ES200/300 Controls. Self-Cleaning Oven with Coil Surface Elements

Welcome Important Safety Instructions.. rm

Features at a Glance

Before Setting Oven Controls. 6

Oven Control Functions

Setting Oven Controls




Care & Cleaning

15-17 r

Adjusting Your oven Temperature

Before You Call Solutions to Common Problems 18-19


Back Cover !_]

Visit the Frigidaire Web Site at:




[United States'



Please attach sales receipt here for future reference.

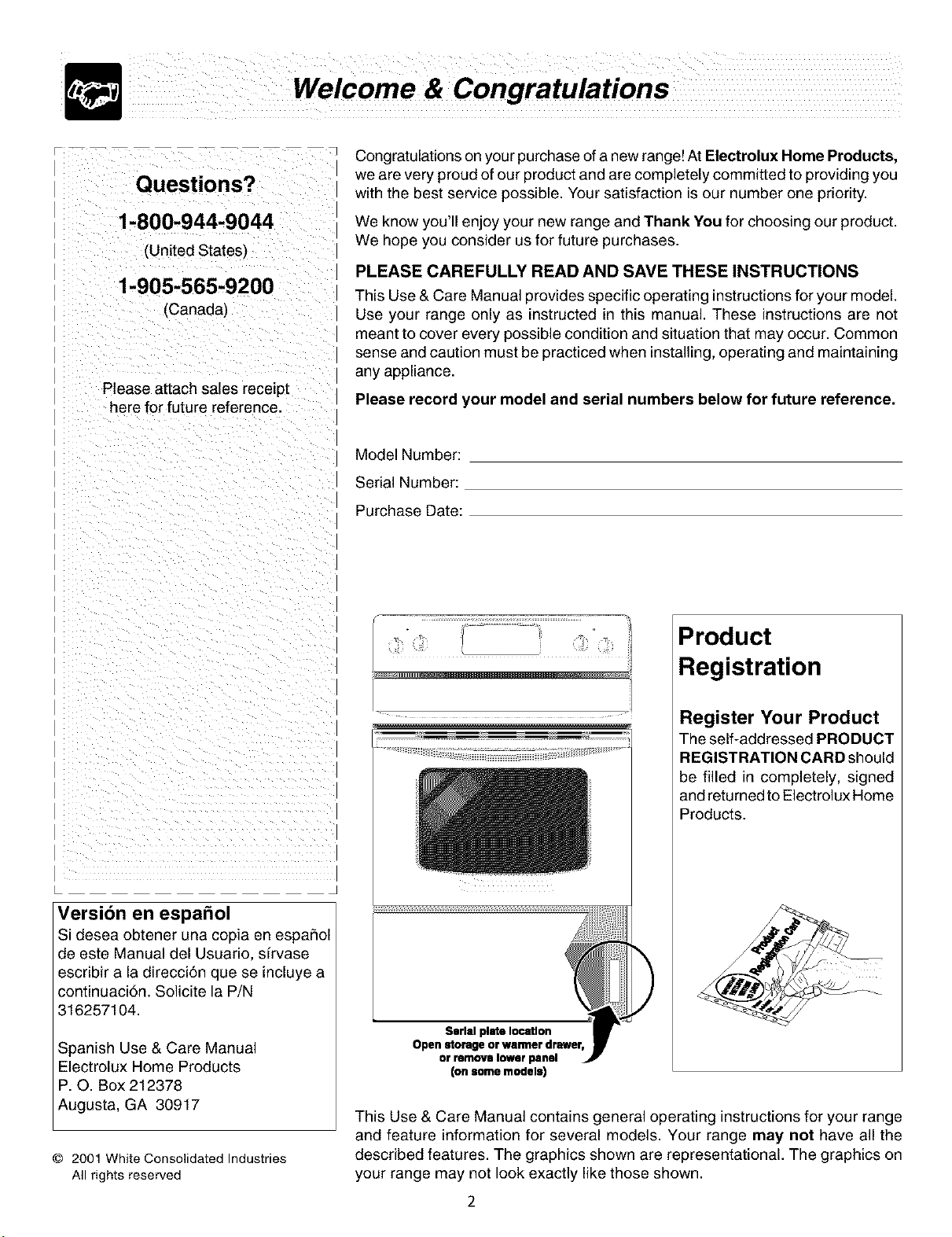

Congratulations on your purchase of a new range! At Electrolux Home Products. we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new range and Thank You for choosing our product.

We hope you consider us for future purchases.


This Use & Care Manual provides specific operating instructions for your model.

Use your range only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be 3racticed when installing. operating and maintaining any appliance.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

Versibn en espafiol Si desea obtener una copia en espaflol de este Manual del Usuario. sirvase escdbir a la direcci6n que se incluye a continuaci6n.

Solicite la P/N 316257104.

Spanish Use & Care Manual Electrolux Home Products P. O. Box 212378 Augusta.

GA 30917

+ 2001 White Consolidated Industries All rights reserved

Serial plate location Open storage orwarmer drawer. or remove lower panel (on some models)



Register Your Product The self-addressed PRODUCT REGISTRATION CARD should

This Use & Care Manual contains general operating instructions for your range and feature information for several models.

Your range may not have all the described features. The graphics shown are representational.

The graphics on your range may not look exactly like those shown.

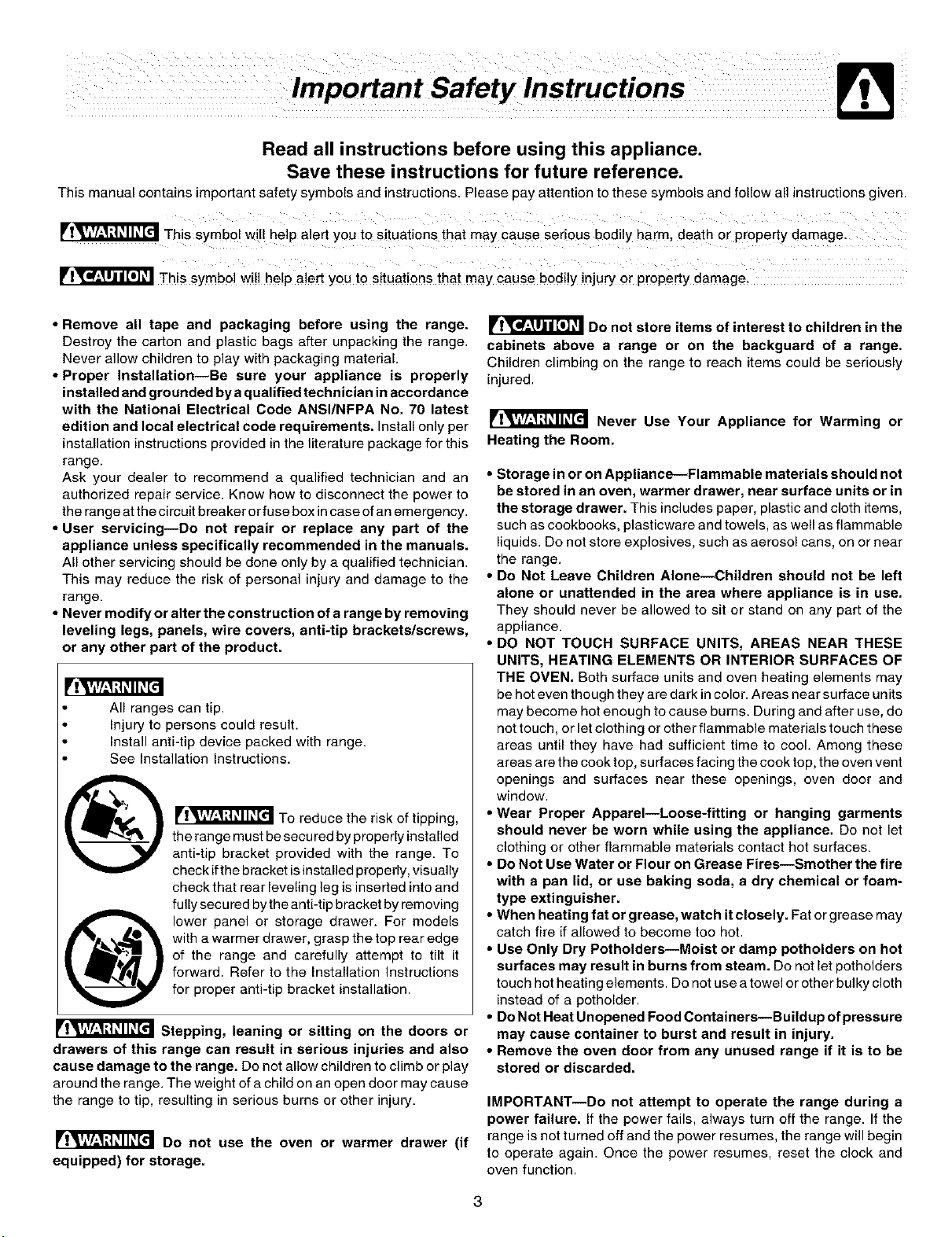

Important Safety Instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains important safety symbols and instructions.

Please pay attention to these symbols and follow all instructions given.

_!_. f.'1:tll[cll This symbol will help alert you to s tuations that may cause serous bodily harm death or property damage.

[!r[ _!_'_'_'1 This Symbol will help alert you to Situations that may cause bodily injury Or property damage.

• Remove all tape and packaging before using the range.

Destroy the carton and plastic bags after unpacking the range.

Never allow children to play with packaging material.

• Proper Installation--Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No.

70 latest edition and local electrical code requirements.

Install only per installation instructions provided in the literature package for this range.

Ask your dealer to recommend a qualified technician and an authorized repair service.

Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

• User servicing--Do not repair or replace any part of the appliance unless specifically recommended in the manuals.

All other servicing should be done only by a qualified technician.

This may reduce the risk of personal injury and damage to the range.

• Never modify or alter the construction of a range by removing leveling legs. panels. wire covers. anti-tip brackets/screws. or any other part of the product.

All ranges can tip.

Injury to persons could result.

Install anti-tip device packed with range.

See Installation Instructions.

_'IVJV-'I:t#Ih?tI To reduce the risk of tipping. the range must be secu red by properly installed anti-tip bracket provided with the range.

To check if the bracket is installed properly. visually check that rear leveling leg is inserted into and fully secu red by the anti-tip bracket by removing lower panel or storage drawer.

For models with a warmer drawer. grasp the top rear edge of the range and carefully attempt to tilt it forward.

Refer to the Installation Instructions

F'IVJV-'I:tII[C'II Stepping. leaning or sitting on the doors or drawers of this range can result in serious injuries and also cause damage to the range. Do not allow children to climb or play around the range. The weight of a child on an open door may cause the range to tip. resulting in serious burns or other injury.

Do not use the oven or warmer drawer (if

Do not store items of interest to children in the cabinets above a range or on the backguard of a range.

Children climbing on the range to reach items could be seriously injured.

Never Use Your Appliance for Warming or Heating the Room.

• Storage in or on Appliance--Flammable materials should not be stored in an oven. warmer drawer. near surface units or in the storage drawer. This includes paper. plastic and cloth items. such as cookbooks. plasticware and towels. as well as flammable liquids. Do not store explosives. such as aerosol cans. on or near the range.

• Do Not Leave Children Alone--Children should not be left

• Wear Proper Apparel--Loose-fitting or hanging garments should never be worn while using the appliance.

Do not let clothing or other flammable materials contact hot surfaces.

• Do Not Use Water or Flour on Grease Fires--Smother the fire with a pan lid. or use baking soda. a dry chemical or foam type extinguisher.

• When heating fat or grease. watch it closely.

Fat or grease may catch fire if allowed to become too hot.

• Use Only Dry Potholders--Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholders touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.

• Do Not Heat Unopened Food Containers--Buildup of pressure may cause container to burst and result in injury.

• Remove the oven door from any unused range if it is to be stored or discarded.

IMPORTANT--Do not attempt to operate the range during power failure.

If the power fails. always turn off the range. If the range is not turned off and the power resumes. the range will begin to operate again. Once the power resumes. reset the clock and oven function.


• Know which knob controls each surface heating unit. Place a pan of food on the unit before turning it on. and turn the unit off before removing the pan.

• Use Proper Pan Size--This appliance is equipped with one or more surface units of different sizes. Select utensils having flat bottoms large enough to cover the surface unit heating element.

The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing.

Proper relationship of utensil to element will also improve efficiency.

• Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Elements--To reduce the risk of burns. ignition of flammable materials. and spillage due to unintentional contact with the utensil. the handle of the utensil should be positioned so that it is turned inward. and does not extend over adjacent surface units.

• Never Leave Surface Elements Unattended at High Heat Settings--Boilovers cause smoking and greasy spillovers that may ignite. or a pan that has boiled dry may melt.

• Do Not Immerse or Soak Removable Heating Elements Heating elements should never be immersed in water. Heating elements clean themselves during normal operation.

• Glazed Cooking Utensils--Only certain types of glass. glass/ ceramic. earthenware. or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature.

Check the manufacturer's recommendations for cook top use.

• When flaming foods under a ventilating hood. turn the fan on.


• Use Care When Opening Oven Door or Warmer Drawer (if equipped)---Stand to the side of the range when opening the door of a hot oven.

Let hot air or steam escape before you remove or replace food in the oven.

• Keep Oven Vent Ducts Unobstructed.

The oven vent is located under the left rear surface element if your model is equipped with coil elements.

The oven vent is located below the backguard for models equipped with ceramic-glass cook tops.

Touching the surfaces in this area when the oven is operating may cause severe burns. Also. do not place plastic or heat-sensitive items on or near the oven vent. These items could melt or ignite.

• Placement of Oven Racks.

Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot


• Clean in the self-cleaning cycle only the parts listed in this Use & Care Manual. Before self cleaning the oven. remove the broiler pan and any utensils or foods from the oven.

• Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

• Do Not Clean Door Gasket--The door gasket is essential for a good seal. Care should be taken not to rub. damage or move the gasket. •The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.


• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each surface element.

Do not allow grease to accumulate.

• Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

• Clean Ventilating Hoods Frequently--Grease should not be allowed to accumulate on the hood or filter.

Follow manufacturer's instructions for cleaning.


• Make Sure Reflector Pans or Drip Bowls Are in Place--Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

• Protective Liners--Do not use aluminum foil to line surface unit drip bowls. or reflector pans. Only use aluminum foil as recommended in this manual.

Improper installation of these liners may result in risk of electric shock. or fire. Improper installation of these liners may result in risk of electric shock. or fire.


The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer. birth defects or other reproductive harm. and requires businesses to warn customers of potential exposure to such substances.

Your Electric Range Features At a Glance

Coil Element

Cook-top Automatic Oven

(some models)


(1)Broil Pan and (1) Broil Pan Insert Ught

ManualOven UghtSwitch (somemodels) •ElementOn" Indicator ' Light

Coil .

Surface Element Controls

Speed Bake Electronic Oven Control Con'ol and with Clock and Itchan "Rmer "Element On" Indicator Light (styles will vary by model) Indicator

Upswept Design Cooktop

Door Latch

Oven Interior

Speed Bake Fan (some models)

Interior Oven Rack(s)

Large 1 Piece Door Handle (stylevaries with model)

Storage Drawer " with Integrated Handle

Full Width Glass Oven Door with or without Window

Removable 6"Coil Surface.

Element Removable

• 8" Coil Surface Element

Removable Element Drip Bowls (colors may vary by model)

Removable 8" Coil Element

Removable Coil Surface Element

Features will vary according to model

Oven Vent Location

For models equipped with coiled surface elements. the oven vent is located under the left rear surface element.

When the oven is on. warm air flows through the left rear element. This venting is necessary for proper air circulation in the oven and good baking results. DO NOT BLOCK THE OVEN VENT.

Arranging Oven Racks AL WAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERA TING THE OVEN). Always use oven mitts when using the oven.

Removing & Replacing Oven Racks To remove. pull the rack forward until it stops. Lift up front of rack and slide out. To replace. fit the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place.


BAKING & ROASTING Food Rack Position

Broiling meats. chicken or fish 1.2 or 3

Cookies. cakes. pies. biscuits & muffins 3 or 4

Frozen pies. angel food cake. yeast. bread. casseroles. small cuts of meat or poultry

Turkey. roast or ham Roasting shelf

Element On

Roasting Shelf

Note: Always use caution when removing food from roasting shelf.

For multiple rack baking with Speed Bake TM. use positions 2 and 5.

To Operate the Surface Elements:

Place cooking utensil on the surface element.

Push in and turn the surface control knob ineither direction to the desired setting.

Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. The control knobs do not have to be set exactly on a particular setting. Use the settings as a guide and adjust the control knob as needed.

When cooking is completed. turn the surface element off before removing the pan. Note: The surface "Element On" indicator light(s) will glow when one or more elements are turned on. A quick glance at these indicator light(s) when cooking is finished is an easy check to be sure all surface elements are turned off.

The suggested settings found inthe chart below are based on cooking in medium-weight metal pans with lids. Settings may vary when using other types of pans. Note: The size and type of utensil used. and the amount and type of food being cooked will influence the setting needed for best cooking results.


Setting Type of Cooking

HIGH (HI - 9) Start most foods. bring water to a boil. pan broiling

MEDIUM HIGH (7 - 8) Continue a rapid boil. fry. deep fat fry

MEDIUM (5 - 6) Maintain a slow boil. thicken sauces and gravies. steam vegetables

MEDIUM LOW (2 - 4) Keep foods cooking. poach. stew

LOW (LO - 1) Keep warm. melt. simmer

Do not place plastic items such as salt and pepper shakers. spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders. towels or wooden spoons could catch fire if placed too close to the element.

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven. become familiar with the various functions of the oven as described below. Note: Controlpanelgraphics may vary from those shown.

CLEAR PAD Used to ciear any function previously entered except the time of day and minute timer. Push CLEAR to stop cooking.

Also the CLEAR pad is used to activate oven door

Iockout setting.

BAKE PAD--Used to \\\\\ select the bake function.

BROIL PAD Used to select the


UP and DOWN ARROW PADS Used along with the function pads to select oven temperature. cooking time. stop time (when programming an automatic stop time). time of day. clean time and minute timer.

• Preheat

• DoorLocked

•. SSelf-Cleaning Oven . .


PREHEAT & LOCK LIGHTS The "OVEN" light will glow each time the oven turns on to maintain the set oven temperature.

The "PREHEAT" light will glow when the oven is first set to operate. or if the desired temperature is reset higher than the actual oven temperature.

The "DOOR LOCKED" light wilt flash when the oven door locks and unlocks or when using the self-clean cycle or the oven door lockout mode is activated.

The indicator light will glow constantly after the door Iocks.



LIGHTS These light to show which feature is in use.

BAKE TIME PAD Used to enter the length of the baking time (if equipped).

STOP TIME PAD Used to set the desired stop time for baking.

Can be used with BAKE TIME to

TIMER PAD Used to set or cancei the minute timer.

The minute timer

The oven can be programmed to: BAKE. TIME BAKE.




For a silent control panel:

When choosing a function. a beep will be heard each time a pad is pressed. If desired. the controls can be programmed for

Note: The control will return to the audible mode after a power outage.

Temperature conversion: The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be programmed for any temperature from 170°F to 550°F (65°C to 287°C).

To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):

Press appears in the display.

Press and hold the O until "HI" appears in the display.

Press and hold O until °F or °C appears in the display.

Press the O or O I to change °F to °C or °C to °F.

Press any control pad to return to normal operating mode.


Note: The time Of day must first be set in Order to Operate the oven.

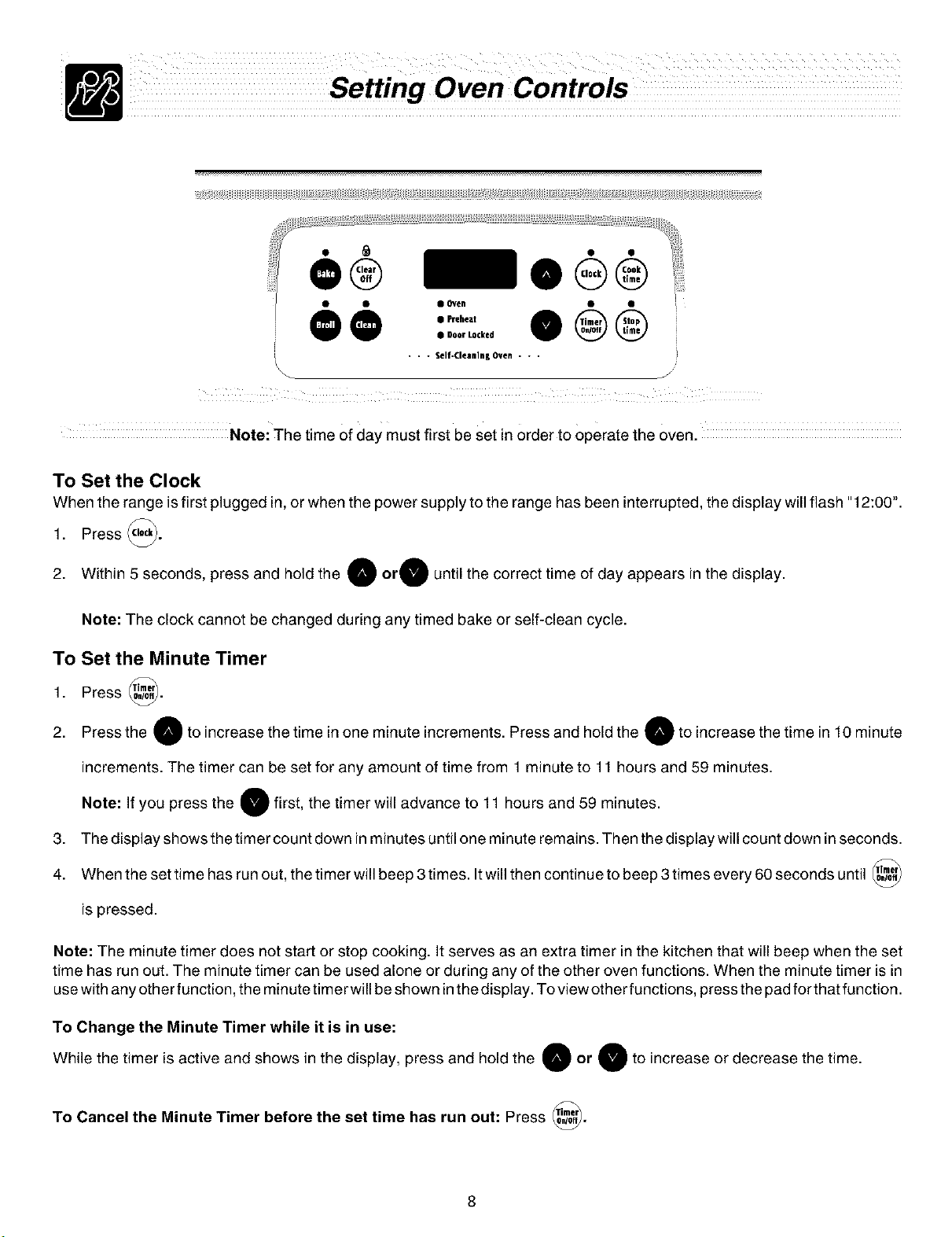

To Set the Clock

When the range is first plugged in. or when the power supply to the range has been inte rrupted. the display will flash "12:00".

Press _.

Within 5 seconds. press and hold the O °rO until the correct time of day appears in the display•

Note: The clock cannot be changed during any timed bake or self-clean cycle•

To Set the Minute Timer

Press _.

Press the O to increase the time in one minute increments• Press and hold the O to increase the time in 10 minute

Note: If you press the O first. the timer will advance to 11 hours and 59 minutes•

The display shows the timer count down in minutes until one minute remains. Then the display will count down in seconds•

When the set time has run out. the timer will beep 3 times• It will then continue to beep 3 times every 60 seconds until

Note: The minute timer does not start or stop cooking• It serves as an extra timer in the kitchen that will beep when the set time has run out. The minute timer can be used alone or during any of the other oven functions• When the minute timer is in use with any other function. the minute timer will be shown in the display• To view other functions. press the pad for that function.

To Change the Minute Timer while it is in use:

While the timer is active and shows in the display. press and hold the O or O to increase or decrease the time.

To Cancel the Minute Timer before the set time has run out: Press _.

To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (65°C to 287°C).

To Set the Controls for Baking:

Press "appears in the display.

Within 5 seconds. press the O or O.The display will show "350°F (177°C). " By pressing and holding the O or

As soon as the O or O is released. the oven will begin heating to the selected temperature.

When the displayed

To cancel the baking function. press _.

To Change the Oven Temperature after Baking has Started:

Press ) and make sure the bake temperature is displayed.

Press the O or to increase or decrease the set temperature.

TO Set Control for Continuous Bake or 12 Hour Energy Saving:

The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.

To set control for continuous baking:

1. Press _. "0:00" will appear in the display.

2. Press and hold @ down for 5 seconds until tone is heard. " hr" will appear in display for continuous cooking. The

3. To cancel the Continuous Bake function. press @ and hold for 5 seconds until tone is heard. "12hr" will appear in display

To Set Control for Oven Lockout:

The control can be programmed to lock the oven door and inactivate the oven controls.

To set Control for Oven Lockout feature:

1. Press and hold for 3 seconds. "Loc" will appear in display. the "Door Locked" indicator light will flash and the motor

2. To cancel the lockout feature. press and hold for 3 seconds. The control will unlock the oven door and resume normal

Note: If any control pad is pressed while in the Oven Door/Contro!

Lockout mode.

Loc wi!! appear in the disPlaY until the control pad is released.

Benefits of Speed Bake TM Cooking System: Foods cook up to 30% faster. saving time and energy• Multiple rack baking.

No special pans or bakeware needed•

• Sclf.¢lznlq 0veto

Speed Bake TM Cooking System (If equipped)

Speed Bake TM Cooking System uses a fan to circulate the oven's heat uniformly and continuously around the oven. This improved heat distribution allows for fast. even cooking and browning results• It also gives better baking results when using two racks at the same time•

Heated air flows around the food from all sides. sealing in juices and flavors• Meats cooked with Speed Bake TM Cooking System are juicer• Poultry is crisp on the outside while staying tender and moist on the inside• Breads and pastry brown more evenly• Most foods baked in a standard oven can be cooked faster and more evenly with Speed Bake TM Cooking System•

Recommended Foods for

Speed Bake TM Cooking System

Decrease Cook Food Item Time by:


Meats (or 5 min/Ib

Poultry (or 10 min/Ib

Frozen foods

Refrigerator cookies (or 2 to 5 min

Refrigerator biscuits (or 2 to 4 min.

Rolls/Breads/Pizza (or 5 min.)


Baked Potatoes


General Cooking Instructions:

To convert baking times for normal recipes to Speed Bake times. start with a 30% reduction in time and increase the time until the desired doneness is obtained• Time reductions will vary depending on the amount and type of food.

Preheating is not necessary when cooking with Speed Bake. except with items such as cakes. cookies. biscuits. breads. etc.

When using two racks at the same time. place inpositions 2 and 5 for the best results•

When baking cakes with Speed Bake. set temperature F ° (13°C) degrees lower than the recommended setting for best results•

To Set Speed Bake TM Cooking System:

Program the oven as you normally would for baking• Speed Bake may be used with Bake. Time Bake and Delayed Time Bake features•

Press and release Speed Bake switch• The indicator light will glow and the fan will come on. The fan stays on when the oven door is closed and shuts off while the oven door isopened• The fan will continue to operate until baking is complete•

To cancel Speed baking function. press on the oven control as you would

NOTE: The Speed Bake feature will not work during a clean cycle•

To Set the Timed Bake Feature (If equipped) The BAKE TIME and STOP TIME controls operate the Timed Bake feature to turn the oven on and off at the times you select inadvance. The oven can be programmed to start immediately and shut off automatically or to begin baking at alater time with an automatic shutoff.

To Program the Oven to Begin Baking Immediately and To Shut Off Automatically:

Be sure that the clock shows the correct time of day.

Place the food in the oven.


Within 5 seconds. press the. or 0" The display will show "350°F (177°C)." By holding the or 0' the

Press _. "0:00" will flash in the display.

Press the O or O until the desired baking time appears in the display.

The oven will turn on and begin heating.

To Program Oven for a Delayed Start Time and to Shut-Off Automatically

Be sure that the clock shows the correct time of day.

Place the food in the oven.


Within 5 seconds. press the O or 0" The display will show "350°F (177°C)." By holding the O or 0' the

Press _. "0:00" will flash in the display.

Press the O or O until the desired baking time appears.

Press _.

The earliest possible stop time will flash in the display.

Press the O °rO' until the desired stop time appears in the display.

Once the controls are set. the control calculates the time when baking will start in order to finish at the time you have set.

10. The oven will turn on at the delayed start time and begin heating.

When the Set Bake Time Runs Out:

To Change the Oven Temperature or Bake Time after Baking has Started:

Press the function pad you want to change.

Press the O or O1 to adjust the setting.

Use caution with the Timed Bake feature to cook cured or frozen meats and most fruits and vegetables.

Foods that can easily spoil such as milk. eggs. fish. meat or poultry. should be chilled in the refrigerator first. Even when chilled. they should not stand in the oven for more than 1 hour before cooking begins. and should be removed promptly when cooking is completed.

The broiler pan and the insert allows grease to drain and be kept away from the high heat of the broiler• DO NOT use the pan without the insert. DO NOT cover the insert with foil; the exposed grease could ignite.


To Broil

Arrange oven rack while oven is still cool• Position the rack as suggested in

Rack Position From Top Food

Rare steaks

Fish. medium steaks. hamburgers and chops

Well-done foods such as chicken and lobster

Press O"

Press and hold the 10 or O until the desired broil setting level appears

Place the insert on the broiler pan. then place the food on the insert• DO NOT

The exposed grease could ignite.

Place the pan on the oven rack• Open the oven door to the broil stop

Broil on one side until food is browned; turn and cook on the second side•

Note: Always pull the rack out to the stop position before turning or removing

When broiling is finished. press _.

Should an oven fire occur. close the oven door and turn off the oven• If the fire continues. use a fire extinguisher• DO NOT put water or flour on the fire• Flour may be explosive••

[Ir[_'l't' During the self-cleaning cycle. the outside of the range can become very hot to the touch. DO NOT leave small children unattended nearthe

[Ir[_!_'I'jT'The health of some birds

DO NOT line the oven

DO NOT force the oven door open.

This can damage the automatic door locking system.

Use caution when opening the door after the self-cleaning cycle is completed.

The oven may still be VERY HOT.



Door Locked

•. Self-CleaninBoven * . .

Self-Cleaning Oven A self-cleaning oven cleans itself with high temperatures (well above cooking temperatures) which eliminate soil completely or reduce it to a fine powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

DO NOT use oven cleaners or oven protective coatings inor around any part of the self-cleaning oven. DO NOT clean the oven door gasket. The woven material of the oven door gasket is essential for a good seal. Care should be taken not to rub. damage or remove the gasket. DO NOT use any cleaning materials on the oven door gasket. Doing so could cause damage. Remove the broiler pan and insert. all utensils and any aluminum foil.

These items cannot withstand high cleaning temperatures• Oven racks may be left inthe oven or may be removed. If they go through the clean cycle their color will turn slightly blue and the finish will be dull. After the cycle is complete and the oven has cooled. rub the sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier into the rack position). Remove any excess spillovers in the oven cavity before starting the self cleaning cycle. To clean. use hot. soapy water and a cloth. Large spillovers can cause heavy smoke or fire when subjected to high temperatures.

DO NOT allow food spills with a high sugar or acid content (such as milk. tomatoes. sauerkraut. fruit juices or pie filling) to remain on the surface as they may leave a dull spot even after cleaning. Clean any soil from the oven frame. the door liner outside the oven door gasket and the small area at the front center of the oven bottom. These areas heat sufficiently to burn soil on. Clean with soap and water.

Baldng element may be tilted about4 or 5 inches to clean sump area

NOTE: Prior to setting the Self-Clean cycle. any spills remaining on the oven bottom should be removed.

Some models have a recessed well for the bake element. On these models. the bake element is designed to be tilted up using your hand from the front of the bake element. This will allow easier access to the oven bottom for cleaning. Be careful not to raise the element more than 4 or 5 inches from the resting position.



To Start the Self-Clean Cycle For satisfactory results use a 2 hour self-clean cycle for light soils and a 3 hour cycle for average to heavy soils.

NOTE: The kitchen area should be ventilated using an open window. ventitlation fan or exhaust hood during the first self-clean cycle• This will help eliminate the normal odors associated with the first self-clean cycle•

To Set the Controls for a Self-Clean Cycle:

Be sure the clock shows the correct time of day.

Press _. " "appears in the display•

Press the O until "3:00" appears in the display for a 3 hour cycle. or press the O until "2:00" appears in the display

As soon as the O or O is released. "CLn" appears in the display•

As soon as the controls are set. the motor driven lock will begin to close automatically and the "LOCK" indicator light will

The "LOCK" light will glow until the cleaning cycle is completed or cancelled. and the oven temperature has cooled•

When the Self-Clean Cycle is Completed:

The time of day or "End" will appear in the display window and the "Clean" and "LOCK" light will continue to glow.

Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out. the oven door can be opened•

If "End" is in the display and the "Clean" indicator remains on. press _.

The time of day will appear in the display•

NOTE: When the oven is cool. wipe away any residue or powdered ash with a damp cloth or paper towel•

Stopping or Interrupting a Self-Cleaning Cycle If it becomes necessary to stop or interrupt a self-cleaning cycle:

Press _.

Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out. the oven door can be opened.

Restart the self-clean cycle once all conditions have been corrected.

Use care when opening the oven door after the self-cleaning cycle• Stand to the side of the oven when opening the door to allow hot air or steam to escape•

DO NOT force the oven door open• This can damage the automatic door locking system• Use caution when

Surfaces How to Clean

Aluminum (Trim Pieces) & Vinyl Use hot. soapy water and a cloth. Dry with a clean cloth.

Glass. Painted and Plastic Control Knobs.

Body Parts. and Decorative Trim

Stainless Steel. Chrome Control Panel.

Decorative Trim

Porcelain Enamel Broiler Pan and Insert.

Door Liner. Body Parts. Warmer Drawer (if equipped)

Oven Racks

Oven Door

Forgeneralcleaning. use hot. soapy water and a cloth. Formore difficultsoils and built-up grease. apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.

Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these materials; they can scratch. To remove control knobs. turn to the OFF position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning. line up the flat sides of both the knob and the shaft; then push the knob into place.

Before cleaning the controlpanel. turn all controls to OFF and remove the control knobs. To remove. pull each knob straight off the shaft. Clean using hot. soapy water and a dishcloth.

Rinse with a clean water using a dishcloth.

Be sure to squeeze excess water from the cloth before wiping the panel; especially when wiping around the controls.

Excess water in or around the controls may cause damage to the appliance.To replace knobs after cleaning. line up the flat sides of both the knob and the shaft; then push the knob into place.

Clean stainless steel with hot. soapy water and a dishcloth.

Rinse with clean water and a cloth. Do not use cleaners with high concentrations of chlorides or chlorines.

Do not use harsh scrubbing cleaners.

Only use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish stains may occur during heating that cannot be removed.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1solution of clear water and ammonia.

If necessary. cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth. and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

Oven racks may be removed or left in the oven during the self-clean cycle for cleaning.

If removed. clean by using a mild. abrasive cleaner following manufacturer's instructions.

Rinse with clean water and dry.

Ifthe racks are cleaned inthe self-clean cycle. their color wHIturn slightly blue and the finish will be dull. After the self-clean cycle is complete. and the oven has cooled. rub the sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier into the rack positions).

To clean oven door. wash with hot. soapy water and a clean cloth. DO NOT immerse the door in water.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven material. on self cleaning models. which is essential for a good seal. Care should be taken not to rub. damage or remove the gasket.

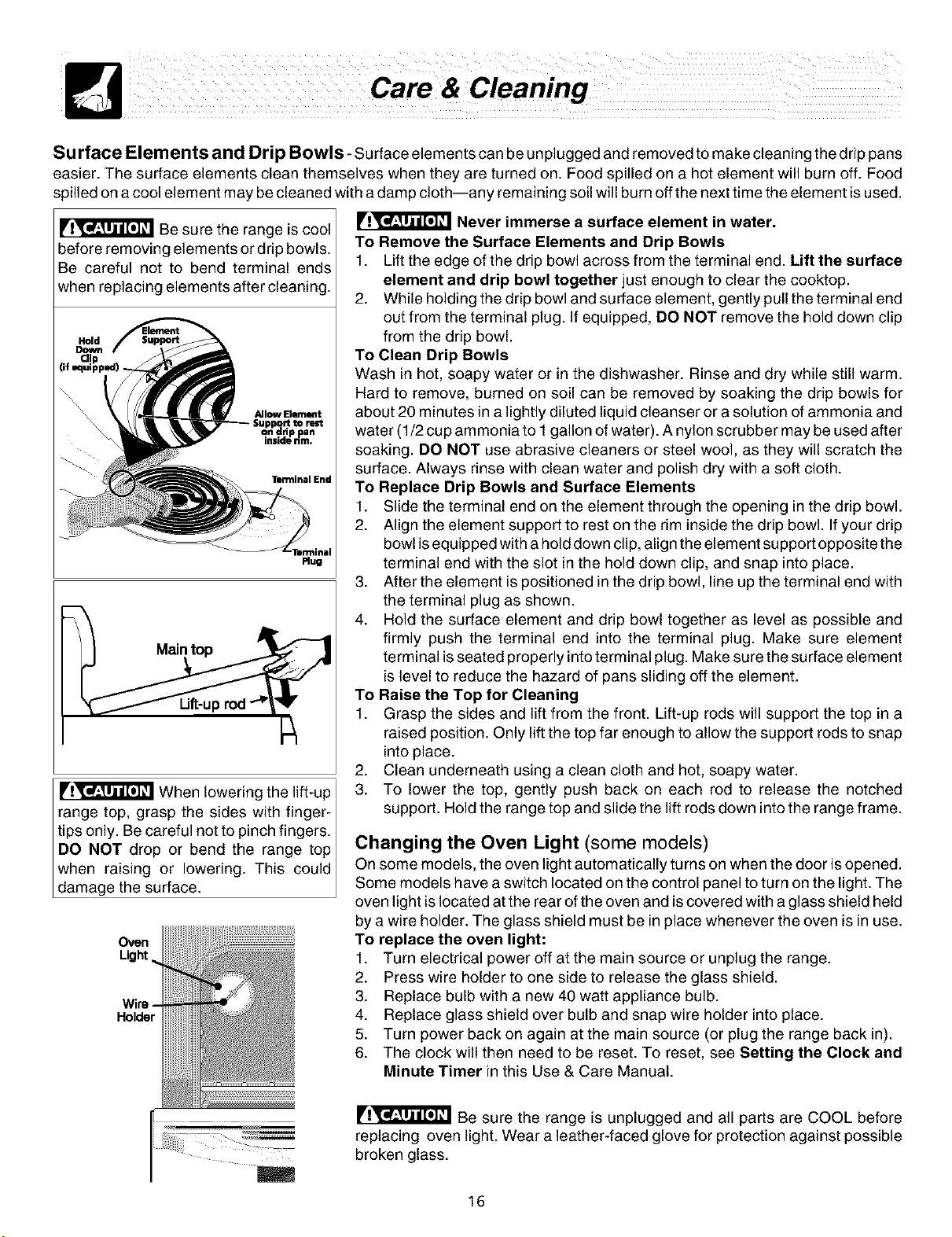

Surface Elements and Drip Bowls Surface elements can be un plugged and removed to make cleaning the drip pans easier. The surface elements clean themselves when they are turned on. Food spilled on a hot element will burn off. Food spilled on a cool element may be cleaned with a damp cloth--any remaining soil will burn off the next time the element is used.

Be sure the range is cool before removing elements or drip bowls.

Be careful not to bend terminal ends when replacing elements after cleaning.

Hold DOWn Clip (if squippl)

Tmrminal End


When lowering the lift-up range top. grasp the sides with finger tips only. Be careful not to pinch fingers.

DO NOT drop or bend the range top when raising or lowering.

This could damage the surface.

Oven Light

Wire Holder

Never immerse a surface element in water.

To Remove the Surface Elements and Drip Bowls

Lift the edge of the drip bowl across from the terminal end. Lift the surface element and drip bowl together just enough to clear the cooktop.

While holding the drip bowl and surface element. gently pull the terminal end out from the terminal plug. If equipped.

DO NOT remove the hold down clip from the drip bowl.

To Clean Drip Bowls Wash in hot. soapy water or in the dishwasher.

Rinse and dry while still warm.

Hard to remove. burned on soil can be removed by soaking the drip bowls for about 20 minutes in a lightly diluted liquid cleanser or a solution of ammonia and water (1/2 cup am monia to 1gallon of water). A nylon scrubber may be used after soaking. DO NOT use abrasive cleaners or steel wool. as they will scratch the surface. Always rinse with clean water and polish dry with a soft cloth.

To Replace Drip Bowls and Surface Elements

Slide the terminal end on the element through the opening in the drip bowl.

Align the element support to rest on the rim inside the drip bowl. If your drip bowl is equipped with a hold down clip. align the element support opposite the terminal end with the slot in the hold down clip. and snap into place.

After the element is positioned in the drip bowl. line up the terminal end with the terminal plug as shown.

Hold the surface element and drip bowl together as level as possible and firmly push the terminal end into the terminal plug. Make sure element terminal is seated properly into terminal plug. Make sure the surface element is level to reduce the hazard of pans sliding off the element.

To Raise the Top for Cleaning

Grasp the sides and lift from the front. Lift-up rods will support the top in a raised position. Only lift the top far enough to allow the support rods to snap into place.

Clean underneath using a clean cloth and hot. soapy water.

To lower the top. gently push back on each rod to release the notched support. Hold the range top and slide the lift rods down into the range frame.

Changing the Oven Light (some models) On some models. the oven light automatically turns on when the door is opened.

Some models have a switch located on the control panel to turn on the light. The oven light is located at the rear of the oven and is covered with a glass shield held by a wire holder. The glass shield must be in place whenever the oven is in use.

To replace the oven light:

Turn electrical power off at the main source or unplug the range.

Press wire holder to one side to release the glass shield.

Replace bulb with a new 40 watt appliance bulb.

Replace glass shield over bulb and snap wire holder into place.

Turn power back on again at the main source (or plug the range back in).

The clock will then need to be reset. To reset. see Setting the Clock and Minute Timer in this Use & Care Manual.

Be sure the range is unplugged and all parts are COOL before replacing oven light. Wear a leather-faced glove for protection against possible broken glass.

To Remove and Replace Oven Door To Remove Oven Door:

Open the door.

Remove screws located on the inside of the oven door near the hinges A (one on each side.)

Close the door to the quarter-open position. Grasp the door firmly on both sides and lift up and off the hinges.

To clean oven door. follow the instructions provided in the cleaning chart under General Cleaning

To Replace Oven Door:

Be sure the hinge arms are in the quarter-open position.

Be careful if pulling the hinges open by hand. The hinges may snap back against the oven frame and could pinch fingers.

Hold the door at the sides near the top. Insert the hinge arms into slots at the bottom of the door.

Hinge arms must go into the range slots evenly. The hinge arms should be inserted into the bottom corners of the door as far as they can go.

If the door is not in line with the oven frame. remove it and repeat the above steps.

The door is heavy. For safe. temporary storage. lay the door flat with the inside of the door facing down.

Care and Cleaning of Stainless Steel (some models)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless parts. Please refer to the table provided at the beginning of the Care & Cleaning section in this Use & Care Manual.

The temperature in the oven has been set at the factory.

When first using the oven. be sure to follow recipe times and temperatures.

Ifyou think the oven is too hot or too cool. the temperature in the oven can be adjusted.

Before adjusting. test a recipe by using a temperature setting that is higher or lower than the recommended temperature.

The baking results should help you to decide how much of an adjustment is needed.

To Adjust Oven Temperature:


Set the temperature to 550°F (287°C) by pushing and holding the 'O"

Within 2 seconds. press and hold until the special 2 digit display appears. Release.

The display now indicates

The temperature can now be adjusted up or down 35°F (17°C). in 5°F steps by pressing and holding the O or 0"

Adjust until the desired amount of offset appears in the display.

When lowering the oven temperature. a minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed amount of degrees.

When you have made the desired adjustment. press to go back to the time of day display.

Note: the adjustments made wilt not change the self-cleaning temperature.

Solutions to Common Problems

Before you call for service. review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance.


Range is not level.

Cannot move appliance easily.

Appliance must be accessible for service.

Surface element too hot or not hot enough.

Surface element does not heat.

Entire appliance does not operate.


Poor installation. Place oven rack incenter of oven. Place a level on the oven rack.

Adjust leveling legs at base of range until the oven rack is level.

Be sure floor is level and is strong and stable enough to adequately support range.

If floor is sagging or sloping. contact a carpenter to correct the situation.

Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are square and have sufficient room for range clearance.

Cabinets not square or are built in too tightly. Contact builder or installer to make appliance accessible.

Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.

Incorrect control setting.

Make sure the correct control is on for the surface element to be used.

Lightweight or warped pans used. Use only flat. evenly balanced. medium or heavyweight cookware.

Flat pans heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy- and medium-weight pans heat evenly.

Because lightweight pans heat unevenly. foods may burn easily.

No power to the appliance.

Check steps under "Entire Appliance Does Not Operate" in this Before You Call Checklist.

Incorrect control setting.

Make sure the correct control is on for the surface element to be used.

Element not making contact inblock. Follow instructionsunder"Surface Elements and Drip Bowls" in the Care & Cleaning section.

Make sure cord/plug is plugged tightly into outlet.

The time of day must first be set in order to operate the oven.

Service wiring is not complete. Contact you r dealer. installing agent or authorized servicer.

Oven light (some models) does not Poweroutage.

Check house lights to be sure. Callyourlocal electric company for work. service.

Oven smokes excessively during broiling.

Replace or tighten bulb. See Changing Oven Light (some models) in this Use & Care Manual for instructions.

Control(s) not set properly.

Follow instructions under Setting Oven Controls.

Make sure oven door is opened to broil stop position.

Meat too close to the element.

Reposition the rack to provide proper clearance between the meat and the element. Preheat broil element for searing.

Meat not properly prepared.

Remove excess fat from meat. Cut remaining fatty edges to prevent curling. but do not cut into lean.

Insert on broiler pan wrong side up and grease not draining. Always place insert on the broiler pan with ribs up and slots down to allow grease to drip into pan.

Grease has built up on oven surfaces.

Regular cleaning is necessary when broiling frequently.

Old grease or food spatters cause excessive smoking.

Solutions to Common Problems


Drip bowls are pitting or rusting.

Drip bowls turning color or distorted.

Oven control beeps continuously with no indicator lights flashing. (If model is equipped with a display F1. F3 or F9 will show.)

Poor baking results.

Foods with acids. such as tomatoes. if allowed to stand in/on bowls will cause corrosion.

Remove and wash drip bowls as soon as possible after a spillover

Normal environment.

Houses along sea coast are exposed to salt air. Protect bowls as much as possible from direct exposure to salt air.

Bottom surface of cookware extends beyond surface elements and touches cooktop surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT use cookware of this type. Pan sizes should be matched to the size of the element. Replacement drip bowls may be purchased from your dealer.

This oven is equipped with a state of the art electronic oven control. Among its many features is afull time oven circuit diagnostics system. The control constantly monitors its internal circuitry as well as several crucial oven circuits to insure they are all ope rating correctly. If at any time one of these systems fails. the control will immediately stop operation. and beep continuously (flashing an error code of F1. F3 or F9 in the display window. if equipped).

Electronic control has detected a fault condition.

Push CLEAR to clear the display and stop the beeping.

Reprogram oven. If fault recurs. record fault number. push C LEAR and contact an authorized servicer.

Self-cleaning cycle does not work.

Soil not completely removed after self cleaning cycle.

Flames inside oven or smoking from vent.

Many factors affect baking results. Make sure the proper rack position is used.

Center food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. If you feel the oven is too hot or cool. see Adjusting Your Oven Temperature in this Use & Care Manual.

Control(s) not set properly. Follow instructions under Self Cleaning section.

Self-cleaning cycle was interrupted.

Follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the Self Cleaning section of this manual.

Failu re to clean bottom. front top of oven. frame of oven or door area outside oven seal. These areas are not in the self-cleaning area. but get hot enough to burn on residue. Clean these areas before the self-cleaning cycle is started. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

Your oven will most likely smoke after a spillover has occurred this is normal. especially for high oven temperatures. pie spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers before starting cycle. You can also set the Self-Cleaning cycle for the maximum clean time.

If flames or excessive smoke are present. stop the self-clean cycle and follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the Self Cleaning section.

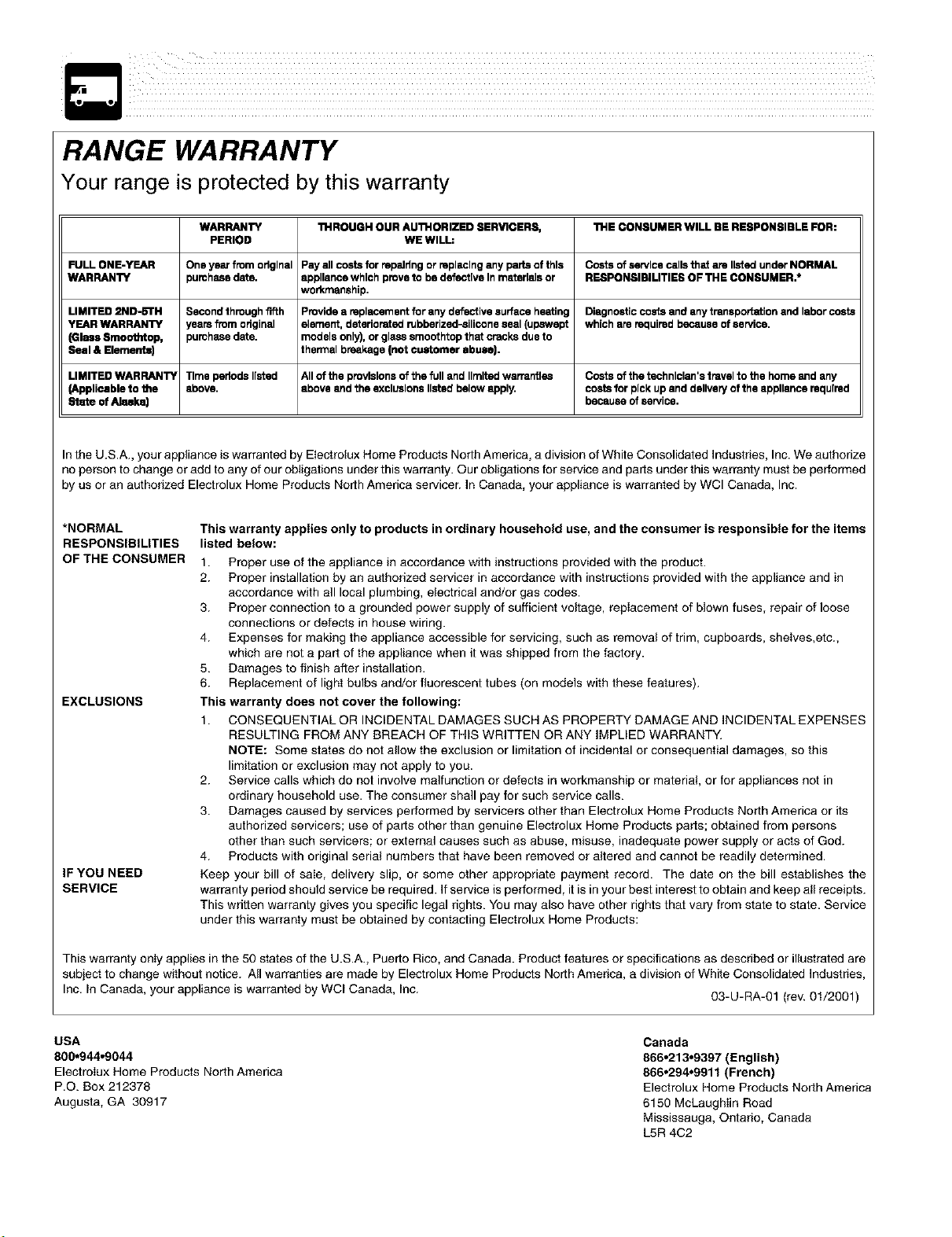

Your range is protected by this warranty


FULL ONE-YEAR Oneyearfromodglnal Payall costsforrepaldngor replacinganypartsof this Costsofservicecallsthat are IlctedunderNORMAL WARRANTY pumhasedate. appliancewhich proveto bedefectiveInmaterialsor RESPONSIBILITIESOF THE CONSUMER.* workmanship.

LIMITED 2ND-ErH Secondthroughf'rh Providea replacementfor any defectivesurfaceheating Diagnosticcostsand any transportationandlaborcosts YEARWARRANTY yearsfrom odginal element. eterioratedrubberized-siliconeseal (upswept which arerequiredbecauseof service. (GlassSrnoothtop. purchasedate. modelsonly). rglasssmoothtopthat cracksdueto Seal & Elernente) thermalbreakage(not customer abuse).

LIMITEDWARRANTY Timepedodslisted Allof the provisionsof thefull andlimitedwarranties Costsofthe technician'stravelto the homeandany (Applicableto the above. aboveandthe exclusionsIlatedbelowapply. costsfor pickup and deliveryofthe appliancerequired Slate of Aluka) becauseof service.

In the U.S.A. your appliance is warranted by Electrolux Home Products North America. a division of White Consolidated Industries.

Inc. We authoriz no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performe( by us or an authorized Electrolux Home Products North America servicer. In Canada. your appliance is warranted by WCl Canada.





This warrantyapplies only to products in ordinaryhousehold use. and the consumeris responsible forthe item listed below:

Proper use of the appliance in accordance with instructions provided with the product.

Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance with all local plumbing. electrical and/or gas codes.

Proper connection to a grounded power supply of sufficient voltage. replacement of blown fuses. repair of loose connections or defects in house wiring.

Expenses for making the appliance accessible for servicing. such as removal of trim. cupboards. shelves. tc.. which are not a part of the appliance when it was shipped from the factory.

Damages to finish after installation.

Replacement of light bulbs and/or fluorescent tubes (on models with these features).

This warranty does not cover the following:


NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages. so this limitation or exclusion may not apply to you.

Service calls which do not involve malfunction or defects in workmanship or material. or for appliances not in ordinary household use. The consumer shall pay for such service calls.

Damages caused by services performed by servicers other than Electrolux Home Products North America or its authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from persons other than such servicers; or external causes such as abuse. misuse. inadequate power supply or acts of God.

Products with original serial numbers that have been removed or altered and cannot be readily determined.

Keep your bill of saIe. delivery slip. or some other appropriate payment record.

The date on the bill establishes th warranty period should service be required.

If service is performed. it is in your best interest to obtain and keep all receipts This written warranty gives you specific legal fights. You may also have other fights that vary from state to state. Servic under this warranty must be obtained by contacting Electrolux Home Products:

This warranty onIy applies in the 50 states of the U.S.A. Puerto Rico. and Canada. Product features or specifications as described or illustrated ar subject to change without notice.

All warranties are made by Electrolux Home Products North America. a division of White Consolidated Industries

Inc. In Canada. your appliance is warranted by WCI Canada.


03-U-RA-01 (rev. 01/2001)

USA 800944.9044 ElectroIux Home Products North America P.O. Box 212378


GA 30917


866.213. 397 (English) 866.294. 911 (French) Electrolux Home Products North America

6150 McLaughIin Road Mississauga.


Canada L5R 4C2

Newest Added: TGF324BHWE TEF351EWA TGF336FSA

Tappan TEF353AUA | Pages: 20 | File type: PDF | Filename: 56077520_tef353aua.pdf | Size: 1.74 MB | Language: English | Other documents: 1 files.

Download User Manual

Contact us

T: @manualsFile

Tappan TEF353AUA Questions and Answers



Owner manual PDF of TEF353AUA Tappan range.

Use manuals file type: PDF. Tappan

Related Products
