TOP-FILL
ULTRASONIC COOL
MIST HUMIDIFIER
User Manual
PE-AH017
Questions or Concerns?
support@parisrhone.co
IMPORTANT SAFETY
INSTRUCTIONS
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 03
KNOWING YOUR HUMIDIFIER 05
USING YOUR HUMIDIFIER 11
CLEANING AND MAINTENANCE 13
TROUBLESHOOTING 15
Soothing Mist for
Sweet Dreams
IMPORTANT SAFETY
INSTRUCTIONS
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 03
KNOWING YOUR HUMIDIFIER 05
USING YOUR HUMIDIFIER 11
CLEANING AND MAINTENANCE 13
TROUBLESHOOTING 15
Soothing Mist for
Sweet Dreams
02 Humidifier
03
Humidifier
INTENDED USE
· This appliance is not intended for use by people who have reduced physical, sensory
or mental capabilities or lack knowledge to use this appliance unless they are given
supervision or instruction by a responsible person.
· Use this appliance only for intended household purposes as described in this User Manual.
BEFORE USING THIS
APPLIANCE READ ALL
INSTRUCTIONS AND
CAUTIONARY MARKINGS
IN YOUR USER MANUAL
AND ON THE APPLIANCE
DANGER
SPECIFICATIONS
Model
Voltage
Rated Power
Water Tank Volume
Mist Output
Working Time on a Full Tank
Recommended Room Size
Noise
PE-AH017
US/CA: 100-120V~ 50 / 60Hz
20W
4L / 1.06Gal
100ml/h (Low)
200ml/h (Medium)
300ml/h (High)
14~30h
10-30 m² / 107-322 ft²
≤28dB
DO NOT touch or hold the
mains plug with wet hands.
DO NOT block or cover the
nozzle while in operation.
DO NOT let children or pets
play with this appliance.
READ AND
SAVE THESE
INSTRUCTIONS
ELECTRICITY SAFETY
· To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator,
stoves or heaters.
· DO NOT use this appliance if the cord has been damaged to avoid fire or electric hazard.
· Keep the cord out of heavy traffic areas and where it will not be tripped over.
RELATED TO USE
· Always place this appliance on a firm, flat and level surface to avoid dropping or tilt.
· Always place this appliance 2 feet (60 cm) above the floor, 12 inches (30 cm) away from
the wall or wooden furniture.
· DO NOT move this appliance while it is on.
· DO NOT attempt to repair any parts on this appliance. Doing so will void your warranty.
The inside of this appliance contains no user serviceable parts. All servicing should be performed
by qualified personnel only.
02 Humidifier
03
Humidifier
INTENDED USE
· This appliance is not intended for use by people who have reduced physical, sensory
or mental capabilities or lack knowledge to use this appliance unless they are given
supervision or instruction by a responsible person.
· Use this appliance only for intended household purposes as described in this User Manual.
BEFORE USING THIS
APPLIANCE READ ALL
INSTRUCTIONS AND
CAUTIONARY MARKINGS
IN YOUR USER MANUAL
AND ON THE APPLIANCE
DANGER
SPECIFICATIONS
Model
Voltage
Rated Power
Water Tank Volume
Mist Output
Working Time on a Full Tank
Recommended Room Size
Noise
PE-AH017
US/CA: 100-120V~ 50 / 60Hz
20W
4L / 1.06Gal
100ml/h (Low)
200ml/h (Medium)
300ml/h (High)
14~30h
10-30 m² / 107-322 ft²
≤28dB
DO NOT touch or hold the
mains plug with wet hands.
DO NOT block or cover the
nozzle while in operation.
DO NOT let children or pets
play with this appliance.
READ AND
SAVE THESE
INSTRUCTIONS
ELECTRICITY SAFETY
· To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator,
stoves or heaters.
· DO NOT use this appliance if the cord has been damaged to avoid fire or electric hazard.
· Keep the cord out of heavy traffic areas and where it will not be tripped over.
RELATED TO USE
· Always place this appliance on a firm, flat and level surface to avoid dropping or tilt.
· Always place this appliance 2 feet (60 cm) above the floor, 12 inches (30 cm) away from
the wall or wooden furniture.
· DO NOT move this appliance while it is on.
· DO NOT attempt to repair any parts on this appliance. Doing so will void your warranty.
The inside of this appliance contains no user serviceable parts. All servicing should be performed
by qualified personnel only.
05Humidifier
KNOWING YOUR
HUMIDIFIER
Packing List
· 1 x Paris Rhône Top-Fill Ultrasonic Cool Mist Humidifier
· 3 x Aroma Pad (1 pre-installed)
· 3 x Dustproof Sponge (1 pre-installed)
· 1 x User Manual
Product Diagram
Air Outlet
Control Panel
Water Floater
Atomizer
Mist Tube
Nozzle
Power Cord
LED Display
Water Tank
Tank Cover
Water Reservoir
Air Inlet/
Essential
Oil Tray
Soothing Mist for
Sweet Dreams
05Humidifier
KNOWING YOUR
HUMIDIFIER
Packing List
· 1 x Paris Rhône Top-Fill Ultrasonic Cool Mist Humidifier
· 3 x Aroma Pad (1 pre-installed)
· 3 x Dustproof Sponge (1 pre-installed)
· 1 x User Manual
Product Diagram
Air Outlet
Control Panel
Water Floater
Atomizer
Mist Tube
Nozzle
Power Cord
LED Display
Water Tank
Tank Cover
Water Reservoir
Air Inlet/
Essential
Oil Tray
Soothing Mist for
Sweet Dreams
07Humidifier
USING YOUR
HUMIDIFIER
Control Panel
Power ON/OFF
Tap to power
On/Off.
Mist Level
Adjustment
Tap to select
low/medi-
um/high mist
levels.
Timer for
Turning ON/OFF
Tap to cycle
through
1h 2h …12h
Cancel Timer
Setting.
Sleep Mode
Tap to
enter/exit
sleep mode.
Night Light
· Tap to turn
on/off night
light.
· Long press to
adjust
brightness.
Auto Mode
Tap to
enable/disable
auto mode.
Note: LED display and night light will be off in sleep mode. Tap any
button to light up the display.
Soothing Mist for
Sweet Dreams
07Humidifier
USING YOUR
HUMIDIFIER
Control Panel
Power ON/OFF
Tap to power
On/Off.
Mist Level
Adjustment
Tap to select
low/medi-
um/high mist
levels.
Timer for
Turning ON/OFF
Tap to cycle
through
1h 2h …12h
Cancel Timer
Setting.
Sleep Mode
Tap to
enter/exit
sleep mode.
Night Light
· Tap to turn
on/off night
light.
· Long press to
adjust
brightness.
Auto Mode
Tap to
enable/disable
auto mode.
Note: LED display and night light will be off in sleep mode. Tap any
button to light up the display.
Soothing Mist for
Sweet Dreams
2.
1.
· When AUTO mode is activated, the appliance will auto enter standby
mode at 65% humidity and auto start working at lower than 60% humidity.
Low, medium or high mist level will be activated automatically based on
the environmental humidity.
· DO NOT directly drip essential oil into water tank.
· DO NOT let water enter mist tube to avoid the damage to this appliance.
· Twisting the nozzle can adjust the direction of mist.
· Medium mist level will be activated by default when this appliance
is turned on again after power interruption.

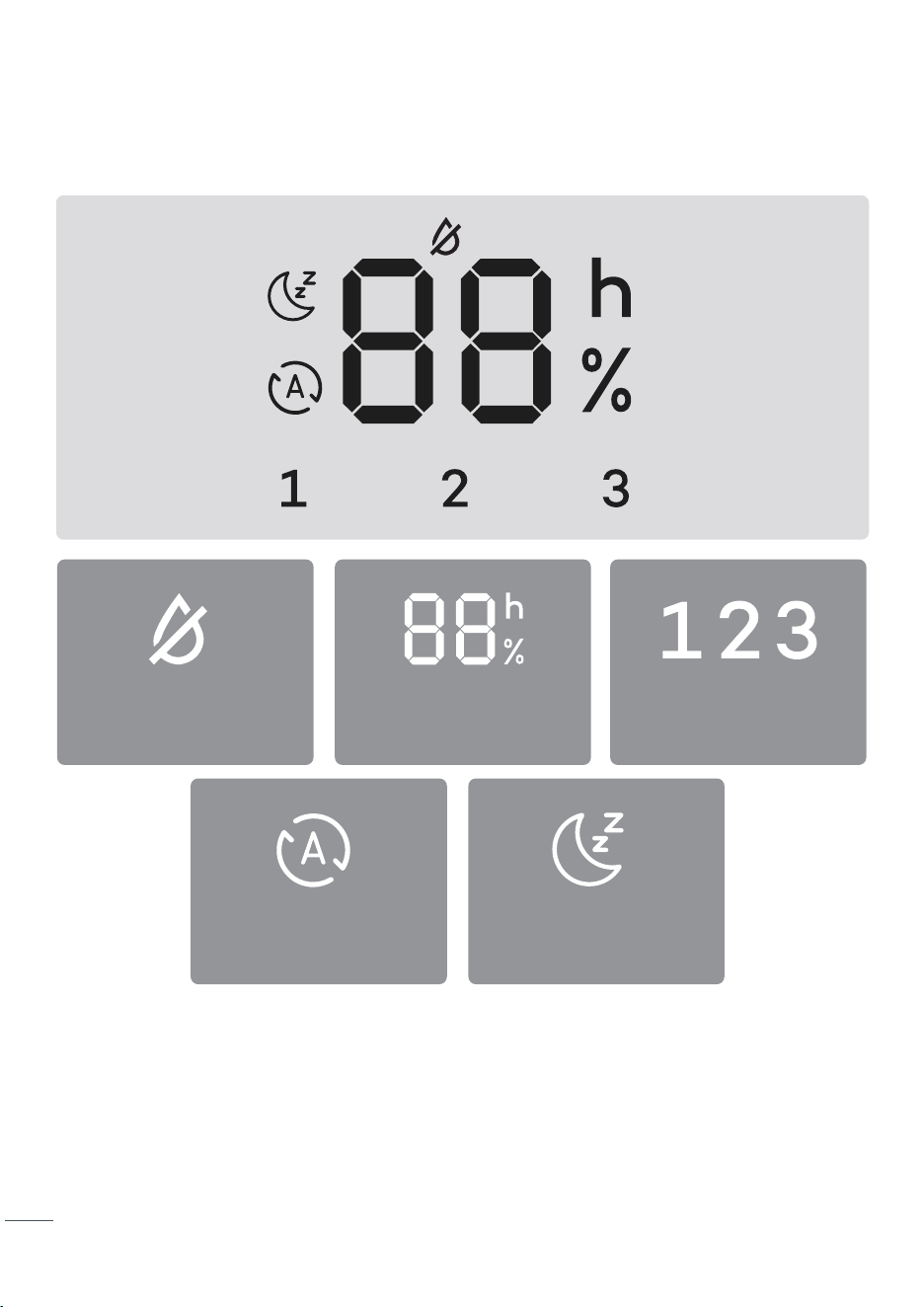

LED Display Getting Started
Low Water Alarm Humidity/Time
Auto Mode Sleep Mode
Mist Level
(LOW/MID/HI)
Connect this
humidifier
to a power
source, it will enter standby mode. The
LED display and night light will be on
for 2 seconds then off.
· Filling Water
Remove the cover, and fill the water
not exceeding the mist tube.
· Adding Essential Oil
1. Press the essential oil tray to pop it up.
2. Drip some essential oil on the aroma
pad.
3. Push back the essential oil tray until
securely locked into place.
08 Humidifier 09Humidifier
2.
1.
· When AUTO mode is activated, the appliance will auto enter standby
mode at 65% humidity and auto start working at lower than 60% humidity.
Low, medium or high mist level will be activated automatically based on
the environmental humidity.
· DO NOT directly drip essential oil into water tank.
· DO NOT let water enter mist tube to avoid the damage to this appliance.
· Twisting the nozzle can adjust the direction of mist.
· Medium mist level will be activated by default when this appliance
is turned on again after power interruption.
LED Display Getting Started
Low Water Alarm Humidity/Time
Auto Mode Sleep Mode
Mist Level
(LOW/MID/HI)
Connect this
humidifier
to a power
source, it will enter standby mode. The
LED display and night light will be on
for 2 seconds then off.
· Filling Water
Remove the cover, and fill the water
not exceeding the mist tube.
· Adding Essential Oil
1. Press the essential oil tray to pop it up.
2. Drip some essential oil on the aroma
pad.
3. Push back the essential oil tray until
securely locked into place.
08 Humidifier 09Humidifier

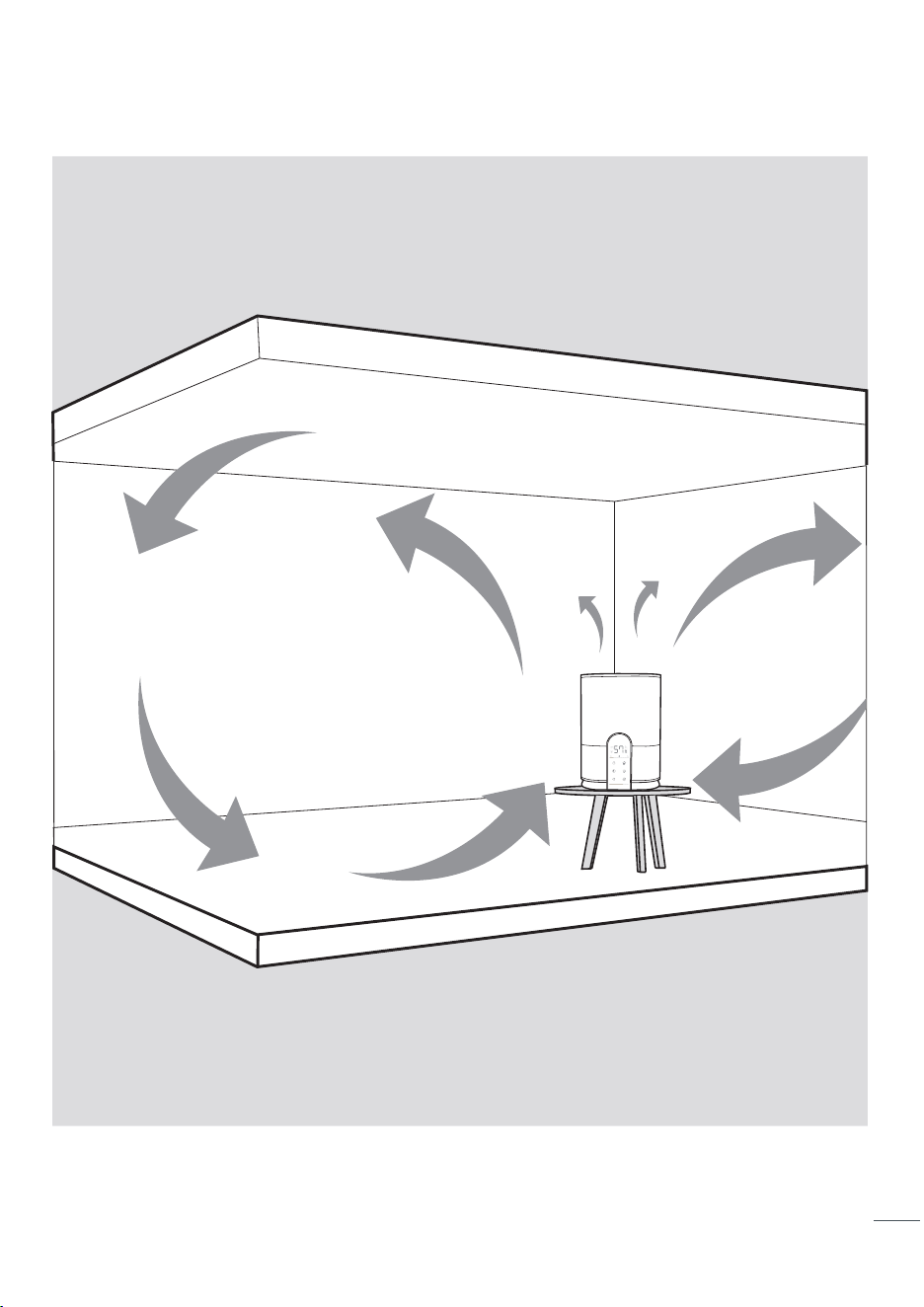

Additional Functions
GETTING THE MOST FROM HUMIDIFIER
Memory Function
The humidifier is designed with power off memory function.
Without power interruption, it will remember your last settings
(except timer setting and night light) once you power it on again.
Tips: Closing doors and windows is conducive to reaching the desired humidity.
Tank Lift-up Protection
The humidifier will auto shut down in case that the
tank is lift up. After putting it back, it will restart working.
Low Water Protection
The humidifier will auto shut down because of
insufficient water. After refilling, it will restart working.
10 Humidifier 11Humidifier
Additional Functions
GETTING THE MOST FROM HUMIDIFIER
Memory Function
The humidifier is designed with power off memory function.
Without power interruption, it will remember your last settings
(except timer setting and night light) once you power it on again.
Tips: Closing doors and windows is conducive to reaching the desired humidity.
Tank Lift-up Protection
The humidifier will auto shut down in case that the
tank is lift up. After putting it back, it will restart working.
Low Water Protection
The humidifier will auto shut down because of
insufficient water. After refilling, it will restart working.
10 Humidifier 11Humidifier
CLEANING AND
MAINTENANCE
· Before cleaning, turn this humidifier off and unplug it.
· Do not let water splash into the air outlet.
· Remove the water tank and its
cover to rinse under tap water.
· Fill some white vinegar or lemon
water in the reservoir and let it sit
for about 15 minutes, then
descale with a cleaning brush.
· Wipe dry with a clean, soft cloth
or paper towel.
· Store it in a cool, dry location
when not in use for long.
13Humidifier
Soothing Mist for
Sweet Dreams
CLEANING AND
MAINTENANCE
· Before cleaning, turn this humidifier off and unplug it.
· Do not let water splash into the air outlet.
· Remove the water tank and its
cover to rinse under tap water.
· Fill some white vinegar or lemon
water in the reservoir and let it sit
for about 15 minutes, then
descale with a cleaning brush.
· Wipe dry with a clean, soft cloth
or paper towel.
· Store it in a cool, dry location
when not in use for long.
13Humidifier
Soothing Mist for
Sweet Dreams
15Humidifier
TROUBLE-
SHOOTING
The humidifier does not work.
There is no air humidification.
There are some white deposits
in the water reservoir.
· This appliance will auto shut down if water
is insufficient.
· The water tank isn’t well assembled.
· In auto mode, this appliance will enter
standby mode at 65% humidity.
· Air inlet/outlet is blocked.
· The water in water reservoir is nearly used up.
· Your room might have too much ventilation.
Close doors and windows.
They are scale. You need to descale this
appliance regularly. Using purified or distilled
water can help prevent the formation of scale.
The mist produces an
unpleasant smell.
· Change water regularly to avoid hard water
deposits.
· Clean this appliance, and leave it at a shady
and cool place for 12 hours with the cover
detached.
The auto mode is not available.
Water has entered the sensor. In this case, the
medium mist level will be activated automati-
cally. 2-8 hours later, auto mode will be
available. If not, unplug this appliance and
contact Paris Rhône Customer Support.
The troubleshooting guide addresses the most common
problems. If problems persist, feel free to contact the Customer
Support at support@parisrhone.co.
Soothing Mist for
Sweet Dreams
15Humidifier
TROUBLE-
SHOOTING
The humidifier does not work.
There is no air humidification.
There are some white deposits
in the water reservoir.
· This appliance will auto shut down if water
is insufficient.
· The water tank isn’t well assembled.
· In auto mode, this appliance will enter
standby mode at 65% humidity.
· Air inlet/outlet is blocked.
· The water in water reservoir is nearly used up.
· Your room might have too much ventilation.
Close doors and windows.
They are scale. You need to descale this
appliance regularly. Using purified or distilled
water can help prevent the formation of scale.
The mist produces an
unpleasant smell.
· Change water regularly to avoid hard water
deposits.
· Clean this appliance, and leave it at a shady
and cool place for 12 hours with the cover
detached.
The auto mode is not available.
Water has entered the sensor. In this case, the
medium mist level will be activated automati-
cally. 2-8 hours later, auto mode will be
available. If not, unplug this appliance and
contact Paris Rhône Customer Support.
The troubleshooting guide addresses the most common
problems. If problems persist, feel free to contact the Customer
Support at support@parisrhone.co.
Soothing Mist for
Sweet Dreams
FCC Compliance
18 Humidifier
This instrument complies with Part 18 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Rev_1.0_EN
WARRANTY
Thanks for choosing Paris Rhône Humidifier.
This product is covered with Paris Rhône product and labor warranty
for 12 months from the date of its original purchase.
The warranty will not apply in cases of:
- Misuse, dismantling, or repairs performed by unauthorized
personnel.
- Any appliance that has been tampered with or used for commercial
purpose.
- Use of force, natural hazards, damage caused by external influences.
- Damage caused by non-observance of the User Manual, e.g.
connection to an unsuitable mains supply or non-compliance with
the instructions.
- Partially or completely dismantled appliances.
- Defects caused by or resulting from damages from shipping or
alteration to the product or any of its parts that have been performed
by unauthorized personnel.
We can only provide after-sales service for
products that are sold by Paris Rhône or
Paris Rhône authorized retailers and distributors.
If you have purchased your appliance from a
different place, please contact your seller for
return and warranty issues.
Please have your invoice and order ID
ready before contacting Customer Support.
Manufacturer: Shenzhen NearbyExpress Technology
Development Co.,Ltd.
Address: Floor 7, Building E, Galaxy World Phase II,
Shenzhen, China
support@parisrhone.co
www.parisrhone.co
MADE IN CHINA
FCC Compliance
18 Humidifier
This instrument complies with Part 18 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Rev_1.0_EN
WARRANTY
Thanks for choosing Paris Rhône Humidifier.
This product is covered with Paris Rhône product and labor warranty
for 12 months from the date of its original purchase.
The warranty will not apply in cases of:
- Misuse, dismantling, or repairs performed by unauthorized
personnel.
- Any appliance that has been tampered with or used for commercial
purpose.
- Use of force, natural hazards, damage caused by external influences.
- Damage caused by non-observance of the User Manual, e.g.
connection to an unsuitable mains supply or non-compliance with
the instructions.
- Partially or completely dismantled appliances.
- Defects caused by or resulting from damages from shipping or
alteration to the product or any of its parts that have been performed
by unauthorized personnel.
We can only provide after-sales service for
products that are sold by Paris Rhône or
Paris Rhône authorized retailers and distributors.
If you have purchased your appliance from a
different place, please contact your seller for
return and warranty issues.
Please have your invoice and order ID
ready before contacting Customer Support.
Manufacturer: Shenzhen NearbyExpress Technology
Development Co.,Ltd.
Address: Floor 7, Building E, Galaxy World Phase II,
Shenzhen, China
www.parisrhone.co
MADE IN CHINA
尺寸：120*160mm
装订成册
材质：封面120克铜版纸，内页80克书纸
尺寸：120*160mm
装订成册
材质：封面120克铜版纸，内页80克书纸
