Walk-Behind
32ncutmodel
Actual product may dJffel slightly from product pictured above
Models covered:
SGV13320KW
GVTP SM32-R0303.1

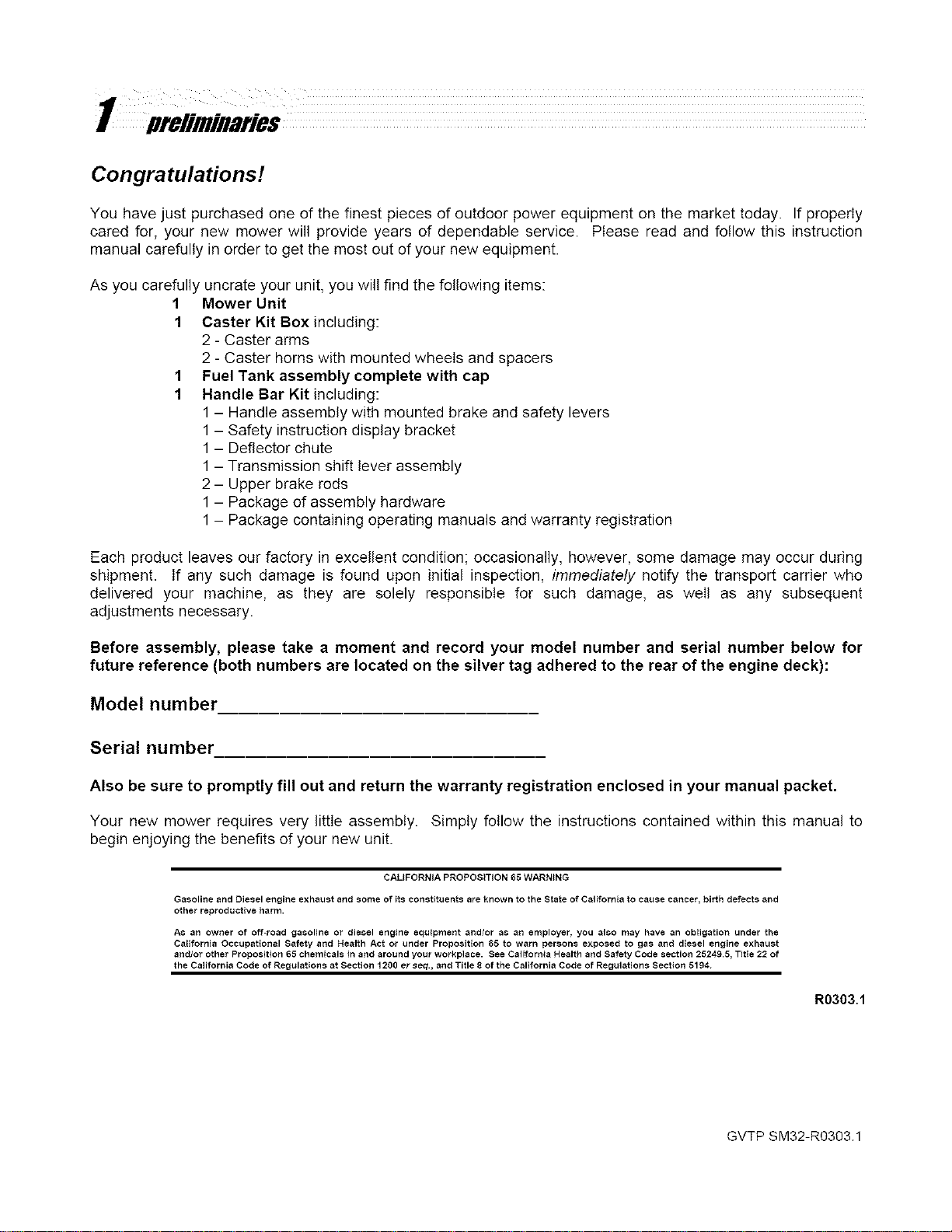

Congratulations!
You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly
cared for, your new mower will provide years of dependable service. Please read and follow this instruction
manual carefully in order to get the most out of your new equipment.
As you carefully uncrate your unit, you will find the following items:
1 Mower Unit
1 Caster Kit Box including:
2 - Caster arms
2 - Caster horns with mounted wheels and spacers

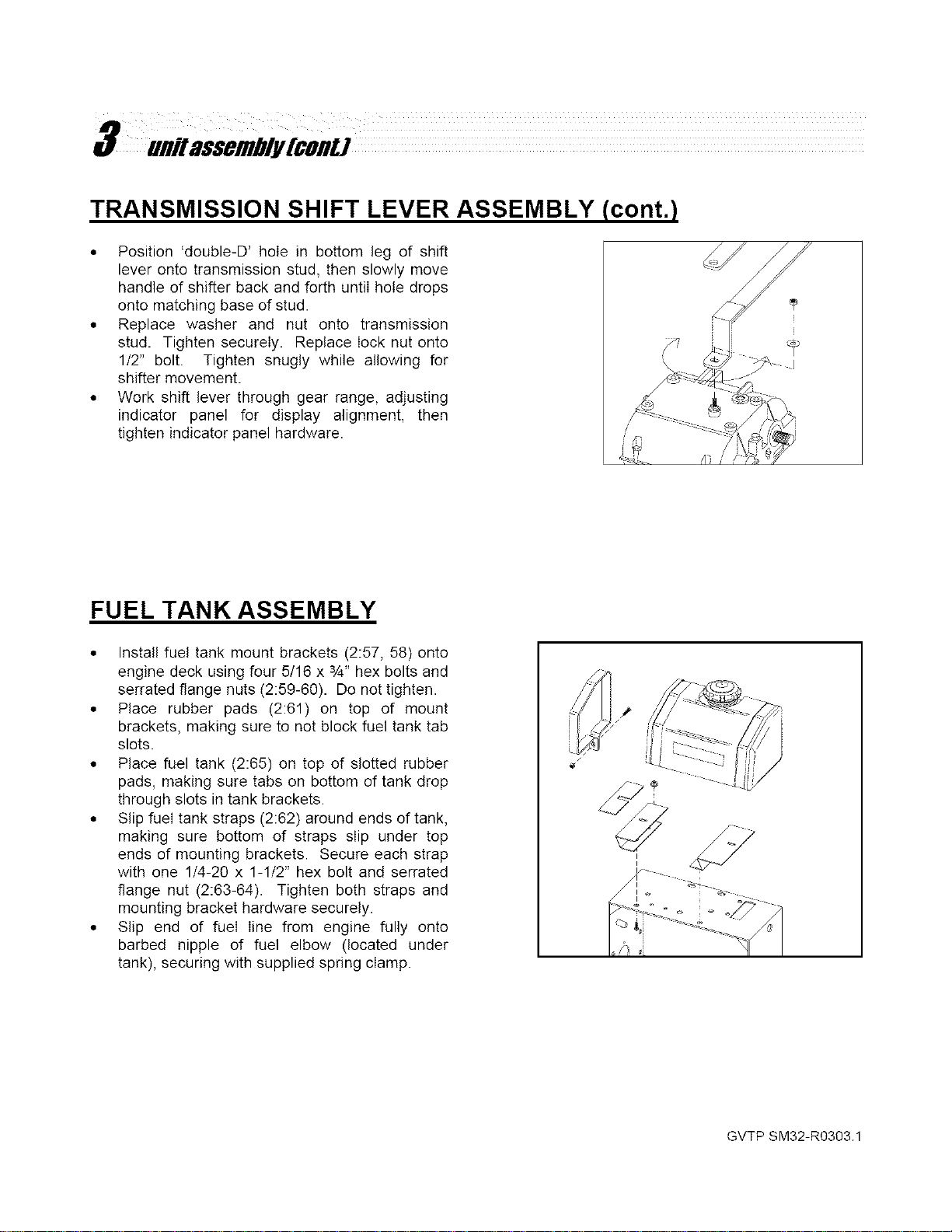

1 Fuel Tank assembly complete with cap

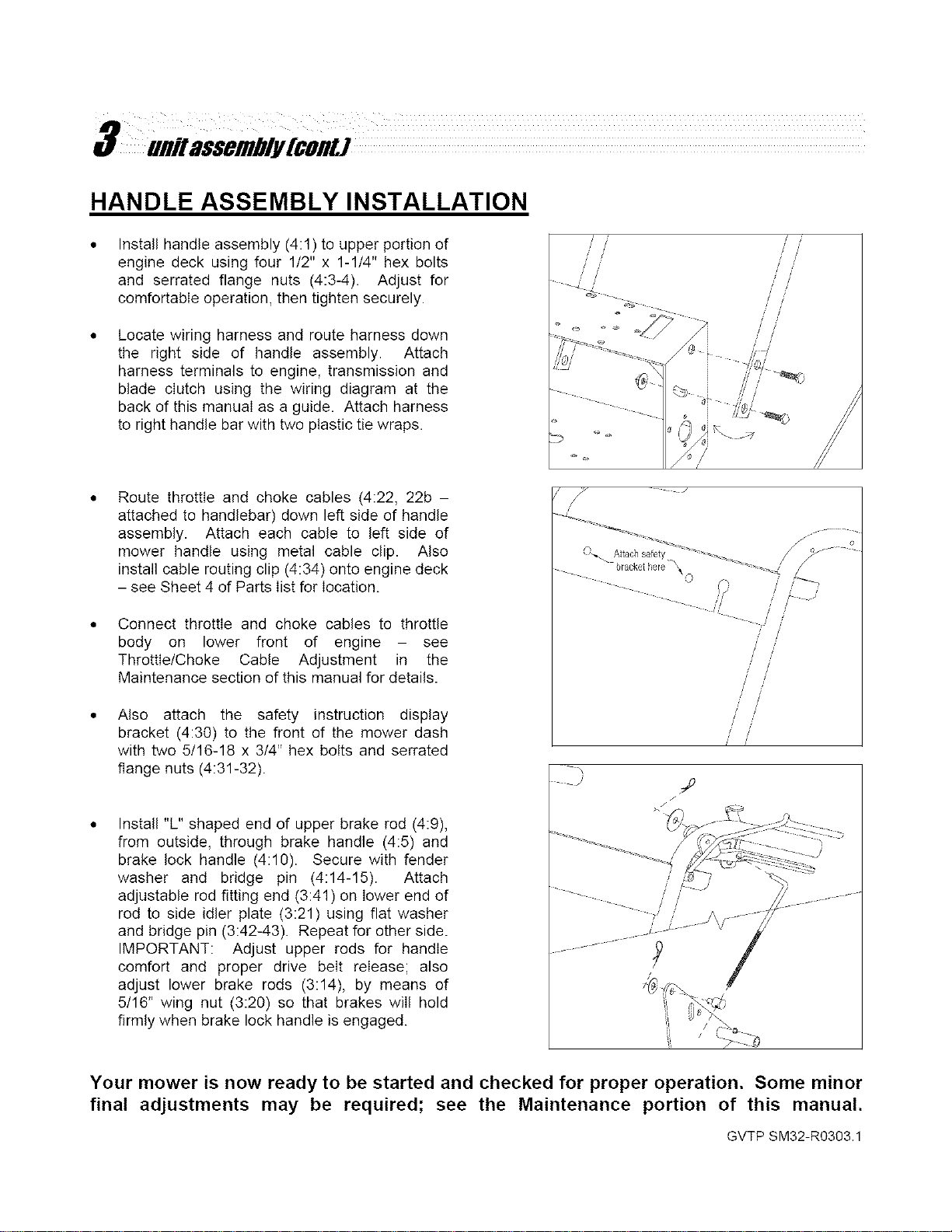

1 Handle Bar Kit including:
1 - Handle assembly with mounted brake and safety levers
1 - Safety instruction display bracket
1 - Deflector chute
1 - Transmission shift lever assembly
2 - Upper brake rods
1 - Package of assembly hardware
1 - Package containing operating manuals and warranty registration
Each product leaves our factory in excellent condition; occasionally, however, some damage may occur during
shipment. If any such damage is found upon initial inspection, immediately notify the transport carrier who
delivered your machine, as they are solely responsible for such damage, as well as any subsequent
adjustments necessary.
Before assembly, please take a moment and record your model number and serial number below for
future reference (both numbers are located on the silver tag adhered to the rear of the engine deck):
Model number
Serial number
Also be sure to promptly fill out and return the warranty registration enclosed in your manual packet.
Your new mower requires very little assembly. Simply follow the instructions contained within this manual to
begin enjoying the benefits of your new unit.
CALIFORNIA PROPOSITION 65 WARNING
Gasoline and Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and
other reproductive harm.
As an owner of off-road gasoline or diesel engine equipment and/or as an employer, you also may have an obligation under the
California Occupational Safety and Health Act or under Proposition 65 to warn persons exposed to gas and diesel engine exhaust
and/or other Proposition 65 chemicals in and around your workplace. See California Health and Safety Code section 25249.5, Tit_e 22 of
the California Code of Regulations at Section 1200 er seq., and Title 8 of the California Code of Regulations Section 5194
R0303.1
GVTP SM32-R0303.1
PLEASE READ THE FOLLOWING BEFORE ASSEMBLING OR OPERATING UNIT
TRAINING
• Read, understand, and follow all instructions in the
manual and on the unit before starting. If the
operator(s) or mechanic(s) can not read English it is
the owner's responsibility to explain this material to
them.
• Become familiar with the safe operation of the
equipment, operator controls, and safety signs.
• All operators and mechanics should be trained.
The owner is responsible for training the users.
• Only allow responsible adults, who are familiar
with the instructions, to operate the unit.
• Never let children or untrained people operate or
service the equipment. Local regulations may
restrict the age of the operator.
• The owner/user can prevent and is responsible for
accidents or injuries occurring to themselves, other
people or property.
PREPARATION
Evaluate the terrain to determine what
accessories and attachments are needed to
properly and safely perform the job. Use only
accessories and attachments approved by the
manufacturer.
• Wear appropriate clothing including safety shoes,
safety glasses and ear protection. Long hair, loose
clothing or jewelry may get tangled in moving parts.
• Inspect the area where the equipment is to be
used and remove all objects such as rocks, toys
and wire, which can be thrown by the machine.
• Use extra care when handling gasoline and other
fuels. They are flammable and vapors are
explosive.
a) Use only an approved container.
b) Never remove fuel cap or add fuel with the
engine running. Allow engine to coot before
refueling. Do not smoke.
c) Never refuel or drain the machine indoors.
• Check that operator's presence controls, safety
switches and shields are attached and functioning
properly. Do not operate unless they are functioning
properly.
OPERATION
• Never run an engine in an enclosed area.
• Mow only in the daylight or with good artificial
light, keeping away from holes and hidden hazards.
• Be sure transmission is in neutral and cutting
blades are disengaged before starting engine.
• Be sure of your footing while using pedestrian
controlled equipment, especially when backing up.
Walk, don't run.
Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while traveling in reverse.
• Be aware of the mower discharge direction and do
not point it at anyone. Do not operate the mower
without either the entire grass catcher or the
deflector in place.
• Slow down and use caution when making turns
and when changing directions on slopes.
• Never raise deck with the blades running.
• Never leave a running unit unattended. Always
disengage cutting blades, set transmission in
neutral, stop engine, and remove keys before
leaving unit. Keep hands and feet away from the
cutting units.
• Disengage the cutting blades when not mowing.
• Never operate with guards not securely in place.
Be sure all safety features are attached, adjusted
properly and functioning properly.
• Never operate with the discharge deflector raised,
removed or altered, unless using a grass catcher.
• Do not change the engine governor setting or over
speed the engine.
• Stop on level ground, disengage cutting blades,
set transmission in neutral, shut off engine before
leaving the operator's position for any reason
including emptying the grass catchers or
unclogging the chute.
• Stop equipment and inspect blades after striking
objects or abnormal vibration occurs. Make
necessary repairs before resuming operations.
• Keep hands and feet away from the cutting units.
• Never carry passengers and keep pets and
bystanders away.
• Do not operate the unit while under the influence
of alcohol or drugs.
• Slow down and use caution when making turns
and crossing roads and sidewalks. Stop blades if
not mowing.
• Use care when loading or unloading the machine
into a trailer or truck.
• Use care when approaching blind corners, shrubs,
trees or other objects that may obscure vision.
GVTP SM32-R0303.1

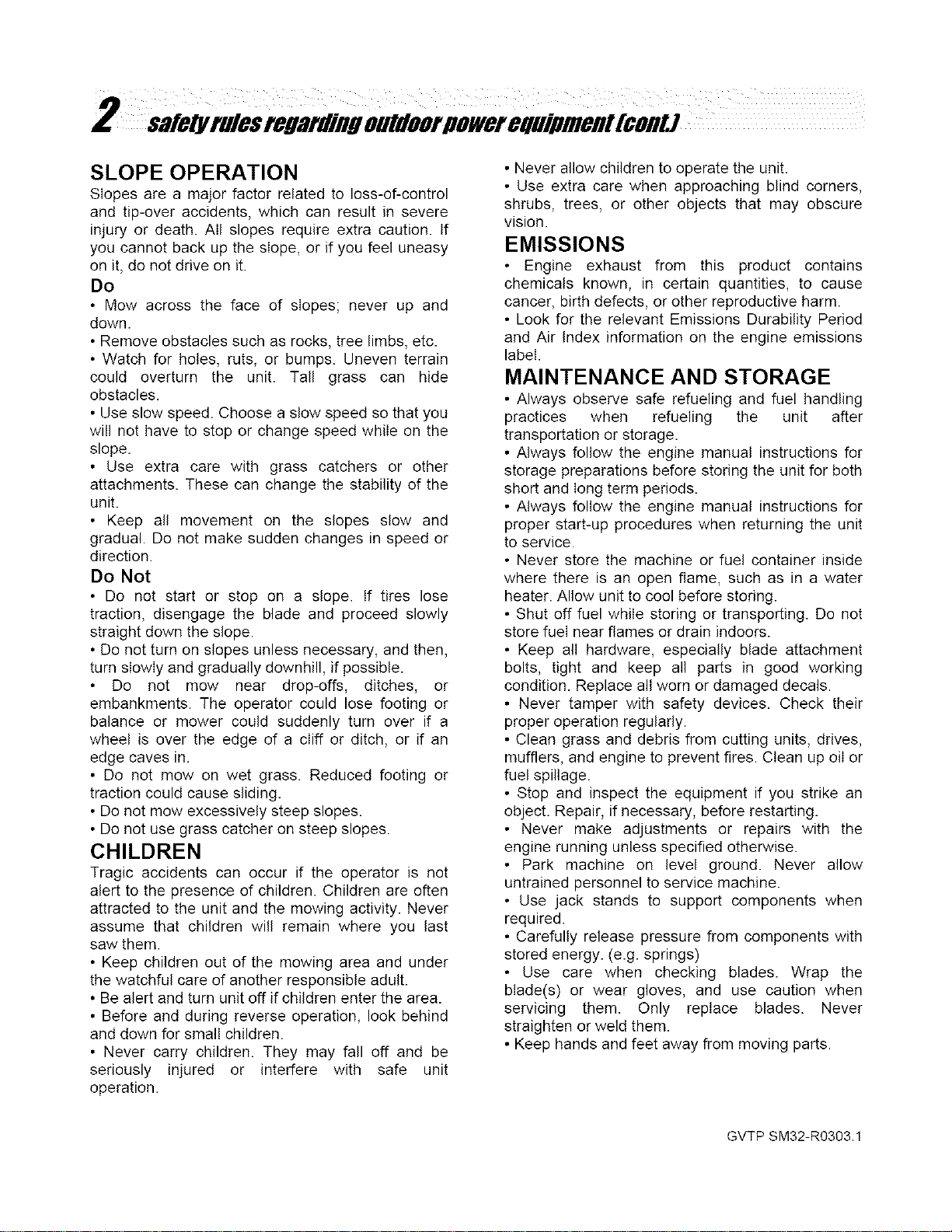

SLOPE OPERATION
Slopes are a major factor related to loss-of-control
and tip-over accidents, which can result in severe
injury or death. All slopes require extra caution. If
you cannot back up the slope, or if you feel uneasy
on it, do not drive on it.
Do
• Mow across the face of slopes; never up and
down.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Uneven terrain
could overturn the unit. Tall grass can hide
obstacles.
• Use slow speed. Choose a slow speed so that you
will not have to stop or change speed while on the
slope.
• Use extra care with grass catchers or other
attachments. These can change the stability of the
unit.
Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed or
direction.
Do Not
• Do not start or stop on a slope. If tires lose
traction, disengage the blade and proceed slowly
straight down the slope.
• Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches, or
embankments. The operator could lose footing or
balance or mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if an
edge caves in.
• Do not mow on wet grass. Reduced footing or
traction could cause sliding.
• Do not mow excessively steep slopes.
• Do not use grass catcher on steep slopes.
CHILDREN
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the unit and the mowing activity. Never
assume that children will remain where you last
saw them.
• Keep children out of the mowing area and under
the watchful care of another responsible adult.
• Be alert and turn unit off if children enter the area.
• Before and during reverse operation, look behind
and down for small children.
• Never carry children. They may fall off and be
seriously injured or interfere with safe unit
operation.
• Never allow children to operate the unit.
• Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
EMISSIONS
Engine exhaust from this product contains
chemicals known, in certain quantities, to cause
cancer, birth defects, or other reproductive harm.
• Look for the relevant Emissions Durability Period
and Air Index information on the engine emissions
label.
MAINTENANCEANDSTORAGE
• Always observe safe refueling and fuel handling
practices when refueling the unit after
transportation or storage.
• Always follow the engine manual instructions for
storage preparations before storing the unit for both
short and long term periods.
• Always follow the engine manual instructions for
proper start-up procedures when returning the unit
to service.
• Never store the machine or fuel container inside
where there is an open flame, such as in a water
heater. Allow unit to cool before storing.
• Shut off fuel while storing or transporting. Do not
store fuel near flames or drain indoors.
• Keep all hardware, especially blade attachment
bolts, tight and keep all parts in good working
condition. Replace all worn or damaged decals.
• Never tamper with safety devices. Check their
proper operation regularly.
• Clean grass and debris from cutting units, drives,
mufflers, and engine to prevent fires. Clean up oil or
fuel spillage.
• Stop and inspect the equipment if you strike an
object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the
engine running unless specified otherwise.
• Park machine on level ground. Never allow
untrained personnel to service machine.
• Use jack stands to support components when
required.
• Carefully release pressure from components with
stored energy. (e.g. springs)
• Use care when checking blades. Wrap the
blade(s) or wear gloves, and use caution when
servicing them. Only replace blades. Never
straighten or weld them.
• Keep hands and feet away from moving parts.
GVTP SM32-R0303.1

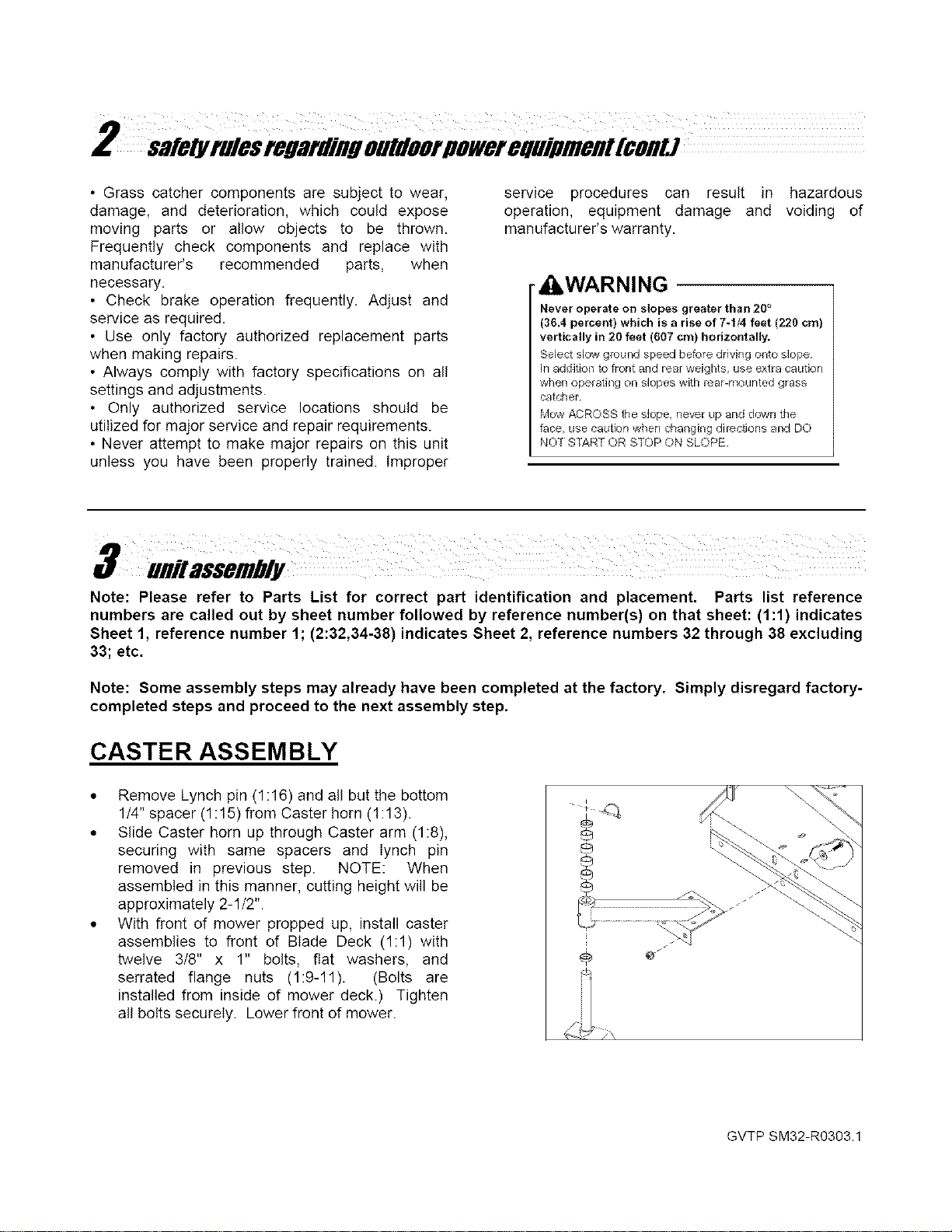

• Grass catcher components are subject to wear,
damage, and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace with
manufacturer's recommended parts+ when
necessary.

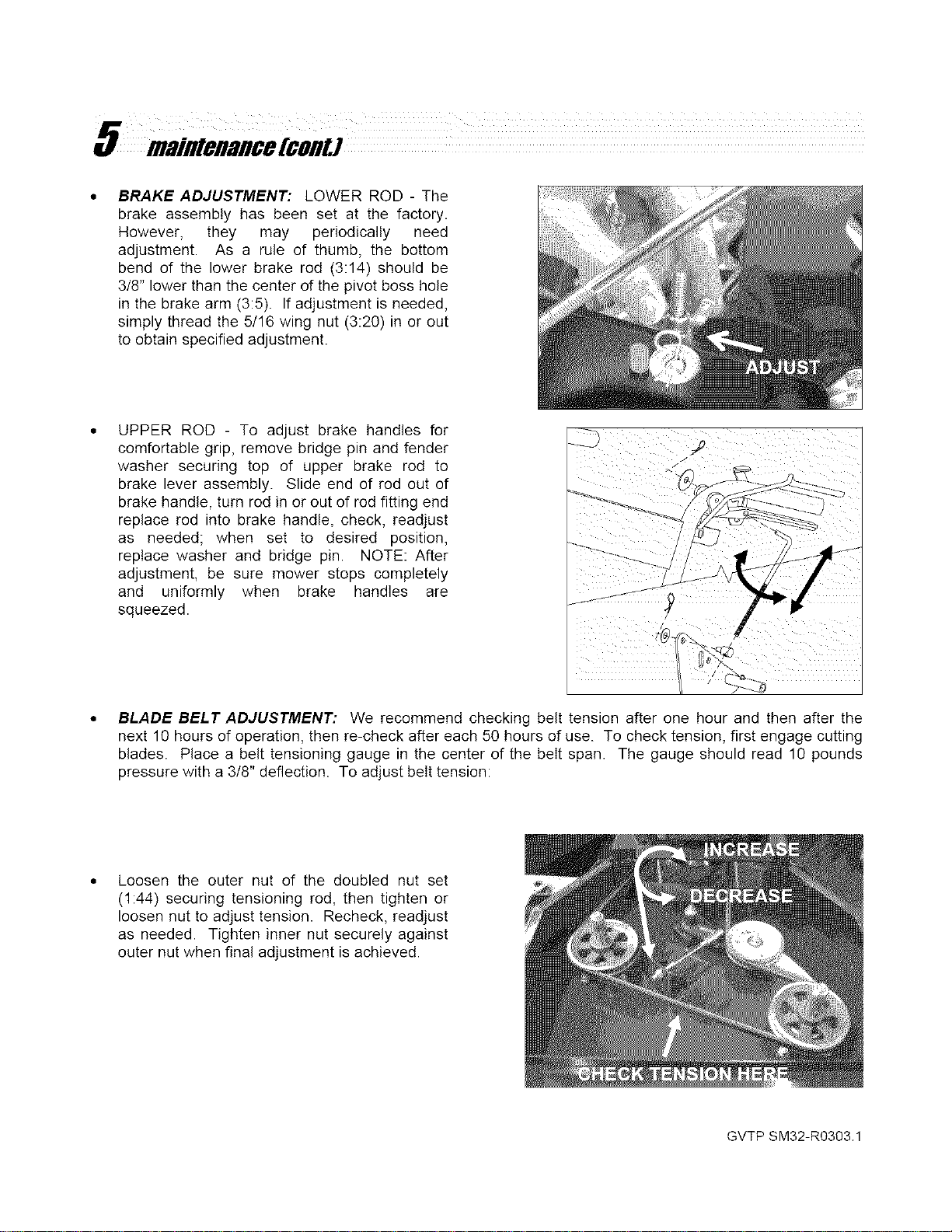

• Check brake operation frequently. Adjust and
service as required.
• Use only factory authorized replacement parts
when making repairs.
• Always comply with factory specifications on all
settings and adjustments.
Only authorized service locations should be
utilized for major service and repair requirements.
• Never attempt to make major repairs on this unit
unless you have been properly trained. Improper
service procedures can result in hazardous
operation, equipment damage and voiding of
manufacturer's warranty.
:i WARNING
Never operate on slopes greater than 20+
(36.4 percent) which is a rise of 7-1f4 feet (220 era)
vertically in 20 feet (607 era) horizontally.
Select sl_,+_ground speed befl_re driving onto slope
In addition to front and I'ear weights, use extra caution
when operating on slopes with rear-mounted grass
catcher
Mow ACROSS the sJope never up and down the
race. _+secaution when changing directions and DO
NOT START OR STOP ON SLOPE.
i ! i i:

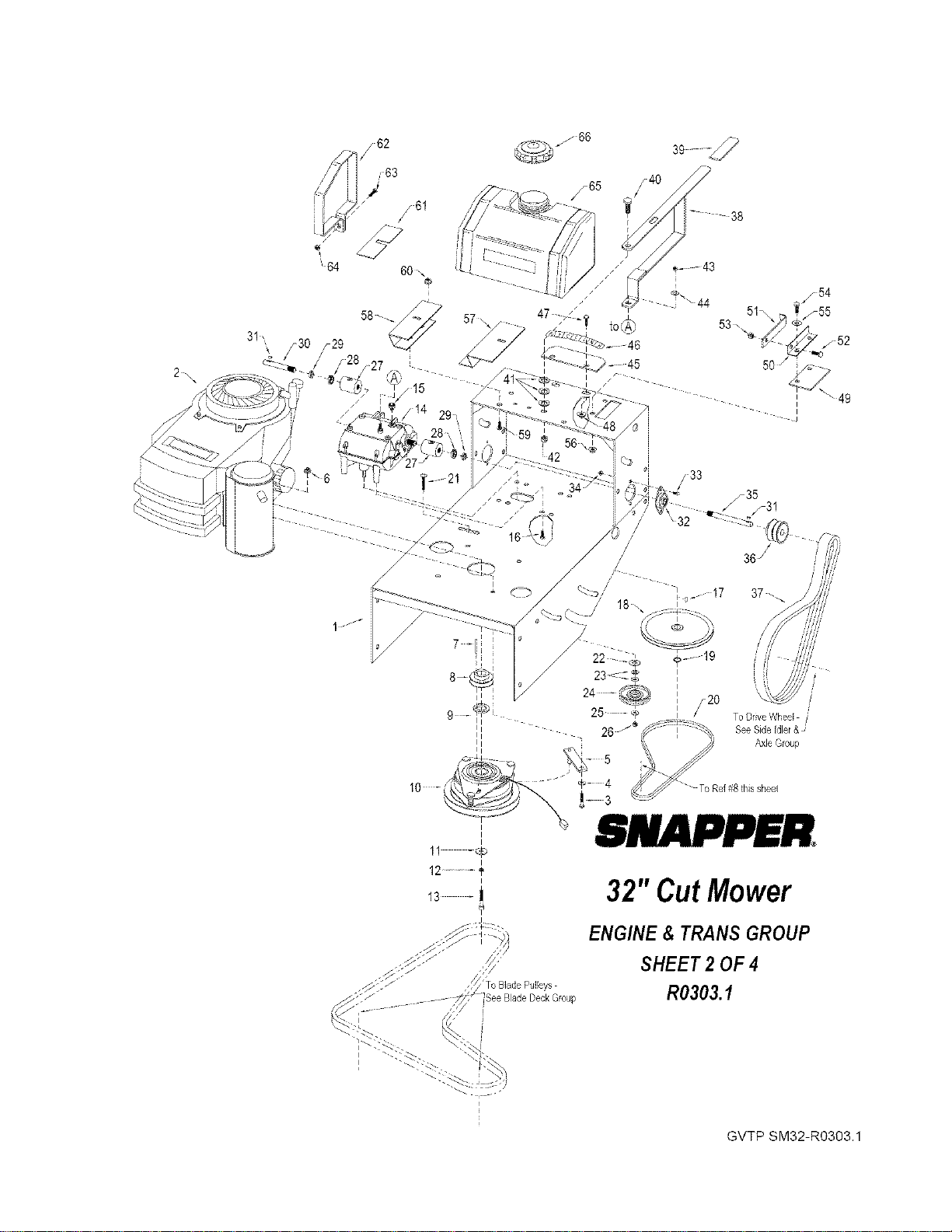

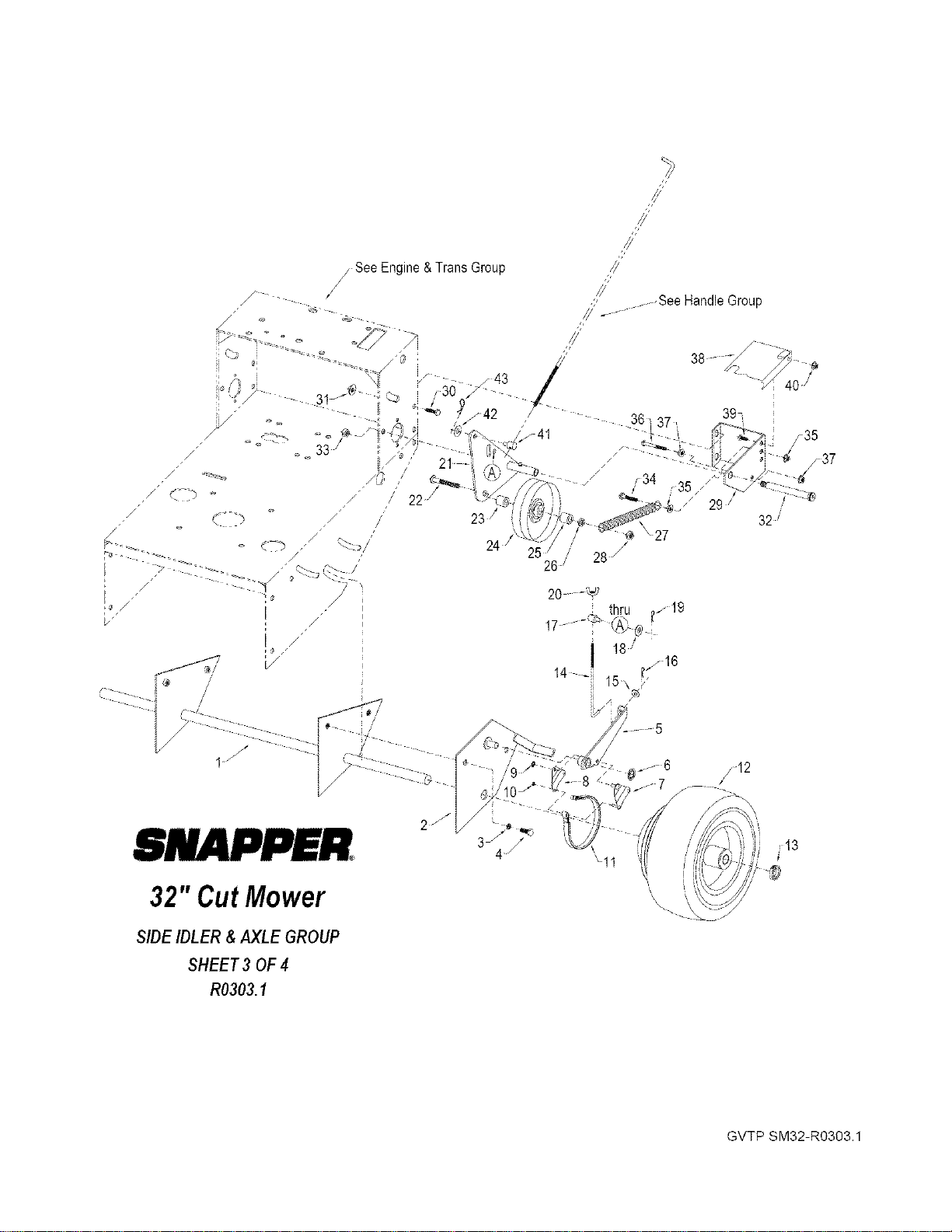

Note: Please refer to Parts List for correct part identification and placement. Parts list reference
numbers are called out by sheet number followed by reference number(s) on that sheet: (1:1) indicates
Sheet 1, reference number 1; (2:32,34-38) indicates Sheet 2, reference numbers 32 through 38 excluding
33; etc.
Note: Some assembly steps may already have been completed at the factory. Simply disregard factory-
completed steps and proceed to the next assembly step.

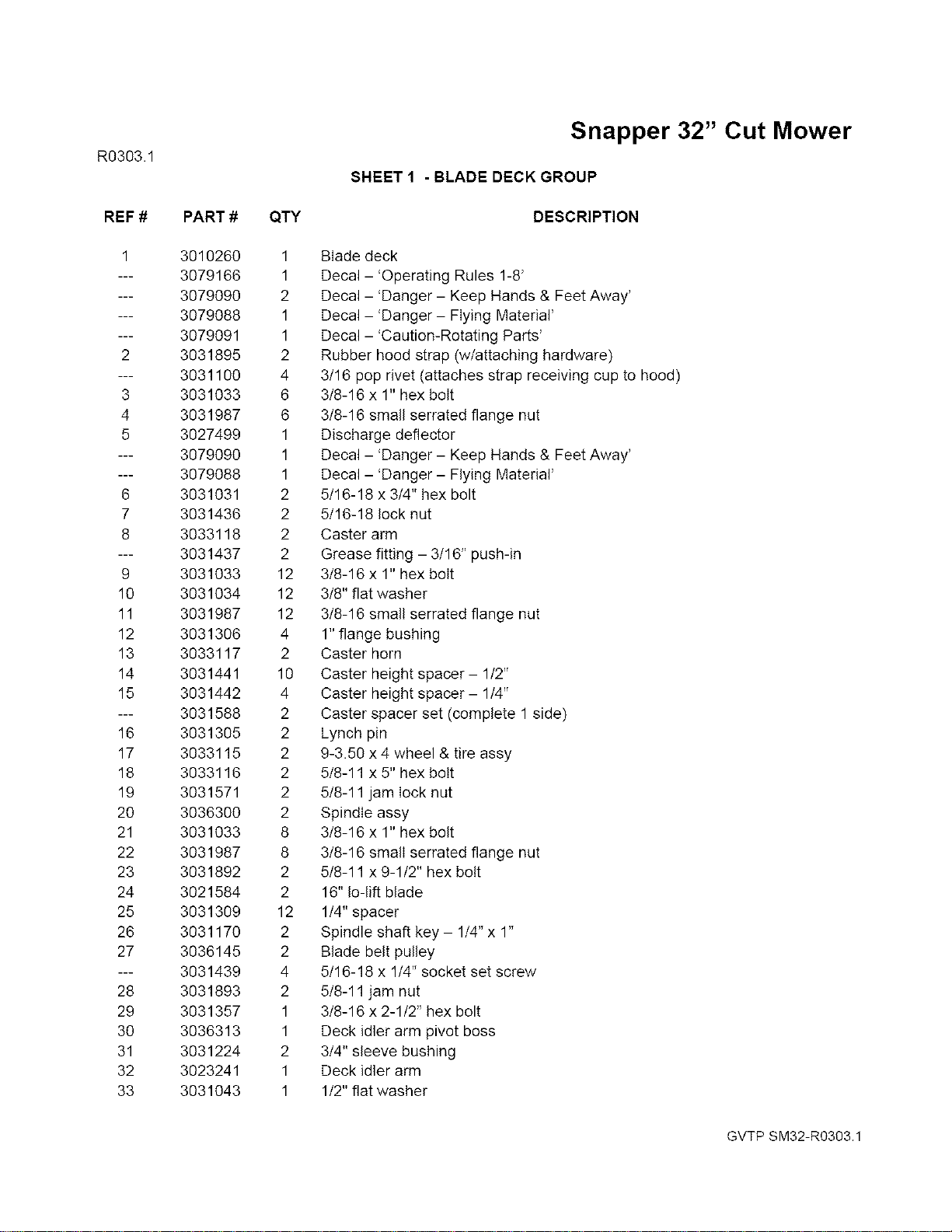

CASTER ASSEMBLY
• Remove Lynch pin (1:16) and all but the bottom
1/4" spacer (1:15) from Caster horn (1:13).
• Slide Caster horn up through Caster arm (1:8),
securing with same spacers and lynch pin
removed in previous step. NOTE: When
assembled in this manner, cutting height will be
approximately 2-1/2".
• With front of mower propped up, install caster
assemblies to front of Blade Deck (1:1) with
twelve 3/8" x 1" bolts, flat washers, and
serrated flange nuts (1:9-11). (Bolts are
installed from inside of mower deck.) Tighten
all bolts securely. Lower front of mower.
GVTP SM32-R0303.1
DISCHARGE DEFLECTOR ASSEMBLY
• Attach discharge deflector (1:5) using two 5/16"
x 3/4" bolts and lock nuts (1:6-7). CAUTION:
Do not over tighten lock nuts.
TRANSMISSION SHIFT LEVER ASSEMBLY
Install Shift indicator panel (2:45) onto rear of
engine deck (2:1) with two 5/16 x 3/4" hex bolts
(2:47), securing with large serrated flange nuts
(2:48). Leave hardware finger tight.
/
I
• Remove 3/8" nylon lock nut and flat washer
(2:43,44) from shift stud atop transmission
(2:14 - location W).
• Remove 1/2 x 2-1/2" hex bolt, three oillite
washers, and lock nut (2:40-42) from top rear of
engine deck.
Insert same 1/2" bolt down through top forward
hole in Shift lever (2:38), slip same three
washers up onto threads of bolt, then drop bolt
into same hole.
®
GVTP SM32-R0303.1
TRANSMISSION SHIFT LEVER ASSEMBLY (cont.)
• Position 'double-D' hole in bottom leg of shift
lever onto transmission stud, then slowly move
handle of shifter back and forth until hole drops
onto matching base of stud.
• Replace washer and nut onto transmission
stud. Tighten securely. Replace lock nut onto
1/2" bolt. Tighten snugly while allowing for
shifter movement.
• Work shift lever through gear range, adjusting
indicator panel for display alignment, then
tighten indicator panel hardware.
FUEL TANK ASSEMBLY
• Install fuel tank mount brackets (2:57, 58) onto
engine deck using four 5/16 x 3/4"hex bolts and
serrated flange nuts (2:59-60). Do not tighten.
• Place rubber pads (2:61) on top of mount
brackets, making sure to not block fuel tank tab
slots.
• Place fuel tank (2:65) on top of slotted rubber
pads, making sure tabs on bottom of tank drop
through slots in tank brackets.
• Slip fuel tank straps (2:62) around ends of tank,
making sure bottom of straps slip under top
ends of mounting brackets. Secure each strap
with one 1/4-20 x 1-1/2" hex bolt and serrated
flange nut (2:63-64). Tighten both straps and
mounting bracket hardware securely.
• Slip end of fuel line from engine fully onto
barbed nipple of fuel elbow (located under
tank), securing with supplied spring clamp.
,i¢/
GVTP SM32-R0303.1

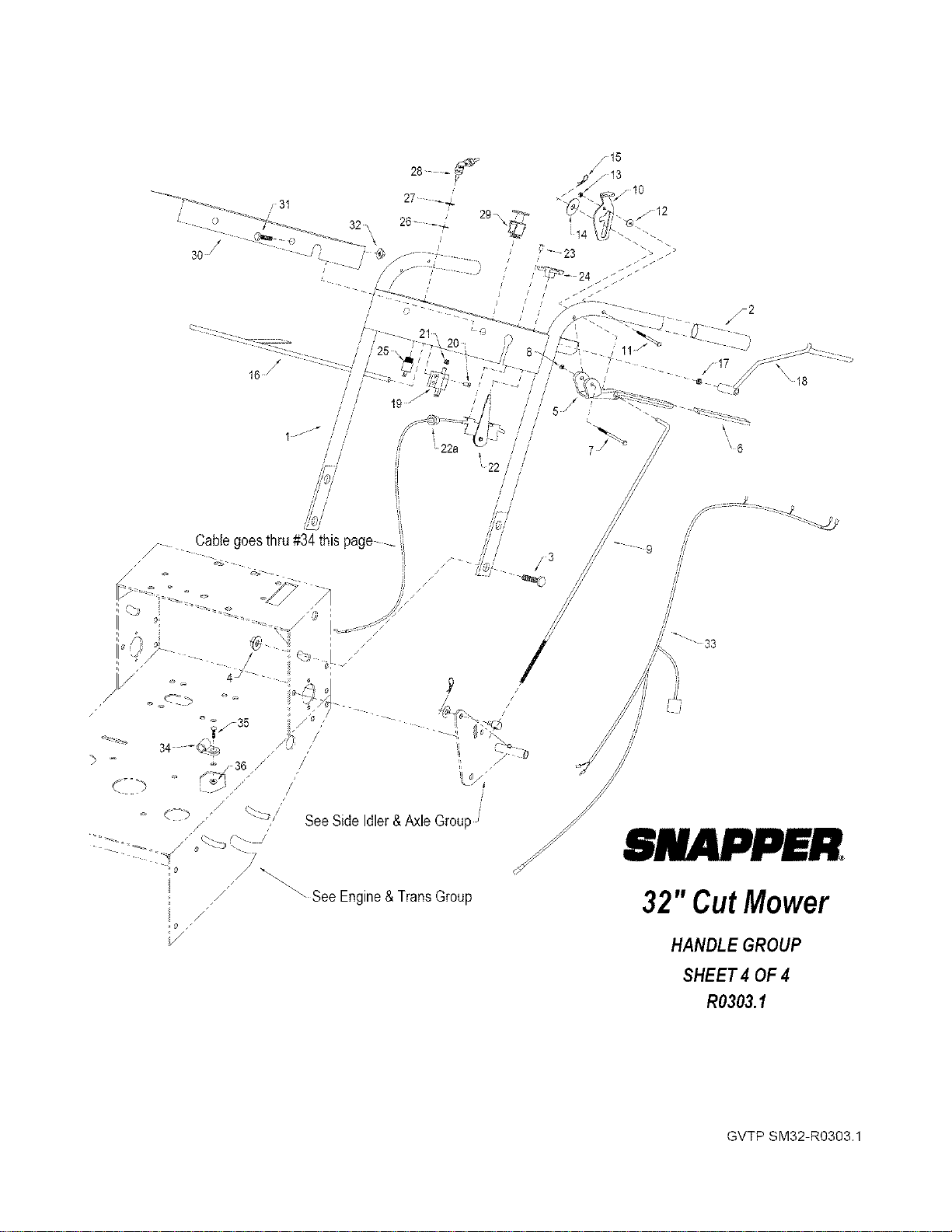

HANDLE ASSEMBLY INSTALLATION
Install handle assembly (4:1) to upper portion of
engine deck using four 1/2" x 1-1/4" hex bolts
and serrated flange nuts (4:3-4). Adjust for
comfortable operation, then tighten securely.
Locate wiring harness and route harness down
the right side of handle assembly. Attach
harness terminals to engine, transmission and

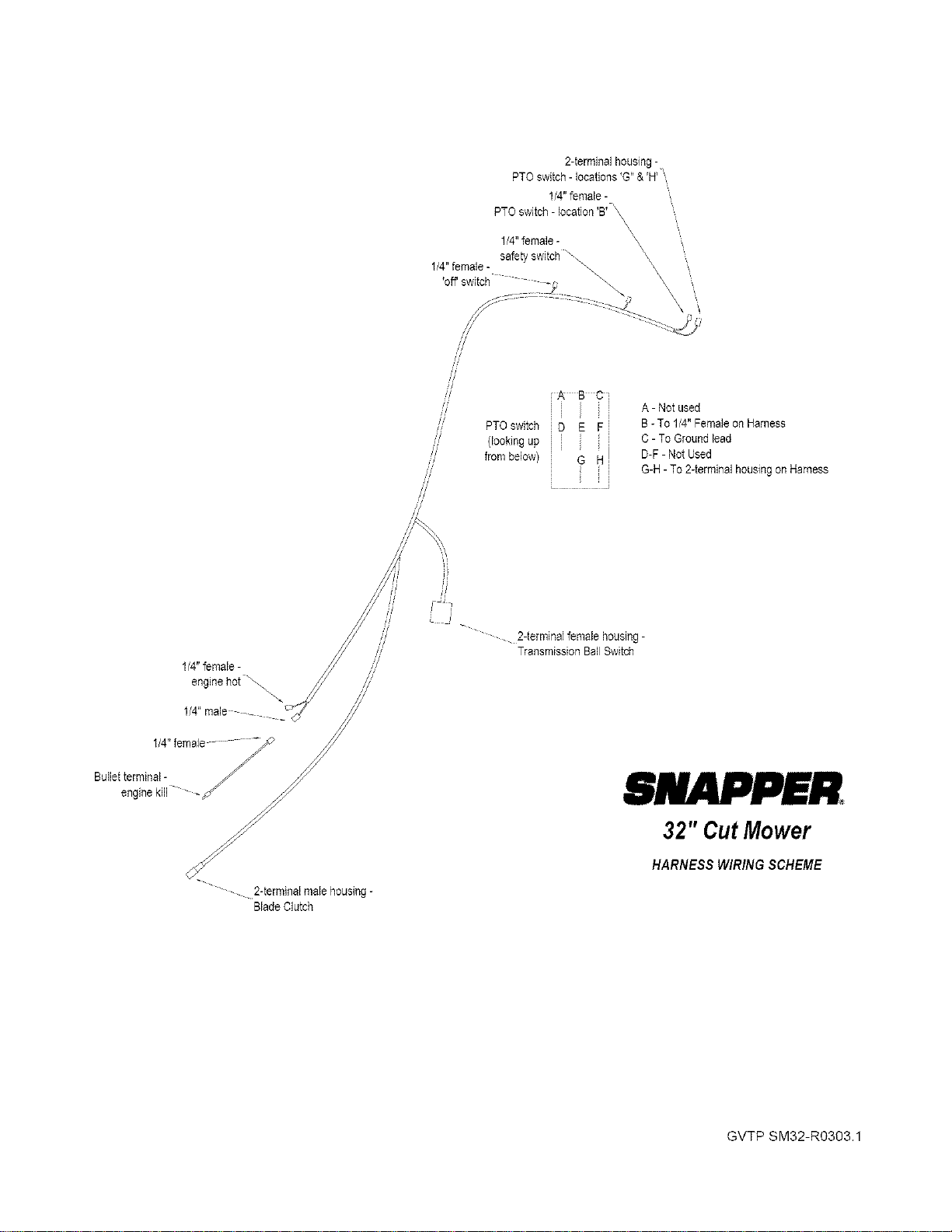

blade clutch using the wiring diagram at the
back of this manual as a guide. Attach harness
to right handle bar with two plastic tie wraps.
/ /
J
/
/ /
,, J
, /
/ ,
Route throttle and choke cables (4:22, 22b -
attached to handlebar) down left side of handle
assembly. Attach each cable to left side of
mower handle using metal cable clip. Also
install cable routing clip (4:34) onto engine deck
- see Sheet 4 of Parts list for location.
Connect throttle and choke cables to throttle
body on lower front of engine - see
Throttle/Choke Cable Adjustment in the
Maintenance section of this manual for details.
Also attach the safety instruction display
bracket (4:30) to the front of the mower dash
with two 5/16-18 x 3/4" hex bolts and serrated
flange nuts (4:31-32).
Install "L" shaped end of upper brake rod (4:9),
from outside, through brake handle (4:5) and
brake lock handle (4:10). Secure with fender
washer and bridge pin (4:14-15). Attach
adjustable rod fitting end (3:41) on lower end of
rod to side idler plate (3:21) using flat washer
and bridge pin (3:42-43). Repeat for other side.
IMPORTANT: Adjust upper rods for handle
comfort and proper drive belt release; also
adjust lower brake rods (3:14), by means of
5/16" wing nut (3:20) so that brakes will hold
firmly when brake lock handle is engaged.
J j
/
Your mower is now ready to be started and checked for proper operation. Some minor
final adjustments may be required; see the Maintenance portion of this manual.
GVTP SM32-R0303.1

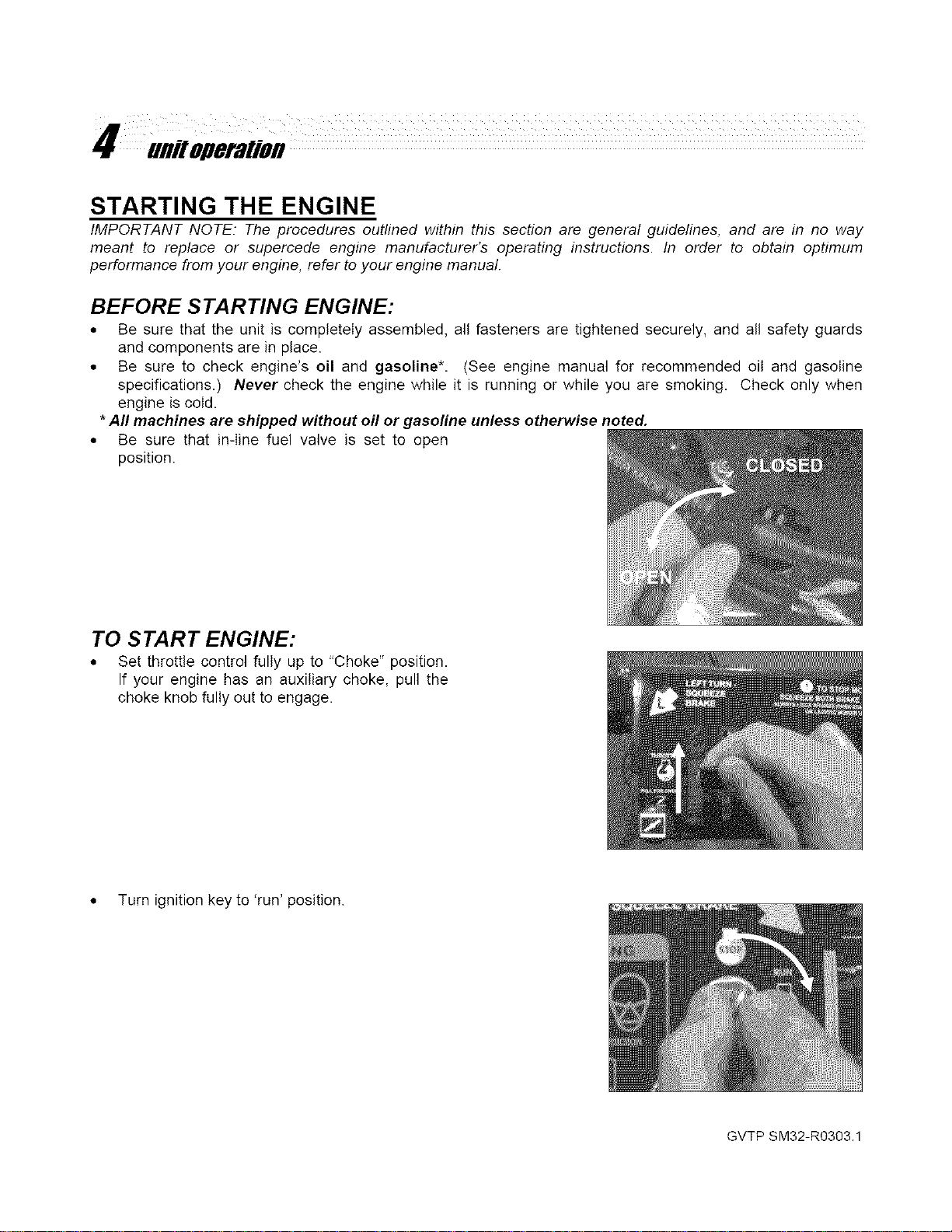

STARTING THE ENGINE
IMPORTANT NOTE: The procedures outlined within this section are general guidelines, and are in no way
meant to replace or supercede engine manufacturer's operating instructions. In order to obtain optimum
performance from your engine, refer to your engine manual.
BEFORE STARTING ENGINE:
• Be sure that the unit is completely assembled, all fasteners are tightened securely, and all safety guards
and components are in place.
• Be sure to check engine's oil and gasoline*. (See engine manual for recommended oil and gasoline
specifications.) Never check the engine while it is running or while you are smoking. Check only when
engine is cold.
*All machines are shipped without oil or gasoline unless otherwise noted.
• Be sure that in-line fuel valve is set to open
position.
TO START ENGINE:
• Set throttle control fully up to "Choke" position.
If your engine has an auxiliary choke, pull the
choke knob fully out to engage.
• Turn ignition key to'run' position.
GVTP SM32-R0303.1

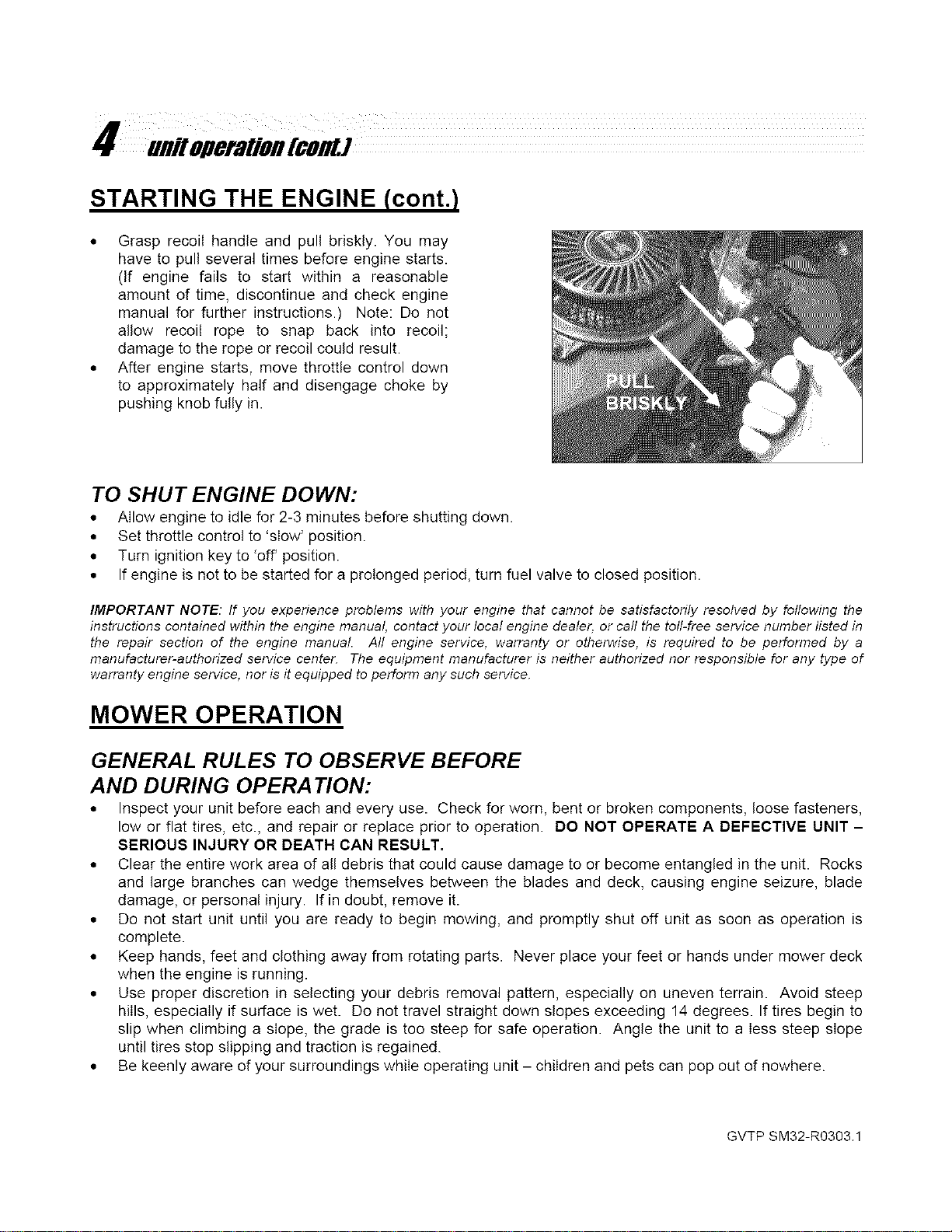

STARTING THE ENGINE (cont.)
• Grasp recoil handle and pull briskly. You may
have to pull several times before engine starts.
(if engine fails to start within a reasonable
amount of time, discontinue and check engine
manual for further instructions.) Note: Do not
allow recoil rope to snap back into recoil;
damage to the rope or recoil could result.
• After engine starts, move throttle control down
to approximately half and disengage choke by
pushing knob fully in.
TO SHUT ENGINE DOWN:
• Allow engine to idle for 2-3 minutes before shutting down.
• Set throttle control to 'slow' position.
• Turn ignition key to'off _position.
• If engine is not to be started for a prolonged period, turn fuel valve to closed position.
IMPORTANT NOTE: If you experience problems with your engine that cannot be satisfactorily resolved by following the
instructions contained within the engine manual, contact your local engine dealer, or call the toll-free service number listed in
the repair section of the engine manual. All engine service, warranty or otherwise, is required to be performed by a
manufacturer-authorized service center. The equipment manufacturer is neither authorized nor responsible for any type of
warranty engine service, nor is it equipped to perform any such service.
MOWER OPERATION
GENERAL RULES TO OBSERVE BEFORE
AND DURING OPERA TION:
• Inspect your unit before each and every use. Check for worn, bent or broken components, loose fasteners,
low or flat tires, etc., and repair or replace prior to operation. DO NOT OPERATE A DEFECTIVE UNIT -
SERIOUS INJURY OR DEATH CAN RESULT.
• Clear the entire work area of all debris that could cause damage to or become entangled in the unit. Rocks
and large branches can wedge themselves between the blades and deck, causing engine seizure, blade
damage, or personal injury. If in doubt, remove it.
• Do not start unit until you are ready to begin mowing, and promptly shut off unit as soon as operation is
complete.
• Keep hands, feet and clothing away from rotating parts. Never place your feet or hands under mower deck
when the engine is running.
• Use proper discretion in selecting your debris removal pattern, especially on uneven terrain. Avoid steep
hills, especially if surface is wet. Do not travel straight down slopes exceeding 14 degrees. If tires begin to
slip when climbing a slope, the grade is too steep for safe operation. Angle the unit to a less steep slope
until tires stop slipping and traction is regained.
• Be keenly aware of your surroundings while operating unit - children and pets can pop out of nowhere.
GVTP SM32-R0303.1
• Learn to listen to your machine - being aware of what a well-running unit sounds like can alert you to a
potential problem. A straining engine or clanging blades or a slapping belt mean that trouble is almost sure
to follow.
ENGAGING THE CUTTING BLADES:
Note: Never engage the mower blades until you are ready to mow and be certain to disengage them
when finished. Never attempt any adjustment or repairs when the blades are engaged.
To engage the cutting blades, simply pull out
the blade engage switch knob (4:29), located in
the center of the handle dash. To disengage,
simply push the knob in. Always be sure
cutting blades are disengaged before stopping
the mower.
Important safety note: Power to the engine will be immediately cut if both of the safety handles (Parts
List Ref #4:18) are released while cutting blades are engaged. This is an important safety feature - do
not attempt to defeat it. Serious injury or death may result.
ENGAGING THE TRANSMISSION:
Note: Never attempt any adjustment or repairs with the transmission engaged.
• Always start your mower in neutral with brake
handles in locked position.
GVTP SM32-R0303.1

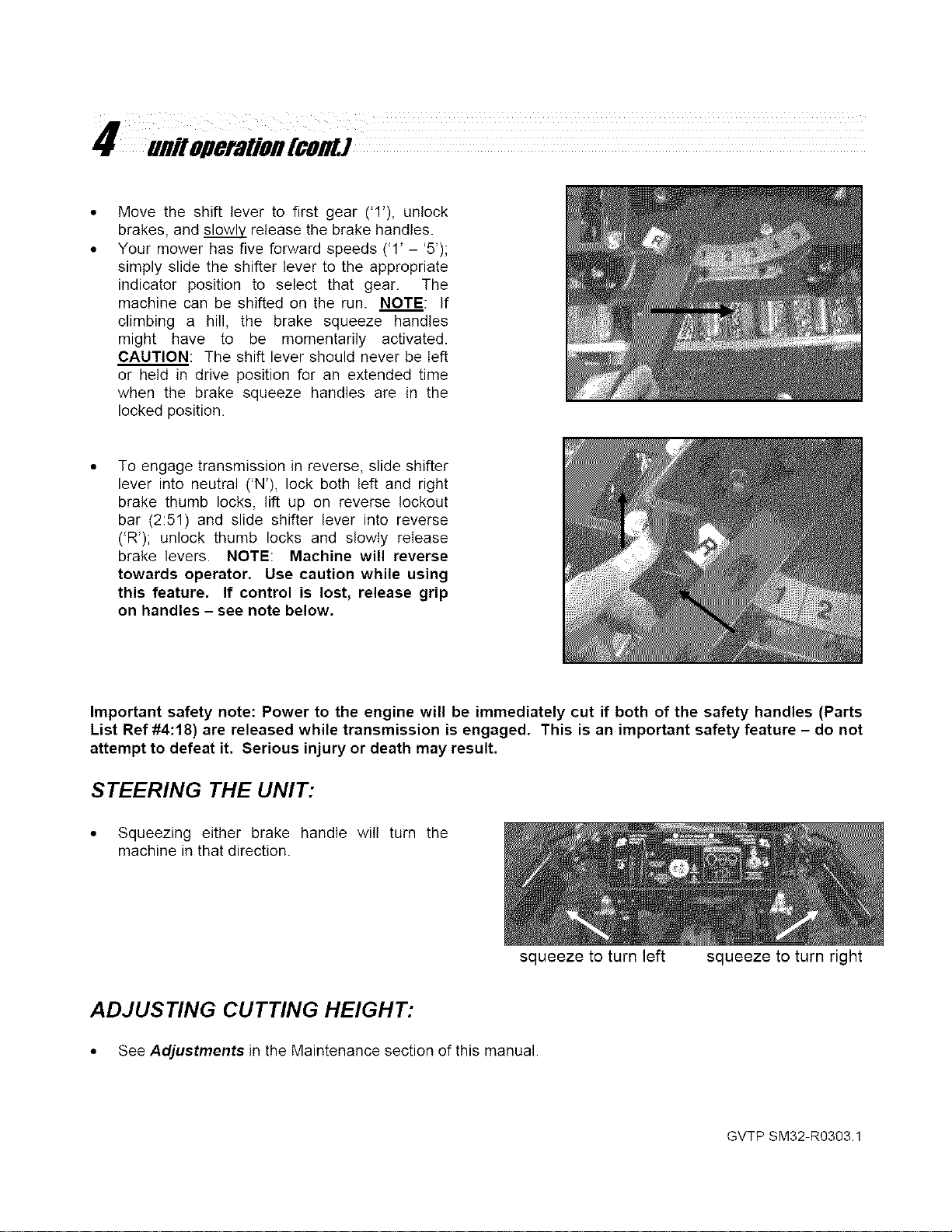

Move the shift lever to first gear ('1'), unlock
brakes, and slowly_release the brake handles.
Your mower has five forward speeds ('1' - '5');
simply slide the shifter lever to the appropriate
indicator position to select that gear. The
machine can be shifted on the run. NOTE: If
climbing a hill, the brake squeeze handles
might have to be momentarily activated.
CAUTION: The shift lever should never be left
or held in drive position for an extended time
when the brake squeeze handles are in the
locked position.
To engage transmission in reverse, slide shifter
lever into neutral ('N'), lock both left and right
brake thumb locks, lift up on reverse lockout
bar (2:51) and slide shifter lever into reverse
('R'); unlock thumb locks and slowly release
brake levers NOTE: Machine will reverse
towards operator. Use caution while using
this feature. If control is lost, release grip
on handles - see note below.
Important safety note: Power to the engine will be immediately cut if both of the safety handles (Parts
List Ref #4:18) are released while transmission is engaged. This is an important safety feature - do not
attempt to defeat it. Serious injury or death may result.
STEERING THE UNIT:
• Squeezing either brake handle will turn the
machine in that direction.
squeeze to turn left squeeze to turn right
ADJUSTING CUTTING HEIGHT:
• See Adjustments in the Maintenance section of this manual.
GVTP SM32-R0303.1

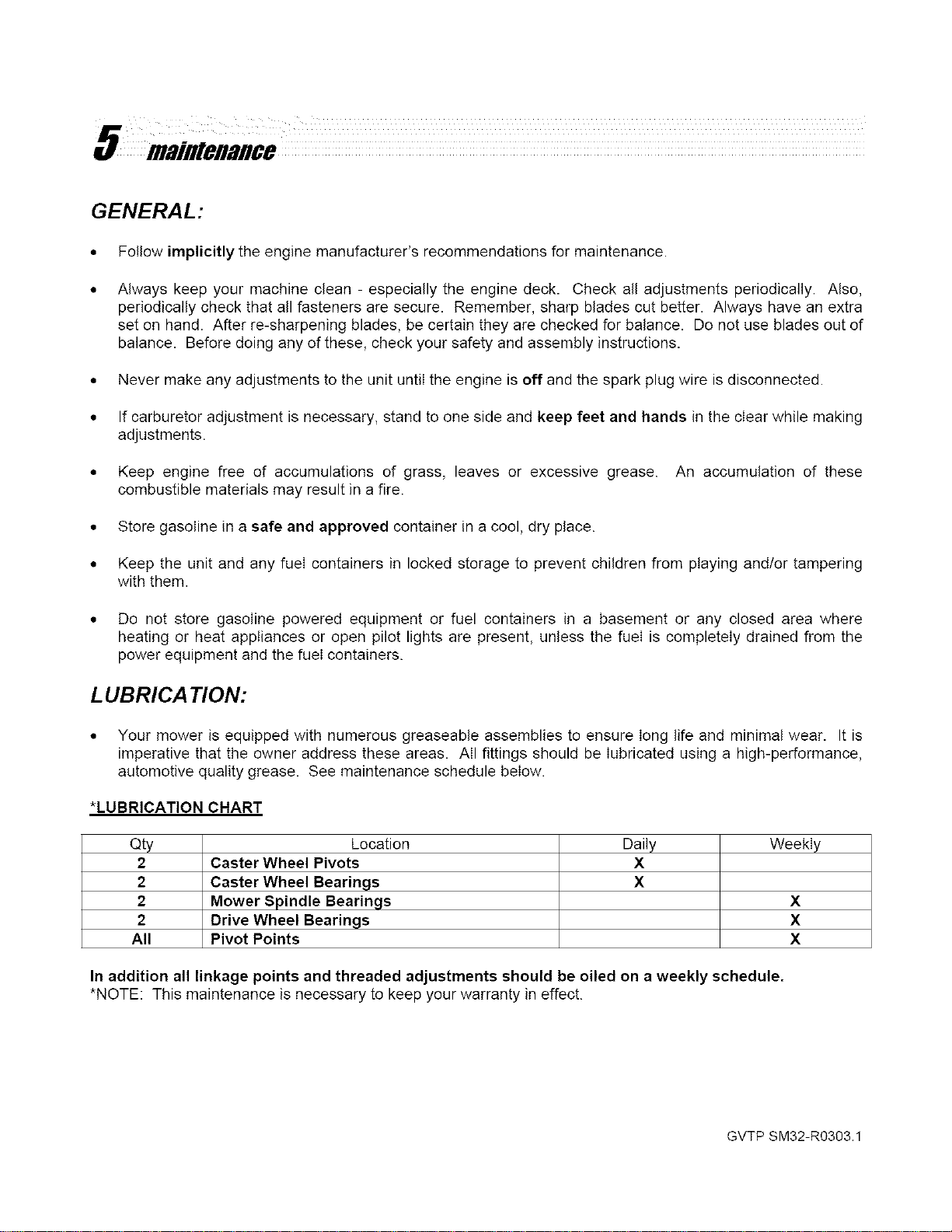

GENERAL:
• Follow implicitly the engine manufacturer's recommendations for maintenance.
• Always keep your machine clean - especially the engine deck. Check all adjustments periodically. Also,
periodically check that all fasteners are secure. Remember, sharp blades cut better. Always have an extra
set on hand. After re-sharpening blades, be certain they are checked for balance. Do not use blades out of
balance. Before doing any of these, check your safety and assembly instructions.
• Never make any adjustments to the unit until the engine is off and the spark plug wire is disconnected.
• If carburetor adjustment is necessary, stand to one side and keep feet and hands in the clear while making
adjustments.
• Keep engine free of accumulations of grass, leaves or excessive grease. An accumulation of these
combustible materials may result in a fire.
• Store gasoline in a safe and approved container in a cool, dry place.
• Keep the unit and any fuel containers in locked storage to prevent children from playing and/or tampering
with them.
• Do not store gasoline powered equipment or fuel containers in a basement or any closed area where
heating or heat appliances or open pilot lights are present, unless the fuel is completely drained from the
power equipment and the fuel containers.
LUBRICA TION:
• Your mower is equipped with numerous greaseable assemblies to ensure long life and minimal wear. It is
imperative that the owner address these areas. All fittings should be lubricated using a high-performance,
automotive quality grease. See maintenance schedule below.
*LUBRICATION CHART
Qty
2
2
2
2
All
Location
Caster Wheel Pivots
Caster Wheel Bearings
Mower Spindle Bearings
Drive Wheel Bearings
Pivot Points
Daily
X
X
Weekly
X
X
X
In addition all linkage points and threaded adjustments should be oiled on a weekly schedule.
*NOTE: This maintenance is necessary to keep your warranty in effect.
GVTP SM32-R0303.1

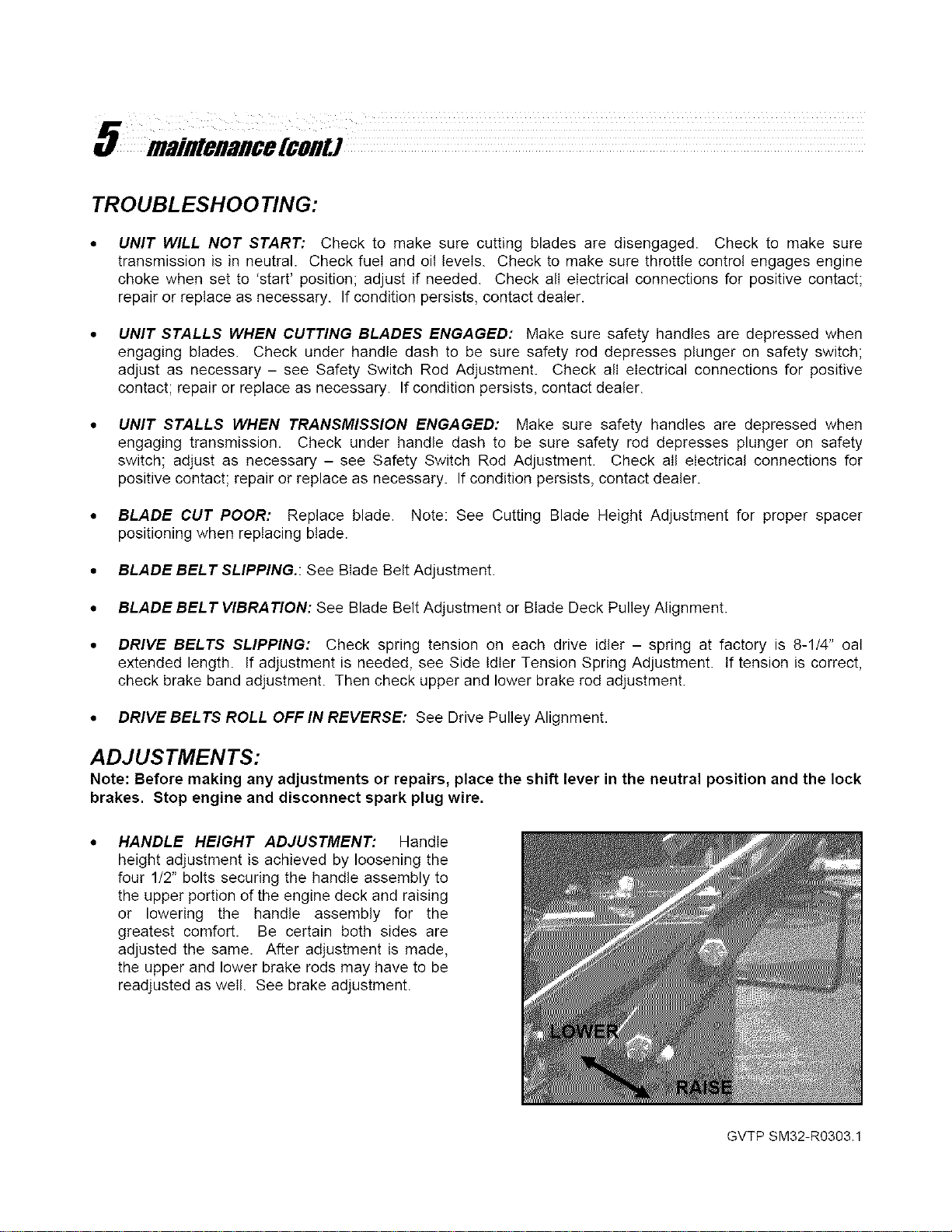

TROUBLESHO0 TING:
UNIT WILL NOT START: Check to make sure cutting blades are disengaged. Check to make sure
transmission is in neutral. Check fuel and oil levels. Check to make sure throttle control engages engine
choke when set to 'start' position; adjust if needed. Check all electrical connections for positive contact;
repair or replace as necessary. If condition persists, contact dealer.
UNIT STALLS WHEN CUTTING BLADES ENGAGED: Make sure safety handles are depressed when
engaging blades. Check under handle dash to be sure safety rod depresses plunger on safety switch;
adjust as necessary - see Safety Switch Red Adjustment. Check all electrical connections for positive
contact; repair or replace as necessary. If condition persists, contact dealer.
UNIT STALLS WHEN TRANSMISSION ENGAGED: Make sure safety handles are depressed when
engaging transmission. Check under handle dash to be sure safety rod depresses plunger on safety
switch; adjust as necessary - see Safety Switch Rod Adjustment. Check all electrical connections for
positive contact; repair or replace as necessary. If condition persists, contact dealer.
• BLADE CUT POOR: Replace blade. Note: See Cutting Blade Height Adjustment for proper spacer
positioning when replacing blade.
• BLADE BELT SLIPPING.: See Blade Belt Adjustment.
• BLADE BELT VIBRATION: See Blade Belt Adjustment or Blade Deck Pulley Alignment.
• DRIVE BELTS SLIPPING: Check spring tension on each drive idler - spring at factory is 8-1/4" oal
extended length. If adjustment is needed, see Side Idler Tension Spring Adjustment. If tension is correct,
check brake band adjustment. Then check upper and lower brake rod adjustment.
• DRIVE BELTS ROLL OFF IN REVERSE: See Drive Pulley Alignment.
ADJUSTMENTS:
Note: Before making any adjustments or repairs, place the shift lever in the neutral position and the lock
brakes. Stop engine and disconnect spark plug wire.
HANDLE HEIGHT ADJUSTMENT: Handle
height adjustment is achieved by loosening the
four 1/2" bolts securing the handle assembly to
the upper portion of the engine deck and raising
or lowering the handle assembly for the
greatest comfort. Be certain both sides are
adjusted the same. After adjustment is made,
the upper and lower brake rods may have to be
readjusted as weil. See brake adjustment.
GVTP SM32-R0303.1

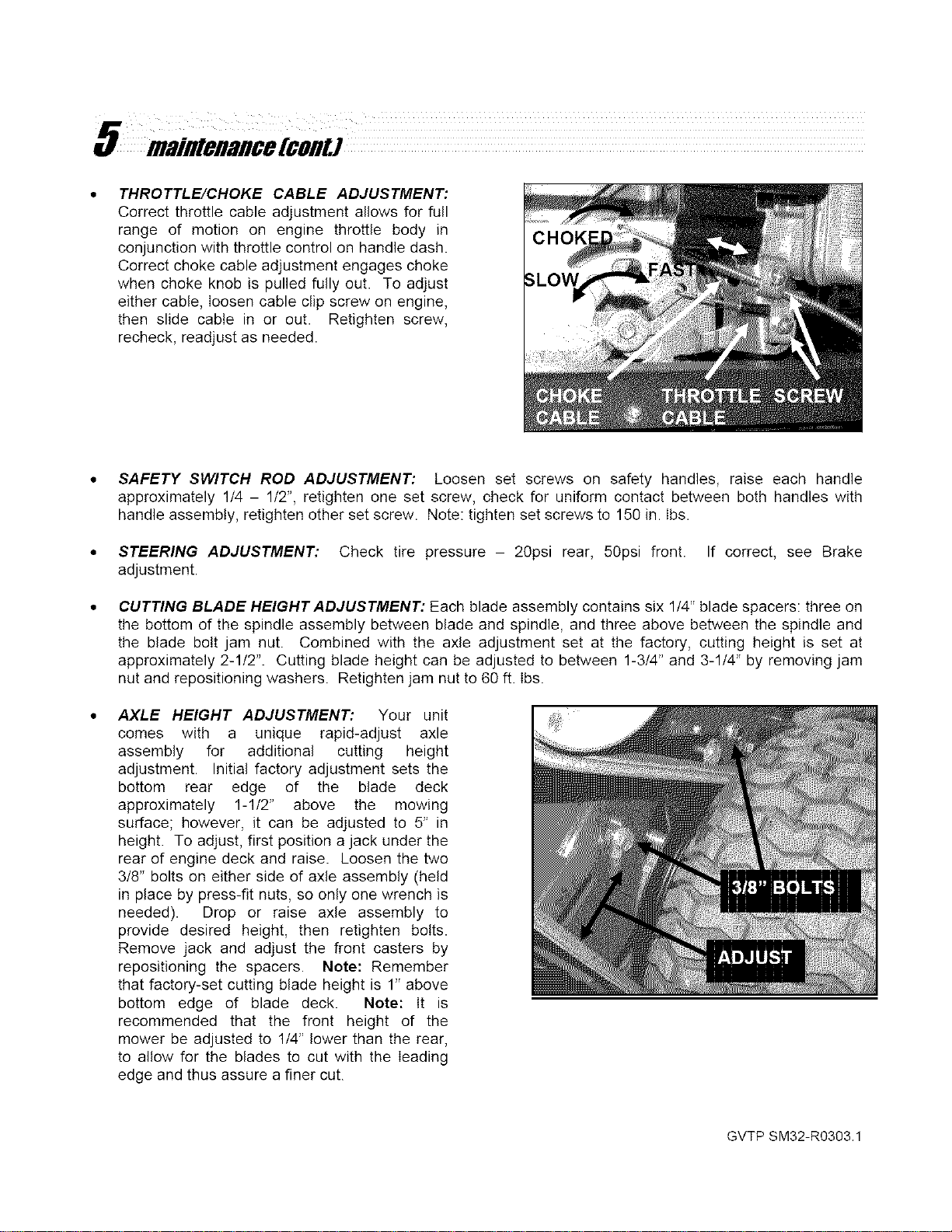

THROTTLE/CHOKE CABLE ADJUSTMENT:
Correct throttle cable adjustment allows for full
range of motion on engine throttle body in
conjunction with throttle control on handle dash.
Correct choke cable adjustment engages choke
when choke knob is pulled fully out. To adjust
either cable, loosen cable clip screw on engine,
then slide cable in or out. Retighten screw,
recheck, readjust as needed.
SAFETY SWITCH ROD ADJUSTMENT: Loosen set screws on safety handles, raise each handle
approximately 1/4 - 1/2", retighten one set screw, check for uniform contact between both handles with
handle assembly, retighten other set screw. Note: tighten set screws to 150 in. Ibs.
STEERING ADJUSTMENT: Check tire pressure - 20psi rear, 50psi front. If correct, see Brake
adjustment.
CUTTING BLADE t..IEIGt..ITADJUSTMENT: Each blade assembly contains six 1/4" blade spacers: three on
the bottom of the spindle assembly between blade and spindle, and three above between the spindle and
the blade bolt jam nut. Combined with the axle adjustment set at the factory, cutting height is set at
approximately 2-1/2". Cutting blade height can be adjusted to between 1-3/4" and 3-1/4" by removing jam
nut and repositioning washers. Retighten jam nut to 60 ft. Ibs.
AXLE HEIGHT ADJUSTMENT: Your unit
comes with a unique rapid-adjust axle
assembly for additional cutting height
adjustment. Initial factory adjustment sets the
bottom rear edge of the blade deck
approximately 1-1/2" above the mowing
surface; however, it can be adjusted to 5" in
height. To adjust, first position a jack under the
rear of engine deck and raise. Loosen the two
3/8" bolts on either side of axle assembly (held
in place by press-fit nuts, so only one wrench is
needed). Drop or raise axle assembly to
provide desired height, then retighten bolts.
Remove jack and adjust the front casters by
repositioning the spacers. Note: Remember
that factory-set cutting blade height is 1" above
bottom edge of blade deck. Note: It is
recommended that the front height of the
mower be adjusted to 1/4" lower than the rear,
to allow for the blades to cut with the leading
edge and thus assure a finer cut.
GVTP SM32-R0303.1
BRAKE ADJUSTMENT: LOWER ROD - The
brake assembly has been set at the factory.
However, they may periodically need
adjustment. As a rule of thumb, the bottom
bend of the lower brake rod (3:14) should be
3/8" lower than the center of the pivot boss hole
in the brake arm (3:5). If adjustment is needed,
simply thread the 5/16 wing nut (3:20) in or out
to obtain specified adjustment.
UPPER ROD - To adjust brake handles for
comfortable grip, remove bridge pin and fender
washer securing top of upper brake rod to
brake lever assembly. Slide end of rod out of
brake handle, turn rod in or out of rod fitting end
replace rod into brake handle, check, readjust
as needed; when set to desired position,
replace washer and bridge pin. NOTE: After
adjustment, be sure mower stops completely
and uniformly when brake handles are
squeezed.
BLADE BELT ADJUSTMENT: We recommend checking belt tension after one hour and then after the
next 10 hours of operation, then re-check after each 50 hours of use. To check tension, first engage cutting
blades. Place a belt tensioning gauge in the center of the belt span. The gauge should read 10 pounds
pressure with a 3/8" deflection. To adjust belt tension:
Loosen the outer nut of the doubled nut set
(1:44) securing tensioning rod, then tighten or
loosen nut to adjust tension. Recheck, readjust
as needed. Tighten inner nut securely against
outer nut when final adjustment is achieved.
GVTP SM32-R0303.1
SIDE IDLER TENSION SPRING
ADJUSTMENT: To increase tension, remove
nut and lock washer securing rear spring
hanger bolt (3:34) in middle tension hole, and
replace bolt in uppermost hole. To decrease
tension, replace in lowest hole. Replace lock
washer and nut, tightening securely. If tension
is still slack, replace springs and/or drive belts.
BLADE DECK PULLEY ALIGNMENT: Check initial alignment of each pulley with blade clutch pulley (2:13)
on engine shaft with straight edge; adjust as needed by loosening set screws in each pulley and raising or
lowering pulley. Retighten set screws to 150 in. Ibs. when final adjustment is complete.
DRIVE PULLEY ALIGNMENT: Check to see that drive pulleys are in line with side idler pulley and wheel
drive pulley; adjust as needed by loosening set screw in pulley and realigning pulley. Retighten set screws
to 150 in. Ibs.
REPLA CEMENT PARTS:
• Replacement parts are available through your local Snapper dealer.
GVTP SM32-R0303.1
32"CutMower
BLADE DECK GROUP
SHEET1 OF4
R0303.1
, See Engine &Trans Group
/
/
//F //
/
[ I
15............................_ _"_-
"11
/3
. /
/2
19/
23 -i
GVTP SM32-R0303.1
R0303.1
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
3O
31
32
33
PART #
3010260
3079166
3079090
3079088
3079091
3031895
3031100
3031033
3031987
3027499
3079090
3079088
3031031
3031436
3033118
3031437
3031033
3031034
3031987
3031306
3033117
3031441
3031442
3031588
3031305
3033115
3033116
3031571
3036300
3031033
3031987
3031892
3021584
3031309
3031170
3036145
3031439
3031893
3031357
3036313
3031224
3023241
3031043
Snapper 32" Cut Mower
SHEET 1 - BLADE DECK GROUP
QTY DESCRIPTION
1 Blade deck
1 Decal- 'Operating Rules 1-8'
2 Decal - 'Danger - Keep Hands & Feet Away'
1 Decal -'Danger- Flying Material'
1 Decal -'Caution-Rotating Parts'
2 Rubber hood strap (w/attaching hardware)
4 3/16 pop rivet (attaches strap receiving cup to hood)
6 3/8-16 x 1" hex bolt
6 3/8-16 small serrated flange nut
1 Discharge deflector
1 Decal - 'Danger - Keep Hands & Feet Away'
1 Decal -'Danger- Flying Material'
2 5/16-18 x 3/4" hex bolt
2 5/16-18 lock nut
2 Caster arm
2 Grease fitting - 3/16" push-in
12 3/8-16 x 1" hex bolt
12 3/8" flat washer
12 3/8-16 smal! serrated flange nut
4 1"flange bushing
2 Caster horn
10 Caster height spacer - 1/2"
4 Caster height spacer - 1/4"
2 Caster spacer set (complete 1 side)
2 Lynch pin
2 9-3.50 x 4 wheel & tire assy
2 5/8-11 x 5" hex bolt
2 5/8-11 jam lock nut
2 Spindle assy
8 3/8-16 x 1" hex bolt
8 3/8-16 smalI serrated flange nut
2 5/8-11 x 9-1/2" hex bolt
2 16" Io-lift blade
12 1/4" spacer
2 Spindle shaft key - 1/4" x 1"
2 Blade belt pulley
4 5/16-18 x 1/4" socket set screw
2 5/8-11 jam nut
1 3/8-16 x 2-1/2" hex bolt
1 Deck idler arm pivot boss
2 3/4" sleeve bushing
1 Deck idler arm
1 1/2" flat washer
GVTP SM32-R0303.1
34 3031987 1 3/8-16 small serrated flange nut
Snapper 32" Cut Mower
R0303.1
REF #
35
36
37
38
39
40
41
42
43
44
45
46
47
PART #
}031410
}031686
}036120
_032132
_031402
3031008
3031568
3031568
3036226
3031987
3036206
3027415
3031917
3046580
3075436
3079090
3079088
3031900

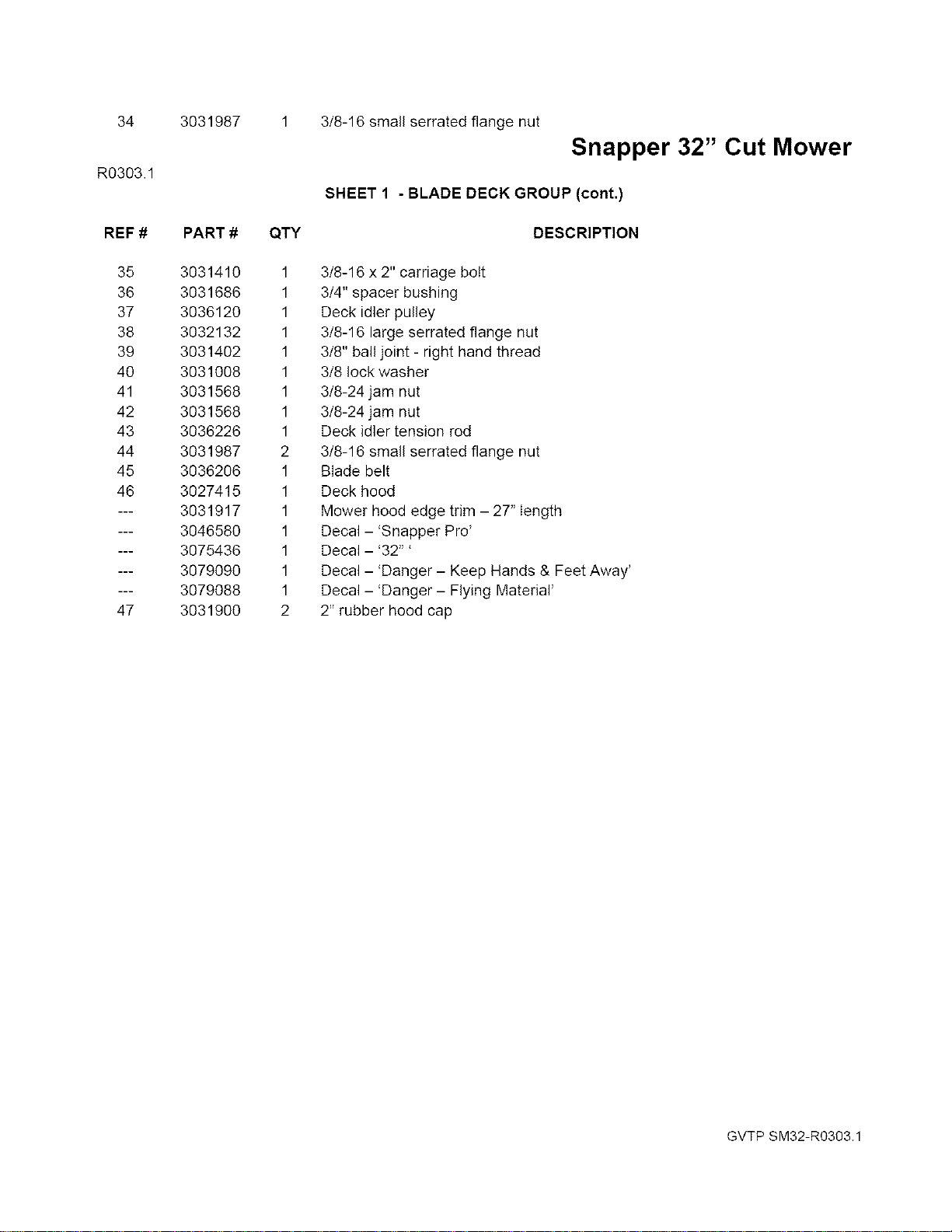

SHEET 1 - BLADE DECK GROUP (cont,)
QTY DESCRIPTION
1 3/8-16 x 2" carriage bolt
1 3/4" spacer bushing
1 Deck idler pulley
1 3/8-16 large serrated flange nut
1 3/8" ball joint - right hand thread
1 3/8 lock washer
1 3/8-24 jam nut
1 3/8-24 jam nut
1 Deck idler tension rod
2 3/8-16 small serrated flange nut
1 BIade belt
1 Deck hood
1 Mower hood edge trim - 27" length
1 Decal - 'Snapper Pro'
1 Decal - '32" '
1 Decal - 'Danger - Keep Hands & Feet Away'
1 Decal -'Danger- Flying Material'
2 2" rubber hood cap
GVTP SM32-R0303.1
2\
/
t,
"64
/ 62
60 \
®
58 _
57\
_15
29
/ 4O
/ 54
\ 49
I
/ 33
36 /
ToDriveWhee! i
I
I
11 -_#
12.................
I
!See Blade Deck Group
i
i
32" Cut Mower
ENGINE & TRANS GROUP
SHEET 2 OF 4
R0303.1
GVTP SM32-R0303.1
R0303.1
Snapper 32" Cut Mower
SHEET 2 - ENGINE & TRANS GROUP
REF # PART # QTY
DESCRIPTION (no model designation denotes common)
1 3010261
--- 3027503
--- 3031573
2 3039121
3 3031006
4 3031027
5 3027273
6 3031986
7 3031665
8 3036143
9 3036222
10 3036325
11 3031409
12 3031319
13 3031414
14 3033229
15 3037088
16 3031660
17 3031314
18 3036142
--- 3031439
19 3031423
20 3036140
21 3031388
22 3031034
23 3025155
24 3036141
25 3031027
26 3031355
27 3036301
--- 3031419
28 3031302
29 3031309
30 3036321
31 3031107
32 3036153
33 3031635
34 3032129
35 3036320
36 3036154
--- 3031439
37 3036155
38 3023264
39 3031722
40 3031461
1 Engine base
1 Blade cam cover plate
2 #10 x 1/2" sheet metal screw
1 Engine - 13hp Kawasaki w/5 amp coil
4 5/16-18 x 1-1/2" hex bolt
1 5/16 flat washer
1 Blade clutch anti-torque pin
4 5/16-18 small serrated flange nut
1 Engine shaft key - 1/4" x 1-7/8"
1 Engine-to-trans pulley
1 1/4" spacer
1 Electric blade clutch
1 7/16" heavy duty washer
1 7/16" lock washer
1 7/16-20 x 2 socket head cap screw
1 Transmission
1 Transmission ball switch
4 5/16-18 x 3/4" 'F' thread bolt
1 #9 woodruff key
1 Transmission pulley
1 5/16-18 x 1/4" socket set screw
1 5/8" snap ring
1 Transmission belt
1 Trans idler bolt
1 3/8" flat washer
2 5/16" SAE washer
1 Trans idler pulley
1 5/16" flat washer
1 3/8-16 lock nut
2 Trans axle coupler
2 Grease fitting - 1/4-28 threaded
2 5/8" locking collar
2 1/4" spacer
1 Trans axle - right
2 #9 woodruff key
2 5/8" bearing unit
4 1/4-20 x 5/8" hex bolt
4 1/4-20 serrated flange nut
1 Trans axle - left
2 2-V drive pulley
2 5/16-18 x 1/4" socket set screw
2 2-V drive belt
1 Shift lever
1 Handle grip - 1/4" x 1-1/4" x 4-1/2"
1 1/2-13 x 2-1/2" hex bolt
GVTP SM32-R0303.1
R0303.1
REF #
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
6O
61
62
63
64
65
66
PART #
3023182
3031637
3031915
3031034
3027412
3079096
3031031
3031986
3027429
3027420
3027421
3031031
3031436
3031032
3031027
3031986
3027484
3027485
3031031
3031986
3032151
3034923
3031292
3032129
3044639
3031755
3016325
3031755
3034095
3044640
Snapper 32" Cut Mower

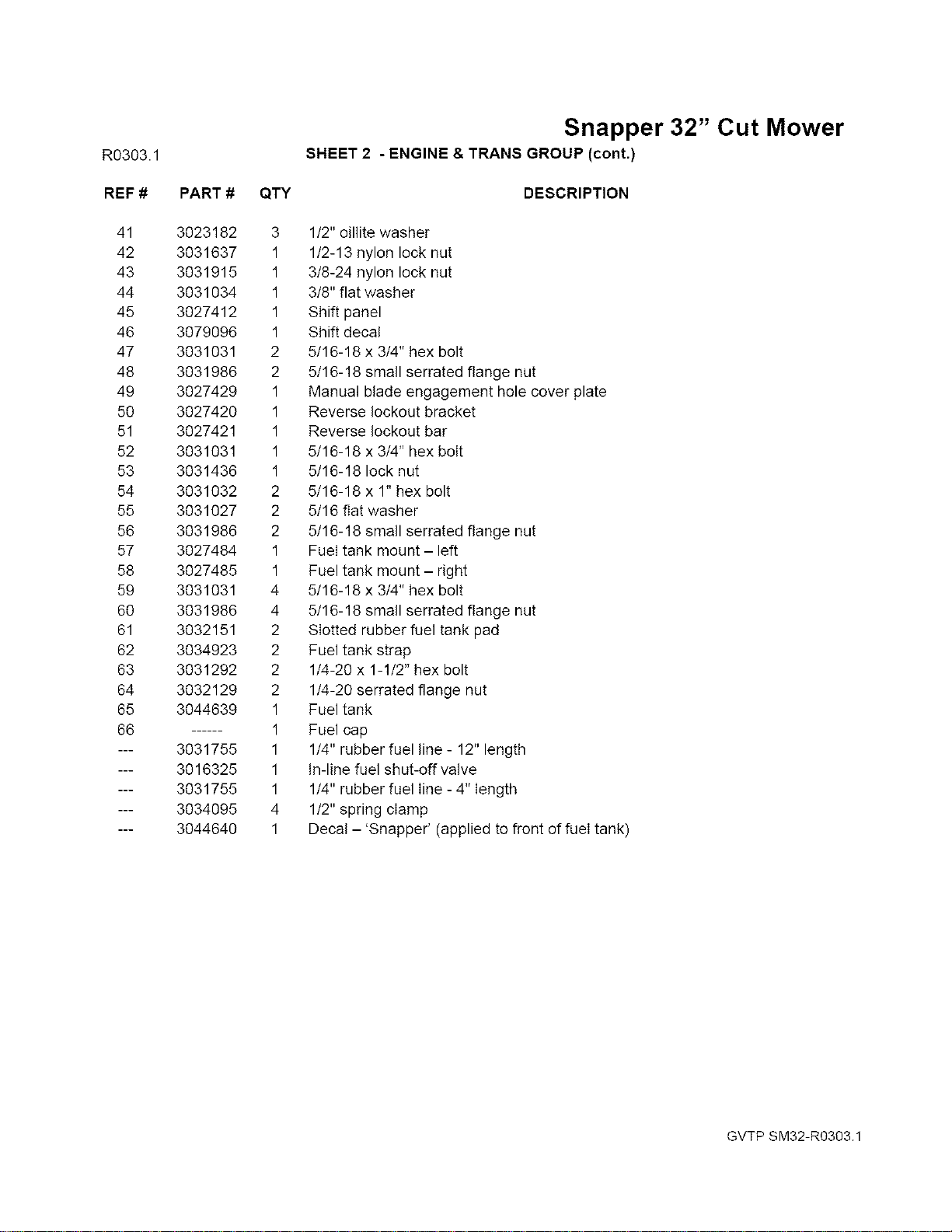

SHEET 2 - ENGINE & TRANS GROUP (cont.)
QTY DESCRIPTION
3 1/2" oillite washer
1 1/2-13 nylon lock nut
1 3/8-24 nylon lock nut
1 3/8" flat washer
1 Shift panel
1 Shift decal
2 5/16-18 x 3/4" hex bolt
2 5/16-18 small serrated flange nut
1 Manual blade engagement hole cover plate
1 Reverse lockout bracket
1 Reverse lockout bar
1 5/16-18 x 3/4" hex bolt
1 5/16-18 lock nut
2 5/16-18 x 1" hex bolt
2 5/16 flat washer
2 5/16-18 small serrated flange nut
1 Fuel tank mount - left
1 Fuel tank mount - right
4 5/16-18 x 3/4" hex bolt
4 5/16-18 small serrated flange nut
2 Slotted rubber fuel tank pad
2 Fuel tank strap
2 1/4-20 x 1-1/2" hex bolt
2 1/4-20 serrated flange nut
1 Fuel tank
1 Fuel cap
1 1/4" rubber fuel line - 12" length
1 In-line fuel shut-off valve
1 1/4" rubber fuel line - 4" length
4 1/2" spring clamp
1 Decal - 'Snapper' (applied to front of fuel tank)
GVTP SM32-R0303.1
/
See Engine &Trans Group
//
//
,?
//
,;, ---See Handle Group
23 /
//
393
29 / /
32 '
/12
/
32" CutMower
S/DE/DLER &AXLE GROUP
SHEET3 OF 4
R0303.1
/13
GVTP SM32-R0303.1
R0303.1
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
3O
31
32
33
34
35
36
37
PART #
3033231
3027407
3027408
3031008
3031033
3023152
3023151
3031613
3031423
3023153
3023154
3031426
3031425
3031427
3033218
3031583
3023150
3031027
3031382
3031910
3031027
3031382
3031896
3023255
3023256
3031613
3031467
3031417
3036156
3031911
3031406
3031860
3031406
3027405
3027406
3031033
3032132
3031862
3031406
3031112
3031987
3031088
3031986
Snapper 32" Cut Mower
SHEET 3 - SIDE IDLER & AXLE GROUP
QTY DESCRIPTION
1 Axle assembly
1 Brake pivot plate - left
1 Brake pivot plate - right
4 3/8" lock washer
4 3/8-16 x 1 hex bolt
1 Brake arm - left
1 Brake arm - right
2 Grease fitting - 1/4" push-in
2 5/8" retaining washer
2 Brake link plate w/pins
2 Brake link plate - no pins
2 3/8" push-on washer
4 5/16" push-on washer
2 Brake band
2 13-5.00 x 6 wheel & tire assy (w/pulleys & brake drum)
2 1" locking collar
2 Lower brake rod
2 5/16 flat washer
2 #2 bridge pin
2 Rod fitting end - unthreaded
2 5/16 flat washer
2 #2 bridge pin
2 5/16-18 wing nut w/nylon insert
1 Side idler plate - left
1 Side idler plate - right
2 Grease fitting - 1/4" push-in
2 1/2-13 x 3-1/2" hex bolt
2 1/2" id x 5/8" spacer
2 Side idler pulley
2 1/2" id x 3/8" spacer
2 1/2-13 lock nut
2 Side idler tension spring
2 1/2-13 lock nut
1 Side idler spring bracket - left
1 Side idler spring bracket - right
4 3/8-16 x 1 hex bolt
4 3/8-16 large serrated flange nut
2 5/8 x 4-1/4" shoulder bolt
2 1/2-13 lock nut
2 3/8-16 x 1-1/2" hex bolt
4 3/8-16 small serrated flange nut
2 5/16-18 x 3" hex bolt
4 5/16-18 small serrated flange nut
GVTP SM32-R0303.1
R0303.1
REF #
38
39
4O
44
45
46
PART #
3027511
3027512
3031031
3031986
3031383
3031027
3031382
Snapper 32" Cut Mower

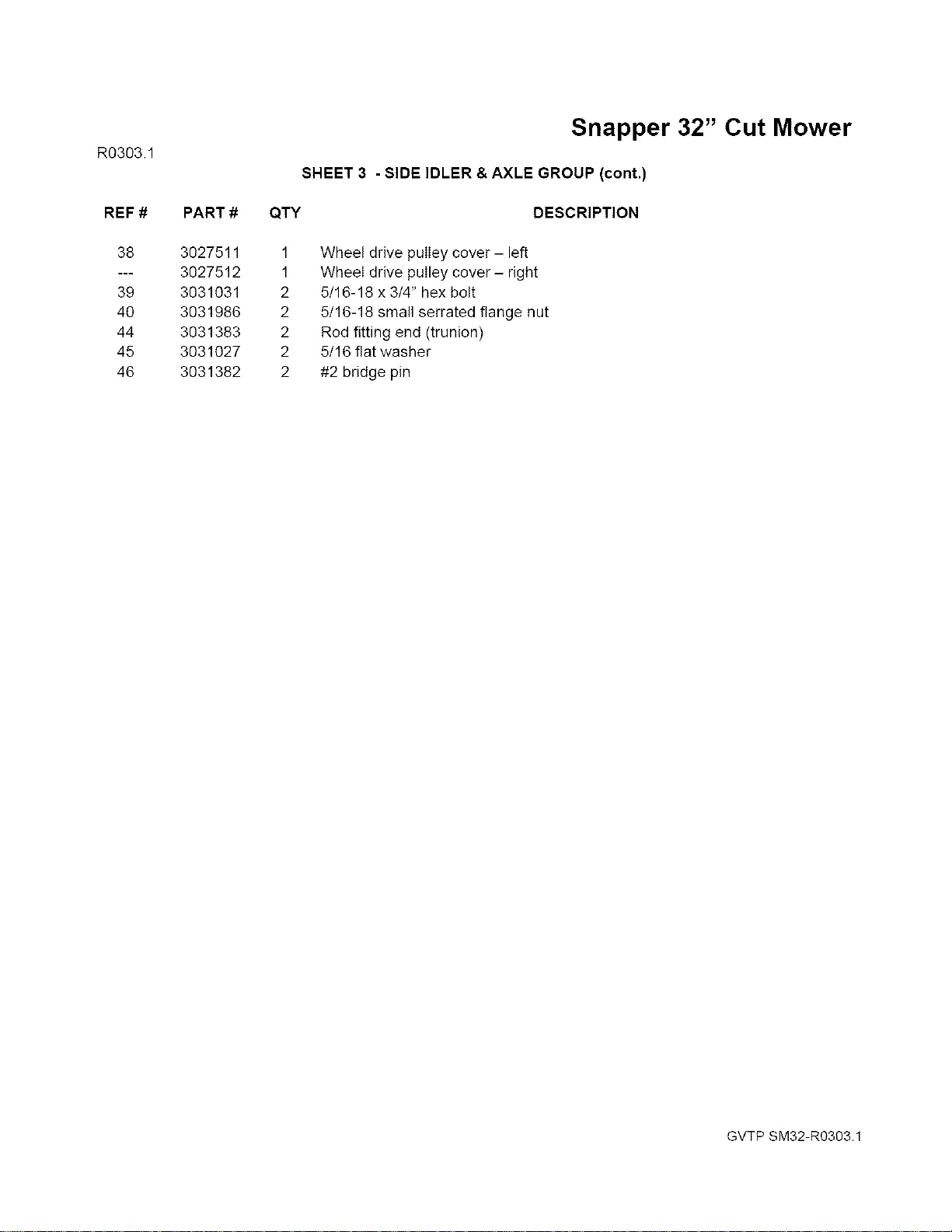

SHEET 3 - SIDE IDLER & AXLE GROUP (cont.)
QTY DESCRIPTION
1 Wheel drive pulley cover - left
1 Wheel drive pulley cover - right
2 5/16-18 x 3/4" hex bolt
2 5/16-18 small serrated flange nut
2 Rod fitting end (trunion)
2 5/16 flat washer
2 #2 bridge pin
GVTP SM32-R0303.1
\
\
/
/"
SeeSide/d/el & _/e G_'ou£
/
......:..:.:,_:::,:7 J "---. . - &'ffa_ e_ou#
_," .,/ _-. SeeEngln_
,/
32"Cut Mower
HANDLE GROUP
SHEET4 OF4
R0303.t
GVT9 SM32-_O303A
R0303.1
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
22a
22b
23
24
25
26
27
28
29
3O
31
32
33
PART #
3023511
3032136
3031283
3031122
3032130
3023259
3031379
3031710
3031098
3023131
3023184
3023130
3031292
3031579
3031098
3031890
3031381
3023512
3031693
3023167
3023166
3031439
3031480
3031100
3031585
3035020
3032140
3035021
3079253
3031100
3031007
3031584
3032011
3031808
3031806
3031581
3039108
3032137
3027504
3075601
3031031
3031986
3032148
QTY
1
1
2
4
4
2
2
2
2
2
1
1
2
2
2
2
2
1
2
1
1
2
1
2
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
2
2
1
Snapper 32" Cut Mower
SHEET 4 - HANDLE GROUP
DESCRIPTION
Handle assembly
Mower dash overlay decal
Handle grip - l"dia x 4-1/2"
1/2-13 x 1-1/4" hex bolt
1/2-13 serrated flange nut
Brake handle
Handle grip - 1/4" x 3/4" x 4"
1/4-20 x 2" hex bolt
1/4-20 lock nut
Upper brake rod
Brake lock - left
Brake lock - right
1/4-20 x 1-1/2" hex bolt
1/4" spring washer
1/4-20 lock nut
5/16" fender washer
#1 bridge pin
Safety switch rod
3/8" id flange bushing
Safety handle - left
Safety handle - right
5/16-18 x 1/4" socket set screw
Handle safety switch
3/16 pop rivet
Safety switch spring
Throttle control
Snap bushing - .500 id
Auxiliary choke cable (not shown)
Decal - 'Pull for Choke' (applied to mower dash overlay)
Pop rivet (attaches throttle to handle dash)
Throttle cable clip (fastens cable to handlebar)
Throttle T-handle
Off switch
3" jumper wire - 1/4" female to 1/4" ring - Off switch ground
5/8" star washer
5/8-18 jam nut
Key set (set of 2)
PTO switch
Safety instruction decal bracket
Safety instruction decal
5/16-18 x 3/4" hex bolt
5/16-18 small serrated flange nut
Wiring harness
GVTP SM32-R0303.1
R0303.1
REF #
34
35
36
PART #
3031916
3031864
3032149
3031635
3031806
3032129
3032012
3031635
3032129
QTY
1
2
1
1
1
1
1
1
1
Snapper 32" Cut Mower

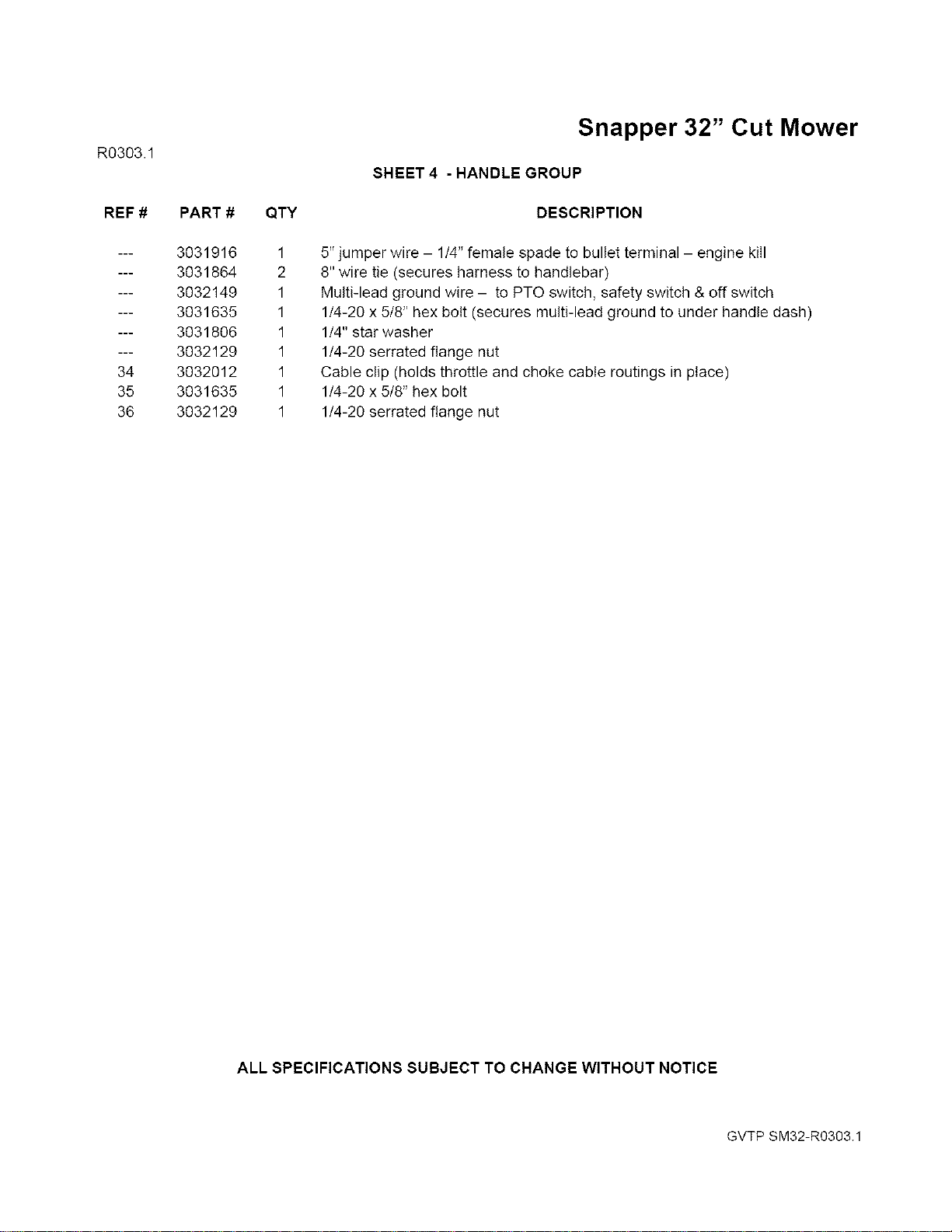

SHEET 4 - HANDLE GROUP
DESCRIPTION
5" jumper wire - 1/4" female spade to bullet terminal - engine kill
8" wire tie (secures harness to handlebar)
Multi-lead ground wire - to PTO switch, safety switch & off switch
1/4-20 x 5/8" hex bolt (secures multi-lead ground to under handle dash)
1/4" star washer
1/4-20 serrated flange nut
Cable clip (holds throttle and choke cable routings in place)
1/4-20 x 5/8" hex bolt
1/4-20 serrated flange nut
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
GVTP SM32-R0303.1
2-terminalhousing-
PTO switch- locations'G" &'H' '
1/4"female-
PTO switch - location'B'
\
\
1/4"female- \
\
safetyswitch \\ \\
t/4" female- \_ \
A B C
'/ PTO switch _D F i
(looking up
frombelow) G
i
i i ' i
A - Notused
B- To 1/4"Femaleon Harness
C - To Groundlead
D-F- Not Used
G-H- To 2-terminal housingonHarness
1/4"female-
enginehot _
1/4"male- -
4"..
-- .. 2-terminalfemale housing-
TransmissionBall Switch
" - -. _2-terminalmale housing-
BladeClutch
32" CutMower
HARNESS WIRING SCHEME
GVTP SM32-R0303.1
SNAPPER
McDonough, GA 30253 U.S.A.
GVTP SM32-R0303.1
