Description: ROBINHOOD SUPERTUB SERIES 3 WORKSTATION
Model Number: ST1200
Model pictured: ST1200
Issue:
1

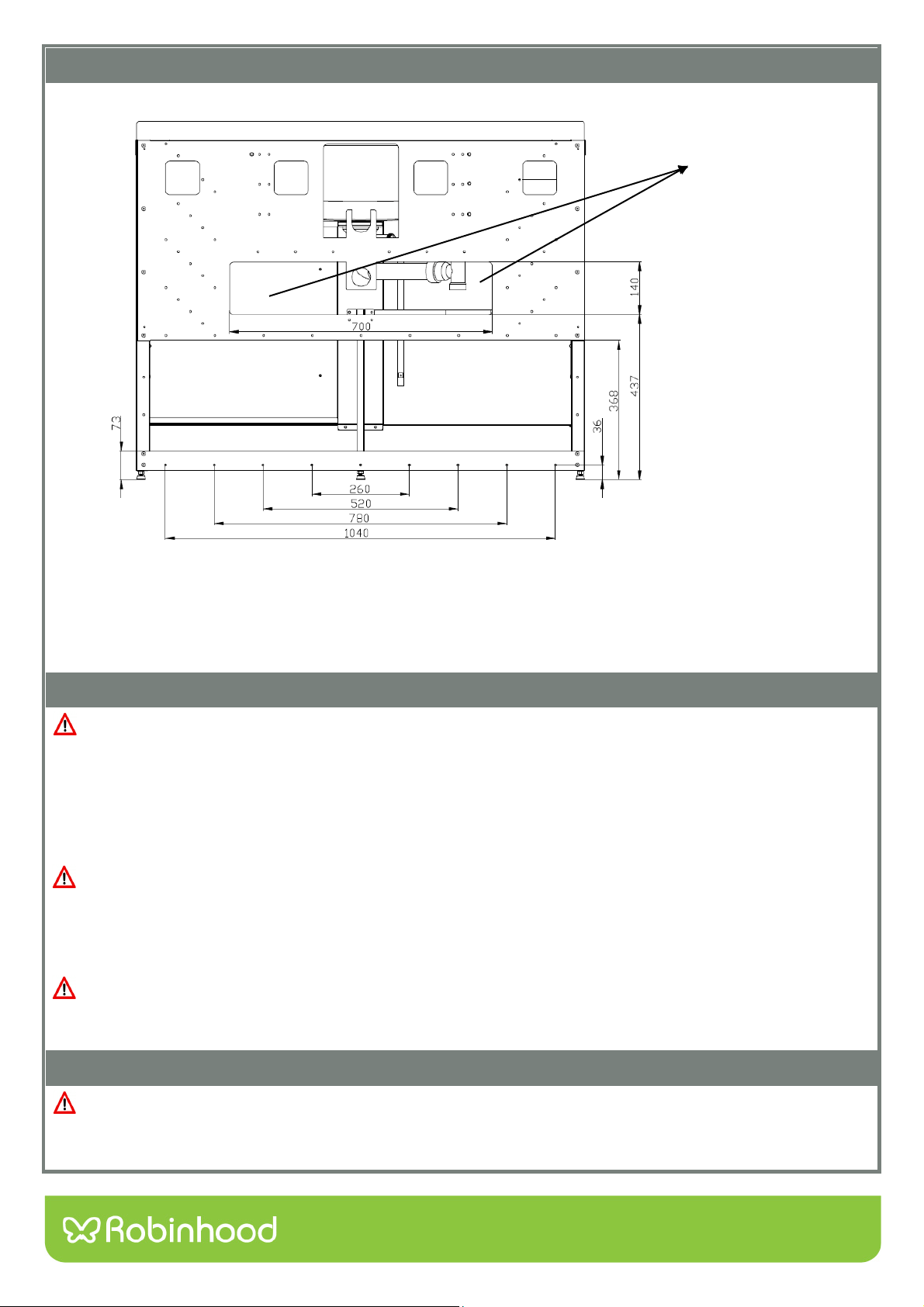

All dimensions in mm; Model may vary slightly from images pictured
2
Back view and wing back position
Contents of packaging:
1 x Robinhood Supertub (incl waste system and square brushed stainless steel pole handles)
1 x Installation kit (incl adjustable feet and 3 way ball valves)
1 x Stainless Steel gooseneck tap (incl flexible hoses and mounting nut)
Pre-installation
Important:
o Please read the entire instructions before installing the laundry tub.
o Ensure the household pipes are thoroughly flushed to remove debris before connecting your laundry tub to
the pipe works. To prevent foreign particles damaging the ceramic cartridge an ‘in-
line’ filter is
recommended to be installed prior to the mixer.
o Warranty on single lever mixer is void if the in-line filter is not fitted.
o Recommended temperature range 5° to 65°C. Maximum temperature 80°C.
o Maximum pressure 72.5 PSI (500 kPa), minimum pressure 22 PSI (150 kPa).
Regulation compliance
Comply with current Drainage and Plumbing Regulations as required by your local authority. Sanitary
plumbing shall only be carried out by a Registered Plumber. All plumbing work must be done in accordance
with local and national building and plumbing codes as applicable.
All electrical work must be done in
accordance with local and national electrical codes as applicable. In some instances this product may need to
be earthed.
Determine site
Determine the most suitable position for the laundry tub. It may be used either to the left or right of the
washing machine. Allow 10mm clearance between the units. Mark the position on the floor as reference.
Important safety information
This Robinhood Supertub is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the Robinhood Supertub.
DO NOT use abrasive household cleaner.
Idea position
for wing backs
3
Confirm if the
washing machine water
inlet needs to be moved from right to left before securing the unit to the wall.
If
needed, please see page 6 of the installation instructions.

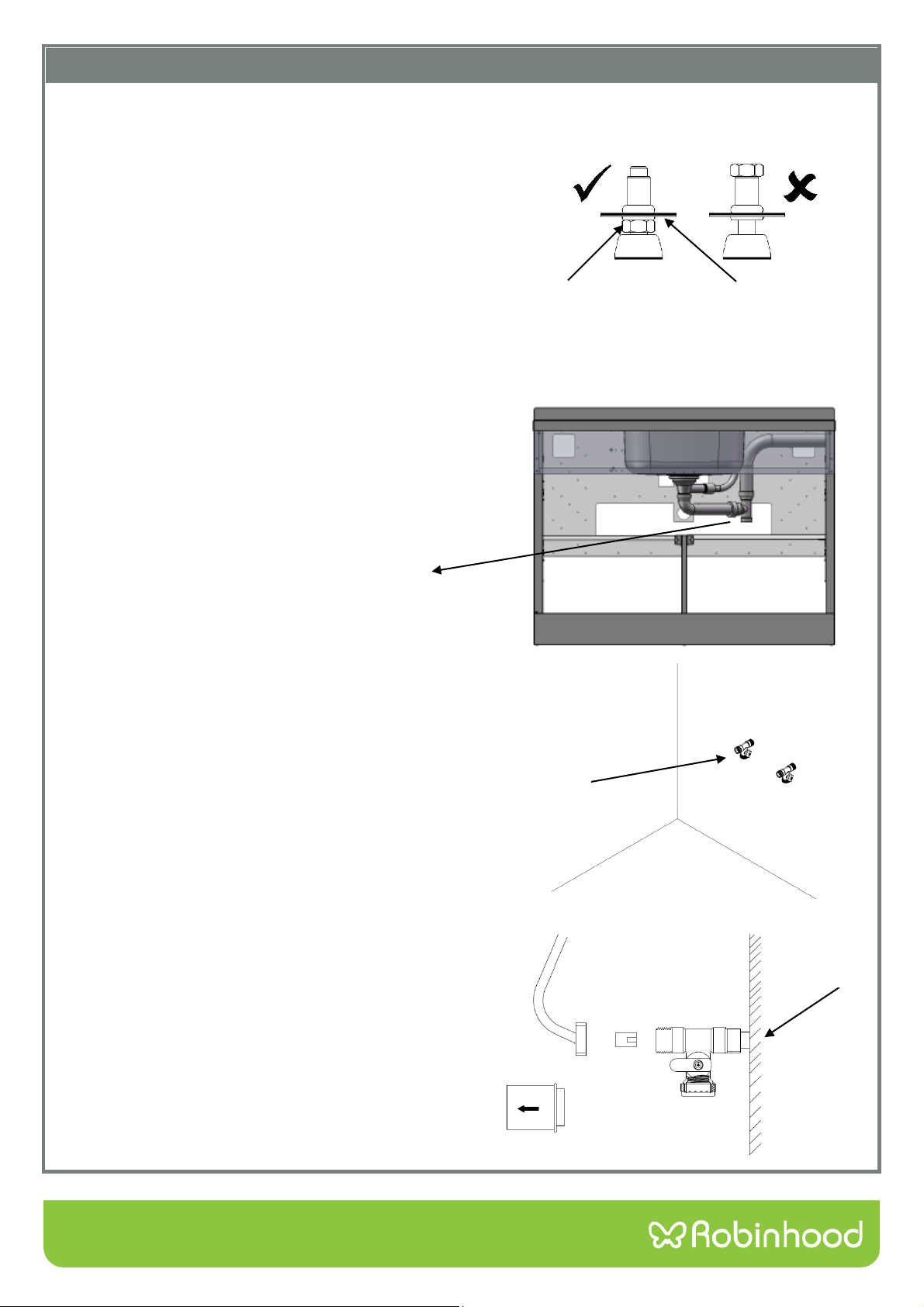

Locknut Bottom of the unit
2. Line up the laundry tub to the installation position and confirm that there is enough room, if necessary, remove
the skirting board at the require distance (1200mm) this will allow the unit to sit flush against the wall. (Check
with your local council for building regulations). Remove the laundry tub away from the wall.
Installing the Supertub
1. Fit the four adjustable feet supplied to the bottom of
the cabinet and adjust to align with bencht
op or
washing machine height. Use the lock nut to secure
the feet into desired position. Tilt laundry tub slightly
to assist with access. Check the top of the laundry tub
with a spirit level to ensure that it is level and check
that the cabinet does not “rock” and confirm both
doors operate correctly.
4. Connect the hot and cold 3 way ball valves from the
installation kit to the mains wingbacks using suitable
washers / hemp / ptfe tape.
Note: If fittings are required standard parts are
available at most plumbing supply outlets. Confirm
that the ¾” washing machine cap is secure and will
not leak.
3 way ball valves
3. This unit comes with 2 shelves and floors,
one set has cut-outs for the waste pipe,
and they can be easily swapped over to ensure
waste pipe can be connected to the side that is
required. Connect the black rubber washing
machine hose protector with the waste pipe.
5. Fit the non-return valve from the installation kit
into the hot 3 way ball valve, ensure that the flow
arrow is the correct way (if fitted the wrong way
no water will come through the valve).
Wing
backs
O-ring to be inserted
first into the 3 way
ball valve
Non return valve
Direction of flow
Can be adjusted
to either side
4
7. Position the laundry tub and cut the house waste pipe (which should already be installed) to the exact
height. The final height will depend on the waste trap dimensions.
8. Fasten the laundry tub to the wall through any of the holes in the rear flanges. Alternative fastening can
be achieved through the floor. Confirm that the doors operate correctly.
9. Connect the hot and cold from the tap ware to the 3 way ball valves; connect the waste system and the
trap to the laundry tub.
10. Test the laundry tub for leaks. Check the tap ware, washing machine caps and the waste system.
11. Seal the laundry tub to the wall using suitable approved sealant. (Check with your lo
cal council for
building regulations).
Confirm if the washing machine waste inlet needs to be moved from right to left before securing the unit to the
wall. If needed, please see page 5-6 for detailed instructions.
1.
Cold water washing machine required, identify cold water 3 way ball valve confirm that the valve is shut
horizontal and remove the ¾” cap and seal. (Keep the cap in a safe location in case you need to remove the
washing machine at a later date). Feed the cold water hose from the washing machine through the white
plastic washing machine waste inlet to the 3 way ball valve, confirm the seal is okay and then connect them
together.
2. Hot water not required, then checks the cap only and make sure it is tight and that the 3 way ball valve is in
the off position.
3. Hot water washing machine required, identify the cold water 3 way ball valve confirm that the valve is shut
horizontal and then remove the ¾” cap and seal. (Keep the cap in a safe location in case you ne
ed to
remove the washing machine at a later date). Feed the hot water hose from the washing machine through
the white plastic washing machine waste inlet
to the 3 way ball valve, confirm the seal is ok then and
connect them together.
4. Washing machine waste hose connection through the white plastic washing machine waste inlet and make
sure that the hose is as far down the hose as possible and then to prevent the washing machine waste hose
from coming loose use the cable tie from the installation kit to fasten the hose firmly to the white plastic
washing machine waste connector. (see next page for picture)
Important:
Ensure the washing machine outlet hose is correctly fitted at both ends and that the spring clips are firmly in
place to prevent leakage.
Installing the Supertub cont.
Installing the washing machine water inlet and waste outlet
6. Fit the tap ware to the tub using the supplied fittings.
Connect the two flexible hoses onto the body of the
tap ware from the underside; ensure that the flexible
hoses are fitted to the hot and cold correctly. Hand
tightened and then finished with a quarter turn only.
5
Op
erating the Stainless Steel gooseneck tap
The tap is operated in conjunction with the Hot and Cold (H&C) indicators on the tap handle.
Installing the washing machine water inlet and waste outlet
Operating Instructions
Operating the washing machine by adjusting 3 way ball valves
1. To use the washing machine from the mains water supply, simply turn the 3 way ball valves quarter turn
valve on. (Shown as above)
2. To isolate the washing machine from the mains water supply, simply turn the 3 way ball valves quarter
turn off. This will isolate the washing machine from the mains water supply but still allow water to flow
through the laundry tub tap. (Shown as above)
1
2
Washing machines hoses
Some parts are hidden for clarity
6
Please follow below instructions:
The washing machine outlet waste hose can be connected to either side of the Robinhood Supertub.
1. On the outside of the laundry tub, remove the screws from the white plastic washing machine waste inlet
and the white plastic blanking plate.
2. On the inside of the laundry tub, remove the clip from the white plastic washing machine waste inlet and
black flexible hose, move the white plastic part to the other side of the laundry tub
3. Reconnect the washing machine flexible hose to the left hand side replace the clip and ensure good seal.
4. On the outside of the laundry tub secure the white plastic washing machine waste inlet with six screws.
5. On the opposite side of the laundry tub secure the white plastic blanking plate with six screws

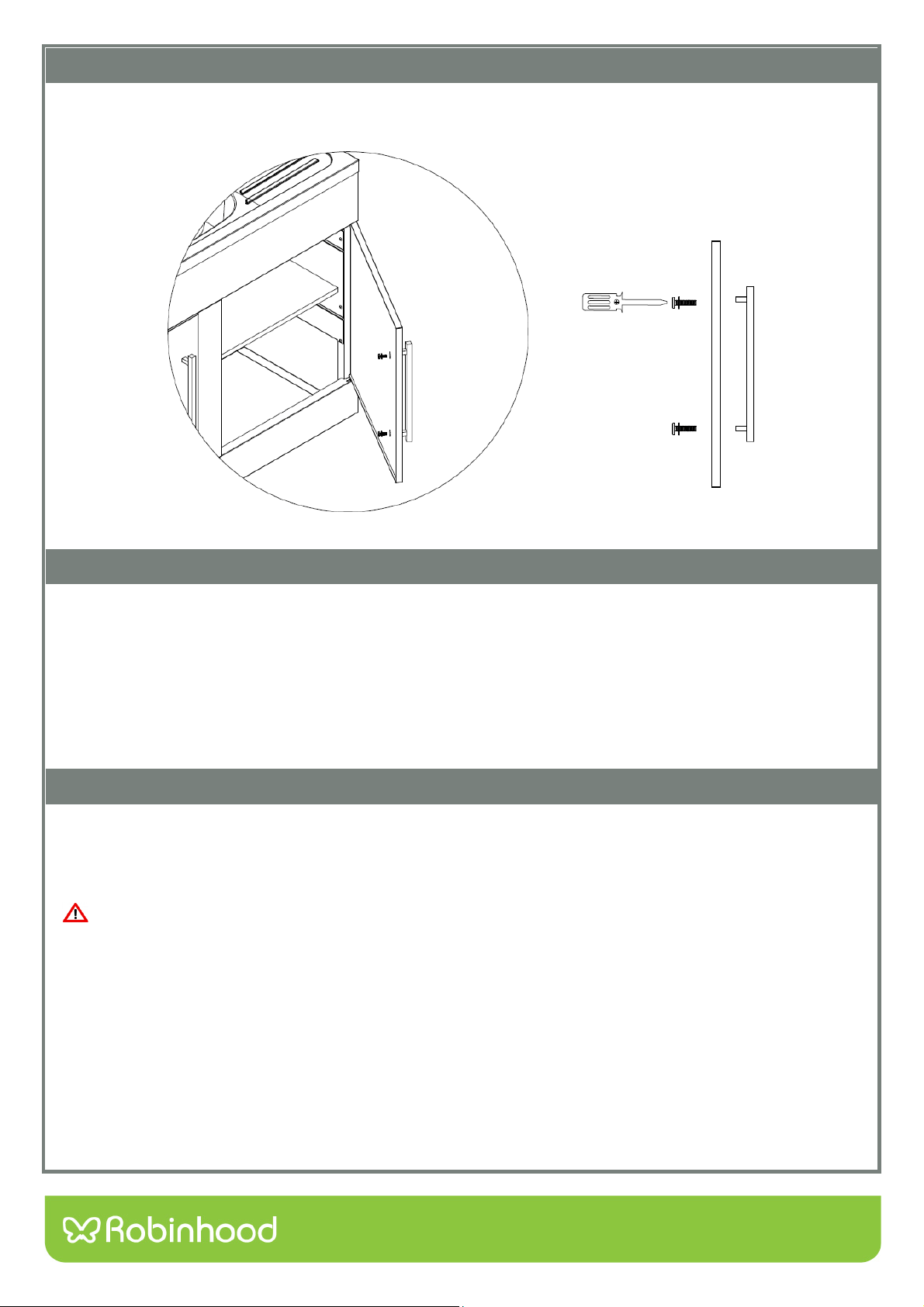

Installing the handle
Changing the washing machine inlet from right to left
Cleaning and maintenance
Powder coated surfaces must not be cleaned with abrasive or chemical cleaners. To keep the Robinhood
Supertub looking its best, wipe regularly with a damp soft cloth. A mild soap and water solution may be used to
remove stubborn dirt. Under no circumstances should harsh detergents (including chemical cleaners) such as
bleach, scourers or any abrasive cleaner be used as these products may irreparably damage the surfaces of the
Robinhood Supertub.
NB. Their use will render the warranty void.
7
Warranty Certificate (New Zealand)
Terms and Conditions
The following conditions apply in respect of the warranty given in this certificate:
1.
Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty
materials, under normal use and subject to the exclusions in this certificate, for a period of:
Uniduct – 12 months from date of original purchase for domestic use.
Supertub - 5 years on stainless bowl, 24 months on Tap, Cabinet and other components from the date of original
purchase for domestic use.
Ironing centre – 12 months from date of original purchase for domestic use.
Waste disposal – 24 months from date of original purchase for domestic use.
“Original purchase”, when used in this certificate, means purchase by the customer directly from Monaco or one of its
approved suppliers.
2.
This warranty is limited to the repair or replacement, at our option, within the warranty period of any component part
which we at our discretion determines to contain faulty materials or a manufacturing defect in breach of this warranty.
This warranty is subject to terms and conditions set out in this certificate.
3.
The warranty only applies within New Zealand.
4.
The customer must produce the original invoice or other purchase documentation as proof of the original purchase date.
Warranty exclusions
1.
The warranty does not apply where, in Monaco’s opinion:
The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.
The product has been repaired or serviced by an unauthorised person.
The product was not installed in accordance with our instructions.
The product was purchased overseas or was not designed for use in New Zealand.
The product was not used, cleaned or cared for in accordance with our instructions.
The product was used outdoors.
All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for
outdoor use.
2.
In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to:
Exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;
Using inappropriate household cleaning products such as abrasive cream or powder cleansers, furniture polish, bleach,
mentholated spirits, drain cleaners, sugar soap, metal pads and strongly alkaline or acidic cleaners;
Heat damage, including from washing the product at high temperatures;
Impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the product
surface or excessive weight being placed on the product;
Structural or support changes in or affecting the building or the application where the product has been installed;
Failure to clean or maintain the product as recommended; or
Any other causes specified in the product information as being excluded from this warranty.
3.
Variations with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time are not
not covered by this warranty. The warranty does not cover visual imperfections or blemishes in the surface and edges of the
product that were not brought to your supplier’s attention at the time you inspected the product.
4.
Costs incurred on installation or removal of a product, or any reinstallation of a product, or any associated costs, are not
covered by this warranty.
5.
Monaco will not be liable for consequential or indirect loss or damage whatsoever and however arising out of or in connection
with the supply, performance or removal of the product, including (but not limited to) loss of profit, loss of revenue, loss of
contract, loss of goodwill or increased cost of workings, even if due to the negligence of Monaco or any of its approved
suppliers, employees or agents.
6.
Charcoal filters and light bulbs are not covered by this warranty
7.
This warranty and the statements contained in this certificate or other documents given to you do not exclude, restrict or
modify the application of any term implied into this warranty by statute, provided that (to the extent any statutory provision
permits Monaco to limit its liability for a breach of an implied condition or warranty) Monaco’s liability for such breach is limited
to the payment of the cost of replacing the product, repairing the product or acquiring an equivalent product.
8.
Subject to clause 5, our obligations under this warranty are limited to those set out in this certificate, and this warranty is
expressly instead of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a
particular purpose and notwithstanding any course of dealing between the parties or custom and usage in trade to the contrary.
Should warranty service be required, please contact us:
Phone: (09) 415 6000
Fax: (09) 415 7400
Email: enquiries@robinhood.co.nz
Website: www.robinhood.co.nz
Terms and conditions are subject to change without notice
New Zealand
Monaco Corporation Limited
Telephone: (09) 415 6000
Facsimile: (09) 415 7400
Email: enquiries@robinhood.co.nz
www.robinhood.co.nz
8
Warranty Certificate (Australia)
ECN: 07034 ECN: 07034
Terms and Conditions
If you are a consumer under the Australian Consumer Law, our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure
1. Shriro Australia Pty Limited (“Shriro”) also warrants the following Robinhood products against manufacturing defects and faulty materials, under
normal use and subject to the exclusions in this certificate, for a period of:
Rangehood, Ovens, Cooktops - 24 months from date of original purchase for domestic use.
Uniduct – 12 months from date of original purchase for domestic use.
Ironing centre – 12 months from date of original purchase for domestic use.
Taps, including Pull-out and Mixer taps – 5 years on parts only from date of original purchase domestic for use, 24 months parts and labour from
date of original purchase for domestic use
Sinks sets– 5 years on stainless steel sink including draining bench from date of original purchase for domestic use, 6 months on all stainless steel
accessories, including wire rack, colander and tray from date of original purchase for domestic use.
Supertub - 5 years on stainless bowl, 24 months on Tap, Cabinet and other components from the date of original purchase for domestic use.
“Original purchase”, when used in this certificate, means purchase by the customer directly from Shriro or one of its approved suppliers.
2. This warranty is limited to the repair or replacement, at our option, within the warranty period of any component part which we at our discretion
determine to contain faulty materials or a manufacturing defect in breach of this warranty. This warranty is subject to terms and conditions set out
in this certificate.
3. The warranty only applies within Australia.
4. For warranty service outside of capital city metropolitan area or 30 km from nearest authorised service agent you will be liable for reasonable
travelling expenses and the cost of transport of the product or parts to and from the service agent
5. To make a claim under this warranty, you must produce the original invoice or other purchase documentation as proof of the original purchase
date. You must send your claim to Shriro Australia Pty Limited, 104 Vanessa Street, Kingsgrove, NSW 2208, within 7 days of any alleged defect or
failure of the product first becoming apparent, you are responsible for the expense of making a claim under this warranty.
This warranty is given by:
Shriro Australia Pty Ltd
ABN 28 002 386 129
Telephone: 1800 648 556
Facsimile: 1800 628 577
Email: [email protected].au
www.robinhood.com.au
Attention Customer Services Manager
Warranty exclusions
1. The warranty does not apply where, in Shriro’s opinion:
The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.
The product has been repaired or serviced by an unauthorised person.
The product was not installed in accordance with our instructions.
The product was purchased overseas or was not designed for use in Australia.
The product was not used, cleaned or cared for in accordance with our instructions.
The product was used outdoors.
2. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use.
3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the
product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone; using inappropriate household cleaning
products such as abrasive cream or powder cleansers, furniture polish, bleach, mentholated spirits, drain cleaners, sugar soap, metal pads and
strongly alkaline or acidic cleaners; heat damage, including from washing the product at high temperatures;
impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the product surface or excessive
weight being placed on the product; structural or support changes in or affecting the building or the application where the product has been
installed; failure to clean or maintain the product as recommended; or any other causes specified in the product information as being excluded from
this warranty.
4. Variations with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time are not covered by this
warranty. The warranty does not cover visual imperfections or blemishes in the surface and edges of the product that were not brought to your
supplier’s attention at the time you inspected the product.
5. We will not be responsible under this warranty for, nor pay the costs of, removing the existing product, or reinstalling the new product, or any
associated costs or damages.
6. Charcoal filters and light bulbs are not covered by this warranty
The benefits given by this warranty are in addition to other rights and remedies of consumers under any law in relation to the goods which cannot be
excluded.
This warranty certificate is not intended to create a contract between Shriro Australia Pty Limited and the purchaser.
Australia
Shriro Australia Pty Limited
(ABN 28 002 386 129)
Telephone: 1800 648 556
Facsimile: 1800 628 577
Email: [email protected].au
www.robinhood.com.au
