Table of Contents
iMPORTANT iNSTRUCTiONS .............. 1

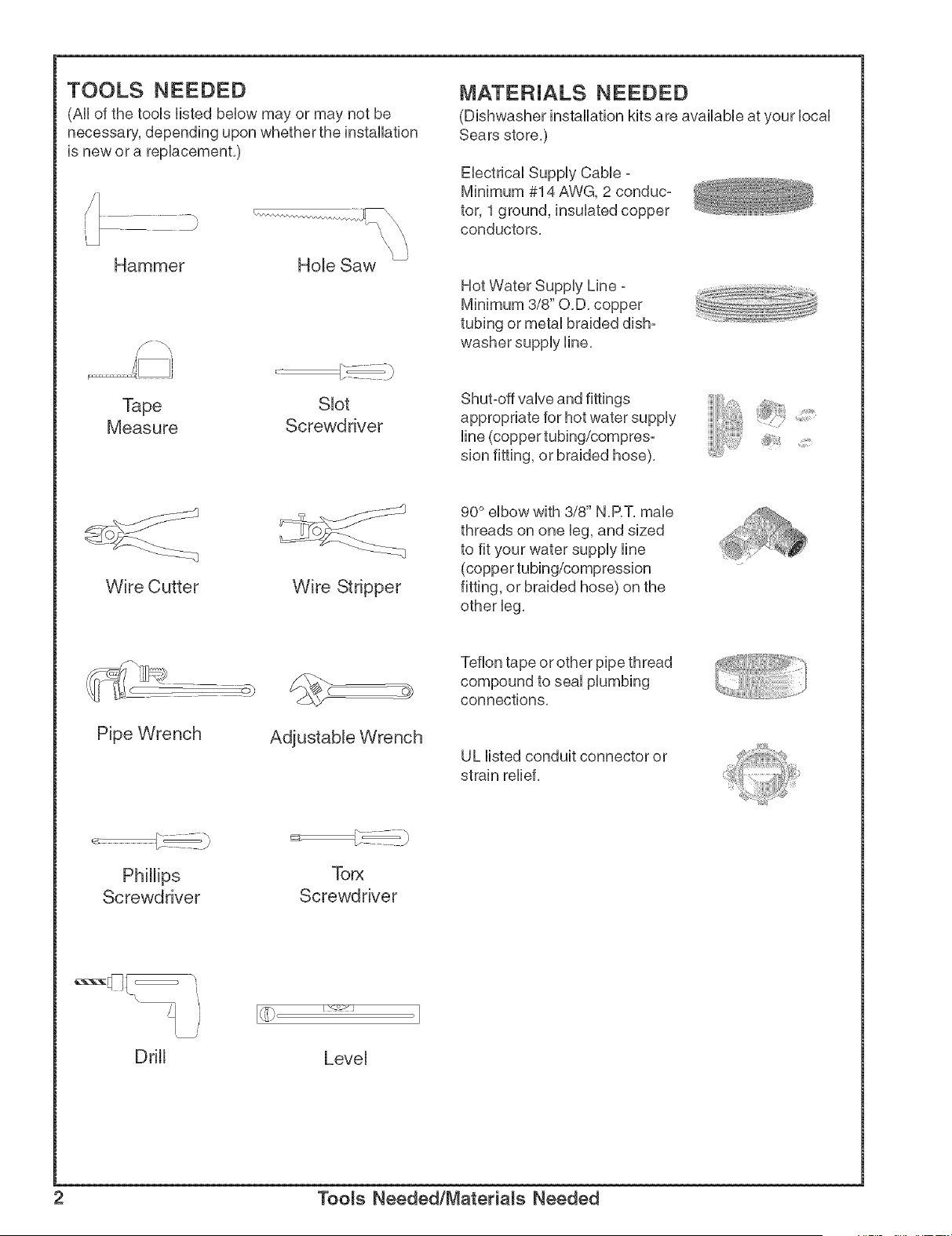

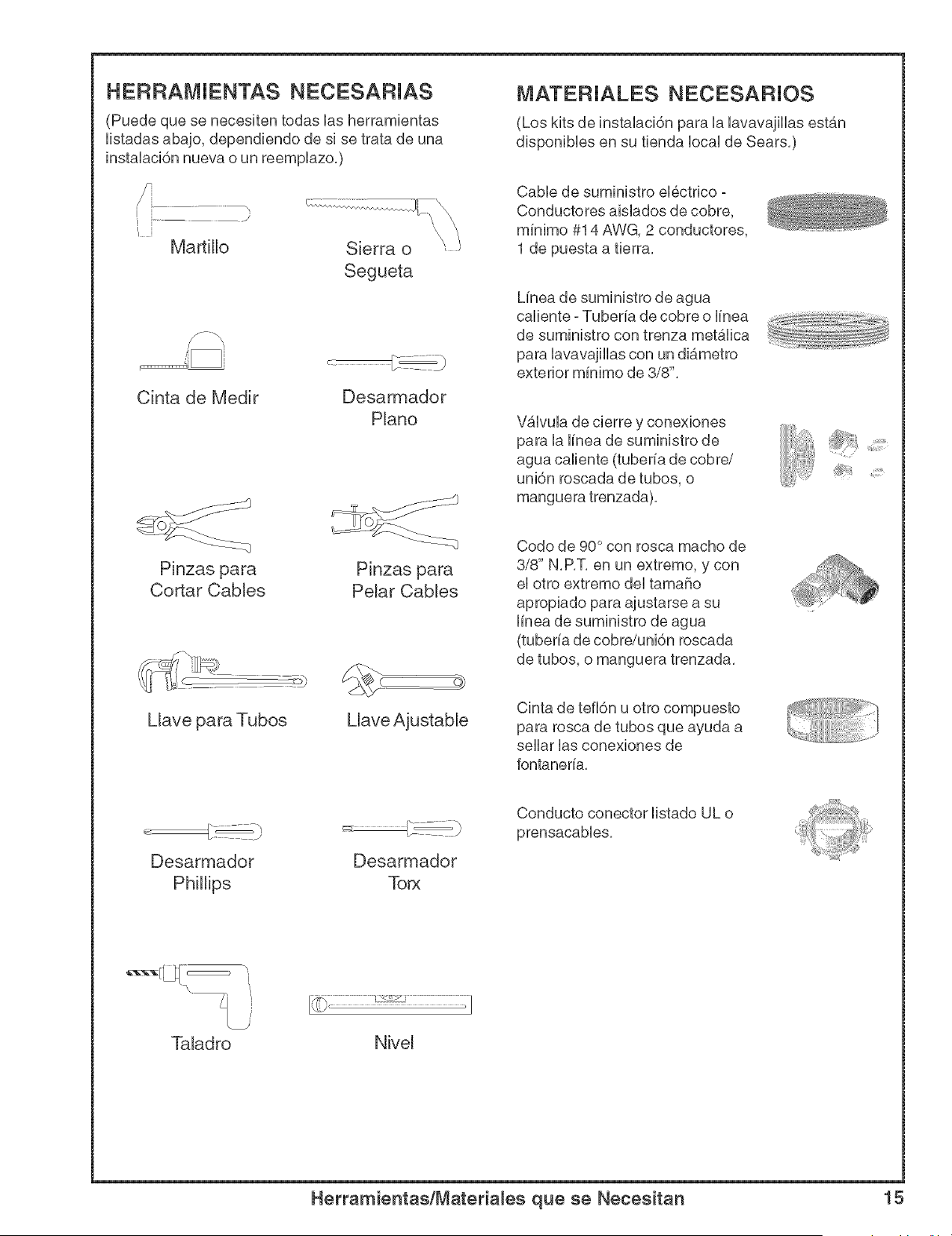

Tools Needed ............................................ 2
Materials Needed ...................................... 2

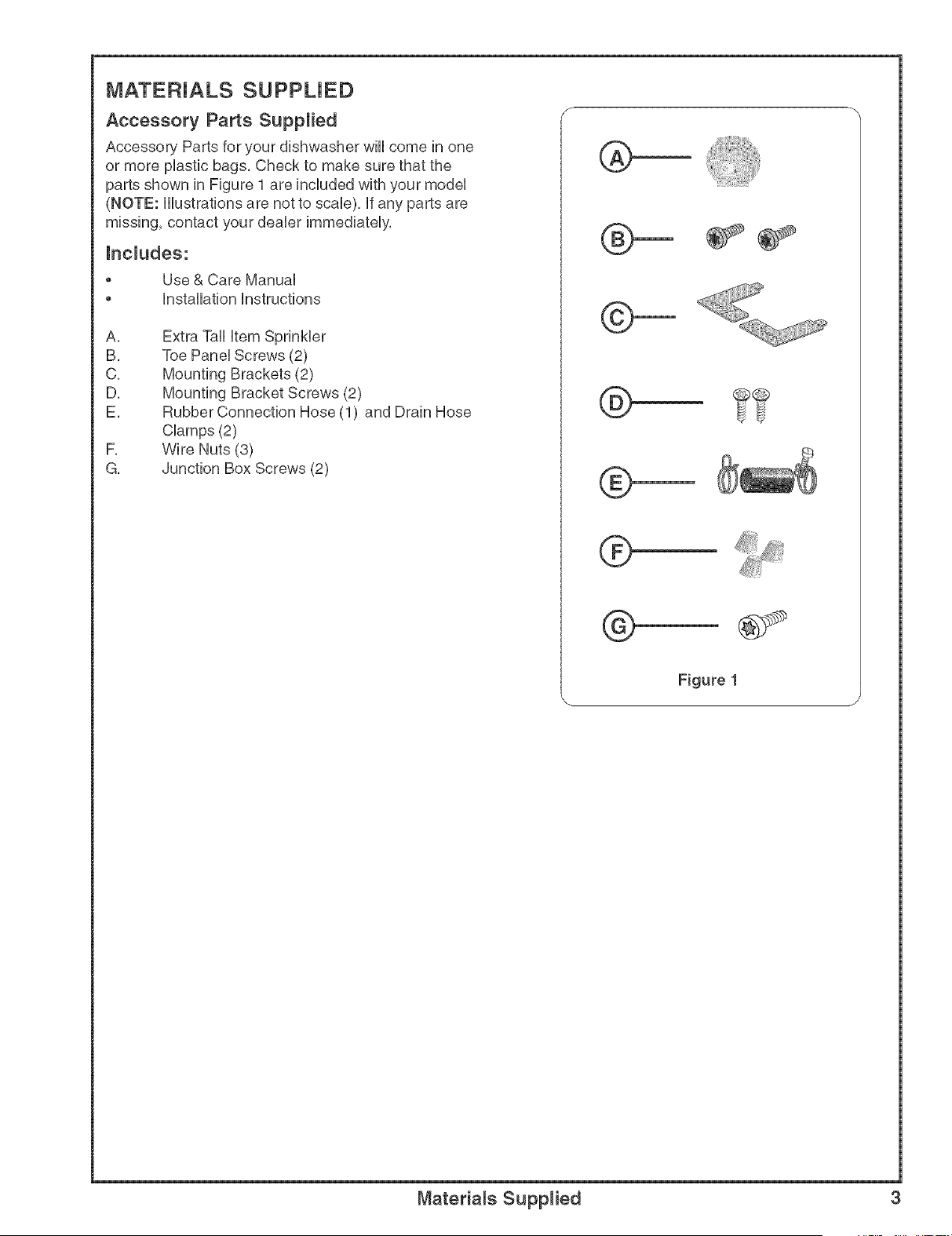

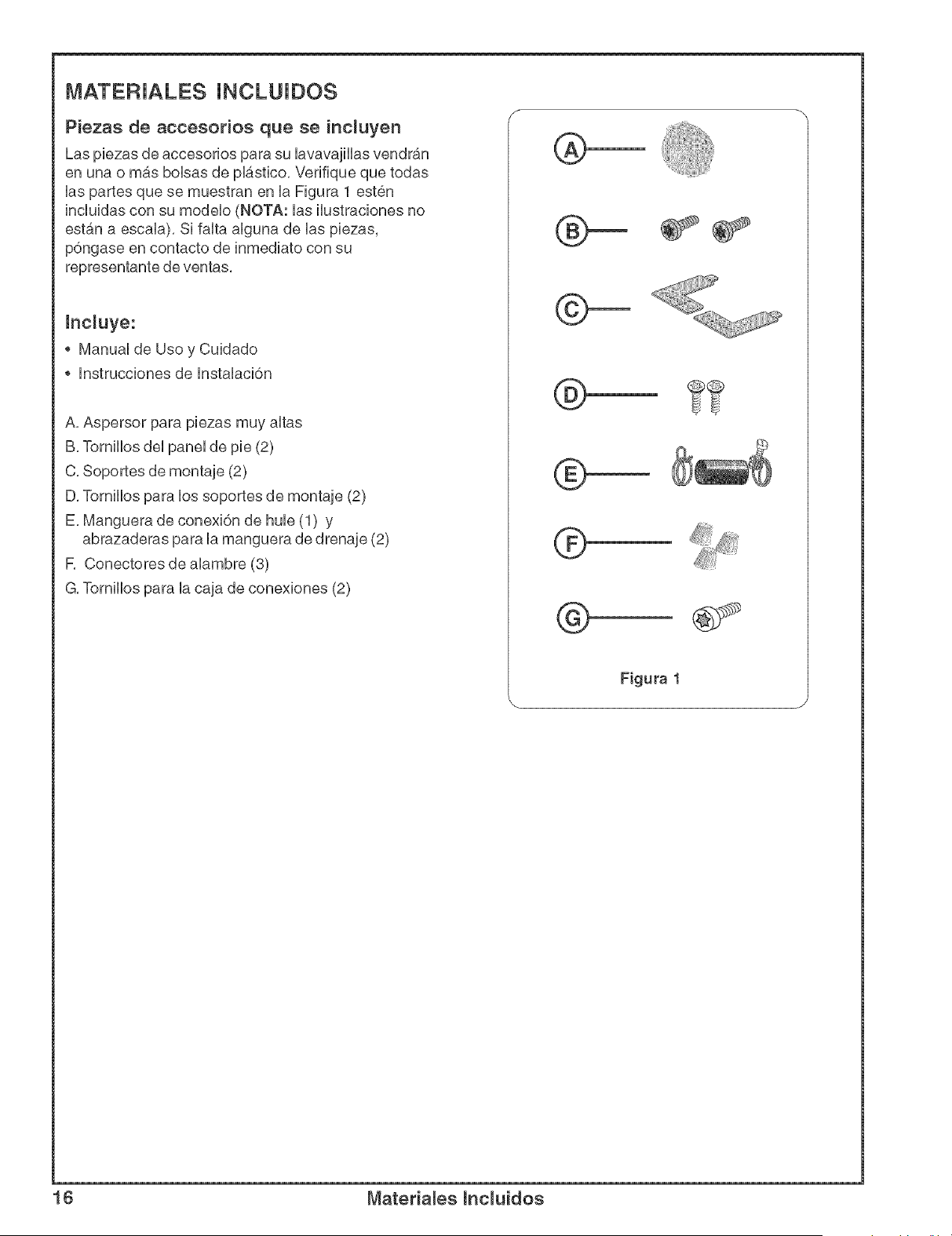

Materials Supplied ..................................... 3

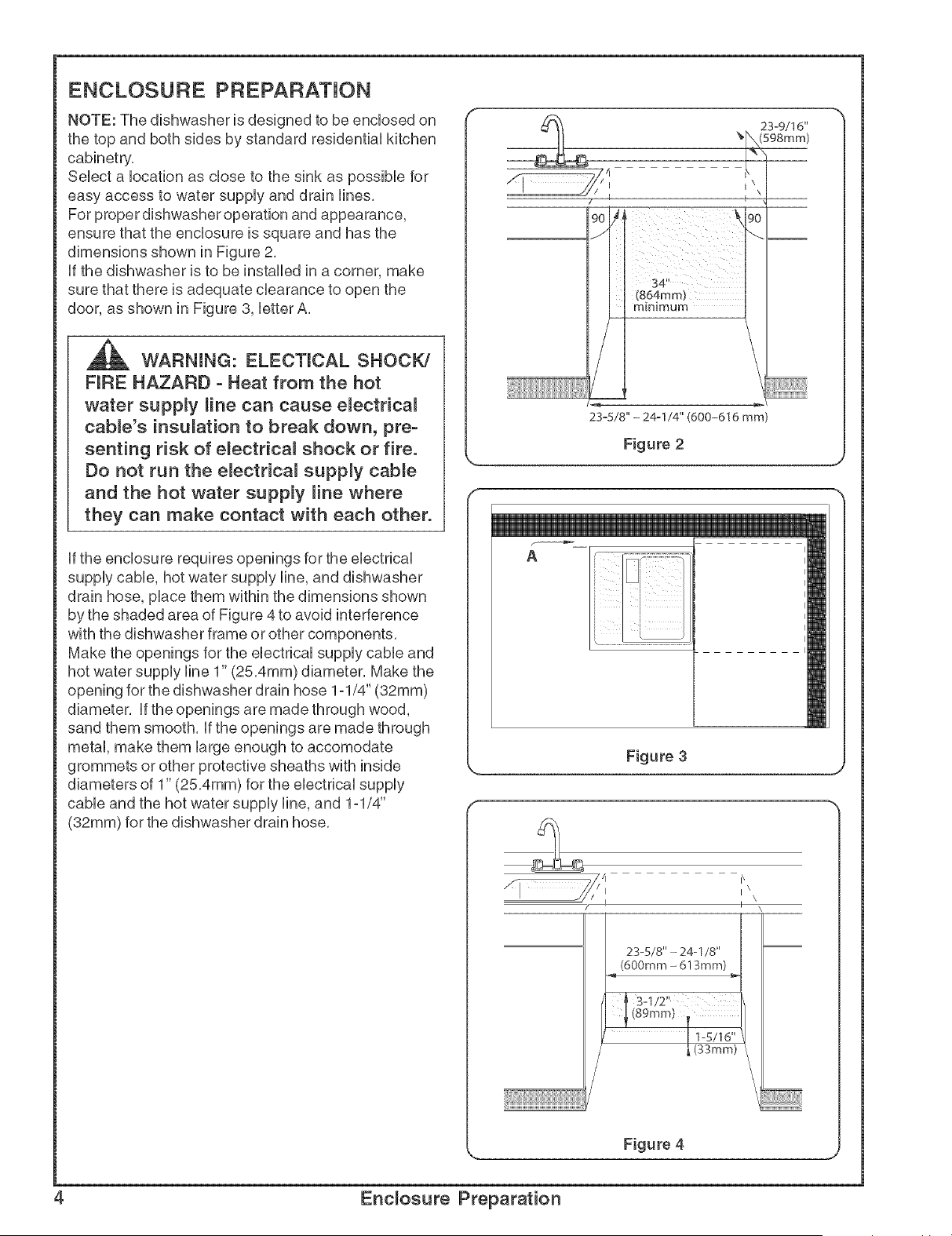

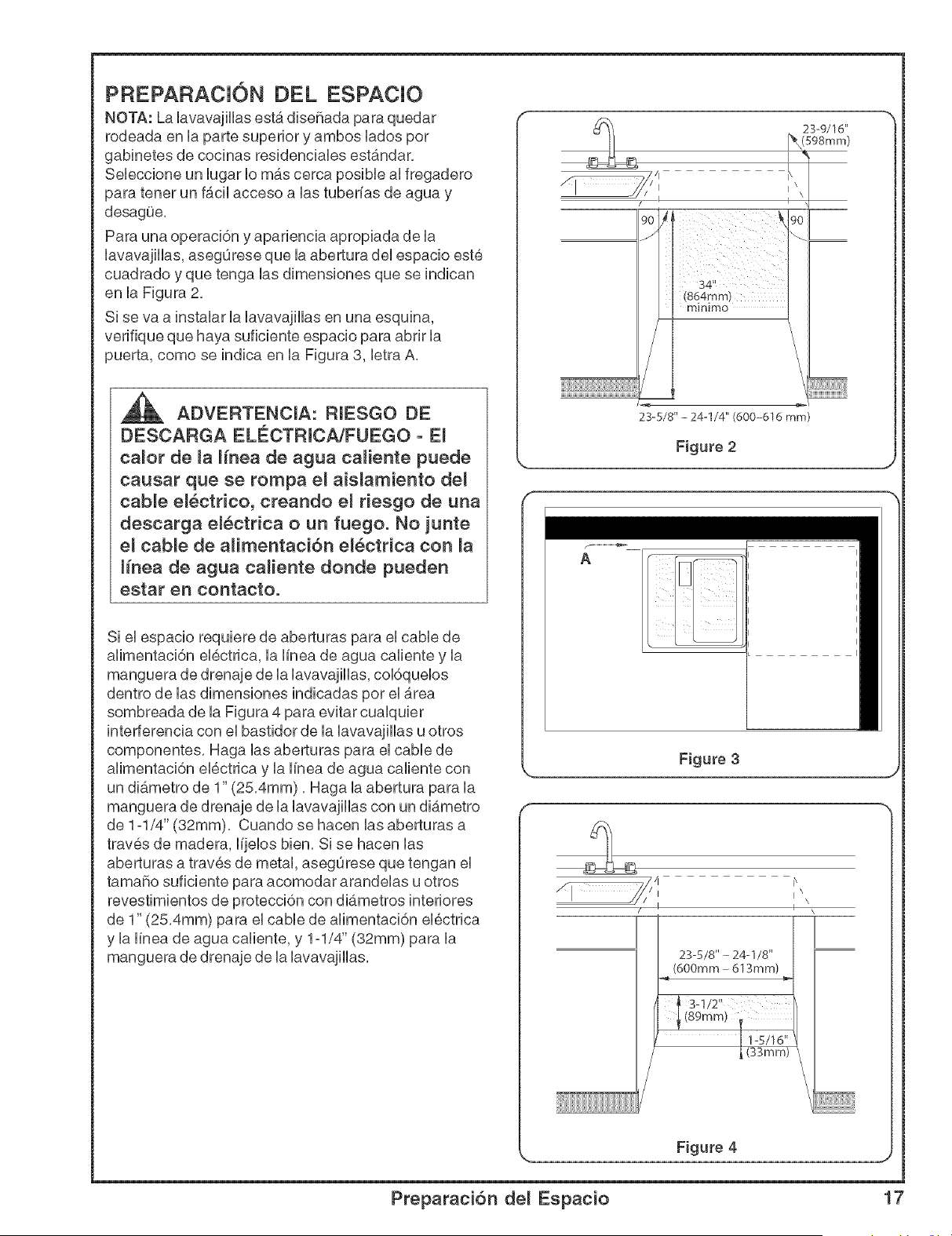

Enclosure Preparation .............................. 4

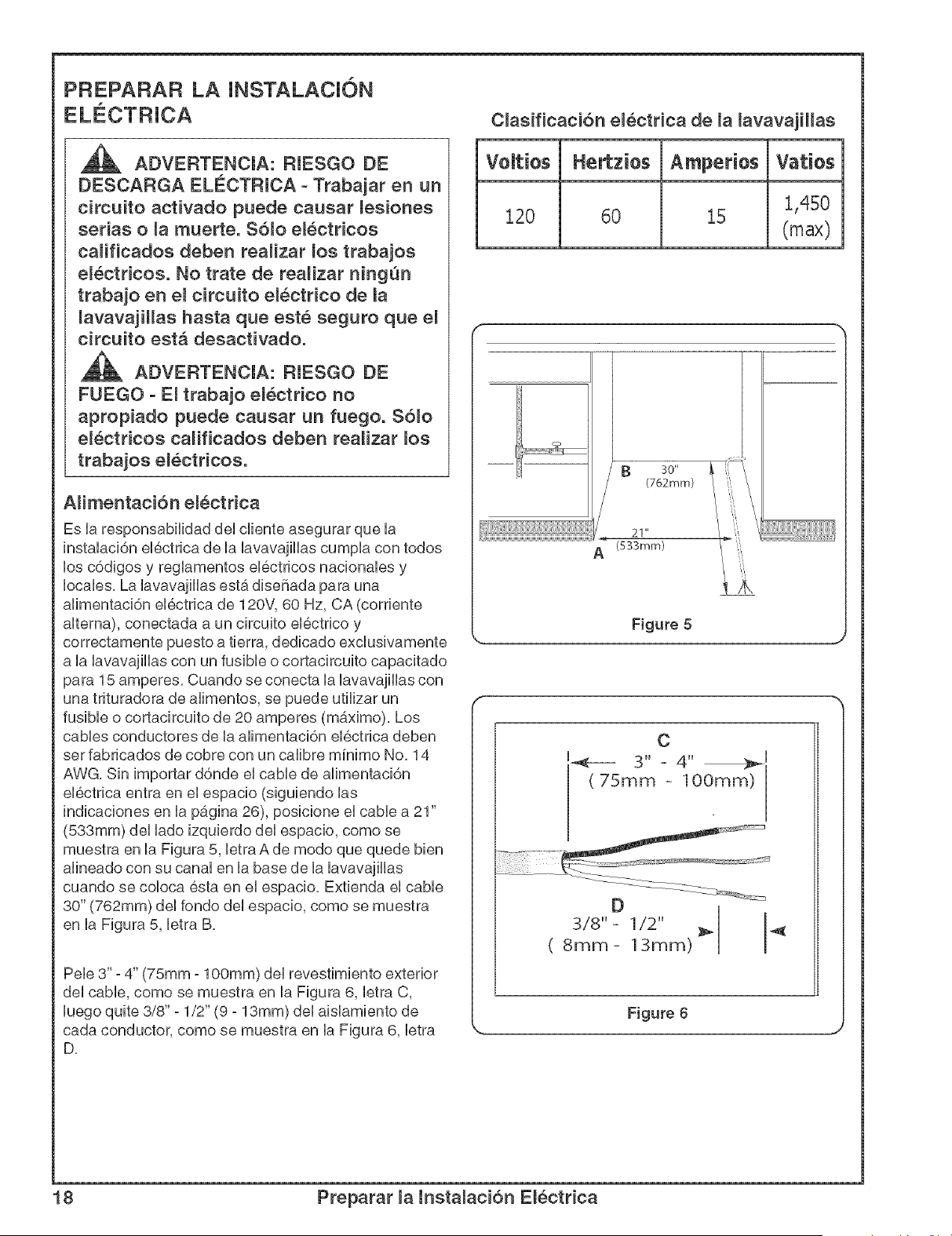

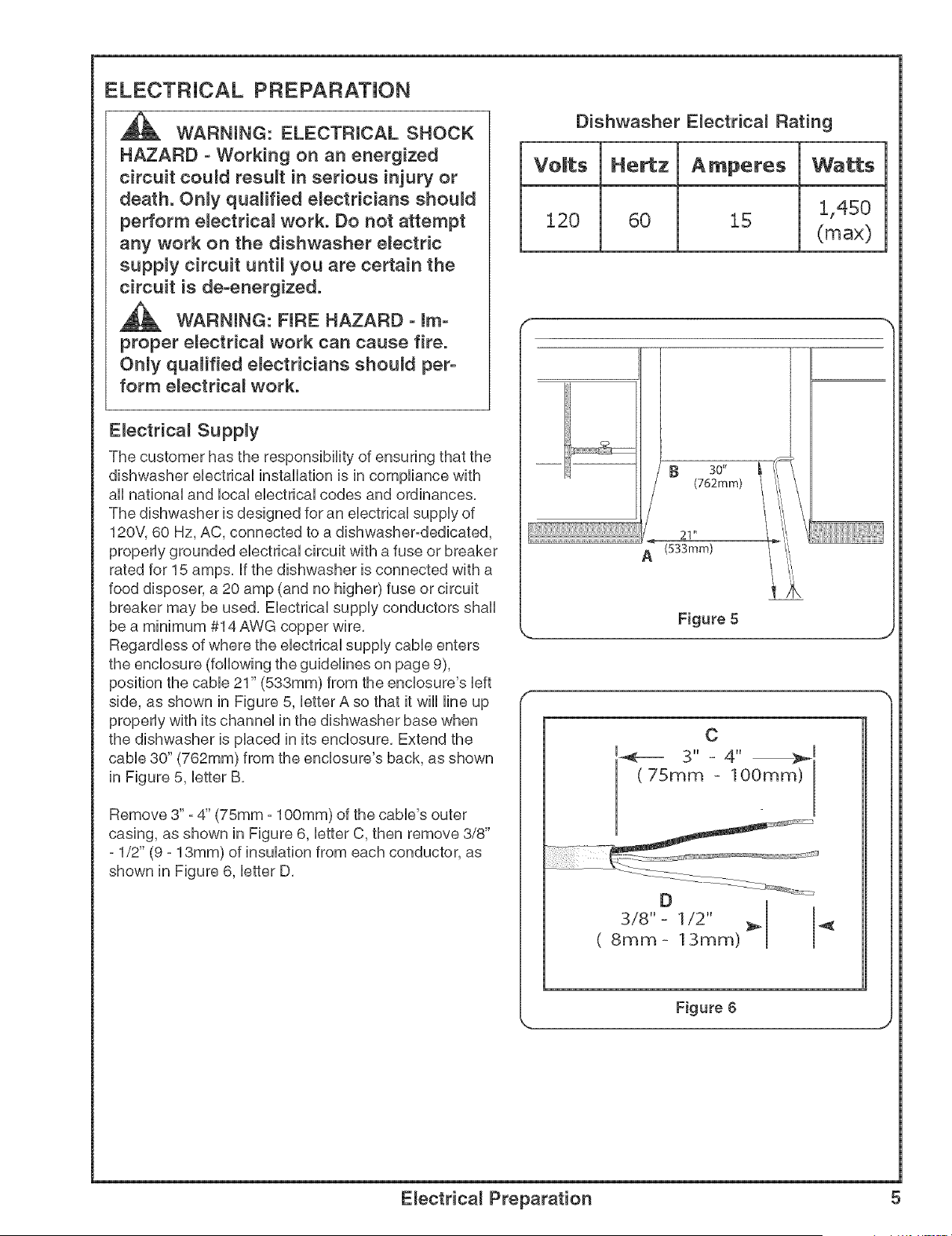

Electrical Preparation ............................... 5

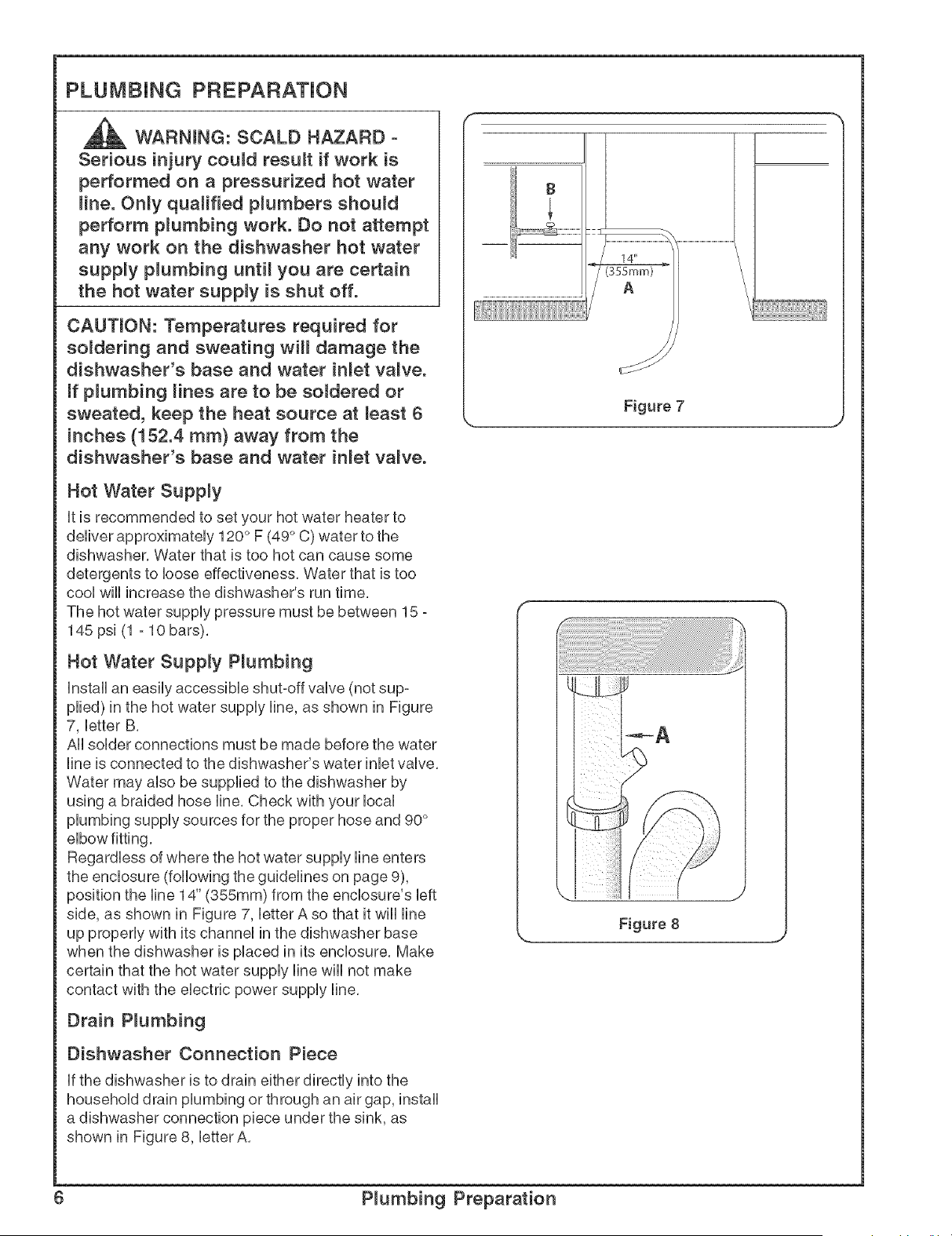

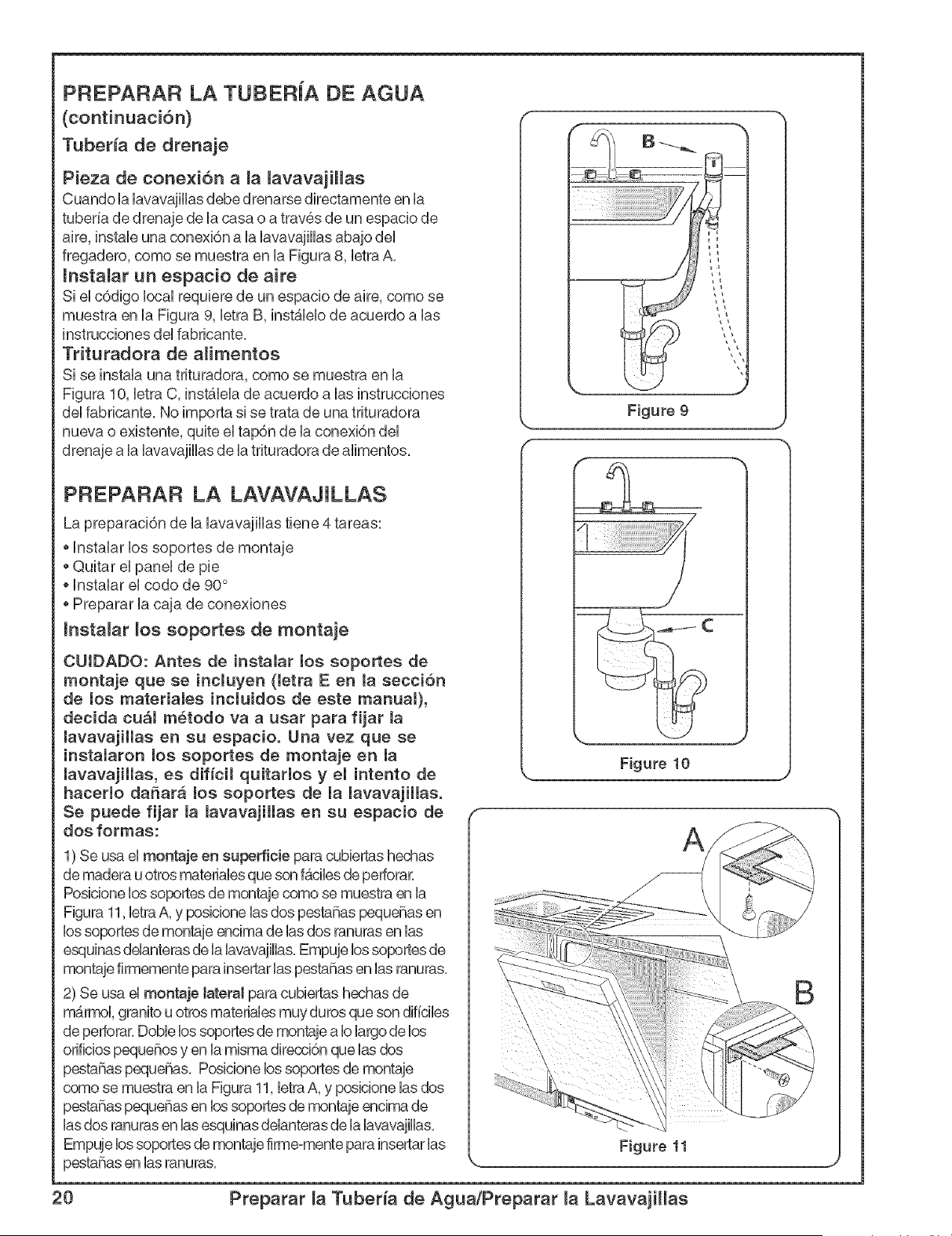

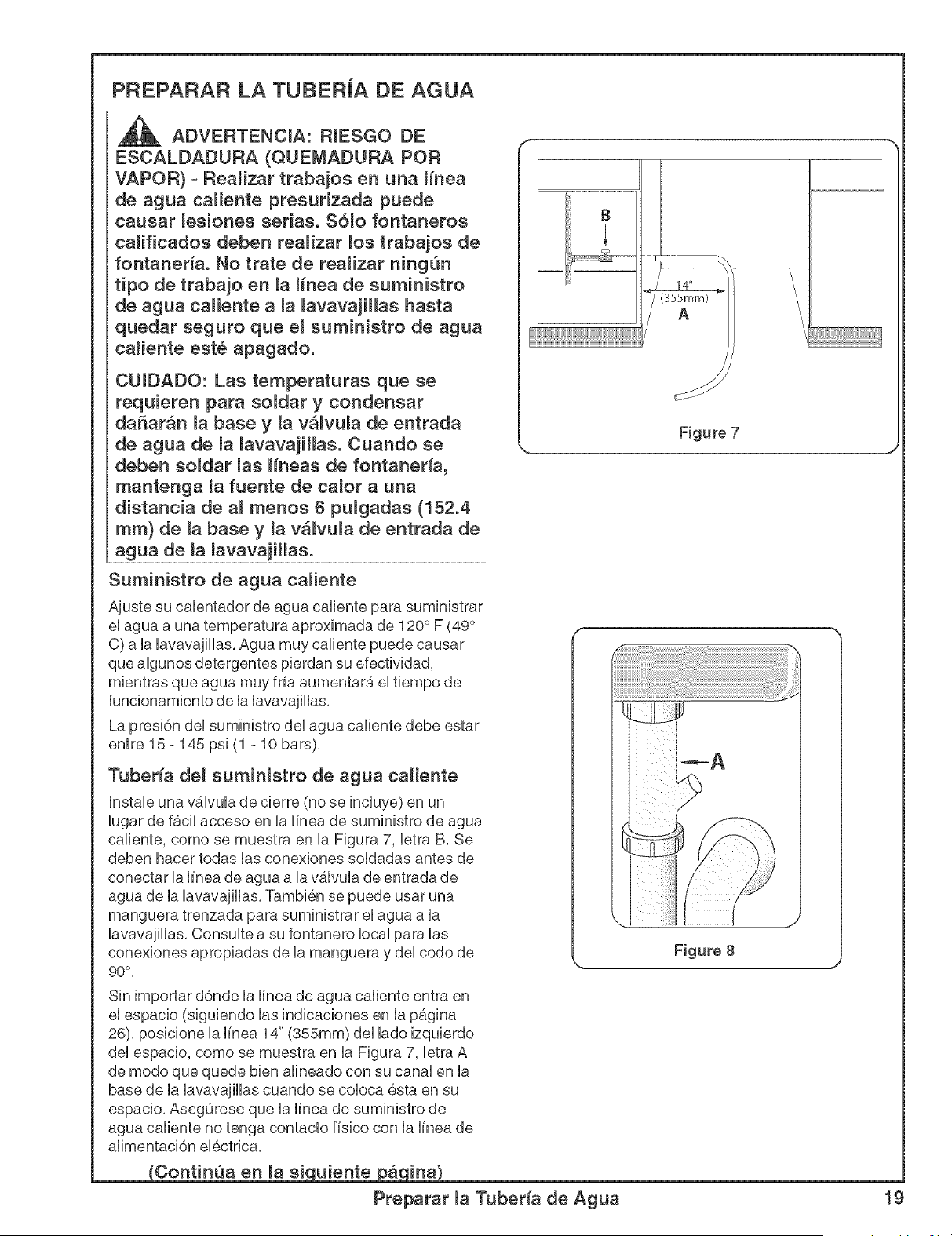

Plumbing Preparation ............................... 6

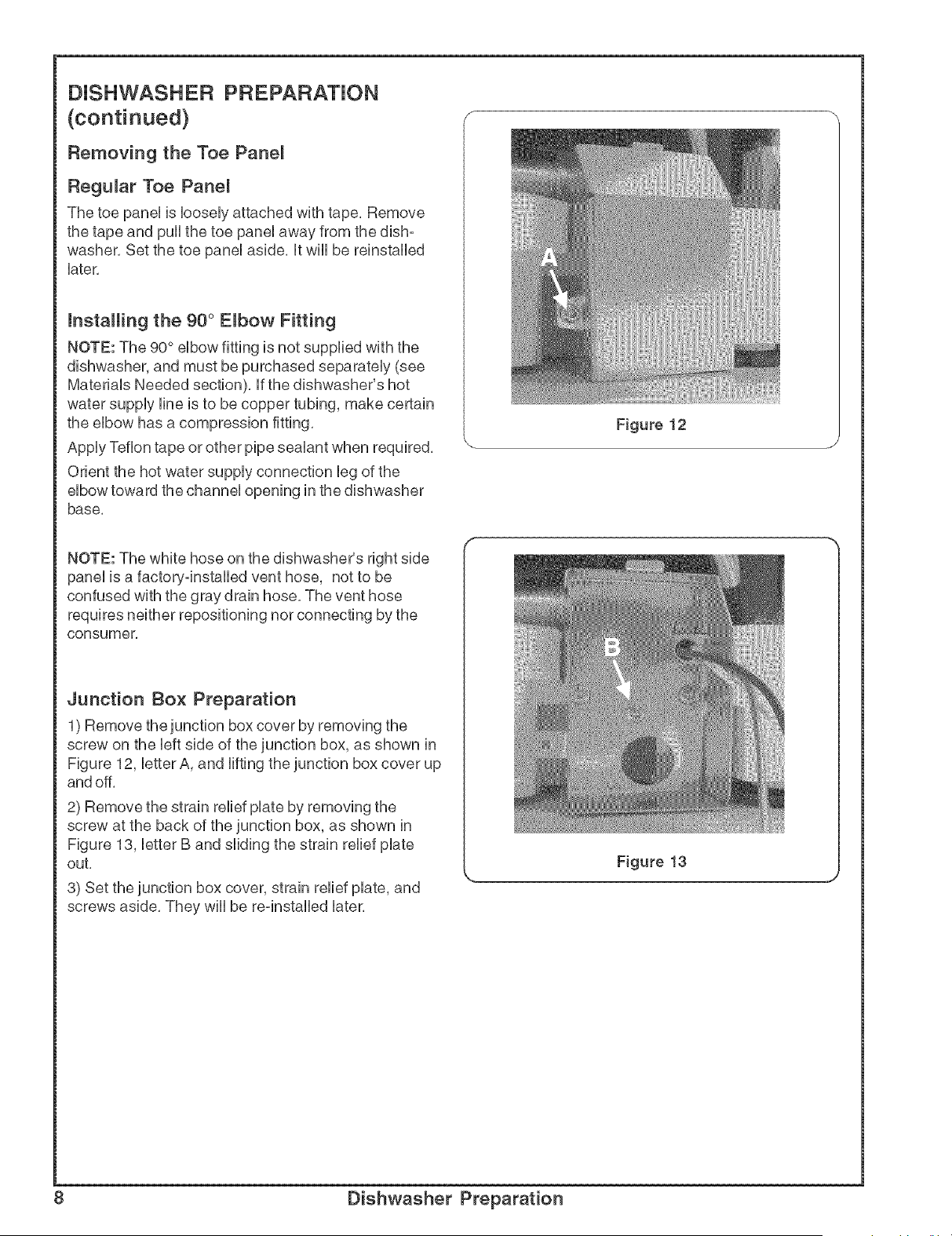

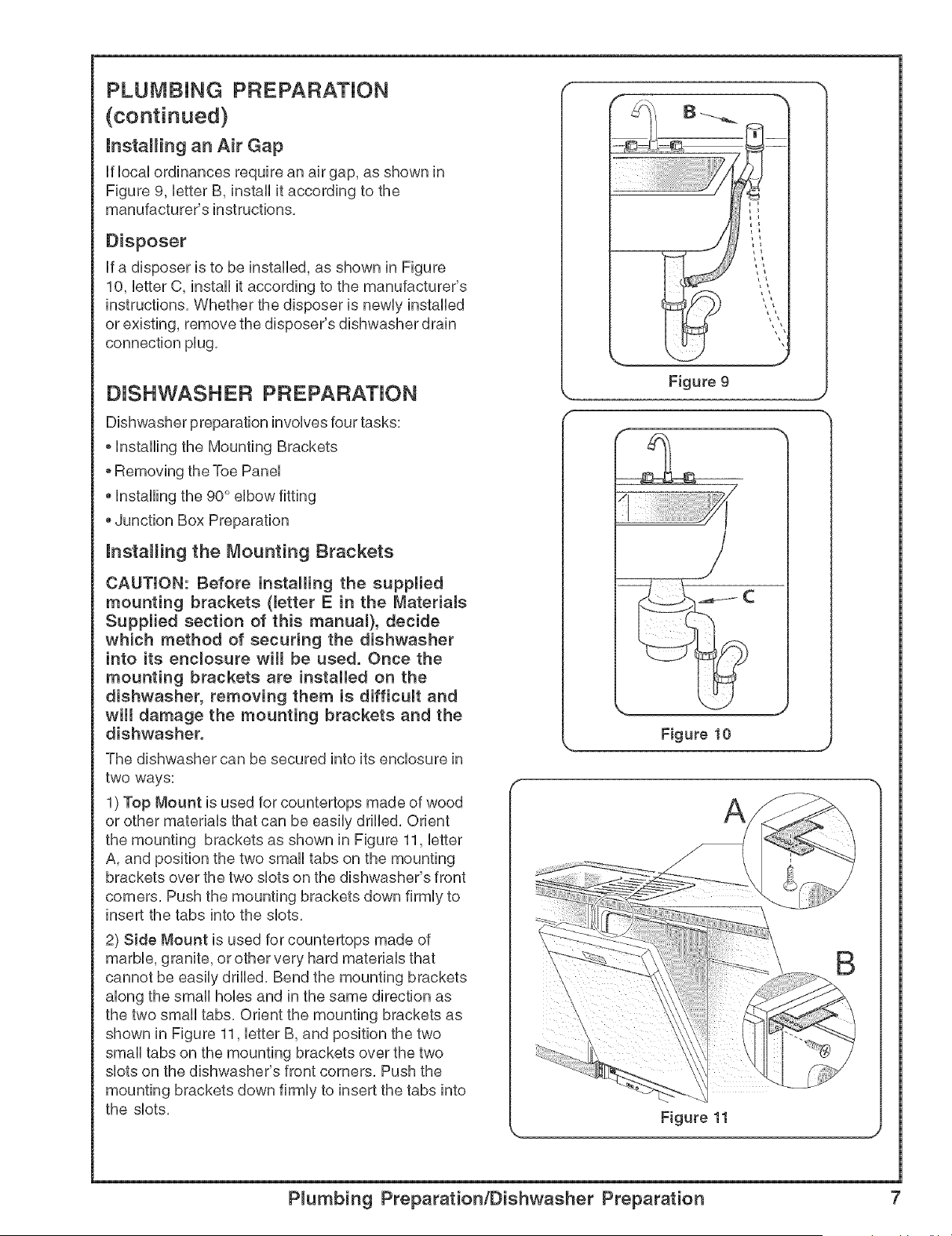

Dishwasher Preparation ........................... 7

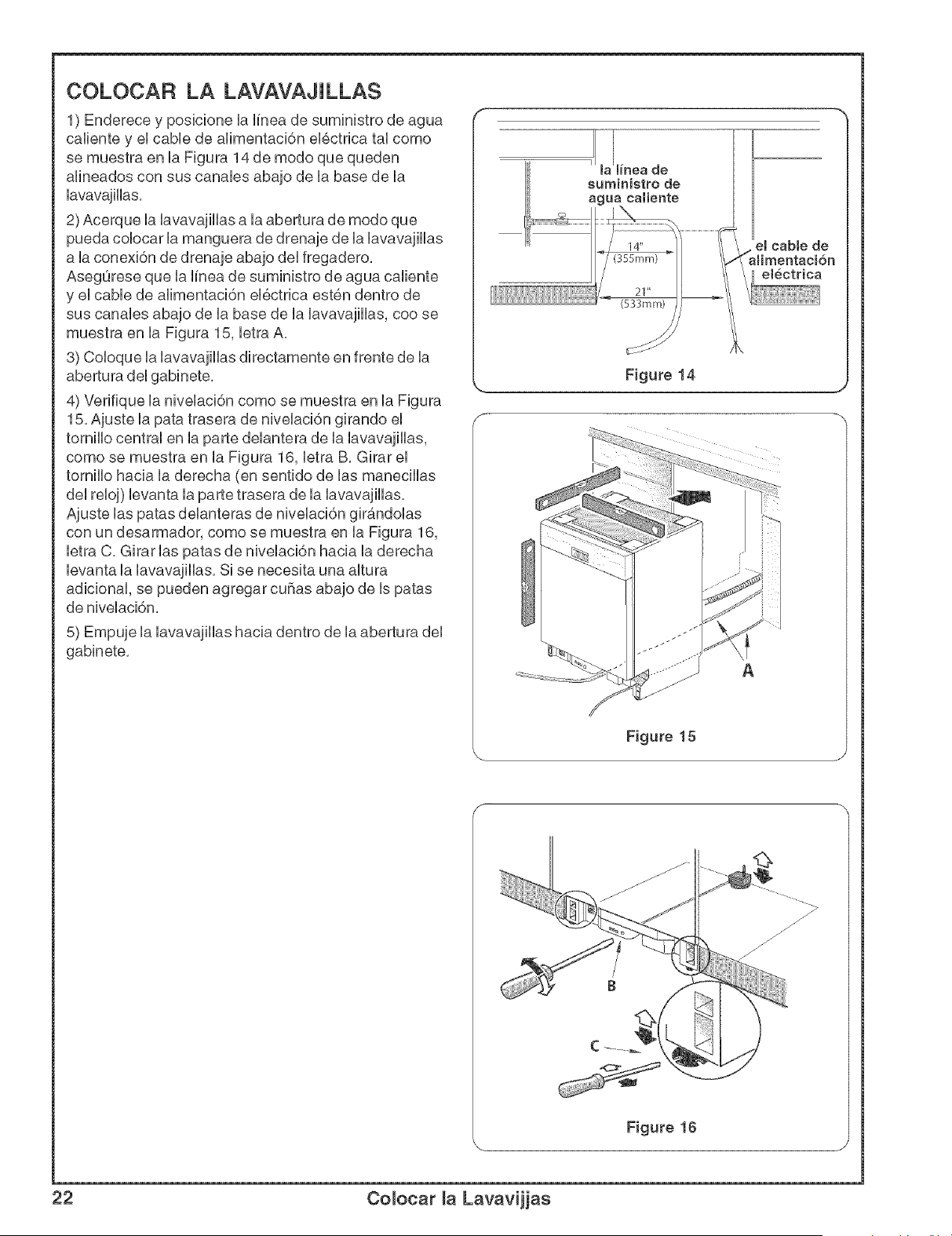

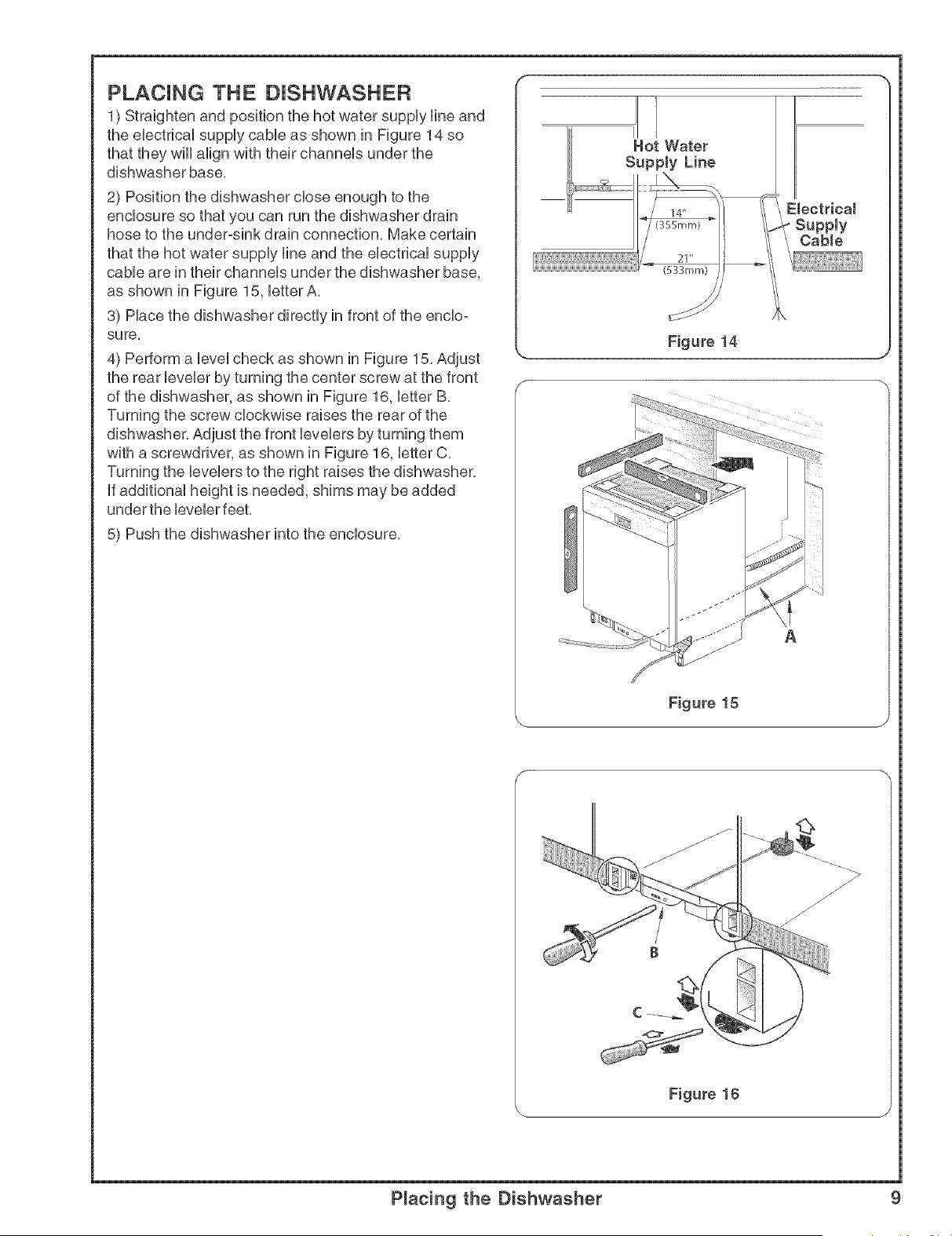

Placing the Dishwasher ............................ 9

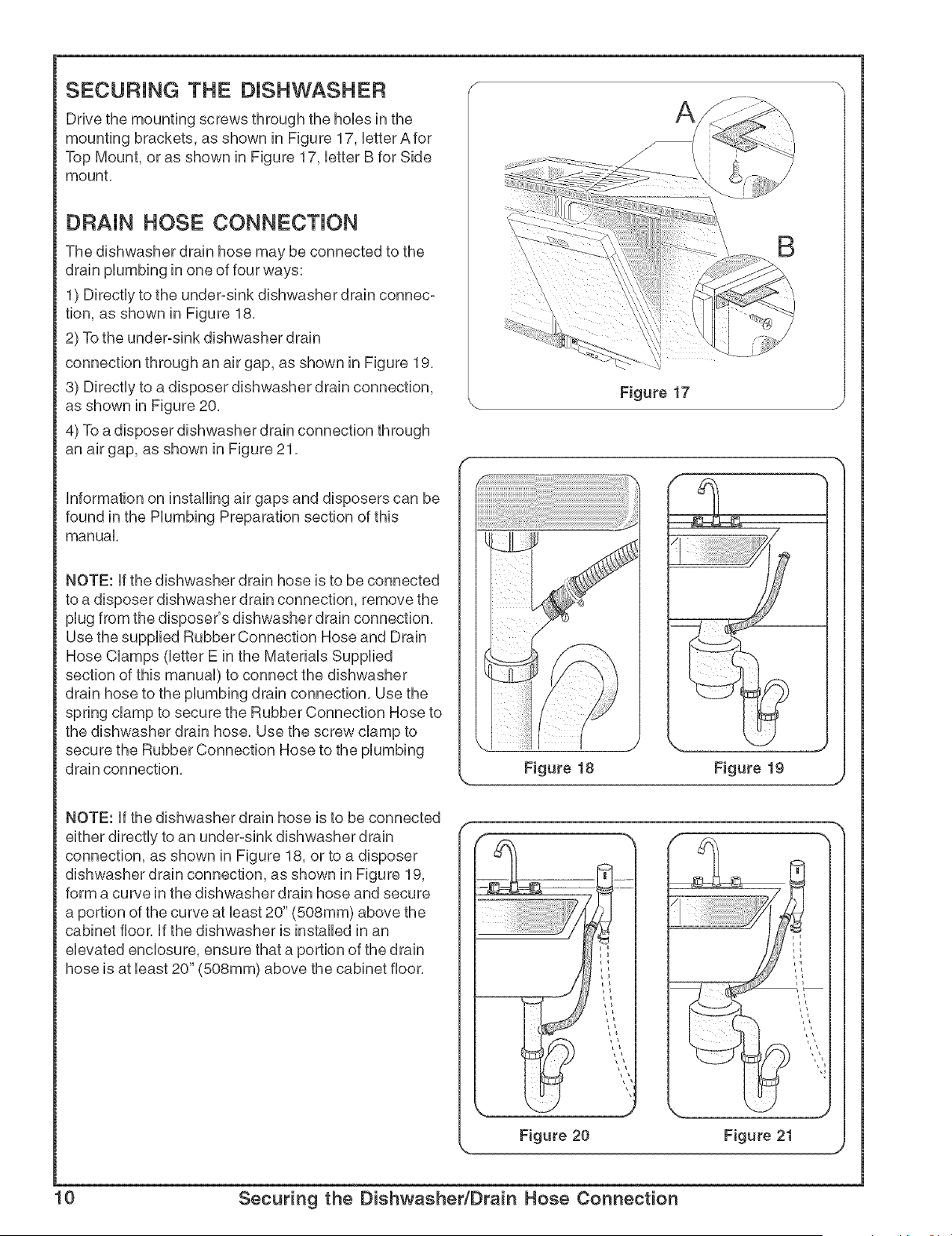

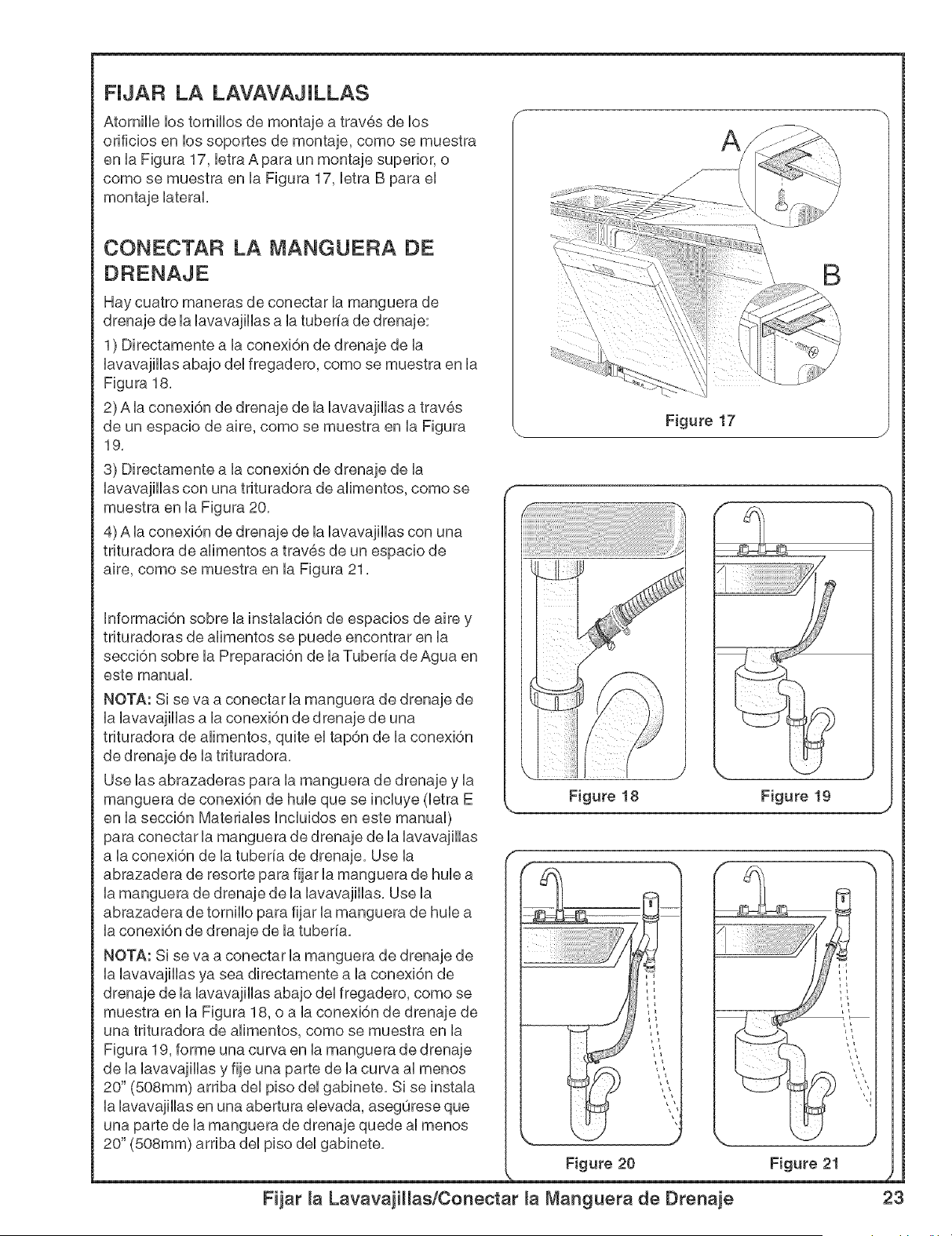

Securing the Dishwasher ....................... 10
Drain Hose Connection .......................... 10

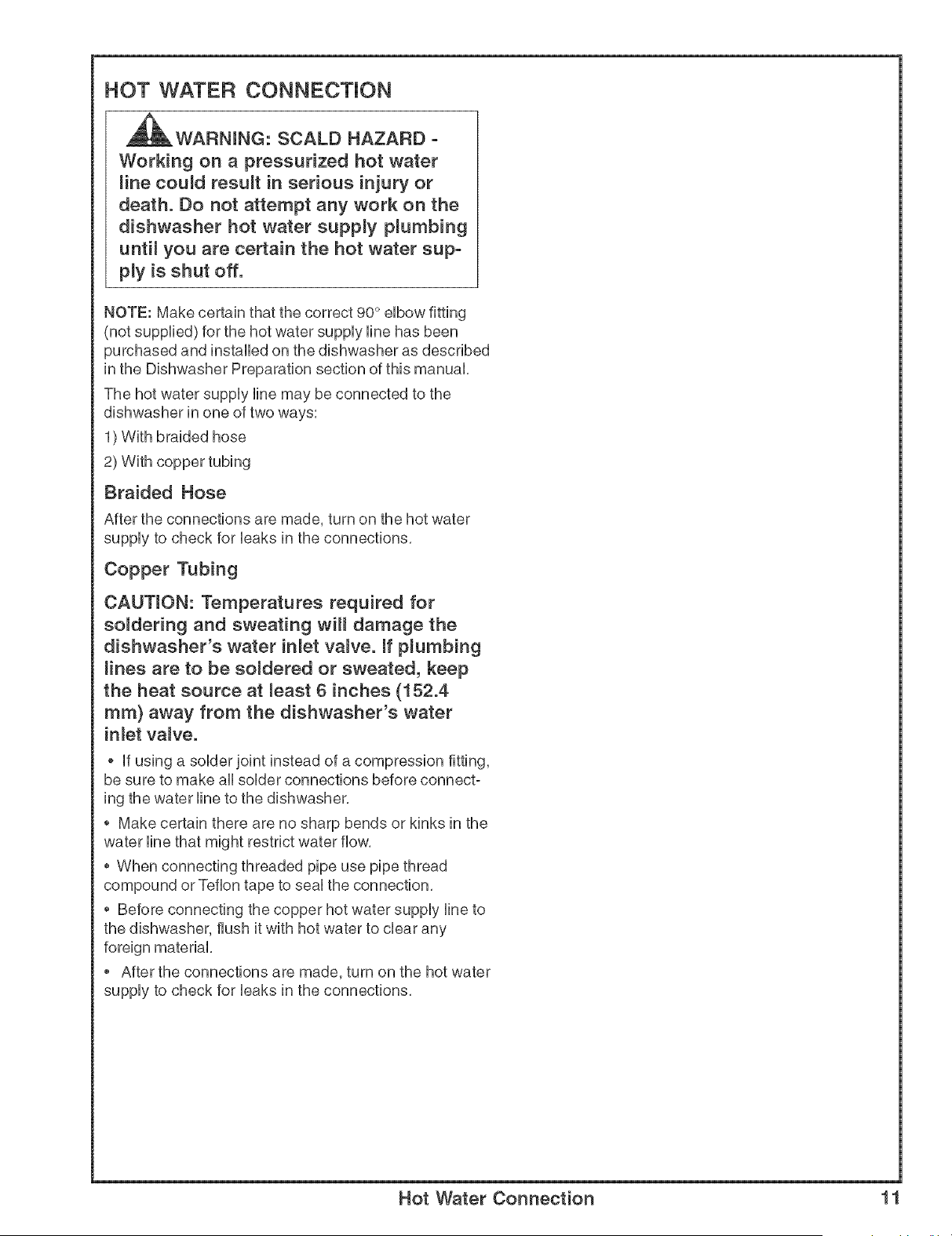

Rot Water Connection ............................ 11

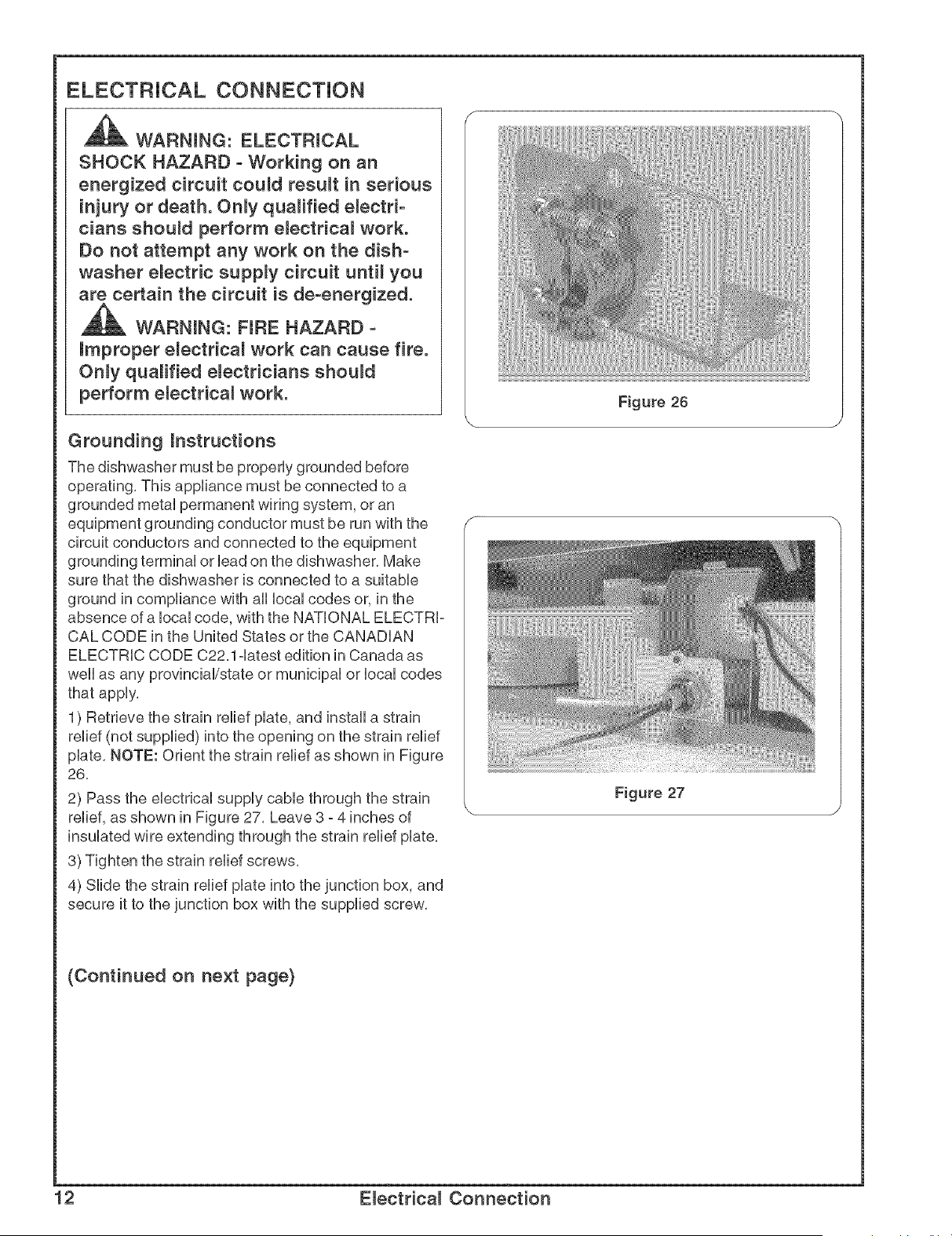

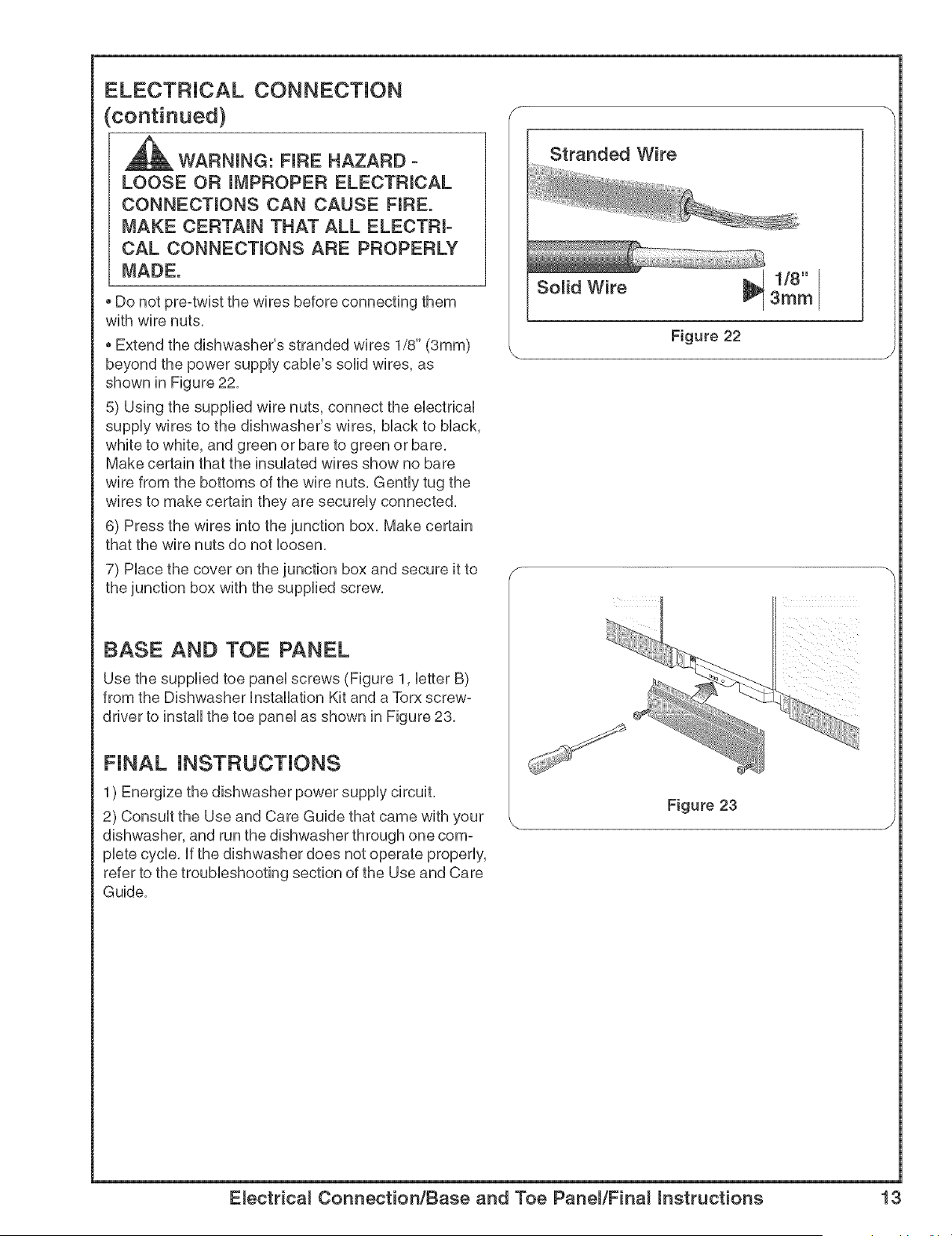

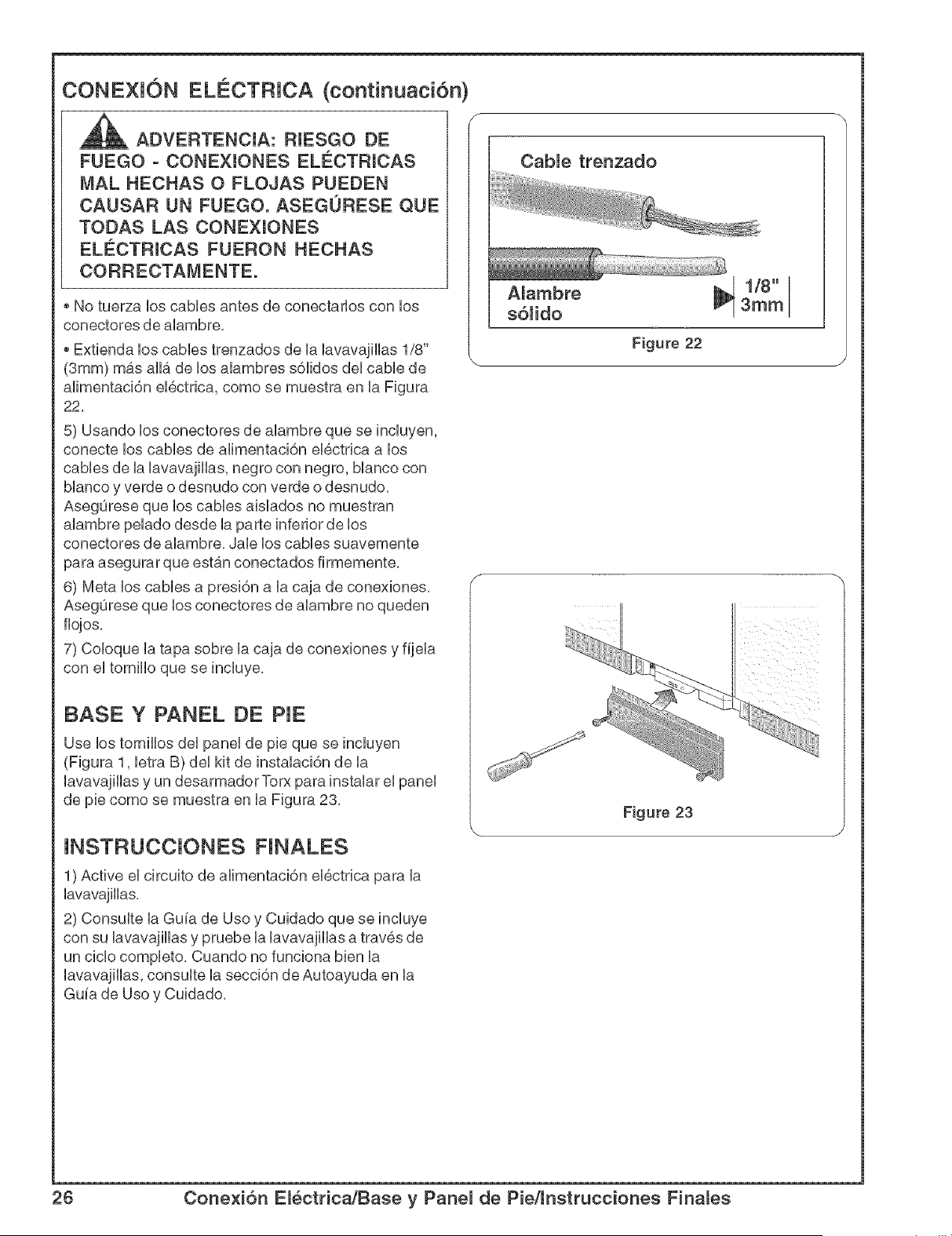

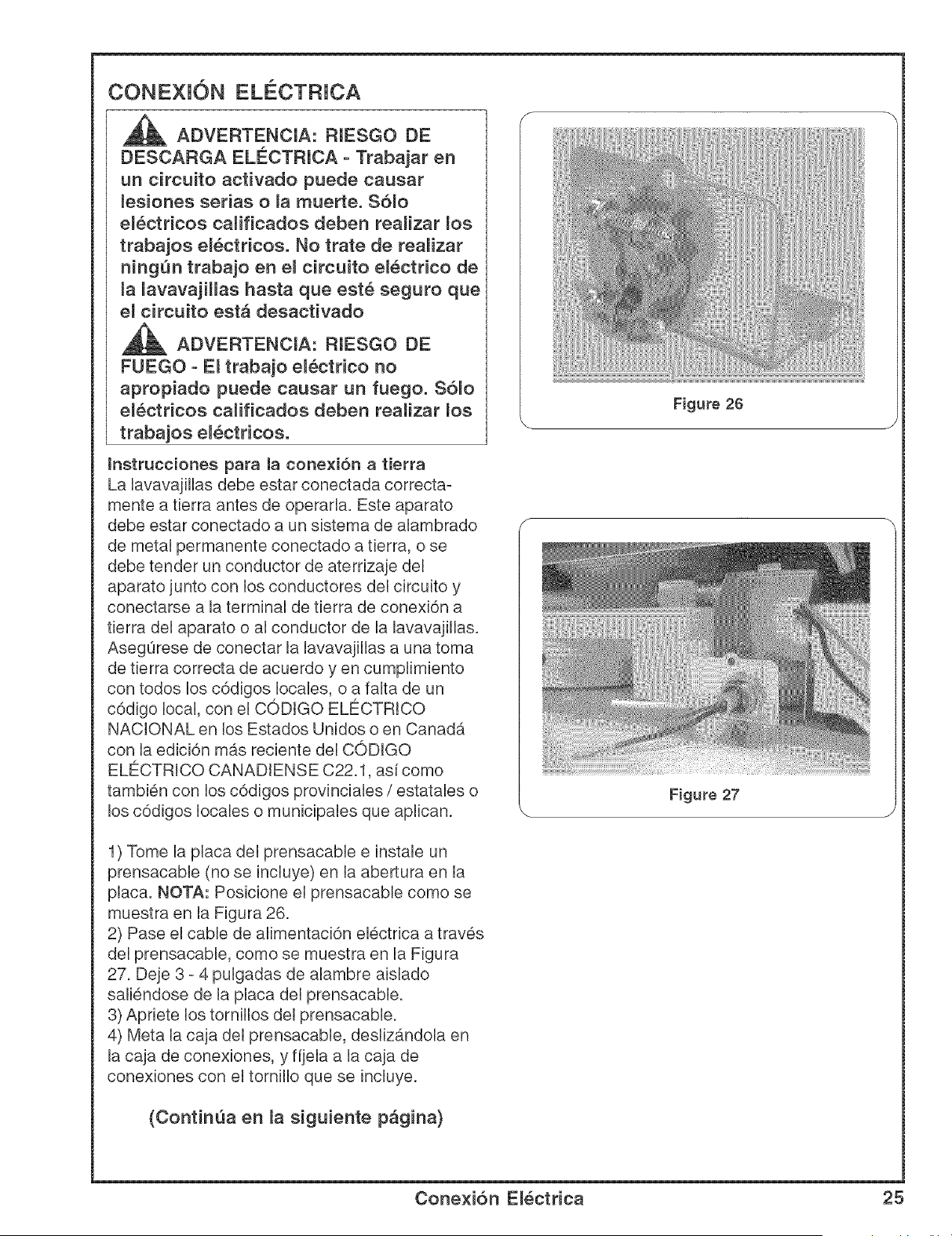

EJectricaJ Connection .............................. 12
Base and Toe PaneJ ................................ 13
RnaJ instructions ..................................... 13

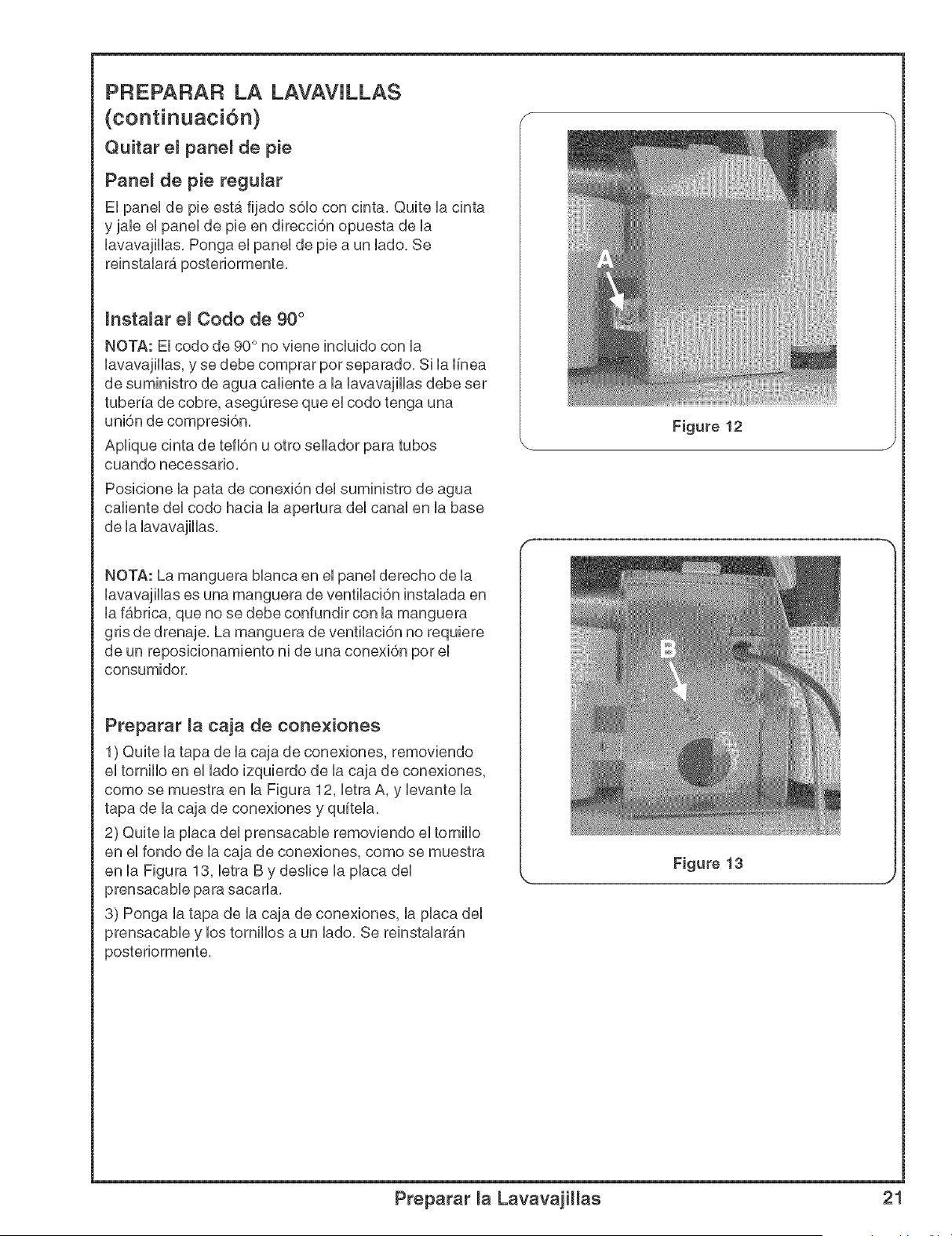

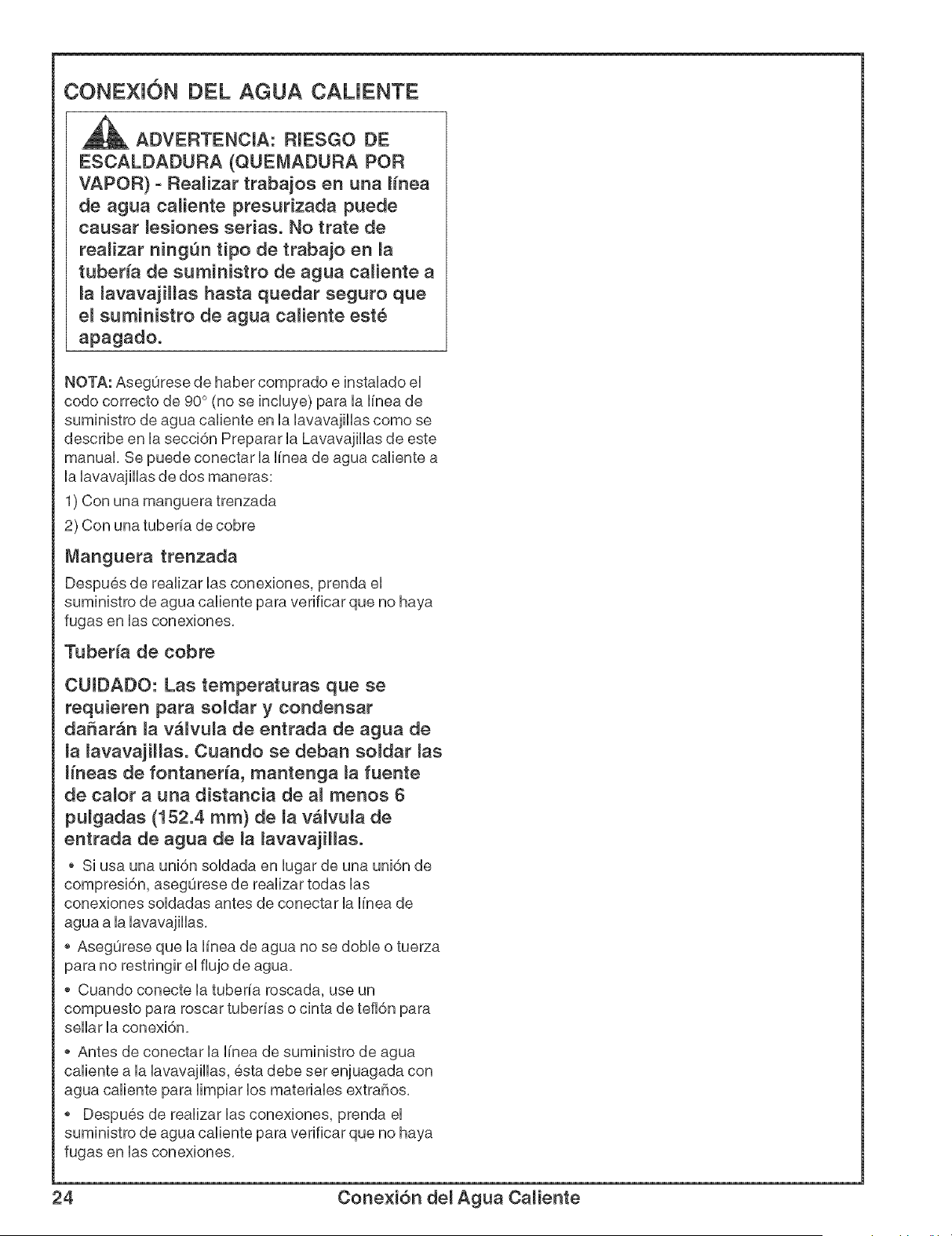

Spanish Language Section ................ 14-26
Customer Service .................... Back Cover

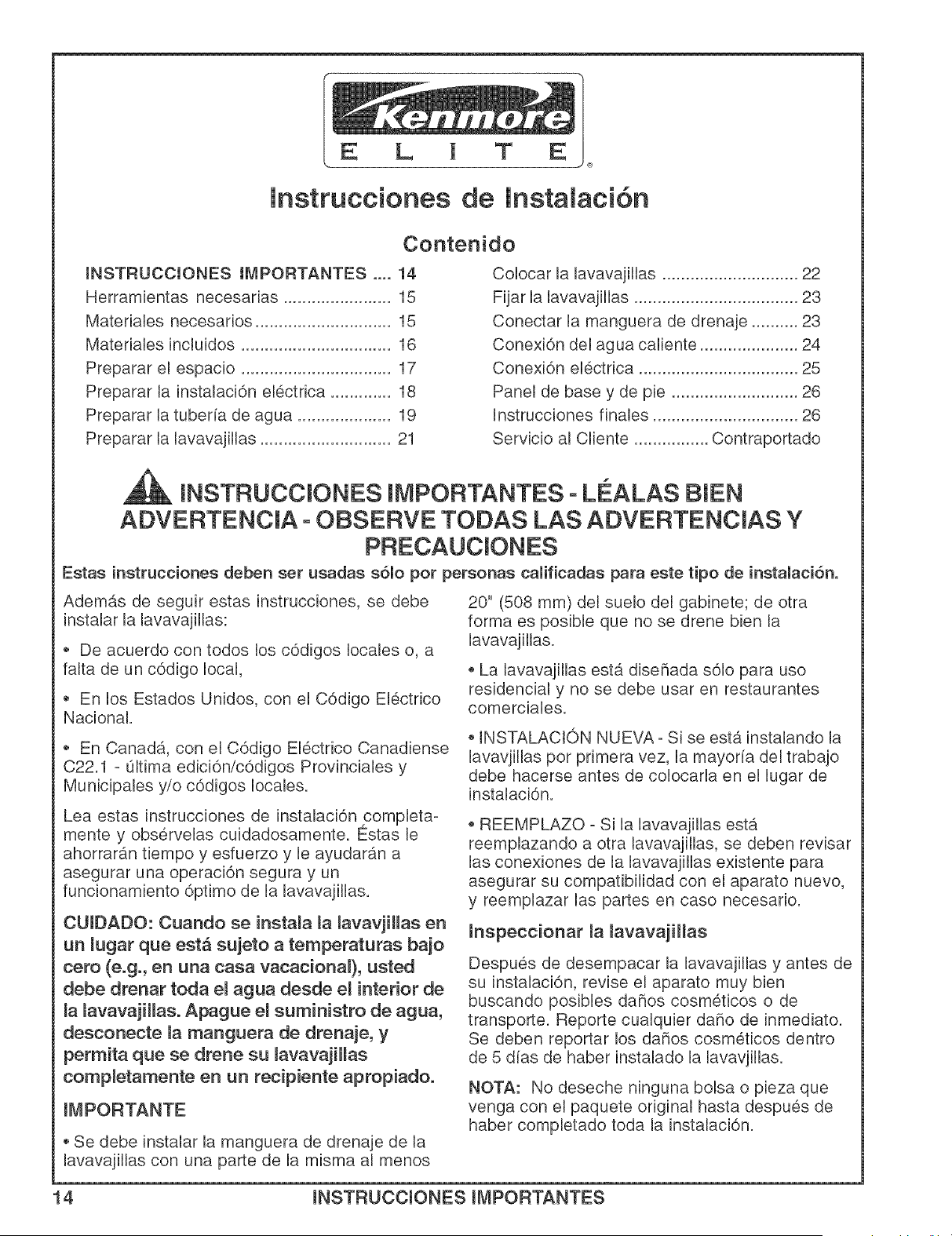

iMPORTANT iNSTRUCTIONS - TO BE READ
WARNING - OBSERVE ALL WARNINGS AND CAUTIONS
These instructions are intended for use by qualified installers only.
tn addition to these instructions, the dishwasher
shall be installed:
Jn accordance with all local codes or, in the
absence of a local code,
Jn the United States, with the National Electric
Code.
Jn Canada, with the Canadian Electric Code
C22.1 =latest edition/Provincial and
Municipal codes and/or local codes.
Read these installation instructions completely
and follow them carefully. They will save you time
and effort and help to ensure safety and optimum
dishwasher performance.
CAUTION: ff the dishwasher is installed in
a _ocation that experiences freezing tem-
peratures (e.g., in a holiday home), you
must drain aH the water from the
dishwasher's interior. Turn off the water
supply, disconnect the drain hose, and
allow your dishwasher to comp_etemy drain
into an appropriate receptacle°
m[V1PORTANT
The dishwasher drain hose must be installed
with a portion of it at least 20" (508ram) off the
cabinet floor; otherwise the dishwasher may not
drain properly.
The dishwasher is intended for residential use
only, and should not be used in commercial food
service establishments.
NEW INSTALLATION - Jf the dishwasher is a
new installation, most of the work must be done
before the dishwasher is moved into place.
REPLACEMENT - If the dishwasher is replac-
ing another dishwasher, check the existing
dishwasher connections for compatibility with the
new dishwasher, and replace parts as neces-
sary.
mnspect the Dishwasher
After unpacking the dishwasher and prior to
installation, thoroughly inspect the dishwasher
for possible freight or cosmetic damage. Report
any damage immediately. Cosmetic defects
must be reported within 5 days of installation.
NOTE: Do not discard any bags or items that
come with the original package until after the
entire installation has been completed.
iMPORTANT iNSTRUCTiONS
