Operating and Installation Instructions
Refrigerators
To prevent accidents and machine damage, read these instructions be-
fore installation or use.
en-US M.-Nr. 10 865 900
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 5
Caring for the environment ................................................................................ 12
How to save energy............................................................................................. 13
Guide to the appliance........................................................................................ 15
Control panel......................................................................................................... 15
Accessories ........................................................................................................... 17
Accessories supplied ....................................................................................... 17
Optional accessories........................................................................................17
Switching on and off ........................................................................................... 19
Before first use ...................................................................................................... 19
Cleaning the refrigerator................................................................................... 19
Turning off for longer periods of time .................................................................... 20
The correct temperature..................................................................................... 21
. . . in the refrigerator section ................................................................................ 21
Automatic cold air circulation (DynaCool) ........................................................21
Temperature display .............................................................................................. 22
Setting the temperature......................................................................................... 22
Using Automatic SuperCool............................................................................... 23
Automatic SuperCool function .............................................................................. 23
Door alarm ........................................................................................................... 24
Door alarm............................................................................................................. 24
Turning the door alarm off early .......................................................................24
Selecting additional settings.............................................................................. 25
Settings mode ....................................................................................................... 25
Activating and deactivating the safety lock...................................................... 25
Storing food in the refrigerator section............................................................. 27
Various cooling zones ........................................................................................... 27
Food which is not suitable for storage in the refrigerator section ......................... 28
What to be aware of when shopping for food....................................................... 28
Storing food correctly............................................................................................ 29
Adjusting the interior fittings.............................................................................. 30
Adjusting the door shelf/bottle shelf ..................................................................... 30
Moving the shelves................................................................................................ 30
Adjusting the bottle holder .................................................................................... 30
Moving the carbon filter ........................................................................................ 31
Contents
3
Defrosting............................................................................................................. 32
Cleaning and care ............................................................................................... 33
Cleaning agents..................................................................................................... 33
Preparing the appliance for cleaning..................................................................... 34
Cleaning the interior and accessories ................................................................... 35
Cleaning the door seal .......................................................................................... 36
Cleaning the ventilation grilles............................................................................... 36
Cleaning the compressor at the back of the appliance ........................................ 36
Starting up the appliance after cleaning ............................................................... 36
Replacing the carbon filters .................................................................................. 37
Frequently Asked Questions .............................................................................. 38
Causes of noises ................................................................................................. 44
Technical Service................................................................................................. 45
Contact in case of fault ......................................................................................... 45
Warranty ................................................................................................................ 45
Electrical connection .......................................................................................... 46
Installation............................................................................................................ 48
Side-by-side.......................................................................................................... 48
Installation location ............................................................................................... 48
Climate class ....................................................................................................49
Ventilation.............................................................................................................. 49
Door panel............................................................................................................. 50
Weight of the door panel.................................................................................. 50
Calculation of cabinet door size .......................................................................50
Before installing the appliance .............................................................................. 51
Installation dimensions.......................................................................................... 52
Changing the door hinges .................................................................................. 53
Adjusting the door hinge .................................................................................... 55
Adjusting the door hinges ..................................................................................... 55
Limiting the opening angle of the appliance door................................................. 55
Building in the appliance .................................................................................... 56
To install the appliance, you will need the following tools:.................................... 56
Parts required for installation: ............................................................................... 56
Preparing the appliance ........................................................................................ 56
Positioning the appliance ...................................................................................... 58
Aligning the appliance ........................................................................................... 59
Contents
4
Installing a continuous toe-kick facing.................................................................. 60
Securing the appliance in the niche ...................................................................... 61
Fitting the cabinet door ......................................................................................... 61
IMPORTANT SAFETY INSTRUCTIONS
5
This appliance complies with all statutory safety requirements.
Please note that inappropriate use can lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for non-compliance with these instruc-
tions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
Appropriate use
This appliance is intended for use in the home and similar environ-
ments.
This appliance is not intended for use outdoors, in damp environ-
ments or in places exposed to rain.
The oven is intended for domestic use only: cooking, baking,
roasting, broiling, defrosting and heating of food.
Only use this appliance for its intended purpose.
This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such ma-
terials or products. Incorrect use of the appliance for such purposes
can cause deterioration of the items stored. The appliance is not
suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from improper or in-
correct use of the appliance.
Persons which lack physical, sensory or mental abilities or experi-
ence with the machine should not use it without supervision or in-
struction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
6
Safety with children
To reduce the risk of injury, do not allow children to play in, on or
near the appliance.
Ensure that any packing material is disposed of safely and kept
out of the reach of children. Danger of suffocation!
Technical safety
The refrigerant system is tested for leaks. This appliance complies
with statutory safety requirements.
This appliance contains the refrigerant Isobutane (R600a), a natu-
ral gas which is environmentally friendly. Although it is combustible,
it does not damage the ozone layer and does not increase the green-
house effect.
The use of this refrigerant has, however, led to a slight increase in
the noise level of the appliance. In addition to the noise of the com-
pressor, you might be able to hear the refrigerant flowing around the
system. This is unavoidable, and does not have any adverse effect
on the performance of the appliance.
Care must be taken during the transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can cause severe irritation to the eyes.
In the event of any damage:
– avoid open flames and anything that creates a spark,
– disconnect the appliance from the electrical power supply,
– ventilate the room where the appliance is located for several min-
utes, and
– contact Miele Technical Service.
IMPORTANT SAFETY INSTRUCTIONS
7
The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every 11g of coolant at least 1m
3
of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
The electrical safety of the appliance can only be guaranteed
when correctly grounded. It is essential that this standard safety re-
quirement is met. If in any doubt please have the electrical installa-
tion tested by a qualified electrician.
Reliable and safe operation of this appliance can only be assured
if it has been connected to the electricity supply.
If the power cord is damaged, it must be replaced by a Miele au-
thorized technician in order to protect the user from harm.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
If moisture gets into electrical components or into the power cord,
it could cause a short circuit. Therefore, do not operate the machine
in areas where there may be moisture or splashing water (e.g.,
garages, laundry rooms).
This appliance must not be installed and operated in mobile in-
stallations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
IMPORTANT SAFETY INSTRUCTIONS
8
For safety reasons, this appliance may only be used after it has
been built in.
During installation, maintenance and repair work, the appliance
must be disconnected from the electrical power supply. It is only
completely isolated from the electricity supply when:
– the circuit breaker has been tripped, or
– the screw-type fuses on the electrical service panel have been re-
moved or
– the power cord has been unplugged. Pull on the plug and not on
the cord when removing it from the outlet.
Installation, repair, and maintenance work should only be per-
formed by a Miele-authorized service technician.
Work by unqualified persons could be dangerous and may void the
warranty.
Any manufacturer's warranty will be void if the appliance is not re-
paired by a Miele approved service technician.
Defective components should only be replaced by Miele original
parts. Only with these parts can the manufacturer guarantee the
safety of the appliance.
Correct use
The appliance is designed for use within a certain climate range
(ambient temperatures), and should not be used outside this range.
The climate range for your appliance is stated on the data plate in-
side the appliance. Installing it in a room with too low an ambient
temperature, e.g. a garage, will lead to the appliance switching off
for longer periods so that it cannot maintain the required tempera-
ture.
WARNING! Danger of overheating! Do not cover or block the air
vents. This can impair the efficiency of the appliance, increase the
power consumption and cause damage to the appliance.
IMPORTANT SAFETY INSTRUCTIONS
9
If storing food which contains a lot of fat or oil in the appliance,
make sure that it does not come into contact with plastic compo-
nents as this could cause stress cracks or break the plastic.
Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Electrical components could
cause flammable vapors to ignite.
Danger of fire and explosion.
Do not operate any electrical equipment (e.g. an electric ice cream
maker) inside the appliance.
Danger of sparking and explosion.
When eating stored food, there is a danger of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Observe the manufacturer's “use-by” dates and storage in-
structions.
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
Cleaning and maintenance
Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
Never use a steam cleaner to clean the appliance.
The steam can reach the electrical components and cause a short
circuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the appliance. Do not use sharp edged or
pointed objects to
– remove frost or ice,
– separate frozen foods or remove ice trays.
Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
IMPORTANT SAFETY INSTRUCTIONS
10
Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might
cause the build-up of gases and pose a danger to health.
California Proposition 65
– This product contains chemicals known to the state of California
to cause cancer or reproductive harm.
– This product can expose you to chemicals including Diisononyl
Phthalate (DINP) which is known to the State of California to
cause cancer. For more information go to www.P65Warn-
ings.ca.gov.
– This product can expose you to chemicals including Di-isodecyl
Phthalate (DIDP) which is known to the State of California to
cause birth defects or other reproductive harm. For more informa-
tion go to www.P65Warnings.ca.gov.
Transport
To avoid damage to the appliance, always transport it upright and
in its packaging.
Danger of injury and damage. The appliance is very heavy and
must be transported by two people.
Disposal of your old appliance
Children could become trapped in the machine and could suffo-
cate.
– Remove the machine doors.
– Remove the drawers.
– Leave the adjustable shelves in the machine so children cannot
climb inside.
Danger of electric shock!
– Cut the plug off the power cord.
– Cut the power cord off the old appliance.
IMPORTANT SAFETY INSTRUCTIONS
11
Dispose of them separately from the appliance.
Ensure that the appliance is not stored in the vicinity of gasoline or
inflammable gases and liquids during and after disposal.
Make sure that the coolant pipework is not damaged during dis-
posal to avoid uncontrolled leakage of oil and coolant (see data plate
for coolant type).
Before disposing of an old appliance, first make the door latches
or locks unusable.
This way you will prevent children from accidentally locking them-
selves in and endangering their lives.
Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
– puncturing the coolant channels in the evaporator,
– kinking any pipework,
– scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. In normal operation there is no risk.
The oil in the compressor can be fatal if swallowed or if it pene-
trates the airways.
Caring for the environment
12
Disposal of packaging material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Return
the packaging to your dealer.
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed.
Take care not to damage the pipework
at the back of your appliance before or
during transportation to an authorized,
environmentally friendly collection de-
pot.
This way, coolant in the pipework and
oil in the compressor will be contained,
and will not leak into the environment.
Please ensure that your old appliance
does not pose a danger to children
while being stored prior to disposal.
See “IMPORTANT SAFETY INSTRUC-
TIONS” for more information.
How to save energy
13
Normal
energy consumption
Increased
energy consumption
Installation/main-
tenance
In a ventilated room In an enclosed, poorly venti-
lated room
Protected from direct sun-
light
In direct sunlight
Away from heat sources
(heater element, oven)
Near a heat source (heater
element, oven)
At an ideal room tempera-
ture of approx. 70°F (20°C)
At an increased room tem-
perature of 75°F (25°C) and
above
Ventilation grille unob-
structed and dusted regu-
larly.
Ventilation grille blocked and
full of dust.
Compressor at the back of
the appliance dusted at least
once a year.
Dust build-up on the com-
pressor
Temperature
setting
39°F to 41°F (4°C to 5°C) in
the refrigerator section
The lower the temperature in
the appliance, the higher the
energy consumption.
How to save energy
14
Normal
energy consumption
Increased
energy consumption
Use The drawers and shelves are
in the original arrangement.
Only open the door when
necessary and for as short a
time as possible. Store food
in an organized way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The appliance will cool down
and the compressor will run
for longer periods.
Take an insulated cool bag
when shopping and load
food in the appliance as
soon as possible.
Replace any food removed
as quickly as possible, be-
fore it begins to thaw.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the tem-
perature inside the appli-
ance. The appliance will cool
down and the compressor
will run for longer periods.
Store food covered or
wrapped.
The evaporation or conden-
sation of liquids will cause a
loss of coldness.
Place frozen food in the re-
frigerator to defrost.
Do not overfill the appliance
in order to allow the air to
circulate.
Overfilling the appliance will
cause poor air circulation
and a loss of coldness.
Guide to the appliance
15
Control panel
a
On/Off button
b
Automatic SuperCool button
c
Display
d
Menu symbol
(Settings mode for:
switching the safety lock on/off)
e
Automatic SuperCool symbol
f
Lock symbol
g
Temperature display
h
Temperature selector button
i
Alarm off button
Guide to the appliance
16

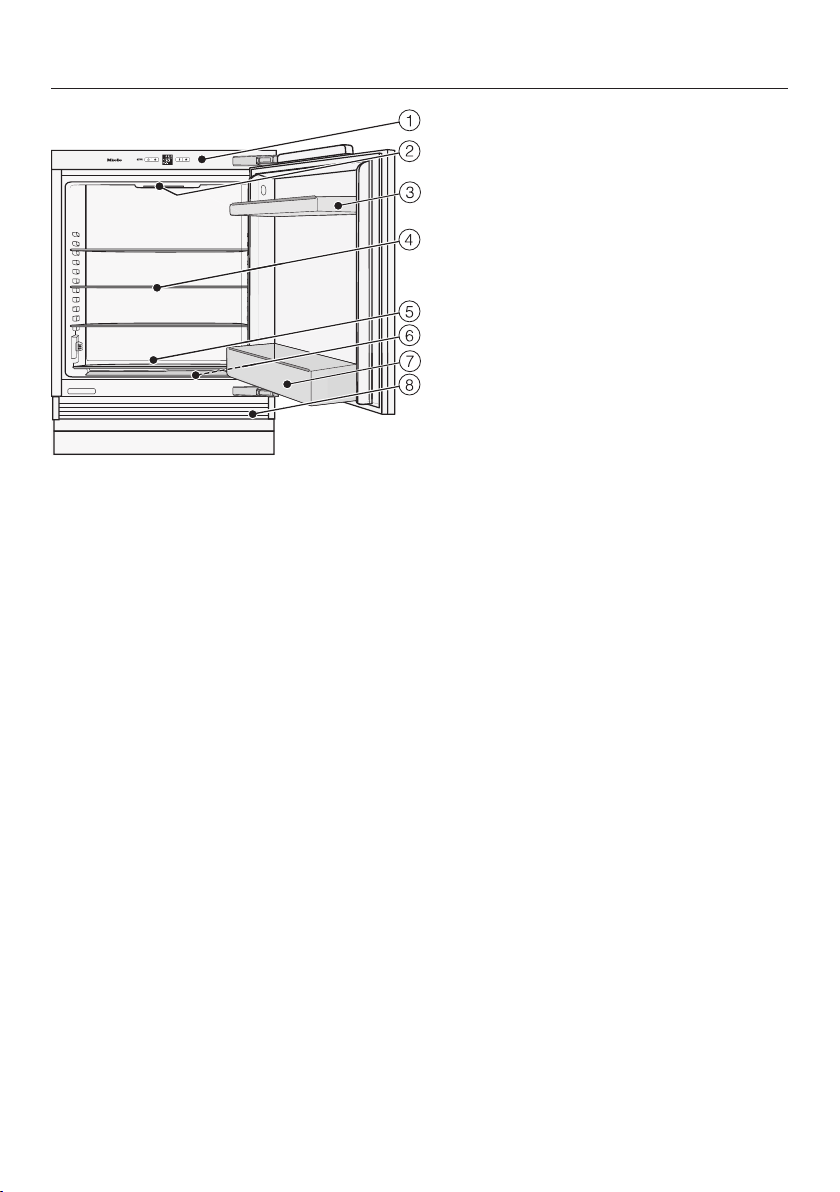

a
Control panel with display
b
Interior lighting (depending on model)
c
Egg tray/door shelf
d
Adjustable rack
e
Condensate channel and drain hole
f
Fruit and vegetable drawer
g
Bottle shelf with bottle holder
h
Ventilation grille
Guide to the appliance
17
Accessories
Accessories supplied
Bottle holder
The non-slip fins of the bottle holder jut
out into the bottle shelf and make bot-
tles more secure when you open and
close the appliance door.

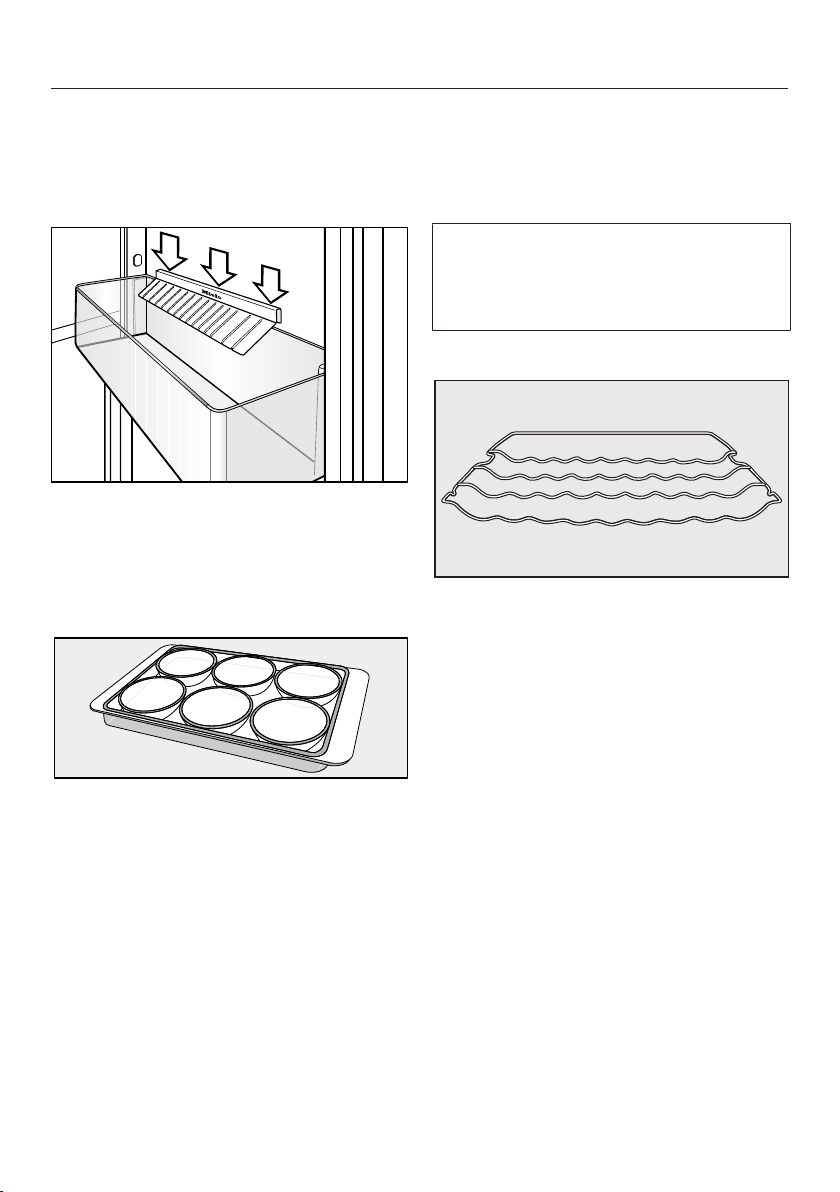

Egg tray
Optional accessories
A range of useful Miele accessories and
care products are available for your ap-
pliance.
Accessories are available to order via
the Miele Webstore, from Miele di-
rectly (see back cover for contact de-
tails) or from your Miele dealer.
Bottle rack
Bottles can be stored horizontally using
the bottle rack to save space.
The bottle rack can be placed at differ-
ent positions in the refrigerator section.
Guide to the appliance
18
KKF-FF Active AirClean carbon filter
with holder
Carbon filters neutralize unpleasant
odors in the refrigerator section for im-
proved air quality.
The carbon filter holder clips onto the
protective strip at the back of the shelf
and can be moved as necessary.
KKF-RF
ActiveAirClean replacement filters
Replacement filters to fit the Active Air-
Clean holder are available. We recom-
mend replacing the carbon filters every
6months.
Switching on and off
19
Before first use
Packaging material
Remove all packaging material from
the inside of the appliance.
Removing the protective film
The stainless steel strips on the door
shelves and adjustable shelves have a
layer of protective film to prevent dam-
age during transportation.
Carefully remove the protective film
from the stainless steel trim.
Cleaning the refrigerator
Please refer to the relevant instruc-
tions in “Cleaning and care”.
Clean the inside of the appliance and
the accessories.
Switching on the appliance
To enable the temperature to get suffi-
ciently cold inside the appliance, allow
the appliance to run for some time be-
fore placing food in it for the first time.
Press the button.
The appliance will start to cool and the
temperature required will appear in the
temperature display. The interior lighting
will come on when the door is opened.
Switching off the appliance
Press the button until the display
goes out.
If this does not work, the safety lock is
activated (see “Selecting additional set-
tings – Activating and deactivating the
safety lock”).
The interior lighting goes out and cool-
ing is turned off.
Switching on and off
20
Turning off for longer periods
of time
If, during a long absence, the ap-
pliance is switched off but not
cleaned and the door(s) left shut,
there is a danger of bacteria building
up inside the appliance.
It is essential to clean the appliance.
If the appliance is not going to be used
for a longer period of time, e.g. while on
vacation:
switch the appliance off,
unplug the power cord or trip the cir-
cuit breaker,
clean the appliance and
leave the door(s) ajar to air the appli-
ance and avoid odors building up in-
side the appliance.
The correct temperature
21
It is very important to set the correct
temperature for storing food in the ap-
pliance. Bacteria will cause food which
is not stored at the correct temperature
to deteriorate rapidly.
The temperature in the appliance will
rise:
– if you open the door frequently or
keep it open too long,
– the more food that is stored in it
– if you put food in it that is too warm,
– the higher the ambient temperature
surrounding the appliance. The appli-
ance is designed for use within spe-
cific ambient temperatures (climate
range). Do not use in ambient tem-
peratures for which it is not designed.
. . . in the refrigerator section
We recommend a temperature of 39°F
(4°C) in the refrigerator section.
Automatic cold air circulation (Dyna-
Cool)
The fan automatically turns on when the
cooling system for the refrigerator sec-
tion turns on. It distributes the tempera-
ture in the refrigerator section to all ar-
eas evenly so that all the food inside will
be chilled to about the same degree.
The correct temperature
22
Temperature display
In normal operation the temperature
display shows the required tempera-
ture.
Setting the temperature
If the appliance door is opened very of-
ten, or if large quantities of food are be-
ing stored in the appliance, or if the am-
bient temperature is high, it is advisable
to set the temperature between 37°F
(3°C) and 41°F (5°C).
The temperature can be adjusted from
35°F (2°C) to 49°F (9°C).
Press the button until the tempera-
ture you want is shown in the temper-
ature display.
The first time you press the button the
last temperature set will flash in the dis-
play.
The temperature value will change up
until the setting for 35°F (2°C) is
reached. It will then drop back to 49°F
(9°C).
After a short while the newly selected
temperature is set automatically and will
appear in the temperature display.
The temperature in the appliance will
now adjust slowly to the newly set tem-
perature.
Using Automatic SuperCool
23
Automatic SuperCool function
The Automatic SuperCool function can
be used to rapidly reduce the tempera-
ture in the Fridge Zone to its lowest set-
ting (depending on the room tempera-
ture).
Automatic SuperCool is particularly rec-
ommended for the rapid chilling of large
amounts of fresh food or drink.
Switching on Automatic SuperCool
Press the button.
The Automatic SuperCool symbol
will light up. The appliance will work at
full power to lower the temperature in
the Fridge Zone.
Switching off Automatic SuperCool
The Automatic SuperCool function will
switch itself off automatically after ap-
prox. 12hours. The Automatic Super-
Cool symbol will go out and the ap-
pliance will run at normal power again.
To save energy, the Automatic Super-
Cool function can be switched off once
food and drinks are sufficiently chilled.
Press the button so that the
symbol goes out.
The appliance will then continue run-
ning at normal power.
Door alarm
24
The appliance is fitted with a warning
system to avoid increased energy con-
sumption if the door is left open.
Door alarm
An alarm will sound if the machine door
has been left open for longer than
60seconds.
As soon as the door is closed, the
alarm sound will stop.
Turning the door alarm off early
If the alarm disturbs you, it can be
turned off early.
Press the button.
The alarm will stop.
The alarm cannot be turned off early in
Settings mode.
Selecting additional settings
25
Settings mode
Certain settings on the appliance can
only be selected in settings mode.
Activating and deactivating the
safety lock
Setting the temperature display
°C/°F
Settings mode is represented in the dis-
play by the menu symbol .
The procedure for accessing settings
mode and for changing settings is de-
scribed below.
Activating and deactivating the safety
lock
The safety lock can be activated to pre-
vent the appliance being turned off by
mistake.
– To activate the lock
Press the button for approx.5sec-
onds.
The menu symbol lights up and
flashes in the display.
Settings mode has now been activated.
Press the button briefly to access
the lock function.
will appear in the display.
Press the button briefly to activate
the lock.
The lock symbol lights up.
Press the on/off button to exit Set-
tings mode.
The temperature will appear in the dis-
play.
– To deactivate the lock
Press the button for approx.5sec-
onds.
The lock symbol and the Menu sym-
bol will light up and will start flash-
ing in the display.
Settings mode has now been activated.
Press the button briefly to access
the lock function.
will appear in the display.
Press the button briefly to deacti-
vate the lock.
The lock symbol will go out.
Press the on/off button to exit Set-
tings mode.
The temperature of the Fridge Zone will
appear in the display.
Changing the temperature unit (Cel-
sius or Fahrenheit)
The temperature can be displayed in ei-
ther Fahrenheit (°F) or Celsius (°C). The
factory default is Fahrenheit °F.
– To change the temperature display
to Celsius
Press the button for approx. 5sec-
onds.
The menu symbol lights up and
flashes in the display.
Settings mode is now activated.
Press the button to access the
“Change temperature unit” function.
flashes in the display.
Press the button briefly to select
°C.
°C appears in the display
Selecting additional settings
26
Press the button briefly to confirm.
flashes in the display.
Press the button to exit Settings
mode.
The temperature will now be displayed
in Celsius.
– To change the temperature display
to Fahrenheit
Press the button for approx. 5sec-
onds.
The menu symbol lights up and
flashes in the display.
Settings mode is now activated.
Press the button to access the
“Change temperature unit” function.
flashes in the display.
Press the button briefly to select
°F.
°F will appear in the display
Press the button briefly to confirm.
flashes in the display.
Press the button to exit Settings
mode.
The temperature will now be displayed
in Fahrenheit.
Storing food in the refrigerator section
27
Do not load more than a maximum of
35lb (16kg) of food in the appliance
door.
WARNING! Fire hazard!
Do not operate any electrical equip-
ment inside the appliance. This can
cause sparking.
Danger of explosion!
Do not store any explosive materials
or products containing flammable
propellants (e.g., spray cans) in the
machine.
If storing food which contains fat
or oil in the machine or the machine
door, stress cracks may be caused in
the plastic, resulting in it breaking.
Make sure that no oil or fat leaks
onto the plastic parts of the machine.
Various cooling zones
Due to natural air circulation there are
different temperature zones in the re-
frigerator section.
Cold, heavy air sinks to the lowest sec-
tion of the appliance. Make use of the
different temperature zones when plac-
ing food in the appliance.
To allow air to circulate efficiently, do
not pack food too closely together in
the refrigerator.
If there is insufficient air circulation
the cooling performance will de-
crease and energy consumption will
increase.
Do not cover the fan in the rear wall
of the refrigerator.
Food must not touch the back of the
refrigerator section as it may freeze to
the back wall.
This appliance has DynamicCooling,
which helps to keep an even tempera-
ture when the fan is running. When
DynamicCooling is turned on, the dif-
ference between the various zones is
less pronounced.
Warmest area
The warmest area in the refrigerator
section is in the top section of the door.
Use this for storing butter so that it re-
mains spreadable and cheese so that it
retains its flavor.
Storing food in the refrigerator section
28
Coldest area
The coldest area in the Fridge Zone is
directly above the fruit and vegetable
drawer and at the back of the appli-
ance.
Use these areas to store all delicate and
highly perishable food, e.g.,
– fish, meat, poultry,
– cold cuts, ready-made meals,
– dishes or baked goods containing
eggs or cream,
– fresh dough, cake mixtures, pizza
dough, or pie dough,
– raw milk cheese and other raw milk
products,
– pre-packed vegetables and other
fresh food whose best-before date
requires storage at a temperature of
at least 39°F (4°C).
Food which is not suitable for
storage in the refrigerator sec-
tion
Not all food is suitable for refrigeration
at temperatures below 41°F (5°C) be-
cause it is sensitive to cold. Depending
on the type of food, the appearance,
consistency, flavor and/or vitamin con-
tent may be altered if stored at too cold
a temperature.
Food that is sensitive to cold includes:
– pineapple, avocados, bananas,
pomegranates, mangos, melons, pa-
paya, passion fruit, citrus fruit (such
as lemons, oranges, mandarins,
grapefruit),
– fruit that is not yet ripe,
– eggplant, cucumbers, potatoes, pep-
pers, tomatoes, zucchini,
– hard cheeses, e.g. Parmesan.
What to be aware of when
shopping for food
The freshness of food when first placed
in the appliance is the most important
factor in determining how long it stays
fresh, and how long it can be kept in the
appliance.
Always observe the use-by date and
the recommended storage temperature.
Time out of the refrigerator should be
kept to a minimum, for example, when
transporting food in a hot car.
Tip: Take a cool bag with you when
shopping and on return place food into
the appliance immediately.
Storing food in the refrigerator section
29
Storing food correctly
Ensure that food stored in the Fridge
Zone is in packaging or covered
properly. This will prevent food smells
from affecting other foods, food from
drying out, and also any cross-contami-
nation of bacteria. This is especially im-
portant when storing meat products.
By ensuring that the temperature set-
tings are correct and by taking appro-
priate hygiene measures, you can pro-
long the storage life of your food con-
siderably.
Fruit and vegetables
Fruit and vegetables can be stored
loose in the fruit and vegetable drawer.
Protein-rich food
Please note that foods rich in protein
deteriorate faster than others. Shellfish,
for example, deteriorates faster than
fish, and fish deteriorates faster than
meat.
Adjusting the interior fittings
30
Adjusting the door shelf/bottle
shelf
Danger of injury!
Only move the door shelves/bottle
shelves in the door when they are
empty.
Push the door/bottle shelf upwards,
then remove it by pulling it forwards.
Replace the shelf at the required
height. Ensure that it is securely
pushed back into position.
Moving the shelves
The shelves can be adjusted according
to the height of the food.
Lift the shelf at the front, pull it for-
wards slightly, lift the recess over the
shelf supports and move the shelf up
or down.
The raised edge on the protective strip
at the back must face upwards to pre-
vent food from touching the back of the
appliance and freezing to it.
Stoppers prevent the shelves from be-
ing dislodged by mistake.
Adjusting the bottle holder
The bottle holder can be moved left or
right, thus creating more room for drink
cartons.
The bottle holder can be removed com-
pletely, e.g. for cleaning:
Lift up the bottle shelf and pull it for-
ward to remove it.
Detach the bottle holder from the
back edge of the bottle shelf.
Adjusting the interior fittings
31
Moving the carbon filter
The carbon filter with KKF-FF holder
(Active AirClean) is available as an op-
tional accessory (see “Accessories -
Optional accessories”).
When you are storing very strong-
smelling food (e.g., cheese):
– Place the holder with the carbon fil-
ters on the adjustable shelf where this
food is being kept.
– Change the carbon filters sooner if
necessary.
– Use additional carbon filters (with
holders) in the appliance (see “Acces-
sories – Optional accessories”).
The holder for the carbon filters sits on
the protective strip at the back of the
adjustable shelf.
To move the carbon filter, pull the
holder up and off the protective strip.
Refit it on the protective strip of the
adjustable shelf you wish to use it on.
Defrosting
32
WARNING! Danger of injury and
damage!
Do not use any mechanical or other
types of aids which are not recom-
mended by the manufacturer to ac-
celerate the defrosting process.
Refrigerator section
The refrigerator defrosts automatically.
Condensate and frost can build-up on
the back wall of the refrigerator when
the compressor is running. There is no
need to remove it, since it will evaporate
automatically with the warmth gener-
ated by the compressor.
The condensate is drained away
through a channel and drain hole, then
fed into an evaporation system at the
back of the appliance.
Condensate must be able to
drain away unhindered at all times.
Keep the condensate channel and
drain hole clean to enable this.
Cleaning and care
33
WARNING! Danger of electric
shock!
Unplug the appliance or trip the cir-
cuit breaker.
WARNING! Fire hazard!
Do not damage the coolant
pipework.
Do not let water get into the
electronic unit or the lighting.
Steam from a steam cleaning ap-
pliance could reach the electrical
components and cause a short cir-
cuit.
Do not use a steam cleaner!
Cleaning water must not get into the
drain hole.
The data plate located inside the ap-
pliance must not be removed. It con-
tains information which is required in
the event of a service call.
Cleaning agents
Cleaning and conditioning agents
used inside the appliance must be
food safe.
To avoid damaging the surfaces of your
appliance, do not use
– cleaning products containing soda,
ammonia, acid, or chloride,
– lime scale removers,
– abrasive cleaning products, such as
scouring powder, scouring liquid, or
pumice stones,
– cleaners containing solvents,
– stainless steel cleaners,
– dishwasher detergent,
– oven sprays,
– glass cleaning agents,
– hard, abrasive sponges and brushes,
such as pot scrubbers,
– eraser sponges,
– sharp metal scrapers.
We recommend using a clean sponge,
lukewarm water with a little liquid dish
soap to clean the surfaces of the appli-
ance.
The following pages contain important
information on cleaning.
Cleaning and care
34
Preparing the appliance for
cleaning
Switch the appliance off.
The display goes out and cooling is
turned off.
If this does not happen, then the safety
lock is still activated (see “Selecting ad-
ditional settings - Activating/deactivat-
ing the lock”).
Unplug the appliance or trip the cir-
cuit breaker.
Take any food out of the appliance
and store it in a cool place.
Remove the door shelf/bottle shelf
from the door.
Take out all other removable parts for
cleaning.
Adjustable shelf
Place the shelf on a worktop covered
with a soft material (e.g., a tea towel).
Remove the trim:
1. Pull the stainless steel strip off the
shelf beginning at one side.
2. Then pull the protective strip off.
After cleaning the shelf reattach the
trim to the adjustable shelf.
Cleaning and care
35
Cleaning the interior and ac-
cessories
Clean the appliance at least once a
month.
Clean up any spills, stains or food im-
mediately. Do not allow them to dry
and stick to the appliance.
Clean the interior with a clean
sponge, lukewarm water, and a little
liquid dish soap.
After cleaning, wipe with clean water
and dry with a soft cloth.
The stainless-steel parts on the
shelves are not dishwasher safe.
Remove the trim before putting the
shelves in the dishwasher.
The following parts cannot be cleaned
in a dishwasher:
– Stainless-steel trim
– Fruit and vegetable drawer
Clean these accessories by hand.
The following parts can be cleaned in
the dishwasher:
The maximum temperature of the
dishwasher program selected must
not exceed 131°F (55°C).
Contact with natural dyes from car-
rots, tomatoes, and ketchup, etc.
may discolor the plastic parts in the
dishwasher. This discoloration does
not affect the stability of the parts.
– bottle holder, egg tray
– shelves and bottle shelf in the door
– the adjustable shelves (without the
strips or printing)
– the holder for the carbon filter (avail-
able as an optional accessory)
Clean the condensate channel and
drain opening frequently using a cot-
ton swab or similar item to ensure
that condensate can drain away
freely.
Leave the door open to air the ma-
chine sufficiently for a short while and
to prevent odor buildup.
Cleaning and care
36
Cleaning the door seal
If the door seal is damaged or
has come out of the groove, the door
will not close properly and this will
affect cooling.
Condensation will form in the inside
and this can cause a build-up of ice.
Do not damage the door seal, and
make sure that it does not come out
of its groove.
Do not use any grease or oil on the
door seal as this will cause the seal
to deteriorate and become porous
over time.
The door seal should be cleaned reg-
ularly with clean water and then
wiped thoroughly dry with a cloth.
Cleaning the ventilation grilles
A build-up of dust will increase the en-
ergy consumption of the appliance.
The air vents should be cleaned on a
regular basis with a brush or vacuum
cleaner (you could use a Miele vac-
uum cleaner dusting brush, for exam-
ple).
Cleaning the compressor at
the back of the appliance
When cleaning the compressor,
be careful not to tear off, kink, or oth-
erwise damage any wiring or other
parts.
Dust the compressor at the back of the
appliance at least once a year. A build-
up of dust will increase the energy con-
sumption of the appliance.
Starting up the appliance after
cleaning
Replace all shelves and accessories
in the appliance.
Reconnect to the power supply and
switch the appliance back on.
Switch on the automatic SuperCool
function for a while so that the refrig-
erator section can cool down quickly.
Put the food back in the appliance
and close the door.
Cleaning and care
37
Replacing the carbon filters
The carbon filter with KKF-FF holder
(Active AirClean) is available as an op-
tional accessory (see “Guide to the
appliance” section “Optional acces-
sories”).
Replace the carbon filters in the holder
around every 6months.
Replacement KKF-RF carbon filters
can be obtained from the Miele Tech-
nical Service, from your dealer, or from
Miele's website.
Tip: The carbon filter holder is dish-
washer safe.
Pull the carbon filter holder upward to
remove it from the adjustable shelf.
When in position, the carbon filters
must not touch the back wall of the
machine, as the moisture could
cause them to stick to it.
Insert the new carbon filters deep
enough in the holder to ensure that
they do not protrude over the edge
of the holder.
Remove both carbon filters and place
the new filters with the surrounding
edge pointing downward in the
holder.
Place the holder in the middle of the
raised edge at the back of any of the
adjustable shelves, so that it clicks
into position.
Frequently Asked Questions
38
With the help of the following guide minor faults in the performance of the ma-
chine, some of which may result from incorrect operation, can be remedied with-
out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
To prevent cold from escaping, open the appliance doors as little as possible un-
til the fault has been corrected.
Problem Possible cause and solution
The appliance is not
getting cold, the interior
lighting does not come
on when the door is
opened, and the display
is not lit up.
The appliance is not switched on and the power sup-
ply symbol is lit up in the display.
Switch the appliance on.
The plug is not properly plugged into the electrical
outlet.
Insert the plug correctly into the socket. The power
supply symbol appears in the display when the
appliance is switched off.
Check whether the fuse has tripped. There could be a
fault with the appliance, the household electrical
wiring or another electrical appliance.
Contact a qualified electrician or Miele Technical
Service for assistance.
Frequently Asked Questions
39
Problem Possible cause and solution
The compressor is turn-
ing on more frequently
and for longer periods
of time; the temperature
in the appliance is too
low.
The ventilation grille is obstructed or dusty.
Do not block the ventilation grille.
Clean the ventilation grille on a regular basis to re-
move any dust.
The door has been opened too frequently, or a large
amount of food has just been put in at once.
Only open the door when necessary and for as
short a time as possible.
After a while, the temperature will return to normal by
itself.
The ambient temperature is too high. The higher the
ambient temperature, the longer the compressor has
to run.
See "installation location" in the "Installation" sec-
tion.
The temperature setting is too low.
Correct the temperature setting.
The Automatic SuperCool function is still turned on.
To save energy, you can turn off Automatic Super-
Cool early yourself.
The compressor comes
on less and less often
and for shorter periods
of time. The tempera-
ture in the appliance
rises.
Not a fault. The temperature setting is too high.
Correct the temperature setting.
Check the temperature again after 24hours.
An alarm is sounding. The door alarm has been activated (see “Door
alarm”).
Close the appliance door.
The alarm will stop.
The door seal is dam-
aged or needs to be re-
placed.
No tools are required to change the door seal.
Change the door seal. A replacement is available
from Technical Service.
Frequently Asked Questions
40
Problem Possible cause and solution
Ice or condensation has
built up inside the appli-
ance.
The door seal has come out of its groove.
Check that the door seal is correctly positioned in
the groove.
The door seal is damaged.
Check whether the door seal is damaged.
An LED indicator light is
flashing at the back of
the refrigerator at the
bottom near the com-
pressor (depending on
model).
The electronic unit for
the compressor is
equipped with an oper-
ation and fault diagno-
sis LED indicator light.
The indicator light flashes several times every 5sec-
onds.
A fault has occurred.
Contact the Technical Service department.
The indicator light flashes regularly every 15sec-
onds.
Not a fault. This flashing is normal.
Frequently Asked Questions
41
Messages in the display
Message Possible cause and solution
The symbol lights up
in the display, the appli-
ance does not get cold,
although the controls
and the interior lighting
are working.
Demo mode is switched on. This allows the appliance
to be presented in the showroom without the cooling
system being switched on. Do not activate this setting
for domestic use.
Contact Miele Technical Service for information on
deactivating Demo mode.
“F0toF9” appears in
the display.
There is a fault.
Contact Miele Technical Service.
The symbol lights up
in the display. You can-
not switch the appli-
ance off.
The safety lock has been activated.
Completely deactivate the safety lock (see “Select-
ing additional settings”, section “Activating and de-
activating the safety lock”).
Frequently Asked Questions
42
The interior lighting is not working.
Problem Possible cause and solution
The interior lighting is
not working.
The appliance has not been switched on.
Switch the appliance on.
To avoid overheating, the lighting turns itself off auto-
matically after approx. 15minutes if the door is left
open. If this is not the case, then there is a fault.
Danger of electric shock.
There are live electrical components under the
lighting cover.
The LED lighting may only be repaired or replaced
by a Miele authorized service technician.
Danger of injury from LED lighting. Light inten-
sity corresponds to laser beam class 1/1M.
The lighting covers must not be removed or dam-
aged, or be removed due to damage. This could
cause injury to your eyes.
Do not look into the LED lighting (laser beam class
1/1M) with optical instruments (e.g. magnifying
glass or similar).
Contact Miele Technical Service.
Frequently Asked Questions
43
Other problems
Problem Possible cause and solution
The floor of the refriger-
ator section is wet.
The drain hole is blocked.
Clean the condensate channel and the drain hole.
The external walls of
the appliance feel
warm.
This is not a fault. The warmth created by the evapo-
rator is used to prevent condensation.
Causes of noises
44
Normal
noises
Cause
Brrrrr... A humming noise is made by the motor (compressor). This noise
can get louder for brief periods when the motor switches on.
Blub, blub... A gurgling noise can be heard when the coolant circulates
through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Crack... A cracking sound can be heard when materials expand inside
the appliance.
Please bear in mind that a certain amount of noise is unavoidable (from the com-
pressor and the coolant circulating through the system).
Noises Possible cause and solution
Rattling,
clinking
The appliance is uneven. Realign the appliance using a spirit
level, by raising or lowering the screw feet underneath the appli-
ance or place something underneath it.
The appliance is touching another appliance or piece of furni-
ture. Move it away.
Drawers, baskets or shelves are unstable or sticking. Check all
removable items and refit them correctly.
Bottles or containers are touching each other. Separate them.
The transport cable clips are hanging loose at the back of the
appliance. Remove the cable clips.
Technical Service
45
Contact in case of fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Technical Service.
Contact information for Miele Techni-
cal Service can be found at the end of
this document.
Please quote the model and serial num-
ber of your appliance when contacting
Miele. Both pieces of information can
be found on the data plate.
You will find the data plate inside your
appliance.
Warranty
For more information about warranty
conditions, please contact Miele Tech-
nical Service.
Electrical connection
46
Danger of electric shock!
The appliance must only be switched
on when it has been installed in ac-
cordance with the installation in-
structions.
Ground the appliance.
The appliance must not be grounded
via a gas pipe.
If in doubt, have a suitably qualified
and experienced electrician check
that the installation complies with rel-
evant regulations.
Do not install a fuse into neutral cur-
rent or grounding electrical circuit.
Do not use extension cords or un-
grounded (two prong) adapters.
Do not use a frayed or damaged
power cord.
Danger of electric shock!
For protection against electric shock
this appliance is equipped with a
pole-free plug which is protected
against reverse polarity. The plug
must be grounded in the usual way.
Do not remove the round grounding
connector pin from the plug.
Use only a grounded plug adapter.
Wait for 1hour after installation before
plugging the appliance into the power
supply. This allows coolant and refriger-
ator oil to settle in accordance with reg-
ulations.
Ensure that the voltage of the main
power supply corresponds with the
connection voltage of the appliance. A
power supply of 110 - 120 V, 60 Hz and
15 Amp (20 Amp for side-by-side instal-
lation) with a NEMA 5-15 molded plug,
which is protected by a main switch or
a fuse, is required to operate the appli-
ance.
The manufacturer recommends operat-
ing the appliance on a separate circuit
to avoid overloading the electrical cir-
cuit.
All relevant legal electrical, fire and
building regulations must be observed
when installing the socket and/or the
appliance.
In certain countries appliances are re-
quired to be connected to the electrical
supply via a wall-mounted ON/OFF
switch.
To avoid the risk of fire, electric shock
or other injuries installation and connec-
tion of the appliance must be carried
out by a suitably qualified electrician in
accordance with all relevant local and
national regulations and standards, in-
cluding fire prevention.
Electrical connection
47
The outlet must be easily accessible in
an emergency so that the appliance can
be quickly disconnected from the elec-
trical supply in case of an emergency.
The socket must be located so that the
upper edge is a maximum
82" (2100mm) distance from the upper
edge of the base of the kitchen cabinet.
If the outlet is no longer accessible
once the appliance has been installed,
an all-pole disconnect device with a
contact opening of at least 1/8" (3mm)
must be present on site. The discon-
nect device may be circuit breaker, a
fuse, or a contactor (compliant with lo-
cal regulations).
The plug and power cord must not
come into contact with the back of the
appliance as vibrations can cause dam-
age to these components. This, in turn,
could result in a short circuit.
Do not plug in other devices behind this
appliance.
Do not connect the appliance to an in-
verter such as those used with an au-
tonomous energy source e.g. solar
power. When switched on, peak loads
in the system can cause the safety
switch-off mechanism to be triggered.
This can damage the electronic unit.
The appliance must not be used with
so-called energy-saving devices ei-
ther. These reduce the amount of en-
ergy supplied to the appliance, causing
it to overheat.
If the power cord needs to be replaced,
this must be done by a qualified techni-
cian.
Installation
48
Side-by-side
The appliance has two side-wall heaters
encased in foam and can be installed
side-by-side with other appliances.
Each appliance must be installed in its
own niche.
Please contact your dealer for specific
information about which combinations
will work with your appliance.
WARNING! This appliance must
be built in, otherwise it could tip
over!
Install the appliance in accordance
with the installation instructions.
Fire hazard and risk of damage!
The appliance must not be installed
underneath a cooktop.
Installation location
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your ap-
pliance, please bear in mind that the
energy consumption will increase if in-
stalled near to a heater, a cooker, or
other appliance that gives off heat. Di-
rect sunlight should also be avoided.
The higher the room temperature, the
longer the compressor has to run and
the higher the energy consumption is.
When installing the appliance, please
note:
– The electrical socket must be easily
accessible in an emergency and not
concealed behind the appliance.
– The plug and power cord must not
touch the back of the appliance as
they could be damaged by vibrations
from the appliance.
– Do not plug other appliances into
electrical sockets behind this appli-
ance.
In environments with high hu-
midity condensation may appear on
the external surfaces of the appli-
ance.
Condensate can cause corrosion on
external appliance walls.
For prevention, it is advisable to in-
stall the appliance with sufficient
ventilation in a dry and/or air condi-
tioned room.
After installation make sure that the
appliance door closes properly, the
air vents are not covered and that
the appliance has been installed in
accordance with these installation in-
structions.
Installation
49
Climate class
The appliance is designed for use within
a certain climate range (ambient tem-
peratures) and should not be used out-
side this range. The climate range of the
appliance is stated on the data plate in-
side the appliance.
Climate
class
Room temperature
SN 50°F to 90°F / 10°C to 32°C
N 60°F to 90°F / 16°C to 32°C
ST 60°F to 100°F / 16 to 38°C
T 60°F to 109°F / 16 to 43°C
Operating in a room which is too cold
will cause the compressor to turn off for
too long, causing the internal tempera-
ture in the appliance to rise, resulting in
damage.
Ventilation
Noncompliance with the speci-
fied dimensions for the ventilation
grille will cause the compressor to
turn on more often and run for longer
periods.
This causes increased energy con-
sumption and an increased com-
pressor operating temperature,
which can result in damage to the
compressor.
It is essential to comply with the ven-
tilation grille dimensions (see “Instal-
lation dimensions”).
The appliance is ventilated through a
ventilation grille in its toe-kick.
The ventilation grille must never be
obstructed. They must also be
cleaned on a regular basis to remove
dust.
Installation
50
Door panel
The required door panel must be min.
5/8” (16mm) and max. 3/4” (19mm)
thick.
Weight of the door panel
If the door panel is too heavy,
this can cause damage!
Installing a door panel which is heav-
ier than the maximum permitted
weight could damage the hinges.
This can cause subsequent func-
tional problems.
Before installing the door panel, ensure
that the weight of the door does not ex-
ceed the maximum permitted:
Appliance Maximum weight
of door panel in lb
(kg)
K 31222 Ui 22lb (10kg)
Calculation of cabinet door size
The width of the cabinet door de-
pends on the style of the kitchen and
the gap between the unit door panels.
When calculating the height of the
cabinet door, remember that the top
edge of the door must be at the same
height as that of the doors of the adja-
cent units.
The following gaps are required:
– The horizontal gap between the cabi-
net door and the cupboard door
above it must be at least 1/8" (3mm).
– The vertical gap between the cabinet
doors should be approx. 1/8" (3mm).
The exact value will depend on the
radius of the edge of the cabinet
door.
The cabinet door must be fitted cor-
rectly and not under tension.
Installation
51
Before installing the appliance
Before installation, remove the bag of
installation accessories and other ac-
cessories from the appliance.
Remove the cord clips from the back
of the appliance.
Remove red transport safety de-
vice (depending on model) and use
the stopper supplied to cover the
hole.
Installation
52
Installation dimensions
Appliance dimensions
Dimensions for ventilation
* The declared energy consumption
was achieved with a niche depth of 22
1/16” (560mm). The appliance is fully
capable of functioning at a niche depth
of 21 5/8” (550mm), but will consume
slightly more energy.
If the appliance is suitable for installa-
tion in a niche, ensure before installa-
tion that it has precisely the correct di-
mensions. The specified ventilation
grille dimensions must be complied
with to ensure that the appliance func-
tions correctly.
Changing the door hinges
53
Before building the appliance in, you
will need to decide on which side the
door is to be hinged. If left-hand hinging
is required, the hinges must be
changed.
To change the door hinging, you will
need the following tools:

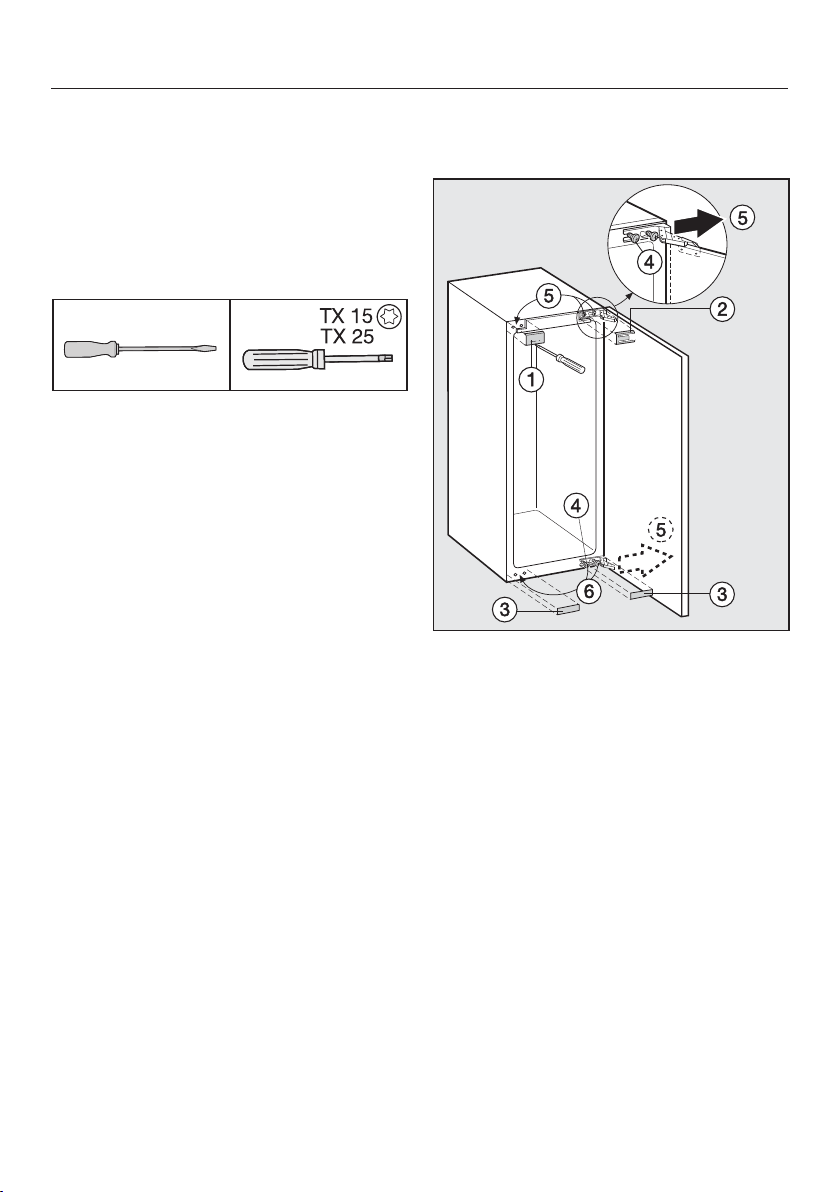

Appliance door
Open the appliance door.
Remove covers , , and with a
slotted screwdriver.
Loosen fixing screws slightly.
Push the appliance dooroutwards,
take it off its hinges and place it to
one side.
Completely remove the fixing
screws and loosely screw them in
the opposite side at the top and
the bottom.
Use a power screwdriver to secure
the hinges. The screws are self-tap-
ping.
If you have inserted pins into the hinges
to limit the door's opening angle:
Changing the door hinges
54

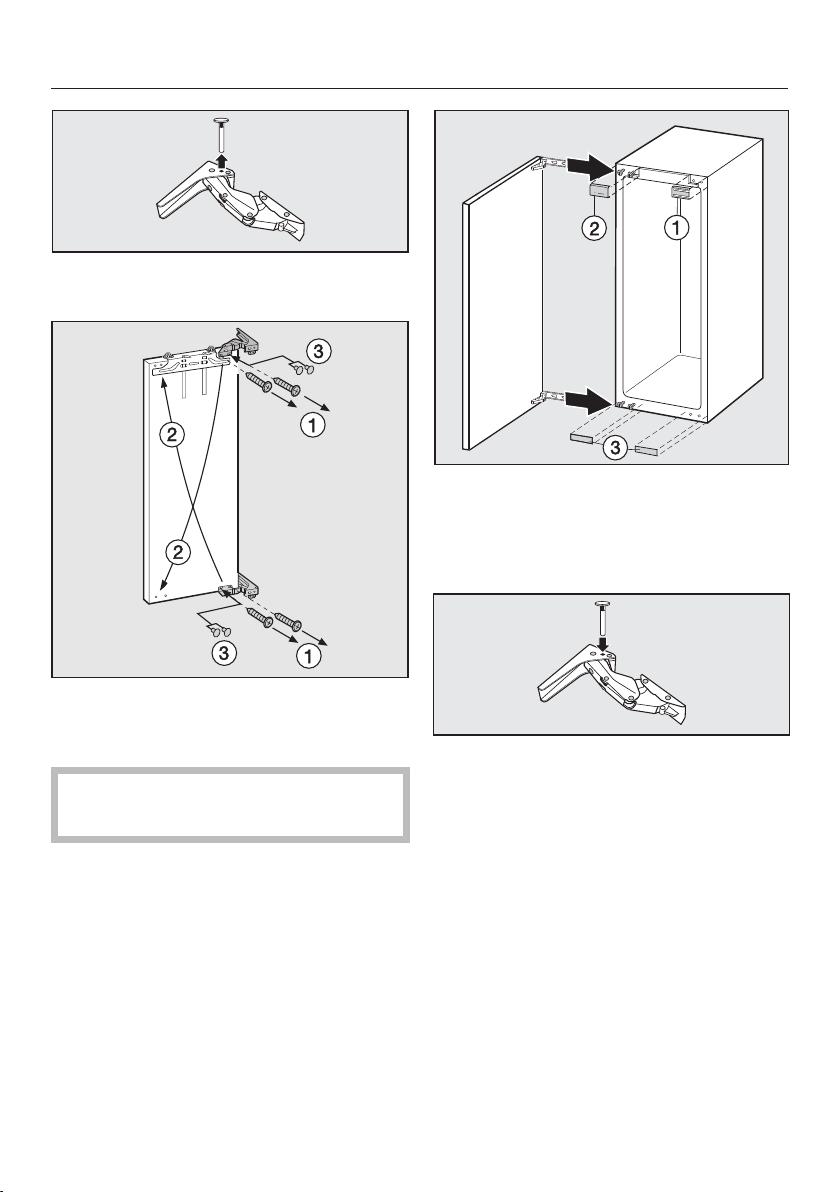

Remove the locking pins from the top
of the hinges.
Remove screws and plug the
empty holes with the stoppers sup-
plied.
Danger of injury!
Do not close the hinges.
Replace the hinges in their diagonally
opposite corners.
Use a power screwdriver to secure
the hinges. The screws are self-
tapping.
Hang appliance door onto pre-fitted
screws and tighten the screws se-
curely.
Replace covers , , and .
If required, refit the locking pins into
the top of the hinges to prevent the
doors opening too far.
Adjusting the door hinge
55

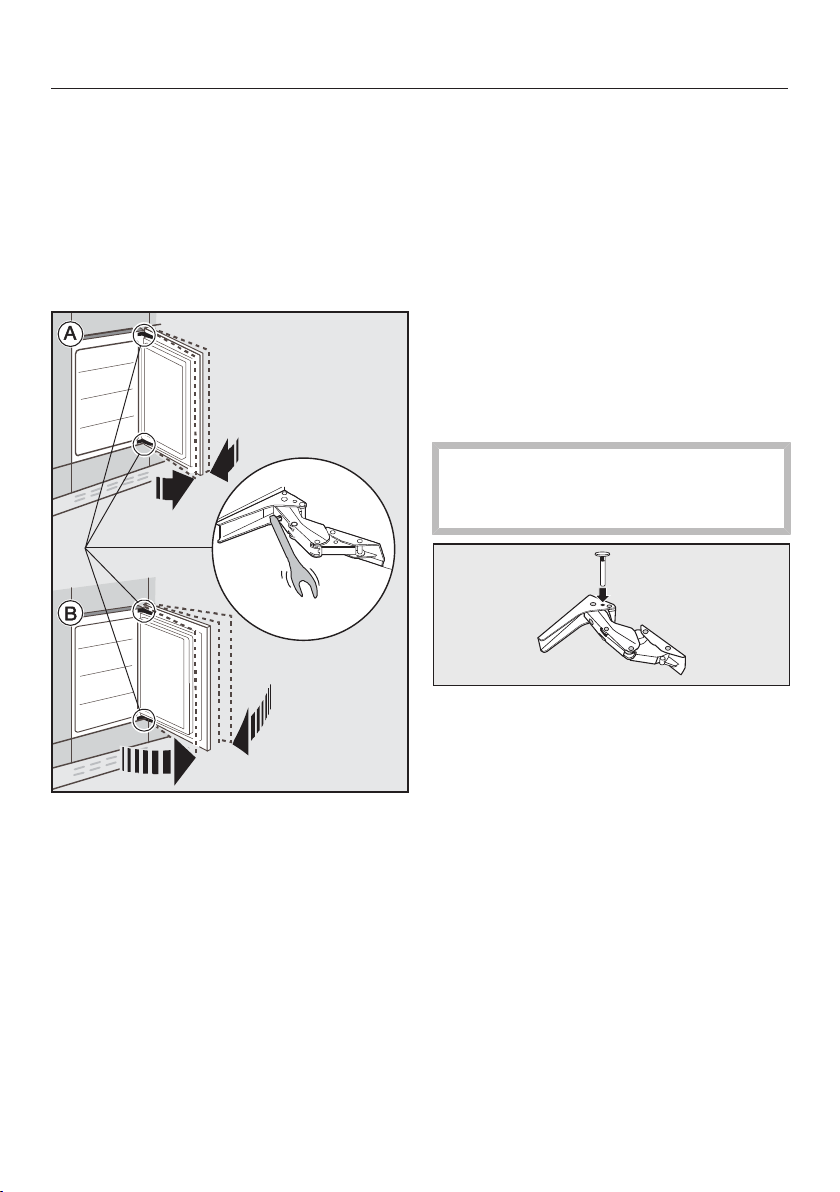

Adjusting the door hinges
If you would like the appliance door to
be cushioned so that it opens more
softly, the spring tension on the appli-
ance door can be adjusted.
To do this, use an Allen key to adjust
the door hinges.
To reduce the opening angle:
Turn the Allen key clockwise.
This tightens the hinges and makes it
harder to open the door wide.
To open the door fully:
Turn the Allen key counterclockwise.
The hinge is looser, making it easier to
open the door.
Limiting the opening angle of
the appliance door
The door hinges are set to enable the
appliance door to be opened wide.
However, if the opening angle of the
door needs to be limited for any reason,
the hinge can be adjusted to accommo-
date this.
If, for example, the appliance door hits
an adjacent wall when it is opened, you
should limit the opening angle of the
appliance door to 90°.
The locking pins for limiting the door
opening must be fitted before the ap-
pliance is installed.
Insert the locking pins supplied for
limiting the door opening into the
hinges from above.
The door opening angle is now limited
to approx. 90°.
Building in the appliance
56

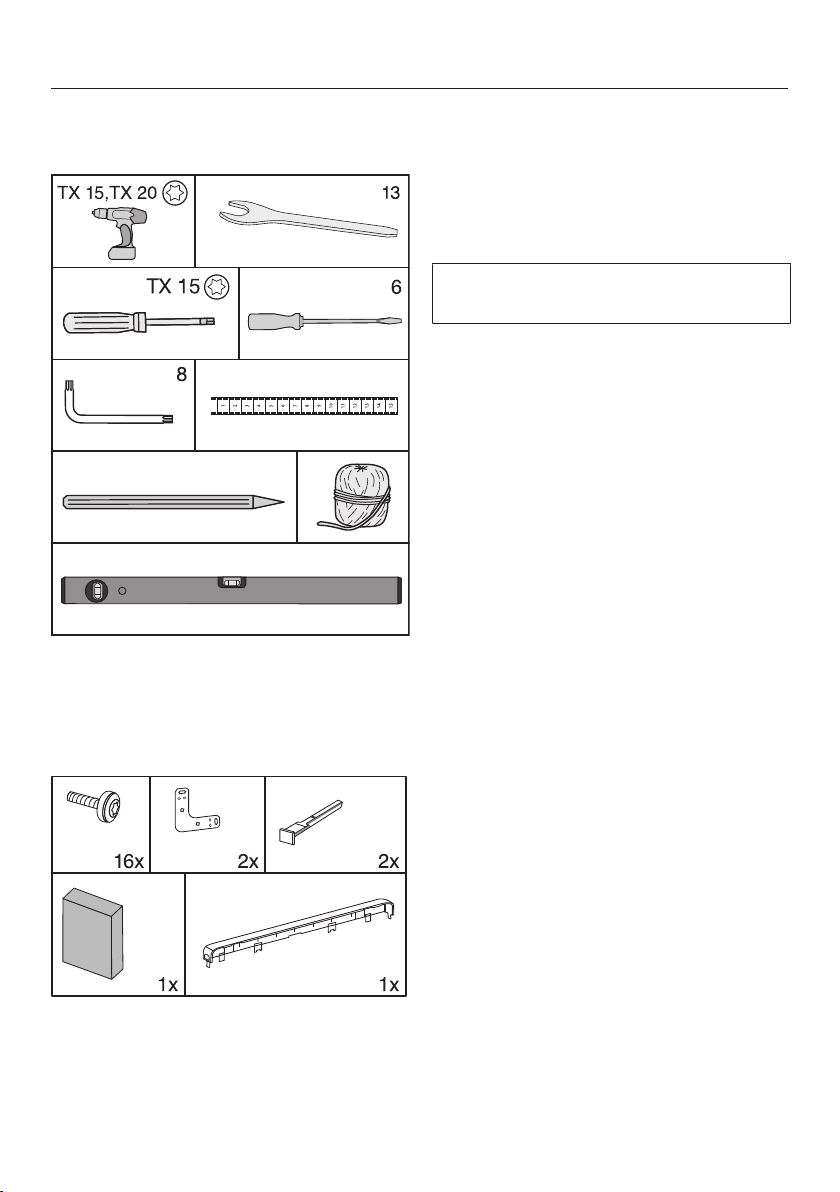

To install the appliance, you
will need the following tools:
Parts required for installation:
All installation parts are number-coded.
This coding is also used in the installa-
tion instructions.
Preparing the appliance
Position the appliance directly in front
of the niche.
Take hold of the toe-kick from the
side and pull it forward and off.
You can choose to secure your appli-
ance in one of two different ways:
1. Secured at the top
This method is suitable for securing
the appliance underneath a plastic
countertop, e.g., laminate). The coun-
tertop must be suitable for screwing
a bracket to.
With the appliance feet fully ex-
tended, the appliance should fit fairly
tightly between the floor and the
countertop.
2. Secured at the side
This method is suitable for securing
the appliance underneath a solid
countertop, e.g., granite). The cabinet
side walls to the right and left of the
appliance must be suitable for
screwing brackets to.
With the appliance feet fully ex-
tended, the appliance should sit
lower than the countertop.
Building in the appliance
57

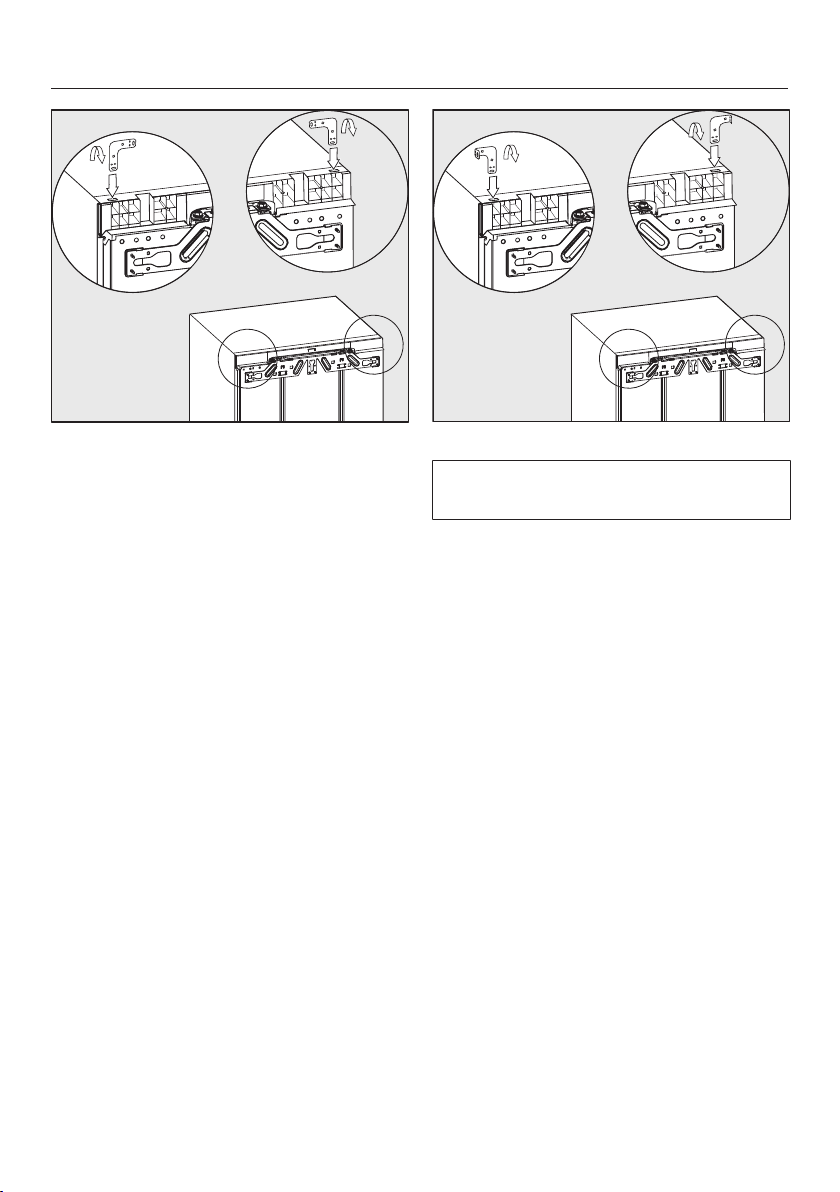

1.Secured at the top
Install the bracket in the aperture in
the top of the appliance.
Bend the bracket at the perforated
position.
2.Secured at the side
Both ends of the bracket must be
bent.
Install the bracket in the aperture in
the top of the appliance.
Bend the bracket at the perforated
position.
Remove the bracket from the aper-
ture and insert the straight end of the
bracket.
Now bend this end of the bracket at
the perforated position.
Building in the appliance
58
Positioning the appliance
Take care not to trap the power
cord when pushing the appliance
into its niche.
To prevent damage to the floor,
take care when moving the appliance
on floors that are sensitive to
scratching.
The appliance feet can break off.
The feet should be almost fully
screwed in when you push the appli-
ance into the niche.
Tip: Before pushing the appliance into
the niche, loosen the two rear feet by
half a turn. After pushing the appliance
into the niche, the feet will be easier to
adjust from the front (see “Aligning the
appliance”).
Lay the power cord so that the appli-
ance can be connected easily once
installed.
Tip: Tie a piece of string to the plug to
“lengthen” the power cord; this will help
you to push the appliance into position.
Then pull the power cord through the
cabinet by the other end of the string.
If the appliance is pushed too far into
the niche, the doors may not close
properly once the door panels have
been installed. This can cause ice to
build up, condensate to accumulate,
and cause the appliance to malfunc-
tion. These can all lead to increased
energy consumption.
Push the appliance into the building-
in niche making sure a gap of
15/8” (42mm) is maintained all
round between the appliance casing
and the front of the cabinet side
walls.
Push the appliance into the niche un-
til the front edges of the hinges at the
top and bottom are flush with the
front edge of the cabinet unit side
wall.
This ensures a distance of
15/8” (42mm) to the front edges of
the cabinet side walls all the way
round.
Building in the appliance
59
On cabinetry with door fittings (e.g.,
knobs, raised seals) the dimension of
these must be taken into account to
ensure that there is a gap of
15/8” (42mm) all round.
Pull the appliance forward by the ap-
propriate dimension.
Check again to make sure there is a
gap of 15/8”(42mm) to the front
edges of the door fittings all round.
Tip: If possible, remove the door fittings
and push the appliance into the niche
until all fixing brackets at the top and
bottom are touching the front edge of
the cabinet unit side wall.

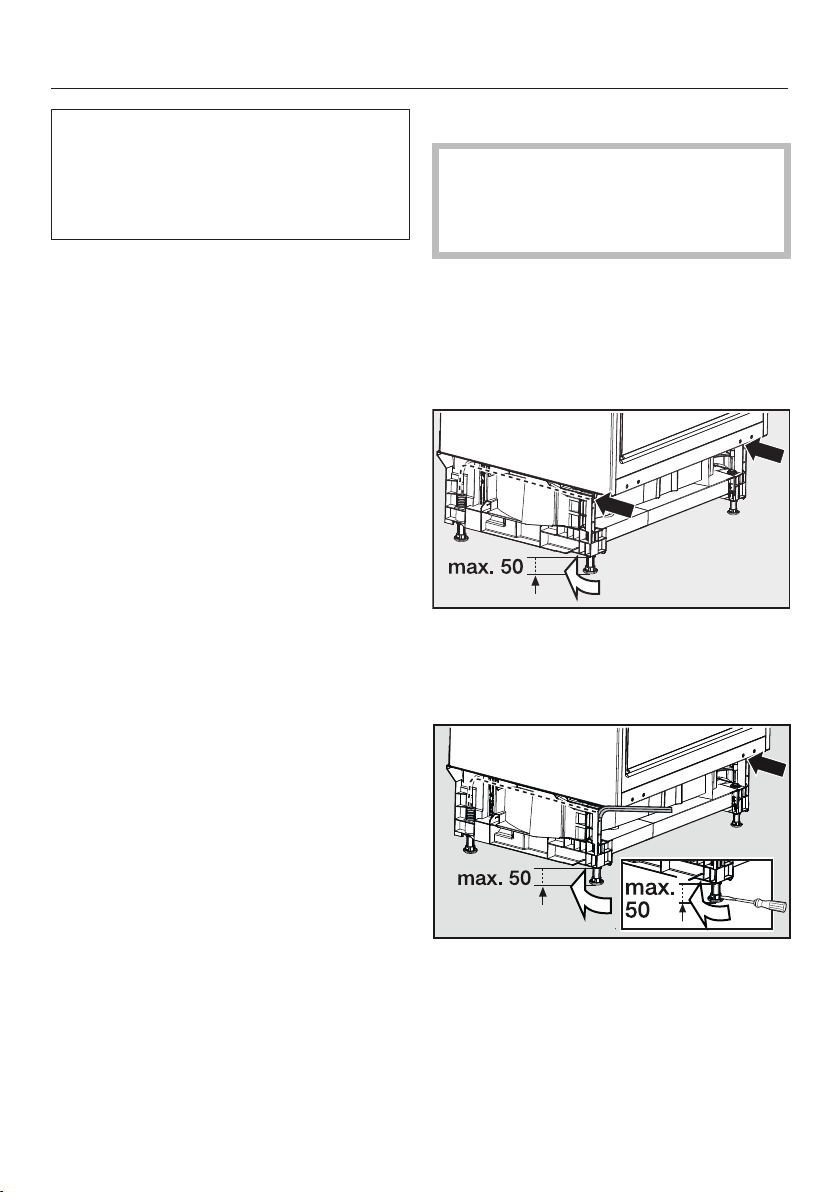

Aligning the appliance
When securing the appliance in the
niche at the top, the appliance
should fit fairly tightly between the
floor and the countertop.
Adjust the front and rear feet in turn
to fit the height of the niche and make
sure the appliance is correctly
aligned.
Proceed as follows:
Adjust both rear feet with the corre-
sponding screws at the front right
and left of the appliance toe-kick.
Use a slotted screwdriver to do this.
Use an Allen key to unscrew both
front feet.
Tip: As soon as the feet have been un-
screwed slightly, you can adjust them
with a screwdriver at the bottom of the
foot (see small illustration).
Building in the appliance
60

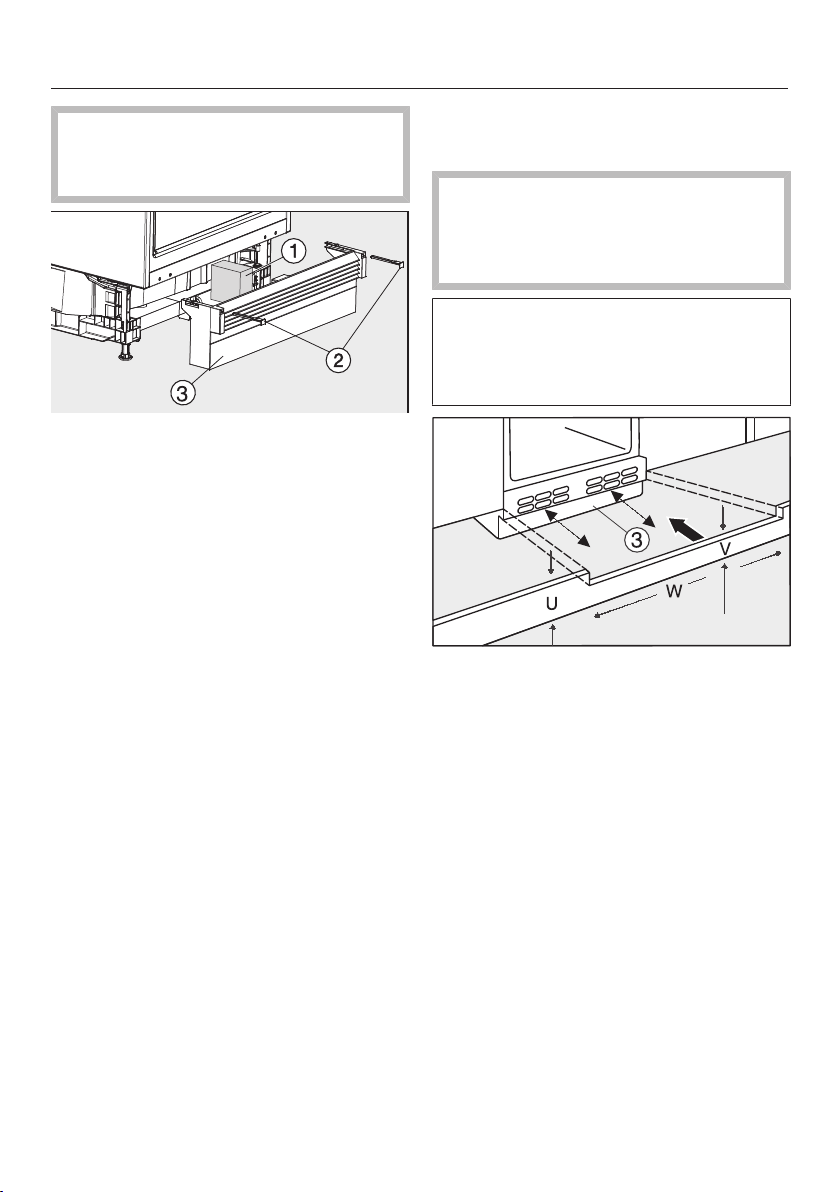

The foam ensures the airflow
is separated to prevent malfunction-
ing of the appliance.
Insert the piece of foam supplied.
Reinstall the toe-kick facing, but
do not secure it in position yet.
Without a continuous toe-kick facing:
Pull the toe-kick facing and for-
ward until the ventilation slats are in
alignment with the adjacent cabinet
toe-kick facings.
Hold the toe-kick facing securely and
screw it into place on the right and
left using the bolts supplied.
With a continuous toe-kick facing:
Push the toe-kick facing right up
against the appliance and screw it
into place on the right and left using
the bolts.
Installing a continuous toe-
kick facing
The appliance is ventilated through a
ventilation grille in its toe-kick.
The ventilation grille must never be
obstructed.
If a continuous toe-kick facing is to be
installed, a suitable ventilation gap will
need to be cut into it for the appli-
ance's ventilation grille.
Trim the toe-kick facing (U) to the cor-
rect height.
Adjust the height (V) along the niche
width (W) underneath the appliance
toe-kick facing.
Building in the appliance
61

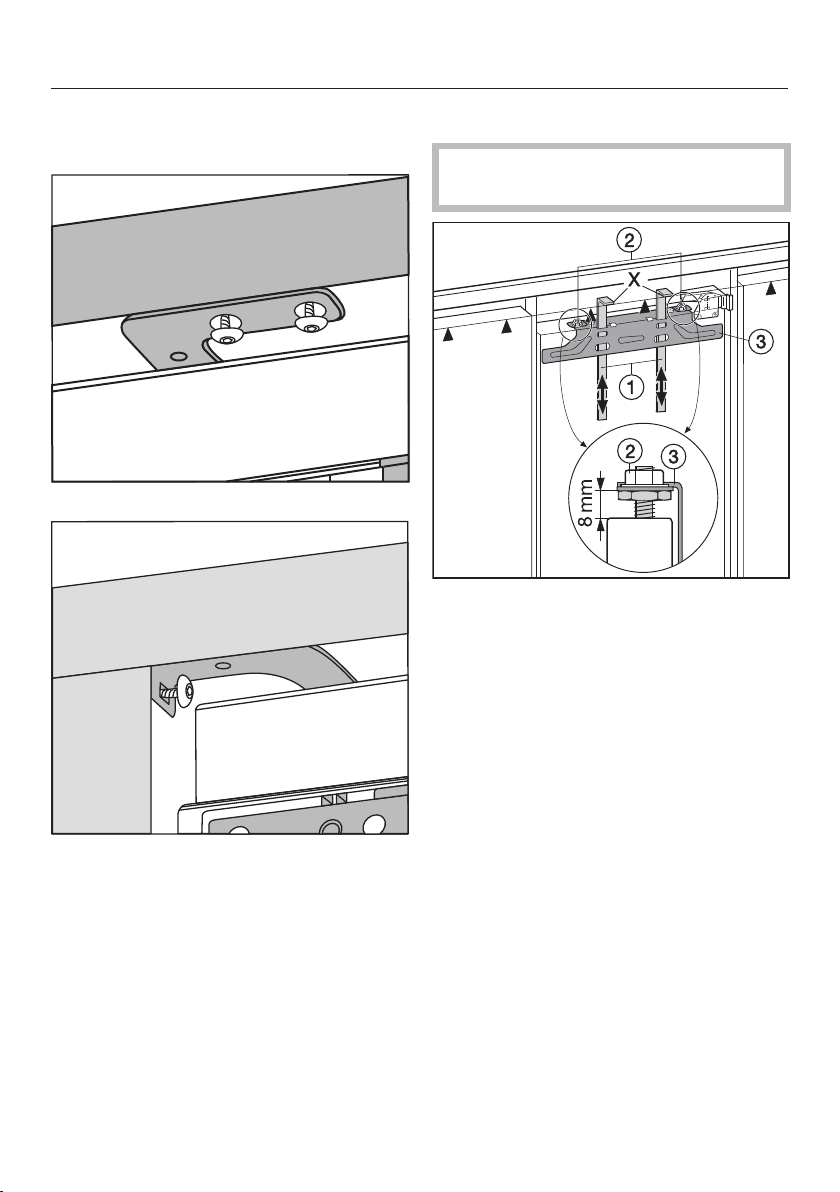

Securing the appliance in the
niche
1.Secured at the top
2.Secured at the side
Screw the appliance into position on
the right and the left.
Fitting the cabinet door
Ensure that the toe-kick facing is re-
fitted correctly.
A gap of 5/16" (8mm) must be set
between the appliance door and the
fixing bracket.
Push the installation aids to the
height of the cabinet door: the lower
contact edge X of the installation aids
must be at the same height as the
upper edge of the cabinet door to be
fitted (symbol).
Unscrew nuts and remove mount-
ing frame together with installation
aids.
Building in the appliance
62

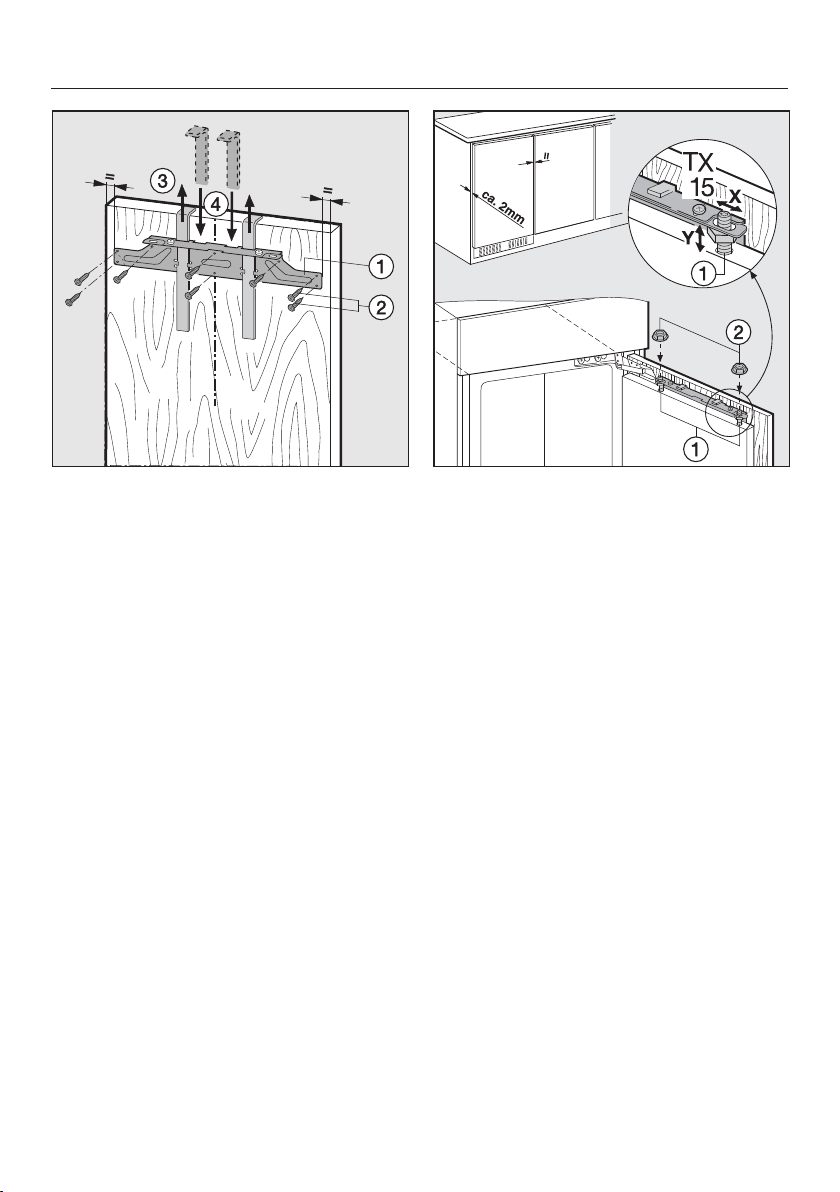

Draw a faint central line with a pencil
on the inside of the cabinet door.
Hang mounting frame with the instal-
lation aids on the inside of the
cabinet door.
Align the fixing bracket centrally.
Attach the fixing bracket securely us-
ing at least 6 short chipboard
screws (4x14mm). (On raised
paneled doors only use 4 screws on
the edges).
Pull the fitting aids upwards to re-
move them.
Turn them around and fit them into
the middle slots on fixing bracket
for safe keeping.
Hang the cabinet door on adjusting
bolts.
Screw nuts loosely onto the ad-
justing bolts.
Close the door and check the dis-
tance between the door and adjacent
cabinet doors.
Align to match adjacent doors if nec-
essary:
Side adjustments X are made by slid-
ing the cabinet door, and height ad-
justments Y by turning adjusting bolts
with a screwdriver.
Building in the appliance
63

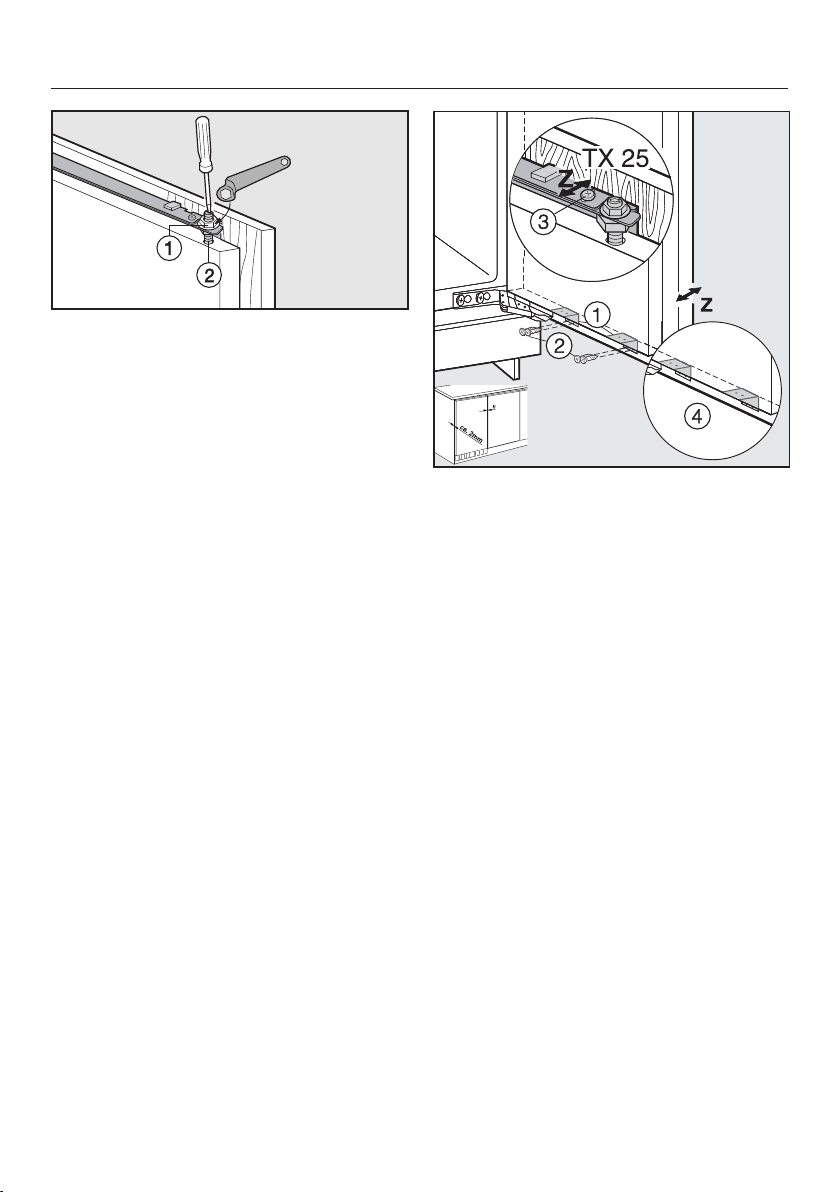

Whilst counterholding adjusting
bolts with a screwdriver, tighten
nuts on the appliance door at the
top with a screwdriver.
Attach the appliance door and the
cabinet door using screws through
fixing brackets:
– Drill holes in the cabinet door (mark
the position of the holes first).
– Screw in the short chipboard
screws (4x14mm).
Align the cabinet door along the
depth plane Z: loosen the screws in
the long slots at the top of the appli-
ance door as well as under the ap-
pliance door. By moving the cabi-
net door, create a gap of
1/16" (2mm) between the cabinet
door and the front edge of the niche.
Align according to the adjacent cabi-
net doors.
Close the door, check it is fastened
correctly, and align it with adjacent
cabinet doors.
Tighten all the screws again.
Building in the appliance
64
Fit the cover in position.
The appliance is properly installed in
the niche if:
– the door closes properly
– the door does not touch the housing
unit
– the seal on the top corner of the han-
dle side is firmly seated
To double check place a torch in the
appliance and close the door.
Turn the lights out in the room. If you
can see any light shining out from the
sides, double check the individual in-
stallation steps.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Technical Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 865 900 / 00en-US
K 31222 Ui
