kitchen collection
SAFETY CONSCIOUS INDUCTION COOKTOPS
WITH NO NAKED FLAMES OR HOT ELEMENTS
MADE FOR
LITTLE HELPERS
2
OUR RANGE
MADE FOR MODERN FAMILIES
Westinghouse has been a household name for generations. And while we’ve been helping
Australian families for years, times have changed. And we’ve changed with them…
Life is so much busier than it used to be, filled with work, extra curricular activities, not to
mention just raising a family! We know it’s not always easy, which is why all Westinghouse
products are designed to make your life a little simpler.
Although we can’t solve everything (sorry!), we can help keep your kitchen in control and
looking great. So whether it’s the auto reheat microwaves, for busy mid-week meal dilemmas,
or dishwashers that get the perfect wash, no matter how you stack; you can always be sure
it’s been Made for Modern Families.

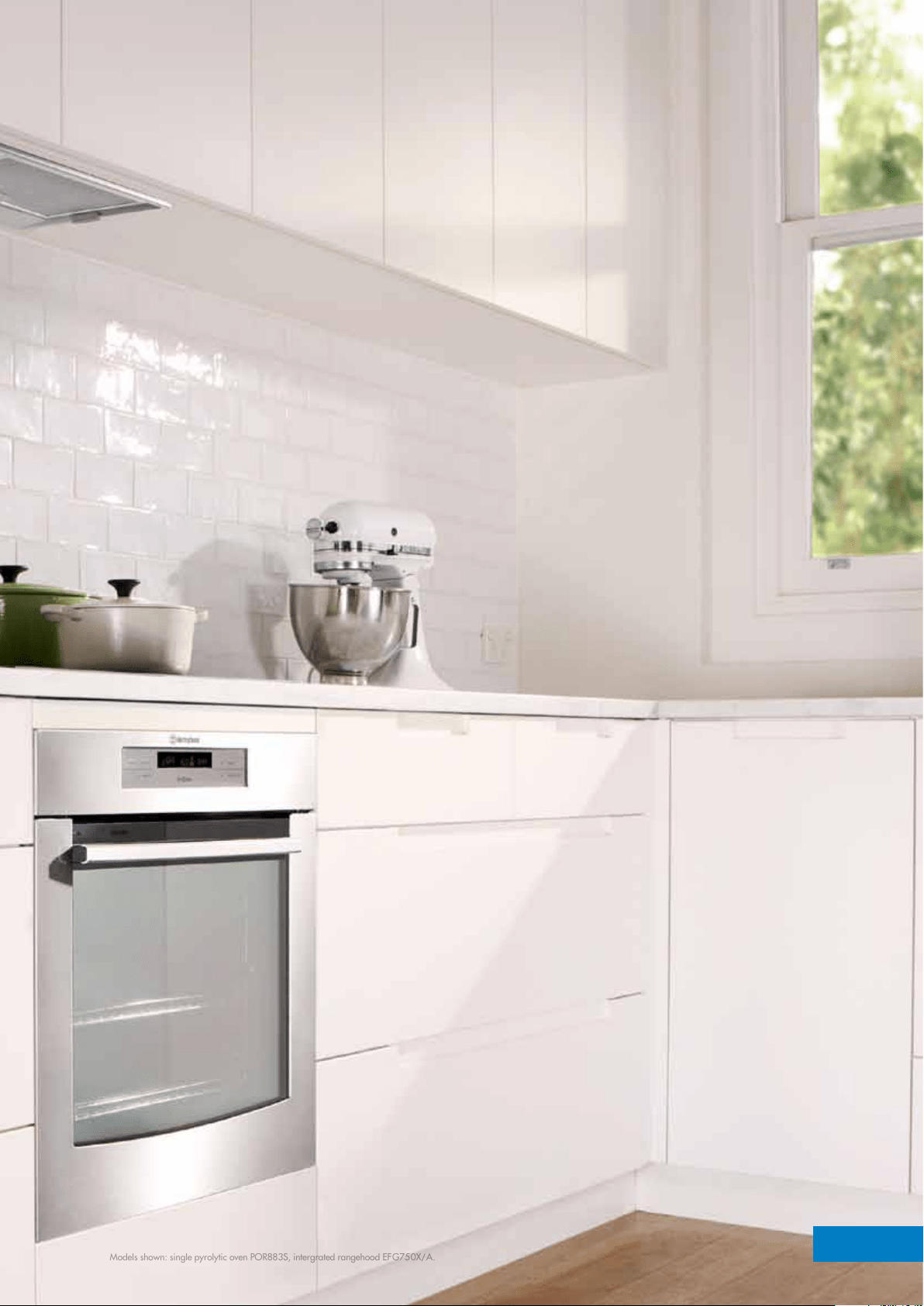

Models shown: single pyrolytic oven POR883S, intergrated rangehood EFG750X/A.
3
OUR RANGE

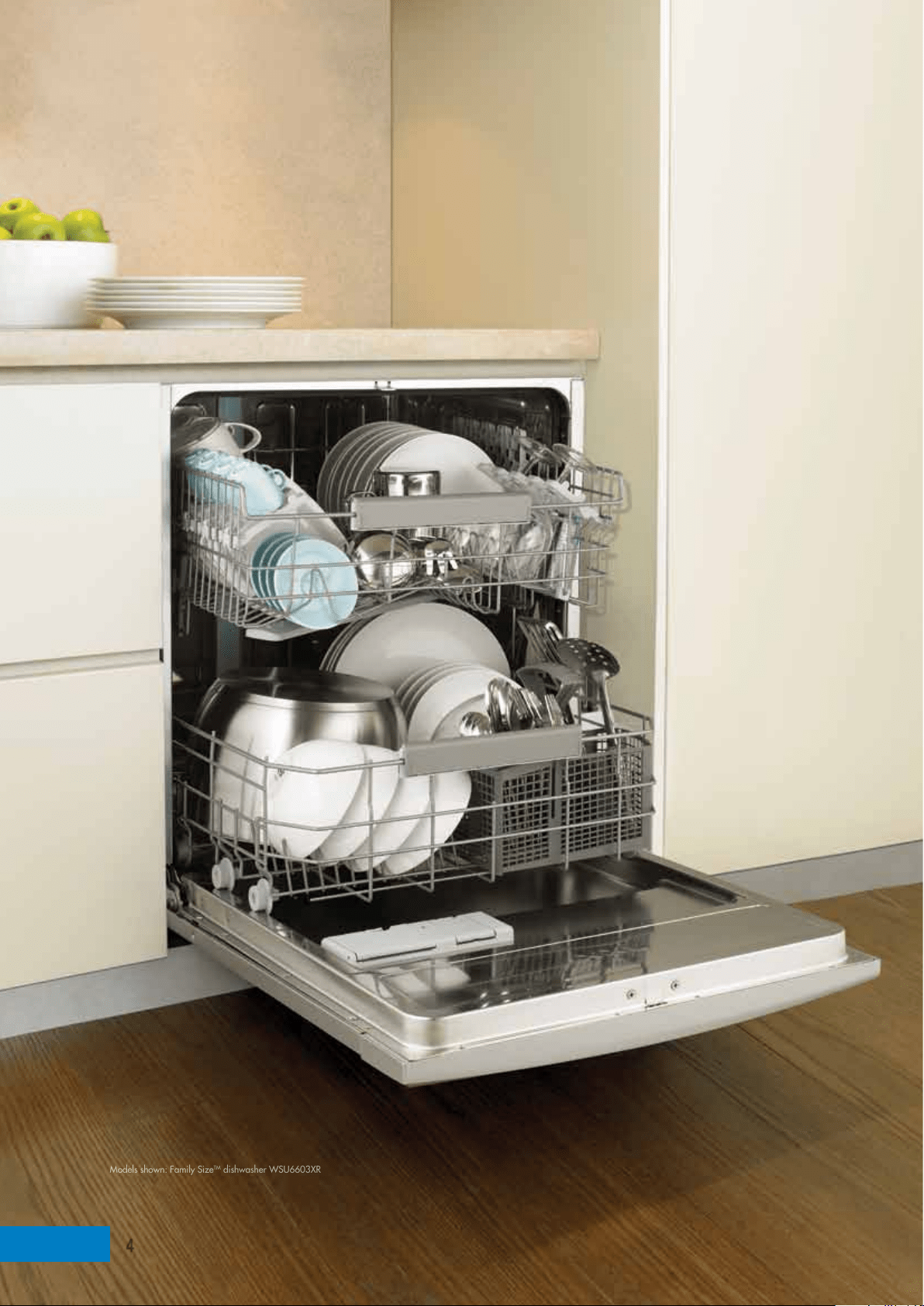

Models shown: Family Size
TM
dishwasher WSU6603XR
4
CONTENTS
5
CONTENTS
Built-in Ovens 8 -15
Microwaves 20 -21
Dishwashers 32- 33
Accessories 36 -37
made for modern families
made for modern families
made for modern families
made for modern families
made for modern families
Westinghouse Gothic BK
Freestanding Ovens 16-19
Rangehoods 28-31
Cooktops 22-27
6
BOSS OVENS
BOSS
®
. THE BIG OVEN SYSTEM
Introducing the bigger, more efficient oven system – the Westinghouse BOSS
®
oven. With larger usable capacity and
a European ‘A’ Class energy efficiency rating
1
, the BOSS
®
oven platform is perfect for families and entertaining.
1
to European standard EN50304. *Most 600 x 600mm ovens have less usable interior space.
BOSS
®
FEATURE MEANING… BENEFIT TO YOU
Gross oven capacity is 80L Larger oven capacity* More room for cooking large meals for your family or
when entertaining
A-Class Energy Efficiency
based on European standard
EN50304
Energy efficient More efficient cooking – saving you time and money
Optimised oven cavity design Excellent cooking performance
through better, more even air
circulation for optimal heat distribution
There are no hot or cold spots in the oven so food
is cooked evenly on each shelf
Reduced air and noise
emissions
Less hot air is expelled by the
cooling fan
Fans and air ducts are optimised for
low noise, whether the oven door is
open or closed
Your kitchen is a more pleasant place for you and
your family because the oven expels less heat and
is very quiet when operating
Improved cleaning Pyrolytic function
Catalytic Liners
Easy, twist & release grill elements
Rounded oven cavity
Flat glass-back doors
Fingerprint-resistant stainless steel
Easily clean the entire oven. Turns grime and grease
into ash. Simply wipe clean when cool. No need for
chemicals
Specially coated liners on the sides and rear of the
oven absorb and vaporise cooking residues
Easily swing the grill element out of the way to clean
the roof of the oven
No corners to trap grime makes wiping down oven
walls easy
No seals or ridges to trap grime and grease to make
cleaning quick and simple
Keep your oven looking like new
Improved safety Integrated grill shield in oven roof Protects hands from the hot elements when
reaching for grill
Fast heat-up time Heats to +200ºC in under10 minutes
(multi-function 8 and multi-function 10 models only)
Less time waiting for the oven to heat up means you
spend less time cooking and more time with your
family and guests
7
BOSS OVENS
SEPARATE GRILL OR BUILT-IN GRILL OPTIONS
Grilling is a convenient, quick and healthy way to cook your favourite dishes – perfect for the modern Australian family.
It uses less fat than frying and allows excess oil and fat to drain away while cooking.
Ovens today come in two different grill configurations:
•
Grill-in-oven: where the grilling element is mounted on the ceiling of the oven and grilling is done within the oven cavity
• Separate grill: is a separate compartment to the main oven with its own grilling element
Each has a unique offering to suit your needs. Grill-in-oven models are the perfect solution for space-restricted kitchens,
or for those who don’t use the grill as often.
A separate grill offers greater flexibility because you can use the grill and oven at the same time, which is great for
entertaining. And because they’re separate, odours don’t transfer between different foods – so there’s no more tasting
last night’s grilled snapper in this afternoon’s baked sponge cake.
A separate grill is also much easier to clean. You don’t have any fats or residue from grilling spattered all through the
oven – it’s contained within the separate compartment.
The options don’t stop there. Choose from separate grill wall ovens mounted at eye-level so it’s easy to keep a watch
on your favourite dishes or separate grill underbench models that neatly fit beneath the bench top.
OVEN TYPE APPLICATION MODELS
Double wall oven More cooking space with either another full-size or half-size oven PDR794, PDR790
Separate grill
wall oven
Prefer a wall mounted oven for easier access; better ergonomics
Want a full-size oven with a handy separate grill
PXR698, PXR688, GXR650
Separate grill
underbench oven
Requires underbench installation to leave more space for working
in the kitchen
Want a full size oven with a handy separate grill
PGR659, PGR657, GGR475
Grill-in-oven Don’t grill very often POR883, POR783, PORS668,
POR668, POR667, PORS663,
POR663,POR967S, PPR776,
GOR476,GOR474, DSP963S,
DSP965S, PSR964S
Integrated freestanding
with separate grill
The complete cooking workstation PSR632, DSP635, GSR625,
GSR627
It’s amazing how versatile cooking can be with Westinghouse!
8
OVENS
Cooking for the entire family can be stressful at the best of times. That is why Westinghouse has developed an even
wider range of superior cooking solutions designed to ensure meal time runs as smoothly as possible. The range includes
ovens with a spacious 80 litre gross capacity and fingerprint resistant stainless steel. All of which ensure when it comes
to cooking for the entire family, it’s easy, from start to finish.
BUILT-IN OVENS
LARGE CAPACITY OVENS
Boasting European A-class energy
efficiency*, the largest of our
built-in oven range will deliver
a huge 160L of total gross
capacity in the double oven,
followed by a surprising 126L in
the duo range and a generous
80L in the standard models.
*to European standard EN50304.
MULTI - LAYER GLAZED OVEN DOOR
Cooler and safer exterior oven
door temperatures are an obvious
outcome of multi-layer glazed
doors. The full-width inner glass
door means a better oven seal
and better temperature control,
as well as easier cleaning.
(Certain models – refer to features tables)
EASY CLEANING
Easy to maintain fingerprint
resistant stainless steel, removable
knobs, rounded oven cavity
corners, drop down grill
†
, acid-
resistant enamel and flat-back
glass doors all add up to easier
cleaning.
(
†
Multi-function grill-in-oven models)
CATALYTIC LINERS
Handy self-cleaning catalytic
liners are fitted on selected
models to absorb the fat given
off during the cooking process.
The fats are then vaporised by the
heat of the oven, making cleaning
a breeze. These can also be
purchased as an optional extra.
(Refer to features tables)
PYROLYTIC CLEANING
Up to two pyrolytic functions turn
different levels of grease and
grime into ash, which then can
be simply wiped away. There
is no need for harsh chemicals.
(POR881S & POR883S only)
COOKING WITH GAS
Using gas, your food won’t dry
out as much. Westinghouse gas
ovens vent to the front, so no flue
is required and feature electronic
gas ignition and flame monitoring
system for improved safety and
ease of use.
SIDE OPENING DOORS
Side opening doors allow you
to get closer to the oven and
minimise reaching.
ANTI - SPATTER GRILL INSERTS
The safe and convenient way to
grill – the anti-spatter grill insert
enables cooking fats to drain
into the grill dish below, which
reduces the risk of fires and
allows for healthier cooking.
QUIET AND COOL
The Westinghouse BOSS
®
range
of ovens have been designed
to be ultra quiet and emit
less external heat for a more
comfortable kitchen environment.
TOUCH ON GLASS CONTROLS
Completely flat touch controls,
wipe clean quickly and easily.
No buttons, no fuss.
(Selected models only)
9
GAS OVENS
MODEL GXR650W/S
#
GOR476W/S
#
GOR474W/S
#
GGR475W/S
#
type separate grill wall single oven single oven
separate grill
underbench
available finishes
white/fingerprint-
resistant stainless steel
white/fingerprint-
resistant stainless steel
white/fingerprint-
resistant stainless steel
white/fingerprint-
resistant stainless steel
BOSS
®
oven system
P P P P
MAIN OVEN
oven functions (refer to page 33) multi-function 3 multi-function 5 multi-function 3 multi-function 3
capacity
– gross (litres) 80 80 80 80
– usable (litres) 66 66 66 66
oven burner output (NG) 10.5M
J
/h 10.5M
J
/h 10.5M
J
/h 10.5M
J
/h
in oven grill electric electric
catalytic liners accessory accessory accessory accessory
timer programmable programmable 2hr auto-off programmable
lights 1 1 1 1
glass layers in door 2 3 2 2
SECOND OVEN OR SEPARATE GRILL
oven function electric grill electric grill
capacity
– gross (litres) 46
– usable (litres) 38
GENERAL FEATURES
controls knob knob knob knob
number of shelves 2 2 2 2
oven/grill dish
P P P P
grill dish
P P P P
anti-spatter grill insert
P P P P
oven tray full width baking tray full width baking tray full width baking tray full width baking tray
connection 10A plug & lead 10A plug & lead 10A plug & lead 10A plug & lead
maximum gas rating (NG)
#
10.5M
J
/h 10.5M
J
/h 10.5M
J
/h 10.5M
J
/h
maximum power rating 2.2kW 2.3kW 2.3kW 1.8kW
DIMENSIONS^
overall HxWxD (mm) 888 x 595 x 566 595 x 595 x 566 595 x 595 x 566 725 x 595 x 566
flush mount cut-out HxWxD (mm) 893 x 600 x 581 600 x 600 x 581 600 x 600 x 581 731 x 600 x 581
proud mount cut-out HxWxD (mm) 885 x 565 x 560 590 x 565 x 560 590 x 565 x 560 723 x 565 x 560
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
# For GXR650, GOR476, GOR474 and GGR475 models, it must be specified at time of purchase if LP gas is required as these models can not be converted. Gas rating for LP models is 9.0MJ/h.
NOTE: These gas products are only suitable for use on normal 240V AC mains supply. The use of inverters, UPS or generators must be checked to ensure the waveform is a pure sinusoidal output to confirm
it is compatible with the electronics within this product. Connection to any power supply that does not meet the above requirements may result in failure of the product to operate and or permanent damage
to electronics within the product and may void the product warranty. No flue is required for Westinghouse gas ovens.
†
Refer to the product information on the back page of this brochure
GAS OVENS
features
†
10
ELECTRIC OVENS
MODEL PDR794W/S PDR790W/S PXR698W/S PXR688W/S PGR659W/S PGR657W/S
type double oven duo oven separate grill wall separate grill wall separate grill underbench separate grill underbench
available finishes
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
BOSS
®
oven system
P P
P P P P
MAIN OVEN
oven functions (refer to page 32) multi-function 8 multi-function 8 multi-function 5 fan forced multi-function 5 fan forced
capacity
– gross (litres) 80 80
80 80 80 80
– usable (litres) 66 66 66 66 66 66
catalytic liners rear & sides rear & sides accessory accessory accessory accessory
timer programmable programmable programmable 2 hour auto off programmable 2 hour auto off
lights 3 3 1 1 1 1
glass layers in door 3 3 2 2 3 2
SECOND OVEN OR SEPARATE GRILL
oven function multi-function 8 multi-function 5 grill grill grill grill
capacity
– gross (litres) 80 46
46 46
– usable (litres) 66 35 38 38
catalytic liners rear & sides rear & sides
lights 3 1
glass layers in door 3 3
GENERAL FEATURES
controls knob knob knob knob knob knob
number of shelves 4 3 2 2 2 2
oven/grill dish 2
P
P P
grill dish
P P
anti-spatter grill insert
P P
P P P P
oven tray 2 x enamel full-width baking tray 1 x enamel full-width baking tray full-width baking tray full-width baking tray full-width baking tray full-width baking tray
connection hardwire hardwire hardwire hardwire hardwire hardwire
maximum power rating 6.2kW 5.3kW 5.3kW 4.5kW 4.9kW 4.1kW
DIMENSIONS^
overall HxWxD (mm) 1081 x 595 x 566 888 x 595 x 566 888 x 595 x 566 888 x 595 x 566 725 x 595 x 566 725 x 595 x 566
flush mount cut-out HxWxD (mm) 1086 x 600 x 581 893 x 600 x 581 893 x 600 x 581 893 x 600 x 581 731 x 600 x 581 731 x 600 x 581
proud mount cut-out HxWxD (mm) 1078 x 565 x 560 885 x 565 x 560 885 x 565 x 560 885 x 565 x 560 723 x 565 x 560 723 x 565 x 560
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure
DOUBLE CAVITY
ELECTRIC OVENS
features
†
11
ELECTRIC OVENS
MODEL PDR794W/S PDR790W/S PXR698W/S PXR688W/S PGR659W/S PGR657W/S
type double oven duo oven separate grill wall separate grill wall separate grill underbench separate grill underbench
available finishes
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
BOSS
®
oven system
P P
P P P P
MAIN OVEN
oven functions (refer to page 32) multi-function 8 multi-function 8 multi-function 5 fan forced multi-function 5 fan forced
capacity
– gross (litres) 80 80
80 80 80 80
– usable (litres) 66 66 66 66 66 66
catalytic liners rear & sides rear & sides accessory accessory accessory accessory
timer programmable programmable programmable 2 hour auto off programmable 2 hour auto off
lights 3 3 1 1 1 1
glass layers in door 3 3 2 2 3 2
SECOND OVEN OR SEPARATE GRILL
oven function multi-function 8 multi-function 5 grill grill grill grill
capacity
– gross (litres) 80 46
46 46
– usable (litres) 66 35 38 38
catalytic liners rear & sides rear & sides
lights 3 1
glass layers in door 3 3
GENERAL FEATURES
controls knob knob knob knob knob knob
number of shelves 4 3 2 2 2 2
oven/grill dish 2
P
P P
grill dish
P P
anti-spatter grill insert
P P
P P P P
oven tray 2 x enamel full-width baking tray 1 x enamel full-width baking tray full-width baking tray full-width baking tray full-width baking tray full-width baking tray
connection hardwire hardwire hardwire hardwire hardwire hardwire
maximum power rating 6.2kW 5.3kW 5.3kW 4.5kW 4.9kW 4.1kW
DIMENSIONS^
overall HxWxD (mm) 1081 x 595 x 566 888 x 595 x 566 888 x 595 x 566 888 x 595 x 566 725 x 595 x 566 725 x 595 x 566
flush mount cut-out HxWxD (mm) 1086 x 600 x 581 893 x 600 x 581 893 x 600 x 581 893 x 600 x 581 731 x 600 x 581 731 x 600 x 581
proud mount cut-out HxWxD (mm) 1078 x 565 x 560 885 x 565 x 560 885 x 565 x 560 885 x 565 x 560 723 x 565 x 560 723 x 565 x 560
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure
12
ELECTRIC OVENS
MODEL POR881S POR883S POR783S POR668W/S POR667W/S POR663W/S POH967S
type single pyrolytic oven single pyrolytic oven single oven single oven single oven single oven single oven
available finishes fingerprint-resistant stainless steel fingerprint-resistant stainless steel fingerprint-resistant stainless steel
white/fingerprint-resistant
stainless steel
white/fingerprint-resistant
stainless steel
white/fingerprint-resistant
stainless steel
stainless steel
BOSS
®
oven system
P P P
P P P
MAIN OVEN
oven functions (refer to page 32) multi-function 8 multi-function 10 multi-function 10 multi-function 8 multi-function 5 multi-function 3 multi-function 8
capacity
– gross (litres) 80 80 80
80 80 80 80
– usable (litres) 66 66 66 66 66 66 67
oven cleaning 2 function pyrolytic 2 function pyrolytic catalytic liners catalytic liners
catalytic liners rear & sides rear & sides accessory accessory
timer programmable programmable programmable programmable programmable 2hr auto-off 2hr auto-off
lights 1 1 3 1 1 1 2
glass layers in door 4 4 3 3 2 2 2
GENERAL FEATURES
controls knobs touch on glass electronic touch on glass electronic knob knob knob knob
number of shelves 2 2 2 2 2 2 2
oven/grill dish
P P P
P P P P
anti-spatter grill insert
P P P
P P P
wire insert
oven tray enamel full-width baking tray enamel full-width baking tray enamel full-width baking tray enamel full-width baking tray full-width baking tray full-width baking tray
connection hardwire hardwire hardwire hardwire hardwire hardwire 15A plug
maximum power rating 3.1kW 3.1kW 3.1kW 3.1kW 3.0kW 2.3kW 2.9kW
telescopic runners
P
DIMENSIONS^
overall HxWxD (mm) 595 x 595 x 573 595 x 595 x 573 595 x 595 x 566 595 x 595 x 566 595 x 595 x 566 595 x 595 x 566 474 x 894 x 565
flush mount cut-out HxWxD (mm) 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 480 x 900 x 570
proud mount cut-out HxWxD (mm) 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 460 x 860 x 550
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure
SINGLE CAVITY
ELECTRIC OVENS
features
†
13
ELECTRIC OVENS
MODEL POR881S POR883S POR783S POR668W/S POR667W/S POR663W/S POH967S
type single pyrolytic oven single pyrolytic oven single oven single oven single oven single oven single oven
available finishes fingerprint-resistant stainless steel fingerprint-resistant stainless steel fingerprint-resistant stainless steel
white/fingerprint-resistant
stainless steel
white/fingerprint-resistant
stainless steel
white/fingerprint-resistant
stainless steel
stainless steel
BOSS
®
oven system
P P P
P P P
MAIN OVEN
oven functions (refer to page 32) multi-function 8 multi-function 10 multi-function 10 multi-function 8 multi-function 5 multi-function 3 multi-function 8
capacity
– gross (litres) 80 80 80
80 80 80 80
– usable (litres) 66 66 66 66 66 66 67
oven cleaning 2 function pyrolytic 2 function pyrolytic catalytic liners catalytic liners
catalytic liners rear & sides rear & sides accessory accessory
timer programmable programmable programmable programmable programmable 2hr auto-off 2hr auto-off
lights 1 1 3 1 1 1 2
glass layers in door 4 4 3 3 2 2 2
GENERAL FEATURES
controls knobs touch on glass electronic touch on glass electronic knob knob knob knob
number of shelves 2 2 2 2 2 2 2
oven/grill dish
P P P
P P P P
anti-spatter grill insert
P P P
P P P
wire insert
oven tray enamel full-width baking tray enamel full-width baking tray enamel full-width baking tray enamel full-width baking tray full-width baking tray full-width baking tray
connection hardwire hardwire hardwire hardwire hardwire hardwire 15A plug
maximum power rating 3.1kW 3.1kW 3.1kW 3.1kW 3.0kW 2.3kW 2.9kW
telescopic runners
P
DIMENSIONS^
overall HxWxD (mm) 595 x 595 x 573 595 x 595 x 573 595 x 595 x 566 595 x 595 x 566 595 x 595 x 566 595 x 595 x 566 474 x 894 x 565
flush mount cut-out HxWxD (mm) 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 600 x 600 x 581 480 x 900 x 570
proud mount cut-out HxWxD (mm) 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 590 x 565 x 560 460 x 860 x 550
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure
14
ELECTRIC OVENS
MODEL PORS668W/S PORS663W/S
type single oven single oven
available finishes
white/
fingerprint-resistant stainless steel
white/
fingerprint-resistant stainless steel
BOSS
®
oven system
P P
MAIN OVEN
oven functions (refer to page 32) multi-function 8 multi-function 3
capacity
– gross (litres) 80 80
– usable (litres) 66 66
catalytic liners
P
accessory
timer programmable 2hr auto-off
lights 1 1
glass layers in door 3 2
side opening door*
P P
GENERAL FEATURES
controls knob knob
number of shelves 2 2
oven/grill dish
P P
anti-spatter grill insert
P P
oven tray enamel full width baking tray full width baking tray
connection hardwire hardwire
maximum power rating 3.0kW 2.3kW
telescopic runners
P
DIMENSIONS^
overall HxWxD (mm) 595 x 595 x 566 595 x 595 x 566
flush mount cut-out HxWxD (mm) 600 x 600 x 581 600 x 600 x 581
proud mount cut-out HxWxD (mm) 590 x 565 x 560 590 x 565 x 560
NB. These doors are not reversible.
* Ovens are available as left or right hand doors and are not reversible once built please ensure when ordering of correct requirements.
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure
SIDE OPENING DOOR
ELECTRIC OVENS
features
†
15
ELECTRIC OVEN
AND COOKTOP
MODEL PPR776W/S
type combination oven
available finishes
white/
fingerprint-resistant stainless steel
BOSS
®
oven system P
MAIN OVEN
oven functions (refer to page 32) multifunction 3
capacity
– gross (litres) 80
– usable (litres) 66
catalytic liners accessory
timer 2hr auto-off
lights 1
door glass layers 2
CONNECTED COOKTOP
type ceramic
elements 4 incl. 1 dual zone
left front 2200/750W
left rear 1200W
right front 1200W
right rear 1800W
GENERAL FEATURES
controls knob
number of shelves 2
oven/grill dish P
anti-spatter grill insert P
oven tray full width baking tray
maximum power rating 8.7kW
DIMENSIONS^
overall oven HxWxD (mm) 595 x 595 x 566
flush mount oven cut-out HxWxD (mm) 600 x 600 x 581
proud mount oven cut-out HxWxD (mm) 590 x 565 x 560
overall cooktop WxDxH below bench (mm) 610 x 515 x 45
cooktop cut-out WxD (mm) 560 x 490
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
NOTE: A minimum gap of 40mm must be maintained between the top of the underbench oven and the bottom of the cooktop to ensure adequate ventilation and space for the interconnection lead.
†
Refer to the product information on the back page of this brochure
COMBINATION ELECTRIC
OVEN & COOKTOP
features
†
16
FREESTANDING
FREESTANDING OVENS
Freestanding oven range is for the serious cook. It puts all your cooking needs in one complete workstation. These units
can be completely freestanding or integrated with kitchen cabinetry for that complete look.
The 600mm models feature convenient separate grills and the same BOSS
®
oven platform as the built-in models.
The 600mm and 900mm models are available in a dual fuel combination – electric oven and gas cooktop or full electric
with a ceramic cooktop and electric oven. The 600mm models are also available with gas cooktop and gas oven.
LARGE CAPACITY OVENS
Our freestanding ovens allow you
to cook large meals easily with a
generous 102L gross capacity in the
900mm models and 80L of gross
capacity in the 600mm models.
SEPARATE GRILLING
COMPARTMENT
All our 600mm models feature a
separate grilling compartment for
added practicality. You can bake
and grill at the same time, and it’s
easier to keep the oven cleaner.
TRIPLE RING BURNER
On selected gas models, a high
power triple-ring burner allows
you to prepare stir-frys like a pro.
EASY CLEAN INNER DOOR
Full glass inner door for easy
cleaning and maintenance.
EASY CLEAN CERAMIC SURFACE
Not only aesthetically pleasing,
the durable glass surface is easy to
clean and maintain ensuring your
kitchen is always looking its best.
HOT SURFACE INDICATORS
Avoid unnecessary accidents
in the kitchen with hot surface
indicators that clearly show if the
hotplates are activated or still hot.

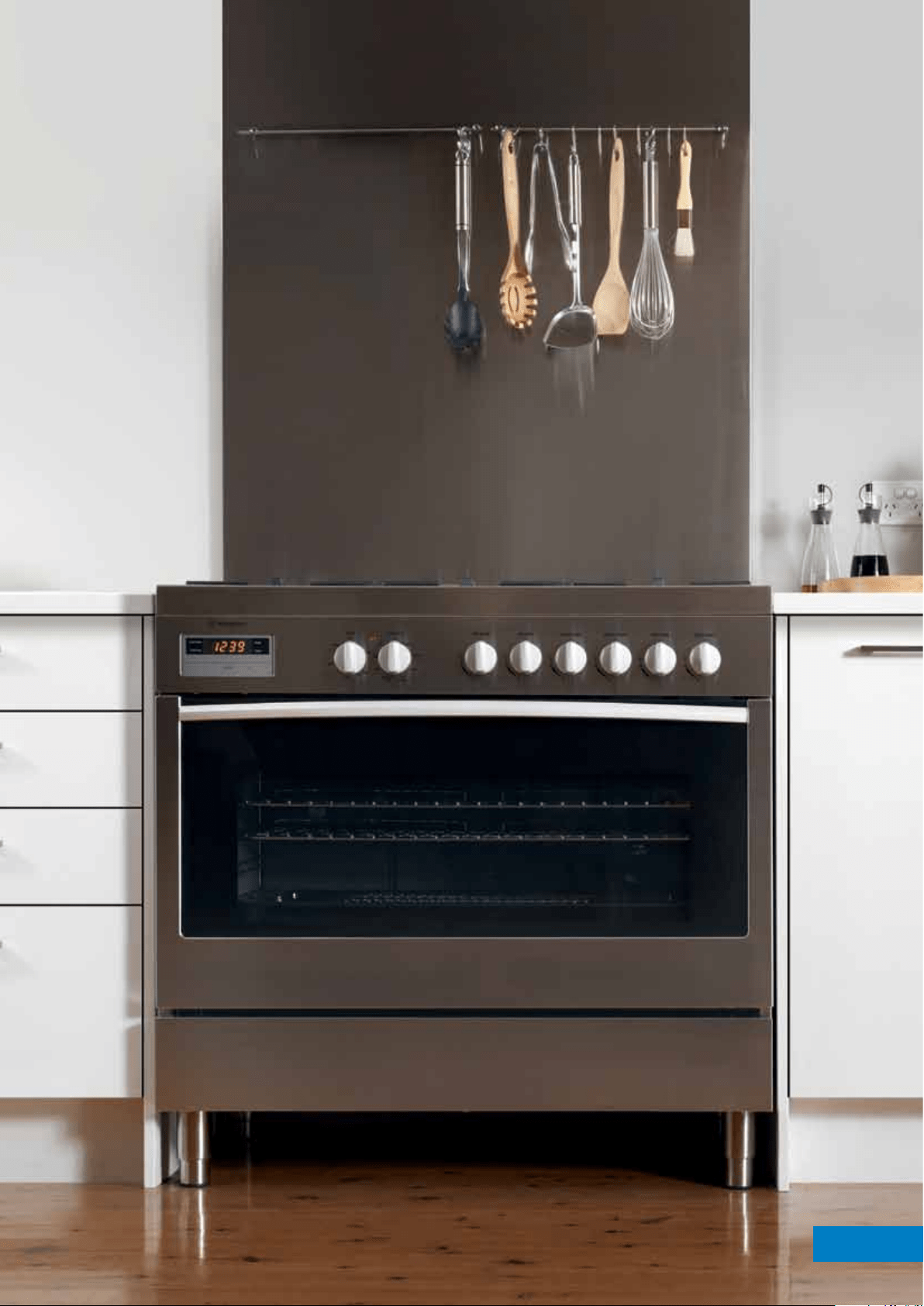

Models shown: 900mm Freestanding Oven DSP965S
17
FREESTANDING
18
FREESTANDING
MODEL PSP964S DSP965S DSP963S PSP632W/S DSP635W/S
#
GSP625W/S*~ GSP627S*~
type electric dual fuel dual fuel electric with separate grill
dual fuel with electric separate
grill
gas with electric separate grill gas with electric separate grill
available finishes stainless steel stainless steel stainless steel
white/fingerprint resistant
stainless steel
^
white/fingerprint resistant
stainless steel
^
white/fingerprint resistant
stainless steel
^
fingerprint resistant
stainless steel
^
BOSS
®
oven system
P P P P
HOB
type ceramic gas gas ceramic gas gas gas
burners/elements
– front left 2200W 12.5M
J
/h wok 11.0M
J
/h 1200W 14.4M
J
/h wok 14.4M
J
/h wok 14.4M
J
/h wok
– left rear 1200W 7.1M
J
/h 7.1M
J
/h 2000W 5.1M
J
/h 5.1M
J
/h 5.1M
J
/h
– middle front (centre) 1400W/2200W 11.0M
J
/h 12.5M
J
/h wok
– middle rear 7.1M
J
/h
– right front 1800W 4.0M
J
/h 4.0M
J
/h 2200/1000W 9.0M
J
/h 9.0M
J
/h 9.0M
J
/h
– right rear 1800W 7.1M
J
/h 7.1M
J
/h 1200W 12.7M
J
/h 12.7M
J
/h 12.7M
J
/h
trivets cast cast cast enamelled wire cast
ignition integrated electronic integrated electronic integrated electronic integrated electronic integrated electronic
hot surface indicator
P
P
MAIN OVEN
type electric electric electric electric electric gas gas
oven functions multi-function 7 multi-function 7 multi-function 7 fan forced fan forced fan fan
capacity
– gross (litres) 102 102 102
80 80 80 80
– usable (litres) 94 94 94 66 66 66 66
oven burner output (NG) 10.5M
J
/h 10.5M
J
/h
oven ignition electronic electronic
removable side racks
P P P
P P P P
catalytic liners fixed cavity liner optional accessory optional accessory optional accessory optional accessory
timer 60 min timer program 60 min timer 120 min auto-off 120 min auto-off 120 min auto-off program
lights 1 1 1 1 1 1 1
door glass layers 2 3 2 2 2 2 3
GENERAL FEATURES
separate grill (electric)
P P P P
telescopic grill
P P P P
number of shelves 2 2 2 2 2 2 2
grill dish
P P P
P P P P
grill insert wire wire wire anti-spatter anti-spatter anti-spatter anti-spatter
oven tray full-width baking tray full-width baking tray full-width baking tray full-width baking tray
electrical connection hardwire 15A plug & lead 15A plug & lead hardwire 20A plug & lead 10A plug & lead 10A plug & lead
maximum power rating 12.0kW 2.8kW 2.8kW 10.7kW 4.1kW 1.9kW 1.9kW
maximum gas rating (NG) 49.0M
J
/h 41.9M
J
/h 40.6M
J
/h 51.1M
J
/h 51.1M
J
/h
DIMENSIONS^
height to hob
°
x width x depth
excluding handles (mm)
870/925 x 895 x 600 870/925 x 895 x 600 870/925 x 895 x 600
905 x 598 x 596 905 x 598 x 596 905 x 598 x 596 905 x 598 x 596
detachable splashback height (mm)
60 60
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
° Height to hob does not include the height of the trivets above the hob.
†
Refer to the product information on the back page of this brochure
FREESTANDING
features
†
19
FREESTANDING
MODEL PSP964S DSP965S DSP963S PSP632W/S DSP635W/S
#
GSP625W/S*~ GSP627S*~
type electric dual fuel dual fuel electric with separate grill
dual fuel with electric separate
grill
gas with electric separate grill gas with electric separate grill
available finishes stainless steel stainless steel stainless steel
white/fingerprint resistant
stainless steel
^
white/fingerprint resistant
stainless steel
^
white/fingerprint resistant
stainless steel
^
fingerprint resistant
stainless steel
^
BOSS
®
oven system
P P P P
HOB
type ceramic gas gas ceramic gas gas gas
burners/elements
– front left 2200W 12.5M
J
/h wok 11.0M
J
/h 1200W 14.4M
J
/h wok 14.4M
J
/h wok 14.4M
J
/h wok
– left rear 1200W 7.1M
J
/h 7.1M
J
/h 2000W 5.1M
J
/h 5.1M
J
/h 5.1M
J
/h
– middle front (centre) 1400W/2200W 11.0M
J
/h 12.5M
J
/h wok
– middle rear 7.1M
J
/h
– right front 1800W 4.0M
J
/h 4.0M
J
/h 2200/1000W 9.0M
J
/h 9.0M
J
/h 9.0M
J
/h
– right rear 1800W 7.1M
J
/h 7.1M
J
/h 1200W 12.7M
J
/h 12.7M
J
/h 12.7M
J
/h
trivets cast cast cast enamelled wire cast
ignition integrated electronic integrated electronic integrated electronic integrated electronic integrated electronic
hot surface indicator
P
P
MAIN OVEN
type electric electric electric electric electric gas gas
oven functions multi-function 7 multi-function 7 multi-function 7 fan forced fan forced fan fan
capacity
– gross (litres) 102 102 102
80 80 80 80
– usable (litres) 94 94 94 66 66 66 66
oven burner output (NG) 10.5M
J
/h 10.5M
J
/h
oven ignition electronic electronic
removable side racks
P P P
P P P P
catalytic liners fixed cavity liner optional accessory optional accessory optional accessory optional accessory
timer 60 min timer program 60 min timer 120 min auto-off 120 min auto-off 120 min auto-off program
lights 1 1 1 1 1 1 1
door glass layers 2 3 2 2 2 2 3
GENERAL FEATURES
separate grill (electric)
P P P P
telescopic grill
P P P P
number of shelves 2 2 2 2 2 2 2
grill dish
P P P
P P P P
grill insert wire wire wire anti-spatter anti-spatter anti-spatter anti-spatter
oven tray full-width baking tray full-width baking tray full-width baking tray full-width baking tray
electrical connection hardwire 15A plug & lead 15A plug & lead hardwire 20A plug & lead 10A plug & lead 10A plug & lead
maximum power rating 12.0kW 2.8kW 2.8kW 10.7kW 4.1kW 1.9kW 1.9kW
maximum gas rating (NG) 49.0M
J
/h 41.9M
J
/h 40.6M
J
/h 51.1M
J
/h 51.1M
J
/h
DIMENSIONS^
height to hob
°
x width x depth
excluding handles (mm)
870/925 x 895 x 600 870/925 x 895 x 600 870/925 x 895 x 600
905 x 598 x 596 905 x 598 x 596 905 x 598 x 596 905 x 598 x 596
detachable splashback height (mm)
60 60
* This gas product is only suitable for use on normal 240V AC mains supply. The use of inverters, UPS or generators must be checked to ensure the waveform is a pure sinusoidal output to
confirm it is compatible with the electronics within this product. Connection to any power supply that does not meet the above requirements may result in failure of the product to operate and
or permanent damage to electronics within the product and may void the product warranty. No flue is required for Westinghouse gas ovens.
# For DSP635 models, hotplates can be converted to LP gas at installation. Injector kit supplied with the unit.
~ For GSP625 and GSP627 models, it must be specified at time of purchase if LP gas is required as these models can not be converted.
^ Front surface only (not hob).
20
MICROWAVES
MICROWAVE OVENS
According to the Westinghouse How Australia Cooks Report, the microwave oven is Australia’s most popular cooking
appliance, found in 95% of kitchens. Of those households, 83% of cooks use their microwave on any given day
†
.
Surprisingly, one in four people are not satisfied with their microwave and one of the main reasons is because it doesn’t
complement other kitchen appliances as well as the overall kitchen decor.
Recognising this frustration and making a distinct move away from the ‘white box on the benchtop’, Westinghouse has
launched a new range of countertop and built-in microwaves designed to complement modern kitchens. With either white
or fingerprint resistant stainless steel finishes and electronic touch controls, the stylish appliances integrate easily into the
kitchen, creating a visually harmonised space.
SEAMLESS DESIGN INTEGRATION
The design perfectly integrates with
the entire Westinghouse kitchen
collection, allowing you to perfectly
co-ordinate your kitchen design.
ADD CRISPNESS TO YOUR DISHES
Grill function* used in isolation, or
combined with microwave power allows
you to cook a wider range of dishes and
add a crisper result where needed.
*Selected models
HARDWEARING, STYLISH AND
EASY TO CLEAN
Full fingerprint resistant stainless steel
metal fascia on the microwave and trim
panel*, provides a hard wearing yet
attractive look to your kitchen.
*Selected models
TRUE BUILT-IN SOLUTION
Venting to the front of the microwave
eliminates the need to duct the heated
air out of your cabinetry offering a
true built-in solution.
VERSATILE FEATURES
Multi-stage cooking from frozen to
cooked, quick start, delayed start
cooking and time and weight
defrost options.
PREPARE DISHES QUICKLY & EASILY
With 8 Auto menus including Auto
Reheat, Vegetables, Pasta, Meat,
Pizza, Potato, Fish and Soup you’ll
have your next meal prepared in
no time!
†Source: Westinghouse How Australia Cooks Report. This report has been produced by Westinghouse, a leading kitchen appliance manufacturer. The research was conducted
nationally by Bread & Butter Research, among 1,000 Australians aged 25-64 years in October 2008.
21
MICROWAVES
MODEL WMS281WF WMS281SF WMG281SF WMS281SB WMG281SB
installation countertop countertop countertop built-in built-in
fascia
white plastic, with UV
protection
fingerprint resistant
stainless steel trims
fingerprint resistant
stainless steel trims
fingerprint resistant
stainless steel trims
and trim kit
fingerprint resistant
stainless steel trims
and trim kit
electronic controls
P P P P P
FEATURES
microwave power 900W 900W 900W 900W 900W
grill power/type N/A N/A 1100w N/A 1100W
grill rack
P P
OVEN FUNCTION
microwave
P P P P P
grill
P P
combination modes 2 2
microwave quick start
P P P P P
delayed start
P P P P P
defrost by weight
P P P P P
defrost by time
P P P P P
auto reheat
P P P P P
auto cook
P P P P P
quick start
P P P P P
OVEN PROGRAMMED FUNCTIONS
meat
P P P P P
fish
P P P P P
vegetables
P P P P P
pizza
P P P P P
pasta
P P P P P
potatoes
P P P P P
soup
P P P P P
INCLUDED ACCESSORIES
grill rack
P P
DIMENSIONS
product dimensions
(h x w x d incl. handle)
305 x 513 x 422mm 305 x 513 x 422mm 305 x 513 x 422mm 460 x 594 x 422mm 460 x 594 x 422mm
product dimensions
(h x w x d excl. handle)
305 x 513 x 390mm 305 x 513 x 390mm 305 x 513 x 390mm 460 x 594 x 392mm 460 x 594 x 392mm
turntable dimensions 315mm 315mm 315mm 315mm 315mm
†
Refer to the product information on the back page of this brochure
MICROWAVE
OVEN
features
†
22
COOKTOPS
ONE- PIECE BURNERS
Cleaning is made easy with the
new one-piece burners which lift
straight off for easier and more
efficient cleaning – no need for
tricky re-assembly.
(Excluding wok burner)
FLAME FAILURE SAFETY
If for any reason the flame
on the cooktop is extinguished,
this added safety feature (on
selected models) will shut off
the gas supply.
TOUCH CONTROLS
Easy to use touch controls
provide a seamless surface that
is harmonious with the benchtop
and includes a button lock
so that controls cannot be
accidently started.
EASY CLEAN CERAMIC SURFACE
Not only aesthetically pleasing,
the durable glass surface is easy
to clean and maintain ensuring
your kitchen is always looking
its best.
GAS COOKTOPS
Westinghouse gas cooktops offer up to four burner types ranging from small to large, including an offset triple ring
wok burner. Our gas cooktops use advanced technology to suit a hardworking, productive kitchen including electronic
ignition, flame failure, removable control knobs and cast iron trivets*.

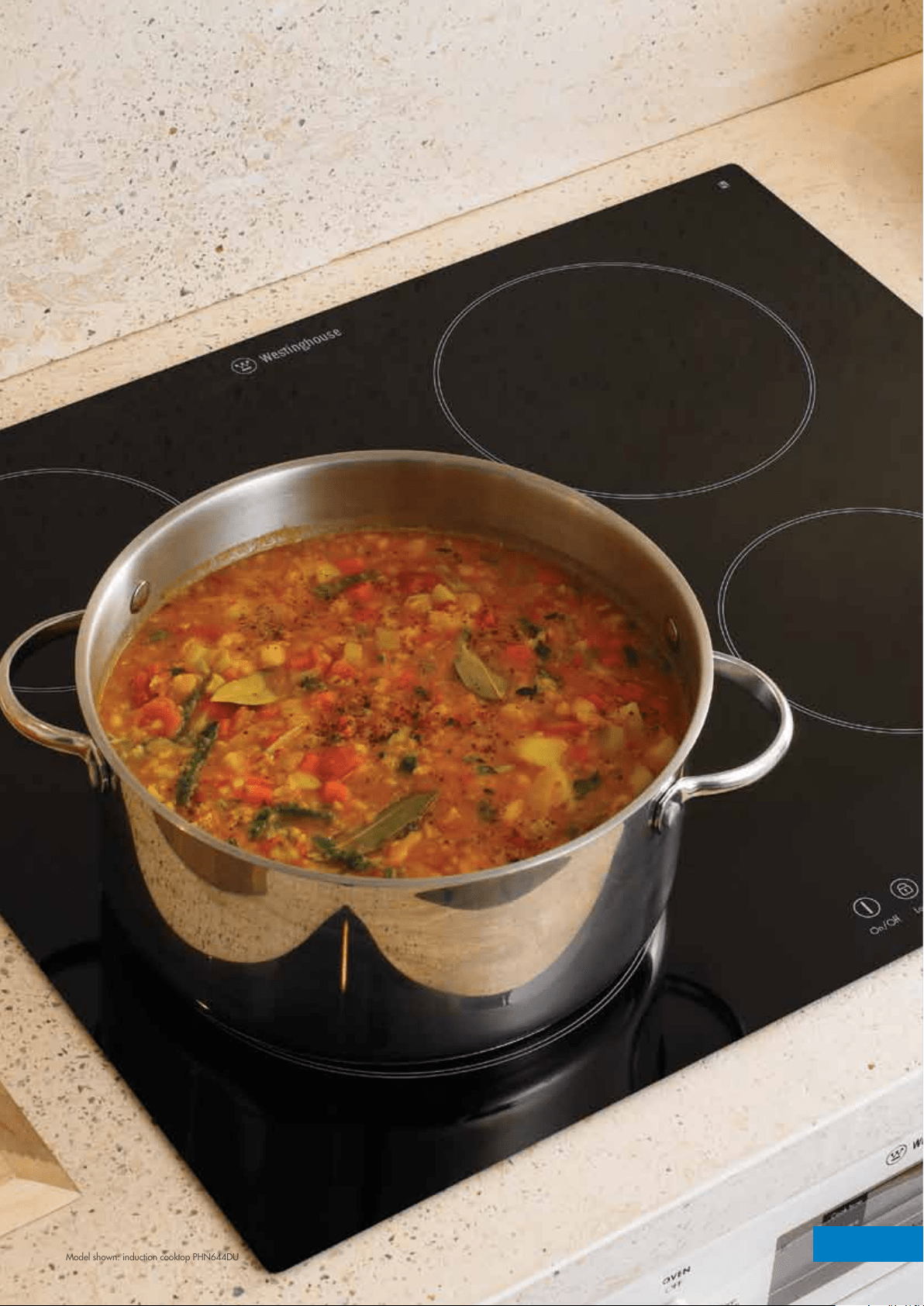

INDUCTION COOKTOP
The new Westinghouse induction cooktops provide the most modern, precise and safest way to cook.
Induction cooking works by creating heat directly in the bottom of the pan, leaving the cooking surface relatively free of heat.
So the only thing hot in the kitchen is the pan.
This makes the kitchen a much safer place for children, because if there’s no pan on the cooking surface, then no heat is
being generated from the hotplate. It also means the cooktop cannot be accidentally left on. It makes cleaning easier too,
as spilt cooking food cannot be burnt onto the cooktop.
Induction cooking is not only the most energy saving way to cook, it gives you precise cooking at exact temperatures
in an instant, for perfect heat control.
CERAMIC COOKTOPS
Westinghouse electric ceramic cooktops have a durable ceramic glass finish that is easy to clean and maintain.
With up to six multi-heat zones, hot surface indicators and temperature limiters, the ceramic cooktop models provide
straightforward solutions for a variety of cooking demands*.
ELECTRIC COOKTOPS
Westinghouse electric cooktops with solid elements are designed for hardworking kitchens. They have corrosion-resistant
surfaces to minimise wear and tear and deliver the desired heat for the life of your cooktop*.
*features vary by model

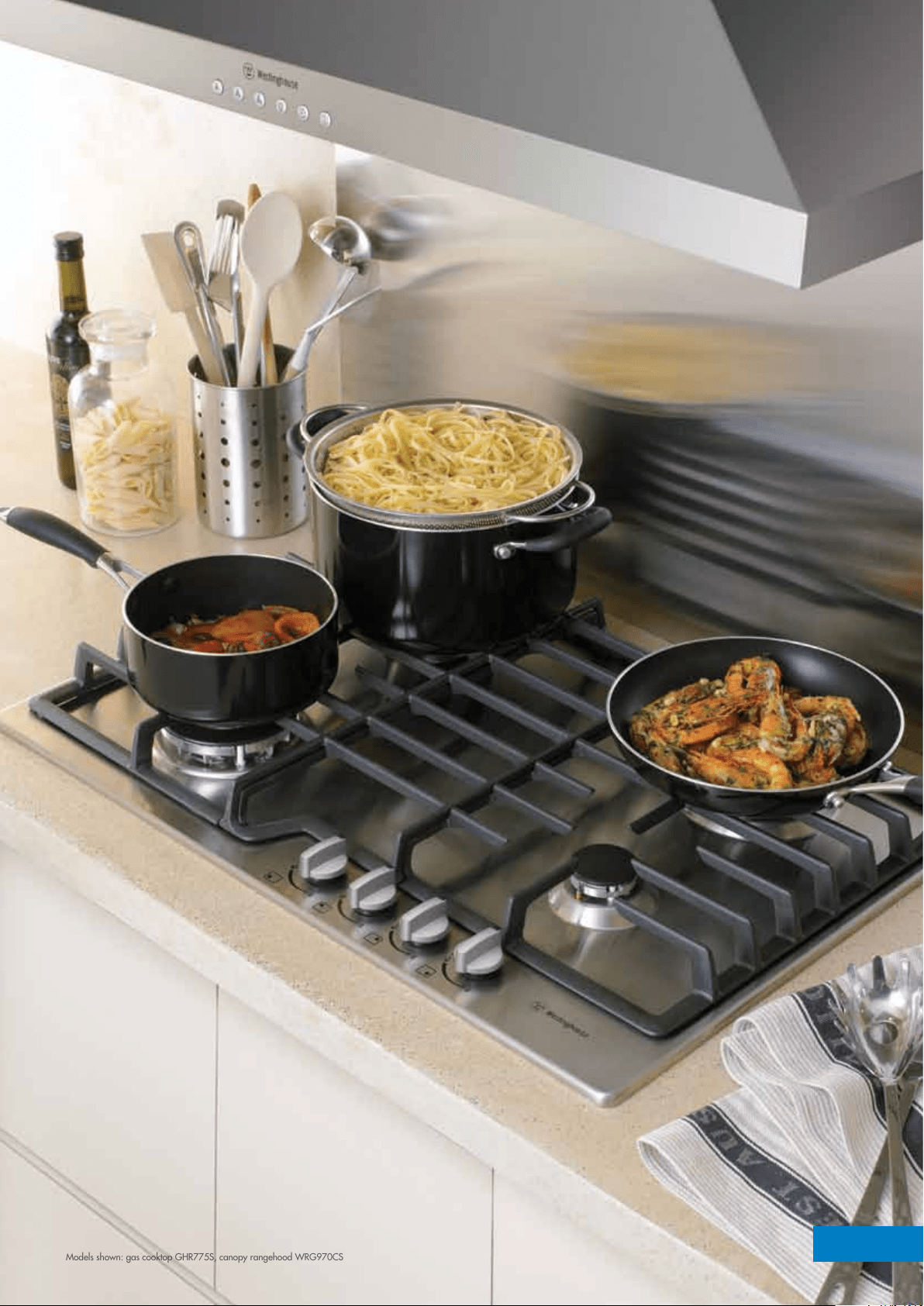

Models shown: gas cooktop GHR775S, canopy rangehood WRG970CS
23
COOKTOPS
24
COOKTOPS
MODEL GHR775S GHR795S GHR95W/S
finish stainless steel stainless steel white enamel/stainless steel
connection 10A plug & lead 10A plug & lead 10A plug & lead
gas rating (NG) 40.6M
J
/h 49.6M
J
/h 49.6M
J
/h
BURNERS
left front 14.4M
J
/h wok 14.4M
J
/h wok 14.4M
J
/h wok
left rear 9.0M
J
/h
centre front 9.0M
J
/h 9.0M
J
/h
centre rear 9.0M
J
/h 9.0M
J
/h
right front 5.1M
J
/h 5.1M
J
/h 5.1M
J
/h
right rear 12.1M
J
/h 12.1M
J
/h 12.1M
J
/h
FEATURES
trivets cast cast enamel
ignition type electronic electronic electronic
flame failure safety
P P
DIMENSIONS^
WxDxH below bench (mm) 744 x 510 x 50 894 x 510 x 50 894 x 510 x 50
cut out WxD (mm) 560 x 480 830 x 480 830 x 480
* Gas Type: Configured for NG and supplied with an LPG conversion kit.
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements,
you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure.
GAS COOKTOPS*
600mm
features
†
GAS COOKTOPS*
750mm & 900mm
features
†
MODEL GHR765S GHR17W/S GHR16W/S GHR12W/S
finish stainless steel
white enamel/stainless
steel
white enamel/
stainless
steel
white enamel/
stainless
steel
connection 10A plug & lead 10A plug & lead 10A plug & lead 10A plug & lead
gas rating (NG) 40.6M
J
/h 40.6M
J
/h 40.6M
J
/h 35.2M
J
/h
BURNERS
left front 14.4M
J
/h wok 14.4M
J
/h wok 14.4M
J
/h wok 12.1M
J
/h
left rear 9.0M
J
/h 9.0M
J
/h 9.0M
J
/h 9.0M
J
/h
right front 5.1M
J
/h 5.1M
J
/h 5.1M
J
/h 5.1M
J
/h
right rear 12.1M
J
/h 12.1M
J
/h 12.1M
J
/h 9.0M
J
/h
FEATURES
trivets cast enamel enamel enamel
ignition type electronic electronic electronic electronic
flame failure safety
P P
DIMENSIONS^
WxDxH below
bench (mm)
594 x 510 x 50 594 x 510 x 50 594 x 510 x 50 600 x 535 x 55
cut out WxD (mm) 560 x 480 560 x 480 560 x 480 570 x 490
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements,
you must refer to the information provided with the product or visit www.westinghouse.com.au
Model shown: induction cooktop PHN644DU
25
COOKTOPS
26
COOKTOPS
MODEL PHN944DU PHN744DU PHN644DU
finish
trimless trimless trimless
connection hardwire hardwire hardwire
maximum power rating 7.4kW 7.4kW 7.4kW
ELEMENTS
left front (size/power/boost) 210mm/2300W/3200W 210mm/2300W/3200W 210mm/2300W/3200W
left rear (size/power/boost) 145mm/1400W/1800W 145mm/1400W/1800W 145mm/1400W/1800W
right front (size/power/boost) 145mm/1400W/1800W 145mm/1400W/1800W 145mm/1400W/1800W
right rear (size/power/boost) 180mm/1800W/2800W 180mm/1800W/2800W 180mm/1800W/2800W
FEATURES
controls electronic touch electronic touch electronic touch
residual heat indication
P P P
child lock
P P P
timer
P P P
automatic warm-up
P P P
DIMENSIONS^
WxDxH below bench (mm) 930 x 520 x 46 700 x 515 x 46 610 x 515 x 46
cut out WxD (mm) 880 x 490 560 x 490 560 x 490
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
NOTE: A minimum 20mm air gap is recommended below induction cooktop for heat dissipation
MODEL PHN798U PHN768U PHN668U PHR285W/S PHR395U PHR284U PHR222U
finish bevelled trimless bevelled trimless trimless white/stainless steel trimless trimless trimless
connection hardwire hardwire hardwire hardwire hardwire hardwire hardwire
maximum power rating 6.5kW 6.5kW 5.9kW 6.4kW 6.4kW 6.5kW 3.0kW
ELEMENTS
total 4 incl. 1 triple zone 4 incl. 1 triple zone 4 incl. 1 dual zone 4 incl. 1 dual zone 4 incl. 1 dual zone 4 2
left front 2300/1600/800W 2300/1600/800W 1700/700W 2200/750W 2200/750W 2300W 1200W
left rear 1200W 1200W 1200W 1200W 1200W 1200W 1800W
right front 1800W 1800W 1800W 1200W 1800W 1200W
right rear 1200W 1200W 1200W 1800W 1200W 1800W
control electronic touch electronic touch electronic touch knob knob knob knob
FEATURES
hot surface indicator
P P P
P P P P
child lock
P P
timer
P P
automatic warm-up
P P
DIMENSIONS^
WxDxH below bench (mm) 930 x 520 x 46 610 x 515 x 46 610 x 515 x 46 604 x 504 x 46 930 x 520 x 46 610 x 515 x 46 320 x 505 x 40
cut out WxD (mm) 880 x 490 560 x 490 560 x 490 560 x 490 880 x 490 560 x 490 303 x 485
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
NOTE: A minimum 30mm air gap is recommended below ceramic cooktop for heat dissipation
INDUCTION COOKTOP
features
†
ELECTRIC CERAMIC
ELEMENT COOKTOPS
features
†
NEW
27
COOKTOPS
MODEL PHR255W/S
finish
white enamel/stainless steel
connection hardwire
maximum power rating 6.5kW
ELEMENTS
total 4
left front 1500W
left rear 2000W
right front 1500W
right rear 1500W
control knob
DIMENSIONS^
WxDxH below bench (mm) 600 x 535 x 58
cut out WxD (mm) 570 x 490
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
MODEL PHN798U PHN768U PHN668U PHR285W/S PHR395U PHR284U PHR222U
finish bevelled trimless bevelled trimless trimless white/stainless steel trimless trimless trimless
connection hardwire hardwire hardwire hardwire hardwire hardwire hardwire
maximum power rating 6.5kW 6.5kW 5.9kW 6.4kW 6.4kW 6.5kW 3.0kW
ELEMENTS
total 4 incl. 1 triple zone 4 incl. 1 triple zone 4 incl. 1 dual zone 4 incl. 1 dual zone 4 incl. 1 dual zone 4 2
left front 2300/1600/800W 2300/1600/800W 1700/700W 2200/750W 2200/750W 2300W 1200W
left rear 1200W 1200W 1200W 1200W 1200W 1200W 1800W
right front 1800W 1800W 1800W 1200W 1800W 1200W
right rear 1200W 1200W 1200W 1800W 1200W 1800W
control electronic touch electronic touch electronic touch knob knob knob knob
FEATURES
hot surface indicator
P P P
P P P P
child lock
P P
timer
P P
automatic warm-up
P P
DIMENSIONS^
WxDxH below bench (mm) 930 x 520 x 46 610 x 515 x 46 610 x 515 x 46 604 x 504 x 46 930 x 520 x 46 610 x 515 x 46 320 x 505 x 40
cut out WxD (mm) 880 x 490 560 x 490 560 x 490 560 x 490 880 x 490 560 x 490 303 x 485
ELECTRIC SOLID
ELEMENT COOKTOPS
features
†
†
Refer to the product information on the back page of this brochure
28
RANGEHOODS
CANOPY RANGEHOODS
Westinghouse canopy rangehoods provide a stunning visual statement and capture the grease, steam and heat build-up
when cooking, drawing smells and residue away from your cooktop. The high performance canopy rangehood brings
your kitchen appliances together whilst clearing the air with minimal noise.
FIXED RANGEHOODS
Westinghouse fixed rangehoods bring everyday practicality to your cooking. Eliminating steam, grease and unsavoury smells,
they are also very practical to install, with just four screws. You can fix your rangehood to a wall or beneath the cupboard
above your cooktop. The sleek, modern lines will suit almost any style of kitchen.
SLIDE-OUT AND INTEGRATED RANGEHOODS
Westinghouse slide-out rangehoods are designed to discreetly and conveniently slide away when not in use. Suitable for
ducting or recirculating, they remove residue and smells from your cooking, ensuring a well-ventilated kitchen. An integrated
rangehood works the same way, with the advantage of being able to design your kitchen cabinetry to house it – effectively
hiding it from view and allowing greater flexibility for unique kitchen installations, where a clean, integrated look is required.
INSTALLATION
You can never be too careful when it comes to installation. When installing your rangehood there are two ways to direct the airflow.
If you are able to move the air outside, through a flue or chimney, a ducted system is ideal (see www.westinghouse.com.au or
phone 1300 363 640 for more information on ducting kit accessories). If clear exterior access is not an option, you simply
install your rangehood to recirculate* (carbon filter required).
* Some models can only be recirculated through the cupboard.
SUPERIOR AIR MOVEMENT
The powerful 3 speed fan
efficiently removes fumes,
smoke and vapour from
the kitchen.
LIGHT UP YOUR COOKING
Two 20W Halogen lights
enhance the cooking space
adding ambience to the kitchen.
QUIET OPERATION
Superior air flow without the noise.
Designed to operate at low noise
levels even on the high fan setting.
Maximum noise level of 56dB(A)
+
when on high fan setting.
+
WRG970CS, WRF900CS
& WRF600CS
TIMED CLEANING
When the cooking’s finished,
this Auto-Offº fan delay will
ensure that all kitchen odours
and residual smoke are removed,
automatically switching itself off
after 5 minutes so meals can
be enjoyed straight away.
º
WRG980CGS & WRG970CS
FRESH AIR FOR CLEAN COOKING
The Westinghouse Rangehood
is designed for easy maintenance
with stainless steel covered filters
^
to make cleaning easier.
^
WRG980CGS & WRG970CS
EASY TO CLEAN
Removable filters are dishwasher
safe for efficient cleaning and
the stainless steel hood is easy
to maintain – simply wipe clean.
29
RANGEHOODS
Models shown: canopy rangehood WRG980CGS, gas cooktop GHR765S, underbench oven POR883S
30
RANGEHOODS
MODEL WRG980CGS WRG970CS WRG950CGS
nominal width (mm) 900 900 900
finish glass & stainless steel stainless steel glass & stainless steel
number of fans/speeds 1/3 1/3 2/3
max. airflow 767m
3
/h 950m
3
/h 750m
3
/h
noise level dB (high/low) 62/51 56/44 71/61
no. of filters 1 3 1
control electronic touch push button push button
top or rear duct hole top top top
lights 2 x 20W halogen 2 x 20W halogen 2 x 40W halogen
optional extension flue 1200mm 1200mm
DIMENSIONS^
WxDxH (mm) 900 x 520 x 70 898 x 520 x 130 900 x 500 x 80
flue height (mm) 1260 1175 1140
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
MODEL WRG630CW/S WRF600CS WRG930CW/S WRF900CS
nominal width (mm) 600 600 900 900
finish white/stainless steel stainless steel white/stainless steel stainless steel
number of fans/speeds 2/3 2/3 2/3 2/3
max. airflow 750m
3
/h 550m
3
/h 750m
3
/h 550m
3
/h
noise level dB (high/low) 71/61 55/48 71/61 55/48
no. of filters 2 2 3 3
control push button push button push button push button
top or rear duct hole top top top top
lights 2 x 40W incandescent 2 x 40W incandescent 2 x 40W incandescent 2 x 40W incandescent
optional extension flue 1100mm 1100mm 1100mm 1100mm
DIMENSIONS^
WxDxH (mm) 599 x 500 x 230 599 x 500 x 230 899 x 500 x 230 899 x 500 x 230
flue height (mm) 1010 1010 1010 1010
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure
CANOPY
RANGEHOODS
features
†
CANOPY
RANGEHOODS
features
†
31
RANGEHOODS
MODEL WRH608IW/S WRH605IW/S WRH908IW/S EFG750X/A EFG540G/A
nominal width (mm) 600 600 900 702 524
finish white/stainless steel white/stainless steel white/stainless steel stainless steel grey
number of fans/speeds 2/3 1/3 2/3 2/3 2/3
max. airflow 400m
3
/h 210m
3
/h 400m
3
/h 620m
3
/h 400m
3
/h
noise level dB (high/
low)
66/59 62/59 66/59 68/52 67/61
number of filters 2 1 2 2 2
front re-circulating option
P P
control
auto-activated
(pull/push)
auto-activated
(pull/push)
auto-activated
(pull/push)
slide switch slide switch
top or rear duct hole top top top top top
lights
2 x 40W
incandescent
1 x 40W
incandescent
2 x 40W
incandescent
2 x 40W
incandescent
2 x 40W
incandescent
DIMENSIONS^
WxDxH (mm) 599 x 300 x 175 599 x 300 x 175 899 x 300 x 175 702 x 284 x 307 524 x 289 x 150
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
†
Refer to the product information on the back page of this brochure
WRJ611 shown WRJ911 shown
MODEL WRJ603UW/WRJ611US WRJ600UW/S WRJ903UW/WRJ911US WRJ900UW/S
nominal width (mm) 600 600 900 900
finish white/stainless steel white/stainless steel white/stainless steel white/stainless steel
number of fans/speeds 2/3 1/3 2/3 1/3
max. airflow 400m
3
/h 200m
3
/h 400m
3
/h 200m
3
/h
noise level dB (high/
low)
64/57 62/51 64/57 62/51
number of filters 2 2 3 3
front re-circulating option
P P P P
control push button push button push button push button
top or rear duct hole both both both both
lights 2 x 40W incandescent 2 x 40W incandescent 2 x 40W incandescent 2 x 40W incandescent
DIMENSIONS^
WxDxH (mm) 598 x 500 x 160 598 x 500 x 160 898 x 500 x 160 898 x 500 x 160
^ IMPORTANT! The above dimensions are a guide only. For complete dimensions and installation requirements, you must refer to the information provided with the product or visit www.westinghouse.com.au
FIXED
RANGEHOODS
features
†
SLIDE-OUT AND
INTEGRATED
RANGEHOODS
features
†
32
DISHWASHERS
FAMILY SIZE DISHWASHERS
Now you can receive a superb in-house washing up service at the press of a button rather than the pull of an ear.
Westinghouse’s new dishwashers each come with a 4.5 star water rating, which means they only consume 11.4 litres of
water per load. Match that with equally impressive washing and drying results and you can take a load off knowing your
dishes are in the best of hands.
QUIET OPERATION
Enjoy peace and quiet in your
home with noise levels as low
as 48dB(A).
(Excludes WSF6602XR/WR).
WATER SAFETY SYSTEM
Our aqua control function is
an advanced anti-flood system.
Automatically cutting off the water
supply to the dishwasher to give
you peace of mind knowing your
kitchen is protected.
(WSU6603XR only).
TOP SERVICE
We can deliver, install and
remove your old dishwasher,
as well as offer home service
and spare parts.
Conditions apply.
SENSOR WASH & LOAD SENSING
Sensor wash assesses the load
size and level of dirt on the dishes
and adjusts the wash cycle to
optimise wash results. (WSU6603XR).
The load sensing feature quickly
senses the load size optimising
the use of water (WSF6602/WR).
WATER & ENERGY EFFICIENT
With 4.5 star WELS*water
rating and 3 star energy rating
our latest range of dishwashers
deliver optimum washing
and drying results.
FLEXIBLE INSTALLATION
Enjoy greater freedom with our new
freestanding range. Position as either
freestanding or fit into a cavity without
being secured. (WSF6602WR/WSF6602XR).
The new built-under model can
be installed behind your cabinetry
kick-panelling giving your kitchen a
streamlined stylish look. (WSU6603XR).
30 MINUTE QUICK WASH CYCLE
With 5 wash programs there’s
is an option to suit your
requirements, giving you more
flexibility to choose what,
when and how you wash.
Now includes the Fast 30
program, to help with your
busy lifestyle.
ACTIVE DRYING
Active drying optimises drying
performance while the interior
light offers better visibility when
loading and unloading your
dishwasher.
(Internal light for WSU6603XR only).
4
4.5
XXL TUB
We’ve developed our wash
performance to handle real life
stacking. And the extra 10 litres
of loadable volume* makes room
for plates up to 34cm tall, giving
you the extra flexibility for
throwing it all in.
*Compared to standard machines of the same size.
AUTO OFF
Our auto off function eliminates any
energy consumption 10 minutes after
your dishwashing cycle has completed.
So you can be reassured we’re
keeping your energy consumption as
efficient as possible.
33
DISHWASHERS
DISHWASHER
features
MODEL WSU6603XR WSF6602WR WSF6602XR
type built-under
±
freestanding
‡
freestanding
‡
available finish
mark-resistant
stainless steel
white
mark-resistant
stainless steel
water efficiency star rating* 4.5 4.5 4.5
water consumption (ltr) 11.4 11.4 11.4
energy star rating 3 3 3
push-button electronic controls
P P P
operating noise level dB(A) 48 51 51
FEATURES
wash programs 5 5 5
rinse
P P P
fast 30min
P P P
normal eco
P P P
normal
P P
heavy
P P P
sensor
P
number of spray arms 2 + top shower 2 + top shower 2 + top shower
load sensing
P P P
wash program indicator
P P P
time remaining display
P P P
last program memory function
P P P
delay start option
P P P
height adjustable upper basket easy lift easy lift easy lift
interior light
P
fold down racks (lower basket) 2 2 2
drying with recondensation active active active
3-stage filtering system
P P P
stainless steel filter
P P P
detergent & rinse aid dispenser
P P P
water supply cold cold cold
adjustable feet
P P P
place settings 13 13 13
removable benchtop
P P
SAFETY
hidden water heater element
P P P
button lock
P P P
water safety system aquacontrol standard standard
overfill sensor
P P P
DIMENSIONS
h x w x d
excluding worktop (mm)
^
818-878 x 596 x 575 820 x 596 x 555 820 x 596 x 555
h x w x d including removable
worktop (mm)
^
NA 850 x 596 x 620 850 x 596 x 620
height adjustment (mm) 0-60 0-10 0-10
±
Built under – Dishwasher needs to be secured under a counter with supplied brackets and screws. Option to integrate the dishwasher behind a cabinetry kick panel if required.
‡
Freestanding – Dishwasher does not need to be secured under a counter. It can remain as a freestanding unit or fit into a cavity. The top panel can be removed if needed to fit under a tight
fitting bench top.
* WELS Standard AS/NZS 6400.2005
^
Depth measured to front corner of door, excludes control panel.
†
Refer to the product information on the back page of this brochure
34
MULTI-FUNCTIONS
ELECTRIC OVENS
POR881S
POR883S
POR663
PORS663
POR667
POR668
PORS668
POR783
PGR657
PGR659
PXR688
PXR698
PDR790
PDR794
POH967S
PPP776
DSP635
PSP632
DSP963
DSP965
PSP964
main oven
pyrolytic cleaning
Heats to high temperature and burns off splatters,
accumulated dirt and grease from the oven liner.
Simply wipe out ash when cooled.
P P
conventional bake (bake/pizza)
Heats from the top and bottom elements. Thermostat
controlled, to maintain a constant temperature. Ideal for
single trays eg. biscuits, scones, cakes, casseroles, roasts.
P P P P P P P P P P P P P P
fan bake
Heats from elements surrounding the fan, circulating heat
around the oven. Cooks at a lower temperature – faster
than baking. Ideal for multi-shelf cooking and reheating.
P P P P P P P P P P P P P P P P P P P P P
grill – electric
Uses a powerful upper element to grill the top of food
such as tender meats, fish, cheese toasties
and other quick cooking food. Preheat the grill for
3 minutes for best results.
P P P P P P P P P P P P P
maxi grill – electric
Grill element and top element works like a normal grill
but uses both the grill element and the boost element,
so that more can be grilled.
P P P P P P P P P P P P
defrost
Uses the fan only to circulate the air in oven
to accelerate defrosting of food.
P P P P P P P P P P P P P P P P P P
rapid heat/fast heat
Uses a combination of elements to get the oven to
the required temperature faster. Can also be used for
drying herbs, craft items, etc.
P P P P P P P P P
base heat
Uses the bottom element only. Excellent for where
a crisp base is required.
P P P P P P P P P
fan assist
Both top and bottom elements (PON783S) or
bottom element (DSK965/963) are used while
a fan circulates air within the cavity.
P P P P P P
pizza
This function uses the bottom element and the element
around the fan.
P P
fan grill
The grill element and the fan are used in combination.
Excellent for thicker cuts of meat, or to get a rotisserie
style result.
P P P P P P P P P P P P P P P
top heat
The top element only is used, allowing for the
browning of the top of dishes.
P
second oven/separate grill
conventional bake
P
fan forced bake
P
grill
P P P P P P P P
maxi grill
P
defrost
P P
rapid heat/fast heat
P
base heat
P P
fan assist
P
fan grill
P P
35
MULTI-FUNCTIONS
GAS OVENS
GOR474
GOR476
GXR650
GGR475
GSP625
GSP627
main oven
conventional bake
A powerful burner underneath the oven heats the oven, in a traditional baking fashion.
Gas cooking provides a moister cooking environment than electric.
P P P P
fan bake
Together with the oven burner, a fan circulates the hot air around the oven.
Perfect for multi-shelf cooking.
P P P P P P
grill
Uses a powerful upper electric element to grill the top of food such as tender meats, fish,
cheese toasties and other quick cooking food. Preheat the grill for 3 minutes for best results.
P P
fan grill
The grill element and the fan are used in combination. Excellent for thicker cuts of meat,
or to get a rotisserie style result.
P
defrost
Uses the fan only to circulate the air in the oven to accelerate defrosting of the food.
P P P P P
separate grill
grill – electric
Uses an electric element at the top of the separate grill to grill the top of food such as tender meats,
fish, cheese toasties and other quick cooking food. Pre-heat the grill for 3 minutes for best results.
P P P P
Models shown: POR883S
36
ACCESSORIES
ACCESSORIES
CAST BAKING DISH
Take advantage of the size of your oven with this huge baking dish specifically designed for you to make
the most of your new Westinghouse oven. The cast baking dish features a non-stick coating so that you
spend less time cleaning.
Model number: ABD610
BAKING TRAY
A full-width, enamelled baking tray is available. Designed to give you the widest possible baking surface,
the baking tray is available for all new Westinghouse BOSS
®
ovens.
Model numbers: ABT600 Non-perforated Baking Tray
SELF CLEANING CATALYTIC LINERS
Catalytic liners are self cleaning panels that fit into the oven enabling you to spend less time cleaning
and more time enjoying yourself. These panels have been designed specifically for your oven.
(POR668, PORS668, PDR790, PDR794 and POR783 come standard with catalytic liners).
Gas Ovens: CKGFL3 Rear & side liners.
FAN FILTER
The stainless steel, dishwasher-cleanable fan filter stops cooking residues from being unnecessarily
spread around the oven.
Model number: CKDFF1
PIZZA STONE KIT
Cook pizza like a pro with this pizza stone kit.
Model number: PSK1
GRIDDLE PLATE
The griddle plate features a ribbed base, high sides, a pour spout and is coated in an easy clean
non-stick surface. It can be placed across two gas burners or electric elements to provide BBQ-style
cooking and endless versatility.
Model number: GRIDDLE
RANGEHOOD CARBON FILTERS
Remove excess cooking smells from the kitchen with an additional carbon filter. Placed below the fan,
carbon filters are ideally used when the main unit is in recirculating mode.
Model numbers: ARCFD (for fixed and slide-out models), AR500CF (for canopy models), AR600CF (suits WRG970CS)
DUCTING KITS
Please visit www.westinghouse.com.au or phone 1300 363 640 for information on ducting kit accessories.
Catalytic Liner Kit Description Models Compatible with the Catalytic Liner Kit
ACC041
side and rear liners
PGR657, PGR659, POR663, POR667, POR668, PORS663, PORS668, PPR776, PXR688,
PXR698, DSP635, PSP632
ACC042
side liners
PGR657, PGR659, POR663, POR667, POR668, PORS663, PORS668, PPR776, PXR688,
PXR698, GGR475, GOR474, GOR476, GXR650, DSP635, PSP632, GSP625, GSP627
ACC043
side and rear liners
GGR475, GOR474, GOR476, GXR650, GSP625, GSP627
ACC044
side liners
PDR790, PDR794, POR783
CKETL2
top liner
PDR790, PDR794, PGR659, PXR698, POR667, POR668, POR783, PORS668
ACCESSORIES
37
Models shown: rangehood WRH608IW, cooktop PHN768U, countertop microwave WMS281WF, underbench oven PGR659W, dishwasher WSF6602WR
38
NOTES
39
OUR RANGE
NOTES
NOTES
WARRANTY
Electrolux Home Products warrants that for domestic application, the Westinghouse Ovens, Built-in Ovens, Freestanding Ovens, Cooktops, Microwave Ovens,
Rangehoods and Dishwashers featured in this brochure are free from defects in materials and workmanship for a period of 2 years (3 months for commercial
applications, excluding dishwashers) from the date of first purchase, subject to the conditions set out in the warranty card accompanying the product when
purchased. Westinghouse dishwashers are only suitable for domestic or equivalent applications. They are not suitable for applications where health and industry
requirements and requlations apply.
†
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of
continuous product development, product specifications may change without notice. Prospective purchasers should therefore check with their retailer
to ensure this publication correctly describes the products that are being offered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Electrolux Home Products Pty Ltd will not be liable for any loss, liability or damage of whatever kind
arising as a result of reliance on such information. Colours of products illustrated are as close as printing limitations allow. Electrolux will at all times
comply with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and Regulations.
® BOSS is a registered trademark of Electrolux Home Products Pty Ltd
© 2012 Electrolux Home Products Pty Ltd ABN 51 004 762 341 WKITCHEN_Apr12
Printed on Monza Gloss Recycled Art stock containing 55% recycled material & 45% from sustainable forests.
TOP SERVICE
Top Service encompasses the after sales service provided by The Electrolux Group
to consumers including delivery, home service and spare parts.
phone: 1300 363 640
fax: 1800 350 067
email: customercare
@electrolux.com.au
web: www.westinghouse.com.au
For more information on all Westinghouse appliances,
or for dimension and installation information, call into your retailer,
phone or email our customer care team or visit our website:
Westinghouse. We are part of the Electrolux family.
Share more of our thinking at www.electrolux.com.au
