Table of Contents
SAFETYPRECAUTIONS...................................................................................................................................3
INSTALLATIONINSTRUCTIONS...................................................................................................................4
InspectionofShipment..........................................................................................................................................4
Manual...........................................................................................................................................................................4
ItemsIncludedwiththisUnit..............................................................................................................................4
Setup–CartAssembly............................................................................................................................................5
CAREANDCLEANING.......................................................................................................................................6
MAINTENANCEINSTRUCTIONS...................................................................................................................6
ORDERINGSPAREPARTS...............................................................................................................................7
Cart‐PartsBreakdown..........................................................................................................................................8
PRODUCTWARRANTY....................................................................................................................................9
PRODUCTSERVICE...........................................................................................................................................9
TERMS&CONDITIONS....................................................................................................................................9
3
SAFETY PRECAUTIONS
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installin
g
, servicin
g
, or operatin
g
this equipment.
014_020416
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
www.nemcofoodequip.com or call 800.782.6761.
022_060215
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefull
y
read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
4
INSTALLATION INSTRUCTIONS
Inspection of Shipment
Afterunpacking,checkthoroughlyforanydamagewhichmayhaveoccurredinshipment.
Purchasershouldmakeclaimdirectlytocarrierforanydamagestomerchandisethatoccurin
transit.Thewarrantydoesnotcoverdamagethatoccursintransit,ordamagecausedbyabuse,
orconsequentialdamageduetotheoperationofthismachine,sinceitisbeyondourcontrol
(referencewarrantyinbackofmanual).
Manual
Readandunderstandtheoperator’smanualandallothersafetyinstructionsbeforeusingthis
equipment.Toordercopiesoftheoperator’smanualcontactGlobalSolutions,301Meuse
ArgonneHicksville,OH43526,800.782.6761,orgotowww.nemcofoodequip.com.
Items Included with this Unit
BaseCabinet
HandleBarand2HandlebarBrackets
2Wheels
1Axle
2Legs
2LegTieStrips
2LegCaps
HardwareKit
5
Setup – Cart Assembly
Thiscartrequiresassembly.Removeallpackagingandtape,thenfollowthestepsbelowforcart
assembly(referenceimageshown).
1. Turnbaseupsidedown.
2. Fastenlegstobasecabinetusingboltsandnutsprovided.Donotfullytightenthenuts
atthistime.
3. Boltalegtiestriptothelegswithboltsandnutsprovided,thentightenallleg
fastenerssecurely.
4. Bolttheotherlegtiestriptotheaxlesupports(referenceimageshown).
5. Installalegcaponeachlegend.
6. Installaxle‐slideaxlethroughholeinsupports,theninsertacotterpinintothehole
oneachendoftheaxle.Thecotterpinmustbeontheinsideofthesupport(reference
imageshown).
7. Slideaspacerontotheaxleshaft,thenplaceawheeloneachendoftheaxleandfasten
witha5/8‐18locknut.DONOTovertighten.
8. Positioncartupright.
9. Assembleahandlebarbracketoneachendofthehandlebar.Fastenhandleassembly
tobaseusingtheboltsandnutsprovided.
10. Removethepopper’soldmaidpan,thencarefullyinstallpopperoncart‐thepower
cordgoesdownintothecabinet(acordaccessholeisprovidedonthefloorofthe
cabinet).Makesurepopperissecurelyseatedoncart,thenslidetheoldmaidpan
throughthecartopeningandintothepopperforuse.
Handlebar
5/8‐18LockNut
CotterPin
(installoninside
ofsupport)
WheelSpacer
BaseCabine
t
HandlebarBracket
LegTieStrip
(foraxlesupport)
LegTieStrip
Leg
1/4‐20x3/4”
HexHDBolt
andNut
Cartopeningforoldmaidpan.
6
CARE AND CLEANING
Goodsanitationpracticedemandsthatallfoodpreparationequipmentbecleanedregularly(only
usenon‐toxic,foodgradecleaners).Acleanlooking,well‐keptmachineisoneofthebestwaysof
advertisingyourproduct.
Followthedirectionsbelowtocleanandsanitizeuniteachdayafteruse.
1. Wipeunitwithasoftcloth,dampenedwithhotwater.DONOTuseabrasivematerials
onthisunit.
2. Iffurthercleaningisneeded,useWatchdogConcessionEquipmentCleaner.
MAINTENANCE INSTRUCTIONS
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installin
g
, servicin
g
, or operatin
g
this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027
_
010914
7
ORDERING SPARE PARTS
1. Identifytheneededpartbycheckingitagainstthephotos,illustrations,and/or
partslist.(Generalimagesmaybeusedinmanualforreferenceonly.)
2. Useonlyapprovedreplacementpartswhenservicingthisunit.
3. Whenordering,pleaseincludepartnumber,partname,andquantityneeded.
4. Pleaseincludeyourmodelnumber,serialnumber,anddateofmanufacture(located
onthemachinenameplate/dataplate)withyourorder.
5. Placeordersbyphoneoronline:
Phone: 800.782.6761
Fax: 419.542.6690
WebPage:www.nemcofoodequip.com
8
Cart - Parts Breakdown
Item PartDescription
PartNumber
GS1508‐C
1 HANDLEBARSTAINLESSSTEEL 10424
2 BRACKETHANDLEBAR(2required) 10421
MANUAL 10436
1 2
Generalimageshownforpartsreferenceonly.
9

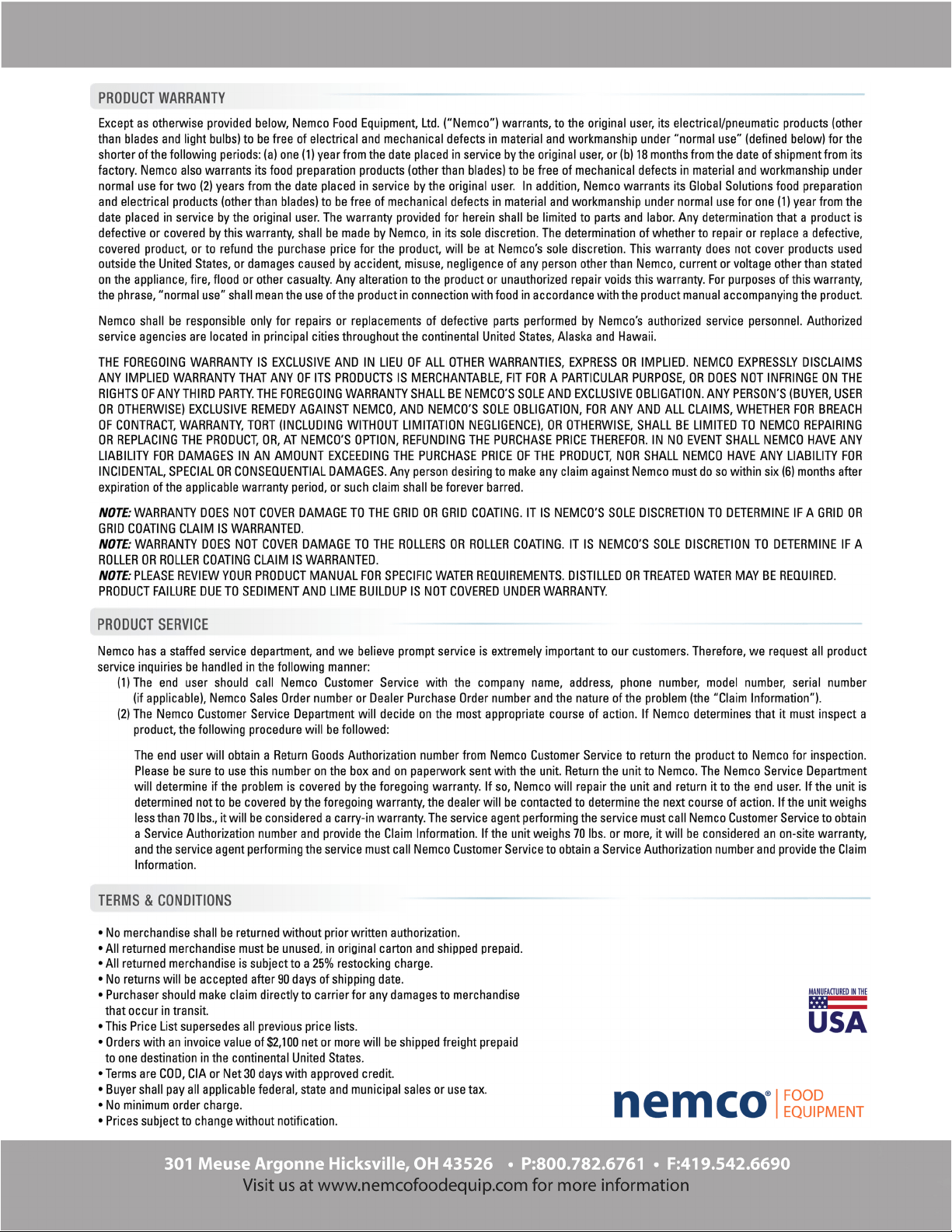

PRODUCT WARRANTY
PRODUCT SERVICE
TERMS & CONDITIONS
110197
3/29/18
10
MODEL NUMBER CROSS REFERENCE
Global Solutions Gold Medal Products Co.
GS1508-C 2659-00-015
Approvals / Listings for Global Solutions Carts:
Our carts are manufactured to Global Solutions (a Nemco Food Equipment Company) specifications
by Gold Medal Products Co., USA.
