ROTARY GLASSWASHER
INSTALLATION AND OPERATION
INSTRUCTION MANUAL
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
MODEL: ROTATION:
GWR-24 CLOCKWISE
GWR-24L COUNTER-CLOCKWISE
DOOR & CONTROLS ON LEFT
GWR-24R CLOCKWISE
DOOR & CONTROLS ON RIGHT
(GWR-24)
Rev. 1/2012
No. GWR-1.00
Printed in the USA
SERIAL NO.
COPYRIGHT © 2012 All Rights Reserved. Printed in the USA.
For future reference, record your dishwasher information in the box below.
Model Number__________________________ Serial Number______________________
Voltage___________________ Hertz__________________ Phase_________________
Service Agent __________________________________ Tel:______________________
Parts Distributor ________________________________ Tel:______________________
ATTENTION:
The model no., serial no., voltage, Hz and phase are needed to identify your machine and to
answer questions.
Please have this information ready if you call for service assistance.
SERVICE CONTACT INFORMATION
Krowne Metal Corporation
100 Haul Road
Wayne, NJ 07470
Toll-Free: (800) 631-0442
Phone: (973) 305-3300
Fax: (973) 872-1129
Email: ser[email protected]
SERVICE INFORMATION
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
WARRANTY REGISTRATION FORM
MODEL NO.: ______________ SERIAL NO.: ______________ INSTALL DATE: _______
NAME OF ESTABLISHMENT: ________________________ PHONE NO.: ______________
ADDRESS: _____________________ CITY/STATE: _______________ ZIP: __________
DEALER NAME: ________________________ CITY/STATE: ___________________
INSTALLATION COMPANY: __________________________________________________
ADDRESS: ______________________________________________________________
PHONE NO.: _____________________________________________________________
CONTACT: ______________________________________________________________
PLEASE FAX TO (973) 872-1129 TO
COMPLETE REGISTRATION
YOU CAN ALSO REGISTER YOUR WARRANTY ONLINE
AT WWW.KROWNE.COM/WARRANTY-GW
4
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Limited Warranty
LIMITED WARRANTY
Krowne Metal Corporation, (herein referred to as "The Company"), 100 Haul Road, Wayne, New Jersey 07470 warrants machines, and parts, as set
out below.
Warranty of Machines: The Company warrants all new machines of its manufacture bearing the name "Krowne Metal Corporation" to be free
from defects in material and workmanship for a period of one (1) year after the date of installation or fteen (15) months after the date of shipment
by The Company, whichever occurs rst. [See below for special provisions relating to glasswashers.] The registration card must be submitted by fax
or online with The Company within ten (10) days after installation. If the registration is not submitted to The Company within such period, the war-
ranty will expire after one year from the date of shipment.
The Company will not assume any responsibility for extra costs for installation in any area where there are jurisdictional problems with local trades
or unions.
If a defect in workmanship or material is found to exist within the warranty period, The Company, at its election, will either repair or replace the
defective machine or accept return of the machine for full credit; provided; however, as to glasswashers, The Company's obligation with respect to
labor associated with any repairs shall end (a) 120 days after shipment, or (b) 90 days after installation, whichever occurs rst. In the event that The
Company elects to repair, the labor and work to be performed in connection with the warranty shall be done during regular working hours by The
Company's authorized service technician. Defective parts become the property of The Company. Use of replacement parts not authorized by The
Company will relieve The Company of all further liability in connection with its warranty. In no event will The Company's warranty obligation exceed
The Company's charge for the machine. The following are not covered by The Company's warranty:
a. Lighting of gas pilots or burners.
b. Cleaning of gas lines.
c. Replacement of fuses or resetting of overload breakers.
d. Adjustment of thermostats.
e. Adjustment of clutches.
f. Opening or closing of utility supply valves or switching of electrical supply current.
g. Cleaning of valves, strainers, screens, nozzles, or spray pipes.
h. Performance of regular maintenance and cleaning as outlined in operator’s guide.
i. Damages resulting from water conditions, accidents, alterations, improper use, abuse, tampering,
improper installation, or failure to follow maintenance and operation procedures.
j. Wear on Pulper cutter blocks, pulse vanes, and auger brush.
Examples of the defects not covered by warranty include, but are not limited to: (1) Damage to the exterior or interior nish as a result of the
above, (2) Use with utility service other than that designated on the rating plate, (3) Improper connection to utility service, (4) Inadequate or
excessive water pressure, (5) Corrosion from chemicals dispensed in excess of recommended concentrations, (6) Failure of electrical
components due to connection of chemical dispensing equipment installed by others, (7) Leaks or damage resulting from such leaks caused
by the installer, including those at machine table connections or by connection of chemical dispensing equipment installed by others,
(8) Failure to comply with local building codes, (9) Damage caused by labor dispute.
Warranty of Parts: The Company warrants all new machine parts produced or authorized by The Company to be free from defects in material and
workmanship for a period of 90 days from date of invoice. If any defect in material and workmanship is found to exist within the warranty period. The
Company will replace the defective part without charge.
DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY. THE COMPANY'S WARRANTY IS ONLY TO THE EXTENT REFLECTED ABOVE.
THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED, TO ANY WARRANTY OF
MERCHANTABILITY, OR FITNESS OF PURPOSE. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
THE REMEDIES SET OUT ABOVE ARE THE EXCLUSIVE REMEDIES FOR ANY DEFECTS FOUND TO EXIST IN THE COMPANY'S DISHWASHING
MACHINES AND THE COMPANY'S PARTS, AND ALL OTHER REMEDIES ARE EXCLUDED, INCLUDING ANY LIABILITY FOR INCIDENTALS OR
CONSEQUENTIAL DAMAGES.
The Company does not authorize any other person, including persons who deal in The Company's dishwashing machines
to change this warranty or create any other obligation in connection with The Company's Dishwashing Machines.
5
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
TABLE OF CONTENTS
Installation 7
Unpacking 7
Utility Connections 9
Chemicals 10
Operation 12
Cleaning 15
Troubleshooting 16
Service Replacement Parts 21
Electrical Schematic 46
Table of Contents
6
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Blank Page
This Page
Intentionally
Left Blank
7
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Installation
Installation
CAUTION!
The glasswasher water inlet plumbing and the drain piping extend below the pallet.
Use extreme care when moving the glasswasher to prevent damage to the glasswasher
plumbing.
1. Move the glasswasher to its permanent location.
2. Open the door and remove the box marked "LEGS".
The box contains (4) 6" [152cm] screw-in legs.
These legs are threaded tightly into the base of the machine.
3. Remove (2) 1/2-13 x 2" bolts holding the glasswasher
to the pallet.
4. Lift the front door off the bottom hinges and set carefully aside.
5. The illustrations below show one method to install the legs
without lifting the glasswasher completely off the pallet.
Unpacking
Remove the (2) pallet bolts holding
the glasswasher to the pallet.
Water
Connections
Boxed Legs
Pallet
Drain
Glasswasher plumbing connections extend
below the pallet.
8
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com

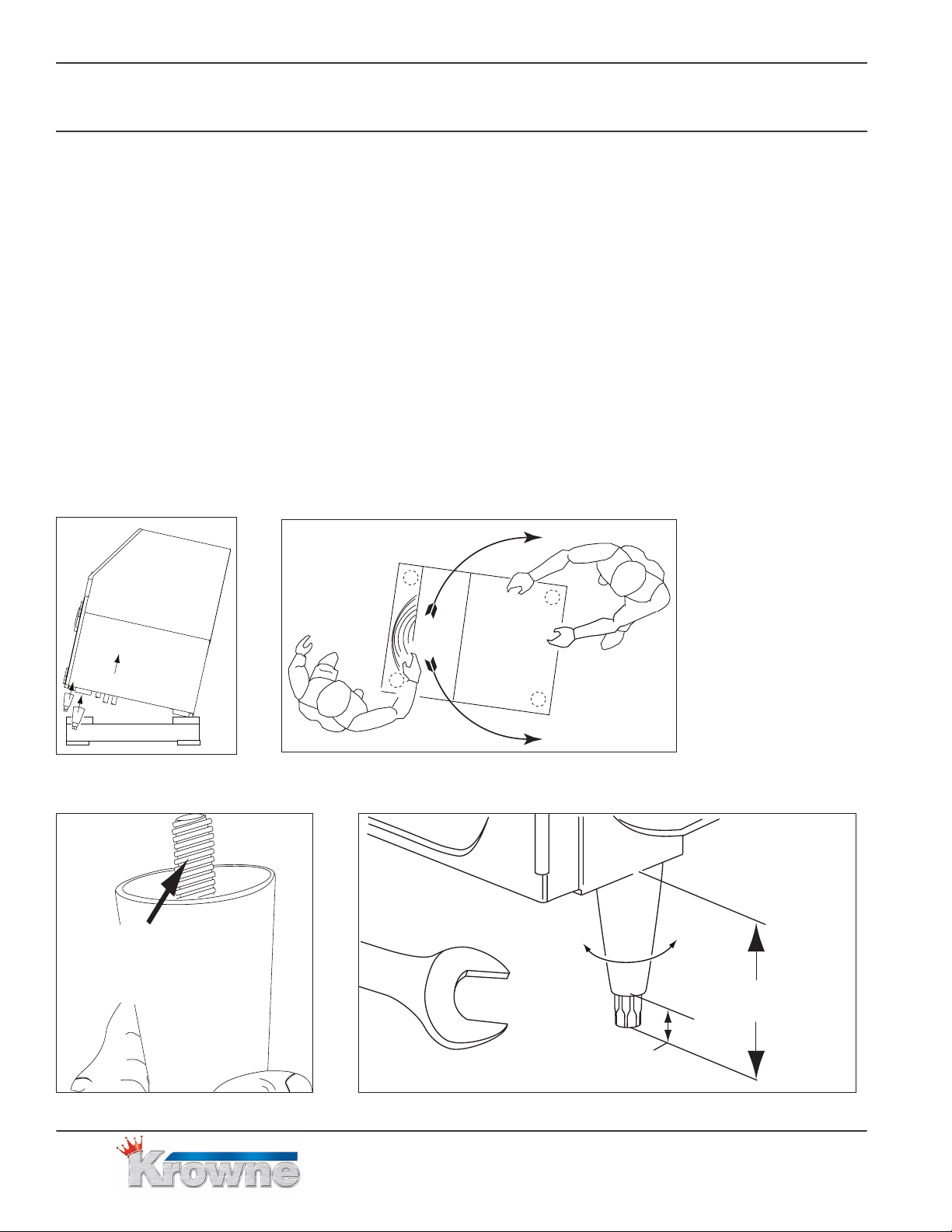

6. Use 2 people to move the machine in order to install the legs.
7. Have 1 person behind the glasswasher tilt it back as the person in front twists the machine
to the right. This makes the front left leg mounting hole accessible.
8. Screw 1 of the legs tightly into place. Repeat this process for the remaining legs.
9. Lift the glasswasher off the pallet, and re-install the front door.
10. Level the glasswasher front-to-back and side-to-side by adjusting the leg bullet feet in or out.
11. Compare the site utilities with the data plate specications. If they agree, then proceed with
the installation according to the diagrams on the next page.
12. Remove the packing material in the glasswasher and discard, then remove any protective
lm on the machine.
Installation
Installation (continued)
Unpacking (continued)
Twist the
glasswasher
to the right,
then to the left.
TILT
6"-7½"
1½"
1"
Level front-to-back and side-to-side
Thread (1) leg in each
corner of the
machine base
Tilt the machine back to
clear plumbing connections.
Twist the machine to the right until the front right leg
mounting hole is accessible.
Make sure to install the legs tightly.
9
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Installation

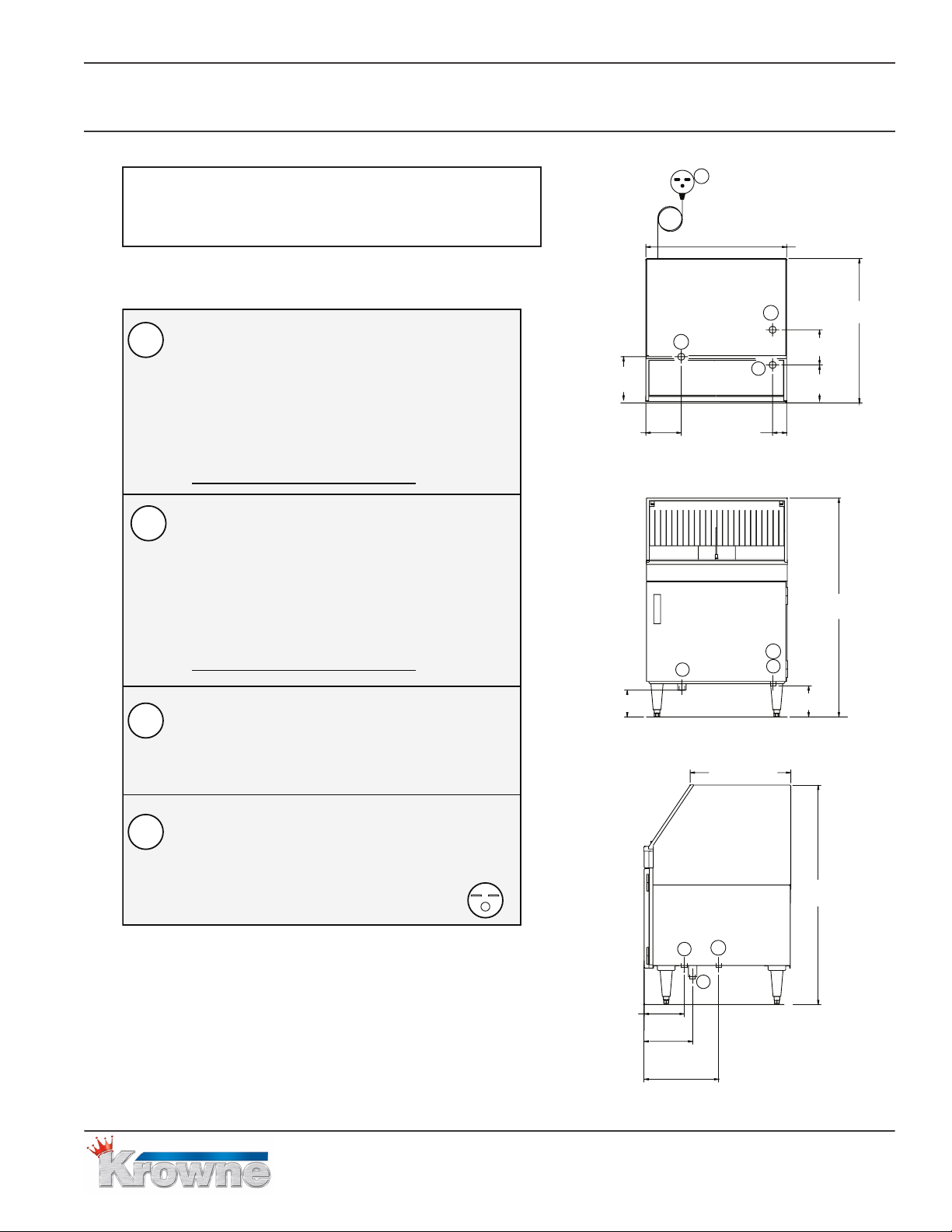

Utility Connections
27" [686]
2½" [64]
8¾"
[222]
1
2
3
Plan View
6¼" [156]
6¼" [156]
7¼" [181]
25" [635]
6 ft.
(1.5M)
Front View
39" [991]
5½" [140]
4¾" [121]
1
2
3
Side View
13½" [343]
8¾" [222]
17¾" [451]
3
2
1
39" [991]
7¼" [184]
4
4
3
2
1
Hot Water Connection:
140-160°F/60-71°C
½" IPS
Flow pressure 25-95 PSI [173-655 kPa].
Install water shut-off valves and check-valves
in the water inlet supply lines and
as close to the machine as possible
Cold Water Connection:
75°F/24°C
½" IPS
Flow pressure 25-95 PSI [173-655 kPa].
Install water shut-off valves and check-valves
in the water inlet supply lines and
as close to the machine as possible
Drain Connection:
Gravity
1½" Tailpiece (slip-fit)
Maximum drain flow 3 US gallons/min [11L/min]
Electric Connection:
208-230VAC/50-60HZ/1PH
Min/Max 15A
6 ft. /1.5 m flexible cord and plug supplied
NEMA 6-15P electric outlet
ATTENTION
All utility connections must be performed by qualied people that will
follow electric, plumbing, and sanitary codes and regulations.
10
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Installation
Installation (continued)
Chemicals
Glassware cleaning chemicals
1. A qualied chemical supplier should supply liquid detergent, sanitizer and rinse-aid for the
glasswasher. The glasswasher manufacturer does not sell glassware washing chemicals.
2. A chemical's formulation and strength vary depending on the chemical supplier; therefore,
the specications given below are approximations only.
3. The glasswasher has 3 built-in chemical dispensing pumps for:
Detergent - Use a commercial grade non-chlorinated detergent specically made for
glasswashers. The recommended concentration of detergent should be .35%.
Sanitizer - 2 types of sanitizer may be used.
(5.25%) Sodium hypochlorite (chlorine bleach) to provide a minimum
concentration of 50 ppm in the nal rinse. The 50 ppm concentration must be
checked using test strips to make sure the proper concentration is maintained.
Iodophor (Iodine formulated with a rinse agent), to provide a minimum
concentration of 12.5ppm in the nal rinse. The 12.5 ppm concentration
must be checked using test strips to make sure the proper concentration is
maintained.
Rinse-aid - Consult your chemical supplier for the proper type of rinse-aid to use in the
glasswasher.

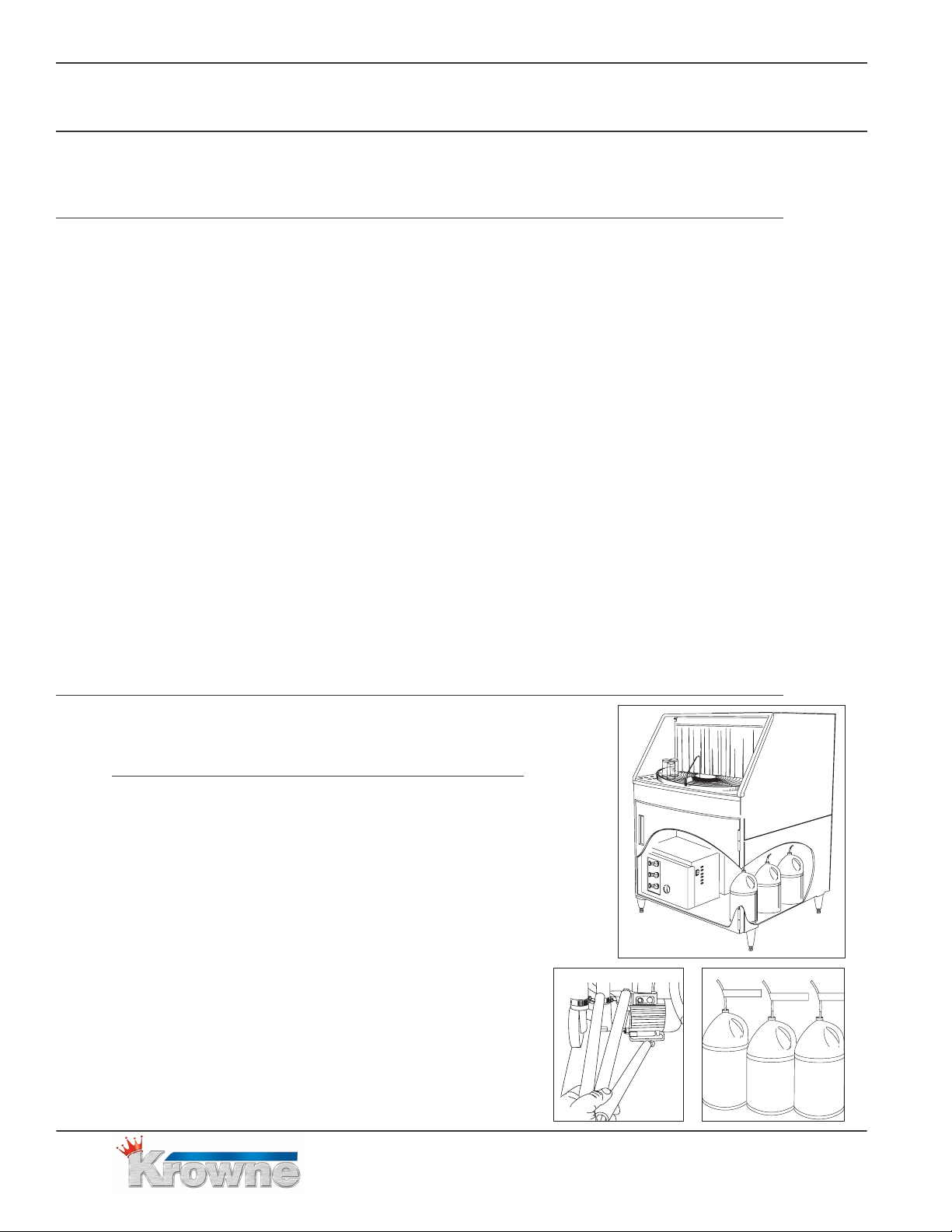

Installing chemical supply containers and chemical pick-up tubes
1. There is enough space inside the lower compartment to hold
3 one gallon containers for detergent, sanitizer, and rinse-aid.
The contents of each container must be marked clearly.
2. The glasswasher comes equipped with 3 gray tubes, called
stiffener tubes, and tubing for each chemical pump.
The tubing inserted in the chemical container has a strainer.
3. The outlet tubes from the supply containers to the chemical
pumps are marked with color-coded labels, they are:
RED - Detergent (DET)
CLEAR - Sanitizer (SAN)
BLUE - Rinse-aid (R/A)
4. Pull the stiffener tubes and chemical tubing forward and
out of the compartment. Make sure the tubing is not
tangled or kinked.
5. Insert the stiffener tube and pick-up tubing into its
container and stow the supply containers in the lower
compartment as shown to the right.
RED
CLEAR
BLUE
SANITIZER
DETERGENT
RINSE
DET
SAN
R/A
DET
SAN
R/A
11
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Installation
Installation (continued)

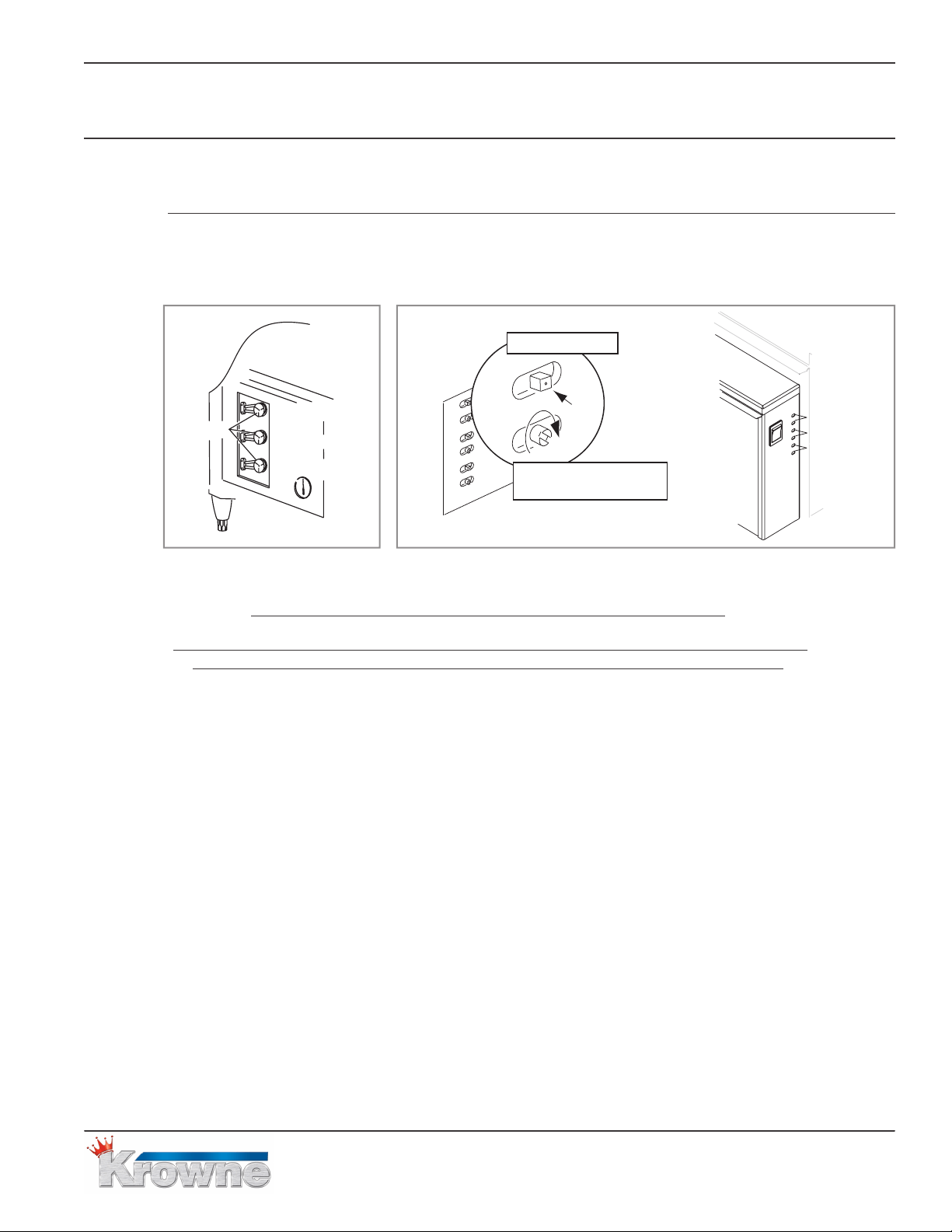

Priming the Chemical Injectors and Approximate Chemical Settings
Each chemical injector can be adjusted using its prime button and concentration adjusting screw.
These controls are located on the right side of the control box located in the lower compartment of the
glasswasher. The white injector rotors are visible through the control box window.
ALL OF THE CHEMICAL SETTINGS BELOW ARE APPROXIMATIONS.
CONSULT A QUALIFIED CHEMICAL REPRESENTATIVE TRAINED IN THE USE OF THE TEST
EQUIPMENT REQUIRED FOR TAKING SAMPLES AND PERFORMING ADJUSTMENTS.
1. Priming the Pumps:
Make sure the proper chemical pick-up tube is in its supply container, then push and hold the prime button
until the detergent, sanitizer and rinse-aid feed tubes are full of chemical. Release the Prime button.
2. Approximate Chemical Settings:
The approximate chemical volume dispensed by the chemical injectors can be
determined by counting the number of revolutions of the injector rotor.
Detergent - 1 revolution in 1-second of the detergent pump rotor ~ 0.35% concentration.
Sanitizer - 1 revolution in 5-seconds ~ 12.5 ppm of Iodophor or 50 ppm of chlorine.
Rinse-aid - 1 revolution in 8-seconds ~ the median volume recommended.
Turn the Injector Concentration screws clockwise to increase or counter-clockwise
to decrease the volume of dispensed chemical.
3. The detergent chemical setting must be performed when the hot-water ll solenoid valve is open.
The hot-water valve is open when the power switch is in the ON position during initial ll and when
the detergent tank oat assembly calls for hot water
The sanitizer and the rinse-aid setting can be performed whenever the cold-water ll solenoid valve
is open. The cold-water ll valve is open whenever the glasswasher power switch is ON and the conveyor
is turning. A separate rinse-aid is not needed when Iodophor is used as a sanitizer. Turn the Injector
Concentration Screw fully counter-clockwise until the rinse-aid injector rotor stops turning.
+
-
Push to prime
Turn CW to increase(+)
CCW to decrease (-)
DET
SAN
R/A
Chemical Injector Prime and Concentration Controls
Detergent
Sanitizer
Rinse-aid
Rotor
12
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Flow Diagram
Operation
The diagram below shows the major components
of the glasswasher and the ow of water and
chemicals during normal operation.
13
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Operation
MIX
Plug machine power cord into a
208-230VAC/60/1,15 A wall recep-
tacle. Turn main power and water
service ON.
Remove lower wash tank scrap screen.
Make sure a glass
is against the conveyor
stop switch, Push the rocker
switch UP to the ON
position until the wash
tank is full of water.
Then, push and hold each
chemical Prime button
until chemical supply
tubes are full.
The incoming cold water
supply temperature must
be a minimum temper-
ature of 75°F/24°C.
Adjust the temperature of
the incoming cold water temperature
by opening or closing the mixing valve
located between the hot water and the
cold water solenoid valves.
Check the cold water temperature
gauge and the cold water pressure
gauge as you adjust the mixing valve.
The minimum temperature should be
75°F/24°C. The pressure gauge should
read a flowing pressure
of 4-6 psi/24-36 kPa.
Check the wash tank
temperature gauge
for 140°F/60°C-
160°F/71°C.
Place glassware on
the conveyor.
The conveyor
stops automatically
when when
the clean glassware
operates the conveyor
stop switch.
Install the drain/
overflow tube into
the drain located
at the front of the
wash tank bottom.
Re-install the
scrap screen
removed
in Step 2.
Pull the chemical
pick-up tubes out
of the machine
Colored labels I.D. each tube
Place tube into its supply container.
On
Off
Flush
MIX
Pressure
Temperature
Wash Tank Heat
Prime
Prime
Prime
Label

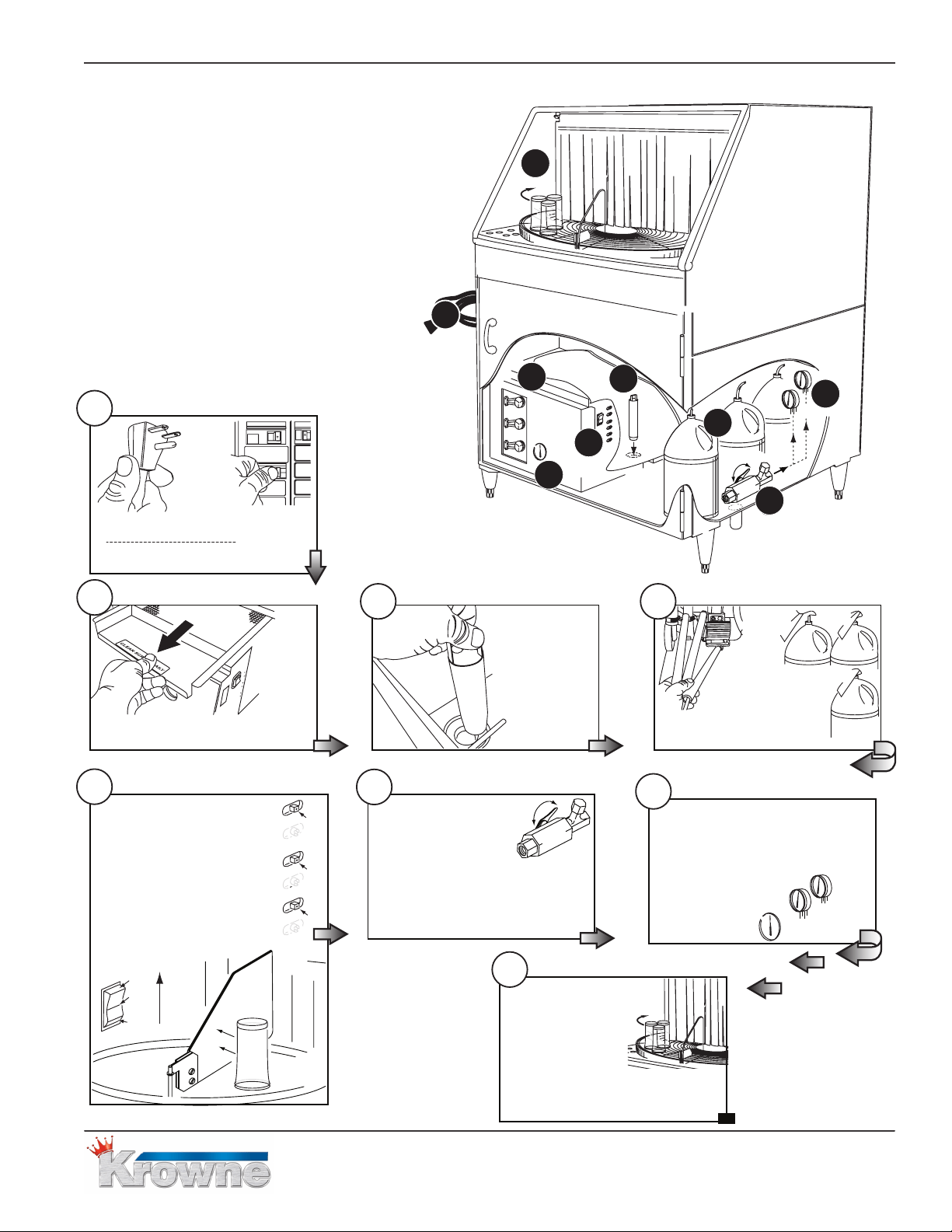

Quick Operation Guide
The glass washing machine is designed
to automatically wash a wide variety of glassware.
The glass washer consists of a wash section and
rinse section. Glasses rotate on a conveyor
through each section. A wash tank in the lower
compartment holds heated wash water. The water
level in the wash tank is maintained by a float and
cam-operated switch. The wash tank water
temperature is controlled by a heater and a
thermostat. The rinse water is supplied from
the cold water supply. Chemicals are automatically
dispensed by built-in chemical pumps
1
2
3 4
6
5
7
8
7
4
6
7
8
1
2
3
5
Red
Label
Detergent
Sanitizer
White
Blue
Label
Rinse-aid
Det.
Sani
R/A
14
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Operation
Operation (continued)
Assembling the Glasswasher
1. Make sure the power switch is in the OFF position.
2. Install the wash arms and rinse spray arms. The spray arms have locating notches in the end of
each arm. Push the spray arm straight into the hub. Do not twist.

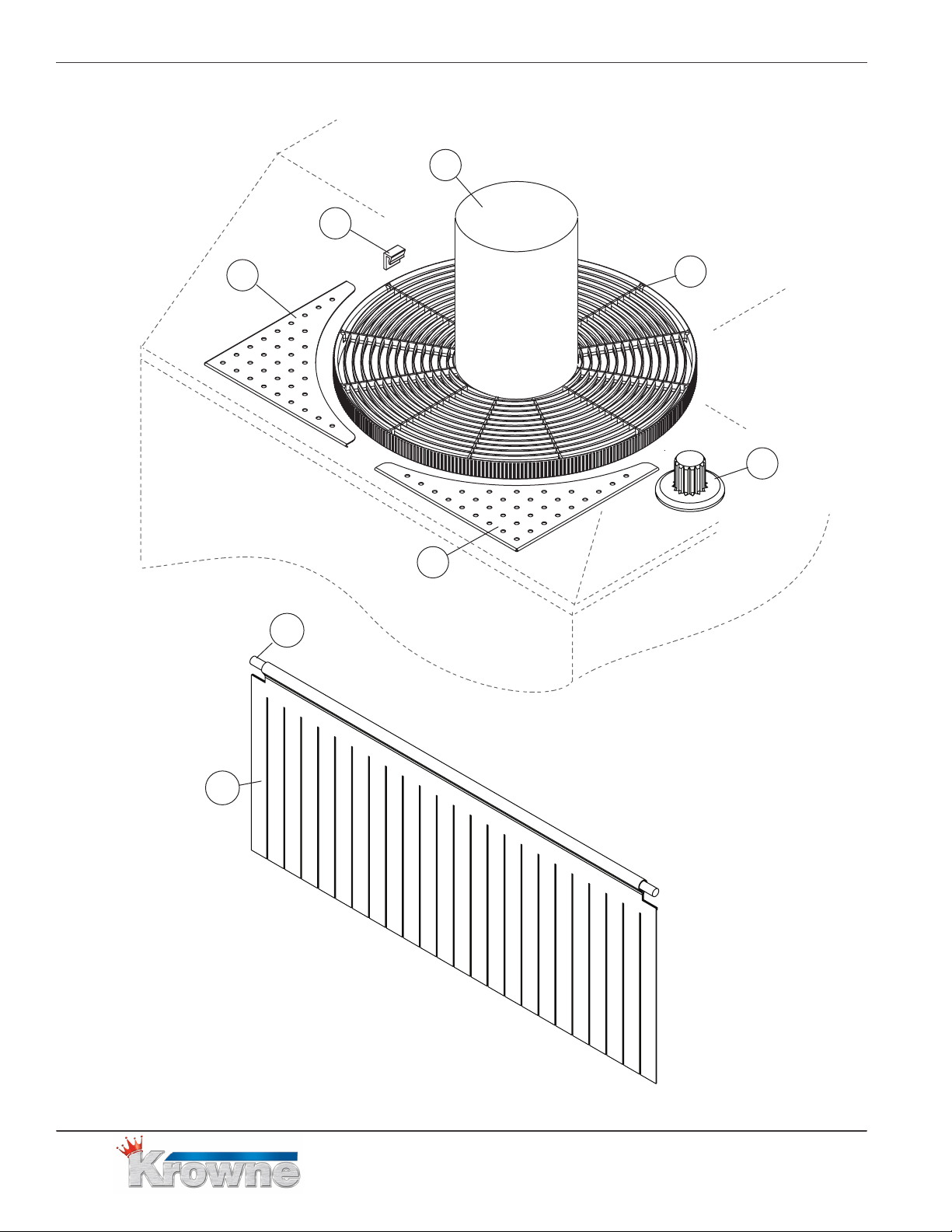

3. Install the conveyor assembly as follows:
• Insert the conveyor into the wash chamber keeping the rear raised.
• Pull the conveyor forward until it meshes with the drive gear located at the front
of the wash chamber.
• Continue to pull the conveyor forward as you lower it on the pivot.
4. Install the stainless steel cylinder in the center of the conveyor.
5. Install the conveyor shut-off assembly (plexiglass divider).
6. Install the right and left hand tray.
7. Install the curtain assembly.
8. Install the upper and lower scrap screens.
9. Install the standpipe in the detergent tank.
Twist slightly to make sure it seats securely in the drain.
10. Install the drain tray/waste collector (if equipped). Make sure the drain tting is secure.
11. Make sure the chemical supply containers are full.
12. Close the door.
Filling the Wash Tank
1. Ensure that the overow/drain tube is in place in the detergent tank.
2. Flip power on-off/ush switch to the “ON” position. The water will ll until
the proper water level is reached.
3. The water temperature is controlled by a tank heater and an adjustable thermostat. The
thermostat should be set for a minimum of 140°F/60°C.
Operating Instructions
1. Ensure that chemical supply containers are full.
2. Detergent is fed into the detergent in controlled amounts detergent dispensing pump.
Use detergent at a strength recommended by your chemical supplier.
3. Open the front door and ip the on/off/ush switch to the “ON” position.
The detergent tank will ll automatically.
4. Load glasses on the conveyor. The conveyor will stop when the glasses contact the
conveyor shut-off switch.
15
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Daily Cleaning or After 8 Hours of Operation:
1. Make sure that any glasses on the conveyor are clean, then remove them from the conveyor.
2. Push the On/Off/Flush switch on the right-hand side of the glasswasher control box to the Off position.
3. Remove the splash curtain from the curtain hooks located at each end of the splash curtain rod.
4. Remove the (2) stainless steel conveyor guards located at each corner of the glasswasher and the plexiglass stop assembly.
5. Remove the cylindrical stainless steel conveyor guard located in the center of the glasswasher.
6. Remove the conveyor by lifting the rear of the conveyor while pulling it forward to disengage the conveyor drive gear located at the right front
corner of the wash chamber.
7. Take these parts to a sink, and wash in hot soapy water using a soft brush and cloth, then rinse with fresh water and set aside to air dry.
8. Clean the wash chamber interior with hot soapy water, then rinse with fresh water. Wipe the interior with a soft cloth. Allow the wash chamber
to air dry overnight.
9. Remove the upper scrap screen, remove large debris in a trash can, take screen to a sink and ush screen with fresh water.
10. Remove the lower scrap screen, remove large debris in a trash can, take screen to a sink and ush clean with fresh water.
11. Remove the stainless steel wash tank cover; clean with hot soapy water at a the wash sink. Wipe clean and dry.
12. Remove the detergent wash tank drain/overow to drain the tank, then ush the tank with fresh water and wipe with a clean cloth.
13. Reassemble the glasswasher in reverse order for continued operation, or leave disassembled overnight to aid drying.
Cleaning Instructions
The cleaning instructions are attached to the inside of the glasswasher front door.
DO NOT CLEAN WITH HARSH DETERGENTS OR ABRASIVE SCOURING PADS.
DO NOT STRIKE THE CONVEYOR ON THE FLOOR OR ANY HARD SURFACE.
DO NOT STRIKE SCREENS ON HARD SURFACES.
DO NOT LEAVE WATER IN THE GLASSWASHER OVERNIGHT.
Cleaning
Weekly Cleaning, After 7 Days or 56 Hours of Operation:
1. Complete 1-12 in the Daily Cleaning above.
2. Remove chemical supply containers if they are stowed inside the glasswasher, wipe any chemical spills with a damp cloth.
Detergent and sanitizer (Chlorine) are corrosive on metal and must be removed as much as possible.
3. Check the inlet chute on the right-side of the detergent tank and ush with fresh warm water to clean any chemical residue.
4. Check chemical supply lines. If a line(s) are restricted, remove the pick-up tube(s) from the container(s), then insert each pick-up tube
in separate container(s) lled with fresh warm water.
5. PUSH and HOLD the PRIME BUTTON labeled for the matching chemical tube until the water moves freely through the supply
tubing. Repeat for each chemical making sure that the warm water is fresh and free of any other chemical.
6. Return the the pick-up tube(s) to the chemical container matching the label on the supply tube(s), then PUSH and HOLD the
PRIME BUTTON for the matching chemical(s) until the chemical moves freely through the supply tube(s).
7. Inspect the chemical dispensing pumps visible behind the plexiglass window located on the front of the control box. PUSH and HOLD
each PRIME BUTTON. One white wheel behind the window for each PRIME BUTTON pushed and held.
8. Find the spray tube assemblies, (3 spray tubes each) located in the wash chamber. There are (2) assemblies in the top and (2)
assemblies in the bottom. Pull (1) assembly at a time. Check the black O-ring on the spray tube hub for damage, replace if missing.
9. Insert and twist the small brass drill bit (reamer) in the each spray tube hole to clean. Insert and twist the large drill on the wood
handle. Push the large reamer down the length of the spray tubes. Insert and twist the long brush in each spray tube to remove
loose debris. Flush the spray tube assembly, then reinstall in the glasswasher. Repeat for each spray tube assembly.
10. Reassemble the glasswasher in reverse order for continued operation, or leave disassembled overnight to aid drying.
16
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
The following troubleshooting guide can help identify a problem and provide a solution.
Inspect your glasswasher before you contact an authorized service representative.
Troubleshooting
Glasswasher will not turn ON.
Conveyor will not rotate.
Conveyor will not stop
rotating.
Conveyor rotates in
wrong direction.
Upper scrap screen is
hard to remove.
Front door will not close
remain closed.
Glasswasher not level
or rocks back and forth.
Main breaker/fuse box OFF
Disconnect fuse blown/breaker
tripped.
Glasswasher ON/OFF switch
OFF. Power cord unplugged.
Clean glass(es) touching the
conveyor shut-off switch.
Conveyor center hub out of
position.
Conveyor support(s) out of
position and/or broken.
Drive gear out of position.
Gear teeth on conveyor worn
or broken.
Gear teeth on drive gear worn
or broken.
Object jamming the conveyor.
Conveyor drive motor
defective.
Conveyor stop switch
needs adjustment or
switch is defective.
The drive motor
is turning the conveyor
backward.
Large debris, such as
broken glass is on screen.
Scrap screen bent and/or broken.
Door magnet broken or missing.
Door bent or broken.
Floor is not level.
Leg(s) are not screwed rmly
into machine base.
Problem Cause(s) Solution(s)
Turn breaker/fuse box ON.
Turn breaker/fuse box ON. Replace
fuse/Reset Breaker.
Flip ON/OFF switch ON.
Plug-in power cord.
Remove clean glasses from the
rinse-side of the glasswasher.
Reposition the conveyor.
Reposition or replace support(s).
Reposition drive gear.
Replace the conveyor.
Replace drive gear.
Remove object.
Tighten leg(s) or replace.
Use bubble level and turn bullet
feet in/out to adjust machine level.
Straighten or replace door.
Authorized service agent may
replace conveyor drive motor.
Authorized Service Agent may
adjust or replace switch.
Authorized Service Agent may
remove drive motor rotate
motor stator 180° and re-
install.
Remove conveyor and lower spray
arm(s). Remove debris.
Replace door magnet.
Authorized Service Agent may repair
or replace damaged screen.
17
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Troubleshooting
Water sprays out the front
of the glasswasher.
Poor washing results.
Chemical supply container(s)
ll with water.
Splash curtain is missing, positioned
incorrectly or damaged.
Spray arm(s) are damaged or
missing.
Glass(es) interferes with splash
curtain.
Clogged spray arm(s) makes water
come out in wrong direction.
Water volume from wash and/or rinse
spray arm(s) low.
Water level in detergent tank low.
Water level oat ball stuck or lling
with water.
Water level switch defective.
Detergent and/or rinse-aid supply
low.
Wash pump and/or water valve(s)
and/or line strainers clogged or
defective.
Detergent tank temperature low.
Chemical injectors out of
adjustment.
Peristaltic tube(s) are
stretched or worn on the glasswasher
chemical pump(s).
Flow control washer
in cold water solenoid valve is
defective.
Problem Cause(s) Solution(s)
Re-install the splash curtain or
replace the splash curtain.
Replace spray arm(s).
Reload glass(es).
Clean the spray arm(s).
Clean spray arm(s).
Re-install drain/overow tube
in wash tank. Service Agent
must adjust water level switch
until water level is below top of
overow.
Clean oat ball, replace if lling with
water.
Authorized service agent may
replace switch.
Rell chemical supplies.
Authorized service agent may replace
wash pump and/or solenoid valve(s).
Clean line strainers.
Raise incoming water temperature
or adjust thermostat for
140°F/60°C in detergent tank.
Contact chemical supplier to
calibrate settings.
Inspect and replace tube(s).
Contact service agent to
repair solenoid valve.
18
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Troubleshooting
Water temperature below
145°F/66°C in detergent tank.
Water leaking under glasswasher.
Detergent tank thermostat tempera-
ture setting low.
Thermostat is defective.
Detergent tank heater is defective.
Incoming water temperature is below
140°F/60°C.
Pump water seal defective.
Glasswasher drain line is clogged.
Upper wash compartment drain
screen is clogged.
Detergent tank drain screen is
clogged.
Building drain line is clogged.
Condensation is forming on the un-
derside of wash compartment.
Vacuum breaker at rear of
glasswasher leaking.
Problem Cause(s) Solution(s)
Replace vacuum breaker.
Increase thermostat setting to
145°F/66°C
Authorized service agent may replace
thermostat.
Authorized service agent may
replace detergent tank heater.
Raise incoming water
temperature to 140°F/60°C.
Authorized service agent may replace
pump seal.
Clean drain line.
Clean drain screen.
Clean detergent tank drain screen.
Clean building drain line.
Open rinse water mixing valve
until temperature of water
70°F/21°C
19
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Troubleshooting
Problem Cause(s) Solution(s)
Flowing water supply line pres-
sure measured at the glasswasher
exceeds 95 psi [655 kPa].
Defective solenoid valve(s).
Defective AUTO-FILL switch.
Rinse water pressure too high
Chemical container(s) are empty.
Chemical supply line(s) are
clogged.
Chemical supply and/or pump
tube(s) are broken.
No power to chemical dispensing
pump(s).
Dispensing pump is defective.
Chemical pumps out of
adjustment
Water ows into glasswasher when
ON/OFF switch is in
the OFF position.
Chemical(s) are not owing into the
glasswasher.
Reduce owing water pressure
measured at the glasswasher below
95 psi [655 kPa].
Authorized service agent may
rebuild or replace the solenoid
valve(s).
Incoming water pressure must be
5 PSI/35 kPa on pressure gauge
located on right-side of glasswasher
lower compartment
Rell the container(s).
Remove the supply line(s) from the
chemical containers and ush with
warm water.
Replace supply line(s) and/or pump
tube(s).
Authorized service agent must inspect
and repair
Chemical supplier must adjust
chemical pumps.
Authorized service agent may replace
chemical dispensing pump.
Service agent replace the switch.
20
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Blank Page
This Page
Intentionally
Left Blank
21
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
SERVICE REPLACEMENT PARTS
Base Assembly 22
Conveyor, Guides, Curtains 24
Wash Hubs, Spray Arms 26
Conveyor Stop Switch 28
Drive Motor Assembly 30

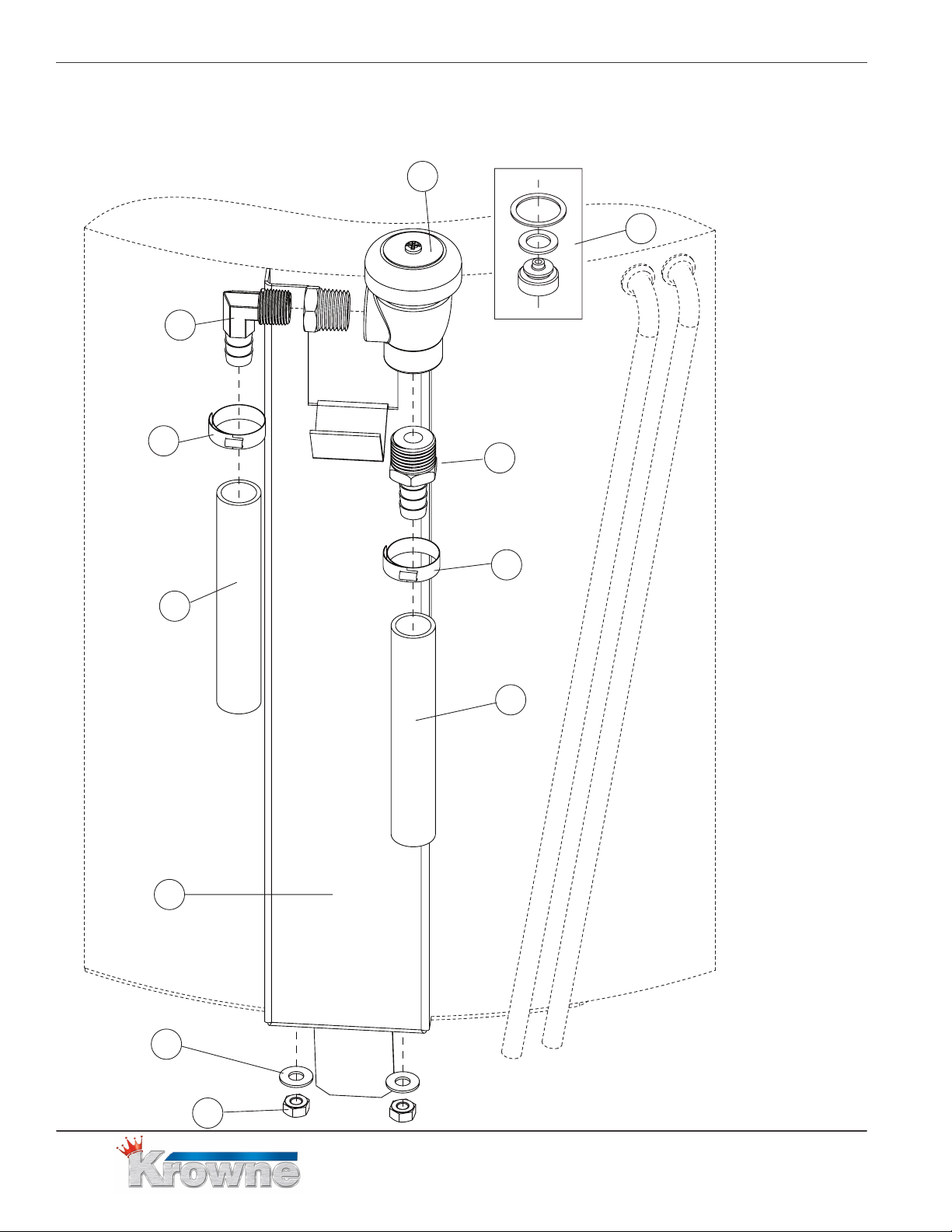

Vacuum Breaker Assembly 32
Wash Pump and Piping 34
Inlet Plumbing 36
Sanitizer Plumbing 38
Detergent Tank Assembly 40

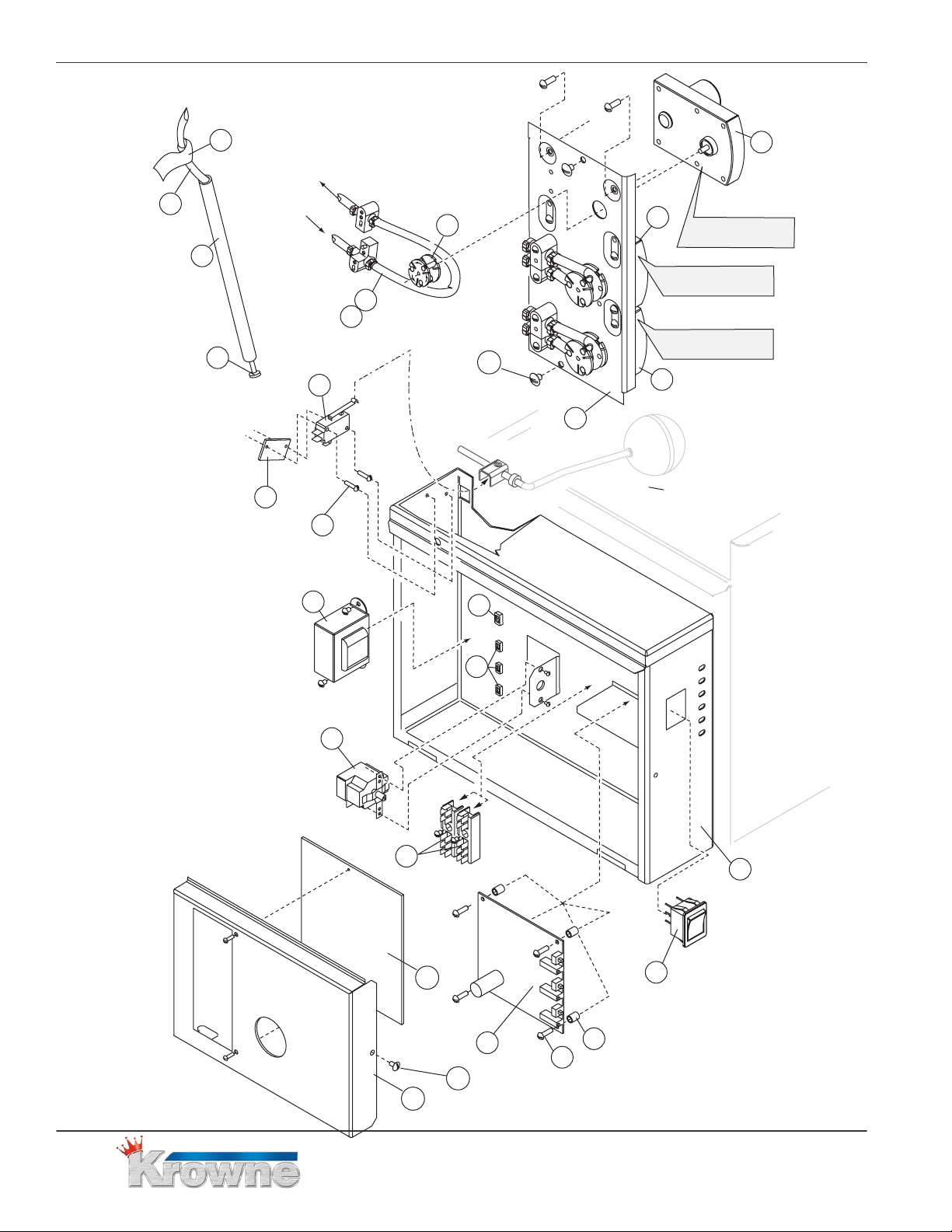

Control Box Assembly 42
Options and Accessories 44

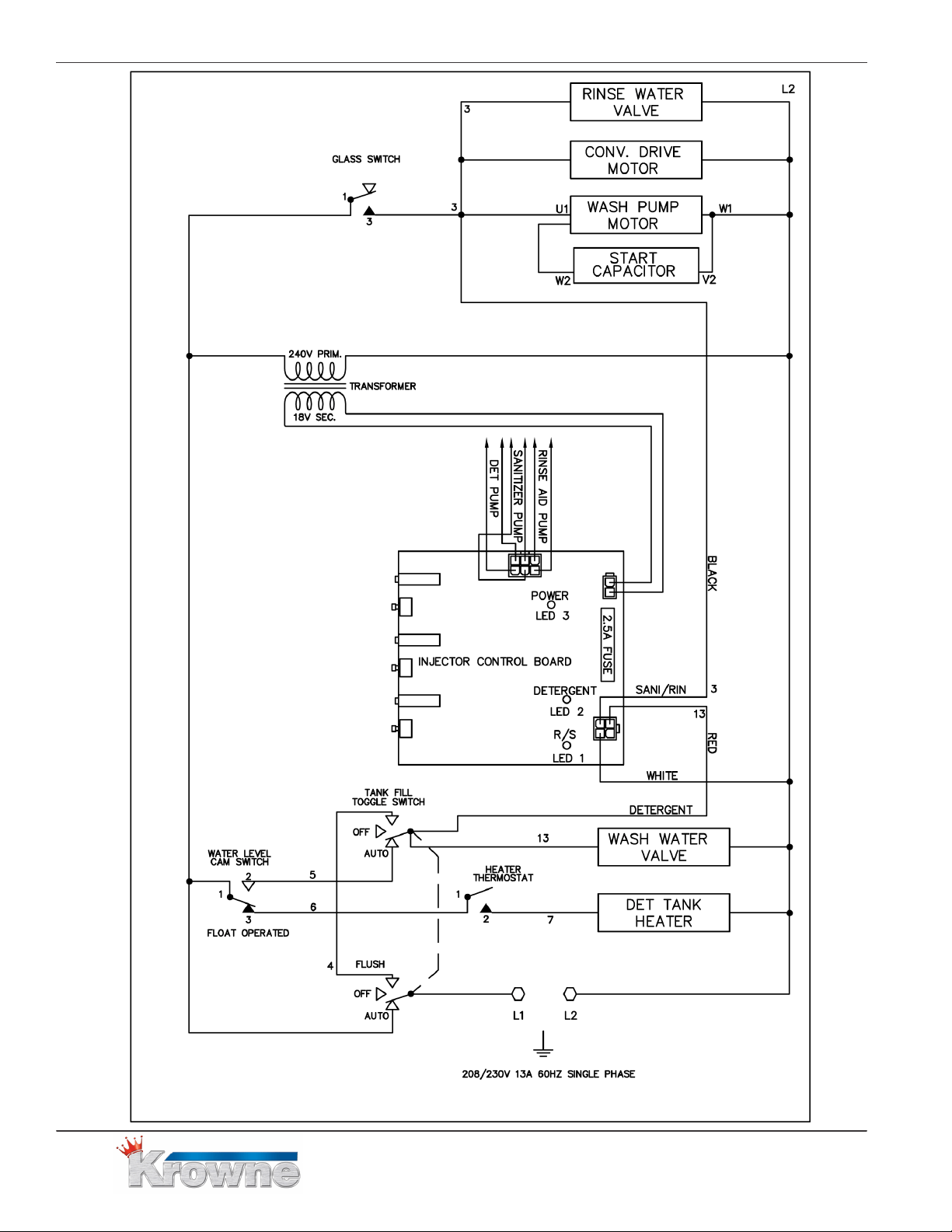

Electrical Schematic 46
Service Replacement Parts
22
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com

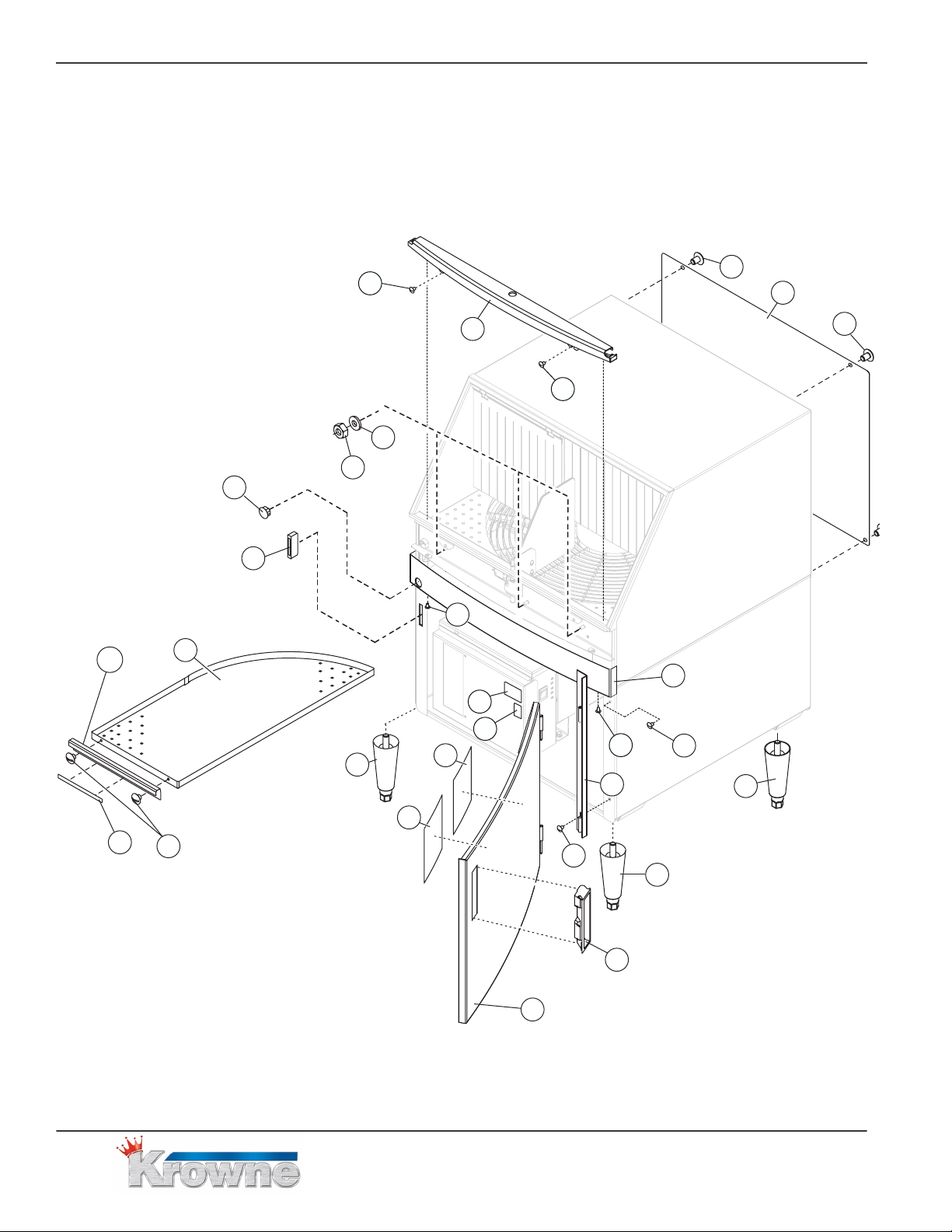

Base Assembly
1
3
2
4
5
7
9
10
8
11
8
8
8
16
5
5
10
12
8
8
13
14
6
15
8
18
17
19
20
23
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Base Assembly
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
1
1
4
1
1
10
1
2
1
1
2
2
1
1
1
1
1
1
GW-2100
GW-2101
GW-2102
GW-2103
GW-1706
GW-2104
GW-2105
GW-1103
GW-2106
GW-1507
GW-2107
GW-2108
GW-2109
GW-2110
GW-2111
GW-2112
GW-2113
GW-2114
GW-2115
GW-2116
Cap Plug, 1"
Magnetic Door Catch
Wash Tank Scrap Screen
Wash Tank Scrap Screen Handle
Leg, NP W/SST Hex Foot
Door Assy.
Door Handle
Screw, 10-32 x 3/8" Truss Head
Door Bracket Assy.
Screw, Truss Slot 10-32 x 3/8" SST
Curved Facia Cap Bracket
Rear Panel
Flat Washer 1/4"
1/4-20 Nylon Lock Nut
Curved Facia Cap
Label, (Clean Screens Daily)
Label, (Warning...)
Data Plate Label
Cleaning Instructions Label
Electrical Schematic Label
24
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Conveyor, Guides, Curtains
1
2
3
3
4
5
6
7
25
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Conveyor, Guides, Curtains
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
1
4
2
1
1
1
1
GW-2200
GW-2201
GW-2202
GW-2203
GW-2204
GW-2205
GW-2206
Conveyor Hub
Conveyor Guide Block
Conveyor Tray
Drive Gear
Conveyor
Curtain Rod (3/8"D x 24"L)
Curtain
26
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com

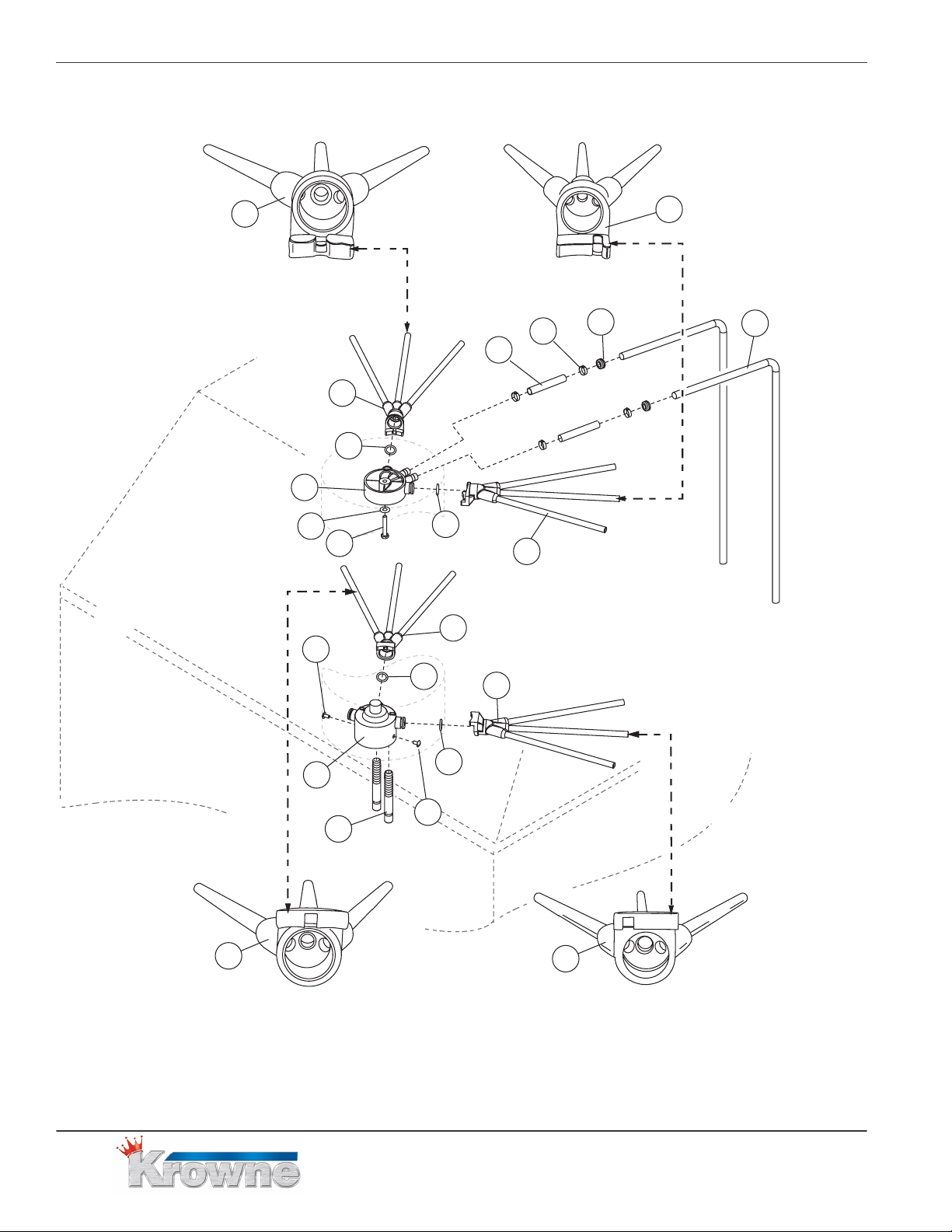

Wash Hubs, Spray Arms
upper rinse spray arm
notch on right
lower wash spray arm
notch in center
lower rinse spray arm
notch on left
upper wash spray arm
notch in center
1
2
1
2
3
3
3
3
10
12
7
9
8
8
5
11
13
1
2
1
2
4
6
GWR-24 and GWR-24R
Clockwise conveyor rotation
Shown
27
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Wash Hubs, Spray Arms
Item
No.
Qty. Part No. Description
*1
---
*2
---
3
4
5
6
7
8
9
10
11
12
13
2
2
2
2
4
1
1
1
2
2
2
AR
4
2
1
GW-2300
GW-2301
GW-2302
GW-2303
GW-2304
GW-2305
GW-2306
GW-2307
GW-2308
GW-1507
GW-2309
GW-2310
GW-2311
GW-2312
GW-2313
Wash Arm GWR-24, GWR-24R
Wash Arm GWR-24L (CCW Only)
Rinse Arm GWR-24, GWR-24R
Rinse Arm GWR-24L (CCW Only)
O-Ring
Top Manifold
Bottom Manifold
Flat Washer, 1/4"
Bolt, 1/4-20 x 1-1/2"
Screw, Truss Slot 10-32 x 3/8" SST
Bottom Manifold Inlet Tube
Braided Hose, 3/8"
Gear Clamp #6
Grommet
3/8" SST Tube
Note:
*Wash and rinse spray arms have notches to make sure they are installed correctly.
The illustration on page 20 is for the clockwise conveyor rotation Models GWR-24 and GWR-24R.
The GWR-24L conveyor rotaton is counter-clockwise.
The location of the wash and rinse spray arms are different than the models mentioned above.
Make sure that you know the correct Model No. of the machine before ordering parts.
Read the Item No. descriptions carefully to avoid mistakes when ordering wash and rinse spray arms.
28
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Conveyor Stop Switch
1
2
3
4
5
6
9
8
7
11
10
29
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Conveyor Stop Switch
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
8
9
10
11
---
1
2
1
1
1
1
1
1
1
1
2
1
GW-2400
GW-1507
GW-2401
GW-2402
GW-2403
GW-2404
GW-2405
GW-2406
GW-2407
GW-2408
GW-2409
GW-2410
Divider Plate
Screw, Truss Slot 10-32 x 3/8" SST
Shut-Off Arm Assy.
Conveyor Shut-Off Shaft
Spring
Conveyor Shut-Off Cam
Dog-Point Screw 1/4-20 x 1/2"
Carriage Bolt 10-24 x 1/2"
Switch Nut Plate
Switch 15A
Screw 4-40 x 1/2"
Shut-Off Assembly (Includes Items 1,2,3)
30
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com

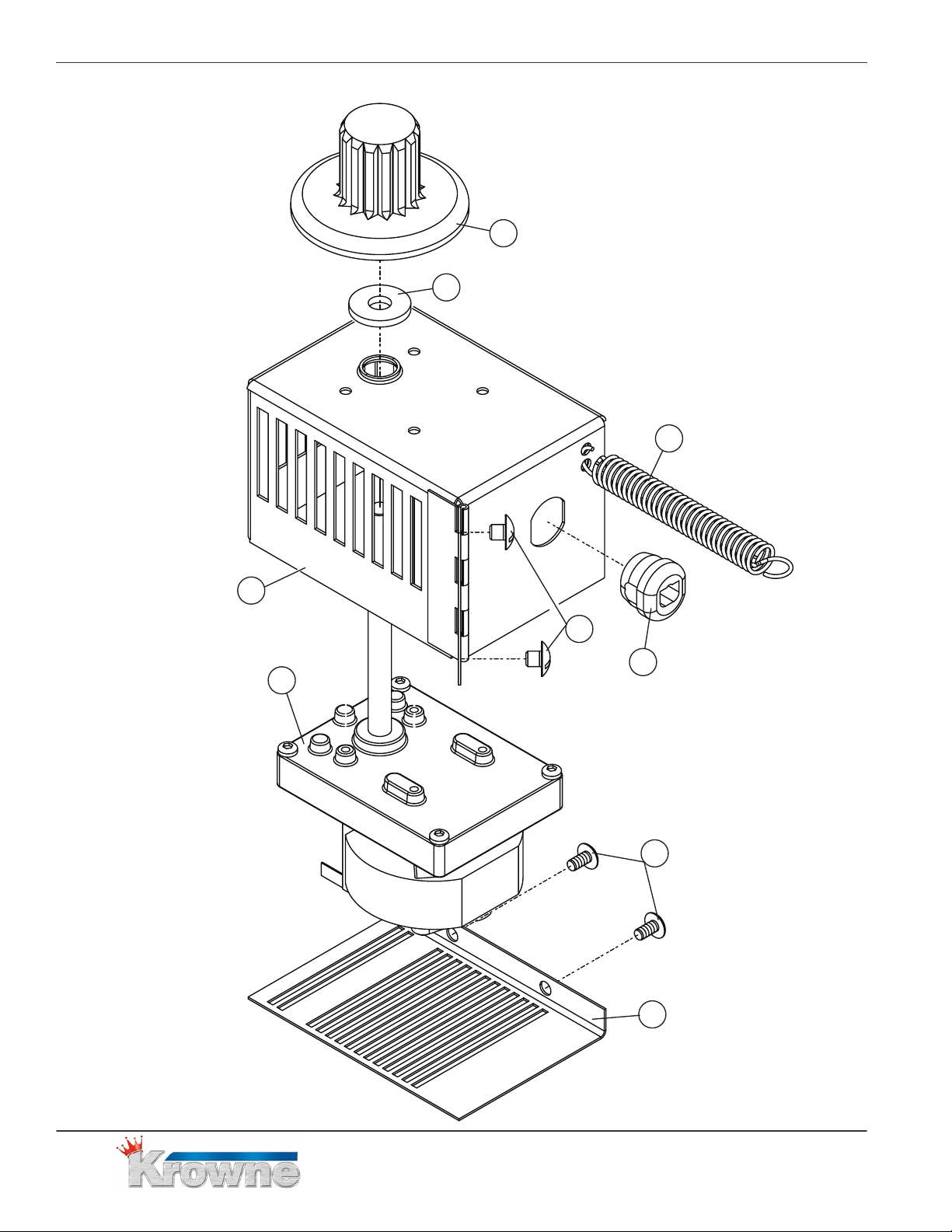

Drive Motor Assembly
1
3
2
4
6
5
5
7
8
31
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Drive Motor Assembly
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
8
1
1
1
1
4
1
1
1
GW-2500
GW-2501
GW-2502
GW-2503
GW-1507
GW-2504
GW-2505
GW-2506
Drive Gear
Water Slinger
Extension Spring
Snap Bushing
Screw, Truss Slot 10-32 x 3/8" SST
Drive Motor Housing Cover
Drive Motor
Drive Motor Housing
32
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Vacuum Breaker Assembly
7
8
9
2
1
6
5
4
3
2
1
33
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Vacuum Breaker Assembly
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
8
9
A/R
2
1
1
1
1
1
2
2
GW-2600
GW-1316
GW-1521
GW-2601
GW-2602
GW-2603
GW-2604
GW-2605
GW-2606
1/2" I.D. Braided Hose
Clamp, Gear, Min. 5/16" Max. 7/8" SST
Elbow, 90 Degrees, 3/8 MPT x 1/2" Hose
1/2" Vacuum Breaker
Vacuum Breaker Repair Kit
1/2" MPT x 1/2" Hose Barb
Plumbing Support
Washer, Flat 1/4"
Nylon Locknut 1/4-20
34
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Wash Pump and Piping
2
1
6
7
7
7
9
11
12
10
10
8
3
4
5
35
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Wash Pump and Piping
Item
No.
Qty. Part No. Description
1
*2
3
4
5
6
7
8
9
10
11
12
1
1
1
1
1
6"
AR
6"
1
AR
AR
AR
GW-2700
GW-2701
GW-2702
GW-2703
GW-2704
GW-2705
GW-2706
GW-2707
GW-2708
GW-1316
GW-2708
GW-2709
Motor Capacitor 6.3uF, 370VAC
Wash Pump/Motor Assy. Complete (230V/50-60Hz/1Ph)
Pump Kit (Items 4 & 5 are Included in the Kit)
Wash Pump Shaft Seal
Wash Pump Impeller
Hose 1" ID x 1-1/4" OD
Hose Clamp #6
Braided Hose 1" ID
Pump Hose Connector
Clamp, Gear Min 5/16" Max. 7/8" SST
Braided Hose 1/2"
Braided Hose 3/8"
36
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Inlet Plumbing
16
19
17
20
18
21
22
23
10
8
7
8
7
6
6
1
1
3
3
4
2
5
9
2
2
Water solenoid detail
Cold Water Valve
To Detergent Tank
To Vacuum Breaker
Hot Water Valve
12
13
14
15
11
1
37
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Inlet Plumbing
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
3
1
1
1
2
2
A/R
1
2
2
2
2
2
2
1
A/R
1
1
1
1
2
1
GW-2800
GW-2801
GW-2802
GW-2803
GW-2804
GW-1521
GW-1316
GW-2805
GW-2806
GW-1917
GW-2807
GW-2808
GW-2809
GW-1112
GW-1113
GW-1514
GW-1515
GW-2810
GW-1518
GW-1519
GW-1520
GW-1511
GW-2811
Solenoid Valve, 230VAC/60 Hz
3/8” MPT Tee
3/8” Fem x 1/2” Adapter
3/8” Check Valve
Mixing Valve
Elbow, 90 Degrees, 3/8 MPT x 1/2" Hose
Clamp, Gear Min 5/16" Max. 7/8" SST
1/2” I.D. Braided Hose
Brass Cap
Screw, 8-32 x 1/2" Pan Hd. Phil SST
Cable Clamp Cover
Cable Clamp Assy.
Screw 10-32 x 3/8” Brass
Washer, Lock #10 Ext. Tooth Brass
Nut, 10-32 Brass
Guide
Kit, Rebuild Valve
Flow Washer (2.6 Gpm)
Gasket
Washer, Seal
Strainer Screen, Solenoid Valve
Screw, 8-32 x 1/2", Slot, RH SST
Coil, Solenoid Valve, 230VAC/60
38
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Sanitizer Plumbing
8
1
2
3
2
2
2
2
4
6
1
5
7
11
1
9
10
10
13
12
15
14
39
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Sanitizer Plumbing
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
AR
5
AR
1
1
2
AR
1
1
2
1
1
1
2
2
GW-2900
GW-1316
GW-2901
GW-2902
GW-2903
GW-1608
GW-1604
GW-1521
GW-2904
GW-2905
GW-2906
GW-2907
GW-2908
GW-1013
GW-2909
1/2" I.D. Braided Hose
Clamp, Gear Min 5/16" Max. 7/8" SST
3/8" I.D. Braided Hose
1/2" x 1/2" x 3/8" Tee
Injector Barb Fitting
Tie, Cable 4"
Hose, 1/8" ID x 1/4" OD PVC
Elbow, 90 Degrees, 3/8 MPT x 1/2" Hose
Thermometer
3/8" x 1/4" Reducer Bushing
3/8" FPT Cross Connector
0-30 PSI Pressure Gauge
Plumbing Clamp
Bolt, Hex Head Flange, 1/4-20 x 3/8" SST
1/8" Hose Barb Fitting
40
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Detergent Tank Assembly
2
3
5
8
6
7
4
9
10
1
33
34
13
14
11
12
15
16
17
18
19
20
21
22
23
24
23
25
31
30
32
29
28
27
26
To control box
CLEAN SCREENS DAILY
41
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Detergent Tank Assembly
Item
No.
Qty. Part No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
1
1
1
1
2
2
1
1
1
1
1
AR
6"
1
1
4
1
4
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
GW-3000
GW-3001
GW-3002
GW-3003
GW-3004
GW-3005
GW-3006
GW-3007
GW-3008
GW-3009
GW-3010
GW-1316
GW-3011
GW-3012
GW-3013
GW-3014
GW-3015
GW-3016
GW-3017
GW-3018
GW-3019
GW-1313
GW-3020
GW-3021
GW-3022
GW-3023
GW-3024
GW-1403
GW-1210
GW-3025
GW-3026
GW-3027
GW-3028
GW-3029
Steam Cover
Detergent Tank Cover
Detergent Tank Screen
Set Screw 1/4-20
Float Cam
Set Screw 6-40
Cam Bushing (Set Screw Included)
Float Rod
Float Ball
Detergent Tank
Water Inlet Tube
Clamp, Gear, Min. 5/16" Max. 7/8" SST
Braided Hose 1/2"
PVC Hose 1" ID x 1-3/8" OD
Gear Clamp 1"
Elbow Flange
Bolt M6 x 25mm (metric)
Inlet Chute Gasket
Nut, M6 (Metric)
Molded Drain Seat
Drain Gasket
Modeled Drain Tee
Clamp, Hose 1-1/2" Gear-Type SST
Molded Drain Hose
Float Rod Bushing
1/4" NPS NP Brass Nut
Stem Thermometer 8"
Thermometer Seal
O-Ring
Thermostat, Wash Tank
Thermostat Adapter
Detergent Tank Heater 3kW
Detergent Tank Standpipe
Label (Clean Screens Daily)
42
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Control Box Assembly
2
1
1
1
9
11
3
4
From
chemical
container
To glass washer
12
13
16
15
21
19
14
18
10
17
8
8
20
24
6
7
5
22
23
25
Rinse-aid
Sanitizer
Detergent
43
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Control Box Assembly
Item
No.
Qty. Part No. Description
1
2
3
4
5
---
---
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
3
3
2
1
1
1
1
3
3
12
1
1
1
2
1
1
2
1
1
1
4
1
1
1
3
4
AR
GW-3100
GW-1909
GW-1916
GW-3101
GW-1908
GW-3102
GW-1911
GW-1913
GW-3103
GW-3104
GW-3105
GW-3106
GW-3107
GW-3108
GW-3109
GW-1210
GW-3110
GW-3111
GW-3112
GW-3113
GW-3114
GW-3115
GW-3116
GW-3117
GW-3118
GW-3119
GW-1604
Injector Motor, 140RPM 12VDC
Rotor, Assembly
Tube, Element Assy. 45CC
Element Tube 15CC (R/A)
Label, Detergent
Chemical Tube Sanitizer Label
Label, Rinse-Aid
Tube, 1/2" ID x 11-7/8" Lg Stiffener
Strainer
Screw 10-32 x 1/4"
Chemical Pump Panel
Water Level Switch 15A
Switch Nut Plate 4-40
Screw, 4-40 x 5/8"
Transformer, 240VAC/18VAC, 30VA
Thermostat, Wash Tank
Terminal Board 11-PNT
Control Box
Rocker Switch On/Off/Flush
Motor Control Circuit Board
Control Circuit Board Spacer
Control Box Cover Window
Control Box Cover
Strain Relief Bushing (Large)
Strain Relief Bushing (1/2")
Screw, 6-32 x 1/2"
Hose, 1/8" ID x 1/4" OD (Rinse Aid & Sanitizer)
44
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Options and Accessories
1
3
2
4
5
6
5
7
8
9
10
12
11
13
14
45
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Options and Accessories
Item
No.
Qty. Part No. Description
1
2
3
1
1
1
GW-3200
GW-3201
GW-3202
Tube Scraper
Tube Brush
Jet Reamer (Comes with Drill)
Item
No.
Qty. Part No. Description
4
5
6
7
8
---
1
1
1
1
1
1
GW-3203
GW-1321
GW-3204
GW-3205
GW-3206
GW-3207
Wash Down Nozzle
Washer, Garden Hose
Nozzle
1/2" x 10' Hose Assy.
Faucet
Wash Down Hose Kit (Includes Items 4-8)
Item
No.
Qty. Part No. Description
---
9
10
11
12
13
14
1
1
1
1
1
1
1
GW-3208
GW-3209
GW-3210
GW-3211
GW-3212
GW-3213
GW-3214
Drain Tray and Waste Collector Kit (Includes Items 9-14)
Drain Tray
Drain Screen
Nipple, 3/8" x 1/2" SST
O-Ring
Washer, 1-5/16" x 5/8" x .08"
Locknut
46
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Electrical Schematic
47
Krowne Metal Corporation | 100 Haul Road | Wayne, NJ 07470
Phone: (800) 631-0442 | Fax: (973) 872-1129 | www.krowne.com
Blank Page
This Page
Intentionally
Left Blank
