LRSC21951ST
REFRIGERATOR
User°s Guide
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
le
Introduction
Installation
Operation
Suggestion on
food storage
Care and
maintenance
Table of contents
Entry
Important safety instruction
Identification of parts
Where to install
Door removal
Door replacement
Feed water pipe installation
Water connection instruction guide
Operation instruction guide
Height adiustment
Starting
Adjusting the temperatures and functions
Shelf (Applicable to some models olny)
Wine holder (Applicable to some models olny)
Egg box
Humidity control in the vegetable compartment

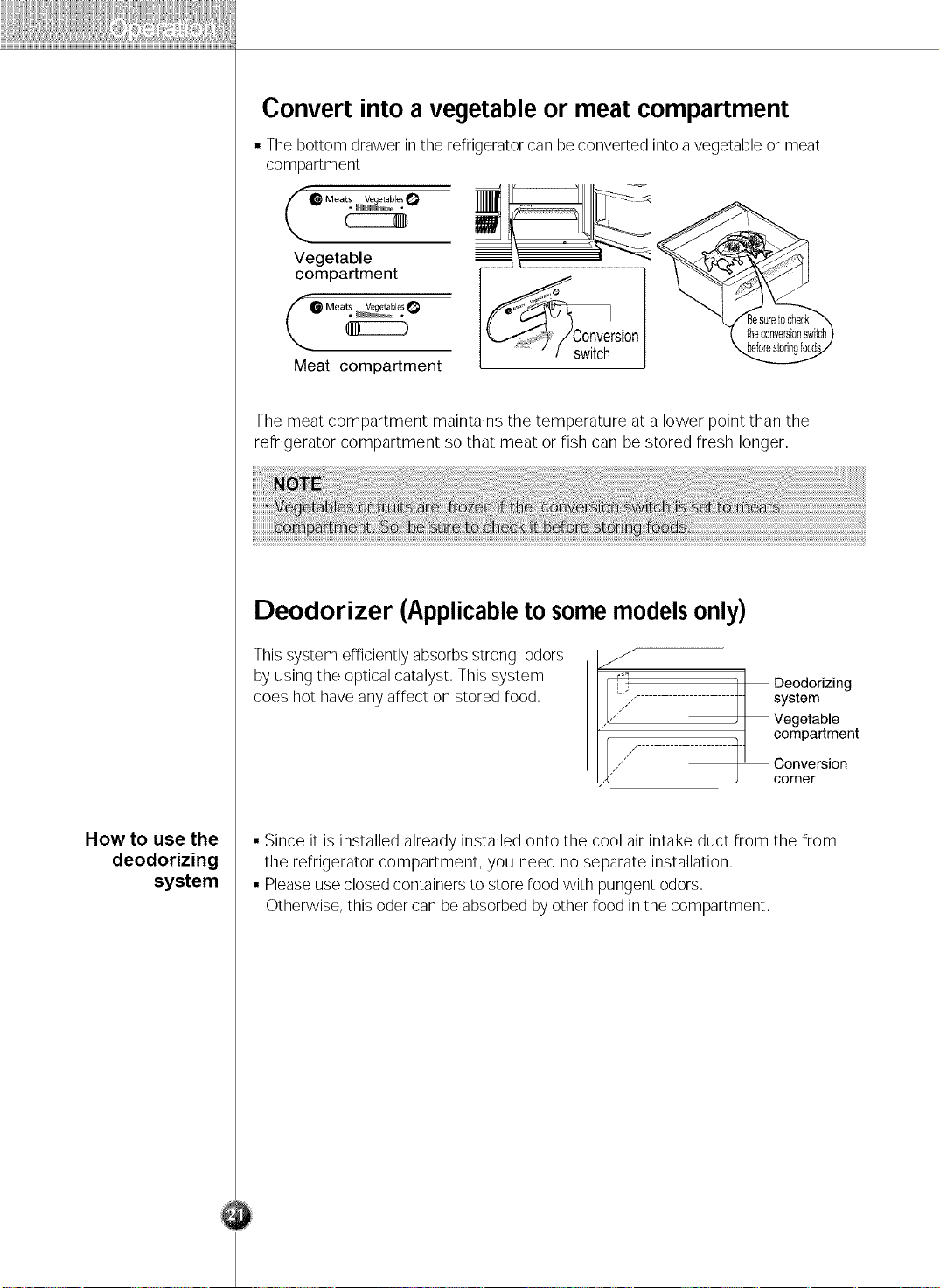

Convert into a vegetable or meat compartment
Deodorizer (Applicable to some models only)
Location of foods
Storing foods

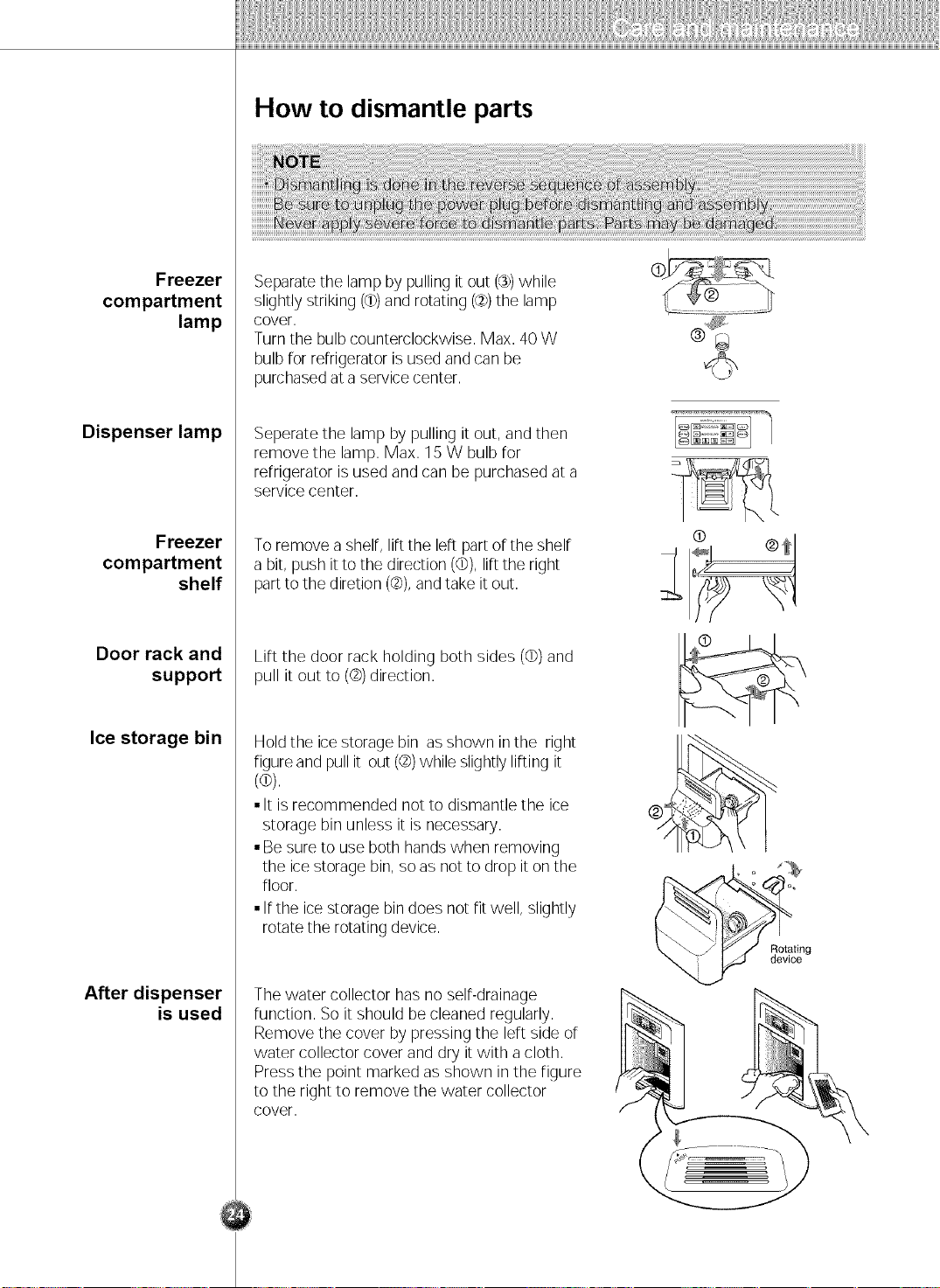

How to dismantle parts
General information
Cleaning

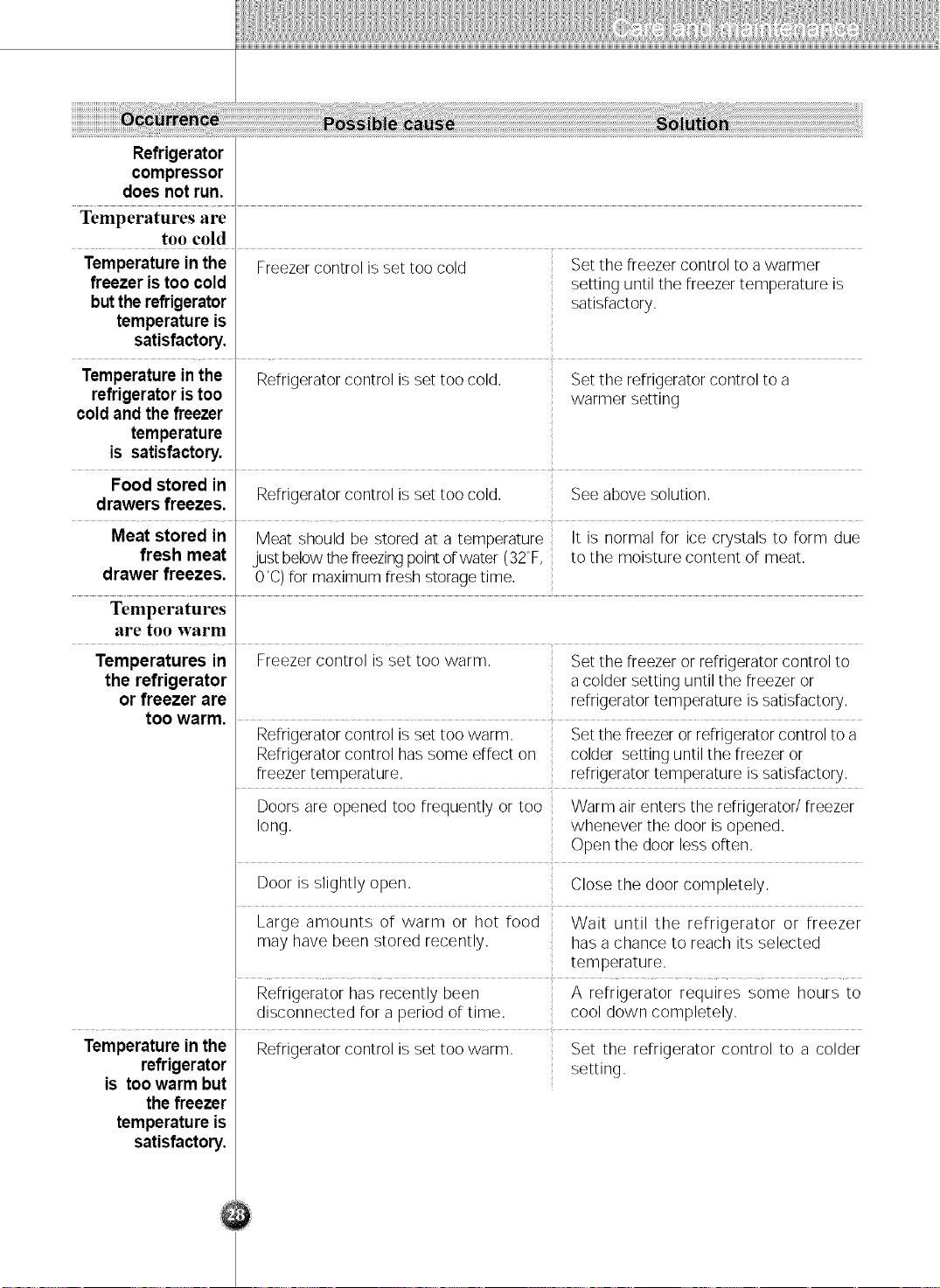

Trouble shooting
When replacing PANEL .......
Recommended
Grounding
Method
Accessibility of
Supply Plug
Supply Cord
Replacement

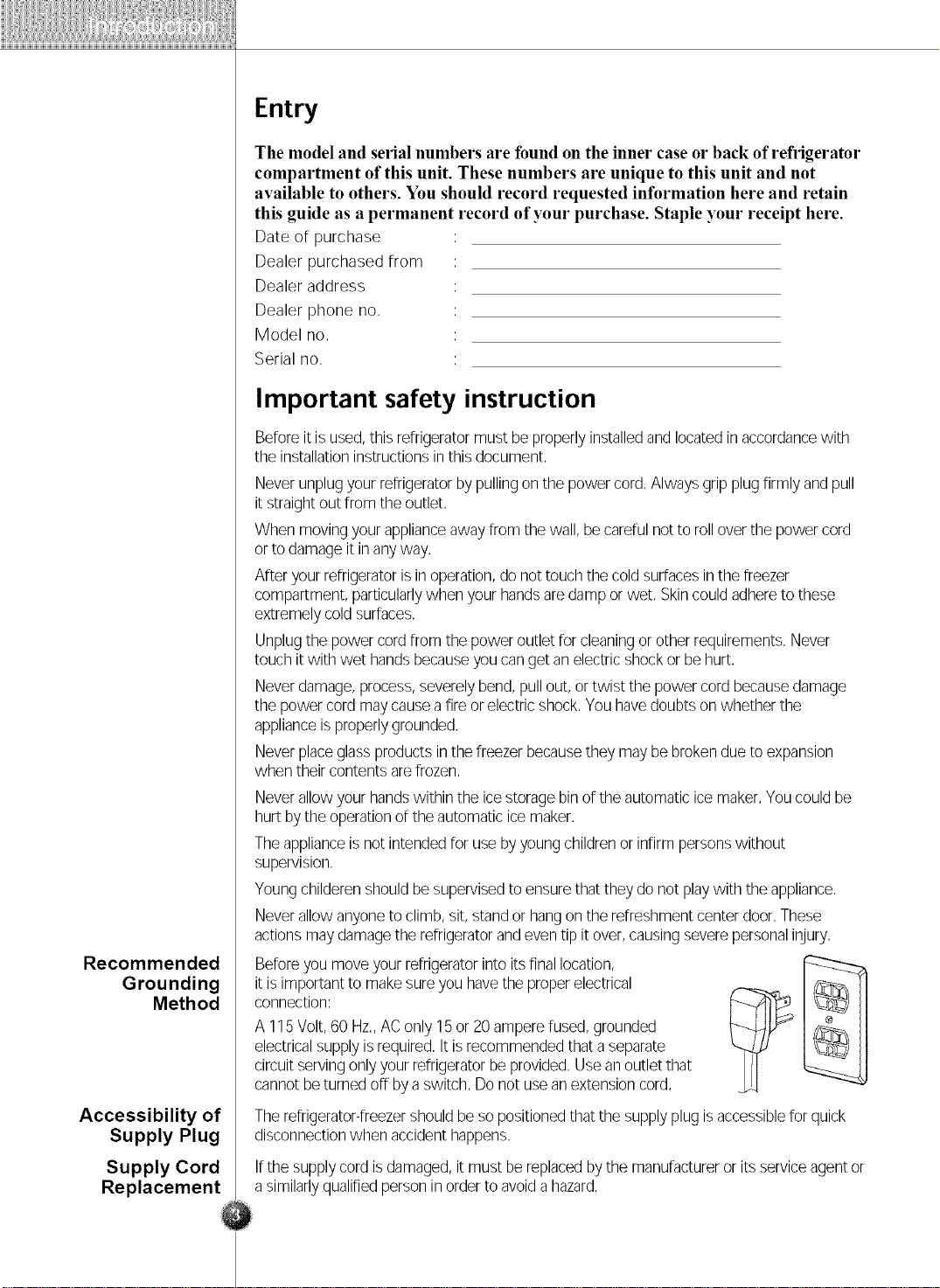

Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested information here and retain
this guide as a permanent record of your purchase. Staple your receipt here.
[)ate of purchase
Dealer purchased from :
Dealer address
Dealer phone no.
Model no.
Serial no.
Important safety instruction
Beforeit isused,this refrigeratormust beproperlyinstalledandlocatedinaccordancewith
the installationinstructionsinthis document,
Neverunplugyourrefrigeratorbypullingon the powercord.Alwaysgrip plugfirmly andpull
itstraightout from the outlet,
When movingyourapplianceawayfrom thewall, becarefulnotto rolloverthe powercord
orto damageit inanyway.
Afteryourrefrigeratorisin operation,do nottouchthe coldsurfacesinthe freezer
compartment,particularlywhen yourhandsaredamporwet, Skincouldadhereto these
extremelycoldsurfaces.
Unplugthe powercordfrom thepower outletfor cleaningor otherrequirements.Never
touch itwith wet handsbecauseyoucangetan electricshockor be hurt,
Neverdamage,process,severelybend,pullout, ortwist thepower cordbecausedamage
the powercord maycausea fireor electricshock,Youhavedoubtson whether the
applianceis properlygrounded.
Neverplaceglassproductsin thefreezerbecausethey maybe brokendue toexpansion
when theircontents arefrozen,
Neverallowyourhandswithin the icestoragebinof theautomaticicemaker,Youcouldbe
hurtbytheoperationof theautomaticicemaker.
Theapplianceisnotintendedfor usebyyoungchildrenorinfirm personswithout
supervision.
Youngchilderenshouldbesupervisedtoensurethatthey do not playwith the appliance.
Neverallowanyoneto climb,sit,standor hangonthe refreshmentcenterdoor.These
actionsmaydamagetherefrigeratorandeventipit over,causingseverepersonalinjury,
Before you move your refrigerator into its final location,
it is important to make sure you have the proper electrical
connection:
A 115Volt,60 Hz.,AConly15 or 20amperefused,grounded
electricalsupplyisrequired.It isrecommendedthata separate
circuitservingonlyyourrefrigeratorbe provided.Useanoutlet that
cannotbe turnedoff bya switch, Donot useanextensioncord,
Therefrigerator-freezershouldbeso positionedthatthe supplyplugisaccessiblefor quick
disconnectionwhen accidenthappens,
Ifthe supplycordisdamaged,it must bereplacedbythe manufactureror its serviceagentor
asimilarlyqualifiedpersonin orderto avoidahazard.
Child entrapment
warning
Don't store
Grounding (Earthing)
DANGER:Riskof child entrapment.
Beforeyou throw away your old refrigerator or freezer:
Take off the doors but leavethe shelves in placeso that children may not easilyclimb
inside.
The applianceisnot intendedfor use byyoung children or infirm persons without
supervision.
Young children should be supervised to ensurethat they do not playwith the appliance.
Don't store or use gasolineor other flammable vapor and liquids inthe vicinity of this or
any other appliance.
Inthe event of an electric short circuit, grounding (earthing)reduces the risk of electric
shock by providingan escape wire for the electriccurrent.
Inorder to prevent possibleelectric shock, this appliancemust be grounded
improper use ofthe grounding plug can result in an electric shock. Consulta qualified
electrician or service person ifthe grounding instructions are not completely
understood, or if you havedoubts on whether the applianceisproperly grounded.
Doorrack ..........................
Automatic
icemaker
Lamp ............................
Shelf
(steelor glass)
Doorrack
Shelf
Drawer(1 or2)
Doorrack
Lowercover
Identification of parts
Freezer Refrigerator
compartment compartment
Milkproductcorner
..........................Lamp
..........................Shelf
...........................Doorrack
...........................Wine holder(Optional)
..............................Shelf
................Snackdrawer
...........................Eggbox
Vegetabledrawer
Doorrack
Vegetable
drawer/Meatdrawer
Humidityswitch
Conversionswitch
(Meats/Vegetabbs)
Select a good
location
Where to install
1. Placeyour appliance where it is easyto use.
2.Avoid placing the unit near heat sources, direct sunlight or moisture.
3.To avoid vibrations, the appliance must be leveled.
4. Don't install the appliance below 5°C. It may cause affect the performance.
_Warning
Remove lower
cover and
then feed water
tube
Remove the
freezer
compartment
door
Remove the
refrigerator
door
Door removal
ElectricShock Hazard
Disconnectelectricalsupply to refrigerator beforeinstalling.
Failureto do socouldresult in deathor seriousinJury,,, ,, _ ....
Ifyour accessdoor istoo narrow for the _ _
refrigerator to passthrough, remove the ;" _'",, _ t '"t-- Lowelcovel
refrigeratordoor and passthe refrigeratorlaterally. _ '_ _ i _
Removethe lowercover byliftingupward,and J__
then pullupthe feedwater tubewhile pressing Jd'w_'_l( i _u(uODLe k.y¢:_ "J
area@showninthe figureto the right,
1)Removingthe hingecover bylooseningthe
screws,Separateallconnectionwires except
for the earthline after.
2) Removethe keeperbyrotating itcounter
clockwise (@)andthen liftingthe upper
hinge up(®).
Hinge f, ........................Connection
i _, cover /,_,_ _ wires
Upper hing_ i_ EarthNne
Kee_, [_pet hinge
3) Removethe freezercompartmentdoorby
lifting it upward,Thistime, thedoor should
be lifted enoughforthereed water pipetube
to be completelypulledout,
completelypulledout,/
j_
Lower hinae .....
1) Loosen the hinge cover screws and remove
the cover, Remove connection wire, if any,
except for the earth line.
2) Remove keeper by rotating it clockwise (@)
and then remove the upper hinge by lifting
it up (@).
3) Removethe refrigeratorcompartment door
bylifting it up.
Pass the
refrigerator
Before
installation
Passthe refrigeratorlaterallythroughthe access
dooras shown inthe right figure,
f

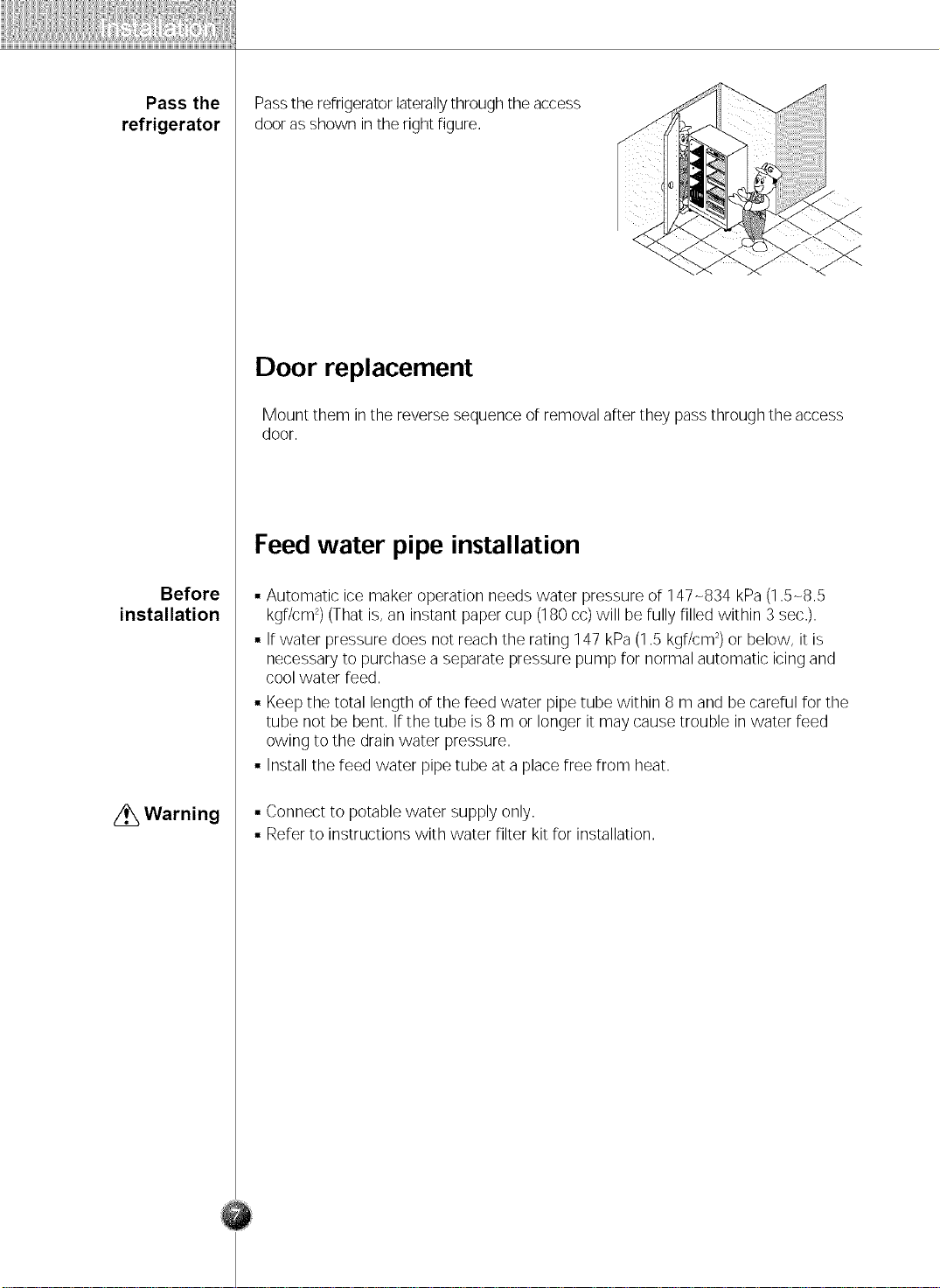

Door replacement
Mount them inthe reverse sequence of removal after they passthrough the access
door.
Feed water pipe installation
• Automatic ice maker operation needs water pressure of 147-834 kPa(1.5-8.5
kgr/cm2)(That is, an instant paper cup (180 cc) will be tully filled within 3 sec.).
• Ifwater pressure does not reach the rating 147 kPa (1.5kgf/cm2)or below, it is
necessary to purchase a separate pressure pump for normal automatic icing and
cool water feed.
• Keepthe total length or the reed water pipe tube within 8 m and be careful for the
tube not be bent, Irthe tube is 8 m or longer it may cause trouble in water reed
owing to the drain water pressure.
• Installthe feed water pipe tube at a placetree from heat.
L:_ Warning • Connect to potable water supply only.
• Refer to instructions with water tilter kit for installation.
Connecting
the refrigerator
to a water source
_Warning
Tools required
Cold water supply

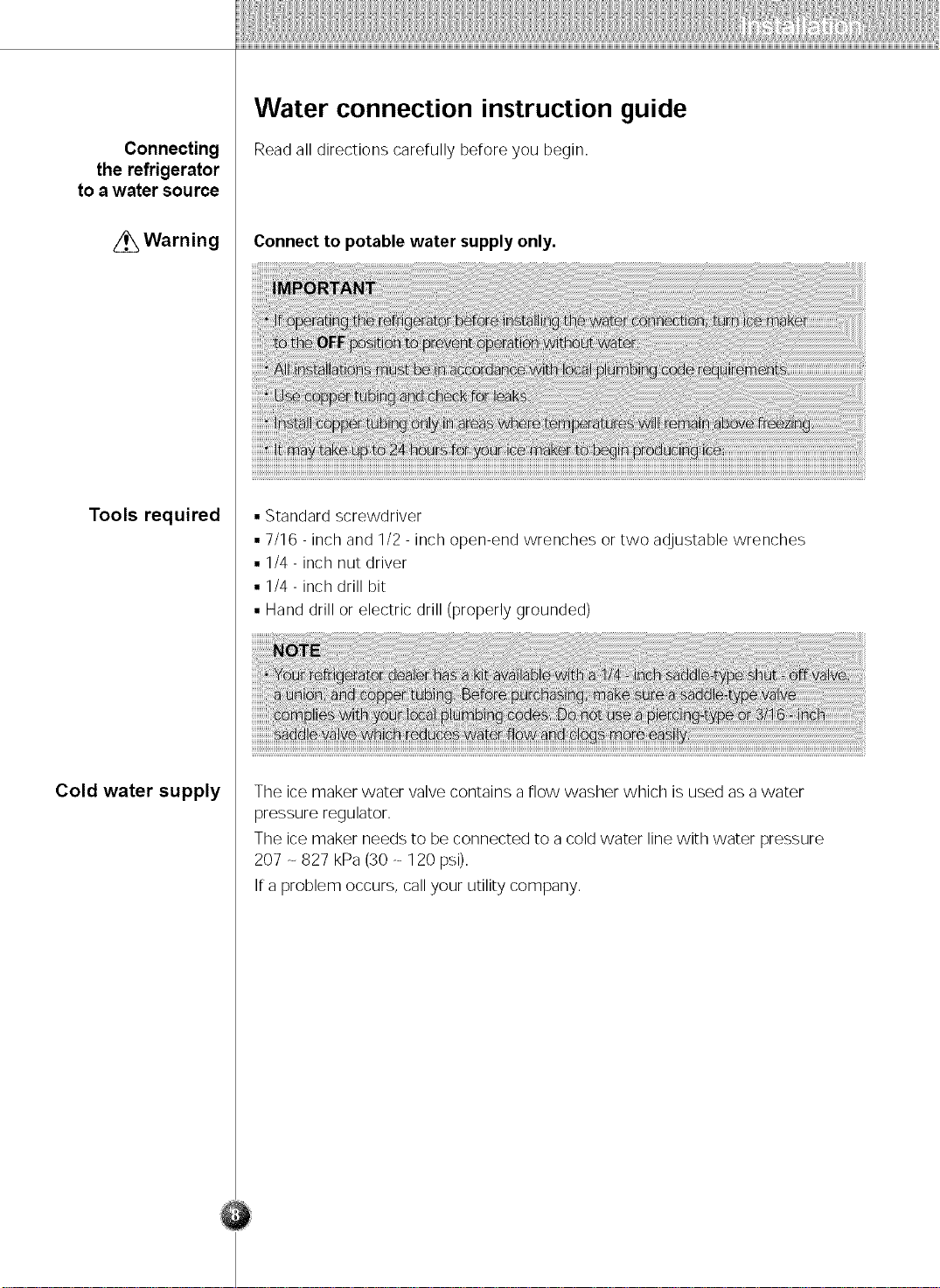

Water connection instruction guide
Readall directions carefully before you begin.
Connect to potable water supply only.
• Standard screwdriver
• 7/16 -inch and 1/2 -inch open-end wrenches or two adjustable wrenches
• 1/4 - inch nut driver
• 1/4 -inch drill bit
• Hand drill or electric drill (properly grounded)
The ice maker water valve contains a flow washer which is used asa water
pressure regulator.
The ice maker needs to be connected to acold water line with water pressure
207 o-827 kPa (30 o-120 psi).
Ira problem occurs, call your utility company.

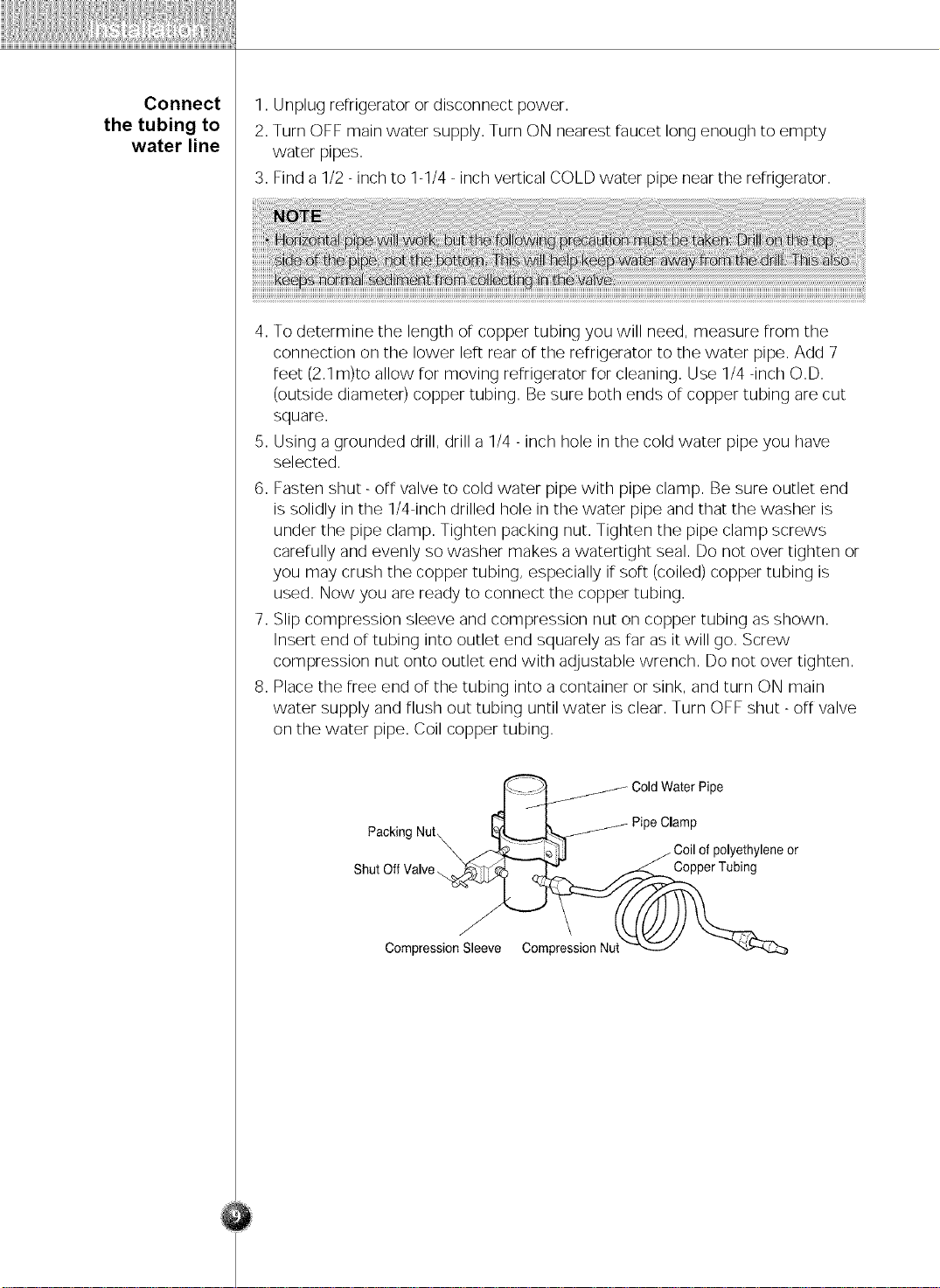

Connect
the tubing to
water line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long enough to empty
water pipes.
3. Find a 1/2 - inch to 1-1/4 -inch vertical COLD water pipe nearthe refrigerator.
4. To determine the length of copper tubing you will need, measure from the
connection on the lower left rear of the refrigerator to the water pipe. Add 7
feet (2.1m)to allow for moving refrigerator for cleaning. Use 1/4 -inch O.D.
(outside diameter) copper tubing. Be sure both ends of copper tubing are cut
square.
5. Using a grounded drill, drill a 1/4 - inch hole in the cold water pipe you have
selected.
6. Fasten shut - off valve to cold water pipe with pipe clamp. Be sure outlet end
is solidly in the 1/4dnch drilled hole in the water pipe and that the washer is
under the pipe clamp. Tighten packing nut. Tighten the pipe clamp screws
carefully and evenly so washer makes a watertight seal. Do not over tighten or
you may crush the copper tubing, especially if soft (coiled) copper tubing is
used. Now you are ready to connect the copper tubing.
7. Slip compression sleeve and compression nut on copper tubing as shown.
Insert end of tubing into outlet end squarely asfar as it will go. Screw
compression nut onto outlet end with adjustable wrench. Do not over tighten.
8. Place the free end of the tubing into acontainer or sink, and turn ON main
water supply and flush out tubing until water is clear. Turn OFF shut- off valve
on the water pipe. Coil copper tubing.
Cold Water Pipe
Pipe Clamp
Packing Nut\
\
Shut Off Valve. Copper Tubing
Compression Sleeve Compression Nu
Connect the tubing to
the refrigerator
Turn the water on at
the shutoff valve
Automatic ice maker

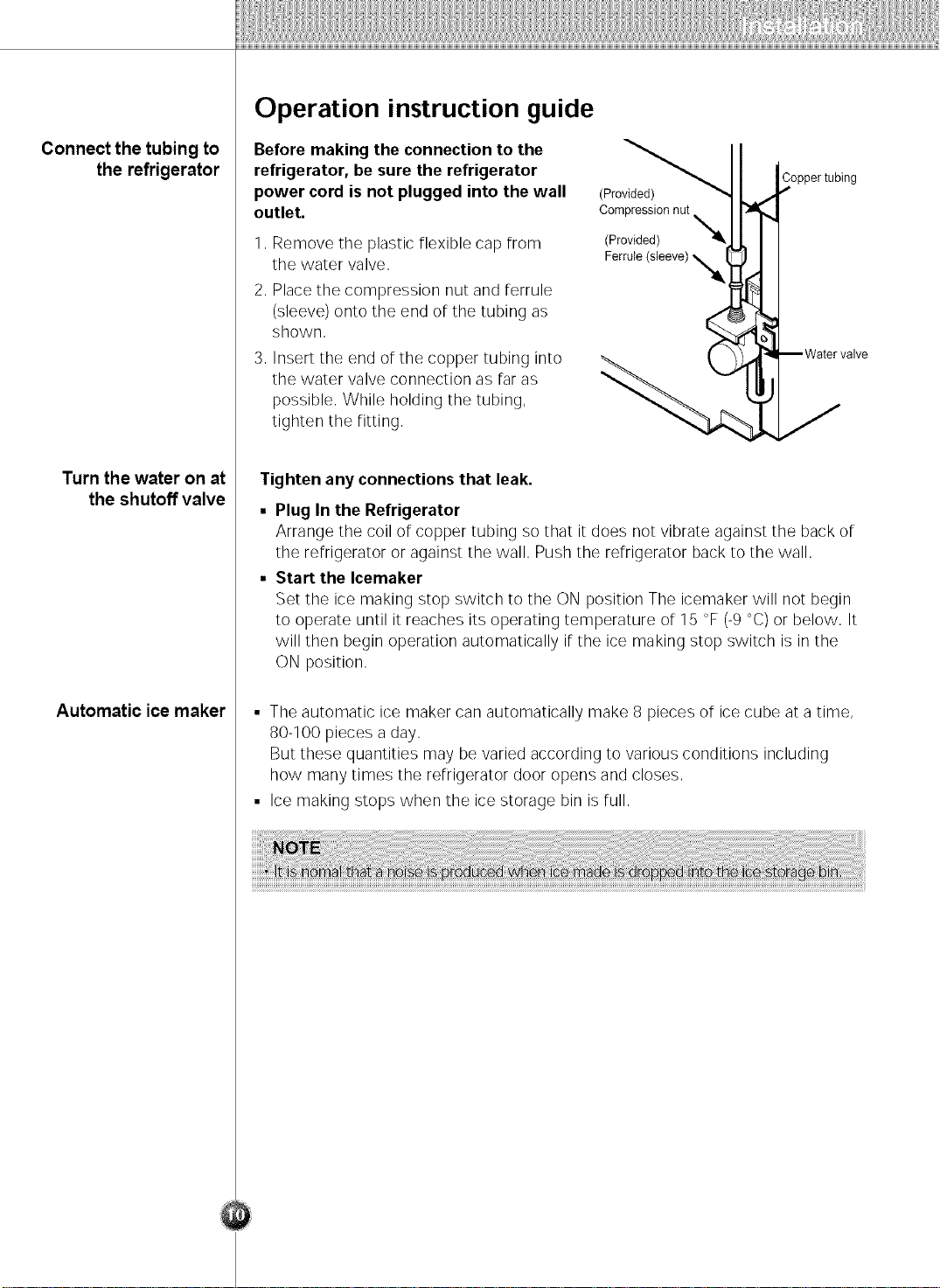

Operation instruction guide
Before making the connection to the
refrigerator, be sure the refrigerator
power cord is not plugged into the wall
outlet.
1. Remove the plastic flexible cap from
the water valve.
2. Place the compression nut and ferrule
(sleeve) onto the end of the tubing as
shown.
3. Insert the end of the copper tubing into
the water valve connection as far as
possible. While holding the tubing,
tighten the fitting.
(Provided)
Compressionnut
(Provided)
Ferrule(sleeve)_I
Coppertubing
Tighten any connections that leak.
• Plug In the Refrigerator
Arrange the coil of copper tubing so that it does not vibrate against the back of
the refrigerator or against the wall. Push the refrigerator back to the wall.
• Start the Icemaker
Set the ice making stop switch to the ON position The icemaker will not begin
to operate until it reaches its operating temperature of 15 °F (-9 °C) or below. It
will then begin operation automatically if the ice making stop switch is in the
ON position.
• The automatic ice maker can automatically make 8 pieces of ice cube at a time,
80-100 pieces aday.
But these quantities may be varied according to various conditions including
how many times the refrigerator door opens and closes,
• Ice making stops when the ice storage bin is full.
When ice maker
does not operate
smoothly
CAUTION
Ice is clumped together
• When ice is clumped together, take the ice clumps out of the ice storage bin,
break them into small pieces, and then place them into the ice storage bin
again.
• When the ice maker produces too small or clumped ice, the amount of water
supplied to the ice maker need to adjusted. Contact the service center.
• If ice is not used frequently, it may clump together.
Power failure
• Water may drop into the freezer compartment. Take the ice storage bin out and
discard all the ice then dry it and place it back.
The unit is newly installed
• It takes about 12 hours for a newly installed refrigerator to make ice in the
freezer compartment.
Throw away the ice (about 20 pieces) first madeaRer refrigerator installation.
The first iceand water may include particles or odor from the reed water pipe or
feed water box.
This is also necessary ifthe refrigerator has not been used for a long time.
Never store beverage cans or other roods in ice storage bin for the purpose of rapid
cooling.
Suchactions may damage the automatic ice maker.
Never remove the ice maker cover.
Sometimes levelthe surface so that the ice storage bin isfully filled with ice.
Ice may pile upjust around the ice maker causing the ice maker to think that the ice
storage bin isrul.
If discolored ice is dispensed, immediately contact Service Center.
Do not use until problem is solved.
If the freezer
compartment door
is lower than the
refrigerator
compartment door
If the freezer
compartment door
is higher than the
refrigerator
compartment door
After leveling the
door height
Next
Height adjustment
Levelthe door by insertingfiat (- type) driverintothe grooveofthe left heightadjusting
screw and rotate it clockwise (0).
Height difference
Left height
adjustment screw
Levelthe door by inserting flat (- type) driver into the groove of the right height
adjusting screw and rotate it clockwise (O).
Height difference
Right height
adjustment screw
The refrigerator doors will close smoothly by heightening the front side by adjusting
the height adjusting screw. If the doors do not close correctly, performance may be
affected.
1.Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their
proper places.They are packedtogether to prevent possibledamage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other
appliances on the same outlet.
Starting
When your refrigerator isfirst installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.

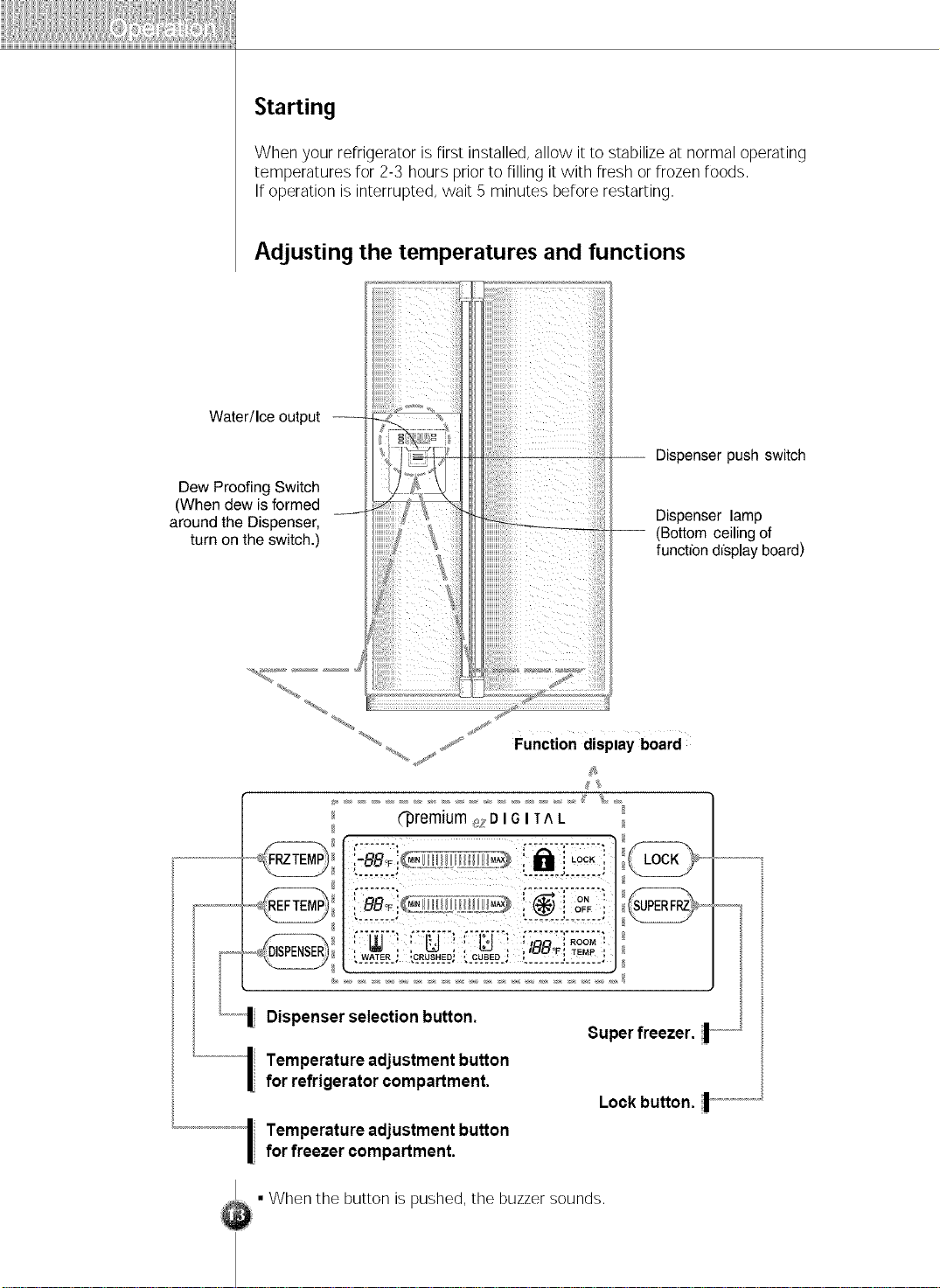

Adjusting the temperatures and functions
Water/Ice output --
Dew Proofing Switch
(When dew is formed
around the Dispenser,
turn on the switch.)
_........ J_* Function display board
Dispenser push switch
Dispenser lamp
-- (Bottom ceiling of
funcbbn display board)
('premium z DIGI TA L
, WATER " ,CRUSHED; , CUBED ,' ', ,, Me ;
Dispenser selection button.
Temperature adjustment button
for refrigerator compartment.
Temperature adjustment button
for freezer compartment.
Super freezer. | .................
Lock button. | ................................
• When the button is pushed, the buzzer sounds.
How to adjust the
temperature in
the freezer
compartment
How to adjust the
temperature in
the refrigerator
compartment
Dispenser use
selection

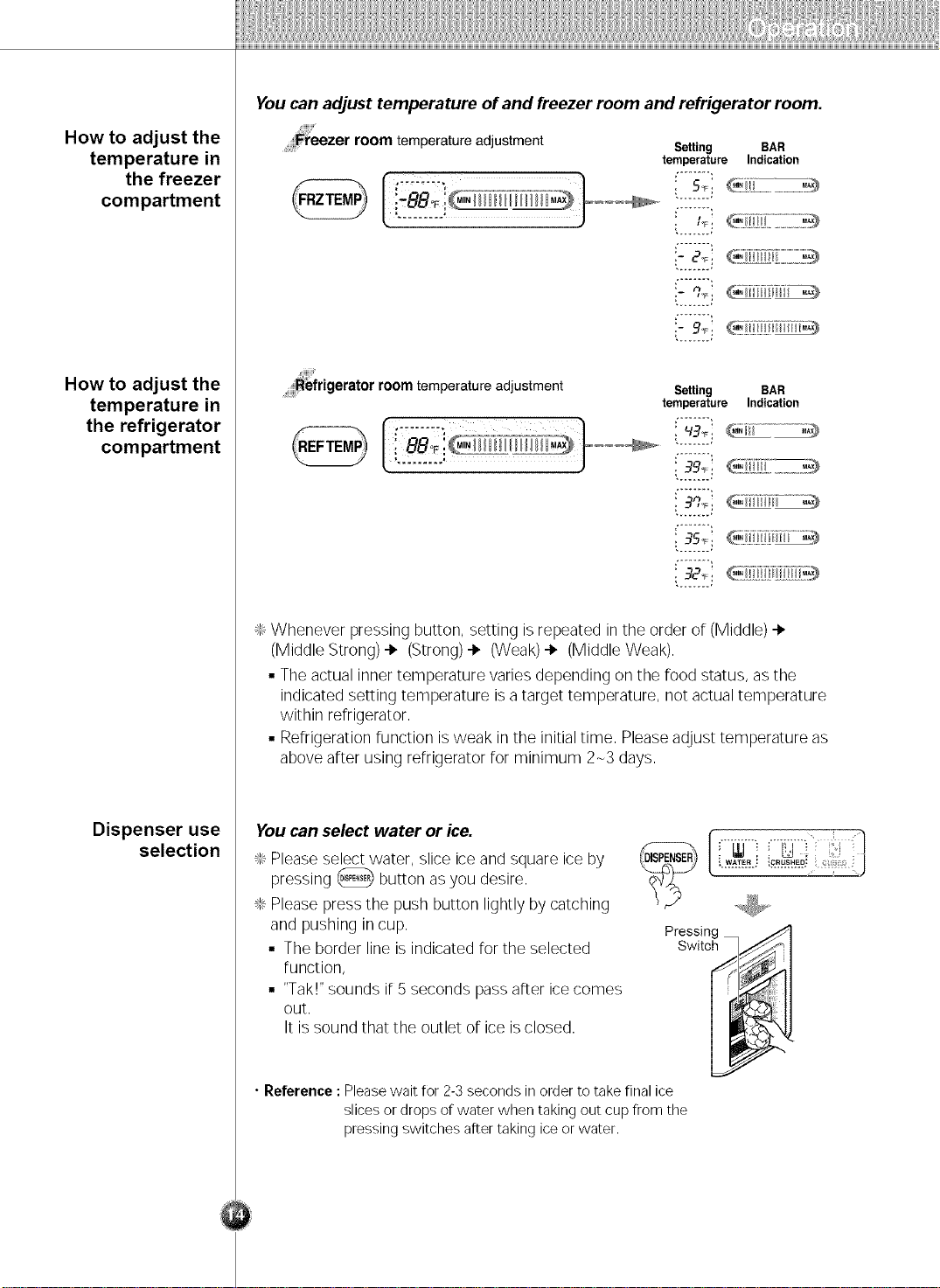

You can adjust temperature of and freezer room and refrigerator room,
_eezer room temperature adjustment Setting BAR
temperature Indication
,, _;ili-ilyiii-ZZ_)
• #oF *,
L........
, _:_frigerator room temperature adjustment
@
Setting
temperature
BAR
Indication
: 3s,_i
_:_Whenever pressing button, setting is repeated in the order of (Middle) ÷
(Middle Strong) -_ (Strong)÷ (Weak)-_ (Middle Weak).
• The actual inner temperature varies depending on the rood status, asthe
indicated setting temperature isa target temperature, not actual temperature
within refrigerator.
• Refrigeration function isweak in the initial time. Pleaseadjust temperature as
above after using refrigerator for minimum 2_3 days.
You can select water or ice.
_ Pleaseselect water, slice iceand square ice by
pressing _ button as you desire.
_ Please press the push button lightly by catching
and pushing in cup.
• The border line is indicated for the selected
function,
• "Tak[" sounds if 5 seconds pass aRerice comes
out.
It issound that the outlet of ice isclosed.
Pressing
Switch
• Reference : Please wait for 2-3 seconds in order to take final ice
slices or drops of water when taking out cup from the
pressing switches after taking ice or water.
Automatic ice
maker
When ice maker
does not operate
smoothly
Super freezer
Lock

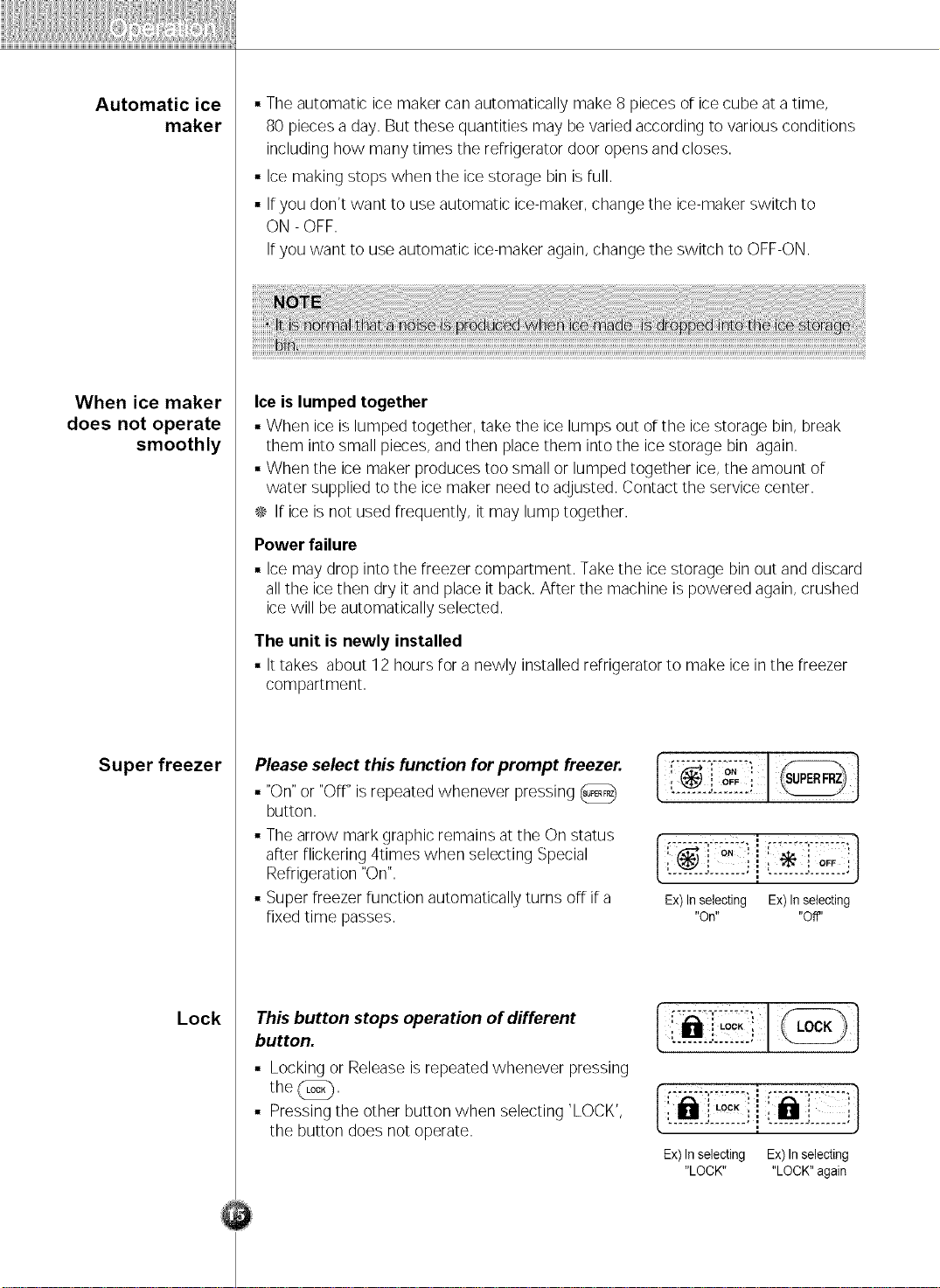

• The automatic ice maker can automatically make 8 pieces of icecube at a time,
80 pieces a day. But these quantities may be varied according to various conditions
including how many times the refrigerator door opens and closes.
• Icemaking stops when the ice storage bin is full.
• Ifyou don't want to use automatic ice-maker, change the ice-maker switch to
ON -OFF.
Ifyou want to use automatic ice-maker again,change the switch to OFF-ON.
Iceis lumped together
• When ice is lumped together, take the ice lumps out of the icestorage bin, break
them into small pieces, and then placethem into the ice storage bin again.
• When the ice maker produces too small or lumped together ice, the amount of
water supplied to the ice maker need to adjusted. Contact the service center.
÷ If ice is not used frequently, it may lump together.
Power failure
• Icemay drop into the freezer compartment. Takethe ice storage binout and discard
all the icethen dry it and place it back. After the machine is powered again,crushed
ice will be automatically selected.
The unit is newly installed
• Ittakes about 12hours for a newly installed refrigerator to make ice in the freezer
compartment.
Please select this function for prompt freezer,
• "On"or "Off" is repeated whenever pressing
button.
• The arrow mark graphic remains at the On status
after flickering 4times when selecting Special
Refrigeration "On".
• Super freezer function automatically turns off if a
fixed time passes.
[
Ex) Inselecting Ex) Inselecting
"On.... Off'
This button stops operation of different
button.
• Locking or Release isrepeated whenever pressing
the_.
• Pressing the other button when selecting 'LOCK',
the button does not operate.
{!iii[i!!iiil,
Ex) Inselecting Ex) Inselecting
"LOCK.... LOCK"again
The other
functions
How ice/cold
water is supplied
How to use
dispenser

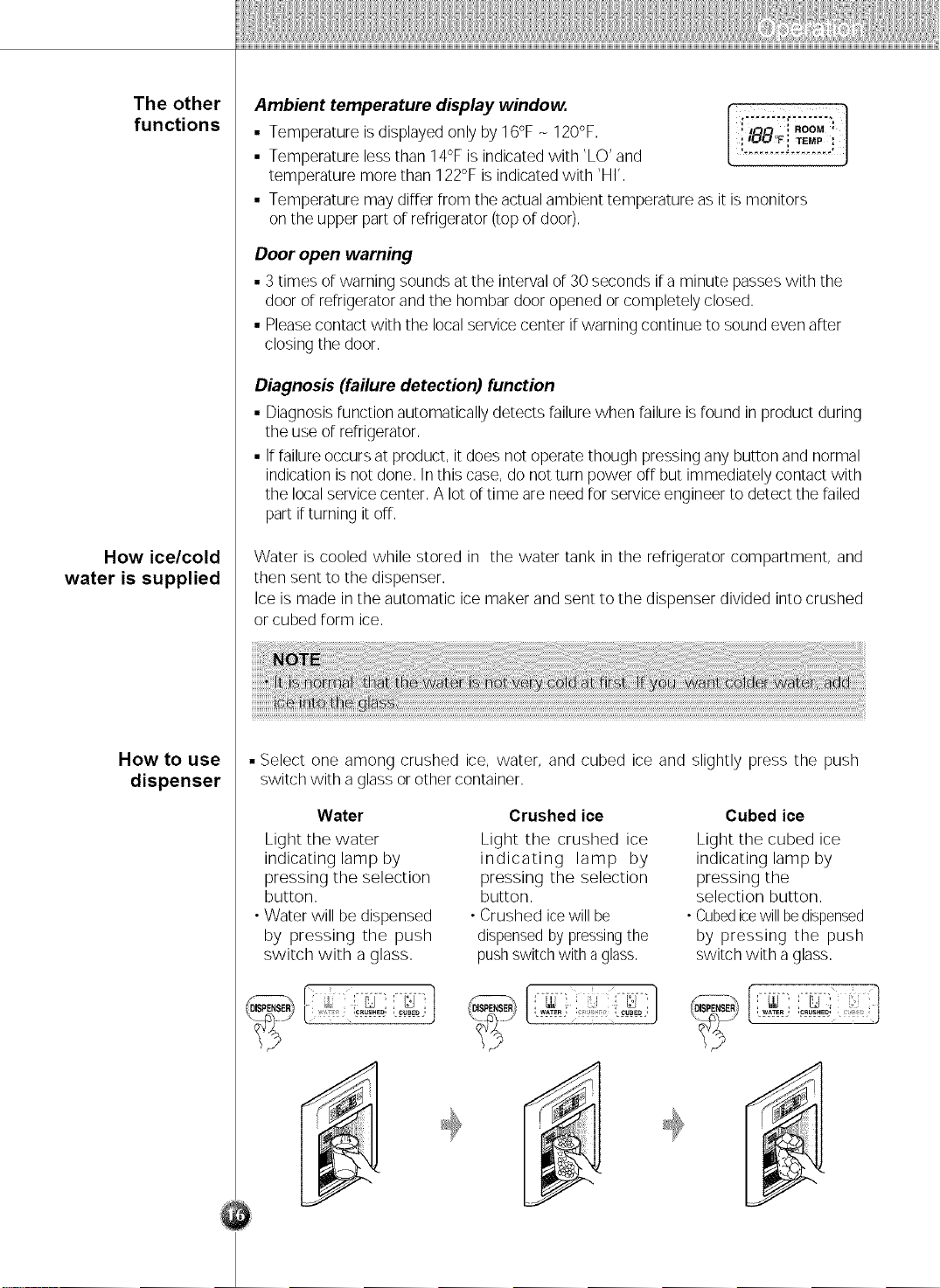

Ambienttemperaturedisplaywindow. [ .:_::::::L..::::]:, i ROOM:
• Temperatureisdisplayedonlyby16°F- 120°F. !'_: TEMP:
• Temperaturelessthan14°Fisindicatedwith'LO'and
temperaturemorethan122°Fisindicatedwith'HI'.
• Temperaturemay differfromtheactualambienttemperatureasitismonitors
ontheupperpartofrefrigerator(topofdoor).
Door open warning
• 3 times of warning sounds atthe interval of 30 seconds ifa minute passeswith the
door of refrigerator and the hombar door opened or completely closed.
• Pleasecontact with the localservice center ifwarning continue to sound even after
closing the door.
Diagnosis (failure detection) function
• Diagnosisfunction automatically detects failurewhen failure isfound in product during
the use of refrigerator.
• If failure occursat product, itdoes not operatethough pressing any button and normal
indication is notdone. Inthis case, do notturn power off but immediately contact with
the localservicecenter. A lot of time are need for service engineer to detect the failed
part ifturning it off.
Water is cooled while stored in the water tank in the refrigerator compartment, and
then sent to the dispenser.
Ice is made in the automatic ice maker and sent to the dispenser divided into crushed
or cubed form ice,
• Select one among crushed ice, water, and cubed ice and slightly press the push
switch with a glass or other container.
Water
Light the water
indicating lamp by
pressing the selection
button.
•Water will be dispensed
by pressing the push
switch with a glass.
Crushed ice
Light the crushed ice
indicating lamp by
pressing the selection
button.
• Crushed icewill be
dispensedbypressingthe
pushswitchwith aglass.
Cubed ice
Light the cubed ice
indicating lamp by
pressing the
selection button.
•Cubedicewillbedispensed
by pressing the push
switch with a glass.
Automatic ice
maker
When ice maker
does not operate
smoothly
• The automatic ice maker can automatically make 8 pieces of icecube at a time,
80 pieces a day. But these quantities may be varied according to various conditions
including how many times the refrigerator door opens and closes.
• Icemaking stops when the ice storage bin is full.
• Ifyou don't want to use automatic ice-maker, change the ice-maker switch to
ON -OFF.
Ifyou want to use automatic ice-maker again,change the switch to OFF-ON
Iceis lumped together
• When ice is lumped together, takethe ice lumps out of the icestorage bin, break
them into small pieces, and then placethem into the ice storage bin again.
• When the ice maker produces too small or lumped together ice, the amount of
water supplied to the ice maker need to adjusted. Contact the service center.
¢ If ice is not used frequently, it may lump together.
Power failure
• Icemay drop into the freezer compartment. Takethe ice storage binout and discard
all the icethen dry it and place it back. After the machine is powered again,crushed
ice will be automatically selected.
The unit is newly installed
• Ittakes about 12hours for a newly installed refrigerator to make ice in the freezer
compartment.
Cautions
Throw away the ice (about 20 pieces) and water (about 7 glasses) first made
after refrigerator installation.
The first ice and water may include particles or odor from the feed water pipe or feed
water box. This is necessary in case that the refrigerator has not been used for a long
time.
Keep children away from the dispenser.
Children may push switch incorrectly bad or damage lamps.
Be careful that food is not block the ice
passage.
If roodsare placedat the entrance of ice
passage,ice may not be dispensed. Theice
passagemay also becovered with ice
powder if splinter iceis used only.This time,
remove the ice powder
accumulated.
Freezer
door
Never store beverage cans or other foods in ice storage bin for the purpose of
rapid cooling.
Such actions may damage the automatic ice maker.
Never use thin crystal glass or crockery to collect ice.
Such glasses or containers may be broken.
Put icefirst into a glass before filling water or other beverages.
Water may be splashed if ice is added to existing liquid in a glass.
Never touch a hand or other tools on ice outlet.
Touch may cause a part breakage or handinjury.
Never remove the ice maker cover.
Sometimes level the surface so that the ice storage bin isfully filled with ice.
Ice is piled upjust nearthe ice maker. So, such status may be considered, bythe ice
maker,that the ice storage bin isfully filled and ice making operation may stop,
If discolored ice is dispensed, immediately contact service center, stopping use.
Never use too narrow or deep glass.
Ice may bejammed in ice passage and, thus, the refrigerator may be railed.
Keep the glass at a proper distance from ice outlet.
A glass too close to the outlet may hinder ice from coming out.
Silde-Under
Shelf
Wine holder
adjustment
Shelf (Applicable to somemodelsonly)
You can store taller items such asa galloncontainer or bottles by simply pushing
in front half of shelf underneath back halfof shelF.Pulltoward you to returnto a
Fullshelf.
Wine holder
(Applicable to somemodelsonly)
Bottles can be stored laterallywith this wine corner. This can be attached to any
shelf,
(
In case of inserting the wine holder :
Pull the wine holder downward as in
® after inserting it into the side anchoring
part of the shelf as in 0 by catching it
upward as in ¢.
In case of separating the wine holder :
Pull the wine holder inward as in @ after
holding it upward as in ® by catching it.
®
Egg box
You carl move the egg box to a place you want and select another form of box
according to the amount of eggs.
[Normal]
[For Many Eggs]
Humidity control in the vegetable compartment
The humidity carl be controlled by adjusting the humidity control switch to the
left/right when storing vegetabes or fruits.
High humidity
Low humidity
How to use the
deodorizing
system
Convert into avegetable or meat compartment
• The bottom drawer inthe refrigerator carl beconverted into a vegetable or meat
compartment
Vegetable
compartment
Meat compartment
rsion
" / switch
The meat compartment maintains the temperature at a lower point than the
refrigerator compartment so that meat or fish can be stored fresh longer.
Deodorizer (Applicable to some models only)
Thissystem efficiently absorbs strong odors
by using the optical catalyst. This system
does hot have anyaffect on stored food.
jJ "i
I
t Deodorizing
,,,= system
,,,'"' i Vegetable
i compartment
/
,,'" Conversion
corner
• Since it is installed already installed onto the cool air intake duct from the from
the refrigerator compartment, you need no separate installation,
• Pleaseuseclosed containersto store food with pungent odors,
Otherwise, this oder can be absorbed by other food inthe compartment,
Wine holder
Snack drawer
Freezer
compartment
shelf
Freezer
compartment
door rack
Freezer
compartment
drawer
Milk product
corner
Egg box
Refrigerator
compartment
shelf
Refrigerator
compartment
door rack
Vegetable drawer
Vegetable
drawer
/meat drawer
conversion corner

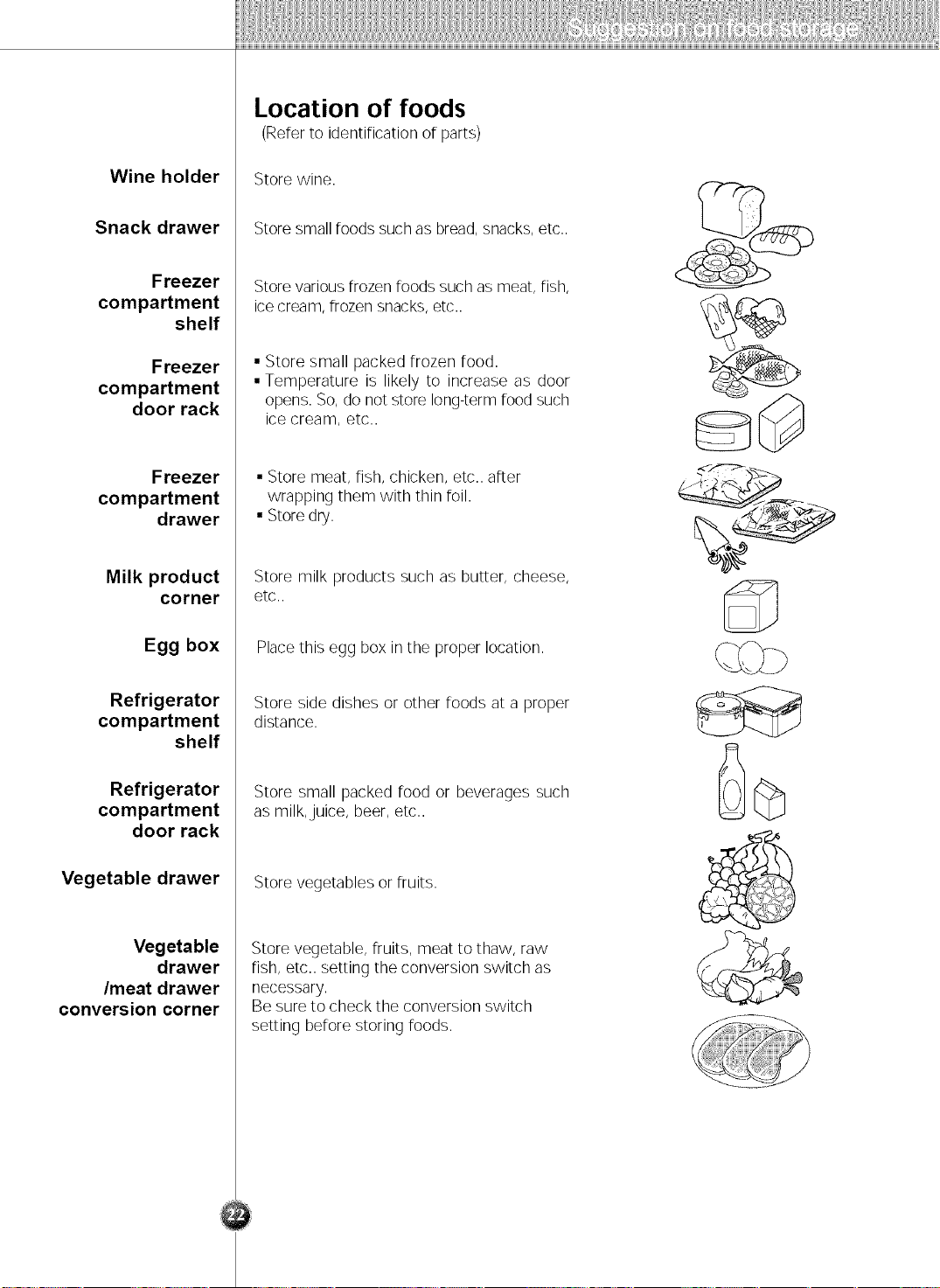

Location of foods
(Refer to identification of parts)
Store wine.
Store small foods suchas bread,snacks,etc..
Store various frozen foods such as meat, fish,
ice cream, frozen snacks, etc..
• Store small packed frozen food.
• Temperature is likely to increase as door
opens. So,do not store long-termfood such
ice cream, etc..
• Store meat, fish, chicken, etc.. after
wrapping them with thin foil.
• Storedry.
Store milk products such as butter, cheese,
etc..
Placethis egg box inthe proper location.
Store side dishes or other foods at a proper
distance.
Store small packed food or beverages such
as milk,juice, beer, etc..
Store vegetables or fruits.
Store vegetable, fruits, meat to thaw, raw
fish, etc.. setting the conversion switch as
necessary.
Be sure to check the conversion switch
setting before storing foods.

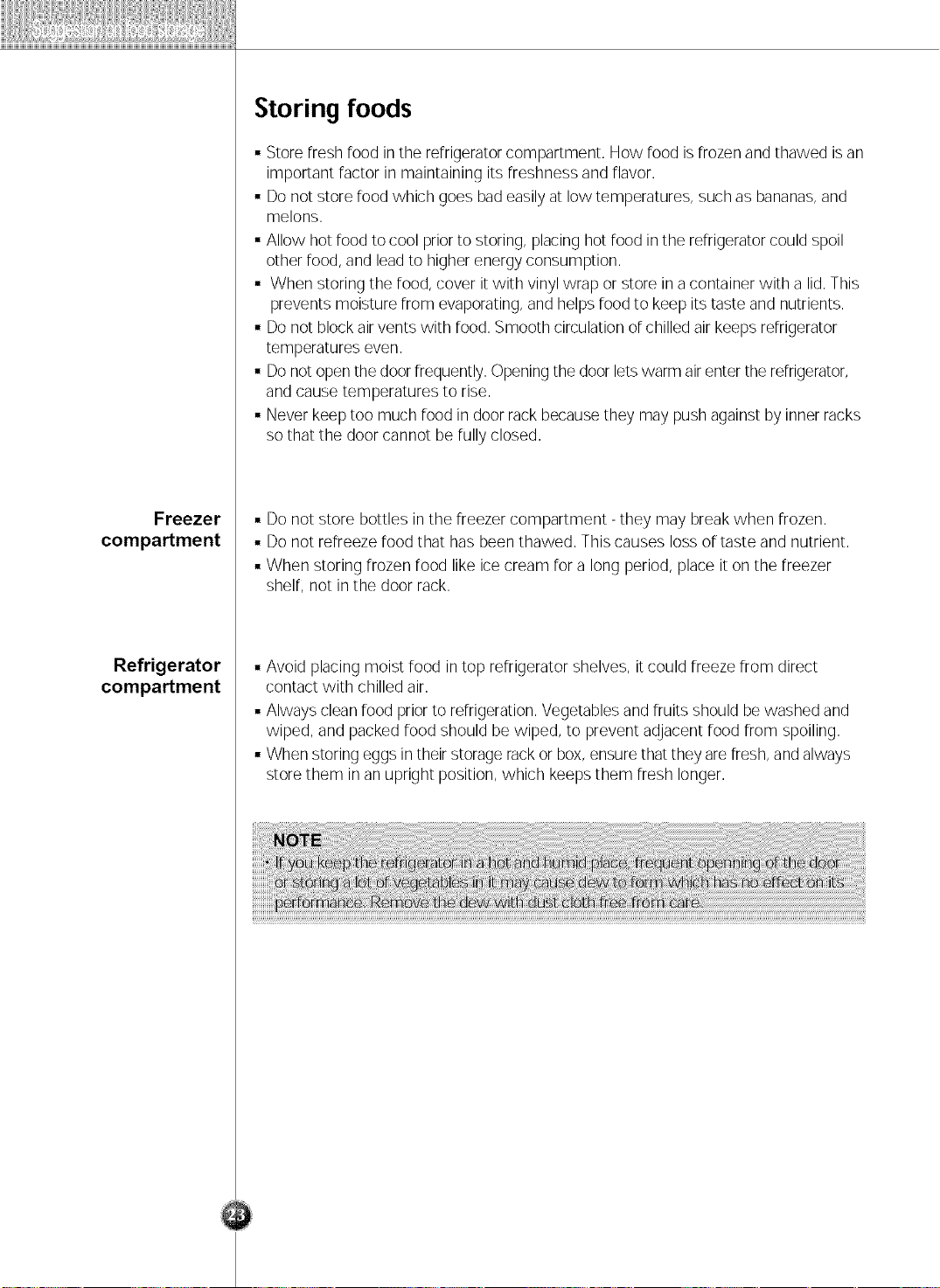

Storing foods
• Storefresh food in the refrigerator compartment, How food isfrozen and thawed isan
important factor in maintaining its freshness and flavor.
• Donot store food which goes bad easilyat low temperatures, such as bananas,and
melons.
• Allow hot rood to cool priorto storing, placinghot rood in the refrigerator could spoil
other rood, and leadto higher energy consumption.
• When storing the rood, cover itwith vinyl wrap or store ina container with a lid.This
prevents moisture from evaporating,and helpsrood to keep its taste and nutrients.
• Donot blockair vents with rood. Smooth circulation ofchilled air keeps refrigerator
temperatures even.
• Donot openthe doorfrequently.Openingthe doorletswarm airenter the refrigerator,
and cause temperatures to rise.
• Never keeptoo much food in door rack becausethey may pushagainst byinner racks
so that the door cannot be fully closed.
Freezer
compartment
Refrigerator
compartment
• Do not store bottles in the freezer compartment -they may breakwhen frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
• When storing frozen rood like icecream for a long period, place it on the freezer
shelf, not in the door rack.
• Avoid placing moist food in top refrigerator shelves, itcould freeze from direct
contact with chilled air.
• Always cleanrood prior to refrigeration.Vegetablesand fruits should be washed and
wiped, and packed rood should be wiped, to prevent adjacent rood from spoiling.
• When storing eggs in their storage rackor box,ensurethat they are fresh,and always
store them in an upright position, which keeps them fresh longer.
Freezer
compartment
lamp
Dispenser lamp
Freezer
compartment
shelf
Door rack and
support
Ice storage bin
After dispenser
is used
How to dismantle parts
Separatethe lampby pulling it out (®)while
slightly striking ((1))and rotating ((2))the lamp
cover.
Turnthe bulb counterclockwise. Max. 40 W
bulbfor refrigerator is usedand can be
purchasedat a servicecenter.
Seperate the lamp by pulling it out, andthen
remove the lamp. Max. 15 W bulb for
refrigerator is used and can be purchased at a
service center.
To remove a shelf, lift the left partof the shelf
a bit, push itto the direction (0), lift the right
partto the diretion (®), andtake it out.
Lift the door rack holding both sides ((b)and
pull it out to (®)direction.
Holdthe icestorage bin asshown in the right
figureand pull it out (®)while slightlylifting it
(®).
• Itis recommended not to dismantle the ice
storage bin unless it is necessary.
•Be sureto use both handswhen removing
the icestorage bin,so as notto drop iton the
floor.
• Ifthe ice storage bindoes not fit well, slightly
rotate the rotating device.
The water collector has no self-drainage I_
function. So it should be cleaned regularly.
Remove the cover by pressing the left side of
water collector cover and dry it with a cloth.
Pressthe point marked as shown in the figure
to the right to remove the water collector
cover, f
(
Lamp in
refrigerator
compartment
Vegetable
compartment
cover
Toremove the lampcover, pressthe protrusion under the lampcover to the front and
then pullthe lampcover out.
Turnthe bulb counterclockwise. Max. 40 W bulbfor refrigerator is usedand can be
purchased at aservice center.
• To remove the vegetable compartment
cover, pull out the vegetable compartment
a bit to the front (b,lift the front part of the
vegetable compartment cover as shown by
®, and take it out.
®
®
Vacation time
Power failure
If you move
Anti
condensation
pipe
Exterior
Interior
After cleaning
Warning
General information
Duringaverage length vacations, you will probably find it best to leavethe refrigerator
in operation. Placefreezable items infreezer for longer life.
When you plan not to operate, remove all food, disconnect the power cord, clean the
interior thoroughly, and leaveeach door OPEN to prevent odor formation.
Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures.
However, you should minimize the number of door openings while the power isoff.
Remove or securely fasten down all loose items inside the refrigerator.
To avoid damaging the height adjusting screws, turn them allthe way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especiallyjust
after installation.
Don't be alarmed.This isdue to the anti-condensation pipe,which pumps hot
refrigerator to prevent "sweating" on the outer cabinet wall.
Cleaning
It is important that your refrigerator be kept clean to prevent undesirableodors. Spilled
rood should be wiped up immediately, since it may acidify and stain plasticsurfaces if
allowed to settle.
Use a lukewarm solution of mild soap or detergent to clean the durablefinish of your
refrigerator.
Wipe with a clean damp cloth and then dry.
Regularcleaning is recommended. Wash all compartments a bakingsoda solution or a
mild detergent and warm water. Rinseand dry.
Pleaseverify that the power cord is not damaged, power plug is not overheated, or
power plug is well inserted into the power consent.
Always remove power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps,switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid from
getting into any electrical partand causing an electric shock.
Never use metallic scouring pads,brushes, coarse abrasive cleaners, strong alkaline
solutions, flammable or toxic cleaning liquidson anysurface.
Do not touch frozen surfaces with wet or damp hands, because damp object will stick
or adhere to extremely cold surfaces.

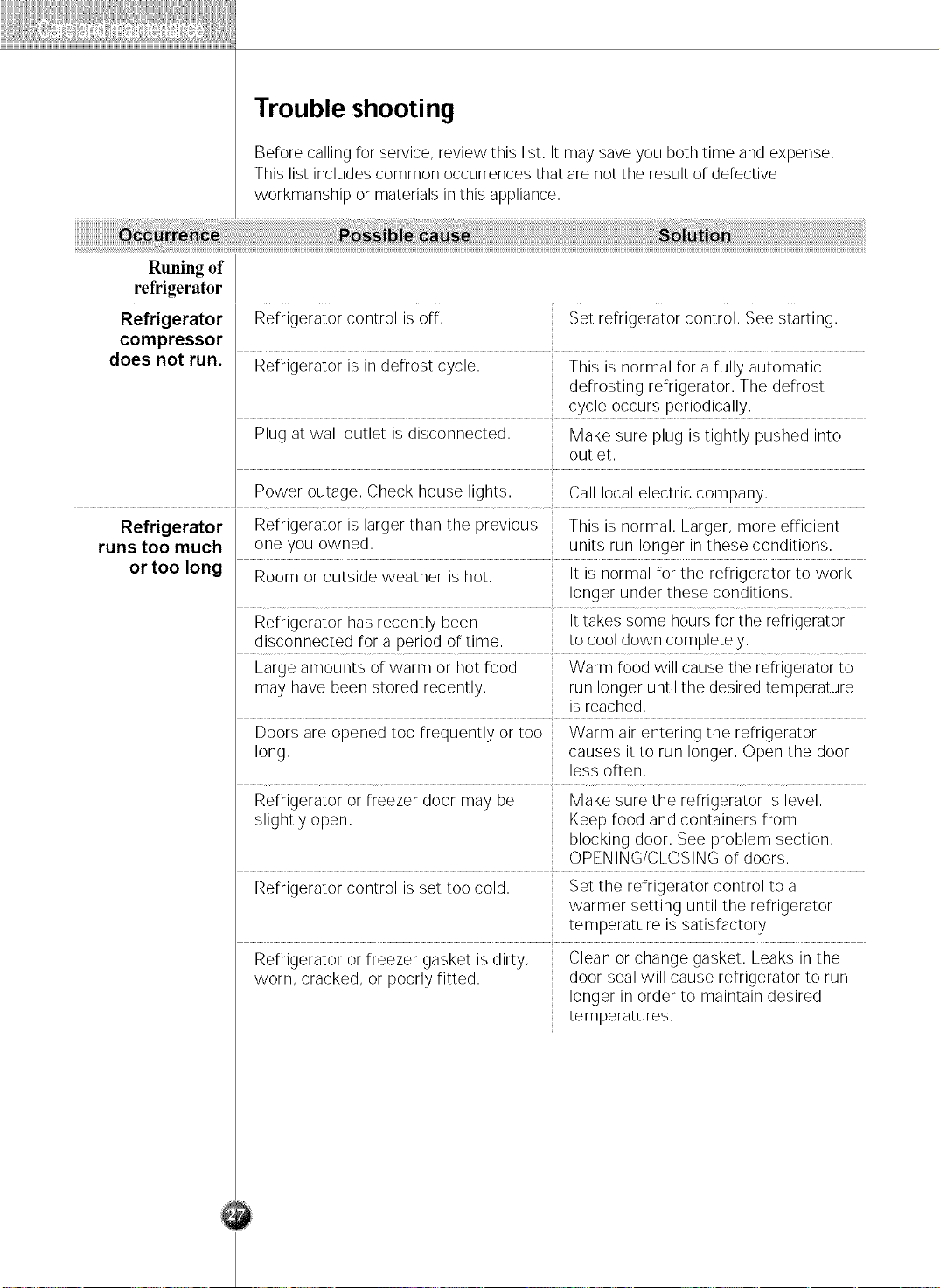

Trouble shooting
Before calling for service, review this list. It may saveyou both time and expense.
This list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
Runing of
refrigerator
Refrigerator Refrigerator control is off. Set refrigerator control. See starting.
compressor
does not run. Refrigerator is in defrost cycle. This is normal for a fully automatic
defrosting refrigerator. The defrost
cycle occurs periodically.
Plug at wall outlet is disconnected. Make sure plug is tightly pushed into
outlet.
Power outage. Check house lights. Call local electric company.
Refrigerator Refrigerator is larger than the previous This is normal. Larger, more efficient
runs too much one you owned, units run longer in these conditions.
or too long Room or outside weather is hot. It is normal for the refrigerator to work
longer under these conditions.
Refrigerator has recently been It takes some hours for the refrigerator
disconnected for a period of time. to cool down completely.
Large amounts of warm or hot food Warm food will cause the refrigerator to
may have been stored recently, run longer until the desired temperature
is reached.
Doors are opened too frequently or too Warm air entering the refrigerator
long. causes it to run longer. Open the door
less often.
Refrigerator or freezer door may be Make sure the refrigerator is level.
slightly open. Keep food and containers from
blocking door. See problem section.
OPENING/CLOSING of doors.
Refrigerator control is set too cold. Set the refrigerator control to a
warmer setting until the refrigerator
temperature is satisfactory.
Refrigerator or freezer gasket is dirty, Clean or change gasket. Leaks in the
worn, cracked, or poorly fitted, door seal will cause refrigerator to run
longer in order to maintain desired
temperatures.
Refrigerator
compressor
does not run.
Temperatures are
too cold
Temperature in the Freezer control is set too cold Set the freezer control to a warmer
freezer is too cold setting until the freezer temperature is
butthe refrigerator satisfactory.
temperature is
satisfactory.
Temperature in the Refrigerator control is set too cold. Set the refrigerator control to a
refrigerator is too warmer setting
cold and the freezer
temperature
is satisfactory.
Food stored in
drawers freezes. Refrigerator control is set too cold. See above solution.
Meat stored in Meat should be stored at a temperature It is normal for ice crystals to form due
fresh meat just belowthe freezingpointofwater (32°F, to the moisture content of meat.
drawer freezes. 0C) for maximum fresh storagetime,
Temperatures
are too warm
Temperatures in Freezer control is set too warm. Set the freezer or refrigerator control to
the refrigerator a colder setting until the freezer or
or freezer are refrigerator temperature is satisfactory.
too warm. .......
Refrigerator control is set too warm. Setthe freezer or refrigerator control to a
Refrigerator control has some effect on colder setting until the freezer or
freezer temperature, refrigerator temperature is satisfactory.
Doors are opened too frequently or too Warm air enters the refrigerator/freezer
long. whenever the door is opened.
Open the door less oRen.
Door is slightly open. Close the door completely.
Large amounts of warm or hot rood Wait until the refrigerator or freezer
may have been stored recently, has a chance to reach its selected
temperature.
Refrigerator has recently been A refrigerator requires some hours to
disconnected for a period of time. cool down completely.
Temperature in the Refrigerator control is set too warm. Set the refrigerator control to a colder
refrigerator setting.
is too warm but
the freezer
temperature is
satisfactory.
Sound and noise
Louder sound Today's refrigerators have increased It is normal for sound levels to be higher.
levelswhen storage capacity and maintain more
refrigerator is on. even temperatures.
Louder sound Refrigeratoroperates at higher pressures This is normal. The sound will level off as
levels when duringthe start of the ON cycle, the refrigerator continues to run.
compressor
comes on.
Vibrating or Floor isuneven or weak. Be sure floor is level and solid and can
rattling noise. Refrigerator rocks on the floor when it is adequately support refrigerator.
moved slightly.
Items placedonthe top of the refrigerator Remove items.
are vibrating.
Dishes are vibrating on the shelves in It is normal for dishes to vibrate slightly.
the refrigerator. Move dishes slightly.
Make sure refrigerator is level and firmly
set on floor.
Refrigeratoristouching wall or cabinets. Move refrigerator so that it does not
touch the wall or cabinets.
Water/Moisture
/Ice inside
refrigerator
Moisture collects The weather is hot and humid which This is normal.
on the inside walls increases the rate of frost buildup
of the refrigerator, and internal sweating.
Door is slightly open. See problem section opening/closing of
doors.
Door is opened too often or too long. Open the door less often.
Water_oisture
/Ice outside
refrigerator
Moisture forms Weather is humid. This is normal in humid weather.
on the outside of When humidity is lower, the moisture
the refrigerator should disappear.
or between doors.
Door is slightly open,causing cold air This time, close the door completely.
from the inside the refrigerator to meet
warm air from the outside.
Odors in refrigerator
Interior needs to be cleaned. Clean interior with sponge,warm water
and baking soda.
Foodwith strong odor isinthe refrigerator. Cover food completely.
Some containers and wrapping materials Use a different container or brand of
produceodors, wrapping materials.
Opening/Closing of
doors/Drawers
Door(s) will not Food package is keeping door open. Move packages that keep door from
close, closing.
Door was closed too hard,causing other Close both doors gently.
door to open slightly.
Refrigerator is not level. It rocks on the Adjust the height adjusting screw.
floor when it is moved slightly.
Floor is uneven or weak. Be sure floor is level and can adequately
Refrigerator rocks on the floor when it support refrigerator.
is moved slightly. Contact carpenter to correct sagging or
sloping floor.
Refrigerator istouching wall or cabinets. Move refrigerator..
Drawers are Food istouching shelf on top of the Keep less rood in drawer.
difficult to move. drawer
Trackthat drawer slides on isdirty. Clean drawer and track.
Dispenser
Dispenser will not Ice storage bin is empty. When the first supply or ice is dropped
dispense ice intothe bin,the dispenser shouldoperate,
Freezertemperature isset too warm. Turn the freezer control to a higher
setting so that ice cubes will be made.
When the first supply or ice is made,
the dispenser should operate.
Household water line valve is not open. Open household water line valve and
allow sufficient time for iceto be made.
When ice is made, dispenser should
operate.
Refrigerator or freezer door is not closed. Be sure both doors are closed.

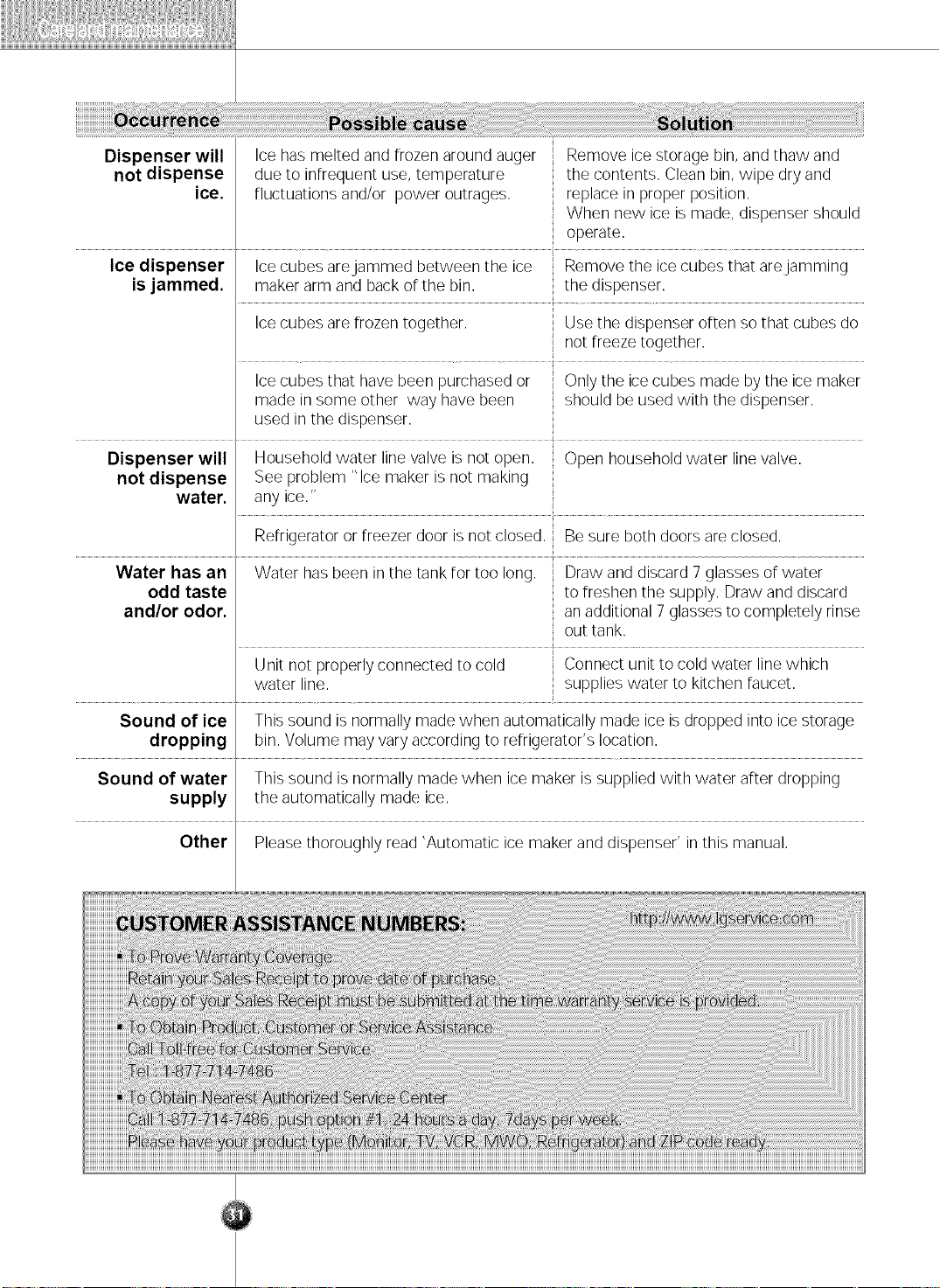

Dispenserwill IcehasmeltedandFrozenaroundauger Removeicestoragebin,andthawand
notdispense duetoinfrequentuse,temperature thecontents.Cleanbin,wipedryand
ice. Fluctuationsand/orpoweroutrages, replaceinproperposition.
Whennewiceismade,dispensershould
operate.
Icedispenser Icecubesarejammedbetweentheice Removetheicecubesthatarejamming
isjammed, makerarmandbackorthebin. thedispenser.
IcecubesareFrozentogether. Usethedispenseroftensothatcubesdo
notFreezetogether.
Icecubesthathavebeenpurchasedor Onlytheicecubesmadebytheicemaker
madeinsomeotherwayhavebeen shouldbeusedwiththedispenser.
usedinthedispenser.
Dispenserwill Householdwaterlinevalveisnotopen. Openhouseholdwaterlinevalve.
notdispense Seeproblem"Icemakerisnotmaking
water, anyice."
RefrigeratororFreezerdoorisnotclosed.Besurebothdoorsareclosed.
Waterhasan WaterhasbeeninthetankFortoolong. Drawanddiscard7glassesorwater
oddtaste toFreshenthesupply.[)rawanddiscard
and/orodor. anadditional7glassestocompletelyrinse
outtank.
Unitnotproperlyconnectedtocold Connectunittocoldwaterlinewhich
waterline. supplieswatertokitchenFaucet.
Soundof ice Thissoundisnormallymadewhenautomaticallymadeiceisdroppedintoicestorage
dropping bin.Volumemayvaryaccordingtorefrigerator'slocation.
Soundofwater Thissoundisnormallymadewhenicemakerissuppliedwithwaterafterdropping
supply theautomaticallymadeice.
Other Pleasethoroughlyread'Automaticicemakeranddispenser'inthismanual.

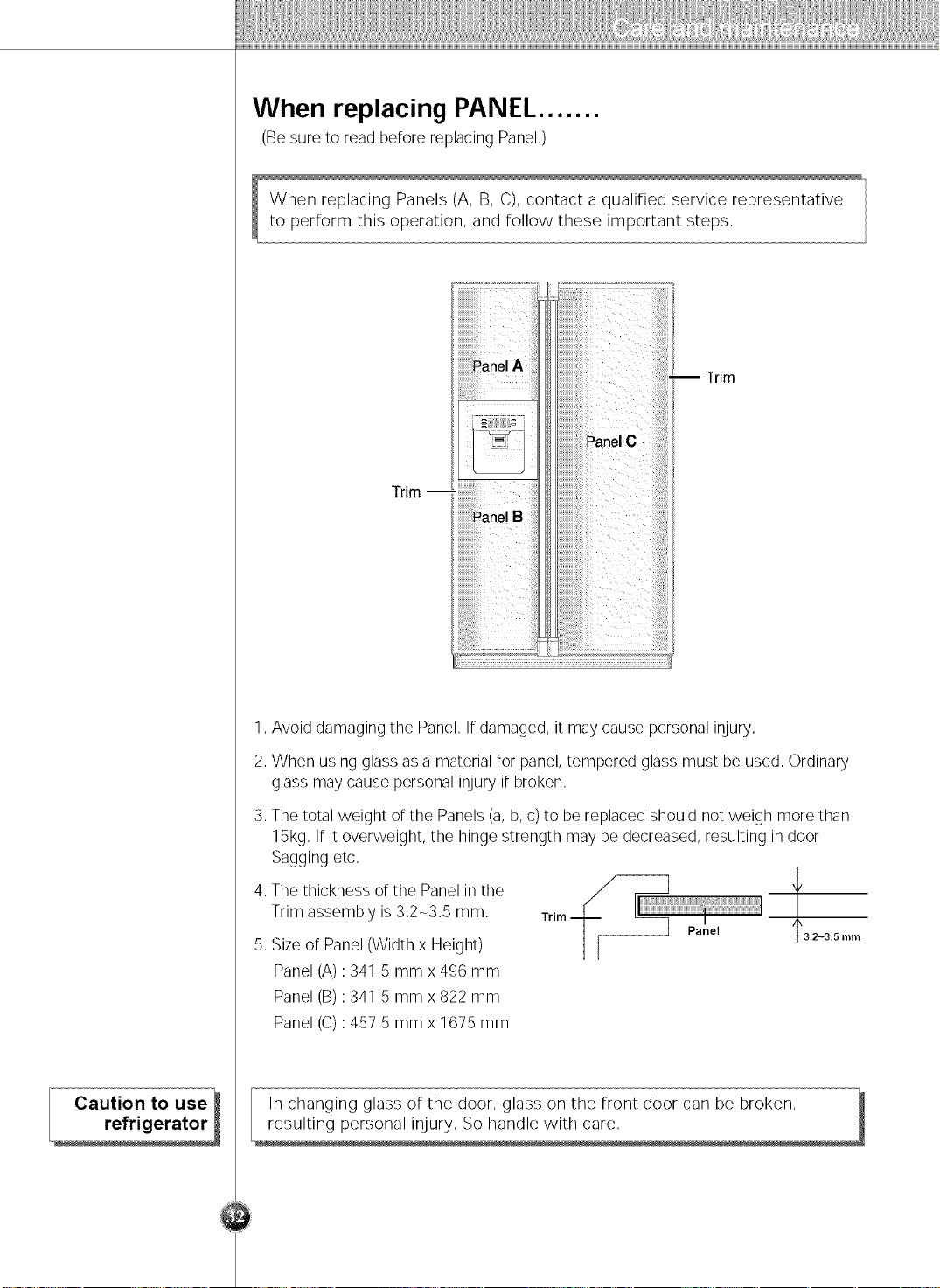

When replacing PANEL .......
(Be sure to read before replacing Panel.)
Trim
1.Avoid damaging the Panel. If damaged, it may cause personal injury.
2.When using glass asa material for panel,tempered glass must be used. Ordinary
glass may cause personal injury if broken.
3. The total weight of the Panels (a,b,c) to be replaced should not weigh more than
15kg. If it overweight, the hinge strength may be decreased, resulting in door
Sagging etc.
4. The thickness of the Panel in the
Trim assembly is3.2-3.5 mm.
5. Size of Panel(Width x Height)
Panel (A) :341.5 mm x 496 mm
Panel (B) :341.5 mm x 822 mm
Panel (C):457.5 mm x 1675 mm
t3.2~3.5mm
In changing glass of the door, glass on the front door can be broken, I
resulting personal injury. So handle with care.
LG Electronics Inc.
LG Twin Tower, 20, Yoido-Dong,
Youngdungpo-Gu, Seoul, 150-721, Korea.
http://www.lge.com
P/NO : 3828JD8692A Printed in Korea
