EN FRENCH DOOR BOTTOM
FREEZER/REFRIGERATOR
FR RÉFRIGÉRATEUR À PORTES
FRANÇAISES/CONGÉLATEUR EN BAS
ES REFRIGERADOR CON CONGELA-
DOR INFERIOR DE PUERTA DOBLE
241978407 February 2016
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
2
Finding Information
Please read and save
this guide
Thank you for choosing Electrolux, our
new premium brand in home appliances.
This Use & Care Guide is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new appliance.
Purchase date
Electrolux model number
Electrolux serial number
Keep a record for quick
reference
Finding Information .............................. 2
Safety .................................................... 3
Feature Overview .................................. 5
Installation ............................................ 6
Removing the Doors ........................... 10
Connecting the Water Supply ............ 12
Controls .............................................. 14
Automatic Ice & Water
Maker/Dispenser ........................... 17
Storage Features ................................ 19
Storing Food and Saving Energy ....... 24
Normal Operating Sounds & Sights ... 25
Changing the Water and Air Filters .... 26
Care and Cleaning .............................. 28
Solutions to Common Problems ........ 31
Warranty .............................................. 37
Table of contents
Questions?
For toll-free telephone support in the U.S.
and Canada: 1-877-4ELECTROLUX
(1-877-435-3287)
For online support and product information
visit http://www.electroluxicon.com
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You
can register online at
www.electroluxappliances.com or by
sending your Product Registration Card
in the mail.
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Freezer door is level across the top
Leveling
Refrigerator is level, side-to-side and
tilted ¼” (6mm) front-to-back
Toe grille is properly attached to
refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates
correctly
Front filter must be flush with filter
housing (select models)
Final Checks
Shipping material removed
Fresh food and freezer temperatures
set
Crisper humidity controls set
Registration card sent in
Installation Checklist
3
Safety
Important safety instructions
General Safety
Safety Precautions
Do not attempt to install or operate your unit
until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning,
or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is
used to alert you to potential personal injury
hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
• Do not store or use gasoline or other
flammable liquids near this or any
other appliance. Read product labels
for warnings regarding flammability
and other hazards.
• Do not operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts
of the automatic ice maker.
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
WARNING
Please read all safety instructions
before using your new refrigerator.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
• Remove all staples from the carton to
avoid injury. Staples can also damage
finishes if they come in contact with
other appliances or furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs,
bedspreads, plastic sheets, or stretch
wrap may become airtight chambers
and can quickly cause suffocation.
• Destroy or recycle the product’s carton,
plastic bags, and any other exterior
wrapping material immediately after
the refrigerator is unpacked. Children
should never play with these items.
Child Entrapment and Suffocation:
• These problems are not limited to the
past. Whether junked, abandoned,
or temporarily stored (even for a few
hours), unattended refrigerators and
freezers are dangerous. Please take
the precautions listed below.
Proper Disposal of
Refrigerators/Freezers
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
www.energystar.gov/recycle for more
information on recycling your old refrigerator.
Before you recycle or dispose of your
old refrigerator/freezer:
• Remove the doors.
• Leave the shelves and baskets in place
so children may not easily climb inside.
• Have refrigerant and compressor oil
removed by a qualified service technician.
4
• The refrigerator must be plugged into
its own dedicated 115 Volt, 60 Hz,
AC-only non-GFCI electric outlet.
The power cord of the appliance
is equipped with a three-prong
grounding plug for your protection
against electrical shock hazards.
It must be plugged directly into
a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local
codes and ordinances. Consult a
qualified electrician. Do not use an
extension cord or adapter plug.
• If the power cord is damaged,
it should be replaced by the
manufacturer, service technician, or a
qualified person.
• Never unplug the refrigerator by pulling
on the power cord. Always grip the
plug firmly and pull straight out from
the receptacle to prevent damaging
the power cord.
• To avoid electrical shock, unplug the
refrigerator before cleaning and before
replacing a light bulb or LED light.
• Performance may be affected if
the voltage varies by 10% or more.
Operating the refrigerator with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the refrigerator from being
turned off accidentally.
Electrical information
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Safety
WARNING
You must follow these guidelines to
ensure that your refrigerator’s safety
mechanisms are operating correctly.
IMPORTANT
To turn off power to your refrigerator,
unplug the power cord from the wall
outlet.
5
Feature Overview
Understanding features and terms

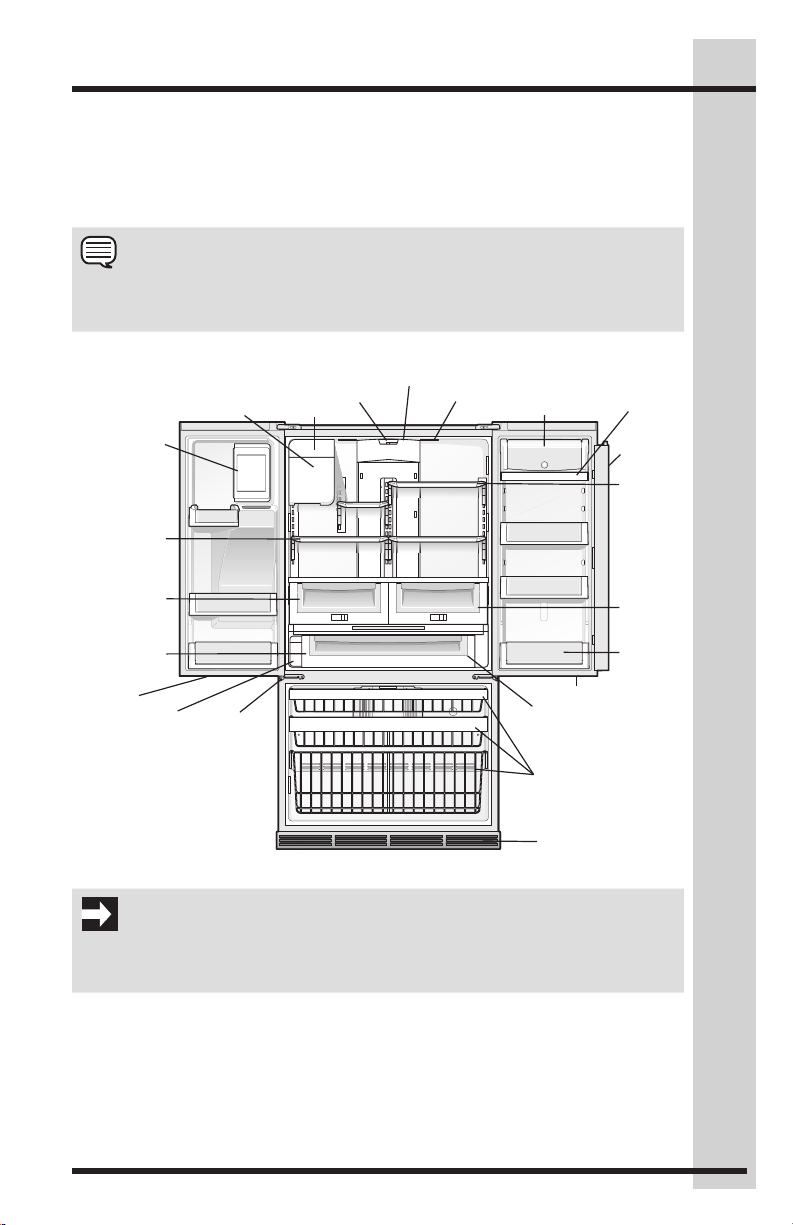

Your Electrolux refrigerator is designed for optimal convenience and storage flexibility.
The illustration below is provided to assist you with familiarizing yourself with product
features and terminology.
NOTE
*Features may vary according to model. Model is shown without freezer drawer cover.
IMPORTANT
Features not included with your refrigerator can be purchased at www.electroluxicon.com
or by calling 1-877-435-3287.
Toe Grille
Dairy CompartmentIce Bin
Ice Maker
Custom
Design
TM
Shelves
*Freezer Baskets
(top basket select
models only)
*Custom Temp
TM
Drawer (CTD)
or Deli Drawer
(with humidity slides)
Crisper
Drawer
Crisper
Drawer
Air
Filter
Water
Filter
*Adjustable
Hinges
*Incandescent Light
*LED Light
Tilt Can
Bin
*Special
Items Rack
(inside CTD)
*LED Light
*LED Light
Flipper Guide
Flipper
Mullion
Custom
Design
TM
Shelves
Air
Filter
6
This Use & Care Guide provides general
installation and operating instructions
for your model. We recommend using a
service or kitchen contracting professional
to install your refrigerator. Use the
refrigerator only as instructed in this Use &
Care Guide. Before starting the refrigerator,
follow these important first steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do Not use an extension cord or an
adapter plug.
• If possible, place the refrigerator out
of direct sunlight and away from the
range, dishwasher, or other heat
sources.
• The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic
ice maker.
Installation
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top 3⁄8 inch (9.5 mm)
Back 1 inch (25.4 mm)
Installation
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing
food. For best use of refrigerator drawers and
freezer baskets, the refrigerator should be in a
position where both can be fully opened.
Guidelines for final posi-
tioning of your refrigerator
• All four corners of the cabinet must
rest firmly on the floor.
• The cabinet should be level at the front
and rear.
• The sides should tilt ¼ inch (6 mm)
from front to back (to ensure that
doors close and seal properly).
• Doors should align with each other
and be level.
CAUTION
DO NOT install the refrigerator where the
temperature will drop below 55°F (13°C) or
rise above 110°F (43°C). The compressor
will not be able to maintain proper
temperatures inside the refrigerator.
DO NOT block the toe grille on the
lower front of your refrigerator. Sufficient
air circulation is essential for the proper
operation of your refrigerator.
NOTE
If your refrigerator is placed with the
door hinge against a wall, you may have
to allow additional space so the door
can be opened wider.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
Tools Necessary:
Phillips
TM
Head
or
#2 Square Drive
Head
(OR) AND OR OR OR
Socket
Wrench Set
Adjustable
Wrench
3/8” Fixed
Wrench
1/4” Nut
Driver
Required Tools
7
Installation
Level Refrigerator & Ad-
just Doors (if necessary)
Guidelines for final positioning of your
refrigerator:
• All four corners of the cabinet must
rest firmly on the floor.
• The sides should tilt ¼ inch (6 mm)
from front to back (to ensure that
doors close and seal properly).
• Doors should align with each other
and be level.
Most of these conditions can be met by
raising or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1 Slightly open freezer drawer.
2 Remove the toe grille (following the
illustrations below for the toe grille on
your model).
Figure 1: Remove screws and then
gently pull forward.
Raise
Lower
Anti-tip
Leg
Door
Door
3 You can raise or lower each door.
Use a 3/8 inch socket wrench to turn
the adjustment screws (1 per side).
To raise: turn adjustment screw
clockwise.
To lower: turn adjustment screw
counterclockwise.
4 Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
5 After unit is leveled, lower anti-tip leg
until it contacts the floor.
6 Install the toe grille by fitting into
place (replacing screws on some
models).
Figure 2: Lift the toe grille and gently
pull forward.
Figure 1
Shoulder
Screw
Clip
Shoulder
Screws
Toe
Grille
Figure 2
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
CAUTION
Do Not loosen or remove these 3 hex
screws.
8
Installation

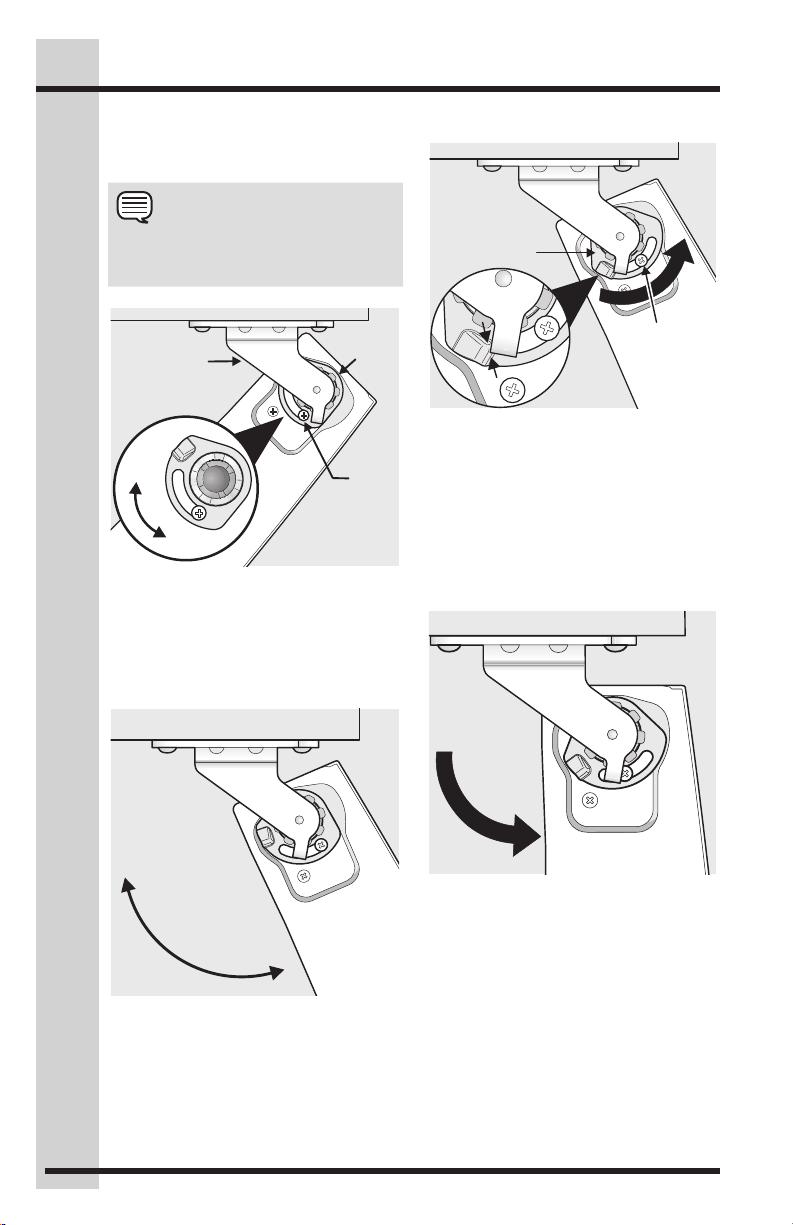

To adjust the door stop:
Door stop is adjustable between 85 to 145
degrees.
1 Open door to provide access to set
screw.
2 Loosen set screw.
3 Adjust door to desired location.
4 Rotate door stop until it makes
contact with the lower hinge.
5 Re-tighten set screw.
6 Ensure door stops in desired location
before resuming normal use.
To level the doors using the adjustable
lower hinge (select models):
1 Remove all food items from door bins
on door being adjusted.
2 Open doors to 90 degrees.
NOTE
View shown is looking up at the bottom
of the refrigerator door.
Adjustable Door Stop
Min
Open
Max
Open
Door
Stop
Lower
Hinge
Set
Screw
Re-tighten Set Screw
Rotate Door
Stop
Re-tighten
Screw
Adjusting Door
Rotate
Door to Desired
Location
Open
Door
90
Degrees
Bottom of Door
9
Flipper
Mullion
Hinge
Flipper
Mullion
Set
Screw
Adjusting Flipper Mullion Screw
Installation
2 Adjust flipper mullion height. For
proper connection with the flipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
between the guide and flipper
mullion.
3 Re-tighten set screw.
3 Lift the door while adjusting the
washer. To raise the door, rotate
washer clockwise (when viewed from
the bottom). To lower door, rotate
washer counter-clockwise (when
viewed from the bottom).
To adjust the flipper mullion:
1 Loosen the set screw located on the
flipper mullion hinge.
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Lower
Door
Hinge
Washer
Raise
Door
Raising/Lowering Door
10
Approximately
5 Feet
Water
Line
Press
Press
To remove the refrigerator doors:
1 Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
2 Disconnect the harness by grasping
both sides of the connector firmly,
depress the latch, and pull apart.
Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.
3 Detach the water tube from the
connector located behind the
refrigerator and pull the tube back out
to the front of the unit. The connector
releases when you press inward on
the outer sleeve while pushing the
tube toward the connector then while
continuing to hold in the sleeve, pull
the tube away.
Removing the Doors
Getting through narrow
spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord
is unplugged from the wall outlet.
2 Open the freezer drawer and remove
the toe grille (see “Installation” section).
3 Remove any food from the door
shelves and close the doors.
To remove the top hinge covers:
1 Remove the two screws from each
cover over the top door hinges.
2 Lift inside edge of hinge cover and tilt
back.
NOTE
DO NOT remove the ground screw from
hinge.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw
Water
Line
Rear
Cover
Screw
Top
Hinge
Ground
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Two Wire
Cables
Leave
Hinge
With
Door
NOTE
Use care while pulling the water tube
from the unit to be sure that you do not
kink the tube.
11
Removing the Doors
Once both doors are in place, ensure
they are aligned with each other and level
(Please see the “Installation” section for
more details), and replace the top hinge
cover.
CAUTION
Be sure doors are set aside in a
secure position where they cannot
fall and cause personal injury, or
damage to the doors or handles.
NOTE
You will be pulling approximately five
feet of water tube from the back of the
refrigerator.
Lower Hinge Removal
4 Unscrew the three lower hinge
screws and hinge if necessary.
To reinstall the right door, reverse the
above steps.
CAUTION
Drawer is heavy. Use caution when
lifting.
NOTE
When reinserting the water tube and
replacing the top hinge cover, use care
to be sure you do not kink the tube.
Removing Freezer Drawer
1 Remove four hex head drawer screws.
2 Lift up drawer to remove.
Remove
Hex Head
Drawer Screw
DO NOT
Remove
Other
Screws
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
Replacing Freezer Drawer
1 Lower drawer back into place.
2 Replace 4 hex head drawer screws
and tighten.
12
Connecting the Water Supply
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼ inch plastic is
not recommended to be used.
Plastic tubing greatly increases
the potential for water leaks,
and the manufacturer will not
be responsible for any damage
if plastic tubing is used for the
supply line.
• DO NOT install water supply
tubing in areas where
temperatures fall below freezing.
• Chemicals from a malfunctioning
water softener can damage the
ice maker. If your home has a
water softening system, ensure
the softener is maintained and
working properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending
on your local/state building codes,
Frigidaire recommends for homes
with existing valves its Smart Choice®
water line kit 5305513409 with a 6
ft. (1.8 meters) Stainless Steel Water
Line and for homes without an existing
valve, Frigidaire recommends its Smart
Choice® water line kit 5305510264 with
a 20 ft. (6 meters) Copper Water Line
with self-tapping saddle valve. Please
refer to www.frigidaire.com/store for
more information.
IMPORTANT
After connecting the water supply, refer
to “How to Prime the Water Supply
System” for important information about
priming an empty water supply system.
Your refrigerator’s water supply system
includes several tubing lines, a water
filter and a water valve. To ensure that
your water dispenser works properly, this
system must be completely filled with water
when your refrigerator is first connected to
the household water supply line.
Before Installing The Water Supply Line,
You Will Need:
• Basic Tools: adjustable wrench,
flat-blade screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water line
with water pressure between 30 and
100 psi.
• A water supply line made of ¼ inch
(6.4 mm) OD, copper, or stainless
steel tubing. To determine the length
of tubing needed, measure the
distance from the ice maker inlet
valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so
the refrigerator can be moved out for
cleaning (as shown).
• A shutoff valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing
type shutoff valve.
• Do not re-use compression fitting or
use thread seal tape.
• A compression nut and ferrule (sleeve)
for connecting a copper water supply
line to the ice maker inlet valve.
13
Connecting the Water Supply
To Connect Water Supply Line
To Ice Maker Inlet Valve
1 Disconnect refrigerator from electric
power source.
2 Place end of water supply line into
sink or bucket. Turn ON water supply
and flush supply line until water
is clear. Turn OFF water supply at
shutoff valve.
3 Remove plastic cap from water valve
inlet and discard cap.
4 If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as
far as it will go (¼inch/6.4mm). Slide
ferrule (sleeve) into valve inlet and
finger tighten compression nut onto
valve. Tighten another half turn with
a wrench; DO NOT over tighten. See
Figure 1.
If you use braided flexible stainless
steel tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and finger tighten nut
onto valve. Tighten another half turn
with a wrench; DO NOT over tighten.
See Figure 2.
5 With steel clamp and screw, secure
water supply line to rear panel of
refrigerator as shown.
6 Coil excess water supply line (copper
tubing only), about 2½turns, behind
refrigerator as shown and arrange
coils so they do not vibrate or wear
against any other surface. Do not
kink tubing.
7 Turn ON water supply at shutoff valve
and tighten any connections that
leak.
8 Reconnect refrigerator to electrical
power source.
9 To turn ice maker on, lower wire
signal arm (freezer ice maker) or set
the ice maker’s On/Off power switch
to the “On” position (fresh food ice
maker).
Figure 1
Plastic Water
Tubing to Ice
Maker Fill
Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Steel
Clamp
Stainless
Steel
water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft (1.8 Meters) Stainless Steel
water line from household
water supply
Plastic Water Tubing
to Ice Maker
Fill Tube
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Figure 2
NOTE
These instructions do not cover after
market ice maker installation. Instructions in
after market ice maker kit should be used.
14
Controls
Wave-Touch
TM
Your refrigerator is equipped with a Wave-
Touch
TM
control panel display. It is only
necessary to gently touch the glass. There
are three levels of display.
1st Level: Sleep Mode
Sleep Mode displays only the water,
cubes and crushed options. Touch an icon
to activate the desired dispenser mode.
The active dispenser mode is more brightly
illuminated.
2nd Level: Awakened Display Mode
IMPORTANT
When the ice maker is turned off, the
ice in the bucket should be transferred
to the freezer or discarded to prevent it
from melting.
The control panel is awakened by touching
anywhere on the glass where there is an
indicator. Black space will not awaken the
display. After 10 seconds of inactivity, the
control panel will return to the Sleep mode.
The following dispenser options are
illuminated:
ice off Press and hold for three
seconds to turn the ice
maker “ON” or “OFF”.
express freeze Activates a faster rate for
freezing food.
dispenser light On / Off
control lock Press and hold for three
seconds to activate and
deactivate. This restricts
undesired changes to the
refrigerator’s settings and
prevents use of the ice and
water dispenser.
15
Controls
3rd Level: User Variable Options
Touching the options icon displays the
following options:
vacation mode Conserves energy by increas-
ing the time between automatic
defrost. This feature is automati-
cally activated during long periods
between door openings. Vacation
mode is manually activated when
the red indicator is lit.
water filter Touch to display filter condition
status. Press and hold for three
seconds to reset after filter change.
air filter Touch to display filter status. Press
and hold for three seconds to reset
after filter change.
temp display When active, it allows the display of
the freezer and fridge temps during
“Sleep Mode”. The temperature is
displayed when the red indicator is
lit.
temp mode Touch to toggle display from
Fahrenheit to Celsius.
mute sounds Tones emitted by each keypress
can be turned off based on user
preference. The sounds are muted
when the red indicator is lit. Warn-
ing signals will stay active.
factory default Resets all refrigerator settings such
as temp, temp display, and alarm
tones to their factory default settings.
on off Press and hold for three seconds
to turn off the cooling system to
clean the refrigerator. It also turns
off the ice maker, all dispenser
functions, and the Custom Temp
TM
drawer (select models). The
temperature display will read OFF.
IMPORTANT
Pressing the system on/off icon does not
turn off power to your refrigerator. You must
unplug the power cord from the wall outlet.
Alarms
Door Ajar If the door has been left open for an
extended period of time, an alarm will
sound and the door ajar indicator will
display on the center of the display. The
alarm is turned off by closing the door.
The alarm off key will blink to prompt the
reset of any pending alarms. Press this
key to reset any system Alarms.
High Temp In the event of a high temperature
condition, the temperature display will blink
and display “HI”. After 20 minutes, the
high temp alert will be displayed and the
alarm off icon will illuminate until pressed,
acknowledging the alarm, at which time
the highest temperature reached will be
displayed and the refrigerator will resume
normal operation. All other modes are
turned off until the alarm is acknowledged.
Power Fail In the event of a power failure, the power
fail alert will be displayed and the alarm
off key will blink until the alarm off icon is
pressed, acknowledging the alarm. Other
modes may be turned off until the alarm is
acknowledged. When the power fail alert
is turned off, the refrigerator will resume
normal operation. The high temp alarm
may also be illuminated until a safe operat-
ing range temperature has been reached.
Setting cooling
temperatures
1 Touch
the glass
panel to
illuminate
the 2
nd
level of
display.
2 Select the options icon. Plus (+) and
minus (-) indicators will appear on either
side of the displayed temperatures.
3 Press the + or – indicator to adjust the
temperature to the desired setting.
The temperature display will begin
to blink with the first touch. After five
seconds of inactivity, the display will
beep to accept the new temperature.
After 10 seconds, the display times
out and returns to the basic display.
16
Controls
The Sabbath Mode is a feature that
disables portions of the refrigerator and its
controls in accordance with observance of
the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
Wave-Touch
TM
“Sabbath
Mode”
Sabbath Mode is turned ON and OFF
by pressing and holding both the freezer
“-” and refrigerator “+” indicators for five
seconds. The display shows “Sb” while in
Sabbath mode.
In the Sabbath Mode, the High Temp alarm
is active for health reasons. For example,
if the door is left ajar the High Temp alarm
is activated. The refrigerator will function
normally once the door is closed, without
any violation of the Sabbath/Holidays.
The High Temp alarm is permitted when
cabinet temperature is outside the safe
zone for 20 minutes. The alarm silences
itself after 10 minutes while the High Temp
icon stays lit until the Sabbath mode is
exited.
For further assistance, guidelines for
proper usage and a complete
list of models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the
lights, dispenser, nor the control panel will
work until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after
power failure recovery. It must be deactivated
with the buttons on the control panel.
NOTE
While in Sabbath Mode, the Wave-
Touch
TM
model will only illuminate the -/+
keys used to turn the Sabbath Mode Off.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice
cube compartment will remain cold
and new ice cubes can be made with
standard trays.
Sabbath Mode and the Custom
Temp
TM
Drawer
The Custom Temp
TM
Drawer should be
turned off for the Sabbath/Holidays. Before
putting the refrigerator into the Sabbath
mode, turn the Custom Temp
TM
Drawer off
by pressing the drawer on/off button. The
display will show “OFF” and the drawer
will turn off. Then enter the Sabbath mode
function on the main refrigerator display.
See Wave-Touch
TM
“Sabbath Mode”
section. When in Sabbath mode, the
display will not illuminate and the drawer
will remain off. The drawer can still be used
as a non-temp controlled drawer in this
mode. When the refrigerator is taken out
of Sabbath mode, the Custom Temp
TM
Drawer will have to be turned back on.
NOTE
If the Custom Temp
TM
Drawer is not
turned off prior to putting the unit into
Sabbath Mode, it will continue to adjust
itself to maintain the set point even if the
display does not illuminate to show that
it is still on.
17
Automatic Ice & Water Maker/Dispenser
Priming the water sup-
ply system
1 Begin filling the tank by pressing and
holding a drinking glass against the
water dispenser paddle.
2 Keep the glass in this position until
water comes out of the dispenser. It
may take about 1½ minutes.
3 Continue dispensing water for about three
minutes to flush the system and plumbing
connections of any impurities (stopping to
empty the glass as necessary).
Ice maker operation & care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24 hours.
The ice maker will fill the ice bin from the
rear. You must dispense some ice to force
the ice forward in the bin. This will allow
the bin to fill completely.
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install
your refrigerator. If you cannot connect a
water supply, set the ice maker’s On/Off
icon to Off and turn off the water supply
valve; otherwise, the ice maker’s fill valve
may make a loud chattering noise when
it attempts to operate without water.
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100
psi. Excessive pressure may cause
water filter to malfunction.
NOTE
The water dispenser has a built-in device that
shuts off the water flow after three minutes of
continuous use. To reset this shutoff device,
simply release the dispenser paddle.
NOTE
The ice maker also has a built-in plastic
signal bale arm that automatically stops
ice production when the ice bin is full.
This signal arm should not be used to
manually stop the ice maker.
IMPORTANT
Turning off the ice maker will result in
existing ice melting in the bin.
IMPORTANT
Turning off the ice maker will disable the
ice dispenser. You will still be able to
dispense water.
Turning the ice maker on and off
Ice production is controlled by the ice
maker’s On/Off icon on the control panel.
Press and hold the “Ice Off” icon for three
seconds to turn the ice maker “ON” or
“OFF”. When the ice maker is “OFF” the
red LED above the icon will be illuminated.
NOTE
Dispensed water is not chilled. For
colder water, add ice to cup or container
before dispensing water.
Using the ice maker after installation
Before making ice for the first time, be
sure to prime the water supply system.
Air in new plumbing lines can result in
two or three empty ice maker cycles.
Furthermore, if the system is not flushed,
the first ice cubes may be discolored or
have an odd flavor.
18
Automatic Ice & Water Maker/Dispenser
Ice maker/dispenser tips
• If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker by holding the
On/Off soft-touch icon for three seconds.
• The following sounds are normal when
the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the
ice chute opens and closes.
• If you need a large quantity of ice
at one time, it is best to get cubes
directly from the ice bin.
• When dispensing cubed ice, it is
normal to have a small quantity of little
pieces along with the whole cubes.
• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
4 Allow the ice
bin to dry
completely
before
replacing in
the freezer.
5 Replace the
ice bin. Turn
the ice maker
on.
Remove and
empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the
ice bin to melt and freeze together,
jamming the dispenser mechanism.
• You do not use the ice dispenser
frequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism.
Remove the ice bin and shake to loosen
the cubes or clean as explained above.
Removing Ice Bin
CAUTION
NEVER use an ice pick or similar
sharp instrument to break up the ice.
This could damage the ice bin and
dispenser mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make
sure it is completely dry.
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1 Turn off the ice maker.
2 Remove the ice bin by pulling straight
out.
3 Empty and carefully clean the ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clear water.
IMPORTANT
When removing or replacing the ice bin, DO
NOT rotate the auger in the ice bin. If the
auger is accidentally rotated, you must realign
the auger by turning it in 90 degree turns (see
below) until the ice bin fits into place with the
drive mechanism. If the auger is not properly
aligned when replacing the ice bin, the bin will
not install correctly. The fresh food door also
may not close properly causing warm air to
leak into the fresh food compartment.
Adjusting Ice Bin Auger
Auger
IMPORTANT
On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed
ice. This could occur in normal operation
of the ice maker. If you start seeing these
more frequently, it may be an indication of
low water pressure or the water filter needs
to be replaced. As the water filter nears the
end of its useful life and becomes clogged
with particles, less water is delivered to the
ice maker during each cycle. Remember, if
it’s been six months or longer since you last
changed your water filter, replace the water
filter with a new one. Poor quality household
water may require the filter to be changed
more frequently.
19
Storage Features
Your refrigerator includes Custom Design
TM
glass shelves that are designed to catch
and hold accidental spills.
You can easily adjust shelf positions in
the fresh food compartments to suit
your needs. The shelves have mounting
brackets that attach to slotted supports at
the rear of each compartment.
To change the position of a shelf:
1 Before adjusting a shelf, remove all food.
2 Lift the front edge up and pull the
shelf out.
3 Replace by inserting the mounting
bracket hooks into the desired
support slots.
4 Lower the shelf and lock into position.
Shelf features
CAUTION
To avoid injury from breakage, handle
tempered glass shelves carefully.
Sudden temperature changes can
cause glass breakage
NOTE
Features may vary according to model.
Half Custom Design
TM
Shelf
Opening Crisper Drawer
Drawers
Your refrigerator includes a variety of
storage drawers. These drawers are
located in fixed positions at the bottom of
the fresh food compartment.
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Crisper humidity control
Crisper drawers include a sliding control
for adjusting the humidity inside the
crisper. Leafy vegetables keep best when
stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best
when stored with the Humidity Control set
on Lower Humidity.
Adjusting Crisper Humidity
Higher
Humidity
Lower
Humidity
Humidity Control
Full Custom Design
TM
Shelf (varies by model)
20
Storage Features
Special items rack (select models)
The innovative design of the special items
rack allows you to store four bottles of
wine or soft drink bottles.
Removing Crisper Drawer
To remove the Crisper Drawer for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the
drawer.
Special Items
Rack
Cool Zone (select models)
Some models are equipped with a meat
keeper drawer for short-term storage of bulk
meat items. This drawer includes sliding
controls for adjusting the humidity inside.
Any meat to be kept longer than two days
should be frozen. If you store fruits or vegetables
in this drawer, set it to a higher humidity.
The Custom Temp
TM
Drawer is designed to keep food items at a precise temperature
whether cooler, warmer, or the same as the fresh food section of the refrigerator. The
thaw setting holds a temperature for thawing frozen foods for 12 hours. At the end of
that time, it then switches to the snacks setting to store the thawed food.
Custom Temp
TM
Drawer (select models)
To operate:
1 To turn on and off, press the drawer’s
On/Off button. The numeric display will
show a temperature between “28°F and
42°F” when on and “OFF” when off.
2 Press F/C if you prefer to display
Fahrenheit “F,” or Celsius “C”.
3 Press either the up (^) or down (v) scroll
buttons to illuminate the desired item.
4 Once an option is selected, the
drawer will adjust and maintain the
temperature for the setting selected.
5 When turned off, the Custom Temp
TM
Drawer functions as a standard
meat pan. The Custom Temp
TM
Drawer is best used for packaged
food products. Leafy vegetables and
unpackaged fruits are best kept in
one of the crisper drawers.
6 The three favorite selections
provide flexibility to set and store
personal temperature selections.
The temperature is adjusted up
by pressing the + or – buttons.
Opening the Drawer
The drawer will store the selected
temperature setting until it is changed.
7 The control buttons can be locked
to prevent accidental changes by
pressing the control lock button
for three seconds. Deactivate by
pressing for three seconds again.
21
Storage Features
To remove the Custom Temp
TM
Drawer
for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the
drawer.
Removing the Drawer
IMPORTANT
DO NOT clean the display area of the
Custom Temp
TM
Drawer with abrasive
or caustic cleaners. Wipe clean with a
moist sponge.
CAUTION
The Custom Temp
TM
Drawer and
cover can be removed for cleaning
but the control unit, attached to
the right side of the fridge, cannot
be removed. Do not immerse the
Custom Temp
TM
Drawer cover in
water or put it in a dishwasher. Clean
with a damp cloth or sponge.
NOTE
When the refrigerator is turned off by
pressing the main Wave-Touch
TM
or
IQ-Touch
TM
on/off button, the Custom
Temp
TM
Drawer will also be turned off.
When the refrigerator is turned back on,
the Custom Temp
TM
Drawer will resume
operations at the temp setting that was
set before the refrigerator was turned off.
Doors
Storage bins
The doors to your fresh food compartment
use a system of modular storage bins. All of
these bins are removable for easy cleaning.
Some of them have fixed positions, while
others can be adjusted to your needs.
Adjustable Door Bin
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used items.
To change the position of an adjustable
door bin:
1 Before
adjusting
a bin,
remove all
food.
2 Grip the
bin firmly
with both
hands
and lift it
upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until
locked in place.
Accessories (varies by model)
Tall bottle retainer
The tall bottle retainer keeps tall containers
in the bin from falling forward when opening
or closing the refrigerator door. To install,
insert the ends of the retainer into the holes.
Tilt can bins
The can bins allow you to efficiently and
securely store up to eight 12-ounce
canned beverages.
Tall
Bottle
Retainer
Tilt Can Bin
22
Storage Features
Dairy compartment
Use the dairy compartment, at the top
of the fresh food compartment door, for
short-term storage of cheese, spreads, or
butter. The dairy compartment is designed
to be warmer than the open area and
includes a lift-up cover that may be locked
and a dairy divider (select models).
Dairy Compartment
Lock
Freezer Features (varies
by model)
To Remove Upper and Middle
Baskets
1 Remove all items from baskets.
2 Remove baskets by pulling baskets
out to their full extension and lift out.
To reinstall upper and middle baskets
(select models), position basket onto the
retainer clips making sure the front of the
basket rests in the retainer clips on the
stabilizer bar.
NOTE
If basket is not resting on stabilizer bar
retainer clips, the drawer will not close
properly.
Three Freezer Baskets (select models)
Stabilizer Bar
Basket
Retainer
Clips
Removing Upper and Middle Baskets
(select models)
23
Tilt Wire Shelf
The freezer tilt wire shelf (located on
the inside of the freezer drawer) is not
designed to be removed.
To Remove Lower Basket
1 Remove all items from basket.
2 Remove the basket by tilting it
forward and lifting it from the retainer
clips.
To reinstall lower basket, insert basket into
retainer clips.
Storage Features
Lower Basket Divider &
Spill Guard Tray
Lower Basket
Divider
Spill Guard
Tray
Dividers Removal
Lift up on the front of the middle divider
and pull out.
Lift up on the rear of the lower divider and
pull out.
NOTE
Spill Guard Tray should be hand washed
in warm water.
To reposition the pivoting divider (some
models), lift up and slide to desired
location then snap back into place. The
pivoting divider is not designed to be
removed.
Lower Basket
Divider
Spill Guard
Tray
Lower Basket Pivoting Divider
(some models)
Removing Lower Basket
Basket
Retainer
Middle Basket Divider
Middle Basket
Divider
Retainers
Stabilizer
Bar
24
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34° F and 40° F with an
optimum temperature of 37° F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture
helps preserve food quality for longer
time periods.
• Wash items and remove excess water.
• Wrap any items that have strong
odors or high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or
surfaces.
• Use the deli drawer or Custom Temp
TM
drawer and set to meat/poultry setting
for short-term storage. Any meat to
be kept longer than two days should
be frozen.
Frozen food storage
• Keep the freezer compartment at 0° F
or lower.
• A freezer operates most efficiently
when it is at least 2/3 full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum foil,
freezer wrap, freezer bags, or airtight
containers. Force as much air out of
the packages as possible and seal
them tightly. Trapped air can cause
food to dry out, change color, and
develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
“express freeze” so that on your return
you can ensure your newly purchased
food designated for the freezer will be
preserved as quickly as possible.
Storing Food and Saving Energy
• Activating “express freeze” also will
help your freezer more efficiently
maintain the selected temperature
after placing new purchases with pre-
existing frozen foods.
• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of
frozen foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct sunlight,
and away from heating ducts or
registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more efficiently.
• Level the refrigerator so that the doors
close tightly.
Temperature settings
• Refer to the “Controls” section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up
inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and close
the door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
25
Normal Operating Sounds
Understanding the
sounds you may hear
Your new, high-efficiency refrigerator
may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator
is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.
The following is a list of major components
in your refrigerator and the sounds they
can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C Defrost heater During defrost
cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice
has been produced, you will hear
ice cubes falling into the ice bin. Ice
maker fan, water valve activation,
and refrigerant gas fluid may create
sounds from its operation.
E Electronic control & automatic
defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on
and off.
F Condenser fan You may hear air
being forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than
older models. The compressor may
have a high-pitched hum or pulsating
sound.
H Water valve Makes a buzzing sound
each time it opens to fill the ice
maker.
I Drain pan (not removable) You
may hear water dripping into the
drain pan during the defrost cycle.
J Condenser May create minimal
sounds from forced air.
K Motorized Custom Temp
TM
drawer damper May produce a light
humming during operation.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
NOTE
Energy efficient foam in your refrigerator
is not a sound insulator.
L Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound
when the solenoid opens and closes
the ice chute.
M Motorized damper May produce a
light humming during operation.
N Custom Temp
TM
drawer fan Turns
off when door opens or Custom
Temp
TM
drawer is turned off.
26

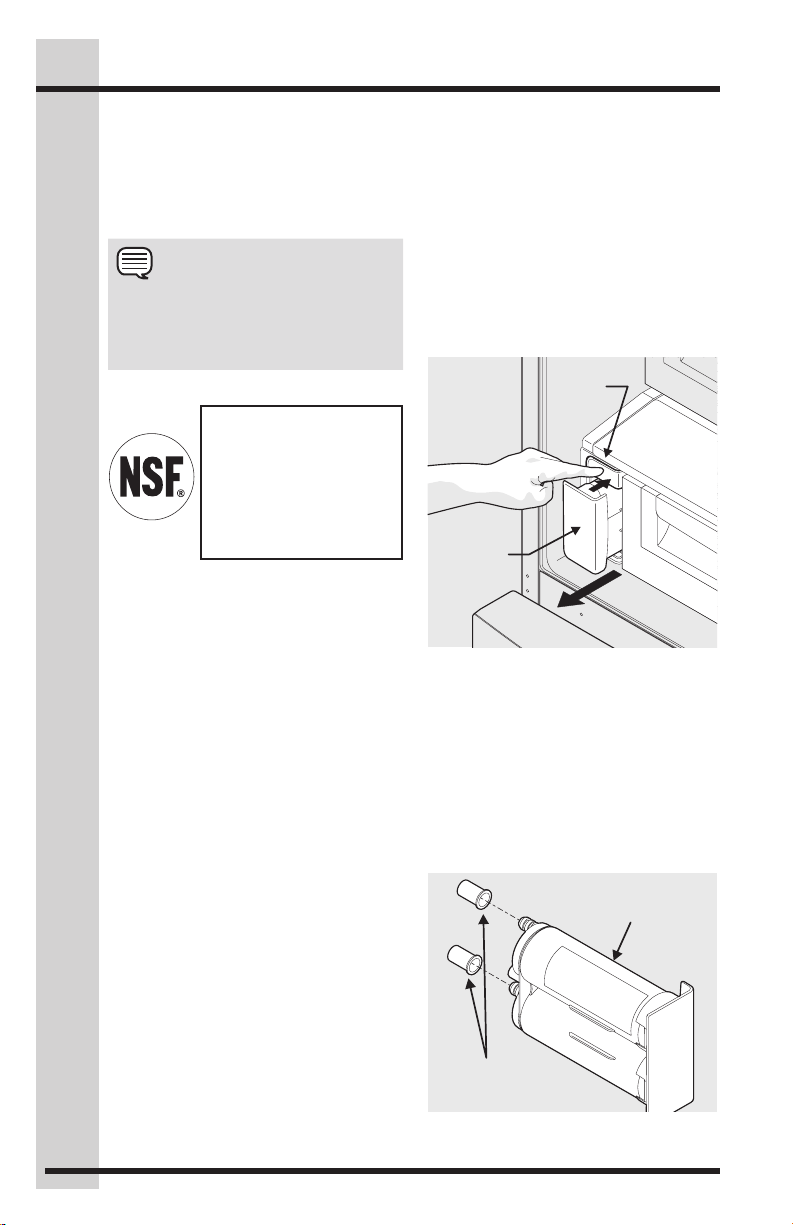

Changing The Water and Air Filters
Your refrigerator is equipped with separate
water and air filtering systems. The
water filter system filters all dispensed
drinking water, as well as the water used
to produce ice. The air filter removes
odors and impurities from the refrigerator
compartment.
Replacement
Water Filter
Remove Two
Protective Caps
Push Water Filter Button
Water Filter
Button
Water Filter
Cartridge
NOTE
The control panel includes controls to
monitor the status of your water and air
filters. See the Controls section for more
information.
About your advanced water filter
Water filter
The water filter is located at the lower left
side of the fresh food compartment.
Replacing your PureAdvantage
TM
water filter
In general, you should change the water
filter every six months to ensure the
highest possible water quality. The Water
Filter Status light on the Touch Panel
prompts you to replace the filter after a
standard amount of water (400 gallons)
has flowed through the system.
If your refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator.
It is not necessary to turn the water supply
off to change the filter. Be ready to wipe
up any small amounts of water released
during the filter replacement.
1 Turn Off the ice maker on the control
panel.
2 Push the filter release button above
the cartridge to disconnect it.
The PureAdvantage
TM
ice
and water filter system
is tested and certified by
NSF International to NSF/
ANSI Standards 42 and
53 for the reduction of
claims specified on the
performance data sheet.
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection
before or after the system. Systems
certified for cyst reduction may be used
on disinfected waters that may contain
filterable cysts.
• Rated Capacity - 400 gallons for
PureAdvantage
TM
ice and water filter
• Rated service flow - .5 gallons per
minute
• Maximum Rated Pressure - 100
pounds per square inch
• Recommended Minimum Operating
Pressure: 30pounds per square inch
• Operating Temp.: Min. 33°F, Max.
100°F
3 Slide the old water filter cartridge
straight out of the housing and
discard it.
4 Unpack the new filter cartridge and
remove the two protective caps
covering the inlet and exit of the filter.
Slide the filter gently into the housing
until it stops against the snap-in
connector at the back of the housing.
27
Reinstall Water Filter
Push-In
Until
Two Clicks
5 Push firmly until the cartridge snaps
into place (you should hear two
clicks). When fully engaged, the front
of the filter cartridge should be flush
with the filter release button.
Ordering replacement
filters
Order new filters by calling 877-808-4195,
online at www.electroluxappliances.com,
or through the dealer where you bought
your refrigerator. You may want to consider
ordering extra filters when you first install
your refrigerator.
Water Filter FC-300 PureAdvantage
TM
Replacement Cartridge
part # EWF01
Air Filter Replacement cartridge,
part # EAFCBF
Air filter
The air filter is located under the utility bin
and/or on the inside of the left door above
the ice maker chute.
Replacing your PureAdvantage
TM
air filter
To ensure optimal filtering of refrigerator
odors, you should change the air filter
every six months (the filter status light on
the Touch Panel prompts you to replace
the filter after six months). You may want
to adjust this time period depending on the
types and amounts of food you typically
store in your refrigerator.
1 Open the air filter door.
2 Remove the old filter and discard it.
3 Unpack the new filter and slide it into
the housing.
4 Close the air filter door.
Changing The Water and Air Filters
Filter located under the utility bin
Air
Filter
Filter located above the ice maker chute
6 Turn On the ice maker at the control
panel.
7 Press a drinking glass against the
water dispenser while checking
for any leaks at the filter housing.
Spurts and sputters may occur as
the system purges air out of the
dispenser system.
8 Prime the water supply system as
described previously.
9 Press and hold the Filter Status
button on the control panel for three
seconds. When the display changes
from “Replace” to “Good,” the status
has been reset.
5 Press and hold the Air Filter Reset
button on the control panel for three
seconds. When the display changes
from “Replace” to “Good,” the status
has been reset.
6 The Air Filter Reset will turn itself off
after a few seconds.
28
Care and Cleaning
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up
any spills immediately and clean the freezer and fresh food compartments at least twice a year.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.
Vacation and moving tips
Refer to the guide on the next page for details on caring and cleaning specific areas of
your refrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline
solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator
is put back into service. Contact a service representative to perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage
flooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated
surfaces with wet or damp hands.
• Sudden temperature changes can cause glass breakage.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall outlet.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not
use paper towels, scouring pads, or other abrasive cleaning materials.
Occasion Tips
Short Vacations • Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you
will only be gone a few days.
Long Vacations • Remove all food and ice if you will be gone one month or more.
• Turn the cooling system off (see “Controls” section for location
of On/Off button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up.
Block doors open if necessary.
Moving • Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
29
Care and Cleaning
Care and cleaning tips
Part Cleaning Agents Tips and Precautions
Interior &
Door Liners
• Soap and water
• Baking soda and
water
• Use two tablespoons of baking soda in one
quart of warm water.
• Be sure to wring excess water out of sponge or
cloth before cleaning around controls, light bulb
or any electrical part.
Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.
Drawers &
Bins
• Soap and water • Use a soft cloth to clean drawer runners and tracks.
• Do not wash any removable items (bins,
drawers, etc.) in dishwasher.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
• Allow glass to warm to room temperature before
immersing in warm water.
Toe Grille • Soap and water
• Mild liquid sprays
• Vacuum
• Remove toe grille (see Installation Instructions).
• Vacuum both sides and wipe with sudsy cloth or
sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non abrasive glass
cleaner
• Do not use commercial household cleaners containing
ammonia, bleach or alcohol to clean handles.
• Use a soft cloth to clean smooth handles.
• Do not use a dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless
Steel Models
Only)
• Soap and water
• Stainless steel
cleaners
• Never use CHLORIDE or cleaners with bleach to
clean stainless steel.
• Clean stainless steel front and handles with non-
abrasive soapy water and a dishcloth. Rinse with
clean water and a soft cloth.
• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most home
improvement or major department stores. Always
follow manufacturer’s instruction. Do not use
household cleaners containing ammonia or bleach.
• NOTE: Always clean, wipe and dry with grain to
prevent scratching.
• Wash the rest of the cabinet with warm water
and mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth.
Push Upward Until The
Extension Snaps In Place
Ice Chute
Extension
The ice chute
extension is designed
to better direct ice
flow into containers.
Pull Down
Press Here
Firmly
Removing the Ice Chute
Extension For Cleaning
1 Turn the
refrigerator
off using the
button on
the control
panel (refer
to Owner’s
Manual).
2 Press
inward
firmly on
the front of
the chute
and pull down.
3 Turn your refrigerator back on.
Installing the Ice Chute
Extension
1 Turn the refrigerator off using the
button on the control panel (refer to
Owner’s Manual).
2 Align the extension with the ice chute
so that the snap clips are just inside
the front edge of the chute.
3 Push upward until the extension
snaps into place.
4 Turn your refrigerator back on.
30
Care and Cleaning
Replacing LED Lights
(select models)
Both the freezer and fresh food compartments
of your refrigerator include LED lights. Always
use Electrolux parts for replacement.
To replace LED Lights:
1 Unplug your refrigerator’s power cord.
2 Remove light cover by pushing up
and out.
3 Hold the LED cover with one hand and
pull the connector with the other hand
while pressing the connector latch.
4 Replace LED light and snap in place
assuring the light is facing in toward
the unit (inside fresh food and freezer).
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195,
online at www.electroluxappliances.com, or
through the dealer where you bought the
refrigerator. Here is the product number to
request when ordering:
LED Light, Part #241891102
Incandescent Lights (40-watt bulb),
Part #5305514148
LED Light Harness Removal
LED Light Removal
NOTE
LED lights are in series so if one is bad or
unplugged, several lights may not light up.
Replacing Light Bulbs
(select models)
Both the freezer and fresh food
compartments of your refrigerator include
incandescent light bulbs that will need
replacing from time-to-time. Some lights
have covers that need to be removed before
replacing the bulbs. Always use bulbs that
are designed for appliance lighting.
CAUTION
Wear gloves when replacing incandescent
light bulbs to avoid getting cut.
To replace light bulbs:
1 Unplug your refrigerator’s power cord.
2 Wear protective gloves.
3 Remove light cover, if necessary.
4 Unscrew and replace old bulb with an
appliance bulb of the same type and
wattage (normally 40 watts).
5 Replace light cover, if necessary.
6 Plug in the refrigerator’s power cord.
Light Sockets
Located Behind
Glass Shelves
Light
Bulb
Refrigerator
Light Cover
Light
Bulb
Refrigerator Light
Light Sockets
Located Behind
Glass Shelves
Light
Bulb
Light
Bulb
Freezer
Light Cover
Freezer Light
31
Solutions to Common Problems
Before you call...
If you experience a problem with your refrigerator or notice a product behavior or
condition that you do not understand, you can usually avoid a call to your service
representative by referring to this section for an answer. Beginning with the following
table, this information includes common problems, causes, and suggested solutions.
Automatic Ice Maker
Problem Cause Correction
Ice maker is
not making
any ice.
• Ice maker is turned off.
• Refrigerator is not
connected to water line or
water valve is not open.
• The water supply line
is kinked.
• The water filter is not
seated properly.
• The water filter may be
clogged with foreign
material.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Freezer ice maker wire
signal arm is being
held up by an item not
allowing it to go in the
on or down position.
• Turn on ice maker. For the fresh food
ice maker, press and hold the “Ice
Off” button for three seconds until the
indicator light is off. For the freezer ice
maker, lower the wire signal arm.
• Connect the unit to the household water
supply and ensure the water valve is open.
• Ensure that the supply line does not
kink when the refrigerator is pushed into
place against the wall.
• Remove and re-install the water filter. Be
sure to push the filter firmly so that you
hear it lock solidly into position.
• If water dispenses slowly or not at all, or
if the filter is six months old or older, it
should be replaced.
• Turn off household water line valve.
Remove valve. Ensure that valve is not a
self-piercing saddle valve. Clean valve.
Replace valve if necessary.
• Move any item or frozen ice cubes that
may block the signal arm from being in
the on or down position. See Automatic
Ice Maker-Freezer section in manual.
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you
expect.
• The water filter may be
clogged with foreign
material.
• The water supply line
is kinked.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Heavy traffic, opening
or closing of the doors
excessively.
• The fresh food and freezer ice makers
will each produce approximately 2.5
pounds of ice every 24 hours depending
on usage conditions.
• If water dispenses slower than normal,
or if the filter is six months old or older, it
should be replaced.
• Ensure that the supply line does not
kink when the refrigerator is pushed into
place against the wall.
• Turn off household water line valve.
Remove valve. Ensure that valve is not a
self-piercing saddle valve. Clean valve.
Replace valve if necessary.
• Press Fast Freeze to temporarily increase
ice production rate.
Freezer ice
maker will
not stop
making ice.
• Ice maker wire
signal arm is being
held down by some
package in the freezer
that has fallen against
the ice maker.
• Move the item or frozen ice cubes that
may block the signal arm from being
in the off or upward position. See
Automatic Ice Maker-Freezer section in
manual.
32
Solutions to Common Problems
Automatic Ice Maker (cont’d)
Problem Cause Correction
Ice cubes
are freezing
together.
• Ice cubes are not being
used frequently enough
or interruption of power
for prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow
cubes break open in
the bin and leak their
water onto existing
ice, which causes it to
freeze together.
• Remove ice container and discard ice.
The ice maker will produce fresh supply.
Ice should be used at least twice weekly
to keep the cubes separated.
• This generally occurs when the ice
maker does not get enough water. This
is usually the result of a clogged water
filter or restricted water supply. Replace
the water filter and if the condition still
occurs check for a Saddle Valve, water
valve not turned on all the way or kinked
water supply line.
Dispenser (Ice & Water)
Problem Cause Correction
Dispenser
will not
dispense ice.
• Dispenser lock out is
engaged.
• Water supply is not
connected.
• Ice storage bin is
empty.
• Household water line
valve is not open.
• Fresh Food door is not
closed.
• Ice dispensing paddle
has been held in for more
than four to five minutes.
• Press and hold control lock for three
seconds.
• Connect water supply. See Connecting
The Water Supply section.
• Ensure ice maker is turned on. When the
first supply of ice is dropped into the bin,
the dispenser should operate.
• Open household water line valve. Allow
sufficient time for the ice to be made. When
ice is made, the dispenser should operate.
• Ensure Fresh Food door is closed. See
Problem Section, Opening/Closing of
Doors/Drawers.
• Motor is overloaded. Motor overload
protector will reset in approximately three
minutes. Ice can then be dispensed.
Ice
dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent use,
temperature fluctuations,
and/or power outages.
• Ice cubes are frozen
together.
• Ice cubes are smaller
than normal.
• Remove ice bin, thaw, and empty the
contents. Clean bin, wipe dry, and
replace in proper position. When new ice
is made, dispenser should operate.
• Use the dispenser often so that cubes
do not freeze together.
• The ice & water filter cartridge could be
clogged. Replace the filter cartridge.
Dispensing system operates best at
30-100 psi water pressure. Well water
pressures should fall within this range.
Dispenser
will not
dispense
water.
• Dispenser lock out is
engaged.
• Water filter not seated
properly.
• Water filter is clogged.
• Household water line
valve is not open.
• Press and hold control lock for three
seconds.
• Remove and reinstall the water filter. Be
sure to push the filter firmly so that you
hear it lock solidly into position.
• Replace filter cartridge. Be sure to
remove protective caps and push the
filter firmly so that you hear it lock solidly
into position.
• Open household water line valve. See
Problem section, Ice Maker Is Not
Making Ice.
33
Solutions to Common Problems
Dispenser (Ice & Water) (cont’d)
Problem Cause Correction
Water has
an odd taste
and/or odor.
• Water has not been
dispensed for an
extended period of time.
• Unit not properly
connected to cold
water line.
• Draw and discard 10-12 glasses
of water to freshen the supply and
completely rinse out the tank.
• Connect unit to cold water line that
supplies water to the kitchen faucet.
Water
pressure is
extremely
low.
• Cut-off and cut-on
pressures are too low
(well systems only).
• Reverse osmosis
system is in
regenerative phase.
• Have someone turn up the cut-off and
cut-on pressure on the water pump
system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during the
regenerative phase.
Light Is Not On
Problem Cause Correction
Light is not
on.
• Light bulb is burned out
or LED light is damaged.
• No electric current is
reaching refrigerator.
• Control system has
disabled lights because
one or both doors were
left open too long.
• See Replacing Light Bulbs or LED Lights
in Care and Cleaning section.
• See Problem section, Running Your
Refrigerator.
• Close and reopen door(s) to enable
lights.
Odors In Refrigerator
Problem Cause Correction
Interior is
dirty.
Odors
• Interior needs to be
cleaned.
• Food with strong
odors is stored in
refrigerator.
• See Care & Cleaning Tips.
• Cover food tightly. Turn on air filtration
system. Air filter may need to be changed
more frequently if foods with strong odors
are routinely stored in refrigerator.
Opening/Closing Of Doors/Drawers
Problem Cause Correction
Door(s) will
not close.
• Refrigerator is not level.
It rocks on the floor
when moved slightly.
• Ensure floor is level and solid, and can
adequately support the refrigerator. Contact a
carpenter to correct a sagging or sloping floor.
Drawers are
difficult to
move.
• Food is touching shelf
on top of drawer.
• Drawer is overloaded.
• Keep less food in drawer.
• Remove or redistribute food.
34 Solutions to Common Problems
Running Your Refrigerator
Problem Cause Correction
Compressor
does not
run.
• Cooling system is
turned Off.
• Refrigerator is in
defrost cycle.
• Plug at wall outlet is
disconnected.
• House fuse is blown or
a tripped circuit breaker.
• Power outage.
• Electronic control
system keeps the
refrigerator at a
constant temperature.
• Turn cooling system On. See Controls
Section for location of cooling system
On/Off button.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs
periodically, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-
delay fuse. Reset circuit breaker.
• Check house lights. Call local Electric
Company.
• This is normal. Refrigerator goes on and
off to keep temperature constant.
Refrigerator
runs too
much or too
long.
• Room or outside
weather is hot.
• Refrigerator has
recently been
disconnected for a
period of time.
• Automatic ice maker is
operating.
• Doors are opened too
frequently or too long.
• Refrigerator/freezer
door may be slightly
open.
• Freezer control is set
too cold (control found
in fresh food section).
• Fresh food/freezer
gasket is dirty, worn,
cracked, or poorly fitted.
• Your variable speed
compressor is
designed to run 100%
of the time except
during the defrost
cycle. At times it will
run faster, such as
after a defrost cycle.
• It’s normal for the refrigerator to work
longer under these conditions.
• It takes 8-12 hours for the refrigerator to
cool down completely.
• Ice maker operation causes refrigerator
to run slightly more.
• Warm air entering the refrigerator causes
it to run more. Open doors less often.
• Ensure refrigerator is level. Keep food
and containers from blocking door. See
Problem section, Opening/ Closing of
Doors/ Drawers.
• Set freezer control to warmer setting until
refrigerator temperature is satisfactory.
Allow 24 hours for temperature to stabilize.
• Clean or change gasket. Leaks in door
seal will cause refrigerator to run longer in
order to maintain desired temperatures.
• It is normal for the compressor to run
continuously except during defrost
mode.
Digital
temperature
displays are
flashing.
• Electronic control
system has detected a
performance problem.
• Call your Electrolux service
representative, who can interpret any
messages or number codes flashing on
the digital displays.
35
Solutions to Common Problems
Temperatures Are Too Cold
Problem Cause Correction
Freezer
temperature
too cold.
Refrigerator
temperature
is satisfactory.
• Freezer control is set
too cold.
• Ice maker is on.
• Set freezer control to a warmer setting.
Allow 24 hours for temperature to stabilize.
• It is normal for the freezer compartment
to over cool while automatic ice maker
is on.
Refrigerator
temperature
too cold.
Freezer
temperature
is satisfactory.
• Refrigerator control is
set too cold.
• Set refrigerator control to a warmer
setting. Allow 24 hours for temperature
to stabilize.
Food stored
in drawers
freezes.
• Refrigerator control is
set too cold.
• See solution above.
Food stored
in Meat
Keeper
freezes
(select
models).
• Meat Keeper
temperature control is
set too cold.
• Adjust Meat Keeper temperature control
to a warmer setting. Meat should be
stored at a temperature just below the
freezing point for maximum fresh storage
time. It is normal for ice crystals to form
due to the moisture content of meat.
Temperatures Are Too Warm
Problem Cause Correction
Freezer/
Refrigerator
temperature
is too warm.
• Doors are opened too
frequently or too long.
• Door is slightly open.
• Warm air enters the refrigerator
whenever the door is opened. Open the
door less often.
• See Problem section, Opening/Closing
of Doors/Drawers.
Freezer
temperature
is too warm.
Refrigerator
temperature
is satisfactory.
• Freezer control is set
too warm.
• Set freezer control to a colder setting.
Allow 24 hours for temperature to
stabilize.
Refrigerator
temperature
is too warm.
Freezer
temperature
is satisfactory.
• Refrigerator control is
set too warm.
• Set refrigerator control to a colder
setting. Allow 24 hours for temperature
to stabilize.
Temperature
in the Deli
Drawer or
Custom
Temp
TM
Drawer is too
warm (select
models).
• Temperature control is
set too warm.
• Adjust temperature control to a colder
setting.
36 Solutions to Common Problems
Water/Moisture/Frost Inside Refrigerator
Problem Cause Correction
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and
humid.
• Door is slightly open.
• Door is opened too
often or too long.
• Open containers.
• The rate of frost buildup and internal
sweating increases.
• See Problem section, Opening/Closing
of Doors/Drawers.
• Open door less often to allow internal
temperature to stabilize.
• Keep containers covered.
Water collects
on bottom
side of drawer
cover.
• Vegetables contain
and give off moisture.
• Moisture on the bottom side of the cover
is not unusual.
• Move humidity control (select models) to
lower setting.
Moisture
collects in
bottom of
drawer.
• Washed vegetables
and fruit drain while in
the drawer.
• Fruits and vegetables are
kept past their prime.
• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.
• Routinely clean out old fruits and vegetables
especially if they begin to break down.
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid.
• Door is slightly open,
causing cold air from
inside refrigerator to meet
warm air from outside.
• This is normal in humid weather. When
humidity is lower, the moisture should
disappear.
• See Problem section, Opening/Closing
of Doors/Drawers.
37
Warranty
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During
the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in
the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed
outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
13. Damages to the finish of appliance or home incurred during transportation or installation,
including but not limited to floors, cabinets, walls, etc.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF
THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your
appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home
Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes
no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
