Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Y The main points in brief 18
3
* Getting to know your appliance 19
3
Z Laundry 22
3
/ Programmes and buttons 23
3
1 Operating the appliance 26
3
M Signal setting 32
3
> Noises 33
3
D Cleaning 34
3
3 Faults and what to do about them 36
3
J After-sales service 38
3
[ Consumption values 39
3
J Technical data 40
3
8 Intended use
4
Intended use
4
â This appliance is intended for private domestic use only.
4
â Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
â This appliance must only be used for drying and freshening up domestic laundry, consisting of items that have been washed with water and are suitable for tumble drying (see label on item). Using the appliance for any other purpose is outside of t...
4
â This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
â The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
4
â Children must not play with this appliance.
4
â Do not allow children to clean or maintain this appliance unsupervised.
5
â Keep children under 3 years and pets away from this appliance.
5
â Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
â Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
â Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
â The mains voltage on your power socket matches the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
â The appliance is only connected to a source of alternating current via a nationally recognized and grounded outlet that has been correctly installed.
6
â The mains plug and the grounded socket match and the earthing system has been correctly installed.
6
â The cross section of the cable is sufficiently large enough.
6
â The mains plug is accessible at all times.
6
â If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of fire/material damage/ damage to the appliance!
6
: Warning
6
Risk of injury/material damage/damage to the appliance!
6
: Warning
7
Risk of injury!
7
Operation
7
: Warning
7
Risk of explosions/fire!
7
â Rinse the laundry thoroughly with warm water and detergent before drying it in the machine.
7
â Do not place laundry in this appliance to be dried if the laundry has not been washed first.
7
â Do not use the appliance if industrial chemicals have been used to clean the laundry.
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
â During the last part of the drying cycle, the laundry in the drum is not heated (cooling cycle). This is to ensure that it remains at a temperature at which it will not be damaged.
8
â Do not switch off the appliance before the drying cycle has finished unless you remove all items of laundry from the drum immediately and spread them out (to dissipate the heat).
8
: Warning
8
Risk of poisoning/material damage!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
â If the amount of laundry in the appliance exceeds its maximum load capacity, it may not be able to operate properly, or this may result in material damage or damage to the appliance.
9
Do not exceed the maximum load capacity of dry laundry. Make sure you comply with the maximum load capacities specified for each of the programs. ~ Page 23
9
â If you operate the appliance without a fluff filter, or if the fluff filter is defective, this may result in damage to the appliance.
9
Do not operate the appliance without a fluff filter, or with a fluff filter that is defective.
9
â Light objects such as hair and lint may be sucked into the air inlet when the appliance is in operation.
9
Keep these away from the appliance.
9
â Foam and foam rubber may deform or melt if dried in the appliance.
9
Do not dry laundry items that contain foam or foam rubber in the appliance.
9
â If you pour the wrong quantity of detergent or cleaning agent into the appliance, this may result in material damage or damage to the appliance.
9
Use detergents/care products/cleaning agents and softeners in accordance with the manufacturers' instructions.
9
â If the appliance overheats, it may not be able to operate properly, or this may result in material damage or damage to the appliance.
10
Make sure that the appliance's air inlet is never obstructed when the appliance is in operation, and that the area around the appliance is adequately ventilated.
10
Cleaning/Maintenance
10
: Warning
10
Danger of death!
10
â Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
â Never take hold of the mains plug with wet hands.
10
â When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
â Do not make any technical modifications to the appliance or its features.
10
â Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
10
â Spare mains cables can be ordered from our customer service.
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
â Do not allow these agents to come into contact with the surfaces of the appliance.
11
â Clean the appliance with nothing but water and a soft, damp cloth.
11
â Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Coolant
12
Greenhouse gas:
12
R134a
12
Energy-saving tips
12
â Spin the laundry before drying. The drier the laundry, the shorter the drying time will be, thus consuming less energy.
12
â Load the dryer with the maximum load.
12
Note:
12
â Ventilate the room and keep the air inlet on the dryer free to ensure air exchange.
12
â Clean the fluff filter after each drying cycle. If the fluff filter is dirty, the drying time is prolonged and energy consumption is increased.
12
â Energy saving mode: If the dryer is not operated for a prolonged period, it automatically switches off before the program starts and when the program has ended to save energy. The display panel and indicator lamps go off after a few minutes and t...
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
â Dryer
13
â Installation and operating instructions
13
â Basket for woollens
13
â Condensation drain*
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
â As the dryer is heavy, you could injure yourself by trying to lift it. Do not lift the dryer on your own.
13
â You could cut your hands on the sharp edges of the dryer. Do not hold the dryer by the sharp edges.
13
â Protruding parts on the dryer may break off when it is lifted or pushed. Do not move the dryer by holding on to protruding parts.
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
â Check the dryer for damage caused during transportation. Never operate a dryer if it is damaged.
13
â Any residual water in the dryer may freeze and damage the dryer. Do not install the dryer in rooms that are at risk of frost.
13
â The dryer is placed on a clean, level and firm surface,
13
â The mains plug can be accessed at all times,
13
â The air inlet on the dryer is kept clear and there is sufficient ventilation,
13
â The area around the dryer is kept clean and
13
â The dryer is levelled using the threaded feet.
14
Note:
14
Note:
14
If in doubt, have the appliance connected by a specialist.
14
Changing the condensation drain
14
Notes
14
Proceed as follows to change the condensation drain:
14
1. Remove the accessories from the dryer drum.
14
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
14
3. Disconnect the hose from the connecting piece and put it in the "parked" position.
14
4. Take the drain hose from the accessories and secure it to the free connecting piece.
14
5. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
15
Caution!
15
Accumulated water can be drawn back into the dryer and may cause material damage.
15
Check that the water drains away from the wash basin quickly. The drain must not be sealed or blocked.
15
Caution!
15
Material damage due to leaks or draining water.
15
Secure the drain hose so that it cannot slip out.Do not kink the drain hose. Ensure that a height difference of max. 100 cm and min. 80 cm between the installation surface and the drain is maintained for drainage into a siphon.
15

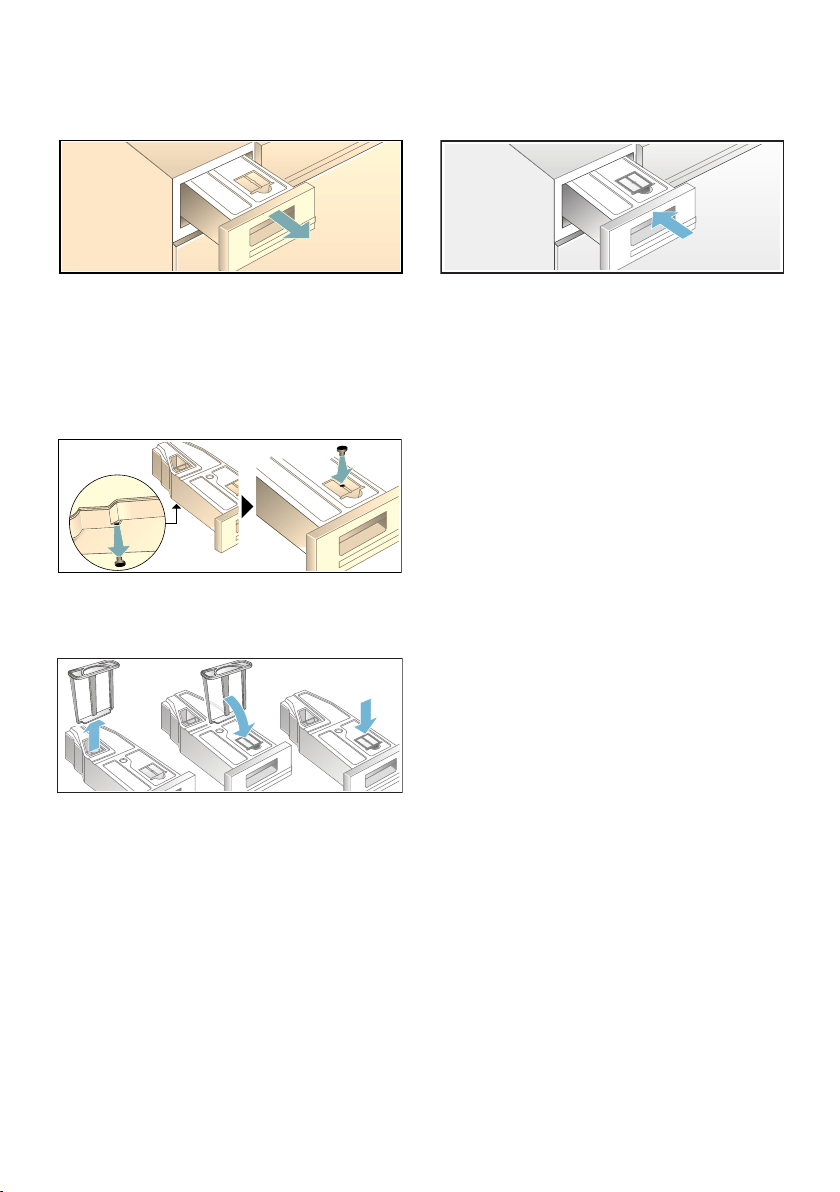

6. Pull out the condensation container fully.
16
7. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.Turn the condensation container back over and insert the stopper into the recess in the top of the condensation container.
16
8. Pull the filter out of the lock-in slot and place it into the recess in the top of the condensation container.
16
9. Slide in the condensation container until it clicks into place.
16
Note:
16
If you want to change the condensation drain back to the condensation container, carry out all these steps in reverse order.
16
Optional accessories
17
â Washer-dryer stack connection set:
17
â Platform:
17
Transport and frost protection
17
1. Empty the condensate container.
17
2. Select any programme using the programme selector.
17
3. Press the Start button.
17
4. Wait for 5 minutes.
17
Note:
17
5. Empty the condensate container again.
17
6. Switch off the dryer.
17
Note:
17
Despite draining, there will always be some residual water in the dryer.
17
Caution!
17
Any residual water may leak out and cause material damage.
17
Caution!
17
The dryer contains coolant and may be damaged.
17

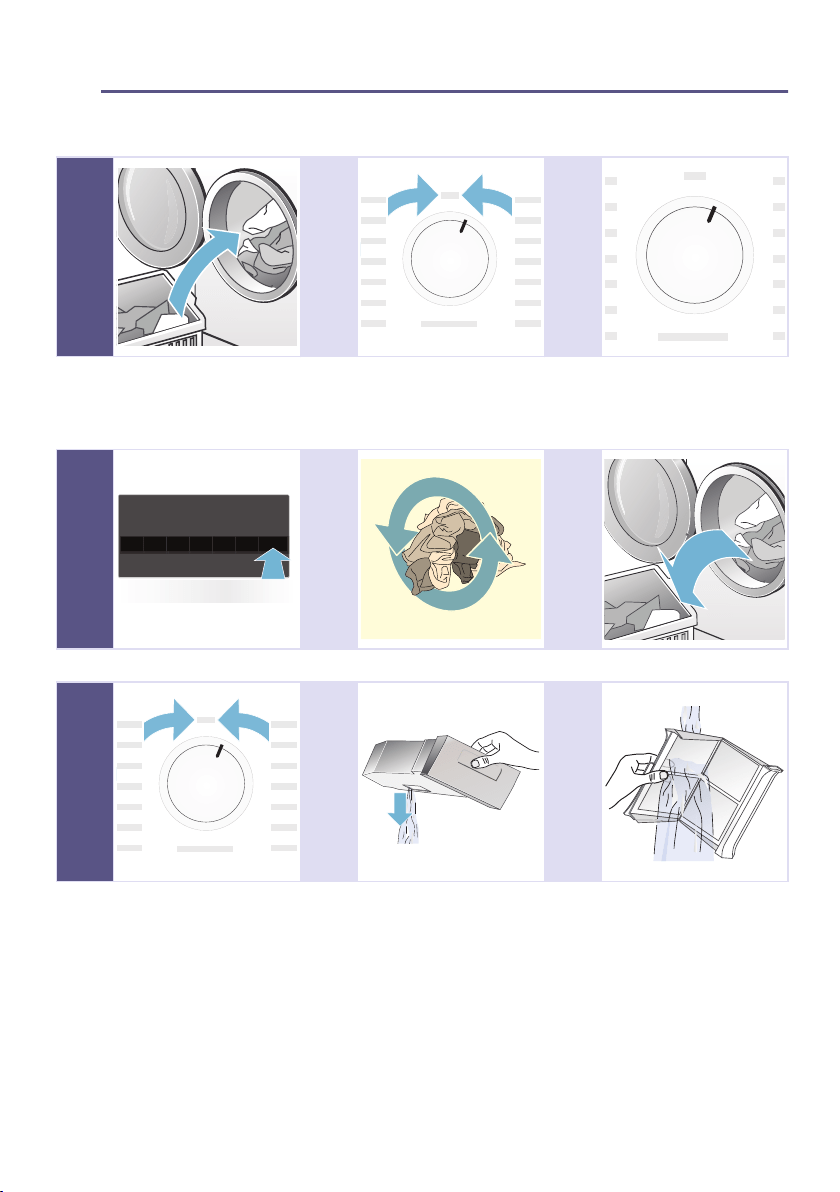

Y The main points in brief
18
The main points in brief
18

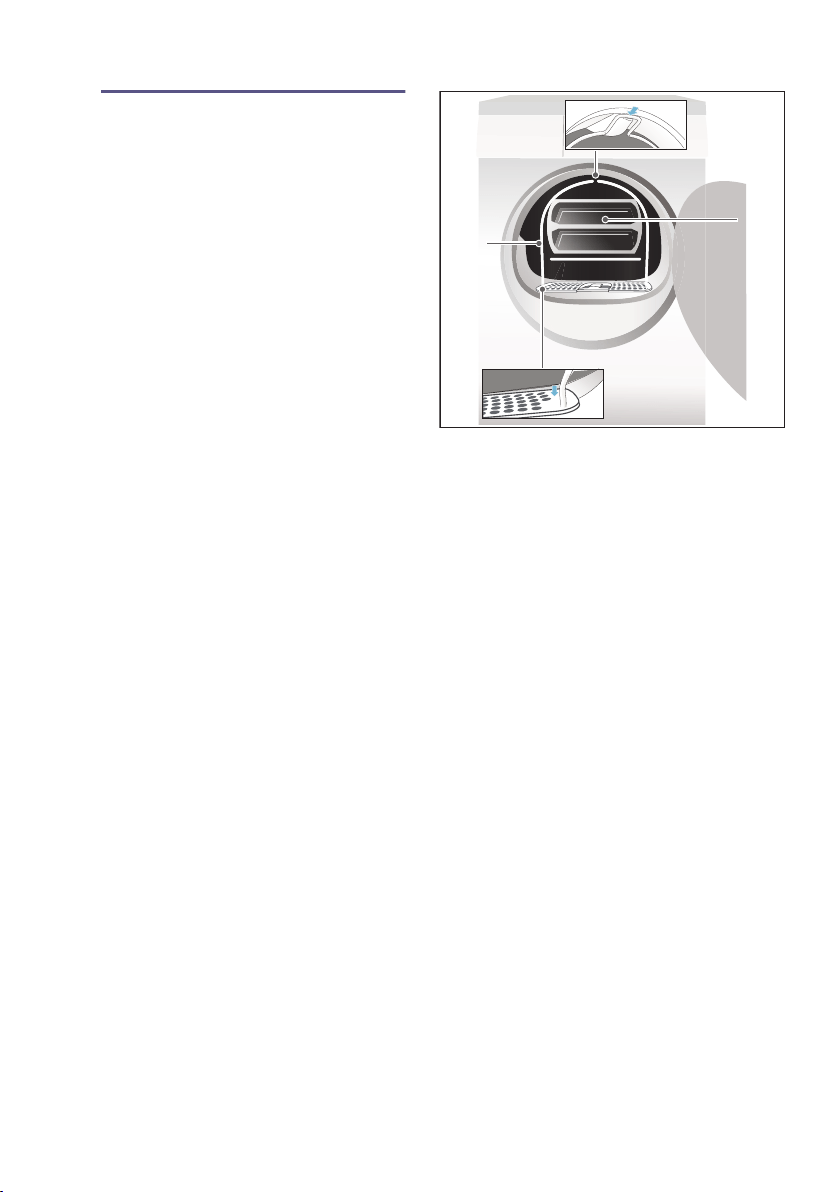

* Getting to know your appliance
19
Getting to know your appliance
19
Dryer
19
Control panel
20
Note:
20
All buttons are sensitive and only need to be touched briefly.
20
Display panel
21
Buttons in the display panel
21
Display panel
21
Z Laundry
22
Laundry
22
Preparing the laundry
22
: Warning
22
Risk of explosion/fire!
22
Caution!
22
The dryer drum and fabrics could be damaged.
22
â Tie cloth belts, apron strings, etc. together or use a laundry bag.
22
â Close zips, hooks and eyelets and buttons. Button up large items of laundry, such as covers.
22
â Remove any metal objects, such as paper clips, from pockets.
22
â To ensure a consistent drying result, sort laundry by fabric type and drying programme.
22
â Always dry very small items of laundry, e.g. babies' socks, together with large items such as towels.
22
â Knitted fabrics such as T-shirts and jerseys often shrink the first time they are tumble-dried. Use a gentle programme.
22
â Do not overdry easy-care laundry. This increases creasing of the laundry.
22
â Use timed programmes for single garments.
22
â Some detergents and care products, e.g. starch or softeners, contain particles which may be deposited on the moisture sensor. This may impair the sensor function and in consequence the drying result.
22
Notes
22
Sorting washing according to:
22
Note:
22
Do not load laundry from the washing machine directly into the tumble dryer. Sort the spun laundry before placing it in the dryer drum.
22
Caution!
22
Possibility of material damage to the dryer or laundry.
22
Do not tumble-dry the following fabrics:
22
â Laundry contaminated with oil.
22
â Unwashed fabrics.
22
â Non-breathable fabrics (e.g. rubber- coated).
22
â Easily damaged fabrics such as silk, synthetic curtains.
22
/ Programmes and buttons
23
Programmes and buttons
23
Programmes
23
Programme and fabrics
23
Maximum load and programme settings/info
23
Note:
24
Buttons
25
Buttons
25
Explanations and notes
25
Note:
25
Note:
25
1 Operating the appliance
26
Operating the appliance
26
Loading laundry and switching on the dryer
26
Note:
26
The dryer must be correctly positioned and connected, ~ Page 13.
26
1. Place the laundry in the drum.
26
2. Turn the programme selector to any programme to switch the dryer on.
26
3. Close the dryer door.
26
Caution!
26
Possibility of material damage to the dryer or laundry.
26
The basket for woollens
26
Note:
26
The basket for woollens is supplied with your dryer or it can be purchased as an accessory from the after-sales service.
26
Caution!
26
Risk of material damage to the dryer and fabrics.
26
Drying with the basket for woollens
27
1. Insert the feet of the basket for woollens into the holes on the fluff filter.
27
2. Lean the basket for woollens against the upper notch.
27
3. Place the required fabric in the insert of the basket for woollens
27
Notes
27
a) Trousers or skirt
27
b) Pullover
27
c) Sports shoes
27
d) Soft toys
27
4. Place the insert or the sports shoes in the basket for woollens.
28
Caution!
28
Risk of material damage to the fabrics.
28
Place the fabrics in the insert of the basket for woollens so that they do not come into contact with the drum.
28
5. Use the programme selector to select the programme for the basket for woollens or a time programme.
28
6. Set the drying time.
28
Note:
28
7. Start the programme.
28
8. Remove the fabrics and switch off the dryer.
28
Setting a programme
28
Note:
28
If you have activated the childproof lock, you must deactivate it before you can set a programme, see ~ Page 25.
28
1. Select the required programme; detailed information on the programmes can be found from ~ Page 23 onwards.
28
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
28
Note:
28
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 23 onwards.
28
Starting the programme
28
Note:
28
If you want to lock the programme to prevent it from being adjusted inadvertently, you can select the childproof lock, see ~ Page 25.
28
Programme sequence
29
Note:
29
When a programme is selected, the expected drying time for the recommended load is displayed. During drying moisture sensors detect the remaining moisture in the load and adjust the programme length (except timed programmes). This is visible via the ...
29
Changing the programme or adding laundry
29
1. To pause the programme, open the dryer door or press the Start button.
29
2. Add or remove laundry.
29
3. Select another programme or an additional function, if required.
29
4. Close the dryer door.
29
5. Press the Start button.
29
Note:
29
The programme duration in the display panel is updated depending on the load and residual moisture in the laundry. The values displayed may change after the programme is changed or the load is adapted.
29
Cancelling the programme
29
Caution!
29
Risk of fire. Laundry may catch fire.
29
Programme end
29
Removing laundry and switching off the dryer
29
1. Remove the laundry.
29
2. Turn the programme selector to the "off" position.
29

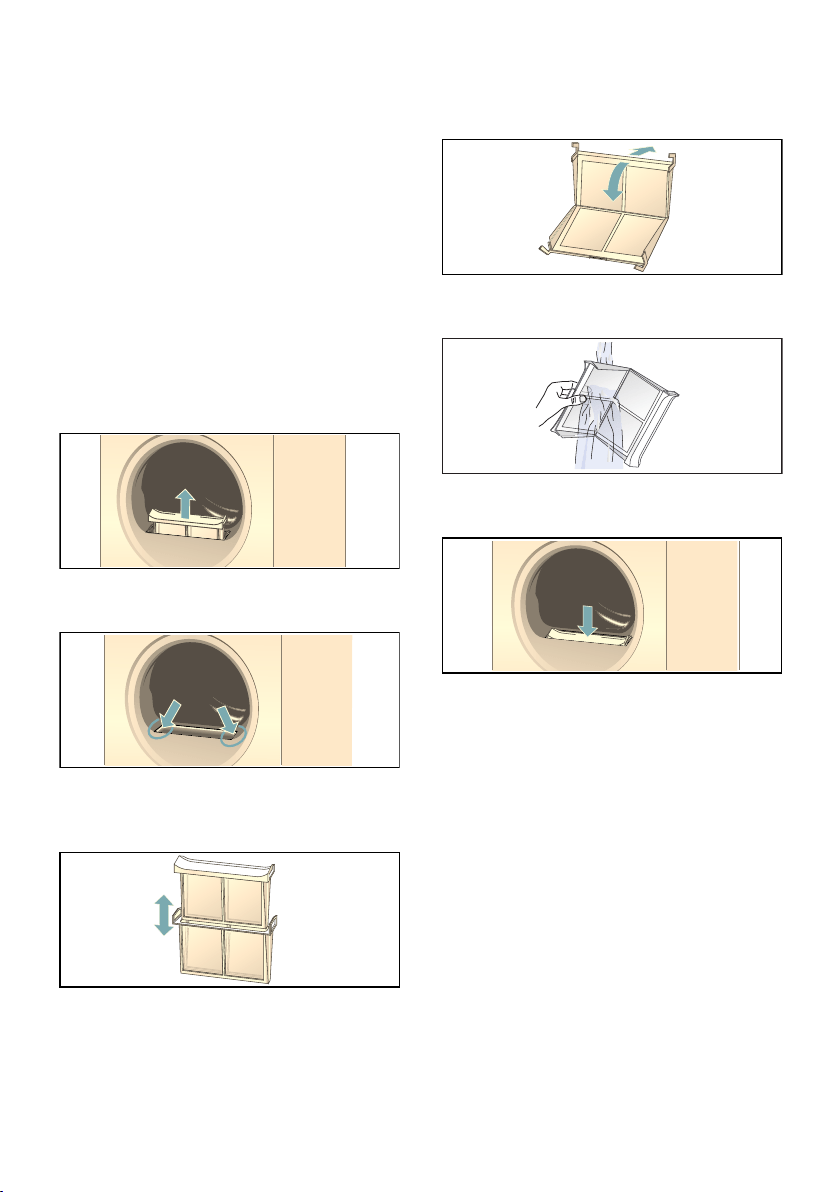

Clean the fluff filter
30
Note:
30
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. Clean fluff filters also reduce ene...
30
1. Open the dryer door and remove all fluff from the door.
30
2. Pull out the two-part fluff filter.
30
3. Remove the fluff from the recess in the fluff filter.
30
Note:
30
4. Pull apart the two-part fluff filter.
30
5. Open both filters and remove all the fluff.
30
6. Rinse away the fluff under warm, running water.
30
7. Dry the fluff filter, close it and reinsert the two-part fluff filter.
30
Caution!
30
The dryer may be damaged.
30
Emptying the condensate container
31
Notes
31
Note:
31
After each drying cycle, empty the condensate container; otherwise the next drying programme may be cancelled as a result of the condensate container being full.
31
1. Pull out the condensate container horizontally.
31
2. Pour out the condensation water.
31
Caution!
31
Dirty condensation water may be harmful to your health and cause material damage.
31
Condensation water is not suitable for drinking and may be contaminated with fluff. Do not drink the condensation water or reuse it.
31
3. Push in the condensate container until you feel it lock back into place in the dryer.
31
Note:
31
The filter in the condensate container filters the condensation which is used during the dryer's automatic cleaning cycle. The filter is cleaned by emptying the condensation. Nevertheless, you should check the filter regularly for remaining deposits ...
31
M Signal setting
32
Signal setting
32
â The spin speed that is used for spinning your laundry before it is dried,
32
â The volume of the audible signal at the end of the programme,
32
â The volume of the audible button signals.
32
Activating setting mode
32
1. Switch the dryer on.
32
2. Select the "Cottons" programme in position 1 and wait for five seconds.
32
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
32
2. The spin speed is shown in the display.
32
3. Press the "Ready in" time button or the drying time button to change the spin speed.
32
4. Turn the programme selector clockwise to position 3.
32
5. The volume of the audible signal at the end of the programme is shown in the display.
32
6. Press the "Ready in" time button or the drying time button to change the volume.
32
7. Turn the programme selector clockwise to position 4.
32
8. The volume for the audible button signal is shown in the display.
32
9. Press the "Ready in" time button or the drying time button to change the volume.
32
> Noises
33
Noises
33
Note:
33
During drying, particularly in the initial phase, operation of the appliance results in noise from the compressor and pump. This is perfectly normal and does not impair proper functioning of the appliance.
33
D Cleaning
34
Cleaning
34
Cleaning the dryer and the control panel
34
: Warning
34
Risk of death!
34
Cleaning the moisture sensor
34
Note:
34
The dryer is equipped with a stainless-steel moisture sensor. The moisture sensor measures how damp the laundry is.
34
After long periods of usage the moisture sensor may become covered by a fine layer of limescale or residues of detergents and care products. Such residues must be removed regularly as the sensor function and in consequence the drying result may be im...
34
Caution!
34
Moisture sensor may be damaged.
34
Cleaning the filter in the condensate container
35
Note:
35
The filter in the condensate container cleans the condensation water that is used during the dryer's automatic cleaning cycle.
35
1. Pull out the condensate container horizontally.
35
2. Pour out the condensation water.
35
3. Remove the filter.
35
4. Clean the filter under warm, running water or in the dishwasher.
35
5. Push in the filter until you feel it lock into place.
35
Caution!
35
The dryer may be contaminated with fluff and thus become damaged.
35
Only operate the dryer with the filter inserted.
35
6. Push in the condensate container until you feel it lock into place.
35
3 Faults and what to do about them
36
Faults and what to do about them
36
Faults
36
Cause/remedy
36
Note:
36
Note:
37
If you cannot rectify the fault yourself by turning the dryer off and then on again, please contact our after-sales service.
37
J After-sales service
38
After-sales service
38
[ Consumption values
39
Consumption values
39
Consumption values table
39
Programme
39
8 kg
39
4 kg
39
8 kg
39
4 kg
39
1400 rpm
39
179 min
39
111 min
39
1.57 kWh
39
0.93 kWh
39
1000 rpm
39
203 min
39
122 min
39
1.80 kWh
39
1.04 kWh
39
800 rpm
39
227 min
39
143 min
39
2.04 kWh
39
1.25 kWh
39
1400 rpm
39
125 min
39
75 min
39
1.10 kWh
39
0.66 kWh
39
1000 rpm
39
150 min
39
90 min
39
1.36 kWh
39
0.82 kWh
39
800 rpm
39
176 min
39
106 min
39
1.64 kWh
39
0.98 kWh
39
3.5 kg
39
3.5 kg
39
800 rpm
39
55 min
39
0.51 kWh
39
600 rpm
39
71 min
39
0.66 kWh
39
Most efficient programme for cotton fabrics
39
The following "standard cottons programme" (identified with ü) is suitable for drying normal, wet cotton laundry and is most efficient in terms of its combined energy consumption for drying wet cotton laundry.
39
Standard programmes for cottons in accordance with current EU regulation 932/2012
39
Programme
39
Load
39
Energy consumption
39
Programme length
39
J Technical data
40
Technical data
40
File type: PDF
File name: 24303661_r8580x2es-05.pdf
File size: 2.99 MB
File Language: English
Pages: 44
Author: Neff
File created: 2016-03-24
Published: 2022-05-21
Updated: 2023-05-06
Download File
Specifications
Brand:
Neff
Model: R8580X2ES/05
Category:
Washers & Dryers
See other models:
V6540X0GB/01
P11N43MK(00)
R7380X0EU/13
R7380X1EU/30
KF2223F30(00)
Download User Manual
Related Products
Neff R8581X2ES/05
Neff R8580X2IR/05
Neff R8580X3GB
Neff R8580X2IR/09
Neff R8580X3GB/01
Neff R8580X2GB/01
Neff R8580X2IR/10
Neff R8581X3ES/01
Neff R8580X2IR/08
Neff R8580X1GB/40
Neff R8580X0GB/30
Neff R8580X0GB/27
Neff R8580X1GB/45
Neff R8580X1GB/43
Neff R8580X0GB/35
Table of Contents
×
Your new tumble dryer
2
Display rules
2
â / -
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Y The main points in brief 18
3
* Getting to know your appliance 19
3
Z Laundry 22
3
/ Programmes and buttons 23
3
1 Operating the appliance 26
3
M Signal setting 32
3
> Noises 33
3
D Cleaning 34
3
3 Faults and what to do about them 36
3
J After-sales service 38
3
[ Consumption values 39
3
J Technical data 40
3
8 Intended use
4
Intended use
4
â This appliance is intended for private domestic use only.
4
â Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
â This appliance must only be used for drying and freshening up domestic laundry, consisting of items that have been washed with water and are suitable for tumble drying (see label on item). Using the appliance for any other purpose is outside of t...
4
â This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
â The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
4
â Children must not play with this appliance.
4
â Do not allow children to clean or maintain this appliance unsupervised.
5
â Keep children under 3 years and pets away from this appliance.
5
â Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
â Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
â Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
â The mains voltage on your power socket matches the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
â The appliance is only connected to a source of alternating current via a nationally recognized and grounded outlet that has been correctly installed.
6
â The mains plug and the grounded socket match and the earthing system has been correctly installed.
6
â The cross section of the cable is sufficiently large enough.
6
â The mains plug is accessible at all times.
6
â If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of fire/material damage/ damage to the appliance!
6
: Warning
6
Risk of injury/material damage/damage to the appliance!
6
: Warning
7
Risk of injury!
7
Operation
7
: Warning
7
Risk of explosions/fire!
7
â Rinse the laundry thoroughly with warm water and detergent before drying it in the machine.
7
â Do not place laundry in this appliance to be dried if the laundry has not been washed first.
7
â Do not use the appliance if industrial chemicals have been used to clean the laundry.
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
â During the last part of the drying cycle, the laundry in the drum is not heated (cooling cycle). This is to ensure that it remains at a temperature at which it will not be damaged.
8
â Do not switch off the appliance before the drying cycle has finished unless you remove all items of laundry from the drum immediately and spread them out (to dissipate the heat).
8
: Warning
8
Risk of poisoning/material damage!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
â If the amount of laundry in the appliance exceeds its maximum load capacity, it may not be able to operate properly, or this may result in material damage or damage to the appliance.
9
Do not exceed the maximum load capacity of dry laundry. Make sure you comply with the maximum load capacities specified for each of the programs. ~ Page 23
9
â If you operate the appliance without a fluff filter, or if the fluff filter is defective, this may result in damage to the appliance.
9
Do not operate the appliance without a fluff filter, or with a fluff filter that is defective.
9
â Light objects such as hair and lint may be sucked into the air inlet when the appliance is in operation.
9
Keep these away from the appliance.
9
â Foam and foam rubber may deform or melt if dried in the appliance.
9
Do not dry laundry items that contain foam or foam rubber in the appliance.
9
â If you pour the wrong quantity of detergent or cleaning agent into the appliance, this may result in material damage or damage to the appliance.
9
Use detergents/care products/cleaning agents and softeners in accordance with the manufacturers' instructions.
9
â If the appliance overheats, it may not be able to operate properly, or this may result in material damage or damage to the appliance.
10
Make sure that the appliance's air inlet is never obstructed when the appliance is in operation, and that the area around the appliance is adequately ventilated.
10
Cleaning/Maintenance
10
: Warning
10
Danger of death!
10
â Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
â Never take hold of the mains plug with wet hands.
10
â When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
â Do not make any technical modifications to the appliance or its features.
10
â Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
10
â Spare mains cables can be ordered from our customer service.
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
â Do not allow these agents to come into contact with the surfaces of the appliance.
11
â Clean the appliance with nothing but water and a soft, damp cloth.
11
â Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Coolant
12
Greenhouse gas:
12
R134a
12
Energy-saving tips
12
â Spin the laundry before drying. The drier the laundry, the shorter the drying time will be, thus consuming less energy.
12
â Load the dryer with the maximum load.
12
Note:
12
â Ventilate the room and keep the air inlet on the dryer free to ensure air exchange.
12
â Clean the fluff filter after each drying cycle. If the fluff filter is dirty, the drying time is prolonged and energy consumption is increased.
12
â Energy saving mode: If the dryer is not operated for a prolonged period, it automatically switches off before the program starts and when the program has ended to save energy. The display panel and indicator lamps go off after a few minutes and t...
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
â Dryer
13
â Installation and operating instructions
13
â Basket for woollens
13
â Condensation drain*
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
â As the dryer is heavy, you could injure yourself by trying to lift it. Do not lift the dryer on your own.
13
â You could cut your hands on the sharp edges of the dryer. Do not hold the dryer by the sharp edges.
13
â Protruding parts on the dryer may break off when it is lifted or pushed. Do not move the dryer by holding on to protruding parts.
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
â Check the dryer for damage caused during transportation. Never operate a dryer if it is damaged.
13
â Any residual water in the dryer may freeze and damage the dryer. Do not install the dryer in rooms that are at risk of frost.
13
â The dryer is placed on a clean, level and firm surface,
13
â The mains plug can be accessed at all times,
13
â The air inlet on the dryer is kept clear and there is sufficient ventilation,
13
â The area around the dryer is kept clean and
13
â The dryer is levelled using the threaded feet.
14
Note:
14
Note:
14
If in doubt, have the appliance connected by a specialist.
14
Changing the condensation drain
14
Notes
14
Proceed as follows to change the condensation drain:
14
1. Remove the accessories from the dryer drum.
14
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
14
3. Disconnect the hose from the connecting piece and put it in the "parked" position.
14
4. Take the drain hose from the accessories and secure it to the free connecting piece.
14
5. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
15
Caution!
15
Accumulated water can be drawn back into the dryer and may cause material damage.
15
Check that the water drains away from the wash basin quickly. The drain must not be sealed or blocked.
15
Caution!
15
Material damage due to leaks or draining water.
15
Secure the drain hose so that it cannot slip out.Do not kink the drain hose. Ensure that a height difference of max. 100 cm and min. 80 cm between the installation surface and the drain is maintained for drainage into a siphon.
15
6. Pull out the condensation container fully.
16
7. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.Turn the condensation container back over and insert the stopper into the recess in the top of the condensation container.
16
8. Pull the filter out of the lock-in slot and place it into the recess in the top of the condensation container.
16
9. Slide in the condensation container until it clicks into place.
16
Note:
16
If you want to change the condensation drain back to the condensation container, carry out all these steps in reverse order.
16
Optional accessories
17
â Washer-dryer stack connection set:
17
â Platform:
17
Transport and frost protection
17
1. Empty the condensate container.
17
2. Select any programme using the programme selector.
17
3. Press the Start button.
17
4. Wait for 5 minutes.
17
Note:
17
5. Empty the condensate container again.
17
6. Switch off the dryer.
17
Note:
17
Despite draining, there will always be some residual water in the dryer.
17
Caution!
17
Any residual water may leak out and cause material damage.
17
Caution!
17
The dryer contains coolant and may be damaged.
17
Y The main points in brief
18
The main points in brief
18
* Getting to know your appliance
19
Getting to know your appliance
19
Dryer
19
Control panel
20
Note:
20
All buttons are sensitive and only need to be touched briefly.
20
Display panel
21
Buttons in the display panel
21
Display panel
21
Z Laundry
22
Laundry
22
Preparing the laundry
22
: Warning
22
Risk of explosion/fire!
22
Caution!
22
The dryer drum and fabrics could be damaged.
22
â Tie cloth belts, apron strings, etc. together or use a laundry bag.
22
â Close zips, hooks and eyelets and buttons. Button up large items of laundry, such as covers.
22
â Remove any metal objects, such as paper clips, from pockets.
22
â To ensure a consistent drying result, sort laundry by fabric type and drying programme.
22
â Always dry very small items of laundry, e.g. babies' socks, together with large items such as towels.
22
â Knitted fabrics such as T-shirts and jerseys often shrink the first time they are tumble-dried. Use a gentle programme.
22
â Do not overdry easy-care laundry. This increases creasing of the laundry.
22
â Use timed programmes for single garments.
22
â Some detergents and care products, e.g. starch or softeners, contain particles which may be deposited on the moisture sensor. This may impair the sensor function and in consequence the drying result.
22
Notes
22
Sorting washing according to:
22
Note:
22
Do not load laundry from the washing machine directly into the tumble dryer. Sort the spun laundry before placing it in the dryer drum.
22
Caution!
22
Possibility of material damage to the dryer or laundry.
22
Do not tumble-dry the following fabrics:
22
â Laundry contaminated with oil.
22
â Unwashed fabrics.
22
â Non-breathable fabrics (e.g. rubber- coated).
22
â Easily damaged fabrics such as silk, synthetic curtains.
22
/ Programmes and buttons
23
Programmes and buttons
23
Programmes
23
Programme and fabrics
23
Maximum load and programme settings/info
23
Note:
24
Buttons
25
Buttons
25
Explanations and notes
25
Note:
25
Note:
25
1 Operating the appliance
26
Operating the appliance
26
Loading laundry and switching on the dryer
26
Note:
26
The dryer must be correctly positioned and connected, ~ Page 13.
26
1. Place the laundry in the drum.
26
2. Turn the programme selector to any programme to switch the dryer on.
26
3. Close the dryer door.
26
Caution!
26
Possibility of material damage to the dryer or laundry.
26
The basket for woollens
26
Note:
26
The basket for woollens is supplied with your dryer or it can be purchased as an accessory from the after-sales service.
26
Caution!
26
Risk of material damage to the dryer and fabrics.
26
Drying with the basket for woollens
27
1. Insert the feet of the basket for woollens into the holes on the fluff filter.
27
2. Lean the basket for woollens against the upper notch.
27
3. Place the required fabric in the insert of the basket for woollens
27
Notes
27
a) Trousers or skirt
27
b) Pullover
27
c) Sports shoes
27
d) Soft toys
27
4. Place the insert or the sports shoes in the basket for woollens.
28
Caution!
28
Risk of material damage to the fabrics.
28
Place the fabrics in the insert of the basket for woollens so that they do not come into contact with the drum.
28
5. Use the programme selector to select the programme for the basket for woollens or a time programme.
28
6. Set the drying time.
28
Note:
28
7. Start the programme.
28
8. Remove the fabrics and switch off the dryer.
28
Setting a programme
28
Note:
28
If you have activated the childproof lock, you must deactivate it before you can set a programme, see ~ Page 25.
28
1. Select the required programme; detailed information on the programmes can be found from ~ Page 23 onwards.
28
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
28
Note:
28
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 23 onwards.
28
Starting the programme
28
Note:
28
If you want to lock the programme to prevent it from being adjusted inadvertently, you can select the childproof lock, see ~ Page 25.
28
Programme sequence
29
Note:
29
When a programme is selected, the expected drying time for the recommended load is displayed. During drying moisture sensors detect the remaining moisture in the load and adjust the programme length (except timed programmes). This is visible via the ...
29
Changing the programme or adding laundry
29
1. To pause the programme, open the dryer door or press the Start button.
29
2. Add or remove laundry.
29
3. Select another programme or an additional function, if required.
29
4. Close the dryer door.
29
5. Press the Start button.
29
Note:
29
The programme duration in the display panel is updated depending on the load and residual moisture in the laundry. The values displayed may change after the programme is changed or the load is adapted.
29
Cancelling the programme
29
Caution!
29
Risk of fire. Laundry may catch fire.
29
Programme end
29
Removing laundry and switching off the dryer
29
1. Remove the laundry.
29
2. Turn the programme selector to the "off" position.
29
Clean the fluff filter
30
Note:
30
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. Clean fluff filters also reduce ene...
30
1. Open the dryer door and remove all fluff from the door.
30
2. Pull out the two-part fluff filter.
30
3. Remove the fluff from the recess in the fluff filter.
30
Note:
30
4. Pull apart the two-part fluff filter.
30
5. Open both filters and remove all the fluff.
30
6. Rinse away the fluff under warm, running water.
30
7. Dry the fluff filter, close it and reinsert the two-part fluff filter.
30
Caution!
30
The dryer may be damaged.
30
Emptying the condensate container
31
Notes
31
Note:
31
After each drying cycle, empty the condensate container; otherwise the next drying programme may be cancelled as a result of the condensate container being full.
31
1. Pull out the condensate container horizontally.
31
2. Pour out the condensation water.
31
Caution!
31
Dirty condensation water may be harmful to your health and cause material damage.
31
Condensation water is not suitable for drinking and may be contaminated with fluff. Do not drink the condensation water or reuse it.
31
3. Push in the condensate container until you feel it lock back into place in the dryer.
31
Note:
31
The filter in the condensate container filters the condensation which is used during the dryer's automatic cleaning cycle. The filter is cleaned by emptying the condensation. Nevertheless, you should check the filter regularly for remaining deposits ...
31
M Signal setting
32
Signal setting
32
â The spin speed that is used for spinning your laundry before it is dried,
32
â The volume of the audible signal at the end of the programme,
32
â The volume of the audible button signals.
32
Activating setting mode
32
1. Switch the dryer on.
32
2. Select the "Cottons" programme in position 1 and wait for five seconds.
32
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
32
2. The spin speed is shown in the display.
32
3. Press the "Ready in" time button or the drying time button to change the spin speed.
32
4. Turn the programme selector clockwise to position 3.
32
5. The volume of the audible signal at the end of the programme is shown in the display.
32
6. Press the "Ready in" time button or the drying time button to change the volume.
32
7. Turn the programme selector clockwise to position 4.
32
8. The volume for the audible button signal is shown in the display.
32
9. Press the "Ready in" time button or the drying time button to change the volume.
32
> Noises
33
Noises
33
Note:
33
During drying, particularly in the initial phase, operation of the appliance results in noise from the compressor and pump. This is perfectly normal and does not impair proper functioning of the appliance.
33
D Cleaning
34
Cleaning
34
Cleaning the dryer and the control panel
34
: Warning
34
Risk of death!
34
Cleaning the moisture sensor
34
Note:
34
The dryer is equipped with a stainless-steel moisture sensor. The moisture sensor measures how damp the laundry is.
34
After long periods of usage the moisture sensor may become covered by a fine layer of limescale or residues of detergents and care products. Such residues must be removed regularly as the sensor function and in consequence the drying result may be im...
34
Caution!
34
Moisture sensor may be damaged.
34
Cleaning the filter in the condensate container
35
Note:
35
The filter in the condensate container cleans the condensation water that is used during the dryer's automatic cleaning cycle.
35
1. Pull out the condensate container horizontally.
35
2. Pour out the condensation water.
35
3. Remove the filter.
35
4. Clean the filter under warm, running water or in the dishwasher.
35
5. Push in the filter until you feel it lock into place.
35
Caution!
35
The dryer may be contaminated with fluff and thus become damaged.
35
Only operate the dryer with the filter inserted.
35
6. Push in the condensate container until you feel it lock into place.
35
3 Faults and what to do about them
36
Faults and what to do about them
36
Faults
36
Cause/remedy
36
Note:
36
Note:
37
If you cannot rectify the fault yourself by turning the dryer off and then on again, please contact our after-sales service.
37
J After-sales service
38
After-sales service
38
[ Consumption values
39
Consumption values
39
Consumption values table
39
Programme
39
8 kg
39
4 kg
39
8 kg
39
4 kg
39
1400 rpm
39
179 min
39
111 min
39
1.57 kWh
39
0.93 kWh
39
1000 rpm
39
203 min
39
122 min
39
1.80 kWh
39
1.04 kWh
39
800 rpm
39
227 min
39
143 min
39
2.04 kWh
39
1.25 kWh
39
1400 rpm
39
125 min
39
75 min
39
1.10 kWh
39
0.66 kWh
39
1000 rpm
39
150 min
39
90 min
39
1.36 kWh
39
0.82 kWh
39
800 rpm
39
176 min
39
106 min
39
1.64 kWh
39
0.98 kWh
39
3.5 kg
39
3.5 kg
39
800 rpm
39
55 min
39
0.51 kWh
39
600 rpm
39
71 min
39
0.66 kWh
39
Most efficient programme for cotton fabrics
39
The following "standard cottons programme" (identified with ü) is suitable for drying normal, wet cotton laundry and is most efficient in terms of its combined energy consumption for drying wet cotton laundry.
39
Standard programmes for cottons in accordance with current EU regulation 932/2012
39
Programme
39
Load
39
Energy consumption
39
Programme length
39
J Technical data
40
Technical data
40
Search:
×
Search
