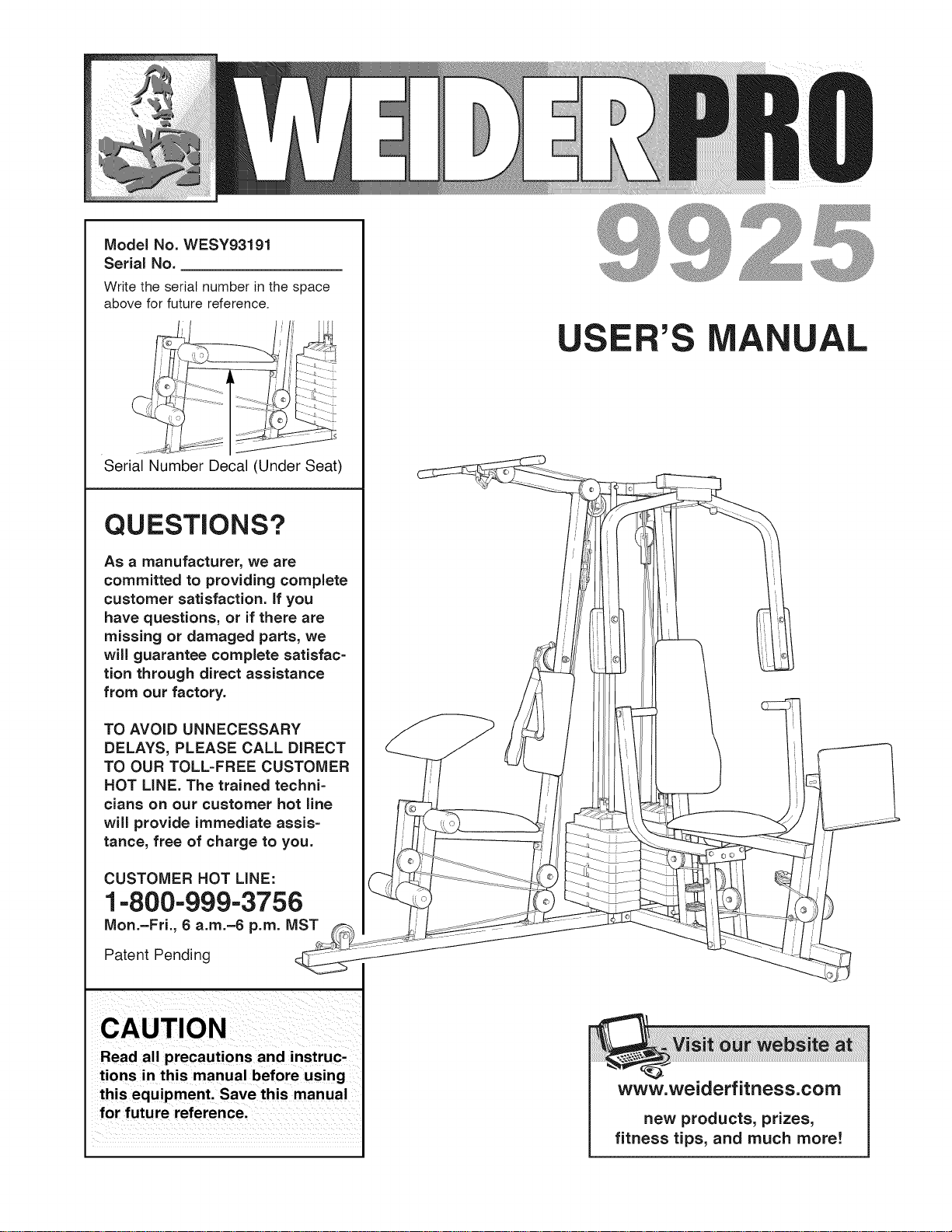

Model No. WESY93191
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
AS a manufacturer, we are
committed to providing complete
customer satisfaction, if you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfac=
tion through direct assistance
from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL=FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.=Fri., 6 a.m.=6 p.m. MST
Patent Pending
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
ER'S MANUAL
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
IMPORTANTPRECAUTIONS............................................................. 2
BEFOREYOUBEGIN................................................................... 3
ASSEMBLY........................................................................... 4
HOWTOUSETHEHOMEGYMSYSTEM................................................... 22
WEIGHTRESISTANCECHART........................................................... 24
TROUBLE-SHOOTINGANDMAINTENANCE................................................ 25
CABLEDIAGRAMS.................................................................... 26
ORDERINGREPLACEMENTPARTS................................................ BackCover
LIMITEDWARRANTY........................................................... BackCover
Note:APARTIDENTIFICATIONCHARTandaPARTLIST/EXPLODEDDRAWINGareattachedinthecenterof
thismanual.RemovethePARTIDENTIFICATIONCHARTandthePARTLIST/EXPLODEDDRAWINGbefore
beginningassembly.

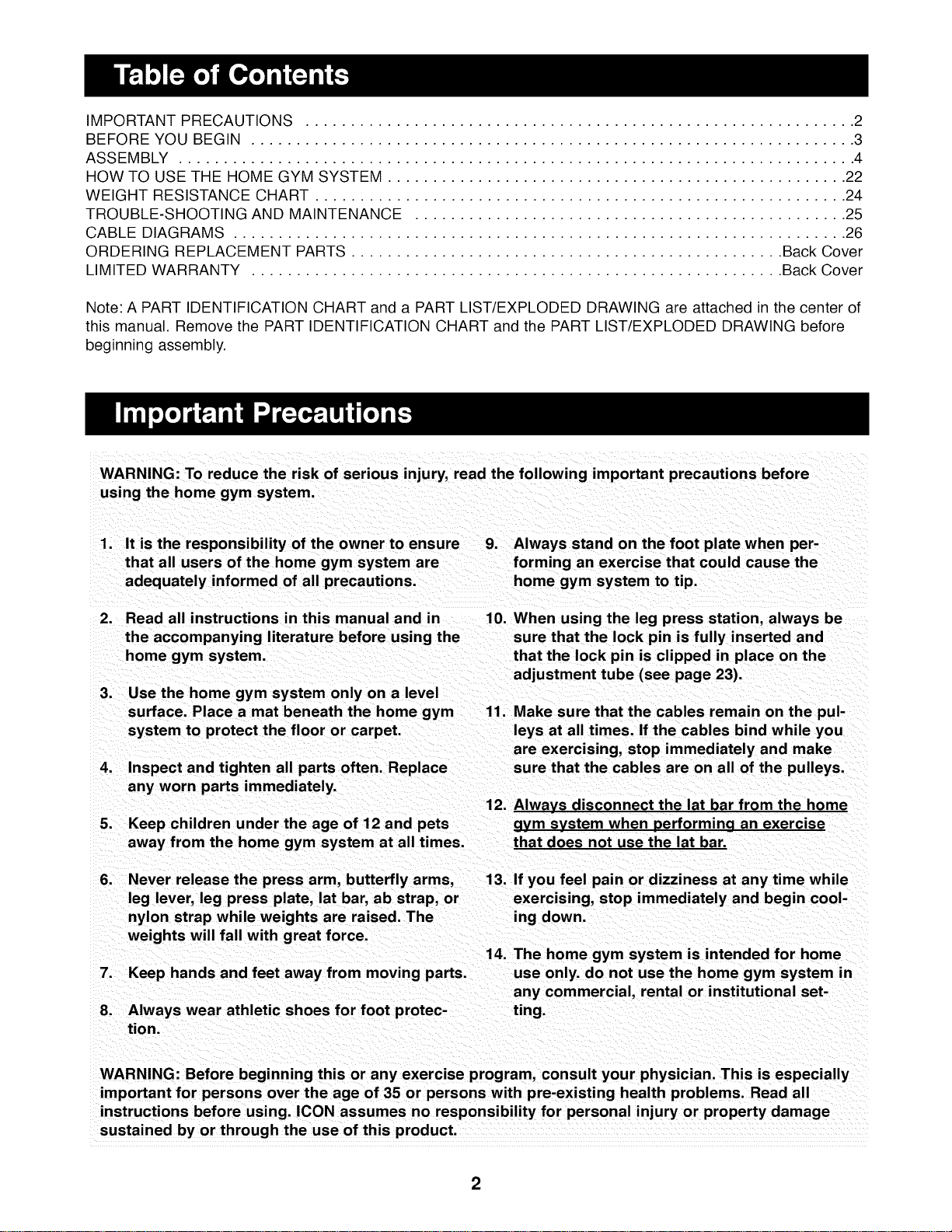

WARNING: To reduce the risk of serious injury, read the following important precautions before
using the home gym system.
1. It is the responsibility of the owner to ensure 9. Always stand on the foot plate when per-
that all users of the home gym system are forming an exercise that could cause the
adequately informed of all precautions, home gym system to tip.
2. Read all instructions in this manual and in
the accompanying literature before using the
home gym system.
3. Use the home gym system only on a level
surface. Place a mat beneath the home gym
system to protect the floor or carpet.
4. Inspect and tighten all parts often. Replace
any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the home gym system at all times.
10. When using the leg press station, always be
sure that the lock pin is fully inserted and
that the lock pin is clipped in place on the
adjustment tube (see page 23).
11. Make sure that the cables remain on the pul-
leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
12. Always disconnect the lat bar from the home
a_ymsystem when oerformin_a an exercise
that does not use the lat bar.
6. Never release the press arm, butterfly arms, 13. If you feel pain or dizziness at any time while
leg lever, leg press plate, lat bar, ab strap, or exercising, stop immediately and begin cool-
nylon strap while weights are raised. The
weights will fall with great force.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec-
tion.
ing down.
14. The home gym system is intended for home
use only. do not use the home gym system in
any commercial, rental or institutional set-
ting.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
2
Thank you for selecting the versatile WELDER R_PRO
9925 Training System. The WELDER_ PRO 9925 offers
a selection of weight stations designed to develop
every major muscle group of the body. Whether your
goal is to tone your body, build dramatic muscle size
and strength, or improve your cardiovascular system,
the WELDER®PRO 9925 will help you to achieve the
specific results you want.
For your benefit, read this manual carefully before
using the WEIDEW _PRO 9925 Training System. If
you have additional questions, please call our
Customer Service Department toll-free at 1-800-999-
3756, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number is
WESY93191. The serial number can be found on a
decal attached to the WELDER'°_'PRO 9925 (see the
front cover of this manual).

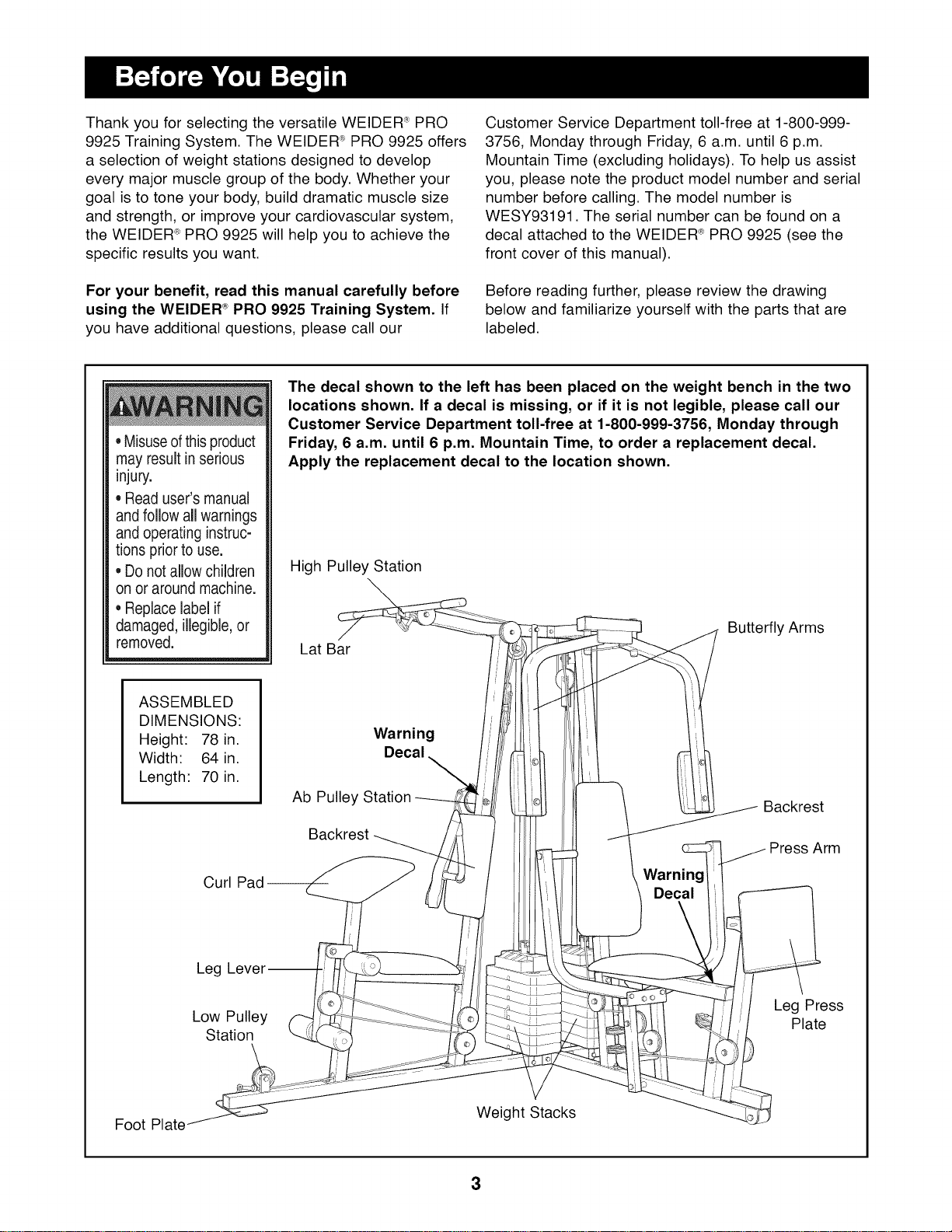

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
, Misuseof this product
may result in serious
injury.
• Read user's manual
and follow all warnings
and operating instruc-
tions prior to use.
• Do not allow children
on or around machine.
• Replace labelif
damaged, illegible, or
removed.
The decal shown to the left has been placed on the weight bench in the two
locations shown. If a decal is missing, or if it is not legible, please call our
Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time, to order a replacement decal.
Apply the replacement decal to the location shown.
High Pulley Station
\
Lat Bar
Butterfly Arms
ASSEMBLED
DIMENSIONS:
Height: 78 in.
Width: 64 in.
Length: 70 in.
Curl
Ab Pulley
Backrest
Warning
Decal
\
Warning
Decal
Backrest
Arm
Leg
Low Pulley
Station
Leg Press
Plate
Foot Plate
Weight Stacks
3

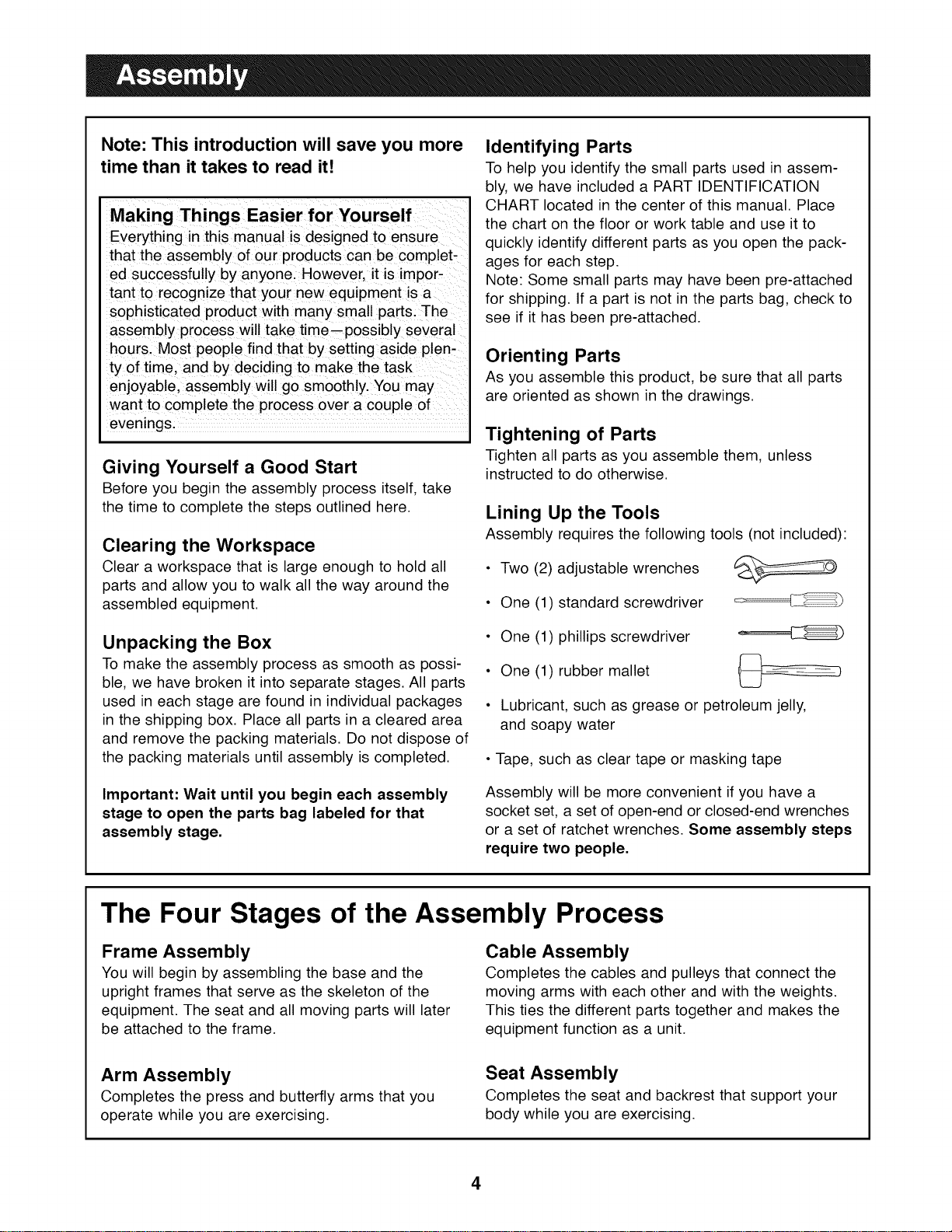

Note: This introduction will save you more
time than it takes to read it!
Making Things Easier for Yourself
Everything in this manual is designed to ensure
that the assembly of our products can be complet-
ed successfully by anyone. However, it is impor-
tant to recognize that your new equipment is a
sophisticated product with many small parts. The
assembly process wilt take time--possibly several
hours. Most people find that by setting aside plen-
ty of time, and by deciding to make the task
enjoyable, assembly will go smoothly. You may
want to complete the process over a couple of
evenings.
Giving Yourself a Good Start
Before you begin the assembly process itself, take
the time to complete the steps outlined here.
Clearing the Workspace
Clear a workspace that is large enough to hold all
parts and allow you to walk all the way around the
assembled equipment.
Unpacking the Box
To make the assembly process as smooth as possi-
ble, we have broken it into separate stages. All parts
used in each stage are found in individual packages
in the shipping box. Place all parts in a cleared area
and remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
Important: Wait until you begin each assembly
stage to open the parts bag labeled for that
assembly stage.
Identifying Parts

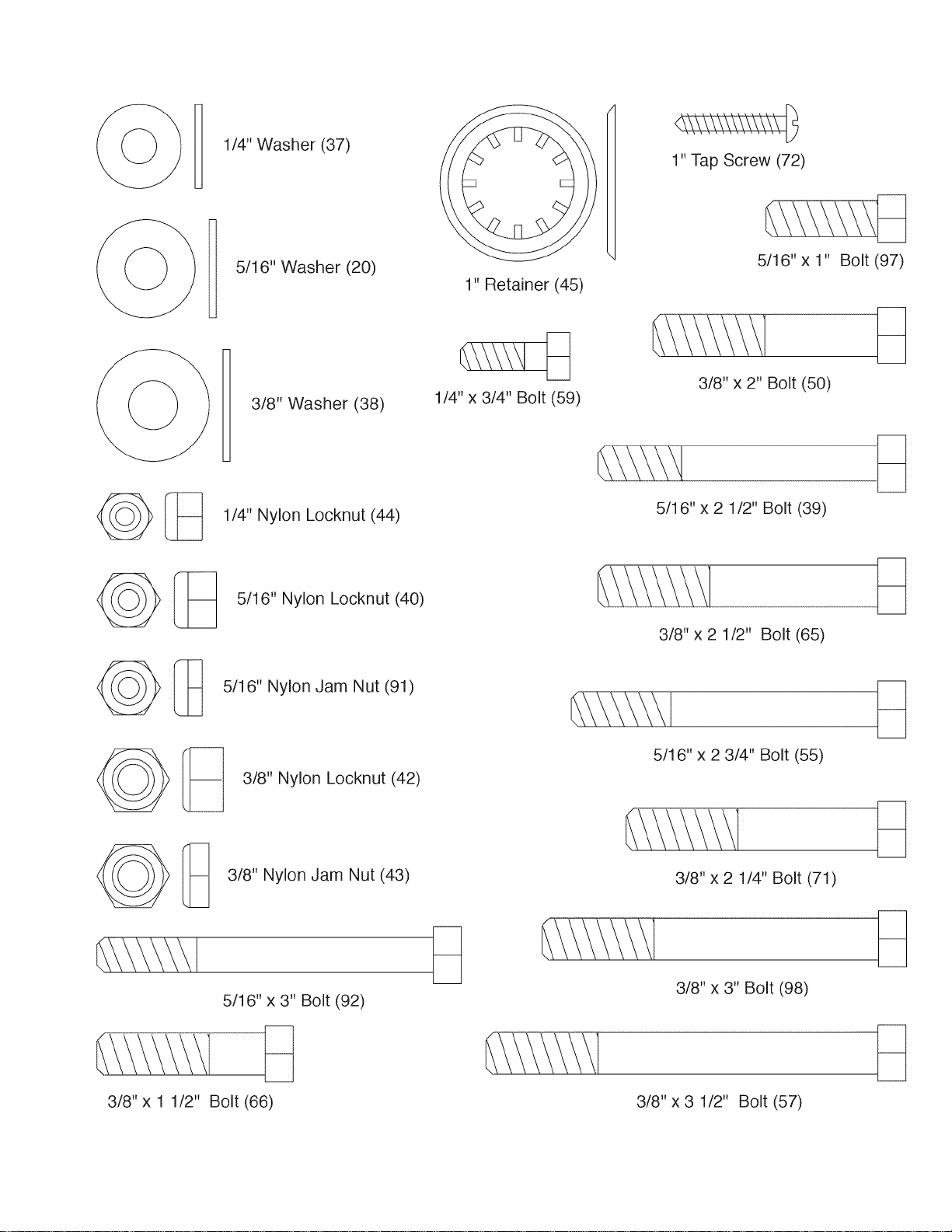

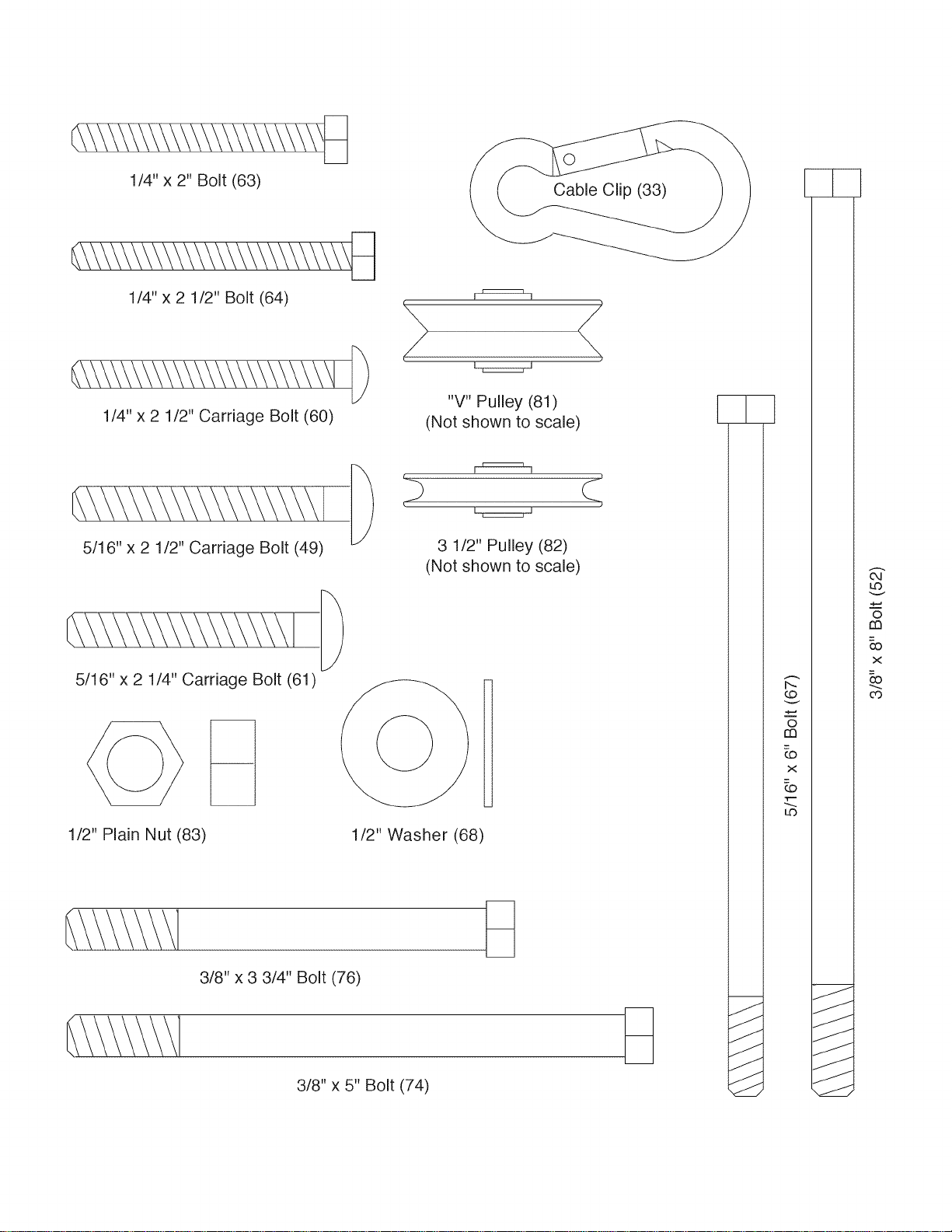

To help you identify the small parts used in assem-
bly, we have included a PART IDENTIFICATION
CHART located in the center of this manual. Place
the chart on the floor or work table and use it to
quickly identify different parts as you open the pack-
ages for each step.
Note: Some small parts may have been pre-attached
for shipping. If a part is not in the parts bag, check to
see if it has been pre-attached.
Orienting Parts
As you assemble this product, be sure that all parts
are oriented as shown in the drawings.
Tightening of Parts
Tighten all parts as you assemble them, unless
instructed to do otherwise.
Lining Up the Tools
Assembly requires the following tools (not included):
• Two (2) adjustable wrenches
• One (1) standard screwdriver
• One (1) phillips screwdriver
• One (1) rubber mallet
• Lubricant, such as grease or petroleum jelly,
and soapy water
• Tape, such as clear tape or masking tape
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end wrenches
or a set of ratchet wrenches. Some assembly steps
require two people.
The Four Stages of the Assembly Process
Frame Assembly
You will begin by assembling the base and the
upright frames that serve as the skeleton of the
equipment. The seat and all moving parts will later
be attached to the frame.
Cable Assembly
Completes the cables and pulleys that connect the
moving arms with each other and with the weights.
This ties the different parts together and makes the
equipment function as a unit.
Arm Assembly
Completes the press and butterfly arms that you
operate while you are exercising.
Seat Assembly
Completes the seat and backrest that support your
body while you are exercising.
4
FRAM EASSEM BLY

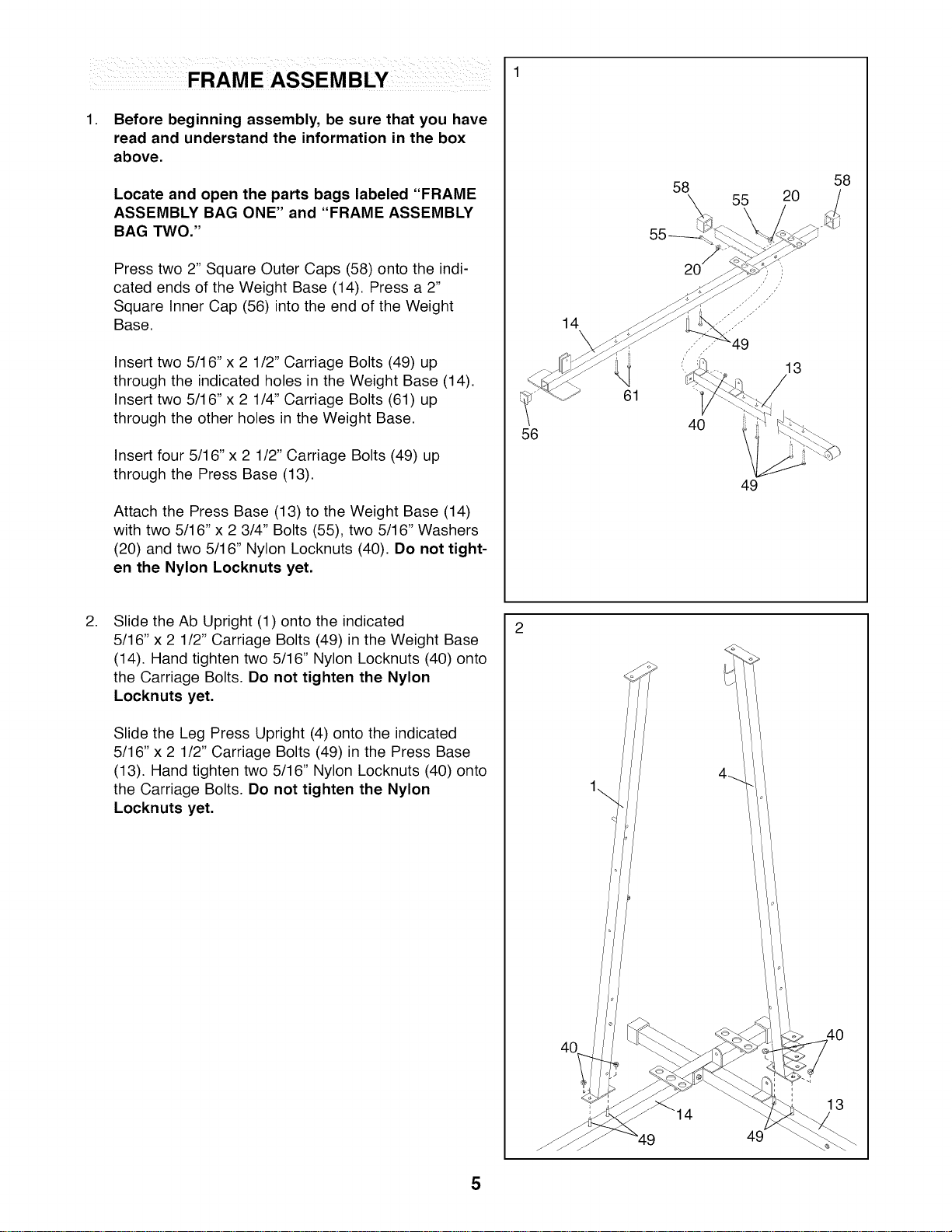

1. Before beginning assembly, be sure that you have
read and understand the information in the box
above.

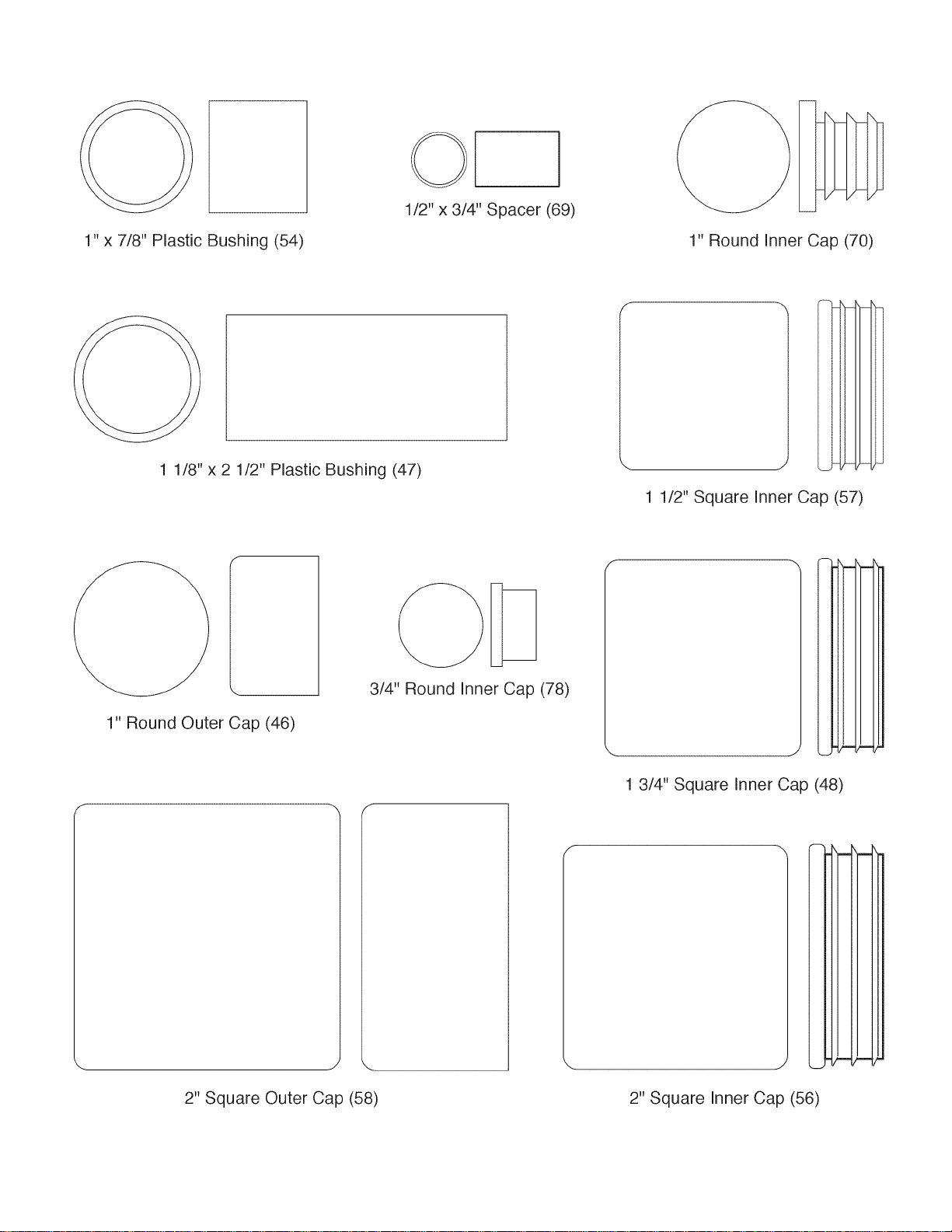

Locate and open the parts bags labeled "FRAME
ASSEMBLY BAG ONE" and "FRAME ASSEMBLY
BAG TWO."
Press two 2" Square Outer Caps (58) onto the indi-
cated ends of the Weight Base (14). Press a 2"
Square Inner Cap (56) into the end of the Weight
Base.
Insert two 5/16" x 2 1/2" Carriage Bolts (49) up
through the indicated holes in the Weight Base (14).
Insert two 5/16" x 2 1/4" Carriage Bolts (61) up
through the other holes in the Weight Base.
Insert four 5/16"x 2 1/2" Carriage Bolts (49) up
through the Press Base (13).
Attach the Press Base (13) to the Weight Base (14)
with two 5/16" x 2 3/4" Bolts (55), two 5/16" Washers
(20) and two 5/16" Nylon Locknuts (40). Do not tight-
en the Nylon Locknuts yet.
14
\
56
58
55
40
49
20
13
58
,
Slide the Ab Upright (1) onto the indicated
5/16" x 2 1/2" Carriage Bolts (49) in the Weight Base
(14). Hand tighten two 5/16" Nylon Locknuts (40) onto
the Carriage Bolts. Do not tighten the Nylon
Locknuts yet.
Slide the Leg Press Upright (4) onto the indicated
5/16" x 2 1/2" Carriage Bolts (49) in the Press Base
(13). Hand tighten two 5/16" Nylon Locknuts (40) onto
the Carriage Bolts. Do not tighten the Nylon
Locknuts yet.
49
13
5
,

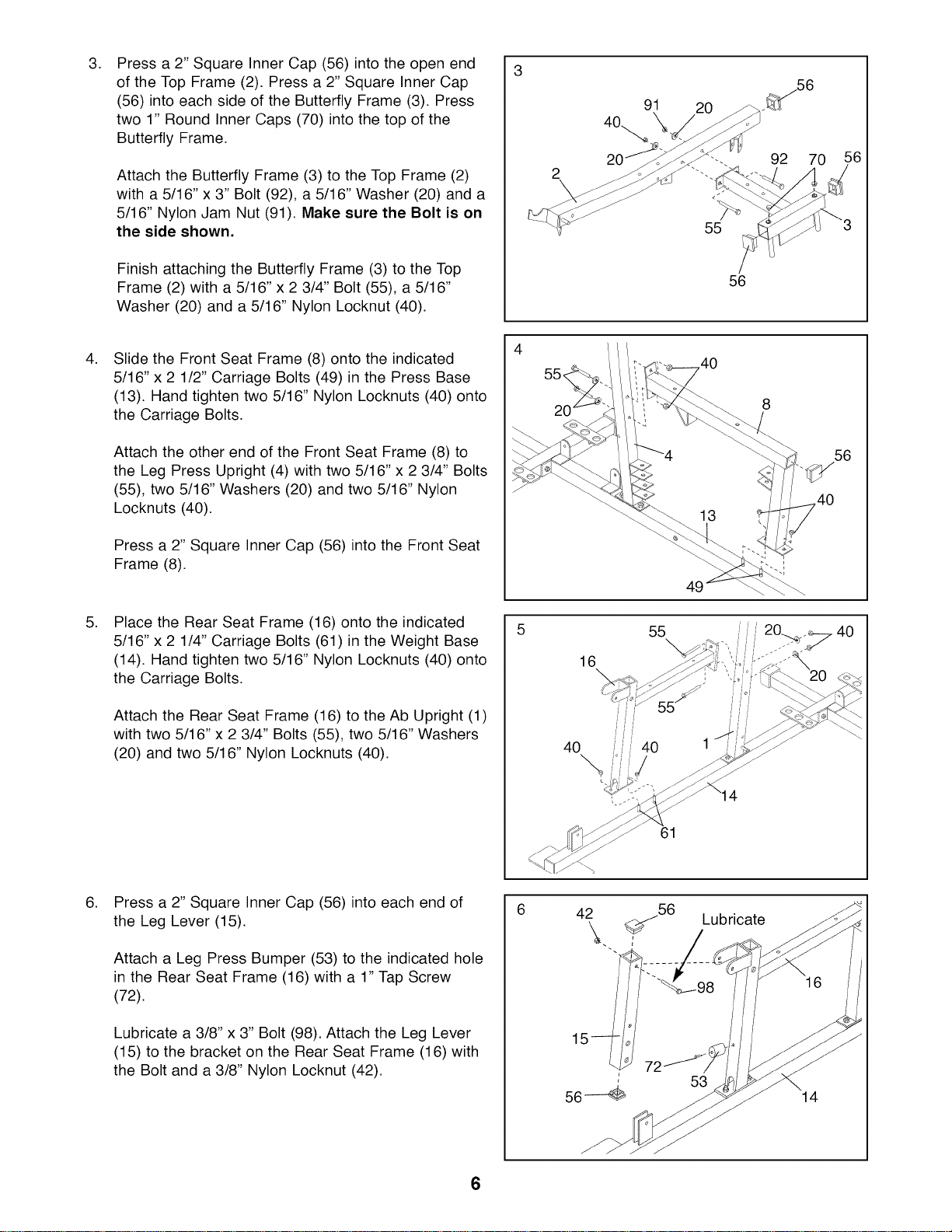

Press a 2" Square Inner Cap (56) into the open end
of the Top Frame (2). Press a 2" Square Inner Cap
(56) into each side of the Butterfly Frame (3). Press
two 1" Round Inner Caps (70) into the top of the
Butterfly Frame.
Attach the Butterfly Frame (3) to the Top Frame (2)
with a 5/16" x 3" Bolt (92), a 5/16" Washer (20) and a
5/16" Nylon Jam Nut (91). Make sure the Bolt is on
the side shown.
Finish attaching the Butterfly Frame (3) to the Top
Frame (2) with a 5/16" x 2 3/4" Bolt (55), a 5/16"
Washer (20) and a 5/16" Nylon Locknut (40).
2
2O
55
92 70
56
,6
,
Slide the Front Seat Frame (8) onto the indicated
5/16" x 2 1/2" Carriage Bolts (49) in the Press Base
(13). Hand tighten two 5/16" Nylon Locknuts (40) onto
the Carriage Bolts.
Attach the other end of the Front Seat Frame (8) to
the Leg Press Upright (4) with two 5/16" x 2 3/4" Bolts
(55), two 5/16" Washers (20) and two 5/16" Nylon
Locknuts (40).
Press a 2" Square Inner Cap (56) into the Front Seat
Frame (8).
56
,
,
Place the Rear Seat Frame (16) onto the indicated
5/16" x 2 1/4" Carriage Bolts (61) in the Weight Base
(14). Hand tighten two 5/16" Nylon Locknuts (40) onto
the Carriage Bolts.
Attach the Rear Seat Frame (16) to the Ab Upright (1)
with two 5/16" x 2 3/4" Bolts (55), two 5/16" Washers
(20) and two 5/16" Nylon Locknuts (40).
Press a 2" Square Inner Cap (56) into each end of
the Leg Lever (15).
Attach a Leg Press Bumper (53) to the indicated hole
in the Rear Seat Frame (16) with a 1" Tap Screw
(72).
Lubricate a 3/8" x 3" Bolt (98). Attach the Leg Lever
(15) to the bracket on the Rear Seat Frame (16) with
the Bolt and a 3/8" Nylon Locknut (42).
16
4O
55
\
%
61
42 56
Lubricate
4O
16
14
6

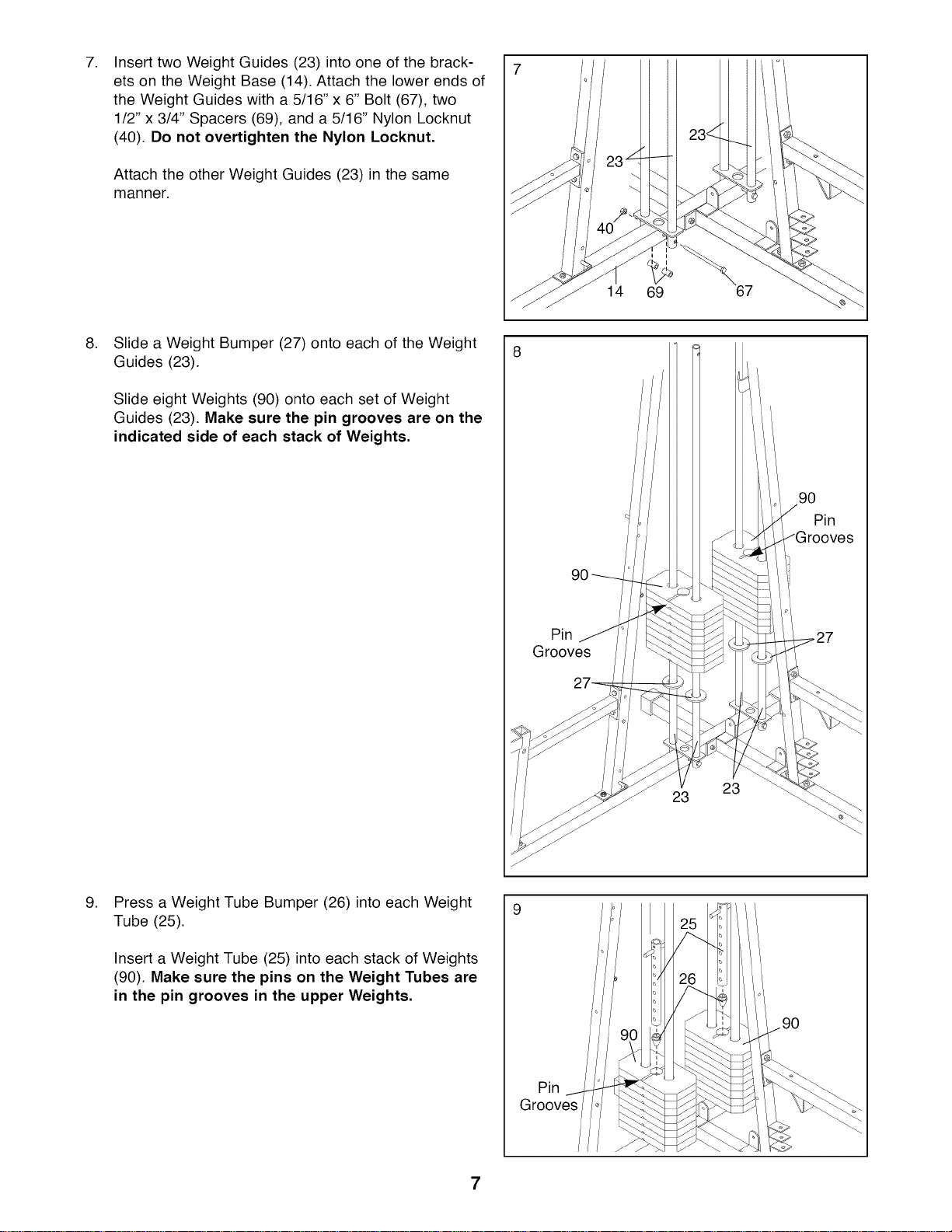

Insert two Weight Guides (23) into one of the brack-
ets on the Weight Base (14). Attach the lower ends of
the Weight Guides with a 5/16" x 6" Bolt (67), two
1/2" x 3/4" Spacers (69), and a 5/16" Nylon Locknut
(40). Do not overtighten the Nylon Locknut.
Attach the other Weight Guides (23) in the same
manner.
14
69
,
Slide a Weight Bumper (27) onto each of the Weight
Guides (23).
Slide eight Weights (90) onto each set of Weight
Guides (23). Make sure the pin grooves are on the
indicated side of each stack of Weights.
8
90
Pin
Grooves
23
23
90
Pin
,
Press a Weight Tube Bumper (26) into each Weight
Tube (25).
Insert a Weight Tube (25) into each stack of Weights
(90). Make sure the pins on the Weight Tubes are
in the pin grooves in the upper Weights.
9
Pin
Grooves
90
7

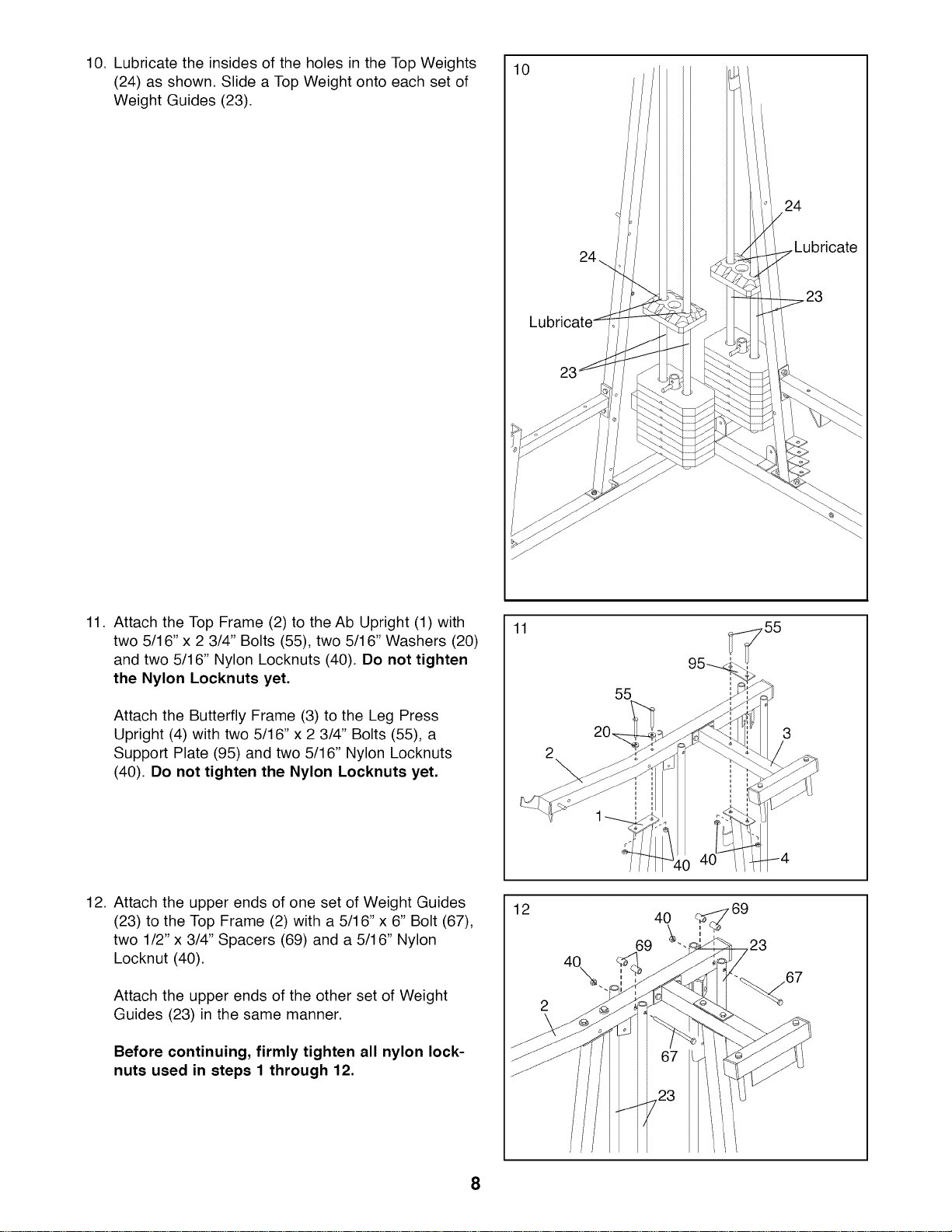

10. Lubricate the insides of the holes in the Top Weights
(24) as shown. Slide a Top Weight onto each set of
Weight Guides (23).
10
24\
24
.Lubricate
23
11.
Attach the Top Frame (2) to the Ab Upright (1) with
two 5/16" x 2 3/4" Bolts (55), two 5/16" Washers (20)
and two 5/16" Nylon Locknuts (40). Do not tighten
the Nylon Locknuts yet.
Attach the Butterfly Frame (3) to the Leg Press
Upright (4) with two 5/16" x 2 3/4" Bolts (55), a
Support Plate (95) and two 5/16" Nylon Locknuts
(40). Do not tighten the Nylon Locknuts yet.
11
2
55
12. Attach the upper ends of one set of Weight Guides
(23) to the Top Frame (2) with a 5/16" x 6" Bolt (67),
two 1/2" x 3/4" Spacers (69) and a 5/16" Nylon
Locknut (40).
Attach the upper ends of the other set of Weight
Guides (23) in the same manner.
Before continuing, firmly tighten all nylon lock-
nuts used in steps 1 through 12.
12
40
69
,23
67
8

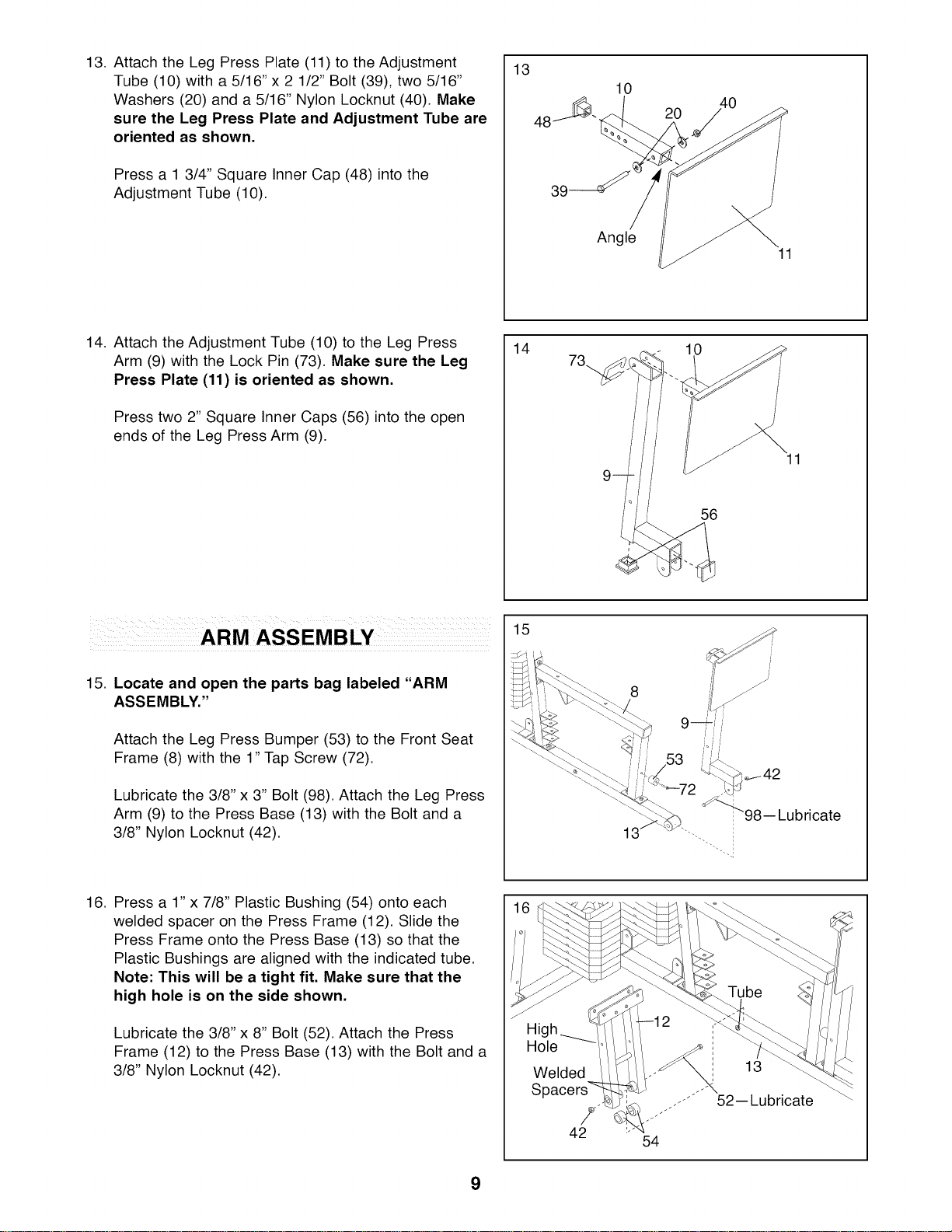

13. Attach the Leg Press Plate (11) to the Adjustment
Tube (10) with a 5/16" x 2 1/2" Bolt (39), two 5/16"
Washers (20) and a 5/16" Nylon Locknut (40). Make
sure the Leg Press Plate and Adjustment Tube are
oriented as shown.
Press a 1 3/4" Square Inner Cap (48) into the
Adjustment Tube (10).
13
39
10
Angle
20
11
14. Attach the Adjustment Tube (10) to the Leg Press
Arm (9) with the Lock Pin (73). Make sure the Leg
Press Plate (11) is oriented as shown.
Press two 2" Square Inner Caps (56) into the open
ends of the Leg Press Arm (9).
14
73
/
/
/
10
56
11
15. Locate and open the parts bag labeled "ARM
ASSEMBLY."
Attach the Leg Press Bumper (53) to the Front Seat
Frame (8) with the 1" Tap Screw (72).
Lubricate the 3/8" x 3" Bolt (98). Attach the Leg Press
Arm (9) to the Press Base (13) with the Bolt and a
3/8" Nylon Locknut (42).
15
13
16. Press a 1" x 7/8" Plastic Bushing (54) onto each
welded spacer on the Press Frame (12). Slide the
Press Frame onto the Press Base (13) so that the
Plastic Bushings are aligned with the indicated tube.
Note: This will be a tight fit. Make sure that the
high hole is on the side shown.
Lubricate the 3/8" x 8" Bolt (52). Attach the Press
Frame (12) to the Press Base (13) with the Bolt and a
3/8" Nylon Locknut (42).
Hole
Welded
13
9

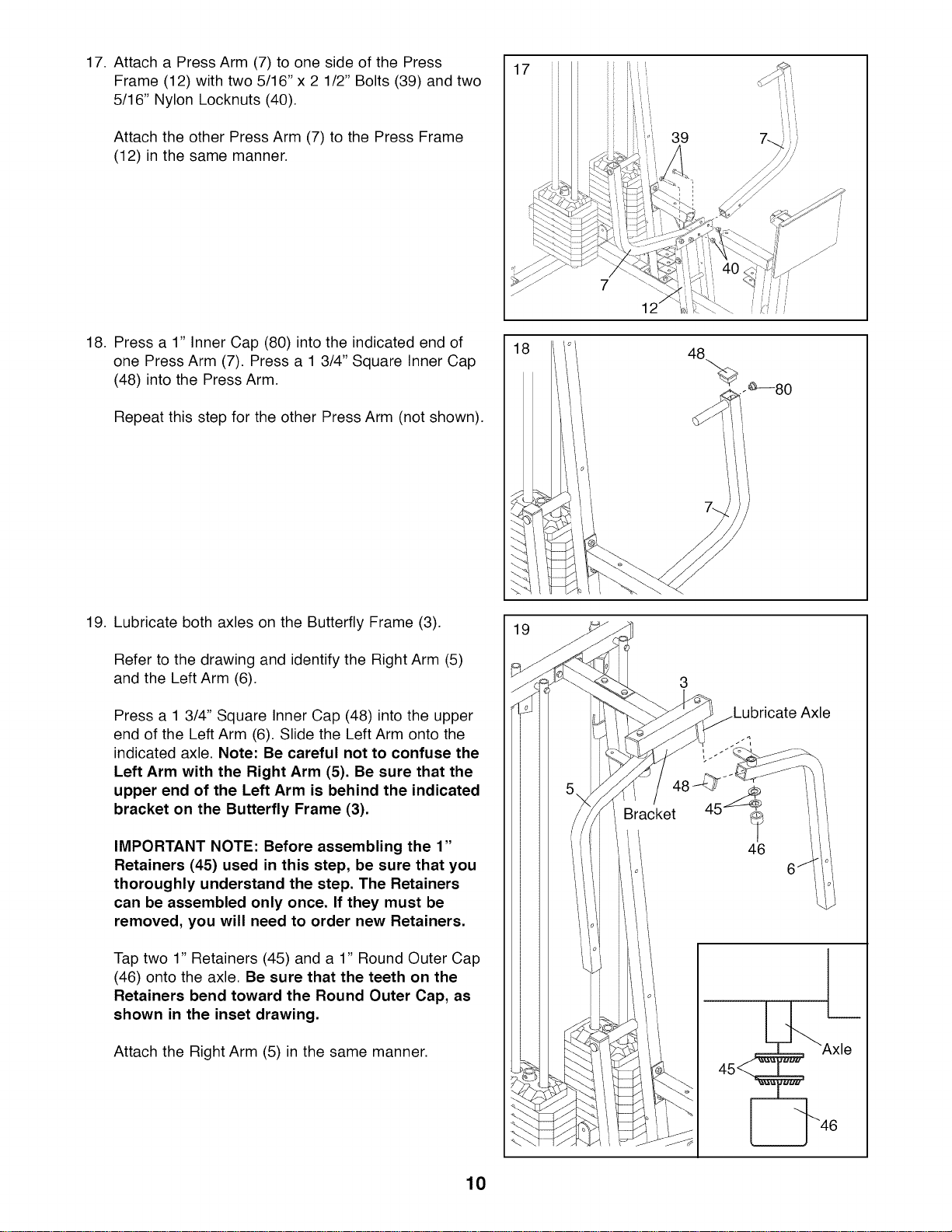

17. Attach a Press Arm (7) to one side of the Press
Frame (12) with two 5/16" x 2 1/2" Bolts (39) and two
5/16" Nylon Locknuts (40).
Attach the other Press Arm (7) to the Press Frame
(12) in the same manner.
39
18. Press a 1" Inner Cap (80) into the indicated end of
one Press Arm (7). Press a 1 3/4" Square Inner Cap
(48) into the Press Arm.
Repeat this step for the other Press Arm (not shown).
19. Lubricate both axles on the Butterfly Frame (3).
Refer to the drawing and identify the Right Arm (5)
and the Left Arm (6).
Press a 1 3/4" Square Inner Cap (48) into the upper
end of the Left Arm (6). Slide the Left Arm onto the
indicated axle, Note: Be careful not to confuse the
Left Arm with the Right Arm (5). Be sure that the
upper end of the Left Arm is behind the indicated
bracket on the Butterfly Frame (3).
IMPORTANT NOTE: Before assembling the 1"
Retainers (45) used in this step, be sure that you
thoroughly understand the step. The Retainers
can be assembled only once. If they must be
removed, you will need to order new Retainers.
Tap two 1" Retainers (45) and a 1" Round Outer Cap
(46) onto the axle, Be sure that the teeth on the
Retainers bend toward the Round Outer Cap, as
shown in the inset drawing.
Attach the Right Arm (5) in the same manner.
19
3
Axle
Bracket 45_
46
I
Lb:x,e
45__
10
20. Press a 1 3/4" Square Inner Cap (48) into the lower
end of the Left Arm (6) and the Right Arm (5).

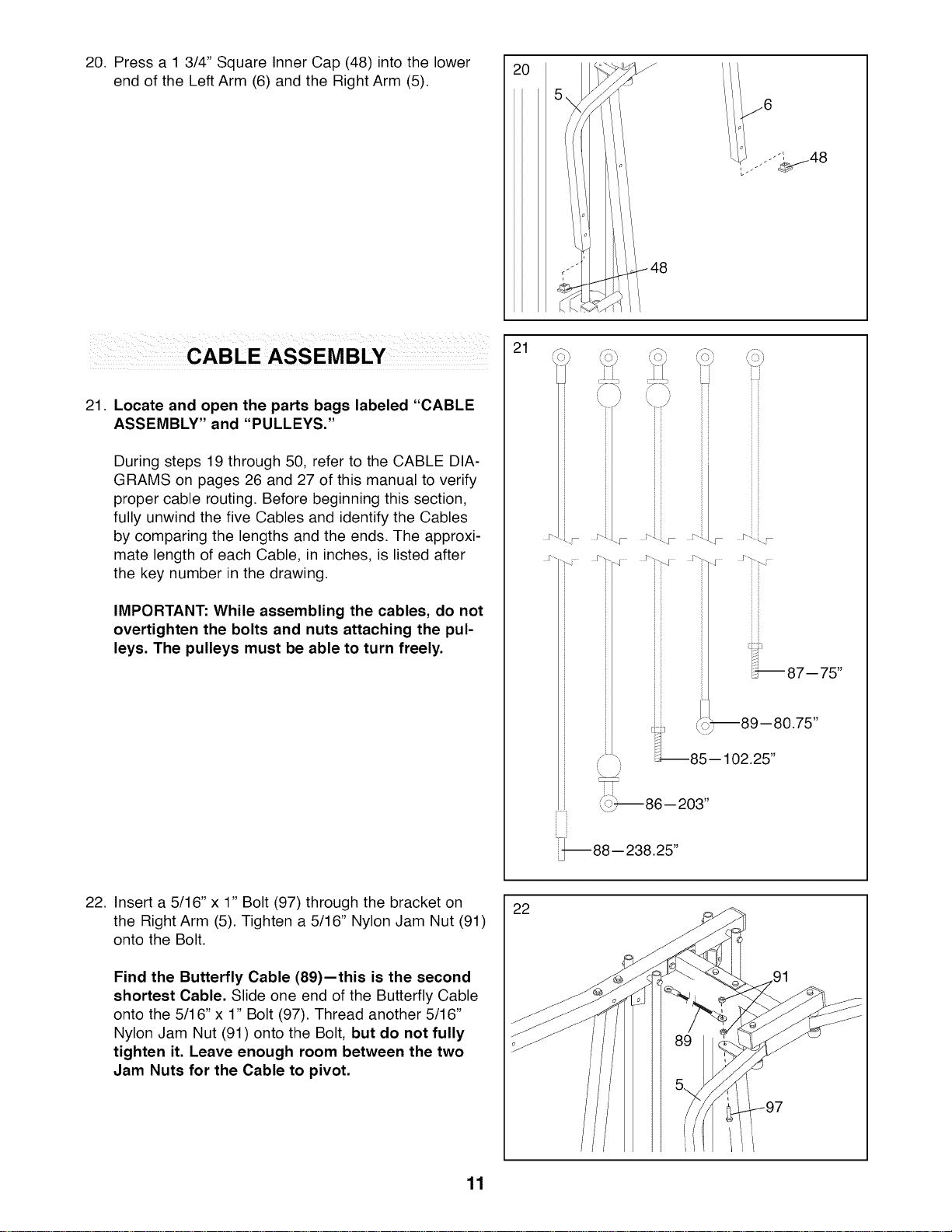

21. Locate and open the parts bags labeled "CABLE
ASSEMBLY" and "PULLEYS."
During steps 19 through 50, refer to the CABLE DIA-
GRAMS on pages 26 and 27 of this manual to verify
proper cable routing. Before beginning this section,
fully unwind the five Cables and identify the Cables
by comparing the lengths and the ends. The approxi-
mate length of each Cable, in inches, is listed after
the key number in the drawing.
IMPORTANT: While assembling the cables, do not
overtighten the bolts and nuts attaching the pul-
leys. The pulleys must be able to turn freely.
21
J'" _i ....
[---i
_m
. j"
_ b--86-- 203"
J_
:_87--75"
--89 --80.75"
85-- 102.25"
88-- 238.25"
22. Insert a 5/16" x 1" Bolt (97) through the bracket on
the Right Arm (5). Tighten a 5/16" Nylon Jam Nut (91)
onto the Bolt.
Find the Butterfly Cable (89)--this is the second
shortest Cable. Slide one end of the Butterfly Cable
onto the 5/16" x 1" Bolt (97). Thread another 5/16"
Nylon Jam Nut (91) onto the Bolt, but do not fully
tighten it. Leave enough room between the two
Jam Nuts for the Cable to pivot.
22
11

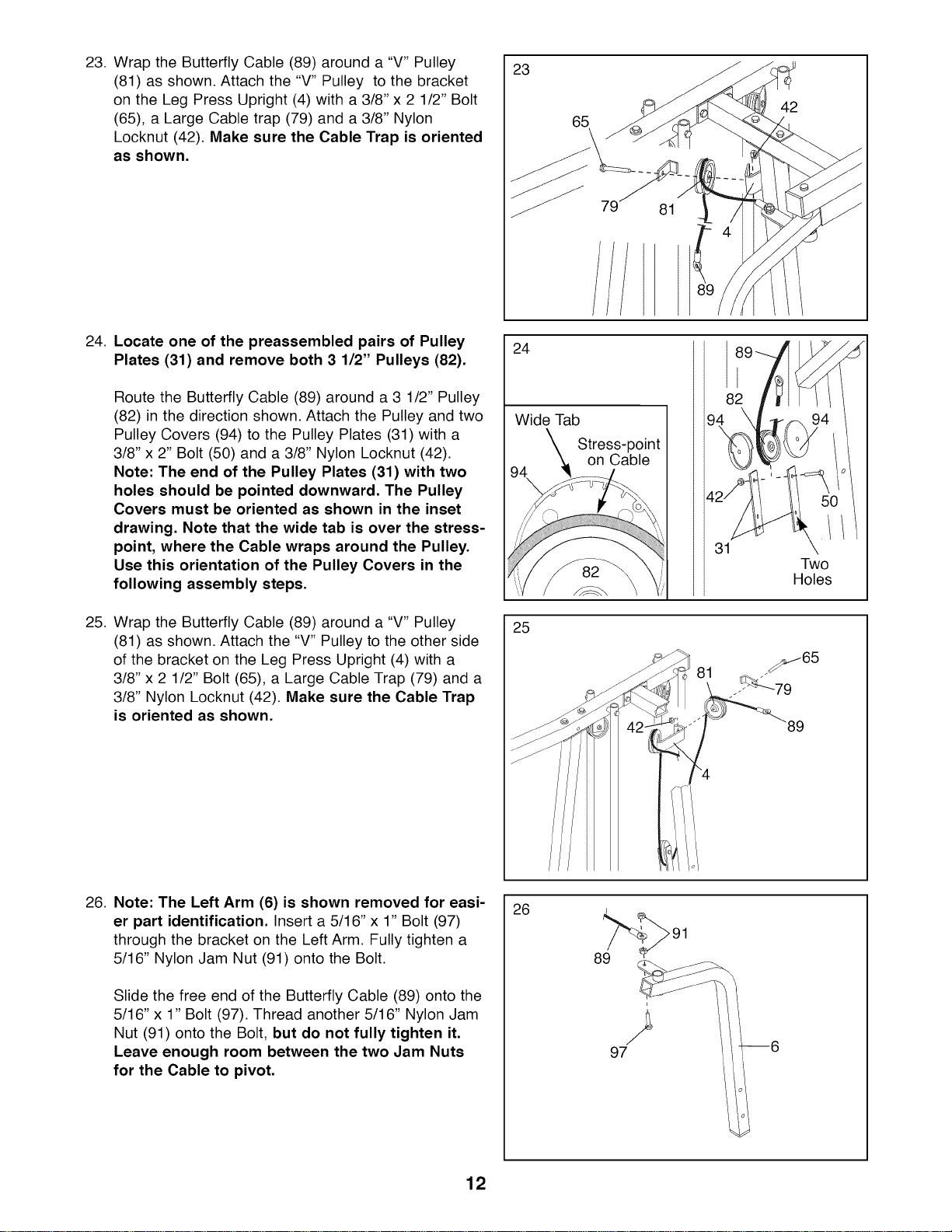

23. Wrap the Butterfly Cable (89) around a "V" Pulley
(81) as shown. Attach the "V" Pulley to the bracket
on the Leg Press Upright (4) with a 3/8" x 2 1/2" Bolt
(65), a Large Cable trap (79) and a 3/8" Nylon
Locknut (42). Make sure the Cable Trap is oriented
as shown.
23
65
79
81
42
24. Locate one of the preassembled pairs of Pulley
Plates (31) and remove both 3 1/2" Pulleys (82).
Route the Butterfly Cable (89) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Pulley Plates (31) with a
3/8" x 2" Bolt (50) and a 3/8" Nylon Locknut (42).
Note: The end of the Pulley Plates (31) with two
holes should be pointed downward. The Pulley
Covers must be oriented as shown in the inset
drawing. Note that the wide tab is over the stress-
point, where the Cable wraps around the Pulley.
Use this orientation of the Pulley Covers in the
following assembly steps.
25. Wrap the Butterfly Cable (89) around a "V" Pulley
(81) as shown. Attach the "V" Pulley to the other side
of the bracket on the Leg Press Upright (4) with a
3/8" x 2 1/2" Bolt (65), a Large Cable Trap (79) and a
3/8" Nylon Locknut (42). Make sure the Cable Trap
is oriented as shown.
24
Wide Tab
94
42,
31
Two
Holes
25
89
26. Note: The Left Arm (6) is shown removed for easi-
er part identification. Insert a 5/16" x 1" Bolt (97)
through the bracket on the Left Arm. Fully tighten a
5/16" Nylon Jam Nut (91) onto the Bolt.
Slide the free end of the Butterfly Cable (89) onto the
5/16" x 1" Bolt (97). Thread another 5/16" Nylon Jam
Nut (91) onto the Bolt, but do not fully tighten it.
Leave enough room between the two Jam Nuts
for the Cable to pivot.
26
89
97
12

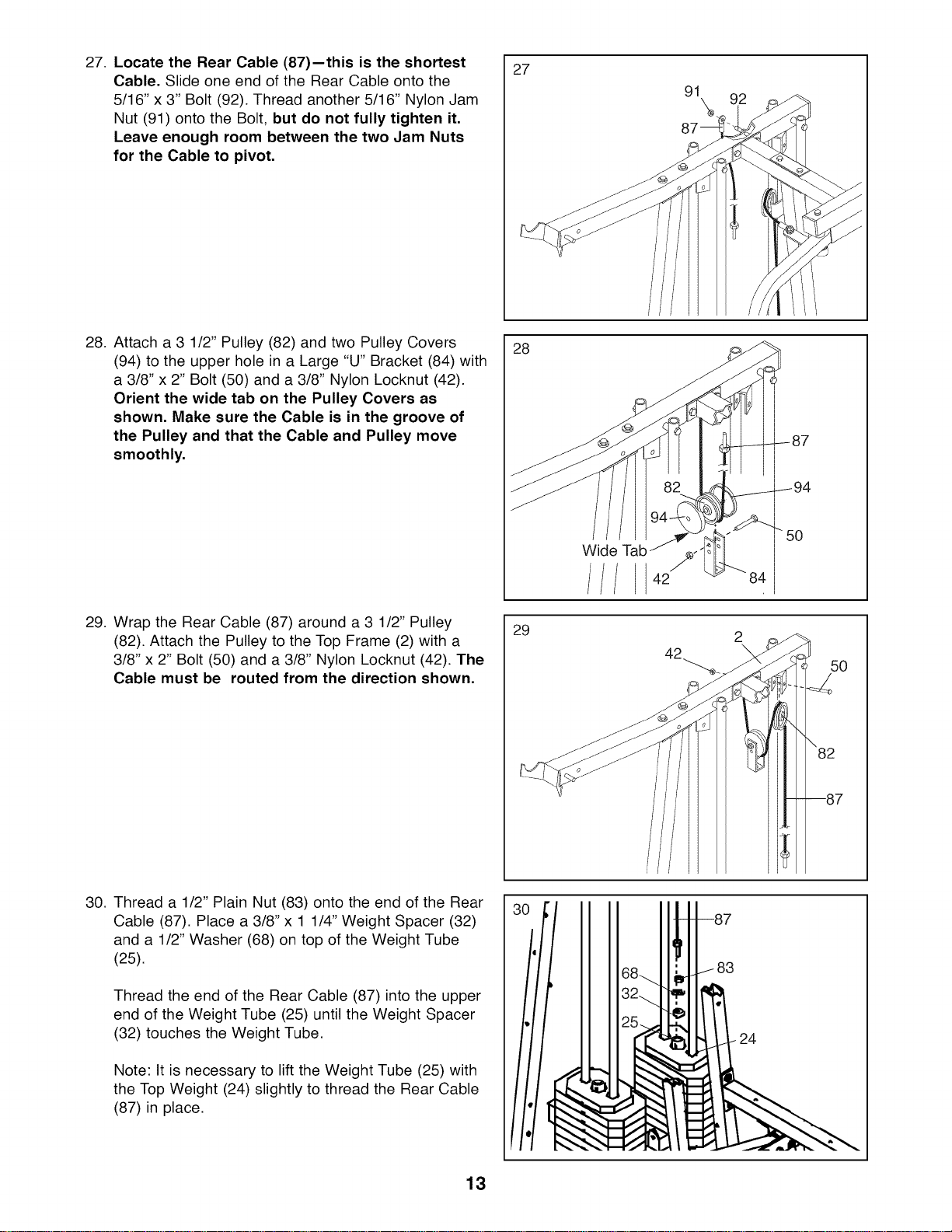

27. Locate the Rear Cable (87)--this is the shortest
Cable. Slide one end of the Rear Cable onto the
5/16" x 3" Bolt (92). Thread another 5/16" Nylon Jam
Nut (91) onto the Bolt, but do not fully tighten it.
Leave enough room between the two Jam Nuts
for the Cable to pivot.
28. Attach a 3 1/2" Pulley (82) and two Pulley Covers
(94) to the upper hole in a Large "U" Bracket (84) with
a 3/8" x 2" Bolt (50) and a 3/8" Nylon Locknut (42).
Orient the wide tab on the Pulley Covers as
shown. Make sure the Cable is in the groove of
the Pulley and that the Cable and Pulley move
smoothly.
29. Wrap the Rear Cable (87) around a 3 1/2" Pulley
(82). Attach the Pulley to the Top Frame (2) with a
3/8" x 2" Bolt (50) and a 3/8" Nylon Locknut (42). The
Cable must be routed from the direction shown.
27
28
29
91
Wide
///
42
50
30. Thread a 1/2" Plain Nut (83) onto the end of the Rear
Cable (87). Place a 3/8" x 1 1/4" Weight Spacer (32)
and a 1/2" Washer (68) on top of the Weight Tube
(25).
Thread the end of the Rear Cable (87) into the upper
end of the Weight Tube (25) until the Weight Spacer
(32) touches the Weight Tube.
Note: It is necessary to lift the Weight Tube (25) with
the Top Weight (24) slightly to thread the Rear Cable
(87) in place.
83
13

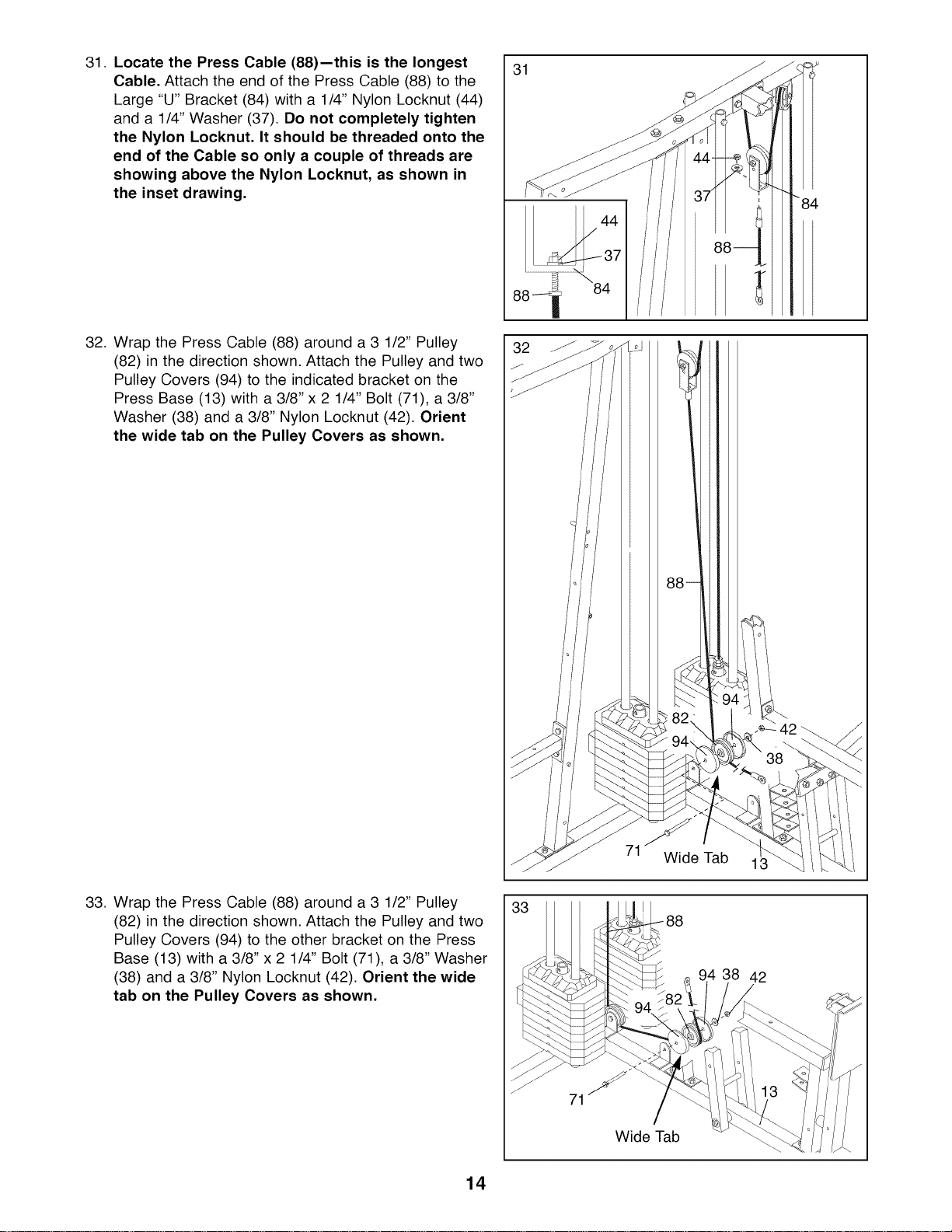

31. Locate the Press Cable (88)--this is the longest
Cable. Attach the end of the Press Cable (88) to the
Large "U" Bracket (84) with a 1/4" Nylon Locknut (44)
and a 1/4" Washer (37). Do not completely tighten
the Nylon Locknut. It should be threaded onto the
end of the Cable so only a couple of threads are
showing above the Nylon Locknut, as shown in
the inset drawing.
32. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated bracket on the
Press Base (13) with a 3/8" x 2 1/4" Bolt (71), a 3/8"
Washer (38) and a 3/8" Nylon Locknut (42). Orient
the wide tab on the Pulley Covers as shown.
33. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the other bracket on the Press
Base (13) with a 3/8" x 2 1/4" Bolt (71), a 3/8" Washer
(38) and a 3/8" Nylon Locknut (42). Orient the wide
tab on the Pulley Covers as shown.
31
32
Wide Tab 1
88
94 38 42
Wide Tab
14
34. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the lower set of holes in the
Pulley Plates (31) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Locknut (42), Orient the wide tab on the
Pulley Covers as shown.
35. Route the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Leg Press Upright (4) with a
3/8" x 3 3/4" Bolt (76), two 3/8" Washers (38) and a
3/8" Nylon Jamnut (43). Orient the wide tab on the
Pulley Covers as shown.
36. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Press
Frame (12) with a 3/8" x 3 1/2" Bolt (57), two 3/8"
Washers (38) and a 3/8" Nylon Locknut (42). Orient
the wide tab on the Pulley Covers as shown.
42 /
94-
/f
82
Wide Tab
35
94 \
38
"Wide Tab
38
43
88
94 42
J
57
38
12

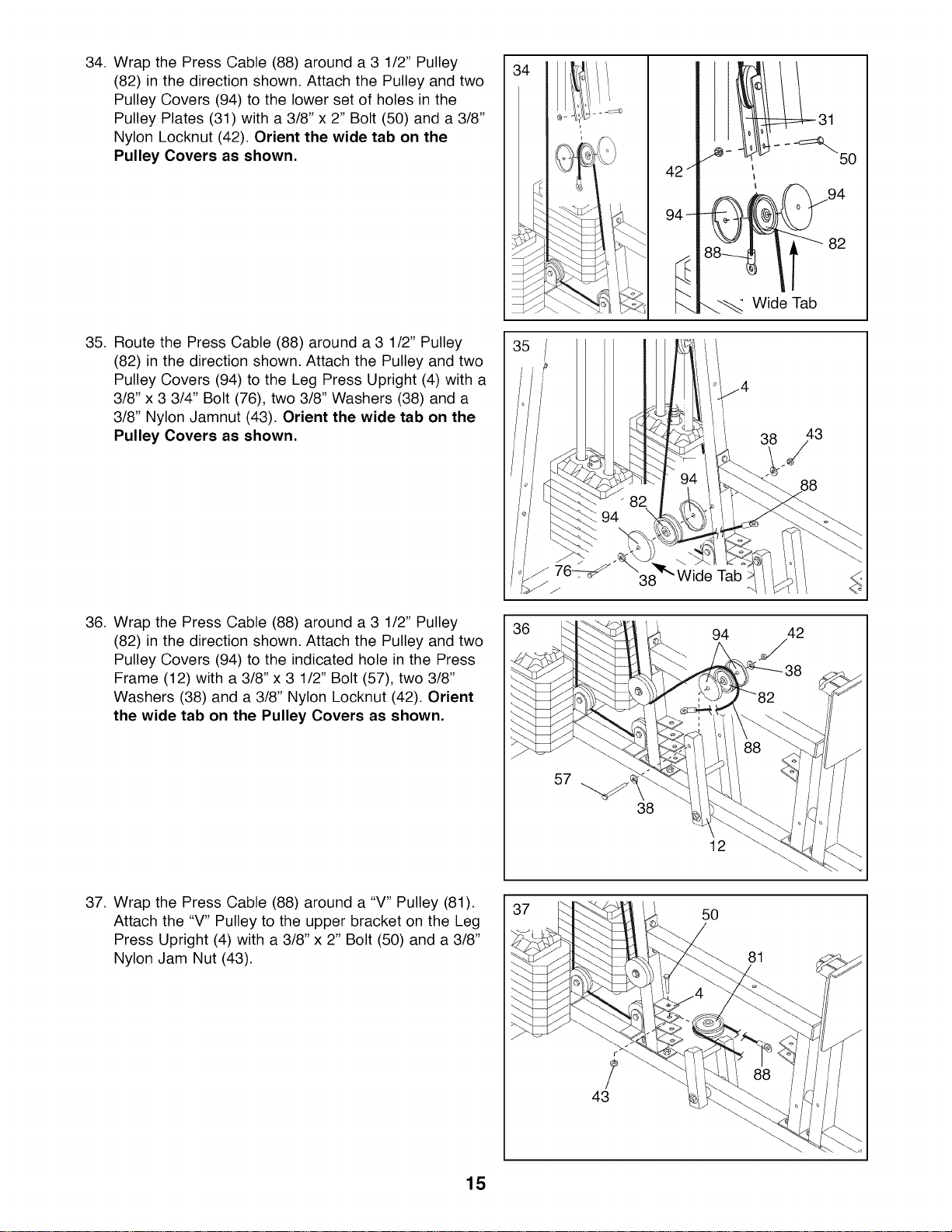

37. Wrap the Press Cable (88) around a "V" Pulley (81).
Attach the "V" Pulley to the upper bracket on the Leg
Press Upright (4) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Jam Nut (43).
50
81
15

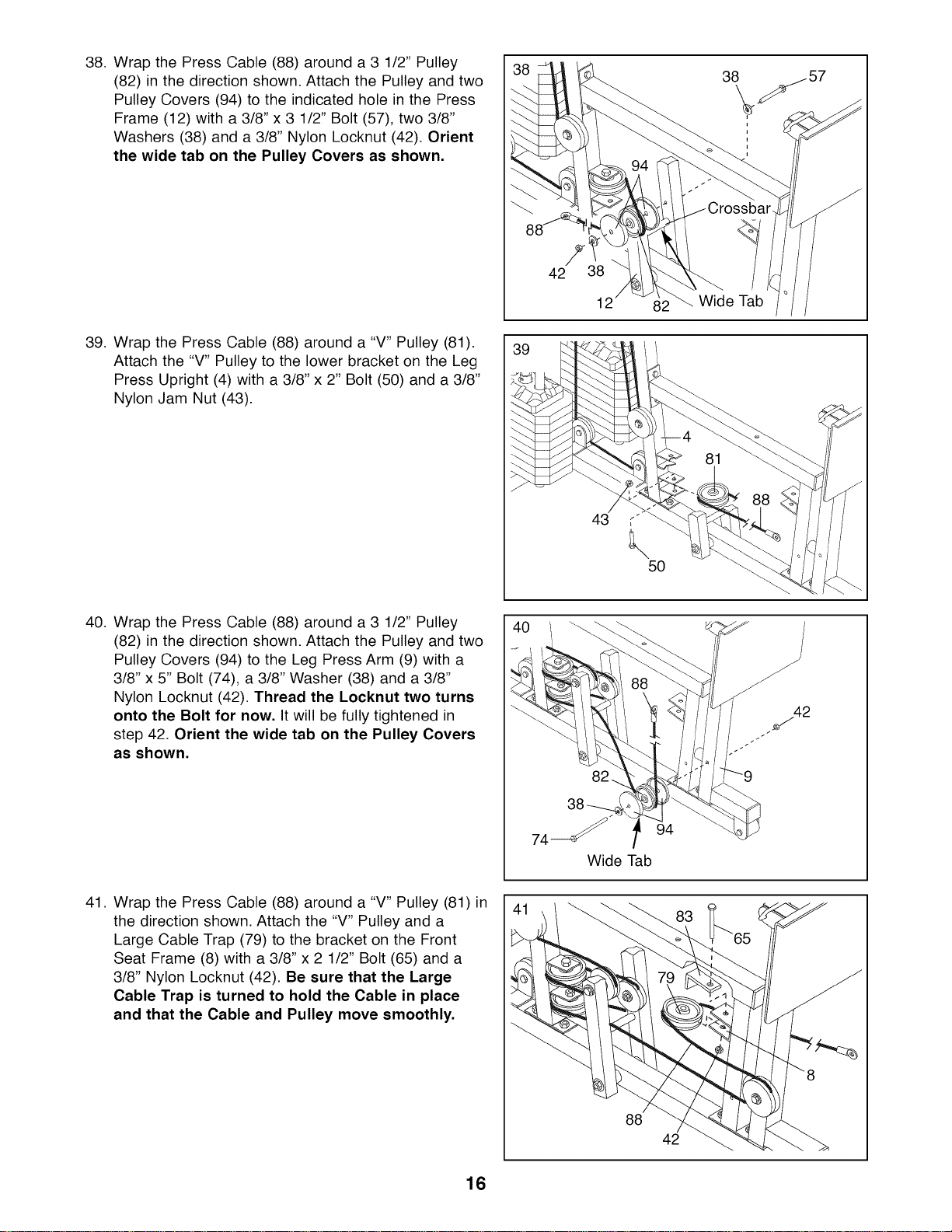

38. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Press
Frame (12) with a 3/8" x 3 1/2" Bolt (57), two 3/8"
Washers (38) and a 3/8" Nylon Locknut (42). Orient
the wide tab on the Pulley Covers as shown.
39. Wrap the Press Cable (88) around a "V" Pulley (81).
Attach the "V" Pulley to the lower bracket on the Leg
Press Upright (4) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Jam Nut (43).
12
43
82
50
Wide Tab
40. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Leg Press Arm (9) with a
3/8" x 5" Bolt (74), a 3/8" Washer (38) and a 3/8"
Nylon Locknut (42). Thread the Locknut two turns
onto the Bolt for now. It will be fully tightened in
step 42. Orient the wide tab on the Pulley Covers
as shown.
74_ 94
Wide Tab
41. Wrap the Press Cable (88) around a "V" Pulley (81) in
the direction shown. Attach the "V" Pulley and a
Large Cable Trap (79) to the bracket on the Front
Seat Frame (8) with a 3/8" x 2 1/2" Bolt (65) and a
3/8" Nylon Locknut (42). Be sure that the Large
Cable Trap is turned to hold the Cable in place
and that the Cable and Pulley move smoothly.
88
42
16

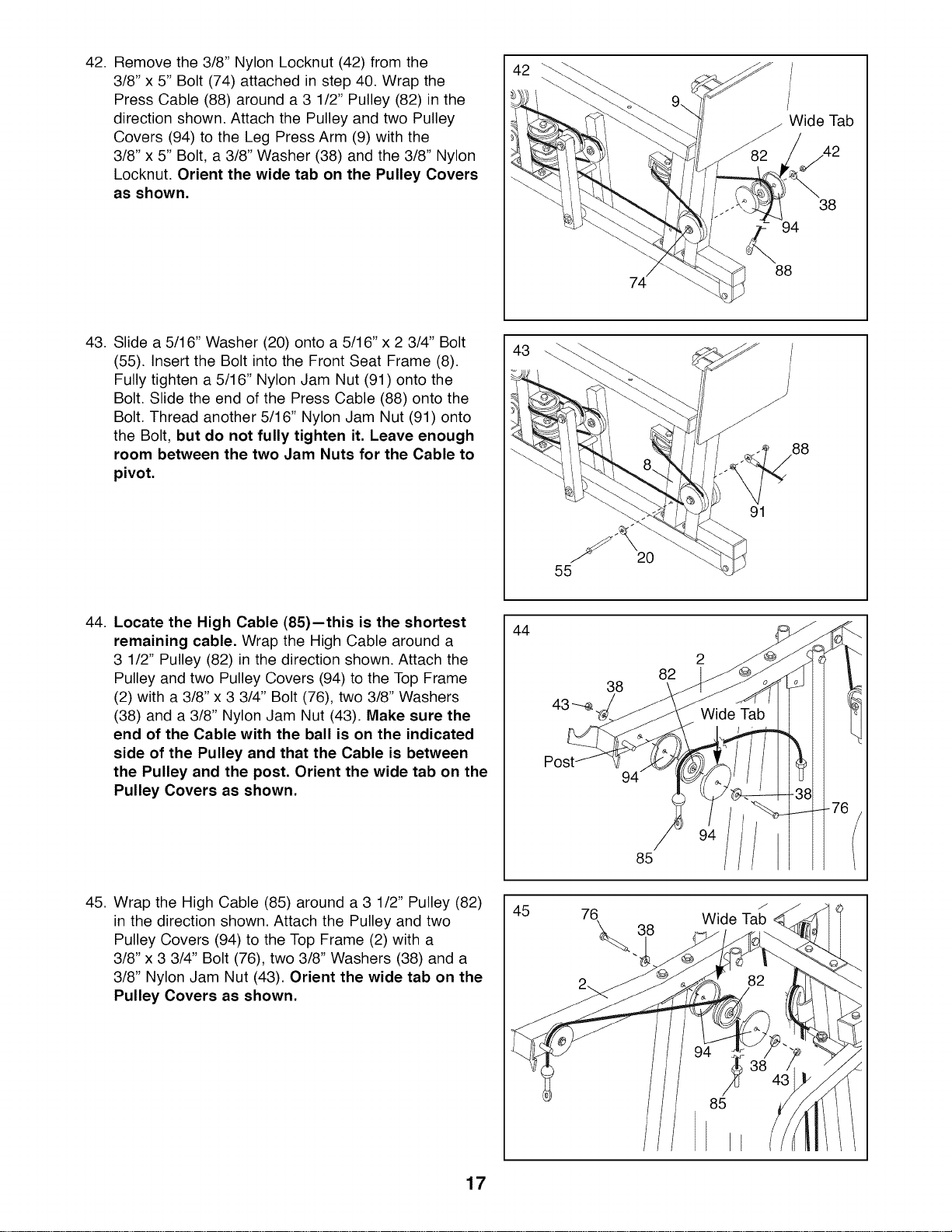

42. Remove the 3/8" Nylon Locknut (42) from the
3/8" x 5" Bolt (74) attached in step 40. Wrap the
Press Cable (88) around a 3 1/2" Pulley (82) in the
direction shown. Attach the Pulley and two Pulley
Covers (94) to the Leg Press Arm (9) with the
3/8" x 5" Bolt, a 3/8" Washer (38) and the 3/8" Nylon
Locknut. Orient the wide tab on the Pulley Covers
as shown.
Wide Tab
/./42
38
88
43. Slide a 5/16" Washer (20) onto a 5/16" x 2 3/4" Bolt
(55). Insert the Bolt into the Front Seat Frame (8).
Fully tighten a 5/16" Nylon Jam Nut (91) onto the
Bolt. Slide the end of the Press Cable (88) onto the
Bolt. Thread another 5/16" Nylon Jam Nut (91) onto
the Bolt, but do not fully tighten it. Leave enough
room between the two Jam Nuts for the Cable to
pivot.
43
55
20
91
/
/
/
88
44. Locate the High Cable (85)--this is the shortest
remaining cable. Wrap the High Cable around a
3 1/2" Pulley (82) in the direction shown, Attach the
Pulley and two Pulley Covers (94) to the Top Frame
(2) with a 3/8" x 3 3/4" Bolt (76), two 3/8" Washers
(38) and a 3/8" Nylon Jam Nut (43), Make sure the
end of the Cable with the ball is on the indicated
side of the Pulley and that the Cable is between
the Pulley and the post. Orient the wide tab on the
Pulley Covers as shown.
44
38
2
82
85
45. Wrap the High Cable (85) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Top Frame (2) with a
3/8" x 3 3/4" Bolt (76), two 3/8" Washers (38) and a
3/8" Nylon Jam Nut (43). Orient the wide tab on the
Pulley Covers as shown.
45
76
38
J
Wide Tab
17

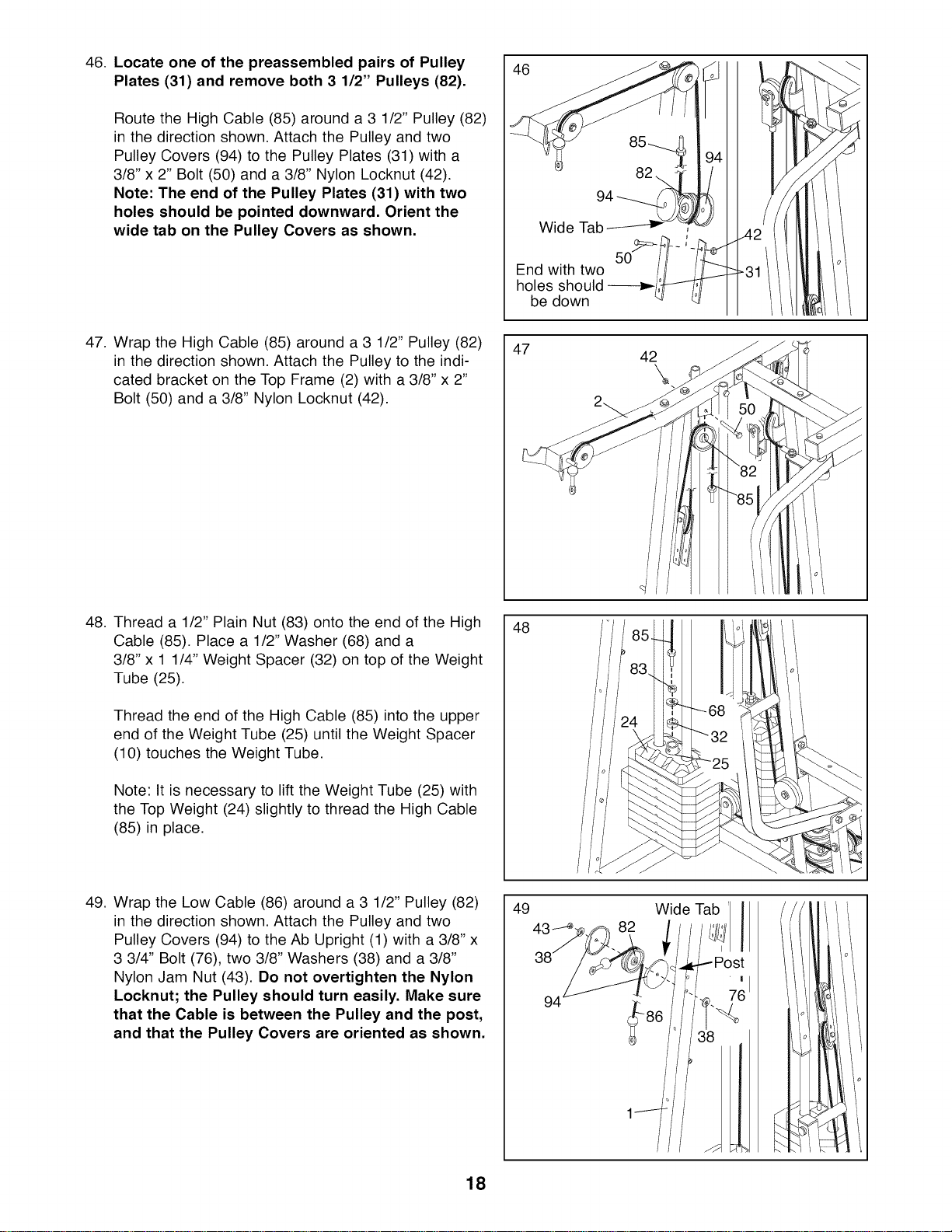

46. Locate one of the preassembled pairs of Pulley
Plates (31) and remove both 3 1/2" Pulleys (82).
Route the High Cable (85) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Pulley Plates (31) with a
3/8" x 2" Bolt (50) and a 3/8" Nylon Locknut (42).
Note: The end of the Pulley Plates (31) with two
holes should be pointed downward. Orient the
wide tab on the Pulley Covers as shown.
46
94
47. Wrap the High Cable (85) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley to the indi-
cated bracket on the Top Frame (2) with a 3/8" x 2"
Bolt (50) and a 3/8" Nylon Locknut (42).
47
48. Thread a 1/2" Plain Nut (83) onto the end of the High
Cable (85). Place a 1/2" Washer (68) and a
3/8" x 1 1/4" Weight Spacer (32) on top of the Weight
Tube (25).
Thread the end of the High Cable (85) into the upper
end of the Weight Tube (25) until the Weight Spacer
(10) touches the Weight Tube.
Note: It is necessary to lift the Weight Tube (25) with
the Top Weight (24) slightly to thread the High Cable
(85) in place.
49. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Ab Upright (1) with a 3/8" x
3 3/4" Bolt (76), two 3/8" Washers (38) and a 3/8"
Nylon Jam Nut (43). Do not overtighten the Nylon
Locknut; the Pulley should turn easily. Make sure
that the Cable is between the Pulley and the post,
and that the Pulley Covers are oriented as shown.
48
49
/_ i85
o / 83 ,,
Wide Tab
18

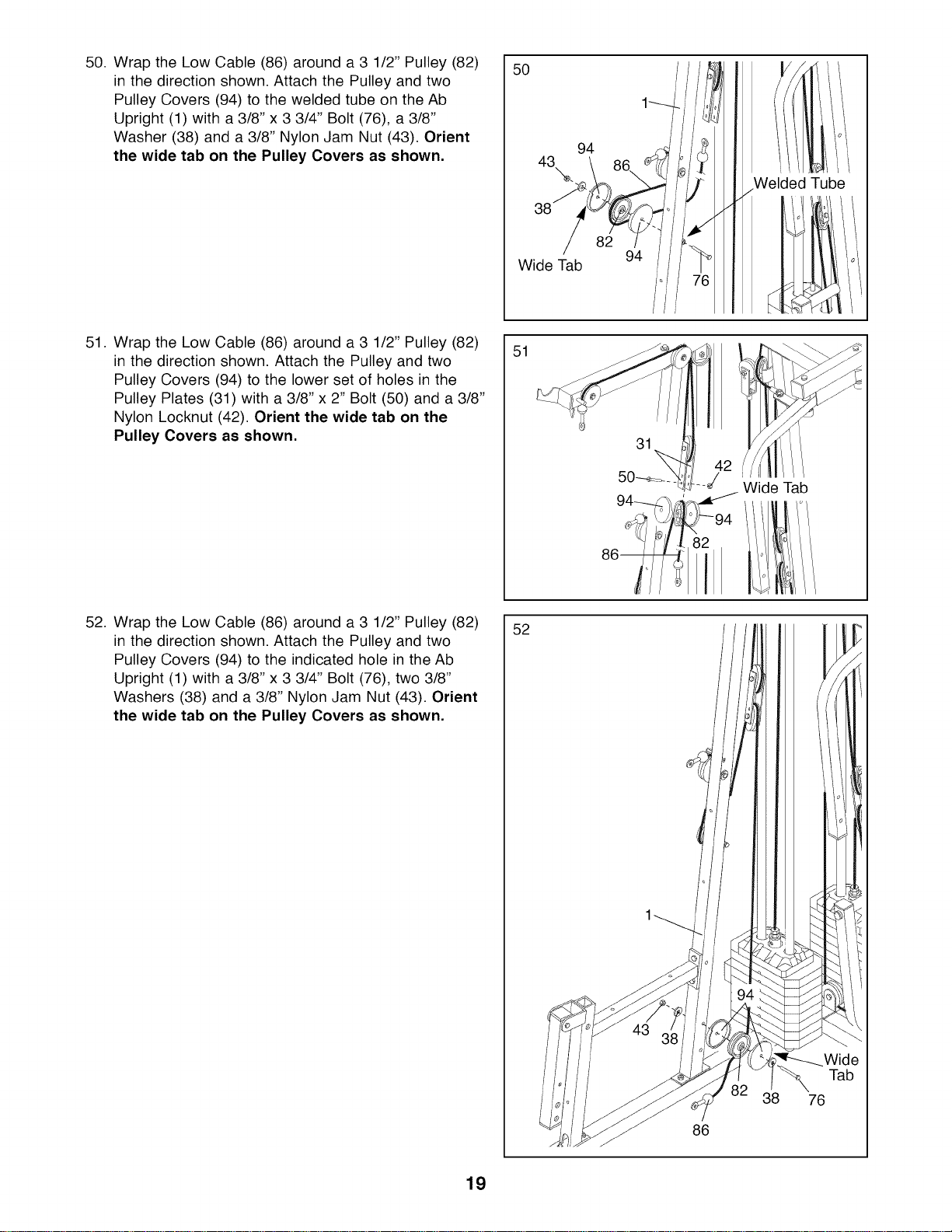

50. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the welded tube on the Ab
Upright (1) with a 3/8" x 3 3/4" Bolt (76), a 3/8"
Washer (38) and a 3/8" Nylon Jam Nut (43). Orient
the wide tab on the Pulley Covers as shown.
51. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the lower set of holes in the
Pulley Plates (31) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Locknut (42). Orient the wide tab on the
Pulley Covers as shown.
50
51
82
Wide Tab
94
Tube
Wide Tab
52. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Ab
Upright (1) with a 3/8" x 3 3/4" Bolt (76), two 3/8"
Washers (38) and a 3/8" Nylon Jam Nut (43). Orient
the wide tab on the Pulley Covers as shown.
52
86
38
76
Tab
19

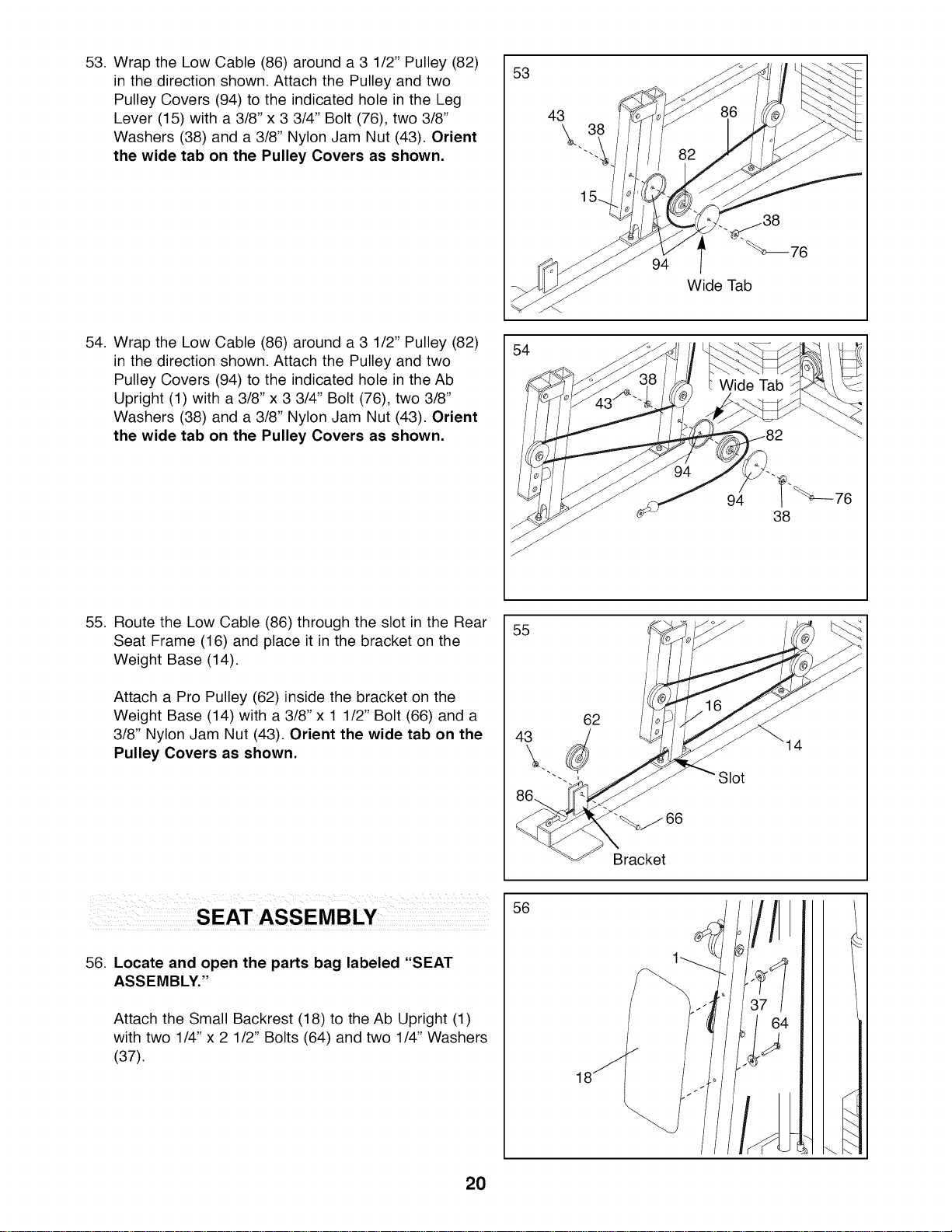

53. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Leg
Lever (15) with a 3/8" x 3 3/4" Bolt (76), two 3/8"
Washers (38) and a 3/8" Nylon Jam Nut (43). Orient
the wide tab on the Pulley Covers as shown.
53
43
94
Wide Tab
54. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Ab
Upright (1) with a 3/8" x 3 3/4" Bolt (76), two 3/8"
Washers (38) and a 3/8" Nylon Jam Nut (43). Orient
the wide tab on the Pulley Covers as shown.
54
94
38
55. Route the Low Cable (86) through the slot in the Rear
Seat Frame (16) and place it in the bracket on the
Weight Base (14).
Attach a Pro Pulley (62) inside the bracket on the
Weight Base (14) with a 3/8" x 1 1/2" Bolt (66) and a
3/8" Nylon Jam Nut (43). Orient the wide tab on the
Pulley Covers as shown.
55
43
62
66
Bracket
14
56. Locate and open the parts bag labeled "SEAT
ASSEMBLY."
Attach the Small Backrest (18) to the Ab Upright (1)
with two 1/4" x 2 1/2" Bolts (64) and two 1/4" Washers
(37).
56
h,..
F..
2O

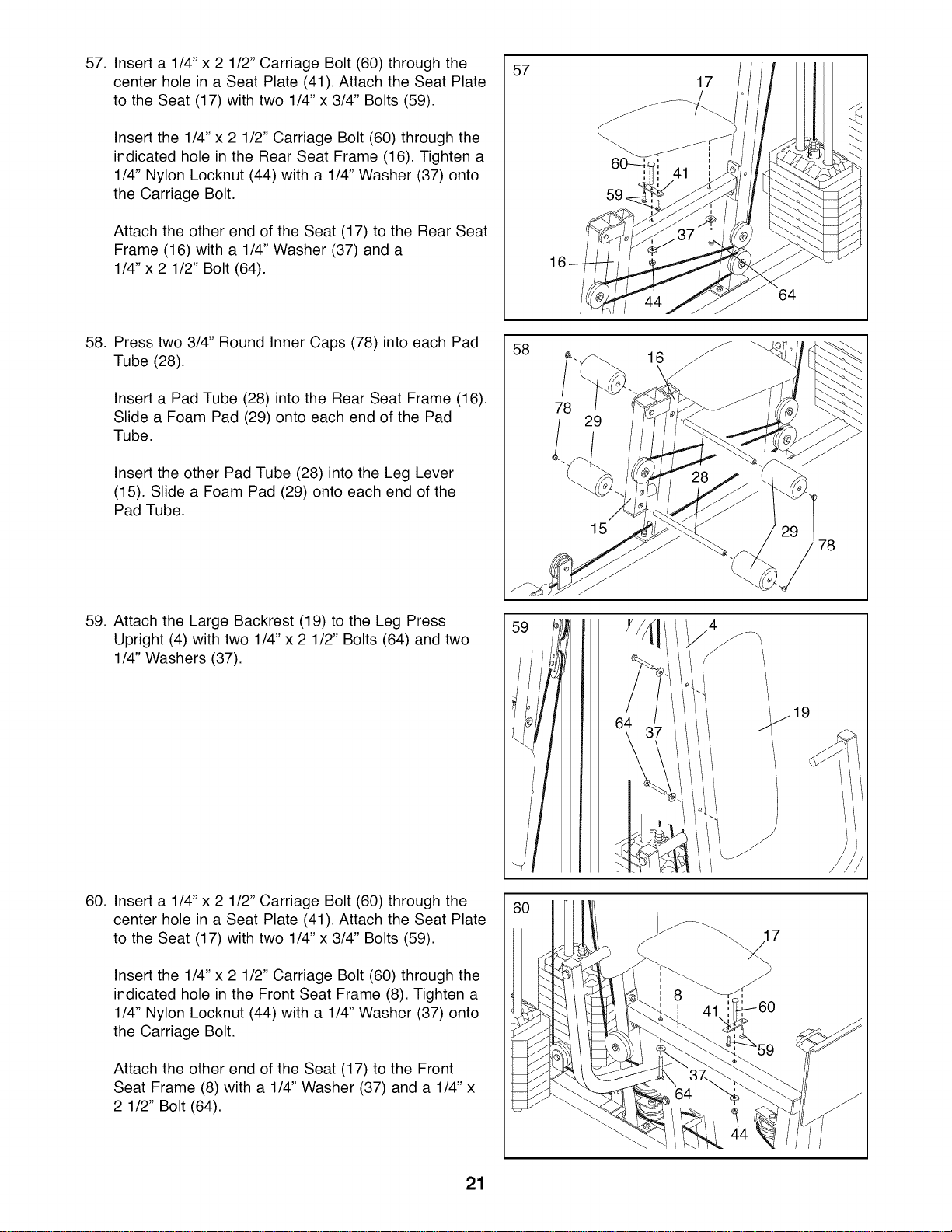

57. Insert a 1/4" x 2 1/2" Carriage Bolt (60) through the
center hole in a Seat Plate (41). Attach the Seat Plate
to the Seat (17) with two 1/4" x 3/4" Bolts (59).
Insert the 1/4" x 2 1/2" Carriage Bolt (60) through the
indicated hole in the Rear Seat Frame (16). Tighten a
1/4" Nylon Locknut (44) with a 1/4" Washer (37) onto
the Carriage Bolt.
Attach the other end of the Seat (17) to the Rear Seat
Frame (16) with a 1/4" Washer (37) and a
1/4" x 2 1/2" Bolt (64).
58. Press two 3/4" Round Inner Caps (78) into each Pad
Tube (28).
Insert a Pad Tube (28) into the Rear Seat Frame (16).
Slide a Foam Pad (29) onto each end of the Pad
Tube.
Insert the other Pad Tube (28) into the Leg Lever
(15). Slide a Foam Pad (29) onto each end of the
Pad Tube.
57
58
17
29
15
64
78
59. Attach the Large Backrest (19) to the Leg Press
Upright (4) with two 1/4" x 2 1/2" Bolts (64) and two
1/4" Washers (37).
60. Insert a 1/4" x 2 1/2" Carriage Bolt (60) through the
center hole in a Seat Plate (41). Attach the Seat Plate
to the Seat (17) with two 1/4" x 3/4" Bolts (59).
Insert the 1/4" x 2 1/2" Carriage Bolt (60) through the
indicated hole in the Front Seat Frame (8). Tighten a
1/4" Nylon Locknut (44) with a 1/4" Washer (37) onto
the Carriage Bolt.
Attach the other end of the Seat (17) to the Front
Seat Frame (8) with a 1/4" Washer (37) and a 1/4" x
2 1/2" Bolt (64).
59
64
/
21

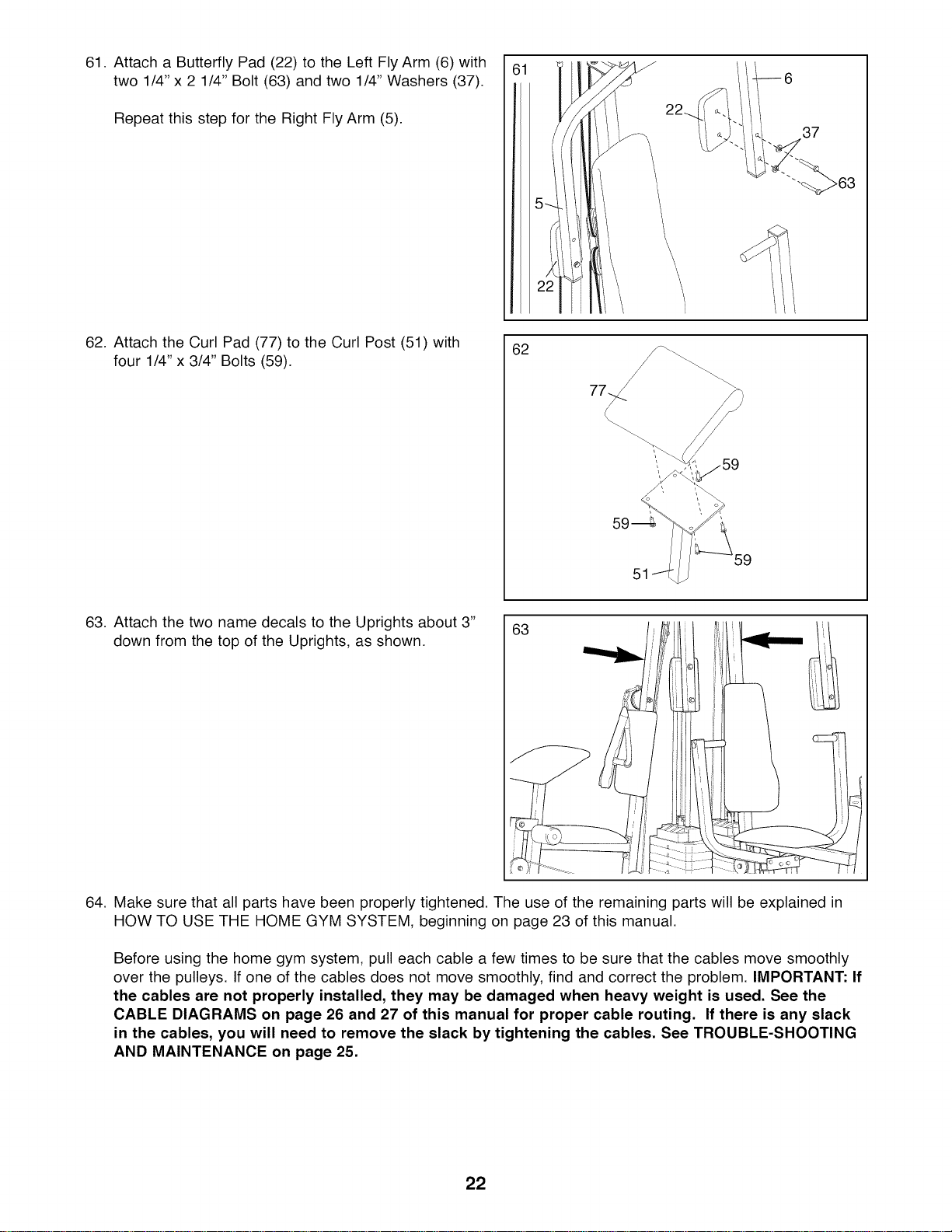

61. Attach a Butterfly Pad (22) to the Left Fly Arm (6) with
two 1/4" x 2 1/4" Bolt (63) and two 1/4" Washers (37).
Repeat this step for the Right Fly Arm (5).
22
62. Attach the Curl Pad (77) to the Curl Post (51) with
four 1/4" x 3/4" Bolts (59).
62
51
63. Attach the two name decals to the Uprights about 3"
down from the top of the Uprights, as shown.
63
64. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
HOW TO USE THE HOME GYM SYSTEM, beginning on page 23 of this manual.
Before using the home gym system, pull each cable a few times to be sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not properly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAMS on page 26 and 27 of this manual for proper cable routing. If there is any slack
in the cables, you will need to remove the slack by tightening the cables. See TROUBLE-SHOOTING
AND MAINTENANCE on page 25.
22
The instructions below describe how each part of the home gym system can be adjusted. Refer to the exercise
poster accompanying this manual to see how the home gym system should be set up for each exercise.
IMPORTANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the cor-
rect starting position for the exercise to be performed. If there is any slack in the cables or chain as an
exercise is performed, the effectiveness of the exercise will be reduced.

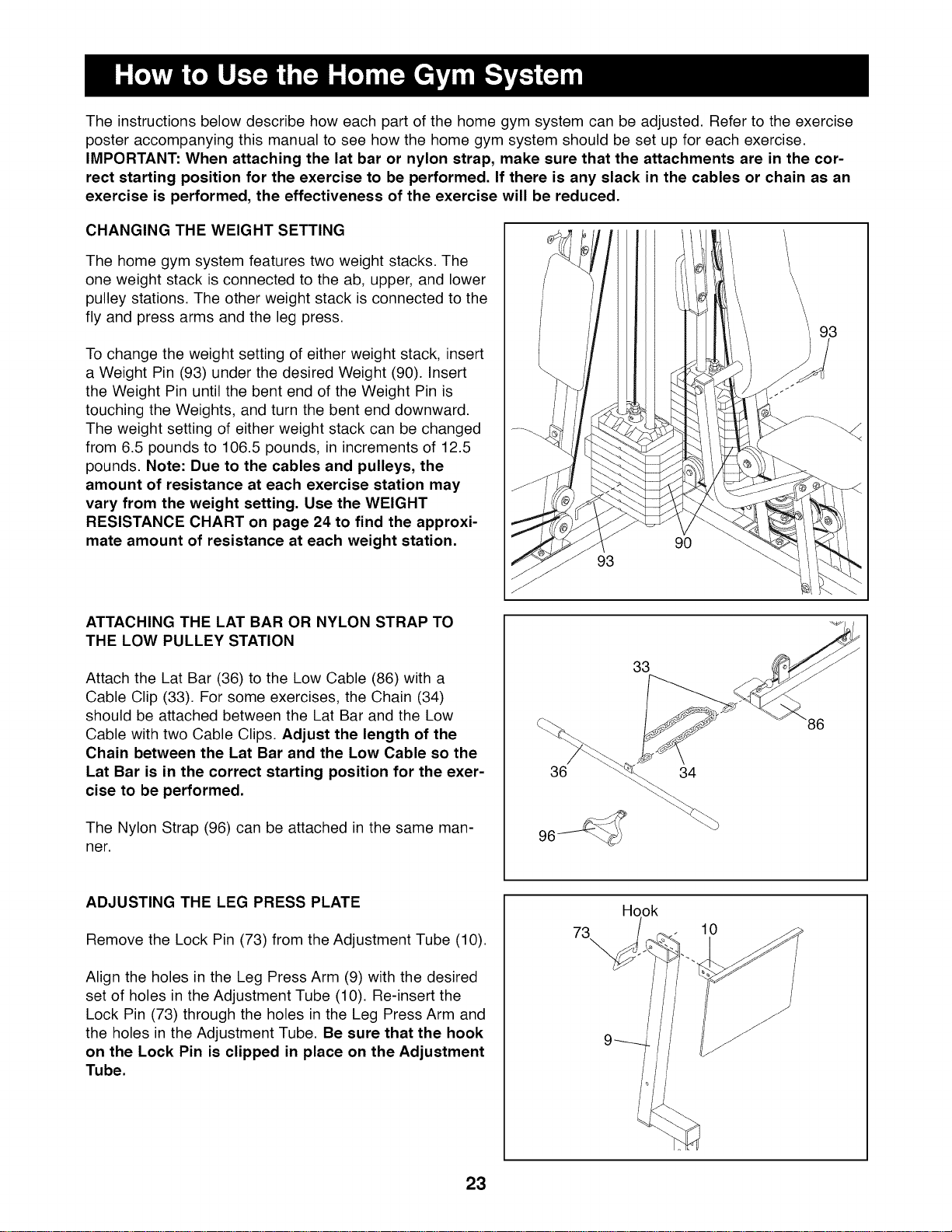

CHANGING THE WEIGHT SETTING
The home gym system features two weight stacks. The
one weight stack is connected to the ab, upper, and lower
pulley stations. The other weight stack is connected to the
fly and press arms and the leg press.
To change the weight setting of either weight stack, insert
a Weight Pin (93) under the desired Weight (90). Insert
the Weight Pin until the bent end of the Weight Pin is
touching the Weights, and turn the bent end downward.
The weight setting of either weight stack can be changed
from 6.5 pounds to 106.5 pounds, in increments of 12.5
pounds. Note: Due to the cables and pulleys, the
amount of resistance at each exercise station may
vary from the weight setting. Use the WEIGHT
RESISTANCE CHART on page 24 to find the approxi-
mate amount of resistance at each weight station. 90
93
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION
Attach the Lat Bar (36) to the Low Cable (86) with a
Cable Clip (33). For some exercises, the Chain (34)
should be attached between the Lat Bar and the Low
Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the Low Cable so the
Lat Bar is in the correct starting position for the exer-
cise to be performed.
The Nylon Strap (96) can be attached in the same man-
ner.
33
86
ADJUSTING THE LEG PRESS PLATE
Remove the Lock Pin (73) from the Adjustment Tube (10).
Align the holes in the Leg Press Arm (9) with the desired
set of holes in the Adjustment Tube (10). Re-insert the
Lock Pin (73) through the holes in the Leg Press Arm and
the holes in the Adjustment Tube. Be sure that the hook
on the Lock Pin is clipped in place on the Adjustment
Tube.
Hook
10
23

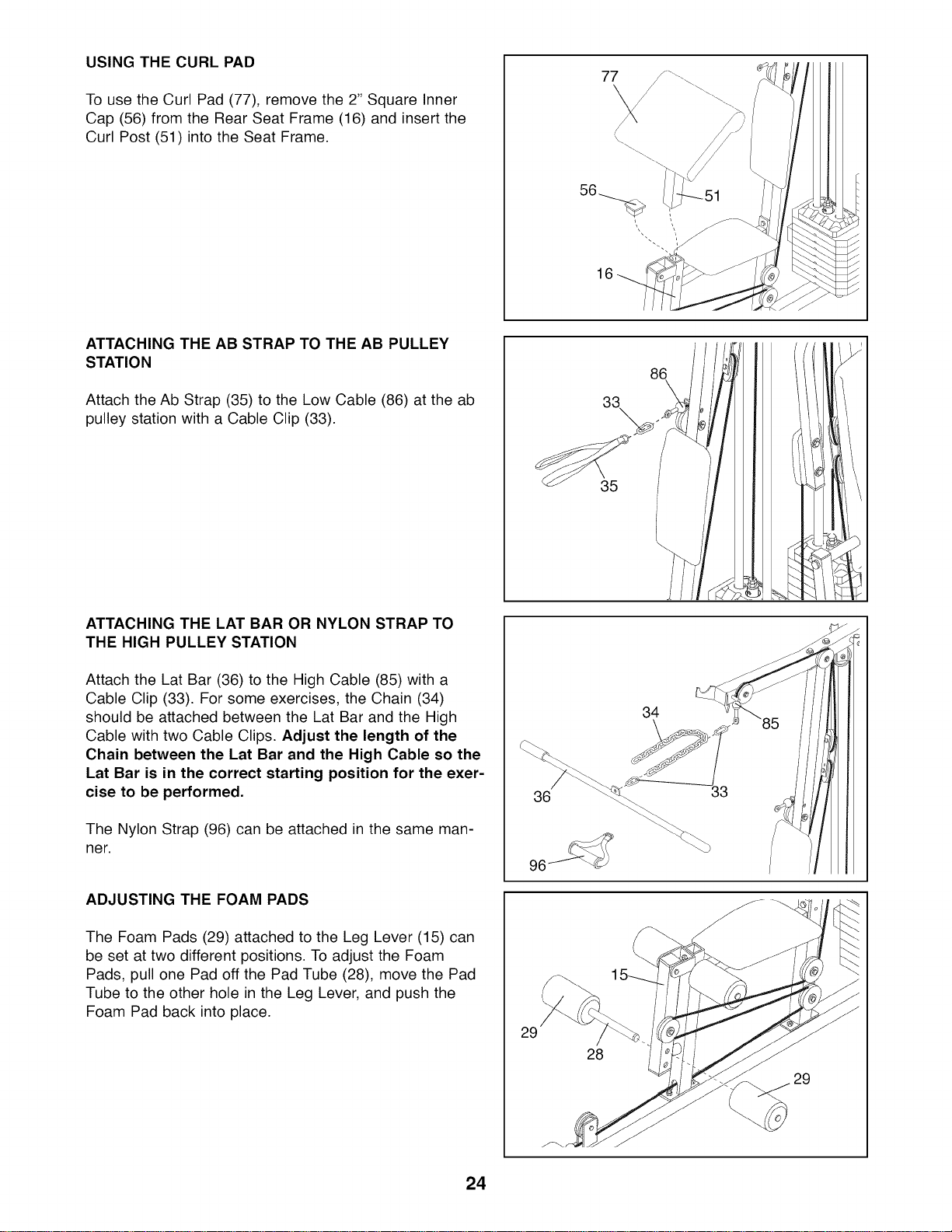

USING THE CURL PAD
To use the Curl Pad (77), remove the 2" Square Inner
Cap (56) from the Rear Seat Frame (16) and insert the
Curl Post (51) into the Seat Frame.
16
ATTACHING THE AB STRAP TO THE AB PULLEY
STATION
Attach the Ab Strap (35) to the Low Cable (86) at the ab
pulley station with a Cable Clip (33).
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
Attach the Lat Bar (36) to the High Cable (85) with a
Cable Clip (33). For some exercises, the Chain (34)
should be attached between the Lat Bar and the High
Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the High Cable so the
Lat Bar is in the correct starting position for the exer-
cise to be performed.
The Nylon Strap (96) can be attached in the same man-
ner.
ADJUSTING THE FOAM PADS
The Foam Pads (29) attached to the Leg Lever (15) can
be set at two different positions. To adjust the Foam
Pads, pull one Pad off the Pad Tube (28), move the Pad
Tube to the other hole in the Leg Lever, and push the
Foam Pad back into place.
36
96
29
86
33
\
35
34
33
28
24
Inspect and tighten all parts each time you use the home gym system. Replace any worn parts immediately. The
home gym system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

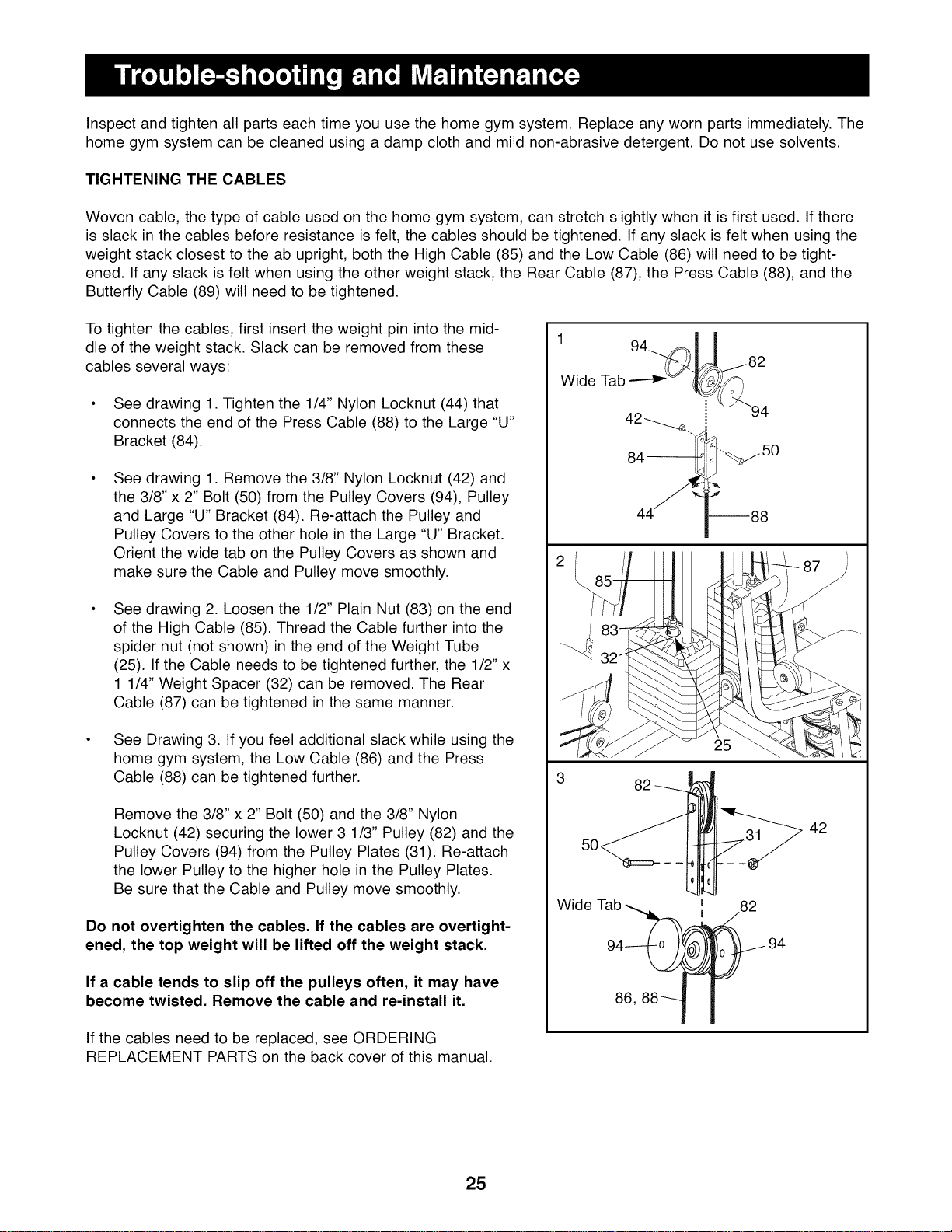

TIGHTENING THE CABLES
Woven cable, the type of cable used on the home gym system, can stretch slightly when it is first used. If there
is slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the
weight stack closest to the ab upright, both the High Cable (85) and the Low Cable (86) will need to be tight-
ened. If any slack is felt when using the other weight stack, the Rear Cable (87), the Press Cable (88), and the
Butterfly Cable (89) will need to be tightened.
To tighten the cables, first insert the weight pin into the mid-
dle of the weight stack. Slack can be removed from these
cables several ways:
• See drawing 1. Tighten the 1/4" Nylon Locknut (44) that
connects the end of the Press Cable (88) to the Large "U"
Bracket (84).
See drawing 1. Remove the 3/8" Nylon Locknut (42) and
the 3/8" x 2" Bolt (50) from the Pulley Covers (94), Pulley
and Large "U" Bracket (84). Re-attach the Pulley and
Pulley Covers to the other hole in the Large "U" Bracket.
Orient the wide tab on the Pulley Covers as shown and
make sure the Cable and Pulley move smoothly.
See drawing 2. Loosen the 1/2" Plain Nut (83) on the end
of the High Cable (85). Thread the Cable further into the
spider nut (not shown) in the end of the Weight Tube
(25). If the Cable needs to be tightened further, the 1/2" x
1 1/4" Weight Spacer (32) can be removed. The Rear
Cable (87) can be tightened in the same manner.
• See Drawing 3. If you feel additional slack while using the
home gym system, the Low Cable (86) and the Press
Cable (88) can be tightened further.
Remove the 3/8" x 2" Bolt (50) and the 3/8" Nylon
Locknut (42) securing the lower 3 1/3" Pulley (82) and the
Pulley Covers (94) from the Pulley Plates (31). Re-attach
the lower Pulley to the higher hole in the Pulley Plates.
Be sure that the Cable and Pulley move smoothly.
Do not overtighten the cables. If the cables are overtight-
ened, the top weight will be lifted off the weight stack.
If a cable tends to slip off the pulleys often, it may have
become twisted. Remove the cable and re-install it.
Wide Tab _ ._._
_94
42_
84_"_- j5°
44 i--88
3 82-___
Wide Tab %
86, 88----
I
82
42
If the cables need to be replaced, see ORDERING
REPLACEMENT PARTS on the back cover of this manual.
25

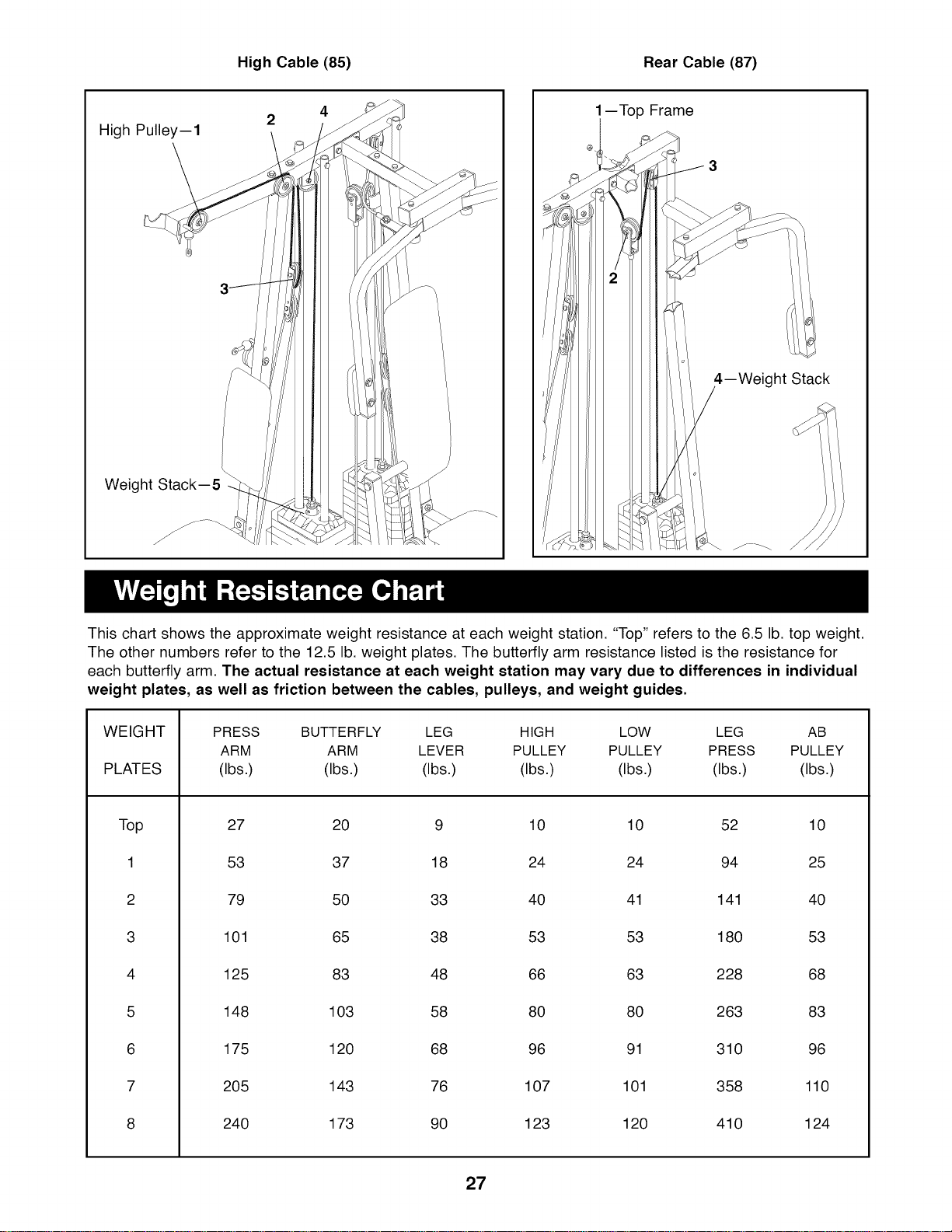

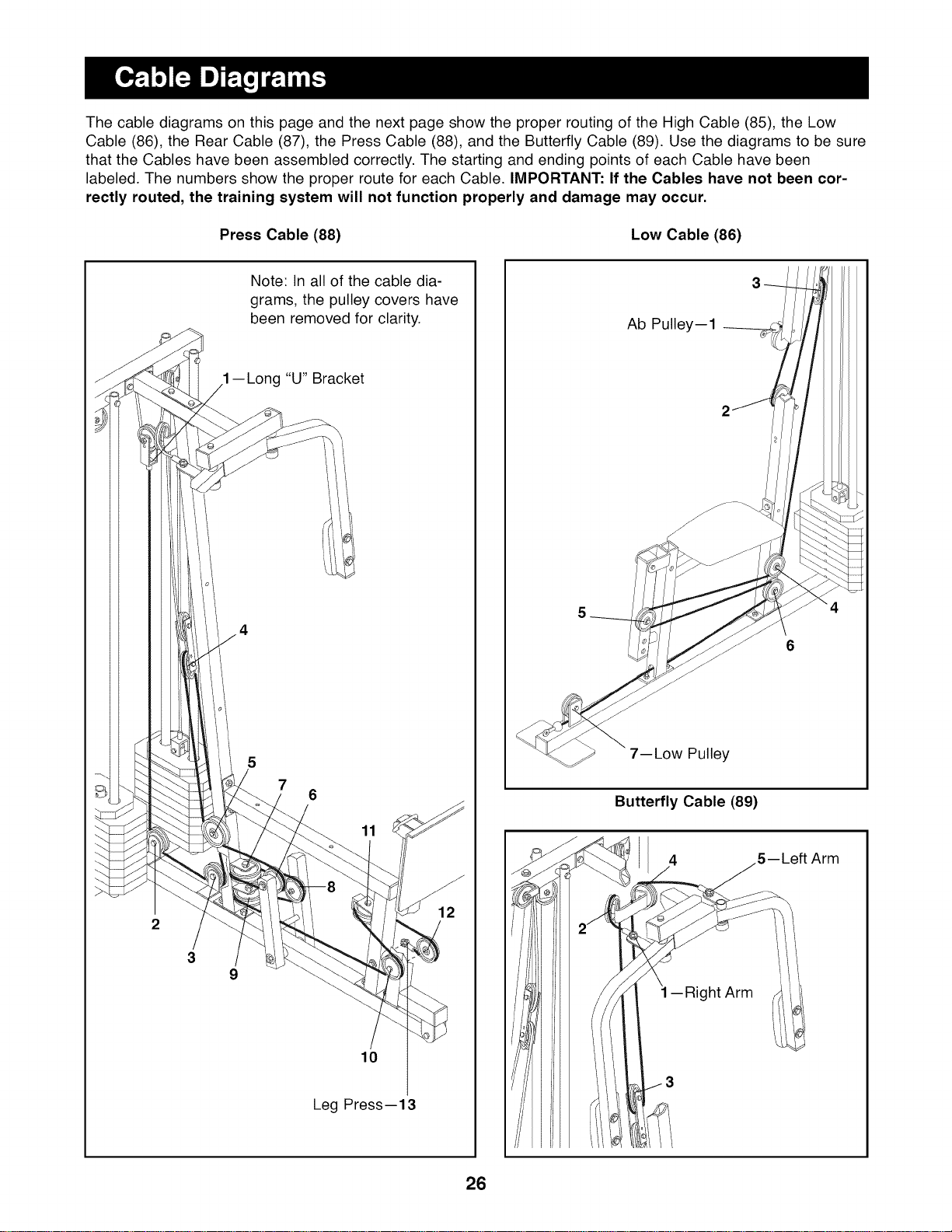

The cable diagrams on this page and the next page show the proper routing of the High Cable (85), the Low
Cable (86), the Rear Cable (87), the Press Cable (88), and the Butterfly Cable (89). Use the diagrams to be sure
that the Cables have been assembled correctly. The starting and ending points of each Cable have been
labeled. The numbers show the proper route for each Cable. IMPORTANT: If the Cables have not been cor-
rectly routed, the training system will not function properly and damage may occur.
Press Cable (88) Low Cable (86)
2
3
Note: In all of the cable dia-
grams, the pulley covers have
been removed for clarity.
'<U"Bracket
5
7
6
11
9
10
/
Leg Press--13
Ab Pulley--1
7--Low Pulley
Butterfly Cable (89)
5-- Left Arm
--Right Arm
26
High Cable (85) Rear Cable (87)
High Pulley--1
Weight Stack--5
1--Top Frame
3
4--Weight Stack
This chart shows the approximate weight resistance at each weight station. "Top" refers to the 6.5 lb. top weight.
The other numbers refer to the 12.5 lb. weight plates. The butterfly arm resistance listed is the resistance for
each butterfly arm. The actual resistance at each weight station may vary due to differences in individual
weight plates, as well as friction between the cables, pulleys, and weight guides.
WEIGHT PRESS BUTTERFLY LEG HIGH LOW
PLATES
Top
1
2
3
4
5
6
7
8
LEG AB
ARM ARM LEVER PULLEY PULLEY PRESS PULLEY
(Ibs.) (Ibs.) (Ibs.) (Ibs.) (Ibs.) (Ibs.) (Ibs.)
27 20 9 10 10 52 10
53 37 18 24 24 94 25
79 50 33 40 41 141 40
101 65 38 53 53 180 53
125 83 48 66 63 228 68
148 103 58 80 80 263 83
175 120 68 96 91 310 96
205 143 76 107 101 358 110
240 173 90 123 120 410 124
27
1"x 7/8" Plastic Bushing (54)
I
1/2" x 3/4" Spacer (69)
1" Round Inner Cap (70)
1 1/8" x 2 1/2" Plastic Bushing (47)
\
1 1/2" Square Inner Cap (57)
1" Round Outer Cap (46)
2" Square Outer Cap (58)
3/4" Round Inner Cap (78)
k_
1 3/4" Square Inner Cap (48)
J
2" Square Inner Cap (56)
1/4"Washer(37)
5/16"Washer(20)
3/8" Washer(38)
@ _ 1/4"NylonLocknut(44)
_ 5/16"NylonLocknut(40)
1"Retainer(45)
1/4"x 3/4"Bolt(59)
1"TapScrew(72)
5/16"x 1" Bolt(97)
3/8"x2" Bolt(50)
5/16"x 21/2"Bolt(39)
3/8"x 2 1/2" Bolt(65)
5/16"NylonJamNut(91)
3/8"NylonLocknut(42)
3/8"NylonJamNut(43)
5/16"x 3"Bolt(92)
3/8"x 11/2" Bolt(66)
5/16"x 23/4"Bolt(55)
3/8"x 2 1/4"Bolt(71)
3/8"x 3"Bolt(98)
3/8"x 3 1/2" Bolt(57)
1/4"x 2"Bolt(63)
1/4"x 21/2"Bolt(64)
1/4"x2 1/2"CarriageBolt(60)
"V"Pulley(81)
(Notshownto scale)
5/16"x 2 1/2"CarriageBolt(49)
_
3 1/2" Pulley (82)
(Not shown to scale)
5/16" x 2 1/4" Carriage Bolt (61)
1/2" Plain Nut (83) 1/2" Washer (68)
3/8" x 3 3/4" Bolt (76)
3/8" x 5" Bolt (74)
E
b--
(D
v
0
r_
¢0
x
(D
T""
LO
A
O4
LO
v
0
r_
x
cO

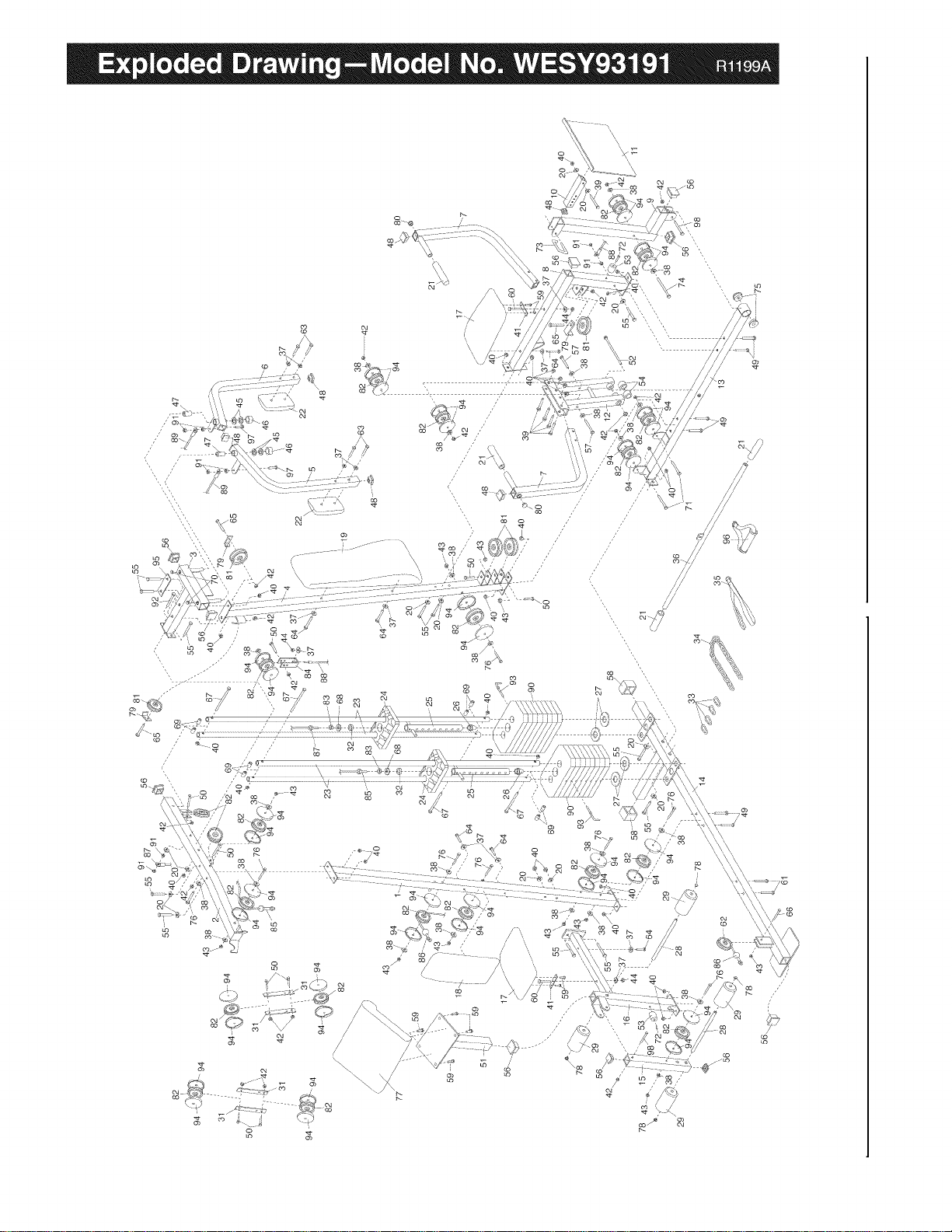

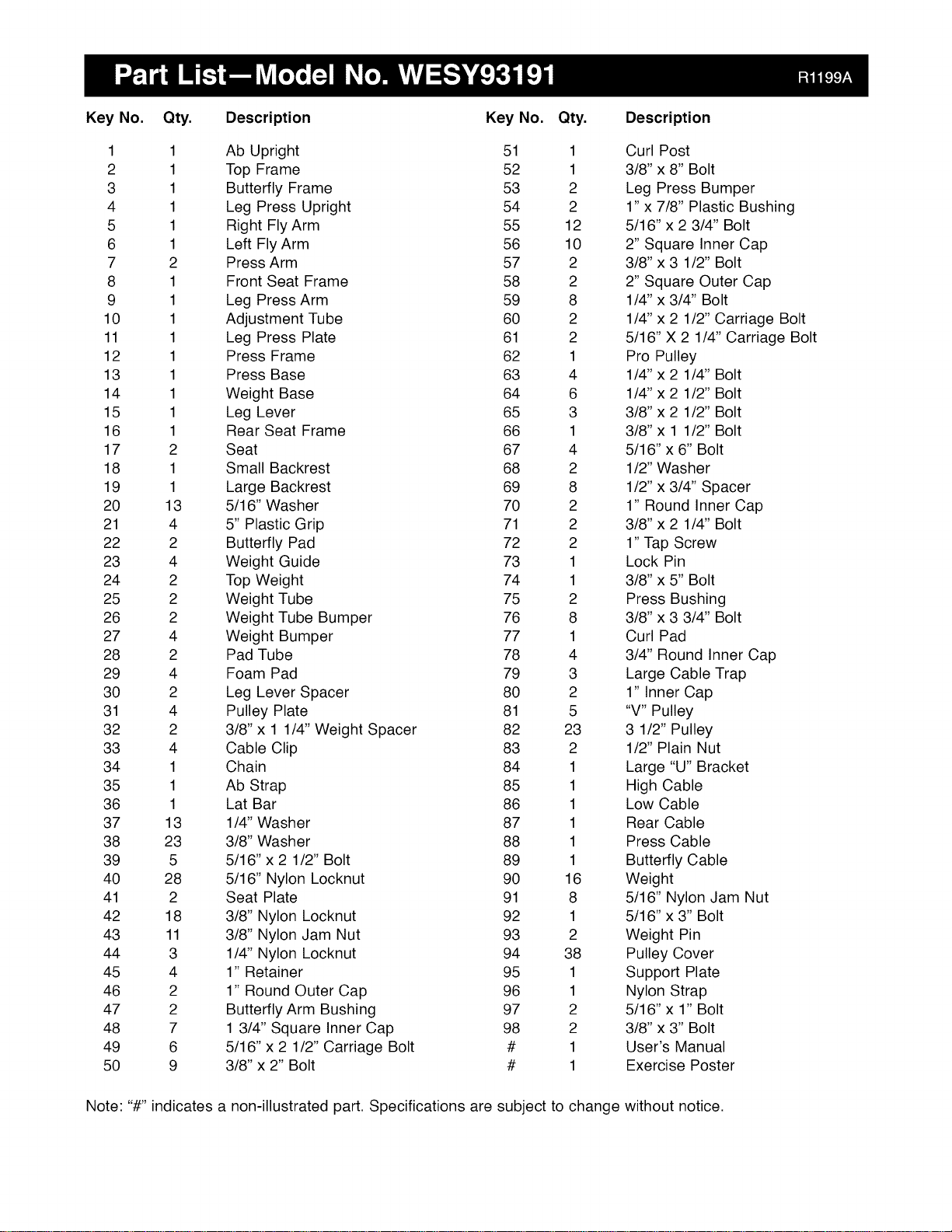

Key No. Qty. Description Key No. Qty. Description
1 1 Ab Upright 51 1 Curl Post
2 1 Top Frame 52 1 3/8" x 8" Bolt
3 1 Butterfly Frame 53 2 Leg Press Bumper
4 1 Leg Press Upright 54 2 1" x 7/8" Plastic Bushing
5 1 Right Fly Arm 55 12 5/16" x 2 3/4" Bolt
6 1 Left Fly Arm 56 10 2" Square Inner Cap
7 2 Press Arm 57 2 3/8" x 3 1/2" Bolt
8 1 Front Seat Frame 58 2 2" Square Outer Cap
9 1 Leg Press Arm 59 8 1/4" x 3/4" Bolt
10 1 Adjustment Tube 60 2 1/4" x 2 1/2" Carriage Bolt
11 1 Leg Press Plate 61 2 5/16" X 2 1/4" Carriage Bolt
12 1 Press Frame 62 1 Pro Pulley
13 1 Press Base 63 4 1/4" x 2 1/4" Bolt
14 1 Weight Base 64 6 1/4" x 2 1/2" Bolt
15 1 Leg Lever 65 3 3/8" x 2 1/2" Bolt
16 1 Rear Seat Frame 66 1 3/8" x 1 1/2" Bolt
17 2 Seat 67 4 5/16" x 6" Bolt
18 1 Small Backrest 68 2 1/2" Washer
19 1 Large Backrest 69 8 1/2" x 3/4" Spacer
20 13 5/16" Washer 70 2 1" Round Inner Cap
21 4 5" Plastic Grip 71 2 3/8" x 2 1/4" Bolt
22 2 Butterfly Pad 72 2 1" Tap Screw
23 4 Weight Guide 73 1 Lock Pin
24 2 Top Weight 74 1 3/8" x 5" Bolt
25 2 Weight Tube 75 2 Press Bushing
26 2 Weight Tube Bumper 76 8 3/8" x 3 3/4" Bolt
27 4 Weight Bumper 77 1 Curl Pad
28 2 Pad Tube 78 4 3/4" Round Inner Cap
29 4 Foam Pad 79 3 Large Cable Trap
30 2 Leg Lever Spacer 80 2 1" Inner Cap
31 4 Pulley Plate 81 5 "V" Pulley
32 2 3/8" x 1 1/4" Weight Spacer 82 23 3 1/2" Pulley
33 4 Cable Clip 83 2 1/2" Plain Nut
34 1 Chain 84 1 Large "U" Bracket
35 1 Ab Strap 85 1 High Cable
36 1 Lat Bar 86 1 Low Cable
37 13 1/4" Washer 87 1 Rear Cable
38 23 3/8" Washer 88 1 Press Cable
39 5 5/16" x 2 1/2" Bolt 89 1 Butterfly Cable
40 28 5/16" Nylon Locknut 90 16 Weight
41 2 Seat Plate 91 8 5/16" Nylon Jam Nut
42 18 3/8" Nylon Locknut 92 1 5/16" x 3" Bolt
43 11 3/8" Nylon Jam Nut 93 2 Weight Pin
44 3 1/4" Nylon Locknut 94 38 Pulley Cover
45 4 1" Retainer 95 1 Support Plate
46 2 1" Round Outer Cap 96 1 Nylon Strap
47 2 Butterfly Arm Bushing 97 2 5/16" x 1" Bolt
48 7 1 3/4" Square Inner Cap 98 2 3/8" x 3" Bolt
49 6 5/16" x 2 1/2" Carriage Bolt # 1 User's Manual
50 9 3/8" x 2" Bolt # 1 Exercise Poster
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice.
/
\
/ /

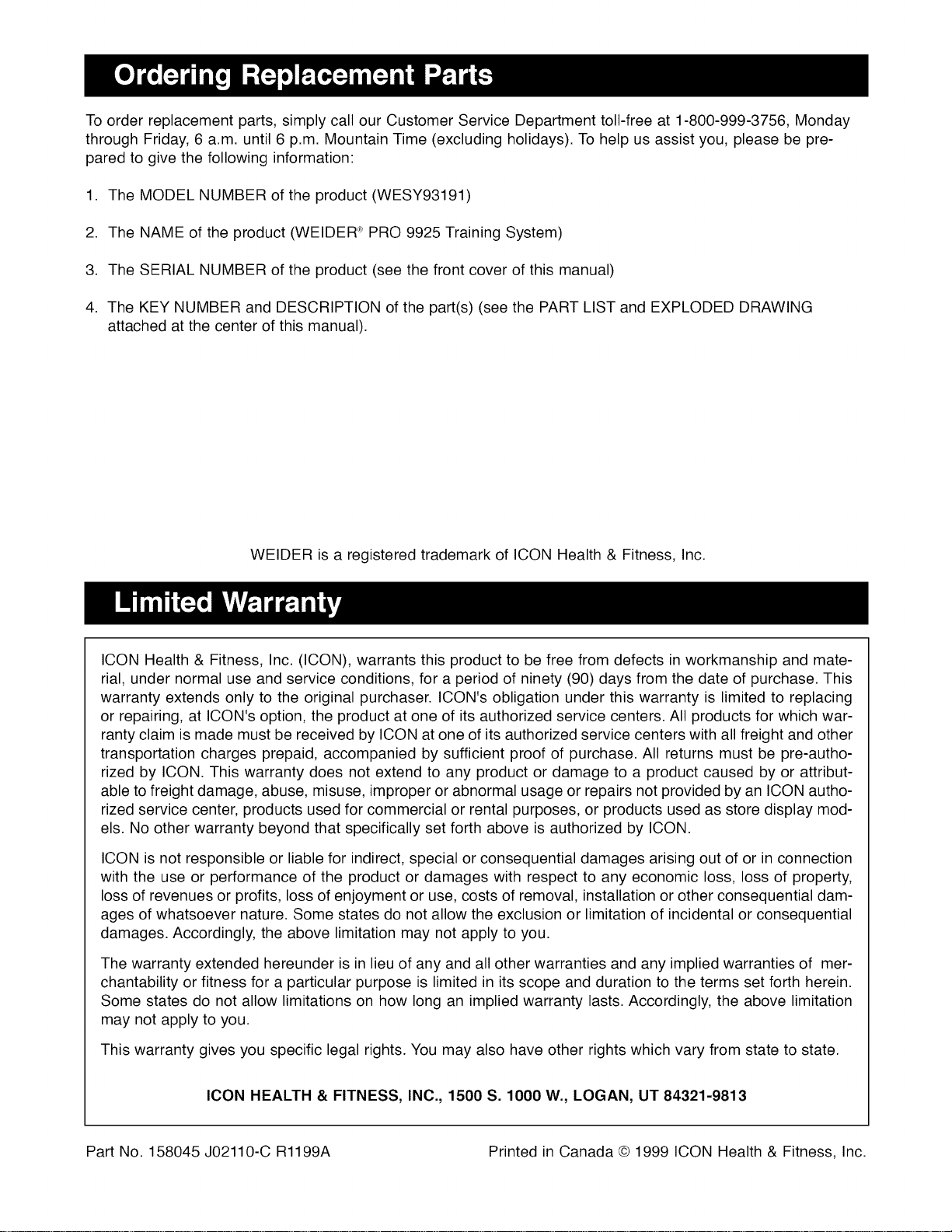

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-
pared to give the following information:
1. The MODEL NUMBER of the product (WESY93191)
2. The NAME of the product (WELDER®PRO 9925 Training System)
3. The SERIAL NUMBER of the product (see the front cover of this manual)
4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING
attached at the center of this manual).
WELDER is a registered trademark of ICON Health & Fitness, Inc.
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate-
rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which war-
ranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-autho-
rized by ICON. This warranty does not extend to any product or damage to a product caused by or attribut-
able to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON autho-
rized service center, products used for commercial or rental purposes, or products used as store display mod-
els. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential dam-
ages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential
damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer-
chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 158045 J02110-C R1199A Printed in Canada © 1999 ICON Health & Fitness, Inc.
