YARDMAX YM0115 User Manual

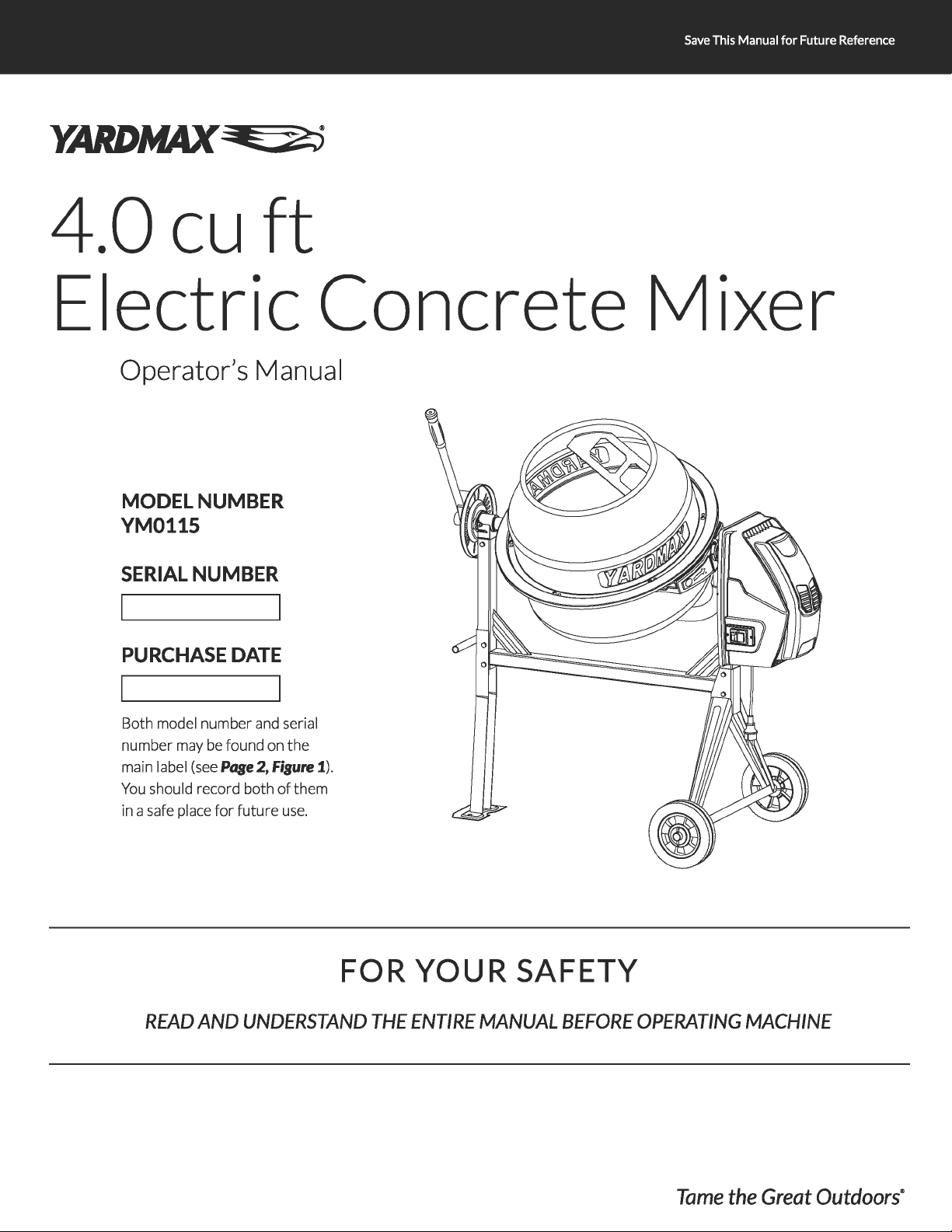

YARDMAX YM0115 4.0 Cu. Ft. Concrete Mixer
Operator’s Manual
For YM0115.
PDF File Manual
,
20 pages
,
Read Online
|
Download pdf file
More photos

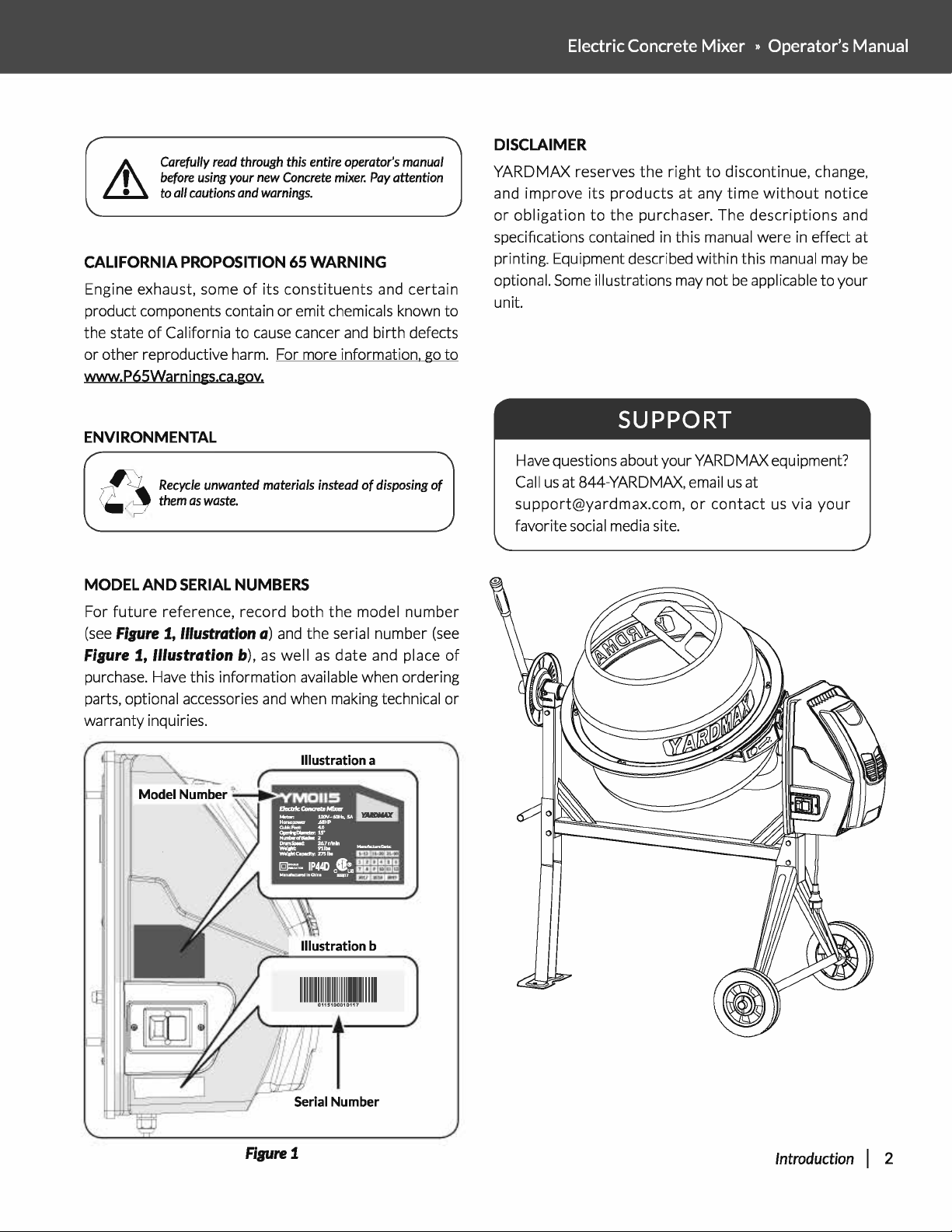

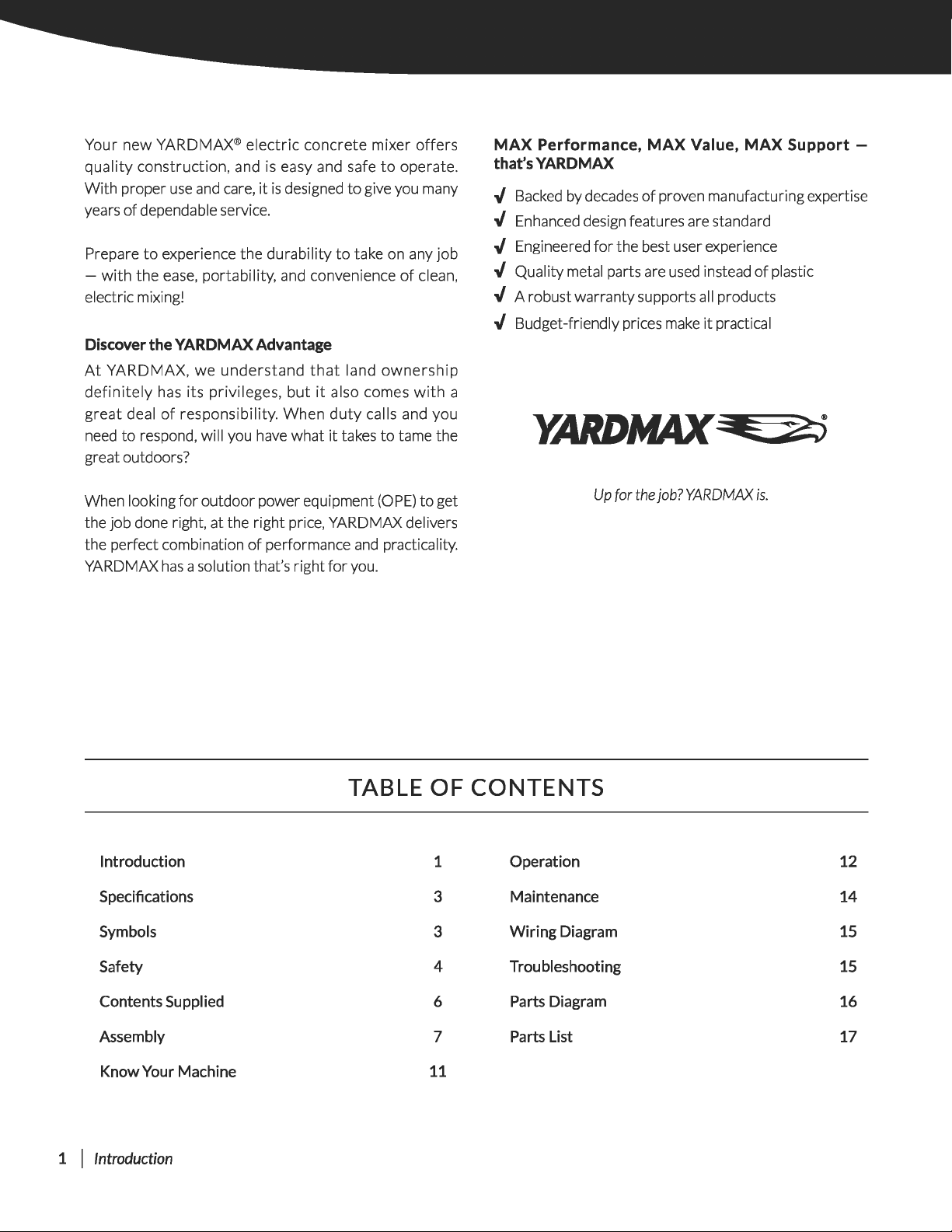

Introduction
Specifications

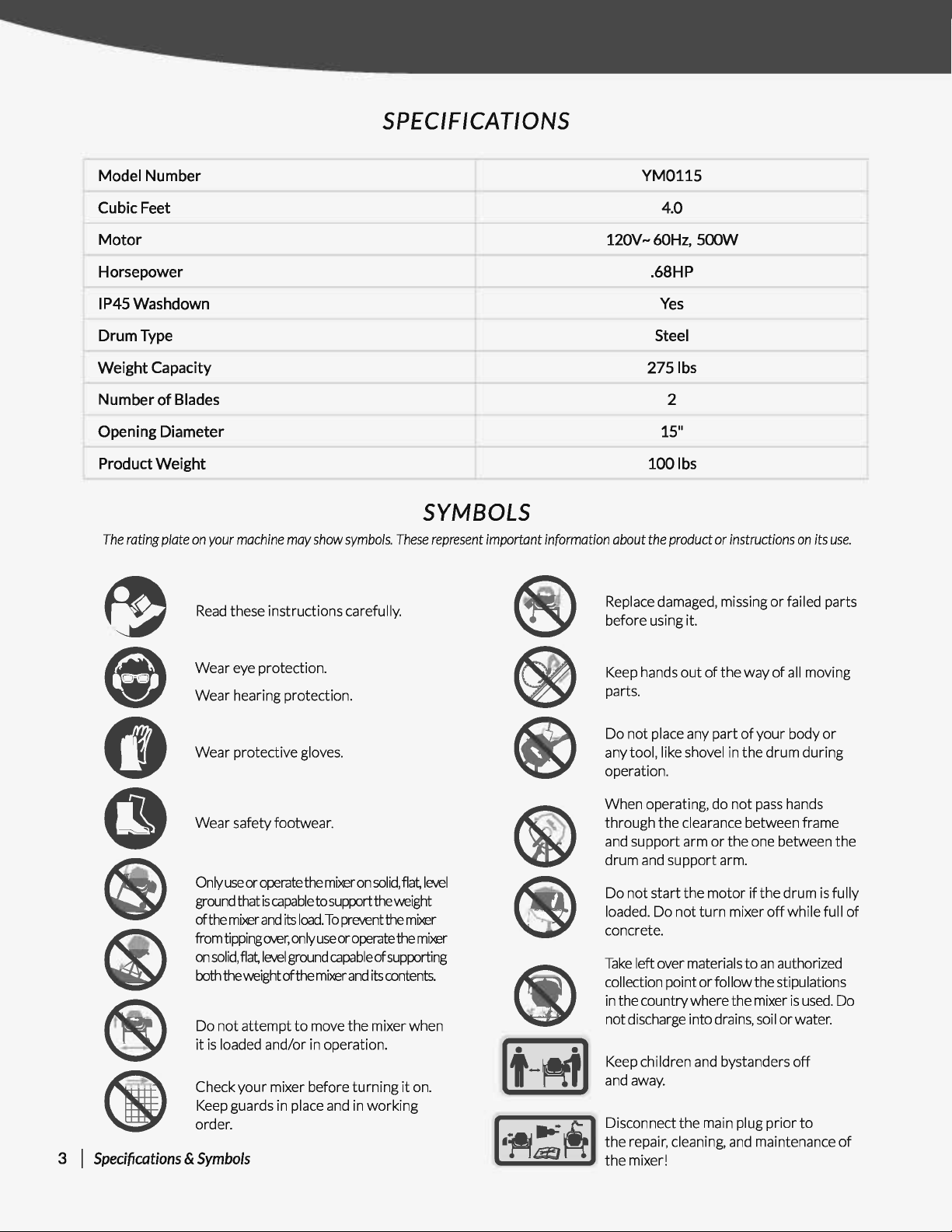

Symbols

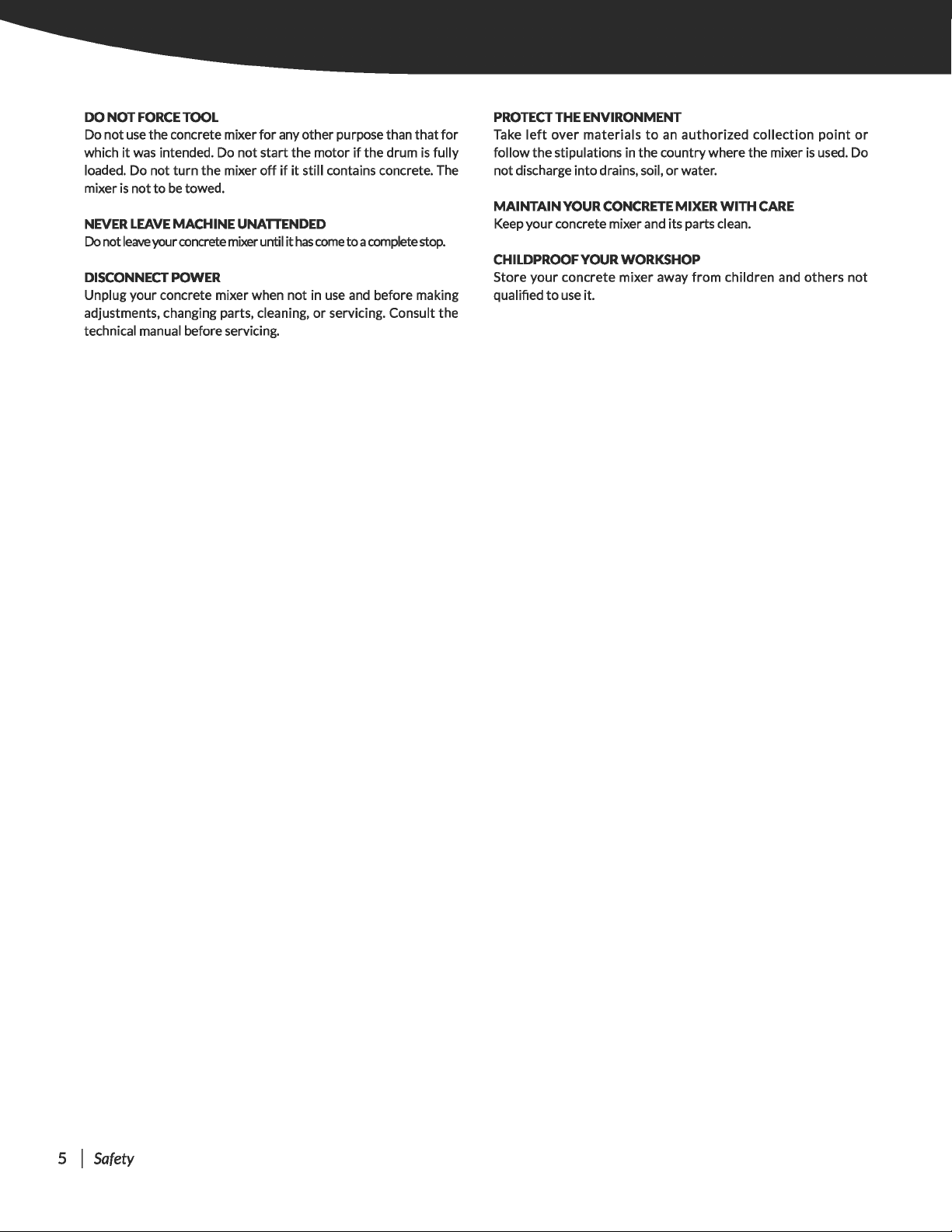

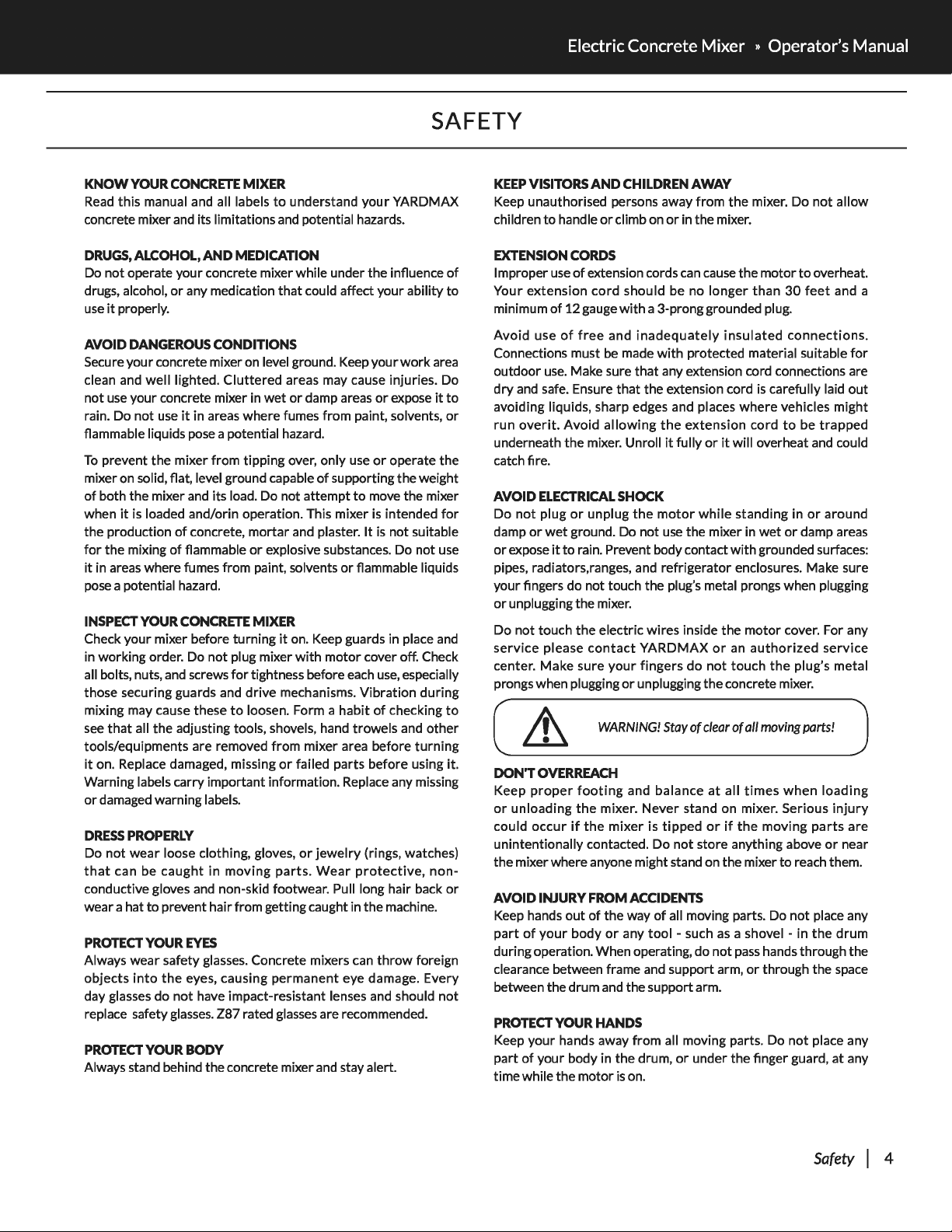

Safety

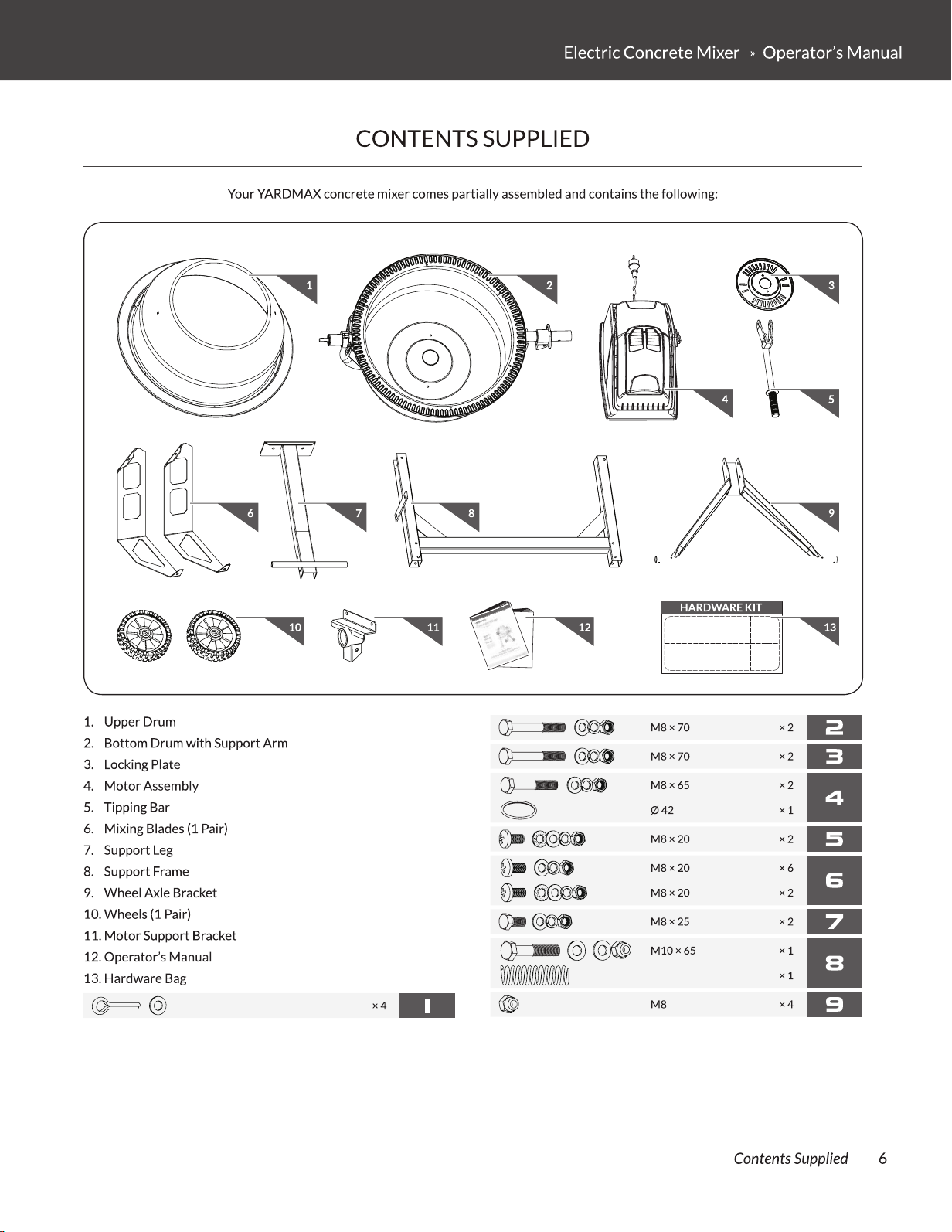

Contents Supplied

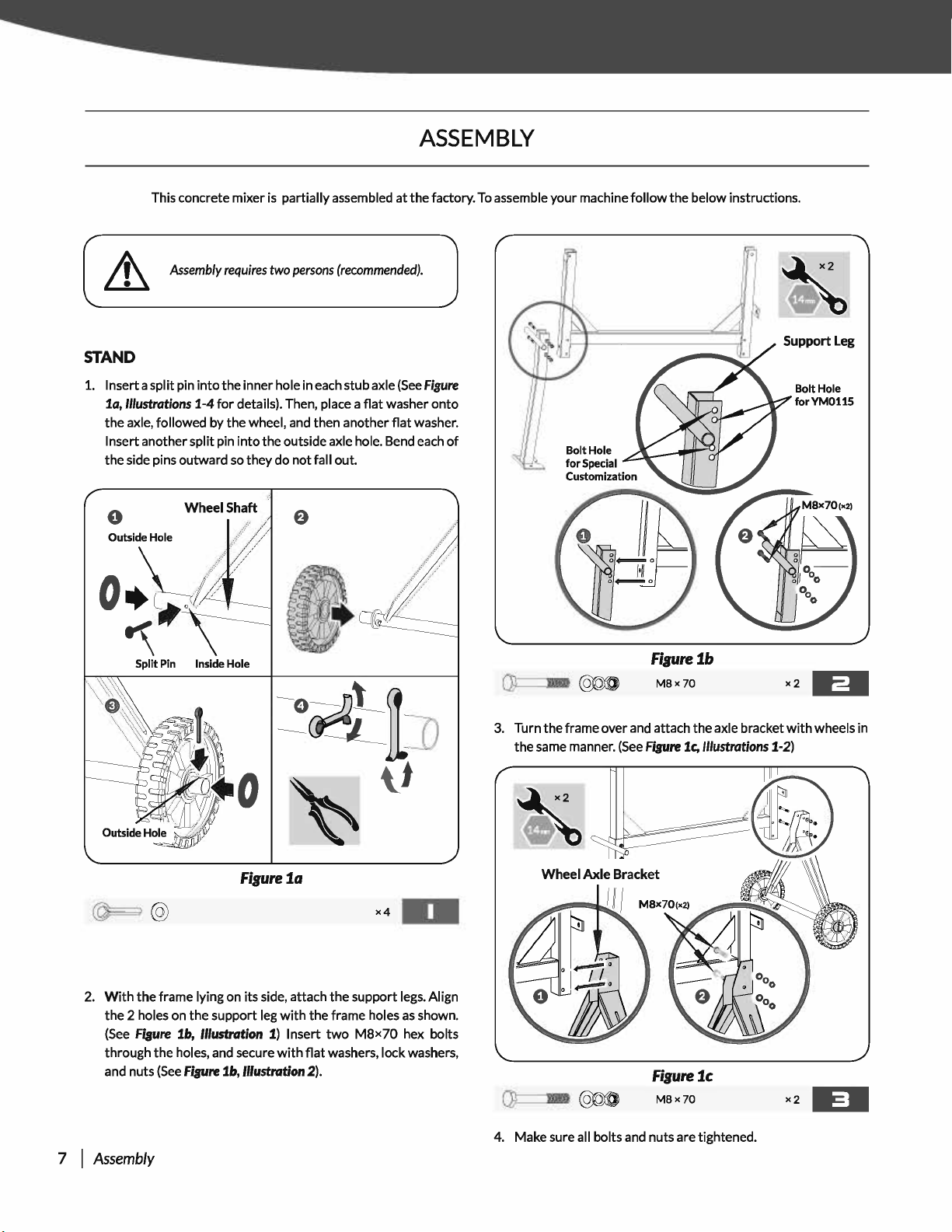

Assembly
STAND

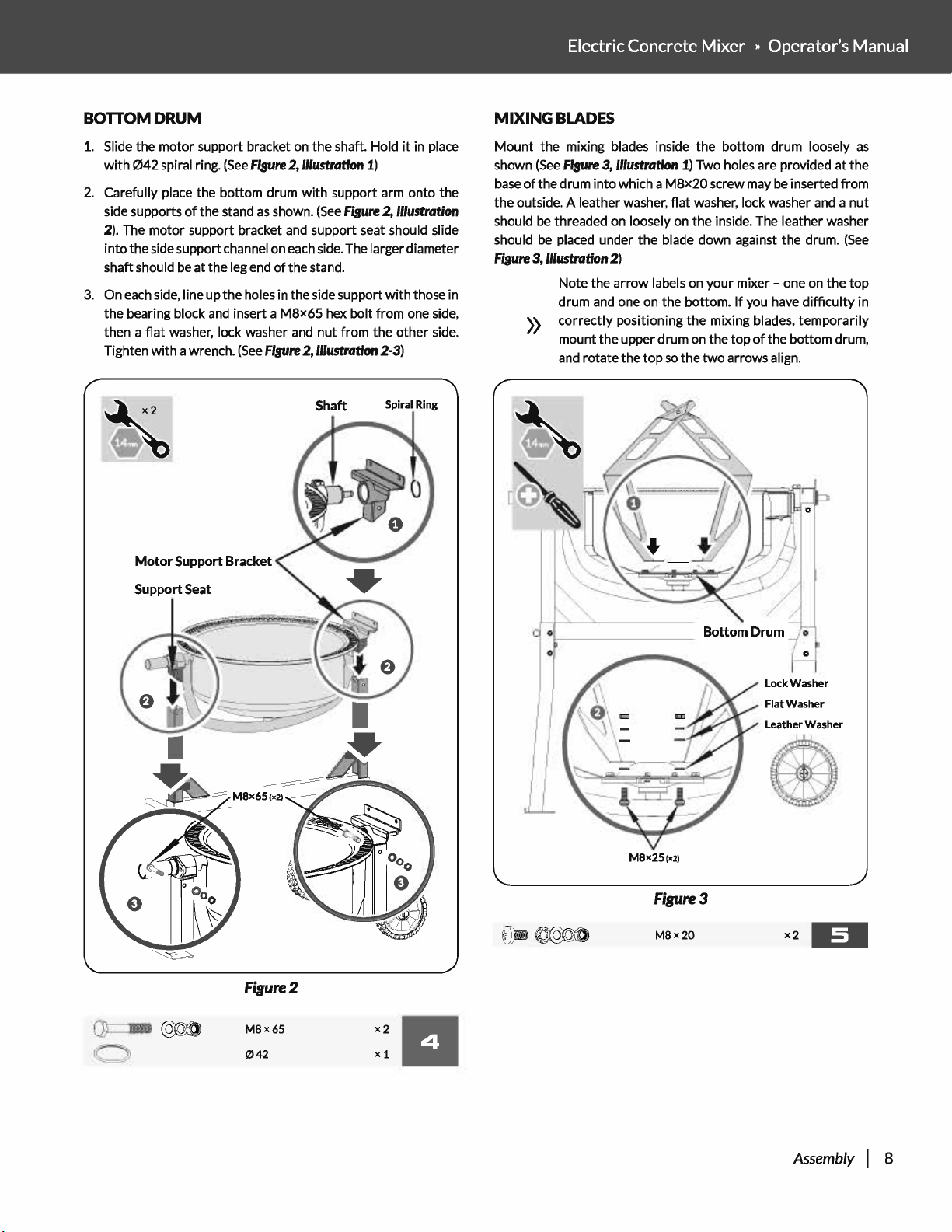

BOTTOM DRUM
MIXING BLADES

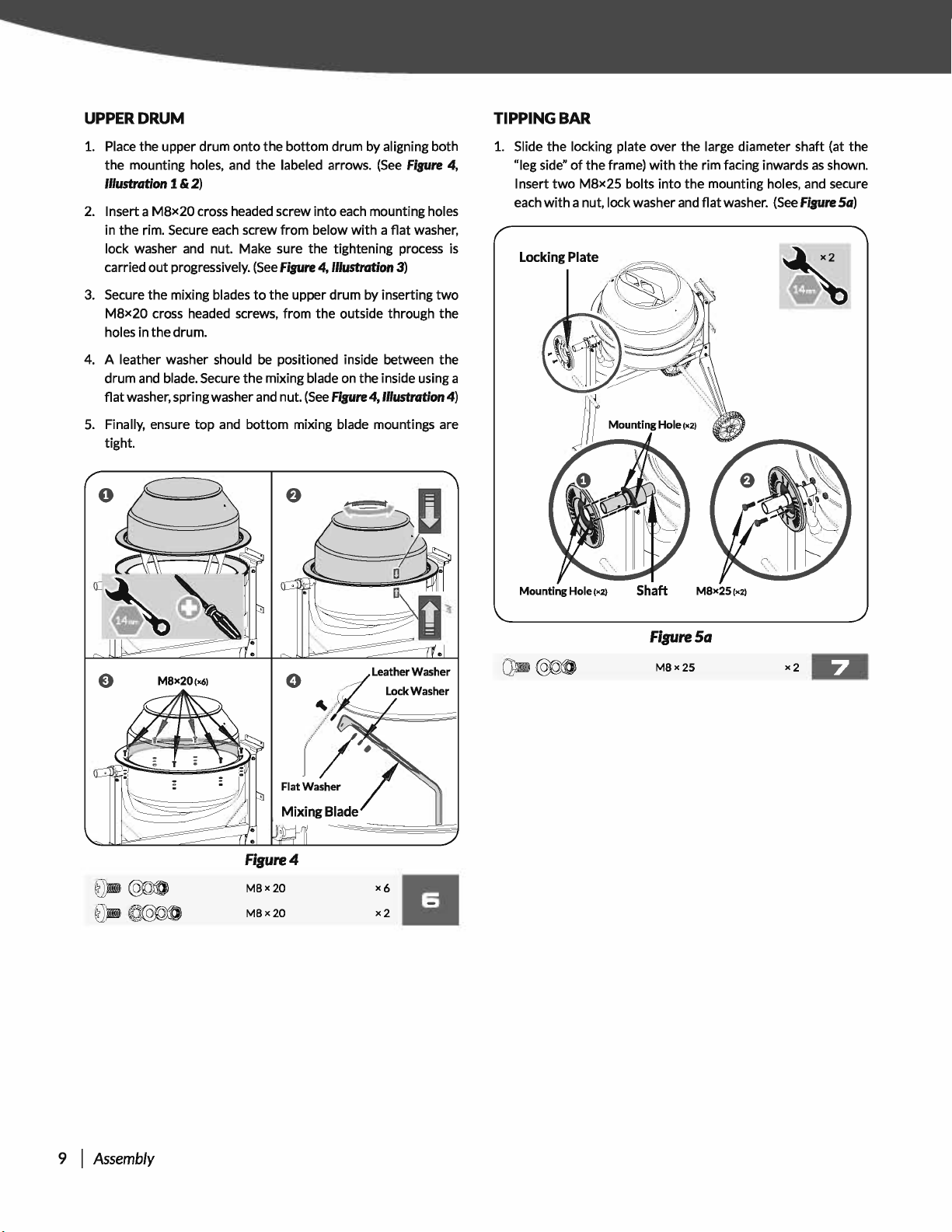

UPPER DRUM
TIPPING BAR

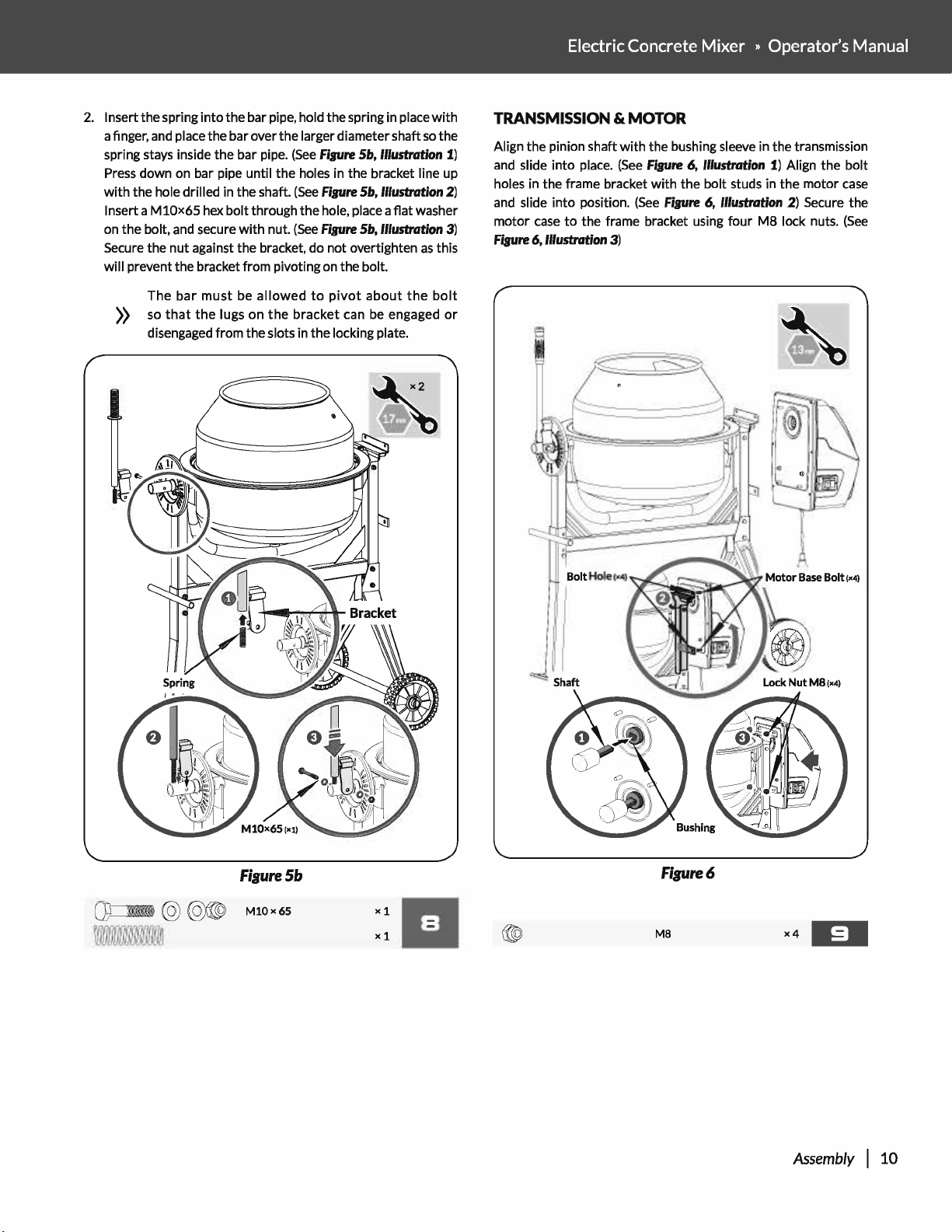

TRANSMISSION & MOTOR
Know Your Machine

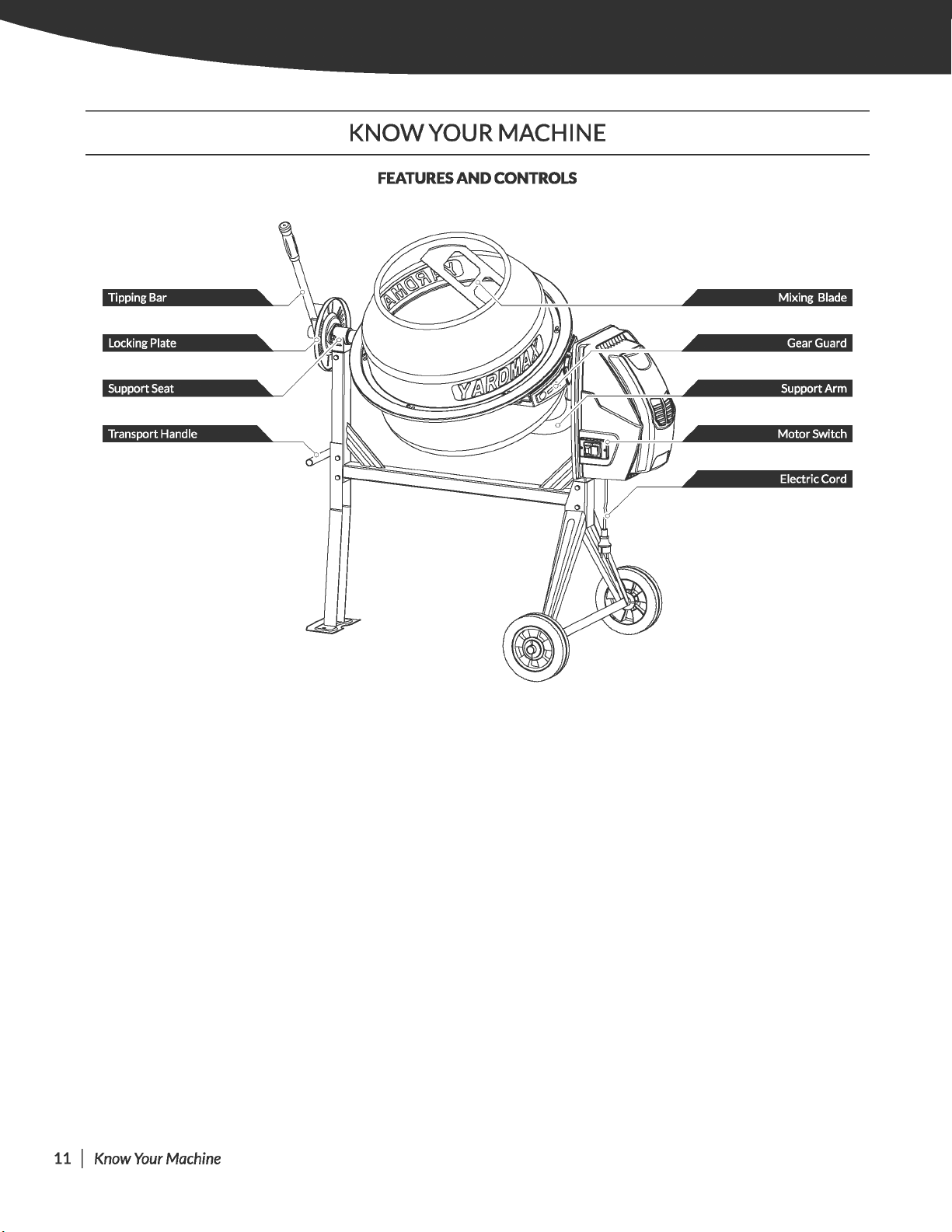

FEATURES AND CONTROLS

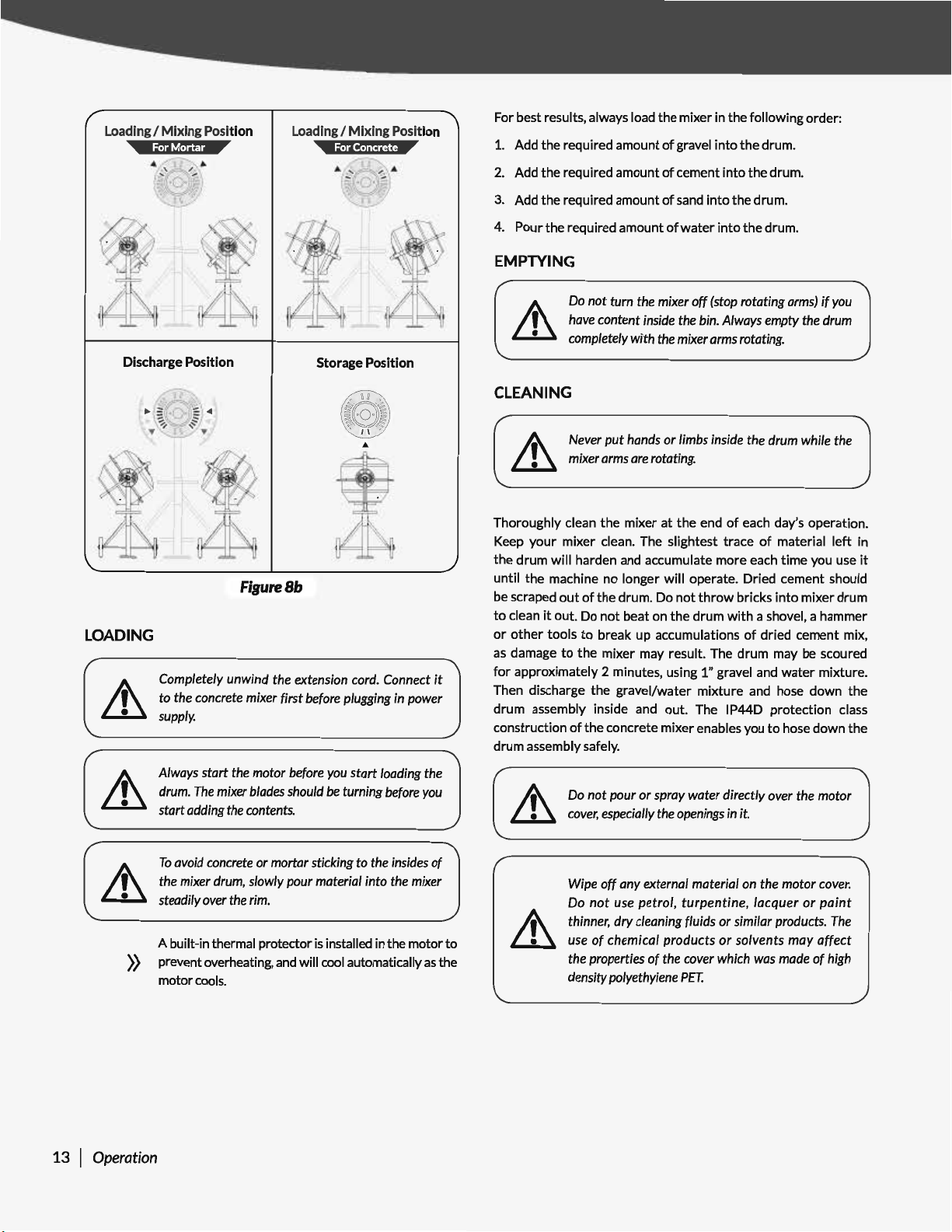

Operation

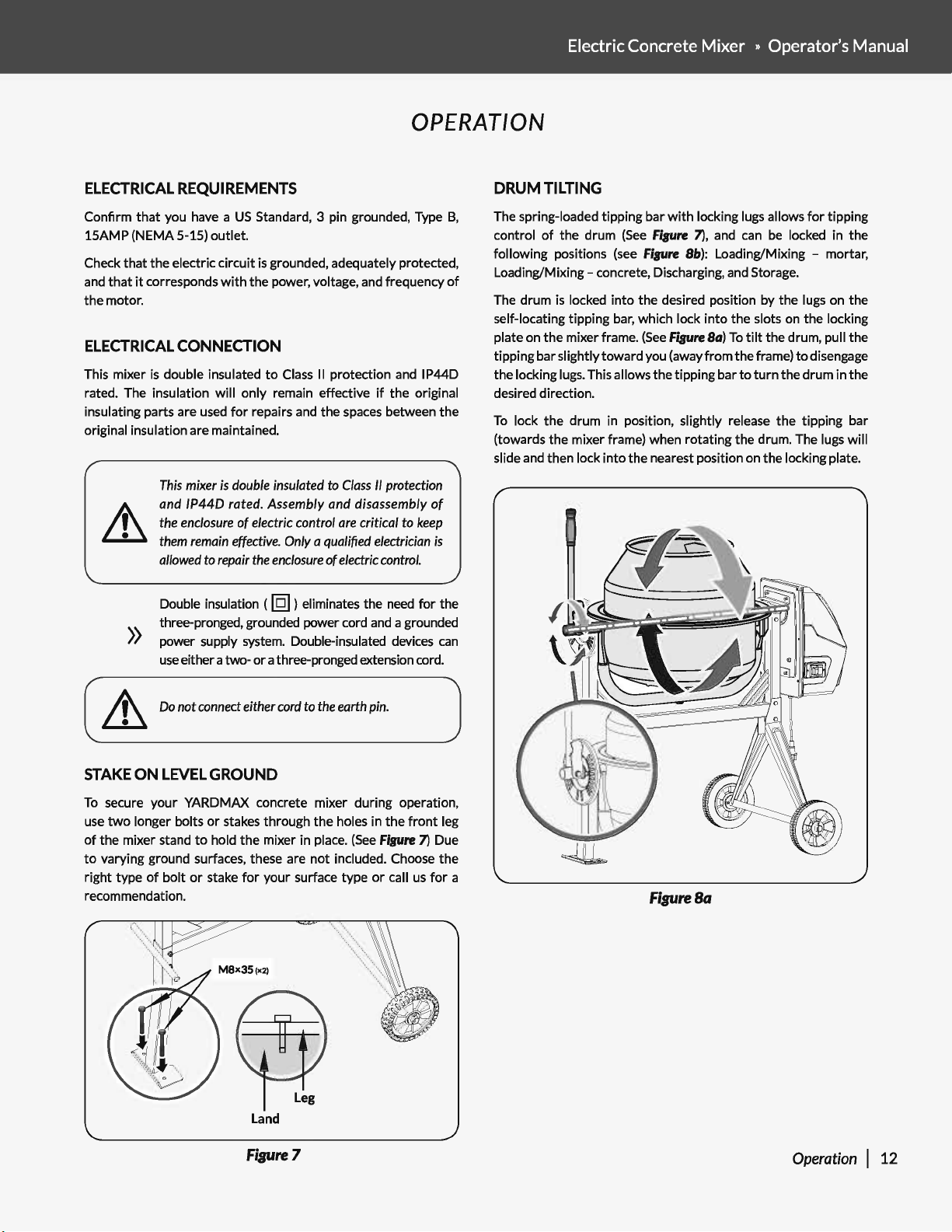

ELECTRICAL REQUIREMENTS
ELECTRICAL CONNECTION
STAKE ON LEVEL GROUND
DRUM TILTING
LOADING
EMPTYING
CLEANING
Maintenance

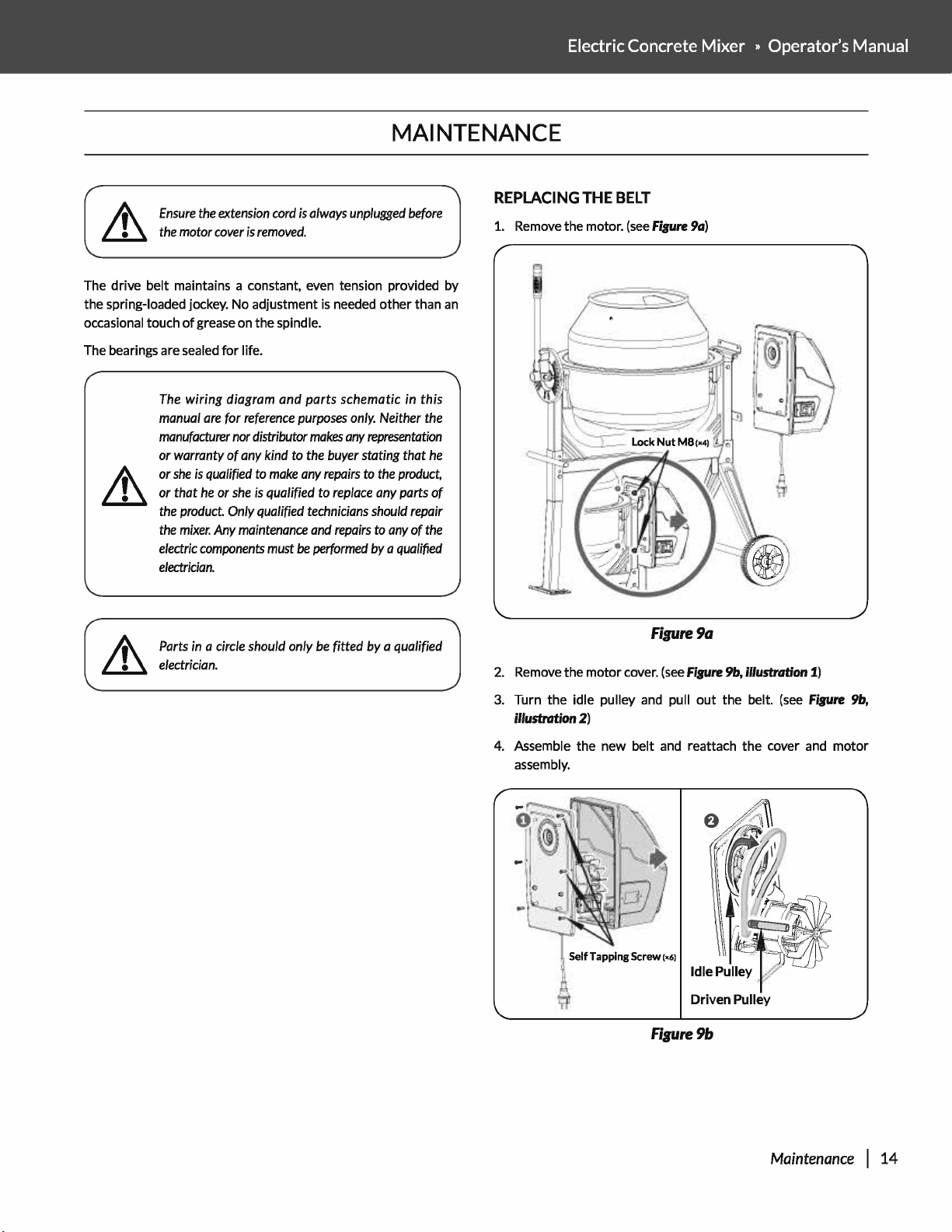

REPLACING THE BELT

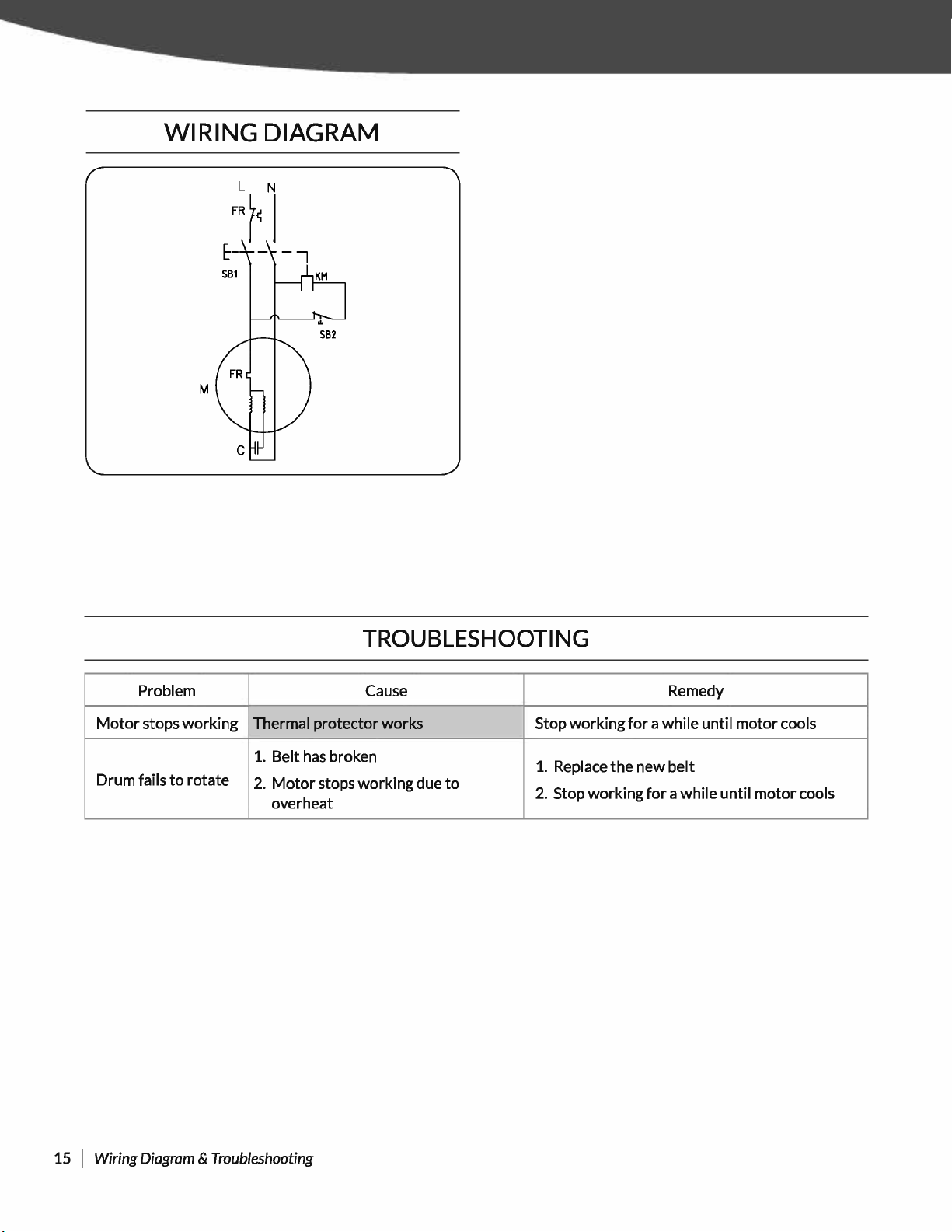

Wiring Diagram
Troubleshooting

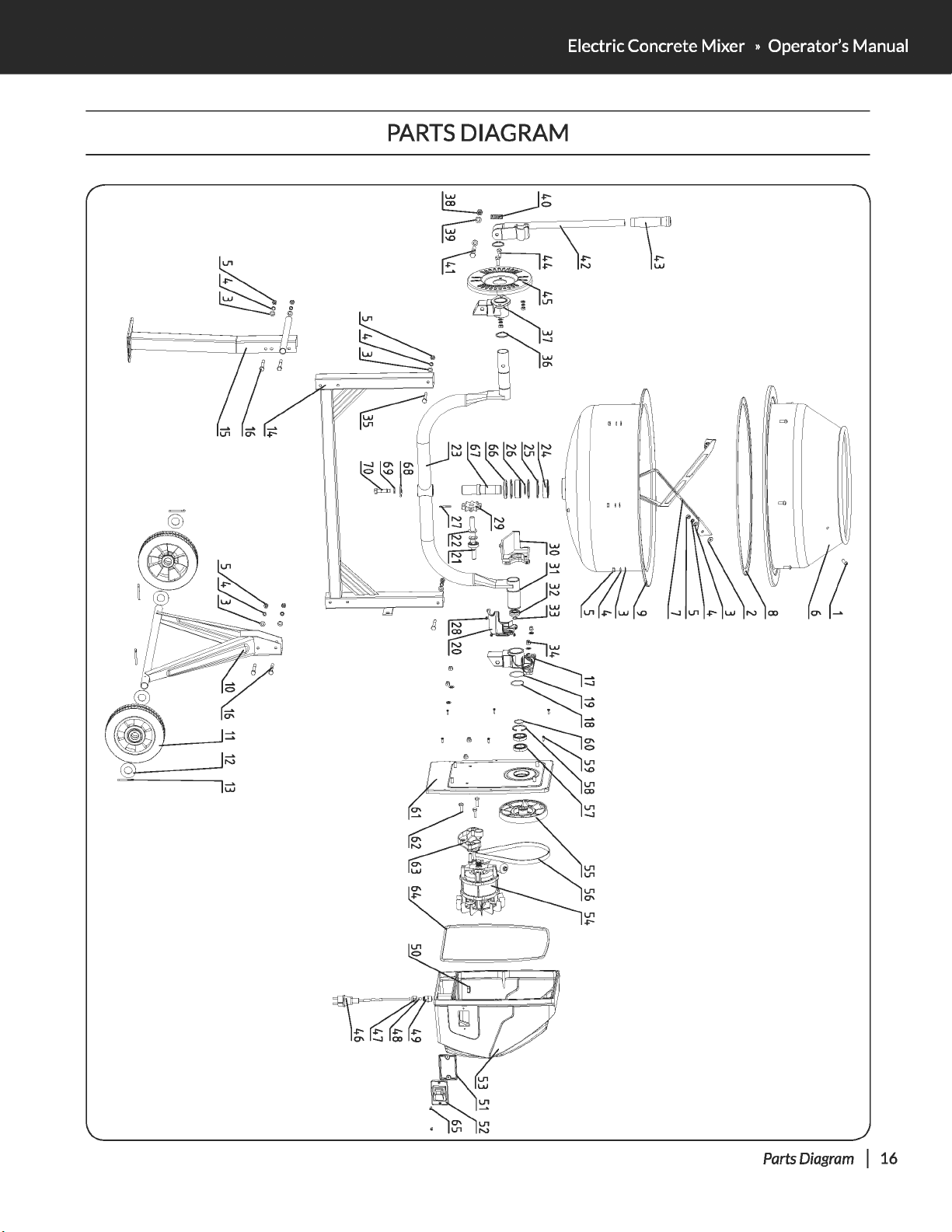

Parts Diagram

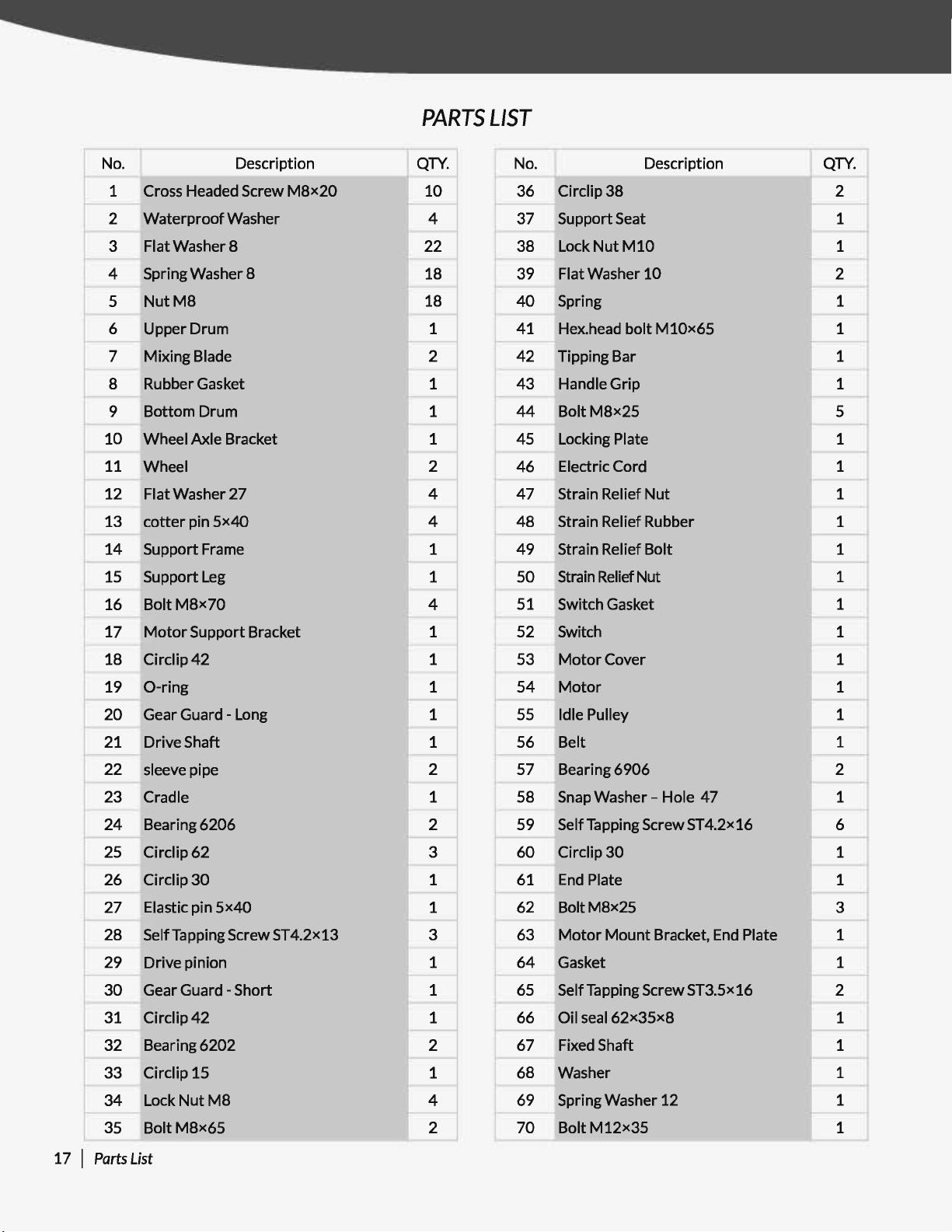

Parts List
