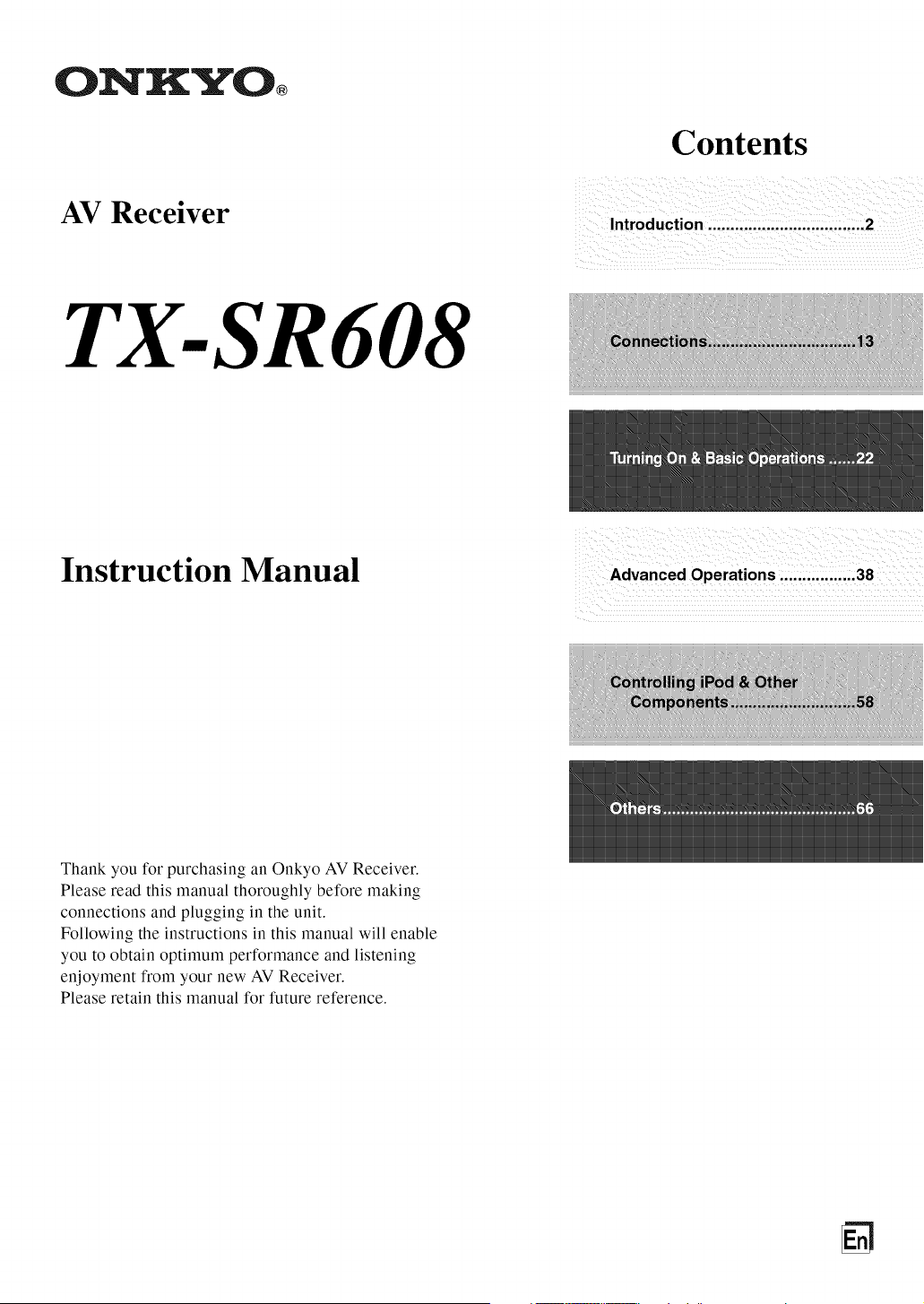

AV Receiver
TX-SR608
Instruction Manual
Advanced Operations :,,:,:,:,_:::::,:38
Thank you for purchasing an Onkyo AV Receiver.
Please read this manual thoroughly before making
connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new AV Receiver.
Please retain this manual for future reference.
g_

5
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

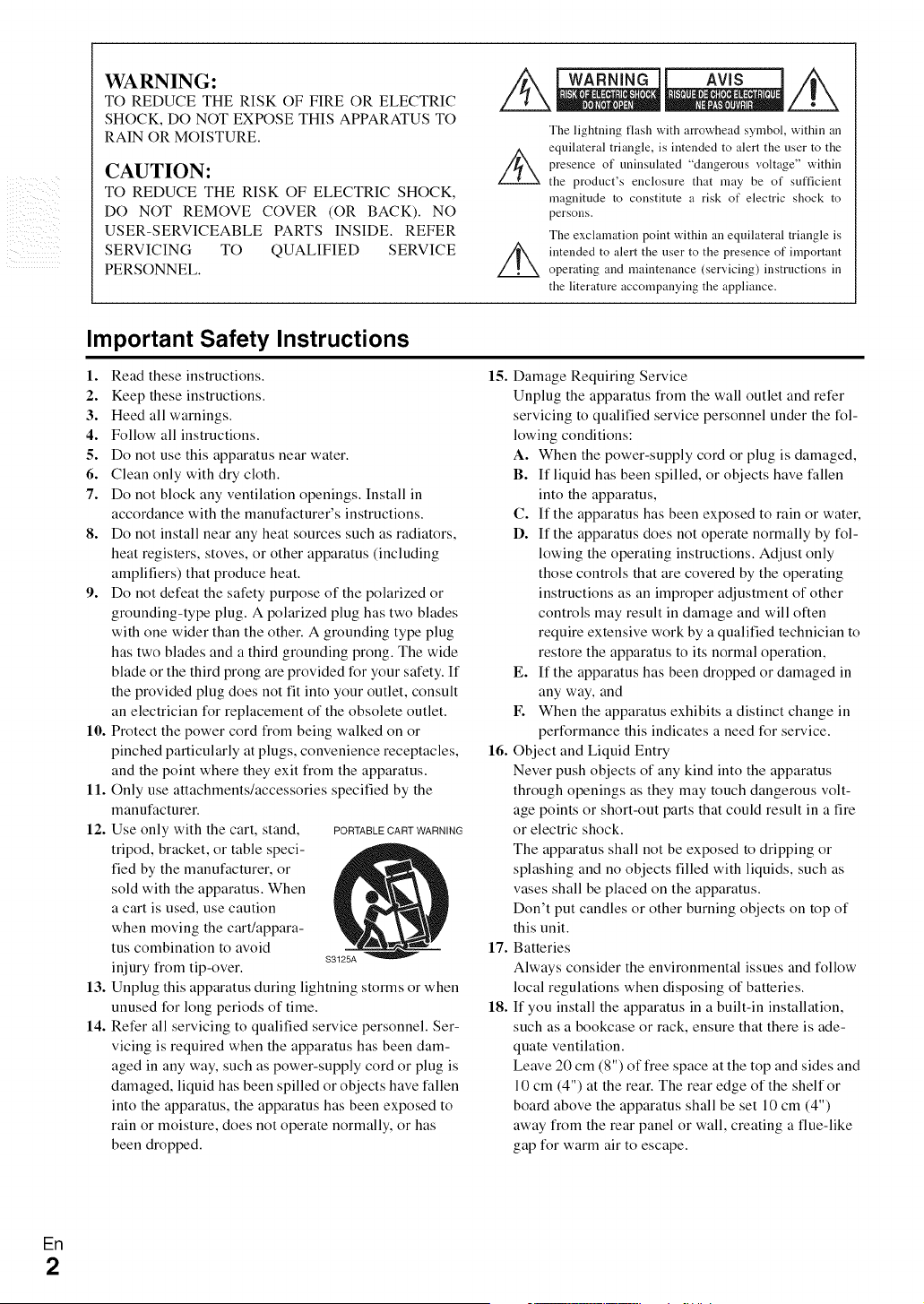

Important Safety Instructions
1. Read these instructions. 15.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, 16.
and the point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, PORTABLECARTWARNING
tripod, bracket, or table speci-
fied by the manufacturer, or
sold with the apparatus. When
a cart is used, use caution
when moving the cart/appara-
tus combination to avoid 17.
injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time. 18.
Refer all servicing to qualified service personnel. Ser-
vicing is required when the apparatus has been dam-
aged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has
been dropped.
8°
9°
10.
11.
12.
13.
14.
Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the fol-
lowing conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or water,
D. If the apparatus does not operate normally by fol-
lowing the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician to
restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous volt-
age points or short-out parts that could result in a fire
or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don't put candles or other burning objects on top of
this unit.
Batteries
Always consider the environmental issues and follow
local regulations when disposing of batteries.
If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is ade-
quate ventilation.
Leave 20 cm (8") of free space at the top and sides and
10 cm (4") at the rear. The rear edge of the shelf or
board above the apparatus shall be set 10 cm (4")
away from the rear panel or wall, creating a flue-like
gap for warm air to escape.
En
2

Precautions
1. Recording Copyright--Unless it's for personal use
only, recording copyrighted material is illegal without
the permission of the copyright holder.
2. AC Fuse--The AC fuse inside the unit is not user-ser-
viceable. If you cannot turn on the unit, contact your
Onkyo dealer.
3. Care--Occasionally you should dust the unit all over
with a soft cloth. For stubborn stains, use a soft cloth
dampened with a weak solution of mild detergent and
water. Dry the unit immediately afterwards with a
clean cloth. Don't use abrasive cloths, thinners, alco-
hol, or other chemical solvents, because they may
damage the finish or remove the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE
FIRST TIME, READ THE FOLLOWING SECTION
CAREFULLY.
AC outlet voltages vary from country to country.
Make sure that the voltage in your area meets the volt-
age requirements printed on the unit's rear panel (e.g.,
AC 230 V, 50 Hz or AC 120 V, 60 Hz).
5,
6,
7,
8°
The power cord plug is used to disconnect this unit
from the AC power source. Make sure that the plug is
readily operable (easily accessible) at all times.
Pressing ON/STAN DBY to select Standby mode does
not tully shutdown the unit. If you do not intend to use
the unit for an extended period, remove the power cord
from the AC outlet.
Preventing Hearing Loss
Caution
Excessive sound pressure from earphones and head-
phones can cause hearing loss.
Batteries and Heat Exposure
Warning
Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat as sunshine, fire or the
like.
Never Touch this Unit with Wet Hands--Never han-
dle this unit or its power cord while your hands are
wet or damp. If water or any other liquid gets inside
this unit, have it checked by your Onkyo dealer.
Handling Notes
• If you need to transport this unit, use the original
packaging to pack it how it was when you originally
bought it.
• Do not leave rubber or plastic items on this unit for
a long time, because they may leave marks on the
case.
• This unit's top and rear panels may get warm alter
prolonged use. This is normal.
• If you do not use this unit for a long time, it may not
work properly the next time you turn it on, so be
sure to use it occasionally.
For U.S. models
FCC Information for User
CAUTION:
The user changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit differ-
ent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni-
cian for help.
For Canadian Models
NOTE: THIS CLASS B DIGITAL APPARATUS COM-
PLIES WITH CANADIAN ICES-003.
For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
ModUle pour les Canadien
REMARQUE: CET APPAREIL NUMt_RIQUE DE
LA CLASSE B EST CONFORME A. LA NORME NMB-
003 DU CANADA.
Sur les modbles dont la fiche est polaris_e:
ATTENTION: POUR t_VITER LES CHOCS t_LEC-
TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU
FOND.
EF1
3

5
For British models
Replacement and mounting of an AC plug on the power
supply cord of this unit should be performed only by qual-
ified service personnel.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appa-
ratus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured
black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured
red.
IMPORTANT
The plug is fitted with an appropriate fuse. If the fuse
needs to be replaced, the replacement fuse must approved
by ASTA or BSI to BS1362 and have the same ampere rat-
ing as that indicated on the plug. Check for the ASTA
mark or the BSI mark on the body of the fuse.
If the power cord's plug is not suitable for your socket out-
lets, cut it off and fit a suitable plug. Fit a suitable fuse in
the plug.
For European Models
Declaration of Conformity
We, ONKYO EUROPE
ELECTRONICS GmbH
LIEGNITZERSTRASSE 6,
82194 GROEBENZELL,
GERMANY
declare in own responsibility, that the ONKYO product
described in this instruction manual is in compliance with the
corresponding technical standards such as EN60065,
EN55013, EN55020 and EN61000-3-2, -3-3.
GROEBENZELL, GERMANY
K. MIYAGI
ONKYO EUROPE ELECTRONICS GmbH

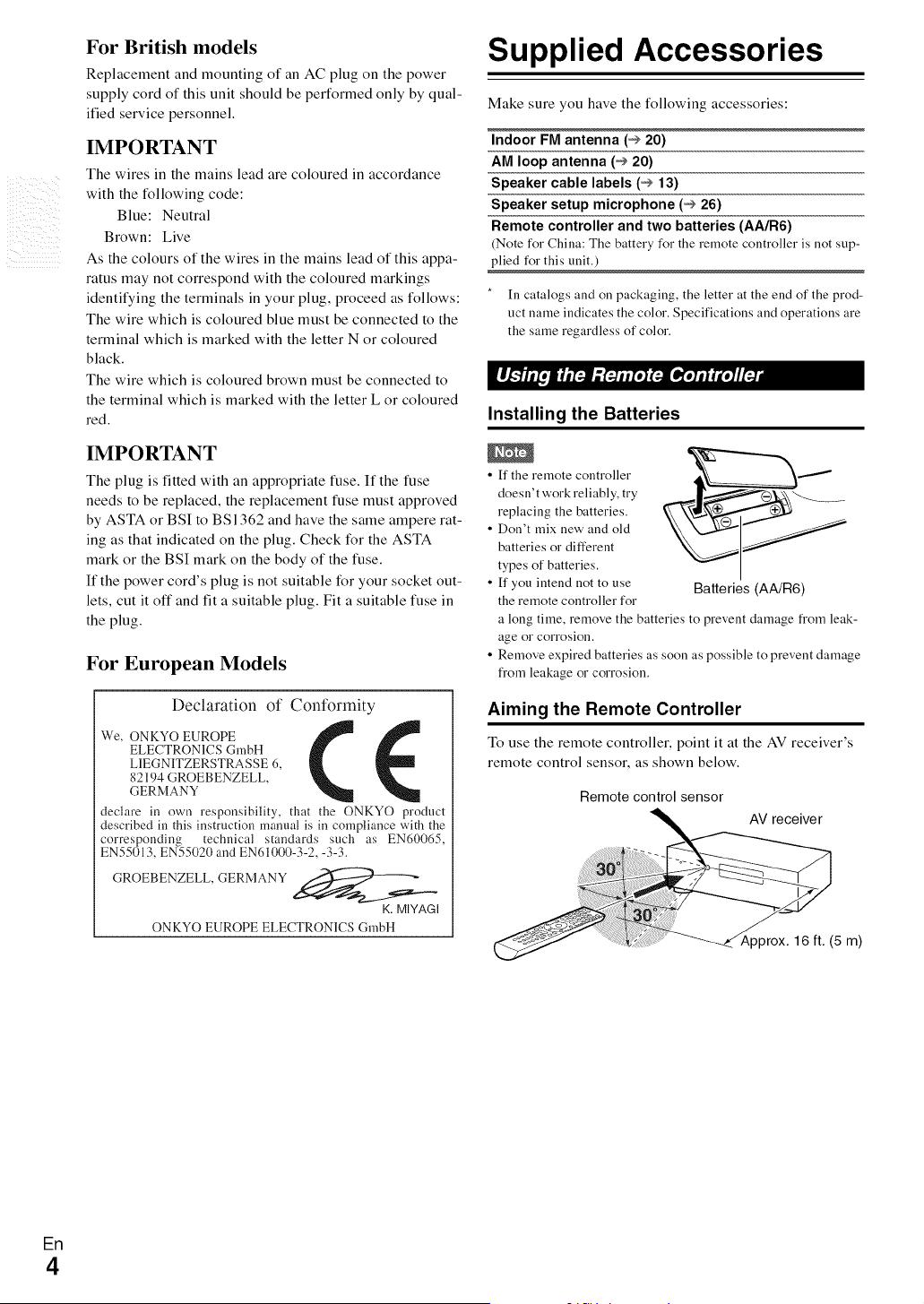

Supplied Accessories
Make sure you have the following accessories:
Indoor FM antenna (_ 20)
AM loop antenna (_ 20)
Speaker cable labels (_ 13)
Speaker setup microphone (_ 26)
Remote controller and two batteries (AA/R6)
(Note for China: The battery for the reruote controller is not sup-
plied for this unit.)
In catalogs and on packaging, the letter at the end of the prod-
uct name indicates the color. Specifications and operations are
the same regardless of color.
Installing the Batteries
• ff the remote controller
doesn't work reliably, try
replacing the batteries.
• Don't mix new' and old
batteries or different
types of batteries.
• If you intend not to use
the remote controller for
Batteries (AA/R6)
a long time, remove the batteries to prevent damage from leak-
age or corrosion.
• Remove expired batteries as soon as possible to prevent damage
from leakage or corrosion.
Aiming the Remote Controller
To use the remote controller, point it at the AV receiver's
remote control sensor, as shown below.
Remote control sensor
AV receiver
16 ft. (5 m)
En
4

Contents
Introduction
Important Safety Instructions ......................................... 2
Precautions ....................................................................... 3
Supplied Accessories ...................................................... 4
Using the Remote Controller .......................................... 4
Features ............................................................................ 6
Front & Rear Panels ......................................................... 8
Front Panel ..................................................................... 8
Display ............................................................................ 9

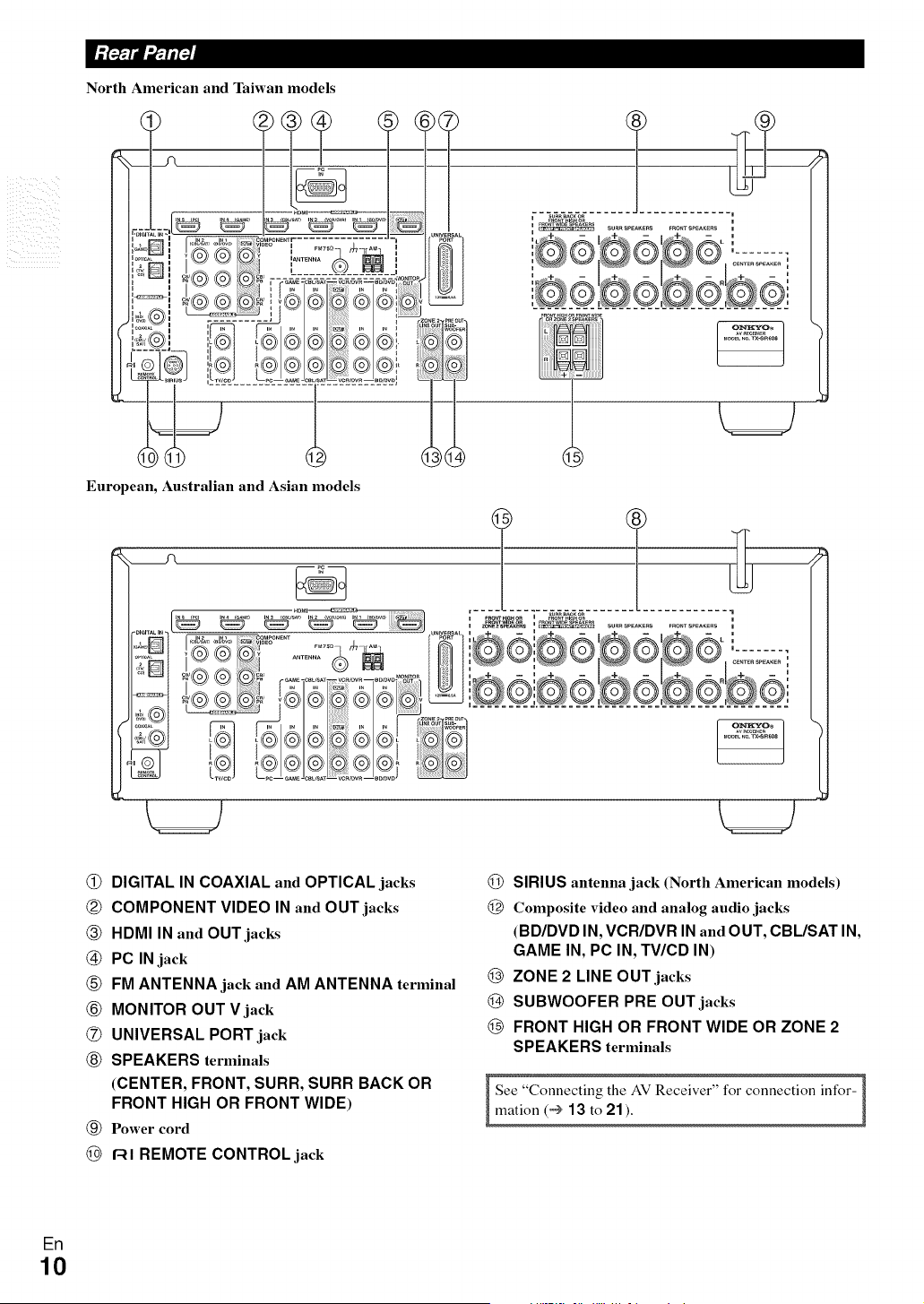

Rear Panel ................................................................... 10

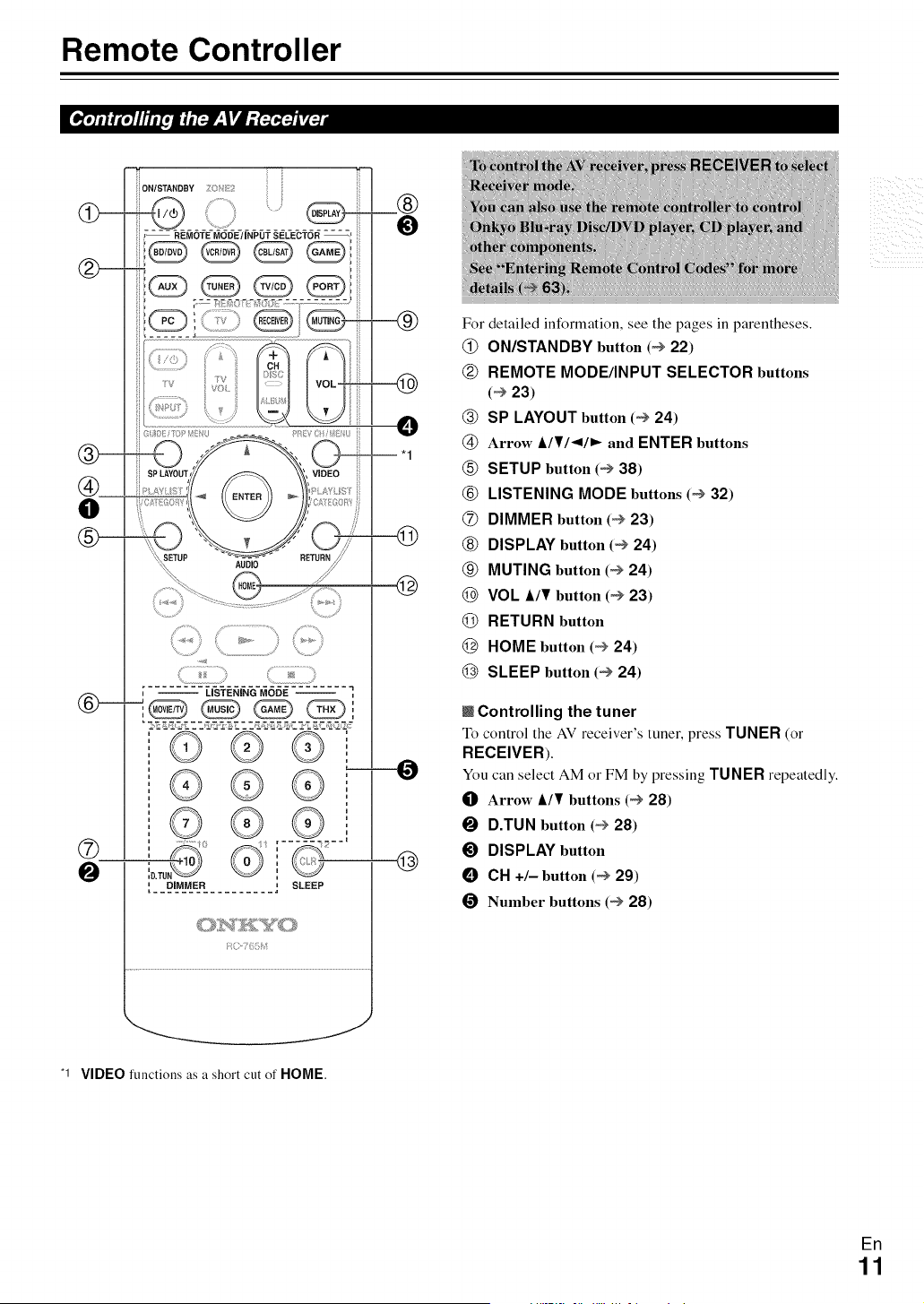

Remote Controller .......................................................... 11
Controlling the AV Receiver ......................................... 11

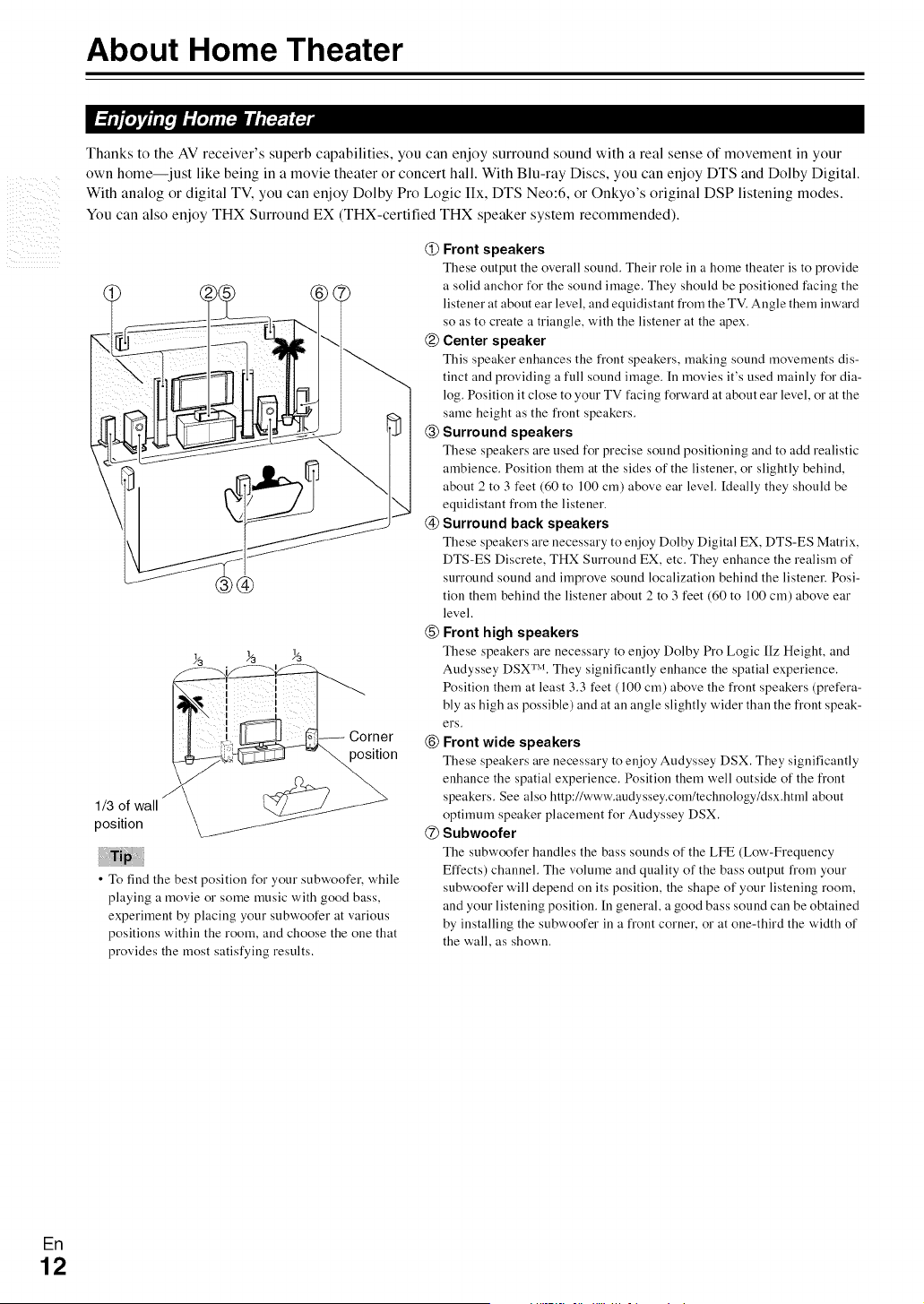

About Home Theater ...................................................... 12
Enjoying Home Theater ................................................ 12
Connecting the AV Receiver ......................................... 13

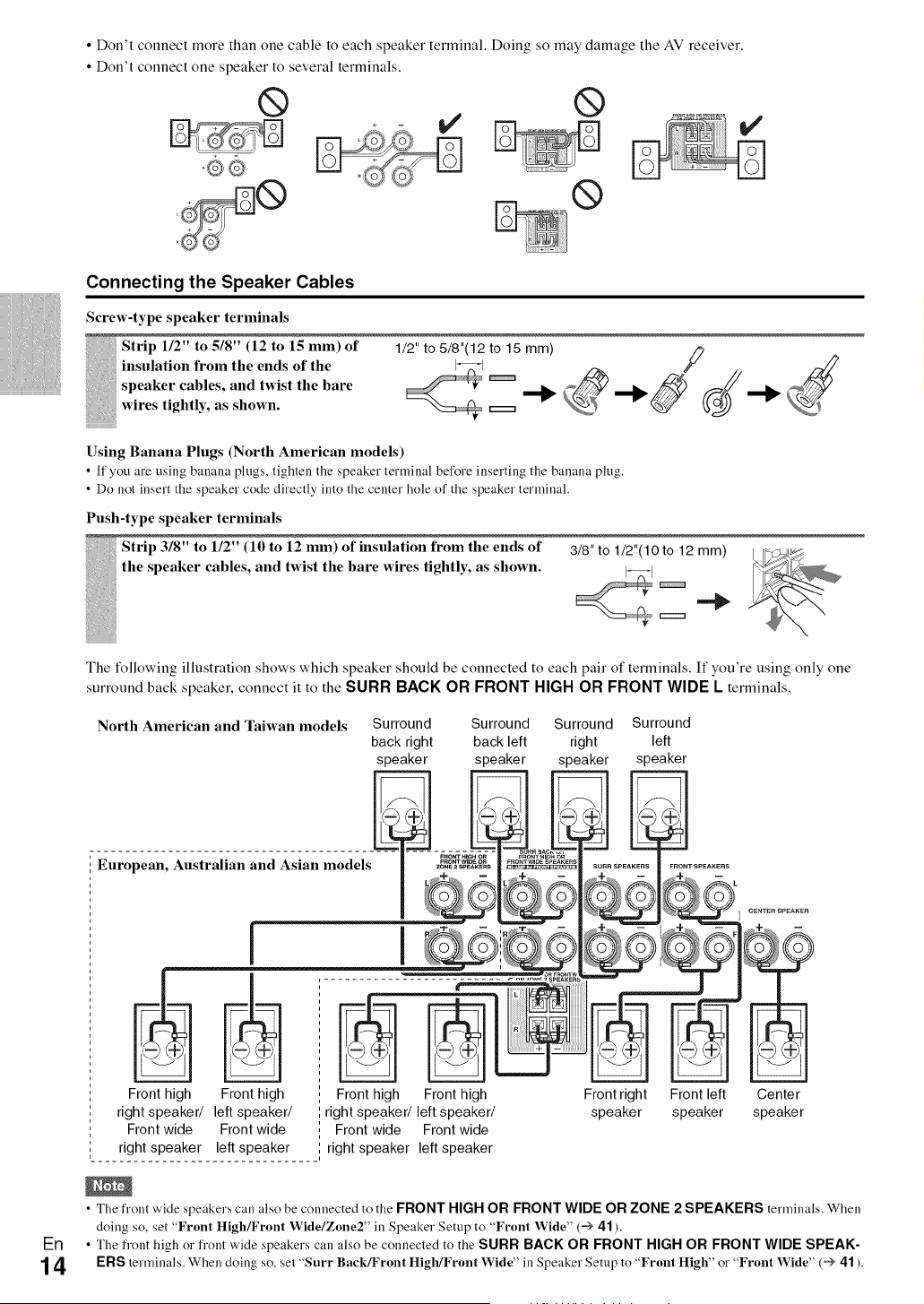

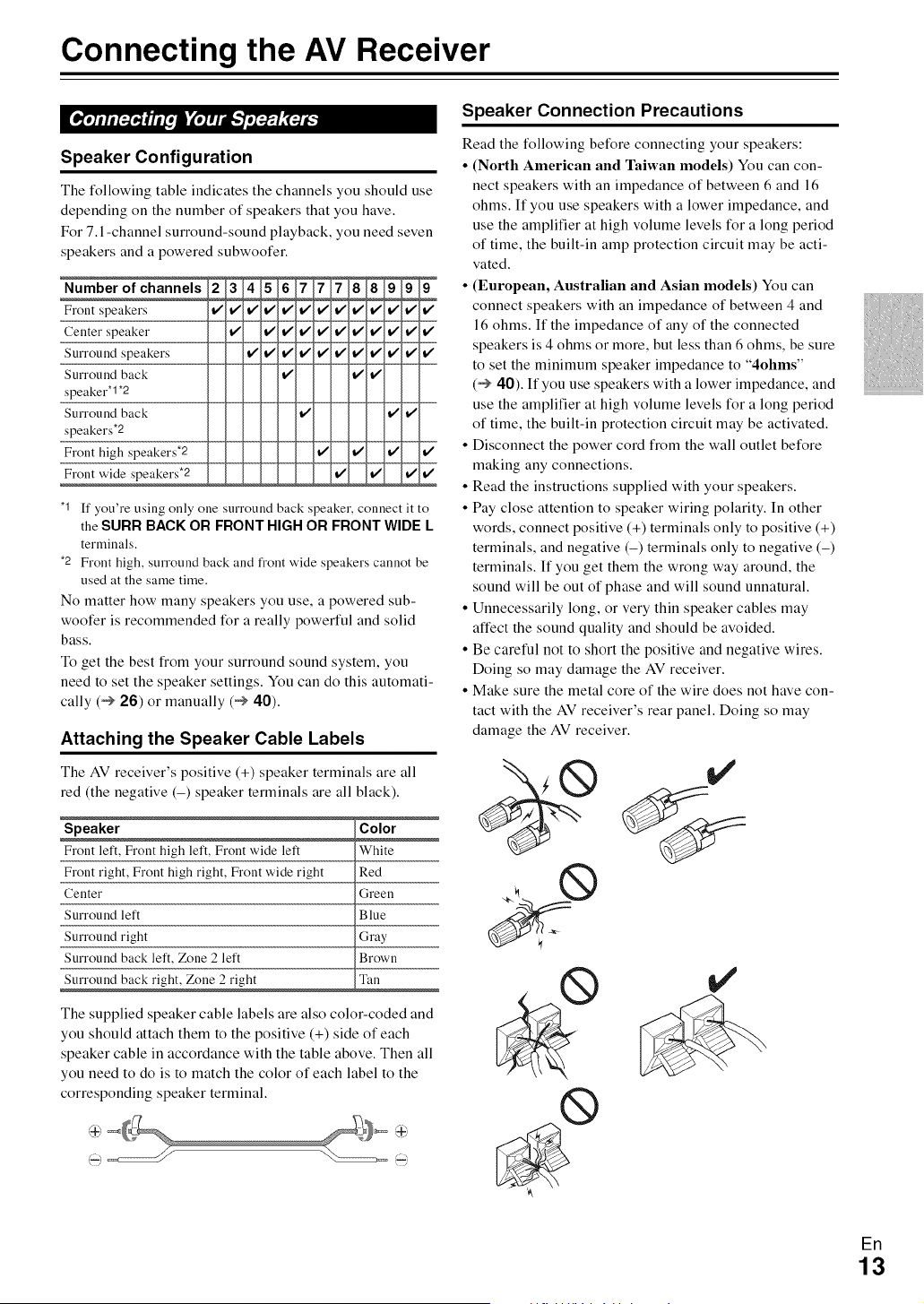

Connecting Your Speakers .......................................... 13

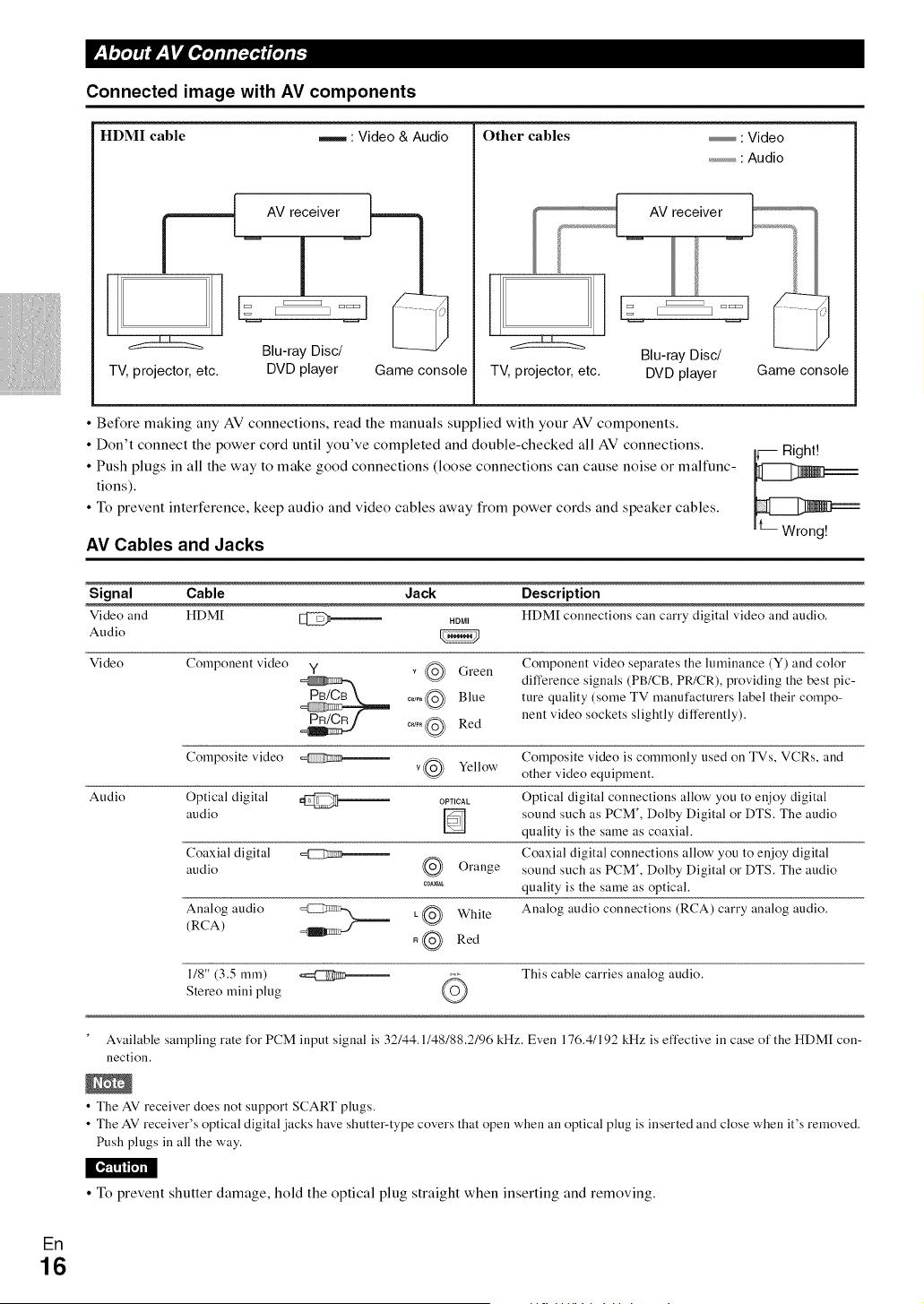

About AV Connections ................................................. 16
Connecting Components with HDMI ............................ 17

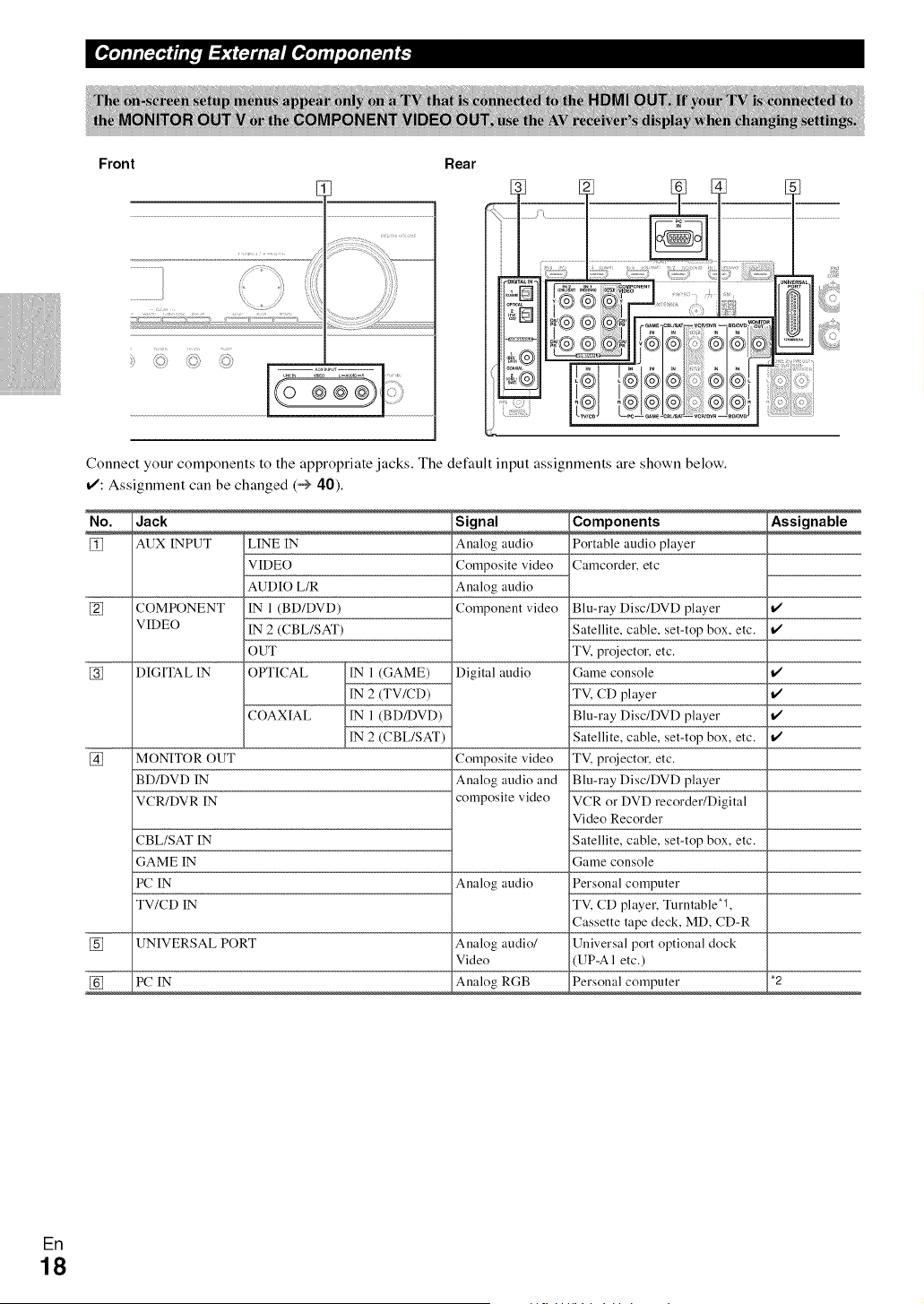

Connecting External Components ................................ 18

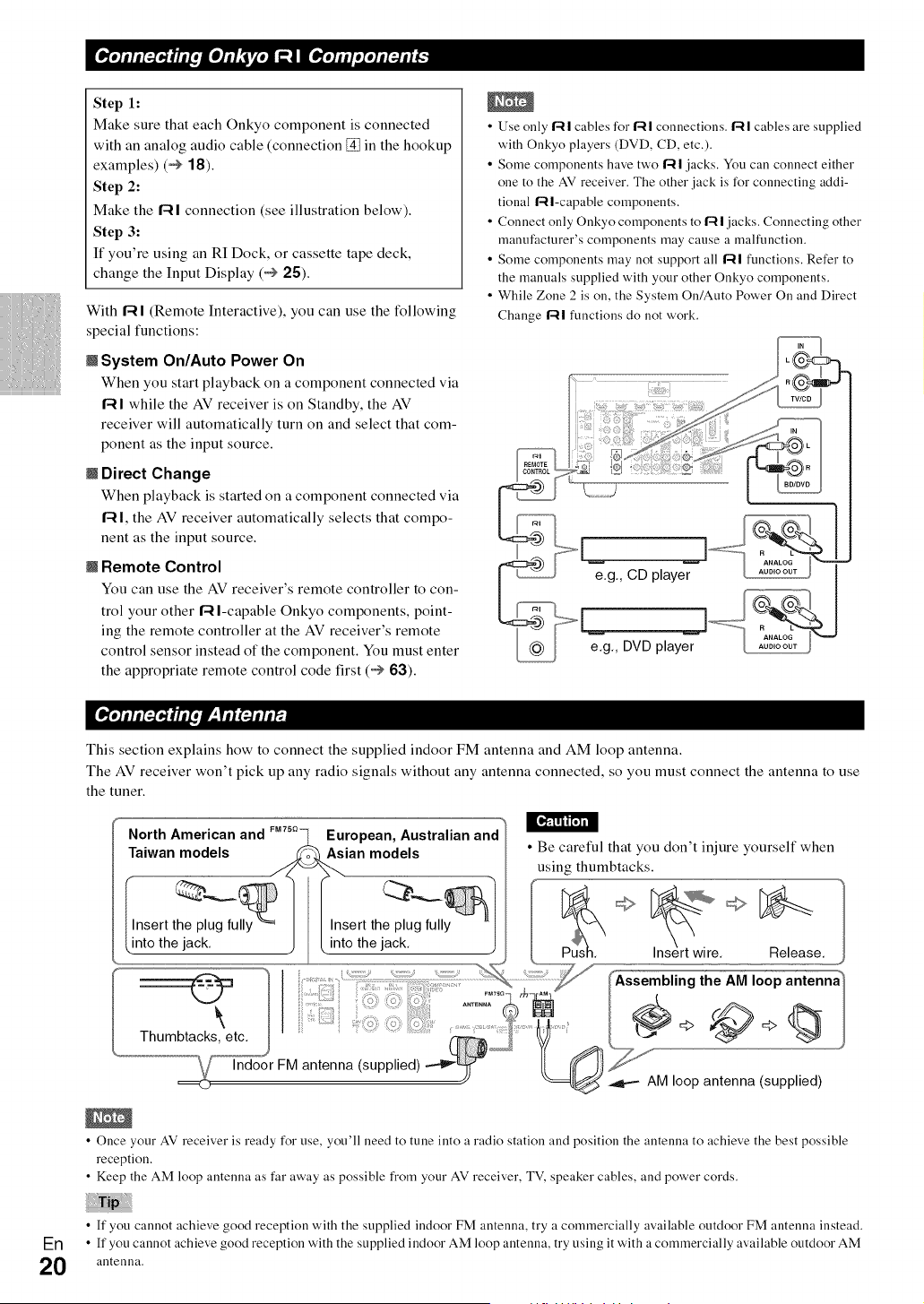

Connecting Onkyo RI Components ............................ 20
Connecting Antenna ..................................................... 20

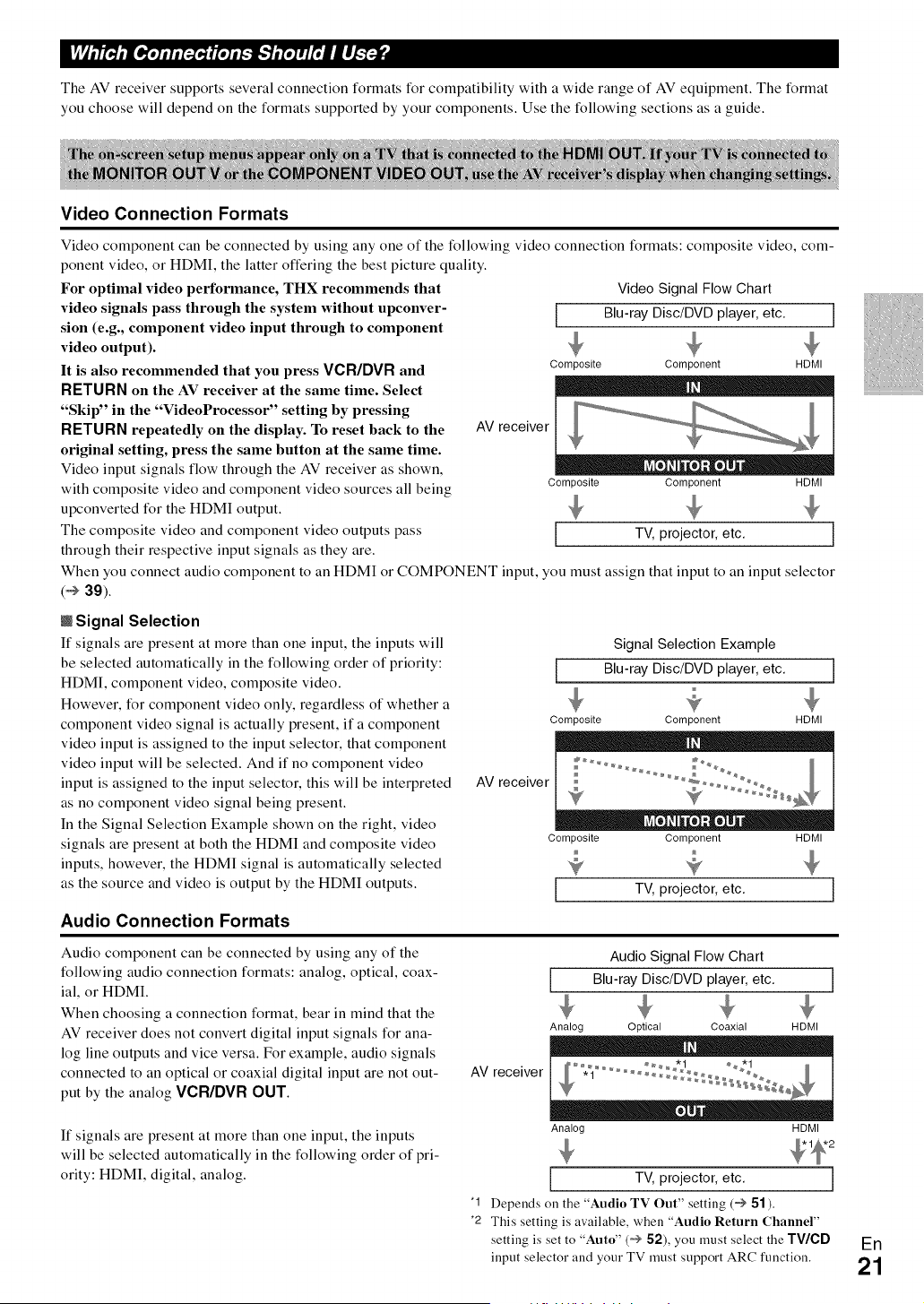

Which Connections Should I Use? ............................... 21

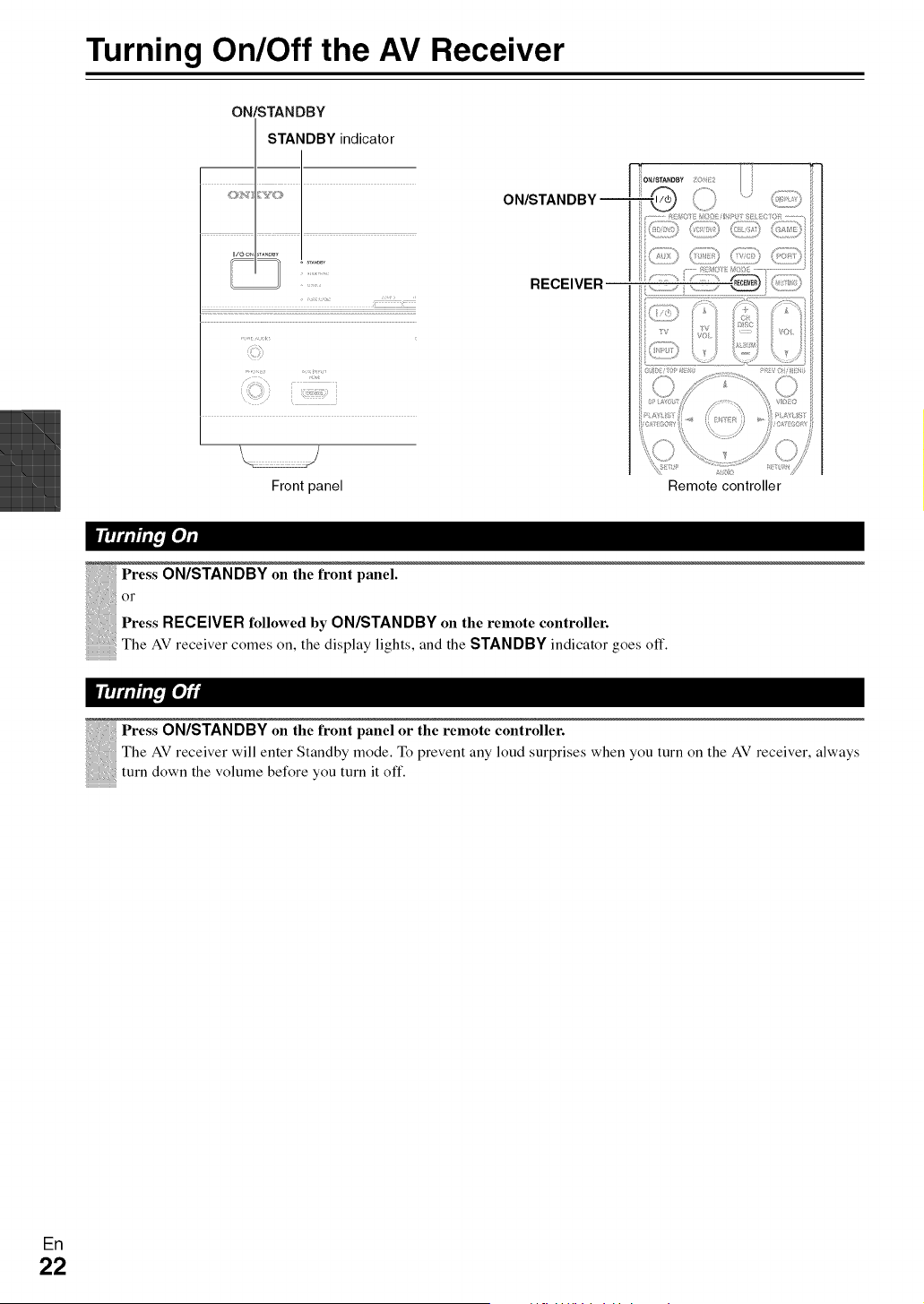

Turning On/Off the AV Receiver ................................... 22
Turning On ................................................................... 22
Turning Off ................................................................... 22

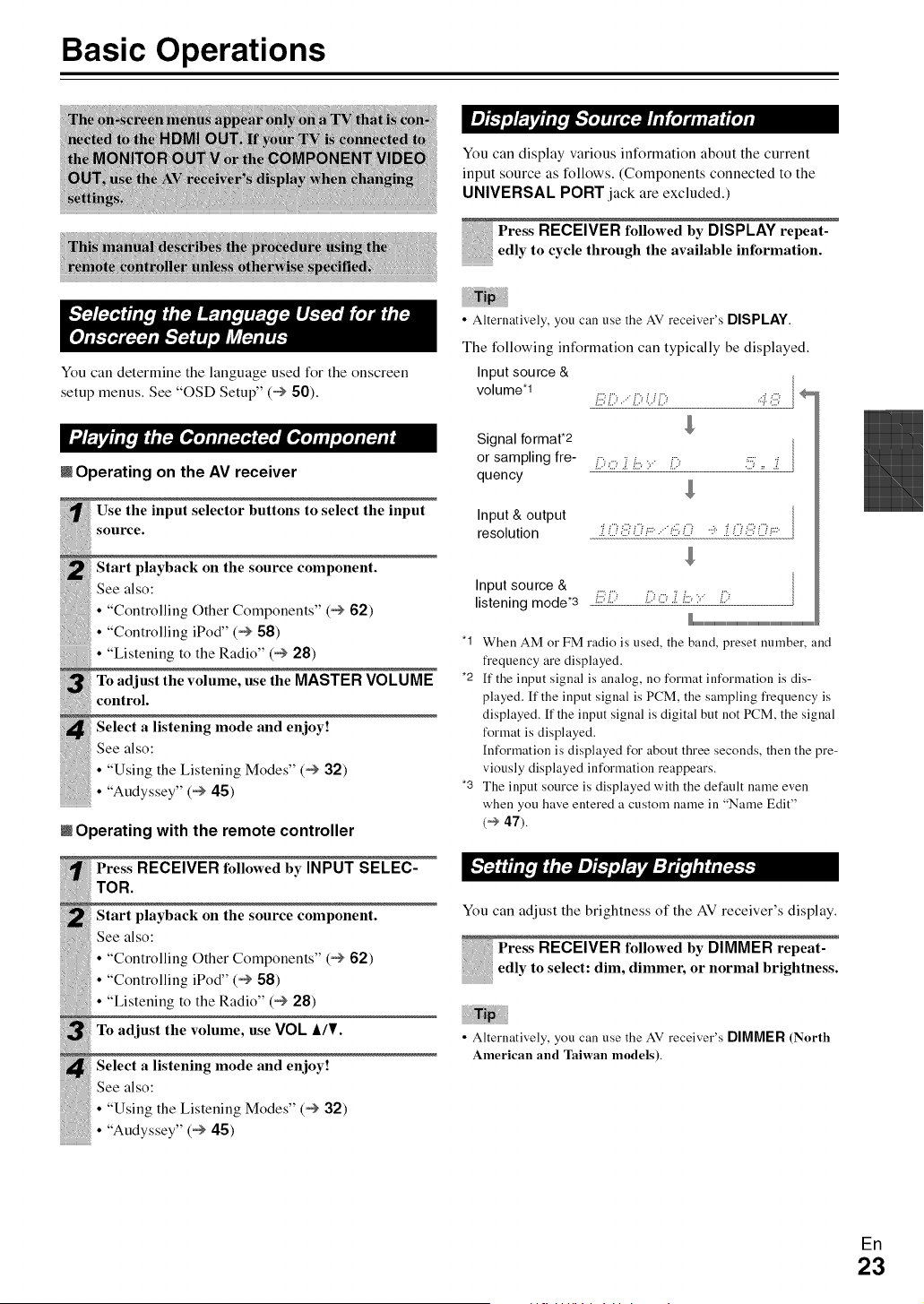

Basic Operations ............................................................ 23
Selecting the Language Used for
the Onscreen Setup Menus ....................................... 23
Playing the Connected Component .............................. 23
Displaying Source Information ..................................... 23
Setting the Display Brightness ..................................... 23
Muting the AV Receiver ................................................ 24
Using the Sleep Timer .................................................. 24
Selecting Speaker Layout ............................................ 24
Using the Home Menu .................................................. 24

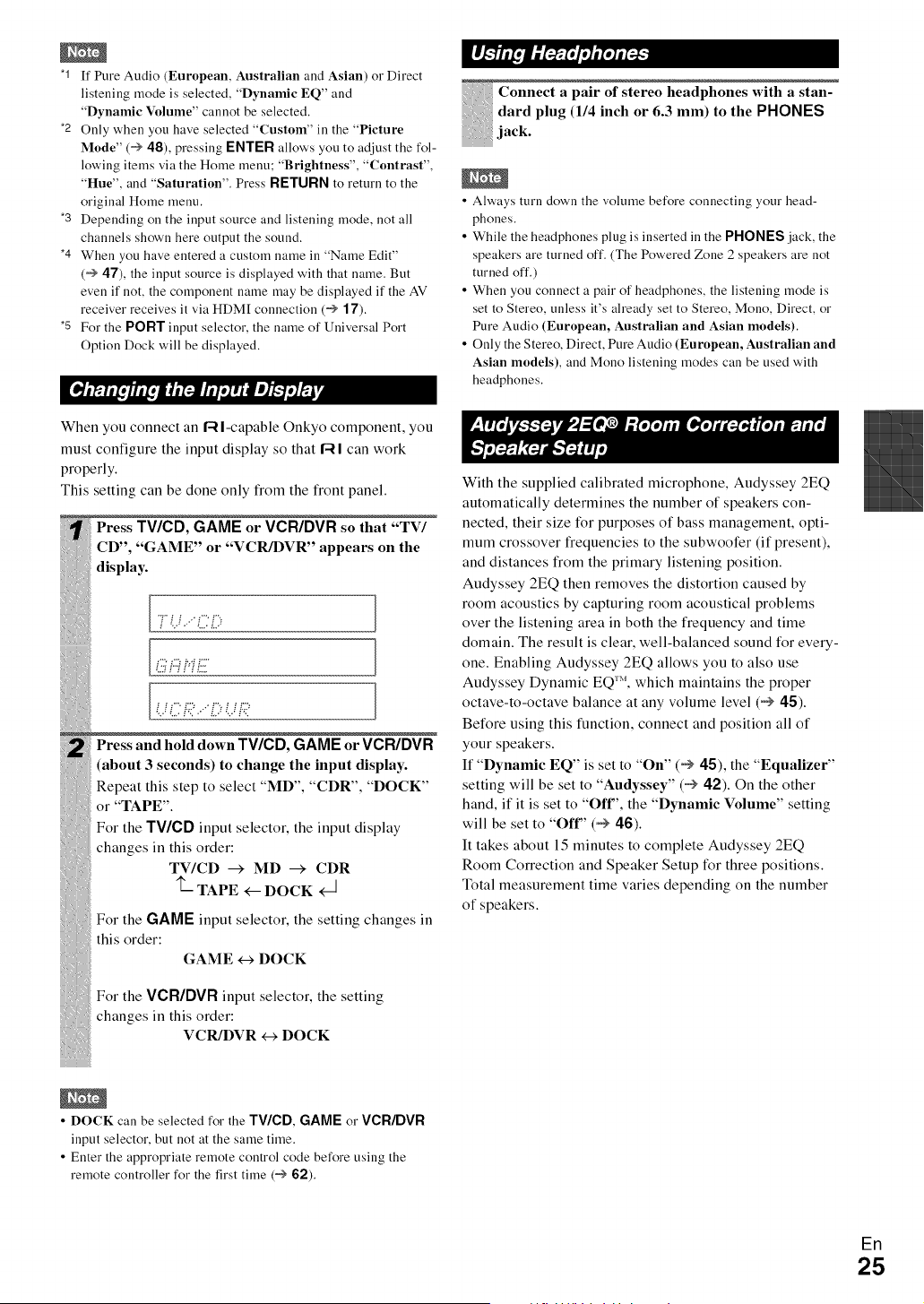

Changing the Input Display .......................................... 25
Using Headphones ....................................................... 25

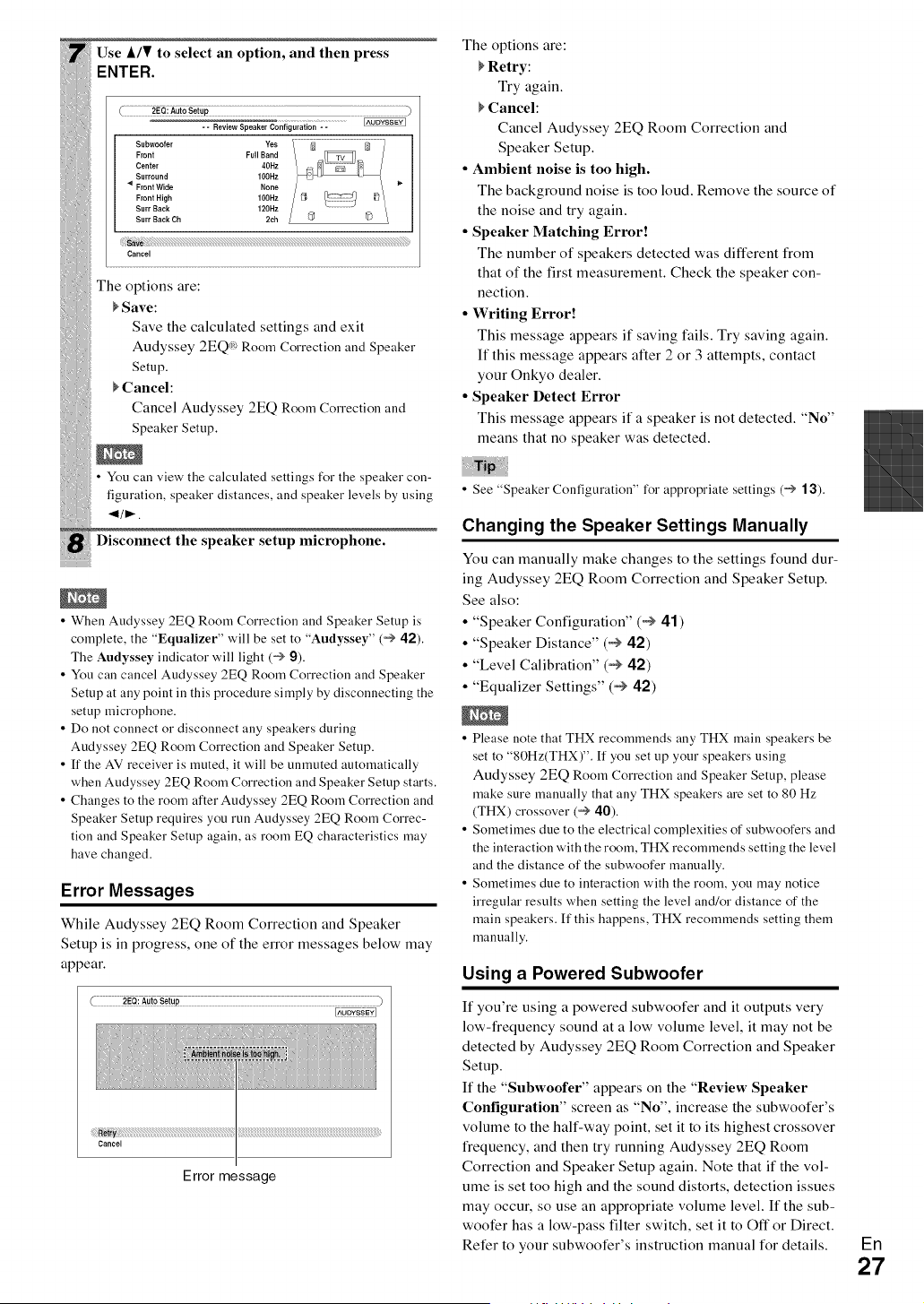

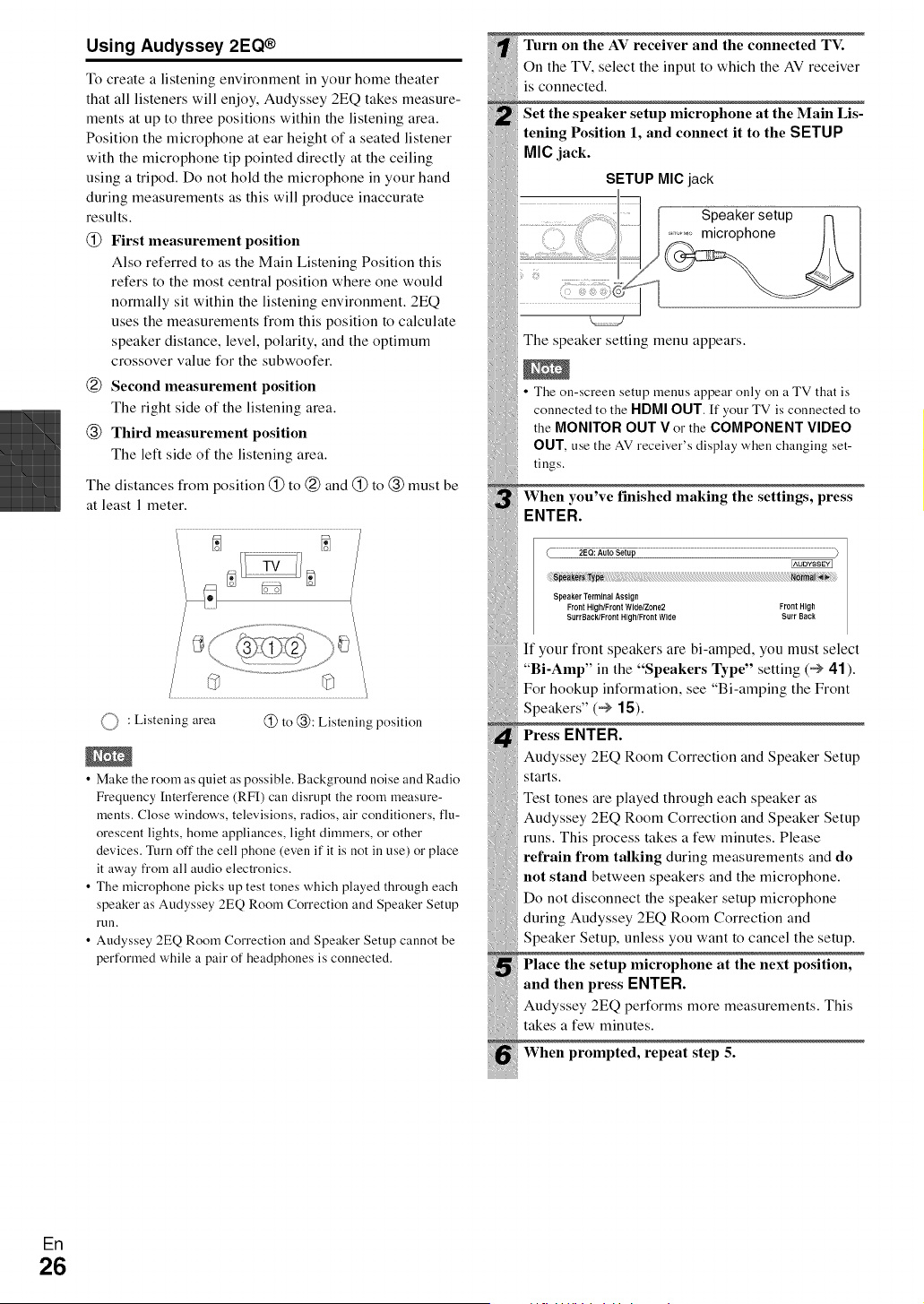

Audyssey 2EQ® Room Correction and
Speaker Setup ........................................................... 25

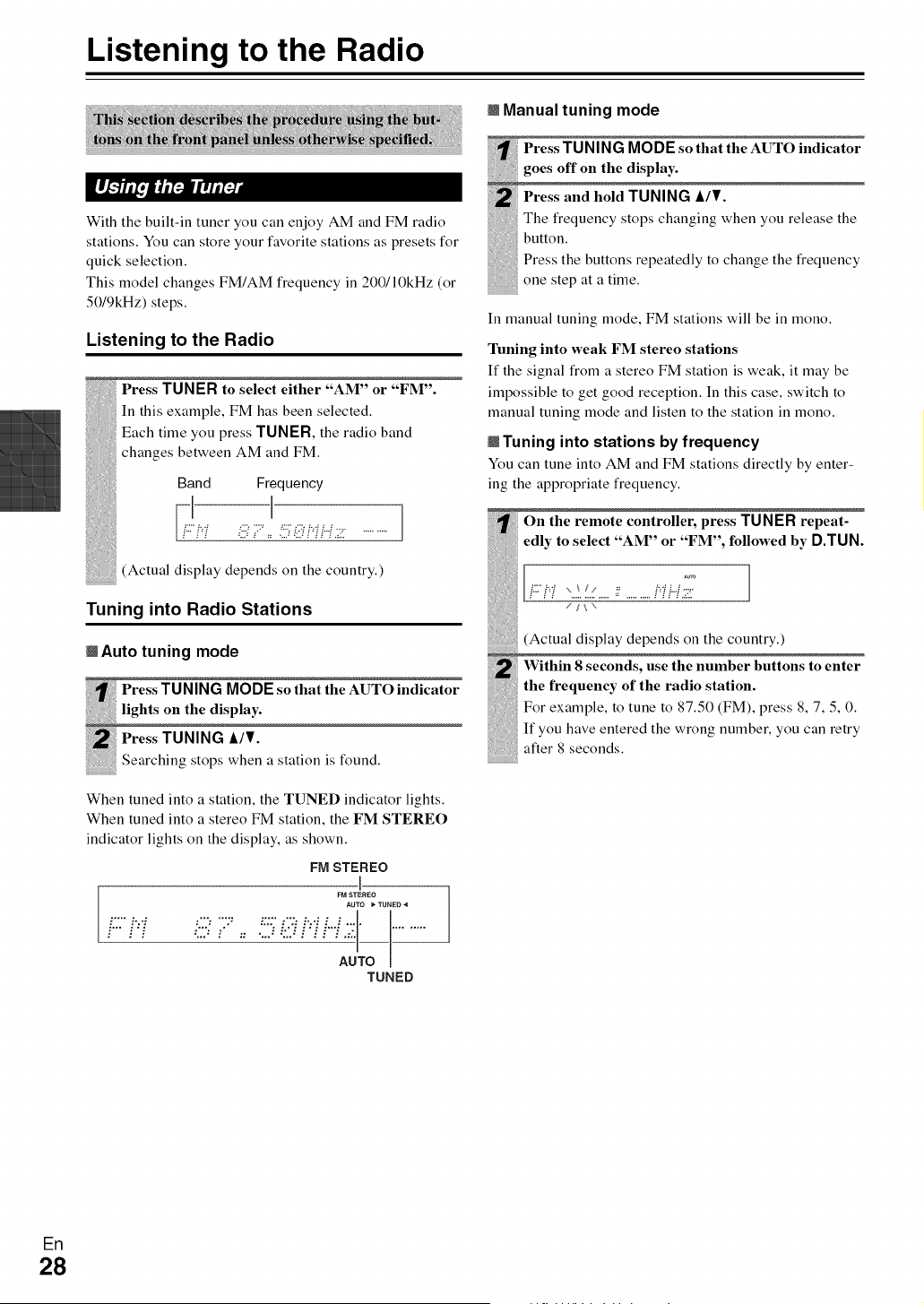

Listening to the Radio ................................................... 28
Using the Tuner ............................................................ 28
Presetting FM/AM Stations ........................................... 29
Using RDS (excluding North American models) .......... 29

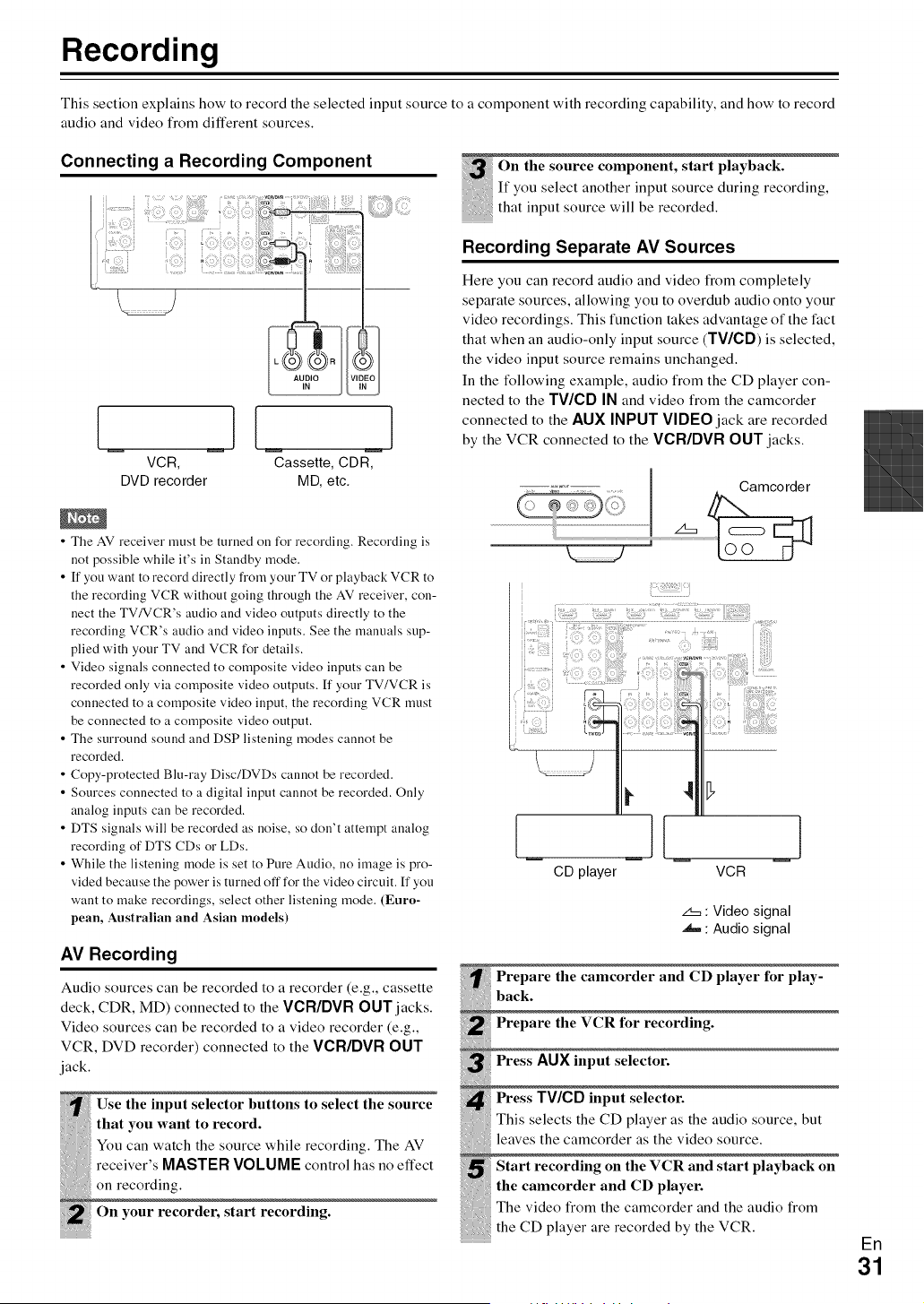

Recording ....................................................................... 31

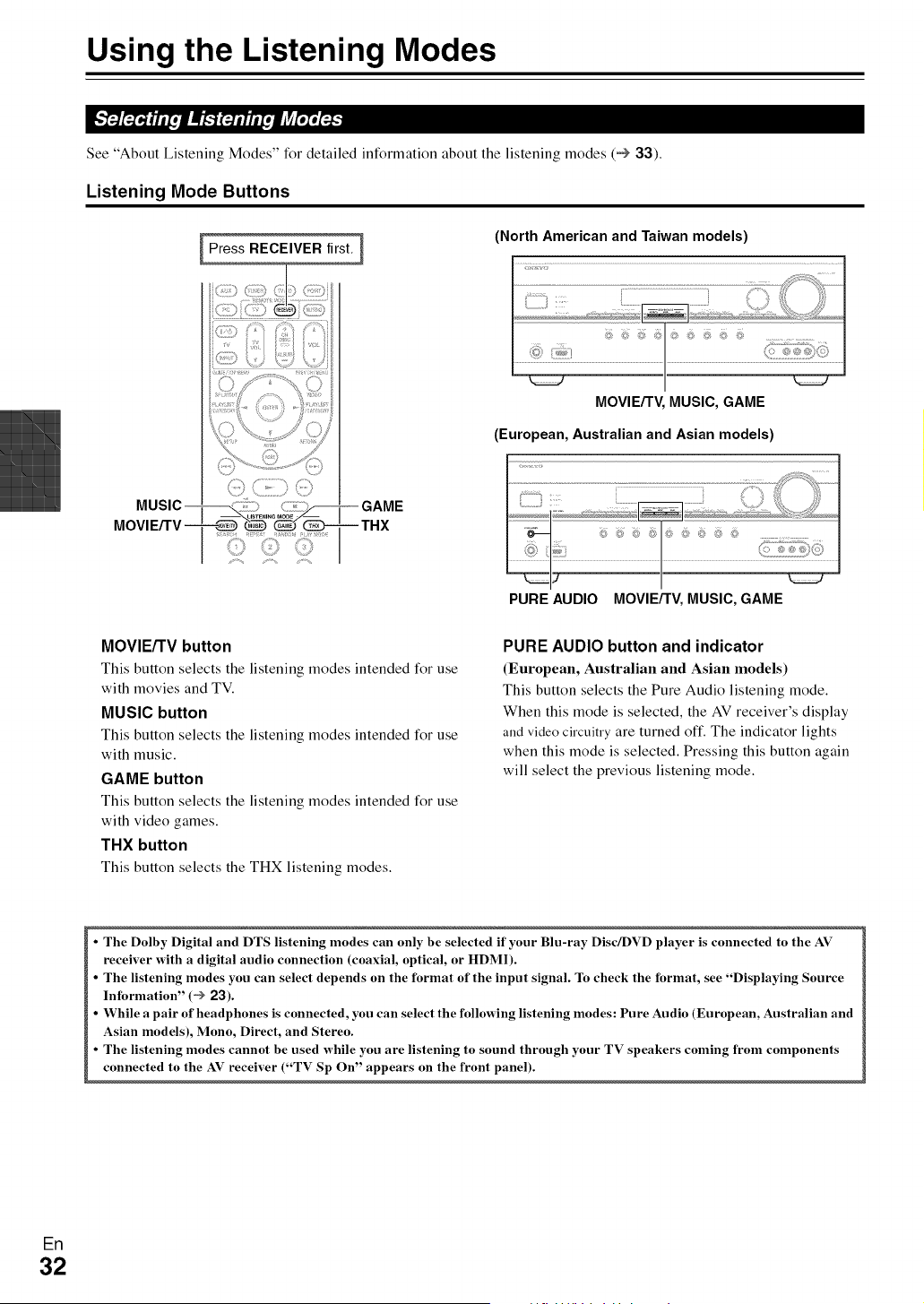

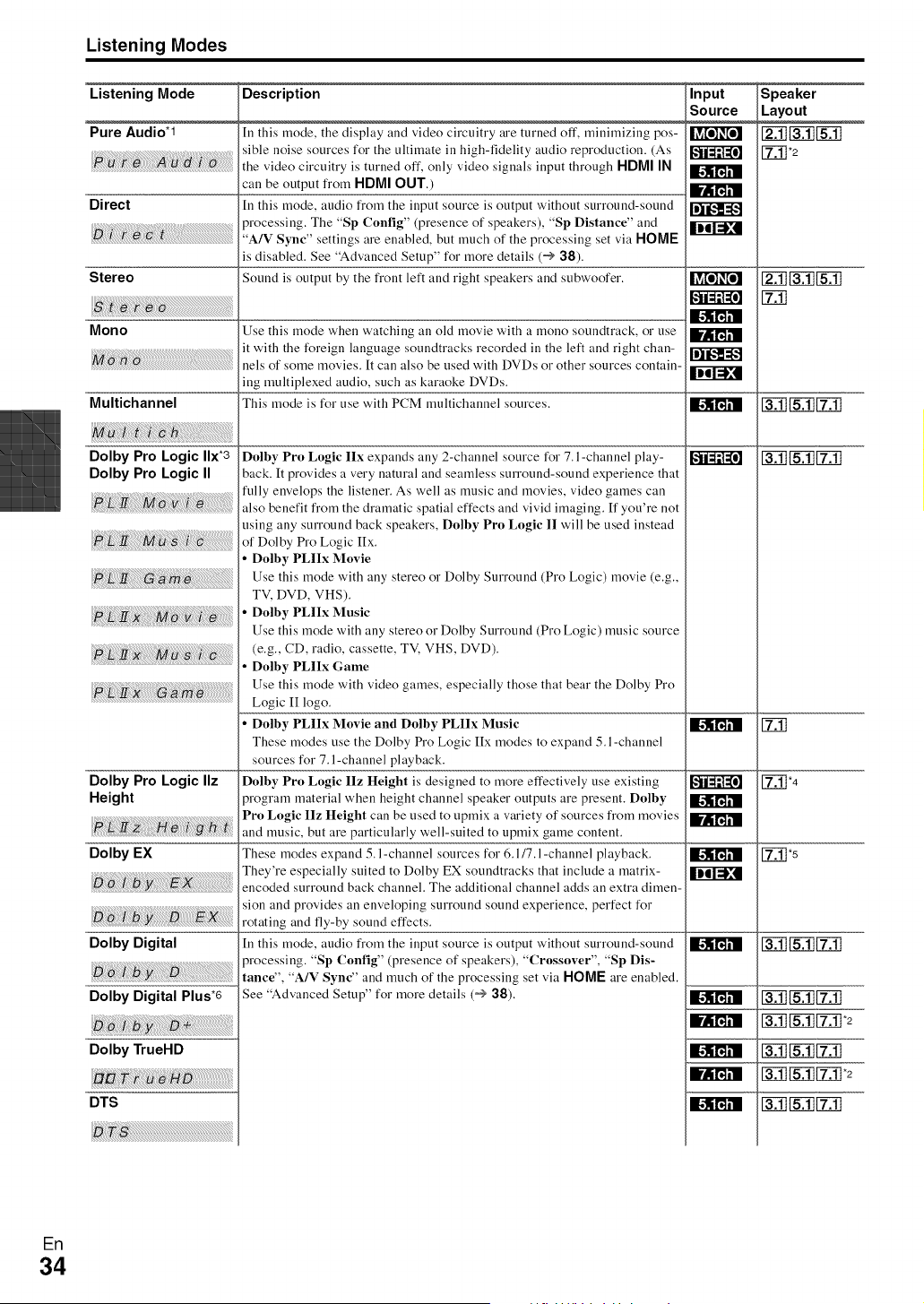

Using the Listening Modes ........................................... 32
Selecting Listening Modes ........................................... 32

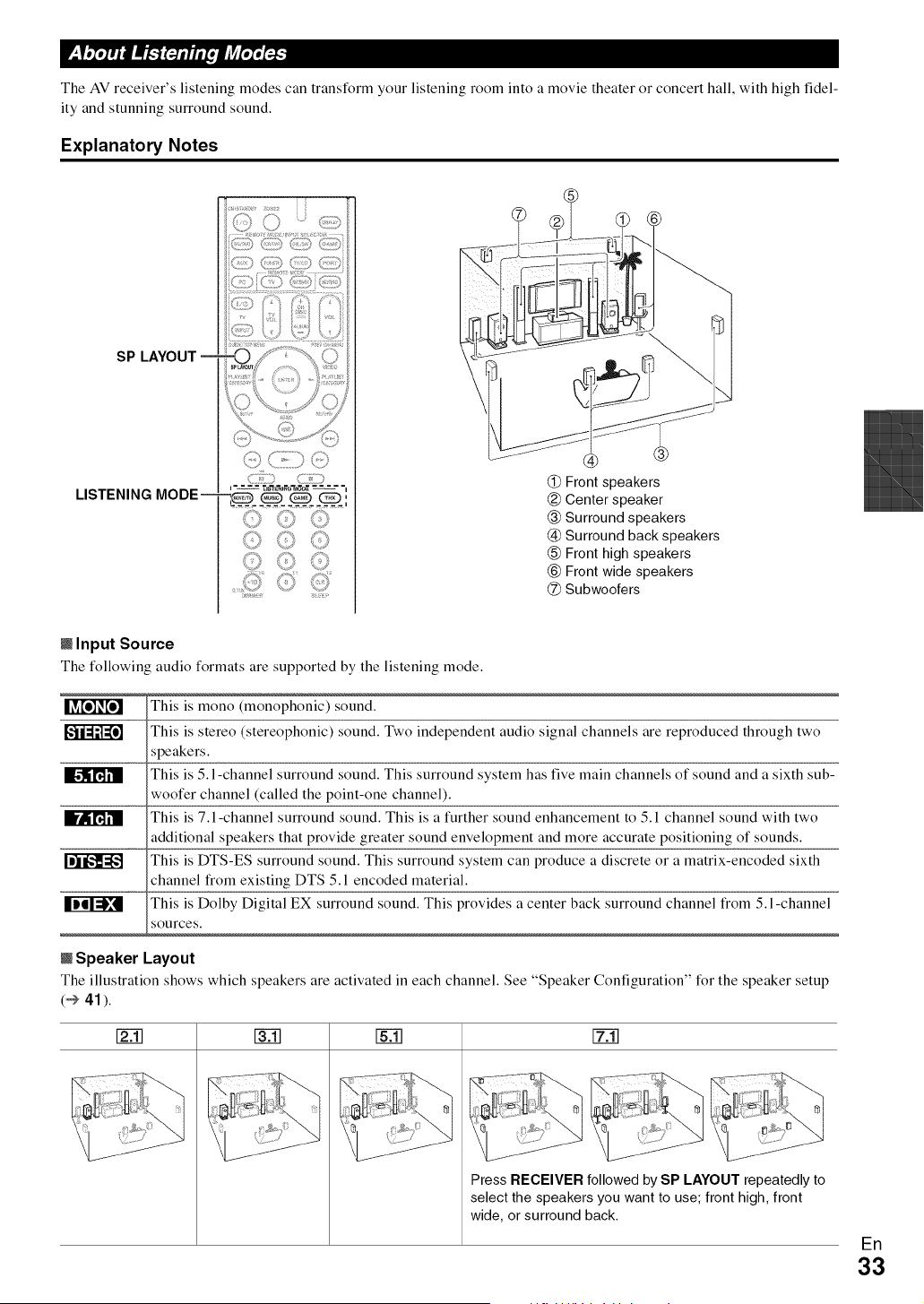

About Listening Modes ................................................. 33

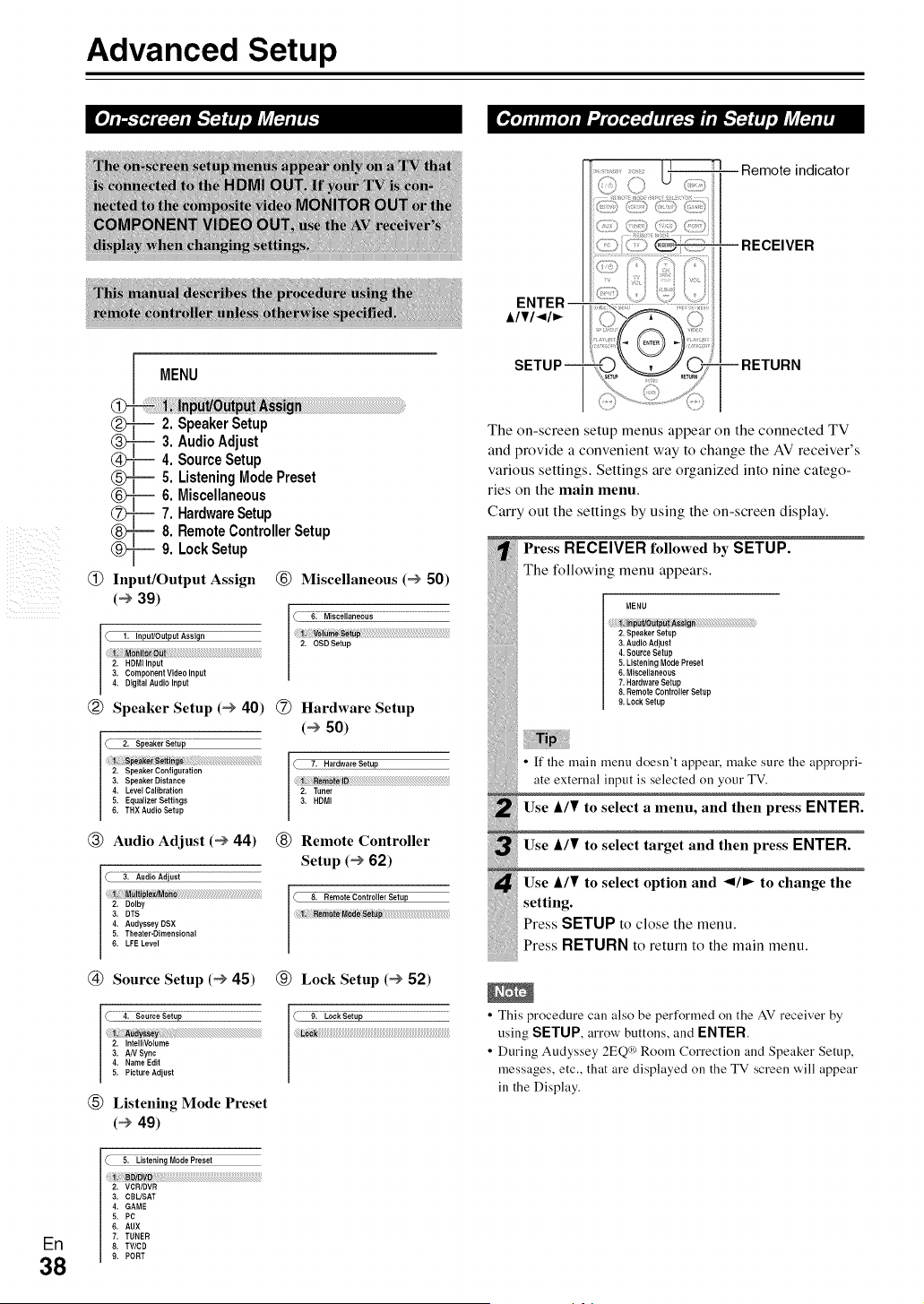

Advanced Setup ............................................................. 38
On-screen Setup Menus ............................................... 38
Common Procedures in Setup Menu ........................... 38
Input/Output Assign ...................................................... 39

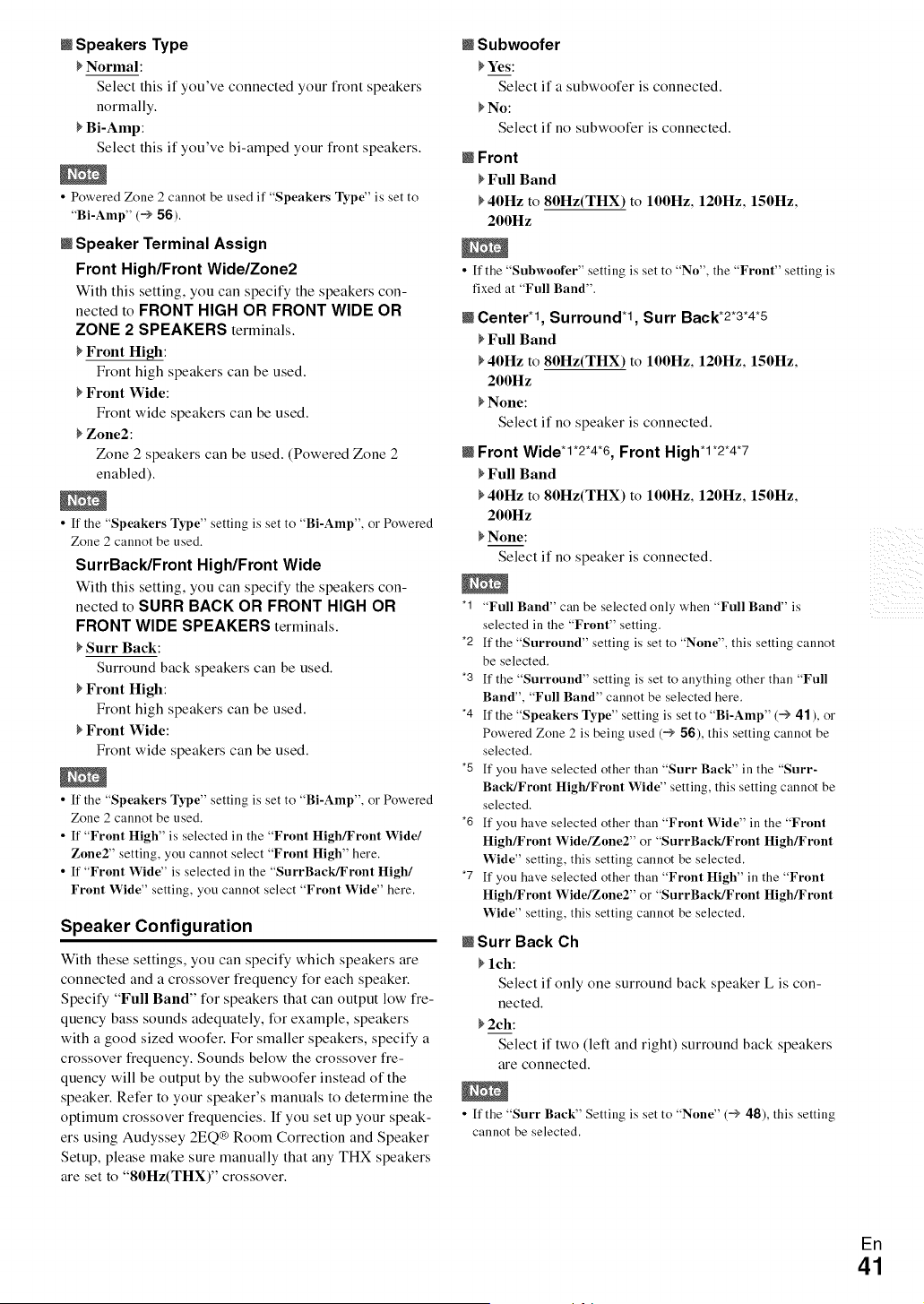

Speaker Setup .............................................................. 40

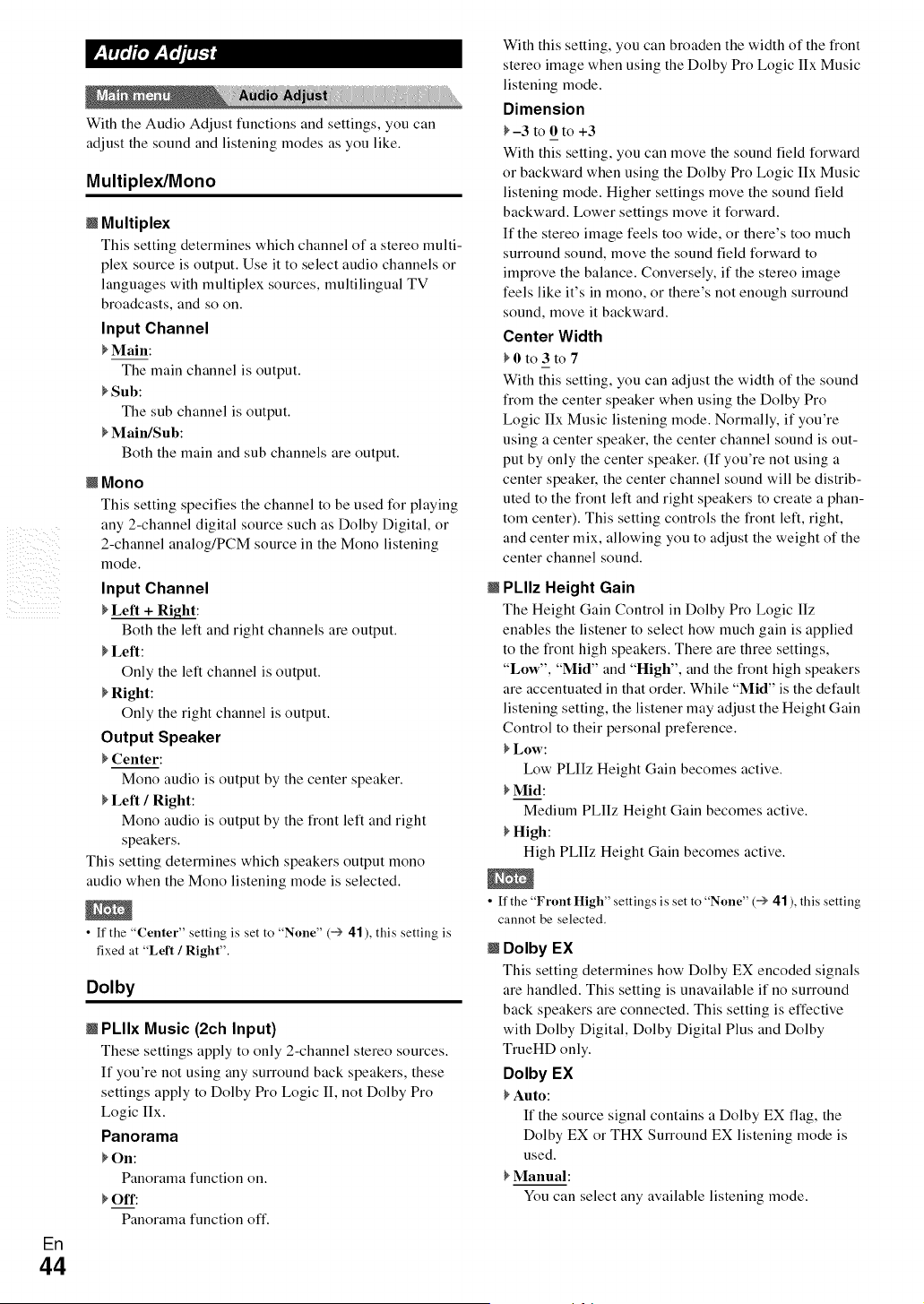

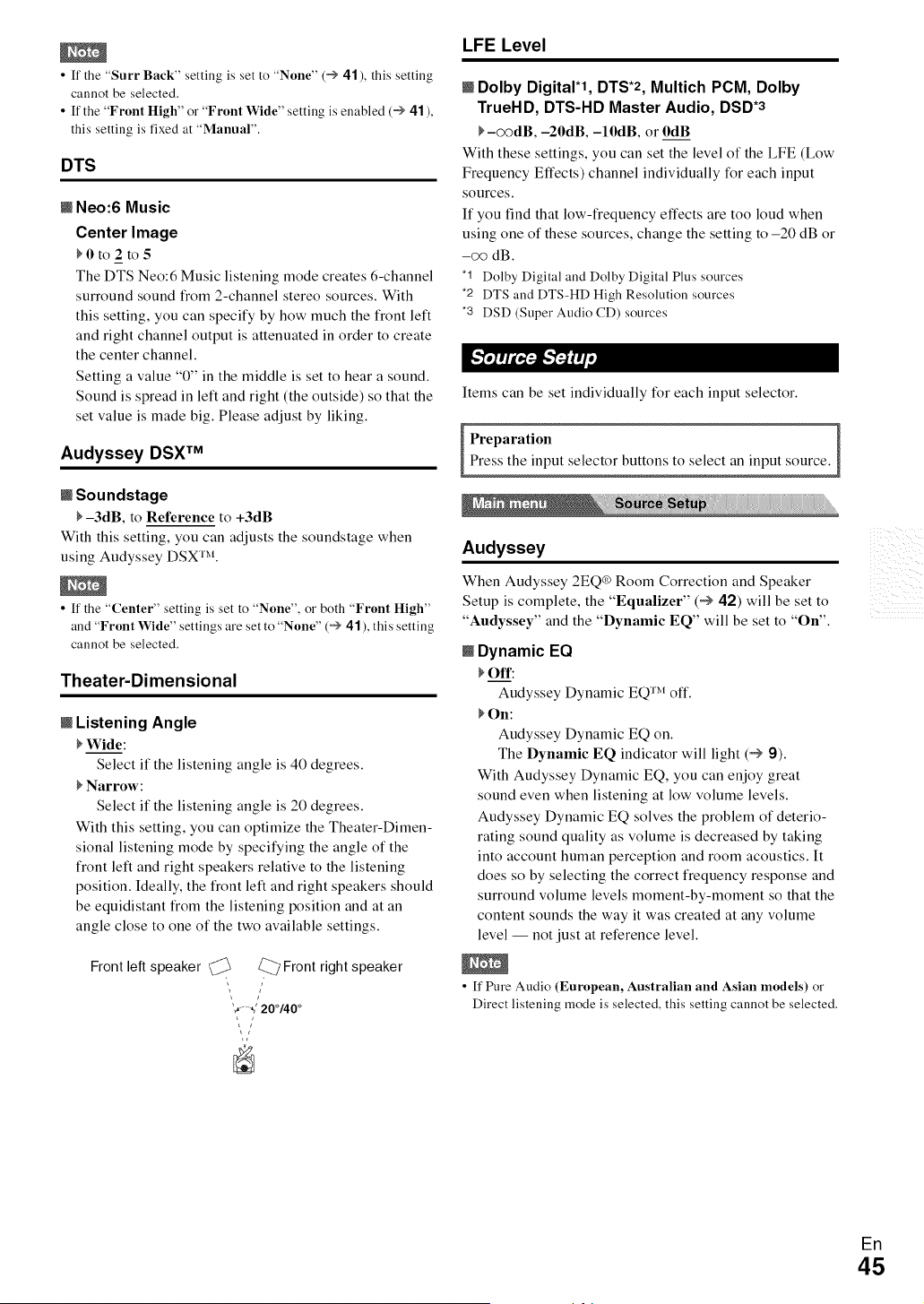

Audio Adjust ................................................................. 44
Source Setup ................................................................ 45
Listening Mode Preset .................................................. 49

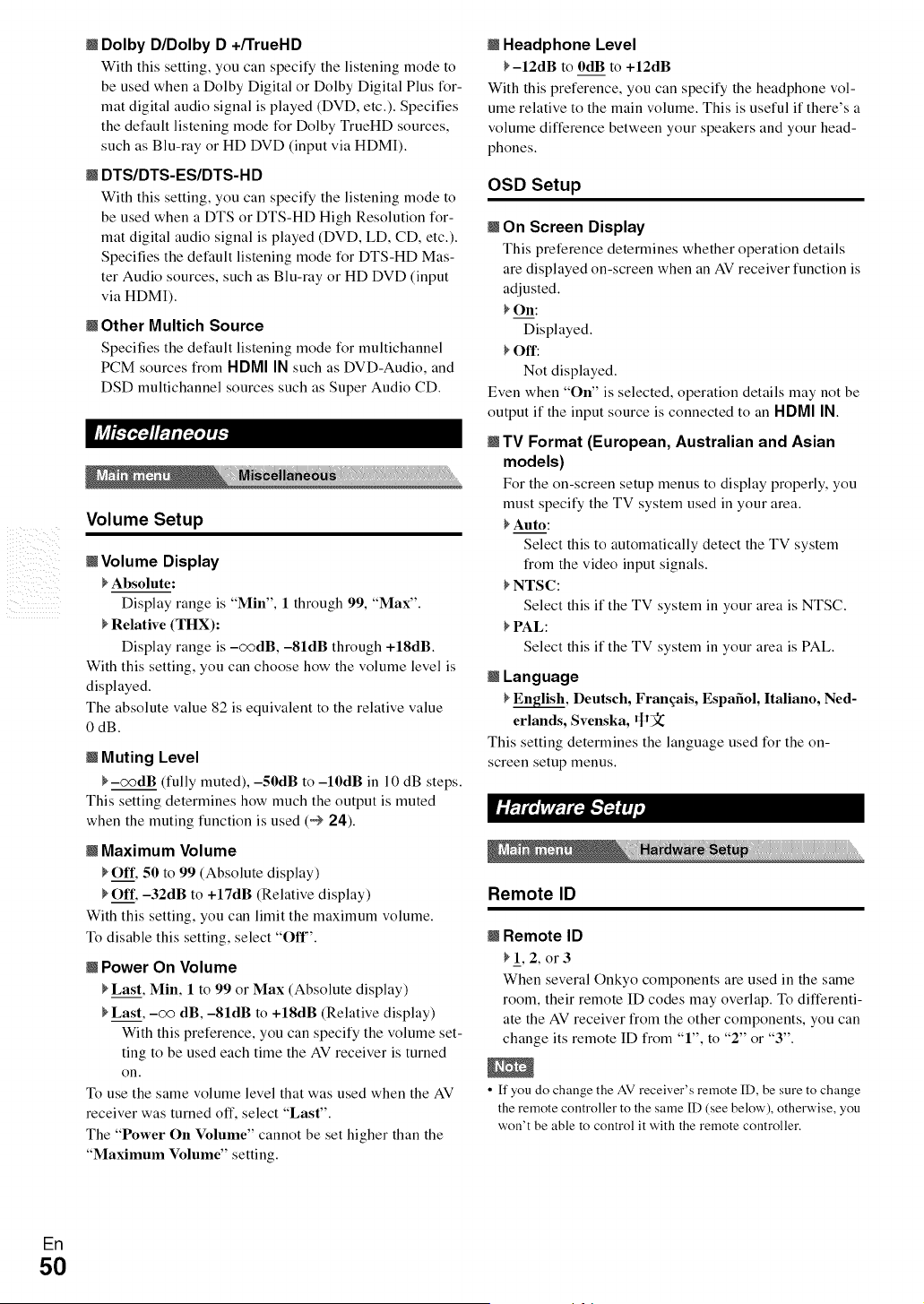

Miscellaneous ............................................................... 50
Hardware Setup ............................................................ 50

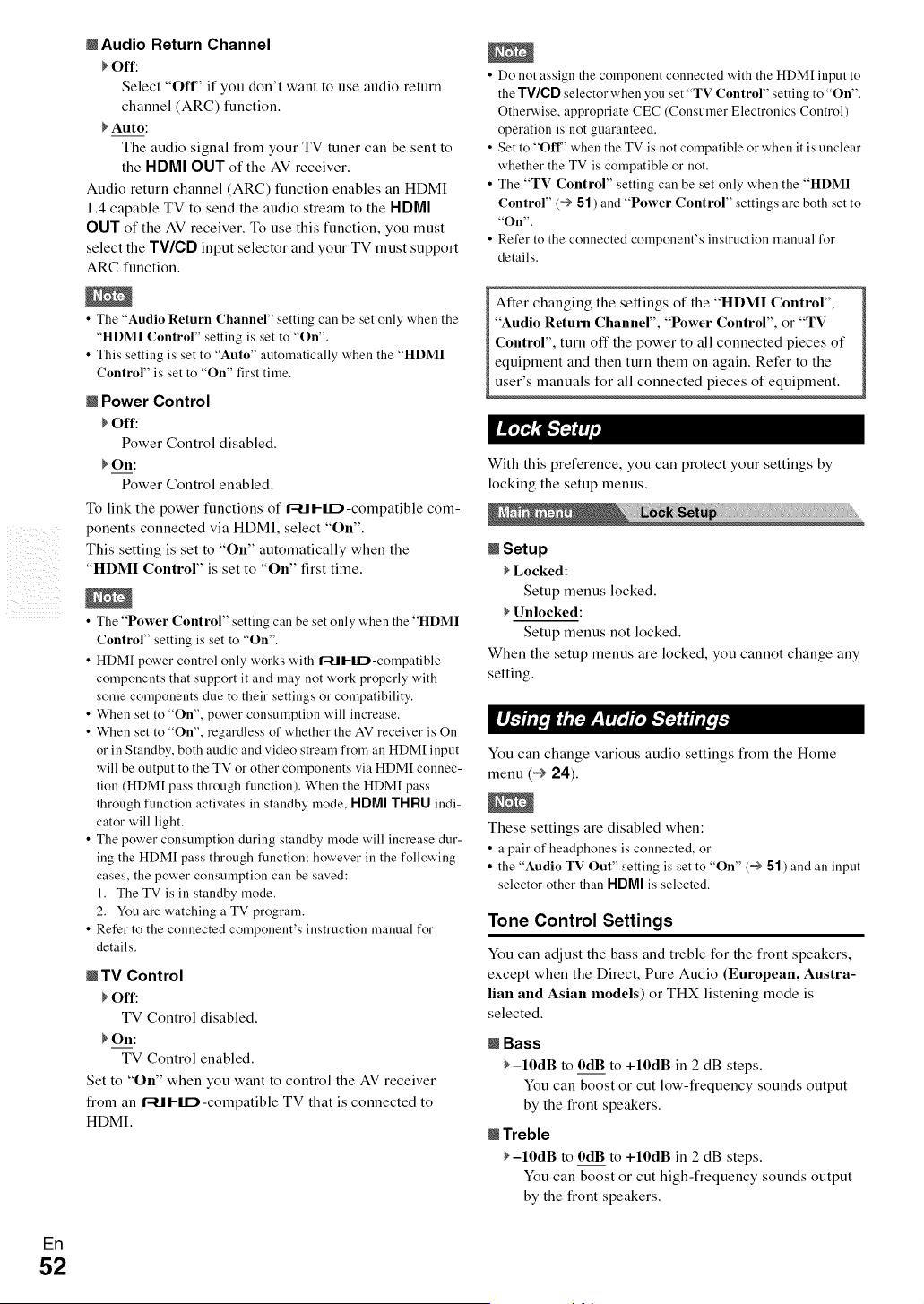

Lock Setup .................................................................... 52

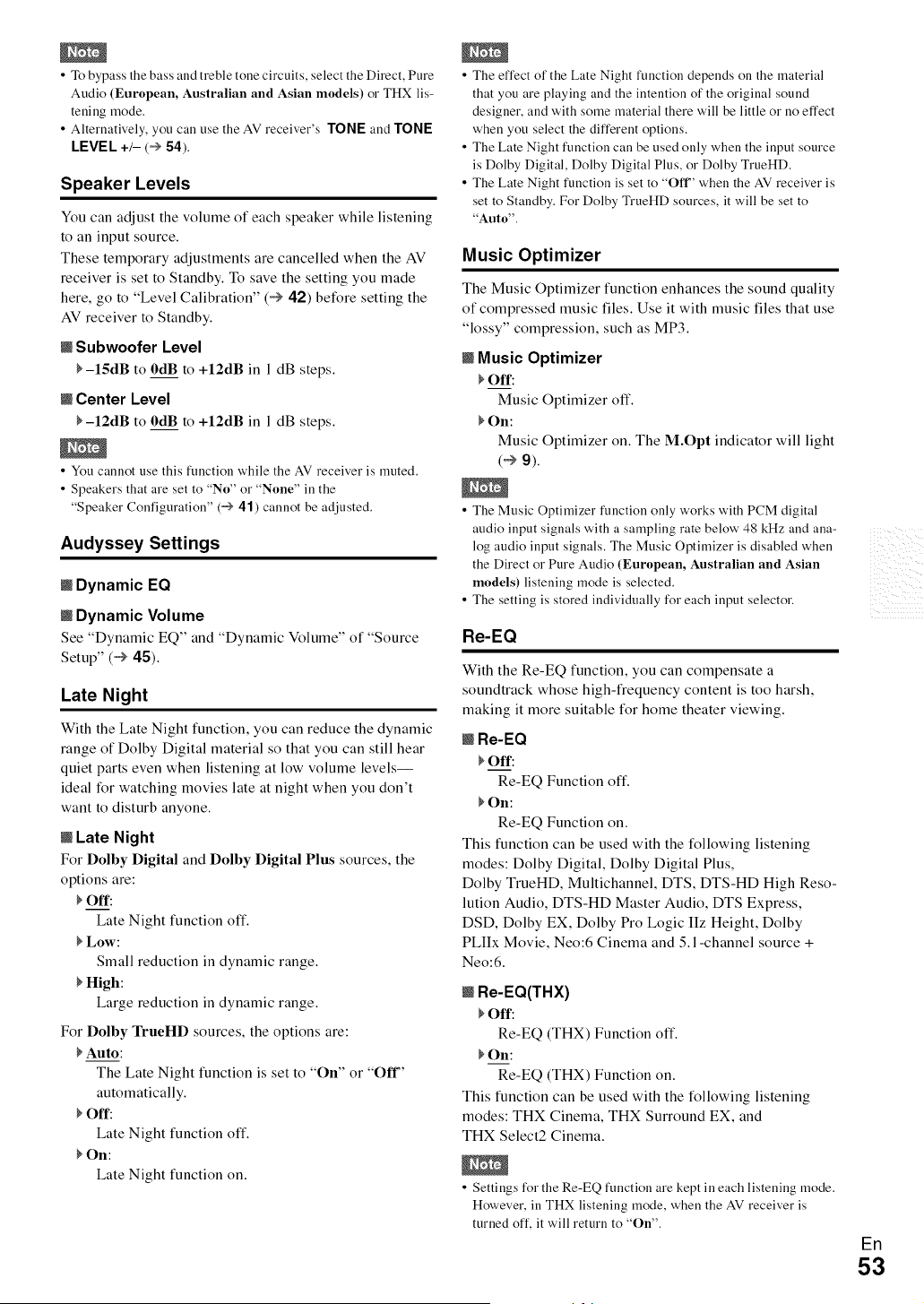

Using the Audio Settings .............................................. 52
Adjusting the Bass & Treble ......................................... 54
Zone 2 .............................................................................. 55
Connecting Zone 2 ....................................................... 55
Setting the Powered Zone 2 ......................................... 56

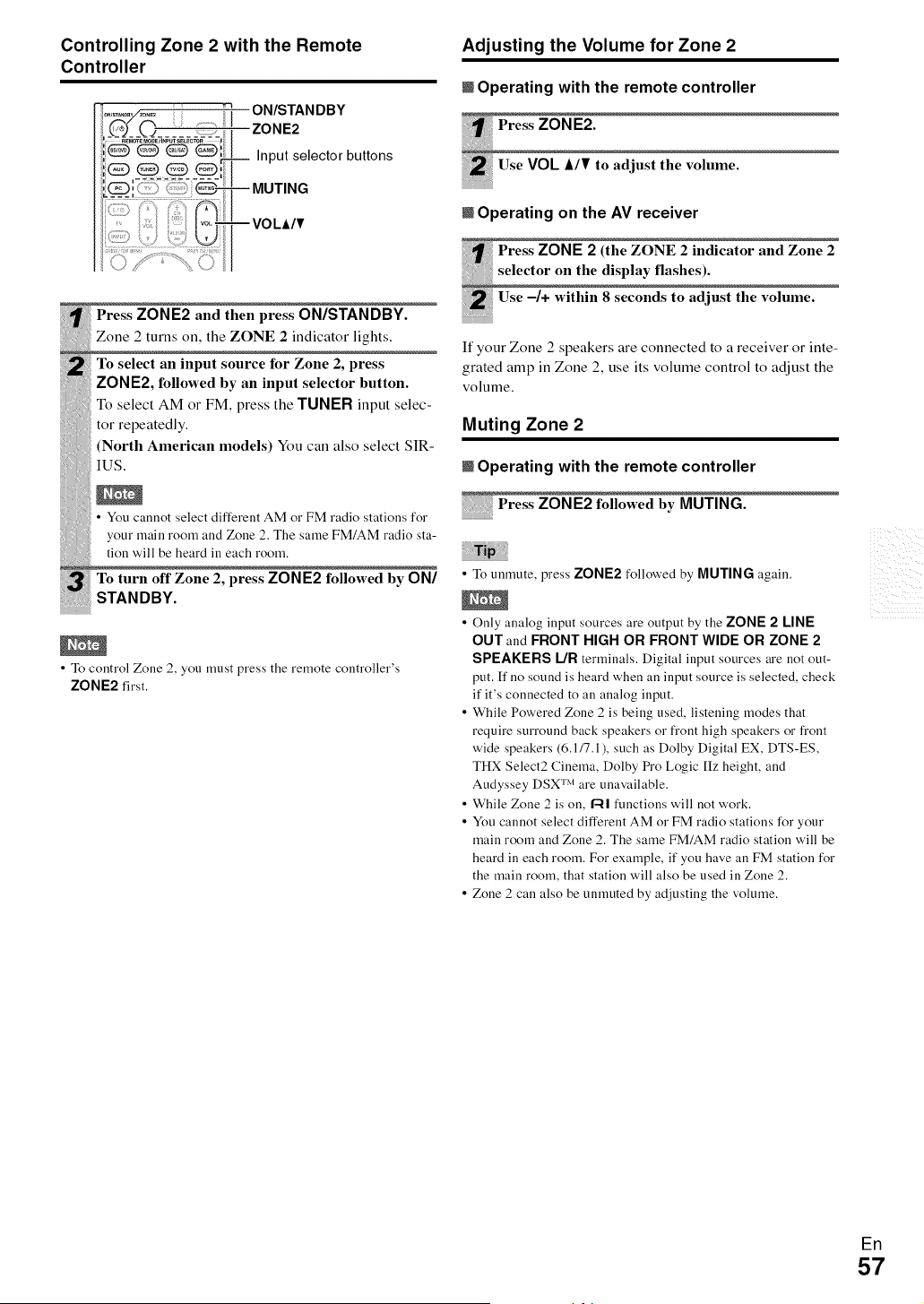

Using Zone 2 ................................................................ 56
Controlling iPod ............................................................. 58

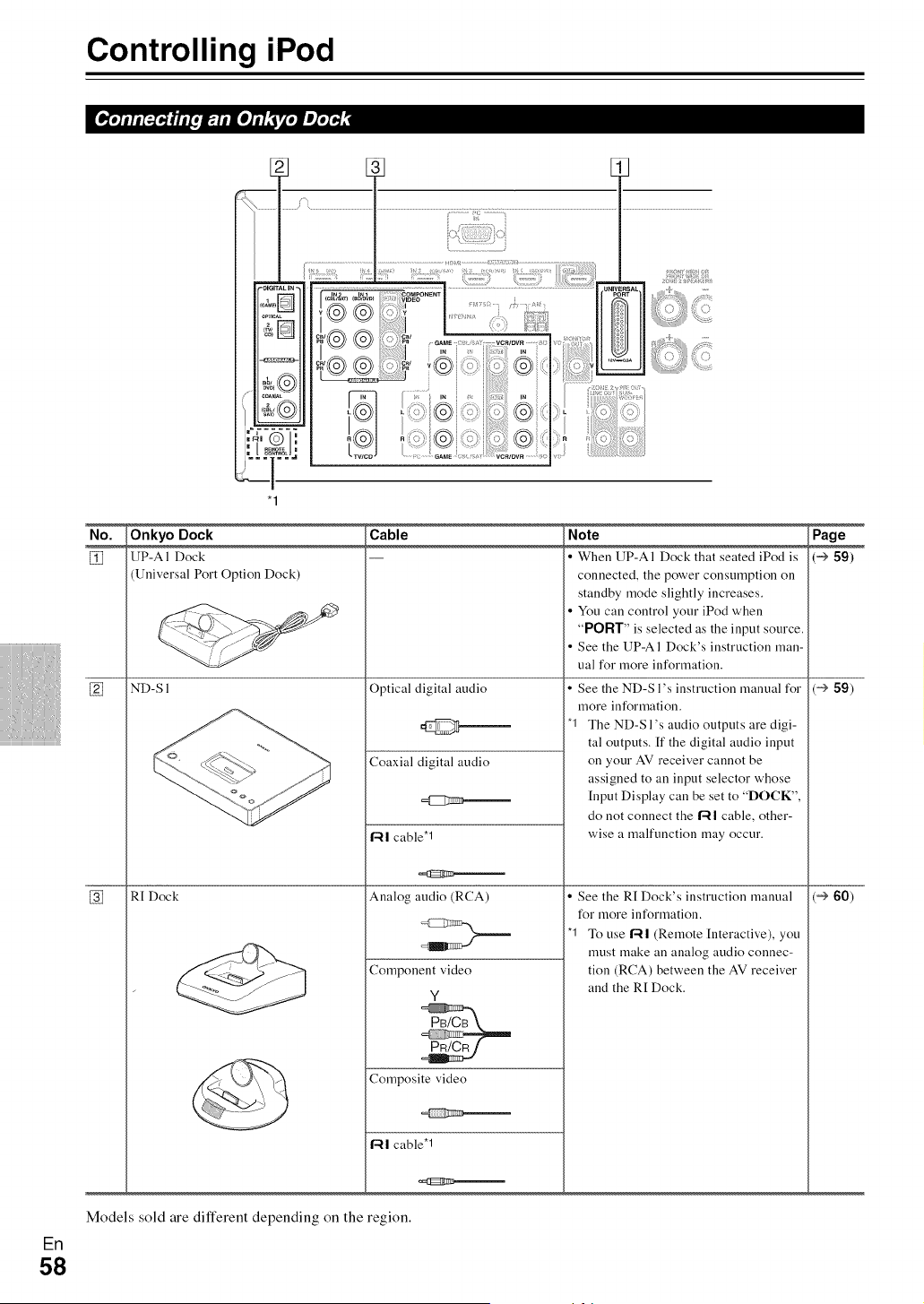

Connecting an Onkyo Dock .......................................... 58

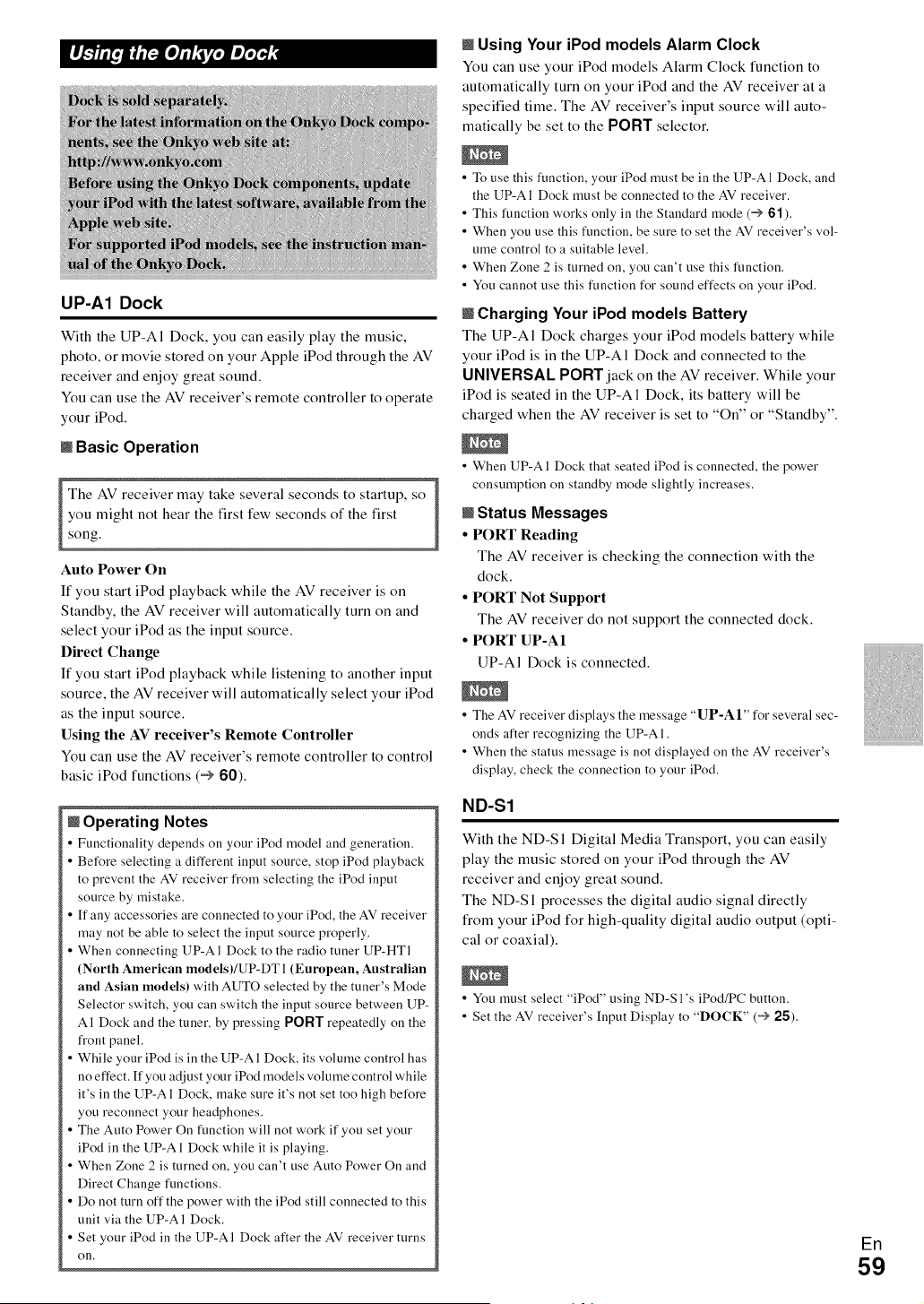

Using the Onkyo Dock .................................................. 59
Controlling Your iPod .................................................... 60

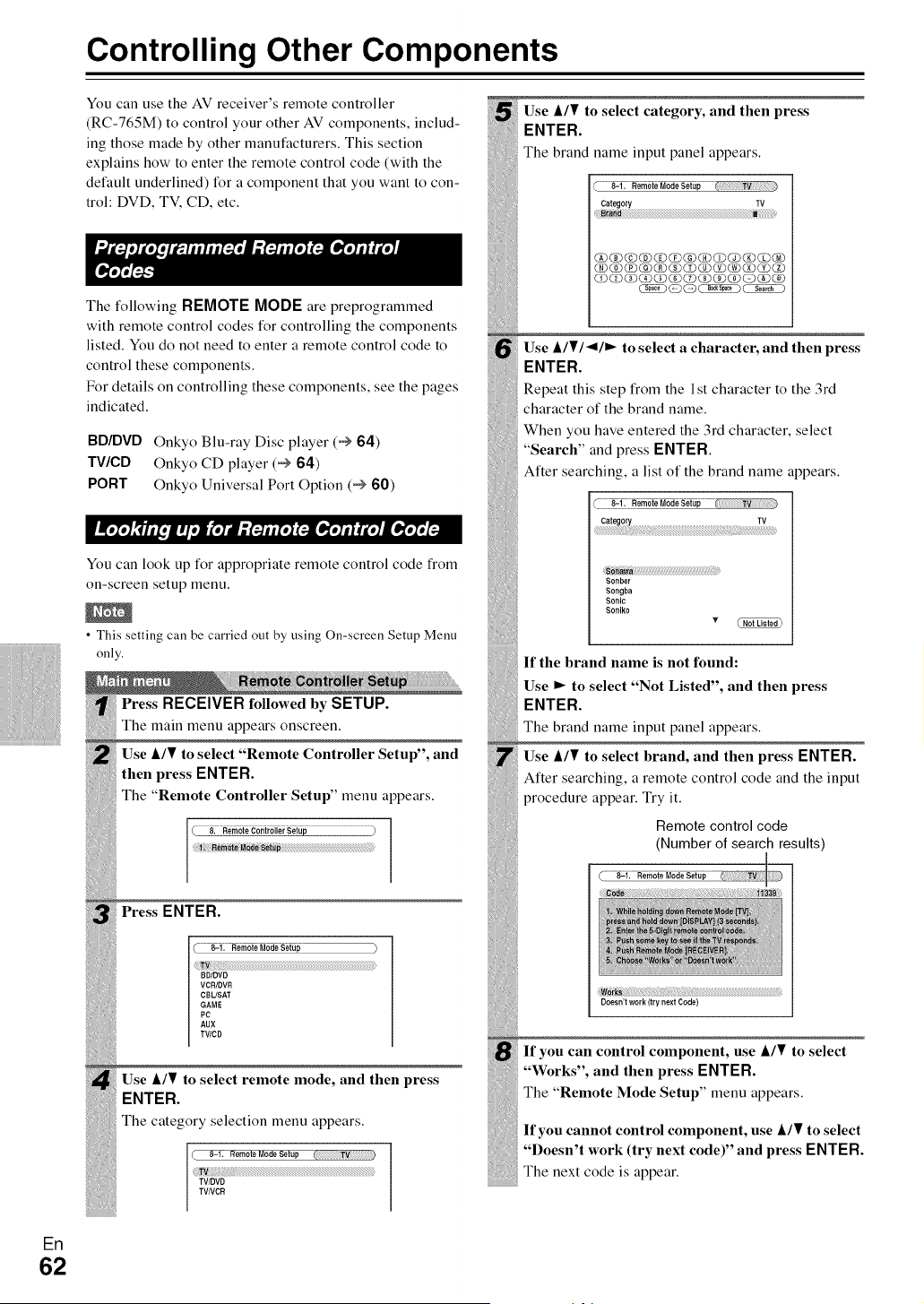

Controlling Other Components ..................................... 62
Preprogrammed Remote Control Codes ...................... 62
Looking up for Remote Control Code ........................... 62
Entering Remote Control Codes ................................... 63
Remote Control Codes for
Onkyo Components Connected via RI ..................... 63

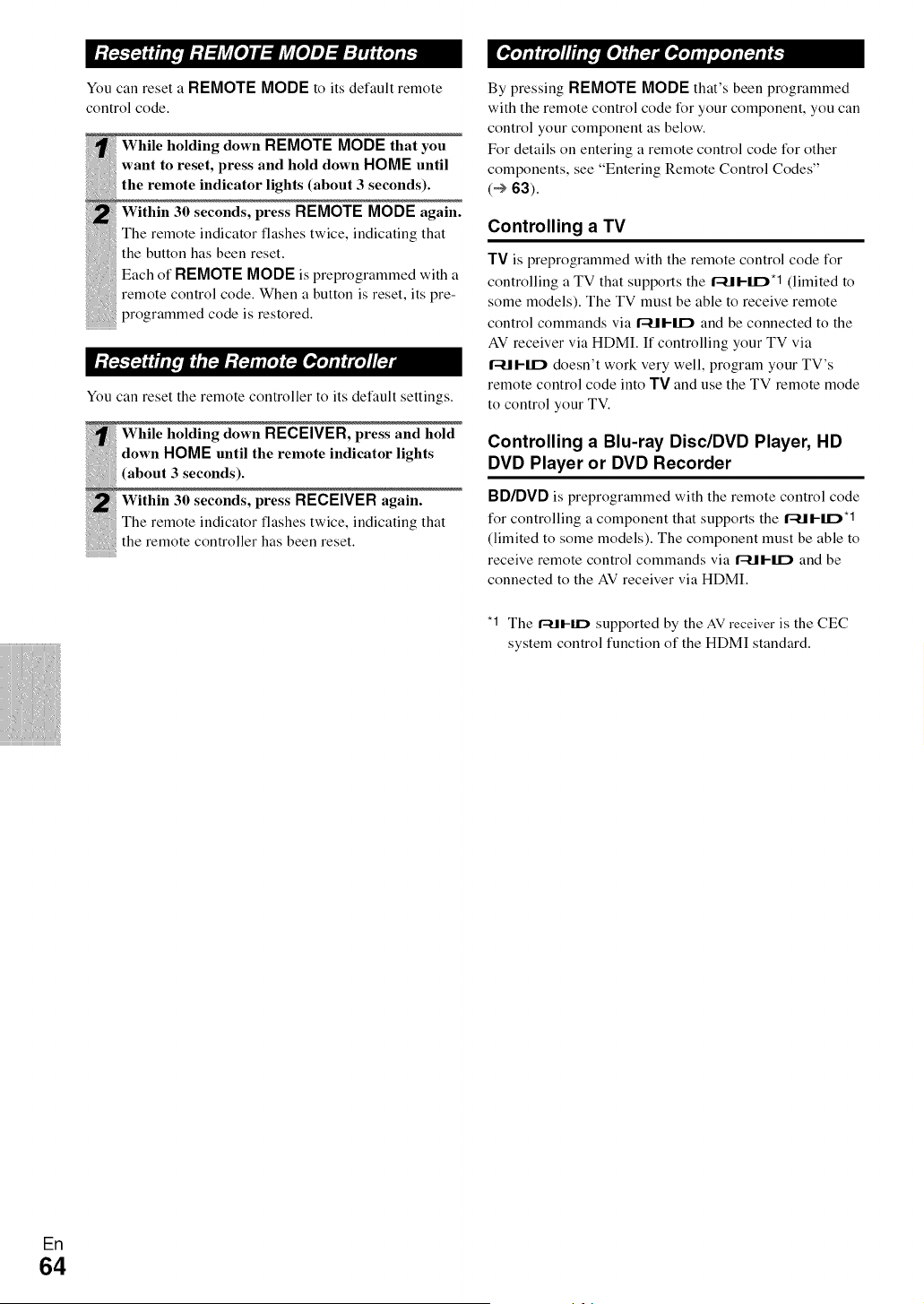

Resetting REMOTE MODE Buttons ............................. 64
Resetting the Remote Controller .................................. 64

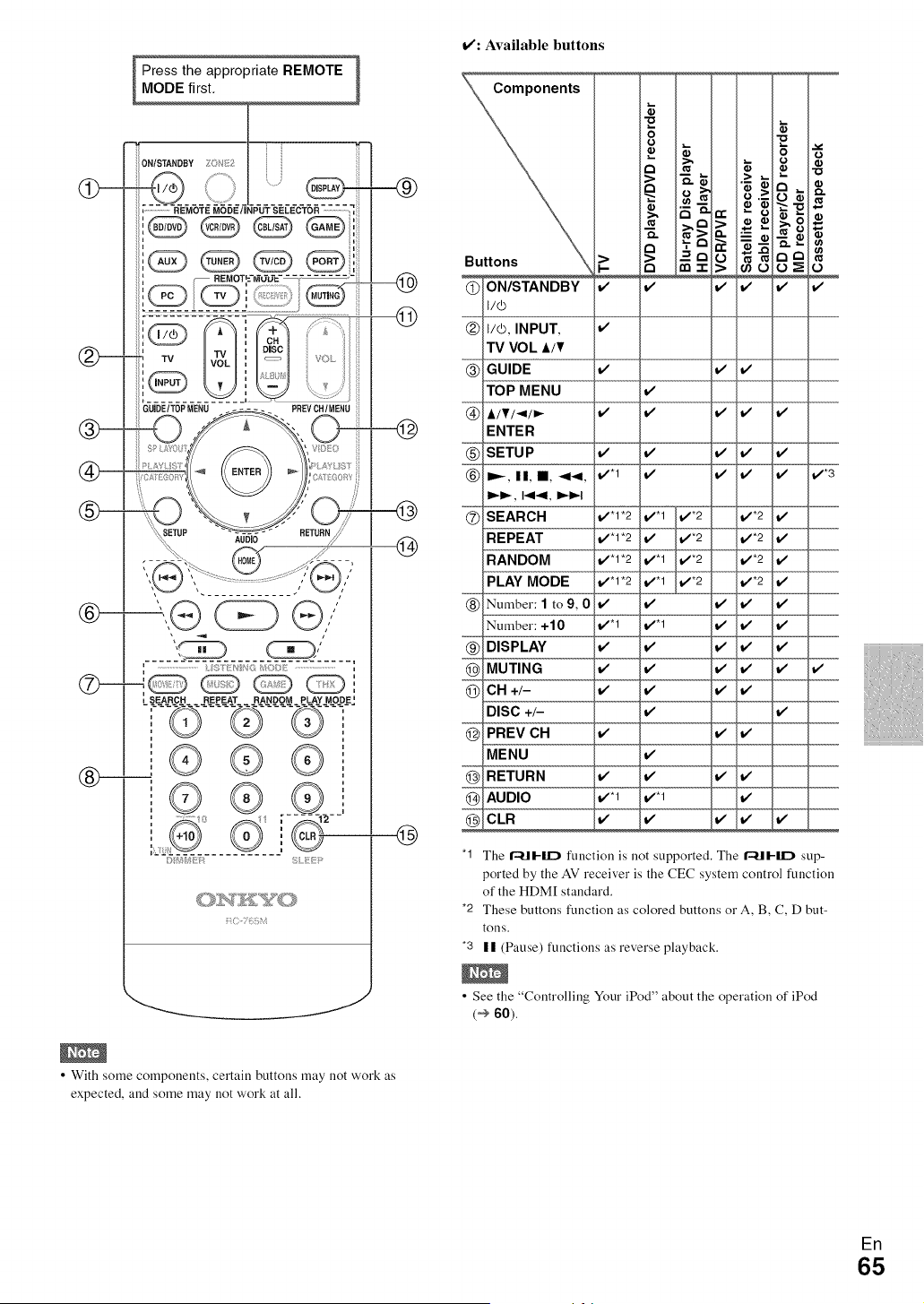

Controlling Other Components ..................................... 64

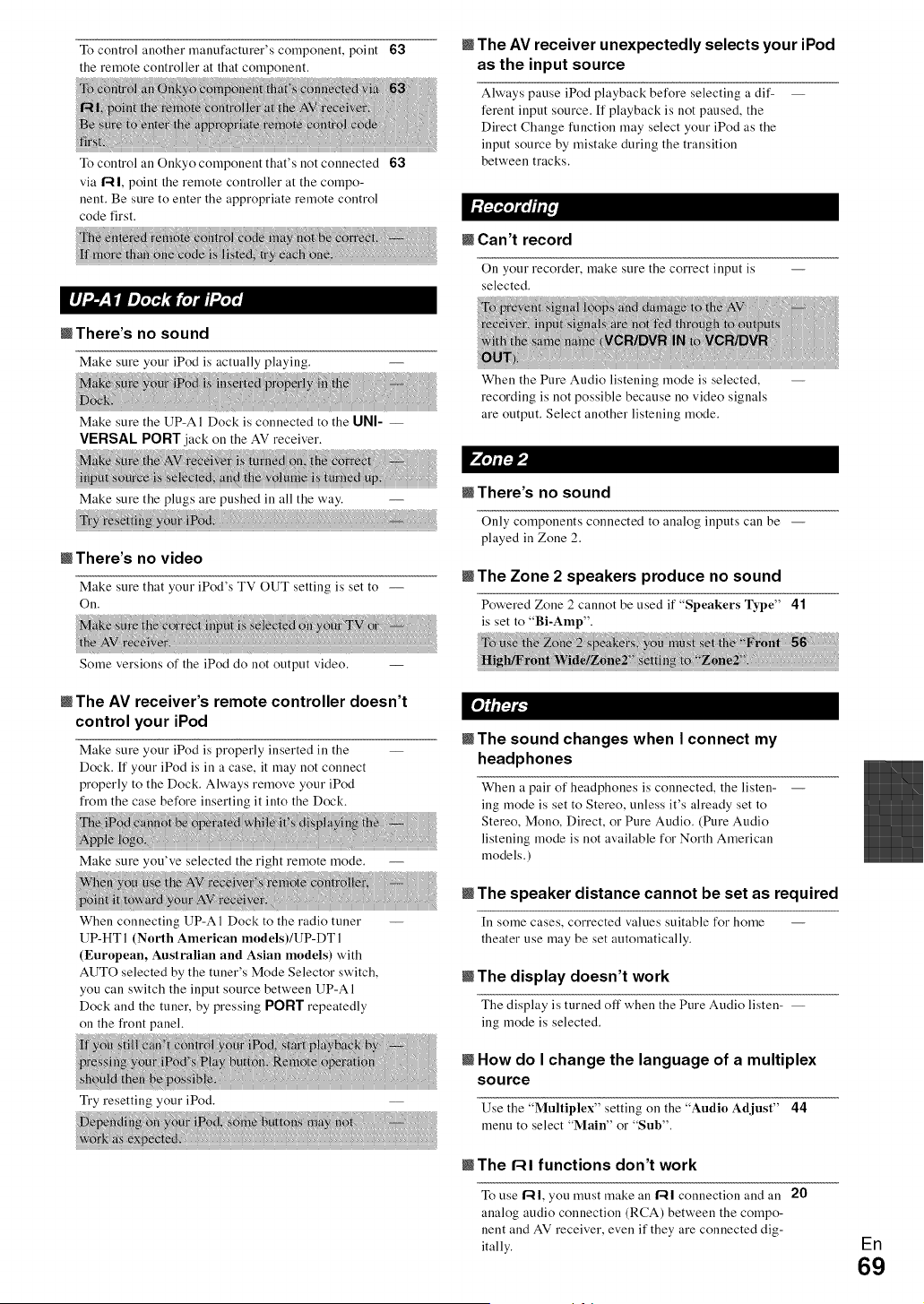

Troubleshooting ............................................................. 66

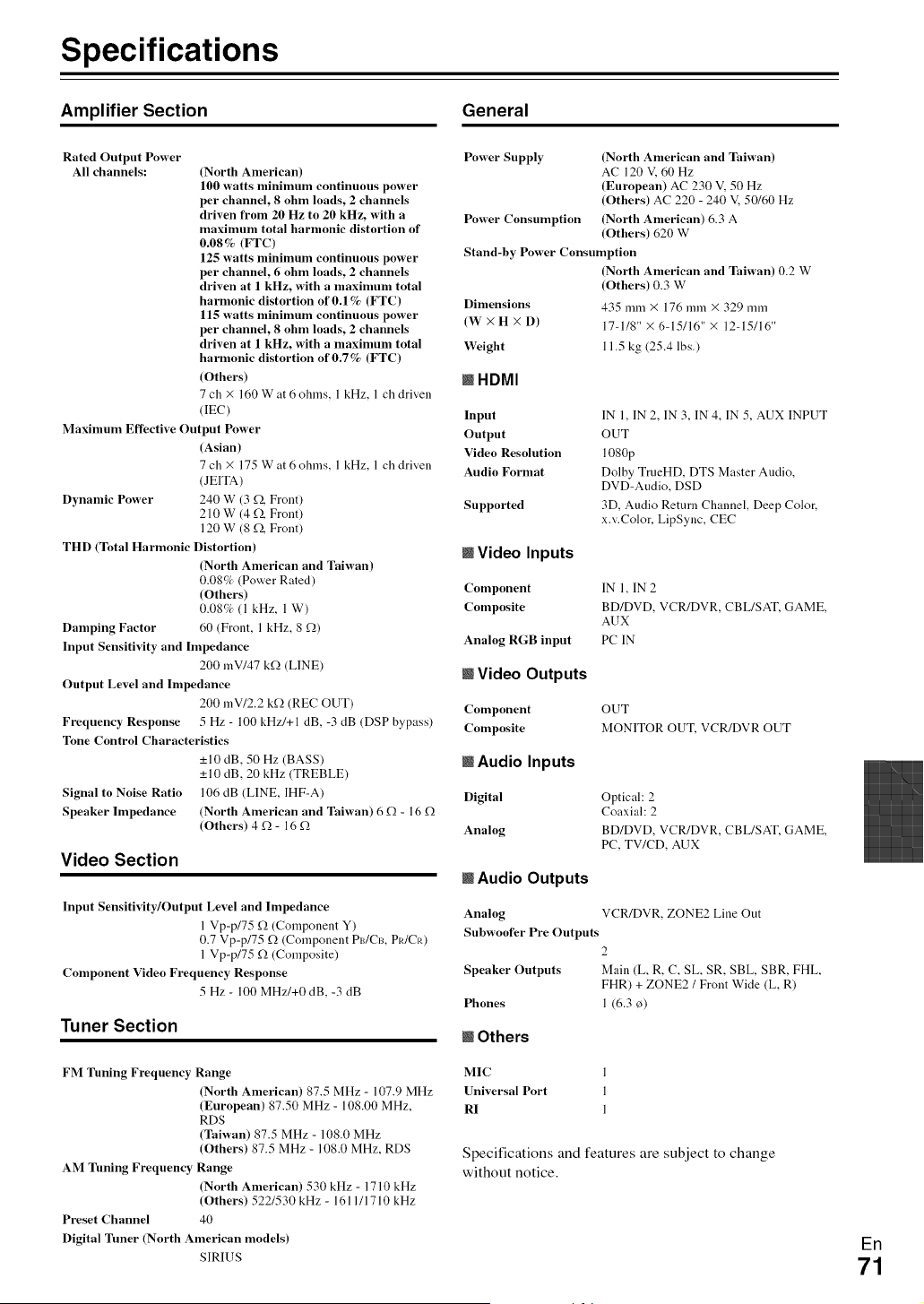

Specifications ................................................................. 71

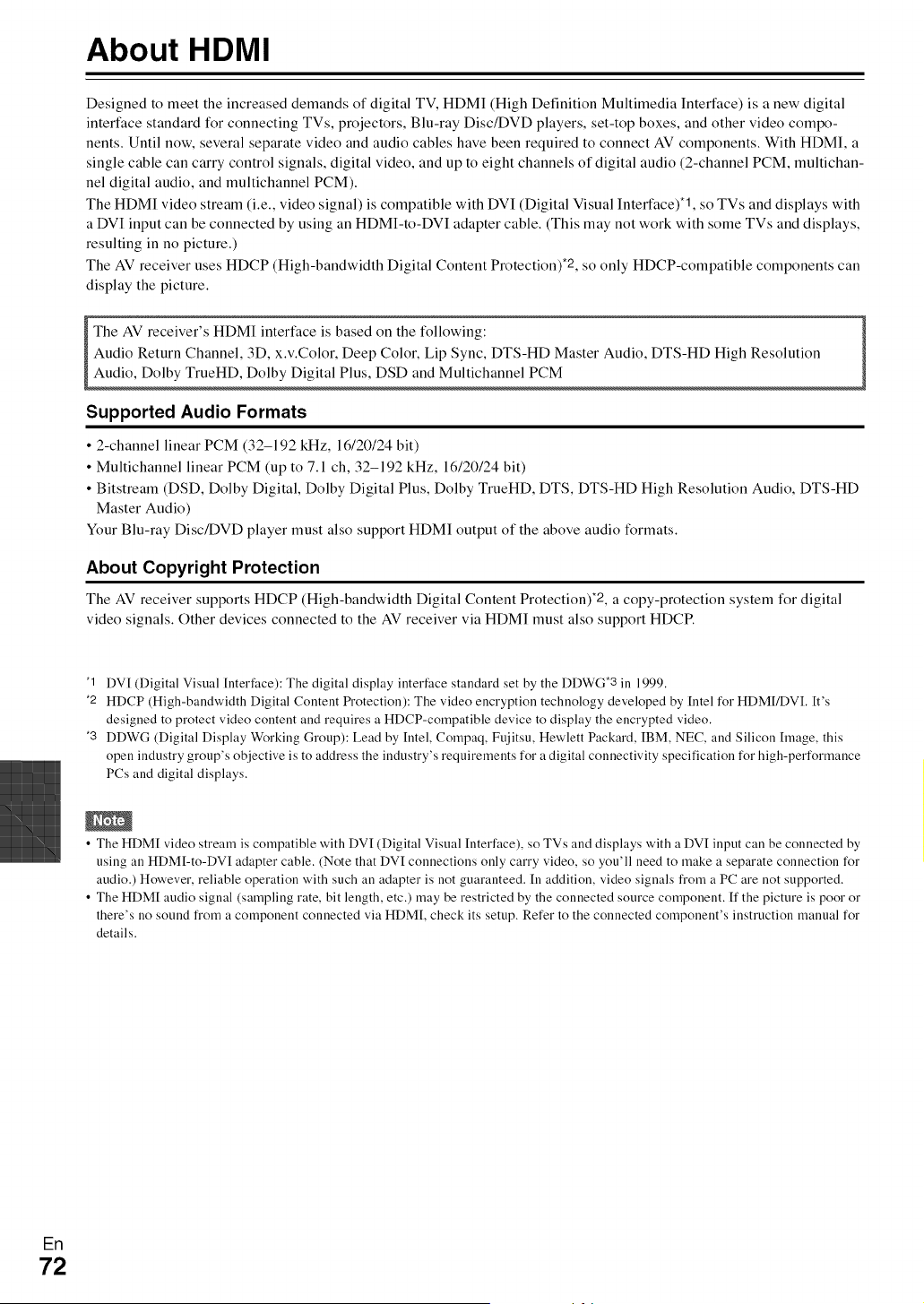

About HDMI ..................................................................... 72

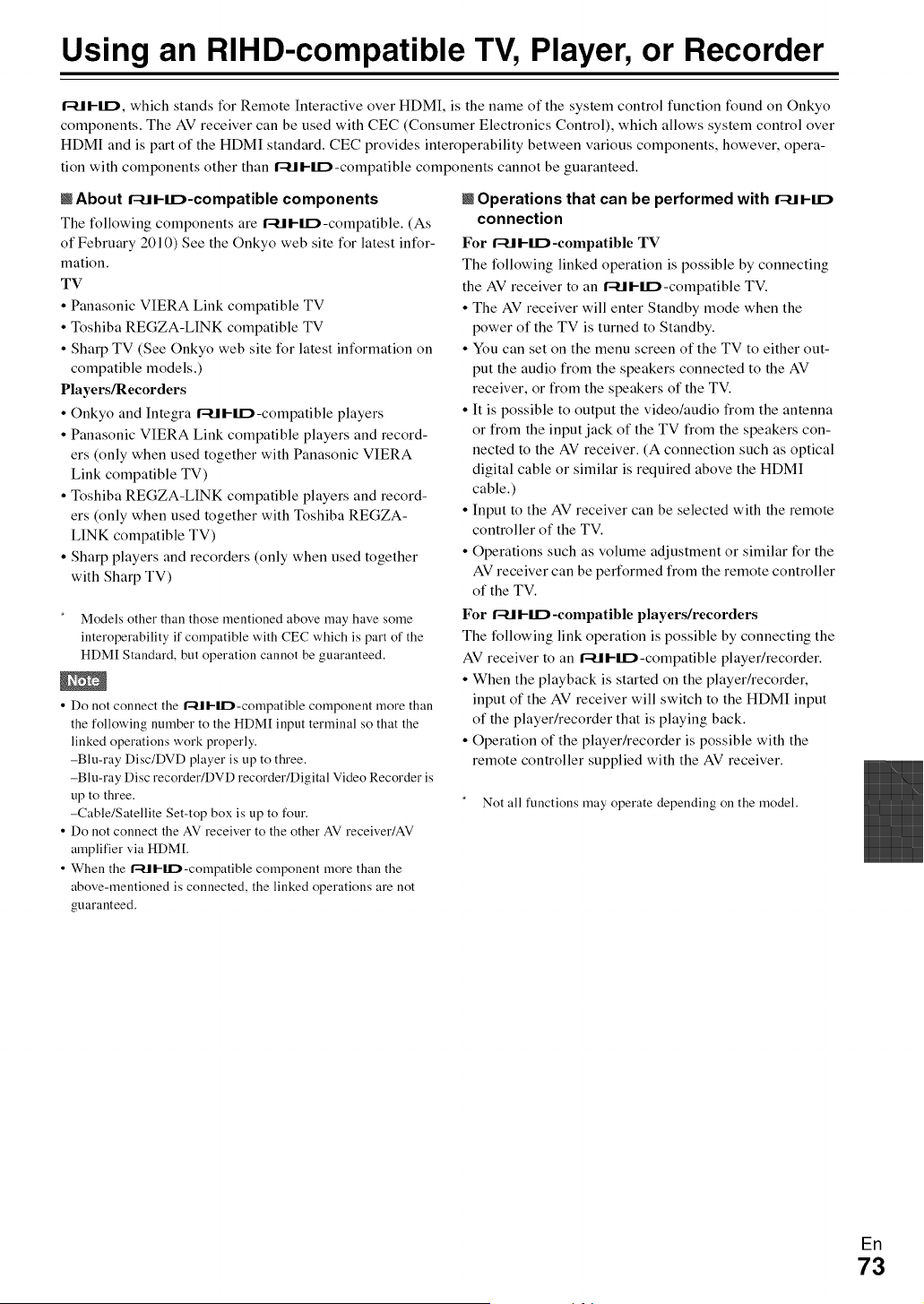

Using an RIHD-compatible TV, Player, or Recorder ...73
Video Resolution Chart .................................................. 75
I To reset the AV receiver to its factory defaults, turn it
on and, while holding down VCR/DVR, press
ON/STANDBY (3 66).
iill _ ii_i
i__ iiii _i i
En
5

Features
Amplifier
• 100 Watts/Channel @ 8 ohms (FTC)
• 160 Watts/Channel @ 6 ohms (IEC)
• 175 Watts/Channel @ 6 ohms (JEITA)
• WRAT-Wide Range Amplifier Technology
(5 Hz to 100 kHz bandwidth)
• Optimum Gain Volume Circuitry
• H.C.RS. (High Current Power Supply) Massive High
Power Transformer
• Jitter Cleaning Circuit Technology
Processing
• THX Select2 Plus*l Certified
• HDMI Video Upscaling (to 1080p Compatible) with
Faroudj a DCDi Cinema Enhancement
• HDMI (Ver. 1.4 with Audio Return Channel, 3D), Deep-
Color, x.v.Color*, Lip Sync, DTS*2-HD Master Audio,
DTS-HD High Resolution Audio, Dolby TrueHD*3,
Dolby Digital Plus, DSD and Multi-CH PCM
• Dolby Pro Logic IIz*3 - New Surround Format (front-
high)
• Audyssey DSXT_t*4 for New Surround Channels (front-
wide/front-high)
• Non-Scaling Configuration
• A-Form Listening Mode Memory
° Direct Mode
• Pure Audio Mode (European, Australian and Asian
models)
• Music Optimizer*5 for Compressed Digital Music files
• 192 kHz/24-bit D/A Converters
• Powerful and Highly Accurate 32-bit Processing DSP
Connections
• 6 HDMI*6 Inputs (1 on front panel) and 1 Output
• Onkyo 1-41I-IlD for System Control
• 4 Digital Inputs (2 Optical/2 Coaxial)
• Component Video Switching (2 Inputs/l Output)
• Front "Line in" Input for Portable audio player
• Universal Port for the Dock for iPod*/HD RadioT_*7
tuner module (North American models)/DAB+ tuner
module (European, Australian and Asian models)
• Banana Plug-Compatible Speaker Posts*8
• Powered Zone 2
• Bi-Amping Capability for FL/FR with SBL/SBR
• Analog RGB Video Input (D-sub 15) for PC
Miscellaneous
• 40 SIRIUS*9/FM/AM Presets (North American mod-
els)
• 40 FM/AM Presets (excluding North American mod-
els)
• Audyssey 2EQ0_*4 to Correct Room Acoustic Problems
• Audyssey Dynamic EQ r_*4 for Loudness Correction
• Audyssey Dynamic VolumeT_*4 to Maintain Optimal
Listening Level and Dynamic Range
• Crossover Adjustment
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control Function (up to 200 ms)
• On-Screen Display via HDMI
• Preprogrammed 94 I-Compatible Remote
SELEeVa _LUS
THX and the THX logo are trademarks of THX Ltd. which
may be registered in some jurisdictions. All rights reserved.
"2 O d_-n_
Master Audi0
Manufactured under license under U.S. Patent #'s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535;
7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and
worldwide patents issued & pending. DTS is a registered
trademark and the DTS logos, Symbol, DTS-HD and DTS-
HD Master Audio are trademarks of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights Reserved.
"3 ED DOLBY
PRO LOGIC IIz I
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic", "Surround EX" and the double-D sym-
bol are trademarks of Dolby Laboratories.
*4
2EQ AUDYSSEY
DYNAMIC VOLUME
Manufactured under license from Audyssey Laboratories "]M.
U.S. and foreign patents pending. Audyssey 2EQO%
Audyssey DSX "IM,Audyssey Dynamic Volume "IMand
Audyssey Dynamic EQ"IMare trademarks of
Audyssey Laboratories.
*5 Music Optimizer "lMis a trademark of Onkyo Corporation.
"6 ib! lrlrl|o
"HDM[, the HDM[ Logo, and High-Definition Multimedia
[nterface are trademarks or registered trademarks of HDM[
Licensing LLC in the United States and other countries."
The HD Radio Ready logo is a proprietary trademark of iBiq-
uity Digital Corp.
To receive HD Radio broadcasts, you must install an Onkyo
UP-HTI HD Radio tuner module (sold separately).
*8 [n Europe, using banana plugs to connect speakers to an audio
amplifier is prohibited.
Ell
6

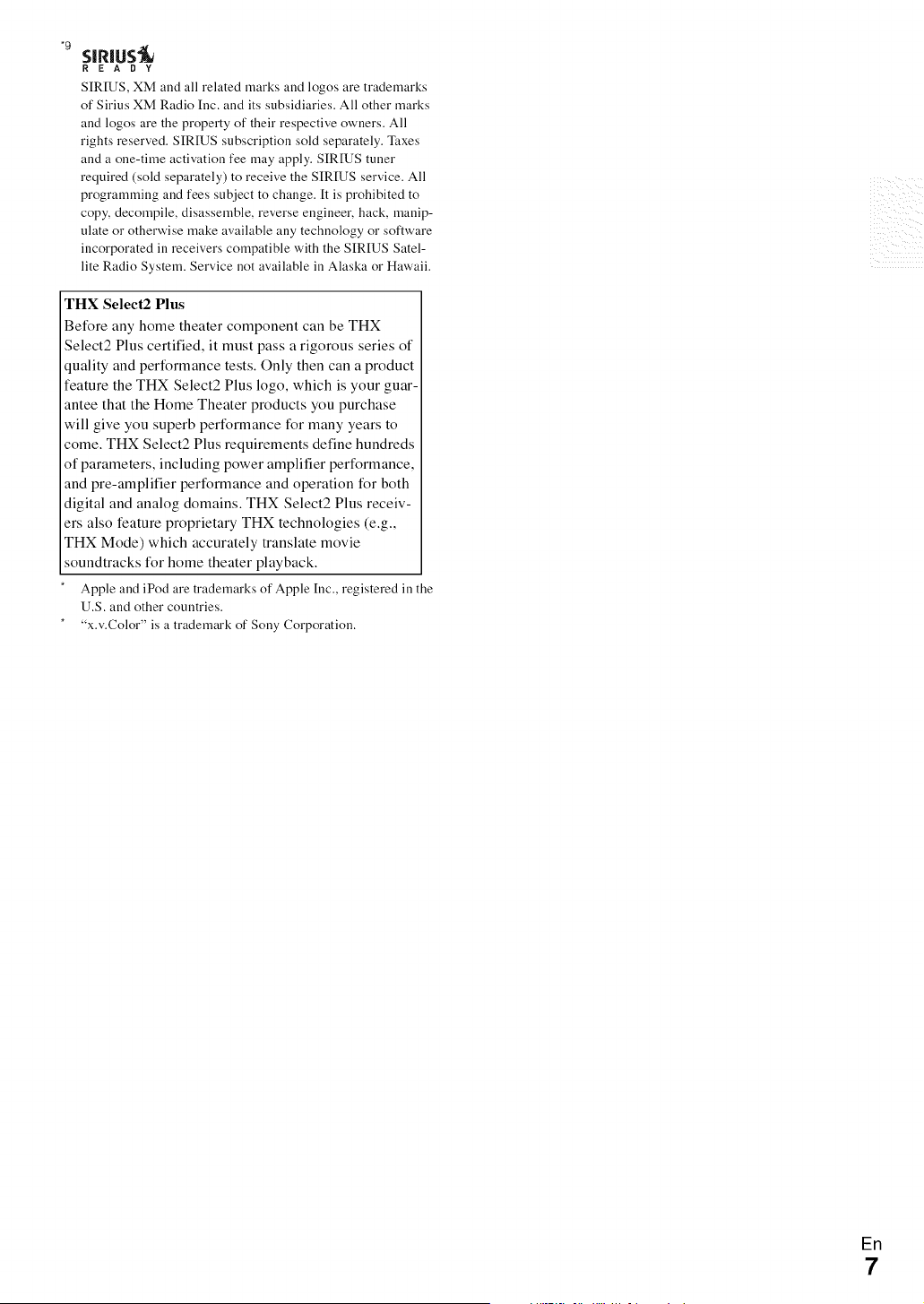

*9 SIR|US_
R _: A D Y
SIRIUS, XM and all related marks and logos are trademarks
of Sirius XM Radio Inc. and its subsidiaries. All other marks
and logos are the property of their respective owners. All
rights reserved. SIRIUS subscription sold separately. Taxes
and a one-time activation fee may apply. SIRIUS tuner
required (sold separately) to receive the SIRIUS service. All
programming and fees subject to change. It is prohibited to
copy, decompile, disassemble, reverse engineer, hack, manip-
ulate or otherwise make available ally technology or software
incorporated ill receivers compatible with the SIRIUS Satel-
lite Radio System. Service not available in Alaska or Hawaii.
THX Select2 Plus
Before any home theater component can be THX
Select2 Plus certified, it must pass a rigorous series of
quality and performance tests. Only then can a product
feature the THX Select2 Plus logo, which is your guar-
antee that the Home Theater products you purchase
will give you superb performance for many years to
come. THX Select2 Plus requirements define hundreds
of parameters, including power amplifier performance,
and pre-amplifier performance and operation for both
digital and analog domains. THX Select2 Plus receiv-
ers also feature proprietary THX technologies (e.g.,
THX Mode) which accurately translate movie
soundtracks for home theater playback.
Apple and iPod are trademarks of Apple [nc., registered in the
U.S. and other countries.
"x.v.Color" is a trademark of Sony Corporation.
i ii
EFI
7

Front & Rear Panels
[=_';111_gb']il_
North American and Taiwan models
ONKYO
European, Australian and Asian models
6 6 61
¥
.... i.....
@ © @ © @ @ @ @
En
8
The actual front panel has various logos printed on it. They are not shown here l_)r clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
(_ ON/STANDBY button (_ 22)
@ STANDBY indicator (_ 22)
(_ HDMI THRU indicator (_ 52)
(_ ZONE 2 indicator (_ 56)
(_ Remote control sensor (_ 4)
ZONE 2, OFF, ZONE 2 LEVEL/TONE LEVEL
and TONE buttons (_ 54, 56 to 57)
(_ Display (_ 9)
(_ LISTENING MODE buttons (_ 32)
DIMMER button (North American and Taiwan
models) (_ 23)
MEMORY button (_ 29)
TUNING MODE button (_ 28)
DISPLAY button (_ 23)
(_ SETUP button (_ 38)
TUNING, PRESET (_ 28 to 29), arrow and
ENTER buttons
RETURN button
MASTER VOLUME control (_ 23)
PHONES jack (_ 25)
AUX INPUT HDMIjack (_ 17)
Input selector buttons (_ 23)
AUX INPUT LINE IN jack (_ 18)
AUX INPUT VIDEO jack (_ 18)
AUX INPUT AUDIO jacks (_ 18)
SETUP MIC jack (_ 26)
@ PURE AUDIO button and indicator (European,
Australian and Asian models) (_ 32)
RT/PTY/TP button (European, Australian and
Asian models) (_ 29)

For detailed information, see the pages in parentheses.
@ Audio input indicators
(_ Listening mode and format indicators (_ 32, 53)
(_ Audyssey indicators (_ 25, 45)
@ Tuning indicators (_ 28)
(_ RDS indicator (excluding North American models)
(_ 29)
(_ SLEEP indicator (_ 24)
(_ MUTING indicator (_ 24)
(_ Message area
iliiiii_i_i__iii
En
9

North American and Taiwan models
European, Australian and Asian models
i _2sp_.s = r_ SUR_S_EAK_RS FaO_+S_EaS I
DIGITAL IN COAXIAL and OPTICAL jacks
COMPONENT VIDEO IN and OUT jacks
HDMI IN and OUT jacks
PC IN jack
FM ANTENNA jack and AM ANTENNA terminal
MONITOR OUT V jack
UNIVERSAL PORT jack
SPEAKERS terminals
(CENTER, FRONT, SURR, SURR BACK OR
FRONT HIGH OR FRONT WIDE)
(_) Power cord
RI REMOTE CONTROL jack
_) SIRIUS antenna jack (North American models)
Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TV/CD IN)
ZONE 2 LINE OUT jacks
SUBWOOFER PRE OUT jacks
FRONT HIGH OR FRONT WIDE OR ZONE 2
SPEAKERS terminals
See "Connecting the AV Receiver" for connection infor-
marion (_ 13 to 21).
EF1
10

Remote Controller
F_J - , r ....
--0
@
For detailed information, see the pages in parentheses.
(!) ON/STANDBY button (_ 22)
(_) REMOTE MODE/INPUT SELECTOR buttons
(_ 23)
(_) SP LAYOUT button (_ 24)
@ Arrow &/¥/_l/_ and ENTER buttons
(_) SETUP button (_ 38)
@ LISTENING MODE buttons (_ 32)
(Z) DIMMER button (_ 23)
(_) DISPLAY button (_ 24)
(_) MUTING button (_ 24)
VOL l/¥ button (_ 23)
(U) RETURN button
HOME button (_ 24)
SLEEP button (_ 24)
Controlling the tuner
To control the AV receiver's tuner, press TUNER (or
RECEIVER).
You can select AM or FM by pressing TUNER repeatedly.
O Arrow A/¥ buttons (_ 28)
D.TUN button (_ 28)
DISPLAY button
O CH +/- button (_ 29)
Number buttons (_ 28)
iii_ ii
"1 VIDEO functions as a short cut of HOME.
EFI
11

About Home Theater
5
Thanks to the AV receiver's superb capabilities, you can enjoy surround sound with a real sense of movement in your
own home--just like being in a movie theater or concert hall. With Blu-ray Discs, you can enjoy DTS and Dolby Digital.
With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo's original DSP listening modes.
You can also enjoy THX Surround EX (THX-certified THX speaker system recommended).
1/3 of wall
position
_ _3
i¸¸¸¸ t I
ii ii¸i
' Corner
_,_ -- _posltlon
• To find the best position for your subwoofer, while
playing a movie or some music with good bass,
experiment by placing your subwoofer at various
positions within the room, and choose the one that
provides the most satisfying results.
@ Front speakers
These output tile overall sound. Their role ill a home theater is to provide
a solid anchor for the sound image. They should be positioned facing the
listener at about ear level, and equidistant from the TV. Angle them inward
so as to create a triangle, with the listener at the apex.
@ Center speaker
This speaker enhances tile front speakers, making sound movements dis-
tinct and providing a full sound image. In movies it's used mainly for dia-
log. Position it close to your TV facing forward at about ear level, or at the
same height as the front speakers.
@ Surround speakers
These speakers are used for precise sound positioning and to add realistic
ambience. Position them at the sides of the listener, or slightly behind,
about 2 to 3 feet (60 to 100 cm) above ear level. Ideally they should be
equidistant from the listener.
@ Surround back speakers
These speakers are necessary to enjoy Dolby Digital EX, DTS-ES Matrix,
DTS-ES Discrete, THX Surround EX, etc. They enhance the realism of
surround sound and improve sound localization behind the listener. Posi-
tion them behind the listener about 2 to 3 feet (60 to 100 cm) above ear
level.
@ Front high speakers
These speakers are necessary to enjoy Dolby Pro Logic [Iz Height, and
Audyssey DSX "lM. They significantly enhance the spatial experience.
Position them at least 3.3 feet (100 cm) above the front speakers (prefera-
bly as high as possible) and at an angle slightly wider than the front speak-
ers.
@ Front wide speakers
These speakers are necessary to enjoy Audyssey DSX. They significantly
enhance the spatial experience. Position them well outside of the front
speakers. See also http://www.audyssey.com/technology/dsx.html about
optimum speaker placement for Audyssey DSX.
(2) Subwoofer
Tile subwoofer handles tile bass sounds of tile LFE (Low-Frequency
Effects) channel. The volume and quality of the bass output from your
subwoofer will depend on its position, the shape of your listening room,
and your listening position. In general, a good bass sound can be obtained
by installing the subwoofer in a front corner, or at one-third the width of
the wall, as shown.
En
12

Connecting the AV Receiver
narrn
Speaker Configuration
The following table indicates the channels you should use
depending on the number of speakers that you have.
For 7.1 -channel surround-sound playback, you need seven
speakers and a powered subwoofer.
Number of channels
Front speakers
Center speaker
Surround speakers
Surround back
speaker*l *2
Surround back
speakers*2
Front high speakers*2
Front wide speakers*2
g
7 77777i,,,
7- 77i¢--
-7777i¢
---7 ........
v'
it/i
7ggg
7777
7777
7777
-77-
---7
-7-7
Z-E-
77
7_
7_
_
EE
"1 ff you're using only one surround back speaker, connect it to
the SURR BACK OR FRONT HIGH OR FRONT WIDE k
terminals.
*2 Front high, surround back and front wide speakers cannot be
used at the same time.
No matter how many speakers you use, a powered sub-
woofer is recommended for a really powerful and solid
bass.
To get the best from your surround sound system, you
need to set the speaker settings. You can do this automati-
cally (@ 26) or manually (@ 40).
Attaching the Speaker Cable Labels
The AV receiver's positive (+) speaker terminals are all
red (the negative (-) speaker terminals are all black).
Speaker Color
Front left, Front high left, Front wide left White
Front right, Front high right, Front wide right Red
Center Green
Surround left Blue
Surround right Gray
Surround back left, Zone 2 left Brown
Surround back right, Zone 2 right Tan
The supplied speaker cable labels are also color-coded and
you should attach them to the positive (+) side of each
speaker cable in accordance with the table above. Then all
you need to do is to match the color of each label to the
corresponding speaker terminal.
Speaker Connection Precautions
Read the following before connecting your speakers:
• (North American and Taiwan models) You can con-
nect speakers with an impedance of between 6 and 16
ohms. If you use speakers with a lower impedance, and
use the amplifier at high volume levels for a long period
of time, the built-in amp protection circuit may be acti-
vated.
• (European, Australian and Asian models) You can
connect speakers with an impedance of between 4 and
16 ohms. If the impedance of any of the connected
speakers is 4 ohms or more, but less than 6 ohms, be sure
to set the minimum speaker impedance to "4ohms"
(_ 40). If you use speakers with a lower impedance, and
use the amplifier at high volume levels for a long period
of time, the built-in protection circuit may be activated.
• Disconnect the power cord from the wall outlet before
making any connections.
• Read the instructions supplied with your speakers.
• Pay close attention to speaker wiring polarity. In other
words, connect positive (+) terminals only to positive (+)
terminals, and negative (-) terminals only to negative (-)
terminals. If you get them the wrong way around, the
sound will be out of phase and will sound unnatural.
• Unnecessarily long, or very thin speaker cables may
affect the sound quality and should be avoided.
• Be careful not to short the positive and negative wires.
Doing so may damage the AV receiver.
• Make sure the metal core of the wire does not have con-
tact with the AV receiver's rear panel. Doing so may
damage the AV receiver.
Ell
13

• Don't connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.
• Don't connect one speaker to several terminals.
® ®
®
Connecting the Speaker Cables
Screw-type speaker terminals
_ trip 1/2" to 5/8" (12 to 15 ram) of
insulation from the ends of the
speaker cables, and twist the bare
wires tightly, as shown.
1/2"_to 5/8"(12 _t° 15 ram) _ "'_ d''__(5>
12222221
Using Banana Plugs (North American models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.
Push-type speaker terminals
_ trip 3/8" to 1/2" (10 to 12 ram) of insulation from the ends of 3/8" to 1/2"(10 to 12 mm)
the speaker cables, and twist the bare wires tightly, as shown. I_1
The following illustration shows which speaker should be connected to each pair of terminals. If you're using only one
surround back speaker, connect it to the SORR BACK OR FRONT HIGH OR FRONT WIDE k terminals.
North American and Taiwan models Surround Surround Surround Surround
back right back left right left
speaker speaker speaker speaker
FRO_THmHOR FaONTHlaUOR
F_ONTWI_EOn F_O_r WlOESPEAKERS
European, Australian and Asian models ....... _ ! _'_ _:::°| _s ...........
ER
14
Front high Front high
right speaker/ left speaker/
Front wide Front wide
right speaker left speaker
__ ............................... J
j,
Front high Front high
right speaker/left speaker/
Front wide Front wide
right speaker left speaker
Front right Front left Center
speaker speaker speaker
• The front wide speakers can also be connected to the FRONT HIGH OR FRONT WIDE OR ZONE 2 SPEAKERS terminals. When
doing so, set "Front High/Front Wide/Zone2" in Speaker Setup to "Front Wide" (_ 41).
• The i_ont high or i_ont wide speakers can also be connected to the SURR BACK OR FRONT HIGH OR FRONT WIDE SPEAK-
ERS terminals. When doing so, set "Surf Back/Front High/Front Wide" in Speaker Setup to "Front High" or "Front Wide" (@ 41 ).

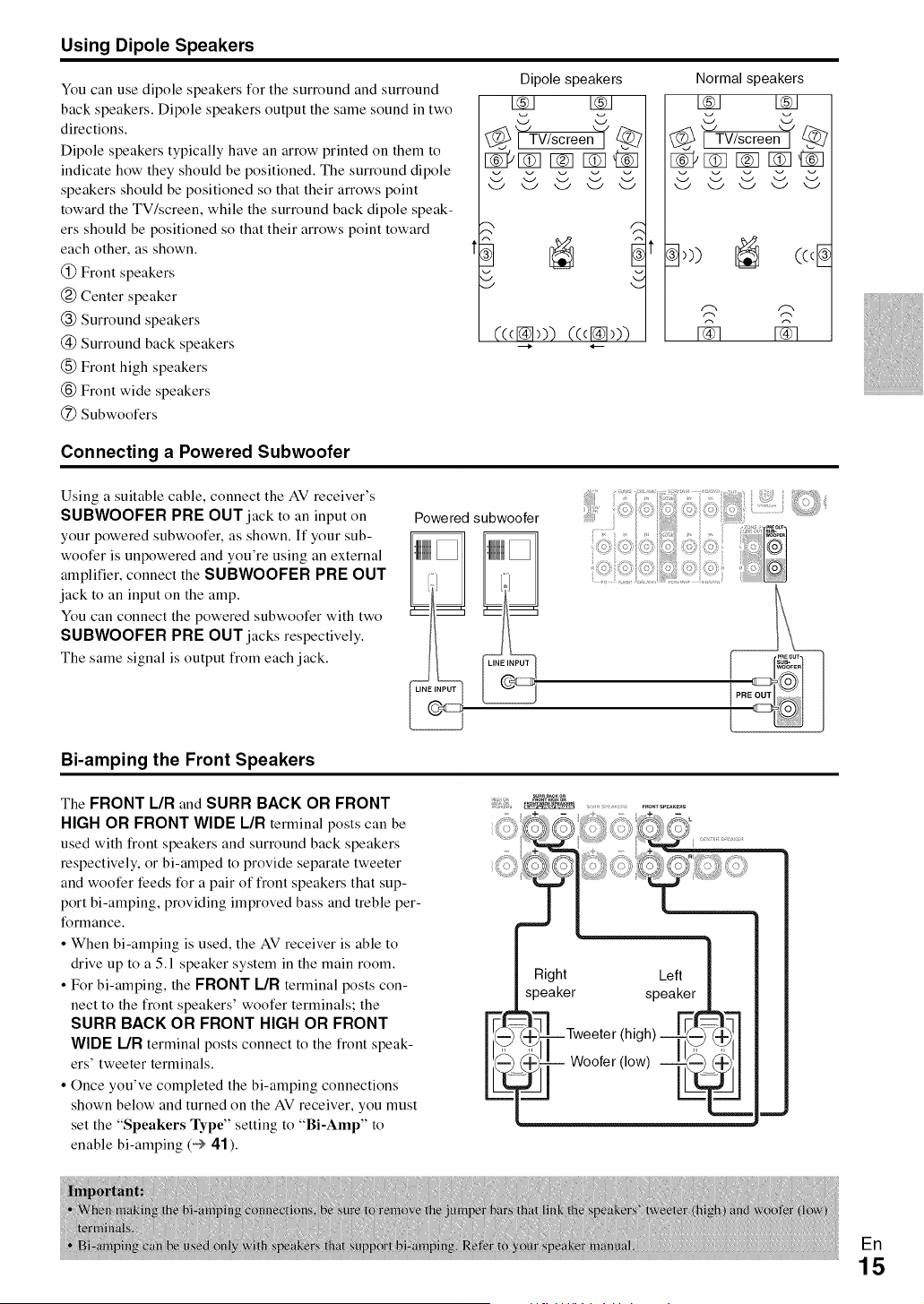

Using Dipole Speakers
You can use dipole speakers for the surround and surround
back speakers. Dipole speakers output the same sound in two
directions.
Dipole speakers typically have an arrow printed on them to
indicate how they should be positioned. The surround dipole
speakers should be positioned so that their arrows point
toward the TV/screem while the surround back dipole speak-
ers should be positioned so that their arrows point toward
each other, as shown.
@ Front speakers
(_) Center speaker
@ Surround speakers
@ Surround back speakers
(_) Front high speakers
@ Front wide speakers
@ Subwoofers
Dipole speakers
LNJ LNJ
_ I"JTV/soreen"_
v
¢((N_)) (((m)))
Normal speakers
LNJ LNJ
VJsereej@
,j _.,
Connecting a Powered Subwoofer
Using a suitable cable, connect the AV receiver's
SUBWOOFER PRE OUT jack to an input on
your powered subwoofer, as shown. If your sub-
woofer is unpowered and you're using an external
amplifier, connect the SUBWOOFER PRE OUT
jack to an input on the amp.
You can connect the powered subwoofer with two
SUBWOOFER PRE OUT jacks respectively.
The same signal is output from each jack.
Bi-amping the Front Speakers
Powered subwoofer
The FRONT L/R and SURR BACK OR FRONT
HIGH OR FRONT WIDE L/R terminal posts can be
used with front speakers and surround back speakers
respectively, or bi-amped to provide separate tweeter
and woofer leeds for a pair of front speakers that sup-
port bi-amping, providing improved bass and treble per-
formance.
• When bi-amping is used, the AV receiver is able to
drive up to a 5.1 speaker system in the main room.
• For bi-amping, the FRONT L/R terminal posts con-
nect to the front speakers' woofer terminals; the
SURR BACK OR FRONT HIGH OR FRONT
WIDE L/R terminal posts connect to the front speak-
ers' tweeter terminals.
• Once you've completed the bi-amping connections
shown below and turned on the AV receiver, you must
set the "Speakers Type" setting to "Bi-Amp" to
enable bi-amping (_ 41 ).
Right Left
speaker speaker
_tweeter (high) _ _
S_l I_L_ Woofer
/'°w/
ER
15

Connected image with AV components
HDMI cable
: Video & Audio
L AV reieiver
__ Blu-ray Disc/
TV, projector, etc. DVD player
Game console
Other cables _ : Video
: Audio
TV, projector, etc.
;
Blu-ray Disc/
DVD player Game console
• Before making any AV connections, read the manuals supplied with your AV components.
• Don't connect the power cord until you've completed and double-checked all AV connections.
• Push plugs in all the way to make good connections (loose connections can cause noise or maltunc-
tions).
• To prevent interference, keep audio and video cables away from power cords and speaker cables.
AV Cables and Jacks
Signal Cable
Video and HDMI
Audio
Video
Audio
Component video
Composite video
Optical digital
audio
Coaxial digital
audio
Analog audio
(RCA)
Jack
HDMI
Y Y @ Green
.....@) Blue
c_,_@ Red
__ v@ Yellow
OPTICAL
B
__ @ Orange
COAXIAL
L @ White
R @ Red
Description
HDM[ connections call carry digital video and audio.
Component video separates the luminance (Y) and color
difference signals (PB/CB, PR/CR), providing the best pic-
ture quality (some TV manufacturers label their compo-
nent video sockets slightly differently).
Composite video is commonly used on TVs, VCRs, and
other video equipment.
Optical digital connections allow' you to enjoy digital
sound such as PCM*, Dolby Digital or DTS. The audio
quality is the same as coaxial.
Coaxial digital connections allow you to enjoy digital
sound such as PCM*, Dolby Digital or DTS. The audio
quality is the same as optical.
Analog audio connections (RCA) carry analog audio.
1/8" (3.5 mm) "=:CZN>_ ,.;a__,
Stereo mini plug
This cable carries analog audio.
Available sampling rate for PCM input signal is 32144.1148188.2196 kHz. Even 176.4/192 kHz is effective in case of the HDM[ con-
nection.
• The AV receiver does not support SCART plugs.
• The AV receiver's optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it's removed.
Push plugs in all the way.
• To prevent shutter damage, hold the optical plug straight when inserting and removing.
ER
16

VCR or DVD recorder/Digital Video Recorder
Game console
TV, projector, etc,
Personal
computer
= 1
Blu-ray Disc/DVD player
ii .......ii ,i_iii_
¸ill¸;}¸¸¸
Camcorder
Satellite, cable, set-top box, etc.
Connect your components to the appropriate jacks. The default input assignments are shown below.
v¢: Assignment can be changed (_ 39).
Jack
Input
Output
HDM[ IN 1
HDM[ IN 2
HDM[ IN 3
HDM[ IN 4
HDM[ IN 5
AUX INPUT HDM[
HDM[ OUT
iSignal Components
Audio/Video
Blu-ray Disc/DVD player
VCR or DVD recorder/Digital Video Recorder
Satellite, cable, set-top box, etc.
Game console
Personal computer
Camcorder
TV, projector, etc.
Assignable
v"
v"
v"
v"
v"
Refer to "About HDMI" ('_ 72) and "Using an RIHD-compatible TV, Player, or Recorder" ('_ 73).
To listen to audio received by the HDMI IN jacks through your TV's speakers:
• Set the "TV Control" setting to "On" (_ 52) for all r"-Ul-IIEl-compatible TV.
• Set the "Audio TV Out" setting to "On" (_ 51 ) when the TV is not compatible with r"-u I-lIE) or the "TV Control" setting to "OFF'
• Set your Blu-ray Disc/DVD player's HDM[ audio output setting to PCM.
• To listen to TV audio through the AV receiver, see "Connecting External Components" (_ .18).
|
• When listening to an HDM[ component through the AV receiver, set the HDM[ component so that its video can be seen on the TV
screen (on the TV, select the input of the HDM[ component connected to the AV receiver). If the TV pow'er is off or the TV is set to
another input source, this may result in no sound from the AV receiver or the sound may be cut off.
• When the "Audio TV Out" setting is set to "On" (_ 5"1) to hear from your TV's speakers, by controlling the AV receiver's volume
the sound will be output from the AV receiver's speakers, too. When the "TV Control" setting is set to "On" (_ 52) to hear from
speakers of r"-u I-IIEl-compatible TV, by controlling the AV receiver's volume, the AV receiver's speakers will produce sound while the
TV's speakers are muted. To stop the AV receiver's speakers producing sound, change the settings, change your TV's settings, or turn
down the AV receiver's volume.
N Audio return channel (ARC) function
Audio return channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the
AV receiver. To use this function, you must select the TV/CD input selector.
• To use ARC function, you must select the TV/CD input selector, your TV must support ARC function and "HDMI
Control" is set to "On"(_ 52).
ER
17

Front Rear
Connect your components to the appropriate jacks. The default input assignments are shown below.
I/: Assignment can be changed (_ 40).
No. Jack Assignable
AUX INPUT
%
%
%
COMPONENT
VIDEO
DIGITAL IN
MONITOR OUT
BD/DVD IN
VCR/DVR IN
CBL/SAT IN
GAME IN
PC IN
TV/CD IN
LINE IN
VIDEO
AUDIO L/R
IN 1 (BD/DVD)
IN 2 (CBL/SAT)
OUT
OPTICAL
COAXIAL
! GAME)
(TV/CD)
(BD/DVD)
(CBL/SAT)
Signal
Analog audio
Composite video
Analog audio
Component video
Digital audio
Composite video
Analog audio and
composite video
Analog audio
Components
Portable audio player
Camcorder, etc
v'
v'
Blu-ray Disc/DVD player
Satellite, cable, set-top box, etc.
TV, projector, etc.
Game console
TV, CD player
Blu-ray Disc/DVD player
Satellite, cable, set-top box, etc.
TV, projector, etc.
Blu-ray Disc/DVD player
VCR or DVD recordeffDigital
Video Recorder
Satellite, cable, set-top box, etc.
Game console
Personal computer
TV, CD player, Turntable*l,
Cassette tape deck, MD, CD-R
Universal port optional dock
(UP-A 1 etc.)
Personal computer
v'
v'
v'
v'
UNIVERSAL PORT Analog audio/
Video
PC IN Analog RGB *2
EF1
18

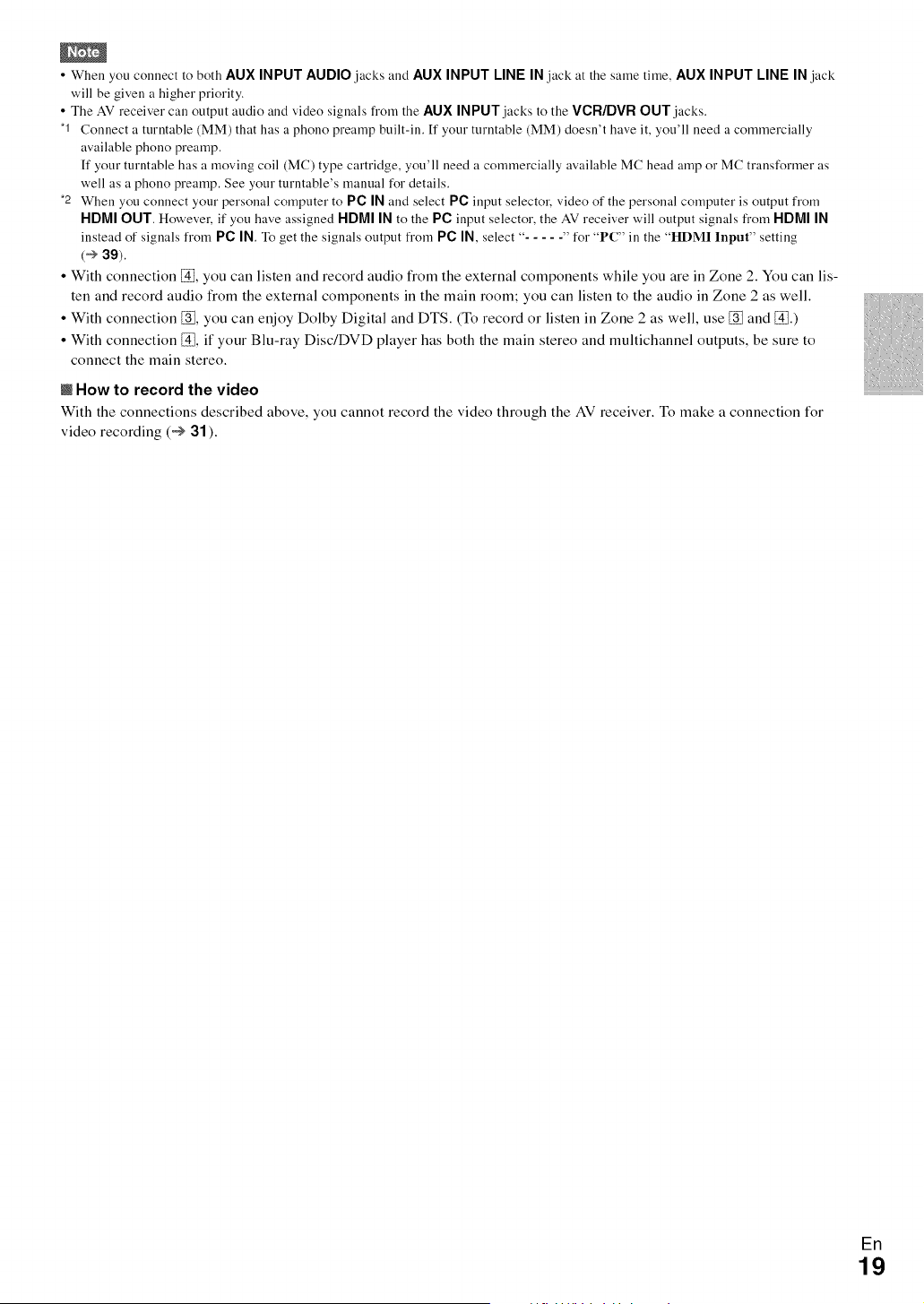

• When you connect to both AUX INPUT AUDIO jacks and AUX INPUT LINE IN jack at the same time, AUX INPUT LINE IN jack
will be given a higher priority.
• The AV receiver call output audio and video signals from the AUX INPUT jacks to the VCR/DVR OUT jacks.
"1 Connect a turntable (MM) that has a phono preamp built-in, ff your turntable (MM) doesn't have it, you'll need a commercially
available phono preamp.
ff your turntable has a moving coil (MC) type cartridge, you'll need a commercially available MC head amp or MC transformer as
well as a phono preamp. See your turntable's manual for details.
*2 When you connect your personal computer to PC IN and select PC input selector, video of the personal computer is output from
HDMI OUT. However, if you have assigned HDMI IN to the PC input selector, the AV receiver will output signals from HDMI IN
instead of signals from PC IN. To get the signals output from PC IN, select % .... " for "PC" in the "HDMI Input" setting
(_ 39).
• With connection _, you can listen and record audio from the external components while you are in Zone 2. You can lis-
ten and record audio from the external components in the main room; you can listen to the audio in Zone 2 as well.
• With connection _, you can enjoy Dolby Digital and DTS. (To record or listen in Zone 2 as well, use _ and _.)
• With connection _, if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to
connect the main stereo.
I How to record the video
With the connections described above, you cannot record the video through the AV receiver. To make a connection for
video recording (_ 31 ).
Ell
19

Step 1:
Make sure that each Onkyo component is connected
with an analog audio cable (connection _ in the hookup
examples) (@ 18).
Step 2:
Make the R I connection (see illustration below).
Step 3:
If you're using an RI Dock, or cassette tape deck,
change the Input Display (_ 25).
With R I (Remote Interactive), you can use the lY_llowing
special functions:
m System On/Auto Power On
When you start playback on a component connected via
fatI while the AV receiver is on Standby, the AV
receiver will automatically turn on and select that com-
ponent as the input source.
m Direct Change
When playback is started on a component connected via
f:t I, the AV receiver automatically selects that compo-
nent as the input source.
m Remote Control
You can use the AV receiver's remote controller to con-
trol your other f:t I-capable Onkyo components, point-
ing the remote controller at the AV receiver's remote
control sensor instead of the component. You must enter
the appropriate remote control code first (_ 63).
• Use only 1"-41cables for 1"-41connections. 1"-41cables are supplied
with Onkyo players (DVD, CD, etc.).
• Some components have two 1"-41jacks. You can connect either
one to the AV receiver. The other jack is for connecting addi-
tional 1"-4I-capable components.
• Connect only Onkyo components to f'-41jacks. Connecting other
manufacturer's components may cause a malfunction.
• Some components may not support all f-q1functions. Refer to
the manuals supplied with your other Onkyo components.
• While Zone 2 is on, the System On/Auto Power On and Direct
Change 1"-41functions do not work.
This section explains how to connect the supplied indoor FM antenna and AM loop antenna.
The AV receiver won't pick up any radio signals without any antenna connected, so you must connect the antenna to use
the tuner.
North American and FM,_O--
Taiwanmode](_2 ._
European, Australian and
ian model(s =_
Thumbtacks, etc.
(supplied)
• Be careful that you don't injure yourself when
using thumbtacks.
Insert wire Release.
g the AM loop ant'enn_
AM loop antenna (supplied)
• Once your AVreceiver is ready for use, you'll need to tune into a radio station and position the antenna to achieve the best possible
reception.
• Keep the AM loop antenna as far away as possible from your AVreceiver, TV,speaker cables, and power cords.
• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.
EFI • If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM
20 antenna.

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format
you choose will depend on the formats supported by your components. Use the following sections as a guide.
Video Connection Formats
Video component can be connected by using any one of the following video connection formats: composite video, com-
ponent video, or HDMI, the latter offering the best picture quality.
For optimal video performance, THX recommends that Video Signal Flow Chart
video signals pass through the system without upconver- ] Blu-ray Disc/DVD player, etc, [
sion (e.g., component video input through to component
video output).
It is also recommended that you press VGR/DVR and
RETURN on the AV receiver at the same time. Select
"Skip" in the "VideoProcessor" setting by pressing
RETURN repeatedly on the display. To reset back to the
original setting, press the same button at the same time.
Video input signals flow through the AV receiver as shown,
with composite video and component video sources all being
upconverted for the HDMI output.
The composite video and component video outputs pass [ TV, projector, etc. ]
through their respective input signals as they are.
When you connect audio component to an HDMI or COMPONENT input, you must assign that input to an input selector
(_ 39).
m Signal Selection
It signals are present at more than one input, the inputs will
be selected automatically in the following order of priority:
HDMI, component video, composite video.
However, for component video only, regardless of whether a
component video signal is actually present, if a component
video input is assigned to the input selector, that component
video input will be selected. And if no component video
input is assigned to the input selector, this will be interpreted
as no component video signal being present.
In the Signal Selection Example shown on the right, video
signals are present at both the HDMI and composite video
inputs, however, the HDMI signal is automatically selected
as the source and video is output by the HDMI outputs.
Audio Connection Formats
Composite Component HDMI
AV receiver
@ @= @
Composite Component HDMI
Signal Selection Example
Blu-ray Disc/DVD player, etc. ]
Composite Component HDMI
AV receiver
Composite Component HDMI
Audio component can be connected by using any of the
following audio connection formats: analog, optical, coax-
ial, or HDMI.
When choosing a connection format, bear in mind that the
AV receiver does not convert digital input signals for ana-
log line outputs and vice versa. For example, audio signals
connected to an optical or coaxial digital input are not out-
put by the analog VCR/DVR OUT.
AV receiver
TV, projector, etc. ]
Audio Signal Flow Chart
Blu-ray Disc/DVD player, etc. ]
Optical Coaxial HDMI
I
Analog
If signals are present at more than one input, the inputs
will be selected automatically in the following order of pri-
ority: HDMI, digital, analog.
Analog HDMI
TV, projector, etc. ]
"1 Depends on the "Audio TV Out" setting (3 51).
*2 This setting is available, when "Audio Return Channel"
setting is set to "Auto" (3 52), you must select the TWGD
input selector and your TV must support ARC function.
En
21

Turning On/Off the AV Receiver
ON/STAN DBY
STANDBY indicator
_ii i i
Front panel
Y
Remote controller
_ Press ON/STANDBY on the front panel.
or
Press RECEIVER followed by ON/STANDBY on the remote controller.
The AV receiver comes on, the display lights, and the STANDBY indicator goes off.
[oJ/j
_ ress ON/STANDBY on the front panel or the remote controller.
The AV receiver will enter Standby mode. To prevent any loud surprises when you turn on the AV receiver, always
turn down the volume before you turn it off.
En
22

Basic Operations
You can display various information about the current
input source as follows. (Components connected to the
UNIVERSAL PORT jack are excluded.)
Press RECEIVER followed by DISPLAY repeat-
edly to cycle through tile available information.
You can determine the language used for the onscreen
setup menus. See "OSD Setup" (_ 50).
N Operating on the AV receiver
{iiiiiiiii;{i_;iiiiii!iiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!,,
Use the input selector buttons to select the input
source.
Start playback on the source component.
See also:
• "Controlling Other Components" (_ 62)
• "Controlling iPod" (_ 58)
• "Listening to the Radio" (_ 28)
VOLUME
control.
Select a listening mode and enjoy!
See also:
• "Using the Listening Modes" (_ 32)
• "Audyssey" (_ 45)
N Operating with the remote controller
i
Press RECEIVER followed by INPUT SELEC-
TOR.
Start playback on tile source component.
See also:
• "Controlling Other Components" (_ 62)
• "Controlling iPod" (_ 58)
• "Listening to the Radio" (_ 28)
To adjust tile volume, use VOL t/V.
Select a listening mode and enjoy!
See also:
• "Using the Listening Modes" (_ 32)
• "Audyssey" (_ 45)
• Alternatively, you call use the AV receiver's DISPLAY.
The following information can typically be displayed.
Input source &
volume*l _.':::_'"_...'_'"____'"_ ,::LS.:?
Signal format*2
or sampling fre........
quency
Input & output
resolution .,............... : . ...., ,..., . .:. ,..., ,......... :
Input source &
listening mode*3
Ill............................................................................................................................................
"1 When AM or FM radio is used, the band, preset number, and
frequency are displayed.
*2 If the input signal is analog, no format information is dis-
played. If the input signal is PCM, the sampling frequency is
displayed. If the input signal is digital but not PCM, the signal
format is displayed.
Information is displayed for about three seconds, then the pre-
viously displayed information reappears.
*3 The input source is displayed with the default name even
when you have entered a custom name in "Name Edit"
(÷ 47).
You can adjust the brightness of the AV receiver's display.
Press RECEIVER followed by DIMMER repeat-
edly to select: dim, dimmer, or normal brightness.
• Alternatively, you can use the AV receiver's DIMMER (North
American and Taiwan models).
ED
23

0 = _ V m = = =
You can temporarily mute the output of the AV receiver.
_ ress RECEIVER followed by MUTING.
The output is muted and the MUTING indicator
flashes on the display.
• To tmmute, press MUTING again o1"adjust the volume.
• The Mute function is cancelled when the AV receiver is set to
Standby.
With the sleep timer, you can set the AV receiver to turn
off automatically alter a specified period.
Press RECEIVER followed by SLEEP repeatedly
to select the required sleep time.
The sleep time can be set from 90 to 10 minutes in
10 minute steps.
The SLEEP indicator lights on the display when the
sleep timer has been set. The specified sleep time
appears on the display for about five seconds, then
the previous display reappears.
• ff you need to cancel the sleep timer, press SLEEP repeatedly
until the SLEEP indicator goes off.
• To check the time remaining until the AV receiver sleeps, press
SLEEP. Note that if you press SLEEP while the sleep time is
being displayed, you'll shorten the sleep time by 10 minutes.
c 4gcra
You can prioritize which speakers you want to use.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii=
Press RECEIVER followed by SP LAYOUT
repeatedly.
+Speaker Layout:FH:
The sound from front high speakers is output
by priority.
Speaker Layout:FW:
The sound from front wide speakers is output
by priority.
+Speaker Layout:SB:
The sound from surround back speakers is out-
put by priority.
• If the "Speakers Type" setting is set to "Bi-Amp" (_ 41 ), or
Powered Zone 2 is being used (_ 56), this setting cannot be
selected.
• When the listening mode that doesn't support front high, front
wide or surround back speakers is used, the setting cannot be
selected.
The Home menu provides you quick access to frequently
used menus without having to go through the long stan-
dard menu. This menu enables you to change settings and
view the current information.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiii....
Press RECEIVER followed by Home.
The following information will be superimposed on
the TV screen.
Video Treble
{fo Subwoofer Level
{pUt Se} Center Level
LIte +!+_+o_:l<+ Dynamic EQ
Dynamic Volume _y
OdB
Use l/¥/</_ to make the desired selection.
+ Audio*l
You can change the following settings: "Bass",
"Treble", "Subwoofer Level", "Center
Level", "Dynamic EQ", "Dynamic Volume",
"Late Night", "Music Optimizer", "Re-EQ",
"Re-EQ(THX)", and "Audio Selector".
See also:
• "Audyssey" (0 45)
• "Using the Audio Settings" (_ 52)
+ Video*2
You can change the following settings: "Wide
Mode" and "Picture Mode". The remote con-
troller's VIDEO acts as a shortcut for this
menu.
See also:
• "Picture Adjust" (@ 48)
+ Info*3*4
You can view the information of the following
items: "Audio", "Video", and "Tuner".
+ Input*4+5
You can select the input source while viewing
the information as follows: the name of input
selectors, input assignments, and radio infor-
mation, and ARC function setting.
Press ENTER to display the current input
source, followed by ill to select the desired
input source. Pressing ENTER again switches
to the selected input source.
+ Listening Mode
You can select the listening modes that are
grouped in the following categories: MOVIE/
TV, MUSIC, GAME, and THX.
Use &/¥ to select the category and </I,_ to
select the listening mode. Press ENTER to
switch to the selected listening mode.
En
24

"3 ff Pure Audio (European, Australian and Asian) or Direct
listening mode is selected, "Dynamic EQ" and
"Dynamic Volume" cannot be selected.
*2 Only when you have selected "Custonf' ill the "Picture
Mode" (_ 48), pressing ENTER allows you to adjust the fol-
lowing items via the Home menu; "Brightness", "Contrast",
"Hue", and "Saturation". Press RETURN to return to the
original Home menu.
*3 Depending on the input source and listening mode, not all
channels shown here output the sound.
*4 When you have entered a custom name in "Name Edit"
(_ 47), the input source is displayed with that name. But
even if not, the component name may be displayed if the AV
receiver receives it via HDM[ connection (_ 17).
*5 For the PORT input selector, the name of Universal Port
Option Dock will be displayed.
I!N ", iNNb'slm:m
Connect a pair of stereo headphones with a stan-
dard plug (1/4 inch or 6.3 ram) to the PHONES
jack.
• Always turn down the volume before connecting your head-
phones.
• While the headphones plug is inserted in the PHONES jack, the
speakers are turned off. (The Powered Zone 2 speakers are not
turned off.)
• When you connect a pair of headphones, the listening mode is
set to Stereo, unless it's already set to Stereo, Mono, Direct, or
Pure Audio (European, Australian and Asian models).
• Only the Stereo, Direct, Pure Audio (European, Australian and
Asian models), and Mono listening modes can be used with
headphones.
When you connect an f=t I-capable Onkyo component, you
must configure the input display so that f=t I can work
properly.
This setting can be done only from the front panel.
iiiiiiiiiiiiiiiii!
iiiiiiiiiiiiiiiiI
Press TV/CD, GAME or VCR/DVR so that "TV/
CD", "GAME" or "VCR/DVR" appears on the
display.
I _7: *;,Ts_',";.27
J
1
Press and hold down TV/CD, GAME or VCR/DVR
(about 3 seconds) to change the input display.
Repeat this step to select "MD", "CDR", "DOCK"
or "TAPE".
For the TV/CD input selector, the input display
changes in this order:
TV/CD + MD + CDR
_-- TAPE _- DOCK
For the GAME input selector, the setting changes in
this order:
GAME _ DOCK
For the VCR/DVR input selector, the setting
changes in this order:
VCR/DVR _ DOCK
• DOCK can be selected for the TWCD, GAME or VCR/DVR
input selector, but not at the same time.
• Enter the appropriate remote control code before using the
remote controller for the first time (_ 62).
With the supplied calibrated microphone, Audyssey 2EQ
automatically determines the number of speakers con-
nected, their size for purposes of bass management, opti-
mum crossover frequencies to the subwoofer (if present),
and distances from the primary listening position.
Audyssey 2EQ then removes the distortion caused by
room acoustics by capturing room acoustical problems
over the listening area in both the frequency and time
domain. The result is clear, well-balanced sound for every-
one. Enabling Audyssey 2EQ allows you to also use
Audyssey Dynamic EQ _, which maintains the proper
octave-to-octave balance at any volume level (_ 45).
Before using this function, connect and position all of
your speakers.
If "Dynamic EQ" is set to "On" (_ 45), the "Equalizer"
setting will be set to "Audyssey" (_ 42). On the other
hand, if it is set to "Off", the "Dynamic Volume" setting
will be set to "Off" (_ 46).
It takes about 15 minutes to complete Audyssey 2EQ
Room Correction and Speaker Setup for three positions.
Total measurement time varies depending on the number
of speakers.
Ell
25

Using Audyssey 2EQ®
To create a listening environment in your home theater
that all listeners will enjoy, Audyssey 2EQ takes measure-
ments at up to three positions within the listening area.
Position the microphone at ear height of a seated listener
with the microphone tip pointed directly at the ceiling
using a tripod. Do not hold the microphone in your hand
during measurements as this will produce inaccurate
results.
@ First measurement position
Also referred to as the Main Listening Position this
refers to the most central position where one would
normally sit within the listening environment. 2EQ
uses the measurements from this position to calculate
speaker distance, level, polarity, and the optimum
crossover value for the subwoofer.
(_ Second measurement position
The right side of the listening area.
(_ Third measurement position
The left side of the listening area.
The distances from position (_) to (_) and (_) to (_) must be
at least 1 meter.
(iii): Listening area @ to @: Listening position
• Make the room as quiet as possible. Background noise and Radio
Frequency [nterference (RFI) can disrupt the room measure-
ments. Close windows, televisions, radios, air conditioners, flu-
orescent lights, home appliances, light dimmers, or other
devices. Turn off the cell phone (even if it is not ill use) or place
it away from all audio electronics.
• The microphone picks up test tones which played through each
speaker as Audyssey 2EQ Room Correction and Speaker Setup
ru n,
• Audyssey 2EQ Room Correction and Speaker Setupcannot be
performed while a pair of headphones is connected.
Turn on the AV receiver and the connected TV.
On the TV, select the input to which the AV receiver
is connected.
Set the speaker setup microphone at the Main Lis-
tening Position 1, and connect it to the SETUP
MIC jack.
SETUP MIC jack
Speaker setup
...... microphone
The speaker setting menu appears.
$
• The on-screen setup menus appear only on a TV that is
connected to the NDMI OUT. [f your TV is connected to
theMONITOR OUT V or the COMPONENT VIDEO
OUT, use the AV receiver's display when changing set-
tings.
Whenyou'vefinishedmakingthesettings, press
ENTER.
Speaker Terminal Assign
FrontHIgh/FrontWlde/Zone2 FrontHIgh
SurrBack/FrontHIgh/FrontWlde SurrBack
If your front speakers are bi-amped, you must select
"Bi-Amp" in the "Speakers Type" setting (_ 41 ).
For hookup information, see "Bi-amping the Front
Speakers" (_ 15).
Press ENTER.
Audyssey 2EQ Room Correction and Speaker Setup
starts.
Test tones are played through each speaker as
Audyssey 2EQ Room Correction and Speaker Setup
runs. This process takes a few minutes. Please
refrain from talking during measurements and do
not stand between speakers and the microphone.
Do not disconnect the speaker setup microphone
during Audyssey 2EQ Room Correction and
Speaker Setup, unless you want to cancel the setup.
Place the setup microphone at the next position,
and then press ENTER.
Audyssey 2EQ performs more measurements. This
takes a few minutes.
When prompted, repeat step 5.
ED
26

V
_ 7 Use l/ to select an option, and then press
ENTER.
• When Audyssey 2EQ Room Correction and Speaker Setup is
complete, the "Equalizer" will be set to "Audyssey" (_ 42).
The Audyssey indicator will light (_ 9).
• You call cancel Audyssey 2EQ Room Correction and Speaker
Setup at ally point ill this procedure simply by disconnecting the
setup microphone.
• Do not connect or disconnect ally speakers during
Audyssey 2EQ Room Correction and Speaker Setup.
• ff the AV receiver is muted, it will be uumuted automatically
when Audyssey 2EQ Room Correction and Speaker Setup starts.
• Changes to the room after Audyssey 2EQ Room Correction and
Speaker Setup requires you run Audyssey 2EQ Room Correc-
tion and Speaker Setup again, as room EQ characteristics may
have changed.
Error Messages
While Audyssey 2EQ Room Correction and Speaker
Setup is in progress, one of the error messages below may
appear.
I_;_sE_
Cancel
Error message
The options are:
Retry:
Try again.
Cancel:
Cancel Audyssey 2EQ Room Correction and
Speaker Setup.
• Ambient noise is too high.
The background noise is too loud. Remove the source of
the noise and try again.
• Speaker Matching Error!
The number of speakers detected was different from
that of the first measurement. Check the speaker con-
nection.
• Writing Error!
This message appears if saving fails. Try saving again.
If this message appears alter 2 or 3 attempts, contact
your Onkyo dealer.
• Speaker Detect Error
This message appears if a speaker is not detected. "No"
means that no speaker was detected.
• See "Speaker Configuration" for appropriate settings (_ 13),
Changing the Speaker Settings Manually
You can manually make changes to the settings found dur-
ing Audyssey 2EQ Room Correction and Speaker Setup.
See also:
• "Speaker Configuration" (_ 41)
• "Speaker Distance" (_ 42)
• "Level Calibration" (_ 42)
• "Equalizer Settings" (_ 42)
• Please note that THX recommends any THX main speakers be
set to "80Hz(THX)". ff you set up your speakers using
Audyssey 2EQ Room Correction and Speaker Setup, please
make sure manually that any THX speakers are set to 80 Hz
(THX) crossover (_ 40).
• Sometimes due to the electrical complexities of subwoofers and
the interaction with the room, THX recommends setting the level
and the distance of the subwoofer manually.
• Sometimes due to interaction with the room, you may notice
irregular results when setting the level and/or distance of the
main speakers. [f this happens, THX recommends setting them
manually.
Using a Powered Subwoofer
If you're using a powered subwoofer and it outputs very
low-frequency sound at a low volume level, it may not be
detected by Audyssey 2EQ Room Correction and Speaker
Setup.
If the "Subwoofer" appears on the "Review Speaker
Configuration" screen as "No", increase the subwoofer's
volume to the half-way point, set it to its highest crossover
frequency, and then try running Audyssey 2EQ Room
Correction and Speaker Setup again. Note that if the vol-
ume is set too high and the sound distorts, detection issues
may occur, so use an appropriate volume level. If the sub-
woofer has a low-pass filter switch, set it to Off or Direct.
Refer to your subwoofer's instruction manual for details.
ER
27

Listening to the Radio
U_L_iN_ Ldr!W_
With the built-in tuner you can enjoy AM and FM radio
stations. You can store your favorite stations as presets for
quick selection.
This model changes FM/AM frequency in 200/10kHz (or
50/9kHz) steps.
Listening to the Radio
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Press TUNER to select either "AM" or "FM".
In this example, FM has been selected.
Each time you press TUNER, the radio band
changes between AM and FM.
Band Frequency
(Actual display depends on the country.)
Tuning into Radio Stations
N Auto tuning mode
Press TUNING MODE so that the AUTO indicator
lights on the display.
Press TUNING l/¥.
Searching stops when a station is found.
When tuned into a station, the TUNED indicator lights.
When tuned into a stereo FM station, the FM STEREO
indicator lights on the display, as shown.
f..?:;..,
FM STEREO
I
FM STEREO
AUTO _- TUNEO,_
TUNED
N Manual tuning mode
Press TUNING MODE so that the AUTO indicator
goes off on the display.
Press and hold TUNING l/¥.
The frequency stops changing when you release the
button.
Press the buttons repeatedly to change the frequency
one step at a time.
In manual tuning mode, FM stations will be in mono.
Tuning into weak FM stereo stations
If the signal from a stereo FM station is weak, it may be
impossible to get good reception. In this case, switch to
manual tuning mode and listen to the station in mono.
N Tuning into stations by frequency
You can tune into AM and FM stations directly hy enter-
ing the appropriate frequency.
_On remote controller, press repeat-
the TUNER
edly to select "AM" or "FM", followed by D.TUN.
(Actual display depends on the country.)
Within 8 seconds, use the number buttons to enter
the frequency of the radio station.
For example, to tune to 87.50 (FM), press 8, 7, 5, 0.
If you have entered the wrong number, you can retry
alter 8 seconds.
En
28

You can store a combination of up to 40 of your favorite
FM/AM radio stations as presets.
iiiiiiiiiiiiiiiiI
Tune into the FM/AM station that you want to
store as a preset.
See the previous section.
Press MEMORY.
The preset number flashes.
_=)i_i_ .5.5.]:.;_.))?_.:iJ.:_:
While the preset number is flashing (about 8 sec-
onds), use PRESET </_ to select a preset from 1
through 40.
Press M E MO RY again to store the station or chan-
nel.
The station or channel is stored and the preset num-
ber stops flashing.
Repeat this procedure for all of your favorite FM/
AM radio stations.
• You call name your radio presets for easy identification (_ 47).
Its name is displayed instead of the band and frequency.
Selecting Presets
To select a preset, use PRESET </*" on the AV
receiver, or the remote controller's CH +/-.
• You can also use the remote controller's number buttons to select
a preset directly.
Deleting Presets
iiiiiiiiiiiiiiiii!
Select the preset that you want to delete.
See the previous section.
While holding down MEMORY, press TONING
MODE.
The preset is deleted and its number disappears from
the display.
When tuned into an RDS station, the RDS indicator lights.
What is RDS?
RDS stands for Radio Data System and is a method of
transmitting data in FM radio signals. It was developed by
the European Broadcasting Union (EBU) and is available
in most European countries. Many FM stations use it these
days. In addition to displaying text information, RDS can
also help you find radio stations by type (e.g., news, sport,
rock, etc.).
The AV receiver supports four types of RDS information:
N PS (Program Service)
When tuned to an RDS station that's broadcasting PS
information, the station's name will be displayed. Press-
ing DISPLAY will display the frequency for 3 seconds.
N RT (Radio Text)
When tuned to an RDS station that's broadcasting text
information, the text will be shown on the display as
described in the next section.
N PTY (Program Type)
This allows you to search for RDS radio stations by type
(_ 30).
N TP (Traffic Program)
This allows you to search for RDS radio stations that
broadcast traffic information (@ 30).
• [n some cases, the text characters displayed on the AV receiver
may not be identical to those broadcast by the radio station. Also,
unexpected characters may be displayed when unsupported
characters are received. This is not a malfunction.
• If the signal from an RDS station is weak, RDS data may be
displayed intermittently or not at all.
When tuned to an RDS station that's broadcasting text
information, the text can be displayed.
Displaying Radio Text (RT)
Press RT/PTY/TP once.
The RT information scrolls across the display.
• The message "Waiting" mayappear whilethe AVreceiver waits
for the RT information.
• If the message "No Text Data" appears on the display, no RT
information is available.
Erl
29

Finding Stations by Type (PTY)
You can search for radio stations by type.
Press RT/PTY/'I'P twice.
The current program type appears on the display.
Use PRESET a/_ to select the type of program
you want.
See the table shown later in this chapter.
To start tile search, press ENTER.
The AV receiver searches until it finds a station of
the type you specified, at which point it stops briefly
before continuing with the search.
When a station you want to listen to is found, press
ENTER.
If no stations are found, the message "Not Found"
appears.
Listening to Traffic News (TP)
Youcan search for stations that broadcast traffic news.
Press RT/PTY/TP three times.
If the current radio station is broadcasting TP (Traf-
fic Program), "[TP]" will appear on the display, and
traffic news will be heard as and when it's broadcast.
If "TP" without square brackets appears, this means
that the station is not broadcasting TP.
To locate a station that is broadcasting TP, press
ENTER.
The AV receiver searches until it finds a station that's
broadcasting TP.
If no stations are found, the message "Not Found"
appears.
m RDS program types (PTY)
Type Display
None None
News reports News
Current affairs Affairs
[nformation [nfo
Sport Sport
Education Educate
Drama Drama
Culture Culture
Science and technology Science
Varied Varied
Pop music Pop M
Rock music Rock M
Middle of the road music Easy M
Light classics Light M
Serious classics Classics
Other music Other M
Weather Weather
Finance Finance
Children's programmes Children
Social affairs Social
Religion Religion
Phone in Phone In
Travel Travel
Leisure Leisure
Jazz music Jazz
Country music Country
National music Nation M
Oldies music Oldies
Folk music Folk M
Documentary Document
Alarm test TEST
Alarm Alarm!
Erl
3O

Recording
This section explains how to record the selected input source to a component with recording capability, and how to record
audio and video from different sources.
Connecting a Recording Component
L J L J
VCR, Cassette, CDR,
DVD recorder MD, etc,
• The AV receiver must be turned on for recording. Recording is
not possible while it's ill Standby mode.
• If you want to record directly from your TV or playback VCR to
the recording VCR without going through the AV receiver, con-
nect the TV/VCR's audio and video outputs directly to the
recording VCR's audio and video inputs. See the manuals sup-
plied with your TV and VCR for details.
• Video signals connected to composite video inputs call be
recorded only via composite video outputs. If your TV/VCR is
connected to a composite video input, the recording VCR must
be connected to a composite video output.
• The surround sound and DSP listening modes cannot be
recorded.
• Copy-protected Blu-ray Disc/DVDs cannot be recorded.
• Sources connected to a digital input cannot be recorded. Only
analog inputs can be recorded.
• DTS signals will be recorded as noise, so don't attempt analog
recording of DTS CDs or LDs.
• While the listening mode is set to Pure Audio, no image is pro-
vided because the power is turned off for the video circuit. If you
want to make recordings, select other listening mode. (Euro-
pean, Australian and Asian modds)
AV Recording
Audio sources can be recorded to a recorder (e.g., cassette
deck, CDR, MD) connected to the VCR/DVR OUT jacks.
Video sources can be recorded to a video recorder (e.g.,
VCR, DVD recorder) connected to the VCR/DVR OUT
jack.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!
Use the input selector buttons to select the source
that you want to record.
You can watch the source while recording. The AV
receiver's MASTER VOLUME control has no effect
on recording.
On your recorder, start recording.
On the source component, start playback.
If you select another input source during recording,
that input source will he recorded.
Recording Separate AV Sources
Here you can record audio and video from completely
separate sources, allowing you to overdub audio onto your
video recordings. This function takes advantage of the fact
that when an audio-only input source (TV/¢D) is selected,
the video input source remains unchanged.
In the lY)llowing example, audio from the CD player con-
nected to the TV/CD IN and video from the camcorder
connected to the AUX INPUT VIDEO jack are recorded
by the VCR connected to the VCR/DVR OUT jacks.
!ii!/l
iiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
[
CD player
VCR
z_= : Video signal
*- : Audio signal
J
Prepare the camcorder and CD player for play-
back.
Prepare the VCR for recording.
Press AUX input selector.
Press TV/CD input selector.
This selects the CD player as the audio source, but
leaves the camcorder as the video source.
Start recording on the VCR and start playback on
the camcorder and CD player.
The video from the camcorder and the audio from
the CD player are recorded by the VCR.
ED
31

Using the Listening Modes
See "About Listening Modes" for detailed information about the listening modes (_ 33).
Listening Mode Buttons
I Press RECEIVER first, 1
(North American and Taiwan models)
MOVIEiTV, MUSIC, GAME
(European, Australian and Asian models)
MUSIC--
MOVIEiTV--
--GAME
--THX
PURE AUDIO MOVIEiTV, MUSIC, GAME
MOVIE/TV button
This button selects the listening modes intended for use
with movies and TV.
MUSIC button
This button selects the listening modes intended for use
with music.
GAME button
This button selects the listening modes intended for use
with video games.
THX button
This button selects the THX listening modes.
PURE AUDIO button and indicator
(European, Australian and Asian models)
This button selects the Pure Audio listening mode.
When this mode is selected, the AV receiver's display
and video circuitry are turned off. The indicator lights
when this mode is selected. Pressing this button again
will select the previous listening mode.
• The Dolby Digital and DTS listening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV
receiver with a digital audio connection (coaxial, optical, or HDMI).
• The listening modes you can select depends on the format of the input signal. To check the format, see "Displaying Source
Information" (_ 23).
• While a pair of headphones is connected, you can select the following listening modes: Pure Audio (European, Australian and
Asian models), Mono, Direct, and Stereo.
• The listening modes cannot be used while you are listening to sound through your TV speakers coming from components
connected to the AV receiver ("TV Sp On" appears on the front panel).
En
32

The AV receiver's listening modes can transform your listening room into a movie theater or concert hall, with high fidel-
ity and stunning surround sound.
Explanatory Notes
SP LAYOUT-
LISTENING MODE--
...........................ii '
WZ,_ _5>:Z) kL}LZ)
q .::5 a _Z2,
_,,Z, ....................
g_ i v ¢ \ 2 #
(iii)
_,2J
{}_i}
I .... gJ_E=NI_G=MSO_....
¢%
0
3Q
@ Front speakers
@ Center speaker
@ Surround speakers
@ Surround back speakers
@ Front high speakers
@ Front wide speakers
(2)Subwoofers
m Input Source
The following audio formats are supported by the listening mode.
This is mono (monophonic) sound.
This is stereo (stereophonic) sound. Two independent audio signal channels are reproduced through two
speakers.
I g-lR'_ This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth sub-
woofer channel (called the point-one channel).
This is 7.1 -channel surround sound. This is a further sound enhancement to 5.1 channel sound with two
additional speakers that provide greater sound envelopment and more accurate positioning of sounds.
This is DTS-ES surround sound. This surround system can produce a discrete or a matrix-encoded sixth
channel from existing DTS 5.1 encoded material.
This is Dolby Digital EX surround sound. This provides a center back surround channel from 5.1 -channel
sources.
N Speaker Layout
The illustration shows which speakers are activated in each channel. See "Speaker Configuration" for the speaker setup
(@ 41 ).
Press RECEIVER followed by SP LAYOUTrepeatedly to
select the speakers you want to use; front high, front
wide, or surround back.
En
33

Listening Modes
Listening Mode Description
Pure Audio*l
Direct
Stereo
[n this mode, the display and video circuitry are turned off, minimizing pos-
sible noise sources for the ultimate in high-fidelity audio reproduction. (As
the video circuitry is turned off, only video signals input through HDMI IN
can be output from HDMI OUT.)
[n this mode, audio from the input source is output without surround-sound
processing. The "Sp Config" (presence of speakers), "Sp Distance" and
"A/V Sync" settings are enabled, but much of the processing set via HOME
is disabled. See "Advanced Setup" for more details (3 38).
Sound is output by the front left and right speakers and subwoofer.
Mono Use this mode when watching all old movie with a mono soundtrack, or use
it with the foreign language soundtracks recorded in the left and right chan-
nels of some movies. It can also be used with DVDs or other sources contain-
ing multiplexed audio, such as karaoke DVDs.
Multichannel This mode is for use with PCM multichannel sources.
M
Dolby Pro Logic IIx*3 Dolby Pro Logic IIx expands any 2-channel source for 7. l-channel play-
Dolby Pro Logic II back. It provides a very natural and seamless surround-sound experience that
fully envelops the listener. As well as music and movies, video games can
also benefit from the dramatic spatial effects and vivid imaging. If you're not
using any surround back speakers, Dolby Pro Logic II will be used instead
of Dolby Pro Logic IIx.
Dolby PLIIx Movie
Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g.,
TV, DVD, VHS).
Dolby PLIIx Music
Use this mode with any stereo or Dolby Surround (Pro Logic) music source
(e.g., CD, radio, cassette, TV, VHS, DVD).
Dolby PLIIx (;ame
Use this mode with video games, especially those that bear the Dolby Pro
...........................................................................................................Logic II logo.
Dolby PLIIx Movie and Dolby PLIIx Music
These modes use the Dolby Pro Logic IIx modes to expand 5. l-channel
sources for 7. l-channel playback.
Dolby Pro Logic IIz Dolby Pro Logic IIz Height is designed to more effectively use existing
Height program material when height channel speaker outputs are present. Dolby
Pro Logic IIz Height can be used to upmix a variety of sources from movies
and music, but are particularly well-suited to upmix game content.
Dolby EX These modes expand 5. l-channel sources for 6.1/7. l-channel playback.
They're especially suited to Dolby EX soundtracks that include a matrix-
encoded surround back channel. The additional channel adds an extra dimen-
sion and provides an enveloping surround sound experience, perfect for
rotating and fly-by sound effects.
Dolby Digital In this mode, audio from the input source is output without surround-sound
processing. "Sp Config" (presence of speakers), "Crossover", "Sp Dis-
tance", "A/V Sync" and much of the processing set via HOME are enabled.
See "Advanced Setup" for more details (3 38).
Dolby Digital Plus*6
Dolby TrueHD
DTS
Input
Source
Speaker
Layout
NNNi1NN
I_-gI*2
I_-gI*4
I_-gI*5
Ni1NN[_il
Ni1NN[_il
[NilNNIY31*2
Ni1NN[_il
[NilNNIY31*_
Ni1NN[_il
Erl
34

Listening Mode Description
DTS-HD High (Continued from tile previous page,)
Resolution Audio
DTS-HD Master
Audio
DTS Express
DSD_7
DTS 96/24_8
DTS-ES Discrete*9
DTS-ES Matrix*9
DTS Neo:6
Audyssey DSX*I 0
i_!!_!_!_i!_i!_i!_!!i!!i!!i!_!_!_i!i_!i_!_i_i!_!i!i!_i!_i!_i!_i!_i!_i!_i!_!_i!_!_!_i_ii!_i!i_
This mode is for use with DTS 96/24 sources. This is high-resolution DTS
with a 96 kHz sampling rate and 24-bit resolution, providing superior fidel-
ity, Use it with DVDs that bear the DTS 96/24 logo.
This mode is for use with DTS-ES Discrete soundtracks, which use a dis-
crete surround back channel for true 6.117, l-channel playback. The seven
totally separate audio channels provide better spatial imaging and 360-
degree sound localization, perfect for sounds that pan across the surround
channels. Use it with DVDs that bear the DTS-ES logo, especially those with
a DTS-ES Discrete soundtrack.
This mode is for use with DTS-ES Matrix soundtracks, which use a matrix-
encoded back-channel for 6,1/7, l-channel playback. Use it with DVDs that
bear the DTS-ES logo, especially those with a DTS-ES Matrix soundtrack.
This mode expands any 2-channel source for up to 7, l-channel playback. It
uses seven full-bandwidth channels of matrix decoding for matrix-encoded
material, providing a very natural and seamless surround sound experience
that fully envelops the listener.
• Neo:6 Cinema
Use this mode with any stereo movie (e.g., TV, DVD, VHS),
• Neo:6 Music
Use this mode with any stereo music source (e.g., CD, radio, cassette, TV,
VHS, DVD).
This mode uses Neo:6 to expand 5, l-channel sources for 6, 1/7, l-channel
playback.
Audyssey DSX _t is a scalable system that adds new speakers to improve sur-
round impression. Starting with a 5,1 system Audyssey DSX first adds Wide
channels for the biggest impact on envelopment. Research in human hearing
has proven that information from the Wide channels is much more critical in
the presentation of a realistic soundstage than then Back Surround channels
found in traditional 7,1 systems. Audyssey DSX then creates a pair of Height
channels to reproduce the next most important acoustical and perceptual
cues. [n addition to these new' Wide and Height channels, Audyssey DSX
applies Surround Envelopment Processing to enhance the blend between the
front and surround channels.
The combination of Dolby Pro Logic II and Audyssey DSX*10 modes can
be used.
The combination of Neo:6 Cinema!Music and Audysscy DSX*10 modes
can be used.
Input
Source
Speaker
Layout
En
35

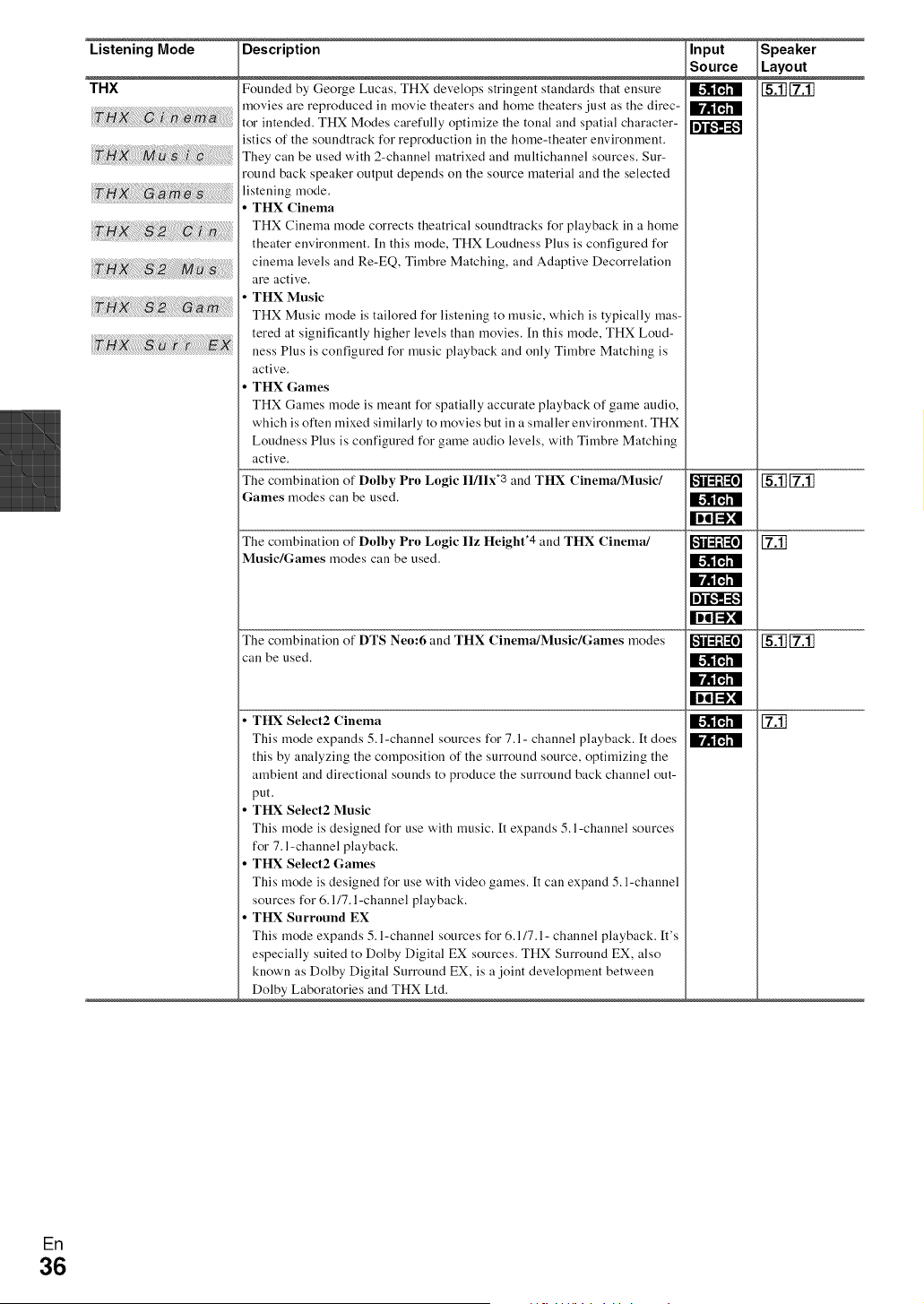

Listening Mode Description
THX
Founded by George Lucas, THX develops stringent standards that ensure
movies are reproduced ill movie theaters and home theaters just as the direc-
tor intended. THX Modes carefully optimize the tonal and spatial character-
istics of the soundtrack for reproduction ill the home-theater environment.
They can be used with 2-channel matrixed and multichannel sources. Sur-
round back speaker output depends on the source material and the selected
listening mode.
THX Cinema
THX Cinema mode corrects theatrical soundtracks for playback in a home
theater euviroumeut. In this mode, THX Loudness Plus is configured for
ciuema levels and Re-EQ, Timbre Matching, and Adaptive Decorrelatiou
are active.
THX Music
THX Music mode is tailored for listening to music, which is typically mas-
tered at significantly higher levels than movies. In this mode, THX Loud-
uess Plus is configured for music playback and only Timbre Matching is
active.
THX (;ames
THX Games mode is meaut for spatially accurate playback of game audio,
which is often mixed similarly to movies but in a smaller euviroumeut. THX
Loudness Plus is configured for game audio levels, with Timbre Matching
active.
The combiuatiou of Dolby Pro Logic II/IIx*3 and THX Cinenm/Music/
(;ames modes can be used.
The combination of Dolby Pro Logic IIz Heighff4 and THX Cinema/
Music/Games modes can be used.
The combination of DTS Neo:6 and THX Cinema/Music/Games modes
can be used.
THX Select2 Cinema
This mode expands 5.l-channel sources for 7.1- channel playback. It does
this by analyzing the composition of the surround source, optimizing the
ambient and directional sounds to produce the surround back channel out-
put.
THX Select2 Music
This mode is designed for use with music. It expands 5. l-channel sources
for 7. l-channel playback.
THX Select2 Games
This mode is designed for use with video games. It can expand 5. l-channel
sources for 6.1/7. l-channel playback.
THX Surround EX
This mode expands 5. l-channel sources for 6.1/7.1 - channel playback. It's
especially suited to Dolby Digital EX sources. THX Surround EX, also
known as Dolby Digital Surround EX, is a joint development between
Dolby Laboratories and THX Ltd.
Input
Source
Speaker
Layout
Er)
36

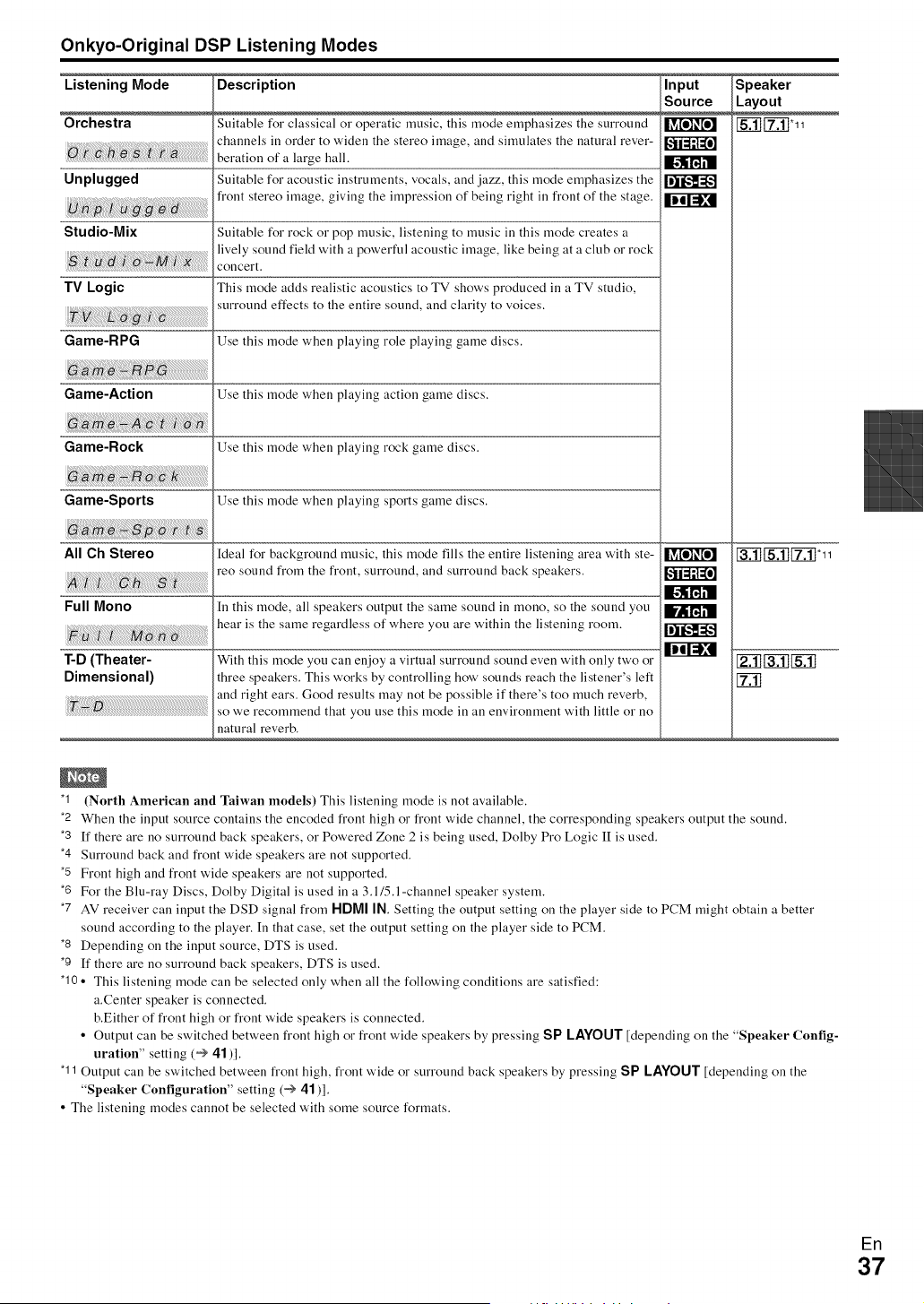

Onkyo-Original DSP Listening Modes
Listening Mode Description
Orchestra Suitable for classical or operatic music, this mode emphasizes the surrotmd
channels ill order to widen the stereo image, and simulates the natural rever-
beration of a large hall.
Unplugged Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the
front stereo image, giving the impression of being right in front of the stage.
n
Studio-Mix Suitable for rock or pop music, listeuiug to music in this mode creates a
lively sound field with a powerful acoustic image, like being at a club or rock
coucert.
TV Logic This mode adds realistic acoustics to TV show's produced in a TV studio,
surround effects to the entire sound, and clarity to voices.
Game-RPG Use this mode when playing role playing game discs.
Game-Action Use this mode when playing action game discs.
Game-Rock Use this mode when playing rock game discs.
Game-Sports Use this mode when playing sports game discs.
All Ch Stereo Ideal for background music, this mode fills the eutire listeuiug area with ste-
reo sound from the front, surround, and surround back speakers.
Full Mono In this mode, all speakers output the same souud in mouo, so the souud you
hear is the same regardless of where you are within the listening room.
T-D (Theater-
Dimensional)
With this mode you cau eujoy a virtual surrouud sound eveu with only two or
three speakers. This works by coutrolliug how' sounds reach the listener's left
aud right ears. Good results may not be possible if there's too much reverb,
sowerecommeudthatyouusethismodeiuaueuviroumeutwithlittleoruo
uatural reverb.
Input
Source
Speaker
Layout
1Ni11_-1"11
[NilNNNil*11
"1 (North American and Taiwan models) This listening mode is not available.
*2 When the input source contains the encoded front high or front wide channel, the corresponding speakers output the sound.
"3 If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used.
*4 Surround back and front wide speakers are not supported.
*5 Front high and front wide speakers are not supported.
*6 For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.l-channel speaker system.
*7 AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player side to PCM might obtain a better
sound according to the player. [n that case, set the output setting on the player side to PCM.
*8 Depending on the input source, DTS is used.
*9 If there are no surround back speakers, DTS is used.
"36 • This listening mode can be selected only when all the following conditions are satisfied:
a.Ceuter speaker is connected.
b.Either of front high or front wide speakers ix connected.
• Output can be switched between front high or front wide speakers by pressing SP LAYOUT [depending on the "Speaker Config-
uration" setting (_ 41)1.
"33 Output can be switched between front high, front wide or surround back speakers by pressing SP LAYOUT [depending on the
"Speaker Configuration" setting (_ 41)1.
• The listening modes cannot be selected with some source formats.
Erl
37

Advanced Setup
ED
38
@-
MENU
-- 2. SpeakerSetup
-- 3. AudioAdjust
-- 4. SourceSetup
-- 5. ListeningModePreset
-- 6. Miscellaneous
-- 7. HardwareSetup
-- 8. RemoteControllerSetup
-- 9. LockSetup
@ Input/Output Assign
(÷ 39)
(_) Miscellaneous (_ 50)
2. OSD Setup
(_) Speaker Setup (_ 40) (_) Hardware Setup
(÷ 5o)
ID_Z3.7.TunerHDMiHardwareSetup
@ Audio Adjust (_ 44)
(_) Remote Controller
Setup (_ 62)
( & RemoteController Setup
• Remote _
@ Source Setup (_ 45) @ Lock Setup (_ 52)
(_) Listening Mode Preset
(_ 49)
¢ - _:-_ook s;_l _- ........................
LQ_:k
.........; __i_U _::_:) i Remote indicator
-- RECEIVER
MT/_/_'- }
The on-screen setup menus appear on the connected TV
and provide a convenient way to change the AV receiver's
various settings. Settings are organized into nine catego-
ries on the main menu.
Carry out the settings by using the on-screen display.
Press RECEIVER followed by SETUP.
The following menu appears.
MENU
2. Speaker Setup
& Audio Adjust
4. Source Setup
& Ustenlng Mode Preset
& Miscellaneous
7. Hardware Setup
& Remote Controller Setup
& Lock Setup
• ff the main menu doesn't appear, make sure the appropri-
ate external input is selected on your TV.
Use lit to select a menu, and then press ENTER.
Use lIT to select target and then press ENTER.
Use &IT to select option and -_l/_,-to change the
setting.
Press SETUP to close the menu.
Press RETURN to return to the main menu.
• This procedure can also be performed on the AV receiver by
using SETUP, arrow buttons, and ENTER.
• During Audyssey 2EQd_ Room Correction and Speaker Setup,
messages, etc., that are displayed on the TV screen will appear
in the Display.

Explanatory Notes
_Yes:
--STelect if a subwoofer is connected.
No:
Select if no subwoofer is connected.
(_) Menu selection
(_) Setting target
(_) Setting options (default setting underlined)
Monitor Out
You can specify the output resolution for the HDMI OUT
and COMPONENT VIDEO MONITOR OUT and have
the AV receiver upconvert the picture resolution as neces-
sary to match the resolution supported by your TV.
m Resolution
Through:
Select this to pass video through the AV receiver at
the same resolution and with no conversion.
Auto:
Select this to have the AV receiver automatically
convert video at resolutions not supported by your
TV.
480p (480p/576p):
Select this for 480p or 576p output and video con-
version as necessary.
720p:
Select this for 720p output and video conversion as
necessary.
} 1080i:
Select this for 1080i output and video conversion as
necessary.
1080p:
Select this for 1080p output and video conversion as
necessary.
HDMI Input
If you connect a video component to an HDMI input, you
must assign that input to an input selector. For example, if
you connect your Blu-ray Disc/DVD player to HDMI
IN 2, you must assign "HDMI2" to the "BD/DVD" input
selector.
If you've connected your TV to the AV receiver with an
HDMI cable, composite video and component video
sources can be upconverted* to HDMI. See "Video Con-
nection Formats" for more information on video signal
flow and upconversion (_ 21).
Composite video,
component video HDMI
( IN
! ......... 0:
_ OUT
Composite video, HDMI
component video
Here are the default assignments.
Input selector
BD/DVD
VCR/DVR
CBL/SAT
GAME
PC
AUX
TUNER
TV/CD
PORT
Default assignment
HDMII
HDMI2
HDMI3
HDMI4
HDMISq
FRONT (Fixed)
..... (Fixed)
m BD/DVD, VCR/DVR, CBL/SAT, GAME, PC,
TWCD, PORT
HDMI1, HDMI2, HDMI3, HDMI4, HDMI5:
Select a corresponding HDMI input that the video
component has been connected.
} ..... :
Select this to output composite video and component
video sources from the HDMIOUT. The video sig-
nal from HDMI output is configured in "Component
Video Input" (_ 40).
"1 If you connect your personal computer to PC IN, you must
assign % .... " to the "PC" input selector.
• "AUX" is used only for input from the front panel.
• Each HDMI input cannot be assigned to two input selec-
tors or more. When HDMI1 - HDMI5 have already
been assigned, you must set first any unused input selec-
tors to "- .... " or you will be unable to assign HDMI1
- HDMI5 to input selector.
• When an HDMI IN is assigned to an input selector as explained
here, the digital audio input for that input selector is automati-
cally set to the same HDMI IN (_ 40, Digital Audio Input).
• TUNER selector cannot be assigned and is fixed at the % .... "
option.
• If you connect a component (such as UP-AI Dock that seated
iPod) to UNIVERSAL PORT jack, you cannot assign any input
to PORT selector.
• Do not assign the component connected with the HDM[ input to
TV/CD selector when you set "TV Control" setting to "On"
(_ 52). Otherwise, appropriate CEC (Consumer Electronics
Control) operation will not be guaranteed.
ED
39

Component Video Input
If you connect a video component to a component video
input, you must assign that input to an input selector. For
example, if you connect your Blu-ray Disc/DVD player to
COMPONENT VIDEO IN 2, you must assign "IN2" to
the "BD/DYD" input selector.
Here are the default assignments.
Input selector
BD/DVD
VCR/DVR
CBL/SAT
GAME
PC
AUX
TUNER
TV/CD
PORT
Default assignment
IN1
IN2
.... (Fixed)
m BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, AUX,
TV/CD, PORT
IN1, IN2:
Select a corresponding component video input that
the video component has been connected.
} ..... :
Select if you are using HDMI output, not component
video output, to output composite video and compo-
nent video sources.
• If you connect a component (such as UP-AI Dock that seated
iPod) to the UNIVERSAL PORT jack, you cannot assign ally
input to PORT selector.
• When an HDMI IN is assigned to all input selector ill "HDM[
[nput" (3 39), this input assignment is automatically set to the
same NDMI IN. And ill addition to the usual inputs (e.g.,
COAXI, COAX2, etc.), you can also select HDM[ inputs.
• Available sampling rate for PCM signals from a digital input
(optical and coaxial) is 32/44.1/48/88.2/96 kHz/l 6, 20, 24 bit.
• If you connect a component (such as UP-AI Dock that seated
iPod) to the UNIVERSAL PORT jack, you cannot assign any
input to PORT selector.
1
Some of the settings in this section are set automatically
by Audyssey 2EQ0_)Room Correction and Speaker
J
Setup function (3 25).
Here you can check the settings made by Audyssey 2EQ
Room Correction and Speaker Setup function, or set them
manually, which is useful if you change one of the con-
nected speakers after using Audyssey 2EQ Room Correc-
tion and Speaker Setup function.
These settings are disabled when:
• a pair of headphones is connected, or
• the "Audio TV Out" setting is set to "On" (3 51) and an input
selector other than HDMIis selected.
Speaker Settings
Digital Audio Input
Ell
4O
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example, if
you connect your CD player to the OPTICAL IN 1, you
must assign "OPTI" to the "T¥/CD" input selector.
Here are the default assignments.
Input selector
BD/DVD
VCR/DVR
CBL/SAT
GAME
PC
AUX
TUNER
TV/CD
PORT
Default assignment
(7()AXI
COAX2
OPTI
.... (Fixed)
OPT2
I BD/DVD, VCR/DVR, CBL/SAT, GAME, PC, AUX,
TWCD, PORT
COAX1, COAX2, OPT1, OPT2:
Select a corresponding digital audio input that the
component has been connected.
..... :
Select if the component is connected to an analog
audio input.
If the impedance of any speaker is 4 ohms or more but less
than 6, set the minimum speaker impedance to 4 ohms.
If you bi-amp the front speakers, you must change the
"Speakers Type" setting (3 41).
For hookup information, see "Bi-amping the Front Speak-
ers" (3 15).
• When bi-amping is used, the AV receiver is able to drive up to
5.1 speakers in the main room.
• Before you change these settings, turn down the volume.
m Speaker Impedance
4ohms:
Select if the impedance of any speaker is 4 ohms or
more but less than 6.
6ohms:
Select if the impedances of all speakers are between
6 and 16 ohms.
• (North American and Taiwan modds) Speakers with an
impedance of less than 6 ohms are not supported.

m Speakers Type
Normal:
Select this if you've connected your front speakers
normally.
Bi-Amp:
Select this if you've bi-amped your front speakers.
• Powered Zone 2 cannot be used if "Speakers Type" is set to
"Bi-Amp" (_ 56).
N Speaker Terminal Assign
Front High/Front Wide/Zone2
With this setting, you can specify the speakers con-
nected to FRONT HIGH OR FRONT WIDE OR
ZONE 2 SPEAKERS terminals.
Front High:
Front high speakers can be used.
Front Wide:
Front wide speakers can be used.
Zone2:
Zone 2 speakers can be used. (Powered Zone 2
enabled).
• If the "Speakers Type" setting is set to "Bi-Amp", or Powered
Zone 2 cannot be used.
SurrBack/Front High/Front Wide
With this setting, you can specify the speakers con-
nected to SURR BACK OR FRONT HIGH OR
FRONT WIDE SPEAKERS terminals.
Surr Back:
Surround back speakers can be used.
Front High:
Front high speakers can be used.
Front Wide:
Front wide speakers can be used.
• If the "Speakers Type" setting is set to "Bi-Amp", or Powered
Zone 2 cannot be used.
• If "Front High" is selected ill the "Front High/Front Wide/
Zone2" setting, you cannot select "Front High" here.
• If "Front Wide" is selected ill the "SurrBaek/Front High/
Front Wide" setting, you cannot select "Front Wide" here.
Speaker Configuration
With these settings, you can specify which speakers are
connected and a crossover frequency for each speaker.
Specify "Full Band" for speakers that can output low fre-
quency bass sounds adequately, for example, speakers
with a good sized woofer. For smaller speakers, specify a
crossover frequency. Sounds below the crossover fre-
quency will be output by the subwoofer instead of the
speaker. Refer to your speaker's manuals to determine the
optimum crossover frequencies. If you set up your speak-
ers using Audyssey 2EQ® Room Correction and Speaker
Setup, please make sure manually that any THX speakers
are set to "80Hz(THX)" crossover.
N Subwoofer
Yes:
Select if a subwoofer is connected.
No:
Select if no subwoofer is connected.
N Front
Full Band
40Hz to 80Hz(THX) to 100Hz, 120Hz, 150Hz,
200Hz
• If the "Subwoofer" setting is set to "No", the "Front" setting is
fixed at "Full Band".
N Center*l, Surround*l, Surr Back*2*3*4*5
Full Band
40Hz to 80Hz(THX) to 100Hz, 120Hz, 150Hz,
200Hz
None:
Select if no speaker is connected.
N Front Wide*l*2*4*6, Front High*l *2*4*7
Full Band
40Hz to 80Hz(THX) to 100Hz, 120Hz, 150Hz,
200Hz
None:
Select if no speaker is connected.
*3 "Full Band" can be selected only when "Full Band" is
selected in the "Front" setting.
*2 If the "Surround" setting is set to "None", this setting cannot
be selected.
*3 If the "Surround" setting is set to anything other than "Full
Band", "Full Band" cannot be selected here.
*4 If the "Speakers Type" setting is set to "Bi-Amp" (_ 41 ), or
Powered Zone 2 is being used (_ 56), this setting cannot be
selected.
*5 If you have selected other than "Surr Back" in the "Surf
Back/Front High/Front Wide" setting, this setting cannot be
selected.
*6 If you have selected other than "Front Wide" in the "Front
High/Front Wide/Zone2" or "SurrBaek/Front High/Front
Wide" setting, this setting cannot be selected.
*7 If you have selected other than "Front High" in the "Front
High/Front Wide/Zone2" or "SurrBaek/Front High/Front
Wide" setting, this setting cannot be selected.
N Surr Back Ch
lch:
Select if only one surround back speaker L is con-
nected.
2ch:
Select if two (left and right) surround back speakers
are connected.
• If the "Surf Back" Setting is set to "None" (_ 48), this setting
cannot be selected.
i ii
Erl
41

5_
m LPF of LFE
(Low-Pass Filter for the LFE Channel)
80Hz, 90Hz, 100Hz, 120Hz
With this setting, you can specify the cutoff frequency
of the LFE channel's low-pass filter (LPF), which can
be used to filter out unwanted hum. The LPF only
applies to sources that use the LFE channel.
• If you're using THX-certified speakers, select "80Hz".
N Double Bass
This setting is set automatically by Audyssey 2EQ® JRoom Correction and Speaker Setup function (3 25).
1
With the Double Bass function, you can boost bass out-
put by feeding bass sounds from the front left, right, and
center channels to the subwoofer.
On:
Double Bass function on.
Off:
Double Bass function off.
• This function call be set only if the "Subwoofer" setting is set to
"Yes", and the "Front" setting is set to "Full Band".
• If you're using THX-certified speakers, select "OFF'.
Speaker Distance
This setting is set automatically by Audyssey 2EQ
I
Room Correction and Speaker Setup function (3 25).
1
Here you can specify the distance from each speaker to the
listening position so that the sound from each speaker
arrives at the listener's ears as the sound designer
intended.
N Unit
feet:
Distances can be set in feet. Range: lft to 30ft in
1 foot steps.
meters:
Distances can be set in meters. Range: 0.3m to 9.0m
in 0.3 meter steps.
(The default setting varies from country to country.)
mLeft, Front Wide Left, Front High Left, Center,
Front High Right, Front Wide Right, Right, Surf
Right, Surf Back Right, Surf Back Left, Surf
Left, Subwoofer
Specify the distance from the each speaker to your lis-
tening position.
• Speakers that you set to "No" or "None" in the Speaker Config-
uration cannot be selected (_ 41).
Level Calibration
This setting is set automatically by Audyssey 2EQ t
Ell Room Correction and Speaker Setup function (3 25).
1
42
Here you can adjust the level of each speaker with the
built-in test tone so that the volume of each speaker is the
same at the listening position.
N Left, Front Wide Left, Front High Left, Center*l,
Front High Right, Front Wide Right, Right, Surr
Right, Surr Back Right, Surr Back Left, Surr Left
-12dB to 0dB to +12dB in 1 dB step.
N Subwoofer*l
-15dB to 0dB to +12dB in 1 dB step.
!
• Speakers that you set to "No" or "None" in the
"Speaker Configuration" cannot be selected (_ 41 ).
• The speakers cannot be calibrated while the AV receiver is
muted.
• The test tone is output at the standard level for THX, which is
0 dB (absolute volume setting 82). If you normally listen at vol-
ume settings below' this, be careful because the test tone will be
much louder.
"1 For the center speaker and subwoofer, the level settings made
by using the Home menu are saved (@ 24).
• If you're using a handheld sound level lneter, adjust the level of
each speaker so that it reads 75 dB SPL at the listening position,
measured with C-weighting and slow' reading.
Equalizer Settings
This setting is set automatically by Audyssey 2EQ
Room Correction and Speaker Setup function (3 25).
1
With the Equalizer settings, you can adjust the tone of
speakers individually with a 5-band equalizer. The volume
of each speaker can be set (3 42).
N Equalizer
Manual:
You can adjust the equalizer for each speaker manu-
ally. If you selected "Manual", continue with this
procedure.
iii:i;i;i_
1
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Press ¥ to select "Channel", and then use a/
to select a speaker.
Use 1/¥ to select a frequency, and then use
the a/_" to adjust the level at that frequency.
The volume at each frequency can be adjusted
from -6rib to 0rib to +6rib in 1 dB steps.
• Low' frequencies (e.g., 63Hz) affect bass sounds;
high frequencies (e.g., 16000Hz) affect treble
sounds.
Use h to select "Channel", and then use _1/I_
to select another speaker.
Repeat steps 1 and 2 for each speaker.
You cannot select speakers that you set to "No"
or "None" in the "Speaker Configuration"
(3 41 ).

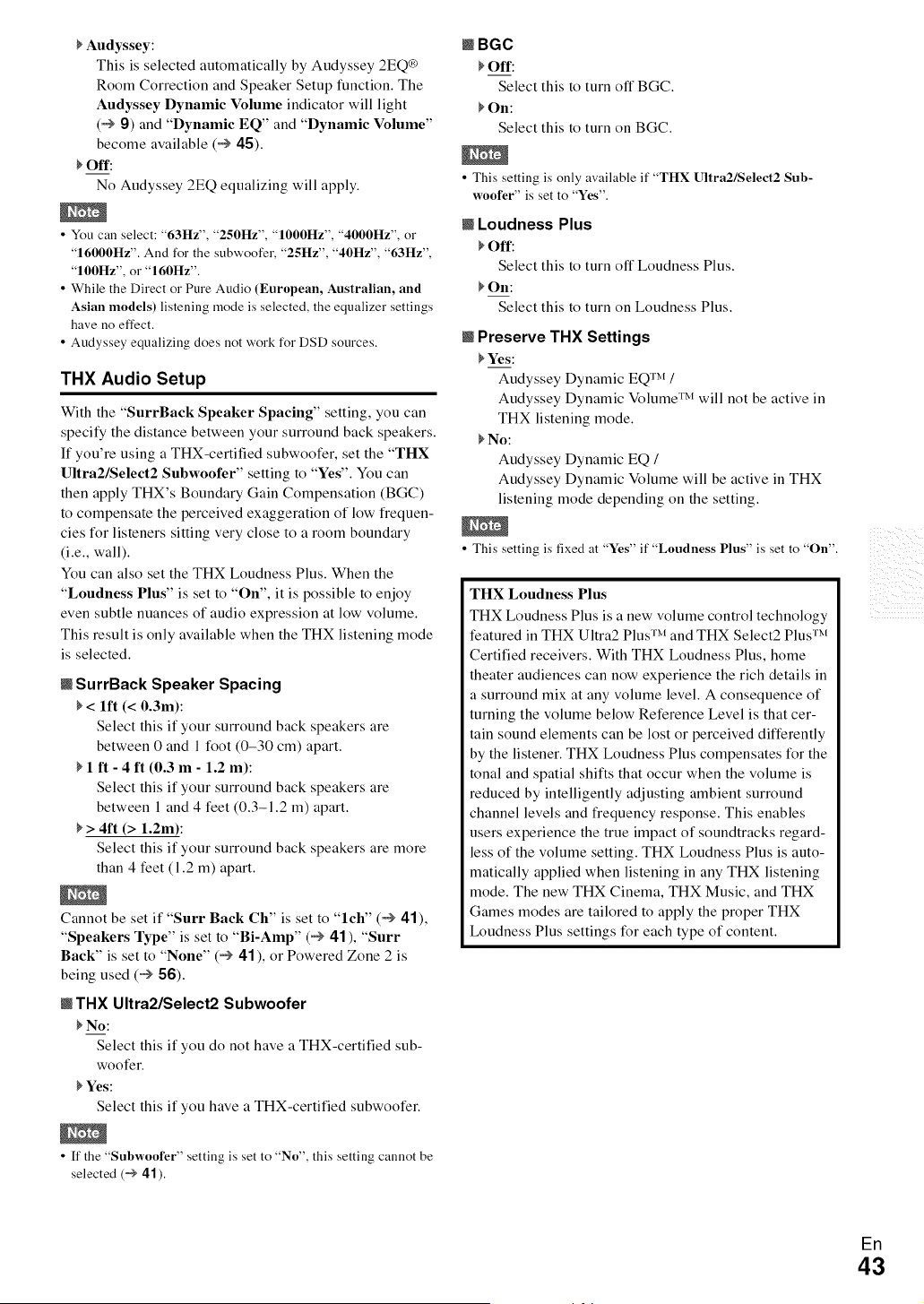

Audyssey:
This is selected automatically by Audyssey 2EQ®
Room Correction and Speaker Setup function. The
Audyssey Dynamic Volume indicator will light
(3 9) and "Dynamic EQ" and "Dynamic Volume"
become available (3 45).
Off:
No Audyssey 2EQ equalizing will apply.
• You call select: "63Hz", "250Hz", "1000Hz", "4000Hz", o1"
"16000Hz". And for the subwoofer, "25Hz", "40Hz", "63Hz",
"100Hz", o1""160Hz".
• While the Direct o1"Pure Audio (European, Australian, and
Asian models) listening mode is selected, the equalizer settings
have no effect.
• Audyssey equalizing does not work for DSD sources.
THX Audio Setup
With the "SurrBaek Speaker Spacing" setting, you can
specify the distance between your surround back speakers.
If you're using a THX-certified subwoofer, set the "THX
Ultra2/Select2 Subwoofer" setting to "Yes". You can
then apply THX's Boundary Gain Compensation (BGC)
to compensate the perceived exaggeration of low frequen-
cies for listeners sitting very close to a room boundary
(i.e., wall).
You can also set the THX Loudness Plus. When the
"Loudness Plus" is set to "On", it is possible to enjoy
even subtle nuances of audio expression at low volume.
This result is only available when the THX listening mode
is selected.
N SurrBack Speaker Spacing
< lft (< 0.3m):
Select this if your surround back speakers are
between 0 and I foot (0-30 cm) apart.
1 ft - 4 ft (0.3 m - 1.2 m):
Select this if your surround back speakers are
between 1 and 4 feet (0.3-1.2 m) apart.
> 4ft (> 1.2m):
Select this if your surround back speakers are more
than 4 feet (1.2 m) apart.
Cannot be set if "Surr Back Ch" is set to "lch" (3 41),
"Speakers Type" is set to "Bi-Amp" (3 41 ), "Surr
Back" is set to "None" (3 41 ), or Powered Zone 2 is
being used (3 56).
N THX Ultra2/Select2 Subwoofer
No:
Select this if you do not have a THX-certified sub-
woofer.
_Yes:
Select this if you have a THX-certified subwoofer.
• [f the "Subwoofer" setting is set to "No", this setting cannot be
selected (_ 4"1).
NBGC
Off:
Select this to turn off BGC.
On:
Select this to turn on BGC.
• This setting is only available if "THX Ultra2/Seleet2 Sub-
woofer" is set to "Yes".
N Loudness Plus
Off:
Select this to turn off Loudness Plus.
On:
Select this to turn on Loudness Plus.
N Preserve THX Settings
Yes:
Audyssey Dynamic EQ "r_l/
Audyssey Dynamic Volume TM will not be active in
THX listening mode.
No:
Audyssey Dynamic EQ /
Audyssey Dynamic Volume will be active in THX
listening mode depending on the setting.
• This setting is fixed at "Yes" if "Loudness Plus" is set to "On".
THX Loudness Plus
THX Loudness Plus is a new volume control technology
featured in THX Ultra2 Plus TM and THX Select2 Plus TM
Certified receivers. With THX Loudness Plus, home
theater audiences can now experience the rich details in
a surround mix at any volume level. A consequence of
turning the volume below Reference Level is that cer-
tain sound elements can be lost or perceived differently
by the listener. THX Loudness Plus compensates for the
tonal and spatial shifts that occur when the volume is
reduced by intelligently adjusting ambient surround
channel levels and frequency response. This enables
users experience the true impact of soundtracks regard-
less of the volume setting. THX Loudness Plus is auto-
matically applied when listening in any THX listening
mode. The new THX Cinema, THX Music, and THX
Games modes are tailored to apply the proper THX
Loudness Plus settings for each type of content.
EF1
43

_ rg'-/i
En
44
With the Audio Adjust functions and settings, you can
adjust the sound and listening modes as you like.
Multiplex/Mono
N Multiplex
This setting determines which channel of a stereo multi-
plex source is output. Use it to select audio channels or
languages with multiplex sources, multilingual TV
broadcasts, and so on.
Input Channel
Main:
The main channel is output.
Sub:
The sub channel is output.
Main/Sub:
Both the main and sub channels are output.
N Mono
This setting specifies the channel to be used for playing
any 2-channel digital source such as Dolby Digital, or
2-channel analog/PCM source in the Mono listening
mode.
Input Channel
Left + Right:
Both the left and right channels are output.
Left:
Only the left channel is output.
Right:
Only the right channel is output.
Output Speaker
Center:
Mono audio is output by the center speaker.
Left / Right:
Mono audio is output by the front left and right
speakers.
This setting determines which speakers output mono
audio when the Mono listening mode is selected.
• If the "Center" setting is set to "None" (@ 41 ), this setting is
fixed at "Left / Right".
Dolby
N PLIIx Music (2ch Input)
These settings apply to only 2-channel stereo sources.
If you're not using any surround back speakers, these
settings apply to Dolby Pro Logic II, not Dolby Pro
Logic IIx.
Panorama
On:
Panorama function on.
Off:
Panorama function off.
With this setting, you can broaden the width of the front
stereo image when using the Dolby Pro Logic IIx Music
listening mode.
Dimension
-3 to 0 to +3
With this setting, you can move the sound field forward
or backward when using the Dolby Pro Logic IIx Music
listening mode. Higher settings move the sound field
backward. Lower settings move it forward.
If the stereo image feels too wide, or there's too much
surround sound, move the sound field forward to
improve the balance. Conversely, if the stereo image
feels like it's in mono, or there's not enough surround
sound, move it backward.
Center Width
_0to3to7
With this setting, you can adjust the width of the sound
from the center speaker when using the Dolby Pro
Logic IIx Music listening mode. Normally, if you're
using a center speaker, the center channel sound is out-
put by only the center speaker. (If you're not using a
center speaker, the center channel sound will be distrib-
uted to the front left and right speakers to create a phan-
tom center). This setting controls the front left, right,
and center mix, allowing you to adjust the weight of the
center channel sound.
N PLIIz Height Gain
The Height Gain Control in Dolby Pro Logic IIz
enables the listener to select how much gain is applied
to the front high speakers. There are three settings,
"Low", "Mid" and "High", and the front high speakers
are accentuated in that order. While "Mid" is the default
listening setting, the listener may adjust the Height Gain
Control to their personal preference.
Low:
Low PLIIz Height Gain becomes active.
Mid:
Medium PLIIz Height Gain becomes active.
High:
High PLIIz Height Gain becomes active.
• If the "Front High" settings is set to "None" (@ 4"1), this setting
cannot be selected.
N Dolby EX
This setting determines how Dolby EX encoded signals
are handled. This setting is unavailable if no surround
back speakers are connected. This setting is effective
with Dolby Digital, Dolby Digital Plus and Dolby
TrueHD only.
Dolby EX
Auto:
If the source signal contains a Dolby EX flag, the
Dolby EX or THX Surround EX listening mode is
used.
Manual:
You can select any available listening mode.

• Ifthe"SurrBack" setting is set to "None" (_ 41), this setting
cannot be selected.
• If the "Front High" or "Front Wide" setting is enabled (_ 41 ),
this setting is fixed at "Manual".
DTS
N Neo:6 Music
Center Image
_0to2to5
The DTS Neo:6 Music listening mode creates 6-channel
surround sound from 2-channel stereo sources. With
this setting, you can specfly by how much the front left
and right channel output is attenuated in order to create
the center channel.
Setting a value "0" in the middle is set to hear a sound.
Sound is spread in left and right (the outside) so that the
set value is made big. Please adjust by liking.
Audyssey DSX TM
N Soundstage
-3dB, to Reference to +3dB
With this setting, you can adjusts the soundstage when
using Audyssey DSX TM.
• If the "Center" setting is set to "None", or both "Front High"
and "Front Wide" settings are set to "None" (_ 41 ), this setting
cannot be selected.
Theater-Dimensional
N Listening Angle
Wide:
Select if the listening angle is 40 degrees.
Narrow:
Select if the listening angle is 20 degrees.
With this setting, you can optimize the Theater-Dimen-
sional listening mode by specifying the angle of the
front left and right speakers relative to the listening
position. Ideally, the front left and right speakers should
be equidistant from the listening position and at an
angle close to one of the two available settings.
Front left speaker _ _ Front right speaker
/
'_- -s'20°140°
LFE Level
N Dolby Digital*l, DTS*2, Multich PCM, Dolby
TrueHD, DTS-HD Master Audio, DSD*3
-cx3dB, -20dB, -10dB, or 0dB
With these settings, you can set the level of the LFE (Low
Frequency Effects) channel individually for each input
sources.
If you find that low-frequency effects are too loud when
using one of these sources, change the setting to -20 dB or
-oo dB.
"1 Dolby Digital and Dolby Digital Plus sources
*2 DTS and DTS-HD High Resolution sources
*3 DSD (Super Audio CD) sources
Items can be set individually for each input selector.
Preparation
Press the input selector buttons to select an input source.
Audyssey
When Audyssey 2EQ0_ Room Correction and Speaker
Setup is complete, the "Equalizer" (_ 49) will be set to
"Audyssey" and the "Dynamic EQ" will be set to "On".
N Dynamic EQ
Off:
Audyssey Dynamic EQ "r_ off.
On:
Audyssey Dynamic EQ on.
The Dynamic EQ indicator will light (_ 9).
With Audyssey Dynamic EQ, you can enjoy great
sound even when listening at low volume levels.
Audyssey Dynamic EQ solves the problem of deterio-
rating sound quality as volume is decreased by taking
into account human perception and room acoustics. It
does so by selecting the correct frequency response and
surround volume levels moment-by-moment so that the
content sounds the way it was created at any volume
level -- not just at reference level.
• If Pure Audio (European, Australian and Asian models) or
Direct listening mode is selected, this setting cannot be selected.
iii_ y
ER
45

m Reference Level
Audyssey Dynamic EQ TM Reference Level Offset
0dB:
It should be used when listening to movies.
5dB:
Select this setting for content that has a very wide
dynamic range, such as classical music.
10dB:
Select this setting for jazz or other music that has a
wider dynamic range. This setting should also be
selected for TV content as that is usually mixed at
10 dB below film reference.
15dB:
Select this setting for pop/rock music or other pro-
gram material that is mixed at very high listening
levels and has a compressed dynamic range.
Movies are mixed in rooms calibrated for film refer-
ence. To achieve the same reference level in a home the-
ater system each speaker level must be adjusted so that
-30 dBFS band-limited (500 Hz to 2000 Hz) pink noise
produces 75 dB sound pressure level at the listening
position. A home theater system automatically cali-
brated by Audyssey 2EQ® will play at reference level
when the master volume control is set to the 0 dB posi-
tion. At that level you can hear the mix as the mixers
heard it.
Audyssey Dynamic EQ T_ is referenced to the standard
film mix level. It makes adjustments to maintain the ref-
erence response and surround envelopment when the
volume is turned down from 0 dB. However, film refer-
ence level is not always used in music or other non-film
content. Audyssey Dynamic EQ Reference Level Offset
provides three offsets from the film level reference
(5 dB, 10 dB, and 15 dB) that can be selected when the
mix level of the content is not within the standard.
• If "Dynamic EQ" setting is setto "OFF',this setting cannot be
selected.
m Dynamic Volume
Off:
Audyssey Dynamic Volume TM off.
Light:
Light Compression Mode becomes active.
Medium:
Medium Compression Mode becomes active.
Heavy:
Heavy Compression Mode becomes active. This set-
ting affects volume the most, causing all sounds to
be of equal loudness.
• Even if you have selected other than "Audyssey" ill "Equalizer"
setting after performing Audyssey 2EQ 0_)Room Correction and
Speaker Setup, selecting "Off' in the "Dynamic EQ" will
change the "Equalizer" setting to "Audyssey" (_ 42).
• If you w'ould like to use Audyssey Dynamic Volume, w'hen
using THX listening modes, set "Loudness Plus" setting to
"Off' and set "Preserve THX Settings" setting to "No" (_ 43).
• When "Dynamic Volume" is set to effective, "Equalizer" is set
to "Audyssey" (_ 42) and "Dynamic EQ" is set to "On".
When "Dynamic EQ" is set to "Off", "Dynamic Volume"
becomes "OFF' automatically.
• When "Dynamic Volume" is set to effective, the Dynamic Vol
indicator will light (_ 9).
• If Pure Audio (European, Australian and Asian models) or
Direct listening mode is selected, this setting cannot be selected.
Audyssey 2EQ then removes the distortion caused by
room acoustics by capturing room acoustical problems
over the listening area in both the frequency and time
domain. The result is clear, well-balanced sound for every-
one. Enabling Audyssey 2EQ allows you to also use
Audyssey Dynamic EQ, which maintains the proper
octave-to-octave balance at any volume level.
Before using this function, connect and position all of
your speakers.
About Audyssey Dynamic EQ
Audyssey Dynamic EQ solves the problem of deterio-
rating sound quality as volume is decreased by taking
into account human perception and room acoustics.
Dynamic EQ selects the correct frequency response and
surround levels moment-by-moment at any user-
selected volume setting. The result is bass response,
tonal balance, and surround impression that remain con-
stant despite changes in volume. Dynamic EQ combines
information from incoming source levels with actual
output sound levels in the room, a prerequisite for deliv-
ering a loudness correction solution.
Audyssey Dynamic EQ works in tandem with
Audyssey 2EQ to provide well-balanced sound for
every listener at any volume level.
About Audyssey Dynamic Volume
Audyssey Dynamic Volume solves the problem of large
variations in volume level between television programs,
commercials, and between the soft and loud passages of
movies. Dynamic Volume looks at the preferred volume
setting by the user and then monitors how the volume of
program material is being perceived by listeners in real
time to decide whether an adjustment is needed. When-
ever necessary, Dynamic Volume makes the necessary
rapid or gradual adjustments to maintain the desired
playback volume level while optimizing the dynamic
range. Audyssey Dynamic EQ is integrated into
Dynamic Volume so that as the playback volume is
adjusted automatically, the perceived bass response,
tonal balance, surround impression, and dialog clarity
remain the same whether watching movies, flipping
between television channels, or changing from stereo to
surround sound content.
Ell
46

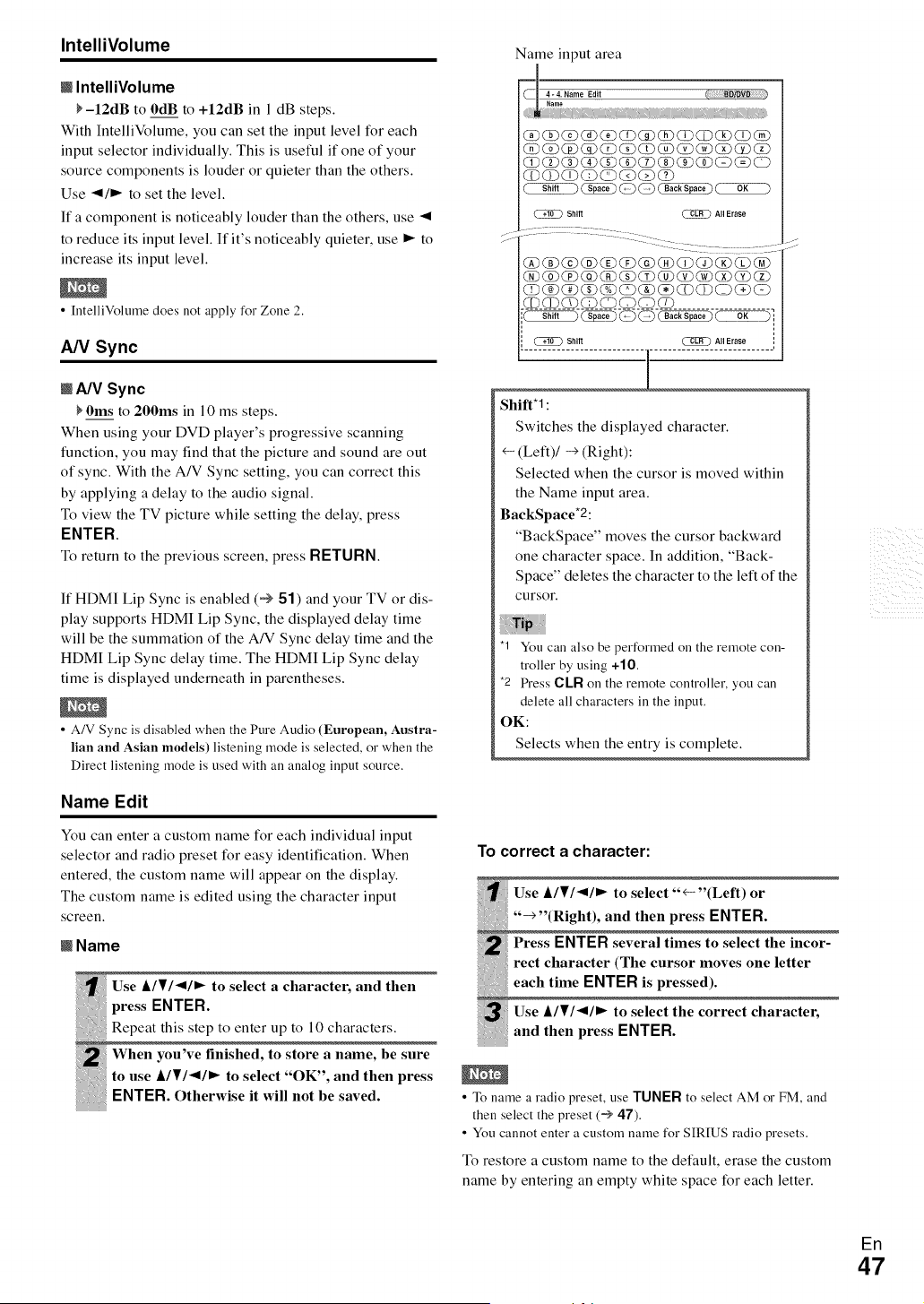

IntelliVolume Name input area
N IntelliVolume
}-12dB to 0dB to +12dB in l dB steps.
With IntelliVolume, you can set the input level for each
input selector individually. This is useful if one of your
source components is louder or quieter than the others.
Use _/_ to set the level.
If a component is noticeably louder than the others, use
to reduce its input level. If it's noticeably quieter, use _ to
increase its input level.
• [ntelliVolume does not apply for Zone 2.
AN Sync
N _ Sync
} 0ms to 200ms in 10 ms steps.
When using your DVD player's progressive scanning
function, you may find that the picture and sound are out
of sync. With the A/V Sync setting, you can correct this
by applying a delay to the audio signal.
To view the TV picture while setting the delay, press
ENTER.
To return to the previous screen, press RETURN.
If HDMI Lip Sync is enabled (_ 51 ) and your TV or dis-
play supports HDMI Lip Sync, the displayed delay time
will be the summation of the A/V Sync delay time and the
HDMI Lip Sync delay time. The HDMI Lip Sync delay
time is displayed underneath in parentheses.
• A/V Sync is disabled when the Pure Audio (European, Austra-
lian and Asian modds) listening mode is selected, or when the
Direct listening mode is used with an analog input source.
Name Edit
You can enter a custom name for each individual input
selector and radio preset for easy identification. When
entered, the custom name will appear on the display.
The custom name is edited using the character input
screen.
N Name
_Use &l¥1"_l_ to select a character, and then
pressENTER.
_ Repeat this step to enter up to 10 characters.
When you've finished, to store a name, be sure
to use &/¥/_/_ to select "OK", and then press
................................ENTER. Otherwise it will not be saved.
::::::::::::::::::::::::::::::::....
(E)(X)(g)(g)@ (D@ (53(!)(D (E)(X)(g)
(?2)@@@@@@@@@@@@
@@(i3@@@@@@@@@@
G) _)(!)G) (23(E)@(23
__G__CEINZZ)
Shift _ All Erase
[(D(D(D(_)(_)U)(_)@@@ O@@ |
L____________U)_2) _(_,_D__2k .................... |
[i @ shllt ]2 _AIIE .... [
1
Shift*l :
Switches the displayed character.
<- (Left)/_ (Right):
Selected when the cursor is moved within
the Name input area.
BackSpace*2:
"BackSpace" moves the cursor backward
one character space. In addition, "Back-
Space" deletes the character to the left of the
cursor.
"1 You can also be performed on the remote con-
troller by using +10.
*2 Press CLR on the remote controller, you can
delete all characters in the input.
OK:
Selects when the entry is complete.
To correct a character:
iiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Use i,l¥1_lm,,, to select "<-"(Left) or
"-* "(Right), and then press ENTER.
Press ENTER several times to select the incor-
rect character (The cursor moves one letter
each time ENTER is pressed).
Use i/¥/_/_ to select the correct character,
and then press ENTER.
• To name a radio preset, use TUNER to select AM or FM, and
then select the preset (_ 47).
• You cannot enter a custom name for SIRIUS radio presets.
To restore a custom name to the default, erase the custom
name by entering an empty white space for each letter.
EF1
47

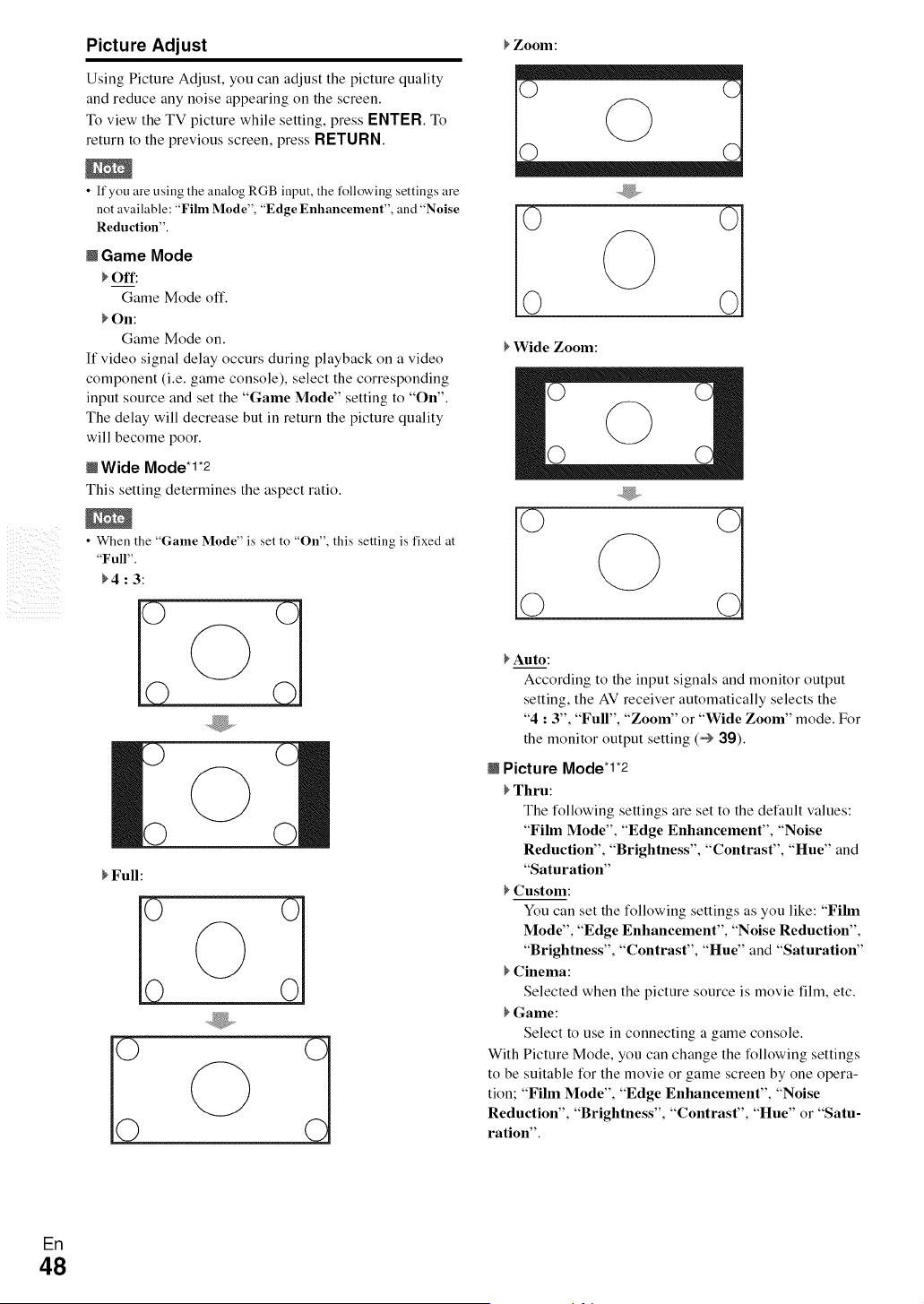

Picture Adjust _Zoom:
Using Picture Adjust, you can adjust the picture quality
and reduce any noise appearing on the screen.
To view the TV picture while setting, press ENTER. To
return to the previous screen, press RETURN.
• If you are using the analog RGB input, the following settings are
notavailable:'Trim Mode", "Edge Enhancement", and "Noise
Reduction".
m Game Mode
Off:
Game Mode off.
On:
Game Mode on.
If video signal delay occurs during playback on a video
component (i.e. game console), select the corresponding
input source and set the "Game Mode" setting to "On".
The delay will decrease but in return the picture quality
will become poor.
m Wide Mode*l*2
This setting determines the aspect ratio.
• When the "Game Mode" is set to "On", this setting is fixed at
"Full".
_4:3:
©
Full:
Wide Zoom:
Auto:
According to the input signals and monitor output
setting, the AV receiver automatically selects the
"4 : 3", "Full", "Zoom" or "Wide Zoom" mode. For
the monitor output setting (_ 39).
m Picture Mode*l*2
Thru:
The following settings are set to the default values:
"Fihn Mode", "Edge Enhancement", "Noise
Reduction", "Brightness", "Contrast", "Hue" and
"Saturation"
Custom:
You can set the fonowing settings as you like: "Fihn
Mode", "Edge Enhancement", "Noise Reduction",
"Brightness", "Contrast", "Hue" and "Saturation"
Cinema:
Selected when the picture source is movie film, etc.
Game:
Select to use in connecting a game console.
With Picture Mode, you can change the fonowing settings
to be suitable for the movie or game screen by one opera-
tion; "Fihn Mode", "Edge Enhancement", "Noise
Reduction", "Brightness", "Contrast", "Hue" or "Satu-
ration".
Eft
48

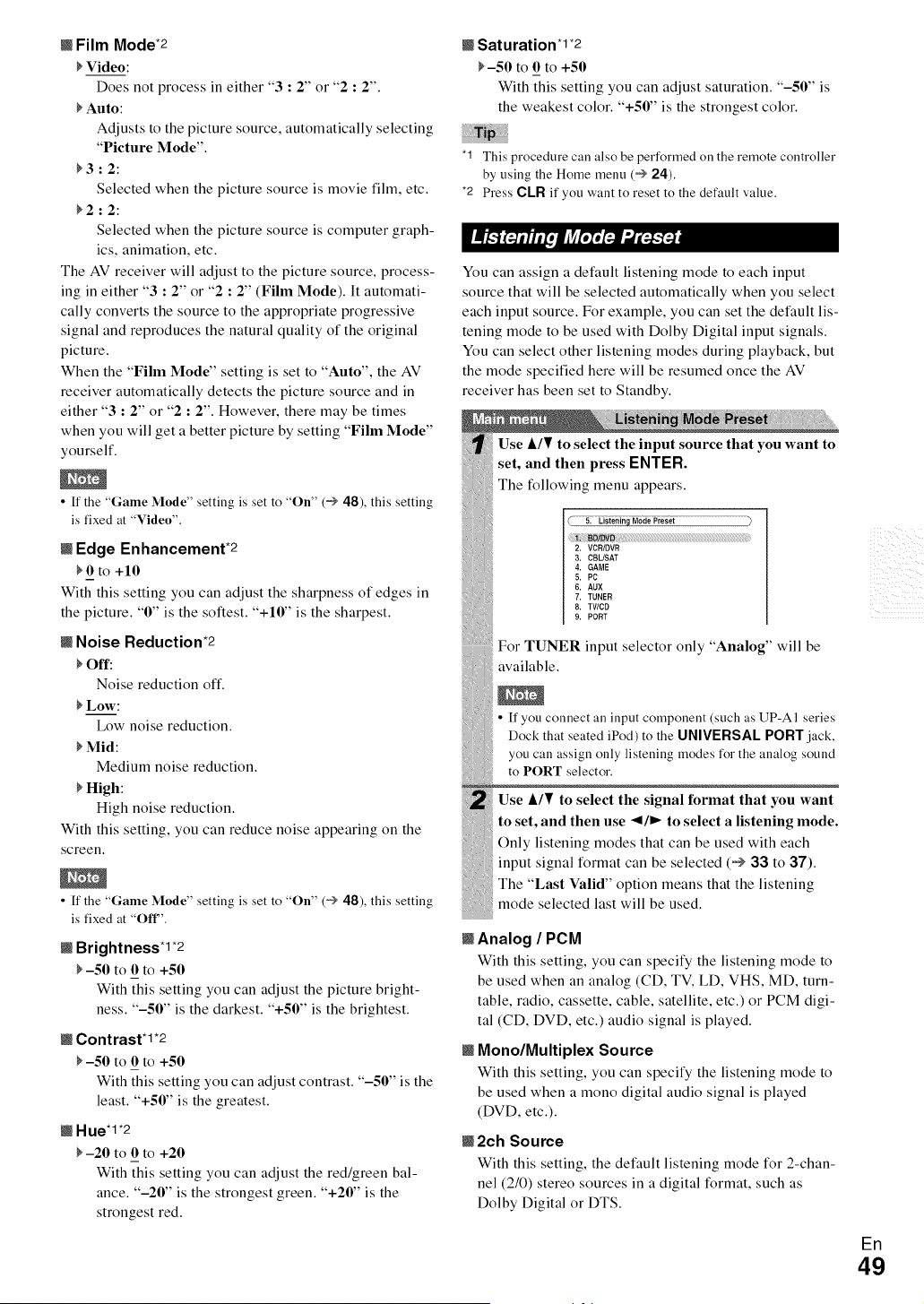

m Film Mode*2
Video:
Does not process in either "3 : 2" or "2 : 2".
} Auto:
Adjusts to the picture source, automatically selecting
"Picture Mode".
_3:2:
Selected when the picture source is movie film, etc.
_2:2:
Selected when the picture source is computer graph-
ics, animation, etc.
The AV receiver will adjust to the picture source, process-
ing in either "3 : 2" or "2 : 2" (Fihn Mode). It automati-
cally converts the source to the appropriate progressive
signal and reproduces the natural quality of the original
picture.
When the "Fihn Mode" setting is set to "Auto", the AV
receiver automatically detects the picture source and in
either "3 : 2" or "2 : 2". However, there may be times
when you will get a better picture by setting "Fihn Mode"
yourself.
!
• ff the "Game Mode" setting is set to "On" (_ 48), this setting
is fixed at "Video".
_j vN!_N _
m Edge Enhancement*2
0 to +10
With this setting you can adjust the sharpness of edges in
the picture. "0" is the softest. "+10" is the sharpest.
m Noise Reduction*2
Off:
Noise reduction off.
Low:
Low noise reduction.
Mid:
Medium noise reduction.
High:
High noise reduction.
With this setting, you can reduce noise appearing on the
screen.
• ff the "Game Mode" setting is set to "On" (_ 48), this setting
is fixed at "Off".
m Brightness*l*2
-50 to 0 to +50
With this setting you can adjust the picture bright-
ness. "-50" is the darkest. "+50" is the brightest.
m Contrast*l*2
-50 to 0 to +50
With this setting you can adjust contrast. "-50" is the
least. "+50" is the greatest.
m Hue*l*2
-20 to 0 to +20
With this setting you can adjust the red/green bal-
ance. "-20" is the strongest green. "+20" is the
strongest red.
m Saturation*l*2
-50 to 0 to +50
With this setting you can adjust saturation. "-50" is
the weakest color. "+50" is the strongest color.
"1 This procedure call also be performed on the remote controller
by using the Home menu (_ 24).
*2 Press CLR if you want to reset to the default value.
You can assign a default listening mode to each input
source that will be selected automatically when you select
each input source. For example, you can set the default lis-
tening mode to be used with Dolby Digital input signals.
You can select other listening modes during playback, but
the mode specified here will be resumed once the AV
receiver has been set to Standby.
Use A/¥ to select the input source that you want to
set, and then press ENTER.
The following menu appears.
....................................For TUNER input selector only "Analog" will be
available.
×
• If you connect an input component (such as UP-A 1series
Dock that seated iPod) to the UNIVERSAL PORT jack,
you can assign only listening modes for the analog sound
to PORT selector.
Use h/¥ to select the signal format that you want
to set, and then use "_/_ to select a listening mode.
Only listening modes that can be used with each
input signal format can be selected (_ 33 to 37).
The "Last Valid" option means that the listening
mode selected last will be used.
m Analog / PCM
With this setting, you can specify the listening mode to
be used when an analog (CD, TV, LD, VHS, MD, turn-
table, radio, cassette, cable, satellite, etc.) or PCM digi-
tal (CD, DVD, etc.) audio signal is played.
m Mono/Multiplex Source
With this setting, you can specify the listening mode to
be used when a mono digital audio signal is played
(DVD, etc.).
m 2ch Source
With this setting, the default listening mode for 2-chan-
nel (2/0) stereo sources in a digital format, such as
Dolby Digital or DTS.
i /
Ell
49

m Dolby D/Dolby D +/'l'rueHD
With this setting, you can specify the listening mode to
be used when a Dolby Digital or Dolby Digital Plus for-
mat digital audio signal is played (DVD, etc.). Specifies
the default listening mode for Dolby TrueHD sources,
such as Blu-ray or HD DVD (input via HDMI).
m DTS/DTS-ES/DTS-H D
With this setting, you can specify the listening mode to
be used when a DTS or DTS-HD High Resolution for-
mat digital audio signal is played (DVD, LD, CD, etc.).
Specifies the default listening mode for DTS-HD Mas-
ter Audio sources, such as Blu-ray or HD DVD (input
via HDMI).
m Other Multich Source
Specifies the default listening mode for multichannel
PCM sources from HDMI IN such as DVD-Audio, and
DSD multichannel sources such as Super Audio CD.
Volume Setup
m Volume Display
Absolute:
Display range is "Min", 1 through 99, "Max".
Relative (THX):
Display range is -oodB, -81dB through +18dB.
With this setting, you can choose how the volume level is
displayed.
The absolute value 82 is equivalent to the relative value
0 dB.
m Muting Level
-_dB (fully muted), -50dB to -10dB in 10 dB steps.
This setting determines how much the output is muted
when the muting function is used (_ 24).
m Maximum Volume
Off, 50 to 99 (Absolute display)
Off, -32dB to +17dB (Relative display)
With this setting, you can limit the maximum volume.
To disable this setting, select "OFF'.
m Power On Volume
Last, Min, 1 to 99 or Max (Ahsolute display)
Last, -oo dB, -81dB to +18dB (Relative display)
With this preference, you can specify the volume set-
ting to be used each time the AV receiver is turned
on.
To use the same volume level that was used when the AV
receiver was turned off, select "Last".
The "Power On Volume" cannot be set higher than the
"Maximum Volume" setting.
I Headphone Level
-12dB to 0dB to +12dB
With this preference, you can specify the headphone vol-
ume relative to the main volume. This is useful if there's a
volume difference between your speakers and your head-
phones.
OSD Setup
I On Screen Display
This preference determines whether operation details
are displayed on-screen when an AV receiver function is
adjusted.
in:
Displayed.
iff:
Not displayed.
Even when "On" is selected, operation details may not he
output if the input source is connected to an HDMI IN.
I TV Format (European, Australian and Asian
models)
For the on-screen setup menus to display properly, you
must specify the TV system used in your area.
Auto:
Select this to automatically detect the TV system
from the video input signals.
NTSC:
Select this if the TV system in your area is NTSC.
PAL:
Select this if the TV system in your area is PAL.
I Language
_, Deutsch, Frangais, Espafiol, Italiano, Ned-
erlands, Svenska, q13_
This setting determines the language used for the on-
screen setup menus.
Remote ID
I Remote ID
_1,2, or3
When several Onkyo components are used in the same
room, their remote ID codes may overlap. To differenti-
ate the AV receiver from the other components, you can
change its remote ID from "1", to "2" or "3".
• If you do change the AV receiver's remote [D, be sure to change
the remote controller to the same [D (see below), otherwise, you
won't be able to control it with the remote controller.
Erl
50

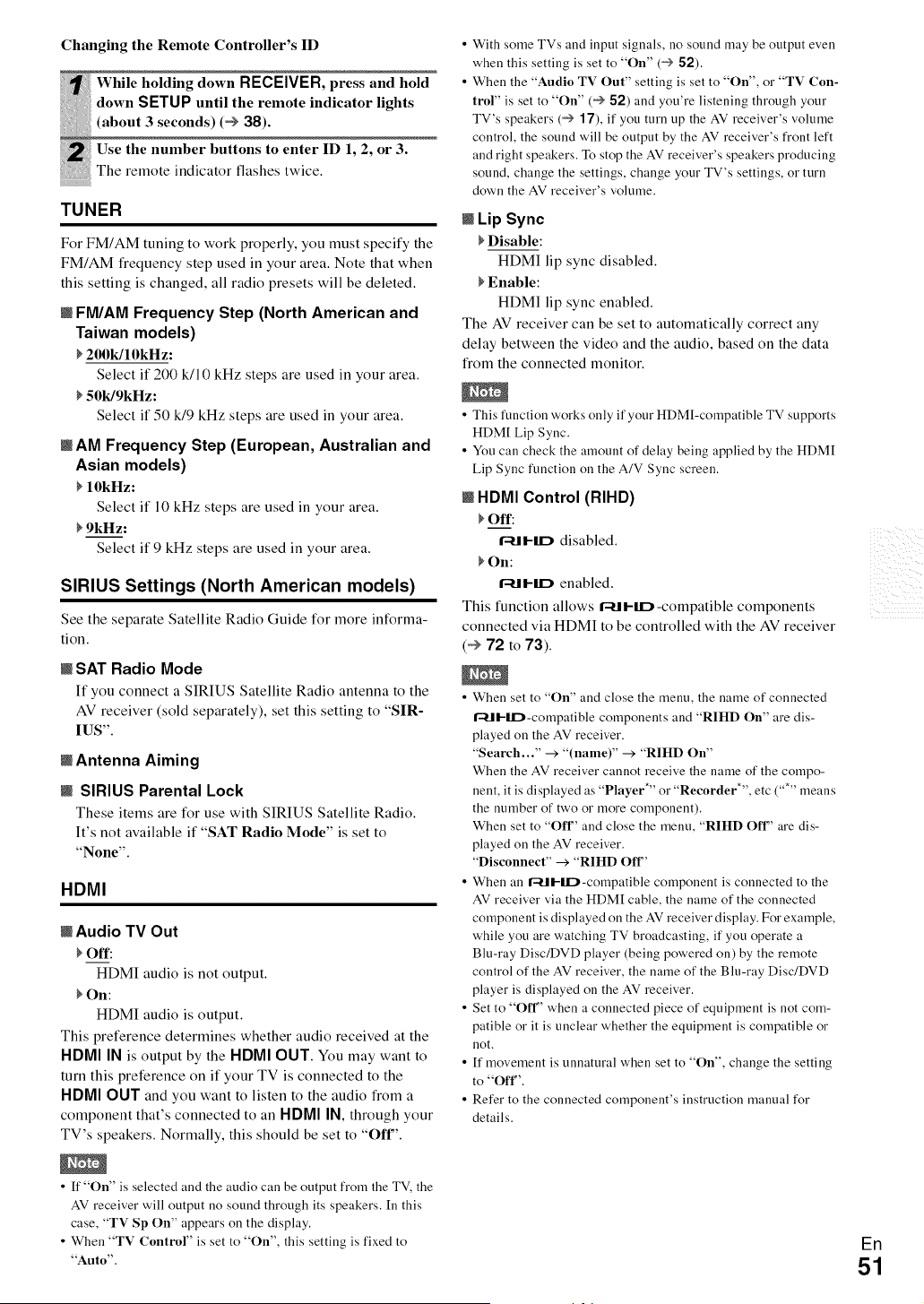

Changing the Remote Controller's ID
!
iiii_!;!lii:iii_i_iiiiiiiiiiii!iiiii
While holding down RECEIVER, press and hold
down SETUP until the remote indicator lights
(about 3 seconds) (_ 38).
Use the number buttons to enter ID 1, 2, or 3.
The remote indicator flashes twice.
TUNER
For FM/AM tuning to work properly, you must specify the
FM/AM frequency step used in your area. Note that when
this setting is changed, all radio presets will be deleted.
N FM/AM Frequency Step (North American and
Taiwan models)
200k/10kHz:
Select if 200 k/l 0 kHz steps are used in your area.
50k/9kHz:
Select if 50 k/9 kHz steps are used in your area.
N AM Frequency Step (European, Australian and
Asian models)
I0kHz:
Select if 10 kHz steps are used in your area.
9kHz:
Select if 9 kHz steps are used in your area.
SIRIUS Settings (North American models)
See the separate Satellite Radio Guide for more informa-
tion.
N SAT Radio Mode
It you connect a SIRIUS Satellite Radio antenna to the
AV receiver (sold separately), set this setting to "SIR-
IUS".
N Antenna Aiming
N SIRIUS Parental Lock
These items are for use with SIRIUS Satellite Radio.
It's not available if "SAT Radio Mode" is set to
"None".
HDMI
N Audio TV Out
Off:
HDMI audio is not output.
On:
HDMI audio is output.
This preference determines whether audio received at the
NDMI IN is output by the NDMI OUT. You may want to
turn this preference on if your TV is connected to the
NDMI OUT and you want to listen to the audio from a
component that's connected to an NDMI IN, through your
TV's speakers. Normally, this should be set to "Off".
• lf"On" is selected and the audio call be output from the TV. the
AV receiver will output no sound through its speakers. [n this
case, "TV Sp On" appears on the display.
• When "TV Control" is set to "On", this setting is fixed to
"Auto".
• With some TVs and input signals, no sound may be output even
when this setting is set to "On" (_ 52).
• When the "Audio TV Out" setting is set to "On", or "TV Con-
trol" is set to "On" (_ 52) and you're listening through your
TV's speakers (_ 17), if you turn up the AV receiver's volume
control, the sound will be output by the AV receiver's front left
and right speakers. To stop the AV receiver's speakers producing
sound, change the settings, change your TV's settings, or turn
down the AV receiver's volume.
N Lip Sync
Disable:
HDMI lip sync disabled.
Enable:
HDMI lip sync enabled.
The AV receiver can be set to automatically correct any
delay between the video and the audio, based on the data
from the connected monitor.
• This function works only if your HDM[-compatible TV supports
HDM[ Lip Sync.
• You can check the amount of delay being applied by the HDM[
Lip Sync function on the A/V Sync screen.
N HDMI Control (RIHD)
Off:
f-41HO disabled.
On:
F-UHD enabled.
This function allows r-UHO-compatible components
connected via HDMI to be controlled with the AV receiver
(_ 72 to 73).
• When set to "On" and close the menu, the name of connected
r"41I-liD-compatible components and "RIHD On" are dis-
played on the AV receiver.
"Search..." --->"(name)" --->"RIHD On"
When the AV receiver cannot receive the name of the compo-
nent, it is displayed as "Player*" or "Recorder*", etc ("*" means
the number of two or more component).
When set to "OFF' and close the menu, "RIHD OFF' are dis-
played on the AV receiver.
"Disconnect" --+ "RIHD OFF'
• When an 1-'41I-liD-compatible component is connected to the
AV receiver via the HDM[ cable, the name of the connected
component is displayed on the AV receiver display. For example,
while you are watching TV broadcasting, if you operate a
Blu-ray Disc/DVD player (being powered on) by the remote
control of the AV receiver, the name of the Blu-ray Disc/DVD
player is displayed on the AV receiver.
• Set to "Off' when a connected piece of equipment is not com-
patible or it is unclear whether the equipment is compatible or
not.
• If movement is unnatural when set to "On", change the setting
to "Off".
• Refer to the connected component's instruction manual for
details.
i /
En
51

m Audio Return Channel
Off:
Select "Off" it you don't want to use audio return
channel (ARC) function.
Auto:
The audio signal from your TV tuner can be sent to
the HDMI OUT of the AV receiver.
Audio return channel (ARC) function enables an HDMI
1.4 capable TV to send the audio stream to the HDMI
OUT of the AV receiver. To use this function, you must
select the TV/CD input selector and your TV must support
ARC function.
• The "Audio Return Channel" setting call be set only when the
"HDMI Control" setting is set to "On".
• This setting is set to "Auto" automatically when the "HDMI
Control" is set to "On" first time.
m Power Control
Off:
Power Control disabled.
On:
Power Control enabled.
To link the power/unctions of F41Hl_-compatible com-
ponents connected via HDMI, select "On".
This setting is set to "On" automatically when the
"HDMI Control" is set to "On" first time.
• The "Power Control" setting call be set only when the "HDMI
Control" setting is set to "On".
• HDMI power control only works with f"41HID-compatible
components that support it and may not work properly with
some components due to their settings or compatibility.
• When set to "On", power consumption will increase.
• When set to "On", regardless of whether the AV receiver is On
or in Standby, both audio and video stream from an HDMI input
will be output to the TV or other components via HDMI connec-
tion (HDMI pass through function). When the HDMI pass
through function activates in standby mode, HDMI THRU indi-
cator will light.
• The power consumption during standby mode will increase dur-
ing the HDMI pass through function; however in the following
cases, the power consumption can be saved:
1. The TV is in standby mode.
2. You are watching a TV program.
• Refer to the connected component's instruction manual for
details.
N TV Control
Off:
TV Control disabled.
On:
TV Control enabled.
Set to "On" when you want to control the AV receiver
from an FJJI-ED-compatible TV that is connected to
HDMI.
• Do not assign the component connected with the HDMI input to
the TV/CD selector when you set "TV Control" setting to "On".
Otherwise, appropriate CEC (Consumer Electronics Control)
operation is not guaranteed.
• Set to "Off" when the TV is not compatible or when it is unclear
whether the TV is compatible or not.
• The "TV Control" setting can be set only when the "HDMI
Control" (_ 51 ) and "Power Control" settings are both set to
"On".
• Refer to the connected component's instruction manual for
details.
Alter changing the settings of the "HDMI Control",
"Audio Return Channel", "Power Control", or "TV
Control", turn off the power to all connected pieces of
equipment and then turn them on again. Refer to the
user's manuals for all connected pieces of equipment.
With this preference, you can protect your settings by
locking the setup menus.
N Setup
Locked:
Setup menus locked.
Unlocked:
Setup menus not locked.
When the setup menus are locked, you cannot change any
setting.
You can change various audio settings from the Home
menu (_ 24).
These settings are disabled when:
• a pair of headphones is connected, or
• the "Audio TV Out" setting is set to "On" (_ 51 ) and an input
selector other than HDMI is selected.
Tone Control Settings
You can adjust the bass and treble for the front speakers,
except when the Direct, Pure Audio (European, Austra-
lian and Asian models) or THX listening mode is
selected.
N Bass
-10dB to 0dB to +10dB in 2 dB steps.
You can boost or cut low-frequency sounds output
by the front speakers.
N Treble
-10dB to 0dB to +10dB in 2 dB steps.
You can boost or cut high-frequency sounds output
by the front speakers.
Ell
52

• To bypass the bass and treble tone circuits, select the Direct, Pure
Audio (European, Australian and Asian models) or THX lis-
tening mode.
• Alternatively, you call use the AV receiver's TONE and TONE
LEVEL +/- (3 54).
Speaker Levels
You can adjust the volume of each speaker while listening
to an input source.
These temporary adjustments are cancelled when the AV
receiver is set to Standby. To save the setting you made
here, go to "Level Calibration" (_ 42) before setting the
AV receiver to Standby.
m Subwoofer Level
-15dB to 0dB to +12dB in 1 dB steps.
m Center Level
-12dB to 0dB to +12dB in l dB steps.
• You cannot use this ftmction while the AV receiver is muted.
• Speakers that are set to "No" o1""None" ill the
"Speaker Configuration" (3 4"1) cannot be adjusted.
Audyssey Settings
N Dynamic EQ
m Dynamic Volume
See "Dynamic EQ" and "Dynamic Volume" of "Source
Setup" (_ 45).
Late Night
With the Late Night function, you can reduce the dynamic
range of Dolby Digital material so that you can still hear
quiet parts even when listening at low volume levels--
ideal for watching movies late at night when you don't
want to disturb anyone.
m Late Night
For Dolby Digital and Dolby Digital Plus sources, the
options are:
Off:
Late Night function off.
Low:
Small reduction in dynamic range.
High:
Large reduction in dynamic range.
For Dolby TrueHD sources, the options are:
Auto:
The Late Night function is set to "On" or "Off"
automatically.
Off:
Late Night function off.
On:
Late Night function on.
• The effect of the Late Night function depends on the material
that you are playing and the intention of the original sound
designer, and with some material there will be little or no effect
when you select the different options.
• The Late Night function can be used only when the input source
is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.
• The Late Night function is set to "OFF' when the AV receiver is
set to Standby. For Dolby TrueHD sources, it will be set to
"Auto".
Music Optimizer
The Music Optimizer function enhances the sound quality
of compressed music files. Use it with music files that use
"lossy" compression, such as MP3.
m Music Optimizer
Off:
Music Optimizer off.
On:
Music Optimizer on. The M.Opt indicator will light
(_ 9).
• The Music Optimizer function only works with PCM digital
audio input signals with a sampling rate below' 48 kHz and ana-
log audio input signals. The Music Optimizer is disabled when
the Direct or Pure Audio (European, Australian and Asian
models) listening mode is selected.
• The setting is stored individually for each input selector.
Re-EQ
With the Re-EQ function, you can compensate a
soundtrack whose high-frequency content is too harsh,
making it more suitable for home theater viewing.
m Re-EQ
Off:
Re-EQ Function off.
On:
Re-EQ Function on.
This function can be used with the following listening
modes: Dolby Digital, Dolby Digital Plus,
Dolby TrueHD, Multichannel, DTS, DTS-HD High Reso-
lution Audio, DTS-HD Master Audio, DTS Express,
DSD, Dolby EX, Dolby Pro Logic IIz Height, Dolby
PLIIx Movie, Neo:6 Cinema and 5.1 -channel source +
Neo:6.
m Re-EQ(THX)
Off:
Re-EQ (THX) Function off.
On:
Re-EQ (THX) Function on.
This function can be used with the following listening
modes: THX Cinema, THX Surround EX, and
THX Select2 Cinema.
• Settings for the Re-EQ function are kept in each listening mode.
However, in THX listening mode, when the AV receiver is
turned off, it will return to "On".
iiill_ i i_i
Ell
53

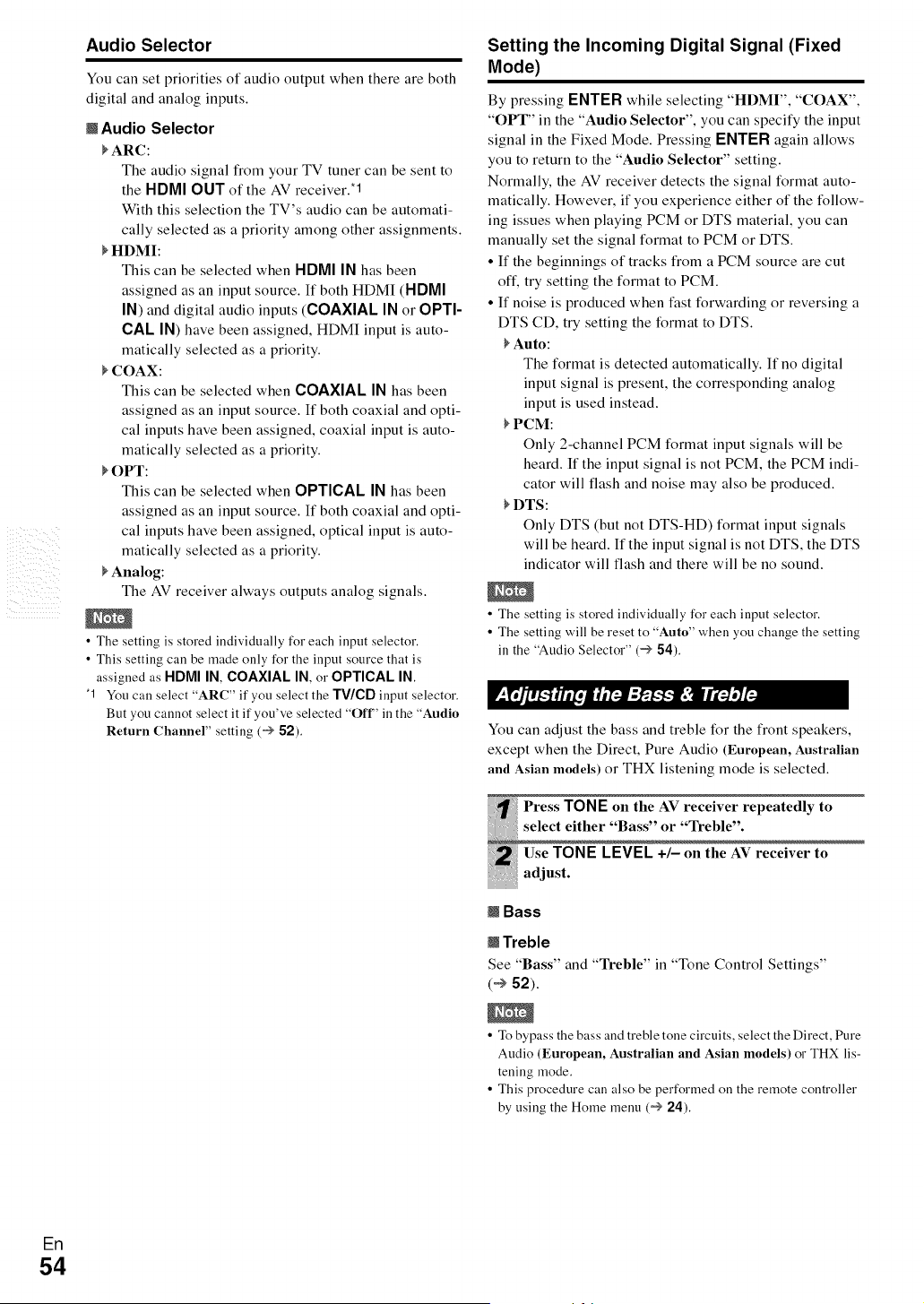

Audio Selector
You can set priorities of audio output when there are both
digital and analog inputs.
m Audio Selector
ARC:
The audio signal from your TV tuner can be sent to
the HDMI OUT of the AV receiver.*1
With this selection the TV's audio can be automati-
cally selected as a priority among other assignments.
HDMI:
This can be selected when HDMI IN has been
assigned as an input source. If both HDMI (HDMI
IN) and digital audio inputs (COAXIAL IN or OPTI-
CAL IN) have been assigned, HDMI input is auto-
matically selected as a priority.
COAX:
This can be selected when COAXIAL IN has been
assigned as an input source. If both coaxial and opti-
cal inputs have been assigned, coaxial input is auto-
matically selected as a priority.
OPT:
This can be selected when OPTICAL IN has been
assigned as an input source. If both coaxial and opti-
cal inputs have been assigned, optical input is auto-
matically selected as a priority.
Analog:
The AV receiver always outputs analog signals.
• The setting is stored individually for each input selector.
• This setting call be made only for the input source that is
assigned as HDMI IN, COAXIAL IN, or OPTICAL IN.
"1 Youcall select "ARC" if you selectthe TV/CD input selector.
But you cannot select it ifyou've selected "Off' illthe "Audio
Return Channel" setting (_ 52).
Setting the Incoming Digital Signal (Fixed
Mode)
By pressing ENTER while selecting "HDMI", "COAX",
"OPT" in the "Audio Selector", you can specify the input
signal in the Fixed Mode. Pressing ENTER again allows
you to return to the "Audio Selector" setting.
Normally, the AV receiver detects the signal format auto-
matically. However, if you experience either of the follow-
ing issues when playing PCM or DTS material, you can
manually set the signal format to PCM or DTS.
• If the beginnings of tracks from a PCM source are cut
off, try setting the format to PCM.
• If noise is produced when fast forwarding or reversing a
DTS CD, try setting the format to DTS.
Auto:
The format is detected automatically. If no digital
input signal is present, the corresponding analog
input is used instead.
PCM:
Only 2-channel PCM format input signals will be
heard. If the input signal is not PCM, the PCM indi-
cator will flash and noise may also be produced.
DTS:
Only DTS (but not DTS-HD) format input signals
will be heard. If the input signal is not DTS, the DTS
indicator will flash and there will be no sound.
• The setting is stored individually for each input selector.
• The setting will be reset to "Auto" when you change the setting
in the "Audio Selector" (3 54).
You can adjust the bass and treble for the front speakers,
except when the Direct, Pure Audio (European, Australian
and Asian models) or THX listening mode is selected.
Press TON E on the AV receiver repeatedly to
select either "Bass" or "Treble".
Use TONE LEVEL+/- on the AVreceiver to
adjust.
I Bass
m Treble
See "Bass" and "Treble" in "Tone Control Settings"
(_ 52).
• To bypass the bass and treble tone circuits, select the Direct, Pure
Audio (European, Australian and Asian models) or THX lis-
tening mode.
• This procedure can also be performed on the remote controller
by using the Home menu (_ 24).
Erl
54

Zone 2
In addition to your main listening room, you can also enjoy playback in the other room, or as we call Zone 2. And, you
can select a different source for each room.
There are two ways you can connect Zone 2 speakers:
1. Connect them directly to the AV receiver.
2. Connect them to an amp in Zone 2.
Connecting Your Zone 2 Speakers Directly
to the AV receiver
Connecting Your Zone 2 Speakers to an
Amp in Zone 2
This setup allows 7.1-channel playback in your main lis-
tening room and 2-channel stereo playback in Zone 2,
with a different source in each room.
This setup allows 5.1 -channel playback in your main room
and 2-channel stereo playback in Zone 2, with a different
source in each room. This is called Powered Zone 2, as the
Zone 2 speakers are powered by the AV receiver. Note that
when Powered Zone 2 is turned off, you can enjoy 7.1-
channel playback in your main room.
Main room _TV
_l _ AM receiver
_er ._.
Zone 2
R L i
Receiver/ ___integrated amp
iii_ ii i
_RomulGuoRFROm_DE
,,ORZONE_SP_A_ERS,
Zone 2
FRONTHIGNOR
FROmWIDEOR
ZONEZ S_'_K_S
Zone 2
• The Zone 2 volume must be set on the Zone 2 amp.
• With this setup, the Zone 2 volume is controlled by the AV
receiver.
• Powered Zone 2 cannot be used if "Speakers Type" is set to
"Bi-Amp" (_ 41).
En
55

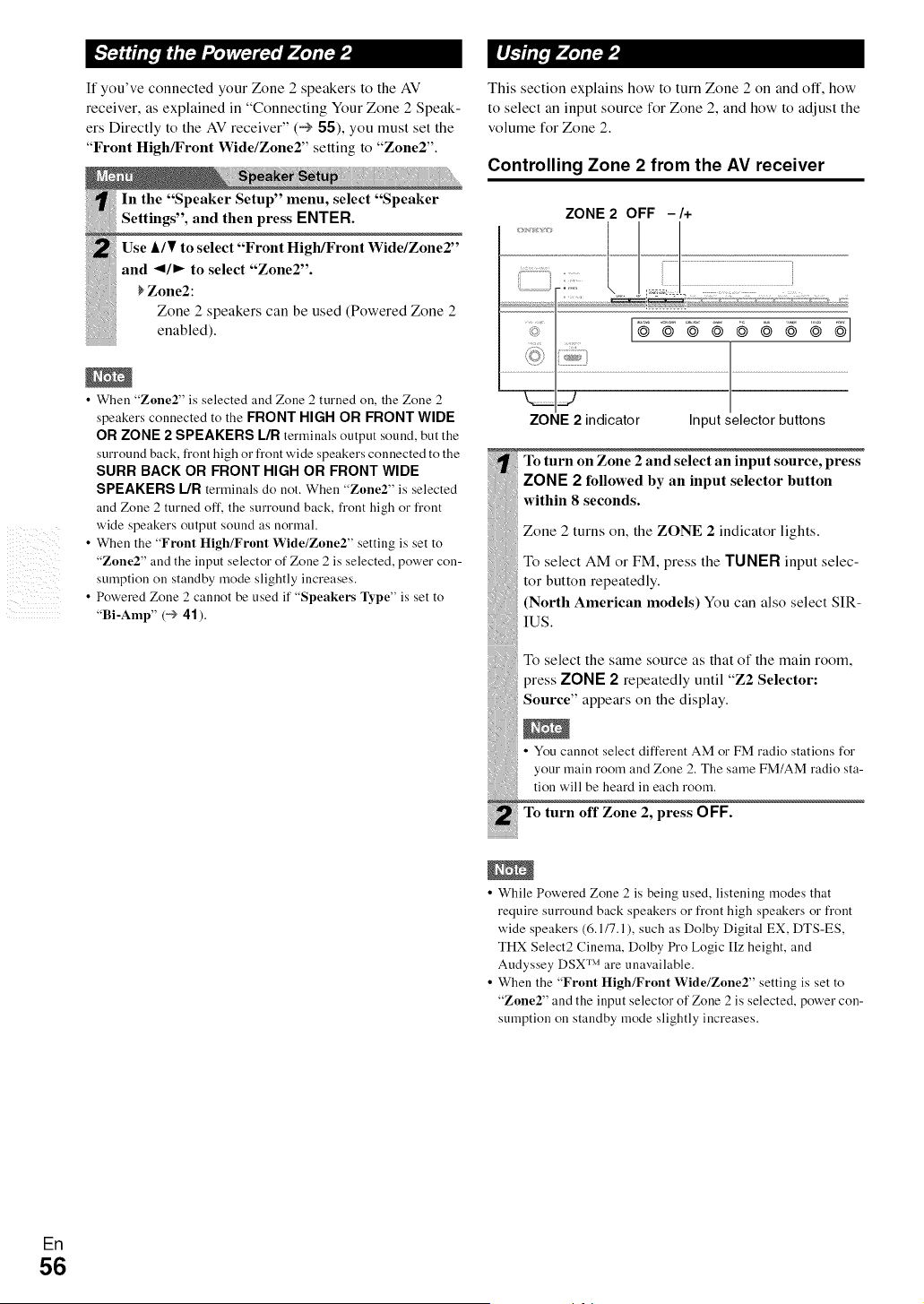

If you've connected your Zone 2 speakers to the AV
receiver, as explained in "Connecting Your Zone 2 Speak-
ers Directly to the AV receiver" (_ 55), you must set the
"Front High/Front Wide/Zone2" setting to "Zone2".
_In the "Speaker Setup" menu, select "Speaker
Settings", and then press ENTER.
_Use 1/¥ to select "Front HigldFront Wide/Zone2"
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
and _/I,_ to select "Zone2".
Zone2:
Zone 2 speakers can be used (Powered Zone 2
enabled).
• When "Zone2" is selected and Zone 2 turned on, the Zone 2
speakers connected to the FRONT HIGH OR FRONT WIDE
OR ZONE 2 SPEAKERS L/R terminals output sound, but the
surround back, front high or front wide speakers connected to the
SURR BACK OR FRONT HIGH OR FRONT WIDE
SPEAKERS L/R terminals do not. When "Zone2" is selected
and Zone 2 turned off, the surround back, front high or front
wide speakers output sound as normal.
• When the "Front High/Front Wide/Zone2" setting is set to
"Zone2" and the input selector of Zone 2 is selected, power con-
sumption on standby mode slightly increases.
• Powered Zone 2 cannot be used if "Speakers Type" is set to
"Bi-Amp" (_ 41).
This section explains how to turn Zone 2 on and off, how
to select an input source for Zone 2, and how to adjust the
volume for Zone 2.
Controlling Zone 2 from the AV receiver
ZONE 2 OFF -/+
ZONE 2 indicator Input selector buttons
iiiiiiiiiiiiiiiiiiiiiiiiiiiiii....
iiiiiiiiiiiiiiiiiiiiiiiiiiiiii....
To turn on Zone 2 and select an input source, press
ZONE 2 followed by an input selector button
within 8 seconds.
Zone 2 turns on, the ZONE 2 indicator lights.
To select AM or FM, press the TUNER input selec-
tor button repeatedly.
(North American models) You can also select SIR-
IUS.
To select the same source as that of the main room,
press ZONE 2 repeatedly until "Z2 Selector:
Source" appears on the display.
• You cannot select different AM or FM radio stations for
your main room and Zone 2. The same FM/AM radio sta-
tion will be heard in each room.
To turn off Zone 2, press OFF.
• While Powered Zone 2 is being used, listening modes that
require surround back speakers or front high speakers or front
wide speakers (6.117.1), such as Dolby Digital EX, DTS-ES,
THX Select2 Cinema, Dolby Pro Logic IIz height, and
Audyssey DSX TM are unavailable.
• When the "Front High/Front Wide/Zone2" setting is set to
"Zone2" and the input selector of Zone 2 is selected, power con-
sumption on standby mode slightly increases.
Ell
56

Controlling Zone 2 with the Remote
Controller
..............., i ON/STANDBV
.......ZONE2
< I
Input selector buttons
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!,,
Press ZONE2 and then press ON/STANDBY.
Zone 2 turns on, the ZONE 2 indicator lights.
To select an input source for Zone 2, press
ZONE2, followed by an input selector button.
To select AM or FM, press the TUNER input selec-
tor repeatedly.
(North American models) You can also select SIR-
IUS.
• You cannot select different AM or FM radio stations for
your main room and Zone 2. The same FM/AM radio sta-
tion will be heard in each room.
To turn off Zone 2, press ZONE2 followed by ON/
STANDBY.
• To control Zone 2, you must press the remote controller's
ZONE2 first.
Adjusting the Volume for Zone 2
m Operating with the remote controller
Press ZONE2.
Use VOL I/V to adjust the volume.
m Operating on the AV receiver
Press ZONE 2 (the ZONE 2 indicator and Zone 2
selector on the display flashes).
Use -/+ within 8 seconds to adjust the volume.
If your Zone 2 speakers are connected to a receiver or inte-
grated amp in Zone 2, use its volume control to adjust the
volume.
Muting Zone 2
m Operating with the remote controller
Press ZON E2 followed by MUTING.
• To unmute, press ZONE2 followed by MUTING again.
• Only analog input sources are output by the ZONE 2 LINE
OUT and FRONT HIGH OR FRONT WIDE OR ZONE 2
SPEAKERS L/R terminals. Digital input sources are not out-
put. If no sound is heard when an input source is selected, check
if it's connected to an analog input.
• While Powered Zone 2 is being used, listening modes that
require surround back speakers or front high speakers or front
wide speakers (6.117.1), such as Dolby Digital EX, DTS-ES,
THX Select2 Cinema, Dolby Pro Logic [Iz height, and
Audyssey DSX TM are unavailable.
• While Zone 2 is on, f-41 functions will not work.
• You cannot select different AM or FM radio stations for your
main room and Zone 2. The same FM/AM radio station will be
heard in each room. For example, if you have an FM station for
the main room, that station will also be used in Zone 2.
• Zone 2 can also be unmuted by adjusting the volume.
i ii
En
57

Controlling iPod
En
58
No.
%
%
"1
Onkyo Dock
UP-A 1 Dock
Universal Port Option Dock)
ND-S 1
RI Dock
Cable
Optical digital audio
Coaxial digital audio
1"-41cable*l
Analog audio (RCA)
Component video
Y
Composite video
1"-'41cable*l
Models sold are different depending on the region.
Note
When UP-AI Dock that seated iPod is
connected, the power consumption on
standby mode slightly increases.
You can control your iPod when
"PONT" is selected as the input source.
See the UP-AI Dock's instruction man-
ual for more information.
• See the ND-S l's instruction manual for
more information.
"1 The ND-S l's audio outputs are digi-
tal outputs. If the digital audio input
on your AV receiver cannot be
assigned to an input selector whose
[nput Display can be set to "DOCK",
do not connect the 1"-41cable, other-
wise a malfunction may occur.
• See the RI Dock's instruction manual
for more information.
"1 To use f'41 (Remote Interactive), you
must make an analog audio connec-
tion (RCA) between the AV receiver
and the RI Dock.
Page
(o 59)
(o 59)
(÷ 60)

UP-A1 Dock
With the UP-AI Dock, you can easily play the music,
photo, or movie stored on your Apple iPod through the AV
receiver and enjoy great sound.
You can use the AV receiver's remote controller to operate
your iPod.
m Basic Operation
The AV receiver may take several seconds to startup, so
you might not hear the first few seconds of the first
song.
Auto Power On
If you start iPod playback while the AV receiver is on
Standby, the AV receiver will automatically turn on and
select your iPod as the input source.
Direct Change
If you start iPod playback while listening to another input
source, the AV receiver will automatically select your iPod
as the input source.
Using tile AV receiver's Remote Controller
You can use the AV receiver's remote controller to control
basic iPod functions (_ 60).
m Operating Notes
• Functionality depends on your iPod model and generation.
• Before selecting a different input source, stop iPod playback
to prevent the AV receiver fi'om selecting the iPod input
source by mistake.
• If any accessories are connected to your iPod, the AV receiver
may not be able to select the input source properly.
• When connecting UP-AI Dock to the radio tuner UP-HTI
(North American models)/UP-DTl (European, Australian
and Asian models) with AUTO selected by the tuner's Mode
Selector switch, you can switch the input source between UP-
AI Dock and the tuner, by pressing PORT repeatedly on the
front panel.
• While your iPod is in the UP-A 1 Dock, its volume control has
no effect. If you adjust your iPod models volume control while
it's in the UP-AI Dock, make sure it's not set too high before
you reconnect your headphones.
• The Auto Power On function will not work if you set your
iPod in the UP-AI Dock while it is playing.
• When Zone 2 is turned on, you can't use Auto Power On and
Direct Change functions.
• Do not turn off the power with the iPod still connected to this
unit via the UP-AI Dock.
• Set your iPod in the UP-AI Dock after the AV receiver turns
on,
E Using Your iPod models Alarm Clock
You can use your iPod models Alarm Clock tunction to
automatically turn on your iPod and the AV receiver at a
specified time. The AV receiver's input source will auto-
matically be set to the POBT selector.
• To use this function, your iPod must be in the UP-AI Dock, and
the UP-AI Dock must be connected to the AV receiver.
• This function works only in the Standard mode (_ 6"1).
• When you use this function, be sure to set the AV receiver's vol-
ume control to a suitable level.
• When Zone 2 is turned on, you can't use this function.
• You cannot use this function for sound effects on your iPod.
m Charging Your iPod models Battery
The UP-AI Dock charges your iPod models battery while
your iPod is in the UP-A1 Dock and connected to the
UNIVIZRSAL PORT jack on the AV receiver. While your
iPod is seated in the UP-AI Dock, its battery will be
charged when the AV receiver is set to "On" or "Standby".
• When UP-AI Dock that seated iPod is connected, the power
consumption on standby mode slightly increases.
m Status Messages
• PORT Reading
The AV receiver is checking the connection with the
dock.
• PORT Not Support
The AV receiver do not support the connected dock.
• PORT UP-A1
UP-AI Dock is connected.
• The AV receiver displays the message "UP-AI" for several sec-
onds after recognizing the UP-AI.
• When the status message is not displayed on the AV receiver's
display, check the connection to your iPod.
ND-S1
With the ND-SI Digital Media Transport, you can easily
play the music stored on your iPod through the AV
receiver and enjoy great sound.
The ND-S 1 processes the digital audio signal directly
from your iPod for high-quality digital audio output (opti-
cal or coaxial).
• You must select "iPod" using ND-SI's iPod/PC button.
• Set the AV receiver's Input Display to "DOCK" (_ 25).
Ell
59

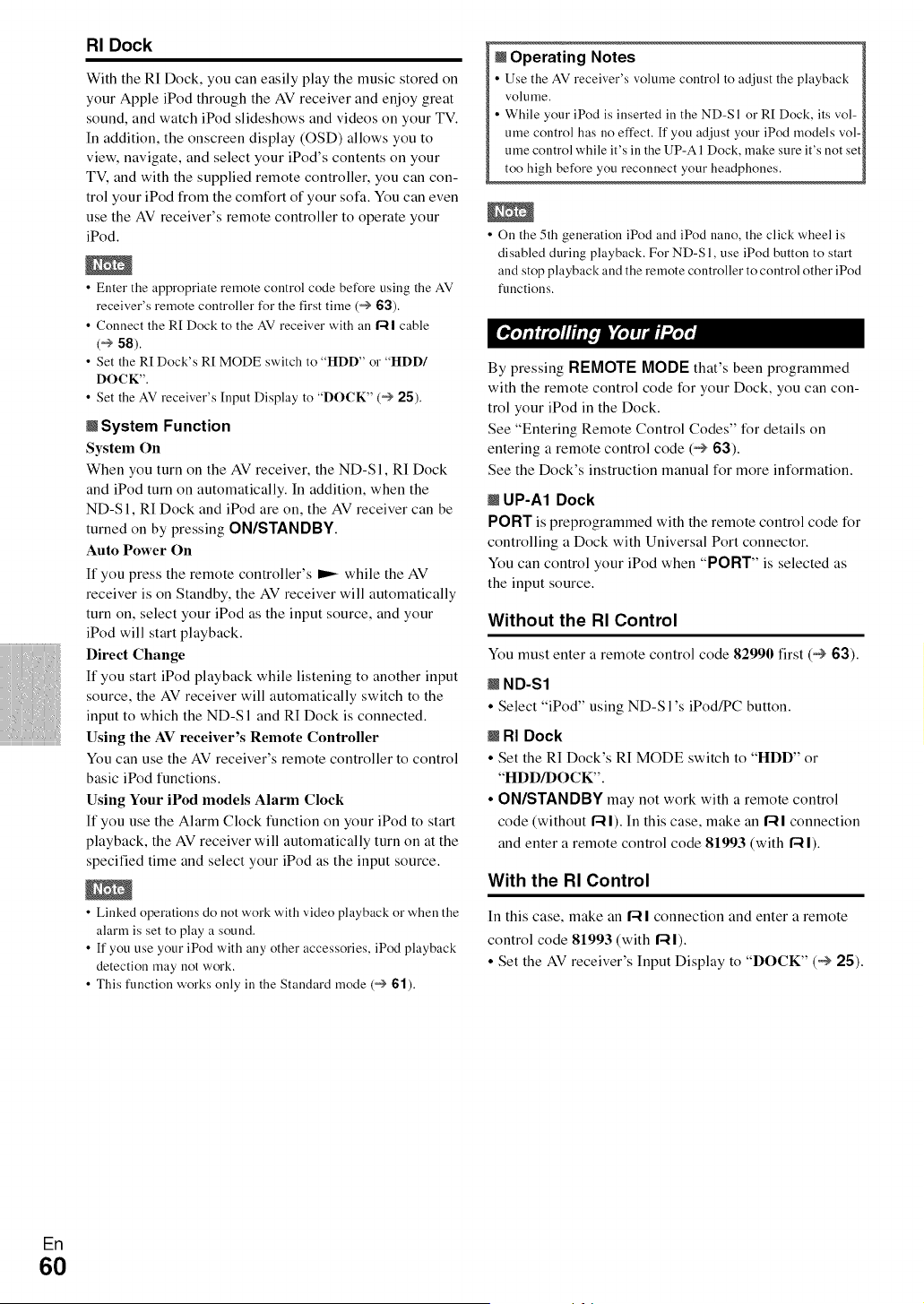

RI Dock
With the RI Dock, you can easily play the music stored on
your Apple iPod through the AV receiver and enjoy great
sound, and watch iPod slideshows and videos on your TV.
In addition, the onscreen display (OSD) allows you to
view, navigate, and select your iPod's contents on your
TV, and with the supplied remote controller, you can con-
trol your iPod from the comfort of your sofa. You can even
use the AV receiver's remote controller to operate your
iPod.
• Enter the appropriate remote control code before using the AV
receiver's remote controller for the first time (_ 63).
• Connect the R[ Dock to the AV receiver with all 1"-41cable
(÷ 58).
• Set the RI Dock's R[ MODE switch to "HDD" or "HDD/
DOCK".
• Set the AV receiver's [nput Display to "DOCK" (_ 25).
m System Function
System On
When you turn on the AV receiver, the ND-SI, RI Dock
and iPod turn on automatically. In addition, when the
ND-S 1, RI Dock and iPod are on, the AV receiver can be
turned on by pressing ON/STANDBY.
Auto Power On
If you press the remote controller's _ while the AV
receiver is on Standby, the AV receiver will automatically
turn on, select your iPod as the input source, and your
iPod will start playback.
Direct Change
If you start iPod playback while listening to another input
source, the AV receiver will automatically switch to the
input to which the ND-S 1 and RI Dock is connected.
Using the AV receiver's Remote Controller
You can use the AV receiver's remote controller to control
basic iPod functions.
Using Your iPod models Alarm Clock
If you use the Alarm Clock function on your iPod to start
playback, the AV receiver win automatically turn on at the
specified time and select your iPod as the input source.
• Linked operations do not work with video playback or when the
alarm is set to play a sound.
• If you use your iPod with ally other accessories, iPod playback
detection may not work.
• This function works only in the Standard mode (_ 61).
I Operating Notes
• Use the AV receiver's volume control to adjust the playback
volume.
• While your iPod is inserted in the ND-SI or R[ Dock, its vol-
ume control has no effect. If you adjust your iPod models vol-
ume control while it's in the UP-A 1 Dock, make sure it's not set
too high before you reconnect your headphones.
• On the 5th generation iPod and iPod nano, the click wheel is
disabled during playback. For ND-S 1, use iPod button to start
and stop playback and the remote controller to control other iPod
functions.
By pressing REMOTE MODE that's been programmed
with the remote control code for your Dock, you can con-
trol your iPod in the Dock.
See "Entering Remote Control Codes" for details on
entering a remote control code (_ 63).
See the Dock's instruction manual for more information.
E UP-A1 Dock
PORT is preprogrammed with the remote control code for
controlling a Dock with Universal Port connector.
You can control your iPod when "PORT" is selected as
the input source.
Without the RI Control
You must enter a remote control code 82990 first (@ 63).
E ND-S1
• Select "iPod" using ND-SI's iPod/PC button.
E RI Dock
• Set the RI Dock's RI MODE switch to "HDD" or
"HDD/DOCK".
• ON/STANDBY may not work with a remote control
code (without f'4 I). In this case, make an f'41 connection
and enter a remote control code 81993 (with f'4 I).
With the RI Control
In this case, make an f-4! connection and enter a remote
control code 81993 (with f-4I).
• Set the AV receiver's Input Display to "DOCK" (_ 25).
EF1
60

Press the appropriate REMOTE !
MODE first,
(i>-
@--
ON/STANDBY
® ® ® ®i::
--',®@@/
_,_A (_" L REPEAT RANDOM PLAYMODE I
_: Available buttons
Dock
Buttons .....\ .....
@ ON/STANDBY t/O
®
®
®
®
®
®
®
®
@
@
TOP MENU
A/T/4/_ENTER
PLAYLIST -,_/_
P.-, I I, II, -,<-<, _,
REPEAT
RANDOM
PLAY MODE
DISPLAY*7
MUTING
ALBUM +/-
VOL A/T
MENU
RETURN
• With some iPod models, generations and R[ Docks, certain buttons may not work as expected.
• For detailed operation of the iPod, please refer to the instruction manual of RI Dock.
*3 This button does not turn the Onkyo DS-A2 or DS-A2X R[ Dock on or off. Your iPod may not respond the first time you press this
button, in which case you should press it again.
This is because the remote controller transmits the On and Standby commands alternately, so if your iPod is already on, it will
remain on when the remote controller transmits an On command.
Similarly, if your iPod is already off, it will remain off when the remote controller transmits an Off command.
*2 Press DISPLAY to change the following modes:
Standard mode
Nothing is displayed on your TV and you navigate and select your contents by using your iPod models display.
Only this mode can playback the video.
Extended mode (Music)
Playlists (artists, albums, songs, and so on) are displayed on your TV, and you can navigate and select your music while looking at
your TV.
Extended mode (Video)
Playlists (Movies, Music Videos, TV Shows, Video Podcasts, or Rentals) are displayed on your TV, and you can navigate and select
your video while looking at your TV.
*3 [n Extended mode (see *2), PLAYLIST is used as the page jump button.
With the page modes, you can quickly locate your favorite songs even when your song lists, artist lists, and so on are very long.
*4 Resume mode
With the Resume function, you can resume playback of the song that was playing when you removed your iPod from the R[ Dock or
Standard mode is selected.
*5 Operation can be performed if you connect ND-S 1 with an I--/I cable.
*6 TOP MENU works as a Mode button when used with a DS-A2 R[ Dock.
*7 DISPLAY turns on backlight for 30 seconds.
• [n Extended mode (see *2), the playback will be continued even if the AV receiver is turned off.
• [n Extended mode (see *2), you cannot operate your iPod directly.
• [n Extended mode (see *2), it may take some time to acquire the contents.
En
61

Controlling Other Components
[_oIeJ _ l i f o_j I_,__,;I/elill_f,;./liffeJt"_ [ t_el i l lr_el l [O]'gJ'_[t.._
ED
62
You can use the AV receiver's remote controller
(RC-765M) to control your other AV components, includ-
ing those made by other manufacturers. This section
explains how to enter the remote control code (with the
default underlined) for a component that you want to con-
trol: DVD, TV, CD, etc.
The following REMOTE MODE are preprogrammed
with remote control codes for controlling the components
listed. You do not need to enter a remote control code to
control these components.
For details on controlling these components, see the pages
indicated.
BD/DVD Onkyo Blu-ray Disc player (_ 64)
TV/CD Onkyo CD player (_ 64)
PORT Onkyo Universal Port Option (_ 60)
You can look up for appropriate remote control code from
on-screen setup menu.
• This setting call be carried out by using On-screen Setup Menu
only.
{{}
{
:::::::::::::::::::::::::::::::::
Press RECEIVER followed by SETUP.
The main menu appears onscreen.
Use L/¥ to select "Remote Controller Setup", and
then press ENTER.
The "Remote Controller Setup" menu appears.
Press ENTER.
( 8-1. RemoteMode Setup )
TV
BD/DVD
VCR/DVR
CBUSAT
GAME
PC
AUX
TV/CD
Use i,/¥ to select remote mode, and then press
ENTER.
The category selection menu appears.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiii....
Use 1/¥ to select category, and then press
ENTER.
The brand name input panel appears.
Category TV
@@@@@@@@@@@@@
@@@@@@@@@@@@@
Use L/¥/_/_ to select a character, and then press
ENTER.
Repeat this step from the 1st character to the 3rd
character of the brand name.
When you have entered the 3rd character, select
"Search" and press ENTER.
After searching, a list of the brand name appears.
categgry 1-y
sonber
Songba
Sonic
Sonlko V
If the brand name is not found:
Use _ to select "Not Listed", and then press
ENTER.
The brand name input panel appears.
Use i,/¥ to select brand, and then press ENTER.
After searching, a remote control code and the input
procedure appear. Try it.
Remote control code
(Number of search results)
If you can control component, use i,/¥ to select
"Works", and then press ENTER.
The "Remote Mode Setup" menu appears.
If you cannot control component, use L/¥ to select
"Doesn't work (try next code)" and press ENTER.
The next code is appear.

You'll need to enter a code for each component that you
want to control.
_Look the remote control code in
appropriate
up
the separate Remote Control Codes list.
The codes are organized by category (e.g., DVD
_ player, TV, etc.).
While holding down REMOTE MODE to which
you want to enter a code, press and hold down
DISPLAY (about 3 seconds).
The remote indicator lights.
• Remote control codes cannot be entered for RECEIVER
andZONE 2.
• Only TV remote control codes call be entered for TV.
• Except for RECEIVER TV and ZONE 2, remote control
codes from ally category call be entered as REMOTE
MODE. However, these buttons also work as input selec-
tor buttons (_ 23), so choose a REMOTE MODE that
corresponds with the input to which you connect your
component. For example, if you connect your CD player
to the CD input, choose TV/CD when entering its remote
control code.
Within 30 seconds, use the number buttons to
enter the 5-digit remote control code.
The remote indicator flashes twice.
If the remote control code is not entered success-
fully, the remote indicator will flash once slowly.
!
• The remote control codes provided are correct at the time of
printing, but are subject to change.
Onkyo components that are connected via if41 are con-
trolled by pointing the remote controller at the AV
receiver, not the component. This allows you to control
components that are out of view, in a rack, for example.
_Make sure Onkyo component
the is connected
with an 1:/I cable and an analog audio cable
(RCA).
See "Connecting Onkyo 1-41 Components" for
details (_ 20).
Enter the appropriate remote control code for
REMOTE MODE.
• BD/DVD
31612:
Onkyo DVD player with 1-4I
• TV/CD
71327:
Onkyo CD player with RI
42157:
Onkyo cassette tape deck with R I
• PORT
_81993:
Onkyo Dock
See the previous section for how to enter remote
control codes.
• When using a cassette tape deck connected via 1"-41,press
and hold TV/CD to switch to TAPE.
Press REMOTE MODE,point the remote control-
ler at the AV receiver, and operate the component.
If you want to control an Onkyo component by pointing
the remote controller directly at it, or you want to control
an Onkyo component that's not connected via [-4 I, use the
following remote control codes:
• BD/DVD
30627:
Onkyo DVD player without 1-4 I
• TV/CD
71817:
Onkyo CD player without R I
11807:
Onkyo TV
If you want to control an Onkyo component by pointing the
remote controller directly at it, use the following remote
control codes:
32900:
Onkyo Blu-ray Disc player
32901:
Onkyo HD-DVD player
70868:
Onkyo MD recorder
71323:
Onkyo CD recorder
82990:
Onkyo Dock
• If you connect a cassette tape deck to the TV/CD IN jack, or
connect an R[ Dock to the to the TWCD IN or VCR/DVR IN or
GAME INjacks, for 1"41to work properly, you must set the [nput
Display accordingly (_ 25).
EF1
63

You can reset a REMOTE MODE to its default remote
control code.
llili!illl:iii_i_!i//lil
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
While holding down REMOTE MODE that you
want to reset, press and hold down HOME until
the remote indicator lights (about 3 seconds).
Within 30 seconds, press REMOTE MODE again.
The remote indicator flashes twice, indicating that
the button has been reset.
Each of REMOTE MODE is preprogrammed with a
remote control code. When a button is reset, its pre-
programmed code is restored.
You can reset the remote controller to its default settings.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
While holding down RECEIVER, press and hold
down HOME until the remote indicator lights
(about 3 seconds).
Within 30 seconds, press RECEIVER again.
The remote indicator flashes twice, indicating that
the remote controller has been reset.
By pressing REMOTE MODE that's been programmed
with the remote control code for your component, you can
control your component as below.
For details on entering a remote control code for other
components, see "Entering Remote Control Codes"
(_ 63).
Controlling a TV
TV is preprogrammed with the remote control code for
controlling a TV that supports the 1-411-11_'1 (limited to
some models). The TV must be able to receive remote
control commands via _Jl-II_ and be connected to the
AV receiver via HDMI. If controlling your TV via
_Jl-II_ doesn't work very well, program your TV's
remote control code into TV and use the TV remote mode
to control your TV.
Controlling a Blu-ray Disc/DVD Player, HD
DVD Player or DVD Recorder
BD/DVD is preprogrammed with the remote control code
for controlling a component that supports the _Jl-ll_*l
(limited to some models). The component must be able to
receive remote control commands via _Jl-II_ and be
connected to the AV receiver via HDMI.
"1 The r-4Jl-to supported by the AVreceiver is the CEC
system control function of the HDMI standard.
EF1
64

I Press the appropriate REMOTE !
MODE first,
__
0N/STANDBY
GUIDE/TOP MENU PREV CN / MENU
I
© @
® ®
©®
@
®
®
ILIII
}:7C-76!!7M
__.@
@
--_. j
• With some components, certain buttons may not work as
expected, and some may not work at all.
€: Available buttons
Buttons \
_ ON/STANDBY
i t/¢
_ t/(b, INPUT,
TV VOL A/T
@ GUIDE
TOP MENU
@ ilTl_lli,>
ENTER
SETUP
@ I_, II, I, _1<,
i_l_, I<l<l, ii_l_l
SEARCH
REPEAT
RANDOM
PLAY MODE
@ Number: 1 to 9, 0
Number: +10
@ DISPLAY
@ MUTING
@ CH +/-
DISC +/-
@ PREV CH
MENU
@ RETURN
G AUDIO
_ CLR
i.
O =.
I_-_
i Iii
I_,_
_- I_'__
> '_
¢ ¢
¢
¢
¢'1 _2
¢'1" 2 _
¢
"1 The r411-ll_ function is not supported. The r411-ll_ sup-
ported by the AV receiver is the CEC system control function
of the HDM[ standard.
*2 These buttons function as colored buttons or A, B, C, D but-
tolls.
*3 || (Pause) functions as reverse playback.
• See the "Controlling Your iPod" about the operation of iPod
(÷ 60).
En
65

Troubleshooting
If you have any trouble using the AV receiver, look for a
solution in this section. If you can't resolve the issue your-
self, contact your Onkyo dealer.
If you can't resolve the issue yourself, try resetting the
AV receiver before contacting your Onkyo dealer.
To reset tile AV receiver to its factory defaults, turn it
on and, while holding down VCB/DVB, press ON/
STAN DBY. "Clear" will appear on the display and
the AV receiver will enter Standby mode.
VCR/DVR
I/o oN,s FAN£BY
_rtt_/t;l
Note that resetting the AV receiver will delete your
radio presets and custom settings.
Remote indicator
RECEIVER
HOME
To reset the remote controller to its factory defaults,
while holding down RECEIVER, press and hold down
HOME until the remote indicator lights (about 3 sec-
onds). Within 30 seconds, press RECEIVER
again.
m The STANDBY indicator flashes red
The protection circuit has been activated. Remove
the power cord fl'om the wall outlet immediately.
Disconnect all speaker cables and input sources, and
leave the AV receiver with its power cord discon-
nected for 1 hour. After that, reconnect the power
cord and set the volume to maximum. If the AV
receiver stays on, set the volume to minimum, dis-
connect the power cord, and reconnect your speakers
and input sources. If the AV receiver turns off when
you set the volume to maximum, disconnect the
power cord, and contact your Onkyo dealer.
N There's no sound, or it's very quiet
Make sure that the digital input source is selected
properly.
Make sure that the inputs and outputs of all compo-
nents are connected properly.
40
Make sure that the input source is properly selected. 23
Check the volume. The AV receiver is designed for
home theater enjoyment. It has a wide volume range,
allowing precise adjustment.
While a pair of headphones is connected to the
PHONES jack, no sound is output by the speakers.
Check the digital audio output setting on the con-
nected device. On some game consoles, such as
those that support DVD, the default setting is off.
If your turntable uses an MC cartridge, you must
connect an MC head amp, or an MC transformer.
17-20
25
r_
N Can't turn on the AV receiver
Make sure that the pow'er cord is properly plugged
into the wall outlet.
Not all listening modes use all speakers.
Make sure that the speaker setup microphone is not
still connected.
33
ED
66

m Only the front speakers produce sound
When the Stereo o1"Mono listening mode is selected,
only the front speakers and subwoofer produce
sound.
Check the Speaker Configuration.
41
N Only the center speaker produces sound
If you use the Dolby Pro Logic IIx Movie, Dolby Pro --
Logic IIx Music, or Dolby Pro Logic [Ix Game lis-
tening mode with a mono source, such as all AM
radio station or mono TV program, the sound is con-
centrated in the center speaker.
Depending on the input signal, some listening modes 33-37
cannot be selected.
N Can't select the Pure Audio listening mode
(European, Australian and Asian models) The --
Pure Audio listening mode cannot be selected while
Zone 2 is on.
N Can't get 6.1/7.1 playback
If no surround back speakers, front wide and front
high speakers are connected, or the Zone 2 speakers
are being used, 6.1/7.1 playback is not possible.
Make sure the speakers are configured correctly. 41
N The surround speakers produce no sound
When the T-D (Theater-Dimensional), Stereo or
Mono listening mode is selected, the surround
speakers produce no sound.
N The speaker volume cannot be set as required
(The volume cannot be set to +18.0 dB)
Check to see if a maximum volume has been set. 50
Make sure the speakers are configured correctly. 4"1
N The center speaker produces no sound
When the Stereo or Mono listening mode is selected, --
the center speaker produces no sound.
N Noise can be heard
Using cable ties to bundle audio cables with power
cords, speaker cables, and so on may degrade the
audio performance, so don't do it.
Make sure the speakers are configured correctly. 4"1
N The front high, front wide and surround back
speakers produce no sound
Depending on the current listening mode, no sound
may be produced by the front high, front wide and
surround back speakers. Select another listening
mode.
33
Make sure the speakers are configured correctly. 41
N The subwoofer produces no sound
When you play source material that contains no
information in the LFE channel, the subwoofer pro-
duces no sound.
N There's no sound with a certain signal format
Check the digital audio output setting on the con-
nected device. On some game consoles, such as
those that support DVD, the default setting is off.
N The Late Night function doesn't work
Make sure the source material is Dolby Digital,
Dolby Digital Plus, and Dolby TrueHD.
53
N About DTS signals
When DTS program material ends and the DTS bit- --
stream stops, the AV receiver remains in DTS listen-
ing mode and the DTS indicator remains on. This is
to prevent noise when you use the pause, fast for-
ward, or fast reverse function on your player. If you
switch your player from DTS to PCM, because the
AV receiver does not switch formats immediately,
you may not hear any sound, in which case you
should stop your player for about three seconds, and
then resume playback.
rl N
tl
ut 31.
d? tt
n_ N
When playing DTS program material, using the
pause, fast forward, or fast reverse function on your
player may produce a short audible noise. This is not
a malfunction.
[713
67

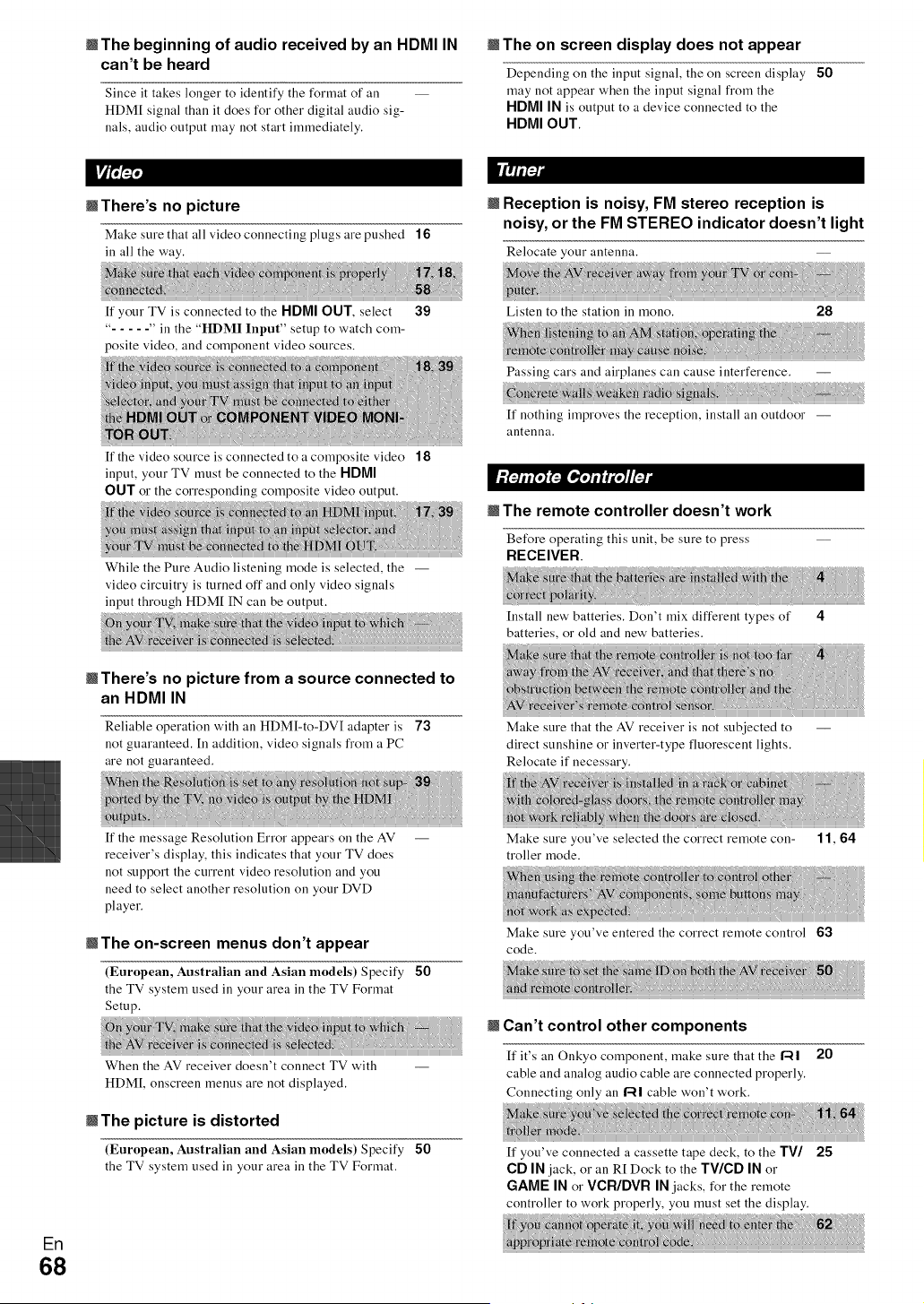

m The beginning of audio received by an HDMI IN
can't be heard
Since it takes longer to identify the format of all
HDMI signal than it does for other digital audio sig-
nals, audio output may not start immediately.
N The on screen display does not appear
Depending on the input signal, the on screen display
may not appear when the input signal from the
HDMI IN is output to a device connected to the
HDMI OUT.
50
_l!r;FJrl
Vi/;F4¢]
N There's no picture
Make sure that all video connecting plugs are pushed 16
in all the way.
N Reception is noisy, FM stereo reception is
noisy, or the FM STEREO indicator doesn't light
Relocate your antenna.
Listen to the station in mono. 28
If your TV is connected to the HDMI OUT, select
" in the "ItDMI Input" setup to watch com-
posite video, and component video sources.
39
Passing cars and airplanes can cause interference.
[f the video source is connected to a composite video 18
input, your TV must be connected to the HDMI
OUT or the corresponding composite video output.
While the Pure Audio listening mode is selected, the --
video circuitry is turned off and only video signals
input through HDMI IN can be output.
N There's no picture from a source connected to
an HDMI IN
Reliable operation with an HDMI-to-DVI adapter is 73
not guaranteed. In addition, video signals from a PC
are not guaranteed.
[f nothing improves the reception, install an outdoor --
antenna.
N The remote controller doesn't work
Before operating this unit, be sure to press
RECEIVER.
Install new batteries. Don't mix different types of 4
batteries, or old and new batteries.
Make sure that the AV receiver is not subjected to --
direct sunshine or inverter-type fluorescent lights.
Relocate if necessary.
En
68
ff the message Resolution Error appears on the AV
receiver's display, this indicates that your TV does
not support the current video resolution and you
need to select another resolution on your DVD
player.
N The on-screen menus don't appear
(European, Australian and Asian models) Specify 50
the TV system used in your area in the TV Format
Setup.
When the AV receiver doesn't connect TV with
HDM[, onscreen menus are not displayed.
N The picture is distorted
(European, Australian and Asian models) Specify 50
the TV system used in your area in the TV Format.
Make sure you've selected the correct remote con- 11, 64
troller mode.
Make sure you've entered the correct remote control 63
code.
N Can't control other components
[f it's an Onkyo component, make sure that the 1-41 20
cable and analog audio cable are connected properly.
Connecting only an 1-41 cable won't work.
If you've connected a cassette tape deck, to the TV/
CD IN jack, or an R[ Dock to the TWCD IN or
GAME IN or VCR/DVR IN jacks, for the remote
controller to work properly, you must set the display.
25

To control another manufacturer's component, point
the remote controller at that component.
To control all Onkyo component that's not connected
via f-_l, point the remote controller at the compo-
nent. Be sure to enter the appropriate remote control
code first.
63
63
N The AV receiver unexpectedly selects your iPod
as the input source
Always pause iPod playback before selecting a dif-
ferent input source. If playback is not paused, the
Direct Change function may select your iPod as the
input source by mistake during the transition
between tracks.
l;i'q'd t l
N Can't record
On your recorder, make sure the correct input is
selected.
rtCi/'., l
N There's no sound
Make sure your iPod is actually playing.
Make sure the UP-A 1Dock is connected to the ONI- --
VERSAL PORT jack on the AV receiver.
Make sure the plugs are pushed in all the way.
When the Pure Audio listening mode is selected,
recording is not possible because no video signals
are output. Select another listening mode.
N There's no video
Make sure that your iPod's TV OUT setting is set to
On.
Some versions of the iPod do not output video.
N The AV receiver's remote controller doesn't
control your iPod
[=Jh'F31rt
Make sure your iPod is properly inserted in the
Dock. If your iPod is in a case, it may not connect
properly to the Dock. Always remove your iPod
from the case before inserting it into the Dock.
Make sure you've selected the right remote mode.
When connecting UP-AI Dock to the radio tuner
UP-HTI (North American models)/UP-DTl
(European, Australian and Asian models) with
AUTO selected by the tuner's Mode Selector switch,
you can switch the input source between UP-AI
Dock and the tuner, by pressing PORT repeatedly
on the front panel.
Try resetting your iPod.
N There's no sound
Only components connected to analog inputs can be --
played in Zone 2.
N The Zone 2 speakers produce no sound
Powered Zone 2 cannot be used if "Speakers Type" 41
is set to "Bi-Amp".
N The sound changes when I connect my
headphones
When a pair of headphones is connected, the listen- --
ing mode is set to Stereo, unless it's already set to
Stereo, Mono, Direct, or Pure Audio. (Pure Audio
listening mode is not available for North American
models.)
N The speaker distance cannot be set as required
[n some cases, corrected values suitable for home --
theater use may be set automatically.
N The display doesn't work
The display is turned off when the Pure Audio listen- --
ing mode is selected.
N How do I change the language of a multiplex
source
Use the "Multiplex" setting on the "Audio Adjust" 44
menu to select "Main" or "Sub".
N The R I functions don't work
To use RI, you must make an f'_l connection and an 20
analog audio connection (RCA) between the compo-
nent and AV receiver, even if they are connected dig-
itally.
Erl
69

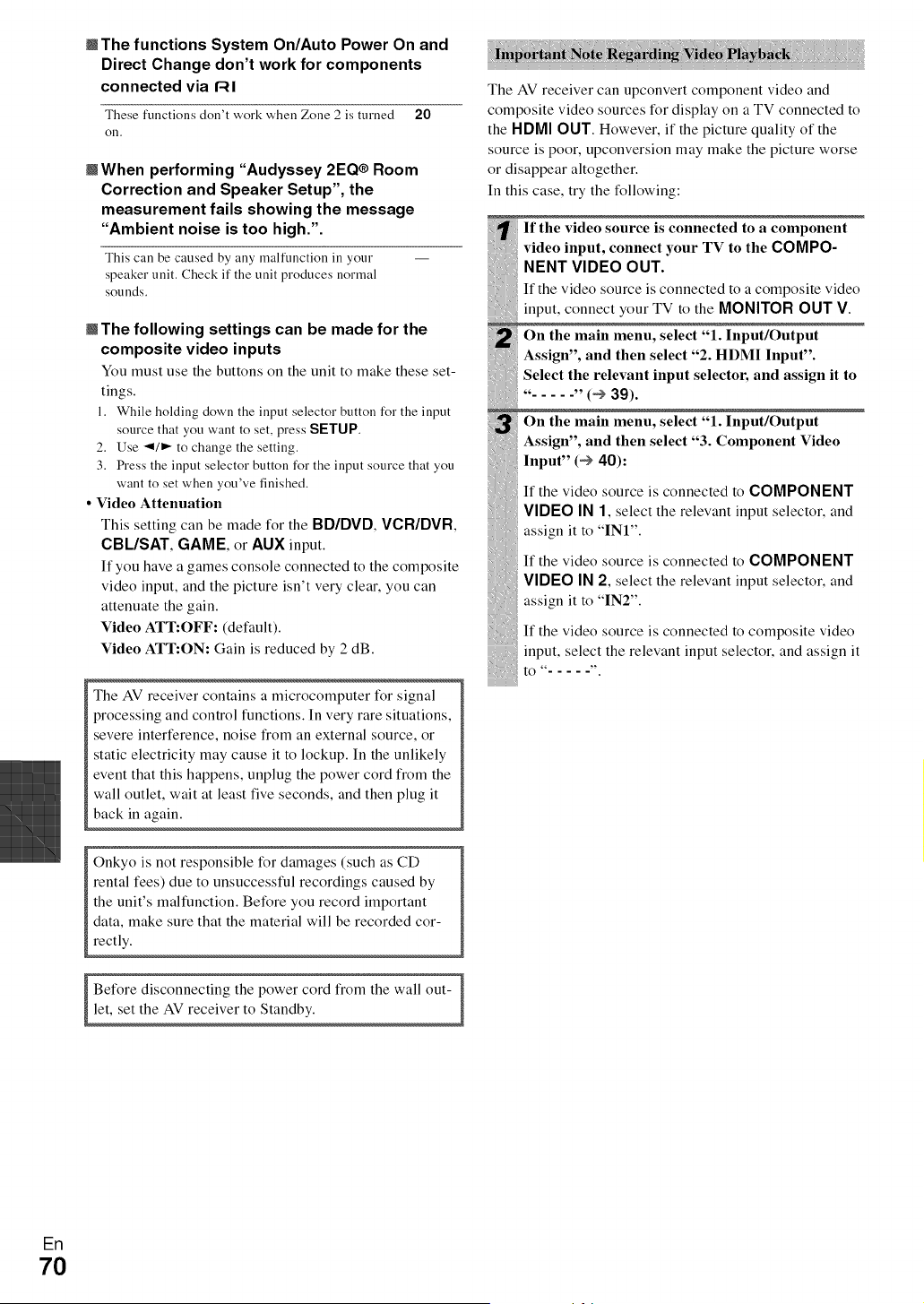

m The functions System On/Auto Power On and
Direct Change don't work for components
connected via RI
These ftmctions don't work when Zone 2 is turned 20
OU,
N When performing "Audyssey 2EQ® Room
Correction and Speaker Setup", the
measurement fails showing the message
"Ambient noise is too high.".
This call be caused by ally malfunction ill your
speaker unit. Check if the unit produces normal
sounds.
m The following settings can be made for the
composite video inputs
You must use the buttons on the unit to make these set-
tings.
1. While holding down the input selector button for the input
source that you want to set, press SETUP.
2. Use -.41_ to change the setting.
3. Press the input selector button for the input source that you
want to set when you've finished.
• Video Attenuation
This setting can be made for the BD/DVD, VCR/DVR,
CBL/SAT, GAME, or AUX input.
If you have a games console connected to the composite
video input, and the picture isn't very clear, you can
attenuate the gain.
Video ATT:OFF: (default).
Video ATT:ON: Gain is reduced by 2 dB.
The AV receiver contains a microcomputer for signal
processing and control functions. In very rare situations,
severe interference, noise from an external source, or
static electricity may cause it to lockup. In the unlikely
event that this happens, unplug the power cord from the
wall outlet, wait at least five seconds, and then plug it
back in again.
The AV receiver can upconvert component video and
composite video sources for display on a TV connected to
the HDMI OUT. However, if the picture quality of the
source is poor, upconversion may make the picture worse
or disappear altogether.
In this case, try the following:
If the video source is connected to a component
video input, connect your TV to the COMPO-
NENT VIDEO OUT.
If the video source is connected to a composite video
input, connect your TV to the MONITOR OUT V.
On the main menu, select "1. Input/Output
Assign", and then select "2. HDMI Input".
Select the relevant input selector, and assign it to
......... (o 39).
On the main menu, select "1. Input/Output
Assign", and then select "3. Component Video
Input" (O 40):
If the video source is connected to COMPONENT
VIDEO IN 1, select the relevant input selector, and
assign it to "INI".
If the video source is connected to COMPONENT
VIDEO IN 2, select the relevant input selector, and
assign it to "IN2".
If the video source is connected to composite video
input, select the relevant input selector, and assign it
to " "
[
Onkyo is not responsible for damages (such as CD
rental fees) due to unsuccessful recordings caused by
the unit's malfunction. Before you record important
data, make sure that the material will be recorded cor-
rectly.
Before disconnecting the power cord from the wall out- l
let, set the AV receiver to Standby.
1
En
70

Specifications
Amplifier Section
General
Rated Output Power
All channels:
(North American)
100 watts minimum continuous power
per channel, 8 ohm loads, 2 channels
driven from 20 Hz to 20 kHz, with a
maximum total harnmnic distortion of
0.08% (FTC)
125 watts minimum continuous power
per channel, 6 ohm loads, 2 channels
driven at 1 kHz, with a maximum total
harmonic distortion of 0.1% (FTC)
115 watts minimum continuous power
per channel, 8 ohm loads, 2 channels
driven at 1 kHz, with a maximum total
harmonic distortion of 0.7% (FTC)
(Others)
7ch × 160 W at 6ohms, 1 kHz, 1 ch driven
(IEC)
Maximum Effective Output Power
(Asian)
7ch x 175 W at 6ohms, 1 kHz, 1 ch driven
(JEITA)
Dynamic Power 240 W (3 f), Front)
210 W (4 f), Front)
120 W (8 f), Front)
THD (Total Harmonic Distortion)
(North American and Taiwan)
0.08% (Power Rated)
(Others)
0.08% (1 kHz, 1 W)
Damping Factor 60 (Front, 1 kHz, 8 f2)
Input Sensitivity and Impedance
200 mV/47 kf) (LINE)
Output Level and Impedance
200 mV/2.2 kf) (REC OUT)
Frequency Response 5 Hz - 100 kHz/+l dB, -3 dB (DSP bypass)
Tone Control Characteristics
_+10dB, 50 Hz (BASS)
_+10dB, 20 kHz (TREBLE)
Signal to Noise Ratio 106 dB (LINE, IHF-A)
Speaker Impedance (North American and Taiwan) 6 f2 - 16 f2
(Others) 4 f2 - 16 f2
Video Section
Input Sensitivity/Output Level and Impedance
1 Vp-p/75 f2 (Component Y)
0.7 Vp-p/75 f) (Component PB/CI3, PIJCI0
1 Vp-p/75 f2 (Composite)
Component Video Frequency Response
5 Hz - 100 MHz/+0 dB, -3 dB
Tuner Section
FM Tuning Frequency Range
(North American) 87.5 MHz - 107.9 MHz
(European) 87.50 MHz - 108.00 MHz,
RDS
(Taiwan) 87.5 MHz - 108.0 MHz
(Others) 87.5 MHz - 108.0 MHz, RDS
AM Tuning Frequency Range
(North American) 530 kHz - 1710 kHz
(Others) 522/530 kHz - 1611/1710 kHz
Preset Channel 40
Digital Tuner (North American models)
SIRIUS
Power Supply (North American and Taiwan)
AC 120 V, 60 Hz
(European) AC 230 V. 50 Hz
(Others) AC 220 - 240 V, 50/60 Hz
Power Consumption (North American) 6.3 A
(Others) 620 W
Stand-by Power Consumption
Dimensions
(W × H × D)
"Weight
NHDMI
(North American and Taiwan) 0.2 W
(Others) 0.3 W
435 mm × 176 mm× 329 mm
17-1/8" × 6-15/16" × 12-15/16"
11.5 kg (25.4 lbs.)
Input IN 1, IN 2, IN 3, IN 4, IN 5, AUX INPUT
Output OUT
Video Resolution 1080p
Audio Fornmt Dolby TrueHD, DTS Master Audio,
DVD-Audio, DSD
Supported 3D, Audio Return Channel, Deep Color,
x.v.Color, LipSync, CEC
N Video Inputs
Component IN 1, IN 2
Composite BD/DVD, VCR/DVR, CBL/SAT, GAME,
AUX
Analog RGB input PC IN
N Video Outputs
Component OUT
Composite MONITOR OUT, VCR/DVR OUT
m Audio Inputs
Digital Optical: 2
Coaxial: 2
Analog BD/DVD, VCR/DVR, CBL/SAT, GAME,
PC, TV/CD, AUX
N Audio Outputs
Analog VCR/DVR, ZONE2 Line Out
Subwoofer Pre Outputs
2
Speaker Outputs Main (L, R, C, SL, SR, SBL, SBR, FHL,
FHR) + ZONE2 / Front Wide (L, R)
Phones 1 (6.3 t_)
N Others
MIC 1
Universal Port 1
RI 1
Specifications and features are subject to change
without notice.
Ell
71

About HDMI
Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital
interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, set-top boxes, and other video compo-
nents. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a
single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichan-
nel digital audio, and multichannel PCM).
The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface)*1, so TVs and displays with
a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays,
resulting in no picture.)
The AV receiver uses HDCP (High-bandwidth Digital Content Protection)*2, so only HDCP-compatible components can
display the picture.
I The AV receiver's HDMI interface is based on the following:
Audio Return Channel, 3D, x.v.Color, Deep Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution
Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multichannel PCM
Supported Audio Formats
• 2-channel linear PCM (32-192 kHz, 16120124 bit)
• Multichannel linear PCM (up to 7.1 ch, 32-192 kHz, 16120124 bit)
• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD
Master Audio)
Your Blu-ray Disc/DVD player must also support HDMI output of the above audio formats.
About Copyright Protection
The AV receiver supports HDCP (High-bandwidth Digital Content Protection)*2, a copy-protection system for digital
video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.
"1 DVI (Digital Visual Interface): The digital display interface standard set by the DDWG*3 ill 1999.
*2 HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by [ntel for HDM[/DVL It's
designed to protect video content and requires a HDCP-compatible device to display the encrypted video.
"3 DDWG (Digital Display Working Group): Lead by [ntel, Compaq, Fujitsu, Hewrlett Packard, IBM, NEC, and Silicon Image, this
open industry group's objective is to address the industry's requirements for a digital connectivity specification for high-performance
PCs and digital displays.
• The HDM[ video stream is compatible with DVI (Digital Visual [nterface), soTVs and displays with a DVI input can be connected by
using an HDM[-to-DVI adapter cable. (Note thatDVI connections only carry video, so you'll need to make a separate connection for
audio.) However,reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.
• The HDM[ audio signal (samplingrate, bit length,etc.) may be restricted by the connected source component. If the picture is poor or
there's no sound from a component connected via HDM[, check its setup. Refer to the connected component's instruction manual for
details.
Ell
72

Using an RIHD-compatible TV, Player, or Recorder
1-411-ID, which stands for Remote Interactive over HDMI, is the name of the system control function found on Onkyo
components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over
HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, opera-
tion with components other than I-'411-lD-compatible components cannot be guaranteed.
m About _JHD-compatible components
The following components are I-'411-lD-compatible. (As
of February 2010) See the Onkyo web site for latest infor-
marion.
TV
• Panasonic VIERA Link compatible TV
• Toshiba REGZA-LINK compatible TV
• Sharp TV (See Onkyo web site for latest information on
compatible models.)
Players/Recorders
• Onkyo and Integra 1-411-lD-compatible players
• Panasonic VIERA Link compatible players and record-
ers (only when used together with Panasonic VIERA
Link compatible TV)
• Toshiba REGZA-LINK compatible players and record-
ers (only when used together with Toshiba REGZA-
LINK compatible TV)
• Sharp players and recorders (only when used together
with Sharp TV)
Models other than those mentioned above may have some
interoperability if compatible with CEC which is part of the
HDM[ Standard, but operation cannot be guaranteed.
• Do not connect the f"-tll-IIO-compatible component more than
the following number to the HDM[ input terminal so that the
linked operations work properly.
-Blu-ray Disc/DVD player is up to three.
-Blu-ray Disc recorder/DVD recorder/Digital Video Recorder is
up to three.
-Cable/Satellite Set-top box is up to four.
• Do not connect the AV receiver to the other AV receiveffAV
amplifier via HDME
• When the f'411-11O-compatible component more than the
above-mentioned is connected, the linked operations are not
guaranteed.
N Operations that can be performed with _.JHD
connection
For r_HD-compatible TV
The following linked operation is possible by connecting
the AV receiver to an I-'411-lD-compatible TV.
• The AV receiver will enter Standby mode when the
power of the TV is turned to Standby.
• You can set on the menu screen of the TV to either out-
put the audio from the speakers connected to the AV
receiver, or from the speakers of the TV.
• It is possible to output the video/audio from the antenna
or from the input jack of the TV from the speakers con-
nected to the AV receiver. (A connection such as optical
digital cable or similar is required above the HDMI
cable.)
• Input to the AV receiver can be selected with the remote
controller of the TV.
• Operations such as volume adjustment or similar for the
AV receiver can be performed from the remote controller
of the TV.
For r_l-ll_-compatible players/recorders
The fonowing link operation is possible by connecting the
AV receiver to an r4lHD-compatihle player/recorder.
• When the playback is started on the player/recorder,
input of the AV receiver win switch to the HDMI input
of the player/recorder that is playing back.
• Operation of the player/recorder is possible with the
remote controller supplied with the AV receiver.
Not all functions may operate depending on the model.
En
73

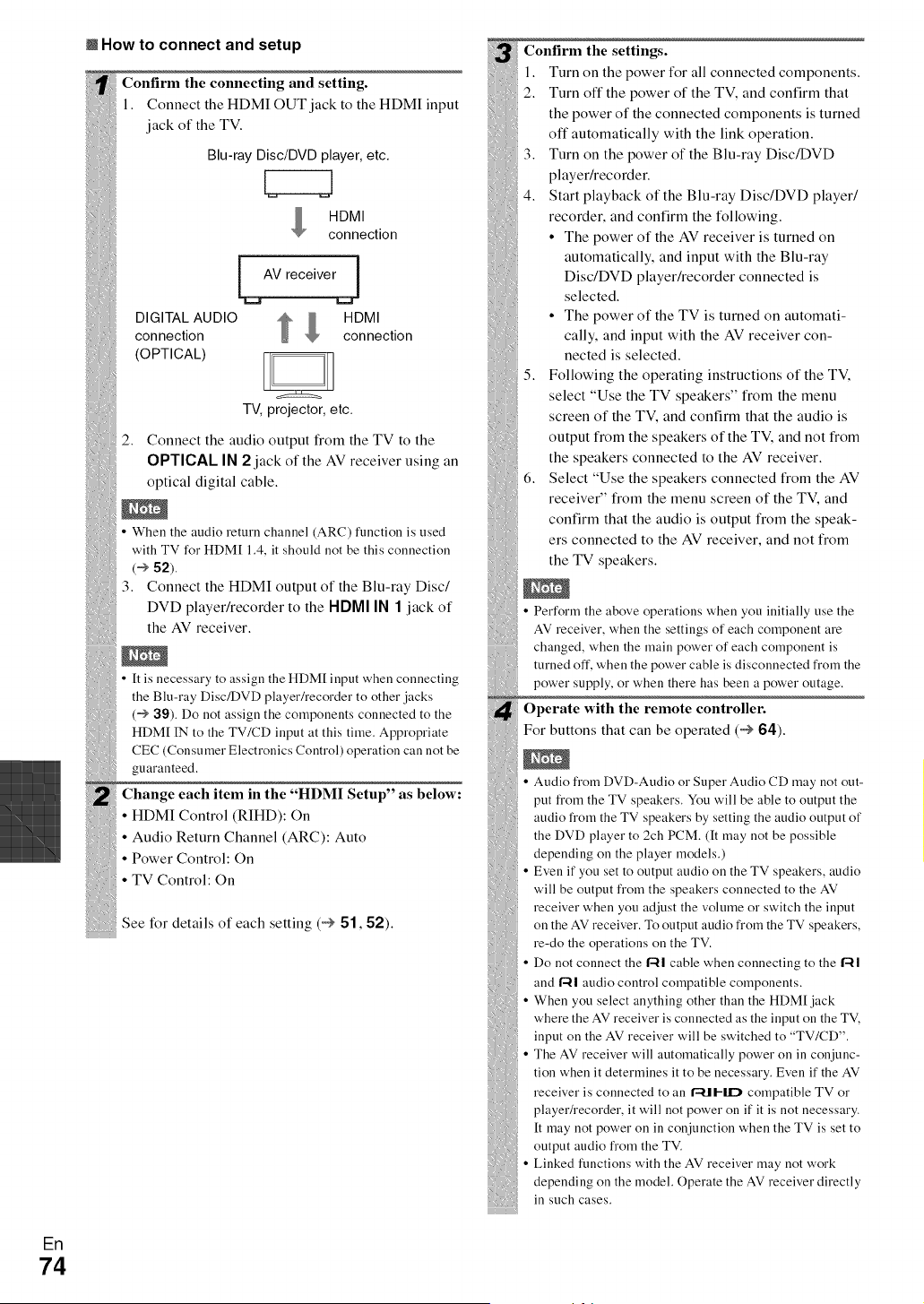

m How to connect and setup
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii,,,
Confirm the connecting and setting.
1. Connect the HDMI OUT jack to the HDMI input
jack of the TV.
Blu-ray Disc/DVD player, etc.
HDMI
connection
[caAV receiverJ
DIGITALAUDIO _ _ HDMI
connection connection
(OPTICAL)
TV, projector, etc.
2. Connect the audio output from the TV to the
OPTICAL IN 2 jack of the AV receiver using an
optical digital cable.
• When the audio return channel (ARC) ftmction is used
with TV for HDM[ 1.4, it should not be this connection
(_ 52).
3. Connect the HDMI output of the Blu-ray Disc/
DVD player/recorder to the HDMI IN 1 jack of
the AV receiver.
• It is necessary to assign the HDM[ input when connecting
the Blu-ray Disc/DVD player/recorder to other jacks
(_ 39). Do not assigu the components connected to the
HDM[ IN to the TV/CD input at this time. Appropriate
CEC (Consumer Electronics Control) operation can not be
guaranteed.
Change each item in the "HDMI Setup" as below:
• HDMI Control (RIHD): On
• Audio Return Channel (ARC): Auto
• Power Control: On
• TV Control: On
See for details of each setting (@ 51,59).
ii !iiiiiii!iili i
iiiiiiiiiiiiiiiiiiiiiiiiiiiiii....
Confirm the settings.
1. Turn on the power for all connected components.
2. Turn off the power of the TV, and confirm that
the power of the connected components is turned
off automatically with the link operation.
3. Turn on the power of the Blu-ray Disc/DVD
player/recorder.
4. Start playback of the Blu-ray Disc/DVD player/
recorder, and confirm the following.
• The power of the AV receiver is turned on
automatically, and input with the Blu-ray
Disc/DVD player/recorder connected is
selected.
• The power of the TV is turned on automati-
cally, and input with the AV receiver con-
nected is selected.
5. Following the operating instructions of the TV,
select "Use the TV speakers" from the menu
screen of the TV, and confirm that the audio is
output from the speakers of the TV, and not from
the speakers connected to the AV receiver.
6. Select "Use the speakers connected from the AV
receiver" from the menu screen of the TV, and
confirm that the audio is output from the speak-
ers connected to the AV receiver, and not from
the TV speakers.
• Perform the above operations when you initially use the
AV receiver, when the settings of each component are
changed, when the main power of each component is
turued off, wheu the power cable is disconnected from the
power supply, or wheu there has been a power outage.
Operate with the remote controller.
For buttons that can be operated (@ 64).
• Audio from DVD-Audio or Super Audio CD may not out-
put from the TV speakers. You will be able to output the
audio from the TV speakers by setting the audio output of
the DVD player to 2ch PCM. (It may not be possible
depeudiug on the player models.)
Even if you set to output audio on the TV speakers, audio
will be output from the speakers connected to the AV
receiver when you adjust the volume or switch the input
on the AV receiver. To output audio from the TV speakers,
re-do the operations on the TV.
Do not connect the 1-41 cable when connecting to the 1-41
and 1-41 audio control compatible components.
When you select anything other than the HDM[ jack
where the AV receiver is connected as the input ou the TV,
input ou the AV receiver will be switched to "TV/CD".
The AV receiver will automatically power on in coujuuc-
tiou when it determines it to be uecessary. Even if the AV
receiver is connected to au r-tl I-liD compatible TV or
player/recorder, it will not power ou if it is not necessary.
It may not power on in coujuuctiou when the TV is set to
output audio from the TV.
Linked functions with the AV receiver may not work
depending on the model. Operate the AV receiver directly
in such cases.
ED
74

Video Resolution Chart
The following tables show how video signals at different resolutions are output by the AV receiver.
NTSC/PAL
_: Output
Input
HDMI
COMPONENT
COMPOSITE
PC (D-Sub)*1
480i/576i
COMPOSITE
480i/576i
v"
Available resolution:
[640 × 480 60/67/73/75 Hz], [800 × 600 56/60/72/75 Hz], [1024 x 768 60/70/75 Hz], [1152 x 864 75 Hz], [1152 x 870 75 Hz],
[1280 × 720 60/75 Hz], [1280 x 768 60 Hz], [1280 × 960 60/75 Hz], [1280 x 1024 60/70/75 Hz], [1360 x 768 60 Hz],
[1400 x 1050 60 Hz], [1600 x 1200 60 Hz], [1680 x 1050 60 Hz], [1920 x 1080 60 Hz]
En
