OWNER’S MANUAL
DRYER
Please read this owner’s manual thoroughly before operating and keep it
handy for reference at all times.
MFL67731061
ENGLISH ESPAÑOL
DLEX9000* DLGX9001*
www.lg.com
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
2
TABLE OF CONTENTS
3
IMPORTANT SAFETY
INSTRUCTIONS
3 WHAT TO DO IF YOU SMELL GAS
4 BASIC SAFETY PRECAUTIONS
4 CALIFORNIA SAFE DRINKING WATER AND
TOXIC ENFORCEMEN ACT
5 GROUNDING INSTRUCTIONS
5 SAFETY INSTRUCTIONS FOR INSTALLATION
6 SAFETY INSTRUCTIONS FOR STEAM
FUNCTIONS
7 SAFETY INSTRUCTIONS FOR CONNECTING
ELECTRICITY
8
TRANSMITTER MODULE
INFORMATION
9
SPECIAL FEATURES

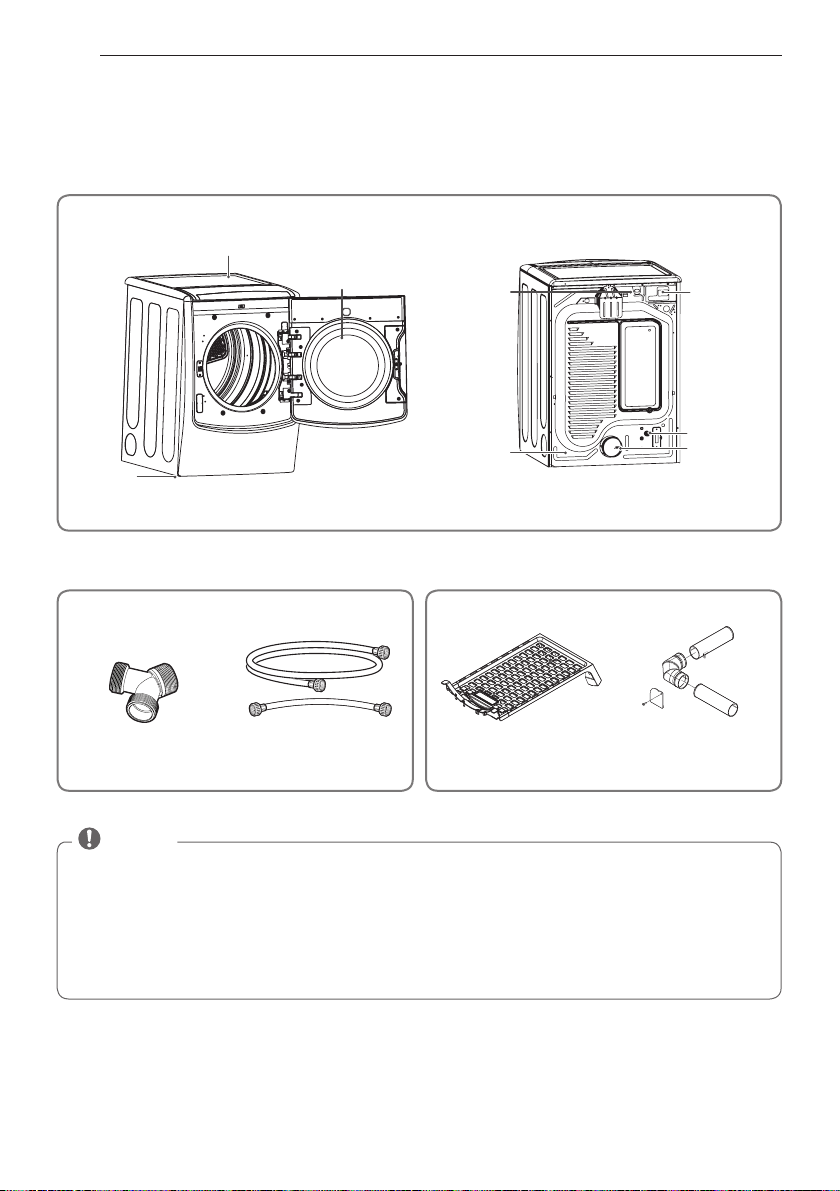

10 PRODUCT OVERVIEW
10 Parts
10 Accessories
11 Control Panel Features
12 Display
13
INSTALLATION

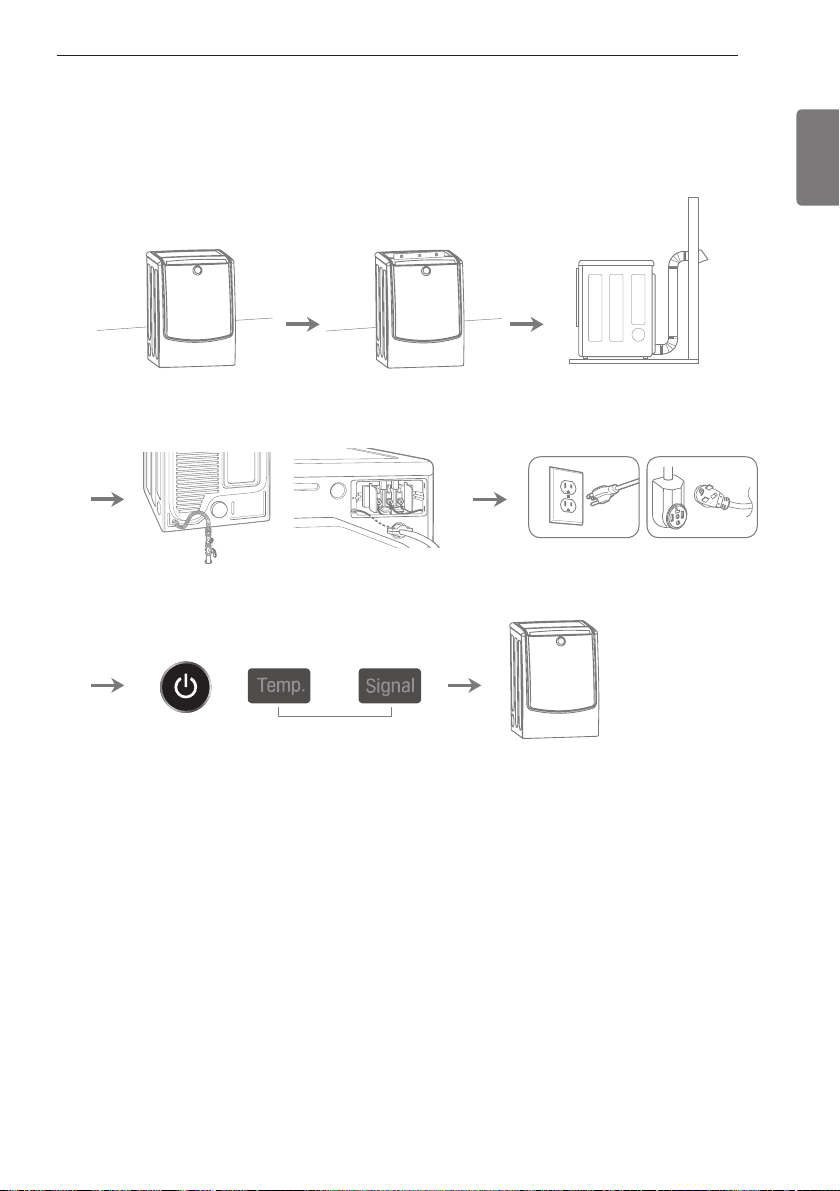

13 Installation Overview
14 Installation Location Requirements
14 Clearances
15 Clearances with Optional Pedestal Base

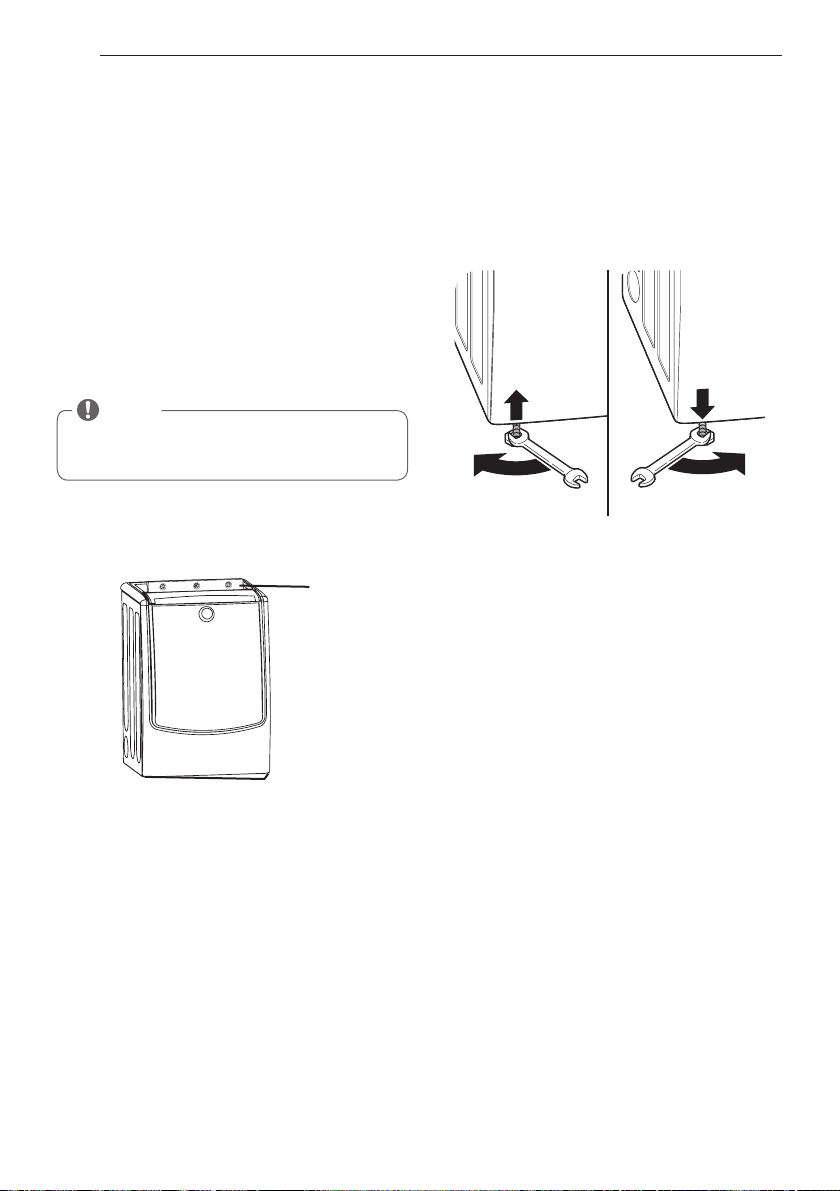

16 Leveling the Dryer

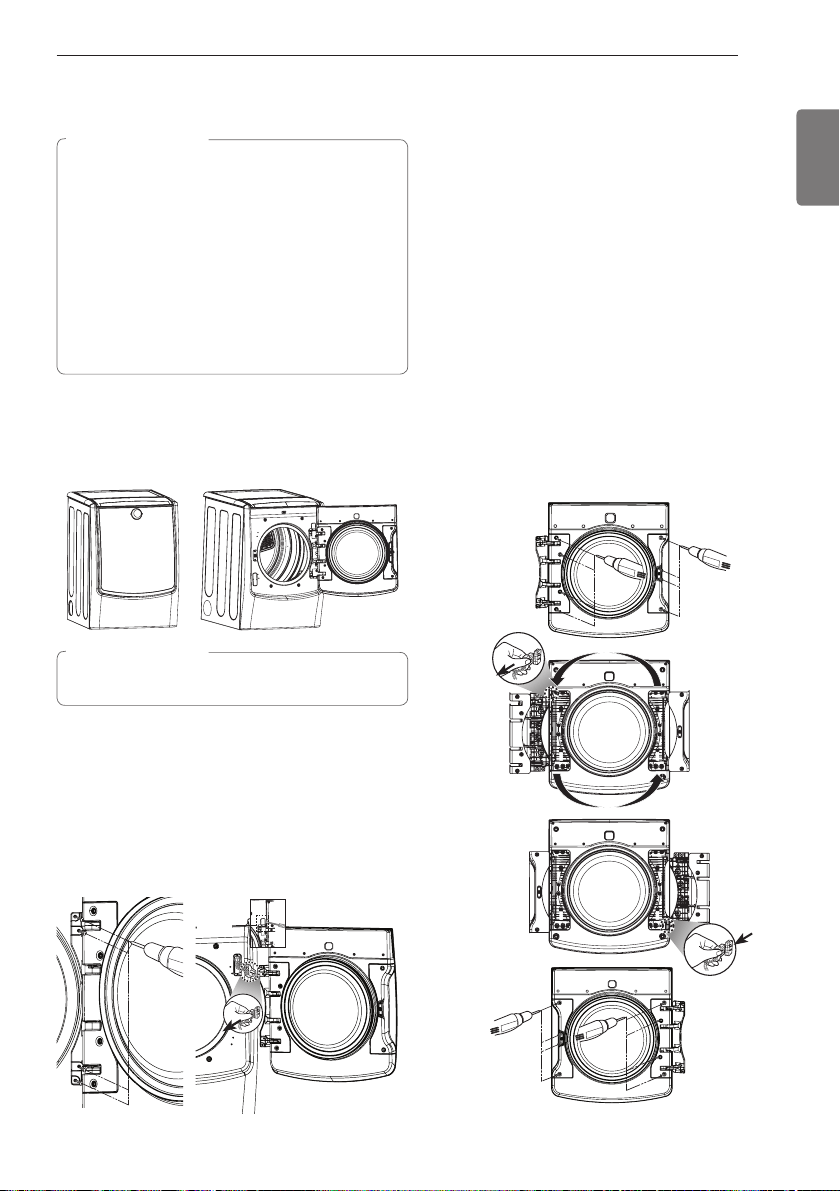

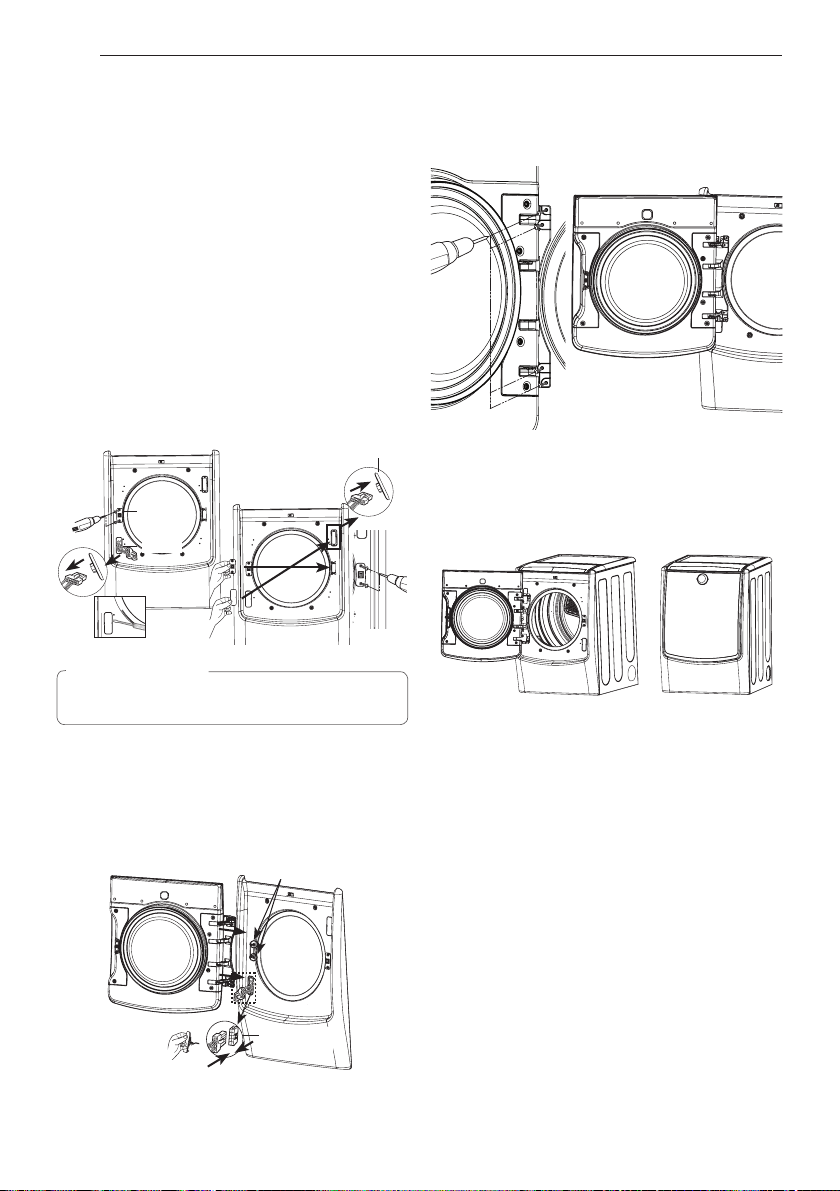

17 Reversing the Door

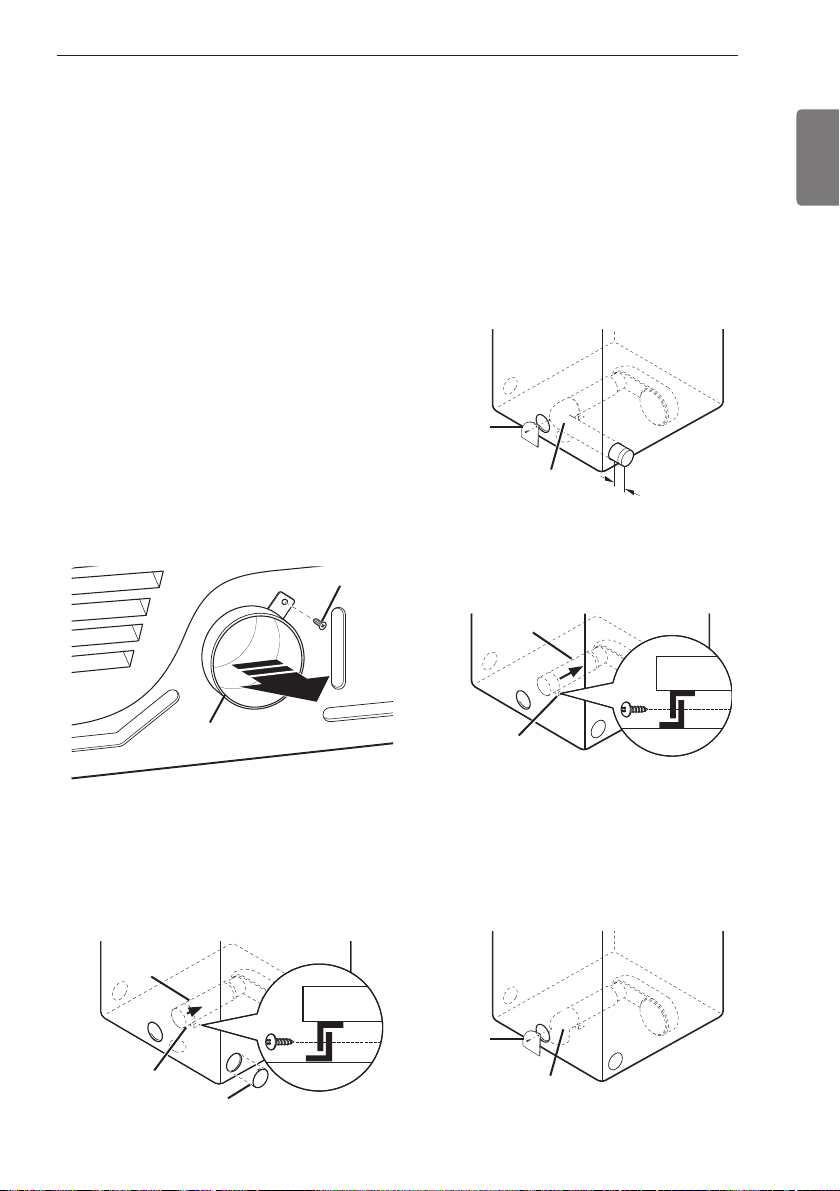

19 Installing the Side Vent Kit

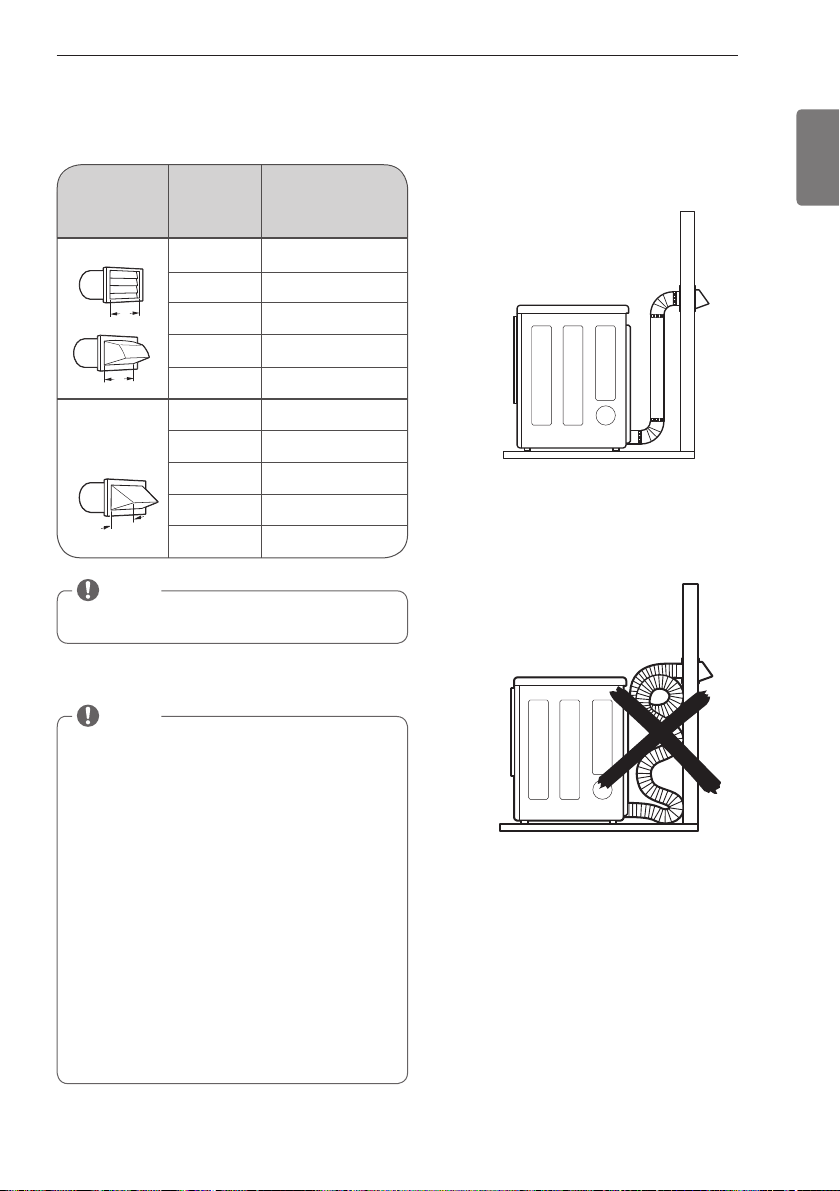

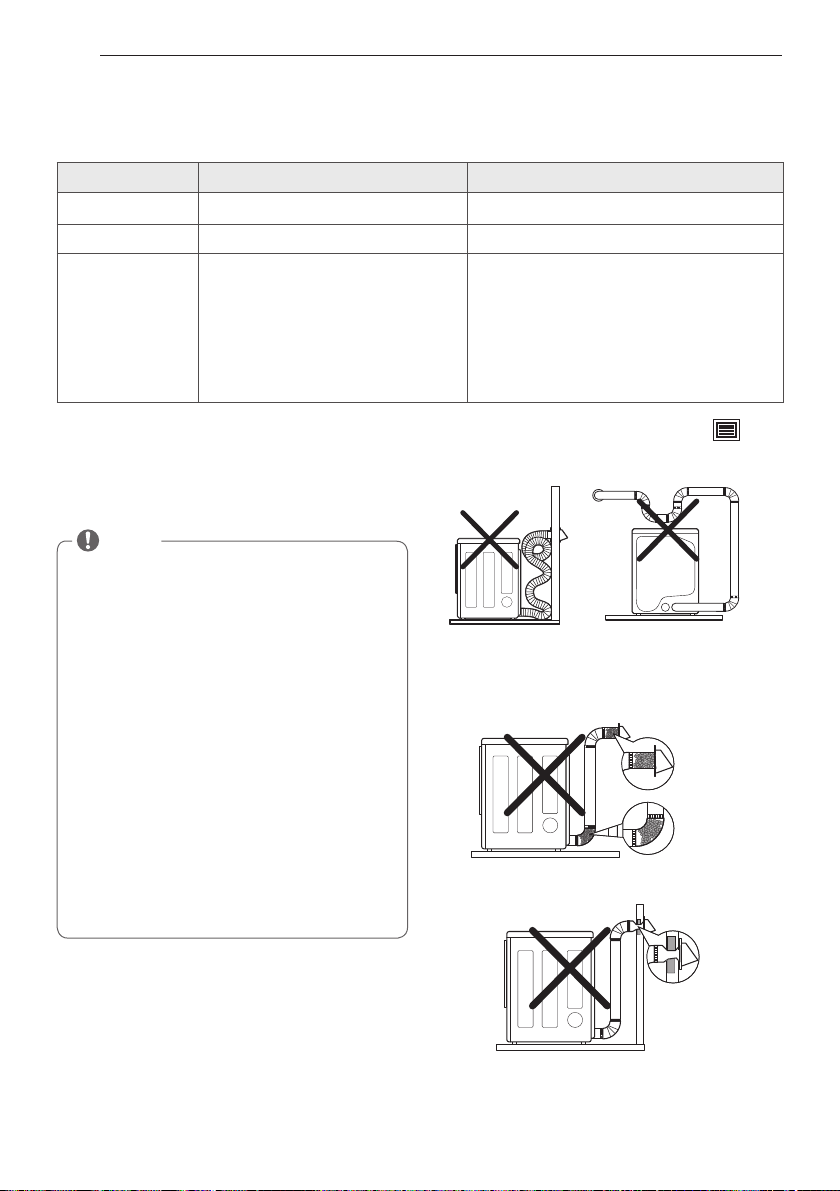

20 Venting the Dryer

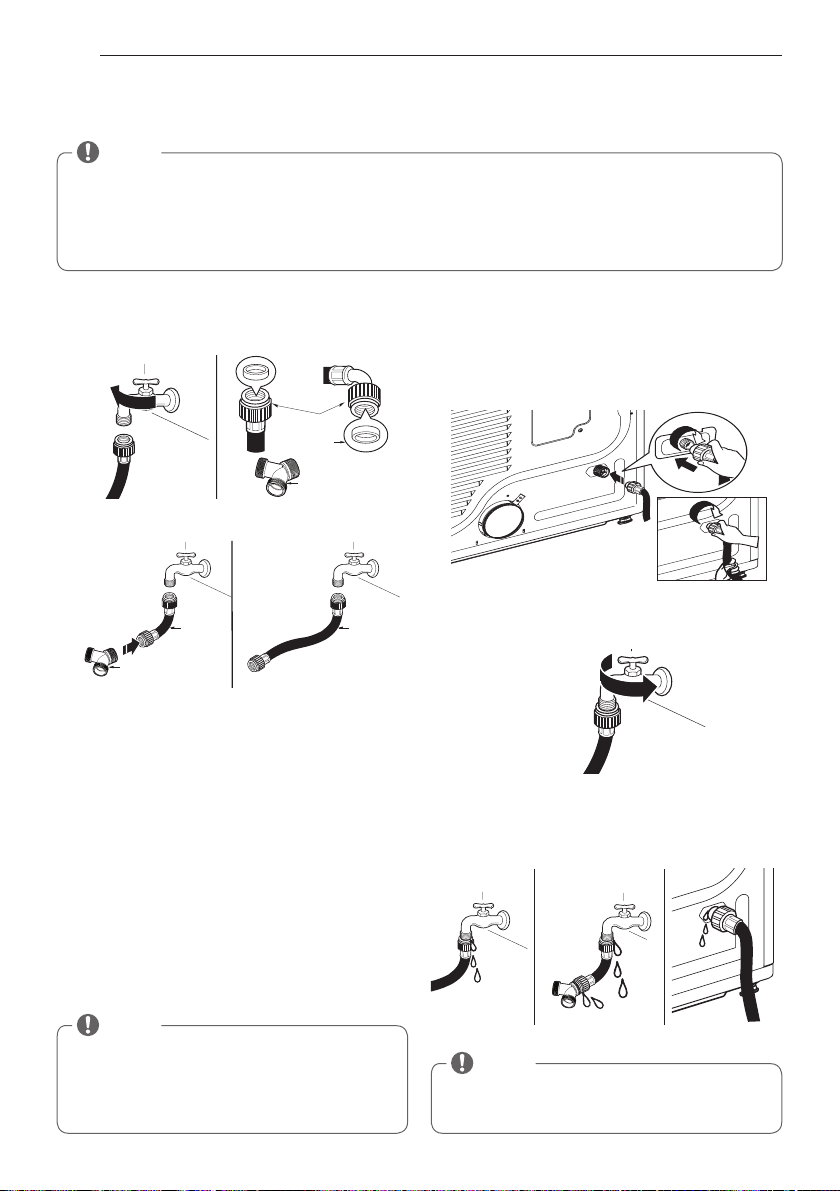

22 Connecting the Inlet Hose
23 Connecting Gas Dryers

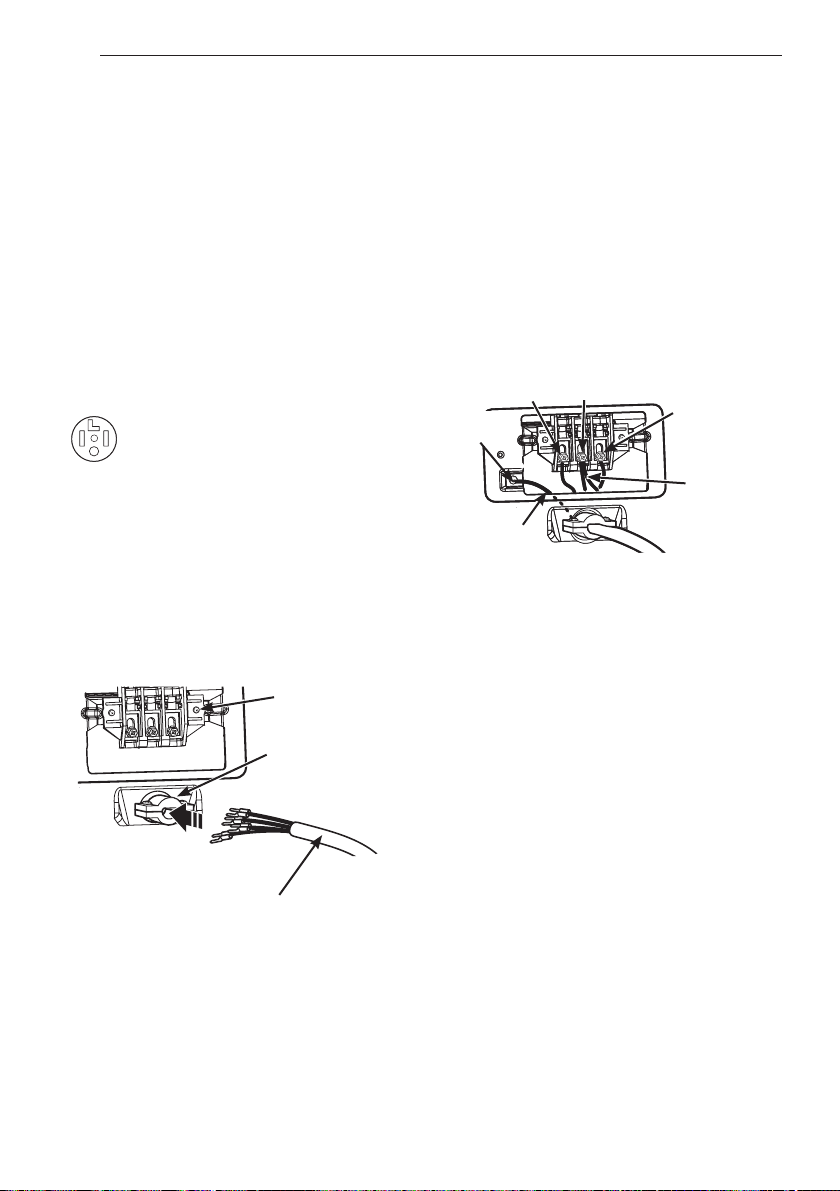

25 Connecting Electric Dryers
30 Special Requirements for Manufactured or
Mobile Homes
30 Final Installation Check
31 Installation Test (Duct Check)
33
OPERATION
33 Operating the Dryer
34 Cycle Guide
35 Sorting Loads
35 Loading the Dryer
35 Check the Lint Filter before Every Load
35 Storage Under the Lid

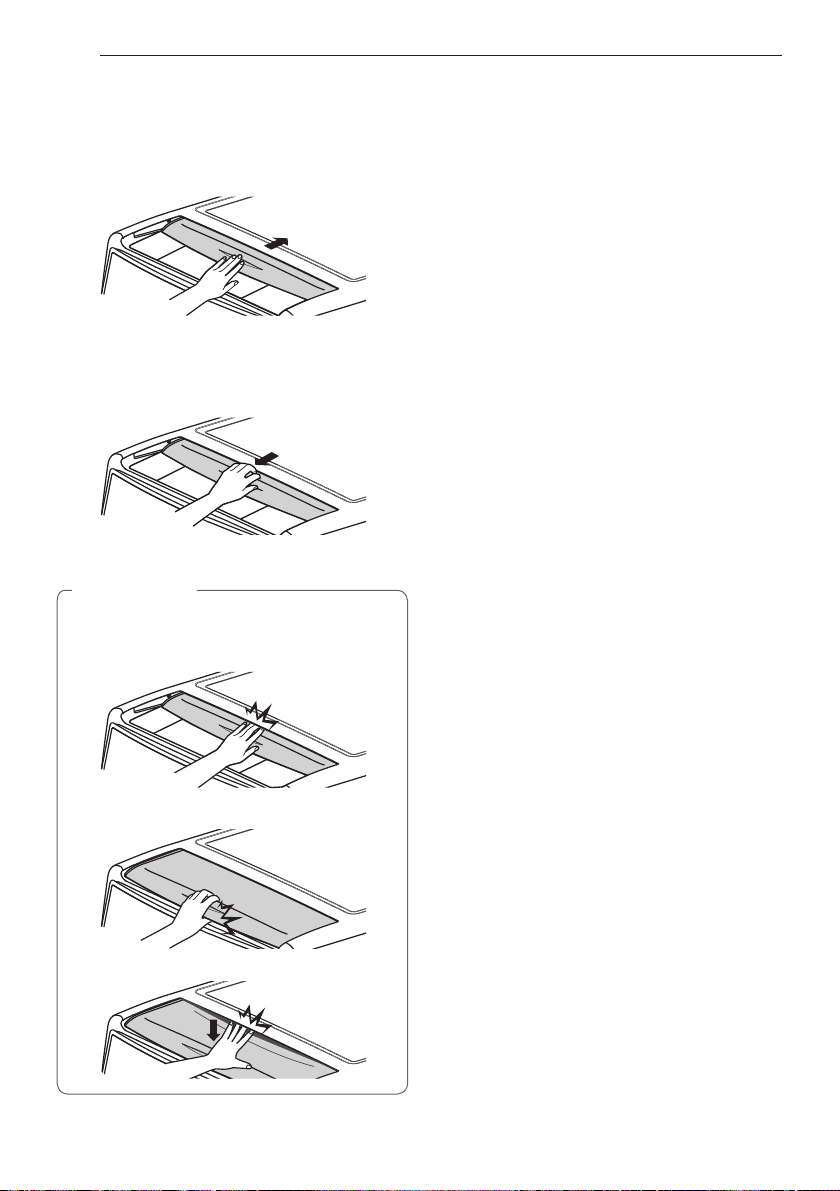

36 Using the Lid
37 Cycle Modifier Buttons
38 Special Functions
39 Custom Program
40 Steam Functions
40 Steam Cycle Guide
41
SMART APPLIANCE
CONNECTIVITY
41 Connectivity Overview
41 Connectivity Setup
42 Smart ThinQ™
44

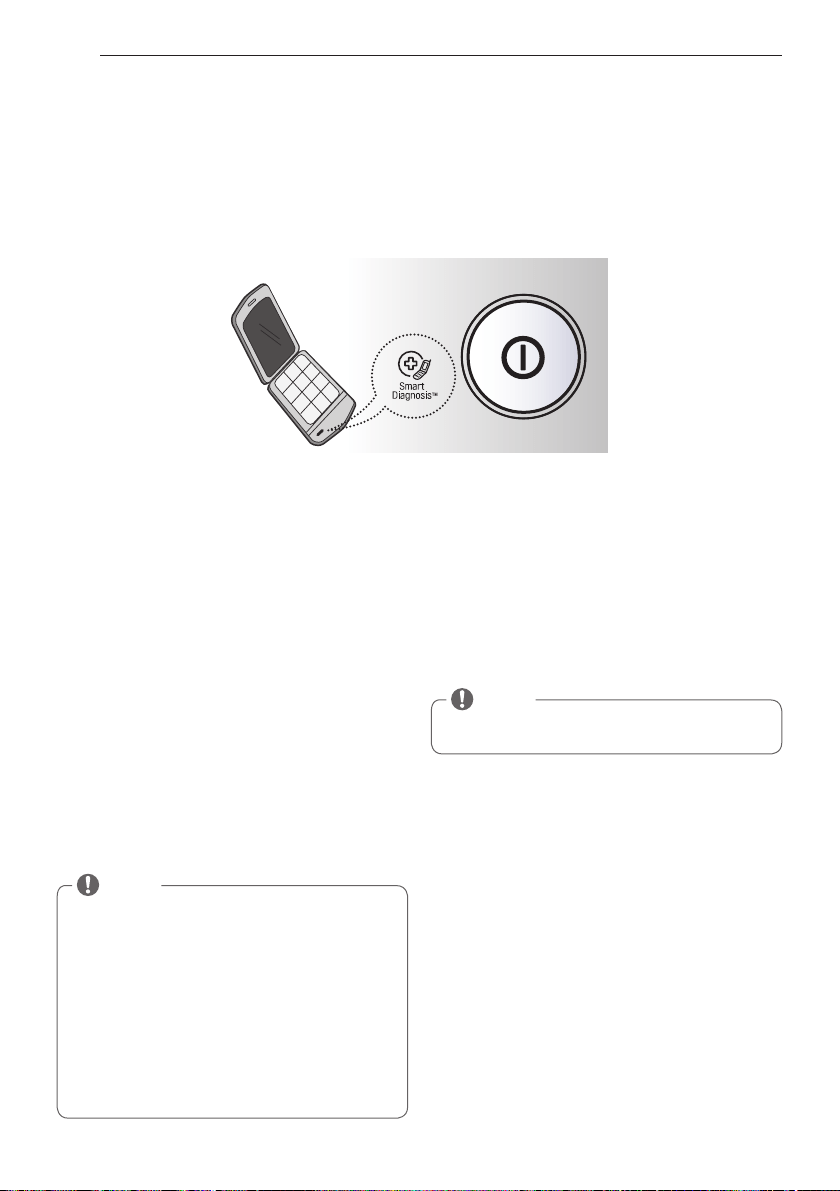

USING SMART DIAGNOSIS
TM
45
MAINTENANCE

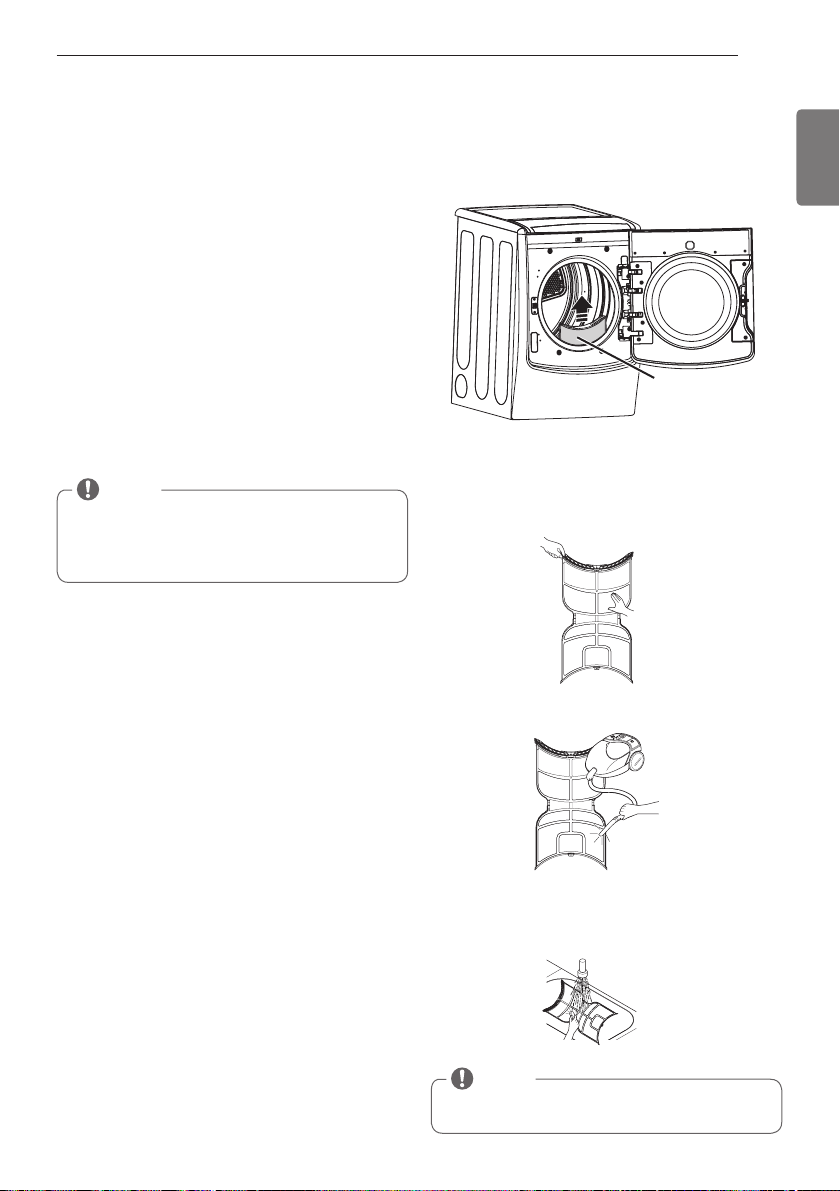

45 Regular Cleaning
46
TROUBLESHOOTING
46 Before Calling for Service
49
SPECIFICATIONS
50
WARRANTY
TABLE OF CONTENTS
3
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric
shock, or to prevent property damage, injury to persons, or death.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING, or CAUTION.
These words mean:
w
DANGER
You will be killed or seriously injured if you don’t immediately follow instructions.
w
WARNING
You can be killed or seriously injured if you don’t follow instructions.
w
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
w
IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric
shock, or to prevent property damage, injury to persons, or death.
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth
defects, or other reproductive harm and requires businesses to warn customers of potential exposure to such
substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized
further by properly venting the dryer to the outdoors.
w
WARNING:
This product contains chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm.
Wash hands after handling.
• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed as
described in this manual.
•
• Do not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
explode.
•
• Do not repair or replace any part of the dryer
or attempt any servicing unless specifically
recommended in this owner’s manual or in published
user-repair instructions that you understand and have
the skills to carry out.
•
• Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
• Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
• Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of
the fabric softener or product.
•
• Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint,
dust, and dirt.
• The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
• Do not install or store the dryer where it will be
exposed to the weather.
• Always check the inside of the dryer for foreign
objects.
• Clean lint screen before or after each load.
•
IMPORTANT SAFETY INSTRUCTIONS
5
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
•
Follow details in
the installation instructions. Electric shock can result if
the dryer is not properly grounded.
• as
described in this manual. Electric shock can result if
the dryer is not properly grounded.
•
•
Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
•
Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
•
Improper
power circuit can melt, creating electric shock and/or
fire hazard.
•
Failure to do so can
result in death, explosion, fire, or burns.
•
Failure to do so can result in
death, explosion, fire, or burns.
• Packaging
material can be dangerous for children. There is a risk
of suffocation.
•
Failure to do so can cause
deform, smoke and fire.
•
Dripping wax,
smoke, or fire can result.
•
Failure to do so can cause product damage, smoke or
fire.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric
shock, or to prevent property damage, injury to persons, or death.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of
electric shock by providing a path of least resistance for electric current. This appliance must be equipped with a cord
having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by
a qualified electrician. This appliance must be connected to a grounded metal, permanent wiring system or an
equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-
grounding terminal or lead on the appliance. Electric shock can result if the dryer is not properly grounded.
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
6
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric
shock, or to prevent property damage, injury to persons, or death.
w
WARNING
To reduce the risk of injury to persons, follow all industry recommended safety procedures including the use of long
sleeved gloves and safety glasses. Failure to follow all of the safety warnings in this manual could result in property
damage, injury to persons, or death.
Exhaust/Ducting:
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
•
Failure to follow these instructions can result in fire or
death.
•
. An accumulation of lint in any area of
the home can create a health and fire hazard.
•
Punctured
ductwork can cause a fire if it collapses or becomes
otherwise restricted in use or during installation.
•
Failure to
follow these instructions can result in fire or death.
•
dryer. Failure to follow these instructions can result in
fire or death.
•
Failure to
follow these instructions can result in fire or death.
•
Secure
all joints with duct tape. For complete details, follow
the Installation Instructions. Failure to follow these
instructions can result in fire or death.
IMPORTANT SAFETY INSTRUCTIONS
•
Failure to follow these instructions can result in a burn
hazard.
•
Failure to follow these
instructions can result in fire or death.
•
Failure to follow these instructions can
result in fire or death.
•
Failure to follow these
instructions can result in a burn hazard.
•
Failure to follow these instructions can result
in a burn hazard.
7
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric
shock, or to prevent property damage, injury to persons, or death.
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
•
To prevent
injury to persons or damage to the dryer, the electrical
power cord must be plugged into a properly grounded
outlet.
•
Failure to do so can result in electric shock
or injury.
•
Failure to follow these instructions can create an
electric shock hazard and/or a fire hazard.
•
Failure to follow these instructions can create an
electric shock hazard and/or a fire hazard.
•
This provides
the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard
from overheated wires.
•
The power cord can be damaged,
resulting in a risk of fire and electric shock.
•
The power cord can
melt, creating an electric shock and/or fire hazard.
•
This will
prevent injury and prevent damage to the dryer from
fire and electric shock.
IMPORTANT SAFETY INSTRUCTIONS
8
TRANSMITTER MODULE INFORMATION
TRANSMITTER MODULE INFORMATION
Model LCW-003
Frequency
Range
2412 to 2462 MHz
Output
Power (Max)
IEEE 802.11 b : 17.56 dBm
IEEE 802.11 g : 25.53 dBm
IEEE 802.11 n : 25.29 dBm
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
the receiver.
• Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference and
2) This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modifications in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with
a minimum distance of 20 cm (7.8 inches) between the
antenna and your body. Users must follow the specific
operating instructions for satisfying RF exposure
compliance.
To obtain the source code under GPL, LGPL, MPL, and
other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms,
warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you
on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping,
and handling) upon email request to opensource@lge.
com. This offer is valid for three (3) years from the date
on which you purchased the product.
9
ENGLISH
SPECIAL FEATURES
EASY-TO-USE CONTROL PANEL
Rotate the cycle selector knob to select the desired dry cycle. Add cycle options or adjust settings with the touch
of a button.
EASY-ACCESS REVERSIBLE DOOR
The wide-opening door provides easy access for loading and unloading. The door hinge can be reversed to adjust
for installation location.
U LT RA-CAPACITY STAINLESS STEEL DRUM WITH DRUM LIGHT
The ultra-large stainless steel drum offers superior durability. The drum is equipped with a light that illuminates
when the dryer door is opened and turns off when the door is closed.
STEAM FUNCTIONS
LG’s steam technology injects fabrics with a swirling jet of hot steam to refresh clothes. Simply select the STEAM
FRESH™ cycle, or add a steam option to selected cycles.
FLOW SENSE™ DUCT BLOCKAGE SENSING SYSTEM INDICATOR
The FLOW SENSE™ duct blockage sensing system detects and alerts you to restrictions in the installed household
ductwork that reduce exhaust airflow through the dryer. If you see the alert: Clean or repair the ducts to remove
the restrictions. Keep your ducts clean to help increase efficiency and reduce long drying times caused by blocked
ducts.
SMART THINQ™
Use a smart phone to control your appliance remotely. Also, it is possible to monitor your cycle
operation so you know how much time is left in the cycle.
Smart appliances can communicate with local utility companies that are equipped with Smart Grid
equipment.
When the cycle is complete or the appliance has problems, you have the option of receiving
push notifications on your smart phone.
Download new and special cycles that are not included with the machine.
Should you experience technical difficulty, your appliance has the capability of transmitting
data by phone to the Customer Information Center to diagnosis the problem.
This feature automatically sets cycle settings based on your laundry needs.
This feature provides the Flow Sense status and cycle use history for the machine.
Your dryer energy usage is affected by the cycle and settings so you may see some changes
in energy usage from one cycle to another.
Protocol P154
Sanitization Performance of
Residential Clothes dryer
C
E
R
T
I
F
I
E
D
D
E
S
I
G
N
SPECIAL FEATURES
10
PRODUCT OVERVIEW
PARTS AND ACCESSORIES
Parts
NOTE
• Visit www.lg.com to purchase accessories.
• Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing.
• For your safety and for extended product life, use only authorized components. The manufacturer is not
responsible for product malfunction or accidents caused by the use of separately purchased unauthorized
components or parts.
• The images in this manual may be different from the actual components and accessories, which are subject to
change by the manufacturer without prior notice for product improvement purposes.
PRODUCT OVERVIEW
Leveling
feet
Reversible
Door
Top Plate
Power Cord
Location
(Gas
Models)
Gas
Connection
Location
(Gas Models)
Terminal
Block
Access
Panel
(Electric
Models)
Exhaust
Duct
Outlet
Inlet Valve
HoseY connector
Accessories
Side vent kit
(sold separately)
Kit No. 383EEL9001B
Drying rack
(AHB73109002)
11
ENGLISH
Control Panel Features
Following are instructions for starting and using your new dryer. Please refer to specific sections of this
manual for more detailed information.
w
WARNING :
To reduce the risk of fire, electric shock, or injury to persons, read this entire manual,
including the Important Safety Instructions, before operating this dryer.
Button
- Press to turn the dryer ON. To turn the dryer off, Press and hold more than 0.4
seconds.
Pressing the ON/OFF button during a cycle will cancel that cycle and any
load settings will be lost.
- Turn this knob to select the desired cycle. Once the desired cycle has been
selected, the standard presets will be shown in the display. On MANUAL DRY
cycles, these settings can be adjusted using the cycle modifier buttons anytime
before starting the cycle.
- Press this button more than 0.5 seconds hold to start the selected cycle. If the
dryer is running, use this button to pause the cycle without losing the current
settings.
If you do not press the Start/Pause button to resume a cycle within four
minutes, the dryer turns off automatically.
- To adjust the drying time, use these buttons with MANUAL DRY, TIME DRY, and
STEAM FRESH™ cycles, as well as the REDUCE STATIC and EASY IRON options. Press
the MORE TIME button to increase the selected manual cycle time by a minute;
press LESS TIME to decrease the cycle time by a minute.
- Use these buttons to modify the default cycle settings for the selected cycle. The
current settings are shown in the display. Press the button for that option to view
and select other settings.
- The OPTION buttons allow you to select additional cycle options. Certain buttons
marked with an asterisk also allow you to activate special functions by pressing
and holding the button for 3 seconds.
- LG’s steam technology injects fabrics with a swirling jet of hot steam to refresh
clothes, reduce static, and make ironing easier. Simply select the Steam Fresh™
cycle, or you can add a steam option to selected cycles.
Operation
PRODUCT OVERVIEW
12
Display
The display shows the settings, estimated time remaining, options, and status messages for your dryer.
When the dryer is turned on, the light in the display will illuminate.
w
WARNING :
To reduce the risk of fire, electric shock, or injury to persons, read this entire manual,
including the Important Safety Instructions, before operating this dryer.
- When the Hold to Start button is pressed, the dryer will display the estimated
(SENSOR DRY) or set time (TIME DRY) remaining, and begin tumbling.
The cycle time on SENSOR DRY cycles may fluctuate as the dryer
recalculates drying time for optimal results
- This portion of the display shows which stage of the drying cycle is currently
underway (CLEAN FILTER, DRY, or COOL).
- When CHILD LOCK is set, the CHILD LOCK indicator will appear and all buttons are
disabled except the POWER button. This prevents children from changing settings
while the dryer is operating
- The display will show CLEAN FILTER when the dryer is turned on as a reminder to
clean the lint filter. It turns off when the Hold to Start button is pressed.
- If you have a special combination of settings that you use frequently, you can
save these settings as a CUSTOM PROGRAM.
- The FLOW SENSE™ duct blockage sensing system detects and alerts you to
blockages in the ductwork that reduce exhaust flow from the dryer. This improves
operating efficiency and helps minimize service calls, saving you money.
- When the appliance is connected to the internet through a home Wi-Fi network,
this indicator appears.
PRODUCT OVERVIEW
13
ENGLISH
INSTALLATION
Installation Overview
Checking and
choosing the proper
location
Leveling the dryer Venting the Dryer
Installation test
Connecting Gas Dryers
(Gas Dryer Type)
Connecting Electric Dryers
(Electric Dryer Type)
Plugging in the power cord
and grounding
Test run
Press and hold
120V
240V(USA)
230V(CANADA)
INSTALLATION
(Gas) (Electric)
14
Installation Location Requirements
w
WARNING
It is important that
you review this entire manual before installing and using your dryer. Detailed instructions concerning electrical
connections, gas connections, and exhaust requirements are provided on the following pages.
Do not operate your dryer at temperatures below 45°F (7°C). At lower temperatures, the dryer might not shut off
at the end of an automatic cycle. This can result in longer drying times. The dryer must not be installed or stored in
an area where it will be exposed to water and/or weather. Check code requirements. Some codes limit, or do not
permit, installation of the dryer in garages, closets, mobile homes or sleeping quarters. Contact your local building
inspector.
Clearances
INSTALLATION SPACING FOR RECESSED AREA OR CLOSET INSTALLATION
The following clearances are recommended for this dryer. Although this dryer has been tested for 1inch (2.5cm)
clearance on the sides and rear, the recommended clearances should be considered for the following reasons:
• A location that allows for proper exhaust installation.
A gas dryer must be exhausted to the outdoors. See
.
• A grounded electrical outlet located within 2 ft.
(61 cm) of either side of the dryer. See
• A sturdy floor to support the total dryer weight of 200
lbs (90.7 kg). The combined weight of a companion
appliance should also be considered.
• No other fuel-burning appliance can be installed in the
same closet as a dryer.
• Additional clearance should be considered for ease of
installation and servicing.
• Additional clearances might be required for wall, door
and floor moldings.
• Additional clearance should be considered on all sides
of the dryer to reduce noise transfer.
For closet installation, with a door, minimum
ventilation openings in the top and bottom of the
door are required. Louvered doors with equivalent
ventilation openings are acceptable.
• Companion appliance clearances should also be
considered.
24 in.
2*
(155 cm
2
)
18" min.*
(45.7 cm)
1"*
(2.5 cm)
5"**
(12.7 cm)
48 in.
2*
(310 cm
2
)
14" max.*
(35.6 cm)
3"
*
(7.6 cm)
3"
*
(7.6 cm)
1"
(2.5 cm)
29"
(73.7 cm)
1"
(2.5 cm)
1"*
(2.5 cm)
5"**
(12.7 cm)
14" max.*
(35.6 cm)
18" min.*
(45.7 cm)
0"
(0 cm)
40
7/8
"
(103.9 cm)
1"*
(2.5 cm)
29"
(73.7 cm)
1"*
(2.5 cm)
33
3/8
"
(84.8 cm)
33
3/8
"
(84.8 cm)
NOTE
• Floor must be level, with a maximum slope of 1 inch (2.5 cm) under entire dryer. Clothes may not tumble
properly, and automatic sensor cycles may not operate correctly if dryer is not level.
• For a garage installation, you will need to place the dryer at least 18 inches (46 cm) above the floor. If using a
pedestal, you will need 18 inches (46 cm) to the bottom of the dryer.
NOTE
There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of
vibration from one to the other. With enough vibration, the appliances will make noise or touch each other
causing paint damage and making even more noise.
INSTALLATION
15
ENGLISH
Clearances with Optional Pedestal Base
RECOMMENDED INSTALLATION SPACING FOR CABINET INSTALLATION
• For cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.
*Required spacing
** For side or bottom venting,
2 inches (5.1 cm) spacing is allowed.
7"* (17.8 cm)
9"*
(22.9 cm)
7"* (17.8 cm)
5"
(12.7cm)
29"
(73.7 cm)
1"
(2.5cm)
(2.5 cm)
(2.5 cm)
33
3/8
"
(84.8 cm)
INSTALLATION
16
Leveling the Dryer
w
WARNING
Failure to follow this warning can cause serious injury
or death.
Failure to follow
this warning can cause serious injury or death.
To ensure that the dryer provides optimal drying
performance, it must be level. To minimize vibration,
noise, and unwanted movement, the floor must be a
perfectly level, solid surface.
1. Position the dryer in the final location. Place a level
across the top of the dryer.
• All four leveling feet must rest solidly on the floor.
Gently push on the top corners of the dryer to make
sure that the dryer does not rock from corner to corner.
If you are installing the dryer on the optional pedestal,
you must use the leveling feet on the pedestal to
level the dryer. The dryer leveling feet should be fully
retracted.
2. Use an adjustable wrench to turn the leveling feet.
Turn clockwise to raise the dryer or counterclockwise
to lower it. Raise or lower the leveling feet until the
dryer is level from side to side and front to back.
Make sure that all four leveling feet are in firm contact
with the floor.
Level
Leveling Feet
NOTE
Adjust the leveling feet only as far as necessary to
level the dryer. Extending the leveling feet more than
necessary can cause the dryer to vibrate.
INSTALLATION
17
ENGLISH
INSTALLATION
flat blade screwdriver, Phillips screwdriver
1. Unplug the machine or turn off the power supply at
the main circuit before reversing the door. Open the
dryer door.
w
WARNING
Be sure to support the weight of the door before
removing the hinge screws.
1. While supporting the door, remove the four hinge
screws.
2. Carefully pull the door away from the cabinet to reveal
the wire harness behind the hinge at the top. Depress
the side lock tab to disconnect the wire harness
connector. The twist tie and cap should prevent the
wire harness from pulling back into the cabinet.
3. Remove the door from the cabinet cover. Set the door
face down on a protected work surface.
Cap R
1. Remove the four screws on the right door frame
(handle and strike), lift it off, and set the parts aside.
(The two center strike screws are longer.)
2. Remove the four screws on the left door frame (hinge
assembly).
3. Carefully lift out the hinge assembly, revealing the
wire harness connector at the top of the hinge.
Depress the center lock tab to disconnect the wire
harness connector.
4. Rotate the hinge assembly 180 degrees and connect
the wire harness to the connector in the bottom right
side of the door.
5. Install the hinge assembly in the recess on the right
side of the door, tucking the wire harness in the corner
to make room. Insert and tighten the four screws.
6. Rotate the handle removed in step one 180 degrees
and install it on the left side of the door using the two
shorter screws. Use the longer screws to mount the
door strike in the center.
Reversing the Door
w
WARNING
THE DRYER DOOR IS VERY LARGE AND HEAVY. Two or
more people are required when reversing the door.
Failure to follow the warnings below can result in
damage to the dryer, property damage or injury to
persons.
the door.
Frame L Frame R
18
1. Remove the two screws and the latch assembly from
the left side of the opening.
2. Rotate the latch assembly and remount it on the right
side of the opening with the two screws.
3. Switch the two caps. Untie the twist tie and remove
the small cap from the side of the wire harness on the
top right of the cabinet. Make sure the wire harness
does not slip back into the cabinet.
4. Remove the left cap by gently prying it up with a flat
blade screwdriver, being careful not to scratch the
paint. Disconnect the wire harness attached to the
cap by pressing the tabs on either side.
5. Attach the left cap to the wire harness on the top right
of the cabinet. Snap the cap into place.
6. Attach the twist tie and the small cap removed in step
1 to the side of the wire harness on the bottom left of
the cabinet. The wire harness will be attached to the
harness in the door.
7. Unscrew the four decorative screws from the left side
of the cabinet and insert them into the matching
holes on the right side of the cabinet.
Latch
Cap L
Cap L
w
WARNING
Be sure to support the weight of the door while
inserting the hinge screws.
1. While supporting the door, move the door into
position with the hinge on the left side.
2. Connect the wire harness from the hinge to the
connector on the lower left side of the cabinet.
Harness
Connector
Hinge Hole
1. Align the hinge with the mounting holes.
2. While supporting the door, fasten the four hinge
screws.
1. Check that the door closes and latches properly.
INSTALLATION
19
ENGLISH
Installing the Side Vent Kit
w
WARNING
• Failure to follow all of the safety warnings in this
manual could result in property damage, injury to
persons, or death.
Your new dryer is shipped to vent to the rear.
It can also be configured to vent to the bottom or side
(right-side venting is not available on gas models).
An adapter kit, part number , may be
purchased from an LG retailer. This kit contains the
necessary duct components to change the dryer vent
location.
1. Remove the rear exhaust duct retaining screw. Pull
out the exhaust duct.
OPTION 1: SIDE VENTING
2. Press the tabs on the knockout and carefully remove
the knockout for the desired vent opening (right-
side venting is not available on gas models). Press the
adapter duct onto the blower housing and secure to
the base of the dryer as shown.
3. Preassemble a 4-inch (10.2 cm) elbow to the next
4-inch (10.2 cm) duct section, and secure all joints
with duct tape. Be sure that the male end of the elbow
faces AWAY from the dryer. Insert the elbow/duct
assembly through the side opening and press it onto
the adapter duct. Secure it in place with duct tape.
Be sure that the male end of the duct protrudes 1½
inches (3.8 cm) to connect the remaining ductwork.
Attach the cover plate to the back of the dryer with
the included screw.
OPTION 2: BOTTOM VENTING
2. Press the adapter duct onto the blower housing and
secure it to the base of the dryer as shown.
3. Insert the 4-inch (10.2 cm) elbow through the rear
opening and press it onto the adapter duct. Be sure
that the male end of the elbow faces down through
the hole in the bottom of the dryer. Secure it in place
with duct tape.
Attach the cover plate to the back of the dryer with
the included screw.
Rear
Exhaust Duct
Retaining
Screw
Elbow
Cover
Plate
Knockout
Bracket
Adapter
Duct
Bracket
Adapter
Duct
Elbow
Cover
Plate
1
2/4
”
(3.8 cm)
INSTALLATION
20
Venting the Dryer
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
• Failure to follow
these instructions can result in fire or death.
•
Failure to follow these instructions can result
in fire or death.
•
Failure to follow these instructions can result in fire or
death.
•
Failure to follow these instructions can result in fire or
death.
•
Failure to follow these instructions can result in fire or
death.
•
Failure to follow these
instructions can result in fire or death.
•
Failure to follow these instructions can result
in fire or death.
•
Failure to follow these instructions can result in fire or
death.
•
dryer. Failure to follow these instructions can result in
fire or death.
•
Failure to
follow these instructions can result in fire or death.
•
Failure to follow these
instructions can result in fire or death.
•
Failure to follow these instructions can
result in fire or death.
•
Failure to
follow these instructions can result in fire or death.
•
•
In the
United States, only those foil-type flexible ducts, if any,
specifically identified for use with the appliance by the
manufacturer and that comply with the Outline for
Clothes Dryer Transition Duct, Subject 2158A, shall be
used.
INSTALLATION
21
ENGLISH
Venting the Dryer (cont.)
ROUTING AND CONNECTING DUCTWORK
NOTE
Deduct 6 ft. (1.8 m) for each additional elbow. Use of
more than four 90* elbows is not recommended.
NOTE
Follow the guidelines below to maximize drying
performance and reduce lint buildup and
condensation in the ductwork.
Ductwork and fittings are NOT included and must be
purchased separately.
• Use 4-inch (10.2 cm) diameter rigid or semirigid
metal ductwork.
• The exhaust duct run should be as short as possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must
point away from the dryer.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated areas
in order to reduce condensation and lint buildup on
duct surfaces.
• Failure to exhaust the dryer correctly will void the
dryer’s warranty.
Ductwork
0
1
2
3
4
0
1
2
3
4
65 ft. (19.8 m)
55 ft. (16.8 m)
47 ft. (14.3 m)
36 ft. (11.0 m)
28 ft. (8.5 m)
55 ft. (16.8 m)
47 ft. (14.3 m )
41 ft. (12.5 m)
30 ft. (9.1 m)
22 ft. (6.7 m)
Recommended
Use only for
short run
installations
4”
(10.2 cm)
4”
(10.2 cm)
2
2
/
4
”
(6.35 cm)
INSTALLATION
22
1. Check the rubber seal in the inlet hose. Two rubber
seals are supplied with each inlet hose. They are used
for preventing water leaks. Make sure the connection
to the cold water tap is tight.
2. Check the installation type.
a.
Shut off the cold water tap and remove the washer hose.
b. Connect the short hose to the Y-connector using one
of the rubber seals.
c. Connect the other end of the short hose to the cold
water faucet.
d.
Connect the long dryer hose to one side of theY-connector
and connect the washer hose to the other side.
a. Connect the straight end of the long hose to the cold
water faucet.
Connecting the Inlet Hose
The dryer must be connected to the cold water tap using the new water supply hose. Do not reuse old hoses.
3. Connect the hose to the dryer.
• Connect the water supply hose to the dryer inlet valve
tightly by hand and then tighten another 2/3 turn with
pliers.
Make sure that there are no kinks in the hoses and that
they are not crushed.
4. Turn on the cold water faucet.
5. Check for leaks at the Y-connector (if used) and in all
hoses.
NOTE
• If any leaks are found, shut o the water faucet,
remove the hose and check the condition of the
rubber seals.
NOTE
• Before connecting the water line to the dryer, ush
several gallons of water into a drain or bucket. This will
help prevent foreign particles such as sand and scale
from clogging the dryer inlet valve.
• Do not overtighten. Damage to the coupling can result.
NOTE
• Water supply pressure must be between 20 psi and 120 psi (138–827 kPa).
• Do not strip or cross-thread when connecting the inlet hose to the valve.
• If the water supply pressure is more than 120 psi (827 kPa), a pressure reducing valve must be installed.
• Periodically check the condition of the hose and replace the hose if necessary.
• Replace inlet hoses after ve years of use to reduce the risk of hose failure.
• Record hose installation or replacement dates on the hoses for future reference.
Hose
connector
Y connector
Rubber
seal
Long
hose
WITH WASHER WITHOUT WASHER
Short
hose
Y connector
INSTALLATION
23
ENGLISH
Connecting Gas Dryers
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
Electrical requirements for gas models only
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
•
Failure
to follow this warning can result in fire, explosion, or
death.
•
Failure to follow this warning can result in
fire, explosion, or death.
•
Failure to follow this warning
can result in fire, explosion, or death.
•
Failure to follow this warning can
result in fire, explosion, or death.
•
Failure to follow this
warning can result in fire, explosion, or death.
•
•
Failure
to follow this warning can result in fire, explosion, or
death.
•
Failure to do
so can result in fire, explosion, or death.
•
1
Failure to do so can result in fire, explosion, or death.
•
3
Failure to do so can result in fire, explosion, or
death.
•
Failure to do so can result in fire,
explosion, or death.
•
Failure to do so can result in fire,
explosion, or death.
•
Failure to
do so can result in fire, explosion, or death.
•
Failure
to do so can result in fire, explosion, or death.
• Failure to do
so can result in fire, explosion, or death.
•
Failure to do so can result in fire, explosion,
or death.
•
Failure to do so can result in fire, explosion, or death.
INSTALLATION
24
Connecting Gas Dryers (cont.)
w
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
•
Failure to do so can result in fire, explosion,
or death.
•
Failure to do so
can result in fire, explosion, or death.
•
Failure to do so can result in fire,
explosion, or death.
•
Failure to do so can result in fire,
explosion, or death.
•
Failure to do so can
result in fire, explosion, or death.
•
. Failure to do so can result in
fire, explosion, or death.
• Failure to
do so can result in fire, explosion, or death.
Connecting the gas supply
1. Make sure that the gas supply to the laundry room is
turned OFF. Confirm that the type of gas available in
your laundry room is appropriate for the dryer. The
dryer is prepared for Natural Gas with a
3
⁄ - inch NPT
gas connection.
2. Remove the shipping cap from the gas connection
at the back of the dryer. Be careful not to damage
the threads of the gas connector when removing the
shipping cap.
3. Connect the dryer to your laundry room’s gas supply
using a new flexible stainless steel connector with a
3
⁄
- inch NPT fitting.
4. Securely tighten all connections between the
dryer and your laundry room’s gas supply. Turn on
your laundry room’s gas supply and check all pipe
connections (both internal and external) for gas leaks
with a noncorrosive leak-detection fluid.
Electrical connection
High-altitude installations
The BTU rating of this dryer is AGA-certified for
elevations below 10,000 feet.
If your gas dryer is being installed at an elevation above
10,000 feet, it must be derated by a qualified technician
or gas supplier.
Plug dryer into a
grounded 3-prong
outlet.
Gas Supply
Shutoff Valve
3/8” NPT Gas
Connection
1/8” NPT Pipe
Plug
AGA/CSA-Certified
Stainless Steel Flexible
Connector
INSTALLATION
25
ENGLISH
Connecting Electric Dryers
w
WARNING
To help prevent fire, electric shock, serious injury,
or death, the wiring and grounding must conform
to the latest edition of the National Electrical Code,
ANSI/NFPA 70 and all applicable local regulations.
Please contact a qualified electrician to check your
home’s wiring and fuses to ensure that your home has
adequate electrical power to operate the dryer.
Electrical requirements for electric models only
w
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
•
Failure to
do so can result in fire, explosion, or death.
•
Failure to follow
these instructions can result in fire, explosion, or
death.
•
Failure to do so can result in fire,
explosion, or death.
•
Failure to follow these instructions can result in fire,
explosion, or death.
•
Failure
to do so can result in fire, explosion, or death.
w
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
w
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
•
•
Failure to
do so can result in fire, explosion, or death.
INSTALLATION
26
Connecting Electric Dryers (cont.)
USA only
w
WARNING
•
fire or death.
•
Four-wire connection for electric dryers:
Power cord
• A 4-wire connection is required for all mobile and
manufactured home installations, as well as all new
construction after January 1, 1996.
• A UL-listed strain relief is required.
1. Remove the terminal block access cover on the upper
back of the dryer. Install a UL-listed strain relief into
the power cord through-hole; then thread a UL-listed,
conductor power cord through the strain relief.
•
conductor and closed loop or
forked terminals with upturned ends.
2. Transfer the dryer’s ground wire from behind the
green ground screw to the center screw of the
terminal block. Attach the two hot leads of the power
cord to the outer terminal block screws. Attach the
white neutral wire to the center terminal block screw.
Attach the power cord ground wire to the green
ground screw. .
Reinstall the terminal block access cover.
Hot
(Black)
Power Cord
Ground Wire
Ground
Screw
White Wire
moved from
Ground Screw
Neutral
(White)
Hot
(Red)
UL-Listed
Strain Relief
UL-Listed
4-Wire Power
Cord
Terminal
Block
INSTALLATION
27
ENGLISH
w
WARNING
•
•

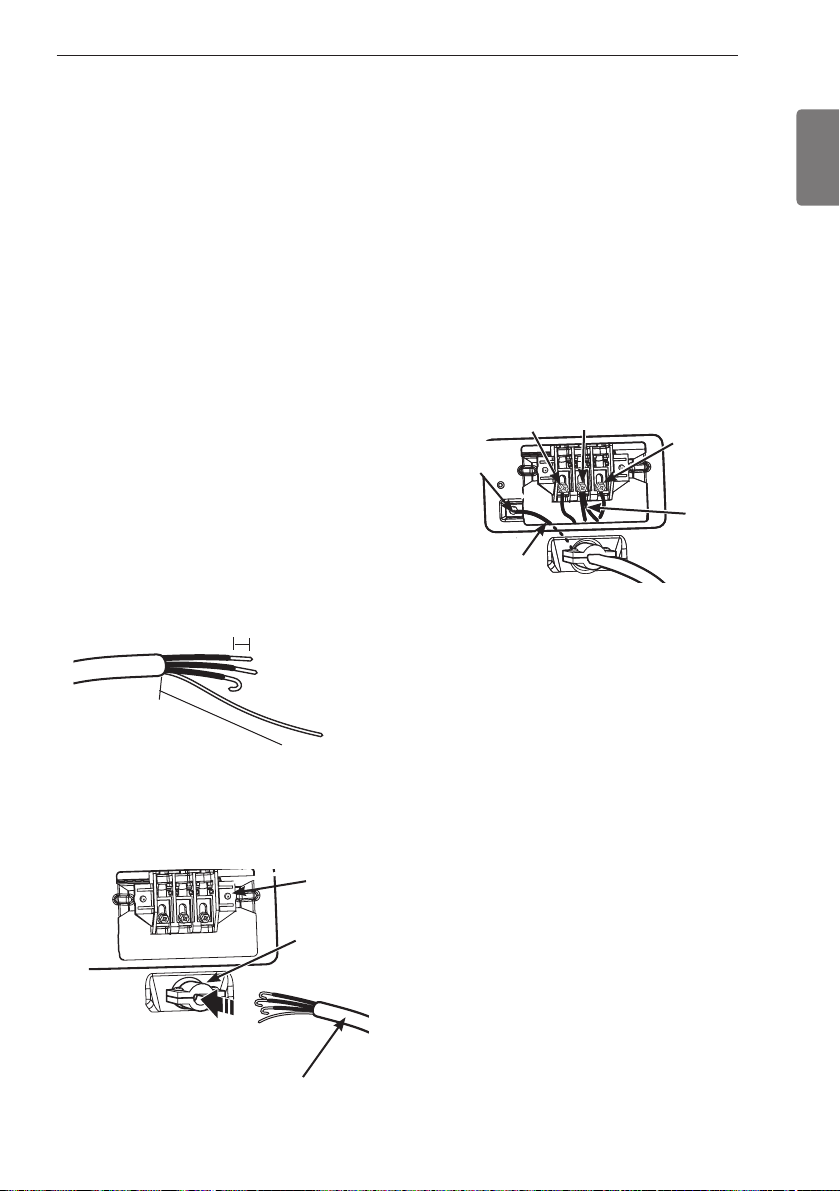

Four-wire connection for electric dryers: Direct wire
• A 4-wire connection is required for all mobile and
manufactured home installations, as well as all new
construction after January 1, 1996.
• A UL-listed strain relief is required.
1. Remove 5 inches (12.7 cm) of the outer covering from
the wire. Remove 5 inches of insulation from the
ground wire. Cut off approximately 1
1
⁄ inches (3.8 cm)
from the other three wires and strip 1 inch (2.5 cm)
insulation from each wire. Bend the ends of the three
shorter wires into a hook shape.
2. Remove the terminal block access cover on the upper
back of the dryer. Install a UL-listed strain relief into
the power cord through-hole; then thread the power
cable prepared in Step 1 through the strain relief.
Ground Wire
5"
(12.7 cm)
1" (2.5 cm)
Connecting Electric Dryers (cont.)
USA only
• Use UL-listed
conductor cable.
• Allow at least 5 ft. (1.5 m) length to allow for removal
and reinstallation of the dryer.
3. Transfer the dryer’s ground wire from behind the
green ground screw to the center screw of the
terminal block. Attach the two hot leads of the power
cable to the outer terminal block screws. Attach the
white neutral wire to the center terminal block screw.
Attach the power cable ground wire to the green
ground screw. .
Reinstall the terminal block access cover.
UL-Listed
Strain Relief
UL-Listed 4-Wire
Power Cord
Terminal
Block
Hot
(Black)
Power Cord
Ground Wire
Ground
Screw
White Wire
moved from
Ground Screw
Neutral
(White)
Hot
(Red)
INSTALLATION
28
Connecting Electric Dryers (cont.)
USA only
w
WARNING
•
•
Three-wire connection for electric dryers:
Power cord
• A 3-wire connection is NOT permitted on new
construction after January 1, 1996.
• A UL-listed strain relief is required.
1. Remove the terminal block access cover on the
upper back of the dryer. Install a UL-listed strain relief
into the power cord through-hole; then thread a UL-
listed,
conductor power cord through the strain
relief.
• Use a
conductor and closed loop or
forked terminals with upturned ends.
2. Attach the two hot leads of the power cord to the
outer terminal block screws. Attach the neutral wire to
the center terminal block screw. Connect the external
ground (if required by local codes) to the green
ground screw. .
Reinstall the terminal block access cover.
UL-Listed
Strain Relief
UL-Listed
3-Wire Power
Cord
Terminal
Block
Ground
Screw
Neutral
(White)
Hot
(Black)
Hot
(Red)
External Ground
Wire (If required
by local codes)
White Wire
from Dryer
harness
INSTALLATION
29
ENGLISH
Connecting Electric Dryers (cont.)
USA only
w
WARNING
•
fire or death.
•
Three-wire connection for electric dryers: Direct wire
• A 3-wire connection is NOT permitted on new
construction after January 1, 1996.
• A UL-listed strain relief is required.
1. Remove 3
1
⁄ inches (8.9 cm) of the outer covering from
the wire. Strip 1 inch (2.5 cm) insulation from each
wire. Bend the ends of the three wires into a hook
shape.
2. Remove the terminal block access cover on the upper
back of the dryer. Install a UL-listed strain relief into
the power cord through-hole; then thread the power
cable prepared in Step 1 through the strain relief.
• Use UL-listed
conductor cable.
• Allow at least 5 ft. (1.5 m) length to allow for removal
and reinstallation of the dryer.
3. Attach the two hot leads of the power cord to the
outer terminal block screws. Attach the neutral wire to
the center terminal block screw. Connect the external
ground (if required by local codes) to the green
ground screw. .
Reinstall the terminal block access cover.
1" (2.5 cm)
UL-Listed
Strain Relief
UL-Listed 3-Wire
Power Cord
Terminal
Block
Ground
Screw
Neutral
(White)
Hot
(Black)
Hot
(Red)
External Ground
Wire (If required
by local codes)
White Wire
from Dryer
harness
INSTALLATION
30
Special Requirements for
Manufactured or Mobile Homes
Any installation in a manufactured or mobile home must
comply with the Manufactured Home Construction and
Safety Standards Title 24 CFR, Part 3280 or Standard
CAN/CSA Z240 MH and local codes and ordinances. If
you are uncertain whether your proposed installation
will comply with these standards, please contact a
service and installation professional for assistance.
• A gas dryer must be permanently attached to the floor.
• The electrical connection for an electric dryer must
be a 4-wire connection. More detailed information
concerning the electrical connection is provided in the
section Connecting Electric Dryers.
• To reduce the risk of combustion and fire, the dryer
must be vented to the outside.
• DO NOT vent the dryer under a manufactured home or
mobile home.
• Electric dryers may be vented to the outside using the
back, left, right, or bottom panel.
• Gas dryers may be vented to the outside using the
back, left, or bottom panel. Gas dryers may not be
vented to the outside using the right side panel
because of the burner housing.
• The dryer exhaust duct must be affixed securely to
the manufactured or mobile home structure, and the
exhaust duct must be made of a material that will resist
fire and combustion.
It is recommended that you use a rigid, semi-rigid, or
flexible metal duct.
• DO NOT connect the dryer exhaust duct to any other
duct, vent, chimney, or other exhaust duct.
• Make sure the dryer has adequate access to outside
fresh air to ensure proper operation. The opening for
outside fresh air must be at least 25 in
2
(163 cm
2
).
• It is important that the clearance of the duct from any
combustible construction be at least 2 inches (5 cm),
and when venting the dryer to the outdoors, the dryer
can be installed with a clearance of 1 inch (2.5 cm) at
the sides and back of the dryer.
• Please be aware that venting materials are not supplied
with the dryer. You should obtain the venting materials
necessary for proper installation.
Final Installation Check
Once you have completed the installation of the dryer
and it is in its final location, confirm proper operation
with the following tests and the Installation Test (Duct
Check) on the following page.
Testing Dryer Heating
Close the dryer door, press the ON/OFF button to turn
the dryer on, and start the dryer on a heat setting.
When the dryer starts, the igniter should ignite the main
burner.
Close the dryer door, press the ON/OFF button to turn
the dryer on, and start the dryer on a heat setting. The
exhaust air should be warm after the dryer has been
operating for 3 minutes.
Checking Airflow
Effective dryer operation requires proper airflow.
The adequacy of the airflow can be measured by
evaluating the static pressure. Static pressure in the
exhaust duct can be measured with a manometer,
placed on the exhaust duct approximately 2 ft. (60.9 cm)
from the dryer.
Static pressure in the exhaust duct should not exceed 0.6
inches (1.5 cm). The dryer should be checked while the
dryer is running with no load.
Checking Levelness
Once the dryer is in its final location, recheck the dryer
to be sure it is level. Make sure it is level from front to
back and side to side, and that all four leveling feet are
firmly on the floor.
NOTE
If all air is not purged from the gas line, the gas igniter
may turn off before the main burner ignites. If this
happens, the igniter will reattempt gas ignition after
approximately two minutes.
INSTALLATION
31
ENGLISH
Installation Test (Duct Check)
Once you have completed the installation of the dryer,
use this test to make sure the condition of the exhaust
system is adequate for proper operation of the dryer.
This test should be performed to alert you to any serious
problems in the exhaust system of your home.
• Your dryer features FLOW SENSE
TM
, an innovative
sensing system that automatically detects blockages
and restrictions in dryer ductwork. Keeping ductwork
clean of lint buildup and free of restrictions allows
clothes to dry faster and reduces energy use.
1.
door.
Do not load anything in the drum for this test, as it
may affect the accuracy of the results.
2.
This button sequence activates the installation test.
The code
will display if the activation is
successful.
3.
The dryer will start the test, which will last about
two minutes. The heat will be turned on and the
temperatures in the drum will be measured.
4.
During the test cycle, monitor the FLOW SENSE
TM
display on the control panel. If the Flow Sense
indicator text lights up, the exhaust system is
restricted. If the indicator text remains dark, the
exhaust system is adequate.
Other problems may also be shown with error codes.
Refer to the next page for error code details and
solutions.
Have the system checked immediately, as performance
will be poor.
5.
At the end of the test cycle,
will display.
The test cycle will end and the dryer will shut off
automatically after a short delay.
NOTE
The dryer should be cool before starting this test. If
the dryer was warmed up during installation, run the
AIR DRY cycle for a few minutes to reduce the interior
temperature.
DARK:
OK
LIGHTED:
RESTRICTED
INSTALLATION
32
Installation Test (Duct Check) (cont.)
• Check the Error Code before you call for service
If the FLOW SENSE
TM
LED is turned on, check the
exhaust system for restrictions and damage. Repair or
replace the exhaust system as needed.
Error Code Possible Causes Solutions
or
• Temperature sensor failure•
Turn o the dryer and call for service.
• Humidity Sensor failure.• Turn o the dryer and call for service.
or
or
• Electric dryer power cord is not
connected correctly, or house power
supply is incorrect.
• House fuse is blown, circuit breaker has
tripped, or power outage has occurred.
• Check the power supply or the connection of
power cord to the terminal block. Refer to the
section of this
manual for complete instructions.
• Reset circuit breaker or replace fuse. Do not
increase the fuse capacity. If the problem is a
circuit overload, have it corrected by a quali-
ed electrician.
Avoid long runs or runs with multiple elbows or
bends.
Excess or crushed
transition duct
Too many elbows or
exhaust too long
Check for blockages and lint buildup.
Make sure the ductwork is not crushed or restricted.
Crushed or
damaged
exhaust
Lint buildup
or blockage
NOTE
When the dryer is rst installed, this test should be
performed to alert you to any existing problems with
the exhaust duct in your home. However, since the
test performed during normal operation provides
more accurate information on the condition of the
exhaust duct than does the installation test, the num-
ber of bars displayed during the two tests may not be
the same.
Do not interrupt the test cycle, as this could result in
inaccurate results.
Even if no bars are displayed during the test cycle,
some restrictions may still be present in the exhaust
system. Refer to the Venting the Dryer section of this
manual for complete exhaust system and venting
requirements.
Your dryer features Flow Sense™, an innovative sens-
ing system that automatically detects blockages and
restrictions in dryer ductwork. Keeping ductwork
clean of lint buildup and free of restrictions allows
clothes to dry faster and reduces energy use.
INSTALLATION
33
ENGLISH
OPERATION
Operating the Dryer
Press the POWER button to turn on the dryer. The cycle LEDs illuminate and a
signal sounds, if turned on. Refer to page 11.
3
Press the Hold to Start button to begin the cycle. The cycle can be paused at
any time either by opening the door or by pressing the Hold to Start button. If
the cycle is not restarted within 4 minutes, the dryer will shut off and the cycle
settings will be lost.
5
Turn the cycle selector knob in either direction until the LED for the desired
cycle is on. The preset temperature, dry level, and option settings for that cycle
will be shown. Refer to page 34. Default settings for the selected cycle can now
be changed if desired. This can be done using the cycle modifier buttons as
shown on page 37. Cycle options can be added using the option buttons as
shown on page 37-40.
4
NOTE
Not all options or modifiers are available on all cycles. A different chime will
sound and the LED will not come on if the selection is not allowed.
Load the dryer with the wet laundry from the washer. If the load is extra large,
you may need to divide it into smaller loads for proper performance and fabric
care.
2
If the lint filter has not already been cleaned, lift out the filter and remove the
lint from the last load. This will help ensure the fastest and most efficient drying
performance.
1
Lint Filter
OPERATION
When the cycle is finished, the chime will sound if it is set. Remove your
clothing from the dryer immediately to reduce wrinkling. If WRINKLE CARE
is selected, the dryer will tumble briefly every few minutes to help prevent
wrinkles from setting in the clothes.
6
34
Cycle Guide
Sensor Dry Cycles
Sensor Dry cycles utilize LG’s unique dual sensor system to
detect and compare the moisture level in clothes and in the
air and adjust the drying time as needed to ensure superior
results. The dryer automatically sets the dryness level and
temperature at the recommended setting for each cycle.
The estimated time remaining will be shown in the display.
LowTemp Dry
This cycle can save energy over the Normal cycle,
depending on the load size. It may be necessary to adjust
the Dryness Level to achieve the desired amount of drying.
Manual Dry Cycles
Use Manual Dry cycles to select a specific amount of
drying time and a drying temperature. When a Manual
Dry cycle is selected, the ESTIMATED TIME REMAINING
display shows the actual time remaining in your cycle.
You can change the actual time in the cycle by pressing
MORE TIME or LESS TIME.
NSF International (formerly the National Sanitation
Foundation), certifies that the cycle
reduces 99.9% of bacteria on laundry, and none of the
bacteria will carry over onto the next laundry load.
• The default settings for the cycle are
temperature and .
These default settings cannot be changed.
• Do NOT use this cycle with delicate items or fabrics.
NOTE
To protect your garments not every dryness level,
temperature, or option is available with every cycle.
See the Cycle Guide for details.
OPERATION
Care
Steam
Fresh
TM
comforters, shirts,
trousers (except
especially delicate
fabrics)
Off
Mid High 10
Adjustable Adjustable
Steam
Sanitary
TM
comforters, bedding,
children’s clothing
Off High
31
Anti
Bacterial
Do not use this cycle
with delicate fabrics.
VeryHigh
1:10
LowTemp
Dry
Only normal / towels
fabric type (Max 3lb)
Normal
High
50
Adjustable
Bedding
comforters, pillows,
shirts
Normal
Medium
55
Adjustable
Heavy
Duty
jeans,
heavyweight items
Normal
High
54
Adjustable
Normal
work clothes,
corduroys, etc.
Normal
Medium
41
*
Adjustable
Jumbo
Dry
comforters, pillows,
shirt
Normal
Medium 1:25
Adjustable
Perm.
Press
permanent press,
synthetic items
More
Low
32
**
Adjustable
Delicates
lingerie, sheets,
blouses
Normal
Low
28
Adjustable
Towels
denim, towels,
heavy cottons
Normal
Mid High 55
Adjustable
Speed Dry
For small loads
with short
drying times
Off
High
25
Adjustable Adjustable
Air Dry
For items that require
heat-free drying such
as plastics or rubber
Off Off
30
Adjustable
*
TurboSteam can only be selected if the Energy Saver is turned off.
**
TurboSteam can only be selected if the Very or More dry level is selected.
= default setting
= allowable option
35
ENGLISH
Check the Lint Filter before Every
Load
Always make sure the lint filter is clean before starting a
new load; a clogged lint filter will increase drying times.
To clean, pull the lint filter straight up and roll any lint
off the filter with your fingers. Do not rinse or wash the
filter to remove lint. Push the lint filter firmly back into
place. See for more information.
Always ensure the lint filter is properly installed before
running the dryer. Running the dryer with a loose or
missing lint filter will damage the dryer and articles in
the dryer.
Storage Under the Lid
· Under the lid are three small storage spaces.
· To open the lid, slide it back.
w
WARNING
Do not store flammable substances or adhesives under
the lid.
Sorting Loads
Fabric care labels
Most articles of clothing feature fabric care labels that
include instructions for proper care.
Grouping Similar Items
For best results, sort clothes into loads that can be dried
with the same drying cycle.
Different fabrics have different care requirements, and
some fabrics will dry more quickly than others.
Loading the Dryer
w
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
•
Failure to do so can result
in fire, explosion, or death.
•
Failure to obey this warning can result in fire, explosion,
or death.
NOTE
Loading tips
• Combine large and small items in a load.
• Damp clothes will expand as they dry. Do not
overload the dryer; clothes require room to tumble
dry properly.
• Close zippers, hooks, and drawstrings to prevent
these items from snagging or tangling on other
clothes.
Lint
Filter
Tumble
dry
Dry
Normal
Permanent Press
/
wrinkle resistant
Fabric care labels
Heat
setting
High
Medium
Low
No heat/air
Gentle/
delicate
Do not tumble dry
Do not dry
(used with
do not wash)
OPERATION
36
w
WARNING
• To avoid injury, do not place fingers under the lid or
between the lid and the cabinet when pressing or
sliding the top lid open or closed.
Using the Lid
- Push the front handle to slide the lid open.
- Pull the top of the handle to slide the lid closed.
OPERATION
37
ENGLISH
Your dryer features several additional cycle options to
customize cycles to meet your individual needs. Certain
option buttons also feature a special function (see the
following page for details) that can be activated by
pressing and holding that option button for 3 seconds.
To Add Cycle Options to a Cycle:
1. Turn on the dryer and turn the cycle selector knob to
select the desired cycle.
2. Use the cycle modifier buttons to adjust the settings
for that cycle.
3. Press the cycle option button(s) for the option you
would like to add. A confirmation message is shown in
the display.
4. Press the Hold to Start button to start the cycle. The
dryer starts automatically.
SIGNAL
Adjusts the volume of the Signal or turns off the Signal.
Press the button repeatedly until the desired volume
setting is illuminated.
Cycle Modifier Buttons
SENSOR DRY cycles have preset settings that are
selected automatically. MANUAL DRY cycles have
default settings, but you may also customize the
settings using the cycle modifier buttons.
Press the button for that option to view and select other
settings.
DRY LEVEL
Selects the level of dryness for the cycle. Press the DRY
LEVEL button repeatedly to scroll through available
settings.
• This option is only available with SENSOR DRY cycles.
• The dryer will automatically adjust the cycle time.
Selecting MORE or VERY increases the cycle time, while
LESS or DAMP decreases the cycle time.
• Use a LESS or DAMP setting for items that you wish to
iron.
TEMP.
Adjusts the temperature setting from ULTRA LOW
to HIGH. This allows precise care of your fabrics and
garments. Press the TEMP. button repeatedly to scroll
through available settings.
TIME DRY
Allows you to manually select the drying time, from 20
to 60 minutes, in 10-minute increments. Use this for
small loads or to remove wrinkles. Use the MORE TIME/
LESS TIME buttons to add or reduce the drying time in
1-minute increments.
NOTE
To protect your garments, not every dryness level,
temperature, or option is available with every cycle.
See the Cycle Guide for details.
OPERATION
38
Special Functions
The option buttons also activate special functions,
including CHILD LOCK.
Select the option by pressing the option button. Press
and hold the option button to select special features
marked with the asterisk (*), such as Child Lock.
* CHILD LOCK
Use this option to prevent unwanted use of the dryer
or to keep cycle settings from being changed while the
dryer is operating.
Press and hold the button for 3 seconds to activate or
deactivate the CHILD LOCK function.
The CHILD LOCK icon is shown in the display, and all
controls are disabled except the POWER button.
DAMP DRY SIGNAL
With this option, the dryer signals when the load is
approximately 80% dry. This allows you to remove
faster- drying lightweight items or items that you would
like to iron or hang while still slightly damp. Press the
DAMP DRY SIGNAL button.
WRINKLE CARE
Selecting this option will tumble the load periodically for
up to 3 hours after the selected cycle, or until the door is
opened. This is helpful in preventing wrinkles when you
are unable to remove items from the dryer immediately.
ENERGY SAVER
This option helps to reduce the energy consumption in
the Normal cycle, depending on the load size.
When the Energy Saver option is selected, the cycle
begins with an air dry section and the drying time is
increased.
SMART GRID
Lower your energy costs when you dry your clothes by
avoiding peak usage times. See the Smart Connectivity
section for more information.
*REMOTE START
Use a smart phone to control the dryer remotely. See the
Smart Connectivity section for more information.
NOTE
Once set, CHILD LOCK remains active until it is
manually deactivated. CHILD LOCK must be turned off
to run another cycle.
To deactivate CHILD LOCK, press and hold the button
for three seconds.
OPERATION
39
ENGLISH
Custom Program
If you have a special combination of settings that you
use frequently, you can save these settings as a CUSTOM
PROGRAM.
To Save a Custom Program:
1. Turn on the dryer and turn the cycle selector knob to
select the desired cycle.
2. Use the cycle modifier buttons to adjust the settings
for that cycle.
3. Press the cycle option button(s) for the option you
would like to add. A confirmation message will be
shown in the display.
4. Press and hold the PGM Save button for 3 seconds.
Recalling a Custom Program
1. Turn on the dryer.
2. Press the CUSTOM PGM button.
3. Press the Hold to Start button to start the cycle.
Steam Functions
LG’s new steam technology allows you to inject fabrics
with a swirling jet of hot steam to refresh clothes.
Simply select the STEAM FRESH™ cycle, or you can add a
steam option to selected cycles.
The STEAM FRESH
TM
Cycle
STEAM FRESH™ uses the power of steam to quickly
reduce wrinkles and odor in fabrics. It brings new life to
wrinkled clothes that have been stored for an extended
time and makes heavily wrinkled clothes easier to iron.
STEAM FRESH™ can also be used to help reduce odors in
fabrics.
NOTE
• The TurboSteam option is activated by default when
the Steam Fresh™ or Steam Sanitary™ cycles are
selected.
• Depending on the load (quantity of items), you may
change the amount of time for the cycle by pressing
the MORE TIME or LESS TIME button. The display will
show 1, 3, 5, or
. 3 means 3 or fewer items, 5 is
for 4 or 5 items, and
indicates a large load such
as a comforter.
Using the STEAM FRESH
TM
Cycle
1. Turn on the dryer and turn the cycle selector knob to
select the STEAM FRESH ™ cycle.
2. To add an option function, select TurboSteam, or
WRINKLE CARE.
3. Depending on the load (quantity of items), steam time
can be changed by pressing the MORE TIME or LESS
TIME buttons.
4. Press Hold to Start to start the cycle.
Adding STEAM to a Standard Cycle
1. Turn on the dryer and turn the cycle selector knob to
select the Normal, Perm. Press, or Heavy Duty cycle.
2. Use the cycle modifier buttons to adjust the settings
for that cycle.
3. Press the TurboSteam button.
4. Press Hold to Start to start the cycle.
The STEAM SANITARY
TM
Cycle
The STEAM SANITARY
TM
cycle is ideal for sanitizing non-
washable items quickly and easily using only steam.
This cycle is recommended for use with cotton and
polyester materials only. (Do NOT use for urethane foam,
down feathers or delicate items)
NOTE
• TurboSteam can only be selected if the Energy Saver
is turned off.
• TurboSteam can only be selected if the Very or More
dry level is selected.
NOTE
You may save only one custom program at a time.
Pressing and holding the PGM Save button will
overwrite any previously saved custom program.
OPERATION
40
Steam Functions (cont.)
w
WARNING
•
Failure to follow this warning can cause serious injury
or death.
•
Failure to follow this warning
can cause serious injury or death.
NOTE
• Steam may not be clearly visible during the steam
cycles. This is normal.
• Do not use Steam Fresh™ with items such as wool
clothing or blankets, leather jackets, silk, wet clothes,
lingerie, foam products, or electric blankets.
• For best results, load articles of similar size and fabric
type. Do not overload.
• When the filter/duct is clogged, the steam option
may not have optimal results.
• When the steam function is operating, the drum will
stop to allow steam to stay in the drum.
OPERATION
Steam Cycle Guide
Amount
31 minutes Dry
Comforter
Bedding
Single (1 each)
Children’s
clothing
3 lbs.
10 minutes
Dry
Comforter Single (1 each)
Shirts* 5 each
+
Follows
Selected
Cycle
Wet
Varies by selected
cycle
8 lbs.
(18 Items)
*Shirt: 70% cotton/30% poly blend. Except especially delicate fabrics.
• When the lint filter or exhaust duct is clogged, steam options will not give proper results.
• For best results, load articles of similar size and fabric type. Do not overload.
41
ENGLISH
SMART APPLIANCE CONNECTIVITY
SMART APPLIANCE CONNECTIVITY
Connectivity Overview
This smart appliance offers options for how you do laundry. Once it is connected to the internet through a home
Wi-Fi network, you can check the progress of a cycle and control the appliance remotely with the LG Smart Laundry
application for your smart phone.
The application can be set up to send push notifications when the cycle is complete or the appliance has problems.
It also provides a list of extra cycles available for download, and helps to troubleshoot problems by recording and
analyzing data from the appliance. The appliance has Smart Grid capability for areas where the utility company has
installed Smart Grid equipment. This feature adjusts the appliance operating times based on when electricity prices
are lower or delays operation when the demand for electricity is high.
Connectivity Setup
1. Run the Google Play Store on an Android smart
phone.
2. Search for LG Smart Laundry.
3. Press LG Smart Laundry on the resulting list.
4. Press INSTALL and ACCEPT to automatically install the
application. You can also check the progress through
the smart phone.
5. When the installation is complete, touch the icon to
access the application.
• LG Smart Laundry application for iOS devices will be
supported later.
You can skip these steps if you already have an LG
account at http://us.smartthinQ.com
1. Run the LG Smart Laundry application on a smart
phone.
2. Select Login at the bottom of the screen.
3. Select Create an account at the bottom of the screen.
4. On the next page, agree to the Terms and Conditions,
Privacy Policy, and LG Account Terms and Conditions.
After selecting I agree, press Confirm.
5. Next, in the e-mail box, enter your email address. This
will be your user ID. You will receive a confirmation
email for activating the account at that email address.
6. Enter a password. Passwords are case sensitive. The
password should be 6-12 characters. Remember
your ID and password. They will be used on the LG
Smart Laundry application to use Smart Appliance
Connectivity functions.
7. Enter your name.
8. Enter your mobile number.
9. Press the Subscribe button. The system will send you
an email containing a link to confirm your identity for
the account.
10. Press the CONFIRM button in the confirmation email,
and the website will display a confirmation page.
Your account is not set up.
1. Run the LG Smart Laundry application on a smart
phone.
2. Select Smart Appliance.
3. Select Dryer.
- If you see a pop-up message about NFC, press the
Cancel button.
4. Press the Wi-Fi model button at the bottom of the
screen.
5. Enter the email ID and password you registered. If you
don’t have an account at http://us.smartthinQ.com,
press the Create an Account button and create a user
ID and password.
6. Select the Login button.
7. On the next page, the application shows the Wi-
Fi network list. Select your home network. If your
network requires a key, enter the password and select
the Connect button.
8. If the application successfully connects to the home
network, turn on the dryer and then press and hold
the Wi-Fi Connect button on the dryer for three
seconds. After powering on the dryer, do not press
any other buttons before pressing and holding the Wi-
Fi Connect button. The Wi-Fi connection indicator on
the dryer blinks to indicate the machine is connecting.
42
SMART APPLIANCE CONNECTIVITY
9. The application now works to connect the appliance
and register it as a Wi-Fi product. A notification
appears when the dryer is successfully set up and
the product registration and Wi-Fi setup is complete.
The Wi-Fi connection indicator illuminates when the
machine connects to the home network.
NOTE
• The machine supports 2.4 GHz Wi-Fi networks only.
• Use the Settings menu in the application to register or
change the machine. Select Settings > Change Product
> Add Product and then follow steps 2–9 above.
• If the router or the router’s password is changed, select
Settings > Change Product > Add Product and then
follow steps 2–9 above.
• If the appliance is having trouble connecting to the Wi-
Fi network, it may be too far from the router. Purchase
a Wi-Fi repeater (range extender) to improve the Wi-Fi
signal strength.
• The Wi-Fi connection may not connect or may
be interrupted because of the home network
environment.
• The network connection may not work properly
depending on the Internet service provider. The
surrounding wireless environment can make the
wireless network service run slowly.
• This information is current at the time of publication.
The application is subject to change for product
improvement purposes without notice to users.
Smart ThinQ™
Use a smart phone to control the appliance remotely. Or
monitor the cycle operation to see the remaining time
left in the cycle.
NOTE
• You must first connect to a gateway and register your
appliance in order to use the Remote Start function.
• The Remote LED on the control panel should be
illuminated.
1. Press and hold the Remote Start button. The Remote
LED on the control panel is illuminated if the
appliance is connected to a Wi-Fi network.
2. Start a cycle from the application on a smart phone.
If the cycle is not started, the machine will wait to
start the cycle until it is turned off remotely from the
application or the Remote Start mode is disabled.
NOTE
• Cycles and options cannot be selected at the
appliance when the machine is in Remote Start
mode.
• Press and hold the Remote Start button again to
enable the Remote Start mode when the appliance is
turned off or the Remote Start mode is released.
Reduce energy costs from drying clothes by avoiding
peak usage periods, with information supplied by your
local electric utility company.
If your utility company has equipped your home with
Smart Grid technology, you will need to contact the
utility company for information regarding the Smart
Grid features.
NOTE
• When Smart Grid is enabled, you may experience
delays or extended cycle times during peak usage
periods.
NOTE
• You must first connect to a gateway and register your
appliance in order to use the Smart Grid function.
43
ENGLISH
The Download Cycle features of this appliance allow
you to download new and special cycles that are not
included in the basic cycles on the appliance.
Appliances that have been successfully registered can
download a variety of specialty cycles specific to the
appliance.
Only one cycle can be stored on the appliance at a time.
Once Cycle Download is completed in the dryer, the
product keeps the downloaded cycle until you change it
to a new download cycle.
NOTE
• You must first connect to a gateway and register
your appliance in order to use the Download cycle
function.
Use your phone to record the Smart Diagnosis™ signal if
you have problems with your appliance.
The application can analyze the signal and help you
solve the problem without waiting for a technician.
Cycle Set helps you choose the best cycle and settings
based on your laundry needs.
Once you have selected your cycle based on the Cycle
Set guide, the cycle and settings will be automatically
set.
NOTE
• Cycle Set function can be enabled when the Remote
Start button is activated.
Laundry Stats will tell you basic stats about your
appliance such as your cycle history and basic
maintenance timing.
Select Laundry Stats in the application to get the stats
and find out the dryer’s vent status.
NOTE
• You must first connect to a gateway and register your
appliance in order to use the Laundry Stats function.
When the cycle is complete or the appliance has
problems, you have the option of receiving push
notifications on your smart phone.
NOTE
• You must first connect to a gateway and register
your appliance in order to use the Smart Message
function.
Your dryer energy usage is affected by the cycle and
options so you may see some changes in energy usage
from one cycle to another.
NOTE
• You must first connect to a gateway and register
your appliance in order to use the Energy Monitoring
function.
SMART APPLIANCE CONNECTIVITY
44
USING SMART DIAGNOSIS™
USING Smart Diagnosis
TM
Audible Diagnosis
Should you experience any problems with your dryer, it has the capability of transmitting data to your Smart Phone
using the LG Smart Laundry&DW Application or via your telephone to the LG call center.
Smart Diagnosis™ cannot be activated unless your dryer is turned on by pressing the Power button. If your dryer is
unable to turn on, then troubleshooting must be done without using Smart Diagnosis™.
Smart Diagnosis™ Using Your
Smart Phone
1. Download the LG Smart Laundry&DW application on
your smart phone.
2. Open the LG Smart Laundry&DW application on your
smart phone. Press the right arrow button to advance
to the next screen.
3. Press the Record button on the smart phone and then
hold the mouth piece of the smart phone near the
Smart Diagnosis™ logo on the dryer.
4. With the phone held in place, press and hold Temp.
button for three seconds.
5. Keep the phone in place until the tone transmission
has finished. It takes time on panel displayed.
6. When the recording is complete, view the diagnosis
by pressing the Next button on the phone.
Smart Diagnosis™ Through the Call
Center
1. Call the LG call center at: (LG U.S.) 1-800-243-0000
(LG Canada) 1-888-542-2623.
2. When instructed to do so by the call center agent,
hold the mouthpiece of your phone over the Smart
Diagnosis™ logo on the machine. Hold the phone no
more than one inch (but not touching) the machine.
3. Press and hold the Temp. button for three seconds.
4. Keep the phone in place until the tone transmission
has finished. It takes time on panel displayed.
5. Once the countdown is over and the tones have
stopped, resume your conversation with the call
center agent, who will then be able to assist you in
using the information transmitted for analysis.
NOTE
Smart Diagnosis™ is a troubleshooting feature
designed to assist, not replace, the traditional method
of troubleshooting through service calls. The
effectiveness of this feature depends upon various
factors, including, but not limited to, the reception
of the cellular phone being used for transmission,
any external noise that may be present during the
transmission, and the acoustics of the room where the
machine is located.
Accordingly, LG does not guarantee that Smart
Diagnosis™ would accurately troubleshoot any given
issue.
NOTE
Do not touch any other buttons or icons on the
display screen.
45
ENGLISH
MAINTENANCE
Regular Cleaning
w
WARNING
To reduce the risk of fire, electric shock, or personal
injury when using this appliance, follow basic
precautions, including the following:
•
Failure to follow this warning can
cause serious injury, fire, electrical shock, or death.
•
They will damage the
finish.
Cleaning the Exterior
Proper care of the dryer can extend its life.
The outside of the machine can be cleaned with warm
water and a mild, nonabrasive household detergent.
Immediately wipe off any spills with a soft, damp cloth.
Cleaning the Interior
Wipe around the door opening and seal with a soft,
damp cloth to prevent lint and dust buildup that could
damage the door seal.
Clean the window with a soft cloth dampened with
warm water and a mild, nonabrasive household
detergent; then wipe dry.
The stainless steel drum can be cleaned with a
conventional stainless steel cleaner, used according to
the manufacturer’s specifications.
Never use steel wool or abrasive cleansers; they can
scratch or damage the surface.
Cleaning Around and Under the Dryer
Vacuum lint and dust from around the dryer and
underneath it regularly. Vent ductwork should be
checked for lint buildup and cleaned at least once per
year. If any noticeable reduction in airflow or drying
performance occurs, immediately check ductwork for
obstructions and blockages.
Maintaining Ductwork
Vent ductwork should be checked for lint buildup
and cleaned at least once per year. If any noticeable
reduction in airflow or drying performance occurs,
immediately check ductwork for obstructions and
blockages. Contact a qualified technician or service
provider.
Cleaning the Lint Filter
Always clean the lint filter after every cycle.
To clean, open the dryer door and pull the lint filter
straight up. Then:
1. Roll any lint off the filter with fingers, or
2. Vacuum the lint filter, or
3. If the lint filter has become very dirty or clogged with
fabric softener, wash the lint filter in warm, soapy
water and allow to dry thoroughly before reinstalling.
NOTE
NEVER operate the dryer without the lint filter in
place. NEVER operate the dryer with a wet lint filter.
NOTE
Do not use methylated spirits, solvents, or similar
products.
Never use steel wool or abrasive cleansers; they can
damage the surface.
MAINTENANCE
Lint
Filter
46
TROUBLESHOOTING
Before Calling for Service
Your dryer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early
stage. If your dryer does not function properly or does not function at all, check the following before you call for
service.
Dryer will not
turn on
• Power cord is not properly
plugged in.
• House fuse is blown, circuit
breaker has tripped, or power
outage has occurred.
• Make sure that the plug is plugged securely into a
grounded outlet matching the dryer’s rating plate.
• Reset circuit breaker or replace fuse. Do not increase
fuse capacity. If the problem is a circuit overload, have it
corrected by a qualified electrician.
Dryer does not
heat
• House fuse is blown, circuit
breaker has tripped, or power
outage has occurred.
• Gas supply or service turned off
(gas models only).
• Energy Saver option selected
• Reset circuit breaker or replace fuse. Do not increase
fuse capacity. If the problem is a circuit overload, have it
corrected by a qualified electrician.
• Confirm that the house gas shutoff and the dryer gas
shutoff are both fully open.
•
If using the Cotton/Normal cycle, deselect the Energy
Saver option. The Energy Saver option is selected by
default. This option reduces energy use by adding an air
dry section to the beginning of the cycle. It is normal to
feel no heat at the beginning of the cycle while in Energy
Saver mode.
Greasy or
dirty spots on
clothes
• Fabric softener used incorrectly.
• Clean and dirty clothes being
dried together.
• Confirm and follow the instructions provided with your
fabric softener.
• Make sure to use your dryer to dry only clean items,
because dirty items can soil clean clothes placed in the
same or subsequent loads.
• Stains on dried clothes are actually stains that were not
removed during the washing process.
Make sure that clothes are being completely cleaned
according to the instructions for your washer and
detergent.
Display shows
error code tE1
or tE2
• Thermistor is malfunctioning.• Turn off the dryer and call for service.
Lint on clothes • Lint filter not cleaned properly.
• Laundry not sorted properly.
• Excess static in clothes.
• Dryer is overloaded.
• Tissue, paper, etc., left in pockets.
• Make sure the lint filter is cleaned before every load. With
some loads that produce high amounts of lint, it may be
necessary to clean the filter during the cycle.
• Some fabrics are lint producers (i.e., a fuzzy white cotton
towel) and should be dried separately from clothes that
are lint trappers (i.e., a pair of black linen pants).
• See the Excess static in clothes after drying section below.
• Divide larger loads into smaller loads for drying.
• Check pockets thoroughly before washing and drying
clothes.
Excess static in
clothes after
drying
• Fabric softener not used or used
incorrectly.
• Clothes dried too long
(overdried).
• Drying synthetics, permanent
press, or synthetic blends.
• Use a fabric softener to reduce static electricity correctly.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
• Overdrying a load of laundry can cause a buildup of static
electricity. Adjust settings and use a shorter drying time,
or use SENSOR DRY cycles.
• These materials can cause static buildup. Try using a fabric
softener.
Display shows
error code PS
• Power cord connection is
incorrect.
• Check the connection of power cord to the terminal block.
Refer to pages 26-29 in this manual.
TROUBLESHOOTING
47
ENGLISH
Before Calling for Service (cont.)
Drying time is
not consistent
• Heat settings, load size, or
dampness of clothing is not
consistent.
•
The drying time for a load will vary depending on the heat
setting, the type of heat used (electric, natural gas, or LP gas),
the size of the load, the type of fabrics, the wetness of the
clothes, and the condition of the exhaust ducts and lint filter.
Clothes take
too long to dry
• Load is not properly sorted.
• Large load of heavy fabrics.
• Dryer controls are not set
properly.
• Lint filter needs to be cleaned.
• Exhaust ducts blocked, dirty, or
duct run is too long.
• House fuse is blown, circuit
breaker has tripped, or power
outage has occurred.
• Dryer is overloaded.
• Dryer is underloaded.
•
Energy Saver option selected
• Separate heavy items from lightweight items. Larger and
heavier items take longer to dry.
• Heavy fabrics take longer to dry because they tend to
retain more moisture. To help reduce and maintain more
consistent drying times for large and heavy fabrics,
separate these items into smaller loads of a consistent size.
• Use the appropriate control settings for the type of load
you are drying.
• Make sure the lint filter is cleaned before every load. With
some loads that produce high amounts of lint, it may be
necessary to clean the filter during the cycle.
• Confirm that the exhaust ductwork is properly configured
and free of debris, lint, and obstructions. Make sure that
outside wall dampers can open properly and are not
blocked, jammed, or damaged.
• Reset circuit breaker or replace fuse. Do not increase
fuse capacity. If the problem is a circuit overload, have it
corrected by a qualified electrician.
• Divide larger loads into smaller loads for drying.
• If you are drying a very small load, add a few extra items to
ensure proper tumbling action.
• If using the Cotton/Normal cycle, deselect the Energy Saver
option. This option reduces energy use by adding an air dry
section to the beginning of the cycle.
Clothes are
wrinkled
• Clothes dried too long
(overdried).
• Clothes left in dryer too long
after cycle ends.
• Overdrying a load of laundry can lead to wrinkled clothes.
Try a shorter drying time, and remove items while they
still retain a slight amount of moisture.
• Remove items from the dryer immediately at the end
of the cycle. Use the WRINKLE CARE option to continue
tumbling clothes at the end of the cycle, for up to 3 hours.
Clothes are
shrinking
• Garment care instructions are
not being followed.
•
To avoid shrinkage, please carefully follow the fabric care
instructions for your garment, because some fabrics will
naturally shrink when washed. Other fabrics can be washed but
will shrink when dried in a dryer. Use a low or no heat setting.
indicator
light is on
during the
drying cycle
• Water supply error.
• Check steam feeder drawer:
(1) Make sure steam feeder is filled with water to MAX line.
(2) Make sure steam feeder is seated properly and drawer is
fully closed.
(3) Turn the dryer off then restart the Steam cycle.
• Do not use distilled water; the water level sensor in the
steam generator will not work.
• The pump is not working. Unplug the dryer and call for
service.
Water drips
from nozzle
when Steam
Cycle starts
• This is normal.• This is steam condensation. The dripping water will stop
after a short time.
The display
shows “d80”,
“d90”, “d95”
• The duct work is about 80%,
90%-95% blocked.(“d80”, “d90”
or “d95” error code displayed 2
hours only)
• House exhaust system blocked.
•
Using the dryer with a
severely restricted exhaust is dangerous and could result
in a fire or other property damage.
• Check the outside dryer vent while the dryer is operating
to make sure there is strong airflow.
• If the exhaust system is extremely long, have it repaired or
rerouted.
• Keep the area around the dryer clean and free of clutter.
• Check the vent hood for damage or lint clogging.
• Make sure the area around the vent hood is clear.
TROUBLESHOOTING
48
Before Calling for Service (cont.)
Steam does not
generate but
no error code is
shown
• Water level error.
• Unplug dryer and call for service.
Garments still
wrinkled after
STEAM FRESH™
• Too many or too different types
of garments in dryer.
• Small loads of 1 to 5 items work best.
• Load fewer garments. Load similar-type garments.
There are no
creases left on
garment after
STEAM FRESH™
• The function of this cycle is to
remove wrinkles from fabric.
• Use an iron to make creases.
Water drips from
door during
Steam Cycle
• This is normal.• Condensation will normally form on the inside of the
dryer door during steam operation. Some condensation
may drip out the bottom of the door.
Steam is not
visible during
Steam Cycle
• This is normal.• Steam vapor is difficult to see when the door is closed.
However, condensation will normally form on the
inside of the dryer door if the steam system is operating
normally.
Drum does not
turn during
Steam Cycle
• This is normal.• The drum is turned off so that the steam vapor remains
in the drum. The drum will normally turn for about 2
seconds once a minute.
Cannot see
steam vapor at
the beginning of
cycle
• This is normal.• Steam is released at different stages of the cycle for each
option.
The display
shows
• MORE TIME button pressed.• This display indicates that the steam option has been set
for a “ ” item such as a comforter.
Press the LESS TIME button to reduce the indicated load
size.
Odors remain
in clothing after
STEAM FRESH™
• STEAM FRESH™ did not remove
odor completely.
• Fabrics containing strong odors should be washed in a
normal cycle.
CHECK FILTER
light is on during
the drying cycle
• Lint filter is almost clogged or
full.
• Pause the drying cycle and clean the lint filter.
FLOW SENSE
TM
indicator shows
four bars during
the drying cycle
or the display
shows “d80” after
drying.
• Ductwork is too long or has too
many turns/restrictions.
• Significant blockage of the
ductwork due to lint buildup or
debris.
• The appliance has detected a
restriction in the external dryer
venting.
• Install a shorter or straighter duct run. See the Installation
Instructions.
• Ductwork should be checked/cleaned soon.
Dryer can be used in this condition, but drying times may
be longer.
• If exhaust restrictions are sensed by the Flow Sense
TM
system, the indicator will remain on for two hours after
the end of the cycle. Opening the door or pressing the
Power button will turn off the display.
TROUBLESHOOTING
49
ENGLISH
Description Steam Dryer
Electrical Requirements Please refer to the rating label regarding detailed information.
Gas Requirements NG: 4-10.5 inches WC
LP: 8–13 inches WC
Dimensions 29”(W) X 33
3
/
8
”(D) X 40
7
/
8
”(H), 56” (D with door open)
73.7 cm (W) X 84.8 cm (D) X 103.9 cm (H), 142.3 cm (D with door open)
Net Weight Gas dryer : 160.7 lbs(72.9 kg)
Electric dryer : 157.4 lbs(71.4 kg)
Drying Capacity
- Normal Cycle
- Steam Cycle
IEC 9.0 cu.ft. (27.3 lbs/12.4 kg)
IEC 9.0 cu.ft. (8 lbs/3.6 kg)
SPECIFICATIONS
SPECIFICAT IONS
50
WARRANTY
WARRANTY (USA)
Should your LG Dryer (“Product”) fail due to a defect in materials or workmanship under normal home use, during the
warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only
to the original retail purchaser of the product and applies only when purchased and used within the United States
including U.S. Territories. Proof of original retail purchase is required to obtain warranty service under this limited
warranty.
Warranty Period Scope of Warranty HOW SERVICE IS HANDLED
One (1) year from date of
original retail purchase
Parts and Labor
LG will provide parts and labor to repair or replace
defective parts.
Ten (10) years from date
of original retail purchase
Dryer drum
Parts only. Customer will be responsible for any labor or
in-home service to replace defective parts.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety
•
(90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
•
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE
WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long
an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific
legal rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT COVER:
Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation of the
•
product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/
installation.
Failure of the product to perform during power failures and interruptions or inadequate electrical service.
•
Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or
•
interrupted water supply or inadequate supply of air.
Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in
•
the Product’s owner’s manual.
Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
•
Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the intended
•
purpose, or any water leakage where the unit was not properly installed.
Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use,
•
or use of accessories, components, or consumable cleaning products that are not approved by LG.
Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the
•
finish of your product, unless such damage results from defects in materials or workmanship and is reported within
one (1) week of delivery.
Damage or missing items to any display, open box, discounted, or refurbished Product.
•
Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model
•
and Serial numbers, along with original retail sales receipt, are required for warranty validation.
Increases in utility costs and additional utility expenses.
•
51
ENGLISH
Repairs when your Product is used in other than normal and usual household use (e.g. commercial use, in offices
•
and recreational facilities) or contrary to the instructions outlined in the Product’s owner’s manual.
Costs associated with removal of your Product from your home for repairs.
•
The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in
•
accordance with published installation instructions, including LG’s owner’s and installation manuals.
Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use
•
of parts not approved or specified by LG.

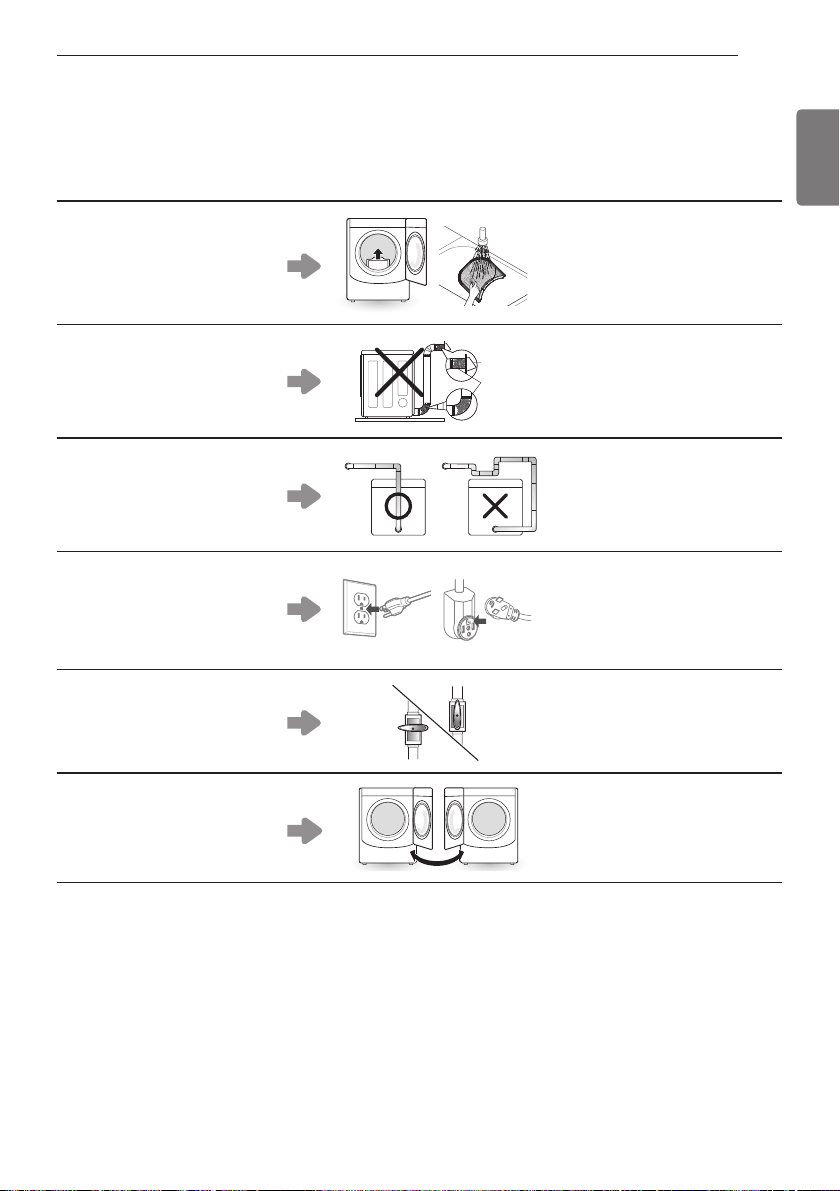

Filter is clogged.
Not heating, long dry time
•
Clean the lint filter.
•
Duct is clogged.
Not heating, long dry time
•
Clean the hood and duct.
•
Excessive duct length and/
or multiple elbows
Not heating, long dry time
•
Keep exhaust ducts as short as
•
possible, using as few elbows
and bends as possible.
Improperly connected power
cord or electrical outlet
issue.
No Power
•
Not Heating
•
Reconnect power cord, replace
•
house fuse or reset breaker. If
outlet is issue, electrician may
be required.
Gas valve is not turned on.
(Gas Dryer)
Not heating
•
Open the gas valve
•
Door Reversal
Instructions for door reversal
•
can be found in the owner’s
manual.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION
If you do not have access to the internet and you need assistance using your product or you would like to schedule
service, you may contact LG Electronics at the number below.
For assistance or service, call 1-800-243-0000.
If you need further assistance, you can write to LG with any questions or concerns at the address below:
LG Electronics, 201 James Record Road, Huntsville, Alabama 35813
For additional product information, visit our website at http://www.lg.com
WARRANTY
