Electronically controlled instantaneous water heater
MCX: 27300, 27400 and 27600 models
Instructions for the user
These appliances deliver water not exceeding 50 ºC in accordance with AS3498.
2
Instructions for user - 9120-15002 - MCX - 801052 - March 2012 v1.01
1. Overview
When ordering spare parts, please always specify the appliance model and serial number.
Pos. Part.-No. Description
1 Hood with control panel
2 801119 MCX heating cartridge 3.5 kW /230V
801120 MCX heating cartridge 4.4 kW /230V
801121 MCX heating cartridge 5.7 kW /230V
3 MCX Safety temperature limiter (STB) with
modification instructions, contact fitting, seals etc.
• 2-pole
• 1-pole
4 801122 MCX Filter
5 MCX water connector-set with two water connectors
and seals (mounted and greased) fastening safety
earthing terminal and filter
Pos. Part.-No. Description
6 MCX complete fixing set (wall bracket with screws
and dowels)
7 801123 Temperature sensor (polarity protection)
not shown:
MCX 3 mains cable with earthed plug,
cable seal and strain relief
MCX 4 mains cable (without plug), cable seal
and strain relief
MCX 6 mains cable (without plug), cable seal
and strain relief
MCX set of small spare parts (seals, nozzle for
cable entry, terminal, installation grease, screws,
wheel nut & discs)
Parts in Bold Type are available as Spare Parts.
Other parts are available on request.
2
7
6
5
4
3
1
3
Instructions for user - 9120-15002 - MCX - 801052 - March 2013 v1.01
This symbol on the products and / or accompanying documents means that used electrical and electronic prod-
ucts should not be mixed with general household waste. For proper treatment, recovery and recycling, please take
these products to designated collection points. Alternatively, in some countries you may be able to return your
products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly
will help to save valuable resources and prevent any potential negative effects on human health and the environment which could other-
wise arise from inappro priate waste handling. Please contact your local authority for further details of your nearest designated collection
point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. If you are a business user
and you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. This symbol is
only valid in the European Union.
2. Environment and recycling
1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Environment and recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5. Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6. Description of appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8. Additional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
9. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
10. Fault finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
11. Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Contents
4
Instructions for user - 9120-15002 - MCX - 801052 - March 2012 v1.01
Installation, initial operation and maintenance of this appliance must only be conducted by an authorised professional, who will then be
responsible for adherence to applicable standards and installation regulations. We assume no liability for any damages caused by failure
to observe these instructions.
• Do not use the appliance until it has been correctly installed and unless it is in perfect working order.
• The appliance is suitable but not limited to domestic use and similar applications inside closed, frost-free rooms, and must only be
used to heat potable water from mains supply.
• The appliance must never be exposed to frost.
• The appliance must be earthed at all times.
• The minimal specific water resistance must not fall below the value stated on the label.
• The maximum water pressure must not exceed the value on the label.
• Before commissioning for the first time and each time the appliance is emptied (e.g. due to work on the plumbing system, if there is a
risk of freezing or in case of maintenance), the appliance must be vented correctly in accordance with the instructions in this manual.
• Do not remove the front cover under any circumstances before switching off the mains electrical supply to the unit.
• Never make technical modifications, either to the appliance itself or the electrical leads and water pipes.
• Pay attention to the fact that water temperatures in excess of approx. 43 °C are perceived as hot, especially by children, and may
cause a feeling of burning. Please note that the fittings and taps may be very hot when the appliance has been in use for some time.
• Water inlet temperature must not exceed 70 °C.
• In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the cold water supply instantly. Repairs must only be
carried out by the customer service department or an authorised professional.
• This appliance must not be used by any person (including children) with limited physical, sensorial or mental abilities or failing experi-
ence and/or knowledge unless they are supervised by a person responsible for their safety or received instructions about how to use
the appliance. Children should be supervised in order to make sure that they do not play with the appliance.
3. Safety instructions
5
Instructions for user - 9120-15002 - MCX - 801052 - March 2013 v1.01
Type MCX 3 MCX 4 MCX 6
Part no. 27300 27400 27600
Capacity (Liter) 0,2 0,2 0,2
Nominal pressure MPa (bar) 1 (10) 1 (10) 1 (10)
Heating system
IES system
bare resistance element
Required water resistance at 15 °C
in cm
1100 800 800
Electric supply 1/N/PE ~ 220 V – 240 V
Nominal power rating 3,5 kW 4,4 kW 5,7 kW
Nominal current 15 A 19 A 25 A
Temperature choice 35 °C – 38 °C – 45 °C
Factory temperature setting 38 °C 38 °C 38 °C
Maximum inlet temperature 70 °C 70 °C 70 °C
Factory flow setting at 0.3MPa (3 bar) 2,0 l/min 2,5 l/min 3,3 l/min
Maximum temperature
increase at rated power
and a flow rate of......
1
2,0 l/min 25 K 31 K 41 K
2,5 l/min 20 K 25 K 33 K
3,0 l/min 17 K 21 K 27 K
3,5 l/min 14 K 18 K 23 K
4,0 l/min 12 K 16 K 20 K
Required l/min to switch on (l/min) 1,2 1,5 1,5
Required l/min to switch off
(l/min) 1,0 1,3 1,3
Min. required cable size
2)
See note 2)
Weight filled with water (kg) approx. 1,5
Dimensions H × W × D (mm) 135 × 186 × 87
Protection class acc. to VDE 1
Ingress protection according to VDE IP 25
1) Temperature rise (Kelvin) + cold-water temperature =
maximum hot-water temperature (°C) 70 °C
2) The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specific require-
ments of AS/NZS 3000.
4. Technical specifications
6
Instructions for user - 9120-15002 - MCX - 801052 - March 2012 v1.01

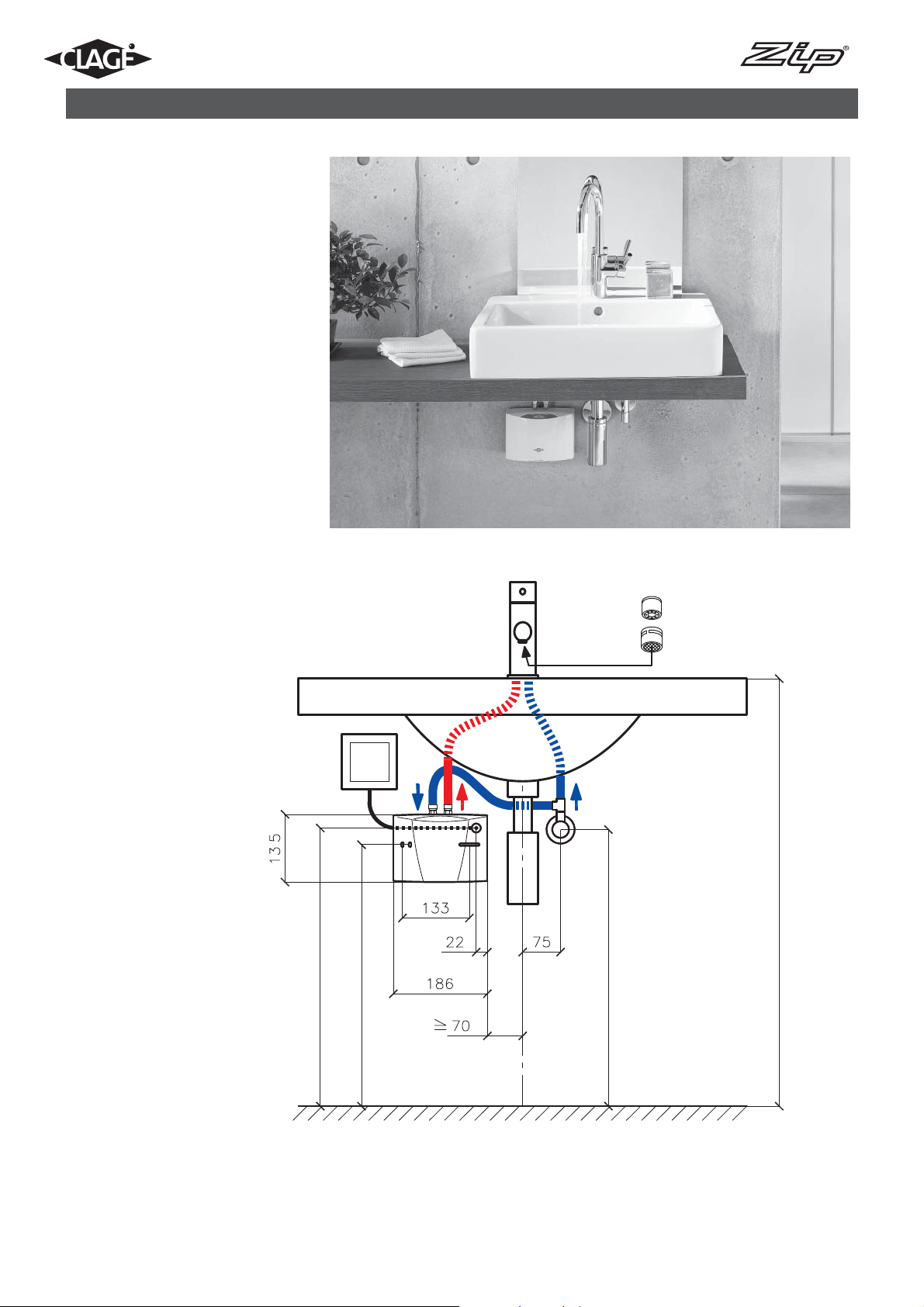

5. Typical installations
Angle valve G 1/2“
Flow controller
MCX 3/4 : CSP 3
MCX 6 : CSP 6
Top edge of wash basin approx.. 850
Dimensions in mm
Electrical connection with mains
power cable
(shorten if necessary)
Axis wall bracket approx. 520
Cable entry approx. 553
Angle valve approx. 550
Vented installation with
specialopenoutlettap
7
Instructions for user - 9120-15002 - MCX - 801052 - March 2013 v1.01
5. Typical installations
Unvented installation
(closed outlet) with tap for
pressurised appliances
Dimensions in mm
Angle valve approx. 550
Top edge of wash basin approx.. 850
Axis wall bracket approx. 520
Cable entry approx. 553
MCX 3/4 : CSP 3
MCX 6 : CSP 6
Angle valve G 1/2“
Flow controller
Electrical connection with mains
power cable
(shorten if necessary)
8
Instructions for user - 9120-15002 - MCX - 801052 - March 2012 v1.01
6. Description of applicance
The Zip instantaneous water heaters are compact electronically controlled water heaters. It is intended to provide economical heating of
water for a wash basin when installed together with a sanitary water fitting. When the hot-water tap is opened, the heater switches itself
on automatically when the minimum water flow rate is exceeded and heats the water as it passes through the appliance.
There are 3 available temperature settings, 35ºC, 38ºC and 45ºC (Max).
For best performance, always fit the special flow controller included with the appliance. This controller is inserted into the outler at the
end of the tap and fits into any standard sleeve size M 22/24.
The maximum possible outlet temperature is determined by the temperature of the incoming water, the rate of flow and the heating
power of the appliance.
This appliance delivers water not exceeding 50ºC in accordance with AS3498.

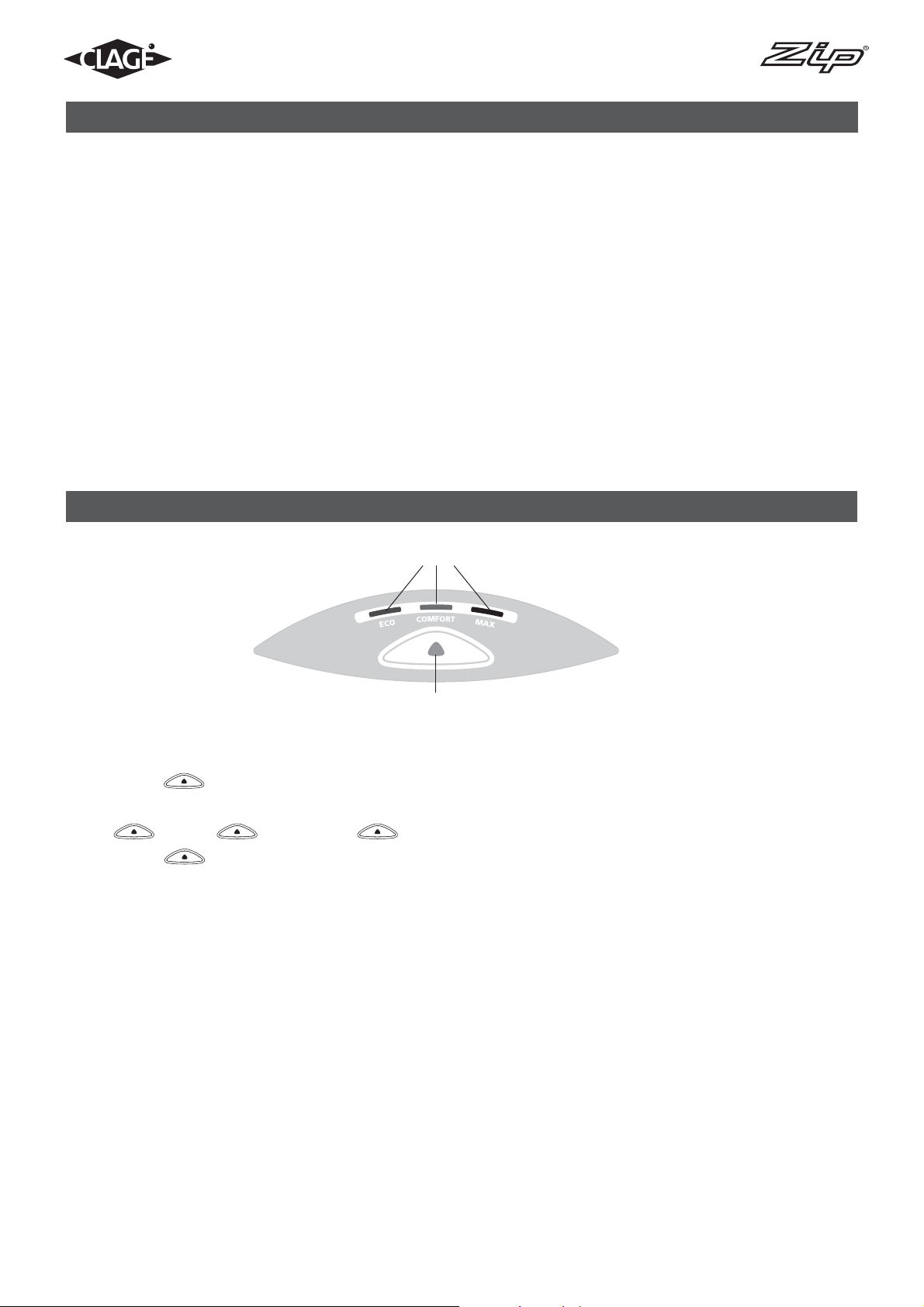

7. Operation
Touch key
Three coloured LEDs
Temperature setting
The “Touch” key
allows you to select one of three preset temperatures.
Every key press sets the temperature to the next level:
35 °C >
> 38°C >
>
45°C (MAX) >
>
35°C
Pressing the key
once again, starts the cycle all over.
The currently selected temperature is indicated by one of three coloured LEDs.
Key lock and temperature lock
The currently selected temperature setting can be locked against unintended changes. Thus, the temperature cannot be changed by a
single keypress.
Activate keylock / Deactivate keylock:
Press “Touch” key (for approx. 5 seconds) until the active LED goes out, then release “Touch” key.
9
Instructions for user - 9120-15002 - MCX - 801052 - March 2013 v1.01
8. Additional features
Activate / De-activate LED display
As part of the appliance’s energy saving feature, the active LED will automatically turn off 20 seconds after the last operation (e.g. tapping
or temperature selection).
To identify the current / selected setting at any time, the LED display can be enabled permanently therefore disabling the LED standby
function:
• Turn off the water at the outlet from the appliance.
• Press and hold the “Touch” key for at least 7 seconds. NB: the LEDs will go out after 5 seconds for a period of approximately 1.5 sec-
onds then light up again.
• While still holding down the “Touch” key, turn on the outlet tap. The LED will go out as confirmation that this option is now selected.
• Release the “Touch” key and turn off the outlet tap.
If the tap is opened or the touch key is used in LED standby mode (LED off), the last active LED lights up (wake up), but the temperature
setting will not change yet. Only when pressed once again, the temperature setting will be adjusted.
The LED Standby function can be re-activated using the same process above.
NB:
This function is retained even after power failure.
10
Instructions for user - 9120-15002 - MCX - 801052 - March 2012 v1.01
9. Maintenance
• The appliance and fittings should only be cleaned with a damp cloth. Do not use abrasive or chlorine-based cleaning agents or sol-
vents.
• Keep the control panel area dry!
• Clean the jet regulator regularly and replace as necessary.
• Dirt and scale deposited in the pi
pes and appliance will affect its function. Typical indications of this are a reduced flow rate or noisy
flow. In such cases, have the appliance inspected by a qualified technician and, if necessary, have the filter in the cold-water inlet
cleaned.
10. Fault finding
Repairs should only be carried out by qualifi ed tradespersons familiar with electric instantaneous water heaters.
All service work should be performed by an authorized Zip service technician – for details of the full range of services available call Zip
Service on 1800 460 222.
When calling for service, please always specify the appliance model and serial number.
The following table will be helpful in determining the causes of some common problems and their solutions.
Problem Cause Solution
Cold water at outlet
Circuit breaker tripped Reset circuit breaker
Water fl ow is not suffi cient Increase the water fl ow to the appliance
Slow water fl ow rate at outlet
Flow controller not fi tted
Fit the correct fl ow controller (see Section 6) or
contact Zip Service
Water pressure not suffi cient Contact Zip Service
Dirt in the pipes Clean fi lter, if problem persist, contact Zip Service
No water at outlet Water supply is turned off Turn on water supply
Appliance switches itself on and
off
Varying water pressure / fl ow rate is too low
Clean fi lter, increase the water fl ow to the appli-
ance. If problem persist, contact Zip Service
Hot water temperature not stable
during use
Supply voltage varies / Water connections
reversed
Contact Zip Service
Hot water temperature too low
and/or one LED fl ashes slowly
Flow rate is too high
Adjust the fl ow either at the tap, the valve or the
fl ow adjustment screw. Zip Service should be
contacted to adjust the fl ow adjustment screw
Voltage supply is too low Contact Zip Service
Faulty heating element Contact Zip Service
One LED fl ashes fast and water
remains cold
Defective temperature sensor Contact Zip Service
Faulty heating element Contact Zip Service
All LEDs fl ashing fast and water is
warm
Defective control panel Contact Zip Service
All LEDs fl ashing fast and water
is cold
Defective power unit Contact Zip Service
LEDs turn off shortly after key
press
Keylock function is active Deactivate Keylock, see instructions on page 8
11
Instructions for user - 9120-15002 - MCX - 801052 - March 2013 v1.01
11. Notes
Instructions for user - 9120-15002 - MCX - 801052 - March 2012 v1.01
Head Office
Zip Heaters (Aust) Pty. Ltd.
ABN: 46 000 578 727
67 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipheaters.com
Facsimile: (02) 9796 3858
Telephone: (02) 9796 3100
Free Call: 1 800 638 633
As Zip policy is one of continuous
product improvement, changes
to specifications may be made
without prior notice. Images in this
booklet have been modified and
may not be true representations of
the finished goods.
12. Quick reference guide
