Refri
Use Ca_
Important Safety Instructions ....................... 1-2
Installation ....................................... 3-6

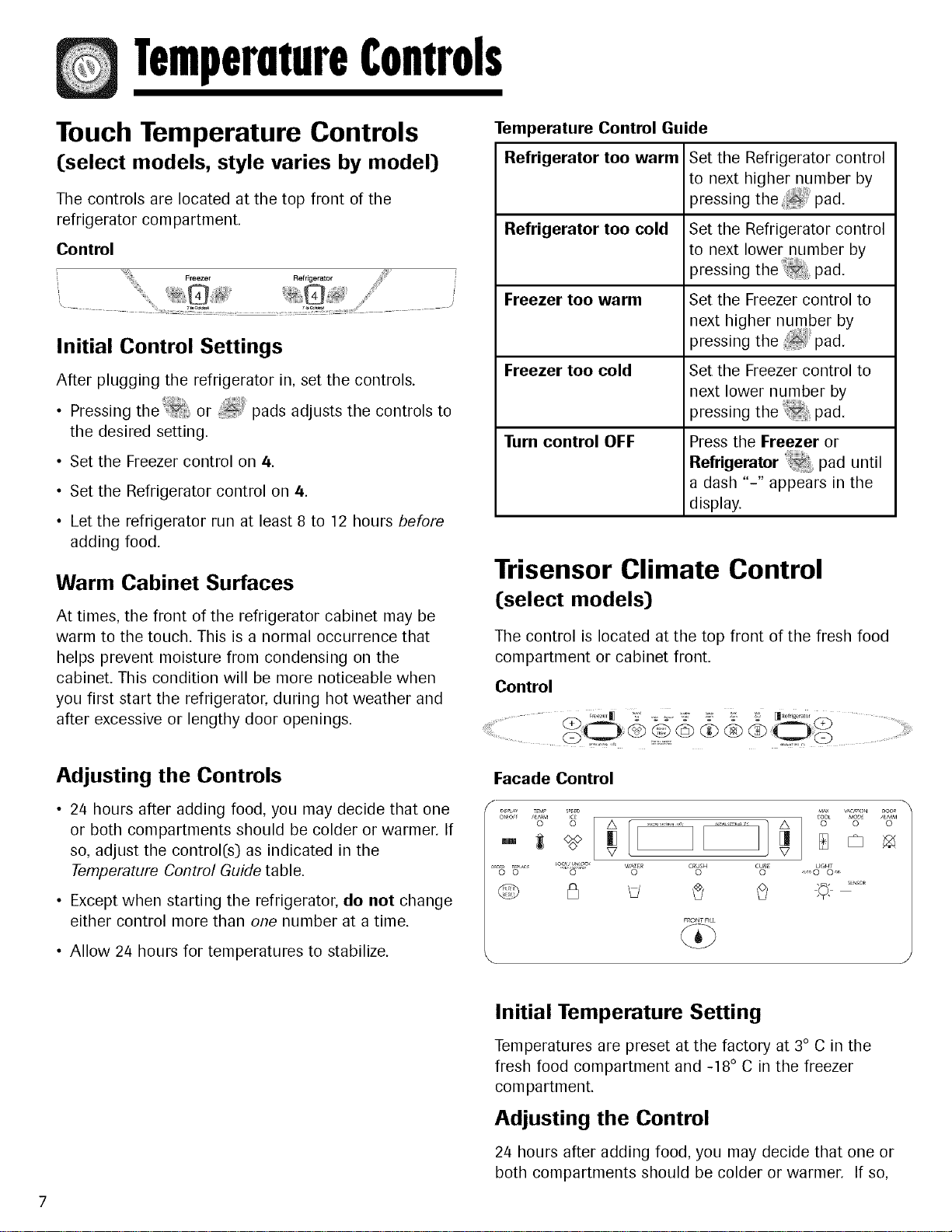

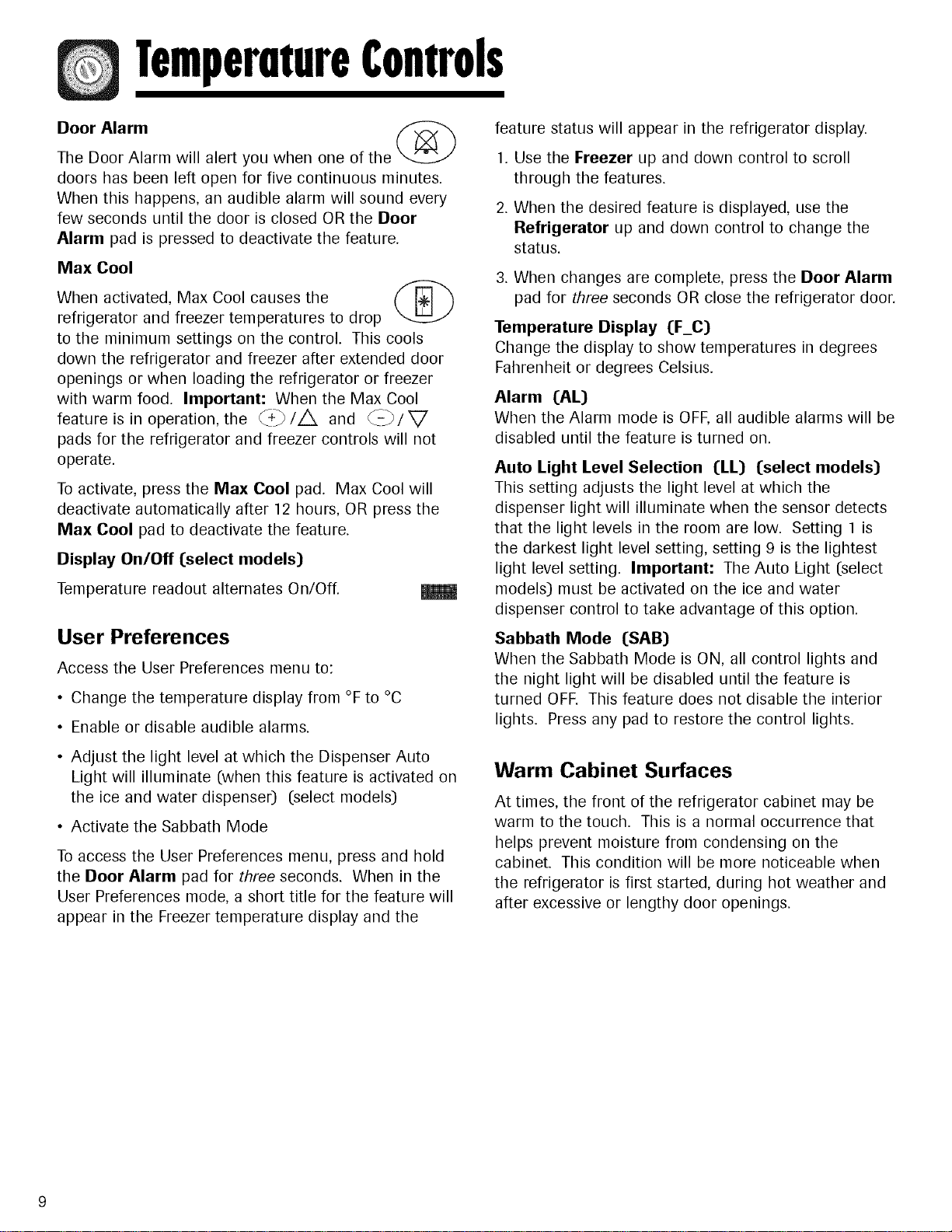

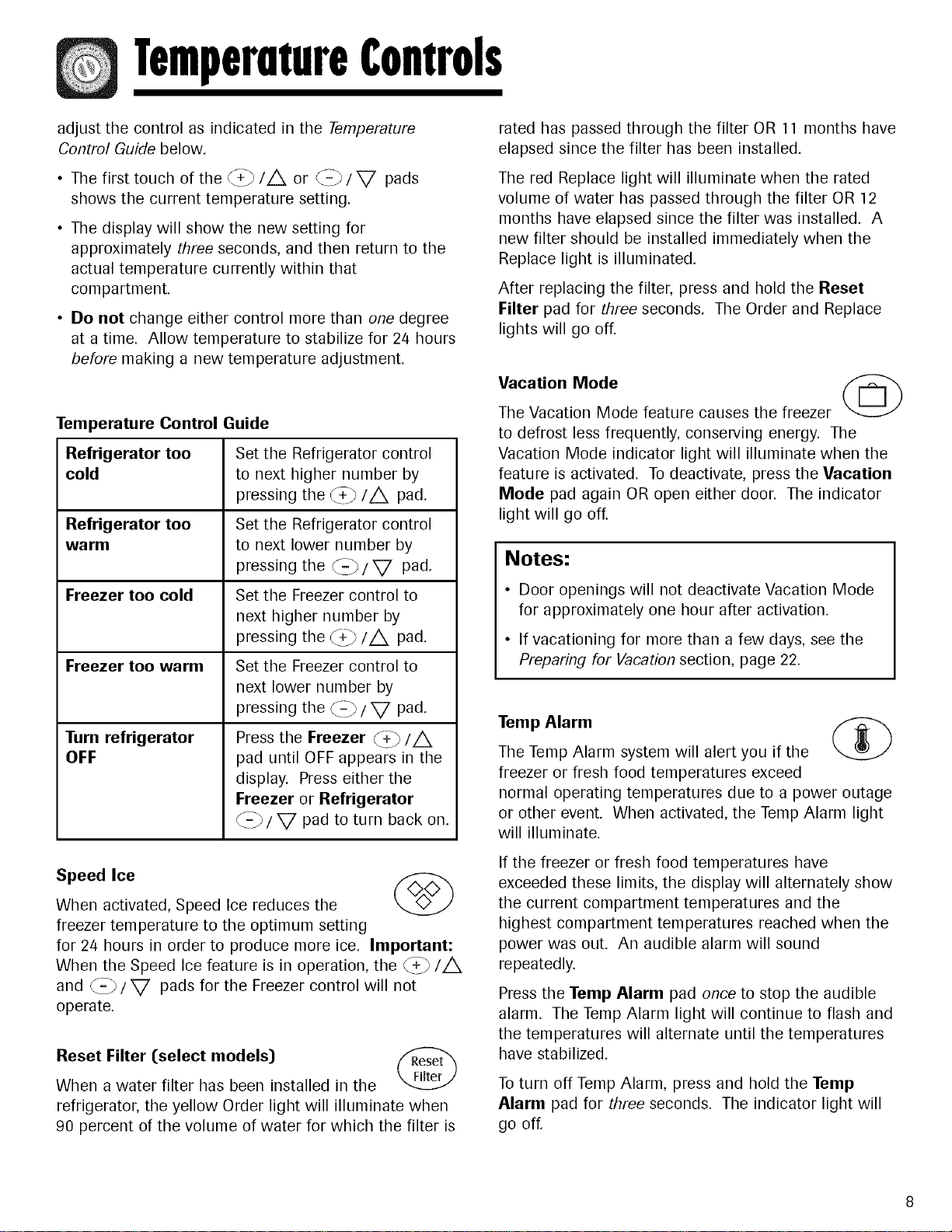

Q Temperature Controls .............................. 7-9

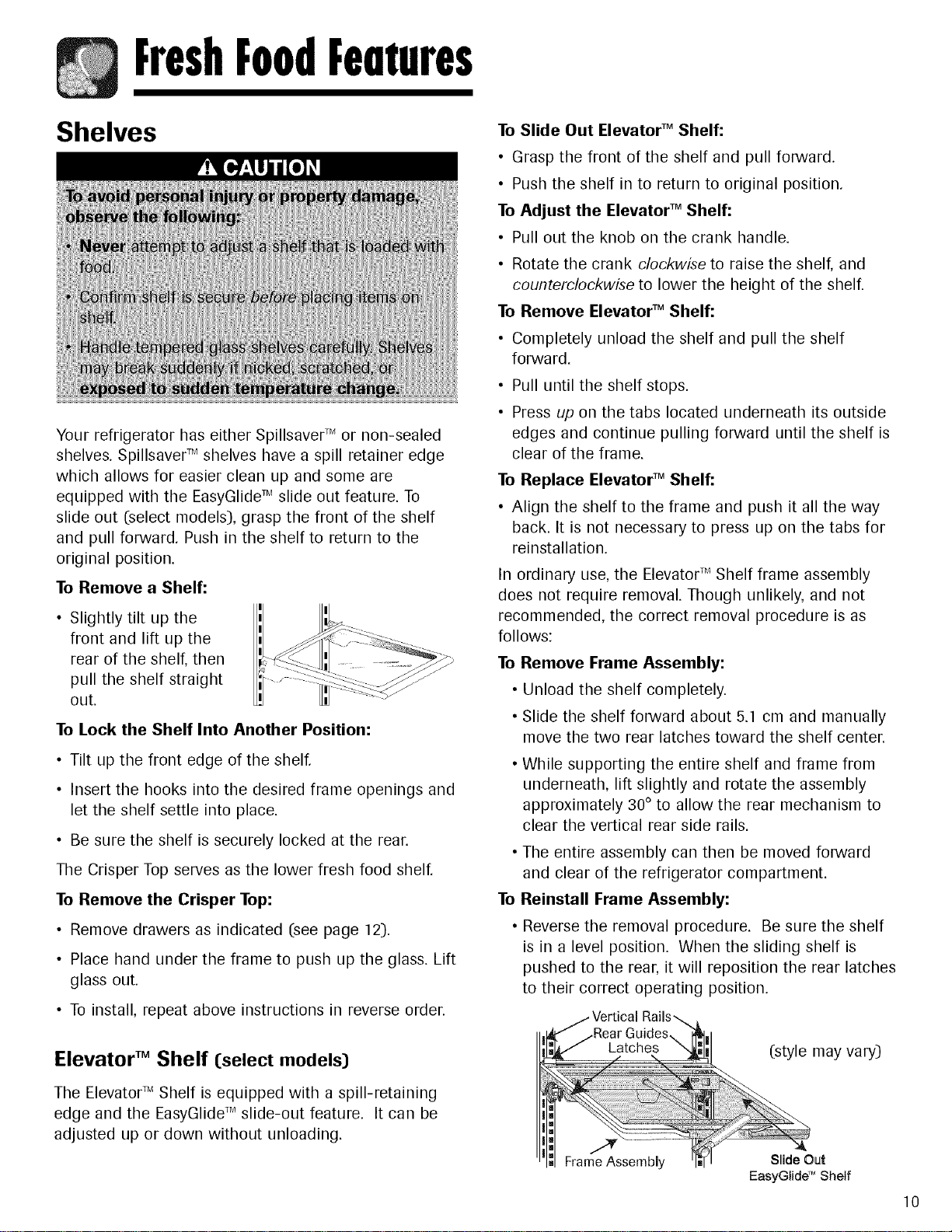

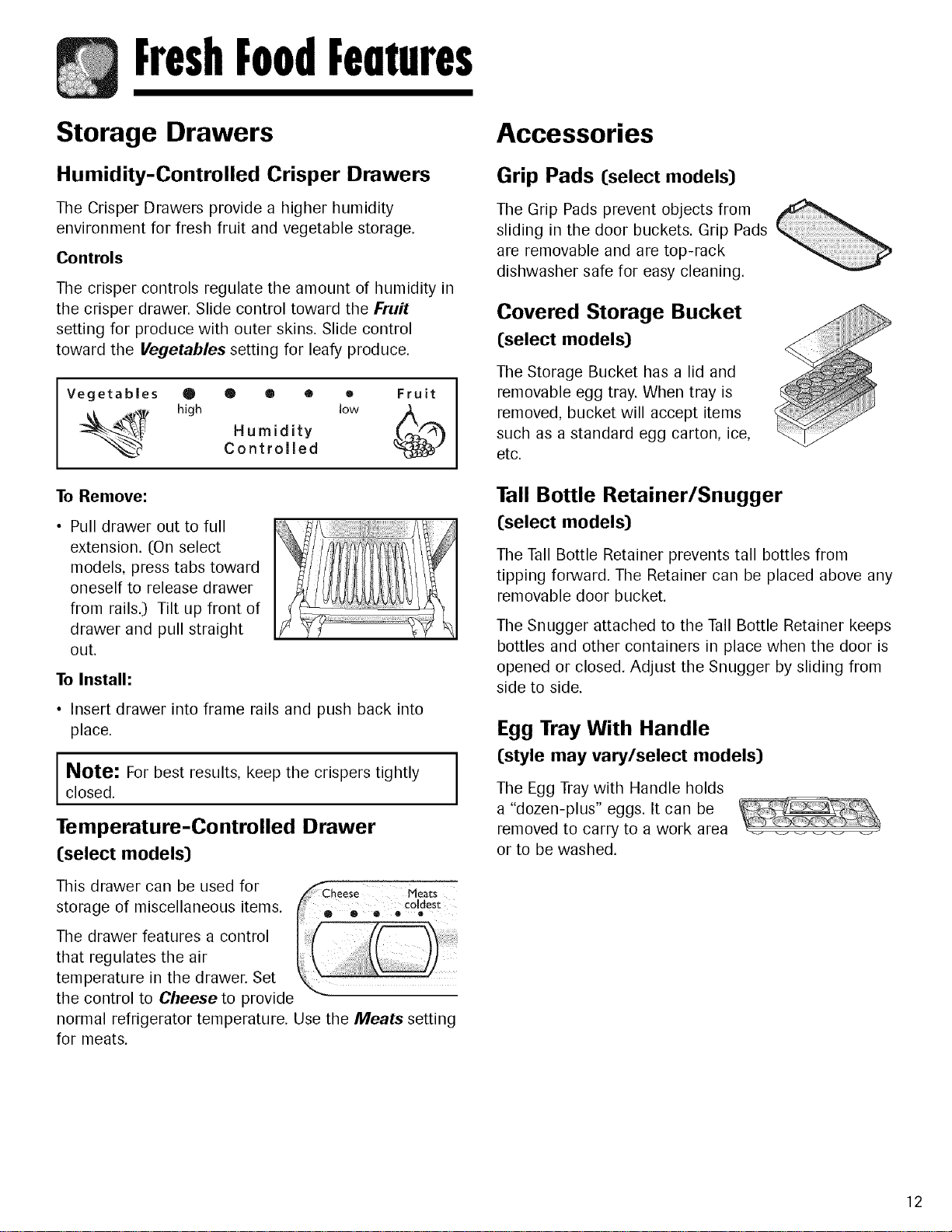

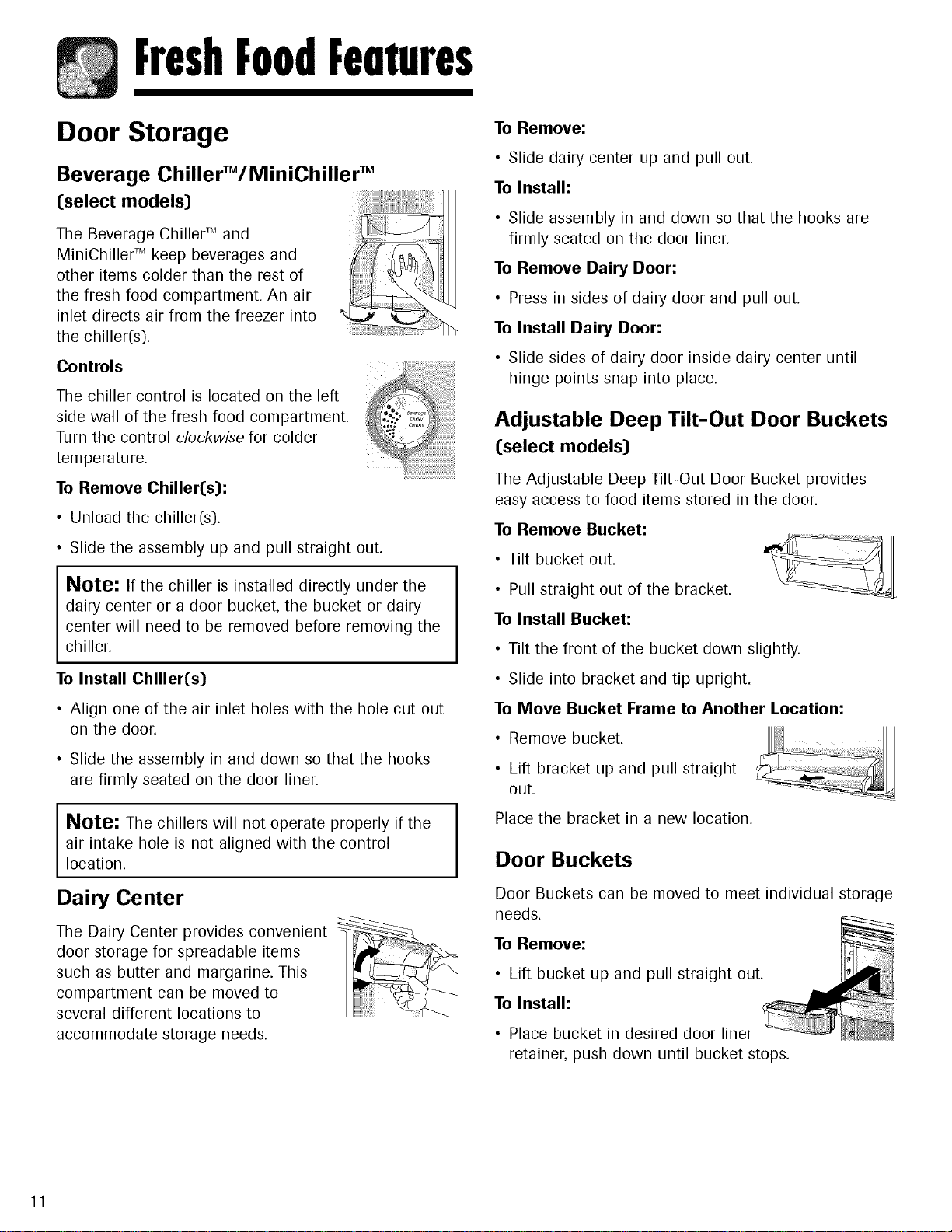

Fresh Food Features ............................. 10-12

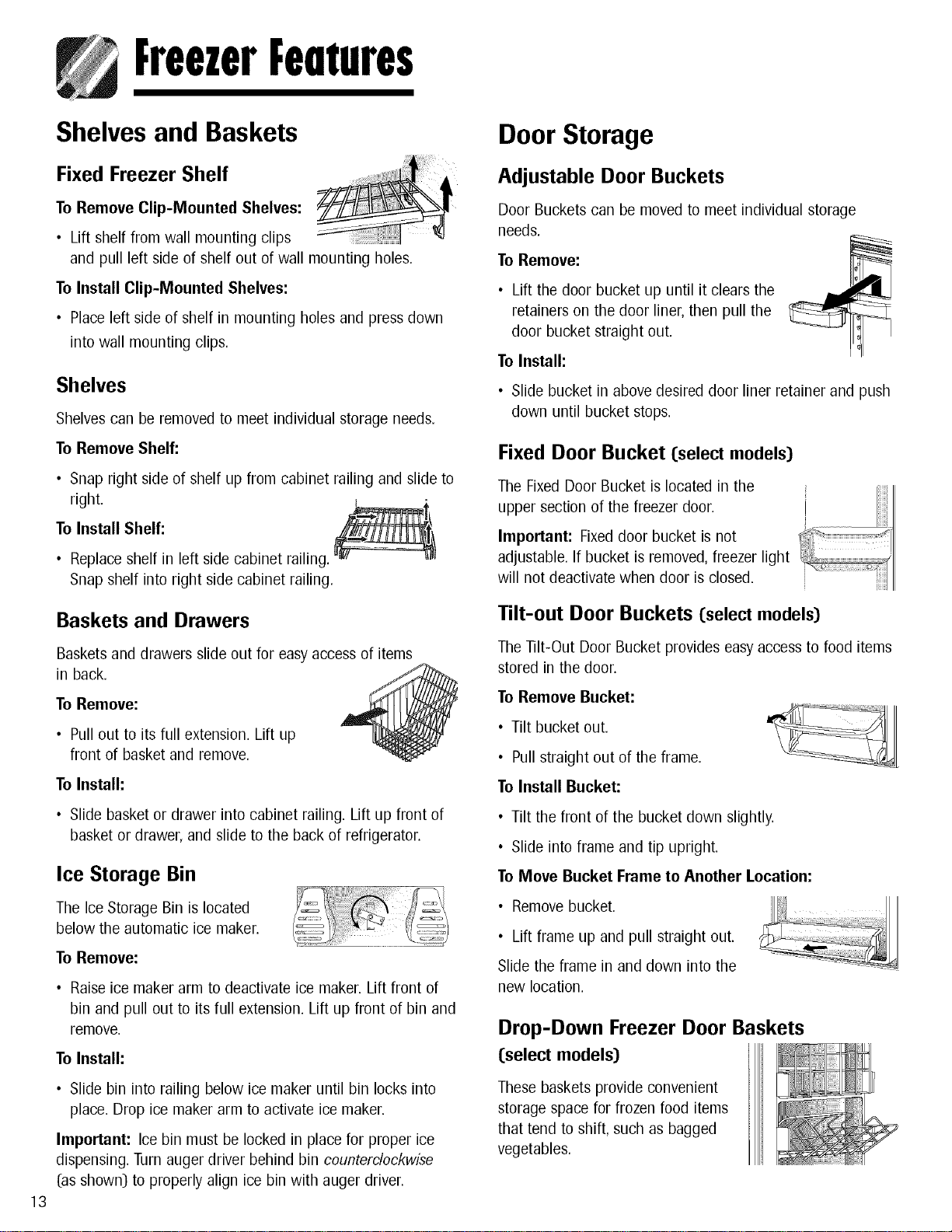

_ Freezer Features ................................... 13

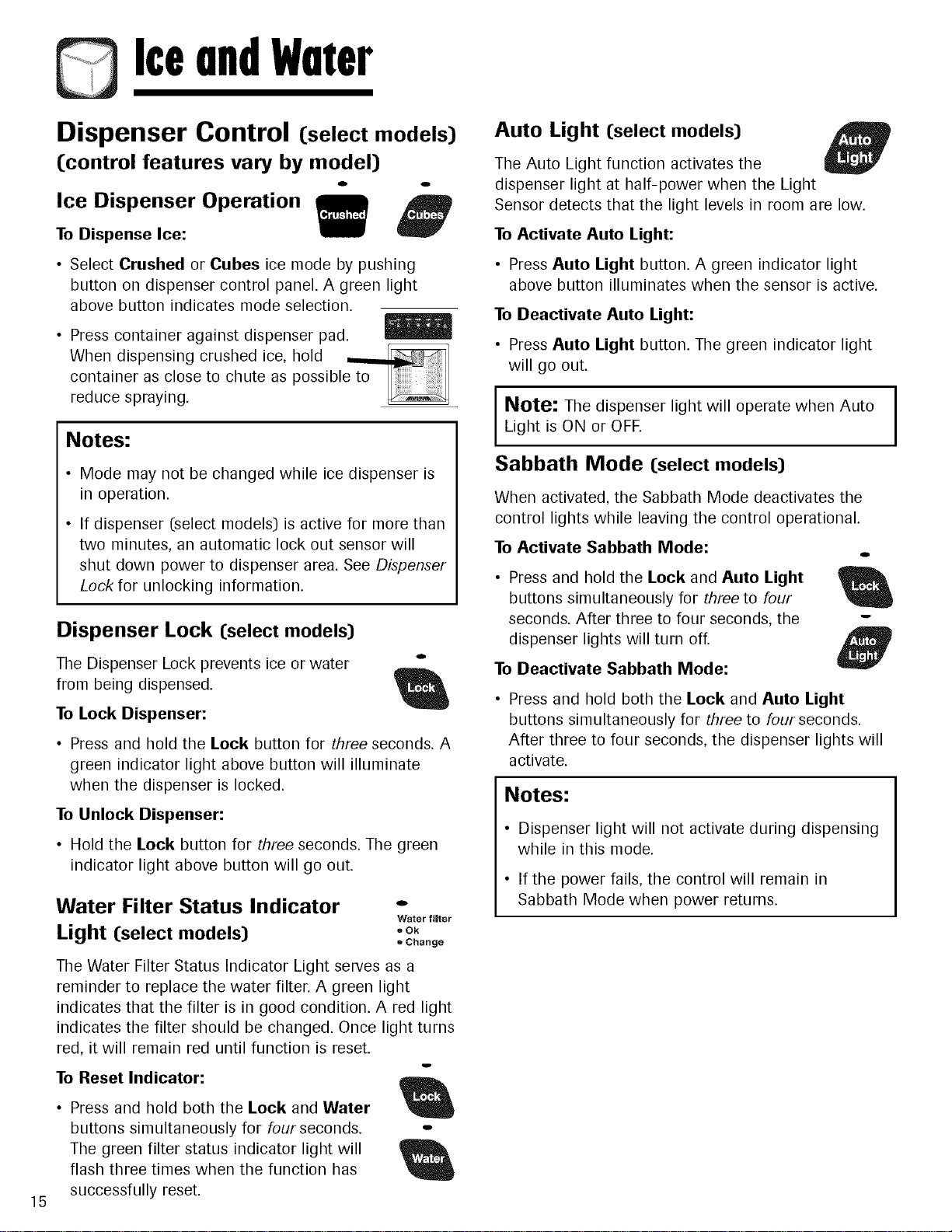

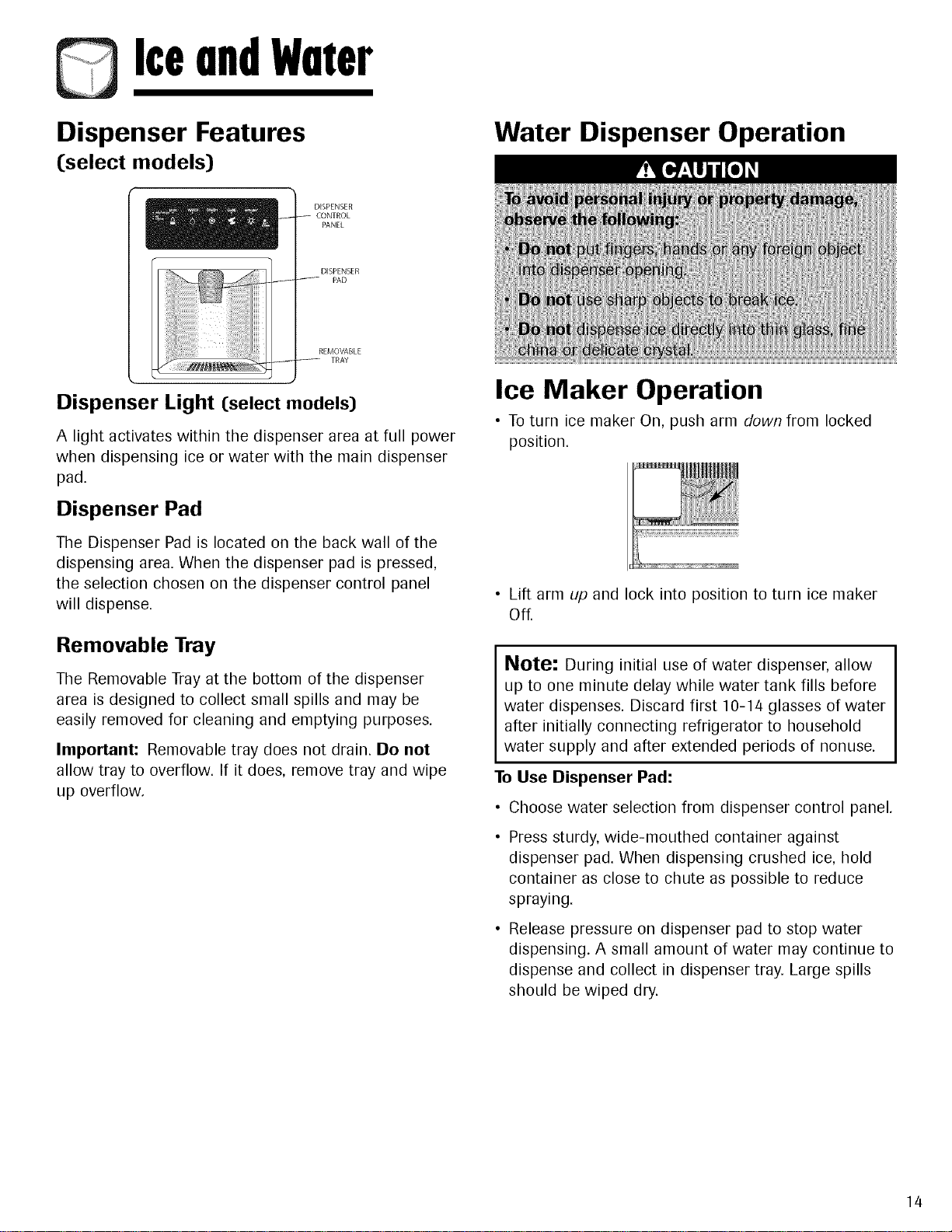

Ice and Water ................................... 14-15

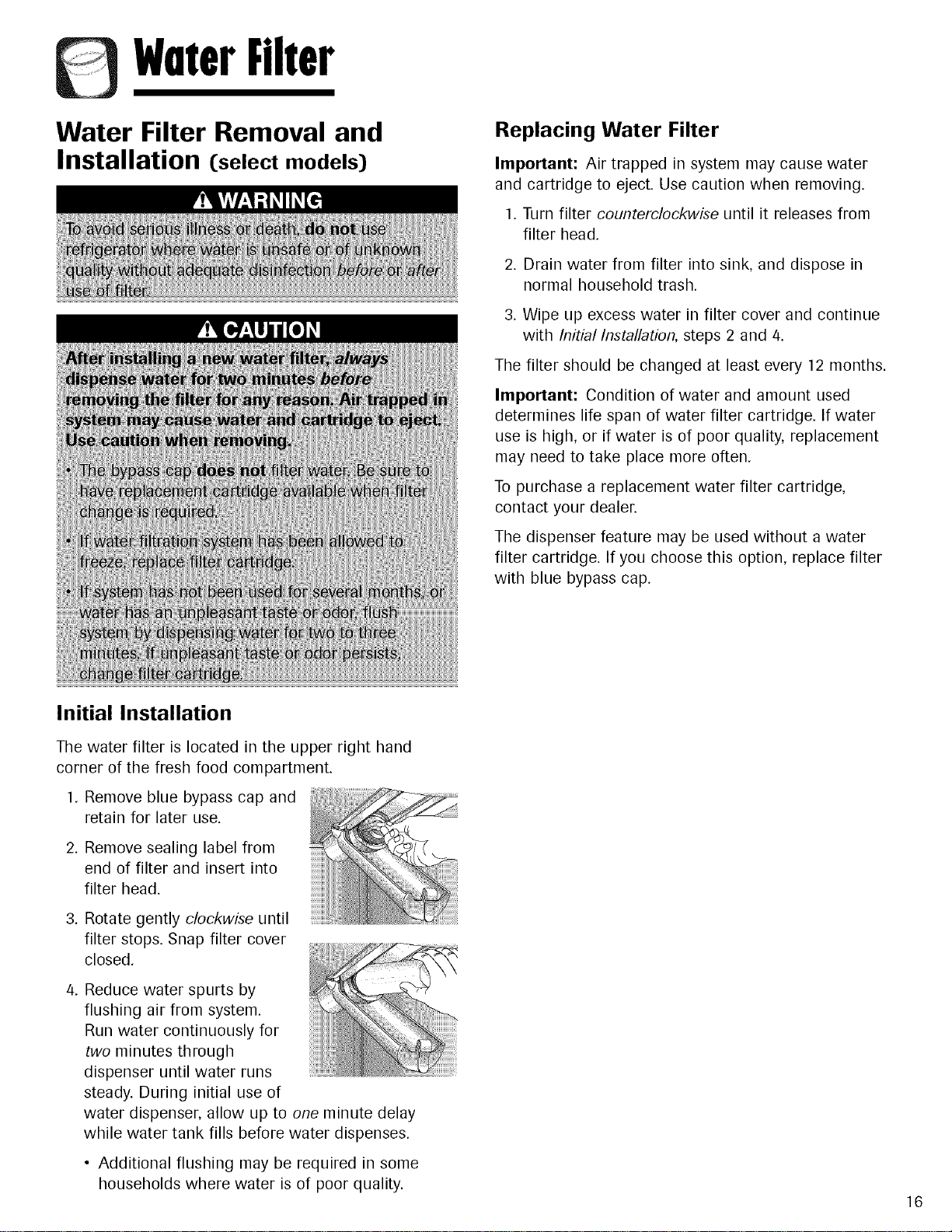

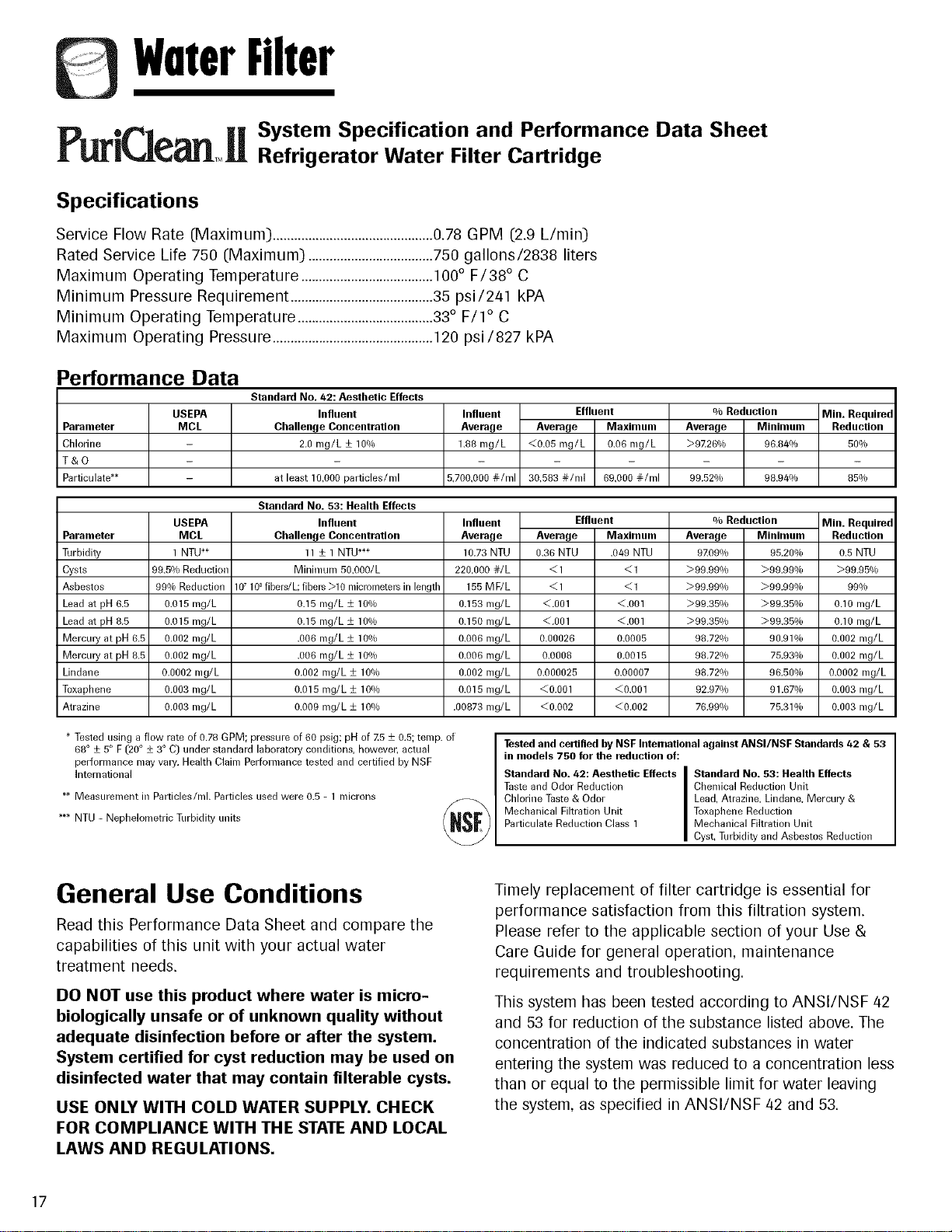

0 Water Filter ..................................... 16-17

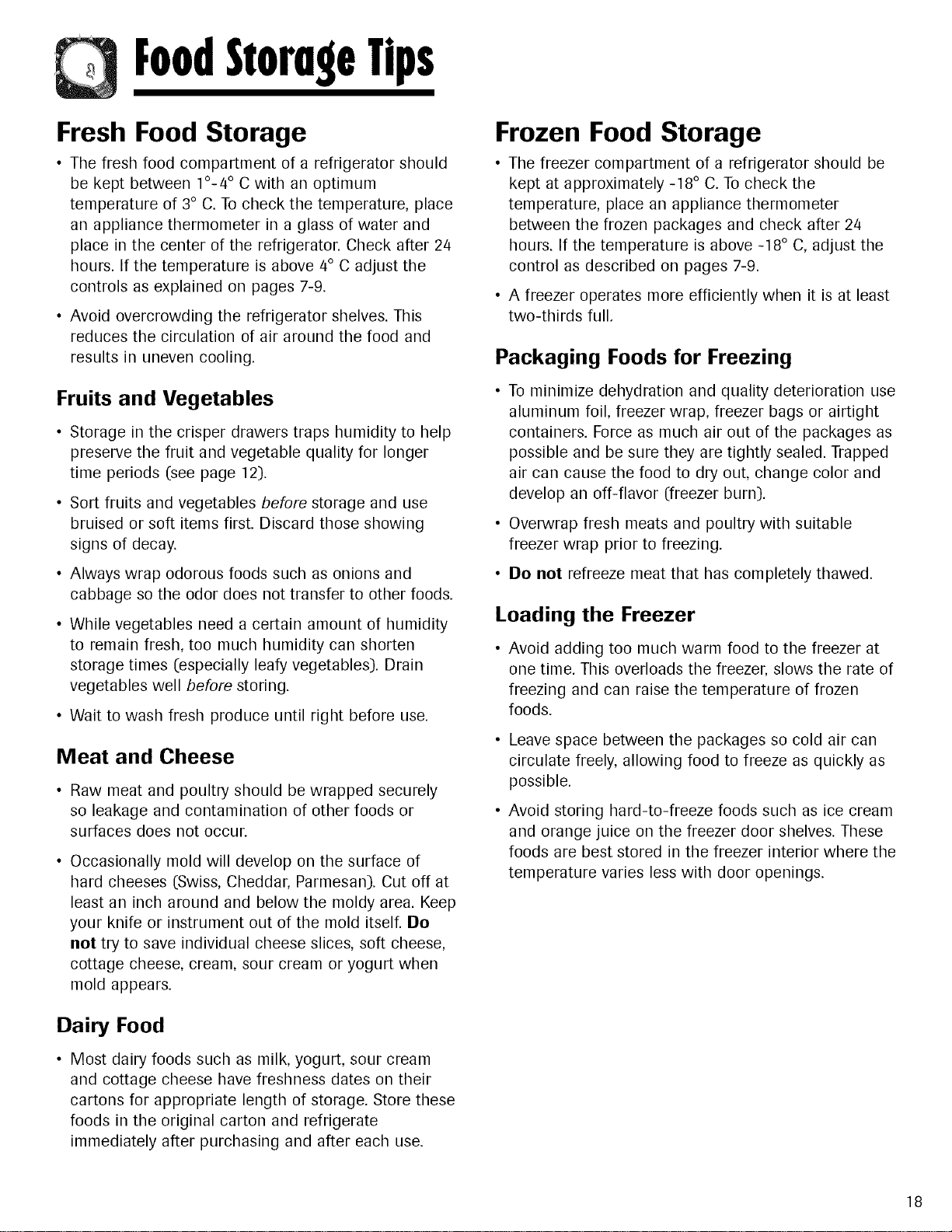

D Food Storage Tips .................................. 18

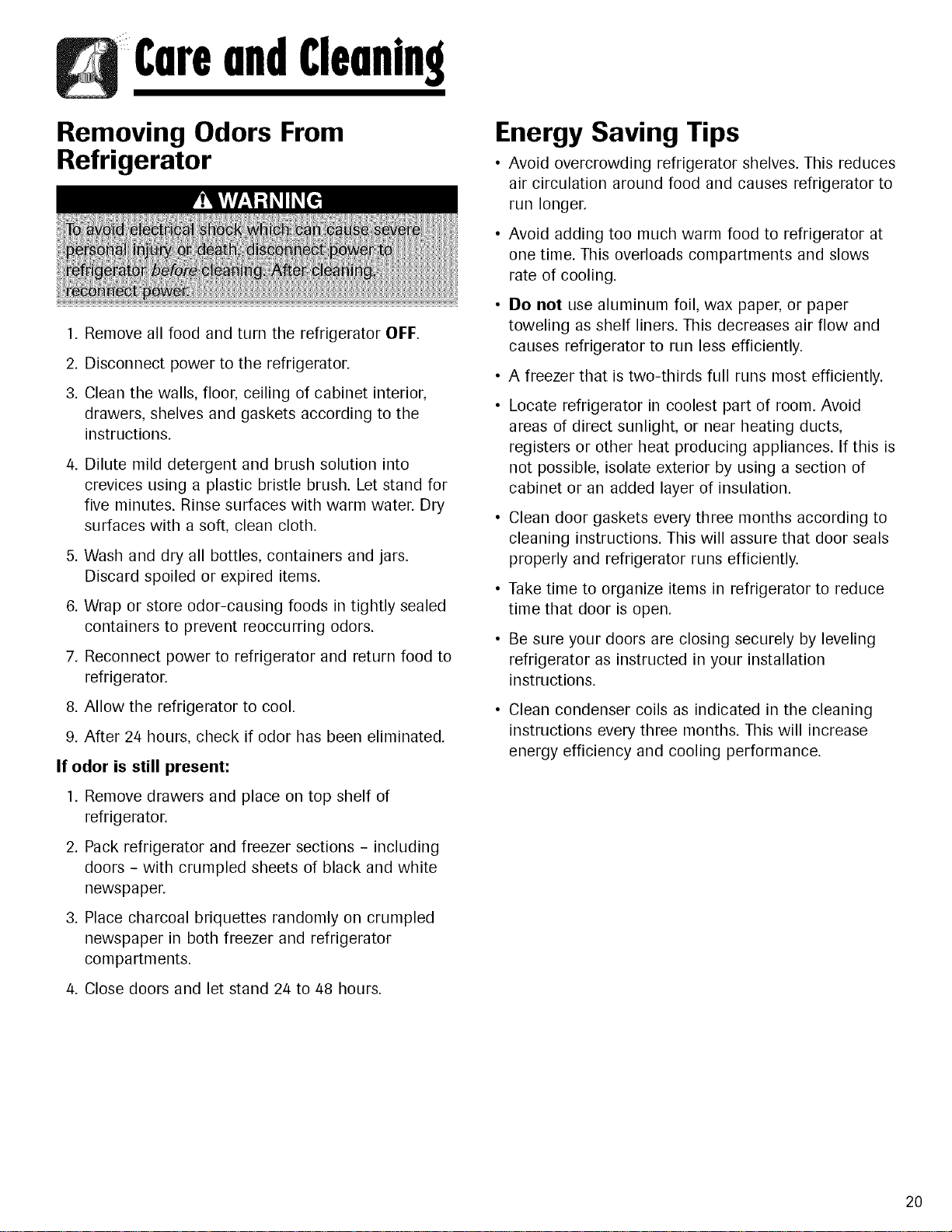

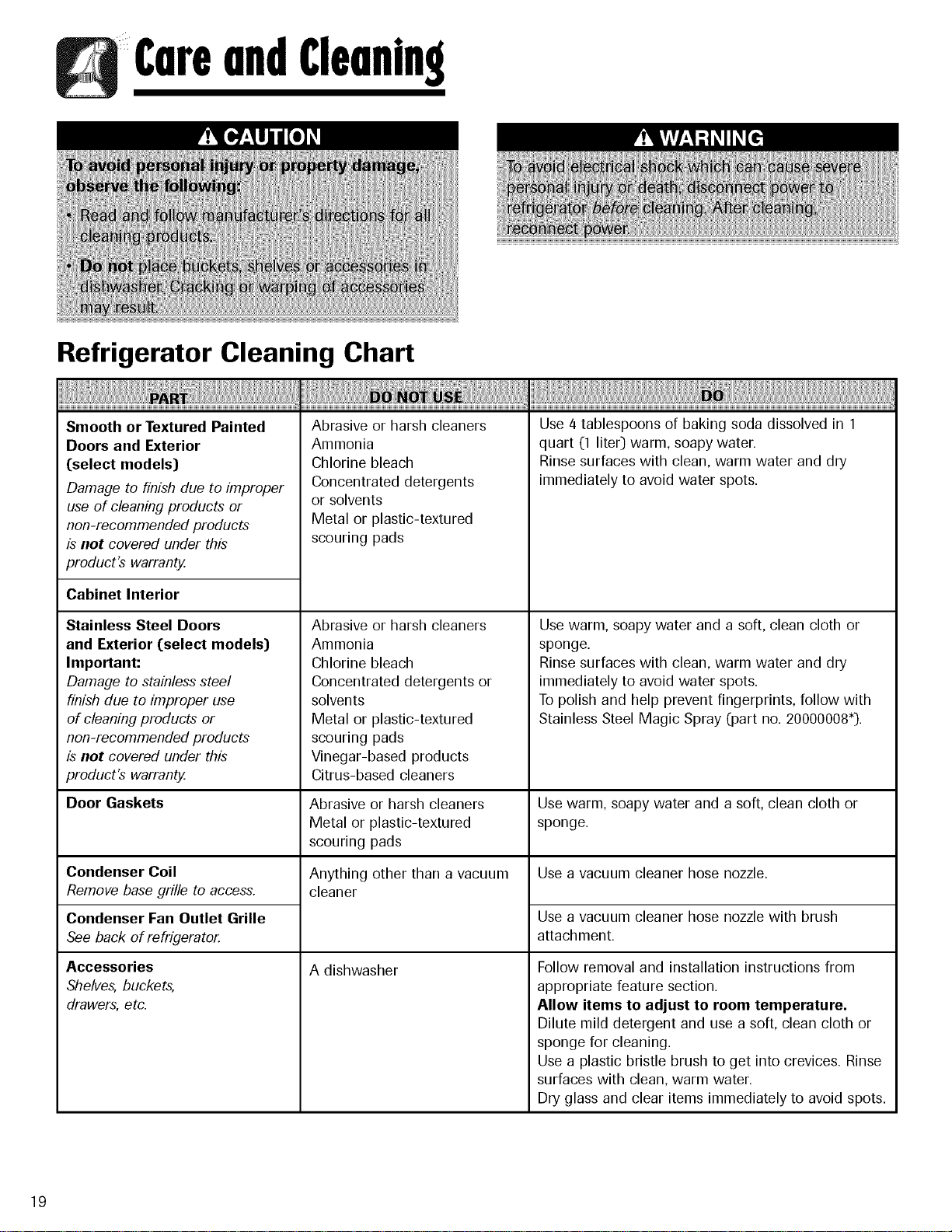

Care and Cleaning ............................... 19-22

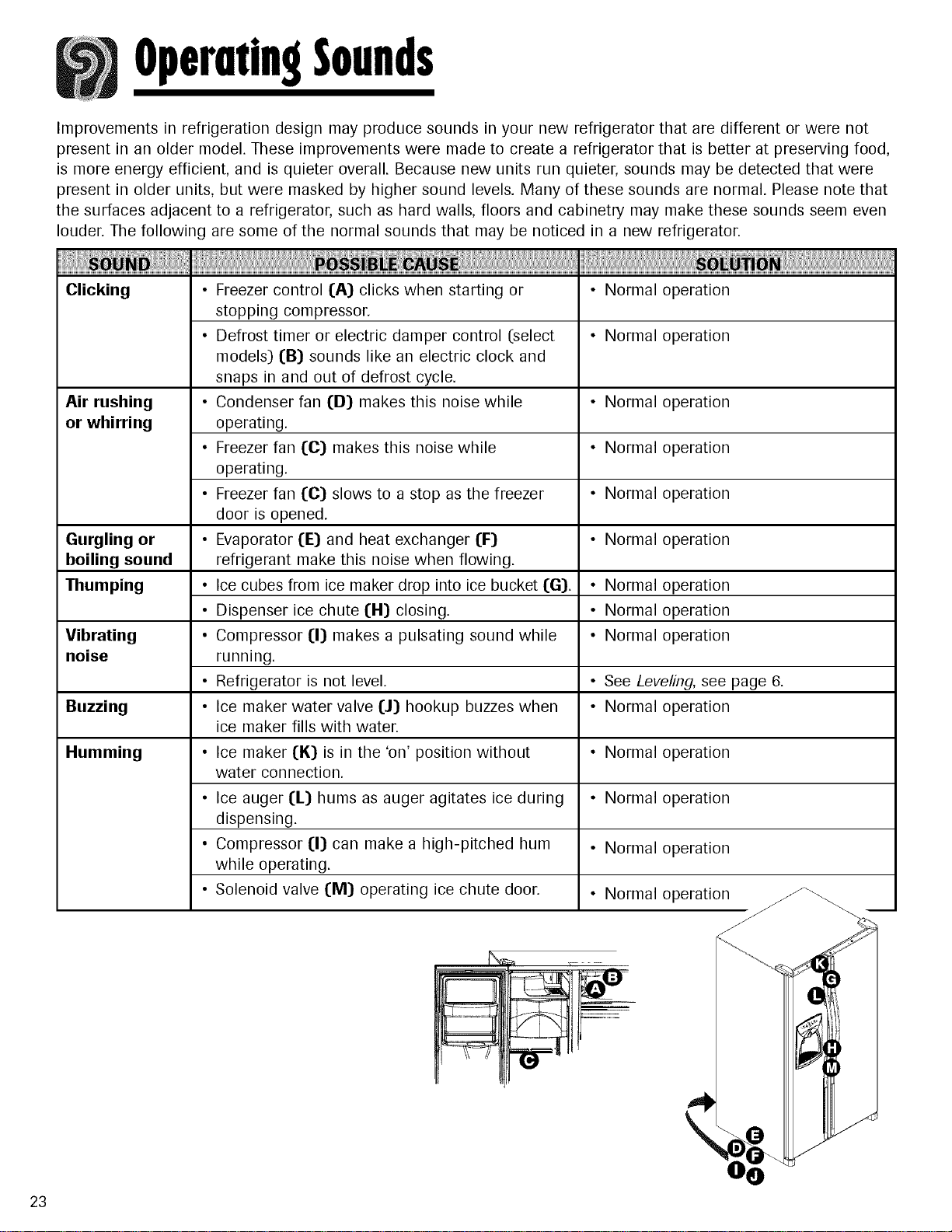

_J Operating Sounds .................................. 23

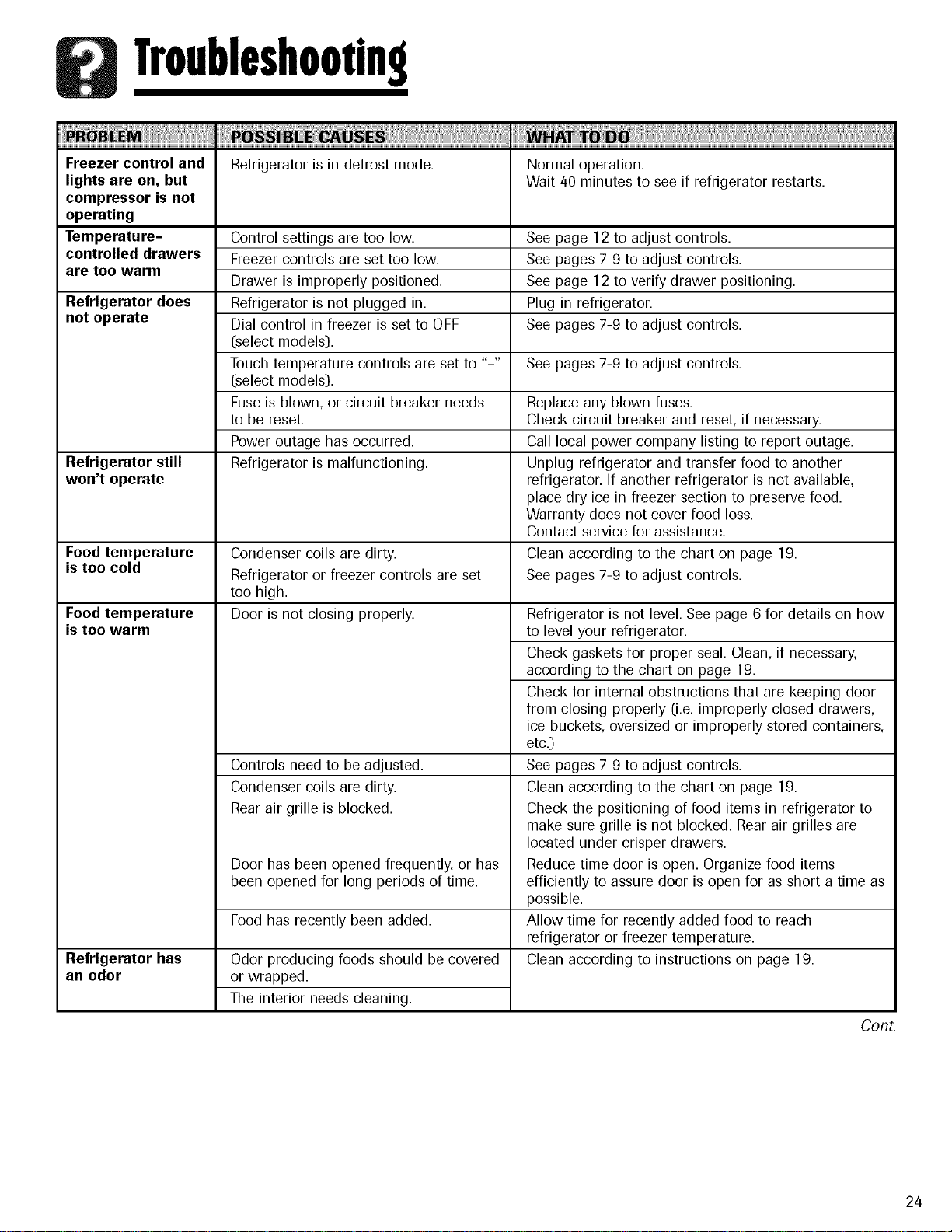

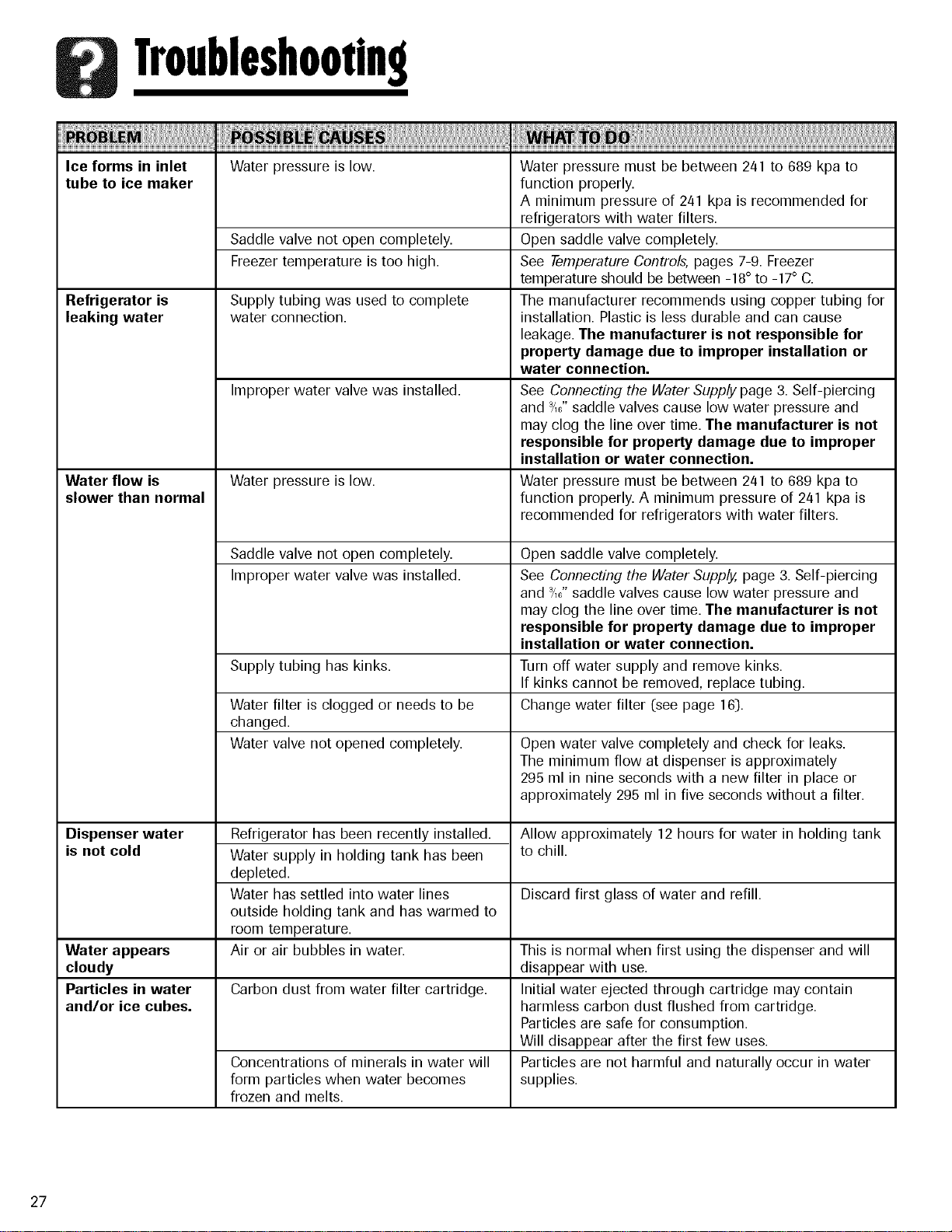

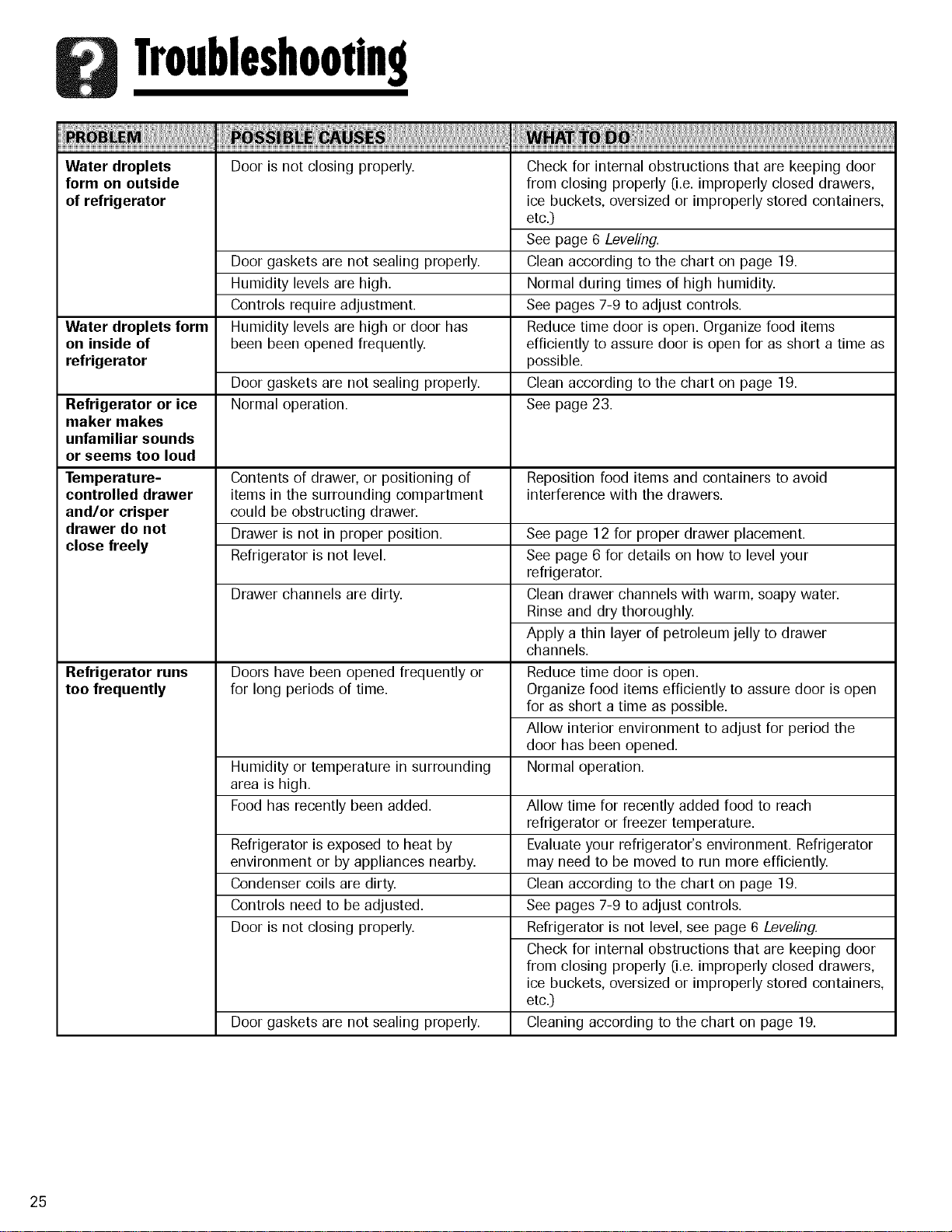

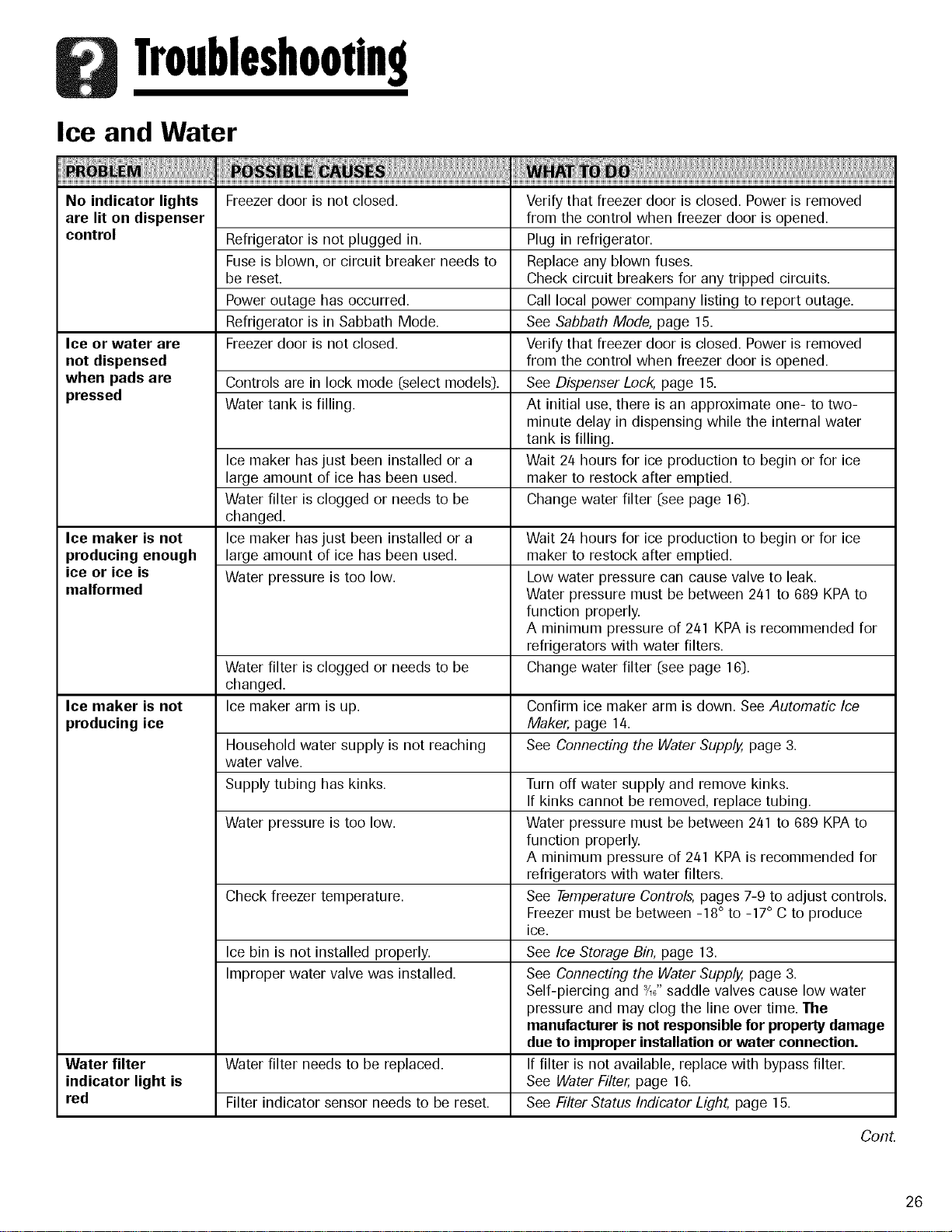

Troubleshooting ................................. 24-27
Part No. 12842126 Litho USA

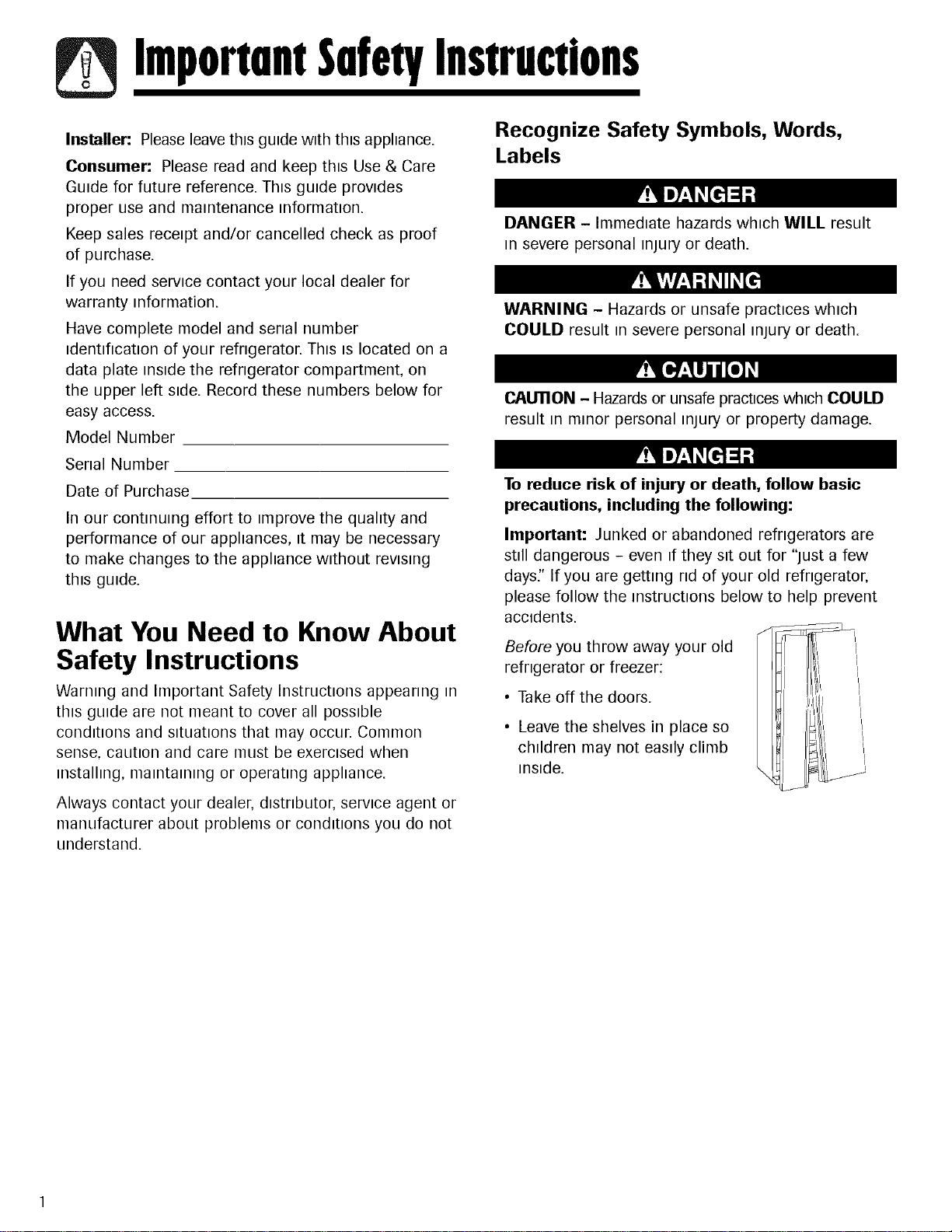

Importan!SafetyInstructions
Installer: Please leave this guide with this appliance.
Consumer: Please read and keep this Use & Care
Guide for future reference. This guide provides
proper use and maintenance information.
Keep sales receipt and/or cancelled check as proof
of purchase.
If you need service contact your local dealer for
warranty information.
Have complete model and serial number
identification of your refrigerator. This is located on a
data plate inside the refrigerator compartment, on
the upper left side. Record these numbers below for
easy access.
Model Number
Serial Number
Date of Purchase
In our continuing effort to improve the quality and
performance of our appliances, it may be necessary
to make changes to the appliance without revising
this guide.
What You Need to Know About
Safety Instructions
Warning and In]portant Safety Instructions appearing m
this guide are not n]eant to cover all possible
conditions and situations that may occur. Con]mon
sense, caution and care nll_lStbe exercised when
instalhng, maintaining or operating apphance.
Always contact your dealer, distributor, service agent or
manufacturer about problems or conditions you do not
understand.
Recognize Safety Symbols, Words,
Labels
DANGER - Immediate hazards which WILL result
in severe personal injury or death.
WARNING - Hazards or unsafe practices which
COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which COULD
result in minor personal injury or property damage.
To reduce risk of injury or death, follow basic
precautions, including the following:
Important: Junked or abandoned refrigerators are
still dangerous - even if they sit out for "just a few
days:' If you are getting rid of your old refrigerator,
please follow the instructions below to help prevent
acctdents.
Before you throw away your old
refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so
children may not easily climb
inside.
J

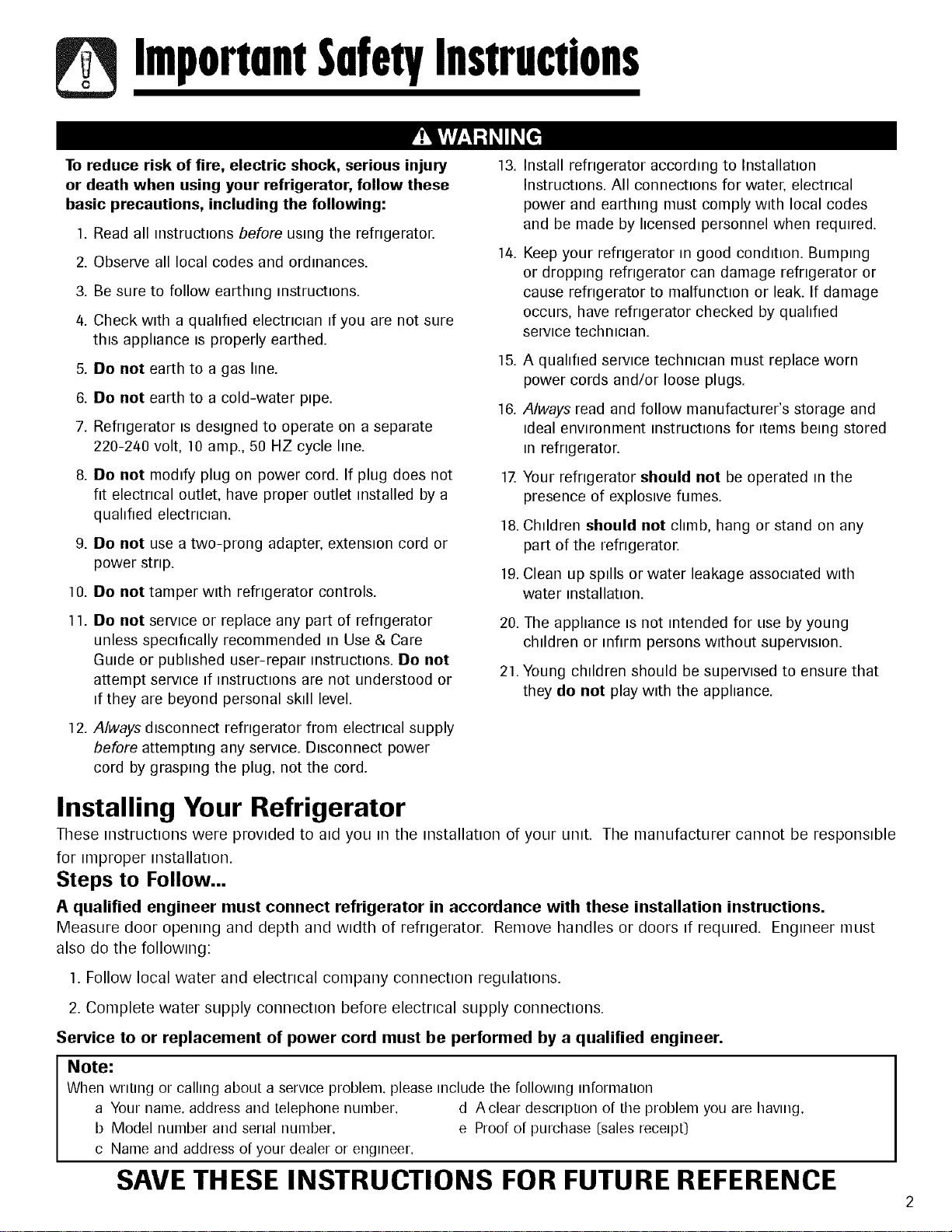

Importan!SafetyInstructions
To reduce risk of fire, electric shock, serious injury
or death when using your refrigerator, follow these
basic precautions, including the following:
1. Read all mstructtons before usmg the refngeratot:
2. Observe all local codes and ordmances.
3. Be sure to follow earthmg mstructtons.
4. Check wtth a quahfied electnctan tfyou are not sure
thts apphance ts properly earthed.
5. Do not earth to a gas hne.
6. Do not earth to a cold-water ptpe.
7. Refngerator ts destgned to operate on a separate
220-240 volt, 10 amp., 50 HZ cycle hne.
13.
14.
15.
16.
8. Do not modtfy plug on power cord. If plug does not 1Z
fit electncal outlet, have proper outlet installed by a
quahfied electnctan.
18.
9. Do not use a two-prong adapter, extenston cord or
power stnp.
10. Do not tamper wtth refrigerator controls.
11. Do not servtce or replace any part of refngerator
unless spectfically recommended m Use & Care
Gutde or pubhshed user-repatr mstructtons. Do not
attempt servtce tf mstructtons are not understood or
tf they are beyond personal sktll level.
12. Always dBconnect refngerator from electrical supply
before attemptmg any servtce. DBconnect power
cord by grasping the plug, not the cord.
Install refngerator accordmg to Installatton
Instructtons. All connecttons for water, electncal
power and earthmg must comply wtth local codes
and be made by hcensed personnel when requtred.
Keep your refngerator m good condttton. Bumping
or droppmg refngerator can damage refrigerator or
cause refngerator to malfunctton or leak. If damage
occurs, have refngerator checked by quahfied
service technician.
A quahfied servtce techmctan must replace worn
power cords and/or loose plugs.
Always read and follow manufacturer's storage and
tdeal envtronment mstructtons for ttems bemg stored
m refngerator.
Your refngerator should not be operated m the
presence of explostve fumes.
Chtldren should not chmb, hang or stand on any
part of the refngerator.
19.Clean up sptlls or water leakage assoctated wtth
water mstallatton.
20. The apphance ts not mtended for use by young
chtldren or mflrm persons wtthout supervBton.
21. Young chtldren should be supervtsed to ensure that
they do not play wtth the apphance.
Installing Your Refrigerator
These instructions were provtded to aid you In the installation of your Llnlt. The n]anufacturer cannot be responstble
for tmproper mstallatton.
Steps to Follow...
P, qualified engineer must connect refrigerator in accordance with these installation instructions.
Measure door opening and depth and wtdth of refrigerator. Remove handles or doors tf requtred. Engtneer i]]tlSt
also do the followtng:
1. Follow local water and electrical company connectton regulattons.
2. Complete water supply connectton before electrical supply connecttons.
Service to or replacement of power cord must be performed by a qualified engineer.
Note:
When wrttmg or calhng about a servtce problem, please include the following mformatton
a Your name, address and telephone number, d A cleat-descrtptton of the problem you are having,
b Model number and serial number, e Proof of purchase [sales recetpt)
c Name and address of your dealer or engineer,
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
2

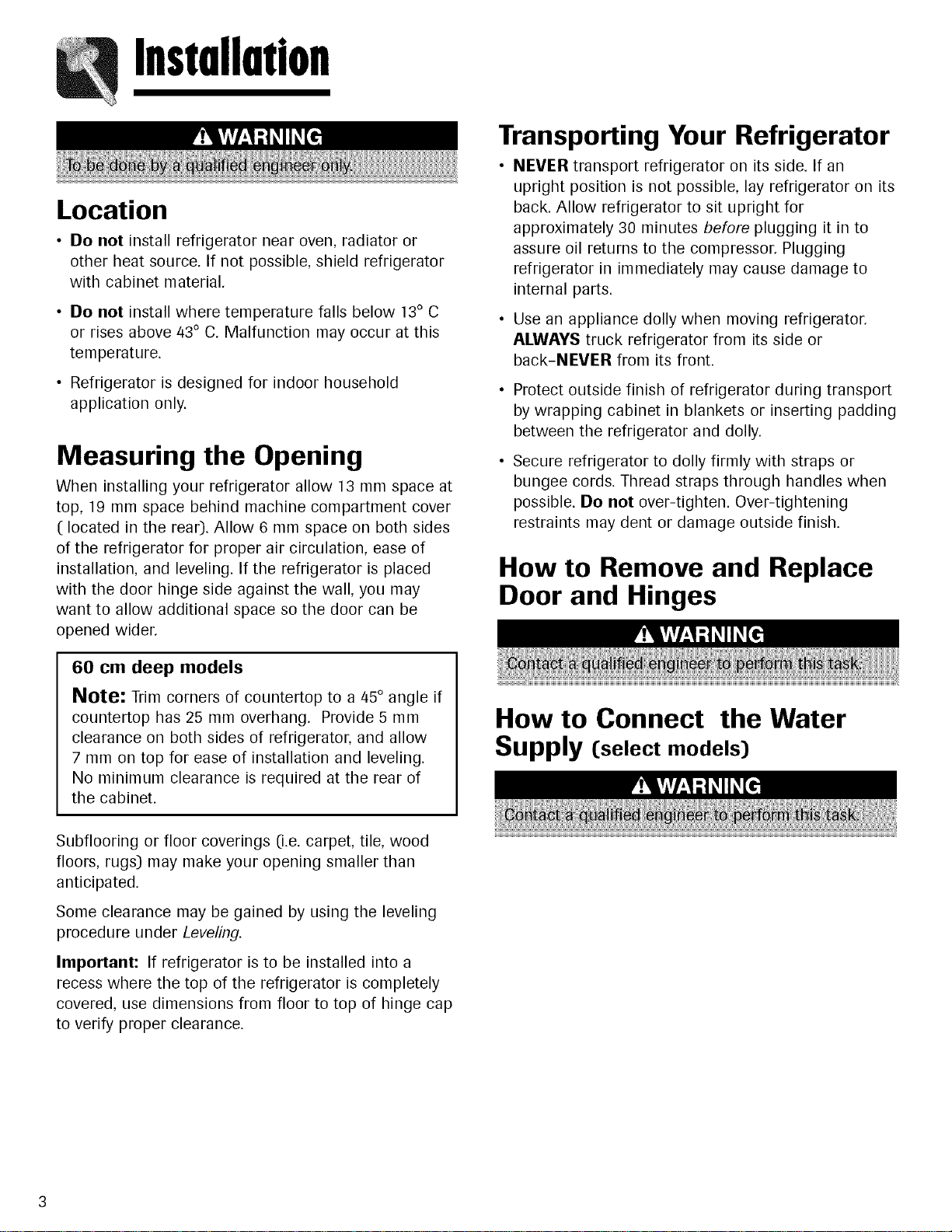

Installation
Location
• Do not install refrigerator near oven, radiator or
other heat source. If not possible, shield refrigerator
with cabinet material.
• Do not install where temperature falls below 13° C
or rises above 43° C. Malfunction may occur at this
temperature.
• Refrigerator is designed for indoor household
application only.
Measuring the Opening
When installing your refrigerator allow 13 mm space at
top, 19 mm space behind machine compartment cover
(located in the rear). Allow 6 mm space on both sides
of the refrigerator for proper air circulation, ease of
installation, and leveling. If the refrigerator is placed
with the door hinge side against the wall, you may
want to allow additional space so the door can be
opened wider.
60 cm deep models
Note: Trim corners of countertop to a 45° angle if
countertop has 25 mm overhang. Provide 5 mm
clearance on both sides of refrigerator, and allow
7 mm on top for ease of installation and leveling.
No minimum clearance is required at the rear of
the cabinet.
Subflooring or floor coverings (i.e. carpet, tile, wood
floors, rugs) may make your opening smaller than
anticipated.
Some clearance may be gained by using the leveling
procedure under Leveling.
Important: If refrigerator is to be installed into a
recess where the top of the refrigerator is completely
covered, use dimensions from floor to top of hinge cap
to verify proper clearance.
Transporting Your Refrigerator
• NEVER transport refrigerator on its side. If an
upright position is not possible, lay refrigerator on its
back. Allow refrigerator to sit upright for
approximately 30 minutes before plugging it in to
assure oil returns to the compressor. Plugging
refrigerator in immediately may cause damage to
internal parts.
• Use an appliance dolly when moving refrigerator.
ALWAYS truck refrigerator from its side or
back-NEVER from its front.
Protect outside finish of refrigerator during transport
by wrapping cabinet in blankets or inserting padding
between the refrigerator and dolly.
Secure refrigerator to dolly firmly with straps or
bungee cords. Thread straps through handles when
possible. Do not over-tighten. Over-tightening
restraints may dent or damage outside finish.
How to Remove and Replace
Door and Hinges
How to Connect the Water
Supply (select models)
Installation

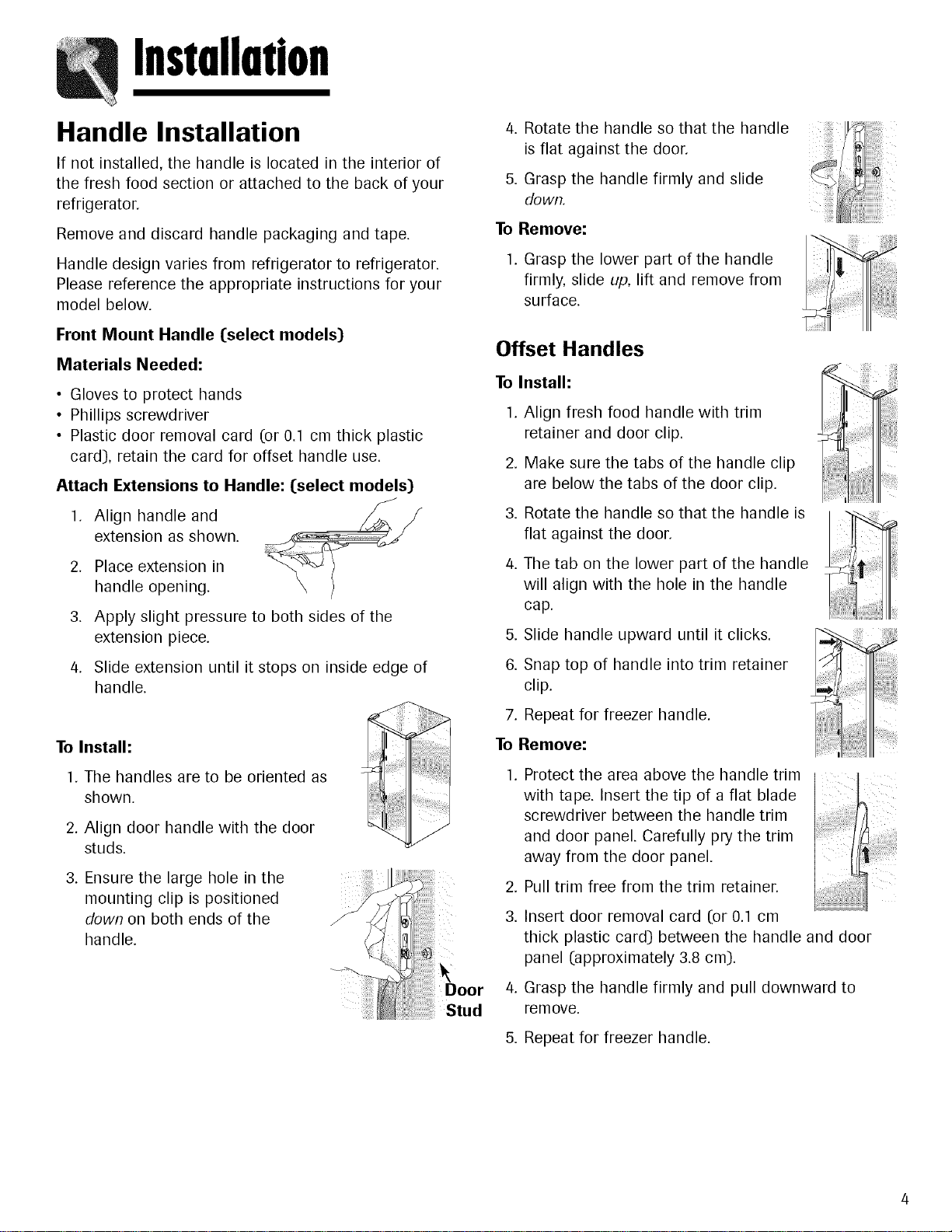

Handle Installation
If not installed, the handle is located in the interior of
the fresh food section or attached to the back of your
refrigerator.
Remove and discard handle packaging and tape.
Handle design varies from refrigerator to refrigerator.
Please reference the appropriate instructions for your
model below.
Front Mount Handle [select models)
Materials Needed:
• Gloves to protect hands
• Phillips screwdriver
• Plastic door removal card (or 0.1 cm thick plastic
card), retain the card for offset handle use.
Attach Extensions to Handle: [select models)
1. Align handle and
extension as shown.
2. Place extension in
handle opening.
3. Apply slight pressure to both sides of the
extension piece.
.
Slide extension until it stops on inside edge of
handle.
To Install:
1. The handles are to be oriented as
shown.
2. Align door handle with the door
studs.
3. Ensure the large hole in the
mounting clip is positioned
down on both ends of the
handle.
Door
Stud
4. Rotate the handle so that the handle
is flat against the door.
5. Grasp the handle firmly and slide
down.
To Remove:
1. Grasp the lower part of the handle
firmly, slide up, lift and remove from
surface.
i ili! i!i!i!i!i¸,?iiii iiiiiiiiiiii:iiiii!i¸
iiii ! i!ii iiiiiiiiiiiiiiii!!iii!i !i!!ii!ii!i
_i_!!i,!ii;:i_ i!i!i_iiiiiii!_!_!_!_!_!_!_!_!_i,i_i!i
Offset Handles
To Install:
1. Align fresh food handle with trim
retainer and door clip.
2. Make sure the tabs of the handle clip
are below the tabs of the door clip.
3. Rotate the handle so that the handle is /
flat against the door.
4. The tab on the lower part of the handle
will align with the hole in the handle
cap.
5. Slide handle upward until it clicks.
6. Snap top of handle into trim retainer
clip.
7. Repeat for freezer handle.
To Remove:
.
.
3.
Protect the area above the handle trim
with tape. Insert the tip of a flat blade
screwdriver between the handle trim
and door panel. Carefully pry the trim
away from the door panel.
Pull trim free from the trim retainer.
Insert door removal card (or 0.1 cm
iii ii !!i
lii iiiiiiii!iiiiiiiiii!!i ii i ili!
thick plastic card) between the handle and door
panel (approximately 3.8 cm).
4. Grasp the handle firmly and pull downward to
remove.
5. Repeat for freezer handle.
Installation

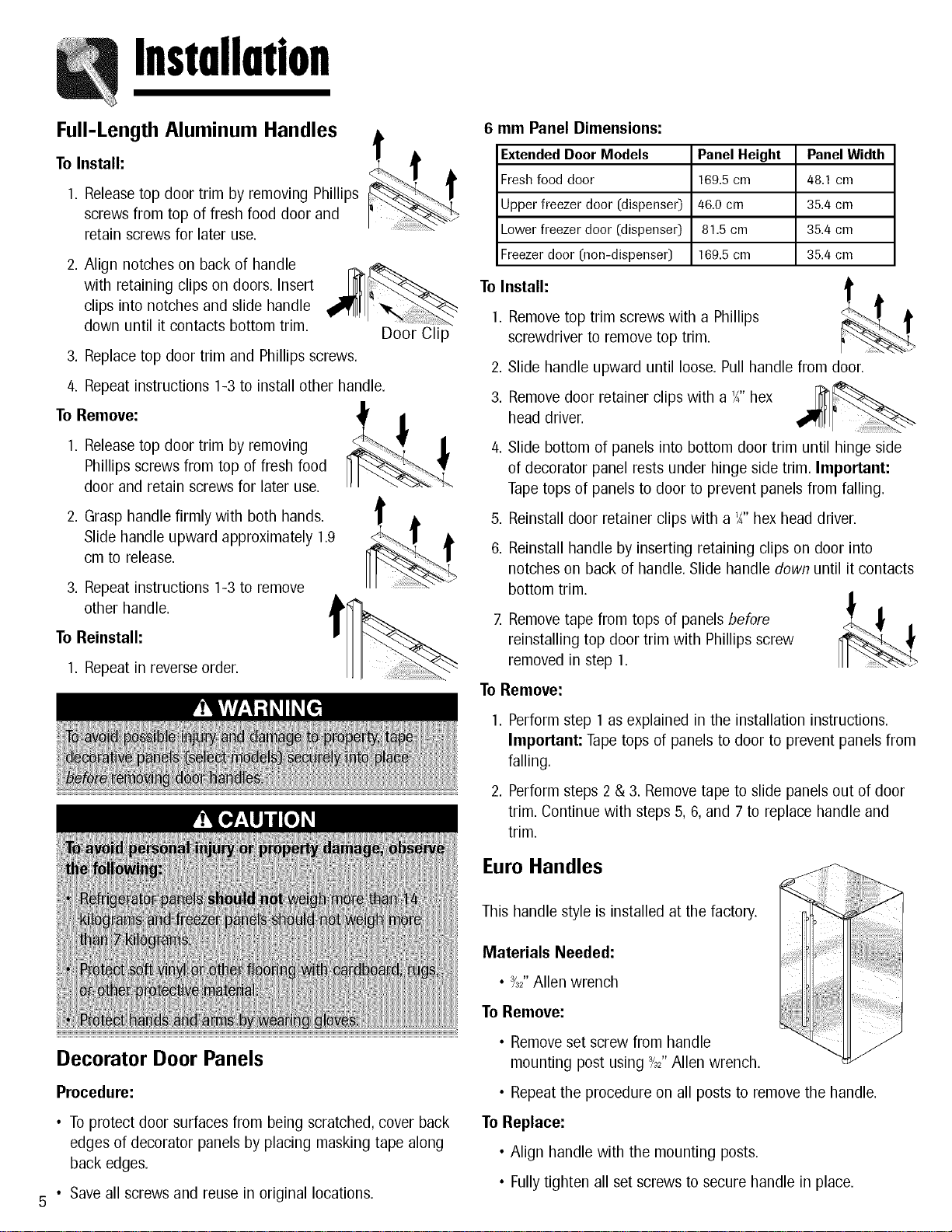

Full-Length Aluminum Handles
To Install:
1. Releasetop door trim by removing Phillips
screws from top of fresh food door and
retain screws for later use.
,
Align notches on back of handle
with retaining clips on doors. Insert
clips into notches and slide handle
down until it contacts bottom trim.
3. Replace top door trim and Phillips screws.
Door Clip
.
To Remove:
1. Releasetop door trim by removing
Phillips screws from top of fresh food
door and retain screws for later use.
2. Grasp handle firmly with both hands.
Slide handle upward approximately 1.9
cm to release.
3. Repeat instructions 1-3 to remove
other handle.
Repeat instructions 1-3 to install other handle.
To Reinstall:
1. Repeat in reverse order.
6 mm Panel Dimensions:
ExtendedDoor Models
Freshfooddoor
Upperfreezerdoor (dispenser)
Lowerfreezerdoor(dispenser]
Freezerdoor (non-dispenser)
To Install:
1.
,
3.
,
6.
Panel Height
169.5 cm
46.0 cm
81.5 cm
169.5 cm
Remove top trim screws with a Phillips
screwdriver to remove top trim.
Slide handle upward until loose. Pull handle from door.
Remove door retainer clips with a V;' hex
head driver.
PanelWidth
48.1crn
35.4cm
35.4cm
35.4cm
Slide bottom of panels into bottom door trim until hinge side
of decorator panel rests under hinge side trim. Important:
Tape tops of panels to door to prevent panels from falling.
Reinstall door retainer clips with a '/;' hex head driver.
Reinstall handle by inserting retaining clips on door into
notches on back of handle. Slide handle down until it contacts
bottom trim.
7. Remove tape from tops of panels before
reinstalling top door trim with Phillips screw
removed in step 1.
To Remove:
1. Perform step 1 as explained in the installation instructions.
Important: Tapetops of panels to door to prevent panels from
falling.
2. Perform steps 2 & 3. Remove tape to slide panels out of door
trim. Continue with steps 5, 6,and 7 to replace handle and
trim.
Euro Handles
Decorator Door Panels
Procedure:
• To protect door surfaces from being scratched, cover back
edges of decorator panels by placing masking tape along
back edges.
• Saveall screws and reuse in original locations.
This handle style is installed at the factory.
Materials Needed:
• _2"Allen wrench
To Remove:
• Remove set screw from handle
mounting post using _2"Allen wrench.
• Repeat the procedure on all posts to remove the handle.
To Replace:
• Align handle with the mounting posts.
• Fully tighten all set screws to secure handle in place.

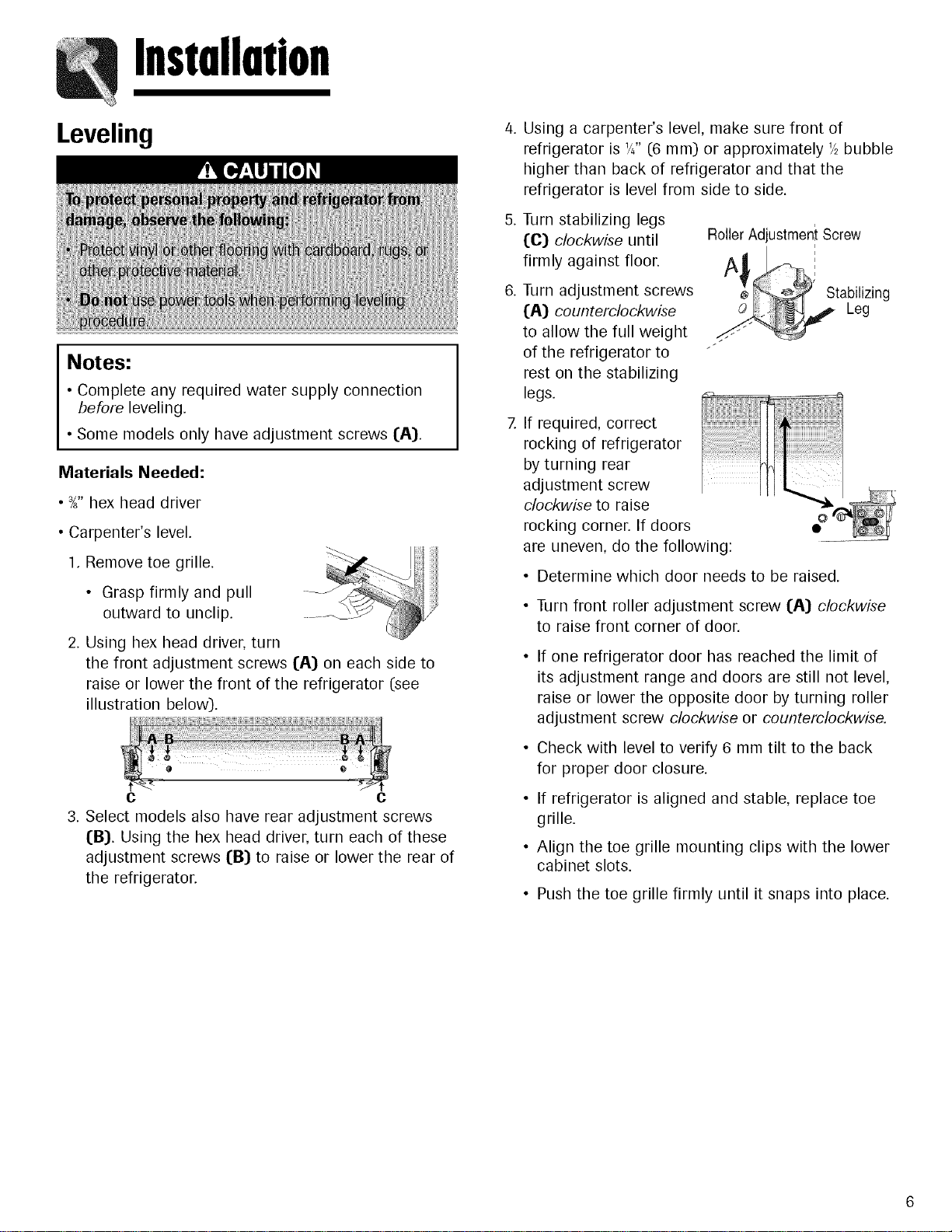

Installation
Leveling
Notes:
• Complete any required water supply connection
before leveling.
• Some models only have adjustment screws (A).
Materials Needed:
• %" hex head driver
• Carpenter's level.
1. Remove toe grille.
• Grasp firmly and pull -- J
outward to unclip.
2. Using hex head driver, turn
the front adjustment screws (A) on each side to
raise or lower the front of the refrigerator (see
illustration below).
c c
3. Select models also have rear adjustment screws
(B). Using the hex head driver, turn each of these
adjustment screws (B) to raise or lower the rear of
the refrigerator.
.
Using a carpenter's level, make sure front of
refrigerator is '/4"(6 ram) or approximately '/2bubble
higher than back of refrigerator and that the
refrigerator is level from side to side.
Turn stabilizing legs
(C) clockwise until
firmly against floor.
Turn adjustment screws
(A) counterclockwise
to allow the full weight
of the refrigerator to
rest on the stabilizing
legs.
If required, correct
rocking of refrigerator
by turning rear
adjustment screw
clockwise to raise
rocking corner. If doors
are uneven, do the following:
RollerAdjustmen! Screw
I
e Stabilizing
o Leg
O
• Determine which door needs to be raised.
Turn front roller adjustment screw (A) clockwise
to raise front corner of door.
If one refrigerator door has reached the limit of
its adjustment range and doors are still not level,
raise or lower the opposite door by turning roller
adjustment screw clockwise or counterclockwise.
Check with level to verify 6 mm tilt to the back
for proper door closure.
• If refrigerator is aligned and stable, replace toe
grille.
• Align the toe grille mounting clips with the lower
cabinet slots.
Push the toe grille firmly until it snaps into place.
TempermureControls
Touch Temperature Controls
(select models, style varies by model)
The controls are located at the top front of the
refrigerator compartment.
Control
i
/
• /
Initial Control Settings
After plugging the refrigerator in, set the controls.
• Pressing the_ or pads adjusts the controls to
the desired setting.
• Set the Freezer control on 4.
• Set the Refrigerator control on 4.
• Let the refrigerator run at least 8 to 12 hours before
adding food.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
you first start the refrigerator, during hot weather and
after excessive or lengthy door openings.
Temperature Control Guide
Refrigerator too warm Set the Refrigerator control
to next higher number by
pressing the _ pad.
Refrigerator too cold Set the Refrigerator control
to next lower number by
pressing the_ pad.
Freezer too warm Set the Freezer control to
next higher number by
pressing the pad.
Freezer too cold
Turn control OFF
Set the Freezer control to
next lower number by
pressing the pad.
Press the Freezer or
Refrigerator @, pad until
a dash "-" appears in the
display.
Trisensor Climate Control
(select models)
The control is located at the top front of the fresh food
compartment or cabinet front.
Control
Adjusting the Controls
• 24 hours after adding food, you may decide that one
or both compartments should be colder or warmer. If
so, adjust the control(s) as indicated in the
Temperature Control Guide table.
• Except when starting the refrigerator, do not change
either control more than one number at a time.
• Allow 24 hours for temperatures to stabilize.
Facade Control
<!_','4'__FK w_R c_s. c_E _,HT
"_ _ o ......o o
t_ Li :o; ......
FRONTF_[Z
Initial Temperature Setting
Temperatures are preset at the factory at 3° C in the
fresh food compartment and -18 ° C in the freezer
corn partment.
Adjusting the Control
24 hours after adding food, you may decide that one or
both compartments should be colder or warmer. If so,
TemperatureControls
adjust the control as indicated in the Temperature
Control Guide below.
• The first touch of the _+_//_ or _-_/V pads
shows the current temperature setting.
• The display will show the new setting for
approximately three seconds, and then return to the
actual temperature currently within that
compartment.
• Do not change either control more than one degree
at a time. Allow temperature to stabilize for 24 hours
before making a new temperature adjustment.
Temperature Control Guide
Refrigerator too
cold
Refrigerator too
wa rm
Freezer too cold
Freezer too warm
Turn refrigerator
OFF
Set the Refrigerator control
to next higher number by
pressing the _/A pad.
Set the Refrigerator control
to next lower number by
pressing the _ / V pad.
Set the Freezer control to
next higher number by
pressing the _/A pad.
Set the Freezer control to
next lower number by
pressing the _-_/_ pad.
Press the Freezer _+_/A
pad until OFF appears in the
display. Press either the
Freezer or Refrigerator
_::_/_ pad to turn back on.
rated has passed through the filter OR 11 months have
elapsed since the filter has been installed.
The red Replace light will illuminate when the rated
volume of water has passed through the filter OR 12
months have elapsed since the filter was installed. A
new filter should be installed immediately when the
Replace light is illuminated.
After replacing the filter, press and hold the Reset
Filter pad for three seconds. The Order and Replace
lights will go off.
Vacation Mode (_
The Vacation Mode feature causes the freezer
to defrost less frequently, conserving energy. The
Vacation Mode indicator light will illuminate when the
feature is activated. To deactivate, press the Vacation
Mode pad again OR open either door. The indicator
light will go off.
Notes:
• Door openings will not deactivate Vacation Mode
for approximately one hour after activation.
• If vacationing for more than a few days, see the
Preparing for Vacation section, page 22.
Temp Alarm
The Temp Alarm system will alert you if the
freezer or fresh food temperatures exceed
normal operating temperatures due to a power outage
or other event. When activated, the Temp Alarm light
will illuminate.
Speed Ice
When activated, Speed Ice reduces the
freezer temperature to the optimum setting
for 24 hours in order to produce more ice. Important:
When the Speed Ice feature is in operation, the _+_/A
and _/_7 pads for the Freezer control will not
operate.
Reset Filter (select models) _(F_-_
When a water filter has been installed in the
refrigerator, the yellow Order light will illuminate when
90 percent of the volume of water for which the filter is
If the freezer or fresh food temperatures have
exceeded these limits, the display will alternately show
the current compartment temperatures and the
highest compartment temperatures reached when the
power was out. An audible alarm will sound
repeatedly.
Press the Temp Alarm pad once to stop the audible
alarm. The Temp Alarm light will continue to flash and
the temperatures will alternate until the temperatures
have stabilized.
To turn off Temp Alarm, press and hold the Temp
Alarm pad for three seconds. The indicator light will
go off.
TemperutureControls
Door Alarm
The Door Alarm will alert you when one of the
doors has been left open for five continuous minutes.
When this happens, an audible alarm will sound every
few seconds until the door is closed OR the Door
Alarm pad is pressed to deactivate the feature.
Max Cool
When activated, Max Cool causes the (/_r_--]-"_
refrigerator and freezer temperatures to drop
to the minimum settings on the control. This cools
down the refrigerator and freezer after extended door
openings or when loading the refrigerator or freezer
with warm food. Important: When the Max Cool
feature is in operation, the _+_/A and _z_/V
pads for the refrigerator and freezer controls will not
operate.
To activate, press the Max Cool pad. Max Cool will
deactivate automatically after 12 hours, OR press the
Max Cool pad to deactivate the feature.
Display On/Off (select models)
Temperature readout alternates On/Off.
User Preferences
Access the User Preferences menu to:
• Change the temperature display from °F to °C
• Enable or disable audible alarms.
feature status will appear in the refrigerator display.
1. Use the Freezer up and down control to scroll
through the features.
2. When the desired feature is displayed, use the
Refrigerator up and down control to change the
status.
3. When changes are complete, press the Door Alarm
pad for three seconds OR close the refrigerator door.
Temperature Display (F_C)
Change the display to show temperatures in degrees
Fahrenheit or degrees Celsius.
Alarm (AL)
When the Alarm mode is OFE all audible alarms will be
disabled until the feature is turned on.
Auto Light Level Selection (LL) (select models)
This setting adjusts the light level at which the
dispenser light will illuminate when the sensor detects
that the light levels in the room are low. Setting 1 is
the darkest light level setting, setting 9 is the lightest
light level setting. Important: The Auto Light (select
models) must be activated on the ice and water
dispenser control to take advantage of this option.
Sabbath Mode (SAB)
When the Sabbath Mode is ON, all control lights and
the night light will be disabled until the feature is
turned OFE This feature does not disable the interior
lights. Press any pad to restore the control lights.
• Adjust the light level at which the Dispenser Auto
Light will illuminate (when this feature is activated on
the ice and water dispenser) (select models)
• Activate the Sabbath Mode
To access the User Preferences menu, press and hold
the Door Alarm pad for three seconds. When in the
User Preferences mode, a short title for the feature will
appear in the Freezer temperature display and the
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
the refrigerator is first started, during hot weather and
after excessive or lengthy door openings.
FreshFoodFeotures
Shelves
Your refrigerator has either Spillsaver TM or non-sealed
shelves. Spillsaver TM shelves have a spill retainer edge
which allows for easier clean up and some are
equipped with the EasyGlide TM slide out feature. To
slide out (select models), grasp the front of the shelf
and pull forward. Push in the shelf to return to the
original position.
To Remove a Shelf:
• Slightly tilt up the
front and lift up the
rear of the shelf, then
pull the shelf straight
out.
To Lock the Shelf Into Another Position:
• Tilt up the front edge of the shelf.
• Insert the hooks into the desired frame openings and
let the shelf settle into place.
• Be sure the shelf is securely locked at the rear.
The Crisper Top serves as the lower fresh food shelf.
To Remove the Crisper Top:
• Remove drawers as indicated (see page 12).
• Place hand under the frame to push up the glass. Lift
glass out.
• To install, repeat above instructions in reverse order.
Elevator TM Shelf (select models)
The Elevator TM Shelf is equipped with a spill-retaining
edge and the EasyGlide TM slide-out feature. It can be
adjusted up or down without unloading.
To Slide Out Elevator TM Shelf:
• Grasp the front of the shelf and pull forward.
• Push the shelf in to return to original position.
To Adjust the Elevator TM Shelf:
• Pull out the knob on the crank handle.
• Rotate the crank clockwise to raise the shelf, and
counterclockwise to lower the height of the shelf.
To Remove Elevator TM Shelf:
• Completely unload the shelf and pull the shelf
forward.
Pull until the shelf stops.
Press up on the tabs located underneath its outside
edges and continue pulling forward until the shelf is
clear of the frame.
To Replace Elevator TM Shelf:
• Align the shelf to the frame and push it all the way
back. It is not necessary to press up on the tabs for
reinstallation.
In ordinary use, the Elevator TM Shelf frame assembly
does not require removal. Though unlikely, and not
recommended, the correct removal procedure is as
follows:
To Remove Frame Assembly:
• Unload the shelf completely.
• Slide the shelf forward about 5.1 cm and manually
move the two rear latches toward the shelf center.
• While supporting the entire shelf and frame from
underneath, lift slightly and rotate the assembly
approximately 30 ° to allow the rear mechanism to
clear the vertical rear side rails.
• The entire assembly can then be moved forward
and clear of the refrigerator compartment.
To Reinstall Frame Assembly:
• Reverse the removal procedure. Be sure the shelf
is in a level position. When the sliding shelf is
pushed to the rear, it will reposition the rear latches
to their correct operating position.
(style may vary)
Frame Assembly
Slide Out
EasyGlide '_Shelf
10
FreshFoodFeotures
Door Storage
Beverage ChillerTM/MiniChiller TM
(select models)
The Beverage Chiller TM and
MiniChiller TM keep beverages and
other items colder than the rest of
the fresh food compartment. An air
inlet directs air from the freezer into
the chiller(s).
Controls
The chiller control is located on the left
side wall of the fresh food compartment.
Turn the control clockwise for colder
tern peratu re.
To Remove Chiller(s):
• Unload the chiller(s).
• Slide the assembly up and pull straight out.
Note: If the chiller is installed directly under the
dairy center or a door bucket, the bucket or dairy
center will need to be removed before removing the
chiller.
To Install Chiller(s)
• Align one of the air inlet holes with the hole cut out
on the door.
• Slide the assembly in and down so that the hooks
are firmly seated on the door liner.
I Note: The chillers will not operate properly if the
air intake hole is not aligned with the control
location.
Dairy Center
The Dairy Center provides convenient
door storage for spreadable items
such as butter and margarine. This
compartment can be moved to
several different locations to
accommodate storage needs.
To Remove:
• Slide dairy center up and pull out.
To Install:
• Slide assembly in and down so that the hooks are
firmly seated on the door liner.
To Remove Dairy Door:
• Press in sides of dairy door and pull out.
To Install Dairy Door:
• Slide sides of dairy door inside dairy center until
hinge points snap into place.
Adjustable Deep Tilt-Out Door Buckets
(select models)
The Adjustable Deep Tilt-Out Door Bucket provides
easy access to food items stored in the door.
To Remove Bucket:
• Tilt bucket out.
• Pull straight out of the bracket.
To Install Bucket:
• Tilt the front of the bucket down slightly.
• Slide into bracket and tip upright.
To Move Bucket Frame to Another Location:
• Remove bucket.
• Lift bracket up and pull straight
out.
Place the bracket in a new location.
Door Buckets
Door Buckets can be moved to meet individual storage
needs.
To Remove:
• Lift bucket up and pull straight out.
To Install:
• Place bucket in desired door liner
retainer, push down until bucket stops.
11
FreshFoodFeotures
Storage Drawers
Humidity-Controlled Crisper Drawers
The Crisper Drawers provide a higher humidity
environment for fresh fruit and vegetable storage.
Controls
The crisper controls regulate the amount of humidity in
the crisper drawer. Slide control toward the Fruit
setting for produce with outer skins. Slide control
toward the Vegetables setting for leafy produce.
VegetabJes 0 • ® • • Fruit
high low
Humidity
Controlled
To Remove:
• Pull drawer out to full
extension. (On select
models, press tabs toward
oneself to release drawer
from rails.) Tilt up front of
drawer and pull straight
out.
To Install:
• Insert drawer into frame rails and push back into
place.
I Note: For best results, keep the crispers tightly
closed.
Temperature-Controlled Drawer
(select models)
This drawer can be used for
storage of miscellaneous items.
The drawer features a control
that regulates the air
temperature in the drawer. Set
the control to Cheese to provide
normal refrigerator temperature. Use the Meats setting
for meats.
Accessories
Grip Pads (select models)
The Grip Pads prevent objects from
sliding in the door buckets. Grip Pads
are removable and are top-rack
dishwasher safe for easy cleaning.
Covered Storage Bucket
(select models)
The Storage Bucket has a lid and
removable egg tray. When tray is
removed, bucket will accept items
such as a standard egg carton, ice,
etc.
Tall Bottle Retainer/Snugger
(select models)
The Tall Bottle Retainer prevents tall bottles from
tipping forward. The Retainer can be placed above any
removable door bucket.
The Snugger attached to the Tall Bottle Retainer keeps
bottles and other containers in place when the door is
opened or closed. Adjust the Snugger by sliding from
side to side.
Egg Tray With Handle
(style may vary/select models)
The Egg Tray with Handle holds
a "dozen-plus" eggs. It can be
removed to carry to a work area
or to be washed.
12
FreezerFeatures
13
Shelves and Baskets
Fixed Freezer Shelf
To Remove Clip-Mounted Shelves:
• Lift shelf from wall mounting clips
and pull left side of shelf out of wall mounting holes.
To Install Clip-Mounted Shelves:
• Place left side of shelf in mounting holes and press down
into wall mounting clips.
Shelves
Shelves can be removed to meet individual storage needs.
To Remove Shelf:
• Snap right side of shelf up from cabinet railing and slide to
right.
To Install Shelf:
• Replace shelf in left side cabinet railing.
Snap shelf into right side cabinet railing.
Baskets and Drawers
Baskets and drawers slide out for easy access of items
in back.
To Remove:
• Pull out to its full extension. Lift up
front of basket and remove.
To Install:
• Slide basket or drawer into cabinet railing. Lift up front of
basket or drawer, and slide to the back of refrigerator.
Ice Storage Bin
The Ice Storage Bin is located
below the automatic ice maker.
To Remove:
• Raise ice maker arm to deactivate ice maker. Lift front of
bin and pull out to its full extension. Lift up front of bin and
remove.
To Install:
• Slide bin into railing below ice maker until bin locks into
place. Drop ice maker arm to activate ice maker.
Important: Ice bin must be locked in place for proper ice
dispensing. Turn auger driver behind bin counterclockwise
(as shown) to properly align ice bin with auger driver.
Door Storage
Adjustable Door Buckets
Door Buckets can be moved to meet individual storage
needs.
To Remove: _
• Lift the door bucket up until it clears the
retainers on the door liner, then pull the _
door bucket straight out.
/
To Install:
• Slide bucket in above desired door liner retainer and push
down until bucket stops.
Fixed Door Bucket (select models)
The Fixed Door Bucket is located in the
upper section of the freezer door.
Important: Fixed door bucket is not
adjustable. If bucket is removed, freezer light
will not deactivate when door is closed.
Tilt-out Door Buckets (select models)
The Tilt-Out Door Bucket provides easy access to food items
stored in the door.
To Remove Bucket:
• Tilt bucket out.
• Pull straight out of the frame.
To Install Bucket:
• Tilt the front of the bucket down slightly.
• Slide into frame and tip upright.
To Move Bucket Frame to Another Location:
• Remove bucket.
• Lift frame up and pull straight out.
Slide the frame in and down into the
new location.
Drop-Down Freezer Door Baskets
(select models)
These baskets provide convenient
storage space for frozen food items
that tend to shift, such as bagged
vegetables.
IceandWater
Dispenser Features
([select models)
DISPENSER
CONTROL
PANEL
DISPENSER
Water Dispenser Operation
Dispenser Light I[select models[}
A light activates within the dispenser area at full power
when dispensing ice or water with the main dispenser
pad.
Dispenser Pad
The Dispenser Pad is located on the back wall of the
dispensing area. When the dispenser pad is pressed,
the selection chosen on the dispenser control panel
will dispense.
Removable Tray
The Removable Tray at the bottom of the dispenser
area is designed to collect small spills and may be
easily removed for cleaning and emptying purposes.
Important: Removable tray does not drain. Do not
allow tray to overflow. If it does, remove tray and wipe
up overflow.
Ice Maker Operation
• To turn ice maker On, push arm down from locked
position.
• Lift arm up and lock into position to turn ice maker
Off.
Note: During initial use of water dispenser, allow
up to one minute delay while water tank fills before
water dispenses. Discard first 10-14 glasses of water
after initially connecting refrigerator to household
water supply and after extended periods of nonuse.
To Use Dispenser Pad:
• Choose water selection from dispenser control panel.
Press sturdy, wide-mouthed container against
dispenser pad. When dispensing crushed ice, hold
container as close to chute as possible to reduce
spraying.
Release pressure on dispenser pad to stop water
dispensing. A small amount of water may continue to
dispense and collect in dispenser tray. Large spills
should be wiped dry.
14
IceandWater
15
Dispenser Control (selectmodels)
(control features vary by model)
o 91p
Ice Dispenser Operation
To Dispense Ice:
• Select Crushed or Cubes ice mode by pushing
button on dispenser control panel. A green light
above button indicates mode selection.
• Press container against dispenser pad.
When dispensing crushed ice, hold
container as close to chute as possibl
reduce spraying.
Notes:
• Mode may not be changed while ice dispenser is
in operation.
• If dispenser (select models) is active for more than
two minutes, an automatic lock out sensor will
shut down power to dispenser area. See Dispenser
Lock for unlocking information.
Dispenser Lock (select models)
o
The Dispenser Lock prevents ice or water
from being dispensed.
To Lock Dispenser:
• Press and hold the Lock button for three seconds. A
green indicator light above button will illuminate
when the dispenser is locked.
To Unlock Dispenser:
• Hold the Lock button for three seconds. The green
indicator light above button will go out.
Water Filter Status Indicator
Water fiNter
Light (select models) ook
= Change
The Water Filter Status Indicator Light serves as a
reminder to replace the water filter. A green light
indicates that the filter is in good condition. A red light
indicates the filter should be changed. Once light turns
red, it will remain red until function is reset.
To Reset Indicator:
• Press and hold both the Lock and Water
buttons simultaneously for four seconds.
The green filter status indicator light will
flash three times when the function has
successfully reset.
Auto Light (select models)
The Auto Light function activates the
dispenser light at half-power when the Light
Sensor detects that the light levels in room are low.
To Activate Auto Light:
• Press Auto Light button. A green indicator light
above button illuminates when the sensor is active.
To Deactivate Auto Light:
• Press Auto Light button. The green indicator light
will go out.
Note: The dispenser light will operate when Auto
Light is ON or OFF.
Sabbath Mode (select models)
When activated, the Sabbath Mode deactivates the
control lights while leaving the control operational.
To Activate Sabbath Mode:
• Press and hold the Lock and Auto Light
buttons simultaneously for three to four
seconds. After three to four seconds, the
dispenser lights will turn off.
To Deactivate Sabbath Mode:
• Press and hold both the Lock and Auto Light
buttons simultaneously for three to four seconds.
After three to four seconds, the dispenser lights will
activate.
Notes:
• Dispenser light will not activate during dispensing
while in this mode.
• If the power fails, the control will remain in
Sabbath Mode when power returns.
I
WaterFilter
Water Filter Removal and
Installation ([select models)
Replacing Water Filter
Important: Air trapped in system may cause water
and cartridge to eject. Use caution when removing.
1. Turn filter counterclockwise until it releases from
filter head.
2. Drain water from filter into sink, and dispose in
normal household trash.
3. Wipe up excess water in filter cover and continue
with hTitialInstallation, steps 2 and 4.
The filter should be changed at least every 12 months.
Important: Condition of water and amount used
determines life span of water filter cartridge. If water
use is high, or if water is of poor quality, replacement
may need to take place more often.
To purchase a replacement water filter cartridge,
contact your dealer.
The dispenser feature may be used without a water
filter cartridge. If you choose this option, replace filter
with blue bypass cap.
Initial Installation
The water filter is located in the upper right hand
corner of the fresh food compartment.
1. Remove blue bypass cap and
retain for later use.
2. Remove sealing label from
end of filter and insert into
filter head.
3. Rotate gently clockwise until
filter stops. Snap filter cover
closed.
4. Reduce water spurts by
flushing air from system.
Run water continuously for
two minutes through
dispenser until water runs
steady. During initial use of
water dispenser, allow up to one minute delay
while water tank fills before water dispenses.
• Additional flushing may be required in some
households where water is of poor quality.
16
WaterFilter
J[ " System Specification and Performance Data Sheet
Refrigerator Water Filter Cartridge
Specifications
Service Flow Rate (Maximum) ............................................. 0.78 GPM (2.9 L/rain)
Rated Service Life 750 (Maximum) ...................................750 gallons/2838 liters
Maximum Operating Temperature .....................................100° F/38 ° C
Minimum Pressure Requirement ........................................35 psi/241 kPA
Minimum Operating Temperature ......................................33° F/1 ° C
Maximum Operating Pressure .............................................120 psi/827 kPA
Performance Data
USEPA
Parameter MCL
Chh)rine
T&O
Particulate**
Standard No. 42: Aesthetic Effects
Influent
Challenge Concentration
2.0 mg/L ± 10%
Min. Required
Reduction
50%
Influent
Average
1.88 mg/L
&7OO+O0O #/ml
Effluent
Average Maximum
<O.O5 mg/L 0.06 mg/L
30,583 #/ml 69,000 #/ml
% Reduction
Average Minimum
>9726% 96.84%
99.52% 98.94%
at least 10,000 particles/ml 85%
USEPA
MCL
1 NTU**
99.5% Reduction
99% Reduction
0.015 mg/L
0.015 mg/L
0.002 mg/L
0.002 mg/L
0.0002 mg/L
0.003 mg/L
0.003 mg/L
Influent
Effluent
Standard No. 53: Health Effects
Influent
% Reduction
Minimum
95.20%
>99.99%
>99.99%
>99.35%
>99.35%
90.91%
75.93%
96.50%
91.67%
75.310/o
Parameter Challenge ConcentmUon Average Average Maximum Average
Turbidi b, 11 ± 1 NTU*** 10.73 NTU 0.36 NTU .049 NTU 9709%
Cysts Minimum 5O,OOO/L 220,000 #/L <1 <1 >99.99%
Asbestos 107108 fibers/L; fibers >10 micR)meters in length 155 MF/L <1 <1 >99.99%
Lead at pH 6.5 0.15 mg/L ± 10% 0.153 mg/L <.001 <.001 >99.35%
Lead at pH 8.5 0.15 mg/L ± 10% 0.150 mg/L <.001 <.001 >99.35%
Mercury at pH 6.5 .006 mg/L ± 10% 0.006 mg/L 0.00026 0.0005 98.72%
Mercury at pH 8.5 .006 mg/L ± 10% 0.006 mg/L 0.0008 0.0015 98.72%
Lindane 0.002 mg/L ± 10% 0.002 mg/L 0.000025 0.00007 98.72%
Toxaphene 0.015 mg/L ± 10% 0.015 mg/L <0.001 <0.001 92.97%
Atrazine 0.009 mg/L ± 10% .00873 mg/L <0.002 <0.002 76.99%
Min. Required
Reduction
0.5 NTU
>99.95%
99%
0.10 mg/L
0.10 mg/L
0.002 mg/L
0.002 mg/L
0.0002 mg/L
0.003 mg/L
0.003 mg/L
* Tested using a flow rate of 0.78 GPM; pressure of 60 psig; pH of 75 ± 0.5; temp. of
68 ° ± 5° F (20 ° ± 3 ° C} under standard laboratory conditions, however, actual
performance may vab,. Health Claim Performance tested and certified by NSF
International
** Measurement in Particles/mE Particles used were 0.5 - 1 microns
*** NTU - Nephelometric Turbidity units S_.I_"_
Tested and certified by NSF IntemaUonal against ANSI/NSF Standards 42 & 53
in models 750 for the mducUon of:
Standard No. 42: Aesthetic Effects | Standard No. 53: Health Effects
Taste and OdoT Reduction I Cllenlical Reduction Unit
Clllorine Taste & Odor Lead, Atrazine, Lindane, Mercury &
Mechanical Filtration Unit Toxaphene Reduction
Particulate Reduction Class 1 Mechanical Filtration Unit
Cyst, Tmbidity and Asbestos Reduction
General Use Conditions
Read this Performance Data Sheet and compare the
capabilities of this unit with your actual water
treatment needs.
DO NOT use this product where water is micro-
biologically unsafe or of unknown quality without
adequate disinfection before or after the system.
System certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
USE ONLY WITH COLD WATER SUPPLY. CHECK
FOR COMPLIANCE WITH THE STATE AND LOCAL
LAWS AND REGULATIONS.
Timely replacement of filter cartridge is essential for
performance satisfaction from this filtration system.
Please refer to the applicable section of your Use &
Care Guide for general operation, maintenance
requirements and troubleshooting.
This system has been tested according to ANSI/NSF 42
and 53 for reduction of the substance listed above. The
concentration of the indicated substances in water
entering the system was reduced to a concentration less
than or equal to the permissible limit for water leaving
the system, as specified in ANSI/NSF 42 and 53.
17
FoodStorageTips
Fresh Food Storage
• The fresh food compartment of a refrigerator should
be kept between 1°-4 ° C with an optimum
temperature of 3° C. To check the temperature, place
an appliance thermometer in a glass of water and
place in the center of the refrigerator. Check after 24
hours. If the temperature is above 4° C adjust the
controls as explained on pages 7-9.
• Avoid overcrowding the refrigerator shelves. This
reduces the circulation of air around the food and
results in uneven cooling.
Fruits and Vegetables
• Storage in the crisper drawers traps humidity to help
preserve the fruit and vegetable quality for longer
time periods (see page 12).
• Sort fruits and vegetables before storage and use
bruised or soft items first. Discard those showing
signs of decay.
• Always wrap odorous foods such as onions and
cabbage so the odor does not transfer to other foods.
• While vegetables need a certain amount of humidity
to remain fresh, too much humidity can shorten
storage times (especially leafy vegetables). Drain
vegetables well before storing.
• Wait to wash fresh produce until right before use.
Meat and Cheese
• Raw meat and poultry should be wrapped securely
so leakage and contamination of other foods or
surfaces does not OCCUR
• Occasionally mold will develop on the surface of
hard cheeses (Swiss, Cheddar, Parmesan). Cut off at
least an inch around and below the moldy area. Keep
your knife or instrument out of the mold itself. De
not try to save individual cheese slices, soft cheese,
cottage cheese, cream, sour cream or yogurt when
mold appears.
Dairy Food
• Most dairy foods such as milk, yogurt, sour cream
and cottage cheese have freshness dates on their
cartons for appropriate length of storage. Store these
foods in the original carton and refrigerate
immediately after purchasing and after each use.
Frozen Food Storage
• The freezer compartment of a refrigerator should be
kept at approximately -18 ° C. To check the
temperature, place an appliance thermometer
between the frozen packages and check after 2/4
hours. If the temperature is above -18 ° C, adjust the
control as described on pages 7-9.
• A freezer operates more efficiently when it is at least
two-thirds full.
Packaging Foods for Freezing
To minimize dehydration and quality deterioration use
aluminum foil, freezer wrap, freezer bags or airtight
containers. Force as much air out of the packages as
possible and be sure they are tightly sealed. Trapped
air can cause the food to dry out, change color and
develop an off-flavor (freezer burn).
• Overwrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.
Loading the Freezer
Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate of
freezing and can raise the temperature of frozen
foods.
Leave space between the packages so cold air can
circulate freely, allowing food to freeze as quickly as
possible.
Avoid storing hard-to-freeze foods such as ice cream
and orange juice on the freezer door shelves. These
foods are best stored in the freezer interior where the
temperature varies less with door openings.
18
CareandCleaning
Refrigerator Cleaning Chart
ii !!!!!!!!!!!! ....
Smooth or Textured Painted
Doors and Exterior
(select models)
Damage to finish due to improper
use of cleaning products or
non-recommended products
is not covered under this
product's warranty.
Cabinet Interior
Stainless Steel Doors
and Exterior (select models)
Important:
Damage to stainless steel
finish due to improper use
of cleaning products or
non-recommended products
is not covered under this
product's warranty.
Door Gaskets
Condenser Coil
Remove base grille to access.
Condenser Fan Outlet Grille
See back of refrigerator.
Accessories
Shelves,buckets,
drawers, etc.
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents
or solvents
Metal or plastic-textured
scouring pads
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scouring pads
Vinegar-based products
Citrus-based cleaners
Abrasive or harsh cleaners
Metal or plastic-textured
scouring pads
Anything other than a vacuum
cleaner
A dishwasher
Use 4 tablespoons of baking soda dissolved in 1
quart (1 liter) warm, soapy water.
Rinse surfaces with clean, warm water and dry
immediately to avoid water spots.
Use warm, soapy water and a soft, clean cloth or
sponge.
Rinse surfaces with clean, warm water and dry
immediately to avoid water spots.
To polish and help prevent fingerprints, follow with
Stainless Steel Magic Spray (part no. 20000008*).
Use warm, soapy water and a soft, clean cloth or
sponge.
Use a vacuum cleaner hose nozzle.
Use a vacuum cleaner hose nozzle with brush
attachment.
Follow removal and installation instructions from
appropriate feature section.
Allow items to adjust to room temperature.
Dilute mild detergent and use a soft, clean cloth or
sponge for cleaning.
Use a plastic bristle brush to get into crevices. Rinse
surfaces with clean, warm water.
Dry glass and clear items immediately to avoid spots.
19
andCleaning
Removing Odors From
Refrigerator
1. Remove all food and turn the refrigerator OFF.
2. Disconnect power to the refrigerator.
3. Clean the walls, floor, ceiling of cabinet interior,
drawers, shelves and gaskets according to the
instructions.
4. Dilute mild detergent and brush solution into
crevices using a plastic bristle brush. Let stand for
five minutes. Rinse surfaces with warm water. Dry
surfaces with a soft, clean cloth.
5. Wash and dry all bottles, containers and jars.
Discard spoiled or expired items.
6. Wrap or store odor-causing foods in tightly sealed
containers to prevent reoccurring odors.
7. Reconnect power to refrigerator and return food to
refrigerator.
8. Allow the refrigerator to cool.
9. After 2/4 hours, check if odor has been eliminated.
If odor is still present:
1. Remove drawers and place on top shelf of
refrigerator.
2. Pack refrigerator and freezer sections - including
doors - with crumpled sheets of black and white
newspaper.
3. Place charcoal briquettes randomly on crumpled
newspaper in both freezer and refrigerator
compartments.
4. Close doors and let stand 24 to 48 hours.
Energy Saving Tips
• Avoid overcrowding refrigerator shelves. This reduces
air circulation around food and causes refrigerator to
run longer.
• Avoid adding too much warm food to refrigerator at
one time. This overloads compartments and slows
rate of cooling.
• Do not use aluminum foil, wax paper, or paper
toweling as shelf liners. This decreases air flow and
causes refrigerator to run less efficiently.
• A freezer that is two-thirds full runs most efficiently.
Locate refrigerator in coolest part of room. Avoid
areas of direct sunlight, or near heating ducts,
registers or other heat producing appliances. If this is
not possible, isolate exterior by using a section of
cabinet or an added layer of insulation.
• Clean door gaskets every three months according to
cleaning instructions. This will assure that door seals
properly and refrigerator runs efficiently.
• Take time to organize items in refrigerator to reduce
time that door is open.
• Be sure your doors are closing securely by leveling
refrigerator as instructed in your installation
instructions.
• Clean condenser coils as indicated in the cleaning
instructions every three months. This will increase
energy efficiency and cooling performance.
20
andCleaning

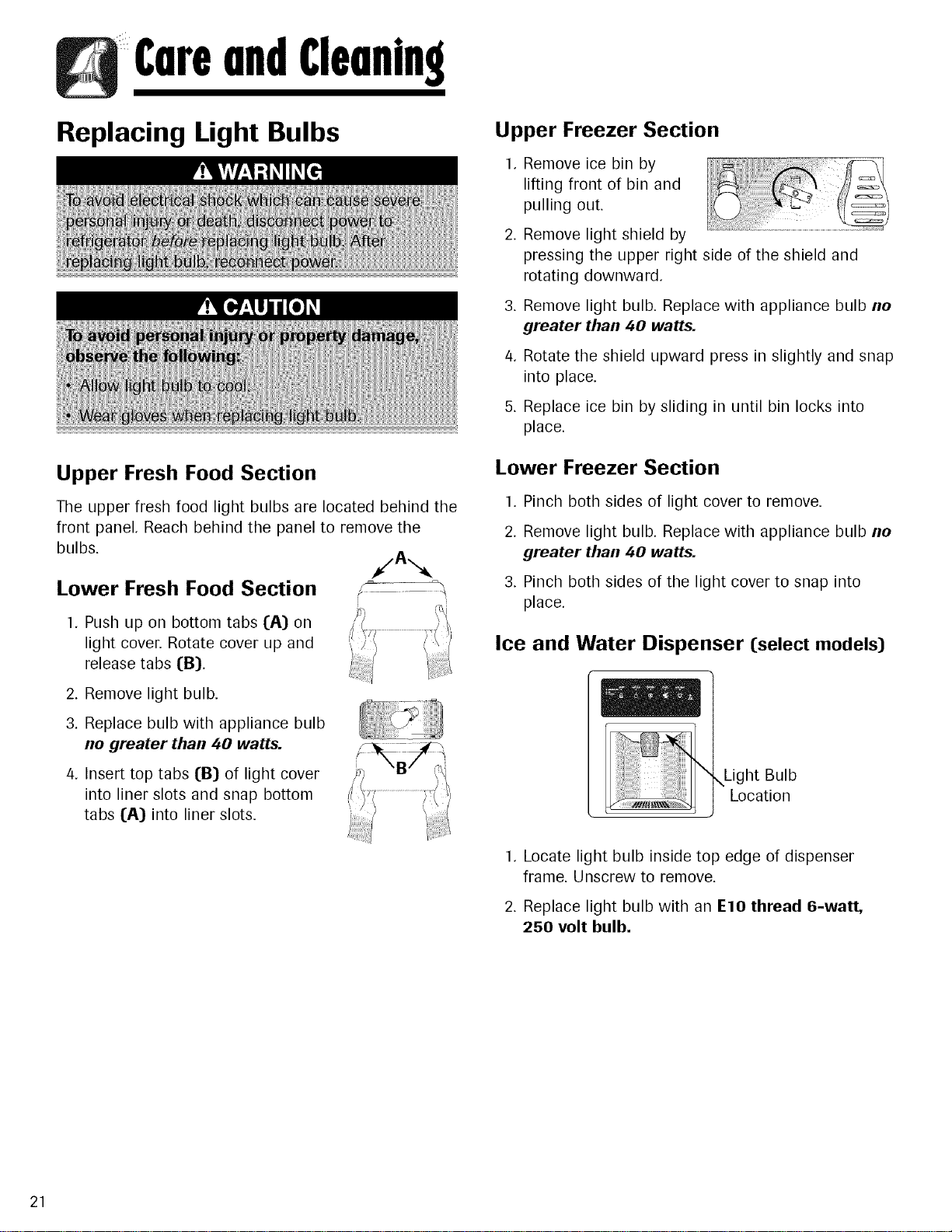

Replacing Light Bulbs
Upper Fresh Food Section
The upper fresh food light bulbs are located behind the
front panel. Reach behind the panel to remove the
bulbs.
Lower Fresh Food Section
1. Push up on bottom tabs (A) on
light cover. Rotate cover up and
release tabs (B).
2. Remove light bulb.
3. Replace bulb with appliance bulb
no greater than 40 watts.
/4. Insert top tabs (B) of light cover
into liner slots and snap bottom
tabs (A) into liner slots.
Upper Freezer Section
1. Remove ice bin by
lifting front of bin and
pulling out.
.
.
Remove light shield by
pressing the upper right side of the shield and
rotating downward.
Remove light bulb. Replace with appliance bulb ne
greater than 40 watts.
Rotate the shield upward press in slightly and snap
into place.
Replace ice bin by sliding in until bin locks into
place.
Lower Freezer Section
1. Pinch both sides of light cover to remove.
2. Remove light bulb. Replace with appliance bulb ne
greater than 40 watts.
3. Pinch both sides of the light cover to snap into
place.
Ice and Water Dispenser (select models)
Light Bulb
Location
1. Locate light bulb inside top edge of dispenser
frame. Unscrew to remove.
2. Replace light bulb with an E10 thread 6-watL,
250 volt bulb.
21
andCleaning

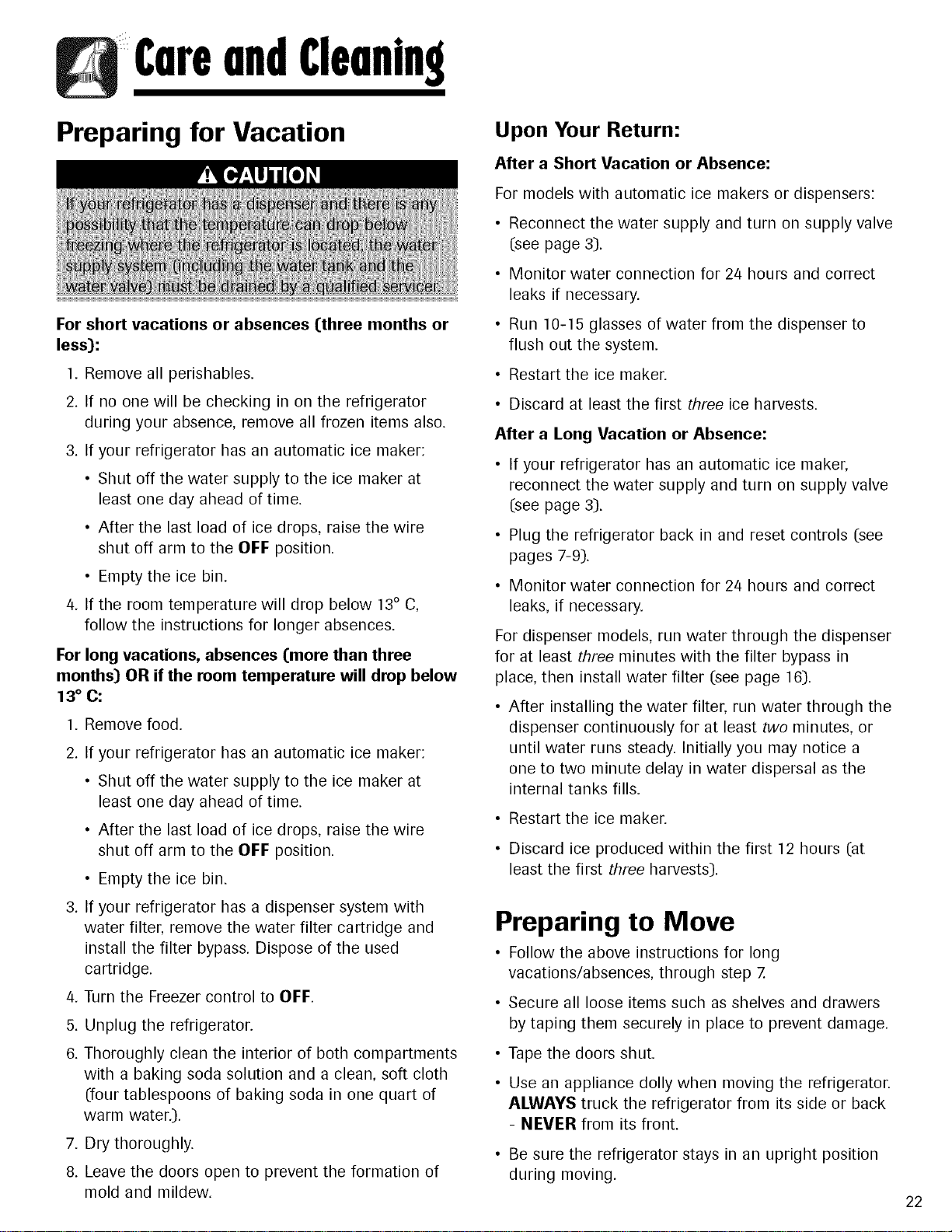

Preparing for Vacation
For short vacations or absences (three months or
less):
1. Remove all perishables.
2. If no one will be checking in on the refrigerator
during your absence, remove all frozen items also.
3. If your refrigerator has an automatic ice maker:
• Shut off the water supply to the ice maker at
least one day ahead of time.
• After the last load of ice drops, raise the wire
shut off arm to the OFF position.
• Empty the ice bin.
4. If the room temperature will drop below 13° C,
follow the instructions for longer absences.
For long vacations, absences (more than three
months) OR if the room temperature will drop below
13° C:
1. Remove food.
2. If your refrigerator has an automatic ice maker:
• Shut off the water supply to the ice maker at
least one day ahead of time.
• After the last load of ice drops, raise the wire
shut off arm to the OFF position.
• Empty the ice bin.
3. If your refrigerator has a dispenser system with
water filter, remove the water filter cartridge and
install the filter bypass. Dispose of the used
cartridge.
4. Turn the Freezer control to OFF.
5. Unplug the refrigerator.
6. Thoroughly clean the interior of both compartments
with a baking soda solution and a clean, soft cloth
(four tablespoons of baking soda in one quart of
warm water.).
7. Dry thoroughly.
8. Leave the doors open to prevent the formation of
mold and mildew.
Upon Your Return:
After a Short Vacation or Absence:
For models with automatic ice makers or dispensers:
• Reconnect the water supply and turn on supply valve
(see page 3).
• Monitor water connection for 24 hours and correct
leaks if necessary.
• Run 10-15 glasses of water from the dispenser to
flush out the system.
• Restart the ice maker.
• Discard at least the first three ice harvests.
After a Long Vacation or Absence:
• If your refrigerator has an automatic ice maker,
reconnect the water supply and turn on supply valve
(see page 3).
• Plug the refrigerator back in and reset controls (see
pages 7-9).
• Monitor water connection for 24 hours and correct
leaks, if necessary.
For dispenser models, run water through the dispenser
for at least three minutes with the filter bypass in
place, then install water filter (see page 16).
After installing the water filter, run water through the
dispenser continuously for at least two minutes, or
until water runs steady. Initially you may notice a
one to two minute delay in water dispersal as the
internal tanks fills.
• Restart the ice maker.
• Discard ice produced within the first 12 hours (at
least the first three harvests).
Preparing to Move
• Follow the above instructions for long
vacations/absences, through step 7.
• Secure all loose items such as shelves and drawers
by taping them securely in place to prevent damage.
• Tape the doors shut.
• Use an appliance dolly when moving the refrigerator.
ALWAYS truck the refrigerator from its side or back
- NEVER from its front.
• Be sure the refrigerator stays in an upright position
during moving.
22
Opemtin9Sounds
Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not
present in an older model. These improvements were made to create a refrigerator that is better at preserving food,
is more energy efficient, and is quieter overall. Because new units run quieter, sounds may be detected that were
present in older units, but were masked by higher sound levels. Many of these sounds are normal. Please note that
the surfaces adjacent to a refrigerator, such as hard walls, floors and cabinetry may make these sounds seem even
louder. The following are some of the normal sounds that may be noticed in a new refrigerator.
Clicking • Freezer control (A) clicks when starting or • Normal operation
stopping compressor.
• Defrost timer or electric damper control (select • Normal operation
models) (B) sounds like an electric clock and
snaps in and out of defrost cycle.
Air rushing • Condenser fan (D) makes this noise while • Normal operation
or whirring operating.
• Freezer fan (C) makes this noise while • Normal operation
operating.
• Freezer fan (C) slows to a stop as the freezer • Normal operation
door is opened.
Gurgling or • Evaporator (E) and heat exchanger (F) • Normal operation
boiling sound refrigerant make this noise when flowing.
Thumping • Ice cubes from ice maker drop into ice bucket (G). • Normal operation
• Dispenser ice chute (H) closing. • Normal operation
Vibrating • Compressor (I) makes a pulsating sound while • Normal operation
noise running.
• Refrigerator is not level. • See Leveling, see page 6.
Buzzing • lee maker water valve (.I) hookup buzzes when • Normal operation
ice maker fills with water.
Humming • Ice maker (K) is in the 'on' position without • Normal operation
water connection.
• Ice auger (L) hums as auger agitates ice during • Normal operation
dispensing.
• Compressor (I) can make a high-pitched hum • Normal operation
while operating.
• Solenoid valve (M) operating ice chute door. • Normal operation __..
/
23
Troubleshooting
II i! !i!i!il ! ! i
Freezer control and Refrigerator isin defrost mode. Normal operation.
lights are on, but Wait 40 minutes to see if refrigerator restarts.
compressor is not
operating
Temperature- Control settings are too low. See page 12 to adjust controls.
controlled drawers Freezer controls are set too low. See pages 7-9 to adjust controls.
are too warm
Drawer is improperly positioned. See page 12 to verify drawer positioning.
Refrigerator does Refrigerator is not plugged in. Plug in refrigerator.
not operate Dial control in freezer is set to OFF See pages 7-9 to adjust controls.
(select models).
Touch temperature controls are set to "-" See pages 7-9 to adjust controls.
(select models).
Fuse is blown, or circuit breaker needs Replace any blown fuses.
to be reset. Check circuit breaker and reset, if necessary.
Power outage has occurred. Call local power company listing to report outage.
Refrigerator still Refrigerator is malfunctioning. Unplug refrigerator and transfer food to another
won't operate refrigerator. If another refrigerator is not available,
place dry ice in freezer section to preserve food.
Warranty does not cover food loss.
Contact service for assistance.
Food temperature Condenser coils are dirty. Clean according to the chart on page 19.
is too cold Refrigerator or freezer controls are set See pages 7-9 to adjust controls.
too high.
Door is not closing properly.
Food temperature
is too warm
Refrigerator has
an odor
Controls need to be adjusted.
Condenser coils are dirty.
Rear air grille is blocked.
Door has been opened frequently, or has
been opened for long periods of time.
Food has recently been added.
Odor producing foods should be covered
or wrapped.
The interior needs cleaning.
Refrigerator is not level. See page 6 for details on how
to level your refrigerator.
Check gaskets for proper seal. Clean, if necessary,
according to the chart on page 19.
Check for internal obstructions that are keeping door
from closing properly (i.e. improperly closed drawers,
ice buckets, oversized or improperly stored containers,
etc.)
See pages 7-9 to adjust controls.
Clean according to the chart on page 19.
Check the positioning of food items in refrigerator to
make sure grille is not blocked. Rearair grilles are
located under crisper drawers.
Reduce time door is open. Organize food items
efficiently to assure door is open for as short a time as
possible.
Allow time for recently added food to reach
refrigerator or freezer temperature.
Clean according to instructions on page 19.
Cont.
24
Troubleshooting
ii !i Uliii iii !i !i iil
Door is not closing properly. Check for internal obstructions that are keeping doorWater droplets
form on outside
of refrigerator
Door gaskets are not sealing properly.
Humidity levels are high.
Controls require adjustment.
Water droplets form Humidity levels are high or door has
on inside of been been opened frequently.
refrigerator
Door gaskets are not sealing properly.
Refrigerator or ice Normal operation.
maker makes
unfamiliar sounds
or seems too loud
Temperature- Contents of drawer, or positioning of
controlled drawer itemsin the surrounding compartment
and/or crisper could be obstructing drawer.
drawer do not Drawer is not in proper position.
close freely Refrigerator is not level.
Drawer channels are dirty.
Doors [lave been opened frequently or
for long periods of time.
Humidity or temperature in surrounding
area is high.
Food has recently been added.
Refrigerator is exposed to heat by
environment or by appliances nearby.
Condenser coils are dirty.
Controls need to be adjusted.
Door is not closing properly.
Door gaskets are not sealing properly.
Refrigerator runs
too frequently
from closing properly (i.e. improperly closed drawers,
ice buckets, oversized or improperly stored containers,
etc.]
See page 6 Leveling.
Clean according to the chart on page 19.
Normal during times of high humidity.
See pages 7-9 to adjust controls.
Reduce time door is open. Organize food items
efficiently to assure door is open for as short a time as
possible.
Clean according to the chart on page 19.
See page 23.
Reposition food items and containers to avoid
interference with the drawers.
See page 12 for proper drawer placement.
See page 6 for details on how to level your
refrigerator.
Clean drawer channels with warm, soapy water.
Rinse and dry thoroughly.
Apply a thin layer of petroleum jelly to drawer
channels.
Reduce time door is open.
Organize food items efficiently to assure door is open
for as short a time as possible.
Allow interior environment to adjust for period the
door has been opened.
Normal operation.
Allow time for recently added food to reach
refrigerator or freezer temperature.
Evaluate your refrigerator's environment. Refrigerator
may need to be moved to run more efficiently.
Clean according to the chart on page 19.
See pages 7-9 to adjust controls.
Refrigerator is not level, see page 6 Leveling,
Check for internal obstructions that are keeping door
from closing properly (i.e. improperly closed drawers,
ice buckets, oversized or improperly stored containers,
etc.]
Cleaning according to the chart on page 19.
25
Troubleshooting
Ice and Water
No indicator lights Freezer door is not closed. Verify that freezer door is closed. Power is removed
are lit on dispenser from the control when freezer door is opened.
control Refrigerator is not plugged in. Plug in refrigerator.
Fuse is blown, or circuit breaker needs to Replace any blown fuses.
be reset. Check circuit breakers for any tripped circuits.
Power outage has occurred. Call local power company listing to report outage.
Refrigerator is in Sabbath Mode. See Sabbath Mode, page 15.
Ice or water are Freezerdoor is not closed. Verify that freezer door is closed. Power is removed
not dispensed from the control when freezer door is opened.
when pads are Controls are in lock mode (select models). See Dispenser Lock, page 15.
pressed Water tank is filling. At initial use, there is an approximate one- to two-
minute delay in dispensing while the internal water
tank is filling.
Ice maker hasjust been installed or a Wait 24 hours for ice production to begin or for ice
large amount of ice has been used. maker to restock after emptied.
Water filter is clogged or needs to be Change water filter (see page 16).
changed.
Ice maker is not Ice maker hasjust been installed or a Wait 24 hours for ice production to begin or for ice
producing enough large amount of ice has been used. maker to restock after emptied.
ice or ice is Water pressure is too low. Lowwater pressure can cause valve to leak.
malformed Water pressure must be between 241 to 689 KPA to
function properly.
A minimum pressure of 241 KPA is recommended for
refrigerators with water filters.
Water filter is clogged or needs to be Change water filter (see page 16).
changed.
Ice maker is not Ice maker arm is up. Confirm ice maker arm is down. See Automatic Ice
producing ice Maker, page 14.
Household water supply is not reaching See Connecting the Water Supply, page 3.
water valve.
Supply tubing has kinks. Turn off water supply and remove kinks.
If kinks cannot be removed, replace tubing.
Water pressure is too low. Water pressure must be between 241 to 689 KPA to
function properly.
A minimum pressure of 241 KPA is recommended for
refrigerators with water filters.
Check freezer temperature. See TemperatureControls, pages 7-9 to adjust controls.
Freezer must be between -18° to -17° C to produce
ice.
Ice bin is not installed properly. See Ice Storage Bin, page 13.
Improper water valve was installed. See Connecting the Water Supply, page 3.
Self-piercing and _/,_"saddle valves cause low water
pressure and may clog the line over time. The
manufacturer is not responsible for property damage
due to improper installation or water connection.
Water filter Water filter needs to be replaced. If filter is not available, replace with bypass filter.
indicator light is See Water Filter,page 16.
red Filter indicator sensor needs to be reset. See Filter Status Indicator Light, page 15.
Cont.
26
Troubleshooting
ii !i Uliii iii !i !i iil
Ice forms in inlet Water pressure is low. Water pressure must be between 241 to 689 kpa to
tube to ice maker function properly.
Saddle valve not open completely.
Freezer temperature is too high.
Refrigerator is Supply tubing was used to complete
leaking water water connection.
Improper water valve was installed.
Water flow is Water pressure is low.
slower than normal
Saddle valve not open completely.
Improper water valve was installed.
Supply tubing has kinks.
Water filter is clogged or needs to be
changed.
Water valve not opened completely.
Dispenser water
is not cold
Water appears
cloudy
Particles in water Carbon dust from water filter cartridge.
and/or ice cubes.
Concentrations of minerals in water will
form particles when water becomes
frozen and melts.
Refrigerator has been recently installed.
Water supply in holding tank has been
depleted.
Water has settled into water lines
outside holding tank and has warmed to
room temperature.
Air or air bubbles in water.
A minimum pressure of 2/41kpa is recommended for
refrigerators with water filters.
Open saddle valve completely.
See TemperatureControls, pages 7-9. Freezer
temperature should be between -18° to -17° C.
The manufacturer recommends using copper tubing for
installation. Plastic is less durable and can cause
leakage. The manufacturer is not responsible for
property damage due to improper installation or
water connection.
See Connecting the Water Supply page 3. Self-piercing
and 3/Z'saddle valves cause low water pressure and
may clog the line over time. The manufacturer is not
responsible for property damage due to improper
installation or water connection.
Water pressure must be between 241 to 689 kpa to
function properly. A minimum pressure of 241 kpa is
recommended for refrigerators with water filters.
Open saddle valve completely.
See Connecting the Water Supply, page 3. Self-piercing
and 3/Z'saddle valves cause low water pressure and
may clog the line over time. The manufacturer is not
responsible for property damage due to improper
installation or water connection.
Turn off water supply and remove kinks.
If kinks cannot be removed, replace tubing.
Change water filter ([seepage 16].
Open water valve completely and check for leaks.
The minimum flow at dispenser is approximately
295 ml in nine seconds with a new filter in place or
approximately 295 ml in five seconds without a filter.
Allow approximately 12 hours for water in holding tank
to chill.
Discard first glass of water and refill.
This is normal when first using the dispenser and will
disappear with use.
Initial water ejected through cartridge may contain
harmless carbon dust flushed from cartridge.
Particles are safe for consumption.
Will disappear after the first few uses.
Particles are not harmful and naturally occur in water
supplies.
27
