User Manual
35in Computer Monitor
Model: V3L6R
1
Before using this product, please carefully read through
this User Manual and keep it properly
Table of Contents
Notices-----------------------------------------------------------------------------------------------------------------------2
Product introduction-----------------------------------------------------------------------------------------------3
Packing list -----------------------------------------------------------------------------------------------------------3
Installation -----------------------------------------------------------------------------------------------------------------4
Installation of base-------------------------------------------------------------------------------------------------4
Installation of mount ----------------------------------------------------------------------------------------------6
Adjusting the monitor---------------------------------------------------------------------------------------------------7
Usage-------------------------------------------------------------------------------------------------------------------------8
Description of buttons---------------------------------------------------------------------------------------------8
Explanation of indicators-----------------------------------------------------------------------------------------8
Cable connection----------------------------------------------------------------------------------------------------9
OSD menu-----------------------------------------------------------------------------------------------------------------10
Menu description-------------------------------------------------------------------------------------------------10
Basic parameters---------------------------------------------------------------------------------------------------------12
Notices
1
Before using this product, please read this
User Manual carefully and keep it well
Do not cover or block the vent hole in the rear casing, and do not use the product on a bed, sofa, blanket or similar
objects.
The range of the supply voltage of the monitor is printed on the label on the rear casing. If it is impossible to
determine the supply voltage, please consult the distributor or local power company.
and damage due to abnormal supply voltage.
Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and
swimming pools.
damage.
Store and use the monitor in a cool, dry and well ventilated place, and keep it away from emission and heat sources.
Do not disassemble or repair this product by self to avoid electric shock. If faults occur, please contact the
after-sales service directly.
Do not pull or twist the power cable forcedly.
may be damaged and the warranty will be invalid.
Make sure the monitor is placed on a flat surface. lf the monitor falls down, it may cause human injury or device
lf the monitor will not be used for a long period, please cut off the power supply to avoid electric shock in rainy days
Please use a reliable electric socket, do not overload the socket, or it may cause fire or electric shock.
Do not put foreign matters into the monitor, or it may cause short circuits resulting fire or electric shock.
There is a polarizer layer (not a protective film) on the surface of the screen. Do not peel it off, or the product
2
Packing list
Product introduction
Please check that the package of the monitor contains all parts.
The color and shape of parts may vary with models. Figures in this User Manual are for reference only.
Wires supplied may vary with purchased products. Figures in this User Manual are for reference only.
Redundant screws can be used as spare screws.
Monitor Stand BaseStand Stem
(PM4*12) Screws (PM4*16)Wall Mount Screws（KM4*12） Screws
VESA connector up VESA connector down
DP signal cable
Power Cable
User manual
3
Use three screws to tighten
Tighten with
two screws

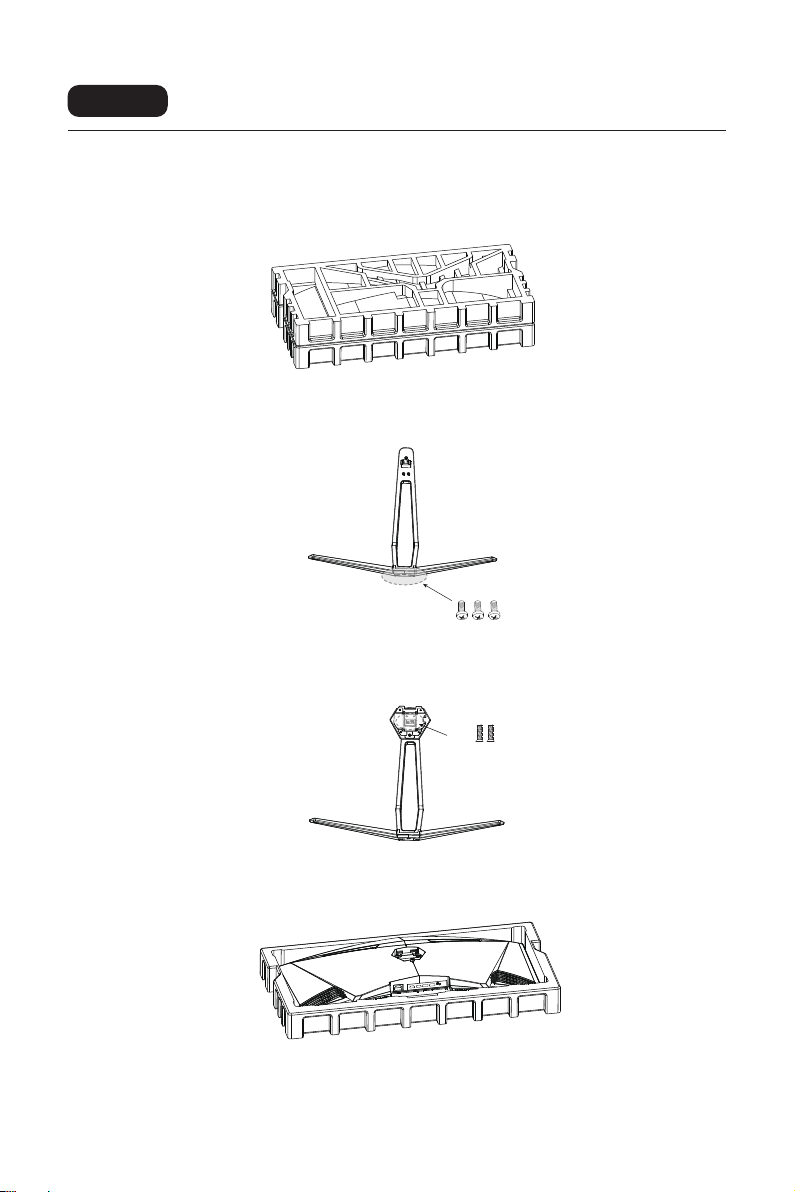

Installation of base
Installation
1. Open the carton package, take out the foam and put it flat on the table top.
2. Take out the base and bracket and tighten them with screws.
4. Remove the upper foam cover (note: the machine cannot leave the lower foam cover).
3. Take out the shaft assembly and lock it with the base of the bracket with screws.
4
7. After assembly, simply hold the stand with hand to stand the monitor upright.
5. Use the assembled base bracket assembly to align the slot of the machine and buckle down
(note: press and hold the quick release button with your fingers to take out the base bracket assembly).
6. Press and hold the quick release button with your fingers to remove the base stand assembly.
Do not press the LCD
Note: During standing of the whole monitor, do not press the liquid crystal screen with hand to avoid
damage to the screen.
5
(PM4*16) Wall Mount Screws
1. Open the carton package, take out the foam and put it flat on the table top.
2. Remove the upper foam box, take out the film-coated bag of the fuselage, and put the fuselage into the
original lower foam box again.
3. Find the PM4*16 screws from the accessory kit, and lock the screws and wall-mounted components in the
threaded holes of the rear shell .
when disassembling the wall-mounted components, the monitor cannot leave
the foam box to prevent the screen from cracking.

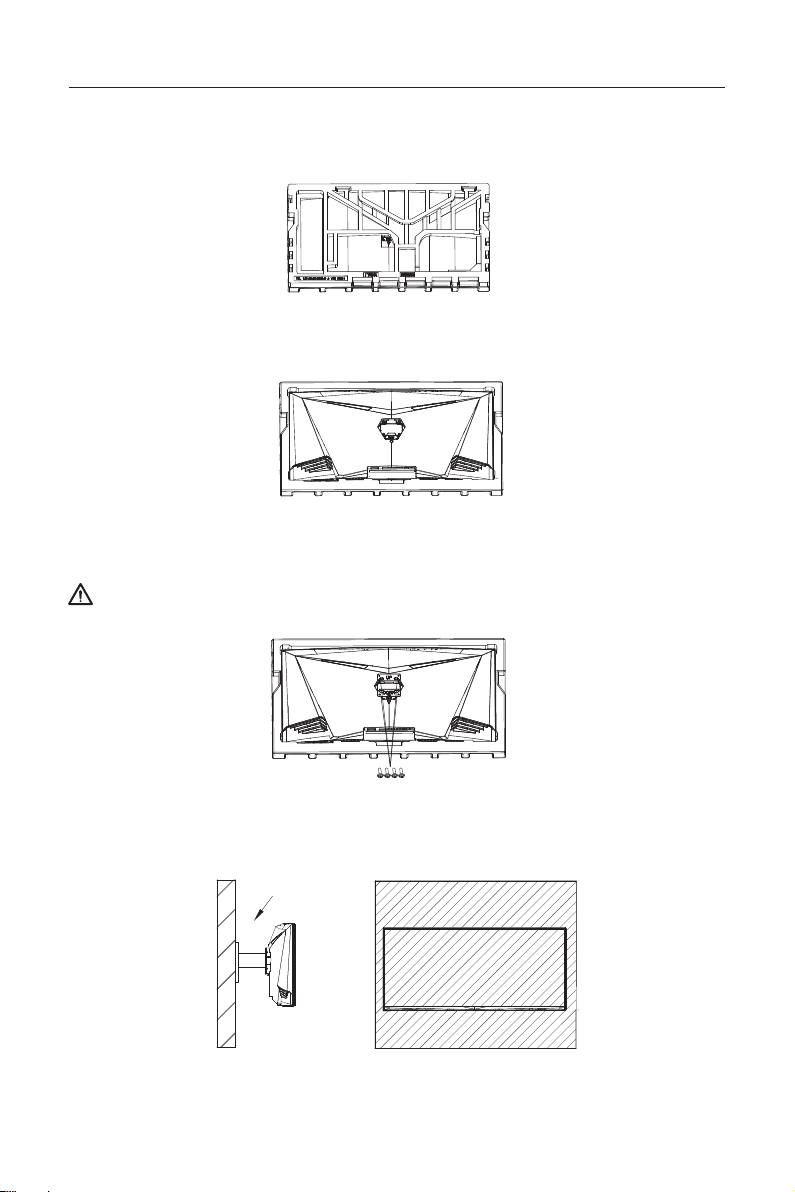

Installation of mount
Mount (not supplied)
4. Note: During hanging of the product, do not pinch the screen with hand to avoid damage to the screen.
6
Adjusting the monitor
Tilting angle
-5.0°(±2.0°)- +15°(±2.0°)
7
Description of buttons
Explanation of indicators
Usage
Menu button: Press to enter sub-menus/quickly enter the main menu
Down button: Press to move down in the menu/quickly adjust the game crosshair
Up button: Press to move up in the menu/quickly adjust the contextual mode
Exit/hot key: Press to return to the previous menu/quickly switch input signals of the port
Power button: Press to turn on/off the monitor
Indicator: A steady blue light indicates that the power is on and the monitor is operating normally. Blue light
flashes to indicate there is no video source and no horizontal or vertical signal or low voltage is detected.
Make sure your computer is turned on and all video cables are fully plugged in and/or connected.
Button Function
Indicator
8
M
M
E
E

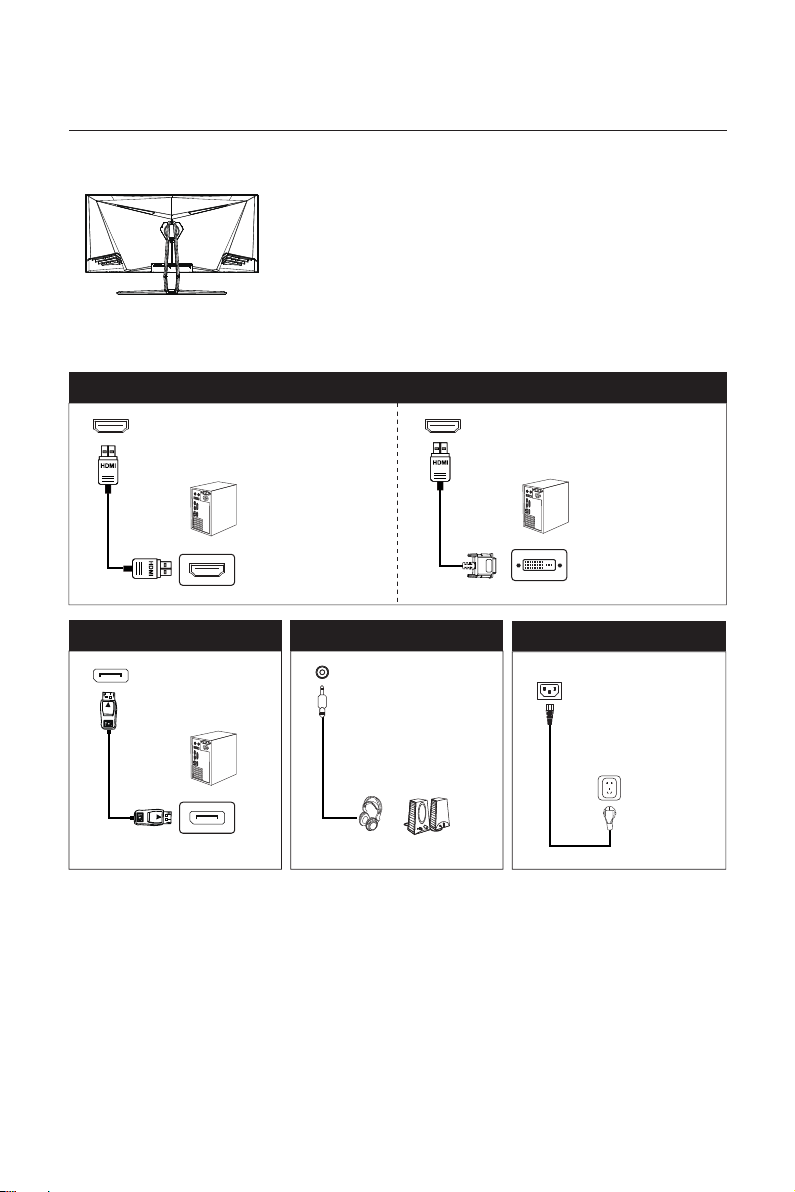

Cable connection:
Use the HDMI cable to connect the HDMI IN
interface of the product to the HDMI OUT
interface of a PC.
* Note: If the power cable or signal cable is damaged, you must replace it
* The bottom interface configuration at the back of the monitor vary with
products.
with special soft cables or special components purchased from the
manufacture or maintenance department.
Use the HDMI-DVI cable to connect the HDMI IN
interface of the product to the DVI OUT interface
of a PC.
HDMI interface
DP interface
AC interface
AUDIO OUT
OR
Use the DP cable to
connect the DP IN interface
of the product to the DP
OUT interface of a PC.
Connect audio outputting
devices such as earphones
to the AUDIO OUT
interface.
Please connect the power
cable plug to the correspo-
nding port of the monitor,
and connect the other end
to a properly grounded
power outlet.
9
The screen display (OSD) menu can be used to adjust settings of the monitor and is shown on the screen after the
The color and shape of the OSD menu of the actual computer may be slightly different from them shown in the figure.
Specifications of the OSD menu may change with improvements of functions without prior notice.
monitor is powered on and the button is pressed.
Menu description
OSD menu
M, , , E,
1. Press one of the buttons ( ) to activate the browser screen.
2. Press （ ）to enter the OSD screen.
3. Press or to browse through the functions.
- Select the desired function, then press the button to enter the submenu.
- Press or to browse the sub-menus, and then press the key to confirm the selection of the desired function.
- Press or to select an option, then press to confirm the setting and exit the current menu.
4. Press to exit the menu interface.
E
M
M
M
10
Functions of the monitor vary with models, and the functions in this manual are
for reference only.
Input Source
Brightness/
Contrast
Color Setting
Picture Quality
Setting
Display
Audio
Multi-Window
OSD
Other
None
None
None
None
None
None
0-100
0-100
0-100
0-100
DP1/DP2/HDMI1/HDMI2
Off/PIP Mode/PBP 2Win
DP1/DP2/HDMI1/HDMI2
Small/Medium/Large
TopRight/TopLeft/BottomRight/BottomLeft
Off/High/Middle/Low
0-100
1.8/2.0/2.2/2.4/2.6
DP1
DP2
HDMI1
HDMI2
Blacklevel
Brightness
Contrast
DCR
Gamma
Pictrue Mode
Color Temperature
Standard/Photo/Movie/Game/FPS/RTS
Warm/Cool/USER
0-100
0-100
0-100
Off/High/Middle/Low
Off/High/Middle/Low
On/Off
On/Off
On/Off
On/Off/Auto Detect
On/Off
Wide Screen/4:3/1:1/Auto
Flicker/Normal/Off
Low Blue Light
Hue
Saturation
Sharpness
Response Time
Noise Reduction
Super Resoultion
Dynamic Luminous
Control
Aspect Ratio
LedMode
Mute
Volume
Audio Source
Multi-Window
Sub Win2 Input
PIP Size
PIP Position
Swap
0-100
0-100
0-100
5-100
Normal/90/180/270
DP1.1/DP1.2/DP1.4
Language
OSD H-Position
OSD V-Position
OSD Transparency
OSD Time Out
OSD Rotation
DP Version
Adaptive-Sync
HDR
Reset
English/简体中文/한국어/РУССКИЙ/Español/日本語/Francais
11
Basic parameters
Product model V3L6R
Screen Size
Viewing Angle
35 inches
≥178°(H) / ≥178°(V)
Pixel pitch
238.2 (per one triad) × 240.2 um
Contrast ratio 2500:1
16.7M
Colors
Aspect Ratio 21:9
Resolution 3440*1440
837.39 × 483.85× 245.11mm/ approx. 8.9 kg
Product Dimentions
Normal base
Without base
Action
Storage
837.39 × 377.93 × 120.81 mm/ approx. 6.78kg
With base
NA
Tilting angle Forward titling: -5°±2° ;
Backward tilting : 15°±2°
Swivel angle
Height angle NA
NAPivot angle
Environmental
conditions
Temperature: 0°C~ 40°C (32°F ~ 104°F)
Humidity: 10%~90% RH (non-condensing)
Temperature: -20°~ 60° (-4°F ~ 140°F)
Humidity: 5%~95% RH (non-condensing)
Maximum refresh rate
Power specifications
180Hz（1. RX580 or GTX 1660 and above Graphics card.
2. Open the OVER CLOCK in the OSD. ）
Product Name Liquid Crystal Display
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
AC120V, 60Hz, 2.0A
Made in China
12
