MODEL: 1056-XL / 1076-XL
1/2” & 3/8” IMPACT WRENCH
SPECIFICATIONS
Important Warnings - Impacts
1. Eye protection and hearing protection and safety gloves must always be worn when operating an impact wrench or impact
driver.
2. When using heavy impact sockets or sockets on impact wrenches with 3/4” drive anvils or larger, a socket retaining ring
and pin should be used to prevent the socket falling off and causing injury.
3. Use only impact sockets and accessories. Only use sockets designated “FOR USE WITH IMPACT WRENCHES”, hand tool
damage and replace when necessary.
Accessory Hazards
4. Disconnect the assembly power tool for threaded fasteners from the energy supply before changing the inserted tool or
accessory.
5. Do not touch sockets or accessories during impacting as this increases the risk of cuts, burns or vibration injuries.
6. Use only sizes and types of accessories and consumables that are recommended by the assembly power tool for threaded
fasteners manufacturer; do not use other types or sizes of accessories and consumables.
Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher
pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air line will
cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can be viewed
in the illustration below. The air inlet, used for connecting air supply, has standard 1/4” NPT (US) or BSP (UK). Line pressure should be increased to compensate for
unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8” I.D. and ttings should have the same inside dimensions.
Air Supply
Model No.
Free Speed
(RPM)
Bolt Capacity
(in.)
Square Drive
(in.)
Impacts Per
Minute
Max. Torque
(ft-lb) @90 psi
Weight
(lbs.)
Length
(in.)
Air Cons.
(CFM)
Rec. Hose
Size
(in.)
Air Inlet
(in.)
1076-XL 9,000 9/16 3/8 1650 550 2.5 4.25 8 3/8 1/4
1056-XL 9,000 9/16 1/2 1650 550 2.5 4.25 8 3/8 1/4
WARNING:
This product can expose you to chemicals
including lead, which are known to the State of California
to cause cancer and birth defects or
other reproductive harm.
.
For more information go to www.P65Warnings.ca.gov
MODEL: 1056-XL / 1076-XL
1/2” & 3/8” IMPACT WRENCH

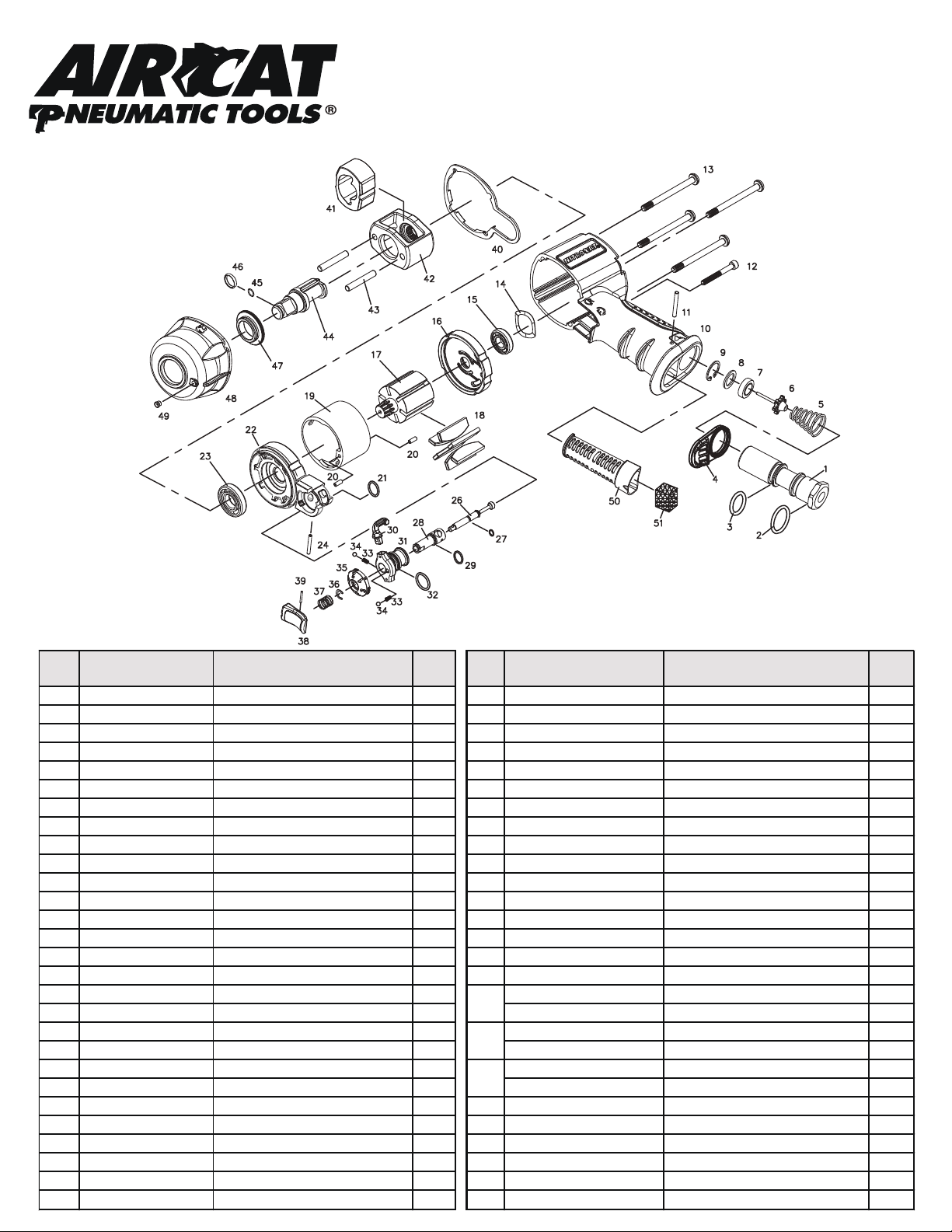

Exploded View & Parts List
Ref.
#
Part Number Description Qty
Ref.
#
Part Number Description Qty
1 9638001M AIR INLET 1 28 9651235 VALVE BODY 1
9638001M-BSP AIR INLET (UK) 1 29 9OR8501 O-RING 1
2 9638003 O-RING 1 30 9611238 REVERSE VALVE LEVER 1
3 9ORAS-115 O-RING 1 31 9651237 REVERSE VALVE 1
4 9638005 DEFLECTOR 1 32 9OR1301 O-RING 1
5 9638006 SPRING 1 33 9611239-1 SPRING 2
6 9328804C VALVE STEM 1 34 9SB0003-1 STEEL BALL 2
7 9328835 VALVE SEAT 1 35 9611240 POWER MANAGEMENT KNOB 1
8 9328825S WASHER 1 36 9611236 RETAINER 1
9 9638010 RETAINI
NG RING 1 37 9S8512 SPRING 1
10 9651210-1056 MOTOR HOUSING FOR 1056-XL 1 38 9261206-BK TRIGGER 1
9651210-1076 MOTOR HOUSING FOR 1076-XL 1 39 9589039 SPRING PIN 1
11 9638011 SPRING PIN 1 40 9651207-RD GASKET 1
12 9611212 SCREW 1 41 9251225 HAMMER 1
13 9651213 BOLT 4 42 9251212 HAMMER FRAME 1
14 9WW-18 WASHER 1 43 9251213 HAMMER PIN 2
15 9R6 BALL BEARING 1 9251208 1/2" ANVIL FOR 1056-XL 1
16 9651206 REAR PLATE 1 9251208-1 3/8" ANVIL FOR 1076-XL 1
17 9251205 ROTOR 1 9OR
7718 RETAINER O-RING FOR 1056-XL 1
18 9251203 ROTOR BLADE 6 9328829-3 RETAINER O-RING FOR 1076-XL 1
19 9251218 CYLINDER 1 9328830-4 SOCKET RETAINER FOR 1056-XL 1
20 9SP0308 SPRING PIN 2 9328830-3 SOCKET RETAINER FOR 1076-XL 1
21 9OR1315 O-RING 1 47 9251216 ANVIL BUSHING 1
22 9651202-A FRONT PLATE W/VALVE BUSHING 1 48 9651230-NICAT HAMMER CASE 1
23 9EE4 BALL BEARING 1 49 9638047 GREASE FITTING 1
24 9SP2520 SPRING PIN 1 50 9651245 MUFFLER TUBE 1
26 965123
2 TRIGGER PIN 1 51 9389507-1056 SILENCER 1
27 9638013 O-RING 1
46
44
45
851 Jupiter Park Lane | Jupiter, FL 33458
www.florida-pneumatic.com
Toll Free: 888-424-7228 | Fax: 561-575-9134
IMPACT WRENCHES
Florida Pneumatic Manufacturing Company (“Florida Pneumatic”) warrants that its AIRCAT and NITROCAT air tools will be free from defects in
material and workmanship for a period of two years from the date of original purchase, except for our AIRCAT VIBROTHERM DRIVE air tools that
are warrantied to be free from defects in material and workmanship for 3 years from the original date of purchase (the “Warranty Period”).
Because Florida Pneumatic cannot control the quality of tools sold by unauthorized sellers, this warranty applies only to tools that were
purchased from Florida Pneumatic or a Florida Pneumatic authorized seller in the United States, unless otherwise prohibited by law. Florida
Pneumatic reserves the right to reject warranty claims from purchasers for tools purchased from unauthorized sellers, including unauthorized
internet sites. This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product,
negligence, or damage due to repair by anyone other than Florida Pneumatic or its authorized service centers. This warranty applies to the tool
only. This warranty does not apply to any attached accessories/consumable products, such as drill chucks, sander backing pads, air hammer
retainers and chisels, "kit" accessories, or any other accessory included with the tool. This warranty is also limited to the original, end-user
purchaser.
If you wish to make a warranty claim based upon a product defect, please return the tool at issue to Florida Pneumatic or a Florida Pneumatic
Authorized Service Center freight prepaid and include your name, address, phone number, a copy of your receipt or other proof of purchase
showing the original date of purchase, and a description of the suspected defect. A list of Florida Pneumatic Authorized Service Centers can be
found at https://www.florida-pneumatic.com/media/uploads/Service-Centers.pdf.
Florida Pneumatic will repair or replace, in its discretion, a defective product or product part(s) covered by this warranty. You must submit your
warranty claim within the applicable Warranty Period.
It is Florida Pneumatic’s policy to continue to improve our products, and Florida Pneumatic reserves the right to make changes in design or
construction of its products at any time without incurring any obligation with respect to products previously sold.
There are no warranties which extend beyond those stated herein. Any implied warranties that may be applicable to the tools, including implied
warranties of merchantability or fitness for a particular purpose, are limited in duration to the duration of this warranty. Some States do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Under no circumstances shall Florida Pneumatic
be liable for any special, incidental, or consequential damages based upon breach of this warranty, breach of contract or strict liability. Some
States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
If you have any questions about whether a seller is authorized, call us at (800) 356-3392 or email [email protected].
LIMITED WARRANTY
FOR THE MOST UP-TO-DATE WARRANTY INFORMATION, VISIT WWW.AIRCAT.COM/WARRANTY
