Design Guide
Freestanding / Semi Built In
24", 30", 48", 36", 60" and 72"
Release 01 2017
2
3
Welcome
Liebherr's engineering excellence in Germany provides the largest
selection of freezers, refrigerators and wine refrigerators worldwide.
Liebherr is one of the World’s leading Manufacturers of Premium Refrigeration.
For more than 60 years, Liebherr has specialized in developing and manufacturing
first class refrigerators and freezers as well as wine cabinets. We focus on
performance and efficiency as well as keeping food fresher longer. Produced
in Austria and Germany, Liebherr has a full line of premium models tailored
specifically for the North American marketplace to fit any design vision you have
for your kitchen.
Our freestanding stainless models are sleek centerpieces that make a definite
statement. Our built-in models are perfect for designs that call for units that slide
into cabinet surrounds. And our fully-integrated models become one with your
kitchen design, hidden seamlessly behind your custom cabinetry.
High quality materials, perfectly detailed finishes, precise electronic control
systems, elite cooling components, variable speed compressors and the latest
production processes ensure energy efficiency and performance for years to
come. Our superior products offer premium quality, cutting edge design and
innovative features that fit with your busy lifestyle.
Liebherr's Commitment to the Environment
The components of Liebherr products can be recycled when the necessary
resources are available. A concern for the environment and a desire to protect
resources has led to increased levels of recycling year after year. When Liebherr
manufactures products, it is essential that the recyclable recovery rate of the
materials we use constantly increases.
Recycling is a common goal among all manufacturers, municipalities and
recycling companies to protect our environment. Protecting the environment
and producing products which have a low impact on the environment, is one of
Liebherr's core values. When the time comes, please attempt to dispose of your
old appliances in an environmentally safe and friendly manner.
4
Introduction
LIEBHERR WARRANTY PLAN
FULL TWO YEAR WARRANTY
For two years from the date of original purchase, your Liebherr warranty covers all parts and labor to repair or replace
any part of the product which proves to be defective in materials or workmanship.
FULL FIVE YEAR WARRANTY
For five years from the date of original purchase, your Liebherr warranty covers all parts and labor to repair or replace
any components that prove to be defective in materials or workmanship in the sealed system. The “Sealed System”
means only the compressor, condenser, evaporator, drier and all connecting tubing.
LIMITED 6TH THROUGH 12TH YEAR WARRANTY
From the 6th through 12th year from the date of original purchase, your Liebherr warranty covers all parts that prove to
be defective in materials or workmanship in the Sealed System (parts only).
For Service in the U.S.
Liebherr Service Center
Toll Free: 1-866-LIEBHER
1-866-543-2437
Email: Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada
Liebherr Service Center
Toll Free: 1-888-LIEBHER
1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road
Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320
Fax: (519) 357-1326
For Installation Questions
Install.Americas@liebherr.com
General Inquires:
1-855-543-2437
5
Contents
Safety Warnings .................................................................................................................................................. 6
Electrical Requirements & Safety ..................................................................................................................... 7
IceMaker (if equipped) ....................................................................................................................................... 7
Area Requirements ............................................................................................................................................. 8
Safety Regulations ............................................................................................................................................. 8
Specifications 24" and 48" Models .............................................................................................................. 9
CS 1210 ..........................................................................................................................................................................................9
CS 1360B ........................................................................................................................................................................................9
CS 1321 ..........................................................................................................................................................................................9
CBS 1360 ......................................................................................................................................................................................10
SBS 26S2 (CS 1321 & CBS 1360) .............................................................................................................................................. 10
Specifications 30" and 60" Models ............................................................................................................ 11
CS 1400R ..................................................................................................................................................................................... 11
CS 1400PC ................................................................................................................................................................................... 11
CS 1400R-IM ................................................................................................................................................................................ 11
CS 1410 .........................................................................................................................................................................................12
CS 1640B ......................................................................................................................................................................................12
CBS 1660 (right hinged)
CBS 1661 (left hinged) ................................................................................................................................................................. 12
SBS 32S2 (CBS 1661 & CBS 1660) ...........................................................................................................................................13
Specifications 36" Models ............................................................................................................................... 14
CS 2060 (right hinged)
CS 2061 (left hinged) ................................................................................................................................................................... 14
CS 2062 ........................................................................................................................................................................................ 14
CBS 2062 .....................................................................................................................................................................................14

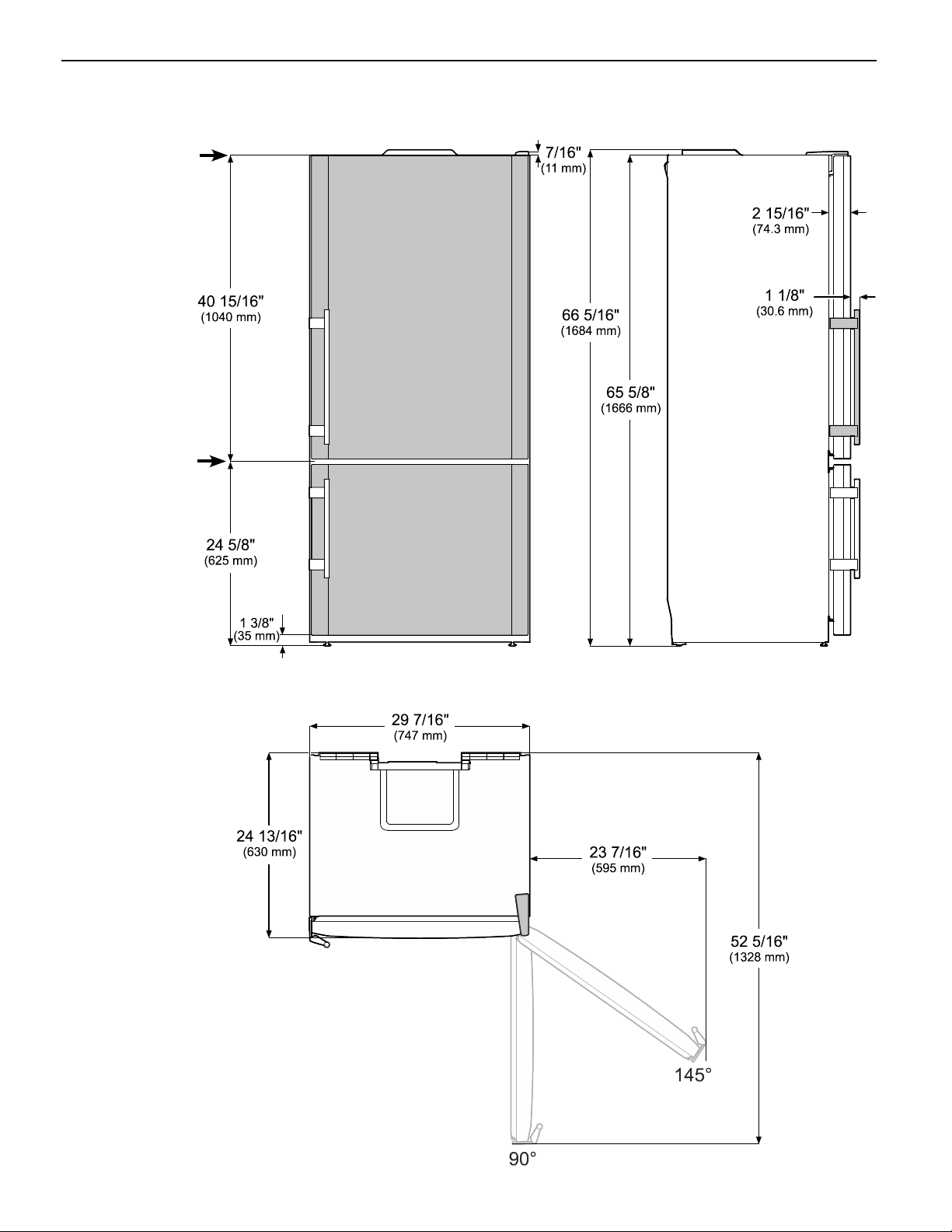

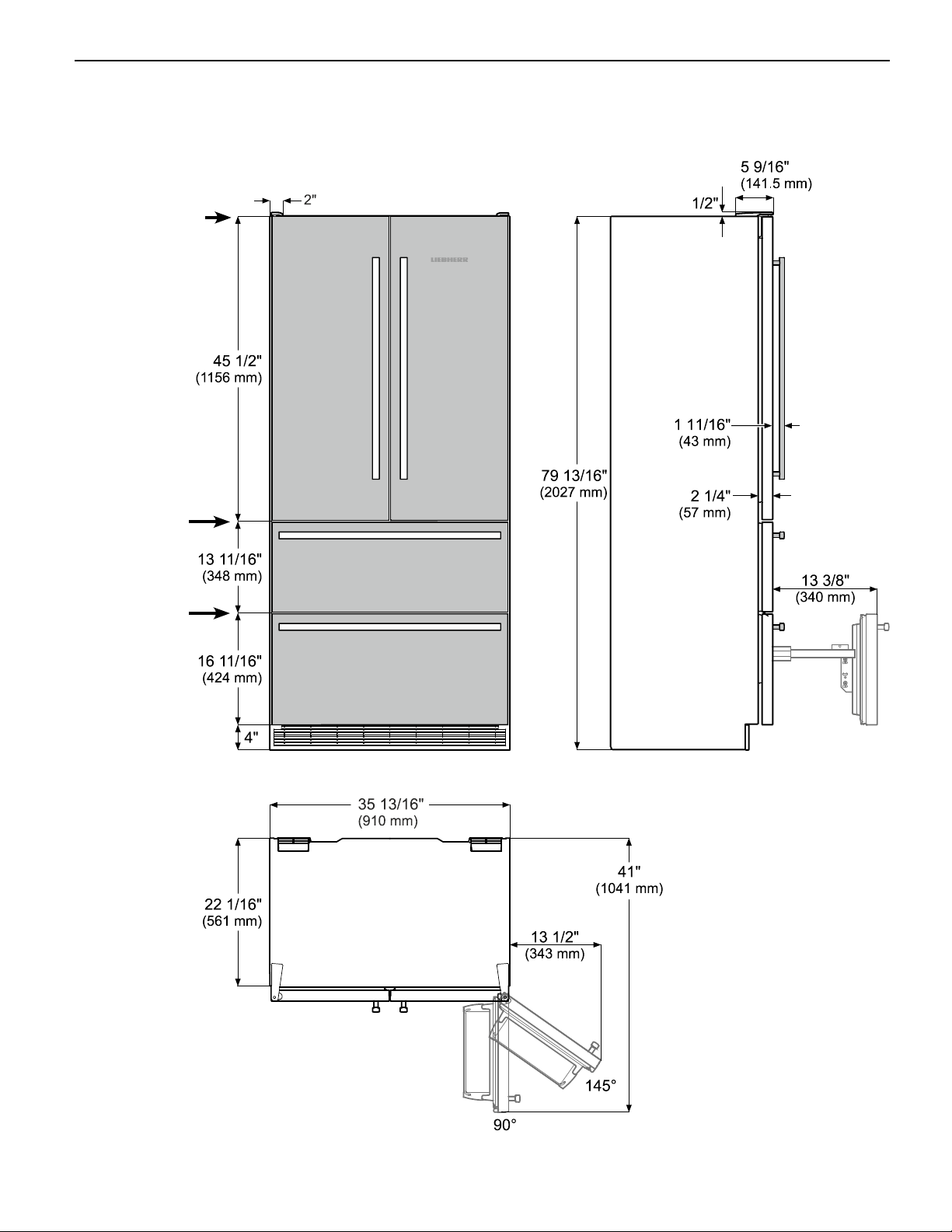

Unit Dimensions................................................................................................................................................ 15
Unit Dimensions CS 1210 ........................................................................................................................................... 15
Unit Dimensions CS 1360B / CS 1321 / CBS 1360 .................................................................................................. 16

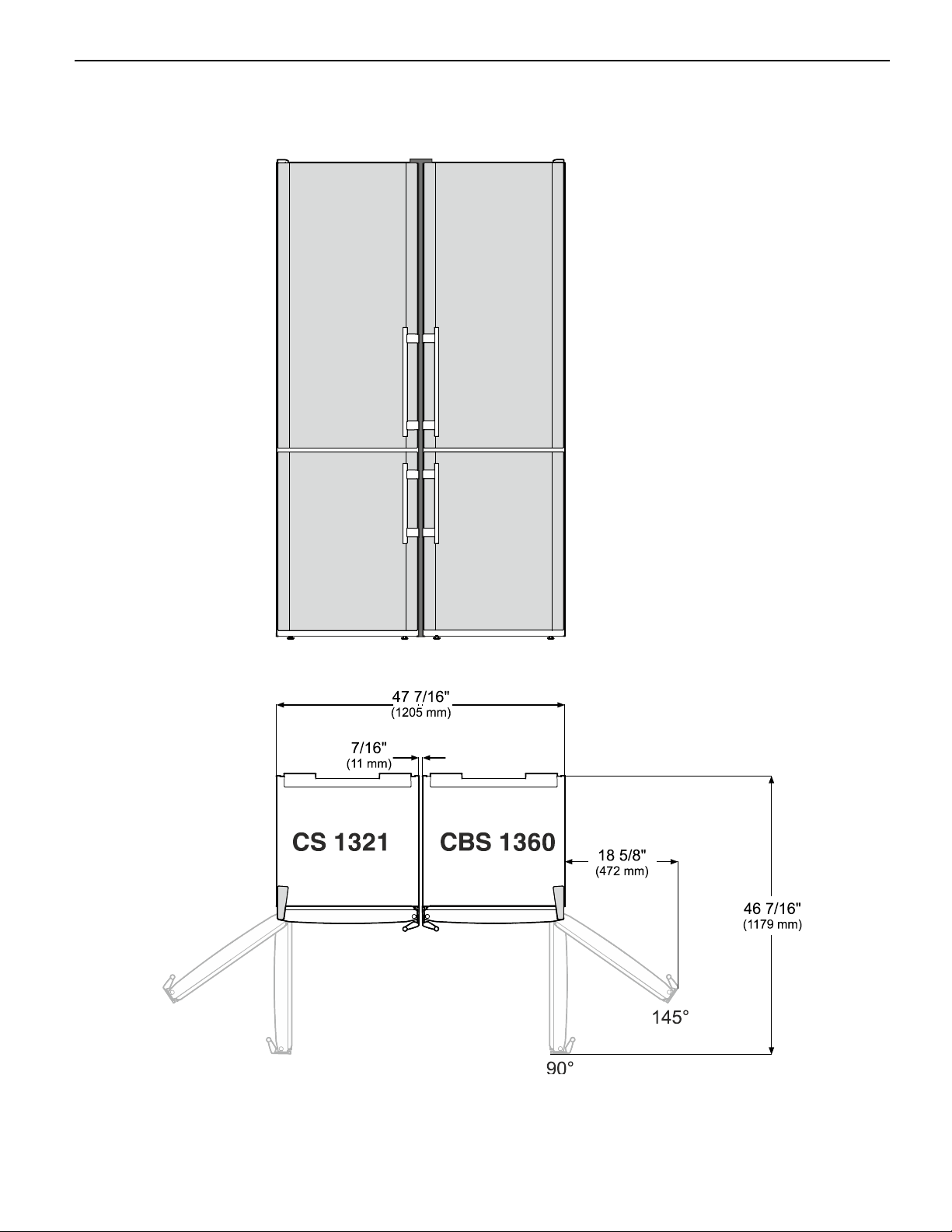

Unit Dimensions SBS 26S2 ....................................................................................................................................... 17
Unit Dimensions CS 1400R / CS 1400PC / CS 1400R-IM ....................................................................................... 18
Unit Dimensions CS 1410 ........................................................................................................................................... 19
Unit Dimensions CS 1640B / CBS 1660 / CBS 1661 ................................................................................................ 20
Unit Dimensions SBS 32S2 ....................................................................................................................................... 21
Unit Dimensions CS 2060, CS 2061 ........................................................................................................................ 22
Unit Dimensions CS 2062, CBS 2062 ...................................................................................................................... 23
Cabinet Opening Dimensions - 24" and 48" Models .................................................................................... 24

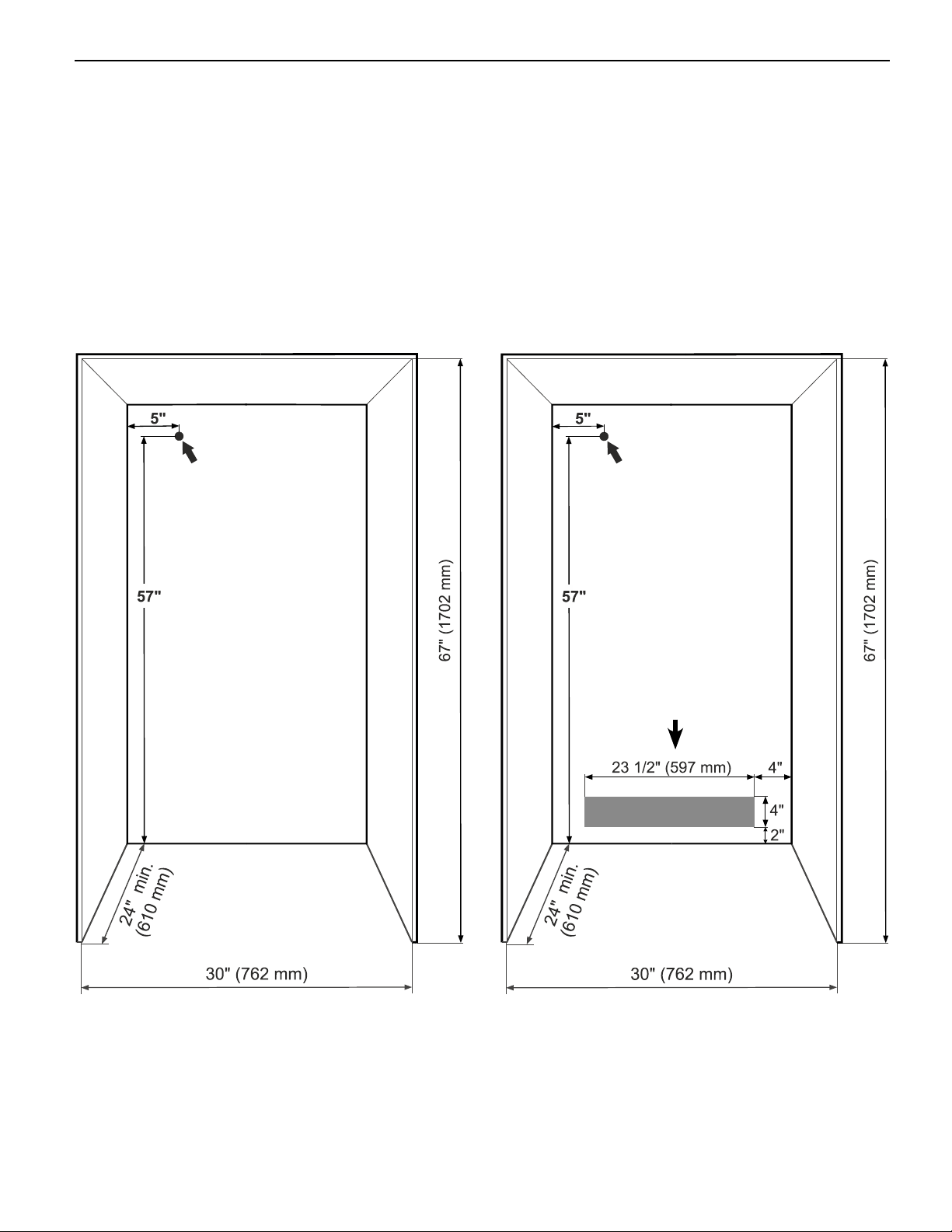

Cabinet Opening Dimensions - 30" and 60" Models ................................................................................... 25

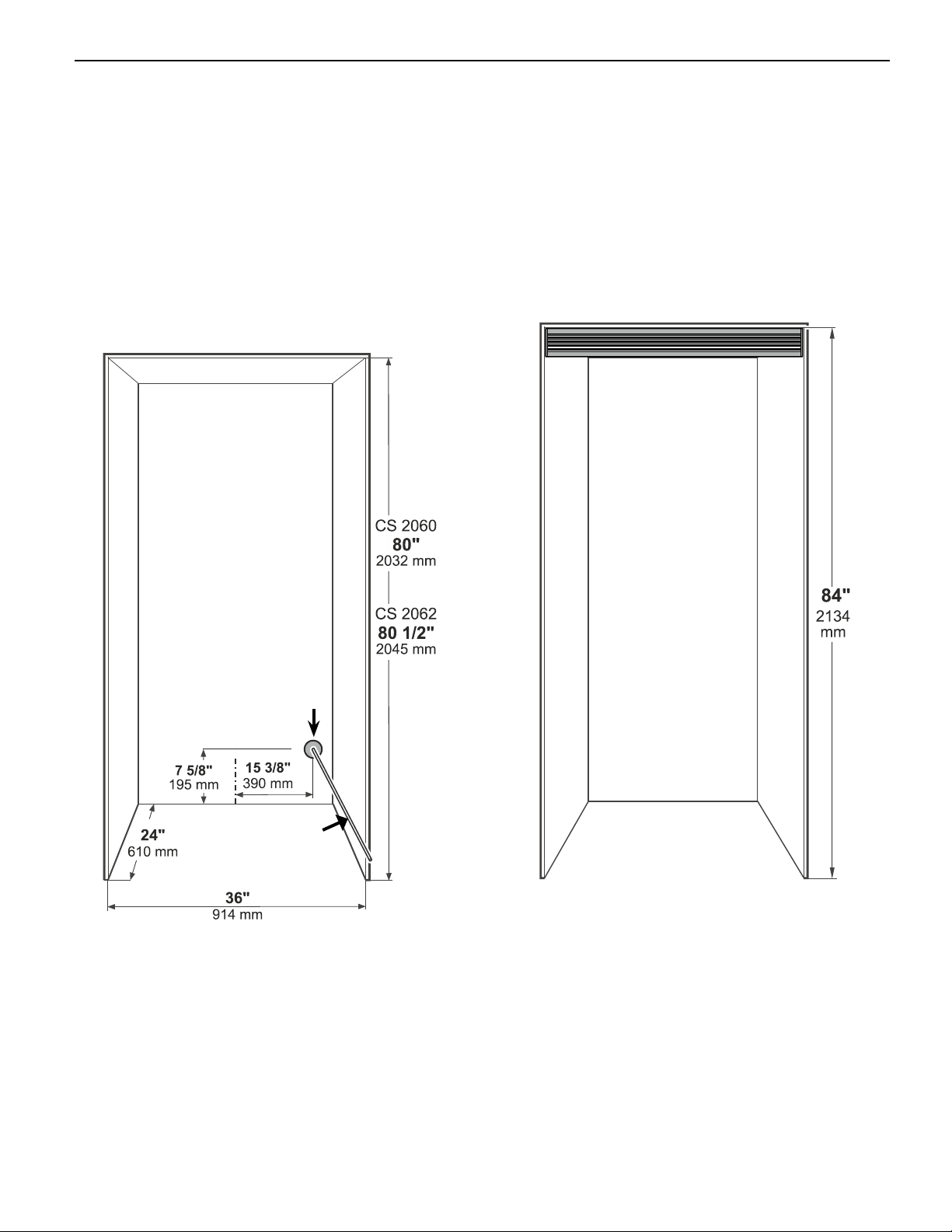

Cabinet Opening Dimensions - 36" Models .................................................................................................. 27
Cabinet Opening Dimensions - 72" Models (Side by Side) ........................................................................ 28

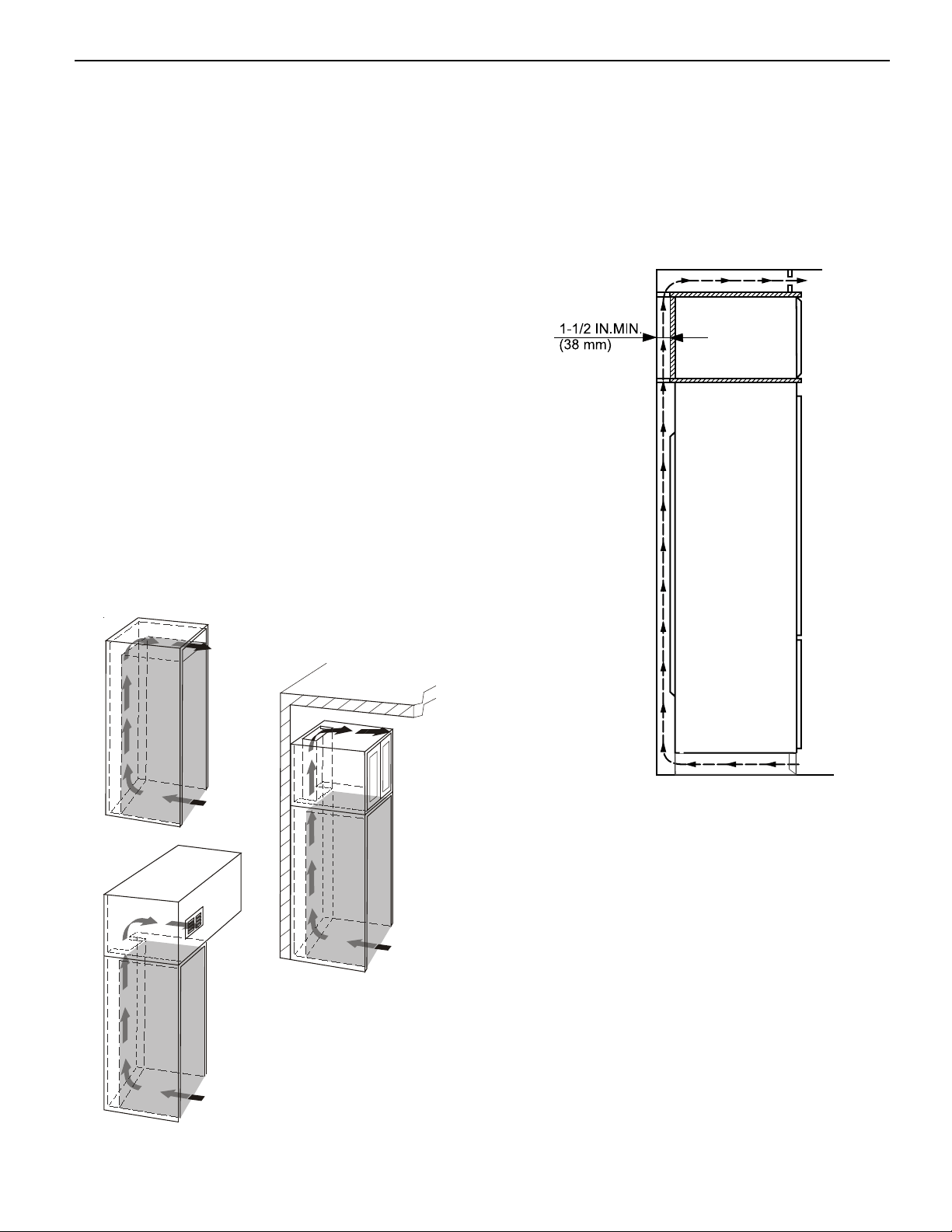

Ventilation Requirements 24", 30", 48" and 60" Models .............................................................................. 29
Ventilation Requirements 36" and 72" (Side by Side) Models ................................................................... 30
Door Swing Clearance ..................................................................................................................................... 31
Door Swing Clearance CS 2060, CS 2061 .................................................................................................................................31
Door Swing Clearance CS 2062, CBS 2062 ..............................................................................................................................32
Accessories ....................................................................................................................................................... 33
6
Safety Warnings
PLEASE READ AND FOLLOW THESE INSTRUCTIONS
This design guide contains Warning and Important statements. This information is important for planning a safe and
efficient installation. Please refer to the Installation Manual specific to your model for complete installation instructions.
This design guide is intended for planning purposes and is not a replacement for your appliance's Use and Care
Manual which contains important information on how to use Liebherr appliances.
Always read and follow all Warning and Important statements!
WARNING!
Warning indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
IMPORTANT
This highlights information that is especially relevant
to a problem-free installation and operation.
Make sure incoming voltage is the same as the unit rating.
To reduce the risk of fire, electric shock, or personal injury, the installation work and electrical wiring must be done by a
qualified electrician in accordance with all applicable codes and standards, including fire rated construction.
To the Installer
It is very important that the guidelines and instructions are followed in this design guide to ensure proper installation
and operation of the unit. The Installation Guidelines section contains important information for making sure the instal-
lation is correct. Read and understand all the information and installation guidelines in this manual before the unit is
installed.
It is also very important to know the Safety Information.
General Remarks
7
Electrical Requirements & Safety
A 15 amp or 20 amp, 110-120 VAC, circuit which is
grounded and protected by a circuit breaker or fuse is
required.
We recommend using a dedicated circuit for each
appliance to prevent circuit overload and the chance of
interruption to the appliance.
The appliances are equipped with a three-prong
(grounding) polarized plug for protection against possible
shock hazards.
Comply with the National Electrical Code as well
as local codes and ordinances when installing the
receptacle.
WARNING!
Electrocution hazard.
Electrical grounding required.
•
Do not remove the round grounding
prong from the plug.
•
Do not use extension cords or
ungrounded (two-prong) adapters.
• Donotuseapowercordthatisfrayedor
damaged.
•
Do not use a power strip.
Failure to follow these instructions may
result in fire, electrical shock or death.
General Remarks
IceMaker (if equipped)
The icemaker is located in the freezer compartment. It
must be connected to the water supply. The appliance
must be level for the icemaker to function properly.
Except for the CS 1640B which has an internal tank ice
maker
The water supply pressure requirements are different
based on whether or not the supplied Liebherr water filter
is installed. With the filter installed, the pressure must be
in the range of 40-90 psi (2.8-6.2 bar). Without the filter
installed the acceptable pressure range is 22-87 psi (1.5-
6 bar).
Use a braided style ice maker hose with 1/4" compression
end or a 1/4" OD copper line to connect the water supply
with the solenoid valve of the appliance. This is not sup-
plied with the appliance.
The supplied brass fitting
must be used to connect to the solenoid
as the plastic threads on the solenoid are
metric.
If you have hard water, we recommend you install a
water softener. Also, a filter must be installed if the water
contains solids such as sand.
All equipment and devices used to supply the water to
the appliance must comply with the current regulations
for your geographical area.
Safety Instructions and Warnings
• Donotattachthewatersourcewhiletheapplianceis
connected to an electrical outlet.
• Ashut-offvalve,mustbeinstalledbetweenthehose
line and the main water supply so that the water
supply can be stopped if necessary. Do not install
the shut-off valve behind the refrigeration unit, so the
water can be stopped without removing the appliance
from its niche.
• Theconnectiontothewatersupplymayonlybemade
by a trained and licensed plumber.
• Thewaterqualitymustcomplywiththedrinkingwater
regulations for the geographical area where the appli-
ance is located.
• Theicemakerisdesignedexclusivelytomakeice
cubes in quantities needed by a household and may
only be operated with water appropriate for this pur-
pose.
• Allrepairsandworkontheicemakermayonlybedone
by customer service personnel or other trained person-
nel.
• Themanufacturercannotacceptliabilityfordamage
caused by equipment or water lines between the sole-
noid valve and the water supply.
8
Area Requirements
Verify the following:
• Floorscansupportrefrigerator’sweightplusapproxi-
mately 1200 pounds (544 kg) of food weight. Not
all Liebherr products are designed for 1200 pounds
(544 kg) of food. Some units are smaller and total
weights may vary.
• Finishedkitchenoorheightislevel.Refrigeratormust
beshimmedtotheoorlevel,orlevelled,tomake
sure, air vents are not obstructed.
• Removeanythingattachedtotherearorsidewalls
that can obstruct refrigerator opening.
• Cutoutdimensionsareaccurate.
• Electricaloutletisincorrectlocation.
Do not install this unit next to any other refrigerator or
freezer except another Liebherr model. Liebherr models
are designed to allow side by side installation. They are
equipped with a heating system to eliminate condensa-
tion when units are installed side by side. Installing this
unit next to any other refrigerator or freezer can cause
condensation or cause damage to the Liebherr unit.
IMPORTANT
To protect the refrigerator from possible damage,
allow the appliance to stand 1 hour in place before
turning the electricity on. This allows the refrigerant
and system lubrication to reach equilibrium.
Blocking For Safety
The anti-tip bracket, if supplied must be installed to
prevent the unit from tipping after it is installed. Refer to
chapter "Blocking For Safety" in the installation instruc-
tions.
Safety Regulations
The appliances and are designed to cool, freeze, store
food as well and make ice (if equipped).
The appliances are manufactured to operate within
specific ambient temperature limits according to its
climate rating.
The climate rating indicates the ambient temperature at
which the appliance may be operated in order to deliver
optimal refrigeration performance.
The climate rating for each model is visible in chapter
"Specifications".
Climate Rating Ambient Temperature
SN 50°F to 90°F (10°C to 32°C)
N 61°F to 90°F (16°C to 32°C)
ST 61°F to 100°F (16°C to 38°C)
T 61°F to 109°F (16°C to 43°C)
SN-ST 50°F to 100°F (10°C to 38°C)
SN-T 50°F to 109°F (10°C to 43°C)
IMPORTANT
Do not operate the appliance outside the specified
ambient temperature range.
- Refrigerant circuits are tested for leaks and complies
with current safety regulations
CAN/CSA C22.2 No.60335-1-11
UL 60335-1 Fifth Edition
CAN/CSA C22.2 No. 60335-2-24-06
UL 60335-2-24 First Edition
General Remarks
9
Freestanding/Semi Built In Models
Specifications 24" and 48" Models
CS 1210
Energy Star: certified
Energy consumption p. a.: 370 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 11.9 cu ft (337 L)
Refrigerator: 8.1 cu ft (229 L)
Freezer: 3.8 cu ft (108 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•SmartSteeldoors
CS 1321
Energy Star: certified
Energy consumption p. a.: 380 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 13.6 cu ft (385 L)
Refrigerator: 9.8 cu ft (277 L)
Freezer: 3.8 cu ft (108 L)
Climate Rating: SN-T
Door hinges: left / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•SmartSteeldoors
CS 1360B
Energy Star: certified
Energy consumption p. a.: 480 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 13.6 cu ft (385 L)
Refrigerator: 9.8 cu ft (277 L)
Freezer: 3.8 cu ft (108 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMaker
•SmartSteeldoors
10

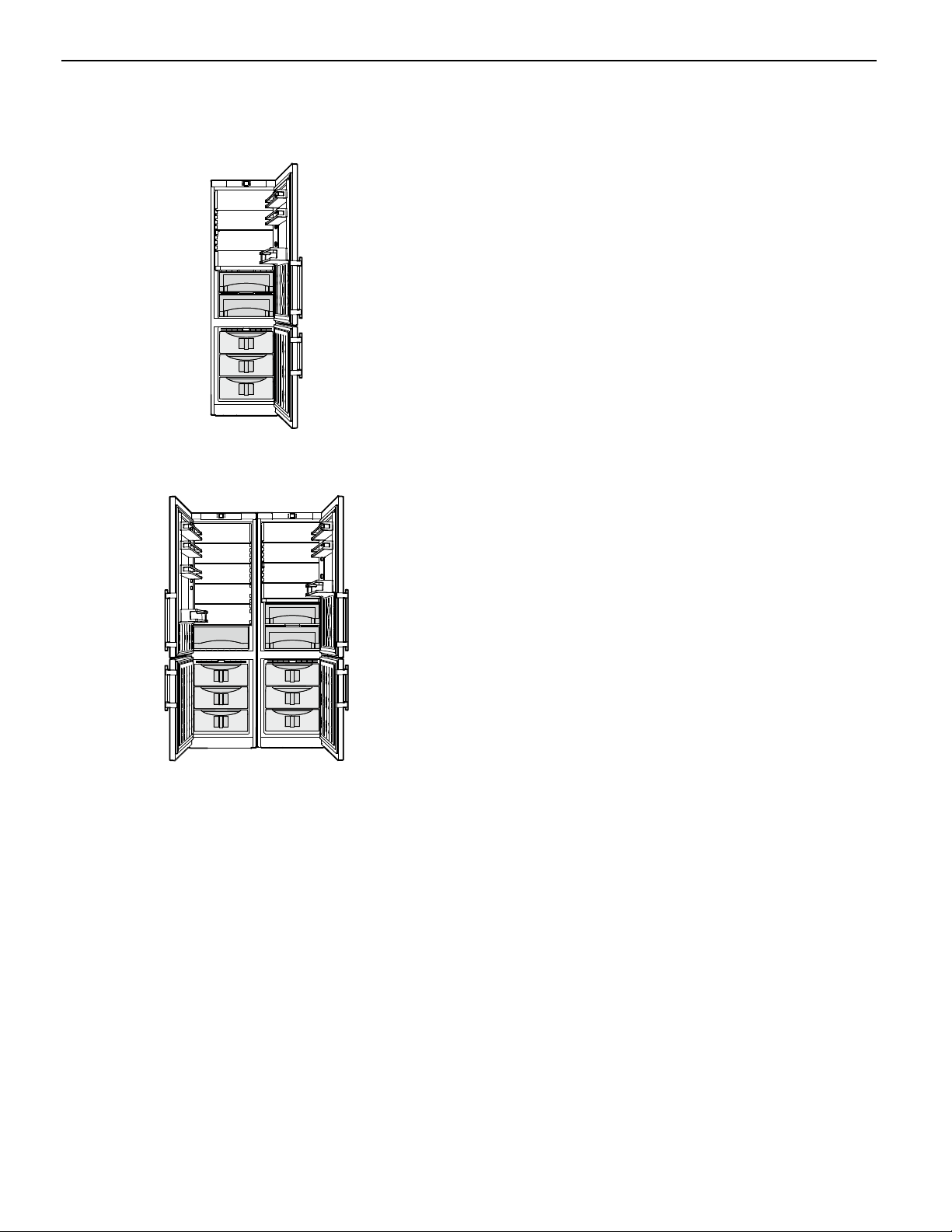

SBS 26S2 (CS 1321 & CBS 1360)
Energy Star: certified
Energy consumption p. a.: 860 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 26.7 cu ft (755 L)
Refrigerator: 19.1 cu ft (539 L)
Freezer: 7.6 cu ft (216 L)
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•SmartSteeldoors
•AutomaticIceMaker
•BioFreshdrawerswithadjustablehumidity
Freestanding/Semi Built In Models
CBS 1360
Energy Star: certified
Energy consumption p. a.: 480 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 13.1 cu ft (370 L)
Refrigerator: 9.3 cu ft (262 L)
Freezer: 3.8 cu ft (108 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMaker
•SmartSteeldoors
•BioFreshdrawerswithadjustablehumidity
11

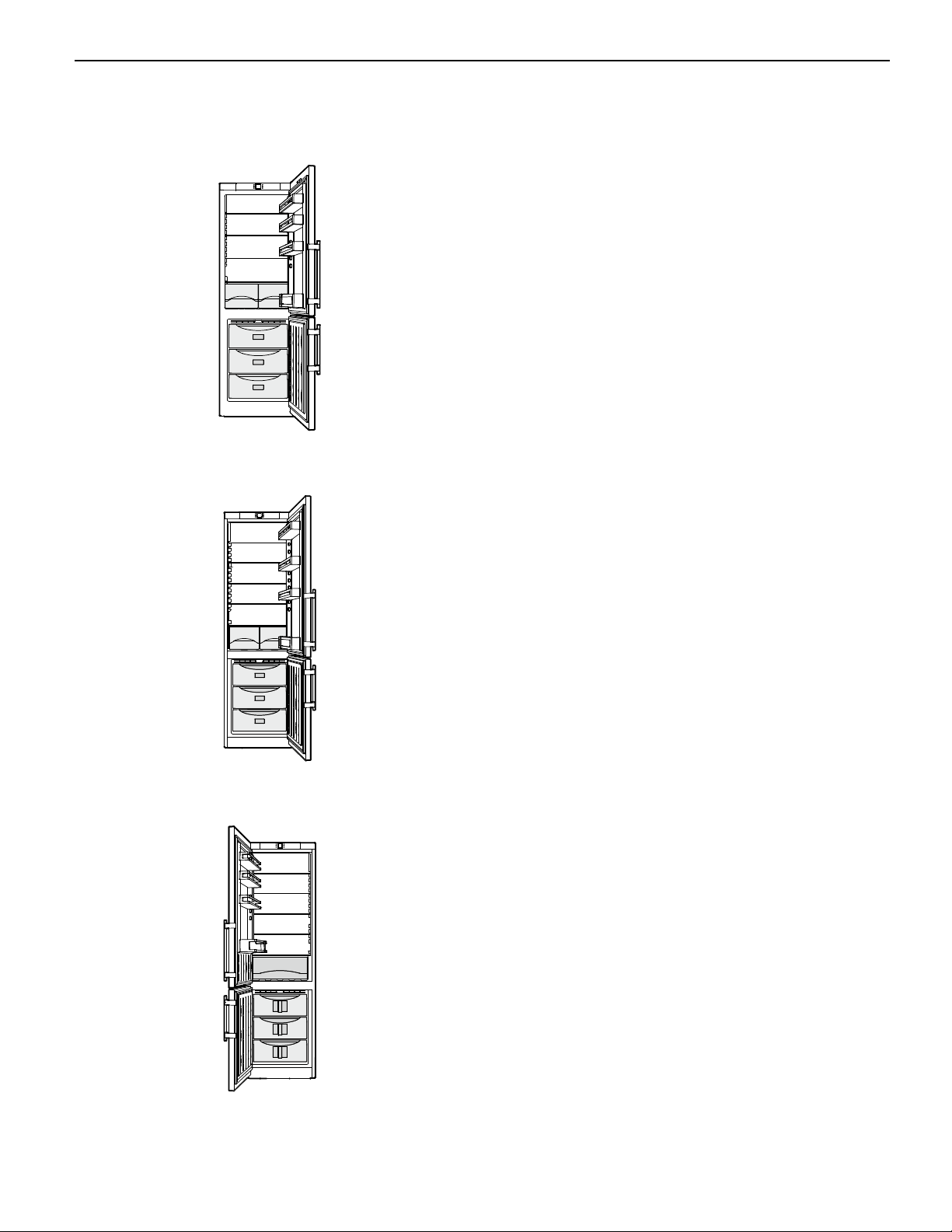

Specifications 30" and 60" Models
Freestanding/Semi Built In Models
CS 1400R
Energy Star: certified
Energy consumption p. a.: 380 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 13.7 cu ft (387 L)
Refrigerator: 10.2 cu ft (288 L)
Freezer: 3.5 cu ft (99 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•SmartSteeldoors
CS 1400PC
Energy Star: certified
Energy consumption p. a.: 380 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 13.7 cu ft (387 L)
Refrigerator: 10.2 cu ft (288 L)
Freezer: 3.5 cu ft (99 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•SmartSteeldoors
CS 1400R-IM
Energy Star : certified
Energy consumption p. a.: 465 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 13.7 cu ft (387 L)
Refrigerator: 10.2 cu ft (288 L)
Freezer: 3.5 cu ft (99 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMaker
•SmartSteeldoors
12
Freestanding/Semi Built In Models
CS 1410
Energy Star: certified
Energy consumption p. a.: 380 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 15.6 cu ft (442 L)
Refrigerator: 12.1 cu ft (343 L)
Freezer: 3.5 cu ft (99 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•SmartSteeldoors
CS 1640B
Energy Star: certified
Energy consumption p. a.: 496 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 16.8 cu ft (477 L)
Refrigerator: 12.1 cu ft (343 L)
Freezer: 4.7 cu ft (134 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakerwithwatertank
•SmartSteeldoors
CBS 1660 (right hinged)
CBS 1661 (left hinged)
Energy Star: certified
Energy consumption p. a.: 488 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 16.4 cu ft (464 L)
Refrigerator: 11.5 cu ft (326 L)
Freezer: 4.9 cu ft (138 L)
Climate Rating: SN-T
Door hinges: right / reversible
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMaker
•SmartSteeldoors
•BioFreshdrawerswithadjustablehumidity
13
Freestanding/Semi Built In Models
SBS 32S2 (CBS 1661 & CBS 1660)
Energy Star: certified
Energy consumption p. a.: 984 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 32.8 cu ft (928 L)
Refrigerator: 23 cu ft (652 L)
Freezer: 9.8 cu ft (276 L)
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMaker
•SmartSteeldoors
•BioFreshdrawerswithadjustablehumidity
14
CS 2060 (right hinged)
CS 2061 (left hinged)
Energy Star: certified
Energy consumption p. a.: 532 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 19.5 cu ft (552 L)
Refrigerator: 13.5 cu ft (382 L)
Freezer: 6 cu ft (170 L)
Ice cube output: 3 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•LEDlightcolumnandLEDfreezerlighting

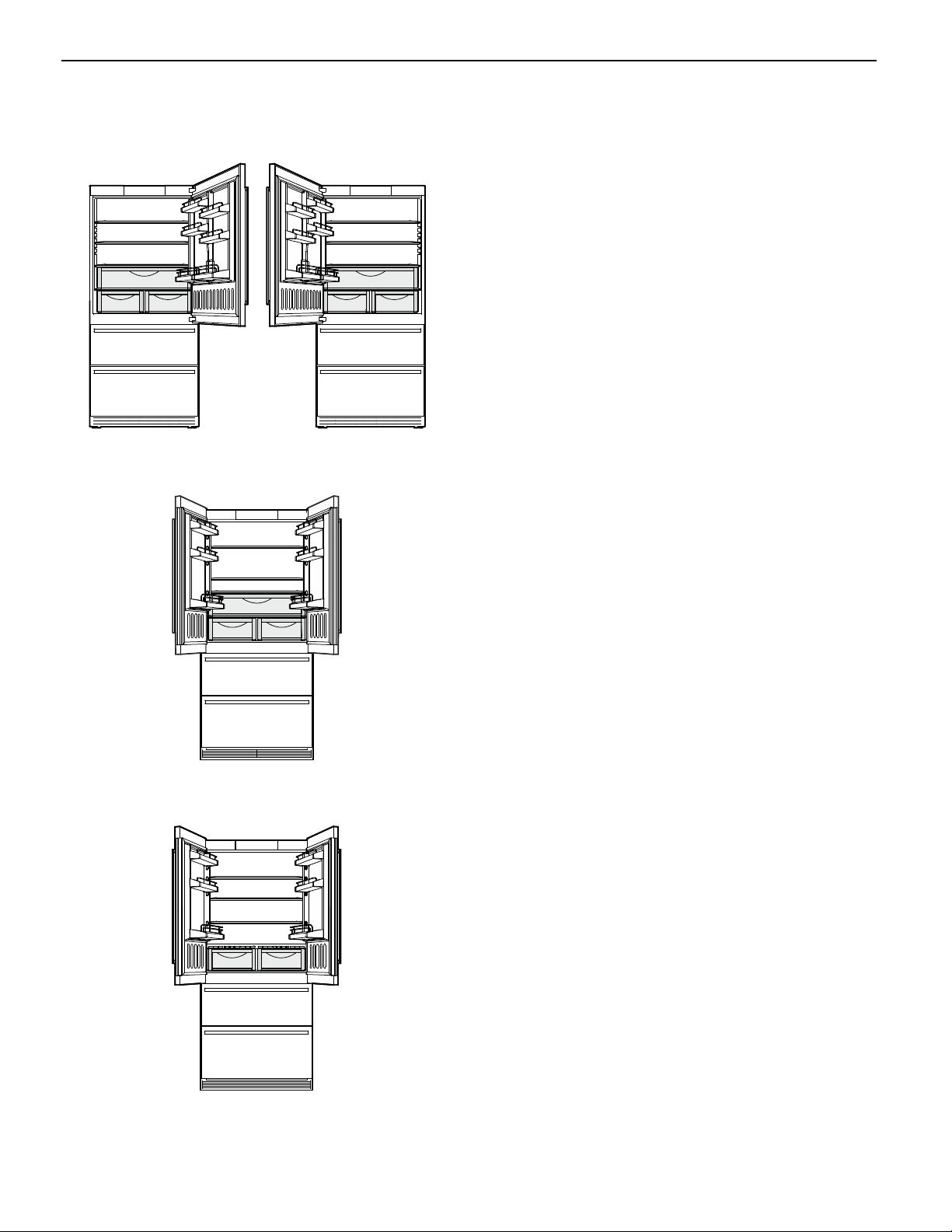

Specifications 36" Models
CS 2062
Energy Star: certified
Energy consumption p. a.: 532 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 19.5 cu ft (552 L)
Refrigerator: 13.5 cu ft (382 L)
Freezer: 6 cu ft (170 L)
Ice cube output: 3 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•LEDlightcolumnandLEDfreezerlighting
CBS 2062
Energy Star: certified
Energy consumption p. a.: 528 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 18.9 cu ft (535 L)
Refrigerator: 12.9 cu ft (365 L)
Freezer: 6 cu ft (170 L)
Ice cube output: 3 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•LEDlightcolumnandLEDfreezerlighting
•BioFreshdrawerswithadjustablehumidity
Freestanding/Semi Built In Models
15

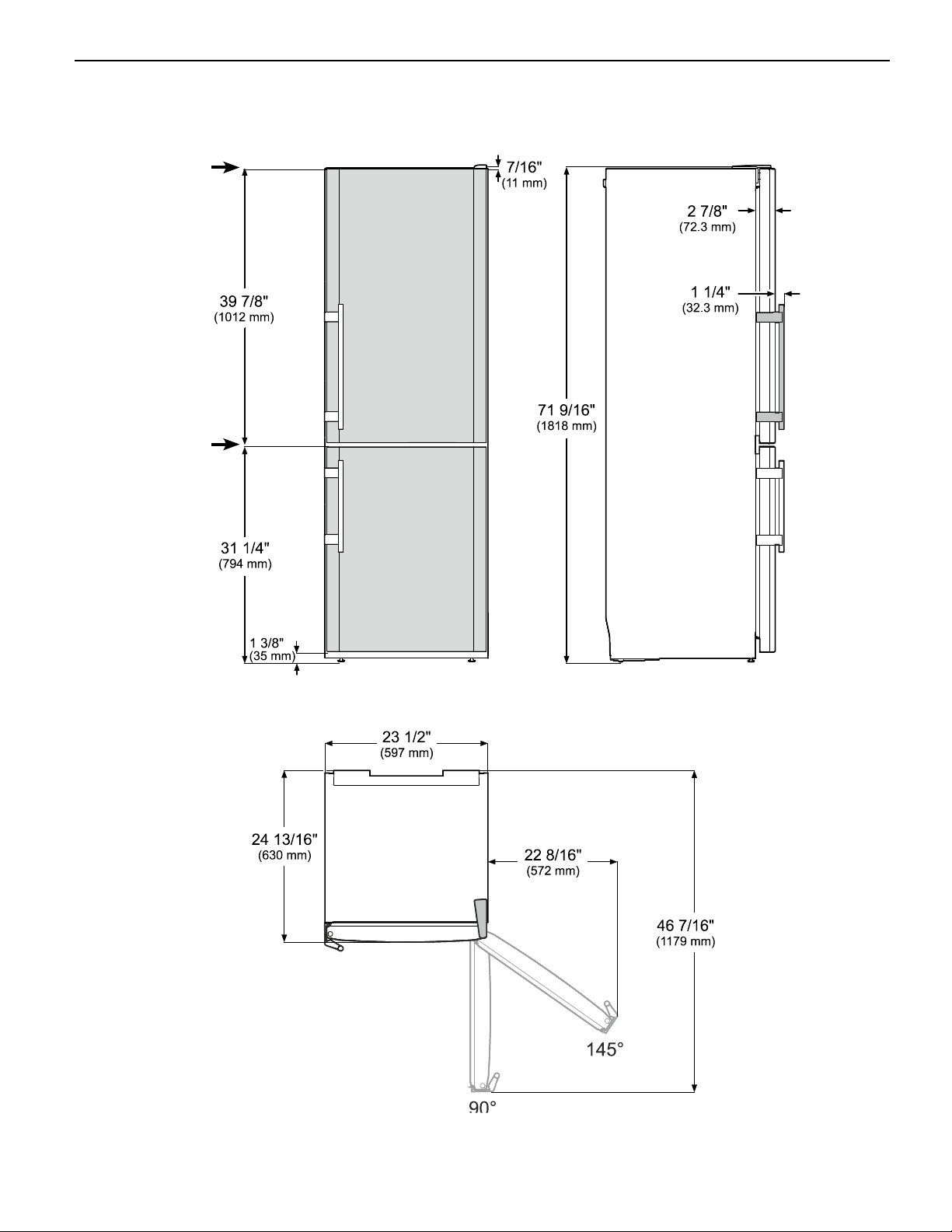

Unit Dimensions CS 1210
Freestanding/Semi Built In Models
Top of refrigerator door
Centerline between
Refrigerator- and
Freezer door
Height can be increased by 5/8" (16 mm)
by turning the levelling feet at the front
and the height adjustable roller units at
the appliance rear.
Allow door swing clearance at
locations next to a wall.
The refrigerator door must
open to a minimum of 90° to
allow the crispers to open and
the shelves to be removed.
Unit Dimensions
16

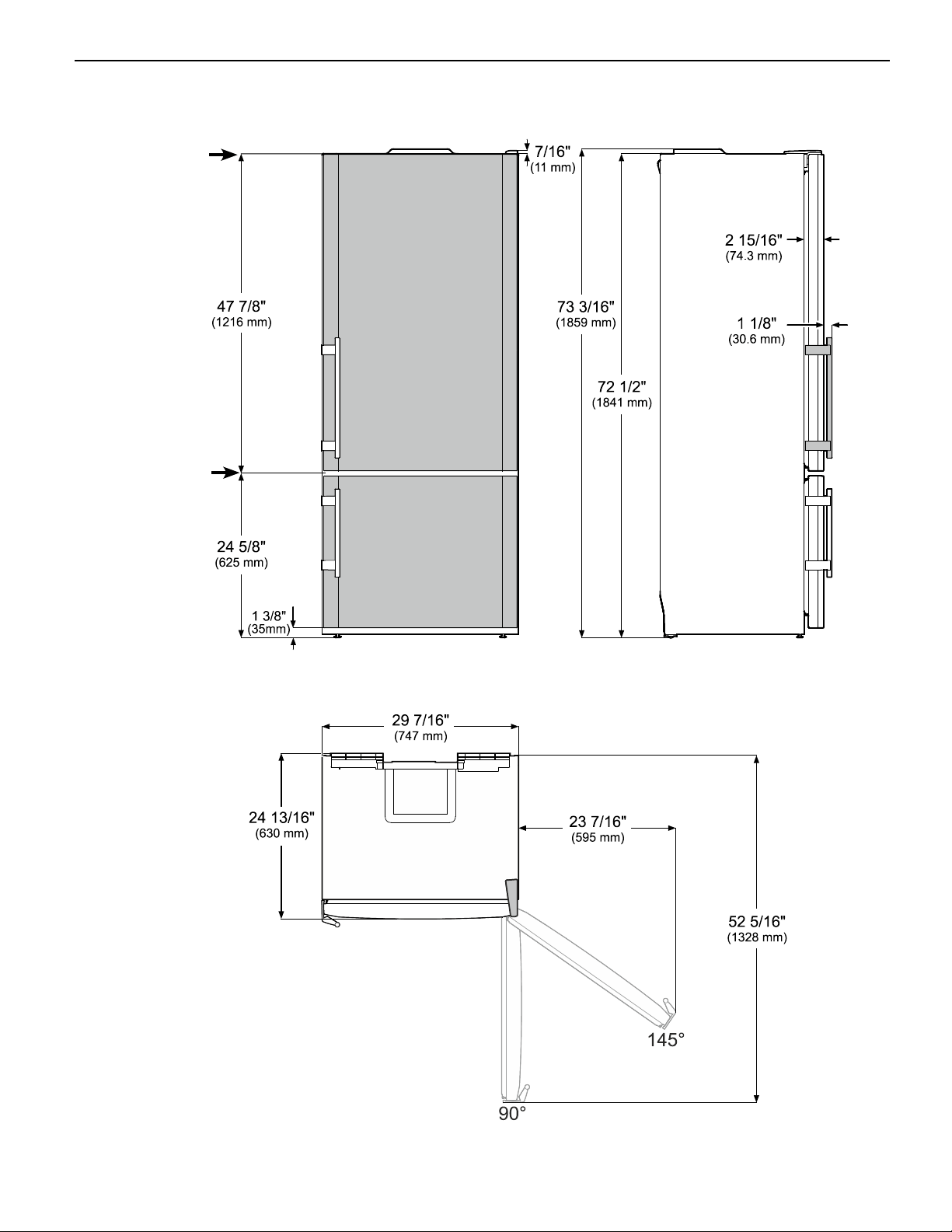

Unit Dimensions CS 1360B / CS 1321 / CBS 1360
Freestanding/Semi Built In Models
Top of refrigerator door
Centerline between
Refrigerator- and
Freezer door
Height can be increased by 5/8" (16 mm)
by turning the levelling feet at the front
and the height adjustable roller units at
the appliance rear.
Allow door swing clearance at locations
next to a wall.
The refrigerator door must open to a
minimum of 90° to allow the crispers to
open and the shelves to be removed.
For models CS 1321 and CBS 1360 it ist
possible to limit the door opening to 90°
17
Unit Dimensions SBS 26S2
Freestanding/Semi Built In Models
Detail measures for each appliance see
"Unit Dimensions CS 1321 and CBS 1360"
18
Freestanding/Semi Built In Models

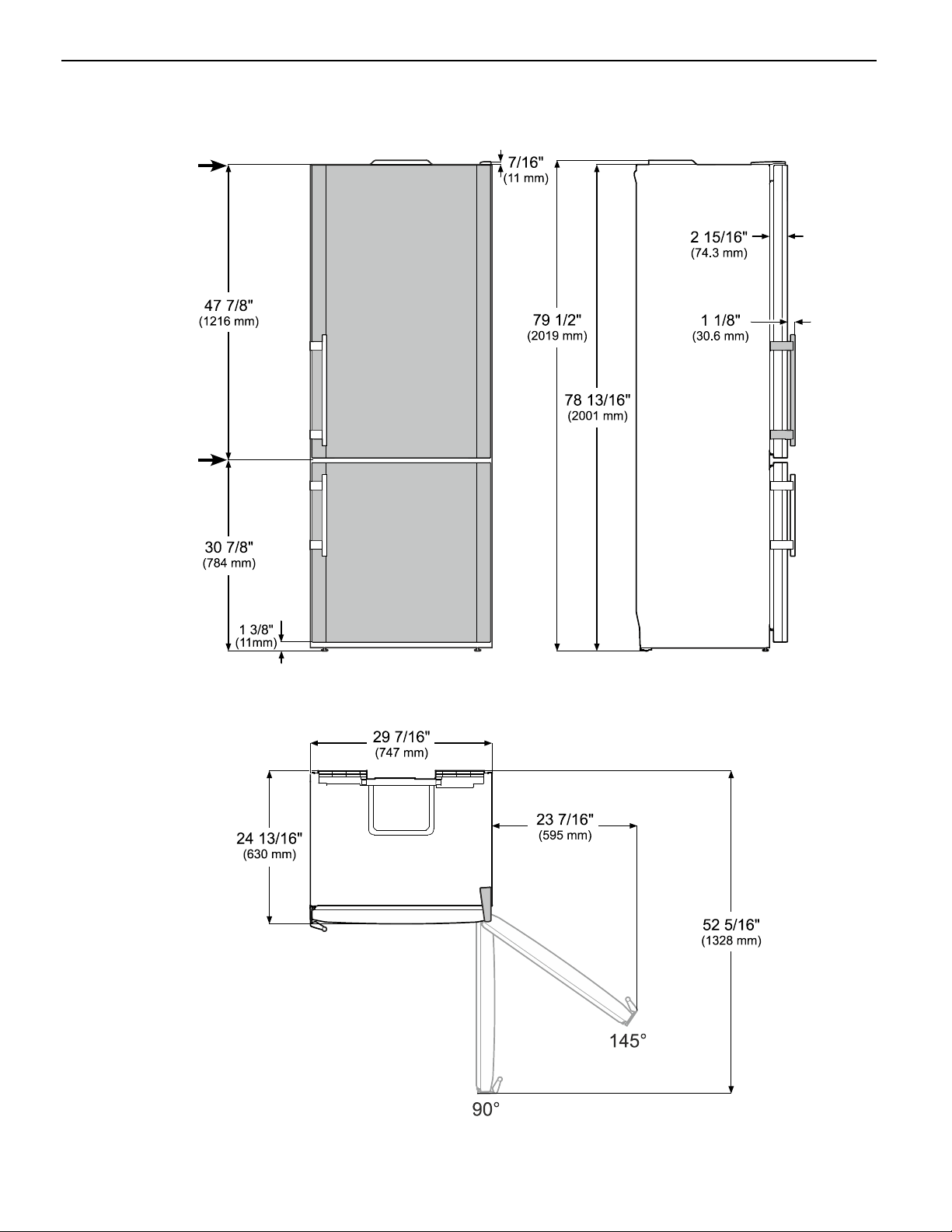

Unit Dimensions CS 1400R / CS 1400PC / CS 1400R-IM
Top of refrigerator door
Centerline between
Refrigerator- and
Freezer door
Height can be increased by 5/8" (16 mm)
by turning the levelling feet at the front
and the height adjustable roller units at
the appliance rear.
Allow door swing clearance at locations next
to a wall.
The refrigerator door must open to a
minimum of 90° to allow the crispers to
open and the shelves to be removed.
For models CS 1400R and CS 1400R-IM it
ist possible to limit the door opening to 90°
19
Unit Dimensions CS 1410
Freestanding/Semi Built In Models
Top of refrigerator door
Centerline between
Refrigerator- and
Freezer door
Height can be increased by 5/8" (16 mm)
by turning the levelling feet at the front
and the height adjustable roller units at
the appliance rear.
Allow door swing clearance at
locations next to a wall.
The refrigerator door must
open to a minimum of 90° to
allow the crispers to open and
the shelves to be removed.
It ist possible to limit the door
opening to 90°
20
Freestanding/Semi Built In Models
Unit Dimensions CS 1640B / CBS 1660 / CBS 1661
Top of refrigerator door
Centerline between
Refrigerator- and
Freezer door
Height can be increased by 5/8" (16 mm)
by turning the levelling feet at the front
and the height adjustable roller units at
the appliance rear.
Allow door swing clearance at
locations next to a wall.
The refrigerator door must
open to a minimum of 90° to
allow the crispers to open and
the shelves to be removed.
It ist possible to limit the door
opening to 90°
21
Unit Dimensions SBS 32S2
Freestanding/Semi Built In Models
Detail measures for each appliance see
"Unit Dimensions CBS 1661 and CBS 1660"
22
Freestanding/Semi Built In Models
Height can be increased by 1-1/2" (40 mm) by
turning the levelling feet at the front and the height
adjustable roller units at the appliance rear.
Allow door swing clearance at
locations next to a wall.
The refrigerator door must
open to a minimum of 90° to
allow the crispers to open and
the shelves to be removed.
Top of refrigerator door
Centerline between
Refrigerator door
and Freezer drawer
Centerline between
Freezer drawers

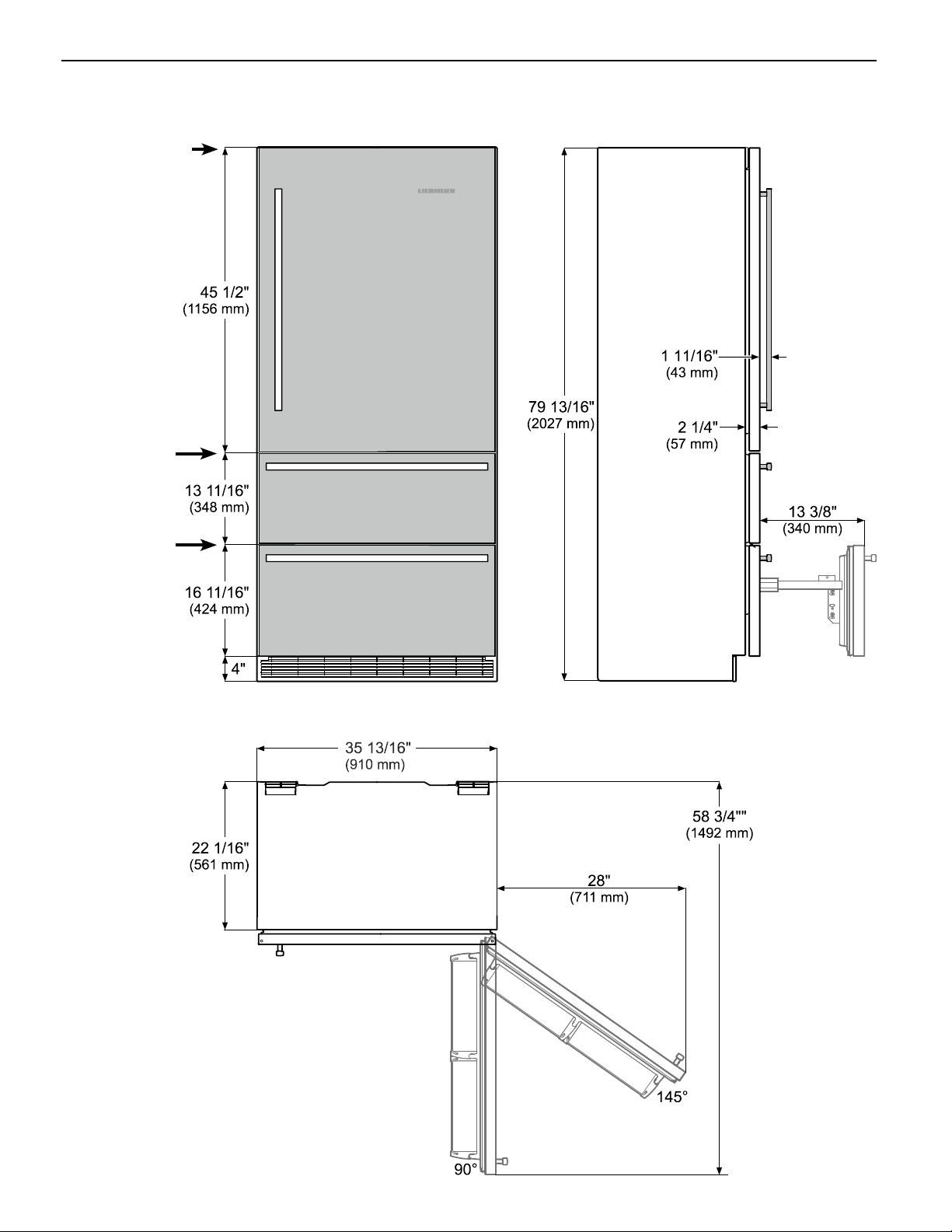

Unit Dimensions CS 2060, CS 2061
23
Unit Dimensions CS 2062, CBS 2062
Height can be increased by 1-1/2" (40 mm) by
turning the levelling feet at the front and the height
adjustable roller units at the appliance rear.
Top of refrigerator door
Centerline between
Refrigerator doors
and Freezer drawer
Centerline between
Freezer drawers
Allow door swing clearance at
locations next to a wall.
The refrigerator door must
open to a minimum of 90° to
allow the crispers to open and
the shelves to be removed.
Freestanding/Semi Built In Models
24
Freestanding/Semi Built In Models

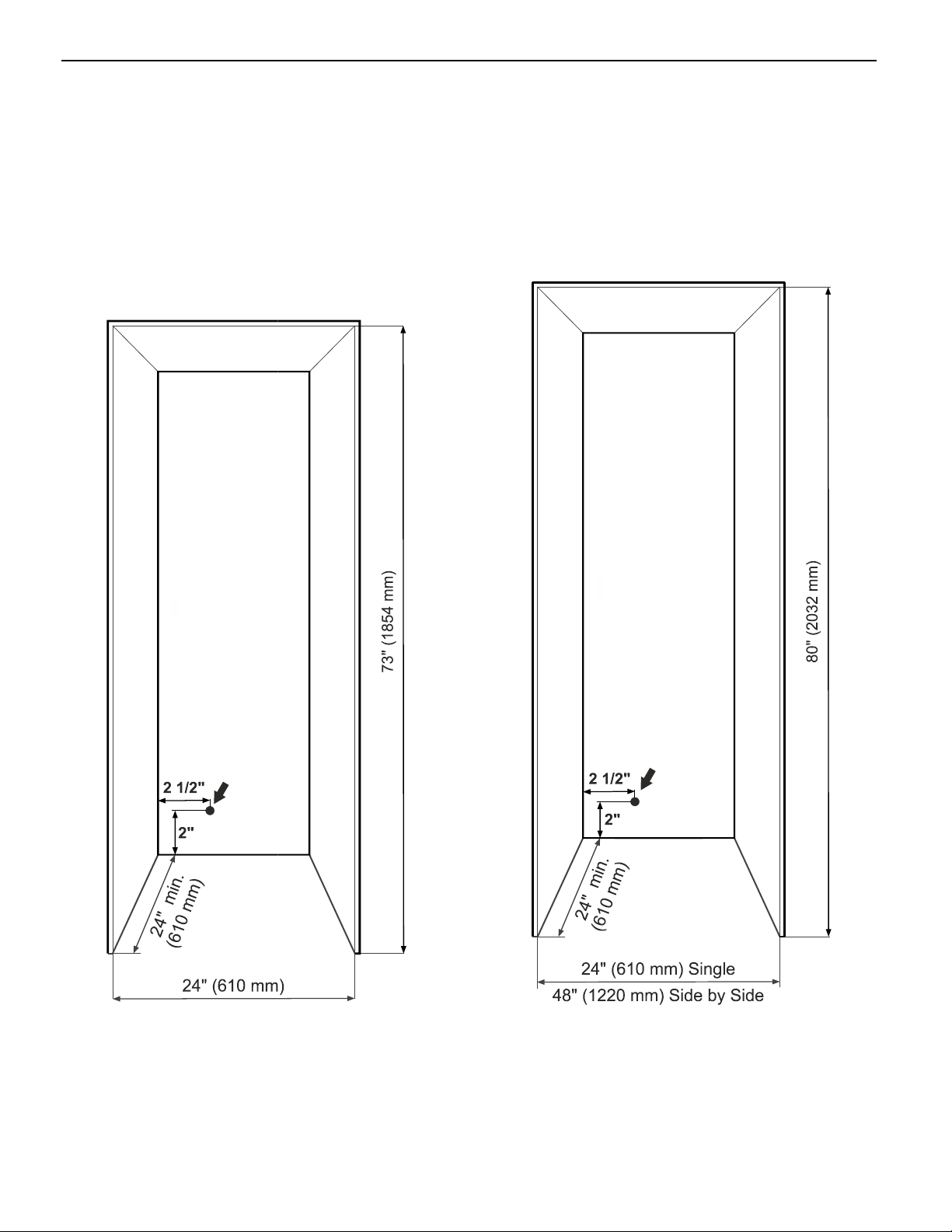

Cabinet Opening Dimensions - 24" and 48" Models
The appliance can be used freestanding or semi built-in.
If semi built-in, consider the cabinet opening dimensions specified below.
CS 1210
CS 1360B, CS 1321, CBS 1360
Free length of the
power cord is 90".
The electrical
outlet must not be
situated behind
the appliance and
must be easily
accessible.
Free length of the
power cord is 90".
The electrical
outlet must not be
situated behind
the appliance and
must be easily
accessible.
The power cord
exits the rear of
the appliance at
this location.
The power cord
exits the rear of
the appliance at
this location.
25
CS 1400R, CS 1400PC
Cabinet Opening Dimensions - 30" and 60" Models
The appliance can be used freestanding or semi built-in.
If semi built-in, consider the cabinet opening dimensions specified below.
Freestanding/Semi Built In Models
Free length of the
power cord is 90".
The electrical
outlet must not be
situated behind
the appliance and
must be easily
accessible.
The power cord exits
the rear of the appli-
ance at this location.
CS 1400R-IM
Free length of the
power cord is 90".
The electrical
outlet must not be
situated behind
the appliance and
must be easily
accessible.
The power cord exits
the rear of the appli-
ance at this location.
The water line lead out posi-
tion for CS 1660 models can
be within the shaded area.
26
IMPORTANT
Do not install the shut-off valve for the water supply behind the appliance, to allow access to the shut off without having to
pull out the appliance.
The water line lead out posi-
tion for CS 1660 models can
be within the shaded area.
NOTE
If the gap between the rear of the appliance and the wall is less than 2 inch (51 mm), the power consumption level
may increase.
Freestanding/Semi Built In Models
Free length of the power
cord is 90".
The electrical outlet
must not be situated
behind the appliance
and must be easily
accessible.
The power cord exits
the rear of the appli-
ance at this location.
CS 1640B, CBS 1660, CBS 1661CS 1410
Free length of the
power cord is 90".
The electrical
outlet must not be
situated behind
the appliance and
must be easily
accessible.
The power cord exits
the rear of the appli-
ance at this location.
27
Freestanding/Semi Built In Models
Cabinet Opening Dimensions - 36" Models
IMPORTANT
With 24" depth cabinets, the water line opening must be
in the location as shown as there will not be room to route
a water line behind the appliance for risk of pinching.
With cabinets deeper than 24" there is room to fit the
pipe behind the appliance and the wall so there are no
requirements for the water line lead out position.
Do not install the shut-off valve for the water supply
behind the appliance, to allow access to the shut off
without having to pull out the appliance!
Water line opening
Water supply line
Free length at least
31 - 1/2" (800 mm)
The cabinet opening height is 84" when using the
decorative grille. The decorative grille is available
as accessory and is not required for proper opera-
tion of the appliance. All ventilation requirements
are handled through the toe kick grille on the ap-
pliance and this decorative grille is intended to be
used as a filler for pre-existing 84" openings.
NOTE
The decorative upper grille attaches to the
cabinets / gables on either side of it and not to the
appliance itself nor any cabinet above.
The appliance can be used freestanding or semi built-in.
If semi built-in, consider the cabinet opening dimensions specified below.
Minimum opening height for the single door 36" models (CS 2060 / CS 2061) is 80".
Minimum opening height for the french door 36" models (CS 2062 / CBS 2062) is 80-1/2" to accommodate the top
mounted hinges.
The requirements for water supply and electrical outlet are the same for both applications.
Free length of the power
cord is 90".
The electrical outlet
must not be situated
behind the appliance
and must be easily
accessible.
The power cord exits the
rear of the appliance just
above the opening for the
water line.
28
IMPORTANT
With 24" depth cabinets, the water line opening must be in the location as shown as there will not be room to route a
water line behind the appliance for risk of pinching.
With cabinets deeper than 24" there is room to fit the pipe behind the appliance and the wall so there are no
requirements for the water line lead out position.
Do not install the shut-off valve for the water supply behind the appliance, to allow access to the shut off without
having to pull out the appliance!
The appliance can be used freestanding or semi built-in.
If semi built-in, consider the cabinet opening dimensions specified below.
Minimum opening height for the single door 36" models (CS 2060 / CS 2061) is 80".
Minimum opening height for the french door 36" models (CS 2062 / CBS 2062) is 80-1/2" to accommodate the top
mounted hinges.
The requirements for water supply and electrical outlet are the same for both applications.
Free length of the power
cord is 90".
The electrical outlet
must not be situated
behind the appliance
and must be easily
accessible.
The power cord exits the
rear of the appliance just
above the opening for the
water line.
Freestanding/Semi Built In Models
Cabinet Opening Dimensions - 72" Models (Side by Side)
The water line lead out posi-
tion can be within the shaded
area.
29
Ventilation Requirements 24", 30", 48" and 60" Models
The refrigerator is designed to allow proper air flow
when the appliance is installed up against the wall.
A minimum space of 1 1/2" is required behind the
cabinet when venting above an upper cabinet which is
installed flush to the top of the appliance.
B - Side view
Cabinet
Refrigerator
Do not restrict the air flow. The opening can either be
directly over the appliance
1
, above the cabinet and
below the ceiling
2
or through a vent installed in a soffit
3
.
The cabinet height as specified at 80” (2032 mm) will
create a 1-5/16” (33 mm) gap above the appliance
providing optimal air flow over the top of the appliance for
its efficient operation.
To have the same air flow for CS 1410 appliances, the
cabinet opening height must be 73-3/4" minimum.
Be sure to consider the possibility of having to raise
some of the leveling legs in order to level the appliance
when installing. If you adjust the height of the appliance -
it will effectively reduce air flow. Therefore leave yourself
some room for adjustment.
IMPORTANT
The section between the freezer door and the floor must
not be covered.
1
2
3
Freestanding/Semi Built In Models
30
Ventilation Requirements 36" and 72" (Side by Side) Models
CS/CBS 20 appliances dont need any ventilation openings in the cabinet.
The required airflow is directed through the toe kick area.
The cover grill provided with the appliance must be
used for the ventilation opening. This grill must not be
covered by toe kick or other trim.
CS/CBS 2062 CS 2060/2061
Freestanding/Semi Built In Models
R600a Refrigerant
WARNING!
The refrigerant R600a contained within the
appliances is environmentally friendly, but
flammable. Leaking refrigerant can ignite.
To prevent possible ignition, designed
ventilation is required.
31
Front of appliance housing
Right side wall of appliance housing
Maximum door
opening angle 145°
Top View

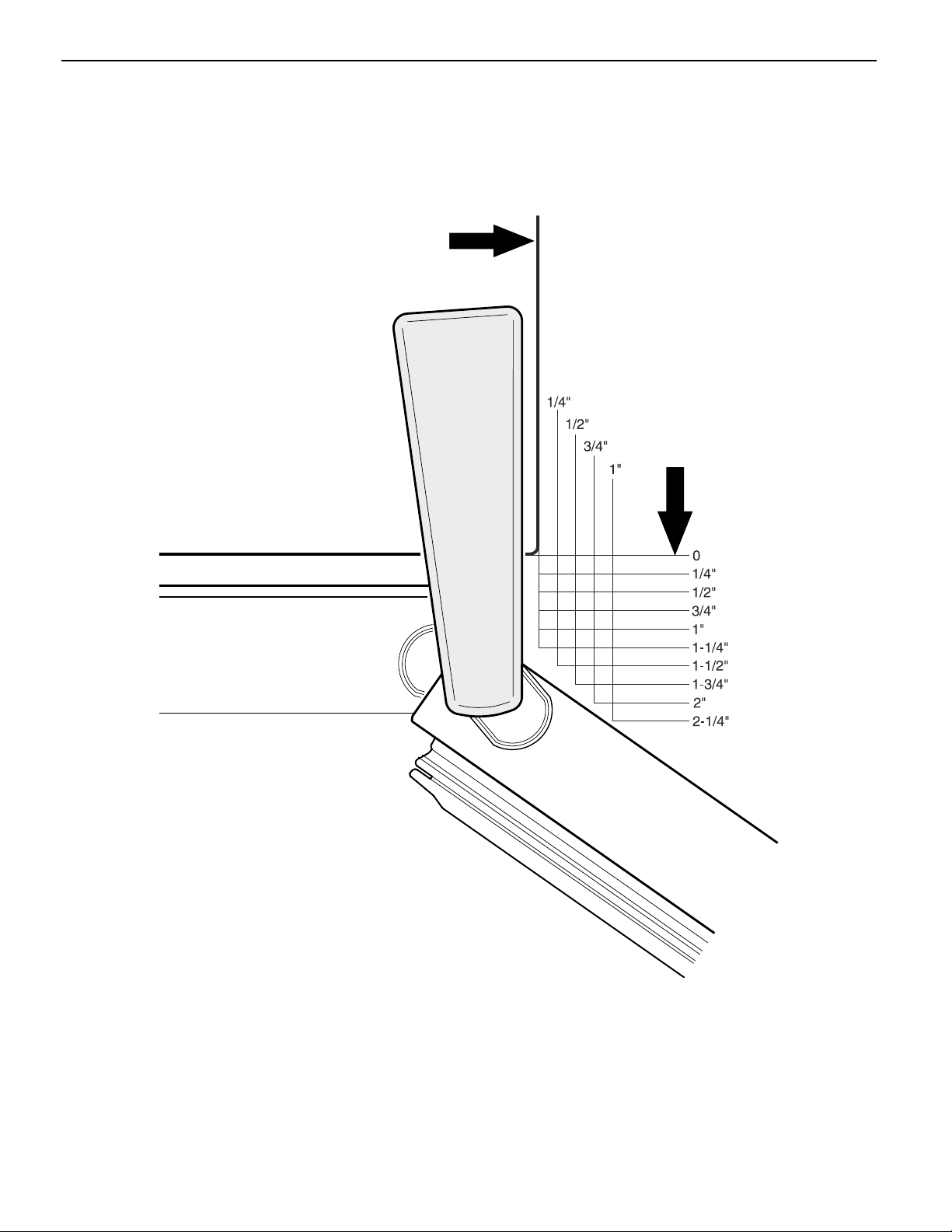

Door Swing Clearance CS 2060, CS 2061
Note
There is no 90° door
stop for this model
Door closed
Freestanding/Semi Built In Models
Door Swing Clearance
32
Freestanding/Semi Built In Models
Door Swing Clearance CS 2062, CBS 2062
Right side wall of appliance housing
Front of appliance housing
Door closed
Maximum door
opening angle 145°
Top View
Note
There is no 90° door
stop for this model
33
Image Article number Name of the item For use with model
9900 199-00 Decorative grille 84" recess height. CS 2062
CBS 2062
9900 277-00 Decorative grille 84" recess height. CS 2060
CS 2061
7440 002-00 Water filter CS 2062
CBS 2062
CS 2060
CS 2061
CS 1660
9096-034-00 Water filter add-on kit with ice maker CBS 1360
CS 1360B
CS 1400R-IM
CBS 1660
CBS 1661
SBS 32S2
SBS 26S2
9900-368-00 Top Vent grill 48" SBS 26S2
Accessories
Freestanding/Semi Built In Models
34
Freestanding/Semi Built In Models

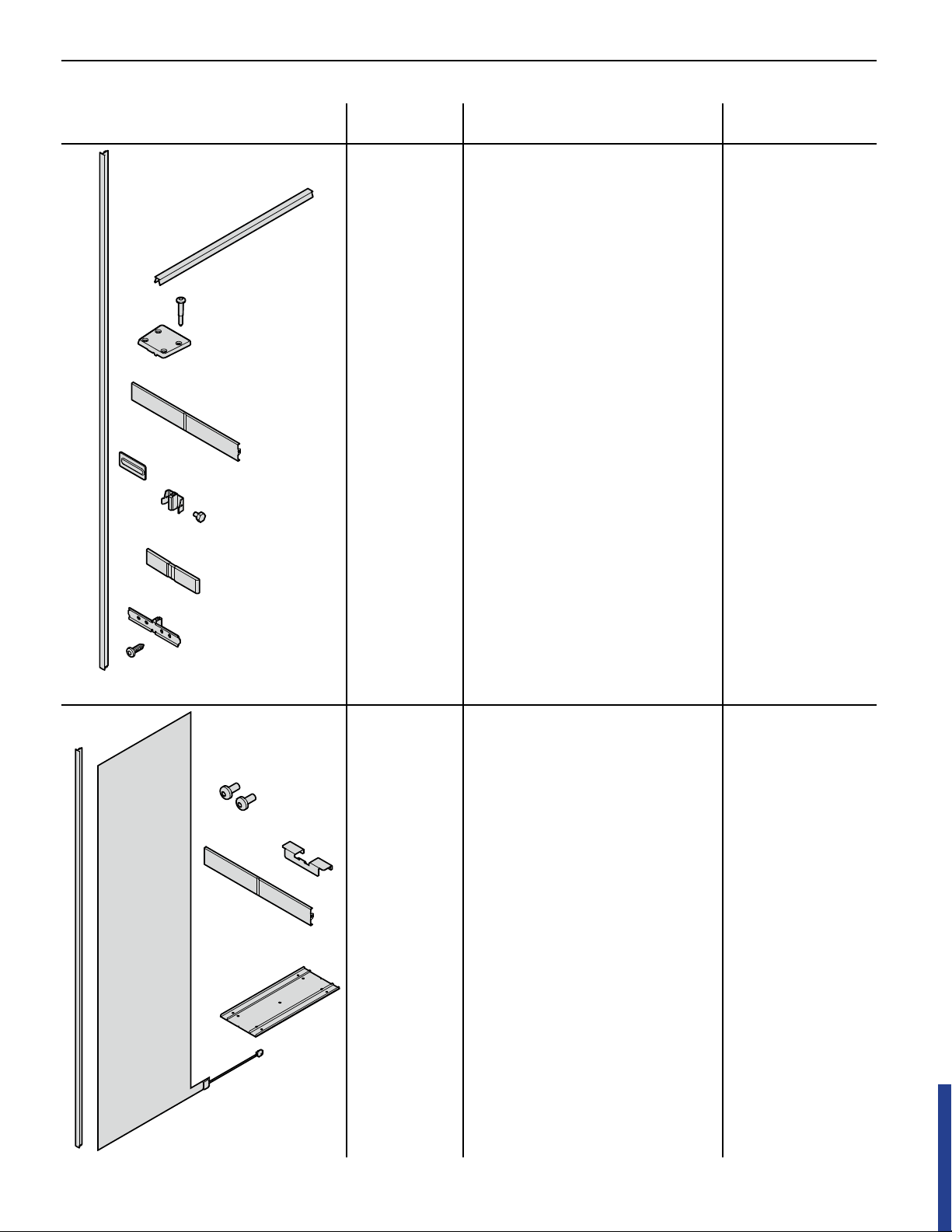

Image Article number Name of the item For use with model
9901-555-00 SBS-Kit SBS 26S2
9900-22100 SBS-Kit CS 2062
CS 2062
