Instruction Manual
CDP 2D1149W
CDP 2D1149X
9 place settings
11 place settings
half-load function
1) Safety Information.........................................1
Read this Manual
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Keep it to refer to it at a later date.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
Before Calling for
Service
To review the section on troubleshooting Tips
will help you to solve some common problems
by yourself .
If you can not solve the problems by yourself ,
please ask for the help of professional technicians.
NOTE:
2) Quick operation guide................................... 2
3) Operation Instruction....................................3
Control Panel...................................................3
Dishwasher Features.................................... ...3
4) Prior using for the first time...........................4
A Water Softener...........................................4
B Loading the Salt into the Softener.................5
C Loading the Detergent................................6

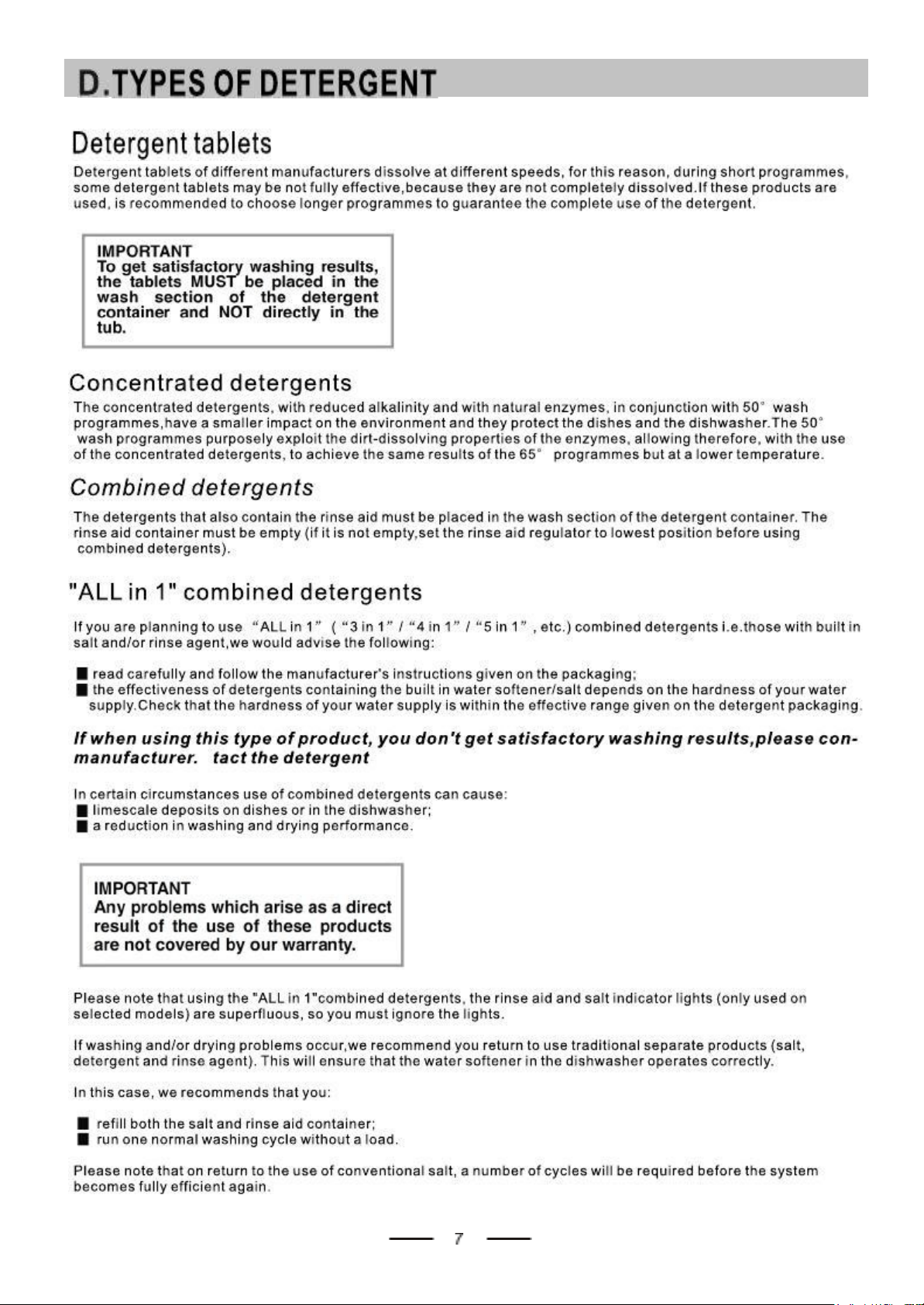

D Types of Detergent............ .........................7

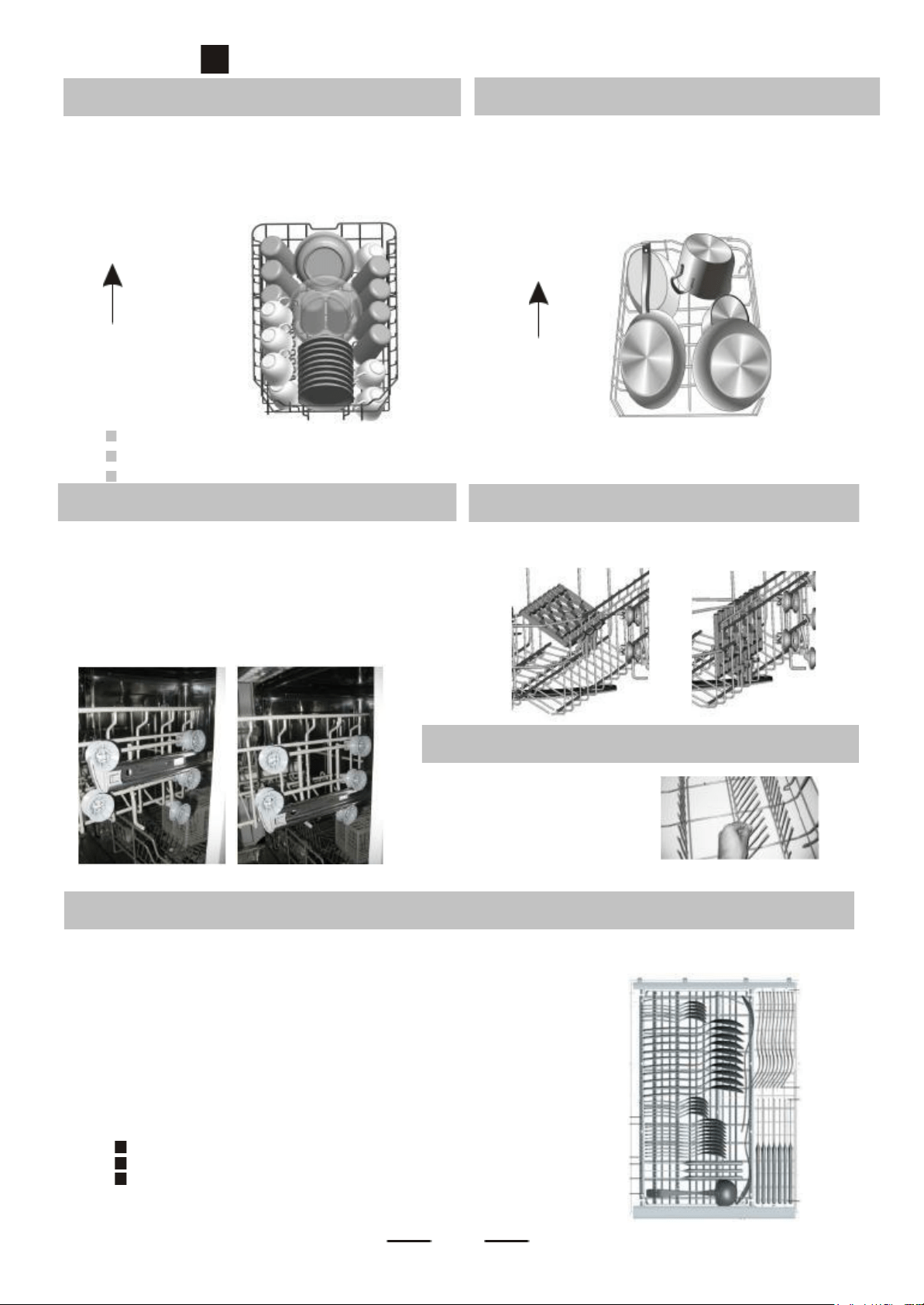

5) Loading the Dishwasher Basket.....................9
Recommengation...........................................9
For washing in the dishwasher the
folliwing cutlery/dishes..................................9
Attention before or after loading the
Dishwasher Baskets......................................9
Removing the Dishes................................. ...9
The Method Loading Normal Dishware......... ...10
6) Starting a washing programme.....................11
Wash Cycle Table...........................................11
Turning on the Appliance................................11
Change the Programme..................................12
At the end of the Wash Cycle...........................12
7) Maintenance and cleaning............................13
Filtering System.............................................13
Caring for the Dishwasher...............................14
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
This user manual shall also be got from the
manufacturer or responsible vendor.
8) Installation instruction....................................15
Positioning the Appliance...............................15
About Power Connection................................15
Water Connection..........................................16
Start of dishwasher........................................17
9) Troubleshooting Tips...................................18
Before calling for service.................................18
Error codes...................................................19

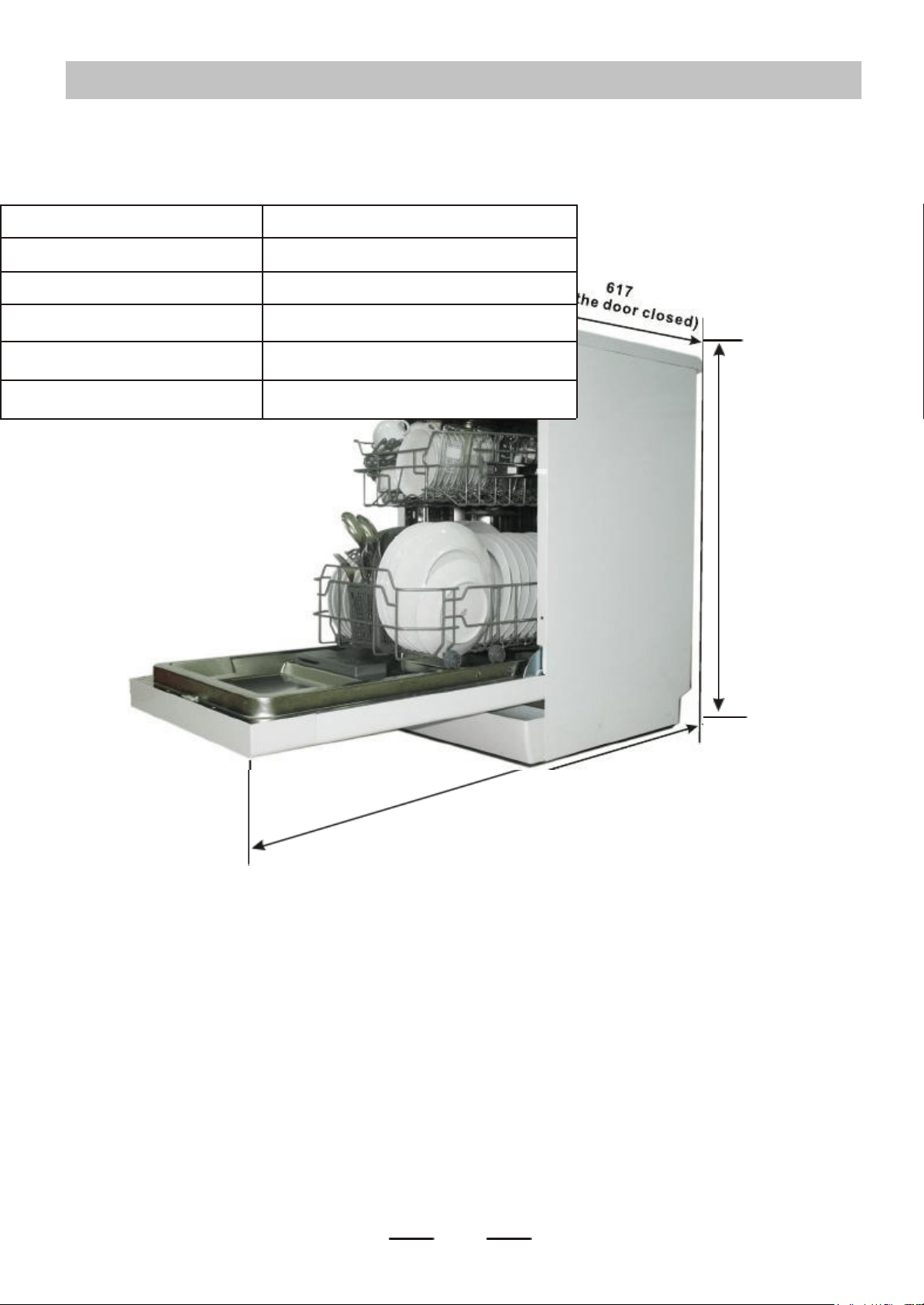

Technical information.....................................20
Loading the baskets according to En50242
1.IMPORTANT SAFETY INFORMATION
WARNING! When using your dishwasher,
follow the precautions listed below:
This appliance is intended to be used in household and similar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
(For EN60335-1 )
This appliance is not intended for use by persons(including children )with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
(For IEC60335-1)
This appliance is for indoor use only, for household use only. To protect
against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft
cloth moisten with mild soap, and then use a dry cloth to wipe it again .
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having
an equipment-earthing conductor and a earthing plug.
The plug must be plugged into an appropriate outlet that is installed and
earthed in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
1-1
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.
The maximum number of place settings to be washed is 11.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
1-2
WARNING!
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a
recycling centre. Therefore cut off the power supply cable
and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper
and should be disposed in the waste paper collection for
recycling.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately for
special treatment is necessary.
1-3
Close the door, Press the Programme button until the selected programme lights up.
( See the section entitled“Operation instruction”)
Turn on the water tap ,press the Start/Reset ,The machine will start working at once
WARNING!
3.Operation Instruction
IMPORTANT
To get the best performance from your dishwasher, read all
operating instructions
before using it for the first time.

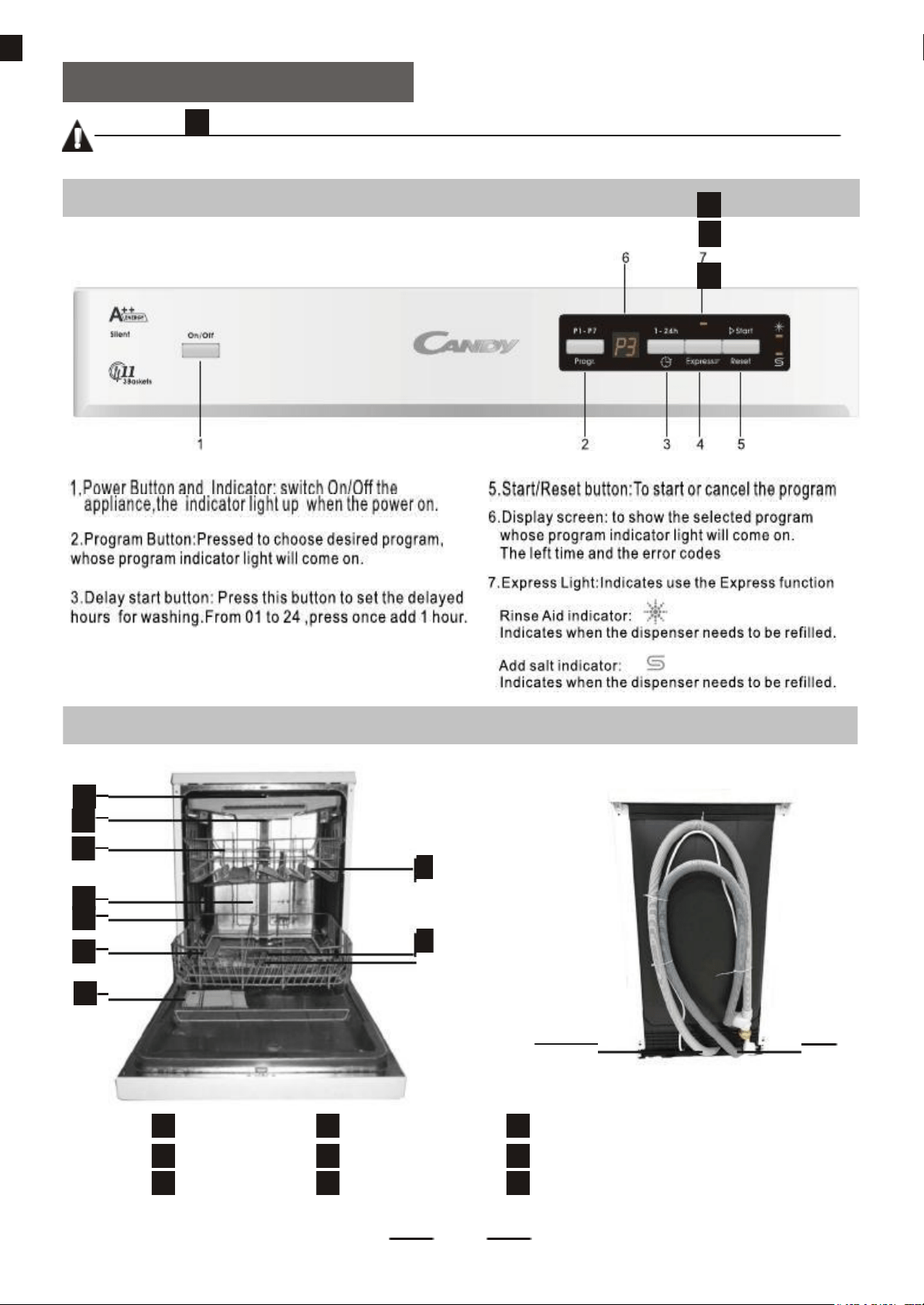

Control Panel
4.Express Option:program Rapid/Soak no
Express function.When the door closed and no
program running,press Express boutton to choose
the function;
Dishwasher Features
1
2
3
4
5
Front view
8
Back View
6
7
9
10
11
12
Top spray arm
Cutlery rack
Upper basket
4
5
6
Inner pipe
Lower basket
Salt container
7
8
9
Dispenser
Cup shelf
Spray arms
10
11
12
Filter assembly
Security Inlet pipe
Drain pipe
3
4.Prior using for the first time
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Fill the rinse aid dispenser
D. Fill in detergent
A. Water Softener
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of
the water used. This is intended to optimise and customise the level of salt consumption.
Please follow the steps below for adjustment in salt consumption.
1. Switch on the appliance;
2. Press the Programme button formore than 5 seconds to start the water
softener set model within 60seconds after the appliance was
switched on;
3. Press the Programme button to select the proper set according to
your local environment, the sets will change in the following
sequence: H3->H4->H5->H6->H1->H2;
4. Press the On/Off button to end the set up model.
Note:1
O O O
O
O
dH:
fH:
German degree
French degree
O
Clark: British degree
Note:2
The manufactory setting: H3 (EN 50242)
Contact your local water board for information on the hardness of your water supply.
NOTE:
If your model does not have any water softener, you may
skip this section.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
4
WATER HARDNESS
Selector Position
Salt co nsumption
(gram/cycle)
O
dH
O
fH
Clark
mmol/l
0~5
0~9
0~6
0~0.94
H1
0
6-11
10-20
7-14
1.0-2.0
H2
9
12-17
21-30
15-21
2.1-3.0
H3
12
18-22
31-40
22-28
3.1-4.0
H4
20
23-34
41-60
29-42
4.1-6.0
H5
30
35-55
61-98
43-69
6.1-9.8
H6
60

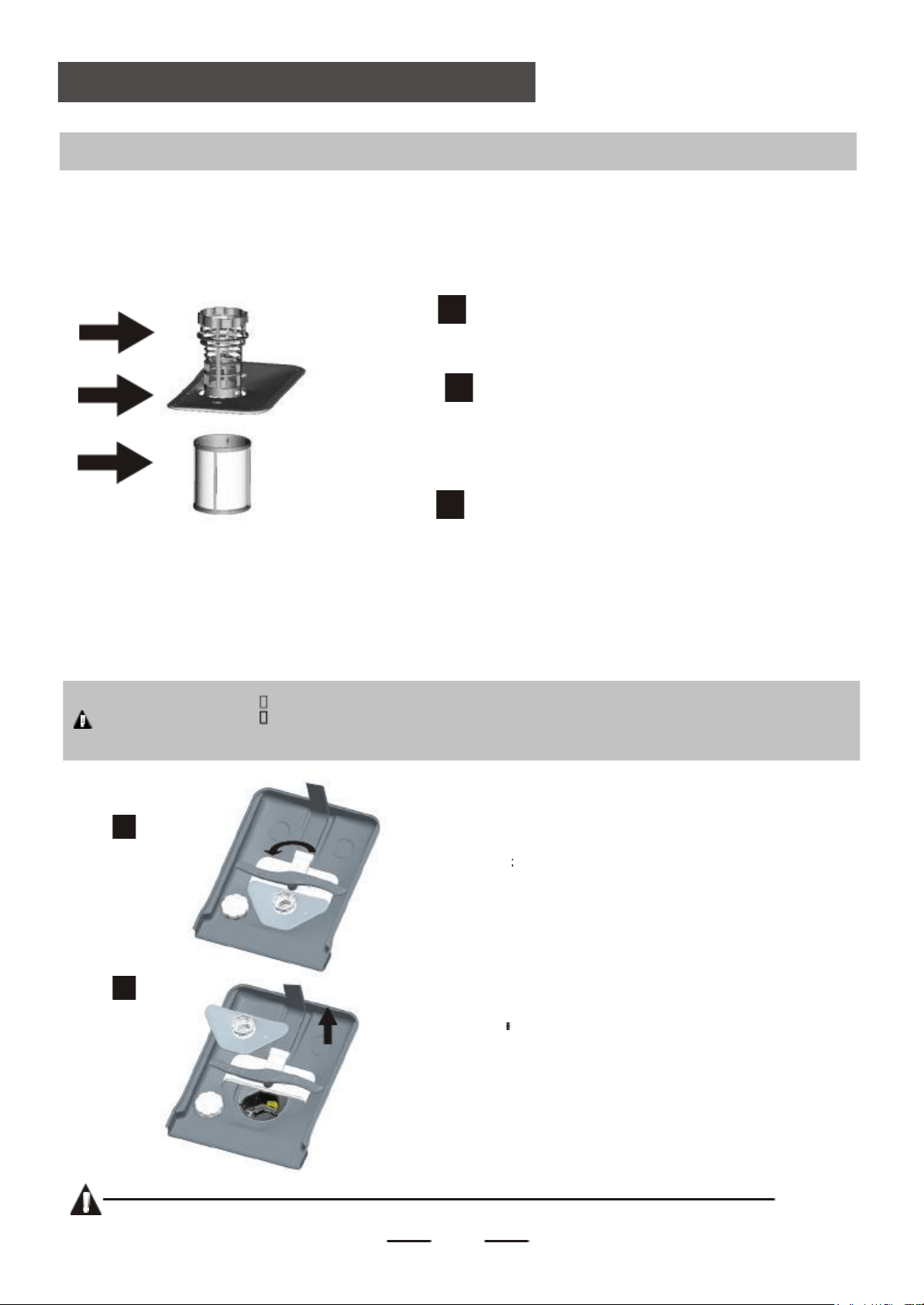

B. Loading the Salt Into the Softener
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
in the following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every other type of
salt not specifically designed for the use in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
A After the lower basket has been removed, unscrew and
remove the cap from the salt container.
B Place the end of the funnel (supplied) into the hole and
introduce about 1.5kg of dishwasher salt.
C Full fill the salt container with water,It is normal for a small
amount of water to come out of the
1
2
salt container.
D After filling the container , screw the cap tightly back clockwise.
E The salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short
program). Otherwise the filter system, pump or other important parts of the machine may be damaged
by salty water. This is out of warranty.
NOTE:
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (for some Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.
5
C. LOADING THE DETERGENT
The detergent
IMPORTANT
It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid or tablet form.
FINISH
gives very good results and can be easily obtained.Unsuitable detergents
(like those for washing up by hand)
do not contain the proper ingredients for use in a dishwasher and stop the dishwasher from working correctly.
Filling the detergent container
The detergent container is inside the door (fig. A 2 ). If the lid of the container is closed, press the button (A) to open.
At the end of every wash cycle the lid is always open and ready for the next time the dishwasher is used.
The amount of detergent to be used varies according to how dirty the dishes are and on the type of dishes to be washed.
We advise using 20/30 g of detergent in the wash section of detergent compartment (B).
After pouring the detergent into the container,close the lid, firstly pushing (1) and then pressing on it (2) until you hear the click.
Since not all detergents are the same the instructions on the boxes of detergent can vary. We should just like to remind users
that too little detergent does not clean the dishes properly whilst too much detergent will not produce better results and is
also a waste.
6
LOADING THE RINSE AID
The rinse aid
The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and
prevents spots and stains forming.
Filling the rinse aid container
The rinse aid container can be found to the left of the detergent container (fig. A "3") .To open the lid, push the
reference mark and, in the same time, pull the tab of opening.It is always advisable to use rinse aid that is specifically
designed for dishwasher.Check the rinse aid level through the indicator eye (C) which is located on the dispenser.
Regulating the rinse aid from 1 to 6
The regulator (D) is placed under the lid and can be turned using a coin.The recommended position is 4.The
limestone content of the water considerably affects the formation of limescale and the drying performance.
It is therefore important to regulate the quantity of rinse aid to achieve good washing results.If, after the wash,
streaks occur on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount
by one position.
8
5.Loading the Dishwasher Baskets
Recommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a program with as low a temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
For washing in the dishwasher the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Are of limited suitability
Some types of glasses can become
dull after a large number of washes
Silver and aluminum parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Attention before or after loading the Dishwasher Baskets
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
9
The Method Loading Normal Dishware
Loading the Upper Basket
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Lower Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
IN
IN
Please be reminded that:
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to
create more space for large utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted by placing the wheels on different height of the
rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelf so that they do not obstruct
the rotation of the spray arms..
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Lower position
Upper position
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Wheels
Cutlery Basket
Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may cause bad performance.
For a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.
Silverware is placed with the male face up.
Long utensils in the middle.
10
(
) Means: need to fill rinse into the Rinse-Aid Dispenser.
NOTE:
[ PX:P1-Intensive,P2-Normal,P3-ECO,P4-Glass,P5-Daily,P6-Rapid,P7-Soak]
Change the Program...
Premise:
1
2
A cycle that is underway can only be modified if it has only been running
for a short time. Otherwise, the
detergent may have already been released, and the appliance may have
already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section
entitled " Loading the
Detergent " ).
Press the Start/Reset button,the machine will be instand by state,press
the Start/Reset button more than
3s then you can change the program to the desired cycle setting (see the section entitled " Starting a wash
cycle. . ." ).
3
The LED display shows the state of the dishwasher:
a)The Screen shows PX and the left time blinking,if the left time is more than 1hour ,the hour and minutes are
alternately blinking
b)The Screen shows the delayed time, the point "." that behind of the time is biinking.
NOTE:
If you open the door during a wash cycle , the machine will pause. The program light will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
If your model has broken remember function, the machine will go on to finish the selected
program after the power cut
Forgot to Add a Dish?
A forgotten dish can be added any time before the detergent cup opens.
1
2
3
Open the door a little .
After the spray arms stop working,
you can open the door
completely.
Add forgotten dishes.
4
5
Close the door
Press the Start/Reset Button, the
dishwasher will run
after 10 seconds.
At the End of the Wash Cycle
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the On/Off Button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.
12
7.Maintenance and Cleaning
Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
2
1
3
Main filter 1
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Coarse filter 2
Larger items, such as pieces of bones or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
Fine filter
3
This filter holds soil and food residues in the sump area and
prevents it from being deposited on the dishes during wash cycle.
Filter assembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
The dishwasher must never be used without the filters.
WARNING!
1
Improper replacement of the filter may reduce the performance level of the
appliance
and damage dishes and utensils.
Ope
n
Step 1
Turn the filter in anti-clockwise direction,
2
Step 2 lift the filter assy up
NOTE:
When following this procedure from step1 to step 2, the filter
system will be removed;
when following it from Step 2 to Step 1, the filter system will be
installed.
13
Remarks:
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
clean the filters under running water.
NOTE: The entire filter assembly should be cleaned once a week.
Cleaning the Filter
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
WARNING!
When cleaning the filters, don't knock on them. Otherwise, the
filters could be
contorted and the performance of the dishwasher could be
decreased.
Caring for the Dishwasher
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Cleaning the Door
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
WARNING!
and electrical components.
Abrasive agents or some paper towels should not be used because of the
risk of
scratching or leaving spots on the stainless steel surface.
Protect Against Freezing
please take frost protection measures on the dishwasher in winter. Every time after washing cycles,
please operate as follows
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
To remove the lower spray arm, pull out the spray arm upward.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
14
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
Remove the Plug
Before cleaning or performing maintenance, always
remove the plug from the socket.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
When not in Use for a LongTime
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
8.Installation instruction
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet.
About Power Connection
WARNING!
For personal safety:
Do not use an extension cord or an adapter plug
with this appliance.
Do not, under any circumstances, cut or remove the
earthing
Connection from the power cord.
Electrical Requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Electrical Connection
Insure proper ground
exists before use
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket
which is earthed
properly. If the electrical socket to which the appliance must be connected
is not
appropriate for the plug , replace the socket, rather than using a adaptors
or the like as
they could cause overheating and burns.
15
How to connect the safety supply hose
The appliance must be connected to the water mains using new hose-sets.
The old hose-sets should not be reused.
Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the
minimum consult our Service Department for advice.
1.Pull The safety supply hoses completely out from storage compartment located at rear
of dishwasher.
2.Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
3.Turn water fully on before starting the dishwasher.
About the safety supply hose
The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow
of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer
corrugated hose is full of water.
WARNING!
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has
one, it is recommended thet the hose be disconnected and the hole plugged.
How to disconnect the safety supply hose
1. Turn off the water.
2.Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the
room, from severe splashing.
3.Unscrew The safety supply hose from the faucet..
COLD WATER CONNECTION
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the
water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and
damage the appliance.
Drain hose Connection
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B
A
16
B
40mm
Counter
How to Drain Excess Water From Hoses
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Syphon Connection
The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish.
The water drain hose should be fixed .
Start of Dishwasher
The following things should be checked before starting the dishwasher.
1 The dishwasher is level and fixed properly
2
3
4
5
6
7
The inlet valve is open
Fill hose connections are fully tightened and not leaking
The wires are tightly connected
The power is switched on
The inlet and drain hoses are knotted
All packing materials and printings should be taken out
from the dishwasher
Attention:
After installation, please make sure to keep this manual.
The content of this manual is very helpful to the users.
17
9.Troubleshooting Tips
Before Calling for Service
Review the charts on the following pages may save you from calling for service.
Problem
Possible Causes What to Do
Dishwasher doesn't Fuse blown, or the
Replace fuse or reset circuit breaker. Remove any other
Technical
problems
start
water not pumped
from dishwasher
Suds in the tub
Stained tub interior
White film on
circuit breaker acted
Power supply is not
turned on
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Improper detergent
Spilled rinse-aid
Detergent with
colourant was used
Hard water minerals
appliances sharing the same circuit
with the dishwasher
Make sure the dishwasher is turned
on and the door is
closed securely.
Make sure the power cord is properly
plugged into the
wall socket.
Check that the water supply is
connected properly and
the water is turned on.
Make sure to close the door properly
and latch it.
Check drain hose.
Check the coarse filter
(see section titled " Cleaning The
Filter ")
Check the kitchen sink to make sure
it is draining well.
If the problem is the kitchen sink not
draining ,you may
need a plumber rather than a
serviceman for dishwashers.
Use only the special dishwasher
detergent to avoid suds.
If this occurs, open the dishwasher
and let suds evaporate.
Add 1 gallon of cold water to the tub.
Close and latch the
dishwasher, then select any cycle.
Dishwasher will drain
out the water at the first step.Open
the door after draining
is stop and check if the suds is
disappeared.
Repeat if necessary.
Always wipe up rinse-aid spills
immediately.
Make sure that the detergent is the
one without
colourant.
To clean the interior, use a damp
sponge with
General
problems
inside surface
There are rust
stains on cutlery
dishwasher detergent
and wear rubber
gloves.
Never use any other
cleaner than
dishwasher
detergent for the risk of
foaming or suds.
The affected items are
not corrosion resistant.
A programme was not
Always run the quick
wash programme .
run after dishwasher
without any crockery in
the dishwasher and
salt was added.
without selecting the
Turbo function (if
present),
Traces of salt have
after adding
dishwasher salt.
gotten into the wash cycle.
The lid of the softer
Check the lid .Ensure
the fix is fine.
is loose
Knocking noise
in the wash
cabinet
Rattling noise
A spray arm is
knocking against
an item in a basket
Items of crockery
Interrupt the programme, and rearrange the items
which are obstructing the spray arm.
Interrupt the programme,
Noise
in the wash cabinet
Knocking noise
in the water pipes
are loose in the
wash cabinet
This may be caused
by on-site installation
or the cross-section of
and rearrange the items of crockery.
This has no influence on the
dishwasher function.
if in doubt, contact a suitably
qualified plumber.
the piping.
18
Unsatis
-factory
washing
result
Unsatis
-factory
drying
result
Problem
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cups
The dishes
are not drying
Possible Causes
The dishes were not
loaded correctly.
The programme was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of spray arms.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
What to Do
See notes in " Loading the
Dishwasher Baskets ".
Select a more intensive
programme.
See" Wash Cycle Table ".
Use more detergent, or change
your detergent.
Rearrange the items so that the
spray can rotate freely.
Clean and/or fit the filter
combination correctly.
Clean the spray arm jets. See
"Cleaning the Spray
Arms".
Use less detergent if you have soft
water and select
a shortest cycle to wash the
glassware and to get
them clean.
Use a mild abrasive cleaner to
eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested
in the directions.
Increase the amount of
rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher
immediately after
washing. Open the door slightly so
that the steam can
escape. Begin unloading the
dishwasher only once t
he dishes are barely warm to the
touch. Empty the low
basket first. This prevents water
form dropping off
dishes in the upper basket.
In short program the washing
temperature is lower.
This also lowers cleaning
performance. Choose
a program with a long washing
time.
Water drainage is more difficult with
these items.
Cutlery or dishes of this type are
not suitable for
washing in the dishwasher.
Error Codes
When some malfunctions come on, the appliance will display error codes to warn you:
Codes
E1
E3
E4
E8
Ed
Meanings
Longer inlet time.
Not reaching the required
temperature .
Overflow.
Failure of orientation of distributary
vavle.
Communication Abnormal.
Possible Causes
Faucets is not opened, or water
intake is
restricted,or water pressure is too
low.
Malfunction of the heating element .
Some element of dishwasher leaks .
Open circuit or break of distributary
vavle.
Detect abnormal data over 20s,
indicator fleets.
Without treatment, it returns to
normal after the
signal recovery.
If overflow occurs, turn off the main water supply before calling a service.
WARNING!
If there is water in the base pan because of an overfill or
small leak,
the water should be removed before restarting the
dishwasher.
19
Technical Information
448
845
1175
20
Height :
845mm
Width :
448m m
Depth :
617mm(with the door closed)
Water pressure:
0.04-1.0MPa
Power supply:
see rating label
Capacity:
11 place settings
Technical Data Sheet
Sheet of household dishwasher according to EU Directive 1059/2010:
NOTE
1 A + + + (highest efficiency) to D (lowest efficiency)
2 Energy consumption
225
kWh per year, based on 280 standard cleaning
cycles using cold water fill and
the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption
2240
litres per year, based on 280 standard cleaning
cycles. Actual water consumption
will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the
most efficient programme in terms of its combined energy and water consumption for
that type of tableware.
The above values have been measured in accordance with standards under specified operating conditions.
Results may vary greatly according to quantity and pollution of the dishes, water hardness,
amount of detergent, etc.
The manual is based on the European Union's standards and rules.
21
Manufacturer
CANDY
Type / Description
CDP 2D1149W.CDP 2D1149X
Standard place settings
11
Energy efficiency class 1 11
A++
Annual energy consumption 2 2
225 kWh
Energy consumption of the standard cleaning cycle
0.78 kWh
Power consumption of off-mode
0.3 W
Power consumption of left-on mode
0.8W
Annual water consumption 3 3
2240 liter
Drying efficiency class 4 4
A
Standard cleaning cycle 5 5
ECO 50
Program duration of the standard cleaning cycle
205 min
Noise level
49 dB(A) re 1 pW
Mounting
Free standing
Could be built-in
Yes
Height
84.5 cm
Width
44.8 cm
Depth (with connectors)
61.7 cm
Power consumption
1930 W
Rated voltage / frequency
230 V~ 50 Hz
Water pressure (flow pressure)
0.4-10 bar = 0.04-1 MPa
Loading the baskets according to En50242:
1.Upper basket:
3
Cups
1
2
3.Cutterly basket:
7
4
8
6
3
2
5
2
2
1
3
Saucers
3
Glasses
5
2
2
2
3
3
1
Small serving bowl
Medium serving bowl
4
1
3
6 8
1
2.Lower basket:
Large serving bowl
1 Knives
2 Forks
3 Dessert spoons
5 Soup spoons
6 Gravy ladles
7 Serving forks
8
9
8
Dessert dishes
4 Teaspoons
8 Serving spoons
10
Dinner plates
Information for comparability tests in accordance
with EN 50242
9
7
7
9
Soup plates
Capacity: 11 place settings
Position of the upper basket:
lower position
Programme: ECO
Rinse aid setting: 6
Softener setting: H3
Oval platter
