• Page 1 - English - : Frigidairecom USA 18003744432 Frigidaireca Canada 18002658352 use amp care REFRIGERATOR A16366502 April 2020 Introduction 2 Important Safety information3 Features 5 Installation 7 Door Removal 9 Door Reversal 10 Door Handle Installation 11 Water Supply Connection 12 Controls and Settings 15 Automatic Water Dispenser 19 Storage Features 20 Saving Energy 22 Filter Replacement 23 Care and Cleaning 26 Troubleshooting 28 Limited Warranty 31
• Page 2 - English - : 2 INTRODUCTION Doors Handles are secure and tight Door seals completely to cabinet on all sides Door is level from side to side across the top Leveling Appliance is level side to side and front to back Cabinet is setting solid on all corners Antitip bracket set in front hinge side Electrical Power House power turned on Appliance plugged in Water Supply House water supply connected to appliance No water leaks present at all connections recheck in 24 hours Final Checks Shipping material removed Registration card sent in Installation Checklist Welcome to our family Thank you for bringing Frigidaire into your home We see your purchase as the beginning of a long relationship together This manual is your resource for the use and care of your product Please read it before using your appliance Keep it handy for quick reference If something doesnt seem right the troubleshooting section will help you with common issues FAQs helpful tips and videos cleaning products and kitchen and home accessories are available at Frigidairecom We are here for you Visit our website chat with an agent or call us if you need help We may be able to help you avoid a service visit If you do need service we can get that started for you Lets make it ocial Be sure to register your product Keep your product info here so its easy to find Model Number Serial Number Purchase Date
• Page 3 - English - : WARNING WARNING indicates a potentially haz ardous situation which if not avoided could result in death or serious injury IMPORTANT IMPORTANT indicates installation oper ation or maintenance information which is important but not hazardrelated DANGER DANGER indicates an imminently haz ardous situation which if not avoided will result in death or serious injury CAUTION CAUTION indicates a potentially haz ardous situation which if not avoided may result in minor or moderate injury Safety Definitions This is the safety alert symbol It is used to alert of potential personal injury hazards Obey all safety messages that follow this symbol to avoid possible injury or death Safety Instructions DO NOT store or use gasoline or other flammable liquid within or in the vicinity of this appliance Read Product Label for warnings regarding flamma bility and other hazards DO NOT store explosive substances such as aerosol cans with a flammable propellant in this appliance DO NOT operate the refrigerator in the presence of explosive fumes Avoid contact with any moving parts of automatic ice maker Remove all staples from the carton Staples can cause severe cuts and also destroy finishes if they come in contact with other appliances or furniture WARNING Please read all instructions before using this appliance Child Safety This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or in struction concerning use of the appliance by a person responsible for their safety Destroy or recycle the carton plastic bags and any exterior wrapping mate rial immediately after the refrigerator is unpacked Children should NEVER use these items to play Cartons covered with rugs bedspreads plastic sheets or stretch wrap may become airtight chambers and can quickly cause suocation IMPORTANT SAFETY INFORMATION WARNING WARNING CALIFORNIA RESIDENTS Cancer and Reproductive Harm wwwP65Warningscagov Proper Disposal of your Appliance Risk of child entrapment Child entrapment and suocation are not problems of the past Junked or aban DANGER DANGER Risk of fire or explosion Flammable refrigerant used Do not use mechanical devices to defrost refrigera tor Do not puncture refrigerant tubing DANGER Risk of fire or explosion Flammable refrigerant used To be re paired only by trained service person nel Use only manufacturerauthorized service parts Any repair equipment used must be designed for flammable refrigerants Follow all manufacturer repair instructions Do not puncture refrigerant tubing CAUTION CAUTION Risk of fire or explosion Dispose of refrigerator properly in accordance with the applicable federal or local regulations Flammable refrigerant used CAUTION Risk of fire or explosion due to puncture of refrigerant tubing Follow handling instructions carefully Flammable refrigerant used
• Page 4 - English - : 4 IMPORTANT SAFETY INFORMATION IMPORTANT CFCHCFC Disposal Your old appliance may have a cooling system that used CFCs or HCFCs chlo rofluorocarbons or hydrochlorofluoro carbons CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere Other refrigerants may also cause harm to the environ ment if released to the atmosphere If you are throwing away your old appliance make sure the refrigerant is removed for proper disposal by a qualified technician If you intentionally release refrigerant you may be subject to fines and imprisonment under provi sions of environmental legislation IMPORTANT To turn o power to your appliance you must unplug the power cord from the electrical outlet Grounding type wall receptacle Power cord with 3prong grounded plug Do not under any circumstances cut remove or bypass the grounding prong WARNING These guidelines must be followed to ensure that safety mechanisms in this appliance will operate properly Electrical information Plug the appliance into its own ded icated 115 Volt 60 Hz 15 Amp AC only electrical outlet The power cord of the appliance is equipped with a 3prong grounding plug for your pro tection against electrical shock haz ards Plug it directly into a properly grounded 3prong receptacle Install the receptacle in accordance with local codes and ordinances Consult a qualified electrician Avoid connect ing the appliance to a Ground Fault Interrupter GFI circuit Do not use an extension cord or adapter plug If the power cord is damaged an authorized service technician should replace it to prevent any risk Never unplug the appliance by pull ing on the power cord Always grip the plug firmly and pull straight out from the receptacle to prevent dam aging the power cord Unplug the appliance before cleaning to avoid electric shock Performance may be aected if the voltage varies by 10 or more Oper ating the appliance with insucient power can damage the compressor Such damage is not covered under your warranty Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the appliance from being turned o accidentally WARNING Do not use electrical ap pliances inside the food storage com partments of the appliance unless they are recommended accessories for use within this model doned appliances are still dangerous even if they will sit for just a few days If you are getting rid of your old appliance please follow the instructions below to help prevent accidents We strongly encourage responsible appli ance recyclingdisposal methods Check with your utility company or visit ener gystargovproductsrecycle for more in formation on recycling your old appliance Before you throw away your old appliance Remove door Leave shelves in place so children may not easily climb inside Have refrigerant re moved by a qualified service technician

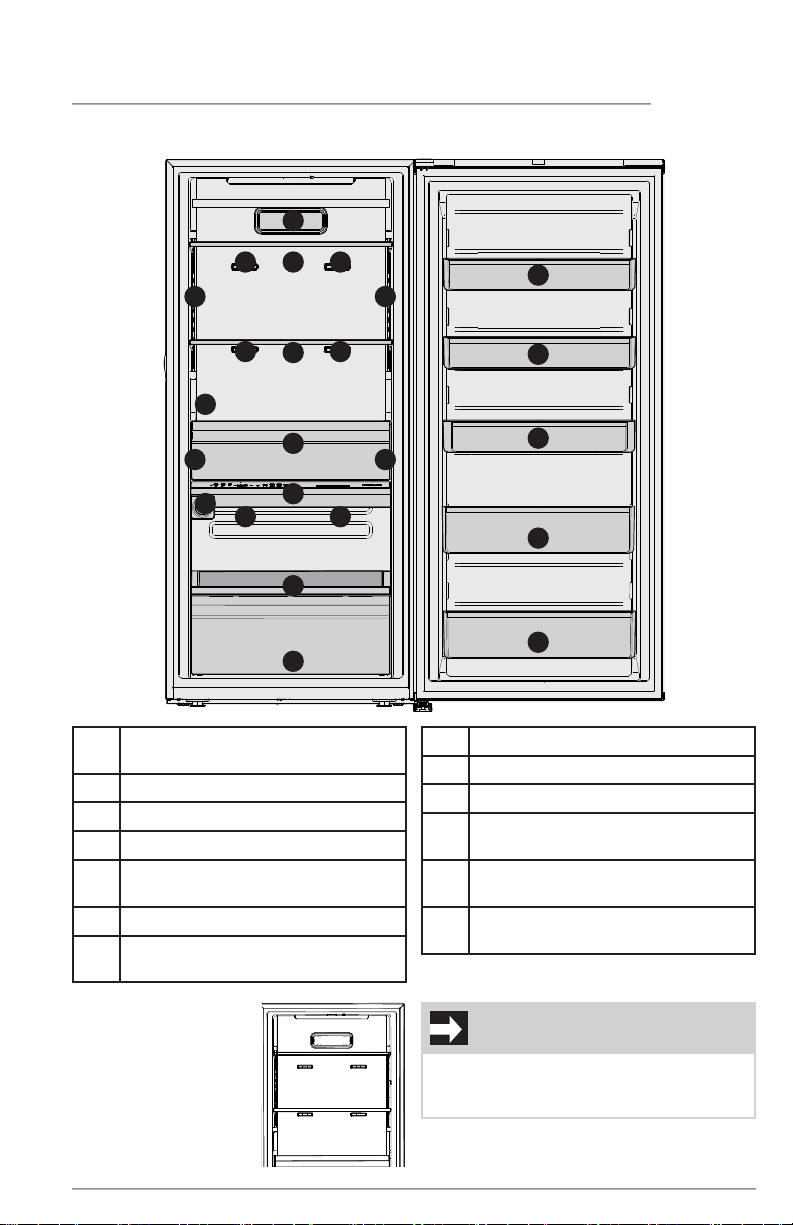

• Page 5 - English - : 5FEATURES Features may vary according to model A Lower Drawer with Removable Dividers B Slideout Shelf C Water Filter D Appliance Control Display E CrispSeal Plus Drawer with Auto Humidity and Produce Keeper F Internal Water Dispenser G Adjustable Full Width Glass Shelves H Air Filter I MultiPort Air Exhaust Ducts J LED Lighting K Adjustable Half Gallon Door Bins with Removable Dividers L Adjustable Gallon Door Bin with Removable Divider M Adjustable Tall Item Door Bins with Removable Dividers A B C D E F G H K L M J G K J J JJ M J I I I I IMPORTANT Do not place items in front of the MultiPort Air Exhaust Ducts as this will impact temperature performance
• Page 6 - English - : IMPORTANT Accessories are available for your appliance and may be purchased at Frigidairecom or by calling 18003744432 Frigidaireca or 18002658352 in Canada or from an authorized seller IMPORTANT Moving your Appliance Your appliance is heavy When moving the appliance for cleaning or service raise the antitip bracket see Setting the antitip bracket Be sure to cover the floor with cardboard or hardboard to avoid floor damage Always pull the appliance straight out when moving it Do not wiggle or walk the appliance when trying to move it as floor damage could occur FEATURES IMPORTANT Cleaning your Appliance Remove tape and glue residue from surfaces before turning on the appliance Rub a small amount of liquid dish soap over any remaining adhesive with your fingers Rinse with warm water and dry with a soft cloth Do not use sharp instruments rubbing alcohol flammable fluids or abrasive cleaners to remove tape or glue These products can damage the surface of your appliance After you remove all of the package materials clean the inside of your appliance before using it See the CARE amp CLEANING section in this manual See important information about cleaning glass shelves and covers in the STORAGE FEATURES section of this manual
• Page 7 - English - : NOTE If your appliance is placed with the door hinge side against a wall you may have to allow additional space for the handle so the door can be opened wider This Use amp Care Guide provides general operating instructions for your model Use the appliance only as instructed in this Use amp Care Guide Before starting the ap pliance follow these important first steps Installation Installation clearances Allow the following clearances for ease of installation proper air circulation and plumbing and electrical connections Sides 316quot Top amp Back 1quot WARNING DO NOT install the appliance where the temperature will drop below 55F 13C or rise above 110F 43C The compressor will not be able to maintain proper temperatures inside the unit Location Choose a place that is near a ground ed electrical outlet Do Not use an extension cord or an adapter plug If possible place the appliance out of direct sunlight and away from the range dishwasher or other heat sources Install the appliance on a floor that is level and strong enough to support a fully loaded appliance Refrigerator 316 5 mm 316 5 mm 1 25 mm 1 25 mm INSTALLATION CAUTION Do not block the lower front of your ap pliance Sucient air circulation is essen tial to operate your appliance properly Leveling Rest all bottom feet firmly on a solid floor The floor must be strong enough to support a fully loaded appliance It is VERY IMPORTANT for your unit to be level in order to function properly If the appliance is not leveled during installation the door may be misaligned and not close or seal properly causing cooling frost or moisture problems To Level the Appliance Level the unit using a carpenters level Adjust the leveling feet at the front making minor adjustments to the rear leveling feet as needed Level the unit front to back and side to side Make sure all 4 feet fully touch the floor CAUTION The cabinet is heavy Two people are recommended to level the cabinet x2 x2

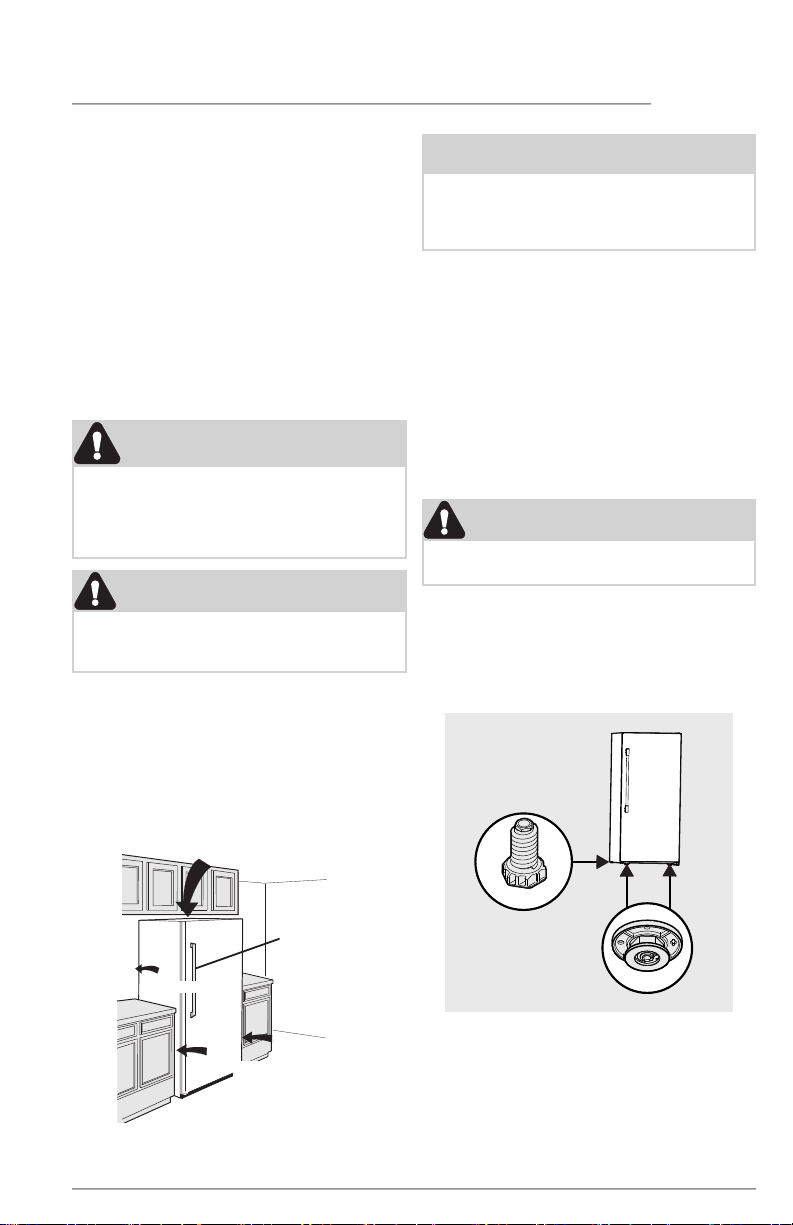

• Page 8 - English - : INSTALLATION Guidelines for final positioning of your appliance Rest all bottom leveling feet firmly on a solid floor The cabinet should be level on all sides The door should be level Door Raise Door Raise Door Freezer Hinge Adjustment Freezer Refrigerator Door Lower Hinge Adjustment for Leveling the Doors of the Matching Refrigerator Freezer Pair To level the doors using the adjustable lower hinge some models If the refrigerator door is lower than the freezer door raise the refrigerator door by turning the adjustment screw counter clockwise using a 19mm socket wrench See illustration below If the freezer door is lower than the refrigerator door raise the freezer door by turning the adjustment screw counter clockwise using a 19mm socket wrench See illustration below WARNING The antitip device must be installed according to the instructions in your Use amp Care Manual Failure to do so may result in injury Setting the antitip bracket Units are equipped with an antitip brack et The antitip bracket is located on the lower front corner of the cabinet on the lower hinge bracket After fully leveling the unit lower the antitip foot by turning it clockwise until is securely contacts the floor Do not raise the cabinet Lower Antitip Bracket

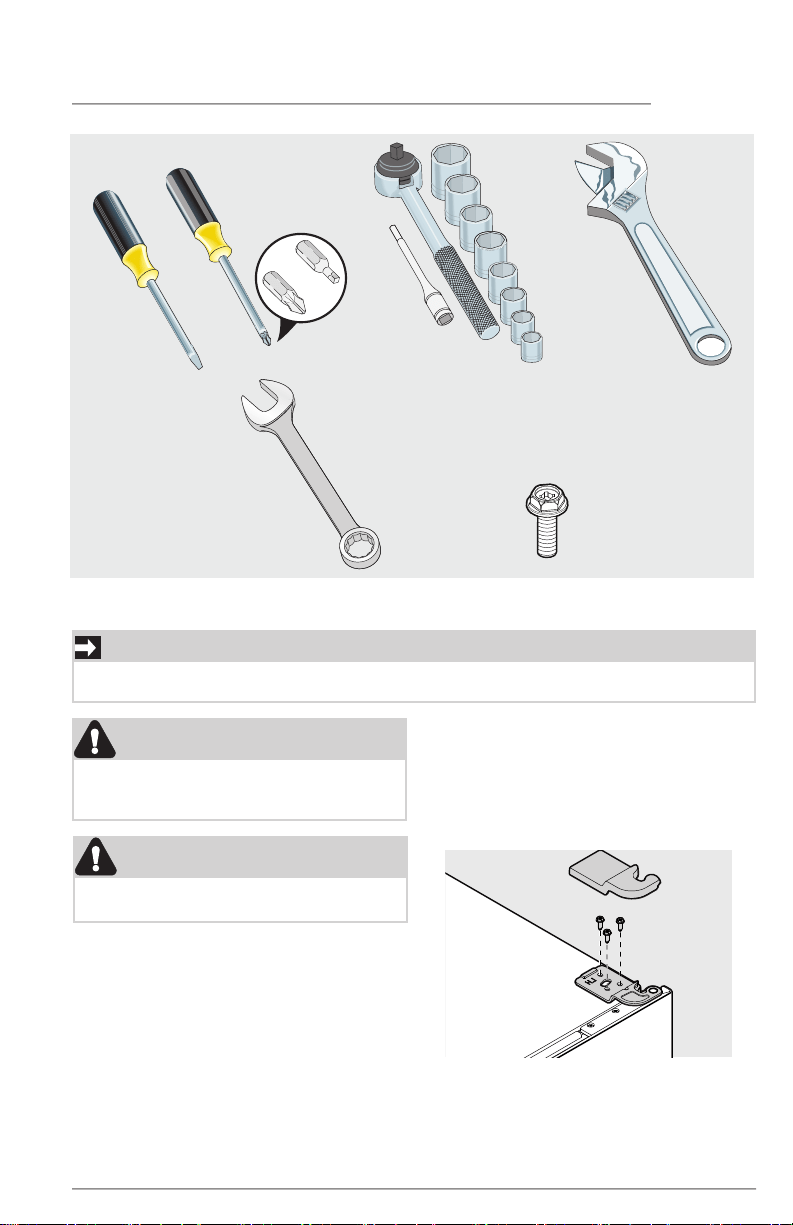

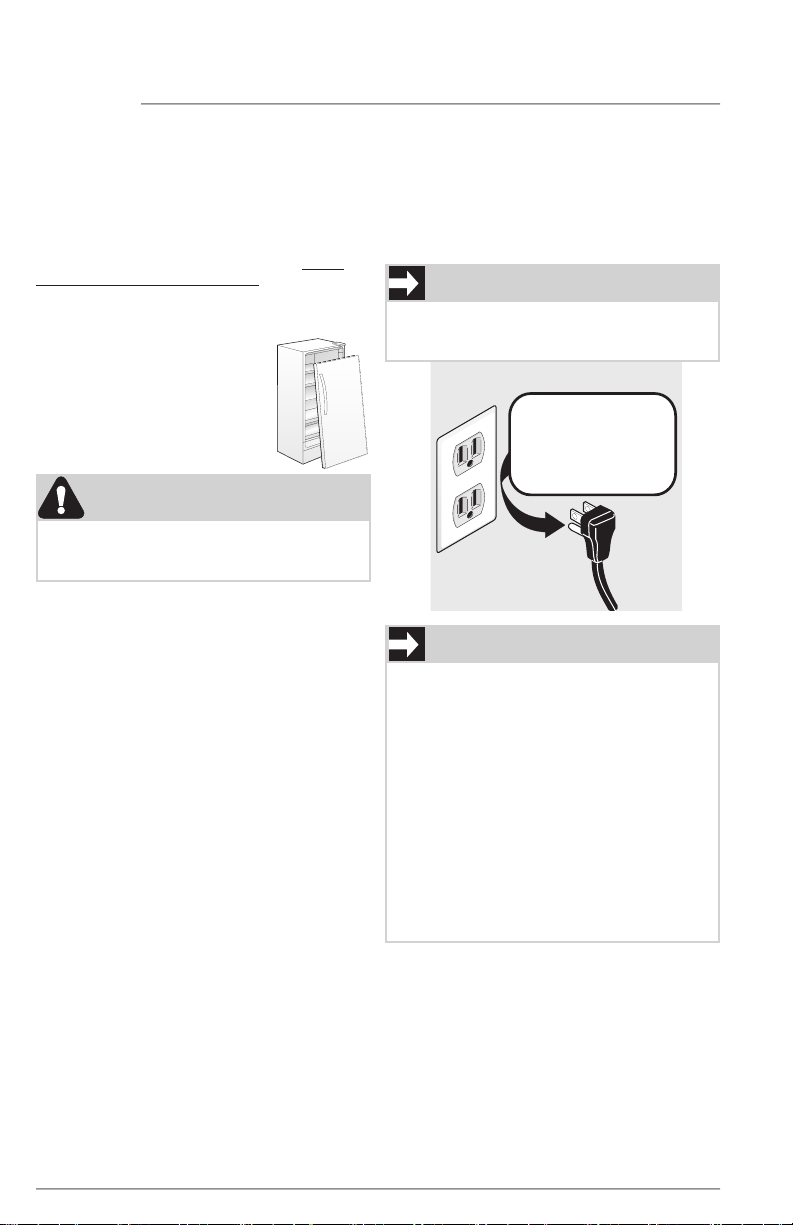

• Page 9 - English - : DOOR REMOVAL IMPORTANT Before you begin remove the electrical power cord from the wall outlet Remove any food from door bins or or Tools Necessary Socket Wrench Set Adjustable Wrench 516quot 8mm Fixed Wrench Flathead Screwdriver and or Phillips TM Head or 2 Square Drive Head 8mm M5x16mm Hex head screw x3 x2 Door removal CAUTION Doors are heavy Two people are recom mended to remove or replace the door assembly from the cabinet CAUTION The door should be closed prior to removing or installing Unplug the unit or switch the breaker that supplies power to the unit to the o position Remove the plastic top hinge cover Hold the door in place while remov ing the top hinge from the cabinet Remove the M5x16 mm hex head screws from the top hinge with a wrench or socket Lift the door upwards and pull up and away from the cabinet until free of the bottom hinge pin mounted on the front of the cabinet To replace the door reverse the above procedures and securely tighten all screws to prevent hinge slippage
• Page 10 - English - : 10 DOOR REVERSAL Door swing reversal IMPORTANT A qualified person should change the swing of your door If you would like to change your door from a righthand swing to a lefthand swing you must purchase a Door Swing Kit CAUTION Doors are heavy Two people are recommended to remove or replace the door assembly from the cabinet Order Kit TTDRRVFRKIT on Frigidairecom or by calling 18003744432 Righthand Swing Lefthand Swing
• Page 11 - English - : 11DOOR HANDLE INSTALLATION CAUTION Wear gloves and use extreme CAUTION when installing these handles The round ed end of the handles may be sharp Door Handle Mounting Instructions 1 Remove handle and any protective packaging from inside the appliance 2 Position handle end caps over upper and lower preinstalled shoulder bolts A that are fastened into door ensuring the holes for the set screws are facing away from the hinge 3 While holding handle firmly against door fasten upper and lower Allen set screws B with supplied Allen wrench A B NOTE All set screws should be tightened and subflush Allen set screw should be seated just below the surface of the end cap of handle end cap The end caps should be drawn tight to door with no gaps
• Page 12 - English - : 12 WATER SUPPLY CONNECTION NOTE Ensure that your water supply line con nections comply with all local plumb ing codes Before Installing The Water Supply Line You Will Need Basic Tools adjustable wrench flatblade screwdriver and Phillips TM screwdriver Access to a household cold water line with water pressure between 30 and 100 psi A braided stainless steel water supply line with integral fittings such as Smart Choice 5304437642 or ¼quot copper line with compression fittings The line must be 6 or longer to allow appli ance to be moved out for cleaning A shuto valve to connect the water supply line to your household water system DO NOT use a selfpiercing type shuto valve Do not reuse compression fitting or use thread seal tape A compression nut and ferrule sleeve for connecting a copper water supply line to the water valve WARNING To avoid electric shock which can cause death or severe personal injury disconnect the unit from electrical pow er source before connecting a water supply line to the appliance CAUTION To Avoid Property Damage Use Copper or Stainless Steel braid ed tubing for the water supply line Frigidaire does not recommend wa ter supply tubing made of ¼quot plastic Plastic tubing greatly increases the potential for water leaks and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line DO NOT install water supply tubing in areas where temperatures fall below freezing

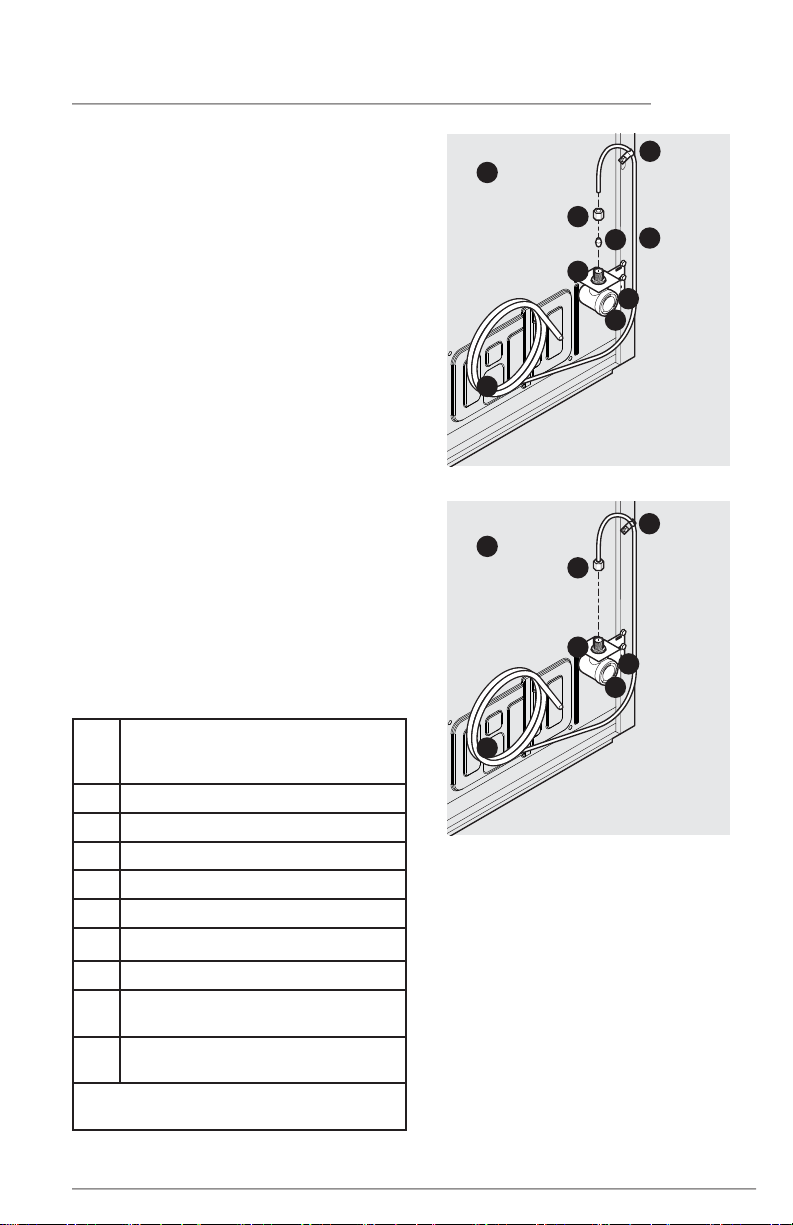

• Page 13 - English - : 13WATER SUPPLY CONNECTION To Connect Water Supply Line To Water Inlet Valve 1 Disconnect the refrigerator from electrical power source 2 Place the end of the water supply line into a sink or bucket Turn ON the water supply and flush the supply line until the water is clear Turn OFF the water supply at the shuto valve 3 Remove the plastic cap from the wa ter valve inlet and discard the cap 4 If you use copper tubing Slide the brass compression nut and then the ferrule sleeve onto the water supply line Push the water supply line into the water valve inlet as far as it will go ¼quot64 mm Slide the ferrule sleeve into the valve inlet and finger tighten the compression nut onto the valve Tighten another half turn with a wrench DO NOT overtighten See Figure 1 If you use braided flexible stainless steel tubing The nut is already assembled on the tubing Slide the nut onto the valve inlet and finger tighten the nut onto valve Tighten another half turn with a wrench DO NOT overtighten See Figure 2 A Plastic Water Tubing to Water Dispenser foamed within the cabinet B Steel Clamp Fig 1 ¼quot Fig 2 ½quot C Brass Compression Nut D Ferrule Sleeve E Copper Water Line F Water Valve Bracket G Valve Inlet H Water Valve I Copper Water Line from Household Water Supply J Braided Flexible Stainless Steel Water Line Include enough tubing in the loop to allow moving the refrigerator out for cleaning Figure 1 A B C D E F G H I Figure 2 A C G F H J B
• Page 14 - English - : 5 With the steel clamp and screw secure the water supply line copper tubing only to the rear panel of refrigerator as shown 6 Coil the excess water supply line copper tubing only about 2½ turns behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface 7 Turn ON the water supply at shuto valve and tighten any connections that leak 8 Reconnect the appliance to electri cal power source NOTE Check with your local building authori ty for recommendations on water lines and associated materials prior to in stalling your new refrigerator Depend ing on your localstate building codes Frigidaire recommends for homes with existing valves its Smart Choice water line kit 5305513409 with a 6Stain less Steel Water Line and for homes without an existing valve Frigidaire recommends its Smart Choice water line kit 5305510264 with a 20copper water line with selftapping saddle valve Please refer to Frigidairecom for more information WATER SUPPLY CONNECTION

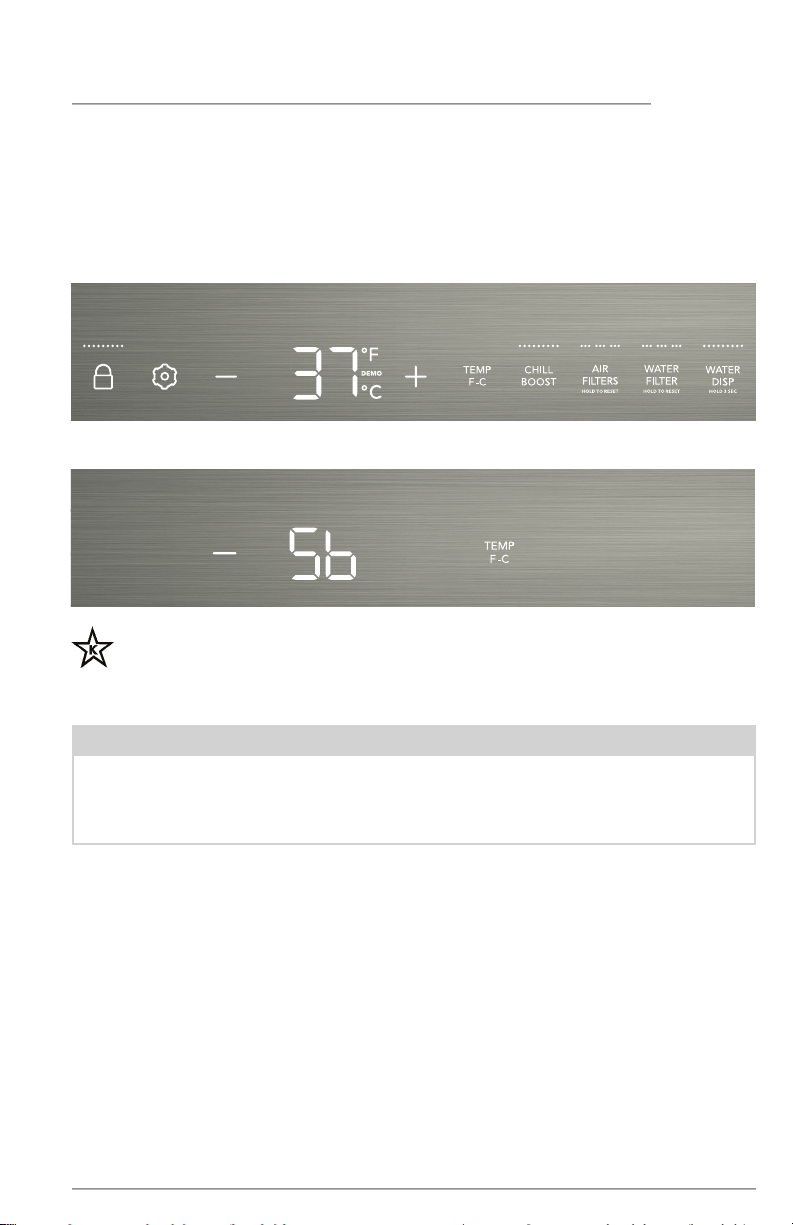

• Page 15 - English - : 15CONTROLS AND SETTINGS Cool Down Period To ensure safe food storage allow the appliance to operate with the door closed for at least 8 hours before loading it with food Door Open Upon opening the door the settings icon will illuminate on the control panel Appliance Display 5 6 7 8 9 By pressing the settings icon you will illuminate all of the icons on the appliance control After 10 seconds of no user interaction with the icons or door closure all the icons will fade except for the settings icon The appliance display is located in the cabinet below the upper drawer

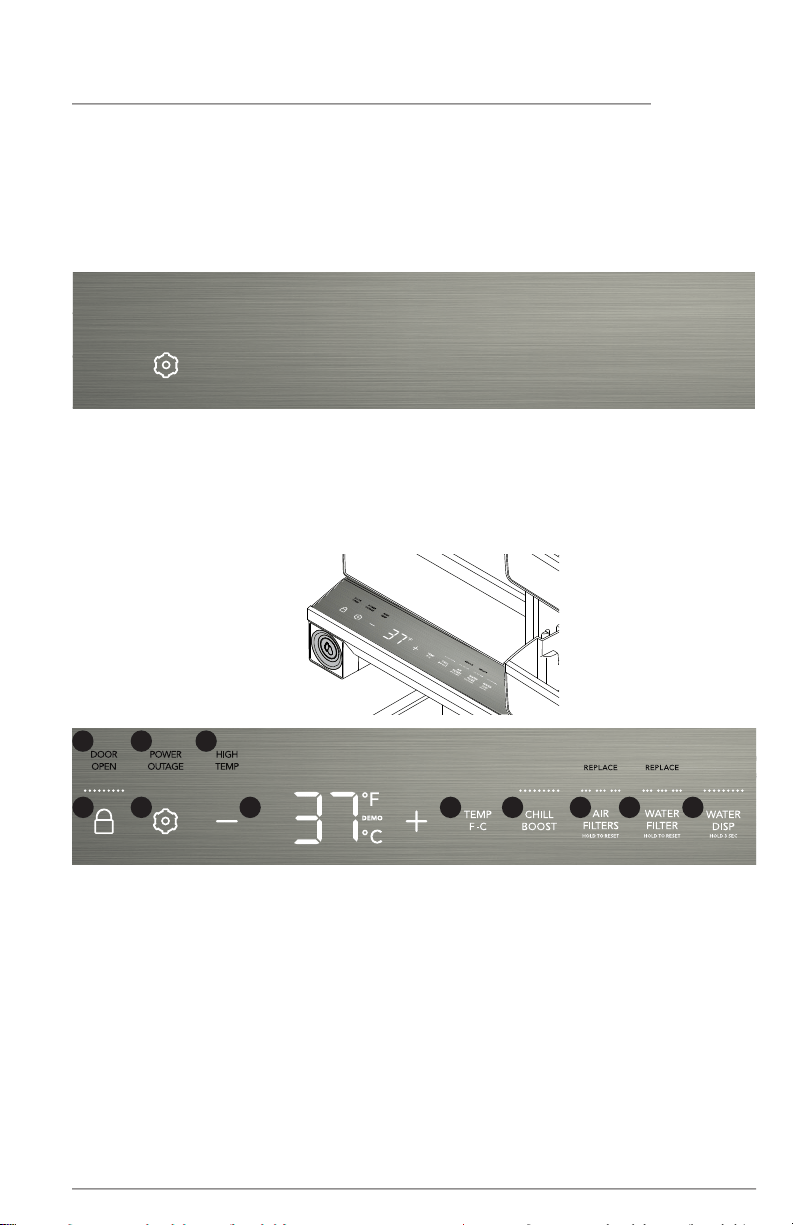

• Page 16 - English - : 16 CONTROLS AND SETTINGS Alarms Controls DOOR OPEN This alert indicates the door has been open for 5 minutes or more The DOOR OPEN LED will illuminate and the audible alert will sound until the door is closed The audible alert can be turned o by pressing the DOOR OPEN key or by clos ing the door If the door is ajar for 5 minutes the interior light will turn o POWER OUTAGE The POWER OUTAGE indicator light informs you there has been a power inter ruption which could have led to the internal temperature incresing beyond the safe temperature range After you check your food reset the alarm by pressing POWER OUTAGE HIGH TEMP If the temperature increases above a safe temperature range the red HIGH TEMP LED light will illuminate and the alarm will sound Reset the alarm by pressing HIGH TEMP The lock button can be used to lock the control panel Press and hold for 3 sec onds to enable While in the locked state no changes can be made until unlocked Press and hold for 3 seconds to disable The settings icon illuminates upon opening the appliance door Press the set tings icon to reveal other function icons After 10 seconds of non use of icons or door closure all icons will fade except the settings icon Adjusting Temp To adjust the temperature setting press to raise the temperature and to lower the temperature on the appliance control Allow several hours for the tem perature to stabilize between adjustments TEMP FC Short press to toggle between Fahrenheit F and Celsius C CHILL BOOST Turning on CHILL BOOST will cool the appliance down to a target temperature and will remain active for up to 24 hours before automatically deactivating or being manually exited To turn the function ono press CHILL BOOST When you turn o CHILL BOOST it will automatically reset the refrigerator back to the previous temperature setting AIR FILTER The AIR FILTER replacement alert will illuminate when it is time to replace the air filter See the FILTER REPLACEMENT section for instructions on how to replace the air filter After changing the air filter reset the AIR FILTER alert by pressing and holding AIR FILTER WATER FILTER The WATER FILTER replacement alert will illuminate when it is time to replace the water filter See the FILTER REPLACEMENT section for instructions on how to replace the water filter After changing the water filter reset the WATER FILTER alert by pressing and holding WATER FILTER WATER DISP The illuminated WATER DISP LED means the internal water dispenser is ON Open the internal water dispenser by pushing the pushpush nozzle Press the water dispenser paddle inside the cabinet to dispense water Turn the dispenser o by pressing and holding WATER DISP for 3 seconds When the water dis penser is o you cannot dispense water You will hear a beep if you try to press the paddle without WATER DISP being turned on Press and hold WATER DISP to turn it on
• Page 17 - English - : 17CONTROLS AND SETTINGS Sabbath Mode The Sabbath Mode is a feature that disables portions of the appliance and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community To enter Sabbath Mode Simultaneously press and hold and TEMP FC for 5 seconds For further assistance guidelines of proper usage and a complete list of models with the Sabbath feature please visit the web at starkorg The unit stays in Sabbath mode after a power failure recovery It must be deactivated with the buttons on the appliance control display Sb will appear on the appliance control display indicating that the unit is in Sabbath mode NOTE While in the Sabbath Mode neither the lights nor the appliance control display will work except to exit Sabbath Mode until Sabbath Mode is deactivated The appliance stays in Sabbath Mode after power failure recovery You must deacti vate it with the buttons on the appliance control display

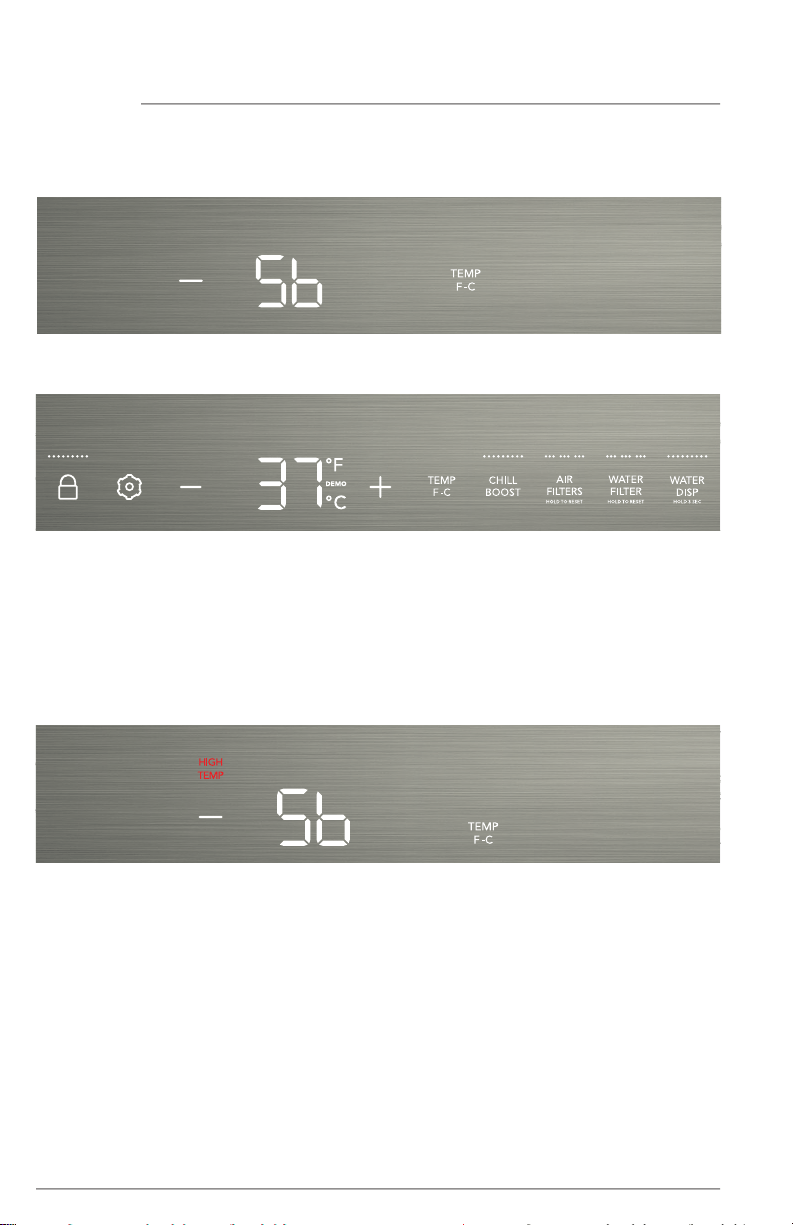

• Page 18 - English - : To exit Sabbath Mode Simultaneously press and hold and TEMP FC for 5 seconds The appliance control display will show all of the icons CONTROLS AND SETTINGS In the Sabbath mode the HIGH TEMP alarm is active for health reasons For example if you leave the door ajar the HIGH TEMP alarm is activated The refrigerator will function normally once you close the door without any violation of the Sabbath holidays The HIGH TEMP alarm comes on when the cabinet temperature is outside the safe zone for 20 minutes The alarm silences itself after 10 minutes while the HIGH TEMP icon stays lit until you exit the Sabbath mode All buttons are disabled and all sounds except the HIGH TEMP alert are muted Only the HIGH TEMP alert will illuminate until you deactivate the Sabbath Mode

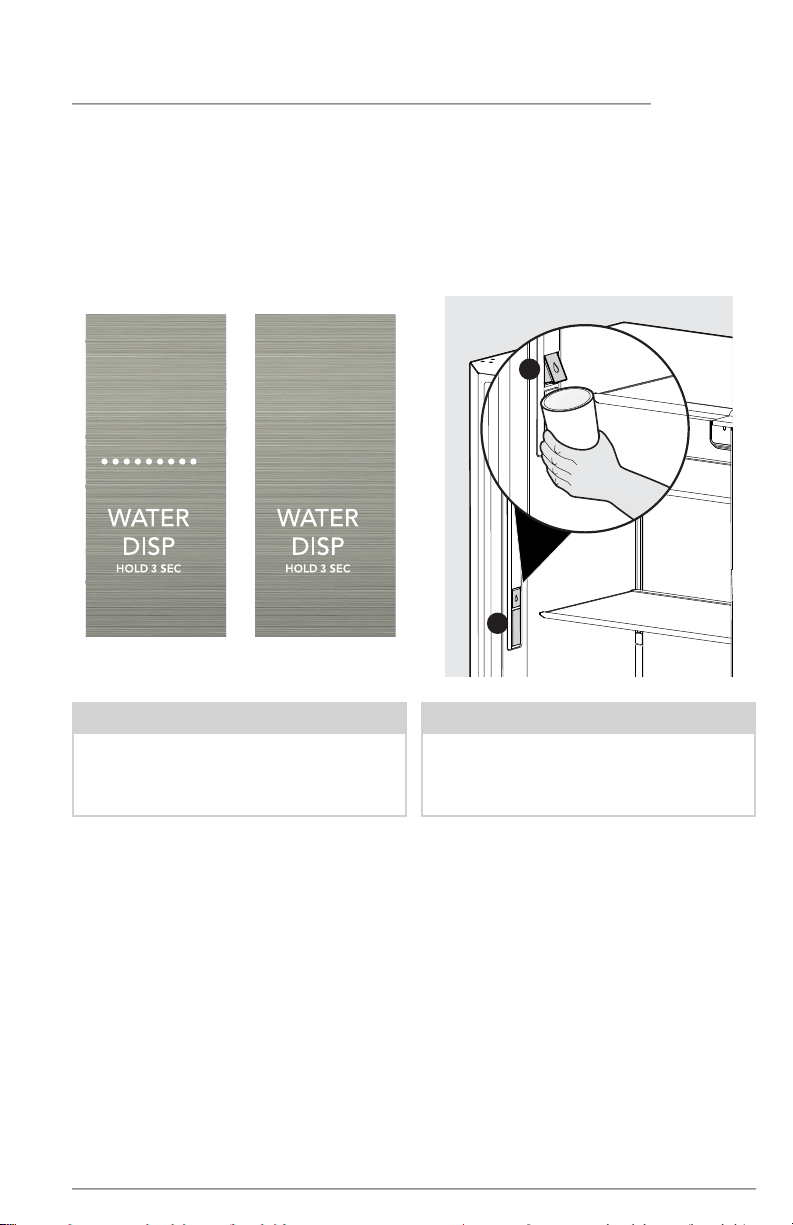

• Page 19 - English - : AUTOMATIC WATER DISPENSER Your refrigerator is equipped with an internal water dispenser mounted inside the cabinet along the lefthand cabinet wall If the water dispenser function becomes disabled enable the water dispenser by pressing and holding WATER DISP on the appliance control display When the water dispenser is turned on the LEDs above WATER DISP are illuminated The water nozzle inside the cabinet allows the water nozzle A to be recessed against cabinet when not in use and to be extended outward when in use To use the water dispenser push the water nozzle A so it is fully extended Place a cup against the paddle B and press to dispense water A B NOTE If you prefer to keep the internal water dispenser disabled use the appliance display to disable it The LEDs will not be illuminated above WATER DISP Water Dispenser On Water Dispenser O NOTE Optional Lock the water dispenser back in place by pushing the water nozzle back in when you have finished dispensing water

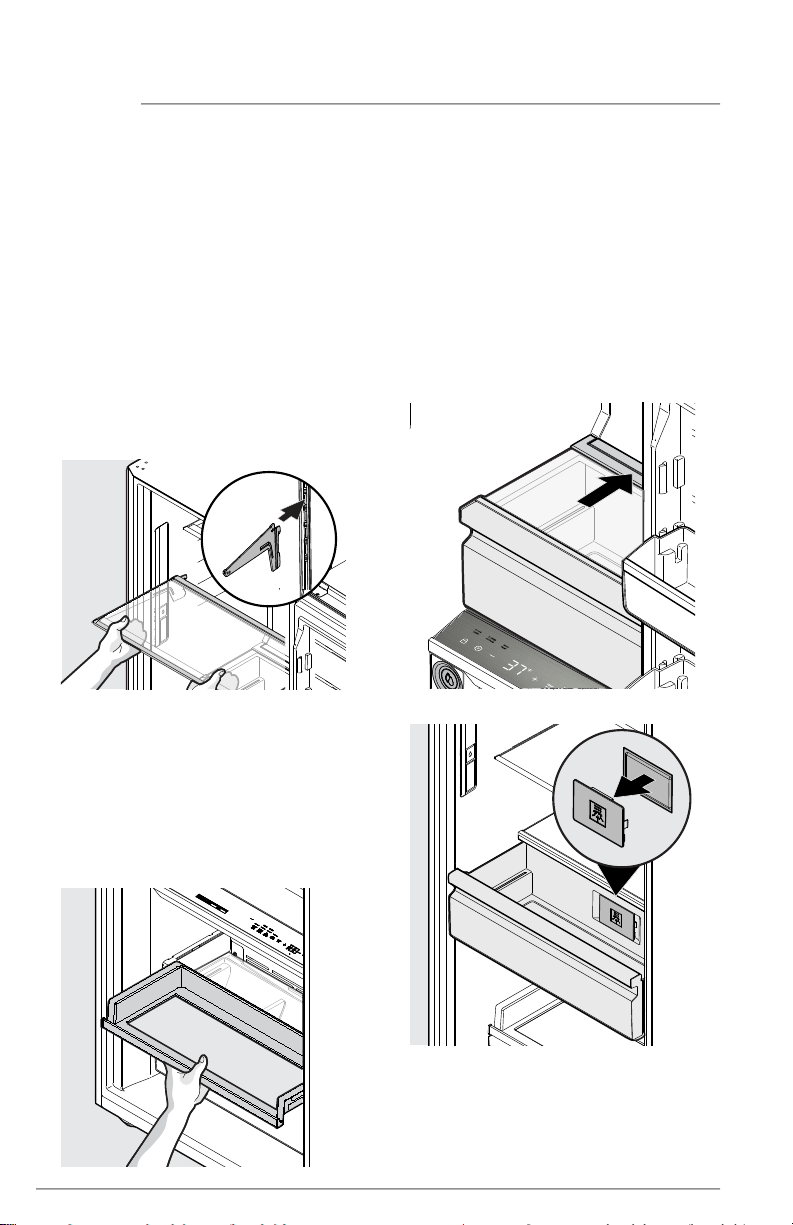

• Page 20 - English - : 20 STORAGE FEATURES Full Width Cantilever Shelves Multiposition adjustable glass shelves can be moved to any position for larger or smaller packages The shipping spacers that stabilize the shelves for shipping may be removed and discarded To Adjust The Shelves Remove all food from the shelf Lift the front edge up to release the tabs from the slots in the rear and pull the shelf out Replace the shelf by inserting the mounting bracket hooks into the desired support slots at the rear Carefully lower the shelf and lock into position SlideOut Shelf The slideout shelf can hold many dierent containers and food types for your convenience To remove the slide out shelf 1 Remove all items from the shelf 2 Remove the shelf by pulling it out until it is fully extended and lift it out CrispSeal Crisper with Auto Humidity and Pure Air Produce Keeper The CrispSeal Crisper with Auto Humid ity keeps produce fresher longer so you waste less food and save money It blocks dry air by maintaining the perfect amount of moisture while removing excess moisture The crisper drawer contains the Pure Air Produce Keeper to ensure your produce stays fresher longer For more information about your Pure Air Produce Keeper see FILTER REPLACEMENT CrispSeal Crisper Pure Air Produce Keeper

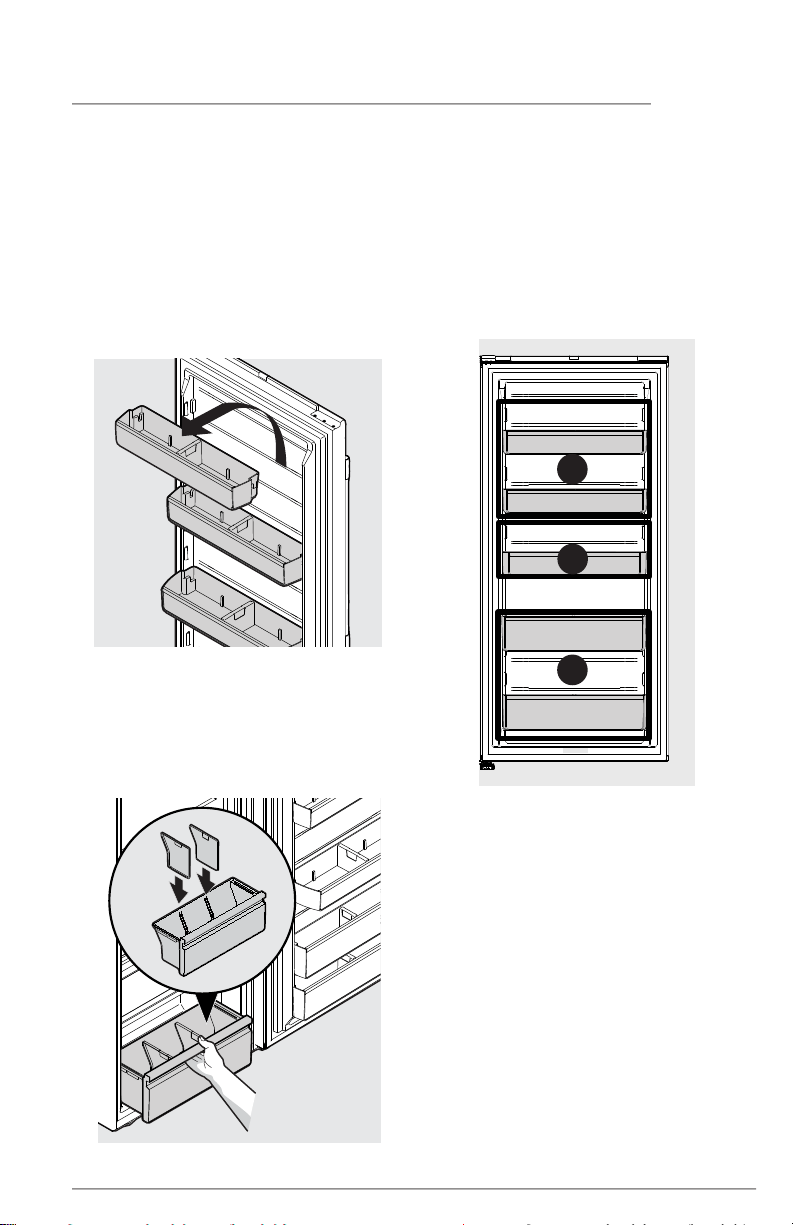

• Page 21 - English - : Adjustable Door Bins with Dividers The adjustable door bins are specially de signed to hold large containers or storage bags Each bin type can be used only in the zone indicated below so the door can close correctly Your unit has two 2Liter Door Bins A a Gallon Door Bin B and two Tall Item Door Bins C The bins can be used easily with or without the dividers STORAGE FEATURES Lower Drawer with Dividers The lower drawer with dividers works great for food that may need to be separated The drawer can easily be used with the dividers or without by removing or adding the inserts A B C To remove a door bin Grasp the ends of the door bin Lift the door bin up until it clears the locking lugs Pull the door bin straight out toward you To install a door bin Make sure the locking feature on the bin aligns with the mounting lugs on the door Lower the door bin into the mounting lugs until it locks in place Door Bin Dividers Customize your unit to fit dierent sized items as your needs change with door bin dividers To remove grasp the divider and pull it upward until it disengages with the door bin To install slide the divider downward into the corresponding door bin alignment features until it is fully placed
• Page 22 - English - : 22 SAVING ENERGY Locate the appliance in the coolest part of the room out of direct sunlight and away from heating ducts or registers Do not place the unit next to heat producing appliances such as a range oven or dishwasher If this is not possible a section of cabinetry or an added layer of insulation between the two appliances will help the unit operate more eciently Level appliance so that the door closes tightly Refer to the CONTROLS AND SETTINGS section for the suggested temperature control settings Do not overcrowd the unit or block cold air vents Doing so causes the appliance to run longer and use more energy Cover foods and wipe containers dry before placing them in the appliance This cuts down on moisture buildup inside the unit Organize the appliance to reduce door openings Remove as many items as needed at one time and close the door as soon as possible
• Page 23 - English - : 23FILTER REPLACEMENT Pure Pour Water Filter Keep safe greattasting water flowing with a Pure Pour water filter Using a Pure Pour water filter Makes Safe Water Second Nature Pure Pour water filters are certified to reduce contaminates and keep greattasting water flowing for you and your family Produces Purity You Can Trust Know for certain your Pure Pour water filter is a protector Counterfeits and knockos put your refrigerator and health at risk Frigidaire Genuine Filters are the smarter safer choice Every Drop Gives Back Partnered on sustainability eorts the use of a Pure Pour water filter helps cut back on the cost and use of plastic used to produce and package bottled water For the complete list please see Performance DataSheet on Electroluxappliancescom Replacing the Water Filter The water filter is located at the middle left side of the refrigerator compartment In general you should change the water filter every 6 months to ensure the highest possible water quality Water Filter Status on the appliance control display prompts you to replace the filter after a standard amount of water 125 gal453 L for Pure Pour has flowed through the system If you have not used your refrigerator for a period of time during moving for exam ple change the filter before reinstalling the refrigerator Do not use with water that is microbiologi cally unsafe or of unknown quality without adequate disinfection before or after the system Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts Test amp certification results Rated Capacity 125 gal453 L for Pure Pour and ice and water filter Rated service flow 50 galmin Operating Temp Min 33F Max 100F Maximum Rated Pressure 100 lbsin² Recommended Minimum Operating Pressure 30 lbsin² Replacing your Pure Pour Water Filter It is not necessary to turn the water supply o to change the filter Be ready to wipe up any small amounts of water re leased during the filter replacement 1 Remove the filter by firmly press ing the water filter cartridge until it releases You will hear a click 2 Slide the old water filter cartridge straight out of the housing and discard it 3 Unpackage the new filter cartridge Using the alignment guide slide it gently into the filter housing until it stops against the snapin connector at the back of the housing 4 Push firmly until the cartridge snaps into place you should hear a click as the cartridge engages the More about your Advanced Water Filter NOTE When you order your replacement filter please reorder the same filter type currently in your refrigerator The Pure Pour ice and water filter sys tem is tested and certified to NSFANSI Standards 42 53 401 and CSA B4831 for the reduction of claims specified on the performance data sheet Visit Frigidairecom for more information Here are the product numbers to request when ordering Pure Pour Water Filter PWF1 FPPWFUO1
• Page 24 - English - : FILTER REPLACEMENT snapin connector 5 Press a drinking glass against the water dispenser while checking for any leaks at the filter housing Any spurts and sputters that occur as the system purges air out of the dispenser system are normal 6 After filling one glass of water con tinue flushing the system for about 4 minutes 7 Press and hold WATER FILTER on the appliance control display for 3 seconds When the display changes from red to green the status has been reset Pure Air Ultra II Air Filter WIth more power to clear the air Frigid aire air filters banish pungent smells and work better than baking soda Pure Air Ultra II Air Filters More powerful than baking soda Keep your unit fresh for up to 6 months Captures amp Keeps Odors Away Absorbs undesirable smells with carbon technology Here are the product numbers to request when ordering Pure Air Ultra II Air Filter PAULTRA2 TM Installing or replacing the air filter Your new Pure Air Ultra II air filter is located in the air filter cover located in the upper rear center of the cabinet Your appliance control is equipped with a REPLACE AIR FILTER indicator to remind you to change your filter every 6 months to ensure optimal filtering of appliance odors To order your replacement filters please visit our online store at Frigidairecom by calling tollfree at 1 800 3724432 or by visiting the dealer where you purchased your unit fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak fad mvaak The air filter element is held in by the removable air filter cover which has a stainless steel decorative plate 1 Grab the cover with your hand pulling until it releases from the fixed air filter housing The air filter element is mounted on the back of the cover 2 Remove the old filter and discard it 3 Unpackage the new filter and snap it into the filter cover The open face carbon media of the filter should be installed facing outward in the cover 4 Reattach the air filter cover to the air filter housing by aligning the cover to the housing and firmly pushing it until it snaps in place 5 Press and hold REPLACE AIR FILTER on the appliance control display to reset it

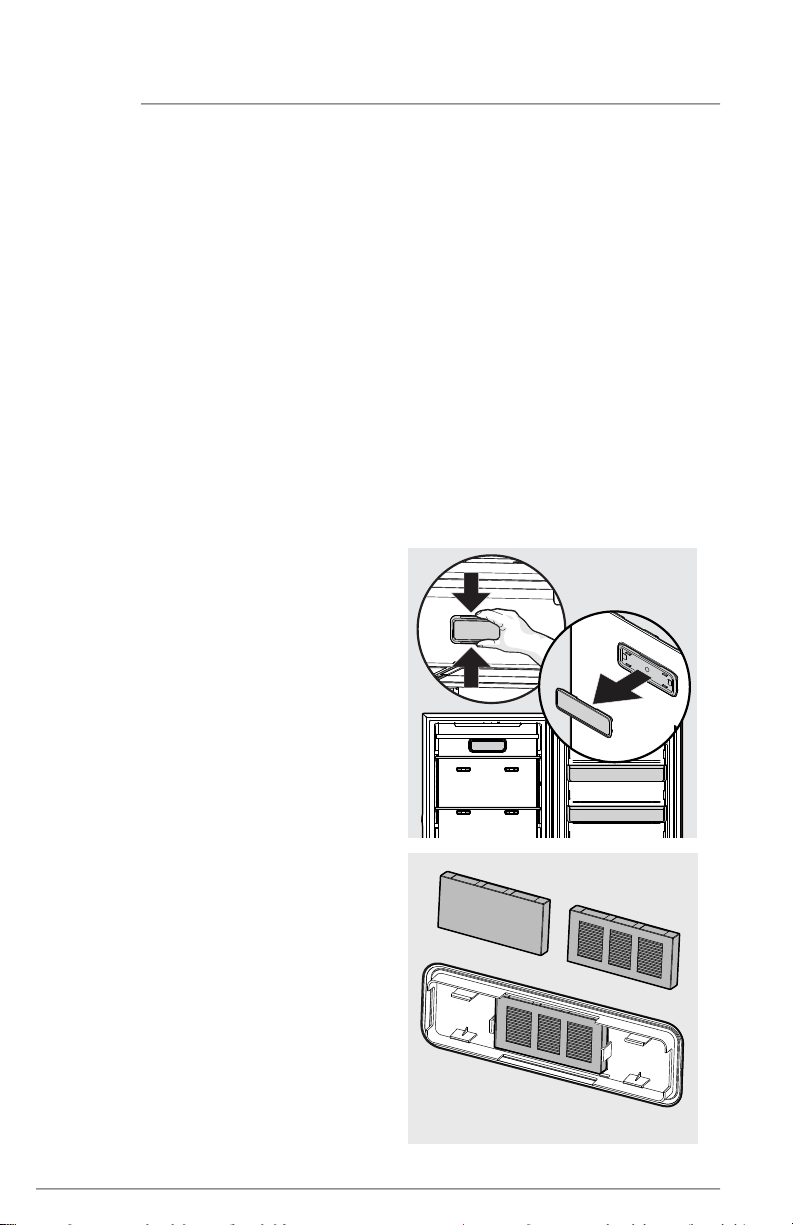

• Page 25 - English - : Pure Air Produce Keeper Keep fruits and vegetables fresher longer with Pure Air Produce Keeper Our produce keeper absorbs ethylene gas the natural gas that causes produce to ripen quicker Reduce food waste save money and enjoy freshtasting produce with a longer storage life Here are the product numbers to request when ordering Pure Air Produce Keeper PK1 FRPAPKRF Installing the Pure Air Produce Keeper 1 Remove the plastic wrapper Insert unopened packet into the holder in the Crisper Drawer 2 For optimal results replace the refill every 6 months along with your air filter CAUTION DO NOT OPEN Contents may irritate eyes or skin Keep out of reach of children FIRST AID Contains potassium perman ganate In case of contact with eyes or skin rinse immediately with water DO NOT EAT If swallowed seek medi cal treatment immediately FILTER REPLACEMENT j f d k a d k a d k a d k a j f k d l a d k a l d k a j f k d a d a k s d a s k d k a f d j s a k d s k a d k s a l d k s l a d s a k G e n e r a t o j f d k a d k a d k a d k a j f k d l a d k a l d k a j f k d a d a k s d a s k d k a f d j s a k d s k a d k s a l d k s l a j f d k a d k a d k a d k a j f k d l a d k a l d k a j f k d a d a k s d a s k d k a f d j s a k d s k a d k s a l d k s l a d s a k j f d k a d k a d k a d k a j f k d l a d k a l d k a j f k d a d a k s d a s k d k a f d j s a k d s k a d k s a l d k s l a d s a k G e n e r a t o r A d o b e I l l u s t r a t o r S V G E x p o r t G e n e r a t o r A d o b e I l l u s t r a t o r S V G E x p o r t G e n e r a t o r j f d k a d k a d k a d k a j f k d l a d k a l d k a j f k d a d a k s d a s k d k a f d j s a k d s k a d k s a l d k s l a d s a k j f d k a d k a d k a d k a j f k d l a d k a l d k a j f k d a d a k s d a s k d k a f d j s a k d s k a d k s a l d k s l a d s a k G e n e r a t o r A d o b e I l l u s t r a t o r S V G E x p o r t G e n e r a t o r A d o b e I l l u s t r a t o r S V G E x p o r t G e n e r a t o r j f d k a d k a d k a d k a j f k d l a d k a l d k a j f k d a d a k s d a s k d k a f d j s a k d s k a d k s a l d k s l a d s a k
• Page 26 - English - : 26 CARE AND CLEANING Protecting Your investment CAUTION Pull the appliance straight out to move it Shifting it from side to side may damage flooring Damp objects stick to cold metal surfaces Do not touch refrigerated surfaces with wet or damp hands Vacation and Moving Tips Short Vacations Leave the unit operating during vacations of less than 3 weeks Long Vacations If the appliance will not be used for several months Remove all food and unplug the power cord Clean and dry the interior thoroughly Leave the door open slightly blocking it open if necessary to prevent odor and mold growth Moving When moving the unit follow these guidelines to prevent damage Disconnect the power cord plug from the wall outlet Secure all loose items such drawers and shelves by taping them securely in place to prevent damage In the moving vehicle secure unit in an upright position to prevent move ment Also protect outside of the ap pliance with a blanket or similar item NOTE Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing ad hesive labels Any glue left from tape or labels can be removed with a mixture of warm water and mild detergent or touch the glue residue with the sticky side of tape you have already removed Do not remove the serial plate Keeping your appliance clean maintains appearance and prevents odor buildup Wipe up any spills immediately and clean the appliance at least twice a year When cleaning take the following precautions Never use CHLORIDE or cleaners with bleach to clean stainless steel Do not wash any removable parts in a dishwasher Always unplug the electrical power cord from the wall outlet before cleaning Remove adhesive labels by hand Do not use razor blades or other sharp instruments which can scratch the appliance surface Do not remove the serial plate Do not use abrasive cleaners such as win dow sprays scouring cleansers brushes flammable fluids cleaning waxes concen trated detergents bleaches or cleansers containing petroleum products on plastic parts interior doors gaskets or cabinet liners Do not use paper towels metallic scouring pads or other abrasive cleaning materials or strong alkaline solutions Before cleaning your appliance turn o power to your appliance by unpluging the power cord from the electrical outlet
• Page 27 - English - : 27CARE AND CLEANING Care amp Cleaning Tips Part What To Use Tips and Precautions Interior amp Door Liners Soap and water Baking soda and water Use 2 tbsp of baking soda in 1 qt of warm water Be sure to wring excess water out of sponge or cloth before cleaning around controls light bulb or any electrical part Door Gaskets Soap and water Wipe gaskets with a clean soft cloth Drawers amp Bins Soap and water Use a soft cloth to clean drawer runners and tracks Do not wash any removable items bins drawers etc in dishwasher Glass Shelves Soap and water Glass cleaner Mild liquid sprays Allow glass to warm to room temperature before immersing in warm water Exterior amp Handles Soap and water NonAbrasive Glass Cleaner Do not use commercial household cleaners ammonia or alcohol to clean handles Use a soft cloth to clean smooth handles Do not use a dry cloth to clean smooth doors Exterior amp Handles Stainless Steel Models Only Soap and water Ammonia Stainless Steel Cleaners Never use CHLORIDE to clean stainless steel Clean stainless steel front and handles with nonabrasive soapy water and a dishcloth Rinse with clean water and a soft cloth Wipe stubborn spots with an ammoniasoaked paper towel and rinse Use a nonabrasive stainless steel cleaner These cleaners can be purchased at most home improvement or major department stores Always follow manufacturers instruction NOTE Always clean wipe and dry with grain to prevent cross grain scratching Wash the rest of the cabinet with warm water and mild liquid detergent Rinse well and wipe dry with a clean soft cloth
• Page 28 - English - : 18002658352 Canada Frigidaireca 18003744432 United States Frigidairecom TROUBLESHOOTING Let us help you troubleshoot your concern This section will help you with common issues If you need us visit our website chat with an agent or call us We may be able to help you avoid a service visit If you do need service we can get that started for you CONCERN CAUSE SOLUTION APPLIANCE OPERATION Appliance does not run Appliance is plugged into a tripped Ground Fault Interrupt GFI Appliance may not be plugged in or plug is loose House fuse blown or tripped circuit breaker Power outage Appliance must be plugged into a dedicated circuit with standard outlet Contact a certified electrician to check Ensure plug is tightly pushed into outlet Checkreplace fuse with a 15amp timedelay fuse Reset circuit breaker Check house lights Call the local electric company Appliance temperature is warmer than preferred The appliance tem perature is set too high Items are blocking the multiport air flow sys tem which may aect cooling performance Set control to a colder setting until appliance temperature is satisfacto ry Allow 24 hours for the tempera ture to stabilize Make sure the items are not placed directly in front of the cold air ex haust ports Appliance is noisy or vibrates The cabinet is not level Floor is weak Adjust the leveling feet See Level ing in the INSTALLATION section Appliance runs too much or too long Room or outside weather is hot Appliance has recently been disconnected for a period of time Large amounts of warm or hot food have been stored recently Door is opened too frequently or too long Door may be slightly open Temperature control is set too low Gaskets are dirty worn cracked or poorly fitted Its normal for the appliance to work longer under these conditions It takes 24 hours for the appliance to cool down completely Warm food will cause appliance to run more until the desired temperature is reached Warm air entering the appliance causes it to run more Open door less often See DOOR PROBLEMS in TROUBLESHOOTING section Turn control knob to a warmer setting Allow several hours for the temperature to stabilize Clean or change gasket See Care and Cleaning Tips in CARE AND CLEANING section Worn cracked or poorly fitting gaskets should be replaced APPLIANCE TEMPERATURES Interior appli ance tempera ture is too cold Temperature control is set too low Set control to a warmer setting Allow several hours for temperature to stabilize
• Page 29 - English - : CONCERN CAUSE SOLUTION APPLIANCE TEMPERATURES contd Temperature in side appliance is too warm Temperature control is set too warm Door is opened too frequently or too long Door may not be seating properly Large amount of warm or hot food has been stored recently Unit has recently been disconnected for a period of time Turn control to a colder setting Allow several hours for temperature to stabilize Warm air enters the appliance every time the door is opened Open door less often Look for food items on the shelves or in the door bins keeping the door from closing completely Wait until the appliance has had a chance to reach its selected temperature Appliance may take up to 24 hours to cool down completely is displayed on control The control has been locked Press for 3 seconds to unlock Sb is displayed on the control The control is in Sabbath Mode Press and TEMP FC for 5 seconds SOUND AND NOISE Louder sound levels when ever appliance is on Modern appliances have increased storage capacity and more stable temperatures They require heavyduty compressors This is normal When the surround ing noise level is low you might hear the compressor running while it cools the interior Popping or cracking sound when compres sor comes on Bubbling or gurgling sound Metal parts under go expansion and contraction as in hot water pipes Refrigerant used to cool refrigerator is circulating through out the system This is normal Sound will level o or disappear as appliance continues to run This is normal Vibrating or rattling noise Appliance is not level It rocks on the floor when it is moved slightly Floor is uneven or weak Appliance is touching the wall Level the appliance Refer to Level ing in the INSTALLATION section Ensure floor can adequately support the appliance Level the appliance by putting wood or metal shims under part of the appliance Relevel appliance or move appli ance slightly Refer to Leveling in the INSTALLATION section TROUBLESHOOTING
• Page 30 - English - : CONCERN CAUSE SOLUTION WATER MOISTURE FROST INSIDE APPLIANCE Moisture forms on inside ap pliance walls Weather is hot and humid which increas es internal rate of frost buildup Door is slightly open Door is kept open too long This is normal Look for food items on the shelves or in the door bins keeping the door from closing completely Open the door less often ODOR IN APPLIANCE Odors in appliance Interior needs to be cleaned Foods with strong odors are in the appliance The air filter needs to be replaced Clean interior with sponge warm wa ter and baking soda Replace air filter Cover the food tightly Refer to Pure Air Ultra II Air Filter the in FILTER REPLACEMENT section DOOR PROBLEMS Door will not close Appliance is not level It rocks on the floor when it is moved slightly Floor is uneven or weak This condition can force the cabinet out of square and misalign the door Refer to Leveling in the INSTALLA TION section Ensure floor can adequately support appliance Level the appliance by put ting wood or metal shims under part of the appliance Look for food items on the shelves or in the door bins keeping the door from closing completely LIGHTING PROBLEMS Cabinet light is not working LED has burned out Call a Frigidaire service technician TROUBLESHOOTING
• Page 31 - English - : 31LIMITED WARRANTY Your appliance is covered by a one year limited warranty For one year from your original date of purchase Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed used and maintained in accordance with the provided instructions Exclusions If You Need Service This warranty does not cover the following 1 Products with original serial numbers that have been removed altered or cannot be readily determined 2 Product that has been transferred from its original owner to another party or removed outside the USA or Canada 3 Rust on the interior or exterior of the unit 4 Products purchased asis are not covered by this warranty 5 Food loss due to any Appliance or freezer failures 6 Products used in a commercial setting 7 Service calls which do not involve malfunction or defects in materials or workmanship or for appliances not in ordinary household use or used other than in accordance with the provided instructions 8 Service calls to correct the installation of your appliance or to instruct you how to use your appliance 9 Expenses for making the appliance accessible for servicing such as removal of trim cupboards shelves etc which are not a part of the appliance when it is shipped from the factory 10 Service calls to repair or replace appliance light bulbs air filters water filters other consumables or knobs handles or other cosmetic parts 11 Surcharges including but not limited to any after hour weekend or holiday service calls tolls ferry trip charges or mileage expense for service calls to remote areas including the state of Alaska 12 Damages to the finish of appliance or home incurred during installation including but not limited to floors cabinets walls etc 13 Damages caused by services performed by unauthorized service companies use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies or external causes such as abuse misuse inadequate power supply accidents fires or acts of God DISCLAIMER OF IMPLIED WARRANTIES LIMITATION OF REMEDIES CUSTOMERS SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN CLAIMS BASED ON IMPLIED WARRANTIES INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW BUT NOT LESS THAN ONE YEAR ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE This warranty only applies in the USA and Canada In the USA your appliance is warranted by Electrolux Major Appliances North America a division of Electrolux Home Products Inc In Canada your appliance is warranted by Electrolux Canada Corp Electrolux authorizes no person to change or add to any obligations under this warranty Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company Product features or specifications as described or illustrated are subject to change without notice Keep your receipt delivery slip or some other appropriate payment record to establish the warranty period should service be required If service is performed it is in your best interest to obtain and keep all receipts Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below USA 18003744432 Frigidaire 10200 David Taylor Drive Charlotte NC 28262 Canada 18002658352 Electrolux Canada Corp 5855 Terry Fox Way Mississauga Ontario Canada L5V 3E4
