Owner’s Manual
LED LCD MONITOR
(LED Monitor*)
27UK580
32UK580
2
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
27UK580
VESA, VESA logo, DisplayPort compliance logo and DisplayPort
compliance logo for dual-mode source devices are all registered
trademarks of the Video Electronics Standards Association.
TABLE OF CONTENTS
LICENSE ...................................................... 2
OPEN SOURCE SOFTWARE NOTICE
INFORMATION ............................................ 3
ASSEMBLING AND PREPARING ..................3
USING THE MONITOR ................................ 15
USER SETTINGS ........................................ 17
TROUBLESHOOTING ................................. 38
PRODUCT SPECIFICATION ......................... 39
3
ENGLISH
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open source licences, that is contained in this product,
please visit https://opensource.lge.com.
In addition to the source code, all referred licence terms, warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]om.
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in
receipt of this information.
ASSEMBLING AND PREPARING
CAUTION
•
Always use genuine LG components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of unauthorized components.
• It is recommended that use the supplied components.
• Illustrations in this document represent typical procedures, so they may look different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing
so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
• Do not carry the monitor upside down. This may cause the monitor to fall off the stand and could result in
personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen
may cause damage to it.
NOTE
•
The components may look different from those illustrated here.
• Without prior notice, all product information and specifications contained in this manual are subject to change
to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer
from which you purchased the product.
• The power cord provided may differ depending upon the region.
Supported Drivers and Software
You can download and install the latest version from the LGE website (www.lg.com).
Drivers and Software Installation Priority
Monitor Driver Recommended
OnScreen Control Recommended
Dual Controller Optional
4
ENGLISH
Product and Button Description
±335°
±335°
±335°
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/
down with your finger.
Basic Functions
Power on
Press the joystick button once with your finger
to turn on the monitor.
Power off
Press and hold the joystick button once more
than 5 seconds with your finger to turn off the
monitor.
/ Volume control
You can control the volume by moving the
joystick button left/right.
NOTE
•
The joystick button is located at the bottom of the monitor.
• The direction of the button changes with the direction of the display.
5
ENGLISH

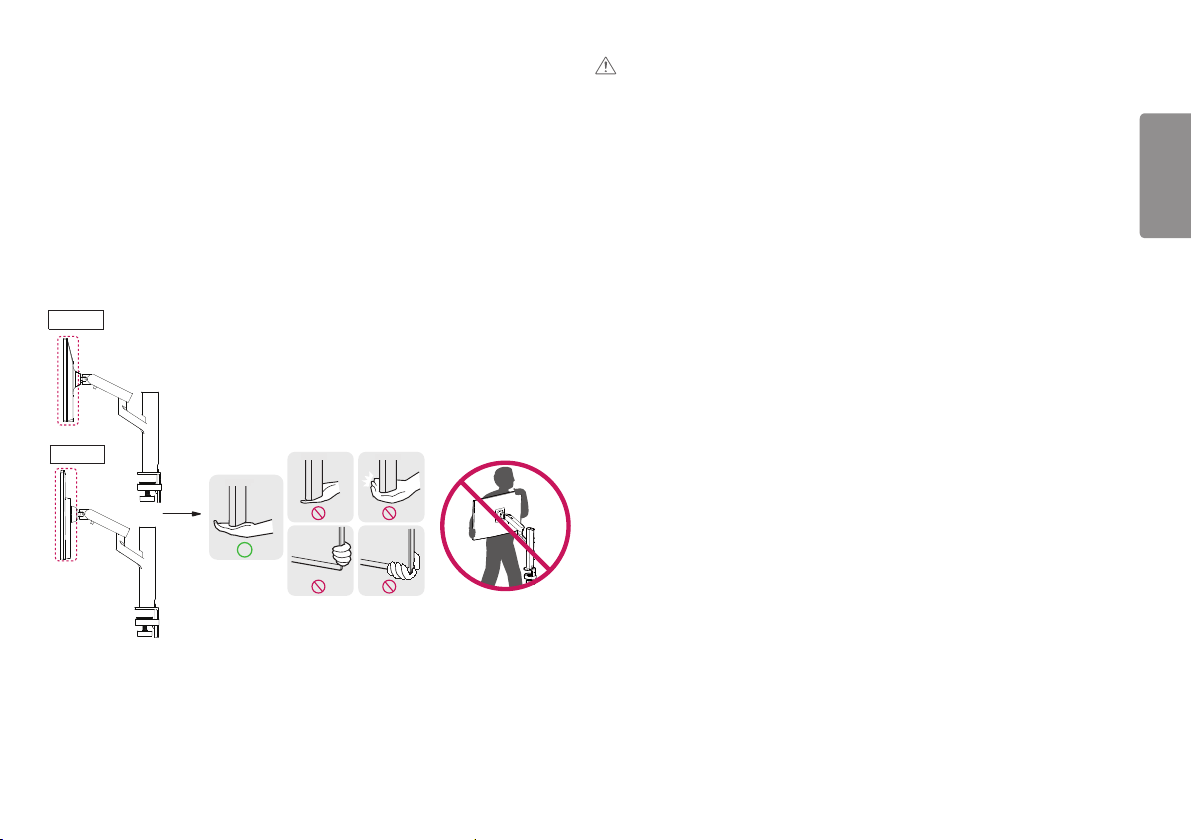

Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or
damaged and to ensure safe transportation, regardless of its shape or size.
• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face away from you to prevent it from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.
• Disassemble and reposition the head and stand separately when moving the monitor.
±335°
±335°
±335°
27UK580
32UK580
CAUTION
•
Avoid touching the monitor screen as much as possible.
- This may result in damage to the screen or some of the pixels used to create images.
• Standing the monitor panel up vertically may cause the monitor to fall due to the joystick and cause damage or
injury. In addition, this may cause the joystick button to malfunction.
6
ENGLISH
Installing on a Table
• Lift the monitor and place it on the table in an upright position. Place the monitor at least 100mm away from
the wall to ensure sufficient ventilation.
±335°
±335°
±335°
: 100 mm (3.9inches)
CAUTION
•
Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power
outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.
• Make sure the table on which the product is installed is stable and solid. A table made of fragile materials such
as glass may be damaged.
• The monitor may tilt on uneven or slanted tables.
• Installation of the stand may leave a mark on the table.
• Do not hang heavy items such as bags or clothes on the stand.
• Avoid falls by verifying that the table is large enough to support the monitor.
• Make sure to fix the stand firmly on the table.
• When installing the stand on the table, make sure the stand is fully engaged to the table so that you would not
hit your head when you get up.
• Do not use excessive force when rotating the monitor. Allowing the monitor to contact a wall may injure
persons nearby or damage the monitor.
• If you are using a monitor other than an existing monitor, this is not covered by quality assurance.
7
ENGLISH
CAUTION
•
Stands that are not fully engaged to the table may allow the monitor to wobble or fall over.
• Make sure the table is solid and stable enough to fully support installation of the monitor. Tables made of
fragile materials such as glass may break.
• For tables with a protrusion
- If the protrusion is located more than 95mm away from the edge of the table, install the monitor only when
a flat protrusion is located between 10 mm to 75 mm from the edge of the table.
27UK580
±335°
±335°
±335°
≥ 95mm (3.7 inches)
≥ 75mm
(2.9 inches)
10mm
(0.4 inches)
32UK580
±335°
±335°
±335°
≥ 95mm (3.7 inches)
≥ 75mm
(2.9 inches)
10mm
(0.4 inches)

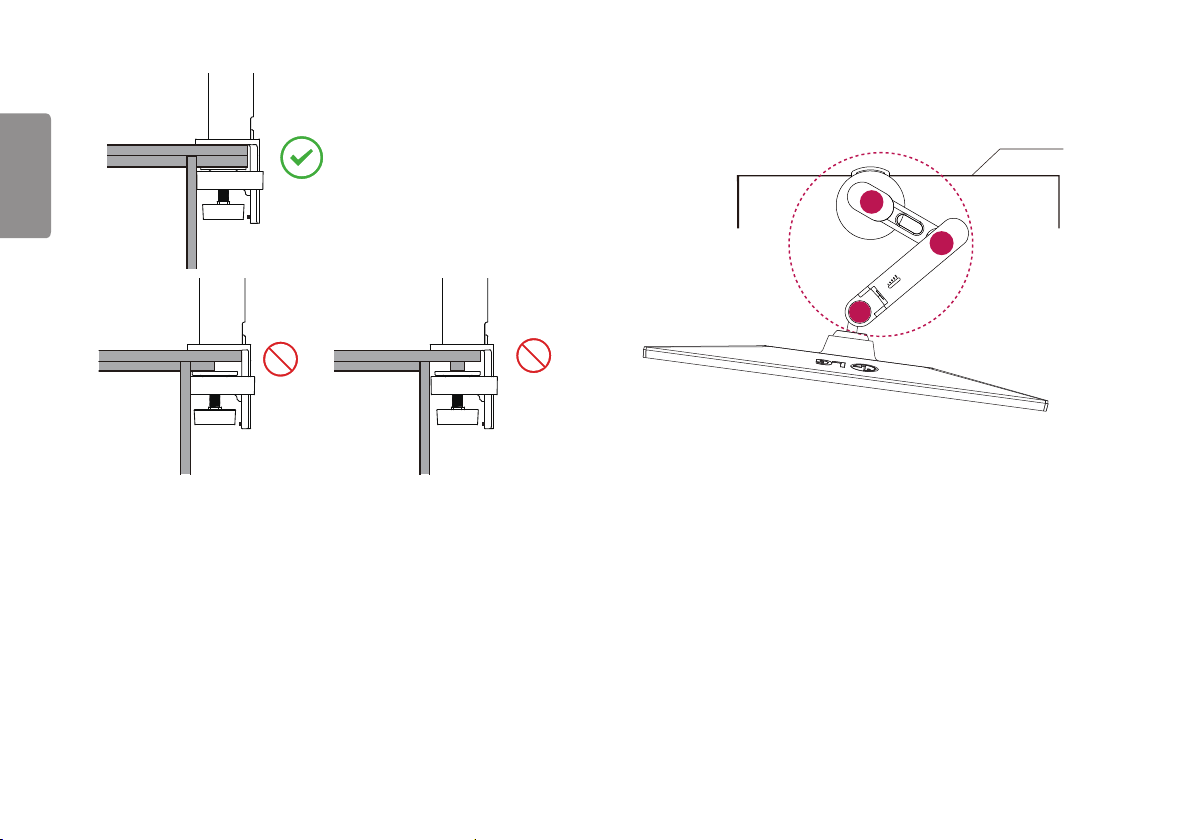

How to fix a clamp
1 After positioning the stand on the table, secure it by turning the handle.
• For tables without a protrusion
- The table should be less than 75 mm thick.
≤75 mm (2.9 inches)
Table
8
ENGLISH
Swivel stand
Your monitor mount lets you adjust the monitor viewing angle.
Table
±335°
±335°
±335°
9
ENGLISH

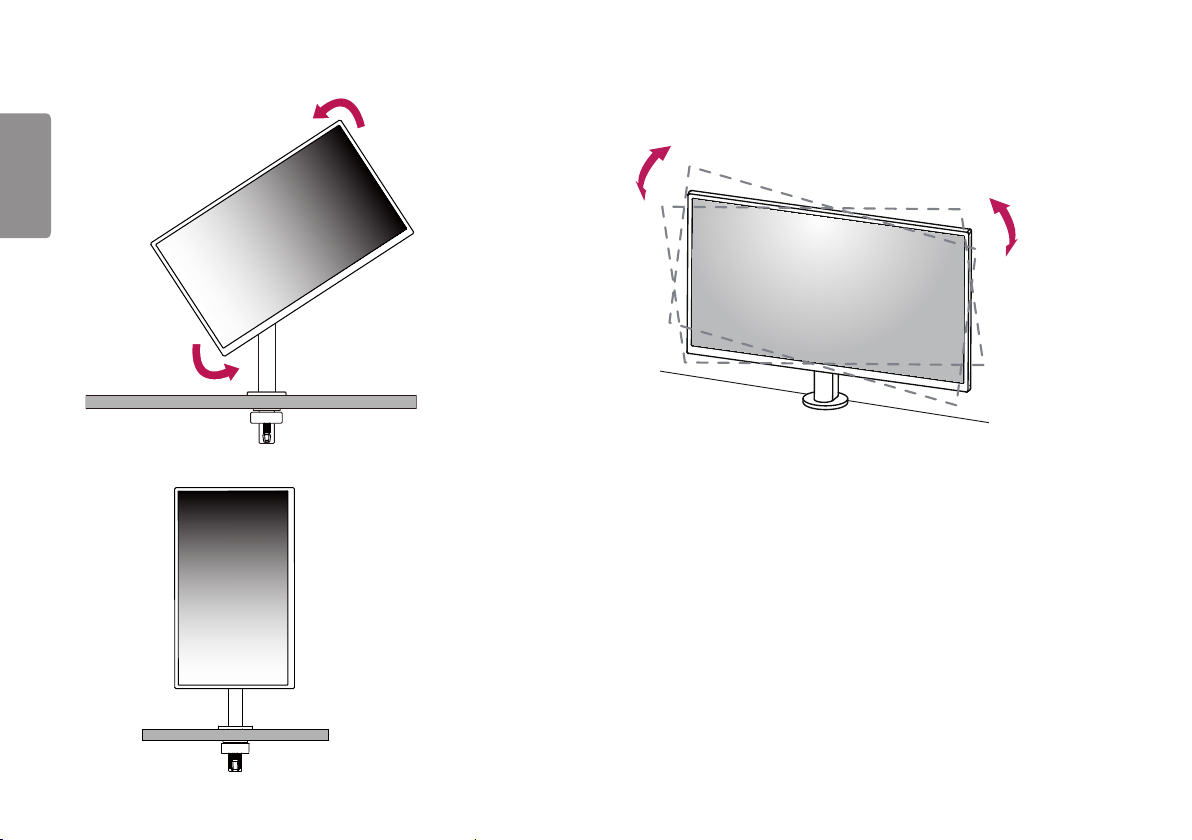

Pivot Feature
The pivot feature allows the monitor to rotate 90° counter-clockwise.
Monitor’s head
Table
WARNING
•
When using the Pivot function, do not rotate the monitor too fast or with excessive force. The table may be
scratched by contact with the monitor's head.
1 Raise the monitor up to the maximum height.
2 Adjust the angle of the monitor in the direction of the arrow as shown in the figure.
10
ENGLISH
3 Rotate the monitor counter-clockwise as shown in the figure.
4 Complete the installation by rotating the monitor 90° as shown below.
Leveling the Screen
If the screen appears crooked to one side after the product has been placed in position, straighten the angle
horizontally as follows.
11
ENGLISH
Adjusting the Stand Height
1 Make sure to hold and move the monitor handle with both hands.
27UK580
±335°
±335°
±335°
Max. 130.0 mm
(5.1 inches)
32UK580
±335°
±335°
±335°
Max. 130.0 mm
(5.1 inches)
WARNING
• To avoid injury when adjusting the height, do not put your hands on the stand.
Adjusting the Angle
Adjust the angle of the screen.
The angle of the screen can be adjusted forward or backward from -25°to25° for a comfortable viewing
experience.
27UK580 32UK580
-25° 25°
-25° 25°
WARNING
•
To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor’s frame as
illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the monitor.
27UK580
32UK580
• Beware of cables attached to the monitor when rotating it.
12
ENGLISH
Using the Kensington Lock
For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website
at http://www.kensington.com.
Connect the monitor to a table using the Kensington security system cable.
NOTE
•
The Kensington security system is optional. You can obtain optional accessories from most electronics stores.
CAUTION
•
Leave enough slack in cable to allow full range of motion.
• To avoid the potential to pinch cables it is important to follow the routing instructions in this manual. Failure to
follow these instructions may result in equipment damage or personal injury.
WARNING
•
If you do not remove the cable when adjusting the monitor, it may cause damage.
• Before connecting cables, it is recommended to rotate the monitor to an appropriate Angle to avoid wiring
difficulties.
13
ENGLISH
Installing on the Wall
This monitor meets the specifications for the wall mount plate or other compatible devices.
Install the monitor at least 100mm away from the wall and leave about 100mm of space at each side of the
monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail
store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.
: 100 mm
Installing the Wall Mount Plate
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
Wall Mount (mm) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate (Optional) LSW 149
NOTE
•
A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable
for any accidents relating to the use of non-standard screws.
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
• The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard
length, it may damage the inside of the product.
• For more information, please refer to the user manual for the wall mounting bracket.
• Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the
screen.
• Remove the stand before installing the monitor on a wall mount by performing the stand attachment in
reverse.
14
ENGLISH
CAUTION
•
Unplug the power cord before moving or installing the monitor to avoid electric shock.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead
to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation
instructions.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or
misuse of inappropriate components will not be covered by the product warranty.
• When measured from the back of the monitor, the length of each installed screw must be 8mm or less.
: Wall Mount Plate
: Back of the Monitor
: Standard screw
: Max. 8 mm
15
ENGLISH
USING THE MONITOR
• Illustrations in this manual may differ from the actual product.
Press the joystick button, go to Settings
Input, and then select the input option.
CAUTION
•
Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC
screensaver if possible.
• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power
outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
Connecting to a PC
• This monitor supports the *Plug and Play feature.
* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure
anything or install any manual drivers.
HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.
CAUTION
•
Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
cable
- High-Speed HDMI
®
/
TM
cable with Ethernet
DisplayPort Connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
•
There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort)
cable or gender that supports DisplayPort 1.4. (Sold separately)(32UK580)
• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort)
cable or gender that supports DisplayPort 1.2 or 1.4. (Sold separately)(27UK580)
16
ENGLISH
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor.
NOTE
•
Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
cable
- High-Speed HDMI
®
/
TM
cable with Ethernet
Connecting Peripherals
Headphones Connection
Connect peripherals to the monitor via the headphones port.
NOTE
•
Peripheral devices are sold separately.
• Depending on the audio settings of the PC and external device, headphones and speaker functions may be
limited.
• If you use angled earphones, it may cause a problem with connecting another external device to the monitor.
Therefore, it is recommended to use straight earphones.
Angled Straight
(Recommend)
17
ENGLISH
USER SETTINGS
NOTE
•
Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
• When Beep Guide is activated, pressing the joystick button will take you to Settings right away.
Activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down and left/right to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
18
ENGLISH
27UK580
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button more than 5 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input features.
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Settings feature.
Main menu disabled Enters the Accessibility menu.
Main menu enabled Turns off the monitor.
Main menu disabled Enters the Accessibility menu.
Main menu enabled Enters the Picture Mode features.
32UK580
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button more than 5 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input features.
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Settings feature.
Main menu disabled Enters the Accessibility menu.
Main menu enabled Turns off the monitor.
Main menu disabled Enters the Accessibility menu.
Main menu enabled Enters the Game features.
19
ENGLISH
Main Menu Features
27UK580 32UK580
Main Menu Description
: Input Sets input mode.
: Power Off Turns off the monitor.
: Settings Configures the screen settings.
: Picture Mode Sets the picture mode.
: Exit Exits the main menu.
Main Menu Description
: Input Sets input mode.
: Power Off Turns off the monitor.
: Settings Configures the screen settings.
: Game Sets the game mode for gaming.
: Exit Exits the main menu.
Menu Settings
1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the
Settings.
2 Move the joystick up/down and left/right to set the options.
3 To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it.
4 If you want to exit the OSD menu, move the joystick to until you exit.
Quick Settings Input Picture General
20
ENGLISH
Quick Settings
Settings > Quick Settings Description
Brightness
Adjusts the contrast and brightness of the screen.
Contrast
Volume
Adjusts the volume.
NOTE
•
You can adjust Mute / Unmute by moving the joystick button to in the Volume menu.
Color Temp
Custom
The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.
Input
Settings > Input Description
Input List Selects the input mode.
Aspect Ratio
Adjusts the aspect ratio of the screen.
Full Wide Displays the video in widescreen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
NOTE
• The display may look the same for Full Wide and Original options at the recommended resolution. (3840 x 2160).
27UK580
21
ENGLISH
NOTE
•
The Picture Mode that can be set depends on the Input signal.
[Picture Mode on SDR (Non-HDR) signal]
Settings > Picture Description
Picture Mode
Custom Allows the user to adjust each element.
Vivid Heightens contrast, brightness and sharpness to display vivid images.
HDR Effect
Optimizes the screen for high dynamic range.
Reader
Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Cinema
Optimizes the screen for video.
FPS
This mode is optimized for FPS games.
RTS
This mode is optimized for RTS Game.
Color Weakness
This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two
colors.
NOTE
•
If the Picture Mode is changed, the screen may flicker or the resolution of your PC screen may be affected.
22
ENGLISH
[Picture Mode on HDR signal]
Settings > Picture Description
Picture Mode
Custom Allows the user to adjust each element.
Vivid Optimized the screen for HDR vivid colors.
Cinema Optimized the screen for HDR video.
FPS This mode is optimized for FPS games.It is suitable for very dark FPS games.
RTS This mode is optimized for RTS Game.
NOTE
•
HDR content may not display correctly depending on Window10 OS settings, please check HDR On/Off settings in Windows.
• When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card performance.
• While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to Graphic card performance.
23
ENGLISH
Settings > Picture Description
Picture Adjust
Brightness
Adjusts the contrast and brightness of the screen.
Contrast
Sharpness Adjusts the sharpness of the screen.
SUPER RESOLUTION+
High Optimizes the screen for crystal clear images. Best for high-definition video or games.
Middle
Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes. Best for UCC
or SD videos.
Low Optimizes the screen for smooth and natural images. Best for still images or images with less movement.
Off Displays in the most common setting. Disables SUPER RESOLUTION+.
NOTE
•
Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for
desktop icons. Doing so may result in unnecessarily high sharpness.
Black Level
Sets the offset level (for HDMI only).
• Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
DFC
On Adjusts the brightness automatically according to the screen.
Off
Disables the DFC feature.
24
ENGLISH
Settings > Picture Description
Game Adjust
Response Time
Sets a response time for displayed pictures based on the movement of the picture on the screen.
For a normal environment, it is recommended that you use Fast. When there is a lot of motion, it is recommended that you use Faster.
Setting to Faster may cause image sticking.
Faster Sets the response time to Faster.
Fast Sets the response time to Fast.
Normal Sets the response time to Normal.
Off Does not use the response time improvement feature.
FreeSync
Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal.
CAUTION
•
Supported Interface: DisplayPort,HDMI.
• Supported Graphic Card : A graphic card that supports AMD’s FreeSync is necessary.
• Supported Version : Make sure to update the graphic card to the latest driver.
• For more information and requirement, refer to AMD website at http://www.amd.com/FreeSync
Extended
Enable wider frequency range of FreeSync function than basic mode.
The screen may flicker during the game play.
Basic Enable basic frequency range of FreeSync function.
Off
FreeSync function off.
Black Stabilizer
You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
25
ENGLISH
Settings > Picture Description
Color Adjust
Gamma
Mode 1,
Mode 2,
Mode 3
The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image
becomes.
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Color Temp
Set your own color temperature.
Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color to between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.
Red/Green/Blue You can customize the picture color using red, green, and blue colors.
Six Color
Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red, green, blue, cyan, magenta, and yellow) and then
saving the settings.
Hue Adjusts the tone of the screen colors.
Saturation
Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher
the value, the more saturated and darker the colors become.
Picture Reset
Do you want to reset your
picture settings?
Yes Returns to the default settings.
No Cancel the select.
26
ENGLISH
General
Settings > General Description
Language Sets the menu screen to the desired language.
SMART ENERGY SAVING
Conserve energy by using luminance compensation algorithm.
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Off Disables the feature.
NOTE
•
The value of energy saving data may differ depending on panel and panel suppliers.
• If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.
Power LED
Turns the power LED on the bottom of the monitor on or off.
On The power LED turns on automatically.
Off The power LED turns off.
NOTE
•
When the Power LED function is turned on, it operates as follows:
- On Mode: White
- Sleep Mode (Standby Mode): White Blinking
- Off Mode: Off
Automatic Standby
Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function.
(Off, 4 H, 6 H and 8 H)
DisplayPort Version
Set DisplayPort Version to the same version as the connected external device. (1.4, 1.2)
To use the HDR function, set to 1.4.
27
ENGLISH
Settings > General Description
HDMI ULTRA HD Deep Color
Provides sharper images when connected to a device supporting ULTRA HD Deep Color.
4K@ 60 Hz Support Format
Resolution Frame rate(Hz)
Color Depth / Chroma Sampling
8 bit 10 bit
3840 x 2160
59.94
60.00
YCbCr 4:2:0
YCbCr 4:2:2
YCbCr 4:4:4 -
RGB 4:4:4 -
NOTE
•
To use HDMI ULTRA HD Deep Color, turn this function "On".
• If the connected device does not support Deep Color, the screen or sound may not work properly. In this case, set this function to off.
• The HDMI ULTRA HD Deep Color function can be set individually for each HDMI port.
• To use the HDR function, set HDMI ULTRA HD Deep Color t o “ O n ”.
Buzzer
This feature lets you set the sound generated from Buzzer when your monitor powers on.
On Enables your monitor's Buzzer.
Off Disables your monitor's Buzzer.
OSD Lock
This feature disables the configuration and adjustment of menus.
On Enables OSD Lock.
Off Disables OSD Lock.
NOTE
•
All features are disabled except Brightness, Contrast, Volume, Input List, Aspect Ratio, OSD Lock and Information.
28
ENGLISH
Settings > General Description
OSD Size User can select OSD Size to Large or Small.
Information The following display information will be shown; Total Power On Time, Resolution.
Reset to Initial Settings
Do you want to reset your settings?
Yes Returns to the default settings.
No Cancel the reset.
29
ENGLISH
32UK580
Quick Settings
Settings > Quick Settings Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume
Adjusts the volume level.
NOTE
•
You can adjust Mute / Unmute by moving the joystick button to▼in the Volume menu.
Color Temp
Custom
The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.
Input
Settings > Input Description
Input List
Selects the input mode.
Aspect Ratio
Adjusts the aspect ratio of the screen.
Full Wide Displays the video in widescreen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
1:1 The aspect ratio is not adjusted from the original.
NOTE
•
The display may look the same for Full Wide , Original, and 1:1 options at the recommended resolution (3840 x 2160).
30
ENGLISH
NOTE
•
The Picture Mode that can be set depends on the Input signal.
[Picture Mode on SDR (Non-HDR) signal]
Settings > Picture Description
Picture Mode
Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for video.
HDR Effect Optimizes the screen for high dynamic range.
Dark Room 1 This mode adjusts the brightness to the optimal level for working in a dark environment.
Dark Room 2 This mode sets the brightness to a lower level than Dark Room 1.
Color Weakness
This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two
colors.
FPS Game 1
This mode is optimized for FPS games.
FPS Game 2
It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark FPS games.
RTS Game
This mode is optimized for RTS Game.
Custom (Game)
In this mode, users can customize various elements including game-related options.
EBU
A standard TV PAL color space for broadcasting.
REC709
A standard HDTV color space for broadcasting.
SMPTE-C
A standard TV NTSC color space for broadcasting.
NOTE
• If the Picture Mode is changed, the screen may flicker or the resolution of your PC screen may be affected.
31
ENGLISH
[Picture Mode on HDR signal]
Settings > Picture Description
Picture Mode
HDR Vivid
Optimized the screen for HDR vivid colors.
HDR Standard
Optimized the screen for HDR.
HDR Game
Optimized the screen for HDR Games.
HDR Cinema
Optimized the screen for HDR video.
NOTE
•
HDR content may not be operated properly depending on the Windows10 OS setting. Please check the HDR On / Off setting of Windows.
• When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card performance.
• While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to Graphic card performance.
32
ENGLISH
Settings > Picture Description
Picture Adjust
Brightness Adjusts the brightness of the screen.
Contrast Adjusts the contrast of the screen.
Sharpness Adjusts the sharpness of the screen.
SUPER RESOLUTION+
High Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high quality video or game.
Middle
The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing.
It is effective for UCC or SD video.
Low
The optimized picture quality is displayed when a user wants smooth and natural images. It is effective for slow-moving
pictures or still images.
Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
NOTE
•
Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for
desktop icons. Doing so may result in unnecessarily high sharpness.
Black Level
Sets the offset level (for HDMI only).
• Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
33
ENGLISH
Settings > Picture Description
Picture Adjust
HDMI ULTRA HD Deep Color
Provides sharper images when connected to a device supporting ULTRA HD Deep Color.
4K@60 Hz Support Format (HDMI ULTRA HD Deep Color On)
Resolution Frame rate (Hz)
Color Depth / Chroma Sampling
8 bit 10 bit
3840 x 2160
59.94
60.00
YCbCr 4:2:0
YCbCr 4:2:2
YCbCr 4:4:4 -
RGB -
4K@30 Hz Support Format (HDMI ULTRA HD Deep Color Off)
Resolution Frame rate (Hz)
Color Depth / Chroma Sampling
8 bit 10 bit
3840 x 2160
29.97
30.00
YCbCr 4:2:2
YCbCr 4:4:4 -
RGB -
NOTE
•
If the connected device does not support ULTRA HD Deep Color, the feature may not work properly.
• If a problem occurs, set the HDMI ULTRA HD Deep Color option to Off.
• HDMI ULTRA HD Deep Color option must be set for each HDMI port (HDMI IN 1, HDMI IN 2) separately.
• HDMI ULTRA HD Deep Color option can be changed with SET OSD Menu.
(Settings - Picture - Picture Adjust - HDMI ULTRA HD Deep Color Off / On)
DFC
On Adjusts the brightness automatically according to the screen.
Off Disables the DFC feature.
34
ENGLISH
Settings > Picture Description
Game Adjust
Response Time
Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Fast.
For a fast-moving picture, it is recommended that you use Faster.
Setting to Faster may cause image sticking.
Faster Sets the response time to faster.
Fast Sets the response time to fast.
Normal Sets the response time to normal.
Off Does not use the response time improvement feature.
Black Stabilizer
You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
35
ENGLISH
Settings > Picture Description
Color Adjust
Gamma
Mode 1,
Mode 2,
Mode 3
The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image
becomes.
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Color Temp
Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.
Red
You can customize the picture color using Red, Green, and Blue colors.Green
Blue
Six Color
Meets the user requirements for colors through adjusting the color and saturation of the six colors(Red_Hue, Red_Saturation, Green_Hue,
Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue,
Yellow_Saturation) and saving the settings.
Hue Adjusts the tone of the screen colors.
Saturation
Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher
the value, the more saturated and darker the colors become.
Picture Reset
Do you want to reset your picture settings?
No Cancel the select.
Yes Returns to the default settings.
36
ENGLISH
General
Settings > General Description
Language
Sets the menu screen to the desired language.
SMART ENERGY SAVING
High Saves energy using the high-efficiency SMART Energy Saving feature.
Low Saves energy using the low-efficiency SMART Energy Saving feature.
Off Disables the SMART Energy Saving feature.
NOTE
•
The value of energy saving data may differ depending on panel and panel suppliers.
• If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.
Power LED
Turns the power LED on the bottom of the monitor on or off.
On The power LED turns on automatically.
Off The power LED turns off.
Automatic Standby Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
DisplayPort 1.2
Enables or disables DisplayPort 1.2.
NOTE
•
Be sure to configure this option according to the DisplayPort version supported by your graphics card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.
Buzzer
This feature lets you set the sound generated from Buzzer when your monitor powers on.
On Enables your monitor's Buzzer.
Off Disables your monitor's Buzzer.
OSD Lock
This feature disables the configuration and adjustment of menus.
On Enables OSD Lock.
Off Disables OSD Lock.
NOTE
• All features are disabled except Brightness, Contrast, Volume, Input List, Aspect Ratio, OSD Lock and Information.
37
ENGLISH
Settings > General Description
OSD Size User can select OSD Size to Large or Small.
Information The display information will be shown the Model, Serial Number, Total Power On Time, Resolution.
Reset Do you want to reset your settings?
No Cancel the select.
Yes Returns to the default settings.
38
ENGLISH
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged in?
• Check if the power cord is correctly plugged into the power outlet.
• Check if there is AC available from the AC plug. (Test using another electrical device).
Is the power LED on?
• Check the power cable connection and press the power button.
Is the power on and the power LED displaying white?
• Check that the connected input is enabled (Settings > Input).
Is the No Signal message being displayed? (27UK580)
• This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
Does the No Signal message appear or is the screen not
displayed? (32UK580)
• This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
• If the screen is not displayed after reconnecting the signal cable, set as below.
- HDMI Input: Set HDMI ULTRA HD Deep Color to off in the monitor's General settings.
Is the Out of Range message being displayed?
• This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product
Specification section of this manual to set the appropriate frequency.
Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution?
• If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.
• Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the
display.
• The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of
the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.
Does image sticking occur even when the monitor is
turned off?
• Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
• To extend the lifetime of the monitor, use a screensaver.
Are there spots on the screen?
• When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related
to the monitor's performance.
Some features are disabled.
Are some functions not available when you press the
Menu button?
• The OSD is locked. Disable OSD Lock in General.
NOTE
• LED can be lighted with Set OSD Menu.
Settings – General – Power LED – On
39
ENGLISH
PRODUCT SPECIFICATION
27UK580
Color Depth 8-bit / 10-bit color is supported.
Resolution
Max Resolution 3840 x 2160 @ 60 Hz
Recommended Resolution 3840 x 2160 @ 60 Hz
Power Sources
Power Rating 19 V
2.0 A
Power Consumption
On mode: 36 W Typ. (Outgoing condition) *
Sleep Mode (Standby Mode) ≤ 0.5 W **
Off Mode ≤ 0.3 W
AC/DC adaptor
ADS-45SN-19-3 19040G, manufactured by SHENZHEN HONOR ELECTRONIC,
or ADS-45SQ-19-3 19040E, manufactured by SHENZHEN HONOR ELECTRONIC,
or LCAP21C, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE,
or AD10530LF, manufactured by PI Electronics (H.K.) Ltd.
Output: 19 V
2.1 A
Environmental Conditions
Operating Conditions Temperature
0 °C to 40 °C (32 °F to 104 °F)
Humidity
Less than 80 %
Storing Conditions Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Less than 85 %
Dimensions
Monitor Size (Width x Height x Depth)
With Stand 623.1 x 621.2 x 458.0 (mm)
24.5 x 24.4 x 18.0 (inches)
Without Stand 623.1 x 371.4 x 42.2 (mm)
24.5 x 14.6 x 1.6 (inches)
Weight (Without Packaging)
With Stand 9.0 kg
19.8 (lbs)
Without Stand 4.4 kg
9.7 (lbs)
Specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
40
ENGLISH
PRODUCT SPECIFICATION
32UK580
Color Depth 8-bit / 10-bit color is supported.
Resolution
Max Resolution 3840 x 2160 @ 60 Hz
Recommended Resolution 3840 x 2160 @ 60 Hz
Power Sources
Power Rating 19 V
3.3 A
Power Consumption
On mode: 50 W Typ. (Outgoing condition) *
Sleep Mode (Standby Mode) ≤ 0.5 W **
Off Mode ≤ 0.3 W
AC/DC adaptor
DA-65G19, manufactured by Asian Power Devices Inc.,
Or ADS-65AI-19-3 19065E, manufactured by SHENZHEN HONOR ELECTRONIC
Output: 19 V
3.42 A
Environmental Conditions
Operating Conditions Temperature
0 °C to 40 °C (32 °F to 104 °F)
Humidity
Less than 80 %
Storing Conditions Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Less than 85 %
Dimensions
Monitor Size (Width x Height x Depth)
With Stand 728.1 x 780.0 x 462.8 (mm)
28.6 x 30.7 x 18.2 (inches)
Without Stand 728.1 x 424.6 x 49.9 (mm)
28.6 x 16.7 x 1.9 (inches)
Weight (Without Packaging)
With Stand 9.8 kg
21.6 (lbs)
Without Stand 5.3 kg
11.6 (lbs)
Specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
41
ENGLISH
Factory Support Mode (Preset Mode, PC)
DisplayPort
27UK580
Display Modes (Resolution) Horizontal Frequency(kHz) Vertical Frequency(Hz) Polarity(H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.00 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45.00 60.00 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60.00 60.00 +/+
1920 x 1080 67.50 60.00 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 65.69 29.98 +/-
3840 x 2160 134.40 60.00 +/- DP Preferred timing
42
ENGLISH
32UK580
Display Modes (Resolution) Horizontal Frequency(kHz) Vertical Frequency(Hz) Polarity(H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.00 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45.00 60.00 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60.00 60.00 +/+
1920 x 1080 67.50 60.00 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 66.66 30.00 +/-
3840 x 2160 133.32 60.00 +/- DP Preferred timing
43
ENGLISH
HDMI
27UK580
Display Modes (Resolution) Horizontal Frequency(kHz) Vertical Frequency(Hz) Polarity(H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.00 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45.00 60.00 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60.00 60.00 +/+
1920 x 1080 67.50 60.00 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 65.69 29.98 +/-
HDMI Preferred timing,
HDMI ULTRA HD Deep Color : Off
3840 x 2160 133.31 60.00 +/-
HDMI Preferred timing,
HDMI ULTRA HD Deep Color : On
44
ENGLISH
32UK580
Display Modes (Resolution) Horizontal Frequency(kHz) Vertical Frequency(Hz) Polarity(H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.00 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45.00 60.00 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60.00 60.00 +/+
1920 x 1080 67.50 60.00 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 67.50 30.00 +/-
HDMI Preferred timing,
HDMI ULTRA HD Deep Color : Off
3840 x 2160 135.00 60.00 +/-
HDMI Preferred timing,
HDMI ULTRA HD Deep Color : On
45
ENGLISH
HDMI Timing (Video)
Factory support mode
(Preset Mode)
Horizontal Frequency(kHz) Vertical Frequency(Hz) Remarks
480p 31.5 60
720p 45.0 60
1080p 67.5 60
2160p 135 60 When HDMI ULTRA HD Deep Color is set to ON
Power LED
32UK580
Mode LED Color
On Mode White (For a few seconds)
Sleep Mode (Standby Mode) Off
Off Mode Off
46
ENGLISH
Beep Guide
27UK580
Menu Location
Quick Settings 1
Quick Settings - Brightness 1 1
Quick Settings - Brightness 1 1 1 Slider
Quick Settings - Contrast 1 2
Quick Settings - Contrast 1 2 1 Slider
Quick Settings - Volume 1 3
Quick Settings - Volume 1 3 1 Slider
Quick Settings - Color Temp 1 4
Quick Settings - Color Temp - Custom 1 4 1
Quick Settings - Color Temp - Warm 1 4 2
Quick Settings - Color Temp - Medium 1 4 3
Quick Settings - Color Temp - Cool 1 4 4
Quick Settings - Color Temp - Manual 1 4 5
Quick Settings - Color Temp - Manual 1 4 5 1 Slider
Input 2
Input - Input List 2 1
Input - Input List - HDMI1 2 1 1
Input - Input List - HDMI2 2 1 2
Input - Input List - DisplayPort 2 1 3
Input - Aspect Ratio 2 2
Input - Aspect Ratio - Full Wide 2 2 1
Menu Location
Input - Aspect Ratio - Original 2 2 2
Picture 3
Picture - Picture Mode 3 1
Picture - Picture Mode - Custom 3 1 1
Picture - Picture Mode - Vivid 3 1 2
Picture - Picture Mode - HDR Effect 3 1 3
Picture - Picture Mode - Reader 3 1 4
Picture - Picture Mode - Cinema 3 1 5
Picture - Picture Mode - FPS 3 1 6
Picture - Picture Mode - RTS 3 1 7
Picture - Picture Mode - Color Weakness 3 1 8
Picture - Picture Adjust 3 2
Picture - Picture Adjust - Brightness 3 2 1
Picture - Picture Adjust - Brightness 3 2 1 1 Slider
Picture - Picture Adjust - Contrast 3 2 2
Picture - Picture Adjust - Contrast 3 2 2 1 Slider
Picture - Picture Adjust - Sharpness 3 2 3
Picture - Picture Adjust - Sharpness 3 2 3 1 Slider
Picture - Picture Adjust - SUPER RESOLUTION+ 3 2 4
Picture - Picture Adjust - SUPER RESOLUTION+
- High
3 2 4 1
Menu Location
Picture - Picture Adjust - SUPER RESOLUTION+ -
Middle
3 2 4 2
Picture - Picture Adjust - SUPER RESOLUTION+ - Low 3 2 4 3
Picture - Picture Adjust - SUPER RESOLUTION+ - Off 3 2 4 4
Picture - Picture Adjust - Black Level 3 2 5
Picture - Picture Adjust - Black Level - High 3 2 5 1
Picture - Picture Adjust - Black Level - Low 3 2 5 2
Picture - Picture Adjust - DFC 3 2 6
Picture - Picture Adjust - DFC - On 3 2 6 1
Picture - Picture Adjust - DFC - Off 3 2 6 2
Picture - Game Adjust 3 3
Picture - Game Adjust - Response Time 3 3 1
Picture - Game Adjust - Response Time - Faster 3 3 1 1
Picture - Game Adjust - Response Time - Fast 3 3 1 2
Picture - Game Adjust - Response Time - Normal 3 3 1 3
Picture - Game Adjust - Response Time - Off 3 3 1 4
Picture - Game Adjust - FreeSync 3 3 2
Picture - Game Adjust - FreeSync - Extended 3 3 2 1
Picture - Game Adjust - FreeSync - Basic 3 3 2 2
Picture - Game Adjust - FreeSync - Off 3 3 2 3
Picture - Game Adjust - Black Stabilizer 3 3 3
Picture - Game Adjust - Black Stabilizer 3 3 3 1 Slider
47
ENGLISH
Menu Location
Picture - Color Adjust 3 4
Picture - Color Adjust - Gamma 3 4 1
Picture - Color Adjust - Gamma - Mode 1 3 4 1 1
Picture - Color Adjust - Gamma - Mode 2 3 4 1 2
Picture - Color Adjust - Gamma - Mode 3 3 4 1 3
Picture - Color Adjust - Gamma - Mode 4 3 4 1 4
Picture - Color Adjust - Color Temp 3 4 2
Picture - Color Adjust - Color Temp - Custom 3 4 2 1
Picture - Color Adjust - Color Temp - Warm 3 4 2 2
Picture - Color Adjust - Color Temp - Medium 3 4 2 3
Picture - Color Adjust - Color Temp - Cool 3 4 2 4
Picture - Color Adjust - Color Temp - Manual 3 4 2 5
Picture - Color Adjust - Color Temp - Manual 3 4 2 5 1 Slider
Picture - Color Adjust - Red 3 4 3
Picture - Color Adjust - Red 3 4 3 1 Slider
Picture - Color Adjust - Green 3 4 4
Picture - Color Adjust - Green 3 4 4 1 Slider
Picture - Color Adjust - Blue 3 4 5
Picture - Color Adjust - Blue 3 4 5 1 Slider
Picture - Color Adjust - Six Color 3 4 6
Picture - Color Adjust - Six Color - Red Hue 3 4 6 1
Picture - Color Adjust - Six Color - Red Hue 3 4 6 1 1 Slider
Picture - Color Adjust - Six Color - Red Saturation 3 4 6 2
Menu Location
Picture - Color Adjust - Six Color - Red Saturation 3 4 6 2 1 Slider
Picture - Color Adjust - Six Color - Green Hue 3 4 6 3
Picture - Color Adjust - Six Color - Green Hue 3 4 6 3 1 Slider
Picture - Color Adjust - Six Color - Green Saturation 3 4 6 4
Picture - Color Adjust - Six Color - Green Saturation 3 4 6 4 1 Slider
Picture - Color Adjust - Six Color - Blue Hue 3 4 6 5
Picture - Color Adjust - Six Color - Blue Hue 3 4 6 5 1 Slider
Picture - Color Adjust - Six Color - Blue Saturation 3 4 6 6
Picture - Color Adjust - Six Color - Blue Saturation 3 4 6 6 1 Slider
Picture - Color Adjust - Six Color - Cyan Hue 3 4 6 7
Picture - Color Adjust - Six Color - Cyan Hue 3 4 6 7 1 Slider
Picture - Color Adjust - Six Color - Cyan Saturation 3 4 6 8
Picture - Color Adjust - Six Color - Cyan Saturation 3 4 6 8 1 Slider
Picture - Color Adjust - Six Color - Magenta Hue 3 4 6 9
Picture - Color Adjust - Six Color - Magenta Hue 3 4 6 9 1 Slider
Picture - Color Adjust - Six Color - Magenta
Saturation
3 4 6 10
Picture - Color Adjust - Six Color - Magenta
Saturation
3 4 6 10 1 Slider
Picture - Color Adjust - Six Color - Yellow Hue 3 4 6 11
Picture - Color Adjust - Six Color - Yellow Hue 3 4 6 11 1 Slider
Picture - Color Adjust - Six Color - Yellow Saturation 3 4 6 12
Picture - Color Adjust - Six Color - Yellow Saturation 3 4 6 12 1 Slider
Picture - Picture Reset 3 5
Menu Location
Picture - Picture Reset - Yes 3 5 1
Picture - Picture Reset - No 3 5 2
General 4
General - Language 4 1
General - Language - English 4 1 1
General - Language - German 4 1 2
General - Language - French 4 1 3
General - Language - Spanish 4 1 4
General - Language - Italian 4 1 5
General - Language - Swedish 4 1 6
General - Language - Finnish 4 1 7
General - Language - Portuguese 4 1 8
General - Language - Portuguese (Brazil) 4 1 9
General - Language - Polish 4 1 10
General - Language - Russian 4 1 11
General - Language - Greek 4 1 12
General - Language - Ukrainian 4 1 13
General - Language - Chinese 4 1 14
General - Language - Traditional Chinese 4 1 15
General - Language - Japanese 4 1 16
General - Language - Korean 4 1 17
General - SMART ENERGY SAVING 4 2
General - SMART ENERGY SAVING - High 4 2 1
48
ENGLISH
Menu Location
General - SMART ENERGY SAVING - Low 4 2 2
General - SMART ENERGY SAVING - Off 4 2 3
General - Power LED 4 3
General - Power LED - On 4 3 1
General - Power LED - Off 4 3 2
General - Automatic Standby 4 4
General - Automatic Standby - 8H 4 4 1
General - Automatic Standby - 6H 4 4 2
General - Automatic Standby - 4H 4 4 3
General - Automatic Standby - Off 4 4 4
General - DisplayPort Version 4 5
General - DisplayPort Version - 1.4 4 5 1
General - DisplayPort Version - 1.2 4 5 2
General - HDMI ULTRA HD Deep Color 4 6
General - HDMI ULTRA HD Deep Color - On 4 6 1
General - HDMI ULTRA HD Deep Color - Off 4 6 2
General - Buzzer 4 7
General - Buzzer - On 4 7 1
General - Buzzer - Off 4 7 2
General - OSD Lock 4 8
General - OSD Lock - On 4 8 1
General - OSD Lock - Off 4 8 2
General - OSD Size 4 9
Menu Location
General - OSD Size - Small 4 9 1
General - OSD Size - Large 4 9 2
General - Information 4 10
General - Information 4 10 1
General - Reset to Initial Settings 4 11
General - Reset to Initial Settings - Yes 4 11 1
General - Reset to Initial Settings - No 4 11 2
49
ENGLISH
32UK580
Menu Location
Quick Settings 1
Quick Settings - Brightness 1 1
Quick Settings - Brightness 1 1 1 Slider
Quick Settings - Contrast 1 2
Quick Settings - Contrast 1 2 1 Slider
Quick Settings - Volume 1 3
Quick Settings - Volume 1 3 1 Slider
Quick Settings - Color Temp 1 4
Quick Settings - Color Temp - Custom 1 4 1
Quick Settings - Color Temp - Warm 1 4 2
Quick Settings - Color Temp - Medium 1 4 3
Quick Settings - Color Temp - Cool 1 4 4
Quick Settings - Color Temp - Manual 1 4 5
Quick Settings - Color Temp - Manual 1 4 5 1 Slider
Input 2
Input - Input List 2 1
Input - Input List - HDMI1 2 1 1
Input - Input List - HDMI2 2 1 2
Input - Input List - Displayport 2 1 3
Input - Aspect Ratio 2 2
Input - Aspect Ratio - Full Wide 2 2 1
Input - Aspect Ratio - Original 2 2 2
Menu Location
Input - Aspect Ratio - 1:1 2 2 3
Picture 3
Picture - Picture Mode 3 1
Picture - Picture Mode - Custom 3 1 1
Picture - Picture Mode - Reader 3 1 2
Picture - Picture Mode - Photo 3 1 3
Picture - Picture Mode - Cinema 3 1 4
Picture - Picture Mode - HDR Effect 3 1 5
Picture - Picture Mode - Dark Room1 3 1 6
Picture - Picture Mode - Dark Room2 3 1 7
Picture - Picture Mode - Color Weakness 3 1 8
Picture - Picture Mode - FPS Game1 3 1 9
Picture - Picture Mode - FPS Game2 3 1 10
Picture - Picture Mode - RTS Game 3 1 11
Picture - Picture Mode - Custom(Game) 3 1 12
Picture - Picture Mode - EBU 3 1 13
Picture - Picture Mode - REC709 3 1 14
Picture - Picture Mode - SMPTE-C 3 1 15
Picture - Picture Adjust 3 2
Picture - Picture Adjust - Brightness 3 2 1
Picture - Picture Adjust - Brightness 3 2 1 1 Slider
Picture - Picture Adjust - Contrast 3 2 2
Menu Location
Picture - Picture Adjust - Contrast 3 2 2 1 Slider
Picture - Picture Adjust - Sharpness 3 2 3
Picture - Picture Adjust - Sharpness 3 2 3 1 Slider
Picture - Picture Adjust - SUPER RESOLUTION+ 3 2 4
Picture - Picture Adjust - SUPER RESOLUTION+
- High
3 2 4 1
Picture - Picture Adjust - SUPER RESOLUTION+ -
Middle
3 2 4 2
Picture - Picture Adjust - SUPER RESOLUTION+ - Low 3 2 4 3
Picture - Picture Adjust - SUPER RESOLUTION+ - Off 3 2 4 4
Picture - Picture Adjust - Black Level 3 2 5
Picture - Picture Adjust - Black Level - High 3 2 5 1
Picture - Picture Adjust - Black Level - Low 3 2 5 2
Picture - Picture Adjust - HDMI ULTRA HD Deep Color 3 2 6
Picture - Picture Adjust - HDMI ULTRA HD Deep
Color - On
3 2 6 1
Picture - Picture Adjust - HDMI ULTRA HD Deep
Color - Off
3 2 6 2
Picture - Picture Adjust - DFC 3 2 7
Picture - Picture Adjust - DFC - On 3 2 7 1
Picture - Picture Adjust - DFC - Off 3 2 7 2
Picture - Game Adjust 3 3
Picture - Game Adjust - Response Time 3 3 1
Picture - Game Adjust - Response Time - Faster 3 3 1 1
50
ENGLISH
Menu Location
Picture - Game Adjust - Response Time - Fast 3 3 1 2
Picture - Game Adjust - Response Time - Normal 3 3 1 3
Picture - Game Adjust - Response Time - Off 3 3 1 4
Picture - Game Adjust - FreeSync 3 3 2
Picture - Game Adjust - FreeSync - Extended 3 3 2 1
Picture - Game Adjust - FreeSync - Basic 3 3 2 2
Picture - Game Adjust - FreeSync - Off 3 3 2 3
Picture - Game Adjust - Black Stabilizer 3 3 3
Picture - Game Adjust - Black Stabilizer 3 3 3 1 Slider
Picture - Color Adjust 3 4
Picture - Color Adjust - Gamma 3 4 1
Picture - Color Adjust - Gamma - Mode 1 3 4 1 1
Picture - Color Adjust - Gamma - Mode 2 3 4 1 2
Picture - Color Adjust - Gamma - Mode 3 3 4 1 3
Picture - Color Adjust - Gamma - Mode 4 3 4 1 4
Picture - Color Adjust - Color Temp 3 4 2
Picture - Color Adjust - Color Temp - Custom 3 4 2 1
Picture - Color Adjust - Color Temp - Warm 3 4 2 2
Picture - Color Adjust - Color Temp - Medium 3 4 2 3
Picture - Color Adjust - Color Temp - Cool 3 4 2 4
Picture - Color Adjust - Color Temp - Manual 3 4 2 5
Picture - Color Adjust - Color Temp - Manual 3 4 2 5 1 Slider
Picture - Color Adjust - Red 3 4 3
Menu Location
Picture - Color Adjust - Red 3 4 3 1 Slider
Picture - Color Adjust - Green 3 4 4
Picture - Color Adjust - Green 3 4 4 1 Slider
Picture - Color Adjust - Blue 3 4 5
Picture - Color Adjust - Blue 3 4 5 1 Slider
Picture - Color Adjust - Six Color 3 4 6
Picture - Color Adjust - Six Color - Red Hue 3 4 6 1
Picture - Color Adjust - Six Color - Red Hue 3 4 6 1 1 Slider
Picture - Color Adjust - Six Color - Red Saturation 3 4 6 2
Picture - Color Adjust - Six Color - Red Saturation 3 4 6 2 1 Slider
Picture - Color Adjust - Six Color - Green Hue 3 4 6 3
Picture - Color Adjust - Six Color - Green Hue 3 4 6 3 1 Slider
Picture - Color Adjust - Six Color - Green Saturation 3 4 6 4
Picture - Color Adjust - Six Color - Green Saturation 3 4 6 4 1 Slider
Picture - Color Adjust - Six Color - Blue Hue 3 4 6 5
Picture - Color Adjust - Six Color - Blue Hue 3 4 6 5 1 Slider
Picture - Color Adjust - Six Color - Blue Saturation 3 4 6 6
Picture - Color Adjust - Six Color - Blue Saturation 3 4 6 6 1 Slider
Picture - Color Adjust - Six Color - Cyan Hue 3 4 6 7
Picture - Color Adjust - Six Color - Cyan Hue 3 4 6 7 1 Slider
Picture - Color Adjust - Six Color - Cyan Saturation 3 4 6 8
Picture - Color Adjust - Six Color - Cyan Saturation 3 4 6 8 1 Slider
Picture - Color Adjust - Six Color - Magenta Hue 3 4 6 9
Menu Location
Picture - Color Adjust - Six Color - Magenta Hue 3 4 6 9 1 Slider
Picture - Color Adjust - Six Color - Magenta
Saturation
3 4 6 10
Picture - Color Adjust - Six Color - Magenta
Saturation
3 4 6 10 1 Slider
Picture - Color Adjust - Six Color - Yellow Hue 3 4 6 11
Picture - Color Adjust - Six Color - Yellow Hue 3 4 6 11 1 Slider
Picture - Color Adjust - Six Color - Yellow Saturation 3 4 6 12
Picture - Color Adjust - Six Color - Yellow Saturation 3 4 6 12 1 Slider
Picture - Picture Reset 3 5
Picture - Picture Reset - No 3 5 1
Picture - Picture Reset - Yes 3 5 2
General 4
General - Language 4 1
General - Language - English 4 1 1
General - Language - German 4 1 2
General - Language - French 4 1 3
General - Language - Spanish 4 1 4
General - Language - Italian 4 1 5
General - Language - Swedish 4 1 6
General - Language - Finnish 4 1 7
General - Language - Portuguese 4 1 8
General - Language - Portuguese (Brazil) 4 1 9
General - Language - Polish 4 1 10
51
ENGLISH
Menu Location
General - Language - Russian 4 1 11
General - Language - Greek 4 1 12
General - Language - Ukrainian 4 1 13
General - Language - Chinese 4 1 14
General - Language - Traditional Chinese 4 1 15
General - Language - Japanese 4 1 16
General - Language - Korean 4 1 17
General - Language - Hindi 4 1 18
General - SMART ENERGY SAVING 4 2
General - SMART ENERGY SAVING - High 4 2 1
General - SMART ENERGY SAVING - Low 4 2 2
General - SMART ENERGY SAVING - Off 4 2 3
General - Power LED 4 3
General - Power LED - On 4 3 1
General - Power LED - Off 4 3 2
General - Automatic Standby 4 4
General - Automatic Standby - Off 4 4 1
General - Automatic Standby - 4H 4 4 2
General - Automatic Standby - 6H 4 4 3
General - Automatic Standby - 8H 4 4 4
General - DisplayPort 1.2 4 5
General - DisplayPort 1.2 - Enable 4 5 1
General - DisplayPort 1.2 - Disable 4 5 2
Menu Location
General - Buzzer 4 6
General - Buzzer - On 4 6 1
General - Buzzer - Off 4 6 2
General - OSD Lock 4 7
General - OSD Lock - On 4 7 1
General - OSD Lock - Off 4 7 2
General - OSD Size 4 8
General - OSD Size - Small 4 8 1
General - OSD Size - Large 4 8 2
General - Information 4 9
General - Information 4 9 1
General - Reset 4 10
General - Reset - No 4 10 1
General - Reset - Yes 4 10 2
The model and serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.
Model
Serial No.
Supplier’s Declaration of Conformity
Trade Name LG
Responsible Party LG Electronics USA, Inc.
Address 111 Sylvan Avenue, North Building,
Englewood Cliffs,NJ 07632
E-mail lg.envir[email protected]
