AH15
ACTIVE COMPACT WEATHERPROOF HORN SPEAKER
Item ref: 952.103UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
The AH15 is a robust, weatherproof horn speaker with a built-in amplifier, which
can be installed indoors or outdoors onto a wall or other surface from its
adjustable mounting bracket.

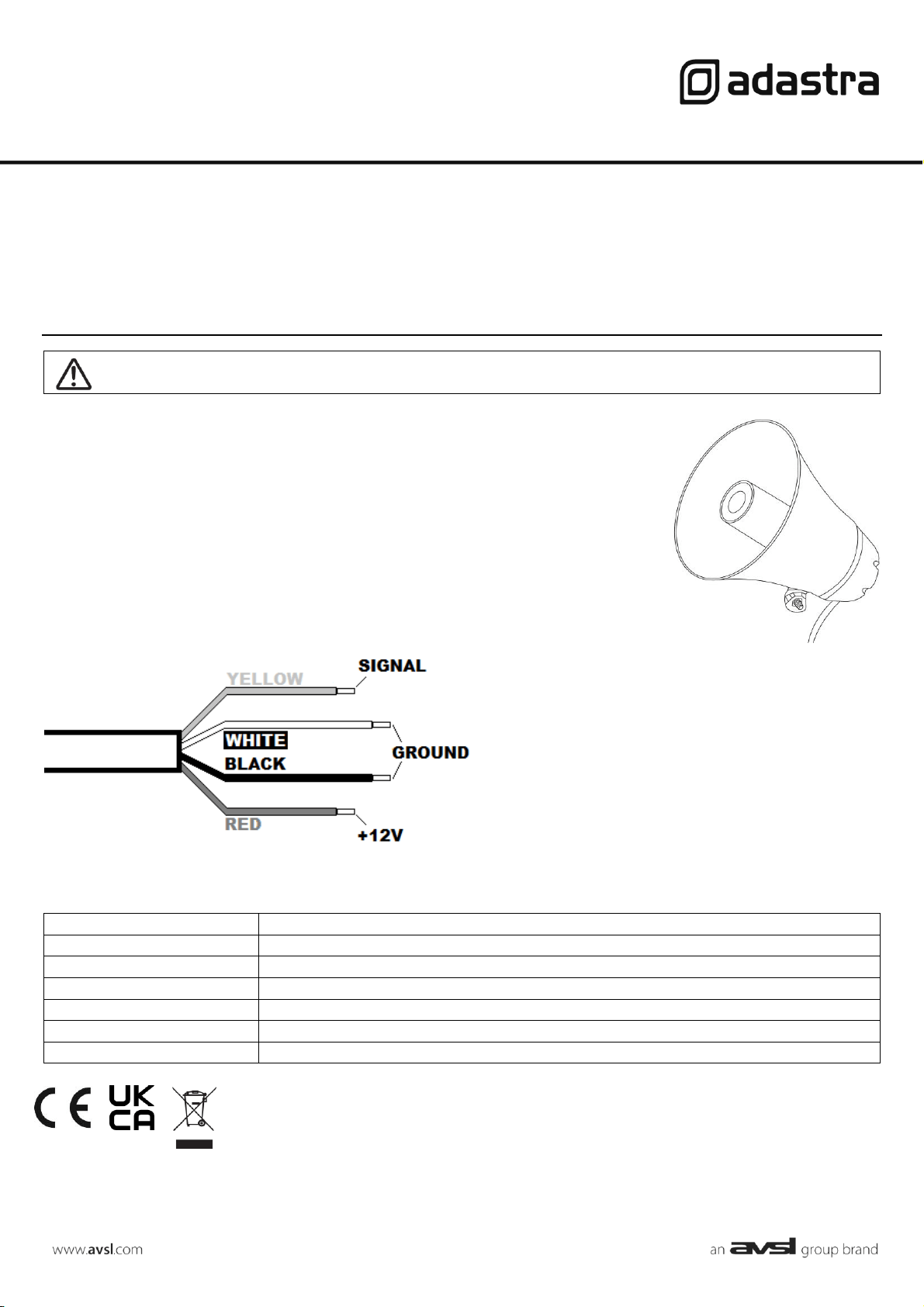

Follow the wiring guide below for power and signal connections to the 4-core
cable (connections should be sealed or sheltered from the elements)
The amplifier can be operated from any 12Vdc
power supply capable of delivering up to 1.2A
current.
Connect the Line Level Audio (0dB = 0.775Vrms)
input to the yellow wire and Ground to the white
wire (signal & power ground are common)
Connect +12V to the red wire and connect the
Ground to the black wire.
Specifications
Power supply
12Vdc, 1.2A (not included)
Construction
ABS moulded body, metal bracket
Connection
Hard-wired cable (power + line in)
Output power: max.
15W
IP rating
IP66
Dimensions
165 x 140mmØ
Weight
446g
Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as
Electrical or Electronic equipment and should not be disposed with other household or commercial waste
at the end of its useful life. The goods must be disposed of according to your local council guidelines.
