OPERATING INSTRUCTIONS UNLOCK LOCK MODELS SU24D5KY/SP24D5KY
CYCLE SErECTOR OPTION SErECTOR
Pots Normat W&le_" COGI Reset
Pans Soll Heat O_y Optlons
Gibs
FILTERED WASH
_ 0_
\1_/_ea_ng
1
o ool f so,,
°!_ ' Light SOil
' I i I i _--.._-,_ Rio,s° HoM
CYCLE SELECTION BUTTONS OPTION SELECTOR BUTTONS
SIGNAL LIGHTS TIMER!CONTROL KNOB
Before Operating Your
Dishwasher:
Read your Dishwasher Owner's Guide. It
contains IMPORTANTSAFETY AND WAR-
RANTY INFORMATION. It also contains
many suggestions for obtaining the best re-
sults from your dishwasher.
To Operate Your
Dishwasher:

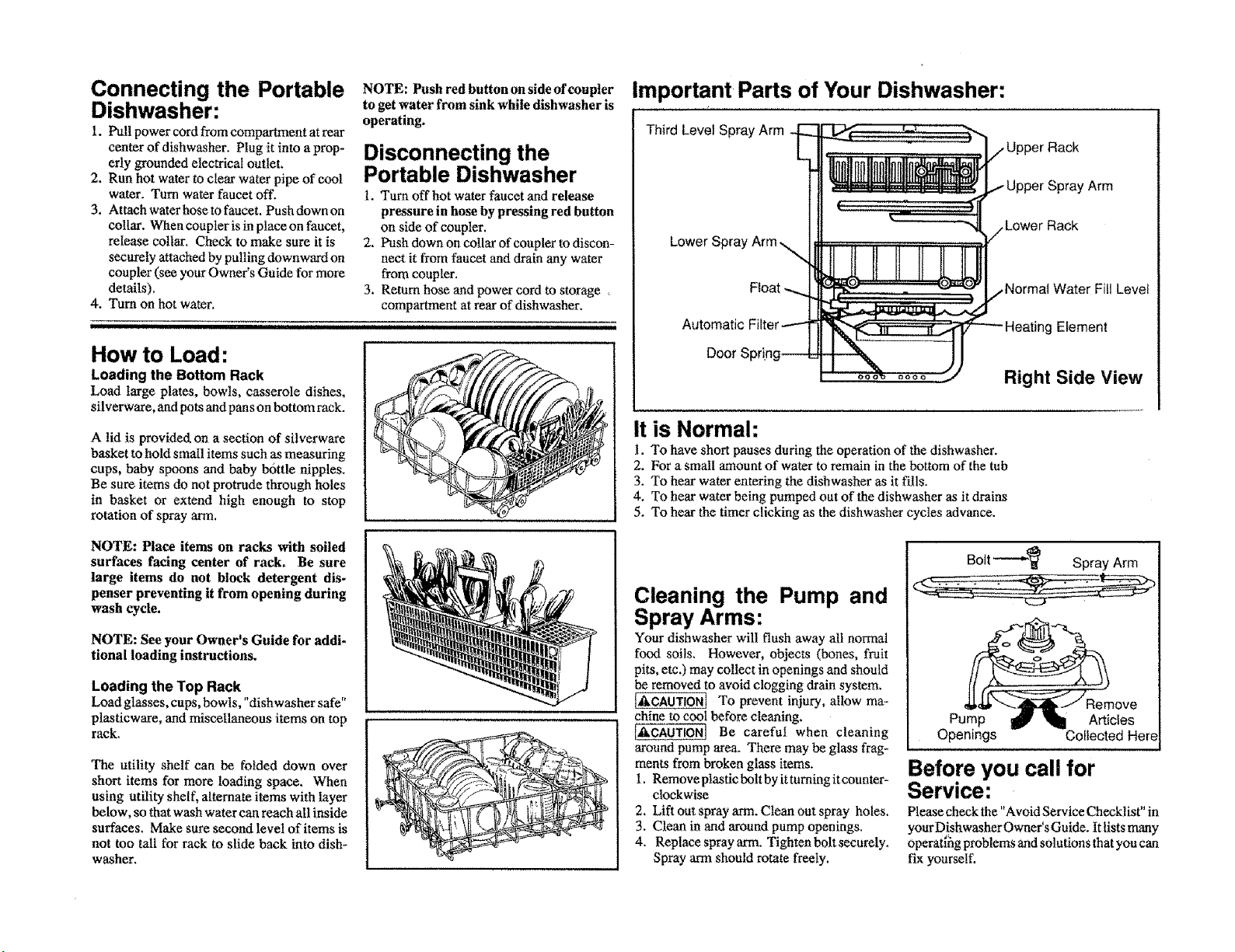

I. Load dishwasher according to directions
(see reverse side).
2. Add detergent to detergent cups (see direc-
tions below).
NOTE: Use granular detergent for best
results,
3. Close door but do not lock.
POTS PANS, HEAVY SOIL,
NORMAL SOIL Cycles
Add detergent to cups 1 and 3. Rotate lid
counter-clockwise. Add detergent to cups
2 and 4. Cups l and 3 should be covered.
LIGHT SOIL Cycle
Add detergent to cups 1 and 3. Rotate lid
counter-clockwise. Cups 1and 3 should be
::covered.
NOTE: See Owner's Guide for details
on amount of detergent,
r
4. Push CYCLE SELECTOR button for de-
sired washor rinse cycle (see Wash Cycle
Selections which follow).
5. Push OPTION SELECTOR buttons (see
Energy Options which follow).
6, TurnTIMER KNOB clockwise to selected
cycle. Knob will click into position at the
beginning of each cycle selection.
7, Connect portable dishwasher to sink (see
reverse side).
8_ To start, move latch to the right to LOCK
position. ON indicator light will glow
throughout wash, rinse and dry portions of
cycle.
9. Disconnect portable dishwasher from sink
(see reverse side).
NOTE: Motor sounds will be heard before
water enters tub.
NOTE: WASH CYCLEselected from push
buttons must match cycle selected by
TIMER KNOB.
Wash Cycle Selections:
Select appropriate wash cycle from descrip-
tions below. If you are unsure about which
cycle to use, check the"Dishwashing Sugges-
tions" chart in your Owner's Guide.
Rinse Hold
(15minutes)(2rinses)(5gallons)
For rinsing dishes that will be washed later.
1. Donotusedetergent. Closedoorbutdonot
lock.
2. Push NORMAL SOIL button.
3. Push RINSE HOLD button.
4. Turn TIMER KNOB clockwise to RINSE
HOLD positinn.
5. To start, move latch to LOCK position.
Light Soil
(60 minutes)(l wash,2 rinses, dry)(7.5gallons)
For lightly soiled dishes and silverware,
1. Adddetergenttocups I and3only. Close
door but do not lock.
2. Push LIGHT SOIL button.
3. Push OPTION SELECTOR buttons.
4, Turn TIMER KNOB clockwise toLIGHT
SOIL position,
5. To start, move latch to LOCK position.
Normal Soil
(66minutes)(2washes,2rinses, dry)(10gallons)
For regularly soiled dishes and silverware.
1, Adddetergenttocups t,2,3and4. Close
door but do not lock.
2. Push NORMAL SOIL button.
3. Push OPTION SELECTOR buttons.
4. Turn TIMER KNOB clockwise to NOR-
MAL SOIL position.
5. To start, move latch to LOCK position.
Heavy Soil
(74minutes)(2washes,3dnses, dry)(l 2.5gallons)
For heavily soiled dishes, silverware, cook-
ware and other items that might require a
double wash.
I. Adddetergemtocups 1,2,3and4, Close
door but do not lock.
2. Push HEAVY SOIL button.
3. Push OPTION SELECTOR buttons.
4. Turn TIMER KNOB clockwise to
HEAVY SOIL position.
5. To start, move latch to LOCK position.
Pots Pans
(81minutes)(2washes,4 rinses,dry)(!5 gallons)
For cteaning sticky pots, greasy broilerpans,
encrusted casseroles and dinnerware.
l. Adddetergenttoeups 1,2.3and4. Close
door but do not lock.
2. Push POTS PANS button.
3, Push OPTION SELECTOR buttons.
4. Turn TIMER KNOB clockwise to POTS
PANS position,
5. To start, move latch to LOCK position,
Energy Options:
Water Heat Option
When WATER HEAT option is selected, the
heating element in the bottom of the tub will
raise the main wash and final rinse water
temperature to approximately t40°F, Wash
action will continue but timer will not advance
until this water temperature has been reached.
The hotter water provided by this option helps
activate dishwasher detergent to clean food,
grease and soil from dishes. WATER HEAT
-can be used with any cycle except RINSE
HOLD.
The WATER HEATING light will glow until
the water temperature reaches 140°F.
To turn off WATER HEAT option, push the
RESET OI>HONS button.
Cool Dry Option
Push COOL DRY button to tum heating ele-
ment offduring drying portion ofcycle, COOL
DRY setting saves electricity. Additional
drying time may be required, with door open,
to completely air dry dishes. Some water
droplets may remain on the door and in areas
where dishes touch dish washer basket or rack.
To turn COOL DRY option off and select a
heated drying period, push RESET OPTIONS
button. If COOL DRY option is not selected,
aheating element warms air inside tub for fast
drying. When drying period is completed and
heating element turns off, dishes wil! continue
to dry.
NOTE: The drying option may be changed
at any time during the cycle and affects only
the drying period.
PfN 154037901B 1/93
