SPECIAL WARNING
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE THIS INSTALLATION MANUAL FOR LOCAL ELECTRICAL INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Radiant Cooktop: SCR3042FB, SCR3041GB, SCR2442FB
INSTALLATION MANUAL
IMPORTANT NOTES TO THE INSTALLER
• Read all of the Installation Manual before installing the Radiant
Cooktop.
• Remove all packing material before connecting the electrical
supply.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
• All cooktops must be hard wired (direct wired) into an approved
junction box. A “plug and receptacle” is not permitted on these
products.
IMPORTANT SAFETY INSTRUCTIONS
If the information in this manual is not followed
exactly, a re or electrical shock may result that could cause
property damage, personal injury or death.
Never leave children alone or unattended in
the area where a cooktop is in use.
Stepping, leaning or sitting on the cooktop
may result in serious injuries and can also cause damage to
the cooktop.
• For Your Safety: Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other appliance.
To eliminate the risk of burns or re due to overheating, cabinets
located above the radiant unit should be avoided. If cabinet space
is available, the risk can be reduced by installing a range hood
that protects horizontally at a minimum of 5 inches below the
bottom of the cabinets
• To prevent accidents and achieve optimal ventilation, allow for
sufcient space around the cooking area.
IMPORTANT INSTALLATION INFORMATION

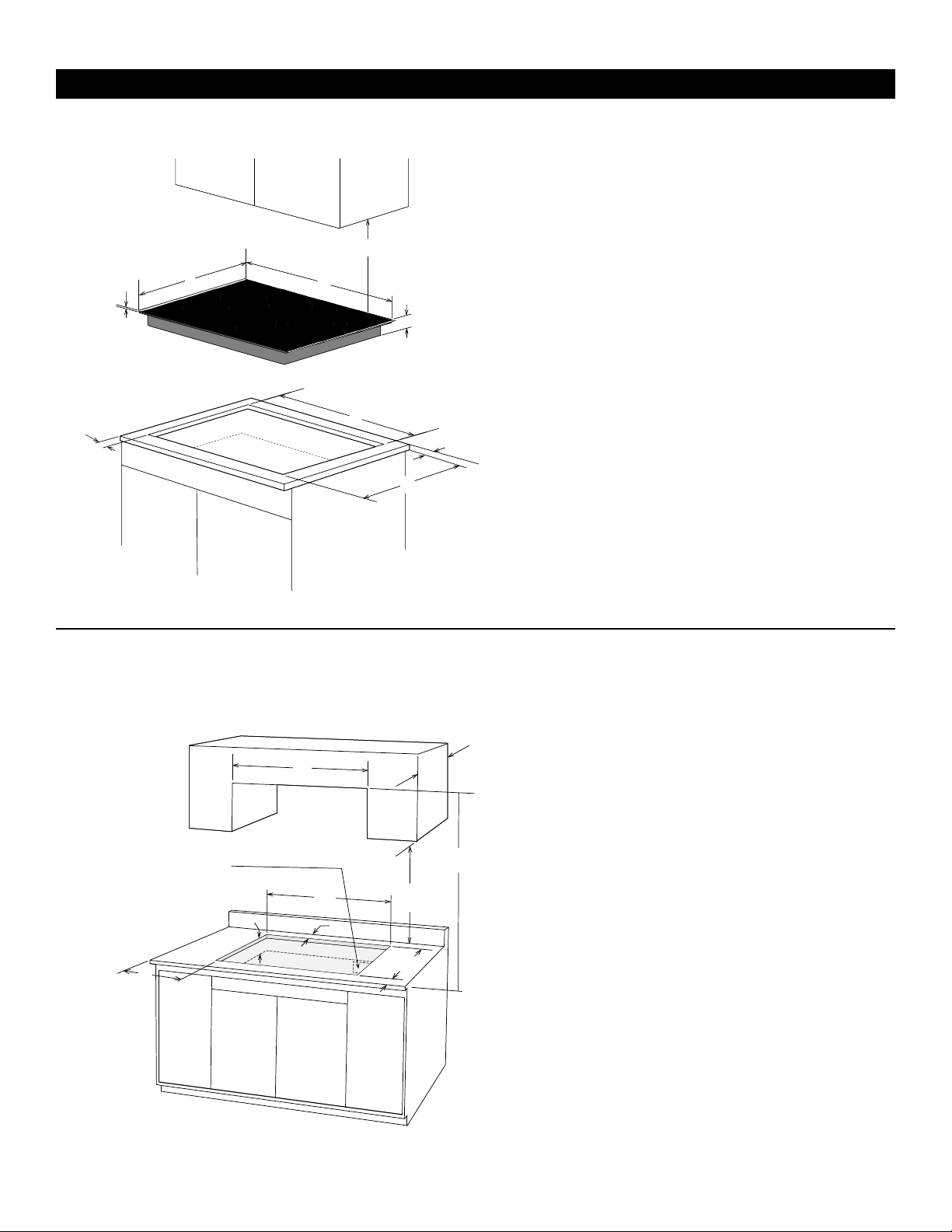

• Dimensions that are shown in Figures 3 & 7 must be used. Given
dimensions provide minimum clearance.
• Contact surface must be solid and level.
• Check location where the cooktop will be installed for proper
electrical supply. Approximate location of junction box, min 12"
(304.8 mm) below the cooktop. See Figure 4.
• Your cooktop can be installed into a countertop by itself, above
a gas or electric wall oven, above a microwave drawer, or above
a convection microwave drawer.
• All electric cooktops run off a single phase, three-wire cable,
240V/60Hz AC only electrical supply with ground. Minimum
distance between cooktop and overhead cabinetry is 3
0".
PART INCLUDED
PARTS QT Y.
Cushion Tape # PCUSGB125MRP0
770 mm x 6 mm x 2 mm
2
Cushion Tape # PCUSGB126MRP0
540 mm x 6 mm x 2 mm
2
BEFORE INSTALLING THE COOKTOP
1. Visually inspect the cooktop for damage. Also make sure all
cooktop screws are on tight.
2. Record the model and serial number as found on the bottom of
your cooktop. When ordering parts for or making inquiries about
your cooktop, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate on your
cooktop.
3. Prepare the cutout dimensions of the countertop.
4. Make sure the wall coverings, countertop and cabinets around
the cooktop can withstand heat (up to 200°F) generated by the
cooktop.

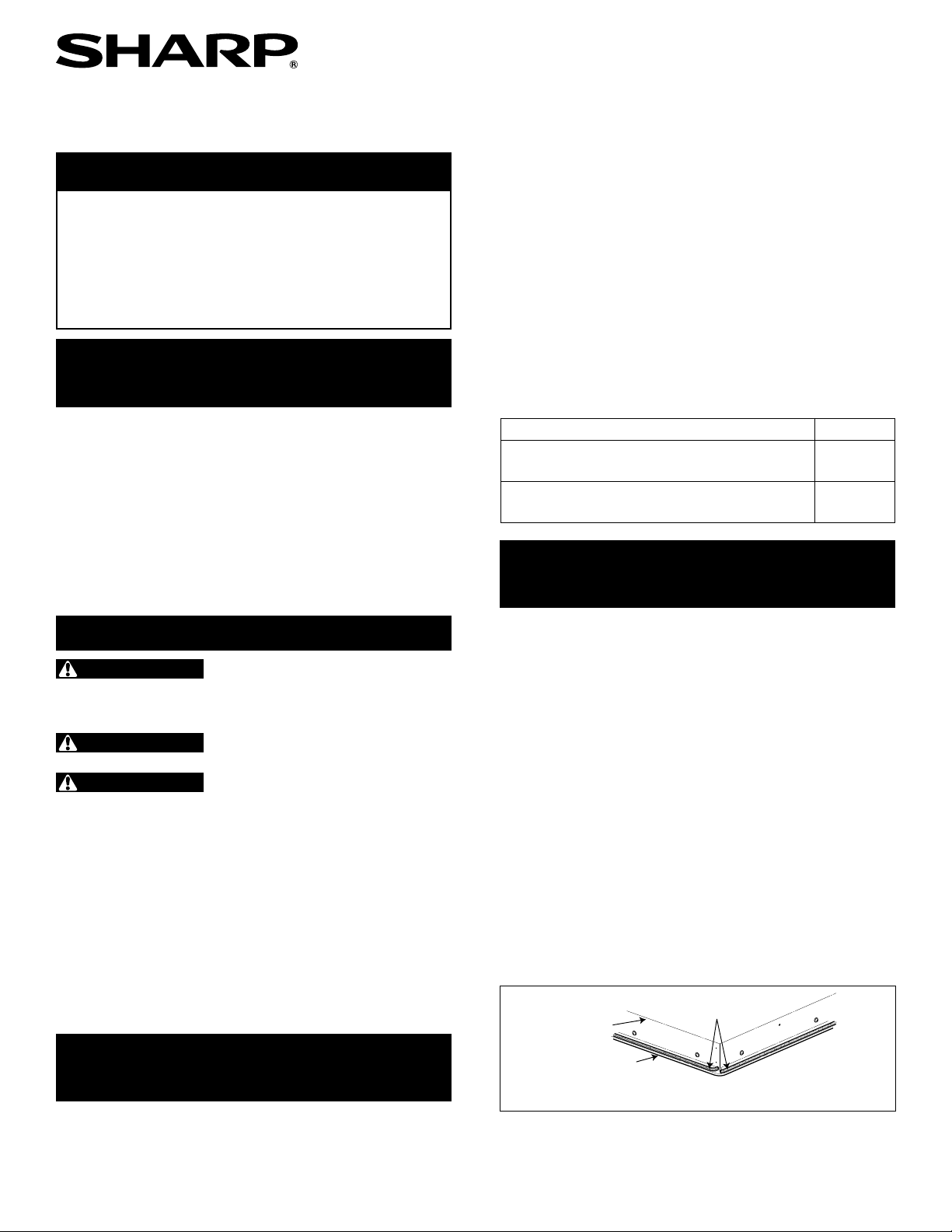

5. Apply the included cushion tape around the outer edge of the
glass on all four sides. Do not overlap the tape. See Figure 1.
6. Gently lower the cooktop into the countertop cutout.
NOTE: Do not seal the cooktop to the countertop, the cooktop must
be removable if service is necessary.
Bottom of Cooktop
Foam Tape
Cooktop
Glass
Figure 1
1
