MICROWAVE HOOD COMBINATION
INSTALLATIONINSTRUCTIONS
This product is suitable for use above electric or gas cooking products up to and including 36" (91.4 cm) wide. See "Installation
Requirements" section for further notes.
These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustration in
these installation instructions.
Tableof Contents
MICROWAVEHOOD COMBINATION SAFETY..............................I

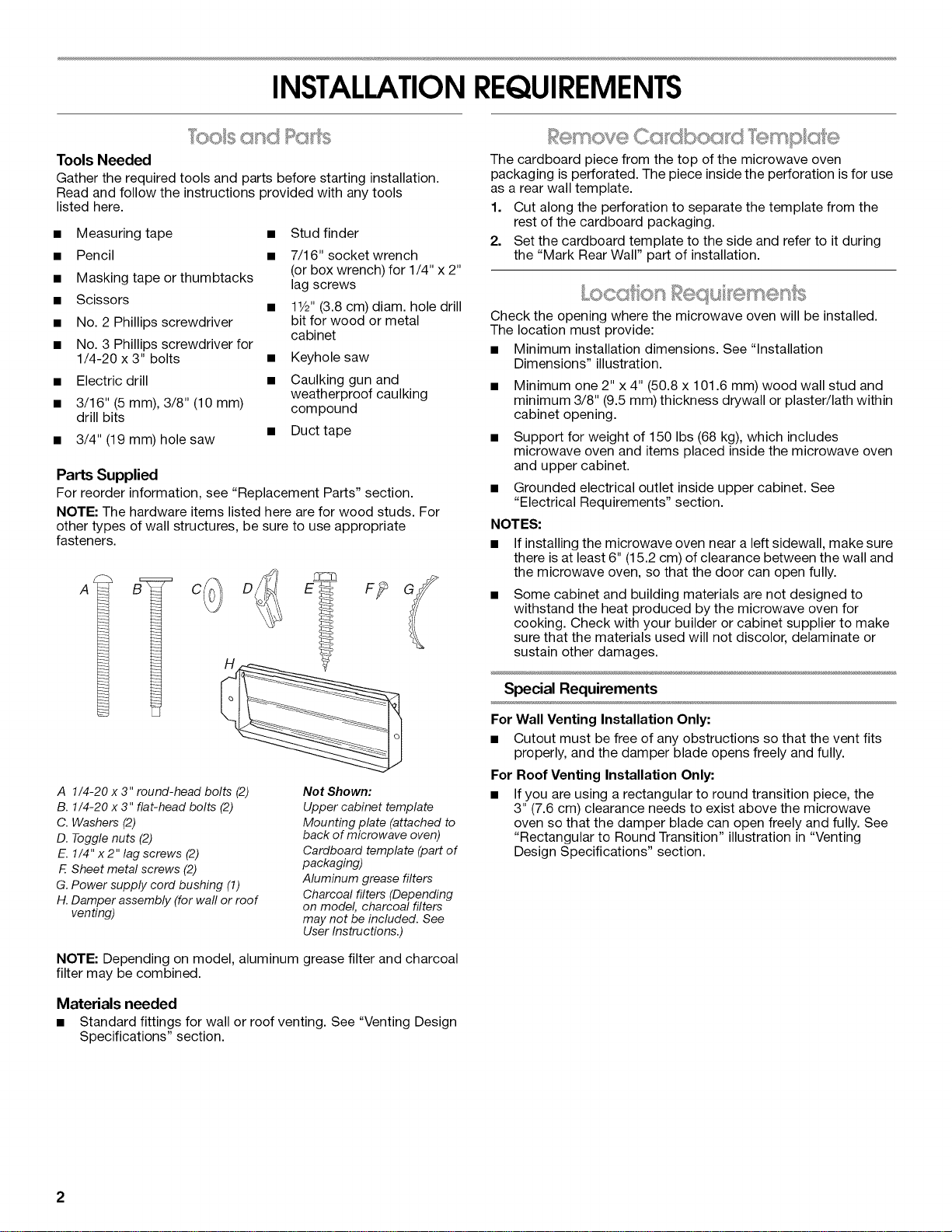

INSTALLATIONREQUIREMENTS...................................................2
Toolsand Parts...............................................................................2
RemoveCardboard Template........................................................2
Location Requirements...................................................................2

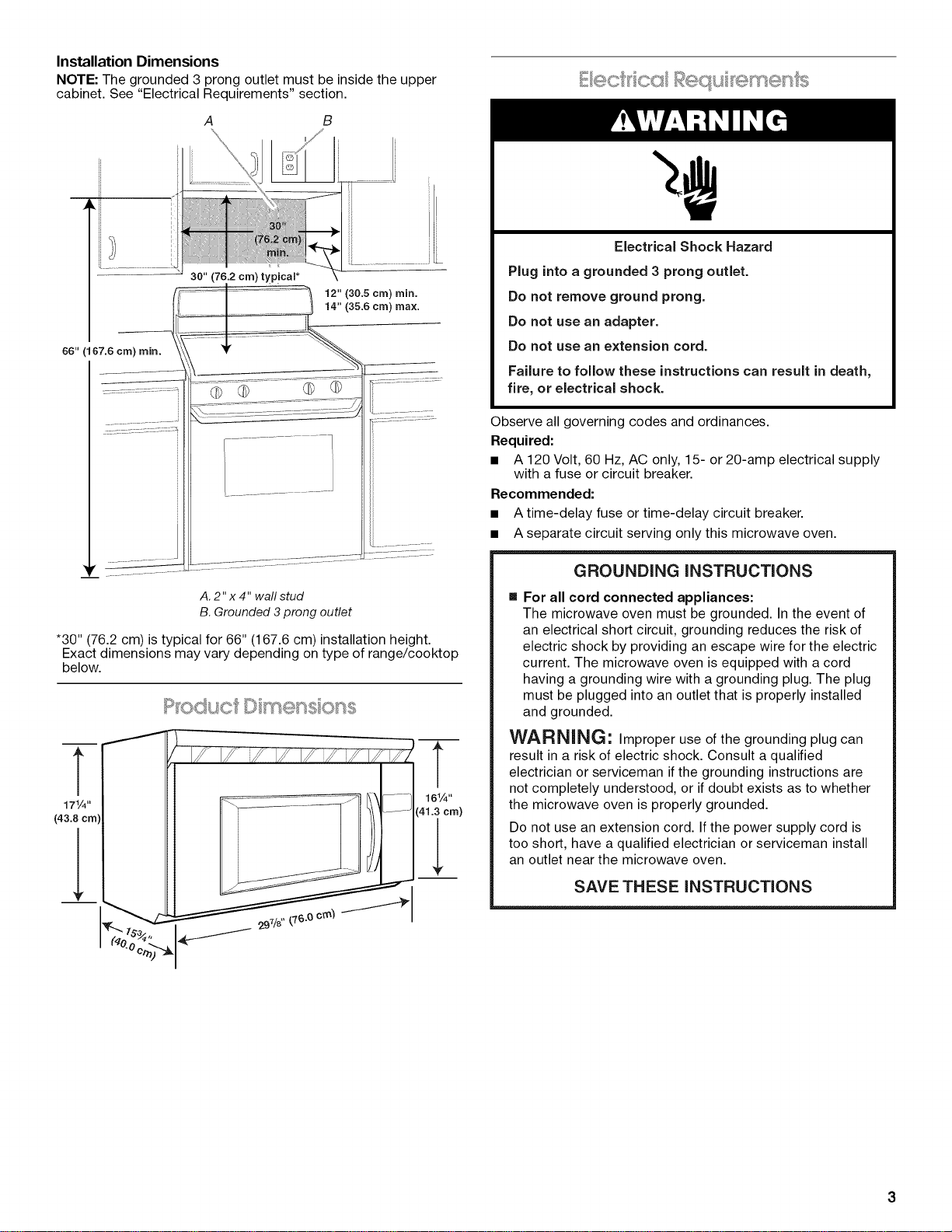

Product Dimensions.......................................................................3
ElectricalRequirements..................................................................3
INSTALLATION INSTRUCTIONS.....................................................4
Remove Mounting Plate.................................................................4
Rotate Blower Motor.......................................................................4

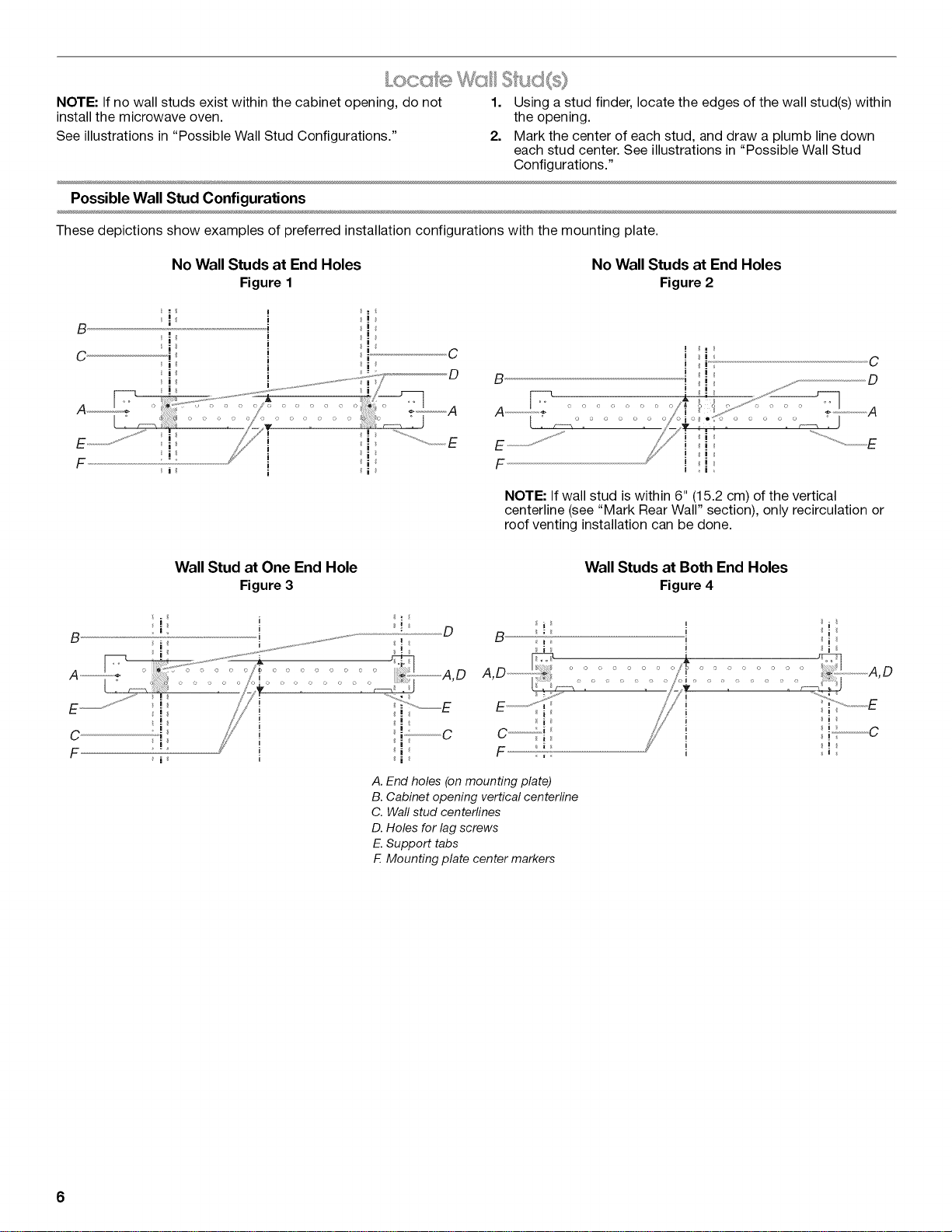

Locate WallStud(s).........................................................................6

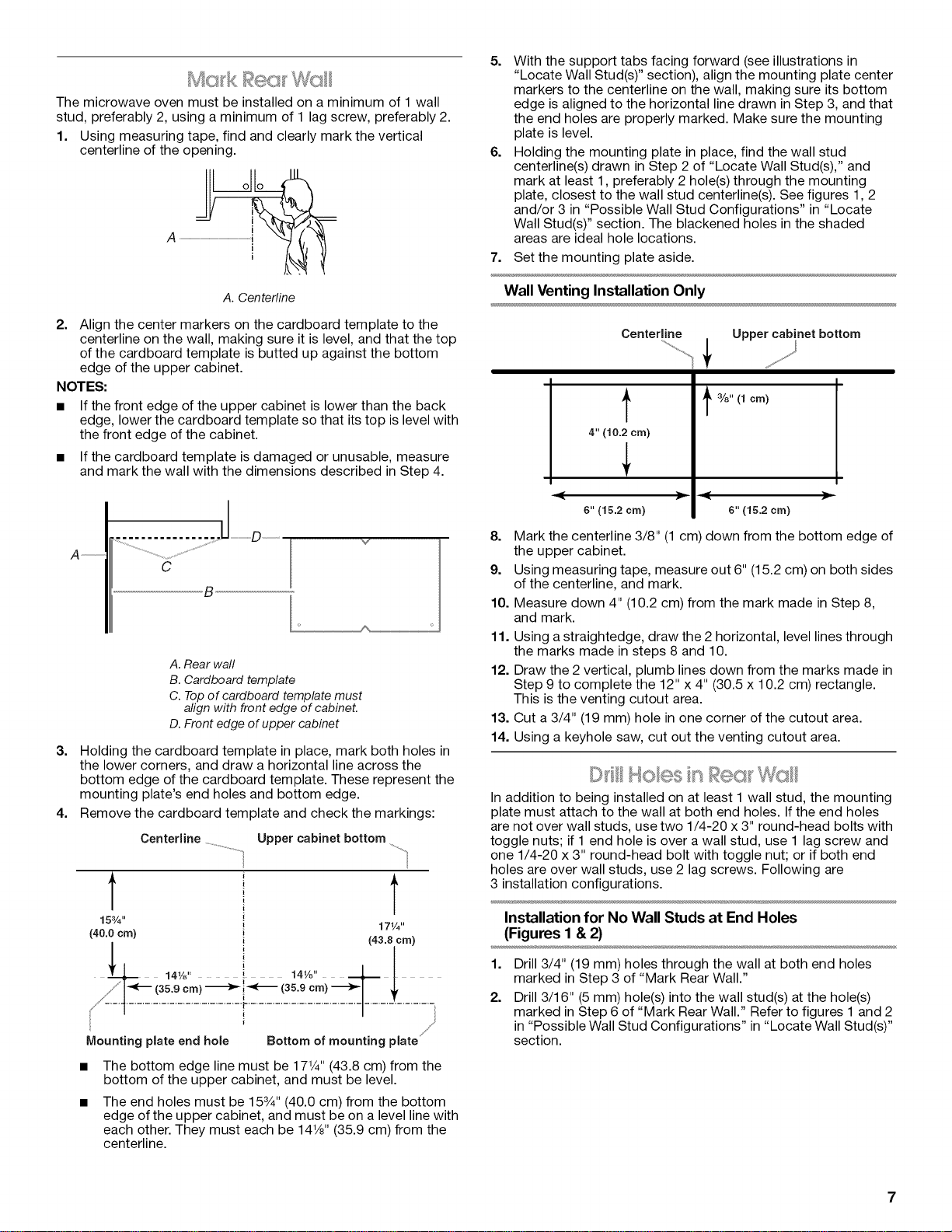

Mark RearWall................................................................................7
Drill Holesin RearWall....................................................................7

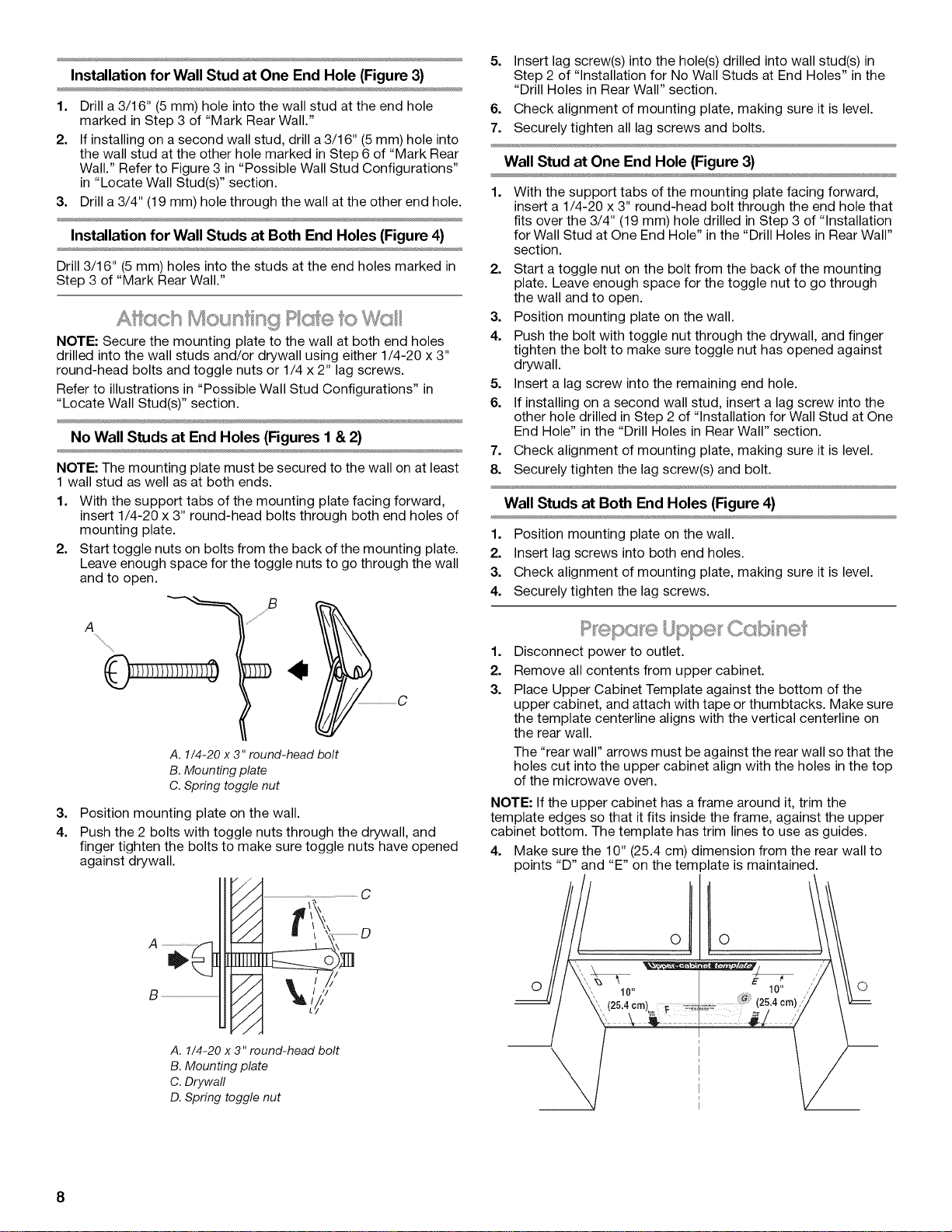

Attach Mounting Plate to Wall........................................................8
PrepareUpper Cabinet...................................................................8
Install DamperAssembly................................................................9
Installthe Microwave Oven ............................................................9

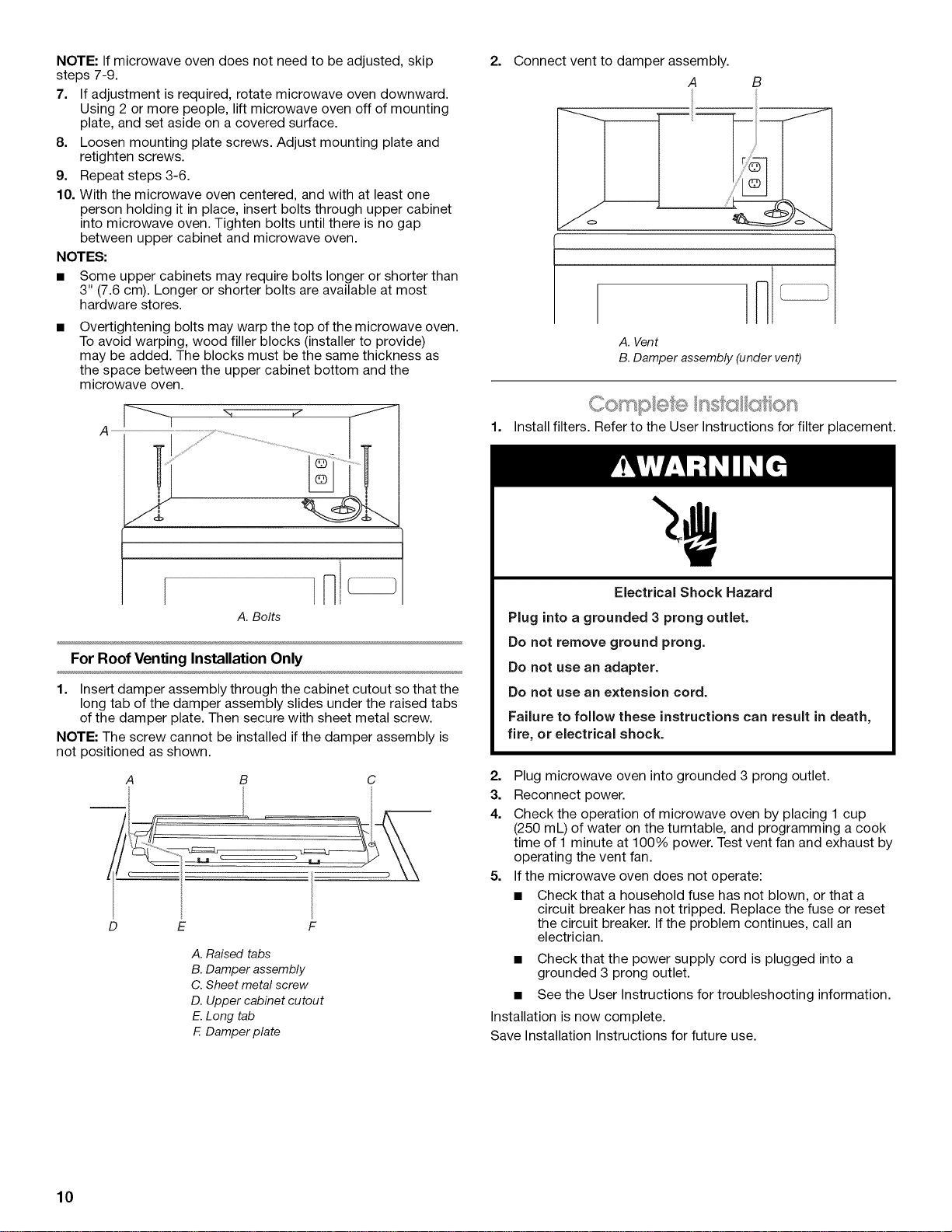

Complete Installation....................................................................10

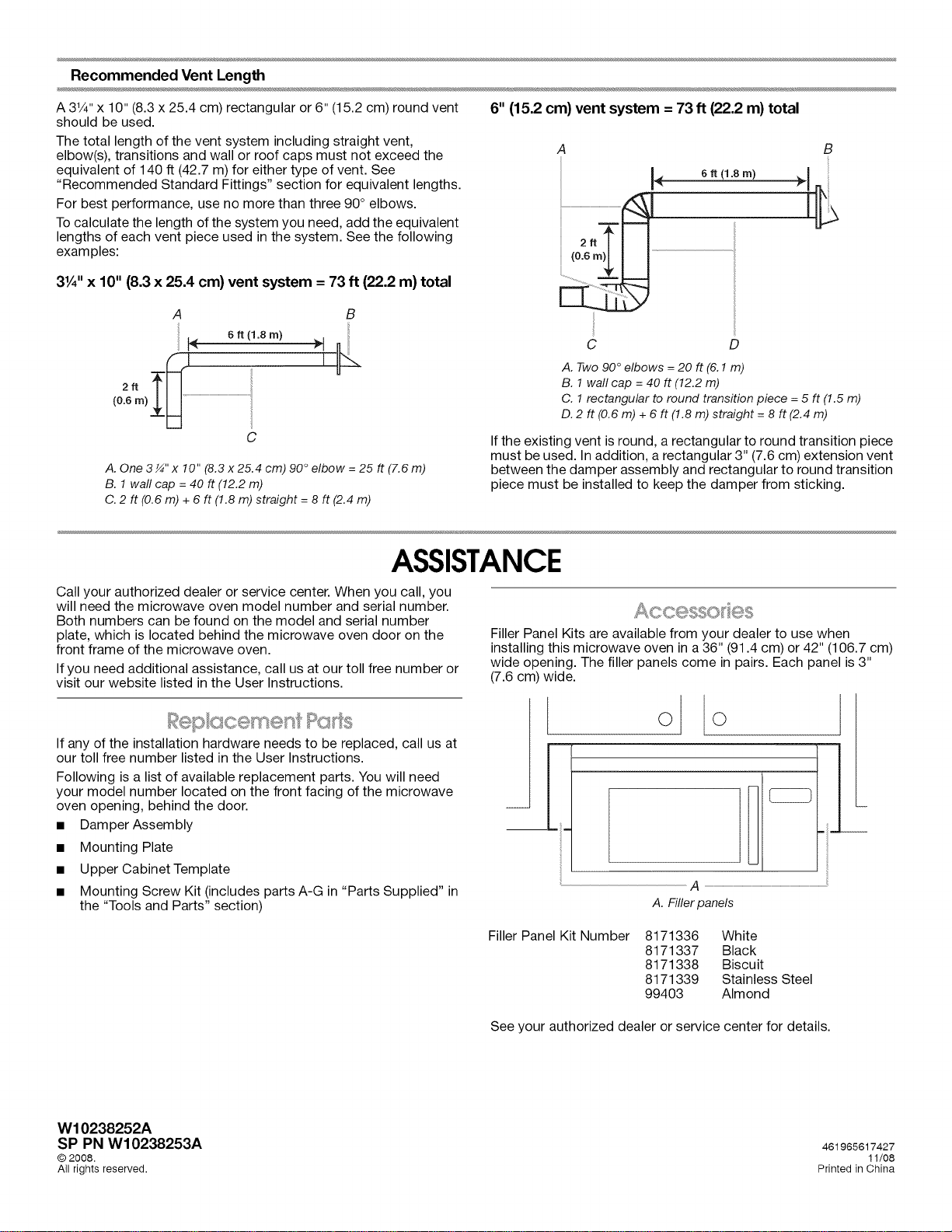

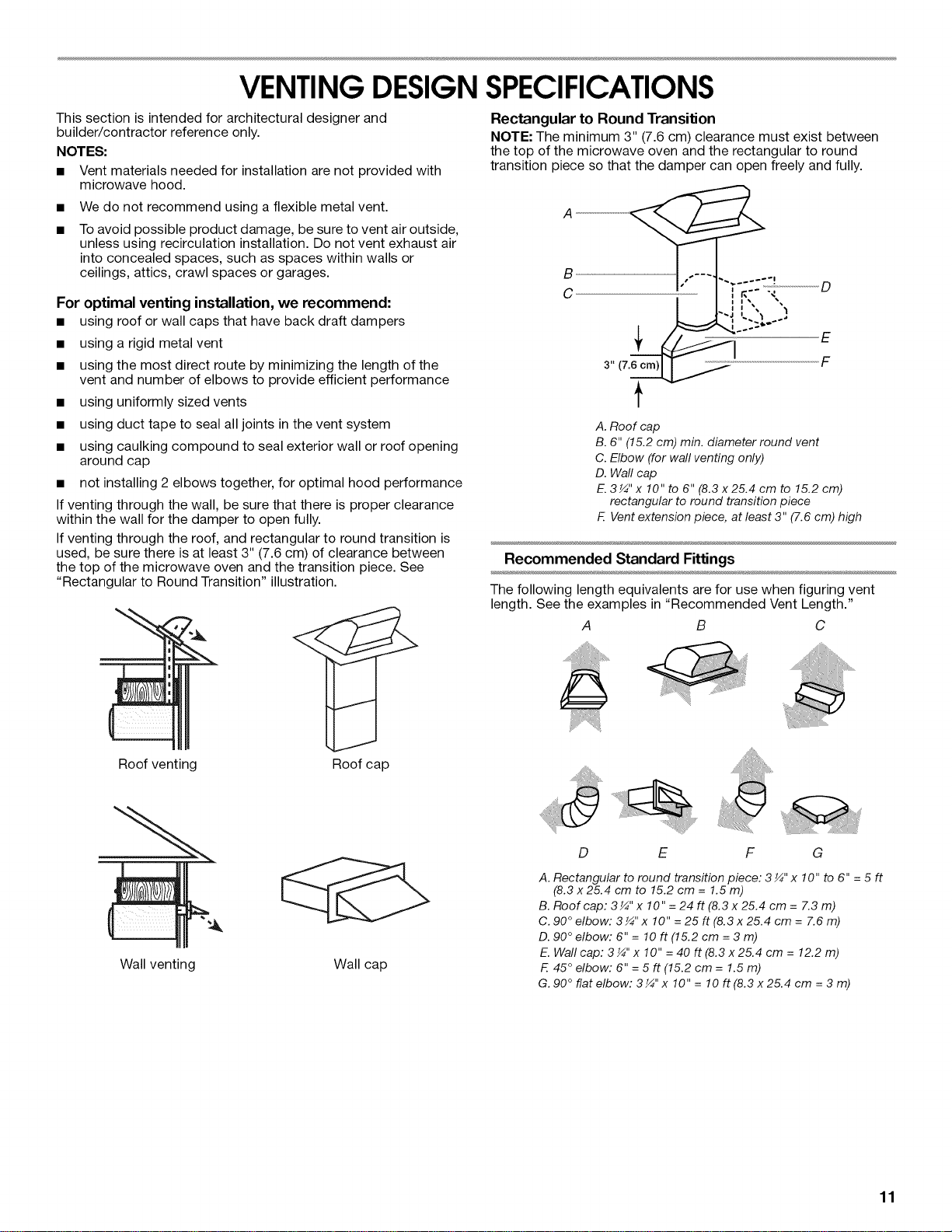

VENTINGDESIGNSPECIFICATIONS............................................11
ASSISTANCE...................................................................................12
Replacement Parts.......................................................................12
Accessories...................................................................................12
MICROWAVE HOOD COMBINATION SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10238252A
