Product Guide
Installed: 2224RGLINT
Breadth of Line
Product Categories & Applications 4
Product Collection by Series 6
Temperature Management Systems 9
Preservation: Beyond refrigeration
U-Select
®
Control Food & Beverage Modes 12
U-Select
®
Control Wine Modes 14
U-Select
®
Control Specialty Settings 15
integration: BuiLt-in to stand out
Integration Matrix 19
Integrating U-Line Products into Cabinetry 21
Integrated Panel/Frame Guide 23
QuiCK referenCe guides
Wine Captain
®
Models 25
Beverage Centers 43
Clear Ice Machines 55
Crescent Ice Makers 61
Glass Door Refrigerators 65
Solid Door Refrigerators 77
Drawer Models 93
Freezers 99
Combo
®
Models 103
ADA Series 109
Outdoor Series 125
Marine Series 135
teChniCaL data
Models at a Glance 148
3
Beverage
Centers
Clear Ice
Machines
Crescent Ice
Makers
Wine Captain
®
Models
Product Categories
Marine OutdoorResidential Oce/Boardroom
Application Categories
4
Combo
®
ModelsDrawer Models FreezersGlass & Solid Door
Refrigerators
Arena/Stadium Hospitality
5
Modular 3000 Series
2000 Series
1000 Series
Modular 3000 Series
The Modular 3000 Series is comprised of our ultra-premium product
oering and is designed to provide the ultimate in point-of-use exibility.
These models are the most innovative, highly featured refrigeration and ice
making products in the modular appliance industry. In addition to timeless
design, the Modular 3000 Series models are equipped with our U-Select
®
Control, providing the ability to choose pre-programmed modes that
properly preserve your food and beverages. Models seamlessly integrate into
surrounding cabinetry and are available in the following nishes: Stainless
or Integrated. The Modular 3000 Series spans seven product categories –
Wine Captain
®
Models, Beverage Centers, Clear Ice Machines, Glass Door
Refrigerators, Solid Door Refrigerators, Drawer Models, and Freezers.
2000 Series
The 2000 Series is comprised of our super-premium product oering and
is designed to integrate beautifully into any application, while actively
maintaining temperatures to ensure extended preservation of your food
and beverages. Pristine lines, spacious interiors, and our Digital Touch Pad
Control provide an elegant and universal aesthetic. The 2000 Series oers
upscale features, advanced technology, and specialized product families.
Models fully integrate into surrounding cabinetry and are available in the
following nishes: Stainless or Integrated. The 2000 Series spans four
product categories – Wine Captain
®
Models, Beverage Centers, Glass Door
Refrigerators, and Solid Door Refrigerators.
1000 Series
The 1000 Series is comprised of our premium product oering, based on
over fty years of innovations, design patents, and world rsts. Now with
a completely redesigned style including upgraded features and technology,
it is the most diverse line in the industry. The 1000 Series features clean
lines, elegant interior spaces, and oers either our Digital Touch Pad
Control or Mechanical Dial Control. The 1000 Series oers more targeted
priced products with impressive features. Models integrate into surrounding
cabinetry and are available in the following nishes: Stainless, Integrated,
Black, or White. The 1000 Series spans seven product categories – Wine
Captain
®
Models, Beverage Centers, Clear Ice Machines, Crescent Ice
Makers, Solid Door Refrigerators, Drawer Models, and Combo
®
Models.
Product Collection by Series
6
ADA Series
Outdoor Series
Marine Series
ADA Series
The ADA Series is designed to install under the federally mandated requirement
of a 34” high countertop. Controls are easily accessible and allow for single-
hand operation. These models are a perfect solution where ADA height
compliancy is required. Models are available in the following nishes: Stainless
or Black. The ADA Series spans four product categories – Crescent Ice Makers,
Glass Door Refrigerators, Solid Door Refrigerators, and Combo
®
Models.
Outdoor Series
Today’s entertaining environments extend far beyond the boundaries of the
traditional home. For over 50 years, our products have been used in outdoor
applications and continue to be amongst our most popular models. Our
outdoor models are fully wrapped in stainless steel to protect from harsh
outdoor elements. These durable outdoor products are UL (Underwriters
Laboratory) rated and deemed suitable for outdoor use. Models are available in
the our Stainless nish. The Outdoor Series spans three product categories –
Clear Ice Machines, Crescent Ice Makers, and Solid Door Refrigerators.
Marine Series
We take ice making and refrigeration to yet another environment, the sea.
Our Marine Series feature durability and aesthetics, as well as exceptional ice
production and refrigeration capacity, for use above and below deck. Corrosive-
resistant, stainless steel hinges and fasteners on the UV resistant cabinet and
doors, combine maximum convenience with durability and good looks. Models
are available in the following nishes: Stainless, Black, or White. The Marine
Series spans two product categories – Crescent Ice Makers and Combo
®
Models.
7
Installed: 2218RINT
Temperature Management Systems
U-Select
®
Control | Modular 3000 Series
Convection Cooling System
All Modular 3000 Series are equipped with our U-Select
®
Control, oering an
OLED display which is ergonomically located on top of the door for convenient
control. Equipped with 5 food & beverage modes, 3 wine modes, and 3 specialty
settings, all preprogrammed to achieve optimal performance.
Digital Touch Pad Control | 2000 Series
Convection Cooling System
All 2000 Series are equipped with our color coordinated Digital Touch Pad
Control, which is conveniently located on the face of each model and oers an
intuitive display, making it quick and simple to control your unit.
Digital Touch Pad Control | 1000 Series
Passive Cooling System
All 1000 Series are equipped with our color coordinated Digital Touch Pad
Control*, which is conveniently located on the face of each model and oers
an intuitive display, making it quick and simple to control your unit.
* Few select 1000 Series models oer a mechanical control.
9
Installed: 3036RRINT
We are committed to providing premium modular
refrigeration and implement a variety of technologies to
ensure extended preservation of your food and beverages.
Most models ensure temperature stability by maintaining
temperature within 1°F of the set point. We oer the widest
temperature oering in the industry. Our glass door models
feature LowE coated, argon gas lled thermopane glass to
protect contents from harmful UV light.
Most of our 1000 and 2000 Series models oer our Digital
Touch Pad control, which provides an intuitive display
for quick and simple control. The Modular 3000 Series
makes it easier than ever before to preserve your food
and beverages. Equipped with the U-Select
®
Control, our
Modular 3000 Series puts the control in your hands, giving
you the ability to choose settings that correspond to the
types of foods and beverages you preserve. Foods stay
fresher longer and taste better when kept at a stable and
optimal temperature. Either select pre-programmed optimal
preservation modes for specic types of food and beverages,
or manually adjust temperatures based on your preference.
Preservation: Beyond
Refrigeration
Temperature Stability
Widest Temperature Settings
UV Protection
11
Mode Range: 34°F - 40°F
Set point: 36°F
Perfect for: Meat, sh,
poultry, butter or other dairy
items, garlic, oils, nuts, and
condiments.
Recreate the ideal showcase
conditions of a ne, neighborhood
deli with the Deli Mode. Cheeses,
condiments, lunchmeats and
other delicacies stay fresh and last
longer when preserved properly.
Market Root CellarDeli
Preservation: Beyond Refrigeration
U-Select
®
Control Food & Beverage Modes
Modular 3000 Series
Mode Range: 34°F - 40°F
Set point: 38°F
Perfect for: Fruits, vegetables,
berries, and leafy greens.
Whether you like to keep
fresh-picked strawberries on
hand, or an entire summer
salad ready to serve at a
moment’s notice, the Market
Mode is the ideal choice for
your fresh fruits and veggies.
Mode Range: 45°F - 55°F
Set point: 50°F
Perfect for: Root vegetables,
potatoes, onions, lemons,
limes, melons, peppers, and
beans.
Rural homeowners in years past
knew that farm-fresh produce
was best kept in cool, dark root
cellars. U-Line has recreated
those ideal conditions with the
Root Cellar Mode, a setting
that maintains crispness and
preserves freshness without
getting too cool.
12
Pantry Beverage Polar
Mode Range: 34°F - 70°F
Set point: 42°F
Perfect for: Dry goods, baking
ingredients, spices and seasonings.
Factors like unstable temperature,
light, bugs, and moisture all aect
the extended preservation of your
dry goods. Many dry goods can be
purchased in bulk, which makes
it that much more important to
store them properly. Pantry mode
extends the life of your dry goods
like our, seasonings, and grains
by oering an environment that
maintains a stable temperature
and ideal moisture level.
Mode Range: 34°F - 65°F
Set point: 38°F
Perfect for: Perfectly chilled for
all types of beverages.
Soft drinks, juices, beer and
wine are at their best when
chilled, yet you may prefer
some items colder than others.
Whatever your “perfect”
temperature is, our Beverage
Mode lets you set—and keep—
your refreshments just right.
Mode Range:
-
5°F - 5°F
Set point: 0° F
Perfect for: Ice cream, popsicles,
frozen meals, meats, desserts,
fruits, vegetables.
Polar Mode quickly sets your
freezer to the ideal temperature
to ensure your everyday frozen
goods, like ice cream, are
preserved to perfection without
a trace of freezer burn.
13
Mode Range: 45°F - 55°F
Set point: 50°F
Perfect for: All white wine
varietals.
You may choose to preserve
fuller-bodied or oaked white
wines at about 50°F degrees,
whereas medium to light-bodied
whites may be better kept at a
slightly lower 45°F - 50°F. No
matter your preference, the
White Wine mode ensures your
next glass of wine is perfectly
cool and crisp.
Mode Range: 55°F - 65°F
Set point: 55°F
Perfect for: All red wine
varietals.
Whether your tastes skew in
favor of full-bodied intense
reds, medium-bodied reds,
or more toward the lighter
fruity red wines, use the Red
Wine mode to ensure you
retain the delicious fullness
of these selections.
Mode Range: 38°F - 50°F
Set point: 45°F
Perfect for: Sparkling wines,
sweet whites and dessert wines.
Champagne, Prosecco, Cuvée,
and other sparkling wines
are best stored at a low
temperature. Yet, chill wines
too cold, and they lose their
avor and balance. Use our
Sparkling Wine mode to extend
the preservation of the bottles
you treasure.
White Wine Red WineSparkling Wine
Preservation: Beyond Refrigeration
U-Select
®
Control Wine Modes
Modular 3000 Series
14
Just bought a room temperature
pack of beer or soda and your
guests are arriving soon?
No worries when your unit is
equipped with the Quick Chill
setting. The Quick Chill setting
can be used to rapidly chill
your contents to the lowest
temperature in each mode for a
designated period of time.
Various U-Line models are
Star-K certied and oer a
Sabbath setting. The Sabbath
setting disables system
responses to user initiated
activities and all external
functions; including lighting,
display and audible alarms. The
unit will continue to maintain its
internal set temperature while
in Sabbath setting. View a full
list of Star-K certied U-Line
units at www.star-k.org.
Energy eciency is a priority
when designing U-Line models.
The Energy Saver setting reduces
the amount of energy the unit
consumes. U-Line has the largest
energy ecient undercounter
oering in the industry.
Quick Chill Sabbath Energy Saver
U-Select
®
Control Specialty Settings
Modular 3000 Series
15

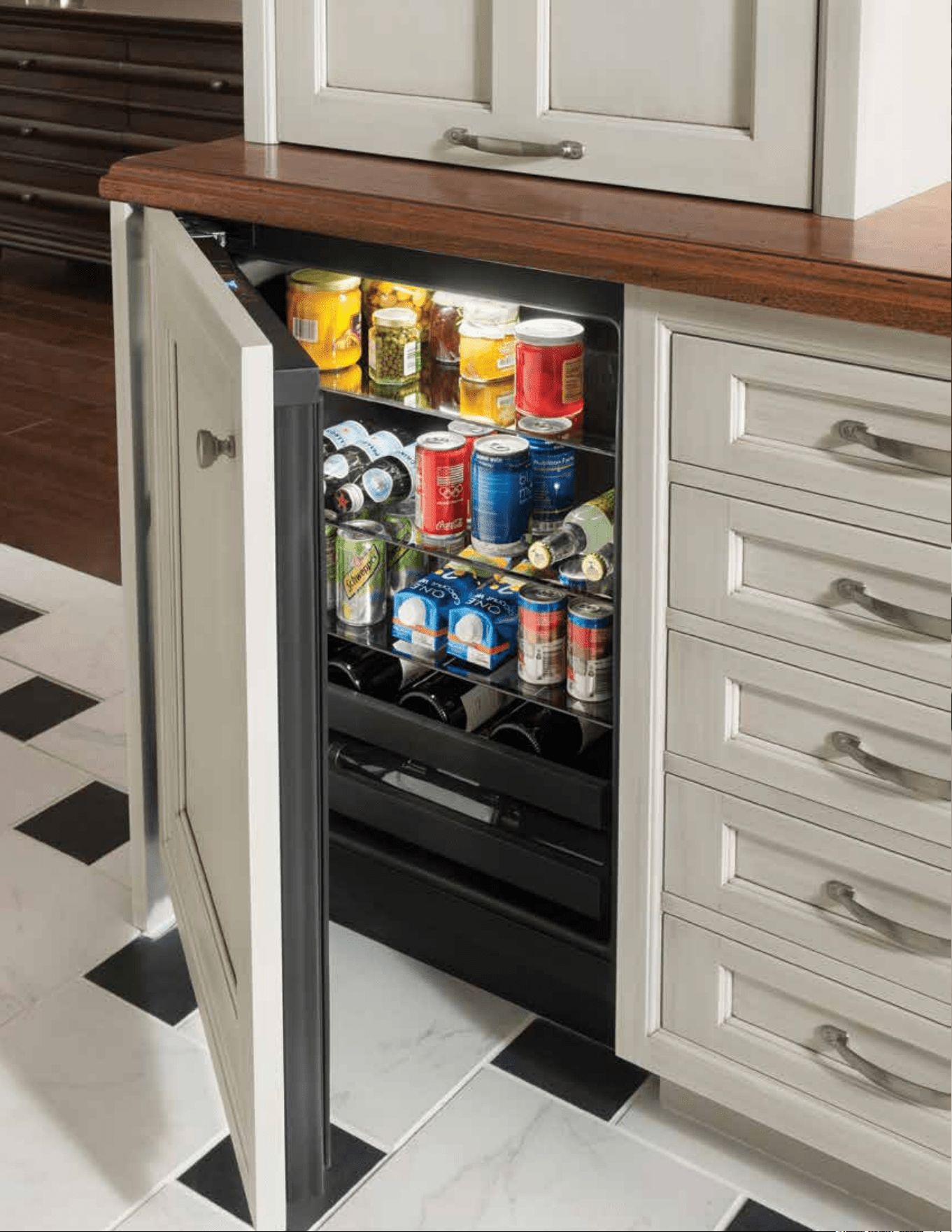

Installed: 36” Custom Model (3018WCINT & 3018CLRINT with Ice Flange Kit)
Our modular refrigeration provides the best premium
design aesthetic and the most function by oering varying
levels of integration, lighting, and installation application
options. Designed and engineered in America, but built
for the world, our products integrate into a standard 24”
cabinet depth and are oered in the following standard
widths: 15”, 18”, 24”, and 36”.
Our front ventilation system is engineered to circumvent
the need for additional airow, providing the exibility to
integrate and install our products undercounter, in island
applications, or wherever you need them most. All integrated
models maintain zero clearance, ensuring performance and
hinge clearance with the panel/frame installed.
Integrated nishes are oered in most models through
each of our series: 1000, 2000, and Modular 3000 Series,
allowing for installation of a ¾”custom overlay panel/frame
of your choice; no kits or accessories needed. All integrated
models oer black interiors that essentially disappear into
your cabinetry, ensuring an elegant installation. Our 2000
Series and Modular 3000 Series grilles can accept a custom
overlay toe-kick; or can accept a continuous custom toe-
kick that extends the full cabinet length to create a design
that seamlessly integrates with your surrounding cabinetry.
Integration:
Built-In to Stand Out
Seamlessly Integrated
Modular 3000 Series
Fully Integrated
2000 Series
Integrated
1000 Series
17
Seamlessly integrates into virtually
any environment and are available
in 18”, 24”, and 36” cabinet widths.
All integrated models maintain zero
clearance, ensuring performance and
hinge clearance from adjacent cabinets
with the panel/frame installed.
Seamlessly Integrated
Modular 3000 Series
Fully integrates into virtually any
environment and are available in
18” and 24” cabinet widths. All
integrated models maintain zero
clearance, ensuring performance
and hinge clearance from adjacent
cabinets with the panel/frame installed.
Fully Integrated
2000 Series
Integrates into various environments
and are available in 15” and 24”
cabinet widths. All integrated
models can be installed to ensure
performance and hinge clearance
with the panel/frame installed.
Integrated
1000 Series
Doors
All models are oered in our
integrated nish, allowing for
installation of a 3/4" custom
overlay panel/frame of your
choice; no kits or accessories
needed. Standard door opening
is 115°. Door pin is included
and oers a 90° stop, providing
accessibility for models that
need to be installed adjacent
to cabinets or walls. Doors are
designed for ne tuning, ensuring
a seamless installation.
All models are oered in our
integrated nish, allowing for
installation of a 3/4" custom
overlay panel/frame of your
choice; no kits or accessories
needed. Standard door opening
is 115°. Door pin is included
and oers a 90° stop, providing
accessibility for models that
need to be installed adjacent
to a wall. Doors are designed
for ne tuning, ensuring a fully
integrated installation.
Many models are oered in
our integrated nish, allowing
for installation of a 3/4" custom
overlay panel/frame of your
choice; no kits or accessories
needed. Door pin is included and
oers a 90° stop, ensuring that
models do not come in contact
with adjacent cabinets or walls.
Integration Matrix
Hinges Grille Leveling LegsDoors
Robust, concealed and covered
articulating hinges provide a
minimalist aesthetic. Built-in
door stop and closer ensure
doors always close. Models
must be ordered hinge specic.
Robust, concealed and covered
articulating hinges provide a
minimalist aesthetic. Built-in
door stop and closer ensure
doors always close. Models
must be ordered hinge specic.
Low-prole, reversible pivot
hinges provide exibility during
installation as the door can
easily be reversed in the eld.
Adjustable grille allows for front
ventilation, ensuring your model can
be installed in a variety of applications,
including islands. Grilles can be
shifted front-to-back and up-and-down
to ensure alignment with adjacent
cabinetry toe-kicks. Grilles can accept
a custom overlay toe-kick; or run your
continuous custom overlay toe-kick that
extends the full cabinet length to create
a design that seamlessly integrates with
your surrounding cabinetry.
Fixed grille allows for front ventilation,
ensuring your model can be installed
in a variety of applications, including
islands. Grille can accept a custom
overlay toe-kick, creating a design
that fully integrates with your
surrounding cabinetry. If your model’s
toe-kick aligns with adjacent cabinetry
toe-kicks, grilles can accept a
continuous custom overlay toe-kick
that extends the full cabinet length to
create a design that fully integrates
with your surrounding cabinetry.
Fixed grille allows for front
ventilation, ensuring your model
can be installed in a variety of
applications, including islands.
Four independently adjustable
leveling legs provide a precise
undercounter t. Rear legs
are accessible and adjustable from
the front for ease of installation.
Models oer a 1” range of height
exibility, reducing installation
time and ensuring a seamlessly
integrated t.
Four independently adjustable
leveling legs provide a precise
undercounter t. Models oer a
1” range of height exibility,
ensuring a fully integrated t.
Four independently adjustable
leveling legs provide a precise
undercounter t. Models oer a
1” range of height exibility,
ensuring an integrated t.
19
Cabinet Styles
Inset
24” deep base cabinet with doors and drawers that close within the frame
structure and are ush with the face of the frame. The overall depth from the
front of the cabinet door or drawer to the back of the base cabinet is 24” deep.
Overlay / Face Frame
24” deep base cabinet with a face frame structure that supports doors and
drawers that close onto the face of the frame. The overall depth from the front
of the cabinet door or drawer to the back of the base cabinet is approximately
24 3/4” deep.
European / Frameless
24” deep base cabinet with no visible frame structure on the outer face of the
cabinet. Doors and drawers fully cover the face frame area of cabinet case
and have minimal reveals or gaps between doors and drawers. The overall
depth from the front of the cabinet door or drawer to the back of the base
cabinet is 24 3/4” deep.
Create the kitchen of your dreams by integrating
your U-Line models into your cabinetry with custom
overlay panels/frames. We provide the simplest and
most eective way to create a clean integrated look,
allowing you to eortlessly blend your appliance into
your surrounding cabinetry. We oer the widest selection
of integrated models in the industry. All Modular 3000
Series and 2000 Series models, and most of our 1000
Series models, accept a ¾" integrated panel/frame. All
integrated models are delivered ready for panel/frame
installation, no kits or accessories needed.
Full ¾” custom overlay panels/frames apply to solid
door, glass door, and drawer models. All integrated
models maintain zero clearance installation, ensuring
performance and hinge clearance with the panel/frame
installed. Additionally, grilles on our Modular 3000 Series
and 2000 Series can accept custom overlay toe-kicks.
The images to the left show samples of various cabinetry
styles your U-Line models can be integrated into. For
further integration details, view the Integrated Panel
Guide on the following page, or visit u-line.com and view
the User Guides for all our models.
Integrating U-Line
Products into Cabinetry
Inset
Overlay / Face Frame
European / Frameless
21
Installed: 3024BEVINT
SERIES MODEL
OvERL Ay /
FACE FRAME
InSET
EUROPEAn /
FRAMLESS
Modular 3000 Series
3018WCInT
• • •
3024ZWCInT
• • •
3036WCWCInT
• • •
2000 Series
2218WCInT
• • •
2224ZWCInT
• • •
1000 Series
1215WCInT
• • •
1224WCInT
• • •
Modular 3000 Series
3024BEvInT
• • •
3036BvWCInT
• • •
2000 Series 2224BEvInT
• • •
1000 Series 1224BEvInT
• • •
Modular 3000 Series 3018CLRInT
• • •
1000 Series CLR1215InT
•
*
•
1000 Series BI1215InT
•
*
•
Modular 3000 Series
3018RGLInT
• • •
3024RGLInT
• • •
3036RRGLInT
• • •
2000 Series
2218RGLInT
• • •
2224RGLInT
• • •
Modular 3000 Series
3018RInT
• • •
3024RInT
• • •
3036RRInT
• • •
2000 Series
2218RInT
• • •
2224RInT
• • •
1000 Series
1215RInT
• • •
1224RInT
• • •
Modular 3000 Series 3024DWRInT
• • •
1000 Series 1224DWRInT
• • •
Modular 3000 Series 3024FZRInT
• • •
1000 Series
CO1224FInT
•
*
•
1224RFInT
• • •
PRODUCT
CATEGORy
Wine Captain
®
Models
Beverage Centers
Clear Ice Machines
Crescent Ice Makers
Glass Door
Refrigerators
Solid Door
Refrigerators
Drawer Models
Freezers
Combo
®
Models
Integrated Panel Guide
*
These units require extra depth for water connections to install into a 24” deep inset cabinet. To accommodate, we recommend cabinet depth be
adjusted and furred out. view the User Guides for complete installation details at u-line.com.
23
Installed: 3018WCINT
Wine Captain
®
Models
1024WC 1215WC 1224WC 2218WC 2224ZWC 3018WC 3024ZWC 3036WCWC
1000 Series 2000 Series 3000 Series
48 24 48 31 43 31 43 62
5.2 2.9 5.2 3.6 4.7 3.6 4.7 7.0
Mechanical
Dial
Digital
Touch Pad
Digital
Touch Pad
Digital
Touch Pad
Digital
Touch Pad
U-Select
®
U-Select
®
U-Select
®
23 1/4" /
591 mm
23 1/4" /
591 mm
23 1/4" /
591 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
24" /
610 mm*
14 15/16" /
379 mm*
24" /
610 mm*
17 3/4" /
450 mm
23 5/8" /
600 mm
17 3/4" /
450 mm
23 5/8" /
600 mm
35 7/16" /
900 mm
Field
Reversible
Field
Reversible
Field
Reversible
Right or Left Right or Left Right or Left Right or Left
Double
Doors
250 kWh 250 kWh 250 kWh 250 kWh 250 kWh 250 kWh 250 kWh 250 kWh
na na na na na na na na
Stainless
Stainless
Integrated
Black
Stainless
Integrated
Black
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
No No Yes No Yes Yes Yes Yes
No Yes Yes Yes Yes Yes Yes Yes
40°F - 60°F 38°F - 65°F 38°F - 65°F 38°F - 65°F 34°F - 65°F 38°F - 65°F 34°F - 65°F 38°F - 65°F
Residential
Residential /
Commercial
Residential /
Commercial
Residential Residential Residential Residential Residential
Capacity: Wine Bottle
(750 ml)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
25
PerformanCe
• Volume of 5.2 cu ft holds up to 48 wine bottles (750 ml)
• Mechanical Dial Control is conveniently located on the grille
• Temperature range: 40°F - 60°F
• Mechanical passive cooling system
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• White interior is illuminated with recessed incandescent lighting
that automatically turns o when the door is closed
• Three-quarter extension zinc coated wine racks allow for easy
access
• Wine racks accommodate a variety of bottle shapes and sizes,
while the fourth and fth racks allow for larger diameter wine and
champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Four independently adjustable leveling legs provide a precise
undercounter t
STAInLESS
FRAME
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1024WCS-00A 115 Field Reversible Stainless Frame 133 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
26
1024wC
24” Wine Captain
®
Model • 1000 Series
features & benefits
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Model 1024WC
Amps: Running 2.4
Capacity: Volume (cu ft) 5.2
Capacity: Wine Bottle (750 ml) 48
Control Type Mechanical Dial
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 123 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) No
Temperature Range 40°F - 60°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
40°-60°
CooLing system
34-1/8
" to
35-1/8
"
(867 mm to
892 mm)
24
"
(610 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4
"
(591 mm)
27
1024wC
1000 Series • 24” Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
PerformanCe
• Volume of 2.9 cu ft holds up to 24 wine bottles (750 ml)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 38°F - 65°F
• Digital passive cooling system
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Three-quarter extension black vinyl wine racks with natural
beech wood fronts allow for easy access and prevent bottles
from shifting
• Wine racks accommodate a variety of bottle shapes and sizes,
while the fourth and fth racks allow for larger diameter wine
and champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated, or Black
STAInLESS
FRAME
BLACk
FRAME
InTEGRATED
FRAME
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1215WCS-00A 115 Field Reversible Stainless Frame 102 lbs
U-1215WCINT-00A 115 Field Reversible Integrated Frame 99 lbs
U-1215WCB-00A 115 Field Reversible Black Frame 102 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
28
1215wC
15” Wine Captain
®
Model • 1000 Series
features & benefits
24"
(610 mm)
1-1/2" (38 mm)
15-1/4"
(387 mm)
34-1/8"
(370 mm)
to
35"
(389 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
7"
(178 mm)
5/8"
(16 mm)
Residential &
Commercial
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Model 1215WC
Amps: Running 1.2
Capacity: Volume (cu ft) 2.9
Capacity: Wine Bottle (750 ml) 24
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 14 15/16" / 379 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 95 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 38°F - 65°F
34-1/8" to
35-1/8"
(867 mm to
892 mm)
14-15/16" (379 mm)
3-5/8
" (92 mm)
Not Including Handle
23-1/4" (591 mm)
38°-65°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
29
1215wC
1000 Series 15” • Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
features & Benefits
PerformanCe
• Volume of 5.2 cu ft holds up to 48 wine bottles (750 ml)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 38°F - 65°F
• Digital passive cooling system
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Three-quarter extension black vinyl coated wine racks allow for
easy access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes,
while the fourth and fth racks allow for larger diameter wine and
champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding with
additional accessory kit
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated, or Black
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
BLACk
FRAME
InTEGRATED
SOLID
InTEGRATED
FRAME
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1224WCS-00A 115 Field Reversible Stainless Frame 133 lbs
U-1224WCS-13A 115 Field Reversible Stainless Frame (Lock) 133 lbs
U-1224WCINT-00A 115 Field Reversible Integrated Frame 130 lbs
U-1224WCINT-60A 115 Field Reversible Integrated Solid 123 lbs
U-1224WCB-00A 115 Field Reversible Black Frame 133 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
30
1224wC
24” Wine Captain
®
Model • 1000 Series
features & benefits
dimensions sPeCifiCations
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
Residential &
Commercial
Model 1224WC
Amps: Running 1.2
Capacity: Average Volume (cu ft) 5.2
Capacity: Wine Bottle (750 ml) 48
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 123 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 38°F - 65°F
3-9/16
"
(91 mm)
34-1/8" to
35-1/8"
(867 mm to
892 mm)
Not Including Handle
23-1/4
" (591 mm)
24
"
(610 mm)
38°-65°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
31
1224wC
1000 Series • 24” Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
FRAME
InTEGRATED
FRAME
PerformanCe
• Volume of 3.6 cu ft holds up to 31 wine bottles (750 ml)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 38°F - 65°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Full extension black vinyl coated wine racks allow for easy
access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes,
while the third and sixth racks allow for larger diameter wine
and champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Robust, concealed and covered hinges with built-in door stop
and closer
• Integrated model requires 3/4” custom door panel
• Fixed grille can accept an overlay toe-kick
• Four independently adjustable leveling legs provide a precise
undercounter t
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-2218WCS-00A 115 Right-Hand Hinge Stainless Frame 134 lbs
U-2218WCS-01A 115 Left-Hand Hinge Stainless Frame 134 lbs
U-2218WCINT-00A 115 Right-Hand Hinge Integrated Frame 132 lbs
U-2218WCINT-01A 115 Left-Hand Hinge Integrated Frame 132 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
32
2218wC
18” Wine Captain
®
Model • 2000 Series
features & benefits
4"
(102 mm)
7"
(178 mm)
17-3/4"
(450 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
Model 2218WC
Amps: Running 1.2
Capacity: Average Volume (cu ft) 3.6
Capacity: Wine Bottle (750 ml) 31
Control Type Digital Touch Pad
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 17 3/4" / 450 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 125 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 38°F - 65°F
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4"
(450 mm)
3-5/16"
(84 mm)
Not Including Handle
23-7/16" (590 mm)
38°-65°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
33
2218wC
2000 Series • 18” Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
PerformanCe
• Volume of 4.7 cu ft holds up to 43 wine bottles (750 ml)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 65°F
• Digital passive cooling system
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Independently controlled dual-zones
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Full extension black vinyl coated wine racks allow for easy
access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes,
while the third and sixth racks allow for larger diameter wine
and champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
• Door lock model available
integration
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Robust, concealed and covered hinges with built-in door stop
and closer
• Integrated model requires 3/4” custom door panel
• Fixed grille can accept an overlay toe-kick
• Four independently adjustable leveling legs provide a precise
undercounter t
InTEGRATED
FRAME
STAInLESS
FRAME (LOCk)
STAInLESS
FRAME
InTEGRATED
SOLID
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-2224ZWCS-00A 115 Right-Hand Hinge Stainless Frame 160 lbs
U-2224ZWCS-01A 115 Left-Hand Hinge Stainless Frame 160 lbs
U-2224ZWCS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 160 lbs
U-2224ZWCS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 160 lbs
U-2224ZWCINT-00A 115 Right-Hand Hinge Integrated Frame 157 lbs
U-2224ZWCINT-01A 115 Left-Hand Hinge Integrated Frame 157 lbs
U-2224ZWCINT-60A 115 Right-Hand Hinge Integrated Solid 150 lbs
U-2224ZWCINT-61A 115 Left-Hand Hinge Integrated Solid 150 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
34
2224ZwC
24” Wine Captain
®
Model • 2000 Series
features & benefits
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
Model 2224ZWC
Amps: Running 1.2
Capacity: Average Volume (cu ft) 4.7
Capacity: Wine Bottle (750 ml) 43
Control Type Digital Touch Pad
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 150 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 65°F
Residential
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
23-7/16" (590 mm)*
34°-65°
34°-65°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
35
2224ZwC
2000 Series • 24” Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
InTEGRATED
SOLID
PerformanCe
• Volume of 3.6 cu ft holds up to 31 wine bottles (750 ml)
• Temperature range: 38°F - 65°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers three distinct modes:
Sparkling Wine: 38°F - 50°F, White Wine: 45°F - 55°F,
Red Wine: 55°F - 65°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Robust full-extension black vinyl coated wine racks allow for
easy access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes;
the fourth and fth racks allow for larger diameter wine and
champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-
down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3018WCS-00A 115 Right-Hand Hinge Stainless Frame 134 lbs
U-3018WCS-01A 115 Left-Hand Hinge Stainless Frame 134 lbs
U-3018WCS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 134 lbs
U-3018WCS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 134 lbs
U-3018WCINT-00A 115 Right-Hand Hinge Integrated Frame 139 lbs
U-3018WCINT-01A 115 Left-Hand Hinge Integrated Frame 139 lbs
U-3018WCINT-60A 115 Right-Hand Hinge Integrated Solid 133 lbs
U-3018WCINT-61A 115 Left-Hand Hinge Integrated Solid 133 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
36
3018wC
18” Wine Captain
®
Model • Modular 3000 Series
features & benefits
4"
(102 mm)
7"
(178 mm)
17-3/4"
(450 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Model 3018WC
Amps: Running 1.2
Capacity: Volume (cu ft) 3.6
Capacity: Wine Bottle (750 ml) 31
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 17 3/4" / 450 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 125 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 38°F - 65°F
Residential
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4"
(450 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
Not Including Handle
23-7/16" (590 mm)
38°-65°
CooLing system
2
0
1
2
D
E
S
I
G
N
J
O
U
R
N
A
L
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
37
3018wC
Modular 3000 Series • 18” Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
FRAME
InTEGRATED
FRAME
InTEGRATED
SOLID
PerformanCe
• Volume of 4.7 cu ft holds up to 43 wine bottles (750 ml)
• Temperature range: 34°F - 65°F
• U-Select
®
Control oers four distinct modes:
Beverage: 34°F - 65°F, Sparkling Wine: 38°F - 50°F,
White Wine: 45°F - 55°F, Red Wine: 55°F - 65°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Independently controlled dual-zones
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Robust full-extension black vinyl coated wine racks allow for
easy access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes;
the third and sixth racks allow for larger diameter wine and
champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
STAInLESS
FRAME (LOCk)
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3024ZWCS-00A 115 Right-Hand Hinge Stainless Frame 160 lbs
U-3024ZWCS-01A 115 Left-Hand Hinge Stainless Frame 160 lbs
U-3024ZWCS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 160 lbs
U-3024ZWCS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 160 lbs
U-3024ZWCINT-00A 115 Right-Hand Hinge Integrated Frame 157 lbs
U-3024ZWCINT-01A 115 Left-Hand Hinge Integrated Frame 157 lbs
U-3024ZWCINT-60A 115 Right-Hand Hinge Integrated Solid 150 lbs
U-3024ZWCINT-61A 115 Left-Hand Hinge Integrated Solid 150 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
38
3024ZwC
24” Wine Captain
®
Model • Modular 3000 Series
features & benefits
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Model 3024ZWC
Amps: Running 1.2
Capacity: Volume (cu ft) 4.7
Capacity: Wine Bottle (750 ml) 43
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 150 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 65°F
Residential
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
23-7/16" (590 mm)
CooLing system
34°-65°
34°-65°
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
39
3024ZwC
Modular 3000 Series • 24” Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
FRAME
STAInLESS FRAME
(LOCk)
InTEGRATED
FRAME
PerformanCe
• Volume of 7.0 cu ft holds up to 62 wine bottles (750 ml)
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Temperature range: 38°F - 65°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control has three distinct modes:
Sparkling Wine: 38°F - 50°F, White Wine: 45°F - 55°F,
Red Wine: 55°F - 65°F
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Independently controlled dual-zones
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Full extension black vinyl coated wine racks allow for easy
access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes;
the fourth and fth racks allow for larger diameter wine and
champagne bottles
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle are interchangeable
with professional handle accessory
• Door lock model available
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-
down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3036WCWCS-00A 115 Double Doors Stainless Frame 252 lbs
U-3036WCWCS-13A 115 Double Doors Stainless Frame (Lock) 252 lbs
U-3036WCWCINT-00A 115 Double Doors Integrated Frame 235 lbs
U-3036WCWCINT-60A 115 Double Doors Integrated Solid 234 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
40
3036wCwC
36” Wine Captain
®
Model • Modular 3000 Series
features & benefits
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Model 3036WCWC
Amps: Running 1.2
Capacity: Volume (cu ft) 7.0
Capacity: Wine Bottle (750 ml) 62
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 35 7/16" / 900 mm
Energy Consumption: Avg. Per Year 250 kWh
ENERGY STAR na
Product Weight: Max 226 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 38°F - 65°F
Residential
4"
(102 mm)
7"
(178 mm)
35-7/16"
(900 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
24"
(610 mm)
38°-65° 38°-65°
CooLing system
35-7/16"
(900 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-7/16" (590 mm)
3-5/8" to 4-5/8"
(92 to
118 mm)
Not Including Handle
2
0
1
2
D
E
S
I
G
N
J
O
U
R
N
A
L
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
41
3036wCwC
Modular 3000 Series • 36” Wine Captain
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Installed: 2224BEVINT
Beverage Centers
1024BEv 1224BEv 2224BEv 3024BEv 3036BvWC
1000 Series 2000 Series 3000 Series
85 85 79 79 79
105 105 123 123 123
16 16 10 10 31
5.4 5.4 4.9 4.9 7.0
Mechanical Dial Digital Touch Pad Digital Touch Pad U-Select
®
U-Select
®
23 1/4" / 591 mm 23 1/4" / 591 mm 23 7/16" / 590 mm 23 7/16" / 590 mm 23 7/16" / 590 mm
34 1/8" / 867 mm 34 1/8" / 867 mm 33 11/16" / 856 mm 33 11/16" / 856 mm 33 11/16" / 856 mm
24" / 610 mm* 24" / 610 mm* 23 5/8" / 600 mm 23 5/8" / 600 mm 35 7/16" / 900 mm
Field Reversible Field Reversible Right or Left Right or Left Double Doors
305 kWh 305 kWh 300 kWh 300 kWh 321.5 kWh
No No No No No
Stainless
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
No Yes Yes Yes Yes
No Yes Yes Yes Yes
34°F - 45°F 34°F - 45°F 34°F - 45°F 34°F - 70°F
38°F - 65°F /
34°F - 70°F
Residential
Residential /
Commercial
Residential Residential Residential
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Wine Bottle
(750 ml)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
43
STAInLESS
FRAME
PerformanCe
• Overall volume of 5.4 cu ft holds up to 85 bottles (12 oz) or
105 cans (12 oz) and 16 wine bottles (750 ml)
• Mechanical Dial Control is conveniently located on the grille
• Temperature range: 34°F - 45°F
• Mechanical passive cooling system
interior/exterior
• White interior is illuminated with recessed incandescent lighting
that automatically turns o when the door is closed
• Three-quarter extension zinc coated wine racks allow for easy
access
• Wine racks accommodate a variety of bottle shapes and sizes
• Two removable tempered glass shelves
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Four independently adjustable levelling legs provide a precise
undercounter t
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1024BEVS-00A 115 Field Reversible Door Stainless Frame 126 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
44
1024Bev
24” Beverage Center • 1000 Series
features & benefits
34-1/8
" to
35-1/8
"
(867 mm to
892 mm)
24
"
(610 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4
"
(591 mm)
Model 1024BEV
Amps: Running 1.2
Capacity: Bottle (12 oz) 85
Capacity: Can (12 oz) 105
Capacity: Volume (cu ft) 5.4
Capacity: Wine Bottle (750 ml) 16
Control Type Mechanical Dial
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 305 kWh
ENERGY STAR No
Product Weight: Max 116 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) No
Temperature Range 34°F - 45°F
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
34°-45°
CooLing system
45
1024Bev
1000 Series • 24” Beverage Center
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
PerformanCe
• Volume of 5.4 cu ft holds up to 85 bottles
(12 oz) or 105 cans (12 oz) and 16 wine bottles (750 ml)
• Digital Touch Pad Control is conveniently located on upper face of
unit
• Temperature range: 34°F - 45°F
• Digital passive cooling system
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Three-quarter extension black vinyl coated wine racks allow for
easy access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes
• Two removable tempered glass shelves
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
• Door lock model available
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Integrated model requires 3/4” custom door panel
• Four independently adjustable levelling legs provide a precise
undercounter t
• Available in the following nishes: Stainless or Integrated
InTEGRATED
FRAME
InTEGRATED
SOLID
STAInLESS
FRAME (LOCk)
STAInLESS
FRAME
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1224BEVS-00A 115 Field Reversible Stainless Frame 127 lbs
U-1224BEVS-13A 115 Field Reversible Stainless Frame (Lock) 127 lbs
U-1224BEVINT-00A 115 Field Reversible Integrated Frame 121 lbs
U-1224BEVINT-60A 115 Field Reversible Integrated Solid 113 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
46
1224Bev
24” Beverage Center • 1000 Series
features & benefits
3-9/16
"
(91 mm)
34-1/8" to
35-1/8"
(867 mm to
892 mm)
Not Including Handle
23-1/4
" (591 mm)
24
"
(610 mm)
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Model 1224BEV
Amps: Running 1.2
Capacity: Bottle (12 oz) 85
Capacity: Can (12 oz) 105
Capacity: Volume (cu ft) 5.4
Capacity: Wine Bottle (750 ml) 16
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 305 kWh
ENERGY STAR No
Product Weight: Max 111 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential &
Commercial
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
47
1224Bev
1000 Series • 24” Beverage Center
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
InTEGRATED
SOLID
PerformanCe
• Volume of 4.9 cu ft holds up to 79 bottles (12 oz) or
123 cans (12 oz) and 10 wine bottles (750 ml)
• Digital Touch Pad Control is conveniently located on upper face of
unit
• Temperature range: 34°F - 45°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Full extension black vinyl coated wine racks allow for easy access
and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes
• Three adjustable tempered glass shelves with 7 height positions
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
integration
• Solid natural beech wood fronts on wine racks can easily be
stained to match surrounding cabinetry
• Robust, concealed and covered hinges with built-in door stop and
closer
• Integrated model requires 3/4” custom door panel
• Fixed grille can accept a 1/4” custom integrated toe-kick
• Four independently adjustable leveling legs provide a precise
undercounter t
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-2224BEVS-00A 115 Right-Hand Hinge Stainless Frame 156 lbs
U-2224BEVS-01A 115 Left-Hand Hinge Stainless Frame 156 lbs
U-2224BEVS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 156 lbs
U-2224BEVS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 156 lbs
U-2224BEVINT-00A 115 Right-Hand Hinge Integrated Frame 144 lbs
U-2224BEVINT-01A 115 Left-Hand Hinge Integrated Frame 144 lbs
U-2224BEVINT-60A 115 Right-Hand Hinge Integrated Solid 132 lbs
U-2224BEVINT-61A 115 Left-Hand Hinge Integrated Solid 132 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
48
2224Bev
24” Beverage Center • 2000 Series
features & benefits
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
23-7/16" (590 mm)*
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 2224BEV
Amps: Running 1.2
Capacity: Bottle (12 oz) 79
Capacity: Can (12 oz) 123
Capacity: Volume (cu ft) 4.9
Capacity: Wine Bottle (750 ml) 10
Control Type Digital Touch Pad
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 300 kWh
ENERGY STAR No
Product Weight: Max 135 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
49
2224Bev
2000 Series • 24” Beverage Center
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
InTEGRATED
SOLID
PerformanCe
• Volume of 4.9 cu ft holds up to 79 bottles (12 oz) or
123 cans (12 oz) and 10 wine bottles (750 ml)
• Temperature range: 34°F - 70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes: Beverage: 34°F -
40°F, Deli: 34°F - 40°F, Market: 34°F - 40°F, Pantry: 34°F - 70°F,
Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Robust full-extension black vinyl coated wine racks allow for easy
access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes
• Three adjustable tempered glass shelves with 7 height positions
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop and
closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Grille can accept a 1/4” custom integrated toe-kick
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3024BEVS-00A 115 Right-Hand Hinge Stainless Frame 156 lbs
U-3024BEVS-01A 115 Left-Hand Hinge Stainless Frame 156 lbs
U-3024BEVS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 156 lbs
U-3024BEVS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 156 lbs
U-3024BEVINT-00A 115 Right-Hand Hinge Integrated Frame 144 lbs
U-3024BEVINT-01A 115 Left-Hand Hinge Integrated Frame 144 lbs
U-3024BEVINT-60A 115 Right-Hand Hinge Integrated Solid 132 lbs
U-3024BEVINT-61A 115 Left-Hand Hinge Integrated Solid 132 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
50
3024Bev
24” Beverage Center • Modular 3000 Series
features & benefits
Model 3024BEV
Amps: Running 1.2
Capacity: Bottle (12 oz) 79
Capacity: Can (12 oz) 123
Capacity: Volume (cu ft) 4.9
Capacity: Wine Bottle (750 ml) 10
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 300 kWh
ENERGY STAR No
Product Weight: Max 146 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
34°-70°
CooLing system
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
23-7/16" (590 mm)
2
0
1
3
D
E
S
I
G
N
J
O
U
R
N
A
L
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
51
3024Bev
Modular 3000 Series • 24” Beverage Center
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
InTEGRATED
SOLID
PerformanCe
• Volume of 7.0 cu ft holds up to 79 bottles (12 oz) or
123 cans (12 oz) and 31 wine bottles (750 ml)
• Temperature range: 34°F - 70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes (right side):
Beverage: 34°F - 40°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control oers four distinct modes (left side):
Beverage: 34°F - 65°F, Sparkling Wine: 38°F - 50°F,
White Wine: 45°F - 55°F, Red Wine: 55°F - 65°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Independently controlled dual-zones
• Relative humidity inside the unit is approx. 50%
• Rubber mounted compressor virtually eliminates vibration
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Robust full-extension black vinyl coated wine racks allow for easy
access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes;
the fourth and fth racks allow for larger diameter wine and
champagne bottles
• Wine racks are designed to accommodate a variety of bottle
shapes and sizes
• The right compartment oers 3 adjustable tempered glass
shelves with 11 height positions
• The right compartment features a full-extension, slide-out crisper
drawer that is removable for easy cleaning
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
integration
• Robust, concealed and covered hinges with built-in door stop and
closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Grille can accept a 1/4” custom integrated toe-kick
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3036BVWCS-00A 115 Double Doors Stainless Frame 247 lbs
U-3036BVWCS-13A 115 Double Doors Stainless Frame (Lock) 247 lbs
U-3036BVWCINT-00A 115 Double Doors Integrated Frame 230 lbs
U-3036BVWCINT-60A 115 Double Doors Integrated Solid 226 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
52
3036BvwC
36” Beverage Center • Modular 3000 Series
features & benefits
Model 3036BVWC
Amps: Running 1.2
Capacity: Bottle (12 oz) 79
Capacity: Can (12 oz) 123
Capacity: Volume (cu ft) 7.0
Capacity: Wine Bottle (750 ml) 31
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 35 7/16" / 900 mm
Energy Consumption: Avg. Per Year 321.5 kWh
ENERGY STAR No
Product Weight: Max 221 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range
Left: 38°F - 65°F
Right: 34°F - 70°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
4"
(102 mm)
7"
(178 mm)
35-7/16"
(900 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
24"
(610 mm)
38°-65° 34°-70°
CooLing system
35-7/16"
(900 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-7/16" (590 mm)
3-5/8" to 4-5/8"
(92 to
118 mm)
Not Including Handle
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
53
3036BvwC
Modular 3000 Series • 36” Beverage Center
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
Installed: 36” Custom Model (3018RGLINT & 3018CLRINT with Ice Flange Kit)
CLR1215 3018CLR
1000 Series 3000 Series
Digital Touch Pad U-Select
®
24" / 610 mm 24" / 610 mm
34 1/8" / 867 mm 33 11/16" / 856 mm
14 15/16" / 379 mm* 17 3/4" / 450 mm
Field Reversible Right or Left
na na
na na
Stainless
Integrated
Black
White
Stainless
Integrated
60 lbs 60 lbs
30 lbs 30 lbs
No No
Yes Yes
Residential Residential
Clear Ice Machines
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath (Star K Certied)
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
For Outdoor Series Clear Ice Machine data, see page 128.
55
STAInLESS
SOLID
BLACk
SOLID
WHITE
SOLID
InTEGRATED
SOLID
PerformanCe
• Daily ice production of up to 60 lbs of ice
• Up to 30 lbs in ice storage capacity
• Clear ice cube dimensions: 7/8” W x 7/8” H x 7/8” L
• Clear ice cube fullness can be adjusted
• Silent setting temporarily suspends ice making for 3 hours
• Digital Touch Pad Control is conveniently located on face of unit
• Indicator alert noties user when cleaning is needed
• Easy clean process only lasts 45 minutes
interior/exterior
• White interior is illuminated with LED lighting
• Clear heavy duty ice scoop included
• Drain required
• Model can be ordered with factory installed P60 drain pump if
gravity drain is not accessible
• Factory installed water and drain line simplies installation
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated, Black,
or White
MODEL DETAILS
Model voltage Door Swing Pump Finish Shipping Weight
U-CLR1215S-00A 115 Field Reversible - Stainless Solid 95 lbs
U-CLR1215S-40A 115 Field Reversible Pump Included Stainless Solid 101 lbs
U-CLR1215INT-00A 115 Field Reversible - Integrated Solid 92 lbs
U-CLR1215INT-40A 115 Field Reversible Pump Included Integrated Solid 98 lbs
U-CLR1215B-00A 115 Field Reversible - Black Solid 95 lbs
U-CLR1215B-40A 115 Field Reversible Pump Included Black Solid 101 lbs
U-CLR1215W-00A 115 Field Reversible - White Solid 92 lbs
U-CLR1215W-40A 115 Field Reversible Pump Included White Solid 101 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
MP37050 Clear Ice Maker Cleaner (1 box of 6 packets) na 1 lb
P60 Drain Pump na
7 lbs
56
CLr1215
15” Clear Ice Machine • 1000 Series
features & benefits
34-1/8" to
35-1/8"
(867 mm to
892 mm)
14-15/16" (379 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4" (591 mm)
24"
(610 mm)
1-1/2" (38 mm)
15-1/4"
(387 mm)
34-1/8"
(370 mm)
to
35"
(389 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
7"
(178 mm)
5/8"
(16 mm)
Model CLR1215
Amps: Running 4
Amps: Ice Harvest 5.5
Control Type Digital Touch Pad
Defrost Type na
Dimensions: Product Depth 24" / 610 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 14 15/16" / 379 mm
ENERGY STAR na
Ice Production Per Day 60 lbs
Ice Storage 30 lbs
Product Weight: Max 91 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) Yes
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
57
CLr1215
1000 Series • 15” Clear Ice Machine
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Daily ice production of up to 60 lbs of ice
• Up to 30 lbs in ice storage capacity
• Clear ice cube dimensions: 7/8” W x 7/8” H x 7/8” L
• Clear ice cube fullness can be adjusted
• Silent mode temporarily suspends ice making for 3 hours
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Indicator alert noties user when cleaning is needed
• Easy clean process only lasts 45 minutes
interior/exterior
• Black interior is illuminated with LED theater lighting
• Clear heavy duty ice scoop included
• Drain required
• Model can be ordered with factory installed P60 drain pump if
gravity drain is not accessible
• Factory installed water and drain line simplies installation
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Grille can accept a 1/4” custom integrated toe-kick
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Pump Finish Shipping Weight
U-3018CLRS-00A 115 Right-Hand Hinge - Stainless Solid 118 lbs
U-3018CLRS-01A 115 Left-Hand Hinge - Stainless Solid 118 lbs
U-3018CLRS-40A 115 Right-Hand Hinge Pump Included Stainless Solid 124 lbs
U-3018CLRS-41A 115 Left-Hand Hinge Pump Included Stainless Solid 124 lbs
U-3018CLRINT-00A 115 Right-Hand Hinge - Integrated Solid 110 lbs
U-3018CLRINT-01A 115 Left-Hand Hinge - Integrated Solid 110 lbs
U-3018CLRINT-40A 115 Right-Hand Hinge Pump Included Integrated Solid 116 lbs
U-3018CLRINT-41A 115 Left-Hand Hinge Pump Included Integrated Solid 116 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
P60 Drain Pump na 7 lbs
58
3018CLr
18” Clear Ice Machine • Modular 3000 Series
features & benefits
Not Including Handle
24" (610 mm)
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4" (450 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
Model 3018CLR
Amps: Running 4
Amps: Ice Harvest 5.5
Control Type U-Select
®
Defrost Type Automatic
Dimensions: Product Depth 24" / 610 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 17 3/4" / 450 mm
ENERGY STAR na
Ice Production Per Day 60 lbs
Ice Storage 30 lbs
Product Weight: Max 114 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) Yes
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
17-3/4"
(450 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for drain, water
line and receptacle
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
2
0
1
3
D
E
S
I
G
N
J
O
U
R
N
A
L
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
59
3018CLr
Modular 3000 Series • 18” Clear Ice Machine
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Installed: 1224BEVINT, BI1215INT
Crescent Ice Makers
BI1215
1000 Series
On/O Switch
23 1/4" / 591 mm
34 1/8" / 867 mm
14 15/16" / 379 mm*
Field Reversible
na
na
Stainless
Integrated
Black
White
25 lbs
25 lbs
No
No
Yes
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath (Star K Certied)
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
For ADA Series Crescent Ice Maker data, see page 126.
For Outdoor Series Crescent Ice Maker data, see page 128.
61
PerformanCe
• Uses less than 3 gallons of water to produce up to 25 lbs of ice
per day
• Up to 25 lbs in ice storage capacity
• Daily ice production rate is approx. 4 times greater than the
average household refrigerator
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on lower face of unit
interior/exterior
• No drain required
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated, Black,
or White
BLACk
SOLID
STAInLESS
SOLID
InTEGRATED
SOLID
WHITE
SOLID
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-BI1215S-00A 115 Field Reversible Stainless Solid 89 lbs
U-BI1215INT-00A 115 Field Reversible Integrated Solid 89 lbs
U-BI1215B-00A 115 Field Reversible Black Solid 89 lbs
U-BI1215W-00A 115 Field Reversible White Solid 89 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
WATERHOOKUP Braided water supply line kit na 2 lbs
62
Bi1215
15” Crescent Ice Maker • 1000 Series
features & benefits
34-1/8" to
35-1/8"
(867 mm to
892 mm)
14-15/16" (379 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4" (591 mm)
24"
(610 mm)
1-1/2" (38 mm)
15-1/4"
(387 mm)
34-1/8"
(370 mm)
to
35"
(389 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
7"
(178 mm)
5/8"
(16 mm)
Model BI1215
Amps: Running 2.5
Control Type On/O Switch
Defrost Type Manual
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 14 15/16" / 379 mm
Energy Consumption: Avg. Per Year na
ENERGY STAR na
Ice Production Per Day 25 lbs
Ice Storage 25 lbs
Product Weight: Max 83 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) No
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
63
Bi1215
1000 Series • 15” Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Installed: 3036RRGLINT
2218RGL 2224RGL 3018RGL 3024RGL 3036RRGL
2000 Series 3000 Series
79 114 79 114 158
123 172 123 172 246
3.6 4.9 3.6 4.9 6.9
Digital Touch Pad Digital Touch Pad U-Select
®
U-Select
®
U-Select
®
23 7/16" / 590 mm 23 7/16" / 590 mm 23 7/16" / 590 mm 23 7/16" / 590 mm 23 7/16" / 590 mm
33 11/16" / 856 mm 33 11/16" / 856 mm 33 11/16" / 856 mm 33 11/16" / 856 mm 33 11/16" / 856 mm
17 3/4" / 450 mm 23 5/8" / 600 mm 17 3/4" / 450 mm 23 5/8" / 600 mm 35 7/16" / 900 mm
Right or Left Right or Left Right or Left Right or Left Double Doors
290 kWh 300 kWh 290 kWh 300 kWh 320 kWh
No No No No No
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
No Yes Yes Yes Yes
Yes Yes Yes Yes Yes
34°F - 45°F 34°F - 45°F 34°F - 70°F 34°F - 70°F 34°F - 70°F
Residential Residential Residential Residential Residential
Glass Door Refrigerators
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
For ADA Series Glass Door Refrigerator data, see page 122.
65
STAInLESS
FRAME
InTEGRATED
FRAME
PerformanCe
• Volume of 3.6 cu ft holds up to 79 bottles (12 oz) or
123 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face of
unit
• Temperature range: 34°F - 45°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Four adjustable tempered glass shelves with 11 height positions
• Full-extension, slide-out crisper drawer is removable for easy
cleaning
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop and
closer
• Integrated model requires 3/4” custom door panel
• Fixed grille can accept an overlay toe-kick
• Four independently adjustable leveling legs provide a precise
undercounter t
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-2218RGLS-00A 115 Right-Hand Hinge Stainless Frame 120 lbs
U-2218RGLS-01A 115 Left-Hand Hinge Stainless Frame 120 lbs
U-2218RGLINT-00A 115 Right-Hand Hinge Integrated Frame 118 lbs
U-2218RGLINT-01A 115 Left-Hand Hinge Integrated Frame 118 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
66
2218rgL
18” Glass Door Refrigerator • 2000 Series
features & benefits
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4"
(450 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
Not Including Handle
23-7/16" (590 mm)
4"
(102 mm)
7"
(178 mm)
17-3/4"
(450 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 2218RGL
Amps: Running 1.2
Capacity: Bottle (12 oz) 79
Capacity: Can (12 oz) 123
Capacity: Volume (cu ft) 3.6
Control Type Digital Touch Pad
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 17 3/4" / 450 mm
Energy Consumption: Avg. Per Year 290 kWh
ENERGY STAR No
Product Weight: Max 111 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
67
2218rgL
2000 Series • 18” Glass Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
PerformanCe
• Volume of 4.9 cu ft holds up to 114 bottles (12 oz) or
172 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face of
unit
• Temperature range: 34°F - 45°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED lighting that automatically
turns o when the door is closed, or can be set to stay on for 3
hours
• Four adjustable tempered glass shelves with 11 height positions
• Full-extension, slide-out crisper drawer is removable for easy
cleaning
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop and
closer
• Integrated model requires 3/4” custom door panel
• Fixed grille can accept an overlay toe-kick
• Four independently adjustable leveling legs provide a precise
undercounter t
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-2224RGLS-00A 115 Right-Hand Hinge Stainless Frame 145 lbs
U-2224RGLS-01A 115 Left-Hand Hinge Stainless Frame 145 lbs
U-2224RGLS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 145 lbs
U-2224RGLS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 145 lbs
U-2224RGLINT-00A 115 Right-Hand Hinge Integrated Frame 142 lbs
U-2224RGLINT-01A 115 Left-Hand Hinge Integrated Frame 142 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
68
2224rgL
24” Glass Door Refrigerator • 2000 Series
features & benefits
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
23-7/16" (590 mm)*
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 2224RGL
Amps: Running 1.2
Capacity: Bottle (12 oz) 114
Capacity: Can (12 oz) 172
Capacity: Volume (cu ft) 4.9
Control Type Digital Touch Pad
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 300 kWh
ENERGY STAR No
Product Weight: Max 135 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
69
2224rgL
2000 Series • 24” Glass Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
PerformanCe
• Volume of 3.6 cu ft holds up to 79 bottles (12 oz) or
123 cans (12 oz)
• Temperature range: 34°F -70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes:
Beverage: 34°F - 65°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Four adjustable tempered glass shelves with 11 height positions
• Full-extension, slide-out crisper drawer is removable for easy
cleaning
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop and
closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3018RGLS-00A 115 Right-Hand Hinge Stainless Frame 120 lbs
U-3018RGLS-01A 115 Left-Hand Hinge Stainless Frame 120 lbs
U-3018RGLS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 120 lbs
U-3018RGLS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 120 lbs
U-3018RGLINT-00A 115 Right-Hand Hinge Integrated Frame 118 lbs
U-3018RGLINT-01A 115 Left-Hand Hinge Integrated Frame 118 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
70
3018rgL
18” Glass Door Refrigerator • Modular 3000 Series
features & benefits
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4"
(450 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
Not Including Handle
23-7/16" (590 mm)
4"
(102 mm)
7"
(178 mm)
17-3/4"
(450 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 3018RGL
Amps: Running 1.2
Capacity: Bottle (12 oz) 79
Capacity: Can (12 oz) 123
Capacity: Volume (cu ft) 3.6
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 17 3/4" / 450 mm
Energy Consumption: Avg. Per Year 290 kWh
ENERGY STAR No
Product Weight: Max 111 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
34°-70°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
71
3018rgL
Modular 3000 Series • 18” Glass Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
PerformanCe
• Volume of 4.9 cu ft holds up to 114 bottles (12 oz) or
172 cans (12 oz)
• Temperature range: 34°F -70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes:
Beverage: 34°F - 65°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Four adjustable tempered glass shelves with 11 height positions
• Full-extension, slide-out crisper drawer is removable for easy
cleaning
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop and
closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3024RGLS-00A 115 Right-Hand Hinge Stainless Frame 145 lbs
U-3024RGLS-01A 115 Left-Hand Hinge Stainless Frame 145 lbs
U-3024RGLS-13A 115 Right-Hand Hinge Stainless Frame (Lock) 145 lbs
U-3024RGLS-15A 115 Left-Hand Hinge Stainless Frame (Lock) 145 lbs
U-3024RGLINT-00A 115 Right-Hand Hinge Integrated Frame 142 lbs
U-3024RGLINT-01A 115 Left-Hand Hinge Integrated Frame 142 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
72
3024rgL
24” Glass Door Refrigerator • Modular 3000 Series
features & benefits
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
23-7/16" (590 mm)
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 3024RGL
Amps: Running 1.2
Capacity: Bottle (12 oz) 114
Capacity: Can (12 oz) 172
Capacity: Volume (cu ft) 4.9
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 300 kWh
ENERGY STAR No
Product Weight: Max 135 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
34°-70°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
73
3024rgL
Modular 3000 Series • 24” Glass Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
PerformanCe
• Volume of 6.9 cu ft holds up to 158 bottles (12 oz) or
246 cans (12 oz)
• Temperature range: 34°F -70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes:
Beverage: 34°F - 65°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Independently controlled dual-zones
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Four adjustable tempered glass shelves with 11 height positions
in each compartment
• Full-extension, slide-out crisper drawers are removable for easy
cleaning
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle are interchangeable
with professional handle accessory
integration
• Robust, concealed and covered hinges with built-in door stop and
closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
STAInLESS
FRAME
STAInLESS
FRAME (LOCk)
InTEGRATED
FRAME
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3036RRGLS-00A 115 Double Doors Stainless Frame 229 lbs
U-3036RRGLS-13A 115 Double Doors Stainless Frame (Lock) 229 lbs
U-3036RRGLINT-00A 115 Double Doors Integrated Frame 217 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
74
3036rrgL
36” Glass Door Refrigerator • Modular 3000 Series
features & benefits
35-7/16"
(900 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-7/16" (590 mm)
3-5/8" to 4-5/8"
(92 to
118 mm)
Not Including Handle
4"
(102 mm)
7"
(178 mm)
35-7/16"
(900 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
24"
(610 mm)
Model 3036RRGL
Amps: Running 1.2
Capacity: Bottle (12 oz) 158
Capacity: Can (12 oz) 246
Capacity: Volume (cu ft) 6.9
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 35 7/16" / 900 mm
Energy Consumption: Avg. Per Year 320 kWh
ENERGY STAR No
Product Weight: Max 203 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Residential
34°-70° 34°-70°
CooLing system
2
0
1
2
D
E
S
I
G
N
J
O
U
R
N
A
L
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
75
3036rrgL
Modular 3000 Series • 36” Glass Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
instaLL ation notes
Installed: 3036RRINT
77
1215R 1224R 2218R 2224R 3018R 3024R 3036RR
1000 Series 2000 Series 3000 Series
57 123 79 114 68 100 136
92 185 123 172 104 141 208
2.9 5.2 3.4 4.9 3.4 4.9 6.9
Digital
Touch Pad
Digital
Touch Pad
Digital
Touch Pad
Digital
Touch Pad
U-Select
®
U-Select
®
U-Select
®
23 1/4" /
591 mm
23 1/4" /
591 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
14 15/16" /
379 mm*
24" /
610 mm*
17 3/4" /
450 mm
23 5/8" /
600 mm
17 3/4" /
450 mm
23 5/8" /
600 mm
35 7/16" /
900 mm
Field
Reversible
Field
Reversible
Right or Left Right or Left Right or Left Right or Left Double Doors
225 kWh 240 kWh 230 kWh 240 kWh 245 kWh 240 kWh 320 kWh
ENERGY STAR ENERGY STAR ENERGY STAR ENERGY STAR ENERGY STAR ENERGY STAR No
Stainless
Integrated
Black
Stainless
Integrated
Black
White
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
Stainless
Integrated
No No No No No No No
Yes Yes Yes Yes Yes Yes Yes
34°F - 45°F 34°F - 45°F 34°F - 45°F 34°F - 45°F 34°F - 70°F 34°F - 70°F 34°F - 70°F
Residential /
Commercial
Residential /
Commercial
Residential Residential Residential Residential Residential
Solid Door Refrigerators
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
For ADA Series Solid Door Refrigerator data, see page 116, 120.
For Outdoor Series Solid Door Refrigerator data, see page 130, 132.
STAInLESS
SOLID
BLACk
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 2.9 cu ft holds up to 57 bottles (12 oz) or
92 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• White interior is illuminated with LED lighting
• Three removable tempered glass shelves
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated & Black
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1215RS-00A 115 Field Reversible Stainless Solid 83 lbs
U-1215RINT-00A 115 Field Reversible Integrated Solid 80 lbs
U-1215RB-00A 115 Field Reversible Black Solid 83 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
78
1215r
15” Solid Door Refrigerator • 1000 Series
features & benefits
34-1/8" to
35-1/8"
(867 mm to
892 mm)
14-15/16" (379 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4" (591 mm)
24"
(610 mm)
1-1/2" (38 mm)
15-1/4"
(387 mm)
34-1/8"
(370 mm)
to
35"
(389 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
7"
(178 mm)
5/8"
(16 mm)
Model 1215R
Amps: Running 1.2
Capacity: Bottle (12 oz) 57
Capacity: Can (12 oz) 92
Capacity: Volume (cu ft) 2.9
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 14 15/16" / 379 mm
Energy Consumption: Avg. Per Year 225 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 76 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential &
Commercial
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
79
1215r
1000 Series • 15” Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
BLACk
SOLID
STAInLESS
SOLID
InTEGRATED
SOLID
WHITE
SOLID
PerformanCe
• Volume of 5.2 cu ft holds up to 123 bottles (12 oz) or
185 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• White interior is illuminated with LED lighting
• Three removable tempered glass shelves
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated, Black,
or White
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1224RS-00A 115 Field Reversible Stainless Solid 109 lbs
U-1224RINT-00A 115 Field Reversible Integrated Solid 106 lbs
U-1224RB-00A 115 Field Reversible Black Solid 109 lbs
U-1224RW-00A 115 Field Reversible White Solid 109 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
80
1224r
24” Solid Door Refrigerator • 1000 Series
features & benefits
34-1/8
" to
35-1/8
"
(867 mm to 892 mm)
24
"
(610 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4
"
(591 mm)
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Model 1224R
Amps: Running 1.2
Capacity: Bottle (12 oz) 123
Capacity: Can (12 oz) 185
Capacity: Volume (cu ft) 5.2
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 240 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 99 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential &
Commercial
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
81
1224r
1000 Series • 24” Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 3.4 cu ft holds up to 79 bottles (12 oz) or
123 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED Lighting
• Four adjustable tempered glass shelves with 11 height positions
• Full-extension, slide-out crisper drawer is removable for easy
cleaning
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Integrated model requires 3/4” custom door panel
• Fixed grille can accept an overlay toe-kick
• Four independently adjustable leveling legs provide a precise
undercounter t
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-2218RS-00A 115 Right-Hand Hinge Stainless Solid 119 lbs
U-2218RS-01A 115 Left-Hand Hinge Stainless Solid 119 lbs
U-2218RINT-00A 115 Right-Hand Hinge Integrated Solid 116 lbs
U-2218RINT-01A 115 Left-Hand Hinge Integrated Solid 116 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
82
2218r
18” Solid Door Refrigerator • 2000 Series
features & benefits
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4"
(450 mm)
3-5/6" (84 mm)
Not Including Handle
23-7/16" (590 mm)
4"
(102 mm)
7"
(178 mm)
17-3/4"
(450 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 2218R
Amps: Running 1.2
Capacity: Bottle (12 oz) 79
Capacity: Can (12 oz) 123
Capacity: Volume (cu ft) 3.4
Control Type Digital Touch Pad
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 17 3/4" / 450 mm
Energy Consumption: Avg. Per Year 230 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 110 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
83
2218r
2000 Series • 18” Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 4.9 cu ft holds up to 114 bottles (12 oz) or
172 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED Lighting
• Four adjustable tempered glass shelves with 11 height
positions
• Full-extension, slide-out crisper drawer is removable for easy
cleaning
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Integrated model requires 3/4” custom door panel
• Fixed grille can accept an overlay toe-kick
• Four independently adjustable leveling legs provide a precise
undercounter t
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-2224RS-00A 115 Right-Hand Hinge Stainless Solid 144 lbs
U-2224RS-01A 115 Left-Hand Hinge Stainless Solid 144 lbs
U-2224RINT-00A 115 Right-Hand Hinge Integrated Solid 132 lbs
U-2224RINT-01A 115 Left-Hand Hinge Integrated Solid 132 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
84
2224r
24” Solid Door Refrigerator • 2000 Series
features & benefits
23-7/16" (590 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 2224R
Amps: Running 1.2
Capacity: Bottle (12 oz) 114
Capacity: Can (12 oz) 172
Capacity: Volume (cu ft) 4.9
Control Type Digital Touch Pad
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 240 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 134 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
85
2224r
2000 Series • 24” Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 3.4 cu ft holds up to 68 bottles (12 oz) or
104 cans (12 oz)
• Temperature range: 34°F -70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes:
Beverage: 34°F - 65°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED theater lighting
• Three full-extension, slide-out drawers are removable for easy
cleaning
• The middle bin has two possible positions and comes with a
removable glass shelf to keep products stable
• The lower bin is large enough to t 2 one-gallon containers with
additional space for more storage
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-
down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3018RS-00A 115 Right-Hand Hinge Stainless Solid 124 lbs
U-3018RS-01A 115 Left-Hand Hinge Stainless Solid 124 lbs
U-3018RINT-00A 115 Right-Hand Hinge Integrated Solid 120 lbs
U-3018RINT-01A 115 Left-Hand Hinge Integrated Solid 120 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
86
3018r
18” Solid Door Refrigerator • Modular 3000 Series
features & benefits
33-11/16" to
34-11/16"
(856 mm to
881 mm)
17-3/4"
(450 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
Not Including Handle
23-7/16" (590 mm)
Model 3018R
Amps: Running 1.2
Capacity: Bottle (12 oz) 68
Capacity: Can (12 oz) 104
Capacity: Volume (cu ft) 3.4
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 17 3/4" / 450 mm
Energy Consumption: Avg. Per Year 245 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 114 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
4"
(102 mm)
7"
(178 mm)
17-3/4"
(450 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
34°-70°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
87
3018r
Modular 3000 Series • 18” Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 4.9 cu ft holds up to 100 bottles (12 oz) or
141 cans (12 oz)
• Temperature range: 34°F -70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes:
Beverage: 34°F - 65°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED theater lighting
• Three full-extension, slide-out drawers are removable for easy
cleaning
• The middle bin has two possible positions and comes with a
removable glass shelf to keep products stable
• The lower bin is large enough to t 2 one-gallon containers with
additional space for more storage
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3024RS-00A 115 Right-Hand Hinge Stainless Solid 146 lbs
U-3024RS-01A 115 Left-Hand Hinge Stainless Solid 146 lbs
U-3024RINT-00A 115 Right-Hand Hinge Integrated Solid 138 lbs
U-3024RINT-01A 115 Left-Hand Hinge Integrated Solid 138 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
88
3024r
24” Solid Door Refrigerator • Modular 3000 Series
features & benefits
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to 34-11/16"
(856 to 881 mm)
23-5/8" (600 mm)
Not Including Handle
23-7/16" (590 mm)
Model 3024R
Amps: Running 1.2
Capacity: Bottle (12 oz) 100
Capacity: Can (12 oz) 141
Capacity: Volume (cu ft) 4.9
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 240 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 136 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
34°-70°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
89
3024r
Modular 3000 Series • 24” Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 6.9 cu ft holds up to 136 bottles (12 oz) or
208 cans (12 oz)
• Temperature range: 34°F -70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes:
Beverage: 34°F - 65°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Independently controlled dual-zones
interior/exterior
• Black interior is illuminated with LED theater lighting
• Three full-extension, slide-out drawers in each compartment are
removable for easy cleaning
• The middle bins have two possible positions and come with a
removable glass shelf to keep products stable
• The lower bins are large enough to t 2 one-gallon containers
with additional space for more storage
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3036RRS-00A 115 Double Doors Stainless Solid 221 lbs
U-3036RRINT-00A 115 Double Doors Integrated Solid 205 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
90
3036rr
36” Solid Door Refrigerator • Modular 3000 Series
features & benefits
35-7/16"
(900 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-7/16" (590 mm)
3-5/8" to 4-5/8"
(92 to
118 mm)
Not Including Handle
Model 3036RR
Amps: Running 1.2
Capacity: Bottle (12 oz) 136
Capacity: Can (12 oz) 208
Capacity: Volume (cu ft) 6.9
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 35 7/16" / 900 mm
Energy Consumption: Avg. Per Year 320 kWh
ENERGY STAR No
Product Weight: Max 197 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
4"
(102 mm)
7"
(178 mm)
35-7/16"
(900 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
24"
(610 mm)
34°-70° 34°-70°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
91
3036rr
Modular 3000 Series • 36” Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Installed: 1224DWRINT
1224DWR 3024DWR
1000 Series 3000 Series
98 90
150 142
5.4 4.5
Digital Touch Pad U-Select
®
23 1/4" / 591 mm 23 7/16" / 590 mm
34 1/8" / 867 mm 33 11/16" / 856 mm
24" / 610 mm* 23 5/8" / 600 mm
Drawers Drawers
305 kWh 300 kWh
No No
Stainless
Integrated
Stainless
Integrated
No No
Yes Yes
34°F - 45°F 34°F - 70°F
Residential /
Commercial
Residential
Drawer Models
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
93
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 5.4 cu ft holds up to 98 bottles (12 oz) or
150 cans (12 oz)
• Digital Touch Pad Control is conveniently located in top
drawer
• Temperature range: 34°F - 45°F
• Digital passive cooling system
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED lighting
• Equipped with 2 full-extension robust stainless drawers
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless or Integrated
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1224DWRS-00A 115 Drawers Stainless Solid 142 lbs
U-1224DWRINT-00A 115 Drawers Integrated Solid 134 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
94
1224dwr
24” Solid Refrigerator Drawers • 1000 Series
features & benefits
23-1/4"
(591 mm)
34-1/8" to 35-1/8"
(867 mm to 892)
3-7/8" (99 mm)
24"
(610 mm)
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Model 1224DWR
Amps: Running 1.2
Capacity: Bottle (12 oz) 98
Capacity: Can (12 oz) 150
Capacity: Volume (cu ft) 5.4
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 305 kWh
ENERGY STAR No
Product Weight: Max 132 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential &
Commercial
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34°-45°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
95
1224dwr
1000 Series • 24” Solid Refrigerator Drawers
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 4.5 cu ft holds up to 90 bottles (12 oz) or
142 cans (12 oz)
• Temperature range: 34°F - 70°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control oers ve distinct modes:
Beverage: 34°F - 65°F, Deli: 34°F - 40°F, Market: 34°F - 40°F,
Pantry: 34°F - 70°F, Root Cellar: 45°F - 55°F
• U-Select
®
Control with digital OLED display is ergonomically
located on top of upper drawer
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Independently controlled dual-zones
interior/exterior
• Black interior is illuminated with LED theater lighting
• Equipped with 2 full-extension soft-close drawers
• Upper bin includes Slide and Divide bin organizer
integration
• Adjustable grille can be shifted front-to-back and up-and-down
• Integrated model requires 3/4” custom door panel
• Grille can accept an overlay toe-kick
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3024DWRS-00A 115 Drawers Stainless Solid 166 lbs
U-3024DWRINT-00A 115 Drawers Integrated Solid 158 lbs
96
3024dwr
24” Solid Refrigerator Drawers • Modular 3000 Series
features & benefits
33-11/16" to
34-11/16"
(856 mm to
881mm)
3-5/8" to 4 5/8"
(92 to 118 mm)
23 5/8"
(600 mm)
Not Including Handle
23-7/16" (590 mm)
Model 3024DWR
Amps: Running 1.2
Capacity: Bottle (12 oz) 90
Capacity: Can (12 oz) 142
Capacity: Volume (cu ft) 4.5
Control Type U-Select
®
Dimensions: Product Depth 23 7/16" / 590 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 300 kWh
ENERGY STAR No
Product Weight: Max 156 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 70°F
Residential
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
34°-70°
34°-70°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
97
3024dwr
Modular 3000 Series • 24” Solid Refrigerator Drawers
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Installed: 3024FZRINT
3024FZR
3000 Series
4.5
U-Select
®
24" / 610 mm
33 11/16" / 856 mm
23 5/8" / 600 mm
Right or Left
430 kWh
No
Stainless
Integrated
No
Yes
-
5°F - 5°F
Residential
Freezers
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
99
STAInLESS
SOLID
InTEGRATED
SOLID
PerformanCe
• Volume of 4.5 cu ft
• Temperature range:
-
5°F to 5°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• U-Select
®
Control allows you to quickly set your model to our
pre-programmed Polar mode
• U-Select
®
Control with digital OLED display is ergonomically
located on top of door
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• Black interior is illuminated with LED theater lighting that
automatically turns o when the door is closed
• Three full-extension, durable vinyl coated freezer baskets are
removable for easy cleaning
• Baskets can accommodate large pizza boxes and one-gallon
containers with additional space for more storage
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
integration
• Robust, concealed and covered hinges with built-in door stop
and closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Grille can accept a 1/4” custom integrated toe-kick
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs; rear legs are
adjustable from the front for ease of installation
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-3024FZRS-00A 115 Right-Hand Hinge Stainless Solid 166 lbs
U-3024FZRS-01A 115 Left-Hand Hinge Stainless Solid 166 lbs
U-3024FZRINT-00A 115 Right-Hand Hinge Integrated Solid 158 lbs
U-3024FZRINT-01A 115 Left-Hand Hinge Integrated Solid 158 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
100
3024fZr
24” Freezer • Modular 3000 Series
features & benefits
24" (610 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
23-5/8" (600 mm)
Not Including Handle
4"
(102 mm)
7"
(178 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
23-5/8"
(600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5/8"
(16 mm)
Model 3024FZR
Amps: Running 2.4
Capacity: Volume (cu ft) 4.5
Control Type U-Select
®
Defrost Type Frost Free
Dimensions: Product Depth 24" / 610 mm
Dimensions: Product Height 33 11/16" / 856 mm
Dimensions: Product Width 23 5/8" / 600 mm
Energy Consumption: Avg. Per Year 430 kWh
ENERGY STAR No
Product Weight: Max 156 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) Yes
Temperature Range
-
5°F to 5°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
-5°-5°
CooLing system
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
101
3024fZr
Modular 3000 Series • 24” Freezer
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Installed: 1224RFINT
CO1224F 1224RF
1000 Series
61 61
114 114
4.2
Ref: 4.2
Fzr: 1.5
Digital Touch Pad Digital Touch Pad
23 1/4" / 591 mm 23 1/4" / 591 mm
34 1/8" / 867 mm 34 1/8" / 867 mm
24" / 610 mm* 24" / 610 mm*
Field Reversible Field Reversible
540 kWh 496 kWh
No No
Stainless
Integrated
Black
White
Stainless
Integrated
Black
White
8 lbs na
8 lbs na
No No
Yes Yes
34°F - 45°F
Ref: 34°F - 45°F
Freezer: 0°F - 5°F
Residential Residential
Combo
®
Models
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
For ADA Series Combo
®
Model data, see page 118.
103
STAInLESS
SOLID
BLACk
SOLID
InTEGRATED
SOLID
WHITE
SOLID
PerformanCe
• Volume of 4.2 cu ft holds up to 61 bottles (12 oz) or
114 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Refrigerator temperature range: 34°F - 45°F
• Digital passive cooling system
• Maintains temperature to within 1°F of the set point to maximize
preservation
• Produces and stores up to 8 lbs of ice per day
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• Patented frost-free technology
interior/exterior
• White interior is illuminated with LED lighting
• Three removable tempered glass shelves
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• No drain required
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated, Black,
or White
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-CO1224FS-00A 115 Field Reversible Stainless Solid 129 lbs
U-CO1224FINT-00A 115 Field Reversible Integrated Solid 126 lbs
U-CO1224FB-00A 115 Field Reversible Black Solid 129 lbs
U-CO1224FW-00A 115 Field Reversible White Solid 129 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
WATERHOOKUP Braided water supply line kit na
2 lbs
104
Co1224f
24” Combo
®
Model
features & benefits
34-1/8
" to
35-1/8
"
(867 mm to 892 mm)
24
"
(610 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4
"
(591 mm)
Model CO1224F
Amps: Running 2.4
Capacity: Bottle (12 oz) 61
Capacity: Can (12 oz) 114
Capacity: Refrigerator Volume (cu ft) 4.2
Control Type Digital Touch Pad
Defrost Type Frost Free
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 580 kWh
ENERGY STAR No
Ice Production Per Day 8 lbs
Ice Storage 8 lbs
Product Weight: Max 119 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
When installing a left-hand hinge model, allow for
145˚ door swing for proper removal of ice bin.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
105
Co1224f
24” Combo
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
PerformanCe
• Refrigerator volume of 4.2 cu ft holds up to 61 bottles (12 oz) or
114 cans (12 oz)
• Freezer volume of 1.5 cu ft
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Refrigerator temperature range: 34°F - 45°F
• Frost Free Freezer maintains a temperature range of 0°F - 5°F
• Digital passive cooling system
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• White interior is illuminated with LED lighting
• Three removable tempered glass shelves
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Integrated model requires 3/4” custom door panel
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless, Integrated, Black,
or White
STAInLESS
SOLID
BLACk
SOLID
InTEGRATED
SOLID
WHITE
SOLID
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1224RFS-00A 115 Field Reversible Stainless Solid 123 lbs
U-1224RFINT-00A 115 Field Reversible Integrated Solid 120 lbs
U-1224RFB-00A 115 Field Reversible Black Solid 123 lbs
U-1224RFW-00A 115 Field Reversible White Solid 123 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
U-FSK-B Freestanding Kit Black
3 lbs
106
1224rf
24” Refrigerator/Freezer • Combo
®
Models
features & benefits
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Model 1224RF
Amps: Running 2.4
Capacity: Bottle (12 oz) 61
Capacity: Can (12 oz) 114
Capacity: Volume (cu ft)
Ref: 4.2
Fzr: 1.5
Control Type Digital Touch Pad
Defrost Type Frost Free
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 34 1/8" / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 496 kWh
ENERGY STAR No
Product Weight: Max 113 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) Yes
Temperature Range
Ref: 34°F - 45°F
Freezer: 0°F - 5°F
Residential
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34-1/8
" to
35-1/8
"
(867 mm to 892 mm)
24
"
(610 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4
"
(591 mm)
Dimensions shown apply to all nishes, including Integrated
(INT) models with 3/4” overlay panel/frame installed.
107
1224rf
Combo
®
Models • 24” Refrigerator/Freezer
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Installed: ADA24RS
BI95 BI98 ADA15IM 29R CO29F ADA24R ADA24RGL
ADA Series
na na na 35 24 70 70
na na na 48 44 140 140
na na na 3.3 2.1 5.3 5.4
On/O
Switch
On/O
Switch
On/O
Switch
Mechanical
Dial
Mechanical
Dial
Digital Touch
Pad
Digital Touch
Pad
17” / 432 mm 20" / 508 mm 23" / 584 mm 23" / 584 mm 23" / 584 mm
23 1/4" /
591 mm
23 1/4" /
591 mm
25 1/16” /
637 mm
27 3/8" /
695 mm
32" /
813 mm
28 1/2" /
724 mm
28 1/2" /
724 mm
32" /
813 mm
32" /
813 mm
13 15/16” /
354 mm
14 15/16" /
379 mm
14 15/16" /
379 mm
20 7/8" /
530 mm
20 7/8" /
530 mm
24" /
610 mm
24" /
610 mm
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible*
Field
Reversible
Field
Reversible
Field
Reversible
na na na 230 kWh 567 kWh 240 kWh 300 kWh
na na na ENERGY STAR No ENERGY STAR No
Black
White
Black
White
Stainless
Black
Black
White
Black
White
Stainless
Black
Stainless
Black
23 lbs 25 lbs 25 lbs na 8 lbs na na
12 lbs 25 lbs 25 lbs na 8 lbs na na
No No No Yes No Standard Standard
No No No No No Yes Yes
na na na 34°F - 45°F 34°F - 45°F 34°F - 45°F 34°F - 45°F
Yes Yes Yes Yes Yes
Residential /
Commercial
Residential /
Commercial
ADA Series
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
*Models with a lock option must be ordered hinge specic.
109
BLACk
SOLID
WHITE
SOLID
PerformanCe
• Uses less than 3 gallons of water to produce up to 23 lbs of ice
per day
• Up to 12 lbs in ice storage capacity
• Daily ice production rate is approx. 4 times greater than the
average household refrigerator
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on the grille
interior/exterior
• No drain required
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom insert panel
• Available in the following nishes: Black or White
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-BI95B-00A 115 Field Reversible Black Solid 59 lbs
U-BI95W-00A 115 Field Reversible White Solid 59 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
110
Bi95
14” Crescent Ice Maker • ADA Series
features & benefits
*Add 1-1/2” For Water Line Clearance
25-1/16"
(637 mm)
13-15/16"
(354 mm)
17" (432 mm) *
8-15/16"
(227 mm)
Model BI95
Amps: Running 2.5
Control Type On/O Switch
Defrost Type Manual
Dimensions: Product Depth 17" / 432 mm
Dimensions: Product Height 25 1/16" / 637 mm
Dimensions: Product Width 13 15/16" / 354 mm
Energy Consumption: Avg. Per Year na
ENERGY STAR na
Ice Production Per Day 23 lbs
Ice Storage 12 lbs
Product Weight: Max 53 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) No
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Cut-Out
Height
25-1/8"
(638 mm)
Filler Panel (Not Provided by U-Line) –
Needed to Attach Mounting Flange on Unit
18-1/2"
(470 mm)
Minimum
Preferred location
for water line and
eletrical outlet is in
adjacent cabinet.
14-1/4"
(362 mm)
Cut Out Width
3/4"
(19 mm)
Minimum Flange
Mounting Area
3/4"
(19 mm)
Minimum Flange
Mounting Area
5/8"
(16 mm)
4"
(102 mm)
7"
(178 mm)
111
Bi95
ADA Series • 14” Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
PerformanCe
• Uses less than 3 gallons of water to produce up to 25 lbs of ice
per day
• Up to 25 lbs in ice storage capacity
• Daily ice production rate is approx. 4 times greater than the
average household refrigerator
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on the grille
interior/exterior
• No drain required
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom insert panel
• Available in the following nishes: Black or White
BLACk
SOLID
WHITE
SOLID
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-BI98B-00A 115 Field Reversible Black Solid 73 lbs
U-BI98W-00A 115 Field Reversible White Solid 73 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
112
Bi98
15” Crescent Ice Maker • ADA Series
features & benefits
27-3/8"
(695 mm)
14-15/16"
(379 mm)
20" (508 mm)*
*Add 1-1/2" For For Water Line Clearance
8-15/16"
(227 mm)
Model BI98
Amps: Running 2.5
Control Type On/O Switch
Defrost Type Manual
Dimensions: Product Depth 20" / 508 mm
Dimensions: Product Height 27 3/8" / 695 mm
Dimensions: Product Width 14 15/16" / 379 mm
ENERGY STAR na
Ice Production Per Day 25 lbs
Ice Storage 25 lbs
Product Weight: Max 67 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) No
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Typical
Counter
Height
34-1/4"
(870 mm)
to
35-1/8"
(892 mm)
Cut-Out
Height
27-3/8"
(695 mm)
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
15-3/16"
(386 mm)
21-1/2"
(546 mm)
Minimum
See Electrical
Specifications
for Power Supply
4"
(102 mm)
7"
(178 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
113
Bi98
ADA Series • 15” Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
PerformanCe
• Uses less than 3 gallons of water to produce up to 25 lbs of ice
per day
• Up to 25 lbs in ice storage capacity
• Daily ice production rate is approx. 4 times greater than the
average household refrigerator
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on lower face of unit
interior/exterior
• No drain required
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless or Black
BLACk
SOLID
STAInLESS
SOLID
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-ADA15IMS-00A 115 Field Reversible Stainless Solid 90 lbs
U-ADA15IMB-00A 115 Field Reversible Black Solid 90 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
WATERHOOKUP Braided water supply line kit na 2 lbs
114
ada15im
15” Crescent Ice Maker • ADA Series
features & benefits
*Add 3/4" To Depth For
Water Line Clearance
32" to 33"
(813 mm to
838 mm)
14 15/16" (379 mm)
23" (584 mm)*
Model ADA15IM
Amps: Running 2.5
Control Type On/O Switch
Defrost Type Manual
Dimensions: Product Depth 23" / 584 mm
Dimensions: Product Height 32" / 813 mm
Dimensions: Product Width 14 15/16" / 379 mm
ENERGY STAR na
Ice Production Per Day 25 lbs
Ice Storage 25 lbs
Product Weight: Max 84 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) No
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
23-3/4"
(603 mm)
Minimum
15-1/4"
(387 mm)
32"
(813 mm)
to
33"
(838 mm)
See Electrical
Specifications
for Power Supply
4"
(102 mm)
7"
(178 mm)
Preferred location
for water line and
eletrical outlet is in
adjacent cabinet.
5/8"
(16 mm)
115
ada15im
ADA Series • 15” Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
BLACk
SOLID
BLACk
SOLID (LOCk)
WHITE
SOLID (LOCk)
WHITE
SOLID
PerformanCe
• Volume of 3.3 cu ft holds up to 35 bottles (12 oz) or
48 cans (12 oz)
• Mechanical Dial Control is conveniently located on the grille
• Temperature range: 34°F - 45°F
• Mechanical passive cooling system
interior/exterior
• Three removable tempered glass shelves
• Three xed shelves in door
• Door swing is eld reversible for non-lock models
• Door lock models are available, and must be ordered hinge
s p e c i c
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom insert panel
• Available in the following nishes: Black or White
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-29RB-00A 115 Field Reversible Black Solid 89 lbs
U-29RB-13A 115 Right-Hand Hinge Black Solid (Lock) 89 lbs
U-29RB-15A 115 Left-Hand Hinge Black Solid (Lock) 89 lbs
U-29RW-00A 115 Field Reversible White Solid 89 lbs
U-29RW-13A 115 Right-Hand Hinge White Solid (Lock) 89 lbs
U-29RW-15A 115 Left-Hand Hinge White Solid (Lock) 89 lbs
116
29r
21” ADA Solid Door Refrigerator • ADA Series
features & benefits
Model 29R
Amps: Running 1.2
Capacity: Bottle (12 oz) 35
Capacity: Can (12 oz) 48
Capacity: Volume (cu ft) 3.3
Control Type Mechanical Dial
Dimensions: Product Depth 23" / 584 mm
Dimensions: Product Height 28 1/2" / 724 mm
Dimensions: Product Width 20 7/8" / 530 mm
Energy Consumption: Avg. Per Year 230 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 80 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) No
Temperature Range 34°F - 45°F
Residential &
Commercial
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
21-1/16"
(535 mm)
Typical
Counter
Height
34-1/4"
(870 mm)
to
35-1/8"
(867 mm)
Cut-Out
Height
28-5/8"
(727 mm)
to
28-7/8"
(733 mm)
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
1-1/2" (38 mm)
7"
(108 mm)
24"
(610 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
28 1/2"
(724 mm)
20 7/8" (530 mm)
4 9/16" (116 mm)
23" (584 mm)
34°-45°
CooLing system
117
29r
ADA Series • 21” ADA Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
PerformanCe
• Refrigerator volume of 2.1 cu ft holds up to 24 bottles (12 oz) or
44 cans (12 oz)
• Mechanical Dial Control is conveniently located on the grille
• Temperature range: 34°F - 45°F
• Mechanical passive cooling system
• Produces and stores up to 8 lbs of ice per day
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
interior/exterior
• No drain required
• Two removable tempered glass shelves
• Two xed storage compartments in door
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom insert panel
• Available in the following nishes: Black or White
BLACk
SOLID
WHITE
SOLID
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-CO29FB-00A 115 Field Reversible Black Solid 101 lbs
U-CO29FW-00A 115 Field Reversible White Solid 101 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
118
Co29f
21” ADA Combo
®
Model • ADA Series
features & benefits
Model CO29F
Amps: Running 2.5
Capacity: Bottle (12 oz) 24
Capacity: Can (12 oz) 44
Capacity: Refrigerator Volume (cu ft) 2.1
Control Type Mechanical Dial
Defrost Type Frost Free
Dimensions: Product Depth 23" / 584 mm
Dimensions: Product Height 28 1/2" / 724 mm
Dimensions: Product Width 20 7/8" / 530 mm
Energy Consumption: Avg. Per Year 567 kWh
ENERGY STAR No
Ice Production Per Day 8 lbs
Ice Storage 8 lbs
Product Weight: Max 92 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) No
Temperature Range 34°F - 45°F
Residential
Cutout includes the additional 1/4” width overall to
ensure proper installation.
When installing a left-hand hinge model, allow for
145˚ door swing for proper removal of ice bin.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
24"
(610 mm)
Minimum
21-1/16"
(535 mm)
See Electrical
Specifications
for Power Supply
Typical
Counter
Height
34-1/4"
(870 mm)
to
35-1/8"
(892 mm)
Cut-Out
Height
28-5/8"
(727 mm)
to
28-7/8"
(733 mm)
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
4"
(102 mm)
7"
(178 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
28 1/2"
(724 mm)
20 7/8" (530 mm)
4 9/16" (116 mm)
23" (584 mm)
119
Co29f
ADA Series • 21” ADA Combo
®
Model
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
BLACk
SOLID (LOCk)
STAInLESS
SOLID (LOCk)
PerformanCe
• Volume of 5.3 cu ft holds up to 70 bottles (12 oz) or
140 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• 32” height meets ADA height requirement yet maximizes
allowable space
• White interior is illuminated with LED lighting
• Four chrome plated durable wire shelves
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
• Door lock is standard
integration
• Unit is designed to be built-in or can be freestanding
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless or Black
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-ADA24RS-13A 115 Field Reversible Stainless Solid (Lock) 123 lbs
U-ADA24RB-13A 115 Field Reversible Black Solid (Lock) 123 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
120
ada24r
24” ADA Solid Door Refrigerator • ADA Series
features & benefits
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
32"
(813 mm)
to
33"
(838 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
5/8"
(16 mm)
Model ADA24R
Amps: Running 1.2
Capacity: Bottle (12 oz) 70
Capacity: Can (12 oz) 140
Capacity: Volume (cu ft) 5.3
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 32" / 813 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 240 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 117 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential &
Commercial
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
23-1/4" (591 mm)
32" to 33”
(813 mm 838 mm)
24" (610 mm)
Not Including Handle
34°-45°
CooLing system
121
ada24r
ADA Series • 24” ADA Solid Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
BLACk
FRAME (LOCk)
STAInLESS
FRAME (LOCk)
PerformanCe
• Volume of 5.4 cu ft holds up to 70 bottles (12 oz) or
140 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Convection cooling system rapidly and eciently takes items to
the set temperature
• Maintains temperature to within 1°F of the set point to maximize
preservation
interior/exterior
• 32” height meets ADA height requirement yet maximizes
allowable space
• White interior is illuminated with LED lighting
• Four chrome plated durable wire shelves
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• Door swing is eld reversible
• Door lock is standard
integration
• Unit is designed to be built-in or can be freestanding
• Four independently adjustable leveling legs provide a precise
undercounter t
• Available in the following nishes: Stainless or Black
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-ADA24RGLS-13A 115 Field Reversible Stainless Frame (Lock) 128 lbs
U-ADA24RGLB-13A 115 Field Reversible Black Frame (Lock) 128 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23054 Professional Door Handle, 1 1/4” Diameter Stainless
2 lbs
122
ada24rgL
24” ADA Glass Door Refrigerator • ADA Series
features & benefits
23-1/4" (591 mm)
32" to 33”
(813 mm 838 mm)
24" (610 mm)
Not Including Handle
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
32"
(813 mm)
to
33"
(838 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
5/8"
(16 mm)
Model ADA24RGL
Amps: Running 1.2
Capacity: Bottle (12 oz) 70
Capacity: Can (12 oz) 140
Capacity: Volume (cu ft) 5.4
Control Type Digital Touch Pad
Dimensions: Product Depth 23 1/4" / 591 mm
Dimensions: Product Height 32" / 813 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 300 kWh
ENERGY STAR No
Product Weight: Max 122 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential &
Commercial
When installing adjacent to wall, ensure 2 1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34°-45°
CooLing system
123
ada24rgL
ADA Series • 24” ADA Glass Door Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
Installed: 1215RSOD
125
BI1215SOD CLR1215SOD 1215RSOD 1224RSOD
Outdoor Series
na na 57 123
na na 92 185
na na 2.9 5.2
On/O Switch Digital Touch Pad Digital Touch Pad Digital Touch Pad
23 1/4" / 591 mm 24" / 610 mm 23 1/4" / 591 mm 23 1/4" / 591 mm
34 1/8" / 867 mm 34 1/8" / 867 mm 34 1/8" / 867 mm 34 1/8" / 867 mm
14 15/16" / 379 mm* 14 15/16" / 379 mm* 14 15/16" / 379 mm* 24" / 610 mm*
Field Reversible Field Reversible Field Reversible Field Reversible
na na 225 kWh 240 kWh
na na ENERGY STAR ENERGY STAR
Stainless Stainless Stainless Stainless
25 lbs 60 lbs na na
25 lbs 30 lbs na na
No No Standard Standard
No Yes Yes Yes
na na 34°F - 45°F 34°F - 45°F
Yes** Yes**
Residential /
Commercial**
Residential /
Commercial**
Outdoor Series
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
*The cutout requires an additional 1/4” width overall to ensure proper installation.
**Deemed suitable for outdoor use by UL.
PerformanCe
• Uses less than 3 gallons of water to produce up to 25 lbs of ice
per day
• Up to 25 lbs in ice storage capacity
• Daily ice production rate is approx. 4 times greater than the
average household refrigerator
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on lower face of unit
interior/exterior
• No drain required
• Standard professional stainless steel handle is interchangeable
with commercial handle accessory
• Full stainless steel cabinet and door are deemed suitable for
outdoor use by UL
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Four independently adjustable leveling legs provide a precise
undercounter t
STAInLESS
SOLID (LOCk)
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-BI1215SOD-00A 115 Field Reversible Stainless Solid (Lock) 89 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23050 Commercial Door Handle, 7/8” Diameter Stainless
2 lbs
126
Bi1215sod
15” Outdoor Crescent Ice Maker • Outdoor Series
features & benefits
34-1/8" to
35-1/8"
(867 mm to
892 mm)
14-15/16" (379 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4" (591 mm)
Model BI1215SOD
Amps: Running 2.5
Control Type On/O Switch
Defrost Type Manual
Dimensions: Depth 23 1/4" / 591 mm
Dimensions: Height 34 1/8" / 867 mm
Dimensions: Width 14 15/16" / 379 mm
ENERGY STAR na
Ice Production Per Day 25 lbs
Ice Storage 25 lbs
Product Weight: Max 83 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) No
When installing adjacent to wall, ensure 2-1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
24"
(610 mm)
1-1/2" (38 mm)
15-1/4"
(387 mm)
34-1/8"
(370 mm)
to
35"
(389 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
7"
(178 mm)
5/8"
(16 mm)
2
0
1
1
D
E
S
I
G
N
J
O
U
R
N
A
L
Deemed suitable for outdoor use by UL.
127
Bi1215sod
Outdoor Series • 15” Outdoor Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
PerformanCe
• Daily ice production of up to 60 lbs of ice
• Up to 30 lbs in ice storage capacity
• Clear ice cube dimensions: 7/8” W x 7/8” H x 7/8” L
• Clear ice cube fullness can be adjusted
• Silent setting temporarily suspends ice making for 3 hours
• Digital Touch Pad Control is conveniently located on face of unit
• Indicator alert noties user when cleaning is needed
• Easy clean process only lasts 45 minutes
interior/exterior
• White interior is illuminated with LED lighting
• Clear heavy duty ice scoop included
• Drain required
• Factory installed drain line simplies installation
• Model can be ordered with factory installed P60 drain pump if
gravity drain is not accessible
• Standard professional stainless steel handle is interchangeable
with commercial handle accessory
• Full stainless steel cabinet and door are deemed suitable for
outdoor use by UL
• Door swing is eld reversible
integration
• Unit is designed to be built-in or can be freestanding
• Four independently adjustable leveling legs provide a precise
undercounter t
STAInLESS
SOLID (LOCk)
AccESSOrIES
Model Description Finish Shipping Weight
23050 Commercial Door Handle, 7/8” Diameter Stainless
2 lbs
P60
Drain Pump
na
7 lbs
MODEL DETAILS
Model voltage Door Swing Pump Finish Shipping Weight
U-CLR1215SOD-00A 115 Field Reversible - Stainless Solid 92 lbs
U-CLR1215SOD-40A
115
Field Reversible
Pump Included
Stainless Solid
101 lbs
128
CLr1215sod
15” Outdoor Clear Ice Machine • Outdoor Series
features & benefits
24"
(610 mm)
1-1/2" (38 mm)
15-1/4"
(387 mm)
34-1/8"
(370 mm)
to
35"
(389 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
7"
(178 mm)
5/8"
(16 mm)
34-1/8" to
35-1/8"
(867 mm to
892 mm)
14-15/16" (379 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4" (591 mm)
Model CLR1215SOD
Amps: Running 4
Amps: Ice Harvest 5.5
Control Type Digital Touch Pad
Defrost Type Automatic
Dimensions: Depth 24" / 610 mm
Dimensions: Height 34 1/8" / 867 mm
Dimensions: Width 14 15/16" / 379 mm
ENERGY STAR na
Ice Production Per Day 60 lbs
Ice Storage 30 lbs
Product Weight: Max 91 lbs
Refrigerant Type R134a
Sabbath (Star K Certied) Yes
When installing adjacent to wall, ensure 2-1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Deemed suitable for outdoor use by UL.
129
CLr1215sod
Outdoor Series • 15” Outdoor Clear Ice Machine
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
PerformanCe
• Overall volume of 2.9 cu ft holds up to 57 bottles (12 oz) or
92 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Digital passive cooling system
interior/exterior
• White interior is illuminated with LED lighting
• Three removable tempered glass shelves
• Standard professional stainless steel handle is interchangeable
with commercial handle accessory
• Full stainless steel cabinet and door are deemed suitable for
outdoor use by UL
• Door swing is eld reversible
• Door lock is standard
integration
• Unit is designed to be built-in or can be freestanding
• Four independently adjustable leveling legs provide a precise
undercounter t
STAInLES SOLID
(LOCk)
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1215RSOD-00A 115 Field Reversible Stainless Solid (Lock) 83 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23050 Commercial Door Handle, 7/8” Diameter Stainless
2 lbs
130
1215rsod
15” Outdoor Refrigerator • Outdoor Series
features & benefits
34-1/8" to
35-1/8"
(867 mm to
892 mm)
14-15/16" (379 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4" (591 mm)
Model 1215RSOD
Amps: Running 1.2
Capacity: Bottle (12 oz) 57
Capacity: Can (12 oz) 92
Capacity: Volume (cu ft) 2.9
Capacity: Wine Bottle (750 ml) na
Control Type Digital Touch Pad
Dimensions: Depth 23 1/4" / 591 mm
Dimensions: Height 34 1/8" / 867 mm
Dimensions: Width 14 15/16" / 379 mm
Energy Consumption: Avg. Per Year 225 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 76 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential &
Commercial
When installing adjacent to wall, ensure 2-1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
24"
(610 mm)
1-1/2" (38 mm)
15-1/4"
(387 mm)
34-1/8"
(370 mm)
to
35"
(389 mm)
Preferred location
for electrical
outlet is in
adjacent
cabinet.
7"
(178 mm)
5/8"
(16 mm)
34°-45°
CooLing system
Deemed suitable for outdoor use by UL.
131
1215rsod
Outdoor Series • 15” Outdoor Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
PerformanCe
• Overall volume of 5.2 cu ft holds up to 123 bottles (12 oz) or
185 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Temperature range: 34°F - 45°F
• Digital passive cooling system
interior/exterior
• White interior is illuminated with LED lighting
• Three removable tempered glass shelves
• Standard professional stainless steel handle is interchangeable
with commercial handle accessory
• Full stainless steel cabinet and door are deemed suitable for
outdoor use by UL
• Door swing is eld reversible
• Door lock is standard
integration
• Unit is designed to be built-in or can be freestanding with the
freestanding accessory kit
• Four independently adjustable leveling legs provide a precise
undercounter t
STAInLESS
SOLID (LOCk)
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
U-1224RSOD-00A 115 Field Reversible Stainless Solid (Lock) 109 lbs
AccESSOrIES
Model Description Finish Shipping Weight
23050 Commercial Door Handle, 7/8” Diameter Stainless
2 lbs
U-FSK-S Freestanding Kit Stainless
3 lbs
132
1224rsod
24” Outdoor Refrigerator • Outdoor Series
features & benefits
34-1/8
" to
35-1/8
"
(867 mm to 892 mm)
24
"
(610 mm)
3-9/16
"
(91 mm)
Not Including Handle
23-1/4
"
(591 mm)
4"
(102 mm)
7"
(178 mm)
24"
(610 mm)
24-1/4"
(616 mm)
34-1/4"
(370 mm)
to
35-1/8"
(392 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Model 1224RSOD
Amps: Running 1.2
Capacity: Bottle (12 oz) 123
Capacity: Can (12 oz) 185
Capacity: Volume (cu ft) 5.2
Control Type Digital Touch Pad
Dimensions: Depth 23 1/4" / 591 mm
Dimensions: Height 34 1/8" / 867 mm
Dimensions: Width 24" / 610 mm
Energy Consumption: Avg. Per Year 240 kWh
ENERGY STAR ENERGY STAR
Product Weight: Max 99 lbs
Refrigerant Type R600a
Sabbath (Star K Certied) Yes
Temperature Range 34°F - 45°F
Residential &
Commercial
When installing adjacent to wall, ensure 2-1/2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
34°-45°
CooLing system
Deemed suitable for outdoor use by UL.
133
1224rsod
Outdoor Series • 24” Outdoor Refrigerator
dimensions specifications
eLectRicaL ReQUiRements
caBinet cUt-oUt
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
Dimensions shown apply to all nishes.
Installed: SS1095FC
135
BI95FC WH95FC SS1095nF SS1095FC SS1095FD SS98nF SP18FC CO29
Marine Series
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
Mechanical
Dial
17" /
432 mm
17" /
432 mm
17" /
432 mm
17" /
432 mm
17" /
432 mm
20" /
508 mm
24 1/2" /
622 mm
23" /
584 mm
25 1/8" /
638 mm
25 1/16" /
637 mm
25 1/16" /
637 mm
25 1/8" /
638 mm
26 1/16" /
662 mm
27 3/8" /
695 mm
18 7/8" /
479 mm
28 1/2" /
724 mm
14" /
356 mm
14" /
356 mm
14" /
356 mm
15 1/8" /
384 mm
15 15/16" /
405 mm
14 15/16" /
379 mm
15 1/8" /
384 mm
20 7/8" /
530 mm
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
na na na na na na na na
na na na na na na na na
Black White Stainless Stainless Stainless Stainless
Stainless
Black
White
Black
White
23 lbs 23 lbs 23 lbs 23 lbs 23 lbs 25 lbs 23 lbs 25 lbs
12 lbs 12 lbs 12 lbs 12 lbs 12 lbs 25 lbs 12 lbs 13 lbs
Latch is
Standard
Latch is
Standard
Latch is
Standard
Latch is
Standard
Latch is
Standard
Latch is
Standard
Latch is
Standard
Latch is
Standard
No No No No No No No No
na na na na na na na 34°F - 45°F
Yes Yes Yes Yes Yes Yes Yes Residential
Marine Series
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath (Star K Certied)
Temperature Range
UL Listing
BLACk SOLID
(FLAnGE TO CABInET)
PerformanCe
• Uses less than 3 gallons of water to produce up to 23 lbs of ice
per day
• Up to 12 lbs in ice storage capacity
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on the grille
• Available in 115 or 220 - 240 volts
interior/exterior
• No drain required
• Zero clearance door swing is eld reversible
• Standard travel package includes door latch and ice ap,
ensuring safe-at-sea storage
• Corrosion and UV resistant components
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom panel
• 1/2” ange mounts ush to cabinet
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
ULN-BI95FCB-03A 115 Field Reversible Black Solid 61 lbs
ULN-BI95FCB-20A 220 - 240 Field Reversible Black Solid 61 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
136
Bi95fC
14” Marine Crescent Ice Maker • Marine Series
features & benefits
17" (432 mm)*
25-1/16"
(637 mm)
14" (356 mm)
8 15/16"
(227 mm)
*Add 1-1/2" For For
Water Line Clearance
Cut-Out
Height
25-1/8"
(638 mm)
Filler Panel (Not Provided by U-Line) –
Needed to Attach Mounting Flange on Unit
18-1/2"
(470 mm)
Minimum
Preferred location
for water line and
eletrical outlet is in
adjacent cabinet.
14-1/4"
(362 mm)
Cut Out Width
3/4"
(19 mm)
Minimum Flange
Mounting Area
3/4"
(19 mm)
Minimum Flange
Mounting Area
5/8"
(16 mm)
4"
(102 mm)
7"
(178 mm)
Model BI95FC
Amps: Running (115 v) 2.5
Amps: Running (220 - 240 v) 1.2
Amps: Max Start Up (115 v) 18
Amps: Max Start Up (220 - 240 v) 6
Control Type on/o switch
Defrost Type Manual
Dimensions: Product Depth 17" / 432 mm
Dimensions: Product Height 25 1/8" / 638 mm
Dimensions: Product Width 14" / 356 mm
ENERGY STAR na
Ice Production Per Day 23 lbs
Ice Storage 12 lbs
Product Weight: Max 55 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) No
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
137
Bi95fC
Marine Series • 14” Marine Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
UL listing only applies to 115 v models.
CaBinet Cut-out
WHITE SOLID
(FLAnGE TO
CABInET)
PerformanCe
• Uses less than 3 gallons of water to produce up to 23 lbs of ice
per day
• Up to 12 lbs in ice storage capacity
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on the grille
• Available in 115 or 220 - 240 volts
interior/exterior
• No drain required
• Zero clearance door swing is eld reversible
• Standard travel package includes door latch and ice ap,
ensuring safe-at-sea storage
• Corrosion and UV resistant components provide product
longevity in harsh environments
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom panel
• 1/2” ange mounts ush to cabinet
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
ULN-WH95FCS-03A 115 Field Reversible (Flange to Cabinet) White Solid 62 lbs
ULN-WH95FCS-20A 220 - 240 Field Reversible White Solid 62 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
138
wh95fC
14” Marine Crescent Ice Maker • Marine Series
features & benefits
17" (432 mm)*
25-1/16"
(637 mm)
14" (356 mm)
8 15/16"
(227 mm)
*Add 1-1/2" For For
Water Line Clearance
Typical
Counter
Height
34-1/4"
(870 mm)
to
35-1/8"
(892 mm)
Cut-Out
Height
25-1/16"
(637 mm)
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
14-3/16"
(360 mm)
18-1/2"
(470 mm)
Minimum
See Electrical
Specifications
for Power Supply
4"
(102 mm)
7"
(178 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
Model WH95FC
Amps: Running (115 v) 1.2
Amps: Running (220 - 240 v) 1.2
Amps: Max Start Up (115 v) 18
Amps: Max Start Up (220 - 240 v) 6
Control Type On/O Switch
Defrost Type Manual
Dimensions: Product Depth 17" / 432 mm
Dimensions: Product Height 25 1/16" / 637 mm
Dimensions: Product Width 14" / 356 mm
ENERGY STAR na
Ice Production Per Day 23 lbs
Ice Storage 12 lbs
Product Weight: Max 56 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) No
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
139
wh95fC
Marine Series • 14” Marine Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
UL listing only applies to 115 v models.
CaBinet Cut-out
STAInLESS
SOLID
(FLUSH TO CABInET)
STAInLESS
SOLID
(FLUSH TO DOOR)
STAInLESS
SOLID
(nO FLAnGE)
PerformanCe
• Uses less than 3 gallons of water to produce up to 23 lbs of ice
per day
• Up to 12 lbs in ice storage capacity
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on the grille
• Available in 115 or 220 - 240 volts
interior/exterior
• No drain required
• Zero clearance door swing is eld reversible
• Standard travel package includes door latch and ice ap,
ensuring safe-at-sea storage
• Corrosion and UV resistant components
integration
• Unit is designed to be built-in or can be freestanding
• Multiple ange options
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
ULN-SS1095FCS-03A 115 Field Reversible (Flush to Cabinet) Stainless Solid 66 lbs
ULN-SS1095FCS-20A 220 - 240 Field Reversible (Flush to Cabinet) Stainless Solid 66 lbs
ULN-SS1095FDS-03A 115 Field Reversible (Flush to Door) Stainless Solid 66 lbs
ULN-SS1095FDS-20A 220 - 240 Field Reversible (Flush to Door) Stainless Solid 66 lbs
ULN-SS1095NFS-03A 115 Field Reversible (No Flange) Stainless Solid 66 lbs
ULN-SS1095NFS-20A 220 - 240 Field Reversible (No Flange) Stainless Solid 66 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
140
ss1095
14” Marine Crescent Ice Maker • Marine Series
features & benefits
15-15/16"
(405 mm)
17" (432 mm) *
26-1/16"
(662 mm)
9" (229 mm)
*Add 1-1/2" For Water Line Clearance
Model SS1095
Amps: Running (115 v) 2.5
Amps: Running (220 - 240 v) 1.2
Amps: Max Start Up (115 v) 18
Amps: Max Start Up (220 - 240 v) 6
Control Type on/o switch
Defrost Type Manual
Dimensions (NF): Product Depth 17” / 432 mm
Dimensions (NF): Product Height 25 1/16” / 637 mm
Dimensions (NF): Product Width 14” / 356 mm
Dimensions (FC): Product Depth 17” / 432 mm
Dimensions (FC): Product Height 25 1/8” / 638 mm
Dimensions (FC): Product Width 15 1/8” / 384 mm
Dimensions (FD): Product Depth 17" / 432 mm
Dimensions (FD): Product Height 26 1/16" / 662 mm
Dimensions (FD): Product Width 15 15/16" / 405 mm
ENERGY STAR na
Ice Production Per Day 23 lbs
Ice Storage 12 lbs
Product Weight: Max 60 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) No
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Cut-Out
Height
26-1/16"
(662 mm)
Filler Panel (Not Provided by U-Line) –
Needed to Attach Mounting Flange on Unit
18-1/2"
(470 mm)
Minimum
See Electrical
Specifications
for Power Supply
14-3/4"
(375 mm)
Cut Out Width
3/4"
(19 mm)
Minimum Flange
Mounting Area
3/4"
(19 mm)
Minimum Flange
Mounting Area
4"
(102 mm)
7"
(178 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
2
0
1
1
D
E
S
I
G
N
J
O
U
R
N
A
L
141
ss1095
Marine Series • 14” Marine Crescent Ice Make
dimensions specifications
eLectRicaL ReQUiRements
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
UL listing only applies to 115 v models.
CaBinet Cut-out
STAInLESS
SOLID
(nO FLAnGE)
PerformanCe
• Uses less than 3 gallons of water to produce up to 25 lbs of ice
per day
• Up to 25 lbs in ice storage capacity
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on the grille
interior/exterior
• No drain required
• Zero clearance door swing is eld reversible
• Standard travel package includes door latch and ice ap,
ensuring safe-at-sea storage
• Corrosion and UV resistant components
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom panel
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
ULN-SS98NFS-03A 115 Field Reversible (No Flange) Stainless Solid 74 lbs
ULN-SS98NFS-20A 220 - 240 Field Reversible (No Flange) Stainless Solid 73 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
142
ss98nf
15” Marine Crescent Ice Maker • Marine Series
features & benefits
27-3/8"
(695 mm)
14-15/16"
(379 mm)
20" (508 mm)*
*Add 1-1/2" For For Water Line Clearance
8-15/16"
(227 mm)
Model SS98NF
Amps: Running (115 v) 2.5
Amps: Running (220 - 240 v) 1.2
Amps: Max Start Up (115 v) 18
Amps: Max Start Up (220 - 240 v) 6
Control Type On/O Switch
Defrost Type Manual
Dimensions: Product Depth 20" / 508 mm
Dimensions: Product Height 27 3/8" / 695 mm
Dimensions: Product Width 14 15/16" / 379 mm
ENERGY STAR na
Ice Production Per Day 25 lbs
Ice Storage 25 lbs
Product Weight: Max 68 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) No
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Typical
Counter
Height
34-1/4"
(870 mm)
to
35-1/8"
(892 mm)
Cut-Out
Height
27-3/8"
(695 mm)
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
15-3/16"
(386 mm)
21-1/2"
(546 mm)
Minimum
See Electrical
Specifications
for Power Supply
4"
(102 mm)
7"
(178 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
143
ss98nf
Marine Series • 15” Marine Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
UL listing only applies to 115 v models.
CaBinet Cut-out
BLACk
SOLID
WHITE
SOLID
STAInLESS
SOLID
PerformanCe
• Uses less than 3 gallons of water to produce up to 23 lbs of ice
per day
• Up to 12 lbs in ice storage capacity
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• On/O switch is conveniently located on the grille
• Available in 115 or 220 - 240 volts
interior/exterior
• No drain required
• Zero clearance door swing is eld reversible
• Standard travel package includes door latch and ice ap,
ensuring safe-at-sea storage
• Corrosion and UV resistant components provide product
longevity in harsh environments
integration
• Unit is designed to be built-in or can be freestanding
• Accepts a 1/4” custom panel
• 1/2” ange mounts ush to cabinet
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
ULN-SP18FCS-03A 115 Field Reversible Stainless Solid 65 lbs
ULN-SP18FCS-20A 220 - 240 Field Reversible Stainless Solid 65 lbs
ULN-SP18FCB-03A 115 Field Reversible Black Solid 68 lbs
ULN-SP18FCB-20A 220 - 240 Field Reversible Black Solid 68 lbs
ULN-SP18FCW-03A 115 Field Reversible White Solid 68 lbs
ULN-SP18FCW-20A 220 - 240 Field Reversible White Solid 68 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
144
sP18fC
15” Marine Crescent Ice Maker • Marine Series
features & benefits
15-1/8"
(384 mm)
24-1/2" (622 mm) *
18-7/8"
(479 mm)
7 9/16"
1/2"
*Add 1-1/2" For Water Line Clearance
Model SP18FC
Amps: Running (115 v) 2.5
Amps: Running (220 - 240 v) 1.2
Amps: Max Start Up (115 v) 18
Amps: Max Start Up (220 - 240 v) 6
Control Type Mechanical Dial
Defrost Type Manual
Dimensions: Product Depth 24 1/2" / 622 mm
Dimensions: Product Height 18 7/8" / 479 mm
Dimensions: Product Width 15 1/8" / 384 mm
ENERGY STAR na
Ice Production Per Day 23 lbs
Ice Storage 12 lbs
Product Weight: Max 59 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) No
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Cut-Out
Height
18-7/8"
(479 mm)
26" (660 mm)
Minimum
See Electrical
Specifications
for Power Supply
Filler Panel (Not Provided by U-Line) –
Needed to Attach Mounting Flange on Unit
Toe Kick
14-1/4"
(362 mm)
Cut-Out Width
3/4"
(19 mm)
Minimum Flange
Mounting Area
3/4" (19 mm) Minimum
Flange Mounting Area
3/4"
(19 mm)
Minimum Flange
Mounting Area
4"
(102 mm)
7"
(178 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
145
sP18fC
Marine Series • 15” Marine Crescent Ice Maker
dimensions specifications
eLectRicaL ReQUiRements
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
UL listing only applies to 115 v models.
CaBinet Cut-out
BLACk
SOLID
WHITE
SOLID
PerformanCe
• Refrigerator volume of 2.1 cu ft holds up to 24 bottles (12 oz) or
44 cans (12 oz)
• Mechanical Dial Control is conveniently located on the grille
• Temperature range: 34°F - 45°F
• Produces and stores up to 8 lbs of ice per day
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L
• Available in 115 or 220 - 240 volts
interior/exterior
• No drain required
• Two removable tempered glass shelves
• Two xed storage compartments in door
• Door swing is eld reversible
• Standard travel package includes door latch and ice ap,
ensuring safe-at-sea storage
• Corrosion and UV resistant components provide product
longevity in harsh environments
integration
• Unit is designed to be built-in or can be freestanding
• Available in the following nishes: Black or White
• Accepts a 1/4” custom panel
MODEL DETAILS
Model voltage Door Swing Finish Shipping Weight
ULN-CO29B-03A 115 Right-Hand Hinge Black Solid 94 lbs
ULN-CO29B-20A 220 - 240 Right-Hand Hinge Black Solid 94 lbs
ULN-CO29W-03A 115 Right-Hand Hinge White Solid 94 lbs
ULN-CO29W-20A 220 - 240 Right-Hand Hinge White Solid 94 lbs
AccESSOrIES
Model Description Finish Shipping Weight
WATERHOOKUP Braided water supply line kit na
2 lbs
146
Co29
21” Marine Combo
®
Model • Marine Series
features & benefits
28 1/2"
(724 mm)
20 7/8" (530 mm)
4 9/16" (116 mm)
Not Including Handle
23" (584 mm)
Model CO29
Amps: Running (115 v) 2.5
Amps: Running (220 - 240 v) 1.2
Amps: Max Start Up (115 v) 18
Amps: Max Start Up (220 - 240 v) 6
Capacity: Bottle (12 oz) 24
Capacity: Can (12 oz) 44
Capacity: Volume (cu ft) 2.1
Control Type Mechanical Dial
Defrost Type Manual
Dimensions: Product Depth 23" / 584 mm
Dimensions: Product Height 28 1/2" / 724 mm
Dimensions: Product Width 20 7/8" / 530 mm
ENERGY STAR na
Ice Production Per Day 25 lbs
Ice Storage 13 lbs
Product Weight: Max 85 lbs
Refrigerant Type R134A
Sabbath (Star K Certied) No
Temperature Range 34°F - 45°F
Residential
Cutout includes the additional 1/4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air ow.
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
Dimensions shown apply to all nishes.
24"
(610 mm)
Minimum
21-1/16"
(535 mm)
See Electrical
Specifications
for Power Supply
Typical
Counter
Height
34-1/4"
(870 mm)
to
35-1/8"
(892 mm)
Cut-Out
Height
28-5/8"
(727 mm)
to
28-7/8"
(733 mm)
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
4"
(102 mm)
7"
(178 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5/8"
(16 mm)
147
Co29
Marine Series • 21” Marine Combo
®
Model
dimensions specifications
eLectRicaL ReQUiRements
instaLL ation notes
Please visit u-line.com to view this model’s User Guide.
All specications are subject to change without notice.
UL listing only applies to 115 v models.
CaBinet Cut-out
Specications subject to change without notice. Sizes are for reference only. For safety, installation, integration, operation,
maintenance, and service details please visit u-line.com and view the User Guides listed under ‘Documentation’.
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Wine Bottle
(750 ml)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath
(Star K Certied)
Temperature Range
UL Listing
Wine Captain
®
Models
1024WC 1215WC 1224WC 2218WC 2224ZWC 3018WC 3024ZWC 3036WCWC
1000 Series 2000 Series 3000 Series
na na na na na na na na
na na na na na na na na
48 24 48 31 43 31 43 62
5.2 2.9 5.2 3.6 4.7 3.6 4.7 7.0
Mechanical
Dial
Digital
Touch Pad
Digital
Touch Pad
Digital
Touch Pad
Digital
Touch Pad
U-Select
®
U-Select
®
U-Select
®
23 1/4" /
591 mm
23 1/4" /
591 mm
23 1/4" /
591 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
24" /
610 mm
14 15/16" /
379 mm
24" /
610 mm
17 3/4" /
450 mm
23 5/8" /
600 mm
17 3/4" /
450 mm
23 5/8" /
600 mm
35 7/16" /
900 mm
Field
Reversible
Field
Reversible
Field
Reversible
Right or Left Right or Left Right or Left Right or Left Double Doors
250 kWh 250 kWh 250 kWh 250 kWh 250 kWh 250 kWh 250 kWh 250 kWh
na na na na na na na na
S S, INT, B S, INT, B S, INT S, INT S, INT S, INT S, INT
na na na na na na na na
na na na na na na na na
No No Yes No Yes Yes Yes Yes
No Yes Yes Yes Yes Yes Yes Yes
40°F - 60°F 38°F - 65°F 38°F - 65°F 38°F - 65°F 34°F - 65°F 38°F - 65°F 34°F - 65°F 38°F - 65°F
Residential
Residential /
Commercial
Residential /
Commercial
Residential Residential Residential Residential Residential
Models at a Glance
148
Beverage Centers
1024BEv 1224BEv 2224BEv 3024BEv 3036BvWC
1000 Series 2000 Series 3000 Series
85 85 79 79 79
105 105 123 123 123
16 16 10 10 31
5.4 5.4 4.9 4.8 7.0
Mechanical
Dial
Digital
Touch Pad
Digital
Touch Pad
U-Select
®
U-Select
®
23 1/4" /
591 mm
23 1/4" /
591 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
24" /
610 mm
24" /
610 mm
23 5/8" /
600 mm
23 5/8" /
600 mm
35 7/16" /
900 mm
Field
Reversible
Field
Reversible
Right or
Left
Right or
Left
Double
Doors
305 kWh 305 kWh 300 kWh 300 kWh 321.5 kWh
No No No No No
S S, INT S, INT S, INT S, INT
na na na na na
na na na na na
No Yes Yes Yes Yes
No Yes Yes Yes Yes
34°F - 45°F 34°F - 45°F 34°F - 45°F 34°F - 70°F
38°F - 65°F /
34°F - 70°F
Residential
Residential /
Commercial
Residential Residential Residential
Crescent Ice Makers
BI95 BI98 ADA15IM BI1215
ADA Series 1000 Series
na na na na
na na na na
na na na na
na na na na
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
17” /
432 mm
20" /
508 mm
23" /
584 mm
23 1/4" /
591 mm
25 1/16" /
637 mm
27 3/8" /
695 mm
32" /
813 mm
34 1/8" /
867 mm
13 15/16" /
354 mm
14 15/16" /
379 mm
14 15/16" /
379 mm
14 15/16" /
379 mm
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
na na na na
na na na na
B, W B, W S, B
S, INT,
B, W
23 lbs 25 lbs 25 lbs 25 lbs
12 lbs 25 lbs 25 lbs 25 lbs
No No No No
No No No No
na na na na
Yes Yes Yes Yes
Clear Ice Machines
CLR1215 3018CLR
1000 Series 3000 Series
na na
na na
na na
na na
Digital
Touch Pad
U-Select
®
24" /
610 mm
24" /
610 mm
34 1/8" /
867 mm
33 11/16" /
856 mm
14 15/16" /
379 mm
17 3/4" /
450 mm
Field
Reversible
Right or
Left
na na
na na
S, INT,
B, W
S, INT
60 lbs 60 lbs
30 lbs 30 lbs
No No
Yes Yes
na na
Yes Yes
149
Glass Door Refrigerators
2218RGL 2224RGL 3018RGL 3024RGL 3036RRGL
2000 Series 3000 Series
79 114 79 114 158
123 172 123 172 246
na na na na na
3.6 4.9 3.6 4.9 6.9
Digital
Touch Pad
Digital
Touch Pad
U-Select
®
U-Select
®
U-Select
®
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
17 3/4" /
450 mm
23 5/8" /
600 mm
17 3/4" /
450 mm
23 5/8" /
600 mm
35 7/16" /
900 mm
Right or Left Right or Left Right or Left Right or Left Double Doors
290 kWh 300 kWh 290 kWh 300 kWh 320 kWh
No No No No No
S, INT S, INT S, INT S, INT S, INT
na na na na na
na na na na na
No Yes Yes Yes Yes
Yes Yes Yes Yes Yes
34°F - 45°F 34°F - 45°F 34°F - 70°F 34°F - 70°F 34°F - 70°F
Residential Residential Residential Residential Residential
Solid Door Refrigerators
1215R 1224R 2218R
1000 Series 2000 Series
57 123 79
92 185 123
na na na
2.9 5.2 3.4
Digital
Touch Pad
Digital
Touch Pad
Digital
Touch Pad
23 1/4" /
591 mm
23 1/4" /
591 mm
23 7/16" /
590 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
33 11/16" /
856 mm
14 15/16" /
379 mm
24" /
610 mm
17 3/4" /
450 mm
Field
Reversible
Field
Reversible
Right or Left
225 kWh 240 kWh 230 kWh
ENERGY
STAR
ENERGY
STAR
ENERGY
STAR
S, INT, B S, INT, B, W S, INT
na na na
na na na
No No No
Yes Yes Yes
34°F - 45°F 34°F - 45°F 34°F - 45°F
Residential /
Commercial
Residential /
Commercial
Residential
Specications subject to change without notice. Sizes are for reference only. For safety, installation, integration, operation,
maintenance, and service details please visit u-line.com and view the User Guides listed under ‘Documentation’.
Models at a Glance
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Wine Bottle
(750 ml)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath
(Star K Certied)
Temperature Range
UL Listing
150
Solid Door Refrigerators
2224R 3018R 3024R 3036RR
2000 Series 3000 Series
114 68 100 136
172 104 141 208
na na na na
4.9 3.4 4.9 6.9
Digital
Touch Pad
U-Select
®
U-Select
®
U-Select
®
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
23 7/16" /
590 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
33 11/16" /
856 mm
23 5/8" /
600 mm
17 3/4" /
450 mm
23 5/8" /
600 mm
35 7/16" /
900 mm
Right or Left Right or Left Right or Left Double Doors
240 kWh 245 kWh 240 kWh 320 kWh
ENERGY
STAR
ENERGY
STAR
ENERGY
STAR
No
S, INT S, INT S, INT S, INT
na na na na
na na na na
No No No No
Yes Yes Yes Yes
34°F - 45°F 34°F - 70°F 34°F - 70°F 34°F - 70°F
Residential Residential Residential Residential
Drawer Models
1224DWR 3024DWR
1000 Series 3000 Series
98 90
150 142
na na
5.4 4.5
Digital
Touch Pad
U-Select
®
23 1/4" /
591 mm
23 7/16" /
590 mm
34 1/8" /
867 mm
33 11/16" /
856 mm
24" /
610 mm
23 5/8" /
600 mm
Drawers Drawers
305 kWh 300 kWh
No No
S, INT S, INT
na na
na na
No No
Yes Yes
34°F - 45°F 34°F - 70°F
Residential /
Commercial
Residential
Combo
®
Models
CO1224F 1224RF
1000 Series
61 61
114 114
na na
4.2
Ref: 4.2
Fzr: 1.5
Digital
Touch Pad
Digital
Touch Pad
23 1/4" /
591 mm
23 1/4" /
591 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
24" / 610 mm 24" / 610 mm
Field
Reversible
Field
Reversible
580 kWh 496 kWh
No No
S, INT, B, W S, INT, B, W
8 lbs na
8 lbs na
No No
Yes Yes
34°F - 45°F
Ref: 34°F - 45°F
Freezer: 0°F - 5°F
Residential Residential
Freezers
3024FZR
3000 Series
na
na
na
4.5
U-Select
®
24" /
610 mm
33 11/16" /
856 mm
23 5/8" /
600 mm
Right or Left
430 kWh
No
S, INT
na
na
No
Yes
-
5°F - 5°F
Residential
151
ADA Series
BI95 BI98 ADA15IM 29R CO29F ADA24R ADA24RGL
ADA Series
na na na 35 24 70 70
na na na 48 44 140 140
na na na na na na na
na na na 3.3 2.1 5.3 5.4
On/O
Switch
On/O
Switch
On/O
Switch
Mechanical
Dial
Mechanical
Dial
Digital
Touch Pad
Digital
Touch Pad
17" /
432 mm
20" /
508 mm
23" /
584 mm
23" /
584 mm
23" /
584 mm
23 1/4" /
591 mm
23 1/4" /
591 mm
25 1/16" /
637 mm
27 3/8" /
695 mm
32" /
813 mm
28 1/2" /
724 mm
28 1/2" /
724 mm
32" /
813 mm
32" /
813 mm
13 15/16" /
354 mm
14 15/16" /
379 mm
14 15/16" /
379 mm
20 7/8" /
530 mm
20 7/8" /
530 mm
24" /
610 mm
24" /
610 mm
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible*
Field
Reversible
Field
Reversible
Field
Reversible
na na na 230 kWh 567 kWh 240 kWh 300 kWh
na na na
ENERGY
STAR
No
ENERGY
STAR
No
B, W B, W S, B B, W B, W S, B S, B
23 lbs 25 lbs 25 lbs na 8 lbs na na
12 lbs 25 lbs 25 lbs na 8 lbs na na
No No No Yes No Standard Standard
No No No No No Yes Yes
na na na 34°F - 45°F 34°F - 45°F 34°F - 45°F 34°F - 45°F
Yes Yes Yes
Residential /
Commercial
Residential
Residential /
Commercial
Residential /
Commercial
Outdoor Series
BI1215SOD CLR1215SOD
Outdoor Series
na na
na na
na na
na na
On/O
Switch
Digital
Touch Pad
23 1/4" /
591 mm
24" /
610 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
14 15/16" /
379 mm
14 15/16" /
379 mm
Field
Reversible
Field
Reversible
na na
na na
S S
25 lbs 60 lbs
25 lbs 30 lbs
No No
No Yes
na na
Yes** Yes**
Specications subject to change without notice. Sizes are for reference only. For safety, installation, integration, operation,
maintenance, and service details please visit u-line.com and view the User Guides listed under ‘Documentation’.
Models at a Glance
Capacity: Bottle
(12 oz)
Capacity: Can
(12 oz)
Capacity: Wine Bottle
(750 ml)
Capacity: Volume
(cu ft)
Control Type
Dimensions:
Product Depth
Dimensions:
Product Height
Dimensions:
Product Width
Door Swing
Energy Consumption:
Avg. Per Year
ENERGY STAR
Finishes
Ice Production Per Day
Ice Storage
Lock Model Available
Sabbath
(Star K Certied)
Temperature Range
UL Listing
152
Marine Series
BI95FC WH95FC SS1095nF SS1095FC SS1095FD SS98nF SP18FC CO29
Marine Series
na na na na na na na 24
na na na na na na na 44
na na na na na na na na
na na na na na na na 2.1
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
On/O
Switch
Mechanical
Dial
17" /
432 mm
17" /
432 mm
17" /
432 mm
17" /
432 mm
17" /
432 mm
20" /
508 mm
24 1/2" /
622 mm
23" /
584 mm
25 1/16” /
637 mm
25 1/16" /
637 mm
25 1/16" /
637 mm
25 1/8" /
638 mm
26 1/16" /
662 mm
27 3/8" /
695 mm
18 7/8" /
479 mm
28 1/2" /
724 mm
14" /
356 mm
14" /
356 mm
14" /
356 mm
15 1/8" /
384 mm
15 15/16" /
405 mm
14 15/16" /
379 mm
15 1/8" /
384 mm
20 7/8" /
530 mm
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
Field
Reversible
na na na na na na na na
na na na na na na na na
B W S S S S S, B, W B, W
23 lbs 23 lbs 23 lbs 23 lbs 23 lbs 25 lbs 23 lbs 25 lbs
12 lbs 12 lbs 12 lbs 12 lbs 12 lbs 25 lbs 12 lbs 13 lbs
No No No No No No No No
No No No No No No No No
na na na na na na na 34°F - 45°F
Yes Yes Yes Yes Yes Yes Yes Residential
Outdoor Series
1215RSOD 1224RSOD
Outdoor Series
57 123
92 185
na na
2.9 5.2
Digital
Touch Pad
Digital
Touch Pad
23 1/4" /
591 mm
23 1/4" /
591 mm
34 1/8" /
867 mm
34 1/8" /
867 mm
14 15/16" /
379 mm
24" / 610 mm
Field
Reversible
Field
Reversible
225 kWh 240 kWh
ENERGY STAR ENERGY STAR
S S
na na
na na
Standard Standard
Yes Yes
34°F - 45°F 34°F - 45°F
Residential /
Commercial**
Residential /
Commercial**
*Models with a lock option must be ordered hinge specic.
**Deemed suitable for outdoor use by UL.
UL Listing only applies to 115 v models.
153
154
u-Line generaL inQuiries
Monday - Friday 8:00 am to 4:30 pm CST
8900 North 55th Street
Milwaukee, Wisconsin 53223 USA
T: +1.414.354.0300
F: +1.414.354.7905
Email: sales@u-line.com
u-line.com
warranty information
FULL ONE YEAR WARRANTY
(TWO YEARS ON MODULAR 3000 SERIES)
From the date of purchase, U-Line covers
all parts and labor to repair or replace any
product, sold and serviced within the United
State and Canada, which proves to be
defective in materials or workmanship.
FULL FIVE YEAR WARRANTY
From the date of purchase, U-Line covers
all parts and labor to repair or replace any
components that prove to be defective in the
sealed system (consisting of the compressor,
condenser, evaporator, bypass valve, dryer,
and connecting tube) for all products sold and
serviced within the United States and Canada.
Visit u-line.com for complete warranty details.
Customer Care
With over 125 combined years of U-Line
product experience, our Customer Care group
is equipped with the knowledge and skills to nd
a solution for you, and fast. Our sophisticated
facility is equipped to handle any service
request. With live products readily available for
diagnostics, our Customer Care group can walk
you through a solution while doing it themselves
on the same model. Our ecient call center
management system ensures minimal wait time
for consumers. We believe product support
should be quick, simple, and frustration-free.
Customer Care &
Parts assistanCe
Monday - Friday 8:00 am to 5:30 pm CST
T: +1.800.779.2547
F: +1.414.354.5696
Customer Care Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
seriaL numBer format
15 14862 - 05 - 0527
Year Factory
use only
Month Factory
use only
Designed, engineered and assembled in WI, USA
Copyright © 2014 U-Line Corporation. All Rights Reserved.
P/N ZLITNAPG Sep. 2014
155
Wine Captain
®
Models • Beverage Centers • Clear Ice Machines • Crescent Ice Makers • Refrigerators • Freezers • Combo
®
Models
8900 North 55
th
Street • Milwaukee, Wisconsin 53223 USA • Phone +1.414.354.0300 • Fax +1.414.354.7905 • u-line.com
