Installation and operating instructions
Tumble dryer
WTH85222GB
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTH85222GB:
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 16
3
Y The main points in brief 18
3
* Getting to know your appliance 19
3
Z Laundry 22
3
/ Programmes and buttons 23
3
1 Operating the appliance 26
3
M Signal setting 29
3
> Noises 30
3
D Cleaning 31
3
3 Faults and what to do about them 33
3
[ Consumption values 35
3
J Technical data 36
3
J After-sales service 36
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Coolant
12
Caution!
12
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13

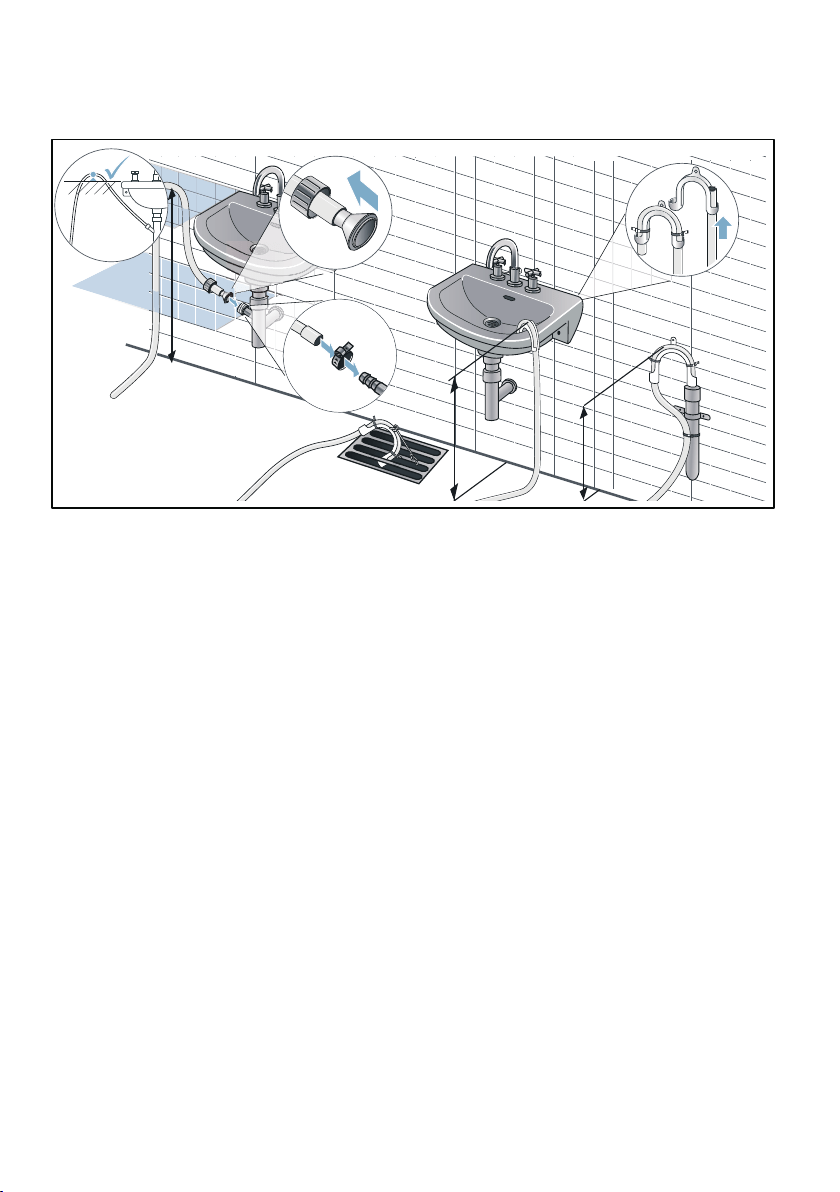

Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
: Warning
13
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
14
Note:
14
Optional accessories
14
Transport and frost protection
15
1. Empty the condensate container.
15
2. Select any programme using the programme selector.
15
3. Press the Start button.
15
4. Wait for 5 minutes.
15
Note:
15
5. Empty the condensate container again.
15
6. Switch off the dryer.
15
Note:
15
Caution!
15
Any residual water may leak out and cause material damage.
15
Caution!
15
The dryer contains coolant and may be damaged.
15
Œ Draining the condensation water
16

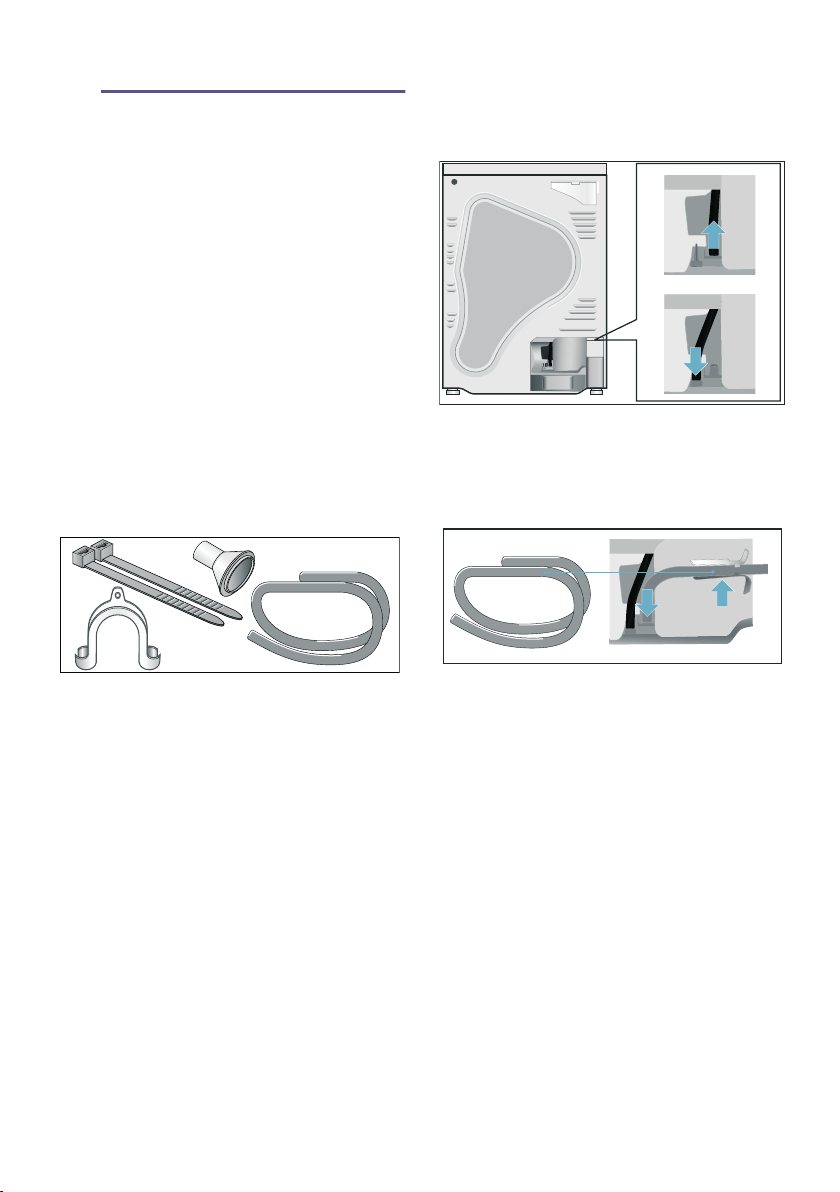

Draining the condensation water
16
1. Remove the accessories from the dryer drum.
16
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
16
3. Disconnect the hose from the connecting piece and put it in the "parked" position.
16
4. Take the drain hose from the accessories and secure it to the free connecting piece.
16
Tip:
16
5. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
17
Caution!
17
Accumulated water can be drawn back into the dryer and may cause material damage.
17
Caution!
17
Material damage due to leaks or draining water.
17
Note:
17
Y The main points in brief
18
The main points in brief
18
* Getting to know your appliance
19
Getting to know your appliance
19
Dryer
19
Control panel
20
Display panel
21
Buttons on the display panel
21
Display panel
21
Z Laundry
22
Laundry
22
Preparing the laundry
22
: Warning
22
Risk of explosion/fire!
22
Caution!
22
The dryer drum and fabrics could be damaged.
22
Notes
22
Sorting washing according to:
22
Note:
22
Caution!
22
Possibility of material damage to the dryer or laundry.
22
Do not tumble-dry the following fabrics:
22
/ Programmes and buttons
23
Programmes and buttons
23
Programmes
23
Programme and fabrics
23
Maximum load and programme settings/info
23
Notes
24
Buttons
25
Buttons
25
Explanations and notes
25
Note:
25
Note:
25

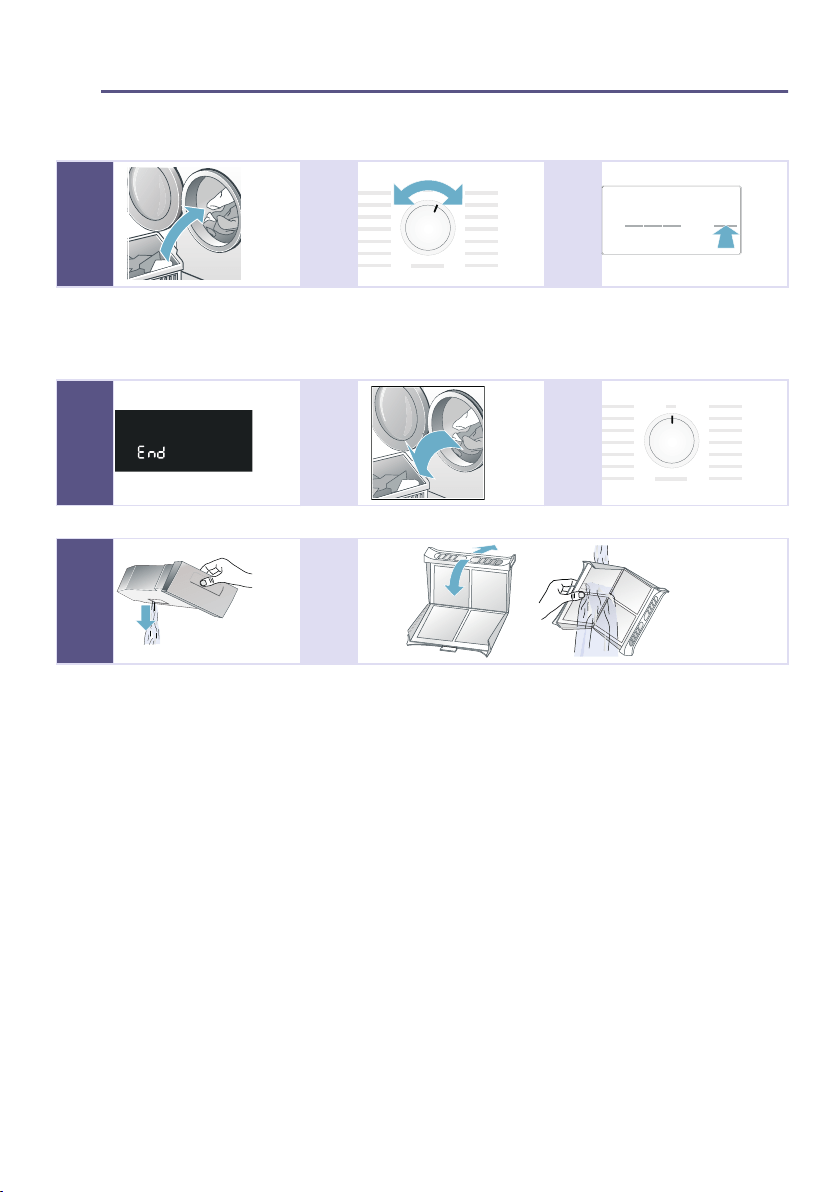

1 Operating the appliance
26
Operating the appliance
26
Loading laundry and switching on the dryer
26
Note:
26
1. Place the laundry in the drum.
26
2. Turn the programme selector to any programme to switch the dryer on.
26
3. Close the dryer door.
26
Caution!
26
Possibility of material damage to the dryer or laundry.
26
Setting a programme
26
Note:
26
1. Select the required programme; detailed information on the programmes can be found on ~ Page 23 onwards.
26
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
26
Note:
26
3. If required, adjust the default programme settings. You can find detailed information on this on ~ Page 25 onwards.
26
Starting the programme
26
Note:
26
Programme sequence
26
Note:
26
Changing the programme or adding laundry
27
1. To pause the programme, open the dryer door or press the Start button.
27
2. Add or remove laundry.
27
3. Select another programme or an additional function, if required.
27
4. Close the dryer door.
27
5. Press the Start button.
27
Note:
27
Cancelling the programme
27
Caution!
27
Risk of fire. Laundry may catch fire.
27
Programme end
27
Removing laundry and switching off the dryer
27
1. Remove the laundry.
27
2. Turn the programme selector to the "off" position.
27

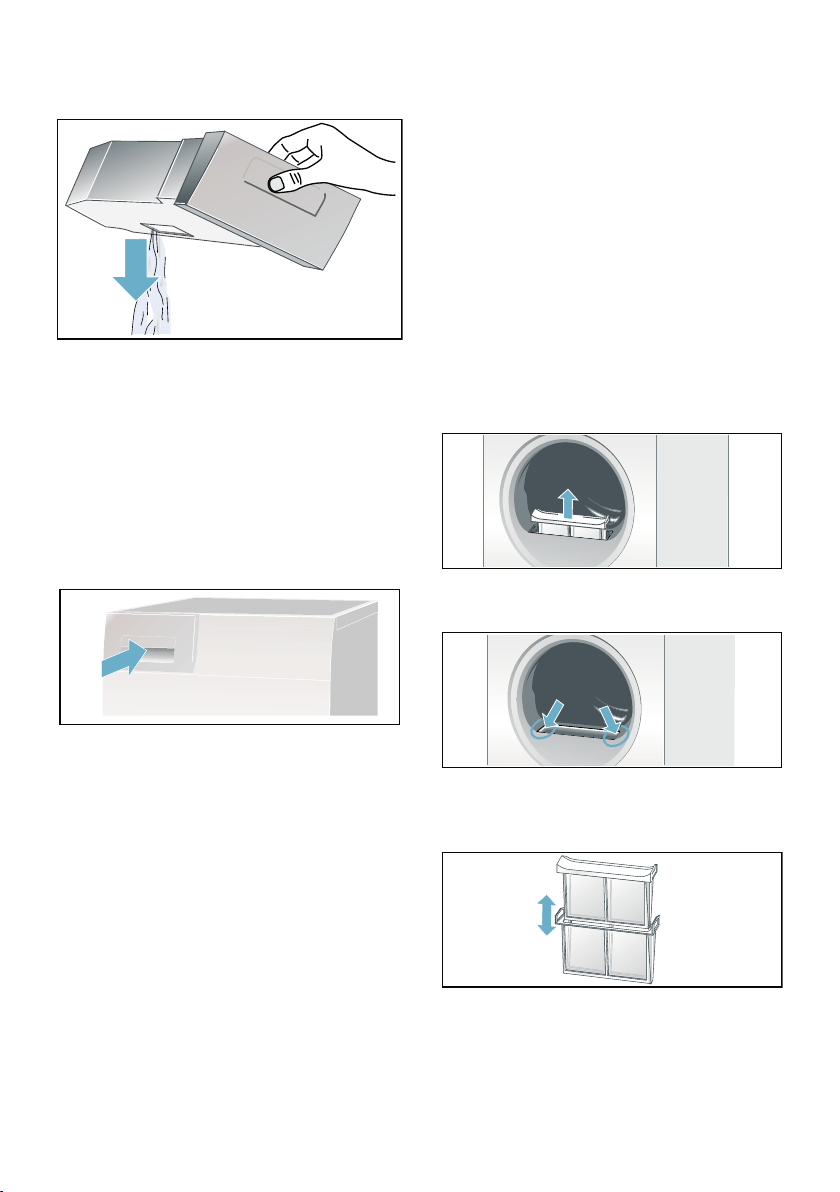

Emptying the condensate container
27
1. Pull out the condensate container horizontally.
27
2. Pour out the condensation water.
28
Caution!
28
Dirty condensation water may be harmful to your health and cause material damage.
28
3. Push in the condensate container until you feel it lock back into place in the dryer.
28

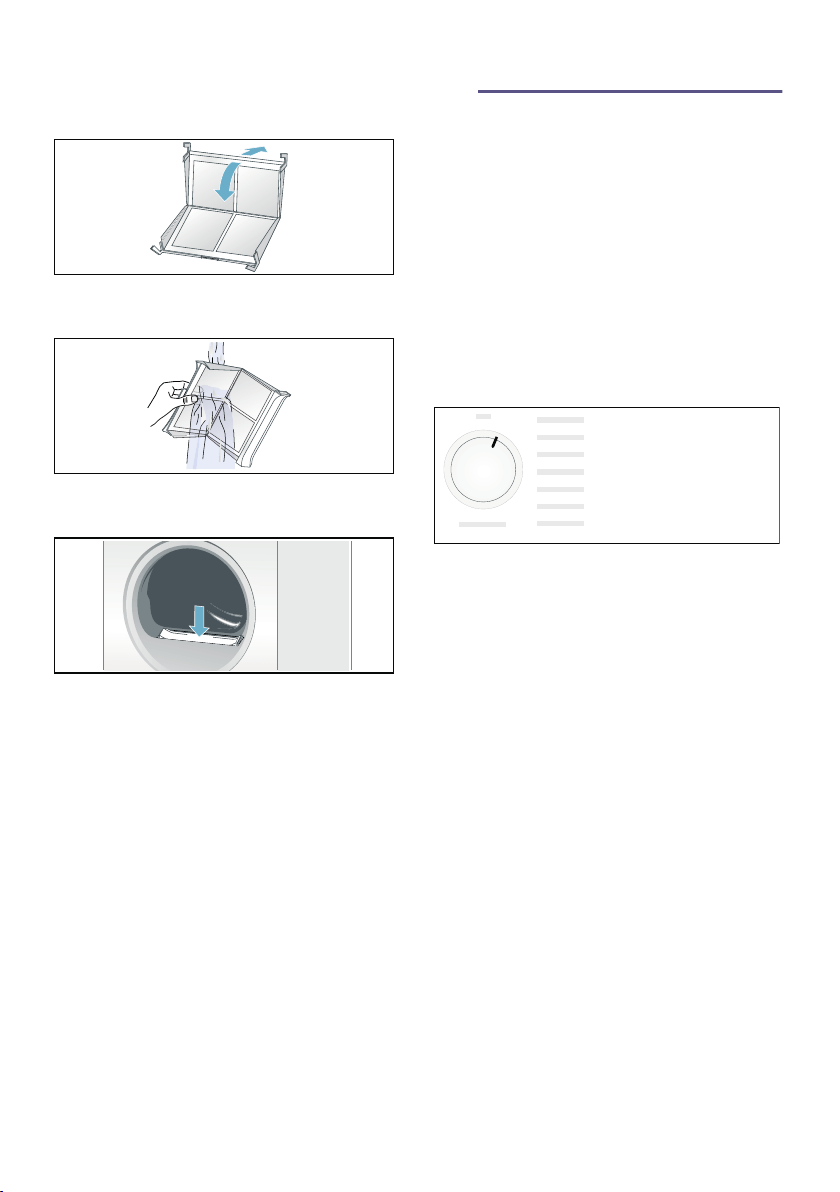

Clean the fluff filter
28
Note:
28
1. Open the dryer door and remove all fluff from the door.
28
2. Pull out the two-part fluff filter.
28
3. Remove the fluff from the recess in the fluff filter.
28
Note:
28
4. Pull apart the two-part fluff filter.
28
5. Open both filters and remove all the fluff.
29
6. Rinse away the fluff under warm, running water.
29
7. Dry the fluff filter, close it and reinsert the two-part fluff filter.
29
Caution!
29
The dryer may be damaged.
29
M Signal setting
29
Signal setting
29
Activating the setting mode
29
1. Switch the dryer on.
29
2. Select the "Cottons" programme in position 1 and wait for five seconds.
29
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
29
2. The spin speed is shown on the display.
29
3. Press the "Ready in" time button or the drying time button to change the spin speed.
29
4. Turn the programme selector clockwise to position 3.
29
5. The volume for the audible signal at the end of the programme is shown on the display.
30
6. Press the "Ready in" time button or the drying time button to change the volume.
30
7. Turn the programme selector clockwise to position 4.
30
8. The volume for the audible button signal is shown on the display.
30
9. Press the "Ready in" time button or the drying time button to change the volume.
30
Note:
30
> Noises
30

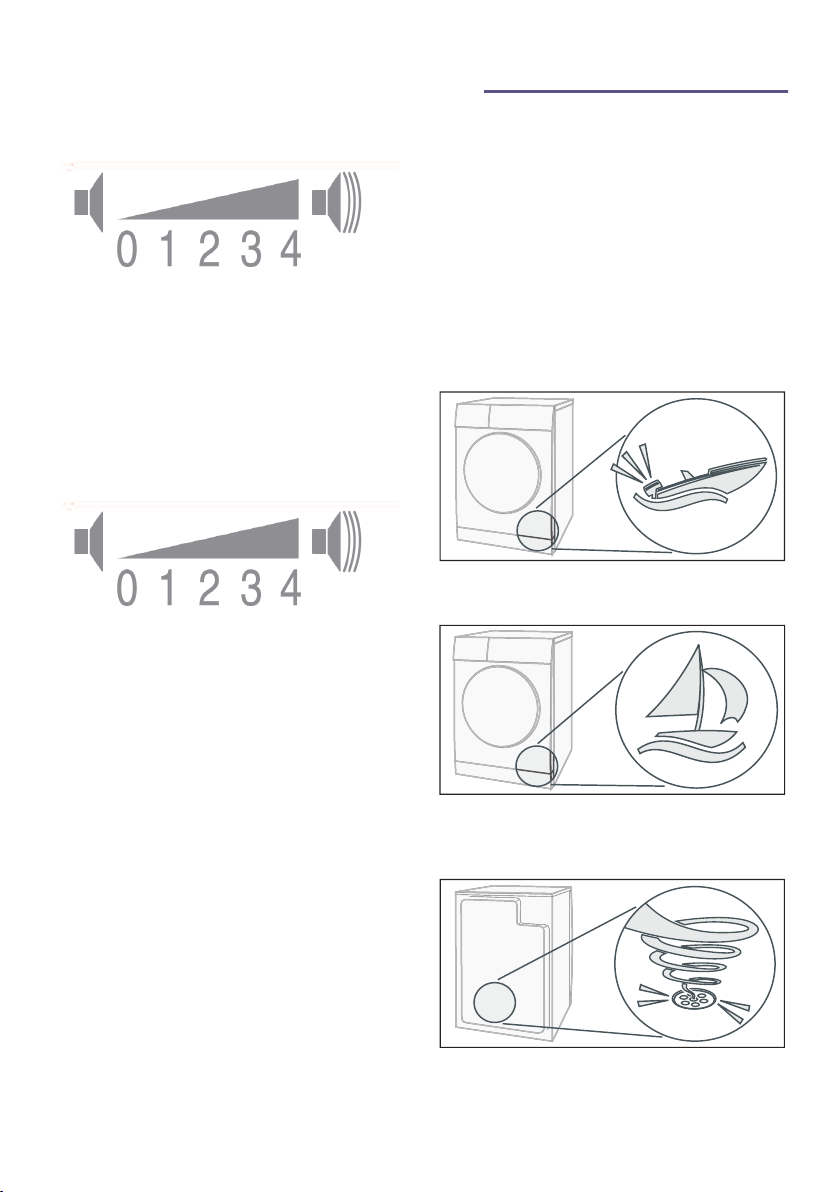

Noises
30
Note:
30
D Cleaning
31
Cleaning
31
Cleaning the dryer and the control panel
31
: Warning
31
Risk of death!
31
Cleaning the moisture sensor
31
Note:
31
Caution!
31
Moisture sensor may be damaged.
31
Cleaning the EasyClean filter
31
1. First clean the fluff filter ~ Page 28.
31
2. Close the door of the dryer.
31
3. Open the maintenance flap on the heat exchanger.
31
4. Release the levers on the EasyClean filter.
31
5. Use the grip handle to pull the EasyClean filter out.
31
6. Now take off the filter mat.
31
7. Wash out the filter mat by hand using clean water.
31
Notes
31
8. Dry the filter mat by squeezing the water out.
31
Note:
31
9. Put the filter mat back on.
32
Note:
32
10. Check how dirty the dryer's heat exchanger is before putting the EasyClean filter back in. If it is very dirty, use a vacuum cleaner with a brush attachment to clean it carefully from top to bottom.
32
Note:
32
Caution!
32
Risk of injury.
32
11. Slide the EasyClean filter in and make sure it clicks into place.
32
12. Close the maintenance flap.
32
13. Switch the dryer off.
32
Note:
32
3 Faults and what to do about them
33
Faults and what to do about them
33
Faults
33
Cause/remedy
33
Note:
33
Note:
34
[ Consumption values
35
Consumption values
35
Consumption values table
35
Programme
35
8 kg
35
4 kg
35
8 kg
35
4 kg
35
1400 rpm
35
181 min
35
116 min
35
1.63 kWh
35
1.00 kWh
35
1000 rpm
35
205 min
35
130 min
35
1.87 kWh
35
1.14 kWh
35
800 rpm
35
230 min
35
145 min
35
2.11 kWh
35
1.28 kWh
35
1400 rpm
35
136 min
35
83 min
35
1.21 kWh
35
0.70 kWh
35
1000 rpm
35
160 min
35
97 min
35
1.45 kWh
35
0.84 kWh
35
800 rpm
35
185 min
35
112 min
35
1.69 kWh
35
0.98 kWh
35
3.5 kg
35
3.5 kg
35
800 rpm
35
72 min
35
0.60 kWh
35
600 rpm
35
84 min
35
0.71 kWh
35
Most efficient programme for cotton fabrics
35
Standard programmes for cottons in accordance with current EU regulation 932/2012
35
Programme
35
Load
35
Energy consumption
35
Programme length
35
J Technical data
36
Technical data
36
J After-sales service
36
After-sales service
36
*9001544464*
40
Thank you for buying a Bosch Home Appliance!
40
Looking for help? You´ll find it here.
40
File type: PDF
File name: 19238446_wth85222gb.pdf
File size: 2.6 MB
File Language: English
Pages: 40
Author: Bosch
File created: 2021-01-07
Published: 2022-05-12
Updated: 2023-05-12
Download File
Specifications
Brand:
Bosch
Model: WTH85222GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WAL28RH1GB
DFS097A51B
DFS067A51B
BCH85KITGB
BCH85NGB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTH85200GB
Bosch WTH85223GB
Bosch WTM85230GB
Bosch WTN85200GB
Bosch WTH85200AU
Bosch WTW85231GB
Bosch WTH84000GB
Bosch WTN85201GB
Bosch WTM85250GB
Bosch WTW85250GB
Bosch WTW85260GB
Bosch WTH83000GB
Bosch WTN85280GB
Bosch WTH84001GB
Bosch WTH85200NL
Table of Contents
×
en Installation and operating instructions
1
Tumble dryer
1
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 16
3
Y The main points in brief 18
3
* Getting to know your appliance 19
3
Z Laundry 22
3
/ Programmes and buttons 23
3
1 Operating the appliance 26
3
M Signal setting 29
3
> Noises 30
3
D Cleaning 31
3
3 Faults and what to do about them 33
3
[ Consumption values 35
3
J Technical data 36
3
J After-sales service 36
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Coolant
12
Caution!
12
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
: Warning
13
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
14
Note:
14
Optional accessories
14
Transport and frost protection
15
1. Empty the condensate container.
15
2. Select any programme using the programme selector.
15
3. Press the Start button.
15
4. Wait for 5 minutes.
15
Note:
15
5. Empty the condensate container again.
15
6. Switch off the dryer.
15
Note:
15
Caution!
15
Any residual water may leak out and cause material damage.
15
Caution!
15
The dryer contains coolant and may be damaged.
15
Œ Draining the condensation water
16
Draining the condensation water
16
1. Remove the accessories from the dryer drum.
16
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
16
3. Disconnect the hose from the connecting piece and put it in the "parked" position.
16
4. Take the drain hose from the accessories and secure it to the free connecting piece.
16
Tip:
16
5. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
17
Caution!
17
Accumulated water can be drawn back into the dryer and may cause material damage.
17
Caution!
17
Material damage due to leaks or draining water.
17
Note:
17
Y The main points in brief
18
The main points in brief
18
* Getting to know your appliance
19
Getting to know your appliance
19
Dryer
19
Control panel
20
Display panel
21
Buttons on the display panel
21
Display panel
21
Z Laundry
22
Laundry
22
Preparing the laundry
22
: Warning
22
Risk of explosion/fire!
22
Caution!
22
The dryer drum and fabrics could be damaged.
22
Notes
22
Sorting washing according to:
22
Note:
22
Caution!
22
Possibility of material damage to the dryer or laundry.
22
Do not tumble-dry the following fabrics:
22
/ Programmes and buttons
23
Programmes and buttons
23
Programmes
23
Programme and fabrics
23
Maximum load and programme settings/info
23
Notes
24
Buttons
25
Buttons
25
Explanations and notes
25
Note:
25
Note:
25
1 Operating the appliance
26
Operating the appliance
26
Loading laundry and switching on the dryer
26
Note:
26
1. Place the laundry in the drum.
26
2. Turn the programme selector to any programme to switch the dryer on.
26
3. Close the dryer door.
26
Caution!
26
Possibility of material damage to the dryer or laundry.
26
Setting a programme
26
Note:
26
1. Select the required programme; detailed information on the programmes can be found on ~ Page 23 onwards.
26
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
26
Note:
26
3. If required, adjust the default programme settings. You can find detailed information on this on ~ Page 25 onwards.
26
Starting the programme
26
Note:
26
Programme sequence
26
Note:
26
Changing the programme or adding laundry
27
1. To pause the programme, open the dryer door or press the Start button.
27
2. Add or remove laundry.
27
3. Select another programme or an additional function, if required.
27
4. Close the dryer door.
27
5. Press the Start button.
27
Note:
27
Cancelling the programme
27
Caution!
27
Risk of fire. Laundry may catch fire.
27
Programme end
27
Removing laundry and switching off the dryer
27
1. Remove the laundry.
27
2. Turn the programme selector to the "off" position.
27
Emptying the condensate container
27
1. Pull out the condensate container horizontally.
27
2. Pour out the condensation water.
28
Caution!
28
Dirty condensation water may be harmful to your health and cause material damage.
28
3. Push in the condensate container until you feel it lock back into place in the dryer.
28
Clean the fluff filter
28
Note:
28
1. Open the dryer door and remove all fluff from the door.
28
2. Pull out the two-part fluff filter.
28
3. Remove the fluff from the recess in the fluff filter.
28
Note:
28
4. Pull apart the two-part fluff filter.
28
5. Open both filters and remove all the fluff.
29
6. Rinse away the fluff under warm, running water.
29
7. Dry the fluff filter, close it and reinsert the two-part fluff filter.
29
Caution!
29
The dryer may be damaged.
29
M Signal setting
29
Signal setting
29
Activating the setting mode
29
1. Switch the dryer on.
29
2. Select the "Cottons" programme in position 1 and wait for five seconds.
29
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
29
2. The spin speed is shown on the display.
29
3. Press the "Ready in" time button or the drying time button to change the spin speed.
29
4. Turn the programme selector clockwise to position 3.
29
5. The volume for the audible signal at the end of the programme is shown on the display.
30
6. Press the "Ready in" time button or the drying time button to change the volume.
30
7. Turn the programme selector clockwise to position 4.
30
8. The volume for the audible button signal is shown on the display.
30
9. Press the "Ready in" time button or the drying time button to change the volume.
30
Note:
30
> Noises
30
Noises
30
Note:
30
D Cleaning
31
Cleaning
31
Cleaning the dryer and the control panel
31
: Warning
31
Risk of death!
31
Cleaning the moisture sensor
31
Note:
31
Caution!
31
Moisture sensor may be damaged.
31
Cleaning the EasyClean filter
31
1. First clean the fluff filter ~ Page 28.
31
2. Close the door of the dryer.
31
3. Open the maintenance flap on the heat exchanger.
31
4. Release the levers on the EasyClean filter.
31
5. Use the grip handle to pull the EasyClean filter out.
31
6. Now take off the filter mat.
31
7. Wash out the filter mat by hand using clean water.
31
Notes
31
8. Dry the filter mat by squeezing the water out.
31
Note:
31
9. Put the filter mat back on.
32
Note:
32
10. Check how dirty the dryer's heat exchanger is before putting the EasyClean filter back in. If it is very dirty, use a vacuum cleaner with a brush attachment to clean it carefully from top to bottom.
32
Note:
32
Caution!
32
Risk of injury.
32
11. Slide the EasyClean filter in and make sure it clicks into place.
32
12. Close the maintenance flap.
32
13. Switch the dryer off.
32
Note:
32
3 Faults and what to do about them
33
Faults and what to do about them
33
Faults
33
Cause/remedy
33
Note:
33
Note:
34
[ Consumption values
35
Consumption values
35
Consumption values table
35
Programme
35
8 kg
35
4 kg
35
8 kg
35
4 kg
35
1400 rpm
35
181 min
35
116 min
35
1.63 kWh
35
1.00 kWh
35
1000 rpm
35
205 min
35
130 min
35
1.87 kWh
35
1.14 kWh
35
800 rpm
35
230 min
35
145 min
35
2.11 kWh
35
1.28 kWh
35
1400 rpm
35
136 min
35
83 min
35
1.21 kWh
35
0.70 kWh
35
1000 rpm
35
160 min
35
97 min
35
1.45 kWh
35
0.84 kWh
35
800 rpm
35
185 min
35
112 min
35
1.69 kWh
35
0.98 kWh
35
3.5 kg
35
3.5 kg
35
800 rpm
35
72 min
35
0.60 kWh
35
600 rpm
35
84 min
35
0.71 kWh
35
Most efficient programme for cotton fabrics
35
Standard programmes for cottons in accordance with current EU regulation 932/2012
35
Programme
35
Load
35
Energy consumption
35
Programme length
35
J Technical data
36
Technical data
36
J After-sales service
36
After-sales service
36
*9001544464*
40
Thank you for buying a Bosch Home Appliance!
40
Looking for help? You´ll find it here.
40
Search:
×
Search
