TABLE OF CONTENTS

Product Record and Registration . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . 3

Cooking Recommendations . . . . . . . . . . . . . . . . . . 9

Before Setting Surface Controls . . . . . . . . . . . . . . 12

Setting Surface Controls . . . . . . . . . . . . . . . . . . . . 16

Before Setting Oven Controls . . . . . . . . . . . . . . . . 19

Setting Oven Controls . . . . . . . . . . . . . . . . . . . . . . 20

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 38

Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . .2

Product Record and Registration . . . . . . . . . . . . . . . . . 2

Need Help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . 3

Cooking Recommendations . . . . . . . . . . . . . . . . . . . . . 9

Before Setting Surface Controls . . . . . . . . . . . . . . . . . 12

Setting Surface Controls . . . . . . . . . . . . . . . . . . . . . . . 16

Before Setting Oven Controls . . . . . . . . . . . . . . . . . . 19

Setting Oven Controls . . . . . . . . . . . . . . . . . . . . . . . . . 20

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Oven Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Questions?

For toll-free telephone support in the U.S.

and Canada call

1-800-944-9044.

For online support and Internet production information visit

http://www.frigidaire.com.

Product Registration

Registering your product with Frigidaire enhances our

ability to serve you. You can register online at

http://www.frigidaire.com or by dropping your Product

Registration Card in the mail.

Record model & serial numbers here

Purchase Date

Frigidaire model number

Frigidaire serial number

Serial Plate Location

Serial plate location: open lower oven drawer (some

models) or storage drawer (some models).

PRODUCT RECORD AND REGISTRATION

Thank you for choosing Frigidaire.

Important: This Use and Care Guide is part of our commit-

ment to customer satisfaction and product quality

throughout the service life of your new appliance. We view

your purchase as the beginning of a relationship. To ensure

our ability to continue serving you, please use this page to

record important product information.

Need Help?

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can

do to help us serve you better.

Read this Use & Care Manual

This manual contains instructions to help you use and

maintain your range properly.

If You Received a Damaged Range...

Immediately contact the dealer (or builder) that sold you the

range.

Save Time and Money

Check the section title “Before You Call”. This section helps

step you through some common problems that might occur.

If you do need service, help is only a phone call away. Call

Frigidaire Customer Services at 1-800-944-9044.

Read all instructions before using this appliance.

Table 1: This manual contains important safety symbols

and instructions. Please pay attention to these

symbols and follow all instructions given.

Do not attempt to install or operate your appliance

until you have read the safety precautions in this

manual. Safety items throughout this manual are

labeled with a WARNING or CAUTION statement

based on the risk type.

Warnings and important instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur.

Common sense, caution, and care must be

exercised with installing, maintaining, or operating

your appliance.

DEFINITIONS

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol

to avoid possible injury or death.

Indicates a potentially hazardous situation

which, if not avoided, may result in death or

serious injury.

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injury.

Indicates installation, operation, maintenance,

or valuable information that is not hazard

related.

Indicates a short, informal reference –

something written down to assist the memory or

for future reference.

WARNING

CAUTION

IMPORTANT

NOTE

Save these instructions for future reference.

WARNING

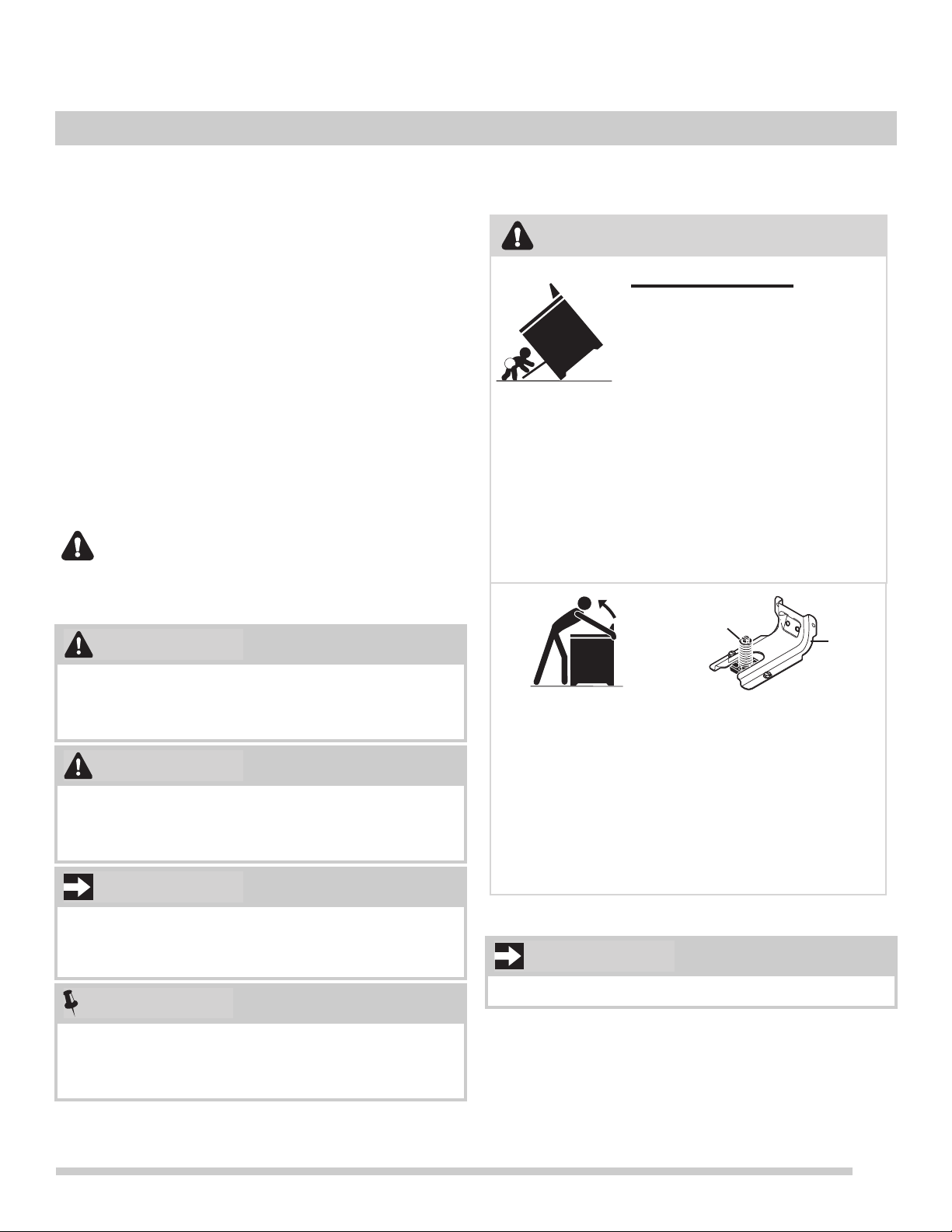

Tip Over Hazard

• A child or adult can tip

the range and be killed.

• Verify the anti-tip device

has been installed to floor

or wall.

• Ensure the anti-tip device is

re-engaged to floor or wall when the

range is moved.

• Do not operate the range without the

anti-tip device in place and engaged.

• Failure to follow these instructions can

result in death or serious burns to

children and adults.

Range

leveling

leg

Anti-tip

bracket

To check if the anti-tip bracket is installed

properly, use both arms to grasp the rear edge

of the range back. Carefully attempt to tilt

range forward. When properly installed, the

range should not tilt forward.

Refer to the anti-tip bracket installation instruc-

tions supplied with your range for proper

installation.

IMPORTANT

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions for future use.

IMPORTANT INSTRUCTIONS FOR

UNPACKING AND INSTALLATION

IMPORTANT - Read and follow the below instruc-

tions and precautions for unpacking, installing,

and servicing your appliance:

Remove all tape and packaging before using the

appliance. Destroy the carton and plastic bags

after unpacking the appliance. Never allow

children to play with packaging material. Do not

remove the wiring label and other literature

attached to the appliance. Do not remove model/

serial number plate.

Cold temperatures can damage the electronic

control. When using this appliance for the first

time, or when the appliance has not been used

for an extended period of time, be sure the

appliance has been in temperatures above 32ºF

(0ºC) for at least 3 hours before turning on the

power to the appliance.

Never modify or alter the construction of the

appliance by removing the leveling legs, panels,

wire covers, anti-tip brackets/screws, or any other

part of the appliance.

Be sure to have an appropriate foam-type fire

extinguisher available, visible, and easily acces-

sible located near the appliance.

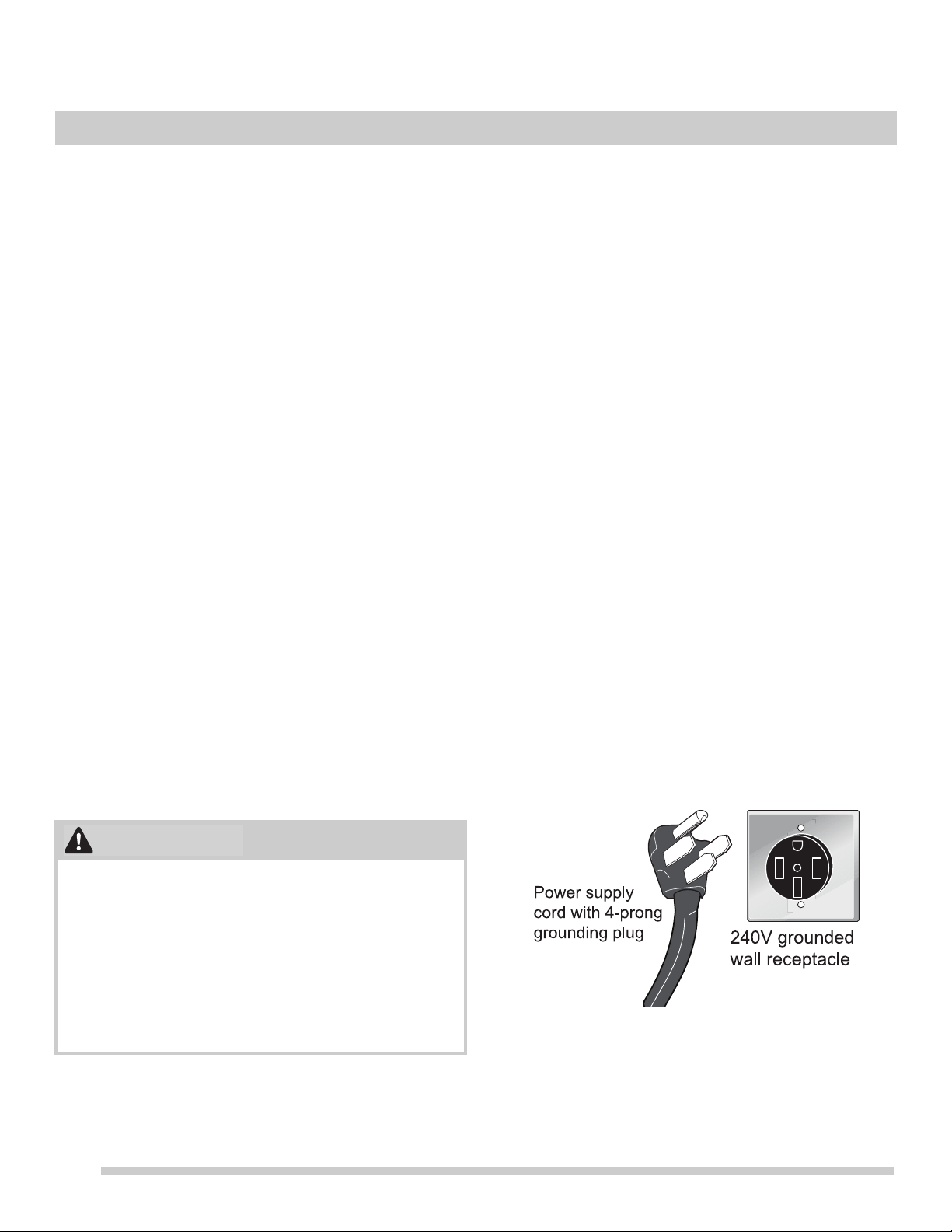

GROUNDING INSTRUCTIONS

Proper Installation—Be sure your appliance is

properly installed and grounded by a qualified

technician. In the United States, install in accor-

dance with the National Fuel Gas Code ANSI

Z223.1/NPFA No. 54, latest edition and National

Electrical Code NFPA No. 70 latest edition, and

local electrical code requirements. In Canada,

install in accordance with CAN/CGA B149.1 and

CAN/CGA B149.2 and CSA Standard C22.1,

Canadian Electrical code, Part 1-latest editions

and local electrical code requirements. Install only

per installation instructions provided in the litera-

ture package for this appliance.

For personal safety, this appliance must be

properly grounded. For maximum safety, the

power cord must be securely connected to an

electrical outlet or junction box that is the correct

voltage, is correctly polarized and properly

grounded, and protected by a circuit breaker in

accordance with local codes.

It is the personal responsibility of the consumer to

have the appropriate outlet or junction box with

the correct, properly grounded wall receptacle

installed by a qualified electrician. It is the respon-

sibility and obligation of the consumer to contact a

qualified installer to assure that the electrical

installation is adequate and is in conformance

with all local codes and ordinances.

See the installation instructions packaged with

this appliance for complete installation and

grounding instructions.

IMPORTANT INSTRUCTIONS FOR USING THE

Avoid fire hazard or electrical shock. Failure to

follow this warning may cause serious injury,

fire, or death.

Avoid fire hazard or electrical shock. Do not use

an adapter plug, use an extension cord, or

remove grounding prong from the power cord.

Failure to follow this warning may cause serious

injury, fire, or death.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions for future use.

APPLIANCE

Storage In or On Appliance—Flammable

materials should not be stored in an oven or

microwave, near surface burners or elements,

or in the storage or warmer drawer (if

equipped). This includes paper, plastic, and

cloth items, such as cookbooks, plastic ware,

and towels, as well as flammable liquids. Do not

store explosives, such as aerosol cans, on or

near the appliance.

Do not leave children alone - Children should

not be left alone or unattended in the area

where appliance is in use. They should never

be allowed to sit or stand on any part of the

appliance, including the storage drawer, lower

broiler drawer, warmer drawer, or lower double

oven.

Do not store items of interest to children in the

cabinets above the appliance or on the back-

guards of ranges. Children climbing on or near

the appliance to reach items could be seriously

injured.

Do not allow children to climb or play around the

appliance. The weight of a child on an open

over door may cause the appliance to tip,

resulting in serious burns or other injury. An

open drawer when hot may cause burns.

WARNING

Never use your appliance as a space heater to

heat or warm the room. Doing so may result in

carbon monoxide poisoning and overheating of

the appliance.

Stepping, leaning, or sitting on the door or

drawers of this appliance can result in serious

injuries and also cause damage to the appli-

ance.

Never cover any slots, holes or passages in the

oven bottom or cover and entire rack with

materials such as aluminum foil. Doing so

blocks air flow through the oven and may cause

carbon monoxide poisoning. Aluminum foil

linings may also trap heat, causing a fire

hazard.

Do not use oven or warmer drawer (if equipped)

for storage.

When heating fat or grease, watch it closely.

Grease may catch fire if it becomes too hot.

Do not use water or flour on grease fires.

Smother fire or flame or use dry chemical or

foam-type extinguisher. Cover the fire with a

pan lid or use baking soda.

Use dry potholders. Moist or damp potholders

on hot surfaces may result in burns from steam.

Do not let potholders touch hot cooking areas.

Do not use towels or other bulky cloths.

Do not heat unopened food containers - Build-

up of pressure may cause container to burst

and result in injury.

WARNING

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions for future use.

IMPORTANT INSTRUCTIONS FOR USING

YOUR INDUCTION COOKTOP

Know which knob or key controls each surface

heating area. Place cookware with food on the

cooking area before turning it on. Turn the

cooking area off before removing the cookware.

Cookware handles should be turned inward and

not extend over adjacent surface elements. — To

reduce the risk of burns, ignition of flammable

materials, and spillage due to unintentional

contact with the utensil, the handle of the

cookware should be positioned so that it is turned

inward, and does not extend over other cooking

areas.

Glazed cooking utensils — Only certain types of

cookware are suitable for cook top service and

must be magnetic to work properly on the

induction zones. Check the manufacturer’s

recommendations for cook top use to ensure that

the cookware is compatible with induction

cooking.

Improper cookware may break due to sudden

changes in temperature. Check the cookware

manufacturer’s recommendations for cooktop

use.

Use proper pan size - This appliance is equipped

with one or more surface units of different sizes.

Select cookware with flat bottoms that match the

surface unit size. Using the proper cookware on

the cooking area will improve efficiency.

Never leave surface elements unattended. Boil-

overs may cause smoking and greasy spills that

may ignite. A pan that has boiled dry could be

damaged and may damage the cooktop.

When you are flaming foods under a ventilating

hood, turn on the fan.

Wear proper apparel - Loose-fitting or hanging

garments should never be worn while using the

appliance. Do not let clothing or other

flammable materials contact hot surfaces.

Do not touch surface burners or elements,

areas near these burners or elements, interior

surfaces of the oven, or the warmer drawer (if

equipped). Surface burners and elements may

be hot even though they appear cool. Areas

near surface burners and elements may

become hot enough to cause burns. During and

after use, do not touch, or let clothing or other

flammable materials touch these areas until

they are cool. These areas may include the

cooktop, surfaces facing the cooktop, oven vent

areas, oven door, and oven window.

Do not attempt to operate the appliance during

a power failure. If the power fails, always turn off

the appliance. If the appliance is not turned off

and the power resumes, electric surface

elements may resume operation when power is

restored. Once the power resumes, reset the

clock and the oven function.

Persons with a pacemaker or similar medical

device should exercise caution using or

standing near an induction unit while it is in

operation, as the electromagnetic field may

affect the working of the pacemaker or similar

medical device. It would be advisable to consult

your doctor or the pacemaker or similar medical

device manufacturer about your particular situa-

tion.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions for future use.

IMPORTANT INSTRUCTIONS FOR GLASS

AND CERAMIC COOKTOPS

Do Not Clean or Operate a Broken Cooktop. If

cooktop should break, cleaning solutions and

spillovers may penetrate the broken cooktop and

create a risk of electric shock. Contact a qualified

technician immediately.

Clean cooktop glass with caution. If a wet sponge

or cloth is used to wipe spills on a hot cooking

area, be careful to avoid a steam burn. Some

cleaners can produce harmful fumes if applied to

a hot surface.

Avoid scratching the cooktop glass with sharp

objects.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

Protective liners—Do not use aluminum foil, after-

market oven liners, or any other materials or

devices to line oven bottom, oven racks, or any

other part of the appliance. Only use aluminum as

recommended for baking, such as lining

cookware or as a cover placed on food. Any other

use of protective liners or aluminum foil may

result in a risk of electric shock or fire or a short

circuit.

Use care when opening oven door, lower oven

door, or warmer drawer (some models). Stand to

the side of the appliance when opening the door

of a hot oven. Let hot air or steam escape before

you remove or replace food in the oven.

Keep oven vent ducts unobstructed. Touching

surfaces in this area when the oven is on may

cause severe burns. Do not place plastic or heat-

sensitive items on or near the oven vent. These

items can melt or ignite.

Placement of oven racks - Always place oven

racks in desired location while oven is cool. If rack

must be moved while oven is hot, do not let

potholder contact hot burner or element in oven.

Use potholders and grasp the rack with both

hands to reposition. Remove all cookware and

utensils before moving the rack.

Do not use a broiler pan without its insert. Broiler

pans and inserts allow dripping fat to drain away

from the high heat of the broiler. Do not cover the

broiler insert with aluminum foil; exposed fat and

grease could ignite.

Do not cook food on the oven bottom. Always

cook in proper cookware and always use the

oven racks.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR APPLIANCE

Clean the appliance regularly to keep all parts

free of grease that could catch fire. Do not allow

grease to accumulate. Greasy deposits in the fan

could catch fire.

Always follow the manufacturer’s recommended

directions for use of kitchen cleaners and

aerosols. Be aware that excess residue from

cleaners and aerosols may ignite causing

damage and injury.

Clean ventilating hoods frequently - Grease

should not be allowed to accumulate on hood or

filter. Follow the manufacturer’s instructions for

cleaning vent hoods.

Before manually cleaning any part of the appli-

ance, be sure all controls are turned off and the

appliance is cool. Cleaning a hot appliance can

cause burns.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions for future use.

IMPORTANT INSTRUCTIONS FOR SELF

CLEANING OVENS

Do not clean the oven door gasket. The door

gasket is essential for a good seal. Care should

be taken not to rub, damage, or move the gasket.

Do not use oven cleaners. No commercial oven

cleaner or oven liner protective coating of any

kind should be used in or around any part of the

appliance.

Use the self clean cycle to clean only the parts

listed in this manual.

Some birds are extremely sensitive to the fumes

given off during the self clean cycle of any oven.

Move birds to another well-ventilated room.

IMPORTANT INSTRUCTIONS FOR SERVICE

AND MAINTENANCE

Do not repair or replace any part of the appliance

unless specifically recommended in the manuals.

All other servicing should be done only by a

qualified technician. This reduces the risk of

personal injury and damage to the appliance.

Always contact your dealer, distributor, service

agent, or manufacturer about problems or condi-

tions you do not understand.

Ask your dealer to recommend a qualified techni-

cian and an authorized repair service. Know how

to disconnect the power to the appliance at the

circuit breaker or fuse box in case of an emer-

gency.

Remove the oven door from any unused oven if it

is to be stored or discarded.

Do not touch a hot oven light bulb with a damp

cloth. Doing so could cause the bulb to break.

Handle halogen lights (if equipped) with paper

towels or soft gloves. Disconnect the appliance or

shut off the power to the appliance before

removing and replacing the bulb.

Important: This appliance has been tested and

found to comply with the limits for a class B digital

device, pursuant to Part 18 of the FCC rules

(United States) and ICES-001 (Canada). These

limits are designed to provide reasonable protec-

tion against harmful interference in a residential

installation. This unit uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However there is no guarantee that interference

will not occur in a particular installation. If this unit

does cause harmful interference to radio or televi-

sion reception, which can be determined by

turning the unit off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antennae.

• Increase distance between unit and receiver.

• Connect the unit into an outlet or a circuit

different from that to which the receiver is

connected.

Before using self clean, remove the broiler pan,

any food, utensils, and cookware from the oven,

storage drawer or warming drawer (if

equipped). Remove oven racks unless

otherwise instructed.

CAUTION

California Residents: for cancer and reproductive

harm information, visit www.P65Warnings.ca.gov

WARNING

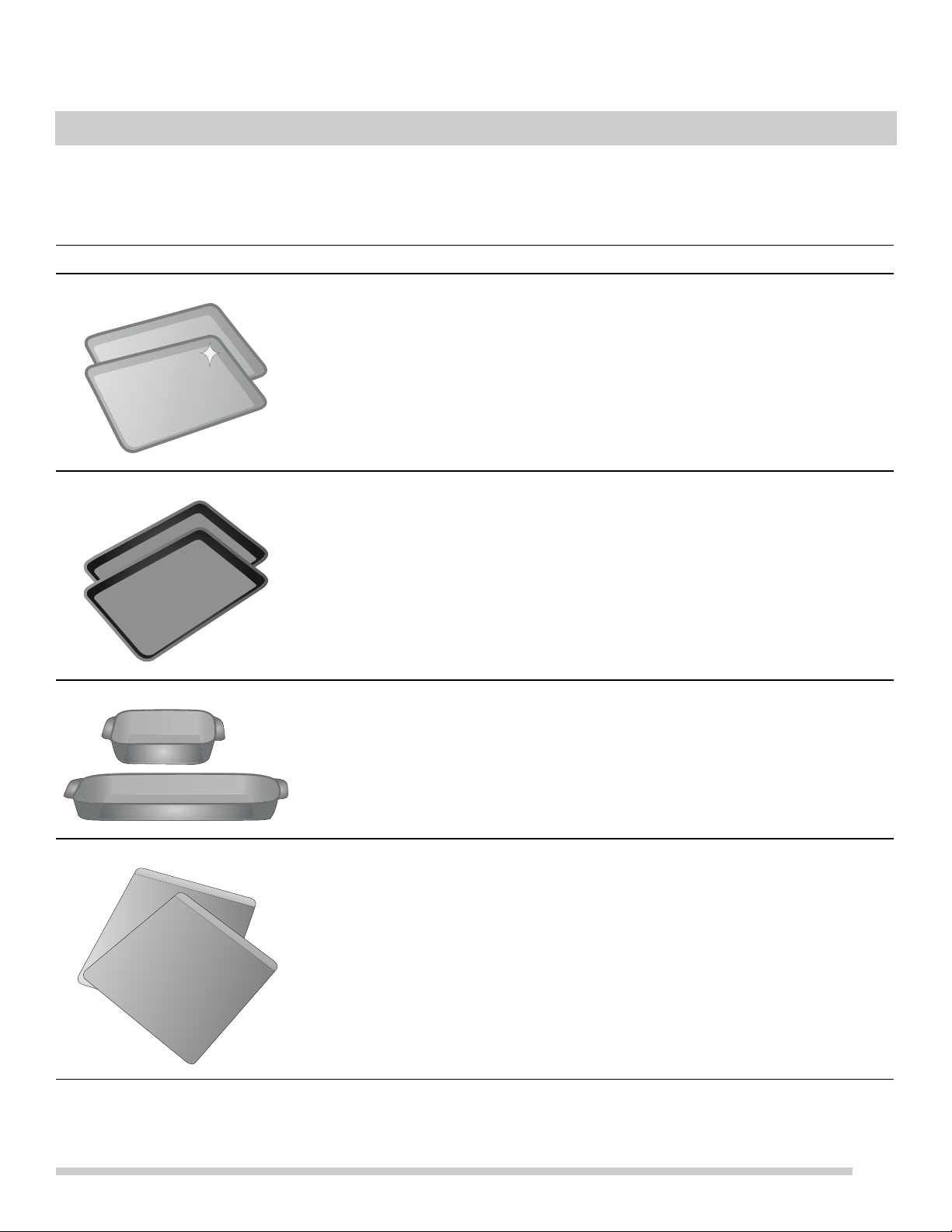

Bakeware

The material of bakeware affects how evenly and quickly it transfers heat from the pan to the food.

Material Attributes Recommendation

Shiny metal bakeware Shiny, aluminum, and non-coated

bakeware is the best for even heating.

It is suitable for all baked goods.

Recommended cooking temperatures and

times are based on shiny metal bakeware.

Dark metal bakeware Dark bakeware cooks hotter than shiny

bakeware.

Reduce the cooking temperature by 25° F

(13-14° C) when using dark bakeware.

Glass bakeware Glass bakeware cooks hotter than

shiny bakeware.

Glass is convenient, as the same piece

of bakeware can be used for cooking,

serving, and storing food.

Reduce the cooking temperature by 25° F

(13-14° C) when using glass bakeware.

Insulated bakeware Insulated bakeware cooks cooler than

shiny bakeware.

Insulated bakeware is designed for

baking in gas ovens.

Increase the cooking temperature by 25° F

(13-14° C) when using insulated bakeware.

COOKING RECOMMENDATIONS

Cooking Conditions

Conditions in your kitchen can affect the performance of your appliance when cooking food.

Condition Attributes Recommendation

Aging cookware As pans age and become discolored,

cooking times may need to be reduced

slightly.

If food is too dark or overcooked, use the minimum cook

time in the recipe or packaging.

If food is too light or undercooked, use the middle to

maximum cook time in the recipe or packaging.

High altitude Air is drier and air pressure is lower.

Water boils at a lower temperature, and

liquids evaporate faster.

Foods may take longer to bake.

Doughs may rise faster.

Adjust cooking temperature, cooking time, or recipes as

needed.

Increase amount of liquid in baking recipes.

Increase cook time on cooktop. Cover dishes to reduce

evaporation.

Increase bake time or oven temperature.

Reduce amount of baking soda or baking powder in

recipe. Reduce rising time or punch down dough and

allow it to rise twice.

Cooking Results

Small adjustments may fix a problem with food not being as done as you like or more done than you like.

Result Recommendation

Food too light Use the middle to maximum cook time recommended on packaging or recipe.

Food too dark Use the minimum cook time recommended on packaging or recipe.

Cooking Tips

Use these additional tips to get the best results from your appliance.

Cooking Tips

Baking

Rack placement Follow the instructions in “Oven Control Features” on starting on page 20.

When using only one rack, place the rack so the food is in the center of the oven.

Preheat Fully preheat the oven before baking items like cookies, cakes, biscuits and breads. Insert food

immediately after the beep.

Checking food Use the window and oven light when checking food. Opening the door may reduce baking perfor-

mance.

Bake Bake is the best function to use for baking on multiple racks.

COOKING RECOMMENDATIONS

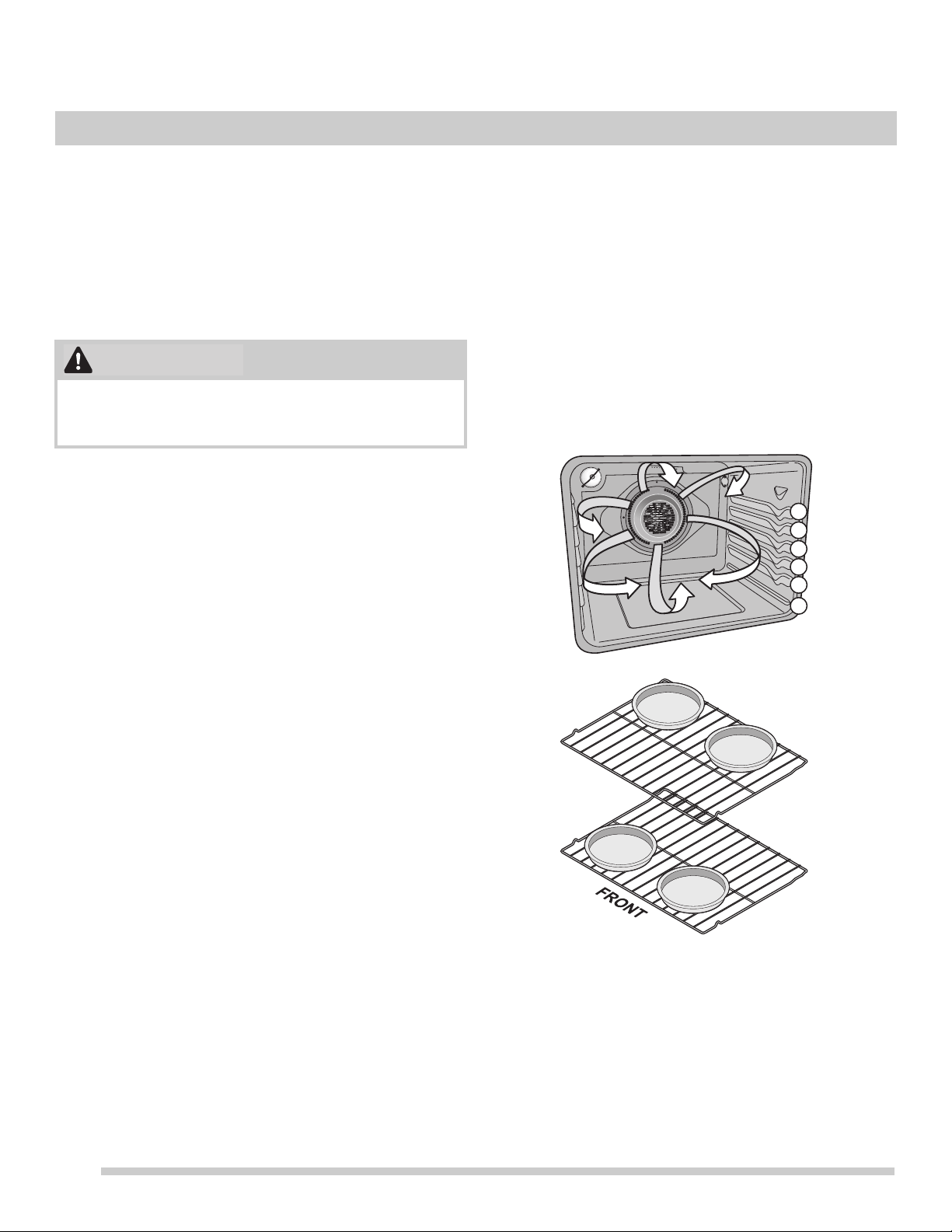

Food placement Allow at least 2 inches (5 cm) of space between bakeware for proper air circulation.

Broiling / Roasting

Broiling pan For best results when broiling, use a broil pan with a broil pan insert designed to drain the fat from

the food, help avoid spatter, and reduce smoking. The broiler pan will catch grease spills, and the

insert helps prevent grease splatters.

If a broiler pan and insert are not supplied with this appliance, they may be purchased from

www.frigidaire.com.

Convection Cooking

Convection

attributes

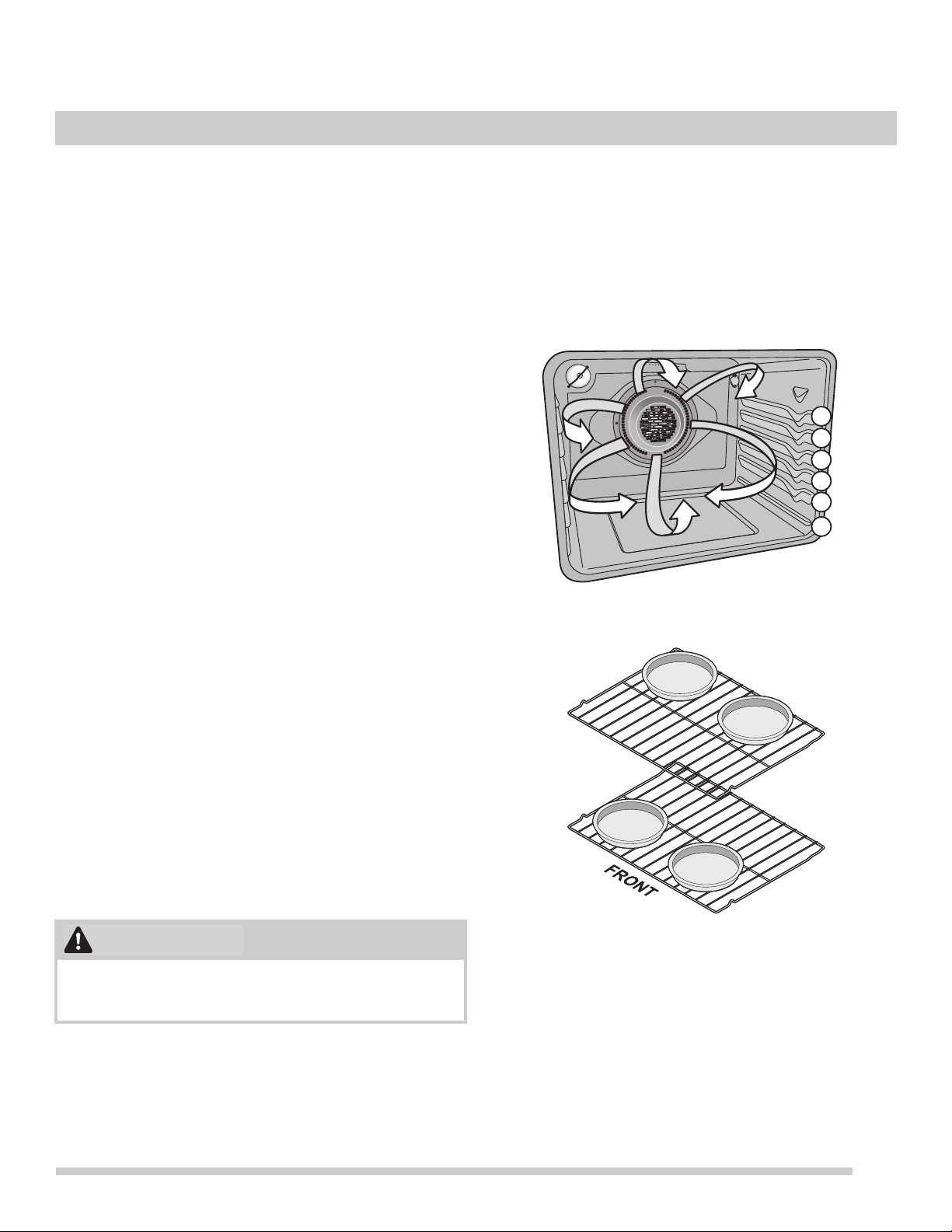

Convection cooking uses a fan to circulate hot air around the oven and food. It browns food more

evenly and reduces hot spots in the oven.

Convection saves time when using multiple racks or cooking several food items at once.

Convection bake Reduce cooking temperature by 25° F (13-14° C) from the recipe unless the recipe is written for

convection baking.

Preheat the oven for best results.

Convection roast Convection roast is best for meats and does not require preheating for most meats and poultry.

Reducing the cooking temperature for convection roast is not recommended. Carefully follow your

recipe’s temperature and time recommendations, adjusting the cooking time if the recipe does not

specify convection roasting time.

Since convection roast cooks faster, cook time may be reduced by 25% to 40% depending on food

type. You can reduce cook times by 25% from the recommended time of your recipe, and check the

food at this time. If needed, continue cooking until the desired doneness is obtained.

Use a meat probe if available with your appliance. Meat probes are also available from most grocery

and home goods stores.

Arrange oven racks so large cuts of meat and poultry are on the lowest rack of the oven.

Do not cover foods when dry roasting - covering will prevent the meat from browning properly.

When cooking meats, use the broiler pan and insert or a roasting rack. The broiler pan will catch

grease spills and the insert helps prevent grease splatters. If you do not have one of these accesso-

ries, they may be purchased from www.frigidaire.com.

Cooking Tips

What is Electromagnetic Induction?

An induction cooking zone uses an electromagnet to induce

heat in iron or steel cookware.

Below each cooking zone on an induction cooktop, there is

a copper coil. When the cooking zone is turned on, the elec-

tricity turns the coil into a type of magnet that heats metal

cookware on the cooktop.

Induction Features

Because heat starts in the cookware instead of the cooktop,

induction offers several advantages.

Fast Heating: Cookware will heat up faster than on a

conventional electric cooktop. Pay close attention to avoid

scorching food when starting to cook. You may need to use

a lower setting for cooking food than you are used to.

Precise Control: The heat going into the cookware will

change immediately when you change the setting of the

cooking zone.

Even Heating: Cookware will typically heat more evenly on

an induction cooktop, so you are less likely to have hot or

cool spots in the cookware.

Cooler Cooktop: An induction cooktop will be cooler when

you remove the cookware than a conventional electric

cooktop would be. Because the cooktop doesn’t get as hot,

you are not as likely to get burned. Spills are also less likely

to burn onto the surface, making clean-up easier.

Energy Efficiency: Induction cooking wastes less energy

than a conventional cooktop, so it uses less electricity.

Preparation

Before using your cooktop for the first time, apply a ceramic

cooktop cleaning cream (available in most hardware,

grocery, and department stores) to the ceramic surface.

Clean and buff with a clean paper towel. Cooktop cleaning

creams leave a protective finish on the glass that will make

cleaning easier when the cooktop is soiled from cooking

and help prevent scratches and abrasions.

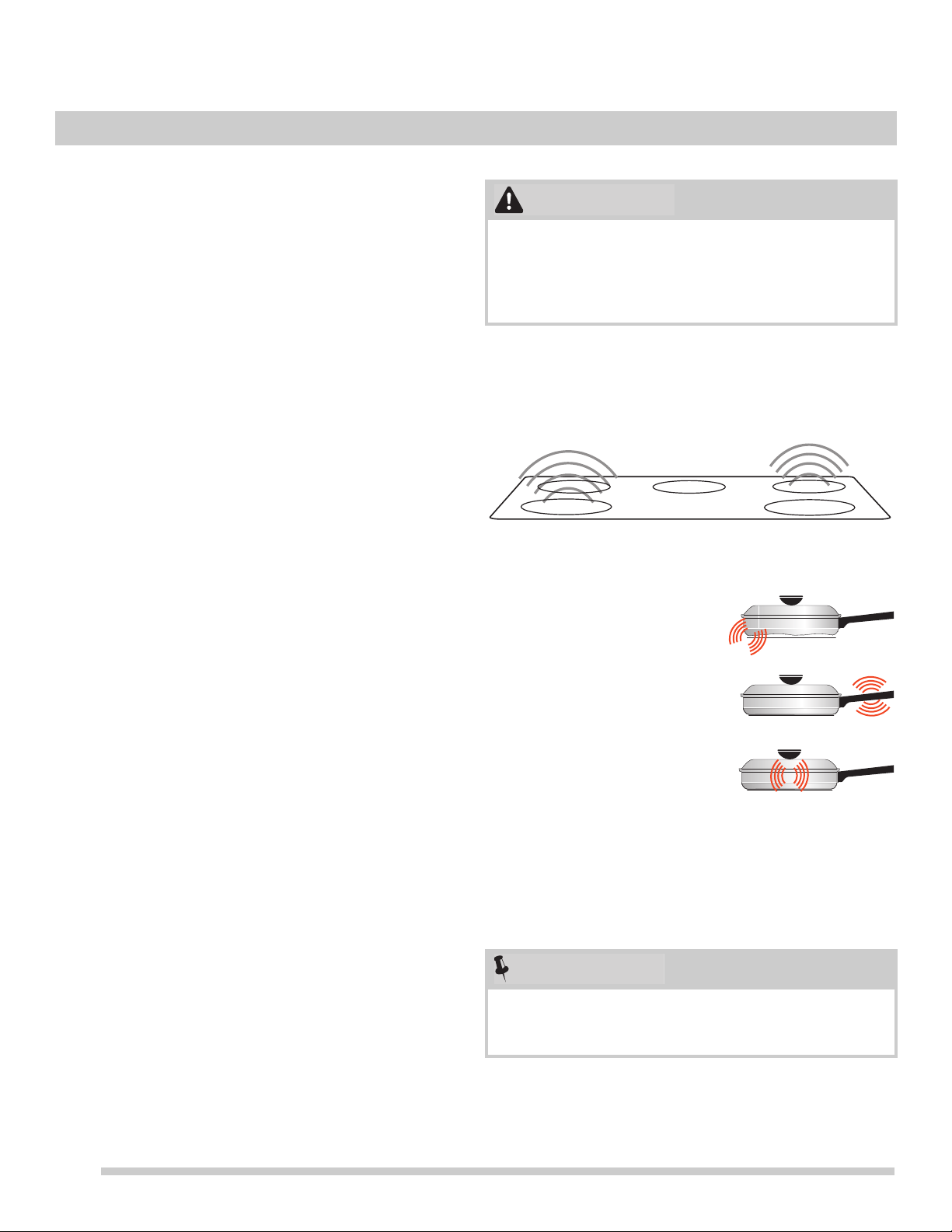

Sounds

The magnetic field over the induction cooking zone may

cause cookware to vibrate, creating a buzzing or humming

noise. These sounds are not unusual, especially at high

settings.

Figure 1: Induction noise

Sounds are less likely to occur with heavier, higher quality

cookware.

An induction cooktop may also produce faint clicking

sounds from the electronic switches that maintain the

desired cooking temperature.

Although induction cooking zones do not produce heat,

they can become hot from contact with hot cookware.

Burns may occur if a cooking zone or the surrounding

area is touched before it has cooled to a safe tempera

ture.

• Cookware that is not perfectly

flat on the bottom may vibrate

slightly against the cooktop.

• A loose handle may vibrate in

its socket.

• Multi-material cookware may

allow small vibrations in its

structure.

Be sure to read detailed instructions for induction cooktop

cleaning in the “Care and Cleaning” section and “Before

You Call” checklist section of this Use and Care Guide.

CAUTION

NOTE

BEFORE SETTING SURFACE CONTROLS

Using Proper Cookware

The size and type of cookware used will influence the heat

setting needed for best cooking results. Be sure to follow

the recommendations for using proper cookware as illus-

trated in

Figure 3 and Figure 3.

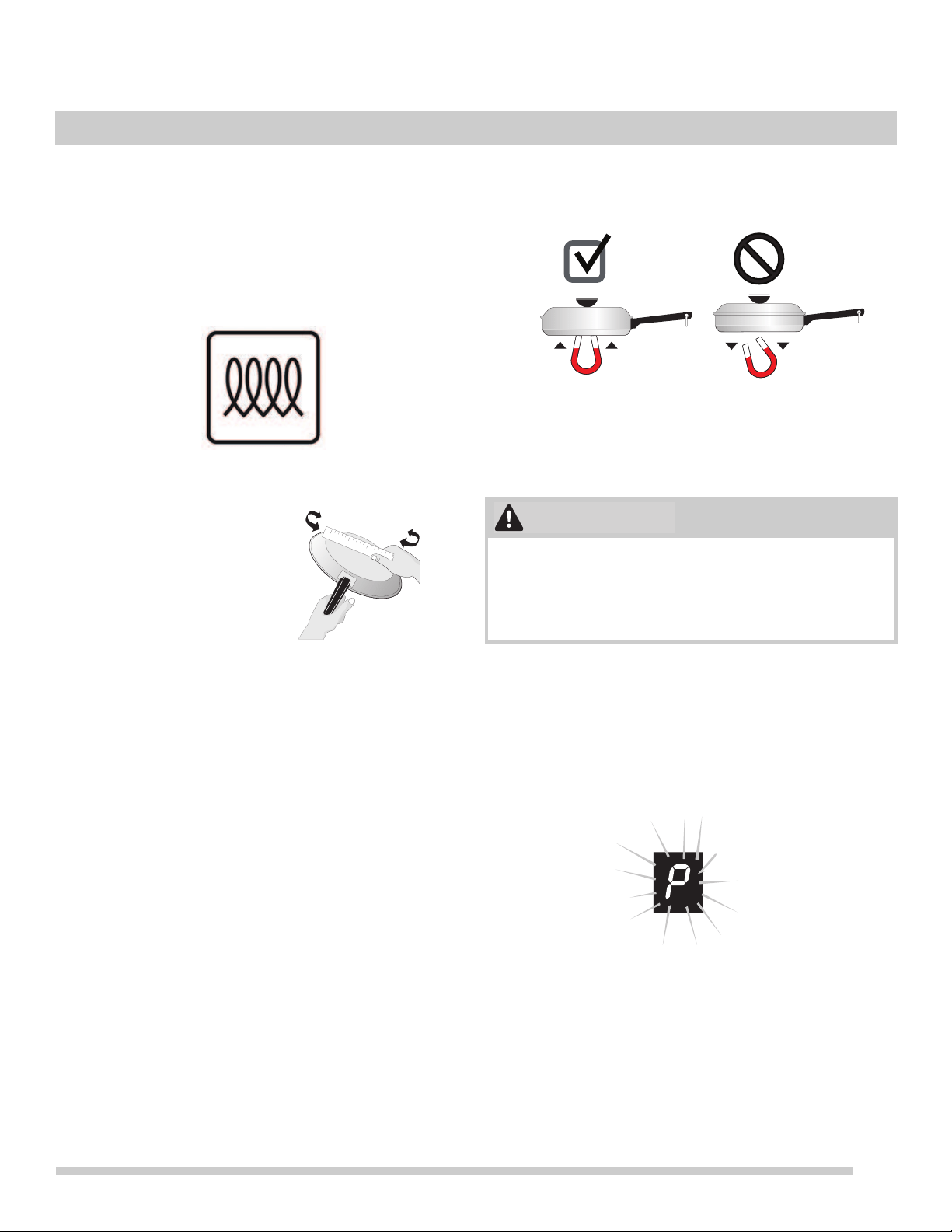

Induction-ready cookware will often have a symbol printed

on the bottom by the manufacturer..

Cookware Selection

Cookware selection is especially important when using an

induction cooktop. The cookware must contain magnetic

iron or steel to work on an induction cooktop. Common

materials for induction cookware include the following:

• Stainless Steel - Slow heat conductor with uneven

cooking results. Durable, easy to clean, and resists

staining. Some types of stainless steel will not work on

an induction cooktop. Use the magnet test (

Figure 4) to

check stainless steel cookware.

•Cast Iron - A slow heat conductor that retains heat very

well. Cooks evenly once cooking temperature is

reached.

• Porcelain-enamel on metal - Heating characteristics

will vary depending on base material. Porcelain-enamel

on a magnetic metal will work on an induction cooktop.

Use the magnet test (

Figure 4) to check porcelain-

enamel cookware.

The Magnet Test

To see if a piece of cookware will work on your induction

cooktop, try to stick a magnet to it (see

Figure 3).

If the magnet clings firmly to the bottom of the cookware, it

will work on your induction cooktop. If the magnet clings

weakly or not at all, the cookware will not heat up on your

induction cooktop.

Pan Sensing

Sensors beneath the cooktop surface require that certain

cookware conditions be met before an induction cooking

zone will operate. If a cooking zone is turned on and no

cookware is detected, the zone display showing the power

setting will flash (

Figure 5).

The conditions that generate a flashing message are illus-

trated in Figure 8. If the situation is not corrected, the

cooking zone will automatically turn off after three minutes.

It’s a good idea to lower the power setting before correcting

the pan sensing message.

Figure 2: Induction symbol

Check for flatness by rotating

a ruler across the bottom of

the cookware (see

Figure 3).

Cookware should have flat

bottoms that make good

contact with the entire surface

of the cooking zone (see

Figure 8 on page 14).

Figure 3: Ruler test

Figure 4: Magnet test

Proper cookware on an operating induction cooking zone

will heat up very quickly. If an empty piece of cookware is

left on an operating induction cooking zone, the rapid

change in temperature may warp or damage the

cookware.

Figure 5: Flashing error message

Magnet

Sticks

Magnet

Falls

CAUTION

BEFORE SETTING SURFACE CONTROLS

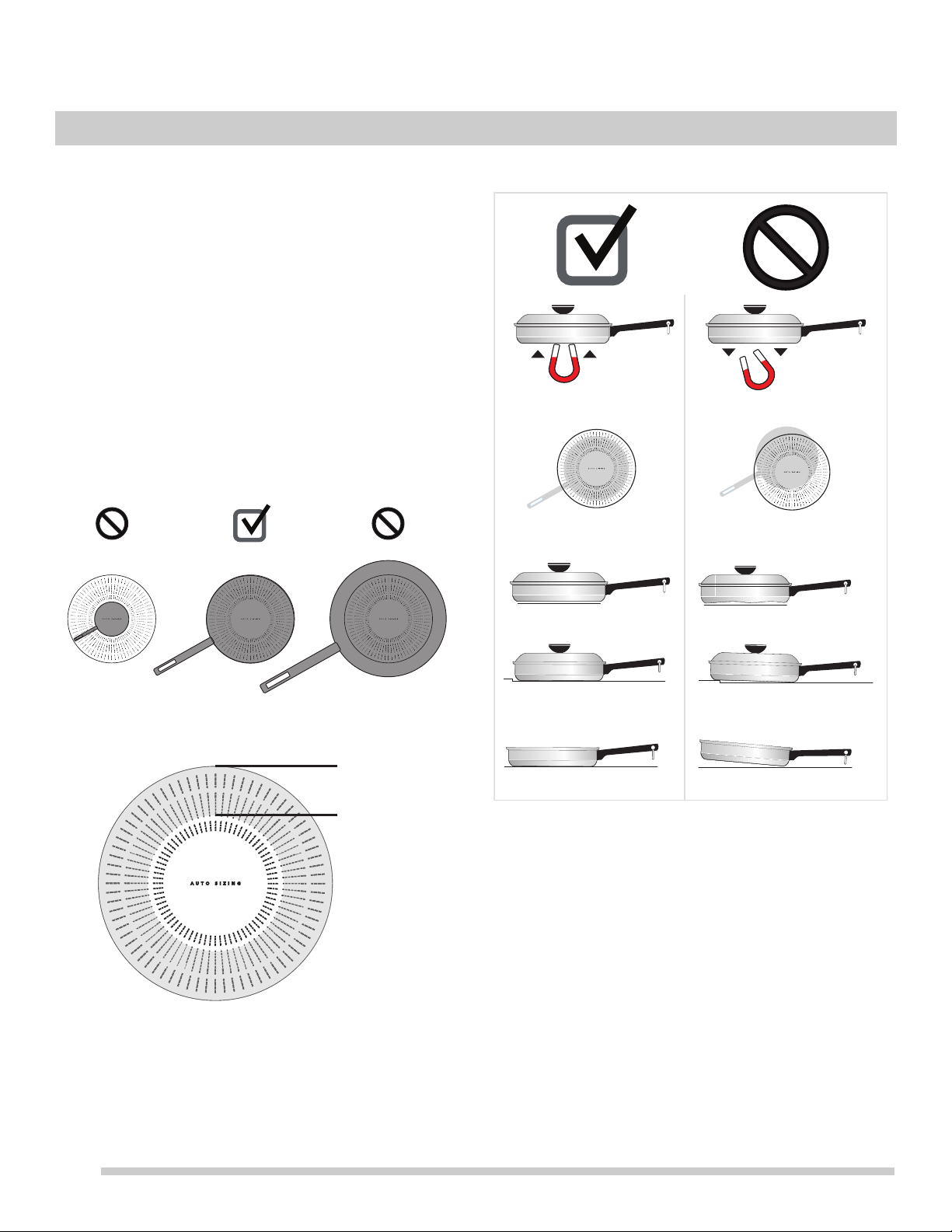

Minimum and Maximum Pan Size

The cooktop graphics are guides to minimum and maximum

pan size for each cooking zone.

Induction cooking zones require a minimum pan size in

order to activate. The inner ring on each cooking zone

indicates the smallest pan size (

Figure 7). If a suitable piece

of cookware is centered properly but is too small, the

display will flash and the pan will not heat. Select a larger

pan or use a different cooking zone.

The outer ring on the cooktop graphic indicates the recom-

mended maximum pan size for that zone (

Figure 6). Do not

use pans with bottoms that extend beyond the outer circle

for a cooking zone. The cookware must make full contact

with the ceramic glass surface. Cookware should not rest

on or touch the metal edges of the cooktop.

For most even heating, use pans that fit the cooking zone

markings. If the pan is not a perfect fit for the marking, using

a larger pan is better than using a smaller pan.

Figure 8: Pan sensing conditions

Figure 6: Pan sizes

Figure 7: Pan sizes for best results

pan too small pan just right pan too big

maximum

pan size

minimum

pan size

• Cookware centered correctly

on cooking zone.

• Flat pan bottom and straight

sides.

• Pan rests completely and is

level on the cooktop

surface.

• Pan is properly balanced.

• Pan bottom rests on cooktop

edge.

• Cookware not centered on

cooking zone.

• Curved or warped pan bottoms

or sides.

• Heavy handle tilts pan.

• Cookware base material has

good magnetic characteristics.

• Cookware base material is

non-magnetic.

Magnet

Sticks

Magnet

Falls

BEFORE SETTING SURFACE CONTROLS

Induction Cooking

When turned on, an induction cooking zone will not get hot.

The induction cooking zone creates heat in the cookware,

not in the cooktop. Heat is not created unless there is an

iron or steel object on the cooking zone.

Cook Zone Setting Display

The Setting Display will show the setting for the cook zone.

Figure 9: Setting displays (left)

If there is no cookware in the cook zone, the setting

indicator will blink, and the magnet will not turn on.

Hot Surface Indicator

The Hot Surface indicator light will turn on when heat is

detected in the cooktop and will remain on until the surface

has cooled to a safe temperature.

Figure 10: Hot surface indicator light

• Although induction cooking zones do not directly

generate heat, they can become hot from contact

with hot cookware. Burns may occur if a cooking

zone or the surrounding area is touched before it has

cooled to a safe temperature.

• Do not place flammable items such as plastic salt

and pepper shakers, spoon holders, or plastic

wrapping on top of the range when it is in use. Heat

radiating from cookware could cause these items to

melt or ignite. Potholders, towels, or wooden spoons

could catch fire if placed too close to hot cookware.

• Do not use aluminum foil to line any part of the

cooktop. Improper installation of these liners may

result in risk of electric shock or fire. If these items

melt on the cooktop, they will damage the cooktop.

• Do not leave empty cookware on an operating

cooking zone. Cookware will heat very quickly and

may be damaged or warped if left on the cooking

zone empty.

• NEVER place or straddle a cooking utensil over two

different surface cooking areas at the same time.

Incorrect use may damage the cooktop.

CAUTION

IMPORTANT

Cooktop Display Windows

The range backguard provides a digital window for each of

the cooking zones located on the cooktop. Power levels

and messages are easily monitored and controlled using

the window displays in combination with the corresponding

controls.

Available Power Level Settings

The cooktop control will display power levels ranging from P

(

Figure 11), Hi (Figure 14) to Lo (Figure 12). The settings

between 9 (Figure 15) and 2(Figure 16) decrease and

increase in 1.0 increments. The lowest setting (Figure 12)

will display just below the lowest digital setting of 2.

Power Boost Power Level (P)

When setting an induction cooking zone for the highest

setting (to the POWER BOOST position), the display will

initially show P (Power Boost) power level for up to 10

minutes. After 10 minutes, the cooking zone will automati

cally return to the Hi setting (Figure 15). The P setting is

only available immediately after activating a cooking zone.

ESEC Error Indicator Message (E)

An error message will be displayed (flashing E) (

Figure 13)

at power up (or after a power failure) if any of the surface

settings were left in the ON positions. If a power failure

should occur, set all of the four surface controls to the OFF

position. This will reset the surface controls.

Be sure to reset the clock. Once the surface controls have

been set to the OFF positions and the clock has been set

with the correct time of day, the surface controls should

return to normal operation. If the surface controls do not

function and the E message remains in any display after

following these procedures, contact an authorized servicer

for assistance.

Lockout Window Message (-)

The (-) message will appear in all the surface control

displays whenever the Lockout or Self-clean feature is

active (

Figure 17). Refer to the “Setting Oven Lockout”

heading on page 21 for more details.

Figure 11: Power Boost

Figure 12: Low setting

Figure 13: Error

message

Figure 14: High setting

Figure 15: Increment

setting

Figure 16: Increment

setting

Figure 17: Cooktop

lockout

SETTING SURFACE CONTROLS

Induction surface cooking zones

Important: When the surface controls are activated a

cooling fan will turn on and remain on until the control is

turned off.

To operate an induction cooking zone:

1. Place correctly sized cookware on the cooking zone.

2. Press the On-Off key of the cooking zone until it beeps.

A - (dash) will appear in the display.

3. Press the + or - key for the cooking zone (

Figure 18)

until you reach the desired setting (refer to the Recom-

mended Induction zone settings in the table on this

page).

4. When cooking is complete, turn the induction cooking

zone OFF by pressing its on-off key before removing

the cookware.

The cooktop has a sensor to detect cookware in the

cooking zone. The cooking zone will not become active

without proper cookware in position. See

“Cooktop Display

Windows” on page 16.

• The Power Boost (P) setting is only available immedi-

ately after activating a cooking zone by pressing the +

key. The cooktop will remain in Power Boost for up to

10 minutes. After 10 minutes, the cooking zone will

automatically change to the High (H) setting.

• The size and type of utensil used and the amount and

type of food being cooked will influence the setting

needed for best cooking results.

• The Hot Surface indicator light will turn on when heat

is detected in a cook zone. The light will remain on

until the heated surface area has cooled sufficiently.

Figure 18: Induction cooking zone control

NOTE

Frigidaire Induction Recommendations

Temp

Range

Power

Level

Description

Low Low

Melt, keep foods warm

Medium

Low

2-4 Continue cooking, poach,

stew

Medium 5-6 Maintain a slow boil,

thicken sauces and gravies,

steaming

Medium

High

7-8

Continue a rapid boil, fry, or

deep fry

High 9 Start most foods, maintain

water at a boil, pan frying,

searing

Power

Boost

P Start heating pans that

contain large amounts of

food or to bring pots of

water to boil

Do not leave empty cookware on an operating cooking

zone. Cookware will heat very quickly and may be

damaged or warped if left on the cooking zone empty.

IMPORTANT

Keep Warm 145°-160°F

Simmer 185 - 200°F

SETTING SURFACE CONTROLS

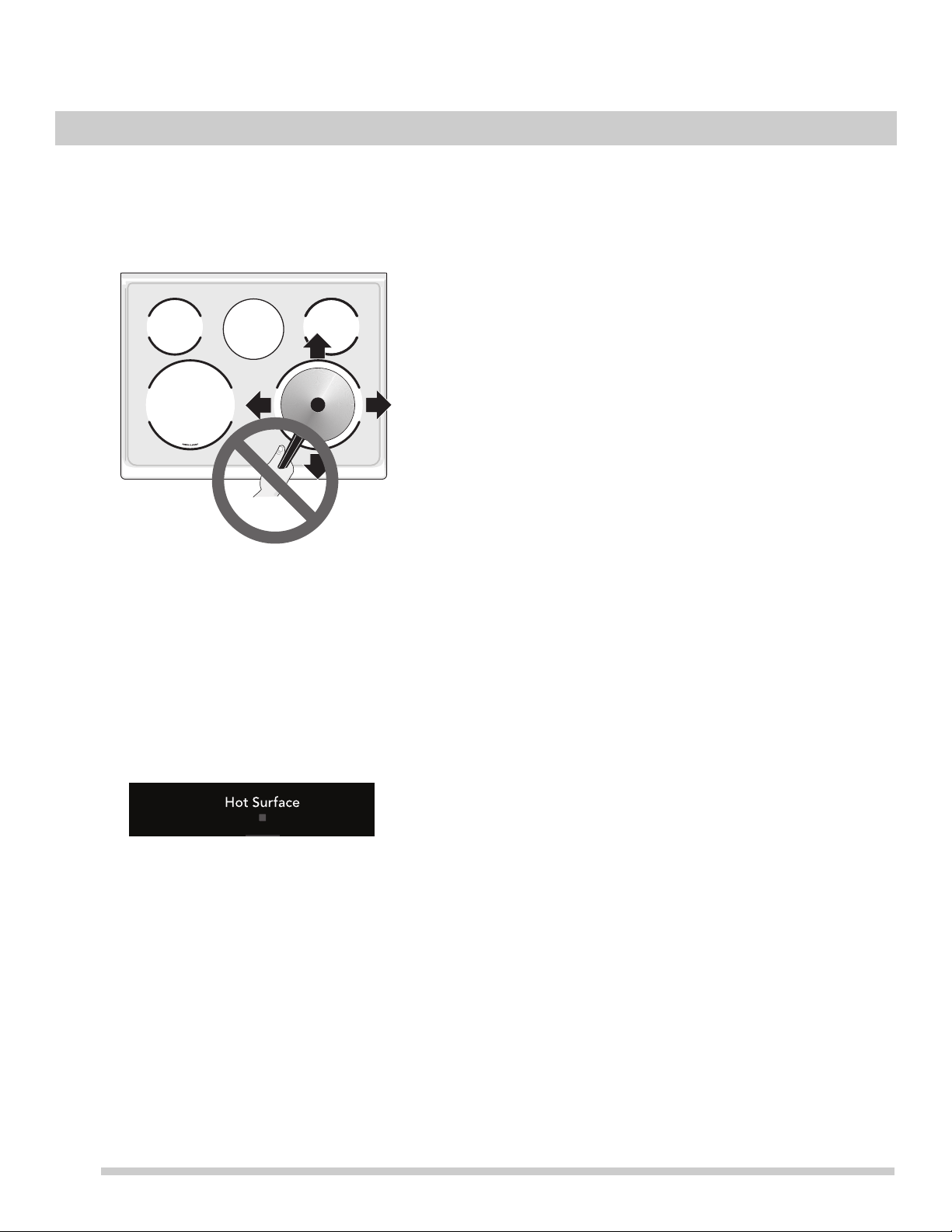

Moving Cookware on a Smooth Cooktop

Always lift cookware before moving on the ceramic glass

smoothtop. Cookware that has a rough or dirty bottom can

mark and scratch the ceramic glass surface. Always start

with clean cookware.

Pan Preheat Recommendations

Induction cooking may decrease the amount of time

required to preheat a piece of cookware compared to

cooking on a radiant or gas cooktop.

Remember that induction surface cooking will initially heat

the cookware very quickly.

• The Hot Surface indicator light will turn on when heat is

detected in a cooking zone and will remain on until the

cooktop surface has cooled sufficiently.

• If cookware is moved away from the center of an active

cooking zone, the cooking zone will become inactive.

The setting display will flash until proper cookware is

placed in the center of the cooking zone. When

cookware is centered on the cooking zone, the zone will

resume heating. If the cooking zone has no cookware

for three minutes, it will automatically shut off.

Home Canning

Be sure to read and observe all the following points when

home canning with your appliance. Check with the USDA

(United States Department of Agriculture) Web site and be

sure to read all the information they have available as well

as follow their recommendations for home canning proce

dures.

• Use only a completely flat bottom canner with no ridges

that radiate from the bottom center when home

canning. Heat is spread more evenly when the bottom

surface is flat. Use a straight-edge to check the canner

bottom.

• Make sure the diameter of the canner does not exceed

1 inch beyond the cooking zone markings or burner.

• It is recommended to use smaller diameter canners on

electric coil and ceramic glass cooktops and to center

canners on the burner grates.

• Start with hot tap water to bring water to boil more

quickly.

• Use the highest heat seating when first bringing the

water to a boil. Once boiling is achieved, reduce heat to

lowest possible setting to maintain that boil.

• Use tested recipes and follow instructions carefully.

Check with your local Cooperative Agricultural

Extension Service or a manufacturer of glass jars for

the latest canning information.

• It is best to can small amounts and light loads.

• Do not leave water bath or pressure canners on high

heat for an extended amount of time.

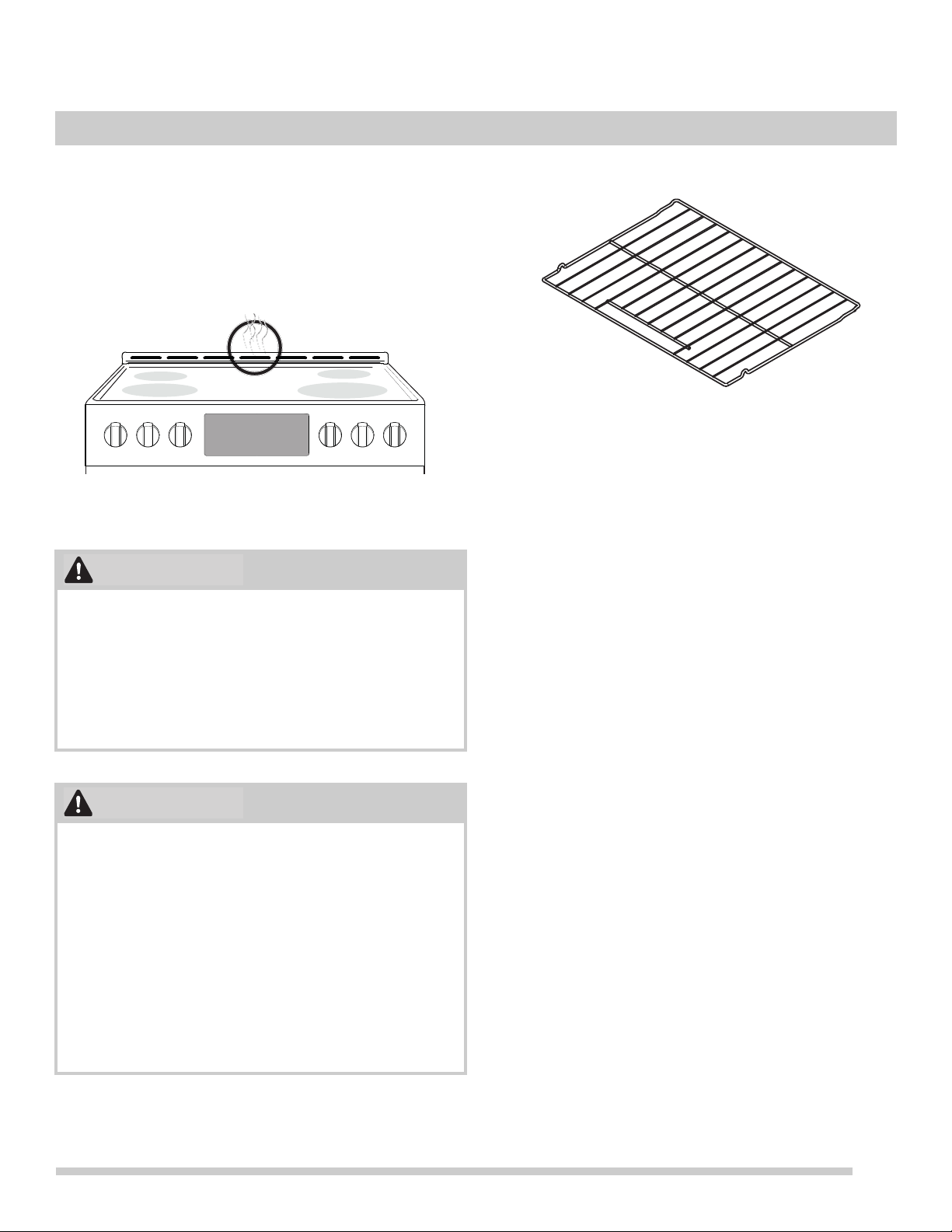

Oven Vent Location

The oven is vented as shown below. When the oven is on,

warm air is released through the vent. This venting is

necessary for proper air circulation in the oven and good

baking results. Do not block oven vent. Never close off the

openings with aluminium foil or any other material. Steam or

moisture may appear near the oven vent. This is normal.

Type of oven racks

• Flat oven racks are be used for most cooking needs

and may be placed in most oven rack positions.

Removing, replacing, and arranging oven racks

Always arrange the oven racks when the oven is cool.

To remove - Pull the oven rack straight forward until it

reaches the stop position. Lift up front of oven rack slightly

and slide out.

To replace - Place the oven rack on the rack guides on

both sides of oven walls. Tilt the front of oven rack upward

slightly and slide the oven rack back into place. Be sure

oven racks are level before using.

Figure 19: Oven vent

Protective Liners — Do not use aluminum foil or any

other material or liners to line the oven bottom, walls,

racks or any other part of the range. Doing so will alter the

heat distribution, produce poor baking results, and

possibly cause permanent damage to the oven interior.

Improper installation of these liners may result in risk of

electric shock or fire. During self clean, temperatures in

the oven will be hot enough to melt foil.

• Always use pot holders or oven mitts when using the

oven. When cooking, the oven interior, oven exterior,

oven racks, and cooktop will become very hot which

can cause burns.

• Remove all oven racks before starting a self clean

cycle. If oven racks are left inside the oven during a

cleaning cycle, the slide ability of the oven racks may

be damaged and all of the oven racks will lose their

shiny finish.

• To prevent possible damage to the oven, do not

attempt to close the oven door until all the oven racks

are fully positioned back inside the oven cavity.

WARNING

CAUTION

Figure 20: Oven rack types

at handle

oven rack

BEFORE SETTING OVEN CONTROLS

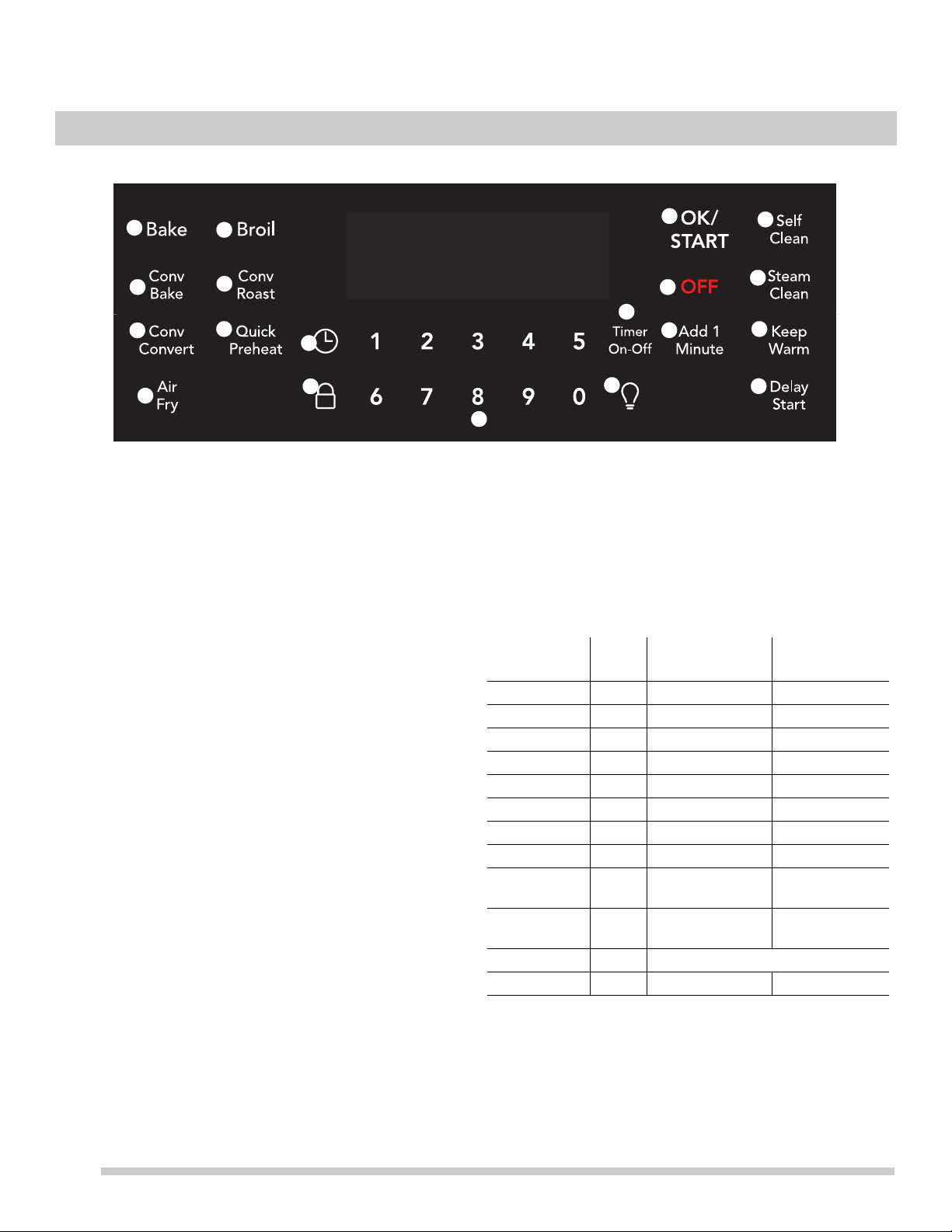

Oven Control Features

1. Bake - Use to enter normal baking temperatures for

recipes that call for regular baking.

2. Broil - Use broil function for direct heat cooking.

3. Conv Bake - Circulates the oven heat evenly and

continuously for faster cooking of some foods.

4. Conv Roast - Uses a convection fan to gently brown

meats and poultry and seal in the juices.

5. Conv Convert - Converts standard bake temperatures

to convection temperature in convection bake.

6. Quick Preheat - Best used for single rack baking with

packaged convenience foods, and foods made from

scratch.

7. Air Fry - Uses hot air for great tasting crispy results

without all the oil.

8. Set Clock - Use to set the time of day

9. Oven Lock - Use to lock out oven controls.

10. 0 through 9 keys - Use to set temperature and time

11. Timer On-Off - Use to set or cancel the minute timer.

The minute timer does not start or stop any cooking

function.

12. Oven Light - Use to turn on internal light. Will turn on

when the oven door is opened.

13. OK/START - Use to set cooking functions and when

setting the clock.

14. OFF - Use to turn off all cooking functions.

15. Add 1 Minute - Use to add additional minutes to the

timer.

16. Self Clean - Use to set self-clean cycle between 2 and

4hrs.

17. Steam Clean - Use as a time saving method for

cleaning light soils.

18. Keep Warm - Use to keep cooked foods at serving

temperature.

19. Delay Start - Add to Quick Preheat, Bake, Conv Bake,

Conv Roast, and Self Clean to program a Delay Start.

Feature Mode Min.Temp. /

Time

Max Temp.

/Time

Quick Preheat 170°F (77°C) 550°F (288°C)

Bake 170°F (77°C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Air Fry 170°F (77°C) 550°F (288°C)

Conv Bake 170°F (77°C) 550°F (288°C)

Conv Roast 170°F (77°C) 550°F (288°C)

Keep Warm 170°F (77°C) until canceled

Timer 0:01 Min. 11:59 Hr./Min.

Clock Time 12 Hr.

24 Hr.

1:00 Hr./Min.

0:00 Min

12:59 Hr./Min.

23:59 Hr./Min.

Delay Start 12 Hr.

24 Hr.

1:00 Hr./Min.

0:00 Min

12:59 Hr./Min.

23:59 Hr./Min

Steam Clean 30 mins

Self Clean 2 hours 4 hours

Note: An entry acceptance tone (1beep) will sound each time a

key is touched (the oven lock key is delayed 3 seconds). An

entry error tone (3 short beeps) will sound if the entry of the

temperature or time is below the minimum or above the

maximum settings for the feature.

SETTING OVEN CONTROLS

Setting the Clock

When the appliance is first powered up, 12:00 will flash in

the display (

Figure 21). The time of day must first be set

before operating the oven.

To Set Clock to 1:30:

1. Press .

2. Enter 1 3 0 using numeric keys.

3. Press OK/START.

Important note:

The clock cannot be changed when a Self Clean, Delay

Start, or cooking feature is active.

Setting Timer

The minute timer allows you to track your cooking times

without interfering with the cooking process. The timer may

be set from a minimum time of 1 minute to a maximum of 11

hours and 59 minutes.

To set timer for 5 minutes:

1. Press Timer On-Off.

2. Enter 5 using numeric keypad.

3. Press Timer On-Off to start the timer. When set time

ends, END will show in the display and the control will

sound a beep three times every 30 seconds until Timer

On-Off key is pressed.

To cancel the timer when active, press Timer On-Off again.

Important note:

• The timer does not start or stop the cooking process. It

serves as an extra minute timer that will beep when the

set time has run out. The timer may be used alone or

while using any of the other oven functions.

• When timer is set for more than 1 hour it will display

hours and minutes until 1 hour remains. When less than

1 hour remains, the display counts down in minutes and

seconds. With less than 1 minute remaining, only

seconds will display.

• If the timer is active during a cooking process, the timer

will show in the display. To view the status of any other

active oven function, press the key of the cooking

function once and it will appear in the display for a few

seconds.

Add 1 Min

Use the Add 1 Min feature to set additional minutes to the

timer. Each press of the key will add 1 minute. If Add 1 Min

is pressed when the timer is not active, the timer will

activate and begin counting down from 1 minute.

To add 2 minutes to the timer:

Press Add 1 Min twice.

Setting 12 Hour or 24 Hour display mode

The clock display mode allows you to select 12 hr or 24 hr

modes. The factory pre-set clock display mode is 12 hours.

To set 12 hr or 24 hr display mode:

1. Press and hold for 6 seconds.

2. Press Self Clean to toggle between 12 Hr day or 24 Hr

day display modes (

Figure 22).

3. Press OK/START to accept the choice.

Changing between continuous bake setting or 12

hour energy saving

The oven control has a factory preset built-in 12 Hour

Energy Saving feature that will turn off the oven if the oven

is left on for more than 12 hours. The control may be

programmed to override this feature to bake continuously.

To change between continuous bake or 12 hour energy

saving feature:

1. Press and hold Timer On-Off for 6 seconds

2. Press Self Clean to toggle between 12 Hour OFF or

Stay On feature (

Figure 23).

3. Press OK/START to accept choice.

Figure 21: 12:00 in display before setting the clock

Figure 22: 12 Hr dAy and 24 Hr dAy settings

Figure 23: 12 hr energy saving (L) continuous setting (R)

SETTING OVEN CONTROLS

Changing temperature display from Fahrenheit to

Celsius

The electronic oven control is set to display °F when

shipped from the factory. The display may be changed to

show either °F or ºC oven temperatures.

To change temperature display mode from °F to °C or

from °C to °F:

1. Press and hold Broil for 6 seconds.

2. Once F (or C) appears in the display, press Self Clean

to toggle between Fahrenheit and Celsius temperature

display modes (

Figure 24).

3. Press OK/START to accept the choice.

Important note:

The oven temperature display cannot be changed during

the cooking process or if a delay start has been set or self

clean is active.

Setting Silent or Audible Control mode

Silent mode allows the oven control to operate without

audible tones. The control may be programmed for silent

operation and later reset to operate with all the normal

audible tones.

To set for silent or audible mode:

1. Press and hold Delay Start for 6 seconds.

2. Press the Self Clean key to toggle between bEEP On

or bEEP OFF (

Figure 25).

3. Press OK/START to accept the choice.

Setting Oven Lockout

The control can be programmed to lock the oven door and

lockout the oven control keys.

To activate the oven lockout features:

1. Be sure oven door is completely closed.

2. Press and hold the lock key for 3 seconds. The motor

driven door latch mechanism will begin locking the oven

door automatically. Do not open the oven door. Allow

about 15 seconds for the oven door to completely lock.

Once door is locked, the word DOOR with a lock icon

will appear in the display.

To cancel the oven lockout feature:

1. Press and hold the lock key for 3 seconds. The motor

door latch will begin unlocking the oven door automati-

cally. Do not open the oven door. Allow about 15

seconds for the oven door to completely unlock.

2. When the word DOOR with a lock icon no longer

displays, the oven door may be opened, and the oven

control keypad will be available for use.

Important: If a control key is pressed when oven lockout is

active, the control will triple beep indicating the key action is

not available when the oven lockout feature is active.

Operating Oven Lights

The interior oven lights will automatically turn on

when the oven door is opened. Oven lights will not operate

during a self clean cycle. For best baking results, do not

leave oven light on while cooking.

Press to turn the interior oven lights on and off

whenever the oven door is closed.

The interior oven lights are located on the side wall of the

oven interior and are covered with a glass shield. The glass

shield protects the bulb from high temperatures and should

always be in place whenever the oven is in use.

To replace the interior oven light, see

“Replacing the Oven

Light” on page 41.

Figure 24: Display showing Fahrenheit and Celsius

Figure 25: Display showing audible and silent operation

SETTING OVEN CONTROLS

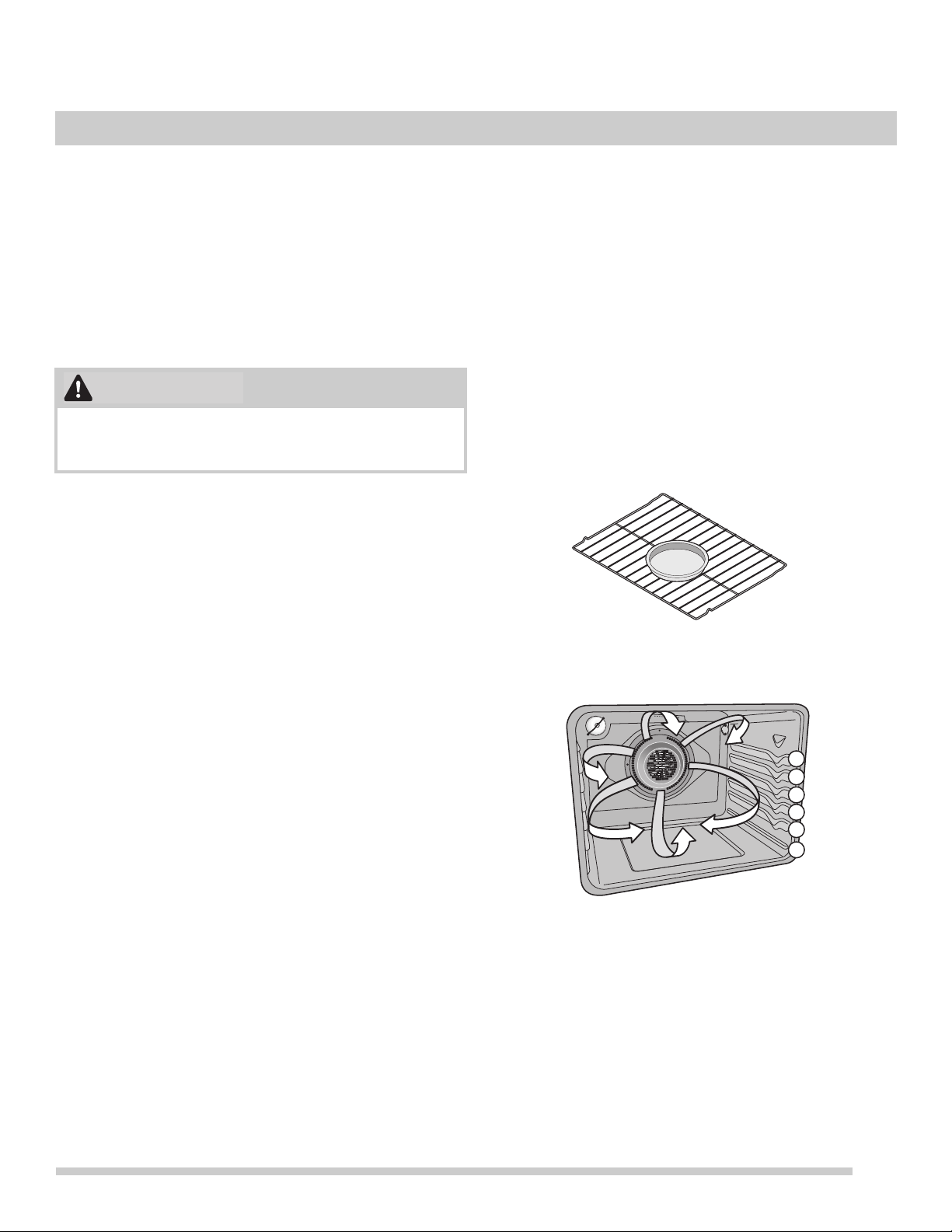

Quick Preheat

Quick Preheat is available for single rack baking with

packaged, convenience foods and foods made from scratch

and can be programmed for temperatures between 170°F

and 550°F.

Follow the recipe or package directions for food preparation

time and temperature. When quick preheat is complete, a

reminder tone will sound and food should be placed in the

oven.

During quick preheat function, the bake burner will cycle on

and off. The convection fan will turn on and stay on until

quick preheat is canceled and turn on and off as needed

during cooking. Depending on your preference for

doneness cooking times may vary. Watch food closely.

Important:

• Always place food in center of the oven on rack position

4 (

Figure 27).

• Place the food as shown in

Figure 26.

• For best results when baking batter and dough-based

items such as cookies and pastries, use convection

bake function and place food in oven when the reminder

tone sounds signaling the oven is fully preheated.

• Food may need to be removed early and should be

checked at minimum recommended bake time.

To set the preheat temperature for 350°F:

1. Arrange the interior oven racks.

2. Press Quick Preheat. 350 will appear in the display.

3. Press OK/START.

4. 350 and PREHEAT will be displayed while the oven is

preheating.

5. Press OFF when baking is complete or to cancel the

preheat feature.

To change preheat temperature while oven is preheating

(ex: changing from 350°F to 425°F):

1. Press Quick Preheat. 350 will appear in the display.

2. Enter the new preheat temperature. Press 4 2 5.

3. Press OK/START. 425 will show in the display.

4. When baking is complete, press OFF.

Note: The oven is equipped with cooling fans that turn on

when the oven reaches a high enough temperature and will

remain on until the oven cavity has cooled. Cooling fans

may remain on for a time after the oven function has been

canceled. This is normal.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

CAUTION

Figure 26: Single rack baking for convenience foods

Figure 27: Oven rack positions

SETTING OVEN CONTROLS

Setting Bake

Bake cooks with heat that rises from the oven bottom. The

heat and air circulate naturally in the oven. A reminder tone

will sound indicating when the set bake temperature is

reached and to place the food in the oven. The convection

fan will turn on in preheat and then cycle on and off as

needed during baking.

Bake may be set for any oven temperature between 170°F

(77°C) to 550°F (288°C)

Baking tips

• Fully preheat the oven before baking items like cookies,

cakes, biscuits and breads.

• Use the convection bake function for best results when

baking cookies on multiple racks.

• Bake is the best function to use for baking cakes.

• For best results when baking layer cakes using two

oven racks, place racks in positions 3 and 5 and place

pans as shown in

Figure 28.

• When using any single rack for baking cookies, cakes,

biscuits, or muffins use rack position 3.

• Allow at least 2 inches (5 cm) of space between

bakeware for proper air circulation.

• Dark or dull bakeware absorbs more heat than shiny

bakeware, resulting in dark or overbrowned foods. It

may be necessary to reduce oven temperature or cook

time to prevent overbrowning of some foods.

• Dark pans are recommended for pies; shiny pans are

recommended for cakes, cookies, and muffins.

• Do not open oven door often. Opening the door will

reduce the temperature in the oven and may increase

cook time.

• Do not leave oven light on while baking.

Important: The oven will bake no longer than 12 hours. If

you wish to bake for a longer period, see

“Changing

between continuous bake setting or 12 hour energy saving”

on page 21 for detailed information.

To set Bake for (default) oven temperature of 350°F:

1. Press Bake.

2. 350° will appear in the display.

3. Press OK/START.

To cancel Bake at any time, press OFF.

To change the oven temperature to 425°F when the

oven is baking:

1. Press Bake.

2. Enter new temperature of 4 2 5 using numeric keys.

3. Press OK/START.

4. To cancel Bake at any time, press OFF.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

CAUTION

Figure 28: Rack positions and pan placement

SETTING OVEN CONTROLS

Convection Bake

Convection Bake uses a fan to circulate the oven's heat

uniformly around the oven. This improved heat distribution

allows for even cooking and browning results. Heated air

flows around the food from all sides. The convection fan will

turn on in preheat and remain on during baking.

Convection bake may be set for any oven temperature

between 170°F (77°C) and 550°F (288°C).

Benefits of convection cooking include:

• Multiple rack baking.

• Foods may cook faster, saving time and energy.

Baking tips

• Fully preheat the oven before baking items like cookies,

cakes, biscuits and breads.

• When baking cakes using two oven racks place

bakeware in positions 3 and 5 and place bakeware as

shown in

Figure 30.

• When using any single rack for baking cookies, cakes,

biscuits or muffins, use rack position 3.

• Unless the recipe is written for convection cooking, use

Conv Convert to reduce oven temperature from the

recipe’s recommended oven temperature.

• Dark or dull bakeware absorbs more heat than shiny

bakeware, resulting in dark or overbrowned foods. It

may be necessary to reduce oven temperature or cook

time to prevent overbrowning of some foods.

• Dark pans are recommended for pies; shiny pans are

recommended for cakes, cookies, and muffins.

• Do not open oven door often. Opening the door will

reduce the temperature in the oven and may increase

cook time.

• Do not leave oven light on while baking.

To set convection bake with a default oven set tempera-

ture of 350°F:

1. Press Conv Bake.

2. Conv Bake and 350° will appear in the display.

3. Press OK/START. The convection fan will turn on and

stay on during the cooking process.

4. To cancel convection bake at any time, press OFF.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

CAUTION

Figure 29: Rack positions

Figure 30: Pan placement for convection baking

SETTING OVEN CONTROLS

Setting Convection Convert

Pressing the Convect Convert key automatically converts

the cooking temperature entered for any standard baking

recipe to the lower temperature required for convection

baking.

To set the oven for convection bake with a standard

baking recipe temperature of 400°F:

1. Arrange interior oven racks.

2. Press Conv Bake.

3. Press 4 0 0.

4. Press Conv Convert.

5. Press OK/START.

6. Place food in the oven.

Important note:

• Convection convert may only be used with the Convec-

tion Bake function.

• When using convection convert, bake time reductions

may vary depending on the oven set temperature.

• If the oven door is opened when any convection

function is active, the convection fan will stop rotating

until the oven door is closed.

• Do not open the oven door often. Opening the door will

reduce the temperature in the oven and may increase

the cooking time necessary for best results.

Setting Delay Start

Delay Start sets a delayed starting time to oven cooking or

cleaning functions. Prior to setting a delay start, be sure the

time of day is set correctly. Delay Start must be set before

starting the cooking function.

To program oven for a delay start beginning at 5:30,

and for baking at 375°F:

1. Press Bake. Enter 3 7 5 using numeric keypad.

2. Press Delay Start.

3. Enter 5 3 0 using numeric keypad.

4. Press OK/START to accept.

5. The oven will turn on when the delay start time (5:30) is

reached.

Important note:

Delay Start may be set using a 24 hr clock. To set clock for

24 Hr operation, See

“Setting 12 Hour or 24 Hour display

mode” on page 21 for more information. The Delay Start

feature may be used with Convection Bake, Convection

Roast, Convection Convert, Bake, Broil and Self Clean

functions.

Note: If the oven door is opened when the oven is set for a

delay start, the cooking function will be canceled.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

CAUTION

Food Poisoning Hazard. Do not let food sit for more

than one hour before or after cooking. Doing so can result

in food poisoning or sickness. Foods that can easily spoil

such as milk, eggs, fish, meat or poultry, should be chilled

in the refrigerator first. Even when chilled, they should not

stand in the oven for more than 1 hour before cooking

begins, and should be removed promptly when finished

cooking.

WARNING

SETTING OVEN CONTROLS

Setting Broil

Use the broil function to cook foods that require direct

exposure to radiant heat for optimum browning results.

Broiling may produce smoke. If smoke is excessive, place

food further away from the flames. Broil may be set with a

delayed start time.

Broil is preset to 550°F and may be set to any temperature

between 400°F (205°C) and 550°F (288°C).

Important: Broiler pans and inserts allow the grease to

drain away from the high heat of the broiler. Do not use the

pan without the insert. Do not cover the insert with foil – the

exposed grease could ignite.

Note: OPEN DOOR BROIL SHUTOFF: If the oven door is

left open during Broil for more than 3 minutes an alarm will

sound to notify the user to close the oven door. If the door is

not closed the oven will turn off within 30 seconds of the

open door alarm.

To set broil with the default broil oven temperature of

550°F:

1. Arrange the oven racks when cool. For optimum

browning results, preheat oven for 2 minutes before

adding food.

2. Press Broil. Broil with oven door closed.

3. Position bakeware in oven.

4. Press OK/START. To adjust the broil temperature,

press Broil again and then enter the new temperature

using the number keys. Press OK/START.

5. Broil on one side until food is browned; turn and broil

other side until done to your satisfaction.

6. When finished broiling, press OFF.

To cancel broil at any time, press OFF.

Note: If a broiler pan and insert are not supplied with this

appliance they may be purchased from www.frigidaire.com

Should an oven fire occur, leave the oven door closed

and turn off the oven. If the fire continues, use a fire extin-

guisher. Do not put water or flour on the fire. Flour may be

explosive and water can cause a grease fire to spread

and cause personal injury.

Always use pot holders or oven mitts when using the

oven. When cooking, the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

WARNING

CAUTION

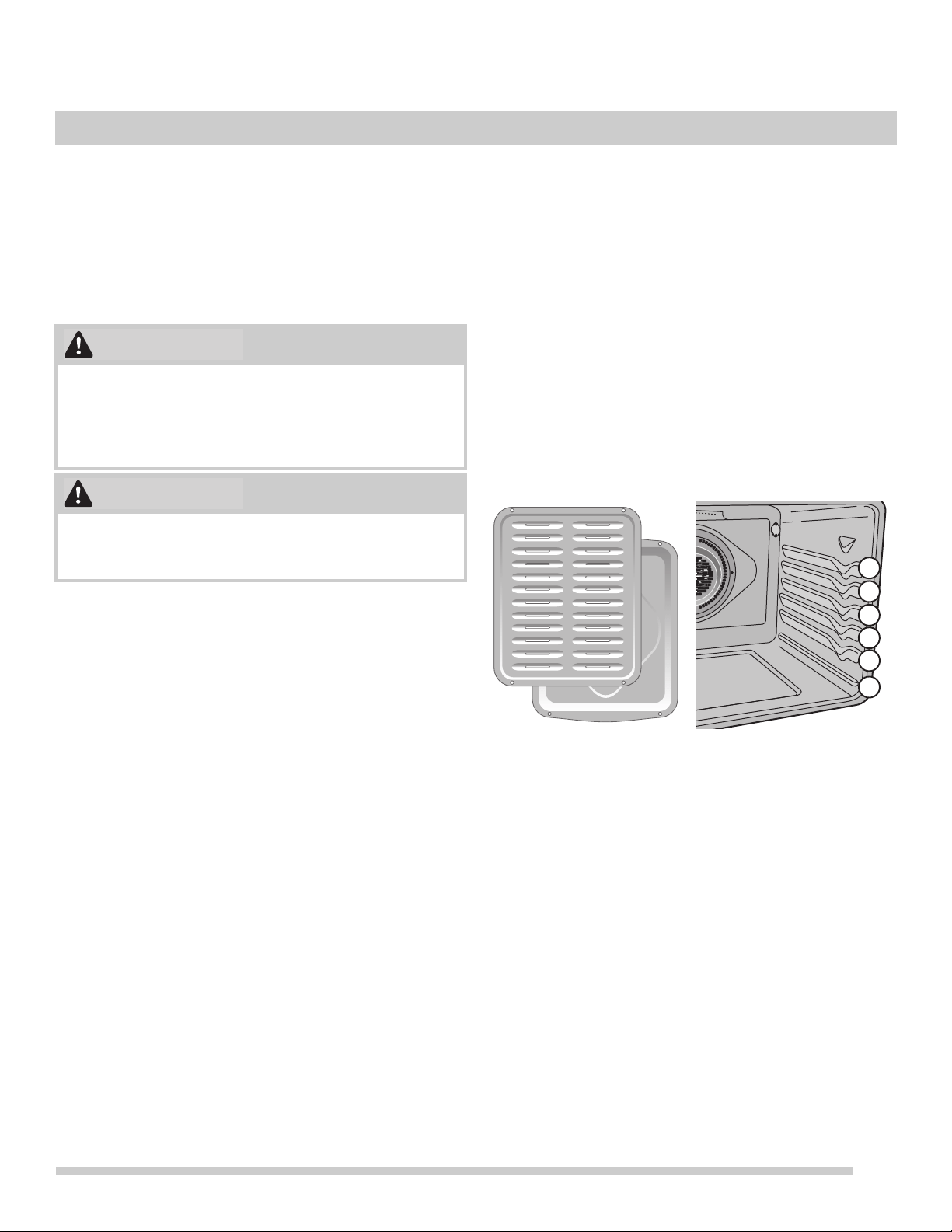

Figure 31: Broil pan with insert(L) Rack positions (R)

SETTING OVEN CONTROLS

Important notes:

• Always arrange oven racks when the oven is cool.

• Broil with oven door closed. If broiling with door open, an alarm will sound alerting you to close the door. If left open,

the Broil function will be canceled.

• For best results when broiling, use a broil pan with broil pan insert designed to drain the fat from the food and help

avoid spatter and reduce smoking.

• When broiling, always pull the oven rack out to the stop position before turning or removing food.

• If a broiler pan and insert are not supplied with this appliance they may be purchased from www.frigidaire.com.

Table 1: Broil Suggestions

Food Rack

Position

Temperature Cook time

(minutes)

1st side 2nd side

Internal

Temperature

Doneness

Steak 1” thick 6th** 550°F (288°C) 5 4 140ºF (60ºC) Rare*

Steak 1” thick 5th or 6th** 550°F (288°C) 6 5 145ºF (63ºC) Medium

Steak 1” thick 5th or 6th** 550°F (288°C) 7 6 170°F (77ºC) Well

Pork Chops 3/4” thick 5th 550°F (288°C) 12 10 170°F (77ºC) Well

Chicken bone-in 4th 450°F (232°C) 20 10 170°F (77ºC) Well

Chicken boneless 5th 450°F (232°C) 8 6 170°F (77ºC) Well

Fish 5th 550°F (288°C) as directed

as directed

170°F (77ºC) Well

Shrimp 4th 550°F (288°C) 170°F (77ºC) Well

Hamburger 1” thick 4th** 550°F (288°C) 6 5 145ºF (63ºC) Medium

Hamburger 1” thick 4th 550°F (288°C) 7 6 170°F (77ºC) Well

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F

(60°C) means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide) The lowest tem-

perature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC).

NOTE: Broiling is direct heat cooking and will produce some smoke. If smoke is excessive, place food further away from ele-

ment. Always watch foods carefully to prevent burning.

SETTING OVEN CONTROLS

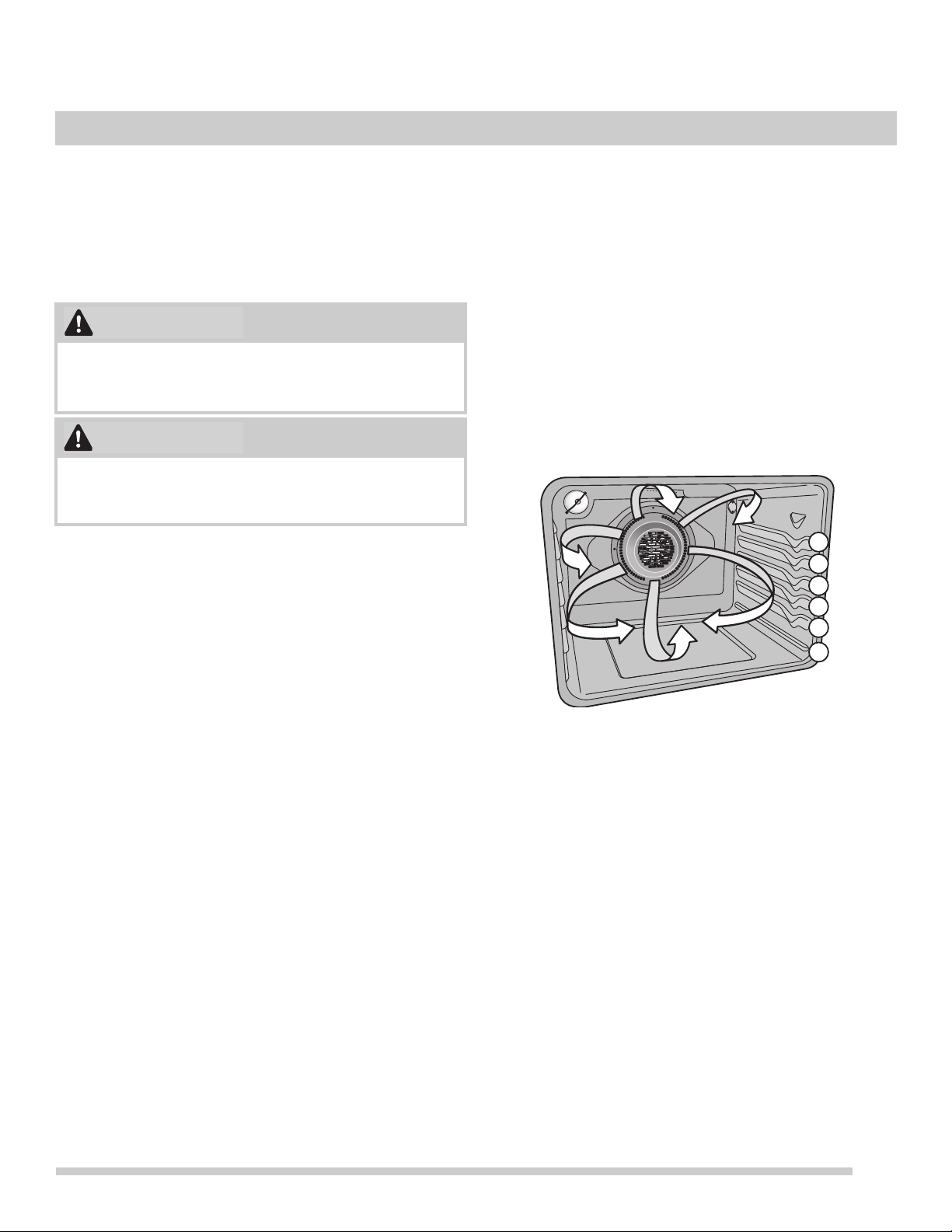

Convection Roast

Convection roast combines a cook cycle with the convec-

tion fan and element to rapidly roast meats and poultry.

Heated air circulates around the meat from all sides, seal-

ing in juices and flavors. Meats cooked with this feature are

crispy and brown on the outside while staying moist inside.

Benefits of Convection Roasting:

• Some foods cook up 25 to 30% faster, saving time and

energy.

• No special pans or bakeware required.

• Preheating is not necessary for most meats and poultry.

• Be sure to carefully follow your recipe’s temperature

and time recommendations or refer to the convection

roast chart for additional information.

To set Convection Roast:

1. Place the insert on broiler pan. Place meat (fat side up)

on insert.

2. Make sure the insert is securely seated on top of the

broiler pan. Do not use the broiler pan without the insert.

3. Place prepared food on oven rack and slide into oven.

4. Close the oven door.

5. Press Conv Roast.

6. Enter desired temperature using numeric keys.

7. Press OK/START.

8. When cooking is completed or to cancel convection

roast press OFF.

Should an oven fire occur, close the oven door and turn

the oven off. If the fire continues, use a fire extinguisher.

Do not put water or flour on fire. Flour may be explosive.

Always use pot holders or oven mitts when using the

oven. When cooking, the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

WARNING

CAUTION

Figure 32: Convection roasting

SETTING OVEN CONTROLS

Convection Roasting tips:

• Preheating for convection roast is not necessary for most meats and poultry.

• Arrange oven racks so large cuts of meat and poultry are on the lowest rack of the oven.

• Smaller roasts and poultry should be cooked using rack position 2 or 3.

• Since convection roast cooks faster, may be able to reduce cook times as much as 25% from the recommended time

of your recipe (check the food at this time). Then if needed, increase cook time until the desired doneness is

obtained.

• Carefully follow your recipe’s temperature and time recommendations or refer to the convection roast recommenda-

tions for additional information.

• Do not cover foods when dry roasting - covering will prevent the meat from browning properly.

• When cooking meats use the broiler pan and insert. The broiler pan will catch grease spills and the insert helps

prevent grease splatters.

• It is not recommended to roast chicken on a roasting rack. Use a deep pan instead.

Table 2: Convection roasting temperature and time recommendations

Meat Weight Oven Temp Internal Temp Mins per lb.

Beef Standing rib roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Rib eye roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Tenderloin roast 2 to 3 lb. 400°F (204ºC) *160ºF (71ºC) 15-25

Poultry Turkey whole** 12 to 16 lb. 325°F (163ºC) 170°F (77ºC) 8-10

Turkey whole** 16 to 20 lb 325°F (163ºC) 170°F (77ºC) 10-15

Turkey whole** 20 to 24 lb. 325°F (163ºC) 170°F (77ºC) 12-16

Chicken 3 to 4 lb. 350°F-375°F (177ºC-191ºC)* 170°F (77ºC) 12-16

Pork Ham roast, fresh 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 30-40

Shoulder blade

roast

4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 20-30

Loin 3 to 4 lb. 325°F (163ºC) 160°F (71ºC) 20-25

Pre-cooked ham 5 to 7 lb. 325°F (163ºC) 160°F (71ºC) 30-40

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C)

means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide) The lowest temperature

recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC)** Stuffed turkey requires

additional roasting time. Shield legs and breast with foil to prevent over browning and drying of the skin.

SETTING OVEN CONTROLS

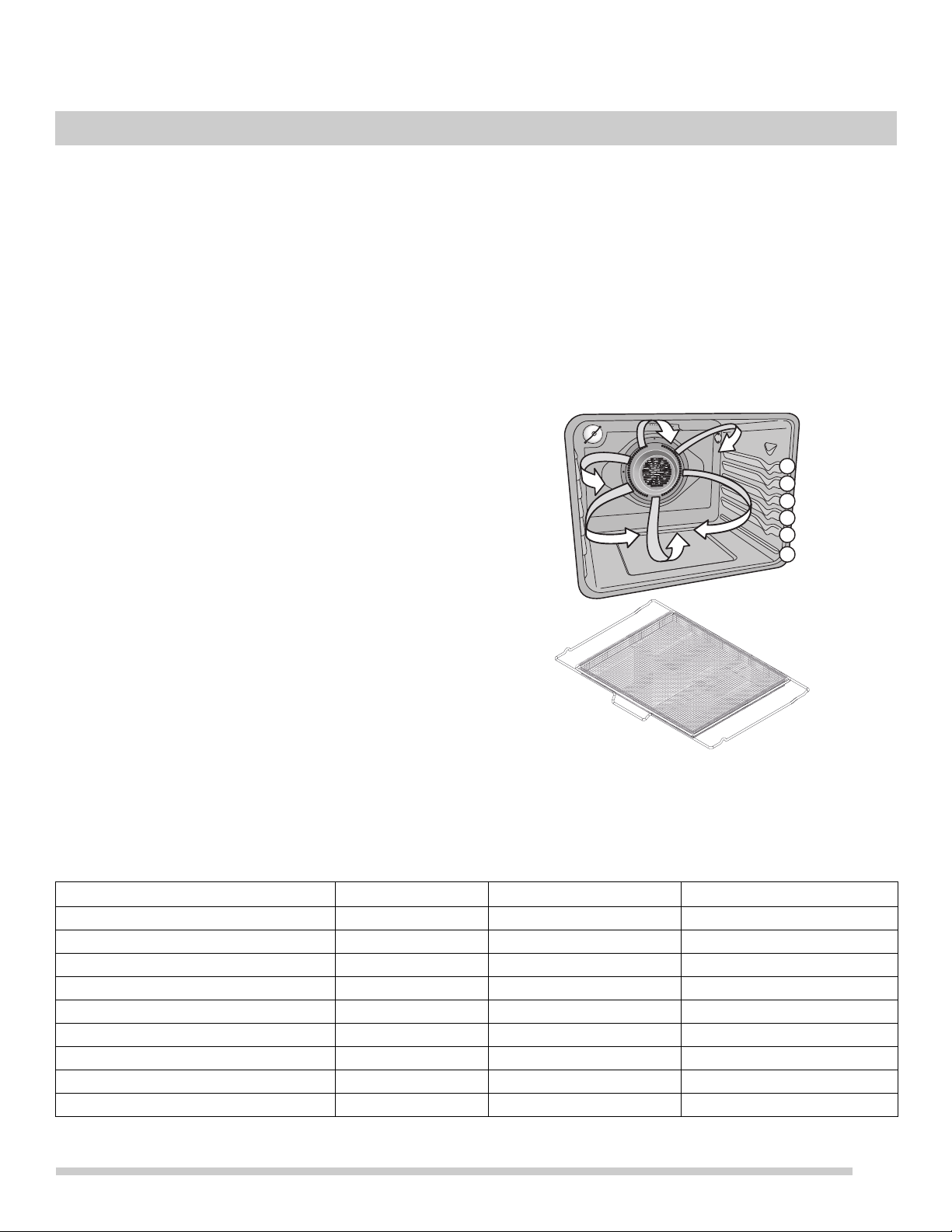

Air Fry

The Air Fry feature works best for single rack baking with

packaged and convenience foods and can be programmed

for temperatures between 170°F and 550°F.

Follow the recipe or package directions for food preparation

quantity, time, and temperature.

Important:

• Air Fry is designed for baking on a single oven rack.

Food should be arranged in single layers on a pan.

• When using Air Fry, use dark bakeware with low or no

sides and place food on rack position 4 for best results.

• Leave oven light off when baking.

• Food may need to be removed early and should be

checked at minimum recommended bake time.

However, frozen dense foods and items with cook times

less than 15 minutes may require additional time.

To set the Air Fry function:

1. Arrange food on rack as suggested.

2. Press Air Fry. Enter the suggested temperature for

particular food.

3. Press OK/START.

4. When preheat tone sounds place the tray on rack

position 4.

Note: Set the minute timer for the minimum suggested

cook time listed in the table below and check food for

desired doneness when timer ends.

5. When cooking is complete press OFF.

Frigidaire offers an optional Air Fry Tray specifically

designed to deliver superior performance.

Some Benefits of the Optional Air Fry Tray:

• Tray optimized for oven space.

• Fits in the dishwasher for easy clean up.

• Higher yield than countertop models.

• Frees up countertop space.

• Compatible with convection ovens.

• The optional Air Fry tray may be purchased from

www.frigidaire.com.

Figure 33: Optional Frigidaire Air Fry Tray. Use rack

position 4 with tray or dark pan with low or no sides for

best results.

Optional Air Fry Tray

Table 3: Suggested Air Fry Settings

Food Quantity (oz.) Temperature Cook Time (mins)

Frozen Tater Tots 50 (Full Tray) 450 °F - 232°C 29-33

Frozen Golden Fries 43 (Full Tray) 425°F - 218°C 25-35

Frozen Sweet Potato Fries 43 425°F - 218°C 20-25

Frozen Chicken Nuggets 32 400°F - 205°C 11-13

Frozen Crispy Chicken Strips 25 400°F - 205°C 18-20

Frozen Hot Wings Bone-In 42 450 °F -232°C 18-25

Frozen Chicken Wings 42 375°F -190°C 60-65

Fresh Chicken Wings 42 425°F - 218°C 30-40

Homemade French Fries 24 425°F - 218°C 30-40

SETTING OVEN CONTROLS

Setting the Sabbath Feature (for use on the Jewish

Sabbath and Holidays)

For further assistance, guidelines for proper

usage, and a complete list of models with the

Sabbath feature, please visit the web at

www.star-k.org.

This appliance provides special settings for

use when observing the Jewish Sabbath/Holidays. Sabbath

mode disables all audible tones or visual display changes

on the oven control. Bake is the only cooking feature avail

able while in the Sabbath mode. Oven controls are locked

during Sabbath mode.

You must first set the Bake feature and temperature(s)

needed for the oven and Delay Start options (if needed).

Any settings made prior to setting the Sabbath mode will be

visible in the displays.

The Sabbath mode will override the factory preset 12 hour

energy saving mode, and the appliance will stay on until the

cooking features are canceled. If any of the cooking

features are canceled when the appliance is in the Sabbath

mode, no audible or visual indicators will be available to

verify the cancellation.

If the oven interior lights are needed, be sure to activate

them prior to setting the Sabbath mode. Once the oven light

is turned on and the Sabbath mode is active, the oven light

will remain on until the Sabbath mode is turned off and the

oven lights are turned off. The oven door will not activate

the interior oven lights when the oven door is opened or

closed.

It is recommended that any oven temperature modification

made within an active Sabbath mode be followed with two

presses of the OK/START key. This will insure the oven

remains on even if an attempt is made to set the oven

temperature outside of its temperature range.

If the oven temperature is set outside of the temperature

range, the oven will default to the nearest available temper-

ature. Try to set the desired oven temperature again.

Important:

• Do not attempt to activate any other oven function

except Bake while the Sabbath feature is active. The

following keys will function correctly when the Sabbath

feature is active: 0-9 number keypad, Bake, OK/START,

and OFF. All other keys should not be used once the

Sabbath feature is active.

• You may change the oven temperature once baking has

started. Press Bake, use the numeric keypad to enter

the oven temperature change (170°F to 550F°), and

press OK/START (for Jewish Holidays only).

• Remember that the oven control will no longer provide

audible tones or display any further changes when the

Sabbath feature is active.

• The oven will remain on until canceled and therefore

may only be used once during the Sabbath/Jewish

Holidays.

• If a delay start time longer than 11 hours and 59

minutes is desired, set the oven control for the 24 hour

day display mode setting. See

“Setting 12 Hour or 24

Hour display mode”

on page 21 for more information.

To program oven to Bake with default oven temperature

of 350°F and activate the Sabbath feature:

1. Be sure the clock is set with the correct time of day.

2. Arrange oven racks, place bakeware in oven, and close

oven door. Press Bake.

3. Note: If Delay Start is desired enter the timeat this point.

See “Setting Delay Start” on page 26 for detailed

instructions.

4. Press OK/START.

5. Press and hold Self Clean and Steam Clean simulta-

neously for about 3 seconds to set the Sabbath feature.

Once the feature is set, SAb will appear in the display

indicating the oven is properly set for the Sabbath

feature (

Figure 34).

Food poisoning hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness.

WARNING

Figure 34: Oven set for Sabbath baking

SETTING OVEN CONTROLS

To turn the oven off and keep the Sabbath feature

active:

1. Press OFF.

To turn off the Sabbath feature:

Press and hold both Self Clean and Steam Clean simulta-

neously for at least 3 seconds to turn the Sabbath feature

off. The control will provide an acceptance tone, and SAb

will disappear from the display. The oven is no longer

programmed for the Sabbath feature.

What to do during a power failure or power interruption

after the Sabbath feature was activated:

Should you experience a power failure or interruption, the

oven will shut-off. When power is restored the oven will not

turn back on automatically. The oven will remember that it is

set for the Sabbath, and the oven display will show the

message SF for Sabbath failure (

Figure 35).

The food may be safely removed from the oven while still in

the Sabbath feature, however the oven cannot be turned

back on until after the Sabbath/Holidays. After the Sabbath

observance turn off the Sabbath feature.

Press and hold both Self Clean and Steam Clean keys for

at least 3 seconds simultaneously to turn the Sabbath

feature off. SF will disappear from the display, and the oven

may be used with all normal functions.

Keep Warm

Keep Warm should only be used with foods that are fully

cooked and at serving temperatures. Keep Warm will keep

foods warm and ready for serving at 170° F (77°C) until

canceled.

To set Keep Warm:

1. If needed, arrange oven racks and place cooked food in

oven.

2. Press Keep Warm: HLd will appear in the display. (If no

other keys are touched within 25 seconds the request

for Warm will clear.)

3. Press OK/START. Warm will automatically turn on and

remain on until cancelled.

Note: To turn Keep Warm off at any time, press OFF.

Figure 35: Display showing Sabbath failure

Food poisoning hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness.

WARNING

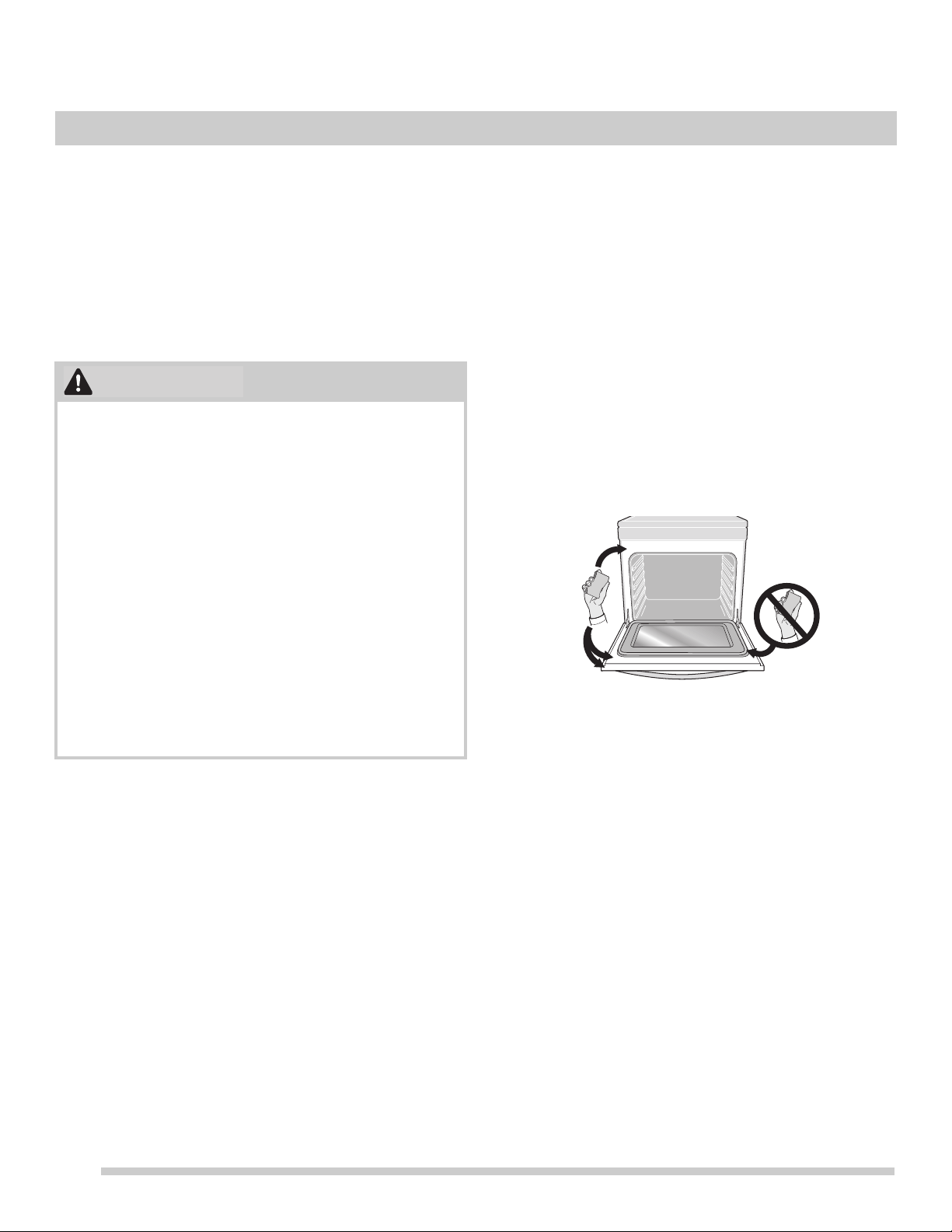

SETTING OVEN CONTROLS

Self Clean

A self cleaning oven cleans itself with high temperatures

(well above normal cooking temperatures), which eliminate

soils completely or reduces them to a fine powdered ash

you can wipe away afterwards with a damp cloth. This func

tion can be programmed for clean times between 2 and 4

hours.

Important: Before starting self clean read all following

caution and important statements before starting a self

clean cycle

Important notes:

• Completely remove all oven racks and any accessories

from oven cavity to avoid damage to oven racks. If the

oven racks are not removed they may discolor.

• Remove all items from the oven and cooktop including

cookware, utensils, and any aluminum foil. Aluminum

foil will not withstand high temperatures from a self

clean cycle and will melt.

• Do not spray oven cleaners or oven protective coatings

in or around any part of the oven interior. Clean any soil

from the oven frame, the door liner outside the oven

door gasket, and the small area at the front center of the

oven bottom (

Figure 36). These areas heat sufficiently

to burn soil on. Clean using soap and water prior to

starting Self Clean.

• Remove any excessive spills. Any spills on the oven

bottom should be wiped up and removed before starting

a self clean cycle. To clean use hot, soapy water and a

cloth. Large spills can cause heavy smoke or fire when

subjected to high temperatures.

• Do not allow food spills with high sugar or acid content

(such as milk, tomatoes, sauerkraut, fruit juices, or pie

fillings) to remain on the surface as they may leave a

dull spot even after cleaning.

• Do not clean the oven door gasket. The woven material

in the gasket is essential for a good seal. Care should

be taken not to rub, damage, or remove the oven door

gasket. Doing so could cause damage to the door

gasket and compromise the performance of the oven.

• The kitchen area should be well ventilated using an

open window, ventilation fan, or exhaust hood during

the first self clean cycle. This will help eliminate the

normal odors.

• Do not attempt to open the oven door when the OVEN

LOCK indicator light is flashing. Allow about 15 seconds

for the motorized door latch mechanism to completely

lock or unlock the oven door.

• When the clean time finishes, the oven door will remain

locked until the range has cooled sufficiently. In addition

to the clean time that was programmed, you must allow

about 1 additional hour for the oven to cool before you

will be able to open the oven door.

• Do not leave small children unattended near appli-

ance. During self clean cycle, the outside of the oven

can become very hot and cause burns if touched.

• Do not line the oven walls, racks, oven bottom, or any

part of the range with aluminum foil. This will cause

permanent damage to the oven interior and destroy

heat distribution, and will melt to the oven interior.

• Do not force the oven door open. This will damage

the automatic door locking system. Use caution when

opening the oven door after the self clean cycle ends.

The oven may still be very hot and cause burns. To

avoid possible burns, stand to side of oven when

opening door to allow steam or hot air to escape.

• The health of some birds is extremely sensitive to

fumes given off during the self clean cycle of any

range. Move birds to a well ventilated room.

CAUTION

Figure 36: Areas to clean and areas to avoid (gasket)

SETTING OVEN CONTROLS

Setting Self Clean

To set self clean:

1. Be sure the oven is empty and all oven racks are

removed. Remove all items from the oven. Be sure

oven door is completely closed.

2. Press Self Clean. The default 3 hour clean time will

appear in the display. You may accept the 3 hour clean

time or choose a different clean duration by entering

any time between 2 and 4 hours clean time by entering

the time using the numeric keys.

3. Press OK/START. The warning to REMOVE RACKS

will flash in the display to remind you that oven racks

should be removed before a self clean.

4. Press OK/START to activate self clean.

5. The warning will end and the motor door lock will begin

locking the oven door and Self Clean will start.

Important: Do not open the oven door while the lock motor

is running or when any locking indicators or displays are

showing. The oven door is completely locked in about 15

seconds. Once the oven door has locked, CLEAN will

appear in the display indicating self clean has started.

Do not force the oven door open when self-clean is active.

This can damage the automatic door-locking system. Use

caution when opening the door after self-clean cycle is

complete; the oven may still be very hot.

When self clean is finished:

1. CLEAN message will turn off, and Hot will appear in

display window.

2. Once the oven has cooled down (about 1 hour) and Hot

is no longer displayed, the oven door may be opened.

3. When the oven interior has completely cooled, wipe

away any residue or powdered ash with a damp cloth or

paper towel.

Setting Delay Start Self Clean

To start a delay self clean with default clean time of 3

hours and a start time of 9:00 o’clock:

1. Be sure the clock is set with the correct time of day, the

oven is empty, and all oven racks are removed. Be sure

oven door is completely closed.

2. Press Self Clean

3. Press Delay Start.

4. Using numeric keypad, enter 9 0 0.

5. Press OK/START to accept.

If it becomes necessary to stop self clean when active:

1. Press OFF.

Important: If self clean has heated the oven to a high

temperature, allow enough time for the oven to cool. Before

restarting self clean, be sure to read important notes below.

Important note:

• If your clock is set with the (default) 12 hr display mode,

the delay start for a self clean can only be programmed

to start up to 11 hours and 59 minutes after the time

showing in the display (be sure to set the clock to

current time before programming a Delay Start). To set

a delay start Self Clean to begin 12 or more hours

(maximum is 23 hours and 59 minutes) after the time of

setting, be sure to first set the control in the 24 Hr

display mode.

• If self clean was active and then interrupted by a power

failure or canceled before the oven was thoroughly

cleaned, it may be necessary to run another self clean

cycle.

• If the oven temperature was high enough when self

clean was interrupted the oven control may not allow

another self clean cycle to be set for up to 4 hours.

To avoid possible burns, use care when opening the oven

door after the self-cleaning cycle. Stand to the side of the

oven when opening the door to allow hot steam and air to

escape.

CAUTION

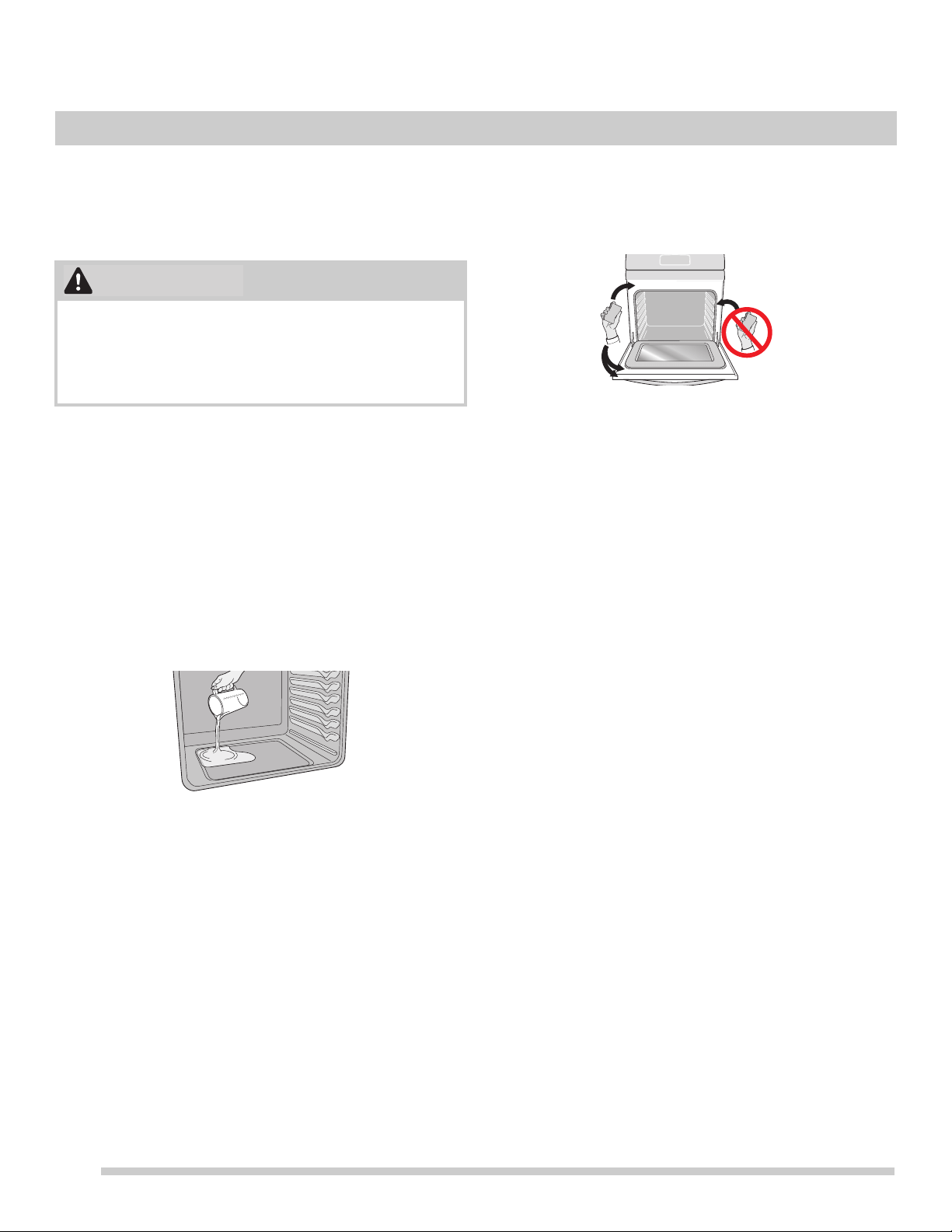

SETTING OVEN CONTROLS

Steam Clean

The Steam Clean feature offers a chemical free and time

saving method to assist in the routine cleaning of small and

light soils. For heavier baked on soils use the Self Clean

feature.

Be sure the oven is level and cool before starting Steam

Clean. If the oven temperature is above room temperature

a triple beep will be heard and the function will not start.

Steam Clean produces best results when started with a cool

oven

To set a Steam Clean cycle:

1. Remove all racks and oven accessories.

2. Scrape or wipe loose debris and grease from the oven

bottom.

3. Pour 1 cup of tap water onto the oven bottom.

(

Figure 37) Close oven door.

4. Press Steam Clean.

5. Press OK/START. St Cn will appear in the display.

6. To see the time remaining in the Steam Clean cycle

press the Steam Clean key once. Do not open the door

during this time. If door is open while in Steam Clean for

more than 4 minutes an open door alarm will sound.

7. When the steam clean cycle is complete an alert will

sound and the END message will show in the display.

Press OFF to return to the clock.

8. Take care opening the door when the steam clean is

finished. Stand to the side of the oven out of the way of

escaping vapor.

9. Wipe oven cavity and bottom. Do not clean oven door

gasket (

Figure 38). Avoid leaning or resting on the oven

door glass while cleaning cavity.

10. To cancel Steam Clean at any time press OFF.

Important: Opening oven door during Steam Clean cycle

prevents the water from reaching the temperature needed

to clean. If the door is left open once Steam Clean starts, an

alarm will sound alerting you to close the door.

• For best results, clean oven immediately after the cycle

is complete. Steam clean works best for soils on the

oven bottom.

• Place a paper towel or cloth in front of the oven to

capture any water that may spill while wiping out.

• A non abrasive scouring pad, stainless steel sponge,

plastic scraper, or eraser style cleaning pad (without

cleaner) can be used for difficult soils. Moisten pads

with water before use.

• Do not leave the residual water in the oven for any

length of time.

• Some condensation or water vapor may appear close to

the oven vent. This is normal. The oven gasket may

become damp; do not wipe dry.

• Local water sources often contain minerals (hard

water). If hard water deposits occur, wipe cavity with a

50/50 solution of water and vinegar or 50/50 solution of

lemon juice and water.

• Steam Clean cannot be programmed with a delay start.

• If Steam Clean results are not satisfactory, run a Self

Clean. See

“Self Clean” on page 34.

Do not add bleach, ammonia, oven cleaner, or any other

abrasive household cleaners to the water used for Steam

Clean. Before cleaning any part of the oven, be sure all

controls are turned off and the oven is cool. The oven

may be hot and can cause burns.

Figure 37: Add 1 cup of tap water

CAUTION

Figure 38: Clean around the oven door gasket

SETTING OVEN CONTROLS

Restoring Factory Default Settings

Your appliance was set with predetermined (default) oven

control settings. Over time, users may have made changes

to these settings. The following options may have been

modified since the appliance was new:

• 12 or 24 hr display mode

• All Meat Probe settings

• Continuous bake or 12 hour energy savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

To restore oven control to factory default settings:

1. Press and hold 7 on numeric keypad until acceptance tone

sounds (about 6 seconds).

2. Press OK/START. The control has been reset with the default

settings.

Adjusting Oven Temperatures

Your appliance has been factory calibrated and tested to

ensure accurate baking temperatures. For the first few

uses, follow your recipe times and temperature recommen-

dations carefully. If you think the oven is cooking too hot or

too cool for your recipe times, you may adjust the control so

the oven cooks hotter or cooler than the oven temperature

displayed.

Important: Do not use oven thermometers such as those

found in grocery stores to check the temperature settings

inside your oven. These oven thermometers may vary as

much as 20 to 40°F degrees from actual temperatures.

The oven temperature may be increased as much as +35°F

(+19°C) or decreased -35°F (-19°C) from the factory cali-

brated settings.

To increase or decrease the oven temperature by 20°F:

1. Press and hold Bake until the control produces an

audible tone (about 6 seconds). The factory offset

temperature of 0 (zero) should appear in the display.

2. Enter 2 0 using numeric keypad.

3. To offset the oven by -20°F, press self clean to toggle

between + and -.

4. Press OK/START to accept change.

Important note:

• Oven temperature adjustments will not change the

Broil, Self Clean, or Keep Warm temperatures.

• The oven temperature adjustment may be made if your

oven control is set to display temperatures in °C

(Celsius). Minimum and maximum settings for Celsius

range from plus (+)19°C to minus (-) 19°C.

All of the above user settings will be restored to the

factory default settings.

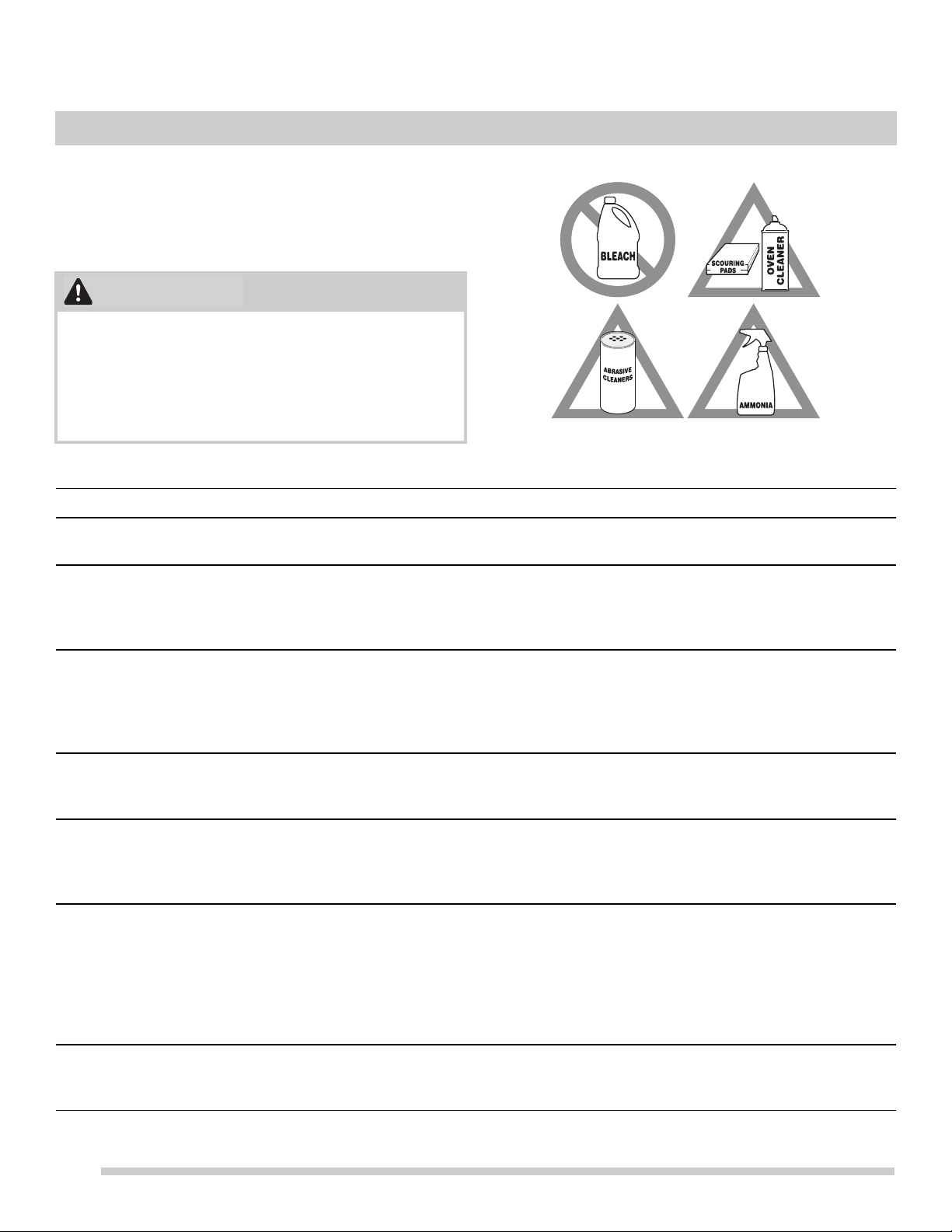

CAUTION

Remove spills and any heavy soiling as soon as possible.

Regular cleaning will reduce the difficulty of major cleaning

later.

• Before cleaning any part of the appliance, be sure all

controls are turned off and the appliance is cool.

• If ammonia or appliance cleaners are used, they must

be removed and the appliance must be thoroughly

rinsed before operating. Follow manufacturer's

instructions and provide adequate ventilation.

CAUTION

Figure 39: Use cleaners with caution

Surface or Area Cleaning Recommendation

Aluminum and vinyl Using a soft cloth, clean with mild dish detergent and water. Rinse with clean water,

dry and polish with a soft, clean cloth.

Painted and plastic controls

Painted body parts

Painted decorative trims

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

vinegar and water. Rinse with clean water, dry and polish with a soft, clean cloth.

Glass cleaners may be used, but do not apply directly to surface; spray onto cloth

and wipe.

Control panel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

vinegar and water. Do not spray liquids directly on the oven control and display area.

Do not use large amounts of water on the control panel - excess water on the control

area may cause damage to the appliance. Do not use other liquid cleaners, abrasive

cleaners, scouring pads, or paper towels - they will damage the finish.

Stainless Steel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

vinegar and water. Rinse with clean water, dry with a soft clean cloth. Do not use

cleaners containing abrasives, chlorides, chlorine, or ammonia.

Smudge Proof™ Stainless Steel

Black Stainless Steel

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

vinegar and water. Rinse with clean water, dry with a soft clean cloth. Do not use

appliance cleaner, stainless steel cleaner, or cleaner containing abrasives, chlorides,

chlorine, or ammonia. These cleaners may damage the finish.

Porcelain-enameled broiler pan

and insert

Porcelain door liner

Porcelain body parts

Rinse with clean water and a damp cloth. Scrub gently with a soapy, non-abrasive

scouring pad to remove most spots. Rinse with a 50/50 solution of clean water and

ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for

30 to 40 minutes. Rinse and wipe dry with a clean cloth. Remove all cleaners or

future heating could damage the porcelain. Do not allow food spills with a high sugar

or acid content (milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on

porcelain surfaces. These spills may cause a dull spot even after cleaning.

Self-cleaning oven interior Before setting a self-clean cycle, clean soils from the oven frame, areas outside the

oven door gasket, and the small area at the front center of the oven bottom. See

“Self Clean” on page 34.

CARE AND CLEANING

Oven door Use mild dish detergent and water or a 50/50 solution of vinegar and water to clean

the top, sides, and front of the oven door. Rinse well. Glass cleaner may be used on

the outside glass of the door. Ceramic smoothtop cleaner or polish may be used on

the interior door glass. Do not immerse the door in water. Do not spray or allow water

or cleaners to enter the door vents. Do not use oven cleaners, cleaning powders, or

any harsh abrasive cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. The oven door gasket is made of a woven

material which is essential for a good seal. Do not rub, damage, or remove this

gasket.

Oven Racks Oven racks must be removed from oven cavity. Clean by using a mild, abrasive

cleaner following manufacturer’s instructions. Rinse with clean water and dry.

Ceramic cooktop See

“Cooktop Maintenance” on page 40.

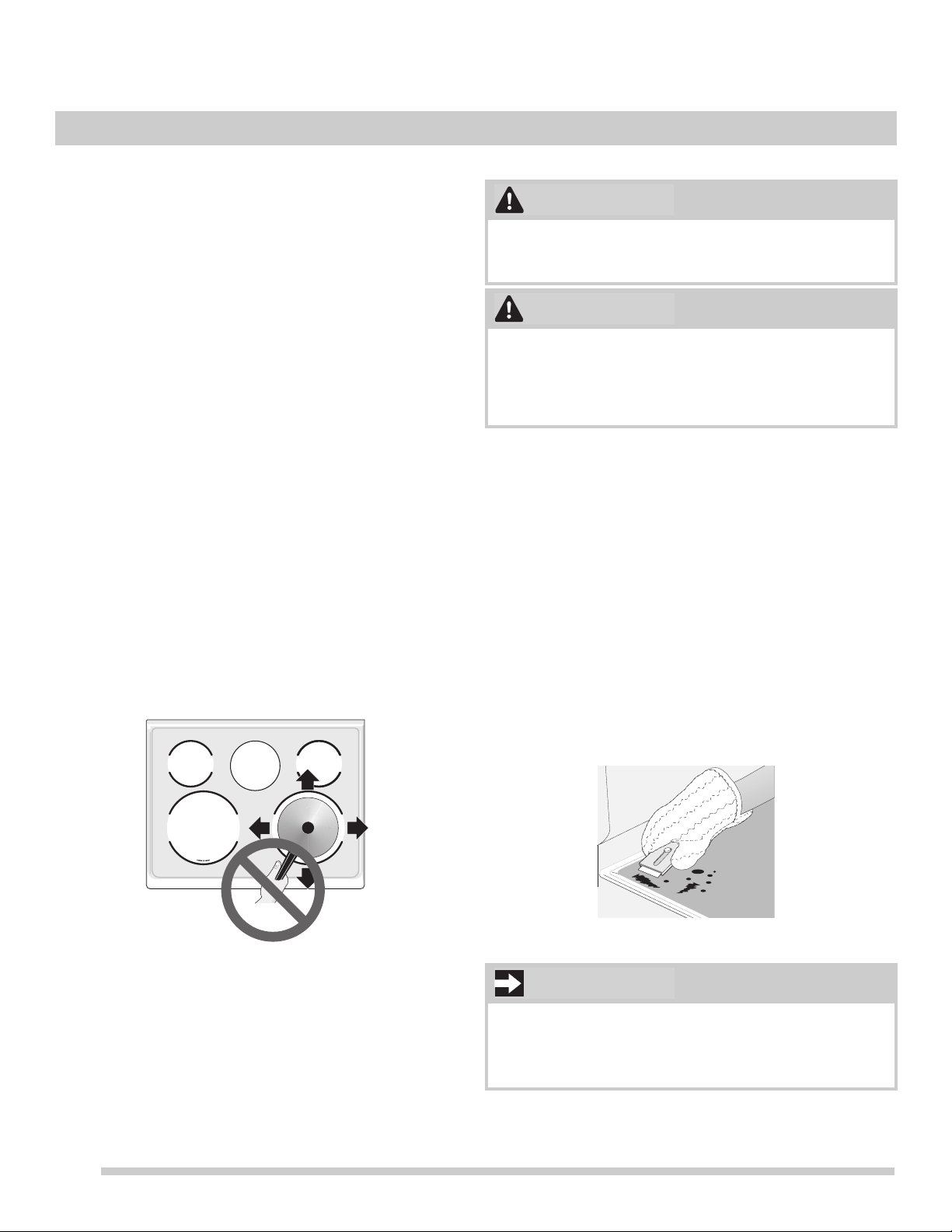

CARE AND CLEANING

Cooktop Maintenance

Consistent and proper cleaning is essential to maintaining

your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply a

ceramic cooktop cleaning cream (available in most

hardware, grocery, and department stores) to the ceramic

surface. Clean and buff with a clean paper towel. This will

make cleaning easier when soiled from cooking. Cooktop

cleaning creams leave a protective finish on the glass to

help prevent scratches and abrasions.

Sliding pans on the cooktop can cause metal markings on

the cooktop surface. These marks should be removed

immediately after the cooktop has cooled using cooktop

cleaning cream. Metal marks can become permanent if not

removed prior to future use.

Cookware (cast iron, metal, ceramic, or glass) with rough

bottoms can mark or scratch the cooktop surface.

Do not:

• Slide anything metal or glass across the cooktop.

• Use cookware with dirt or dirt build up on the bottom;

always use clean cookware.

• Use your cooktop as a cutting board or work surface in

the kitchen.

• Drop heavy or hard objects on the ceramic glass

cooktop; they may cause it to crack.

Cooktop Cleaning

For light to moderate soil:

For light to moderate soil: Apply a few drops of cooktop

cleaning cream directly to the cooktop. Use a clean paper

towel to clean the entire cooktop surface. Make sure the

cooktop is cleaned thoroughly, leaving no residue. Do not

use the towel you use to clean the cooktop for any other

purpose.

For heavy, burned on soil:

Apply a few drops of cooktop cleaning cream directly to the

soiled area. Rub the soiled area using a non-abrasive

cleaning tool, applying pressure as needed. Do not use the

pad you use to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor

blade scraper, holding scraper at a 30 degree angle to the

surface. Remove loosened soils with cooktop cleaning

cream and buff the surface clean.

Figure 40: Cooktop care

Do not use a cooktop cleaner on a hot cooktop. The

fumes can be hazardous to your health, and can chemi-

cally damage the ceramic-glass surface.

Before cleaning the cooktop, be sure the controls are

turned to OFF and the cooktop is cool. The glass surface

could be hot from contact with hot cookware, and burns

may occur if the glass surface is touched before it has

cooled sufficiently.

Damage to the ceramic glass cooktop may occur if you

use an abrasive type cleaning pad. Only use cleaning

products that have been specifically designed for ceramic

glass cooktops.

WARNING

CAUTION

30°

IMPORTANT

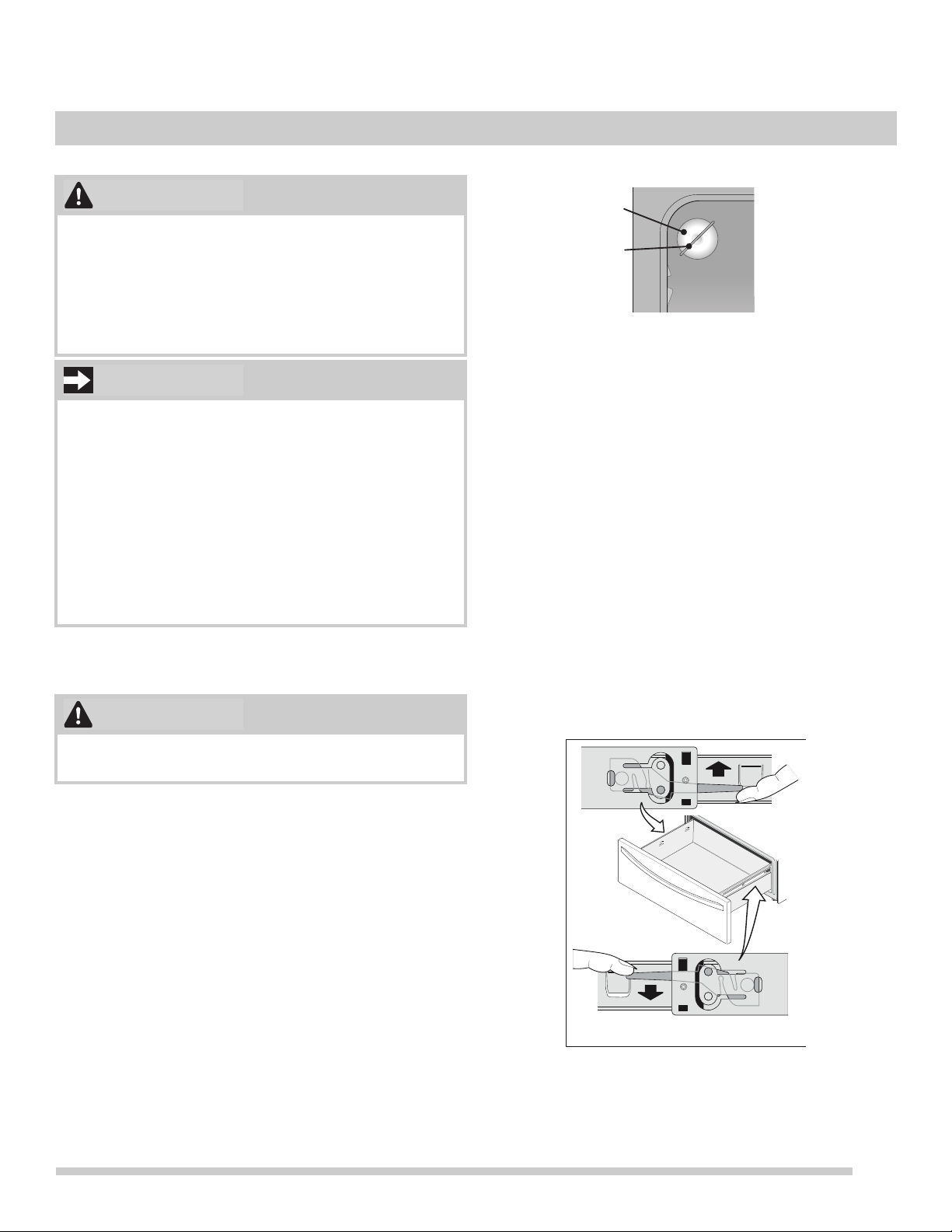

CARE AND CLEANING

Aluminum Foil and Utensils

Replacing the Oven Light

The interior oven light is located at the rear of the oven

cavity and covered with a glass shield. The glass shield

must be in place whenever the oven is in use (

Figure 41).

1. Turn electrical power off at the main source or unplug

the appliance.

2. Remove the interior oven light shield after removing the

wire holder by carefully moving the wire to the side of

the glass shield. The tension from the wire holds the

glass shield in place.

3. Pull the shield straight out. Do not twist or turn.

4. Replace the bulb with a new appliance bulb.

5. Replace the glass oven light shield. Replace wire

holder.

6. Turn the power back on again at the main source (or

plug the appliance back in).

7. Be sure to reset the time of day on the clock.

Remove and replace storage drawer

Use the storage drawer for storing cooking utensils. The

drawer can be removed to facilitate cleaning under the

range. Use care when handling the drawer.

To remove the drawer:

1. Open the drawer to the fully opened position.

2. Locate the latches on both sides of the drawer.

3. Pull up on the left glide latch and push down on the right

glide latch.

4. Pull the drawer away from the range.

To replace the drawer:

1. Align the glide latches on both sides of the drawer with

the slots on the drawer.

2. Push the drawer back into the range.

Never cover any slots, holes, or passages in the oven

bottom or cover an entire oven rack with materials such

as aluminum foil. Aluminum foil linings may trap heat,

causing a fire hazard.

Protective Liners — Do not use aluminum foil to line the

oven bottom. Improper installation of these liners may

result in risk of electric shock or fire.

• Aluminum foil - Use of aluminum foil on a hot cooktop

can damage the cooktop. Do not use thin aluminum

cooking utensils or allow aluminum foil to touch the

surface elements under any circumstances.

• Aluminum utensils - The melting point of aluminum is

much lower than that of other metals. Care must be

taken when aluminum pots or pans are used on the

cooktop. If aluminum pans are allowed to boil dry

when using the cooktop, not only will the utensil be

damaged or destroyed, but it may fuse to, break, or

mark the ceramic glass surface, permanently

damaging the cooktop surface.

Be sure the oven is unplugged and all parts are cool

before replacing the oven light.

WARNING

IMPORTANT

CAUTION

Figure 41: Oven light protected by glass shield

wire

holder

glass

shield

Latch

Left Glide

Right Glide

Pull up latch

with finger

Pull down latch

with finger

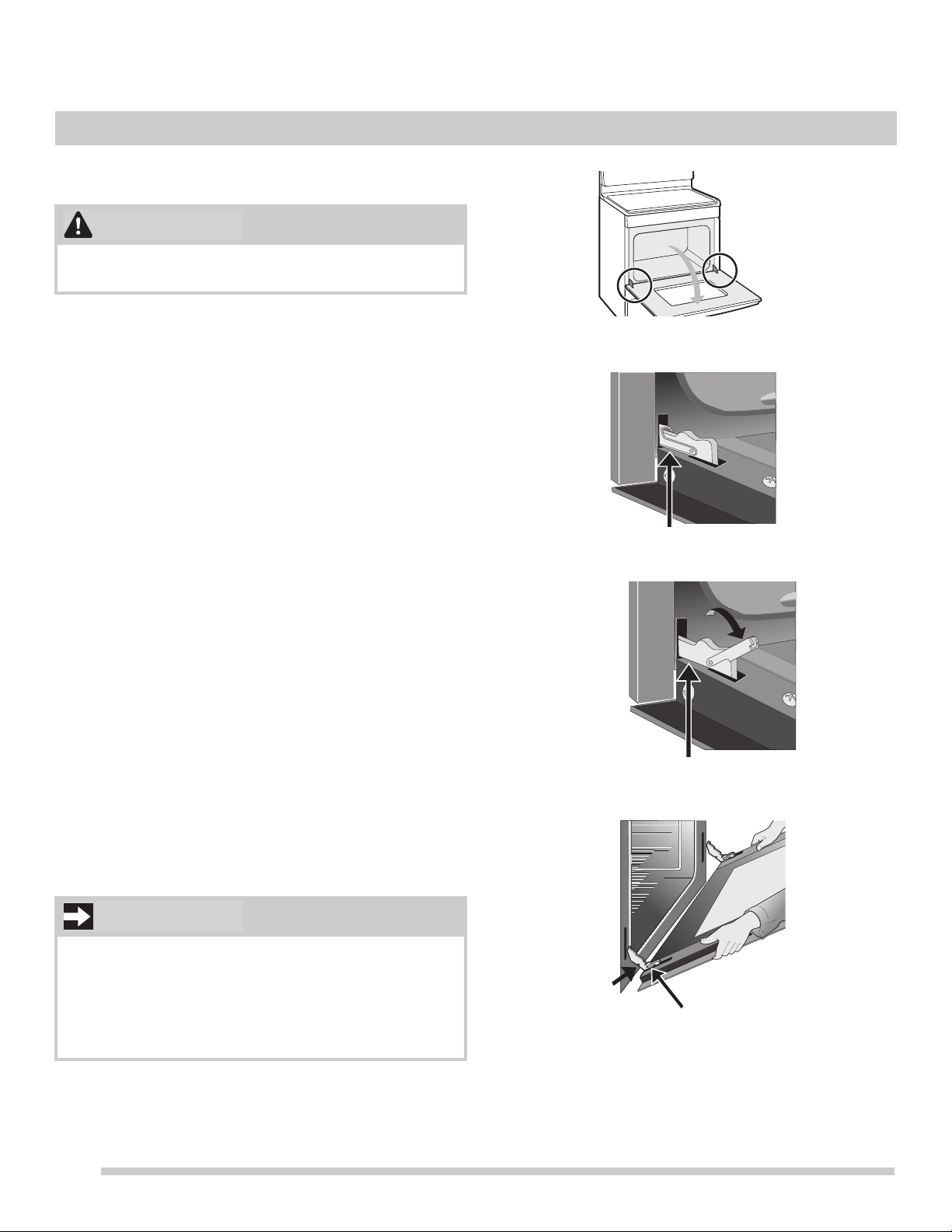

CARE AND CLEANING

Removing and Replacing the Oven Door

To remove the oven door:

1. Open oven door completely, horizontal with floor.

2. Pull up the lock located on each hinge support toward

front of the oven until the lock stops. You may have to

apply a little upward pressure on the lock to pull it up

(Figure 43 and Figure 44).

3. Grasp the door by the sides, and close the door until the

door frame makes contact with the unlocked hinges.

4. Pull the bottom of the door toward you while rotating the

top of the door toward the appliance to completely

disengage the hinge levers (Figure 45).

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door

sides. Do not use the oven door handle (Figure 45).

2. Hold the oven door at the same angle as the removal

position. Carefully insert the hinge levers into the oven

frame until you feel the hinge levers are seated into the

hinge notches. The hinge arms must be fully seated into

the hinge notches before the oven door can be fully

opened. (Figure 45).

3. Fully open the oven door, horizontal with floor (Figure

42).

4. Push the door hinge locks up toward and into the oven

frame on both left and right oven door hinges to the

locked position (Figures 44 and 45).

5. Close the oven door.

The door is heavy. For safe, temporary storage, lay the

door flat with the inside of the door facing down.

Special door care instructions - Most oven doors contain

glass that can break. Do not hit the glass with pots, pans,

or any other object. Scratching, hitting, jarring, or

stressing the glass may weaken its structure, causing an

increased risk of breakage at a later time. Do not close

the oven door until all of the oven racks are fully in place.

CAUTION

IMPORTANT

Figure 42: Door hinge location

Figure 43: Door hinge locks

Figure 44: Unlocking door hinge

Figure 45: Replacement and location of hinge arm and

roller pin

Oven door

hinge

locations

Door frame flush

with hinge lock

Hinge

notch

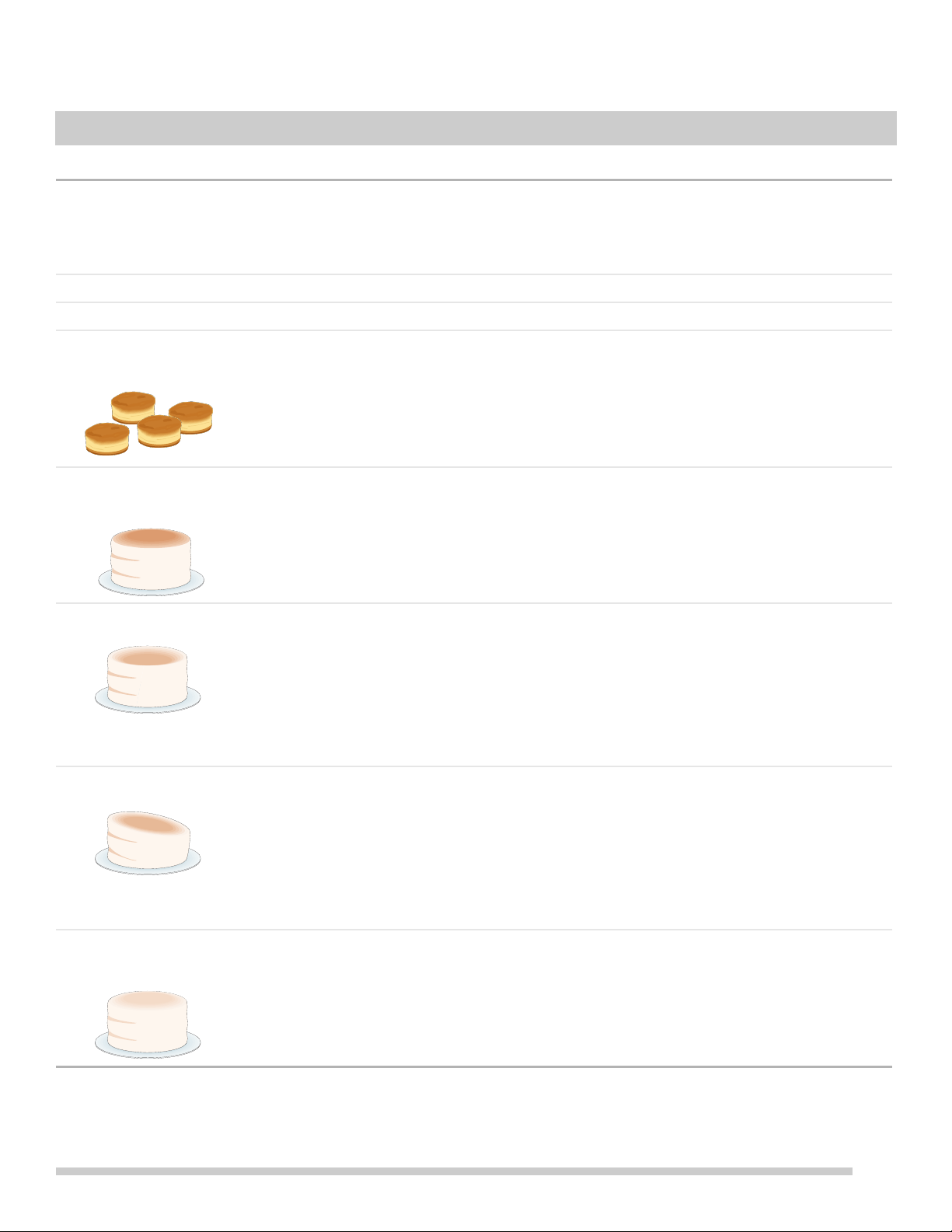

Oven Baking

For best cooking results, preheat the oven before baking cookies, breads, cakes, pies, pastries, etc. There is no need to

preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product

may vary slightly from your previously owned appliance.

Baking Problems and Solutions

Baking Problems Causes Corrections

Cookies and biscuits burn

on the bottom.

• Cookies and biscuits put into

oven before oven is

preheated.

• Oven rack is overcrowded.

• Dark pan absorbs heat too

fast.

• Allow oven to preheat to desired temperature before

placing food in oven.

• Choose pan sizes that will permit at least 2” of air space

(5.1 cm) on all sides when placed in the oven.

• Use a medium weight shiny baking sheet.

Cakes too dark on top or

bottom

• Cakes put in oven before

oven is preheated.

• Rack position too high or

too low.

• Oven too hot.

• Allow oven to preheat to the selected temperature

before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F (13°C) lower than recom-

mended.

Cakes not done in center • Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Glass cookware slow heat

conductor.

• Set oven temperature 25°F (13°C) lower than recom-

mended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there are at

least 2” (5.1 cm) of space on all sides of pan.

• Reduce temperature and increase cook time or use

shiny bakeware.

Cakes not level. • Oven not level.

• Pan too close to oven wall or

rack overcrowded.

• Pan warped.

• Oven light left on while

baking.

• Place a marked glass measuring cup filled with water on

the center of the oven rack. If the water level is uneven,

refer to the installation instructions for leveling the oven.

• Use proper rack position and place pan so there are at

least 2” (5.1 cm) of space on all sides of pan.

• Do not use pans that are dented or warped.

• Do not leave the oven light on while baking.

Foods not done when

cooking time is over.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too

frequently.

• Set oven temperature 25°F (13°C) higher than

suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except the

ones to be used for baking.

• Open oven door only after the shortest recommended

baking time.

BEFORE YOU CALL

Solutions to Common Problems:

Before you call for service, review the following list. It may save you time and expense.

Possible solutions are provided with the problem listed.

Problem Cause / Solution

Entire appliance does not

operate.

Appliance not connected. Make sure power cord is plugged properly into outlet.

Check your fuse box or breaker box to make sure the circuit is active.

Electrical power outage. Check house lights to be sure. Call your local electric

company for service outage information.

Oven Problems

Poor baking results. Many factors affect baking results. Use proper oven rack position.

Center food in the oven and space pans to allow air to circulate. Preheat the oven to

the set temperature before placing food in the oven.

Try adjusting the recipe's recommended temperature or baking time.

Flames inside oven or smoking

from oven vent.

Excessive spills in oven. Grease or food spilled onto the oven bottom or oven cavity.

Wipe up excessive spills before starting the oven.

If flames or excessive smoke are present when using broil, see

“Setting Broil” on

page 27.

Oven smokes excessively when

broiling.

Incorrect setting. Follow the

“Setting Broil” instructions on page 27.

Meat too close to the broil element. Reposition the broil pan to provide proper

clearance between the meat and broil element. Remove excess fat from meat. Cut

remaining fatty edges to prevent curling, but do not cut into lean.

Grease build up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Grease or food splatters will cause excessive smoking.

Oven control panel beeps and

displays any F code error.

Oven control has detected a fault or error condition. To clear the error, press the OFF

key on the control panel. Once the error code is cleared, try the bake or broil function.

If the F code error repeats, turn off the power to appliance, wait 5 minutes, and then

repower the appliance. Set the clock with correct time of day. Try the bake or broil

function again. If the fault recurs, press the OFF key to clear.

Oven portion of appliance does

not operate.

The time of day is not set. The clock must be set in order to operate the oven. See

“Setting the Clock” on page 21.

Be sure the oven controls are set properly for the desired function. See

“Oven Control

Features” starting on page 20 and review instructions for the desired cooking function

in this manual or see Entire appliance does not operate in this checklist.

Fan noise before cooking, or

after cooking is finished and the

appliance is off.

Some models are equipped with fans that run during and after normal operation to

cool and ventilate the appliance. On some models, the fan will begin to run as soon

as a function is activated. It is normal for these fans to continue to run during any kind

of operation. They may also run for an extended period of time, even when the oven

is off. Loud noises from the fans are not normal and require service.

BEFORE YOU CALL

Cooktop Problems

Surface element is too hot or not

hot enough.

Incorrect surface control setting. Adjust power level setting.

The Power Boost (P) setting is only available immediately after activating a cooking

zone by pressing the + key. The cooktop will remain in Power Boost for up to 10

minutes. After 10 minutes, the cooking zone will automatically change to the High (H)

setting.

The size and type of utensil used and the amount and type of food being cooked will

influence the setting needed for best cooking results.

The Hot Surface indicator light will turn on when heat is detected in a cook zone. The

light will remain on until the heated surface area has cooled sufficiently

Surface element does not heat or

does not heat evenly.

Be sure the correct surface control is turned on for element needed.

Be sure to use the correct cookware material type for induction cooking. Use

cookware specifically identified by the manufacturer to use for induction cooking.

If you’re not sure, use a magnet to test whether the cookware type will work. If a

magnet sticks to the bottom of the cookware, the material type is correct for induction

cooking.

Use quality heavier gauge cookware.

Cookware in the cooking zone is

too hot or not hot enough.

Incorrect surface control setting. Adjust power level setting.

Cooking zone does not heat

cookware.

Be sure the correct surface control is turned on for the element needed.

Incorrect cookware used. See

“Cooking Recommendations” on page 9.

Cookware is the wrong size or incorrectly positioned in the cooking zone. See

“Pan

Sensing” on page 13.

Cooking zone does not heat

evenly.

Cookware is warped. Use only flat, evenly balanced cookware. Flat pans heat better

than warped pans.

Cookware materials and weight of the material affect heating. Heavy and medium-

weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn

easily.

Cooking zone control does not

work

More than one control was pressed at once. Make sure that when trying to set the

control, nothing is touching another control.

Water or soil on the control panel. Clean the control panel.

The number in the setting

indicator is flashing.

Incorrect cookware used. See

“Cooking Recommendations” on page 9.

Cookware is the wrong size or incorrectly positioned in the cooking zone.

See “Pan Sensing” on page 13.

Problem Cause / Solution

BEFORE YOU CALL

The letter E appears in a setting

indicator

An error has occurred. This may happen because cookware has boiled dry. Remove

cookware and turn off the cooktop. After 30 seconds, turn on the cooktop.

If the cookware was the problem, E will no longer display.

An error may occur because of water, oil, or food on the controls. Clean the control

panel. Disconnect the power to the range for a minute, then reconnect it.

If the error still occurs, call an authorized dealer or service technician.

F 11 Error Code If you get an F11 error, turn the power to the range off and wait 30 second to turn it

back on. Make sure the oven control panel is clean. Spills, grease, lots of steam when

opening the oven door, and residues from certain cleaners may cause this error.

Clean the control with some warm, soapy water and dry with a clean cloth. If the error

persists, call our help line

A - (dash) appears in the all the

surface control displays.

The cooktop is locked. See

“Setting Oven Lockout” on page 22.

The Hot Cooktop warning did not

come on.

The cooktop did not get hot enough to activate the warning.

If the cooktop was running long enough for the surface to get hot, call an authorized

dealer or service technician.

The control area becomes hot. The cookware is too large or too close to the controls.

Put large cookware on a rear zone if possible.

Areas of discoloration with

metallic sheen on cooktop

surface.

Mineral deposits from water and food. Remove them using cooktop cleaning creme

applied to the ceramic surface. Buff with a non-abrasive cloth or sponge.

Scratches or abrasions on

cooktop surface.

Coarse particles such as salt or hardened soils between cooktop and utensils can

cause scratches.

Be sure the cooktop surface and bottoms of utensils are clean before use. Small

scratches do not affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used.

Apply cooktop cleaning creme to the ceramic surface. Buff with a non-abrasive cloth

or sponge.

Cookware with a rough bottom was used.

Use smooth, flat-bottomed cookware.

Metal marks on the cooktop. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils

on the cooktop surface. Apply cooktop cleaning creme to the ceramic surface. Buff

with a non-abrasive cloth or sponge. For more information, see

“Cooktop Mainte-

nance” on page 40.

Self Clean Problems

Self clean does not work. Oven control not set properly. See

“Self Clean” on page 34.

Oven racks discolored or do not

slide easily.

Oven racks left in oven cavity during self clean. Remove oven racks from oven cavity

before starting a self-clean cycle. Clean by using a mild abrasive cleaner following

manufacturer's instructions. Rinse with clean water, dry, and replace in oven.

Problem Cause / Solution

BEFORE YOU CALL

Soil not completely removed after

self clean.

Self clean was interrupted. Review instructions on

“Setting Self Clean” on page 35.

Excessive spills on oven bottom. Remove excessive spills before starting self clean.

Failure to clean soil from the oven frame, the door liner outside the oven door gasket,

and the small area at the front center of the oven bottom. These areas are not in the

self-cleaning area, but get hot enough to burn on residue. Clean these areas before

starting the self-cleaning cycle. Burned-on residue can be cleaned with a stiff nylon

brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

Frigidaire FGIH3047VFA free standing electric range

Product's Documents

User Manual

Specifications

Frigidaire FGIH3047VFA Questions and Answers
