Installation Manual for STR, STA, & STG Models
2001 EAST TERRA LANE • O’FALLON, MISSOURI 63366-4434
(636)-240-2400 • FAX (636)-272-2408 • INT’L FAX (636)-272-7546 • (800)325-6152
PARTS DEPARTMENT (800)-424-TRUE • PARTS DEPARTMENT FAX# (636)-272-9471
www.truemfg.com
At TRUE, we are continually searching out environmentally
friendly components and processes that will reduce our
carbon footprint. This process encapsulates both our
approach to manufacturing as well as our approach to the
performance of our equipment.
TRUE’s 63+ years of commercial refrigeration focus
has enabled us to become experts on the design and
development of our systems. While energy effi ciency has
always been part of our design process, we have recently
put forth an initiative to improve our systems to be the most
effi cient in the industry, without sacrifi cing the performance
that ultimately provides food safety for our customers
throughout the World.
CONGRATULATIONS!
You have just purchased the finest commercial freezer, refrigerator, and heated cabinet available.
You can expect many years of trouble-free operation.
IMPORTANT INFORMATION READ THIS!
IF UNIT HAS LOCKS, KEYS ARE LOCATED ON THE BACK OF THIS MANUAL
STR•STA
•STG
TABLE OF CONTENTS
Safety Information
Safety Precautions _________________________ 1
Proper Disposal ___________________________ 2
Adapter Plugs ____________________________ 2
Connecting Electricity ______________________ 3
Installation / Operation Instructions
Ownership _______________________________ 3
Required Tools / Recommended Tools _________ 3
Unpackaging _____________________________ 4
Wire Size Chart ___________________________ 5
Locating & Installation of Leg/Castors __________ 6
Leveling & Sealing Cabinet To Floor ___________ 7
Electrical Instructions _______________________ 8
Start-up _________________________________ 9

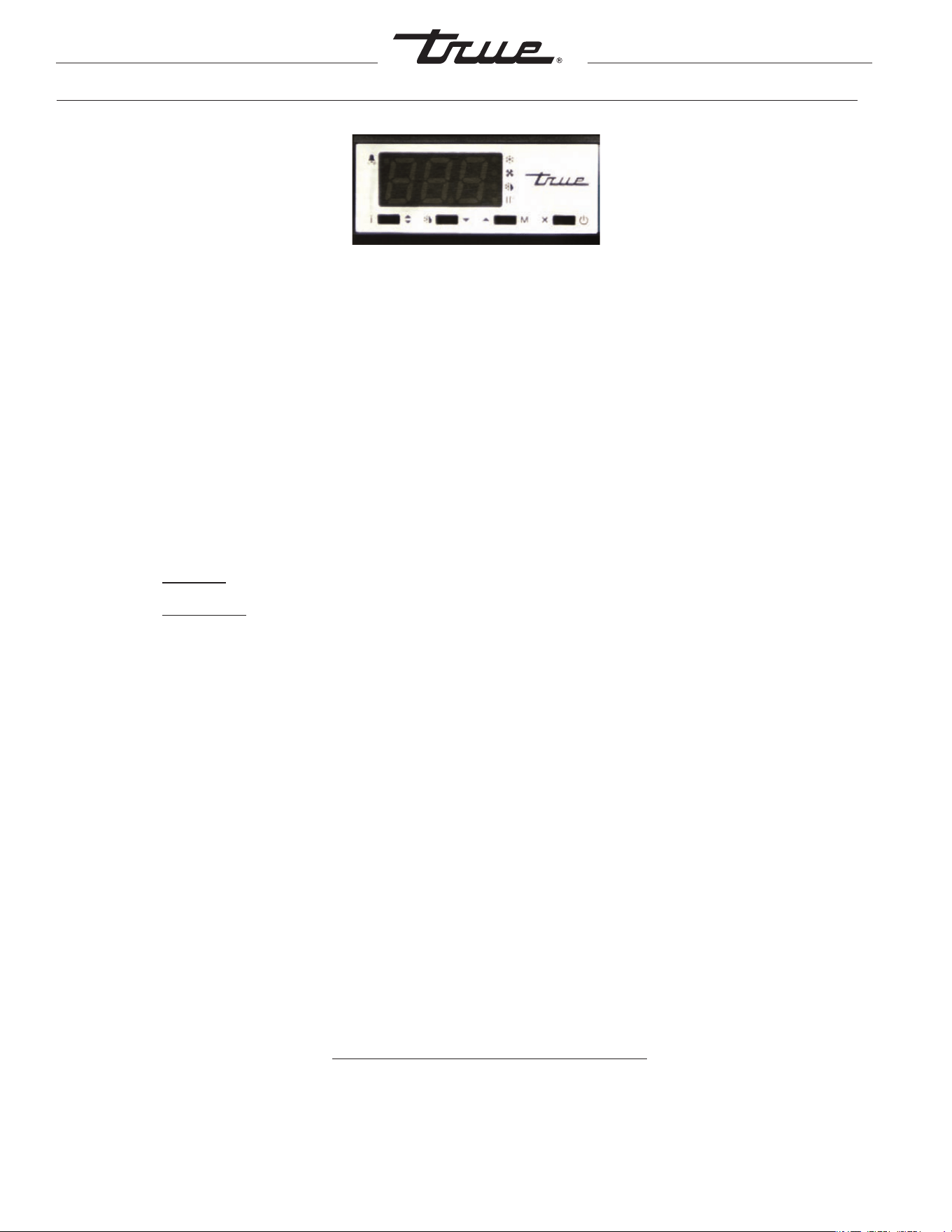

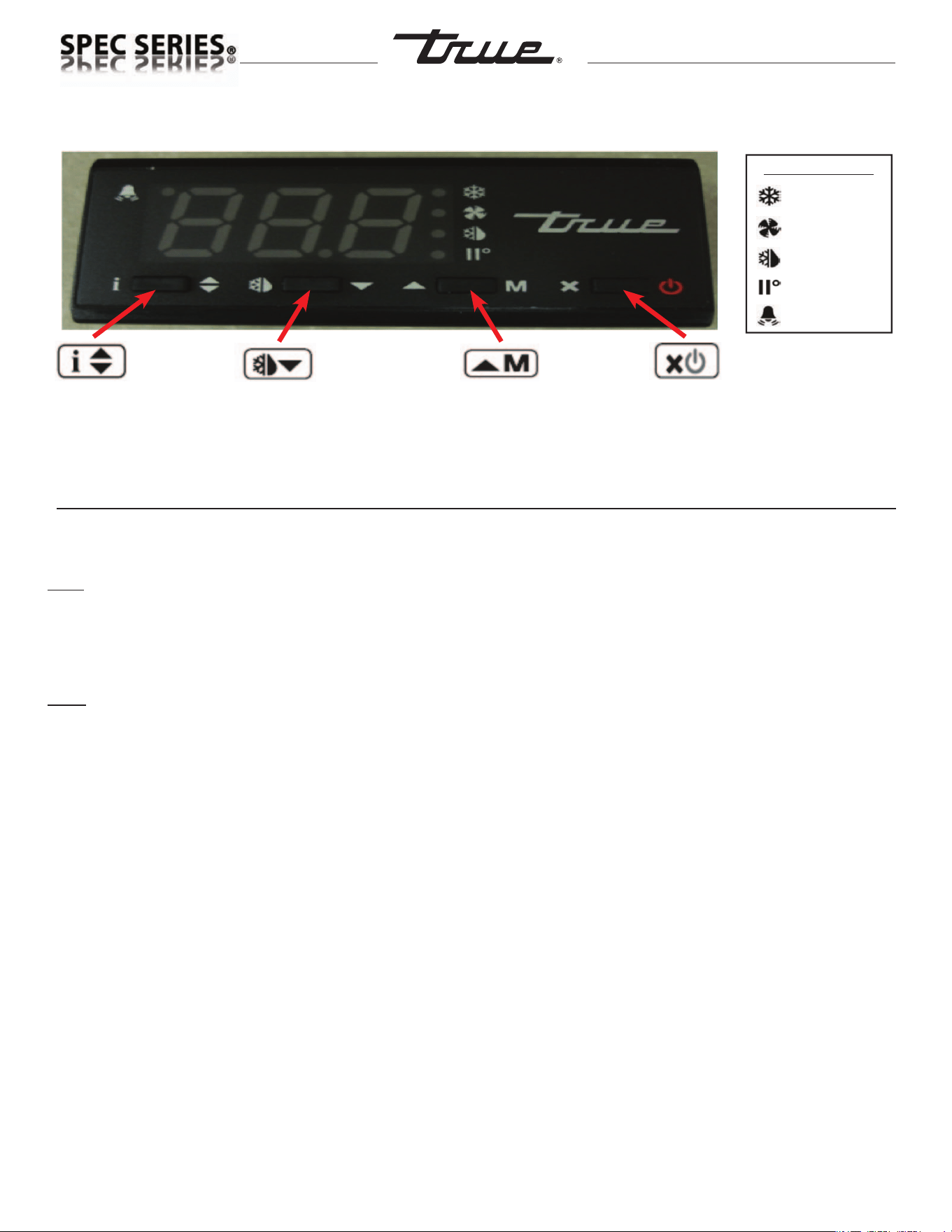

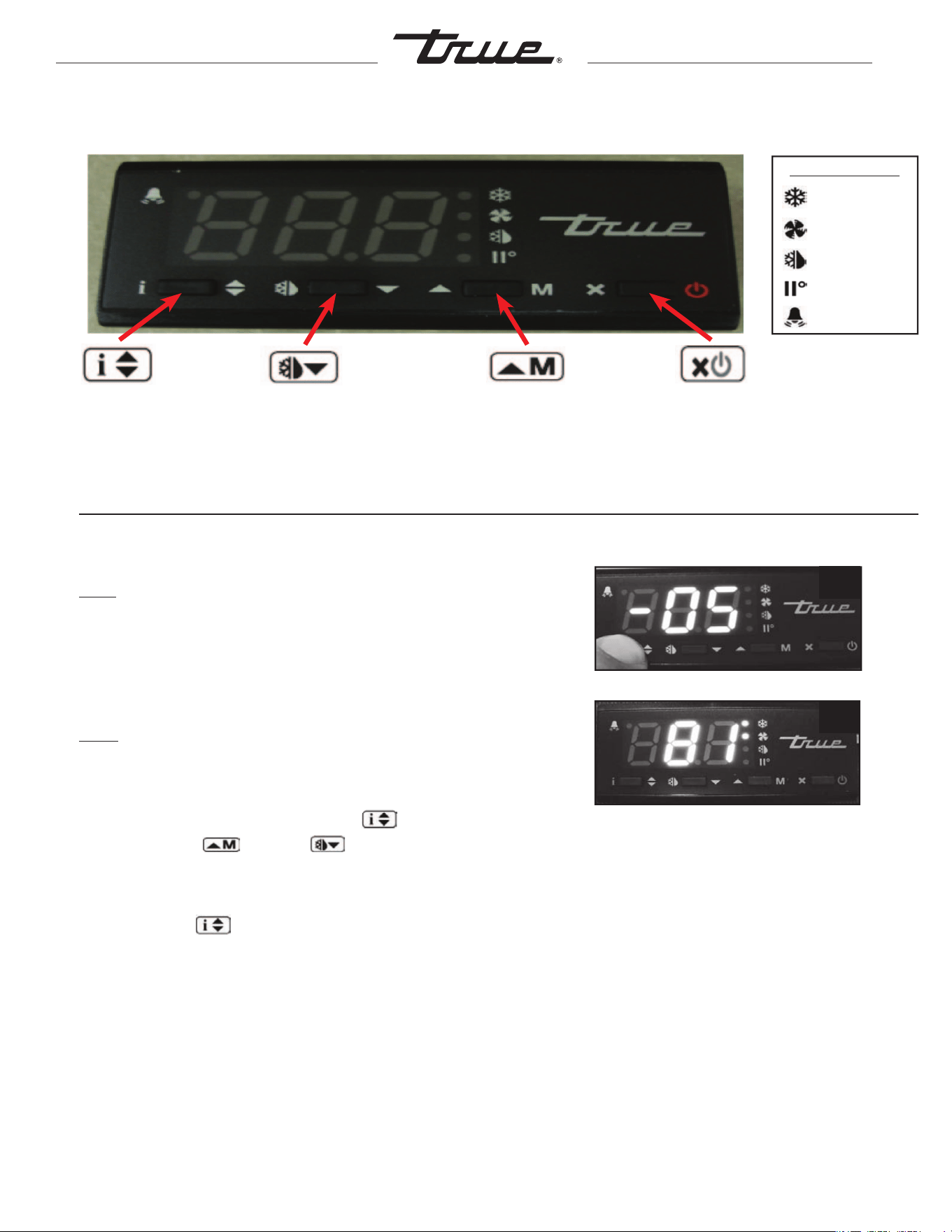

Electronic Temp Control Operations ________ 10-16
Pilaster and Shelf Installation ________________ 17
Pilaster Configuration and Installation _________ 18
Door Operation __________________________ 19
Maintenance, Care & Cleaning
Cleaning Condenser Coil _________________ 20-21
Stainless Steel Equipment Care & Cleaning _____ 22-23
Warranty (U.S.A. & Canada Only!) _____________ 24
NOTICE TO
CUSTOMER:
Loss or spoilage of products in your
refrigerator/freezer/heated cabinet
is NOT covered
by warranty.
In addition to
following recommended installation
procedures you must run the
refrigerator/freezer/heated cabinet
24 hours prior to usage.
TRANSPORTING THIS CABINET WITHOUT THE PROPER DOOR BLOCKS WILL RESULT IN
DAMAGE TO DOORS OR IMPROPER DOOR OPERATION.
DO NOT UNBLOCK DOORS UNTIL COOLER IS SPECIFICALLY
LOCATED IN ITS FINAL LOCATION.
TO ENSURE PROPER DOOR OPERATION, CASTORS OR LEGS MUST BE
INSTALLED AND THE CABINET MUST BE LEVELED FROM FRONT
TO BACK AND LEFT TO RIGHT.
1
STR•STA
•STG
• This unit must be properly installed and located in accordance with the Installation Instructions before it is used.
• Do not allow children to climb, stand or hang on the shelves in the unit. They could damage the unit and
seriously injure themselves.
• Do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick to these
extremely cold surfaces.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are
necessarily small; be careful closing doors when children are in the area.
NOTE
We strongly recommend that any servicing be performed by a qualified individual.
• Unplug the unit before cleaning and making repairs.
• While cleaning condenser coil lift and hold top louvered grill. Any servicing to condensing unit remove top
louvered grill. For further instructions please refer to page 18.
WARNING!
Use this appliance for its intended purpose as described in this Owner Manual.
This cabinet contains fluorinated greenhouse gas covered by the Kyoto Protocol
(please refer to cabinet’s inner label for type and volume,
GWP of 134a= 1,300. R404a= 3,800).
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
How to Maintain Your TRUE Unit to Receive the Most
Efficient and Successful Operation
You have selected one of the finest commercial refrigeration units made. It is
manufactured under strict quality controls with only the best quality materials
available. Your TRUE unit when properly maintained will give you many years of
trouble-free service.
2
USE OF ADAPTER PLUGS
NEVER USE AN ADAPTER PLUG! TRUE will not warranty any equipment that has
been connected to an adapter plug.
PROPER DISPOSAL OF THE UNIT
DANGER!
RISK OF CHILD ENTRAPMENT
USE OF EXTENSION CORDS
NEVER USE AN EXTENSION CORD! TRUE will not warranty any equipment that has been
connected to an extension cord.
Child entrapment and suffocation are not problems of the past. Junked or abandoned unit are still dangerous…even
if they will sit for “just a few days.” If you are getting rid of your old unit, please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old Unit:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
Refrigerant Disposal
Your old unit may have a cooling system that uses “Ozone Depleting ” chemicals. If you are
throwing away your old unit, make sure the refrigerant is removed for proper disposal by a
qualified service technician. If you intentionally release any refrigerants you can be subject to fines and
imprisonment under provisions of the environmental regulations.
North America Use Only!
NEMA plugs
TRUE uses these types of plugs. If you
do not have the right outlet have a
certified electrician install the correct
power source.
3
STR•STA
•STG
The power cord of this appliance is equipped with a grounding plug which mates with a standard grounding wall
outlet to minimize the possibility of electric shock hazard from this appliance. Have the wall outlet and circuit
checked by a qualified electrician to make sure the outlet is properly grounded. If the outlet is a standard 2-prong
outlet, it is your personal responsibility and obligation to have it replaced with the properly grounded wall outlet. The unit
should always be plugged into its own individual electrical circuit, which has a voltage rating that matches the rating
plate. This provides the best performance and also prevents overloading building wiring circuits which could cause a
fire hazard from overheated wires. Never unplug your unit by pulling on the power cord. Always grip plug firmly and
pull straight out from the outlet. Repair or replace immediately all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When removing the unit away from the wall, be careful not to roll over or damage the power cord.
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the ground prong from the power cord. For personal safety, this
appliance must be properly grounded.
WARNING!
To ensure that your unit works properly from the first day, it must be installed properly. We highly recommend a
trained refrigeration mechanic and electrician install your TRUE equipment. The cost of a professional installation is
money well spent. Before you start to install your TRUE unit, carefully inspect it for freight damage. If damage is
discovered, immediately file a claim with the delivery freight carrier.
TRUE is not responsible for damage incurred during shipment.
OWNERSHIP
INSTALLATION / OPERATION INSTRUCTIONS
• Adjustable Wrench
• 1/2 socket (Castor Bolts)
• 3/4 socket (Skid Bolts)
• Level
REQUIRED TOOLS
• Cordless Drill
• 1/2 socket and 3/4 socket adaptor for cordless drill
RECOMMENDED TOOLS
4
The following procedure is recommended for unpackaging the unit:
A. Remove the outer packaging, (cardboard and bubbles or styrofoam corners and clear plastic). Inspect for concealed
damage. Again, immediately file a claim with the freight carrier if there is damage.
B. Move your unit as close to the final location as possible before removing the wooden skid.
NOTE
Keys for units with door locks are located in warranty packets.
UNPACKAGING
REMOTE UNITS (This section applies to remotes only!)
• Remote cabinets must be ordered as remote. We do not recommend converting for a standard self contained
to remote system.
• All remote cabinets must be hard wired.
• No castors available.
• All remote cabinets come standard using 404A refrigerant.
• All remote units come standard with expansion valve, liquid line solenoid, heated condensate pan, and defrost
timer when applicable.
• Contact TRUE Technical Service for BTU requirements.
• No wiring necessary between cabinet and condensing unit.
• All remote condensing units purchased from TRUE are 208/230 volts single phase.
If you have any questions regarding this section, please call TRUE at 1-(800)-325-6152.
The following procedure is for locking and unlock unit:
A. Insert the key and turn.
B. Remove the key.
LOCK AND KEYS
Insert key
5
STR•STA
•STG
CONDUCTORS AND CIRCUITS
Wire Gauge for 2% Voltage Drop in Supply Circuits.
115 Volt Distance In Feet To Center of Load
Amps 20 30 40 50 60 70 80 90 100 120 140 160
2 14 14 14 14 14 14 14 14 14 14 14 14
3 14 14 14 14 14 14 14 14 14 14 14 12
4 14 14 14 14 14 14 14 14 14 12 12 12
5 14 14 14 14 14 14 14 12 12 12 10 10
6 14 14 14 14 14 14 12 12 12 10 10 10
7 14 14 14 14 14 12 12 12 10 10 10 8
8 14 14 14 14 12 12 12 10 10 10 8 8
9 14 14 14 12 12 12 10 10 10 8 8 8
10 14 14 14 12 12 10 10 10 10 8 8 8
12 14 14 12 12 10 10 10 8 8 8 8 6
14 14 14 12 10 10 10 8 8 8 6 6 6
16 14 12 12 10 10 8 8 8 8 6 6 6
18 14 12 10 10 8 8 8 8 8 8 8 5
20 14 12 10 10 8 8 8 6 6 6 5 5
25 12
10 10
8 8 6 6 6 6 5 4 4
30 12 10 8 8 6 6 6 6 5 4 4 3
35 10 10 8 6 6 6 5 5 4 4 3 2
40 10 8 8 6 6 5 5 4 4 3 2 2
45 10 8 6 6 6 5 4 4 3 3 2 1
50 10 8 6 6 5 4 4 3 3 2 1 1
Wire Gauge for 2% Voltage Drop in Supply Circuits.
230 Volt Distance In Feet To Center of Load
Amps 20 30 40 50 60 70 80 90 100 120 140 160
5 14 14 14 14 14 14 14 14 14 14 14 14
6 14 14 14 14 14 14 14 14 14 14 14 12
7 14 14 14 14 14 14 14 14 14 14 12 12
8 14 14 14 14 14 14 14 14 14 12 12 12
9 14 14 14 14 14 14 14 14 12 12 12 10
10 14 14 14 14 14 14 14 12 12 12 10 10
12 14 14 14 14 14 14 12 12 12 10 10 10
14 14 14 14 14 14 12 12 12 10 10 10 8
16 14 14 14 14
12 12 12 10 10 10 8 8
18 14 14 14 12 12 12 10 10 10 8 8 8
20 14 14 14 12 10 10 10 10 10 8 8 8
25 14 14 12 12 10 10 10 10 8 8 6 6
30 14 12 12 10 10 10 8 8 8 6 6 6
35 14 12 10 10 10 8 8 8 8 6 6 5
40 14 12 10 10 8 8 8 6 6 6 5 5
50 12 10 10 8 6 6 6 6 6 5 4 4
60 12 10 8 6 6 6 6 6 5 4 4 3
70 10 10 8 6 6 6 5 5 4 4 2 2
80 10 8 8 6 6 5 5 4 4 3 2 2
90 10 8 6 6 5 5 4 4 3 3 1 1
100 10 8 6 6 5 4 4 3 3 2 1 1
6
Slide packing material under the unit.
Thread leg into cabinet bottom cabinet.
The end of the leg is adjustable to easy
leveling.
Castor with leveling shims.
Anchor castor.
REMOVAL FROM WOODEN SKID / INSTALLATION OF LEGS AND CASTORS
Important Safeguard for installation of leg/castor (Images below that demonstrate procedure)
Removal from wooden skid
1. Make sure unit is as close to the final location as possible.
2. Remove the shipping bolts located at the bottom of the wooden skid.
3. Carefully slide the unit off the wooden skid. Slide packing material
underneath the side of the unit hanging off the skid. Then install castors or
legs for that side of the unit. (See images below for install)
4. Then carefully slide the other side of the unit off one corner at a time while
installing castors or legs for each corner. Use packing material for under each corner of the unit before
installing a castor or leg.
Securing Castors and Legs
To obtain maximum strength and stability of the unit, it is important that you make sure each castor is secure. Legs
are hand-tightened securely against the base of the cabinet.
Unit Leveling
Shims have been provided for leveling castored units positioned on uneven floors. Shims must be positioned between the
bottom of the cabinet and the castor plate.
1. Level cabinet front to back and side to side (diagonally). Use the shims provided and slide them between the
cabinet bottom and the castor plate. Loosen anchor bolts to slide shims above castor plate.
2. Tighten and secure the castor by tightening the four anchoring bolts with a 3/4 inch open-end wrench,
socket.
Castor install 1
Castor install 2
Castor install 3
Leg install 1
Leg install 2
Removing shipping bolts
7
STR•STA
•STG
A. Set unit in its final location. Be sure there is adequate ventilation in your room. Under extreme heat conditions,
(100°F+, 38°C+), you may want to install an exhaust fan.
WARNING
Warranty is void if ventilation is insufficient.
B. Proper leveling of your TRUE unit is critical to operating success (for non-mobile models). Effective condensate removal
and door operation will be effected by leveling.
C. The unit should be leveled front to back and side to side with a level.
D. Ensure that the drain hose or hoses are positioned in the pan.
E. Free plug and cord from the top of the unit (do not plug in).
F. The unit should be placed close enough to the electrical supply so that extension cords are never used.
WARNING
Compressor warranties are void if the unit is more than 7 ft. (2.1m) from plug-in connection.
LEVELING
Optional
A. It may be necessary to seal the cabinet to the floor for local sanitary codes or if the customer so desires. TRUE recom-
mends either of the following methods:
B. Using a vinyl cove base trim as produced by Armstrong, Johnson, or Kentile (available at floor covering suppli-
ers) or using mastics available at hardware stores.
C. When applying the cove base trim, thoroughly clean both the cabinet and floor of dirt and grease. Apply a rec-
ommended contact cement to the cove base trim. After cove base trim has dried, fill in cracks and joints with a
caulking material.
D. When applying a mastic, draw an outline of the cabinet on the floor. Raise and block the front side of the cabi-
net. Apply a bead of mastic to the floor 1/2” inside the outline drawn. Lower the cabinet. Raise and block the rear
side of the cabinet. Apply the bead of mastic, lower the cabinet.
SEALING CABINET TO FLOOR
8
A. Before your new unit is connected to a power supply, check the incoming voltage with a voltmeter. If anything
less than 100% of the rated voltage for operation is noted, correct immediately.
B. All units are equipped with a power cord, and must be powered at proper operating voltage at all times. Refer to
cabinet data plate for this voltage.
TRUE requires that a sole use circuit be dedicated for the unit. Failure to do so voids warranty.
WARNING
Compressor warranties are void if compressor burns out due to low voltage.
WARNING
Power supply cord ground should not be removed!
NOTE
To reference wiring diagram - locate the diagram on the junction box cover.
ELECTRICAL INSTRUCTIONS
9
STR•STA
•STG
LAE Control Sequence of Operation
1. Cabinet is plugged in.
a. Display will illuminate.
b. Interior lights will illuminate on Glass Door models only. (If lights do not come on please see
instructions on following pages(s).) Solid Door cabinet lights are controlled by door switch.
2. After the LAE control preprogrammed time delay of 3 minutes (freezers only), the compressor and evaporator
fan(s) will start if the control is calling for cooling.
a. Control may be already preprogrammed from the factory so at the start of every compressor cycle or
during a defrost cycle, the condenser fan(s) will reverse for 30 seconds to blow dirt off the condensing
coil.
3. The LAE control will cycle the compressor but may also cycle evaporator fan(s) on and off together
determined by the Set-Point and Differential temperatures. (If the Set-Point needs to be changed due to
conditions please see instructions on the following pages(s).)
a. The Set-Point is the preprogrammed temperature which shuts off the compressor.
b. The Differential is the preprogrammed temperature that is added to the Set-Point temperature that will
start the compressor.
Example: If the Set-Point is -9°F/-23°C and the Differential is 10°F/5°C
(Set-Point) -9°F + 10 (Differential) = 1°F
Or
(Set-Point) -23°C + 5 (Differential) = -18°C
The compressor and evaporator fan(s) will cycle off -9°F/-23°C
and back on at 1°F/-18°C
4. The LAE control may be preprogrammed to initiate defrost by interval or at specifi c times of day. (If additional
Defrost Intervals / Cycles are needed or a manual defrost is required due to conditions please see instructions
on next page(s).)
a. At this time the “dEF” will appear on the display and compressor will turn off until a preprogrammed
temperature or duration is reached. During this time for freezers only, evaporator fan(s) will also turn off
and the coil heater and drain tube heaters will also be energized.
b. After the preprogrammed temperature or duration for defrost has been reached there may be a short delay
for both the compressor and evaporator fans to restart. At this time “dEF” may still appear on the display
for a short time.
True Manufacturing recommends that only the Set-Point and/or
Defrost Interval / Cycles may be adjusted due to certain conditions.
This sequence is NOT model specifi c.
Any questions please contact the Technical Service Department.
800-325-6152 • [email protected]
STARTUP
10
LOCKING & UNLOCKING LAE CONTROLLER
WHY:
LOCKING OF CONTROL IS NECESSARY TO PREVENT
CHANGES TO PROGRAM THAT MAY AFFECT CABINET
OPERATION
HOW:
A. To change lock setting press and release the info
button . “t1” will appear. See image 1.
Press the up button until “Loc” appears.
See image 2.
B. While pressing and holding the info button press
the up or down button to change the lock
settings. If “no” appears, the controller is unlocked. If “yes”
appears, the controller is locked. See images 3 and 4.
C. Once the lock setting has been set correctly release
the info button .
Wait 5 seconds for the display to show temperature.
See image 5.
the up or down button to change the lock
Press the up button until “Loc” appears.
the up or down button to change the lock
button . “t1” will appear. See image 1.
While pressing and holding the info button press
the info button .
1
2
5
LAE Electronic Control
Info/Set Point
Button
Manual Defrost/
Down Button
Manual Activation/
Up Button
Stand-By
Button
3
Image 3:
If “no” appears
on screen,
the controller
is unlocked.
4
Image 4:
If “yes” appears
on screen,
the controller
is locked.
Compressor
Running
Activation of 2nd
Parameter Set - NA
Alarm - NA
Cabinet in Defrost
Evaporator Fan
Running
LAE Control Icons
11
STR•STA
•STG
HOW TO TURN GLASS DOOR MODEL
LIGHTS ON/OFF
WHY:
LIGHT MAY BE CONTROLLED BY LAE CONTROLLER OR
INTERIOR LIGHT SWITCH.
HOW:
A. To control interior/sign lights by the LAE Controller,
press and release the “Manual Activation” button.
B. To control interior/sign lights by the interior door
switch, depress the rocker switch to the “ON” position.
Light Switch is located on inside top right of the
ceiling.
press and release the “Manual Activation” button.
LAE Electronic Control
Info/Set Point
Button
Manual Defrost/
Down Button
Manual Activation/
Up Button
Stand-By
Button
Compressor
Running
Activation of 2nd
Parameter Set - NA
Alarm - NA
Cabinet in Defrost
Evaporator Fan
Running
LAE Control Icons
ON Position
(Solid Door models lights are controlled by a door switch)
May need to unlock control.
12
LAE Electronic Control
Info/Set Point
Button
Manual Defrost/
Down Button
Manual Activation/
Up Button
Stand-By
Button
SETTING TIME OF DAY
WHY:
TO MAKE SURE THE CABINET DOES NOT INITIATE
DEFROST & GET WARM DURING TIMES OF HIGH USAGE.
Control may be designed to initiate defrost at specifi c
times of the day.
HOW:
A. To change the time of day, press and release the info
button . “t1” will appear.
Press the up button until “min” appears.
See image 1.
B. While pressing and holding the info button ,
press the up or down button to change the
clock minutes. See image 2.
C. Once the minutes have been set correctly, release the
info button and “hrs” will appear on the display.
See image 3.
D. While pressing and holding the info button ,
press the up or down button to change the
clock hours. See image 4.
Note: When changing the clock hour, the clock will be
displayed in 24 hour format ranging from 0-23.
E. Once the hour has been set correctly, release the info
button .
Wait 5 seconds for the display to show temperature.
See image 5.
press the up or down button to change the
press the up or down button to change the
Press the up button until “min” appears.
press the up or down button to change the
press the up or down button to change the
button . “t1” will appear.
While pressing and holding the info button ,
button .
While pressing and holding the info button ,
info button and “hrs” will appear on the display.
1
2
3
4
5
May need to unlock control. Does not adjust for daylight savings time.
This is only necessary if the defrost mode parameter (DFM) is set for “RTC”.
13
STR•STA
•STG
LAE Electronic Control
Info/Set Point
Button
Manual Defrost/
Down Button
Manual Activation/
Up Button
Stand-By
Button
HOW TO CHANGE THE “SET POINT”
WHY:
THE SET POINT IS THE TEMPERATURE AT WHICH THE
COMPRESSOR WILL SHUT OFF.
Please note that the “set point” IS NOT the cabinet
holding temperature.
HOW:
A. To see the set point, press and hold the info button.
See image 1.
B. While still holding the info button ,
press the up or down button to change
the “set point”.
C. Once the “set point” has been set correctly release the
info button .
The display will show temperature. See image 2.
press the up or down button to change
press the up or down button to change
info button .
1
2
Compressor
Running
Activation of 2nd
Parameter Set - NA
Alarm - NA
Cabinet in Defrost
Evaporator Fan
Running
LAE Control Icons
May need to unlock control.
While still holding the info button ,
14
Info/Set Point
Button
Manual Defrost/
Down Button
Manual Activation/
Up Button
Stand-By
Button
Compressor
Running
Activation of 2nd
Parameter Set - NA
Alarm - NA
Cabinet in Defrost
Evaporator Fan
Running
LAE Control Icons
LAE Electronic Control
HOW TO INITIATE A MANUAL DEFROST
May need to unlock control.
WHY:
A ONE TIME ADDITIONAL DEFROST MAY BE NECESSARY
TO CLEAR ACCUMULATED FROST/ICE FROM EVAPORATOR
COIL.
HOW:
The method to initiate a manual defrost is determined by
the Defrost Mode Parameter “DTM” preprogrammed in
the controller.
A. REGULAR TIME DEFROST (TIM)
If controller is preprogrammed for “TIM”, press and
release the Manual Defrost button until “dEF” appears.
B. REAL TIME CLOCK (RTC)
If controller is preprogrammed for “RTC” press the and
hold the Manual Defrost button for 5 seconds until
“dh1” appears. Release the Manual Defrost button
and then press and hold for an additional 5 seconds
until “dEF” appears.
DEFROST WILL ONLY TERMINATE ONCE A SPECIFIC PRESET
TEMPERATURE OR A PRESET TIME DURATION IS REACHED.
15
STR•STA
•STG
WHY:
THE DEFROST INTERVAL IS THE TIME DURATION BETWEEN
DEFROST CYCLES.
The Defrost Interval time starts when the cabinet is supplied
power or after a manual defrost.
HOW:
A. To see the set point, press and hold the info button
and the stand-by button at the same time.
“ScL” will appear. See image 1.
B. Push the up button until “dFt” appears.
See image 2.
C. Press and hold the info button to see the
“defrost interval time”. See image 3.
D. While pressing and holding the info button ,
press the up or down button to change the “defrost
interval times” (higher the number the less frequent
the cabinet will defrost).
E. Once the “defrost interval time” has been changed,
release the info button .
Wait 30 seconds for the display to show temperature.
See image 4.
and the stand-by button at the same time.
HOW TO CHANGE “DEFROST
INTERVALS”
Push the up button until “dFt” appears.
and the stand-by button at the same time.
Press and hold the info button to see the
release the info button .
While pressing and holding the info button ,
1
2
3
4
LAE Electronic Control
Info/Set Point
Button
Manual Defrost/
Down Button
Manual Activation/
Up Button
Stand-By
Button
Compressor
Running
Activation of 2nd
Parameter Set - NA
Alarm - NA
Cabinet in Defrost
Evaporator Fan
Running
LAE Control Icons
May need to unlock control.
This can only be changed if defrost mode parameter “DFM” is set for “TIM”.
16
WHY:
THE DEFROST TIME IS THE TIME OF DAY DEFROST CYCLES ARE INITIATED.
Time of Day must be set ensure that factory set defrost times are
occur at the correct times. By adding a cycle you will be adding an
extra specifi c defrost start time.
HOW:
A. To see the defrost times press and hold the info button and
the stand-by button at the same time.. “ScL” will appear.
See image 1.
B. Push the “up” button until “dh1” appears. See image 2.
C. Press and hold the info button to see the “defrost time”.
See image 3.
Note: Clock times are displayed in 24 hour format ranging from
0-23.5.
D. Release and push the info button to scroll “dh1” - “dh6” which
show the factory pre-set defrost times. See image 4. Additional
time of day may be added when the time for defrost shows “---”.
E. While pressing and holding the info button press the up or
down button to change “defrost time”. See image 5.
F. Once the “defrost time” has been added release the info
button. Wait 30 seconds for the display to show temperature. See
image 6.
the stand-by button at the same time.. “ScL” will appear.
HOW TO CHANGE A “DEFROST CYCLE”
Push the “up” button until “dh1” appears. See image 2.
A. To see the defrost times press and hold the info button and
Press and hold the info button to see the “defrost time”.
Release and push the info button to scroll “dh1” - “dh6” which
While pressing and holding the info button press the up or
Once the “defrost time” has been added release the info
1
3
2
4
5
6
ALL OTHER SETTINGS ARE FACTORY PRE-SET AND SHOULD NOT BE CHANGED.
If you have any questions, please call TRUE technical service.
Phone: 800-325-6152 • Email: service@truemfg.com
LAE Electronic Control
Info/Set Point
Button
Manual Defrost/
Down Button
Manual Activation/
Up Button
Stand-By
Button
Compressor
Running
Activation of 2nd
Parameter Set - NA
Alarm - NA
Cabinet in Defrost
Evaporator Fan
Running
LAE Control Icons
May need to unlock control.
This can only be changed if defrost mode parameter (DFM) is set for “RTC”.
17
STR•STA
•STG
TRUE STR, STA, and STG cabinets are available with four
different shelving / tray slide options.
Type Kit #1. Angle Type Tray Slide
Type Kit #2. Rod Style Tray Slide
Type Kit #3. Universal Tray Slide
Type Kit #4. Shelf Standards (shelf clips)
Required Tools:
• Standard Screwdriver (Flathead)
• Rubber / Plastic Mallet
• Tape Measure
Installation Procedures (Wire Shelves):
Wire shelves come with shelf clips (image 1).
Properly insert the shelf clips in the desired height (remember
all shelf clips will need to be installed at the same height to
keep the shelf level.
Once the shelves are installed the remaining threaded holes
will have thumb screws inserted. These thumb screws are
provided in the unit.
PILASTER INSTALLATION & OPERATION
NOTE:
The package containing the pilasters will have the same serial number as cooler.
Please check to make sure these serial numbers are the same.
Type Kit #1 (Angle Type Tray Slide)
Type Kit #2 (Rod Style Tray Slide)
Type Kit #3 (Universal Tray Slide)
Shelf
Shelf
Standards
Shelf
Clip
Shelf
WARNING
Do not use pliers or any
crimping tools when installing
shelf clips. Altering shelf
clips in any way can lead to
shelving instability.
Install the top tab of the
shelf clip into the proper
hole. Push up on the
bottom of the clip. Bottom
tab of the shelf clip will t
tightly. You may need to
squeeze or twist the bottom
of the shelf clip to install
.
Image 1
Type Kit #4
(Shelf Standards
/ Shelf Clips)
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
18
Image 14
PILASTER CONFIGURATION & INSTALLATION
Pilaster
980850
Pilaster
980846
Pilaster
980848
Pilaster
980852
Pilaster
980850
Pilaster
980846
Pilaster
980851
Pilaster
980852
Pilaster
980848
Pilaster
980853
Pilaster
980851
Pilaster
980853
Pilaster Installation (Side Wall of
Cabinet)
Pilaster Installation (Back Wall of
Cabinet / Two & Three Door Models)
Pilaster Installation Two and Three Door
Models (Middle of Wall in Rear of Cabinet)
Configuration (Pilasters):
Each TRUE Specification Series (STR, STA, and STG) is
available with two pilaster configurations. Each
configuration depends on the end user preference. Multiple
door units can have two configurations for each section.
See Image 13.
Installation Procedures (Pilasters):
Install slotted thumb screws into threaded holes along the
inside wall of the cabinet.
Slide pilasters into position behind the slotted screws. Leave
all of the thumb screws loose for adjustments when installing
tray slides.
It is critical to measure from the center of the square hole on
the front pilaster to the center hole of the rear pilaster. This
measurement should be 24 5/8” (see image 14). Do the same
on the opposite side of cabinet for single door. Make sure the
measurement (24 5/8”) is the same in the center pilasters in 2
and 3 door units. Tap the tray slides into the Pilasters with a
rubber Mallet.
Angle & Rod Type shelving uses a 18 1/8” distance between
Pilasters. Universal Tray slides have a 21 1/4” distance between
Pilasters (see image 15).
After the pilasters are installed the Universal Tray, Angle Type
Tray, and Rod Style Tray Slides will slide into the pilasters (see
images 2-7). When disassembling or changing tray slides a rubber
mallet may be used to take out the different tray slides. Gently tap
on the under side of the tray slide to loosen it from the pilaster.
24 5/8
(Critical Measurement Front to Rear Pilasters)
18 1/8”
Angle Type
&
Rod Type
21 1/4”
Universal
Tray Slide
Top view (Critical Measurement side to side)
Image 15
Image 13
Image 16
Image 17
Image 18
19
STR•STA
•STG
DOOR OPERATION
Door Configuration:
After installing, cabinet doors can be
adjusted for alignment. The hinge on
the door and hinge on the cabinet can
be adjusted accordingly.
Step 1
To remove door open at a 90˚ angle
from the cabinet and lift door up and
out from the cabinet hinges carefully
avoiding rainshield. Rest the door in a
safe area.
Step 2
Remove gray plastic cover from hinge
located on the cabinet. (See image 1).
Use a standard screw driver and pry out
the gray cover. This exposes the three
Phillips screw anchoring the hinge to
the cabinet. (See image 2). Loosen
these three screws but don’t remove
them. Adjustment can be made slightly
up/down and side to side.
Step 3
The hinge on the cabinet door can also
be adjusted. Remove cover from hinge
located on the door. Pull on the cover
directly out from the door. (See image
3). This exposes the three Phillips
screws anchoring the hinge to the door.
Loosen these three screws but don’t
remove them. The hinge can be
moved side to side, up and down. (See
image 4).
NOTE:
When tightening the hinges to
the cabinet and door do not
apply pressure to the Phillips
screws. Carefully anchor them
without applying extreme
amounts of pressure.
Step 4
To adjust the lock latch remove two
Phillips screws and the latch can be put
to the side for later reinstallation. (See
image 5). The lock base that anchors
the latch can be adjusted simply by
loosening the two Phillips screws, but
not removing them. Then the lock base
can be moved side to side for
adjustment. (See image 6). After
adjustment is complete tighten the lock
base and install the latch back into
place.
Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
20
• Disconnect power supply.
CAUTION:
Before performing service or maintenance make sure louver grill is secured in open position.
Use instructions and photos below to secure louver grill.
1. Remove thumbscrews on the top of each cabinet end.
2. Lift louver grill (careful not to pull on any wires)
3. Reinstall thumbscrews
A. The thumbscrews should be put through louver grill
holes and fastened into previous position in cabinet end.
CAUTION:
Make sure top louver grill is correctly
seated in the open position when servicing or
cleaning.
B. When servicing is complete remove thumbscrews and close louver grill. Then reinstall thumbscrews into original
location.
•
While cleaning condenser coil lift and hold top louvered grill. Clean off accumulated dirt from the condenser
coil with a stiff bristle brush. Vacuum all dirt residue from the coil and surrounding areas while holding the
top louvered grill. Any servicing to condensing unit remove top louvered grill. On top of the cabinet are two
screws are located on either side of the louver grill. Remove these screws from the hinges and keep them in a
safe place while servicing the unit. These screws are needed for later re-install of the louver grill.
MAINTENANCE, CARE & CLEANING
CLEANING THE CONDENSER COIL
When using electrical appliances, basic safety precautions should be followed, including the following:
Condenser Cleaning
Thumbscrew Location
Louver grill in upright position
Thumbscrews located
on cabinet ends
21
STR•STA
•STG
Condensers accumulate dirt and require cleaning every 30 days. Dirty condensers result in compressor failure, product loss,
and lost sales... which are not covered by warranty.
If you keep the Condenser clean you will minimize your service expense and lower your electrical costs. The Condenser
requires scheduled cleaning every thirty days or as needed.
Air is pulled through the Condenser continuously, along with dust, lint, grease, etc.
A dirty Condenser can result in NON-WARRANTEED part & Compressor Failures, Product Loss, and Lost Sales.
Proper cleaning involves removing dust from the Condenser. By using a soft brush, or vacuuming the Condenser with a
shop vac, or using CO2, nitrogen, or pressurized air.
If you cannot remove the dirt adequately, please call your refrigeration service company.
On the Spec Series units the condenser is accessible on the top of the unit. You must lift open the cabinet rainshield to
expose the Condenser. (Spec Series models)
The Condenser looks like a group of vertical fins. You need to be able to see through the condenser for the unit to function
at maximum capacity. Do not place filter material in front of condensing coil. This material blocks air-flow to the coil similar
to having a dirty coil.
THE CLEANING OF THE CONDENSER IS NOT COVERED
BY THE WARRANTY!
HOW TO CLEAN THE CONDENSER:
1. Disconnect the electrical power to the unit.
2. Open the rainshield.
3. Vacuum or brush the dirt, lint, or debris from the finned condenser coil.
4. If you have a significant dirt build up you can blow out the condenser with compressed air.
(CAUTION MUST BE USED to avoid eye injury. Eye protection is recommended.)
5. When finished be sure to close the rainshield.
6. Reconnect the electrical power to the unit.
If you have any questions, please call TRUE Manufacturing at 636-240-2400 or 800-325-6152 and ask for the Service
Department. Service Department Availability Monday-Friday 7:30 a.m. to 5:30p.m. and Saturday 8:00 a.m. to 12:00 a.m. CST.
IMPORTANT WARRANTY INFORMATION
22
CAUTION:
Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces.
Stainless Steel Opponents
There are three basic things which can break down your stainless steel’s passivity layer and allow
corrosion to rear its ugly head.
1) Scratches from wire brushes, scrapers, and steel pads are just a few examples of items that can be abrasive to stainless
steel’s surface.
2) Deposits left on your stainless steel can leave spots. You may have hard or soft water depending on what part of the
country you live in. Hard water can leave spots. Hard water that is heated can leave
deposits if left to sit too long. These deposits can cause the passive layer to break down and rust your stainless steel.
All deposits left from food prep or service should be removed as soon as possible.
3) Chlorides are present in table salt, food, and water. Household and industrial cleaners are the worst type of chlorides
to use.
8 steps that can help prevent rust on stainless steel:
1. Using the correct cleaning tools
Use non-abrasive tools when cleaning your stainless steel products. The stainless steel’s passive layer will not be
harmed by soft cloths and plastic scouring pads. Step 2 tells you how to find the polishing marks.
2. Cleaning along the polish lines
Polishing lines or “grain” are visible on some stainless steels. Always scrub parallel to visible lines on some stainless
steels. Use a plastic scouring pad or soft cloth when you cannot see the grain.
3. Use alkaline, alkaline chlorinated or non-chloride containing cleaners
While many traditional cleaners are loaded with chlorides, the industry is providing an ever increasing choice of non-
chloride cleaners. If you are not sure of your cleaner’s chloride content contact your cleaner supplier. If they tell you
that your present cleaner contains chlorides, ask if they have an alternative. Avoid cleaners containing quaternary salts
as they can attack stainless steel, causing pitting and rusting.
4. Water Treatment
To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and
distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment
specialist if you are not sure of the proper water treatment.
5. Maintaining the cleanliness of your food equipment
Use cleaners at recommended strength (alkaline, alkaline chlorinated or non-chloride). Avoid build-up of hard stains
by cleaning frequently. When boiling water with your stainless steel equipment, the single most likely cause of
damage is chlorides in the water. Heating any cleaners containing chlorides will have the same damaging effects.
6. Rinse
When using chlorinated cleaners you must rinse and wipe dry immediately. It is better to wipe standing cleaning
agents and water as soon as possible. Allow the stainless steel equipment to air dry. Oxygen helps maintain the
passivity film on stainless steel.
7. Hydrochloric acid (muriatic acid) should never be used on stainless steel
8. Regularly restore/passivate stainless steel
STAINLESS STEEL EQUIPMENT CARE AND CLEANING
23
STR•STA
•STG
Recommended cleaners for certain situations / environments of stainless steel
A) Soap, ammonia and detergent medallion applied with a cloth or sponge can be used
for routine cleaning.
B) Arcal 20, Lac-O-Nu Ecoshine applied provides barrier film for fingerprints and smears.
C) Cameo, Talc, Zud First Impression is applied by rubbing in the direction of the polished lines for
stubborn stains and discoloring.
D) Easy-off and De-Grease It oven aid are excellent for removals on all finishes for grease-fatty acids,
blood and burnt-on foods.
E) Any good commercial detergent can be applied with a sponge or cloth to remove grease and oil.
F) Benefit, Super Sheen, Sheila Shine are good for restoration / passivation.
NOTE:
The use of stainless steel cleaners or other such solvents is not
recommended on plastic parts. Warm soap and water will suffice.
STAINLESS STEEL EQUIPMENT CARE AND CLEANING
24
T
RUE
R
EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
®
ONE YEAR PARTS & LABOR WARRANTY
TRUE warrants to the original purchaser of every new TRUE refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or
workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with
the instruction packet supplied with each TRUE unit. TRUE’s obligation under this warranty is limited to a period of one (1) year from the date of original
installation or 15 months after shipment date from TRUE, whichever occurs first.
Any part covered under this warranty that are determined by TRUE to have been defective within one (1) year of original installation or fifteen (15)
months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or
assemblies. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE.
ADDITIONAL FOUR YEAR COMPRESSOR WARRANTY
In addition to the one (1) year warranty stated above, TRUE warrants its hermetically and semi-hermetically sealed compressor to be free from defects
in both material and workmanship under normal and proper use and maintenance service for a period of four (4) additional years from the date of
original installation but not to exceed five (5) years and three (3) months after shipment from the manufacturer.
Compressors determined by TRUE to have been defective within this extended time period will, at TRUE’s option, be either repaired or replaced with a
compressor or compressor parts of similar design and capacity.
The four (4) year extended compressor warranty applies only to hermetically and semi-hermetically sealed parts of the compressor and does not
apply to any other parts or components, including, but not limited to, cabinet, paint finish, temperature control, refrigerant, metering device, driers, motor
starting equipment, fan assembly or any other electrical component, etcetera.
404A/134A COMPRESSOR WARRANTY
The four year compressor warranty detailed above will be voided if the following procedure is not carefully adhered to:
1. This system contains R404A or R134A refrigerant and polyol ester lubricant. The polyol ester lubricant has rapid moisture absorbing qualities. If long
exposure to the ambient conditions occur, the lubricant must be removed and replaced with new. For oil amounts and specifications please call TRUE
technical service department (800-325-6152). Failure to comply with recommended lubricant specification will void the compressor warranty.
2. Drier replacement is very important and must be changed when a system is opened for servicing. A drier using XH-7 desiccant or an exact
replacement solid core drier must be used. The new drier must also be the same capacity as the drier being replaced.
3. Micron level vacuums must be achieved to insure low moisture levels in the system. 500 microns or lower must be obtained.
WARRANTY CLAIMS
All claims for labor or parts must be made directly through TRUE. All claims should include: model number of the unit, the serial number of the
cabinet, proof of purchase, date of installation, and all pertinent information supporting the existence of the alleged defect.
In case of warranty compressor, the compressor model tag must be returned to TRUE along with above listed information.
Any action or breach of these warranty provisions must be commenced within one (1) year after that cause of action has occurred.
WHAT IS NOT COVERED BY THIS WARRANTY
TRUE’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty
neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
NO CONSEQUENTIAL DAMAGES. TRUE IS NOT RESPONSIBLE FOR ECONOMIC LOSS; PROFIT LOSS; OR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES,
INCLUDING WITHOUT LIMITATION, LOSSES OR DAMAGES ARISING FROM FOOD OR PRODUCT SPOILAGE CLAIMS WHETHER OR NOT ON ACCOUNT OF
REFRIGERATION FAILURE.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user to whom delivered. ANY
SUCH ASSIGNMENT OR TRANSFER SHALL VOID THE WARRANTIES HEREIN MADE AND SHALL VOID ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IMPROPER USAGE. TRUE ASSUMES NO LIABILITY FOR PARTS OR LABOR COVERAGE FOR COMPONENT FAILURE OR OTHER DAMAGES RESULTING FROM
IMPROPER USAGE OR INSTALLATION OR FAILURE TO CLEAN AND/OR MAINTAIN PRODUCT AS SET FORTH IN THE WARRANTY PACKET PROVIDED WITH THE UNIT.
RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in
non-commercial or residential applications.
ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TRUE is not responsible for
the repair or replacement of any parts that TRUE determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse,
accident, damage during transit or installation, fire, flood, or act of God.
IMPROPER ELECTRICAL CONNECTIONS. TRUE IS NOT RESPONSIBLE FOR THE REPAIR OR REPLACEMENT OF FAILED OR DAMAGED COMPONENTS RESULTING
FROM ELECTRICAL POWER FAILURE, THE USE OF EXTENSION CORDS, LOW VOLTAGE, OR VOLTAGE DROPS TO THE UNIT.
NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE: THERE ARE NO OTHER WARRANTIES, EXPRESSED, IMPLIED OR
STATUTORY, EXCEPT THE ONE (1) YEAR PARTS & LABOR WARRANTY AND THE ADDITIONAL FOUR (4) YEAR COMPRESSOR WARRANTY AS DESCRIBED ABOVE.
THESE WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, INCLUDING IMPLIED WARRANTY AND MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
OUTSIDE U.S./Canada: This warranty does not apply to, and TRUE is not responsible for, any warranty claims made on products sold or used outside
the United States or Canada.
WARRANTY INFORMATION (U.S.A & CANADA ONLY!)
