SaCe_/Instructions ....................................3
Operating Instructions, Tips
Automatic Icemaker ...................................................12
CFC Disposal .........................................................................2

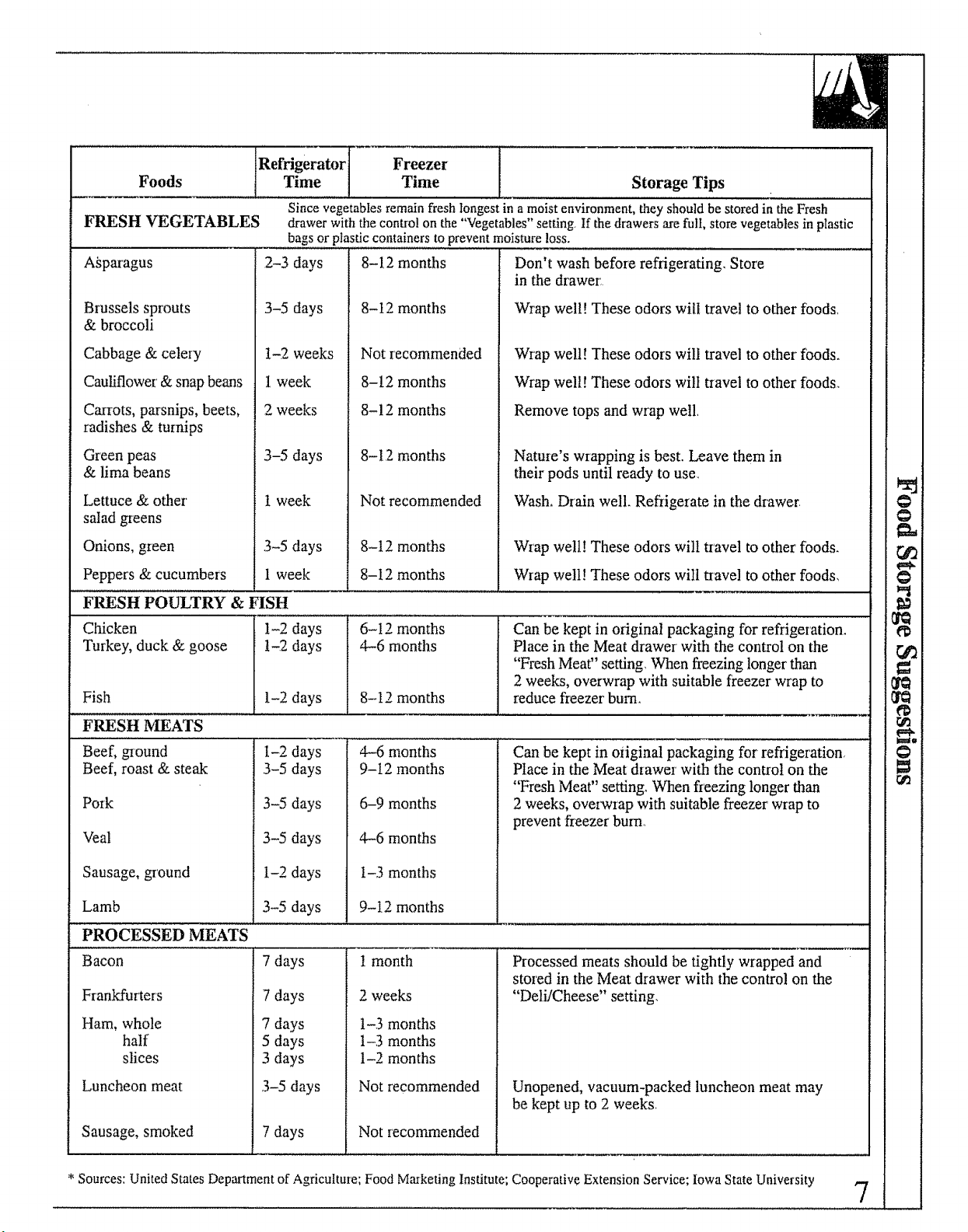

Food Storage Suggestions .....................6, 7
Ice Dispenser .....................................................13, 14
lcemaker Accessory Kit .............................................12
Power Saver Switch .....................................................5

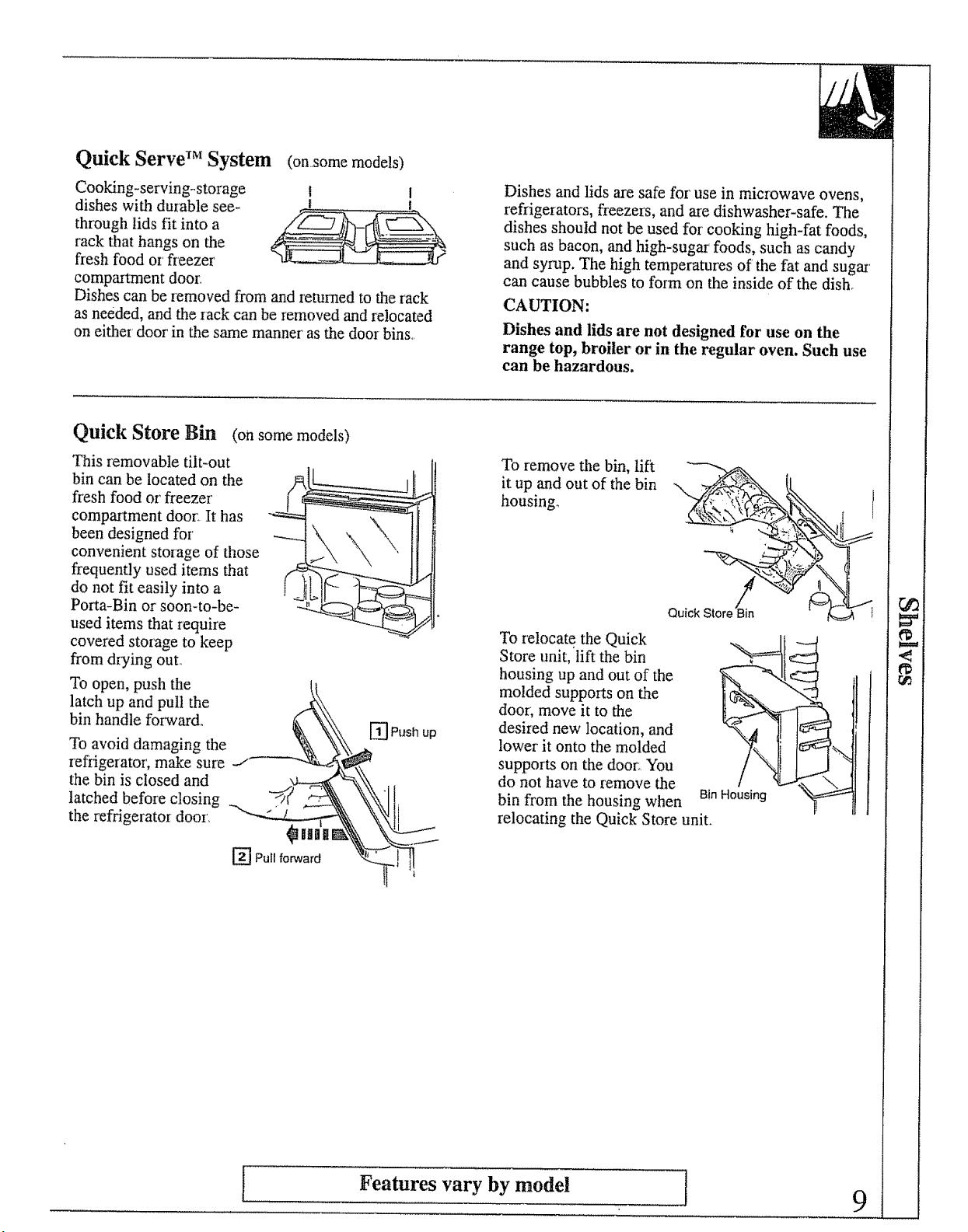

Shelves ............................................................................8, 9

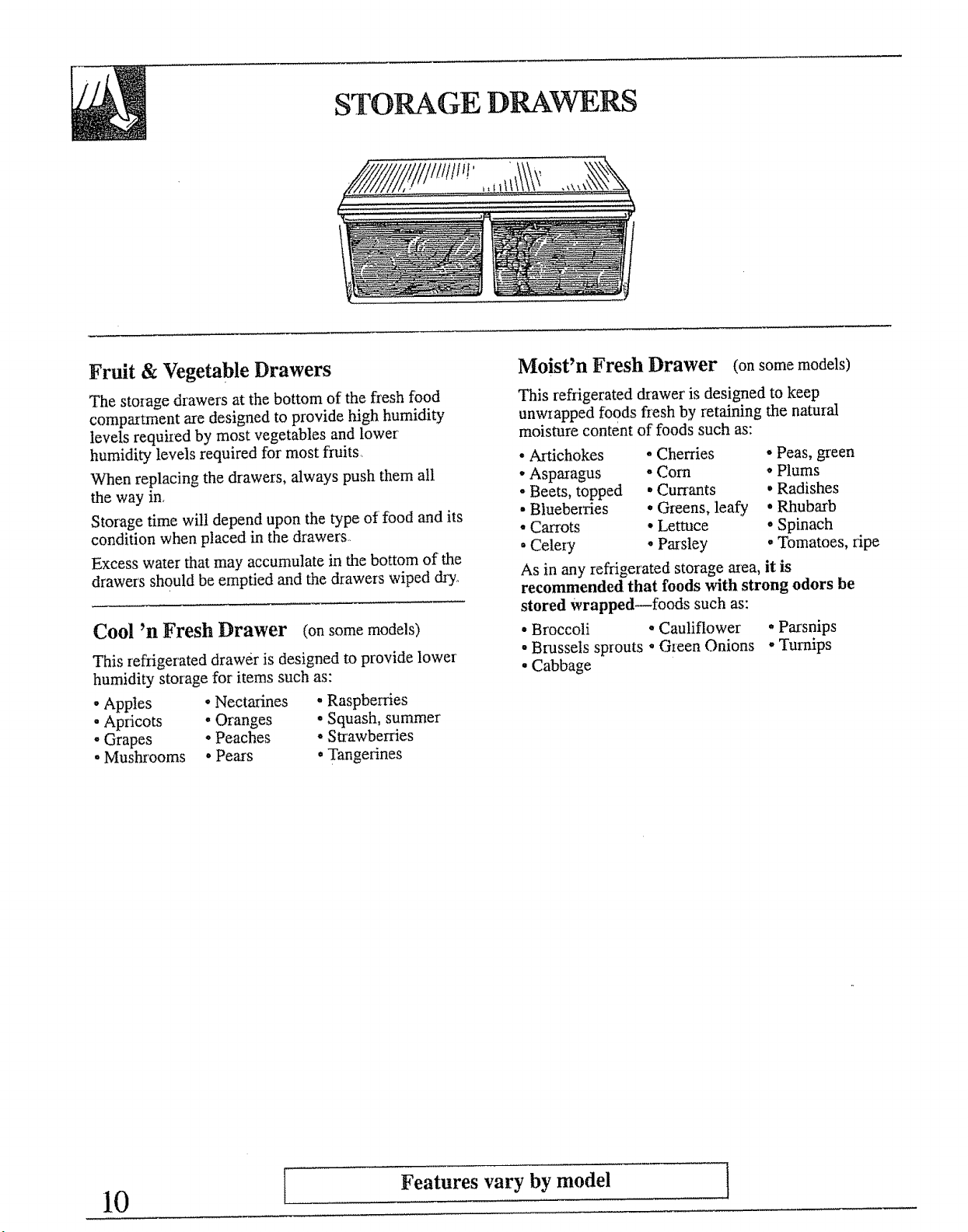

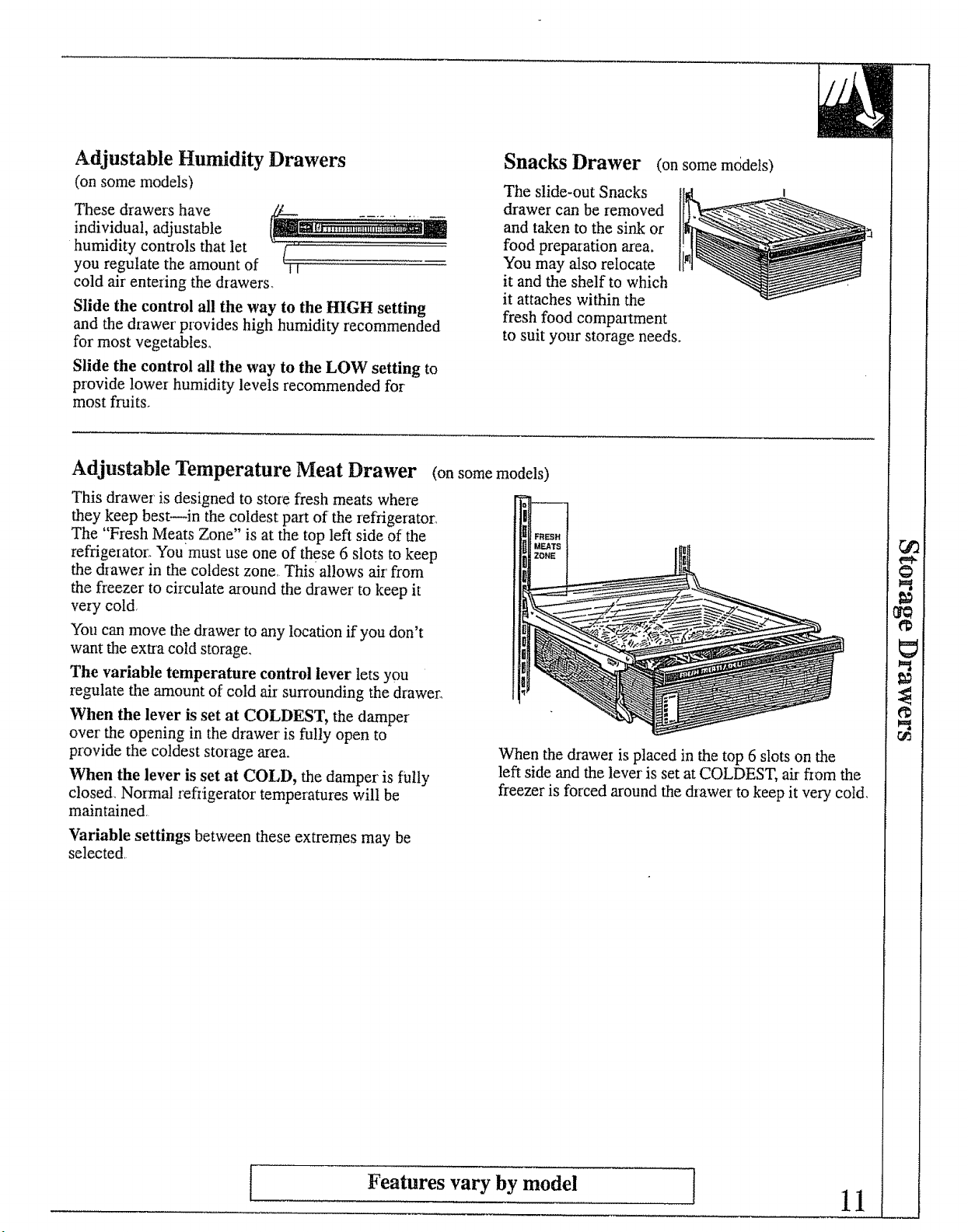

Storage Drawers ................................................10,'11
Temperature Controls ................................................5
Care and Cgeaning
Behind Refrigerator ......................................................16
Cleaning--lnside and Outside ......................15
Clearances .......................................................................19

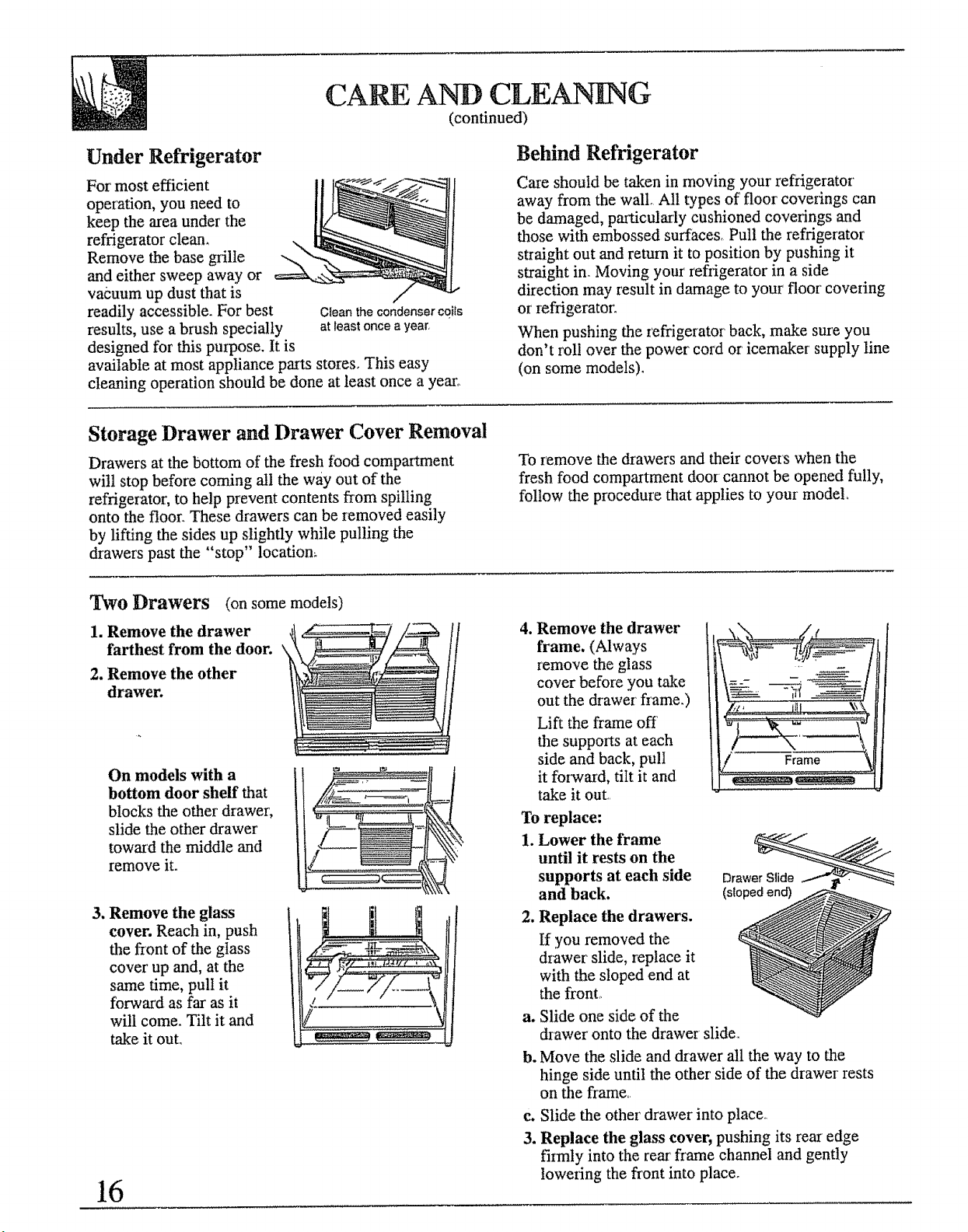

Drawer and Cover Removal .....................16, 17

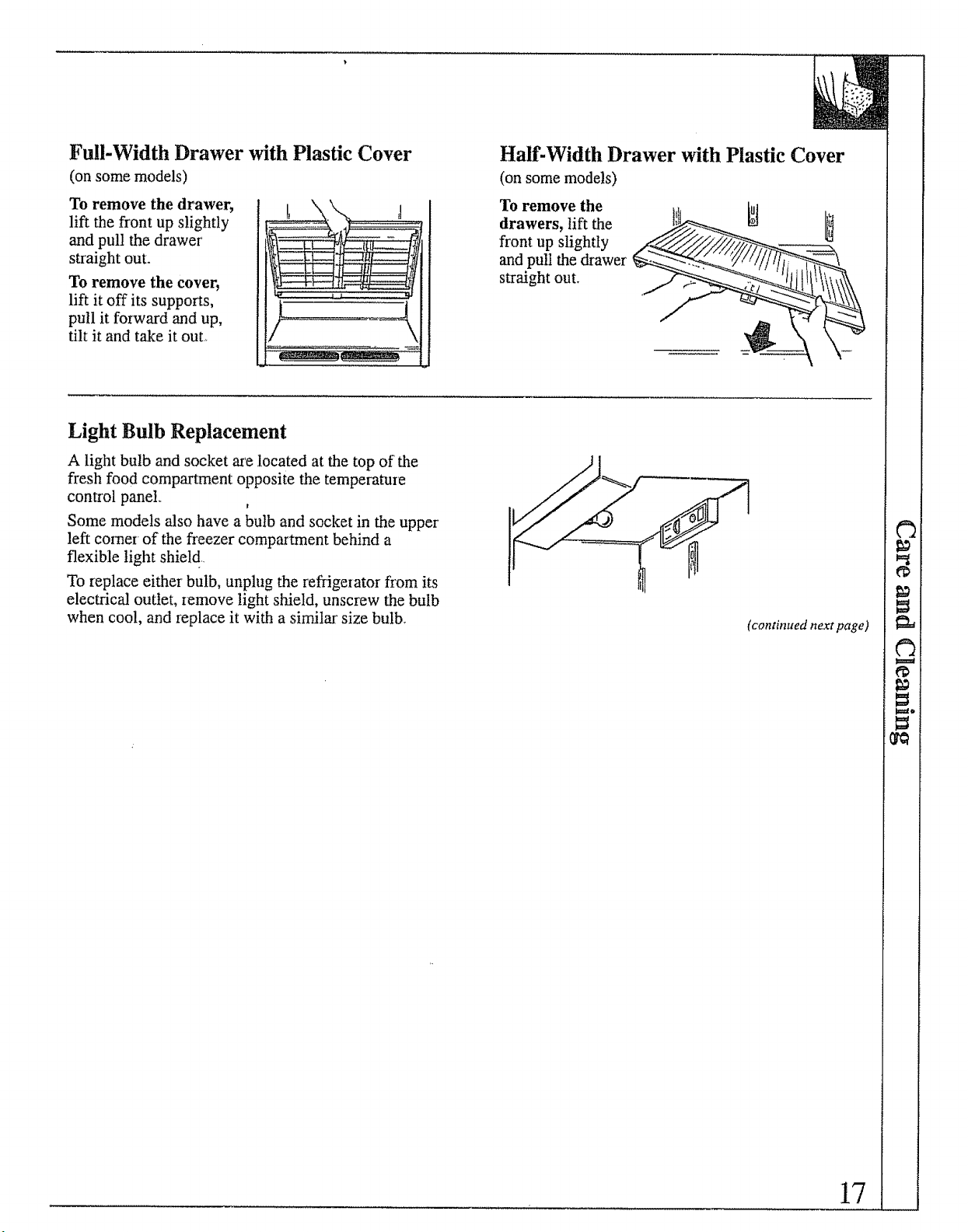

Light Bulb Replacement ........................................17
Location ...................................................................................19
Moving and Vacation ...................................................18
Rollers ..........................................................................................19
Under Refrigerator .................................................16
Water Filter Accessory ..............................................12

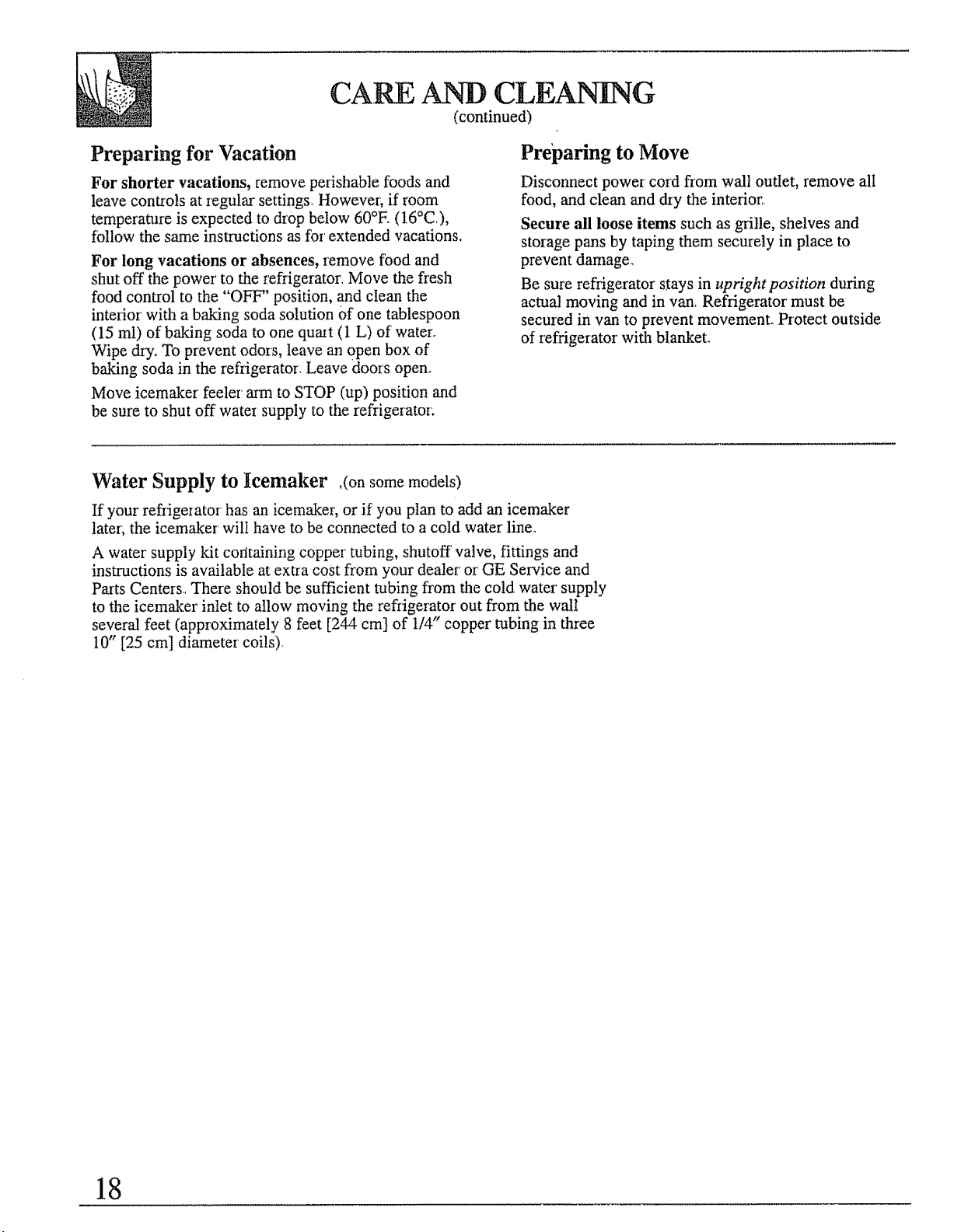

Water Supply to Icemaker .................................18

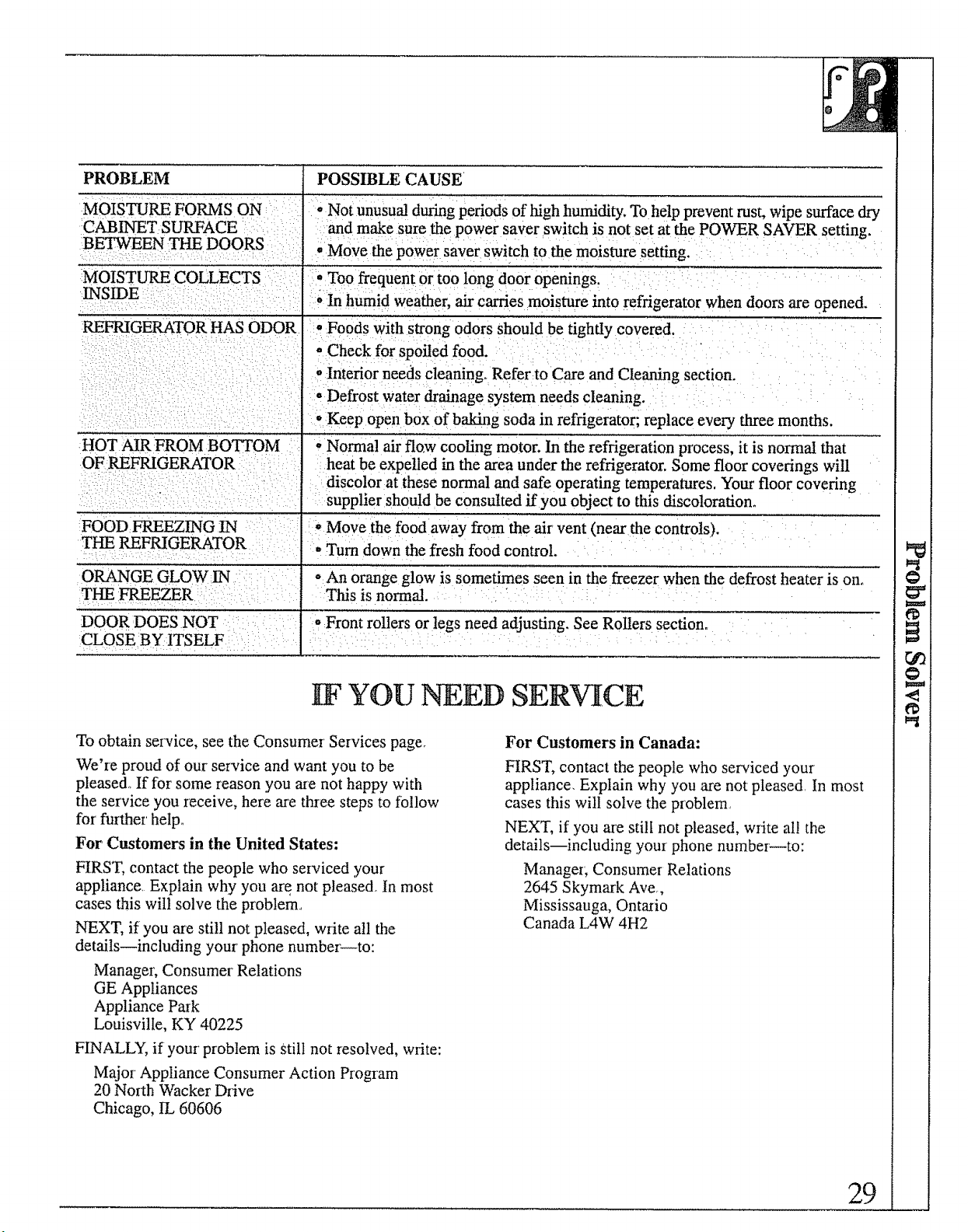

Problem Solver .............................27-29
Normal Operating Sounds ...........................27
More questions ?_Anthe United States call
GEAnswer Center° 800.626.2000
in Canadaconsultyour localtelephone
directoryfor the CamcoServiceCenter
IlnstaHation ........................................... 20-26
Adapter Plug ...............................................................20
Electrical Requirements .......................................20
Extension Cords .............................................................20
Grounding .......................................................................20

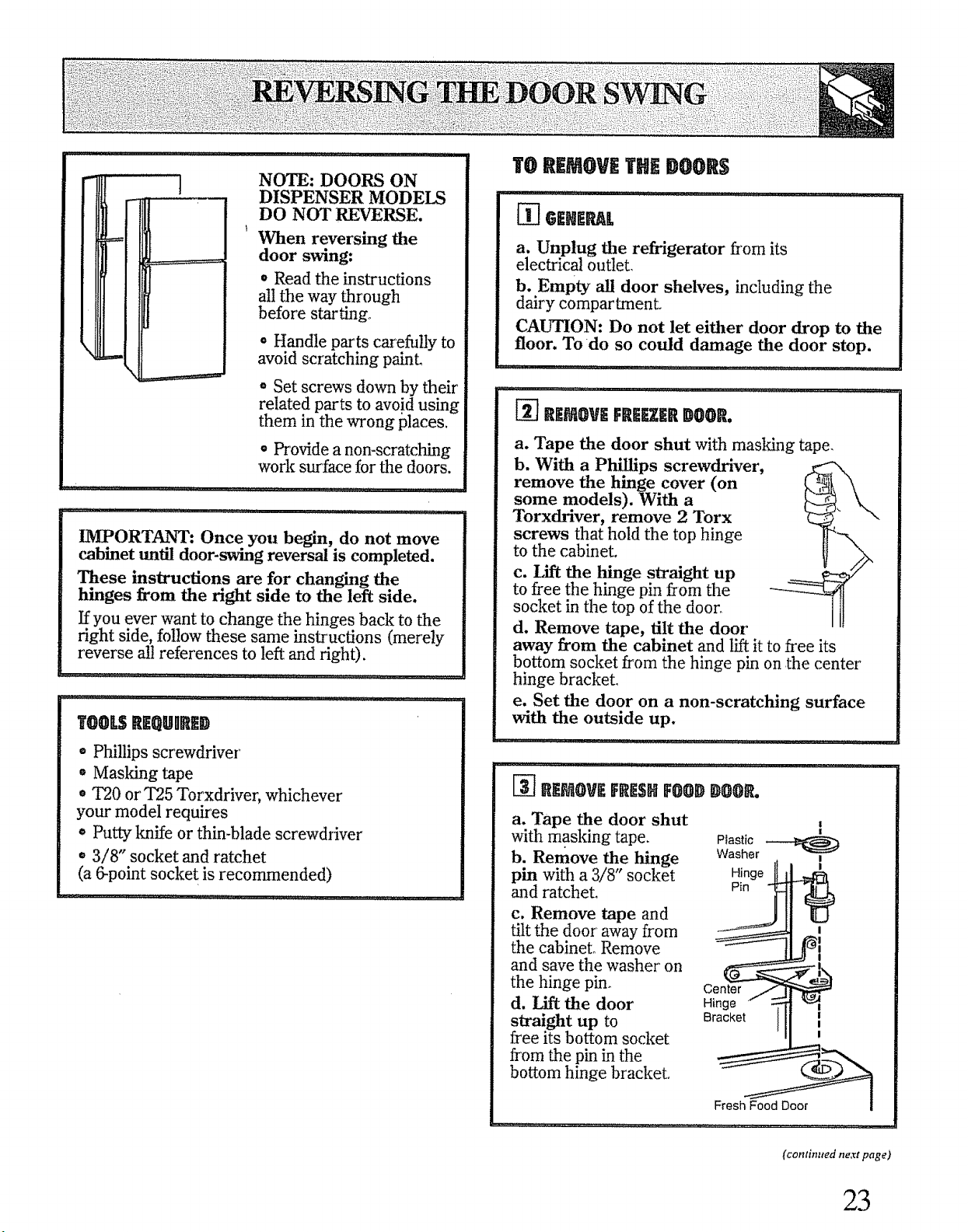

Reversing the Door Swing .......................23-26

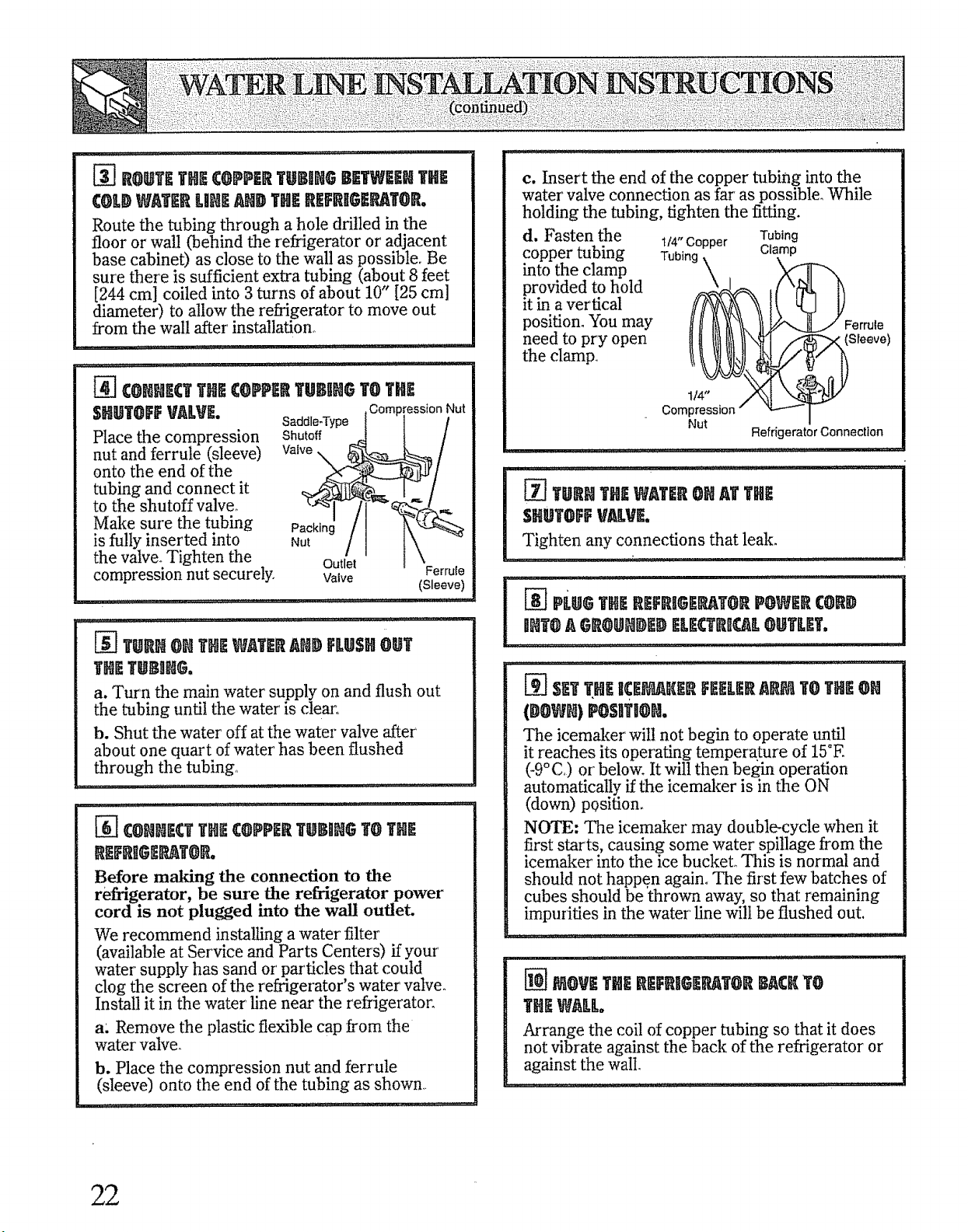

Water Line Installation ..................................21,22
Consumer Services .........................2,4
Appliance Registration ..............................................2
Model and Serial Numbers ..............................2

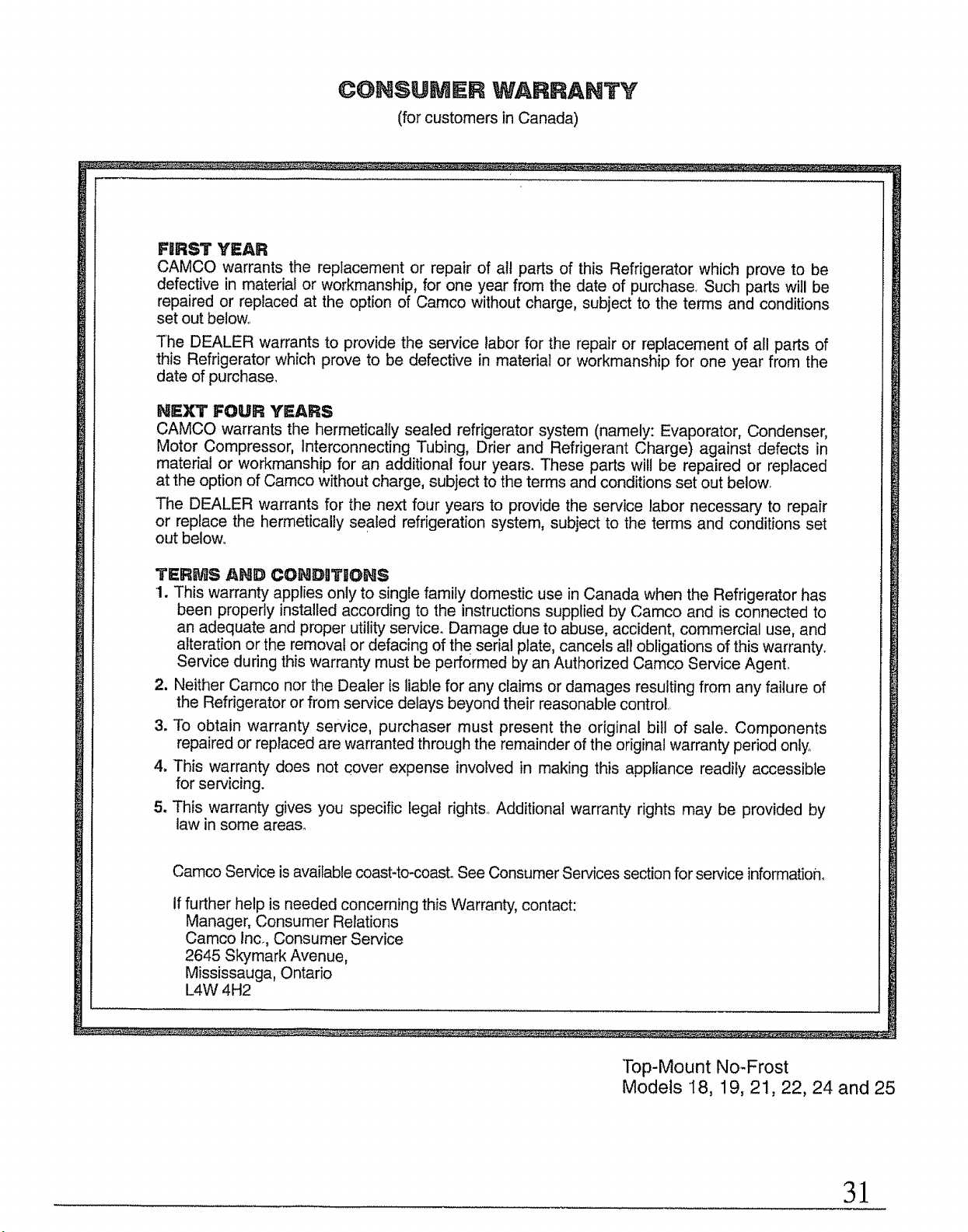

Warranty for Canadian Customers .............31
Warranty for U. S,Customers ............Back Cover
Top-MountNo-Frost
Models 18,19,21,22,24and25
GEAppliances
WELCOME
Welcome to the GE family. We're proud of our quality products and we
believe in dependable service. You'll see it in this easy-to-use guide and
you'll hear it in the friendly voices of our customer service staff. Best of
all, you'll experience these values each time you open your refrigerator,
That's important, because your new refrigerator will be part of your
family for a long time.
CFC DISPOSAL
Your old refrigerator has a cooling system that used
CFCs (chlorofluorocarbons)_ CFCs are believed to
harm stratospheric ozone.
If you are throwing away your old refrigerator, make
sure the CFC refrigerant is removed for proper
disposal by a qualified servicer° If you intentionally
release this CFC refrigerant you can be subject to
Frees and imprisonment under provisions of the
federal Clean Air Act.
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain your
new refrigerator properly.
Keep it handy for answers to your questions.
if you don't understand something or need
more help:
In the United States, call:
GE Answer Center ®
800.626.2000
24 hours a day, 7 days a week
In Canada, write:
Manager, Consumer Relations
2645 Skymark Ave.
Mississauga, Ontario
Canada LAW 4H2
If you received a damaged refrigerator...
Immediately contact the dealer (or builder) that sold
you the refrigerator°
Save time and money. Before you request
service...
Check the Problem Solver section in this guide. It lists
minor operating problems that you can correct yomself
Write down the model and serial numbers.
You'll see them on a label on the left side, near the top
of the fresh food compartment.
These numbers are also on the Consumer Product
Ownership Registration Card that came with your
refrigerator.
Before sending in this card, please write these
numbers here:
Model Number
Serial Number
Use these numbers in any co[respondence or service
calls concerning your refrigerator.
IMPORTANT: You must provide proof of purchase
or installation date foi in-warranty service,
Date Purchased
Date Installed
BuildedDealer Name
Address
Phone
2
V[PORTANT SAFETY INSTRUCTIONS
Read aH instructions before using this appliance.
:A :WARNING--When using this appliance,
always exercise basic safety precautions,
including the following:
Use this appliance only for its intended purpose
as described in this Use and Care Guide.
o Don't refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin
No. 69 says:
".. °Youmay safely refreeze frozen foods that
have thawed if they still contain ice crystals or if
. This refrigerator must be properly they are still cold--below 40°E (4°C.).
: installed and located in accordance "._.Thawed ground meats, poultry or fish that
with the Installation Instructions
before it is used.
_2,,_,' .... Never unplug your refrigerator by
_:i__::_il pulling on the power cord. Always grip
plug firmly and pull straight out from
the outlet.
o Repair or replace immediately al! electric
serwce cords that have become frayed or
otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length
or at either the plug or connector end.
- When moving your refrigerator away from the
wall, be careful not to r011over or damage the
power cord.
o Do not allow children to climb, stand or
hang on the shelves in tile refrigerator. They
could damage the refrigerator and seriously
injure themselves
0 f your old refrigerator is stil! around
the house but n& in use, be sure to
remove the doors. This will reduce the
l_ossibility of danger to children.
have any off-odor oroff:color should not be
reffozen andshould not be eaten. Thawed ice
cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The
food may be dangerous to eat.
"Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits,
vegetables and prepared foods. The eating quality
of red meats is affected less than that of many
other foods. Use refrozen foods as soon as
possible to save as much of their eating quality as
you can."
* nplug your refrigerator before
cleaning and making repairs.
NOTE: We strongly recommend that
any selwicing be performed by a
qualified individual
Before replach,lg a burned-out light bulb, the
refrigerator should be unplugged in orderto avoid
contact with a live wire filament. (A burned-out
light bulb may break when being replaced.)
NOTE: Turning control to OFF position does
not remove power to the light circuit.
oAfter your refrigerator is in operation, do
not touch the cold surfaces in the freezer
compartment, particularly when hands are
damp or wet. Skin may adhere to these extremely
cold:surfaces.
*If your refrigerator has an automatic icemaker,
avoid contact with the moving parts of the ejector
mechanism, or with the heating element that
releases the cubes. Do not place fingers or hands
on the automatic icemaldng mechanism while the
refrigerator is plugged in.
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
SAVE THESE
INSTRUCTIONS
i
i
i
[
O
=
=
_t
=
r_
3
We'll Be There
With the purchase of your new GE appliance, receive the assurance that if you ever
need information or assistance from GE, we'll be there. All you have to do is call!
GEAnswerCentePIn_eUnitedStates:000.626.2000
Whatever your question about any GE major appliance, GE Answer Center _ information service is available to help, Your call-and
your question-will be answered prompdy and courteously, And you can call any time GE Answer Center ®service is open 24 hours a
day, 7 days a week,,
InCanadacontactManager,ConsumerRelations,Camco,Inc.,
2645SIo/markAvenue,Mississauga,Ontario,CanadaL4W4/t2
In-HomeRepairSemice/n_eUnitedStates:O004_E-CARES(000432-2737)
AGE consumer service professional will provide expe_t repair service, scheduled at a time that's convenient for you. Many GE
Consumer'Service company-operated locations offer you service today or tomorrow, or'at your convenience (7:00 a.m to 7:00 p.m.
weekdays, 9:00 a.m to 2:00 p..m. Saturdays) Our factory-trained technicians know your appliance inside and out--so most repairs
can be handled in just one visit.
InCanadaconsultyourlocaltelephonedirectoryforthe
CamcoServiceorAuthorizedServiceCenternearestyou.
ForCustomersWithSpecialNeeds.../n_eUnitedStates:800.626.2000
Upon request, GE will provide Braille controls for a variety el GE appliances, and a brochure to assist in planning a barrier-free
kitchen for persons with limited mobility. To obtain these items, free of charge, cal1800.626.2000..
Consumers with impaired hearing or speech who have access to a TDD or' a conventional teletypewriter may call 800-TDD-GEAC
(800-8334322) to request information or service,
InCanadacontactManager,ConsumerRela#ons,Camco,Inc.,
2045Slo/markAvenue,Mississauga,Ontario,CanadaL4W4tt2
$omiceContractsIn_oUnitedStates:800-620-2224
You can have the secure feeling that GE Consumer Service will still be thee e after your warranty expires, Purchase a GE contract
while yourwarranty is still in effect and you'll receive a substantial discount, With a multiple-year contract, you're assured of future
service at today's prices,
800-401-3630InCanada
PartsandAccossodosIn_eUnitedStates:600-6264002
Individuals qualified to service their' own appliances can have parts or accessories sent direcdy to their home, The GE parts system
provides access to over 47,000 parts, .,and all GE Genuine Renewal Parts are fully warranted, VISA, MasterCard and Discover cards
are accepted,
User maintenance instructions contained in this booklet cover procedures intended to be performed by any user. Other servicing
generally should be referred to qualified service personnel, Caution must be exercised, since improper servicing may cause unsafe
operation.
InCanadaconsultyourlocaltelephonedirectoryfor_e
CamcoServiceorAuthorizedServiceCenternearestyou.
4
TEMPERATURE CONTROLS
The temperature controls in your refrigerator
have letters and numbers. Initially set the freezer
control at "C" and the fresh food control at "52'
The fresh food control maintains the temperatures
throughout the refrigerator.
5 INITIAL SETTING
9 COLDEST
FRESHFOOD
Moving the fresh food control to "OFF" stops
cooling in both areas--fresh food and freezer--
but does not shut off power to the refrigerator.
The freezer control
moves a damper to
change the amount
of cold air that
moves from the
freezer to the fresh
food compartment.
Cordair . _ raE (coldest setting)
from freezer _;;;_4._C 1[
compartment _.N_N II
,,___../) ,.r,> _NL[
(warmestsetting) Ar-:::_
viow [
Power Saver Switch
The power saver' switch is located on the temperature
control panel. To reduce the amount of electricity
required to operate your refrigerator, push switch to
the POWER SAVER setting,
This turns off the unit in your refrigerator that
prevents moisture from forming on the outside.
With this unit turned off, moisture may form on the
outside of your refrigerator, especially when the
weather is humid The humidity is most likely to be
high in the summer, in the early morning hours, and in
homes which are not air conditioned°
Over an extended period of time, moisture thatfoims
on the refrigerator surface may cause deterioration of
the paint finish., It will be important to protect the
finish by using appliance polish wax as described in
the Care & Cleaning section.
The cost to operate the low-wattage unit is about the
same as it costs to use two night lights.
When you move the power saver switch from the
POWER SAVER setting, low wattage electricity
flows through the unit and warms the outside of the
refrigerator° Under most conditions, this prevents the
forming of moisture or water droplets,
No Defrosting
It is not necessary to defrost the freezer or fresh food
compaxtments_ Although your refrigerator is designed
and equipped to defrost itself automatically, some
frost on packages is normal.
If you turn your household thermostat
below 60°F. (16°C.) at night...
o..you may want to move the freeze_
control one step colder. Cooler
temperatures in the house may cause
the compressor to operate less
frequently, thus allowing the freezer
compartment to warm somewhat. To
protect your frozen food supply, leave the freezer
setting at this colder setting for the entke winter or for
as long as you keep your thermostat turned down.
Moving the freezer' control to colder setting should
have no effect on your fresh food compartment.
However, if freezing occurs, move the fresh food
control one step warmer_
When you stop turning the thermostat down, turn the
refrigerator's controls back to their regular settings.
How to Test Temperatures
Use the milk test for the fresh food compartment.
Place a container of milk on the top shelf in the
fresh food compartment. Check it a day later. If the
milk is too warm or too cold, adjust the temperature
controls.
Use the ice cream test for the freezer compartment.
Place a container of ice cream in the center of the
freezer compartment. Check it after a day. If it's _oo
hard or too soft, adjust the temperature controls,
After changing the controls, always allow 24 hours
for the refrigerator to reach the temperature you
have set.
FOOD STORAGE SUGGESTIONS
Use these storage times as guidelines for good eating
quality. The type of packaging used and the storage
temperatures wilt affect how long food will keep in
the refrigerator
New techniques are constantly being developed
Consult the County Extension Service or your local
Utility Company for the latest information on freezing
and storbzg foods,,
Refrigerat0r [ Freezer l
Foods Time Time Storage Tips
DAIRY PRODUCTS
Butter 1-2 weeks 6-9 months
Milk & cream
Cream cheese, cheese
spread & cheese food
Cottage cheese
Hard cheese (Swiss,
Cheddar & Parmesan)
Sour cream
1 week after the
"sell by" date
I-2 weeks after
the "sell by" date
5-7 days after the
"sell by" date
1-2 months
10 days after the
"sell by" date
Not recommended
Not recommended
Not recommended
May become crumbly
Not recommended
Store butter' covered in the DaiIy
Compartment to prevent butter from
absorbing odors,
Refrigerate immediately after use, Close
tightly, Don't drink out of the carton
because enzymes from your mouth cause
milk to sour. Don't freeze cream unless
whipped, '
Wrap tightly,
Wrap tightly to keep odors confined,
Cut off mold if it develops on the surface°
EGGS
Eggs in the shell
Leftover yolks
or whites
FRESH FRUITS
Apples
Avocados
Berries & cherries
Ciuus fluits
Grapes
Peaches, nectarines,
plums & apricots
Pineapples, cut
t week after' the
"sell by" date
2-4days
i
Not recommended ICover' and store small ends down,
l
9-!2 months
Ripening of many fruits is slowed by refrigeration Store fruits in the storage
drawer with the control on the "Fruits" setting
! month
3-5 days
2-3 days
6-t2 months
6-12 months
6-12 months '
Not recommended
6-12 months
6-12 months
6-12 months
1-2 weeks
3-5 days
3-5 days
2-3 days
Ripen at room temperature befbre
refrigerating, Avocados wilt darken
when refrigerated.
Store covered or in the storage
drawer to prevent moisture loss,
Store uncovered
Store covered or in the storage
drawer to prevent moisture loss.
Ripen at room temperature before
refrigerating_
Use quickly for best eating quality.
6
Refrigerator[ Freezer [
Foods Time | Time Storage Tips
Since vegetables remain fresh longest in a moist environment, they should be stored in the Fresh
FRESH VEGETABLES drawer with the contro! on the "Vegetables" setting. If the drawers axe full, store vegetables in plastic
bags or plastic containers to prevent moisture loss.
Asparagus 2-3 days 8-12 months Don't wash before refrigerating. Store
Brussels sprouts
& broccoli
Cabbage & celery
Cauliflower'& snap beans
Carrots, parsnips, beets,
radishes & turnips
Green peas
& lima beans
Lettuce & other'
salad greens
Onions, green
Peppers & cucumbers
3-5 days
1-2 weeks
1 week
2 weeks
3-5 days
t week
3-5 days
1 week
8-12 months
Not recommended
8-12 months
8-12 months
8-12 months
Not recommended
8-12 months
8-12 months
in the drawer;
Wrap we!l[ These odors will travel to other foods,
Wrap we!l[ These odors will travel to other foods.
Wrap well! These odors wilt travel to other f0ods_
Remove tops and wrap well,
Nature's wrapping is best. Leave them in
their pods until ready to use_
Wash. Drain well. Refiigerate in the drawer,
Wrap well! These odors will travel to other foods.
Wrap well! These odors will travel to other foods,
FRESH POULTRY & FISH
Chicken
Turkey, duck & goose
Fish
FRESH MEATS
Beef, gound
Beef, roast & steak
Pork
Veal
Sausage, ground
Lamb
1-2 days
1-2 days
1-2 days
6-12 months
4-6 months
8-12 months
Can be kept in original packaging for refrigeration.
Place in the Meat drawer with the control on the
"Fresh Meat" setting_ When freezing longer than
2 weeks, overwrap with suitable freezer wrap to
reduce freezer burn,
I-2 days
3-5 days
3-5 days
3-5 days
1-2 days
3-5 days
4-6 months
9-12 months
6-9 months
4-6 months
1-3 months
9-12 months
Can be kept in original packaging for refrigeration.
Place in the Meat drawer with the control on the
"Fresh Meat" setting_ When freezing longer than
2 weeks, ovetwIap with suitable freezer' wrap to
prevent freezer burn.
PROCESSED MEATS
1 monthBacon
Frankfurters
Ham, whole
half
slices
Luncheon meat
Sausage, smoked
7 days
7 days
7 days
5 days
3 days
3-5 days
7 days
2 weeks
1-3 months
1-3 months
1-2 months
Not recommended
Not reconmaended
Processed meats should be tightly wrapped and
stored in the Meat drawer with the control on the
"Deli/Cheese" setting.
Unopened, vacuum-packed luncheon meat may
be kept up to 2 weeks_
!
* Sources: United States Department of Agricultme; Food Marketing Institute; Cooperative Extension Service; Iowa State University 7
SHELVES
How to Rearrange YourSheLves
Shelves in the fresh
food and fl'eezer
compartments are
adjustable°
To remove shelves:
Tilt the shelf up at
front, then lift it up
and out of tracks on
the rear" wall of the
N
iefligerator.
(on some models)
To replace shelves:
Select the desired shelf
height. With shelf front
raised slightly, engage
top hooks in tracks at
rear of cabinet., Then
lower fl'ont of' shelf until
it locks into position.
Wire shelves (on some
models) are adjustable
in the same manner,
N Engage
top hook
N Lower to lock
into place
Removable Wine Rack
The wine rack is designed
to hold a bottle on its side,,
(on some models)
Extra Freezer Shelf
Some models have an
extra fleezer shelf that .
allows you to use the
freezer space more
efficiently,,
(on some models)
Porta-Bins on the Doors (on somemodels)
Adjustable Porta-Bins on fresh .i
food and freezer compartment ,_,,
doors can easily be carried
from the refrigerator to the
work a_ea.
To remove: Slide Porta-Bin
forward on molded supports
until it comes completely
out of the door.
To relocate: Select desired shelf height, engage
Porta-Bins in the molded supports of the door,
and slide in.. Porta-Bin will hook in place°
Snuggers (onsomemodels)
Snuggers are designed to
give you storage flexibility
in Porta-Bins and on your'
fresh food door shelves.
Place index finger and
middle finger on either side
of the snugger near the front
and simply move it back
and forth to fit your needs..
,_ Sn/ugger
Two-Position Freezer Shelf (onsome models)
To relocate the two-position freezer shelf, lift slightly
and move it sideways to flee the ends of the shelf
from the holes in the walls,. Then tilt the shelf and
take it out. To reinstall the shelf, first insert one end
and then the other,.
For models without an For models with an icemaker,
icemaker, the shelf can be the shelf must be placed in
placed in either position, the lower position
8
[
Features vary by model
Quick Serve:MSystem (onsomemodels)
CookJng-serving_storage 1 I
dishes with durable see- t
through lids fit into a
rack that hangs on the
fresh food or freezer
compartment door.
Dishes can be removed from and ietu:ned to the rack
as needed, and the rack can be removed and relocated
on either door in the same manner as the door bins,
Dishes and lids are safe for use in microwave ovens,
refrigerators, freezers, and are dishwasher-safe. The
dishes should not be used for cooking high-fat foods,
such as bacon, and high-sugar foods, such as candy
and syrup. The high temperatures of the fat and sugar'
can cause bubbles to form on the inside of the dish
CAUTION:
Dishes and lids are not designed for use on the
range top, broiler or in the regular oven. Such use
can be hazardous.
Quick Store Bin (onsomemodels)
This removable tilt-out
bin can be located on the
fresh food or freezer
compartment door.. It has
been designed for
convenient storage of those
frequently used items that
do not fit easily into a
Porta-Bin or soon-to-be-
used items that require
covered storage to keep
from drying out,.
To open, push the
latch up and pull the ...._\
bin handle forward _ -_x?, __, .
" _ _,\),', El]Pusnup
To avoid damaging the '_ _\_,,_b
refrigerator, make sure -f ""-a_-e'lx_
the bin is closed and __'_\\ ,,
latched before closing _'-_ <4k_,\_,1!
the refrigerator door, "_'_-__ _q'_}l
To remove the bin, lift
it up and out of the bin
housing.
To relocate the Quick
Store unit, lift the bin
housing up and out of' the
molded supports on the
door; move it to the
desired new location, and
lower it onto the molded
supports on the door. You
do not have to remove the
bin from the housing when BinHousing
relocating the Quick Store unit.
I
I
Features vary by model
9
STORAGE DRAWERS
Fruit & Vegetable Drawers
The storage drawers at the bottom of the flesh food
compartment are designed to provide high humidity
levels requked by most vegetables and lower
humidity levels required for most ffuits_
When replacing the drawers, always push them all
the way in,
Storage time will depend upon the type of food and its
condition when placed in the drawers,,
Excess water that may accumulate in the bottom of the
drawer's should be emptied and the drawers wiped dry°
Cool 'n Fresh Drawer (onsomemodels)
This refligerated drawer is designed to provide lower
humidity storage for items such as:
o Apples *Nectarines • Raspberries
• Apricots o Oranges ° Squash, summer
o Grapes oPeaches *Strawberries
• Mushrooms • Pears *Tangerines
Moist'n Fresh Drawer (on somemodels)
This refligerated drawer is designed to keep
unwrapped foods fresh by retaining the natural
moisture content of foods such as:
- Artichokes • Cherries ° Peas, green
- Asparagus • Corn ° Plums
• Beets, topped • Currants • Radishes
° Blueberries • Greens, leafy . Rhubarb
- Carrots • Lettuce • Spinach
° Celely • Parsley - Tomatoes, iipe
As in any refrigerated storage mea, it is
recommended that foods with strong odors be
stored wrapped--foods such as:
• Broccoli • Cauliflower ° Parsnips
• Brussels sprouts ° Green Onions ° Turnips
° Cabbage
10 Features vary by model
Adjustable Humidity Drawers
(on some models)
These drawers have
individual, adjustable
humidity controls that let u/" ....
you regulate the amount of
'-ll
cold air entering the drawers_
Slide the control all the way to the HIGH setting
and the drawer provides high humidity recommended
for most vegetables°
Slide the control all the way to the LOW setting to
provide lowe_ humidity levels recommended for
most fruits.
Snacks Drawer (on some models)
The slide-out Snacks
drawer can be removed
and taken to the sink or
food preparation area.
You may also relocate
it and the shelf to which
it attaches within the
fresh food compaztment
to suit your storage needs.
Adjustable Temperature Meat Drawer (onsomemodels)
This drawer is designed to stoic fresh meats where
they keep best--in the coldest part of the refrigerator,
The "Fresh Meats Zone" is at the top left side of the
refrigerator. Youmust use one of these 6 slots to keep
the drawer in the coldest zone. This allows air from
the freezer to circulate around the drawer to keep it
very cold,
You can move the drawer to any location if you don't
want the extra cold storage.
The variable temperature control lever lets you
regulate the amount of cold air surrounding the drawer,
When the lever is set at COLDEST, the damper
over the opening in the drawer is fully open to
provide the coldest storage area.
When the lever is set at COLD, the damper is fully
closed, Normal refiigerator temperatures will be
maintained.
When the drawer is placed in the top 6 slots on the
left side and the lever is set at COLDEST, air fi'om the
freezer is forced around the drawer to keep it very cold,
Variable settings between these extremes may be
selected
Features vary by model I
11
7---
[
k
I
L
7
J
[
i
AUTOMATIC ICEMAKER
(on some models)
Anew,y-,nst ,od, ,e,,a,ormayt, ej}
8 to 12 hours to begin making ice.
Your icemaker will produce eight cubes per
cycle--approximately 100 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other use
conditions.
If your refrigerator
is operated before
the water connection
is made to the
ieemaker, keep the
feeler arm in the
STOP (up) position,.
When the refrigerator
has been connected to
the water supply,
move the feeler arm to
the ON (down) position.
The ice maker will fi!l
with water' when it
cools to freezing,.
A newly-installed
refrigerator may take
rcemaker Feeler arm in
(up) position
e
torage
Bin
Feeler arm in
ON (down)
position
8 to t 2 hours to begin making ice cubes,
Throw away the first few batches of ice,,
This flushes away impurities in the water line.
Icemaking will continue until the feeler' arm senses a
sufficient accumulation of ice cubes in the storage bin
and halts the operation temporarily. For maximum ice
storage, level the stored cubes with your hand
occasionally. Be sure nothing interferes with the
swing of the feeler' arm,
The icemaker ejects cubes in groups of eight and it is
normal for several cubes to be joined together',
Move the icemaker feeler arm to the STOP (up)
position when:
*home water supply is to be off for several hours.
° ice storage bin is to be removed for' a period of time°
° going away on vacation, at which time you should
also turn off the valve in the water supply line to
your' refrigerator,
° turning the fresh food control to the OFF position,,
If ice is not used frequently, old ice cubes will
become cloudy and taste stale° Empty the ice storage
bin periodically and wash it in lukewarm water_ Be
sure to allow the storage bin to dry before replacing
it--otherwise ice cubes may stick to other' parts of
the icemakero
If this is your first icemaker, you'll hear" occasional
sounds that may be unfamiliar,, They are normal
icemakJng sounds and are not a cause for concern.
Water Filter Accessory
Your ice cubes can only be as fresh-
tasting as the water that produces them.
That's why it's a good idea to purify
your water with a water filter:.
REMOVES SEDIMENT
Rigid, porous graded density depth
cellulose fiber cartridge catches dirt,
rust particles, sand and silt.
REMOVES ODORS
Activated charcoal granules
remove musty, stale odors.
IMPROVES TASTE
Activated charcoal granules remove oily,
medicinal, plastic and metallic tastes_
REDUCES SCALE
Special crystals reduce hard
scale deposit formation,.
The water filter is an option at exu'a cost and is
available from your dealer. Specify WR97X0214.
It has complete installation instructions and installs
on 1/4" OD_ copper' water line..
[ Features vary by model
12
Icemaker Accessory Kit
If your refrigerator did not come already equipped
with an automatic icemaker, an Icemaker Accessory
Kit is available at extra cost,. Check the back of the
refrigerator for the specific icemaker kit needed for
your model,.
ICE DISPENSER
(on some models)
]1
How the Ice Dispenser Works
When the selector switch is set at ICE CUBES...
(1) The automatic icemaker fills the
(2) ice storage bin_
(3) Pushing on the ice cradle activates the
(4) motor-powered auger which moves the ice
cubes into glass through the
(5) chute°
When the selector switch is moved to CRUSHED
ICE, a flipper' directs the cubes through the
(6) crusher and crushed ice falls through the chute.
Spills are caught in the
(7) spill shelf's.
A newly-installed refrigerator may take
8 to 12 hours to begin making ice. it
CAUTION: Never put fingers or anyother
objects into the ice crusher discharge opening.
Before Ushlg Your Ieemaker and Dispenser
If your refrigerator is operated
before the water connection is
made, remove the ice storage
bin and make sure the icemaker
feeler arm is in the STOP (up)
position.
When the refrigerator has been
connected to the water supply, move
the feeler arm to the ON (down) position_
The icemaker will fill with water' when it cools to
freezing. A newly-installed refrigerator may take
8 to 12 hours to begin making ice cubes_
Once Your Icemaker is in Operation
When the water supply
has been connected to the
icemaker, remove the ice
storage bin, move the
icemaker feeler' an'n to the
ON (down) position, and
replace the bin,
To remove the ice storage
bin, lift the front of the bin and
pull the bin straight out while
supporting it at front and rear..
To replace the ice storage bin:
Slide it back on the ice bin shelf°
If the bin does not go all the way
back, remove it and rotate the
drive mechanism 1/4 turn. Then
push the bin back again°
(continued next page)
Features vary by model ]
13
g_
_t
I
I
J
i
i
i
I
To Use the Dispenser
Set the selector switch to ICE
CUBES or CRUSHED ICE.
Press the tim of the glass
gently but firmly against the
rubber-cushioned cradle_
To stop dispensing, release
pressure from the cradle and
hold the glass under the
chute to catch the last bits of
ice or droplets of water.
After crushed ice is dispensed,
some water may drip from the chute.
ICE DISPENSER
(continued)
Do not pour water in the
spill shelf because it is
not self-draining. Pour it
in kitchen sink. Any large
amount of water' should
be wiped dry right away,
The shelf and its grille
should be cleaned regularly_
SpitI shelf
If This is Your First Icemaker
Some crushed ice may be dispensed even though you
- selected CUBES.. This happens occasionally when a
few cubes accidentally get directed to the crusher.
Sometimes a mound of snow will form on the door in
the ice chute_ This condition is normal and usually
occurs when you have dispensed crushed ice
repeatedly.. The snow will eventually evaporate.
Sometimes crushed ice will spray beyond the glass.
To avoid this, hold the glass up close to the chute.
ff Ice Clumps Form in the Storage Bin
When ice is not used frequently ice clumps may
form in the storage bin, which may jam the motor-
powered auger which moves the ice through the
chute. If this happens:
° remove the storage bin from the freezer
compartment
*break up ice clumps with fingertip pressure and
discard remaining clumps
° replace the bin before remaining cubes melt and
fuse together
Important Facts About Your Dispenser
*Avoid overfilling glass with ice and use of narrow
or extra-tall glasses. Backed-up ice can jam the
chute or cause the door in the chute to freeze shut_
Periodically open the freezer compartment door and
look down into the chute, If ice is blocking the
chute, poke it through with a wooden spoon_
° To help keep bits of ice from being sprayed
beyond the glass, place glass close to ice chute--
but not so close that it blocks outcoming ice,
*Ice should not be dispensed into thin glasses, fine
china or delicate crystalwthey can crack or chip
from the combined pressure of your hand pressing
them against the cradle and ice dropping into them.
Add ice before filling the glass with a beverage.
This will prevent splashing, which is annoying and
which, if the splash reaches the ice selector switch,
could cause it to stick or bind.
*Beverages and foods should not be quick.chilled
in the ice storage bin, Cans, bottles or food
packages in the storage bin may cause the icemaker
or auger tojam_
. Do not add ice from trays or bags to the storage
bin. It may not crush or dispense well_
14
t Features vary by model ]
CARE AND CLEANING
Cleaning--Outside
The ice dispenser spill shelf (on some models)
should be wiped dry immediately to prevent spotting
if excessive spills occur. Water left on the shelf may
leave deposits that you can remove by soaking with
undiluted vinegar. You can also use a paste of non-
precipitating water softener (such as Calgon brand)
and water, or 1 teaspoon (5 mI) of citric acid powder
per pint (500 ml) of hot tap water, Soak until the
deposit disappears or becomes loose enough to rinse
away, Usually 30 minutes soaking time is adequate.
Avoid using wax on the spill shelf and tiim
The door handles and trim (on some models) can be
cleaned with a cloth dampened with a solution of mild
liquid dishwashing detelgent and water, Dry with a
soft cloth. Don't use wax on the door handles and trim.
The soft door handles (on some models) are easy to
keep clean if they are waxed every few months° Use a
household wax such as Pledge brand or' Jubilee brand
to coat the handles, Soil will then easily wash off with
a dish detergent and water or a non-abrasive all-
purpose cleaner:
Keep the finish clean. Wipe with a clean cloth lightly
dampened with kitchen appliance wax or mild liquid
dishwashing detergent, Dry and polish with a clean,
soft cloth_ Do not wipe the refrigerator with a soiled
dishwashing cloth or wet towel These may leave a
residue that can erode the paint_ Do not use scouring
pads, powdered cleaners, bleach or cleaners
containing bleach because these products can scratch
and weaken the paint finish_
Protect the paint finish. The finish on the outside of
the refrigerator is a high quality, baked-on paint
finish With proper care, it will stay new-looking and
rest-free for years, Apply a coat of kitchen/appliance
wax when the refrigerator is new and then at least
twice a year,
Appliance Polish Wax & Cleaner is available from
Ser#ice and Pm'ts Centers
Cleaning--Inside
inside the fresh food and freezer compartments
should be cleaned at least once a yem: Unplug the
refrigerator before cleaning if this is not practical, wring
excess moisture out of sponge or cloth when cleaning
around switches, lights or controls Apply an appliance
wax polish to the inside surface between the doors
Use warm water and baking soda solution--about a
tablespoon (15 ml) of baking soda to a quart (i L) of
water This both cleans and neutralizes odors, Rinse
thoroughly with water and wipe dry
Other parts of the refrigerator--including door
gaskets, meat and vegetable drawers, ice stol age bin
and all plastic parts--can be cleaned the same way
After cleaning door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side
This helps keep the gaskets from sticking and bending
out of shape, Do not use cleansing powders or other
abrasive cleaners,
Avoid cleaning cold glass shelves (on some models)
with hot water because the extreme temperature
difference may cause them to break.
To help prevent odors, leave an open box of baking
soda in the rear of the refrigerator, on the top shelf_
Change the box every 3 months. An open box of baking
soda in the freezer will absorb stale freezer odors.
Quick Serve dishes and lids can be cleaned in an
automatic dishwasher or by hand with liquid
dishwashing detergent and water You can remove
stains by soaldng them in a bleach and water
solution--1 part chlorine bleach to 3 parts water°
(Stubborn stains may require soaking,) Use a plastic
scouring pad to remove burned-on soil Do not use
cleansing powders or other abrasive cleaners_
(contim_ed ne_t page)
15
CARE AND CLEANING
(continued)
Under Refrigerator
For most efficient
operation, you need to
keep the area under the
refrigerator clean,
Remove the base grille --.
and either sweep away or
vacuum up dust that is
readily accessible. For best Clean the condenser coils
results, use a brush specially at least once a year,
designed for this purpose. It is
available at most appliance parts stores. This easy
cleaning operation should be done at least once a year°
Behind Refrigerator
Care should be taken in moving your refrigerator
away from the wall. All types of floor coverings can
be damaged, particularly cushioned coverings and
those with embossed surfaces, Pull the refrigerator
straight out and return it to position by pushing it
straight ino Moving your' refrigerator in a side
direction may result in damage to your' floor coveting
or refrigerator.
W'hen pushing the refrigerator back, make sure you
don't roll over the power cord or icemaker supply line
(on some models).
Storage Drawer and Drawer Cover Removal
Drawers at the bottom of the fresh food compartment
will stop before coming all the way out of the
refrigerator, to help prevent contents from spilling
onto the floor. These drawers can be removed easily
by lifting the sides up slightly while pulling the
drawers past the "stop" location_
To remove the drawers and their covets when the
fresh food compartment door cannot be opened fully,
follow the procedure that applies to your model,
Two Drawers (on some models)
1. Remove the drawer
farthest from the door. _._
1
2. Remove the other
drawer.
On models with a
bottom door shelf that
blocks the other drawer,
slide the other drawer
toward the middle and
remove it.
3. Remove the glass
cover. Reach in, push
the fiont of the glass
cover up and, at the
same time, pull it
forward as far as it
will come. Tilt it and
take it out,
16
4. Remove the drawer
frame. (Always
remove the glass
cover before you take
out the drawer frame.)
Lift the frame off
the supports at each
side and back, pull
it fbtward, tilt it and
take it out..
/ Frame
To replace:
1. Lower the frame
until it rests on the
supports at each side
and back.
Drawer Slide
(sloped end)
=,
Replace the drawers.
If you removed the
drawer slide, replace it
with the sloped end at
the front
a. Slide one side of the
drawer onto the drawer slide
b. Move the slide and drawer all the way to the
hinge side until the other side of the drawer rests
on the frame,
e. Slide the other drawer into place_
3. Replace the glass cover, pushing its rear edge
firmly into the rear frame channel and gently
lowering the front into place,
Full-Width Drawer with Plastic Cover
(on some models)
To remove the drawer, P, \_ _!
lift the front up slightly __ ::::i: _i _l
and pull the drawer' _ _---_!_t
I
straight out. _ _-_ "_-_
To remove the cover, _ _ '
lift it off its supports, _ :.:::::::::'' ::i:'i'
pull it forward and up, ---
tilt it and take it out., / \
Half-Width Drawer with Plastic Cover
(on some models)
To remove the
drawers, lift the
front up slightly
and pull the drawer
straight out_
Light Bulb Replacement
A light bulb and socket are located at the top of the
fresh food compartment opposite the temperature
control panel,,
Some models also have a bulb and socket in the upper
left corner of the freezer compartment behind a
flexible light shield,,
To replace either' bulb, unplug the refrigerator from its
electrical outlet, remove light shield, unscrew the bulb
when cool, and replace it with a similar size bulb_
(continued next page)
17
CARE AND CLEANING
(continued)
Preparing for Vacation
For shorter vacations, remove perishable foods and
leave controls at regular settings_ However, if room
temperature is expected to drop below 60°E (16°C),
follow the same instructions as for extended vacations,
For long vacations or absences, remove food and
shut off the power to the refrigerator, Move the fresh
food control to the "OFF" position, and clean the
interior with a baking soda solution Of one tablespoon
(15 ml) of baking soda to one quint (1 L) of water:
Wipe dry. To prevent odors, leave an open box of
baking soda in the refrigerator. Leave doors open_
Move icemaker feeler arm to STOP (up) position and
be sure to shut off water supply to the refrigerator:
Preparing to Move
Disconnect power cord from wall outlet, remove all
food, and clean and dry the interior,
Secure all loose items such as grille, shelves and
storage pans by taping them securely in place to
prevent damage,
Be sure refrigerator s:tays in upright position during
actua! moving and in van, Refrigerator must be
secured in van to prevent movement. Protect outside
of refrigerator with blanket_
Water Supply to Icemaker ,(onsomemodels)
If your refrigelator has an icemaker, or if you plan to add an icemaker
later, the icemaker will have to be connected to a cold water line.,
A water supply lit corltaining copper tubing, shutoff valve, fittings and
instructions is available at extra cost from your dealer or GE Service and
Parts Centers, There should be sufficient tubing fi'om the cold water supply
to the icemaker inlet to allow moving the refrigerator out from the wall
several feet (approximately 8 feet [244 cm] of 1/4" copper tubing in three
10" [25 cm] diameter' coils),
18
P FRJGE TOR LOCATION
Do not install the refrigerator where the
temperature will go below 60°E (16°C.) because it
will not mn often enough to maintain proper
temperatures.
Do install it on a floor strong enough to support
it fully loaded.
To keep energy costs down, avoid locating the
refrigerator next to the range or a heating vent.
CLEARANCES
Allow the following clearances for ease of
installation, proper air circulation and plumbing
and electrical connections:
Sides .............................................................. 3/4" (19 mm)
Top ........................................................................1" (25 mm)
Back .....................................................................I" (25 mm)
If Model 19, 22, or 25 is to be installed against a wall
on the hinge side, allow 1½" (44 mm) for door
cleaz ance..
ROLLERS
(on some models)
The rollers have 3 purposes:
1. Rollers can be adjusted so the door closes easily
when opened about halfway (Raise the front about
3/4" [!9 mm] from the floor.)
2. Rolleis should be adjusted so the refrigerator is
firmly positioned on the floor and does not wobble.
3. Rollers allow you to move the refrigerator away
from the wall for' cleaning
To adjust the rollers:
1. Remove the base
grille by grasping the
bottom of the grille
and pulling it out_
2. Turn the two front roller
adjusting screws clockwise
to raise the refligerator,
counterclockwise to lower it,
3,
To replace the base
grille, line up the
clips on the back of
the grille with the
openings in the base
plate and push the
gri!le forward until
it snaps into place,
19
iNSTALLATION REQUIREMENTS
I_ORTANT...PIease Read Carefully
How to Connect Electricity
For personal
safety, this
appliance must be
properly grounded.
The power cord of
this appliance is
equipped with a 3-
prong (grounding)
plug which mates
with a standard 3-
Preferred method
grounding exists
before using.
prong (grounding)
wall outlet to minimize the possibility of electric
shock hazard from this appliance_
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded
Where a standard 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded 3-prong
wail outlet,.
Use of Adapter Plug
Because of
potential safety
hazards under"
certain conditions,
we strongly
recommend
against use of an
adapter plug.
However, if you
still elect to use
an adapter, where
local codes
Temporary Method
(Adapter plugs not _"2
Align large prongs/slots,
Insure proper grounding and firm
connec!ton exists before use,
permit, a
TEMPORARY CONNECTION may be made to a
properly grounded 2-prong wall outlet by use of a UL
listed adapter available at most local hardware stores.
The larger slot in the adapte_ must be aligned with the
larger' slot in the wall outlet to provide proper polarity
in the connection of the power cord
Use of an adapter plug will increase the clearance
needed fol the back of the refrigerator..
CAUTION: Attaching the adapter ground terminal
to a wall outlet cove[ screw does not ground the
appliance unless the cover screw is metal, and not
insulated, and the wall outlet is grounded thlough the
house wiring. You should have the circuit checked by
a qualified electrician to make sure the outlet is
properly grounded,.
When disconnecting the power cord from the
adapter, always hold the adapter in place with one
hand while pulling the power cord plug with the other
hand° If this is not done, the adapter ground terminal
is very likely to break with repeated use°
Should the adapter ground terminal break, DO
NOT USE the appliance until a proper ground has
again been established.
Electrical Requirements
The refrigerator should always be plugged into its
own individual electrical outlet which has a voltage
rating that matches the rating plate,
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires°
Use of Extension Cords
Because of potential safety hazards under' certain
conditions, we strongly recommend against the use of
an extension cord, However', if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed 3-wire grounding type appliance extension
cord having a grounding type plug and outlet and that
the electrical rating of the co_d be 15 amperes
(minimum) and 120 volts_
0
_UTUOH:
• if you use your refrigerator before connecting
the water line, make sure the icemaker feeler
arm is kept in the STOP (up) position.
o Do not install the icemaker tubing in areas
where temperatures fall below freezing_
oWhen using any electrical device (such as a
power drill) during installation, be sure the
device is insulated or wired in a manner to
prevent the hazard of electric shock.
o Al! installations must be in accordance with
local plumbing code requirements_
W_T YOUWKL KE|D
A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 20 and 120 p.s.i.
o Power drill, unless you have a self-piercing valve_
o Copper tubing, 1/4" outer diameter to
connect the refrigerator to the water supply.
Be sure both ends of the tubing are cut square.
TO determine how much copper tubing you need:
measure the distance from the water valve on the
back of the refrigerator to the water supply pipe°
Then add 8 feet (244 cm)_ Be sure there is
sufficient extra tubing (about 8 feet [244 cm]
coiled into 3 turns of about 10 inches [25 cm]
diameter) to allow the rehigerator to move out
from the wall after installation. Do not use plastic
tubing or plastic fittings because the water supply
line is under pressure at all times**Also, certain
types of plastic tubing may become brittle with
age and crack, resulting in water leakage.
o Shutoff valve to connect to the cold water
lineo The shut-off valve should have a water inlet
with a minimum inside diameter of 5/32" at the
point of connection to the COLD "WATER LINE.
Saddle-type shut-off valves are included in many
water supply tdts. Before purchasing, make sure
a saddle-_¢pe valve complies with your local
plumbing codes_
o Two t/4" outer diameter compression nuts
and 2 ferrules (sleeves)--to connect the
copper tubing to the shutoff valve and the
refrigerator water valve°
• If your existing water line has a flared fitting at
the end, you will need an adapter (available at
plumbing supply stores) to connect the water
line to the refrigerator OR_you can cut off the
flared fitting with a tube cutter and then use a
compression fitting.
WARRAHTYIHFGRt_JITiON
This water line installation is not warranted by
the refrigerator or icemaker manufacturer.
Follow these instructions carefully to minimize
the risk of expensive water damage.
ShUTOFFTH| WAT|RSUPPtY. ]
Turn on the nearest faucet long enough to clear
the line of water.
INSTALLTHESHUTOm:FVALV|0N TE
N_REST FR|QU|NTI, Y USED DRIHKIN6
WATER UH|.
Typical ways to conned to wuler supply
Through floor to Under sink Through wall I
basement cold to cold to utility room space under
water pipe water pipe cold water pipe house
a. Choose a location for' the valve that is easily
accessible. It is best to connect into the side of
a vertical water pipe, When it is necessary to
connect into a horizontal water pipe, make the
connection to the top or side, rather than at the
bottom, to avoid drawing off any sediment from
the water pipe,
b. Drill a 1/4" hole in the water pipe, using a
sharp bit_ Remove any burrs resulting from
drilling the hole in the pipe. (Do not drill a hole
if the valve is a self-piercing type,)
c. Fasten the shutoff valve to the cold water pipe
with the pipe clamp_
d. Tighten the
clamp screws until
the sealing washer'
begins to swell° Do
not overtighten or
you may crush the
copper tubing,
Pipe
Cramp
Saddle-Type _"k,_.
Shutoff .......
Valve
-Washer
_) Hntet End
Vertical
_.. Cold Water
Pipe
(continued next page)
21
ROUT[ TMn:COIPP|R TUB_KG B|TWHK TKI
CGLD WATER LIK_ AnW)Tnt R|FRIG|_TGR.
Route the tubing through a hole drilled in the
floor or wall (behind the refrigerator or adjacent
base cabinet) as close to the wall as possible. Be
sure there is sufficient extra tubing (about 8 feet
[244 cm] coiled into 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move out
from the wall after installation°
[_] CONVICT Tt_ Cq)PP_RTUBtHG TG THI
SHUTOR:_VAILV[_.
Place the compression
nut and ferrule (sleeve)
onto the end of the
tubing and connect it
to the shutoff valve,
Make sure the tubing
is fully inserted into
the valve_ Tighten the
compression nut securely.
Saddle-Type
Shutoff
Packing ]
Nut /
Outlel
Valve
Compression Nut
Ferru{e
(Sleeve)
[_ TURKGNTHI WATERAHDIFLU$KGUT
TK_TUBaNGo
a. Turn the main water supply on and flush out
the tubing unt!l the water is clear,
b. Shut the water off at the water valve after
about one quart of water has been flushed
through the tubing,
COHKECTTKI_COPPR:RTUBU_6TOTK[
Before malting the connection to the
refrigerator, be sure the refrigerator power
cord is not plugged into the wall outlet.
We recommend installing a water filter
(available at Service and Parts Centers) if your
water supply has sand or particles that could
clog the screen of the refrigerator's water valve_
Install it in the water line near the refrigerator_
a. Remove the plastic flexible cap from the
water valve,
b. Place the compression nut and ferrule
(sleeve) onto the end of the tubing as shown,
c. Insert the end of the copper tubing into the
water valve connection as far as possible. While
holding the tubing, tighten the fitting.
d. Fasten the t14" Copper Tubing
copper tubing Tubing Clamp
into the clamp "\ \
provided to hold
it in a vertical
position° You may Ferrule
need to pry open Steeve)
the clamp
1/4"
Compression
Nut
Refrigerator Connection
Tighten any connections that lealc
, ,,,,., ,...,,.
The icemaker will not begin to operate until
it reaches its operating temperature of 15°E
(-9°C.) or below. It wilt then begin operation
automatically if the icemaker is in the ON
(down) position.
NOTE: The icemaker may double-cycle when it
first starts, causing some water spillage from the
icemaker into the ice bucket_ This is normal and
should not happen again_ The first few batches of
cubes should be thrown away, so that remaining
impurities in the water line will be flushed out.
TK_ ff_nL
Arrange the coil of copper tubing so that it does
not vibrate against the back of the refrigerator or
against the wail.
22
t
NOTE: DOORS ON
DISPENSER MODELS
DO NOT REVERSE.
When reversing the
door svAng:
• Read the instructions
all the way through
before starting°
o Handle parts carefldly to
avoid scratching paint,
° Set screws down by their
related parts to avoid using
them in the wrong places.
* Provide a non-scratching
work surface for the doors.
IMPORTANT: Once you begin, do not move
cabinet until door-swing reversal is completed.
These instructions are for changing the
hinges from the fight side to the left side.
Ifyou ever want to change the hinges back to the
right side, follow these same instructions (merely
reverse all references to left and right).
i iii..... i _1_1 i ....iiii iiii1__
TOOLSR|QUm|D
° Phillips screwdriver'
o Masking tape
° T20 or T25 Torxdriver, whichever
your model requires
o Putty knife or thin-blade screwdriver
° 3/8" socket and ratchet
(a 6-point socket is recommended)
TOREMOV|THE900R$
i i1_1 _ :_1 iiii..........................
a. Unplug the refrigerator from its
electrical outlet
b. Empty all door shelves, including the
dairy compartment.
CAUTION: Do not let either door drop to the
floor. To do so could damage the door stop.
R£MOV[I:R|_ER 9QQR.
a. Tape the door shut with masldng tape.
b. With a Phillips screwdriver,
remove the hinge cover (on
some models). With a
Torxdriver, remove 2 Torx
screws that hold the top hinge
to the cabinet.
c. Lift the hinge straight up
to free the hinge pin from the
socket in the top of the door_
d. Remove tape, tilt the door
away from the cabinet and lift it to free its
bottom socket from the hinge pin on the center
hinge bracket.
e. Set the door on a non-scratching surface
with the outside up.
I H _ H,rll ..........................
R[ 0YE IRISHF00DDooR.
a. Tape the door shut
with masking tape,
b. Remove the hinge
pin with a 3/8" socket
and ratchet,
c. Remove tape and
tilt the door away from
the cabinet_ Remove
and save the washer on
the hinge pin°
d. Lift the door
straight up to
free its bottom socket
from the pin in the
bottom hinge bracket,
Plastic
Washer
Hinge
Pin
I
I
I
Fresh Food Door
(continued next page)
23
TOR|V| E HARDWAR|GHCSIHET
T_$_R B@TTGMKgHGEBP_CKETTGTHELEFT,
a. Remove the base _ne, Grasp it at the bottom
and pull it straight out.
J
Bottom right
Plastic washer
b. Using a Torxdfiver, remove the hinge bracket
and plastic washer from the bottom fight side
of the cabinet.
Pla stic washe r""'-_. __i_ I
:7----
c. Reinstall the hinge bracket and plastic
washer to the bottom left side of the cabinet.
............ I'NI"llll,,ill i,1,1_ii,l_l_
24
I_] T_$F|R CEHTRHIIHG|B_CK|TTOTfl| Ut"T.
Do not remove this screw
I
J
Center right
a. Remove the center hinge bracket by removing
the three Torx screws. NOTE: Keep these
screws with the hinge bracket. They are
longer screws and will be used when
installing the hinge on the other side.
b. Remove the three Torx screws from the center
left side of the cabinet. Screw them into the holes
on the right side, which were uncovered in Step
(a) above.
l
Center left
0 7-
Place the center hinge bracket over the holes at
the center left side of the cabinet, insert the three
screws that were removed with the center hinge
bracket in Step (a) and tighten them.
]'_ TRANSF|R TOP HBHG|TO TK| IEJ:T.
Interchange hinge and screws at top right with
screws at top left of cabinet Do not tighten
screws on hinge side at this time.
[4] TUNSFER DOOR STOPS.
a. On each door, move the metal door stop from
the fight end to the left end.
b. Move any screws from the left end to the
fight end.
Te R[_VIR$| DOORHAHDL|$
:::l. u in
Left side 8
T_$FIR FRESHFOODDOGEUA_DLI
TOTn_ RItGKT,
To remove handle...
o Remove handle plug using
putty knife under edge, and
remove screw underneath_
o Remove two screws holding handle to top of
door and, if refrigerator has a long handle,
remove screw holding handle to bottom of door
o Remove handler
After removing
handle...
o Remove screws from
right edge of door* top and
insert them into handle
screw holes on left side,
o Remove plug button
from left edge of door and
insert it into hole on
opposite side.
o Transfer medallion on
door to opposite side_
When reinstalling
handle...
Plug Button
Handle Holes
Medallion q
o Attach handle to right side of door with screws
at top, under handle plug, and, if refrigerator has
a long handle, with screw at bottom of door.
,.I
Right side
TI_I$1F|R [Rl_IR DO011_._DL_
TO][Hl RUG_?.
Left Side
Right Side
° Remove one screw holding handle to top of door
and two screws holding handle to bottom of door:.
o Remove handle°
,, Remove screws from fight edge of door and
insert them into handle screw holes on left side.
_,Attach handle to right edge of door' with
screws at top and bottom, using holes closest to
edge of door_
(continued next page)
25
TOR|_NG FR|$[] FOODD00R
a. Lower bottom socket of fresh food door
onto pin on bottom hinge bracket. Be sure
washer is in place.
b. Tilt door toward cabinet and gently push
door under center hinge bracket and align
with the hole in
the center hinge
bracket
c. Reinstall hinge
pin with a 3/8"
socket and ratchet
so it extends
through hole in
center hinge
bracket and into
socket on top of
fresh food door.
washer
Hinge pin
!
!
4
!
Center
hinge _
bracket
t
1
I
Fresh food door,-----------,I=_
TOREHANGFREr_EIRDOOR
t Center hinge pin
a. Lower bottom socket of freezer door onto
center hinge pin. Be sure washer is in place.
b. Tilt door toward cabinet, lifting the top
hinge so the pin fits into the socket on top of
the door.
c, Tighten the top hinge screws after
supporting the door' on the handle side and
aligning so the gap between the doors is even all
across the front.
26
NORMAL OPERATING SOUNI)S
These sounds are normal and are due mostly to high efficient operation.
Icemaker
(on some models)
Occasionally you witl
hear' ice cubes dropping
into the ice bin°
Cold Control
& Defrost Timer
These parts can produce
a snapping sound when
turning the refrigerator
on or off. The timer also
xoduces a sound similar
to an electric clock_
" Plastic Liner
Cracldng or popping
[sounds due to expansion
[of the plastic liner,
Condenser Fan
You may hear air
being forced over the
condenser by the fan_
Depending on the placement of the refrigerator in your kitchen, you
may want to place a piece of rubber backed carpet under the
refrigerator to reduce the noise°
Evaporator Fan
You may hear air being
forced tt-aough the
cabinet by the fan
Evaporator
The flow of refrigerant
through the evaporator
may create a boiling or
gurgling sound,
Defrost Heater
During deflost cycles, °
water ckipping onto the
heater may cause a
hissing or sizzling sound_
After defrosting, a
popping sound may
occur and the evaporator
may create a boiling or
gurgling sound,
Compressor
Modern, high efficiency
compressors operate
much faster than older'
models, The compressor
may have a high pitched
hum or pulsating sound,,
! Water Valve
(on models equipped with
ian automatic icemaker)
When the icemaker fills
with water, a buzzing
sound and running water
will be heard,
Water Pan
Water may be heard
running into the drain pan
during defrost cycle,,
27
QUESTIONS?
USE THIS PROBLEM SOLVER
PROBLEM POSSIBLE CAUSE
!:FROST:OR:ICE CRYSTALS
ON_:FROZ_.N !FOOD:
IsLOW ICE CUBE FREEZING
!!ICEZ:CUBES.HAVE::I:::i::_:....
iOE
28
• May be in defrost cYcle when motor does not operate for about 30 minutes.
ilTemperamre:ic0tltrol in OFF poSition. :i :i : :
' :Ifintefiorfight:_s:not onl refrigerator may notbe plugged in at wall outlet.
,i:Ifpifig iis:Se(ure and the refrigerator still fails to operate, plug a larnp or a small
:::appliance into the same outlet to determine if there ig a tripped circuit breaker or
::burned out fuse.
• :M0dem refrigerators with more storage space and a larger freezer
ii:::comp_ent _eqUire more operating time. i
i,No_a1:when refrigerator iS first delivered to your home--usually requires 24
hours to comp!etely cool down.
':*iLarge amounts of food placed in refrigerator to be cooled or frozen,
:*Hrt wea_er_frequent d°°r °penings-
* Door left open.
:* Temperature contr0!s are set too cold. Refer to the Temperature Control section.
:-Griile::_d c:0ndenSer need cleaning. Refer to Care and Cleaning section.
,i Temperature contro! starts and stops motor to maintain even temperatures,
, If refrigerator vibrates, more than likely it is not resting solidly on the floor and
:i:front roller SCrews or front leveling legs need adjusting, or floor is weak or uneven.
::Refer to Rollers section.
,iIfdishes vibrate on shelves, try moving them. Slight vibration is normal.
' Fo0ds n0t covered, wrapped or sealed properly.
:,:Temperature control not set cold enough. Refer to Tempbrature Control section
Warm weather-.frequent door openings,.
oor left open for: too long a time or package holding door open or blocldng
:air duct in freezer Compartment.
Door.may have been !eft ajar or package holding door open°
*:To0 frequent or too !°ng door openings.
. Frost within package is normal.
-Icemaker feeler arm is in STOP (up) position.
. Water supply turned off or not connected.
Freeze r compartment too warm.
_Piled up cubes:in the Storage bin may cause icemaker to shut off prematurely.
......Remove storage bin from freezer and level cubes by hand°
connecting refrigerator to home water line may be clogged..
, Door may have been left ajar.
Turn temperature control to colder setting,
rice storage bin needs to be emptied, washed and old cubes need to be discarded,
*Unsealed packages in refrigerator and/or freezer compartments may be transmitting
odor/taste to ice cubes.
o Interior of refrigerator needs Cleaning. Refer to Care and Cleaning section.
PROBLEM POSSIBLE CAUSE
MOISTURE FORMS ON
CABIN T SURFACE
BETWEEN THE DOORS
:MOISTURE COLLECTS
INSIDE
REFRIGERATOR HAS ODOR
HOT AIR FROM BOTTOM
OF REFRIGERATOR
FOOD FREEZING IN
THE REFRIGERATOR
o Not unusual during periods of high humidity. To help prevent rust, wipe surface dry
and make sure the power saver switch is not set at the POWER SAVER setting.
• Move the power saver switch to the moisture setting.
• Too frequent or too long door openings,
• In humid weather, air carries moisture into refrigerator when doors are opened.
• Foods with strong odors should be tightly covered.
° Check for spoiled food.
• Interior needs cleaning. Refer:to Care and Cleaning section.
• Defrost water drainage system needs cleaning.
, Keep open box of baking soda in refrigerator; replace every three months.
• Normal air flow cooling motor. In the refrigeration process, it is normal that
heat be expelled in the area under the refrigerator. Some floor coverings will
discolor at these normal and safe operating temperatures. Your floor covering
supplier .should be consulted ff you object to this discoloration.
o Move the food away from the air vent (near the controls).
, Turn down the fresh food control.
ORANGE GLOW IN o An orange glow is sometimes seen in the freezer when the defrost heater is on.
THE FREEZER This is normal.
DOOR DOES NOT ° Front rollers or legs need adjusting. See Rollers section.
CLOSE BY ITSELF
YOU NEED SERVICE
To obtain service, see the Consumer Services page.
We're proud of our service and want you to be
pleased,. If for some reason you are not happy with
the service you receive, here are three steps to follow
for further' helpo
For Customers in the United States:
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased_ tn most
cases this will solve the problem
NEXT, if you are still not pleased, write all the
details--including your phone number--to:
Manager, Consumer' Relations
GE Appliances
Appliance Park
Louisville, KY 40225
FINALLY, if your problem is Still not resolved, write:
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, 1L 60606
For Customers in Canada:
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased In most
cases this will solve the problem,
NEXT, if you are still not pleased, write all the
details--including your phone number--to:
Manager; Consumer Relations
2645 Skymark Ave,,
Mississauga, Ontario
Canada L4W 4H2
29
NOTES
30
CONSUMER WARRANTY
(for customers in Canada)
FIRS'r YEAR
CAMCO warrants the replacement or repair of all parts of this Refrigerator which prove to be
defective in material or workmanship, for one year from the date of purchase. Such parts will be
repaired or replaced at the option of Camco without charge, subject to the terms and conditions
set out below..
The DEALER warrants to provide the service labor for the repair or replacement of all parts of
this Refrigerator which prove to be defective in material or workmanship for one year from the
date of purchase.
NEXT FOUR YEARS
CAMCO warrants the hermetically sealed refrigerator system (namely: Evaporator, Condenser,
Motor Compressor, Interconnecting Tubing, Drier and Refrigerant Charge) against defects in
material or workmanship for an additional four years. These parts will be repaired or replaced
at the option of Camco without charge, subject to the terms and conditions set out below.
The DEALER warrants for the next four years to provide the service labor necessary to repair
or replace the hermetically sealed refrigeration system, subject to the terms and conditions set
out below,.
TERMS AND CONDnTIONS
1. This warranty applies only to single family domestic use in Canada when the Refrigerator has
been properly installed according to the instructions supplied by Camco and is connected to
an adequate and proper utility service. Damage due to abuse, accident, commercial use, and
alteration or the removal or defacing of the serial plate, cancels all obligations of this warranty,.
Service during this warranty must be performed by an Authorized Camco Service Agent.
2. Neither Camco nor the Dealer is liable for any claims or damages resulting from any failure of
the Refrigerator or from service delays beyond their reasonable control..
3. To obtain warranty service, purchaser must present the original bill of sale. Components
repaired or replaced are warranted through the remainder of the original warranty period onlyo
4. This warranty does not cover expense involved in making this appliance readily accessible
for servicing.
5, This warranty gives you specific legal rights., Additional warranty rights may be provided by
law in some areas°
Camco Service is available coast-to-coast. See Consumer Services section for service information_
If further help is needed concerning this Warranty, contact:
Manager, Consumer Relations
Camco Inc., Consumer Service
2645 Skymark Avenue,
Mississauga, Ontario
L4W 4H2
Top-Mount No-Frost
Models I8, 19, 21,22, 24 and 25
3]
YOURGENERAL ELECTRICREFRIGERATOR ..................Staple sales slip. or cancelled check
here. Proof of original purchase date
WARRANTY neededtoobta,nservice
(for customers in the United States) under warranty.
WHAT iS COVERED
FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we willprovide, free of
charge, parts and service labor in
your home to repair or replace any
part of the refrigerator that fails
because of a manufacturing defect_
FULL FIVE-YEAR WARRANTY
For five years from date of original
purchase, we wilt provide, free of
charge, parts and service labor in
your home to repair or replace any
part of the sealed refrigerating.
system (the compressor,condenser,
evaporator and all connecting
tubing) that fails because of a
manufacturing defecL
LIMITED LIFETIME WARRANTY
For the life of the refrigerator, we
willreplace, free of charge, any
see-through pan or drawer made
from Lexarl_ polycarbonate resin
and furnishedwiththe refrigeratorif
the pan or drawer breaks during
normal household use. Drawer
covers are not included_The drawers
can be exchanged at a GE Service
and Parts Center, or by writing to the
address below°
This warranty is extended to the
original purchaser and any succeeding
owner for products purchased for
ordinary home use in the 48 mainland
states, Hawaii and Washington, D.C,,
In Alaska the warranty is the same
except that it is LIMITED because you
must pay to ship the product to the
service shop or for the service
technician's travel costs to your home.
All warranty service will be provided
by our Factory Service Centers or by
our Authorized Customer Care®
servicers during normal working hours.
Should your appliance need service,
during warranty period or beyond, call
800-GE-CARES (800-432-2737)°
............................ .....
WHAT BSNOT COVERED
oService trips to your home to
teach you how to use the product.
Read your Use and Care
material, tf you then have any
questions about operating the
product, please contact your
dealer or our Consumer Affairs
office at the address below, or
call, toll free:
GE Answer Center _
800°626.2000
consumer information service
° Improper installation°
If you have an installation problem,
contact your dealer or installer.
You are responsible for providing
adequate electrical, plumbing and
other connecting facilities.
o Replacement of house fuses or
resetting of circuit breakers.
• Failure of the product if it is used
for other than its intended purpose
or used commercially°
o Damage to product caused
by accident, fire, floods or acts
of God.
oLoss of food due to spoilage.
WARRANTOR IS NOT
RESPONSIBLE FOR
CONSEQUENTIAL DAMAGES,.
................. :..:..:...,:..:.
................... , ,,, ,,,,, ,,,, ,,,,..... ,, , , ,,,,,, ,,,,,.........................
Some states do not allow the exclusion or ftmltation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you, This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General
Warrantor: General Electric Company
If further help is needed concerning this warranty, write:
Manager---Consumer Affairs, Appliance Park, Louisville, KY 40225
This book is printed on recycled paper.
I Part No. 162D3948PO02 1
Pub. No. 49-6803
12_95 CG
Top-Mount No-Frost
Models 18, 19, 21, 22, 24 and 25
Printedin the UnitedStates
