Use a Care Guide
French Door Bottom Freezer/Refrigerator
Guia de Uso y Cuidado
Refrigerador con congelador inferior de puerta doble
Guide d'utilisation et d'entretien
R4frig4rateur i_ portes fran_aisesiCor_g41a_eur en bas
241940002 March 2(i)09

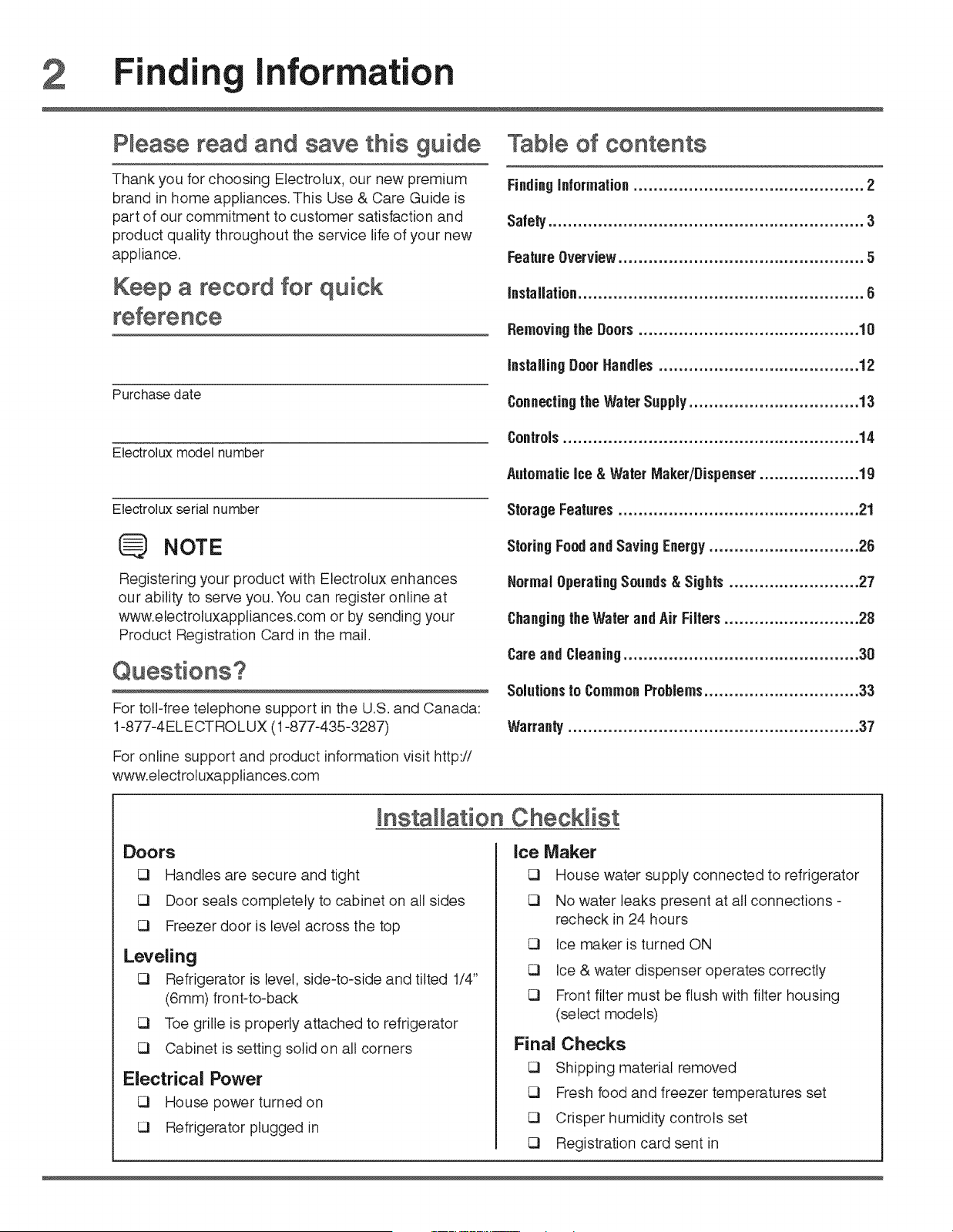

2 Finding information
P ease read and save this 9uide
Thank you for choosing Electrolux, our new premium
brand in home appliances.This Use & Care Guide is
part of our commitment to customer satisfaction and
product quality throughout the service life of your new
appliance.
Keep a record for quick
Table of contents
FindingInformation .............................................. 2
Surely ............................................................... 3
Feature Overview ................................................. 5
installation......................................................... G

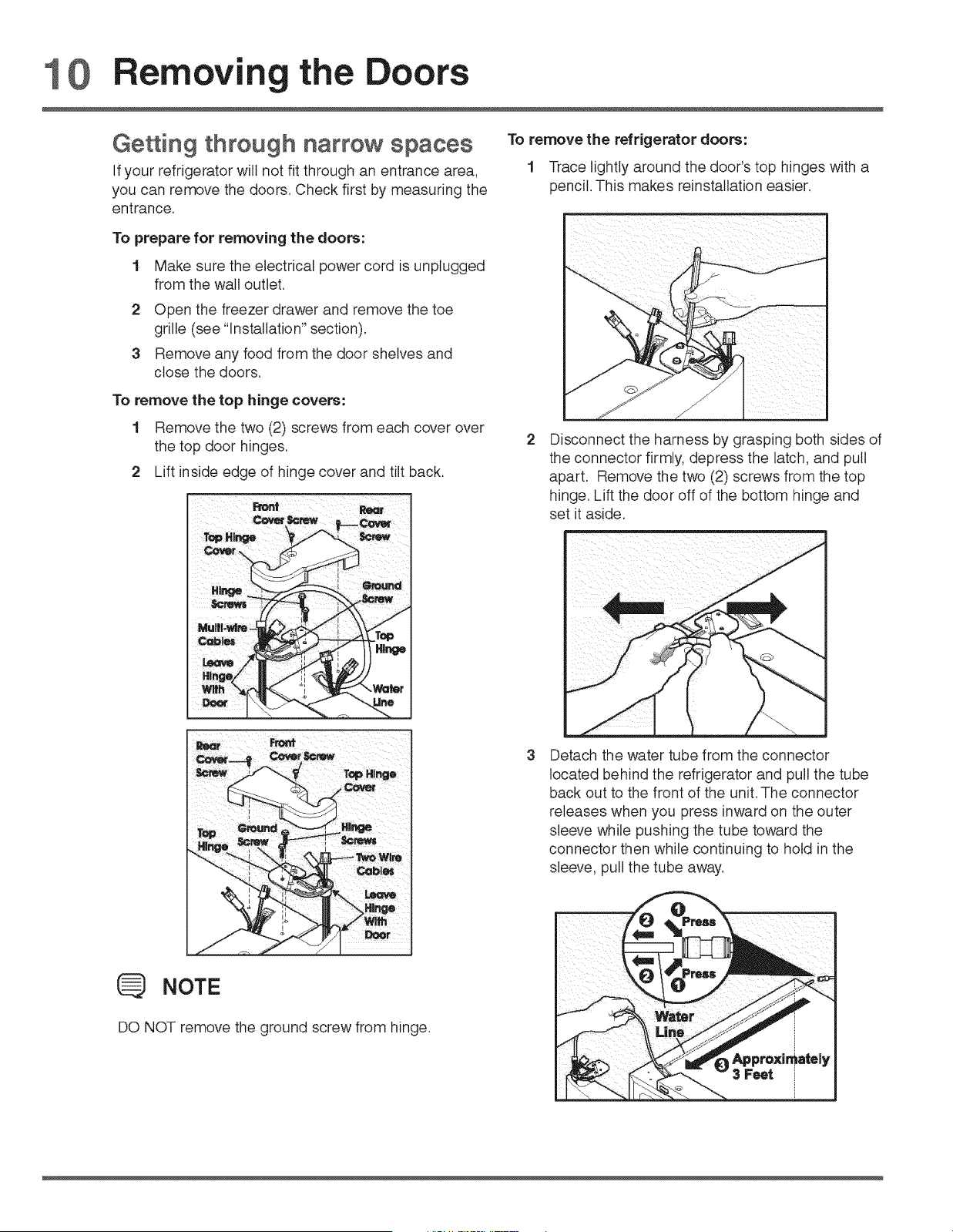

Removingthe Boors ............................................ 10
Purchase date
Etectrolux model number
Electrolux serial number

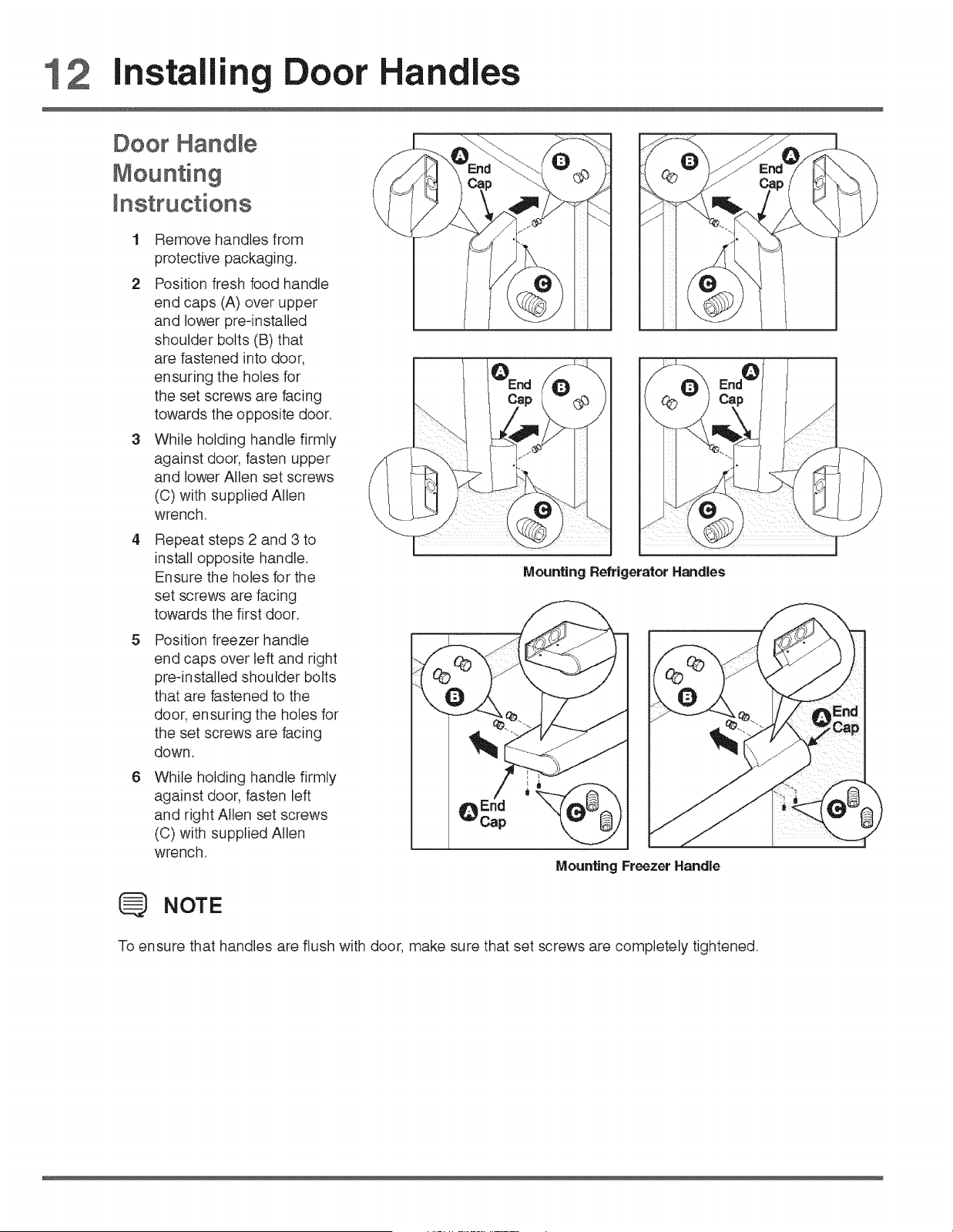

Installing Boor Handles........................................ 12

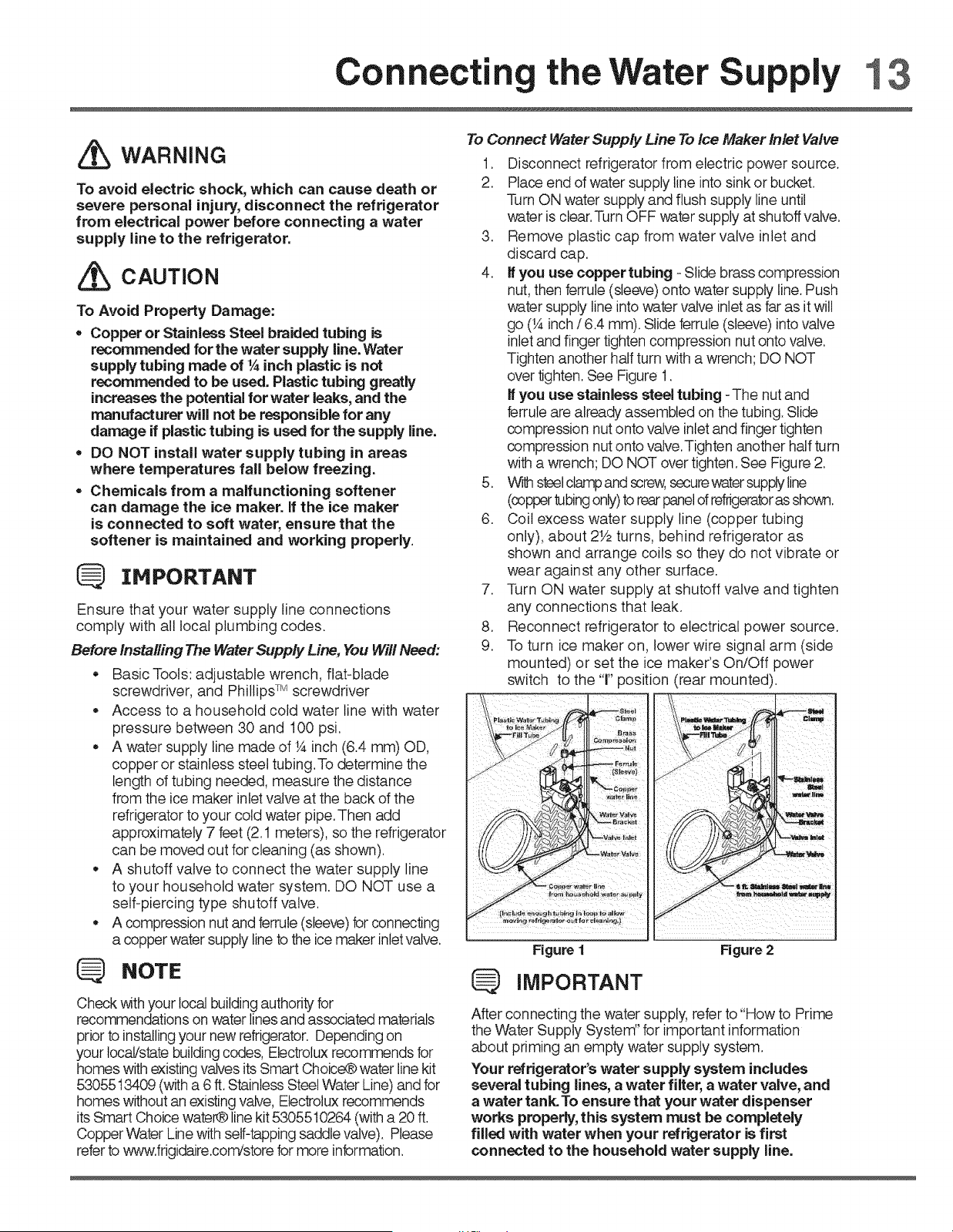

Connectingthe Water Supply .................................. 13

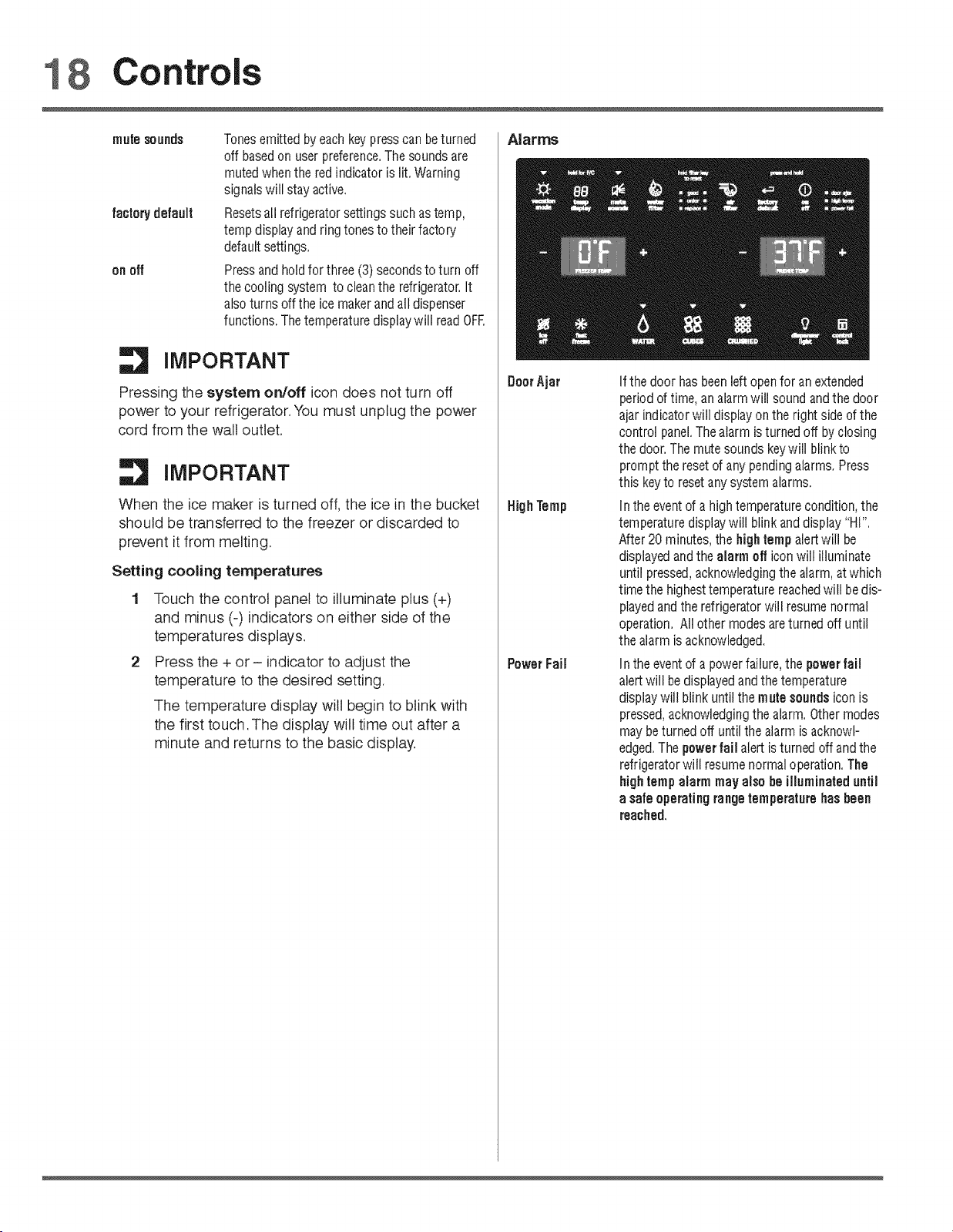

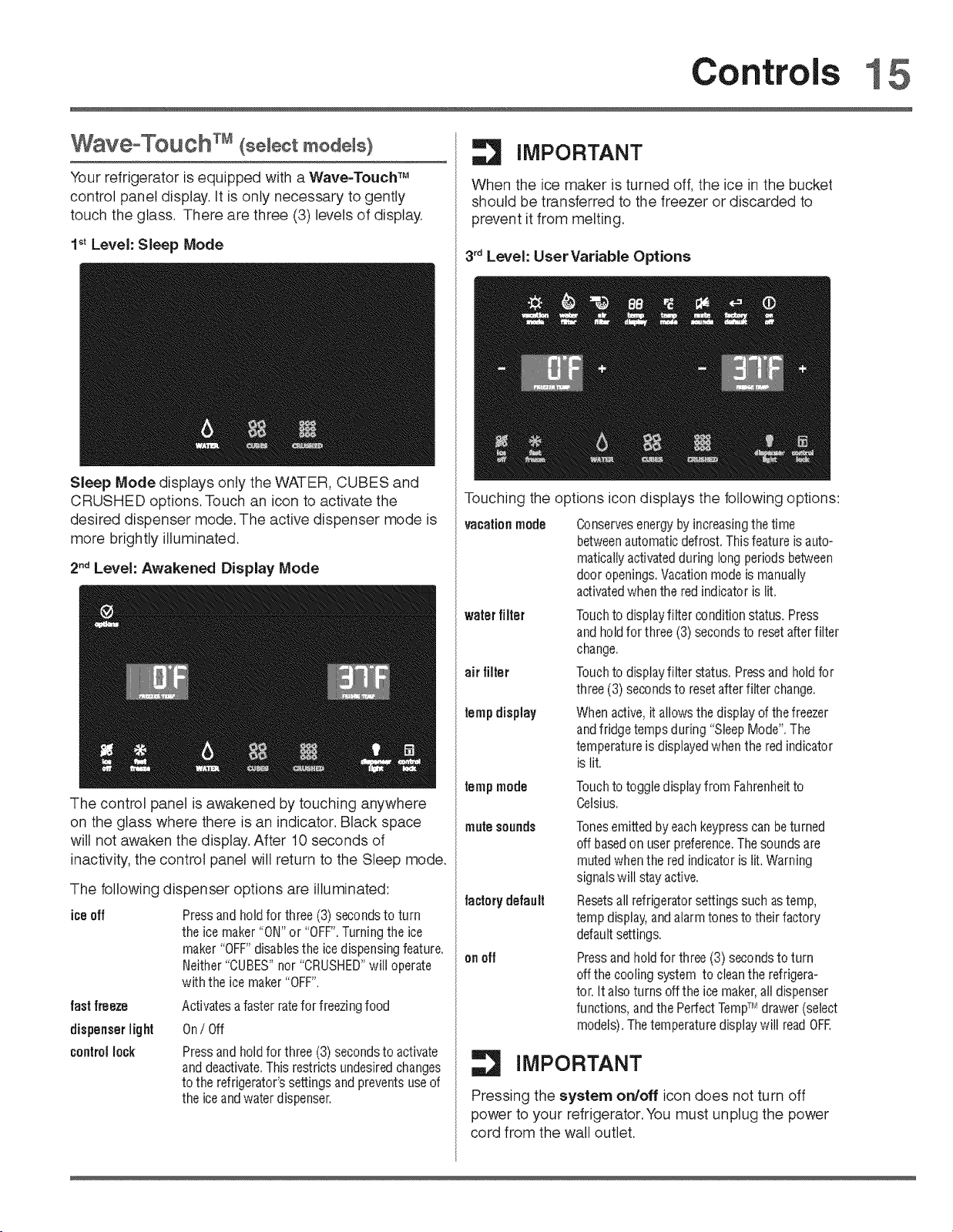

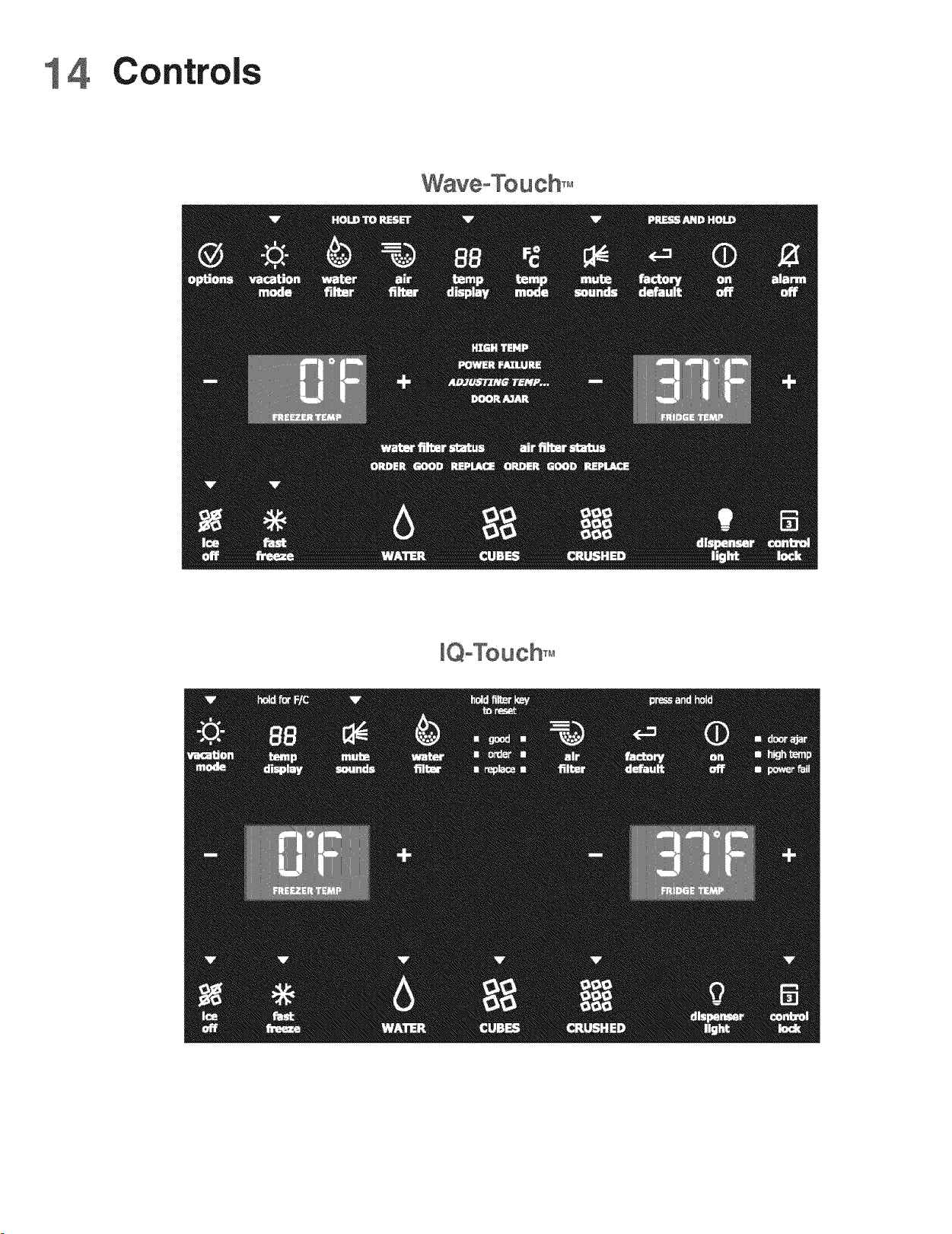

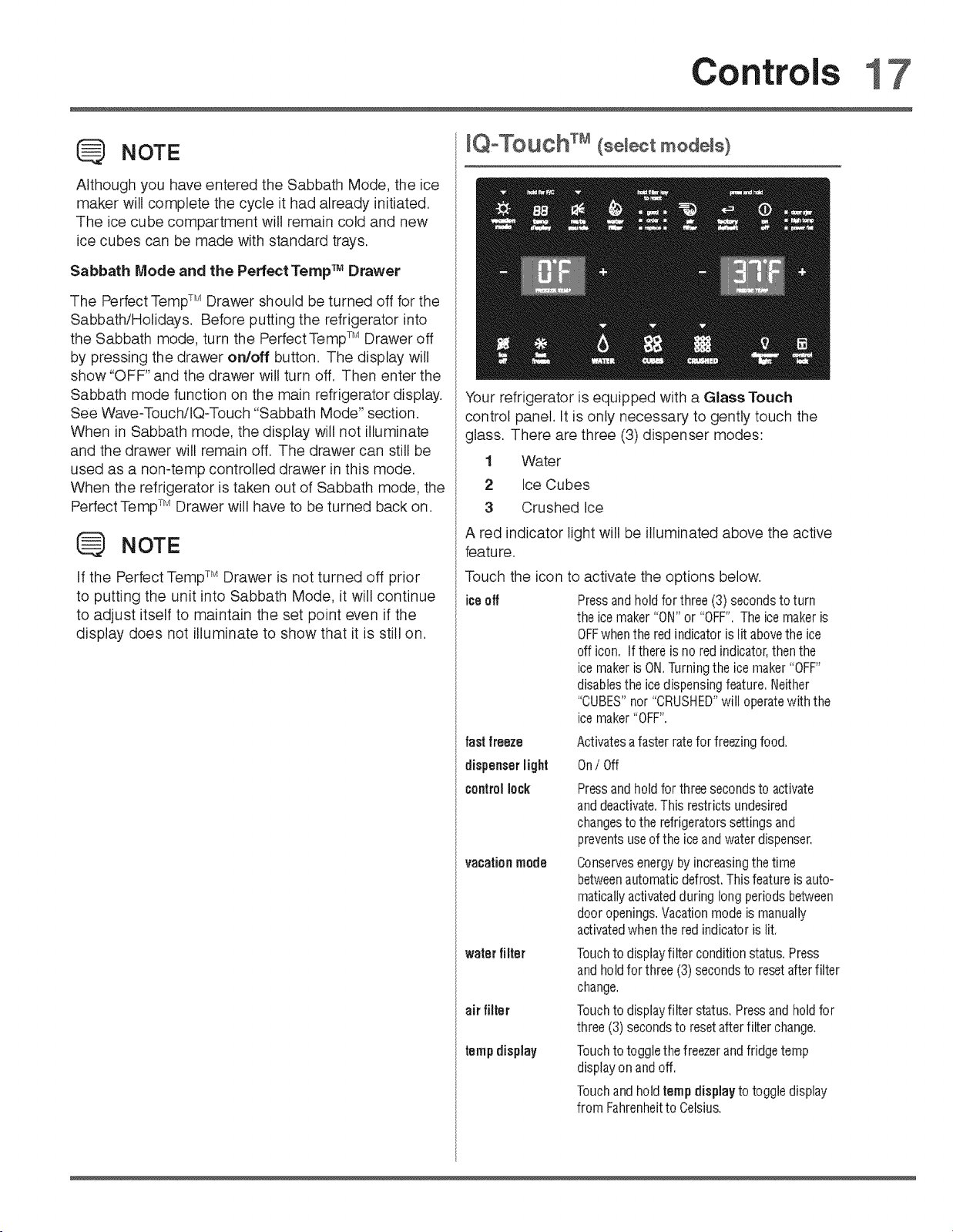

Controls........................................................... 14

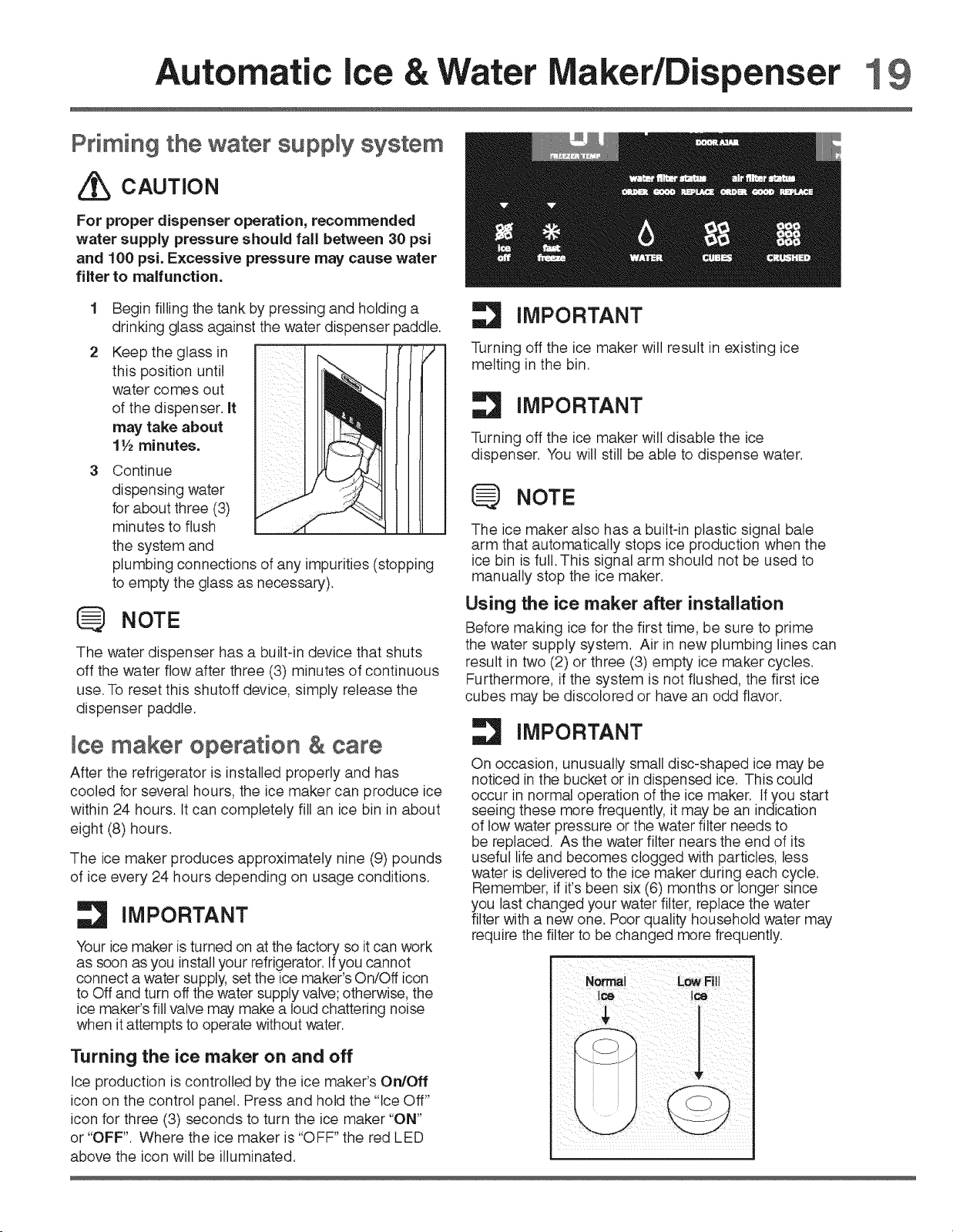

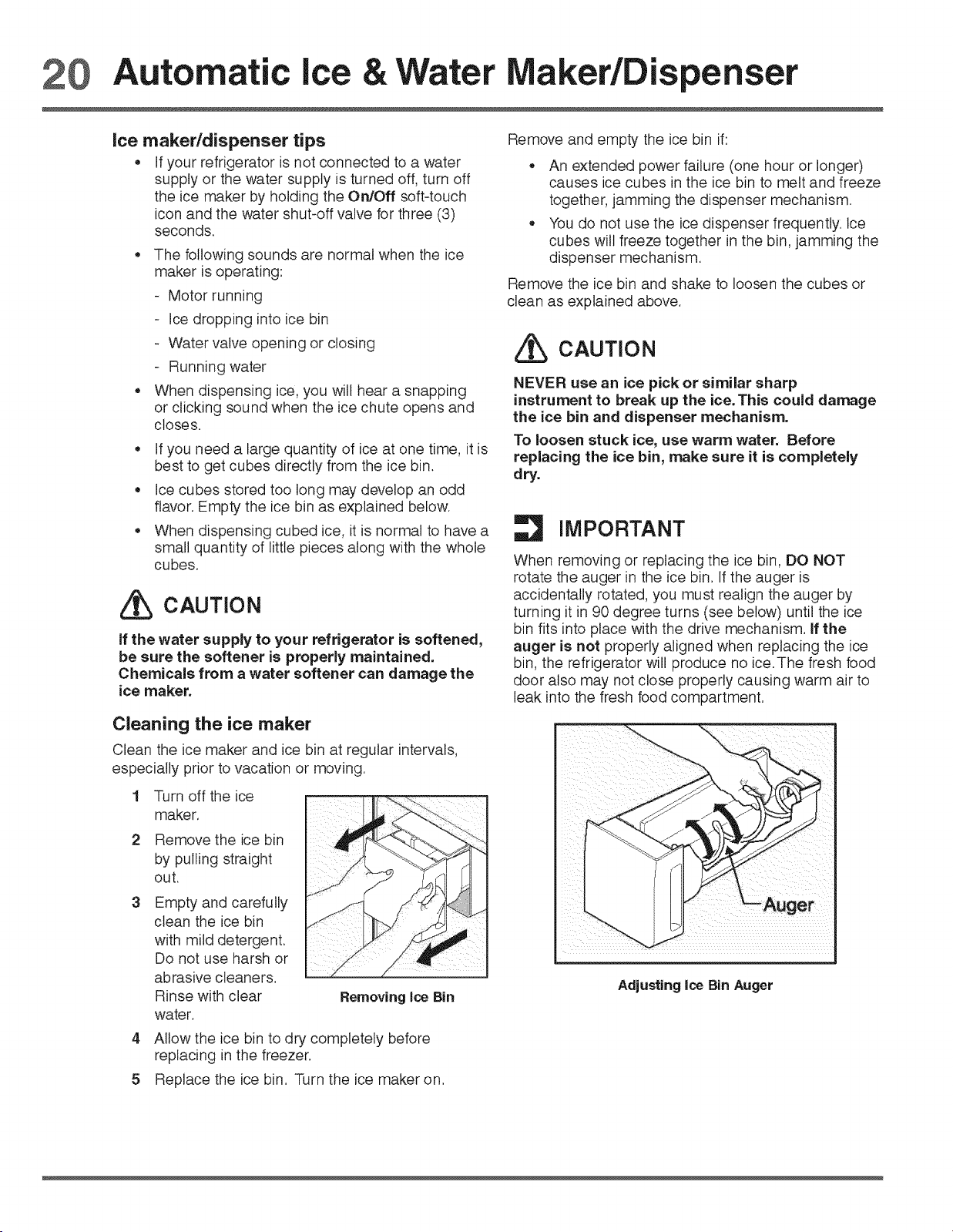

AutomaticIce & Water MakertDispenser.................... 19
NOTE
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www.electroluxappliances.com or by sending your
Product Registration Card in the mail.

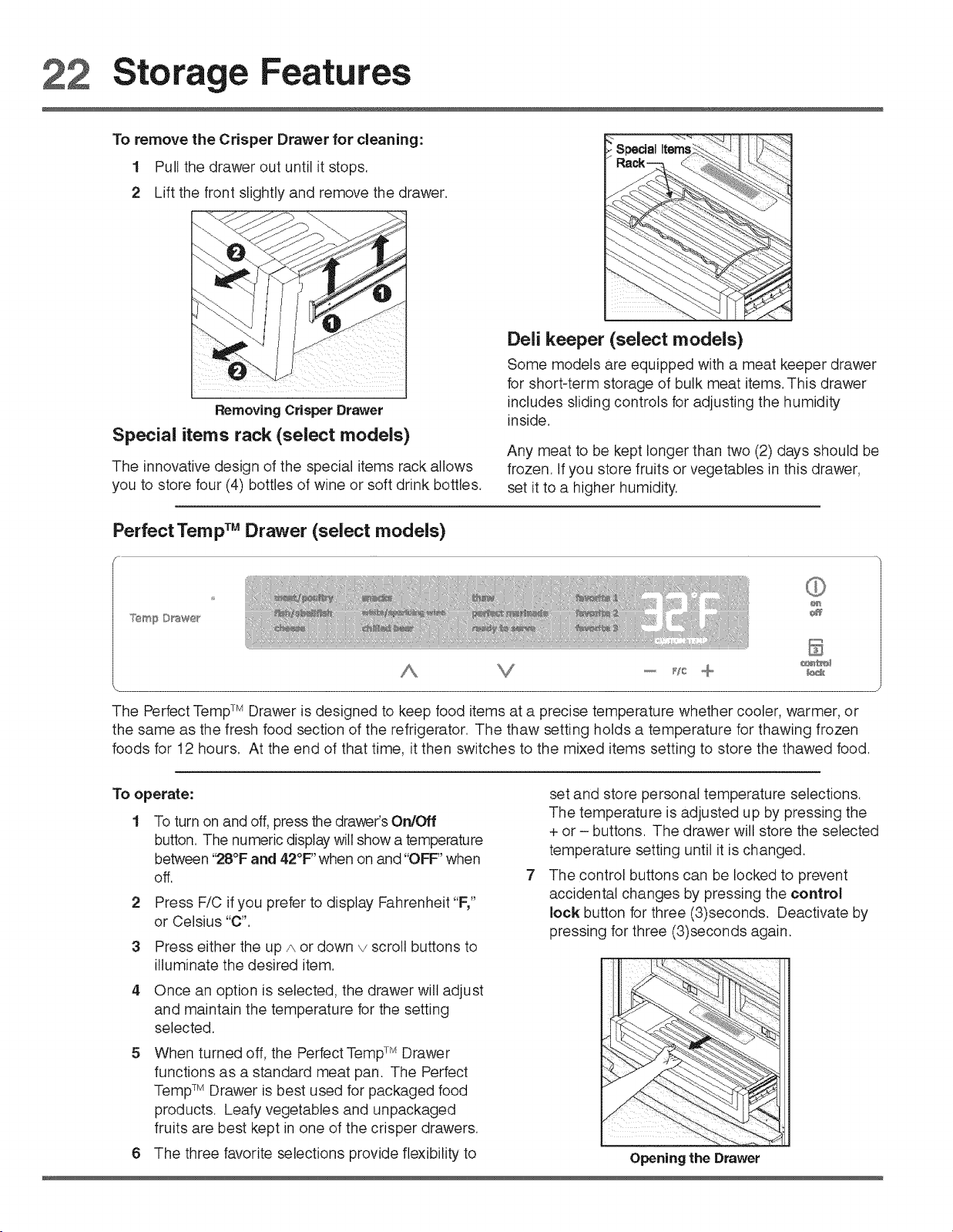

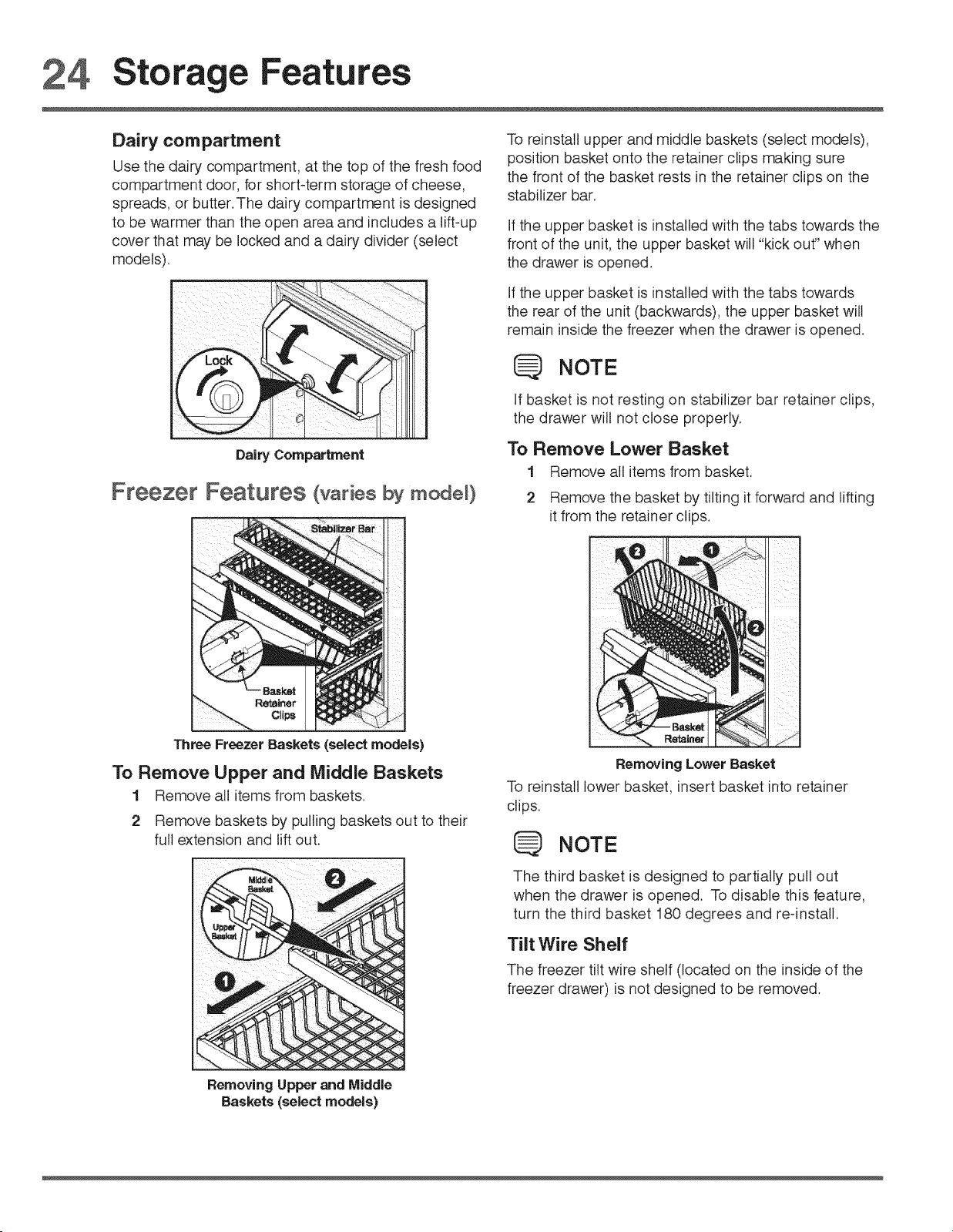

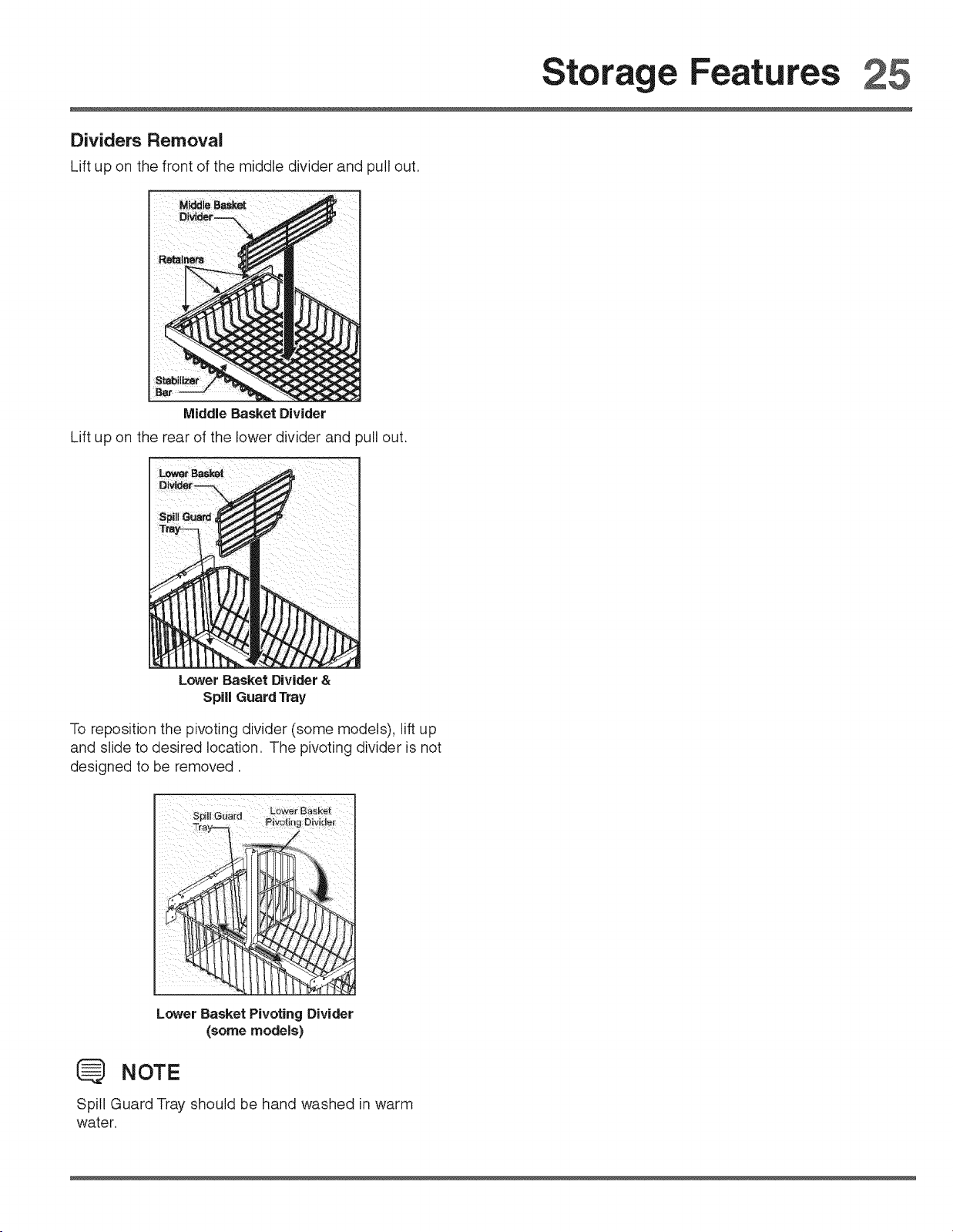

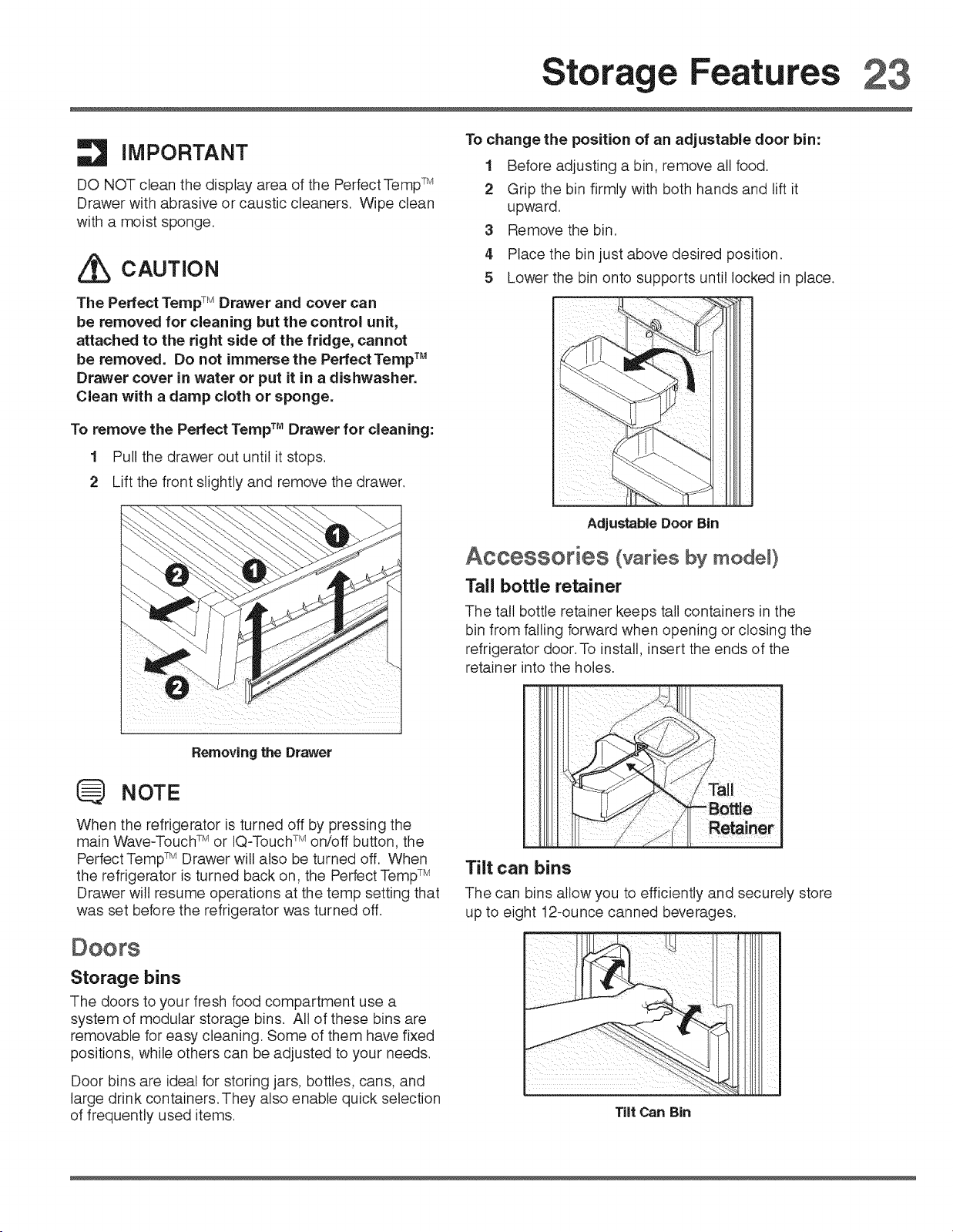

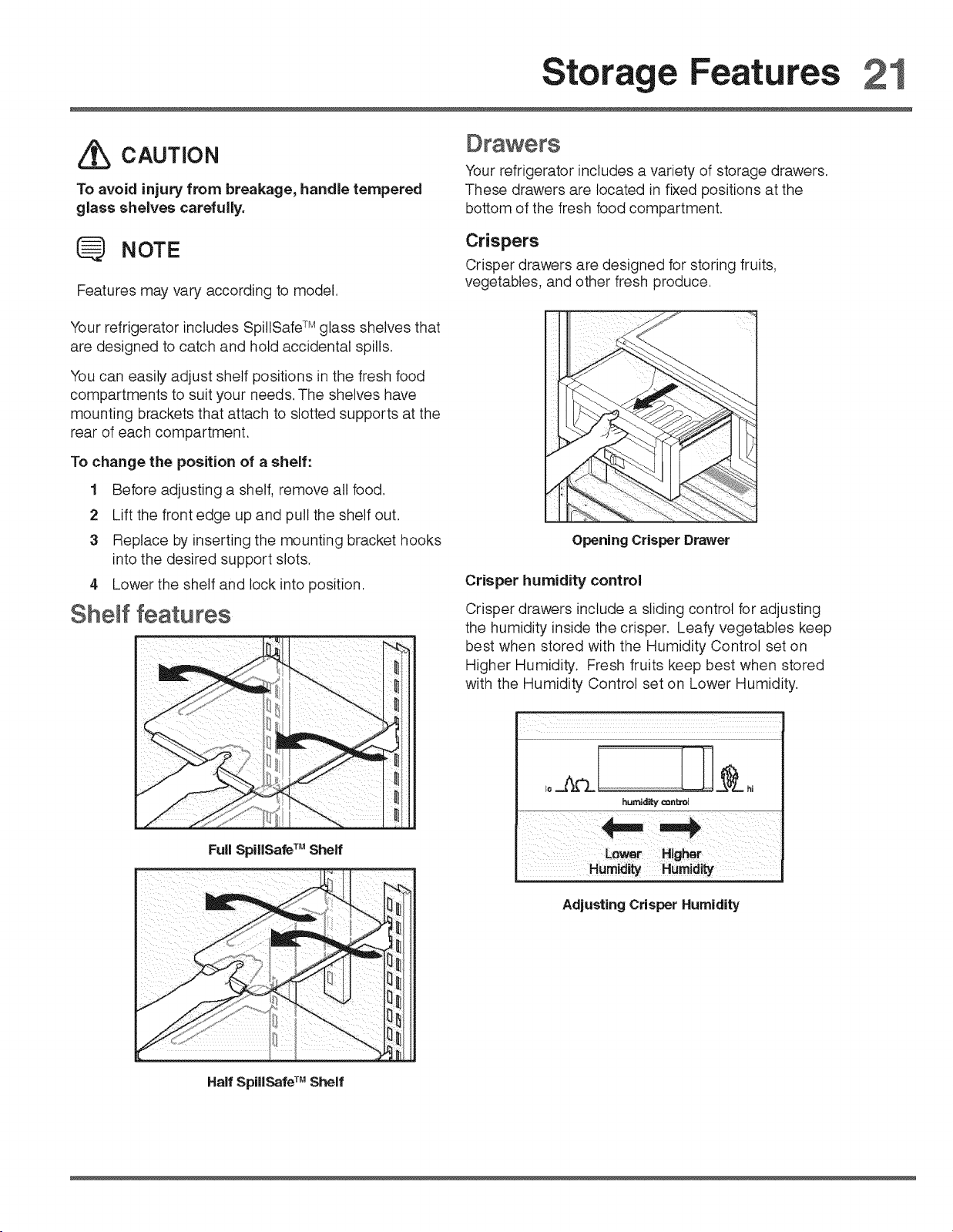

Storage Features ................................................ 21

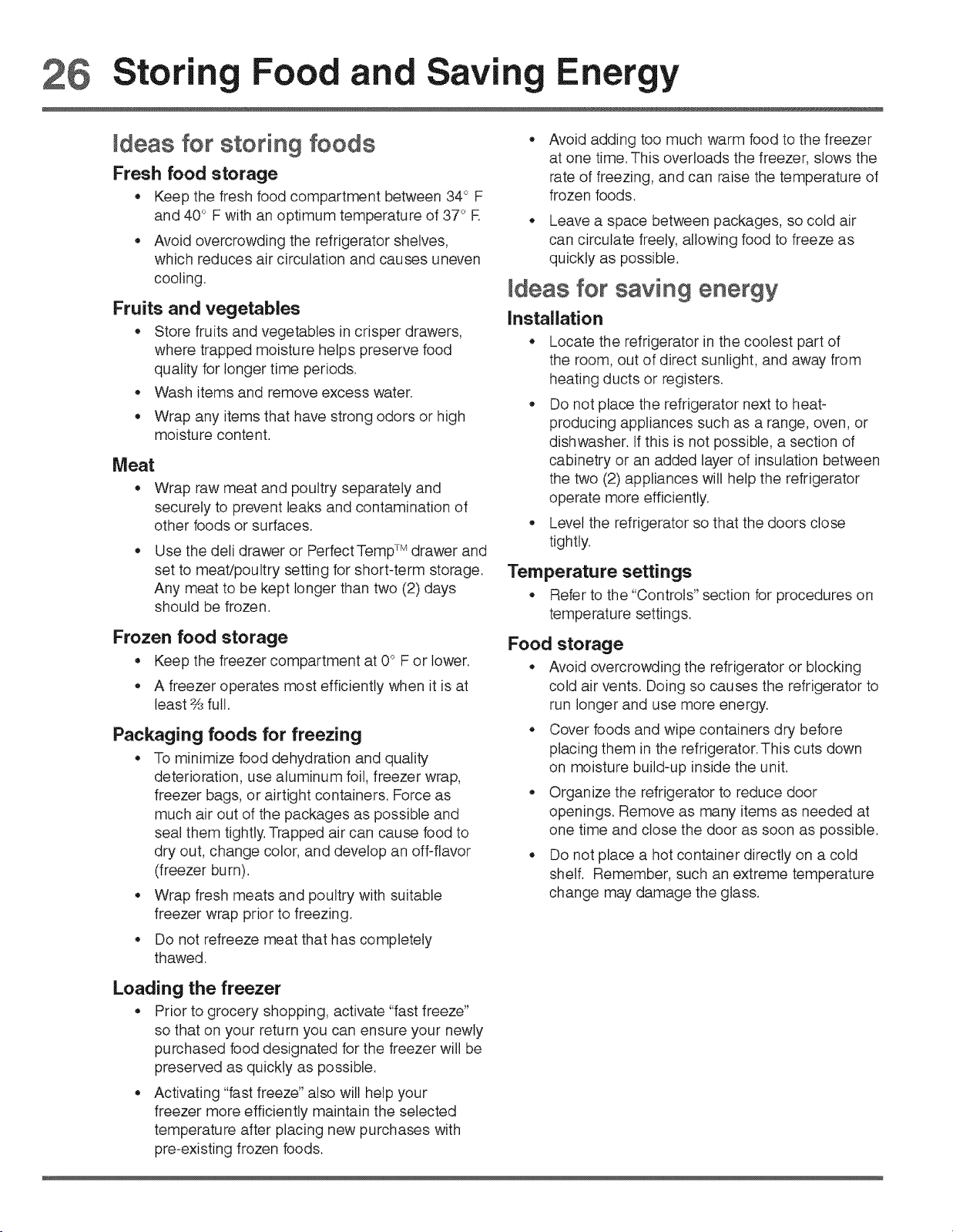

Storing Food and Saving Energy.............................. 26

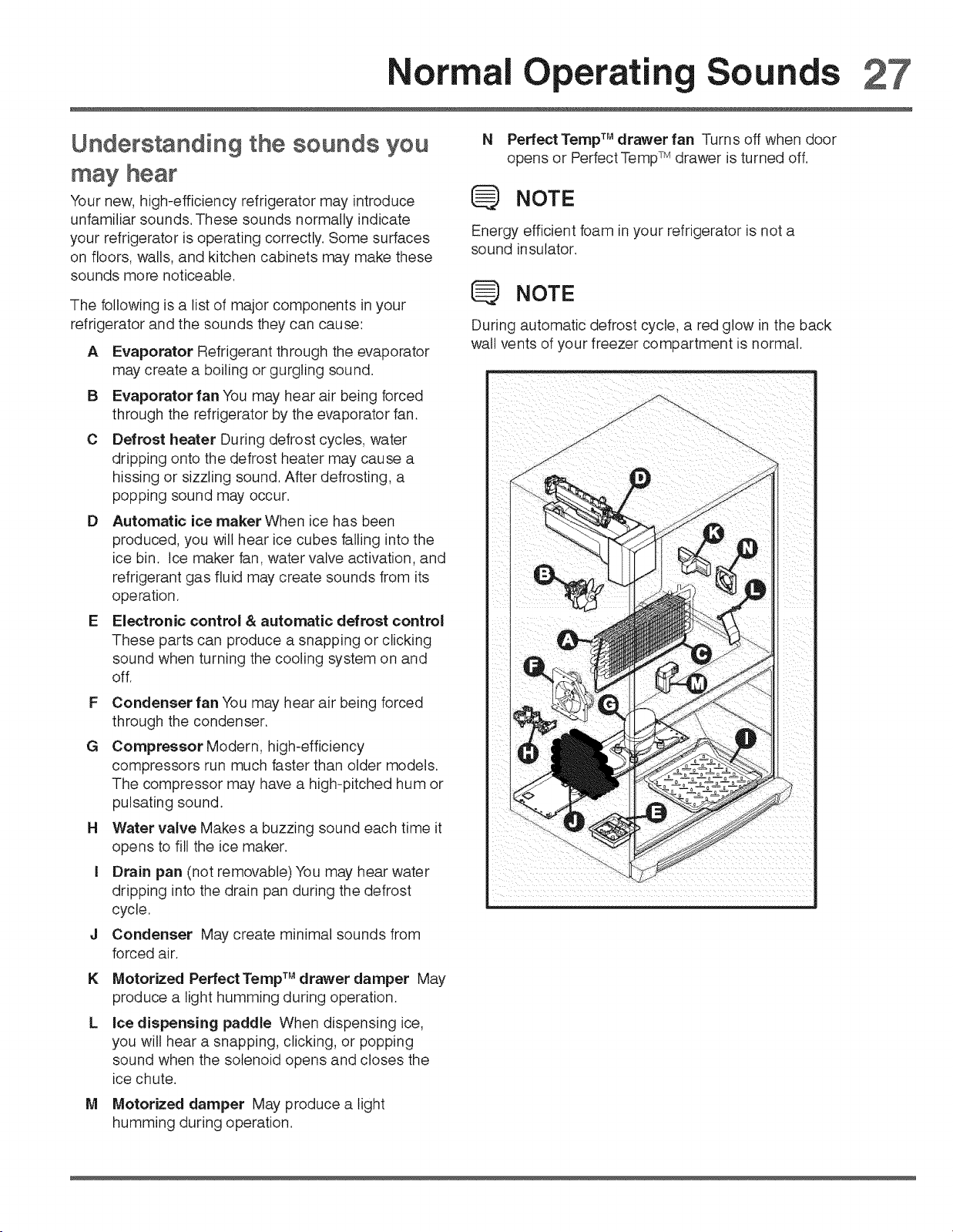

Normal OperatingSounds & Sights .......................... 27

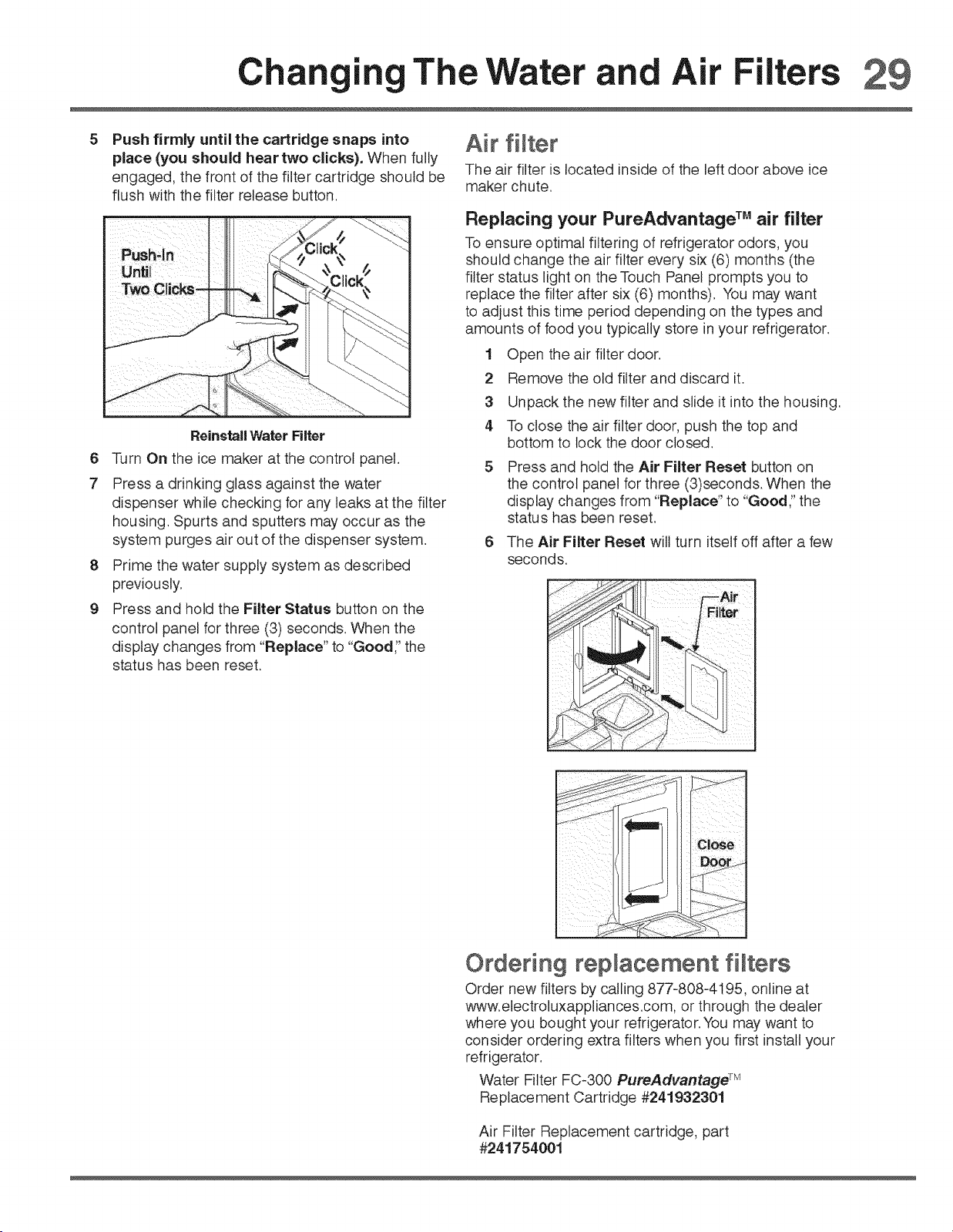

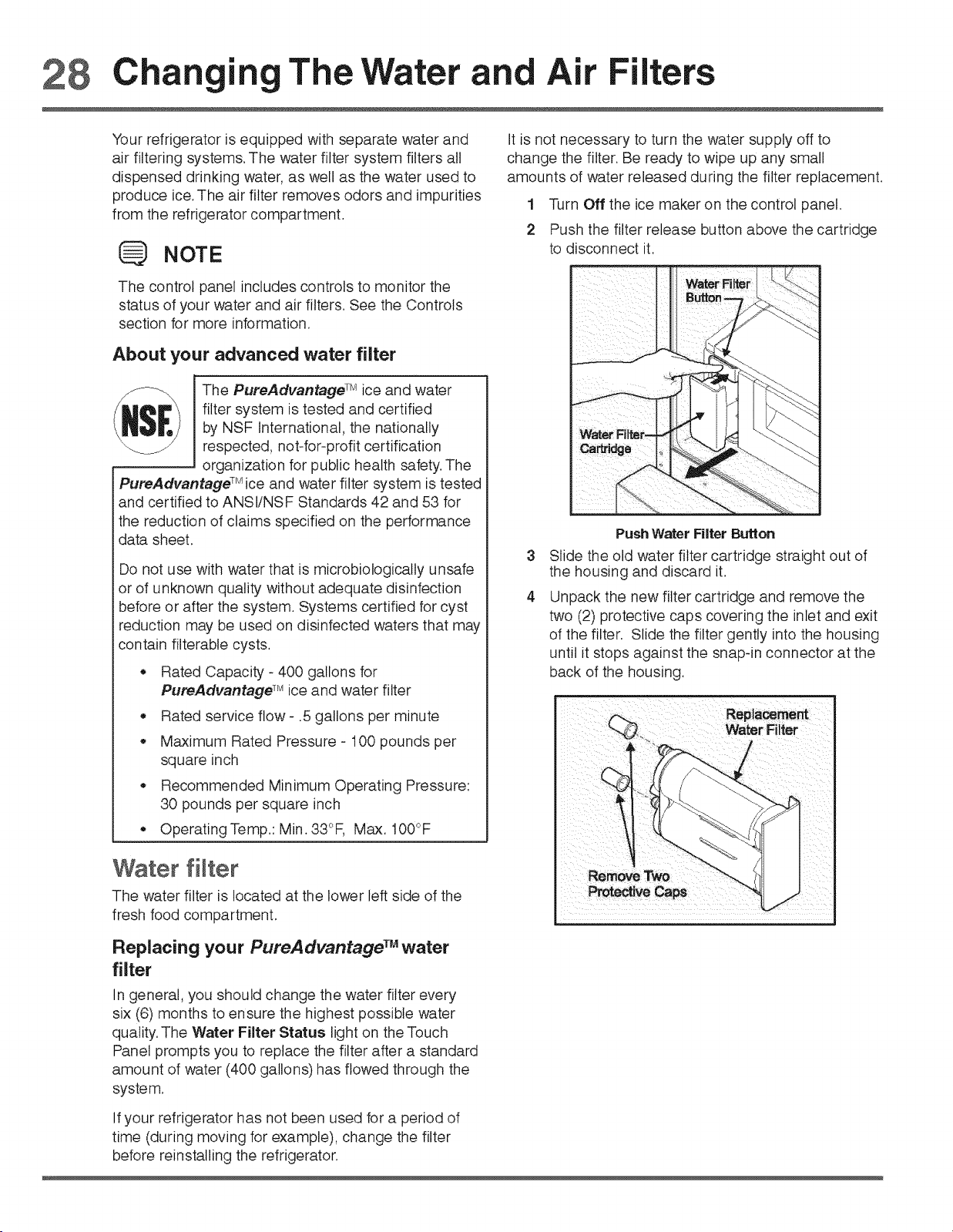

Changingthe Water andAir Filters........................... 28

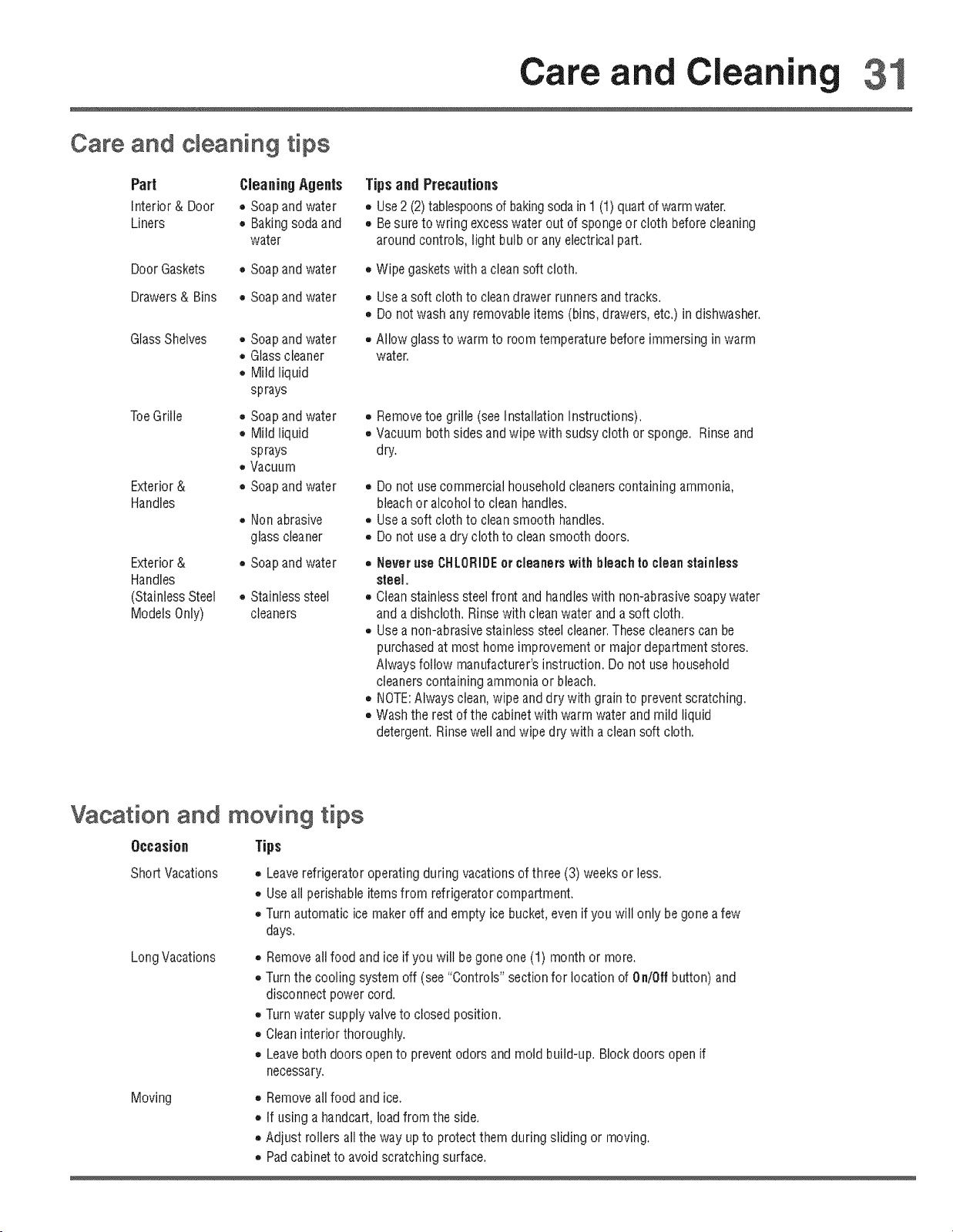

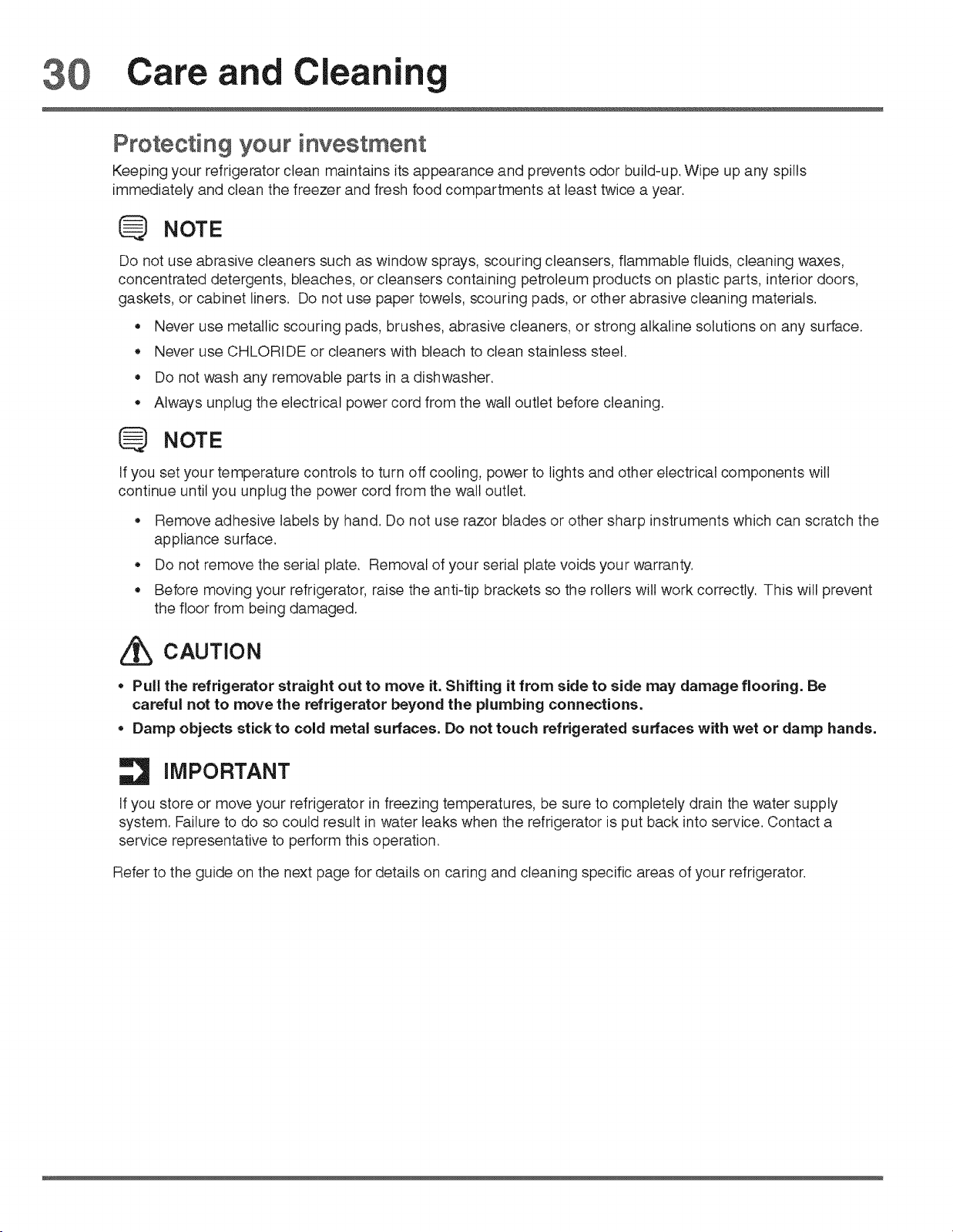

Careand Cleaning............................................... 30
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and product information visit http:/i
www.electroluxappliances.com

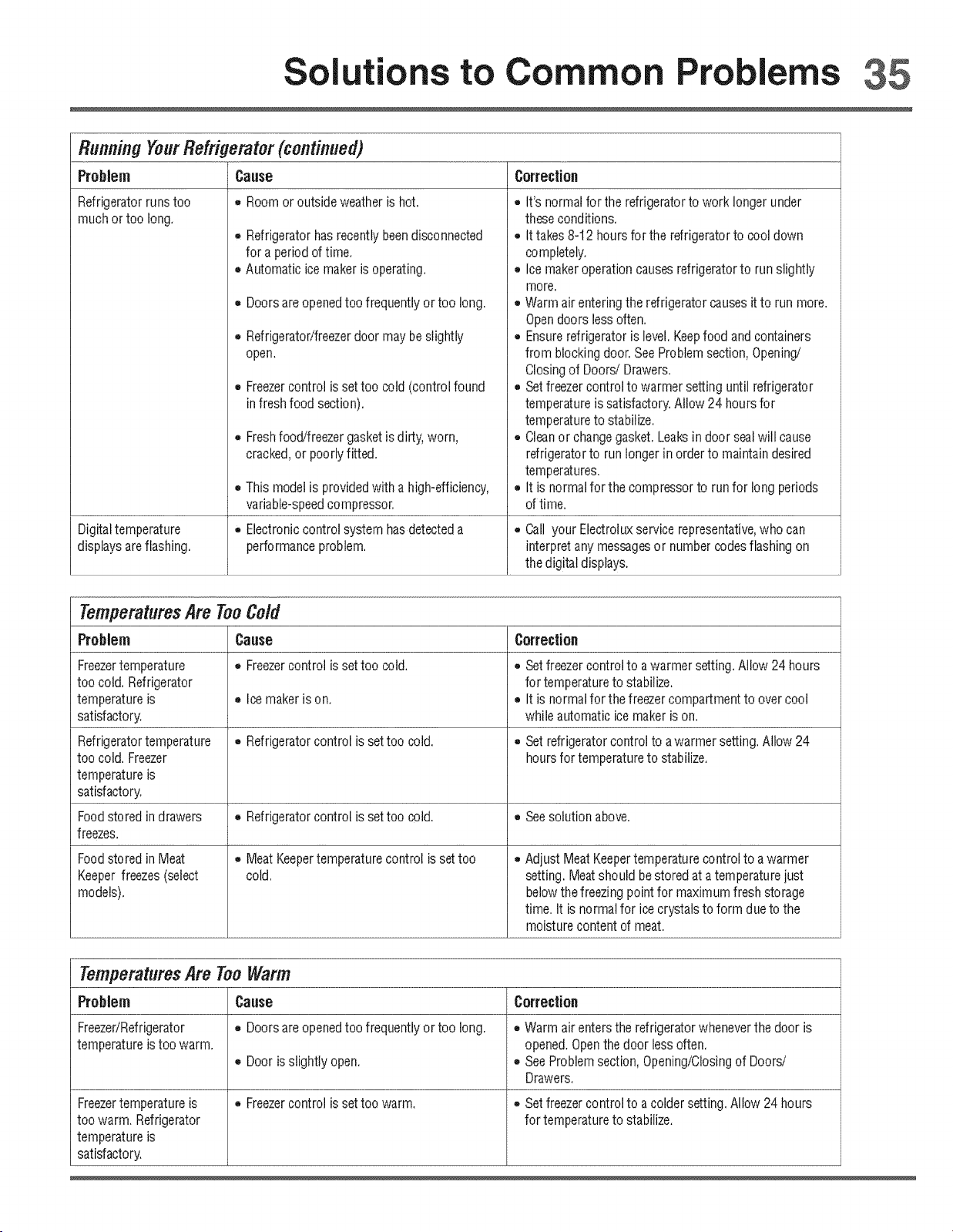

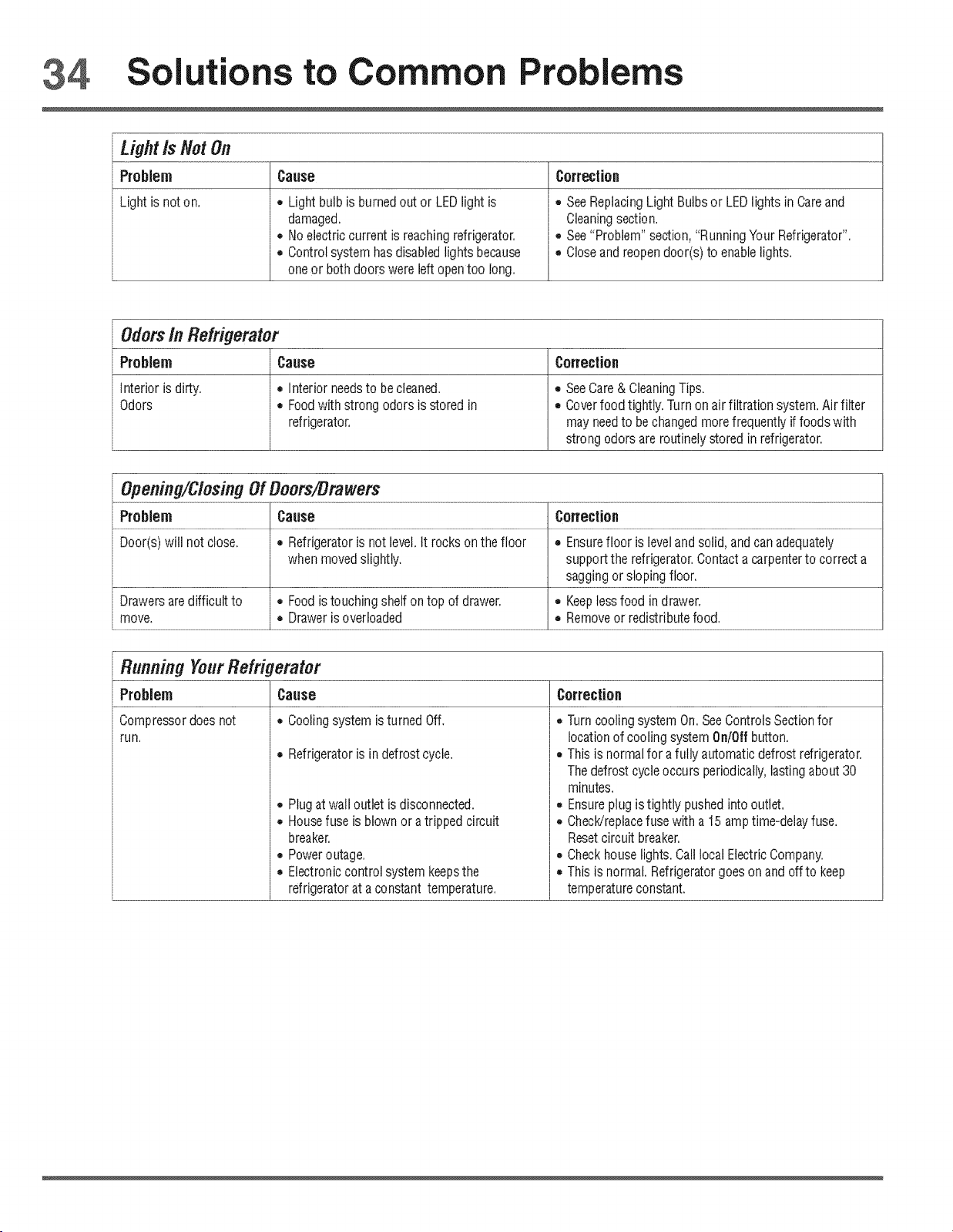

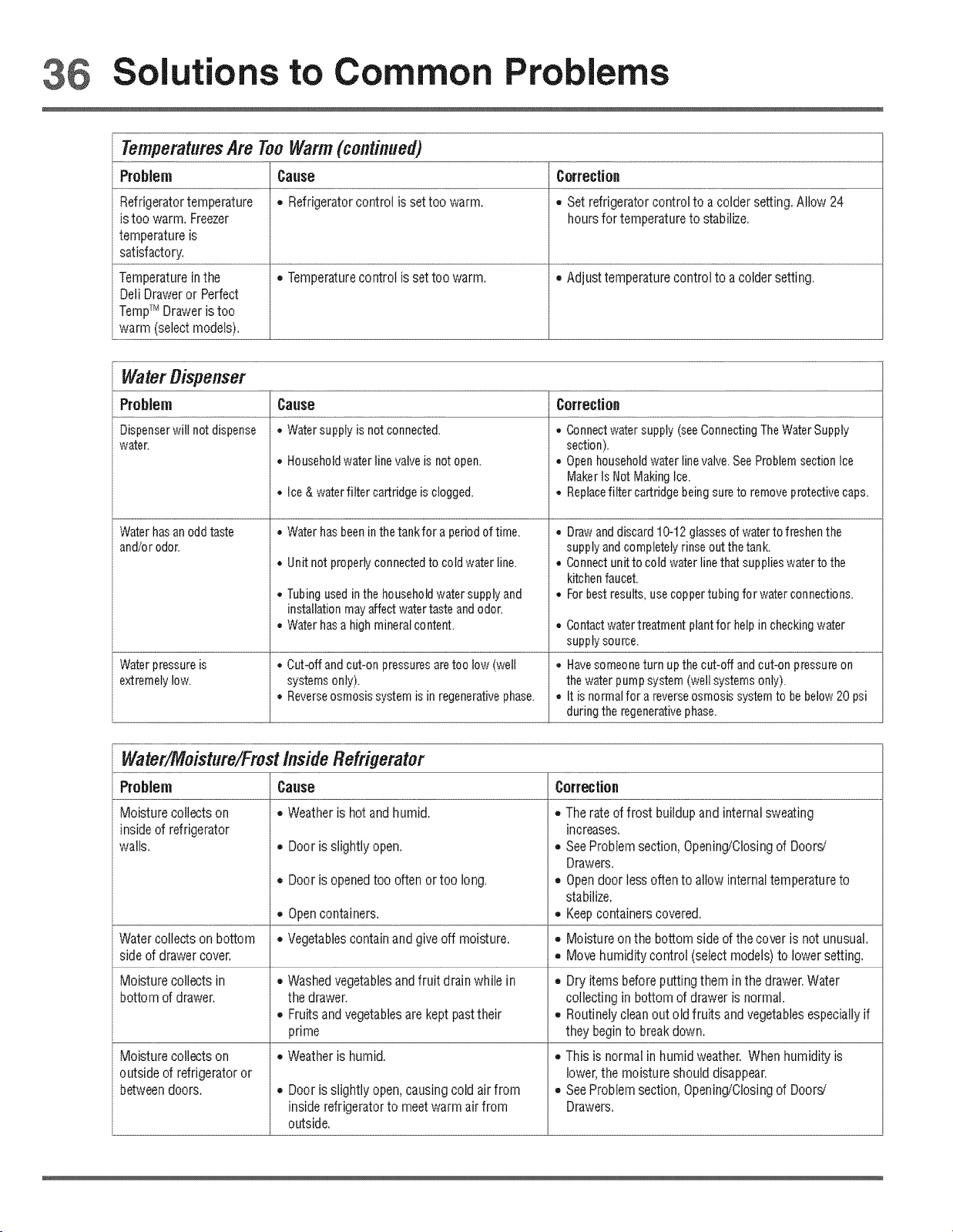

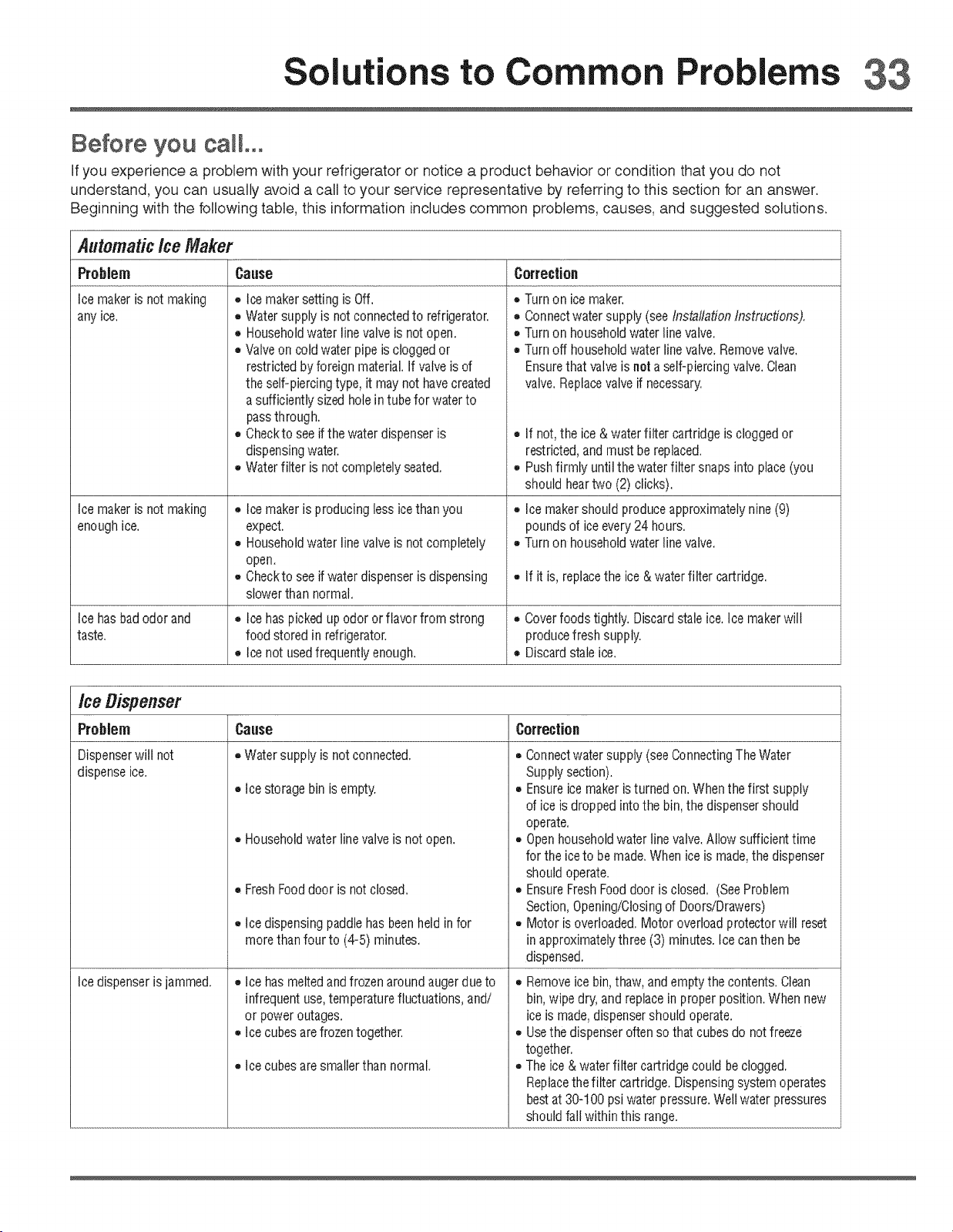

Solutions to CommonProblems............................... 33

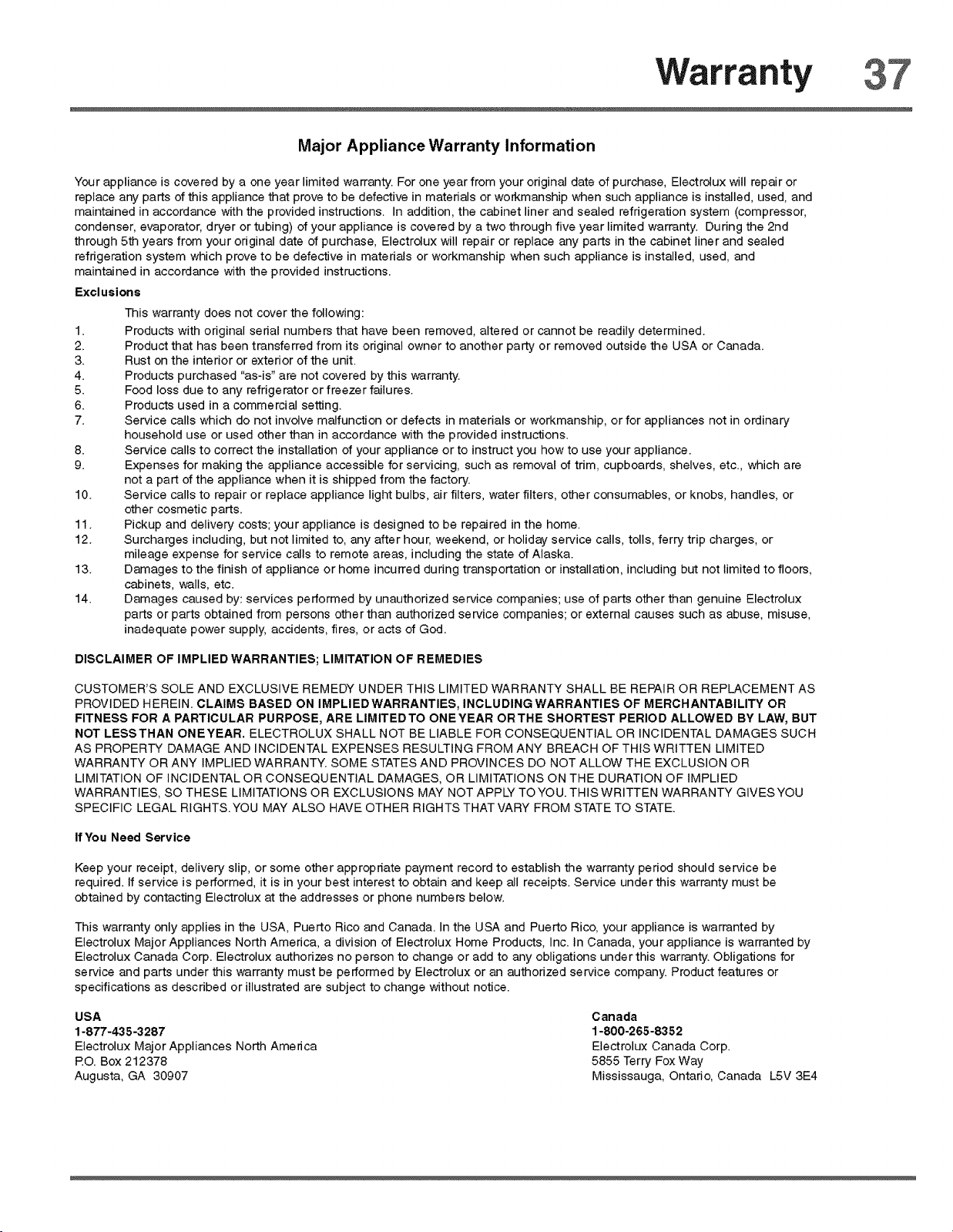

Warranty.......................................................... 37
Jnsta mation Checklist
Doors
[] Handles are secure and tight
rq Door seals completely to cabinet on all sides
[] Freezer door is level across the top
Leveling
[] Refrigerator is level, side-to-side and tilted 1/4"
(Cmm) front-to-back
13 Toe grille is properly attached to refrigerator
[] Cabinet is setting solid on all corners
Electrical Power
83 House power turned on
[] Refrigerator plugged in
Ice Maker
_3 House water supply connected to refrigerator
C3 No water leaks present at all connections -
recheck in 24 hours
[] Ice maker is turned ON
[] Ice & water dispenser operates correctly
[] Front filter must be flush with filter housing
(select models)
Final Checks
[] Shipping material removed
[] Fresh food and freezer temperatures set
[] Crisper humidity controls set
[] Registration card sent in

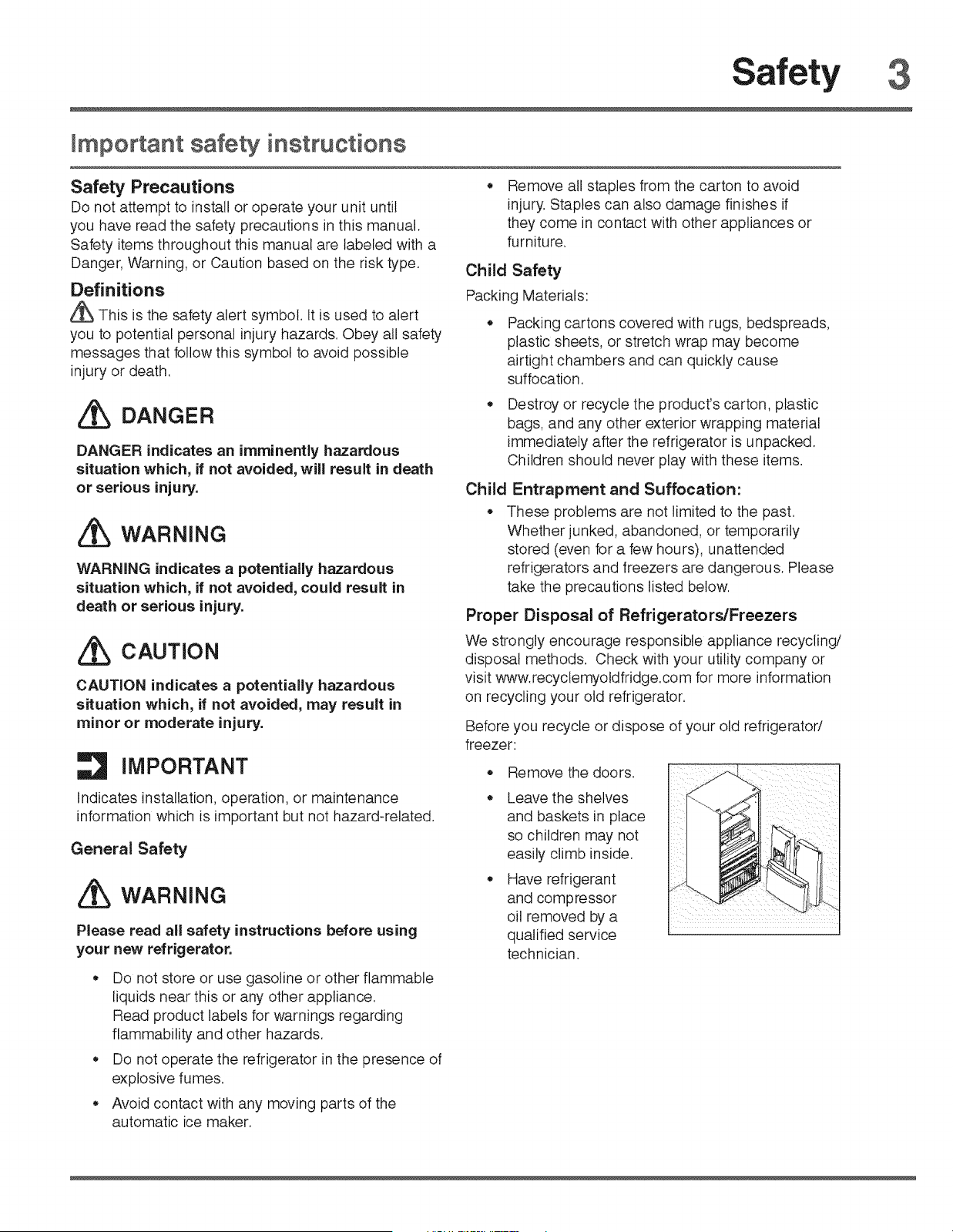

Safety 3
Important safety instructions
Safety Precautions
Do not attempt to install or operate your unit until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
Danger, Warning, or Caution based on the risk type.
Definitions
_This is the safety alert symbol. It is used to alert
o
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
Indicates installation, operation, or maintenance
information which is important but not hazard-related.
General Safety
WARNING
Please read all safety instructions before using
your new refrigerator.
,, Do not store or use gasoline or other flammable
liquids near this or any other appliance.
Read product labels for 'warnings regarding
flammability and other hazards.
• Do not operate the refrigerator in the presence of
explosive fumes.
,, Avoid contact with any moving parts of the
automatic ice maker.
Remove all staples from the carton to avoid
injury. Staples can also damage finishes if
they come in contact with other appliances or
furniture.
Child Safety
Packing Materials:
Packing cartons covered with rugs, bedspreads,
plastic sheets, or stretch wrap may become
airtight chambers and can quickly cause
suffocation.
Destroy or recycle the product's carton, plastic
bags, and any other exterior wrapping material
immediately after the refrigerator is unpacked.
Children should never play with these items.
Child Entrapment and Suffocation:
. These problems are not limited to the past.
Whether junked, abandoned, or temporarily
stored (even for a few hours), unattended
refrigerators and freezers are dangerous. Please
take the precautions listed below.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance recycling/
disposal methods. Check with your utility, company or
visit www.recyctemyoldfridge.com for more information
on recycling your old refrigerator.
Before you recycle or dispose of your old refrigerator/
freezer:
o
o
Remove the doors.
Leave the shelves
and baskets in place
so children may not
easily climb inside.
Have refrigerant
and compressor
oil removed by a
qualified service
technician.

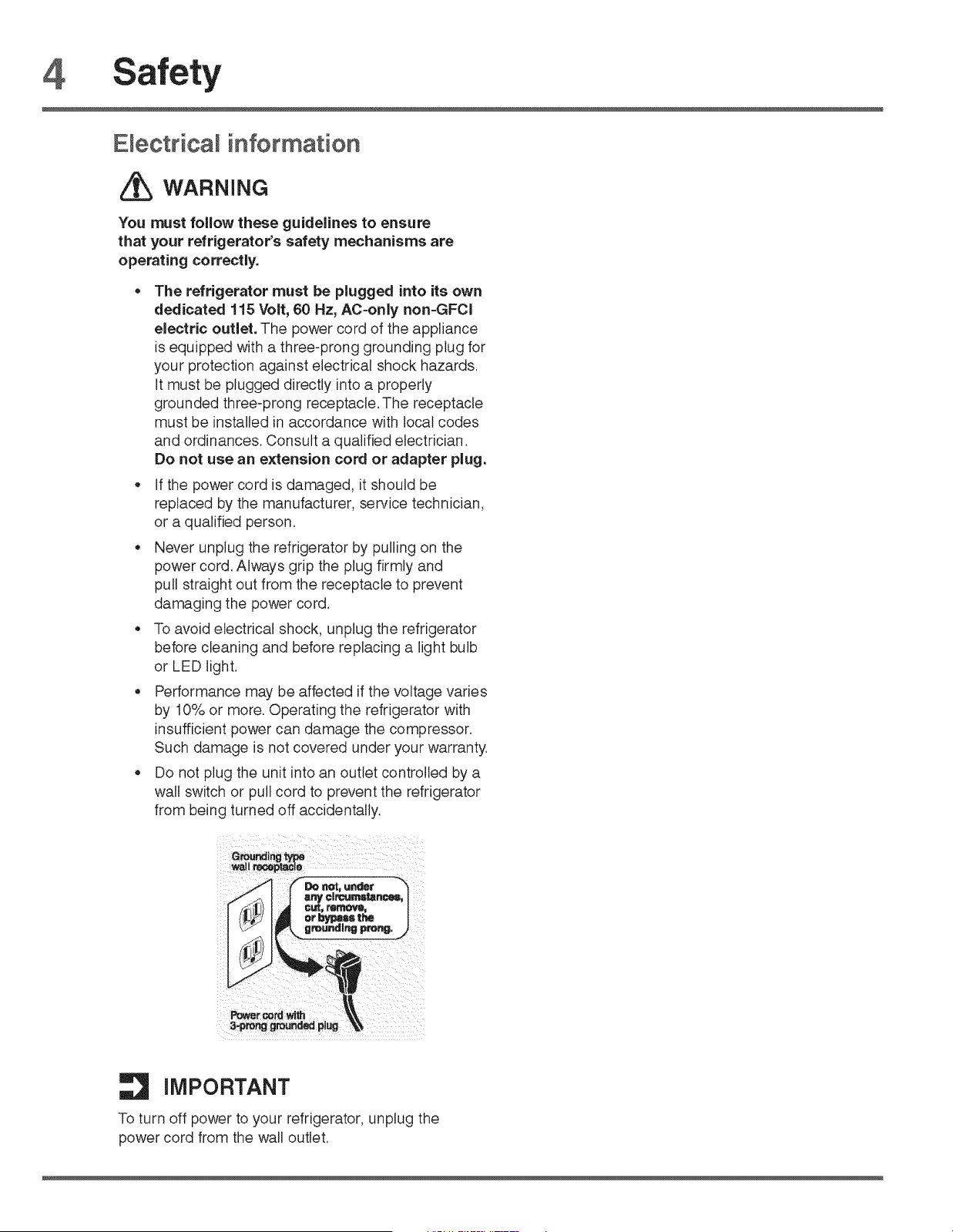

4 Safety
Emectdcal information
WARNING
You must follow these guidelines to ensure
that your refrigerator's safety mechanisms are
operating correctly,
. The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz, AC-only non=GFCl
electric outlet. The power cord of the appliance
is equipped with a three-prong grounding plug for
your protection against electrical shock hazards.
It must be plugged directly into a properly
grounded three-prong receptacle. The receptacle
must be installed in accordance with local codes
and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
o If the power cord is damaged, it should be
replaced by the manufacturer, service technician,
or a qualified person.
• Never unplug the refrigerator by pulling on the
power cord. Always grip the plug firmly and
pull straight out from the receptacle to prevent
damaging the power cord.
• To avoid electrical shock, unplug the refrigerator
before cleaning and before replacing a light bulb
or LED light.
o Performance may be affected if the voltage varies
by 10% or more. Operating the refrigerator with
insufficient power can damage the compressor.
Such damage is not covered under your warranty.
• Do not plug the unit into an outlet controlled by a
walt switch or pull cord to prevent the refrigerator
from being turned off accidentally.
Grounding
wall reeeptac e
| IMPORTANT
To turn off power to your refrigerator, unplug the
power cord from the wall outlet.

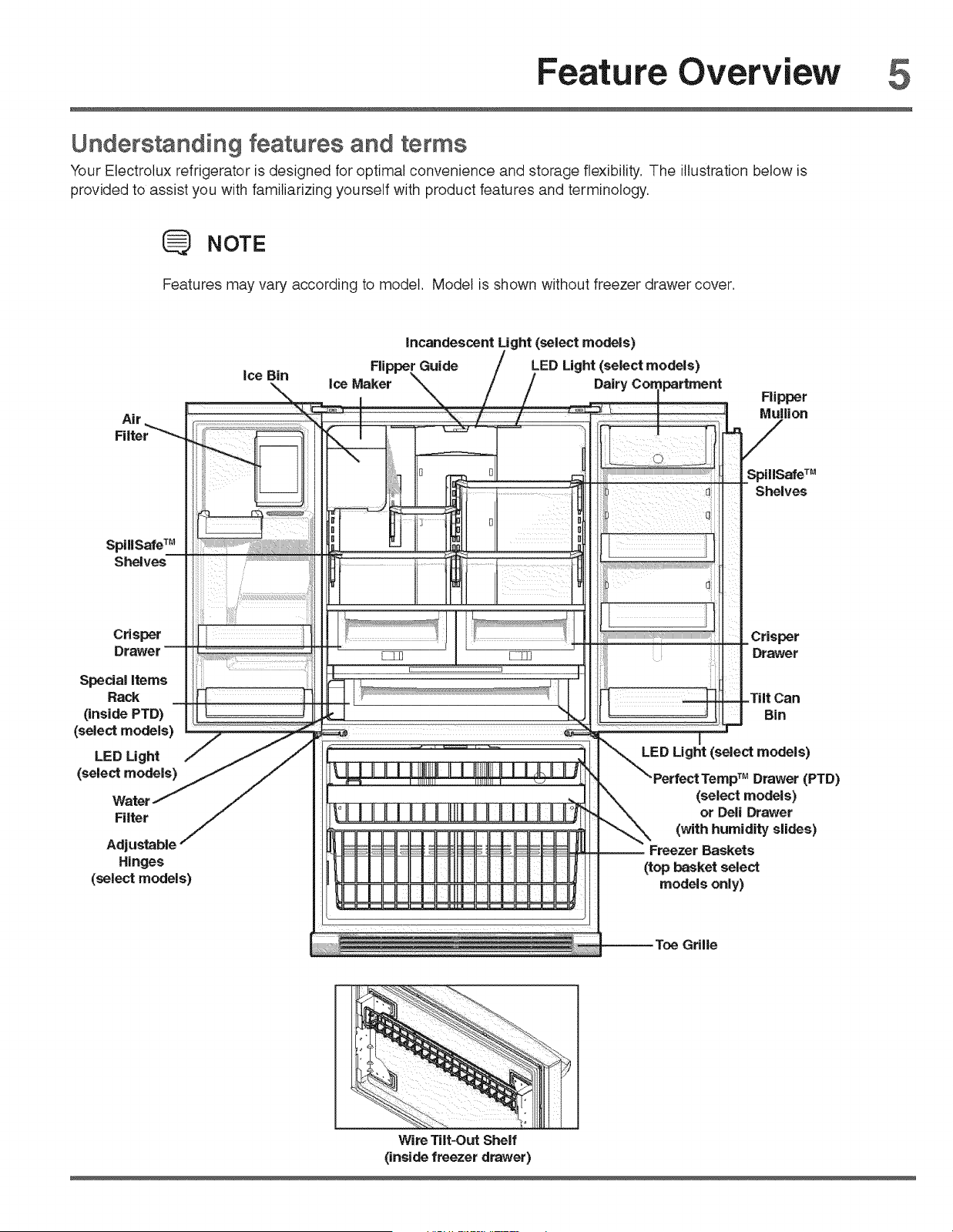

Feature Overview 5
Understanding features and terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. The illustration below is
provided to assist you with familiarizing yourself with product features and terminology,
NOTE
Features may vary according to model,
Model is shown without freezer drawer cover.
Ice Bin
Air
Filter
SpilISafeTM
Shelves
Crisper
Special Items
Rack
(inside PTD)
(select models)
LED Light
(select models)
Water
Filter
Adjustable
Hinges
(select models)
Incandescent Light (select models)
Flipper Guide LED Light (select models)
Ice Maker Dairy
Flipper
_lien
Shelves
Crisper
Drawer
Tilt Can
Bin
)TMDrawer (PTD)
(select models)
or Dell Drawer
(with humidity slides)
Freezer Baskets
(top basket select
models only)
_---- Toe Grille
I1:_'b,
Wire Tilt-Out Shelf
(inside freezer drawer)
6

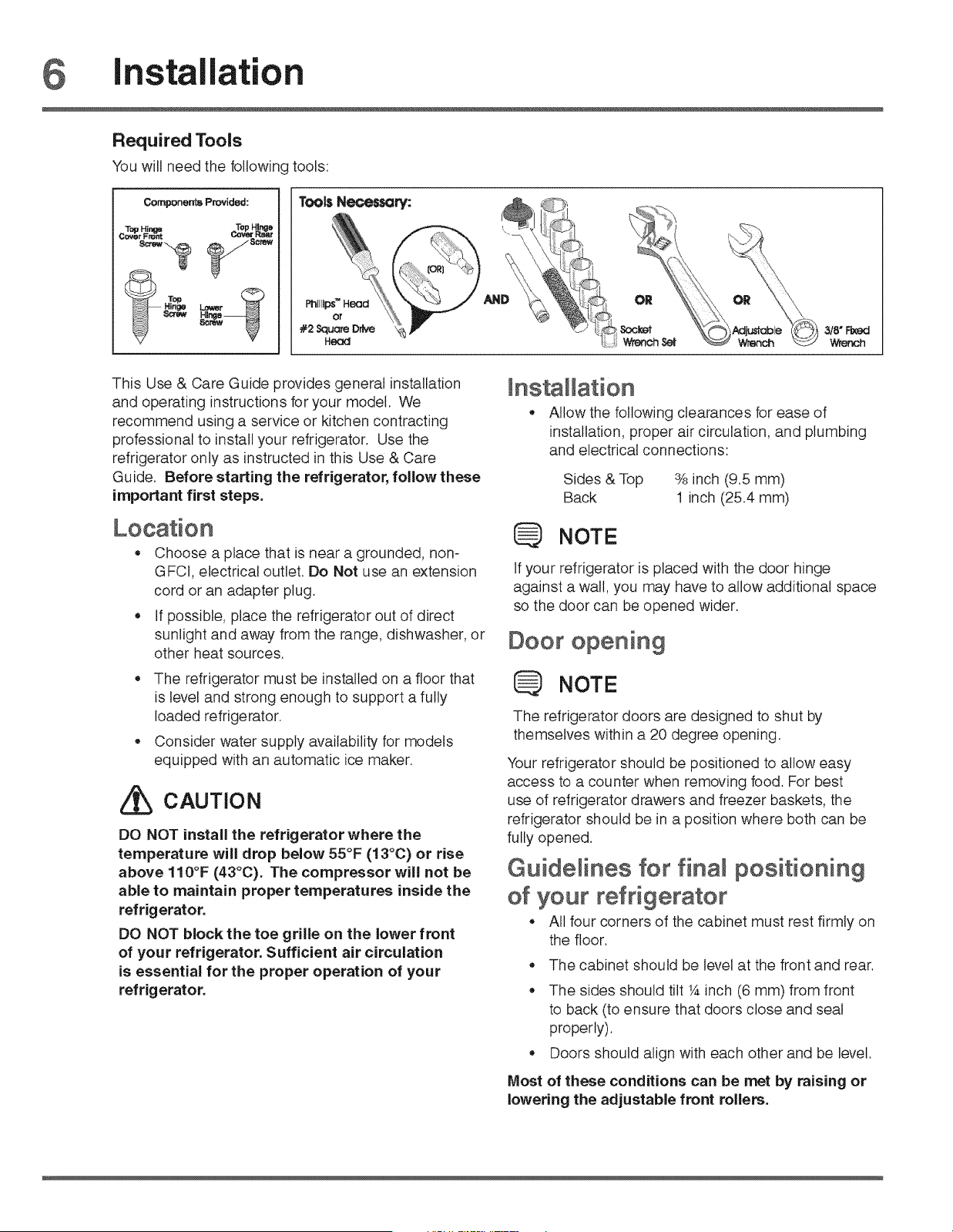

installation
Required Tools
You will need the following tools:
Components Provided:
Top Hi_ _ToP Ht_
Cover Fro_
Screw _ _ 8c_
ToolsNecessary:
&!8" Fb¢_::l
Wrench
This Use & Care Guide provides general installation
and operating instructionsfor your model. We
recommend using a service or kitchen contracting
professional to install your refrigerator. Use the
refrigerator only as instructed in this Use & Care
Guide. Before starting the refrigerator, follow these
important first steps.
,, Choose a place that is near a grounded, non-
GFCI, electrical outlet. Do Not use an extension
cord or an adapter plug.
* If possible, place the refrigerator out of direct
sunlight and away from the range, dishwasher, or
other heat sources.
,, The refrigerator must be installed on a floor that
is level and strong enough to support a fully
loaded refrigerator.
,, Consider water supply availability for models
equipped with an automatic ice maker.
CAUTION
DO NOT install the refrigerator where the
temperature will drop below 55°F (13°O) or rise
above 110°F (43°C). The compressor will not be
able to maintain proper temperatures inside the
refrigerator,
DO NOT block the toe grille on the lower front
of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator.
Installation
* Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
Sides & Top ¾ inch (9.5 mm)
Back 1 inch (25.4 mm)
NOTE
If your refrigerator is placed with the door hinge
against a wall, you may have to allow additional space
so the door can be opened wider.
Door opening
NOTE
The refrigerator doors are designed to shut by
themselves within a 20 degree opening.
Your refrigerator should be positioned to aitow easy
access to a counter when removing food. For best
use of refrigerator drawers and freezer baskets, the
refrigerator should be in a position where both can be
fully opened.
Guidelines for fina[ positioning
of your refrigerator
* All four corners of the cabinet must rest firmly on
the floor.
e
o
The cabinet should be level at the front and rear.
The sides should tilt ¼ inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
Doors should align with each other and be level.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.

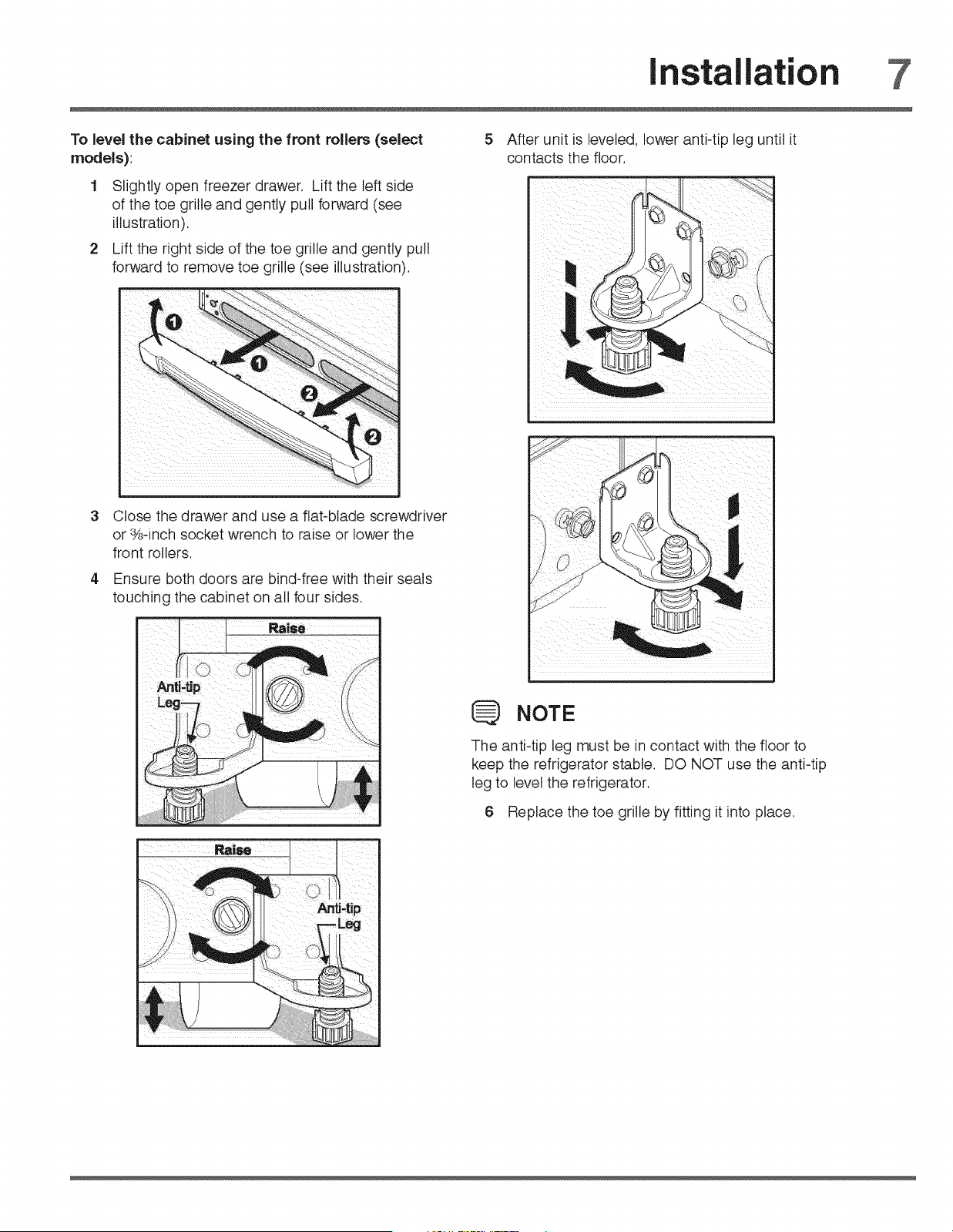

installation 7'
To level the cabinet using the front rollers (select
models):
1 Slightly open freezer drawer. Lift the left side
of the toe grille and gently pull forward (see
illustration).
2 Lift the right side of the toe grille and gently pull
forward to remove toe grille (see illustration).
5 After unit is leveled, lower anti-tip leg until it
contacts the floor,
3
4
Close the drawer and use a flat-blade screwdriver
or %-inch socket wrench to raise or lower the
front rollers,
Ensure both doors are bind-free with their seals
touching the cabinet on all four sides.
NOTE
The anti-tip leg must be in contact with the floor to
keep the refrigerator stable. DO NOT use the anti-tip
leg to level the refrigerator.
6 Replace the toe grille by fitting it into place,
installation

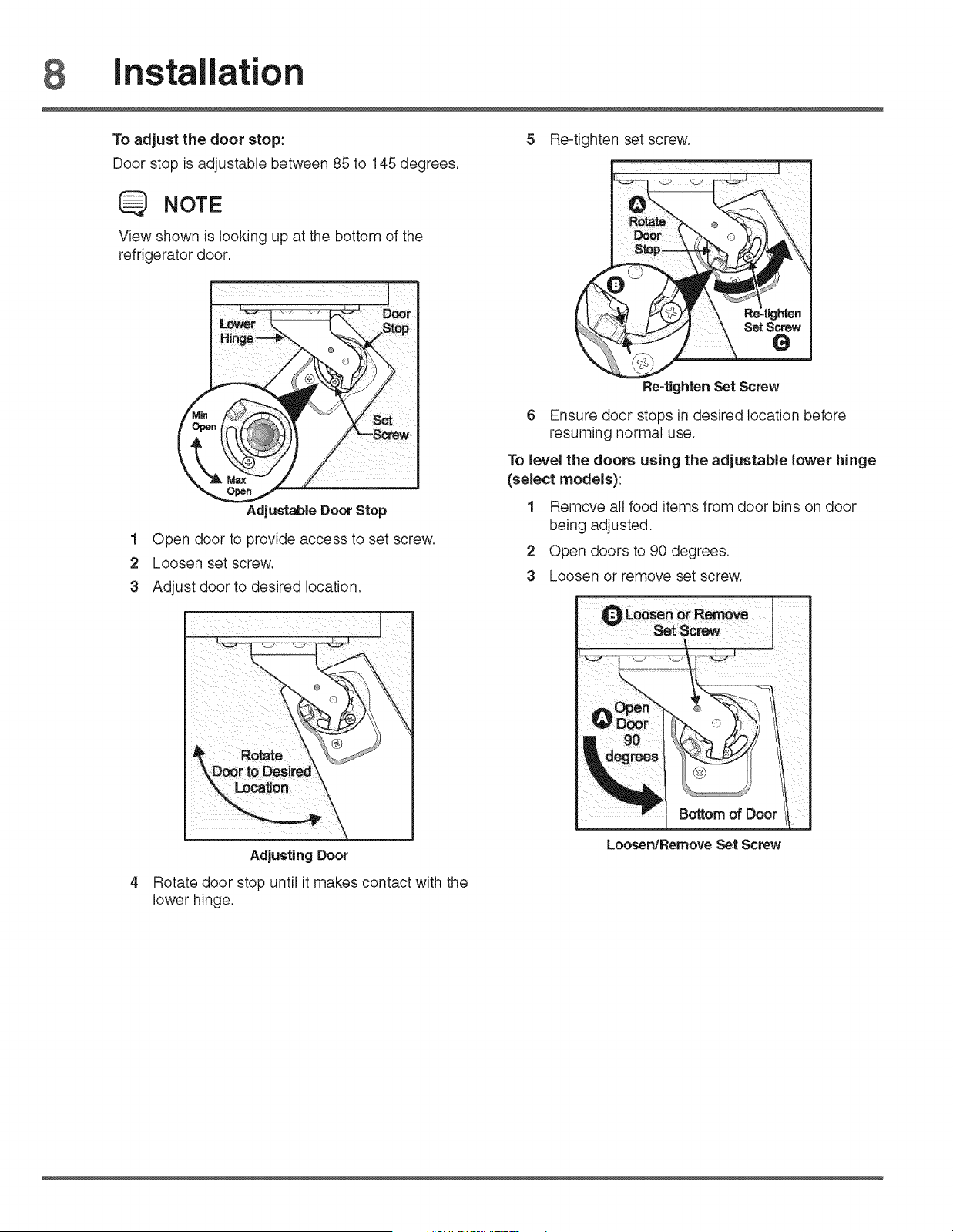

To adjust the door stop:
Door stop is adjustable between 85 to 145 degrees.
NOTE
View shown is looking up at the bottom of the
refrigerator door,
Adjustable Door Stop
1 Open door to provide access to set screw.
2 Loosen set screw.
3 Adjust door to desired location,
5 Re-tighten set screw.
SetScrew
e
Re-tighten Set Screw
6 Ensure door stops in desired location before
resuming normal use.
To level the doors using the adjustable lower hinge
(select models):
1 Remove all food items from door bins on door
being adjusted.
2 Open doors to 90 degrees.
3 Loosen or remove set screw.
Adjusting Door
Rotate door stop until it makes contact with the
lower hinge.
Bottom of Door
Loosen/Remove Set Screw
installation 9

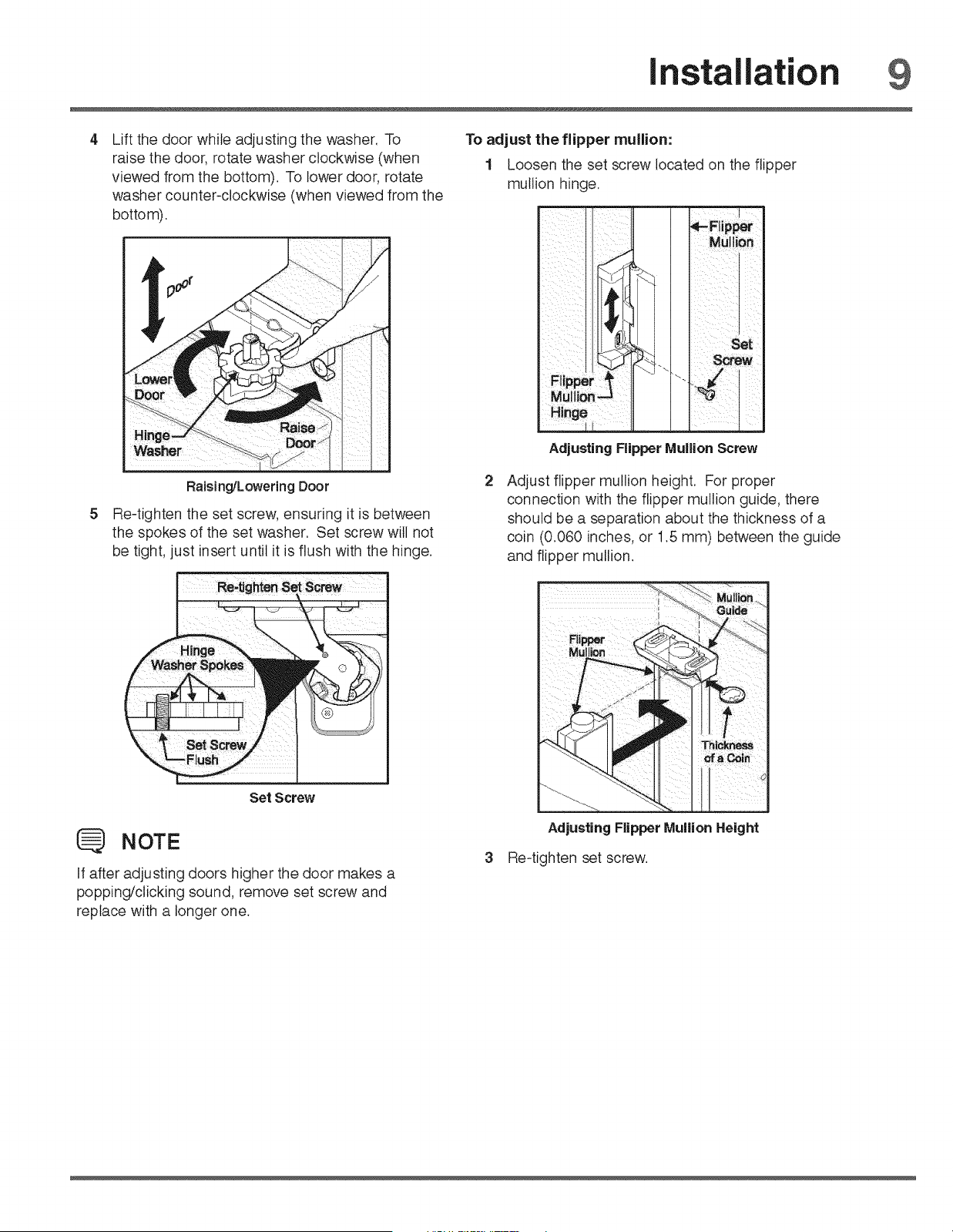

Lift the door while adjusting the washer. To
raise the door, rotate washer clockwise (when
viewed from the bottom). To lower door, rotate
washer counter-clockwise (when viewed from the
bottom).
Raising/Lowering Door
To adjust the flipper mullion:
1 Loosen the set screw located on the flipper
mullion hinge.
SeE
8crew
Adjusting Flipper Mullion Screw
Re-tighten the set screw, ensuring it is between
the spokes of the set washer. Set screw will not
be tight, just insert until it is flush with the hinge.
2
Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
Set Screw
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove set screw and
replace with a longer one.
Adjusting Flipper Mullion Height
3 Re-tighten set screw.
Removing e Doors
Getting through narrow spaces
if your refrigerator will not fit through an entrance area,
you can remove the doors, Check first by measuring the
entrance.
To remove the refrigerator doors:
1 Trace tightly around the door's top hinges with a
pencil. This makes reinstallation easier,
To prepare for removing the doors:
Make sure the electrical power cord is unplugged
from the wall outlet.
2 Open the freezer drawer and remove the toe
grille (see "1nstallation" section).
3 Remove any food from the door shelves and
close the doors,
To remove the top hinge covers:
1 Remove the two (2) screws from each cover over
the top door hinges,
2 Lift inside edge of hinge cover and tilt back.
i
Hi
Mulll-v_
I
I scr_ jzF'--....f
I "%_b _"-. I1| "._,l,Qe
Disconnect the harness by grasping both sides of
the connector firmly, depress the latch, and pull
apart. Remove the two (2) screws from the top
hinge, Lift the door off of the bottom hinge and
set it aside.
Detach the water tube from the connector
located behind the refrigerator and pull the tube
back out to the front of the unit, The connector
releases when you press inward on the outer
sleeve while pushing the tube toward the
connector then while continuing to hold in the
sleeve, pull the tube away.
NOTE
DO NOT remove the ground screw from hinge.
Removin
the Doors 1 1
NOTE
You will be pulling approximately three (3) feet of
water tube from the back of the refrigerator.
4 Unscrew the three (3) lower hinge screws and
hinge if necessary.
To reinstall the right door, reverse the above steps.
Lower Hinge Removal
L
Once both doors are in place, ensure they are aligned
with each other and level (Please see the "Installation"
section for more details), and replace the top hinge
cover.
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal injury,
or damage to the doors or handles.
Removing Freezer Drawer
1 Open freezer drawer,
2 Remove drawer screws on right and left sides
(two (2) screws on each side),
i_ii _I _i _
3 Lift drawer up and out to remove.
CAUTION
Drawer is heavy. Use caution when lifting.
Installing Freezer Drawer
1 With lower slides and basket pulled out, mount
drawer in reverse of removal.
2 Tighten drawer screws then turn another 1/4 turn.
3 Check gasket seal around freezer drawer. Make
adjustments on drawer screws if necessary.
NOTE
DO NOT remove center screw from freezer drawer.
This is a factory adjustment,
2 lnstallin Door andles
Door Handle
1 Remove handles from
protective packaging.
2 Position fresh food handle
end caps (A) over upper
and lower pre-installed
shoulder bolts (B) that
are fastened into door,
ensuring the holes for
the set screws are facing
towards the opposite door.
3 While holding handle firmly
against door, fasten upper
and lower Alien set screws
(C) with supplied Allen
wrench,
4
5
6
Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the
set screws are facing
towards the first door.
Position freezer handle
end caps over left and right
pre-installed shoulder bolts
that are fastened to the
door, ensuring the holes for
the set screws are facing
down.
While holding handle firmly
against door; fasten left
and right Allen set screws
(C) with supplied Allen
wrench,
oEnd
Cap
Mounting Refrigerator Handles
Mounting Freezer Handle
NOTE
To ensure that handles are flush with door, make sure that set screws are completely tightened.
Connecting the Water u ply 13
WARNING
To avoid electric shock, which can cause death or
severe personal injury, disconnect the refrigerator
from electrical power before connecting a water
supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainiees Steel braided tubing is
recommended for the water supply line. Water
supply tubing made of 1Ainch plastic is not
recommended to be used. Plastic tubing greatly
increases the potential for water leaks, and the
manufacturer will not be responsible for any
damage if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
• Chemicals from a malfunctioning softener
can damage the ice maker, if the ice maker
is connected to soft water, ensure that the
softener is maintained and working properly.
IMPORTANT
Ensure that your water supply line connections
comply with all local plumbing codes.
Before Installing The Water Supply Line, You Will Need:
,, Basic Tools: adjustable wrench, flat-blade
screwdriver, and Phillips TM screwdriver
- Access to a household cold water line with water
pressure between 30 and 100 psi.
,, A water supply line made of ¼ inch (6.4 mm) OD,
copper or stainless steel tubing.To determine the
length of tubing needed, measure the distance
from the ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the refrigerator
can be moved out for cleaning (as shown).
,, A shutoff valve to connect the water supply line
to your household water system. DO NOT use a
self-piercing type shutoff valve.
,, A compression nut and ferrule (sleeve)br connecting
a copper water supply line to the ice maker inlet valve.
NOTE
Check with your local buildingauthority for
recommendations on water linesand associated materials
prior to installingyour new refrigerator. Depending on
your local/state buildingcodes, Electrolux recommends for
homes with existing valves its Smart Choice@water linekit
5305513409 (with a 6 ft. Stainless Steel Water Line) and for
homes without an existing valve, Electrolux recommends
itsSmart Choice water_ line kit 5305510264 (with a 20 ft.
Copper Water Line with self-tapping saddle valve). Please
refer to www.frigidaire.corrVstorefor more information.
To Connect Water Supply Line To tee Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket.
Turn ON water supply and flush supply line until
water is clear.Turn OFF water supply at shutoff valve.
3. Remove plastic cap from water valve inlet and
discard cap.
4. If you use copper tubing - Slide brass compression
nut, then ferrule (sleeve) onto water supply line. Push
water supply line into water valve inlet as far as it will
go (¼ inch / 6.4 mm). Slide ferrule (sleeve) into valve
inlet and finger tighten compression nut onto valve.
Tighten another half turn with a wrench; DO NOT
over tighten. See Figure 1.
If you use stainless steel tubing -The nut and
ferrule are already assembled on the tubing. Slide
compression nut onto valve inlet and finger tighten
compression nut onto valve. Tighten another half turn
with a wrench; DO NOT over tighten. See Figure 2.
5. Wilh sleelclampand screw,securewatersupplyline
(copperlubingonly)to rearpanelof refrigerabras shovm.
6. Coil excess water supply line (copper tubing
only), about 2V2 turns, behind refrigerator as
shown and arrange coils so they do not vibrate or
wear again st any other surface.
7. Turn ON water supply at shutoff valve and tighten
any connections that leak.
8. Reconnect refrigerator to electrical power source.
9. To turn ice maker on, lower wire signal arm (side
mounted) or set the ice maker's On/Off power
switch to the "!" position (rear mounted).
Figure 1
iMPORTANT
Figure 2
After connecting the water supply, refer to "How to Prime
the Water Supply System" for important information
about priming an empty 'water supply system.
Your refrigerator's water supply system includes
several tubing lines, a water filter, a water valve, and
a water tank_ To ensure that your water dispenser
works properly, this system must be completely
filled with water when your refrigerator is first
connected to the household water supply line.
Controls
Controls 15
WaveoTouch TM(semectmod÷ws)
Your refrigerator is equipped with a Wave-Touch TM
control panel display. It is only necessary to gently
touch the glass. There are three (3) levels of display.
1_tLevel: Sleep Mode
Sleep Mode displays only the WATER, CUBES and
CRUSHED options. Touch an icon to activate the
desired dispenser mode. The active dispenser mode is
more brightly illuminated.
2°d Level: Awakened Display Mode
The control panel is awakened by touching anywhere
on the glass where there is an indicator. Black space
will not awaken the display: After 10 seconds of
inactivity, the control panel will return to the Sleep mode.
The following dispenser options are illuminated:
iceoff
fastfreeze
dispenserlight
controllock
Press and hold for three (3) seconds to turn
the ice maker "ON" or "OFF'. Turning the ice
rnaker "OFF' disablesthe ice dispensing feature.
Neither "CUBES"nor "CRUSHED"will operate
with the ice maker "OFF".
Activates afaster rate for freezingfood
On/ Off
Press and hold for three (3) seconds to activate
and deactivate.This restricts undesired changes
to the refrigerator's settings and prevents use of
the ice andwater dispenser.
IMPORTANT
When the ice maker is turned off, the ice in the bucket
should be transferred to the freezer or discarded to
prevent it from melting.
3rdLeveh User Variable Options
Touching the options icon displays the following options:
vacationmode
waterfilter
airfilter
letupdisplay
tampmode
mutesounds
factorydefault
on off
Conservesenergy by increasing the time
betweenautornatic defrost. This feature is auto-
matically activatedduring long periods between
door openings. Vacation mode is manually
activated when the red indicator is lit.
Touch to display filter condition status. Press
and hold for three (3) seconds to resetafter filter
change.
Touch to displayfilter status. Pressand holdfor
three (3) seconds to reset after filter change.
When active, it allows the display of the freezer
andfridge temps during "Sleep Mode". The
temperature is displayed when the red indicator
is {it.
Touchto toggledisplayfrom Fahrenheitto
Celsius.
Tonesemitted by each keypresscan be turned
off based on user preference.The sounds are
muted when the red indicator is lit. Warning
signals will stay active.
Resets all refrigerator settings such astemp,
ternp display,and alarm tones to their factory
default settings.
Press and hold for three (3) seconds to turn
off the cooling system to cleanthe refrigera-
tor. It also turns off the ice maker,all dispenser
functions, and the PerfectTampTM drawer (select
models). Thetemperature display will read OFE
IMPORTANT
Pressing the system on/off icon does not turn off
power to your refrigerator. "Youmust unplug the power
cord from the wall outlet.
G Contro

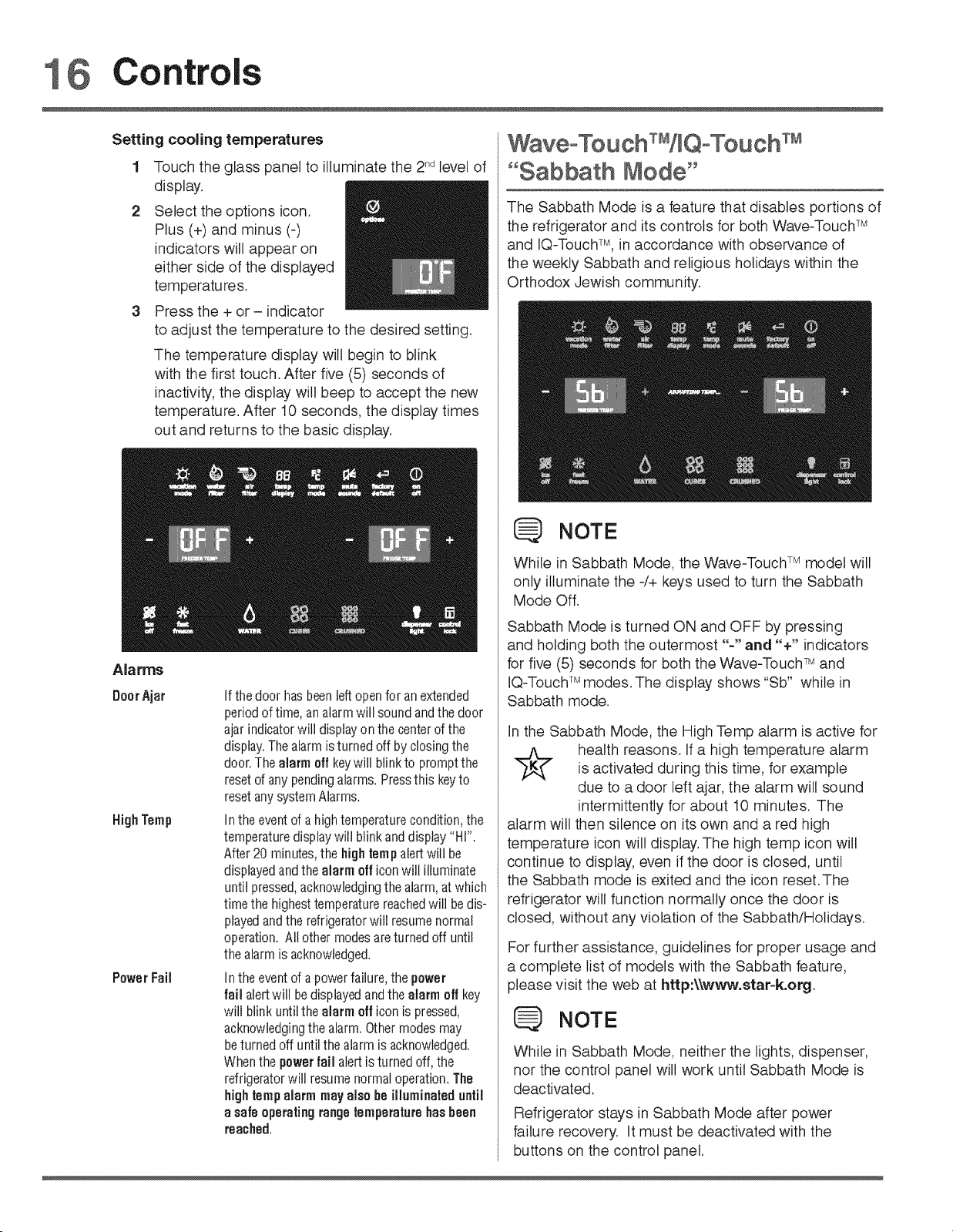

Setting cooling temperatures
2
3
Touch the glass panel to illuminate the 2ndlevel of
display.
Select the options icon.
Plus (+) and minus (-)
indicators will appear on
either side of the displayed
temperatu res.
Press the + or -indicator
to adjust the temperature to the desired setting.
The temperature display wilt begin to blink
with the first touch. After five (5) seconds of
inactivity, the display will beep to accept the new
temperature. After 10 seconds, the display times
out and returns to the basic display.
HighTamp
PowerFail
If the door has been leftopen for an extended
periodof time, an alarm will sound andthe door
ajar indicator will display on the center of the
display. The alarm is turned off by closing the
door. The alarm eft keywill blink to prompt the
reset of any pending alarms. Pressthis keyto
reset any system Alarms.
In the event of a high temperaturecondition, the
temperature display will blink anddisplay "HI".
After 20 minutes,the high |emp alert will be
displayed and the alarm off icon will illuminate
until pressed, acknowledging the alarm, at which
time the highest temperature reachedwill be dis-
playedand the refrigerator will resume normal
operation. All other modes are turned off until
the alarm is acknowledged.
In the event of a power failure, the power
fail alert will be displayed and the alarm off key
will blink until the alarm off icon is pressed,
acknowledging the alarm. Othermodes may
be turned off until the alarm is acknowledged.
When the powerfail alert is turned off, the
refrigerator will resume normal operation. The
highletup alarm may also be illuminatedunlil
a safe operating rangetemperaturehas been
reached.
"Sabbath Mode"
The Sabbath Mode is a feature that disables portions of
the refrigerator and its controls for both Wave-Touch TM
and IQ-ToucWM,in accordance with observance of
the weekly Sabbath and religious holidays within the
Orthodox Jewish community.
NOTE
While in Sabbath Mode, the Wave-Touch TM model will
only illuminate the -/+ keys used to turn the Sabbath
Mode Off.
Sabbath Mode is turned ON and OFF by pressing
and holding both the outermost "-" and "+" indicators
for five (5) seconds for both the Wave-TouchTM and
IQ-ToucWMmodes. The display shows "Sb" while in
Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active for
health reasons. If a high temperature alarm
is activated during this time, for example
due to a door left ajar, the alarm will sound
intermittently for about 10 minutes. The
alarm will then silence on its own and a red high
temperature icon will display. The high temp icon will
continue to display, even if the door is closed, until
the Sabbath mode is exited and the icon reset. The
refrigerator will function normally once the door is
closed, without any violation of the Sabbath/Holidays.
For further assistance, guidelines for proper usage and
a complete list of models with the Sabbath feature,
please visit the web at http:\\wvc_v.star-k.org.
NOTE
While in Sabbath Mode, neither the lights, dispenser,
nor the control panel will work until Sabbath Mode is
deactivated.
Refrigerator stays in Sabbath Mode after power
failure recovery. It must be deactivated with the
buttons on the control panel.
Controls 17
NOTE
Although you have entered the Sabbath Mode, the ice
maker wilt complete the cycle it had already initiated.
The ice cube compartment will remain cold and new
ice cubes can be made with standard trays.
Sabbath Mode and the Perfect Temp TM Drawer
The Perfect TempTM Drawer should be turned off for the
Sabbath/Holidays. Before putting the refrigerator into
the Sabbath mode, turn the PerfectTemp TM Drawer off
by pressing the drawer on/off button. The display will
show"OFF" and the drawer will turn off. Then enter the
Sabbath mode function on the main refrigerator display.
See Wave-TouchilQ-Touch "Sabbath Mode" section.
When in Sabbath mode, the display will not illuminate
and the drawer will remain off. The drawer can still be
used as a non-temp controlled drawer in this mode.
When the refrigerator is taken out of Sabbath mode, the
Perfect TempTM Drawer will have to be turned back on.
NOTE
If the Perfect Temp TM Drawer is not turned off prior
to putting the unit into Sabbath Mode, it will continue
to adjust itself to maintain the set point even if the
display does not illuminate to show that it is still on.
Q-Touch (select models}
Your refrigerator is equipped with a Glass Touch
control panel. It is only necessary to gently touch the
glass. There are three (3) dispenser modes:
1 Water
2 Ice Cubes
3 Crushed Ice
A red indicator light will be illuminated above the active
feature.
Touch the icon to activate the options below.
iceoff Pressand hold for three (3) seconds to turn
the ice maker "ON" or "OFF". The ice maker is
OFFwhenthe red indicator is lit above the ice
off icon. if there is no red indicator,then the
ice makeris ON.Turning the ice maker "OFF"
disables the icedispensing feature. Neither
"CUBES"nor "CRUSHED"will operate with the
icemaker "OFF".
fast freeze
dispenserlight
controllock
vacationmode
Activatesafasterratefor freezingfood.
On/ Off
Pressand hold for three seconds to activate
and deactivate.This restricts undesired
changesto the refrigerators settings and
prevents use of the ice and water dispenser.
Conservesenergy by increasingthe time
betweenautomatic defrost. This feature is auto-
maticallyactivatedduring long periods between
door openings. Vacationmode is manually
activated when the red indicator is lit.
waterfilter
Touchto display filter condition status. Press
and hold for three (3) seconds to reset after filter
change.
Touchto dispaayfilter status. Pressand hold for
three (3) seconds to reset after filter change.
Touchto toggle the freezerand fridge temp
display on and off.
Touchand hold temp display to toggle display
from Fahrenheitto Celsius.
Contro
mutesounds
factorydefault
onoff
Tonesemittedbyeachkeypresscanbeturned
off basedonuserpreference.Thesoundsare
mutedwhenthe redindicatorislit, Warning
signalswill stayactive.
Resetsall refrigeratorsettingssuchastemp,
tempdisplayandringtonesto theirfactory
defaultsettings.
Pressand holdfor three(3) secondsto turn off
thecoolingsystemto cleantherefrigerator:It
alsoturnsoffthe icemakerandalldispenser
functions.Thetemperaturedisplaywill readOFE
IMPORTANT
Pressing the system on/off icon does not turn off
power to your refrigerator, You must unplug the power
cord from the walt outlet.
IMPORTANT
When the ice maker is turned off, the ice in the bucket
should be transferred to the freezer or discarded to
prevent it from melting.
Setting cooling temperatures
Touch the control panel to illuminate plus (+)
and minus (-) indicators on either side of the
temperatures displays.
Press the + or- indicator to adjust the
temperature to the desired setting,
The temperature display will begin to blink with
the first touch, The display will time out after a
minute and returns to the basic display.
Alarms
DoorAjar
HighTemp
PowerFail
If the door has been left open for an extended
period of time, an alarm witl sound and the door
ajar indicator will display on the right side of the
control panel.The alarm is turned off by closing
the door. The mute sounds keywill blinkto
prompt the reset of any pending alarms. Press
this keyto reset any system alarms.
In the eventof a high temperature condition, the
temperature display will blink and display "HI'.
After 20 minutes, the high letup alertwill be
displayed andthe alarm off icon will illuminate
until pressed, acknowledging the alarm, at which
time the highest temperature reachedwill be dis-
playedand the refrigerator will resume normal
operation. All other modes are turned off until
the alarm is acknowledged.
In the eventof a power failure, the power fail
alert will be displayed andthe temperature
display will blink until the mute soundsiconis
pressed,acknowledging the alarm. Other modes
may be turned off until the alarm is acknowl-
edged.The powerfail alert is turned off and the
refrigerator will resume normal operation. The
highletup alarm may also be illuminated until
a safe operatingrange temperature has been
reached.
Automatic ice Water aker/Dispenser 19
Priming the water supply system
CAUTION
For proper dispenser operation, recommended
water supply pressure should fall between 30 psi
and 100 psi. Excessive pressure may cause water
filter to malfunction.
Begin filling the tank by pressing and holding a
drinking glass against the water dispenser paddle.
Keep the glass in 7 =
this position until
water comes out
of the dispenser, it
may take about
11/2minutes.
Continue
dispensing water
for about three (3)
minutes to flush
the system and
plumbing connections of any impurities (stopping
to empty the glass as necessary).
NOTE
The water dispenser has a built-in device that shuts
off the water flow after three (3) minutes of continuous
use. To reset this shutoff device, simply release the
dispenser paddle.
Ice maker operation & care
After the refrigerator is installed properly and has
cooled for several hours, the ice maker can produce ice
within 24 hours, tt can completely fill an ice bin in about
eight (8) hours.
The ice maker produces approximately nine (9) pounds
of ice every 24 hours depending on usage conditions.
IMPORTANT
Your ice maker is turned on at the factory so it can work
as soon as you install your refrigerator. Ifyou cannot
connect a water supply, set the ice maker's On/Off icon
to Off and turn off the water supply valve; otherwise, the
ice maker's fill valve may make a loud chattering noise
when it attempts to operate without water.
Turning
melting
MPORTANT
off the ice maker 'will result in existing ice
in the bin.
IMPORTANT
Turning off the ice maker will disable the ice
dispenser. You wilt still be able to dispense water.
NOTE
The ice maker also has a built-in plastic signal bale
arm that automatically stops ice production when the
ice bin is full. This signal arm should not be used to
manually stop the ice maker.
Using the ice maker after installation
Before making ice for the first time, be sure to prime
the water supply system, Air in new plumbing lines can
result in two (2) or three (3) empty ice maker cycles.
Furthermore, if the system is not flushed, the first ice
cubes may be discolored or have an odd flavor.
IMPORTANT
On occasion, unusually small disc-shaped ice may be
noticed in the bucket or in dispensed ice. This could
occur in normal operation of the ice maker. If you start
seeing these more frequently, it may be an indication
of low water pressure or the water filter needs to
be replaced. As the water filter nears the end of its
useful life and becomes clogged with particles, tess
water is delivered to the ice maker during each cycle.
Remember, if it's been six (6) months or longer since
you last changed your water filter, replace the water
filter with a new one. Poor quality household water may
require the filter to be changed more frequently.
Turning the ice maker on and off
Ice production is controlled by the ice maker's On/Off
icon on the control panel. Press and hold the "Ice Off"
icon for three (3) seconds to turn the ice maker "ON"
or "OFF". Where the ice maker is "OFF" the red LED
above the icon will be illuminated.
Automatic ice Water Maker/Dispenser
ice maker/dispenser tips
,, If your refrigerator is not connected to a water o
supply or the water supply is turned off, turn off
the ice maker by holding the On/Off soft-touch
icon and the water shut-off valve for three (3) •
seconds.
,, The following sounds are normal when the ice
maker is operating:
Motor running
Ice dropping into ice bin
Water valve opening or closing
Running water
,, When dispensing ice, you will hear a snapping
or clicking sound when the ice chute opens and
closes.
If you need a large quantity of ice at one time, it is
best to get cubes directly from the ice bin.
Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
When dispensing cubed ice, it is normal to have a
small quantity of little pieces along with the whole
cubes.
CAUTION
if the water supply to your refrigerator is softened,
be sure the softener is properly maintained.
Chemicals from a water softener can damage the
ice maker.
Cleaning the ice maker
Clean the ice maker and ice bin at regular intervals,
especially prior to vacation or moving.
1 Turn off the ice
maker,
2 Remove the ice bin
by pulling straight
out.
3 Empty and carefully
clean the ice bin
with mild detergent.
Do not use harsh or
abrasive cleaners.
Rinse with clear
water.
iiU ¸ :
Removing ice Bin
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
An extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and freeze
together, jamming the dispenser mechanism.
You do not use the ice dispenser frequently: Ice
cubes wilt freeze together in the bin, jamming the
dispenser mechanism.
Remove the ice bin and shake to loosen the cubes or
clean as explained above.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice.This could damage
the ice bin and dispenser mechanism.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely
dry.
iMPORTANT
When removing or replacing the ice bin, DO NOT
rotate the auger in the ice bin. If the auger is
accidentally rotated, you must realign the auger by
turning it in 90 degree turns (see below) until the ice
bin fits into place with the drive mechanism. If the
auger is not properly aligned when replacing the ice
bin, the refrigerator will produce no ice. The fresh food
door also may not close properly causing warm air to
leak into the fresh food compartment.
Adjusting Ice Bin Auger
Storage Features 21
CAUTION
To avoid injury from breakage, handle tempered
glass shelves carefully.
NOTE
Features may vary according to model.
Your refrigerator includes SpiltSafe TM glass shelves that
are designed to catch and hold accidental spills.
"Youcan easily adjust shelf positions in the fresh food
compartments to suit your needs. The shelves have
mounting brackets that attach to slotted supports at the
rear of each compartment.
To change the position of a shelf:
1 Before adjusting a shelf, remove all food.
2 Lift the front edge up and pull the shelf out.
3 Replace by inserting the mounting bracket hooks
into the desired support slots.
4 Lower the shelf and lock into position.
She f features
Full SpillSafe TM Shelf
Your refrigerator includes a variety of storage drawers.
These drawers are located in fixed positions at the
bottom of the fresh food compartment.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
Opening Crisper Drawer
Crisper humidity control
Crisper drawers include a sliding control for adjusting
the humidity inside the crisper. Leafy vegetables keep
best when stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best when stored
with the Humidity Control set on Lower Humidity.
_ii_ i_ i_ i_ i_ i_ i_ i_ i_ i_ i_ i_ i TM _ _ _ _ _
humidib/_nt_el
Humidi_ Humidi_
Adjusting Crisper Humidity
TM
Half SpilISafe Shelf
22 Storage Features
To remove the Crisper Drawer for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the drawer.
Removing Crisper Drawer
Special items rack (select models)
The innovative design of the special items rack allows
you to store four (4) bottles of wine or soft drink bottles.
select models)Deli keeper
Some models are equipped with a meat keeper drawer
for short-term storage of bulk meat items. This drawer
includes sliding controls for adjusting the humidity
inside.
Any meat to be kept longer than two (2) days should be
frozen. If you store fruits or vegetables in this drawer,
set it to a higher humidity.
Perfect Tem pTM Drawer (select models)
_m_ DF_W_I _
The Perfect TempTM Drawer is designed to keep food items at a precise temperature whether cooler, warmer, or
the same as the fresh food section of the refrigerator. The thaw setting holds a temperature for thawing frozen
foods for 12 hours. At the end of that time, it then switches to the mixed items setting to store the thawed food.
To operate:
To turn on and off, press the drawer's On!Off
button. The numeric display will show a temperature
_ o o _
between 28 F and 42 F when on and "OFF" when
off.
2 Press FiC if you prefer to display Fahrenheit"F,"
or Celsius "C".
3 Press either the up _',.or down '_ scroll buttons to
illuminate the desired item.
4 Once an option is selected, the drawer wilt adjust
and maintain the temperature for the setting
selected.
5 When turned off, the Perfect TempTM Drawer
functions as a standard meat pan. The Perfect
Temp TM Drawer is best used for packaged food
products. Leafy vegetables and unpackaged
fruits are best kept in one of the crisper drawers.
6 The three favorite selections provide flexibility to
7
set and store personal temperature selections.
The temperature is adjusted up by pressing the
+ or - buttons. The drawer will store the selected
temperature setting until it is changed.
The control buttons can be locked to prevent
accidental changes by pressing the control
lock button for three (3)seconds. Deactivate by
pressing for three (3)seconds again.
Opening the Drawer
Storage Features
IMPORTANT
DO NOT clean the display area of the Perfect Temp TM
Drawer with abrasive or caustic cleaners. Wipe clean
with a moist sponge.
CAUTION
The Perfect Temp TMDrawer and cover can
be removed for cleaning but the control unit,
attached to the right side of the fridge, cannot
be removed. Do not immerse the PerfectTemp _M
Drawer cover in water or put it in a dishwasher.
Clean with a damp cloth or sponge.
To change the position of an adjustable door bin:
1 Before adjusting a bin, remove all food.
2 Grip the bin firmly with both hands and lift it
upwa rd.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked in place.
To remove the Perfect Temp TMDrawer for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the drawer.
Removing the Drawer
Adjustable Door Bin
Accessories (varies by modeO
Tall bottle retainer
The tall bottle retainer keeps tall containers in the
bin from falling forward when opening or closing the
refrigerator door. To install insert the ends of the
retainer into the holes.
NOTE
When the refrigerator is turned off by pressing the
main Wave-Touch TMor IQ-Touch TMon/off button, the
PerfectTemp -r_',4Drawer will also be turned off. When
the refrigerator is turned back on, the Perfect Temp TM
Drawer will resume operations at the temp setting that
was set before the refrigerator was turned off.
DOORS
Storage bins
The doors to your fresh food compartment use a
system of modular storage bins. All of these bins are
removable for easy cleaning. Some of them have fixed
positions, while others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles cans, and
large drink containers.They also enable quick selection
of frequently used items.
Tilt can bins
The can bins allow you to efficiently and securely store
up to eight 12-ounce canned beverages.
Tilt Can Bin
24 Storage Features
Dairy compartment
Use the dairy compartment, at the top of the fresh food
compartment door, for short-term storage of cheese,
spreads, or butter. The dairy compartment is designed
to be warmer than the open area and includes a lift-up
cover that may be locked and a dairy divider (select
models).
Dairy Compartment
Freezer Features (varies by model)
ii
Three Freezer Baskets (select models)
To Remove Upper and Middle Baskets
1 Remove all items from baskets.
2 Remove baskets by pulling baskets out to their
full extension and lift out.
Removing Upperand Middle
Baskets (select models)
To reinstall upper and middle baskets (select models),
position basket onto the retainer clips making sure
the front of the basket rests in the retainer clips on the
stabilizer bar.
If the upper basket is installed with the tabs towards the
front of the unit, the upper basket will "kick out" when
the drawer is opened.
If the upper basket is installed with the tabs towards
the rear of the unit (backwards), the upper basket wilt
remain inside the freezer when the drawer is opened.
_.) NOTE
If basket is not resting on stabilizer bar retainer clips,
the drawer will not close properly.
To Remove Lower Basket
1 Remove all items from basket.
Remove the basket by tilting it forward and lifting
it from the retainer clips.
[
2i
i
[
Removing Lower Basket
To reinstall lower basket insert basket into retainer
clips.
NOTE
The third basket is designed to partially pull out
when the drawer is opened. To disable this feature,
turn the third basket 180 degrees and re-install.
Tilt Wire Shelf
The freezer tilt 'wire shelf (located on the inside of the
freezer drawer) is not designed to be removed.
Storage Features 25
Dividers Removal
Lift up on the front of the middle divider and pull out.
Middle Basket Divider
Lift up on the rear of the lower divider and pull out.
Lower Basket Divider &
SpiU Guard Tray
To reposition the pivoting divider (some models), lift up
and slide to desired location. The pivoting divider is not
designed to be removed.
Lower Basket Pivoting Divider
(some models)
NOTE
Spill Guard Tray should be hand washed in warm
water.
Storing Food an Saving Energy
deas for storing foods
Fresh food storage
,, Keep the fresh food compartment between 34_ F
and 40 ° F with an optimum temperature of 37 ° F.
o Avoid overcrowding the refrigerator shelves,
which reduces air circulation and causes uneven
cooling.
Fruits and vegetables
,, Store fruits and vegetables in crisper drawers,
where trapped moisture helps preserve food
quality for longer time periods.
,, Wash items and remove excess water.
o
Wrap any items that have strong odors or high
moisture content,
Meat
,, Wrap raw meat and poultry separately and
securely to prevent leaks and contamination of
other foods or surfaces.
Use the dell drawer or Perfect TempTM drawer and
set to meat/poultry setting for short-term storage.
Any meat to be kept longer than two (2) days
should be frozen.
Frozen food storage
• Keep the freezer compartment at 0 ° F or lower.
,, A freezer operates most efficiently when it is at
least _ full.
Packaging foods for freezing
,, To minimize food dehydration and quality
deterioration, use aluminum foil, freezer wrap,
freezer bags, or airtight containers. Force as
much air out of the packages as possible and
seal them tightly. Trapped air can cause food to
dry out, change color, and develop an off-flavor
(freezer burn).
,, Wrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
,, Do not refreeze meat that has completely
thawed.
Avoid adding too much warm food to the freezer
at one time. This overloads the freezer, slows the
rate of freezing, and can raise the temperature of
frozen foods.
,, Leave a space between packages, so cold air
can circulate freely, allowing food to freeze as
quickly as possible.
deas for saving energy
Installation
Locate the refrigerator in the coolest part of
the room, out of direct sunlight, and away from
heating ducts or registers.
Do not place the refrigerator next to heat-
producing appliances such as a range, oven, or
dishwasher. If this is not possible, a section of
cabinetry or an added layer of insulation between
the two (2) appliances will help the refrigerator
operate more efficiently.
• Level the refrigerator so that the doors close
tightly.
Temperature settings
,, Refer to the "Controls" section for procedures on
temperature settings.
Food storage
,, Avoid overcrowding the refrigerator or blocking
cold air vents. Doing so causes the refrigerator to
run longer and use more energy.
* Cover foods and wipe containers dry before
placing them in the refrigerator.This cuts down
on moisture build-up inside the unit.
Organize the refrigerator to reduce door
openings. Remove as many items as needed at
one time and close the door as soon as possible.
,, Do not place a hot container directly on a cold
shelf. Remember, such an extreme temperature
change may damage the glass.
Loading the freezer
Prior to grocery shopping, activate "fast freeze"
so that on your return you can ensure your newly
purchased food designated for the freezer will be
preserved as quickly as possible.
,, Activating "fast freeze" also will help your
freezer more efficiently maintain the selected
temperature after placing new purchases with
pre-existing frozen foods.
ormal Operatin Sounds 27
Understanding the sounds you
may hear
Your new, high-efficiency refrigerator may introduce
unfamiliar sounds. These sounds normally indicate
your refrigerator is operating correctly. Some surfaces
on floors, walls, and kitchen cabinets may make these
sounds more noticeable.
The following is a list of major components in your
refrigerator and the sounds they can cause:
A Evaporator Refrigerant through the evaporator
may create a boiling or gurgling sound.
B Evaporator fan "Youmay hear air being forced
through the refrigerator by the evaporator fan.
C Defrost heater During defrost cycles, water
dripping onto the defrost heater may cause a
hissing or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice has been
produced, you will hear ice cubes falling into the
ice bin. Ice maker fan, water valve activation, and
refrigerant gas fluid may create sounds from its
operation.
E Electronic control & automatic defrost control
These parts can produce a snapping or clicking
sound when turning the cooling system on and
off.
G
H
K
M
Condenser fan You may hear air being forced
through the condenser.
Compressor Modern, high-efficiency
compressors run much faster than older models.
The compressor may have a high-pitched hum or
pulsating sound.
Water valve Makes a buzzing sound each time it
opens to fill the ice maker.
Drain pan (not removable) You may hear water
dripping into the drain pan during the defrost
cycle.
Condenser May create minimal sounds from
forced air.
Motorized Perfect Temp TM drawer damper May
produce a light humming during operation.
Ice dispensing paddle When dispensing ice,
you wilt hear a snapping, clicking, or popping
sound when the solenoid opens and closes the
ice chute.
Motorized damper May produce a light
humming during operation.
N PerfectTemp TM drawerfan Turns off when door
opens or Perfect TempTM drawer is turned off.
NOTE
Energy efficient foam in your refrigerator is not a
sound insulator.
NOTE
During automatic defrost cycle, a red glow in the back
walt vents of your freezer compartment is normal.
Changin TheWater and Air Filters
Your refrigerator is equipped with separate water and
air filtering systems. The water filter system filters att
dispensed drinking water, as well as the water used to
produce ice. The air filter removes odors and impurities
from the refrigerator compartment.
NOTE
The control panel includes controls to monitor the
status of your water and air filters. See the Controls
section for more information.
It is not necessary to turn the water supply off to
change the filter. Be ready to wipe up any small
amounts of water released during the filter replacement.
1 Turn Off the ice maker on the control panel,
2 Push the filter release button above the cartridge
to disconnect it.
About your advanced water filter
.... \ The PureAdvantage TM ice and water
NSE)' filter system is tested and certified
by NSF International, the nationally
X
....._J respected, not-for-profit certification
organization for public health safety, The
PureAdvantage TM ice and water filter system is tested
and certified to ANSl/NSF Standards 42 and 53 for
the reduction of claims specified on the performance
data sheet.
Do not use with water that is microbiologicatly unsafe
or of unknown quality without adequate disinfection
before or after the system. Systems certified for cyst
reduction may be used on disinfected waters that may
contain filterable cysts.
,, Rated Capacity - 400 gallons for
PureAdvantage TM ice and water filter
,, Rated service flow- ,5 gallons per minute
,, Maximum Rated Pressure - 100 pounds per
square inch
,, Recommended Minimum Operating Pressure:
30 pounds per square inch
,, Operating Temp.: Min.33°F, Max. 100°F
Water fiJter
The water filter is located at the lower left side of the
fresh food compartment.
3
4
PushWater Filter Button
Slide the old water filter cartridge straight out of
the housing and discard it.
Unpack the new filter cartridge and remove the
two (2) protective caps covering the inlet and exit
of the filter: Slide the filter gently into the housing
until it stops against the snap-in connector at the
back of the housing.
TM
Replacing your PureAdvantage water
filter
In general, you should change the water filter every
six (6) months to ensure the highest possible water
quality. The Water Filter Status light on the Touch
Panel prompts you to replace the filter after a standard
amount of water (400 gallons) has flowed through the
system.
If your refrigerator has not been used for a period of
time (during moving for example), change the filter
before reinstalling the refrigerator.
Changin TheWater an Air Filters 29
Push firmly until the cartridge snaps into
place (you should hear two clicks), When fully
engaged, the front of the filter cartridge should be
flush with the filter release button.
Reinstall Water Filter
6 Turn On the ice maker at the control panel.
7 Press a drinking glass against the water
dispenser while checking for any leaks at the filter
housing. Spurts and sputters may occur as the
system purges air out of the dispenser system.
8 Prime the water supply system as described
previously.
9 Press and hold the Filter Status button on the
control panel for three (3) seconds. When the
display changes from "Replace" to "Good_' the
status has been reset.
Air filter
The air filter is located inside of the left door above ice
maker chute.
Replacing your PureAdcantage TM air filter
To ensure optimal filtering of refrigerator odors, you
should change the air filter every six (6) months (the
filter status light on the Touch Panel prompts you to
replace the filter after six (6) months). You may want
to adjust this time period depending on the types and
amounts of food you typically store in your refrigerator.
Open the air filter door.
Remove the old filter and discard it.
1
2
3
4
5
6
Unpack the new filter and slide it into the housing.
To close the air filter door, push the top and
bottom to lock the door closed,
Press and hold the Air Filter Reset button on
the control panel for three (3)seconds. When the
display changes from "Replace" to "Good," the
status has been reset.
The Air Filter Reset wilt turn itself off after a few
seconds.
1 /1¸¸¸¸ A_r
ii iiiiii iiiilli
I I!ll III1 1°'°°°I
Ordering replacement fimters
Order new filters by calling 877-808-4195, online at
www.electroluxappliances.com, or through the dealer
where you bought your refrigerator. You may want to
consider ordering extra filters when you first install your
refrigerator.
Water Filter FC-300 PureAdvantagd M
Replacement Cartridge #241932301
Air Filter Replacement cartridge, part
#241754001
3
Care and Cleanin
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills
immediately and clean the freezer and fresh food compartments at least twice a year.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior doors,
gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.
,, Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.
,, Never use CHLORIDE or cleaners with bleach to clean stainless steel.
,, Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical components will
continue until you unplug the power cord from the walt outlet,
* Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the
appliance surface.
,, Do not remove the serial plate. Removal of your serial plate voids your warranty.
,, Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will prevent
the floor from being damaged.
CAUTION
,, Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be
careful not to move the refrigerator beyond the plumbing connections.
,, Damp objects stickto cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply
system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a
service representative to perform this operation.
Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.
Carean Cleaning 31
Care and cleaning tips
Part CleaningAgents
Interior& Door = Soapandwater
Liners ,, Bakingsodaand
water
DoorGaskets
Drawers& Bins
Glass Shelves
Toe Grille
Exterior&
Handles
,, Soap and water
,, Soap and water
,, Soap and water
,, Glass cleaner
• Mild liquid
sprays
,, Soap and water
Mild liquid
sprays
_,Vacuum
• Soap and water
,, Non abrasive
glass cleaner
Exterior & ,, Soap and water
Handles
(Stainless Steel ,, Stainless steel
Models Only) cleaners
Tipsand Precautions
,, Use2 (2)tablespoonsof bakingsodain1 (1)quartof warmwater.
o Besureto wring excesswater out of spongeor cloth beforecleaning
aroundcontrols,light butbor anyelectricalpart.
,, Wipe gaskets with a clean soft cloth.
• Useasoft clothto cleandrawerrunnersandtracks.
,, Do notwashanyremovableitems(bins,drawers,etc.) in dishwasher.
Allowglassto warmto roomtemperaturebeforeimmersinginwarm
water.
I
e
Q
o
o
Remove toe grille (see Installation Instructions).
Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and
dry.
Do not use commercial household cleaners containing ammonia,
bleach or alcohol to clean handles.
Use a soft cloth to clean smooth handles.
Do not use a dry cloth to clean smooth doors.
Never use CHLORIDEor cleanerswith bleach to clean stainless
steel.
Clean stainless steel front and handles with non-abrasive soapy water
and a dishcloth. Rinsewith clean water and a soft cloth.
Use a non-abrasive stainless steel cleaner.These cleaners can be
purchased at most home improvement or major department stores.
Always follow manufacturer's instruction. Do not use household
cleaners containing ammonia or bleach.
NOTE:Always clean, wipe and dry with grain to prevent scratching.
Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well and wipe dry with a clean soft cloth.
Vacation and moving tips
Occasion Tips
Short Vacations _, Leave refrigerator operating during vacations of three (3) weeks or less.
,, Useall perishaNe items from refrigerator compartment.
_,Turn automatic ice maker off and empty ice bucket, even if you will only begone afew
days.
Long Vacations ,, Remove all food and ice if you wilt be gone one (1) month or more.
• Turn the cooling system off (see "Controls"section for location of OntOff button) and
disconnect power cord.
,, Turn water supply valveto closed position.
,, Clean interior thoroughly.
,, Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
Moving ,, Remove all food and ice.
_, If using a handcart, load from the side,
,, Adjust rollers all the way up to protect them during sliding or moving.
,, Padcabinet to avoid scratching surface.
32 Care and Cleaning
Repmacin 9 LED Lights (s÷ ÷otmode s)
Both the freezer and fresh food compartments of your
refrigerator include LED lights. Always use Electrolux
parts for replacement.
To replace LED Lights:
1 Unplug your refrigerator's power cord.
2 Remove light cover by pushing up and out.
3 Hold the LED cover with one hand and pull the
connector with the other hand while pressing the
connector latch.
4 Replace LED light and snap in place assuring the
light is facing in toward the unit (inside fresh food
and freezer) or facing outward on bottom of fresh
food doors.
LED Light Removal
m
i_ill
ii
_m
CAUTION
Wear gloves when replacing incandescent light
bulbs to avoid getting cut.
To replace light bulbs:
1 Unplug your refrigerator's power cord.
2 Wear protective gloves,
3 Remove light cover, if necessary.
4 Unscrew and replace old bulb with an appliance
bulb of the same type and wattage (normally 40
watts).
5 Replace light cover, if necessary.
6 Plug in the refrigerator's power cord.
LED Light Harness Removal
NOTE
LED lights are in series so if one is bad or unplugged,
several lights may not light up.
Replacing Light Bulbs ( ÷ ootmode )
Both the freezer and fresh food compartments of your
refrigerator include incandescent light bulbs that will
need replacing from time-to-time. Some lights have
covers that need to be removed before replacing
the bulbs. Always use bulbs that are designed for
appliance lighting.
Refrigerator Light
Freezer Light
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online at
www.electroluxappliances.com, or through the dealer
where you bought the refrigerator. Here is the product
number to request when ordering:
LED Light, Part #241891101
Incandescent Lights (40-watt bulb), Part
#5305514148
Solutions to Common Problems 33
Before you call°°o
If you experience a problem with your refrigerator or notice a product behavior or condition that you do not
understand, you can usually avoid a call to your service representative by referring to this section for an answer.
Beginning with the following table, this information includes common problems, causes, and suggested solutions.
Automatic ice/Flaker
Problem
Icemakeris notmaking
anyice.
Icemakerisnotmaking
enoughice.
Cause
• Ice maker setting is Off.
,, Water supply is not connected to refrigerator.
,, Householdwater line valve is not open.
,, Valve on cold water pipe is cloggedor
restricted by foreign material. If valve is of
the self-piercing type, it may not havecreated
a sufficiently sized hole in tube for water to
pass through.
• Checkto see if the water dispenser is
dispensing water.
,, Water filter is not completely seated.
• Ice maker is producing less icethan you
expect.
,, Householdwater line valve is not completely
open.
• Checkto see if water dispenser is dispensing
slower than normal.
Correction
,, Turn on ice maker.
,, Connect water supply (see Installation Instructions).
• Turn on household water line valve.
, Turn off household water linevalve. Removevalve.
Ensurethat valveis not a self-piercing valve.Clean
valve. Replacevalve if necessary.
,, If not, the ice & water filter cartridge is clogged or
restricted, and must be replaced.
,, Pushfirmly until the water filter snaps into place(you
should heart_vo(2) clicks).
,, Ice makershould produce approximately nine (9)
pounds of ice every 24 hours.
,, Turn on householdwater line valve.
• If it is, replacethe ice & water fitter cartridge.
Icehasbadodorand ,, Icehaspickedupodor or flavorfrom strong ,, Coverfoodstightly.Discardstaleice.Ice makerwilt
taste, foodstoredinrefrigerator, producefreshsupply.
,, Icenot usedfrequentlyenough. ,, Discardstaleice,
Correction
iceDispenser
Problem
Dispenser will not
dispense ice.
Ice dispenser is jammed.
Cause
,, Water supply' is not connected.
Ice storage bin is empty,
,, Householdwater line valve is not open.
• FreshFood door is not closed.
• Ice dispensing paddle has beenheld in for
more than four to (4-5) minutes.
• Ice has melted andfrozen around auger due to
infrequent use, temperature fluctuations, and.i
or power outages.
,, Ice cubes are frozen together.
• Ice cubes are smaller than normal.
,, Connectwater supply (see ConnectingThe Water
Supply section).
• Ensureice maker is turned on. When the first supply
of ice is dropped into the bin, the dispenser should
operate.
• Openhousehold water line valve.Allow sufficient time
for the ice to be made.When ice is made,the dispenser
should operate.
,, EnsureFreshFooddoor is closed. (See Problem
Section, Opening/Closingof Doors/Drawers)
• Motor is overloaded. Motor overload protector will reset
inapproximately three (3) minutes. Ice can then be
dispensed.
,, Removeice bin, thaw, and empty the contents. Clean
bin, wipe dry, and replace inproper position. When new
ice is made, dispenser should operate.
= Usethe dispenser often so that cubesdo not freeze
together.
,, The ice & water filter cartridge could be clogged.
Replacethe filter cartridge. Dispensing system operates
bestat 30-100 psi water pressure.Well water pressures
should fall within this range.
34 Solutions to Common Problems
Light/sflot On
Problem
Light is not on.
Cause
,, Light bulb is burned out or LED light is
damaged.
,, Noelectric current is reaching refrigerator.
,, Control system has disabled lights because
one or both doors were left open too tong.
Correction
,, See ReplacingLight Bulbs or LEDlights in Careand
Cleaning section.
• See "Problem" section, "Running Your Refrigerator".
,, Close and reopendoor(s) to enable lights.
Odorsin Refrigerator
Problem Cause
Interior isdirty. ,, Interior needsto be cleaned.
Odors ,, Foodwith strong odors is stored in
refrigerator.
Correction
,, SeeCare& CleaningTips.
,, Coverfood tightly. Turn on air filtration system. Air filter
may needto be changed morefrequently if foods with
strong odors are routinely stored in refrigerator.
Problem
Door(s)will notclose.
Opening/Closing Of Boors/@rawers
Cause
,, Refrigerator is not level. It rocks on the floor
when moved slightly.
]Correction
= Ensurefloor is leveland solid, and canadequately
support the refrigerator. Contact a carpenter to correct a
sagging or sloping floor,
Drawers are difficult to ,, Food is touching shelf on top of drawer. ,, Keeptess food in drawer.
move. • Drawer is overloaded = Remove or redistribute food.
Running YourRefrigerator
Cause Correction
,, Coolingsystem is turned Off.
Problem
Compressor does not
run,
_, Refrigerator is in defrost cycle.
,, Plug at wall outlet is disconnected.
,, Housefuse is blown or a tripped circuit
breaker.
,, Power outage.
,, Electroniccontrol system keepsthe
refrigerator at a constant temperature.
,, Turn cooling system On.SeeControls Section for
location of cooling system On/Off button.
,, This is normal for a fully automatic defrost rdrigerator.
The defrost cycleoccurs periodically,lasting about 30
minutes.
,, Ensure plug is tightly pushed into outlet.
,, Check/replacefuse with a 15 amp time-delay fuse.
Reset circuit breaker.
,, Check house tights, Call local Electric Company.
_,This is normal. Refrigerator goes on and off to keep
temperatureconstant.
Solutions to Common Problems 35
RunningYourRefrigerator(continued)
Problem Cause
Refrigerator runs too
much or too long,
Digitaltemperature
displaysareflashing.
• Roomoroutsideweatherishot.
,, Refrigeratorhasrecentlybeendisconnected
for a periodof time.
,, Automaticicemakerisoperating.
= Doorsareopenedtoo frequentlyor too long.
,, Refrigerator/freezerdoormaybeslightly
open.
• Freezercontrolis settoo cold(controlfound
infreshfood section).
,_Freshfood/freezergasketis dirty,worn,
cracked,or poorlyfitted.
o Thismodelis providedwithahigh-efficiency,
variable-speedcompressor.
,, Electroniccontrolsystemhasdetecteda
performanceproblem.
Correction
, It's normalfor therefrigeratorto work longerunder
theseconditions,
,, Ittakes8-I2 hoursfor therefrigeratorto cooldown
completely.
• Icemakeroperationcausesrefrigeratorto run slightly
more.
• Warmairenteringthe refrigeratorcausesit to run more.
Opendoorslessoften.
, Ensurerefrigeratoris level.Keepfoodandcontainers
from blockingdoor.SeeProblemsection,Opening/
Closingof Doors/Drawers.
,, Setfreezercontrolto warmersettinguntilrefrigerator
temperatureis satisfactory.Allow24 hoursfor
temperatureto stabilize.
,, Cleanor changegasket.Leaksin doorsealwill cause
refrigeratorto runlongerin orderto maintaindesired
temperatures.
,, It is normalfor the compressorto runfor longperiods
oftime.
Call yourElectroluxservicerepresentative,who can
interpretanymessagesor numbercodesflashingon
the digitaldisplays.
TemperaturesAre TooCold
Problem
Freezertemperature
toocold.Refrigerator
temperatureis
satisfactory.
Refrigeratortemperature
toocold.Freezer
temperatureis
satisfactory.
Cause
, Freezercontrolis settoo cold.
,, Icemakeris on.
,, Refrigeratorcontrolissettoo cold.
Correction
,, Setfreezercontrolto awarmersetting.Allow24 hours
for temperatureto stabilize.
,, It is normalfor thefreezercompartmentto overcool
whileautomaticicemakeris on.
,, Refrigeratorcontrolissettoo cold.
,, MeatKeepertemperaturecontrolis settoo
cold.
,, Setrefrigeratorcontrolto awarmersetting.Allow24
hoursfor temperatureto stabilize.
Foodstoredindrawers ,_Seesolutionabove.
freezes.
Food stored in Meat
Keeper freezes (select
models).
,, Adjust Meat Keepertemperature control to a warmer
setting. Meat should be stored at a temperature just
below the freezing point for maximum fresh storage
time. it is normal for ice crystals to form dueto the
moisture content of meat.
TemperaturesAre TooWarm
Problem
Freezer/Refrigerator
temperatureistoo warm.
Freezertemperature is
too warm. Refrigerator
temperature is
satisfactory:
Cause
• Doors are openedtoo frequently or too long.
• Door is slightly open,
,, Freezercontrolis settoo warm.
Correction
o Warm air enters the refrigerator whenever the door is
opened. Openthe door less often.
,, See Problem section, Opening/Closing of Doors/
Drawers.
,, Set freezer control to a colder setting. Allow 24 hours
for temperature to stabilize.
3G Solutions to Common Problems
TemperaturesAre Too Warm(continued)
Problem
Refrigeratortemperature
is too warm. Freezer
temperature is
satisfactory.
Temperature in the
Dell Drawer or Perfect
TempTM Drawer is too
warm (select models).
Cause
,, Refrigerator control is set too warm,
,, Temperaturecontrol isset toowarm.
Correction
• Setrefrigeratorcontrolto a coldersetting.Allow24
hoursfor temperatureto stabilize.
Adjust temperature control to a colder setting.
Water Dispenser
Problem
Dispenserwill not dispense
water.
Waterhasanoddtaste
and/or odor.
Waterpressureis
extremelylow:
Cause
Watersupply is not connected.
Householdwater linevalveis not open.
,, Ice & waterfitter cartridgeis clogged.
o Waterhasbeenin thetankfor a periodof time.
o Unit notproperlyconnectedto coldwater line.
• Tubingusedinthe householdwater supplyand
installationmay affectwatertasteandodor.
,, Waterhasa high mineralcontent.
o Cut-offandcut-on pressuresaretoo low(well
systemsonly).
,, Reverseosmosissystemis in regenerativephase=
Correction
Connectwater supply(seeConnectingTheWaterSupply
section).
o Openhouseholdwater linevalve.SeeProblemsectionIce
MakerIsNot MakingIce.
Replacefilter cartridgebeingsureto removeprotectivecaps.
• Drawanddiscard10-12glassesof waterto freshenthe
supplyandcompletelyrinseoutthetank.
,, Connectunitto cold waterlinethatsupplieswaterto the
kitchenfaucet.
• Forbest results,usecoppertubing for waterconnections.
• Contactwatertreatmentplantfor helpincheckingwater
supplysource.
,_ Havesomeoneturn up the cut-offandcut-onpressureon
thewaterpumpsystem(wellsystemsonly).
• It is normalfor a reverseosmosissystemto be below20 psi
duringtheregenerativephase.
Problem
Moisture collects on
inside of refrigerator
walls,
Water collects on bottom
side of drawer cover.
Moisture collects in
bottom of drawer.
Water/Moisture/FrostInsideRefrigerator
Cause
,, Weather is hot and humid.
,, Door is slightly open.
,, Door is opened too often or too long.
• Opencontainers.
_,Vegetablescontain and give off moisture.
Moisture collects on
outside of refrigerator or
betweendoors.
,, Washed vegetablesand fruit drain while in
the drawer.
,, Fruits and vegetables are kept pasttheir
prime
,, Weather is humid.
o Door isslightly open, causing cold air from
inside refrigerator to meet warm air from
outside.
Correction
,, The rate of frost buildup and internalsweating
increases.
,, SeeProblem section, Opening/Closingof Doors/
Drawers.
• Open door less often to allow internal temperature to
stabilize.
,, Keep containers covered.
,, Moistureonthe bottomsideof thecoveris not unusual.
o Movehumiditycontrol(selectmodels)to lowersetting.
,, Dry items before putting them in the drawer.Water
collecting in bottom of drawer is normal.
Routinely clean out old fruits and vegetablesespecially if
they begin to breakdown.
,, This is normal in humid weather. When humidity is
lower, the moisture should disappear.
SeeProblem section, Opening/Closingof Doors/
Drawers.
Warranty 37
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or
replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and
maintained in accordance with the provided instructions. In addition, the cabinet liner and sealed refrigeration system (compressor,
condenser, evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During the 2nd
through 5th years from your original date of purchase, Electrolux will repair or replace any parts in the cabinet liner and sealed
refrigeration system which prove to be defective in materials or workmanship when such appliance is installed, used, and
maintained in accordance with the provided instructions.
Exclusions
1,
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
This warranty does not cover the following:
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased "as-is" are not covered by this warranty.
Food loss due to any refrigerator or freezer failures.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are
not a part of the appliance when it is shipped from the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or
other cosmetic parts.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or
mileage expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors,
cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,
inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT AS
PROVIDED HEREIN CLAIMS BASED ON IMPLIEDWARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITEDTO ONEYEAR ORTHE SHORTEST PERIOD ALLOWED BY LAW, BUT
NOT LESSTHAN ONEYEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTI ES, SO TH ESE LIMITATIO NS O R EXCLUSIO NS MAY NOT APPLY TO YO U. THIS WRI TTEN WARRANTY G IVES YOU
SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be
required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be
obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp. ElectroIux authorizes no person to change or add to any obligations under this warranty. Obligations for
service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
RO. Box 212378
Augusta, GA 30907
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
