REFRIGERATOR - FREEZER
OPERATION MANUAL
CONTENTS
• DESCRIPTION
• WARNING
• CAUTION
• INSTALLATION
• OPERATION
• CARE AND CLEANING
• STORING FOOD
• BEFORE CALLING FOR SERVICE
• SPECIFICATION
• WARRANTY
Thank you for buying this SHARP product.
Before using
your SHARP refrigerator, please read this operation
manual to ensure that you gain the maximum benefit
from it.
MODEL
SJ-244V
SJ-308V
SJ-339V
......................................... 2
................................................ 3
................................................ 3
......................................... 3
............................................. 4
............................. 4
....................................... 5
........... 5
....................................... 6
.............................................. 7
Household use only
Free standing type
2
DESCRIPTION
SJ-308V
Fresh compartment
Freezer shelf
Freezer temp.control
knob
Ice cube maker
Ice cube box
Refrigerator temp.
control knob
Light
Refrigerator shelf
Vegetable shelf
Vegetable crisper
Adjustable foot
Magnetic door seal
Door pocket
Bottle pocket
Small pocket (left)
Small pocket (right)
Light switch
Egg pocket
Egg holder
Door pocket
Magnetic door seal
Model name SJ-244V SJ-308V SJ-339V
Refrigerator shelf
2 2 2
Door pocket
3 3 3
Egg holder
- 1 1
Small pocket (right)
1 1 2
Small pocket (left)
1 1 1
*
*
*
*
*
*
More foods can be stored by removing the following
accessories as indicated in the figure below.
Ice cube maker, Ice cube box, Freezer shelf
3
WARNING
CAUTION
INSTALLATION
1.
2.
Using the front Adjustable foot, ensure that the
refrigerator is positioned firmly and level on the floor.
3.
Connect the power plug to a 230/240 volt. 10 amp.
power point.
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly with water.
Adjustable
foot
Dust deposited on the power plug may cause fire. Wipe
it off carefully.
Do not attempt to change or modify this refrigerator. This
may result in fire, electric shock or injury.
Ensure that the refrigerator presents no danger to
children while being stored for disposal. (e.g. remove the
door to prevent child entrapment.)
Do not touch the compressor unit or its peripheral parts,
as they become extremely hot during operation and the
metal edges may cause injury.
Do not touch foods or metal containers in the freezer
compartment with your wet hands. This may cause
frostbite.
Do not place bottled and canned drinks in the freezer as
they may crack when frozen.
In case of gas leak, ventilate the area by opening a
window, etc. Do not touch the refrigerator or the power
outlet.
Do not place objects containing liquid or unsteady
objects on top of refrigerator.
This refrigerator is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the refrigerator by a person
responsible for their safety. Young children should be
supervised to ensure that they do not play with the
refrigerator.
WARNING
Do not install the refrigerator in a damp or wet
location as this may cause damage to the
insulation and a leak. Condensation may also
build on the outer cabinet and cause rust.
1.
3.
2.
4.
5.
2.
3.
4.
5.
6.
7.
SJ-244V
970mm
1145mm
1065mm
1221mm
a
b
60mm
90mm
60mm
60mm
Keep adequate ventilation space around the
refrigerator.
•
The figure shows the minimum required space for
installing the refrigerator. It differs from the space in
the measurement condition of the amount of power
consumption.
SJ-308V
SJ-339V
NOTE :
•
•
Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
Attention about Power supply:
Do not use an extension cord or adapter plug.
Make sure that the power cord has not been damaged
during installation or moving. If the power plug or cord
is loose, do not insert the power plug. There is a risk
of electric shock or fire.
Disconnect from the mains electricity supply by
removing the mains plug from the electricity supply
socket. Do not remove by pulling the mains lead. This
may cause electric shock or fire.
Should the flexible supply cord be damaged, it must
be replaced by service agent approved by SHARP as
a special cord is required.
1.
•
•
•
•
•
Insufficient spacing will decrease cooling efficiency
and increase energy consumption.
This may reduce the life of the unit and void warranty.
This refrigerator is designed for indoor use only, do not
place the unit on an unsealed surface.
Do not store highly volatile and flammable materials such
as ether, petrol, propane gas, aerosol cans, adhesive
agents and pure alcohol etc.
These materials are liable to explode.
This refrigerator contains flammable refrigerant (R600a:
isobutane) and insulation blowing gas (cyclopentane).
Observe the following rules to prevent ignition and explosion.
The refrigeration system behind and inside the refrigerator •
contains refrigerant. Do not allow any sharp objects to
come into contact with the ref
rigeration system.
Do not use mechanical devices or other means to •
accelerate the defrosting process. (This refrigerator has
adopted automatic defrosting system.)
Do not use electric appliances inside the refrigerator.•
Use only the specified parts for the refrigerator •
compartment light.
Do not block the openings on the circumference of the •
refrigerator.
Do not use flammable sprays, such as spray paint near •
the refrigerator. It may cause explosion or fire.
If the refrigeration system should get punctured, do not •
touch the wall outlet and do not use open flames. Open
the window and air out the room. Then ask a service
agent approved by SHARP for servicing.
This refrigerator should be disposed appropriately. •
Take the refrigerator to a recycling plant for flammable
refrigerant and insulation blowing gases.
4
OPERATION
Controlling temperatures
Hints when making ice
1. Do not over fill the Ice cube trays;
otherwise the ice cubes will be
joined together when frozen
2. When the ice cubes are made, turn
the lever clockwise to empty the ice
into the Ice cube box.
NOTE :
To prevent damage to the Ice cube
box, do not make ice in the Ice cube box.
Deodorizing unit
Defrosting
Deodorizing catalyst is installed on the routes of cold air.
No operation and cleaning are required.
Defrosting is fully automatic due to a unique energy saving
system.
CARE AND CLEANING
1. Remove the shelves and pockets from the cabinet and
door. Wash them in warm soapy dishwashing water;
rinse in clean water and dry.
2. Clean the inside with a cloth soaked in warm soapy
dishwashing water. Then, use cold water to wipe off
soapy water.
Lever
Ice cube box
WARNING
Unplug the refrigerator first to prevent electric
shock.
Do not splash water directly on the outer cabinet
or the interior. This may lead to rusting and
deterioration of the electrical insulation.
To prevent cracking on inside surfaces and plastic
components, follow these tips.
•
•
Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use
only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped
off thoroughly, cracking of plastic parts can result.
3. Wipe the exterior with a soft cloth each time it is soiled.
4.
Clean the Magnetic door seal with a toothbrush and
warm soapy dishwashing water.
Extreme ambient temperatures
During periods of extreme ambient temperatures
(e.g. less than 10°C, or more than 35°C)
you may find it necessary to rebalance the freezer and
refrigerator temperature controls accordingly.
Wipe any spills from the refrigerator immediately as acid
or alkaline in the food can cause cracking and staining of
plastic parts.

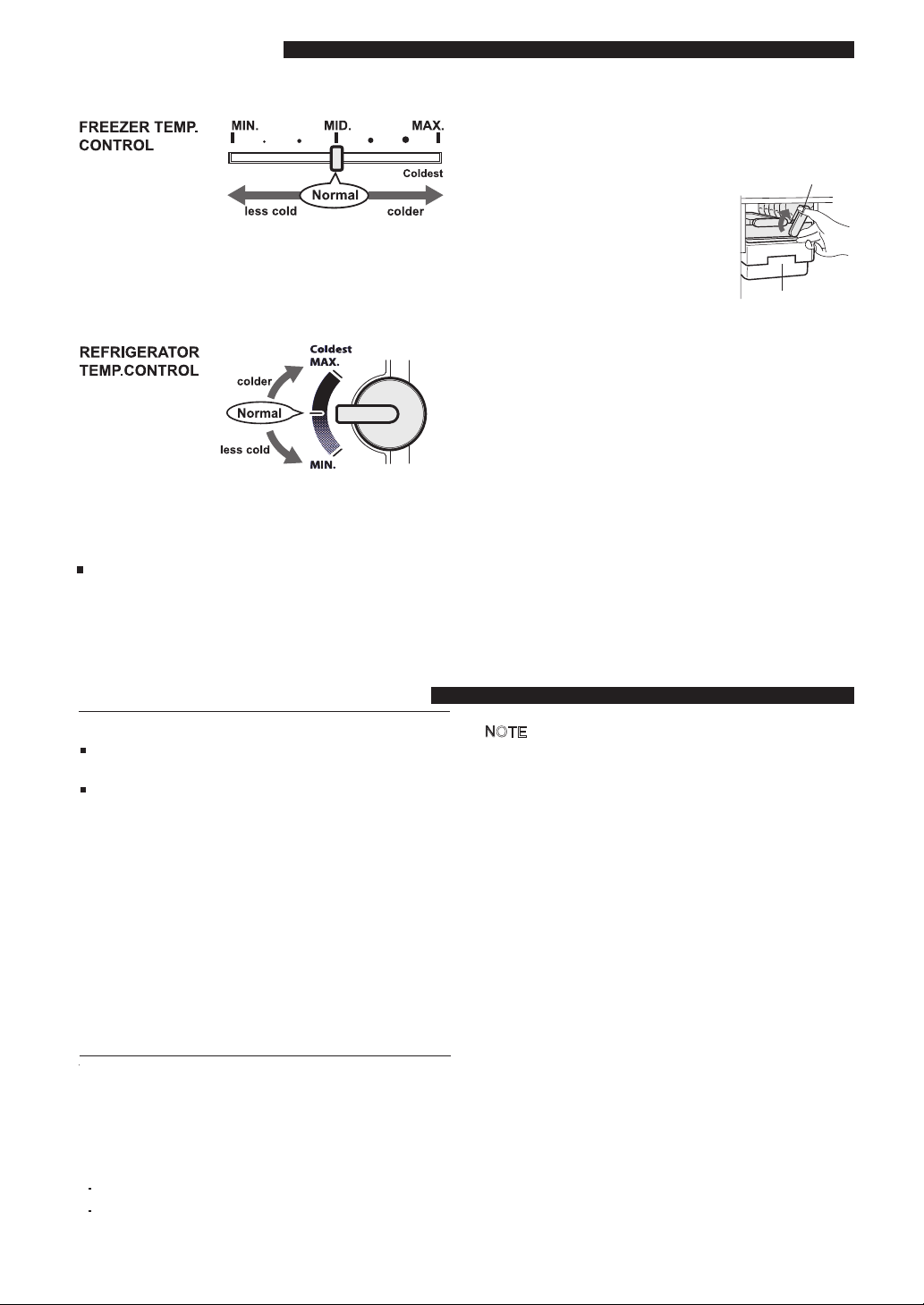

• FREEZER TEMP. CONTROL regulates the quantity of
cold air to the freezer.
• With FREEZER TEMP. CONTROL set to MAX, you may
need to adjust the REFRIGERATOR TEMP. CONTROL
to balance the temperatures.
• REFRIGERATOR TEMP. CONTROL controls the
compressor running time of the refrigeration system.
• MAX setting will result in colder temperature in both
(refrigerator and freezer) compartments.
If a refrigerator lamp blows
Switching off your refrigerator
If the refrigerator needs to be switched off for an extended
period, the following steps should be taken to reduce the
symptom of mould:
1. Remove all food.
2. Remove the power plug from the power point.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly for
air circulation.
NOTE
• Do not use hot water, household cleaning powders, creams
or spray-on cleaning products, or any other cleaning
products such as mineral turpentine, methylated spirits,
thinners, petrol etc. These may damage your refrigerator
and may void any warranty.
• If the power supply is disconnected, please wait for at least
5 minutes before re-connecting power.
•
Wipe any spills from the control knob immediately as liquid
ingress can damage the electronics.
• Do not drop objects inside the refrigerator or strike the inner
wall. This may cause the inner surface to crack.
IMPORTANT
The lamp should only be replaced by a service center
approved by SHARP.
5
STORING FOOD
Refrigeration reduces the rate of food spoilage.
To maximize the shelf life of perishable food products,
ensure that the food is of the freshest possible quality. The
following is a general guide to help promote longer food
storage.
• Most dairy products have a use by date on the outer
packaging which informs the recommended temperature
and shelf life of the product.
• Eggs should be stored in the Egg pocket.
Meats / Fish / Poultry
• Place on a plate or dish and cover with paper or plastic
wrap.
• For larger cuts of meat, fish, or poultry, place to the rear
of the shelves.
• Ensure all cooked food is wrapped securely or placed in
an airtight container.
NOTE :
• Evenly place the food on the shelves to allow
the cooling air to circulate efficiently.
• Hot foods should be cooled before storing.
Storing hot foods increases the
temperature in the unit and increases the
risk of food spoilage.
• Do not block the outlet and inlet of the cool
air circulating circuit with foods or
containers; otherwise the foods will not be
evenly cooled throughout the refrigerator.
• Do not place food directly in front of cold
air outlet.
This may lead
to the food
freezing.
FOR BEST FREEZING
• Quality of foods should be fresh.
• Freeze small quantities of food at a time to freeze them
quickly.
• Food should be properly stored or covered and the air
should be removed to seal tightly.
• Evenly place the food in the freezer.
• Label bags or containers to keep an inventory of freezing
food.
BEFORE YOU CALL FOR SERVICE
Before you call for service, check the following points.
SolutionProblem
The outside of a cabinet is hot when
touched.
It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise.
• Loud noise produced by the compressor when operation starts
--- Sound becomes quieter after a while.
• Loud noise produced once a day by the compressor
--- Operating sound produced immediately after automatic defrost operation.
• Sound of flowing fluid (gurgling sound, fizzing sound)
--- Sound of refrigerant flowing in pipes (sound may become louder from
time to time).
• Cracking or crunching sound, Squeaking sound --- Sound produced by
expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs
inside or outside the refrigerator.
This may occur in one of the following cases. Use a wet cloth for wiping frost
and a dry cloth for wiping dew.
• When the ambient humidity is high.
• When the door is frequently opened and closed.
• When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator
compartment freeze.
Noticeable odures.
• Deodorizing unit cannot remove all of the odours
IN
OUT
Vegetable
shelf
• Keep the door securely closed.
It is normal for the refrigerator to produce the following sounds.
• Wrapping is required for the food with strong odours.
Fruit / Vegetables
Dairy Product & Eggs
To minimise moisture loss, fruit and vegetables should be
loosely enclosed in a plastic material (e.g. wrap, bags) and
placed in the vegetable crisper.
If you still require service contact your SHARP Approved Service Centre.
SHARP Approved Service Centre locations can be found in the Support area of our website;
Australia : http://www.sharp.net.au
New Zealand : http://www.sharp.net.nz
• Is the refrigerator operated for a long time with REFRIGERATOR TEMP.
CONTROL set at MAX?
• Low ambient temperature may cause food to freeze even if
REFRIGERATOR TEMP. CONTROL is set to MIN.
(Refer to temperature adjustment setting on page 4)
6
SPECIFICATION
SJ-244V SJ-308V SJ-339V
223 282 312
245 308 339
45 50 52
Height 1491 1580 1700
Width 545 600 600
Depth 610 631 631
Group (AS / NZS 4474.1)
Net weight (kg)
Outer dimensions
(mm)
Charge (g)
Insulation blowing gas
Rated storage volume (L)
Rated gross volume (L)
Defrosting input (W)
Climate class
Refrigerant
Rated voltage (V~)
Rated frequency (Hz)
Rated current (A)
Rated input of heating system (W)
220-240
50
0.6-0.7
128-152
128-152
T
R600a
45
Cyclo pentane
5T
45 45
SHARP CORPORATION OF AUSTRALIA PTY.LTD.
A. B. N. 40 003 039 405
1 HUNTINGWOOD DRIVE, HUNTINGWOOD, N.S.W. 2148
P.O.BOX 6827, BLACKTOWN. N.S.W. 2148
SHARP CORPORATION OF NEW ZEALAN
D LIMITED
59 HUGO JOHNSTON DRIVE PENROSE, AUCKLAND
Printed in Thailand
TINS-B372CBRZ 12GT TH 1
