INSTALLATION GUIDE
Isodrive 650
www.schweigen.com.auRevision V3 21/04/22
Under our policy of continuous product development,
product specications may change without notice.
Please refer to the online version of the manual for the
latest updates and specications.
Page 2
Welcome
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this guide before use and installation.
This guide contains important information on the correct use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and dispose
of the packaging in a responsible manner.
Page 3
Index
1. Welcome _____________________________________________________________________________________ 2
2. Your Safety
Receiving your rangehood ______________________________________________________________________ 4
Before Installation ______________________________________________________________________________ 4
Electrical Cord __________________________________________________________________________________ 4
Motor Features ________________________________________________________________________________ 5
General Notes on Installation and Use ____________________________________________________________ 5
Recommended Installation Distance _____________________________________________________________ 5
Minimum Mounting Height ______________________________________________________________________ 6
Avoidance of Back Flow _________________________________________________________________________ 6
Safety of Children ______________________________________________________________________________ 6
Replacement of Supply Cord _____________________________________________________________________ 6
Why Schweigen SteelFlex
™
Safety Duct __________________________________________________________ 6
3. Description
Isodrive Motor _________________________________________________________________________________ 7
4. Installation
Roof Installation _______________________________________________________________________________ 8
Eaves Installation ______________________________________________________________________________ 11
Wall Installation ________________________________________________________________________________ 12
Backdraft Shutter System for 150mm Ducting ____________________________________________________ 13
Installation for Backdraft Shutter System (150mm Ducting) _________________________________ 14
Backdraft Shutter System Fitment to Bell-mouth Adaptor __________________________________ 15
Single Motor Installation Example ________________________________________________________________ 16
5. Measurements
Measurements for Isodrive 650 ______________________________________________________ 17
6. SteelFlex
™
Safety Duct
SteelFlex
™
Safety Ducting __________________________________________________________ 18
Assembling SteelFlex
™
Safety Duct ____________________________________________________ 19
Shallow Roof Space _______________________________________________________________ 20
Important Note __________________________________________________________________ 20
Securing SteelFlex
™
Safety Duct ______________________________________________________ 21
7. Maintenance
Roof Restoration or Cleaning ________________________________________________________ 22
8. Warranty/Disclaimer ________________________________________________________________________ 23
Page 4
2. Your Safety
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless the person has been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance, it is not a toy.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you fail to do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earth that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Before Installation
We recommend this appliance to be installed or repaired by an experienced Home Appliances technician.
Please see our website www.schweigen.com.au for experienced installers.
It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the warranty.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it must be
replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard. The power
supply cord connection MUST BE installed in such a way that access is easy in case of emergency.
RECEIVING YOUR RANGEHOOD
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, the supplier, nor the retailer, will be responsible
for the costs associated with the repair, replacement, removal or re-installation of
the appliances.
Page 5
2. Your Safety
This guide is for the installation of the motor used in the Isodrive systems after the canopy/rangehood or
bathroom extraction grill has been mounted on the wall or ceiling. (Refer to canopy/rangehood or bathroom
extraction unit installation manual).
NOTE: All PVC pipe and SteelFlex
™
ducting measurements are referring to inside measurements, unless
otherwise mentioned..
Motor Features
• Universal mounting, all position with IPX4 degree of weather protection.
• Patented anti water intrusion system.
• Super quiet, long vane, backward curved centrifugal fan.
• Airow is dependant on installation and the ducting used. Using a single 150mm SteelFlex
™
duct, you
should attain up to 650m
3
/hr depending on the ducting installation. The use of a smaller than 150mm
ducting would result in a loss of airow.
• Simple installation: The motor mounts onto a 100mm PVC pipe for ultimate strength and allows for easy
Dektite roof sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high eciency PSC type and rated at 57W costing around the same as a 60W light globes to run.
• WARRANTY 10 YEARS return to manufacturer. Covers faulty manufacturing or components. It does not
cover normal wear and tear, chemical or storm damage etc. (see warranty card for more information).
General Notes on Installation and Use
This fan unit is designed to be installed using 100mm PVC pipe as the initial connection duct to the fan module,
and is supplied with a 100mm PVC pipe to 150mm SteelFlex
™
duct bell-mouth adaptor.
This fan is suitable for connection to ducting runs with a minimum inlet area of 11,000mm
2
. Ducting runs should
be more than 2 metres away from the unit and no more than 6 metres (check with supplier if longer duct length
required). SteelFlex
™
ducting must be extended suciently to present a smooth air passage with bends of at
least the radius of twice the diameter of the duct. Excessive bends in the ducting will compromised
extraction.
WARNING: The rangehood must not be ducted into a wall cavity or a ceiling space, where a build up of grease
can occur and become a potential re risk. This will void your warranty.
NOTE: Fan module and Steelex
™
duct are acoustically matched. Use of semi-rigid or rigid ducting will
result in increased noise and may void warranty. See installation instruction notes ‘Why Schweigen SteelFlex
™
Safety Duct’.
Recommended Installation Distance
Isodrive 650 motor, recommended 4 metres (approx.) of SteelFlex
™
ducting and with at least two bends.
NOTE: Installation closer than this distance may result in higher noise level. Maximum duct length is 6 metres.
Check with supplier if longer duct length is required. Do not reduce the duct size at any time and avoid
sharp bends.
Page 6
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part of the
fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or other open re
appliances.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of Supply Cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in order to
avoid a hazard.
Why Schweigen SteelFlex
™
Safety Duct
Schweigen SteelFlex
™
is an ultra-strong and exible high-performance safety ducting made
of Shirikon Firemesh
®
– a tri-layer tear-resistant UV-treated sleeve. Both are developed by
Schweigen – the Silent Rangehood specialists, for quiet and ecient high-volume transfers
of temperature-sensitive air. Engineered to enhance the health and safety of your home,
Schweigen SteelFlex
™
is antimicrobial treated, thermally insulated and acoustically dampened.
It is reproof, pest and crush proof with a treated surface that prevents the build-up of grease
and bacteria.
Schweigen’s unique Isodrive system works in the opposite way to conventional rangehoods, pulling air through
the hood and acoustically matched ducting, producing almost silent high volume ow. The use of a complete
rigid or semi-rigid ducting system will allow an organ piping eect to occur; like a didgeridoo where a noise is
produced at one end of a hollow rigid pipe and the noise is amplied out the other.
The Isodrive system places the noise outside the house.
WARNING: Installation without the use of at least the minimum recommended length of acoustically matched
SteelFlex
™
in the system will void performance expectations. Any installation problem must be reported
to Schweigen. Call outs relating to incorrect installation will result in a service fee direct to the customer.
Schweigen takes no responsibility for problems caused by faulty installation, this may void warranty.
An experienced installer list can be obtained from Schweigen website www.schweigen.com.au or by
calling 1300 881 693.
2. Your Safety
Page 7
3. Description
Isodrive Motor

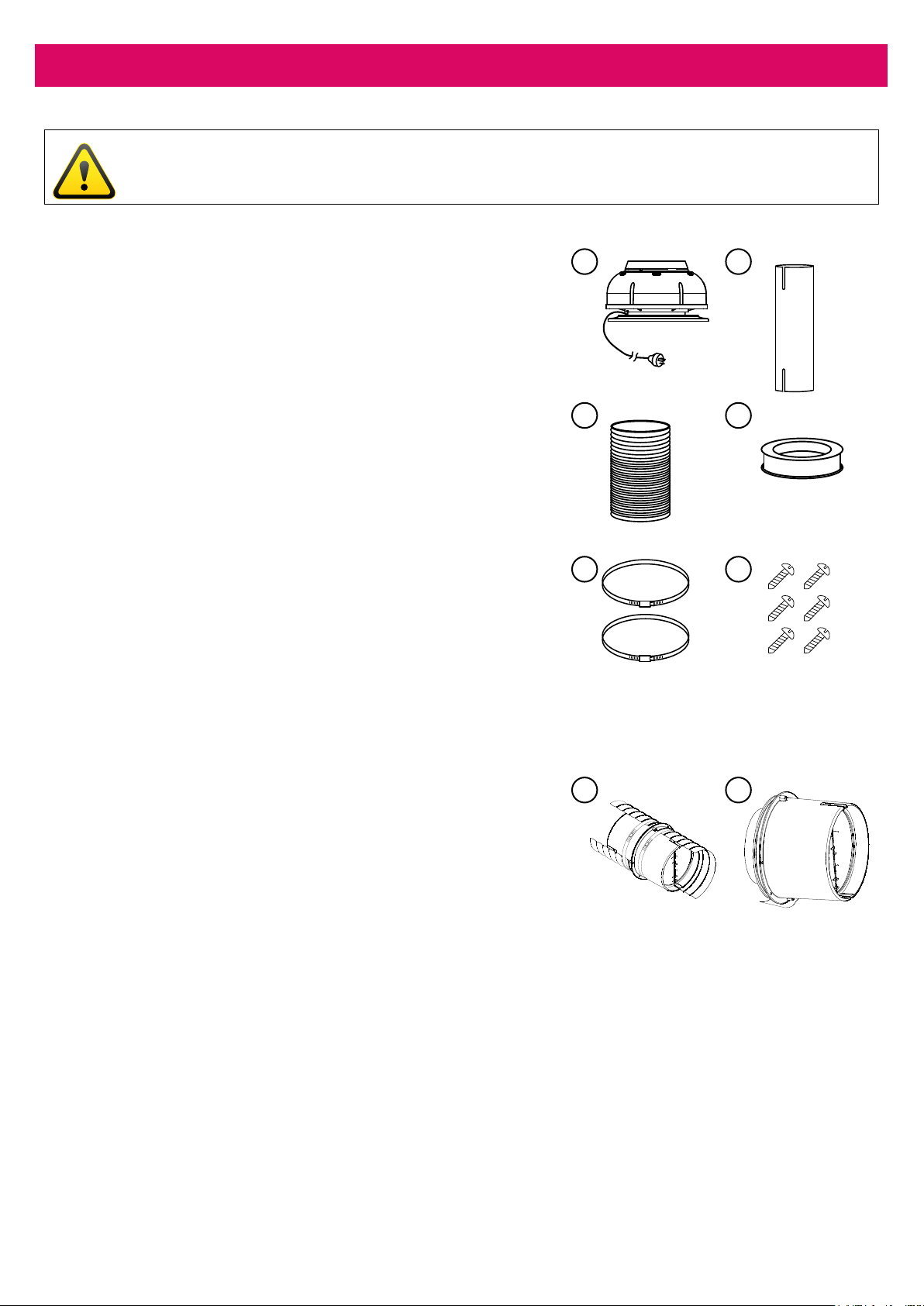

Included in the box:
1. Isodrive 650 motor (280W x 200H mm approx.)
Approx. 3 metre, 10amp cable and standard plug
2. Fire resistant 100mm (110mm outside dimension)
PVC riser pipe
3. SteelFlex
™
safety ducting. Approx. 4 metres,
150mm (160mm outside dimension) diameter
4. Bell-mouth adapter ring
150mm duct to 100mm riser
5. 2 x Steel ring clamps (for adaptor and rangehood outlet)
6. 6 x 20mm self-drilling button head screws
Not included in the box:
A. (Optional) Backdraft shutter for 150mm ducting
Refer to page 13 for more information.
Part number 150MMINLINEBDSSBUILD
B. (Optional) Backdraft shutter tment to bell mouth
adaptor Refer to page 15 for more information.
Part number 150MMINBDSSBUILD
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
roof truss
• Gaer tape / electrical tape
• 2 x steel ring clamps (for backdraft shutter)
1
5
A
2
3 4
6
B
NOTE
For more SteelFlex
™
ducting instructions, refer page 18.
Page 8
4. Installation
Roof Installation
Recommended duct length: 650 motor — 4 metres.
Mount 100mm rigid PVC pipe securely to beams, trusses or other appropriate structures: refer gure 1. The pipe
should be mounted vertically or perpendicular to the roof cladding with the roof penetration being sealed using a
Dektite or other appropriate sealing membrane or device.
Ensure that the PVC pipe protrudes a minimum of 80mm past the top of the Dektite, checking that the
mounting ange clears the roof cladding at upper edge as shown in gure 1 — Roof Mount Option.
Maximum recommended protrusion is 200mm. Fit mounting ange, refer gure 2, to pipe using silicon sealant,
then tape in position until sealant has set.
Pass power cord and plug through mounting ange and pipe, then out the slotted end of the PVC pipe for
connection to the socket coming from the canopy/rangehood or authorised switching mechanism in bathroom
application, refer gure 2.
Fit fan module to mounting ange by placing in position, rotating clockwise to engage bayonet ngers then
secure by screwing in locking screw (while holding fan module rmly in the fully clockwise position), refer gure 2.
Do not install the SteelFlex
™
in a straight line and minimum of two gentle bends in the ducts is required.
Page 9
4. Installation
Roof Mount Option
Eaves Mount Option
Wall Mount Option
Mounting Flange
100mm PVC Pipe
Dektite
Connect to
rangehoood
Bell-mouth adaptor
Clamp
Slot option
20
min
20
min
Bell-mouth adaptor
Min 90mm long PVC pipe
Connect
to rangehood
To fan
Cover
Clamp
Rangehood
Electrical connection
between rangehood and
remote fan module
Connect to main power

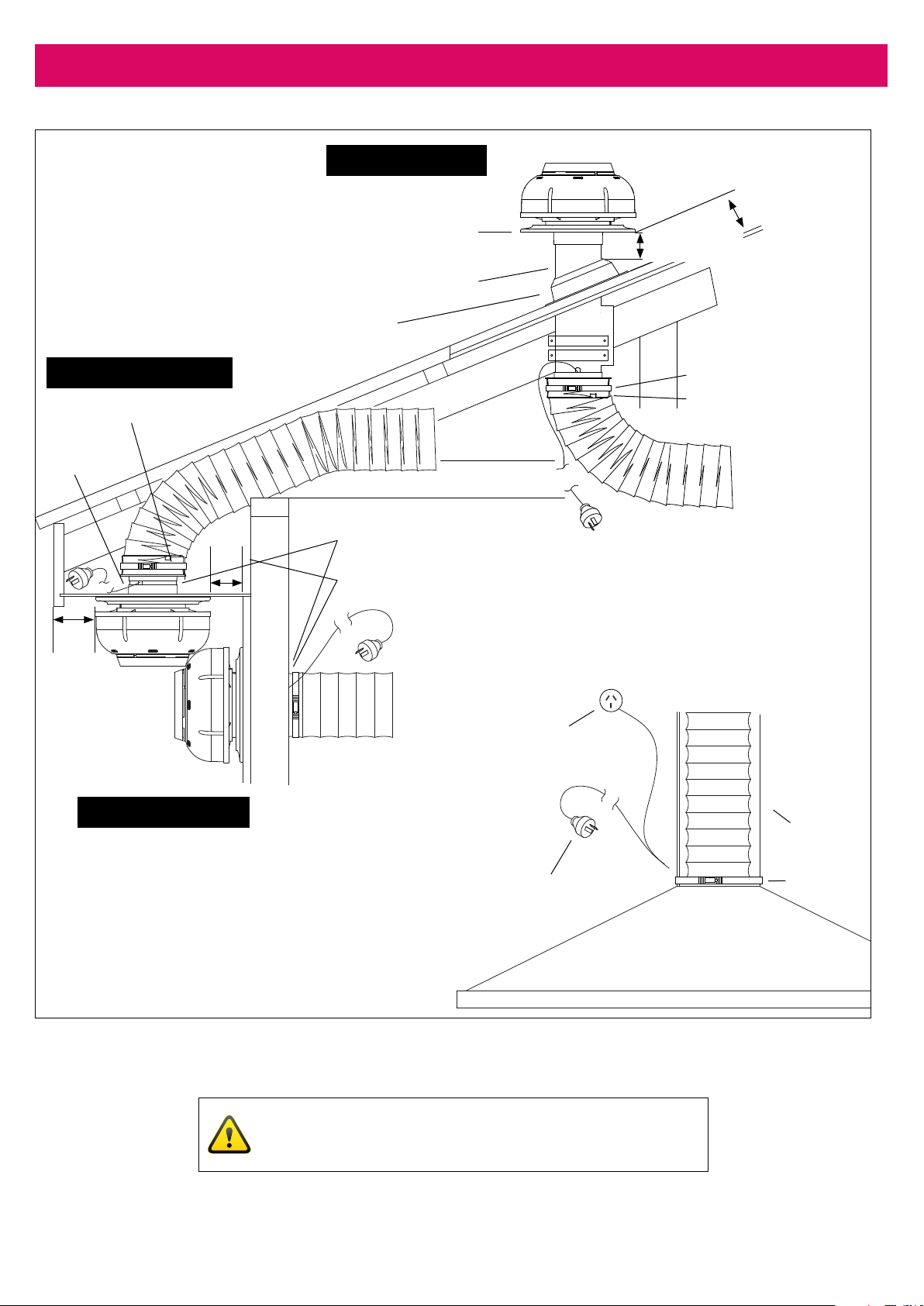

Figure 1: The three options for mounting the unit
IMPORTANT
For more SteelFlex
™
ducting instructions, refer page 18.
100mm
Ensure
clearance
Clamp
Page 10
4. Installation
Figure 2: Roof installation
Locking Screw
Fan Module
Roof Clading
Mounting Flange
Dektite
Roof Frame
100mm PVC Pipe
Secure pipe to structure
150mm SteelFlex
™
ducting
Clamp
6 metre max
Connect to
rangehood
Power cord
Bell-mouth adaptor
Slot pipe for power cord
exit. Cover with ducting
tape if required
Optional
bend
Slot option
Roof Installation
IMPORTANT
For more SteelFlex
™
ducting instructions, refer page 18.
NOTE: Ensure that power cord is feed
through exit slot and is not allowed to
double back restricting fan inlet.
Page 11
4. Installation
150mm SteelFlex
™
ducting

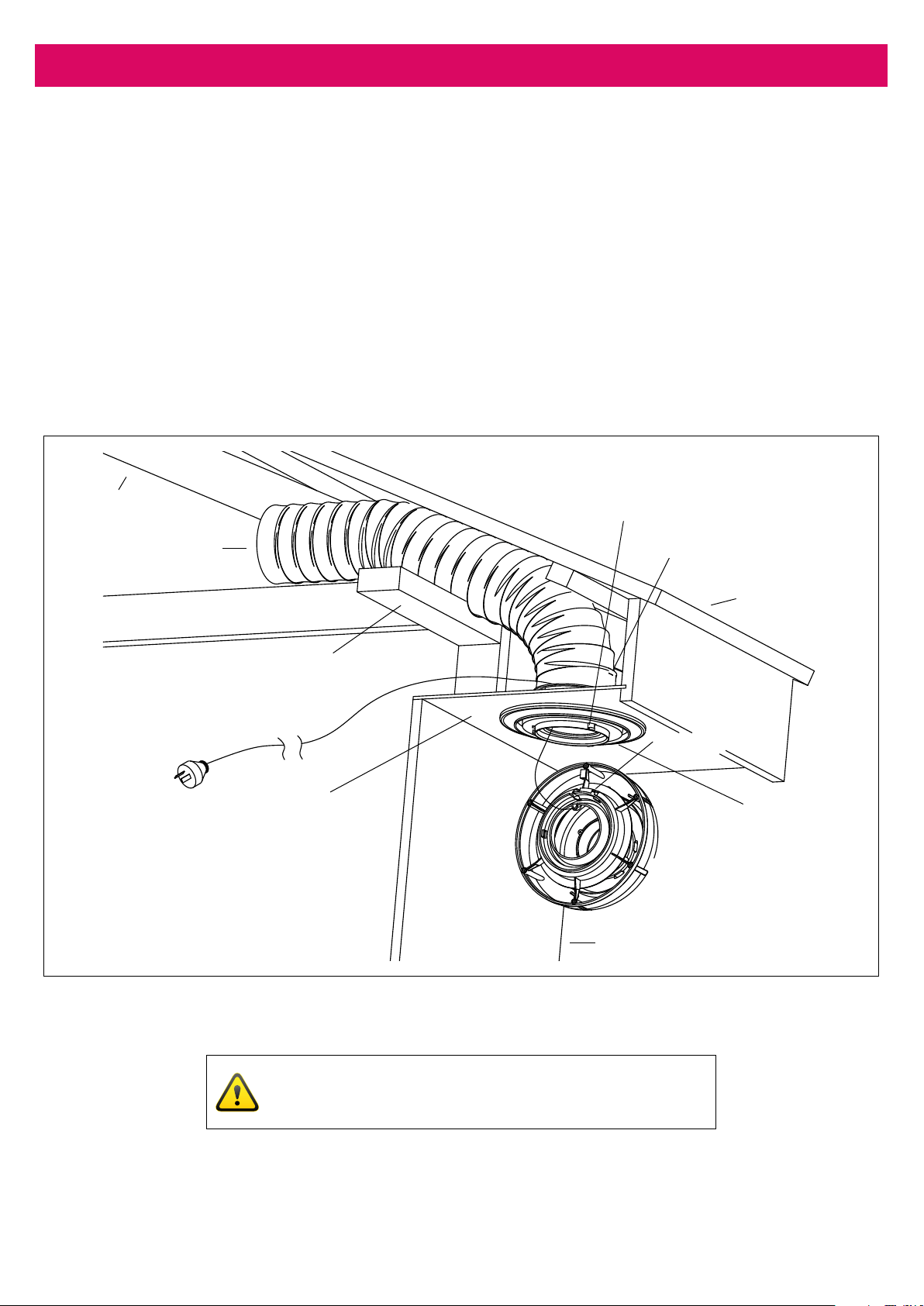

Eaves Installation
After ensuring sucient clearance exists for the mounting ange and ducting, refer gure 1, cut a circular hole
165mm Ø, maintaining adequate clearances. The eaves sheeting should be reinforced.
Pre-drill mounting ange recess. Refer gure 3.
If access to the eaves space is restricted, before xing mounting ange to eaves, preassemble mounting ange,
PVC pipe, bell-mouth adaptor and exi-duct then feed up into roof space. Remember to run power cord through
the assembly and out the slotted PVC pipe wall, refer gure 3.
Fit fan module to mounting ange by placing in position, rotating clockwise to engage bayonet ngers then
secure by screwing in locking screw (while holding fan module rmly in the fully clockwise position).
Ensure that one of the three
bayonet ngers is accessible
for securing locking screw
Bell-mouth Adaptor
Roof Cladding
Locking Screw
Pre-drill mounting
ange recess and secure
to reinforced eaves
sheet using #8 self
tapping screws
Wall
Eaves
Top Plate
Roof Frame/Truss

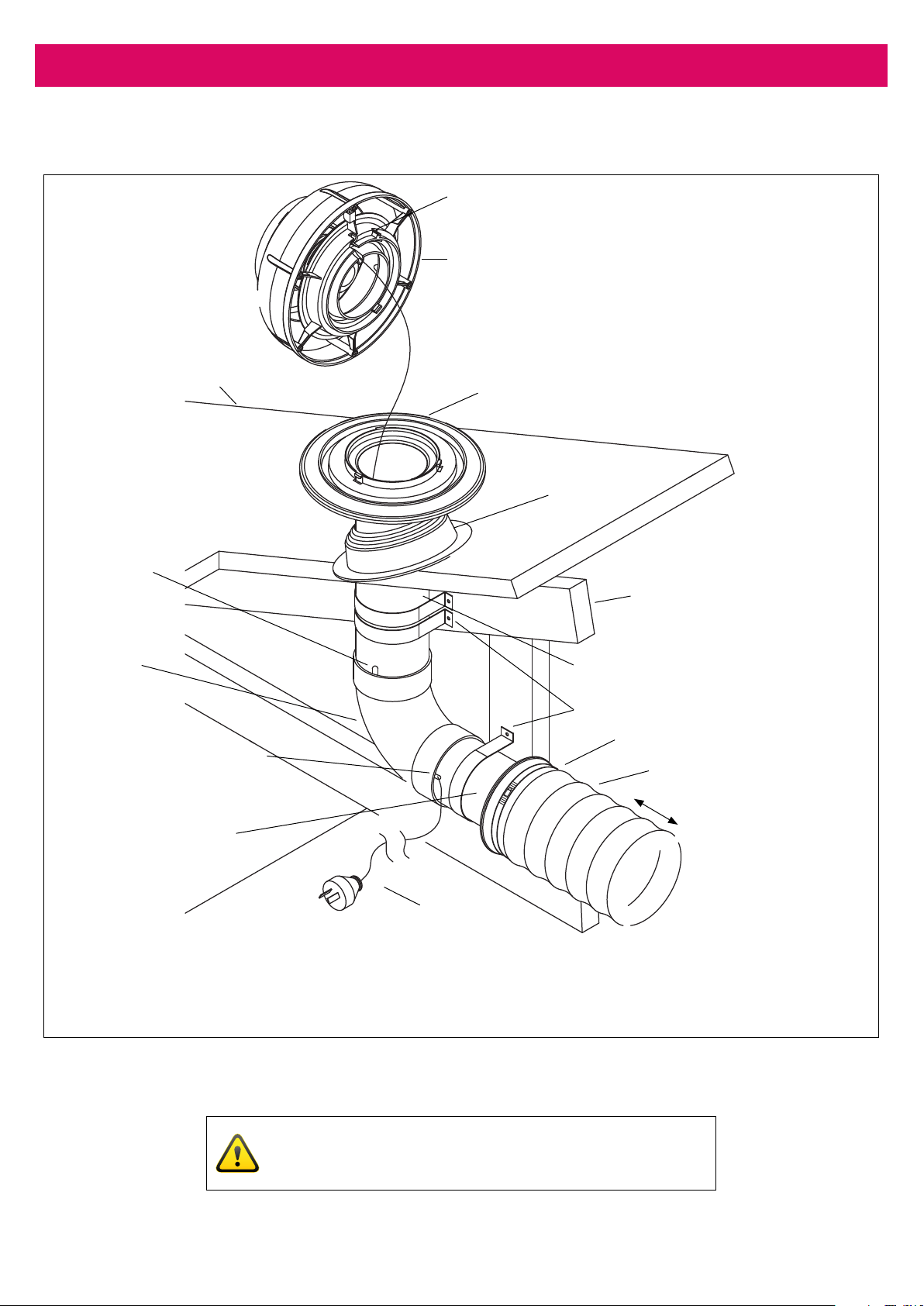

Figure 3: Eaves installation
IMPORTANT
For more SteelFlex
™
ducting instructions, refer page 18.
NOTE: Ensure that power cord is
feed through exit slot and is not
allowed to double back restricting
fan inlet.
Page 12
4. Installation
Figure 4: Wall installation

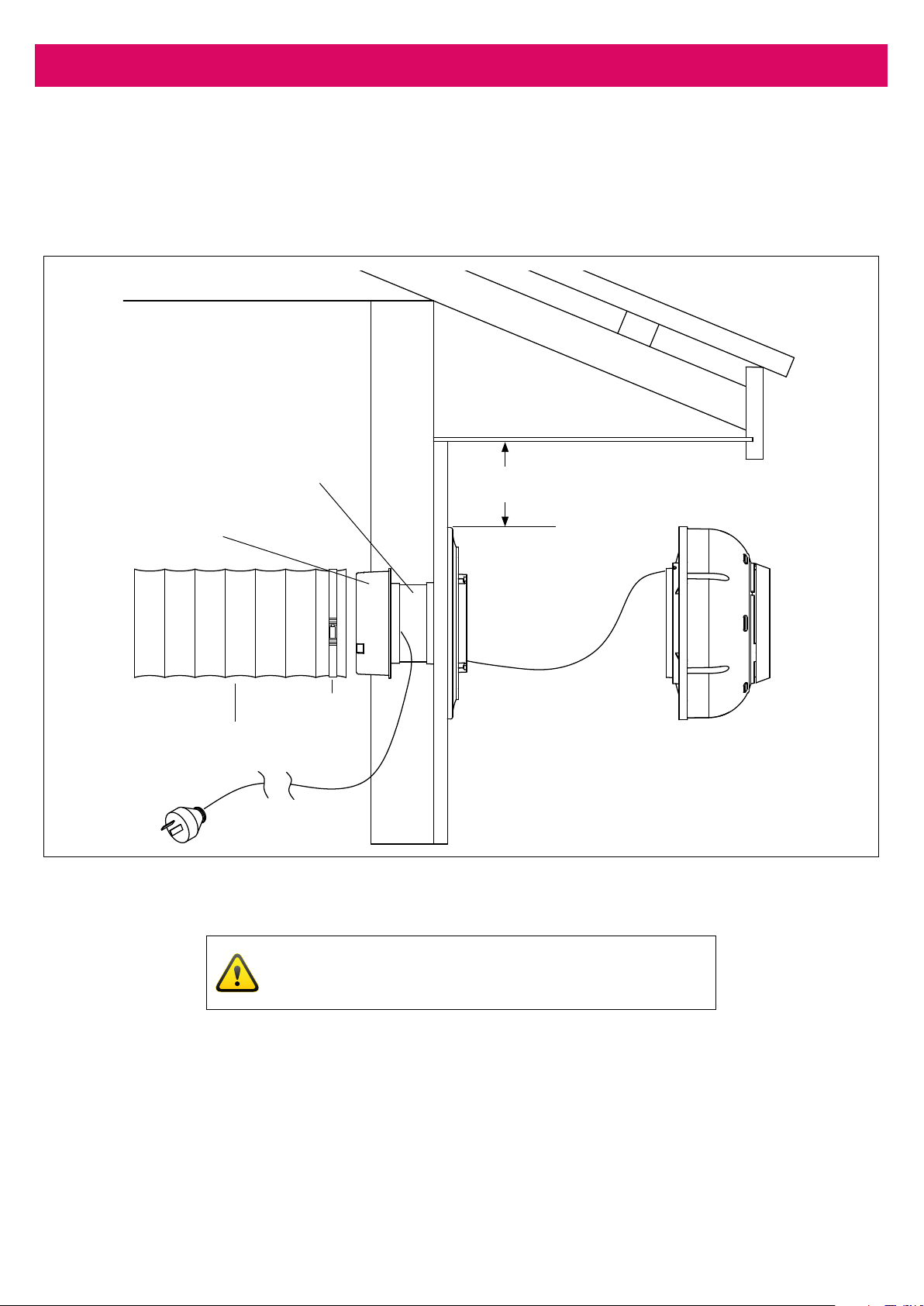

Wall Installation
The installation should be similar to eaves mounting if access to the inside is limited, but if unrestricted. Refer
to EAVES INSTALLATION and gure 4.
Min 20mm
NOTE: Ensure that power cord is feed
through exit slot and is not allowed to
double back restricting fan inlet.
Bell-mouth Adaptor
Min 90mm long PVC pipe
IMPORTANT
For more SteelFlex
™
ducting instructions, refer page 18.
150mm SteelFlex
™
ducting
Clamp
Page 13
4. Installation
Figure 5: In line shutter system
Mount shutter system as close to
Isodrive fan as practicable
Direction of
airow
To Isodrive
650 motor
SteelFlex
™
duct
SteelFlex
™
duct
Use clamps to secure SteelFlex
™
duct to shutter system
In line shutter system
Backdraft Shutter System for 150mm Ducting (optional)
This backdraft shutter suitable for Isodrive 650 motor only.
IMPORTANT
If shutter system is mounted in the
horizontal position, shutter shaft
should be vertical.

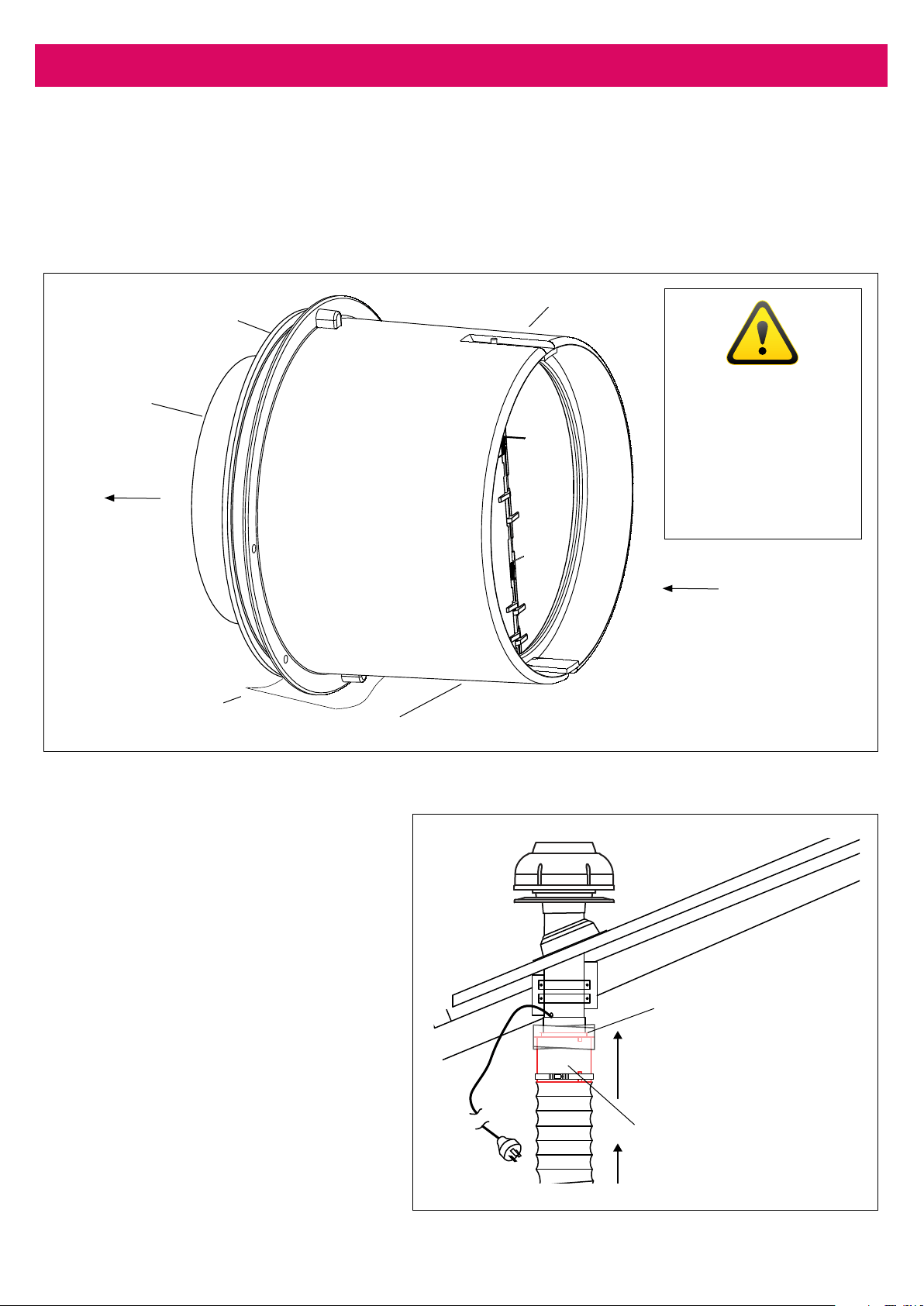

Part number: 150MMINLINEBDSSBUILD
Air ow
Direction
of airow
Page 14
4. Installation
Installation Example for Backdraft Shutter System (optional)
(150mm Ducting, refer to gure 5)
This backdraft shutter suitable for Isodrive 650 motor only.
Vertical Installation
Figure 6 shows an example of vertical
installation. If space is allowed, it could be
installed near the ranghood outlet.
Horizontal Installation
If you have a narrow roof space, you can install
the backdraft shutter horizontally, refer to
gure 7.

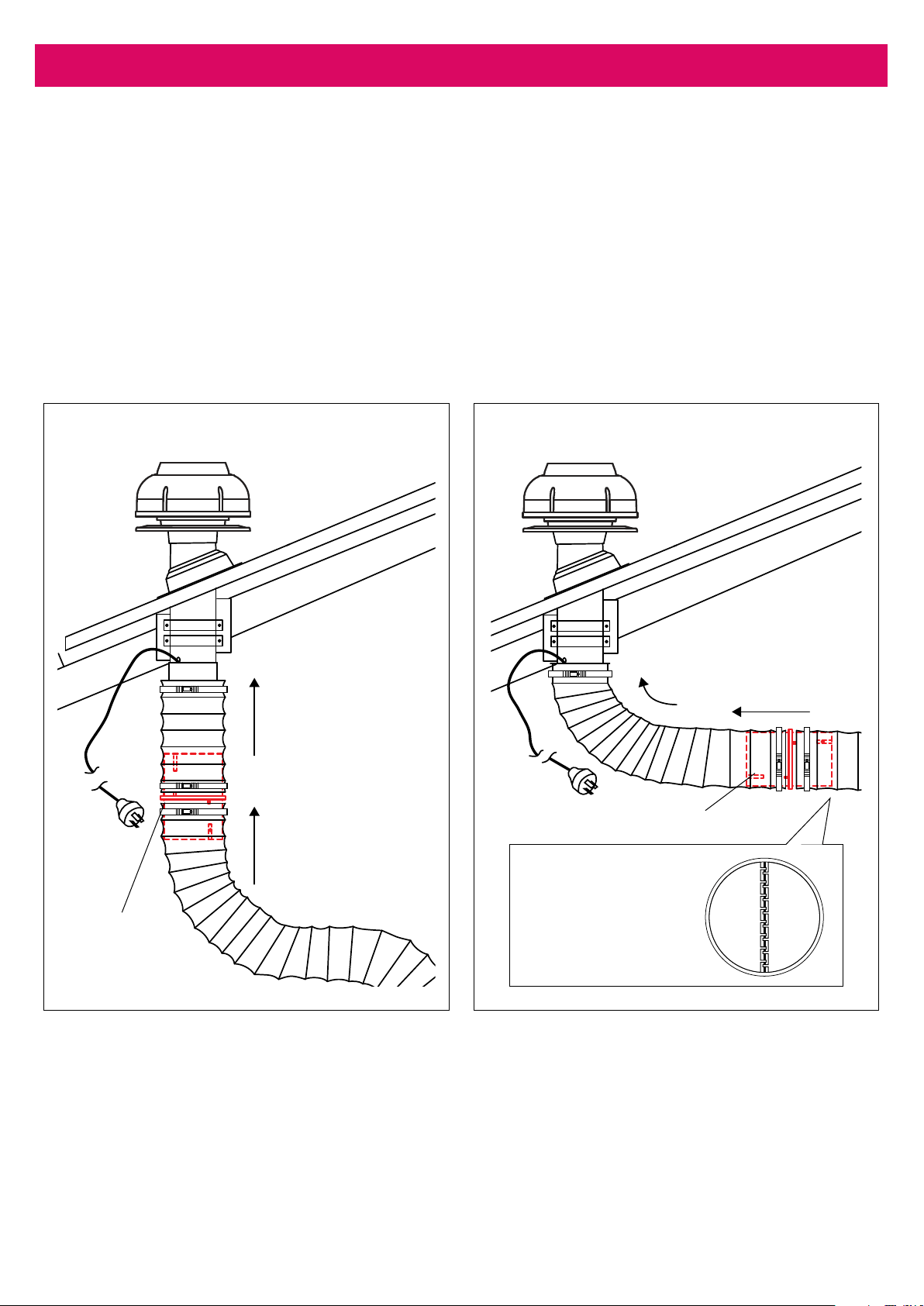

Figure 6: Vertical installation Figure 7: Horizontal installation
Backdraft shutter
Backdraft shutter
Air ow
Air ow
NOTE: Shutter
shaft should be
placed vertically.
Page 15
4. Installation
Vertical Installation
Figure 9 shows an example of vertical
installation.
Backdraft Shutter System Fitment to Bell-mouth Adaptor
(optional)
This backdraft shutter suitable for Isodrive 650 motor only. This backdraft shutter system cannot be installed
in eave type installation.
Figure 8: Backdraft shutter
Figure 9: Vertical installation
Backdraft shutter system
Bell-mouth adaptor
Fit SteelFlex
™
duct over shutter assembly
Tape over anges
100mm pipe
to Isodrive
650 motor
Direction of
airow
To Isodrive
650 motor
IMPORTANT
If shutter system
is mounted in the
horizontal position,
shutter shaft should be
vertical.

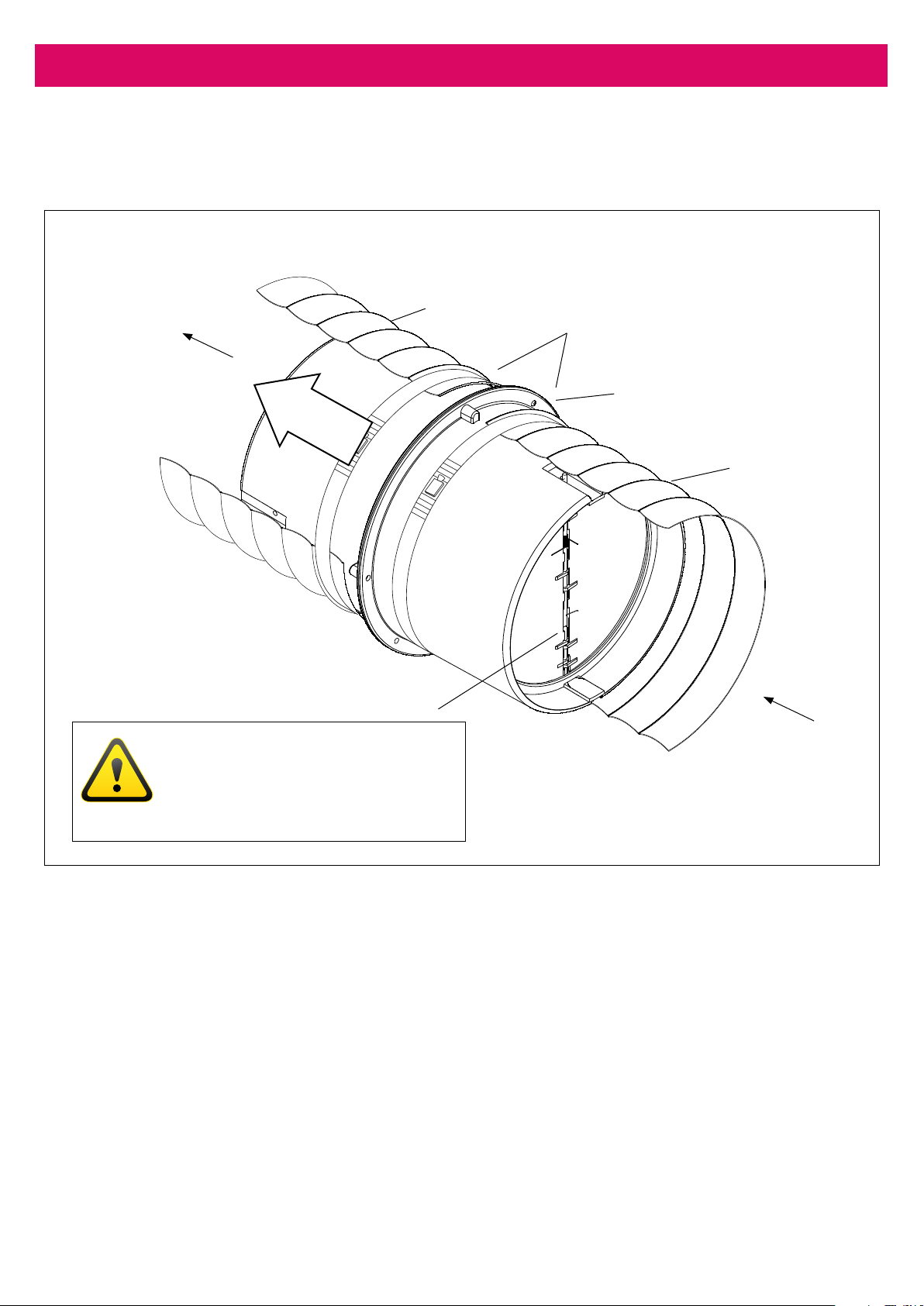

Part number: 150MMBDSSBUILD
Backdraft shutter system
Tape over anges
Air ow
Page 16
4. Installation

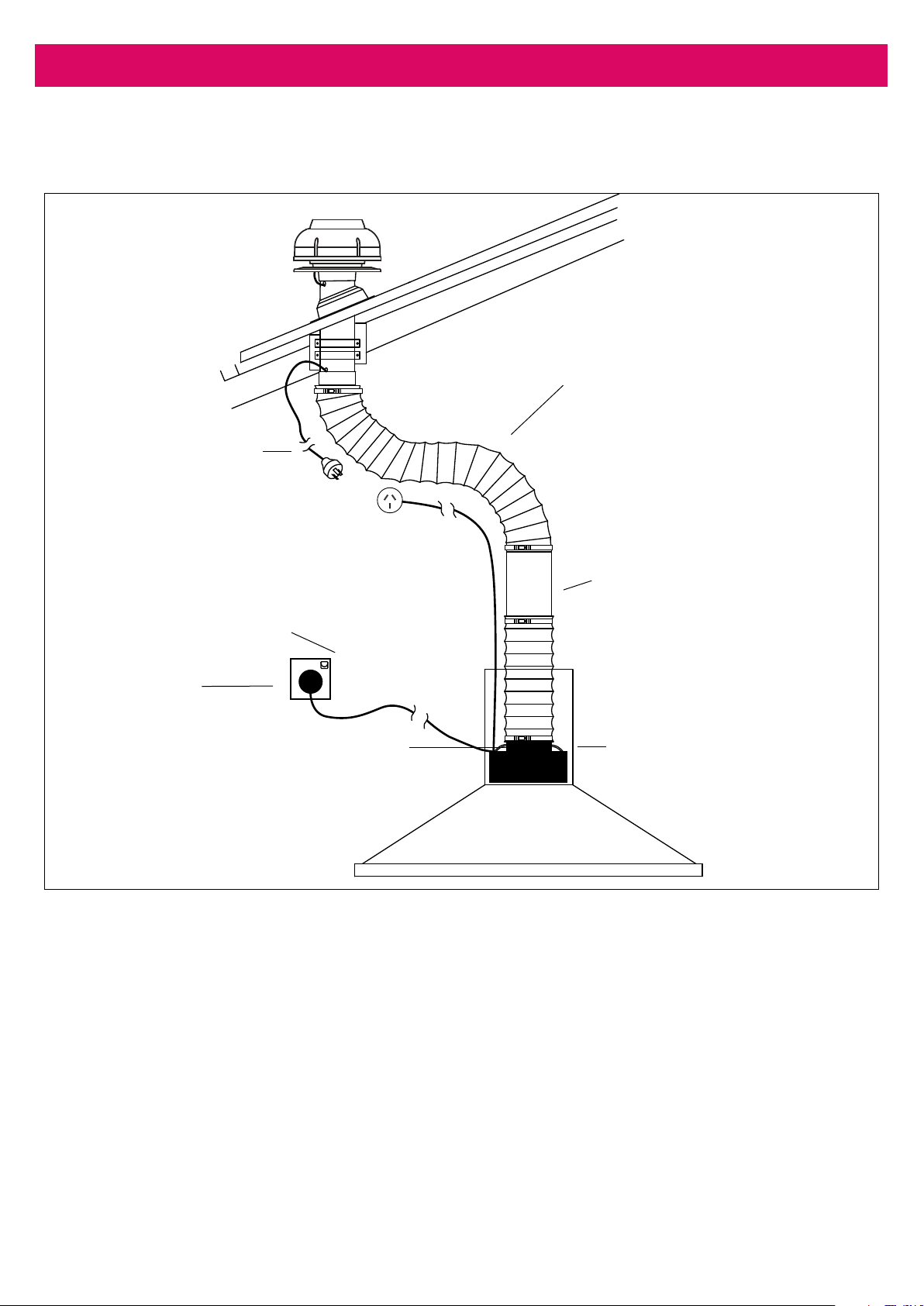

Single Motor Installation Example
Connect to rangehood
Connect to motor
Cover
Connect to
main power
Use reducer 150mm to 200mm
Use smooth owing curves for
maximum airow. Remove excess
ducting by trimming to length. DO
NOT install motor in straight line
to rangehood.
In-line backdraft shutter
(optional) part number:
150MMINLINEBDSSBUILD

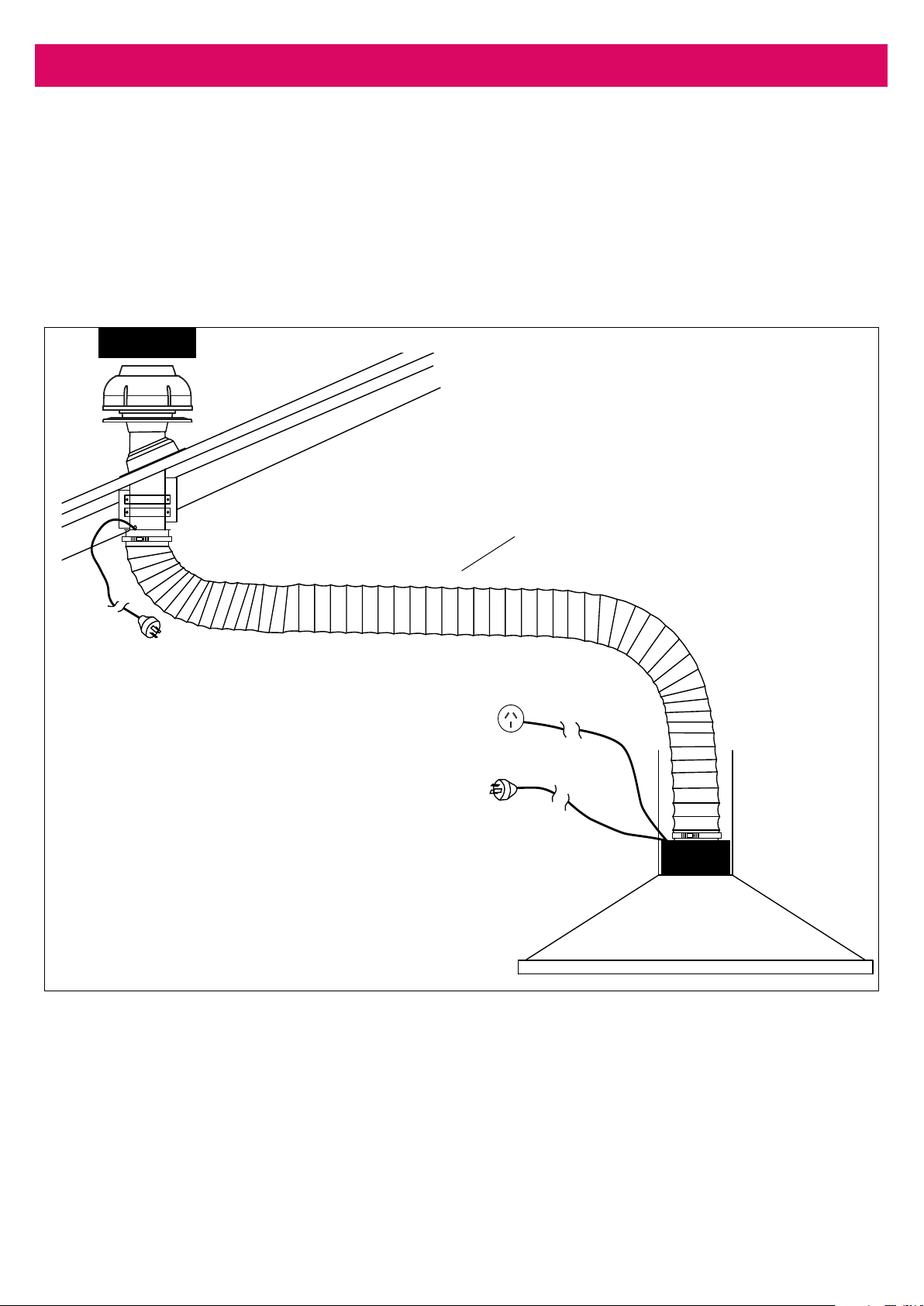

Figure 10: Single motor installation
Page 17
5. Measurements
Measurements for Isodrive 650
(Not to Scale)

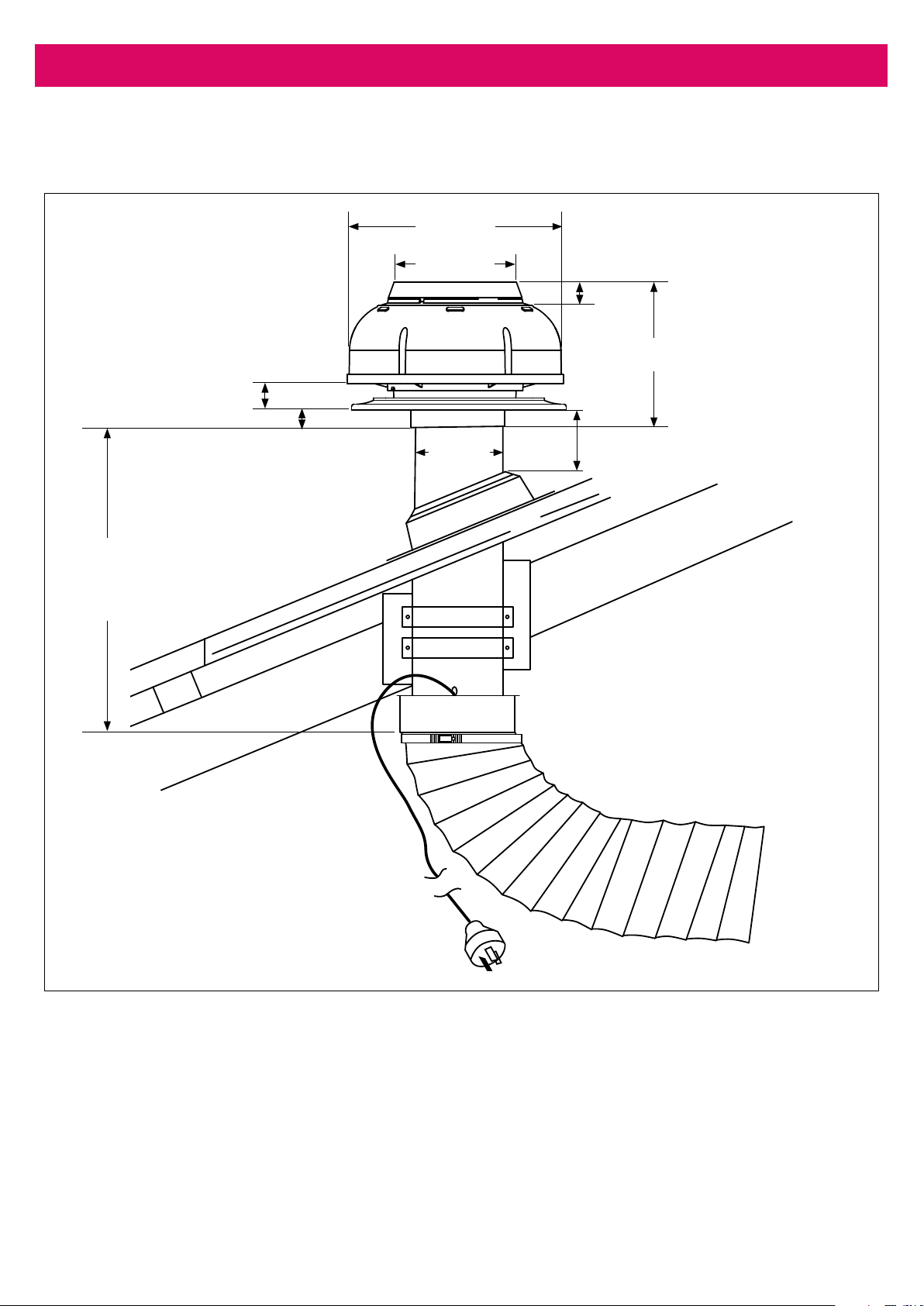

Figure 11: Measurements for Isodrive 650
155mm
110mm
195mm
280mm
30mm
100mm
Isodrive 650
weighs 2.7kg
35mm
30mm
420mm
Page 18
6. SteelFlex
™
Safety Duct
SteelFlex
™
Safety Ducting
SteelFlex
™
safety ducting must be fully extended and cut to the required length upon installation. Maximum
fan performance will not be achieved unless the ducting is fully extended. Failure to fully extend ducting
results in a smaller air passage and lower airows. Incorrect installation may reduce airow or increase noise
levels. Call outs relating to incorrect installation will result in a service fee directed to the customer. Schweigen
will take no responsibility for problems caused by faulty installation. A list of experienced installers can be
obtained from the Schweigen website www.schweigen.com.au.
650 motor
Figure 12: SteelFlex
™
Safety Ducting
Please keep the SteelFlex
™
ducting
taut, 4 metres in length (optional) with
two gentle bends.
NOTE: In shallow roof spaces extend
SteelFlex
™
ducting horizontally
Page 19
6. SteelFlex
™
Safety Duct

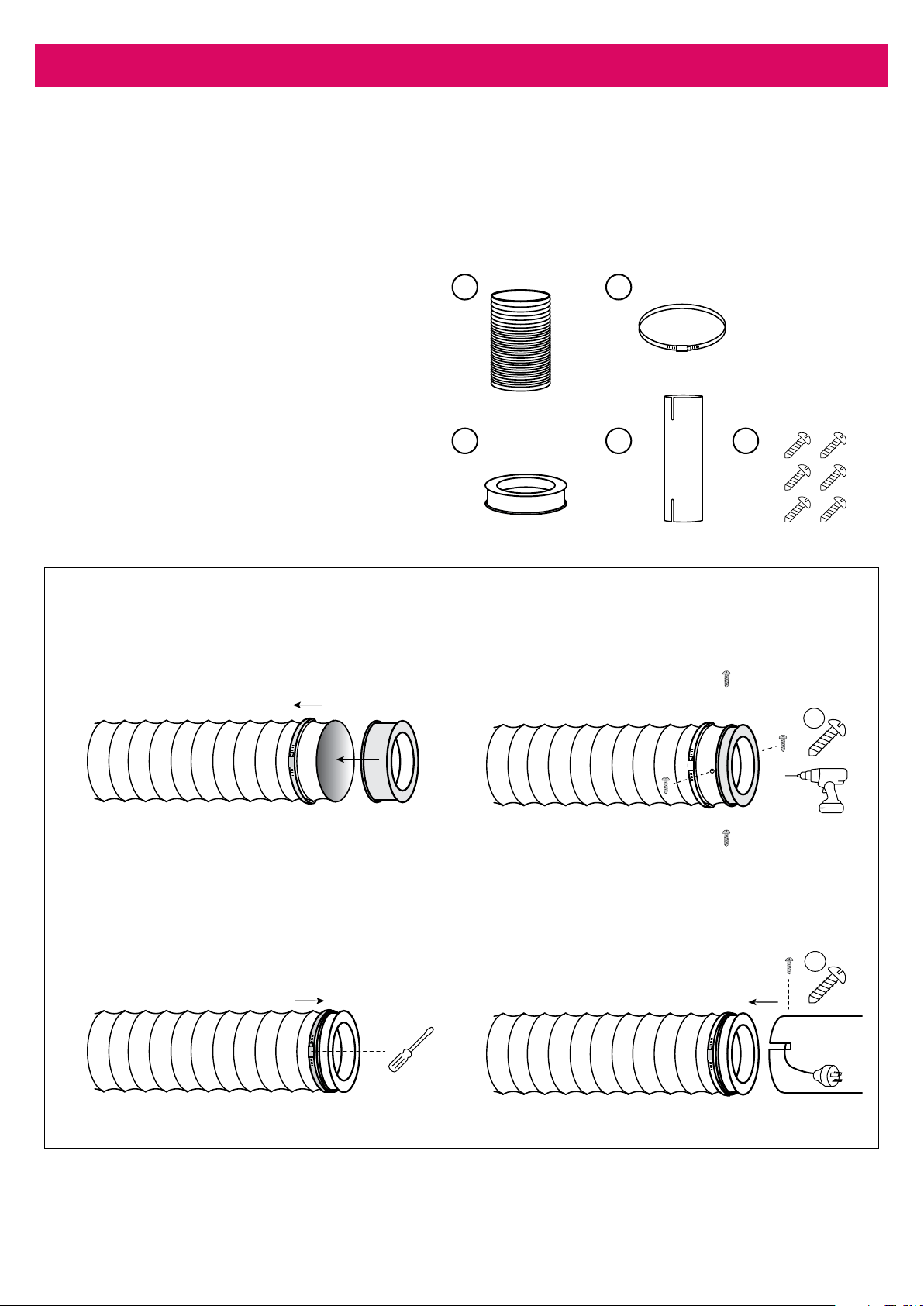

Assembling SteelFlex
™
Safety Duct
SteelFlex
™
safety duct must be secured to either the bell-mouth adapter ring or a 150mm mounting pipe.
1. Slide the steel ring clamp over the end of
the duct then insert the bell-mouth adapter
ring into the duct end
Parts required:
1. SteelFlex
™
safety ducting
2. Steel ring clamp
3. Bell-mouth adapter ring 150mm duct to
100mm riser
4. 100mm PVC riser pipe
5. 20mm self-drilling button head screws
1
2
3 4 5
NOTE: Do not use duct tape to fasten the duct – the screws and hose clamp are adequate to secure the duct
to the bell-mouth adapter ring.
2. Secure duct to the bell-mouth adapter at
regular intervals with 4 x 20mm button
head screws
4. Attach the mounting pipe to the bell-mouth
adapter and secure with 1 x 20mm button
head screw
3. Slide the steel ring clamp back up and
tighten to secure the bell-mouth adapter
and the duct
x4
x1
Figure 13: Duct assembling
Page 20
6. SteelFlex
™
Safety Duct

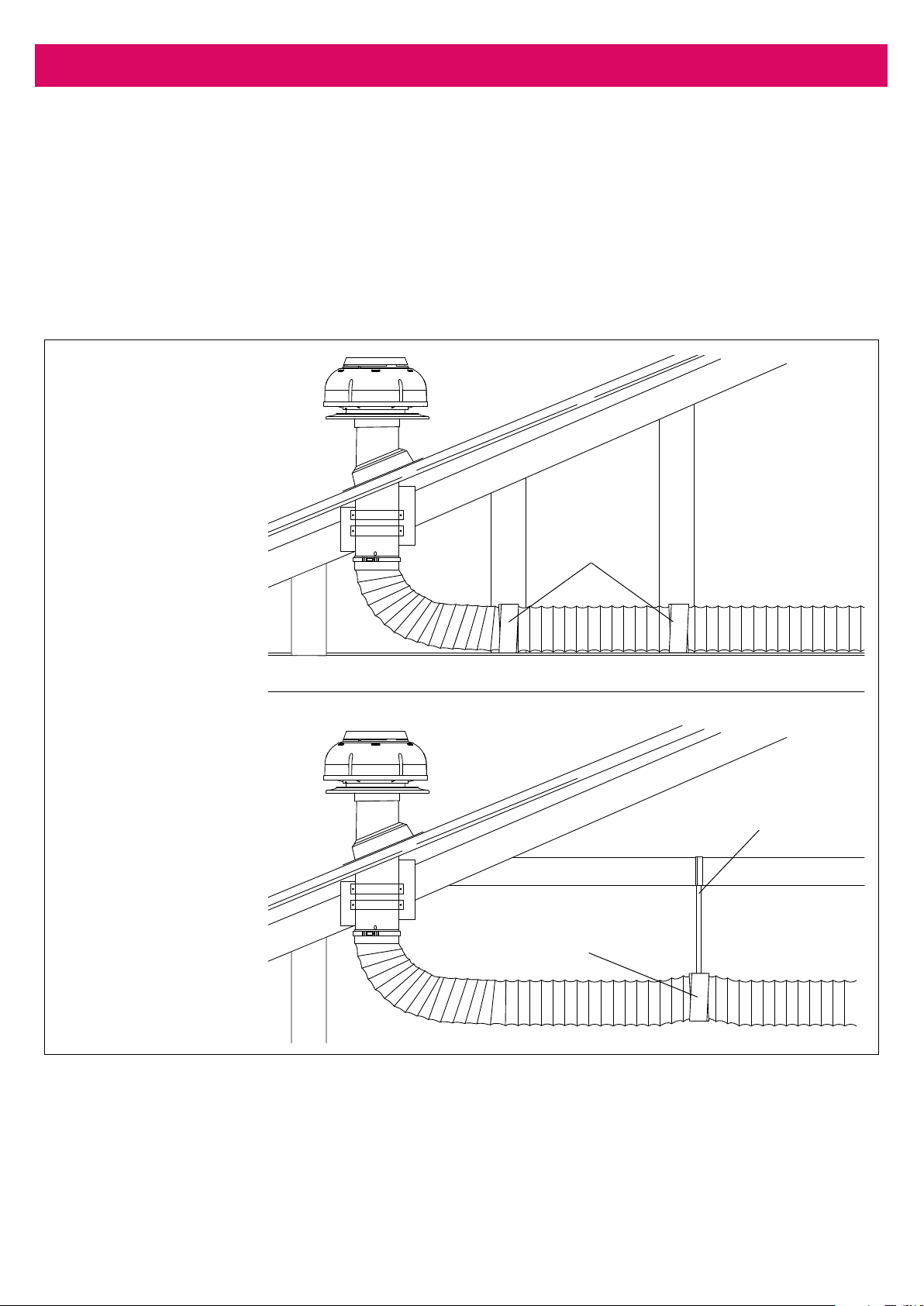

Shallow Roof Space
In shallow roof spaces, do not crush or kink SteelFlex
™
ducting, as it will reduce air ow severely. 90 degree
curve made of PVC or galvanise can be used as a substitute for the bend, refer to gure 13.
Figure 14: Shallow roof space
Figure 15: SteelFlex
™

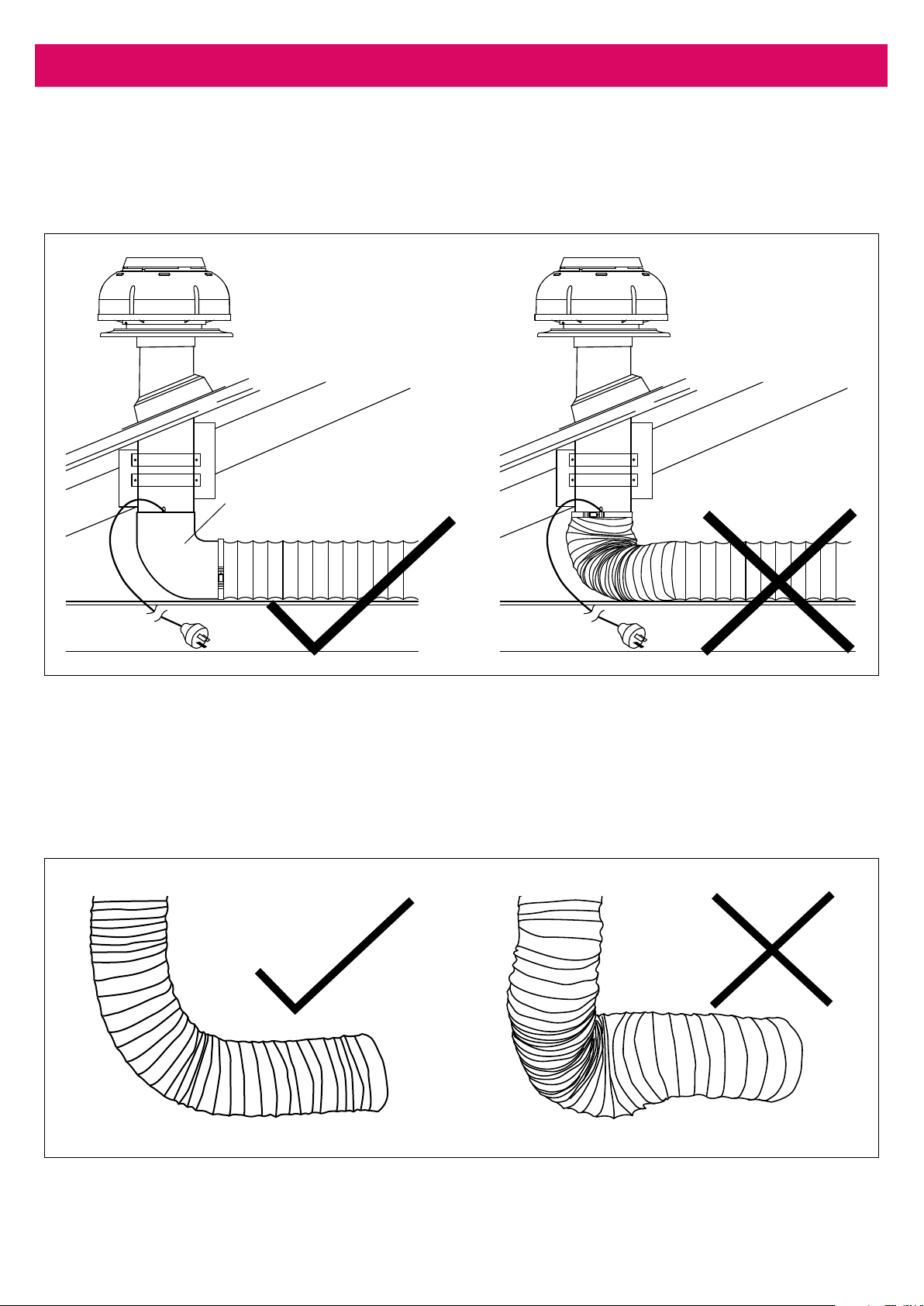

duct recommended installation
Important Note
Please do not crush or kink SteelFlex
™
ducting, as it will reduce air ow and may cause noise to occur through
the system. Ducting needs to be kept taut at all times.
90 degree curve PVC or
galvanise curve
Page 21
6. SteelFlex
™
Safety Duct
Securing SteelFlex
™
Safety Duct
SteelFlex
™
safety duct must be installed with supports at maximum intervals of 1.5 metres. SteelFlex
™
safety
ductwork can be supported by using good quality gaer or aluminium foil tape. Provided that it does not
restrict the internal diameter of the ducting. Ducting installed looped over hanging beams should be installed
in such a manner as to ensure the changes of direction are gradual. Support of the ducting with the use of
hangers may be required, see option 2.
NOTE: Ducting should be kept taut at all times.
Figure 16: Securing SteelFlex
™
Safety Duct
Option 1
Secure the SteelFlex
™
duct to the beam
Option 2
Support SteelFlex
™
duct by using hangers.
NOTE: Care shall be
taken to minimize
sagging or snaking
of the duct between
supports.
Aluminium foil
tape
Aluminium foil tape
Hanger
Page 22
7. Maintenance
Roof Restoration or Cleaning
Before doing your roof restoration or cleaning, please completely cover the outside motor system and avoid all
chemical contact.
IMPORTANT
Any damages caused by the
use of chemical products are
not covered by warranty.

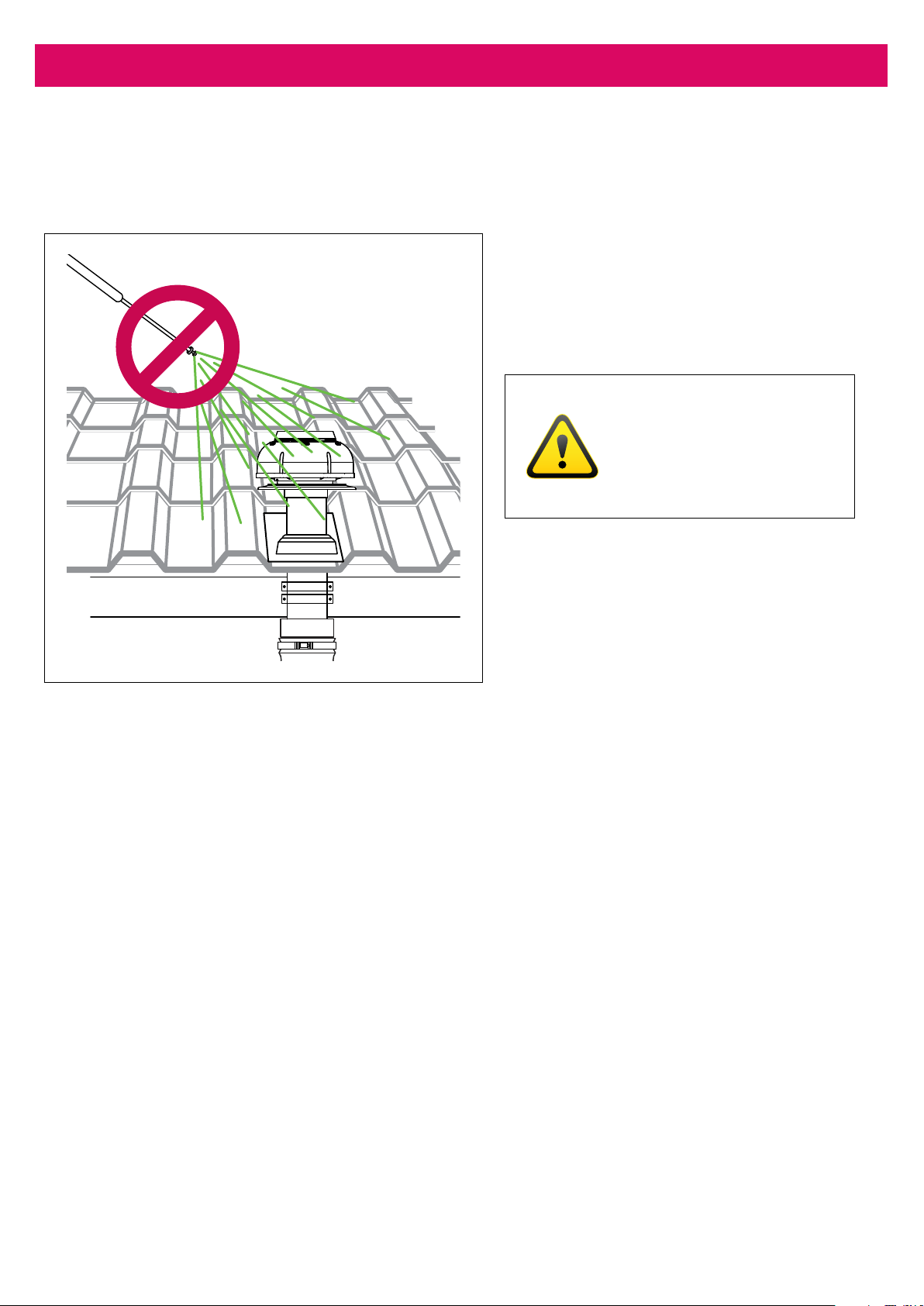

Figure 17: Avoid chemical contact to motor system
Page 23
8. Warranty / Disclaimer
Warranty
(See warranty for more information)
Isodrive motor has a 10-Year replacement product warranty.* The consumer is responsible for any charges
associated with removal of the faulty unit and installation of the new unit. The customer is also responsible
for any freight charges incurred in this change over process. Schweigen SteelFlex
™
comes with a Lifetime
Warranty*.
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly describes
the products being oered for sale. All information supplied is to be used for general reference purposes only
and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage
of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for
illustrative purposes only.
*Terms and conditions apply.
Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693
Email sales@schweigen.com.au Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510
Email info.par[email protected] Web www.parex.co.nz
