CAUTION:
Weight on this product should not exceed 250 lbs.
Owner's
Manual
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN CHINA
©
2020 Stamina Products, Inc.
2020, 08
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
When calling for parts or
service, please specify
the following numbers
:
Model#: 50-1747
S/N: _____________
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
TABLE OF CONTENTS
Safety Instructions ...................................... 2
Before You Begin ........................................ 4
Equipment Warning, Caution & Notice Labels
... 5
Hardware Identication Chart .................... 6
Assembly Instructions ................................ 7
Storage ....................................................... 12
Maintenance ............................................... 12
Conditioning Guidelines ........................... 13
Warm-Up and Cool-Down ......................... 14
Warranty ..................................................... 15

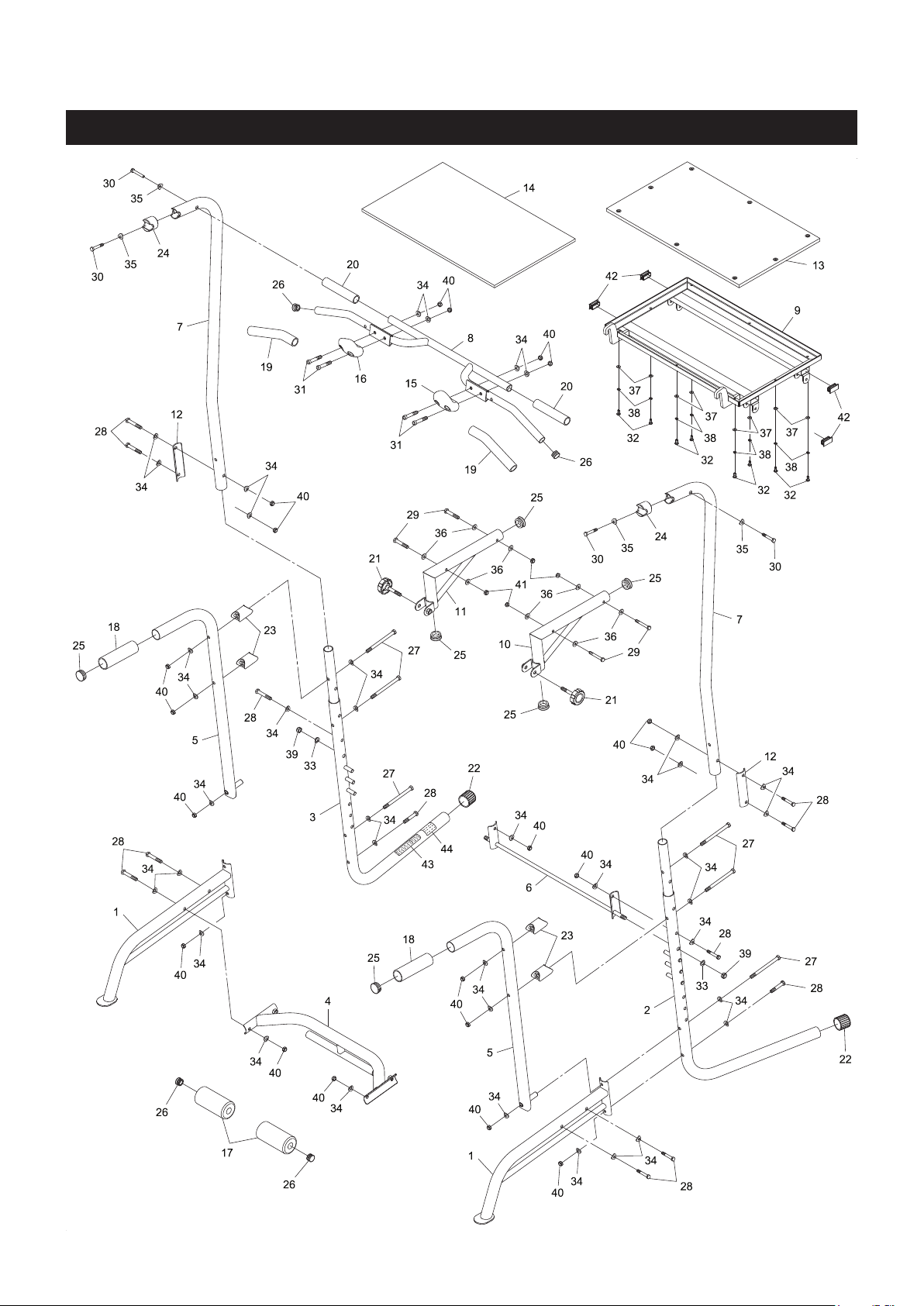

Product Parts Drawing .............................. 16
Parts List .................................................... 17
Notes .......................................................... 18
Fax/Mail Ordering Form ............................ 19
SAFETY INSTRUCTIONS
2
1. Save these instructions and ensure that other exercisers read this manual prior to using the
STAMINA
│
X
-
AMRAP Power Tower for the rst time.
2. Read all warnings and cautions posted on the STAMINA
│
X
-
AMRAP Power Tower.
3. The STAMINA
│
X
-
AMRAP Power Tower should only be used after a thorough review of the
Owner’s Manual. Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the STAMINA
│
X
-
AMRAP Power Tower. Do not allow children to
use or play on the STAMINA
│
X
-
AMRAP Power Tower. Keep children and pets away from the
STAMINA
│
X
-
AMRAP Power Tower when it is in use.
6. It is recommended that you place this exercise equipment on an equipment mat.
7. Set up and operate the STAMINA
│
X
-
AMRAP Power Tower on a solid level surface. Do not
position the STAMINA
│
X
-
AMRAP Power Tower on loose rugs or uneven surfaces.
8. Make sure that adequate space is available for access to and around the STAMINA
│
X
-
AMRAP
Power Tower.
9. Before using, inspect the STAMINA
│
X
-
AMRAP Power Tower for worn or loose components, and
securely tighten or replace any worn or loose components prior to use.
10. Consult a physician prior to commencing an exercise program and follow his/her
recommendations in developing your tness program. If at any time during exercise you feel faint,
dizzy, or experience pain, stop and consult your physician.
11. Always choose the workout which best ts your physical strength and exibility level. Know your
limits and train within them. Always use common sense when exercising.
12. Do not wear loose or dangling clothing while using the STAMINA
│
X
-
AMRAP Power Tower.
13. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or
cross training shoes that t well, provide foot support, and feature non-skid rubber soles.
14. Be careful to maintain your balance while using, mounting, dismounting, or assembling the
STAMINA
│
X
-
AMRAP Power Tower, loss of balance may result in a fall and serious bodily injury.
15. The STAMINA
│
X
-
AMRAP Power Tower should not be used by persons weighing over 250
pounds.
16. The STAMINA
│
X
-
AMRAP Power Tower should be used by only one person at a time.
17. The STAMINA
│
X
-
AMRAP Power Tower is for consumer use only. It is not for use in public or
semipublic facilities.
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the STAMINA
│
X
-
AMRAP Power Tower.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.car[email protected]om
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
Left Main Stand
Plyobox Platform
Upright
Small Hand Hold
Long Foam Grip
Left Plyobox Support
Base Frame
Upright
Caution Label
BEFORE YOU BEGIN
4
Base Frame
Base Cross
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Allen Wrench (8mm)
Wrench (2 pieces)
Adjustment Knob
Foam Pad
Dip Upright
Pull-Up Bar
Endcap
Serial Decal
Thank you for choosing the STAMINA
│
X
-
AMRAP Power Tower. We take great pride in this
quality product and hope it will provide many hours
of quality exercise to make you feel better, look
better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The STAMINA
│
X
-
AMRAP
Power Tower provides a convenient and simple
method to begin your journey of getting your body
in shape and achieving a happier and healthier
lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See
page 5 for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
STAMINA
│
X
-
AMRAP Power Tower.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be a
missing or incorrectly sized part. If you have any
questions or problems with the parts included with
your STAMINA
│
X
-
AMRAP Power Tower, please
do not return the product. Contact us FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com. Our Customer Care Sta is
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
Large Hand Hold
Dip Foam Grip
5
This chart is provided to help identify the warning, caution, and notice labels on the STAMINA
│
X
-
AMRAP Power Tower. Please take a moment to familiarize yourself with all of the warning, caution,
and notice labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(43)
CAUTION
!
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35 or have any pre-existing
health condition. Always make sure all nuts and bolts are securely tightened
before using this product. This product should not be used by person
weighing more than 250 lbs. unless otherwise stated in your Owner’s Manual.
Keep others including children & pets away from equipment when in use.
For consumer use only. Failure to follow all warnings and
instructions could result in injury or property damage.
Before assembling or using this product, read and follow
the Owner’s Manual and all other warnings and
instructions that accompany this product. Replace this
caution label if damaged, illegible, or removed.
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(44)
1 (800) 375-7520
Mon-Thurs • 7:30am - 5pm, Fri • 8am - 3pm CST
FAX: (417) 889-8064 • www.staminaproducts.com
MADE IN CHINA
Customer Care
50-1747
Model # Serial #
GUARANTEED PERFORMANCE
Part Number and Description Qty
6
39 Nylock Nut (M12 x 1.75) 2
40 Nylock Nut (M10 x 1.5) 20
41 Nylock Nut (M8 x 1.25) 4
36 Washer (M8) 8
length
length
mm.
in.
INCHES
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
28 Bolt, Hex Head (M10 x 1.5 x 55mm) 12
29 Bolt, Hex Head (M8 x 1.25 x 55mm) 4
30 Bolt, Hex Head (M8 x 1.25 x 50mm) 4
27 Bolt, Hex Head (M10 x 1.5 x 130mm) 6
31 Bolt, Socket Head (M10 x 1.5 x 55mm) 4
33 Arc Washer (M12) 2
34 Arc Washer (M10) 38
35 Arc Washer (M8) 4
ASSEMBLY INSTRUCTIONS
NOTE: DO NOT SECURELY TIGHTEN ALL BOLTS UNTIL STEP 8.
STEP 1
Attach the BASE FRAMES(1) to both sides of the BASE CROSS(4) with HEX BOLTS (M10x1.5x55mm)
(28), ARC WASHERS(M10)(34), and NYLOCK NUTS(M10x1.5)(40).
STEP 2
Slide the FOAM PADS(30) to both sides of the bar on the BASE CROSS(4).
7
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
RIGHT
LEFT
Welded Nut
Welded Nut
ASSEMBLY INSTRUCTIONS
STEP 3
Attach the RIGHT and LEFT MAIN STANDS(2, 3) to both sides of the CROSS BAR(6) with HEX
BOLTS(M10x1.5x55mm)(28), ARC WASHERS(M10)(34), NYLOCK NUTS(M10x1.5)(40), ARC
WASHERS(M12)(33), and NYLOCK NUTS(M12x1.75)(39).
STEP 4
Refer to the illustration below. Attach the RIGHT and LEFT MAIN STANDS(2, 3) to the BASE
FRAMES(1) with HEX BOLTS(M10x1.5x55mm)(28), ARC WASHERS(M10)(34), and NYLOCK NUTS
(M10x1.5)(40) using the bottom holes as shown.
8
ASSEMBLY INSTRUCTIONS
STEP 5
Insert an UPRIGHT(7) into the LEFT MAIN STAND(3). Place an ARC WASHER(M10)(34) on a HEX
BOLT(M10x1.5x130mm)(27). Insert the HEX BOLT(M10x1.5x130mm)(27) through the LEFT MAIN
STAND(3) (lower position as shown), a SPACER TUBE(23), and a DIP UPRIGHT(5), then secure with
ARC WASHER(M10)(34), and NYLOCK NUT(M10x1.5)(40). Repeat to bolt the UPRIGHT(7), LEFT
MAIN STAND(3), SPACER TUBE(23), and DIP UPRIGHT(5) together on the upper hole. Bolt the LEFT
MAIN STAND(3), BASE FRAME(1), and DIP UPRIGHT(5) together with HEX BOLT(M10x1.5x130mm)
(27), ARC WASHERS (M10)(34), and NYLOCK NUT(M10x1.5)(40).
STEP 6
For more security, attach the SUPPORT PLATE(12) to the LEFT MAIN STAND(3) and UPRIGHT(7) with
HEX BOLTS(M10x1.5x55mm)(28), ARC WASHERS(M10)(34), and NYLOCK NUT(M10x1.5)(40).
Repeat STEP 5 and STEP 6 for the right side.
9
To assemble the SPACER
TUBES(23), start from the
one at the lower position.
ASSEMBLY INSTRUCTIONS
STEP 7
Refer to the illustration below. Attach the SMALL HAND HOLD(15) and LARGE HAND HOLD(16) to the
PULL-UP BAR(8) with SOCKET HEAD BOLTS(M10x1.5x55mm)(31), ARC WASHERS(M10)(34), and
NYLOCK NUTS(M10x1.5)(40).
STEP 8
Attach the PULL-UP BAR(8) to both the UPRIGHTS(7) with HEX BOLTS(M8x1.25x50mm)(30) and
ARC WASHERS(M8)(35).
NOTICE: Prior to tightening all the bolts, move the STAMINA
│
X
-
AMRAP Power Tower to the
location where it will be used. This will allow the unit to sit more evenly on the oor
where it will be used in case the previous location where it was assembled was not
level.
SECURELY TIGHTEN ALL OF THE BOLTS FROM STEP 1 TO STEP 8.
10
29
36
29
36
36
36
41
11
9
10
29
36
29
36
36
36
41
9
ASSEMBLY INSTRUCTIONS
STEP 9
Refer to the detail view and illustration below. Attach the PLYOBOX SUPPORTS(10, 11) to the
PLYOBOX PLATFORM(9) with HEX BOLTS(M8x1.25x55mm)(29), WASHERS(M8)(36), and NYLOCK
NUTS(M8x1.25)(41). Hook the PLYOBOX PLATFORM(9) onto the lugs on the RIGHT and LEFT MAIN
STANDS(2, 3) and secure with the ADJUSTMENT KNOBS(21).
NOTE: There are three lugs on the RIGHT and LEFT MAIN STANDS(2, 3) to adjust the PLYOBOX
PLATFORM(9) to dierent heights. Refer to the illustration below and check on the positions of
lugs 1, 2, and 3. The lowest lug is to support the hook on the PLYOBOX PLATFORM(9) only,
never try to hook the PLYOBOX PLATFORM(9) onto this lug for use.
WARNING: Make sure ADJUSTMENT KNOBS(21) that came with equipment are fully engaged at all
times.
11
Hook
Hook
Lug
3
Lug
2
Lug
1
This lug is to support
the hook only.
Welded Nuts
face in.
1. To store the STAMINA
│
X
-
AMRAP Power Tower, simply keep it in a clean dry place.
2. Use two people to lift from the back ends of the BASE FRAMES(1) and the PULL-UP BAR(8) to
move the STAMINA
│
X
-
AMRAP Power Tower.
The safety and integrity designed into the STAMINA
│
X
-
AMRAP Power Tower can only be maintained
when the STAMINA
│
X
-
AMRAP Power Tower is regularly examined for damage and wear. Special
attention should be given to the following:
1. Verify that the CAUTION LABEL(43) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(43) if it is missing or damaged.
2. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
3. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Securely tighten loose nuts and bolts.
4. Worn or damaged components must be replaced immediately or the STAMINA
│
X
-
AMRAP Power
Tower removed from service until repair is made.
5. Only Stamina Products supplied components should be used to maintain/repair the STAMINA
│
X
-
AMRAP Power Tower.
6. Keep your STAMINA
│
X
-
AMRAP Power Tower clean by wiping it o with an absorbent cloth after
use.
STORAGE
MAINTENANCE
12
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
13
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
14
LIMITED WARRANTY
MODEL 50-1747
15
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and three
years on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These warranties
are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any implied warranty, Stamina
reserves the right to require the product to be returned for inspection, at the purchaser’s expense, to
Stamina’s premises in Springfield, Missouri. Return of the enclosed warranty registration card is not
required for warranty coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
PRODUCT PARTS DRAWING
16
BACK
FRONT
PART# PART NAME QTY
1 Base Frame 2
2 Right Main Stand 1
3 Left Main Stand 1
4 Base Cross 1
5 Dip Upright 2
6 Cross Bar 1
7 Upright 2
8 Pull-Up Bar 1
9 Plyobox Platform 1
10 Right Plyobox Support 1
11 Left Plyobox Support 1
12 Support Plate 2
13 Plywood Board 1
14 Rubber Mat 1
15 Small Hand Hold 1
16 Large Hand Hold 1
17 Foam Pad 2
18 Dip Foam Grip 2
19 Long Foam Grip 2
20 Foam Grip 2
21 Adjustment Knob 2
22 Endcap (ø38.1mm) 2
23 Spacer Tube 4
24 Connective Cap 2
25 Round Plug (ø38.1mm) 6
26 Round Plug (ø25mm) 4
27 Bolt, Hex Head (M10 x 1.5 x 130mm) 6
28 Bolt, Hex Head (M10 x 1.5 x 55mm) 12
29 Bolt, Hex Head (M8 x 1.25 x 55mm) 4
30 Bolt, Hex Head (M8 x 1.25 x 50mm) 4
31 Bolt, Socket Head (M10 x 1.5 x 55mm) 4
32 Bolt, Button Head (M6 x 1 x 15mm) 8
33 Arc Washer (M12) 2
34 Arc Washer (M10) 38
35 Arc Washer (M8) 4
36 Washer (M8) 8
37 Washer (M6) 8
38 Lock Washer (M6) 8
39 Nylock Nut (M12 x 1.75) 2
40 Nylock Nut (M10 x 1.5) 20
41 Nylock Nut (M8 x 1.25) 4
42 Retangular Plug (20mm x 40mm) 4
43 Caution Label 1
44 Serial Decal 1
45 Allen Wrench (8mm) 1
46 Wrench 2
47 Manual 1
PARTS LIST
17
NOTES
18
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
