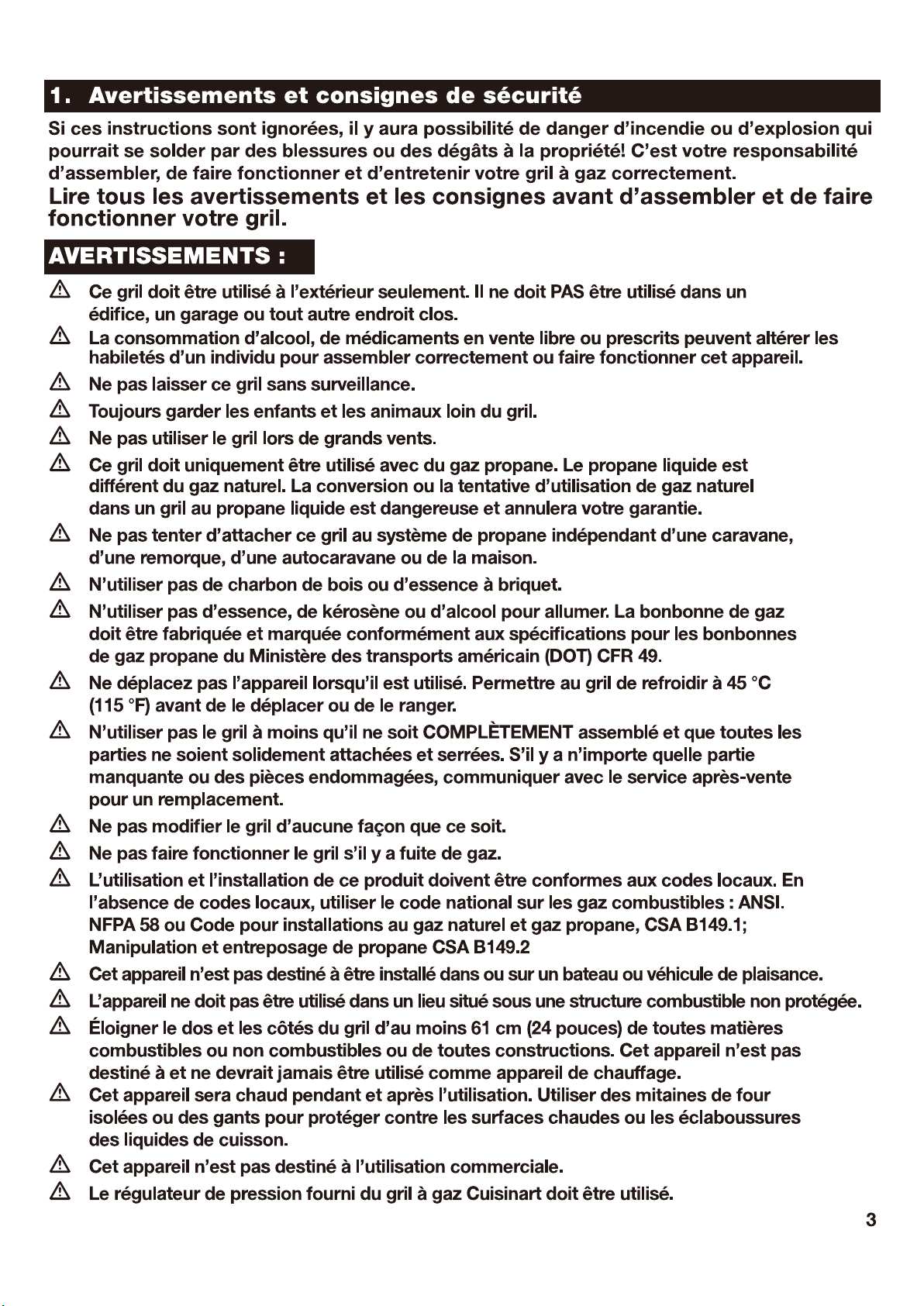

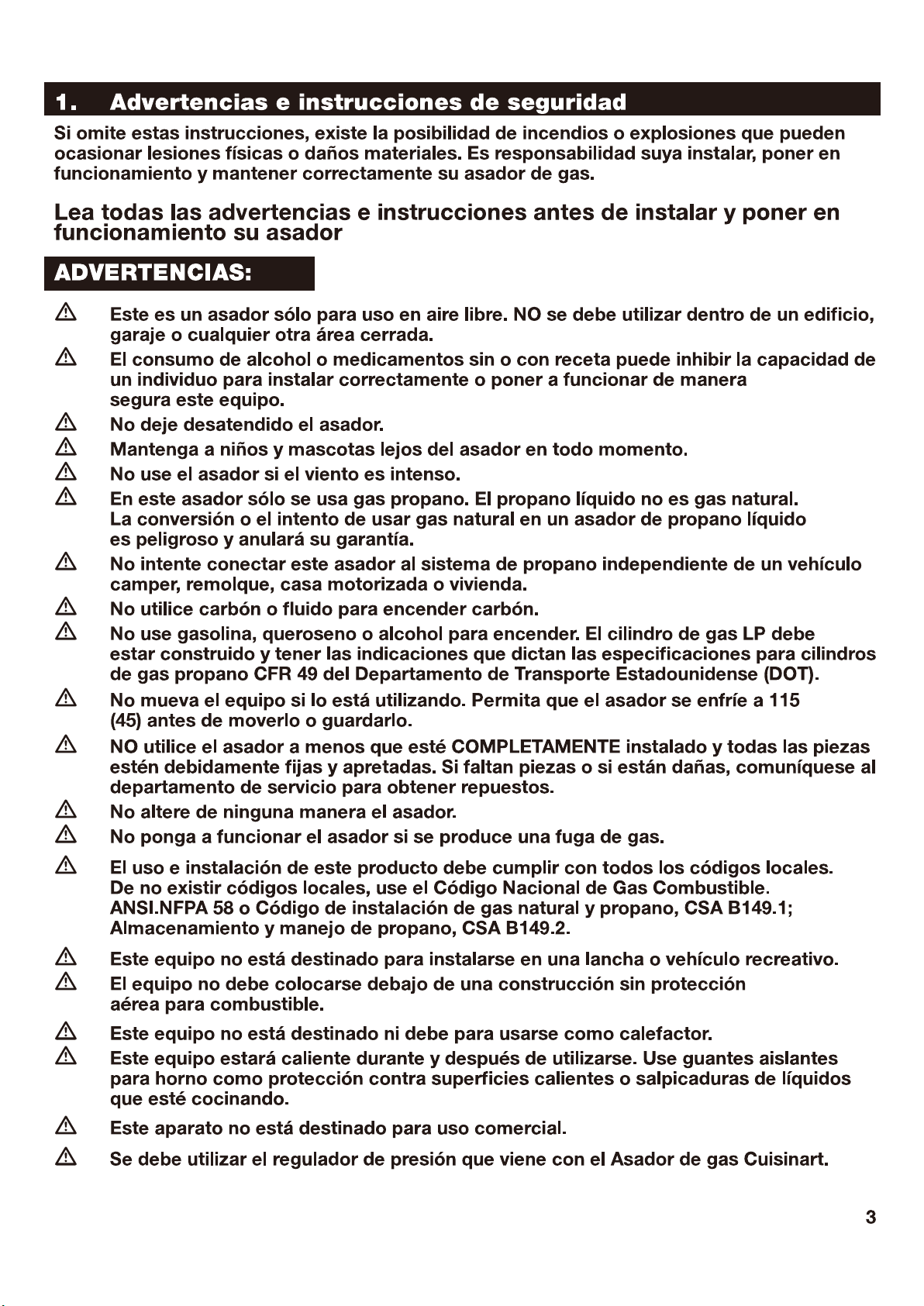

1. Warnings and Safety Instructions y Instructions
If these instructions are ignored, there is a possibility of a hazardous fire or explosion which
could result in physical injury or property damage! It is your responsibility to assemble,
operate and maintain your gas grill properly.
READ ALL WARNINGS AND INSTRUCTIONS PRIOR TO ASSEMBLING
AND OPERATING YOUR GRILL
WARNINGS:
m This grill is for outdoor use only. It should NOT be used in a building, garage or
any other enclosed area.
m The use of alcohol, prescription or non-prescription drugs may impair an individual’s
ability to properly assemble or safely operate this appliance.
m Do not leave the grill unattended.
m Keep children and pets away from the grill all the times.
m Do not use the grill in high wind.
m This grill must be used with propane gas only. Liquid propane is not natural gas.
The conversion or attempted use of natural gas in a liquid propane grill is dangerous
and will void your warranty.
m Do not attempt to attach this grill to the self-contained propane system of a camper,
trailer, motor home or house.
m Do not use charcoal or lighter fluid.
m Do not use gasoline, kerosene or alcohol for lighting. The LP-gas cylinder must be
constructed and marked in accordance with the specifications for propane gas
m cylinder of the U.S. Department of Transportation (DOT).
m Do not move appliance when in use. Allow the grill to cool to 115º (45) before
moving or storing.
m Do not use the grill unless it is COMPLETELY assembled and all parts are securely
fastened and tightened. If there are any missing or damaged parts, contact customer
service for a replacement.
m Do not alter the grill in any manner.
m Do not operate the grill if there is gas leak present.
m The use and installation of this product must conform to local codes. In the absence
of local codes, use the National Fuel Gas Code: ANSI.NFPA 58 or Natural Gas and
Propane Installation Code, CSA B149.1; Propane Storage and Handling,
CSA B149.2. Natural Gas and Propane Installation Code.
m This appliance is not intended to be installed in or on a boat or recreational vehicle.
m Locate the grill away from any combustible or non-combustible materials or
construction by at least 24 inches (61cm) from the back and sides.
m The appliance shall not be located used under overhead unprotected combustible construction.
m This appliance is not intended for and should never be used as a heater.
m This appliance will be hot during and after use. Use insulated oven mitts or
gloves for protection from hot surfaces or splatter from cooking liquids.
m This appliance is not intended for commercial use.
m The pressure regulator supplied with the Cuisinart Gas Grill must be used.

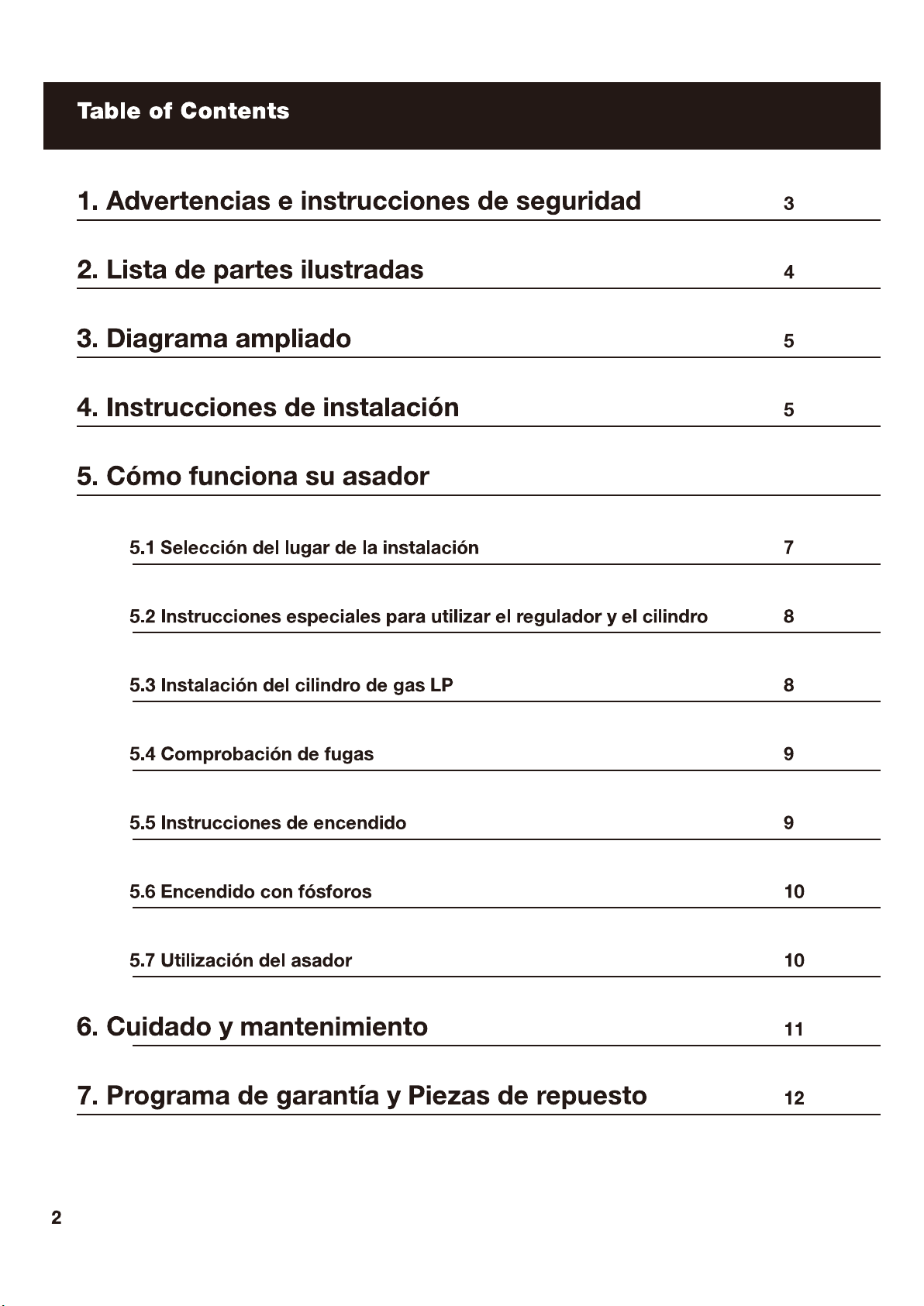

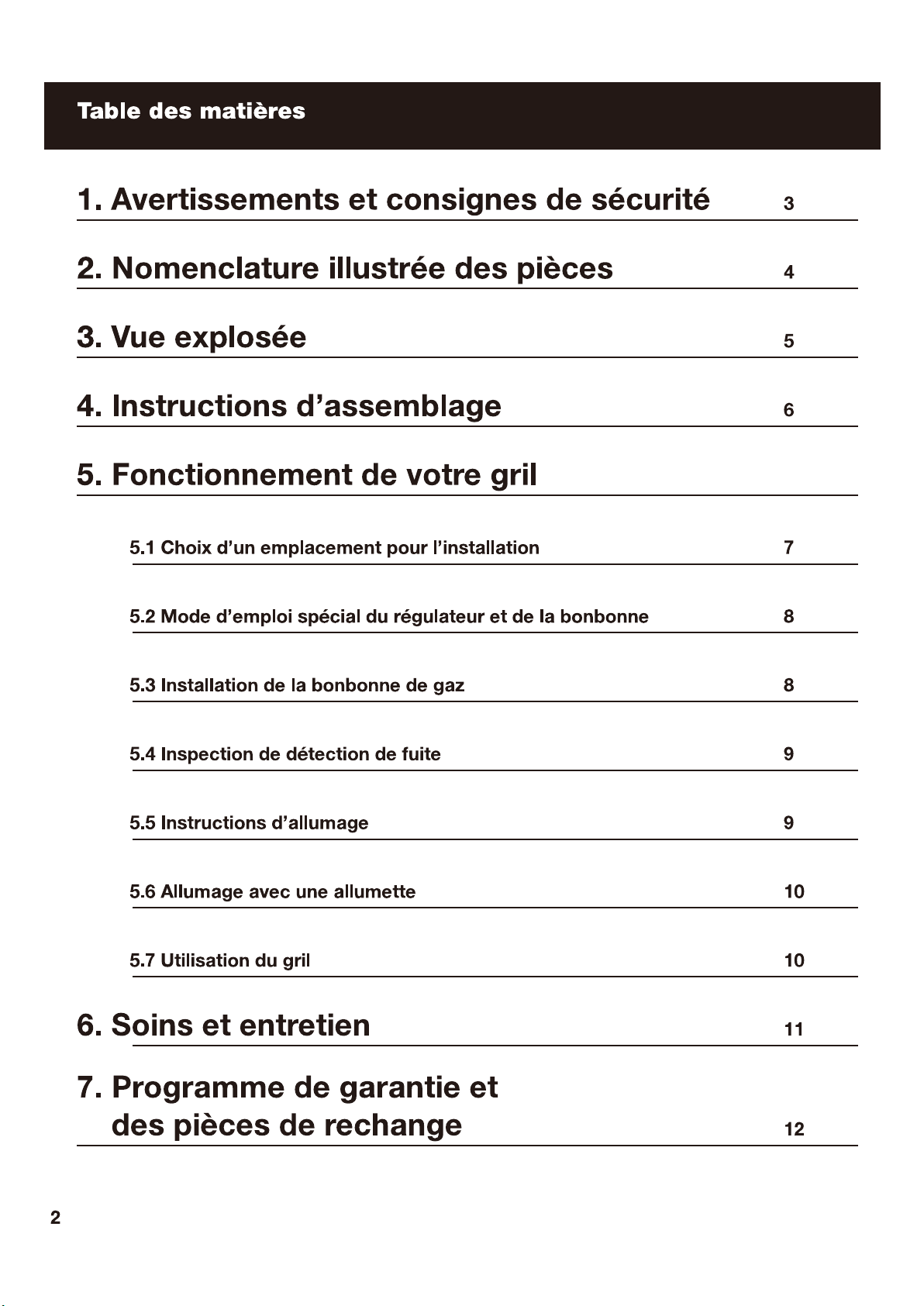

Table of Contents
1. Warnings and Safety Instructions 3
2. Illustrated Parts List 4
3. Exploded View 5
4. Assembly Instructions 6
5. Operating Your Grill
5.1 Select a proper location 8
5.2 Special Instructions for the use of regulator and cylinder 8
5.3 Installing the LP gas cylinder 9
5.4 Checking for gas leak 9
5.5 Lighting instructions 10
5.6 Match lighting 10
5.7 Using the grill 10
6. Care and Maintenance 11
7. Warranty Program and
Replacement Parts 12
2
3

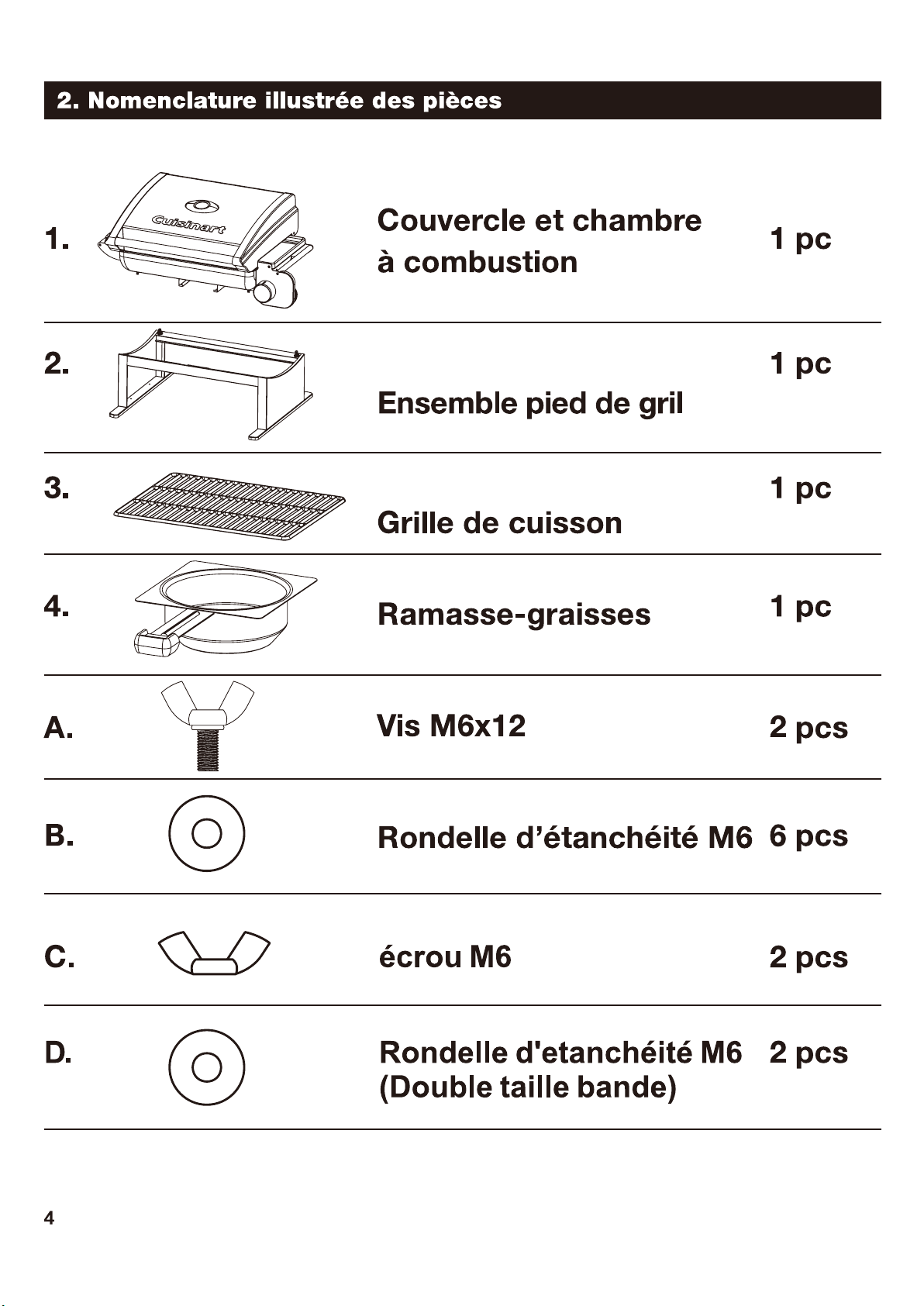

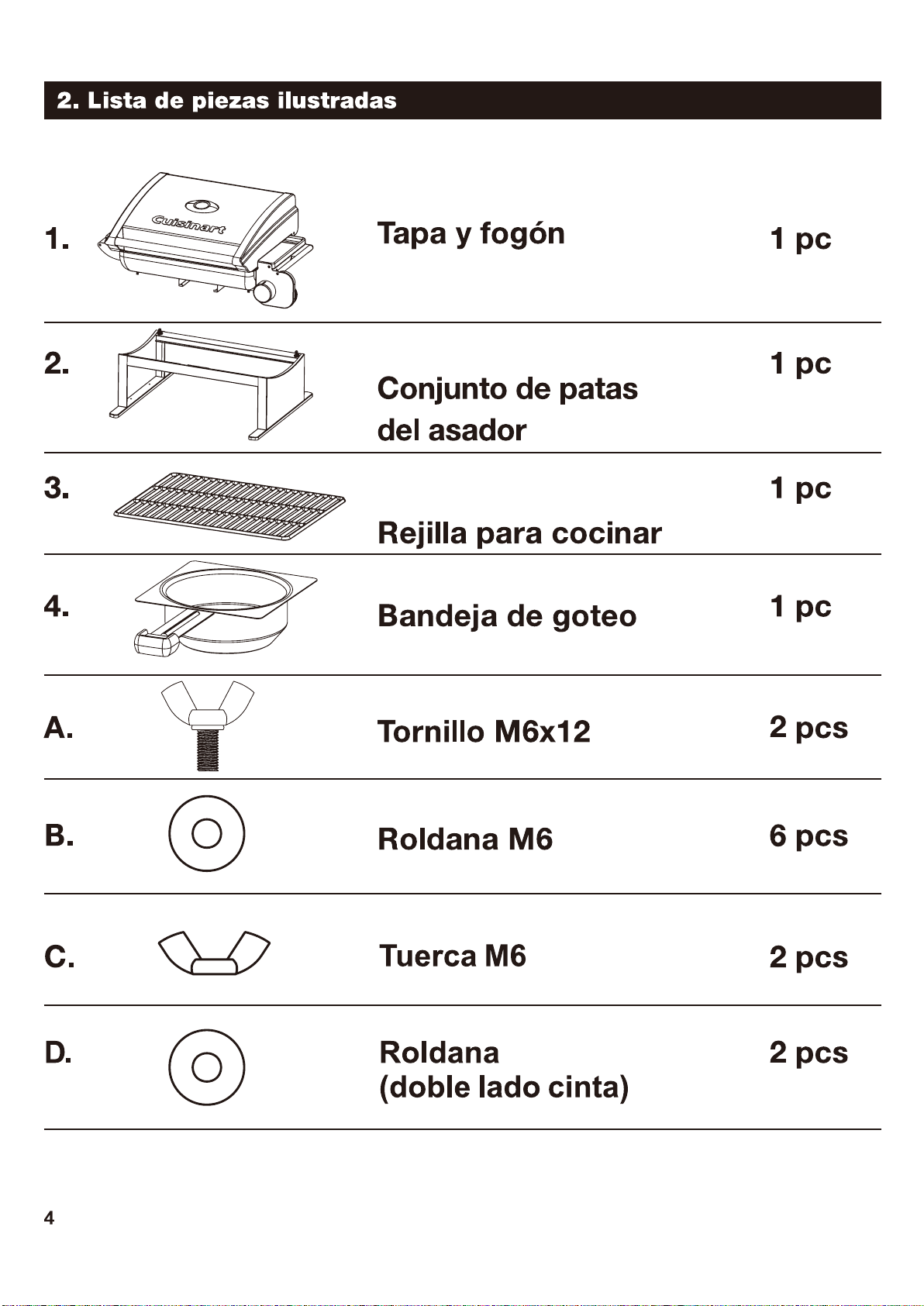

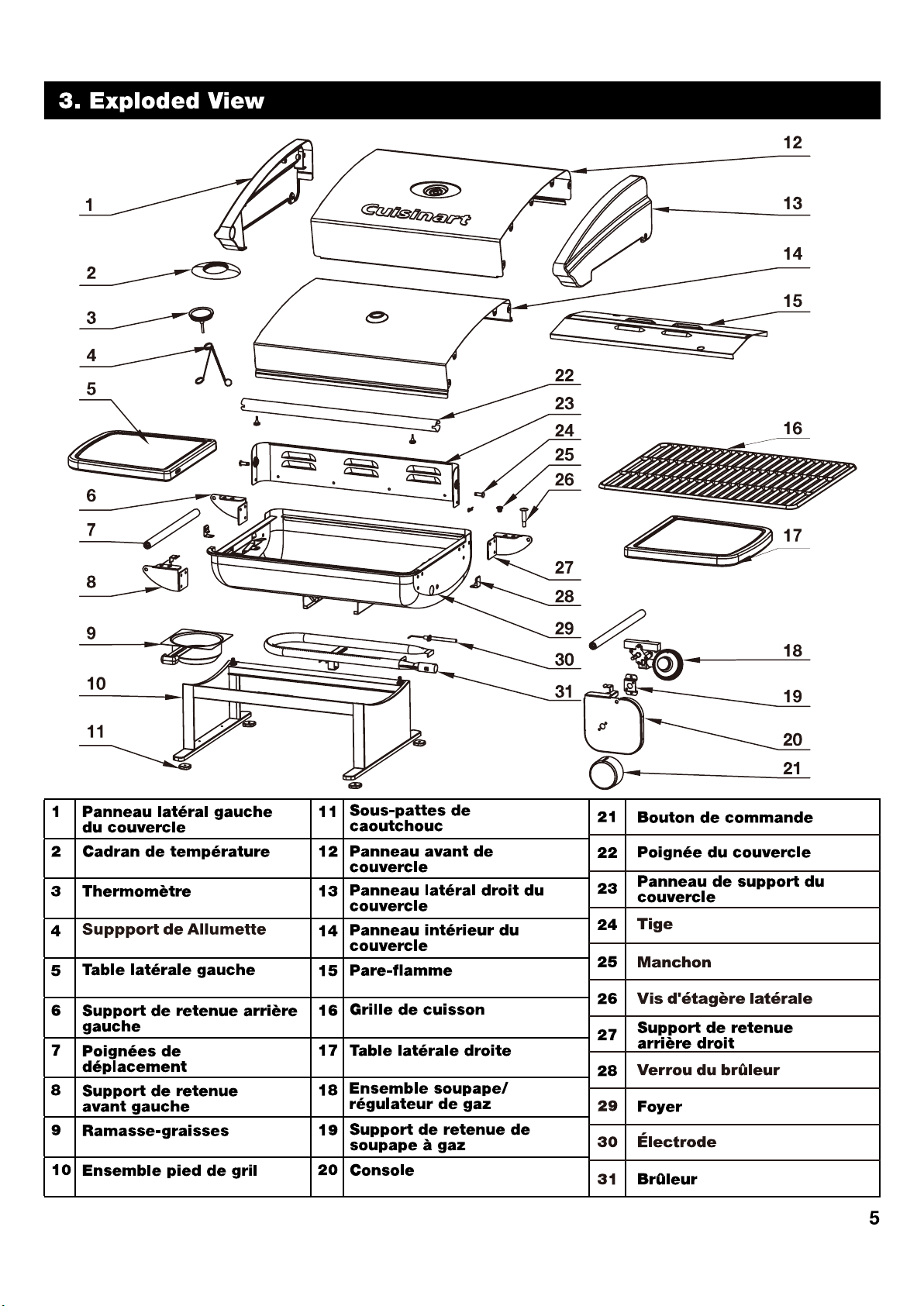

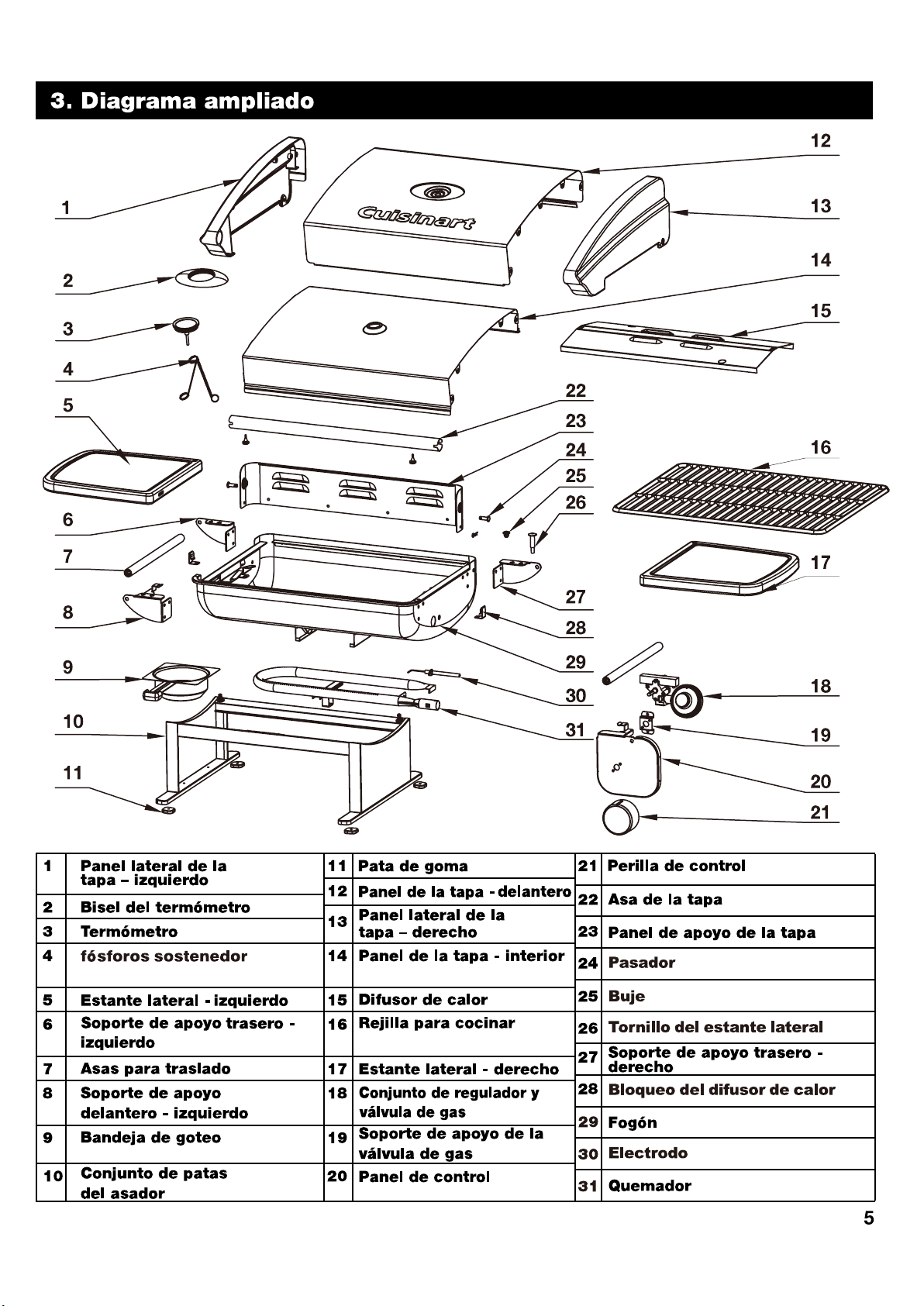

2. Illustrated Parts List 3. Exploded View
A. Lid & Firebox 1 pc
B. Grill Leg Assembly 1 pc
C. Cooking Grate 1 pc
D. Drip Tray 1 pc
E. Screw M6x12
F. Black Washer M6 6 pcs
G. Nut M6 2 pcs
H. White Adhesive Washer M6 2 pc
(Doubled sided tape)
4 5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1 Lid side panel – left 11 Rubber Feet 21 Control knob
2 Thermometer’s bezel 12 Lid panel - Front 22 Lid handle
3 Thermometer 13 Lid side panel – Right 23 Lid support panel
4 Match Holder 14 Lid side panel – Inner 24 Pin
5 Side Shelf - left 15 Flame tamer 25 Bushing
6 Rear support
bracket - left
16 Cooking grate 26 Side shelf screw
7 Carrying handles 17 Side Shelf - Right 27 Rear support bracket - right
8 Front support bracket
– left
18 Regulator and gas
valve assembly
28 Flame tamer lock
9 Drip tray 19 Gas valve support bracket 29 Fire Box
10 Leg assembly 20 Control Panel 30 Electrode
31 Burner
North American Distributor: The Fulham Group, Newton, MA 02466
2 pcs

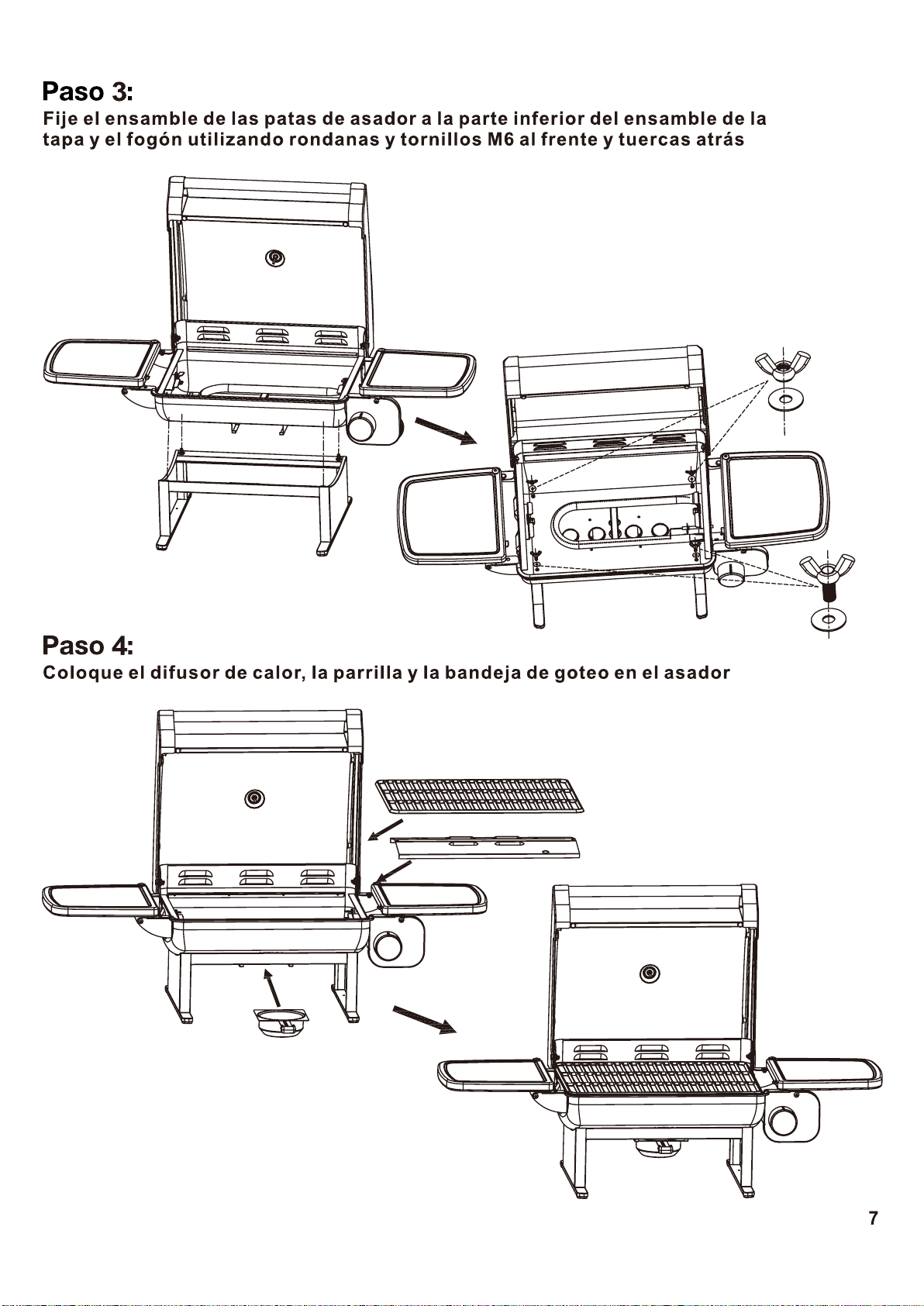

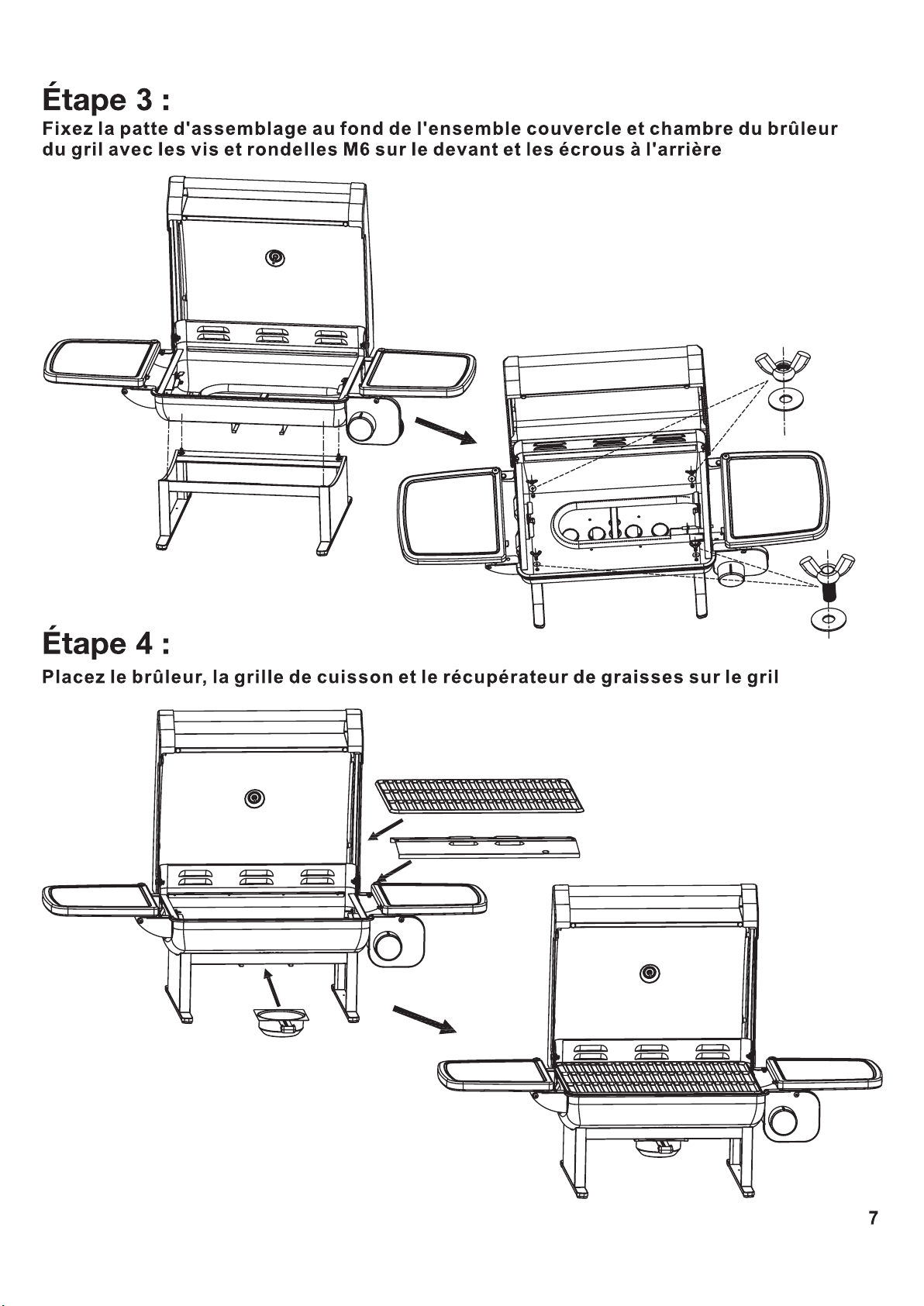

Step 3a:
Attach the Grill Leg Assembly (Part B) to the bottom of the Lid & Fire Box (Part A) assembly
Step 4:
Put the Flame Tamer, Cooking Grate and Drip Tray on the grill.

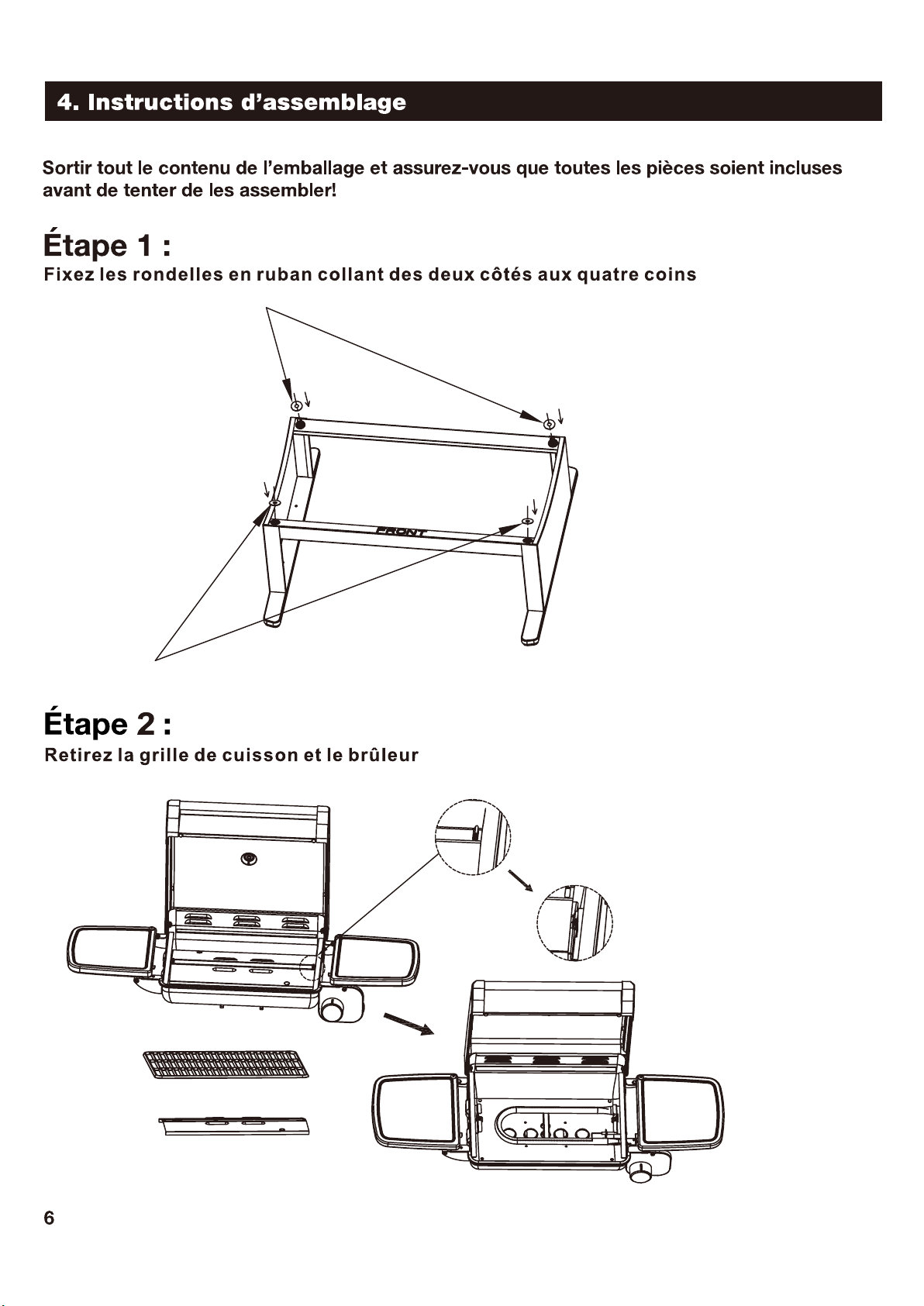

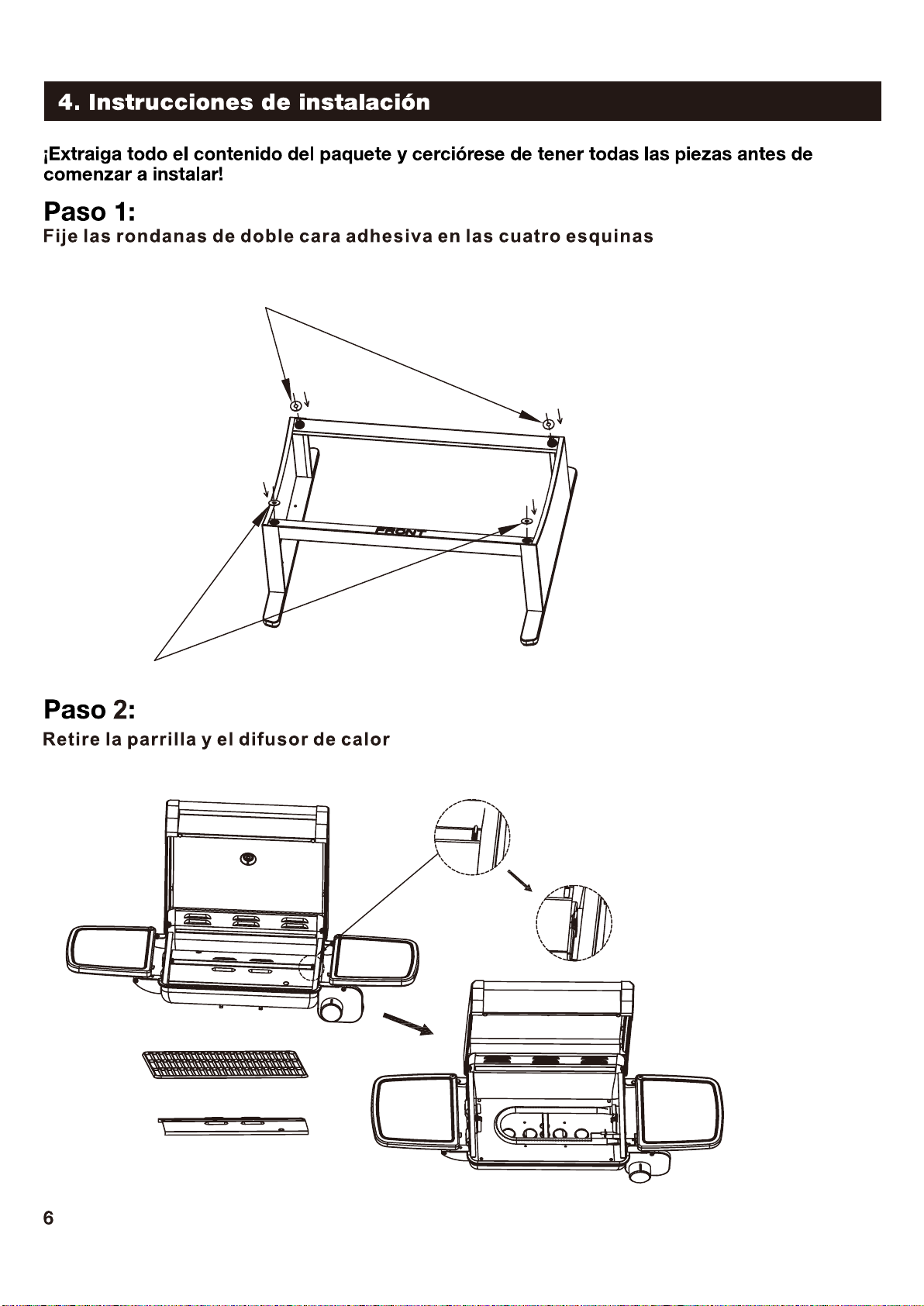

4. Assembly Instructions
Remove all the contents from packaging, and make sure all parts are
present before attempting to assemble! Part numbers reference the table on page 4.
Step 1:
White Adhesive washer M6 (Part H) over
the two bolt holes on the front corners of
the grill leg assembly (Part B).
Next, attach black washer M6 (Part F) on the
bolt posts on the rear corners of the grill leg
assembly (Part B).
Step 2:
Remove cooking grate and flame tamer
6
7
Part F
Part H
Step 3b:
Place Black Washers M6 (Part F) over two bolt
posts at back and tighten two nut M56 (Part G)
on the posts.
3c: Place Black Washers M6 (Part F)
over screw M6 x 12 (Part E) and tighten
into holes at front.

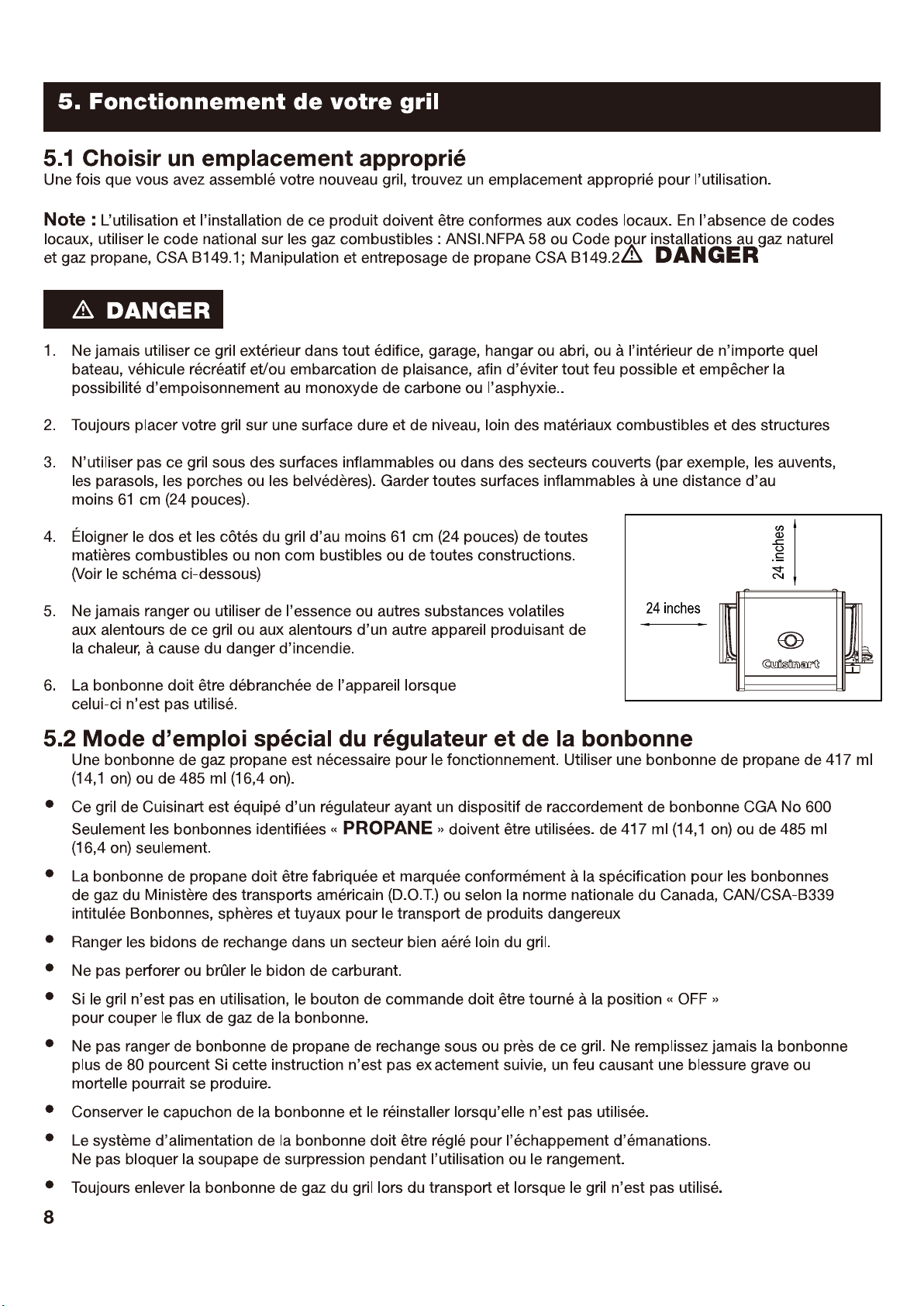

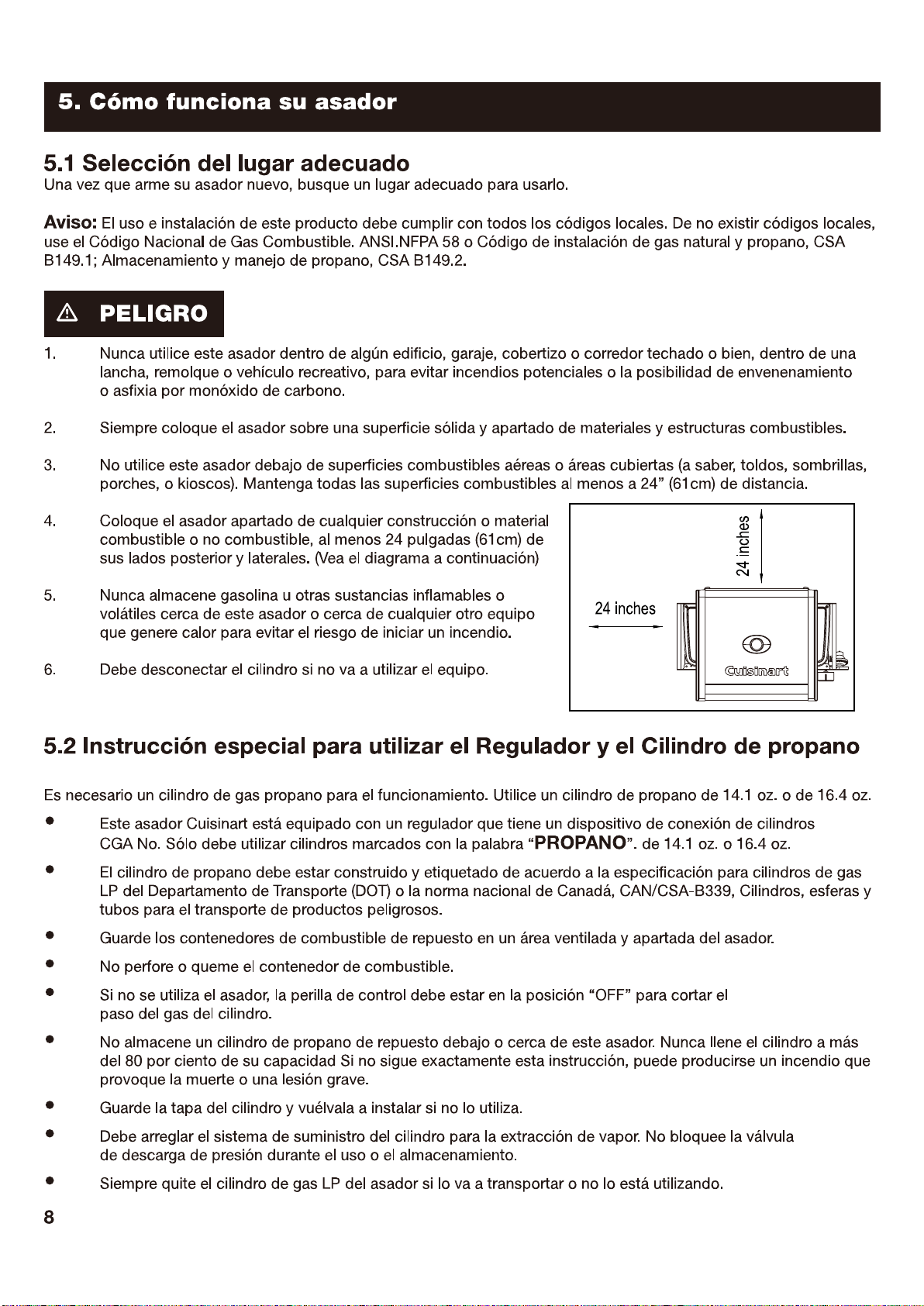

5. Operating Your Grill
5.1 Select a Proper Location
Once you have assembled your new grill, find a suitable location for use.
Note: The use of installation of this product must conform to local codes. In absence of local codes, use the National
Fuel Gas Code: ANSI Z223.1/NFPA54, Storage and Handling of Liquified Petroleum Gases, ANSI.NFPA 58 or Natural
Gas and Propane Installation Code, CSA B149.1; Propane Storage and Handling, CSA B149.2.
m DANGER
1. Never use this outdoor grill inside any building, garage, shed or breezeway, or inside any boat, trailer or
recreational vehicle and/or boat, to prevent possible fire and to prevent the possibility of carbon
monoxide poisoning or asphyxiation.
2. Always place your grill on a hard and level surface far away from combustible materials and structures.
3. Do not use this grill under an overhead combustible surface or covered area
( e.g., awnings, umbrellas, porches or gazeboes ). Keep all combustible
surfaces at least 24” (61cm) away.
4. Locate the grill away from any combustible and non-combustible
material or construction by at least 24 inches (61cm) from back and 24
inches (61cm) from side.(See the diagram below)
5. Never store or use gasoline or other flammable or volatile
substances in the vicinity of this grill or in the vicinity of any other
heat-generating appliance, because of the danger of starting a fire.
6. The cylinder be disconnected when the appliance is not in use.
5.2 Special Instructions for the Use of Regulator and Propane Cylinder
A propane gas cylinder is required for operation. Use a 14.1 oz. or 16.4 oz.
• This Cuisinart grill is equipped with a regulator having a CGA No.600 cylinder connection device
for connecting to a 14.1 oz. or 16.4 oz. Only cylinders marked “PROPANE” must be used.
• The propane cylinder must be constructed and marked in accordance with the specification for
LP-Gas cylinders of the U.S Department of Transportation (D.O.T) or the National standard of Canada,
CAN/CSA-B339,Cylinders, Spheres and Tubes for Transportation of Dangerous Goods.
• Store spare fuel canisters in a well-ventilated area away from the grill.
• Do not puncture or burn fuel canister.
• If the grill is not in use, the control knob must be turned to the “OFF” position to shut off the gas flow
from the cylinder.
• Do not store a spare propane cylinder under or near this grill. Never fill the cylinder beyond 80 percent full.
If this instruction is not followed exactly, a fire causing death or serious injury may occur.
• Save the cylinder cap and reinstall when not in use.
• Cylinder supply system must be arranged for vapor withdrawal. Do not block the pressure relief valve
during use or storage.
• Always remove LP-gas cylinder from grill when transporting and when not in use.
8

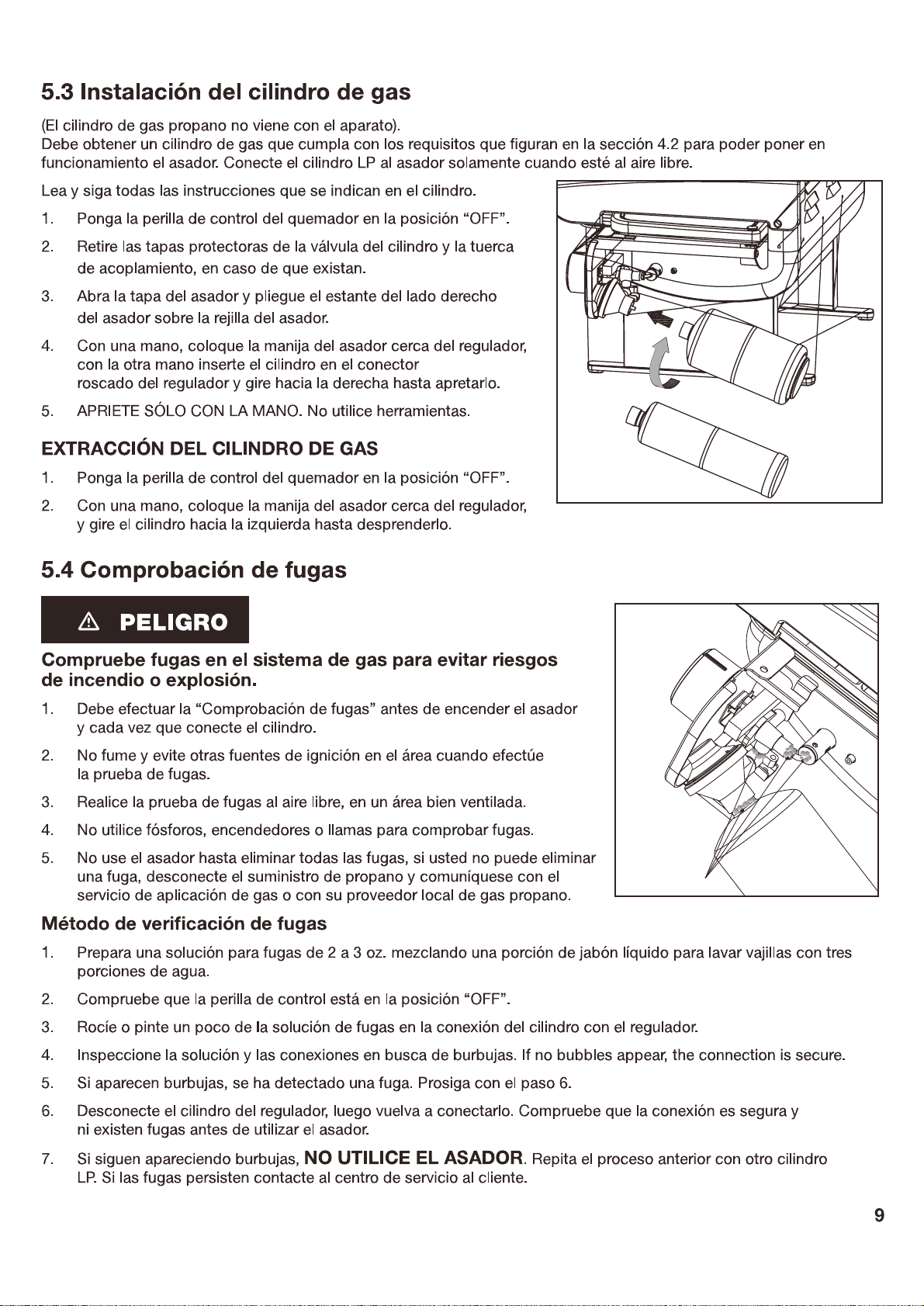

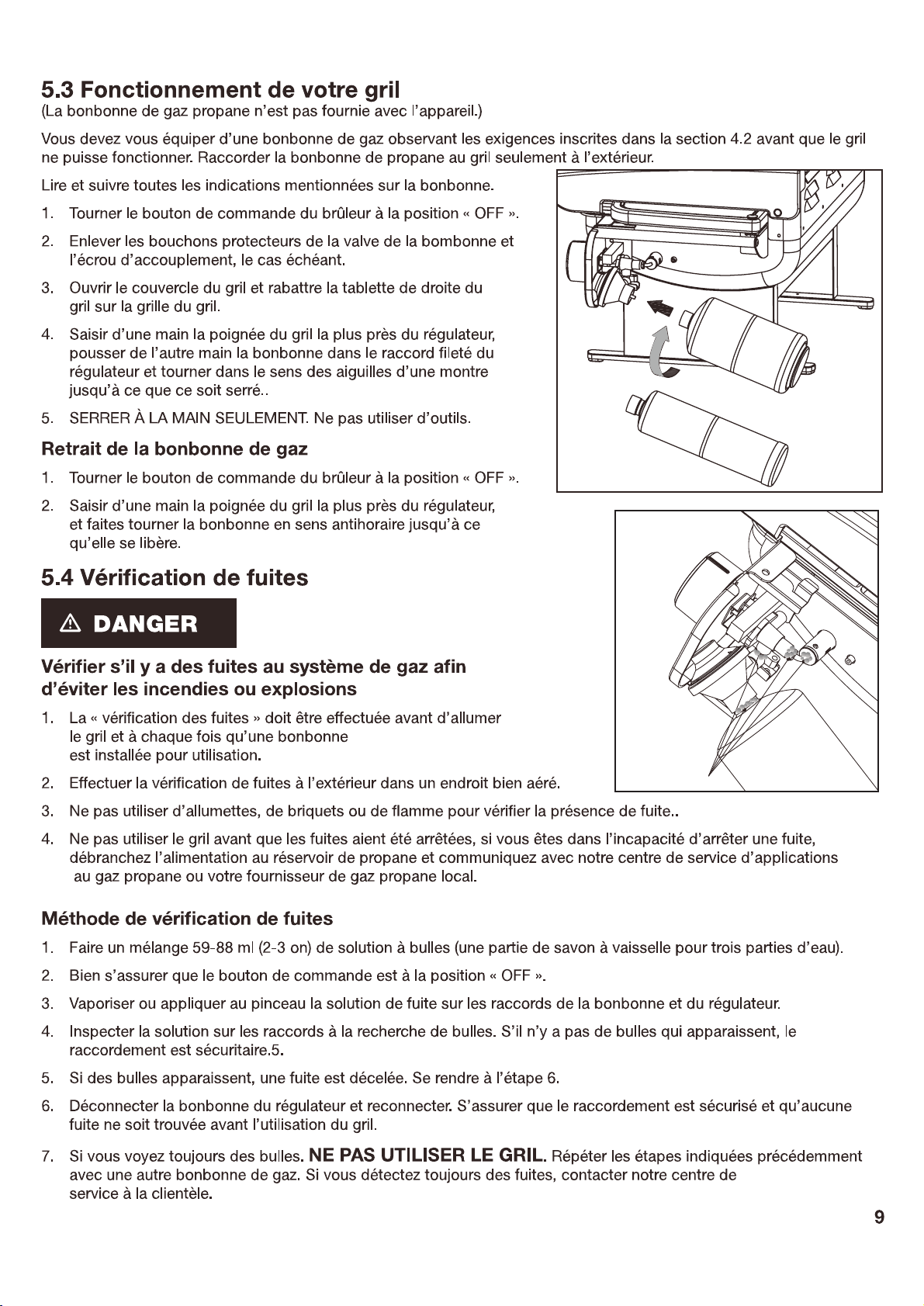

5.3 Installing the Gas Cylinder
(The propane gas cylinder is not provided with the appliance.)
A gas cylinder complying with the requirements listed in section 5.2 must be obtained before the grill can operate.
Connect the LP cylinder to the grill outdoors only.
Read and follow all direction on the cylinder.
1. Turn the burner control knob to “OFF” position.
2. Remove the protective caps from the cylinder valve and
coupling nut, if present.
3. Open grill lid and fold right-hand grill shelf over onto grill grate
4. Grasp the grill handle nearest to the regulator with one hand,
and with the other hand push the cylinder into the threaded
regulator connector and turn clockwise until tight.
5. TIGHTEN BY HAND ONLY. Do not use tools.
Removal Of The Gas Cylinder
1. Turn the burner control knob to “OFF” position.
2. Grasp the grill handle nearest to the regulator with one
hand, and turn the cylinder counterclockwise until it comes off.
5.4 Checking for Gas Leak
m DANGER
Check gas system for leaks to prevent fire or explosion hazard
1. The “Leak Check” must be performed before lighting the grill and each
time the cylinder is connected for use.
2. Do not smoke or allow other sources of ignition in the area while
conducting a leak test.
3. Conduct the leak test outdoors in a well-ventilated area.
4. Do not use matches, lighters or a flame to check for leaks.
5. Do not use grill until all leaks have been stopped. If you are unable
to stop a leak, disconnect the propane supply, and call for gas
application service or your local propane gas supplier.
Leak Check Method
1. Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water.
2. Make sure control knob is in the “OFF” position.
3. Spray or paint some leak solution on the cylinder and regulator connection.
4. Inspect the solution at the connections, looking for bubbles. If no bubbles appear, the connection is secure.
5. If bubbles appear, a leak is detected. Go to step 6.
6. Disconnect the cylinder from the regulator, and reconnect. Make sure the connection is secure
and no leak is found before using the grill.
7. If you continue to see bubbles, DO NOT USE THE GRILL. Repeat the above process
with a different LP cylinder. If leaks are still present, contact the customer service center.
9

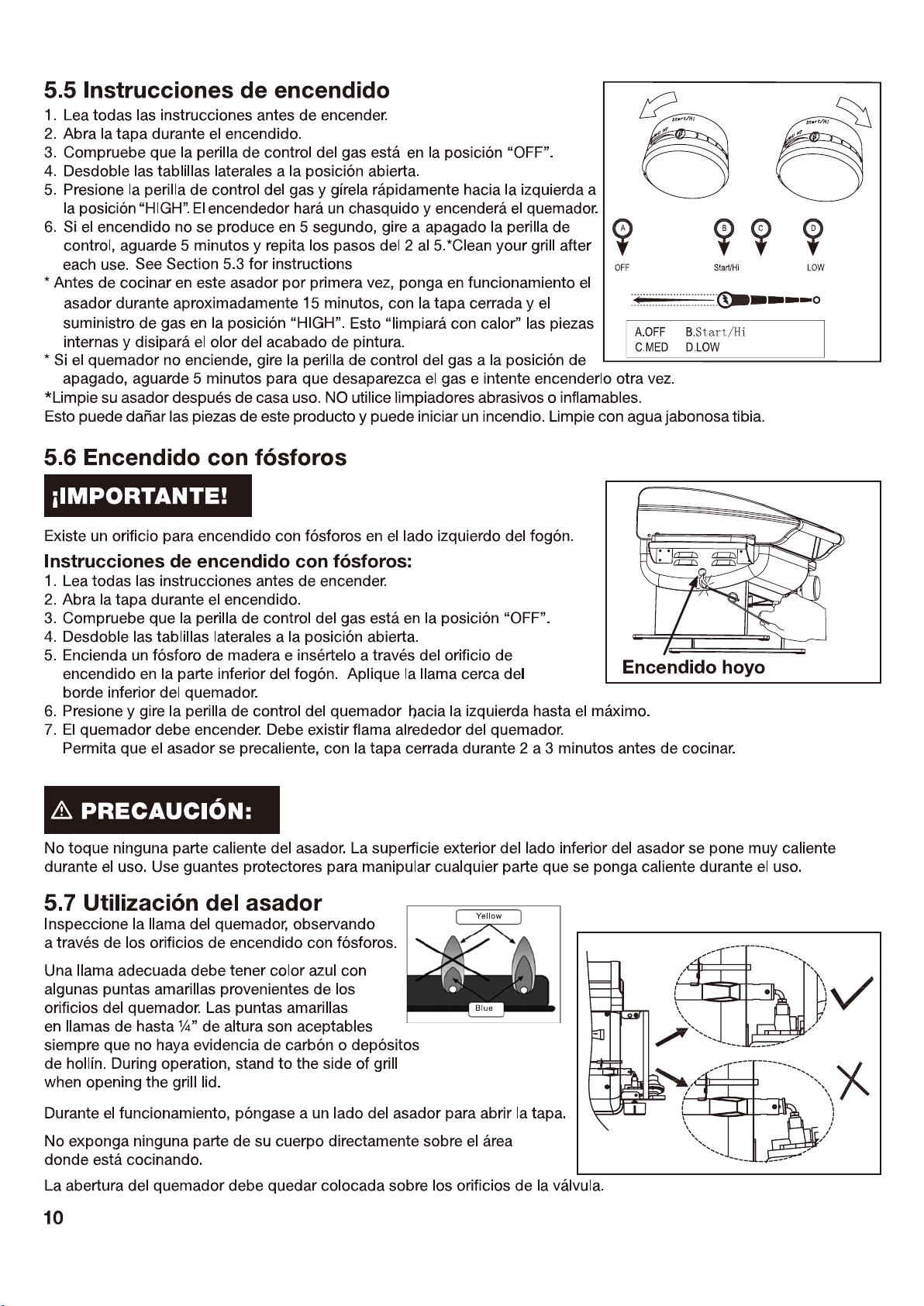

5.5 Lighting Instructions
1. Read all instructions before lighting.
2. Open lid during lighting.
3. Make sure the gas control knob is in “OFF” position.
4. Unfold side tables into the open position.
5. Push the gas control knob and quickly turn counterclockwise to “HIGH”
position. The igniter will click and light the burner.
6. If ignition does not occur in 5 seconds, turn the gas control knob off, wait
5 minutes, and repeat steps 2 - 5.* Before cooking on this grill for the first
time, operate the grill for about 15 minutes with the lid closed and the gas
turned on “HIGH”. This will “heat clean” the internal parts
and dissipate odor from the painted finish.
*Clean your grill after each use. See Section 6.3 for instructions
*If the burner does not light, turn the gas control knob off and wait 5 minutes
to let the gas clear before you try again.
5.6 Match lighting
IMPORTANT!
A match lighting hole is located on the left side of the firebox.
Match lighting instructions:
1. Read all instructions before lighting.
2. Open lid during lighting.
3. Make sure the gas control knob is in “OFF” position.
4. Unfold side tables into the open position.
5. Strike a long wooden match and position the burning match
through the match lighting hole in the left side of the firebox.
Place the flame near the bottom edge of the burner.
6. Push down and turn the burner control knob counterclockwise
to the high setting.
7. The burner should light. The flame will carry around the burner.
Allow grill to pre-heat with the grill lid closed for 2-3 minutes
before cooking.
mCAUTION:
Do not touch any hot grill parts. The outside of the grill bottom especially becomes very hot during use. Use protective
gloves to handle any parts that might become hot during use.
5.7 Using the Grill
Inspect the burner flame by looking through the match lighting holes.
A good flame should be blue with some yellow
tips coming from the burner holes. Yellow tips
on flames up to 1/4“ in height are acceptable
as long as no carbon or soot deposits appear.
During operation, stand to the side of grill
when opening the grill lid.
Do not expose any part of your body directly
above the cooking area.
The burner opening must be positioned properly over the valve orifices.
10

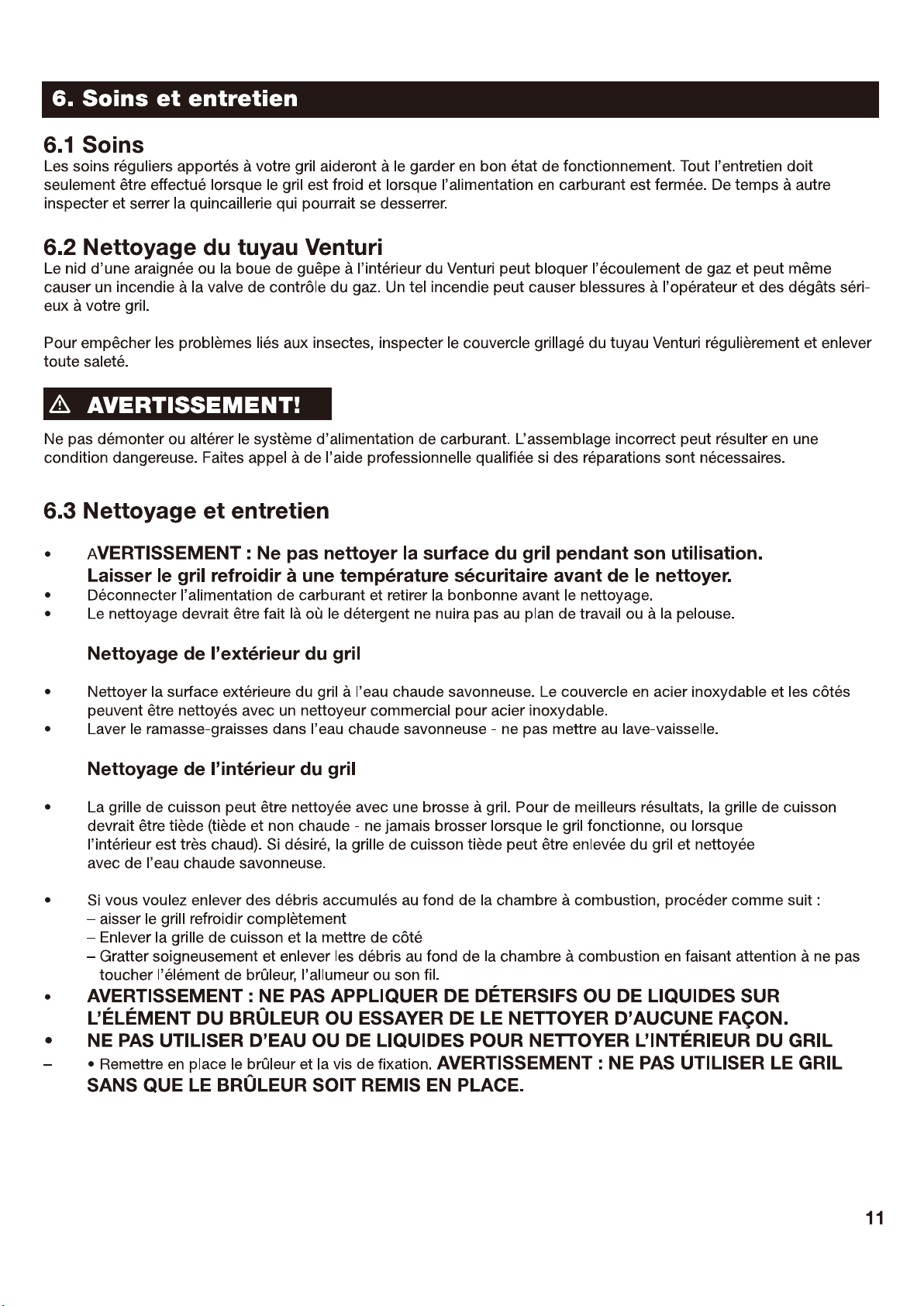

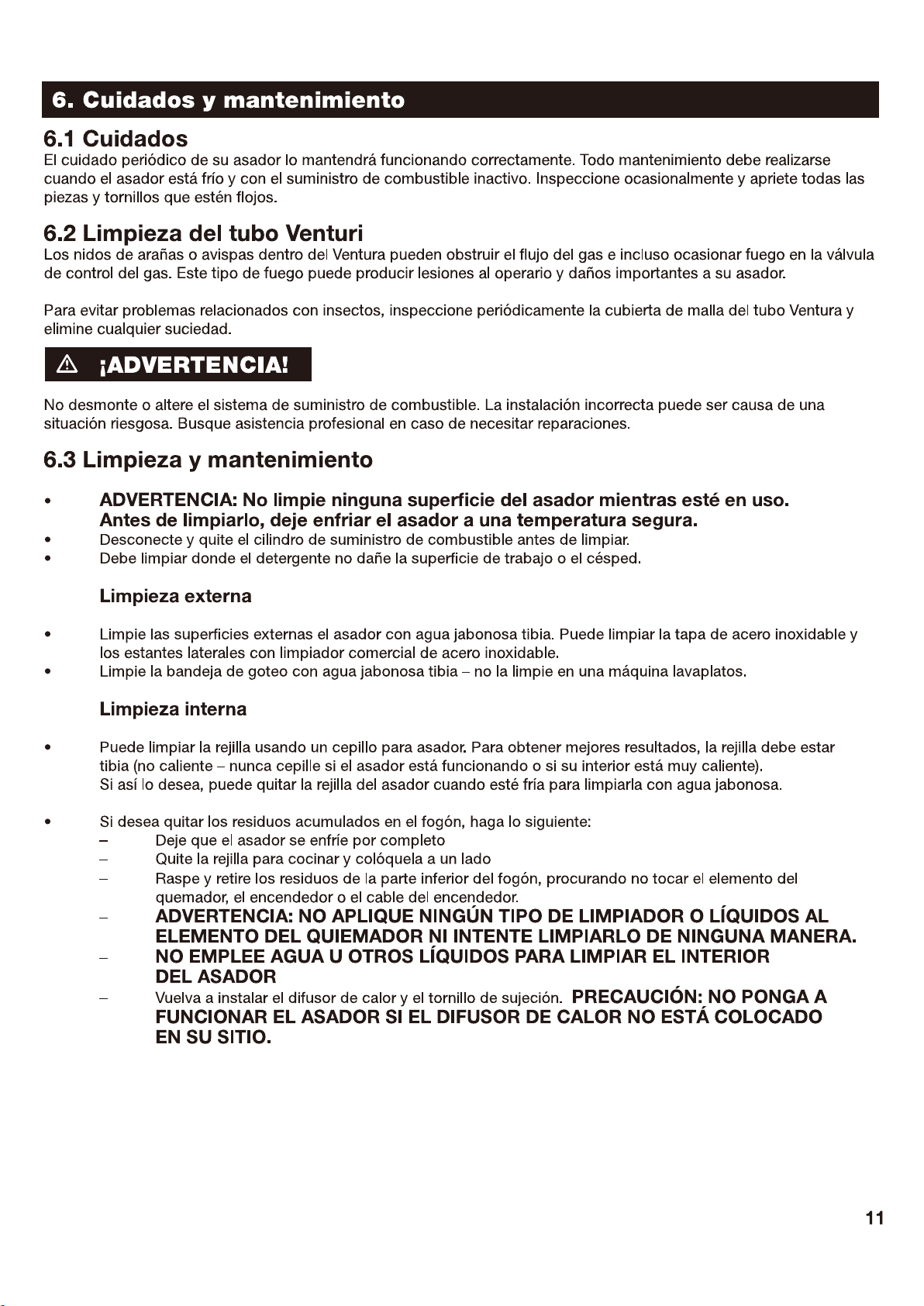

6. Care And Maintenance
6.1 Care
Regular care of your grill will help keep it operating properly. All maintenance should be done only when the
grill is cool and with the fuel supply turned off. Occasionally inspect and tighten hardware that may become loose.
6.2 Cleaning The Venturi Tube
A spider’s nest or wasp’s mud inside the Venturi Tube can block gas flow and can even cause a fire at the gas
control valve. Such a fire can cause operator injury and serious damage to your grill.
To prevent insect related problems, inspect the Venturi Tube screen cover regularly and remove any dirt.
WARNING!
Do not disassemble or alter the fuel supply system. Improper assembly can result in a hazardous condition.
Seek qualified professional assistance if repairs are required.
6.3 Cleaning And Maintenance
• WARNING: Do not clean any grill surface while grill is operating.
Let grill cool to a safe temperature prior to cleaning.
• Disconnectthefuelsupplyandremovethefuelsupplycylinderpriortocleaning.
• Cleaningshouldbedonewheredetergentwon’tharmworksurfaceorlawn.
Exterior Cleaning
• Cleangrillexteriorsurfaceswithwarmsoapywater.Stainlesssteellidpanelandside
shelves can be cleaned with commercial stainless steel cleaner.
• Washdriptrayinwarmsoapywater–donotrunthroughdishwasher.
Interior Cleaning
• Cookinggratecanbecleanedwithagrillbrush.Forbestresults,cookinggrateshouldbewarm
(warm,nothot–neverbrushwithgrilloperating,orwheninteriorisveryhot).Ifdesired,cool
cooking grate can be removed from grill and cleaned with warm soapy water.
• Shouldyouwishtoremoveaccumulateddebrisfromthebottomoftherebox,proceedasfollows:
– Letgrillcoolcompletely
– Removecookinggrateandsetaside
– Removescrewsecuringametamer;removeametamerandsetaside!CAUTIONFlametameredges
andsurfacearesharp–usecarewhenhandling
– Carefullyscrapeandremovedebrisfrombottomofreboxusingcarenottotouchburnerelement,
igniter, or igniter wire.
WARNING: DO NOT APPLY ANY CLEANERS OR LIQUIDS TO BURNER ELEMENT
OR ATTEMPT TO CLEAN IN ANY WAY.
– DO NOT USE WATER OR LIQUIDS TO CLEAN GRILL INTERIOR
– Replaceametamerandsecuringscrew.CAUTION: DO NOT OPERATE GRILL WITHOUT
FLAME TAMER IN PLACE.
11
LIGHTING HOLE
7. Warranty and Replacement Parts
This warranty covers defects in parts and workmanship for a period of 3 years from the original
purchase date. Any damage claim regarding the enameling must be submitted within 30 days of
purchase to be covered by the warranty.
The following conditions are NOT covered by this warranty:
• Unevennessandcolorvariationsintheenamelcoating.
• Damagecausedbyimproperassemblyordisregardofthemanual.
• Useofsparepartsnotsuppliedbymanufacturer.
• Damageresultingfrommodicationsorinappropriateuse.
• Abuseofthegrill
• Damagecausedbyimpropermaintenanceorrepairsbyanunauthorizedperson.
Limitations and exclusions:
1. This warranty applies only to the original purchaser and may not be transferred.
2. If you can not verify the purchase date of the grill the warranty period will begin on the date the
grill was manufactured.
3. Replacement or repair parts are warranted for the remaining period of the original part warranty.
Your obligations:
This grill must be assembled, installed, operated and maintained in accordance with all applicable
codes and the instruction manual furnished with this grill. You must keep an invoice, cancelled
check or payment record to verify the purchase date of the grill.
For troubleshooting, FAQs or customer service, visit us at www.thefulhamgroup.
com/CGG-200 or contact us at 1-866-994-6390
To order replacement parts or additional Cuisinart Grilling products,
visit us at www.cuisinart.com or call 1-800-211-9604
Model#CGG-200
North American Distributor:
The Fulham Group
Newton, MA 02466
12
