Operator's Manual
i.ght Shaft
Trimmer
TBSS
C_US LISTED
A241
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
769-00425 (9/02)
PRINTED IN USA
THANK YOU
Thank you for buying this quality product. This modern
outdoor power tool will provide many hours of useful
service. You will find it to be a great labor-saving device.
This operator's manual provides you with easy-to-
understand operating instructions. Read the whole
manual and follow all the instructions to keep your new
outdoor power tool in top operating condition.
PRODUCT REFERENCES, ILLUSTRATIONS AND
SPECIFICATIONS
All information, illustrations and specifications in this
manual are based on the latest product information
available at the time of printing. We reserve the right to
make changes at any time without notice.
Copyright © 2002 MTD SOUTHWEST INC
All Rights Reserved.
Troy-Bilt® is a registered trademark of MTD PRODUCTS INC
SpeedSpool ® is a registered trademark of MTD
SOUTHWEST INC
SERVICE INFORMATION
Service on this unit both within and after the warranty
period should be performed only by an authorized and
approved service dealer.
Dial:
• 1-330-558-7220
Or
• 1-866-840-6483 to obtain the listing of the
authorized service dealer nearest you.
DO NOT RETURN THE UNIT TO THE RETAILER.
NOTE: PROOF OF PURCHASE WILL BE REQUIRED
FOR WARRANTY SERVICE,
THIS PRODUCT IS COVERED BY ONE OR
MORE US PATENTS. OTHER PATENTS PENDING.
Read the Operator's Manual(s) and follow all
warnings and safety instructions. Failure to do
so can result in serious injury to the operator
and/or bystanders.
Rules for Safe Operation .................... 3-6
A. Important Safety Information ............... 3-4
B. Safety and International Symbols ............. 5
C. Know Your Unit ........................... 6
II.
Operating Instructions ..................... 7-8
A. Assembling the coupler .................... 7
B. Holding the Trimmer ...................... 8
C. Adjusting Trimming Line Length ............. 8
D. Tips for Best Trimming Results .............. 8
E. Decorative Trimming ...................... 8
Ill.
Maintenance and Repair Instructions ......... 9-11
A. Line Installation for the SpeedSpool® ........ 9
B. Installing a Prewound Reel ................ 10
C. Cleaning the SpeedSpool® ................ 10
D. SpeedSpool® Replacement Parts ........... 11
E. Cleaning ............................... 11
F. Storage ................................ 11
G. Transporting ............................ 11
IV. Troubleshooting Chart ...................... 12
V. Specifications ............................. 13
Vl. Warranty ................................. 16
CONTENTS OF CARTON
This unit should consist of the following:
• TBSS Straight Shaft Trimmer
• Hanger
• Operator's Manual
• Product Registration Card
NOTE: This product has been rated for use on both gas
and electric powerheads.
2

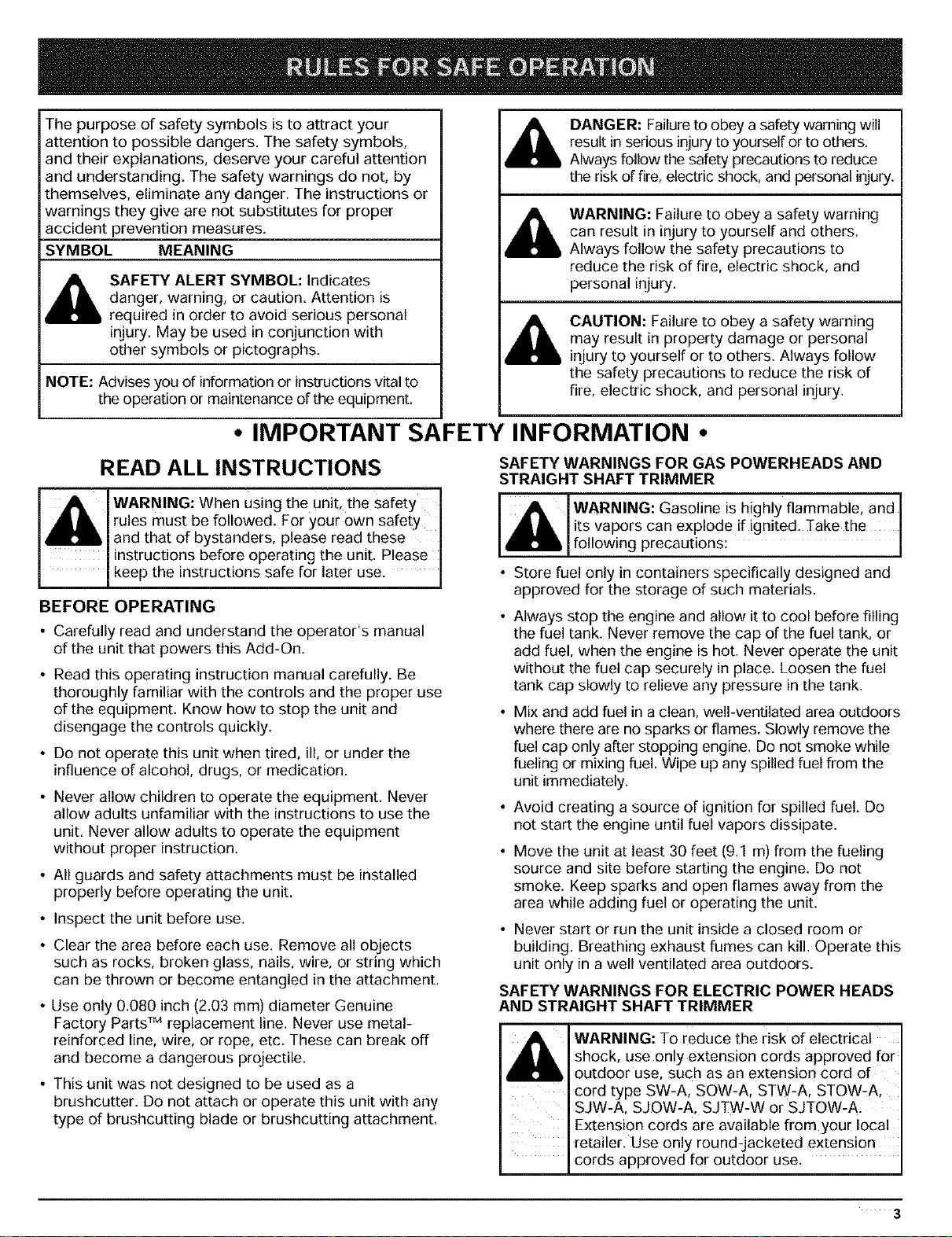

The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols,
and their explanations, deserve your careful attention
and understanding. The safety warnings do not, by
themselves, eliminate any danger. The instructions or
warnings they give are not substitutes for proper
accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates
danger, warning, or caution. Attention is
required in order to avoid serious personal
injury. May be used in conjunction with
other symbols or pictographs.
NOTE: Advises you of information or instructions vital to
the operation or maintenance of the equipment.
IA
DANGER: Failure to obey a safety warning will
result in serious injury to yourself or to others.
Always follow the safety precautions to reduce
the risk of fire, electric shock, and personal injury.
WARNING: Failure to obey a safety warning
can result in injury to yourself and others.
Always follow the safety precautions to
reduce the risk of fire, electric shock, and
personal injury.
CAUTION: Failure to obey a safety warning
may result in property damage or personal
injury to yourself or to others. Always follow
the safety precautions to reduce the risk of
fire, electric shock, and personal injury.
• IMPORTANT SAFETY INFORMATION •
READ ALL INSTRUCTIONS
WARNING: When using the unit, the safety
rules must be followed. For your Own safety I
and that of bystanders, please read these
instructions before operating the unit. Please
keep the nstruct ons safe for ater use.
BEFORE OPERATING
• Carefully read and understand the operator's manual
of the unit that powers this Add-On.
• Read this operating instruction manual carefully. Be
thoroughly familiar with the controls and the proper use
of the equipment. Know how to stop the unit and
disengage the controls quickly.
• Do not operate this unit when tired, ill, or under the
influence of alcohol, drugs, or medication.
• Never allow children to operate the equipment. Never
allow adults unfamiliar with the instructions to use the
unit. Never allow adults to operate the equipment
without proper instruction.
• All guards and safety attachments must be installed
properly before operating the unit.
• Inspect the unit before use.
• Clear the area before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string which
can be thrown or become entangled in the attachment.
• Use only 0.080 inch (2.03 mm) diameter Genuine
Factory Parts rMreplacement line. Never use metal-
reinforced line, wire, or rope, etc. These can break off
and become a dangerous projectile.
• This unit was not designed to be used as a
brushcutter. Do not attach or operate this unit with any
type of brushcutting blade or brushcutting attachment.
SAFETY WARNINGS FOR GAS POWERHEADS AND
STRAIGHT SHAFT TRIMMER
WARNING: Gasoline is highly flammable, and
its vapors can explode if ignited, Take the
fo ow ng precaut ons:
• Store fuel only in containers specifically designed and
approved for the storage of such materials,
• Always stop the engine and allow it to cool before filling
the fuel tank. Never remove the cap of the fuel tank, or
add fuel, when the engine is hot. Never operate the unit
without the fuel cap securely in place. Loosen the fuel
tank cap slowly to relieve any pressure in the tank.
• Mix and add fuel in a clean, well-ventilated area outdoors
where there are no sparks or flames. Slowly remove the
fuel cap only after stopping engine. Do not smoke while
fueling or mixing fuel. Wipe up any spilled fuel from the
unit immediately.
• Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
• Move the unit at least 30 feet (9.1 m) from the fueling
source and site before starting the engine. Do not
smoke. Keep sparks and open flames away from the
area while adding fuel or operating the unit.
• Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can kill. Operate this
unit only in a well ventilated area outdoors.
SAFETY WARNINGS FOR ELECTRIC POWER HEADS
AND STRAIGHT SHAFT TRIMMER
WARNING: To reduce the risk of electrical
shock, use on!y extension cords approved for
outdoor use, such as an extension cord of
cord type SW-A, SOW-A, STW-A, STOW-A,
SJW-A, SJOW-A, SJTW-W or SJTOW-A.
Extension cords are available from your local
retailer. Use only round-jacketed extension
cords approved for outdoor use.
3

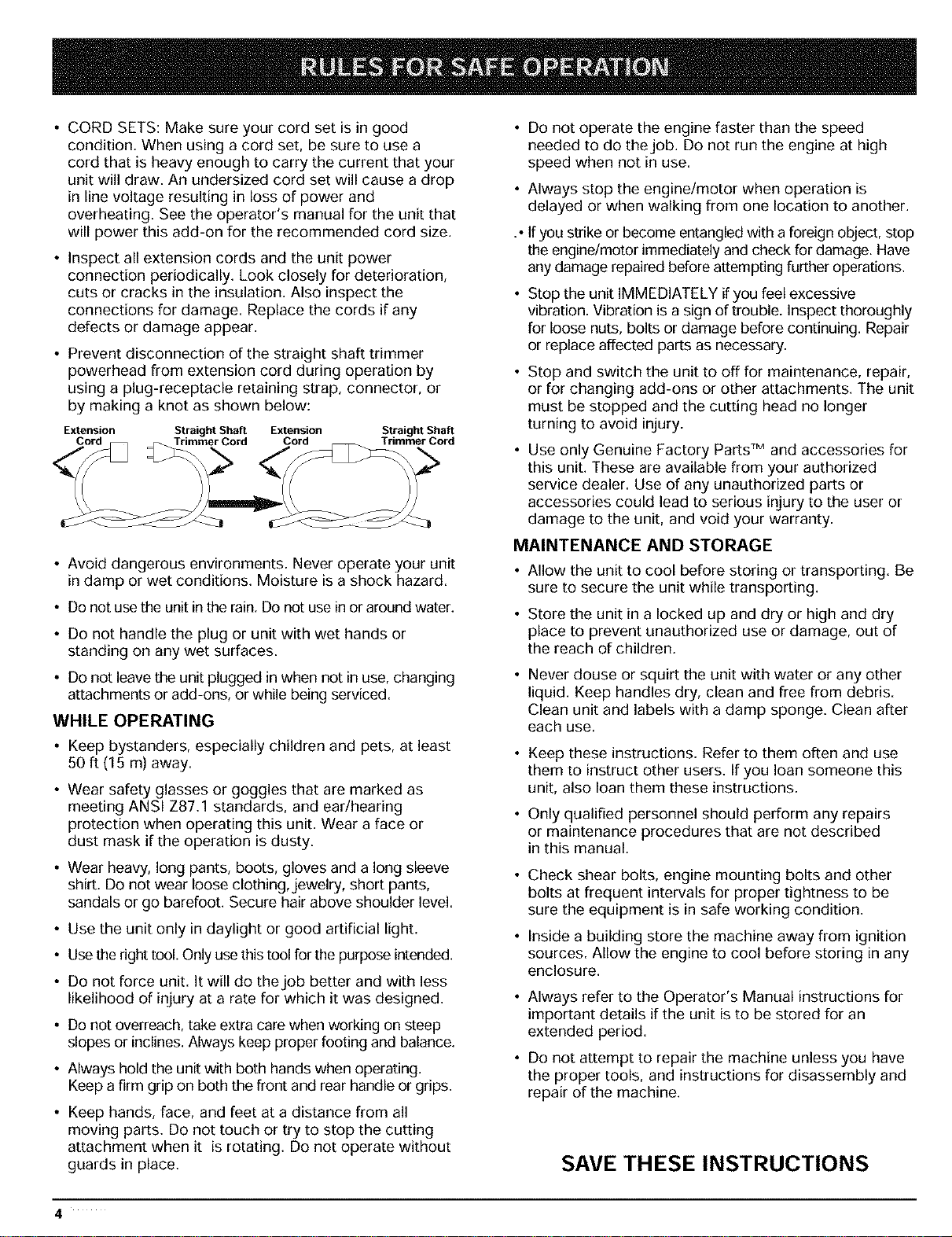

• CORDSETS:Makesureyourcordsetisingood
condition.Whenusingacordset,besuretousea
cordthatisheavyenoughtocarrythecurrentthatyour
unitwilldraw.Anundersizedcordsetwillcauseadrop
inlinevoltageresultinginlossofpowerand
overheating.Seetheoperator'smanualfortheunitthat
willpowerthisadd-onfortherecommendedcordsize.
• Inspect all extension cords and the unit power
connection periodically. Look closely for deterioration,
cuts or cracks in the insulation. Also inspect the
connections for damage. Replace the cords if any
defects or damage appear.
• Prevent disconnection of the straight shaft trimmer
powerhead from extension cord during operation by
using a plug-receptacle retaining strap, connector, or
by making a knot as shown below:
Extension Straight Shaft Extension Straight Shaft
Cord Trimmer Cord Cord Trimmer Cord
• Avoid dangerous environments. Never operate your unit
in damp or wet conditions. Moisture is a shock hazard.
• Do not use the unit inthe rain. Do not use in or around water.
• Do not handle the plug or unit with wet hands or
standing on any wet surfaces.
• Do not leave the unit plugged in when not in use, changing
attachments or add-ons, or while being serviced.
WHILE OPERATING
• Keep bystanders, especially children and pets, at least
50 ft (15 m) away.
• Wear safety glasses or goggles that are marked as
meeting ANSI Z87.1 standards, and ear/hearing
protection when operating this unit. Wear a face or
dust mask if the operation is dusty.
• Wear heavy, long pants, boots, gloves and a long sleeve
shirt. Do not wear loose clothing,jewelry, short pants,
sandals or go barefoot. Secure hair above shoulder level.
• Use the unit only in daylight or good artificial light.
• Usethe right tool.Only use this tool for the purpose intended.
• Do not force unit. It will do the job better and with less
likelihood of injury at a rate for which it was designed.
• Do not overreach, take extra care when working on steep
slopes or inclines. Always keep proper footing and balance.
• Always hold the unit with both hands when operating.
Keep a firm grip on both the front and rear handle or grips.
• Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the cutting
attachment when it is rotating. Do not operate without
guards in place.
4
• Do not operate the engine faster than the speed
needed to do the job. Do not run the engine at high
speed when not in use.
• Always stop the engine/motor when operation is
delayed or when walking from one location to another.
.- If you strike or become entangled with a foreign object, stop
the engine/motor immediately and check for damage. Have
any damage repaired before attempting further operations.
• Stop the unit IMMEDIATELY ifyou feel excessive
vibration. Vibration is a sign of trouble. Inspect thoroughly
for loose nuts, bolts or damage before continuing. Repair
or replace affected parts as necessary.
• Stop and switch the unit to off for maintenance, repair,
or for changing add-ons or other attachments. The unit
must be stopped and the cutting head no longer
turning to avoid injury.
• Use only Genuine Factory Parts TMand accessories for
this unit. These are available from your authorized
service dealer. Use of any unauthorized parts or
accessories could lead to serious injury to the user or
damage to the unit, and void your warranty.
MAINTENANCE AND STORAGE
• Allow the unit to cool before storing or transporting. Be
sure to secure the unit while transporting.
• Store the unit in a locked up and dry or high and dry
place to prevent unauthorized use or damage, out of
the reach of children.
• Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean unit and labels with a damp sponge. Clean after
each use.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
• Only qualified personnel should perform any repairs
or maintenance procedures that are not described
in this manual.
• Check shear bolts, engine mounting bolts and other
bolts at frequent intervals for proper tightness to be
sure the equipment is in safe working condition.
• Inside a building store the machine away from ignition
sources. Allow the engine to cool before storing in any
enclosure.
• Always refer to the Operator's Manual instructions for
important details if the unit is to be stored for an
extended period.
• Do not attempt to repair the machine unless you have
the proper tools, and instructions for disassembly and
repair of the machine.
SAVE THESE INSTRUCTIONS

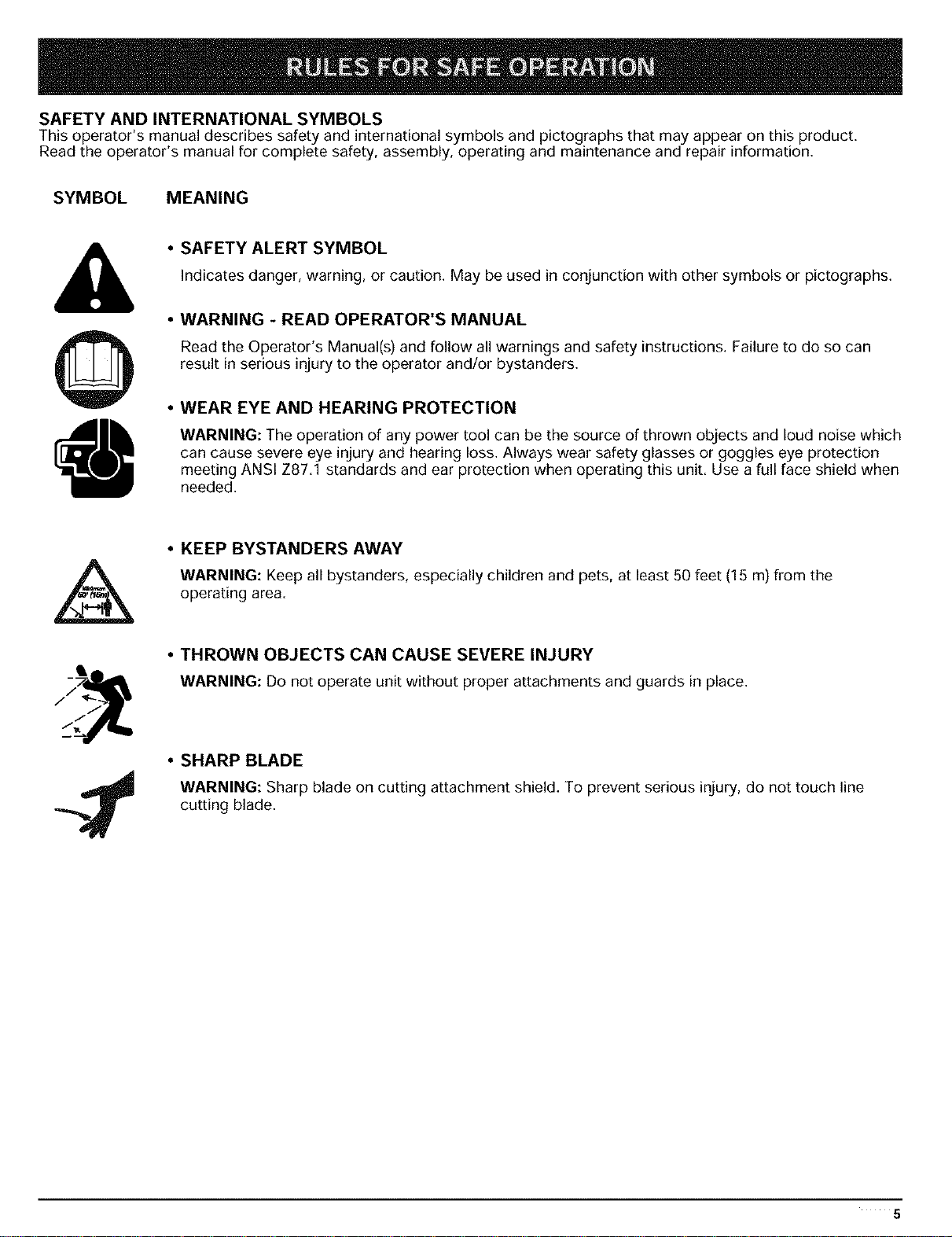

SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
SYMBOL MEANING
A
©
@
• SAFETY ALERT SYMBOL
Indicates danger, warning, or caution. May be used in conjunction with other symbols or pictographs.
• WARNING - READ OPERATOR'S MANUAL
Read the Operator's Manual(s) and follow all warnings and safety instructions. Failure to do so can
result in serious injury to the operator and/or bystanders.
• WEAR EYE AND HEARING PROTECTION
WARNING: The operation of any power tool can be the source of thrown objects and loud noise which
can cause severe eye injury and hearing loss. Always wear safety glasses or goggles eye protection
meeting ANSI Z87.1 standards and ear protection when operating this unit. Use a full face shield when
needed.
• KEEP BYSTANDERS AWAY
WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the
operating area.
• THROWN OBJECTS CAN CAUSE SEVERE INJURY
WARNING: Do not operate unit without proper attachments and guards in place.
• SHARP BLADE
WARNING: Sharp bladeon cuttingattachmentshield.To preventseriousinjury,do nottouch line
cutting blade.
5

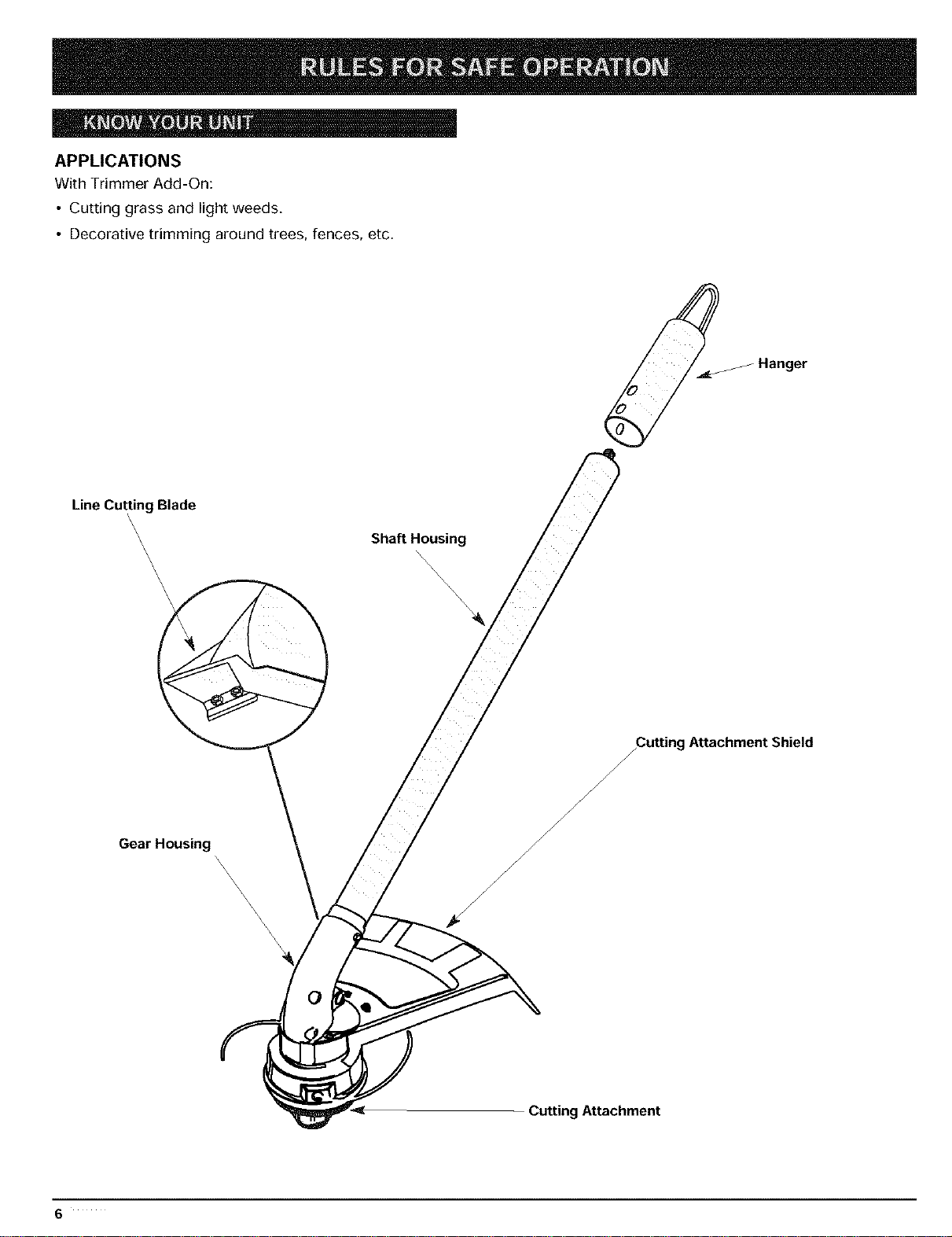

APPLICATIONS
With Trimmer Add-On:
• Cutting grass and light weeds.
• Decorative trimming around trees, fences, etc.
Line Cutting Blade
\
\
\
\
\
\
\
\
\
\
Gear Housing
_ Hanger
Cutting Attachment Shield
\
\
Cutting Attachment
6

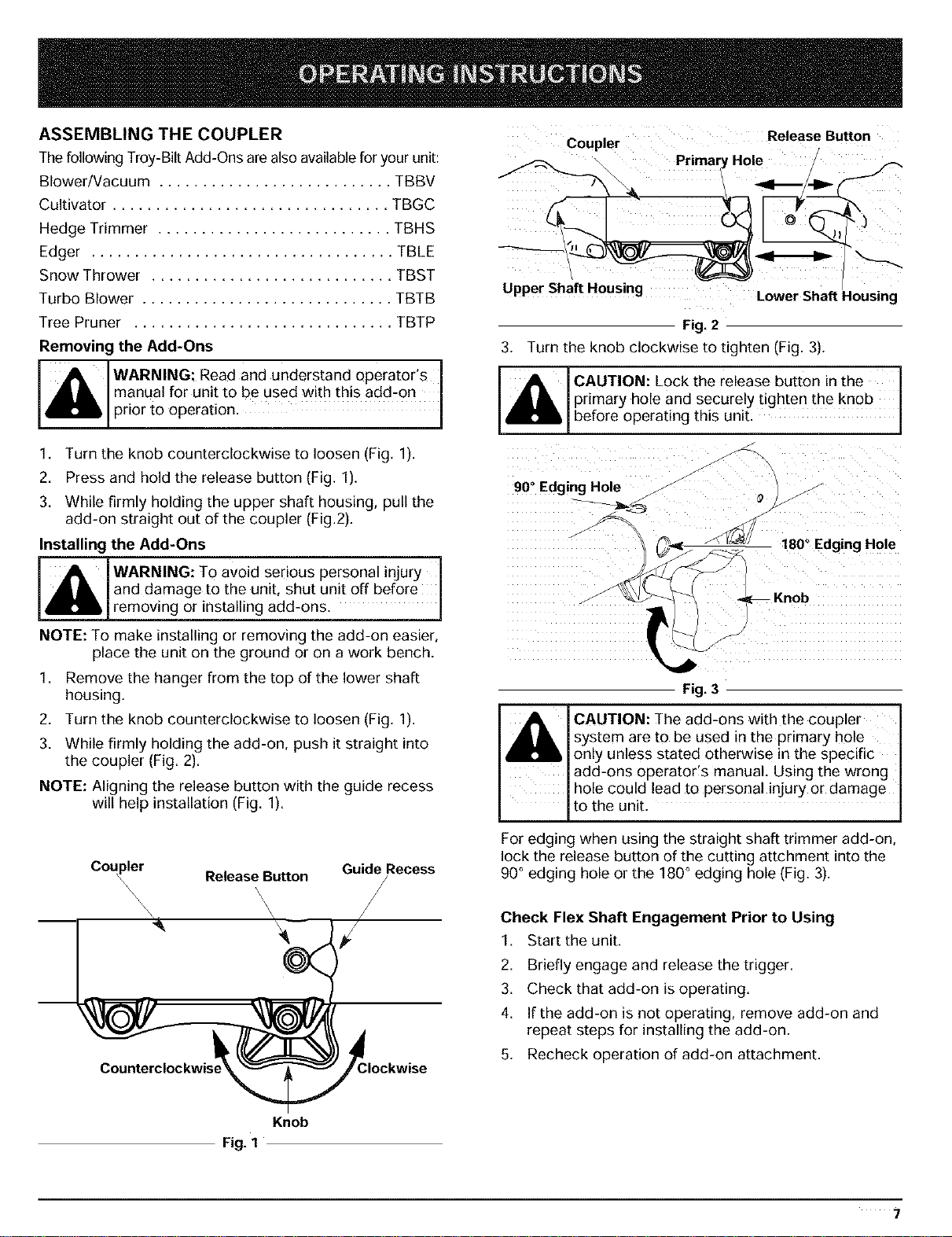

ASSEMBLINGTHECOUPLER
The following Troy-Bilt Add-Ons are also availablefor your unit:
Blower/Vacuum ........................... TBBV
Cultivator ................................ TBGC
Hedge Trimmer ........................... TBHS
Edger ................................... TBLE
Snow Thrower ............................ TBST
Turbo Blower ............................. TBTB
Tree Pruner .............................. TBTP
Removing the Add-Ons
WARNING: Read and understand operator's I
manual for Unit to be used with this add-0n
prior to operation.
1. Turn the knob counterclockwise to loosen (Fig. 1).
2. Press and hold the release button (Fig. 1).
3. While firmly holding the upper shaft housing, pull the
add-on straight out of the coupler (Fig.2).
Installing the Add-Ons
and damage to the unit, shut unit off before
remov ng or nsta ng add-ons.
NOTE: To make installing or removing the add-on easier,
place the unit on the ground or on a work bench.
1. Remove the hanger from the top of the lower shaft
housing.
2. Turn the knob counterclockwise to loosen (gig. 1).
3. While firmly holding the add-on, push it straight into
the coupler (Fig. 2).
NOTE: Aligning the release button with the guide recess
will help installation (Fig. 1).
Coupler
Hole
/
L
L
J
upper Shaft Housing Lower Shaft Housing
Fig. 2
3. Turn the knob clockwise to tighten (Fig. 3).
CAUTION: Lock the release button in the
primary hole and securely tighten the knob
before operat ng th sun t.
90° EdgingHole
180 ° Edging Hole
L
Fig. 3
CAUTION: The add-ons with the coupler
system are to be used in the primary hole
only unless stated otherwise in the specific
add-ons operator% manual. Using the wrong
hole could lead to personal injury or damage
to the unit.
Coupler Release Button
X\
\\
\\
\\ \\
Counterclockwise
Guide Recess
For edging when using the straight shaft trimmer add-on,
lock the release button of the cutting attchment into the
90° edging hole or the 180° edging hole (Fig. 3).
Check Flex Shaft Engagement Prior to Using
1. Start the unit.
2. Briefly engage and release the trigger.
3. Check that add-on is operating.
4. If the add-on is not operating, remove add-on and
repeat steps for installing the add-on.
5. Recheck operation of add-on attachment.
Knob
Fig. 1
7

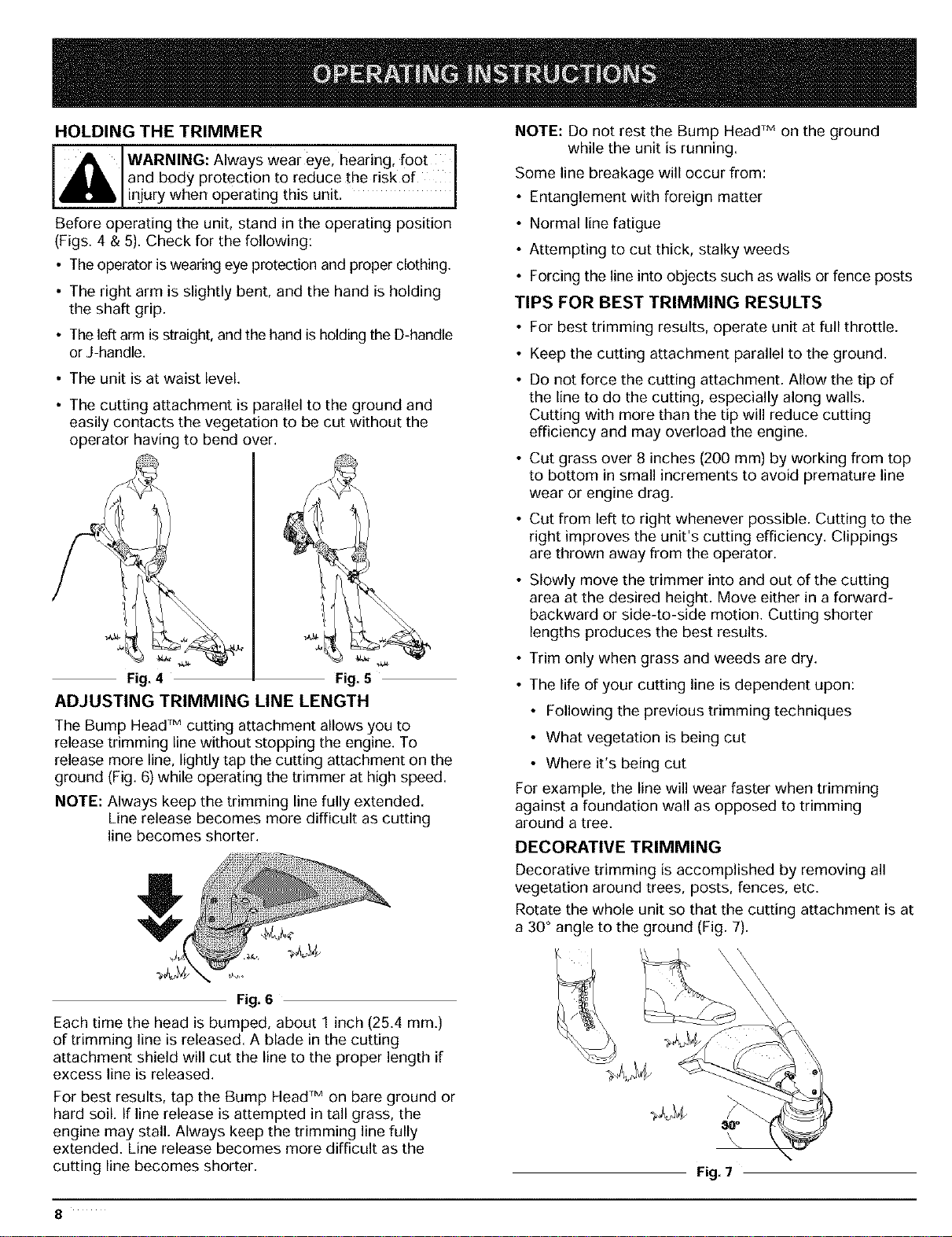

HOLDING THE TRIMMER
and body protection to reduce the risk Of _
injury when operating this unit. J
Before operating the unit, stand in the operating position
(Figs. 4 & 5). Check for the following:
• Theoperator is wearing eye protection and proper clothing.
• The right arm is slightly bent, and the hand is holding
the shaft grip.
• Theleft arm is straight, and the hand is holding the D-handle
or J-handle.
• The unit is at waist level.
• The cutting attachment is parallel to the ground and
easily contacts the vegetation to be cut without the
operator having to bend over.
Fig. 4 Fig. 5
ADJUSTING TRIMMING LINE LENGTH
The Bump HeadTM cutting attachment allows you to
release trimming line without stopping the engine. To
release more line, lightly tap the cutting attachment on the
ground (Fig. 6) while operating the trimmer at high speed.
NOTE: Always keep the trimming line fully extended.
Line release becomes more difficult as cutting
line becomes shorter.
Fig, 6
Each time the head is bumped, about 1 inch (25.4 mm.)
of trimming line is released. A blade in the cutting
attachment shield will cut the line to the proper length if
excess line is released.
For best results, tap the Bump Head rMon bare ground or
hard soil. If line release is attempted in tall grass, the
engine may stall. Always keep the trimming line fully
extended. Line release becomes more difficult as the
cutting line becomes shorter.
8
NOTE: DOnot rest the Bump HeadTM on the ground
while the unit is running.
Some line breakage will occur from:
• Entanglement with foreign matter
• Normal line fatigue
• Attempting to cut thick, stalky weeds
• Forcing the line into objects such as walls or fence posts
TIPS FOR BEST TRIMMING RESULTS
• For best trimming results, operate unit at full throttle.
• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of
the line to do the cutting, especially along walls.
Cutting with more than the tip will reduce cutting
efficiency and may overload the engine.
• Cut grass over 8 inches (200 ram) by working from top
to bottom in small increments to avoid premature line
wear or engine drag.
• Cut from left to right whenever possible. Cutting to the
right improves the unit's cutting efficiency. Clippings
are thrown away from the operator.
• Slowly move the trimmer into and out of the cutting
area at the desired height. Move either in a forward-
backward or side-to-side motion. Cutting shorter
lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon:
• Following the previous trimming techniques
• What vegetation is being cut
• Where it's being cut
For example, the line will wear faster when trimming
against a foundation wall as opposed to trimming
around a tree.
DECORATIVE TRIMMING
Decorative trimming is accomplished by removing all
vegetation around trees, posts, fences, etc.
Rotate the whole unit so that the cutting attachment is at
a 30 ° angle to the ground (Fig. 7).
Fig. 7

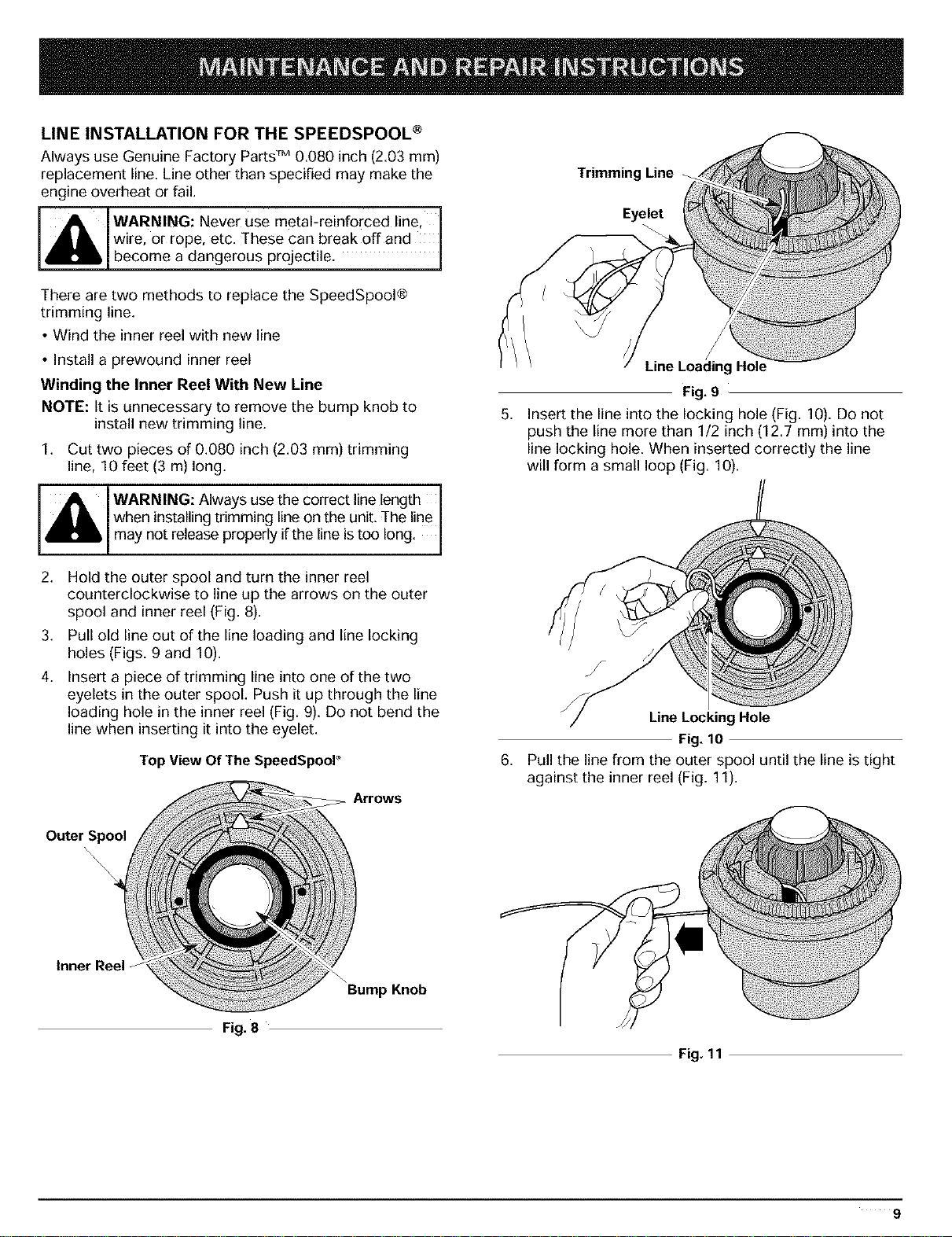

LINE INSTALLATION FOR THE SPEEDSPOOL ®
Always use Genuine Factory PartsTM 0.080 inch (2.03 mm)
replacement line. Line other than specified may make the
engine overheat or fail.
WARNING: Never use metal-reinforced Pine,
wire, or rope, etc. These Can break off and
become a dangerous project e.
There are two methods to replace the SpeedSpool®
trimming line.
• Wind the inner reel with new line
• Install a prewound inner reel
Winding the Inner Reel With New Line
NOTE: It is unnecessary to remove the bump knob to
install new trimming line.
1. Cut two pieces of 0.080 inch (2.03 mm) trimming
line, 10 feet (3 m)long.
when installing trimming line on the unit. The line
may not re ease proper y if the ne s too ong.
2.
3.
4.
Hold the outer spool and turn the inner reel
counterclockwise to line up the arrows on the outer
spool and inner reel (Fig. 8).
Pull old line out of the line loading and line locking
holes (Figs. 9 and 10).
Insert a piece of trimming line into one of the two
eyelets in the outer spool. Push it up through the line
loading hole in the inner reel (Fig. 9). Do not bend the
line when inserting it into the eyelet.
Top View Of The SpeedSpool ®
Arrows
Trimming Line
Eyelet
.
Line Loading Hole
Fig. 9
Insert the line into the locking hole (Fig. 10). Do not
push the line more than 1/2 inch (12.7 mm) into the
line locking hole. When inserted correctly the line
will form a small loop (Fig. 10).
.
Line Locking Hole
Fig. 10
Pull the line from the outer spool until the line is tight
against the inner reel (Fig. 11).
OuterSpool
Inner
Fig. 8
Bump Knob
Fig. 11
9
7. Repeat procedures 4-6 with the second piece of line.
8. Hold the outer spool. Wind the inner reel
counterclockwise until approximately four (4) inches
(102 mm) of line remain (Fig. 12).
NOTE: Do not wind the inner reel before installing the
second piece of line.
.2
9.
Fig.12
If winding the line becomes difficult or the line jams,
pull the ends of the line from the spool (Fig. 13).
Continue winding the inner reel counterclockwise.
Fig. 13
INSTALLING A PREWOUND REEL
1.Turn the bump knob counterclockwise and remove
the bump knob, spring, and foam seal (Fig. 14).
Bump Knob _
Foam Seal
Spring_
I
2. Pull the old inner reel with existing line from the outer
spool.
3. Insert the ends of the prewound inner reel line into
the outer spool eyelets (Fig. 15). Push the new inner
reel, arrow side up, into the outer spool.
Fig. 15
4. Hold the inner reel in place and install the bump
knob, spring and foam seal. Press down and turn the
bump knob clockwise. Grasp the ends and pull
firmly to release the line from the holding slots in the
inner reel. (Fig. 13).
Releasing the Inner Reel
If the SpeedSpoor does not release line correctly, pull
the ends of the line firmly from the spool (Fig. 13). If this
does not release line, follow the Cleaning the
SpeedSpool ®instructions.
CLEANING THE SPEEDSPOOL ®
Cleaning the SpeedSpool ®may be necessary,
• To remove jammed or excess line,
• IftheSpeedSpooP becomes difficult to wind or does not
operate correctly when bumping the head on the ground,
1. Hold the outer spool, and unscrew the bump knob
counterclockwise (Fig. 16).
Inner
Fig. 14
Fig. 16
10

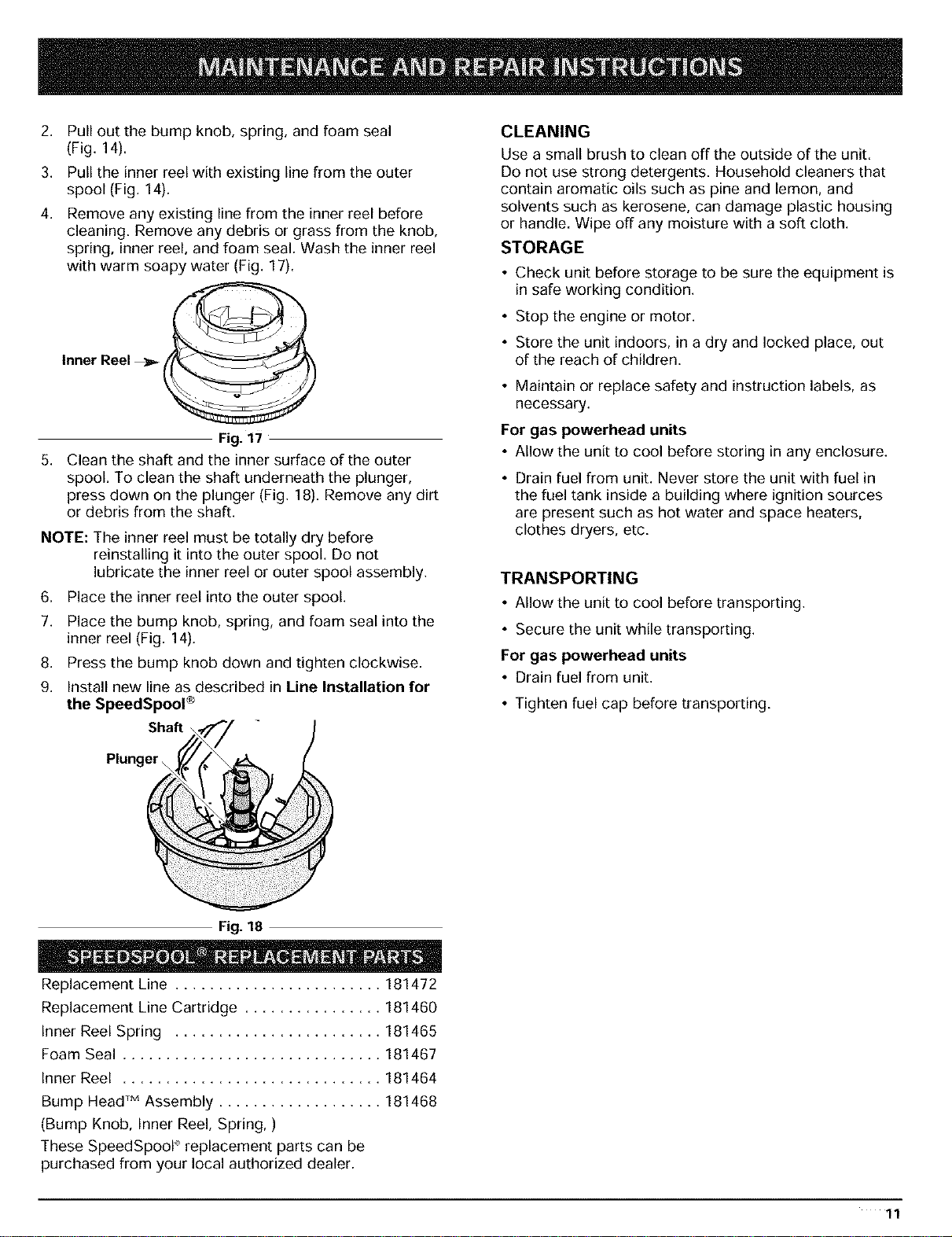

2.
3.
4.
Pull out the bump knob, spring, and foam seal
(Fig. 14).
Pull the inner reel with existing line from the outer
spool (Fig. 14).
Remove any existing line from the inner reel before
cleaning. Remove any debris or grass from the knob,
spring, inner reel, and foam seal. Wash the inner reel
with warm soapy water (Fig. 17).
Inner Reel
Fig. 17
5. Clean the shaft and the inner surface of the outer
spool. To clean the shaft underneath the plunger,
press down on the plunger (Fig. 18). Remove any dirt
or debris from the shaft.
NOTE: The inner reel must be totally dry before
reinstalling it into the outer spool. Do not
lubricate the inner reel or outer spool assembly.
6. Place the inner reel into the outer spool.
7. Place the bump knob, spring, and foam seal into the
inner reel (Fig. 14).
8. Press the bump knob down and tighten clockwise.
9. Install new line as described in Line Installation for
the SpeedSpool ®
Plunger \
CLEANING
Use a small brush to clean offthe outside of the unit.
Do not use strong detergents. Household cleaners that
contain aromatic oils such as pine and lemon, and
solvents such as kerosene, can damage plastic housing
or handle. Wipe off any moisture with a soft cloth.
STORAGE
• Check unit before storage to be sure the equipment is
in safe working condition.
• Stop the engine or motor.
• Store the unit indoors, in a dry and locked place, out
of the reach of children.
• Maintain or replace safety and instruction labels, as
necessary.
For gas powerhead units
• Allow the unit to cool before storing in any enclosure.
• Drain fuel from unit. Never store the unit with fuel in
the fuel tank inside a building where ignition sources
are present such as hot water and space heaters,
clothes dryers, etc.
TRANSPORTING
• Allow the unit to cool before transporting.
• Secure the unit while transporting.
For gas powerhead units
• Drain fuel from unit.
• Tighten fuel cap before transporting.
Fig. 18
Replacement Line ........................ 181472
Replacement Line Cartridge ................ 181460
Inner Reel Spring ........................ 181465
Foam Seal .............................. 181467
Inner Reel .............................. 181464
Bump HeadTM Assembly ................... 181468
(Bump Knob, Inner Reel, Spring, )
These SpeedSpooP replacement parts can be
purchased from your local authorized dealer.
11

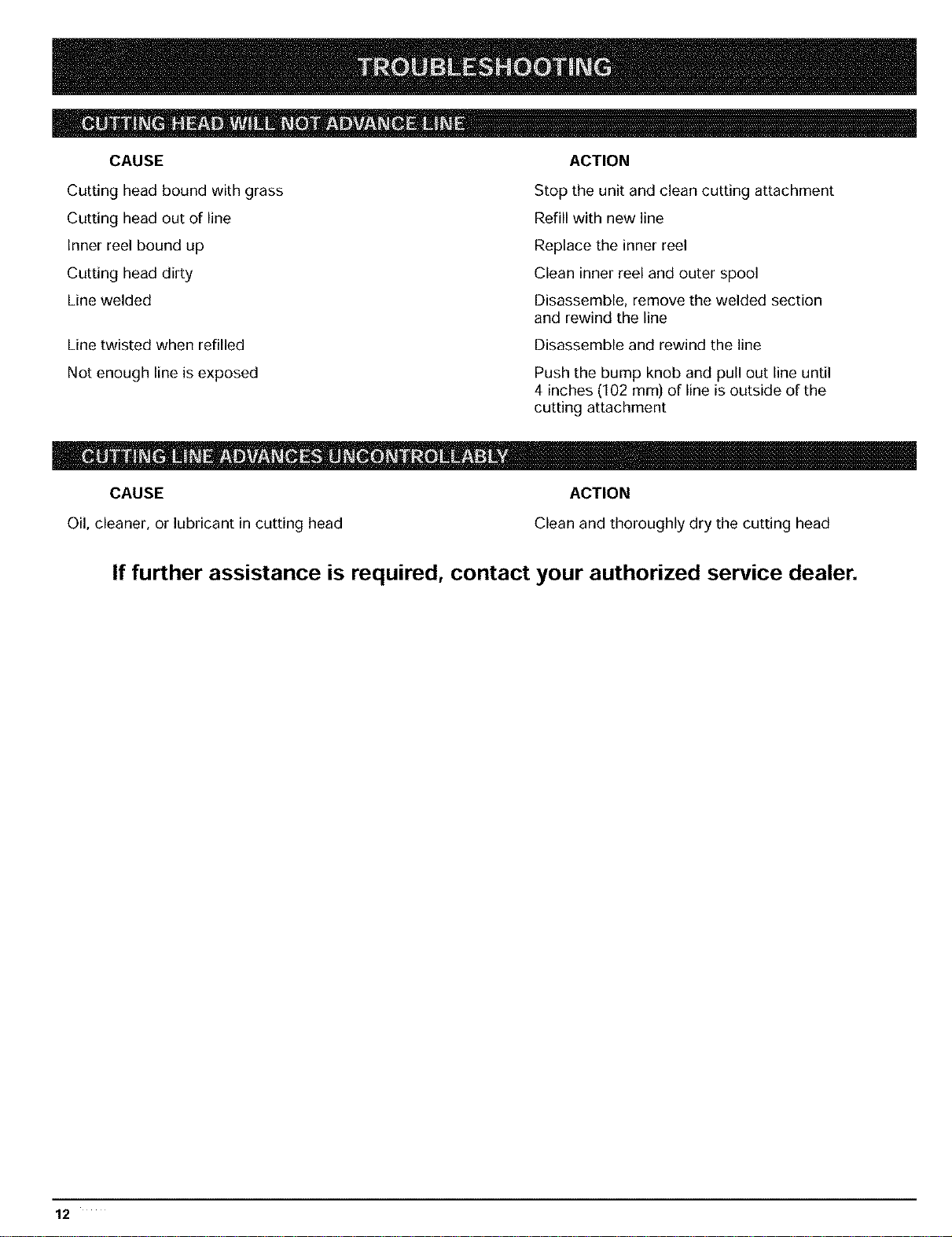

CAUSE
Cutting head bound with grass
Cutting head out of line
Inner reel bound up
Cutting head dirty
Line welded
Line twisted when refilled
Not enough line is exposed
ACTION
Stop the unit and clean cutting attachment
Refill with new line
Replace the inner reel
Clean inner reel and outer spool
Disassemble, remove the welded section
and rewind the line
Disassemble and rewind the line
Push the bump knob and pull out line until
4 inches (102 mm) of line is outside of the
Cutting attachment
CAUSE
Oil, cleaner, or lubricant in cutting head
ACTION
Clean and thoroughly dry the cutting head
If further assistance is required, contact your authorized service dealer.
12

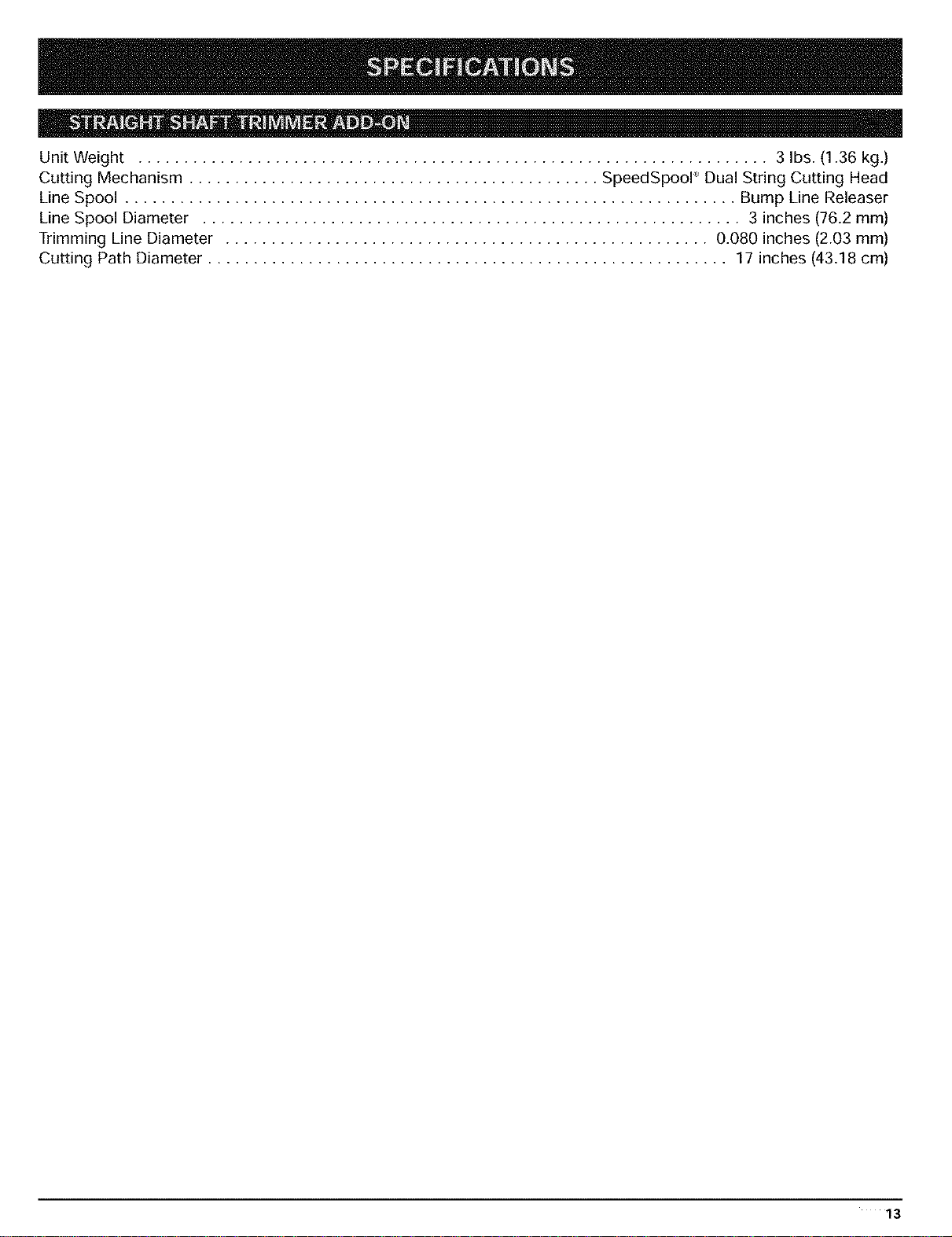

Unit Weight ..................................................................... 3 Ibs. (1.36 kg.)
Cutting Mechanism ............................................. SpeedSpooP Dual String Cutting Head
Line Spool ................................................................... Bump Line Releaser
Line Spool Diameter ........................................................... 3 inches (76,2 mm)
Trimming Line Diameter ..................................................... 0,080 inches (2.03 mm)
Cutting Path Diameter ......................................................... 17 inches (43,18 cm)
13
14
15
BOOM AND TRIMMER PARTS - MODEL TBSS
4-CYCLE GAS TRIMMER
PPN - 41AJSS-C063
Item Part NO. Description
1 753-1212 Lower Drive Shaft Housing Assembly (includes 2)
2 791-181166 Lower Flexible Drive Shaft
3 791-153597 Lower Clamp Assembly (includes 4)
4 791-145569 AntFRotation Screw
5 791-180547 Shield Mounting Hardware
6 791-180548 Shield and Blade Assembly (includes 21)
7 791-682061 Blade Assembly
8 791-181566 Gearbox Assembly (includes 9 & 10)
9 791-181457 Outer Spool & Eyelet Assembly
10 791-181561 Thrust Washer
11 791-181458 Retaining Ring
12 791q81459 Small Spring
13 753*04257 Slider
14 791-181532 E-Clip
15 791-181531 Spring
16 791-181462 Plunger
17 791-181463 C-Clip
18 791-181464 Inner Reel
19 791-181465 Large Spring
20 791-181467 Foam Seal
21 791-181468 Bump Head Knob Assembly (includes 19 & 20)
_tional Accessories
791-181472 Replacement Line, .080 Diameter
791-181460 Reel and Line Assembly
791 *682075 Shoulder Strap Assembly
791-147192 Hanger Accessory
79%181470 Complete Cutting Head Assembly
(includes 4, 5, 8-21)
Items Not Shown
@
Issued 9/02

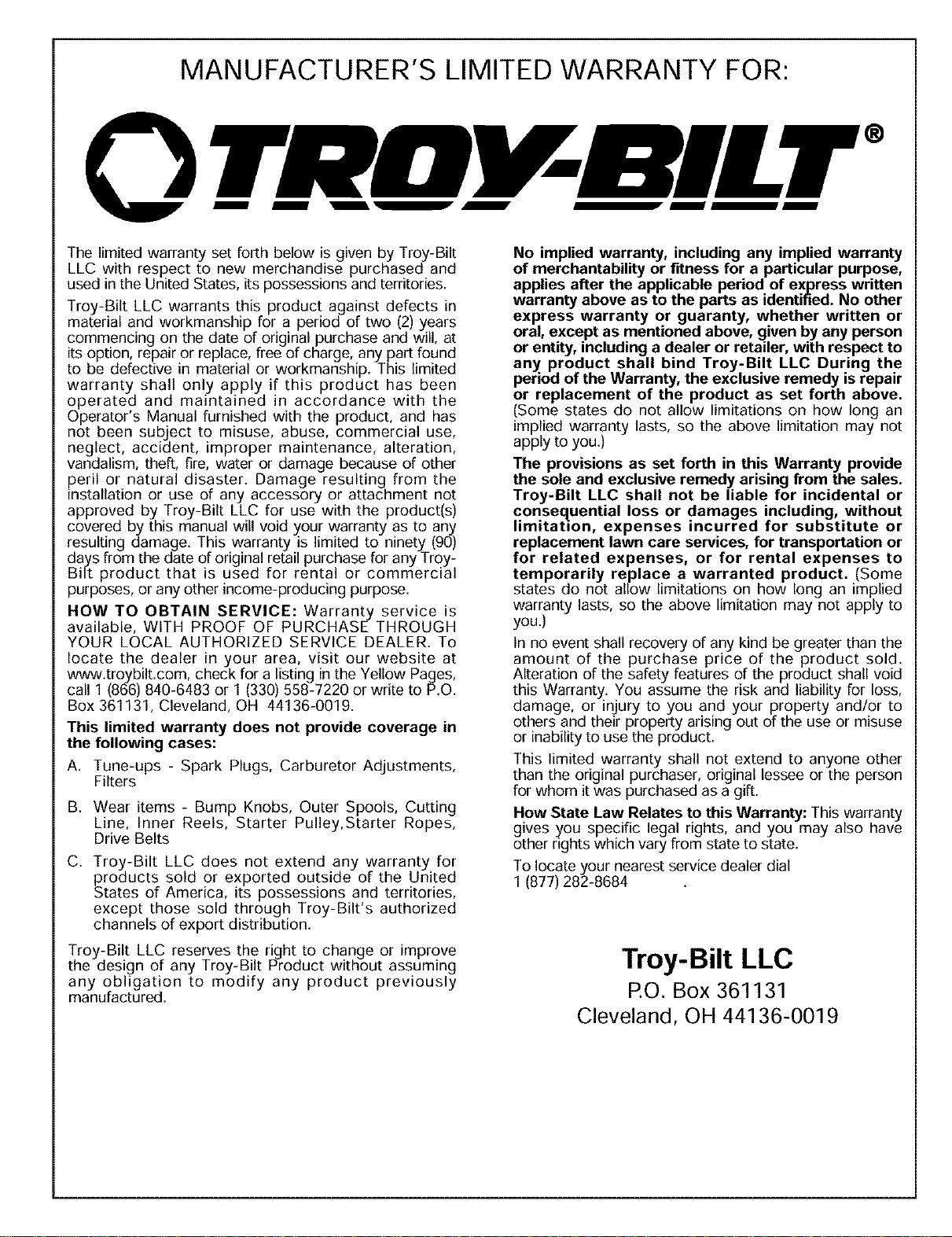

MANUFACTURER'S LIMITED WARRANTY FOR:
O
I m I_m
The limited warranty set forth below is given by Troy-Bilt
LLC with respect to new merchandise purchased and
used in the United States, its possessions and territories.
Troy-Bilt LLC warrants this product against defects in
material and workmanship for a period of two (2) years
commencing on the date of original purchase and will, at
its option, repair or replace, free of charge, any part found
to be defective in material or workmanship. This limited
warranty shall only apply if this product has been
operated and maintained in accordance with the
Operator's Manual furnished with the product, and has
not been subject to misuse, abuse, commercial use,
neglect, accident, improper maintenance, alteration,
vandalism, theft, fire, water or damage because of other
peril or natural disaster. Damage resulting from the
installation or use of any accessory or attachment not
approved by Troy-Bilt LLC for use with the product(s)
covered by this manual will void your warranty as to any
resulting damage. This warranty is limited to ninety (90)
days from the date of original retail purchase for any Troy-
Bill: product that is used for rental or commercial
purposes, or any other income-producing purpose.
HOW TO OBTAIN SERVICE: Warranty service is
available, WITH PROOF OF PURCHASE THROUGH
YOUR LOCAL AUTHORIZED SERVICE DEALER. To
locate the dealer in your area, visit our website at
www.troybilt.com, check for a listing in the Yellow Pages,
call 1 (866) 840-6483 or 1 (330) 558-7220 or write to P.O.
Box 361131, Cleveland, OH 44136-0019.
This limited warranty does not provide coverage in
the following cases:
A. Tune-ups - Spark Plugs, Carburetor Adjustments,
Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting
Line, Inner Reels, Starter Pulley,Starter Ropes,
Drive Belts
C. Troy-Bilt LLC does not extend any warranty for
PsrOducts sold or exported outside of the United
tates of America, its possessions and territories,
except those sold through Troy-Bilt's authorized
channels of export distribution.
Troy-Bilt LLC reserves the right to change or improve
the design of any Troy-Bilt Product without assuming
any obligation to modify any product previously
manufactured.
No implied warranty, including any implied warranty
of merchantability or fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty or guaranty, whether written or
oral, except as mentioned above, given by any person
or entity, including a dealer or retailer, with respect to
any product shall bind Troy-Bilt LLC During the
period of the Warranty, the exclusive remedy is repair
or replacement of the product as set forth above.
(Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not
apply to you.)
The provisions as set forth in this Warranty provide
the sole and exclusive remedy arising from the sales.
Troy-Bilt LLC shall not be liable for incidental or
consequential loss or damages including, without
limitation, expenses incurred for substitute or
replacement lawn care services, for transportation or
for related expenses, or for rental expenses to
temporarily replace a warranted product. (Some
states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to
you.)
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold.
Alteration of the safety features of the product shall void
this Warranty. You assume the risk and liability for loss,
damage, or injury to you and your property and/or to
others and their property arising out of the use or misuse
or inability to use the product.
This limited warranty shall not extend to anyone other
than the original purchaser, original lessee or the person
for whom it was purchased as a gift.
How State Law Relates to this Warranty: This warranty
gives you specific legal rights, and you may also have
other rights which vary from state to state.
To locate your nearest service dealer dial
1 (877) 282-8684
Troy-Bilt LLC
P.O. Box 361131
Cleveland, OH 44136-0019
