Operating and installation instructions
base unit fridge
20180725
7086654 - 00
(S)UIKo 1550/60
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment.................. 2
1.2 Appliance range of use............................................. 2
1.3 Conformity................................................................ 3
1.4 Product data............................................................. 3
1.5 Saving energy.......................................................... 3
2 General safety information................................... 3
3 Controls and displays........................................... 4
3.1 Operating and control elements............................... 4
3.2 Temperature display................................................. 4
4 Putting into operation............................................ 4
4.1 Transporting the appliance....................................... 4
4.2 Installing the appliance............................................. 4

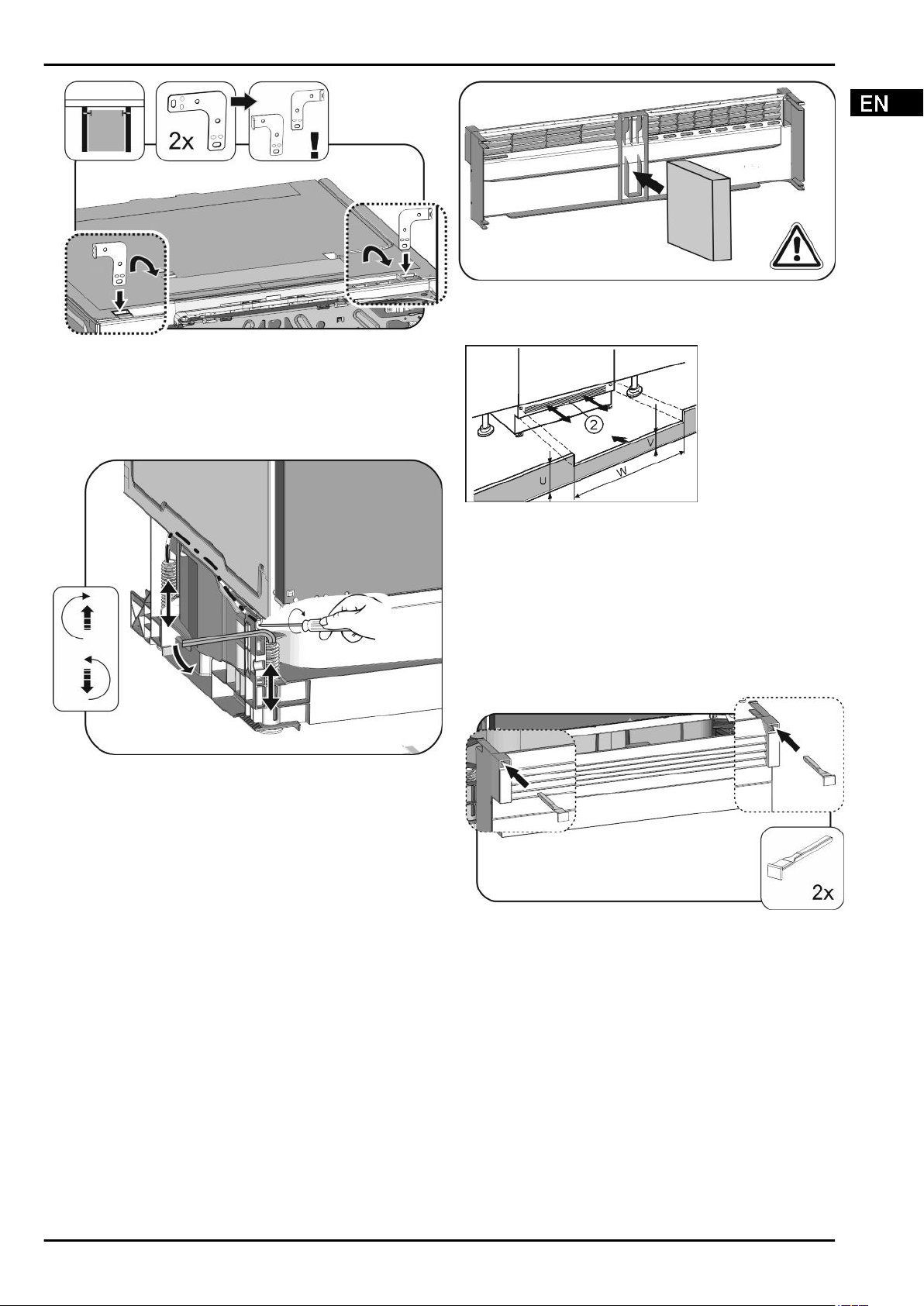

4.3 Installation................................................................ 5

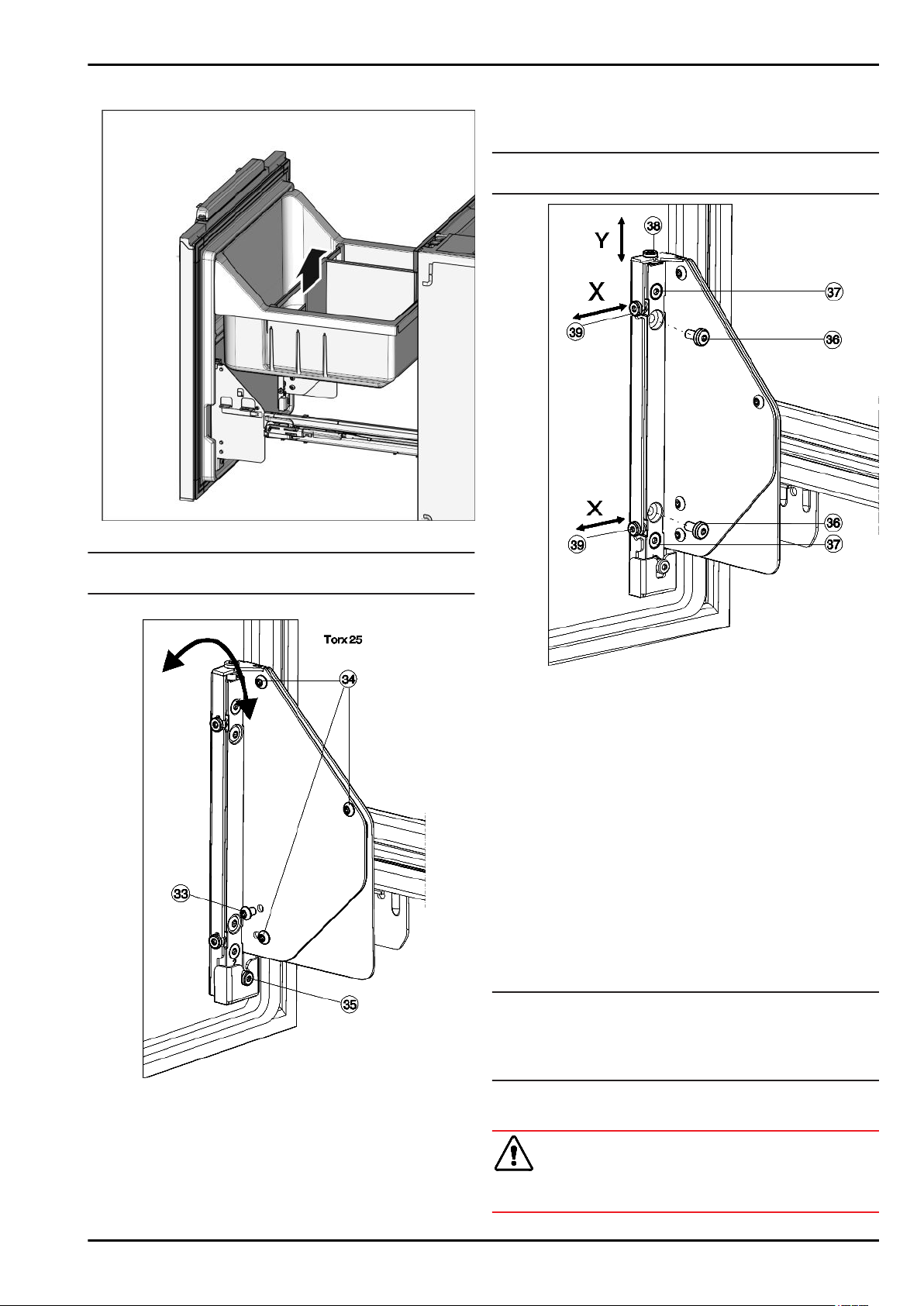

4.4 Adjusting the contact of the door seal....................... 9
4.5 Disposing of packaging............................................ 10
4.6 Connecting the appliance......................................... 11
4.7 Switching on the appliance....................................... 11
5 Control.................................................................... 11
5.1 Child proofing........................................................... 11
5.2 Door alarm................................................................ 11
5.3 Sabbath Mode.......................................................... 11
5.4 Food refrigeration..................................................... 12
5.5 Setting the temperature............................................ 12
5.6 SuperCool................................................................ 12
5.7 Butter dish................................................................ 12
5.8 Egg tray.................................................................... 13
5.9 Relocating the retainers............................................ 13
5.10 Partitioning the vegetable bin................................... 13
5.11 Storing food in the Lift-up-Box*................................. 13
6 Maintenance........................................................... 13
6.1 Defrosting................................................................. 13
6.2 Cleaning the appliance............................................. 13
6.3 Customer service..................................................... 14
7 Malfunctions........................................................... 15
8 Decommissioning.................................................. 16
8.1 Switching off the appliance....................................... 16
8.2 Taking the appliance out of service........................... 16
9 Disposing of the appliance................................... 16
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that
we have to reserve the right to make design, equipment and
technical modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked with
an asterisk (*).
Instructions for action are marked with a , the results of
action are marked with a
.
1 Appliance at a glance
1.1 Description of appliance and equip-
ment
Note
u
Place food inside the appliance as shown in the diagram.
This allows the appliance to save energy during operation.
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency on delivery.

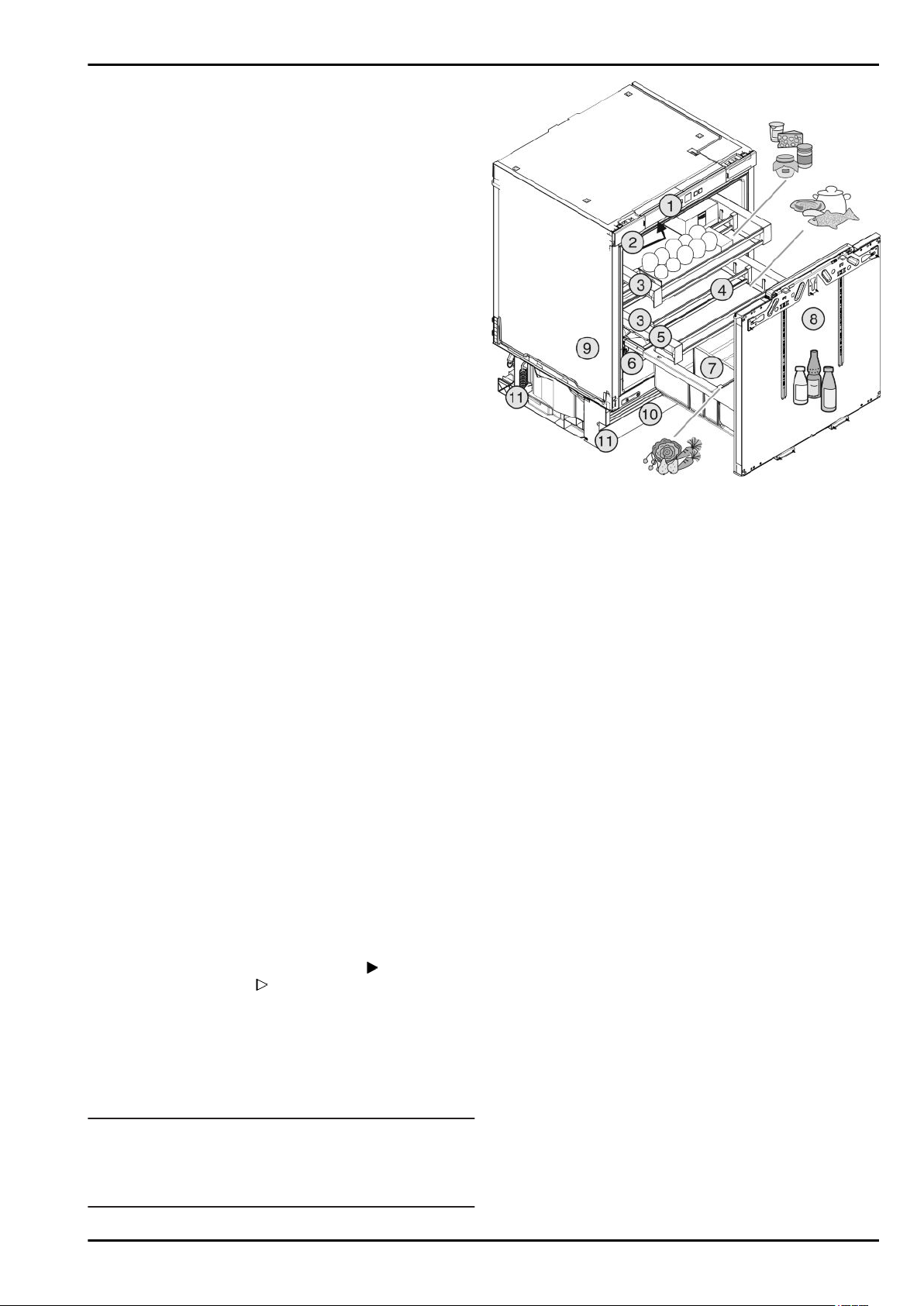

Fig. 1
(1) Operating panel (7) Bottle rack
(2) Internal lighting (8) Adjustable door
(3) Extending shelf (9) Type plate
(4) Relocatable retainers (10) Adjustable plinth panel
(5) Extending shelf, coldest
zone
(11) Height-adjustable feet,
front and back
(6) Lift-up Box*
1.2 Appliance range of use
Intended use
The appliance is only suitable for cooling food
products in a domestic or household-like envi-
ronment. This includes, for example, use:
-
in staff kitchens, bed and breakfast establish-
ments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the whole-
sale trade.
The appliance is suitable for integrating under
counters.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage to
the goods stored or they may spoil.
Climate classifications
Appliance at a glance
2 * Depending on model and options
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica-
tion applying to your appliance is printed on the
rating plate.
Note
u
Keep to the specified ambient temperatures
in order to guarantee that the appliance works
properly.
Climate classi-
fication
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
1.3 Conformity
The refrigerant circuit has been tested for leaks. In installed
condition, this appliance complies with the applicable safety
stipulations and with directives 2014/35/EU, 2014/30/EU,
2009/125/EG, 2011/65/EU and 2010/30/EU.
1.4 Product data
Product data is included with the appliance, as per Directive
(EU) 2017/1369. The complete product data sheet is available
on the Liebherr website under Downloads.
1.5 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption is dependent on the installation condi-
tions, e.g. ambient temperature (see 1.2) . If the ambient
temperature deviates from the standard temperature of
25°C, the energy consumption may differ.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Arrange the food in an organised way (see 1) .
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it doesn’t
warm up too much.
-
Inserting warm food: allow to cool down to room temperature
first.
2 General safety information
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experience
and knowledge provided that they are super-
vised or have received instruction in the safe
use of this device, and about the resulting
hazards. Children must not play with this
appliance. Cleaning and user maintenance
work must not be carried out by children
without adult supervision. Children aged
between 3 and 8 are allowed to load and
unload the appliance. Children below the age
of 3 must be kept away from the appliance
unless they are under continuous adult super-
vision.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains plug
or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Repairs, interventions on the appliance and
the replacement of mains connection line may
only be carried out by After-Sales Service or
other suitably trained specialist personnel.
-
Only install, connect and dispose of the appli-
ance according to the instructions.
-
Only use the appliance when it is installed.
-
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the interior
of the appliance and are not suitable for room
lighting.
Fire hazard:
-
Refrigerant R 600a is environmentally friendly,
but flammable. Leaking refrigerant may ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not use an open flame or other source
of ignition inside the appliance.
•
Do not use electrical appliances inside the
appliance (e.g. steam cleaners, heaters, ice
cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the vicinity
of the leakage point. Properly air the room.
Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list of
contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Please be sure to store alcoholic drinks or
other packaging containing alcohol in tightly
closed containers. Any alcohol that leaks out
may be ignited by electrical components.
Danger of tipping and falling:
General safety information
* Depending on model and options 3
-
Do not misuse the plinth, drawers, doors etc.
as a step or for support. This applies particu-
larly to children.
Danger of food poisoning:
-
Do not consume food which has been stored
too long.
Danger of frostbite, numbness and pain:
-
Avoid lasting skin contact with cold surfaces
or refrigerated/frozen food or take protective
steps, e.g. wear gloves. Do not consume ice
cream, water ice or ice cubes immediately
and do not consume them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use elec-
trical heating or steam cleaning equipment,
open flames or defrosting sprays to defrost.
-
Do not use sharp implements to remove the
ice.
Danger of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
The symbol can be located on the compressor. It
refers to the oil in the compressor and indicates
the following danger: Swallowing or inhaling can
be fatal. This is only relevant for recycling. There
is no danger in normal operation.
Please observe the specific information in
the other sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful information and tips.

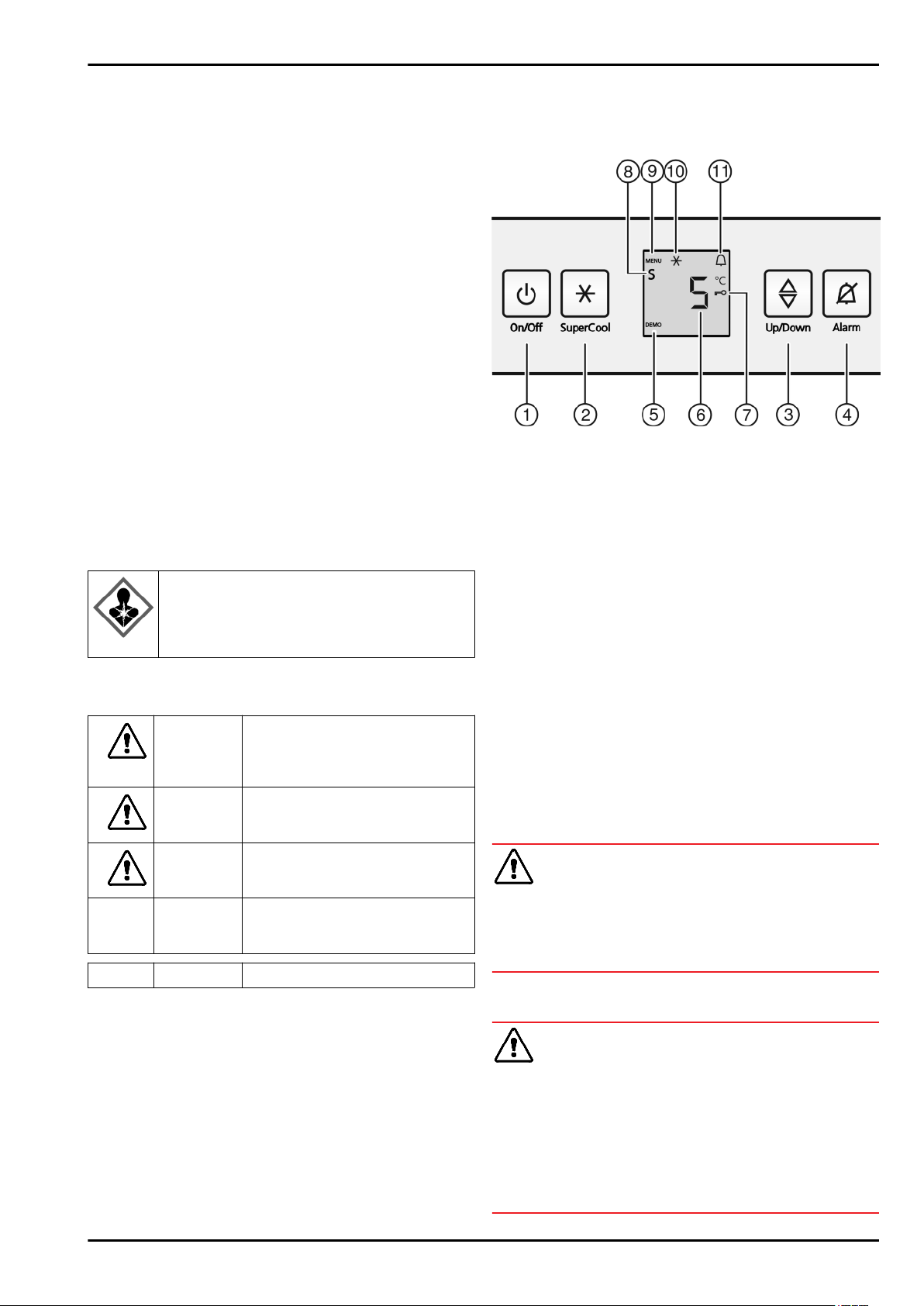

3 Controls and displays
3.1 Operating and control elements
Fig. 2
(1) On/Off button (7) Child lock symbol
(2) SuperCool button (8) Sabbath Mode symbol
(3) Settings button (9) MENU symbol
(4) Alarm button (10) SuperCool symbol
(5) DEMO Mode display (11) Alarm symbol
(6) Temperature display
3.2 Temperature display
During normal operation, the display shows:
-
the average cooling temperature
The temperature display flashes if/when:
-
You change the temperature setting
The following displays indicate a fault. Possible causes and
solutions: (see 7) .
-
F0 to F9
4 Putting into operation
4.1 Transporting the appliance
CAUTION
Risk of injury and danger of damage as a result of incorrect
transport!
u
Transport the appliance in a packed condition.
u
Transport the appliance upright.
u
Do not transport the appliance without assistance.
4.2 Installing the appliance
WARNING
Risk of fire due to short circuit!
If the mains cable/connector of the appliance or of another
appliance touch the rear of the appliance, the mains cable/
connector may be damaged by the appliance vibrations,
leading to a short circuit.
u
Stand the appliance so that it is not touched by connectors
or main cables.
u
Do not plug the appliance or any others into sockets located
near the rear of the appliance.
Controls and displays
4 * Depending on model and options
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
u
The appliance is designed for use in enclosed areas. Do not
operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
u
Only use the appliance when it is installed.
WARNING
Fire hazard due to refrigerant!
The refrigerant R 600a is environmentally friendly but flam-
mable. Escaping refrigerant may ignite.
u
Do not damage the piping of the refrigeration circuit.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
WARNING
Blocked ventilation openings pose a risk of fire and damage!
u
Always keep the ventilation openings clear. Always ensure
that the appliance is properly ventilated!
NOTICE
Risk of damage due to condensate!*
If your appliance is not a Side-by-Side (SBS) appliance:
u
do not install the appliance directly alongside a further refrig-
erator/freezer.
q
In the event that the appliance is damaged, contact the
supplier immediately before connecting to the mains.
q
The floor at the site must be flat and level.
q
Do not install the appliance in a location where it is exposed
to direct radiation of the sun, next to a cooker, heater and
similar.
q
The appliance is suitable for integrated, under-worktop use.
q
Ventilation is effected by way of the plinth.
q
Do not install the appliance without assistance.
q
The more refrigerant R 600a there is in the appliance, the
larger than room must be in which it is located. In rooms that
are too small, a leak can product a flammable gas/air
mixture. According to the standard EN 378, per 11 g of
refrigerant R 600a, the room where the appliance is installed
must be at least 1 m
3
. The quantity of refrigerant used in
your appliance is indicated on the type plate on the inside of
the appliance.
u
Detach the connecting cable from the rear of the appliance,
removing the cable holder at the same time because other-
wise there will be vibratory noise!
After installation:
u
Remove the protective film from the decorative trims.
u
Remove all transit supports.
u
Dispose of packaging material (see 4.5) .
Note
u
Clean the appliance (see 6.2) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.
4.3 Installation

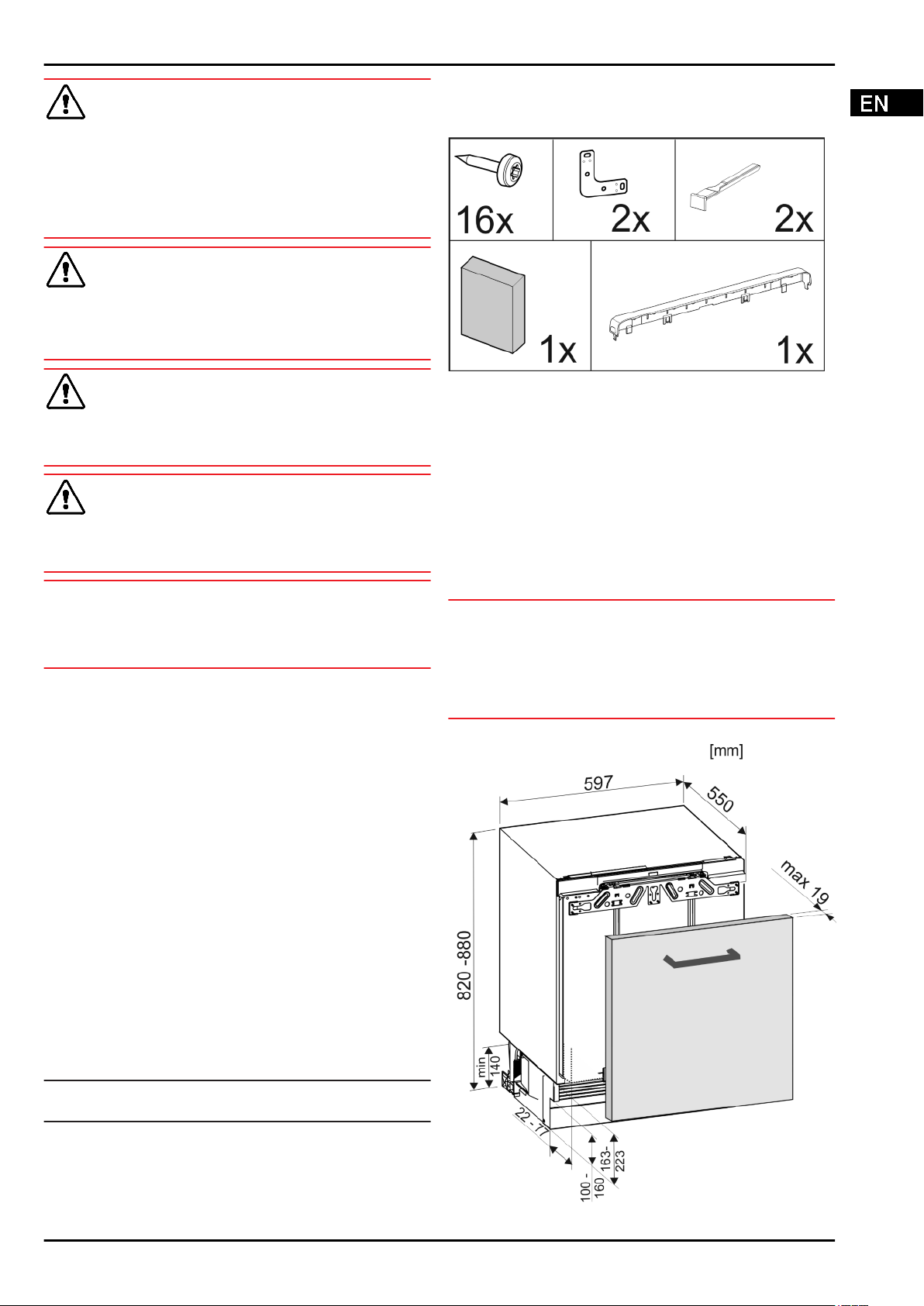

All the assembly components accompany the appliance.
Fig. 3
*
Ensure that the following tools are to hand:
q
Cordless Torx® screwdriver 15, 25
q
Spanner 13
q
Screwdriver Torx® 15
q
Flat-blade screwdriver 6
q
Allen key 8
q
Tape measure
q
Pencil
q
String
q
Spirit level
NOTICE
Risk of damage due to condensate!
u
If refrigerator and freezer are installed side-by-side, the
freezer always has to be sited to the right of the refrigerator
(as seen from the front). Condensate is prevented from
forming between the appliances by the foamed-in side wall
heating on the left side of the freezer.
Pay attention that the socket is readily accessible.
Fig. 4
Putting into operation
* Depending on model and options 5

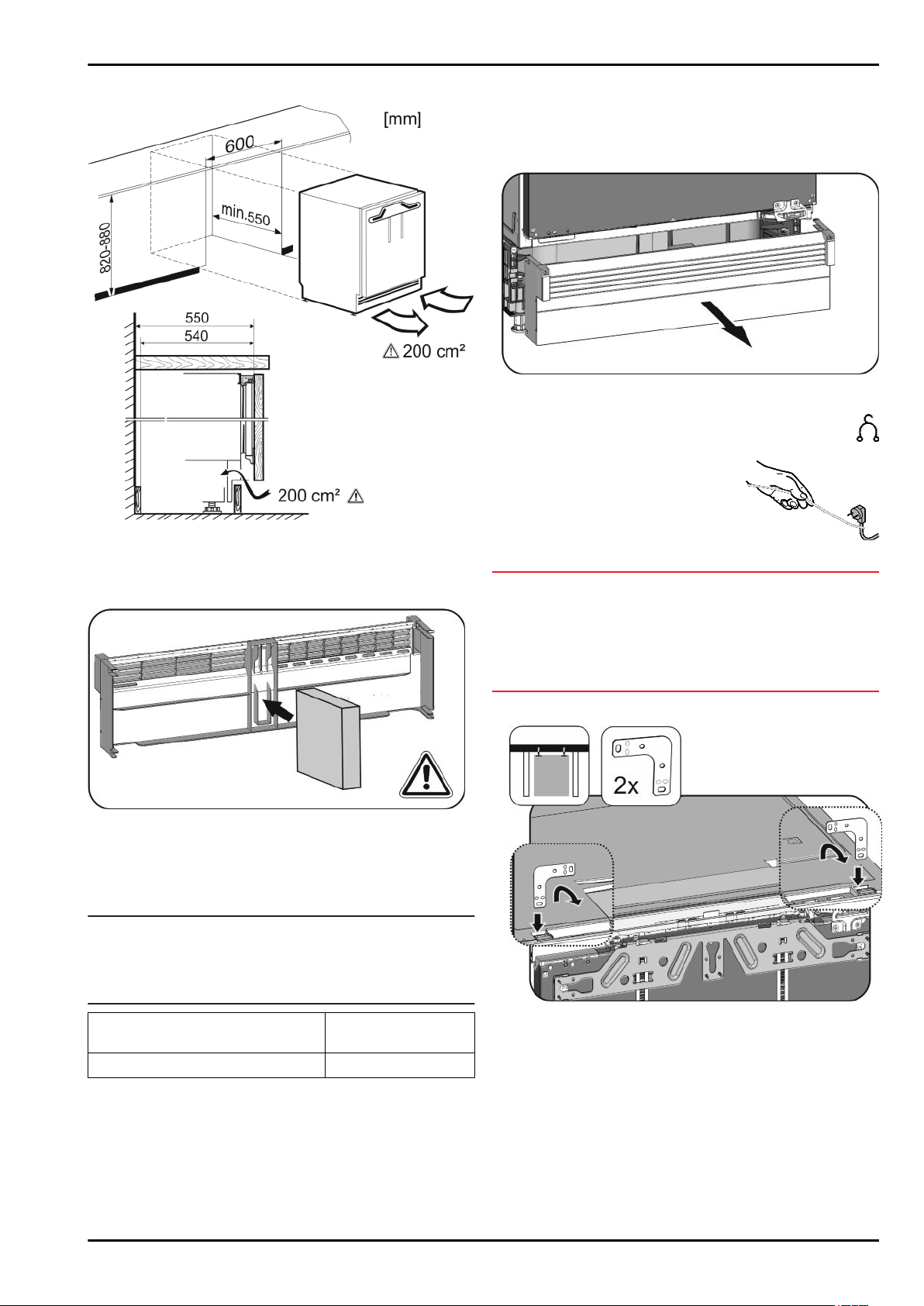

Ventilation requirements
Fig. 5
The air flow cavity must be at least 200 cm².
The unit's energy consumption will increase if there is insuffi-
cient air flow.
Fig. 6
Fix the foam pad in the middle of the plinth panel.
The foam pad is used to separate the incoming and outgoing
air flow and allows sufficient ventilation.
Unit door weight
Note
u
Before assembling the door of the unit, make sure that the
admissable weight of the unit door is not exceeded.
u
Otherwise damage to the telescopic rails and resultant
malfunction cannot be ruled out.
Model
Maximum unit door
weight
S/UIKo 10 kg
Side fixing
q
Base frame under a hard worktop, such as granite.
q
The appliance is lower than the work surface when the
adjusting feet are fully extended.
q
Pre-requisite: Side unit wall available for screw connection.
Top fixing
q
The appliance is slightly braced under the work top when
the adjusting feet are fully extended.
q
No granite plate.
4.3.1 Installing the appliance
Fig. 7
u
If already in place, pull the plinth panel forwards.
u
Detach the connecting cable from the rear of the appli-
ance, removing the cable holder at the same time
because otherwise there will be vibratory noise!
u
Lay the connecting cable with
the help of a string in such a
way that the appliance can be
easily connected after fitting.
Fig. 8
NOTICE
Risk of harm to flooring susceptible to damage!
u
Place a strip of cardboard under the height-adjustable feet,
approx. 10 cm x 60 cm, one at either side. Cut the strips out
of the packaging. For opening heights less than 826 mm,
use strips of a firm but thin material.
u
After the appliance has been slid in, remove the strips.
Top fixing
Fig. 9
u
Insert the bracket into the holder on the top of the unit and
bend towards the front.
u
Slide the unit into the recess and level, see Levelling the
appliance.
Side fixing:
Putting into operation
6 * Depending on model and options
Fig. 10
u
Bend both brackets at one end before installation. Insert the
straight edge into the holder on the top of the unit and bend
towards the front.
u
Slide the unit into the recess and level, see Levelling the
appliance.
Levelling the appliance
Fig. 11
u
Unscrew the rear adjusting feet using a screwdriver and
undo the front adjusting feet using a no. 8 Allen key alter-
nately until the unit sits just under the worktop.
u
Use a spirit level to level the unit.
w
The gap from the front edge of the cabinet wall to the appli-
ance should be 41.5 mm on both sides.
w
Should there be no unit side wall, align it with the work top.
For units with door stop components (knobs, sealing
lips etc.):
u
Deduct the extra dimension (depth of the door stop compo-
nents) from the 41.5 mm depth of insertion.
u
Unscrew the rear adjusting feet using a screwdriver and
undo the front adjusting feet using a no. 8 Allen key (if the
adjusting feet are retracted) or a screwdriver (if the adjusting
feet are extended) alternately as far as they will go. The
maximum adjustment range is 60 mm.
w
The appliance is aligned upright.
w
The appliance is slightly braced between the floor and the
work top.
Fig. 12
u
Place the foam pad in the plinth panel – this is essential for
separating air flows!
Fig. 13
u
Fit the plinth panel (2) without securing.
u
Position the unit door and the unit plinth panel for testing.
u
If plinth panel (2) is visible, pull it forward until the front edge
of the ventilation grid and the unit plinth panel are in line.
-or-
u
If the plinth panel (2) is hidden, push it right back.
u
Ensure that the ventilation slots are completely free: If
necessary, cut some off the height of the unit plinth panel
(U).
w
Adjust the bar height (V) under the plinth panel (2) along the
recess width (W).
Fig. 14
u
Fit and secure the plinth panel: Hold the plinth panel and
insert the catch.
u
Fix the unit plinth panel.
To secure appliance in the recess:
Putting into operation
* Depending on model and options 7
Fig. 15
u
If affixing the unit under a worktop, use 2 screws to secure
the fixing bracket under the worktop.
Fig. 16
u
If attaching the unit at the side, screw the fixing bracket into
the recess with one screw on each side.
4.3.2 Fitting the unit door
u
Fit the handle on the unit door.
Note
To ensure uniform extension of the pull-out compartment:
u
Always fit the unit door handle to the middle of the unit door.

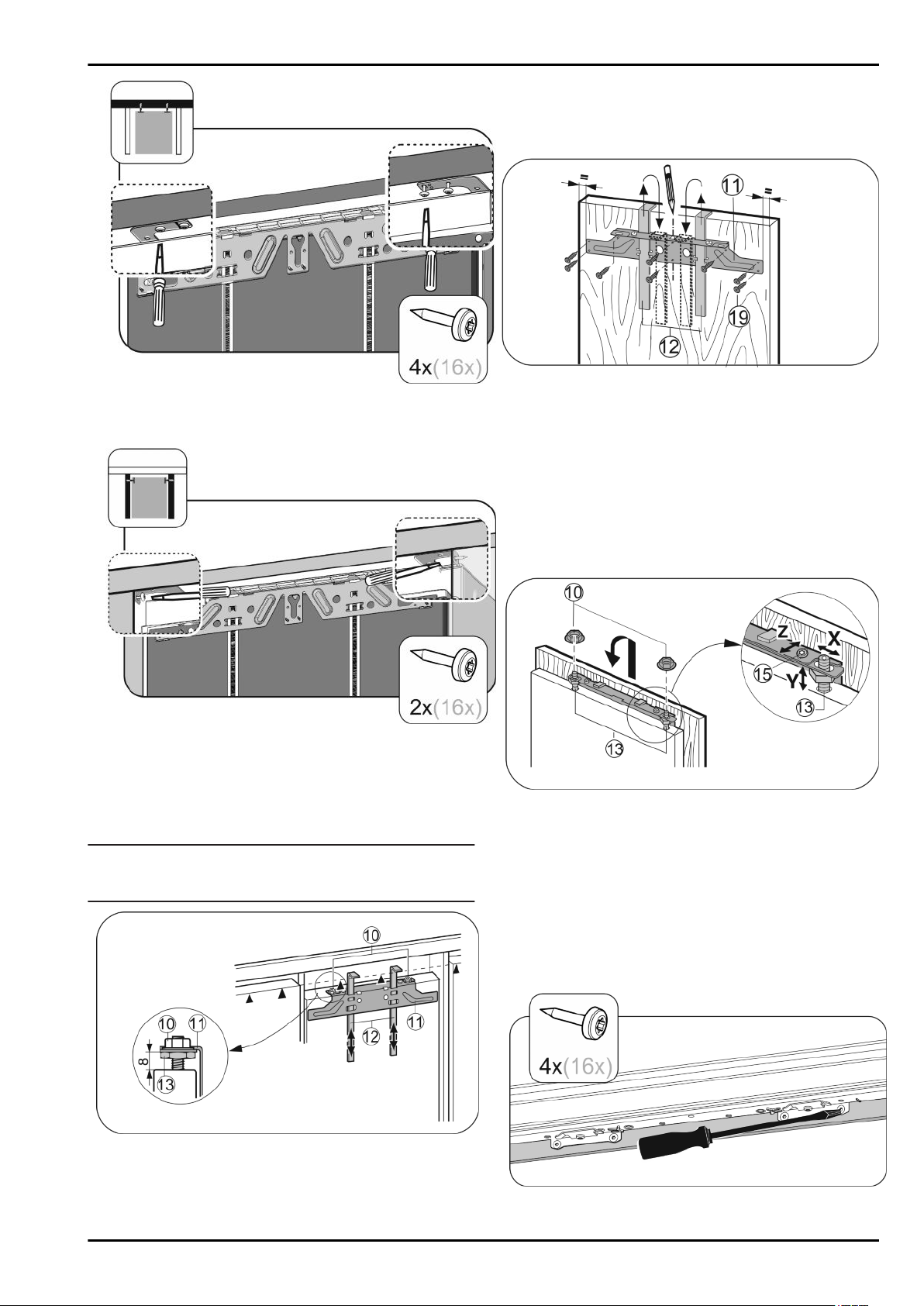

Fig. 17
u
Check 8 mm presetting. (Distance between appliance door
and lower edge of crosspiece)
u
Push up assembly aids
Fig. 17 (12)
to unit door height.
Lower edge ▲of the assembly aid = top edge of the unit
door to be fitted.
u
Unscrew fastening crosspiece
Fig. 17 (11)
by undoing the
locknuts
Fig. 17 (10)
.
Fig. 18
u
Attach fastening crosspiece
Fig. 18 (11)
to the inside of the
unit door using the assembly aids
Fig. 18 (12)
.
u
Align the crosspiece
Fig. 18 (11)
in the middle of the door.
w
Distances to the outer edge are equal at the left and right.
For chipboard doors:
u
Secure the fastening crosspiece
Fig. 18 (11)
with at least 6
screws
Fig. 18 (19)
.
For frame and panel doors:
u
Secure the fastening crosspiece
Fig. 18 (11)
with 4 screws
Fig. 18 (19)
at the edge.
u
Raise the assembly aids
Fig. 18 (12)
for removal, turn them
and insert them into the adjacent openings.

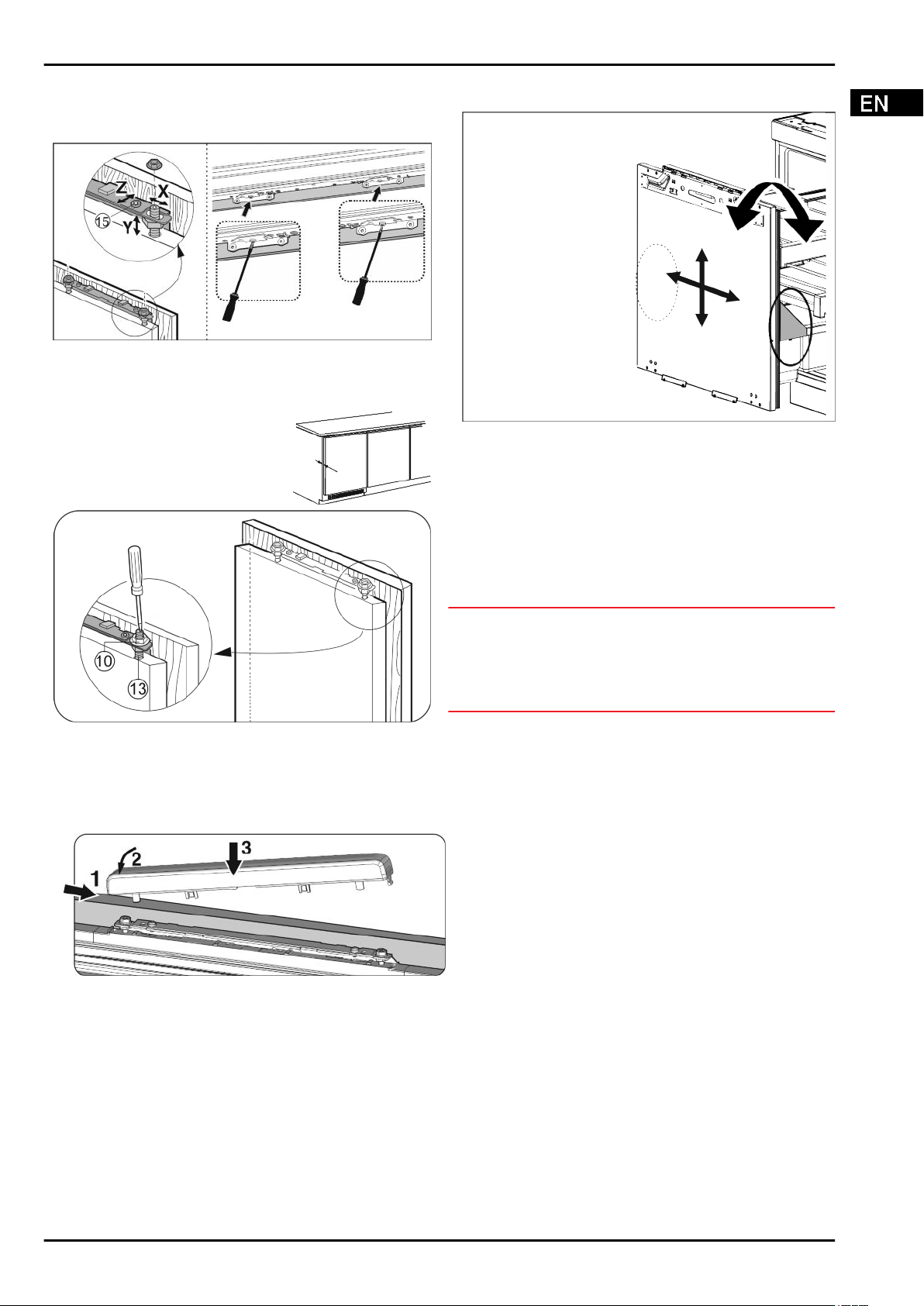

Fig. 19
u
Attach the unit door to the adjusting bolts
Fig. 19 (13)
and
loosely screw the locknuts
Fig. 19 (10)
onto them.
u
Close the door.
u
Check the gap between the door and the surrounding unit
doors.
u
To laterally align the door: push unit door in X direction.
u
To align the door vertically Y and in the lateral inclination:
adjust adjusting bolts
Fig. 19 (13)
with a screwdriver.
w
The unit door is flush and in alignment with the surrounding
unit fronts.
u
Tighten locknuts
Fig. 19 (10)
.
Fig. 20
u
To screw the unit door to the appliance door:
Putting into operation
8 * Depending on model and options
u
Drill pilot holes in the door of the unit (possibly make prelimi-
nary holes with a bradawl).
u
Screw the appliance door to the cabinet door using the fixing
bracket.
Fig. 21
u
Align the cabinet door to the height marked Z: loosen the
screws at the top and bottom of the door, then adjust the
door.
u
Do not allow knobs and sealing lips
to make contact - important for func-
tion!
u
Allow an air gap of 2 mm between
the unit door and the body of the
unit.
Fig. 22
u
Check the fit of the door and readjust if necessary.
u
Tighten all screws.
u
Tighten lock nuts
Fig. 22 (10)
with a no. 13 Allen key, making
sure you counterhold the adjusting bolts
Fig. 22 (13)
with a
screwdriver.
Fig. 23
u
Fit the top cover and click into place.
Check the following points to ensure the appliance is fitted
properly. Failure to do so may lead to icing, condensate forming
and malfunction:
w
The door has to close properly
w
The unit door must not butt against the unit body
4.4 Adjusting the contact of the door
seal
It may be necessary to adjust the appliance door, depending
on the weight of the kitchen unit door.
Once the kitchen unit door has been fitted, see that the door
seal makes full contact with the appliance body.
Fig. 24
The means for adjustment is situated on the right and left
underneath the bottle rack on the door interior.
The setting as delivered is 0.
The following adjustments are possible:
q
Inclination ± 1°
q
Upward adjustment by 4 mm
q
Downward adjustment by 2 mm
q
Adjustment by 2 mm to the left and right, respectively
NOTICE
Functional impairment and risk of damage!
u
Use the adjustment of the appliance door only for ensuring
that the door seal of the pull-out compartment makes 100
percent contact with the appliance body. Do not use it for
adjusting the kitchen unit door.
A check can be made on tight door closure by placing a shining
electric torch inside.
Putting into operation
* Depending on model and options 9
4.4.1 Adjusting the door inclination
Fig. 25
Note
u
Always make the adjustment on both sides, left and right!
u
Lift the vegetable bowl up to remove
Fig. 26
u
Unscrew and remove the screw
Fig. 26 (33)
.
w
Dispose of the screw
Fig. 26 (33)
, it is no longer needed.
u
Just loosen the screws
Fig. 26 (34)
by 1 to 2 turns.
u
Turn the adjusting screw
Fig. 26 (35)
. Clockwise: for inclina-
tion of the door away from the appliance body at the top.
Anticlockwise: for inclination of the door towards the appli-
ance at the top and away from the appliance body at the
bottom.
u
After having adjusted the inclination, re-tighten all the
screws
Fig. 26 (34)
.
4.4.2 Aligning the position of the door
Note
u
Always make the adjustment on both sides, left and right!
Fig. 27
Vertical adjustment, Y:
u
Unscrew and remove the screws
Fig. 27 (36)
.
w
Dispose of the screws
Fig. 27 (36)
, they are no longer
needed.
u
Just loosen the screws
Fig. 27 (37)
by 1 to 2 turns.
u
Turn the adjusting screw (38). Clockwise: for moving the
door upwards by 4 mm max. Anticlockwise: for moving the
door downwards by 2 mm max.
u
Re-tighten all the screws
Fig. 27 (37)
.
Lateral adjustment, X:
u
If the screws
Fig. 27 (36)
are still present, unscrew and
remove them.
u
Just loosen the screws
Fig. 27 (37)
by 1 to 2 turns.
u
Turn the adjusting screws
Fig. 27 (39)
according to the
lateral adjusting direction wanted.
u
After having made the lateral adjustment, re-tighten the
screws
Fig. 27 (37)
.
u
Re-insert the bottle rack
Fig. 25 (32)
and vegetable bin
Fig. 25 (31)
.
Note
Make sure the vegetable bowl is correctly positioned and clicks
into place.
Otherwise the door will not close.
u
The vegetable bowl should be flush with the inner door.
4.5 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic film!
u
Do not allow children to play with packing material.
Putting into operation
10 * Depending on model and options
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
u
Take the packaging material to an official collecting point.
4.6 Connecting the appliance
NOTICE
Failure to connect properly
Damage to the electronics.
u
Do not use a standalone inverter.
u
Do not use an energy saving plug.
WARNING
Failure to connect properly
Fire hazard.
u
Do not use an extension cable.
u
Do not use distributor blocks.
The type of current (alternating current) and voltage at the
installation site have to conform with the data on the type plate
(see 1) .
The socket must be properly earthed and fused. The tripping
current for the fuse must be between 10 A and 16 A.
The socket must be easily accessible so that the appliance can
be quickly disconnected from the supply in an emergency. It
must be outside the area of the rear of the appliance.
u
Check the electrical connection.
u
Plug in the power plug.
4.7 Switching on the appliance
u
Open the door.
u
Press the On/Off button
Fig. 2 (1)
.
w
The temperature display lights up. The appliance
is switched on.
w
If “DEMO” is displayed, demo mode is activated.
Please contact the after sales service.
5 Control
5.1 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently switched
off by playing children.
5.1.1 Setting the child lock function
u
Activate setting mode: Press the SuperCool button
Fig. 2 (2)
for around 5 seconds.
w
The display indicates S.
w
The menu symbol
Fig. 2 (9)
shines.
u
Use the Settings button
Fig. 2 (3)
to select c.
u
Briefly press theSuperCool button
Fig. 2 (2)
to confirm.
When
c1 is indicated in the display:
u
to activate the child lock, briefly press the
SuperCool button
Fig. 2 (2)
.
w
The child lock symbol
Fig. 2 (7)
shines. c flashes in the
display.
When c0 is indicated in the display:
u
to deactivate the child lock, briefly press the SuperCool
button
Fig. 2 (2)
.
w
The child lock symbol
Fig. 2 (7)
goes out. c flashes in the
display.
u
To deactivate the set-up mode: press On/Off button
Fig. 2 (1)
.
-or-
u
Wait for 5 minutes.
w
The temperature is indicated again in the temperature
display.
5.2 Door alarm
For the fridge compartment
An audible warning sounds if the door is open for
longer than 60 seconds.
The audible warning stops automatically when the
door is closed.
5.2.1 Muting the door alarm
The audible alarm can be muted when the door is open. The
sound switch-off function is active as long as the door is left
open.
u
Press alarm button
Fig. 2 (4)
.
w
The door alarm is silenced.
5.3 Sabbath Mode
This function meets the religious requirements on the Sabbath
or Jewish feast days. When Sabbath mode is on some of the
electronic control functions are switched off. After setting
Sabbath mode you no longer need to worry about indicator
lamps, figures, symbols, displays, alarm messages and fans.
The thawing cycle only works for the specified time without
taking account of fridge use. After a power cut the appliance
automatically switches back to Sabbath mode.
There is a list of Star-K certified appliances at www.star-k.org/
appliances.
WARNING
Danger of food poisoning.
If a power cut occurs when Sabbath mode is enabled, this
message is not saved. Once the power is restored the appli-
ance continues to work in Sabbath mode. When this mode is
over no message about the power cut is displayed on the
temperature display.
If a power cut occurred during Sabbath mode:
u
Check the food for quality. Do not eat the food if it has
thawed.
-
All functions are blocked until Sabbath mode is switched off.
-
If functions such as SuperFrost, SuperCool, ventilation etc.
are selected when Sabbath mode is switched on they
remain switched on.
-
No audible signals are emitted and the temperature display
does not indicate any warnings or settings (such as a
temperature alarm or door alarm).
-
The internal light is off.
5.3.1 Setting Sabbath Mode
u
Activate setting mode: Press the SuperCool button
Fig. 2 (2)
for around 5 seconds.
w
S flashes in the display.
Control
* Depending on model and options 11
w
The Menu symbol
Fig. 2 (9)
lights up.
u
To call up the Sabbath Mode function: Briefly press the
SuperCool button
Fig. 2 (2)
.
w
S flashes in the display.

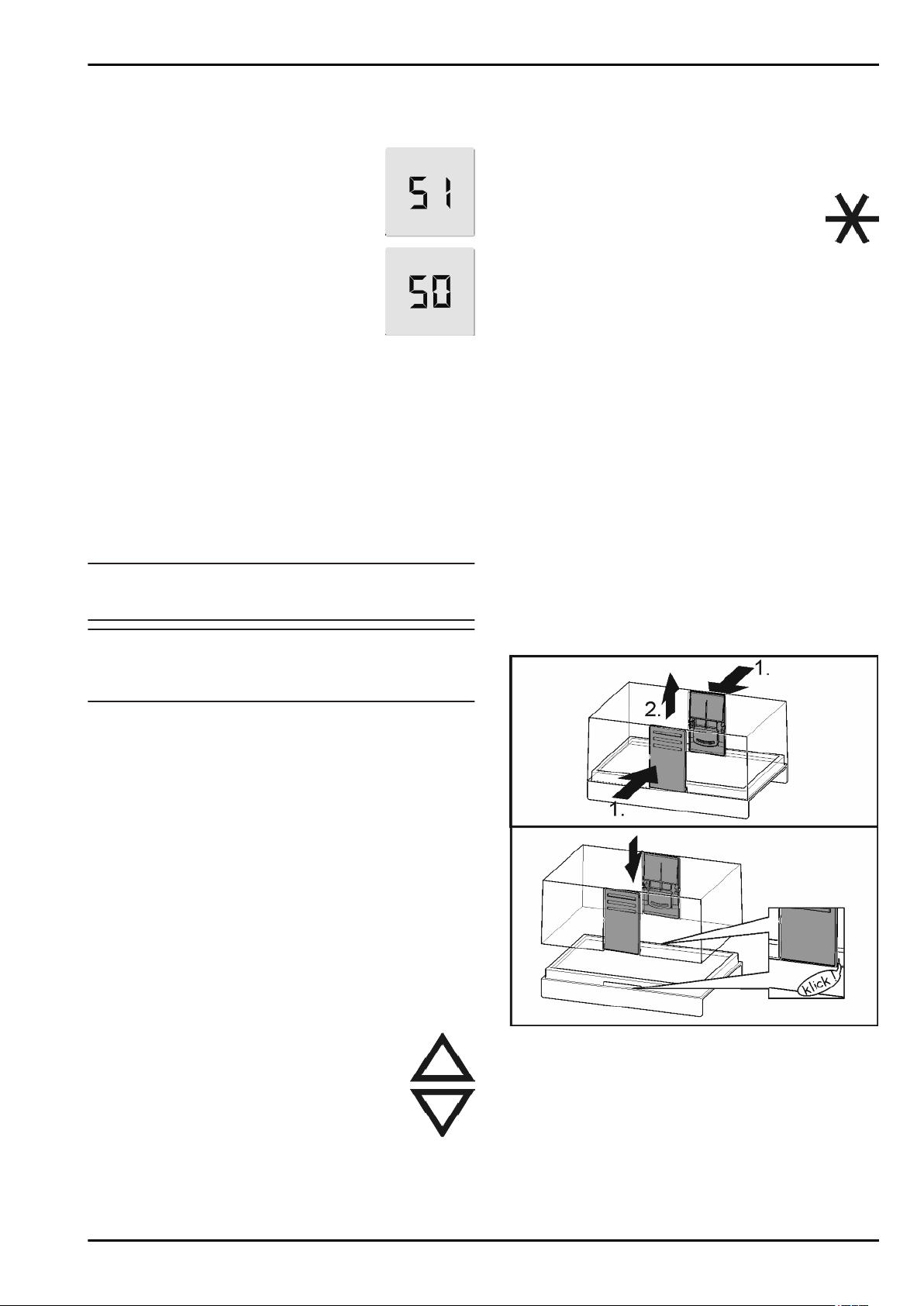

If you see S1 in the display:
u
To switch on Sabbath Mode, briefly press
the SuperCool button
Fig. 2 (2)
.
If you see S0 in the display:
u
To switch off Sabbath Mode, briefly press
the SuperCool button
Fig. 2 (2)
.
u
Deactivate setting mode: Press the On/Off button
Fig. 2 (1)
.
-or-
u
Wait 5 min.
w
The temperature display shows the Sabbath Mode symbol
Fig. 2 (8)
as long as Sabbath Mode is on.
w
Sabbath Mode switches off automatically after 120 hours if it
has not already been switched off manually.
5.4 Food refrigeration
The coldest areas are directly above the vegetable compart-
ments and along the back wall. The warmest area is at the top
front and in the door.
Note
u
The maximum weight you can store in the pull-out compart-
ment with bottle rack and vegetable bin is 20 kg.
Note
The energy consumption increases and the cooling perform-
ance decreases if the ventilation is inadequate.
u
Always keep the air slits of the fan free.
u
Store readily perishable food such as pre-cooked meals,
meat and sausage products in the middle area of the coldest
zone. Store butter and preserves in the top area. (see 1)
u
Use recyclable plastic, metal, aluminium and glass
containers and cling film for wrapping.
u
Always store liquids and food which is subject to odour or
taste transfer in closed containers or cover them.
u
Do not store food too close together to enable good air
circulation.
5.5 Setting the temperature
The temperature depends on the following factors:
-
the frequency of opening the door
-
the room temperature of the installation location
-
the type, temperature and quantity of the food
Recommended temperature setting: 5 °C
The temperature is changed sequentially. Once the 2 °C setting
is reached, the sequence starts again at 9 °C.
u
Call up temperature function: press the setting
button
Fig. 2 (3)
.
w
The previously-set value will flash in the temper-
ature display.
u
Change the temperature in 1 °C steps: Press the
setting button
Fig. 2 (3)
until the required
temperature is indicated in the temperature
display.
u
Change temperature continually: hold down
setting button.
w
During adjustment the value flashes on the
display.
w
The new setting is adopted approx. 5 seconds after the last
time the button was pressed and the set temperature is
again displayed. The temperature in the interior gradually
adjusts to the new value.
5.6 SuperCool
With SuperCool you switch to the highest cooling
performance to reach lower cooling temperatures.
Use SuperCool, to rapidly cool large amounts of
food.
When SuperCool is activated, the fan* may run. The appliance
operates with maximum cooling performance, which means
that the noise of the refrigeration unit may be temporarily
louder.
The SuperCool function uses slightly more energy.
5.6.1 Cooling with SuperCool
u
Briefly press SuperCool button
Fig. 2 (2)
.
w
The SuperCool symbol
Fig. 2 (10)
lights up in the display.
w
The cooling temperature drops to the coldest value.
SuperCool is activated.
w
SuperCool is automatically deactivated after 12 hours. The
appliance continues to operate in the energy-saving, normal
mode.
5.6.2 To prematurely deactivate SuperCool
u
Briefly press SuperCool button
Fig. 2 (2)
.
w
The SuperCool symbol
Fig. 2 (10)
goes out in the display.
w
SuperCool is deactivated.

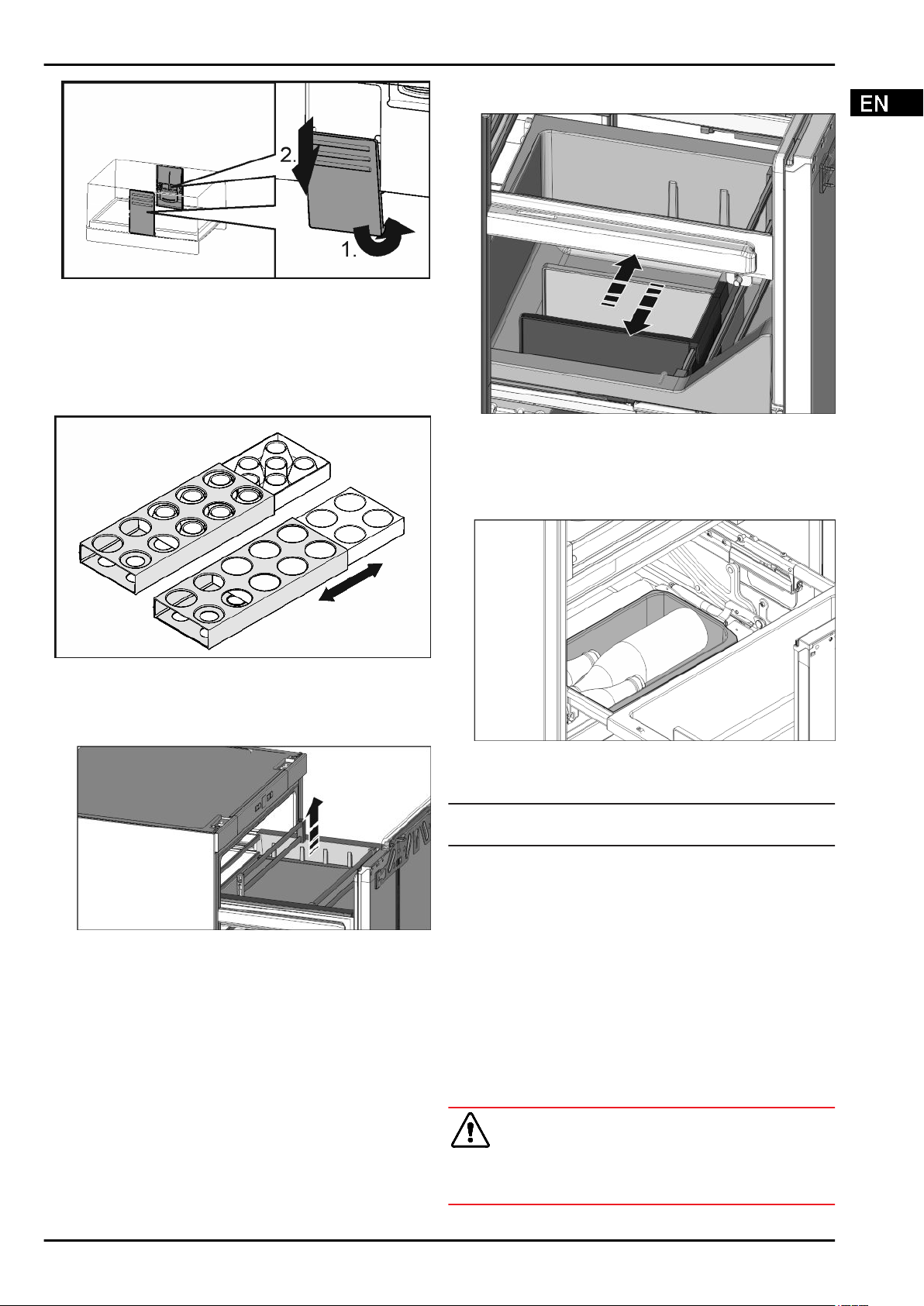

5.7 Butter dish
Opening/closing the butter dish
Fig. 28
Dismantling the butter dish
Control
12 * Depending on model and options
Fig. 29
u
You can take the butter dish apart for cleaning.
5.8 Egg tray
You can take out and rotate the egg tray. You can use the two
parts of the egg tray to mark different use-by dates, for
example.
u
Use the top part to store e.g. chicken eggs.
u
Use the bottom part to store quails' eggs.
5.9 Relocating the retainers
Fig. 30
u
Take hold of the retainers at the right and left, carefully lift
them out and press them into the new seats until the holders
engage.
5.10 Partitioning the vegetable bin
Fig. 31
u
The partition can be used to subdivide the vegetable bin.
Insert the partition at the guides or simply lift it out.
5.11 Storing food in the Lift-up-Box*
Fig. 32
u
Use the Lift-up Box to store unopened/sealed bottles and
packed items.
Note
u
The Lift-up Box has a maximum capacity of 4 kg.
6 Maintenance
6.1 Defrosting
6.1.1 Defrosting refrigerator compartment
The refrigerator compartment is defrosted automatically. The
water evaporates. Drops of water on the rear wall are function-
ally conditioned and perfectly normal.
u
Clean the drain hole at regular intervals to allow the defrost
water to drain (see 6.2) .
6.2 Cleaning the appliance
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
Maintenance
* Depending on model and options 13
NOTICE
Incorrect cleaning damages the appliance!
u
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel wool.
u
Do not use any sharp or abrasive cleaning agents, nor any
that contain sand, chloride or acid.
u
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of the
appliance. It is important for the customer service.
u
Do not pull off, bend or damage cables or other compo-
nents.
u
Do not allow any cleaning water to enter the drain channel,
ventilation grille or electrical parts.
u
Please use soft cleaning cloths and a universal pH-neutral
cleaning agent.
u
Please use cleaning and care products suitable for contact
with foodstuffs in the appliance interior.
u
Empty appliance.
u
Pull out the power plug.
u
Clean the vent grille regularly.
w
Dust deposits increase energy consumption.
u
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
u
Clean drain hole:
Remove deposits with
a narrow instrument,
e.g. a cotton bud.

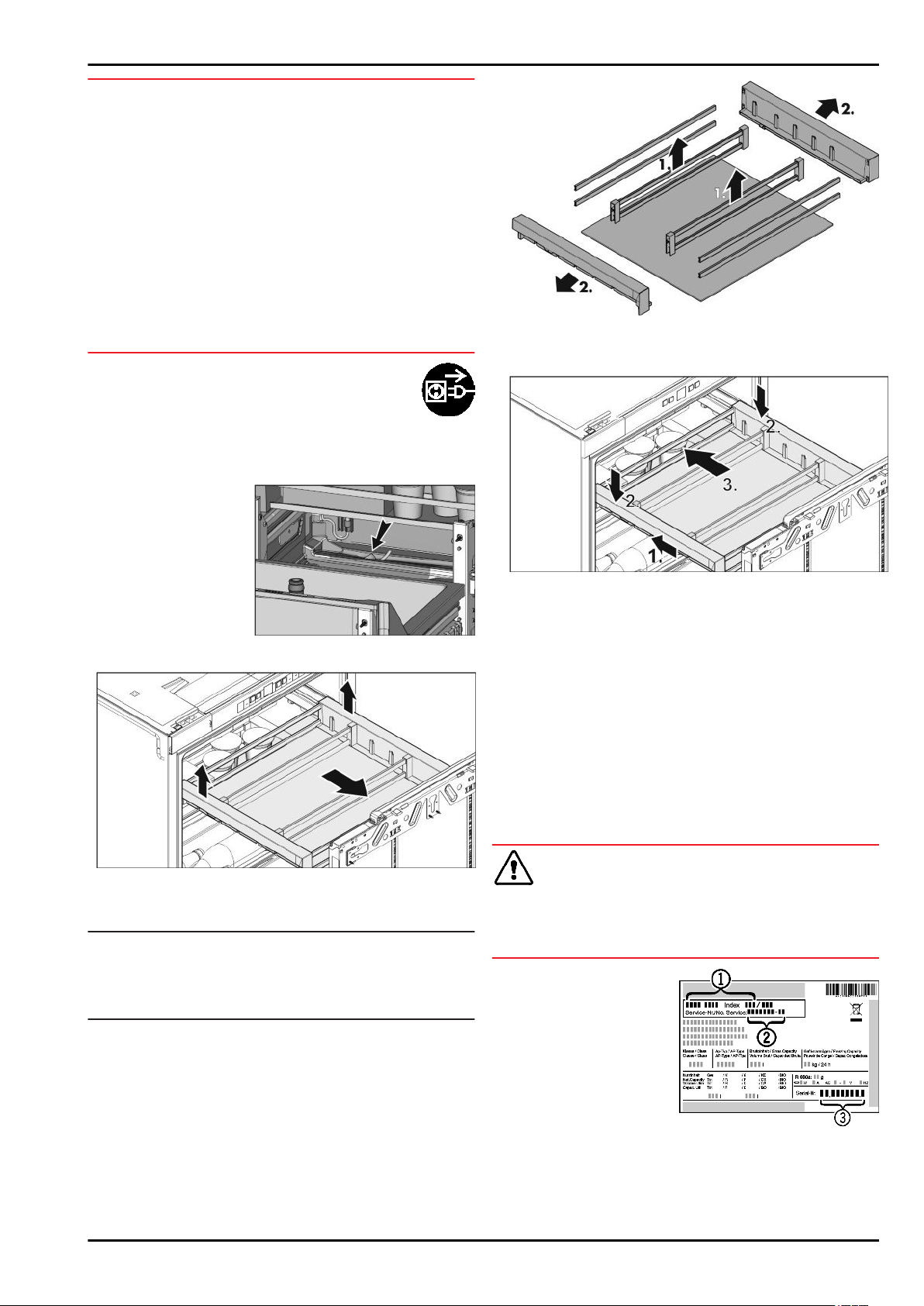

u
Most of the parts can be dismantled for cleaning: see the
relevant chapter.
Fig. 33
u
Removing the shelf: Lift the shelf at the back and draw it
forwards, as illustrated.
Note
u
If the shelf can no longer be extended as far as originally,
then extend the telescopic rails all the way. The ball retainers
of the telescopic rails are realigned in the process and
maximum extension is restored.
u
Only use a damp cloth to clean the telescopic rails. The
grease in the runners is for lubrication purposes and must
not be removed.
u
To disassemble the cabinet:Lift the inner retaining rods
upwards, pull the brackets out. This releases the front and
rear retaining rods as well as the glass panel.
Fig. 34
u
Inserting the shelf: Retract the telescopic rails.
u
Place the shelf on the telescopic rails, push it to the back
until it audibly engages.
After cleaning:
u
Wipe dry the appliance and items of equipment.
u
Connect the appliance and switch it on again.
When the temperature is sufficiently cold:
u
Put the food back inside.
6.3 Customer service
First check whether you can correct the fault yourself by refer-
ence to the list (see 7) . If this is not the case, please contact
the customer service whose address is given in the enclosed
customer service list.
WARNING
Risk of injury if repair work is not carried out professionally!
u
Have any repairs and action - not expressly specified - on
the appliance and mains cable carried out by service
personnel only. (see 6)
u
Read the appliance
designation
Fig. 35 (1)
, service
No.
Fig. 35 (2)
and
serial No.
Fig. 35 (3)
off the type plate
located inside the
appliance on the left-
hand side.
Fig. 35
u
Notify the customer service, specifying the fault, appliance
designation
Fig. 35 (1)
, service No.
Fig. 35 (2)
and serial No.
Fig. 35 (3)
.
Maintenance
14 * Depending on model and options
w
This will help us to provide you with a faster and more accu-
rate service.
u
Keep the appliance closed until the customer service
arrives.
w
The food will stay cool longer.
u
Pull out the mains plug (not by pulling the connecting cable)
or switch off the fuse.
7 Malfunctions
Your appliance is designed and manufactured for a long life
span and reliable operation. If a malfunction nonetheless
occurs during operation, check whether it is due to a handling
error. In this case you will have to be charged for the costs
incurred, even during the warranty period. You may be able to
rectify the following faults yourself:
Appliance does not work.
→
The appliance is not switched on.
u
Switch on the appliance.
→
The power plug is not properly inserted in the wall socket.
u
Check power plug.
→
The fuse of the wall socket is not in order.
u
Check fuse.
The compressor runs for a long time.
→
The compressor switches to a low speed when little cold is
needed. Although the running time is increased as a result,
energy is saved.
u
This is normal in energy-saving models.
→
SuperCool is activated.
u
The compressor runs for longer in order to rapidly cool the
food. This is normal.
A LED on the bottom rear of the appliance (at the
compressor) flashes repeatedly every 5 seconds*.
→
There is a fault.
u
Please contact the after-sales service (see 6) .
Excessive noise.
→
Due to the various speed steps, speed-regulated* compres-
sors can generate different running noises.
u
The sound is normal.
A bubbling and gurgling noise.
→
This noise comes from the refrigerant flowing in the refriger-
ation circuit.
u
The sound is normal.
A quiet clicking noise.
→
The noise is produced whenever the refrigeration unit
(motor) automatically switches on or off.
u
The sound is normal.
A hum. It is briefly a little louder when the refrigeration
unit (the motor) switches on.
→
The refrigeration increases automatically when the
SuperCool function is activated, fresh food has just been
placed in the appliance or the door has been left open for a
while.
u
The sound is normal.
→
The ambient temperature is too high.
u
Solution: (see 1.2)
A low hum.
→
The sound is produced by air flow noise of the fan.
u
The sound is normal.
Vibration noises
→
The appliance is not standing firmly on the floor. As a result
objects and adjacent units start to vibrate when the refriger-
ator is running.
u
Check the installation and realign the appliance.
u
Keep bottles and jars apart.
Flow sound at the soft stop mechanism.
→
The noise is produced when the door is opened and
closed.
u
The sound is normal.
The temperature display indicates: F0 to F9
→
There is a fault.
u
Please contact the after-sales service (see 6) .
DEMO shines in the temperature display.
→
The demo mode is activated.
u
Please contact the after-sales service (see 6) .
The outer surfaces of the appliance are warm*.
→
The heat of the refrigeration circuit is used to prevent
condensate from forming.
u
This is normal.
The temperature is not cold enough.
→
The door of the appliance is not properly closed.
u
Close the door of the appliance.
→
Insufficient ventilation.
u
Keep ventilation grille clear, and clean it.
→
The ambient temperature is too high.
u
Solution: (see 1.2) .
→
The appliance was opened too frequently or for too long.
u
Wait to see whether the appliance reaches the required
temperature by itself. If not, please contact the after sales
service (see 6) .
→
The temperature is incorrectly set.
u
Set the temperature to a colder setting and check after 24
hours.
→
The appliance is too close to a source of heat (stove, heater
etc).
u
Change the position of the appliance or the source of heat.
→
The appliance was not inserted properly into the recess.
u
Check whether the appliance was inserted correctly and
the door closes properly.
The internal light does not come on.
→
The appliance is not switched on.
u
Switch the appliance on.
→
The door was open for longer than 15 minutes.
u
The internal light switches itself off automatically after about
15 minutes if the door is open.
→
The LED illumination is faulty or the cover is damaged:
WARNING
Risk of injury due to electric shock!
Live parts are located under the cover.
u
Have the LED interior light changed or repaired only by the
customer service or by specialized personnel trained for the
purpose.
WARNING
Danger of injury by LED lamp!
The lighting intensity of the LED light complies with laser class
RG 2.
If the cover is defective:
u
Do not look into the illumination with optical lenses from the
immediate proximity. This can cause injury to the eyes.
The door seal is defective or needs to be replaced for
another reason.
→
The door seal can be replaced. It can be replaced without
the need for special tools.
u
Contact Customer Service (see 6) :
The unit has iced up or condensation has formed.
→
The door seal may have also slipped out of its groove.
Malfunctions
* Depending on model and options 15
u
Check to ensure that the door seal is seated properly in the
groove.
8 Decommissioning
8.1 Switching off the appliance
u
Press the On/Off button
Fig. 2 (1)
until the display goes dark.
Release button.
w
If the appliance cannot be switched off, the child lock func-
tion is active (see 5.1) .
8.2 Taking the appliance out of service
u
Empty the appliance.
u
Switch off the appliance (see 8) .
u
Remove mains connector.
u
Clean the appliance (see 6.2) .
u
Leave the door open to prevent odour.
9 Disposing of the appliance
The appliance contains some reusable materials
and should be disposed of properly - not simply
with unsorted household refuse. Appliances which
are no longer needed must be disposed of in a
professional and appropriate way, in accordance
with the current local regulations and laws.
When disposing of the appliance, ensure that the refrigeration
circuit is not damaged to prevent uncontrolled escape of the
refrigerant it contains (data on type plate) and oil.
u
Disable the appliance.
u
Pull out the plug.
u
Cut through the connecting cable.
Decommissioning
16 * Depending on model and options
Disposing of the appliance
* Depending on model and options 17
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
home.liebherr.com
