User Manual Whynter TBR185SR Refrigerator

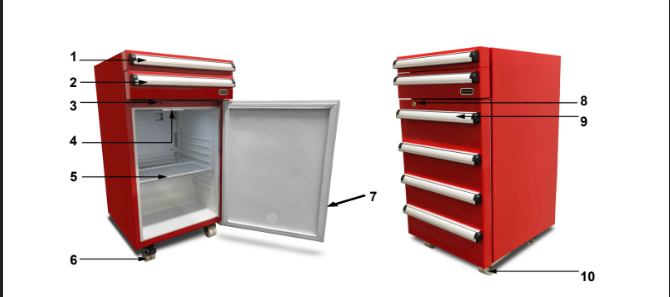

Parts and Accessories
BOTTOM REAR SECTION
Product Features / Technical Data
Ideal for any small space where cold storage is needed, the Whynter Portable 1.8 cu.ft. Tool Box Refrigerator with 2 Drawers and Lock can also be used in the kitchen, offices, garages or basements. This space-saving Tool Box Refrigerator is designed with a flush back, allowing it to fit cleanly against the wall or into corners. This freezer features a stainless steel trimmed glass door, adjustable temperature control, and a lock for securing the contents.
- Powder coated red with a Full Steel Exterior
- Powerful compressor cooling
- Roller Guided Metal Drawers - for storing a wide variety of home tools and hardware
- Mechanical temperature control with temperature range from high 30oF to mid 60oF
- Wheel Rollers - lets you easily transport or move your tool box refrigerator whenever the need arises
- Soft interior LED lighting with on/off switch
- Inside cabinet drain
- Door lock and two keys
- Freestanding setup (clearance around the unit is needed)

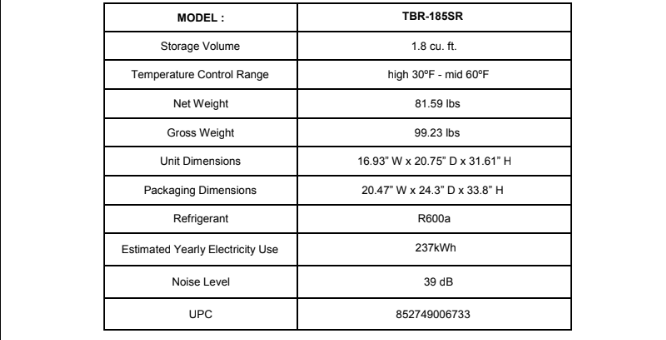

TECHNICALDATA
Installation
REMOVE PACKAGING MATERIALS
IMPORTANT: Do not remove any permanent instruction labels or the data label on your tool box refrigerator
REMOVE TAPE AND GLUE FROM YOUR TOOL BOX REFRIGERATOR BEFORE USING
To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue inside the refrigerator compartment. These products can damage the inside surface.
CLEANING BEFORE USE
After you remove all of the packaging materials, clean the inside of your tool box refrigerator before using it.
INSTALLATION CLEARANCES
Your tool box refrigerator should be conveniently located for day-to-day use in a dry, well-ventilated room. Do not install the tool box refrigerator where the temperature will go below 50°F or above 90°F, because it will not main- tain proper temperatures. Be sure to install your tool box refrigerator on a floor strong enough to support it when it is fully loaded.
FREESTANDING INSTALLATION
A freestanding installation will allow you to install the tool box refrigerator in any place you desire provided that the required clearance space around the appliance is respected. In every setting, there must be adequate ventila- tion and access for service. Never install or operate the unit in an enclosed area, such as a closed cabinet.
- Before connecting the tool box refrigerator to the power source, let it stand upright for approximately 4 hours.This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
- The normal operation of the tool box refrigerator depends on heat radiation from the condenser. Allow at least inches of space between the back and sides of the appliance, which allows the proper air circulation to cool the compressor and condenser. The installation should allow the tool box refrigerator to be pulled forward for servicing if necessary.
- This unit MUST be installed in an area protected from the elements, e.g., wind, rain, water spray or drips. Do NOT use in an outdoor setting.
- The tool box refrigerator should not be located next to ovens, grills or other high heat resources.
- Too much humidity in the air will cause frost to form quickly on the evaporator requiring more frequent de- frosting of the tool box refrigerator.
- Avoid locating the appliance in area that may be exposed to excessive moisture.
- The tool box refrigerator must be installed with all electrical requirements followed.
- The unit should be located on a hard and level surface that can support the unit when it is full. It is important for the tool box refrigerator to be level in order to work properly.
- A standard electrical supply (115 VAC only, 60 Hz, 10A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required.
- IMPORTANT: Do not kink or pinch the power supply cord between the tool box refrigerator and wall or com- partment.
MOVEMENT OF YOUR APPLIANCE
- Position the tool box refrigerator in a dry and well-ventilated place. Keep the tool box refrigerator away from direct sunlight, heaters, and corrosive gases or chemicals.
- Clean the interior surface with lukewarm water using a soft cloth.
- Place your appliance on a hard and level floor that is strong enough to support it when it is fully loaded.
- The tool box refrigerator can be simply moved from one room to another by using the pre-installed wheel roll- ers.
- If the appliance is needed to be lifted, two or more people should move tool box refrigerator. Failure to do so can result in back or other injury.
- We do not recommend installing the appliance on carpet.
Operation and Controls
TEMPERATURE CONTROL BOX
To obtain the best possible results for your tool box refrigerator, it is important that you operate it properly. Your tool box refrigerator uses a mechanical thermostat control knob which can be located at the back side of the refrigerator. This tool box refrigerator operates within a temperature range from high 30oF - mid 60oF
The temperature control knob is marked with the settings OFF-COLD-COLDEST in order of increasing cold- ness. When the unit is set to “OFF”, the refrigerator stops running.
NOTE:
- Give your refrigerator time to cool down completely. It is best to wait for 24 hours before adding items.
- This refrigerator is not designed for use as a freezer. The temperature range for this tool box refrigerator is optimized for beverage storage. Perishable items may require a different storage environment.
INTERIOR LIGHT
To turn on/off the interior light, flip the switch next to the thermostat control knob. Please note that the interior light can only be controlled by this switch but not the opening and closing of the door.
CYLINDER LOCK
This tool box refrigerator is equipped with a lock to keep your beverages safe and secure. Please note that only the large roller tool drawer and refrigerator cabinet will be secured when the lock is used.
FRESH FOOD STORAGE
- Wrap or store food in the refrigerator in airtight and moisture – proof material. This prevents food odor and taste transfer throughout refrigerator.
- Fruit – wash, dry and store in refrigerator in plastic bags or crisper.
- Leafy vegetables- remove wrapping and trim or tear off bruised and discolored areas then wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.
- Fish – use fresh fish the same day as purchased.
- Meat – store most meat in original wrapping as long as it is airtight and moisture – proof. Re-wrap if nec- essary.
- Leftovers – cover leftovers with plastic wrap or aluminum foil. Plastic containers with tight-seal lid can also be used.
NOTE:
For best performance, leave enough space in the refrigerator compartment for air to circulate around the packages. Also let enough room at the front so the door can close tightly.
DEFROSTING
Under most ambient conditions, the appliance does not need to be defrosted. In cold ambient temperatures and/or high humidity, some frost may build up. To defrost the appliance, set the thermostat dial to “OFF”, re- move frozen or perishable items and defrosting should occur in a few hours. After defrosting, return the ther- mostat dial to the desired position. For faster defrosting, remove all items from the appliance, unplug the appli- ance and leave the door open. Never use a knife or other metal instrument to scrape ice/frost from the evapo- rator.
NORMAL SOUNDS
The unit is cooled by a compressor. The compressor pumps coolant through the cooling system, producing operating noise. Even when the compressor cuts out, noises caused by changes in temperature and pressure are unavoidable. Operating noise will be most audible immediately after the compressor comes on. It becomes quieter as the operating period continues.
The following noises are normal and occur from time to time:
- Gurgling sound, caused by the refrigerant flowing through the appliance’s coils
- Humming noise made by the compressor. This noise can get louder for brief periods when the motor is switching on.
- Cracking/popping sounds, resulting from the materials contraction and expansion due to temperature vari- ations.
- Fan operating sound, to circulate the air within the refrigerator compartment.
- Unusual noise is normally the result of improper installation.
- Where the unit is installed in open-plan kitchen or in partition walls, the level of operating noise will be heard more acutely. However, this is due to the surrounding architecture and not to the unit.
NOTE: An individual’s perception of noise is directly linked to the environment in which the unit is located, as well the specific type of models. Our appliances are in line with international standards for such appliance and in line with the latest technical developments. Please remember that the noise of the compressor and the cool- ant circulating in the system is unavoidable
Cleaning and Maintenance
CLEANING
Outside/Exterior
- Wipe with a clean cloth lightly dampened with appliance polish wax or mild liquid dishwashing detergent.Dry and polish with a clean, soft cloth.
- Do not wipe the tool box refrigerator with a soiled dishwashing cloth or wet towel. Do not use scouring pads, powdered cleaners, bleach, or cleaners containing bleach.
Inside
- Turn off the power, unplug the appliance, and remove all items including shelves.
- Use warm water and baking soda solution–about a tablespoon of baking soda to a quart of water. Rinse thoroughly with water and wipe dry.
- Do not use cleaning powders or other abrasive cleaners. An open box of baking soda in the tool box re- frigerator will absorb stale tool box refrigerator odors. Change the box every three months.
- An open box of baking soda in the tool box refrigerator will absorb stale tool box refrigerator odors.
- Change the box every three months
CHANGING THE LIGHT BULBS
To change the light bulb, make sure to unplug tool box refrigerator or disconnect unit from power supply be- fore removing the bulb. Replace the bulb with an 8-watt LED bulb. Please note that not all bulbs will fit your tool box refrigerator. Be sure to replace the bulb with one of the same size and shape. Plug in the tool box refrigerator or reconnect tool box refrigerator to power supply after bulb replacement.
PREPARING FOR STORAGE
If the tool box refrigerator will not be used for a long time, or is to be moved to another place, it will be neces- sary to defrost the unit and dry the interior.
- Disconnect the tool box refrigerator from the power supply by removing the power plug from the wall socket. WARNING: Do not touch the power plug when your hands are wet. Never unplug the unit by pull- ing the cord.
- Leave the door open to allow air circulation and mold prevention, mildew and unpleasant smells.
CAUTION: Store the unit out of the reach of children. If you have children, you may want to take additional precautions such as locking the beverage refrigerator door.
VACATION TIME
- Short vacations: Leave the appliance operating during vacations of less than two days.
- Long vacations: If the appliance will not be used for an extended period, remove all items and turn off the appliance. Clean and dry the interior thoroughly.
MOVING YOUR APPLIANCE
- Remove all items inside the appliance.
- Securely tape down (we recommend using painter’s tape) all loose items (shelves) inside your appli- ance.
- Turn the adjustable leg up to the base to avoid damage.
- Tape (we recommend using painter’s tape) the door shut.
- Be sure the appliance stays secure in the upright position during transportation and protect the exterior of appliance with a blanket, or similar item.
ENERGY SAVING TIPS
- The appliance should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of any direct sunlight.
- Ensure that the appliance is adequately ventilated. Never obstruct the air vents.
- Close the door tightly and do not open the appliance too frequently or for a long period of time.
- Store the content in an organized way.
- Do not over-fill the appliance to allow air to circulate.
Troubleshooting
Many common tool box refrigerator problems are easily resolved. Try the troubleshooting suggestions be-low to see if the problems can be resolved before having to contact the service department.
1. The machine won't operate
The tool box refrigerator is un- plugged
The voltage is not in the correct range
Too many appliances running form the same power circuit
- Push the plug completely into the power source
- Make sure that the tool box refrigerator runs on a dedicated power source that can support the maximum power consumption of the tool box re- frigerator
- Run the tool box refrigerator on a dedicated pow- er source
2. Noise during operation
Unit is not on a leveled surface
Certain sounds are normal
- Make sure unit is placed in a leveled surface
- See “Normal Sounds”
3. The compressor runs for 1 to 5 minutes and stops
The voltage is not in the correct range
- Unplug and restart when the power is normal
4. The compressor runs but the inner liner does not get very cold
The ambient temperature is too high
The system is blocked
- If temperature is higher than 90°F, the unit need longer to cool to the set temperature
5. The tool box refrigera- tor does not cool suffi- ciently
Tool box refrigerator door being opened frequently
Tool box refrigerator door left open for a while
Not enough adequate clearance
Tool box refrigerator is overfilled
Ambient temperature is too high
- Refrain from opening the tool box refrigerator door recurrently
- Make sure to close tool box refrigerator door
- Follow recommended clearance measurements
- If temperature is higher than 90°F, the unit need longer to cool to the set temperature
6. The compressor does not run
The controller is faulty (the power indicator is not on)
The thermostat is set too high and the ambient temperature is too low
- Set the tool box refrigerator to a lower tempera- ture
7. Interior light does not work
No power at outlet tool
box refrigerator is unplugged
Light bulb burned out
- Replace fuse or reset the breaker
- Push the plug completely into the outlet
- Replace light bulb
8. Door does not fully close
Unit is not on a leveled surface
Stored items holding door open
- Make sure unit is placed in a leveled surface
- Move stored item to a different location
9. Foods defrosting
The tool box refrigerator is un- plugged
Fuse blown
Tool box refrigerator door being opened frequently
Tool box refrigerator door left open for a while
- Push the plug completely into the power source
- Replace fuse or reset the breaker
- Check to see if an object is holding the door open
10. Excessive frost buildup
Door left open too frequent or too long door openings
High humidity
- Check to see if an object is holding the door open
- Open the door less often
Many common tool box refrigerator problems are easily resolved. Try the troubleshooting suggestions be- low to see if the problems can be resolved before having to contact the service department.
1. Tool box refrigerator external surface is warm
The external tool box refrigera- tor walls can be as much as 30° F warmer than room tempera- ture
- This is normal while the compressor works to trans- fer heat from inside the tool box refrigerator com- partment
2. Moisture forms the tool box refrigerator walls
Weather is hot and humid, which increases internal rate of frost buildup
Door may not be closing properly
Door is kept open too long, or is opened too frequently
- This is normal
- Check door installation
- Open the door less often
3. Odors in tool box refrig- erator
Interior needs to be cleaned
Food with strong odors are in the tool box refrigerator
- Clean interior with sponge, warm water, and baking soda
