SERVICEMANUAL

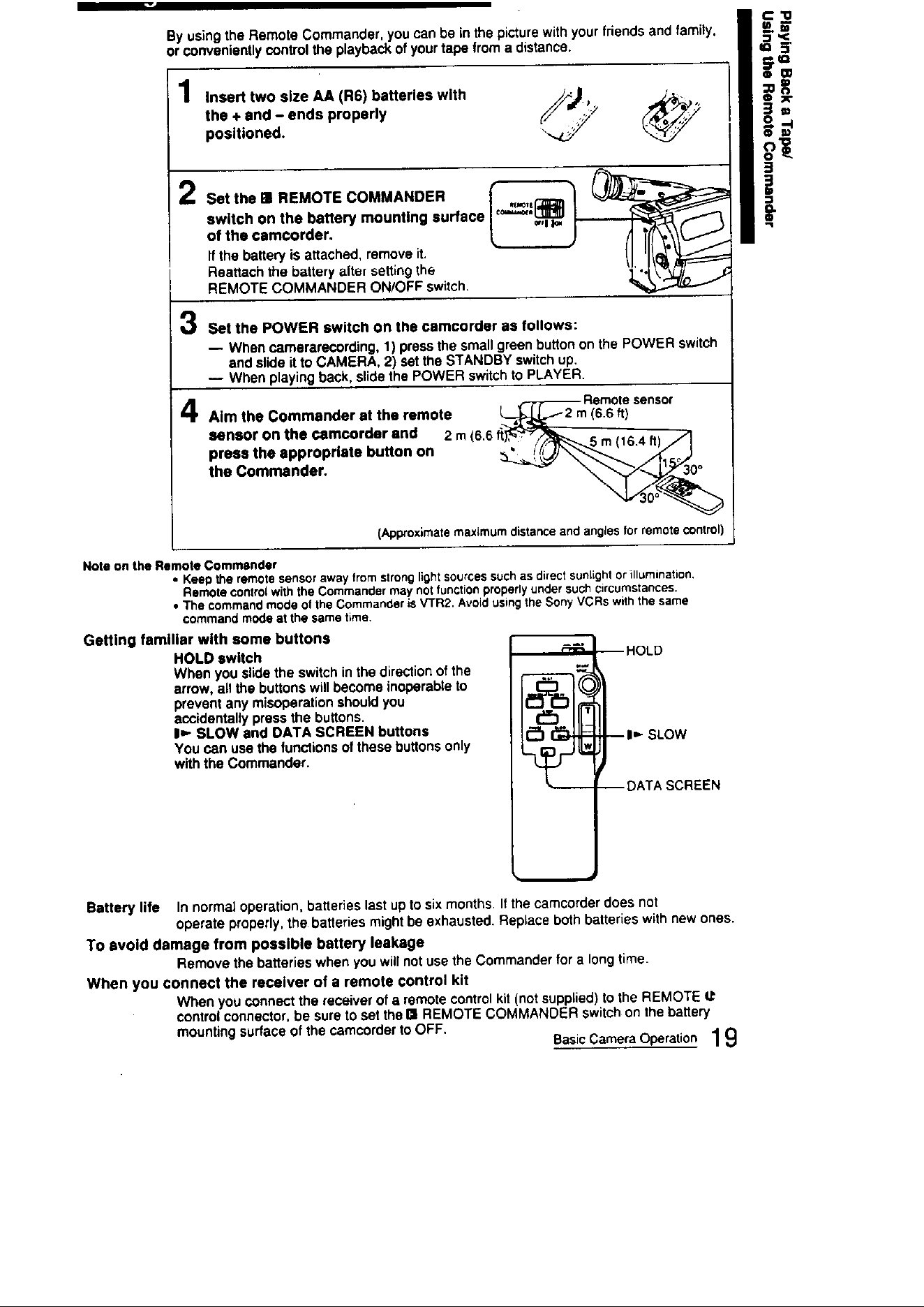

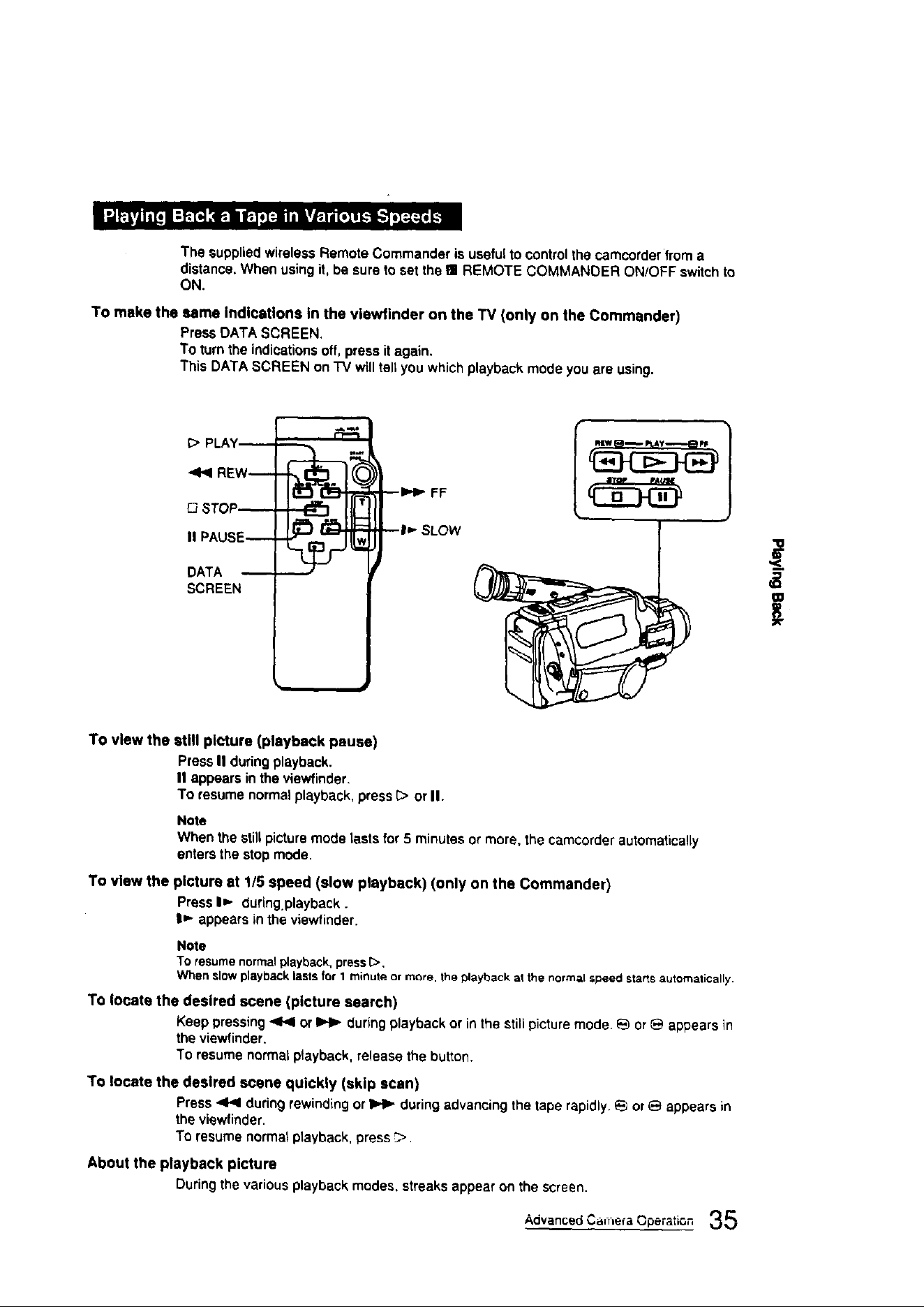

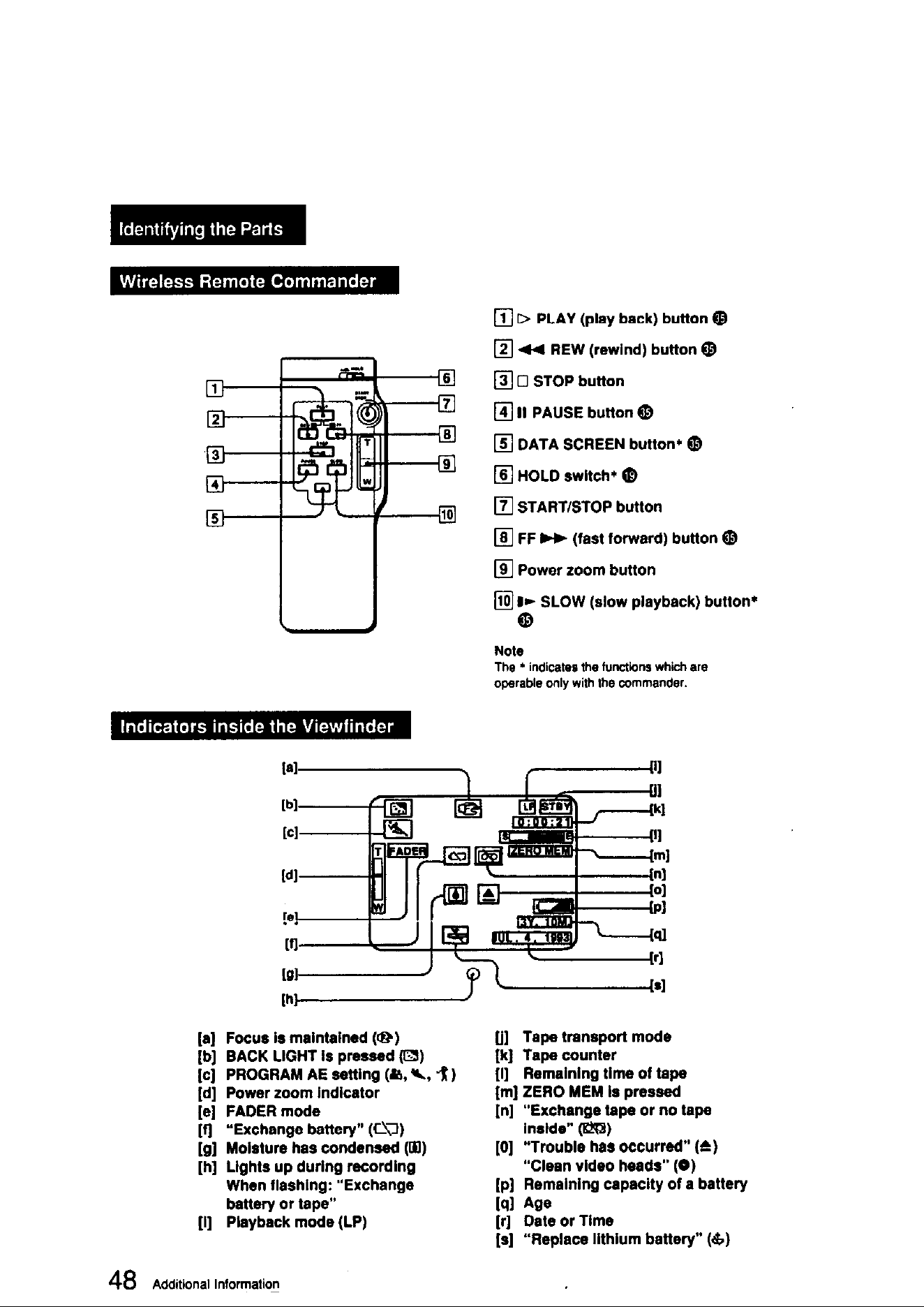

Remote commander is available as a unit. But as
individual parts the battery case lid of commander
is only avaiable.
CCD-FX420/FX425
RMT-509
US Model
CCD-FX420/FX425
Canadian Model
CCD-FX420
Video8
Handgcam
IA MECHANISM I
CCD-FX420/FX425 is based on model CCD-FX300/FX310/FX311.
For MECHANISM ADJUSTMENTS, refer to the
"8 mm Video MECHANICAL ADJUSTMENT
MANUAL ]Y" (9-973-199-11 ).
In this service manual, onlythe differences from CCD-FX300/FX310/FX311 are mentioned.
When servicing, see the CCD-FX300/FX310/FX311 service manual(9-973-275-11 ) with this.

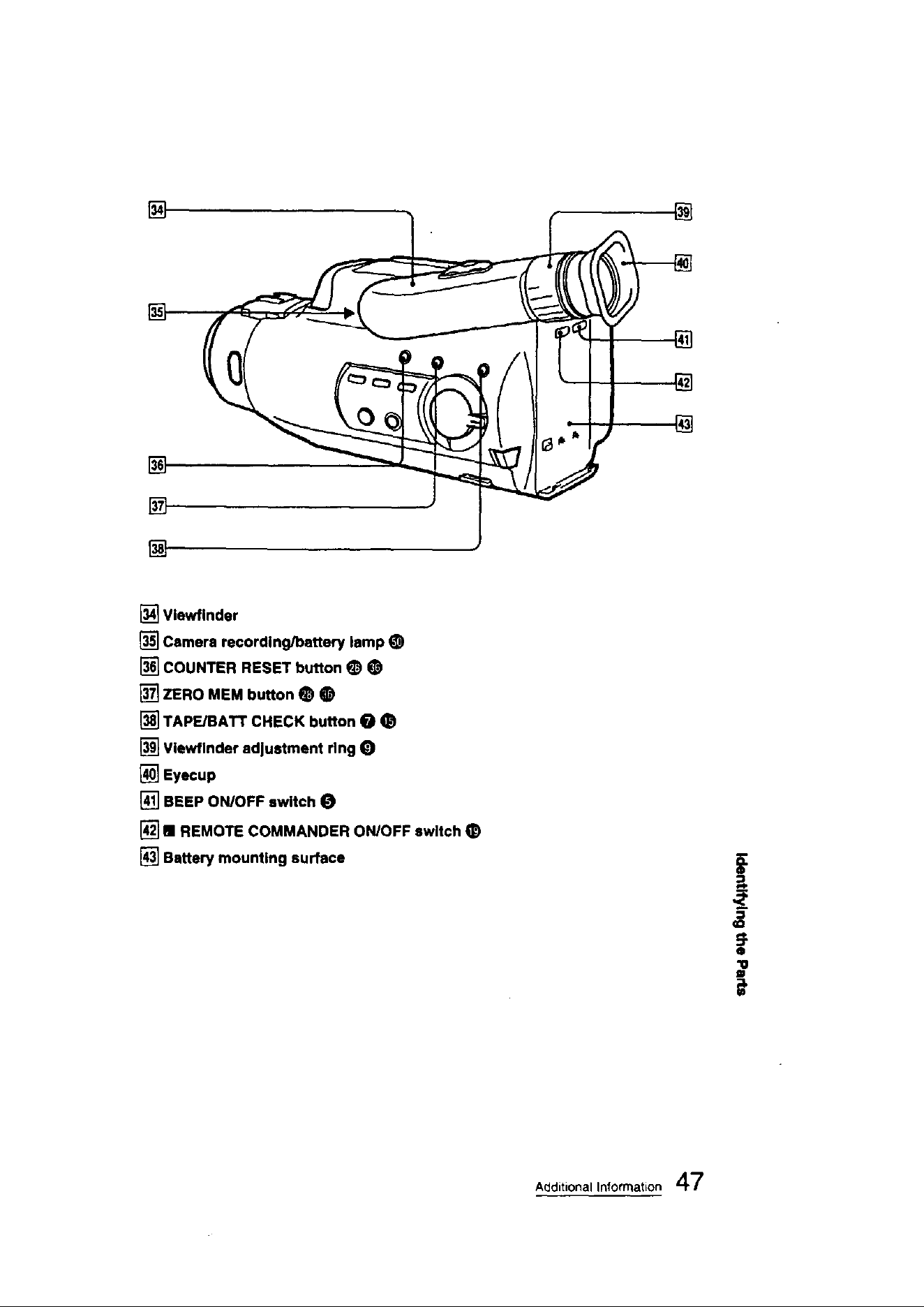

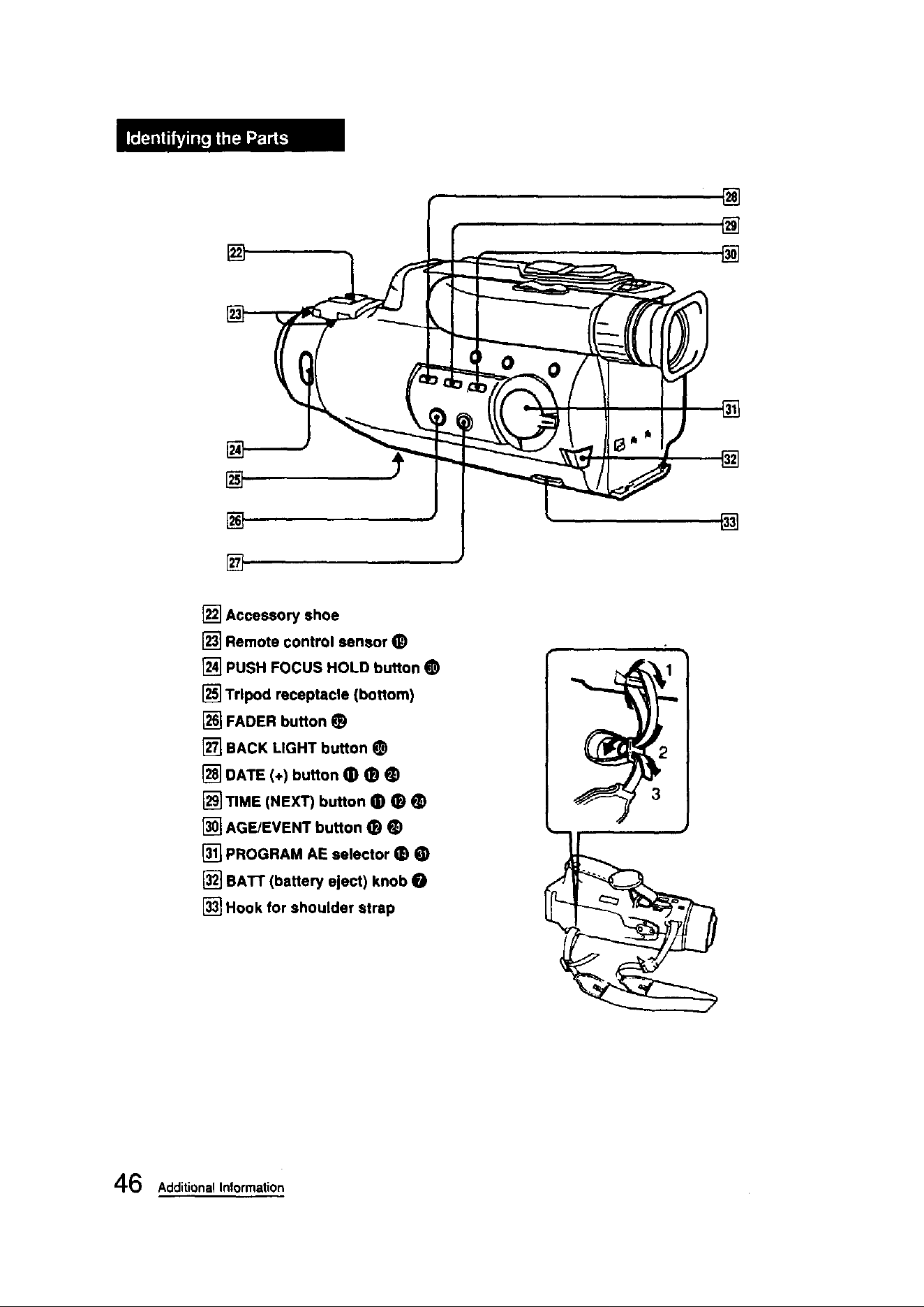

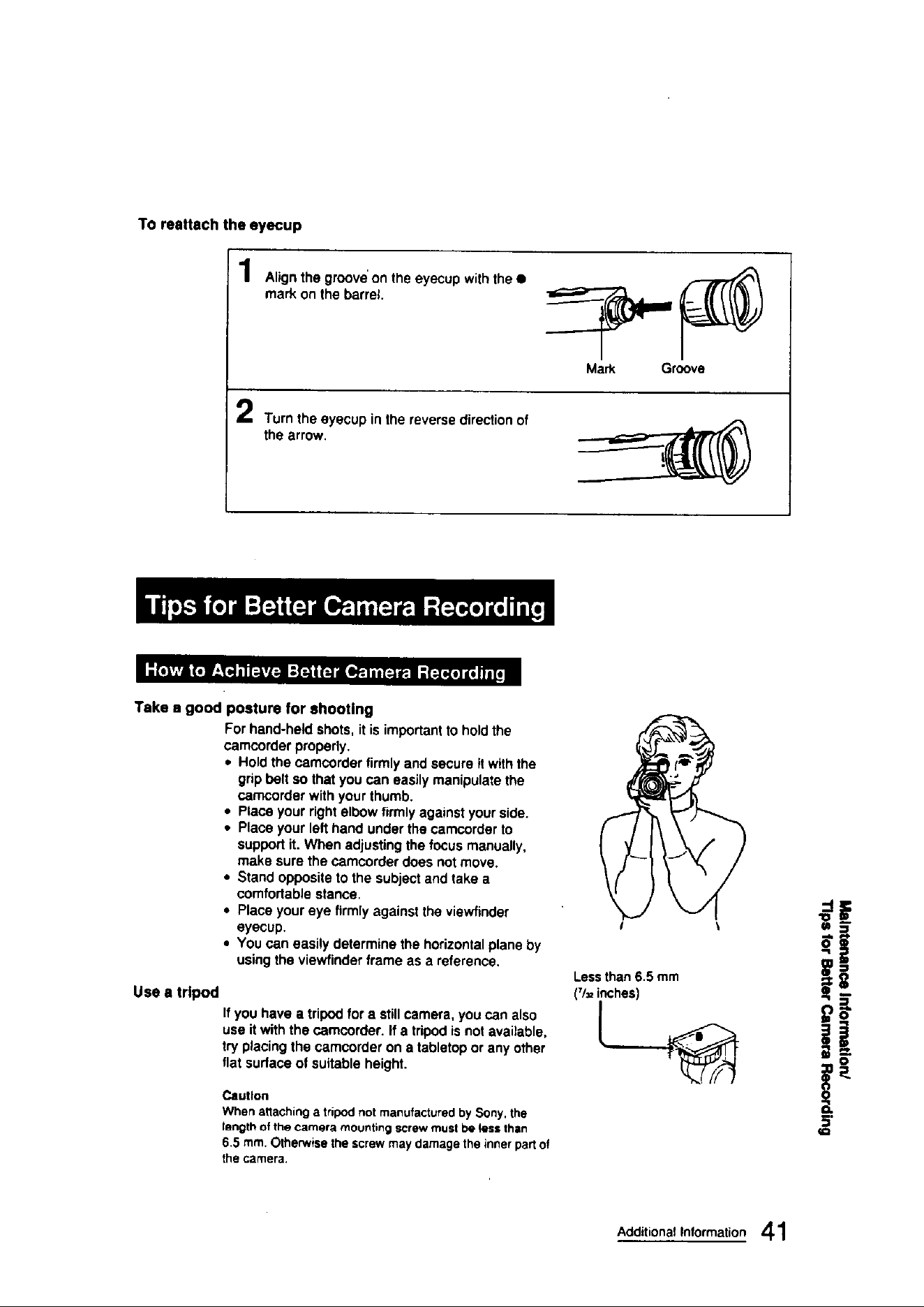

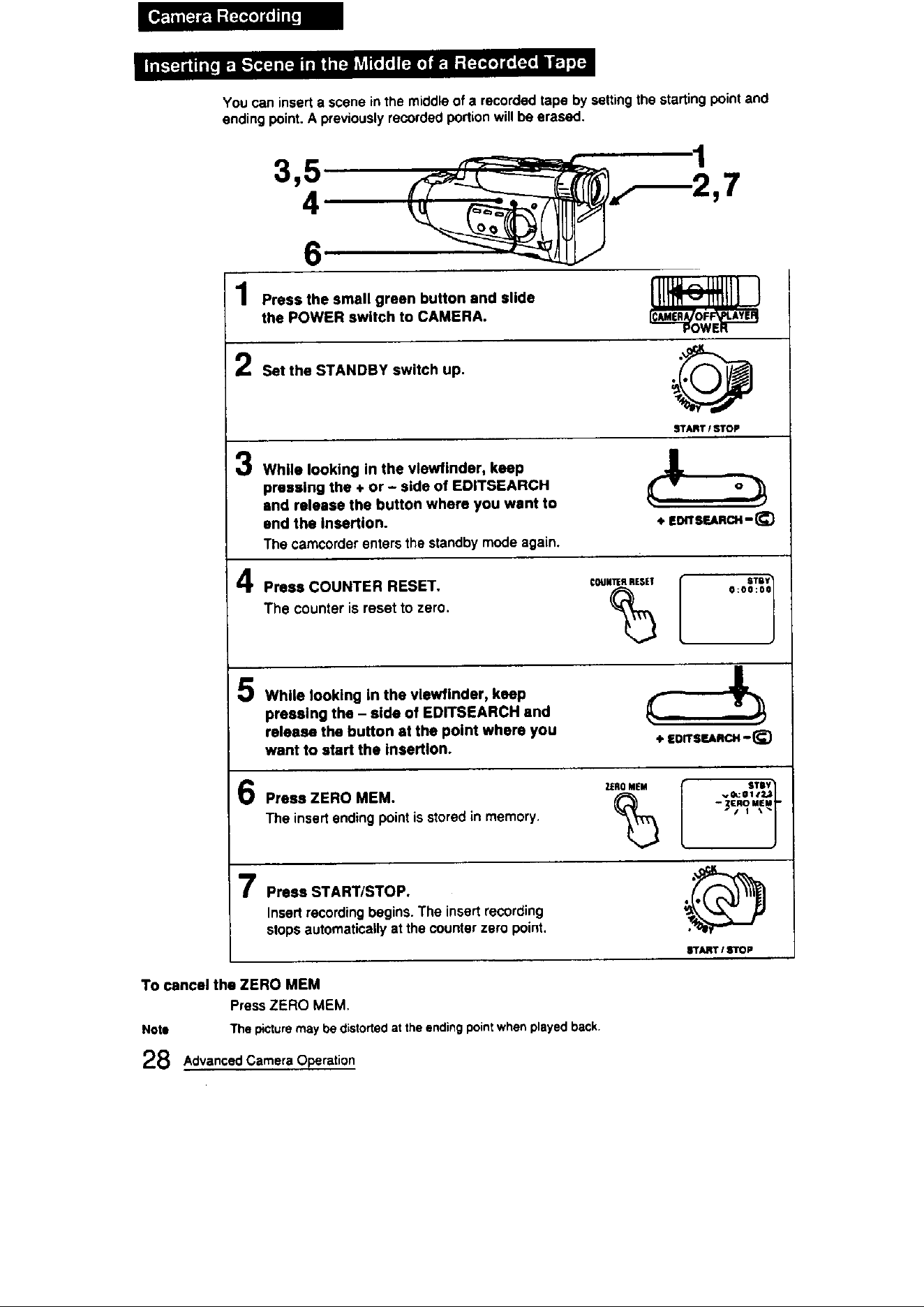

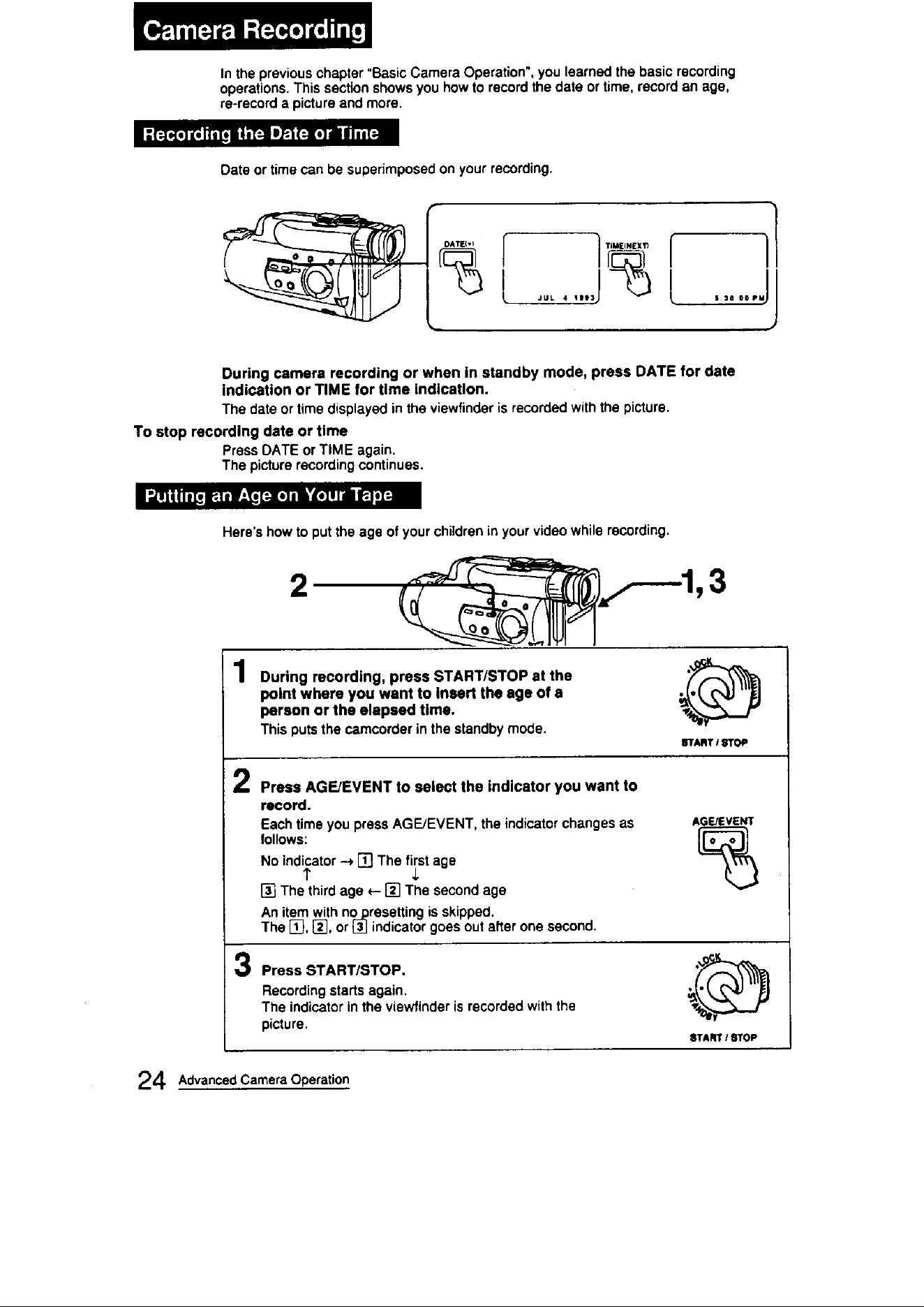

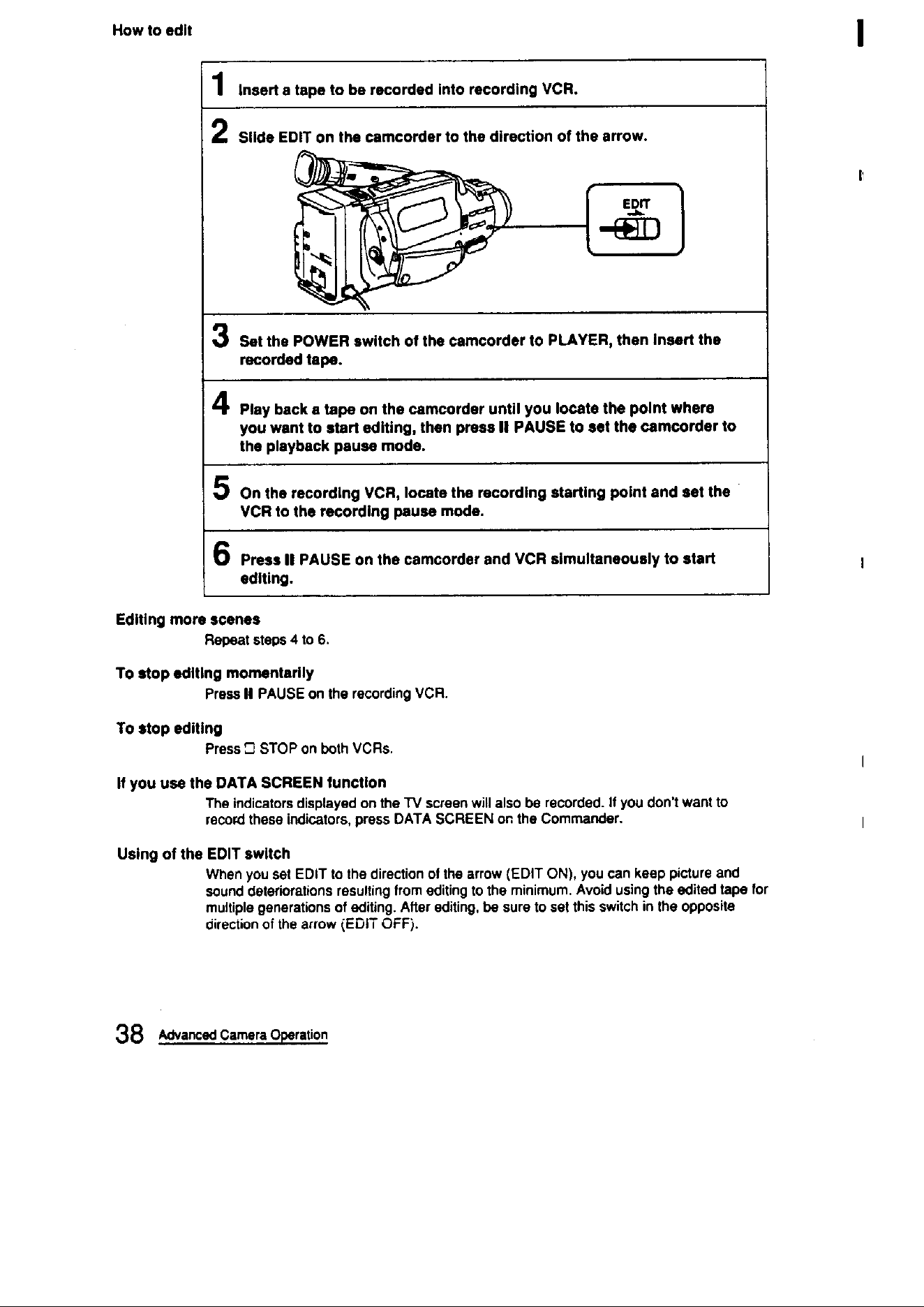

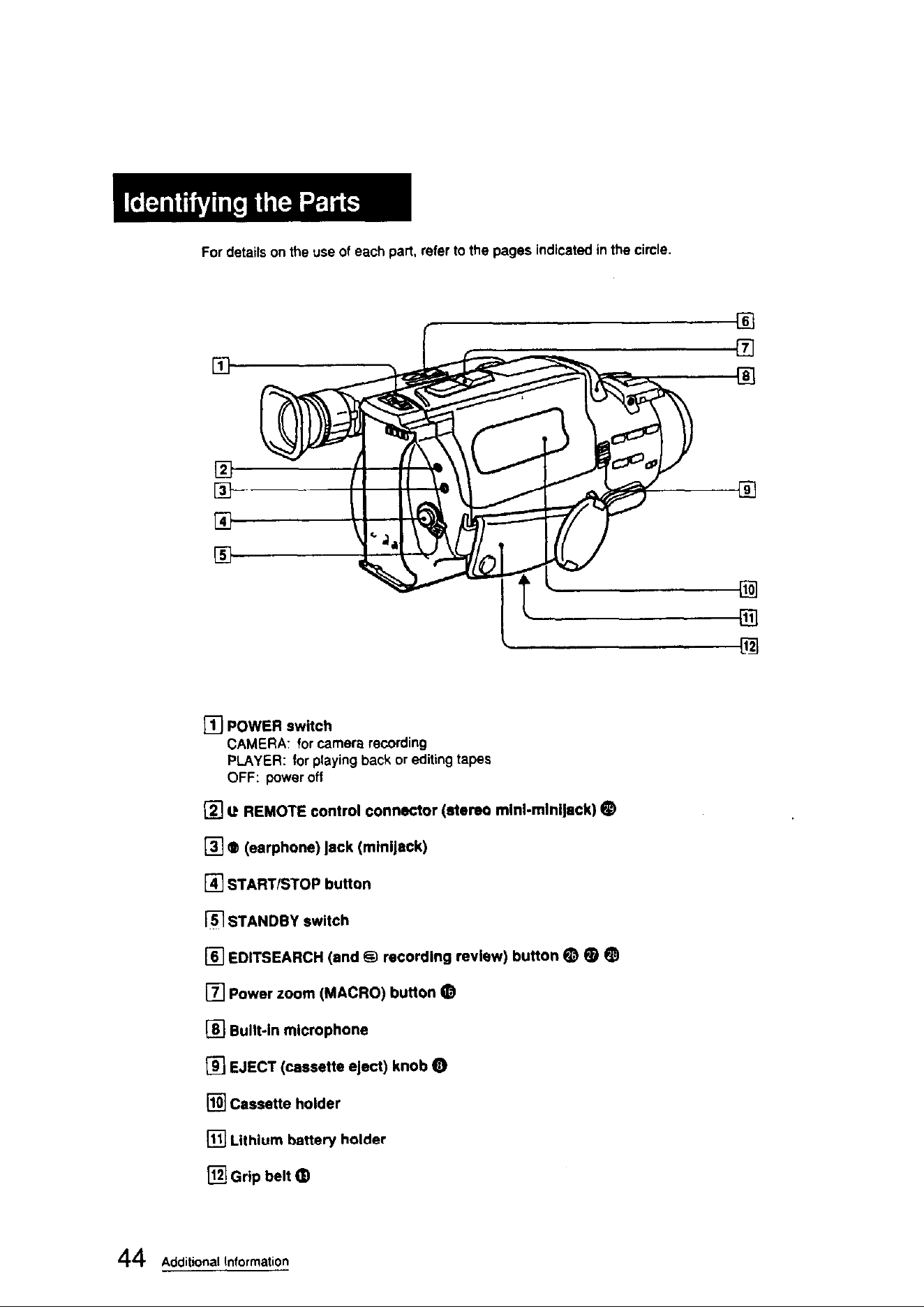

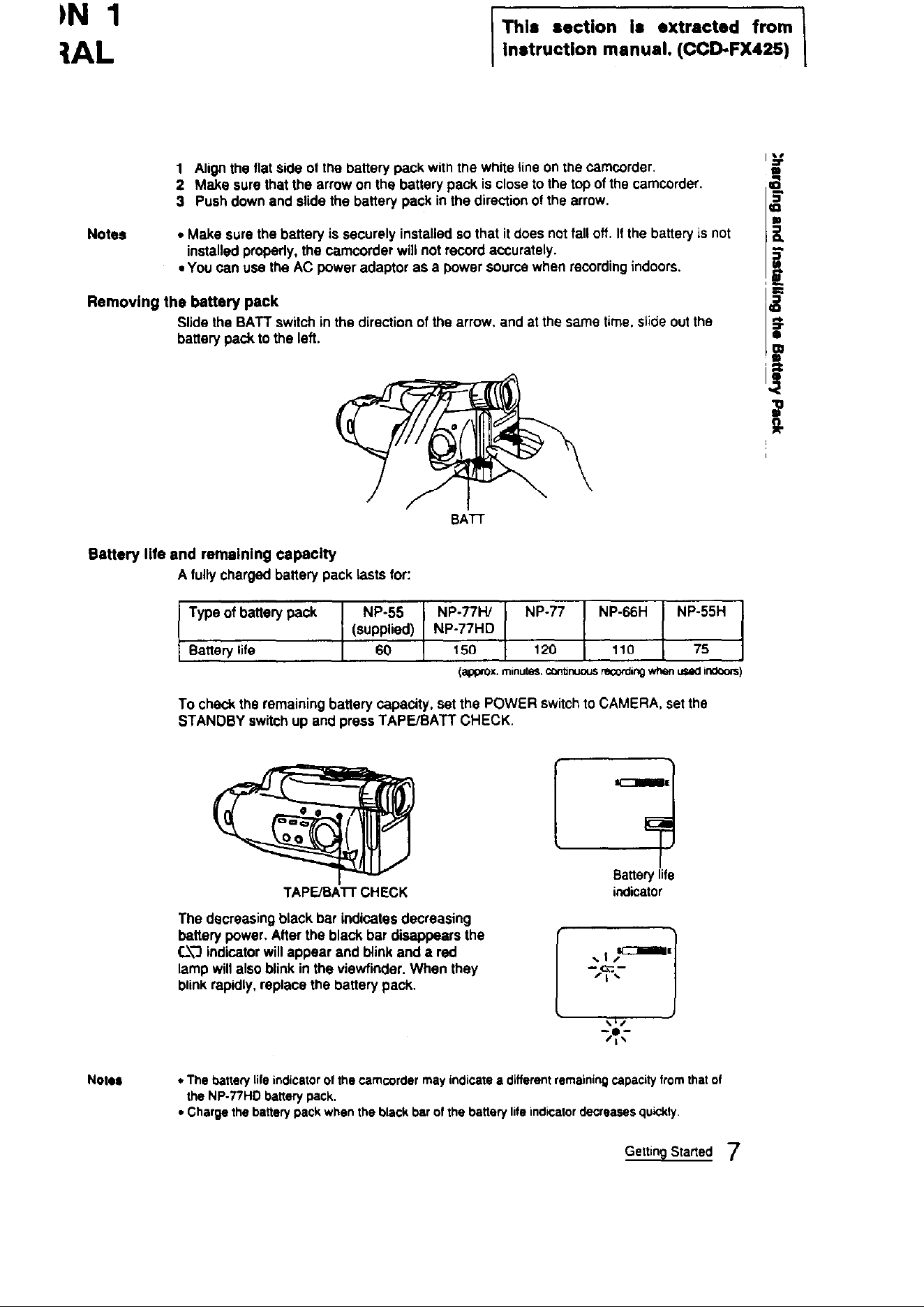

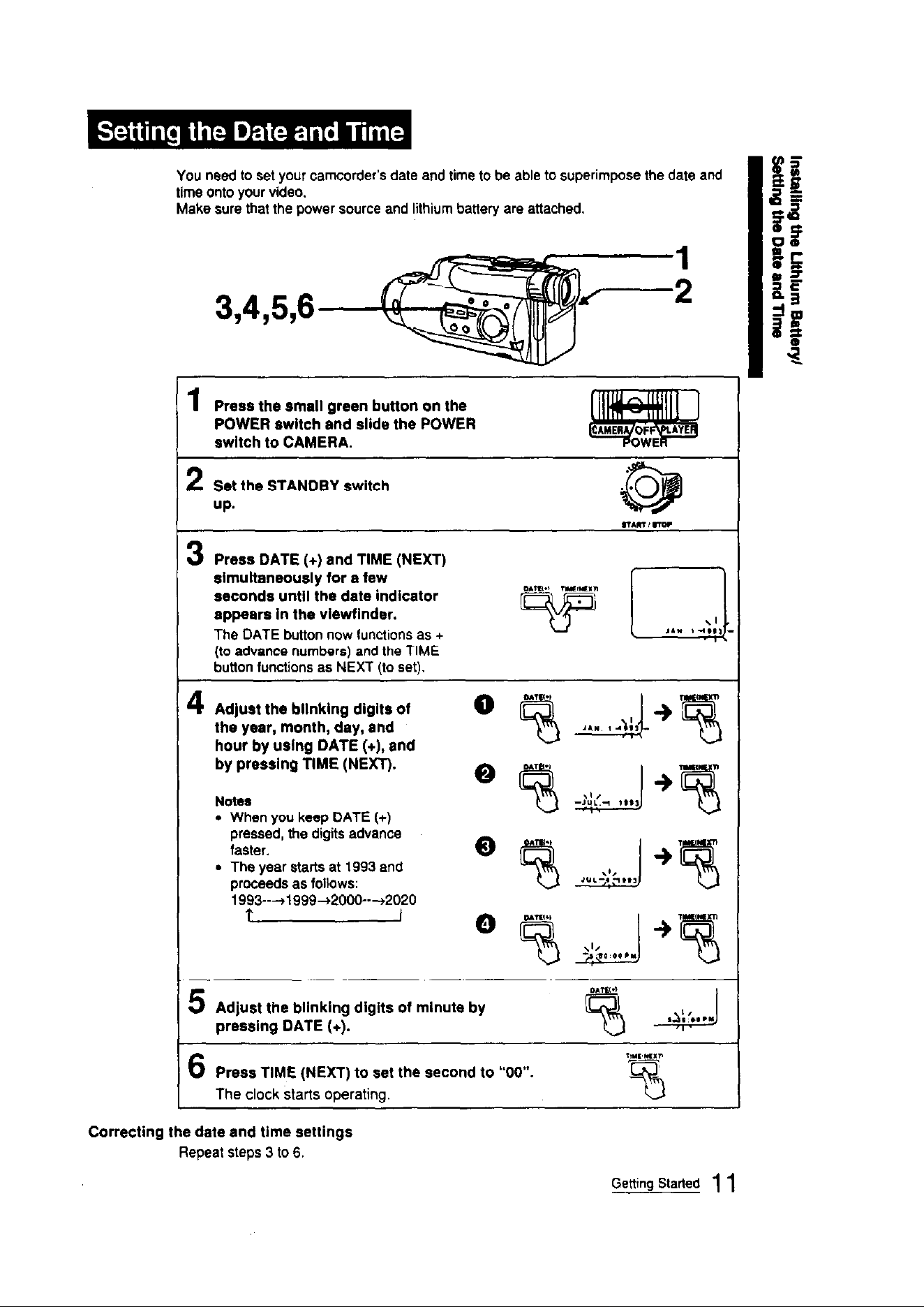

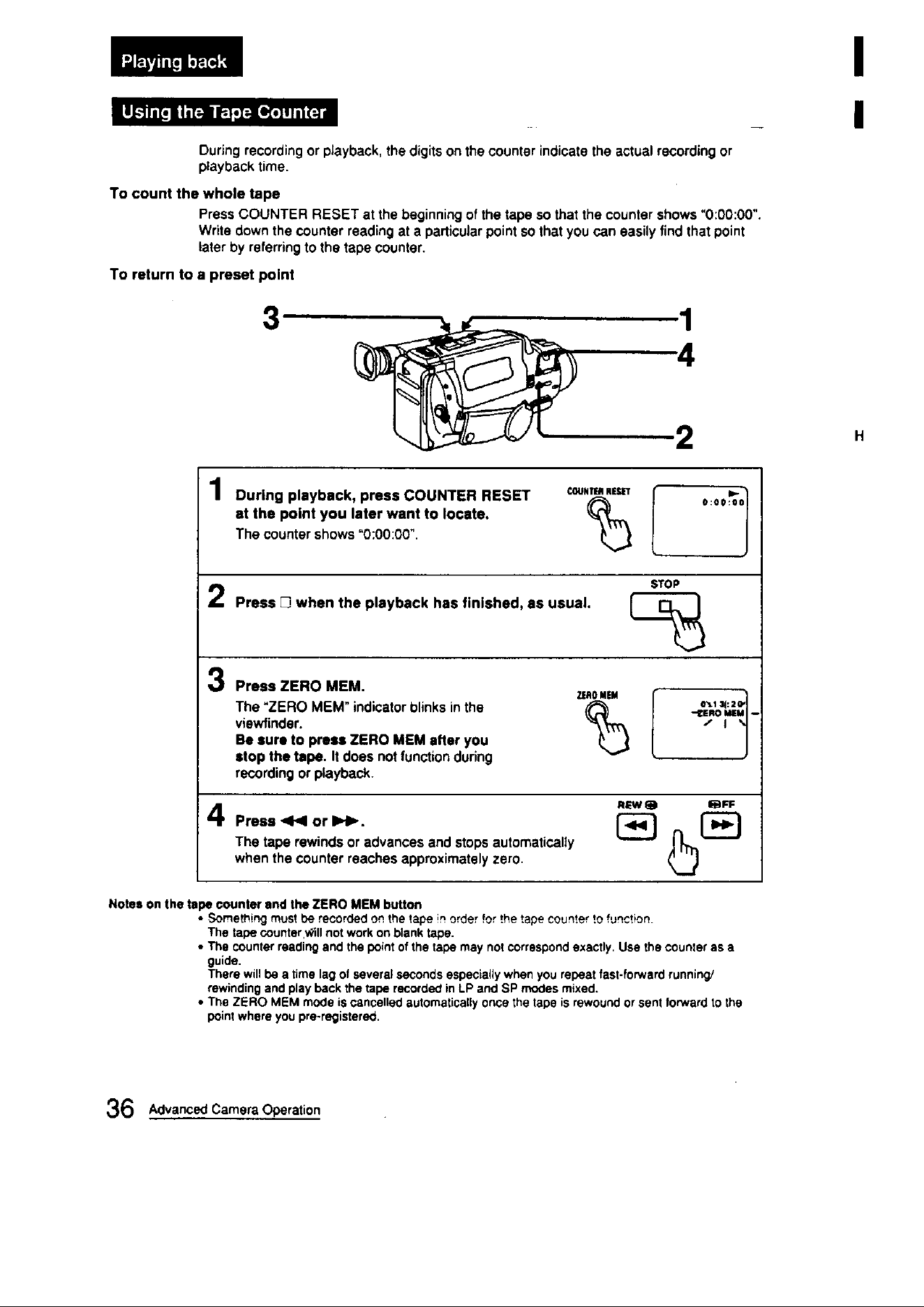

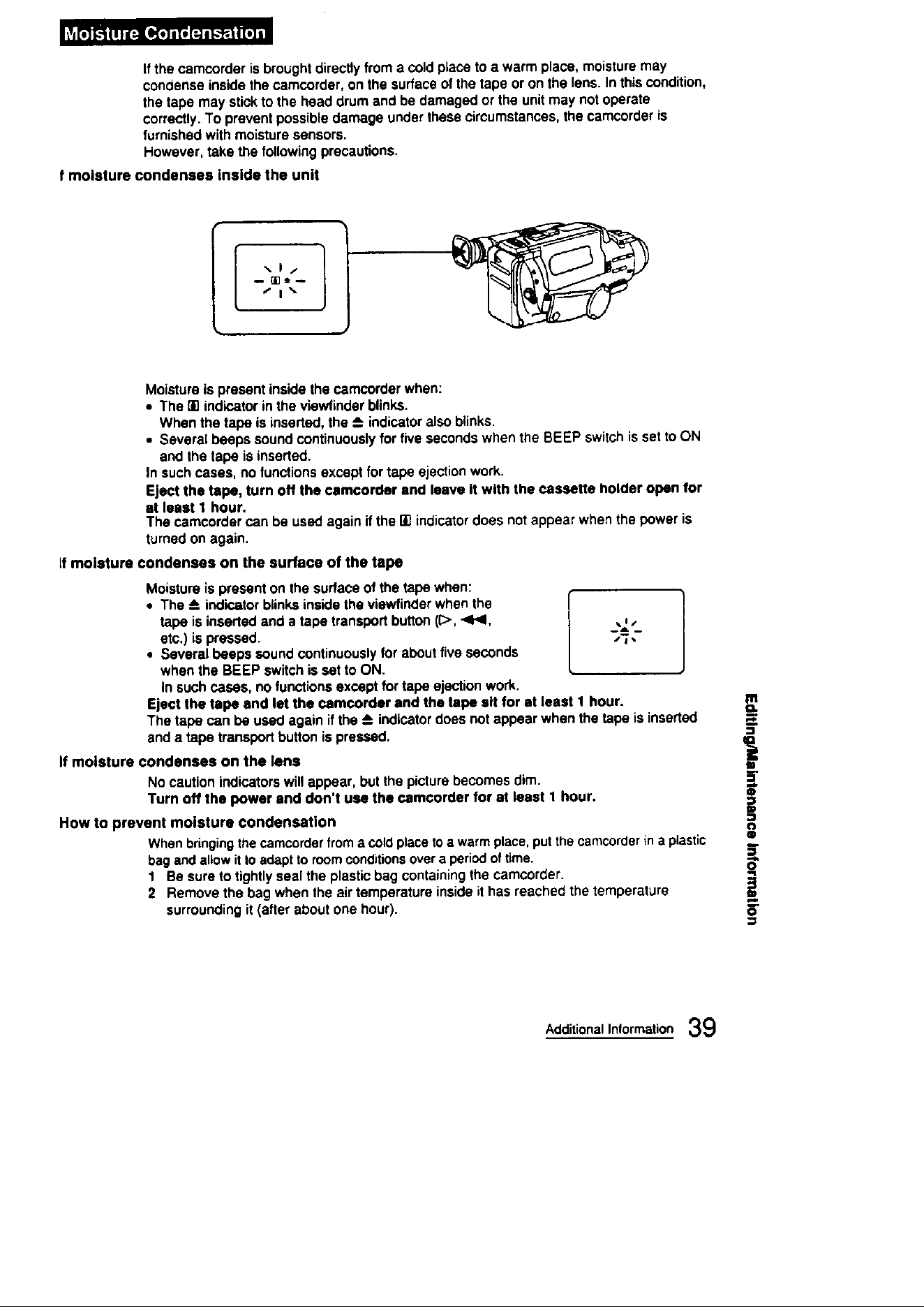

Video camera recorder
System
Video recording system
Rotary two heads, Helical scanning
FM system
Audio recording system
Rotary head, FM system

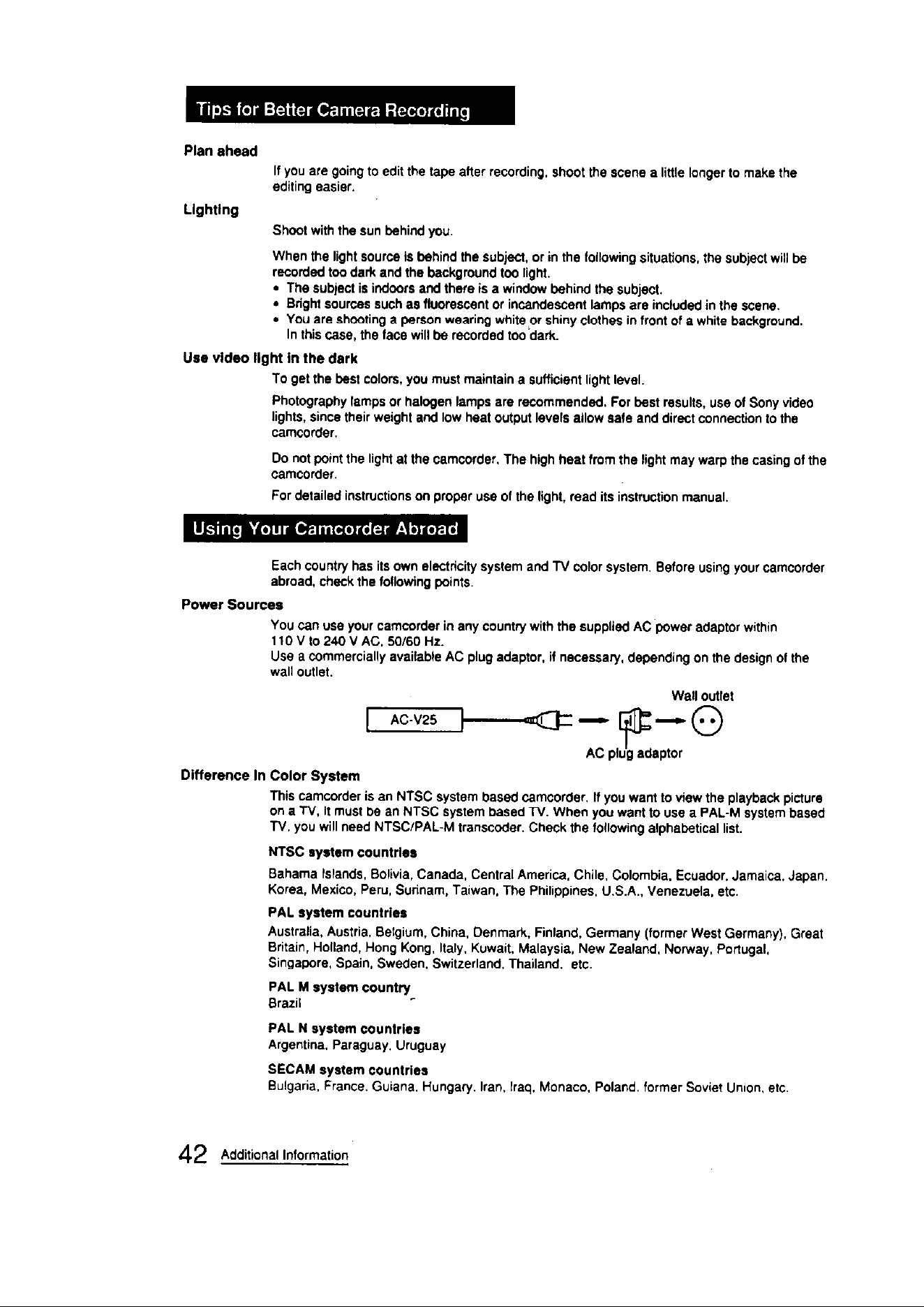

Video signal NTSC color, EIA standards
Usable cassette 8 mm video format cassette
Tape speed SP mode: Approx. 1.43 cm
(_9/32inch)/sec.
LP mode: Approx. 0.72 cm
(5/,6inch)/sec.
(playback only)
Recording time SP mode: 2 hours (P6-120)

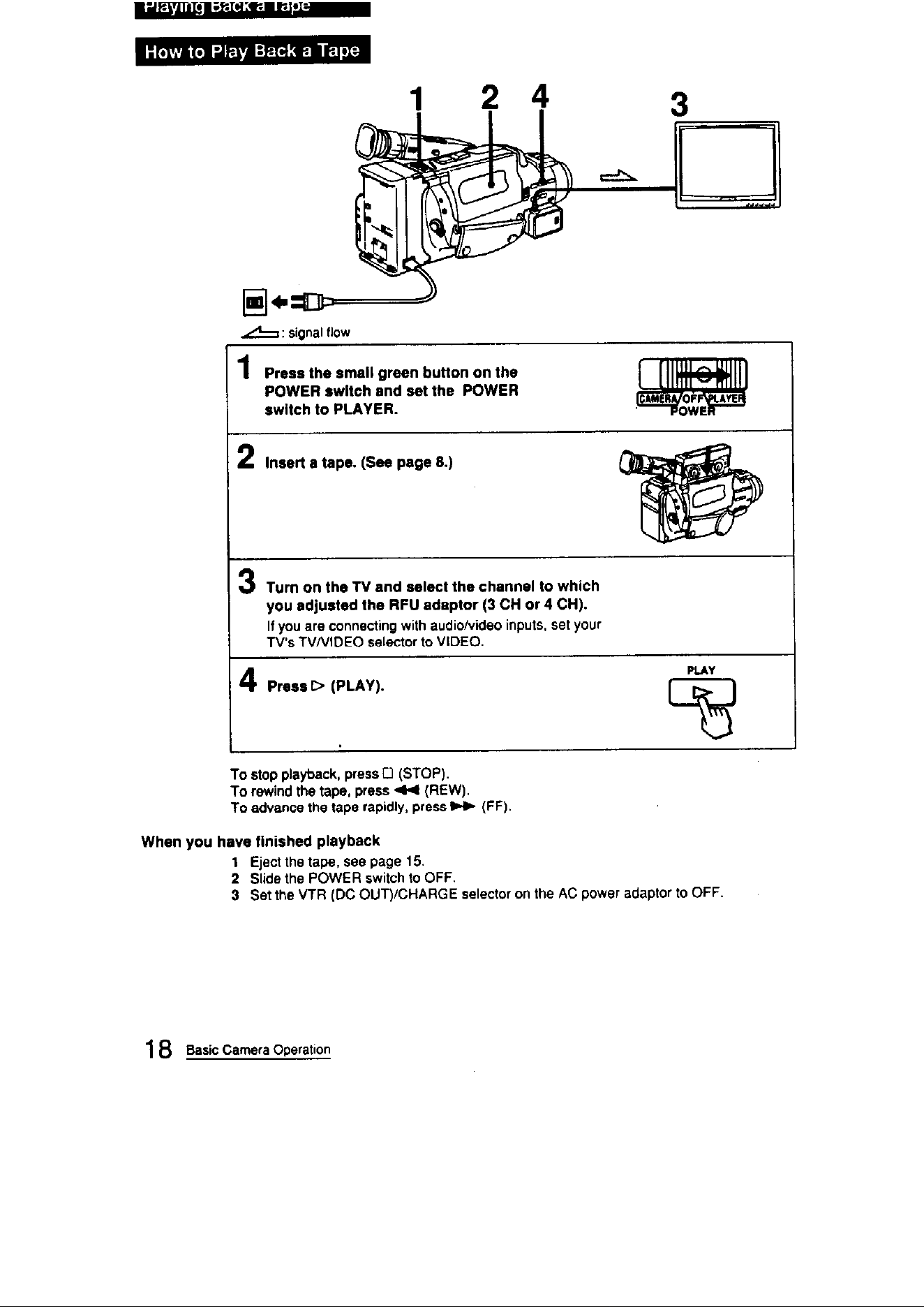

Playback time SP mode: 2 hours (P6-120)
LP mode: 4 hours (P6-120)
Fast forward/rewind time
Approx. 6 min. 30 sec. (P6-120)
Image device CCD (Charge Coupled Device)

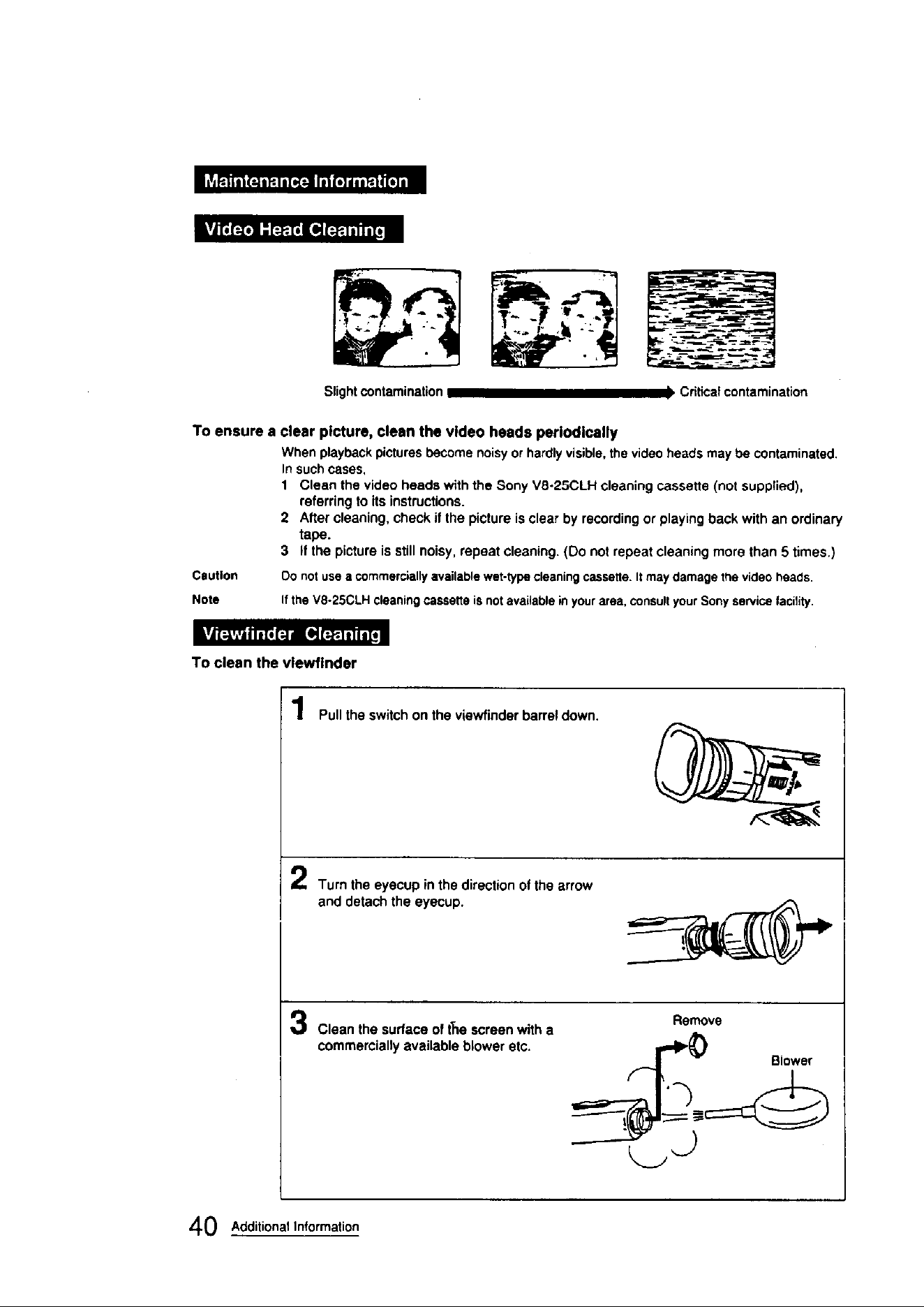

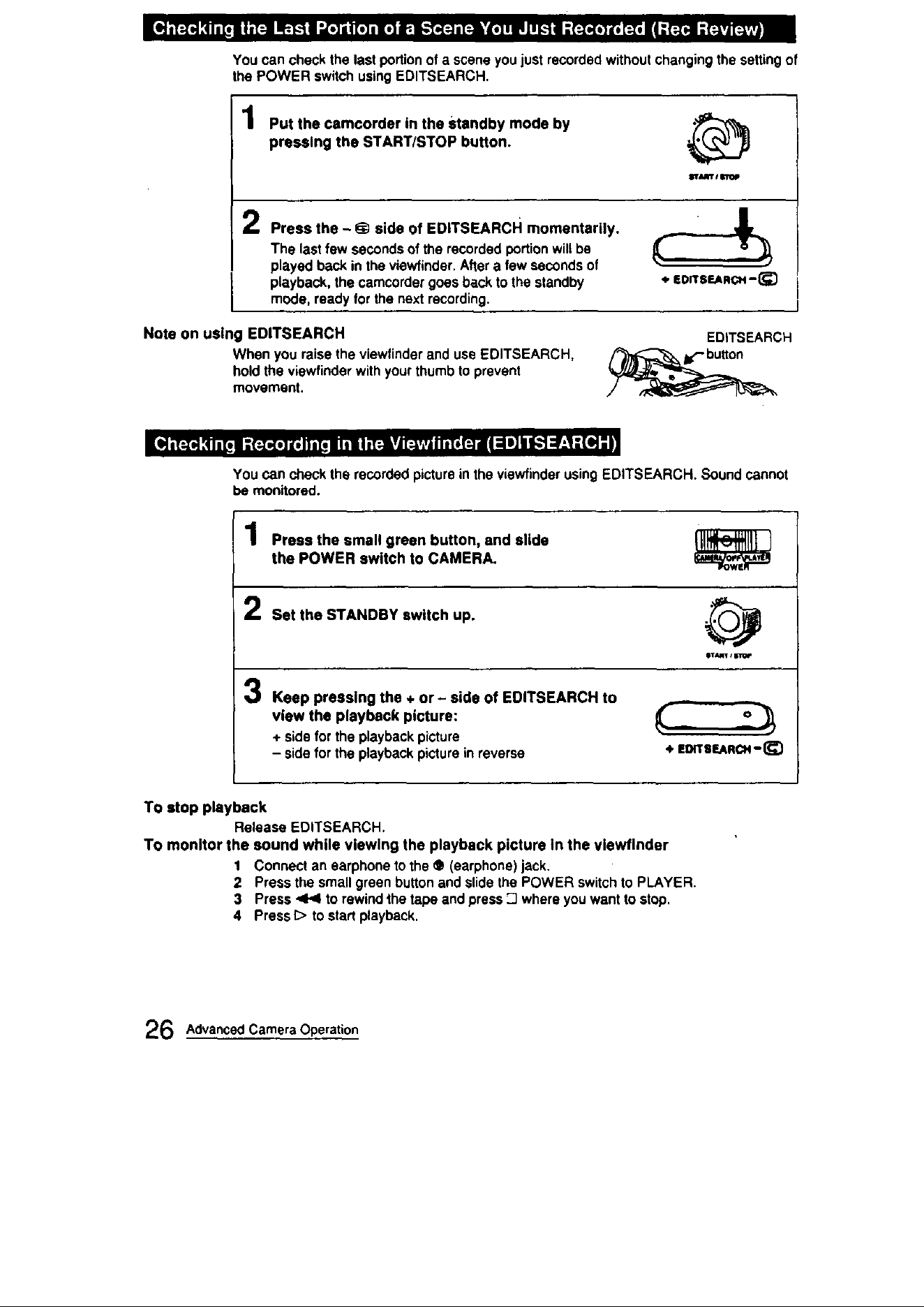

Viewfinder Electronic viewfinder
(black and white)
Lens Combined 10 × power zoom lens
f=6.1 to 61 mm (V4to 2V2 inches)
Approx. 441o 440 mm (13/4to
173/Binches) converted into the
focal length of a 35-mm still
camera.
F 1.6 to 2.4 with macro
Filter diameter: 37 mm (1 '/2 inches)
TTL autofocus system inner focus
wide macro system
IMICROFILM
SPECl FICATIONS
Color temperature AUTO
Minimum illumination
2 Ix
Illumination range 2 Ix to 100,000 Ix
(0.2 to 9294 footcandles)
Recommended illumination
More than 100 Ix
(9 footcandles)

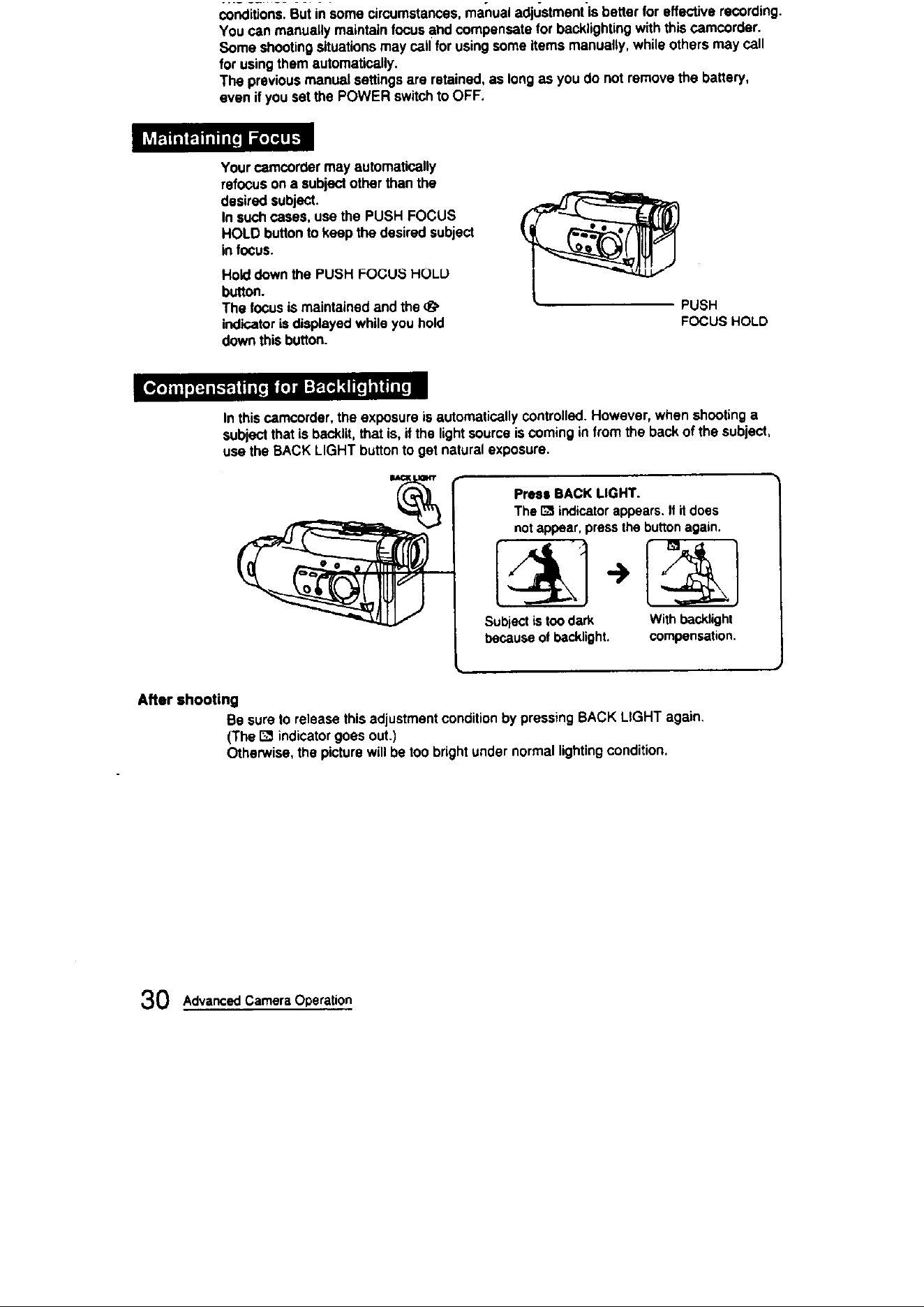

Aperture correction Automatic
With backlight adjustment

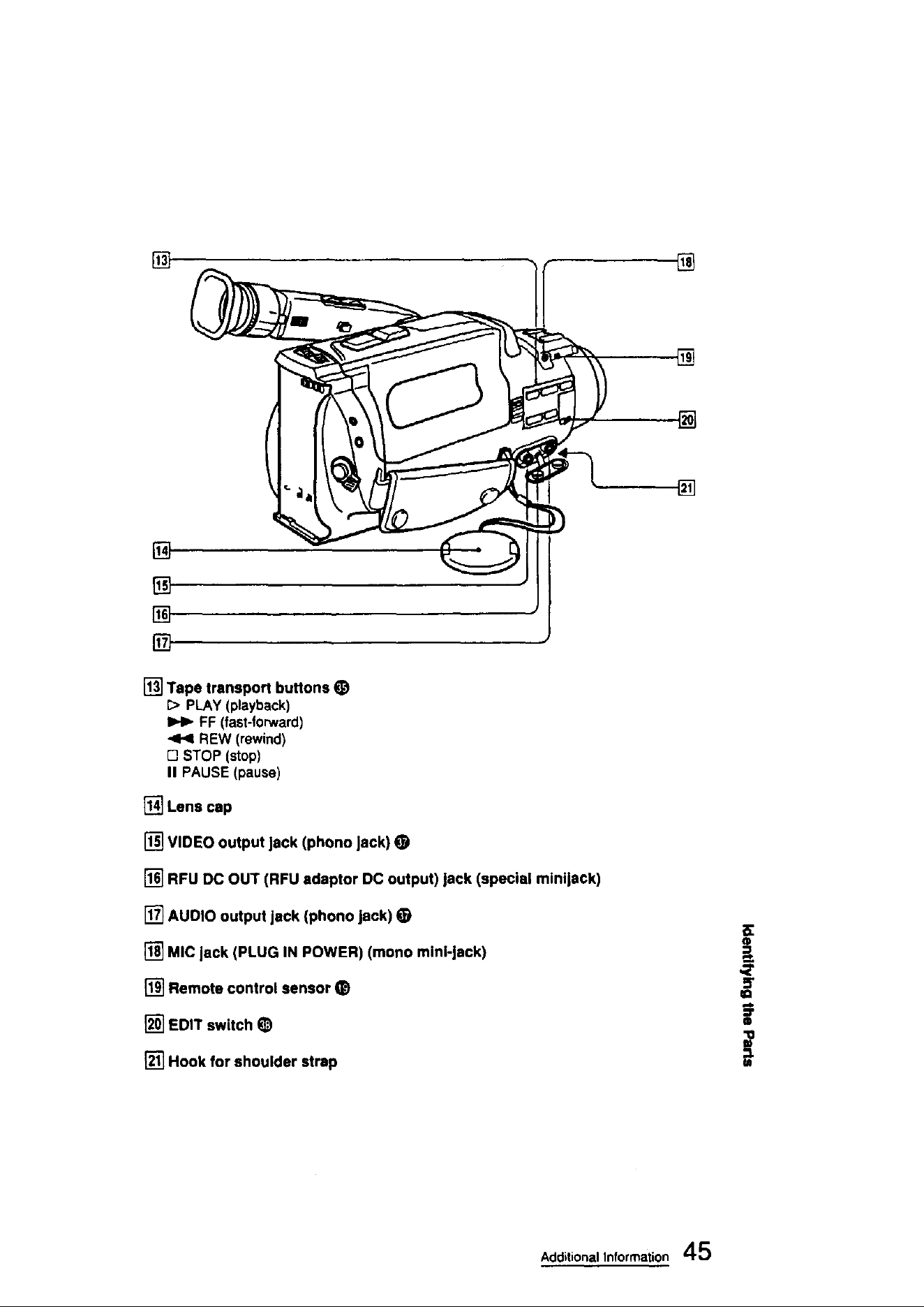

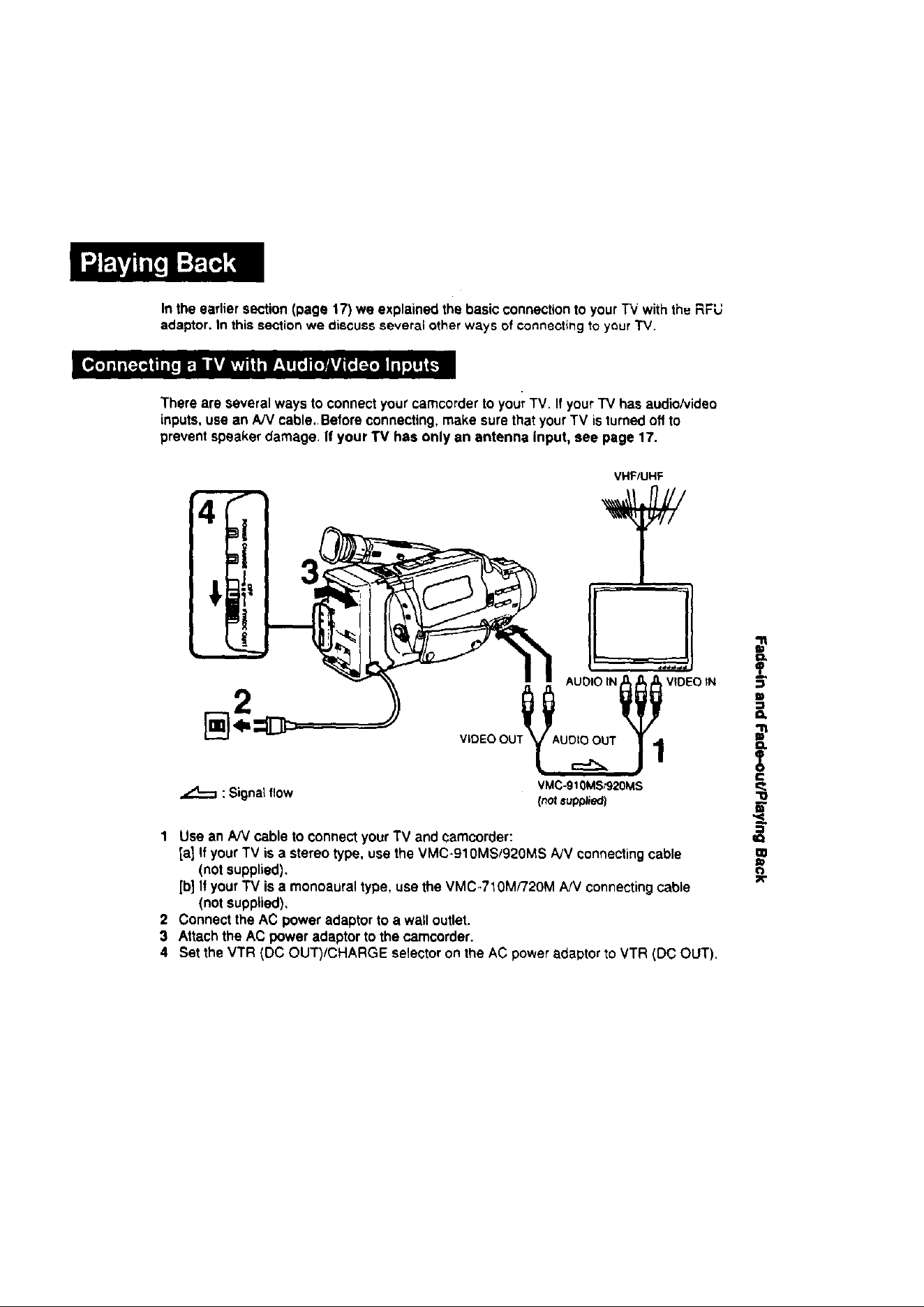

Input and output connector

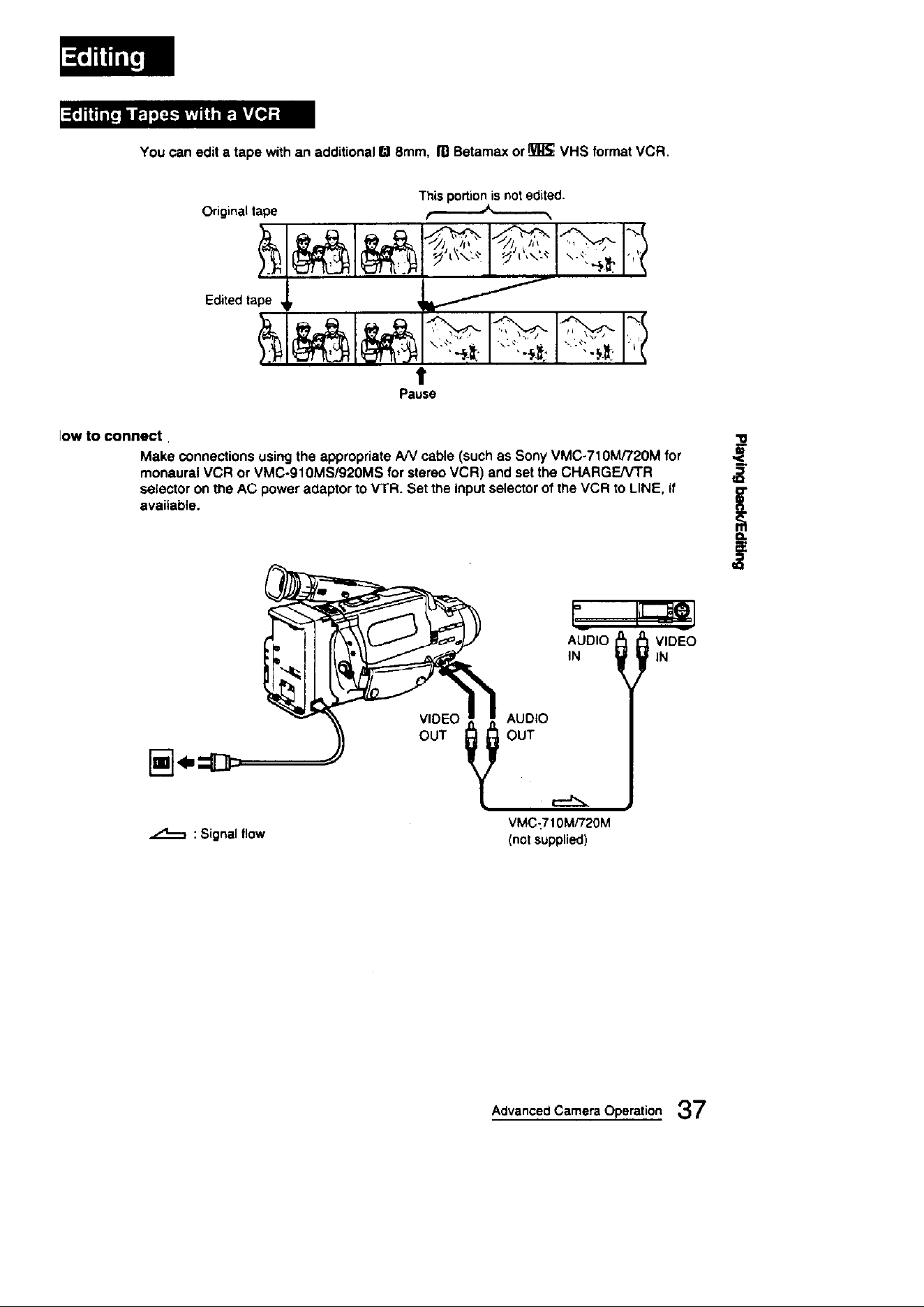

Video output Phono jacK, 1 Vp-p, 75 ohms
unbalanced sync negative
Audio output Phono jack
Output: -7.5 riBs, (at output
impedance 47 kilohms)
impedance less than
1 kilohms

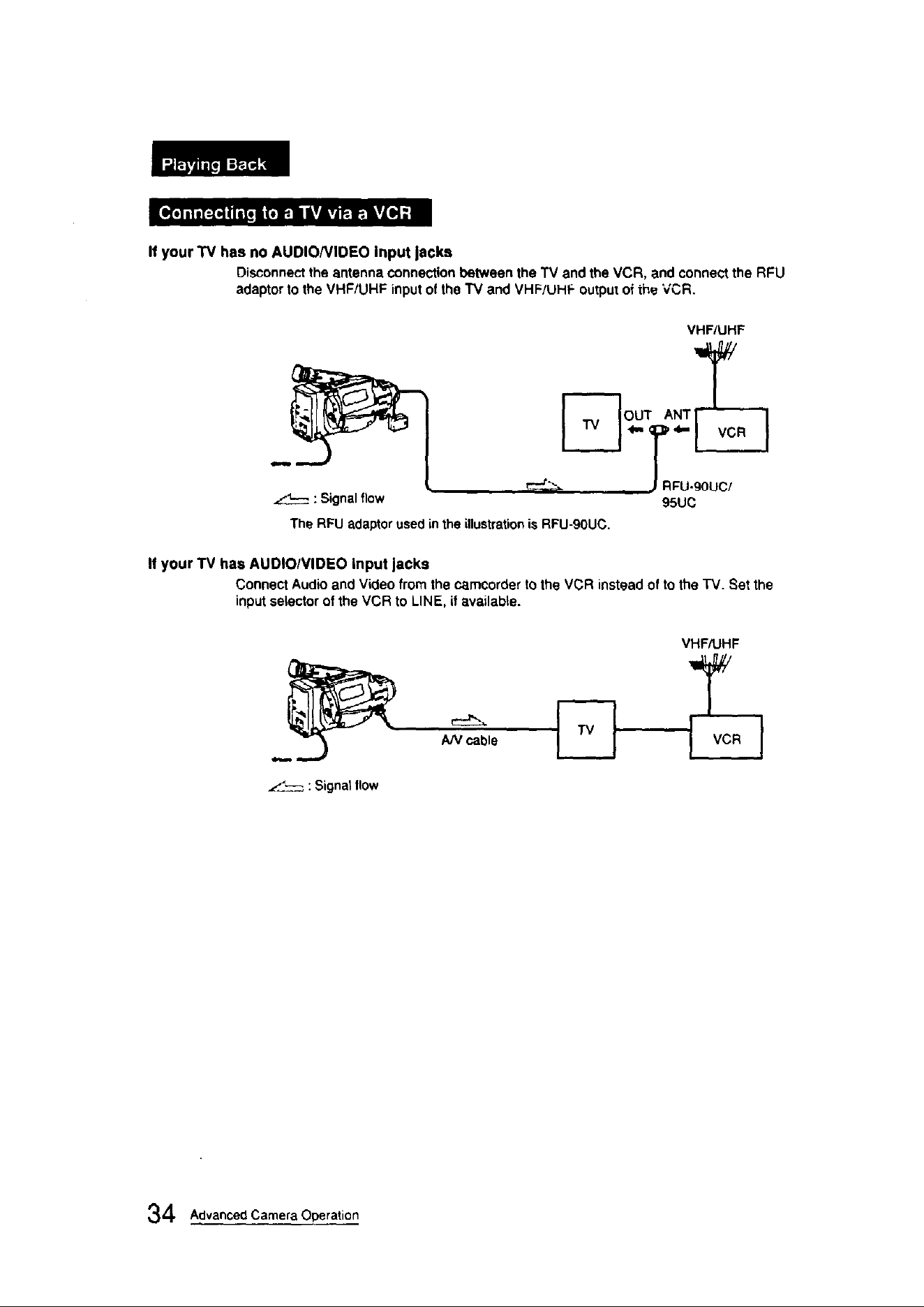

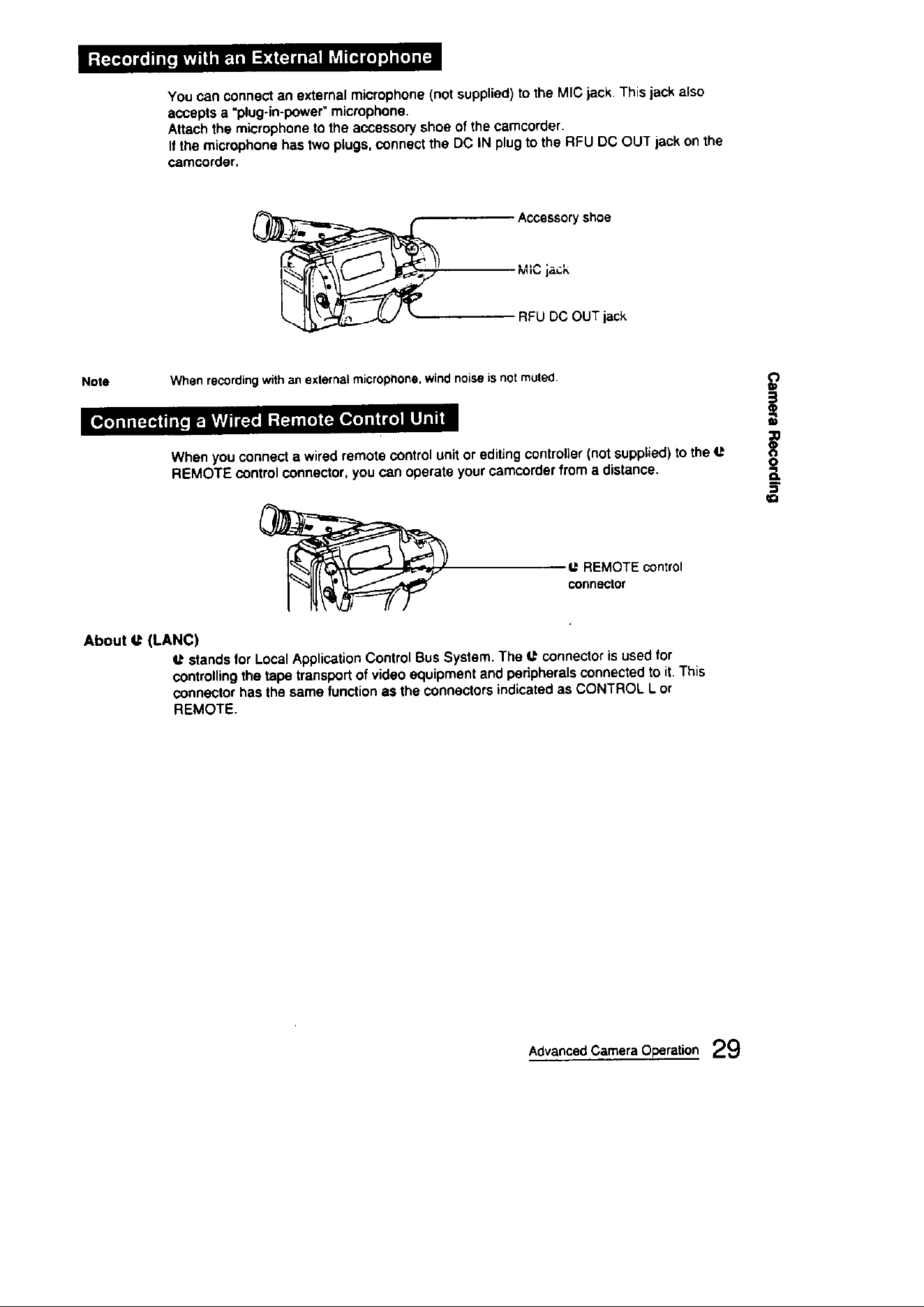

RFU DC OUT Special minijack, 5 V DC
Earphone jack Minijack, 8-ohm impedance
Remote _ jack Stereo mini-minijack
MIC jack Minijack, --66 dBs, low impedance
with 2.5 to 3 V DC output, impedance
6.8 kilohms
Microphone power output jack
Special minijack, 5 V DC
Continued on next page --
