LG Electronics LFX31925ST/05 LG refrigerator User Manual

Life's Good

OWNER'S MANUAL

FRENCH DOOR

REFRIGERATOR

Please read this owner's manual thoroughly before

operatin 9 and keep it handy for reference at all times.

LFX31925**

P/NO : MFL62184416 www.lg.com

2 TABLE OF CONTENTS

TABLE OF CONTENTS

PRODUCT FEATURES

IMPORTANT SAFETY INSTRUCTIONS

7 COMPONENTS

7 Refrigerator Exterior

8 Refrigerator Interior

9 INSTALLATION

9 Installation Overview

9 Specifications

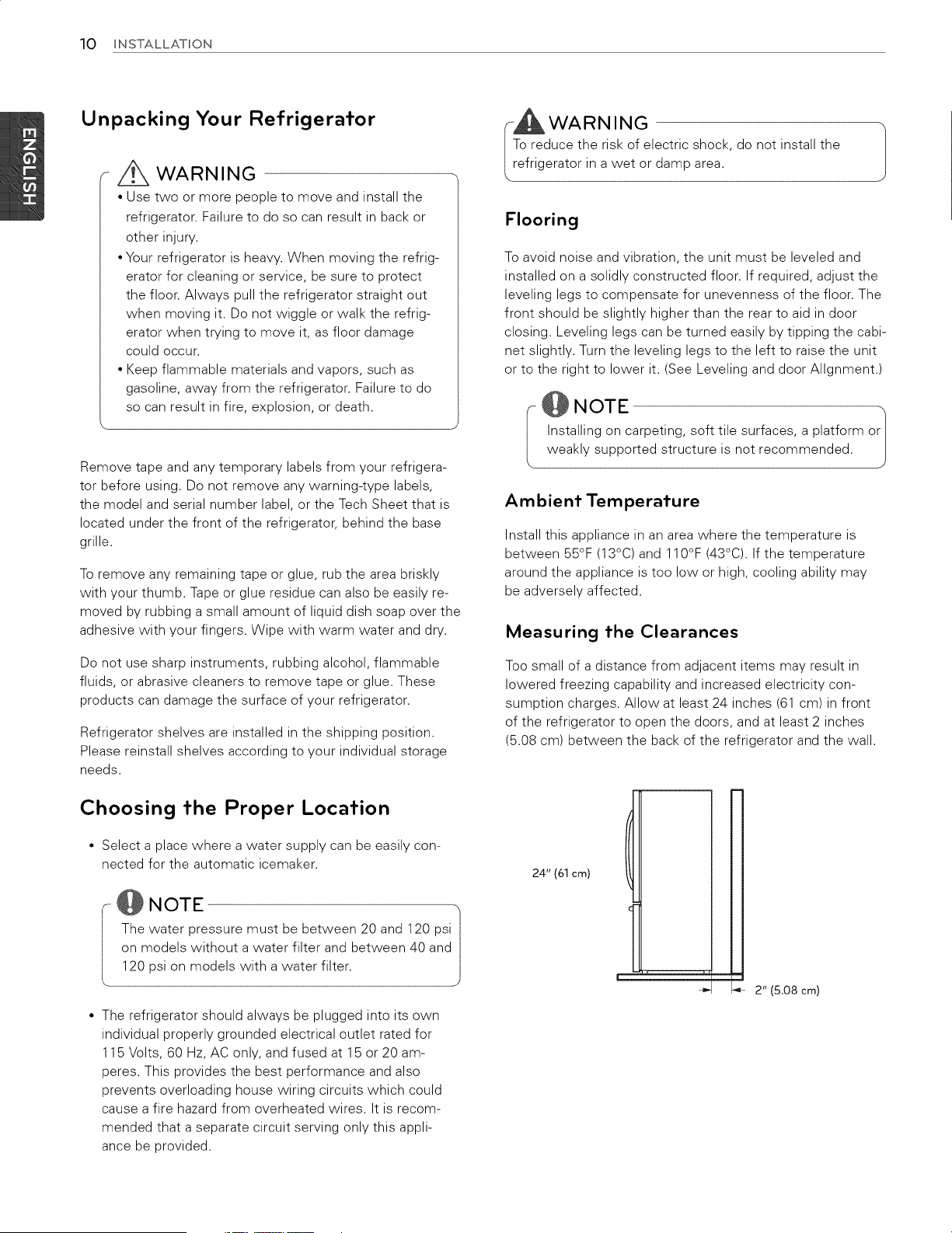

10 Unpacking Your Refrigerator

10 Choosing the Proper Location

10 - Flooring

10 - Ambient Temperature

10 - Measuring the Clearances

11 Removing/Assembling the Refrigerator

Door Handles

11 Removing/Assembling the Freezer

Drawer Handle

12 Removing/Assembling the Doors and Drawers

12 - Removing the Left Refrigerator Door

13 - Removing the Right Refrigerator Door

14 - Assembling the Right Refrigerator Door

15 - Assembling the Left Refrigerator Door

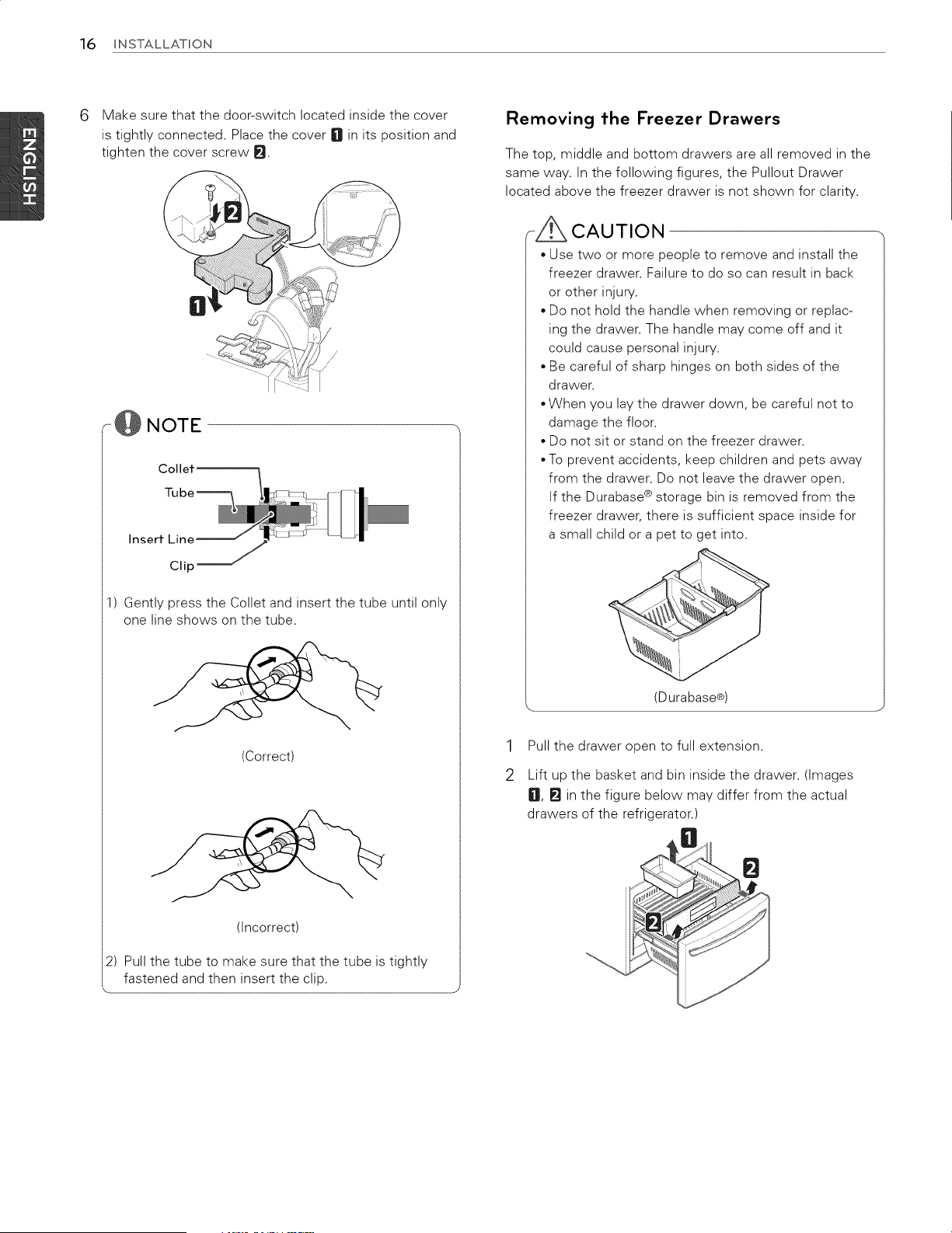

16 - Removing the Freezer Drawers

17 - Assembling the Freezer Drawers

19 Connecting the Water Line

19 -Before You Begin

19 - Water Pressure

19 - What You Will Need

20 -Water Line Installation Instructions

21 Turning On the Power

22 Leveling and Door Alignment

22 - Leveling

22 - Door Alignment

23 HOW TO USE

23 Before Use

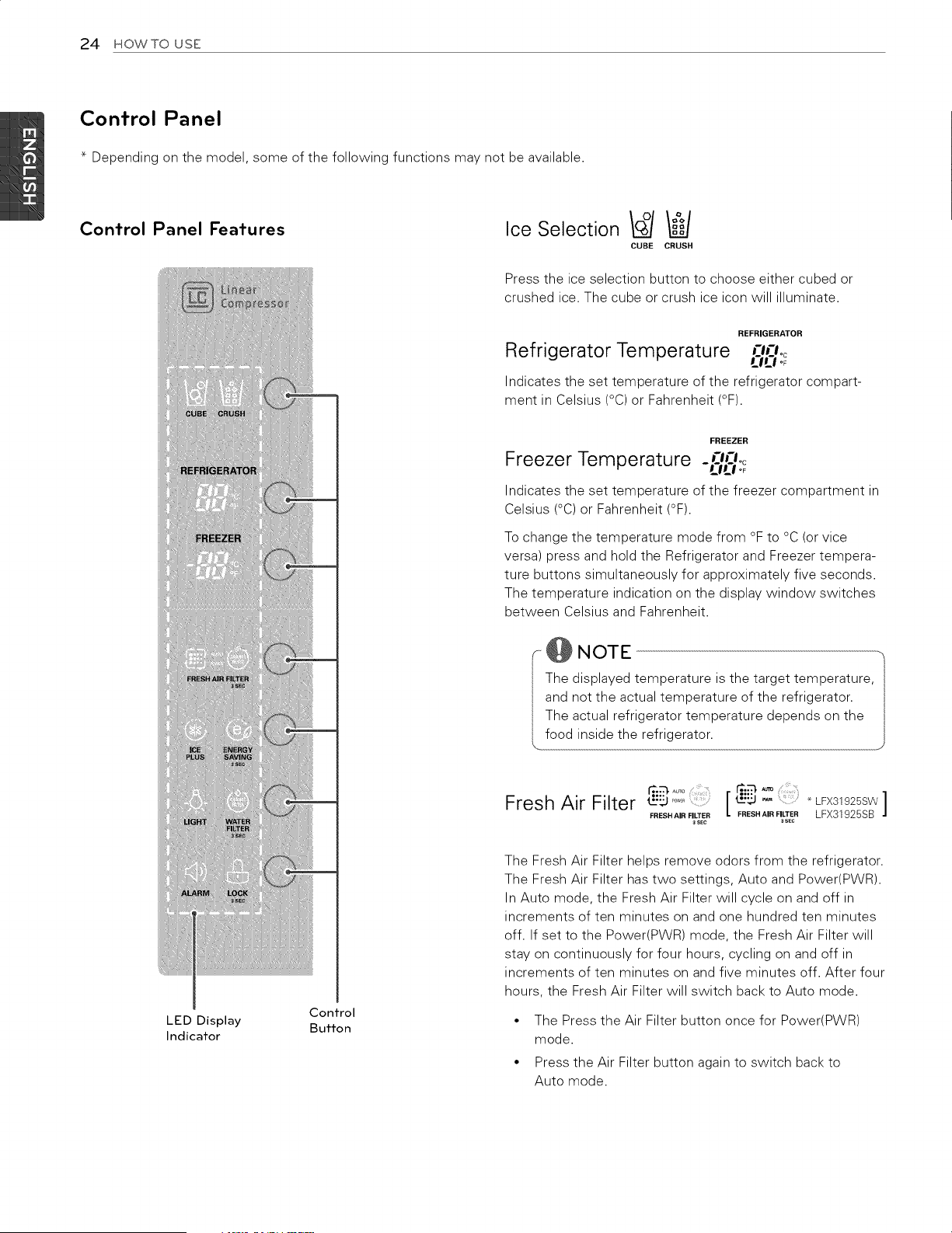

24 Control Panel

24 - Control Panel Features

26 In-Door Ice Bin

26 - Detaching the In-Door Ice Bin

26 - Assembling the In-Door Ice Bin

27 Automatic Icemaker

27 - Turning the Automatic Icemaker On or Off

28 - When You Should Turn the Icemaker Off

28 - Normal Sounds You May Hear

28 - Preparing for Vacation

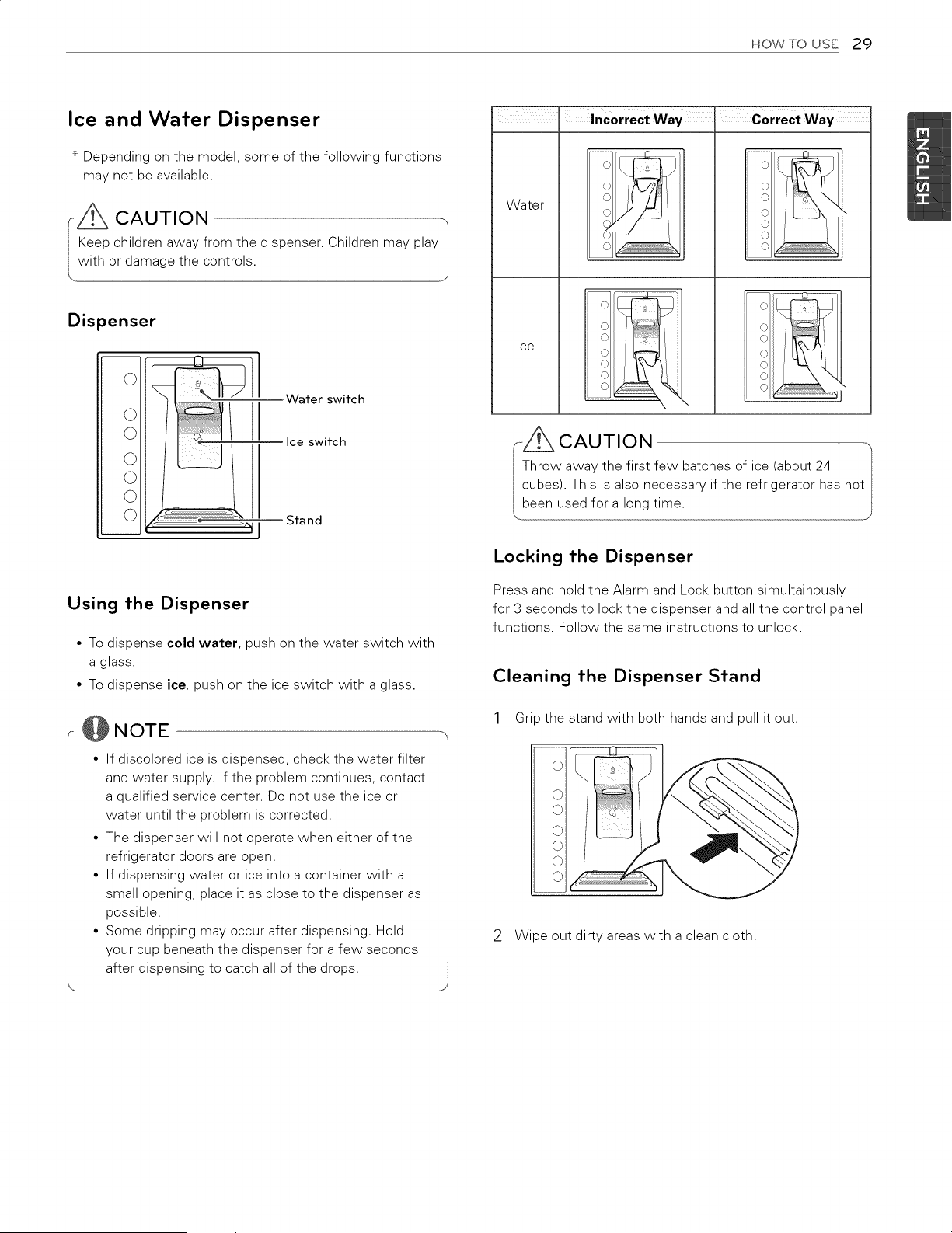

29 Ice and Water Dispenser

29 - Dispenser

29 - Using the Dispenser

29 - Locking the Dispenser

29 - Cleaning the Dispenser Stand

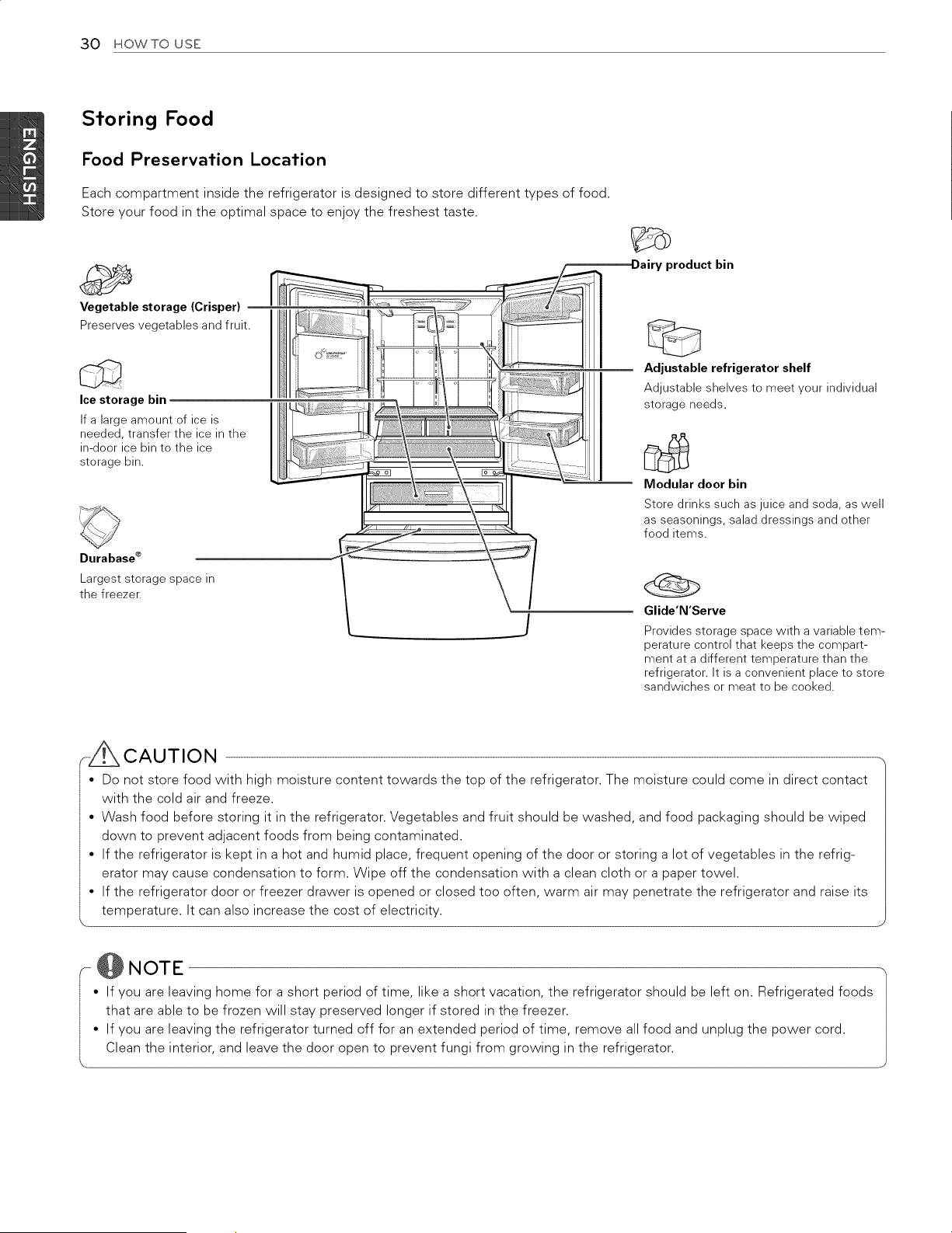

.30 Storing Food

.30 - Food Preservation Location

31 - Food Storage Tips

31 - Storing Frozen Food

32 Humidity Controlled Crisper and Glide'N'Serve

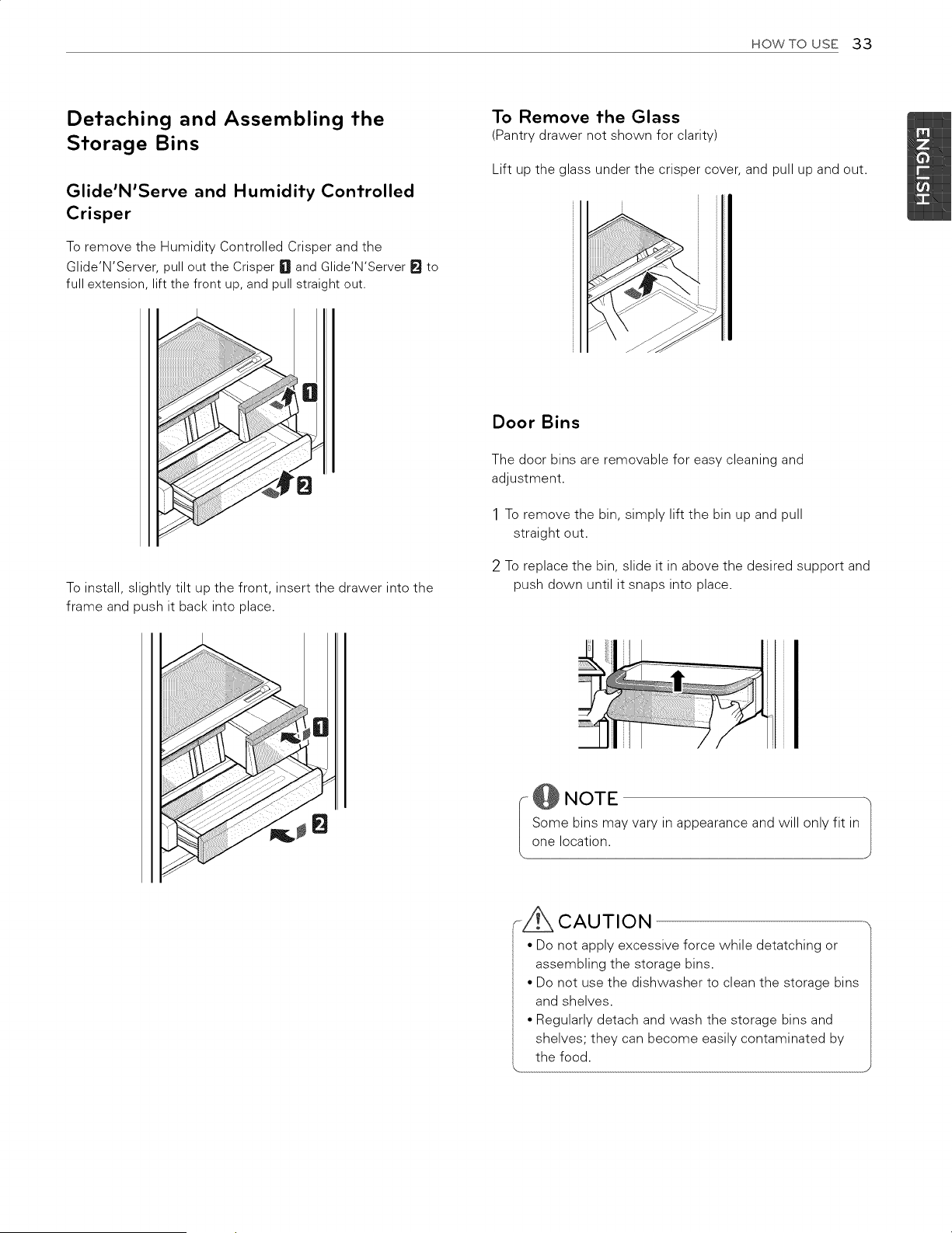

33 Detaching and Assembling the Storage Bins

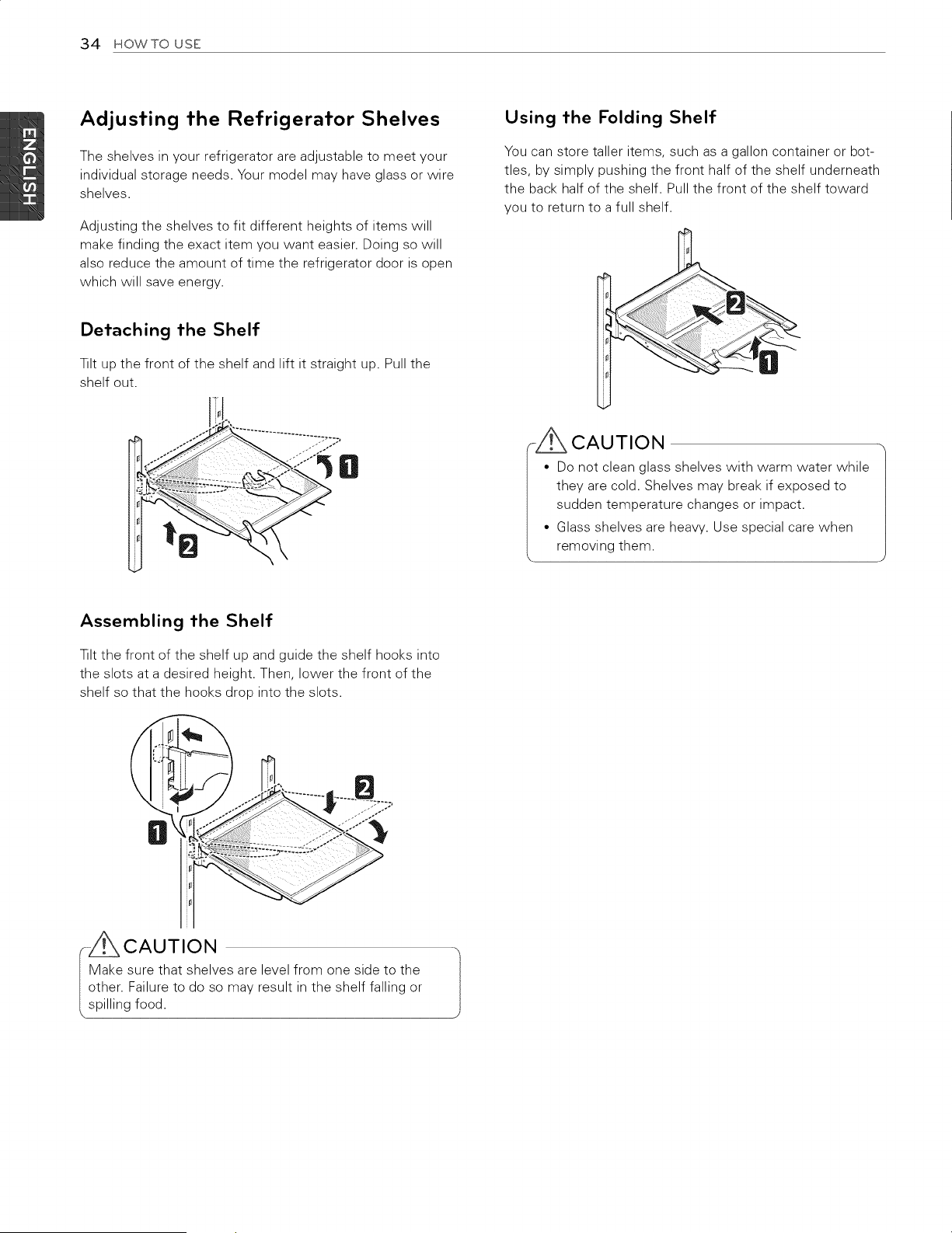

34 Adjusting the Refrigerator Shelves

35 MAINTENANCE

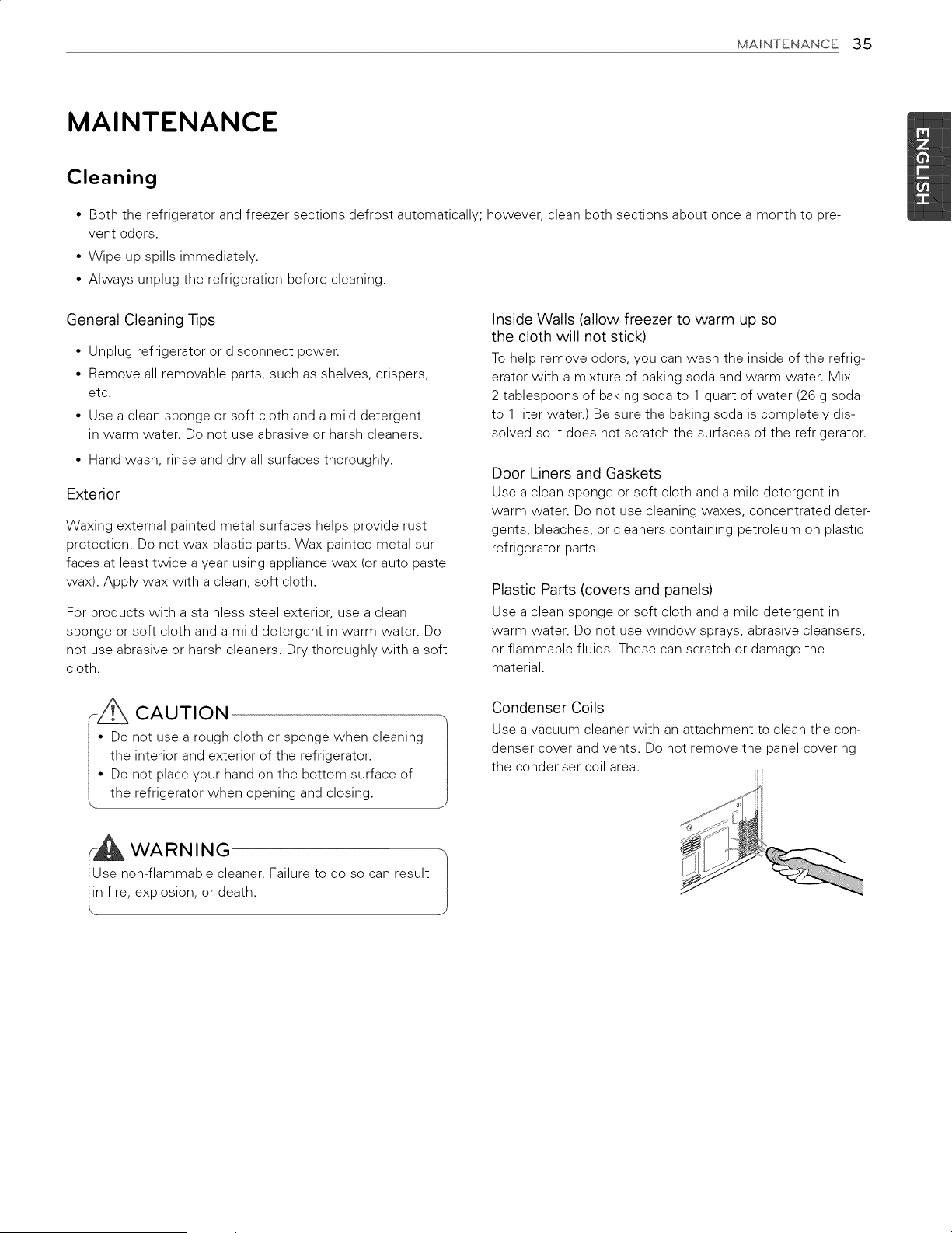

35 Cleaning

36 Replacing the Fresh Air Filter

37 Replacing the Water Filter

41 SMART DIAGNOSIS

41 Using Smart Diagnosis

42 TROUBLESHOOTING

50 WARRANTY

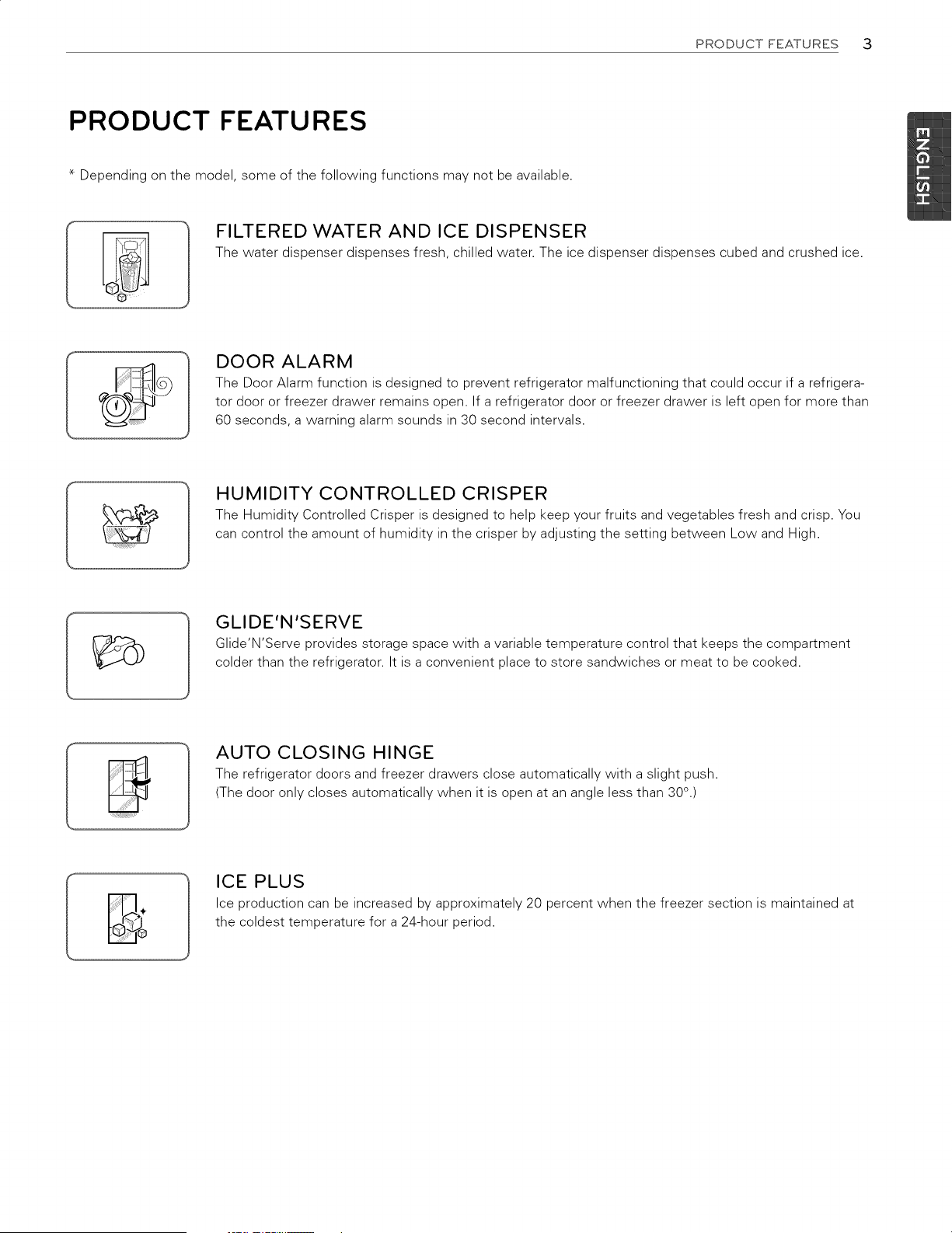

PRODUCT FEATURES 3

PRODUCT FEATURES

* Depending on the model, some of the following functions may not be available.

FILTERED WATER AND ICE DISPENSER

The water dispenser dispenses fresh, chilled water. The ice dispenser dispenses cubed and crushed ice.

DOOR ALARM

The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a refrigera-

tor door or freezer drawer remains open. If a refrigerator door or freezer drawer is left open for more than

60 seconds, a warning alarm sounds in 30 second intervals.

HUMIDITY CONTROLLED CRISPER

The Humidity Controlled Crisper is designed to help keep your fruits and vegetables fresh and crisp. You

can control the amount of humidity in the crisper by adjusting the setting between Low and High.

GLIDE'N'SERVE

Glide'N'Serve provides storage space with a variable temperature control that keeps the compartment

colder than the refrigerator. It is a convenient place to store sandwiches or meat to be cooked.

AUTO CLOSING HINGE

The refrigerator doors and freezer drawers close automatically with a slight push.

(The door only closes automatically when it is open at an angle less than 30°.)

ICE PLUS

Ice production can be increased by approximately 20 percent when the freezer section is maintained at

the coldest temperature for a 24-hour period.

4 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or

others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word WARNING or CAUTION. These words mean:

_IL WARNING You can be killed or seriously injured if you do not follow instructions.

_1_ CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or

product damage.

WARNING

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be

followed, including the following.

Power

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the

outlet.

• Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that

shows cracks or abrasion damage along its length or at either the plug or connector end.

• Do not use an uncertified power outlet.

• Unplug the power plug immediately in the event of a blackout or thunderstorm.

• Plug in the power plug with the power cord facing downward.

Installation

• Contact an authorized service center when you install or relocate the refrigerator.

• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.

• Connect this product to a dedicated grounded electric outlet conforming with the rating prior to use. It is the user's respon-

sibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

• Do not install the refrigerator where there may be a danger of falling.

Use

• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerator. They could damage

the refrigerator and seriously injure themselves.

• Do not place heavy objects on the dispenser of the refrigerator or hang onto it.

• Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.

• Do not put live animals inside of the refrigerator.

• Do not allow children to climb into the product when it is in use.

• In the event of a gas leak (propane/LPG), ventilate sufficiently and contact an authorized service center before use. Do not

touch or disassemble the electric outlet of the refrigerator.

• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ventilate sufficiently and contact an

authorized service center.

• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the refrigerator or store them inside

the refrigerator. Do not place the refrigerator in the vicinity of flammable gas.

IMPORTANT SAFETY INSTRUCTIONS 5

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE,

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be

followed, including the following,

• Do not use this product for special purposes (storage of medicine or test materials or for ships, etc).

• Unplug the power plug before cleaning or repairing the refrigerator.

• When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.

• Do not modify or extend the power cord.

• Do not use a dryer to dry the interior. Do not light a candle to remove the interior odor.

• For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit checked by a qualified electri-

cian to make sure the outlet is properly grounded.

• Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the user's responsibility to

replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

• Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.

• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke.

• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.

• Do not disassemble or modify the refrigerator.

• Do not put hands, feet, or metal objects below or behind the refrigerator.

• Do not operate the refrigerator or touch the power cord with wet hands.

• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism or with the heating

element that releases the cubes. Do not place fingers or hands on the automatic ice-making mechanism while the refrigera-

tor is plugged in.

• When dispensing ice from the dispenser, do not use crystal ceramics.

• Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your refrigerator is in operation.

• Do not put glass containers, glass bottles or soda in the freezer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the

appliance by a person responsible for their safety.

• Do not refreeze frozen food that have thawed completely. It may result in a serious health issue.

• If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper disposal by a qualified

servicer. If you release CFC coolant, you may be fined or imprisoned in accordance with the relevant environmental law.

• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When disposing the refrigera-

tor, remove the packing materials from the door or take off the doors but leave the shelves in place so that children may not

easily climb inside.

6 IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be

followed, including the following,

CAUTION

Installation

• The refrigerator must be properly installed in accordance with the Installer Instructions that were taped to the front of the

refrigerator.

• Be careful when you unpack and install the refrigerator. Immediately dispose of packing materials (plastic) out of reach of

children.

Use

• Close the door carefully when children are around.

• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing

doors when children are in the area.

• If you store food properly, beware that it may fall and cause injury.

Maintenance

• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft fabric.

• Wipe foreign objects (dust, water, etc) off the prongs of the power plug and contact areas regularly.

SAVE THESE INSTUCTIONS

COMPONENTS 7

COMPONENTS

Use this page to become more familiar with the parts and features of your refrigerator. Page references are included for your

convenience.

*The appearance and specifications of the actual product may differ depending on the model.

Refrigerator Exterior

Filtered Water and Ice Dispenser

Dispenses purified water and ice.

LED Display

Displays the refrigerator and freezer

temperature, the water filter condition

and the dispenser status.

(

Control Panel

Handle

Opens and closes the door.

Refrigerator

Preserves food.

Sets the refrigerator and freezer

LED Light

LED lights up under the

refrigerator door.

temperatures, the water filter con-

dition and the dispenser mode.

Ez Handle

Easily opens the freezer door.

Freezer

Preserves frozen food.

8 COMPONENTS

Refrigerator Interior

Water filter

Purifies water.

@ NOTE

The filter should be replaced

every 6 months. Please refer

to the "Replacing the filter"

section in this manual for

details.

* This function may not be

available, depending on

the model.

Indoor Ice Bin

100 ice cubes are

automatically produced

over a 24-hour period.

Crisper

Controls humidity and helps

vegetables and fruit to stay

crisp.

Fixed Door Bin

Used to preserve chilled

food or drinks.

Pullout Drawer

Used for extra storage

within the freezer compart-

ment.

LED interior lamps

The interior lamps light up the

inside of the refrigerator.

[

_ --.<1

Durabase ®and Durabase ®Divider

The Durabase is a storage space recom-

mended for the preservation of large food

items. The Durabase Divider is used to

organize the Durabase area into sections. It

can be adjusted from side to side to accom-

modate items of different sizes.

Dairy Product Bin

Used to preserve dairy

products.

Adjustable

Refrigerator Shelf

The shelves in your re-

frigerator are adjustable

to meet your individual

storage needs.

Guide Divider

The Guide Divider can

be used to organize the

drink or pitcher area.

Modular Door Bin

Interchangeable bins can

be arranged to suit your

storage needs.

Auto Closing Hinge

The refrigerator doors

and freezer drawers

close automatically when

you push them slightly.

(The door only closes

automatically when it is

open at an angle of less

than 30°.)

Glide'N'Serve

Allows you to store food

items at a different

temperature than the

regular refrigerator area.

F-Basket

Area in the freezer that

allows you to fill smaller

items for quick cooling.

INSTALLATION9

INSTALLATION

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another location.

-....

iii i

::i;x:::--J.............

/_ ...................../I.

1 Unpacking your 2 Choosing the proper 3 Disassembling/Assembling

refrigerator location

4 Connecting the wafer

supply and water line

5 Leveling and Door

Alignment

Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Bottom-freezer refrigerator model LFX31925

Description French door refrigerator

Electrical requirements 115 VAC @ 60 Hz

Nlin. / Max. Water pressure 21 - 121 PSI (1.5 - 8.5 kgf/cm 2)

Dimensions 35 3/4" (W) X 36 1/4" (D) X 70 1/4" (H), 48 1/8" (D w/door open)

908 mm (W) X 921 mm (D) X 1783 mm (H), 1221 mm (D w/door open)

Net weight 348 lb. (158 kg)

Refrigerator storage capacity 20.7 cu. ft.

Freezer storage capacity 10.0 cu. ft.

10 INSTALLATION

Unpacking Your Refrigerator

WARNING

• Use two or more people to move and install the

refrigerator. Failure to do so can result in back or

other injury.

• Your refrigerator is heavy. When moving the refrig-

erator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out

when moving it. Do not wiggle or walk the refrig-

erator when trying to move it, as floor damage

could occur.

• Keep flammable materials and vapors, such as

gasoline, away from the refrigerator. Failure to do

so can result in fire, explosion, or death.

Remove tape and any temporary labels from your refrigera-

tor before using. Do not remove any warning-type labels,

the model and serial number label, or the Tech Sheet that is

located under the front of the refrigerator, behind the base

grille.

To remove any remaining tape or glue, rub the area briskly

with your thumb. Tape or glue residue can also be easily re-

moved by rubbing a small amount of liquid dish soap over the

adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage

needs.

Choosing the Proper Location

• Select a place where a water supply can be easily con-

nected for the automatic icemaker.

• @ NOTE

The water pressure must be between 20 and 120 psi

on models without a water filter and between 40 and

120 psi on models with a water filter.

• The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 am-

peres. This provides the best performance and also

prevents overloading house wiring circuits which could

cause a fire hazard from overheated wires. It is recom-

mended that a separate circuit serving only this appli-

ance be provided.

WARNING l

To reduce the risk of electric shock, do not install the

refrigerator in a wet or damp area.

Flooring

To avoid noise and vibration, the unit must be leveled and

installed on a solidly constructed floor. If required, adjust the

leveling legs to compensate for unevenness of the floor. The

front should be slightly higher than the rear to aid in door

closing. Leveling legs can be turned easily by tipping the cabi-

net slightly. Turn the leveling legs to the left to raise the unit

or to the right to lower it. (See Leveling and door Alignment.)

[- NOTE

Installing on carpeting, soft tile surfaces, a platform or I

Ambient Temperature

Install this appliance in an area where the temperature is

between 55°F (13°C) and 110°F (43°C). If the temperature

around the appliance is too low or high, cooling ability may

be adversely affected.

Measuring the Clearances

Too small of a distance from adjacent items may result in

lowered freezing capability and increased electricity con-

sumption charges. Allow at least 24 inches (61 cm) in front

of the refrigerator to open the doors, and at least 2 inches

(5.08 cm) between the back of the refrigerator and the wall.

24" (61 cm)

q, i,

'_- 2" (5,08 cm)

INSTALLATION 11

Removing/Assembling the

Refrigerator Door Handles

Removing/Assembling the

Freezer Drawer Handle

NOTE

Removing the doors is always recommended when it /

is necessary to move the refrigerator through a nar-

row opening. If it is necessary to remove the handles,

follow the directions below.

Removing the Handles

1 Loosen the set screws D with a s/ in. Allen wrench and

remove the handle.

Loosen the mounting fasteners _ that connect to the

refrigerator door and handle using a 1/4 in. Allen wrench,

remove the mounting fasteners.

Assembling the Handles

Assemble the mounting fasteners El at both ends of the

handle using a 1/4in. Allen wrench.

Place the handle on the door by fitting the handle foot-

prints over the mounting fasteners and tightening the set

screws _ with a a/a2in. Allen wrench.

Removing the Handles

1 Loosen the set screws _ located on the lower side of

the handle with a 1/8in. Allen wrench and remove the

handle.

Loosen the mounting fasteners _ that connect to the

freezer drawer and handle using a 1/4 in. Allen wrench,

and remove the mounting fasteners.

Assembling the Handles

Assemble the mounting fasteners _ at both ends of the

handle using a 1/4in. Allen wrench.

Place the handle on the door by fitting the handle foot-

prints over the mounting fasteners and tightening the set

screws _ with a 1/sin. Allen wrench.

12 INSTALLATION

Removing/Assembling the Doors

and Drawers

Removing the doors is always recommended when it is nec-

essary to move the refrigerator through a narrow opening.

F_WARNING -_

• If your entrance door is too narrow for the refrigera-

tor to pass through, remove the refrigerator doors and

move the refrigerator sideways through the doorway.

• Use two or more people to remove and install the

refrigerator doors. Failure to do so can result in back or

other injury.

• Disconnect the electrical supply to the refrigerator

before installing. Failure to do so could result in serious

injury or death.

• Do not put hands, feet or other objects into the air

vents, base grille, or bottom of the refrigerator. You may

be injured or receive an electrical shock.

• Be careful when handling the hinge, base grille and

stopper. It may result in injury.

• Remove food and bins from the doors and drawers

before detaching.

\ J

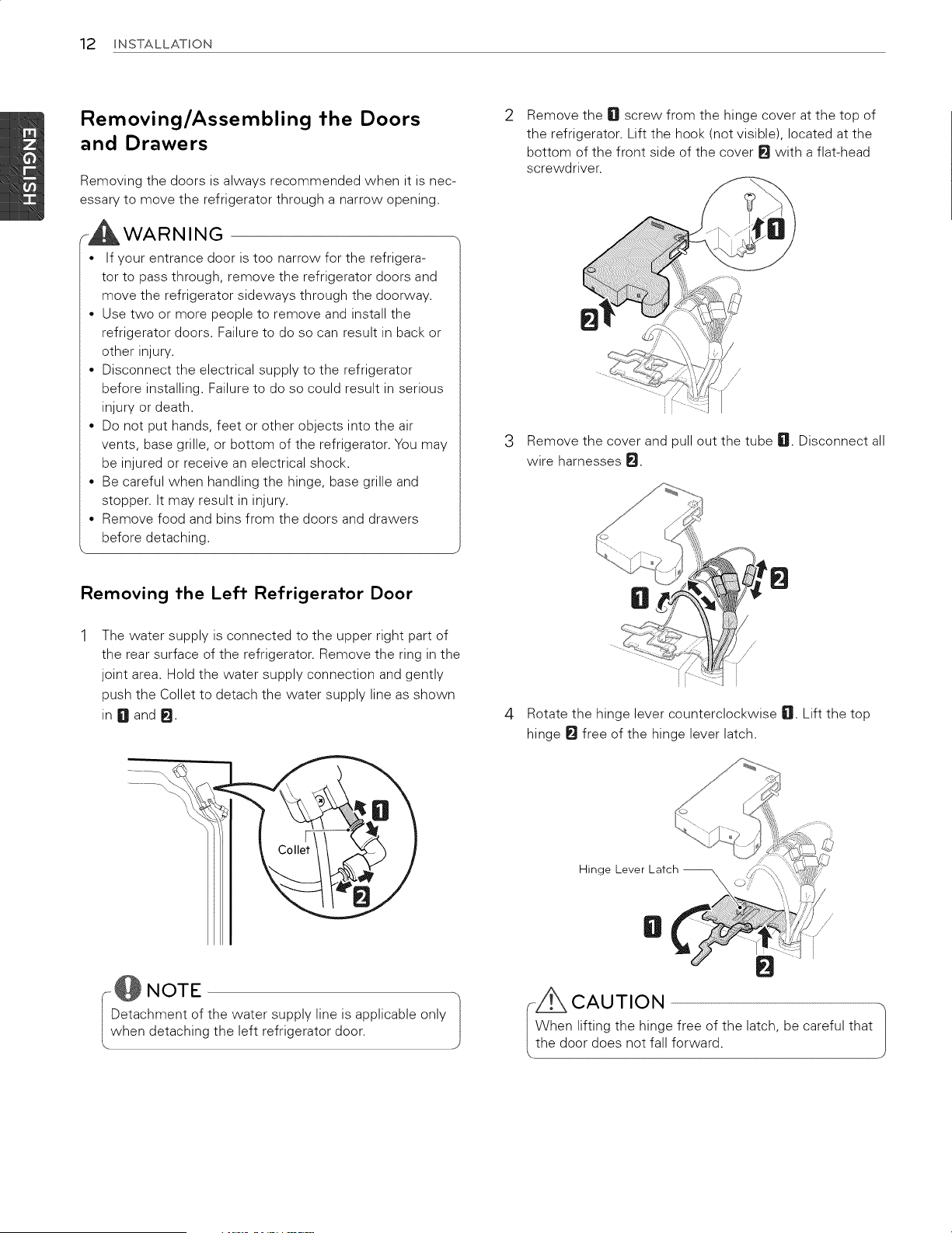

Removing the Left Refrigerator Door

The water supply is connected to the upper right part of

the rear surface of the refrigerator. Remove the ring in the

joint area. Hold the water supply connection and gently

push the Collet to detach the water supply line as shown

in D and D.

Remove the _ screw from the hinge cover at the top of

the refrigerator. Lift the hook (not visible), located at the

bottom of the front side of the cover E! with a flat-head

screwdriver.

3 Remove the cover and pull out the tube _. Disconnect all

wire harnesses _.

4 Rotate the hinge lever counterclockwise _. Lift the top

hinge _ free of the hinge lever latch.

- 1

_Colle

--@ NOTE

Detachment of the water supply line is applicable only /

when detaching the left refrigerator door.

Hinge Lever Latch --

D ///

_Z_ CAUTION

When lifting the hinge free of the latch, be careful that i1the door does not fall forward.

INSTALLATION 13

Removing the Left Refrigerator Door

(continued)

Lift the door from the middle hinge pin and remove the

door.

CAUTION

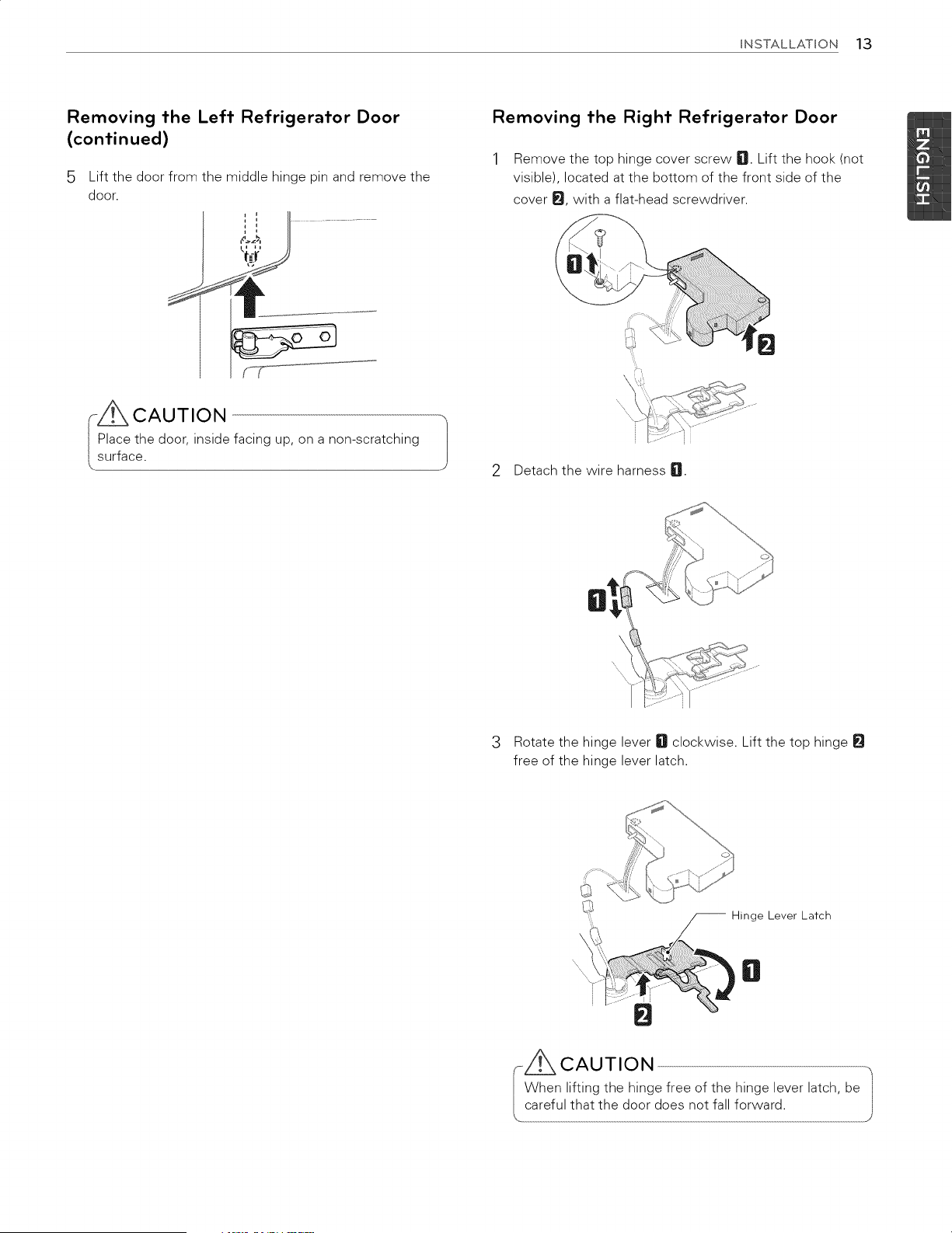

Removing the Right Refrigerator Door

1 Remove the top hinge cover screw D. Lift the hook (not

visible), located at the bottom of the front side of the

cover _, with a flat-head screwdriver.

2 Detach the wire harness D.

3 Rotate the hinge lever _ clockwise. Lift the top hinge

free of the hinge lever latch.

Hinge Lever Latch

• D

_-Z_ CAUTION

When liftingthe hingefreeofthe hinge leverlatch,be

carefulthatthe door does notfallforward.

14 INSTALLATION

Removing the Right Refrigerator Door

(continued)

4 Lift the door from the middle hinge pin and remove the

door.

Assembling the Right Refrigerator Door

Install the right-side door first.

1 Make sure that the plastic sleeve is inserted in the bot-

tom of the door. Lower the door onto the middle hinge

pin as shown in the figure.

-Z_CAUTION

Place the door on the floor, inside facing up, on a non- |

scratching surface.

2 Fit the hinge D over the hinge lever latch and slot it into

place. Rotate the lever D counterclockwise to secure the

hinge.

D -- Hinge Lever Latch

[]

3 Connect the wire harness i[i.

INSTALLATION 1.'.5

4 Make sure that the door-switch located inside the cover

is tightly connected. Position the cover in its place. Insert

and tighten the cover screw _.

3 Connect all the wire harnesses.

Push the water supply tube into the hole on the top case

and pull it through the backplate.

Assembling the Left Refrigerator Door

Install the left refrigerator door after the right door is installed.

1 Make sure that the plastic sleeve is inserted in the bot-

tom of the door. Install the refrigerator door onto the

middle hinge.

, ,di/J......................

Hold the water supply connection and gently push in the

collet to connect the water supply line as shown in D and

_. Insert the tube at least s/sinch (1B mm) into the con-

nector. Assemble the clip to the joint part for fastening.

Fit the hinge D over the hinge lever latch and slot it into

place. Rotate the lever clockwise _ and fasten the hinge.

Hinge Lever

}

16 INSTALLATION

Make sure that the door-switch located inside the cover

is tightly connected. Place the cover D in its position and

tighten the cover screw _.

_-_ NOTE

Collet

Insert Line

Clip

) Gently press the Collet and insert the tube until only

one line shows on the tube.

(Correct)

(Incorrect)

Pull the tube to make sure that the tube is tightly

fastened and then insert the clip.

Removing the Freezer Drawers

The top, middle and bottom drawers are all removed in the

same way. In the following figures, the Pullout Drawer

located above the freezer drawer is not shown for clarity.

CAUTION

• Use two or more people to remove and install the

freezer drawer. Failure to do so can result in back

or other injury.

• Do not hold the handle when removing or replac-

ing the drawer. The handle may come off and it

could cause personal injury.

• Be careful of sharp hinges on both sides of the

drawer.

• When you lay the drawer down, be careful not to

damage the floor.

• Do not sit or stand on the freezer drawer.

• To prevent accidents, keep children and pets away

from the drawer. Do not leave the drawer open.

If the Durabase ® storage bin is removed from the

freezer drawer, there is sufficient space inside for

a small child or a pet to get into.

(Durabase®)

1 Pull the drawer open to full extension.

2 Lift up the basket and bin inside the drawer. (Images

D, _ in the figure below may differ from the actual

drawers of the refrigerator.)

INSTALLATION 17'

3 Remove the screws from the rails at both ends.

Assembling the Freezer Drawers

The top, middle and bottom drawers are all assembled in the

same way.

1 With both hands, pull out each rail simultaneously until

both rails are fully extended.

4 With both hands, grip both sides of the drawer and pull it

up to remove it from the rails.

CAUTION

Do not hold the handle when removing or replacing

the drawer. The handle may come off and it could

cause personal injury.

2 Grasp the drawer on each side and hook the drawer

supports into the rail tabs located on both sides.

With both hands, hold each rail and push it in to allow

both rails to slide in simultaneously.

_ CAUTION

Do not holdthe handlewhen removing orreplacingthe I

drawer.The handlemay come offand itcouldcause

18 INSTALLATION

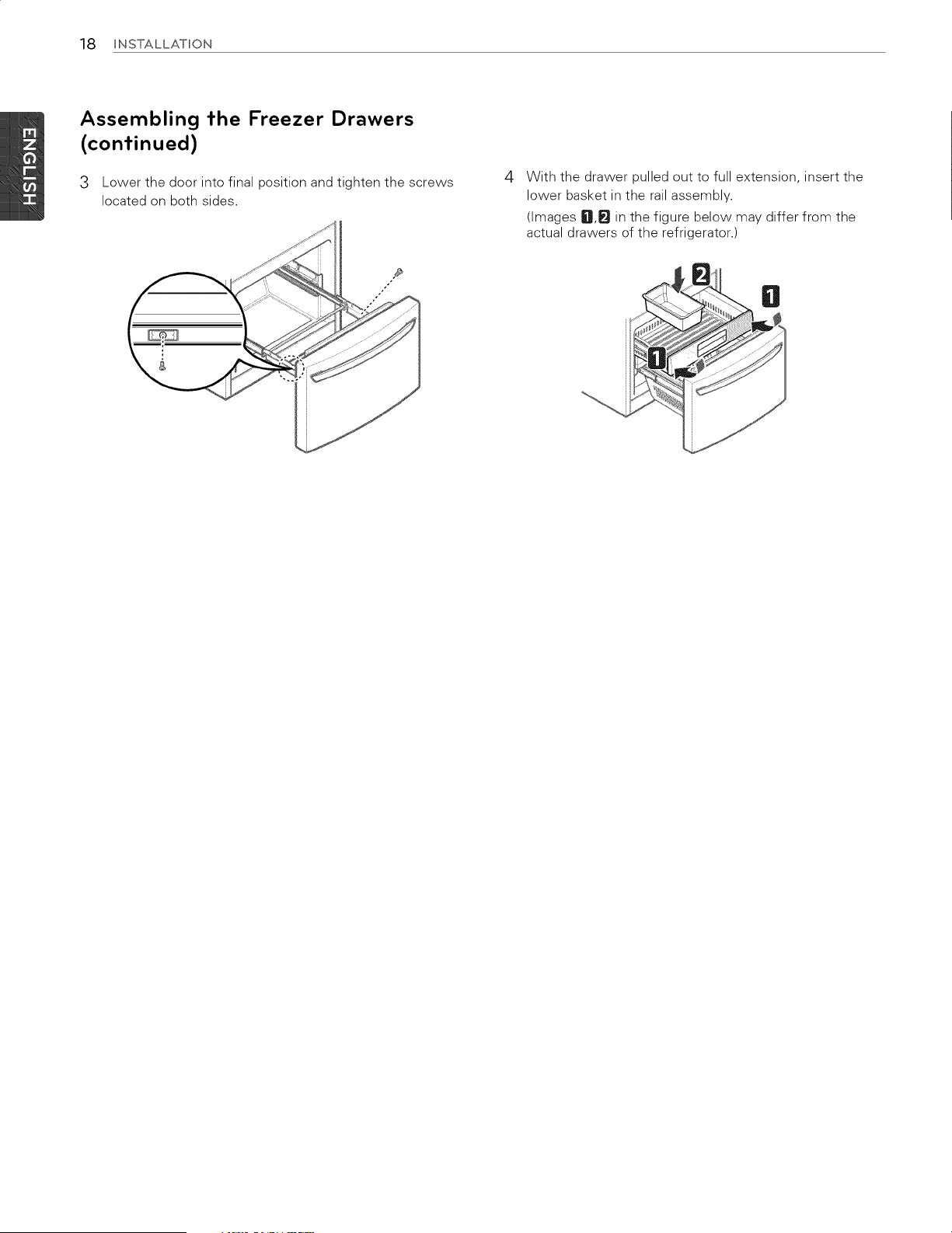

Assembling the Freezer Drawers

(continued)

3 Lower the door into final position and tighten the screws

located on both sides.

With the drawer pulled out to full extension, insert the

lower basket in the rail assembly.

(Images D,_ in the figure below may differ from the

actual drawers of the refrigerator.)

INSTALLATION 19

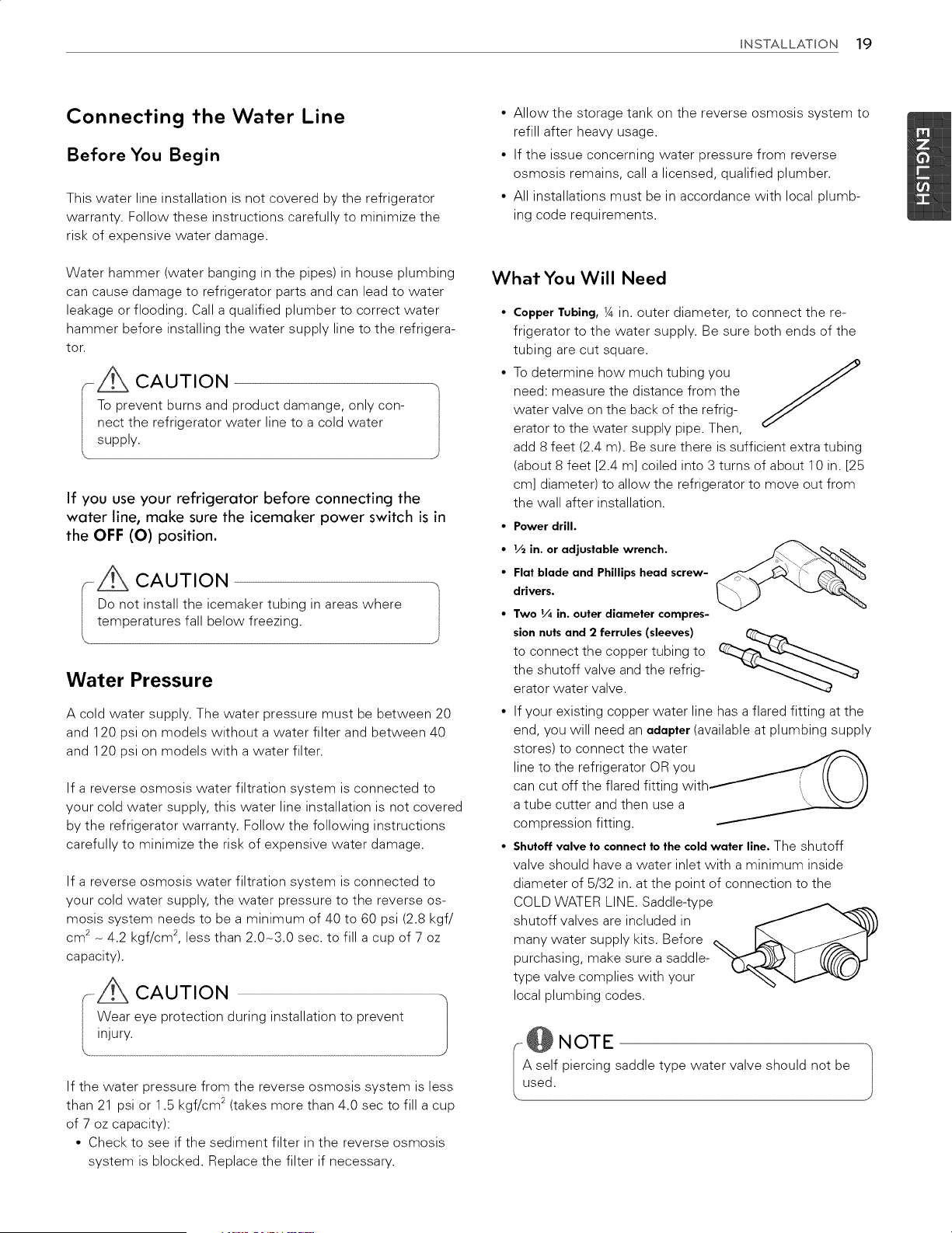

Connecting the Water Line

Before You Begin

This water line installation is not covered by the refrigerator

warranty. Follow these instructions carefully to minimize the

risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing

can cause damage to refrigerator parts and can lead to water

leakage or flooding. Call a qualified plumber to correct water

hammer before installing the water supply line to the refrigera-

tor.

CAUTION

If you use your refrigerator before connecting the

water line, make sure the icemaker power switch is in

the OFF (0) position.

CAUTION

install the icemaker tubing in areas where

Water Pressure

A cold water supply. The water pressure must be between 20

and 120 psi on models without a water filter and between 40

and 120 psi on models with a water filter.

If a reverse osmosis water filtration system is connected to

your cold water supply, this water line installation is not covered

by the refrigerator warranty. Follow the following instructions

carefully to minimize the risk of expensive water damage.

If a reverse osmosis water filtration system is connected to

your cold water supply, the water pressure to the reverse os-

mosis system needs to be a minimum of 40 to 60 psi (2.8 kgf/

cm 2 - 4.2 kgf/cm 2, less than 2.0-3.0 sec. to fill a cup of 7 oz

capacity).

U-Z_ CAUTION

_A(ear eye protection during installation to prevent |

If the water pressure from the reverse osmosis system is less

than 21 psi or 1.5 kgf/cm 2 (takes more than 4.0 sec to fill a cup

of 7 oz capacity):

• Check to see if the sediment filter in the reverse osmosis

system is blocked. Replace the filter if necessary.

• Allow the storage tank on the reverse osmosis system to

refill after heavy usage.

• If the issue concerning water pressure from reverse

osmosis remains, call a licensed, qualified plumber.

• All installations must be in accordance with local plumb-

ing code requirements.

What You Will Need

Copper Tubing,1Ain. outer diameter, to connect the re-

frigerator to the water supply. Be sure both ends of the

tubing are cut square.

To determine how much tubing you

need: measure the distance from the

water valve on the back of the refrig-

erator to the water supply pipe. Then,

add 8 feet (2.4 m). Be sure there is sufficient extra tubing

(about 8 feet [2.4 m] coiled into 3 turns of about 10 in. [25

cm] diameter) to allow the refrigerator to move out from

the wall after installation.

Power drill.

½ in. or adjustable wrench.

Flat blade and Phillips head screw-

drivers.

Two I/4 in. outer diameter compres-

sion nuts and 2 ferrules (sleeves)

to connect the copper tubing to

the shutoff valve and the refrig-

erator water valve.

If your existing copper water line has a flared fitting at the

end, you will need an adapter (available at plumbing supply

stores) to connect the water

line to the refrigerator OR you _f/f "_'_

can cut off the flared fitting with/ ,\ \_ /))

a tube cutter and then use a

compression fitting.

Shutoff valve to connect to the cold water line. The shutoff

valve should have a water inlet with a minimum inside

diameter of 5/32 in. at the point of connection to the

COLD WATER LINE. Saddle-type

shutoff valves are included in

many water supply kits. Before

purchasing, make sure a saddle-

type valve complies with your

local plumbing codes.

,-_ NOTE

A self piercing saddle type water valve should not be

used.

20 INSTALLATION

Water Line Installation Instructions

-z_ WARNING

When using any electrical device (such as a power

drill) during installation, be sure the device is bat-

tery powered, double insulated or grounded in

a manner that will prevent the hazard of electric

shock.

Install the shutoff valve on the nearest frequently used drink-

ing water line.

1 SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the

line.

to connect into a horizontal water pipe,

make the connection to the top or side,

rather than at the bottom, to avoid draw-

ing off any sediment from the water pipe.

CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible.

It is best to connect into the side of a

vertical water pipe. When it is necessary

DRILL THE HOLE FOR THE VALVE

Drill a 1Ain. hole in the water pipe

using a sharp bit. Remove any burrs

resulting from drilling the hole in the

pipe. Be careful not to allow water

to drain into the drill. Failure to drill a

1Ain. hole may result in reduced ice

production or smaller cubes.

@ NOTE

The hookup line cannot be white, plastic tubing.

Licensed plumbers must use only copper tubing NDA

tubing #49595 or 49599 or Cross Link Polyethylene

(PEX) tubing.

4 FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the

pipe clamp.

"_@ NOTE

Commonwealth of Massachusetts Plumbing Codes

248CMR shall be adhered to. Saddle valves are illegal

and use is not permitted in Massachusetts. Consult

with your licensed plumber.

TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins

to swell.

NOTE: Do not overtighten clamp or you may

crush the tubing.

Washer

Pipe Clamp -- Inlet End

Clamp Screw --

ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or floor

(behind the refrigerator or adjacent base cabinet) as close

to the wall as possible.

-@ NOTE 1

Be surethereissufficientextratubing(about8 feet

coiledinto3 turnsof about10 in.diameter)toallow

the refrigeratorto move outfrom thewallafterinstal-

lation.

CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper

tubing onto the end of the tubing and connect it to the

shutoff valve. Make sure the tubing is fully inserted into

the valve. Tighten the compression nut securely.

Pipe Clamp --

Saddle-Type

Shutoff Valve

Vertical Cold

Water Pipe

Saddle-Type

Shutoff Valve

Packing Nut

Outlet Valve

Compression Nut

Ferrule (sleeve)

INSTALLATION 21

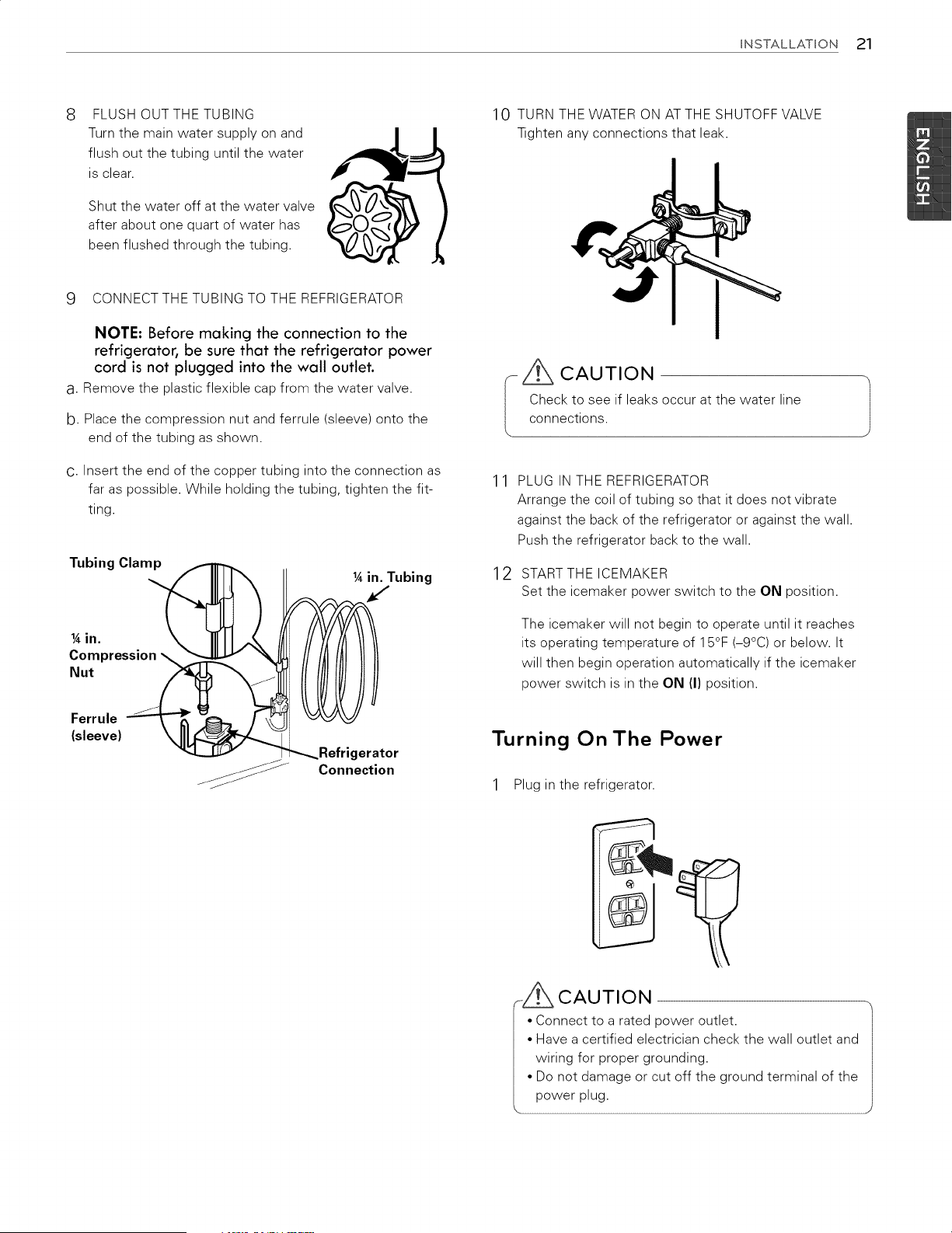

FLUSH OUT THE TUBING

Turn the main water supply on and

flush out the tubing until the water

is clear.

Shut the water off at the water valve

after about one quart of water has

been flushed through the tubing.

10 TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

9 CONNECT THE TUBING TO THE REFRIGERATOR

NOTE: Before making the connection to the

refrigerator, be sure that the refrigerator power

cord is not plugged into the wall outlet.

a. Remove the plastic flexible cap from the water valve.

b. Place the compression nut and ferrule (sleeve) onto the

end of the tubing as shown.

C. Insert the end of the copper tubing into the connection as

far as possible. While holding the tubing, tighten the fit-

ting.

Tubing Clamp

14in.

Corn[

Nut

14in. Tubing

Ferrule

(sleeve)

gerator

Connection

z_ CAUTION

I heck to see if leaks occur at the water lineconnections.

PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the wall.

Push the refrigerator back to the wall.

START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (-9°C) or below. It

will then begin operation automatically if the icemaker

power switch is in the ON (I) position.

Turning On The Power

1 Plug in the refrigerator.

z_CAUTION .-.

I" Connect to a rated power outlet.

| • Have a certified electrician check the wall outlet and

| wiring for proper grounding.

| • Do not damage or cut off the ground terminal of the

22 INSTALLATION

Leveling and Door Alignment

Leveling

After installing, plug the refrigerator's power cord into a

3-prong grounded outlet and push the refrigerator into the

final position.

Your refrigerator has two front leveling legs--one on the right

and one on the left. Adjust the legs to alter the tilt from front-

to-back or side-to-side. If your refrigerator seems unsteady,

or you want the doors to close more easily, adjust the

refrigerator's tilt using the instructions below:

Door Alignment

Both the left and right refrigerator doors have an adjustable

nut, located on the bottom hinge, to raise and lower them to

align properly. If the space between your doors is uneven,

follow the instructions below to align the doors evenly:

Use the wrench (included with the Owner's Manual) to turn

the nut in the door hinge to adjust the height. To the right to

raise or to the left to lower the height.

Remove the base grille. Refer to the Base Grille

Installation section.

Turn the leveling leg to the left to raise that side of the

refrigerator or to the right to lower it. It may take several

turns of the leveling leg to adjust the tilt of the

refrigerator.

NOTE

A flare nut wrench works best, but an open-end

wrench will suffice. Do not over-tighten.

Open both doors again and check to make sure that they

close easily. If the doors do not close easily, tilt the refrig-

erator slightly more to the rear by turning both leveling

legs to the left. It may take several more turns, and you

should turn both leveling legs the same mount.

4 Replace the base grille.

HOW TO USE 23

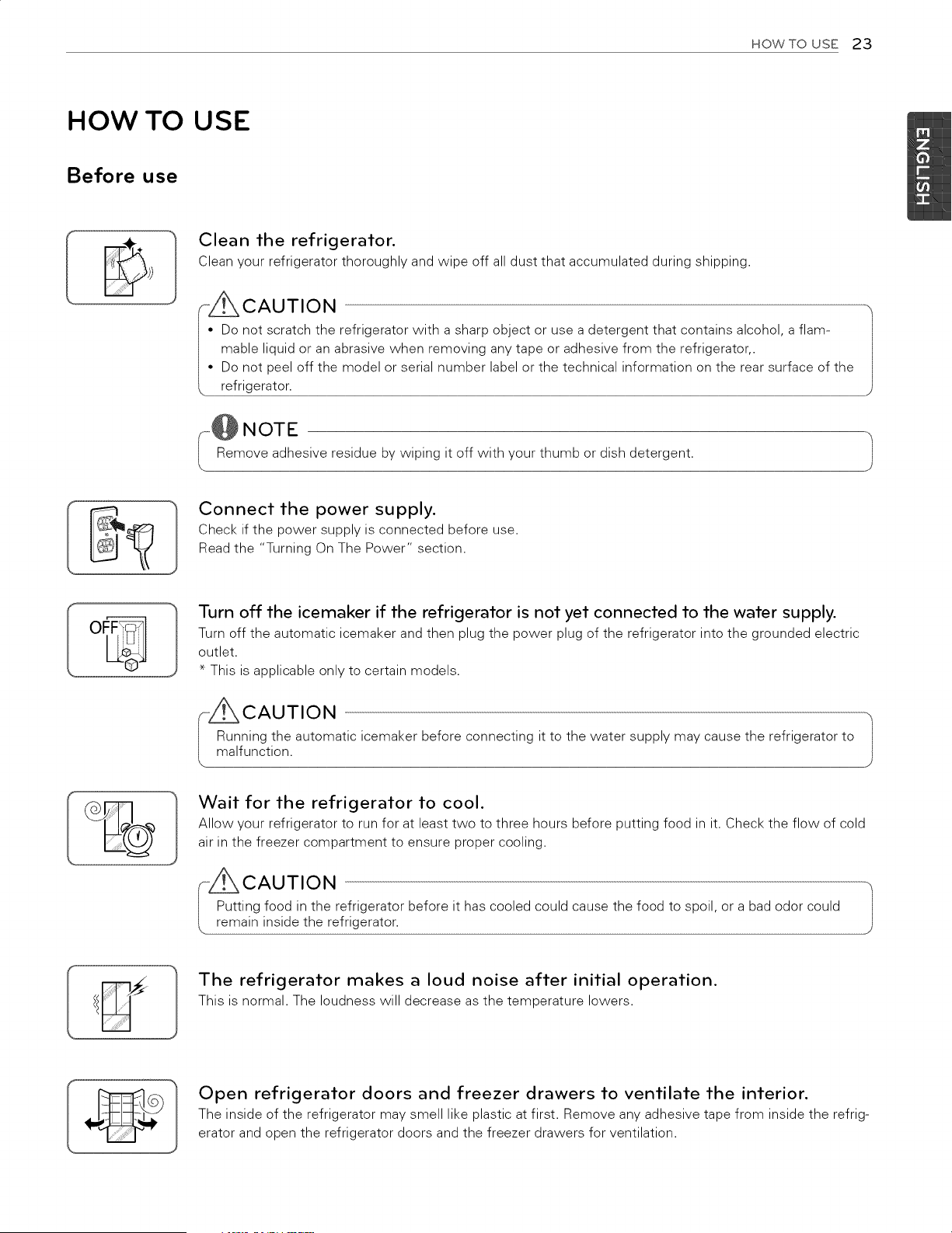

HOW TO USE

Before use

Clean the refrigerator.

Cleanyour refrigerator thoroughly and wipe off all dust that accumulated during shipping.

_z_CAUTION

• Do notscratchtherefrigeratorwitha sharp objectoruse a detergentthatcontainsalcohol,a flam-

mable liquidor an abrasivewhen removingany tape oradhesivefrom the refrigerator,.

• Do not peeloffthe model or serialnumber labelorthe technicalinformationon the rearsurfaceofthe

,, refrigerator.

- _ NOTE

Remove adhesive residue by wiping it off with your thumb or dish detergent.

Connect the power supply.

Check if the power supply is connected before use.

Read the "Turning On The Power" section.

Turn off the icemaker if the refrigerator is not yet connected to the wafer supply.

Turn off the automatic icemaker and then plug the power plug of the refrigerator into the grounded electric

outlet.

* This is applicable only to certain models.

_z_CAUTION

Running the automaticicemakerbeforeconnectingitto thewater supplymay cause the refrigeratorto

malfunction.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold

air in the freezer compartment to ensure proper cooling.

_-z_ CAUTION

Putting food in the refrigerator before it has cooled could cause the food to spoil, or a bad odor could

, remain inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The loudness will decrease as the temperature lowers.

Open refrigerator doors and freezer drawers to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from inside the refrig-

erator and open the refrigerator doors and the freezer drawers for ventilation.

24 HOWTO USE

Control Panel

Depending on the model, some of the following functions may not be available.

Control Panel Features

Control

LED Display Button

Indicator

Ice Selection _J

CUBE CRUSH

Press the ice selection button to choose either cubed or

crushed ice. The cube or crush ice icon will illuminate.

REFRIGERATOR

Refrigerator Temperature OOoc

LILI oF

Indicates the set temperature of the refrigerator compart-

ment in Celsius (°C) or Fahrenheit (°F).

FREEZER

Freezer Temperature rer_oc

-OO OF

Indicates the set temperature of the freezer compartment in

Celsius (°C) or Fahrenheit (°F).

To change the temperature mode from °F to °C (or vice

versa) press and hold the Refrigerator and Freezer tempera-

ture buttons simultaneously for approximately five seconds.

The temperature indication on the display window switches

between Celsius and Fahrenheit.

"@ NOTE

The displayed temperature is the target temperature,

and not the actual temperature of the refrigerator.

The actual refrigerator temperature depends on the

food inside the refrigerator

.... : [

Fresh Air Filter eg ....... e..'._

FRESH AIR FILTER FRESH AIR FILTER LFX31925SB J

3 SEC 3SEC

The Fresh Air Filter helps remove odors from the refrigerator.

The Fresh Air Filter has two settings, Auto and Power(PWR).

In Auto mode, the Fresh Air Filter will cycle on and off in

increments of ten minutes on and one hundred ten minutes

off. If set to the Power(PWR) mode, the Fresh Air Filter will

stay on continuously for four hours, cycling on and off in

increments of ten minutes on and five minutes off. After four

hours, the Fresh Air Filter will switch back to Auto mode.

• The Press the Air Filter button once for Power(PWR)

mode.

• Press the Air Filter button again to switch back to

Auto mode.

HOW TO USE 2.5

Control Panel Features (continued)

OHA .[ @ =LFX3192SSW]

Change Filter ......

FRESH AIR FILTER FRESH AIR FILTER LFX31925SB

3SEC s sEc

When the Change Filter icon turns on, the air filter needs to

be replaced. After replacing the air filter, press and hold the

Fresh Air Filter button for three seconds to turn the icon light

off. It is recommended to change the air filter approximately

every 6 months.

Ice Plus _

ICE

PLUS

This function increases both ice making and freezing

capabilities.

• When you touch the Ice Plus button, the graphic will

illuminate in the display and will continue for 24 hours.

The function will automatically shut off after 24 hours.

• You can stop this function manually by touching the

button one more time.

Energy Saving _

ENERGY

SAVING

3 SEC

The Energy Saving function disables the mullion heater

located on the refrigerator door in order to conserve electric-

ity. Press and hold the Energy Saving button for three sec-

onds to activate or deactivate this function.

NOTE

Discontinue using the Energy Saving function if ex-

cessive moisture begins to collect on the door

When you press the Light button, the dispenser light will turn

on and the indicator will appear on the LED display.

Door Alarm _))

ALARM

• When power is connected to the refrigerator, the door

alarm is initially set to ON. When you press the Door

Alarm button, the display will change to OFF and the

Door Alarm function will deactivate.

• When either the refrigerator or the freezer door is left

open for more than 60 seconds, the alarm tone will

sound to let you know that the door is open.

• When you close the door, the door alarm will stop.

Control Lock

EZ3

LOCK

3 SEC

The Control Lock function disables every other button on the

display.

When power is initially connected to the refrigerator,

the Lock function is off.

If you want to activate the Lock function to lock other

buttons, press and hold the Lock button for three sec-

onds or more. The Lock icon will display and the Lock

function is now enabled.

To disable the Lock function, press and hold the Lock

button for approximately three seconds.

Power Saving Mode

• When the refrigerator is in the Power Saving Mode,

the display will remain off until a door is opened or a

button is pressed. Once on, the display will remain on

for 20 seconds.

Change Water Filter

WATER

FILTER

3 SEC

When the water filter indicator turns on, you have to change

the water filter. After changing the water filter, press and

hold the Change Filter button for three seconds to turn the

indicator light off. You need to change the water filter ap-

proximately every six months.

26 HOW TO USE

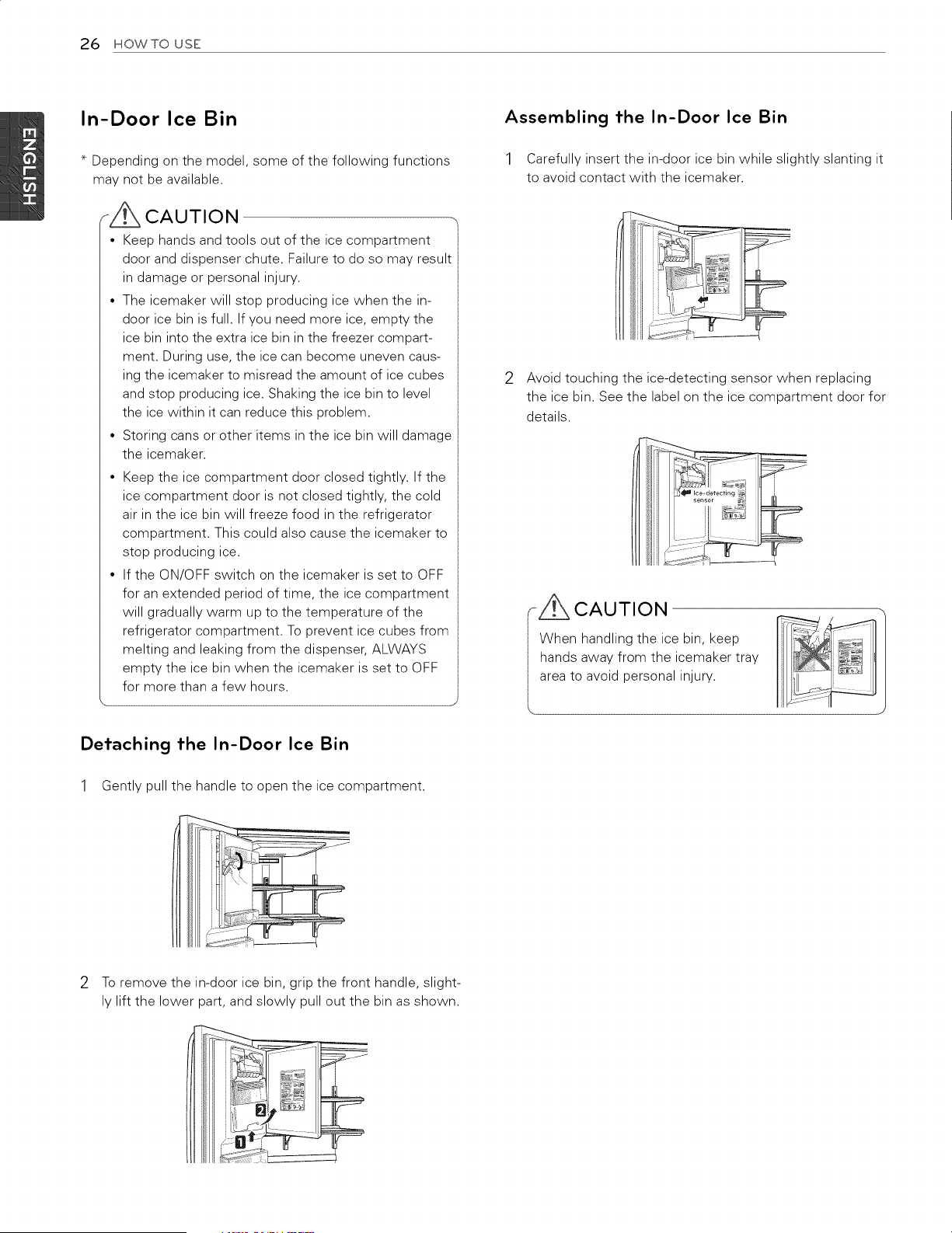

In-Door Ice Bin

* Depending on the model, some of the following functions

may not be available.

_/_ CAUTION

• Keep hands and tools out of the ice compartment

door and dispenser chute. Failure to do so may result

in damage or personal injury.

• The icemaker will stop producing ice when the in-

door ice bin is full. If you need more ice, empty the

ice bin into the extra ice bin in the freezer compart-

ment. During use, the ice can become uneven caus-

ing the icemaker to misread the amount of ice cubes

and stop producing ice. Shaking the ice bin to level

the ice within it can reduce this problem.

• Storing cans or other items in the ice bin will damage

the icemaker.

• Keep the ice compartment door closed tightly. If the

ice compartment door is not closed tightly, the cold

air in the ice bin will freeze food in the refrigerator

compartment. This could also cause the icemaker to

stop producing ice.

• If the ON/OFF switch on the icemaker is set to OFF

for an extended period of time, the ice compartment

will gradually warm up to the temperature of the

refrigerator compartment. To prevent ice cubes from

melting and leaking from the dispenser, ALWAYS

empty the ice bin when the icemaker is set to OFF

for more than a few hours.

Detaching the In-Door Ice Bin

1 Gently pull the handle to open the ice compartment.

Assembling the In-Door Ice Bin

1 Carefully insert the in-door ice bin while slightly slanting it

to avoid contact with the icemaker.

2 Avoid touching the ice-detecting sensor when replacing

the ice bin. See the label on the ice compartment door for

details.

_z_CAUTION

When handlingthe icebin,keep

hands away from the icemakertray

areato avoidpersonalinjury.

2 To remove the in-door ice bin, grip the front handle, slight-

ly lift the lower part, and slowly pull out the bin as shown.

HOW TO USE 27

Automatic Icemaker

Depending on the model, some of the following functions

may not be available.

Ice is made in the automatic icemaker and sent to the dis-

penser. The icemaker will produce 12 cubes per cycle--

approximately 120 cubes in a 24-hour period, depending

on freezer compartment temperature, room temperature,

number of door openings and other operating conditions.

• It takes about 12 to 24 hours for a newly installed re-

frigerator to begin making ice. Wait 72 hours for full ice

production to occur.

• Ice making stops when the in-door ice bin is full. When

full, the in-door ice bin holds approximately 6 to 8 (12-16

oz) glasses of ice.

• The water pressure must be between 20 and

120 psi on models without a water filter and between

40 and 120 psi on models with a water filter to produce

the normal amount and size of

ice cubes.

• Foreign substances or frost on the ice-detecting sensor

can interrupt ice production. Make sure the sensor area

is clean at all times for proper operation.

Icemaker

Power

Ice-clefecfing

Sensor

Turning the Automatic Icekamer On or Off

To turn off the automatic icemaker, set the icemaker switch to

OFF (0). To turn on the automatic icemaker, set the switch to

ON (I1.

28 HOW TO USE

Automatic Icemaker (continued)

\CAUTION

• The first ice and water dispensed may include particles

or odor from the water supply line or the water tank.

• Throw away the first few batches of ice (about 24

cubes). This is also necessary if the refrigerator has not

been used for a long time.

• Never store beverage cans or other items in the ice bin

for the purpose of rapid cooling. Doing so may damage

the icemaker or the containers may burst.

• If discolored ice is dispensed, check the water filter and

water supply. If the problem continues, contact a Sears

or other qualified service center. Do not use the ice or

water until the problem is corrected.

• Keep children away from the dispenser. Children may

play with or damage the controls.

• The ice passage may become blocked with frost if only

crushed ice is used. Remove the frost that accumulates

by removing the ice bin and clearing the passage with

a rubber spatula. Dispensing cubed ice can also help

prevent frost buildup.

• Never use thin crystal glass or crockery to collect ice.

Such containers may chip or break resulting in glass

fragments in the ice.

• Dispense ice into a glass before filling it with water

or other beverages. Splashing may occur if ice is dis-

pensed into a glass that already contains liquid.

• Never use a glass that is exceptionally narrow or deep.

Ice may jam in the ice passage and refrigerator perfor-

mance may be affected.

• Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice

from dispensing.

• To avoid personal injury, keep hands out of the ice door

and passage.

• Never remove the dispenser cover.

• If ice or water dispenses unexpectedly, turn off the

water supply and contact a qualified service center.

When You Should Turn the Icemaker Off

• When the water supply will be shut off for several

hours.

• When the ice bin is removed for more than one or two

minutes.

• When the refrigerator will not be used for several days.

-@ NOTE /

The icebinshouldbe emptied when the icemakeron

off switch is turned to the OFF position.

Normal Sounds You May Hear

• The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the ON (I) position,

it will buzz even if it has not yet been hooked up to

water. To stop the buzzing, move the power switch to

OFF (0).

NOTE

Keeping the power switch in the ON (I) position

before the water line is connected can damage the

• You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

Preparing For Vacation

Set the icemaker power switch to OFF (0) and shut off the

water supply to the refrigerator.

_-@ NOTE -_

I The icebinshouldbe emptied anytimethe icemaker

If the ambient temperature will drop below freezing, have a

qualified technician drain the water supply system to prevent

serious property damage due to flooding caused by ruptured

water lines or connections.

HOW TO USE 29

Ice and Water Dispenser

* Depending on the model, some of the following functions

may not be available.

CAUTION

Keep children away from the dispenser. Children may play /

with or damage the controls.

Dispenser

Water

Ice

()

\ ".

-_Z_ CAUTION

Throw away the first few batches of ice (about 24

cubes). This is also necessary if the refrigerator has not

been used for a long time.

Using the Dispenser

• To dispense cold water, push on the water switch with

a glass.

• To dispense ice, push on the ice switch with a glass.

NOTE

• If discolored ice is dispensed, check the water filter

and water supply. If the problem continues, contact

a qualified service center. Do not use the ice or

water until the problem is corrected.

• The dispenser will not operate when either of the

refrigerator doors are open.

• If dispensing water or ice into a container with a

small opening, place it as close to the dispenser as

possible.

• Some dripping may occur after dispensing. Hold

your cup beneath the dispenser for a few seconds

after dispensing to catch all of the drops.

Locking the Dispenser

Press and hold the Alarm and Lock button simultainously

for 3 seconds to lock the dispenser and all the control panel

functions. Follow the same instructions to unlock.

Cleaning the Dispenser Stand

1 Grip the stand with both hands and pull it out.

2 Wipe out dirty areas with a clean cloth.

30 HOW TO USE

Storing Food

Food Preservation Location

Each compartment inside the refrigerator is designed to store different types of food.

Store your food in the optimal space to enjoy the freshest taste.

Vegetable storage (Crisper)

Preserves vegetables and fruit.

Ice storage bin

If a large amount of ice is

needed, transfer the ice in the

in-door ice bin to the ice

storage bin.

Durabase ¢ _

Largest storage space in /

the freezer. _.

Dairy product bin

Adjustable refrigerator shelf

Adjustable shelves to meet your individual

storage needs.

Modular door bin

Store drinks such as juice and soda, as well

as seasonings, salad dressings and other

food items.

Glide'N'Serve

Provides storage space with a variable tem-

perature control that keeps the compart-

ment at a different temperature than the

refrigerator. It is a convenient place to store

sandwiches or meat to be cooked.

CAUTION

• Do not store food with high moisture content towards the top of the refrigerator. The moisture could come in direct contact

with the cold air and freeze.

• Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food packaging should be wiped

down to prevent adjacent foods from being contaminated.

• If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of vegetables in the refrig-

erator may cause condensation to form. Wipe off the condensation with a clean cloth or a paper towel.

• If the refrigerator door or freezer drawer is opened or closed too often, warm air may penetrate the refrigerator and raise its

temperature. It can also increase the cost of electricity.

NOTE ]

• If you are leaving home for a short period of time, like a short vacation, the refrigerator should be left on. Refrigerated foods

that are able to be frozen will stay preserved longer if stored in the freezer.

• If you are leaving the refrigerator turned off for an extended period of time, remove all food and unplug the power cord.

Clean the interior, and leave the door open to prevent fungi from growing in the refrigerator.

HOW TO USE 31

Food Storage Tips

* The following tips may not be applicable depending on

the model.

Wrap or store food in the refrigerator in airtight and moisture-

proof material unless otherwise noted. This prevents food

odor and taste transfer throughout the refrigerator. For dated

products, check date code to ensure freshness.

Food How to

Butter or

Margarine

Keep opened butter in a covered dish

or closed compartment. When stor-

ing an extra supply, wrap in freezer

packaging and freeze.

Cheese

Store in the original wrapping until

you are ready to use it. Once opened,

rewrap tightly in plastic wrap or alu-

minum foil.

Milk

Wipe milk cartons. For best storage,

place milk on interior shelf, not on

door shelf.

Eggs Store in original carton on interior

shelf, not on door shelf.

Fruit Do not wash or hull the fruit until it is

ready to be used. Sort and keep fruit

in its original container, in a crisper,

or store in a completely closed paper

bag on a refrigerator shelf.

Leafy

Vegetables

Remove store wrapping and trim or

tear off bruised and discolored areas.

Wash in cold water and drain. Place

in plastic bag or plastic container and

store in crisper.

Vegetables with

skins (carrots,

peppers)

Place in plastic bags or plastic con-

tainer and store in crisper.

Fish

Store fresh fish and shellfish in the

freezer section if they are not being

consumed the same day of purchase.

It is recommended to consume fresh

fish and shellfish the same day pur-

chased.

Leftovers Cover leftovers with plastic wrap,

aluminum foil, or plastic containers

with tight lids.

Storing Frozen Food

_-@ NOTE

Check a freezer guide or a reliable cookbook for fur-

ther information about preparing food for freezing or

food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of food. Do

not put more unfrozen food into the freezer than will freeze

within 24 hours (no more than 2 to 3 Ibs. of food per cubic

foot of freezer space). Leave enough space in the freezer for

air to circulate around packages. Be careful to leave enough

room at the front so the door can close tightly.

Storage times will vary according to the quality and type of

food, the type of packaging or wrap used (how airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means that

moisture in the food and air inside the package have con-

densed, creating ice crystals.

@NOTE

Allow hot foods to cool at room temperature for 30

minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

Packaging

Successful freezing depends on correct packaging. When

you close and seal the package, it must not allow air or mois-

ture in or out. If it does, you could have food odor and taste

transfer throughout the refrigerator and could also dry out

frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper freezing

methods.

Do not use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

32 HOW TO USE

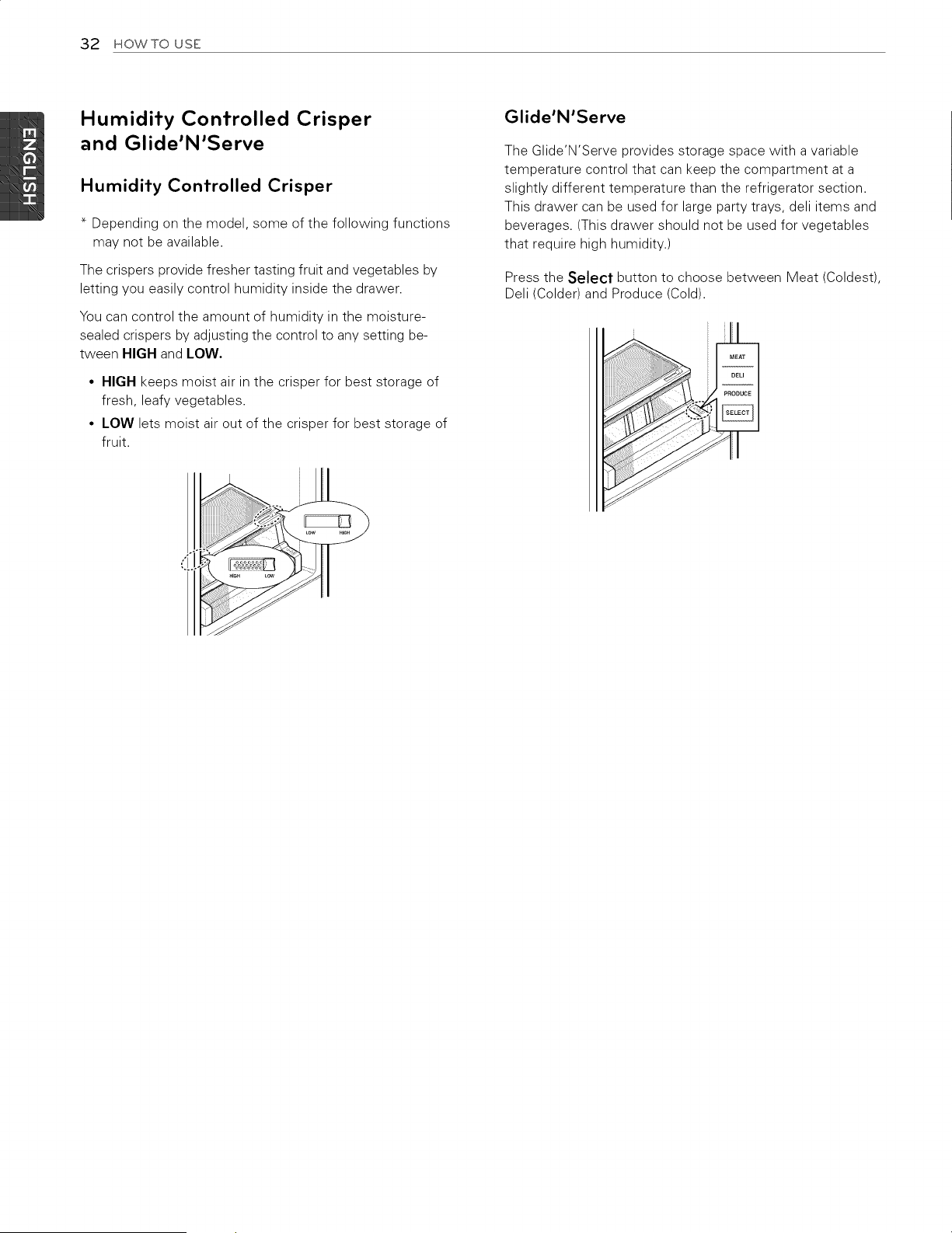

Humidity Controlled Crisper

and Glide'N'Serve

Humidity Controlled Crisper

Depending on the model, some of the following functions

may not be available.

The crispers provide fresher tasting fruit and vegetables by

letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture-

sealed crispers by adjusting the control to any setting be-

tween HIGH and LOW.

• HIGH keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

• LOW lets moist air out of the crisper for best storage of

fruit.

Glide'N'Serve

The Glide'N'Serve provides storage space with a variable

temperature control that can keep the compartment at a

slightly different temperature than the refrigerator section.

This drawer can be used for large party trays, deli items and

beverages. (This drawer should not be used for vegetables

that require high humidity.)

Press the Select button to choose between Meat (Coldest),

Deli (Colder) and Produce (Cold).

HOW TO USE 33

Detaching and Assembling the

Storage Bins

Glide'N'Serve and Humidity Controlled

Crisper

To remove the Humidity Controlled Crisper and the

Glide'N'Server, pull out the Crisper U and Glide'N'Server _ to

full extension, lift the front up, and pull straight out.

To Remove the Glass

(Pantry drawer not shown for clarity)

Lift up the glass under the crisper cover, and pull up and out.

To install, slightly tilt up the front, insert the drawer into the

frame and push it back into place.

Door Bins

The door bins are removable for easy cleaning and

adjustment.

1 To remove the bin, simply lift the bin up and pull

straight out.

2 To replace the bin, slide it in above the desired support and

push down until it snaps into place.

_ NOTE

Some binsmay vary inappearance and willonlyfitin

one location.

CAUTION

• Do not apply excessive force while detatching or

assembling the storage bins.

• Do not use the dishwasher to clean the storage bins

and shelves.

• Regularly detach and wash the storage bins and

shelves; they can become easily contaminated by

the food.

34 HOW TO USE

Adjusting the Refrigerator Shelves

The shelves in your refrigerator are adjustable to meet your

individual storage needs. Your model may have glass or wire

shelves.

Adjusting the shelves to fit different heights of items will

make finding the exact item you want easier. Doing so will

also reduce the amount of time the refrigerator door is open

which will save energy.

Using the Folding Shelf

You can store taller items, such as a gallon container or bot-

tles, by simply pushing the front half of the shelf underneath

the back half of the shelf. Pull the front of the shelf toward

you to return to a full shelf.

Detaching the Shelf

Tilt up the front of the shelf and lift it straight up. Pull the

shelf out.

--z_ CAUTION ....

• Do not clean glass shelves with warm water while

they are cold. Shelves may break if exposed to

sudden temperature changes or impact.

• Glass shelves are heavy. Use special care when

removing them.

Assembling the Shelf

Tilt the front of the shelf up and guide the shelf hooks into

the slots at a desired height. Then, lower the front of the

shelf so that the hooks drop into the slots.

CAUTION

MAINTENANCE 35

MAINTENANCE

Cleaning

• Both the refrigerator and freezer sections defrost automatically; however, clean both sections about once a month to pre-

vent odors.

• Wipe up spills immediately.

• Always unplug the refrigeration before cleaning.

General Cleaning Tips

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves, crispers,

etc.

• Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use abrasive or harsh cleaners.

Hand wash, rinse and dry all surfaces thoroughly.

Exterior

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal sur-

faces at least twice a year using appliance wax (or auto paste

wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water. Do

not use abrasive or harsh cleaners. Dry thoroughly with a soft

cloth.

Inside Walls (allow freezer to warm up so

the cloth will not stick)

To help remove odors, you can wash the inside of the refrig-

erator with a mixture of baking soda and warm water. Mix

2 tablespoons of baking soda to 1 quart of water (26 g soda

to 1 liter water.) Be sure the baking soda is completely dis-

solved so it does not scratch the surfaces of the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use cleaning waxes, concentrated deter-

gents, bleaches, or cleaners containing petroleum on 31astic

refrigerator parts.

Plastic Parts (covers and panels)

Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use window sprays, abrasive cleansers,

or flammable fluids. These can scratch or damage the

material.

CAUTION

Condenser Coils

Use a vacuum cleaner with an attachment to clean the con-

denser cover and vents. Do not remove the panel covering

the condenser coil area.

._ WARNING

se non-flammable cleaner. Failure to do so can result

fire, explosion, or death.

36 MAINTENANCE

Replacing the Fresh Air Filter

It is recommended that you replace the air filter:

• Approximately every six months.

• When the CHANGE FILTER light turns on.

1. Remove the Old Filter

Turn the filter cover to the left to detach from the refrigera-

tor wall.

2 Install a New Air Filter.

Turn the filter to the right to attach to the refrigerator wall.

After changing the filter, push and hold the Air Filter button

for three seconds to reset the filter sensor.

MAINTENANCE 37

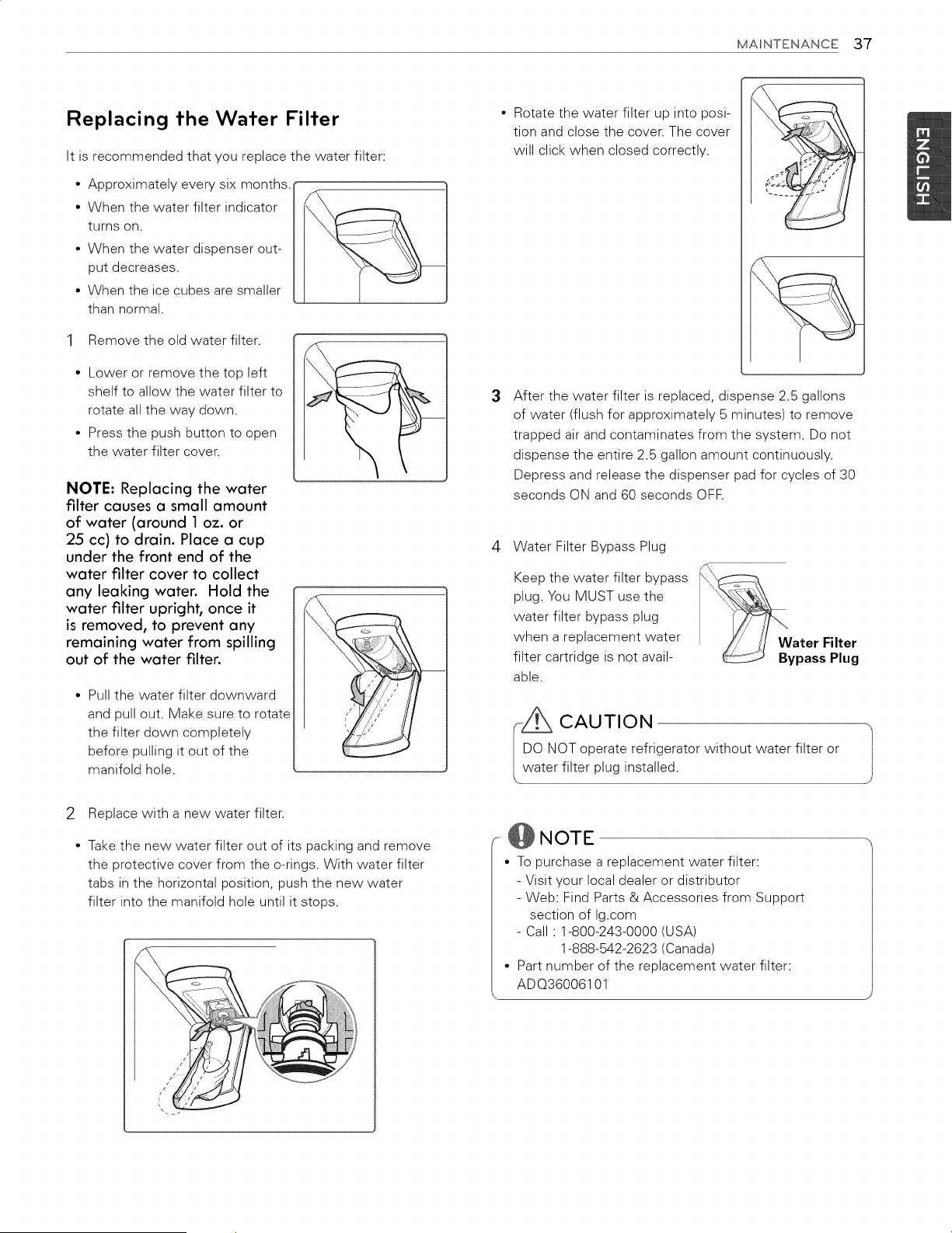

Replacing the Water Filter

It is recommended that you replace the water filter:

• Approximately every six months.

• When the water filter indicator

turns on.

• When the water dispenser out-

put decreases.

• When the ice cubes are smaller

than normal.

1 Remove the old water filter.

• Lower or remove the top left

shelf to allow the water filter to

rotate all the way down.

• Press the push button to open

the water filter cover.

NOTE: Replacing the water

filter causes a small amount

of water (around 1 oz. or

25 cc) to drain. Place a cup

under the front end of the

water filter cover to collect

any leaking water. Hold the

water filter upright, once it

is removed, to prevent any

remaining water from spilling

out of the water filter.

• Pull the water filter downward

and pull out. Make sure to rotate

the filter down completely

before pulling it out of the

manifold hole.

• Rotate the water filter up into posi-

tion and close the cover. The cover

will click when closed correctly.

After the water filter is replaced, dispense 2.5 gallons

of water (flush for approximately 5 minutes) to remove

trapped air and contaminates from the system. Do not

dispense the entire 2.5 gallon amount continuously.

Depress and release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFE

4 Water Filter Bypass Plug

Keep the water filter bypass /__

plug. You MUST use the

water filter bypass plug

when a replacement water ater Filter

filter cartridge is not avail- _ Bypass Plug

able.

_-Z_ CAUTION

DO NOT operaterefrigeratorwithoutwater filteror

water filter plug installed.

2 Replace with a new water filter.

• Take the new water filter out of its packing and remove

the protective cover from the o-rings. With water filter

tabs in the horizontal position, push the new water

filter into the manifold hole until it stops.

NOTE

• To purchase a replacement water filter:

- Visit your local dealer or distributor

- Web: Find Parts & Accessories from Support

section of Ig.com

- Call: 1-800-243-0000 (USA)

1-888-542-2623 (Canada)

• Part number of the replacement water filter:

ADO36006101

38 MAINTENANCE

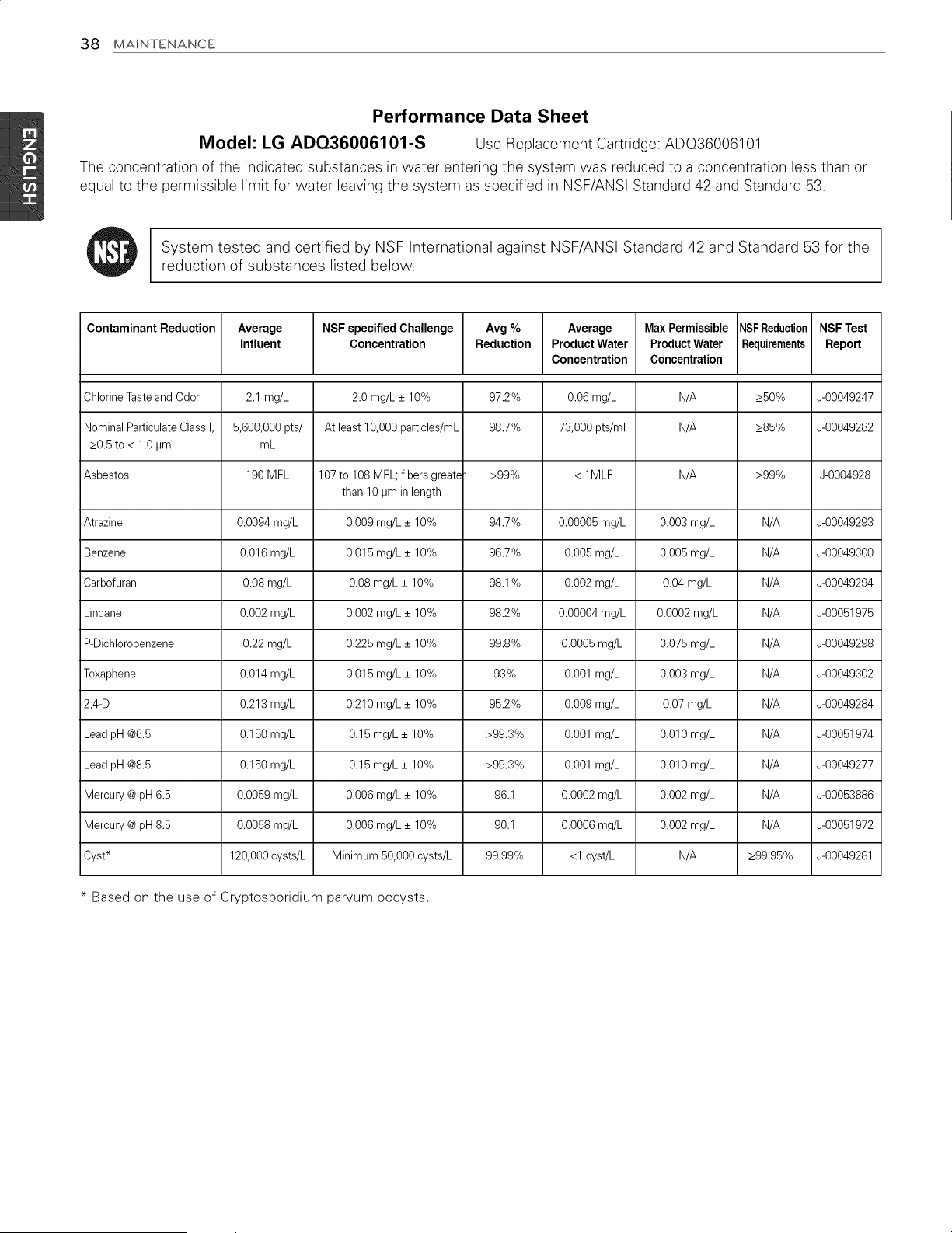

Performance Data Sheet

Model: LG ADQ36006101-S Use Replacement Cartridge: ADO36006101

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or

equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.

System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the

reduction of substances listed below.

Contaminant Reduction Average NSF specified Challenge Avg % Average Max Permissible NSFReduction NSF Test

Influent Concentration Reduction Product Water Product Water Requirements Report

Concentration Concentration

Chlorine Tasteand Odor 2.1 mg/L 2.0 mg/L _+10% 97.2% 0.06 mg/L N/A >50% J-00049247

Nominal Particulate Class I, 5,600,000 pts/ At least 10,000 particles/mL 98.7% 73,000 pts/ml N/A >85% J-00049282

, >0.5 to < 1.0 IJm mL

Asbestos 190 MFL 107 to 108 M FL;fibers great_ >99% < 1MLF N/A >99% J-0004928

than 10 IJmin length

Atrazine 0.0094 mg/L 0.009 mg/L _+10% 94.7% 0.00005 mg/L 0.003 mg/L N/A J-00049293

Benzene 0.016 mg/L 0.015 mg/L _+10% 96.7% 0.005 mg/L 0.005 mg/L N/A J-00049300

Carbofuran 0.08 mg/L 0.08 mg/L _+10% 98.1% 0.002 mg/L 0.04 mg/L N/A J-00049294

Lindane 0.002 mg/L 0.002 mg/L _+10% 98.2% 0.00004 mg/L 0.0002 mg/L N/A J-00051975

P-Dichlorobenzene 0.22 mg/L 0.225 mg/L _+10% 99.8% 0.0005 mg/L 0.078 mg/L N/A J-00049298

Toxaphene 0.014 mg/L 0.015 mg/L _+10% 93% 0.001 mg/L 0.003 mg/L N/A J-00049302

2,4-D 0.213 mg/L 0.210 mg/L _+10% 95.2% 0.009 mg/L 0.07 mg/L N/A J-00049284

Lead pH @6.5 0.150 mg/L 0.15 mg/L _+10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00051974

Lead pH @8.5 0.150 mg/L 0.15 mg/L _+10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00049277

Mercury @pH 6.5 0.0059 mg/L 0.006 mg/L _+10% 96.1 0.0002 mg/L 0.002 mg/L N/A J-00053886

Mercury @pH 8.5 0.0058 mg/L 0.006 mg/L _+10% 90.1 0.0006 mg/L 0.002 mg/L N/A J-00051972

Cyst_ 120,000cysts/L Minimum 50,000 cysts/L 99.99% <1 cyst/L N/A >99.95% J-00049281

Based on the use of Cryptosporidium parvum oocysts.

MAINTENANCE 39

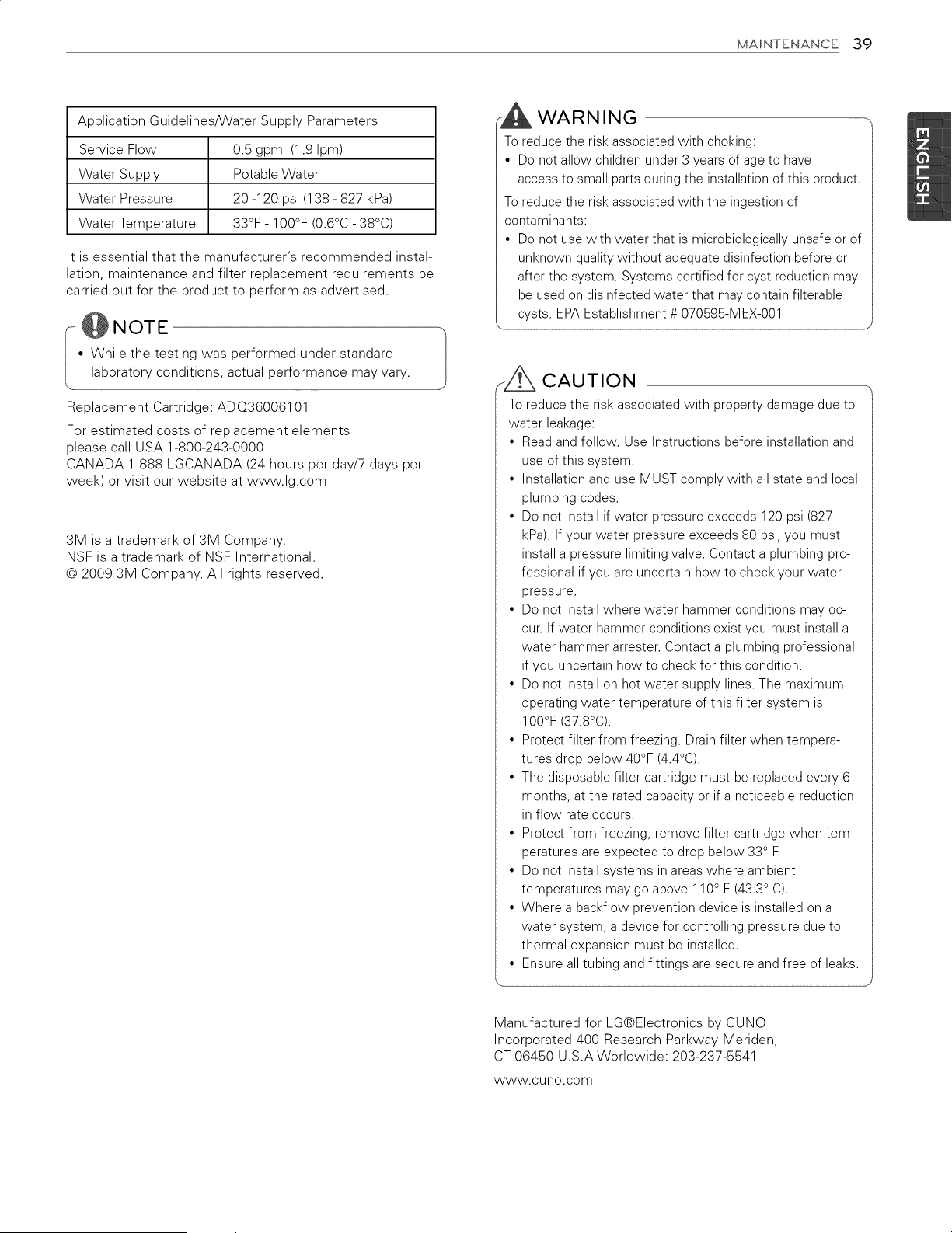

Application GuidelinesANater Supply Parameters

Service Flow 0.5 gpm (1.9 Ipm)

Water Supply Potable Water

Water Pressure 20 -120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

It is essential that the manufacturer's recommended instal-

lation, maintenance and filter replacement requirements be

carried out for the product to perform as advertised.

-_ NOTE

• While the testing was performed under standard

laboratory conditions, actual performance may vary.

Replacement Cartridge: ADO36006101

For estimated costs of replacement elements

please call USA 1-800-243-0000

CANADA 1-888-LGCANADA (24 hours per day/7 days per

week) or visit our website at www.lg.com

3M is a trademark of 3M Company.

NSF is a trademark of NSF International.

WARNING

To reduce the risk associated with choking:

• Do not allow children under 3 years of age to have

access to small parts during the installation of this product.

To reduce the risk associated with the ingestion of

contaminants:

• Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or

after the system. Systems certified for cyst reduction may

be used on disinfected water that may contain filterable

cysts. EPA Establishment # 070B9B-MEX-001

CAUTION _,

To reducethe riskassociatedwithpropertydamage due to

water leakage:

• Read and follow,Use Instructionsbeforeinstallationand

use ofthissystem,

• Installationand use MUST comply withallstateand local

plumbingcodes,

• Do notinstallifwater pressureexceeds 120 psi(827

kPa). If your water pressure exceeds 80 psi, you must

install a pressure limiting valve. Contact a plumbing pro-

fessional if you are uncertain how to check your water

pressure.

• Do not install where water hammer conditions may oc-

cur. If water hammer conditions exist you must install a

water hammer arrester. Contact a plumbing professional

if you uncertain how to check for this condition.

• Do not install on hot water supply lines. The maximum

operating water temperature of this filter system is

100°F (37.8°C).

• Protect filter from freezing. Drain filter when tempera-

tures drop below 40°F (4.4°C).

• The disposable filter cartridge must be replaced every 6

months, at the rated capacity or if a noticeable reduction

in flow rate occurs.

• Protect from freezing, remove filter cartridge when tem-

peratures are expected to drop below 330 E

• Do not install systems in areas where ambient

temperatures may go above 1100 F (43.30 C).

• Where a backflow prevention device is installed on a

water system, a device for controlling pressure due to

thermal expansion must be installed.

• Ensure all tubing and fittings are secure and free of leaks.

Manufactured for LG®Electronics by CUNO

Incorporated 400 Research Parkway Meriden,

CT 06450 U.S.A Worldwide: 203-237-5541

www.cuno.com

40 MAINTENANCE

State of California

Department of Public Health

Water Treatment Device

Certificate Number

09-2018

Date Issued: December 15, 2009

Trademark/Model Designation

ADQ36006101 -S

Manufacturer: Cuno Inc.

Replacement Elements

ADQ36006101

to Section

Microbiological Contaminants and Turbidit v

Cysts

lnor_a diolo_ical Contaminants

Organic Contaminants

Benzene

Carbofuran

Lindane

p-Dichlorobenzene

Toxaphene

Rated Service Capacity: 200gal

Rat erviceFIow: 0.5 gpm

SMART DIAGNOSIS 41

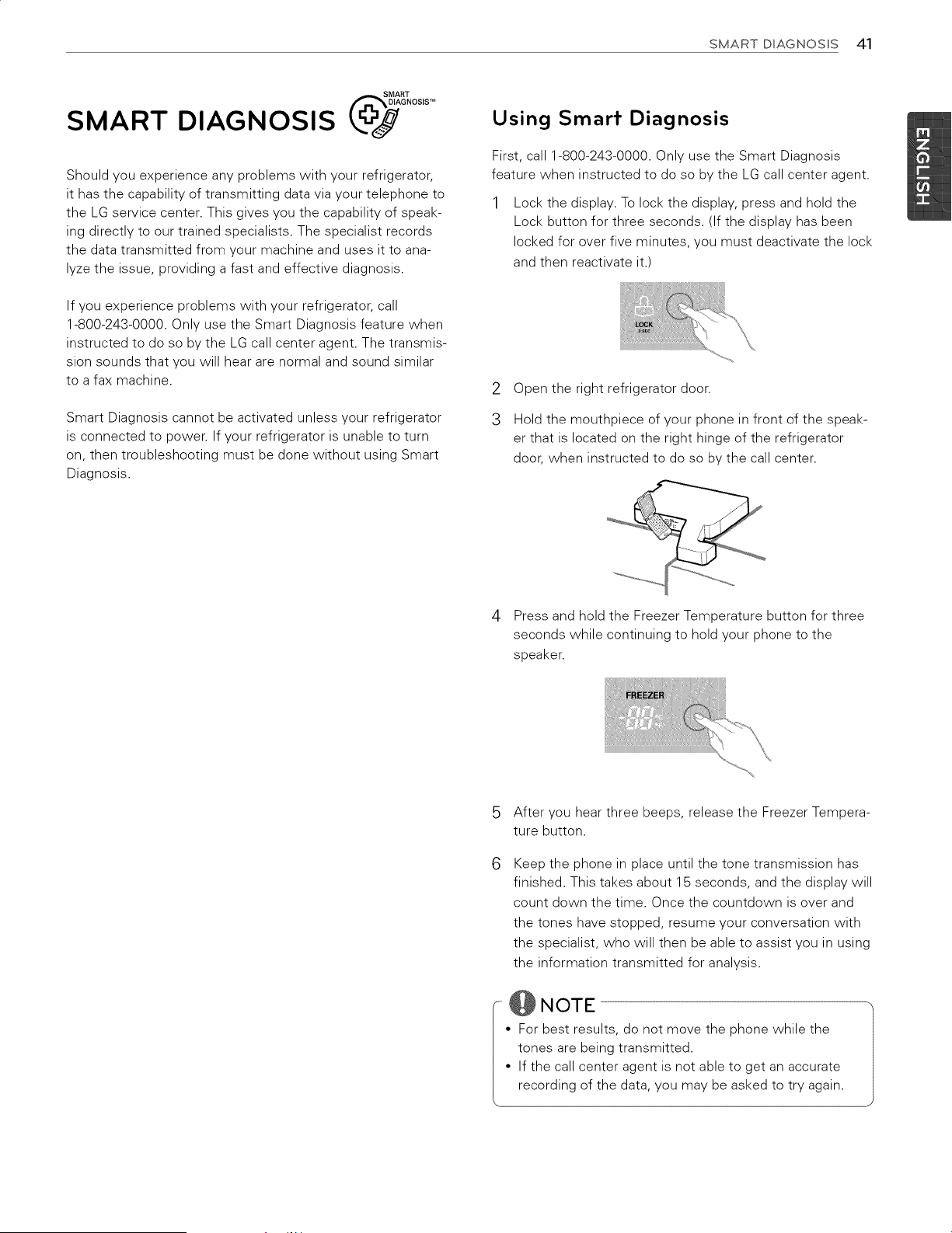

SMART DIAGNOSIS os,sT.

Should you experience any problems with your refrigerator,

it has the capability of transmitting data via your telephone to

the LG service center. This gives you the capability of speak-

ing directly to our trained specialists. The specialist records

the data transmitted from your machine and uses it to ana-

lyze the issue, providing a fast and effective diagnosis.

If you experience problems with your refrigerator, call

1-800-243-0000. Only use the Smart Diagnosis feature when

instructed to do so by the LG call center agent. The transmis-

sion sounds that you will hear are normal and sound similar

to a fax machine.

Smart Diagnosis cannot be activated unless your refrigerator

is connected to power. If your refrigerator is unable to turn

on, then troubleshooting must be done without using Smart

Diagnosis.

Using Smart Diagnosis

First, call 1-800-243-0000. Only use the Smart Diagnosis

feature when instructed to do so by the LG call center agent.

Lock the display. To lock the display, press and hold the

Lock button for three seconds. (If the display has been

locked for over five minutes, you must deactivate the lock

and then reactivate it.)

Open the right refrigerator door.

Hold the mouthpiece of your phone in front of the speak-

er that is located on the right hinge of the refrigerator

door, when instructed to do so by the call center.

4 Press and hold the Freezer Temperature button for three

seconds while continuing to hold your phone to the

speaker.

After you hear three beeps, release the Freezer Tempera-

ture button.

Keep the phone in place until the tone transmission has

finished. This takes about 15 seconds, and the display will

count down the time. Once the countdown is over and

the tones have stopped, resume your conversation with

the specialist, who will then be able to assist you in using

the information transmitted for analysis.

NOTE

For best results, do not move the phone while the

tones are being transmitted.

If the call center agent is not able to get an accurate

recording of the data, you may be asked to try again.

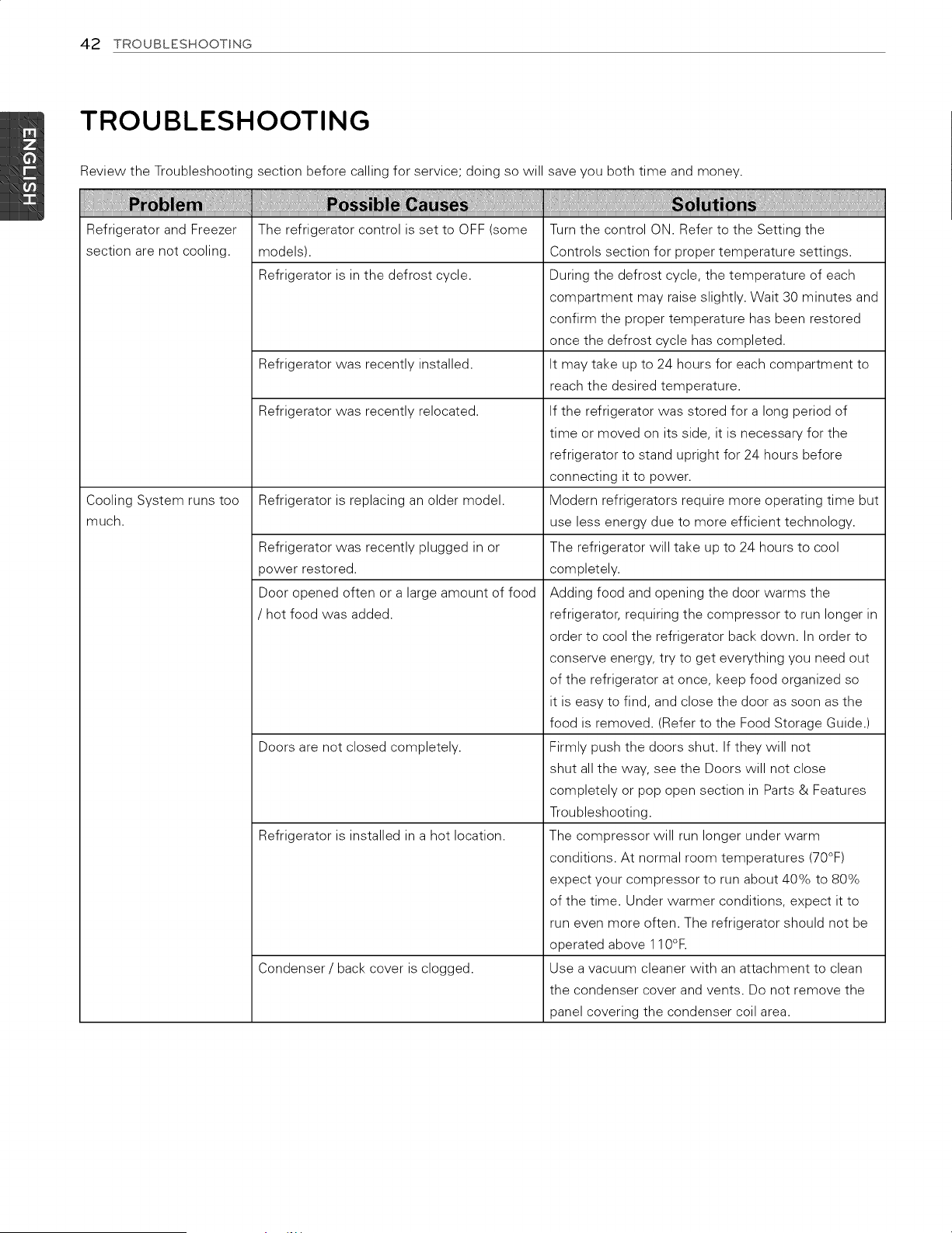

42 TROUBLESHOOTING

TROUBLESHOOTING

Review the Troubleshooting section before calling for service; doing so will save you both time and money.

Refrigerator and Freezer The refrigerator control is set to OFF (some

section are not cooling, models).

Refrigerator is in the defrost cycle.

Refrigerator was recently installed.

Refrigerator was recently relocated.

Cooling System runs too Refrigerator is replacing an older model.

much.

Refrigerator was recently plugged in or

power restored.

Door opened often or a large amount of food

/ hot food was added.

Doors are not closed completely.

Refrigerator is installed in a hot location.

Condenser / back cover is clogged.

Turn the control ON. Refer to the Setting the

Controls section for proper temperature settings.

During the defrost cycle, the temperature of each

compartment may raise slightly. Wait 30 minutes and

confirm the proper temperature has been restored

once the defrost cycle has completed.

It may take up to 24 hours for each compartment to

reach the desired temperature.

If the refrigerator was stored for a long period of

time or moved on its side, it is necessary for the

refrigerator to stand upright for 24 hours before

connecting it to power.

Modern refrigerators require more operating time but

use less energy due to more efficient technology.

The refrigerator will take up to 24 hours to cool

completely.

Adding food and opening the door warms the

refrigerator, requiring the compressor to run longer in

order to cool the refrigerator back down. In order to

conserve energy, try to get everything you need out

of the refrigerator at once, keep food organized so

it is easy to find, and close the door as soon as the

food is removed. (Refer to the Food Storage Guide.)

Firmly push the doors shut. If they will not

shut all the way, see the Doors will not close

completely or pop open section in Parts & Features

Troubleshooting.

The compressor will run longer under warm

conditions. At normal room temperatures (70°F)

expect your compressor to run about 40% to 80%

of the time. Under warmer conditions, expect it to

run even more often. The refrigerator should not be

operated above 110°R

Use a vacuum cleaner with an attachment to clean

the condenser cover and vents. Do not remove the

panel covering the condenser coil area.

TROUBLESHOOTING43

RefrigeratororFreezer Refrigeratorwasrecentlyinstalled.

sectionistoowarm.

Airventsareblocked.

Interiormoisturebuildup.

Doorsareopenedoftenorforlongperiods

oftime.

Unitisinstalledinahotlocation.

Alargeamountoffoodorhotfoodwas

addedtoeithercompartment.

Doorsnotclosedcorrectly.

Temperature control is not set correctly.

Defrost cycle has recently completed.

Doors are opened often or for long periods

of time.

Doors not closed correctly.

Weather is humid.

Defrost cycle recently completed.

Food is not packaged correctly.

It may take up to 24 hours for each compartment to

reach the desired temperature.

Rearrange items to allow air to flow throughout the

compartment. Refer to the Airflow diagram in the

Using Your Refrigerator section.

When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level

within the compartment. To lessen the effect,

reduce the frequency and duration of door openings.

The refrigerator should not be operated in

temperatures above 11 OR

Adding food warms the compartment requiring the

cooling system to run. Allowing hot food to cool to

room temperature before putting it in the refrigerator

will reduce this effect.

See the Doors will not close correctly or pop open

section in Parts & Features Troubleshooting.

If the temperature is too warm, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

During the defrost cycle, the temperature of each

compartment may raise slightly and condensation

may form on the back wall. Wait 30 minutes and

confirm the proper temperature has been restored

once the defrost cycle has completed.

When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level

within the compartment. To lessen the effect,

reduce the frequency and duration of door openings.

See the Doors will not close correctly section in the

Troubleshooting section.

Humid weather allows additional moisture to enter

the compartments when the doors are opened

leading to condensation or frost. Maintaining a

reasonable level of humidity in the home will help

to control the amount of moisture that can enter the

compartments.

During the defrost cycle, the temperature of each

compartment may raise slightly and condensation

may form on the back wall. Wait 30 minutes and

confirm that the proper temperature has been

restored once the defrost cycle has completed.

Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation within

each compartment. Wipe all containers dry and store

food in sealed packaging to prevent condensation

and frost.

44 TROUBLESHOOTING

Foodisfreezing Foodwithhighwatercontentwasplaced Rearrangeitemswithhighwatercontentawayfrom

intherefrigerator nearanairvent. airvents.

compartment. Refrigeratortemperaturecontrolisset Ifthetemperatureistoocold,adjustthecontrolone

incorrectly, incrementatatimeandwaitforthetemperatureto

stabilize.RefertotheSettingtheControlssection

formoreinformation.

Refrigeratorisinstalledinacoldlocation.

Doorisopenedfrequentlyorforlongperiods

oftime.

Frostoricecrystalsform

onfrozenfood(outside

ofpackage).

Doorisnotclosingproperly.

RefrigeratororFreezer Incorrecttemperaturecontrolsettings.

sectionistoocold.

Whentherefrigeratorisoperatedintemperature

below41°F(5°C),foodcanfreezeintherefrigerator

compartment.Therefrigeratorshouldnotbe

operatedintemperaturebelow55°F(13°C).

Whenthedoorsareopenedoftenorforlongperiods

oftime,warm,humidairentersthecompartment.

Thisraisesthetemperatureandmoisturelevel

withinthecompartment.Increasedmoisturewill

leadtofrostandcondensation.Tolessentheeffect,

reducethefrequencyanddurationofdooropenings.

RefertotheDoorswillnotclosecorrectlyorpop

opensectionintheTroubleshootingsection.

Ifthetemperatureistoocold,adjustthecontrolone

incrementatatimeandwaitforthetemperatureto

stabilize.RefertotheSettingtheControlssection

formoreinformation.

Frostoricecrystalson Condensationfromfoodwitha highwater Thisisnormalforfooditemswithahighwater

frozenfood(insideof contenthasfrozeninsideofthefood content.

sealedpackage), package.

Foodhasbeenleftinthefreezerforalong Donotstorefooditemswithhighwatercontentin

periodoftime. thefreezerforalongperiodoftime.

Icemakerisnotmaking Demandexceedsicestoragecapacity.

enoughice.

Housewatersupplyisnotconnected,valve

isnotturnedonfully,orvalveisclogged.

Waterfilterhasbeenexhausted.

Lowhousewatersupplypressure.

ReverseOsmosisfiltrationsystemisused.

Tubingconnectingrefrigeratortohouse

supplyvalveiskinked.

Theicemakerwillproduceapproximately1O0cubes

ina24hourperiod.

Connecttherefrigeratortoacoldwatersupplywith

adequatepressureandturnthewatershutoffvalve

fullyopen.

Iftheproblempersists,it maybenecessaryto

contactaplumber.

Itisrecommendedthatyoureplacethewaterfilter:

• Approximatelyeverysixmonths.

• Whenthewaterfilterindicatorturnson.

• Whenthewaterdispenseroutputdecreases.

• Whentheicecubesaresmallerthannormal.

Thewaterpressuremustbebetween20and120

psionmodelswithoutawaterfilterandbetween40

and120psionmodelswithawaterfilter.

Iftheproblempersists,it maybenecessaryto

contactaplumber.

Reverseosmosisfiltrationsystemscanreducethe

waterpressurebelowtheminimumamountand

resultinicemakerissues.(RefertoWaterPressure

section.)

Thetubingcankinkwhentherefrigeratorismoved

duringinstallationorcleaningresultinginreduced

waterflow.Straightenorrepairthewatersupplyline

andarrangeittopreventfuturekinks.

TROUBLESHOOTING 45

Icemaker is not making

enough ice (continued).

Dispensing water slowly.

Doors are opened often or for long periods

of time.

Doors are not closed completely.

The temperature setting for the freezer is

too warm.

Water filter has been exhausted.

Reverse osmosis filtration system is used.

Low house water supply pressure.

Not dispensing ice. Doors are not closed completely.

Infrequent use of the dispenser.

The delivery chute is clogged with frost or

ice fragments.

The dispenser display is locked.

Ice bin is empty.

If the doors of the unit are opened often, ambient

air will warm the refrigerator which will prevent the

unit from maintaining the set temperature. Lowering

the refrigerator temperature can help, as well as not

opening the doors as frequently.

If the doors are not properly closed, ice production

will be affected. See the Doors will not close

completely or pop open section in Parts & Features

Troubleshooting for more information.

The recommended temperature for the freezer

compartment for normal ice production is O°F. If the

freezer temperature is warmer, ice production will

be affected.

It is recommended that you replace the water filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Reverse osmosis filtration systems can reduce the

water pressure below the minimum amount and

result in icemaker issues.

If the problem persists, it may be necessary to

contact a plumber.

The water pressure must be between 20 and 120

psi on models without a water filter and between 40

and 120 psi on models with a water filter.

If the problem persists, it may be necessary to

contact a plumber.

Ice will not dispense if any of the refrigerator doors

are left open.

Infrequent use of the ice dispenser will cause the

cubes to stick together over time, which will prevent

them from properly dispensing. Check the ice bin

for ice cubes clumping/sticking together. If they are,

break up the ice cubes to allow for proper operation.

Eliminate the frost or ice fragments by removing the

ice bin and clearing the chute with a plastic utensil.

Dispensing cubed ice can also help prevent frost or

ice fragment buildup.

Press and hold the Lock button for three seconds to

unlock the control panel and dispenser.

It may take up to 24 hours for each compartment to

reach the desired temperature and for the icemaker

to begin making ice. Make sure that the shutoff

(arm/sensor) is not obstructed.

Once the ice supply in the bin has been completely

exhausted, it my take up to 90 minutes before

additional ice is available, and approximately 24

hours to completely refill the bin.

46 TROUBLESHOOTING

Icemakerisnotmaking Refrigeratorwasrecentlyinstalledor Itmaytakeupto24hoursforeachcompartmentto

ice. icemakerrecentlyconnected, reachthedesiredtemperatureandfortheicemaker

tobeginmakingice.

Icemakernotturnedon. LocatetheicemakerON/OFFswitchandconfirm

thatitisintheON(I)position.

Theicedetectingsensorisobstructed. Foreignsubstancesorfrostontheice-detecting

sensorcaninterrupticeproduction.Makesure

thatthesensorareaiscleanatalltimesforproper

operation.

Therefrigeratorisnotconnectedtoawater Connectrefrigeratortothewatersupplyandturnthe

supplyorthesupplyshutoffvalveisnot watershutoffvalvefullyopen.

turnedon.

Icemakershutoff(armorsensor)obstructed.

Notdispensingwater.

Reverseosmosiswaterfiltrationsystemis

connectedtoyourcoldwatersupply.

Newinstallationorwaterlinerecently

connected.

Thedispenserpanelislocked.

Thedispenserisnotsetforwater

dispensing.

Refrigeratororfreezerdoorsarenotclosed

properly.

Waterfilterhasbeenrecentlyremovedor

replaced.

Tubingconnectingrefrigeratortohouse

supplyvalveiskinked.

Thehousewatersupplyisnotconnected,

thevalveisnotturnedonfully,orthevalve

isclogged.

Ifyouricemakerisequippedwithaniceshutoff

arm,makesurethatthearmmovesfreely.Ifyour

icemakerisequippedwiththeelectroniciceshutoff

sensor,makesurethatthereisaclearpathbetween

thetwosensors.

Reverseosmosisfiltrationsystemscanreduce

thewaterpressurebelowtheminimumamount

andresultinicemakerissues.(RefertotheWater

Pressuresection.)

Dispense2.5gallonsofwater(flushfor

approximately5minutes)toremovetrappedairand

contaminatesfromthesystem.Donotdispensethe

entire2.5gallonamountcontinuously.Depressand

releasethedispenserpadforcyclesof30seconds

ONand60secondsOFR

PressandholdtheLockbuttonforthreesecondsto

unlockthecontrolpanelanddispenser.

Thedispensercanbesetforiceorwater.Make

certainthatthecontrolpanelissetfortheproper

operation.PresstheWaterbuttononthecontrol

paneltodispensewater.

Waterwillnotdispenseifanyoftherefrigerator

doorsareleftopen.

Afterthewaterfilterisreplaced,dispense2.5

gallonsofwater(flushforapproximately5minutes)

toremovetrappedairandcontaminatesfromthe

system.Donotdispensetheentire2.5gallon

amountcontinuously.Depressandreleasethe

dispenserpadforcyclesof30secondsONand60

secondsOFE

Thetubingcankinkwhentherefrigeratorismoved

duringinstallationorcleaningresultinginreduced

waterflow.Straightenorrepairthewatersupplyline

andarrangeittopreventfuturekinks.

Connectrefrigeratortothewatersupplyandturnthe

watershutoffvalvefullyopen.

Iftheproblempersists,it maybenecessaryto

contactaplumber.

TROUBLESHOOTING 47

. !

Ice has bad taste or odor. A water filter may need to be installed to eliminate

taste and odor problems.

Water supply contains minerals such as

sulfur.

Icemaker was recently installed.

Ice has been stored for too long.

The food has not been stored properly in

either compartment.

NOTE: In some cases, a filter may not help. It may

not be possible to remove all minerals / odor / taste

in all water supplies.

Discard the first few batches of ice to avoid

discolored or bad tasting ice.

Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste.

Throw away old ice and make a new supply.

Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

The interior of the refrigerator needs to be See the Care and Cleaning section for more

cleaned, information.

The ice storage bin needs to be cleaned. Empty and wash the bin (discard old cubes). Make

sure that the bin is completely dry before reinstalling

it.

Dispensing warm water. Refrigerator was recently installed. Allow 24 hours after installation for the water

storage tank to cool completely.

The water dispenser has been used recently Depending on your specific model, the water

and the storage tank was exhausted, storage capacity will range from approximately 20 to

30 oz.

Dispenser has not been used for several If the dispenser has not been used for several hours,

hours, the first glass dispensed may be warm. Discard the

first 10 oz.

Refrigerator is connected to the hot water

supply.

Water has bad taste or Water supply contains minerals such as

odor. sulfur.

Water filter has been exhausted.

Refrigerator was recently installed.

Icemaker shutoff (arm/sensor) is obstructed.

Icemaker is making too

much ice.

Make sure that the refrigerator is connected to a

cold water pipe.

_I, WARNING: Connecting the refrigerator to a hot

water line may damage the icemaker.

A water filter may need to be installed to eliminate

taste and odor problems.

It is recommended that you replace the water filter:

• Approximately every 6 months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove trapped air and

contaminates from the system. Do not dispense the

entire 2.5 gallon amount continuously. Depress and

release the dispenser pad for cycles of 30 seconds

ON and 60 seconds OFR

Empty the ice bin. If your icemaker is equipped

with an ice shutoff arm, make sure that the arm

moves freely. If your icemaker is equipped with the

electronic ice shutoff sensor, make sure that there

is a clear path between the two sensors. Reinstall

the ice bin and wait 24 hours to confirm proper

operation.

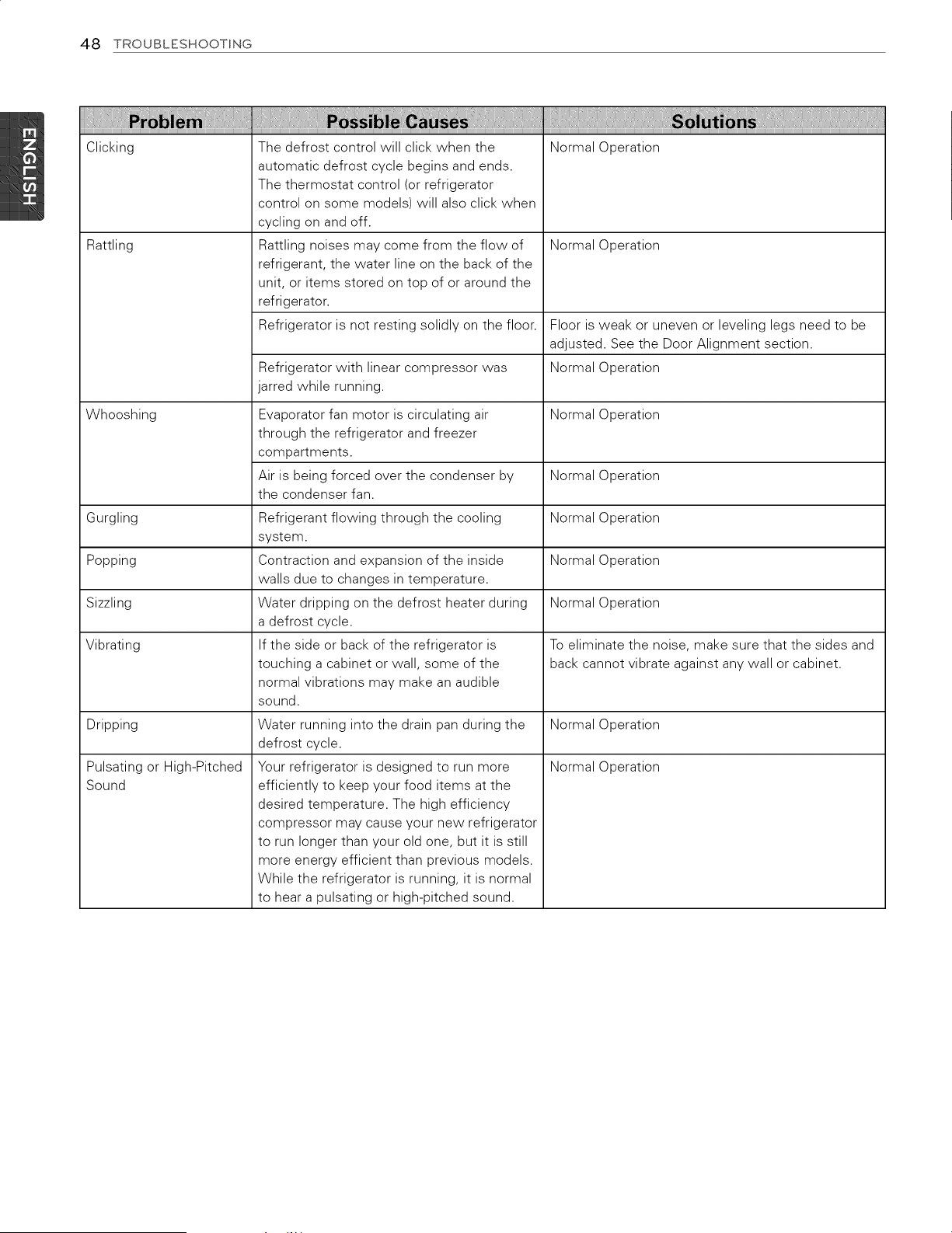

48 TROUBLESHOOTING

Clicking The defrost control will click when the Normal Operation

Rattling Normal Operation

Floor is weak or uneven or leveling legs need to be

adjusted. See the Door Alignment section.

Normal Operation

Whooshing Normal Operation

Normal Operation

Gurgling Normal Operation

Popping Normal Operation

Sizzling Normal Operation

Vibrating To eliminate the noise, make sure that the sides and

back cannot vibrate against any wall or cabinet.

Normal Operation

Dripping

Pulsating or High-Pitched

Sound

automatic defrost cycle begins and ends.

The thermostat control (or refrigerator

control on some models) will also click when

cycling on and off.

Rattling noises may come from the flow of

refrigerant, the water line on the back of the

unit, or items stored on top of or around the

refrigerator.

Refrigerator is not resting solidly on the floor.

Refrigerator with linear compressor was

jarred while running.

Evaporator fan motor is circulating air

through the refrigerator and freezer

compartments.

Air is being forced over the condenser by

the condenser fan.

Refrigerant flowing through the cooling

system.

Contraction and expansion of the inside

walls due to changes in temperature.

Water dripping on the defrost heater during

a defrost cycle.

If the side or back of the refrigerator is

touching a cabinet or wall, some of the

normal vibrations may make an audible

sound.

Water running into the drain pan during the

defrost cycle.

Your refrigerator is designed to run more

efficiently to keep your food items at the

desired temperature. The high efficiency

compressor may cause your new refrigerator

to run longer than your old one, but it is still

more energy efficient than previous models.

While the refrigerator is running, it is normal

to hear a pulsating or high-pitched sound.

TROUBLESHOOTING49

Doorswillnotclose Foodpackagesareblockingthedooropen. Rearrangefoodcontainerstoclearthedooranddoor

correctlyorpopopen. shelves.

Icebin,crispercover,pans,shelves,door Pushbinsallthewayinandputcrispercover,pans,

bins,orbasketsareoutofposition, shelvesandbasketsintotheircorrectpositions.

SeetheUsingYourRefrigeratorsectionformore

information.

Thedoorswereremovedduringproduct Removeandreplacethedoorsaccordingtothe

installationandnotproperlyreplaced. RemovingandReplacingRefrigeratorHandlesand

Doorssection.

Refrigeratorisnotleveledproperly. SeeDoorAlignmentintheRefrigerationInstallation

sectiontolevelrefrigerator.

Doorsaredifficultto Thegasketsaredirtyorsticky.

open.

Doorwasrecentlyclosed.

Refrigeratorwobblesor Levelinglegsarenotadjustedproperly.

seemsunstable. Floorisnotlevel.

Lightsdonotwork. LEDinteriorlightingfailure.

Refrigeratorhasan TheAirFiltermayneedto besettotheMAX

unusualodor. settingorreplaced.

Cleanthegasketsandthesurfacesthattheytouch.

Rubathincoatofappliancepolishorkitchenwaxon

thegasketsaftercleaning.

Whenyouopenthedoor,warmerairentersthe

refrigerator.Asthewarmaircools,itcancreatea

vacuum.Ifthedoorishardtoopen,waitoneminute

toallowtheairpressuretoequalize,thenseeif it

opensmoreeasily.

RefertotheLevelingandDoorAlignmentsection.

Itmaybenecessarytoaddshimsundertheleveling

legsorrollerstocompleteinstallation.

TherefrigeratorcompartmentlampisLEDinterior

lighting,andserviceshouldbeperformedbya

qualifiedtechnician.

SettheAirFiltertotheMAXsetting.Iftheodor

doesnotgoawaywithin24hours,thefiltermay

needtobereplaced.SeetheReplacingtheAirFilter

sectionforreplacementinstructions.

50 WARRANTY

WARRANTY (USA)

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during the warranty period set

forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and

applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is required to obtain

warranty service under this limited warranty.

WARRANTY PERIOD

Refrigerator Sealed System Linear Compressor

(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)

One (1) year from the date of One (1) year from the date of Seven (7) years from the date of Ten (10) years from the date of

original retail purchase original retail purchase original retail purchase original retail purchase

Parts and Labor Parts and Labor Parts only (Consumer will be Part only (Consumer will be

(internal/functional parts only) charged for labor) charged for labor)

Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or operating the unit in an

unsuitable environment will not be covered under this warranty.

I_ Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

I_ Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS

LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL

BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT

LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states

do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclu-

sion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on operation of the product; repair or replace fuses or cor-

rect wiring or plumbing, or correction of unauthorized repairs/installation.

2. Failure of product to perform during power failures and interruptions or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inad-

equate supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the instructions outlined in the product owner's manual.

5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.

6. Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or

specified by LG.

7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the intended purpose, or any water leakage

where the unit was not properly installed.

8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, com-

ponents, or consumable cleaning products that are not approved by LG.

9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless

such damage results from defects in materials or workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).

10. Damage or missing items to any display, open box, discounted, or refurbished product.

11. Products with original serial numbers that have been removed, altered, or can not be readily determined. Model and Serial numbers, along

with original retail sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your product is used in other than normal and usual household use (e.g. commercial use, offices, and recreational facilities) or

contrary to the instructions outlined in the product owner's manual.

15. Costs associated with removal of your product from your home for repairs.

16. The removal and reinstallation of the product if it is installed in an inaccessible location or is not installed in accordance with published installa-

tion instructions, including LG's owner's and installation manuals.

17. Shelves, door bins, drawers, handles, accessories, and other parts besides those that were originally included with this particular model.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance,

please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate

option from the menu, or visit our website at http://us.lgservice.com

Or by mail: LG Customer Information Center:

R O. Box 240007, 201 James Record Road Huntsville, Alabama

35813 ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

WARRANTY51

WARRANTY (CANADA)

WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during the warranty

period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is

valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian

distributor thereof. The warranty only applies to Products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty will begin sixty (60) days from the date of manufacture)

Refrigerator/Freezer Sealed System Linear Compressor

(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)

One (1) year from the date One (1) year from the date Seven (7) years from the date Ten (10) years from the date of

of original retail purchase of original retail purchase of original retail purchase original retail purchase

Parts and Labor Parts and Labor Parts only (Consumer will be Part only (Consumer will be

(internal/functional parts only) charged for labor) charged for labor)

Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or operating the unit in

an unsuitable environment will not be covered under this warranty.

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

• Replacement products and parts may be new or remanufactured.

• LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG

CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER

EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT

AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION

WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS

WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL,

CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAM-

AGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL

OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have

other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies

any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this

warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or cor-

rection of wiring or plumbing, or correction of unauthorized repairs/installation.

2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate

supply of air.

4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner's manual.

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.

6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts

not approved or specified by LG Canada.

7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any

water leakage due to improper installation.

8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accesso-

ries, components, or cleaning products that are not approved by LG Canada.

9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless

such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.

10. Damage or missing items to any display, open box, discounted, or refurbished Product.

11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with

original retail sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or

recreational facilities) or contrary to the instructions outlined in the Product owner's manual.

15. Costs associated with removal of the Product from your home for repairs.

16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installa-

tion instructions, including the Product owner's and installation manuals.

17. Shelves, door bins, drawers, handles, and accessories to the Product. Also excluded are parts besides those that were originally included with

the Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assis-

tance, please call or visit our website: Call 1-888-542-

2623 (24 hours a day, 365 days a year) and select the

appropriate option from the menu, or visit our

website at http://www.lg.com

Write your warranty information below:

Product Registration Information: __

Model: _____ Serial Number:

Date of Purchase:

Life's Good

For inquires or comments, visit www.lgocom or call;

1-800-243-0000 USA, Consumer User

1-888-865-3026 USA, Commercial User

1-888-542-2623 CANADA

www, lg,com

LG Electronics LFX31925ST/05 LG refrigerator

Product's Documents

User Manual

Specifications

LG Electronics LFX31925ST/05 Questions and Answers
