SAVE FOR CONSUMER
OPTIONAL 2.2GPM FLOW
FLOW REGULATOR
(2) 1/2 in Supply Lines
Groove joint pliers Wrench
Screwdriver
Plumber's Putty
Sealant Tape
You choose the flow rate!
This faucet ships with an
eco-friendly 1.5GPM flow regulator
installed.
If you desire higher flow rate, a
2.2GPM flow regulator has also
been included in the box.
Switching the flow regulator is
simple! See the "Flow Regulator
Replacement" section for details.
Important!
Single Handle Kitchen Faucet
Model # LK5000
INSTALLATION / OWNER'S MANUAL
Retract pull-out hose (1) up through faucet body,
until the pull-out hose fitting is flush with the bottom
of shank (2). Do not pull hose fitting past the shank.
Insert faucet body through the hole in sink.
Note: Do not feed the pull-out hose (1) back down
through the spout until step 4.
Install plastic washer (3) and metal washer (4)onto
the threaded mounting shank. Thread nut (5) onto
mounting shank. Do not overtighten.
WARNING: Please carefully read and properly follow the instructions for installation found in this manual.
Shut off water supplies.
Before installation, assemble the hand spray (1) to the
pull-out hose by turning hand spray clockwise and
remove quick connect assembly (2) from the free end
of pull-out hose.
If installing the faucet with the large escutcheon, begin
with step 2A. If installing the faucet with small
escutcheon, begin with step 3.
Retract pull-out hose (1) up through faucet body, until
the pull-out hose fitting is flush with the bottom of shank
(2). Do not pull hose fitting past the shank. Insert faucet
body through the hole in 3 hole escutcheon.
Note: Do not feed the pull-out hose (1) back down
through the spout until step 4.
From underneath sink, hand tighten mounting nuts (3).
Install plastic washer (4) and metal washer (5) onto the
threaded mounting shank. Thread nut (6) onto mounting
shank. Do not overtighten.
6
4
5
3
1
2
STEPS:
2
1
4
5
3
Ø1 3/8" (Ø35mm)
2
1
Before installation, screw bolts to the 3 hole escutcheon.
Insert escutcheon assembly through the gasket and the
holes of the sink.
3-Ø1 3/8" (Ø35mm)

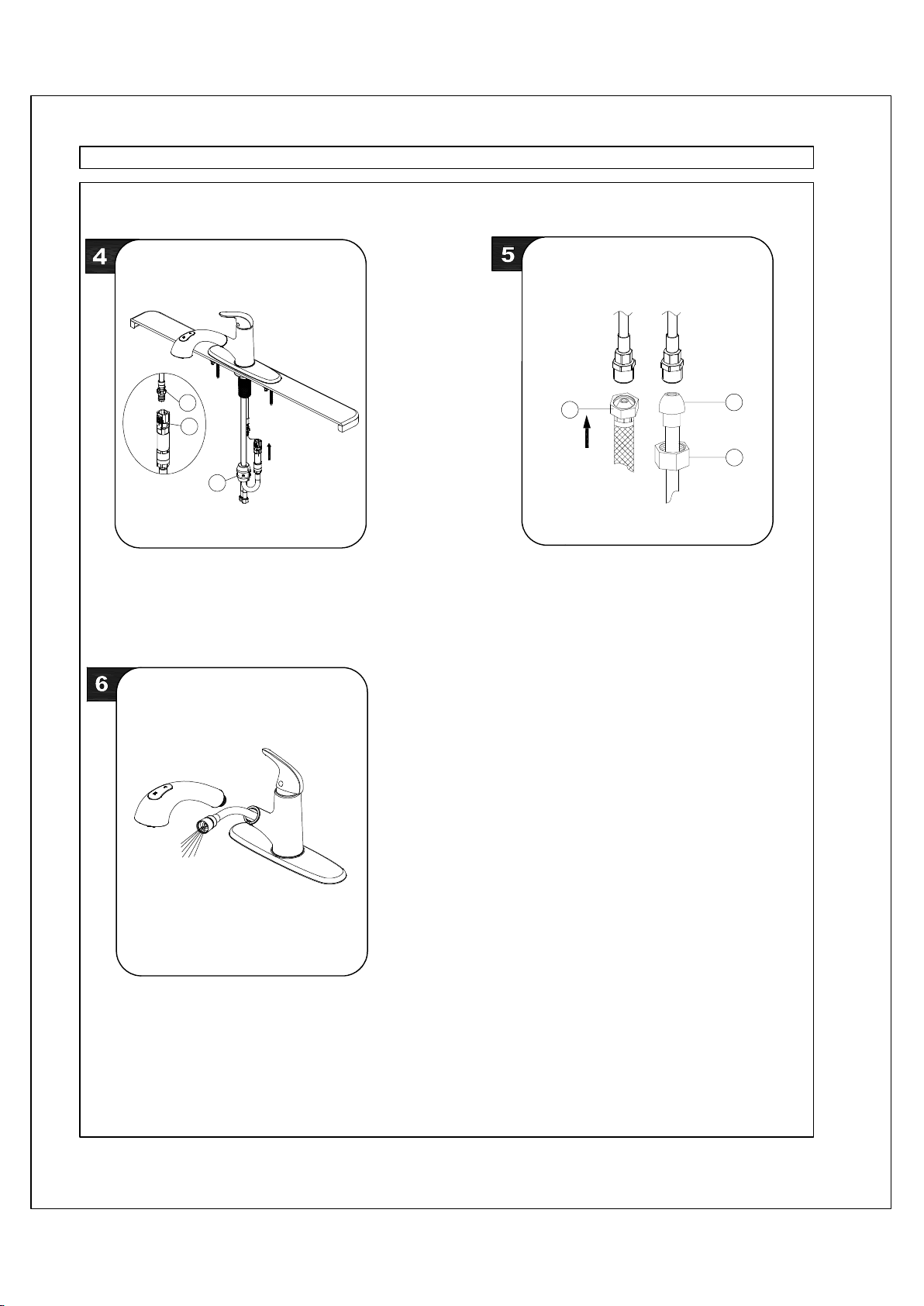

Screw quick connect assembly to the free end of pull-out
hose. Align male fitting (1) and tabs (2) on quick connector.
Push quick connector housing firmly upward and snap
onto male fitting. Pull down moderately to ensure
connection has been made.
After connecting the hose, attach weight (3) to hose at
bottom of loop to prevent hose from twisting and return
hose to proper position.
Important: after installation is completed, turn on hot
and cold water supplies. Pull the hose assembly out of
the spout and remove the spray head by unscrewing it
from the hose counterclockwise. Be sure to hold the
end of the hose down into the sink and turn the faucet
on to the warm position where it mixes hot and cold
water. Flush water lines for one minute. Check for
leaks. Re-tighten any connections if necessary, but do
not overtighten. Reinstall spray head by hand
tightening it back onto the spray hose.
Make connections to water lines.
Use 1/2" I.P.S. faucet connections (1) or use coupling
nuts (3) with 3/8" O.D.ball-nose riser (2). Use
wrenches to tighten connections. Do not overtighten.
WARNING: Please carefully read and properly follow the instructions for installation found in this manual.
STEPS:
1
3
2
1
2
3
Shut off water supply. Remove set screw plug (1) and
unscrew the set screw (2) on the handle (3). Remove
handle (3) and loosen the screw (4) from valve stem.
Loosen the cap (5).
Congratulations on your purchase of an Elkay product.
Although your product is extremely durable, attention should
be given to the care, cleaning and maintenance of this
product. Cleaning agents and abrasives may cause damage,
which may result in oxidation and discoloration.
By following these simple guidelines for proper care and
cleaning, it will give you years of enjoyment:
TO CLEAN: Simply wipe gently with a damp cloth and blot dry
with a soft towel. A common rule of thumb is: when you dry off,
dry off your product.
· Avoid build-up of soap, toothpaste or mineral deposits, as
these tend to have an adverse effect on the appearance of
the product.
· NEVER use cleaning products of any kind on this product -
especially those containing ammonia, bleach or alcohol - or
those with any form of abrasive.
FLOW REGULATOR REPLACEMENT
1
2
1
This faucet ships with a 1.5 GPM flow restrictor installed.
An optional 2.2 GPM flow restrictor is also included in the
box.
To switch the flow rate of the faucet:
1. Disassemble the quick connect assembly by
separating the connector (1) and quick connect (2).
2. Replace 1.5 GPM connector (green) with the 2.2 GPM
connector.
3. Reinstall the quick connect assembly.
FOR CARE AND MAINTENANCE:
·The water in certain areas of the world can be very caustic -
standing water around the product can cause damage. Be
sure to remove standing water with a dry, soft cloth as soon
as possible.
·For polished brass finishes, as often as once a week, you
can apply a paste wax or special, non-abrasive, brass
coating (DO NOT APPLY POLISH).
·Before applying a protective coating, gently brush the entire
fixture using a soft tooth brush. This will remove any dirt or
deposit build-up.
·These simple steps will add temporary protective coating to
your faucet and extend the life of the finish.
Failure to follow care and cleaning will void your warranty.
For additional information, please visit elkayusa.com.
CARE AND CLEANING INSTRUCTIONS
1
2
Loosen cartridge nut (1) by turning it
counter-clockwise and lift out the cartridge (2).
Insert new cartridge. Reinstall the handle.
4
5
2
1
3
CARTRIDGE REPLACEMENT
2
1
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY
OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW
OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT
BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN
INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR
OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED
WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE
MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT
OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT
LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY
DAMAGE OR OTHER MONETARY LOSS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply. This
warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
This warranty covers product installed in the United States and Canada.
What is not covered:
1. Damage caused by accident, negligence, misuse, abuse, improper
installation or operation or failure to follow care or installation instructions
enclosed with your product.
2. Damage occurring during shipment of the product (claims must be
presented to the carrier).
3. Normal wear and tear.
4. Labor charges, costs of removal and reinstallation, and any damages
to other property.
5. All industrial, commercial and business use whose purchasers are
hereby extended a limited lifetime on mechanical parts and 5 years on
finish.
P01299* Handle Kit
P35295 Metal Washer
P35296 Plastic Washer
RP70224 Cartridge nut
P35301
Washer
P05146* Aerator
Assembly
P05135 2.2GPM Flow Regulator
P46468 Quick Connect
elkayusa.com
Elkay
P36169 Nut
P46472 Adaptor
RP64105 Insert
P48058 Hand Spray Hose
P05134 1.5GPM Flow Regulator
P44277 Weight
P37144 O-ring
P46466 Block
P37142 O-ring
Spout Base
P01295* Handle
P38111 Set Screw
P38112 Set Screw Plug
P51001* Hand Spray
Note: Hand spray includes
aerator assembly
P29248 Cartridge
RP80237* Cap
P36165 Screw
Model # LK5000
P99348 (Rev. date: 04/2011)
©2011 Elkay
P36159 Mounting Nut
P36158 Bolt
RP80245* Single
Hole Escutcheon
RP80185* 3 Hole
Escutcheon
RP80289 Gasket
REPLACEMENT PARTS
ELKAY LIMITED LIFETIME WARRANTY
What you must do to obtain warranty service:
Either write to Elkay, attention Customer Care, 2222 Camden Court,
Oak Brook, IL 60523 or call 1-800-223-5529. Please provide date of
purchase and installation, description of nature of the defect, and
model number or description of model and/or component part.
ELKAY LIMITED LIFETIME WARRANTY
Elkay warrants that all parts and finishes of the Elkay Residential brand
faucets are free from defects in materials and workmanship for the life of
the product, if purchased after 1996. This warranty covers the
original consumer purchaser of the product only.
If the product should leak or drip during normal use, Elkay will provide,
free of charge, a replacement cartridge. For other defects in material or
workmanship, Elkay will, at its option, supply replacement parts (or if no
longer available a comparable product). Elkay reserves the right to
examine product in question and its installation prior to replacement.
WARRANTY
