Installation Instructions
For A-Kit 22"
Please read ALL instructions before installing. Two
people are recommended to install this product. If
a new electrical outlet is required, have the outlet
installed by a qualified electrician before installing
unit. See #5 in Preliminary Instructions following.
Preliminary Instructions
Do the following before starting to install unit.
See illustrations below.
1. Check window opening size - the mounting
parts furnished with this air conditioner are
made to install in a wooden sill double-hung
window.The standard parts are for a window
opening of 30" (711 mm) minimum to 42"
(1067 mm) maximum width. Open sash to a
minimum of 19" (483 mm). (FIG. 1)
2. Check condition of window - all wood parts
of window must be in good shape and able to
firmly hold the needed screws. If not, make
repairs before installing unit.
3. Check your storm windows - you will need
1/2" (13 mm) clearance below window stool.
If storm window frame does not allow the
clearance required, correct by adding a piece
of wood as shown in FIG. 2, or by removing
storm window while room air conditioner is
being installed. (continued)
FIG. I _SASH
19" MIN,
1/2",_MIN. 1
STORMWINDOWFRAME
OROTHEROBSTRUCTION
FIG. 2
SASH
f
19" MIN.
1/2" MIN. ',1 1/2" MIN,[
THIO NESSAS
[ L_ _ REQUIRED,ALONG
I v ENTIRE STOOL.
STORM WINDOW FRAME FASTENWITH TWO
OR OTHER OBSTRUCTION NAILS OR SCREWS.

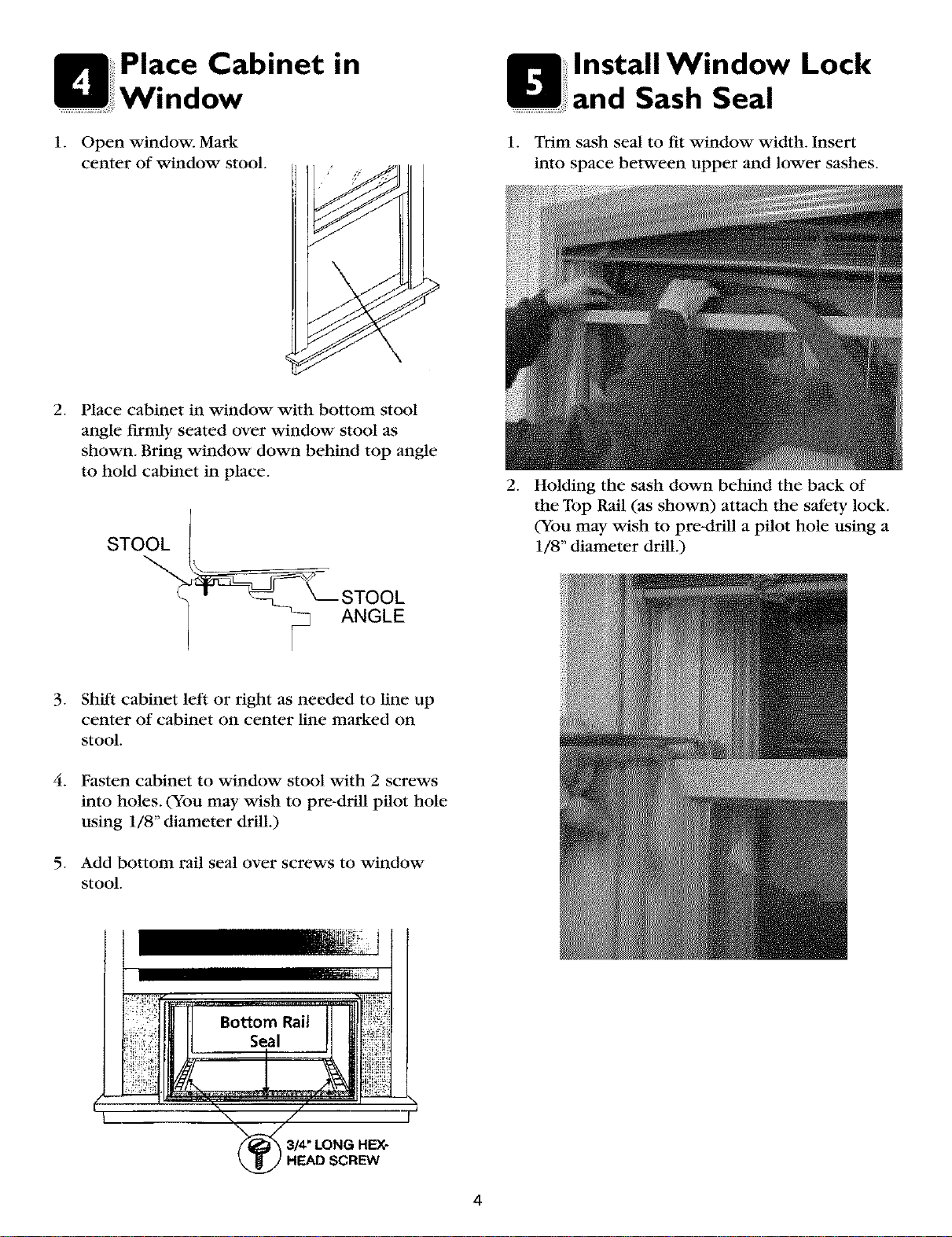

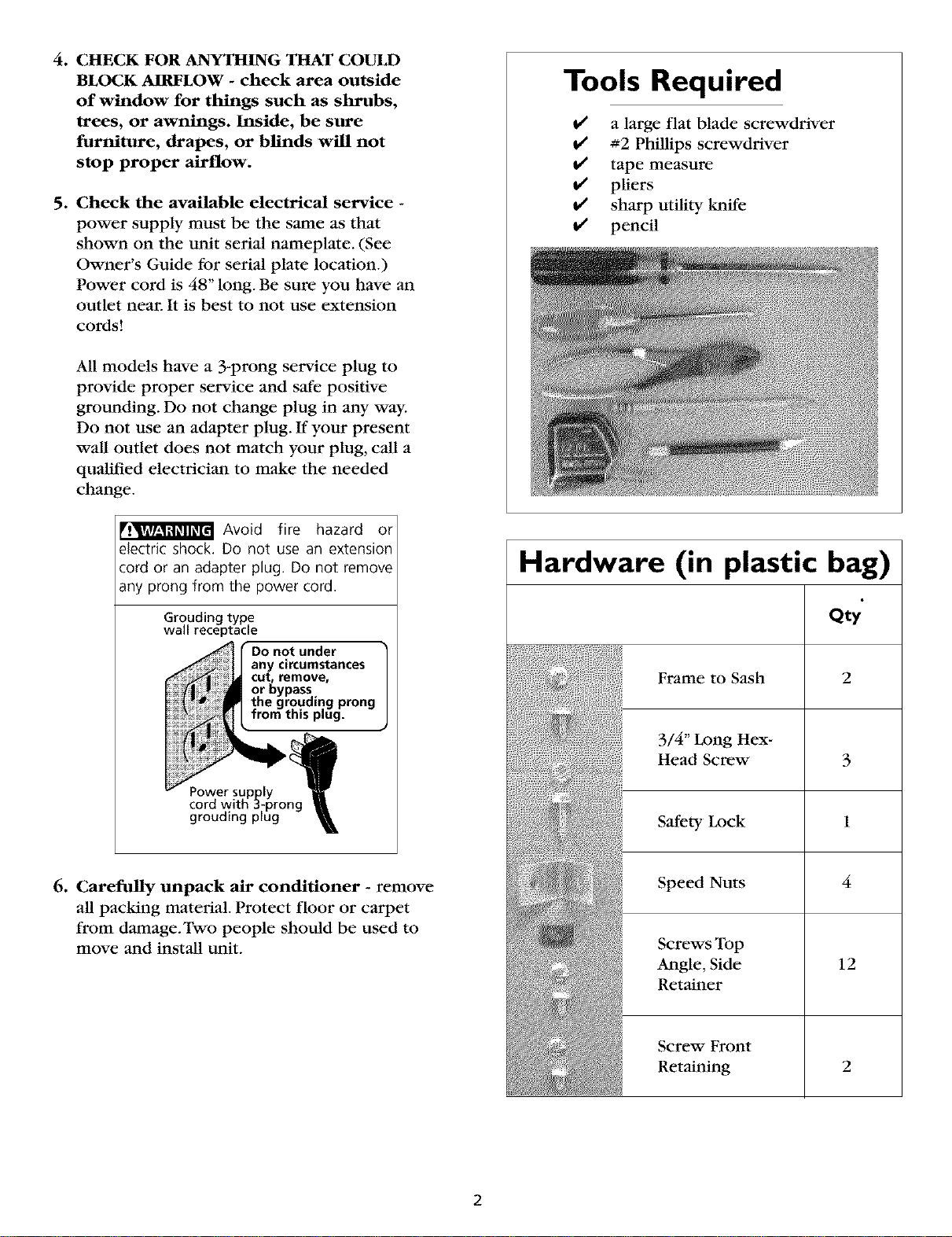

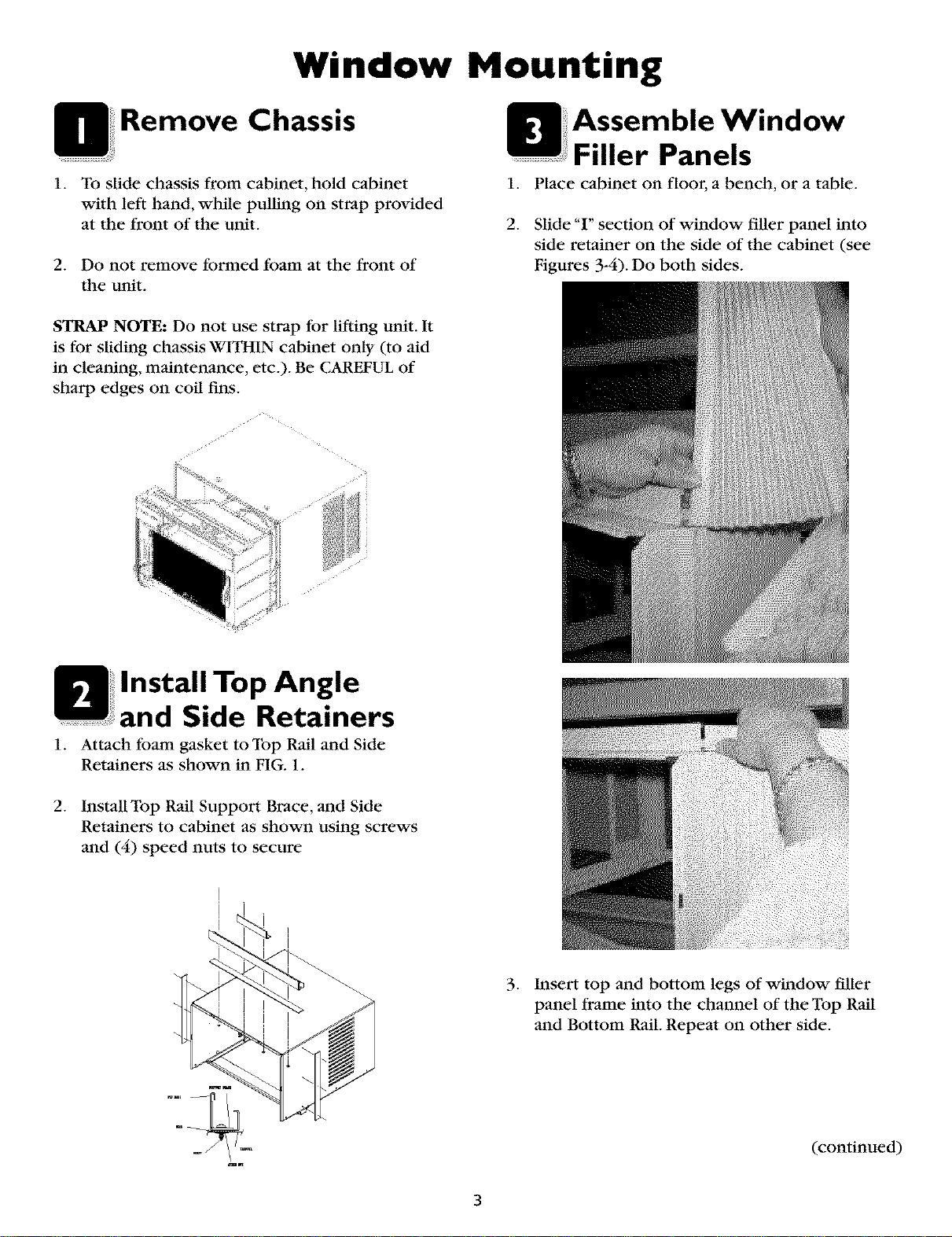

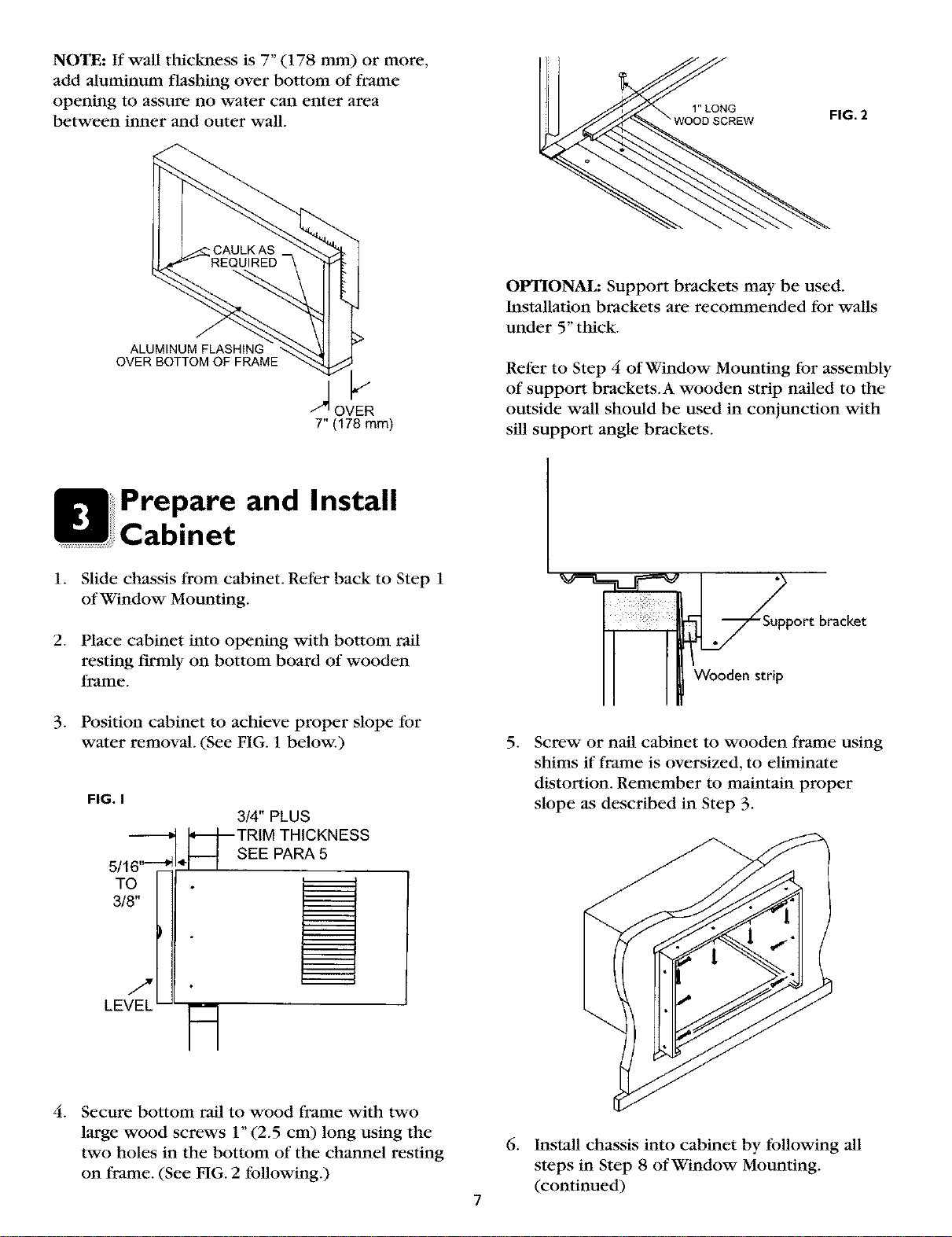

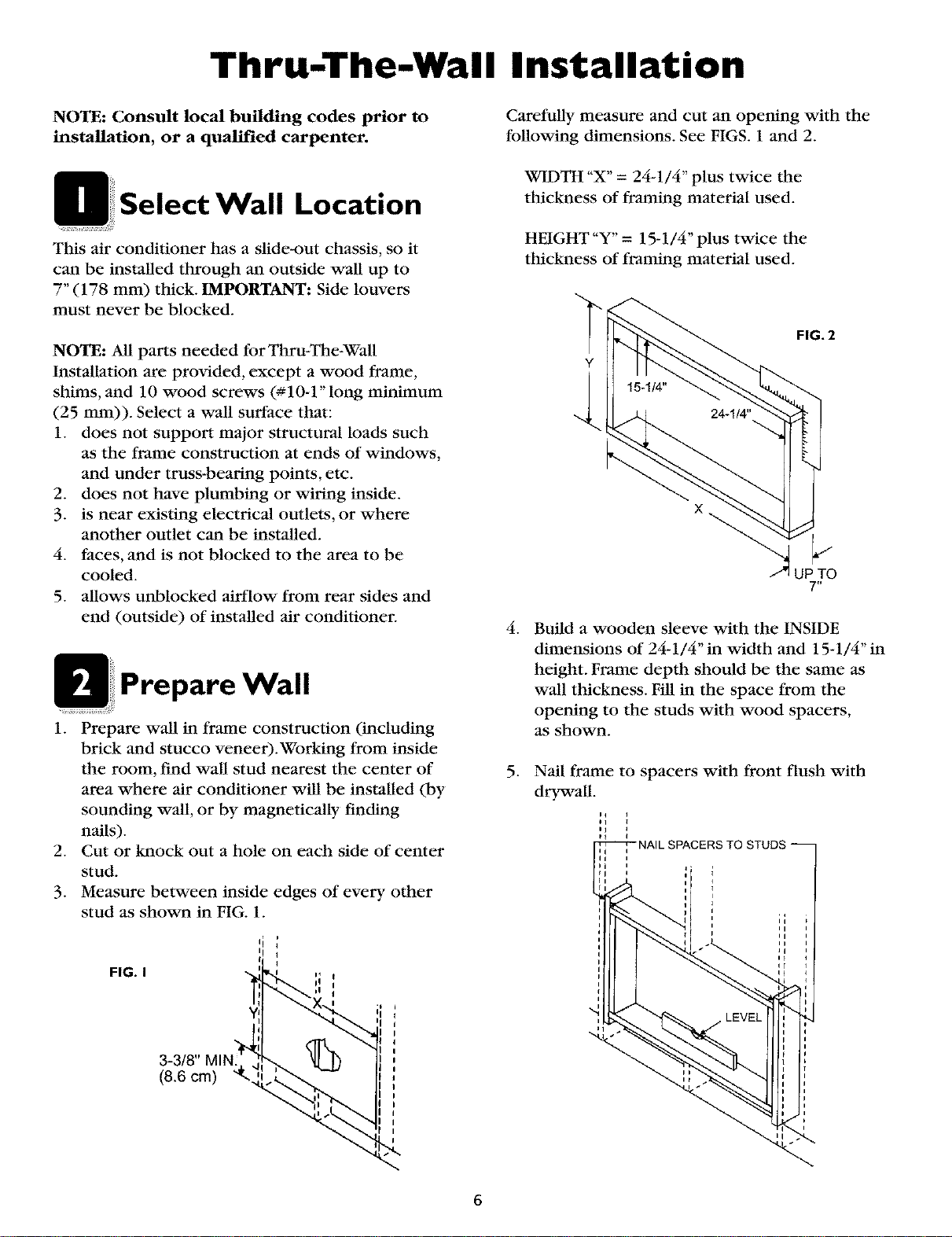

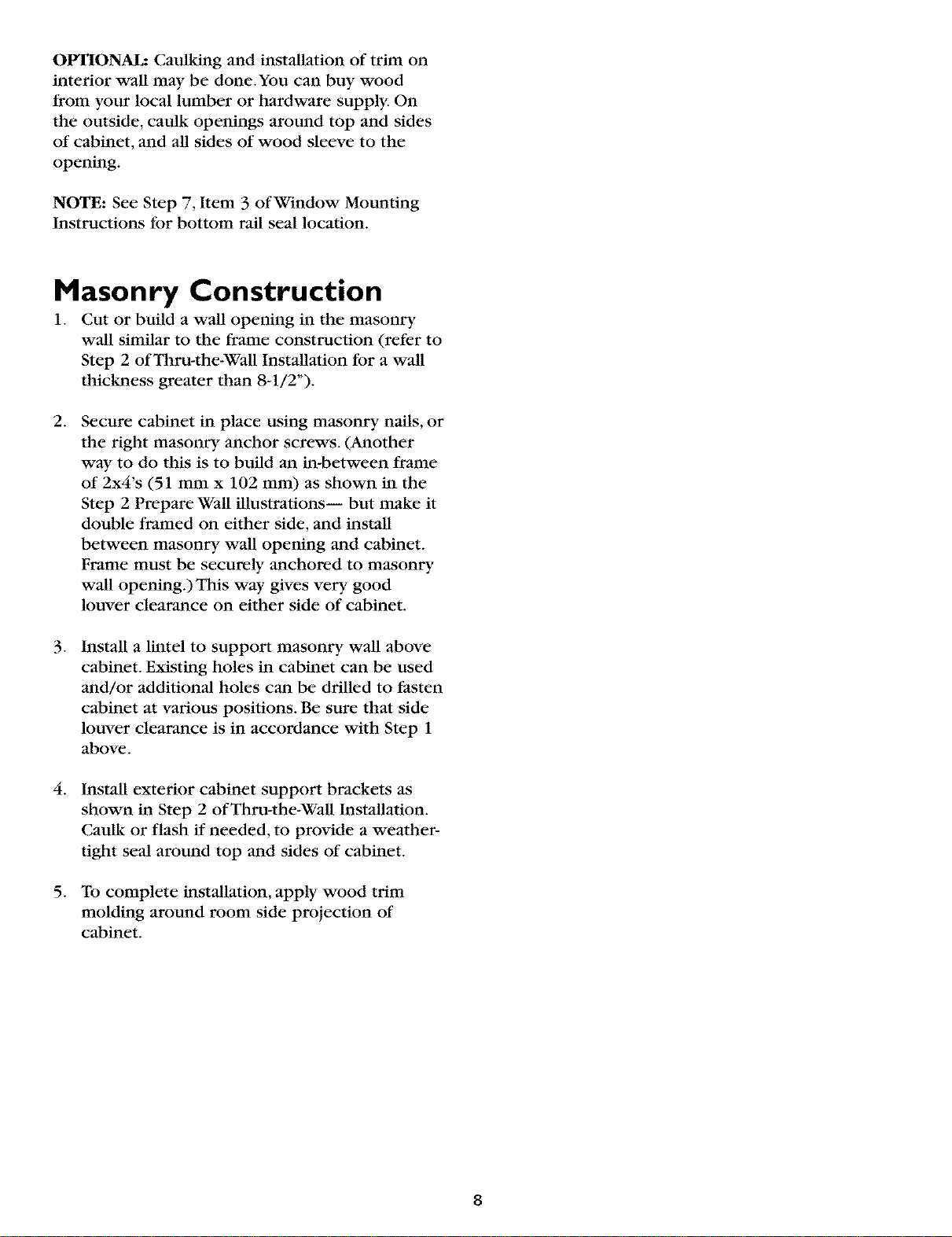

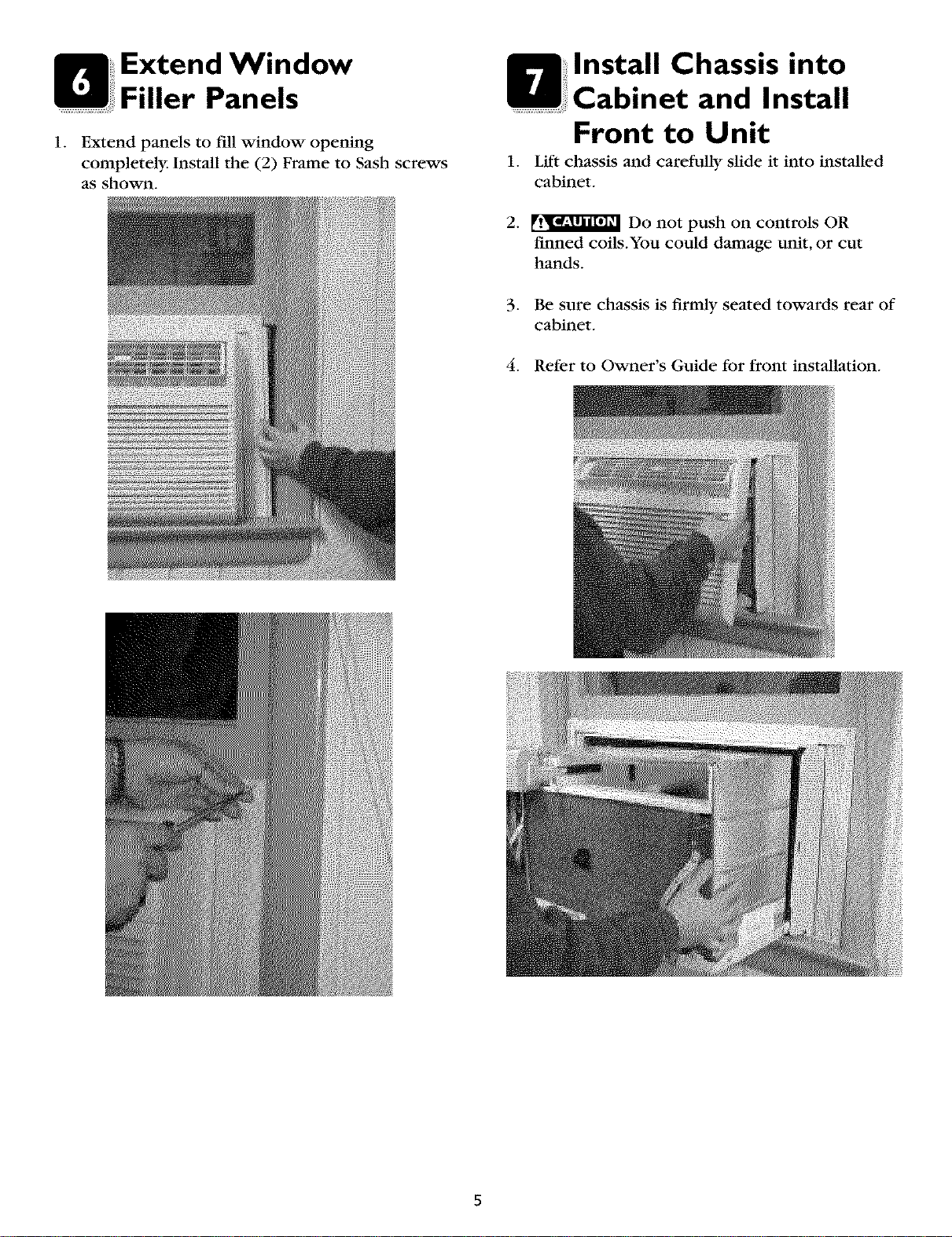

1 309000915 (0111)
