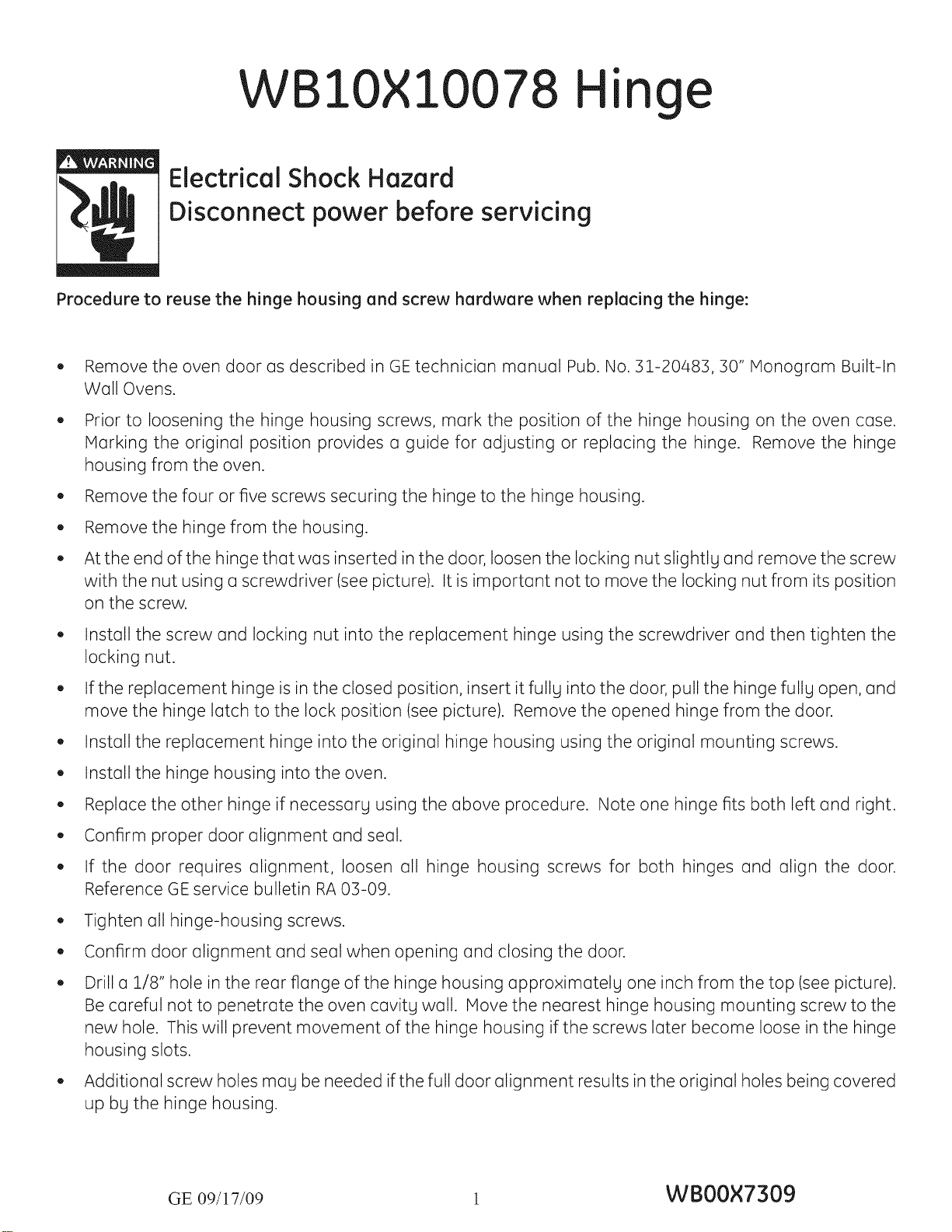

10×10078 Hinge
Electrical Shock Hazard
Disconnect power before servicing
Procedure to reuse the hinge housing and screw hardware when replacing the hinge:
,, Remove the oven door as described in GEtechnician manual Pub. No. 31-20483, 30" Monogram Built-In
Wall Ovens.
,, Prior to loosening the hinge housing screws, mark the position of the hinge housing on the oven case.
Marking the original position provides a guide for adjusting or replacing the hinge. Remove the hinge
housing from the oven.
,, Remove the four or five screws securing the hinge to the hinge housing.
,, Remove the hinge from the housing.

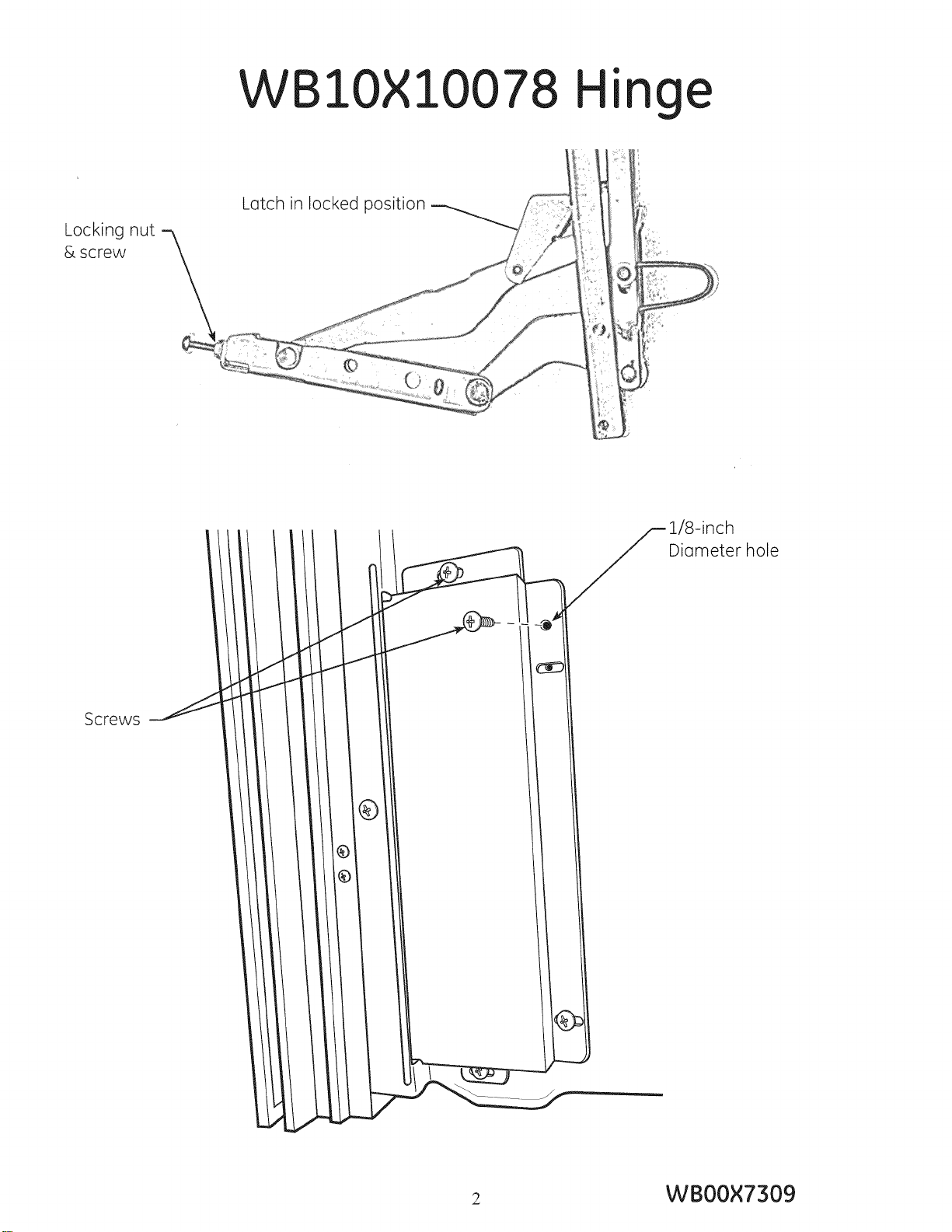

,, At the end of the hinge that was inserted in the door, loosen the locking nut slightlg and remove the screw
with the nut using a screwdriver (see picture). It is important not to move the locking nut from its position
on the screw.
,, Install the screw and locking nut into the replacement hinge using the screwdriver and then tighten the
locking nut.
,, If the replacement hinge is in the closed position, insert it fullg into the door, pull the hinge fullg open, and
move the hinge latch to the lock position (see picture). Remove the opened hinge from the door.
,, Install the replacement hinge into the original hinge housing using the original mounting screws.
,, Install the hinge housing into the oven.
,, Replace the other hinge if necessarg using the above procedure. Note one hinge fits both left and right.
,, Confirm proper door alignment and seal.
,, If the door requires alignment, loosen all hinge housing screws for both hinges and align the door.
Reference GEservice bulletin RA03-09.
,, Tighten all hinge-housing screws.
,, Confirm door alignment and seal when opening and closing the door.
,, Drill a 1/8" hole in the rear flange of the hinge housing approximatelg one inch from the top (see picture).
Be careful not to penetrate the oven cavitg wall. Move the nearest hinge housing mounting screw to the
new hole. This will prevent movement of the hinge housing if the screws later become loose in the hinge
housing slots.
,, Additional screw holes mag be needed if the full door alignment results in the original holes being covered
up bg the hinge housing.
GE 09/17/09 1 WB00×7309
