Use _ Care Guide
Wave-Touch TM Fro_t-Load Gas _ Electric D_y'er
Guia de Uso y Cuidado
Secadora eKctfica y a gas de carga fro_tal Wave-Touch Mc
Guide d'utilisation et d'entretien
S_cheuse 5 gaz et 5 ]'_]ectficit_ 5 chargeme_lt fro_ta] \,_ave-Touch Mc

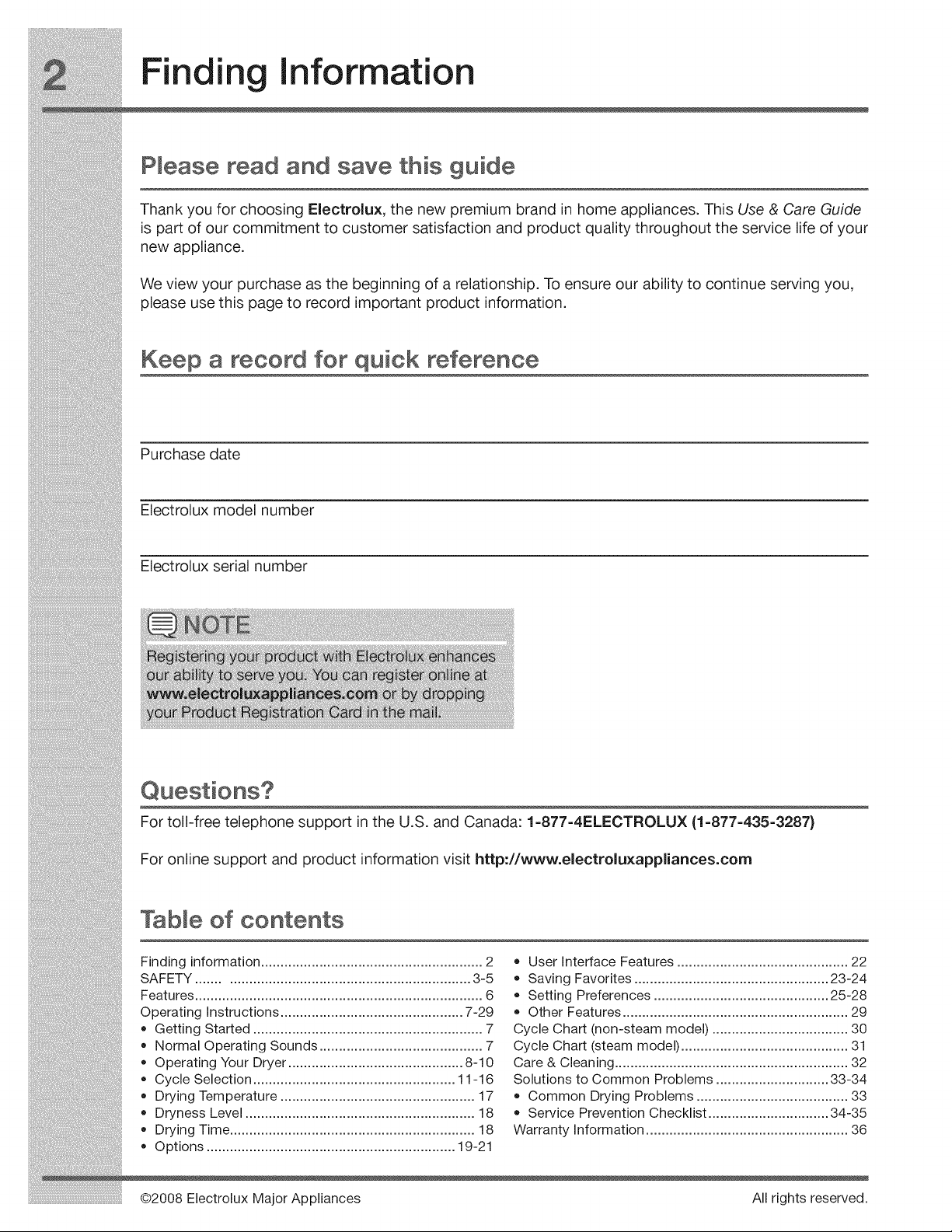

Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide
is part of our commitment to customer satisfaction and product quality throughout the service life of your
new appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Electrolux model number
Electrolux serial number
For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX {1-877-435-3287)
For online support and product information visit http://www.electroluxappliances.com
Table of contents
Finding information ......................................................... 2
SAFETY ..................................................................... 3-5
Features .......................................................................... 6
Operating instructions ............................................... 7-29
• Getting Started ........................................................... 7
Normal Operating Sounds .......................................... 7

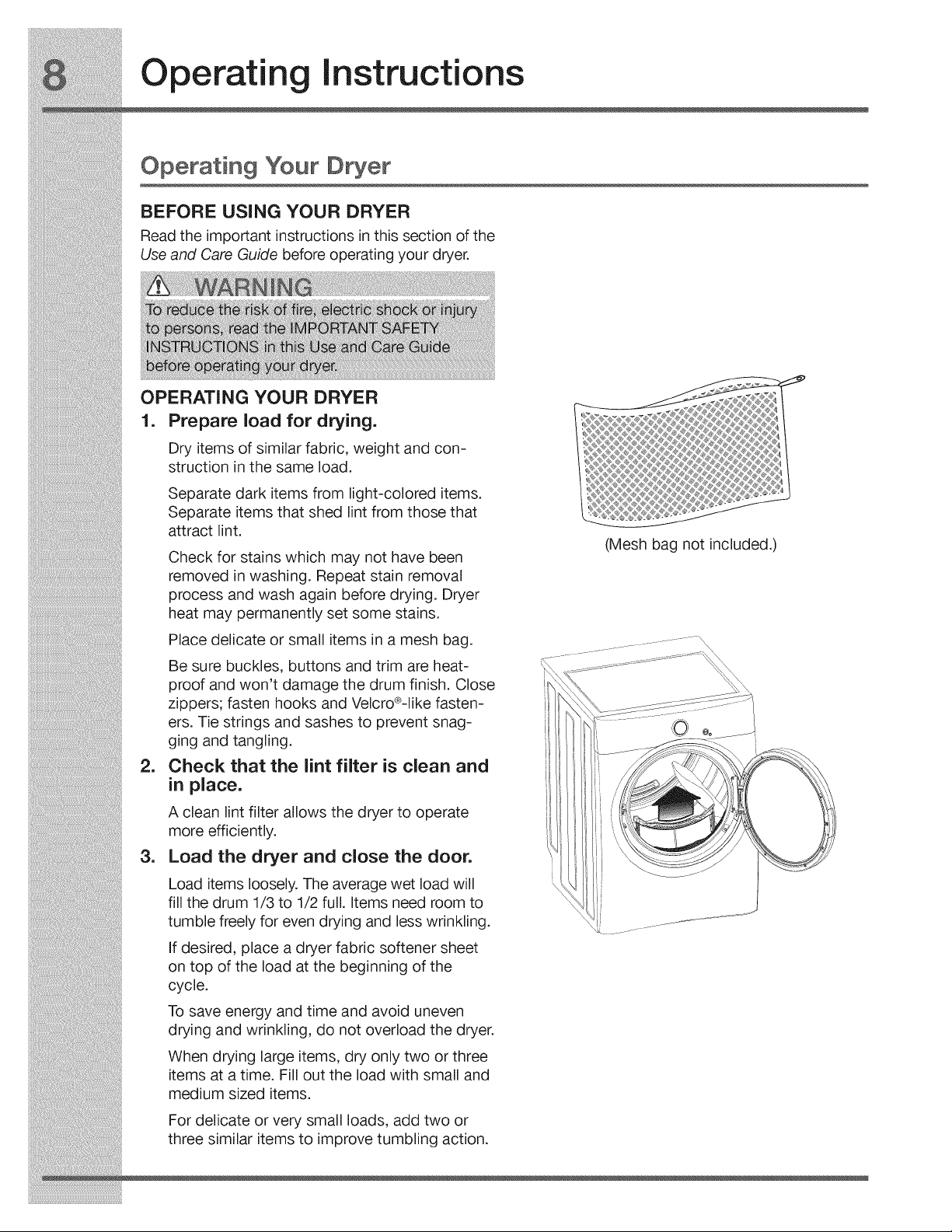

Operating Your Dryer ............................................. 8-10

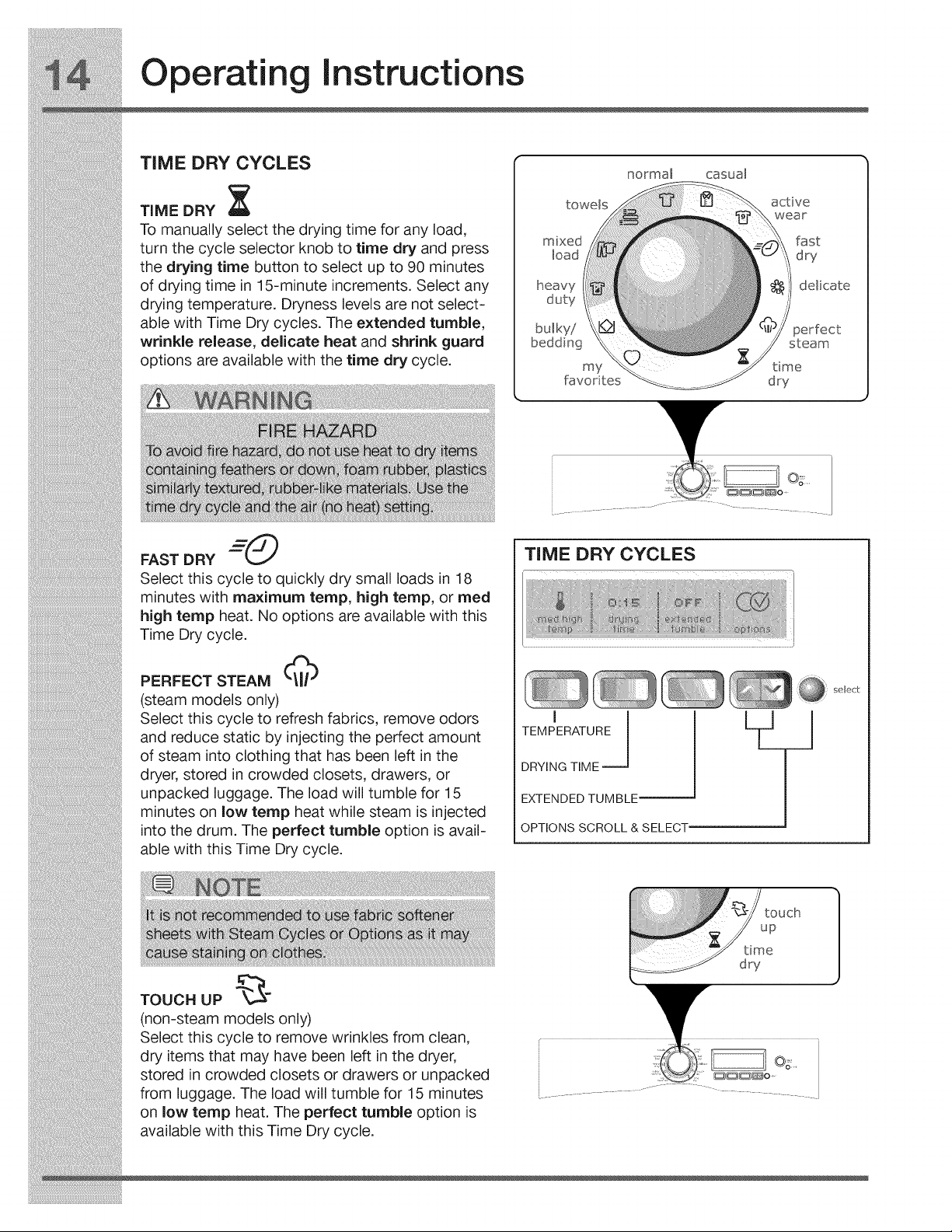

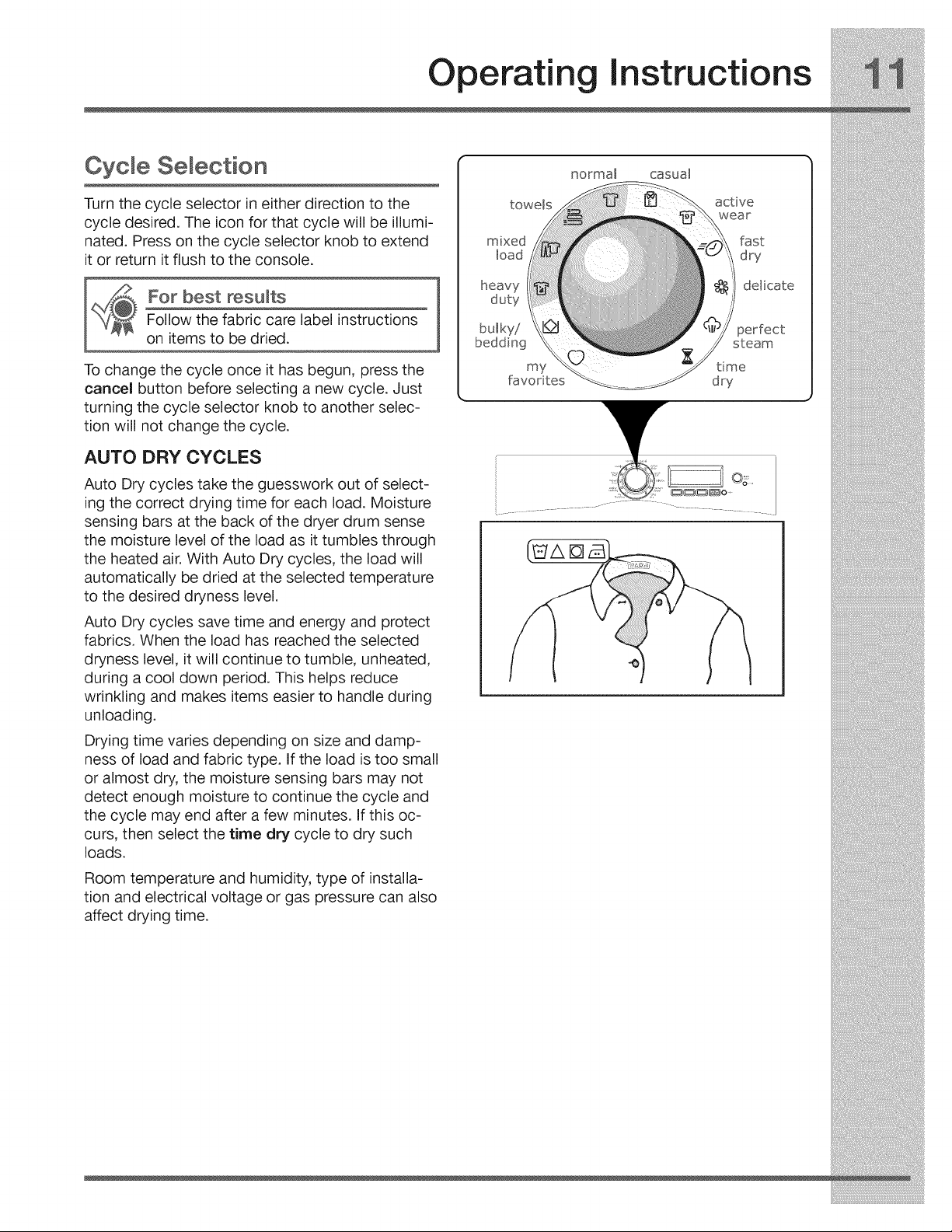

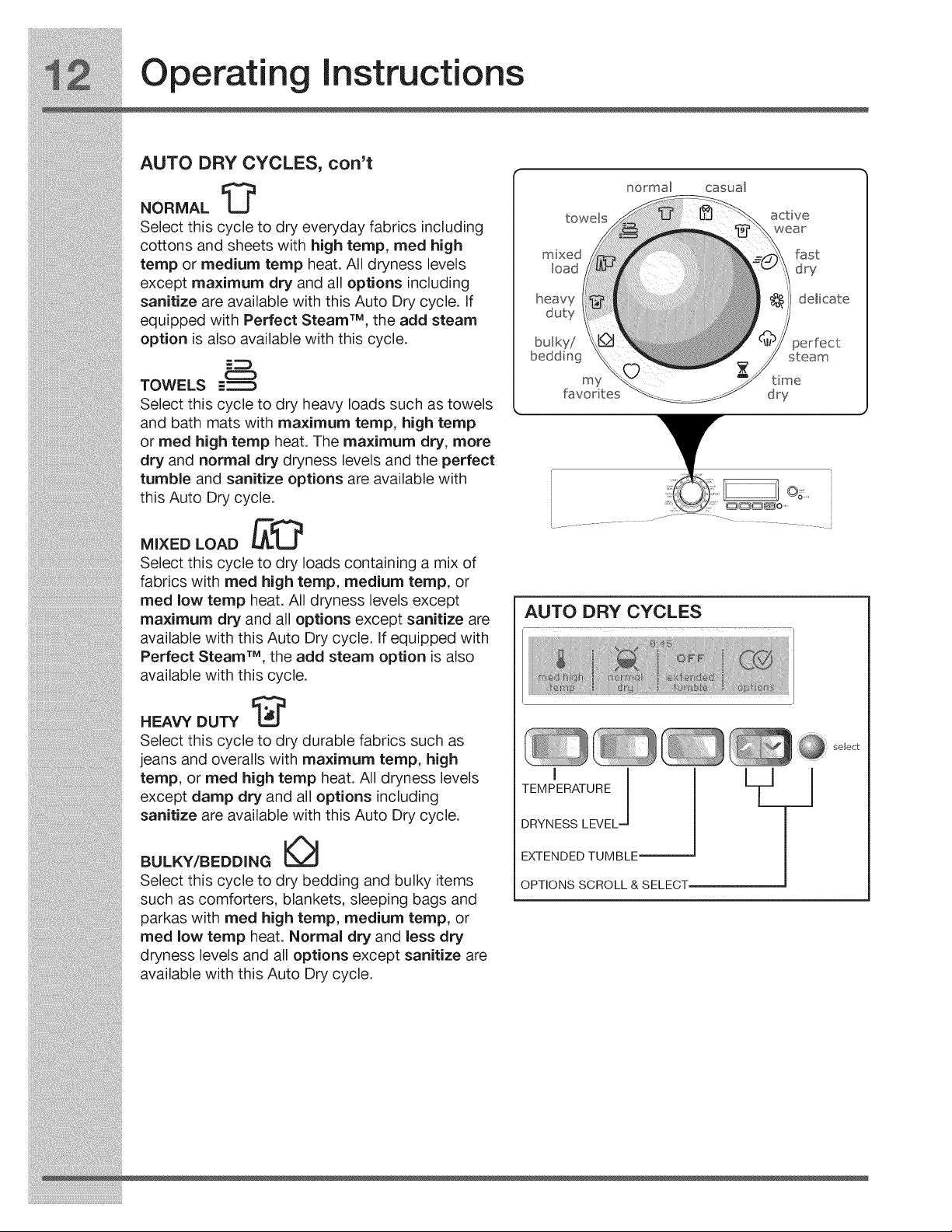

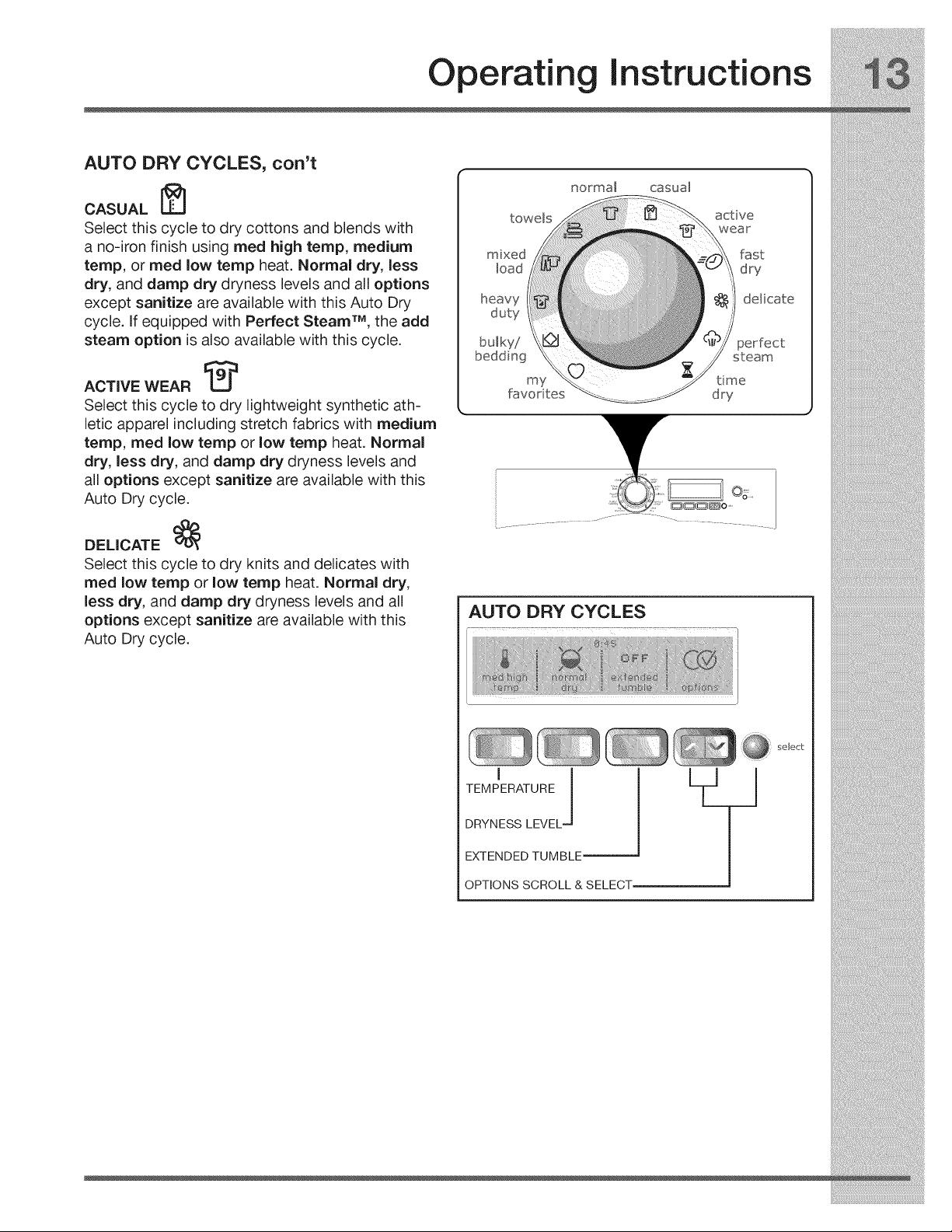

Cycle Selection .................................................... 11-16

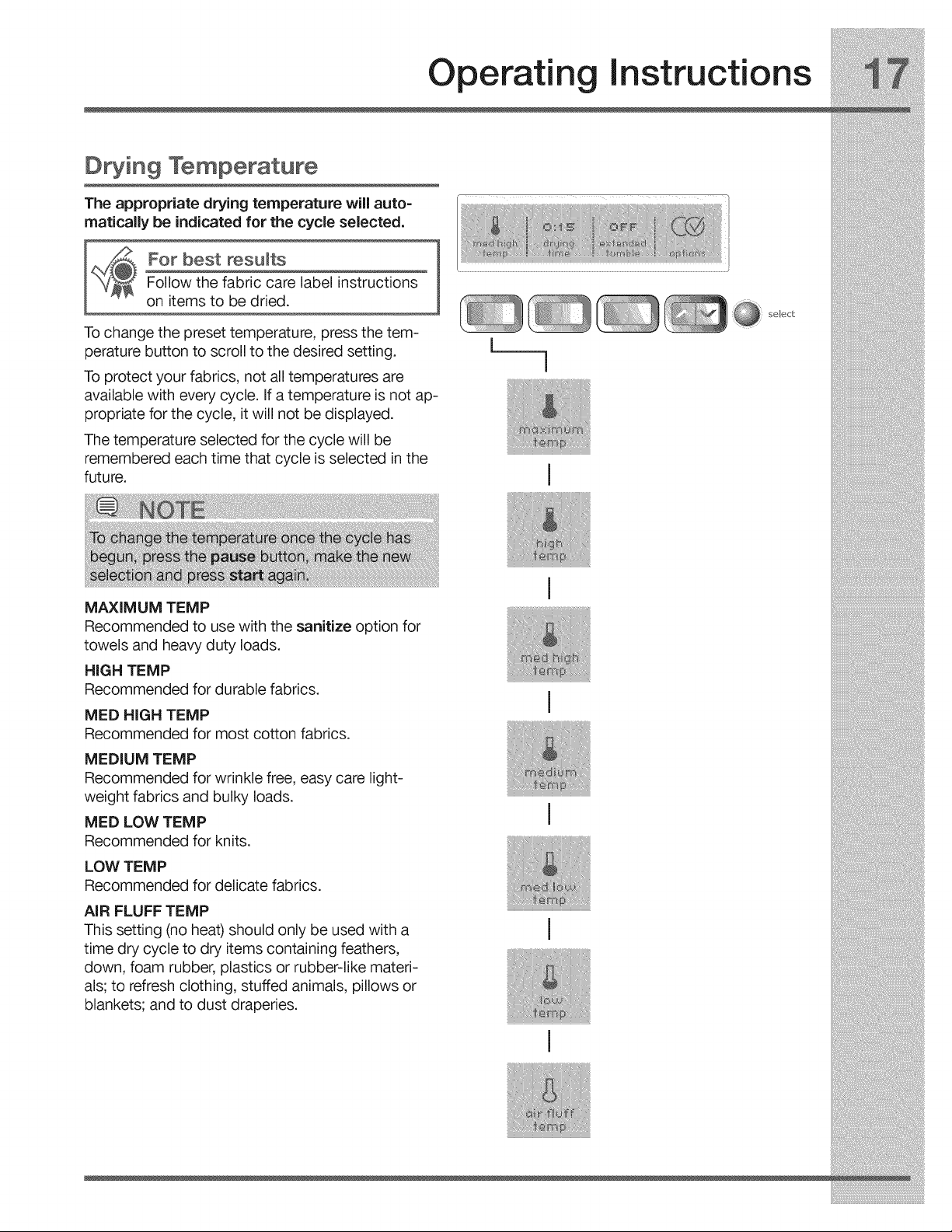

Drying Temperature .................................................. 17

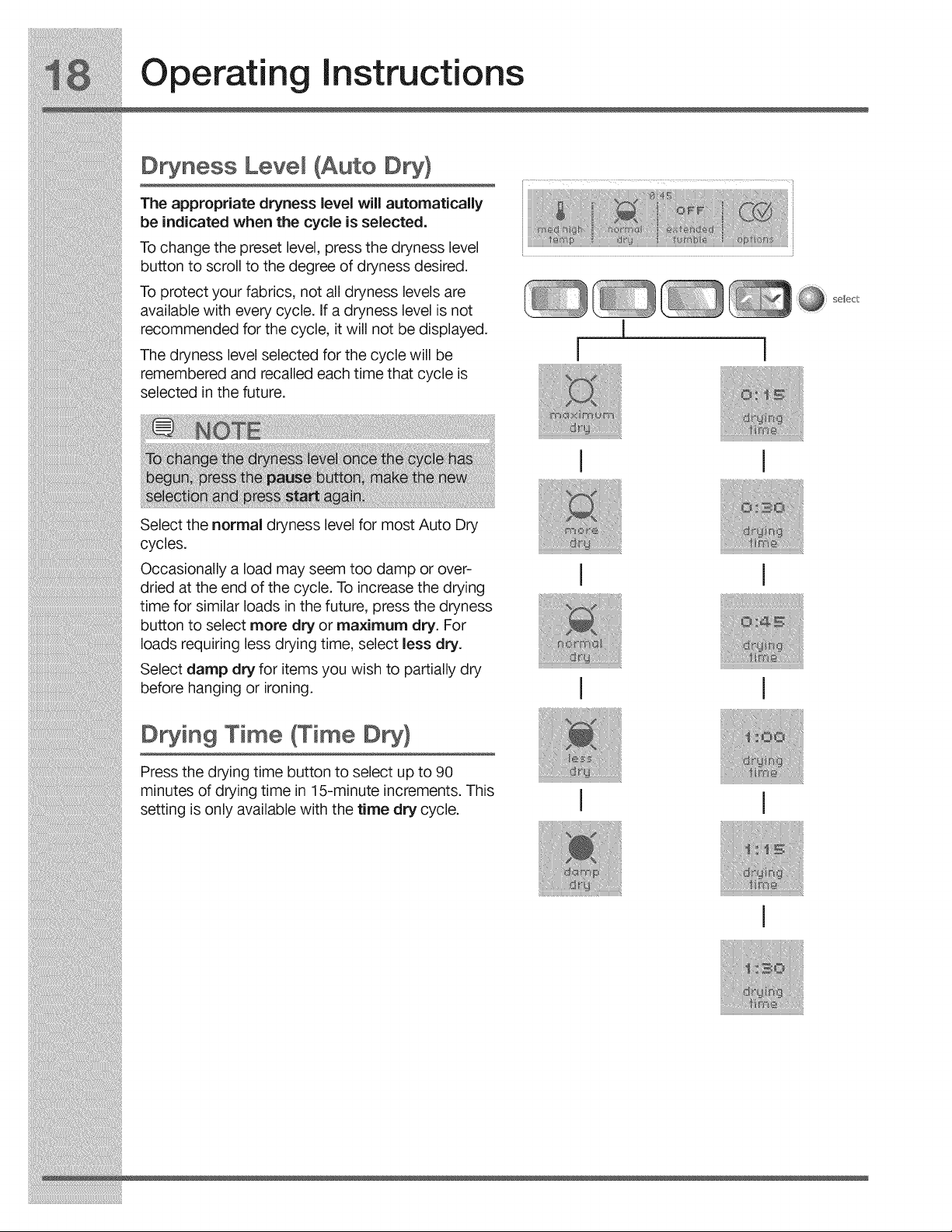

Dryness Level ........................................................... 18
Drying Time ............................................................... 18

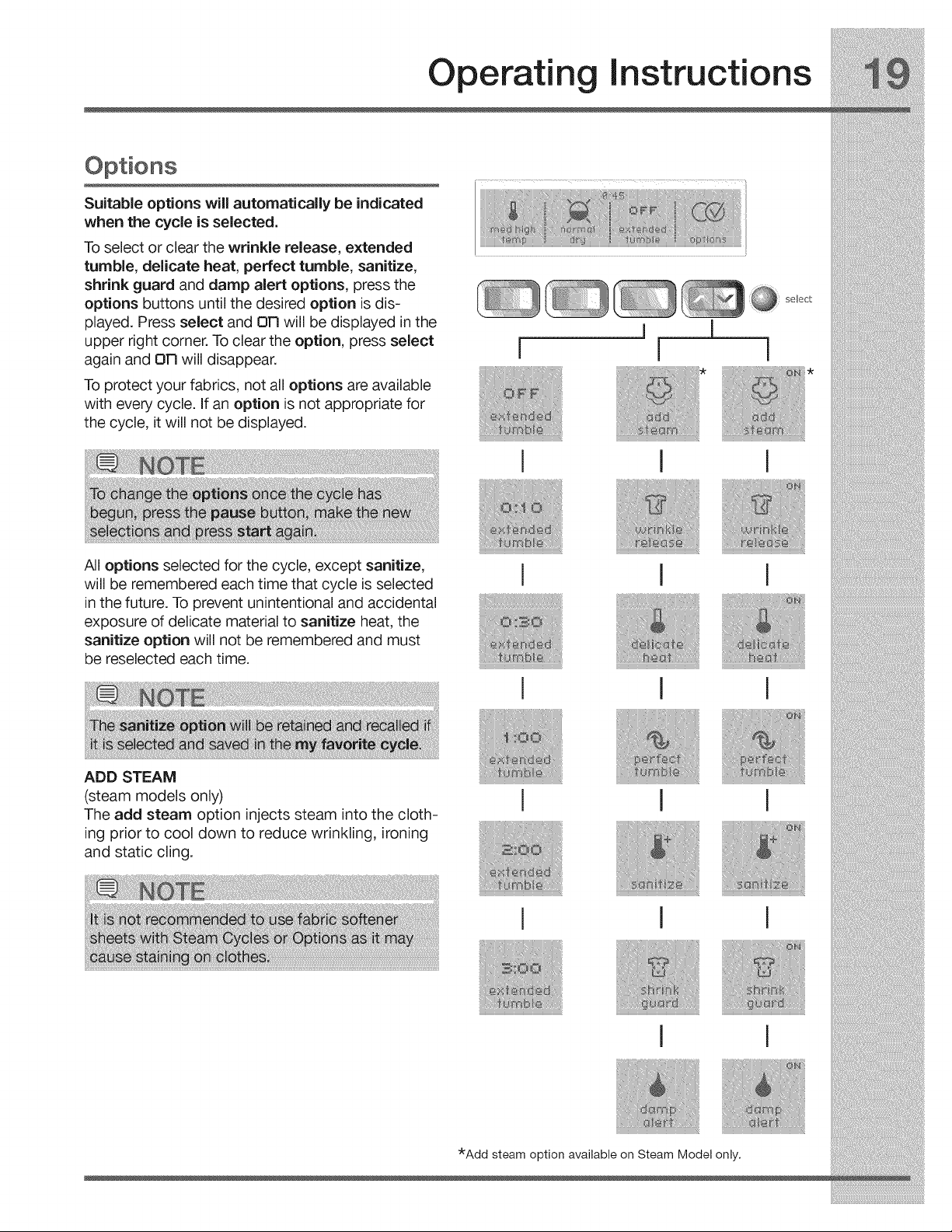

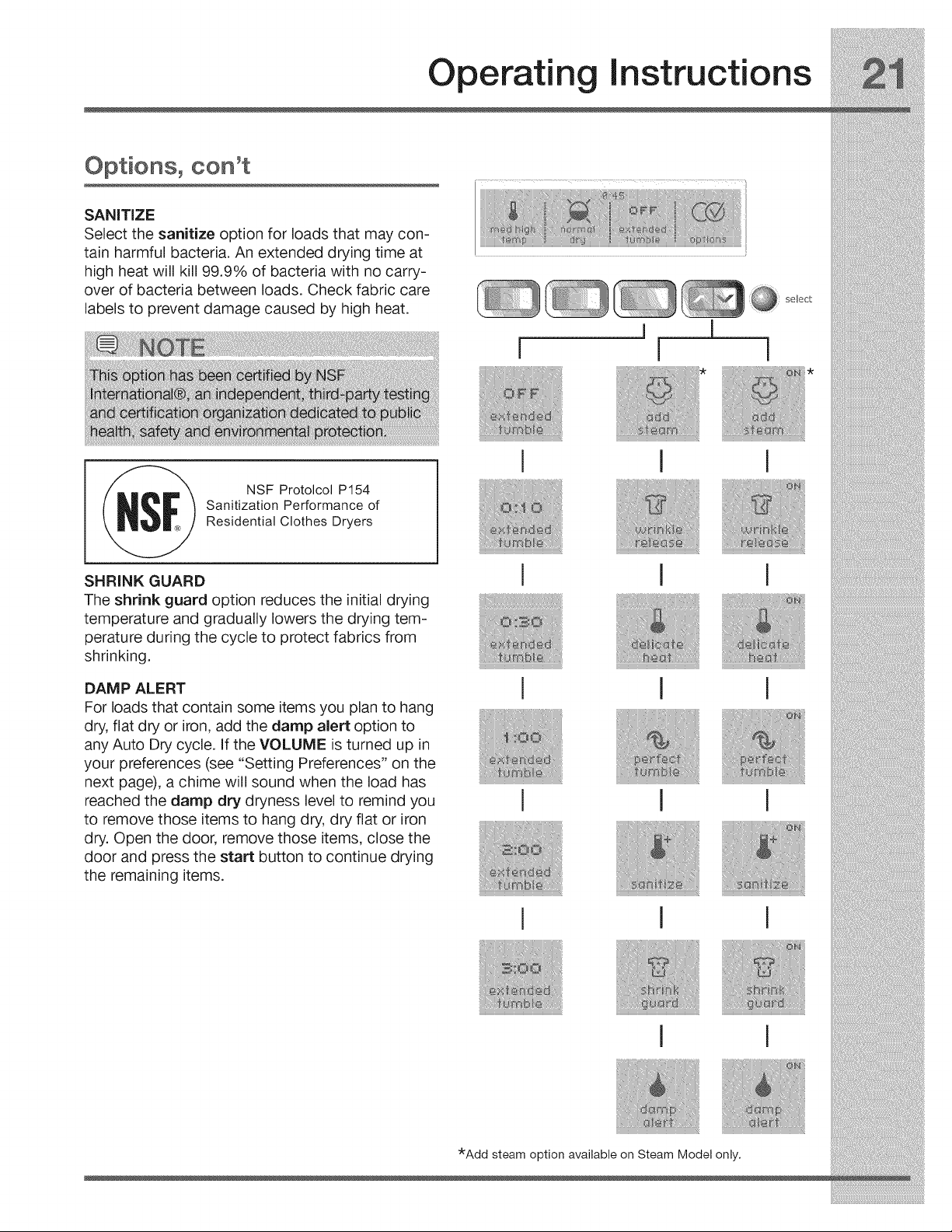

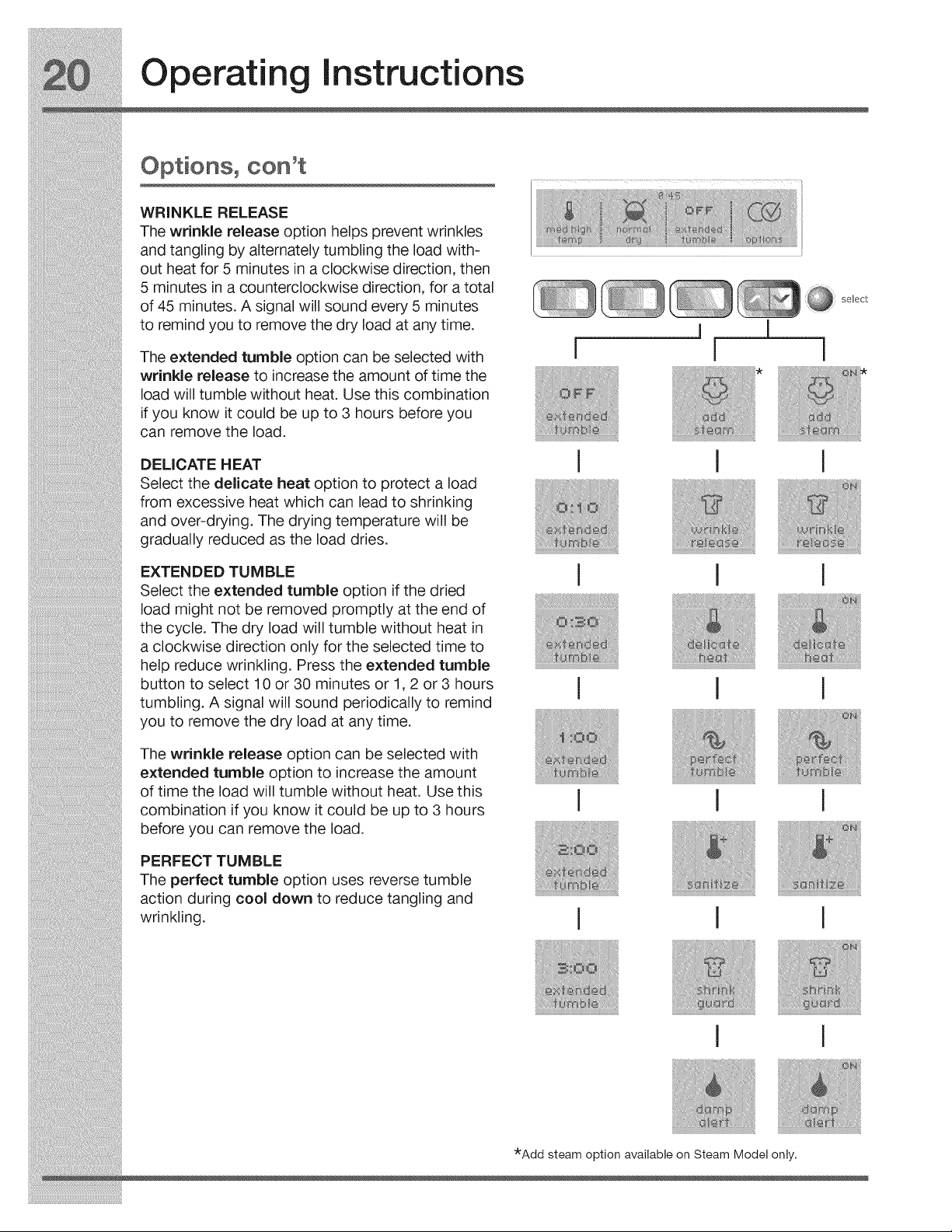

Options ................................................................ 19-21

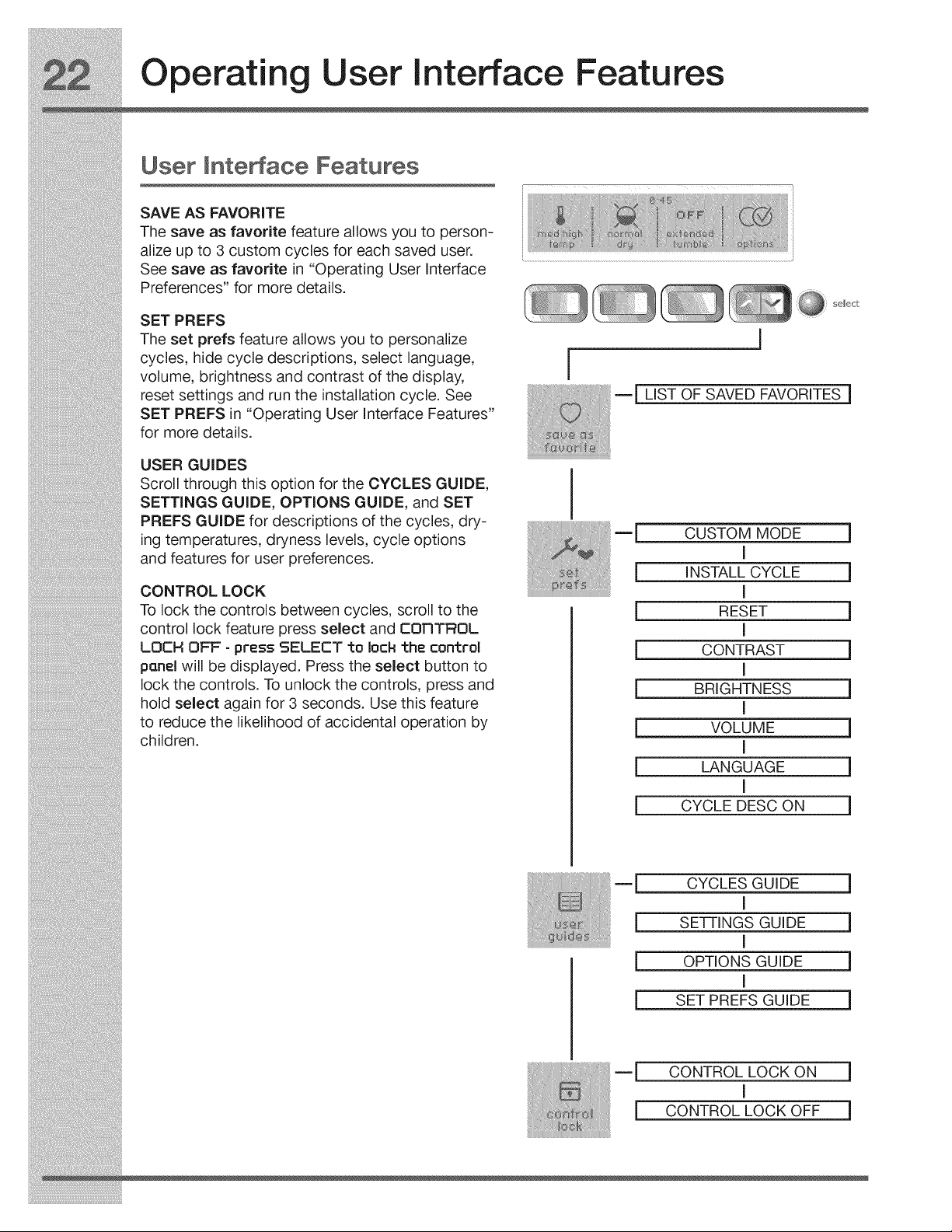

User Interface Features ............................................ 22

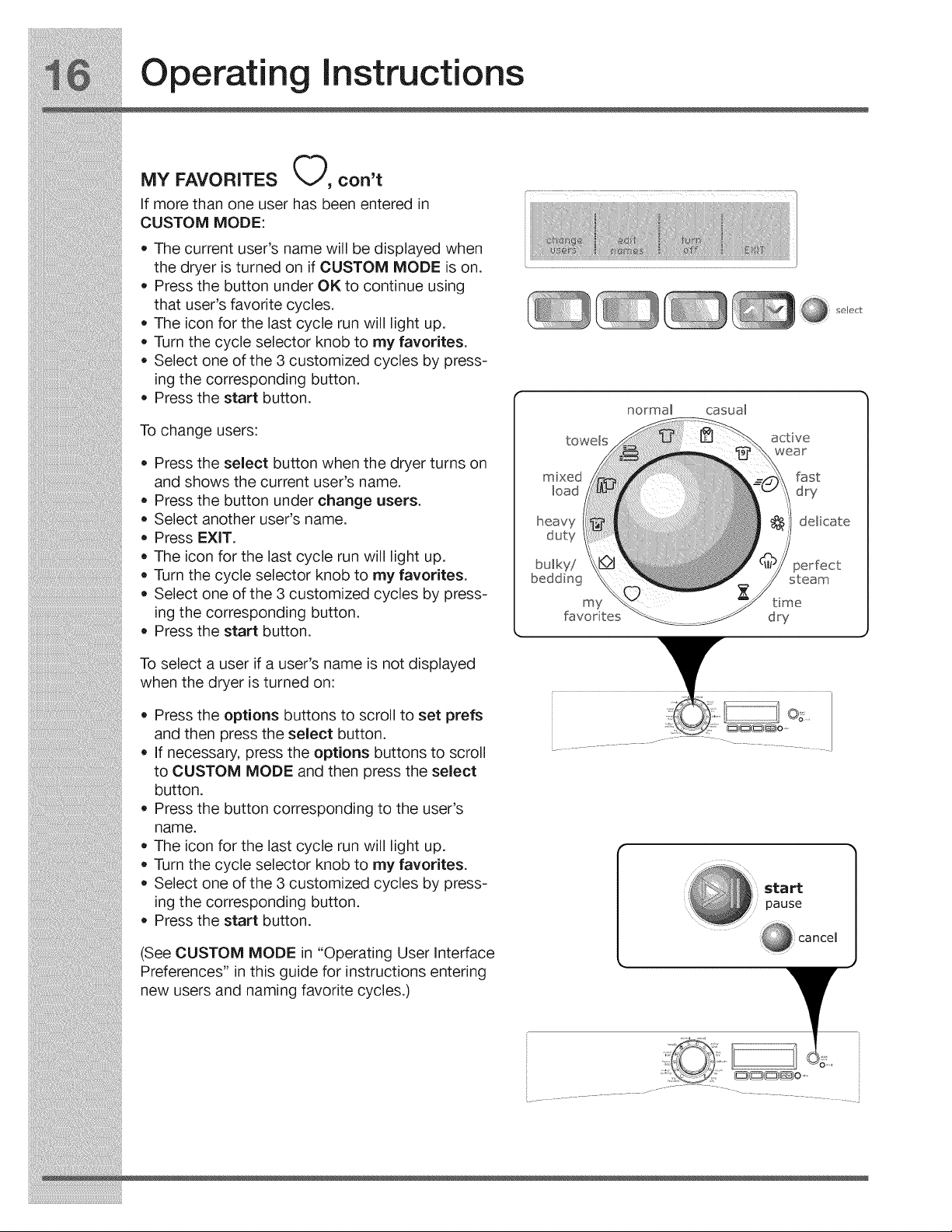

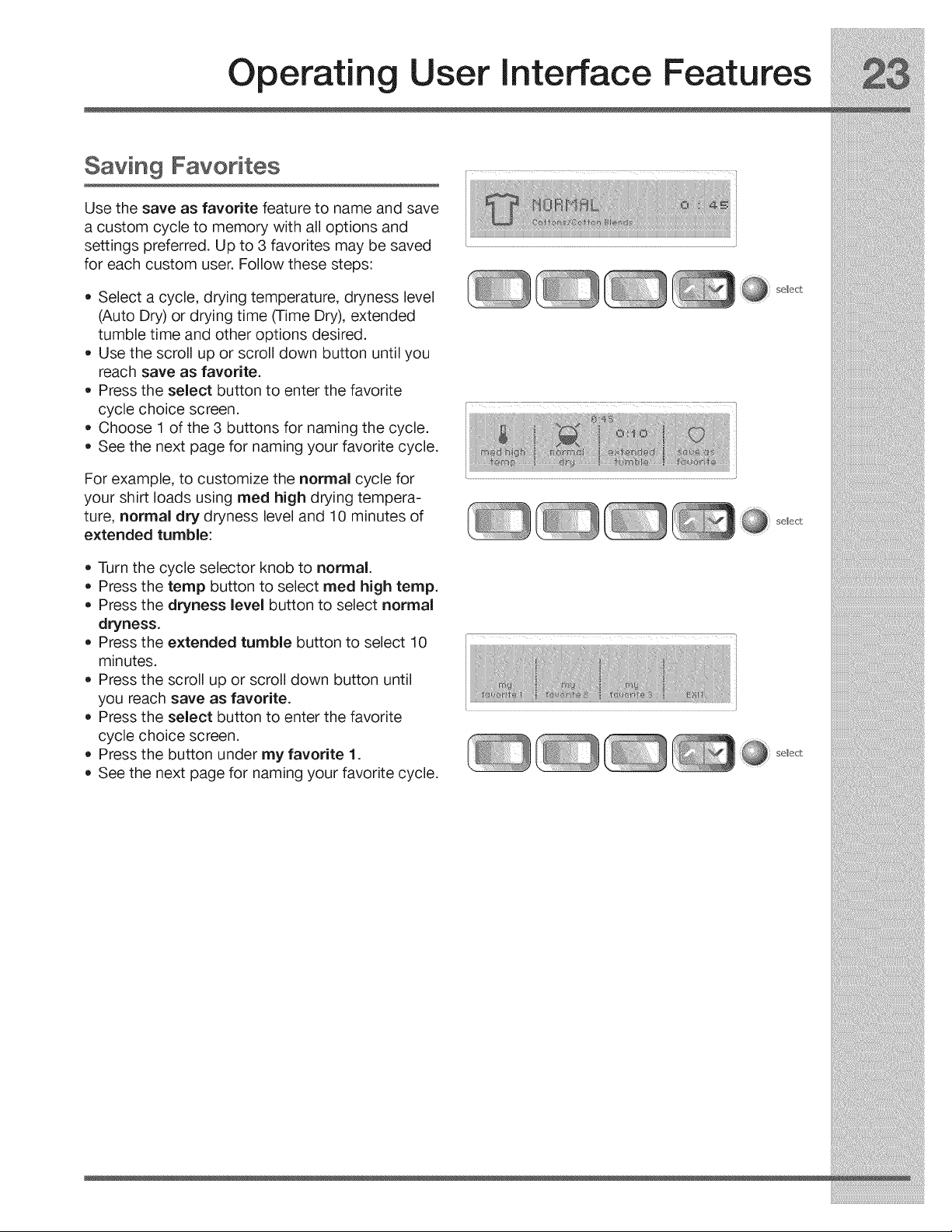

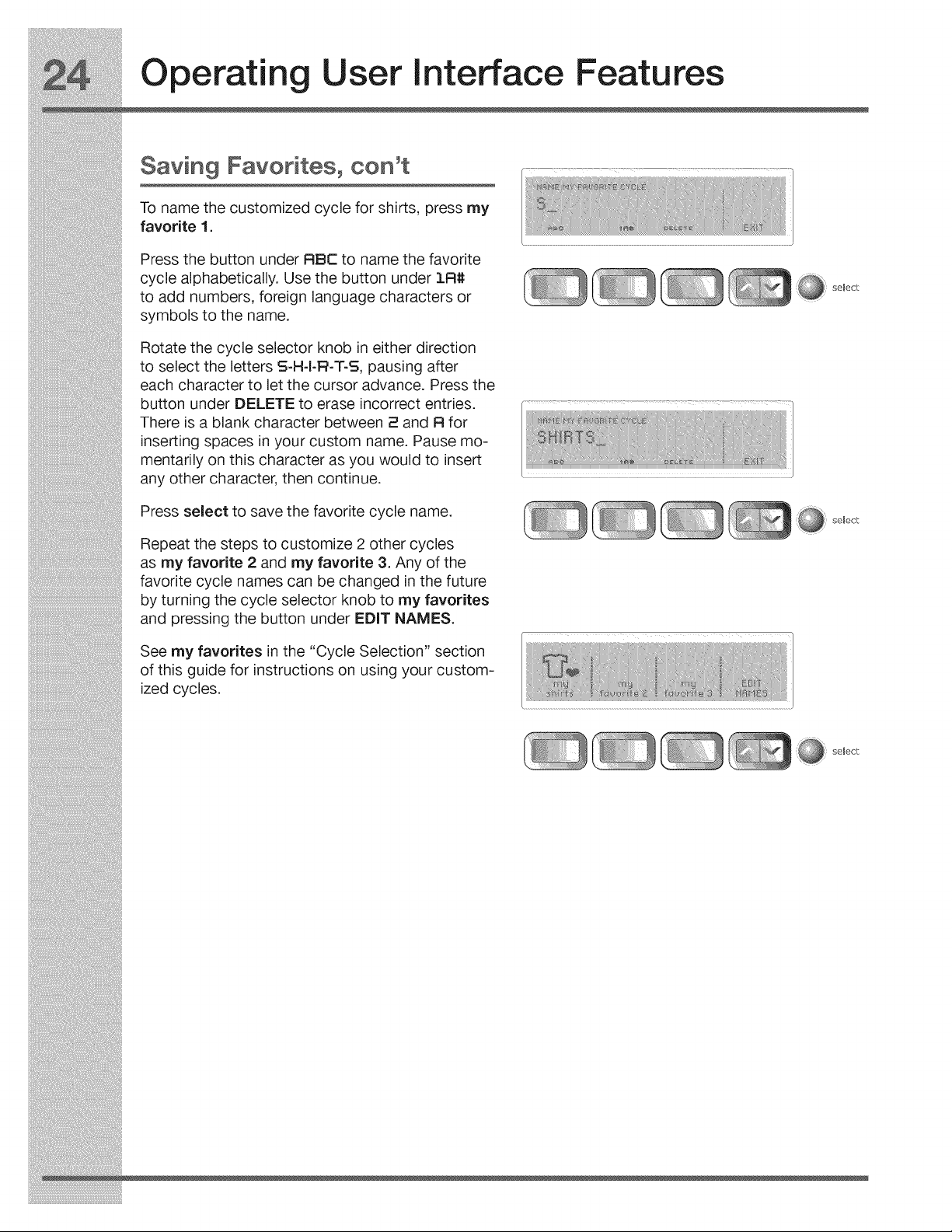

Saving Favorites .................................................. 23-24

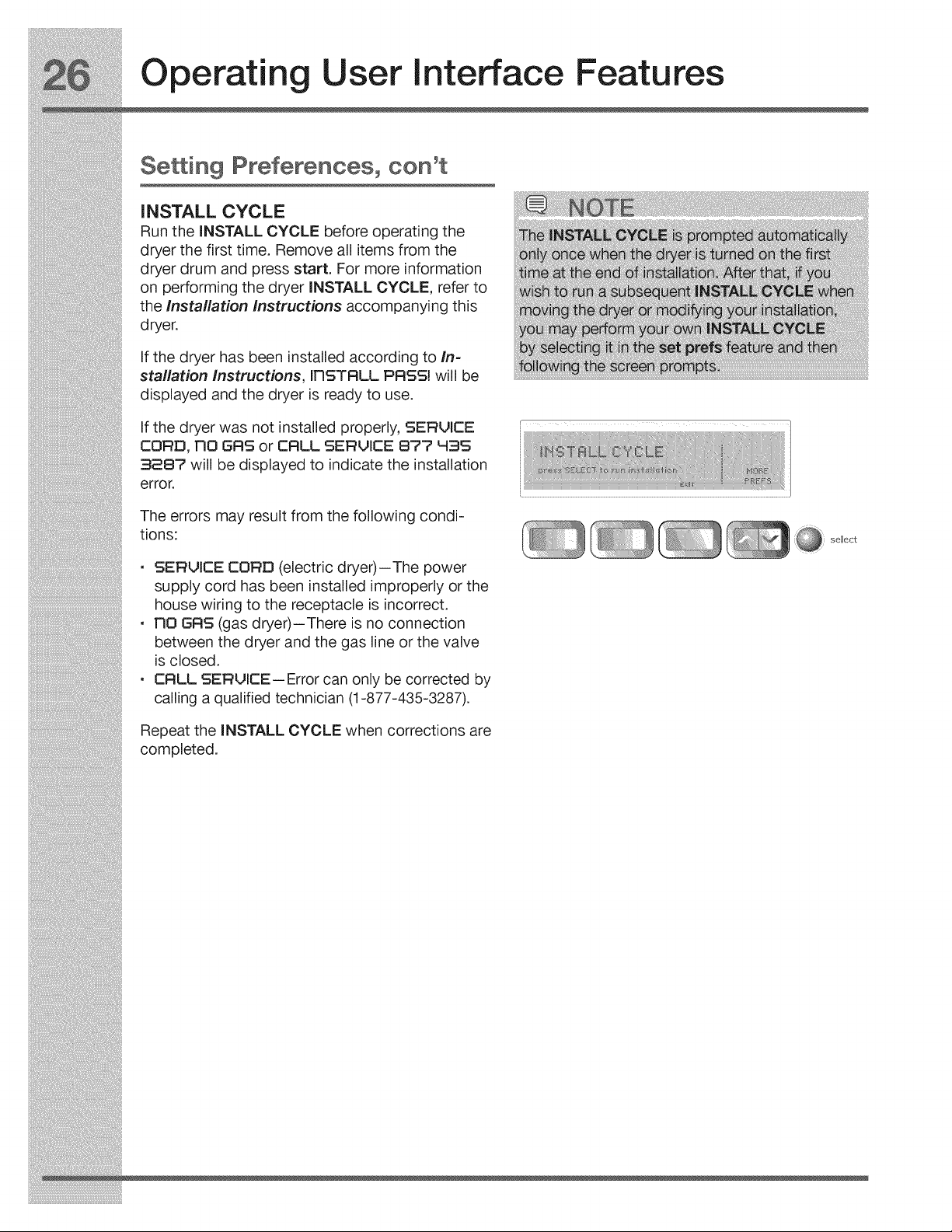

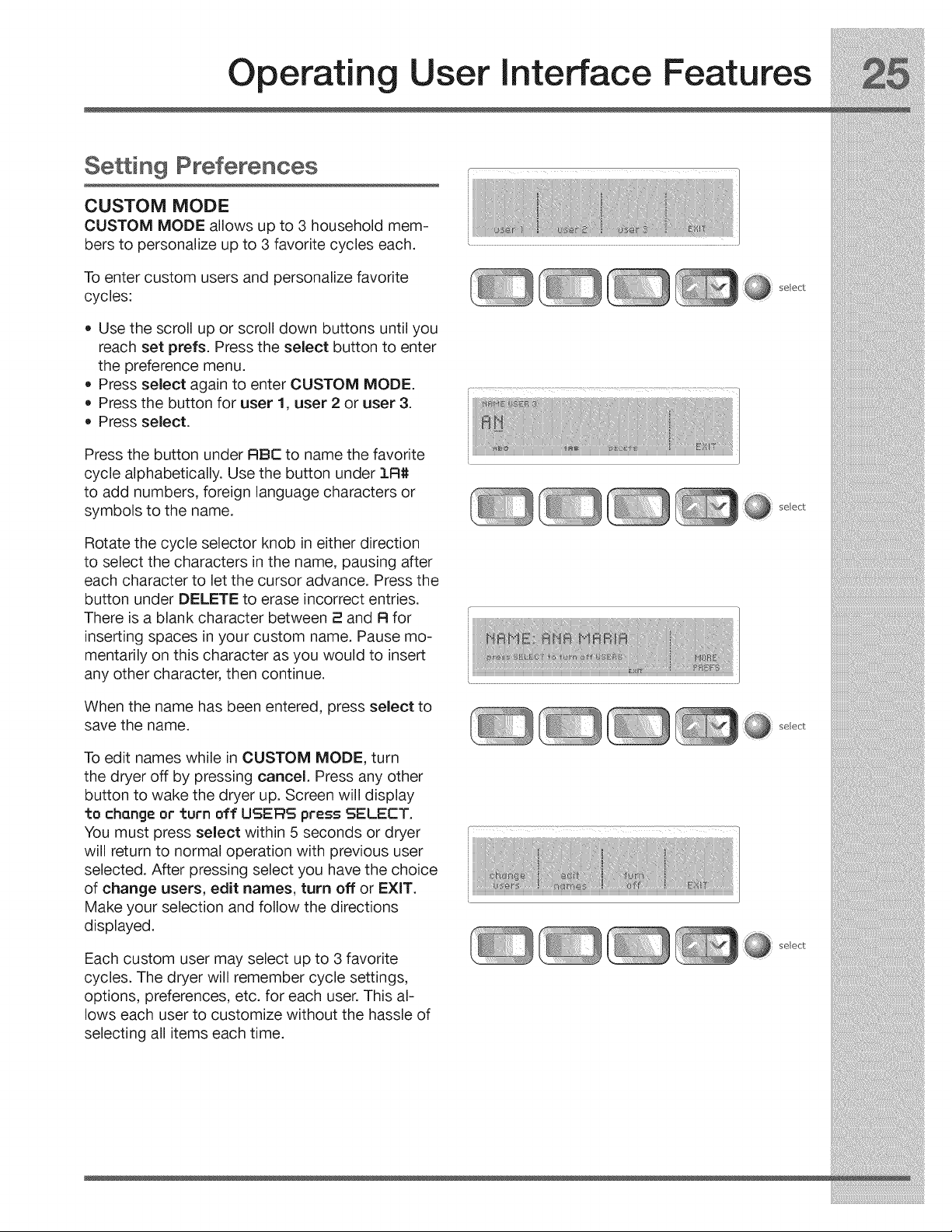

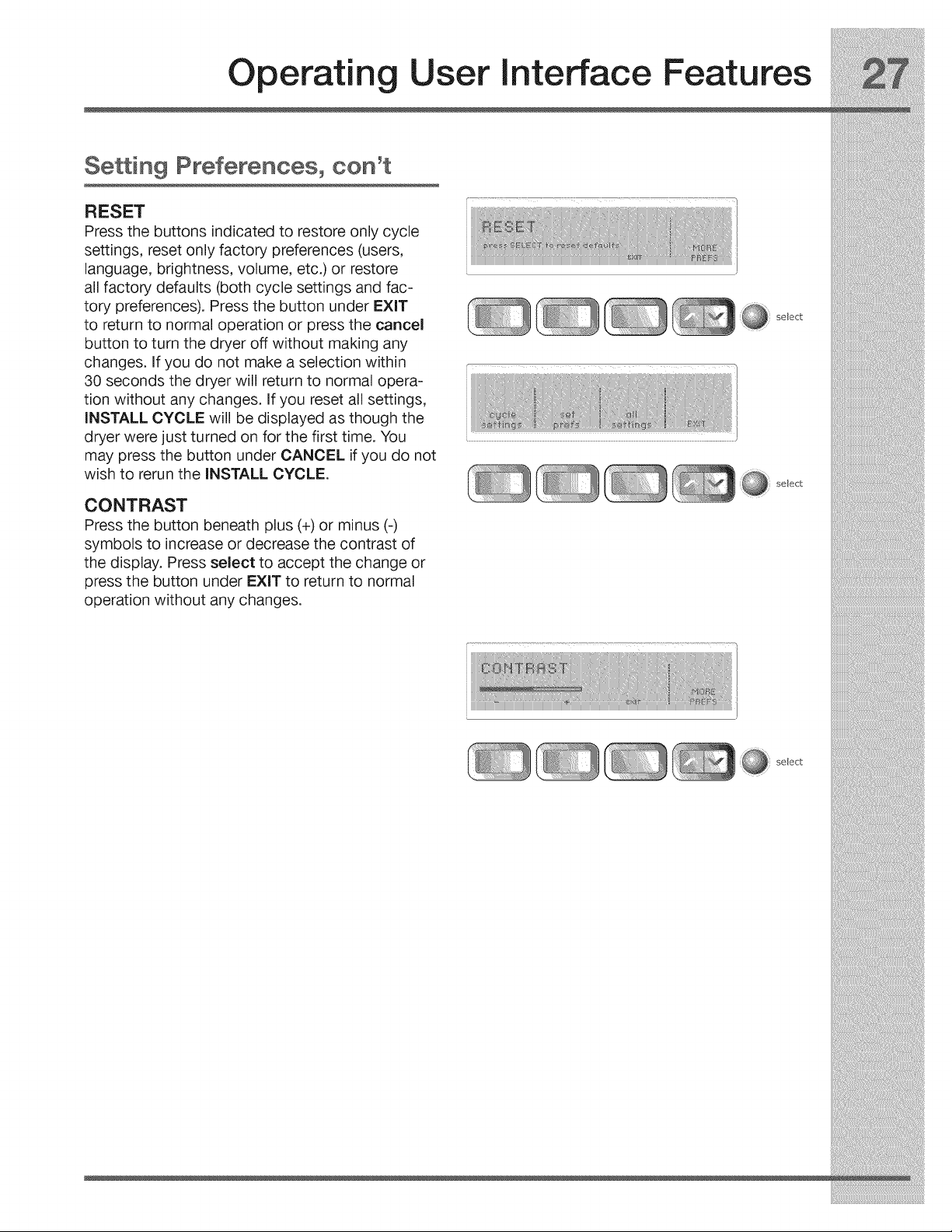

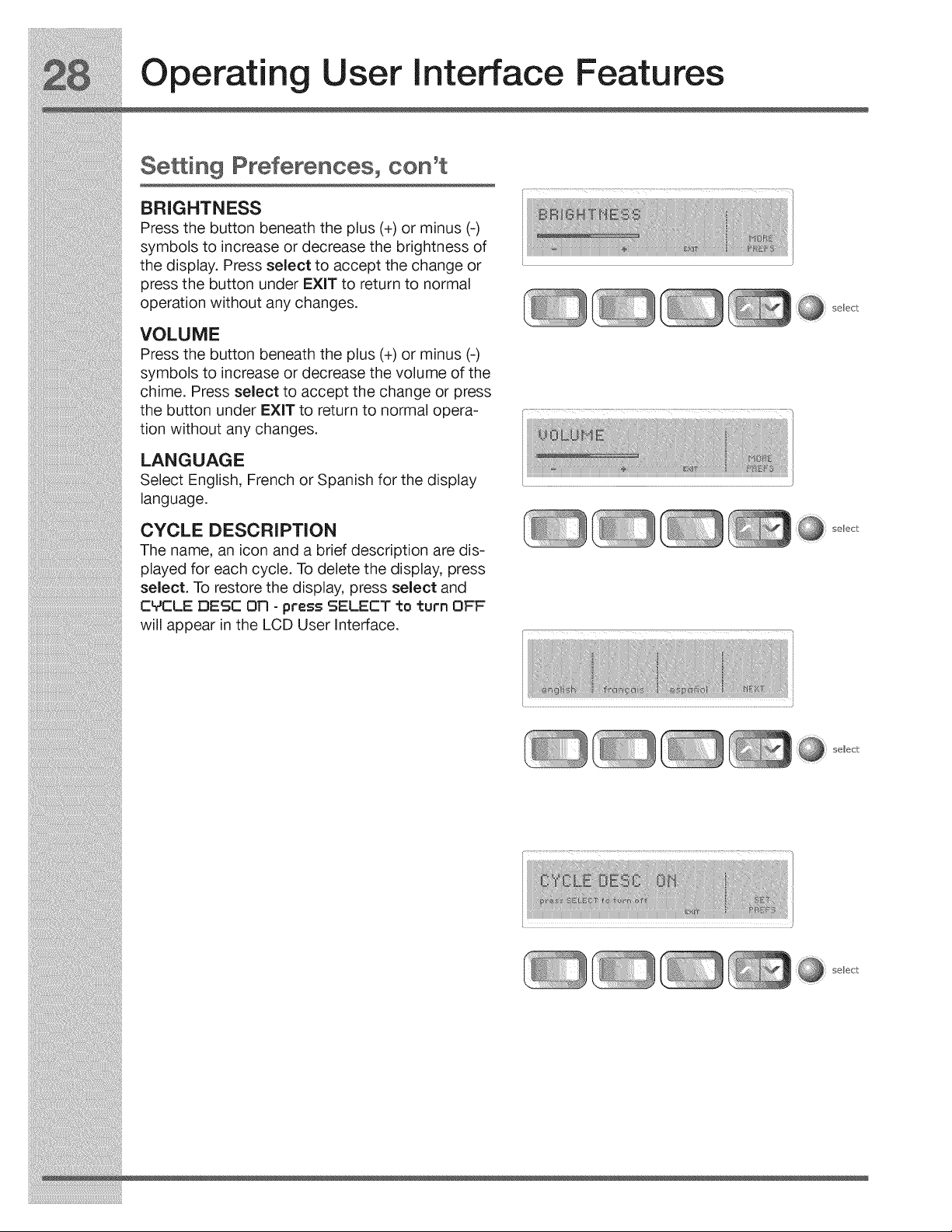

Setting Preferences ............................................. 25-28

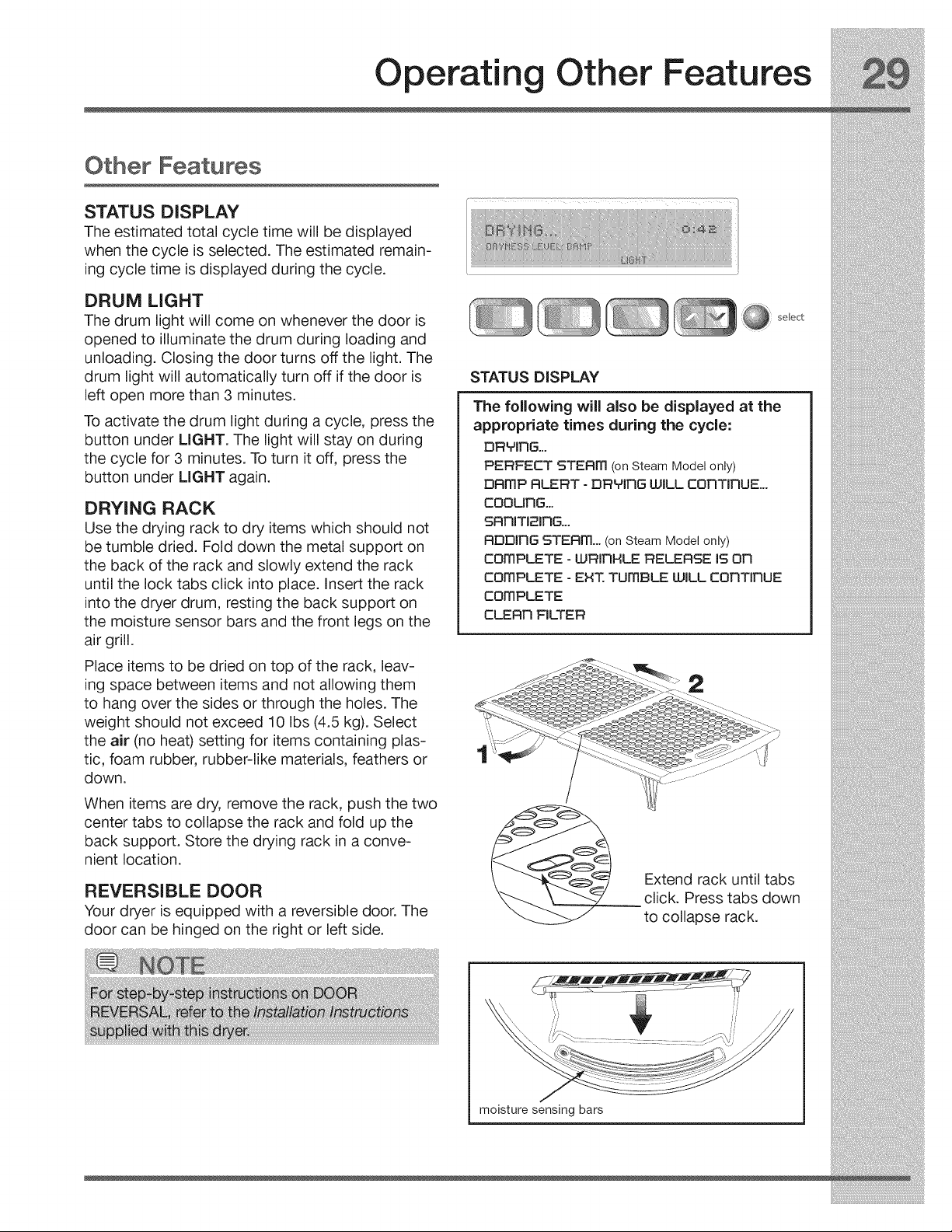

Other Features .......................................................... 29

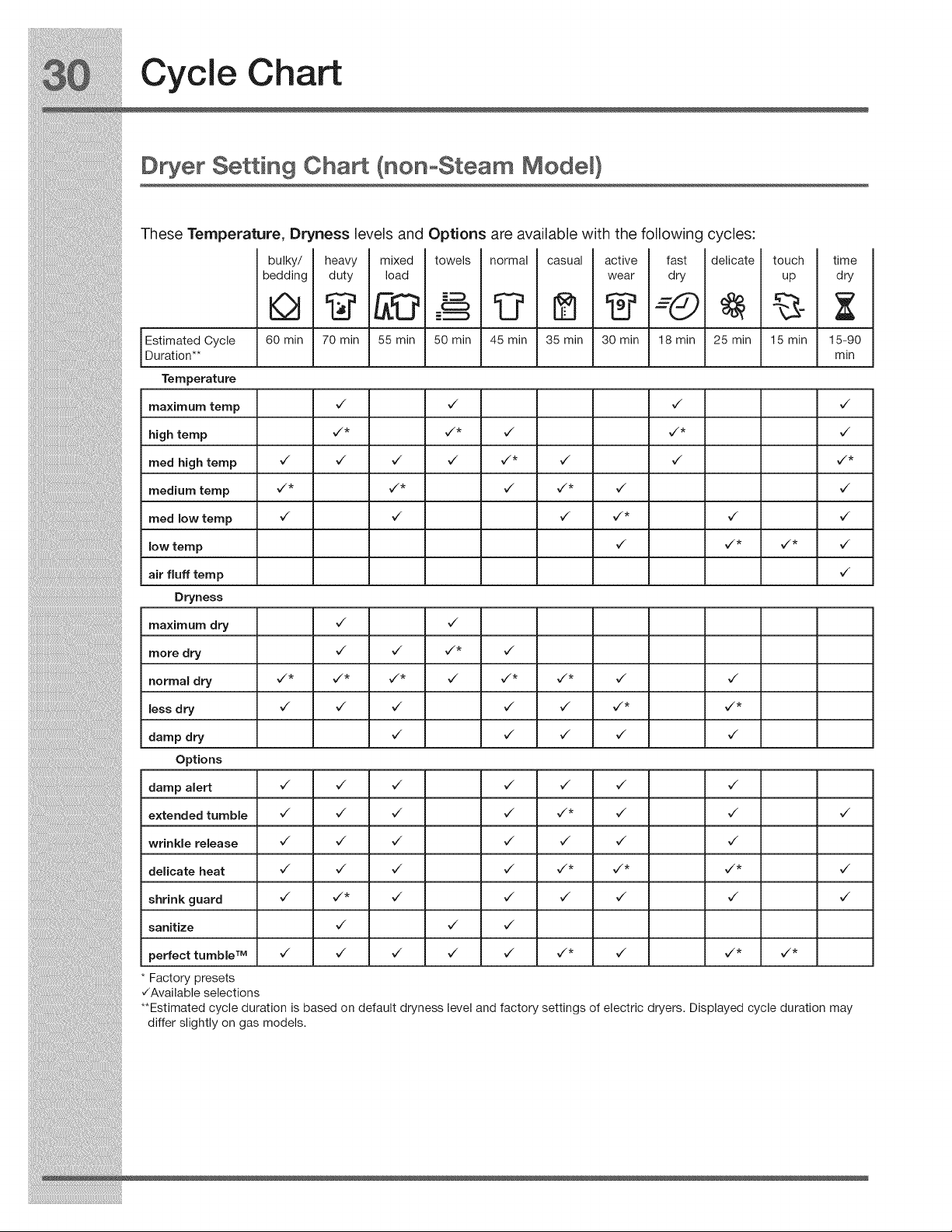

Cycle Chart (non-steam model) ................................... 30

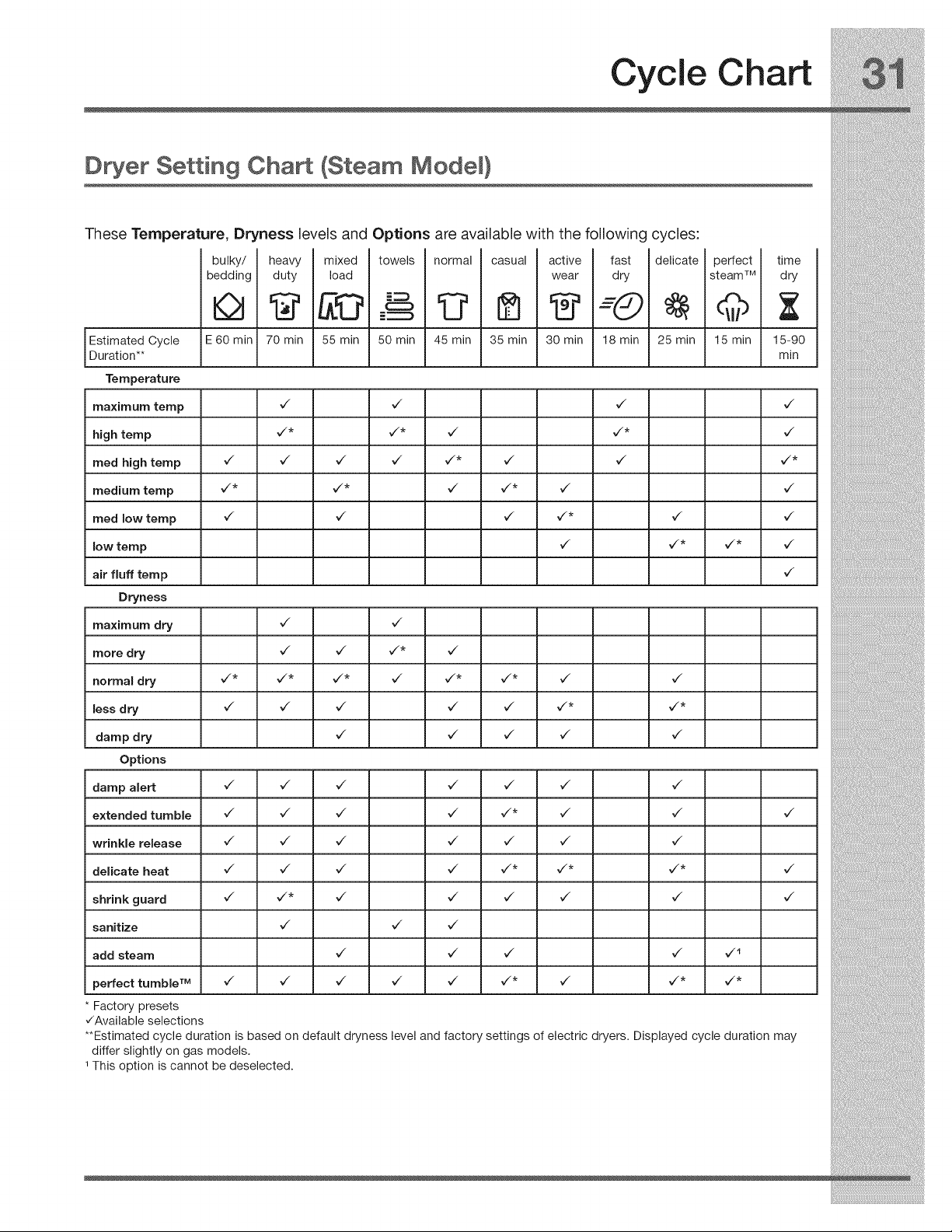

Cycle Chart (steam model) ........................................... 31

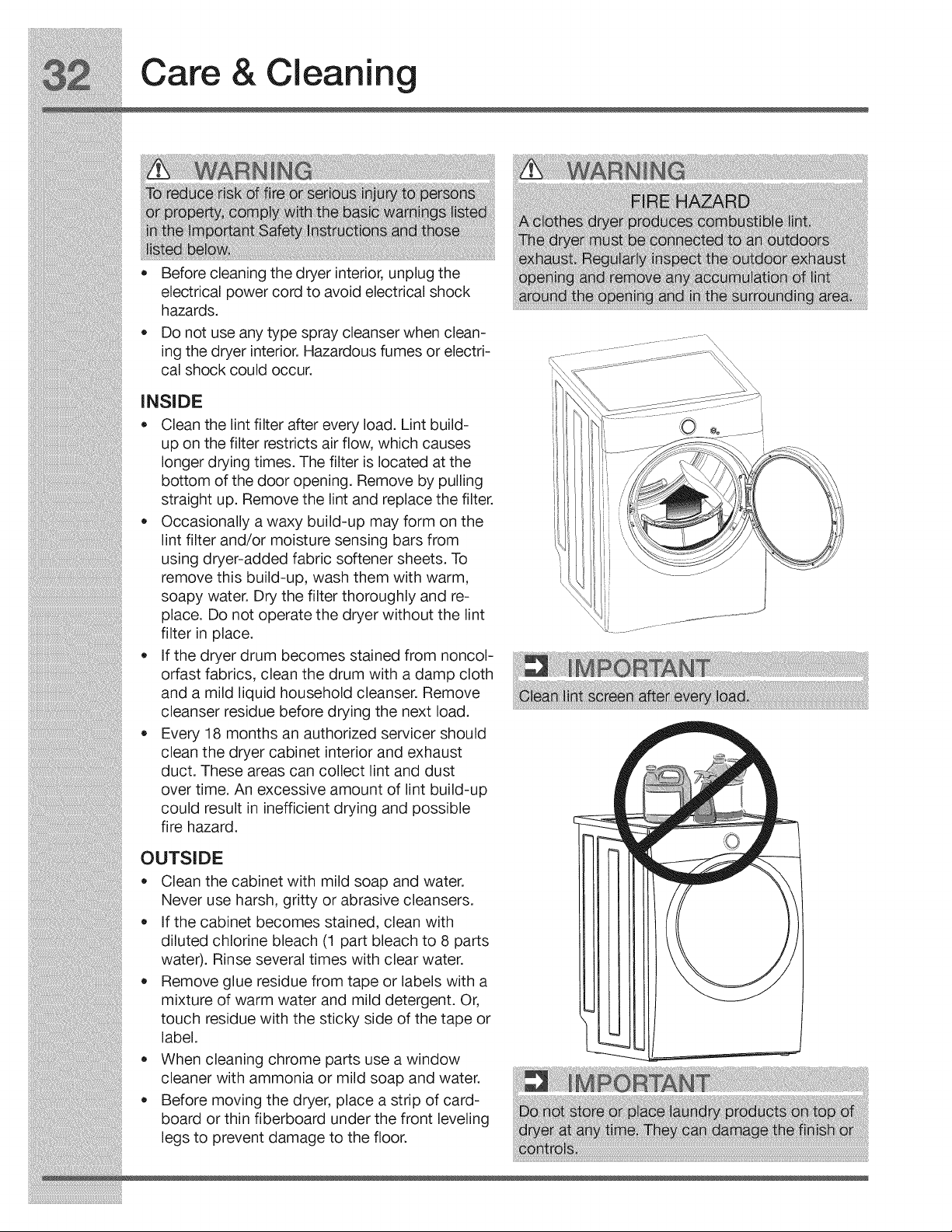

Care & Cleaning ............................................................ 32
Solutions to Common Problems ............................. 33-34

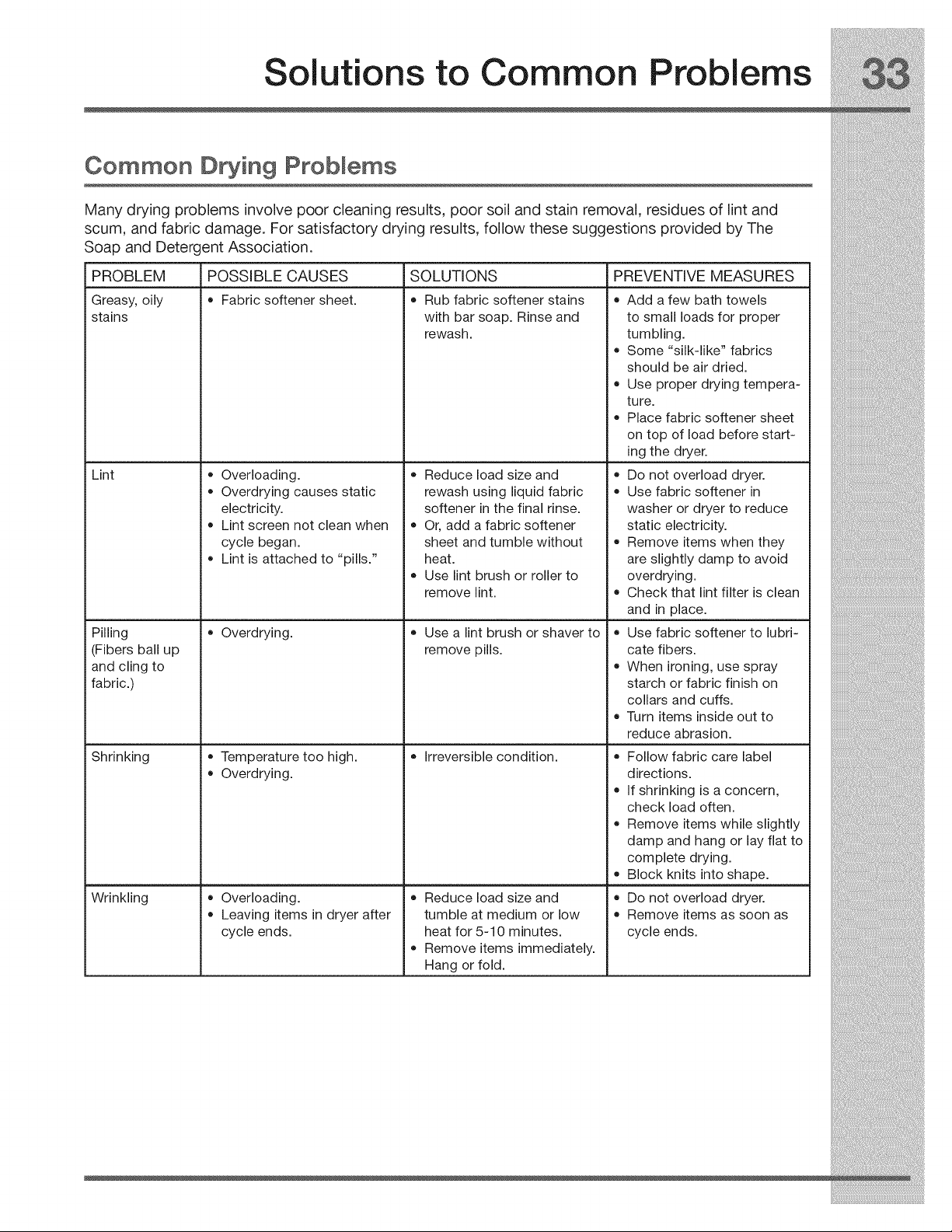

Common Drying Problems ....................................... 33

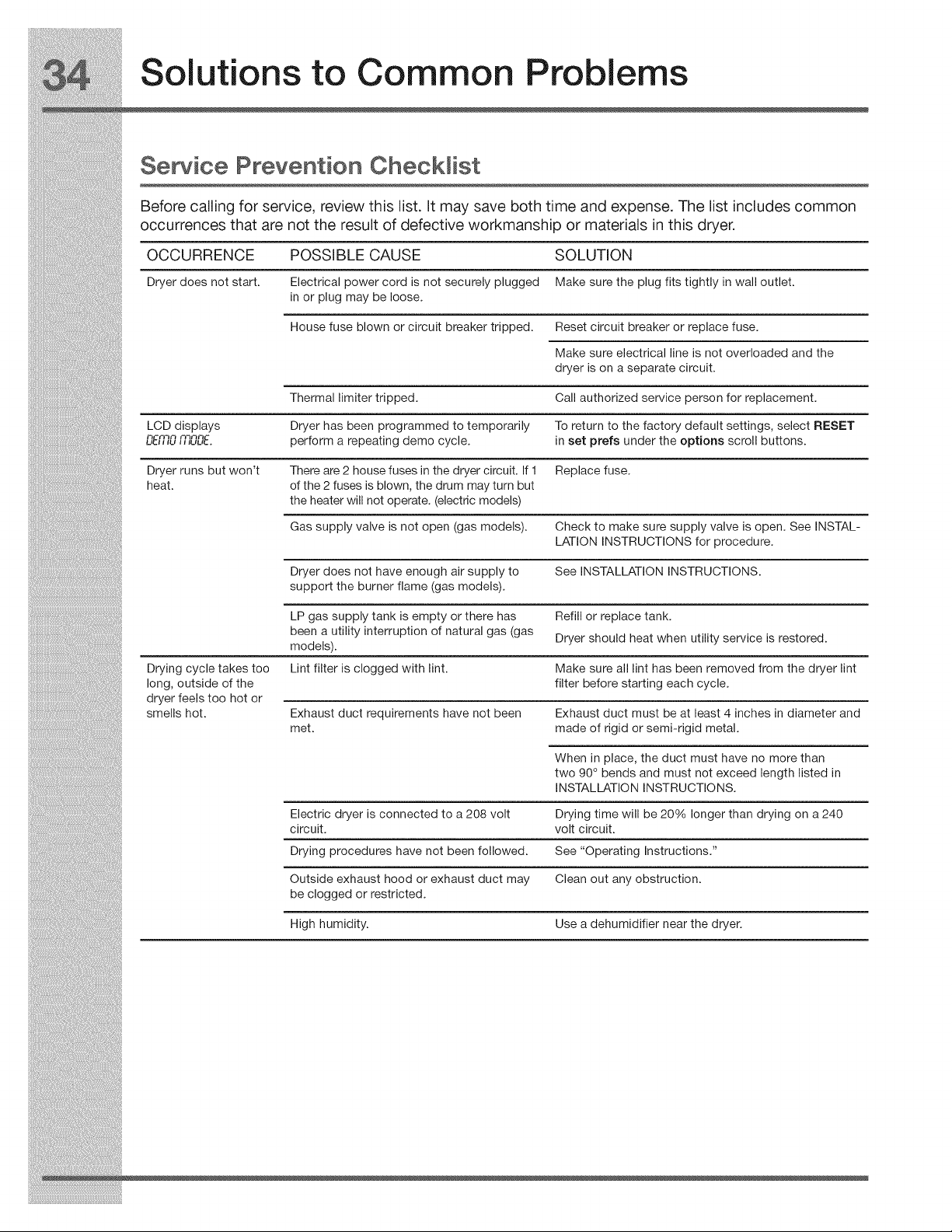

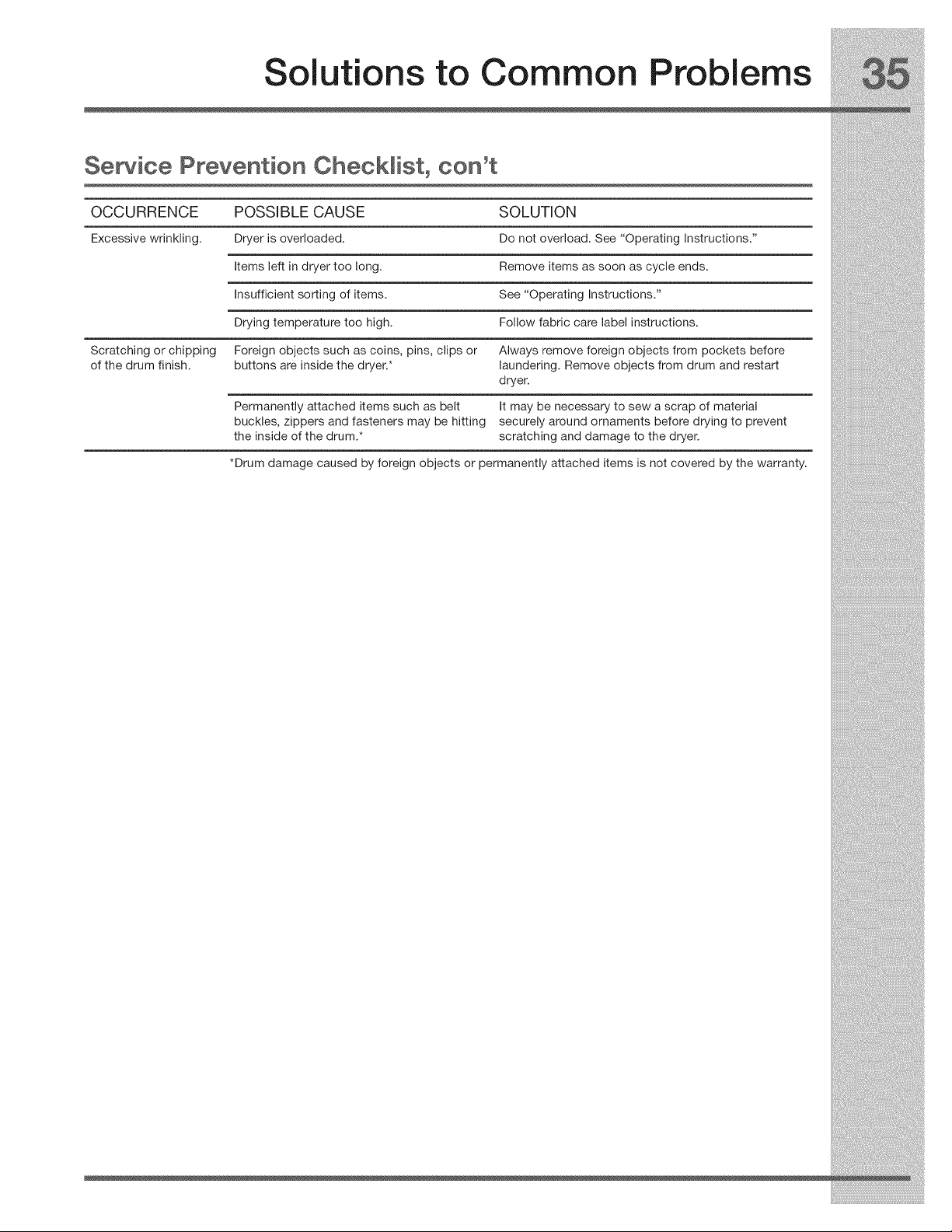

Service Prevention Checklist ............................... 34-35

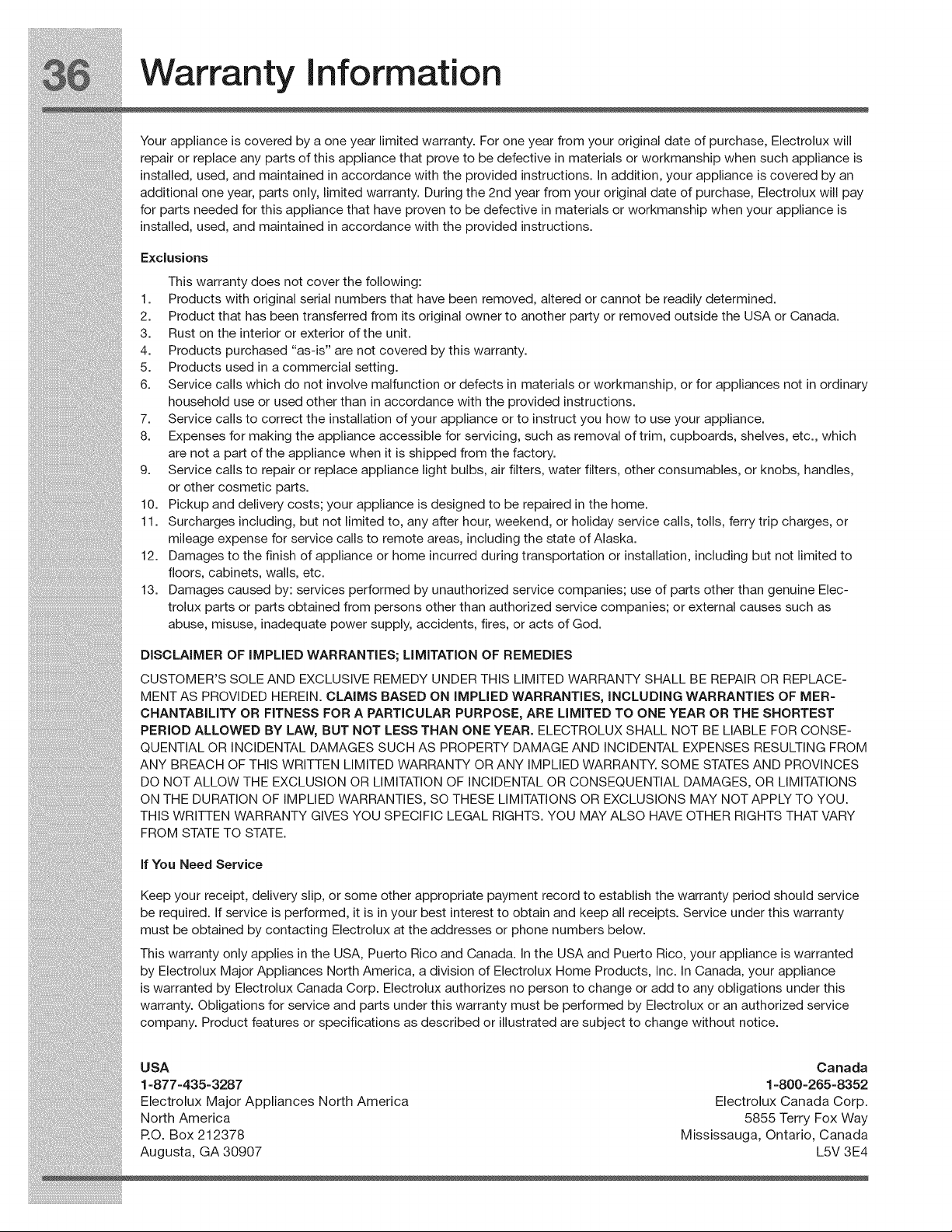

Warranty information .................................................... 36
©2008 Electrolux Major Appliances All rights reserved.
Safety

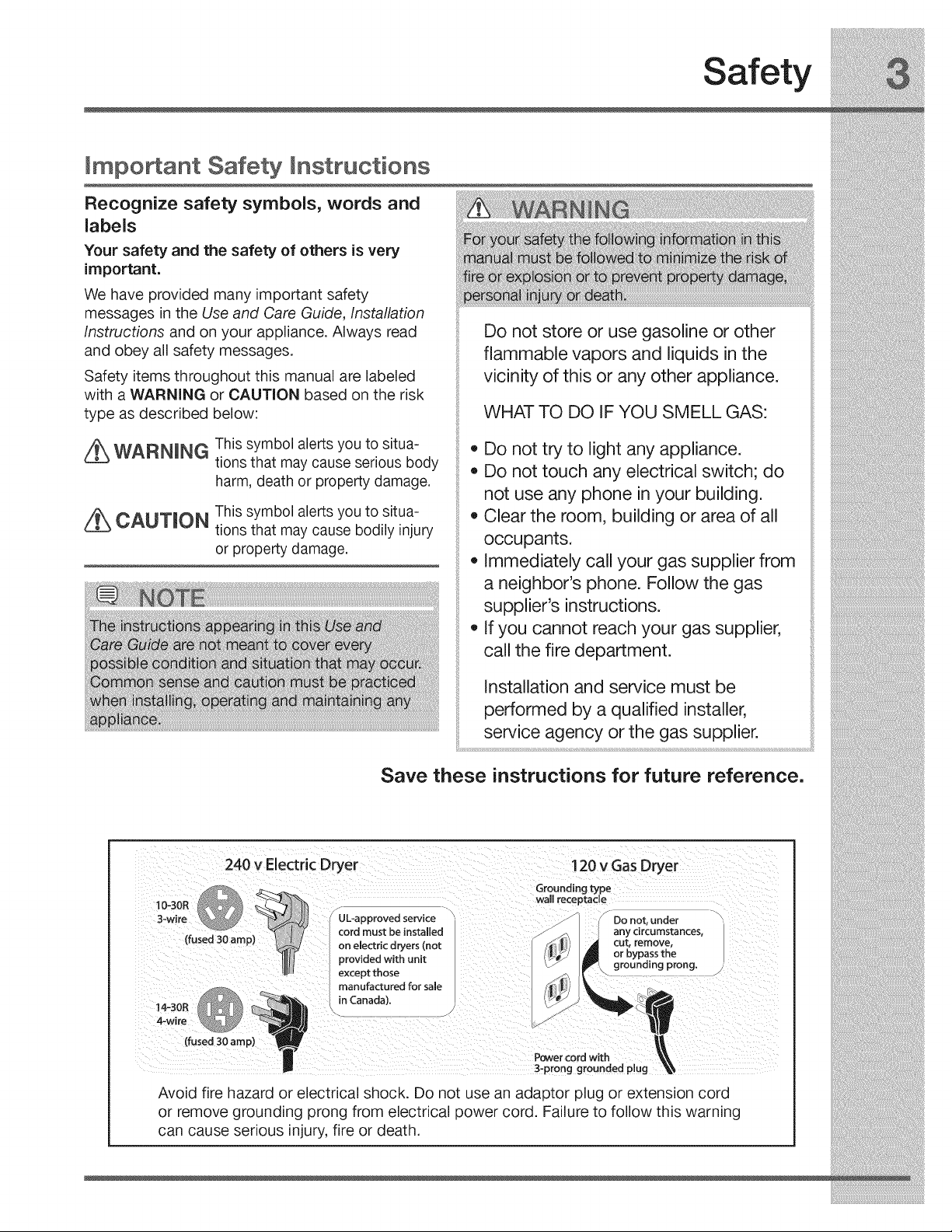

ImpoAant Safety Instructions
Recognize safety symbols, words and
labels
Your safety and the safety of others is very
important.
We have provided many important safety
messages in the Use and Care Guide, Installation
Instructions and on your appliance. Always read
and obey all safety messages.
Safety items throughout this manual are labeled
with a WARNING or OAUTION based on the risk
type as described below:
/_ WARNING This symbol alerts you to situa-
tions that may cause serious body
harm, death or property damage.
/_ CA[JT_ON This symbol alerts you to situa-
tions that may cause bodily injury
or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
,, Do not try to light any appliance.
_,Do not touch any electrical switch; do
not use any phone in your building.
_,Clear the room, building or area of all
occupants.
,, Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
_,If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Save these instructions for future reference.
240 v Electdc Dryer
UL-approved service
cord must be installed
on electric dryers (not
provided with unit
except those
manufactured for sale
in Canada).
120 v Gas Dryer
Grounding type
wall receptacle
Do not, under
_..\ any circumstances,
--_'_I_ .i cut, remove,
I_/ _ or bypass the
_'_ grounding prong.
II
Power cord with k_
3-prong grounded plug _,'_
Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord
or remove grounding prong from electrical power cord. Failure to follow this warning
can cause serious injury, fire or death.
Safety

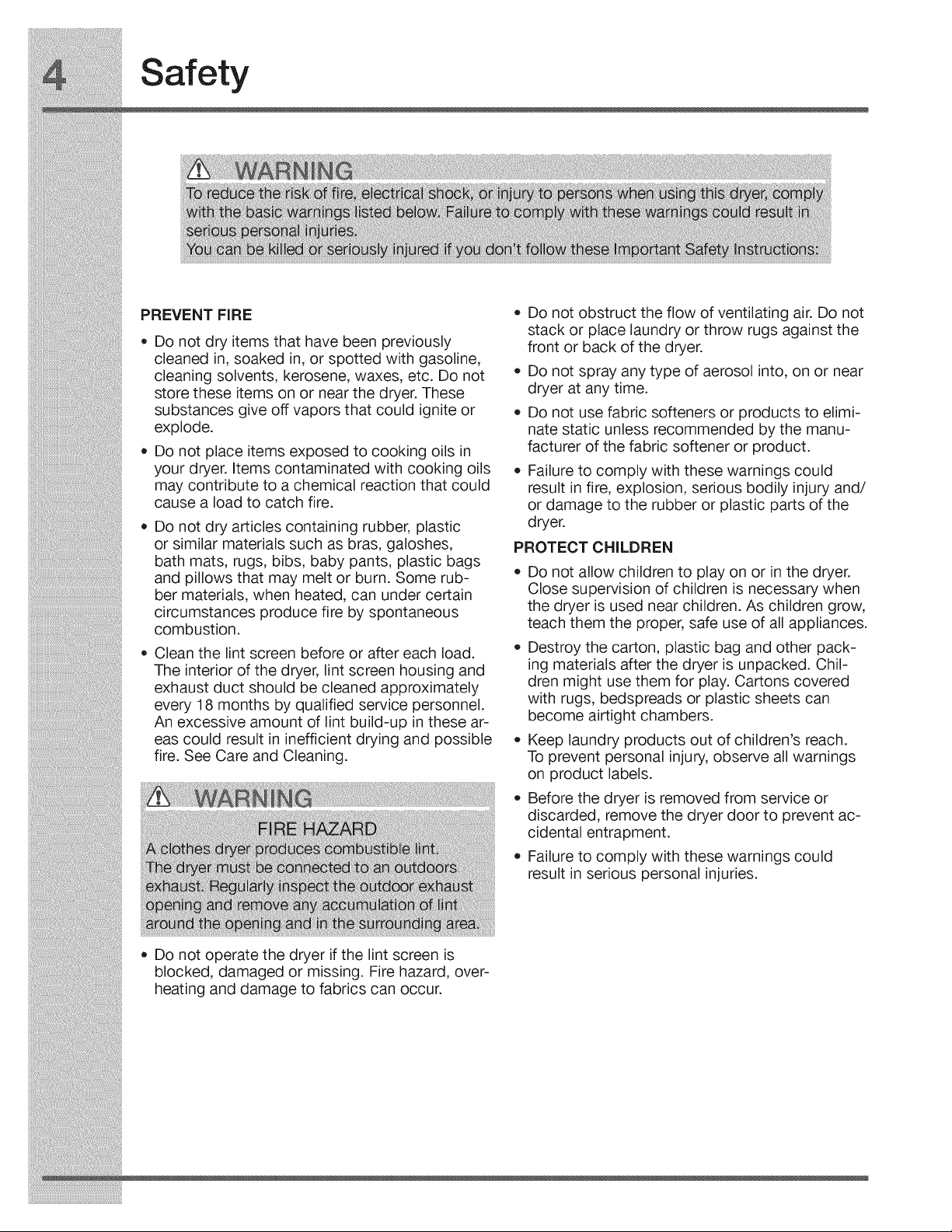

PREVENT FiRE
• Do not dry items that have been previously
cleaned in, soaked in, or spotted with gasoline,
cleaning solvents, kerosene, waxes, etc. Do not
store these items on or near the dryer. These
substances give off vapors that could ignite or
explode.
Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a load to catch fire.
Do not dry articles containing rubber, plastic
or similar materials such as bras, galoshes,
bath mats, rugs, bibs, baby pants, plastic bags
and pillows that may melt or burn. Some rub-
ber materials, when heated, can under certain
circumstances produce fire by spontaneous
combustion.
Clean the lint screen before or after each load.
The interior of the dryer, lint screen housing and
exhaust duct should be cleaned approximately
every 18 months by qualified service personnel.
An excessive amount of lint build-up in these ar-
eas could result in inefficient drying and possible
fire. See Care and Cleaning.
Do not obstruct the flow of ventilating air. Do not
stack or place laundry or throw rugs against the
front or back of the dryer.
Do not spray any type of aerosol into, on or near
dryer at any time.
Do not use fabric softeners or products to elimi-
nate static unless recommended by the manu-
facturer of the fabric softener or product.
Failure to comply with these warnings could
result in fire, explosion, serious bodily injuryand/
or damage to the rubber or plastic parts of the
dryer.
PROTECT CHILDREN
Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. As children grow,
teach them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other pack-
ing materials after the dryer is unpacked. Chil-
dren might use them for play. Cartons covered
with rugs, bedspreads or plastic sheets can
become airtight chambers.
Keep laundry products out of children's reach.
To prevent personal injury, observe all warnings
on product labels.
Before the dryer is removed from service or
discarded, remove the dryer door to prevent ac-
cidental entrapment.
Failure to comply with these warnings could
result in serious personal injuries.
• Do not operate the dryer ifthe lint screen is
blocked, damaged or missing. Fire hazard, over-
heating and damage to fabrics can occur.

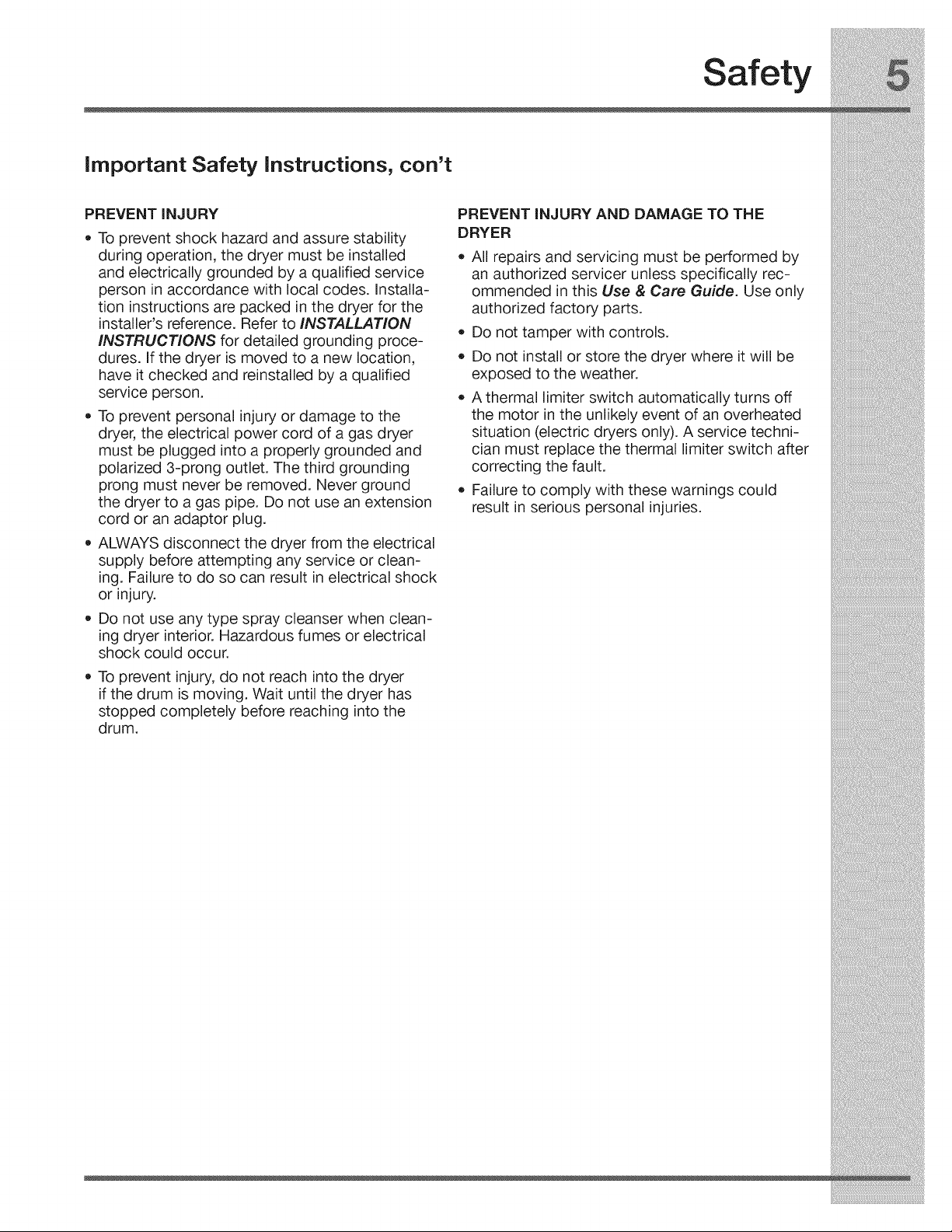

Safety
important Safety instructions, con't
PREVENTINJURY
• To prevent shock hazard and assure stability
during operation, the dryer must be installed
and electrically grounded by a qualified service
person in accordance with local codes. Installa-
tion instructions are packed in the dryer for the
installer's reference. Refer to INSTALLATION
o
INSTRUCTIONS for detailed grounding proce-
dures. If the dryer is moved to a new location,
have it checked and reinstalled by a qualified
service person.
To prevent personal injury or damage to the
dryer, the electrical power cord of a gas dryer
must be plugged into a properly grounded and
polarized 3-prong outlet. The third grounding
prong must never be removed. Never ground
the dryer to a gas pipe. Do not use an extension
cord or an adaptor plug.
ALWAYS disconnect the dryer from the electrical
supply before attempting any service or clean-
ing. Failure to do so can result in electrical shock
or injury.
Do not use any type spray cleanser when clean-
ing dryer interior. Hazardous fumes or electrical
shock could occur.
To prevent injury, do not reach into the dryer
if the drum is moving. Wait until the dryer has
stopped completely before reaching into the
drum.
PREVENT INJURY AND DAMAGE TO THE
DRYER
All repairs and servicing must be performed by
an authorized servicer unless specifically rec-
ommended in this Use & Care Guide. Use only
authorized factory parts.
Do not tamper with controls.
Do not install or store the dryer where it will be
exposed to the weather.
A thermal Iimiter switch automatically turns off
the motor in the unlikely event of an overheated
situation (electric dryers only). A service techni-
cian must replace the thermal limiter switch after
correcting the fault.
Failure to comply with these warnings could
result in serious personal injuries.
iil

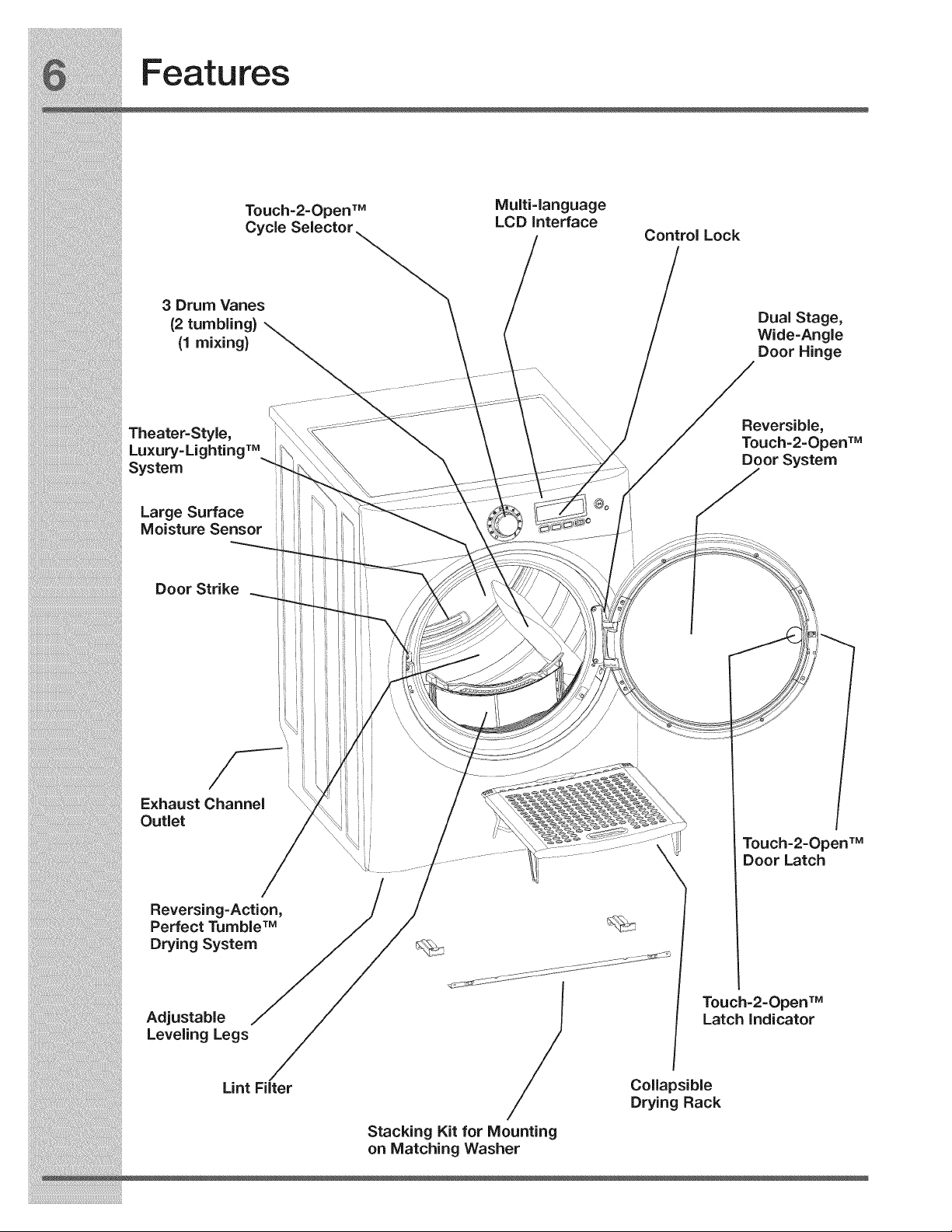

Touch=2=OpenTM
Cycle Selector
Multi-language
LCD interface
Control Lock
Dual Stage,
Wide=Angle
Door Hinge
Theater-Style,
Luxury-LightingTM
System
Large Surface
Moisture Sensor
Reversible,
Touch=2=OpenTM
Door System
Door Strike
Exhaust Channel \
Outlet
Reversing=Action,
Perfect TumbleTM
Drying System
Touch- 2=Open T_
Door Latch
Adjustable
Leveling Legs
Lint Fiiter
Stacking Kit for Mounting
on Matching Washer
/
Col|apsible
Drying Rack
Touch-2-OpenTM
Latch Indicator
Operating instructions
casual
active
cate
perfect
steam
my time
favorites dry
To operate your dryer, follow these basic steps:
1. Check and dean the lint filter. (See page 8.)
2. Load the dryer. (See page 8.)

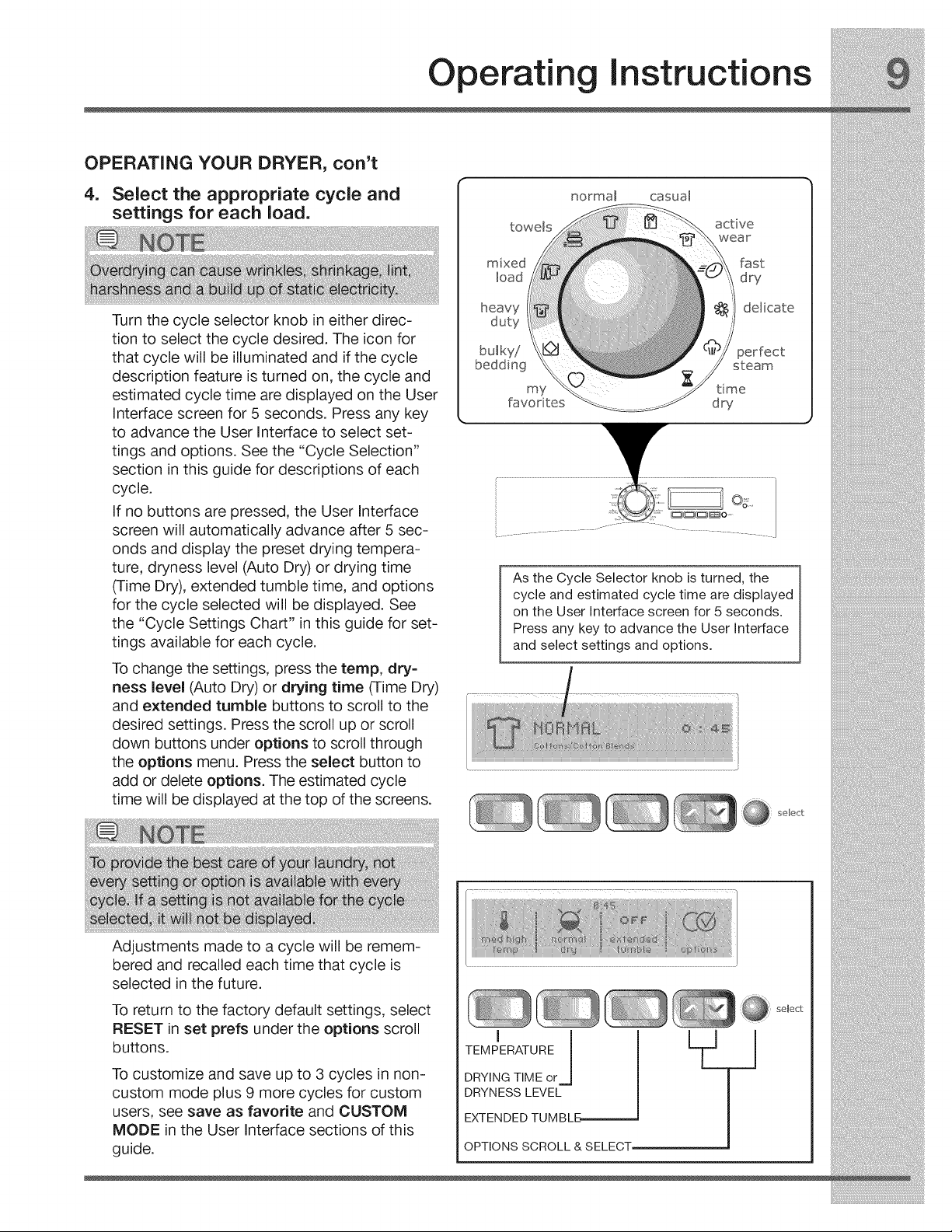

3. Select the desired cycle. (See page 9, pages
11-14 and page 29.)

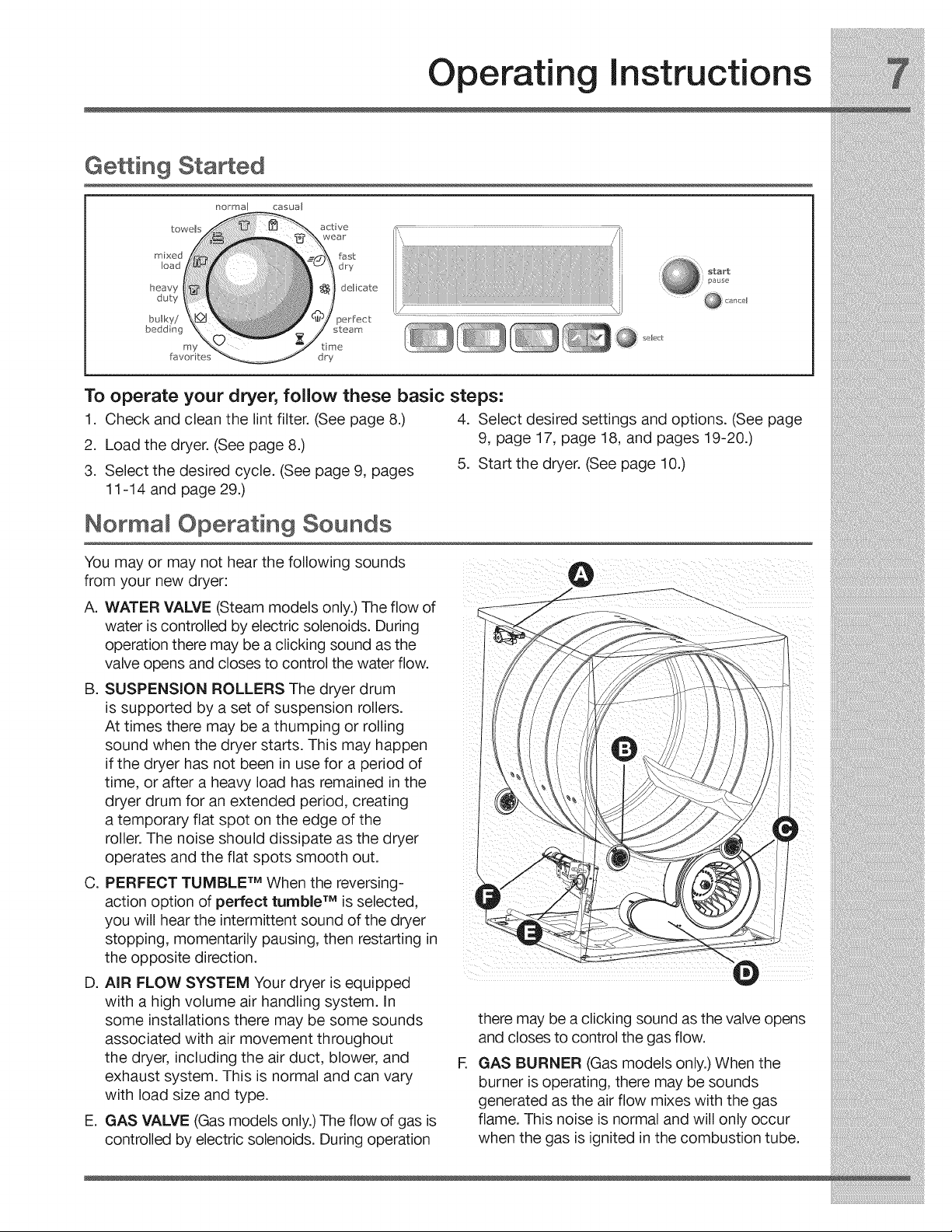

Normal Operating Sounds
4. Select desired settings and options. (See page
9, page 17, page 18, and pages 19-20.)

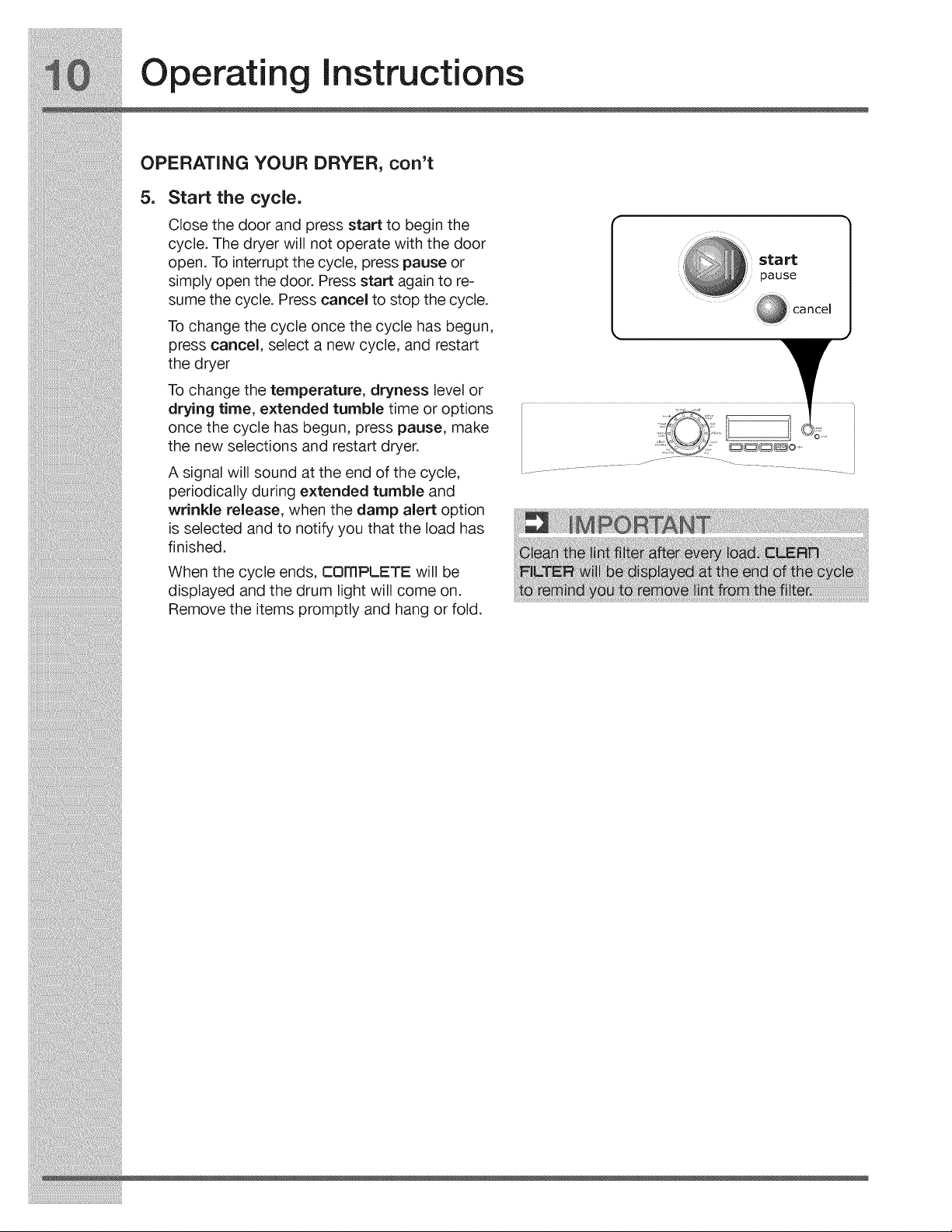

5. Start the dryer. (See page 10.)
You may or may not hear the following sounds
from your new dryer:
A. WATER VALVE (Steam models only.) The flow of
water is controlled by electric solenoids. During
operation there may be a clicking sound as the
valve opens and closes to control the water flow.
B. SUSPENSION ROLLERS The dryer drum
is supported by a set of suspension rollers.
At times there may be a thumping or rolling
sound when the dryer starts. This may happen
if the dryer has not been in use for a period of
time, or after a heavy load has remained in the
dryer drum for an extended period, creating
a temporary flat spot on the edge of the
roller. The noise should dissipate as the dryer
operates and the flat spots smooth out.
C. PERFECT TUMBLE TM When the reversing-
action option of perfect tumble TM is selected,
you will hear the intermittent sound of the dryer
stopping, momentarily pausing, then restarting in
the opposite direction.
D. AIR FLOW SYSTEM Your dryer is equipped
with a high volume air handling system. In
some installations there may be some sounds
associated with air movement throughout
the dryer, including the air duct, blower, and E
exhaust system. This is normal and can vary
with load size and type.
E. GAS VALVE (Gas models only.) The flow of gas is
controlled by electric solenoids. During operation
there may be a clicking sound as the valve opens
and closes to control the gas flow.
GAS BURNER (Gas models only.) When the
burner is operating, there may be sounds
generated as the air flow mixes with the gas
flame. This noise is normal and will only occur
when the gas is ignited in the combustion tube.
Operatin
instructions
Operating Your Dryer
BEFORE USING YOUR DRYER
Read the important instructions in this section of the
Use and Care Guide before operating your dryer.
OPERATING YOUR DRYER
=
Prepare load for drying.
Dry items of similar fabric, weight and con-
struction in the same load.
Separate dark items from light-colored items.
Separate items that shed lint from those that
attract lint.
Check for stains which may not have been
removed in washing. Repeat stain removal
process and wash again before drying. Dryer
heat may permanently set some stains.
Place delicate or small items in a mesh bag.
Be sure buckles, buttons and trim are heat-
proof and won't damage the drum finish. Close
zippers; fasten hooks and Velcro®-Iike fasten-
ers. Tie strings and sashes to prevent snag-
ging and tangling.
2. Check that the lint filter is clean and
in place.
A clean lint filter allows the dryer to operate
more efficiently.
3. Load the dryer and close the door.
Load items loosely. The average wet load will
fill the drum 1/3 to 1/2 full. items need room to
tumble freely for even drying and less wrinkling.
If desired, place a dryer fabric softener sheet
on top of the load at the beginning of the
cycle.
To save energy and time and avoid uneven
drying and wrinkling, do not overload the dryer.
When drying large items, dry only two or three
items at a time. Fill out the load with small and
medium sized items.
For delicate or very small loads, add two or
three similar items to improve tumbling action.
Mesh bag not included.)
Operating instructions
OPERATING YOUR DRYER, con't
4. Select the appropriate cycle and
settings for each load.
Turn the cycle selector knob in either direc-
tion to select the cycle desired. The icon for
that cycle will be illuminated and if the cycle
description feature is turned on, the cycle and
estimated cycle time are displayed on the User
Interface screen for 5 seconds. Press any key
to advance the User Interface to select set-
tings and options. See the "Cycle Selection"
section in this guide for descriptions of each
cycle.
If no buttons are pressed, the User Interface
screen will automatically advance after 5 sec-
onds and display the preset drying tempera-
ture, dryness level (Auto Dry) or drying time
(Time Dry), extended tumble time, and options
for the cycle selected will be displayed. See
the "Cycle Settings Chart" in this guide for set-
tings available for each cycle.
To change the settings, press the temp, dry-
ness level (Auto Dry) or drying time (Time Dry)
and extended tumble buttons to scroll to the
desired settings. Press the scroll up or scroll
down buttons under options to scroll through
the options menu. Press the select button to
add or delete options. The estimated cycle
time will be displayed at the top of the screens.
towe_s
mixed
load
heavy
duty
bulky/
bedding
norma_ casual
active
wear
fast
dry
del care
perfect
steam
my time
favorites dry
............................. 7" ............... ..................
As the Cycle Selector knob is turned, the
cycle and estimated cycle time are displayed
on the User Interface screen for 5 seconds.
Press any key to advance the User Interface
and select settings and options.
select
Adjustments made to a cycle will be remem-
bered and recalled each time that cycle is
selected in the future.
To return to the factory default settings, select
RESET in set prefs under the options scroll
buttons.
To customize and save up to 3 cycles in non-
custom mode plus 9 more cycles for custom
users, see save as favorite and CUSTOM
MODE in the User interface sections of this
guide.
j
TEMPERATURE
DRYING TIME or
DRYNESS LEVEL
EXTENDED TUMBLB
OPTIONS SCROLL & SELECT--
select
Operatin
Instructions
OPERATING YOUR DRYER, con't
5_
Start the cycle.
Close the door and press start to begin the
cycle. The dryer will not operate with the door
open. To interruptthe cycle, press pause or
simply open the door. Press start again to re-
sume the cycle. Press cancel to stop the cycle.
To change the cycle once the cycle has begun,
press cancel, select a new cycle, and restart
the dryer
To change the temperature, dryness level or
drying time, extended tumble time or options
once the cycle has begun, press pause, make
the new selections and restart dryer.
A signal will sound at the end of the cycle,
periodically during extended tumble and
wrinkle release, when the damp alert option
is selected and to notify you that the load has
finished.
When the cycle ends, cOmPLETE will be
displayed and the drum light will come on.
Remove the items promptly and hang or fold.
Operating Instructions
Cycle Selection
Turn the cycle selector in either direction to the
cycle desired. The icon for that cycle will be illumi-
nated. Press on the cycle selector knob to extend
it or return it flush to the console.
For best results
Follow the fabric care label instructions
on items to be dried.
To change the cycle once it has begun, press the
cancel button before selecting a new cycle. Just
turning the cycle selector knob to another selec-
tion will not change the cycle.
AUTO DRY CYCLES
Auto Dry cycles take the guesswork out of select-
ing the correct drying time for each load. Moisture
sensing bars at the back of the dryer drum sense
the moisture level of the load as it tumbles through
the heated air. With Auto Dry cycles, the load will
automatically be dried at the selected temperature
to the desired dryness level.
Auto Dry cycles save time and energy and protect
fabrics. When the load has reached the selected
dryness level, it will continue to tumble, unheated,
during a cool down period. This helps reduce
wrinkling and makes items easier to handle during
unloading.
Drying time varies depending on size and damp-
ness of load and fabric type. If the load is too small
or almost dry, the moisture sensing bars may not
detect enough moisture to continue the cycle and
the cycle may end after a few minutes. If this oc-
curs, then select the time dry cycle to dry such
loads.
Room temperature and humidity, type of installa-
tion and electrical voltage or gas pressure can also
affect drying time.
towels
mixed
load
heavy
duty
bulky/
bedding
normal casual
active
wea_ _
fast
dr,i
de[ cate
perfect
steam
my time
favor tes dry
Operatin
instructions
AUTO DRY CYCLES, con't
NORMAL _
Select this cycle to dry everyday fabrics including
cottons and sheets with high temp, meal high
temp or medium temp heat. All dryness levels
except maximum dry and all options including
sanitize are available with this Auto Dry cycle. If
equipped with Perfect Steam TM, the add steam
option is also available with this cycle.
TOWELS =_
Select this cycle to dry heavy loads such as towels
and bath mats with maximum temp, high temp
or reed high temp heat. The maximum dry, more
dry and normal dry dryness levels and the perfect
tumble and sanitize options are available with
this Auto Dry cycle.
MIXED LOAD £1_
Select this cycle to dry loads containing a mix of
fabrics with meal high temp, medium temp, or
meal low temp heat. All dryness levels except
maximum dry and all options except sanitize are
available with this Auto Dry cycle. If equipped with
Perfect Steam TM, the add steam option isalso
available with this cycle.
HEAVY DUTY I_
Select this cycle to dry durable fabrics such as
jeans and overalls with maximum temp, high
temp, or meal high temp heat. All dryness levels
except damp dry and all options including
sanitize are available with this Auto Dry cycle.
BULKY/BEDDING
Select this cycle to dry bedding and bulky items
such as comforters, blankets, sleeping bags and
parkas with reed high temp, medium temp, or
reed low temp heat. Normal dry and less dry
dryness levels and all options except sanitize are
available with this Auto Dry cycle.
towels
mixed
load
heavy
duty
bulky!
bedding
normal casual
active
wear
fast
dry
delicate
perfect
steam
my time
favorites dry
L.............................. ............ " - ............ J
AUTO DRY CYCLES
TEMPERATURE
DRYNESS LEVEL
EXTENDED TUMBLE_
OPTIONS SCROLL & SELECT--
1
select
Operating instructions
AUTO DRY CYCLES, con't
CASUAL [_
Select this cycle to dry cottons and blends with
a no-iron finish using meal high temp, medium
temp, or meal low temp heat. Normal dry, less
dry, and damp dry dryness levels and all options
except sanitize are available with this Auto Dry
cycle. If equipped with Perfect Steam TM, the add
steam option isalso available with this cycle.
ACTIVE WEAR I_
Select this cycle to dry lightweight synthetic ath-
letic apparel including stretch fabrics with medium
temp, meal low temp or low temp heat. Normal
dry, less dry, and damp dry dryness levels and
all options except sanitize are available with this
Auto Dry cycle.
DELICATE _!_
Select this cycle to dry knits and delicates with
meal low temp or low temp heat. Normal dry,
less dry, and damp dry dryness levels and all
options except sanitize are available with this
Auto Dry cycle.
towels
mixed
load
heavy
duty
bulky/
bedding
normal casud
active
wea_
fast
dr,i
dd cate
perfect
steam
my time
favorites dry
AUTO DRY CYCLES
TEM PIERATURE _ L_
DRYNESS LEVEL /
select
Operatin
instructions
TiME DRY CYCLES
TIME DRY
To manually select the drying time for any load,
turn the cycle selector knob to time dry and press
the drying time button to select up to 90 minutes
of drying time in 15-minute increments. Select any
drying temperature. Dryness levels are not select-
able with Time Dry cycles. The extended tumble,
wrinkle release, delicate heat and shrink guard
options are available with the time dry cycle.
towels
mixed
goad
heavy
duty
bulky/
bedding
normal casual
actve
wea_ _
fast
dry
del care
perfect
steam
my time
favor tes dry
FAST DRY "='_--(_
Select this cycle to quickly dry small loads in 18
minutes with maximum temp, high temp, or meal
high temp heat. No options are available with this
Time Dry cycle.
PERFECT STEAM _)
(steam models only)
Select this cycle to refresh fabrics, remove odors
and reduce static by injecting the perfect amount
of steam into clothing that has been left in the
dryer, stored in crowded closets, drawers, or
unpacked luggage. The load will tumble for 15
minutes on low temp heat while steam is injected
into the drum. The perfect tumble option is avail-
able with this Time Dry cycle.
t............................................... - ................
TIME DRY CYCLES
TEM PIERATURE I LEJ _
DRYING TIME ====_
EXTENDED TUMBLE_
OPTIONS SCROLL & SELECT--
1
select
TOUCH UP _'_-
(non-steam models only)
Select this cycle to remove wrinkles from clean,
dry items that may have been left in the dryer,
stored in crowded closets or drawers or unpacked
from luggage. The load will tumble for 15 minutes
on low temp heat. The perfect tumble option is
available with this Time Dry cycle.
]
Operating Instructions

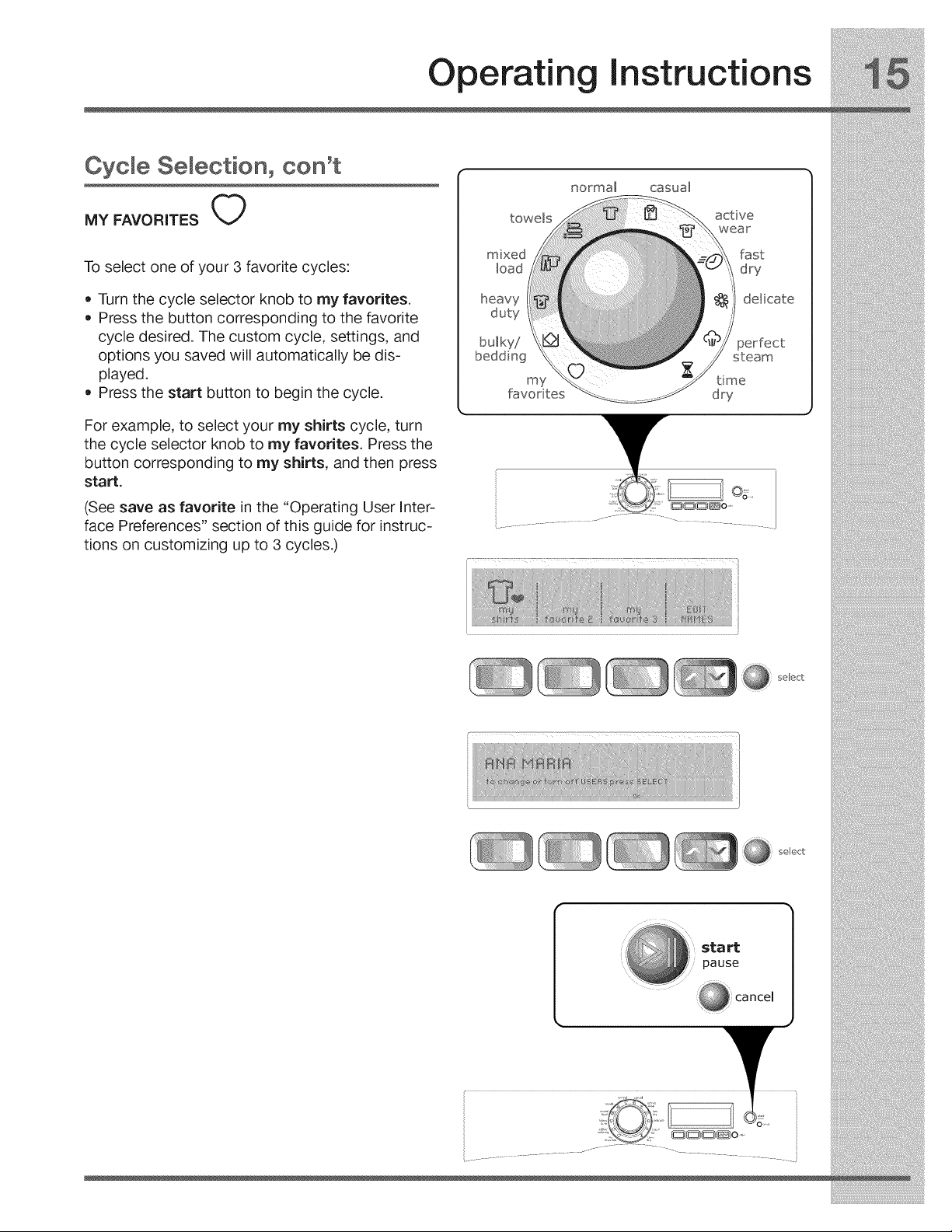

Cycle Selection0 con't
MY FAVORITES 0
To select one of your 3 favorite cycles:
• Turn the cycle selector knob to my favorites.
Press the button corresponding to the favorite
cycle desired. The custom cycle, settings, and
options you saved will automatically be dis-
played.
Press the start button to begin the cycle.
For example, to select your my shirts cycle, turn
the cycle selector knob to my favorites. Press the
button corresponding to my shirts, and then press
start.
(See save as favorite in the "Operating User Inter-
face Preferences" section of this guide for instruc-
tions on customizing up to 3 cycles.)
towels
mixed
load
heavy
duty
bulky/
bedding
normal casud
active
wea_
fast
dr,i
dd cate
perfect
steam
my time
favorites dry
select
select
start
pause
cancel
• Press the start button.
To select a user if a user's name is not displayed
when the dryer is turned on:
Press the options buttons to scroll to set prefs
and then press the select button.
If necessary, press the options buttons to scroll
to CUSTOM MODE and then press the select
button.
_,Press the button corresponding to the user's
name.
• The icon for the last cycle run will light up.
• Turn the cycle selector knob to my favorites.
• Select one of the 3 customized cycles by press-
ing the corresponding button.
• Press the start button.
(See CUSTOM MODE in "Operating User Interface
Preferences" in this guide for instructions entering
new users and naming favorite cycles.)
Lime
favorites dry
start
pause
cancel
Operating Instructions
D in9 Temperature
The appropriate drying temperature will auto-
maticaliy be indicated for the cycle selected.
For best results
Follow the fabric care label instructions
on items to be dried.
Tochange the preset temperature, press the tem-
perature button to scroll to the desired setting.
To protect your fabrics, not all temperatures are
available with every cycle. If a temperature is not ap-
propriate for the cycle, it will not be displayed.
The temperature selected for the cycle will be
remembered each time that cycle is selected in the
future.
select
MAXIMUM TEMP
Recommended to use with the sanitize option for
towels and heavy duty loads.
HiGH TEMP
Recommended for durable fabrics.
MED HiGH TEMP
Recommended for most cotton fabrics.
MEDIUM TEMP
Recommended for wrinkle free, easy care light-
weight fabrics and bulky loads.
MED LOW TEMP
Recommended for knits.
LOW TEMP
Recommended for delicate fabrics.
AIR FLUFF TEMP
This setting (no heat) should only be used with a
time dry cycle to dry items containing feathers,
down, foam rubber, plastics or rubber-like materi-
als; to refresh clothing, stuffed animals, pillows or
blankets; and to dust draperies.
Operatin
Instructions
D ness Level (Auto
The appropriate dryness level will automatically
be indicated when the cycle is selected.
Tochange the preset level, press the dryness level
button to scroll to the degree of dryness desired.
To protect your fabrics, not all dryness levels are
available with every cycle. If a dryness level is not
recommended for the cycle, it will not be displayed.
The dryness level selected for the cycle will be
remembered and recalled each time that cycle is
selected in the future.
¢ : ...... - 7 : .... ..... :::: ............ : ........
[ i
se[ect
Select the normal dryness level for most Auto Dry
cycles.
Occasionally a load may seem too damp or over-
dried at the end of the cycle. To increase the drying
time for similar loads in the future, press the dryness
button to select more dry or maximum dry. For
loads requiring less drying time, select less dry.
Select damp dry for items you wish to partially dry
before hanging or ironing.
D in9 Time (Time Dry}
Press the drying time button to select up to 90
minutes of drying time in 15-minute increments. This
setting is only available with the time dry cycle.
Operating Instructions
Suitable options will automatically be indicated
when the cycle is selected.
To select or clear the wrinkle release, extended
tumble, delicate heat, perfect tumble, sanitize,
shrink guard and damp alert options, press the
options buttons until the desired option isdis-
played. Press select and On will be displayed in the
upper right corner. To clear the option, press select
again and On will disappear.
To protect your fabrics, not all options are available
with every cycle, if an option is not appropriate for
the cycle, it will not be displayed.
select
i
All options selected for the cycle, except sanitize,
will be remembered each time that cycle is selected
in the future. To prevent unintentional and accidental
exposure of delicate material to sanitize heat, the
sanitize option will not be remembered and must
be reselected each time.
I
ADD STEAM
(steam models only)
The add steam option injects steam intothe cloth-
ing prior to cool down to reduce wrinkling, ironing
and static cling.
WAdd steam option available on Steam Model only.
Operatin
instructions
Options, con't
WRINKLE RELEASE
The wrinkle release option helps prevent wrinkles
and tangling by alternately tumbling the load with-
out heat for 5 minutes ina clockwise direction, then
5 minutes ina counterclockwise direction, for a total
of 45 minutes. A signal will sound every 5 minutes
to remind you to remove the dry load at any time.
The extended tumble option can be selected with
wrinkle release to increase the amount of time the
load will tumble without heat. Use this combination
if you know it could be up to 3 hours before you
can remove the load.
DELICATE HEAT
Select the delicate heat option to protect a load
from excessive heat which can lead to shrinking
and over-drying. The drying temperature will be
gradually reduced as the load dries.
EXTENDED TUMBLE
Select the extended tumble option if the dried
load might not be removed promptly at the end of
the cycle. The dry load will tumble without heat in
a clockwise direction only for the selected time to
help reduce wrinkling. Press the extended tumble
button to select 10 or 30 minutes or 1,2 or 3 hours
tumbling. A signal will sound periodically to remind
you to remove the dry load at any time.
The wrinkle release option can be selected with
extended tumble option to increase the amount
of time the load will tumble without heat. Use this
combination if you know it could be up to 3 hours
before you can remove the load.
PERFECT TUMBLE
The perfect tumble option uses reverse tumble
action during cool down to reduce tangling and
wrinkling.
I 1
i
select
1
WAdd steam option available on Steam Model only.
Operating instructions
Options, con't
SANITIZE
Select the sanitize option for loads that may con-
tain harmful bacteria. An extended drying time at
high heat will kill 99.9% of bacteria with no carry-
over of bacteria between loads. Check fabric care
labels to prevent damage caused by high heat.
select
i
NSF Protolcol P154
Sanitization Performance of
Residential Clothes Dryers
SHRINK GUARD
The shrink guard option reduces the initial drying
temperature and gradually lowers the drying tem-
perature during the cycle to protect fabrics from
shrinking.
DAMP ALERT
For loads that contain some items you plan to hang
dry, flat dry or iron, add the damp alert option to
any Auto Dry cycle. If the VOLUME is turned up in
your preferences (see "Setting Preferences" on the
next page), a chime will sound when the load has
reached the damp dry dryness level to remind you
to remove those items to hang dry, dry flat or iron
dry. Open the door, remove those items, close the
door and press the start button to continue drying
the remaining items.
I
*Add steam option available on Steam Model only.
Operatin
User Interface Features
User Inte ace Features
SAVE AS FAVORITE
The save as favorite feature allows you to person-
alize up to 3 custom cycles for each saved user.
See save as favorite in "Operating User Interface
Preferences" for more details.
SET PREFS
The set prefs feature allows you to personalize
cycles, hide cycle descriptions, select language,
volume, brightness and contrast of the display,
reset settings and run the installation cycle. See
SET PREFS in "Operating User Interface Features"
for more details.
USER GUIDES
Scroll through this option for the CYCLES GUIDE,
SETTINGS GUIDE, OPTIONS GUIDE, and SET
PREFS GUIDE for descriptions of the cycles, dry-
ing temperatures, dryness levels, cycle options
and features for user preferences.
CONTROL LOCK
To lock the controls between cycles, scroll to the
control lock feature press select and CDFITRDL
LOCH OFF - press SELECT to lock the control
panel will be displayed. Press the select button to
lock the controls. To unlock the controls, press and
hold select again for 3 seconds. Use this feature
to reduce the likelihood of accidental operation by
children.
r
select
[ LIST OF SAVED FAVORITES i
[ CUSTOM MODE i
[ INSTALL CYCLE
[ RESET
[ CONTRAST
[ BRIGHTNESS
[ VOLUME
[ LANGUAGE
[ CYCLE DESC ON
[ CYCLES GUIDE i
I
[ SE-R-INGS GUIDE i
I
[ OPTIONS GUIDE i
I
[ SET PREFS GUIDE i
[ CONTROL LOCK ON i
I
[ CONTROLLOCKOFF i
Operating User interface Features
Saving Favorites
Use the save as favorite feature to name and save
a custom cycle to memory with all options and
settings preferred. Up to 3 favorites may be saved
for each custom user. Follow these steps:
• Select a cycle, drying temperature, dryness level
(Auto Dry) or drying time (Time Dry), extended
tumble time and other options desired.
Use the scroll up or scroll down button until you
reach save as favorite.
Press the select button to enter the favorite
cycle choice screen.
Choose 1 of the 3 buttons for naming the cycle.
See the next page for naming your favorite cycle.
For example, to customize the normal cycle for
your shirt loads using reed high drying tempera-
ture, normal dry dryness level and 10 minutes of
extended tumble:
Turn the cycle selector knob to normal.
Press the temp button to select reed high temp.
Press the dryness level button to select normal
dryness.
Press the extended tumble button to select 10
minutes.
Press the scroll up or scroll down button until
you reach save as favorite.
Press the select button to enter the favorite
cycle choice screen.
Press the button under my favorite 1.
See the next page for naming your favorite cycle.
select
select
select
Operatin
User interface Features
Saving Favorites, con't
To name the customized cycle for shirts, press my
favorite 1.
Press the button under RBC to name the favorite
cycle alphabetically. Use the button under :IR#
to add numbers, foreign language characters or
symbols to the name.
Rotate the cycle selector knob in either direction
to select the letters 5-H-I-R-T-5, pausing after
each character to let the cursor advance. Press the
button under DELETE to erase incorrect entries.
There is a blank character between 2 and R for
inserting spaces in your custom name. Pause mo-
mentarily on this character as you would to insert
any other character, then continue.
Press select to save the favorite cycle name.
Repeat the steps to customize 2 other cycles
as my favorite 2 and my favorite 3. Any of the
favorite cycle names can be changed in the future
by turning the cycle selector knob to my favorites
and pressing the button under EDIT NAMES.
See my favorites in the "Cycle Selection" section
of this guide for instructions on using your custom-
ized cycles.
select
select
select
Operating User interface Features
Setting Preferences
CUSTOM MODE
CUSTOM MODE allows up to 3 household mem-
bers to personalize up to 3 favorite cycles each.
To enter custom users and personalize favorite
cycles:
• Use the scroll up or scroll down buttons until you
reach set prefs. Press the select button to enter
the preference menu.
• Press select again to enter CUSTOM MODE.
• Press the button for user 1, user 2 or user 3.
Press select.
Press the button under RBC to name the favorite
cycle alphabetically. Use the button under :ZR#
to add numbers, foreign language characters or
symbols to the name.
Rotate the cycle selector knob in either direction
to select the characters in the name, pausing after
each character to let the cursor advance. Press the
button under DELETE to erase incorrect entries.
There is a blank character between 2 and R for
inserting spaces in your custom name. Pause mo-
mentarily on this character as you would to insert
any other character, then continue.
When the name has been entered, press select to
save the name.
To edit names while in CUSTOM MODE, turn
the dryer off by pressing cancel. Press any other
button to wake the dryer up. Screen will display
to chsnge or turn off USERS press SELECT.
You must press select within 5 seconds or dryer
will return to normal operation with previous user
selected. After pressing select you have the choice
of change users, edit names, turn off or EXIT.
Make your selection and follow the directions
displayed.
Each custom user may select up to 3 favorite
cycles. The dryer will remember cycle settings,
options, preferences, etc. for each user. This al-
lows each user to customize without the hassle of
selecting all items each time.
select
select
select
select
Operatin
User Interface Features
Setting Preferences, con't
iNSTALL CYCLE
Run the INSTALL CYCLE before operating the
dryer the first time. Remove all items from the
dryer drum and press start. For more information
on performing the dryer INSTALL CYCLE, refer to
the Installation Instructions accompanying this
dryer.
If the dryer has been installed according to In-
stallation Instructions, INSTALL PASS! will be
displayed and the dryer is ready to use.
If the dryer was not installed properly, SERUICE
CORD, FIB GR5; or CRLL SERUICE 877 H3cJ
3287 will be displayed to indicate the installation
error.
The errors may result from the following condi-
tions:
. SERUICE CORE) (electric dryer)--The power
supply cord has been installed improperly or the
house wiring to the receptacle is incorrect.
• nO GAS (gas dryer)--There is no connection
between the dryer and the gas line or the valve
is closed.
• CALL 5ERUICE-- Error can only be corrected by
calling a qualified technician (1-877-435-3287).
Repeat the INSTALL CYCLE when corrections are
completed.
select
Operating User interface Features
Setting Preferences, con't
RESET
Press the buttons indicated to restore only cycle
settings, reset only factory preferences (users,
language, brightness, volume, etc.) or restore
all factory defaults (both cycle settings and fac-
tory preferences). Press the button under EXIT
to return to normal operation or press the cancel
button to turn the dryer off without making any
changes. If you do not make a selection within
30 seconds the dryer will return to normal opera-
tion without any changes. If you reset all settings,
INSTALL CYCLE will be displayed as though the
dryer were just turned on for the first time. You
may press the button under CANCEL if you do not
wish to rerun the INSTALL CYCLE.
CONTRAST
Press the button beneath plus (+) or minus (-)
symbols to increase or decrease the contrast of
the display. Press select to accept the change or
press the button under EXIT to return to normal
operation without any changes.
select
select
select
Operatin
User Interface Features
Setting Preferences, con't
BRIGHTNESS
Press the button beneath the plus (+) or minus (-)
symbols to increase or decrease the brightness of
the display. Press select to accept the change or
press the button under EXIT to return to normal
operation without any changes.
VOLUME
Press the button beneath the plus (+) or minus (-)
symbols to increase or decrease the volume of the
chime. Press select to accept the change or press
the button under EXIT to return to normal opera-
tion without any changes.
LANGUAGE
Select English, French or Spanish for the display
language.
CYCLE DESCRIPTION
The name, an icon and a brief description are dis-
played for each cycle. To delete the display, press
semect. To restore the display, press select and
CMCLE DESC On - press SELECT to turn OFF
will appear in the LCD User interface.
r ...................................:: ........................... ................
select
select
i i
select
select
Operating Other Features
Other Features
STATUS DISPLAY
The estimated total cycle time will be displayed
when the cycle is selected. The estimated remain-
ing cycle time is displayed during the cycle.
DRUM LIGHT
The drum light will come on whenever the door is
opened to illuminate the drum during loading and
unloading. Closing the door turns off the light. The
drum light will automatically turn off if the door is
left open more than 3 minutes.
To activate the drum light during a cycle, press the
button under LIGHT. The light will stay on during
the cycle for 3 minutes. To turn it off, press the
button under LIGHT again.
DRYING RACK
Use the drying rack to dry items which should not
be tumble dried. Fold down the metal support on
the back of the rack and slowly extend the rack
until the lock tabs click into place. Insert the rack
into the dryer drum, resting the back support on
the moisture sensor bars and the front legs on the
air grill.
Place items to be dried on top of the rack, leav-
ing space between items and not allowing them
to hang over the sides or through the holes. The
weight should not exceed 10 Ibs (4.5 kg). Select
the air (no heat) setting for items containing plas-
tic, foam rubber, rubber-like materials, feathers or
down.
When items are dry, remove the rack, push the two
center tabs to collapse the rack and fold up the
back support. Store the drying rack in a conve-
nient location.
REVERSIBLE DOOR
Your dryer is equipped with a reversible door. The
door can be hinged on the right or left side.
select
STATUS DISPLAY
The following will also be displayed at the
appropriate times during the cycle:
DRMIBG...
PERFECT STERm (on Steam Model only)
DRmP RLERT - DRMIRGWILL COnTInUE...
COOLING...
SRBITI21BG...
RDDJBGSTERm... (on SteamModelonly)
cOmPLETE - LURIBHLERELERSE ISOR
cOmPLETE - EHT.TUMBLE WILL COnTInUE
cOmPLETE
CLERB FILTER
.......:::::,,
1
2
/
Extend rack until tabs
click. Press tabs down
to collapse rack.
moisture sensing bars
Cycle Chart
D er Setting ChaA (non-Steam ModeO
These Temperature, Dr
bulky/
bedding
i_J|
60 min
'hess levels and Options are available with the following cycles:
heavy
duty
4. N
mixed
load
towels
E_
.=_
normal
_ N
45 min
casual
35 min
active
wear
30 min
fast
dry
_--©
delicate
25 min
Estimated Cycle 70 min 55 min 50 min 18 min
Uurat on**
Temperature
maximum temp ,/ ,/ ,/ ,/
high temp _* _* _ _*
reed high temp _ _ _ _ _* _ _ _*
medium temp _* _* _ _* _
med low temp _/ _/ _/ _/* _/ _/
low temp _ _* _*
air fluff temp ,/
Dryness
maximum dry ,/ ,/
more dry _/ _/ _/* _/
normal dry '/* '/* '/* '/ '/* '/* '/ '/
less dry _ _ _ _ _ _* _*
damp dry ,/ ,/ ,/ ,/ ,/
Options
damp alert ,/ ,/ ,/ ,/ ,/ ,/ ,/
extended tumble _/ _/ _/ _/ _/* _/ _/ _/
wrinkle release ,/ ,/ ,/ ,/ ,/ ,/ ,/
delicate heat _/ _/ _/ _/ _/* _/* _/* _/
shrink guard ,/ ,/* ,/ ,/ ,/ ,/ ,/ ,/
sanitize _ _
perfect tumble TM _/ _/ _/ _/ _/ _/* _/ _/* _/*
Factory presets
V'Available selections
touch time
up dry
15 min 15-90
mid
**Estimated cycle duration is based on default dryness level and factory settings of electric dryers. Displayed cycle duration may
differ slightly on gas models.
Cycle Chart
D er Setting ChaA (Steam Mode0
These Temperature, Dr
bulky/
bedding
i_J|
E60 min
,hess levels and Options are available with the following cycles:
heavy
duty
4= N
mixed
load
towels
E_
.=_
normal
_ N
45 min
casual
35 min
active
wear
30 min
fast
dry
_--©
delicate
25 min
Estimated Cycle 70 min 55 min 50 min 18 min
Duration**
Temperature
maximum temp ,/ ,/ ,/ ,/
high temp _* _* _ _*
reed high temp _ _ _ _ _* _ _ _*
medium temp _* _* _ _* _
med low temp _/ _/ _/ _/* _/ _/
low temp _ _* _*
air fluff temp ,/
Dryness
maximum dry ,/ ,/
more dry _/ _/ _/* _/
normal dry _* _* _* _ _* _* _
less dry _ _ _ _ _ _* _*
damp dry ,/ ,/ ,/ ,/ ,/
Options
damp alert ,/ ,/ ,/ ,/ ,/ ,/ ,/
extended tumble _/ _/ _/ _/ _/* _/ _/ _/
wrinkle release ,/ ,/ ,/ ,/ ,/ ,/ ,/
delicate heat _/ _/ _/ _/ _/* _/* _/* _/
shrink guard ,/ ,/* ,/ ,/ ,/ ,/ ,/ ,/
sanitize _ _
add steam _/ _/ _/ _/ _/_
perfect tumble TM _/ _/ _/ _/ _/ _/* _/ _/* _/*
Factory presets
V'Available selections
perfect time
steam TM dry
15 min 15-90
mln
**Estimated cycle duration is based on default dryness level and factory settings of electric dryers. Displayed cycle duration may
differ slightly on gas models.
1This option is cannot be deselected.
Care & Cleaning
• Before cleaning the dryer interior, unplug the
electrical power cord to avoid electrical shock
hazards.
• Do not use any type spray cleanser when clean-
ing the dryer interior. Hazardous fumes or electri-
cal shock could occur.
INSIDE
Clean the lint filter after every load. Lint build-
up on the filter restricts air flow, which causes
longer drying times. The filter is located at the
bottom of the door opening. Remove by pulling
straight up. Remove the lint and replace the filter.
• Occasionally a waxy build-up may form on the
lint filter and/or moisture sensing bars from
using dryer-added fabric softener sheets. To
remove this build-up, wash them with warm,
soapy water. Dry the filter thoroughly and re-
place. Do not operate the dryer without the lint
filter in place.
If the dryer drum becomes stained from noncol-
orfast fabrics, clean the drum with a damp cloth
and a mild liquid household cleanser. Remove
cleanser residue before drying the next load.
Every 18 months an authorized servicer should
clean the dryer cabinet interior and exhaust
duct. These areas can collect lint and dust
over time. An excessive amount of lint build-up
could result in inefficient drying and possible
fire hazard.
OUTSIDE
= Clean the cabinet with mild soap and water.
Never use harsh, gritty or abrasive cleansers.
• If the cabinet becomes stained, clean with
diluted chlorine bleach (1 part bleach to 8 parts
water). Rinse several times with clear water.
• Remove glue residue from tape or labels with a
mixture of warm water and mild detergent. Or,
touch residue with the sticky side of the tape or
label.
• When cleaning chrome parts use a window
cleaner with ammonia or mild soap and water.
• Before moving the dryer, place a strip of card-
board or thin fiberboard under the front leveling
legs to prevent damage to the floor.
Solutions to Common Problems
Common D ing Probmems
PROBLEM
Greasy, oily
stains
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and
scum, and fabric damage. For satisfactory drying results, follow these suggestions provided by The
Soap and Deter(_ent Association.
POSSIBLE CAUSES PREVENTIVE MEASURES
• Fabric softener sheet.
Lint
Pilling
(Fibers ball up
and cling to
fabric.)
Shrinking
Wrinkling
SOLUTIONS
Rub fabric softener stains
with bar soap. Rinse and
rewash.
Overloading.
Overdrying causes static
electricity.
Lint screen not clean when
cycle began.
Lint is attached to "pills."
Reduce load size and
rewash using liquid fabric
softener in the final rinse.
Or, add a fabric softener
sheet and tumble without
heat.
Use lint brush or roller to
remove lint.
Overdrying.
Temperature too high.
• Overdrying.
Overloading.
Leaving items in dryer after
cycle ends.
Use a lint brush or shaver to
remove pills.
Irreversible condition.
Reduce load size and
tumble at medium or low
heat for 5-10 minutes.
Remove items immediately.
Hang or fold.
Add a few bath towels
to small loads for proper
tumbling.
Some "silk-like" fabrics
should be air dried.
Use proper drying tempera-
ture.
Place fabric softener sheet
on top of load before start-
ing the dryer.
Do not overload dryer.
Use fabric softener in
washer or dryer to reduce
static electricity.
Remove items when they
are slightly damp to avoid
overdrying.
Check that lint filter is clean
and in place.
Use fabric softener to lubri-
cate fibers.
When ironing, use spray
starch or fabric finish on
collars and cuffs.
Turn items inside out to
reduce abrasion.
o
o
o
Follow fabric care label
directions.
If shrinking is a concern,
check load often.
Remove items while slightly
damp and hang or lay flat to
complete drying.
Block knits into shape.
Do not overload dryer.
Remove items as soon as
cycle ends.
Solutions to Common Problems
Semite Prevention Checklist
Before calling for service, review this list. It may save both time and expense. The list includes common
occurrences that are not the result of defective workmanship or materials in this Wyer.
OCCURRENCE POSSIBLE CAUSE SOLUTION
Dryer does not start. Electrical power cord is not securely plugged Make sure the plug fits tightly in wall outlet.
in or plug may be loose.
House fuse blown or circuit breaker tripped. Reset circuit breaker or replace fuse.
Make sure electrical line is not overloaded and the
dryer is on a separate circuit.
Thermal limiter tripped. Call authorized service person for replacement.
LCD displays Dryer has been programmed to temporarily To return to the factory default settings, select RESET
£1 n'3n
LtLC_l ru n'3_'3n -
,,,uuL. perform a repeating demo cycle, in set prefs under the options scroll buttons.
Dryer runs but won't There are 2 house fuses in the dryer circuit. If 1 Replace fuse.
heat. of the 2 fuses is blown, the drum may turn but
the heater will not operate. (electric models)
Gas supply valve is not open (gas models). Check to make sure supply valve is open. See INSTAL-
LATION INSTRUCTIONS for procedure.
Dryer does not have enough air supply to See INSTALLATION INSTRUCTIONS.
support the burner flame (gas models).
LP gas supply tank is empty or there has Refill or replace tank.
been a utility interruption of natural gas (gas Dryer should heat when utility service is restored.
models).
Drying cycle takes too Lint filter is clogged with lint. Make sure all lint has been removed from the dryer lint
long, outside of the filter before starting each cycle.
dryer feels too hot or
smells hot. Exhaust duct requirements have not been Exhaust duct must be at least 4 inches in diameter and
met. made of rigid or semi-rigid metal.
When in place, the duct must have no more than
two 90° bends and must not exceed length listed in
INSTALLATION INSTRUCTIONS.
Electric dryer is connected to a 208 volt Drying time will be 20% longer than drying on a 240
circuit, volt circuit.
Drying procedures have not been followed. See "Operating Instructions."
Outside exhaust hood or exhaust duct may Clean out any obstruction.
be clogged or restricted.
High humidity. Use a dehumidifier near the dryer.
Solutions to Common Problems
Semite Prevention Checklist0 con't
OCCURRENCE POSSIBLE CAUSE SOLUTION
Excessive wrinkling. Dryer is overloaded. Do not overload. See "Operating Instructions."
Items left in dryer too long. Remove items as soon as cycle ends.
Insufficient sorting of items. See "Operating Instructions."
Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping Foreign objects such as coins, pins, clips or Always remove foreign objects from pockets before
of the drum finish, buttons are inside the dryer.* laundering. Remove objects from drum and restart
dryer.
Permanently attached items such as belt It may be necessary to sew a scrap of material
buckles, zippers and fasteners may be hitting securely around ornaments before drying to prevent
the inside of the drum.* scratching and damage to the dryer.
*Drum damage caused by foreign objects or permanently attached items is not covered by the warranty.
Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will
repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is
installed, used, and maintained in accordance with the provided instructions. In addition, your appliance is covered by an
additional one year, parts only, limited warranty. During the 2nd year from your original date of purchase, Electrolux will pay
for parts needed for this appliance that have proven to be defective in materials or workmanship when your appliance is
installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Products used in a commercial setting.
6. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided instructions.
7. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
8. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it is shipped from the factory.
9. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles,
or other cosmetic parts.
10. Pickup and delivery costs; your appliance is designed to be repaired in the home.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or
mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Elec-
trolux parts or parts obtained from persons other than authorized service companies; or external causes such as
abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DiSCLAiMER OF IMPLIED WARRANTIES; LiMITATiON OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THiS LIMITED WARRANTY SHALL BE REPAIROR REPLACE-
MENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, iNCLUDING WARRANTIES OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSE-
QUENTIAL OR iNCiDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND iNCiDENTAL EXPENSES RESULTING FROM
ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY iMPLIED WARRANTY. SOME STATESAND PROVINCES
DO NOT ALLOW THE EXCLUSION OR LIMiTATiON OF iNCiDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS
ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WRITTEN WARRANTY GIVES YOU SPECiFiC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATETO STATE.
if You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service
be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty
must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted
by Eiectrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance
is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this
warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
North America
P.O. Box 212378
Augusta, GA 30907
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
