TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use & Care
of your Refrigerator
Important Safety Instructions ......................2
Features at a Glance ...................................4
Installation ................................................5
Door Removal Instructions ........................ 10
Installing Door Handles .............................13
Connecting Water Supply .......................... 17
Controls ...................................................19
Automatic Ice and Water Dispenser …………22
242134904 (June 2012)
Automatic Ice Maker - Freezer………………....24
Storage Features…………………………………….25
Storing Food and Saving Energy……………….29
Normal Operating Sounds and Sights………..30
Changing the Filter………………………………….31
Care and Cleaning…………………………………..33
Before You Call……………………………………….37
Major Appliance Warranty…………………………41
2
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Freezer drawer is level across the top
Leveling
Refrigerator is level, side-to-side and tilted
¼” (6 mm) front-to-back
Toe grille is properly attached to refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to refrigerator
No water leaks present at all connections
- recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
Denitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
IMPORTANT SAFETY INSTRUCTIONS
For your Safety
• DO NOT store or use gasoline, or other
ammableliquidsinthevicinityofthisor
any other appliance. Read product labels
forwarningsregardingammabilityand
other hazards.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker.
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
nishesiftheycomeincontactwithother
appliances or furniture.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation
or maintenance information which is
important but not hazard-related.
WARNING
Please read all instructions before using
this refrigerator.
3

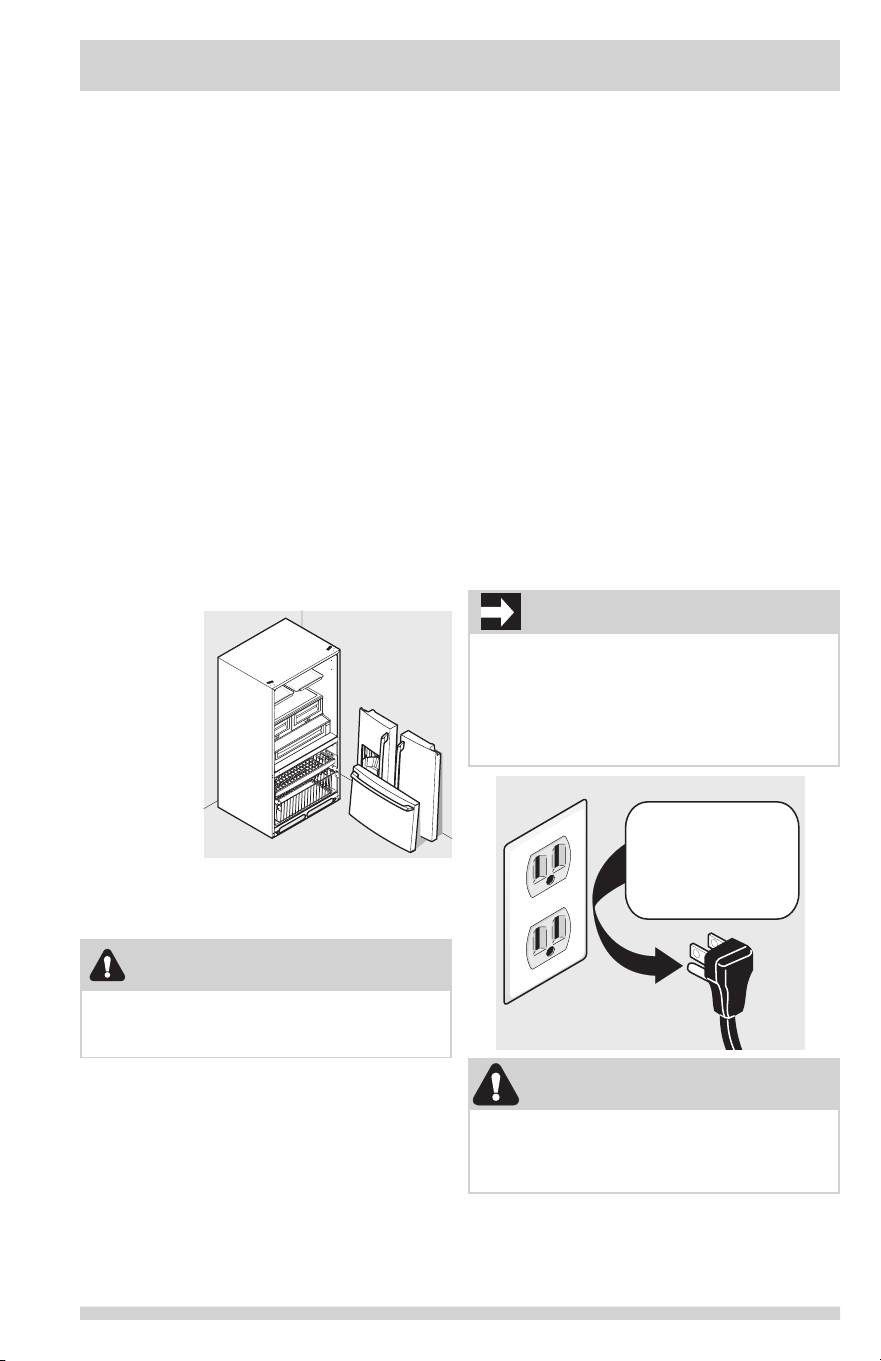

IMPORTANT SAFETY INSTRUCTIONS
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately after
the refrigerator is unpacked. Children should
NEVER use these items to play. Cartons covered
with rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and can
quicklycausesuffocation.
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezers are still dangerous –
even if they will sit for “just a few days”. If you
are getting rid of your old refrigerator or freezer,
please follow the instructions below to help
prevent accidents.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you throw away your old refrigerator /
freezer:
• Remove
doors.
• Leave
shelves in
place so
children
may not
easily climb
inside.
• Have
refrigerant
removed by
aqualied
service
technician.
Electrical information
• The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp,
AC only electrical outlet.
Thepowercordoftheapplianceisequipped
with a three-prong grounding plug for your
protection against electrical shock hazards.
It must be plugged directly into a properly
grounded three prong receptacle. The
receptacle must be installed in accordance
with local codes and ordinances. Consult
aqualiedelectrician. Avoid connecting
refrigerator to a Ground Fault Interrupter
(GFI) circuit. Do not use an extension
cord or adapter plug.
• If the power cord is damaged, it should be
replaced by an authorized service technician
to prevent any risk.
• Never unplug the refrigerator by pulling on
thepowercord.Alwaysgriptheplugrmly,
and pull straight out from the receptacle to
prevent damaging the power cord.
• Unplug the refrigerator before cleaning
and before replacing a light bulb to avoid
electrical shock.
• Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigeratorwithinsufcientpowercan
damage the compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to
prevent the refrigerator from being turned
off accidentally.
Grounding type wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord with
3-prong gounded plug
CAUTION
To avoid personal injury or property damage,
handle tempered glass shelves carefully. Shelves
may break suddenly if nicked, scratched, or
exposed to sudden temperature change.
WARNING
These guidelines must be followed to ensure
that safety mechanisms in this refrigerator will
operate properly.
IMPORTANT
Pressing and holding the On/Off button for 3
seconds, located on the temperature control
panel, will disable your refrigerator’s cooling
system but does not disconnect the power to
the light bulb and other electrical components.
To turn off power to your refrigerator you must
unplug the power cord from the electrical outlet.
4

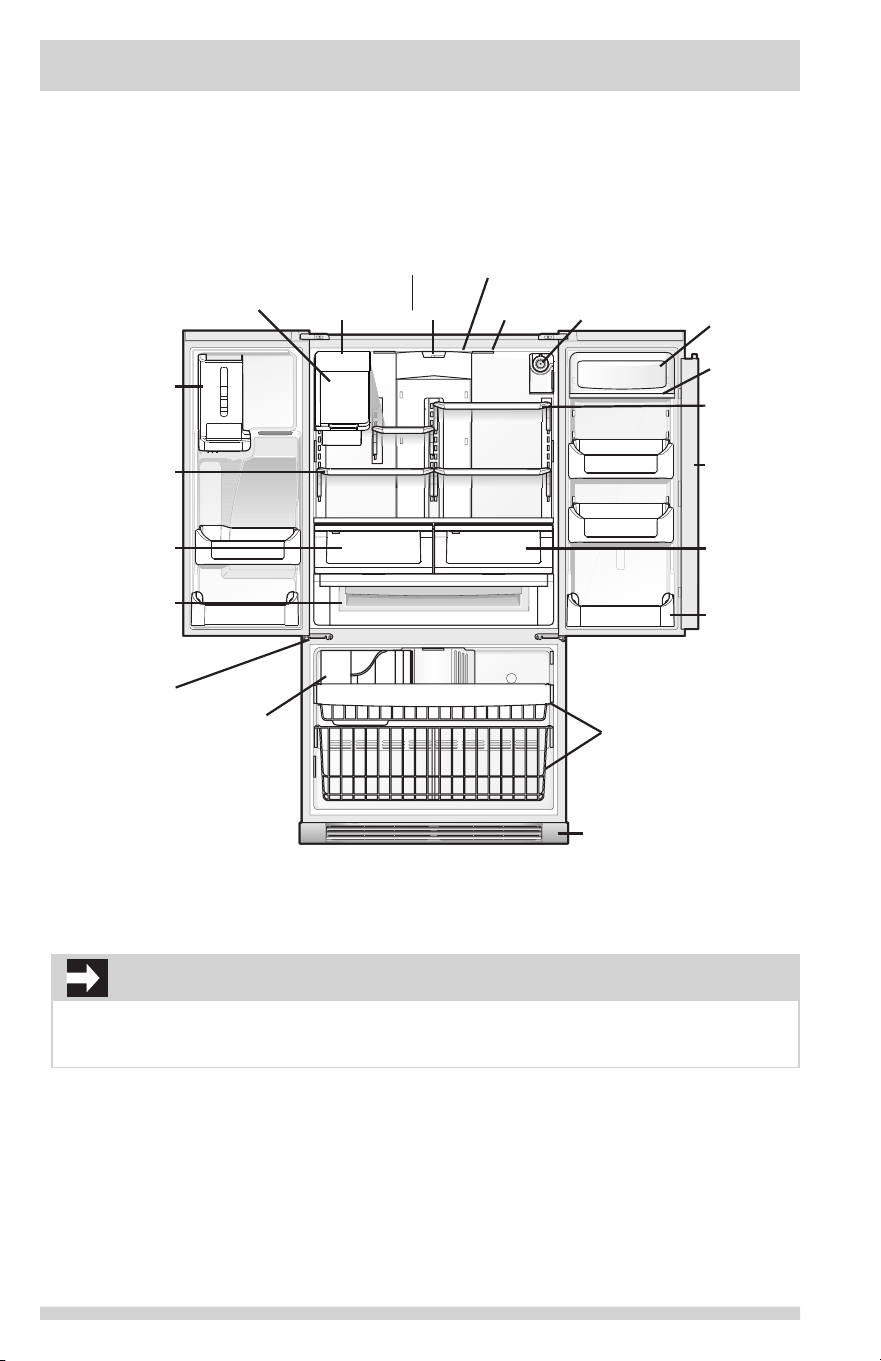

FEATURES AT A GLANCE
*Features may vary according to model
*Features may vary according to model
Ice Bin
*Fresh Food
Ice Maker
Flipper
Guide
*Incandescent Light
*LED
Light
Water
Filter
*Dairy
Compartmen
t
*Air Filter
®
SpillSafe
Shelves
Flipper
Mullion
Crisper
Drawer
*Door Bin
Freezer Baskets
Toe Grille
*Ice
Maker
Adjustable
Hinges
*Can Rack
SpillSafe
®
Shelves
Crisper
Drawer
TM
Store-
More
Drawer
IMPORTANT
Features not purchased with your refrigerator can be purchased at www.frigidaire.com or by
calling 1-800-944-9044.
5
Phillips™
Head or
#2 Square
Drive Head
(OR)
AND OR
Socket
Wrench Set
Adjustable
Wrench
OR
3/8"
Fixed
Wrench

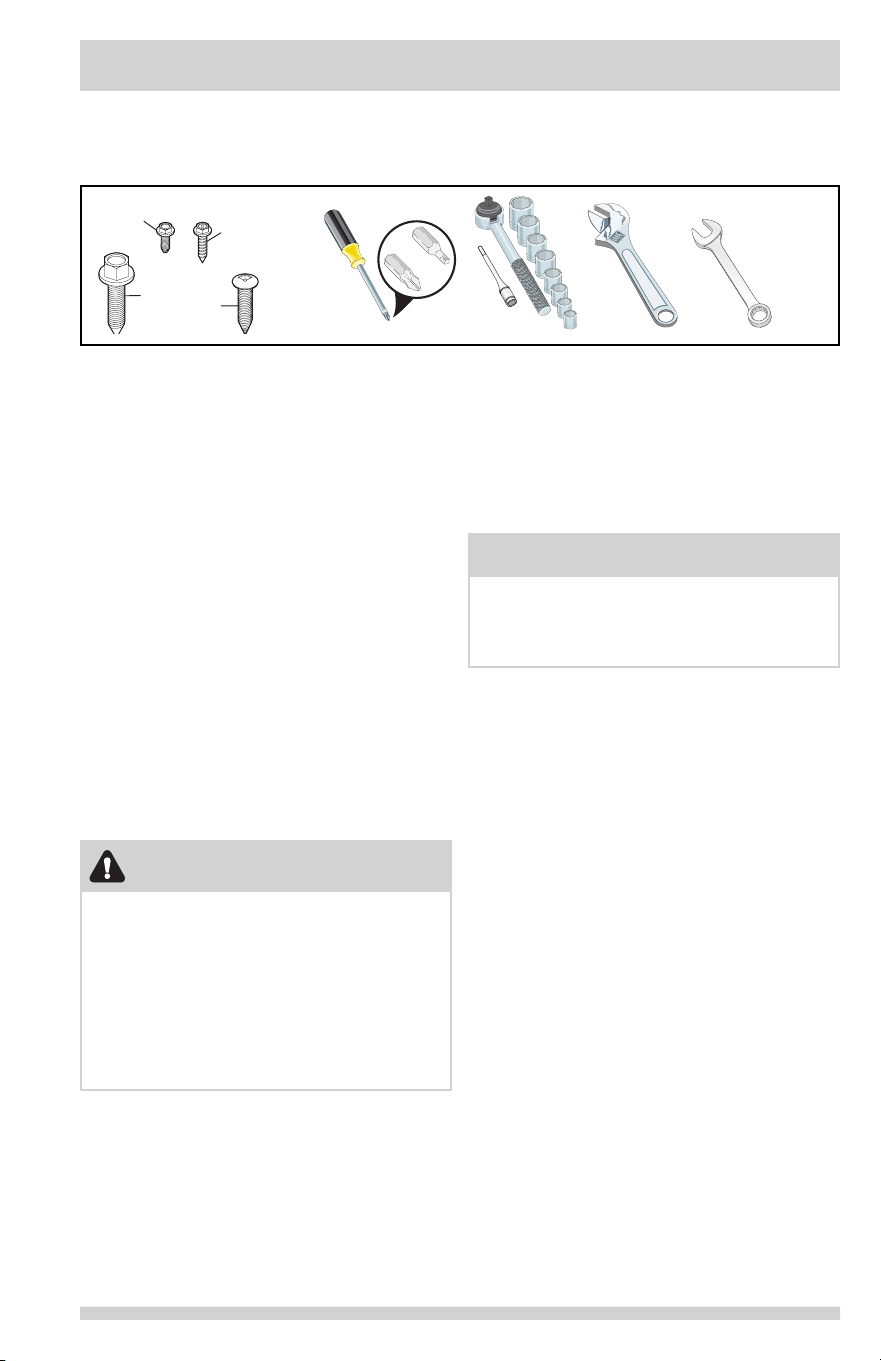

Tools Necessary:
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
INSTALLATION
This Use & Care Guide provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only as
instructed in this Use & Care Guide. Before
starting the refrigerator, follow these
importantrststeps.
Location
• Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher, or other heat sources.
• Therefrigeratormustbeinstalledonaoor
that is level and strong enough to support
a fully loaded refrigerator.
• Consider water supply availability for models
equippedwithanautomaticicemaker.
Installation
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top
3
/
8
” (9.5 mm)
Back 1” (25.4 mm)
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing
food. For best use of refrigerator drawers and
freezer baskets, the refrigerator should be in a
position where both can be fully opened.
Required Tools
You will need the following tools:
CAUTION
Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or
rise above 110°F (43°C). The compressor
will not be able to maintain proper
temperatures inside the refrigerator.
Do Not block the toe grille on the lower front
ofyourrefrigerator.Sufcientaircirculation
is essential for the proper operation of your
refrigerator.
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
6
INSTALLATION
Toe Grille Must
Fit in Slot On
Anti-tip Bracket
Screw/Washer
Assembly
(3) Retaining Clips
Leveling Freezer Drawer (if necessary)
To level the freezer drawer:
1. Check gasket seal around top, bottom, and sides of freezer drawer.
2. If gasket is not sealed, open drawer and slightly loosen four (4) drawer screws (two (2)
on each side) to allow drawer to rotate.
3. Close drawer and recheck the seal
on the gasket (A). Open the drawer
grabbing by the sides in the center (B).
Be careful not to rotate the drawer.
4. Tighten four (4) drawer screws.
5. Recheck gasket seal.
Level Refrigerator & Adjust Doors (if necessary)
Guidelinesfornalpositioningofyourrefrigerator:
• Allfourcornersofthecabinetmustrestrmlyontheoor.
• The sides should tilt
1
/
4
inch (6 mm) from front to back (to ensure that doors close and seal
properly).
• Doors should align with each other and
be level.
Most of these conditions can be met by raising or lowering the
adjustable front rollers.
To level the cabinet using the
front rollers:
1. Slightly open freezer drawer. Lift the toe
grille and gently pull forward
(see illustration).
Grab
Drawer
at
Center
from
Both
Sides
then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
A B
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
7
NOTE
View shown is looking up at the bottom of
the refrigerator door.

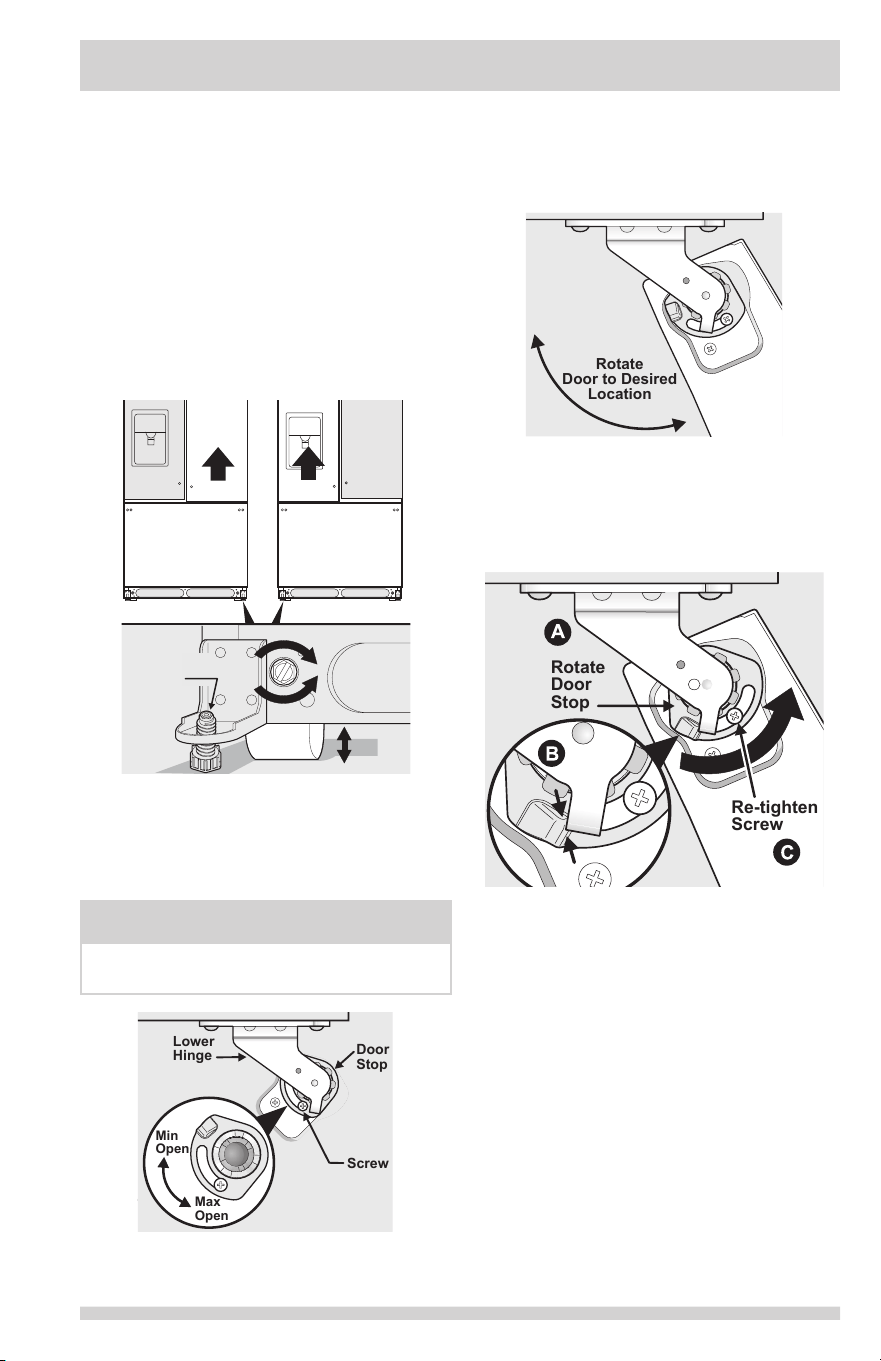

2. You can raise or lower each door.
Use a
3
/
8
” socket wrench to turn the
adjustment screws (1 per side).
To raise: turn adjustment
screw clockwise.
To lower: turn adjustment
screw counterclockwise.
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
4. After unit is leveled, lower anti-tip leg
untilitcontactstheoor.
Raise
Anti-tip
Leg
Door
Lower
Door
5. Installthetoegrillebyttingintoplace.
To adjust the door stop:
Door stop is adjustable between 85 to
145 degrees.
1. Open door to provide access to screw.
2. Loosen screw.
3. Adjust door to desired location.
4. Rotate door stop until it makes contact
with the lower hinge.
5. Retighten screw.
6. Ensure door stops in desired location
before resuming normal use.
Rotate
Door to Desired
Location
Adjusting Door
Rotate
Door
Stop
Re-tighten
Screw
Retighten Screw
Adjustable Door Stop
Lower
Hinge
Door
Stop
Screw
Min
Open
Max
Open
INSTALLATION
8
NOTE
If after adjusting doors higher the door makes
a popping/clicking sound, remove screw and
replace with the longer one supplied in the
handle package (select models).
4. Lift the door while adjusting the
washer. To raise the door, rotate
washer clockwise (when viewed from
the bottom). To lower door, rotate
washer counterclockwise (when viewed
from the bottom).
5. Retighten the screw (where applicable),
ensuring it is between the spokes of the
washer. Screw will not be tight, just
insertuntilitisushwiththehinge.
Door
Lower
Door
Hinge
Washer
Raise
Door

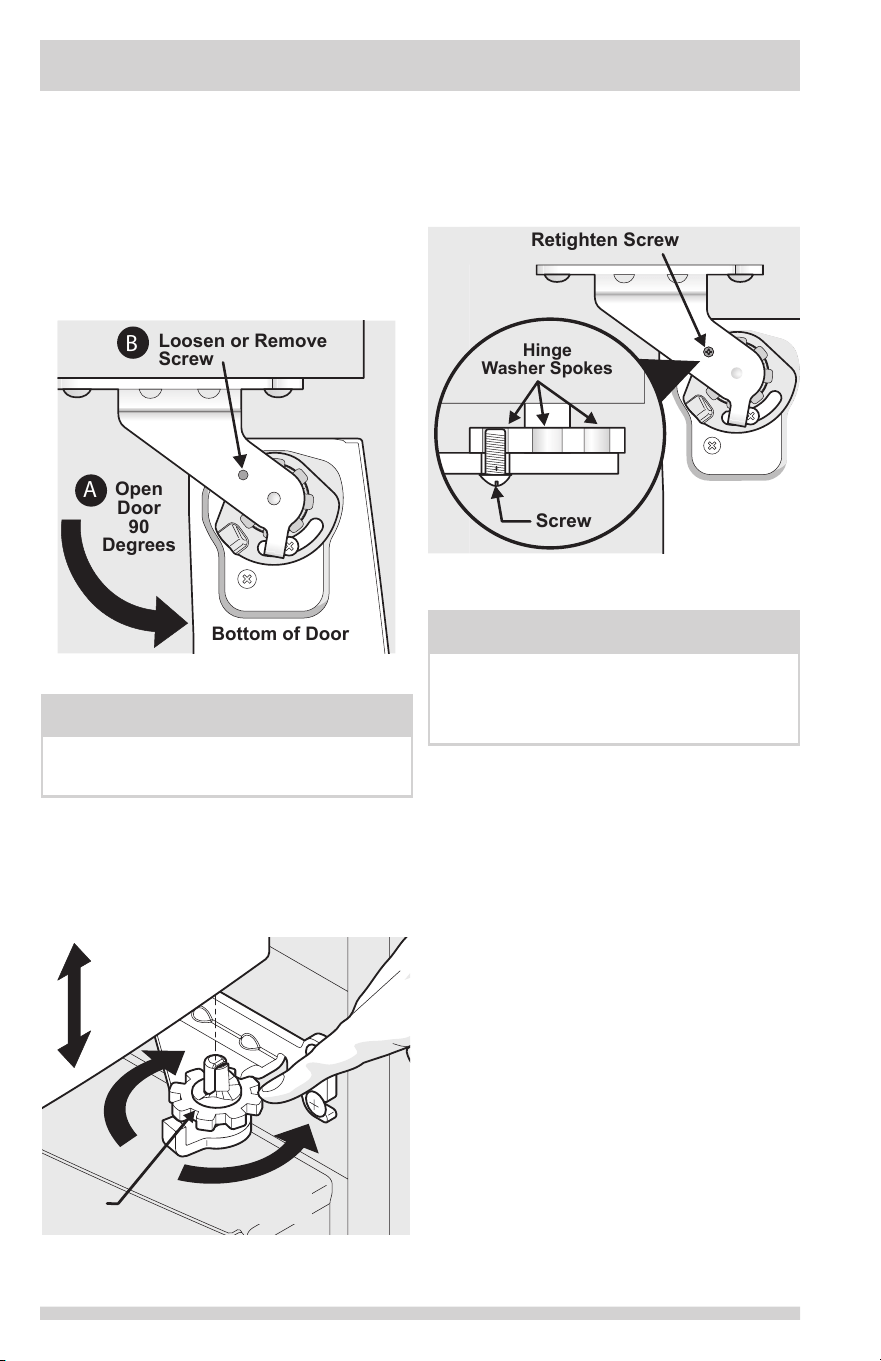

Raising/Lowering Door
Screw (where applicable)
Hinge
Washer Spokes
Screw
Retighten Screw
INSTALLATION
To level the doors using the
adjustable lower hinge
(select models):
1. Remove all food items from door bins
on door being adjusted.
2. Open doors to 90 degrees.
3. Loosen or remove screw.
NOTE
Adjustable hinge should only be used after
doors have been leveled with rollers.
A
B
Loosen or Remove
Screw
Open
Door
90
Degrees
Bottom of Door
Loosen/Remove Screw (where applicable)
9
Flipper
Mullion
Hinge
Screw
Flipper
Mullion

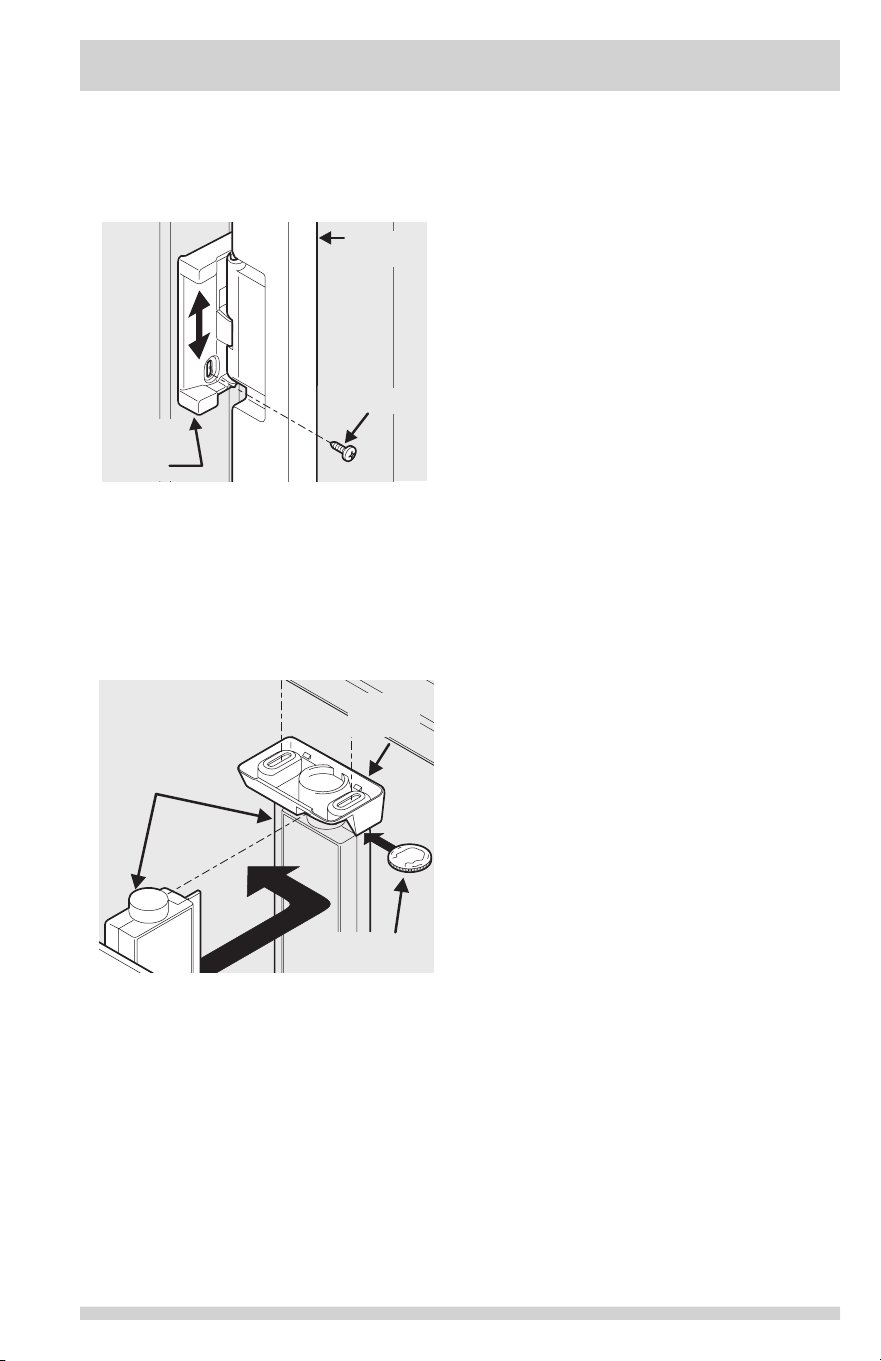

Adjusting Flipper Mullion Screw
Toadjusttheippermullion:
1. Loosenthescrewlocatedontheipper
mullion hinge.
2. Adjustippermullionheight.For
properconnectionwiththeipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
betweentheguideandippermullion.
Mullion
Guide
Flipper
Mullion
Thickness
of a Coin
Adjusting Flipper Mullion Height
3. Retighten screw.
INSTALLATION
10
NOTE
DO NOT remove the ground screw from hinge.
NOTE
Use care while pulling the water tube from the
unit to be sure you do not kink the tube.
Press
Press
Water
Line
Approximately
5 Feet

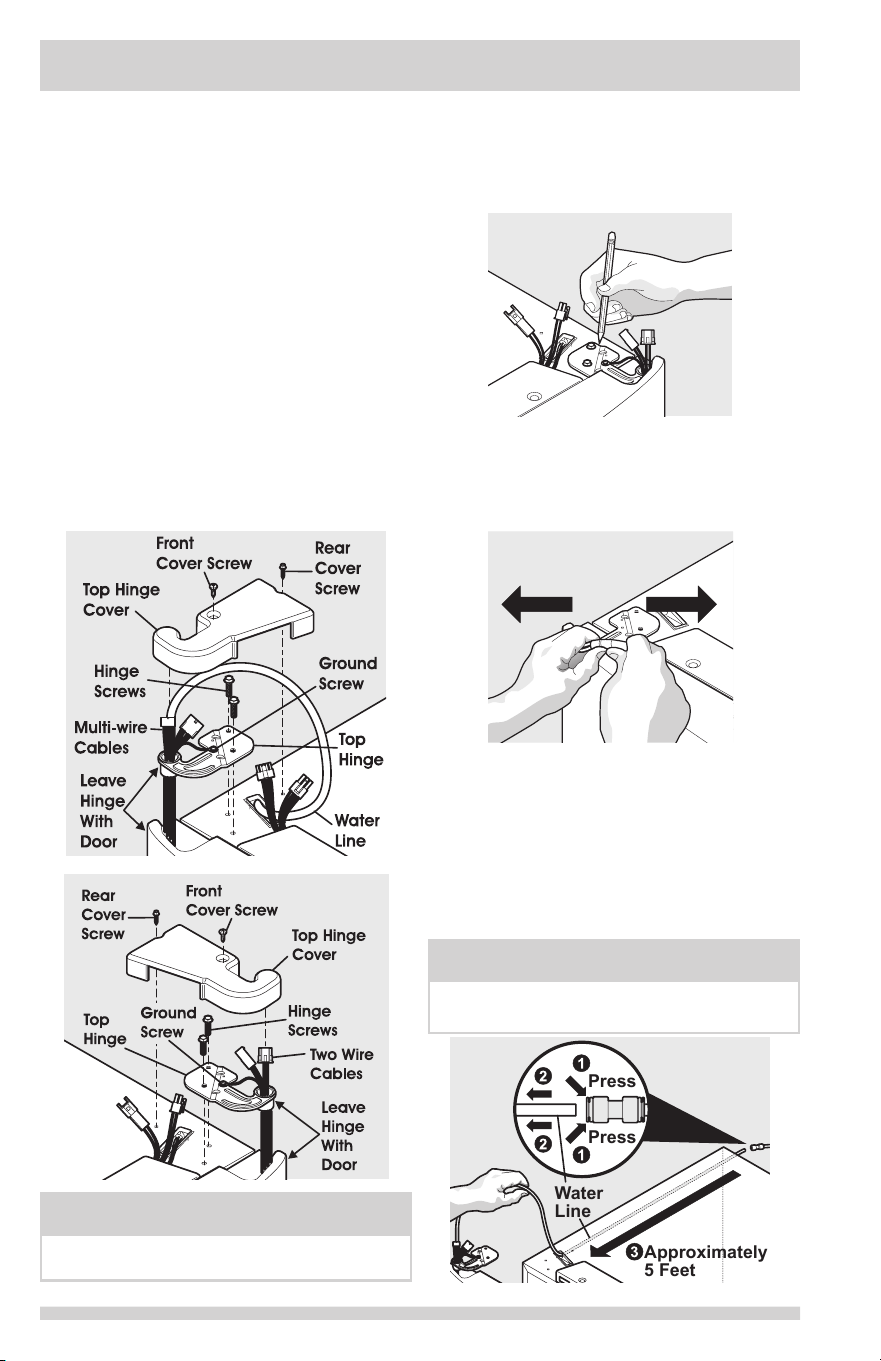

DOOR REMOVAL INSTRUCTIONS

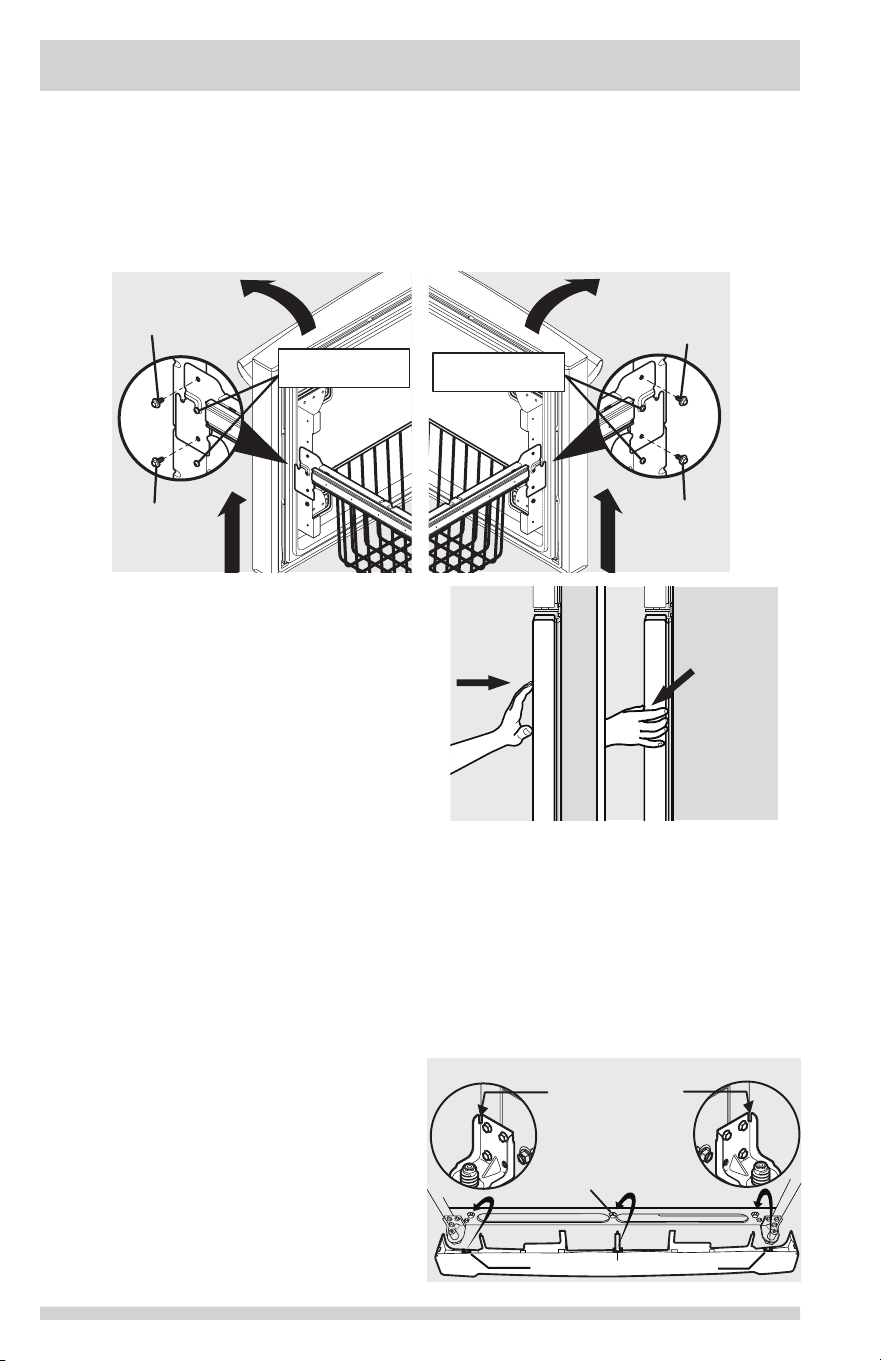

To remove the refrigerator doors:
1. Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
2. Disconnect the harness by grasping both
sidesoftheconnectorrmly,depressthe
latch, and pull apart. Remove the two (2)
screws from the top hinge. Lift the door
off of the bottom hinge and set it aside.
3. Detach the water tube from the
connector located behind the
refrigerator and pull the tube back out
to the front of the unit. The connector
releases when you press inward on
the outer sleeve while pushing the
tube toward the connector then while
continuing to hold in the sleeve, pull
the tube away.
Getting through narrow spaces
Ifyourrefrigeratorwillnottthroughan
entrance area, you can remove the doors.
Checkrstbymeasuringtheentrance.
To prepare for removing the doors:
1. Make sure the electrical power cord is
unplugged from the wall outlet.
2. Open the freezer drawer and remove
the toe grille (see “Installation” section).
3. Remove any food from the door
shelves and close the doors.
To remove the top hinge covers:
1. Remove the two (2) screws from each
cover over the top door hinges.
2. Lift inside edge of hinge cover and
tilt back.
11
NOTE
Youwillbepullingapproximatelyve(5)feetofwatertubefromthebackoftherefrigerator.
NOTE
When reinserting the water tube and replacing the top hinge cover, use care to be sure you do not
kink the tube.
DOOR REMOVAL INSTRUCTIONS
Once both doors are in place, ensure they are aligned with each other and level (Please see the
“Installation” section for more details), and replace the top hinge cover.
4. Unscrew the three (3) lower hinge screws and hinge if necessary.
To reinstall the right door, reverse the above steps.
Removing Freezer Drawer
1. Open freezer drawer.
2. Remove drawer screws on right and left sides (two (2) screws on each side).
CAUTION
Be sure doors are set aside in a secure position where they cannot fall and cause personal injury,
or damage to the doors or handles.
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws

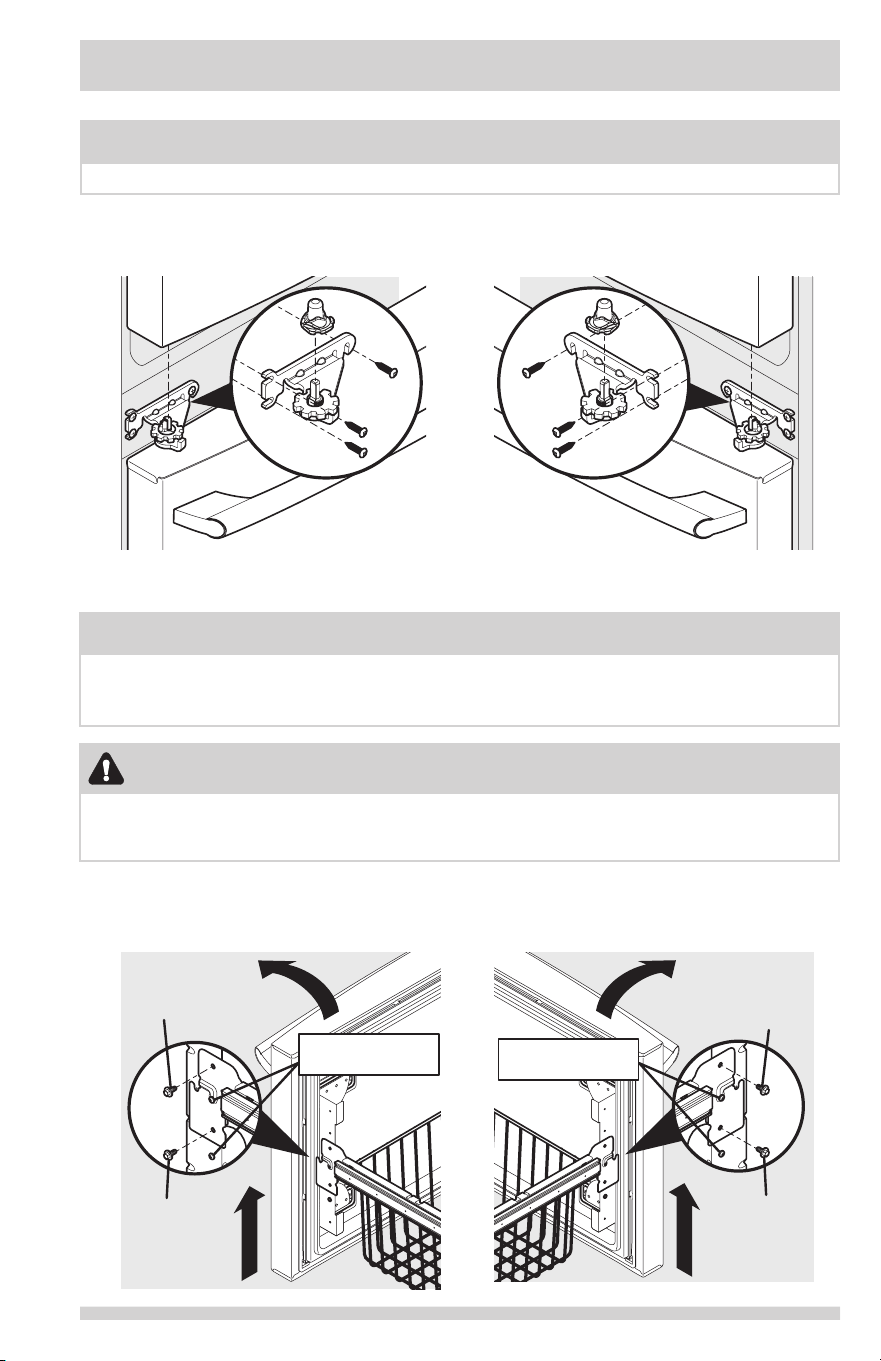

Lower Hinge Removal
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
12

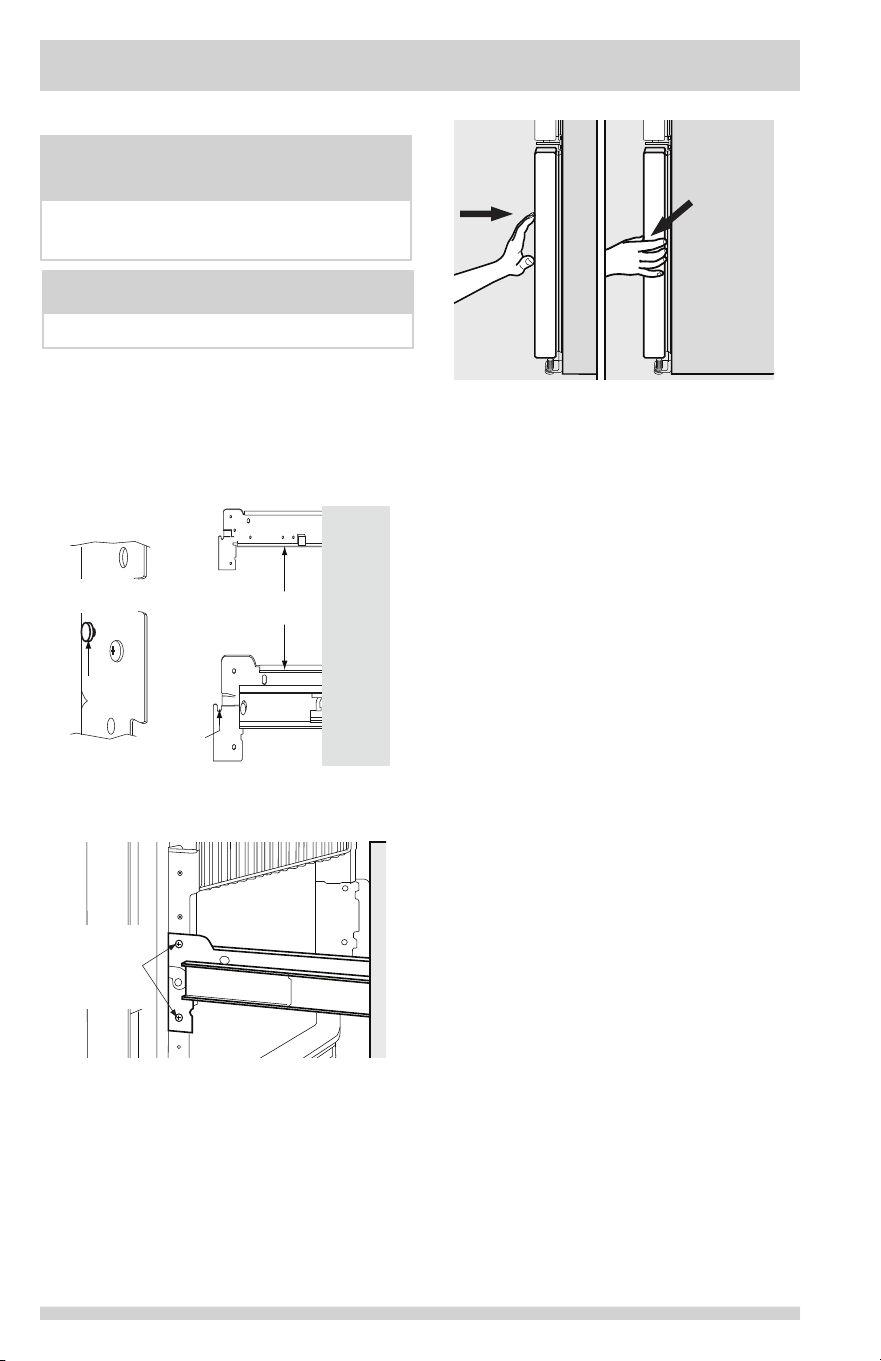

DOOR REMOVAL INSTRUCTIONS
NOTE
Do not remove center screw from freezer
drawer. This is a factory adjustment.
CAUTION
Drawer is heavy. Use caution when lifting.
1. Lift drawer up and out to remove.
Installing Freezer Drawer
1. With lower slides pulled out, hang
drawer onto slide brackets ensuring
pins on each side are fully inserted into
slots on each side.
2. Reinstall four (4) drawer screws (two
(2) per side), tighten down, and close
drawer (C).
3. Check gasket seal around top, bottom,
and sides of freezer drawer.
4. If gasket is not sealed, open drawer
and slightly loosen four (4) drawer
screws (two (2) on each side) to allow
drawer to rotate.
5. Close drawer and recheck the seal
on the gasket (A). Open the drawer
grabbing by the sides in the center (B).
Be careful not to rotate the drawer.
Assembly
Pin
Slot
Cabinet
Drawer
Fully Extend
Drawer Slides
Install
Screws
(2) Each
Side
Grab
Drawer
at
Center
from
Both
Sides
then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
6. Tighten four (4) drawer screws.
7. Recheck gasket seal.
8. Installthetoegrillebyttinginto
place.
13
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the
opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
tighten the set screws on the handles.

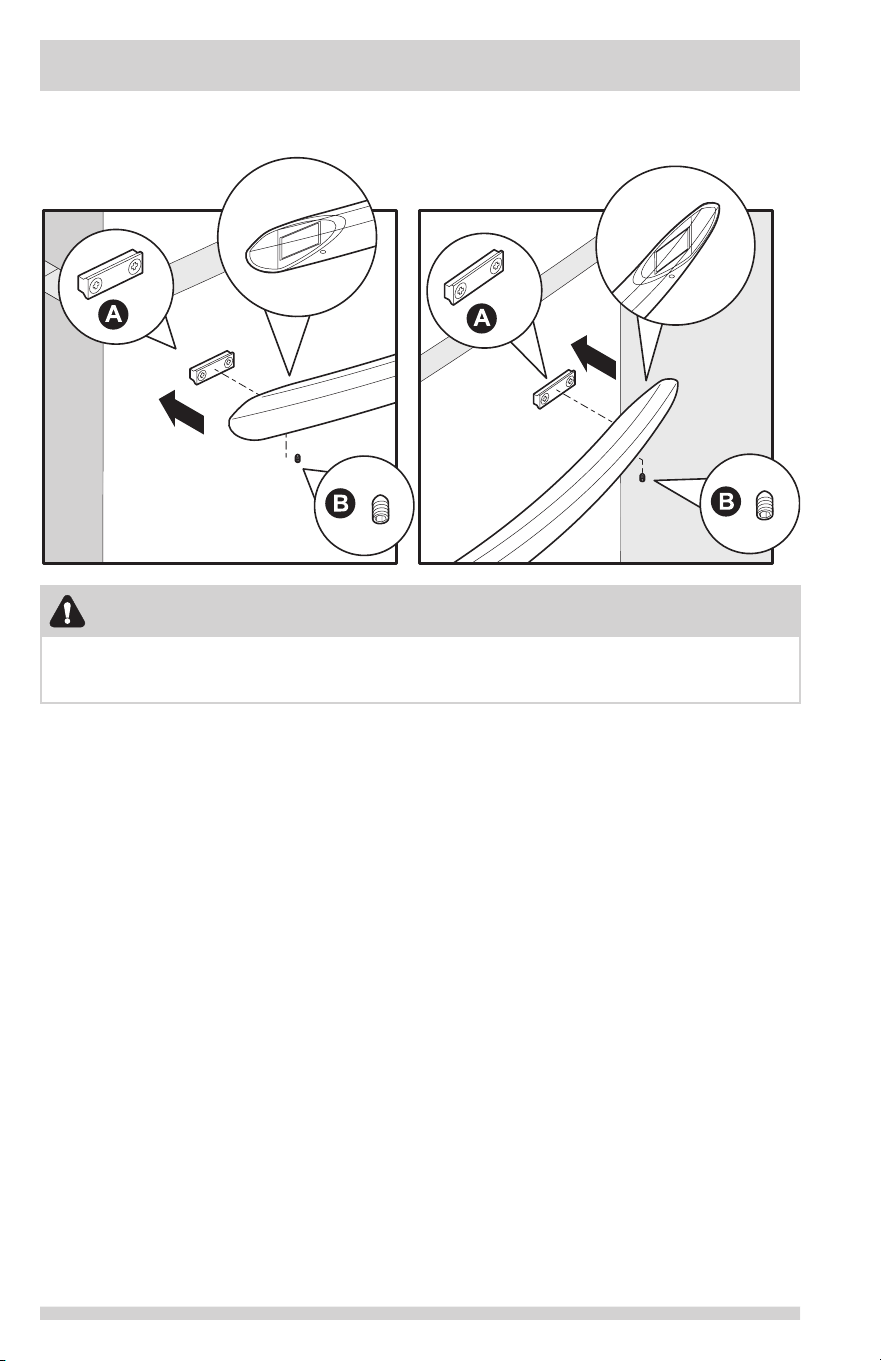

INSTALLING DOOR HANDLES

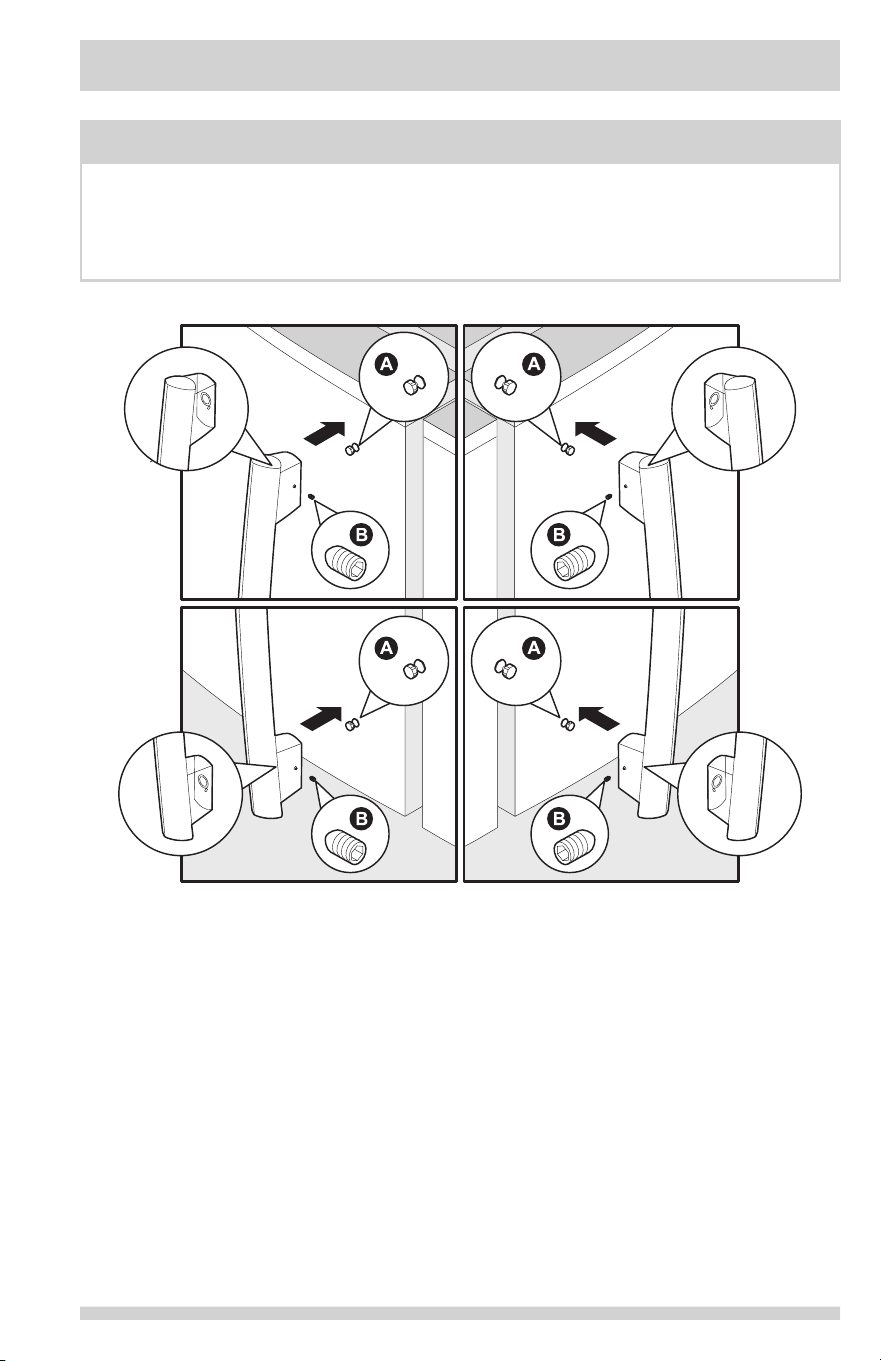

Door Handle Mounting Instructions for Frigidaire Gallery
®
1. Remove handles from carton and any other protective packaging.
2. Position fresh food handle end over upper and lower pre-installed shoulder bolts (A)
that are fastened into door, ensuring the holes for the set screws are facing towards the
opposite door.
3. Whileholdinghandlermlyagainstdoor,fastenupperandlowerAllensetscrews(B)
with supplied Allen wrench.
4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are
facingtowardstherstdoor.
5. Position freezer handle end over left and right pre-installed handle mounts that are
fastened to the door, ensuring the holes for the set screws are facing down.
6. Whileholdinghandlermlyagainstdoor,looselytightenfarrightAllensetscrew(B)withsupplied
Allen wrench until there is no gap between handle and door.
7. Stillholdingthehandlermlytothedoor,rmlytightenfarleftAllensetscrew(B)withsupplied
Allen wrench.
8. ReturntothefarrightAllensetscrew(B)andrmlytightenwithsuppliedAllenwrench.

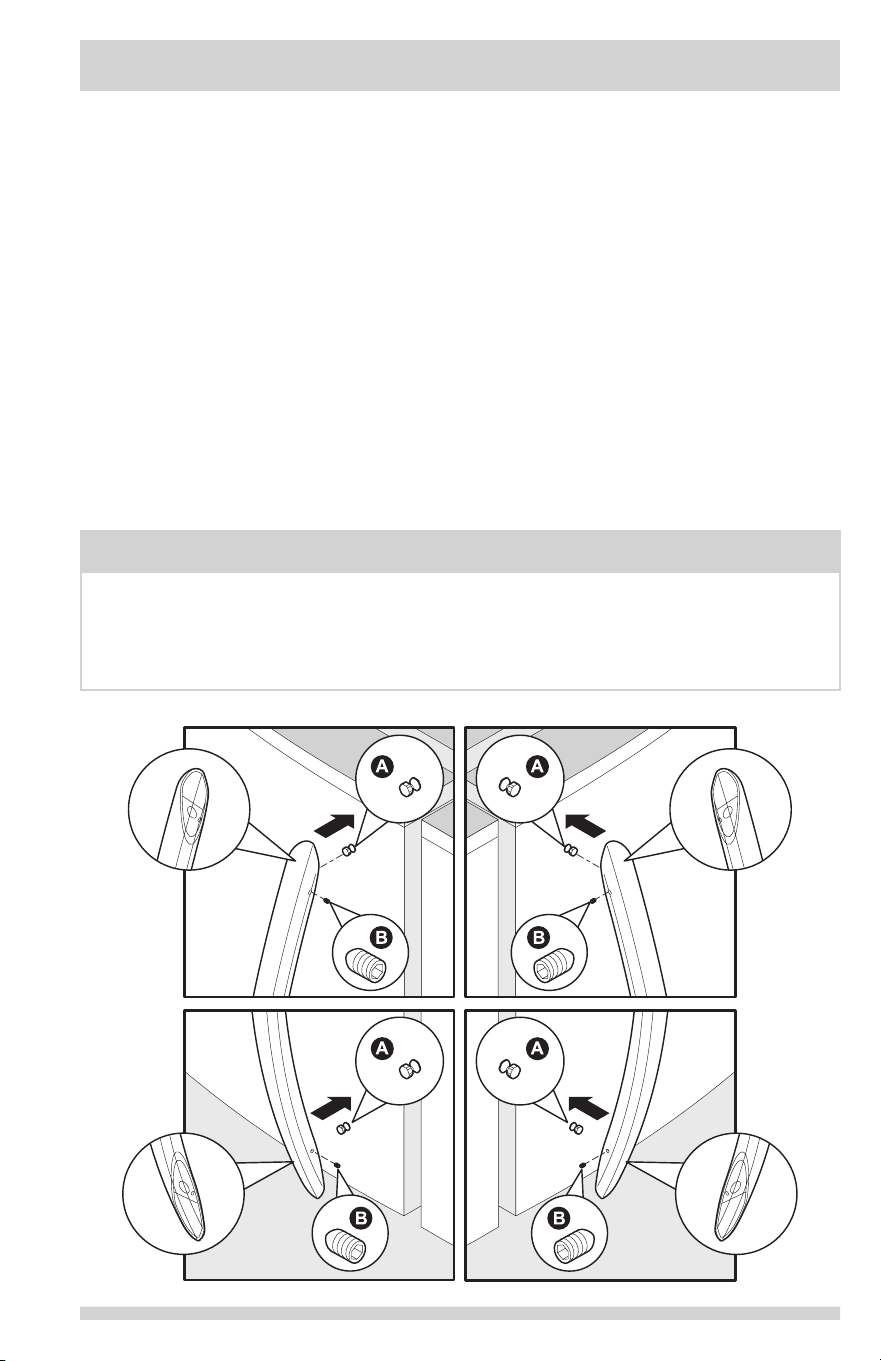

Mounting Refrigerator Handles
14

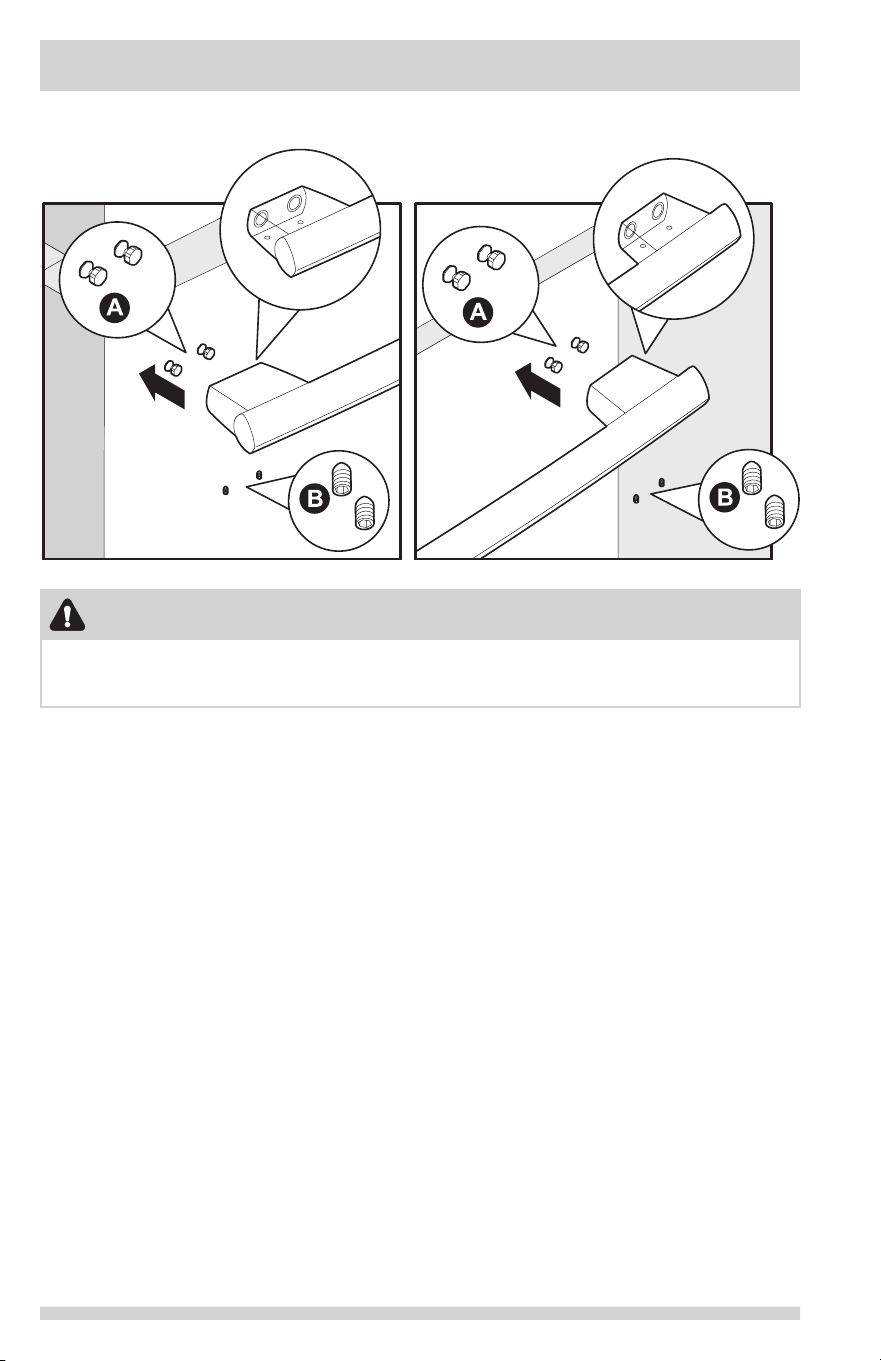

Door Handle Mounting Instructions for
Frigidaire Professional
®
1. Remove handles from carton and any other protective packaging.
2. Position fresh food handle end over upper and lower pre-installed shoulder bolts (A)
that are fastened into door, ensuring the holes for the set screws are facing towards the
opposite door.
3. Whileholdinghandlermlyagainstdoor,fastenupperandlowerAllensetscrews(B)
with supplied Allen wrench.
4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are
facingtowardstherstdoor.
5. Position freezer handle end over left and right pre-installed handle mounts that are
fastened to the door, ensuring the holes for the set screws are facing down.
6. Whileholdinghandlermlyagainstdoor,looselytightenfarrightAllensetscrew(B)withsupplied
Allen wrench until there is no gap between handle and door.
7. Stillholdingthehandlermlytothedoor,rmlytightenfarleftAllensetscrew(B)withsupplied
Allen wrench.
8. ReturntothefarrightAllensetscrew(B)andrmlytightenwithsuppliedAllenwrench.
9. Firmly tighten the inside Allen set screws.
INSTALLING DOOR HANDLES
Mounting Freezer Handle
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
15
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the
opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
tighten the set screws on the handles.
INSTALLING DOOR HANDLES
Mounting Refrigerator Handles
16
Mounting Freezer Handle
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
INSTALLING DOOR HANDLES
17
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing your
new refrigerator. Depending on your local/
state building codes, Frigidaire recommends for
homes with existing valves its Smart Choice
®
water line kit 5305513409 (with a 6 ft. Stainless
Steel Water Line) and for homes without an
existing valve, Frigidaire recommends its Smart
Choice
®
water line kit 5305510264 (with a 20
ft. Copper Water Line with self-tapping saddle
valve). Please refer to www.frigidaire.com/
store for more information.

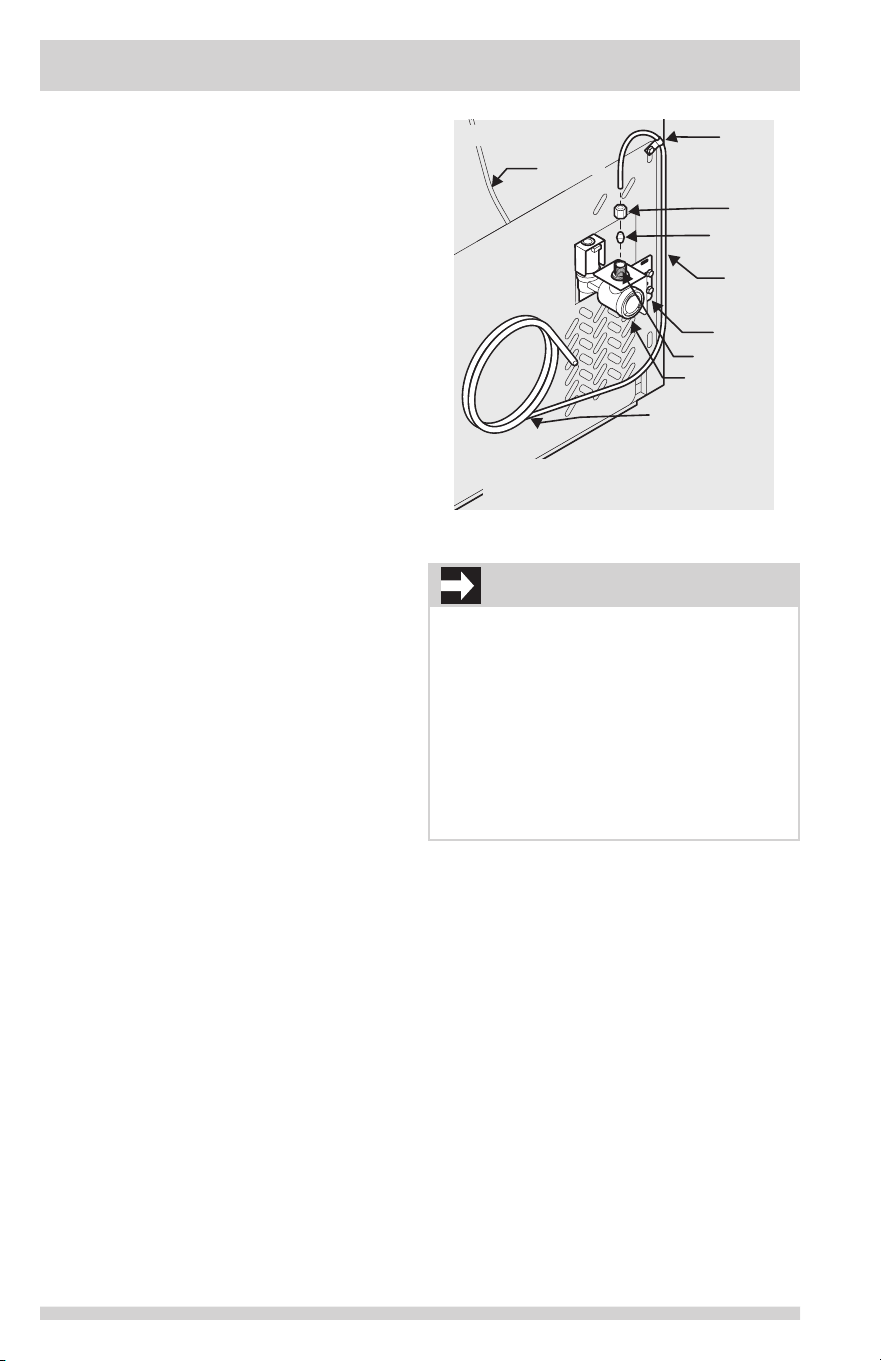

CONNECTING THE WATER SUPPLY
Before Installing The Water
Supply Line, You Will Need:
• BasicTools:adjustablewrench,at-blade
screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch (6.4
mm) OD, copper or stainless steel tubing.
To determine the length of tubing needed,
measure the distance from the ice maker
inlet valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning
(as shown).
• A shutoff valve to connect the water supply
line to your household water system. DO
NOT use a self-piercing type shutoff valve.
• Donotreusecompressionttingoruse
thread seal tape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the
ice maker inlet valve.
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• CopperorStainlessSteelbraided
tubing is recommended for the water
supply line. Water supply tubing made
of ¼ inch plastic is not recommended
to be used. Plastic tubing greatly
increases the potential for water leaks,
and the manufacturer will not be
responsible for any damage if plastic
tubing is used for the supply line.
• DONOTinstallwatersupplytubingin
areas where temperatures fall
below freezing.
• Chemicalsfromamalfunctioning
water softener can damage the ice
maker. If your home has a water
softening system, ensure the softener
is maintained and working properly.
IMPORTANT
Ensure that your water supply line connections
comply with all local plumbing codes.
18
CONNECTING THE WATER SUPPLY
Figure 1
To Connect Water Supply Line To
Ice Maker Inlet Valve
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line into sink
or bucket. Turn ON water supply and
ushsupplylineuntilwaterisclear.
Turn OFF water supply at shutoff valve.
3. Remove plastic cap from water valve
inlet and discard cap.
4. If you use copper tubing - Slide
brass compression nut, then ferrule
(sleeve) onto water supply line. Push
water supply line into water valve inlet
as far as it will go (¼ inch/6.4 mm).
Slide ferrule (sleeve) into valve inlet and
ngertightencompressionnutonto
valve. Tighten another half turn with
a wrench; DO NOT overtighten. See
Figure 1.
If you use stainless steel tubing
- The nut and ferrule are already
assembled on the tubing. Slide
compression nut onto valve inlet and
ngertightencompressionnutonto
valve. Tighten another half turn with
a wrench; DO NOT overtighten. See
Figure 1.
5. With steel clamp and screw, secure
water supply line (copper tubing only)
to rear panel of refrigerator as shown.
6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange coils
so they do not vibrate or wear against
any other surface. Do not kink tubing.
7. Turn ON water supply at shutoff valve
and tighten any connections that leak.
8. Reconnect refrigerator to electrical
power source.
9. To turn ice maker on, lower wire signal
arm (freezer ice maker) or set the ice
maker’s On/Off power switch to the
“On” position (fresh food ice maker).
Steel
Clamp
Brass
compression
Nut
Ferrule
(Sleeve)
Water
line
Water Valve
Bracket
Valve Inlet
Water Valve
Water line from
household water
supply
(Include enough tubing on loop to allow
moving refrigerator out for cleaning.)
Plastic Water Tubing
to Ice Maker
Fill Tube
IMPORTANT
After connecting the water supply, refer to
“How to Prime the Water Supply System”
for important information about priming an
empty water supply system.
Your refrigerator’s water supply system
includesseveraltubinglines,awaterlter,
a water valve, and a water tank. To ensure
that your water dispenser works properly, this
systemmustbecompletelylledwithwater
whenyourrefrigeratorisrstconnectedto
the household water supply line.
19

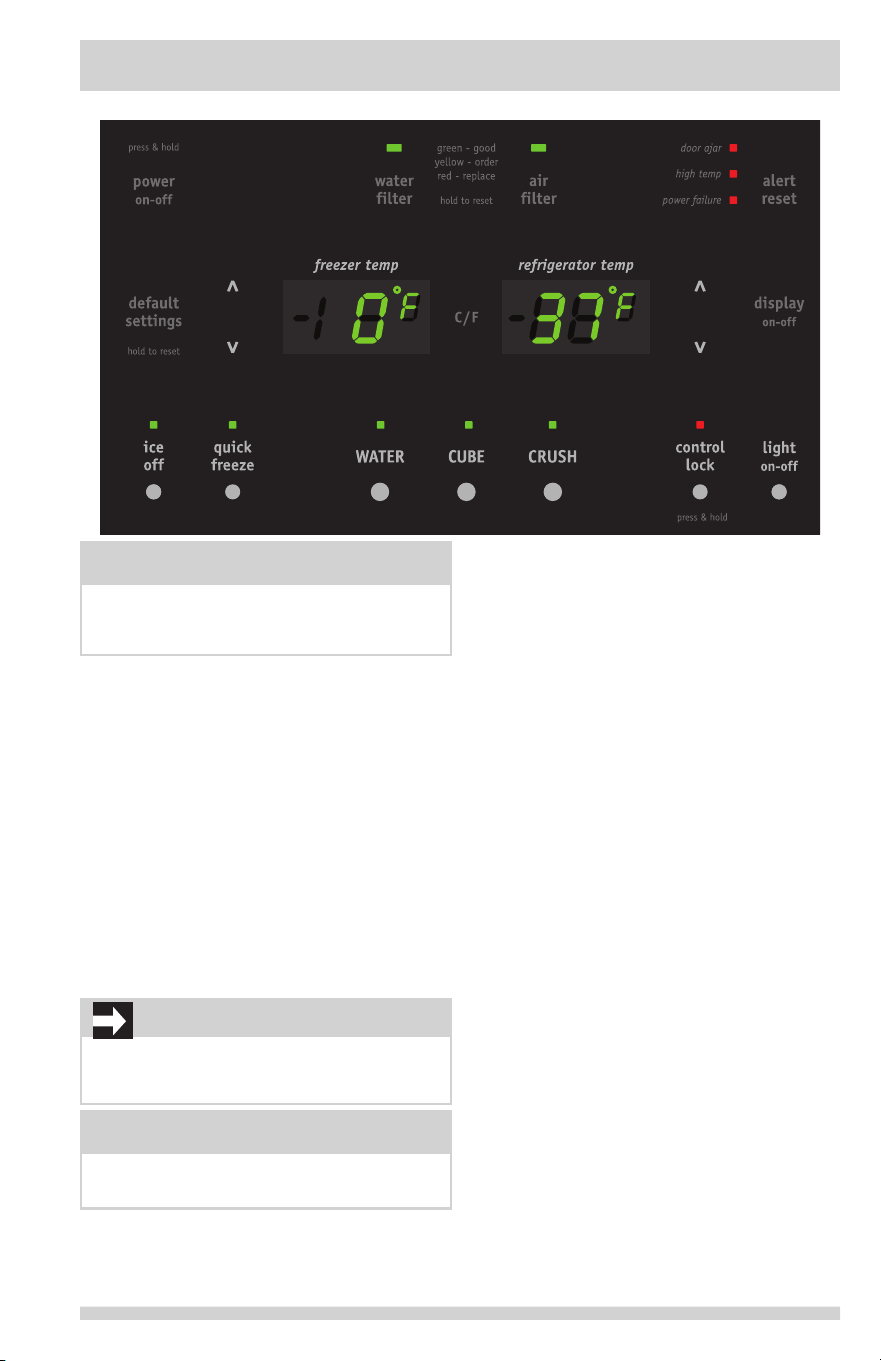

CONTROLS
(Fresh Food
Ice Maker)
(Freezer Ice
Maker, select
models)
ice off Press and hold for three
(3) seconds to turn the
ice maker “ON” or “OFF”.
The ice maker is turned
off when the LED above
the “Ice Off” icon is
illuminated. Turning the
ice maker “OFF” disables
the ice dispensing
feature. Neither “CUBE”
nor “CRUSH” will operate
with the ice maker “OFF”.
quick freeze Activates a faster rate
for freezing food and
increases ice production
in the freezer.
light On / Off
control lock Press and hold for three
(3) seconds to activate and
deactivate. This restricts
undesired changes to the
refrigerator’s settings and
prevents use of the ice and
water dispenser.
waterlter Touchtodisplaylter
condition status. Press
and hold for three (3)
seconds to reset after
lterchange.
airlter Touchtodisplaylter
status. Press and hold for
three (3) seconds to reset
afterlterchange.
display on-off Toggles the temperature
displays On and Off.
C / F Touch to toggle display
from Fahrenheit to Celsius.
default settings Hold to Reset all refrigera-
tor settings such as temp,
and temp display to their
factory default settings.
power Press and hold for three
(3) seconds to turn off the
cooling system to clean
the refrigerator. It also
turns off the ice maker, all
dispenser functions. The
temperature display will
read OFF.
NOTE
Your appliance may have some or all of the
features listed below. Become familiar with these
features and their use and care.
NOTE
For freezer ice maker, see Automatic Ice
Maker-Freezer section.
IMPORTANT
When the fresh food ice maker is turned off, the
ice in the bucket should be transferred to the
freezer or discarded to prevent it from melting.
20
Yourrefrigeratorisequippedwithatouch control
panel. It is only necessary to gently touch the
control panel. There are three (3) dispenser modes:
1. Water
2. Ice Cubes
3. Crushed Ice
A green indicator light will be illuminated above
the active feature.
CONTROLS
Alarms
Door Ajar If the door has been left
open for an extended pe-
riod of time, an alarm will
sound and the door ajar
indicator will illuminate
on the display. Press the
alarm reset key to reset
any system alarms.
High Temp In the event of a high
temperature condition,
the temperature display
will blink and display “HI”.
After 20 minutes, the
high temp alert will be
illuminated. Press alarm
reset to acknowledge
the alarm, at which time
the highest temperature
reached will be displayed
and the refrigerator will
resume normal opera-
tion. All other modes are
turned off until the alarm
is acknowledged.
Power Fail In the event of a power
failure, the power fail
alert will be illuminated.
Press alarm reset to
Setting cooling temperatures
1. Down (∨) and Up (∧) indicators are located
beside the displayed temperatures.
2. Press the ∨ or ∧ indicator to adjust the
temperature to the desired setting.
3. The temperature display will begin to
blinkwiththersttouch.Afterve(5)
seconds of inactivity, the display will beep
to accept the new temperature. After 10
seconds, the display times out and returns
to the basic display.
Sabbath Mode
The Sabbath Mode is a feature that disables portions
of the refrigerator and its controls in accordance
with observance of the weekly Sabbath and religious
holidays within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by pressing
and holding both the freezer “∨” and refrigerator “∧”
indicatorsforve(5)seconds.Thedisplayshows
“Sb” while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is
active for health reasons. If a high
temperature alarm is activated during
this time, for example due to a door left
ajar, the alarm will sound intermittently
for about 10 minutes. The alarm will then silence
on its own and a red high temperature icon will
display. The high temp icon will continue to display,
even if the door is closed, until the Sabbath mode
is exited and the icon reset. The refrigerator will
function normally once the door is closed, without
any violation of the Sabbath/Holidays.
For further assistance, guidelines for proper usage
and a complete list of models with the Sabbath
feature, please visit the web at http:\\www.
star-k.org.
acknowledge the alarm.
Other modes may be
turned off until the alarm
is acknowledged. When
the power fail alert
is acknowledged, the
refrigerator will resume
normal operation. The
high temp alarm may also
be illuminated until a safe
operating range tempera-
ture has been reached.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work until
Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after power
failure recovery. It must be deactivated with
the buttons on the control panel.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice cube
compartment will remain cold and new ice
cubes can be made with standard trays.
IMPORTANT
Pressing the power on/off icon does not turn
off power to your refrigerator. You must unplug
the power cord from the wall outlet.
21
CONTROLS
LCD Controls (select models)
User Interface
Yourrefrigeratorisequippedwithauserinterface
display. It is only necessary to touch the panel.
There is no need to press with force.
Touch an icon (Water/Cube/Crush) to activate
the desired dispenser mode.
light on-off On / Off
control lock Press and hold for
three (3) seconds to
activate and deacti-
vate. The Lock icon
will be displayed in
the LCD window. This
restricts undesired
changes to the refrig-
erator’s settings and
prevents use of the ice
and water dispenser.
options Touch to display op-
tions menu.
Use the menu buttons
to scroll down to either
freezer or refrigera-
tor temp to adjust
temperatures.
Use the Temp Adjust
buttons to adjust the
temperature to the
desired setting.
Press the SET button
to accept the new
temperature setting.
Press options button
to exit the main menu.
power on-off Press and hold for
three (3) seconds to
turn off the cooling
system to clean the
refrigerator. It also
turns off all dispenser
functions. The tem-
perature display will
read “OF”.
options
IMPORTANT
Pressing the power off icon does not turn off
power to your refrigerator. You must unplug the
power cord from the wall outlet.
22
AUTOMATIC ICE & WATER DISPENSER
Priming the water supply system
1. Beginllingthe
tank by pressing
and holding a
drinking glass
against the water
dispenser paddle.
2. Keep the glass in
this position until
water comes out
of the dispenser.
It may take
about 1½ minutes.
3. Continue dispensing water for about
four(4)minutestoushthesystem
and plumbing connections of any
impurities (stopping to empty the glass
as necessary).
Ice maker operation & care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24 hours. The
icemakerwilllltheicebinfromtherear.
You must dispense some ice to force the ice
forward in the bin. This will allow the bin to
llcompletely.
Turning the fresh food ice maker
on and off
Ice production is controlled by the ice maker’s
On/Off icon on the control panel. Press and
hold the “Ice Off” icon for three (3) seconds
to turn the ice maker “ON” or “OFF”. The ice
maker is turned off when the LED above the
“Ice Off” icon is illuminated.
Using the ice maker
after installation
Beforemakingiceforthersttime,besure
to prime the water supply system. Air in new
plumbing lines can result in two (2) or three
(3) empty ice maker cycles. Furthermore, if
thesystemisnotushed,thersticecubes
maybediscoloredorhaveanoddavor.
NOTE
The water dispenser has a built-in device that
shutsoffthewaterowafterthree(3)minutes
of continuous use. To reset this shutoff device,
simply release the dispenser paddle.
NOTE
Dispensed water is chilled. For colder
water, add ice to cup or container before
dispensing water.
NOTE
The ice maker also has a built-in plastic
signal bale arm that automatically stops
ice production when the ice bin is full. This
signal arm should not be used to manually
stop the ice maker.
CAUTION
For proper dispenser operation, recommended
water supply pressure should fall between
30 psi and 100 psi. Excessive pressure may
causewaterltertomalfunction.
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a water
supply, set the ice maker’s On/Off icon to
Off and turn off the water supply valve;
otherwise,theicemaker’sllvalvemaymake
a loud chattering noise when it attempts to
operate without water.
IMPORTANT
Turning off the ice maker will result in
existing ice melting in the bin.
IMPORTANT
Turning off the ice maker will disable the ice
dispenser. You will still be able to dispense water.
23
IMPORTANT
On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed ice.
This could occur in normal operation of the
ice maker. If you start seeing these more
frequently,itmaybeanindicationoflow
waterpressureorthewaterlterneedstobe
replaced.Asthewaterlternearstheendofits
useful life and becomes clogged with particles,
less water is delivered to the ice maker during
each cycle. Remember, if it’s been six (6)
months or longer since you last changed your
waterlter,replacethewaterlterwithanew
one.Poorqualityhouseholdwatermayrequire
theltertobechangedmorefrequently.
AUTOMATIC ICE & WATER DISPENSER
Ice maker/dispenser tips
• If your refrigerator is not connected to a water
supply or the water supply is turned off, turn
off the ice maker by holding the On/Off soft-
touch icon for three (3) seconds.
• The following sounds are normal when the
ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the ice
chute opens and closes.
• Ifyouneedalargequantityoficeatone
time, it is best to get cubes directly from
the ice bin.
• Ice cubes stored too long may develop an odd
avor.Emptytheicebinasexplainedbelow.
• When dispensing cubed ice, it is normal to have
asmallquantityoflittlepiecesalongwiththe
whole cubes.
4. Allow the ice
bin to dry
completely
before
replacing in
the freezer.
5. Replace the ice
bin. Turn the
ice maker on.
Remove and empty
the ice bin if:
• An extended
power failure
(one hour or longer) causes ice cubes in
the ice bin to melt and freeze together,
jamming the dispenser mechanism.
• Youdonotusetheicedispenserfrequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water softener
can damage the ice maker.
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1. Turn off the ice maker.

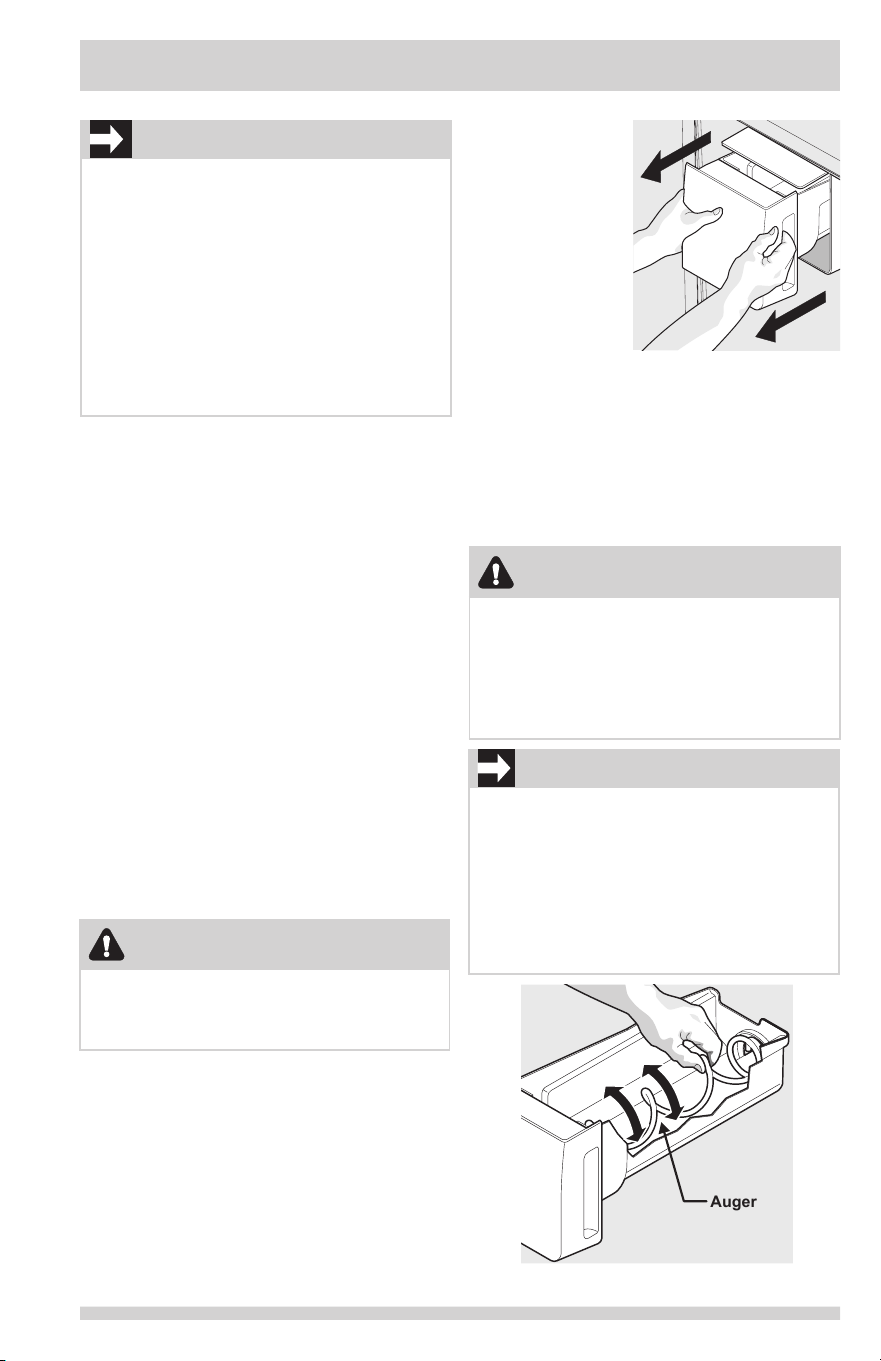

2. Remove the ice bin by pulling
straight out.
3. Empty and carefully clean the ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clear water.
Removing Ice Bin
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin and dispenser
mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it is
completely dry.
IMPORTANT
When removing or replacing the ice bin, DO
NOT rotate the auger in the ice bin. If the
auger is accidentally rotated, you must realign
the auger by turning it in 45 degree turns (see
below)untiltheicebintsintoplacewith
the drive mechanism. If the auger is not
properly aligned when replacing the ice bin, the
refrigerator will not dispense ice. The fresh food
door also may not close properly causing warm
air to leak into the fresh food compartment.
Adjusting Ice Bin Auger
Auger
24

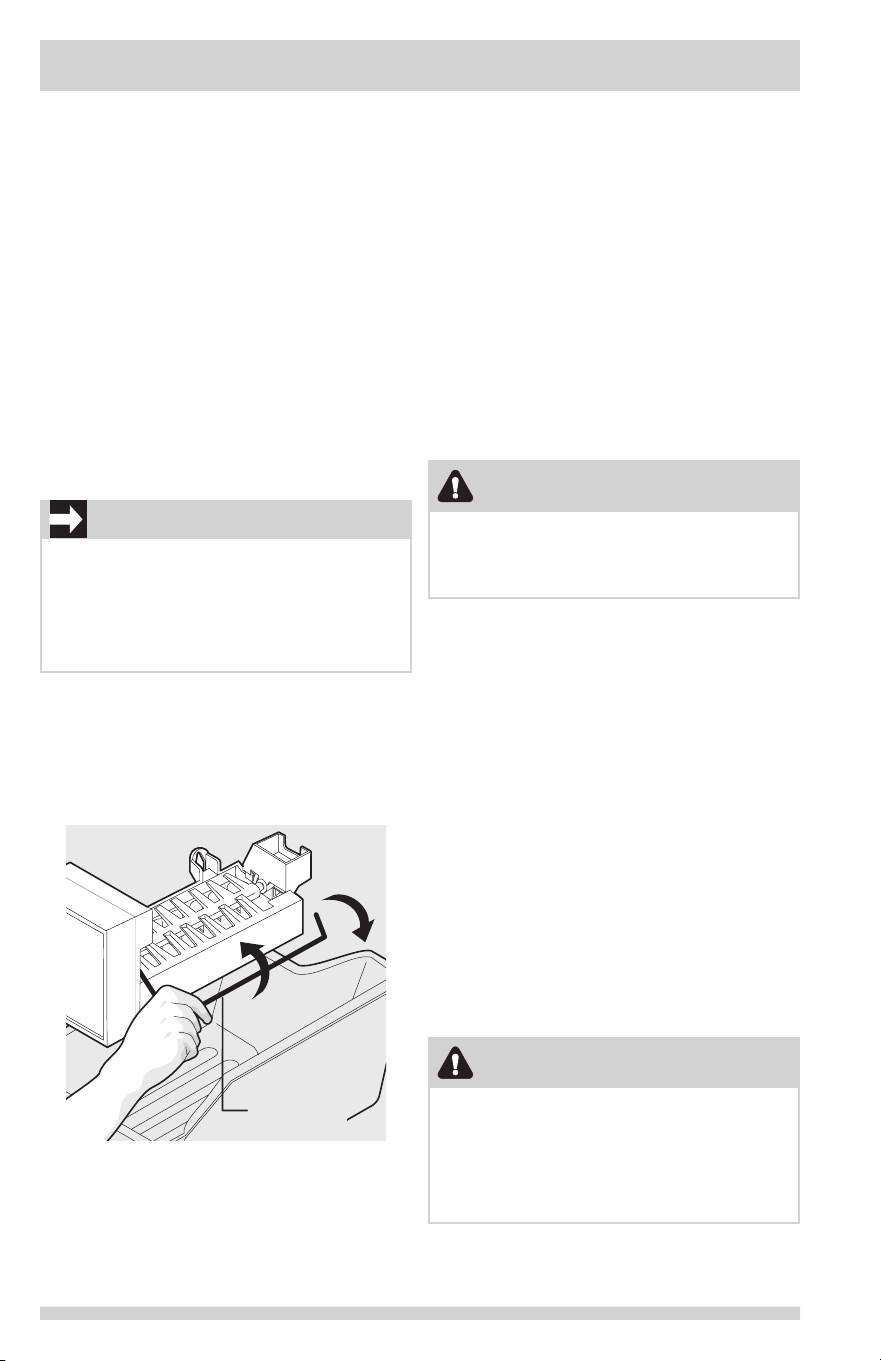

AUTOMATIC ICE MAKER - FREEZER
Operation & Care of the
Freezer Ice Maker
(select models)
After the refrigerator is installed properly, the ice
maker can produce ice within 24 hours. It can
completelylltheicebininaboutthree(3)days.
Whenusingtheicemakerforthersttimeand
in order for the ice maker to work properly, it is
necessarytoclearairfromwaterltertubing.
Once ice maker begins making ice, allow the
buckettollcompletely,thendiscardtherstTWO
(2) FULL buckets of ice. It will take at least two
(2)daystocompletelyllthebucketonregularice
making mode or 1
1
/
2
days on fast ice mode.
The ice maker produces approximately four 2.5
pounds of ice every 24 hours depending on
usage conditions.
Turning the ice maker on and off
Ice production is controlled by lifting/lowering
the ice maker’s wire signal arm. To gain
access to the ice maker, pull the freezer drawer
out. Lift the wire signal arm to turn the ice
maker OFF and lower the wire signal arm to
turn it ON.
Ice maker tips
• If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker by lifting wire
signal arm.
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1. Turn off the ice maker.
2. Remove the ice bin.
3. Empty and carefully clean the ice bin
with mild detergent. Do not use harsh
or abrasive cleaners. Rinse with clean
water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and freeze together.
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
• The following sounds are normal when the
ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may develop an odd
avor.Emptytheicebinasexplainedbelow.
Quick Ice Function
YourrefrigeratorisequippedwithaQuickIce
Function, that increases ice production. This
function terminates automatically.
Cleaning the ice maker
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a water
supply, lift the ice maker’s wire signal arm to
turnitoff.Otherwise,theicemaker’sllvalve
may make a loud chattering noise when it
attempts to operate without water.
ON
OFF
Wire
Signal Arm
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it is
completely dry.
25
NOTE
Features may vary according to model.
STORAGE FEATURES

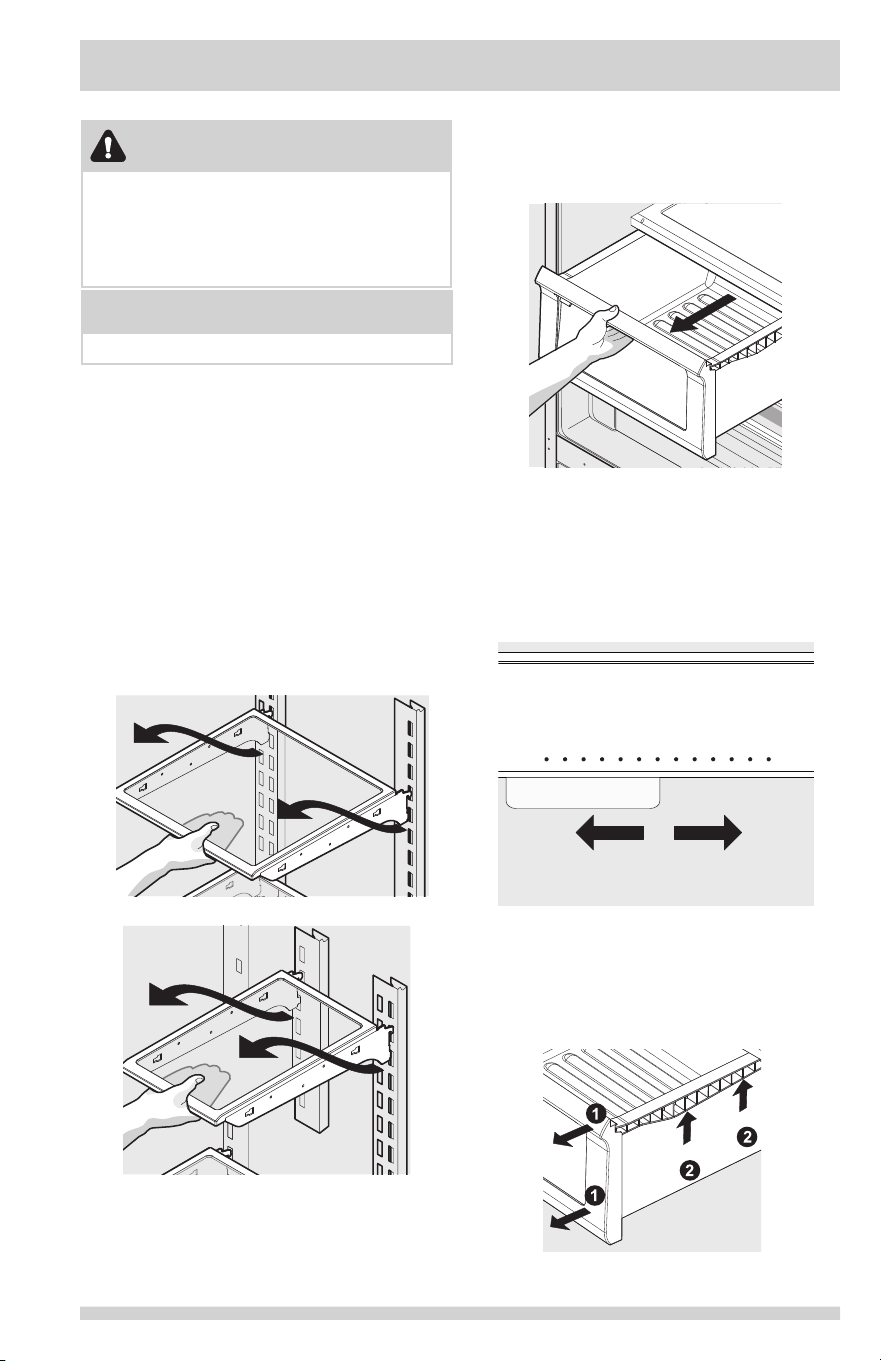

Your refrigerator includes SpillSafe
TM
glass shelves
that are designed to catch and hold accidental spills.
You can easily adjust shelf positions in the fresh
food compartments to suit your needs. The shelves
have mounting brackets that attach to slotted
supports at the rear of each compartment.
To change the position of a shelf:
1. Remove all food from shelf.
2. Lift the front edge up and pull the
shelf out.
3. Replace by inserting the mounting bracket
hooks into the desired support slots.
4. Lower the shelf and lock into position.
Shelf features
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
Drawers
Your refrigerator includes a variety of storage
drawers.Thesedrawersarelocatedinxedpositions
at the bottom of the fresh food compartment.
Crisper humidity control
Crisper drawers include a sliding control for adjusting
the humidity inside the crisper. Leafy vegetables keep
best when stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best when stored
with the Humidity Control set on Lower Humidity.
To remove the Crisper Drawer for cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove
the drawer.
CAUTION
To avoid personal injury or property damage,
handle tempered glass shelves carefully. Shelves
may break suddenly if nicked, scratched, or
exposed to sudden temperature change. Allow
the glass shelves to stabilize to room temperature
before cleaning. Do not wash in dishwasher.
Full SpillSafe
TM
Shelf
Half SpillSafe
TM
Shelf
Opening Crisper Drawer
Adjusting Crisper Humidity
Vegetables Fruits
hi
lo
Higher
Humidity
Lower
Humidity
humidity control
Removing Crisper Drawer
26
STORAGE FEATURES

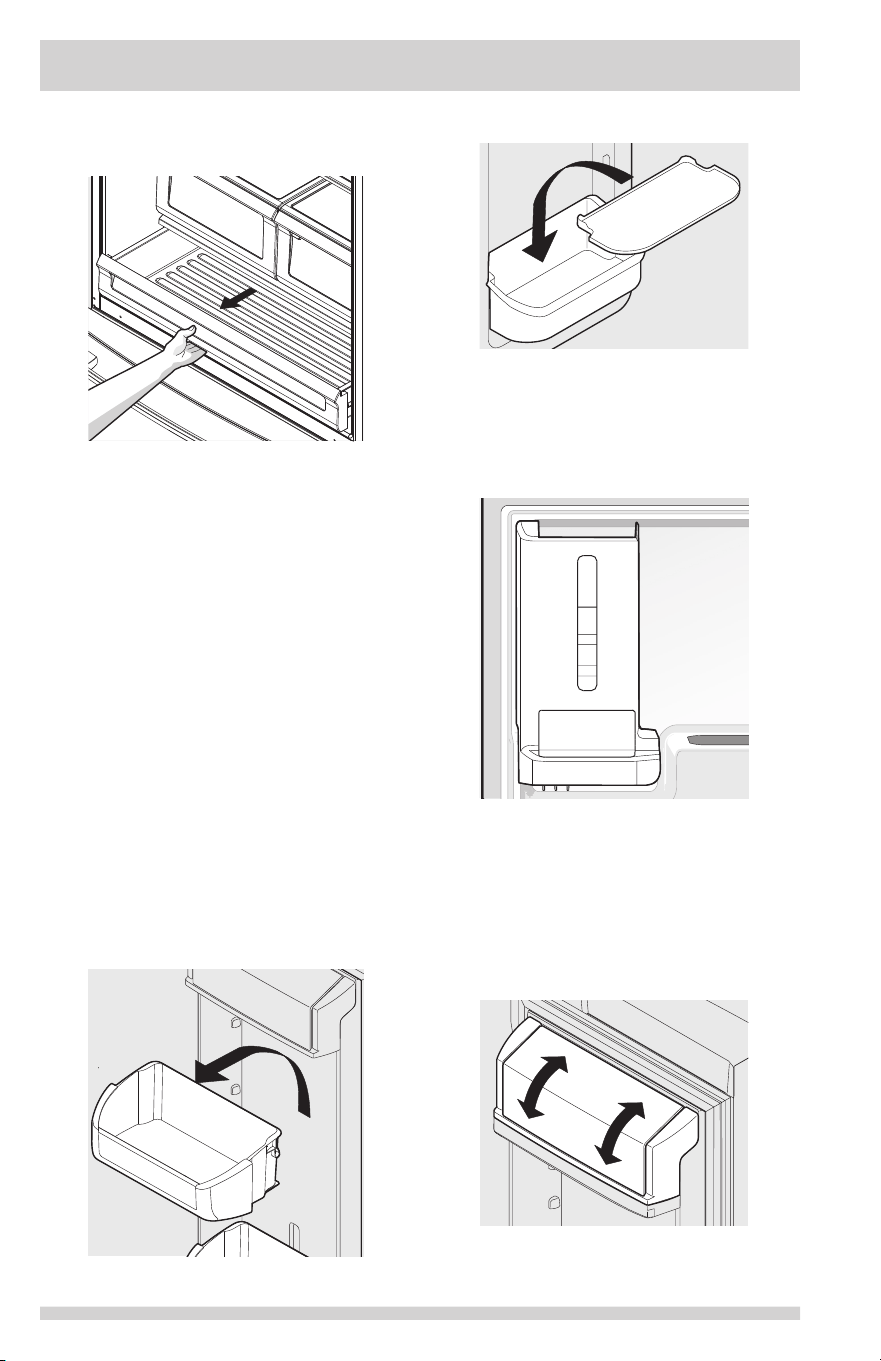

Deli drawer
Ideal for storage of deli meats and cheese.
Doors
Storage bins
The doors to your fresh food compartment use
a system of modular storage bins. All of these
bins are removable for easy cleaning. Some of
themhavexedpositions,whileotherscanbe
adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enablequickselectionoffrequentlyuseditems.
To change the position of an adjustable
door bin:
1. Remove all food from door bin.
2. Gripthebinrmlywithbothhandsand
lift it upward.
3. Remove the bin.
4. Place the bin just above desired
position.
5. Lower the bin onto supports until
locked in place.
Accessories (vary by model)
Removable Can Dispenser
The can dispenser holds six 12 ounce cans.
Insert cans into top of bin and dispense from
the bottom.
Dairy compartment
Use the dairy compartment, at the top of the
fresh food compartment door, for short-term
storage of cheese, spreads, or butter. The dairy
compartment is designed to be warmer than
the open area and includes a lift-up cover and
a dairy divider (select models).
6. Place bin liner into bin.
Adjustable Door Bin
Can Dispenser
Dairy Compartment
27
NOTE
If basket is not resting on stabilizer bar retainer
clips, the drawer will not close properly.
STORAGE FEATURES

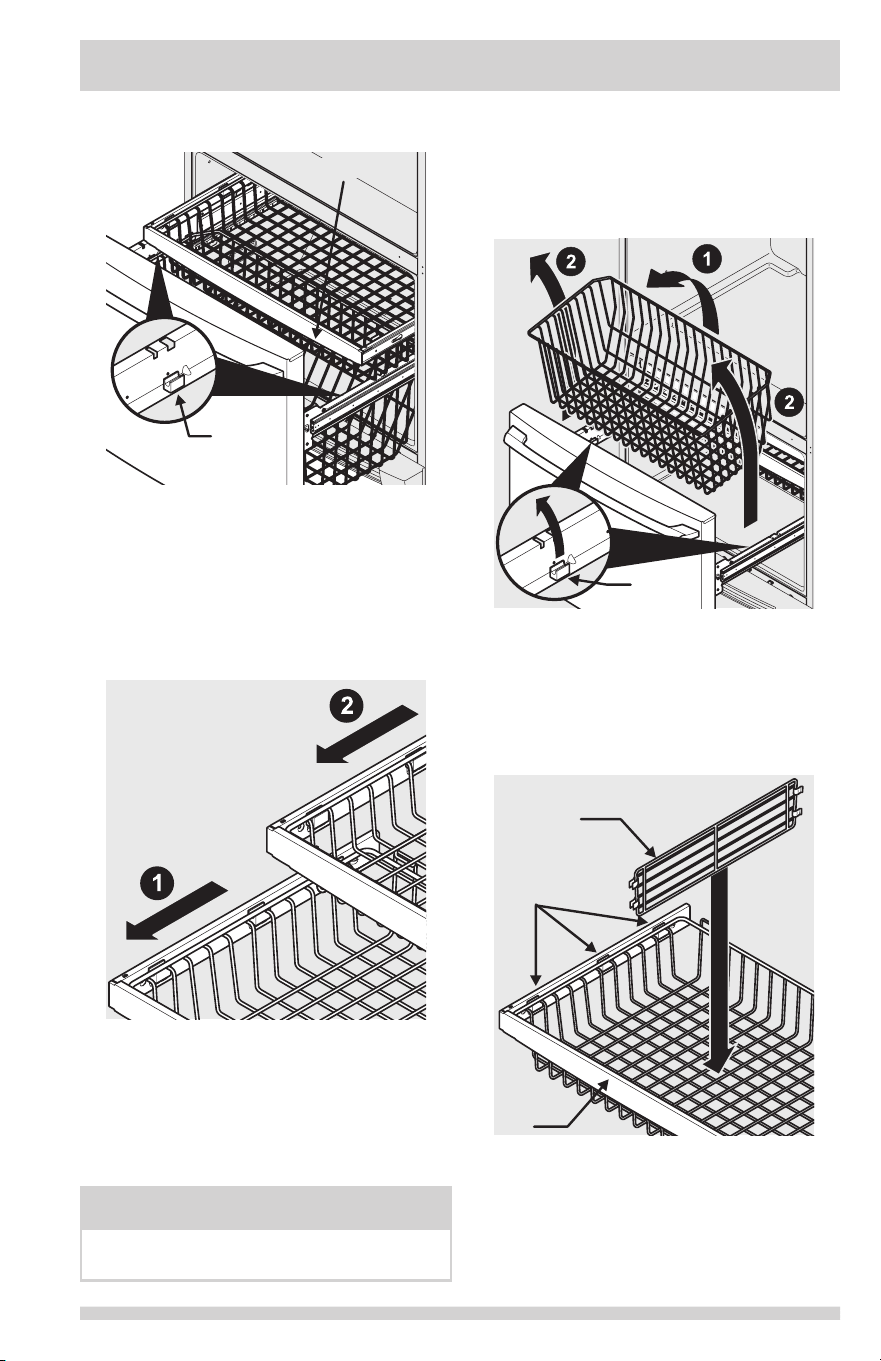

Freezer Features (vary by model)
To Remove Upper Basket
1. Remove all items from basket.
2. Remove basket by pulling baskets out
to their full extension and lift out.
To reinstall upper basket, position basket onto
the retainer clips making sure the front of
the basket rests in the retainer clips on the
stabilizer bar.
To Remove Lower Basket
1. Remove all items from basket.
2. Remove the basket by tilting it forward
and lifting it from the retainer clips.
To reinstall lower basket, insert basket into
retainer clips.

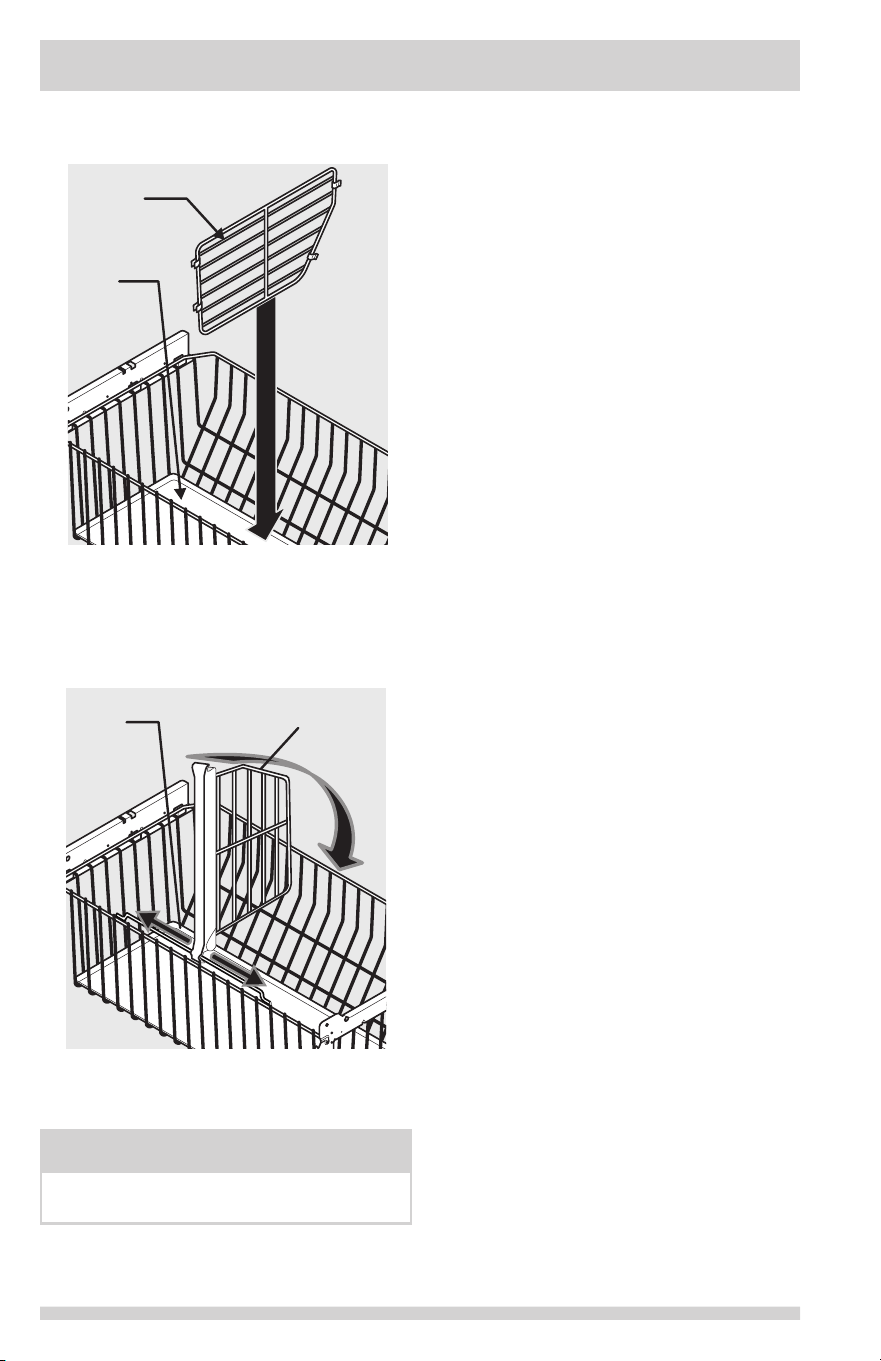

Dividers Removal
Lift up on the front of the divider and pull out.
Two Freezer Baskets
Stabilizer Bar
Basket
Retainer
Clips
Removing Upper Basket
Removing Lower Basket
Basket
Retainer
Basket Divider
Basket
Divider
Retainers
Stabilizer
Bar
28
NOTE
Spill Guard Tray should be hand washed in
warm water.
Lift up on the rear of the lower divider and
pull out.
Lower Basket Divider &
Spill Guard Tray
Lower Basket
Divider
Spill Guard
Tray
STORAGE FEATURES
To reposition the pivoting divider (some models),
lift up and slide to desired location. The pivoting
divider is not designed to be removed.
Lower Basket Pivoting Divider
(some models)
Spill Guard
Tray
Lower Basket
Pivoting Divider
29
STORING FOOD AND SAVING ENERGY
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34° F and 40° F with an optimum
temperature of 37° F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation and
causes uneven cooling.
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture helps
preservefoodqualityforlongertimeperiods.
• Wash items and remove excess water.
• Wrap any items that have strong odors or
high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or surfaces.
• Use the deli drawer to store meat/poultry
for short-term storage. Any meat to be kept
longer than two (2) days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0° F or lower.
• Afreezeroperatesmostefcientlywhenit
is at least
2
/
3
full.
Packaging foods for freezing
• Tominimizefooddehydrationandquality
deterioration, use aluminum foil, freezer
wrap, freezer bags, or airtight containers.
Force as much air out of the packages as
possible and seal them tightly. Trapped air
can cause food to dry out, change color,
anddevelopanoffavor(freezerburn).
• Wrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
“quickfreeze”sothatonyourreturnyou
can ensure your newly purchased food
designated for the freezer will be preserved
asquicklyaspossible.
• Activating“quickfreeze”alsowillhelp
yourfreezermoreefcientlymaintainthe
selected temperature after placing new
purchases with pre-existing frozen foods.
• Avoid adding too much warm food to the
freezer at one time. This overloads the
freezer, slows the rate of freezing, and can
raise the temperature of frozen foods.
• Leave a space between packages, so cold
air can circulate freely, allowing food to
freezeasquicklyaspossible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest part
of the room, out of direct sunlight, and
away from heating ducts or registers.
• Do not place the refrigerator next to heat-
producing appliances such as a range, oven,
or dishwasher. If this is not possible, a section
of cabinetry or an added layer of insulation
between the two (2) appliances will help the
refrigeratoroperatemoreefciently.
• Level the refrigerator so that the doors
close tightly.
Temperature settings
• Refer to the “Controls” section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator or blocking
cold air vents. Doing so causes the refrigerator
to run longer and use more energy.
• Cover foods and wipe containers dry before
placing them in the refrigerator. This cuts
down on moisture build-up inside the unit.
• Organize the refrigerator to reduce door
openings. Remove as many items as
needed at one time and close the door as
soon as possible.
• Do not place a hot container directly on a
cold shelf. Remember, such an extreme
temperature change may damage the glass.
30

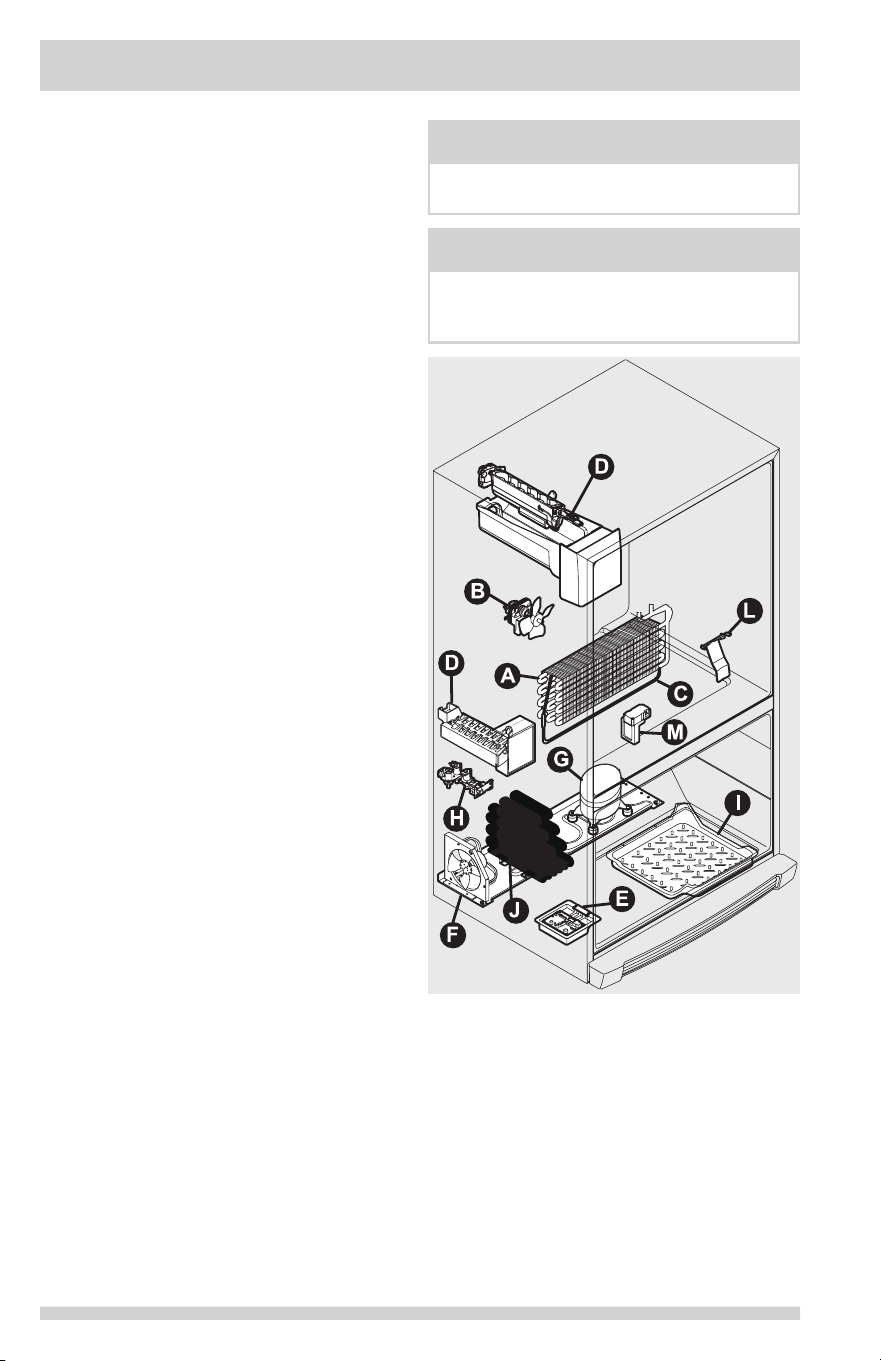

NOTE
Energyefcientfoaminyourrefrigeratoris
not a sound insulator.
NOTE
During automatic defrost cycle, a red glow
in the back wall vents of your freezer
compartment is normal.
Understanding the sounds
you may hear
Yournew,high-efciencyrefrigeratormay
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is
operatingcorrectly.Somesurfacesonoors,
walls, and kitchen cabinets may make these
sounds more noticeable.
The following is a list of major components in
your refrigerator and the sounds they can cause:
A. Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B. Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C. Defrost heater During defrost
cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
D. Automatic ice maker When ice
has been produced, you will hear ice
cubes falling into the ice bin. Ice
maker fan, water valve activation,
andrefrigerantgasuidmaycreate
sounds from its operation.
E. Electronic control & automatic
defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on
and off.
F. Condenser fan You may hear air
being forced through the condenser.
G. CompressorModern,high-efciency
compressors run much faster than older
models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water valve Makes a buzzing sound
eachtimeitopenstolltheicemaker.
I. Drain pan (not removable) You may
hear water dripping into the drain pan
during the defrost cycle.
J. Condenser May create minimal
sounds from forced air.
L. Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound
when the solenoid opens and closes
the ice chute.
M. Motorized damper May produce a
light humming during operation.
NORMAL OPERATING SOUNDS AND SIGHTS
31

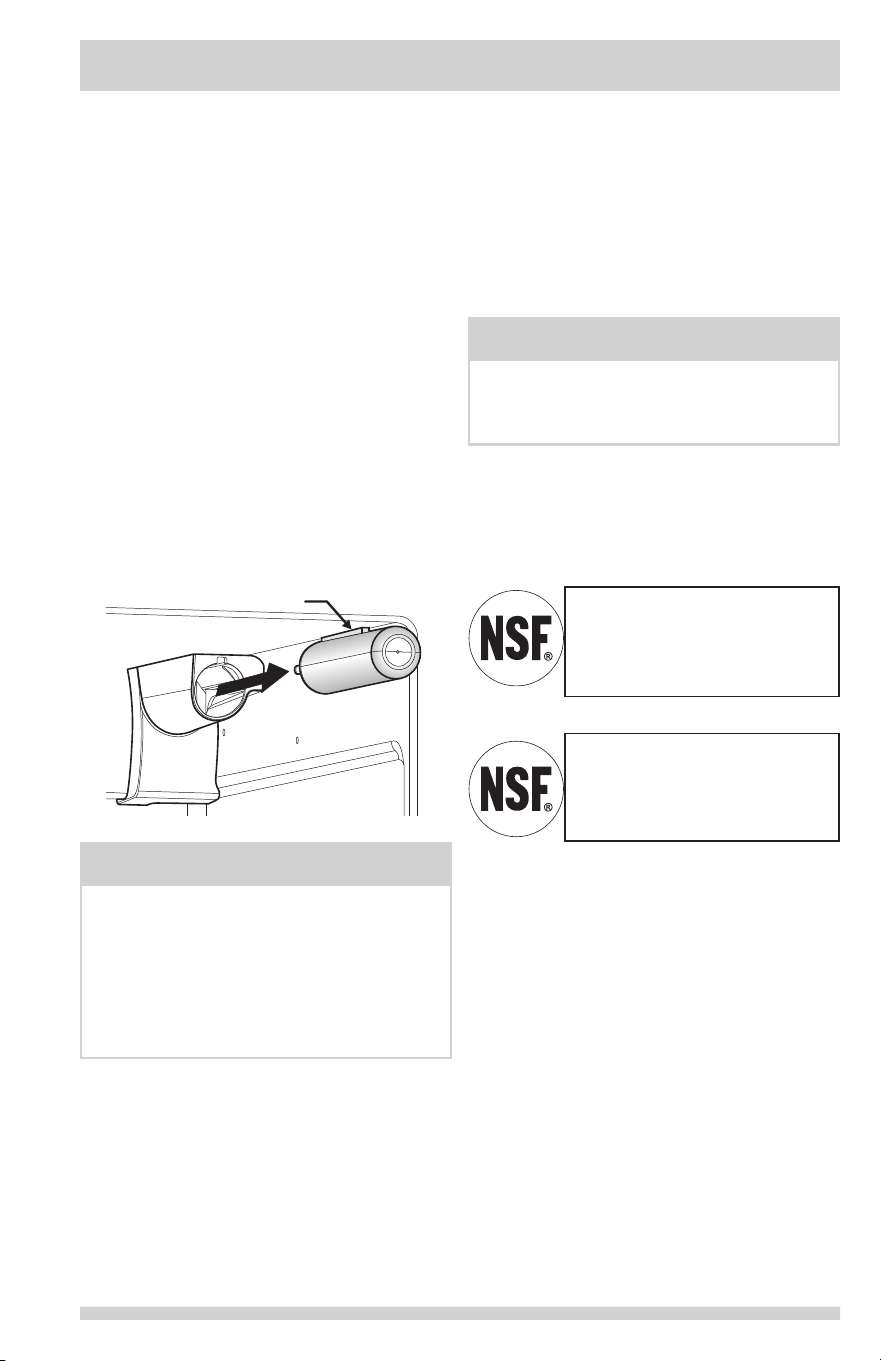

NOTE
Ifyourrefrigeratorisequippedwitha
PureSource Ultra
TM
waterlter,itmustbe
replaced with PureSource Ultra
TM
Water
Filter ULTRAWF.
NOTE
Ifyourrefrigeratorisequippedwitha
PureSource 3
TM
waterlter,itcanbereplaced
with a PureSource Ultra
TM
Water
Filter. Replacing your PureSource 3
TM
Water
Filter with a PureSource Ultra
TM
Water Filter
removes more potential contaminants as
tested by NSF. The contaminants or other
substances removed or reduced by this water
lterarenotnecessarilyinallusers’water.
CHANGING THE FILTER
Locating the Filters
Yourrefrigeratorisequippedwithwater
lteringsystem.Thewaterltersystemlters
all dispensed drinking water, as well as the
water used to produce ice.
Water Filter
Thewaterlterislocatedatthetoprightside
of the fresh food compartment.
Ordering Replacement Filters
Toorderyourreplacementlters,pleasevisit
our online store at www.frigidaire.com/store,
by calling toll-free at 877-808-4195, or by
visiting the dealer where you purchased your
refrigerator. Frigidaire recommends that you
orderextralterswhenyourstinstallyour
refrigerator,andthatyoureplaceyourltersat
least once every six months.
Replacing the Water Filter
In general, you should change the water
ltereverysixmonthstoensurethehighest
possiblewaterquality.Water Filter Status
on the user interface prompts you to replace
thelterafterastandardamountofwater
(200 gallons/757 liters for PureSource
Ultra
TM
and PureSource 3
TM
)
hasowed
through the system.
If your refrigerator has not been used for a
period of time (during moving for example),
changethelterbeforereinstalling
the refrigerator.
Do not use with water that is microbiologically
unsafeorofunknownqualitywithoutadequate
disinfection before or after the system.
Systemscertiedforcystreductionmaybe
used on disinfected waters that may contain
lterablecysts.
Test&certicationresults:
• Rated Capacity - 200 gallons/757 liters for
PureSource Ultra
TM
and PureSource 3
TM
iceandwaterlter
• Ratedserviceow-.50gallonsperminute
• Operating Temp: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 pounds per
squareinch
• Recommended Minimum Operating
Pressure:30poundspersquareinch
More about your Advanced
Water Filter
Filter Cartridge
The PureSource Ultra
TM
ice and water
ltersystemistestedandcertiedto
NSF/ANSI Standards 42 and 53 for the
reductionofclaimsspeciedonthe
performance data sheet.
The PureSource 3
TM
ice and water
ltersystemistestedandcertied
to NSF/ANSI Standards 42 and 53
forthereductionofclaimsspecied
on the performance data sheet.
Hereistheproductnumbertorequest
when ordering:
PureSource Ultra
TM
Water Filter
Part #ULTRAWF
or
PureSource 3
TM
Water Filter
Part #WF3CB
32

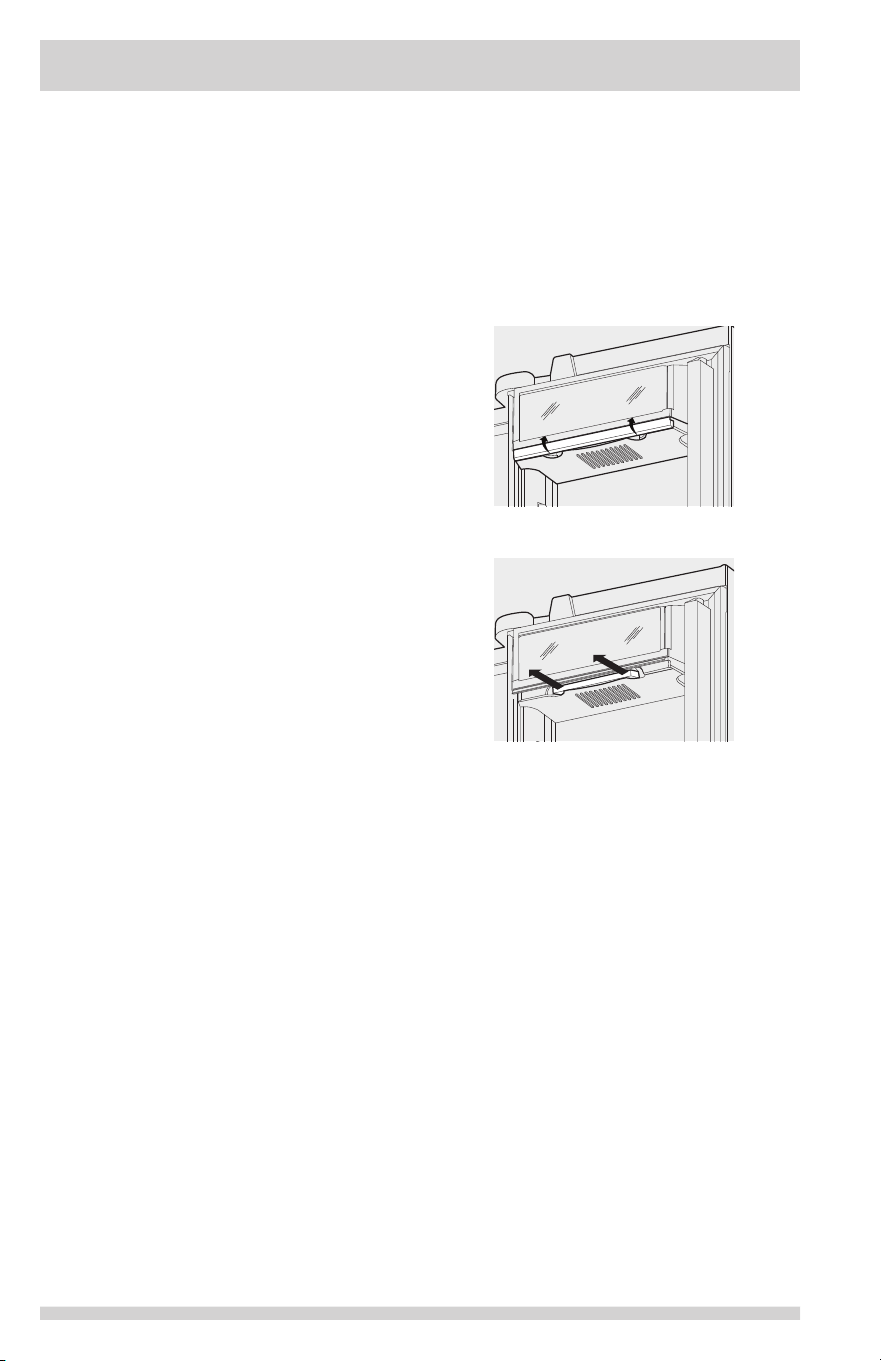

To replace your
waterlter:
It is not necessary to turn the water supply off
tochangethelter.Bereadytowipeupany
small amounts of water released during the
lterreplacement.
1. Turn Off the ice maker power switch.
2. Removethelterbypushingonthe
end/faceofthelter.
3. Slidetheoldwaterltercartridgestraight
out of the housing and discard it.
4. Unpackagethenewltercartridge.
Using the alignment guide, slide it
gentlyintothelterhousinguntilit
stops against the snap-in connector at
the back of the housing.
5. Pushrmlyuntilthecartridge
snaps into place (you should hear a
click as the cartridge engages the
snap-in connector).
6. Press a drinking glass against the
water dispenser while checking for any
leaksatthelterhousing.Anyspurts
and sputters that occur as the system
purges air out of the dispenser system
are normal.
7. Afterllingoneglassofwater,continue
ushingthesystemforaboutfour
minutes.
8. Turn On the ice maker.
9. Press and hold the Water Filter button
on the Ice & Water Dispenser control
panel for three seconds. When the
display changes from Red to Green,
the status has been reset.
CHANGING THE FILTER
Orderingreplacementlters
Ordernewltersbycalling877-808-4195,
online at www.frigidaire.com/store, or through
the dealer where you bought your refrigerator.
Youmaywanttoconsiderorderingextralters
whenyourstinstallyourrefrigerator.
Air Filter Replacement cartridge, part
#PAULTRA
Airlter(select models)
Theairlterislocatedundertheutilitybin.
Replacing your PureAdvantage
TM
airlter
Toensureoptimallteringofrefrigerator
odors,youshouldchangetheairlterevery
six(6)months(thelterstatuslightonthe
TouchPanelpromptsyoutoreplacethelter
after six (6) months).
1. Opentheairlterdoor.
2. Removetheoldlteranddiscardit.
3. Unpackthenewlterandslideitinto
thehousing.Theopenfaceofthelter
should be installed facing downward.
4. Toclosetheairlterdoor,pushthetop
and bottom to lock the door closed.
5. Press and hold the Air Filter Reset
button on the control panel for three
(3)seconds. When the display changes
from “Replace” to “Good,” the status
has been reset.
6. The Air Filter Reset will turn itself off
after a few seconds.
33

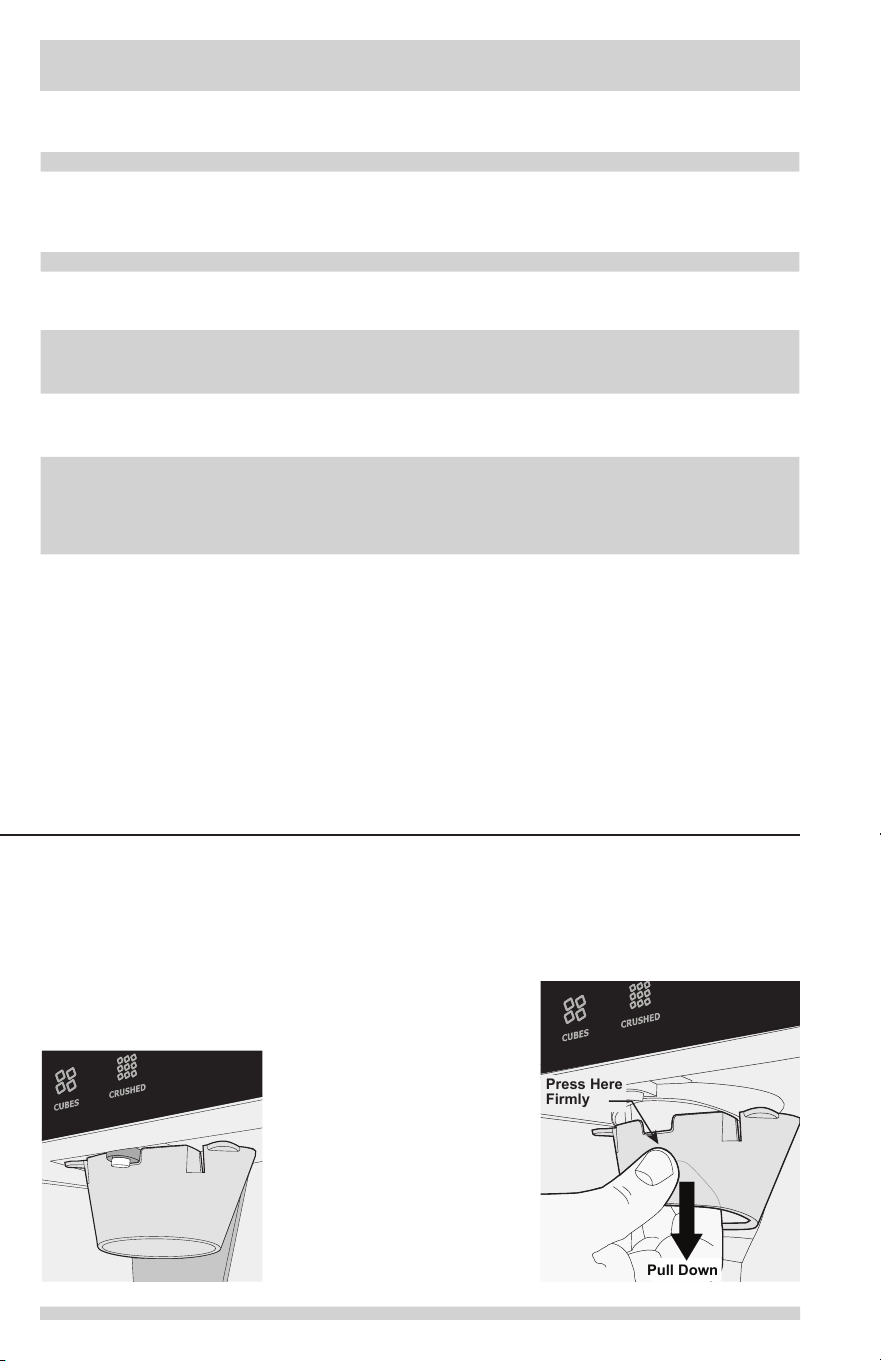

NOTE
Donotuseabrasivecleanerssuchaswindowsprays,scouringcleansers,ammableuids,
cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products
on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring
pads, or other abrasive cleaning materials.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical
components will continue until you unplug the power cord from the wall outlet.
CARE & CLEANING
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any
spills immediately and clean the freezer and fresh food compartments at least twice a year.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the
appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This
willpreventtheoorfrombeingdamaged.
Refertotheguideonthenextpagefordetailsoncaringandcleaningspecicareasofyourrefrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on
any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
Vacation and moving tips
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three (3) weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you will only be gone
a few days.
Long
Vacations
• Remove all food and ice if you will be gone one (1) month or more.
• Turn the cooling system off (see “Controls” section for location of On/Off button)
and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.
Moving • Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
CAUTION
• Pulltherefrigeratorstraightouttomoveit.Shiftingitfromsidetosidemaydamageooring.
Be careful not to move the refrigerator beyond the plumbing connections.
• Dampobjectssticktocoldmetalsurfaces.Donottouchrefrigeratedsurfaceswithwetordamphands.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water
supply system. Failure to do so could result in water leaks when the refrigerator is put back into
service. Contact a service representative to perform this operation.
34
CARE & CLEANING
Care and cleaning tips
Part Cleaning Agents Tips and Precautions
Interior &
Door Liners
• Soap and water
• Baking soda
and water
• Use two (2) tablespoons of baking soda in one (1)
quartofwarmwater.
• Be sure to wring excess water out of sponge or cloth before
cleaning around controls, light bulb or any electrical part.
Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.
Drawers &
Bins
• Soap and water • Use a soft cloth to clean drawer runners and tracks.
• Do not wash any removable items (bins, drawers,
etc.) in dishwasher.
Glass
Shelves
• Soap and water
• Glass cleaner
• Mildliquidsprays
• Allow glass to warm to room temperature before
immersing in warm water. Sudden temperature
changes can cause glass breakage.
Toe Grille • Soap and water
• Mildliquidsprays
• Vacuum
• Remove toe grille (see Installation Instructions).
• Vacuum both sides and wipe with sudsy cloth or
sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non abrasive
glass cleaner
• Do not use commercial household cleaners containing
ammonia, bleach or alcohol to clean handles.
• Use a soft cloth to clean smooth handles.
• Do not use a dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless
Steel Models
Only)
• Soap and water
• Stainless steel
cleaners
• Never use CHLORIDE or cleaners with bleach to clean
stainless steel.
• Clean stainless steel front and handles with non-
abrasive soapy water and a dishcloth. Rinse with
clean water and a soft cloth.
• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most home
improvement or major department stores. Always
follow manufacturer’s instruction. Do not use
household cleaners containing ammonia or bleach.
• NOTE: Always clean, wipe and dry with grain to
prevent scratching.
• Wash the rest of the cabinet with warm water and
mildliquiddetergent.Rinsewellandwipedrywitha
clean soft cloth.
Ice Chute Extension
Theicechuteextensionisdesignedtobetterdirecticeowintocontainers.
Removing the Ice Chute Extension For Cleaning
1. Turn the refrigerator off using the button on the control panel (refer to the “Controls”
section of this Manual).
2. Pressinwardrmlyonthefrontofthechuteandpull
down.
3. Turn your refrigerator back on.
Pull Down
Press Here
Firmly
35

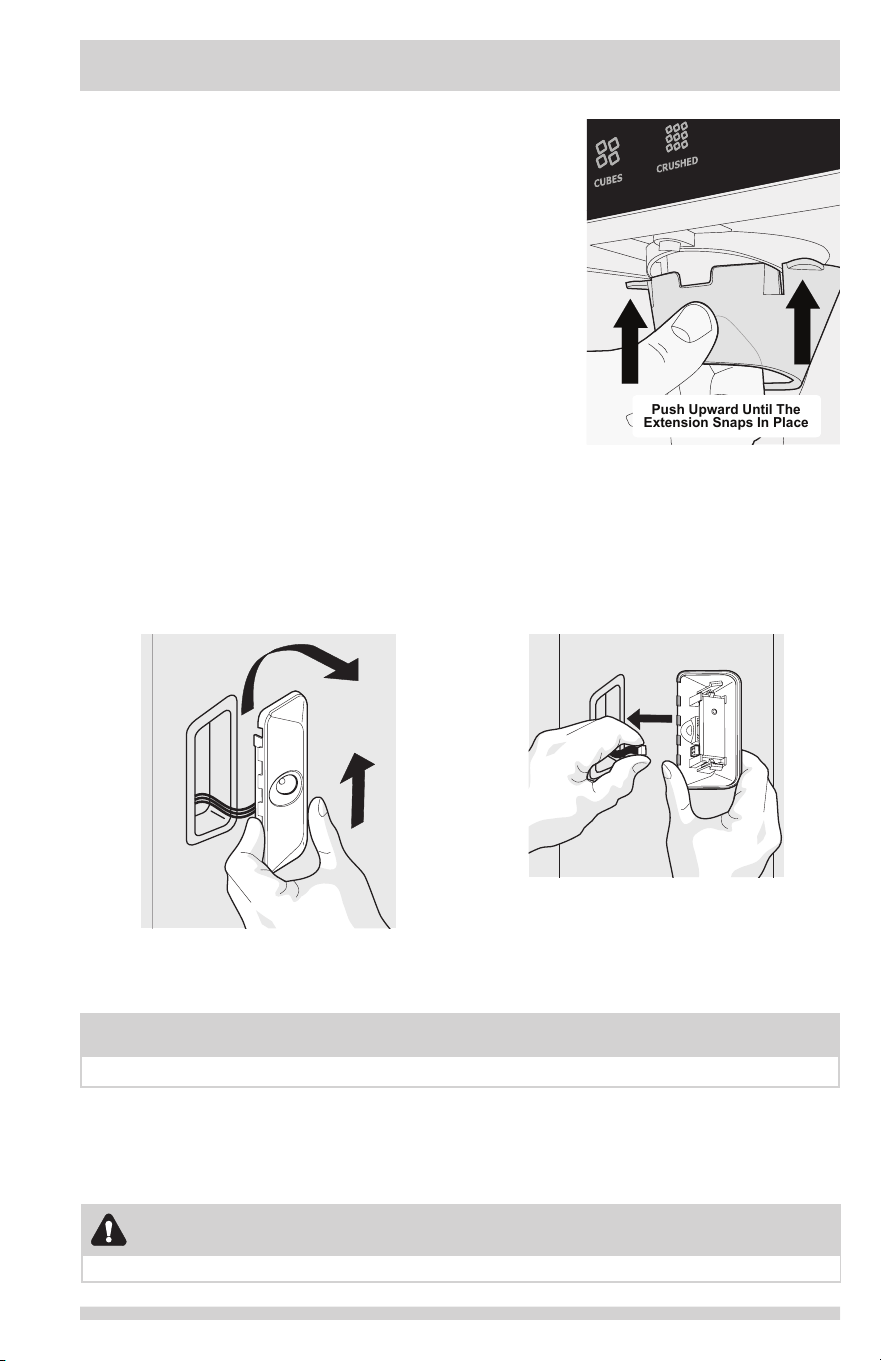

NOTE
LED lights are in series so if one is bad or unplugged, several lights may not light up.
Installing the Ice Chute Extension
1. Turn the refrigerator off using the button on the control
panel (refer to the “Controls” section of this Manual).
2. Align the extension with the ice chute so that the snap
clips are just inside the front edge of the chute.
3. Push upward until the extension snaps into place.
4. Turn your refrigerator back on.
Push Upward Until The
Extension Snaps In Place
CARE & CLEANING
Replacing LED Lights (select models)
The fresh food compartments of your refrigerator may have LED
lights. Always use Frigidaire parts for replacement.
Replacing Light Bulbs (select models)
Both the freezer and fresh food compartments of your refrigerator include incandescent light bulbs
that will need replacing from time-to-time. Some lights have covers that need to be removed
before replacing the bulbs. Always use bulbs that are designed for appliance lighting.
To replace LED Lights:
1. Unplug your refrigerator’s power cord.
2. Remove light cover by pushing up and out.
3. Hold the LED cover with one hand and pull the connector with the other hand while pressing
the connector latch.
4. Replace LED light and snap in place assuring the light is facing in toward the unit (inside
fresh food).
LED Light Harness Removal
LED Light Removal
CAUTION
Wear gloves when replacing incandescent light bulbs to avoid getting cut.
36

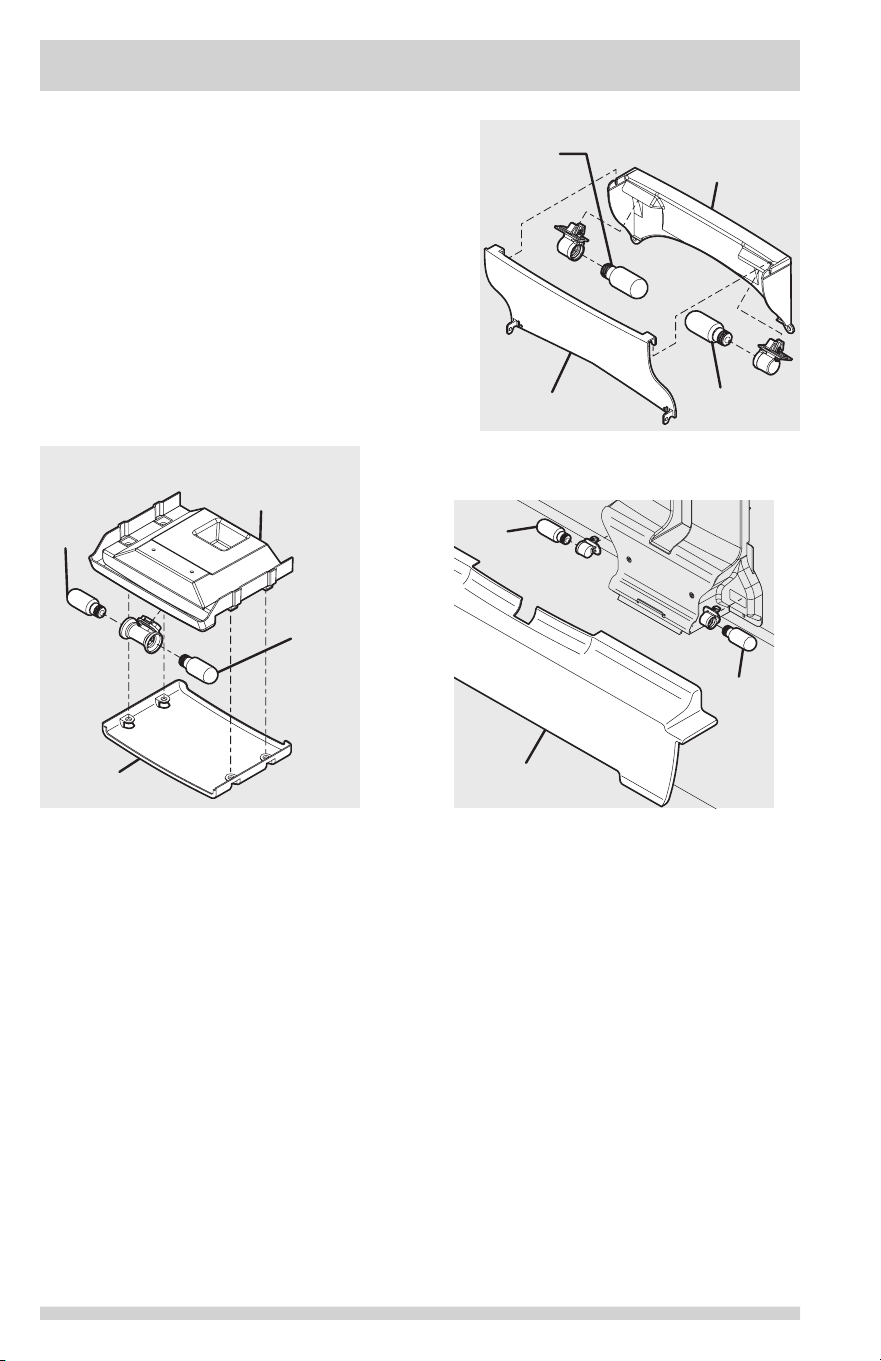

Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online at www.frigidaire.com/store, or through the
dealerwhereyouboughttherefrigerator.Hereistheproductnumbertorequestwhenordering:
LED Light, Part #241891102
Incandescent Lights (40-watt bulb), Part #5305514148
To replace light bulbs:
1. Unplug your refrigerator’s power cord.
2. Wear protective gloves.
3. Remove light cover, if necessary.
4. Unscrew and replace old bulb with an appliance
bulb of the same type and wattage (normally
40 watts).
5. Replace light cover, if necessary.
6. Plug in the refrigerator’s power cord.
CARE & CLEANING
Freezer Light
Light Socket
Located in Upper
Freezer Section
Freezer
Light Cover
Light
Bulb
Light
Bulb
Refrigerator Light
Light
Bulb
Light Sockets
Located Behind
Glass Shelves
Light
Bulb
Refigerator
Light Cover
Back Wall Lights
Light
bulb
Light
bulb
Rear Deli Pan
Light Cover
37
BEFORE YOU CALL
Visit our web site at
www.frigidaire.com.
1-800-944-9044 (United States)
1-800-265-8352 (Canada)
CONCERN POTENTIAL CAUSE COMMON SOLUTION
AUTOMATIC ICE MAKER
Ice maker is not
making any ice.
• Ice maker is turned off.
• Refrigerator is not con-
nected to water line or
water valve is not open.
• The water supply line
is kinked.
• Thewaterlterisnot
seated properly.
• Thewaterltermay
be clogged with
foreign material.
• Freezer ice maker wire
signal arm is being held
up by an item not al-
lowing it to go in the on
or down position.
• Turn on ice maker. For the fresh food ice
maker, press and hold the “Ice Off” button
for three (3) seconds until the indicator light
is off. For the freezer ice maker, lower the
wire signal arm.
• Connect the unit to the household water
supply and ensure the water valve is
open.
• Ensure that the supply line does not kink
when the refrigerator is pushed into place
against the wall.
• Removeandre-installthewaterlter.Be
suretopushthelterrmlysothatyou
hear it lock solidly into position.
• If water dispenses slowly or not at all, or
ifthelterissix(6)monthsoldorolder,it
should be replaced.
• Move any item or frozen ice cubes that
may block the signal arm from being in
the on or down position. See Automatic
Ice Maker-Freezer section in manual.
Ice maker is not
making enough ice.
• Ice maker is producing
less ice than
you expect.
• Thewaterltermaybe
clogged with
foreign material.
• The water supply line
is kinked.
• Saddle valve on cold water
pipe is clogged or restricted
by foreign material.
• Heavytrafc,opening
or closing of the
doors excessively.
• The fresh food and freezer ice makers will each
produce approximately 2.5 pounds of ice every
24 hours depending on usage conditions.
• If water dispenses slower than normal, or
ifthelterissix(6)monthsoldorolder,it
should be replaced.
• Ensure that the supply line does not kink
when the refrigerator is pushed into place
against the wall.
• Turn off household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.
• Press Fast Freeze to temporarily increase
ice production rate.
Freezer ice maker
will not stop mak-
ing ice (select
models).
• Ice maker wire signal
arm is being held down
by some package in the
freezer that has fallen
against the ice maker.
• Move any item or frozen ice cubes that
may block the signal arm from being in
the off or upward position. See Auto-
matic Ice Maker-Freezer section
in manual.
Ice cubes are
freezing together.
• Ice cubes are not being
usedfrequentlyenough
or interruption of power
for prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow cubes
break open in the bin
and leak their water onto
existing ice, which causes
it to freeze together.
• Remove ice container and discard ice.
The ice maker will produce fresh supply.
Ice should be used at least twice weekly
to keep the cubes separated.
• This generally occurs when the ice maker
does not get enough water. This is usu-
allytheresultofacloggedwaterlteror
restricted water supply. Replace the water
lterandiftheconditionstilloccurscheck
for a Saddle Valve, water valve not turned
on all the way or kinked water supply line.
38
CONCERN POTENTIAL CAUSE COMMON SOLUTION
DISPENSER (Ice & Water)
Dispenser will not
dispense ice.
• Dispenser lock out
is engaged.
• There is no ice in the
bin to be dispensed.
• The refrigerator doors are
not completely closed.
• Dispenser paddle has
been pressed too long
and the dispenser mo-
tor has overheated.
• Press and hold control lock for three
(3) seconds.
• See the “Ice maker is not making any ice”
section above.
• Be sure the refrigerator doors are com-
pletely closed.
• The motor overload protector will reset in
about three (3) minutes and then ice can
be dispensed.
Ice dispenser is
jammed.
• Ice has melted and frozen
around auger due to
infrequentuse,tempera-
tureuctuations,and/or
power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw, and empty
the contents. Clean container, wipe dry,
and replace in proper position. When new
ice is made, dispenser should operate.
• Remove ice cubes that are jamming the
dispenser.
Dispenser will not
dispense water.
• Dispenser lock out
is engaged.
• Waterlternotseated
properly.
• Waterlterisclogged.
• Household water line
valve is not open.
• Press and hold control lock for three
(3) seconds.
• Removeandreinstallthewaterlter.Be
suretopushthelterrmlysothatyou
hear it lock solidly into position.
• Replaceltercartridge.Besuretoremove
protectivecapsandpushthelterrmlyso
that you hear it lock solidly into position.
• Open household water line valve. See CON-
CERN column AUTOMATIC ICE MAKER.
Water has an odd
taste and/or odor.
• Water has not been
dispensed for an ex-
tended period of time.
• Unit not properly con-
nected to cold water line.
• Draw and discard 10-12 glasses of water to
freshen the supply.
• Connect unit to cold water line that sup-
plies water to the kitchen faucet.
Water pressure is
extremely low.
• Cut-off and cut-on pres-
sures are too low (well
systems only).
• Reverse osmosis system
is in regenerative phase.
• Have someone turn up the cut-off and cut-on
pressure on the water pump system (well
systems only).
• It is normal for a reverse osmosis system to be
below 20 psi during the regenerative phase.
Water not cold
enough.
• As warmer tap water goes
through the filter and enters
the water tank the chilled
water is pushed through
to the dispenser. Once the
chilled water is used up it will
take several hours to bring
the freshly replaced water to
a cooler temperature.
• Add ice to cup or container before dis-
pensing water.
OPENING/CLOSING OF DOORS/DRAWERS
Door(s) will not
close.
• Door was closed too
hard, causing other
door to open slightly.
• Refrigerator is not level.
Itrocksontheoor
when moved slightly.
• Refrigerator is touching
a wall or cabinet.
• Close both doors gently.
• Ensureoorislevelandsolid,andcan
adequatelysupporttherefrigerator.Contacta
carpentertocorrectasaggingorslopingoor.
• Ensureoorislevelandsolid,andcan
adequatelysupporttherefrigerator.Contacta
carpentertocorrectasaggingorslopingoor.
BEFORE YOU CALL
39
CONCERN POTENTIAL CAUSE COMMON SOLUTION
OPENING/CLOSING OF DOORS/DRAWERS (Continued)
Drawers are dif-
culttomove.
• Food is touching shelf
on top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in drawer.
• Ensure drawer is properly installed on track.
• Clean drawer, rollers, and track. See Care
& Cleaning.
RUNNING OF REFRIGERATOR
Compressor does
not run.
• Freezer control is set to
“OF” or “0”.
• Refrigerator is in
defrost cycle.
• Plug at electrical outlet
is disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs peri-
odically, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-
delay fuse. Reset circuit breaker.
• Check house lights. Call local electric company.
Refrigerator runs
too much or too
long.
• Room or outside
weather is hot.
• Doors are opened too
frequentlyortoolong.
• Fresh Food/freezer
door may be
slightly open.
• Freezer control is set
too cold.
• Fresh Food/freezer
gasket is dirty, worn,
cracked,orpoorlytted.
• Condenser is dirty.
• It’s normal for the refrigerator to work longer
under these conditions.
• Warm air entering the refrigerator causes
it to run more. Open doors less often.
• Ensure refrigerator is level. Keep food and
contains from blocking door. See CON-
CERN column OPENING/CLOSING OF
DOORS/DRAWERS.
• Set Fresh Food control to warmer setting until
refrigerator temperature is satisfactory. Allow
24 hours for temperature to stabilize.
• Clean or change gasket. Leaks in door
seal will cause refrigerator to run longer in
order to maintain desired temperatures.
• Clean condenser. See Care & Cleaning.
Compressor goes
off and
on frequently.
• Thermostat keeps the
refrigerator at a con-
stant temperature.
• This is normal. Refrigerator goes on and
off to keep temperature constant.
DIGITAL TEMPERATURE DISPLAY
Digital tempera-
ture displays
areashing.
• Electronic control
system has detected a
performance problem.
• Call your Frigidaire service representative,
who can interpret any messages or number
codesashingonthedigitaldisplays.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture collects on
inside of
refrigerator walls.
• Weather is hot
and humid.
• Door is slightly open.
• The rate of frost buildup and internal
sweating increases.
• See CONCERN column OPENING/CLOSING
OF DOORS/DRAWERS.
Water collects on
bottom side of
drawer cover.
• Vegetables contain and
give off moisture.
• It is not unusual to have moisture on the bot-
tom side of the cover.
• Move humidity control (some models) to
lower setting.
Water collects in
bottom of drawer.
• Washed vegetables
and fruit drain while in
the drawer.
• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.
BEFORE YOU CALL
40
CONCERN POTENTIAL CAUSE COMMON SOLUTION
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture col-
lects on outside
of refrigerator or
between doors.
• Weather is humid.
• Door is slightly open,
causing cold air from in-
side refrigerator to meet
warm air from outside.
• This is normal in humid weather. When hu-
midity is lower, the moisture should disappear.
• See CONCERN column OPENING/
CLOSING OF DOORS/DRAWERS.
BEFORE YOU CALL
41
MAJOR APPLIANCE WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and
maintained in accordance with the provided instructions.
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the
USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10.Servicecallstorepairorreplaceappliancelightbulbs,airlters,waterlters,otherconsumables,
or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12.Damagestothenishofapplianceorhomeincurredduringinstallation,includingbutnotlimited
tooors,cabinets,walls,etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other
than genuine Electrolux parts or parts obtained from persons other than authorized service
companies;orexternalcausessuchasabuse,misuse,inadequatepowersupply,accidents,res,
or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY
SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD
ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE
LIABLEFORCONSEQUENTIALORINCIDENTALDAMAGESSUCHASPROPERTY
DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIALDAMAGES,ORLIMITATIONSONTHEDURATIONOFIMPLIED
WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO
HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish
thewarrantyperiodshouldserviceberequired.Ifserviceisperformed,itisinyourbest
interest to obtain and keep all receipts. Service under this warranty must be obtained by
contacting Electrolux at the addresses or phone numbers below.
Exclusions
If You
Need
Service
USA
1.800.944.9044
Electrolux Major Appliances
North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In
Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to
change or add to any obligations under this warranty. Obligations for service and parts under this
warranty must be performed by Electrolux or an authorized service company. Product features or
specicationsasdescribedorillustratedaresubjecttochangewithoutnotice.
