Installation & User manual
EMSB25XC
Build-in microwave
1
CONTENT
CONTENT ................................................................................................................. 1
SPECIFICATIONS .................................................................................................... 2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ..... 2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 3
INSTALLATION GUIDE .......................................................................................... 6
GROUNDING INSTRUCTIONS ............................................................................... 8
RADIO INTERFERENCE ........................................................................................ 8
BEFORE CALLING FOR SERVICE ........................................................................ 8
COOKING TECHNIQUES ....................................................................................... 9
COOKING UTENSILS GUIDE................................................................................. 9
PRODUCT DIAGRAM ........................................................................................... 10
TURNTABLE INSTALLATION ............................................................................... 10
CONTROL PANEL ................................................................................................. 11
OPERATION INSTRUCTIONS .............................................................................. 12
SETTING THE CLOCK ............................................................................................................ 12
EXPRESS COOKING ............................................................................................................... 12
MICROWAVE COOKING ........................................................................................................ 13
GRILL ............................................................................................................................... 13
COMBINATION .................................................................................................................... 13
CONVECTION ..................................................................................................................... 14
MICROWAVE +CONVECTION ................................................................................................. 14
SPEED DEFROST .................................................................................................................. 15
MULTI -S TA G E COOKING ....................................................................................................... 15
CHILD LOCK ....................................................................................................................... 15
AUTOMATIC PROTECTION MECHANISM ................................................................................... 15
COOK MENU ..................................................................................................................... 16
AUTO COOK ....................................................................................................................... 17
TROUBLE ........................................................................................................................... 18
CLEANING AND CARE ......................................................................................... 18
CONSUMERS CARE CONTACT CENTER .......................................................... 20
2
SPECIFICATIONS
Power Consumption:
220V/50Hz,1400W(Microwave),1800W(Grill),
1800W(Convection)
230V-240V/50Hz,1400W(Microwave),1950W(Grill),
1950W(Convection)
Rated Microwave Power Output:
900W
Operation Frequency:
2450MHz
Outside Dimensions:
389mm(H)×594mm(W)×385mm(D)
Oven Cavity Dimensions:
214mm(H)×342mm(W)×360mm(D)
Oven Capacity:
25Litres
Net Weight:
Approx. 17kg
Model number:
EMSB25XC
Plug Type& Cable Length
Thailand plug( Thailand),UK plug(Singapore ), 1010MM
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY
1. Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is important
not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil
or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door
close properly and that there is no damage to the
a) Door (including any bent),
b) Hinges and latches (broken or loosened),
c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except qualified service
personnel.
3
IMPORTANT SAFETY
INSTRUCTIONS
When using electrical appliance basic safety precautions should be followed,
including the following:
WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave energy:
1. Read all instructions before using the appliance and keep for future reference.
2. Use this appliance only for its intended use as described in the manual. Do not
use corrosive chemicals or vapors in this appliance. This type of oven is
specifically designed to heat, cook or dry food. It is not designed for industrial or
laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped. If the supply cord is damaged, it
must be replaced by the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
5. WARNING!--Only allow children to use the oven without supervision when
adequate instructions have been given so that the child is able to use the oven
in a safe way and understands the hazards of improper use.
6. WARNING!--When the appliance is operated in the combination mode, children
should only use the oven under adult supervision due to the temperatures
generated
7. To reduce the risk of fire in the oven cavity:
When heating food in plastic or paper container, keep an eye on the oven due
to the possibility of ignition.
Remove wire twist-ties from paper or plastic bags before placing bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door
closed in order to stifle any flames.
Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils, or food in the cavity when not in use.
The microwave oven is intended for heating food and beverages. Drying of
clothing and heating of warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
8. WARNING!--Liquid or other food must not be heated in sealed containers since
they are liable to explode.
9. Microwave heating of beverage can result in delayed eruptive boiling, therefore
care has to be taken when handle the container.
4
10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and
even result in skin burns.
11. Eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode even after microwave heating has
ended.
12. Pierce foods with heavy skins such as potatoes, whole squashes, apples and
chestnuts before cooking.
13. The contents of feeding bottles and baby jars should be stirred or shaken and
the temperature should be checked before serving in order to avoid burns.
14. Cooking utensils may become hot because of heat transferred from the heated
food. Potholders may be needed to handle the utensil.
15. Utensils should be checked to ensure that they are suitable for use in
microwave oven.
16. WARNING!--It is hazardous for anyone other than a trained person to carry out
any service or repair operation which involves the removal of any cover which
gives protection against exposure to microwave energy.
17. This Microwave complies with EN 55011/CISPR 11, in this standard it belong to
Class B Group 2 classification. Group 2 equipment: group 2 contains all ISM RF
equipment in which radio-frequency energy in the frequency range 9 kHz to 400
GHz is intentionally generated and used or only used locally, in the form of
electromagnetic radiation, inductive and/or capacitive coupling, for the
treatment of material, for inspection/analysis purposes, or for transfer of
electromagnetic energy. Class B equipment is equipment suitable for use in
locations in residential environments and in establishments directly connected
to a low voltage power supply network which supplies buildings used for
domestic purposes.
18. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
19. Children should be supervised to ensure that they do not play with the
appliance.
20. The microwave oven is only used in freestanding.
21. WARNING!--Do not install oven over a range cook top or other heat-producing
appliance. if installed could be damaged and the warranty would be avoid .
22. The microwave oven shall be placed in a cabinet.
23. The door or the outer surface may get hot when the appliance is operating.
24. WARNING!--Accessible parts may become hot during use. Young children
5
should be kept away.
25. During use the appliances becomes hot. Care should be taken to avoid touching
heating elements inside the oven, for cooking ranged and ovens.
26. The temperature of accessible surfaces may be high when the appliance is
operating.
27. Appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
28. WARNING!--If the door or door seals are damaged, the oven must not be
operated until it has been repaired by a competent person.
29. The appliances are not intended to be operated by means of an external timer
or separate remote-control system.
30. The microwave oven is for household use only and not for commercial use.
31. Never remove the distance holder in the back or on the sides, as it ensures a
minimum distance from the wall for air circulation.
32. Please secure the turntable before you move the appliance to avoid damages.
33. CAUTION!--It is dangerous to repair or maintain the appliance by no other than
a specialist because under these circumstances the cover have to be removed
which assures protection against microwave radiation. This applies to changing
the power cord or the lighting as well. Send the appliance in these cases to our
service centre.
34. The microwave oven is intended for defrosting, cooking and steaming of food
only.
35. Use gloves if you remove any heated food.
36. Caution! Steam will escape, when opening lids or wrapping foil.
37. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are aged from 8 years
and above and supervised.
38. If smoke is emitted, switch off or unplug the appliance and keep the door closed
in order to stifle any flames.
6

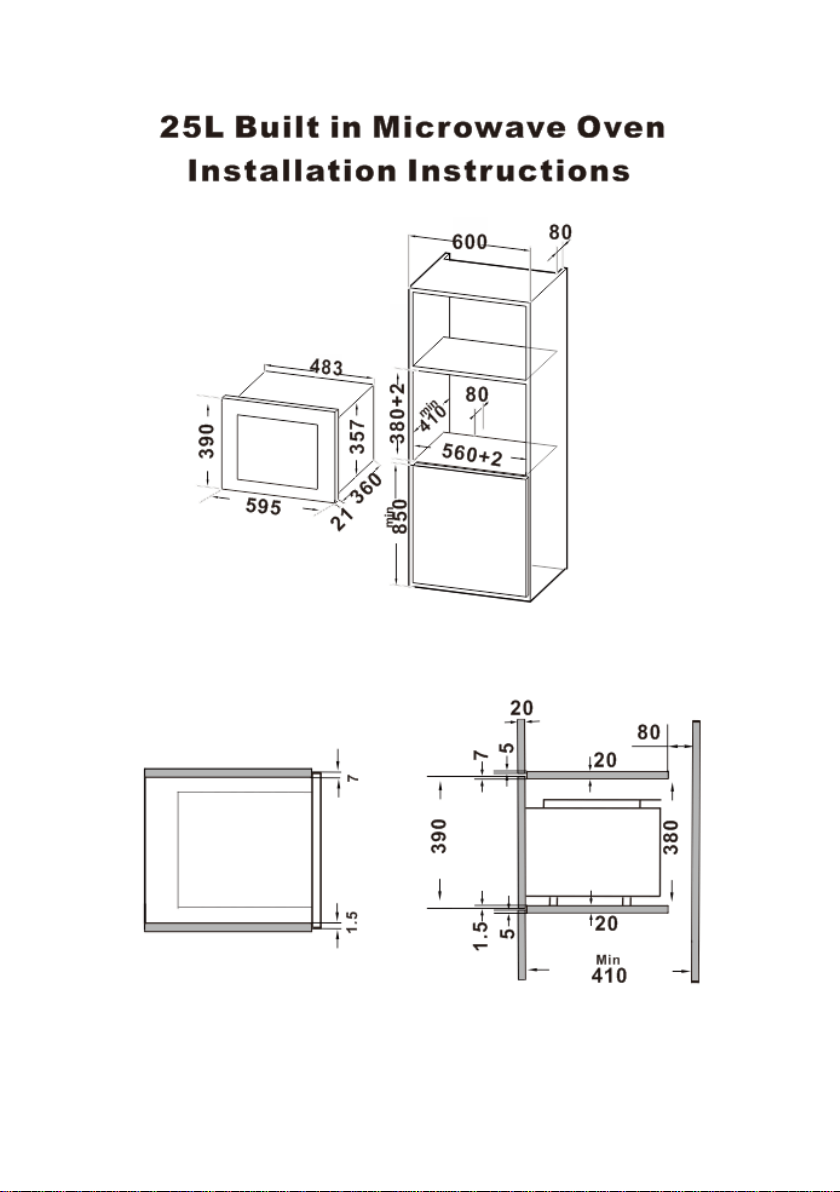

INSTALLATION GUIDE
1. Make sure that all the packing materials are removed from the inside of the
door.
2. WARNING!--Check the oven for any damage, such as misaligned or bent door,
damaged door seals and sealing surface, broken or loose door hinges and
latches and dents inside the cavity or on the door. If there is any damage, do not
operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight
and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or
near combustible materials.
5. Do not operate the oven without glass tray, roller support, and shaft in their
proper positions.
6. Make sure that the power supply cord is undamaged and does not run under the
oven or over any hot or sharp surface.
7. The socket must be readily accessible so that it can be easily unplugged in an
emergency.
8. Do not use the oven outdoors.
7
8
GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a
grounding wire with a grounding plug. It must be plugged into a wall receptacle
that is properly installed and grounded. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the
electric current. It is recommended that a separate circuit serving only the oven be
provided. Using a high voltage is dangerous and may result in a fire or other
accident causing oven damage.
WARNING!--Improper use of the grounding plug can result in a risk of electric
shock.
Note:
1. If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to
the oven or personal injury resulting from failure to observe the electrical
connection procedures.
The wires in this cable main are colored in accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
RADIO INTERFERENCE
Operation of the microwave oven can cause interference to your radio, TV, or
similar equipment. When there is interference, it may be reduced or eliminated by
taking the following measures:
1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
BEFORE CALLING FOR SERVICE
Before asking for service, please check each item below:
Check to ensure the oven is plugged in securely. If not, remove the plug from
9
the outlet, wait 10 seconds, and plug it in again securely.
Check for a blown circuit fuse or a tripped main circuit breaker. If these seem
to be operating properly, test the outlet with another appliance.
Check to ensure the control panel is programmed correctly and the timer is set.
Check to ensure the door is securely closed, engaging the door lock system. If
the door is not properly closed, the microwave energy will not flow inside.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A
QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN
YOURSELF.
COOKING TECHNIQUES
1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add
more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook
evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods
as chicken and hamburgers. Large items like roasts must be turned over at least
once.
5. Rearrange foods such as meatballs halfway through cooking both from top to
bottom and from the center of the dish to the outside.
COOKING UTENSILS GUIDE
1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in
microwave ovens. Metallic containers for food and beverages are not allowed
during microwave cooking. This requirement is not applicable if the
manufacturer specifies size and shape of metallic containers suitable for
microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim
should not be used.
3. Do not use recycled paper products when microwave cooking, as they may
contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in
corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed
areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm)
10
between foil and cavity.
The list below is a general guide to help you select the correct utensils.
Cookware
Microwave Grill Convection Combination*
Heat–Resistant Glass
Yes
Yes
Yes
Yes
Non Heat–Resistant Glass
No
No
No
No
Heat–Resistant Ceramics
Yes
Yes
Yes
Yes
Microwave–Safe Plastic Dish
Yes
No
No
No
Kitchen Paper
Yes
No
No
No
Metal Tray
No
Yes
Yes
No
Metal Rack
No
Yes
Yes
No
Aluminum Foil & Foil Container
No
Yes
Yes
No
* Combination: applicable for both "microwave + grill", and "microwave +
convection" cooking.
PRODUCT DIAGRAM
1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Door Release Button
6. Control Panel
7. Wave Guide
(Please do not remove the mica
plate covering the wave guide)
8. Glass Tray
9. Grill Heater
10. Metal Rack
Turntable Installation
Hub(underside)
Glass tray
Turntable ring assembly
Turntable shaft
11
CONTROL PANEL
Button
Action
Behavior
Microwave Quick Press
Press to set microwave
cooking power level
Grill Quick Press
Press to set grill
cooking program
Combi Grill Quick Press
Press to set microwave
and grill combination
cooking program
Convection Quick Press
Press to set convection
cooking program
Combi
Convec
Quick Press
Press to set microwave
and convection
combination cooking
program
+/- Quick Press
Press to set cooking
time and clock time
Auto Menu Quick Press
Press to select auto
cook menu
Clock/Weight Quick Press
Preset to set clock time
Preset to set food
weight or servings
Stop/Clear
Quick Press
Press once to
temporarily stop
cooking
or
twice to cancel cooking
altogether.
It is also used to set
child lock
Start/+30 Quick Press
Press to start cooking
programs
Press to express
cooking program
12
OPERATION INSTRUCTIONS
When the oven first plugged in, a beep will sound and the display will show "1:00"
and "
".
In the process of setting, broke about 20 seconds the oven will return to standby
mode.
During cooking, if press STOP/CLEAR button once, the program will be paused,
and then press
Start/+30 button once to resume. But if you press STOP/CLEAR
button twice, the program will be cancelled.
After cooking end, the display will show End and beep will sound every two minutes
until user press any button or open the door.
In the process of setting, you can increase or decrease time quickly by pressing
and holding the +/- buttons.
The electronically controlling system of the microwave oven has the feature of
cooling. As for any cooking mode which cooking time above 2 minutes, in pausing
state or stopping state, the oven fan will work about 3 minutes automatically to cool
the oven for prolonging the life of the oven.
SETTING THE CLOCK
This is a 12- or 24- hour clock. You can choose to set the clock time in 12- or 24- hour
by pressing CLOCK/WEIGHT button in standby mode.
1. In standby mode, press CLOCK/WEIGHT button once or twice to select 12- hour
or 24- hour clock.
2. Press +/- buttons to set hour digit.
3. Press CLOCK/WEIGHT button once.
4. Press +/- buttons to set minute digit.
5. Press CLOCK/WEIGHT to confirm.
NOTE: During cooking, you can check the current clock time by pressing
CLOCK/WEIGHT button.
EXPRESS COOKING
Use this feature to program the oven to start at 100% power conveniently. In standby
mode, press Start/+30button repeatedly to set cooking time (each press to increase 30
seconds, and up to 10 minutes). The oven will start working automatically.
NOTE: During express cooking, you can add cooking time by pressing
Start/+30button.
13
MICROWAVE COOKING
1. In standby mode, press MICROWAVE button repeatedly to set power level.
2. Press +/- buttons to set cooking time. The longest time is 95 minutes.
3. Press Start/+30 button to start.
Press MICROWAVE button to set cooking power level:
Press
MICROWAVE
Power
(Display)
Microwave
Power
Press
MICROWAVE
Power
(Display)
Microwave
Power
Once
P100
100%
6 times
P-50
50%
Twice
P-90
90%
7 times
P-40
40%
3 times
P-80
80%
8 times
P-30
30%
4 times
P-70
70%
9 times
P-20
20%
5 times
P-60
60%
10 times
P-10
10%
NOTE: During cooking, you can check the current power level by pressing
MICROWAVE button.
GRILL
The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs,
sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin
dishes.
1. In standby mode, press GRILL button once.
2. Press +/- buttons to set cooking time. The longest time is 95 minutes.
3. Press Start/+30button to start.
COMBINATION
Combination 1 : 30% of whole time for microwave cooking, 70% for grill cooking.
Combination 2: 40% of time for microwave cooking, 45% time for grill cooking and
15% time the oven will stop working in one cycle.
1. In standby mode, press COMBI GRILL button once or twice to select "Co-1" or
"Co-2".
2. Press +/- buttons to set cooking time. The longest time is 95 minutes.
3. Press Start/+30 button to confirm.
NOTE: During cooking, you can press COMBI GRILL button to check the current
Combination type.
14
CONVECTION
During convection cooking, hot air is circulated throughout the oven cavity to brown
and make crisp foods quickly and evenly. This oven can be programmed for ten
different cooking temperatures (110℃→120℃→130℃→140℃ →150℃→160℃→
170℃ →180℃→190℃→200℃). The longest cooking time is 95 minutes.
To preheat and cook with convection:
Your oven can be programmed to combine preheating and convection cooking
operations.
1. In standby mode, press CONVECTION button repeatedly to select cooking
temperature.
2. Press Start/+30 button to confirm. Beeps will sound when the designated
temperature is reached.
3. Open the door and place container of food at the center of the turntable.
4. Press +/- buttons to set cooking time.
5. Press Start/+30button to start.
NOTE: The longest preheat time is 30 minutes, and it cannot be set. When the oven
reaches preheat temperature, the oven will sound beep every 5 seconds. If you don’t
open the oven door within the 30 minutes, the program will end automatically.
To cook with convection:
1. In standby mode, press CONVECTION button repeatedly to select cooking
temperature..
2. Press +/- buttons to set cooking time.
3. Press Start/+30button to start.
NOTE: During cooking, you can check the convection temperature by pressing
CONVECTION button.
MICROWAVE +CONVECTION
This oven has one pre-programmed settings that make it easy to cook with both
convection heat and microwave automatically. The longest cooking time is 95 minutes.
1. In standby mode, press COMBI CONVE button once.
2. Press +/- buttons to set cooking time.
3. Press Start/+30 button to confirm.
NOTE: During cooking, you can check the convection temperature by pressing COMBI
CONVE button.
15
SPEED DEFROST
1. In standby mode, press AUTO MENU button 9 times to select “A-9”.
2. Press +/- buttons to set defrosting time. The time ranges from 10 seconds to 95
minutes.
3. Press Start/+30 button to start.
NOTE: During defrosting, the oven will pause to remind user to turn food over, after
that, press Start/+30 button to resume.
MULTI-STAGE COOKING
Your oven can be programmed for up to 3 automatic cooking sequences.
Suppose you want to set the following cooking program:
Microwave cooking
↓
Microwave cooking (with lower power level)
1. Input the first microwave cooking program. Do not press Start/+30button.
2. Input the second microwave cooking program.
3. Press Start/+30button to start.
NOTE: Auto cook menus, express cooking, convection with preheat and speed defrost
cannot be set in the multistage cooking program
CHILD LOCK
Use to prevent unsupervised operation of the oven by children.
To set: In standby mode, press and hold STOP/CLEAR button for 3 seconds, the
indicator light will turn on, the oven will auto enter child lock mode.
To cancel: Press and hold STOP/CLEAR button for 3 seconds, the indicator light will
disappear.
AUTOMATIC PROTECTION MECHANISM
OVERHEATING PROTECTION - Digital tube has been shows "E01" and had been
"DE-" alarm when the system into the super high temperature protection status. After
pressing STOP/CLEAR button, the system into normal standby mode.
LOW TEMPERATURE PROTECTION - Digital tube has been shows "E02" and had
been "DE-" alarm when the system enters into the low temperature protection status.
After pressing STOP/CLEAR button, the system enters into normal standby mode.
SENSOR MALFUNCTION PROTECTION - In case of short circuit, the system enters
into malfunction protection. The display shows "E03" and had been "DE-" alarm. After
pressing STOP/CLEAR button, the oven will be back to normal.
16
COOK MENU
For the following food, it is recommended to use time and power for better cooking
effect.
Food type
Cooking
function
Power/Temperature Weight/Share
Cooking
time
Beverage /
coffee
MW
100%
1 cup 1:30
2 cups 2:40
3 cups 3:50
Popcorn MW 100% 100 g 2:00~3:00
Auto reheat rice
MW
100%
200 g 1:30
300 g 2:00
400 g
2:30
500 g
3:00
600 g 3:30
700 g 4:00
800 g
4:30
Potatoes
MW
100%
230 g 5:00
460 g 8:00
Bake Pizza
Conv
170℃
150 g 20:00
300 g 21:00
450 g 22:00
Cake Conv 140℃ 475 g 50:00
Chicken Conv combi
200℃
800 g 27:00
1000 g 30:00
1200 g 33:00
1400 g 36:00
17
AUTO COOK
For the following food or cooking mode, it is not necessary to program the cooking
power and time. It is sufficient to indicate the type of food that you wish to cook as well
as the weight or servings of the food.
1. In standby mode, press AUTO MENU button repeatedly to select food code.
2. Press CLOCK/WEIGHT button repeatedly to set food weight or servings.
3. Press Start/+30button to start.
Auto cook menus:
Menu
Weight/Share Display
1. For Chicken, during
cooking, the system will
pause to remind you to
turn food over for
uniform cooking. After
that, press
Start/+30button to
resume
2. The re
sult of auto
cooking depends on
factors such as
fluctuation of voltage,
the shape and size of
food, your personal
preference as to the
doneness of certain
foods and even how
well you happen to
place food in the oven.
If you find the result at
any rate not quite
satisfactory, please
adjust the cooking time
a little bit accordingly.
Chicken
800 g
800 g
1000 g
1000 g
1200 g
1200 g
1400 g
1400 g
Popcorn
99 g 99 g
Milk/Coffee
1 cup
1
2 cups
2
3 cups
3
Potato
1
1
2
2
Spaghetti
100 g
100 g
200 g
200 g
300 g
300 g
AutoReheat
200 g
200 g
300 g
300 g
400 g
400 g
500 g
500 g
600 g
600 g
700 g
700 g
800 g
800 g
Pizza
150 g
150 g
300 g
300 g
450 g
450 g
Cake
475 g 475 g
18
TROUBLE
Trouble
Possible cause
Remedy
O
ven can not be
started
（1）Power cord not plugged
in tightly
Unplug. Then plug again after
10 seconds.
（2）Fuse blowing or circuit
breaker works
Replace fuse or reset circuit
breaker （
repaired by
professional personnel of our
company
）
（3）Trouble with outlet
Test outlet with other electrical
appliances
Oven does not heat
（
4
）
Door not closed well
Close door well
Glass turntable make
noise when
microwave oven
（5）Dirty roller reser and
oven bottom
Refer to “Cleaning”to clean
dirty parts
CLEANING AND CARE
1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to
oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets
very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull
the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to
the operating parts inside the oven, water should not be allowed to seep into the
ventilation openings.
4. Wipe the door and window on sides, the door seals and adjacent parts frequently
with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When
cleaning the control panel, leave oven door open to prevent oven from accidentally
turning on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft
cloth. This may occur when the microwave oven is operated under high humidity
condition. And it is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in
19
warm sudsy water or in a dishwasher.
9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the oven with mild detergent. The roller ring may
be washed in mild, soapy water or in a dishwasher. When removing the roller ring,
be sure to replace it in the proper position.
10. Remove odors from your oven by combining a cup of water with the juice and skin of
one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and
dry with a soft cloth.
11. If the light bulb burns out, please contact customer service to have it replaced.
12. The oven should be cleaned regularly and any food deposits should be removed.
Failure to maintain the oven in a clean condition could lead to deterioration of
surface that could adversely affect the life of the unit and could possibly result in a
hazardous situation.
13. Please do not dispose of this appliance into the domestic rubbish bin; it should be
disposed to the particular disposal center provided by the municipalities.
14. When the microwave oven with grill function is first used, it may produce slight
smoke and smell. This is a normal phenomenon, because the oven is made of a
steel plate coated with lubricating oil, and the new oven will produce fumes and odor
generated by burning the lubricating oil. This phenomenon will disappear after a
period of using.
20
Consumers care contact center
Thailand
Consumer Care Tel : (+66 2) 725 9000
Electrolux Thailand Co., Ltd.
Electrolux Building 14th Floor
1910 New Phetchaburi Road,
Bangkapi, Huai Khwang, Bangkok 10310
Office Tel : (+66 2) 7259100
Office Fax : (+66 2) 7259299
Email : customercarethai@electrolux.com
Malaysia
Consumer Care Center Tel: 1300-88-11-22
Electrolux Home Appliances Sdn. Bhd.
Corporate Office Address: Unit T2-7, 7th Floor, Tower 2, PJ33,
No. 3, Jalan Semangat, Seksyen 13,
46200 Petaling Jaya, Selangor.
Office Tel : (+60 3) 7843 5999
Office Fax : (+60 3) 7955 5511
Consumer Care Center Address: Lot C6, No. 28,
Jalan 15/22, Taman Perindustrian Tiong Nam,
40200 Shah Alam, Selangor
Consumer Care Center Fax : (+60 3) 5524 2521
Email : malaysia.customercare@electrolux.com
Indonesia
Hotline service: 08041119999
PT. Electrolux Indonesia
Electrolux Building
Jl.Abdul Muis No.34, Petojo Selatan,
Gambir Jakarta Pusat 10160
Email:customercare@electrolux.co.id
SMS & WA : 0812.8088.8863
Philippines
Consumer Care Center Toll Free : 1-800-10-845-CARE(2273)
Consumer Care Hotline : (+63 2) 845-CARE(2273)
Electrolux Philippines, Inc.
Unit B 12F Cyber Sigma Bldg,Lawton Avenue,
McKinley West,Taguig, Philippines 1634
Trunkline: +63 2 737- 4757
Website : www.electrolux.com.ph
Email : wecare@electrolux.com
Vietnam
Consumer Care Center Toll Free:
1800-58-88-99
Tel: (+84 28) 3910 5465
Electrolux Vietnam Ltd.
Floor 9th, A&B Tower
76 Le Lai Street - Ben Thanh Ward - District
1
Ho Chi Minh City
，
Vietnam
Singapore
Consumer Care Center Tel: (+65) 6727 3699
Electrolux S.E.A. Pte Ltd.
351 Braddell Road
#01-04, 351 On Braddell
Singapore 579713
Email : customer-care.sin@electrolux.com
HONG KONG
SERVICE HOTLINE: (+852) 3193 9888
DCH ELECTRICAL APPLIANCES
SERVICE CENTRE
4/F, DCH BUILDING, 20 KAI CHEUNG
ROAD,
KOWLOON BAY, HONG KONG
EMAIL: cust[email protected].hk
WEBSITE: www.electrolux.com.hk
Conformed to the stipulation on permissible content limitation of
some hazardous & restricted chemical substances.
(RoHS compliant)
(According to the Circular No. 30/2011/TT-BCT, Vietnam, dated 10
th
August, 2011)
RoHS
Compliant
© 2018 Electrolux Home Products Pty Ltd.
EMAN_EMSB25XC_Micro_June 15 referring to attached UM
