BEFORE YOU BEGIN
Read these instructions completely
and carefully.
IMPORTANT – Save these instruc-
tions for local inspector’s use.
IMPORTANT – Observe all governing
codes and ordinances.
Note to Installer – Be sure to leave these
instructions with the Consumer.
Note to Consumer – Keep these instructions
with your Owner’s Manual for future
reference.
Installation
Instructions
1/4" Custom Dishwasher
Door Panel Kit
GPF825 Series Kits
GPF825B-Black Trim Kit,
GPF825C-Bisque Trim Kit, GPF825W-White Trim Kit
TOOLS AND MATERIALS REQUIRED:
• Stubby Phillips screwdriver
• Gloves to protect against sharp edges
• Safety glasses
KIT INCLUDES:
• Door panel frame
• 2 Door springs
STOP

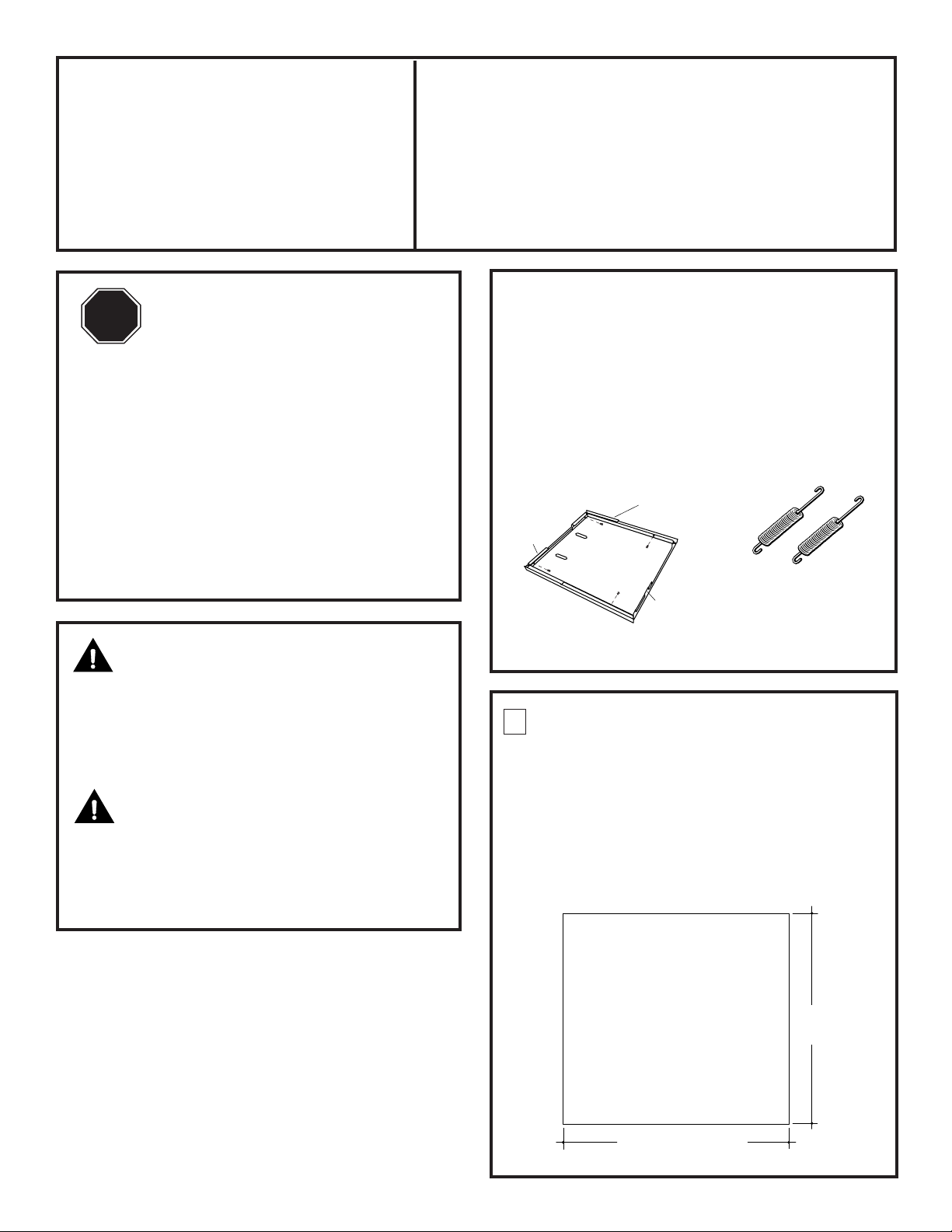

1 CUT 1/4" THICK CUSTOM
PANEL TO SIZE
• Cut door panel to the dimensions shown in
Figure 1.
NOTE: The trim provided will conceal the cut
edges of the panel.
Fully Assembled Door Panel Frame
2 Door Springs
To Be Used On All Models
Except PDW8500
Figure 1
WARNING:
To prevent electric shock, disconnect electri-
cal power supply to dishwasher before
changing panels. Do not operate dishwasher
while changing panel.
CAUTION:
On new installations, do not remove wood
base until you are ready to install the dish-
washer. The dishwasher will tip over when
the door is opened.
Adjustable
Steel Panel
Top
Trim
Side Trim
Bottom
Trim
1/4" Thick
Door Panel
23-1/2"
25-1/16"
